Durable airtight fixed aluminum body. Includes anodized blue heat sink to provide maximum airflow for the LED light source.
LED Characteristics
This general application light fixture features a 12 watt LED module that maintains uniform intensity producing up to 1225 lumens; with a typical CRI of 95. Available with 2700 K, 3000 K, 3500 K , 4000 K or 5000 K color selectable temperature.
Dimming
100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers. For compatible dimmers, visit www.liteline. com/lunadimmers
Beam Spread
The fixture lens provides 40° beam spread.
Mounting
Includes two spring loaded clips to attached to any ceiling material.
LED Driver
Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18” FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings.
Quick Connect push-in terminals
Three “Quick connect” push-in terminals for fast and easy wiring.
Operating Temperature
-20°C~40°C (-4°F~104°F)
Environment
• Suitable for wet locations.
• Approved for direct contact with insulation.
Project Name Type
Location
Quantity
Contact/Phone
Notes
Date
SPECIFICATION
Application Ceiling Recess Mount
Approved Location Wet / Insulated Ceilings
Beam Angle 40°
CCT (selectable) 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Certification cETLus Class II Yes
Color BK / BN / WH CRI 95
Dimming Yes
Dimming Tech TRIAC/ELV
Energy Star Yes
Hole Cut Ø 35/8" (92mm)
Input 100-135V AC, 50 / 60Hz
LM79 Yes
LM80 Yes
Lumens Up to 1225
Lumens per Watt Up to 108 Power Factor >0.90
Projected Life 70% @ 50,000 hrs
Warranty Lifetime
Wattage 12W
CCT LUMEN OUTPUT
K 1085
K
K 1200
K 1225
Description

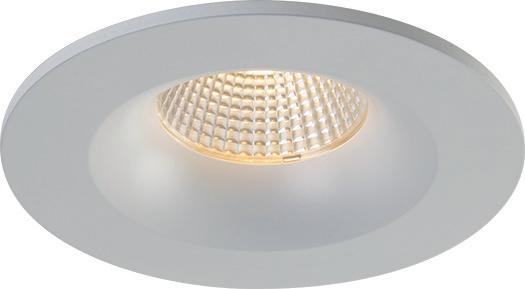

The RA35-12F is a 12 watt 3.5" round fixed recessed light fixture for retrofit application. It is a high-performance, easy to install downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations.
Ordering Guide
Notes: Accessories are sold separately. For additional options please consult your Liteline representative.
Due to our continued efforts to improve our products, product specifications are subject to change without notice. 1
Driver Options
Leave blank for standard 120V driver
P : 120-277V, Commercial, 0-10V
C : 120~347V, Commercial 0-10V
EM : Emergency Backup, 120~277V, 0-10V1
E : Lutron Hi-Lume ® 1% (EcoSystem®)
NCSC-R4D
/

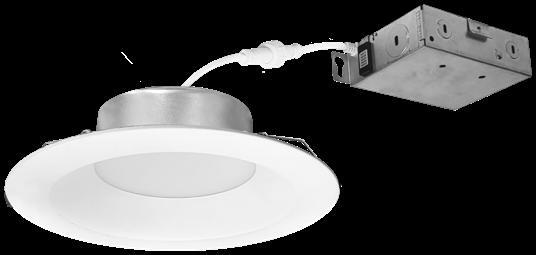

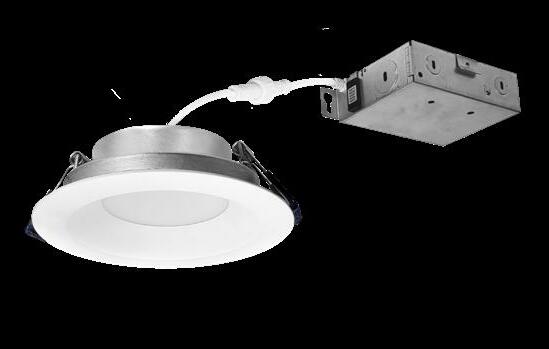

NCSC-R6D 4" & 6" Can-less LED Downlights
PRODUCT DESCRIPTION
Can-less LED recessed downlights are designed for easy installation into new construction or remodel applications. Each downlight includes a Selectable CCT switch located on the junction box. The deep reflector provides excellent glare control, quality of light, and efficiency.
FEATURES

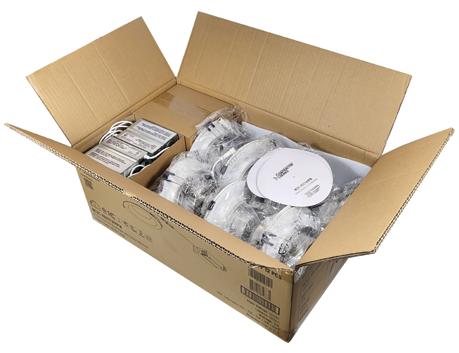

Packaged in case quantities of 12
Five color temperatures in each fixture
(2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes pre-wired junction box
Quick installation and cost savings
IC Air-Tight rated
cETLus Listed for Wet Locations
5-year limited warranty
SPECIFICATION
Construction: Dead front (non-metallic) luminaire with spring clips for easy installation. Gasket included for airtight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2 " and two 3/8 " knockouts and snap on cover. Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6" and Junction box wire length: 10"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8 " to 5/16 ". New construction frame-ins are available, see accessories.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
Click Here or check complete dimmer list at www. NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NEFLINTW-EW-4: 4' Quick Connect Linkable Cable
NEFLINTW-EW-20 : 20' Quick Connect Linkable Cable
NEPK-20LEDUNV: 20W Emergency with Remote Test Switch
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK drivers
NF-R246 : Universal New Construction Frame-In for 4" only
NFC-R4 30 : New Construction Frame-In with Collar for 4"
NFC-R55: New Construction Frame-In with Collar for 6"
Emergency: Luminaire is compatible with 2 0W or 23W Emergency LED Driver (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet locations
Certified to the requirements of CA Title 24 JA8-2025

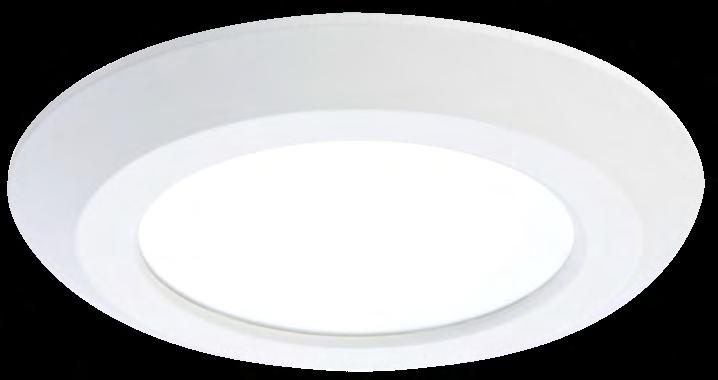

• Ultra-low profile surface luminaire with wide distribution
• Ceiling or wall mounting in compatible junction boxes

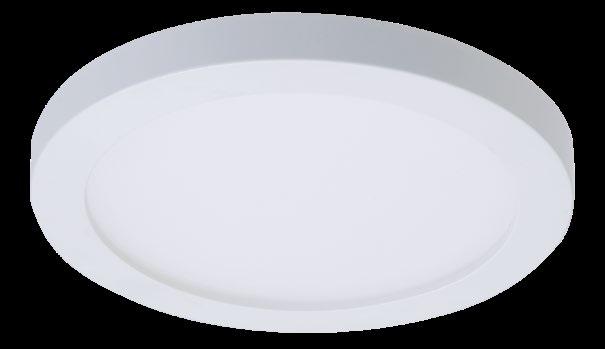

SMD4 Series

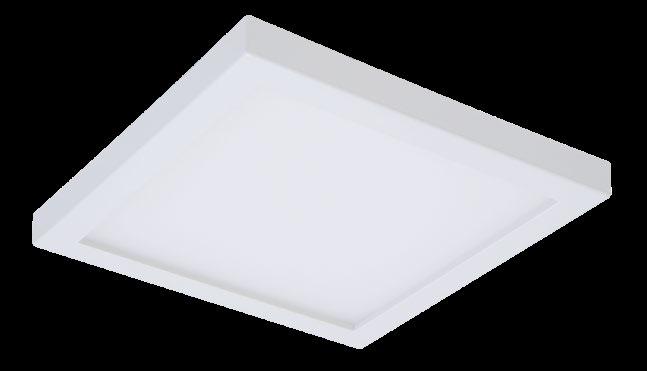

4” Round and Square Surface Mount Downlight
SMD4R & SMD4S
Typical Applications
Residential
Product Certification
Product Features
• Retrofit 4" recessed downlights with screwbase adapter (SOLD SEPERATELY)
• 2700K, 3000K, 3500K, 4000K or 5000K field selectable CCT; 90 CRI
• Dimmable with 120V dimmer
Dimensional and Mounting Details
NCSC-R4D
/
NCSC-R6D 4" & 6" Can-less LED Downlights
PRODUCT DESCRIPTION
Can-less LED recessed downlights are designed for easy installation into new construction or remodel applications. Each downlight includes a Selectable CCT switch located on the junction box. The deep reflector provides excellent glare control, quality of light, and efficiency.
FEATURES
Packaged in case quantities of 12
Five color temperatures in each fixture
(2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes pre-wired junction box
Quick installation and cost savings
IC Air-Tight rated
cETLus Listed for Wet Locations
5-year limited warranty
SPECIFICATION
Construction: Dead front (non-metallic) luminaire with spring clips for easy installation. Gasket included for airtight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2 " and two 3/8 " knockouts and snap on cover. Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6" and Junction box wire length: 10"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8 " to 5/16 ". New construction frame-ins are available, see accessories.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
Click Here or check complete dimmer list at www. NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NEFLINTW-EW-4: 4' Quick Connect Linkable Cable
NEFLINTW-EW-20 : 20' Quick Connect Linkable Cable
NEPK-20LEDUNV: 20W Emergency with Remote Test Switch
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK drivers
NF-R246 : Universal New Construction Frame-In for 4" only
NFC-R4 30 : New Construction Frame-In with Collar for 4"
NFC-R55: New Construction Frame-In with Collar for 6"
Emergency: Luminaire is compatible with 2 0W or 23W Emergency LED Driver (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet locations
Certified to the requirements of CA Title 24 JA8-2025
SAMPLE NUMBER: SMD4R69SWH = 4" Round Surface Mount Downlight, 600 lumen, 90CRI, Selectable CCT, White Junction Box Installation: Order junction box separately, as supplied by others, to complete installation. Recessed Installation: Order HALO recessed housing and SMD4ACCKIT separately to complete installation.
SMD4R = 4" Round Surface Mount Downlight, 120V
= 4" Square Surface Mount Downlight, 120V

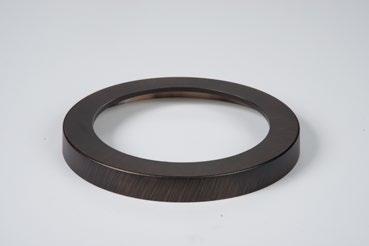

Designer Trims

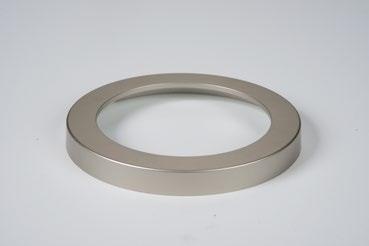

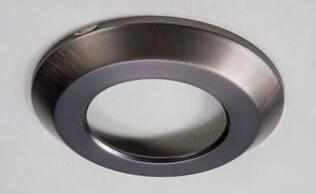

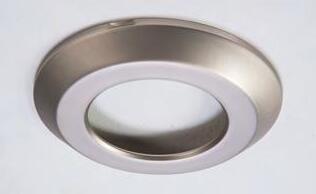

SMD4RTRMSN = 4" Round SMD Satin Nickel
SMD4RTRMTBZ = 4" Round SMD Tuscan Bronze

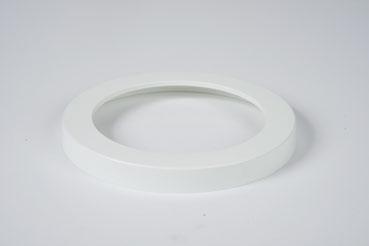

SMD4RTRMWH = 4" Round SMD White (paintable)

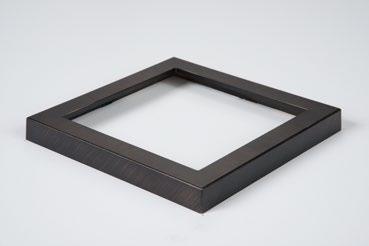

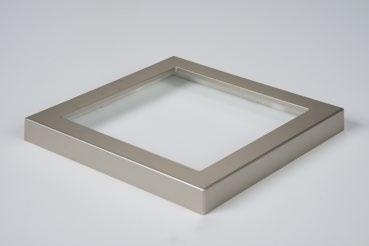

SMD4STRMSN = 4" Square SMD Satin Nickel
SMD4STRMTBZ = 4" Square SMD Tuscan Bronze

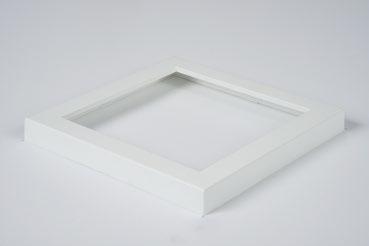

SMD4STRMWH = 4" Square SMD White (paintable)
T24HWKIT = Title 24 Cable harness kit used to convert incandescent and low voltage housings to LED

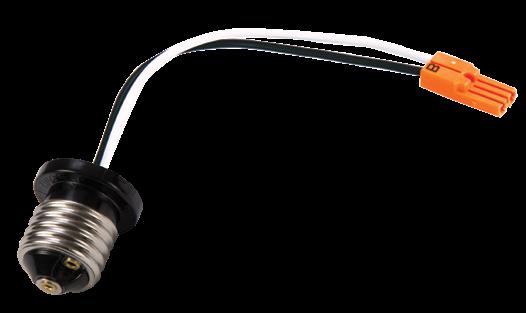

SMD4ACCKIT = SMD4 accessory kit includes friction clips and a Edison screwbase adapter for recessed housing installation.
Notes
Accessories
Designer Trims
SMD4RTRMWH round, white (paintable)
SMD4STRMWH square, white (paintable)
SMD4RTRMSN round, satin nickel
SMD4STRMSN square, satin nickel
SMD4RTRMTBZ round, tuscan bronze
SMD4STRMTBZ square, tuscan bronze
BLANK

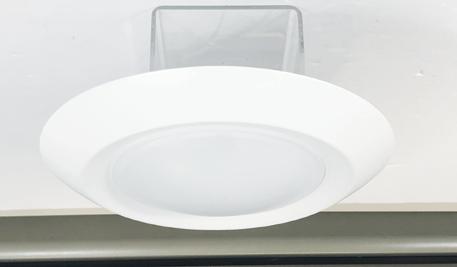

SLD6 1200 Series
6” Round Surface LED Downlight
SeleCCTable color temperature 1200 Lumen Series
Typical Applications
Residential
Product Certification
Interactive Menu
• Order Information page 2
• Product Specification page 3
• Energy Data page 4
• Photometric Data page 4
• Product Warranty
Top Product Features
• Ultra-low profile surface luminaire with wide distribution
• Ceiling or wall mounting in compatible junction boxes
• 120V with phase dim or 120V-277V UNV with 0-10V dim
Product Features
• Select from 5 CCTs via switch; 2700K, 3000K, 3500K, 4000K, 5000K CCT
• Wet location listed for showers and protected ceilings
• 90 CRI; Dimmable to 5%
Dimensional and Mounting Details
NLOPAC-R6REGT24TW
6" Regressed AC Opal LED Surface Mount with Selectable CCT
Source: 11W LED Up to 1100lm
PRODUCT DESCRIPTION
The Regressed AC Opal fixture is designed to surface mount over a standard junction box. Luminaires include a selectable color temperature switch located under the lens to change the color temperature without removing the fixture. The regressed light source gives the appearance of a recessed luminaire.
FEATURES
Recessed appearance
AC LED (No Driver)
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
Can be used with recessed housings when used with optional retrofit kit cETLus Listed for Wet Locations
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets
SPECIFICATION
Construction: One piece die-cast aluminum formed luminaire. Aluminum body dissipates heat and extends life.
Mounting: Surface mount luminaire is compatible with 3" or 4" junction boxes and 1/2" deep pancake boxes. Luminaires can also be mounted on 5" or 6" recessed housings using optional torsion spring kit (NLOPAC-R6TWRECKIT).
Ratings: IC rated when used with 3" or 4" electrical junction box rated for direct contact with insulation. Fire rated when used with a fire rated junction box.
ELECTRICAL
Input Voltage: 120V
Input Frequency: 60Hz
Lumens / Wattage: 1100lm / 11W
Color Temperature: Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
Color Rendering Index: 90+ CRI
Beam Spread: 114° Wide Flood
Operating temperature: -20°C to 40°C
Dimming: Triac or ELV
OPTIONAL ACCESSORY
NLOPAC-R6TWRECKIT: Retrofit Kit for 5" or 6" Recessed Housings
NLOPAC-4BKT-2: Bracket for 4" Square Junction Boxes
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LISTING
cETLus Listed for Wet Locations
· 5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1).
FCC Compliant
6" Regressed AC Opal LED Surface Mount with Selectable CCT
Description
NLOPAC-R6REGT24TWW = White Finish
Example: NLOPAC-R6REGT24TWW = 6" Regressed AC Opal LED Surface Mount, Selectable CCT, White Finish

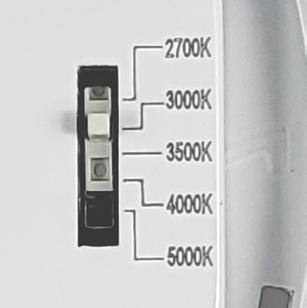

Five position sliding switch 27K / 30K / 35K / 40K / 50K
Optional Accessory
Description
NLOPAC-R6TWRECKIT = Retrofit Kit for 5" or 6" Recessed Housings
NLOPAC-4BKT-2 = Bracket for 4" Square Junction Boxes
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
Order Information
SAMPLE NUMBER: SLD6129S1EMWR = 6” Surface Mount LED Downlight, 90CRI, Selectable CCT, 120V, Matte White Junction Box Installation: Order junction box separately, as supplied by others, to complete installation. Recessed Installation: Order HALO recessed housing and SLDACCKIT separately to complete installation.
(Order Separately)
(Order Separately)
Bronze
SLD6TRMWH=6” SLD White (paintable)

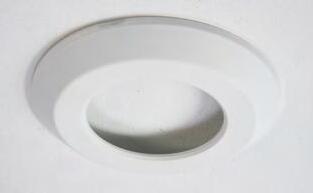

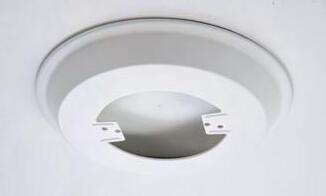

J-Box Spacer Extension Ring
Add 15/16” depth when SLD driver cannot fit into installed junction box SLD6EXT=6” Surface LED J-Box Extender, 9.5” O.D.
RAD Adapters
When junction box is mounted flat on a ceiling or beam surface (not recessed in ceiling)
SLDACCKIT=SLD Accessory Parts Replacement Kit (Screwbase adapter, torsion springs, friction blades)
SLD6BRKT=6” Junction Box Bracket & Screws
Refer to SLD Accessories specification sheet for further information.
Accessories (Order Separately)
Notes SLD6TRMWH White (Paintable) SLD6TRMSN Satin Nickel
J-box Spacer Extension Ring
SLD6EXT 6" Surface LED Space Ring
RAD Adapter
SLD6RAD 6" SLD Round Surface J-box Adapter For 4" round and octagon junction boxes.
BLANK
NMP2-LED
Source: 3.5W LED 300lm Performance Data
PRODUCT DESCRIPTION
Josh, a slim light disk LED system for accent, under cabinet, in-cabinet, niche, and jewelry cases, and other appplications with limited space. These low-profile fixtures can be spaced together to provide excellent and even illumination on all surfaces. The Josh pucks does not produce a diode image and can be recessed or surface mounted. Combined with ultra low-profile housing, Josh offers unique features and a great ease of installation. LED technology eliminates forward heat from the fixture, also no UV or infrared rays to harm artwork, retail displays or heat sensitive foods. The luminaire produces more light than a traditional 20 watt xenon or halogen puck while consuming only 3.5 watts each puck.
FEATURES
24V Low Voltage System
300lm / 3.5W
2700K, 3000K, 3500K or 4000K @ 90+ CRI
Well suited for very small spaces 0.6" deep with 2.72" diameter
Recessed or surface mount
Easy installation
Dimmable with power supply
12", 24", 38" and 48" extension cables accessory available.
No flicker delay or warm up like compact fluorescent products
No UV light or infrared wavelengths
5-Year Limited Warranty
· Each puck comes with a 72" wire and connector
ELECTRICAL
Input Voltage: 24VDC
Lumens / Wattage: 300lm / 3.5W
Color Temperature: 2700K, 3000K, 3500K, 4000K
Color Rendering Index: 90+ CRI
Operating Temp.: 20˚C to 50˚C
Cord Length: 72" wire and connector
Maximum # of Units Per Interconnect: Six luminaires can be connected to interconnect (NMPA-6P-24). Each luminaire must connect to interconnect, cannot daisy chain.
Life Expectancy: 50,000 hours
Dimming: Specified by driver
Cabinet Installation: Up to three puck lights may be
SAMPLE NUMBER: SMD4R6930WH=4" Round Surface Mount Downlight, 90CRI, 3000K Junction Box Installation: Order junction box separately, as supplied by others, to complete installation. Recessed Installation: Order Halo recessed housing separately to complete installation.
*For T20 California product, apply “-CA” to the catalog number (i.e. SMD4R6930WH-CA)
Accessories
Designer Trims
SMD4STRMWH square, white (paintable)
SMD4RTRMWH round, white (paintable)
SMD4RTRMSN = 4 Round SMD Satin Nickel
SMD4RTRMTBZ = 4 Round SMD Tuscan Bronze
SMD4RTRMWH = 4 Round SMD White (paintable)
SMD4STRMSN = 4 Square SMD Satin Nickel
SMD4STRMTBZ = 4 Square SMD Tuscan Bronze
SMD4STRMWH = 4 Square SMD White (paintable)
T24HWKIT = Title 24 Cable harness kit used to convert incandescent and low voltage housings to LED HE26LED = E26 Screw base adapter for retrofit (included) R = Recycled
T24HWKIT
SMD4STRMSN square, satin nickel
SMD4RTRMSN round, satin nickel
HE26LED E26 Screw base adapter for retrofit (included)
SMD4STRMTBZ square, tuscan bronze
SMD4RTRMTBZ round, tuscan bronze
Housings
Compatible Halo LED Housings with LED luminaire connector (high-efficacy compliant)
Halo LED Housings
H995ICAT = 4" IC, airtight shallow new construction housing, LED, 120 - 277V
E4ICATSB = 4" non-IC, airtight shallow new construction housing, adjustable socket bracket, E26, 120V
• Depth .& DIMENSION
• Weight Width
• Height 25.13Ibs (32in) 28.00lbs (36in) 1.40in
• 32.00 or36.00in 24.00in
ILLUMINA®
BS101LED ECO

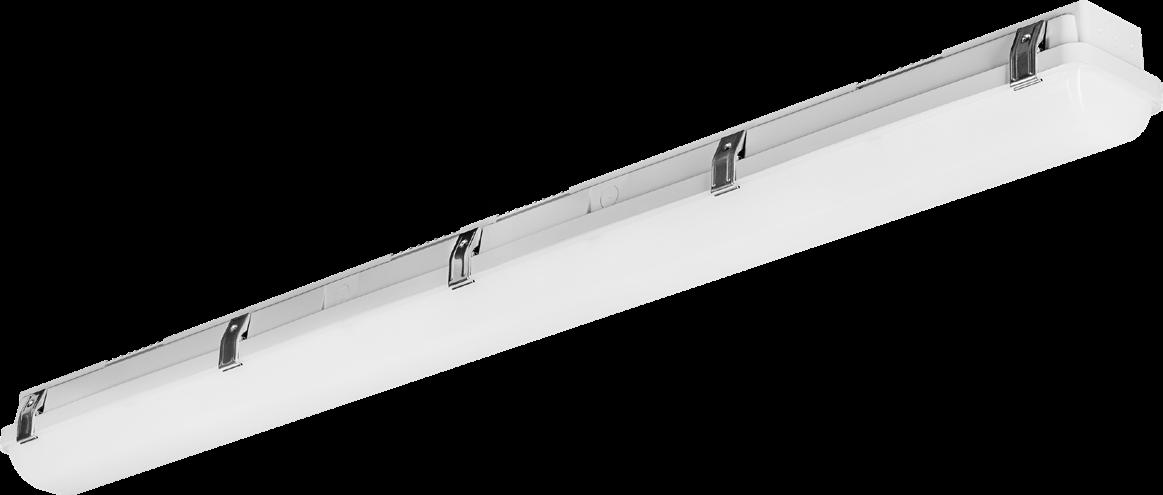

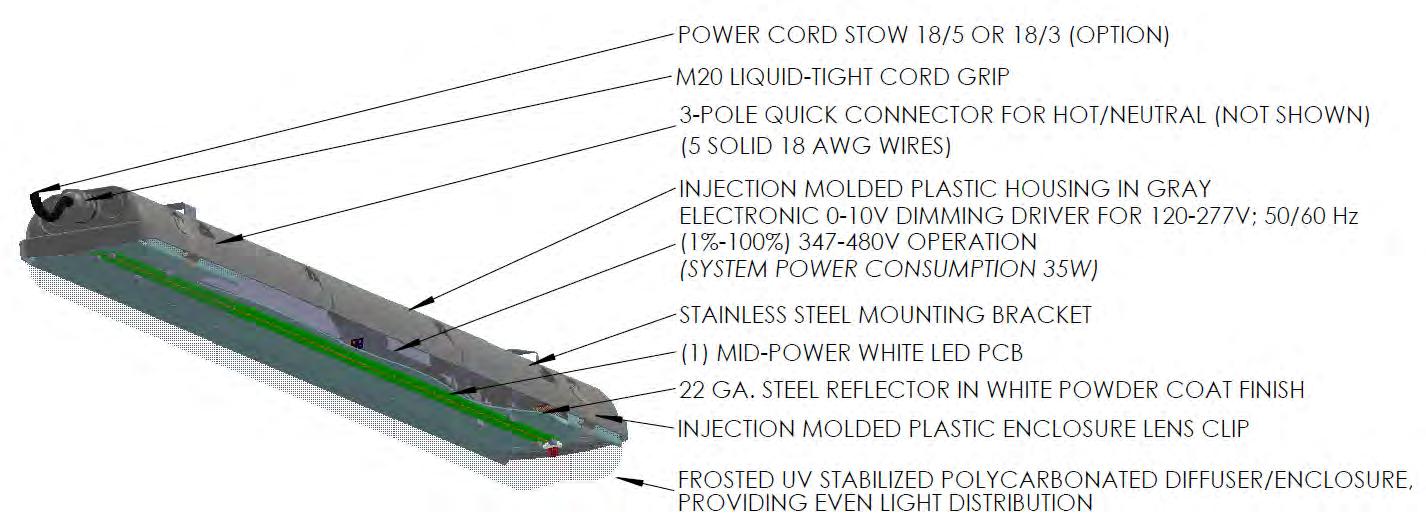

The ILLUMINA® BS101LED ECO is an economical, corrosion, flame and vandal resistant wet location luminaire certified to NSF/ ANSI 2 for Splash Zone applications.
1SPKxWBS148,9(swivel single pendant kit, white, x=length)
2PKxW8,9 (double stem pendant mount kit, white)
2SPKxW8,9 (swivel double stem pendant kit)
2ACx9 (aircraft cable, x=length)
2CH489 (48" chain hang kit, field cuttable)
NOTE 1: Emergency pack 120-277V; 10W/1440 lm.
NOTE 2: No DLC for LO.
NOTE 3: JM direct j-box mount maintains fixture's IP66 rating
APPLICATION: The ILLUMINA® BS101LED ECO provides ideal illumination for canopies, warehouses, schools, breezeways and service corridors. It can be installed both indoor & outdoor.
NOTE 4: Specify length and 3 or 5-conductor (CRD required for suspension mounting: pendant and chain/ cable kit accessories)
NOTE 5: Includes latches, grommets, etc. installed at the factory for quick installation
NOTE 6: OS is std Beghelli sensor (Magnum OSM1, CRMB9, OSFSP221, SBOR and other sensors also available)
TECHNICAL INFORMATION
(surge protection - 10KA)
NOTE 7: Beghelli offers wireless and powerless control solutions, contact factory for more details
NOTE 8: Standard pendant lengths "x" = 12 (12"), 24 (24") and 48 (48")
NOTE 9: Consult factory for non-standard lengths
NOTE 10: Handheld remote to adjust FSP221 occ sensor
NOTE 11: Quick Mount bracket requires JM mount; FA option recommended for maximum labor savings www.beghelliusa.com
WT40 (4000K) blank (surface mount standard)
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/3 0/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens

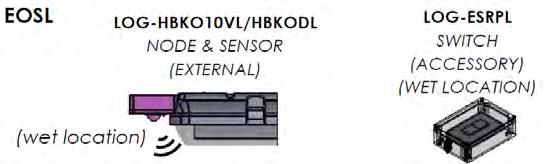

BEGHELLI LIGHTING CONTROL SOLUTIONS
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
SS6G3DR / IC632
6” SS LED Lensed Downlight Gen 3 - Wet Location
ELECTRICAL DATA
* System Wattage include driver and LED Module consumption. ** Delivered lumen output will vary depending on CCT selection.
LED MODULE
■ Po wered by OSRAM PrevaLED® Cube LED Module
■ 50 ,000 hours at 70% lumen maintenance
■ No h eat, mercury or UV
■ Av ailable in 1100, 1500, 2000, 2500, 3000lm and 4000lm
■ 80 C RI & 2700K, 3000K, 3500K, 4000K
ELECTRICAL SYSTEM
■ Universal voltage 120-277V (347V available, consult factory)
■ Os ram Optotronic ® standard with 0-10V dimming to 1%
■ Po wer factor >.9, 50/60Hz
■ Multiple dimming options available
OPTICAL SYSTEM
Specification grade reflector with 1.2mm thickness. Reflector available in clear specular, haze or white. Architectural, discrete polished self flange standard. Optional painted white flange is available. Reflector is available with clear tempered or sand blasted lens, must specify.
FRAME CONSTRUCTION
Heavy duty galvanized steel frame with a large access junction box. ETL listed for through wiring. LED light engine and driver are accessible from above or below ceiling.
INSTALLATION
The luminaire is type Non-IC. Insulation must be kept at a minimum of 3” away from fixture. Universal mounting brackets included. Compatible with C-channel, flat bar, wood joist bar hanger and EMT. Bar hangers must be ordered separately. C-channel is recommended for T-bar ceilings. Maximum ceiling thickness is 1 1/4”.
EMERGENCY BACKUP
Remote test switch included. External battery operates LED load of up to 7W at a minimum of 400 lumens for 90 minutes (EM7), or 20W at a minimum of 1300 lumens for 90 minutes (EM20).
LISTING/WARRANTY
■ ET L listed to US and Canadian standards for wet locations.
■ 5-Year Intense LED Limited Warranty
Housing Part Number (Example: SS6G3DRL4358)
Housing LED Module CCT / CRI Dimming (120-277V) Options
(7W Emergency Backup w/ Remote Test Switch IOTA part #ILB-CP07-A) (20W Emergency Backup w/ Remote Test Switch Bodine part #BSL20LV) (C-Channel Bar Hangers) (Flat Bar Hangers) (Wood Joist Bar Hangers)
NC3-61 / NC3-66 / NC3-68
6" Sapphire III LED Reflectors
Source: 11W to 60W 900lm to 5500lm
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness.
Reflector: Deep cone reflector spun from 0.050 high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC 3-68 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Decorative Glass: NC3-68 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-6CF 6" Tempered Clear Glass with Frosted Center
NTG-6FC 6" Tempered Frosted Glass with Clear Center
NTG-6HC 6" Tempered Clear Glass with Frosted Center and 3-1/8" Open Center
Integral Emergency Switch: NC 3-61 is compatible with integral emergency test switch (must specify).
EMI test switch for field install to the trim.
EMI2 test switch is pre-installed to the trim.
Remote Emergency: All reflectors are compatible with remote emergency options.
LABELS AND LISTINGS
cULus Listed for Wet Locations when used with compatible frame-in
5-Year Limited Warranty
ENERGY STAR certified
(BB, BMPW, and CC finishes are not certified) RoHS Compliant
Emergency Test Switch 1 (Compatible with NC3-61 up to 4500lm only, must specify on new construction/remodel, switch is located on reflector) 1 Not compatible with 5500lm
031026P1
Compliances:

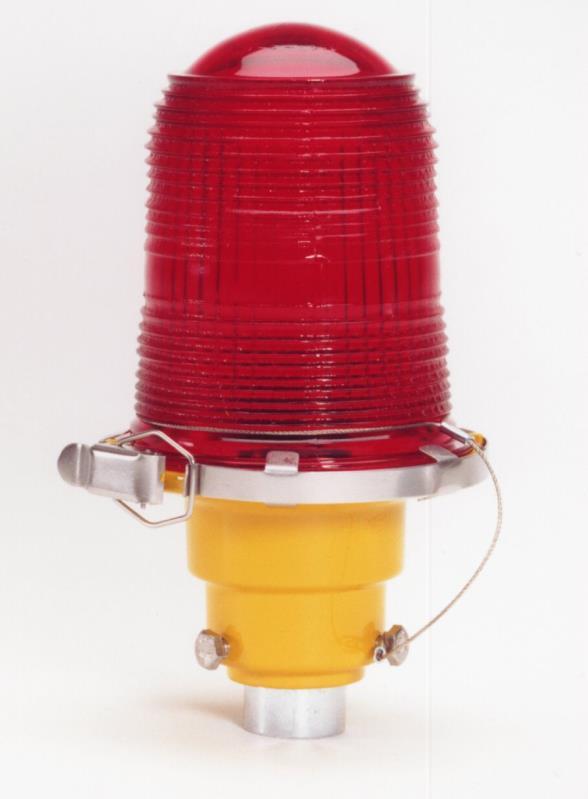

POINT OBSTRUCTION LIGHTS POL
INCANDESCENT STANDARD SERIES
ETL Verified FAA L-810 to FAA AC 150/5345-43H at -55 deg C to +55 deg C
ETL Listed to UL 1598 at-40 deg C to +55 deg C
ETL Listed to CSA C22.2 No.250.0-04 Canada
ICAO Annex 14 Low Intensity Types A (10 cd) & B (32 cd)
POL incandescent red steady-burning obstruction lights are used to mark tall structures that present hazards to air navigation. During the night, these lights warn pilots to stay clear of the obstruction when installed in accordance with FAA AC 70/7460-1 and applicable FCC and ICAO rules and recommendations. Each POL includes a lens tether and ground wire. See OL110POL for more options and for double POL’s.
SF: Slipfitter for 2-3/8 in OD & for 2-inch EMT (60mm)
POL-20000-R-116-34B

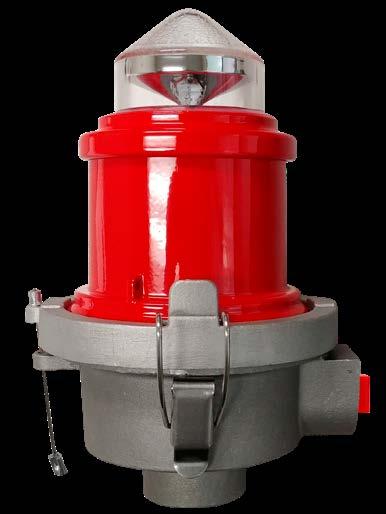

L-810 LED Night Vision Compatible Steady-Bur ning Red Obstruction Light
Compliance and Applications
• ETL Certified L-810: FAA AC 150/5345-43J; EB-67D
• IP67 Certified
• Certified FCC 47 CFR, Part 15:2020, §15.107 and §15.109, Class A
Compliant to:
• ICAO Annex 14, Low Intensity Obstacle Light, Type B
• DGAC of Mexico
• MIL-C-7989
Our Night Vision Compatible, omni-directional, red, steady-burning, LED obstruction light is designed for marking tall structures such as buildings, towers, masts, cranes, meteorological towers, chimneys and other hazards to aircraft. This energy-saving LED light is a direct replacement for incandescent fixtures, providing years of reliable and maintenance-free operation. Available in single, double, and retrofit configurations; optional solar drive package.
What Does NVG Friendly Mean?
Both the FAA and Transport Canada have issued safety alerts warning that common LED obstruction lights pose a hazard to pilots using Night Vision Goggles (NVGs). This is due to the fact that NVGs typically use filters to block cockpit lighting from saturating the imaging system. This has the unintended effect of making LED obstruction lights invisible to pilots. In response, we have incorporated NVG Friendly technology into our fixture (IR 860 nm peak intensity), giving pilots using night vision goggles unmatched visibility of airfield perimeters, buildings, and towers. The L810LEDNV light is the first LED L-810 available to ensure that your structure is visible to all pilots, making it the first true LED replacement for incandescent obstruction lights.
Why Our L810LEDNV is Better
• Direct replacement for existing incandescent light
• Lasts up to 10 times longer than an incandescent light
• Uses 96% less power than an incandescent light
• Night Vision Goggle & NVIS Compatible
• No regular maintenance
• Available in single and dual configurations with bottom or side conduit outlets
• Can be operated in steady-burning or flashing mode (controller not supplied)
Marine Treated Option:
• Recommended for harsh, high-salt coastal and marine environments.
• Protects fixture finish from salt damage and prevents corrosion.
• 3-Step Powder Coat: 1) Primer, 2) Epoxy powder base coat and glossy polyester gray (RAL 7030) powder finish coat, 3) Oven curing.
• Photocell option for automatic activation at night
• Wind Loading: Effective Projected Area of the L-810 with single mounting base is 23.125 square-inches

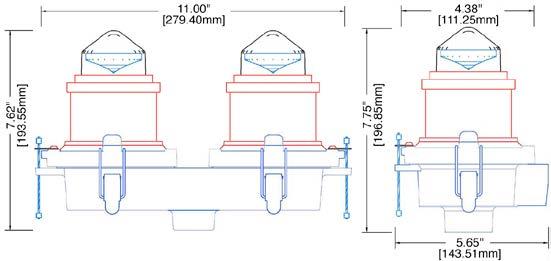

Night Vision Compatible Obstruction Light
Optional Low Surface Mount
Single L-810 LED Night Vision Compatible Obstruction Light

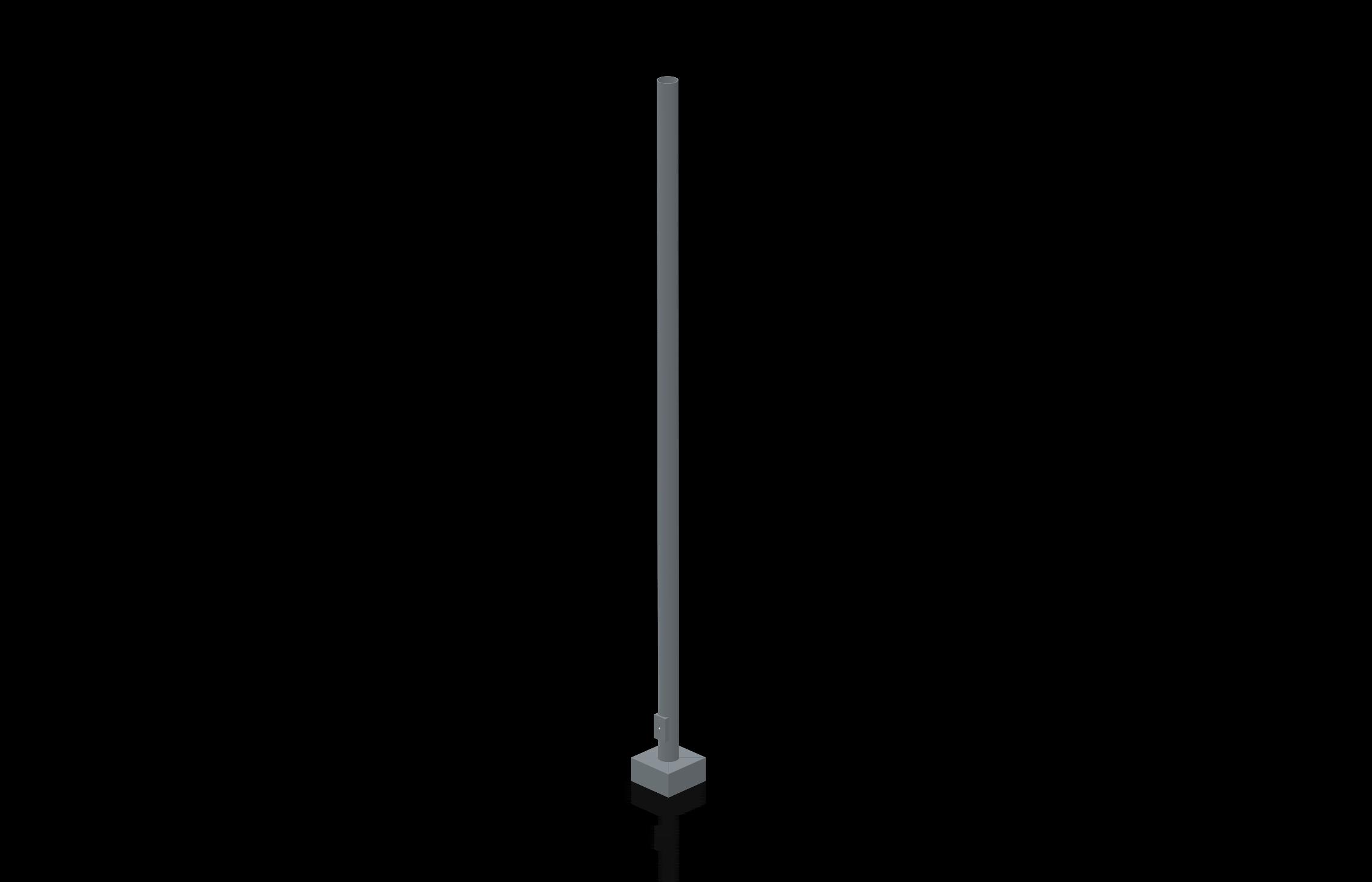

Optional 2" Pole Mount
Shown with Frangible Coupling and Floor Flange
BLANK
Spare Parts
FL-810LEDNV-AC 100-277 VAC LED NV
Replacement Light Head
FL-810LEDNV-DC 12-48 VDC LED NV
Replacement Light Head
Alarm Line Option:
For AC and DC model fixtures, the blue wire (18AWG) is defined as the Alarm Line. When the red LED fails, the fixture’s input voltage for the fixture will be present at this wire. For AC and DC model fixtures, during normal operation (LED ON), it will have 0 VAC and 0 VDC respectively at the blue wire; in case of LED failure (turning off), it will energize the blue wire to the fixture’s input voltage, 100-277 VAC for AC models and 12-48 VDC for DC model fixtures.
L-810 LED Ordering Codes
VAC
Black
White
Green
Low Surface Mount2
2" Pole Mount3
VDC
Red
Black
Green
Shipping Information:
Single: 3.2 lb. (1.45 kg); 10" x 10" x 10" Carton
Double: 7 lb. (3.17 kg); 15" x 15" x 10" Carton
1 1-1/2" Frangible Coupling (FL-FC1.5) UNF threads are not compatible with NPT threaded junction boxes. 2 For single option only. 3 2-3/8" O.D. tenon adjustable for 2.25"-2.75" poles. 4 CAUTION! For AC model fixtures, the Alarm Line (blue wire) will be energized to a high AC voltage (fixture’s input voltage 120-277VAC) during a failure of the LED.
Obstruction Lighting Controls
Lighting controls are designed for use when multiple obstruction light fixtures are to be controlled with common electronics. The electronic control module comes in a cast iron device box with threaded hubs on both top and bottom. Replacement modules (controls without device box) are also available upon request.
Photocells
• Model 81020: 105-305VAC, 1000W photocell. FAA style photocells activate at 35 ft-cd and turn off at 52 ft-cd. Instant ON photocell has 3-5 second time delay that prevents activation and de-activation from momentary light conditions. Does not come with device box, includes 1/2" threaded male fitting.
• Model 81021 [CALL FOR AVAILABILITY]: 120/240VAC, 4800W photocell. Meets FAA/FCC requirements for obstruction lighting. Energized at 35 ft-cd and de-energized at 60 ft-cd. Time delay eliminates contact chatter. Contains dual 20A load contacts. Front plastic housing mounts to cast aluminum junction box (included).
• Model 81022: Hazardous Location Photocontrol Unit. Outdoor lighting control for exterior lighting in hazardous locations: explosion proof, dust-ignition proof, and weatherproof. Nominal Voltage 50/60 Hz: 120/208/240/277VAC. Voltage Range: 105-305. Housing: sand cast copper-free aluminum - epoxy powder coated.
Photocell Ordering Codes
FL-81020
Part Number
FL-81021 [CALL FOR AVAILABILITY]
FL-81021-2 [CALL FOR AVAILABILITY]
FL-81022
Description
Photocell only (105-305VAC, 1000W max)
Photocell with aluminum box (120VAC, 4800W max)
Photocell with aluminum box (240VAC, 4800W max)
Hazardous Location Photocontrol Unit (120/208/240/277VAC)
Model 81020
Model 81021
Model 81022
Alarm Line: Blue
Alarm Line: Blue
Color Guide
ILLUMINA®
BS101LED ECO

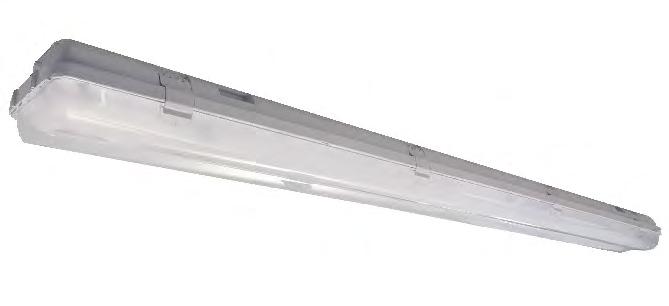

The ILLUMINA® BS101LED ECO is an economical, corrosion, flame and vandal resistant wet location luminaire certified to NSF/ ANSI 2 for Splash Zone applications.
1SPKxWBS148,9(swivel single pendant kit, white, x=length)
2PKxW8,9 (double stem pendant mount kit, white)
2SPKxW8,9 (swivel double stem pendant kit)
2ACx9 (aircraft cable, x=length)
2CH489 (48" chain hang kit, field cuttable)
NOTE 1: Emergency pack 120-277V; 10W/1440 lm.
NOTE 2: No DLC for LO.
NOTE 3: JM direct j-box mount maintains fixture's IP66 rating
APPLICATION: The ILLUMINA® BS101LED ECO provides ideal illumination for canopies, warehouses, schools, breezeways and service corridors. It can be installed both indoor & outdoor.
NOTE 4: Specify length and 3 or 5-conductor (CRD required for suspension mounting: pendant and chain/ cable kit accessories)
NOTE 5: Includes latches, grommets, etc. installed at the factory for quick installation
NOTE 6: OS is std Beghelli sensor (Magnum OSM1, CRMB9, OSFSP221, SBOR and other sensors also available)
TECHNICAL INFORMATION
(surge protection - 10KA)
NOTE 7: Beghelli offers wireless and powerless control solutions, contact factory for more details
NOTE 8: Standard pendant lengths "x" = 12 (12"), 24 (24") and 48 (48")
NOTE 9: Consult factory for non-standard lengths
NOTE 10: Handheld remote to adjust FSP221 occ sensor
NOTE 11: Quick Mount bracket requires JM mount; FA option recommended for maximum labor savings www.beghelliusa.com
WT40 (4000K) blank (surface mount standard)
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project
Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
TYPE P SPEC RIVER

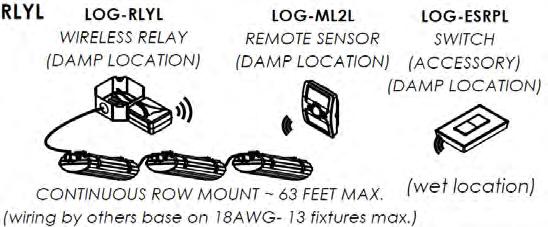

BEGHELLI LIGHTING CONTROL SOLUTIONS
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
SPECIFICATIONS
Description
ANYX ARV13
Trim
Lens
Reflector
The Anyx ARV13 LED fixtures build on the highly successful Anyx line. The Anyx ARV13 series features a durable, color-impregnated polycarbonate housing supported by a marine grade, die cast aluminum base plate to provide a lighting fixture that will survive in the harshest environments. The Anyx 13 series has been installed successfully in large scale projects such as dorm rooms, behavioral health facilities, transportation stations and public schools.
One piece injection molded UV stabilized polycarbonate mechanically interlocked to base plate and sealed against moisture and contaminants with two high temperature silicone O-rings. Color is molded through entire part for scratch resistant finish. Locked in place with one concealed tamper resistant set screw.
One piece injection molded prismatic polycarbonate with minimum 0.130" wall thickness. Secured to base plate by trim and sealed with two high temperature silicone O-rings.
Heavy gauge formed aluminum primed and finished with electrostatically applied power coat.
Base Plate Pressure die cast marine grade aluminum. Chemically primed and finished with electrostatically applied polyester powder coat.
Gaskets
Closed cell die cut neoprene gasket provided between fixture mounting plate and mounting surface. High temperature silicone O-ring between the trim and lens, between the lens and base plate, and between the mounting plate and base plate.
Drivers Dimming to 1%, 10% or Programable Lumen Output driver options. Non-Dimming Driver is also available.
LED
UL Listing
2700K, 3000K, 3500K, 4000K, or 5000K and 82 CRI. L 70 projected life of over 130,000 hours at 50ºC.
U.L., C.UL. Wet Location Listing standard. IP66 standard in compliance with IEC 60598, certain exclusions may apply. Please refer to Ordering Information for details.
Government BAA – Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act Procurement as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
Warranty Lifetime warranty against vandalism. Luminaire LED will repair or replace any fixture damaged due to vandalism for the lifetime of the installation.
10-year warranty on LED boards against operational defects. Tested in accordance with LM-80. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed.
Note Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
C023-A C034-A

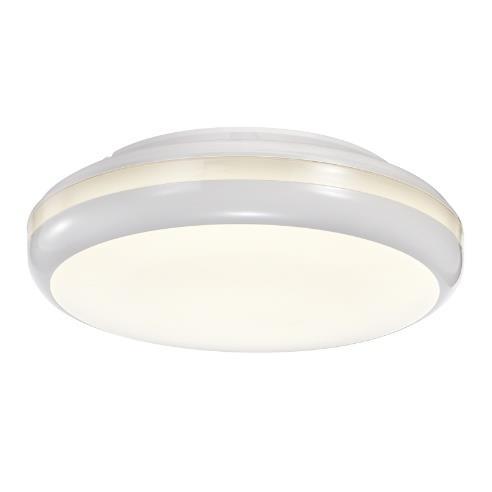

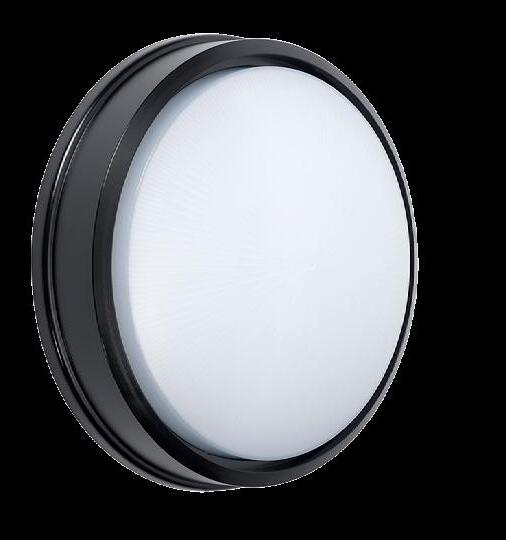

LED Ceiling Light
Features
Housing
Injection Molded Polycarbonate Housing and Shade
Ideal for High Humidity Environment Applications, IP65 Rated
Suitable for Ceiling Mount or Wall Mount
Mounts Directly to Surface with Two Wall Anchors
2 Side Conduit Entry Points
Operating Temperature = -20°C to 40°C
Optical
Shade: Injection Molded High Transmission Opal Polycarbonate Creates Excellent Light
Distribution and Uniformity
Electrical
High Power Factor, Low THD
Option: Built-in Emergency Battery Backup (–EM)
Bi-Level Light with Built-in High Frequency Motion Sensor (-BI)
Lamp
Built-in LED Module
Certification
ETL/cETL Listed, Wet Location Rated
Warranty
5 Years Warranty on Driver and LED Module
Note: MCT Type: Adjustable Multi Color Temperature 3000K/4000K/5000K
ANYX ARV13
ORDERING INFORMATION
BLANK
ILLUMINA®
BS101LED ECO
The ILLUMINA® BS101LED ECO is an economical, corrosion, flame and vandal resistant wet location luminaire certified to NSF/ ANSI 2 for Splash Zone applications.
1SPKxWBS148,9(swivel single pendant kit, white, x=length)
2PKxW8,9 (double stem pendant mount kit, white)
2SPKxW8,9 (swivel double stem pendant kit)
2ACx9 (aircraft cable, x=length)
2CH489 (48" chain hang kit, field cuttable)
NOTE 1: Emergency pack 120-277V; 10W/1440 lm.
NOTE 2: No DLC for LO.
NOTE 3: JM direct j-box mount maintains fixture's IP66 rating
APPLICATION: The ILLUMINA® BS101LED ECO provides ideal illumination for canopies, warehouses, schools, breezeways and service corridors. It can be installed both indoor & outdoor.
NOTE 4: Specify length and 3 or 5-conductor (CRD required for suspension mounting: pendant and chain/ cable kit accessories)
NOTE 5: Includes latches, grommets, etc. installed at the factory for quick installation
NOTE 6: OS is std Beghelli sensor (Magnum OSM1, CRMB9, OSFSP221, SBOR and other sensors also available)
TECHNICAL INFORMATION
(surge protection - 10KA)
NOTE 7: Beghelli offers wireless and powerless control solutions, contact factory for more details
NOTE 8: Standard pendant lengths "x" = 12 (12"), 24 (24") and 48 (48")
NOTE 9: Consult factory for non-standard lengths
NOTE 10: Handheld remote to adjust FSP221 occ sensor
NOTE 11: Quick Mount bracket requires JM mount; FA option recommended for maximum labor savings www.beghelliusa.com
WT40 (4000K) blank (surface mount standard)
TECHNOLOGY CAST IN A BEAUTIFUL LIGHT
For over 20 years, TCP has been designing, developing and delivering energy-efficient lighting into the market. Thanks to our cutting-edge technology and manufacturing expertise, we have shipped billions of high quality lighting products. With TCP, you can count on a lighting product that is designed to meet the needs of the market - that transforms your surroundings and envelopes you in warmth - lighting that generates beauty with every flip of the switch.
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
Wireline Dimensions
Photometric Report
Based on photometric data for TCP item # STR4UZDSW5CCTIS set at 55 watts and 3500K Polar Graph
NO SPEC
TECHNOLOGY CAST IN A BEAUTIFUL LIGHT
For over 20 years, TCP has been designing, developing and delivering energy-efficient lighting into the market. Thanks to our cutting-edge technology and manufacturing expertise, we have shipped billions of high quality lighting products. With TCP, you can count on a lighting product that is designed to meet the needs of the market - that transforms your surroundings and envelopes you in warmth - lighting that generates beauty with every flip of the switch.
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
Wireline Dimensions
Photometric Report
Based on photometric data for TCP item # STR4UZDSW5CCTIS set at 55 watts and 3500K Polar Graph
VA4
Job/Location:
Contractor:
INDOOR DAMP
Job Type: Prepared By: Date:
specifications: internal
The VA4 comes standard configured with high output LEDs, 120/277V input, available in red or green. AC only and Self powered versions are available. Nickel-cadmium batteries provide a minimum 90 minutes of emergency duration. Electronic cut-off circuit prevents over discharge.
specifications: external
The VA4 is constructed from durable corrosion and flame resistant thermoplastic. The VA4 comes standard with a mounting canopy, two (2)stencils, one (1) backplate, removable chevrons and all mounting hardware. The VA4 comes standard finished in white; optional black finish is available. A damp location rating is standard on all VA4 products. An external LED status indicator and test switch is standard on all self-powered models.
ordering logic
NOTE 1: Shield guard must be ordered as a seperate line item #276100035. NOTE 2: 3/8” IP with white finish. For other lengths, contact factory.
EXAMPLE: VA4-R-HT-B
DESCRIPTION: Red LED, AC only, black housing

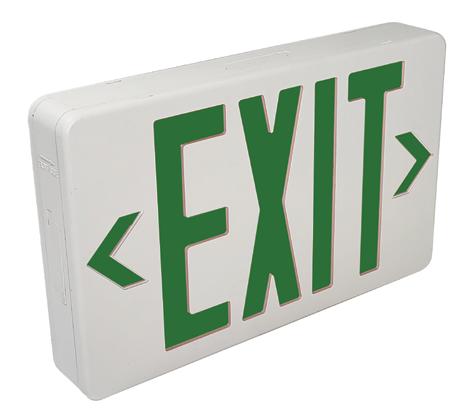

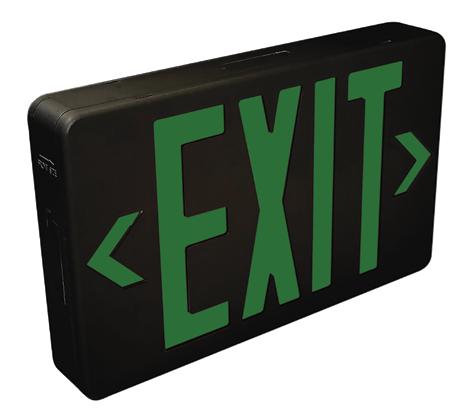

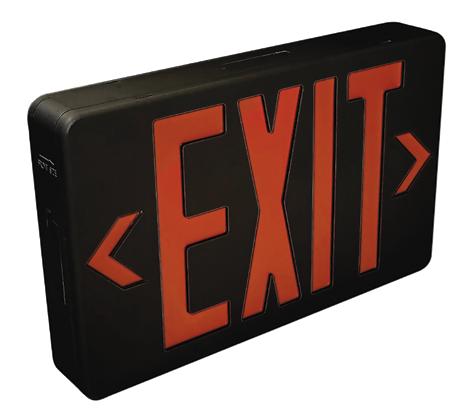

NX-603D-LED
Thermoplastic Dual Color (Red/Green) LED Exit Sign with Battery Backup
Source: 3W normal operation 0.4W emergency operation
PRODUCT DESCRIPTION
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
11-13/16" Width x 7-1/4" Height x 1-13/16" Depth
Injection-molded thermoplastic housing
Black or White housing finish
FACE
6" high text with color diffusion
Both double and a blank face are included
Snap-in direction indicators
MOUNTING
Wall, side, or ceiling
Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: Normal operation: 3W / Emergency operation: 0.4W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES

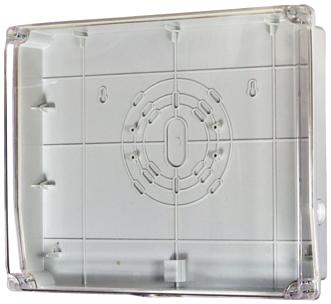

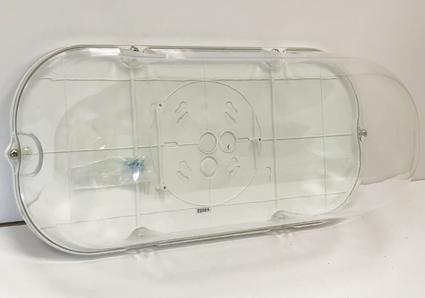

NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
5-Year Limited Warranty UL 924
Rated for Damp Locations (Wet Location when used with NEG-60) NFPA
Certified to the energy efficiency standards of California Title 20
Thermoplastic Dual Color LED Exit Sign with Battery Backup
Type Project Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
AC only and Self-Powered models come standard configured with high output, high efficiency LED’s. 120/277V input. Nickelcadmium batteries provide a minimum 90 minutes of emergency duration. Optional 120 minute duration battery is available. Solid state charger & transfer. Fuse protection is standard.
The standard OL2 is constructed from durable 20 gauge steel, including the surface mount housing, recessed backbox and trim plate. The brushed aluminum finish option (BA) is available for recessed models only with the trim place constructed of aluminum. The high clarity acrylic face plate is available in both single face or double face versions, with a clear, white, or mirrored background (please specify). Field adjustable chevrons are standard. White, baked powder coat finish is standard on all versions. Available in custom colors (please specify). External LED monitor light and test switch are standard on self-powered versions.
ordering
Accessories
1PKxB4 (single pendant kit, black, x=length)
1PKxBA4 (single pendant kit, brushed aluminum, x=length)
NOTE 1: Available in single face only
NOTE 2: For AC only
NOTE 3: Only available for recessed models (aluminum trim plate)
(ceilling recess)
(ceilling surface)
recess) BA
1 (wall surface)
(end surface) IF (inverted face) SW (special wording- specify)
1PKxW4 (single pendant kit, white, x=length) OL2BBOX (recessed back box, standard)
NOTE 4: Standard pendant lengths "x" = 12 (12"), 24 (24"), 48 (48"). BA available in 12" length only.
(120 minute emergency)
(autotest - for SA model only)
aluminum)
(custom color)

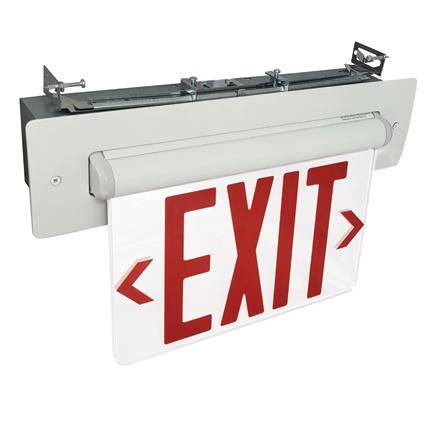

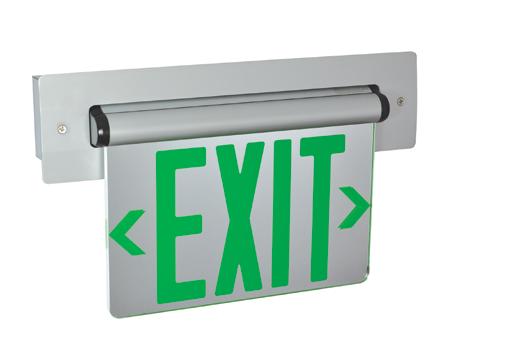

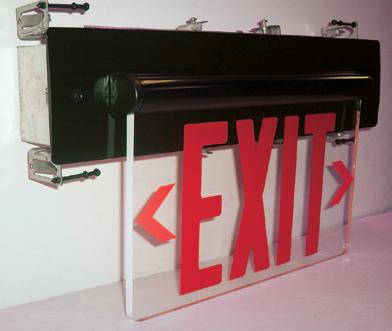

Recessed Adjustable LED Edge-Lit Exit Sign
Source: 3.8W
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: Normal operation: 3.8W / Emergency operation: 0.7W
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery Back-Up (NX-815-LED): NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
Listed
· State & Municipal Certified to the energy efficiency standards of California Title 20

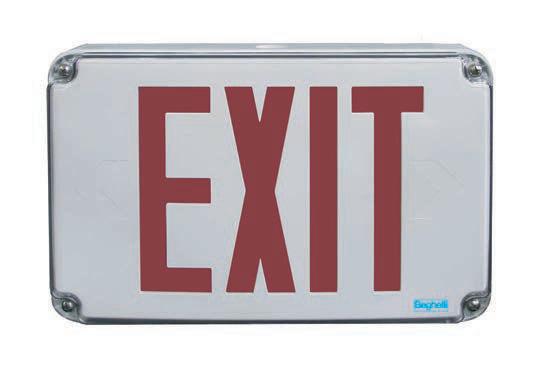

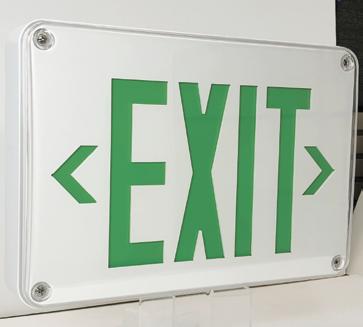

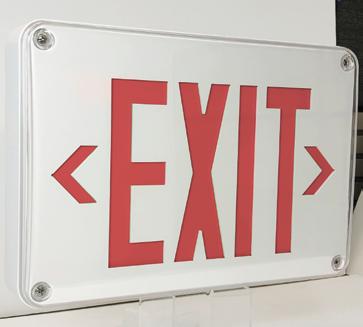

The Paco Aqua Exit (PXA) is the newest edition to our Paco series. It has dual input 120/277V and is offered as AC only and self-powered. The Paco Aqua Exit self powered version uses a rechargeable, maintenance free 3.6V 900mAH nickel cadmium battery. The circuit board features an onboard solid state transformer, low voltage disconnect and brownout protection. Available in either red or green LEDs consuming less than 2W.
external
The Paco Aqua Exit is UL924 listed for wet location and features performance and reliability in a compact and attractive unit. It is constructed from high impact and corrosion resistant, thermoplastic.
The UV resistant polycarbonate faceplate has an integrated gasket to ensure ingress protection. Removable chevrons allow for onsite selection. The Paco Aqua Exit comes standard in white. The SA version includes a sealed test switch and status indicator, which gives immediate unit status.
dimensions (in,mm.)
PXAGHT Exit, AC only, green LED, universal face and mount, white
PXAGSA Exit, AC & EM, green LED, universal face and mount, white
PXAGSAAT Exit, AC & EM, green LED, universal face and mount, white, autotest
PXAGSARC Exit, AC & EM, green LED, universal face and mount, white, 3W remote capable
PXARHT Exit, AC only, red LED, universal face and mount, white
PXARSA Exit, AC & EM, red LED, universal face and mount, white
PXARSAAT Exit, AC & EM, red LED, universal face and mount, white, autotest
PXARSARC Exit, AC & EM, red LED, universal face and mount, white, 3W remote capable
PXARSARCAT Exit, AC & EM, red LED, universal face and mount, white, 3W remote capable, autotest
(wall mount), white
(ceiling mount), white

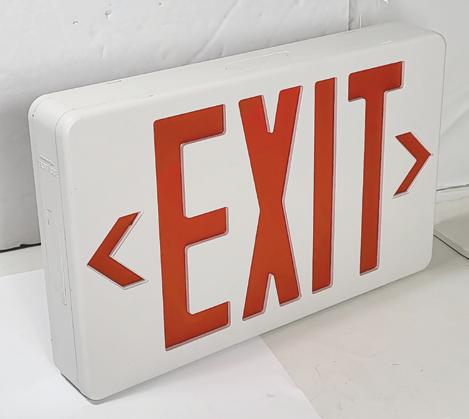

Source: 2.2W
PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
5-Year Limited Warranty
· UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com

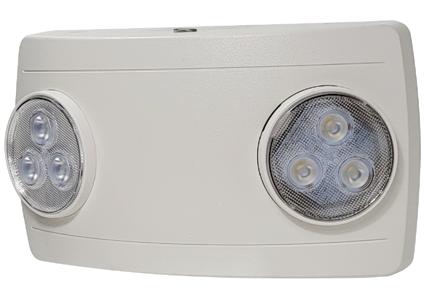

The PACO PEH1 is ideal for use in hotels, offices, restaurants and other commercial applications. The PEH1 features a quick snap design the reduces installation time. Easy field wiring & durable construction is suitable for surface wall or ceiling installations.
■ internal
The PEH1 uses a rechargeable, maintenance-free nickel cadmium battery. Configured with 120/277V input standard, a universal 120-277V option is available. The circuit board features an onboard solid state transformer, low voltage disconnect and brownout protection.
■ external
The PEH1 is constructed from high impact, UV-stabilized, UL 94 V-0 plastic. The PEH1 comes in a white finish. Two fully adjustable 1.5W LED lamp heads ensure emergency lighting performance, accurate positioning and reduced maintenance. Universal mounting plate and quick snap design speeds installation. Easy field wiring & durable construction suitable for surface wall or ceiling installations.
ordering information
Job Name: Date:
PEH1 emergency unit, Ni-Cd battery, 2 x 1.5W LED, white finish, 120/277V, Title 20
PEH1 emergency unit, Ni-Cd battery, 2 x 1.5W LED, white finish, autotest, 120/277V
PEH1ATB PEH1 emergency unit, Ni-Cd battery, 2 x 1.5W LED, black finish, autotest, 120/277V
PEH1 emergency unit, Ni-Cd battery, 2 x 1.5W LED, black finish, autotest, 120/277V, remote capable
PEH1 emergency unit, Ni-Cd battery, 2 x 1.5W LED, white finish, autotest 120/277V, remote capable
PEH1 emergency unit, Ni-Cd battery, 2 x 1.5W LED, black finish, 120/277V, Title 20
PEH1 emergency unit, Ni-Cd battery, 2 x 1.5W LED, white finish, 120/277V, remote capable, Title 20
PEH1 emergency unit, Ni-Cd battery, 2 x 1.5W LED, black finish, 120/277V, remote capable, Title 20
PEH1UNV PEH1 emergency unit, Ni-Cd battery, 2 x 1.5W LED, white finish, 120-277V
PEH1UNVWL PEH1 emergency unit, Ni-Cd battery, 2 x 1.5W LED, white finish, 120-277V, wet location
NOTE: RC and UNV options are not Title 20 compliant
Accessories
WG6DX11LX7WWHT Wireguard (wall mount), white
Wet Location Model

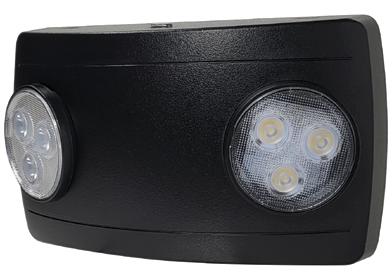

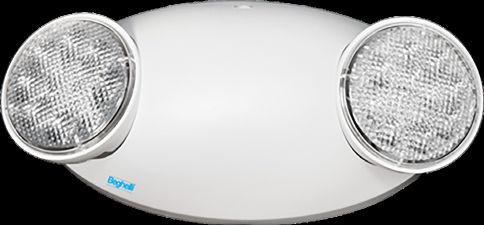

NE-612LED
Compact Dual Head LED Emergency Light with Optional Remote Capability
Source: (2) 0.9W or 1W LED (2)90lm to 150lm
PRODUCT DESCRIPTION
Luminaire provides 90 minutes of light from two adjustable heads for illuminating paths of egress upon failure of normal power. Emergency unit is available in higher lumen output and remote capability.
FEATURES
Compact housing with (2) adjustable LEDs Lightweight snap together design
Self-diagnostic and self-testing option available Ceiling or wall mounted
Universal 120/277VAC input
Remote capability
SPECIFICATION
Construction: Injection-molded thermoplastic ABS housing. Plastic enclosure with 5VA flame retardant. Quick connector design for easy installation. Two fully adjustable glare-free round heads for emergency lighting.
Mounting: Plastic enclosure includes a top and side knockout for conduit application. Suitable for wall mounting or ceiling mounting. Waterproof vandal resistant enclosure available, must specify NEG-602.
Operation: Luminaire will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time per battery.
ELECTRICAL
Input Voltage: 120/277VAC 60Hz
Lumens / Wattage:
NE-612LED: (2) 110lm / 0.9W
NE-612LEDRC: (2) 90lm / 0.9W
NE-612LEDHORC: (2) 150lm / 1W
Color Temperature: 5700K
Operating Temperature: 10˚C to 40˚C ambient temperature (-25°C to 50°C when used with NEG-602)
Batteries: NiMH 3.6V 2W maintenance-free
Remote Option: Luminaire is capable of including an additional 3.6V / 4W battery. Additional battery is used to power an additional remote emergency light. Upon power failure, each additional battery requires an additional 24 hours to recharge.
LABELS AND LISTINGS
· cULus Listed for Damp Locations (Wet Location Listed when used with NEG-602)
Meets or exceeds all requirements in NFPA 70, NFPA 101 life safety code 5-Year Limited Warranty
Notes
PRODUCT IMAGES & DIMENSIONS
NFPA 101 requires 1.0 foot-candle average and 0.1 foot-candle minimum with a 40:1 maximum/minimum ratio. Below is a recommended mounting height and spacing on surface with reflectance at 80% ceiling, 50% walls, and 20% floor.
Compact Dual Head LED Emergency Light
= (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, White Finish
NE-612LEDRCB = (2) 0.9W / 90lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish
NE-612LEDRCW = (2) 0.9W
/
for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish
NE-612LEDHORCW = (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
Accessory
Example: NE-612LEDHORCW = Compact Dual Head LED Emergency Light with (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White finish Description NE-612LEDB = (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, Black Finish

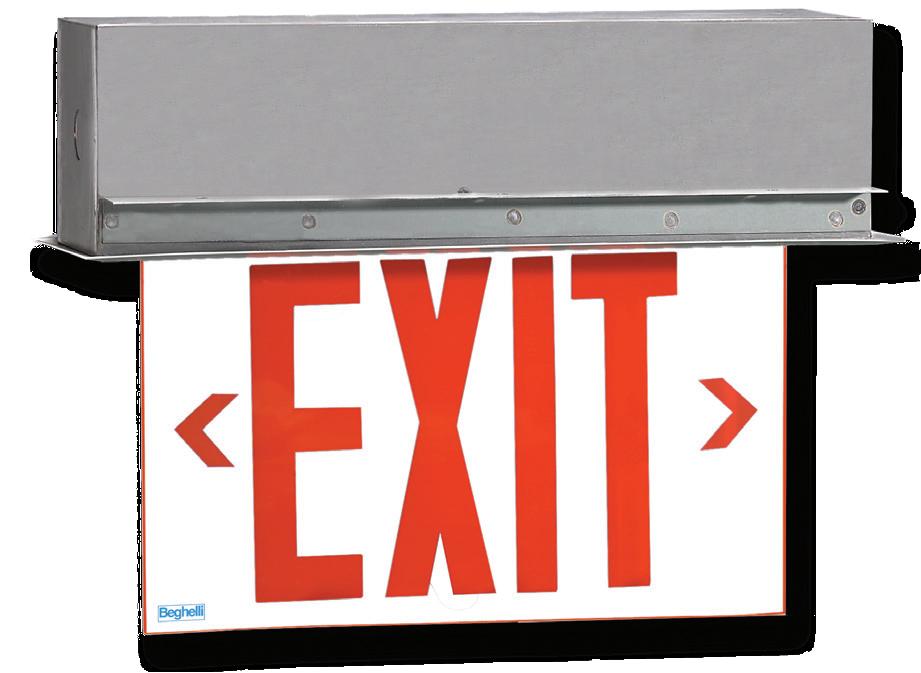

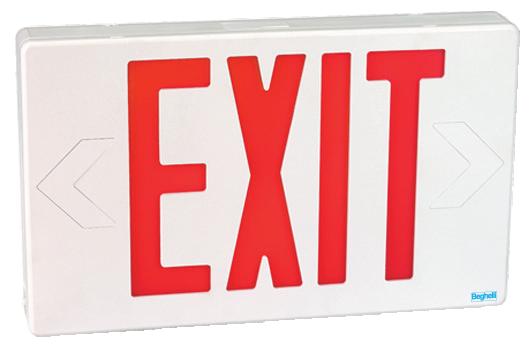

LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
5-Year Limited Warranty
· UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
5-Year Limited Warranty
· UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
5-Year Limited Warranty
· UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
5-Year Limited Warranty
· UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com

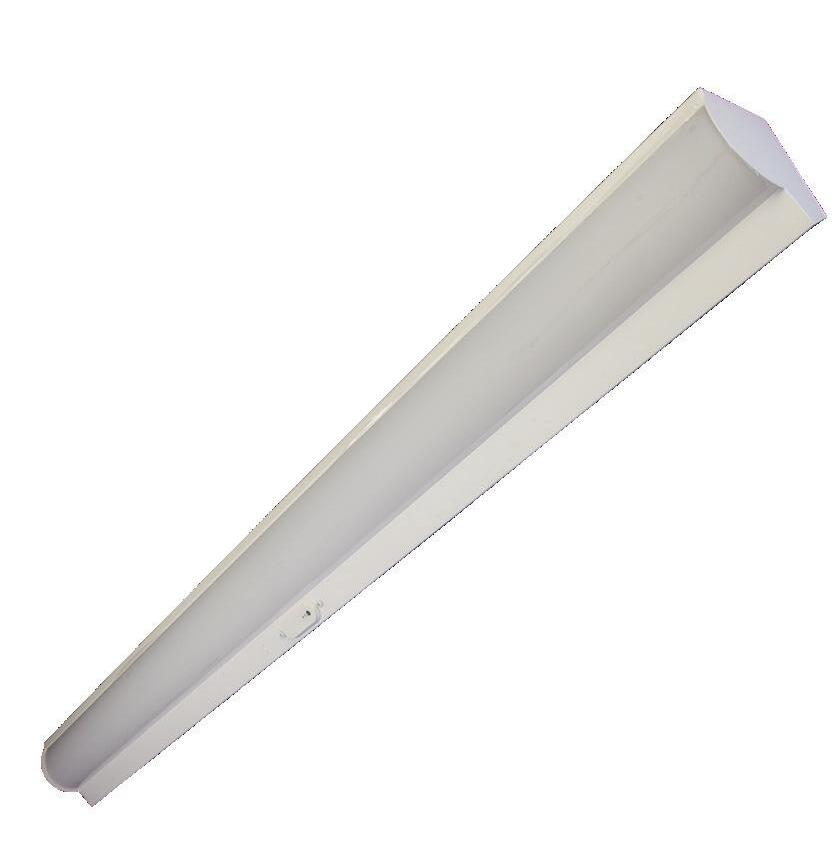

Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
BLANK
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
NO SPEC
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/9 0/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
BLANK
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
NO SPEC
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project
Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
BLANK
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
NO SPEC
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project
Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
BLANK
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
PER SCHEDULE COLORS LED

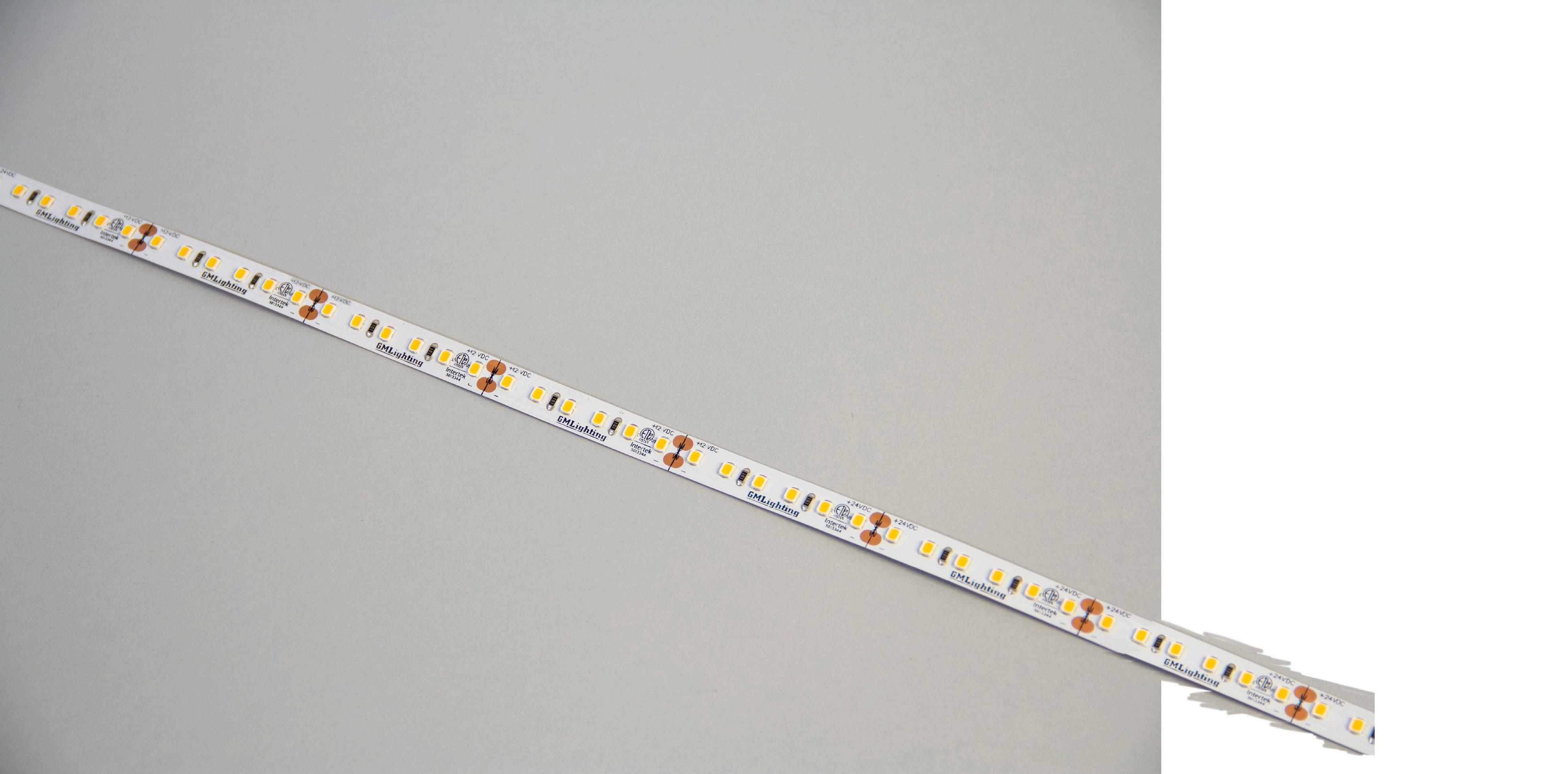

LTR-P Professional Series
3W, 12VDC and 24VDC
LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Includes Sure-Tite connectors
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
SPECIFICATIONS
ELECTRICAL
• 12V/24V
• 3 watts per foot
OPTICS
• 90+ CRI
CERTIFICATION
• ETL (12V) / UL (24V)
• Title 24 compliant when used with used with specific drivers. Consult factory.
• Class 2
• Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space
WARRANTY
• 5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for
only and does not cover any labor or incidental charges related to
or warranty.
BLANK
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
RECOMMENDED DRIVERS
LD-XD-UNV LineDrive Electronic Multi-Dimmable Power Supply, 12VDC or 24VDC 20W, 40W, 60W, 96W, 180W, 200W, 300W
LD-E-UNV LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 200W, 300W
LD-MD-UNV LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 150W, 200W, 300W View Spec Sheet
LD-EDM LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC 60W
LTP Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
PSD Electronic Dimmable Power Supply, 12VDC or 24VDC 15W, 24W, 60W, 90W
DIMENSION
16’-4” (5M reel) 100’ (30M reel)
(8mm)
.039” (1mm) Cuttable every 2” (51mm)
CONNECTORS
BLANK
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
LED-CHL
LED-CHL-6
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL N/A
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole N/A
LED-CHL-MC (2) Additional mounting clips for LED-CHL
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'
PER SCHEDULE COLORS LED
LTR-P Professional Series
3W, 12VDC and 24VDC
LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Includes Sure-Tite connectors
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
SPECIFICATIONS
ELECTRICAL
• 12V/24V
• 3 watts per foot
OPTICS
• 90+ CRI
CERTIFICATION
• ETL (12V) / UL (24V)
• Title 24 compliant when used with used with specific drivers. Consult factory.
• Class 2
• Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space
WARRANTY
• 5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for
only and does not cover any labor or incidental charges related to
or warranty.
BLANK
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
RECOMMENDED DRIVERS
LD-XD-UNV LineDrive Electronic Multi-Dimmable Power Supply, 12VDC or 24VDC 20W, 40W, 60W, 96W, 180W, 200W, 300W
LD-E-UNV LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 200W, 300W
LD-MD-UNV LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 150W, 200W, 300W View Spec Sheet
LD-EDM LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC 60W
LTP Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
PSD Electronic Dimmable Power Supply, 12VDC or 24VDC 15W, 24W, 60W, 90W
DIMENSION
16’-4” (5M reel) 100’ (30M reel)
(8mm)
.039” (1mm) Cuttable every 2” (51mm)
CONNECTORS
BLANK
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
LED-CHL
LED-CHL-6
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole. N/A
LED-CHL-MC (2) Additional mounting clips for LED-CHL
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'
PER SCHEDULE NORA
NIOB-2RNB
2" Iolite Round Bullnose
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
2" Iolite Round Bullnose - Dedicated Housing Required Color Temperature
NIOB-2RNBCDX = Comfort Dim † /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing) * 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-28 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-215 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum / 1500lm / 20W
NHIOICD-220 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum / 2000lm / 24W
NHIOICD-225 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum / 2500lm / 28W
PER SCHEDULE NORA
NIOB-2RNB
2" Iolite Round Bullnose
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
2" Iolite Round Bullnose - Dedicated Housing Required Color Temperature
NIOB-2RNBCDX = Comfort Dim † /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing) * 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-28 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-215 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum / 1500lm / 20W
NHIOICD-220 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum / 2000lm / 24W
NHIOICD-225 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum / 2500lm / 28W
PER SCHEDULE NORA
NIOB-2RNB
2" Iolite Round Bullnose
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
2" Iolite Round Bullnose - Dedicated Housing Required Color Temperature
NIOB-2RNBCDX = Comfort Dim † /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing) * 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-28 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-215 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum / 1500lm / 20W
NHIOICD-220 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum / 2000lm / 24W
NHIOICD-225 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum / 2500lm / 28W
PER SCHEDULE NORA
NIOB-2RNB
2" Iolite Round Bullnose
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
2" Iolite Round Bullnose - Dedicated Housing Required Color Temperature
NIOB-2RNBCDX = Comfort Dim † /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing) * 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-28 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-215 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum / 1500lm / 20W
NHIOICD-220 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum / 2000lm / 24W
NHIOICD-225 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum / 2500lm / 28W
PER SCHEDULE NORA
NIOB-2RNB
2" Iolite Round Bullnose
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
2" Iolite Round Bullnose - Dedicated Housing Required Color Temperature
NIOB-2RNBCDX = Comfort Dim † /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing) * 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-28 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-215 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum / 1500lm / 20W
NHIOICD-220 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum / 2000lm / 24W
NHIOICD-225 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum / 2500lm / 28W
PER SCHEDULE NORA
NIOB-2RNB
2" Iolite Round Bullnose
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
2" Iolite Round Bullnose - Dedicated Housing Required Color Temperature
NIOB-2RNBCDX = Comfort Dim † /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing) * 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-28 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-215 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum / 1500lm / 20W
NHIOICD-220 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum / 2000lm / 24W
NHIOICD-225 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum / 2500lm / 28W
PER SCHEDULE NORA
NIOB-2RNB
2" Iolite Round Bullnose
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
2" Iolite Round Bullnose - Dedicated Housing Required Color Temperature
NIOB-2RNBCDX = Comfort Dim † /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing) * 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-28 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-215 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum / 1500lm / 20W
NHIOICD-220 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum / 2000lm / 24W
NHIOICD-225 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum / 2500lm / 28W
PER SCHEDULE NORA
NIOB-2RNB
2" Iolite Round Bullnose
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
2" Iolite Round Bullnose - Dedicated Housing Required Color Temperature
NIOB-2RNBCDX = Comfort Dim † /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing) * 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-28 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-215 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum / 1500lm / 20W
NHIOICD-220 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum / 2000lm / 24W
NHIOICD-225 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum / 2500lm / 28W
PER SCHEDULE NORA
NIOB-2RC
2" Iolite Round Adjustable Cone Reflector
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Notes
PRODUCT IMAGES & DIMENSIONS
NIOB-2RC Round Adjustable Cone Regressed Reflector Adjustability: New Construction: 30° (800-1000lm) / 25° (1500-2500lm) Remodel: 15° (800-1000lm) 3-5/8" Color Temperature Finish Lumens / Wattage
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm
PER SCHEDULE NORA
NIOB-2RC
2" Iolite Round Adjustable Cone Reflector
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Notes
PRODUCT IMAGES & DIMENSIONS
NIOB-2RC Round Adjustable Cone Regressed Reflector Adjustability: New Construction: 30° (800-1000lm) / 25° (1500-2500lm) Remodel: 15° (800-1000lm) 3-5/8" Color Temperature Finish Lumens / Wattage
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm
PER SCHEDULE NORA
NIOB-2RC
2" Iolite Round Adjustable Cone Reflector
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Notes
PRODUCT IMAGES & DIMENSIONS
NIOB-2RC Round Adjustable Cone Regressed Reflector Adjustability: New Construction: 30° (800-1000lm) / 25° (1500-2500lm) Remodel: 15° (800-1000lm) 3-5/8" Color Temperature Finish Lumens / Wattage
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm
PER SCHEDULE NORA
NIOB-2RC
2" Iolite Round Adjustable Cone Reflector
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Notes
PRODUCT IMAGES & DIMENSIONS
NIOB-2RC Round Adjustable Cone Regressed Reflector Adjustability: New Construction: 30° (800-1000lm) / 25° (1500-2500lm) Remodel: 15° (800-1000lm) 3-5/8" Color Temperature Finish Lumens / Wattage
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm
PER SCHEDULE NORA

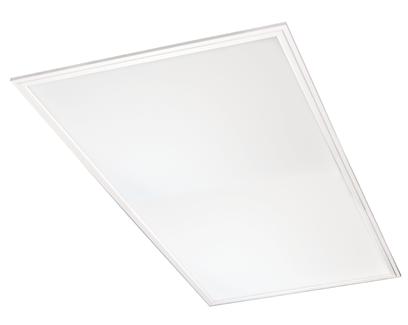

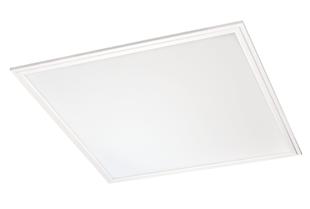

NPDBL
LED Backlit Panels
Source: 30W to 45W LED 3500lm to 5700lm
PRODUCT DESCRIPTION
LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired. The white diffused lens optimizes output while diffusing LED diode image.
SPECIFICATION
Construction: An array of LED s are mounted on the back of aluminum frame. White opalescent diffused lens optimizes output while reducing LED diode image. The construction seals the conditioned air from the plenum or non-conditioned air, eliminates bugs or dirt getting to top of lens for sav ings on maintenance cost.
Lens: PMMA (Polymethyl methacrylate) lens is lightweight and shatter resistant.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Installation: The luminaire fits into standard 15/16" and narrow 9/16" T-grid ceiling systems. Wiring compartment is on the back of panel and includes replaceable driver, which is accessible via a service door secured with two screws. Wiring compartment consists of three 1/2" knockouts for romex or flex wiring
ELECTRICAL
Input: 120-347V
Lumens / Wattage:
2' x 2': 3500lm / 30W
2' x 4': 5700lm / 45W
Color Temperature: Dedicated CCT (3000K, 4000K or 5000K) or Selectable CCT (2'x2' only)
2' x 2': Dedicated CCT (3000K, 4000K or 5000K) or Selectable CCT (3000K / 3500K / 4000K)
2' x 4': Dedicated 5000K
Color Rendering Index: 80+CRI
Operating Temperature: 0°C to 45°C
Lifetime: 60,000 hours @ L70
Dimming: 0-10V dimming down to 5%
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
ACCESSORIES
NPDBL-JB4X4: 4" Junction Box to allow panels to be daisy chained (4-in / 4-out)
NPDBL-22DFK/W: 2'x2' Surface Mount Frame to allow panels to be mounted over junction box
NPDBL-24DFK/W: 2'x4' Surface Mount Frame to allow panels to be mounted over junction box
NPDBL-22DDFK/W: 2'x2' Surface Mount Frame for panels with emergency
NPDBL-24DDFK/W: 2'x4' Surface Mount Frame for panels with emergency
NPDBL-22RFK/W: 2'x2' Recessed Mounting Kit to allow panels to be recessed into hard ceiling
NPDBL-24RFK/W: 2'x4' Recessed Mounting Kit to allow panels to be recessed into hard ceiling
NPDBL-PKW: Pendant Mounting Kit to suspend panels from monopoint canopy
Emergency: Luminaire can be specified with 120-277V emergency battery with remote test switch Battery operates luminaire at 7W for 90 minute emergency operation on fully charged battery.
Note: EM option not compatible with pendant mounting kit accessory
LABELS AND LISTINGS
cULus Listed for Damp Locations
· 5-Year Limited Warranty
DLC Listed FCC certified
RoHS compliant
LED Backlit Panels with Dedicated CCT
Size / Lumens / Wattage Color Temperature Options
NPDBL-E22 = 2' x 2' / 3500lm / 30W /334W = Selectable CCT (3000K / 3500K / 4000K) /30W = 3000K /40W = 4000K /50W = 5000K EM = Emergency with Remote Test Switch
NPDBL-E24 = 2' x 4' / 5700lm / 45W /50W = 5000K EM = Emergency with Remote Test Switch
Example: NPDBL-E24/50W = 2' x 4' LED Backlit Panel, 5700lm

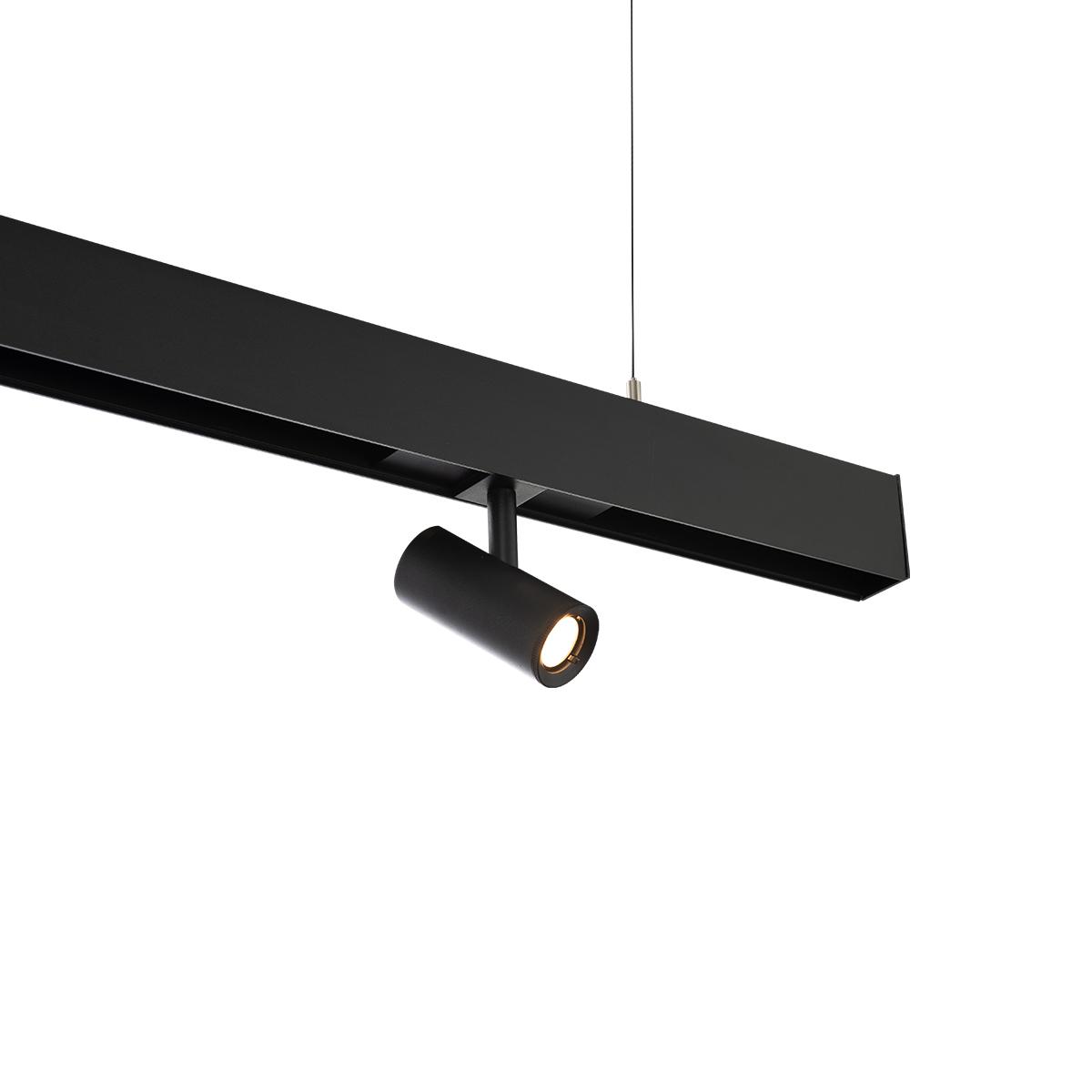

The only lighting, power, and control system complete with lighting elements designed for discriminating performance. Configure VENTRIX for your retail, restaurant, commercial office, or residential lighting plan.
FEATURES
• Adjustable accent elements with your choice of 15°-40° Dynamic Focus or Fixed Beam high lumen output elements at 15° Spot, 25° Narrow Flood, or 35° Flood via factory installed TIR lens.
• Stealth armature with 360° horizontal rotation and 90° vertical aiming
• Accepts one lens and glare control accessory
• To enable access to VENTRIX element releasing tabs, maintain at least 3” of free channel space
• Driver concealed within the fixture
• 5 year warranty
SPECIFICATIONS
Construction Die-cast aluminum with rotatable front face
LED Landscape surface mount indicator luminaire for both soft and hard ground applications. The indicator light is perfect for outdoor applications, including wells and ponds, decks and patios, inground, as well as ceiling and wall applications.
FEATURES
• Slim low profile design-surface mount installation
• IP68 rated, Suitable for continuous immersion under water
• Factory sealed water tight fi xtures
• Solid stainless steel construction
• 10’ lead wire and direct burial gel filled wire nuts included
• Maintains constant lumen output against voltage drop
• UL 1838 Listed
• MLV dimmable with remote MLV dimmer
ORDERING NUMBER
2541-30_____
Example: 2541-30SS
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Input: 9 - 15VAC (Transformer is required)
Power: 2.8W / 3.2 VA (Use VA value for sizing the transformer and calculate voltage drop.)
Brightness: 50lm
Beam Angle: 90° CRI: 85
Rated Life: 60,000 hours

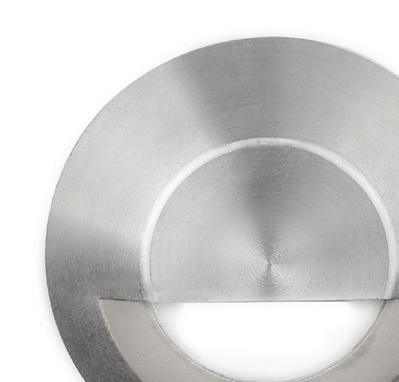

2" INGROUND - CIRCLE STEP LIGHT

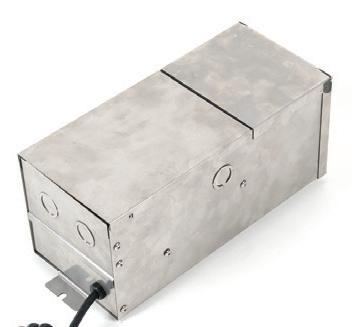

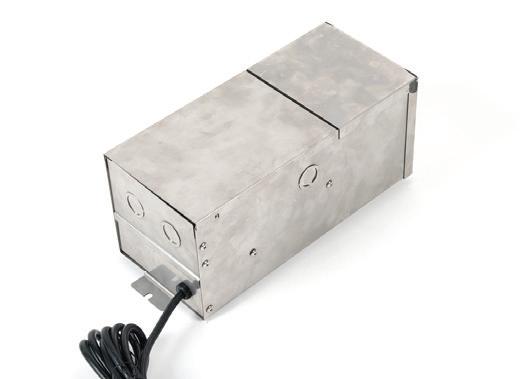

Magnetic Transformers
Stainless Steel, 12-15V output, IP65 rated, uL 1838 listed See transformer spec sheet for details and its accessories
*Low end of this range is determined by output current which may not directly translate to the perceived light output
WAC Lighting fixtures are compatible with a variety of dimmers. For your convenience we have included a compatibility chart showing dimmers which have been tested with our products. The recommended list below is based upon testing conducted in a lab, and the results can vary in certain field applications due to a number of factors. Exclusion from the list does not imply incompatibility, just that it has not been tested by WAC Lighting. Please reference the dimmer manufacturer’s instructions for installation, or contact a WAC lighting professional at 800-526-2588.

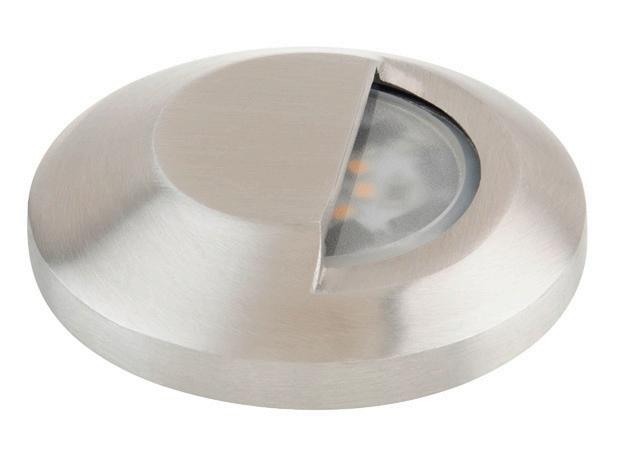

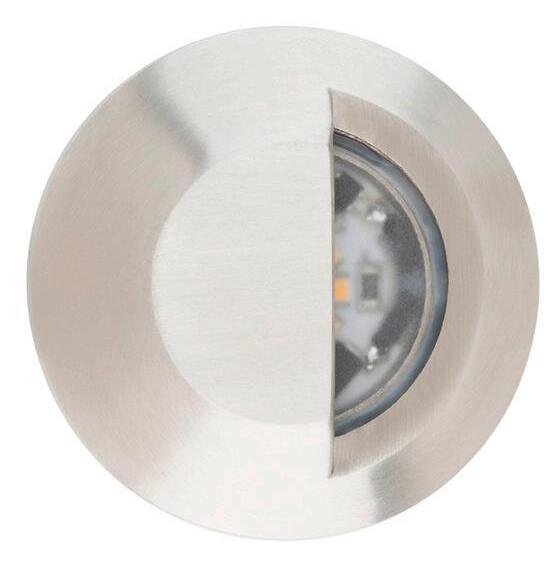

2” SURFACE MOUNT STEP LIGHT
Magnetic Transformers
9075-TRN-SS 75W Max
9150-TRN-SS 150W Max
Stainless Steel, 12-15V output, IP65 rated, uL 1838 listed See transformer spec sheet for details and its accessories
9300-TRN-SS 300W Max
9600-TRN-SS 600W Max

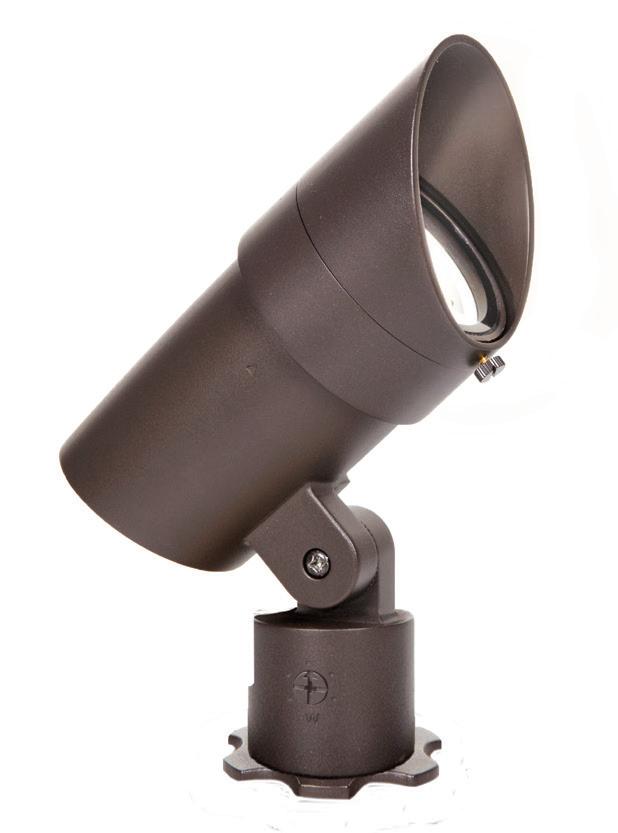

GRAND ACCENT 12V
PRODUCT DESCRIPTION
Landscape accent luminaire. One fixture replaces all older halogen landscape accent lights
FEATURES
• Adjustable and lockable beam angle
• Integral dimmer
• IP66 rated, Protected against high-pressure water jets
• Includes a detachable shroud
• Solid diecast brass or corrosion resistant aluminum
• Factory sealed water tight fixtures
• 6' lead wire and direct burial gel filled wire nuts
• Maintains constant lumen output against voltage drop
• UL 1838 Listed
• MLV dimmable with remote MLV dimmer
Fixture Type:
Catalog Number:
Project:
Location:
5211-_______
Example: 5211-40BK
SPECIFICATIONS
Input: Power:
Brightness: Beam Angle: CRI: Rated Life: 9 - 15VAC (Transformer is required) 15W to 35W / 21VA - 44VA (Use VA value for sizing the transformer and calculate voltage drop.)
740 lm to 2000 lm 15° to 60° 85 45,000 hours
GRAND ACCENT 12V
PRODUCT DESCRIPTION
Landscape accent luminaire. One fixture replaces all older halogen landscape accent lights
FEATURES
• Adjustable and lockable beam angle
• Integral dimmer
• IP66 rated, Protected against high-pressure water jets
• Includes a detachable shroud
• Solid diecast brass or corrosion resistant aluminum
• Factory sealed water tight fixtures
• 6' lead wire and direct burial gel filled wire nuts
• Maintains constant lumen output against voltage drop
• UL 1838 Listed
• MLV dimmable with remote MLV dimmer
ORDERING NUMBER
5211-_______
Example: 5211-40BK
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Input: Power:
Brightness: Beam Angle: CRI: Rated Life: 9 - 15VAC (Transformer is required) 15W to 35W / 21VA - 44VA (Use VA value for sizing the transformer and calculate voltage drop.) 740 lm to 2000 lm 15° to 60° 85 45,000 hours

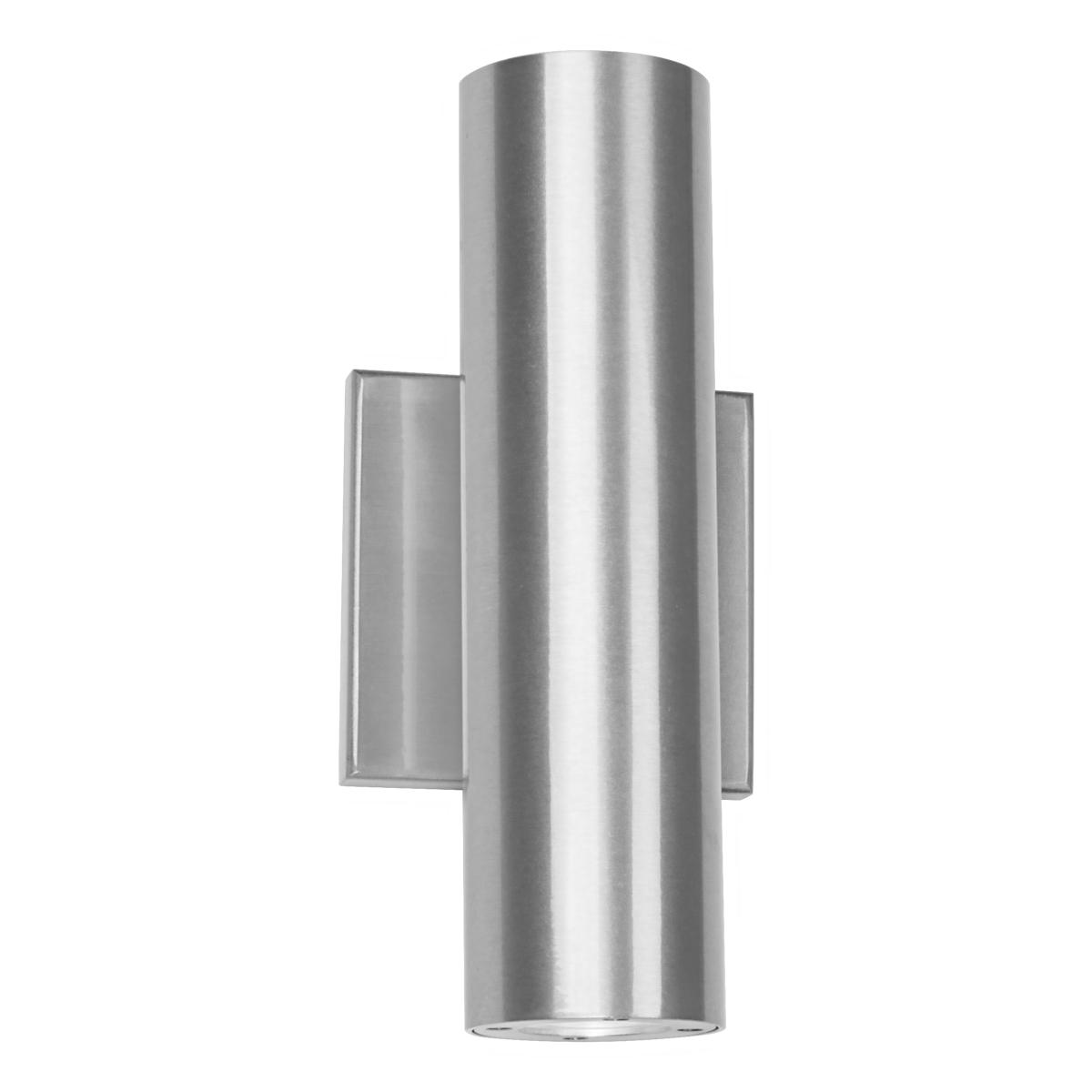

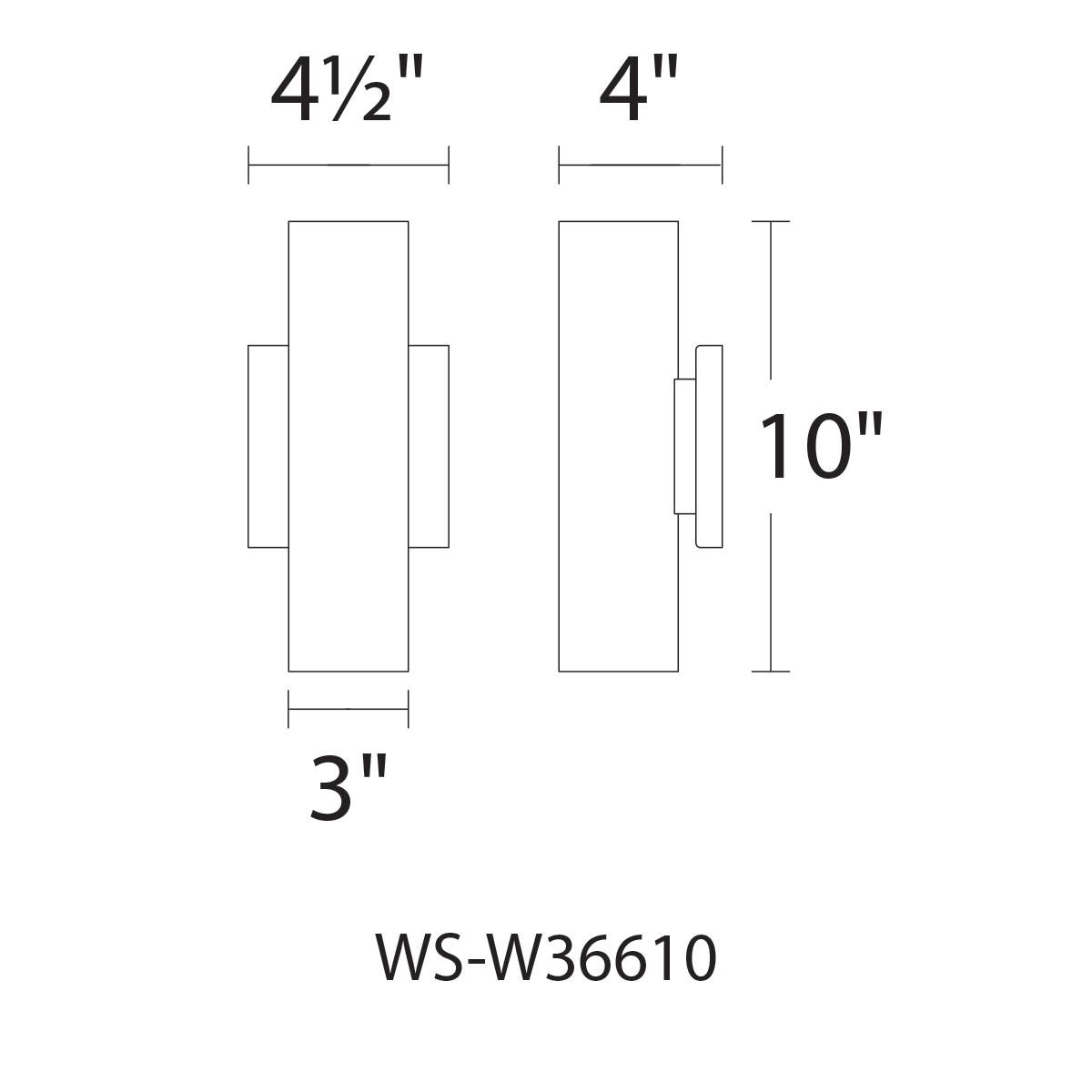

Caliber
Outdoor Wall Sconce 3000K
Model & Size
WS-W36610 10"
- 1 Light 3000K - 90
Fixture Type:
Catalog Number:
Project:
Location:
Example: WS-W36610-BZ
For custom requests please contact customs@waclighting.com
DESCRIPTION
Light projection tuned with precision.
FEATURES
• Discrete cylinder with minimal mounting hardware
• Weather-resistant powder coated finish
• WS-W36614 is Up & down light, WS-W36610 is one direction
• Light engine is factory sealed for maximum protection from the elements
• Driver concealed within the fixture
• 5 year warranty
SPECIFICATIONS
Color Temp: 3000K
Input: 120-277V,50/60Hz CRI 90
Dimming: ELV: 100-10%
Rated Life: 72,000 Hours
Mounting: Can be mounted on wall vertically or horizontally
Standards: ETL, cETL, ADA, Wet Location Listed
Construction Aluminum hardware with lens diffuser
FINISHES:
Caliber
Outdoor Wall Sconce 3000K
Fixture Type:
Catalog Number:
Project:
Location:
Model & SizeColor Temp & CRI WattLumensFinish
WS-W36610 10"
- 1 Light 3000K - 90 11W560 AL Brushed Aluminum
Example: WS-W36610-BZ
For custom requests please contact customs@waclighting.com
DESCRIPTION
Light projection tuned with precision.
FEATURES
• Discrete cylinder with minimal mounting hardware
• Weather-resistant powder coated finish
• WS-W36614 is Up & down light, WS-W36610 is one direction
• Light engine is factory sealed for maximum protection from the elements
• Driver concealed within the fixture
• 5 year warranty
SPECIFICATIONS
Color Temp: 3000K
Input: 120-277V,50/60Hz CRI 90
Dimming: ELV: 100-10%
Rated Life: 72,000 Hours
Mounting: Can be mounted on wall vertically or horizontally
Standards: ETL, cETL, ADA, Wet Location Listed
Construction Aluminum hardware with lens diffuser
FINISHES:

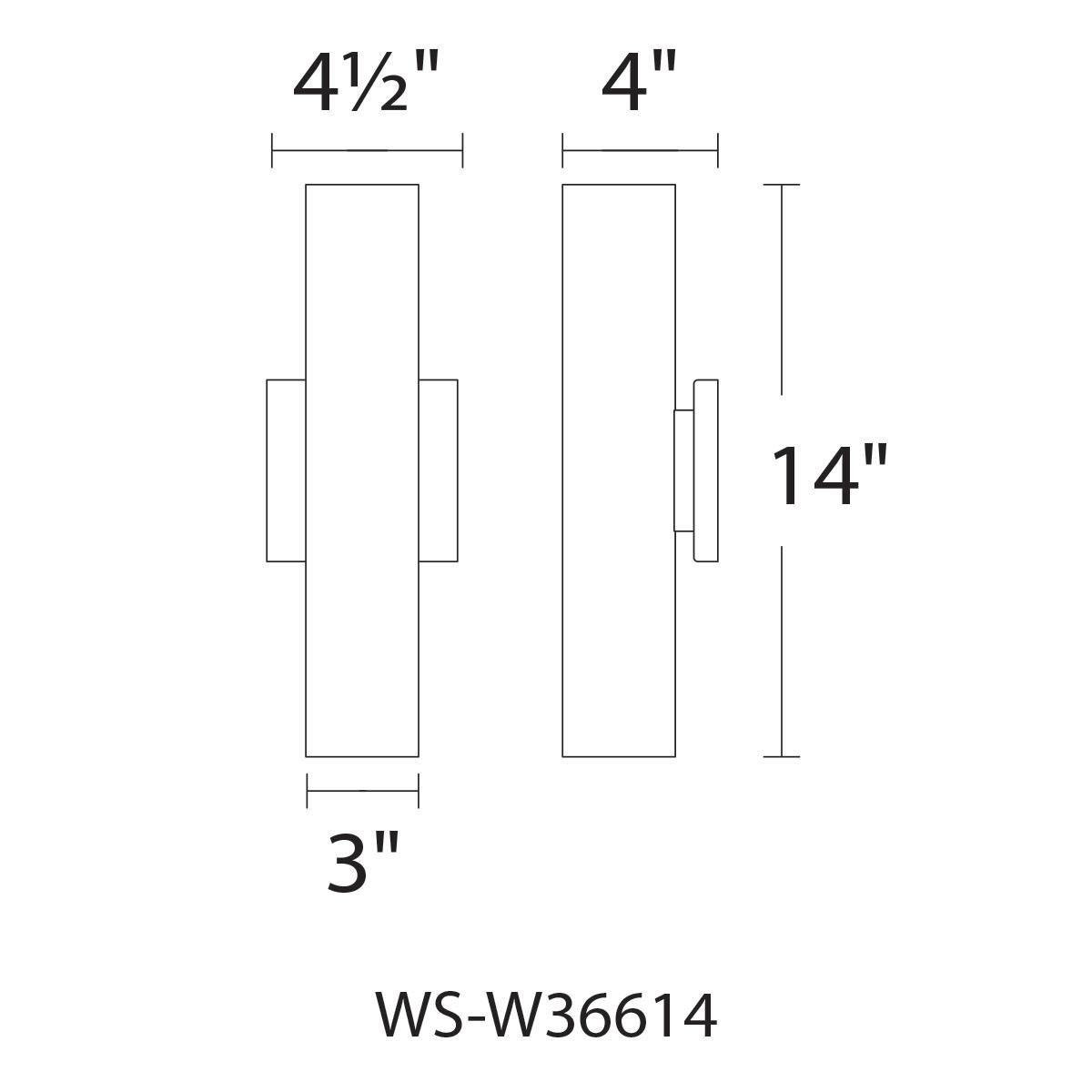

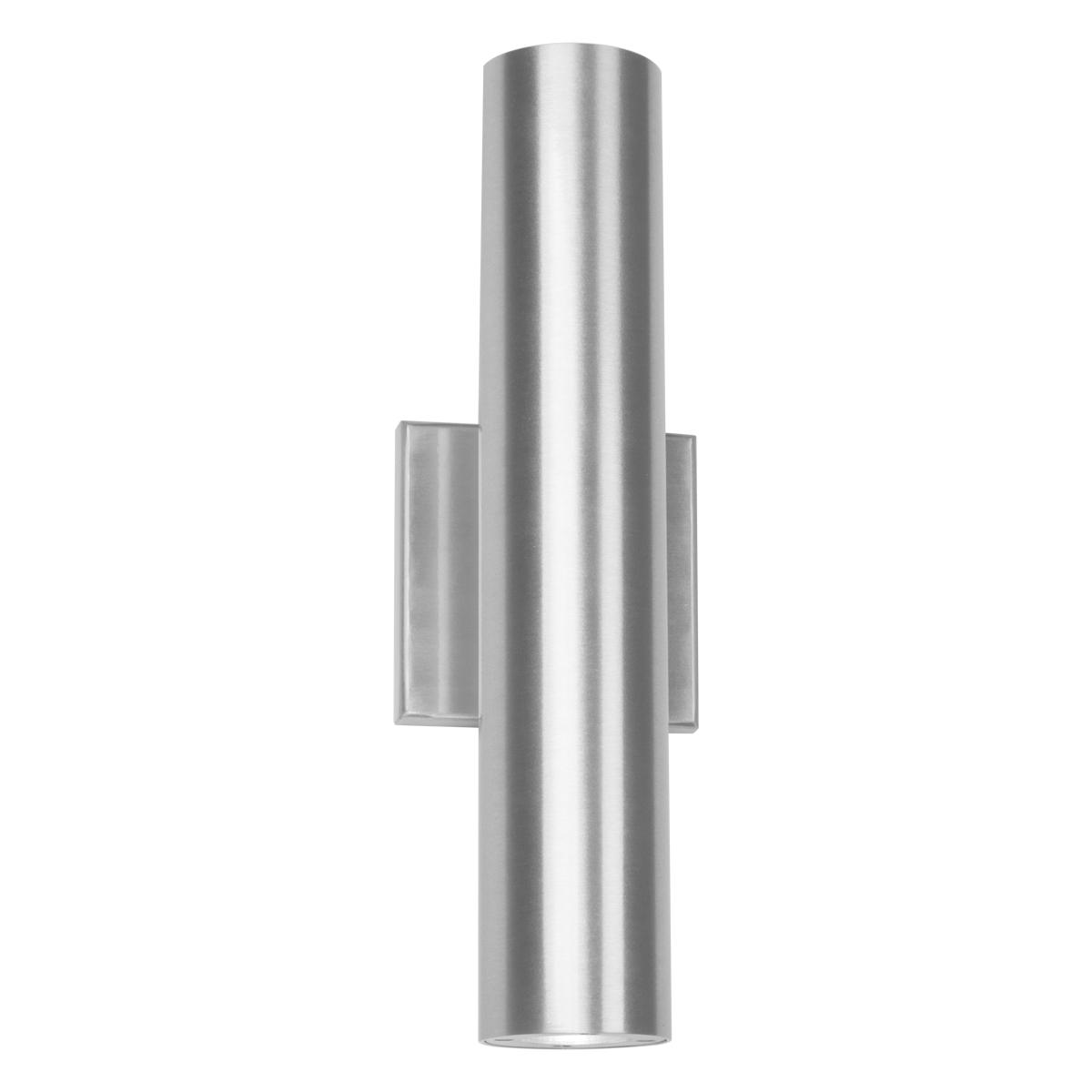

Caliber
Outdoor Wall Sconce 3000K
Fixture Type:
Catalog Number:
Project:
Location:
Model & SizeColor Temp & CRI WattLumensFinish
WS-W36614 14"
- 2 Lights 3000K - 90
21W1140 AL Brushed Aluminum
Example: WS-W36614-BZ
For custom requests please contact customs@waclighting.com
DESCRIPTION
Light projection tuned with precision.
FEATURES
• Discrete cylinder with minimal mounting hardware
•Weather-resistant powder coated finish
•WS-W36614 is Up & down light, WS-W36610 is one direction
•Light engine is factory sealed for maximum protection from the elements
•Driver concealed within the fixture
•5 year warranty
SPECIFICATIONS
Color Temp: 3000K
Input: 120-277V,50/60Hz CRI 90
Dimming: ELV: 100-10%
Rated Life: 72,000 Hours
Mounting: Can be mounted on wall in all orientations
Standards: ETL, cETL, ADA, Wet Location Listed
Construction Aluminum hardware with lens diffuser
FINISHES:
BLANK
MINI ACCENT LED PATH
PRODUCT DESCRIPTION
Landscape mini accent luminaire. One xture replaces all older halogen landscape accent lights
