TYPE B SPEC HORIZON OAKLAND PARK
PROJECT NAME:
ORDERING CODE:
MATERIALS

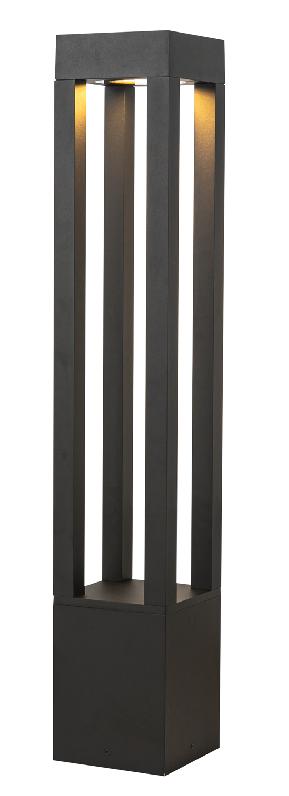

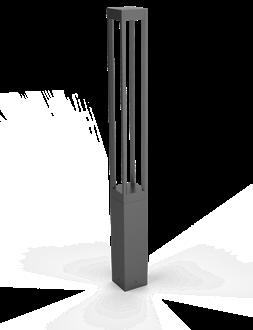

➀ Heavy cast aluminum top cover.
➁ Optical system assembly.
➂ 4x extruded aluminum struts.
➃ Cast aluminum driver housing.
➄ 4” (102mm) x 4” (102mm) extruded aluminum square body.
➅ Cast aluminum mounting base.

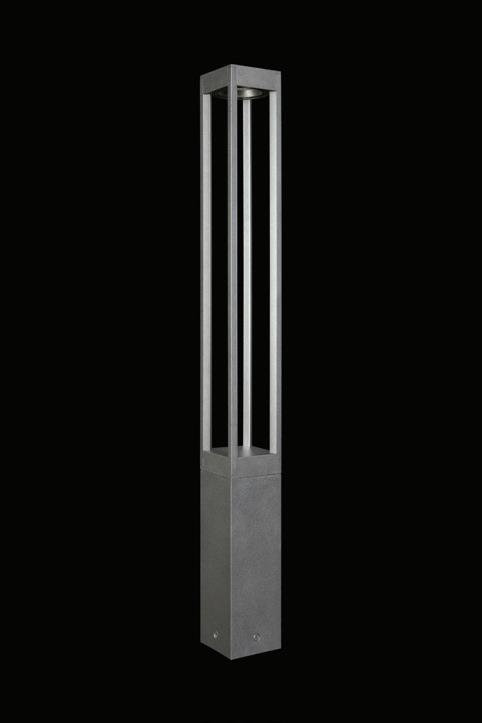

Lumiquad bollard is made of corrosion resistant 356 aluminum alloy with a copper (CU) content of less than 0.1%.
ELECTRICAL DRIVER
Driver is 0-10V dimming-ready (dims to 10%) with: 120-277 multi-volt compatibility (50-60Hz), operating temperatures of -40°C/-40°F to 55°C/131°F, output over voltage protection, output over current protection, output short circuit protection with autorecovery.
LED LIGHT ENGINE
Offered in 2700K/3000K/3500K/4000K CCT with 80 CRI. 70% LED lumen maintenance at 60,000 hours (L70/B50) based on IESNA LM-80-08 LED extrapolated life, calculated per IESNA TM-21-21. Optional true amber LED for turtle sensitive areas. Wavelengths: 585nm to 597nm.
FINISH
Five-stage preparation process includes preheating of cast aluminum parts for air extraction. Polyester powder coating is applied through an electrostatic process, and oven cured for long term finish.
CERTIFICATION
UL Certified to Canadian and U.S. safety standards. Certified for use in wet locations. Rated IP65. Photometric testing performed by an independent laboratory in accordance with IES LM-79-08 standards at 25°C. Actual performance may differ as a result of end-user environment and application.
WARRANTY
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: https://www.acuitybrands.com/ support/warranty/terms-and-conditions
MOUNTING

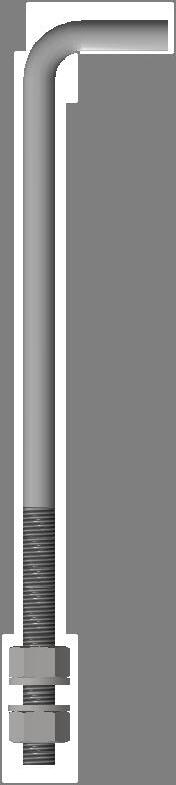

Mounts with a set of 4 x 3/8”-16 x 3 3/4” lg. galvanized anchor bolts.
MEASUREMENTS
Toll
LQ427
HORIZON OAKLAND PARK
PROJECT

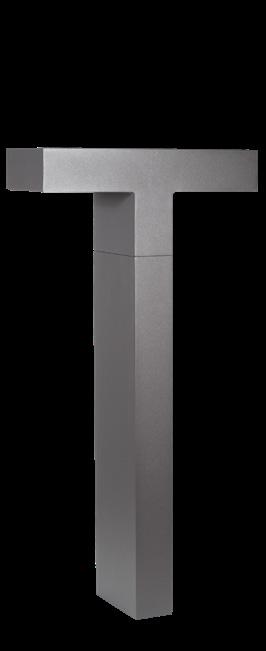

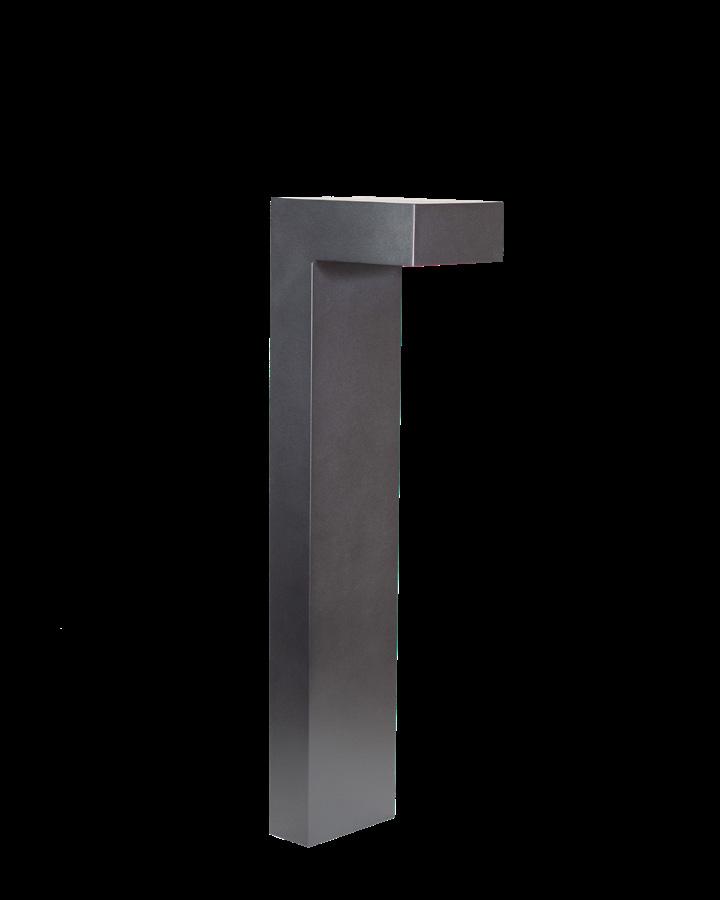

EB42936-BK-UNV Black
SPECIFICATION DETAILS
Fixture Dimensions L6-3/8" x W6-3/8" x H35-7/8"
Light Source LED with DC Driver
Lumens BK-2241lm Voltage 120-277V Color Temperature 3000K
CRI (Ra) 90CRI
Optional Color Temps 2700K - 5000K Available, Minimum Order Quantities Apply
LED Rated Life 50,000 hours
Dimming 100% - 10%, TRIAC or ELV Dimmer (Not Included)
Glass Details Clear High Impact Glass
Location Wet, IP65
Illumination Direction Down Paint Finish BK02
*For custom options, consult factory for details
*For warranty information, please visit www.kuzcolighting.com/warranty Material Aluminum + Glass
DESCRIPTION
Architectural designed high powered LED exterior bollard fixture, high pressure die-cast aluminum square-shaped housing with four rectangular-shaped openings which radiates the light downward and throughout all openings and surrounding areas of the bollard. Available in two different heights and IK10 Rated.
COMMENT
6-3/8” Finish BK - Black
TYPE B SPEC HORIZON OAKLAND PARK
LQ427 Static White
L1L10 1039 lm/14w
L1L20 2078 lm/31w
True Amber
L1LK2A 301 lm/12w 1
Delivered lumens calculated at 4000K/80CRI except for amber. Type V distribution. Refer to reference table for outputs at other distribution types. Typical power consumption. Refer to LCF table for outputs at other CCTs.
CRY Cherry KNP Knotty pine MPL Maple OFL Oak RSW Rosewood TEK Teak WLN Walnut
*- Denotes a required field
1- Available only with AMB.
2- For IDA certification compliance, luminaire must be ordered with 3000K or warmer.

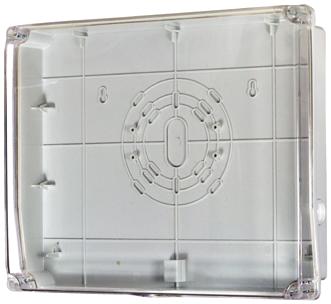

3- Remote mount 50ft - 12” square enclosure with access cover. Not available with 347V, 480V, HVOLT or PH. Cable between fixture and remote box is provided by other.
4- Installed on back side when distribution LD2 is selected.
6- Not available with any BLS option. Not available with LD2 or LD5.
7- Contact factory to coordinate custom matching color.
8- Specify RAL number.
9- Faux wood finish not applied to the fixture head or accessories. Additional delay required. Not compatible with marine grade paint.
10- Marine grade paint for harsh, coastal environment and exposure to salt water. Additional delay required.
BLANK

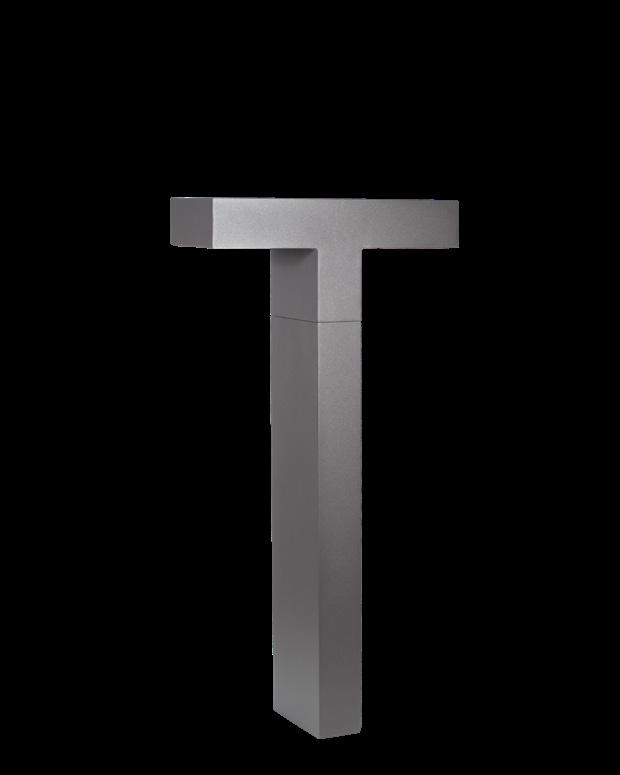

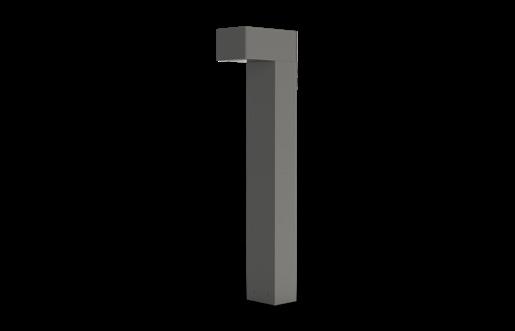

TYPE B1 SPEC HORIZON OAKLAND PARK
PROJECT NAME:
ORDERING CODE:
MATERIALS
➀ Front cover constructed of corrosion resistant aluminum.
➁ 4.5” (114mm) x 6” (152mm) Extruded aluminum optical chamber.
➂ Available in configurations of 9 LEDs or 18 LEDs.
➃ Clear tempered glass.
➄ 4.5” (114mm) x 6” (152mm) 6063-T6 aluminum pole. 0.125” wall thickness. All stainless steel hardware.
Bellevue bollard is made of 6063-T6 extruded aluminum alloy. LED board is assembled on a thick extruded aluminum profile and protected by a clear tempered glass. The acrylic optics provide a wide range of IES type distribution. The driver is mounted inside the fixture which is accessible from the back of the fixture head for ease of maintenance.
ELECTRICAL DRIVER
Driver is 120-277V multi-volt compatibility (50-60Hz), 0-10V dimmingready (dims to 10%). Optional 347/480V, operating temperatures of -40°C/-40°F to 55°C/131°F, output over voltage protection, output over current protection, output short circuit protection with auto-recovery.
LED LIGHT ENGINE
Type I, II, III, IV light distribution via high performance optical lenses. Offered in 2700K, 3000K, 3500K, 4000K / 80 CRI. 70% LED lumen maintenance at 60,000 hours (L70/B50) based on IESNA LM-80-08 LED extrapolated life, calculated per IESNA TM-21-21. Optional true amber LED for turtle sensitive areas. Wavelengths: 584.5nm to 597nm.
FINISH
Five-stage preparation process includes preheating of cast aluminum parts for air extraction. Polyester powder coating is applied through an electrostatic process, and oven cured for long term finish.
CERTIFICATION
UL Certified to Canadian and U.S. safety standards. Certified for use in wet locations. Rated IP65. Rated IK10. Photometric testing performed by an independent laboratory in accordance with IES LM-79-08 standards at 25°C. Actual performance may differ as a result of enduser environment and application.
WARRANTY
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: https://www.luminis.com/ technical/warranty/
MOUNTING
Bellevue is designed for ease of access and installation. The head is secured on a mounting bracket that is accessible from the inside. The base plate is secured with a set of (4) 3/8”-16 x 10” lg. galvanized hook anchor bolts.

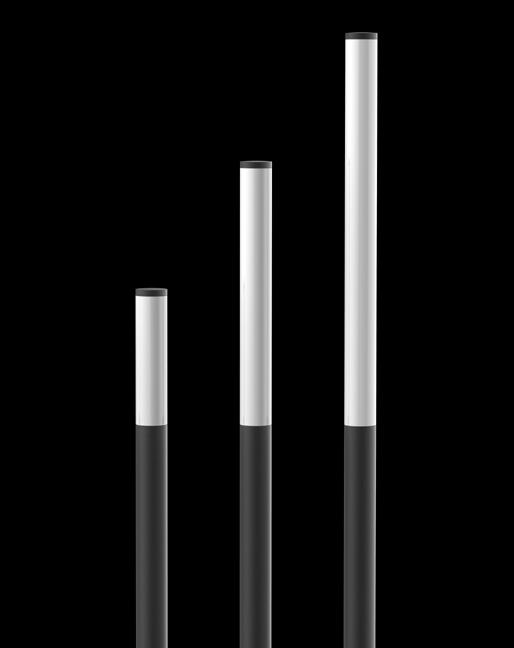

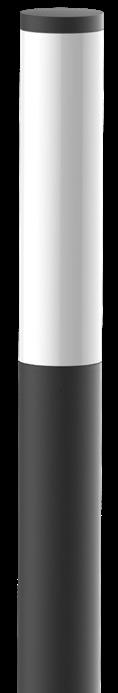

Lumux BL350 Series bollards are elegant, architectural luminaires that excel at defining spaces, both during the day and at night.
Ideal for illuminating paths and plazas, BL350 is a powerful outdoor LED solution with a distinctive minimalistic design, offering broad, mid, and narrow light distribution patterns. BL350 is constructed from heavy-duty aluminum extrusion, providing durability that meets the highest standards. The BL350 Series is offered in single (BL350) or twin (BL350-2) versions, and the shorter BL350S and BL350S-2 models. The wall mounted WS-BL350 provides the perfect compliment. BL350, BL350-2, and WS-BL350 models are offered with T2, T3, and T4 beam angle options. Part of the Lumux lighting collection that includes PL2014 area lighting.
MARINE GRADE
120277v
TYPE B1 SPEC HORIZON OAKLAND PARK
BVA11B Static White
L1L10 904 lm / 11w
L1L16 1384 lm / 19w
L1L24 1976 lm / 30w
True Amber
L1LK2A 262 lm / 8w 1
Delivered lumens calculated at 4000K/80CRI except for amber. Type IV distribution. Refer to reference table for outputs at other distribution types. Typical power consumption. Refer to LCF table for outputs at other CCTs
*- Denotes a required field
1- Available only with AMB option.
2- For IDA certification compliance, luminaire must be ordered with 3000K or warmer.
3- Not available with 480 or HVOLT.
4- GFI is installed 27” above grade on access door side. Flush cover. GFI requires 120V feed. GFI receptacle by others.
For higher lumen packages, please consult the Lumux sales team.
Light Engine: Constant Current driver with integrated 0-10v dimming, powering high quality LEDs.
Emergency Battery Pack: Optional integral 10W emergency battery pack provides 1,000 lumens with a 90 minute battery life.
Housing: Heavy-duty construction of corrosion resistant, lowcopper diecast aluminum, secured with vandal-resistant, stainless steel screws.
Lens: Sealed one-piece shatter-proof clear glass barrier over polycarbonate optics. T2, T3, and T4 Beam Angle options are only available for BL350, BL350-2, and WS-BL350.
Gasket: Closed-cell silicone foam gasket seals out moisture, dust, and insects, for weather-tight operation. IP65 - ETL listed for wet-locations.
Mounting: Secures with galvanized anchor bolts to pre-installed concrete footing.
Finish: Zinc polyester powder coat finish in black, white, silver, bronze, or any custom RAL color. Consult factory for marine grade or anti-microbial finish.
LUMUX LIGHTING
7803 Industry Ave, Pico Rivera, CA 90660 sales@lumux.com
Content of specification sheet subject to change

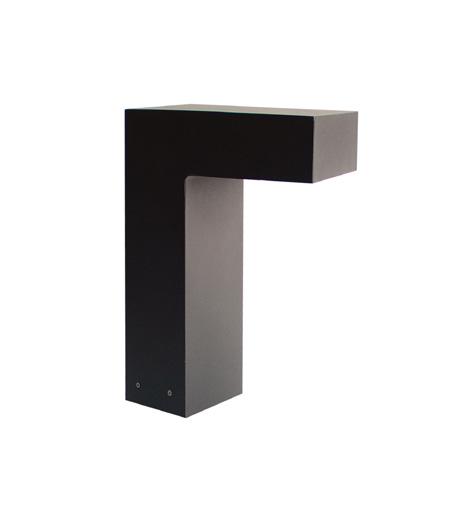

TYPE B2 SPEC HORIZON OAKLAND PARK
ELECTRICAL: 12V
WATTAGE: 2W
ENGINE: FB-LS2
LUMENS: 150
MOUNTING: EZ Spike / SPJ19-03-SP-RB Recommended
FINISHES
Matte Bronze (MBR)
Verde (V)
Moss (M)
Black (B)
Rusty (R)
Satin Brass (SB)
Aged Brass (AG)
Raw Copper (RC)
Natural Copper (NC)
PVD PREMIUM
PVD Polished (PVDP)
PVD Satin (PVDS)
PVD Graphite (PVDG)
PVD Bronze (PVDBZ)
PVD Black (PVDBL))
WATTAGELUMENS
2W 150
3W 350
Custom lumen packages are available upon request
2200K
2700K
Custom options are available
ELECTRICAL
12V 120V
MOUNTING OPTION
Anchor bolted-DM6SQ
Direct Burial-DB
DATE:
PROJECT:
FIRM:
CATALOG NO: COMMENTS:

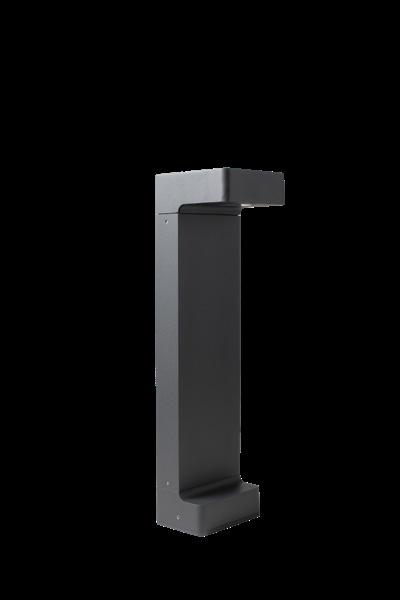

BL350 SERIES BOLLARD
Lumux BL350 Series bollards are elegant, architectural luminaires that excel at defining spaces, both during the day and at night.
Ideal for illuminating paths and plazas, BL350 is a powerful outdoor LED solution with a distinctive minimalistic design, offering broad, mid, and narrow light distribution patterns. BL350 is constructed from heavy-duty aluminum extrusion, providing durability that meets the highest standards. The BL350 Series is offered in single (BL350) or twin (BL350-2) versions, and the shorter BL350S and BL350S-2 models. The wall mounted WS-BL350 provides the perfect compliment. BL350, BL350-2, and WS-BL350 models are offered with T2, T3, and T4 beam angle options. Part of the Lumux lighting collection that includes PL2014 area lighting.
MARINE GRADE
120277v
BLANK
HORIZON OAKLAND PARK TYPE B2 ALT
DATE:
PROJECT:
FIRM:
CATALOG NO: COMMENTS:
BL350 SERIES BOLLARD
The BL350 Series offers low and medium height gateway, path, and plaza luminaires with a modern design and forward beam angle options.
Ordering Guide
GCFI Dual Receptacle WS-BL350 Custom RAL2
1 Beam Angle options only available for BL350, BL350-2 & WS-BL350.
2Consult factory for additional options
3Consult factory for additional pricing; Emergency Battery and GFCI dual receptacle are not available for BL350S-2.
Performance Specifications
Up to: Flux 2,900 lm, 39W, LER 74 lm/W (4000K) per light source
120-277v input voltage Photocell option
Starting temp. rated to -20˚F Occupancy Sensor option
Catalog No.:
Integrated 0-10v Dimming Integral Emergency Battery option
For higher lumen packages, please consult the Lumux sales team.
Light Engine: Constant Current driver with integrated 0-10v dimming, powering high quality LEDs.
Emergency Battery Pack: Optional integral 10W emergency battery pack provides 1,000 lumens with a 90 minute battery life.
Housing: Heavy-duty construction of corrosion resistant, lowcopper diecast aluminum, secured with vandal-resistant, stainless steel screws.
Lens: Sealed one-piece shatter-proof clear glass barrier over polycarbonate optics. T2, T3, and T4 Beam Angle options are only available for BL350, BL350-2, and WS-BL350.
Gasket: Closed-cell silicone foam gasket seals out moisture, dust, and insects, for weather-tight operation. IP65 - ETL listed for wet-locations.
Mounting: Secures with galvanized anchor bolts to pre-installed concrete footing.
Finish: Zinc polyester powder coat finish in black, white, silver, bronze, or any custom RAL color. Consult factory for marine grade or anti-microbial finish.
Content of specification sheet subject to change
7803 Industry Ave, Pico Rivera, CA 90660 sales@lumux.com
TYPE C SPEC HORIZON OAKLAND PARK
Downlight · Asymmetric wall washer
Application
Recessed downlights with an asymmetric distribution designed for the illumination of walls in corridors and other interior and exterior locations.
Silicone applied robotically to casting, plasma treated for increased adhesion
Galvanized steel rough in ceiling pan with through wiring junction box
Pure anodized aluminum reflector surface
Silicone optic with excellent high temperature and UV stability
NRTL listed to North American Standards, suitable for wet locations
Protection class IP 65
Weight: 4.8 lbs.
Electrical
Operating voltage 120-277V AC
Minimum start temperature -20° C
LED module wattage 11.5 W
System wattage 14.0 W
Controllability
0-10V dimming down to 1%
Color rendering index Ra > 90
Luminaire lumens 954 lm
LED service life (L70) 60000 hrs
LED color temperature
4000K (K4)
3500K (K35)
3000K (K3)
2700K (K27)
BEGA can supply you with suitable LED replacement modules for up to 20 years after the purchase of LED luminaires - see website for details
Finish
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL, custom, and premium colors provided in polyester powder and/or liquid paint.
Included (available for pre-shipment) CP24261 Ceiling pan
HORIZON OAKLAND PARK TYPE
NC3-41 / NC3-46 / NC3-48
4" Sapphire III LED Reflectors
Source: 13W to 46W 900lm to 4500lm
PRODUCT DESCRIPTION

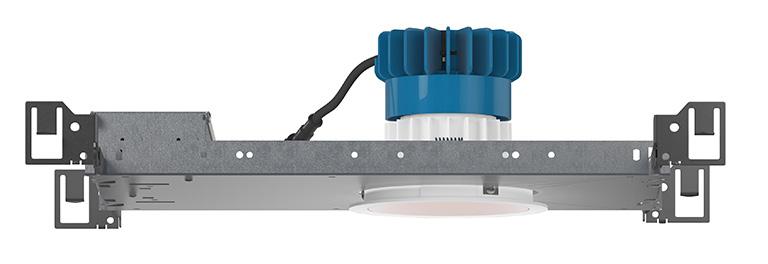

The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
FEATURES
Signify ® Fortimo COB LED technology
Specifiable beam spreads 4" deep cone reflectors, wall wash and deco glass · 2700K, 3000K, 3500K and 4000K @ 90+ CRI 5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC3-48 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Delivered Lumens 900lm1500lm2500lm3500lm4500lm
Wattage 13W max.18W max.26W max.38W max.46W max.
Color Temperature 2700K, 3000K, 3500K or 4000K
Color Rendering Index 90+ CRI
Beam Spread 38° Spot, 53° Narrow Flood or 64° Flood
Compatible Frame-In
NCH3-4L1 NCHR3-4L1
NCH3-4L2 NCHR3-4L2
NCH3-4L3 NCHR3-4L3
Lifetime 50,000 hours @ L70
Type
Project
Catalog No.
NCH3-4L4 NCHR3-4L4
NCH3-4L5 NCHR3-4L5
Decorative Glass: NC3-48 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-4SPH-FC 4" Tempered Frosted Glass with Clear Center
NTG-4SPH-HC 4" Tempered Clear Glass with Frosted Center and 3-1/8” Open Center
LABELS AND LISTINGS
c ULus Listed for Wet Locations when used with compatible frame-in 5 -Year Limited Warranty
E NERGY STAR certified
R oHS Compliant
F CC Compliant
NC3-46 = Wall Wash 1
NC3-48 = Deco Glass *, Not compatible with 4500lm L1 = 900lm / 13W
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS: Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.

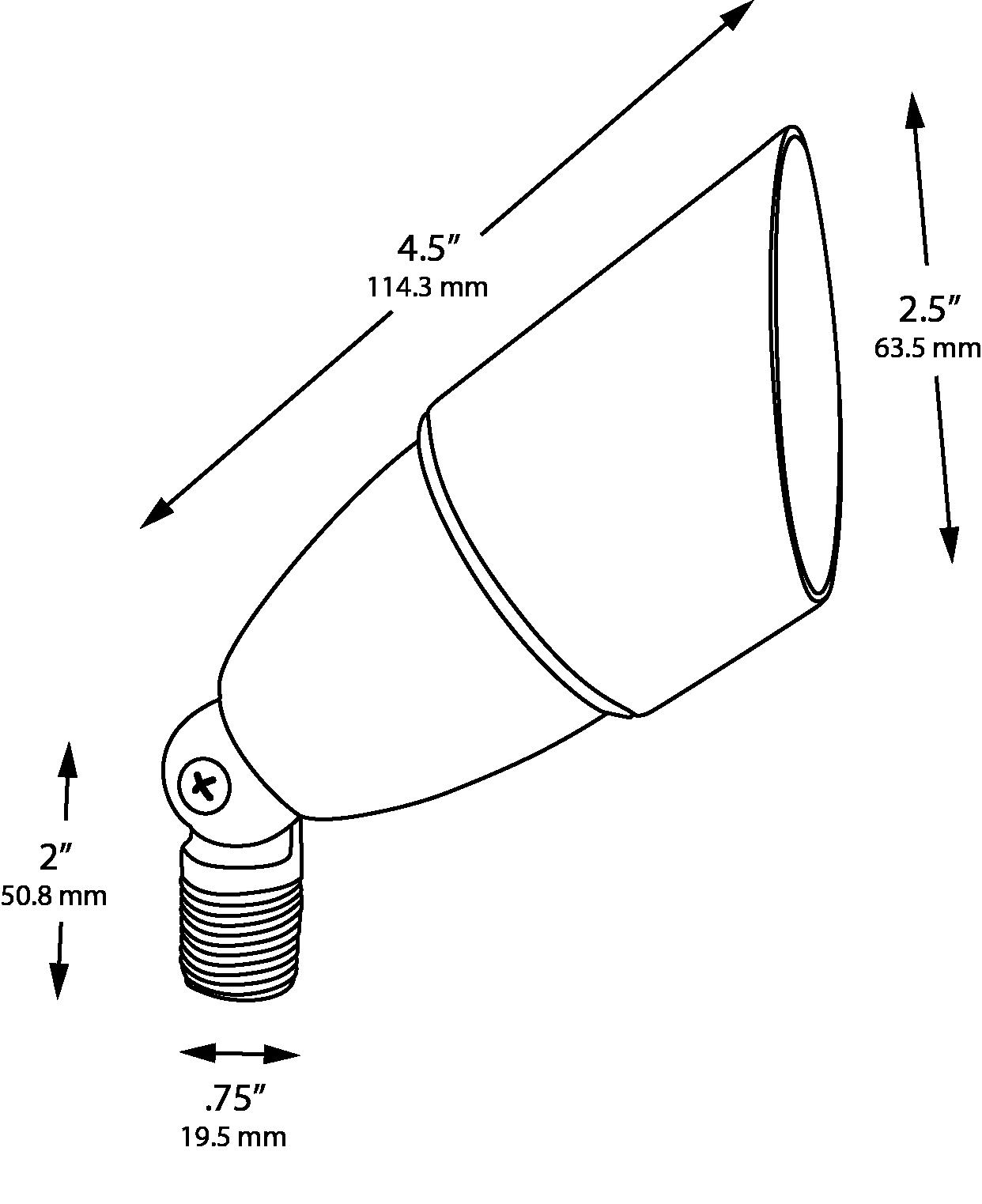

DIMENSIONS:
Type:
Model:
SPECIFICATION SHEET

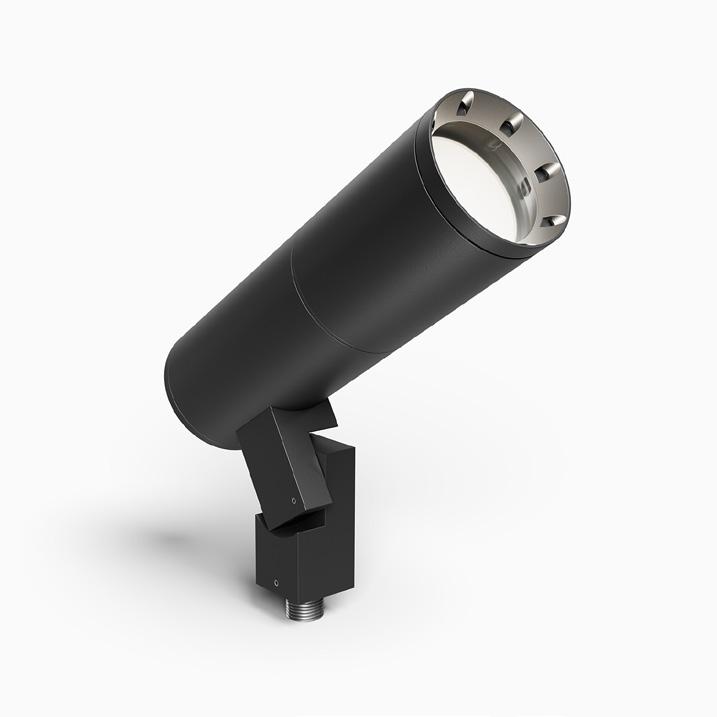

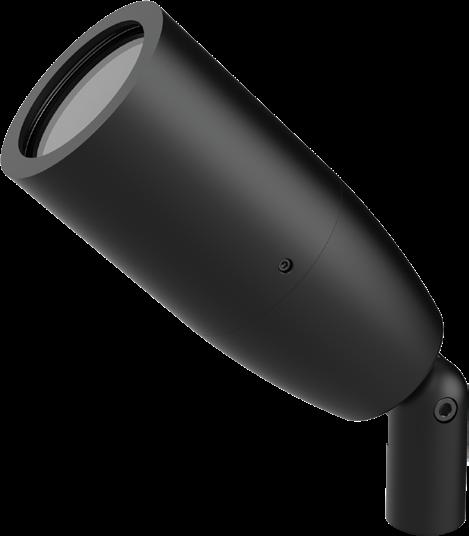

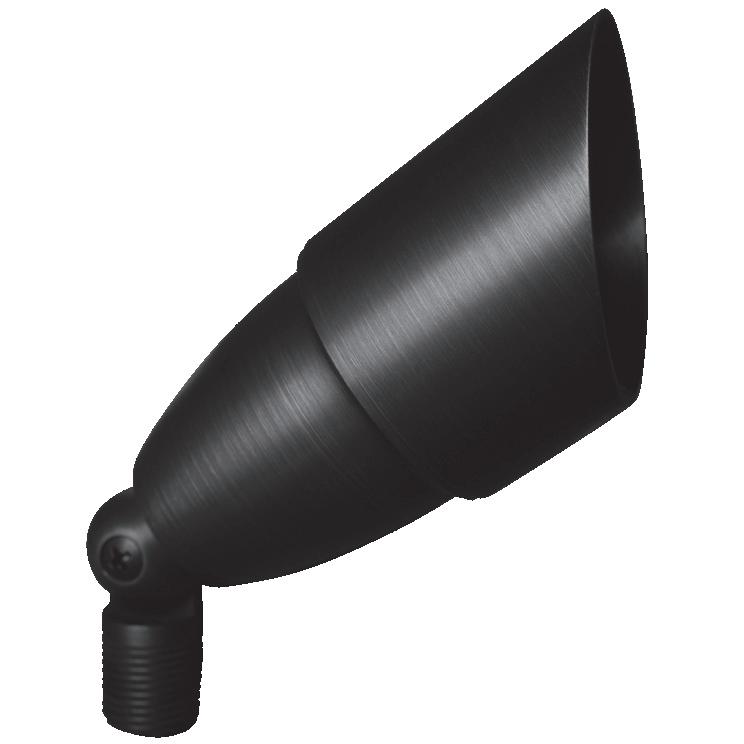

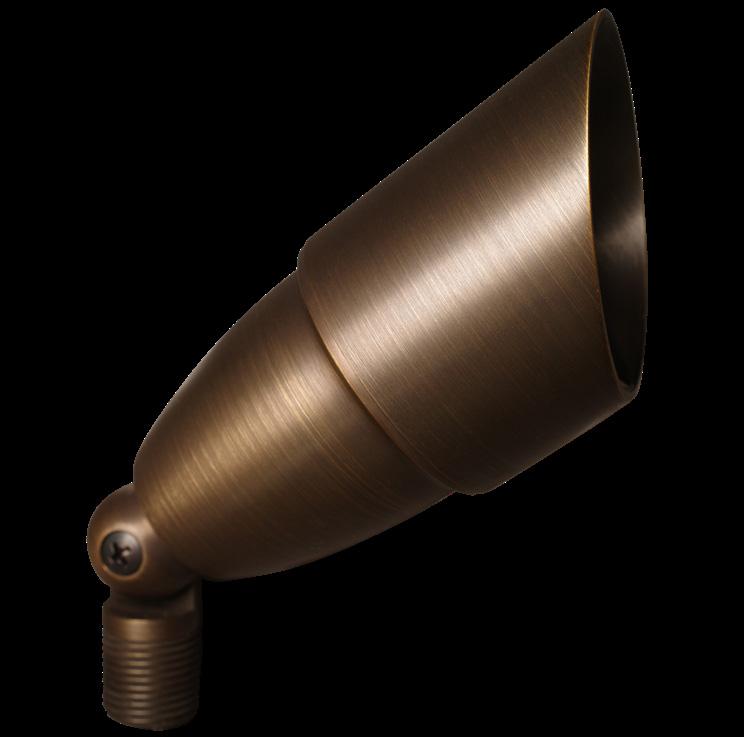

The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
TYPE LT.1 SPEC HORIZON OAKLAND PARK
Tree Mounted J-Box, Bronze
Tree Mounted J-Box with Aluminum mounting strap, available with 1-4 JBoxes per strap
_TRBS8 Tree Mounted J-Box with Bronze mounting strap, available with 1-4 JBoxes per strap
PM60A8 Adjustable Post Mount
PMBR60A8 Adjustable Post Mount - Brass
PM60C Post Mount with Conduit
PMBR60C Post Mount with Conduit - Brass
PM60D8 Post Mount with Open Bottom
PMBR60D8 Post Mount with Open Bottom - Brass
Note: Multi Head (AMHM) mounting accessory is available and can be ordered separately, please see below and spec sheet for options. Consult factory if you require the AMHM to be used with any independent mounting accessories
Note: Aluminum or Bronze Stake Mounted J-Box (SBA_ or SBB_) is available in 12" or 18" and can be ordered separately, please see below and spec sheet for options.
*Required Fields
Notes:
1 Remote transformer required. Options for remote transformers
2 Integral Driver.
3 Aluminum stems only compatiable with PM60A, PM60C and PM60D.
4 Brass stems only compatible with PMBR60A, PMBR60C and PMBR60D.
5 Extended arms compatible with WMC and WMSA.
6 Up to 2 options can be specified.
7 NBS paint uses specialty pigments to give a natual appearance that may vary by fixture.
8 Only available with 12 volt.
9 RALTBD for pricing only, replace with applicable RAL call out when ready to order. See the RALBROCHURE for available options. It is recommended that Hydrel products only use textured paint.
10 Zinc Undercoat provides corrosion protection for Marine Environment and Natatorium Construction.
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.

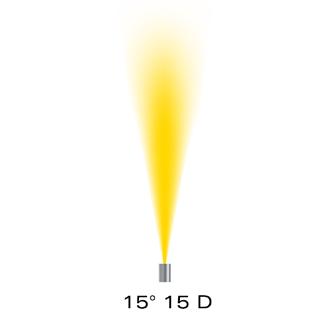

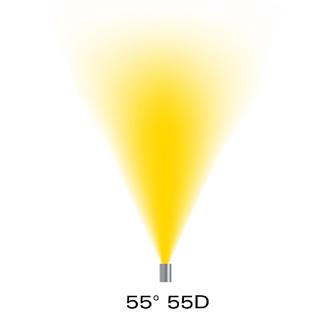

OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION
SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS: Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:
SPECIFICATION SHEET
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
TYPE LT.2 SPEC HORIZON OAKLAND PARK
Tree Mounted J-Box, Bronze
Tree Mounted J-Box with Aluminum mounting strap, available with 1-4 JBoxes per strap
_TRBS8 Tree Mounted J-Box with Bronze mounting strap, available with 1-4 JBoxes per strap
PM60A8 Adjustable Post Mount
PMBR60A8 Adjustable Post Mount - Brass
PM60C Post Mount with Conduit
PMBR60C Post Mount with Conduit - Brass
PM60D8 Post Mount with Open Bottom
PMBR60D8 Post Mount with Open Bottom - Brass
Note: Multi Head (AMHM) mounting accessory is available and can be ordered separately, please see below and spec sheet for options. Consult factory if you require the AMHM to be used with any independent mounting accessories
Note: Aluminum or Bronze Stake Mounted J-Box (SBA_ or SBB_) is available in 12" or 18" and can be ordered separately, please see below and spec sheet for options.
*Required Fields
Notes:
1 Remote transformer required. Options for remote transformers
2 Integral Driver.
3 Aluminum stems only compatiable with PM60A, PM60C and PM60D.
4 Brass stems only compatible with PMBR60A, PMBR60C and PMBR60D.
5 Extended arms compatible with WMC and WMSA.
6 Up to 2 options can be specified.
7 NBS paint uses specialty pigments to give a natual appearance that may vary by fixture.
8 Only available with 12 volt.
9 RALTBD for pricing only, replace with applicable RAL call out when ready to order. See the RALBROCHURE for available options. It is recommended that Hydrel products only use textured paint.
10 Zinc Undercoat provides corrosion protection for Marine Environment and Natatorium Construction.
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:

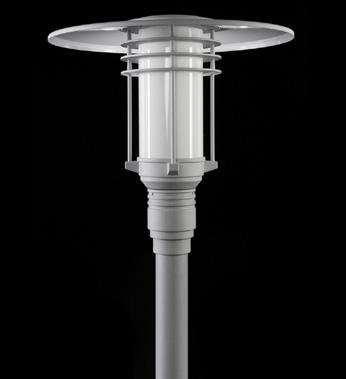

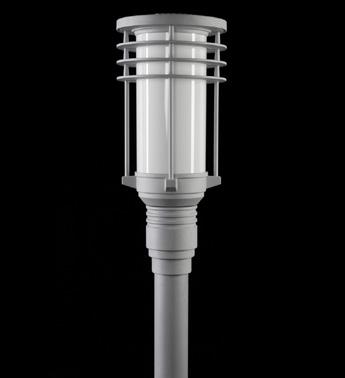

Eclipse is made of corrosion resistant 356 aluminum alloy with a copper (CU) content of less than 0.1%.
Light source is enclosed in a high impact white translucent UV stabilized acrylic sealed diffuser. Increased impact protection with a set of three aluminum louvers.
The lower cast aluminum housing fits with a 4” (102mm) or 5” (127mm) pole and contains all electrical controls on a removable tray.
ELECTRICAL
DRIVER Standard driver is 0-10V dimming-ready (dims to 10%) with: 120-277 multi-volt compatibility (50-60Hz), optional 347V on request, minimum operating temperature of -30ºC/-22ºF, output over voltage protection, output over current protection, output short circuit protection with auto-recovery, and over temperature protection (110ºC)
LED Standard 4000K/80CRI. Optional 2700K, 3000K and 3500K. Removable modular LED platform.
LIFE
75,000hrs L86B50 (based on IESNA TM-21 Test Method and LM-80 data).
145,000hrs L70B50 (calculated projection from LM-80 data).
FINISH
Five-stage preparation process including preheating of cast aluminum parts for air extraction, and an environmentally friendly alloy sealant. Polyester powder coating is applied through an electrostatic process and oven cured for long term finish.
1- Heavy cast aluminum top cover with integral LED heat dissipating pad.
2- Ø 30” x .090” (2.3mm) thick hard aluminum top shade. Underside surface is painted white enamel to optimize light performance (EC813 only).
3- Set of three aluminum louvers.
4- Set of 4 X 1/2” (13mm) solid aluminum struts.
5- High impact white translucent UV stabilized acrylic diffuser.
6- Cast aluminum upper electrical housing.
7- Cast aluminum lower electrical housing.
EC812
EC813
MOUNTING
Maximum weight: 32 lbs (14.5 kg)
Eclipse is designed for ease of access and installation. Standard luminaire mounts on a 4” (102mm) or 5” (127mm) pole. Alternate poles or wall attachments are proposed with high quality components to meet multiple installation conditions.
CERTIFICATION
Certified and Approved as per CSA C22.2 No.: 250.0 standard and ANSI/UL 1598 standard, for wet location. Rated IP65.
Photometric testing performed by an independent laboratory in accordance with IES LM-79-08 standards at 25ºC. Lumen depreciation in accordance with IESNA LM80 standards.
EC812 EPA: 0.96
EC813
1.25
TYPE PT1 SPEC HORIZON OAKLAND
TYPICAL PHOTOMETRY SUMMARY
Descriptive Information
EC812-L1W65r1
EC813-L1W65r1
Total Lms: 4553 Lumens
Total Input Watts: 48.3 W
Source: LED
Efficacy: 94.2 Lumens/Watt
BUG: B2-U4-G3
CCT/CRI: 4000K/80 Maximum Candela: 584 @ 65ºV
Please visit our web site www.luminis.com for complete I.E.S. formatted download data.
L1W18r1 1805 21W
L1W65r1 4553 48W
EC813
OPTIONS
ELECTRICAL
FS Fuse 2
PH Photocell 2
347L 347V input power driver
LIGHT
Alternate CCT ºK LED (LCF: Lumen conversion factor). (Apply multiplier to listed values for lumens output reference).
K27 2700K CCT 80 CRI (LCF: 0.91)
K3 3000K CCT 80 CRI (LCF: 0.94)
K35 3500K CCT 80 CRI (LCF: 0.98)
NOTE: Other CCT & higher CRI available, please consult factory.
NOTES
MOUNTING
AC8 Pole mount attachment with 45º support
2AC8 Double pole mount attachment with 45º support at 180º
AW8 Wall mount attachment with 45º support
EC8P Pole mount attachment with stacked arms
2EC8P Double pole mount attachment with stacked arms at 180º
EC8PS Pole mount attachment with short stacked arms (EC812 only)
2EC8PS Double pole mount attachment with short stacked arms at 180º (EC812 only)
EC8W Wall mount attachment with stacked arms
EC8WS Wall mount attachment with short stacked arms (EC812 only)
ECM4T Post top mounting on 4” (102mm) pole
ECM5T Post top mounting on 5” (127mm) pole 4
TN3 3” Tenon pole adaptor 3
PR8 Pedestal mount adaptor
Optional 347V
STANDARD COLORS
WHT Snow white
BKT Jet black
BZT Bronze
MST Matte silver
GRT Titanium gray
DGT Gun metal
CHT Champagne
SGT Steel gray
BGT English cream
OPTIONAL COLORS
CS Custom color RAL RAL# color
(Refer to color chart) 120V 277V
ACCESSORIES
HS8 House side shield
CONTROL
NLTAIR2 nLight AIR Control gen2, Pole mounted black sensor. 5, 6, 7
1- Luminaires are factory prewired for 120V (if no voltage is specified). For other voltages, please specify with catalog number or consult factory.
2- Fuse and photocell options are normally installed with poles when specified with Luminis luminaires (except for other types of mounting).
3- 3” tenon pole adaptor only required for 3” O.D. poles by others.
4- For 1/8” wall thickness. For other wall thickness contact factory.
5- Not compatible with PH, Wall mounts, Double Pole Mounts, TN3, PR8.
Luminaires may be altered for design improvement or discontinued without prior notice.
BLANK
Pole Cap - Aluminum With Stainless Steel Screws (Tenon Option AvailableSee Mounting Designation)
The pole shaft will be constructed of seamless extruded tube of 6063 Aluminum Alloy per the requirements of ASTM B221. The shaft assembly shall be full-length heat treated to produce a T6 temper.
5" Butt Diameter - 2-1/2" x 5" Handhole with curved Lap Style Aluminum Door and two (2) SS Self-Tapping Attaching Screws. A Grounding Provision is provided as part of the handhole.
6" Butt Diameter - Reinforced, 3" x 5" curved Cast Aluminum Frame (Alloy 356-T6) with Aluminum Door and two (2) SS Hex Head Screws. A Grounding Provision incorporating a 3/8" diameter hole is provided opposite the Handhole.
7"+ Butt Diameters - Reinforced, 4" x 6" curved Cast Aluminum Frame (Alloy 356-T6) with Aluminum Door and two (2) SS Hex Head Screws. Reinforced Frame will contain a tapped 3/8"-16NC Grounding Provision.

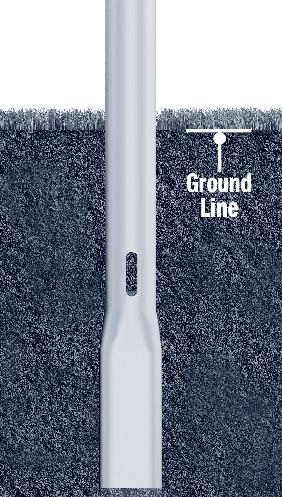

Direct Buried Pole bottom section on 6”+ butt diameter poles will be partially flattened into an antirotational, oval cross section. Wire access will be provided 24" below ground line. Soil conditions vary by site. Foundation requirements should be determined by a qualified Structural Engineer with knowledge of jobsite soil conditions.
Vibration Damper
When determined necessary by Hapco, a Vibration Damper will be factory-installed inside the pole shaft. Customer specification of the damper is available.

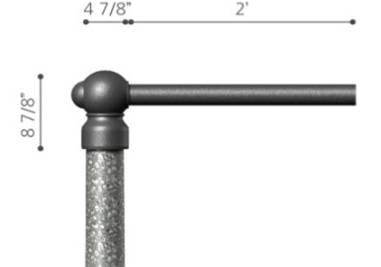

Mounting Designation
Side Drill Mount
For Side Drill Mount applications specify luminaire type, quantity and orientation. A luminaire drilling template must be supplied at time of order.
Tenon Mount - Welded or Spun For Tenon Mount applications specify both Tenon diameter (2.375", 2.875", 3.5", etc.) and length (3", 4", etc.). Tenon style is factory option. Welded Tenon can be specified.

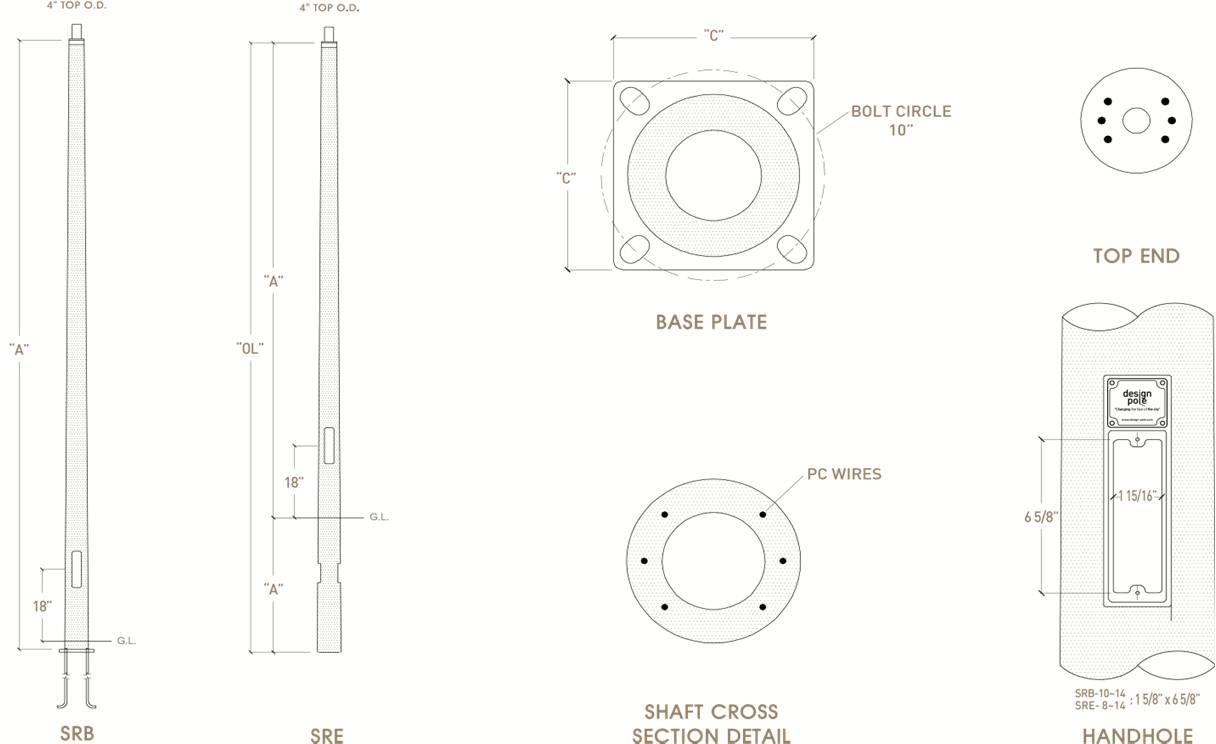

TYPE PT1 POLE SPEC HORIZON OAKLAND PARK
Catalog Number System
The catalog number for Hapco poles utilizes the following identification system.
R T AE
RTA20B6BE-** 0.156'' 6
6
0.156'' 7
0.156'' 8
RTA20D6BE-**
RTA20D7BE-**
Catalog Number Example -
RTA 30 D 8 B E – 01
RTA20C8BE-** 0.188'' 8
0.125'' 5
0.156'' 6
RTA20D8BE-**
RTA22B5AE-**
RTA25C6BE-** 0.188'' 6
0.156'' 7
Round Tapered Aluminum, 30’ Mounting Height, .188" Wall Thickness, 8" Butt Diameter, 4.5" Top Diameter, Direct Buried, Satin Aluminum Finish.
Wall Thickness
B = .125"
C = .156"
RTA25D7BE-**
RTA25C7BE-** 0.188'' 7
0.156'' 8
RTA25C8BE-** 0.188'' 8
D = .188"
E = .219"
F = .250"
RTA25E8BE-**
RTA25D8BE-** 0.219'' 8
0.250'' 8
RTA25F8BE-** 0.156'' 7
0.219'' 8
G = .312"
Butt Diameter
5 = 5"
6 = 6"
7 = 7"
RTA30F8BE-**
RTA30E8BE-** 0.250'' 8
0.188'' 9
8 = 8"
9 = 9"
RTA30F9BE-**
RTA30D9BE-** 0.250'' 9
0.156'' 8
RTA35C8BE-** 0.188'' 8
1 = 10"
Top Diameter
RTA35E8BE-**
RTA35D8BE-** 0.219'' 8
0.250'' 8
0.188'' 9
0.250'' 9
0.188'' 10
0.250'' 10
0.312'' 10
0.188'' 8 70 10.2 7.0
0.219'' 8
0.250'' 8
0.188''
RTA35F8BE-**
RTA35D9BE-**
RTA35F1CE-**
RTA35G1CE-**
RTA40F9BE-**
RTA40D1CE-**
A = 3"
B = 4.5"
C = 6"
Base Style
E = Direct Buried
Finish
01 = Satin Aluminum
BA = Black Powder Coat
BH = White Powder Coat
BM = Dark Bronze Powder Coat
BV = Dark Green Powder Coat
GC = Gray Powder Coat
** = Specify Finish
EPA Notes:
Effective Projected Area (EPA) in square feet. EPA’s calculated using wind velocity (mph) indicated in accordance with 2009 AASHTO LTS-5 using a 25 year design life. Maximum EPA is based on the luminaire weight shown. Increased luminaire weight may reduce the maximum EPA. If weight is exceeded, or if other design life or code is required, please consult the factory..
Eclipse is made of corrosion resistant 356 aluminum alloy with a copper (CU) content of less than 0.1%.
Light source is enclosed in a high impact white translucent UV stabilized acrylic sealed diffuser. Increased impact protection with a set of three aluminum louvers.
The lower cast aluminum housing fits with a 4” (102mm) or 5” (127mm) pole and contains all electrical controls on a removable tray.
ELECTRICAL
DRIVER Standard driver is 0-10V dimming-ready (dims to 10%) with: 120-277 multi-volt compatibility (50-60Hz), optional 347V on request, minimum operating temperature of -30ºC/-22ºF, output over voltage protection, output over current protection, output short circuit protection with auto-recovery, and over temperature protection (110ºC)
LED Standard 4000K/80CRI. Optional 2700K, 3000K and 3500K. Removable modular LED platform.
LIFE
75,000hrs L86B50 (based on IESNA TM-21 Test Method and LM-80 data).
145,000hrs L70B50 (calculated projection from LM-80 data).
FINISH
Five-stage preparation process including preheating of cast aluminum parts for air extraction, and an environmentally friendly alloy sealant. Polyester powder coating is applied through an electrostatic process and oven cured for long term finish.
1- Heavy cast aluminum top cover with integral LED heat dissipating pad.
2- Ø 30” x .090” (2.3mm) thick hard aluminum top shade. Underside surface is painted white enamel to optimize light performance (EC813 only).
3- Set of three aluminum louvers.
4- Set of 4 X 1/2” (13mm) solid aluminum struts.
5- High impact white translucent UV stabilized acrylic diffuser.
6- Cast aluminum upper electrical housing.
7- Cast aluminum lower electrical housing.
EC812
EC813
MOUNTING
Maximum weight: 32 lbs (14.5 kg)
Eclipse is designed for ease of access and installation. Standard luminaire mounts on a 4” (102mm) or 5” (127mm) pole. Alternate poles or wall attachments are proposed with high quality components to meet multiple installation conditions.
CERTIFICATION
Certified and Approved as per CSA C22.2 No.: 250.0 standard and ANSI/UL 1598 standard, for wet location. Rated IP65.
Photometric testing performed by an independent laboratory in accordance with IES LM-79-08 standards at 25ºC. Lumen depreciation in accordance with IESNA LM80 standards.
EC812 EPA: 0.96
EC813
1.25
TYPE PT2 SPEC HORIZON OAKLAND
TYPICAL PHOTOMETRY SUMMARY
Descriptive Information
EC812-L1W65r1
EC813-L1W65r1
Total Lms: 4553 Lumens
Total Input Watts: 48.3 W
Source: LED
Efficacy: 94.2 Lumens/Watt
BUG: B2-U4-G3
CCT/CRI: 4000K/80 Maximum Candela: 584 @ 65ºV
Please visit our web site www.luminis.com for complete I.E.S. formatted download data.
L1W18r1 1805 21W
L1W65r1 4553 48W
EC813
OPTIONS
ELECTRICAL
FS Fuse 2
PH Photocell 2
347L 347V input power driver
LIGHT
Alternate CCT ºK LED (LCF: Lumen conversion factor). (Apply multiplier to listed values for lumens output reference).
K27 2700K CCT 80 CRI (LCF: 0.91)
K3 3000K CCT 80 CRI (LCF: 0.94)
K35 3500K CCT 80 CRI (LCF: 0.98)
NOTE: Other CCT & higher CRI available, please consult factory.
NOTES
MOUNTING
AC8 Pole mount attachment with 45º support
2AC8 Double pole mount attachment with 45º support at 180º
AW8 Wall mount attachment with 45º support
EC8P Pole mount attachment with stacked arms
2EC8P Double pole mount attachment with stacked arms at 180º
EC8PS Pole mount attachment with short stacked arms (EC812 only)
2EC8PS Double pole mount attachment with short stacked arms at 180º (EC812 only)
EC8W Wall mount attachment with stacked arms
EC8WS Wall mount attachment with short stacked arms (EC812 only)
ECM4T Post top mounting on 4” (102mm) pole
ECM5T Post top mounting on 5” (127mm) pole 4
TN3 3” Tenon pole adaptor 3
PR8 Pedestal mount adaptor
Optional 347V
STANDARD COLORS
WHT Snow white
BKT Jet black
BZT Bronze
MST Matte silver
GRT Titanium gray
DGT Gun metal
CHT Champagne
SGT Steel gray
BGT English cream
OPTIONAL COLORS
CS Custom color RAL RAL# color
(Refer to color chart) 120V 277V
ACCESSORIES
HS8 House side shield
CONTROL
NLTAIR2 nLight AIR Control gen2, Pole mounted black sensor. 5, 6, 7
1- Luminaires are factory prewired for 120V (if no voltage is specified). For other voltages, please specify with catalog number or consult factory.
2- Fuse and photocell options are normally installed with poles when specified with Luminis luminaires (except for other types of mounting).
3- 3” tenon pole adaptor only required for 3” O.D. poles by others.
4- For 1/8” wall thickness. For other wall thickness contact factory.
5- Not compatible with PH, Wall mounts, Double Pole Mounts, TN3, PR8.
Luminaires may be altered for design improvement or discontinued without prior notice.
BLANK

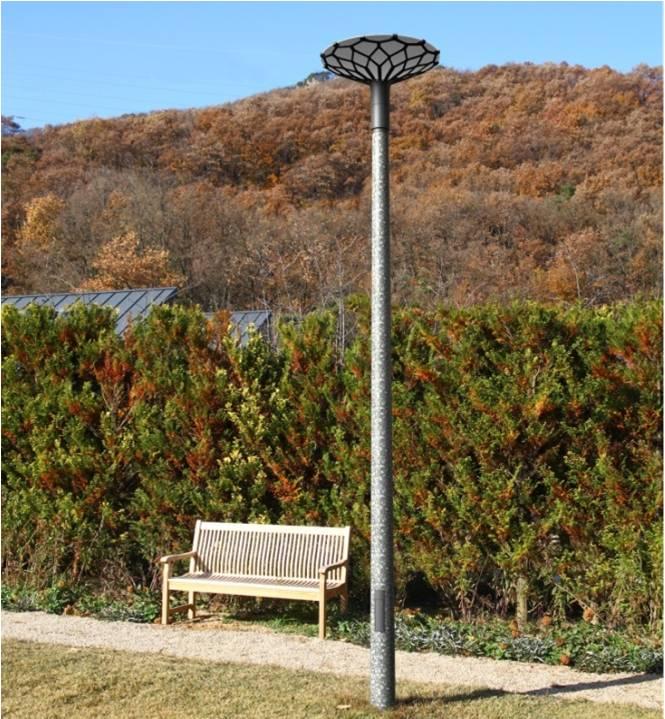

SRB/SRE
ORDERING INFORMATION
PROJECT
QUOTE
PREPARED BY
DATE
DESCRIPTION
The Small Round Pole was designed with aesthetics in mind. Our slimmest pole, the SRB/SRE is used in many applications, from commercial to residential, and for general area lighting. Our standard choice, the Small Round Pole retains the round, tapered feature of DesignPole, the optimal form for wind loads.
Ordering Example: SRB-12-SG-DG-T1
SRB 8’ to 24’ WG : White Granite DG : Dark Grey (Glossiness : 20%)
SRE
RGS : Roof Grey S LG : Light Grey (Glossiness : 50%)
1. Prestressed spun concrete makes DesignPole one of the strongest in the market.
2.The addition of natural stone aggregates, besides strengthening the concrete, makes for an aesthetically pleasing look.
3.This concrete is processed with our patented polishing technique that exposes a unique surface that resembles terrazzo.
4.DesignPole virtually eliminates maintenance costs. No need for painting or coating.
5.DesignPole can withstand any weather condition, such as heavy rain and wind, in any environment, such as the oceanfront or desert.
6.Customization available. Consult manufacturer.
STEEL FINISH
Dark Grey
Metallic Grey Light Grey
White Granite Roof Grey S Stained Glass Brown Light
Wall Stone Candy Blue Fade Orange Roof Grey B Passion Red Brown Dark Choco Mint
BLANK
TYPE SA SPEC HORIZON OAKLAND PARK
Specifications

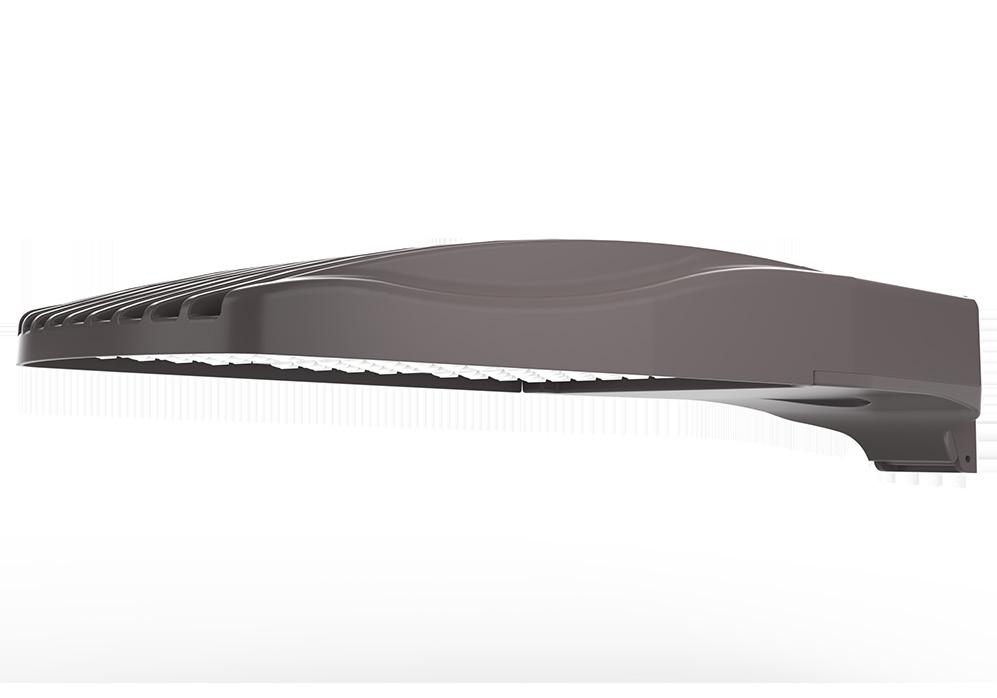

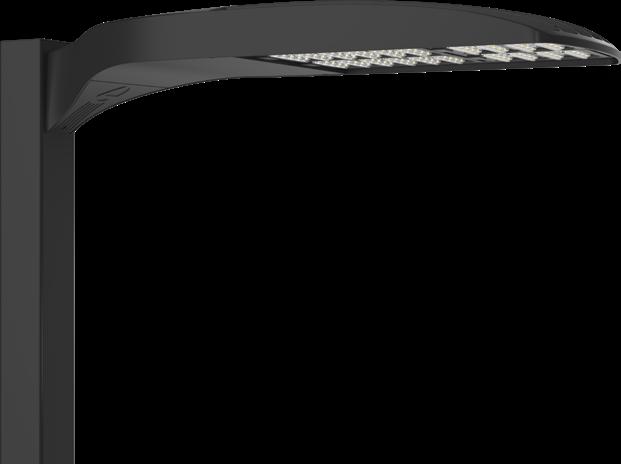

D-Series Size 2 LED Area Luminaire
Design Select options indicated by this color background.
Ordering Information
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The outstanding photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications with typical energy savings of up to 80% vs. 1000W HID and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
Shipped installed
NLTAIR2 PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc. 11, 12, 20, 21
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 20, 21
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate) 14, 21
PER7 Seven-pin receptacle only (controls ordered separate) 14, 21
FAO Field adjustable output 15, 21
BL30 Bi-level switched dimming, 30% 16, 21
BL50 Bi-level switched dimming, 50% 16, 21
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17
XtraLight® reserves the right to change specifications without notice.
TYPE SA POLE SPEC HORIZON OAKLAND PARK
The pole shaft will be constructed of seamless extruded tube of 6063 Aluminum Alloy per the requirements of ASTM B221. The shaft assembly shall be full-length heat treated to produce a T6 temper.
Pole Cap - Aluminum With Stainless Steel Screws (Tenon Option AvailableSee Mounting Designation)
5" Butt Diameter - 2-1/2" x 5" Handhole with curved Lap Style Aluminum Door and two (2) SS Self-Tapping Attaching Screws. A Grounding Provision is provided as part of the handhole.
6" Butt Diameter - Reinforced, 3" x 5" curved Cast Aluminum Frame (Alloy 356-T6) with Aluminum Door and two (2) SS Hex Head Screws. A Grounding Provision incorporating a 3/8" diameter hole is provided opposite the Handhole.
7"+ Butt Diameters - Reinforced, 4" x 6" curved Cast Aluminum Frame (Alloy 356-T6) with Aluminum Door and two (2) SS Hex Head Screws. Reinforced Frame will contain a tapped 3/8"-16NC Grounding Provision.
Direct Buried Pole bottom section on 6”+ butt diameter poles will be partially flattened into an antirotational, oval cross section. Wire access will be provided 24" below ground line. Soil conditions vary by site. Foundation requirements should be determined by a qualified Structural Engineer with knowledge of jobsite soil conditions.
Vibration Damper
When determined necessary by Hapco, a Vibration Damper will be factory-installed inside the pole shaft. Customer specification of the damper is available.
Mounting Designation
Side Drill Mount
For Side Drill Mount applications specify luminaire type, quantity and orientation. A luminaire drilling template must be supplied at time of order.
Tenon Mount - Welded or Spun For Tenon Mount applications specify both Tenon diameter (2.375", 2.875", 3.5", etc.) and length (3", 4", etc.). Tenon style is factory option. Welded Tenon can be specified.
NOTE: ALL HOLES DRILLED ONLY THROUGH THE FACES SPECIFIED BY 'X'
NOTES:
1.DIRECT BURIAL CLASS 1 POLE PER ASTM 4923. POLE TOP DEFLECTION SHALL NOT EXCEED 15% OF THE ABOVE GROUND HEIGHT AT MAXIMUM WIND LOADING AND MAXIMUM FIXTURE WEIGHT.
2.DESIGN CRITERIA PER AASHTO LTS-6-2013 WITH A MINIMUM SAFETY FACTOR OF 1.5 PER ANSI C136.20-2012.
3.WIND SPEEDS DEFINED AS 3 SECOND GUST PER ASCE 7-16 WITH VELOCITY CONVERSIONS PER 2018 IBC 1609.3.1.
4.EMBEDMENT BASED ON MINIMUM DEPTH RECOMMENDED BY ANSI C136.20-2012 SECTION 5.3 AND ASSUMING CLASS 5 SOIL OR BETTER WHEN LOADED AT MAXIMUM EPA.
TYPE SA POLE SPEC HORIZON OAKLAND PARK
Catalog Number System
The catalog number for Hapco poles utilizes the following identification system.
R T AE -
RTA20B6BE-** 0.156'' 6
6
0.156'' 7
0.156'' 8
RTA20D6BE-**
RTA20D7BE-**
Catalog Number Example -
RTA 30 D 8 B E – 01
RTA20C8BE-** 0.188'' 8
0.125'' 5
0.156'' 6
RTA20D8BE-**
RTA22B5AE-**
RTA25C6BE-** 0.188'' 6
0.156'' 7
Round Tapered Aluminum, 30’ Mounting Height, .188" Wall Thickness, 8" Butt Diameter, 4.5" Top Diameter, Direct Buried, Satin Aluminum Finish.
Wall Thickness
B = .125"
C = .156"
RTA25D7BE-**
RTA25C7BE-** 0.188'' 7
0.156'' 8
RTA25C8BE-** 0.188'' 8
D = .188"
E = .219"
F = .250"
RTA25E8BE-**
RTA25D8BE-** 0.219'' 8
0.250'' 8
RTA25F8BE-** 0.156'' 7
0.219'' 8
G = .312"
Butt Diameter
5 = 5"
6 = 6"
7 = 7"
RTA30F8BE-**
RTA30E8BE-** 0.250'' 8
0.188'' 9
8 = 8"
9 = 9"
RTA30F9BE-**
RTA30D9BE-** 0.250'' 9
0.156'' 8
RTA35C8BE-** 0.188'' 8
1 = 10"
Top Diameter
RTA35E8BE-**
RTA35D8BE-** 0.219'' 8
0.250'' 8
0.188'' 9
0.250'' 9
0.188'' 10
0.250'' 10
0.312'' 10
0.188'' 8 70 10.2 7.0
0.219'' 8
0.250'' 8
0.188''
RTA35F8BE-**
RTA35D9BE-**
RTA35F1CE-**
RTA35G1CE-**
RTA40F9BE-**
RTA40D1CE-**
A = 3"
B = 4.5"
C = 6"
Base Style
E = Direct Buried
Finish
01 = Satin Aluminum
BA = Black Powder Coat
BH = White Powder Coat
BM = Dark Bronze Powder Coat
BV = Dark Green Powder Coat
GC = Gray Powder Coat
** = Specify Finish
EPA Notes:
Effective Projected Area (EPA) in square feet. EPA’s calculated using wind velocity (mph) indicated in accordance with 2009 AASHTO LTS-5 using a 25 year design life. Maximum EPA is based on the luminaire weight shown. Increased luminaire weight may reduce the maximum EPA. If weight is exceeded, or if other design life or code is required, please consult the factory..
BLANK
www.designheure.com contact@designheure.com
Tel : 33 (0)4 67 53 99 63

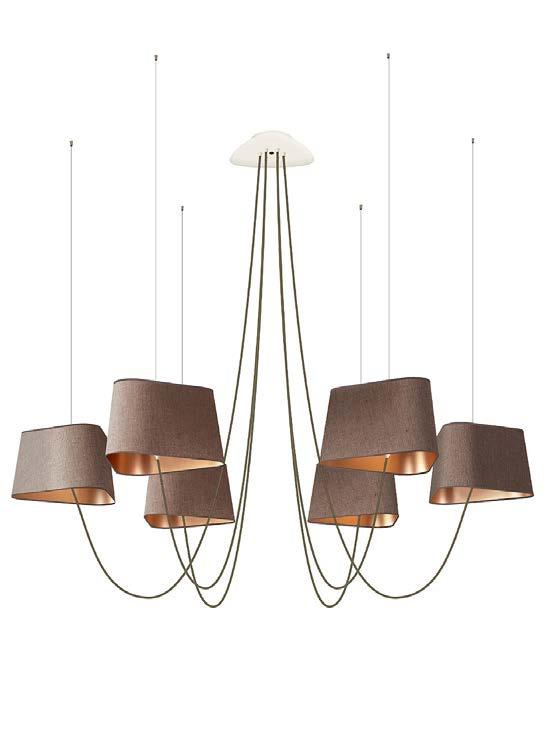

La collection ‘‘ Nuage ’’ est un concept élégant et ingénieux d’éclairage nomade. Sa légèreté et son adaptabilité en font le best-seller des collections Designheure. Simplicité et pureté des lignes de cette collection intemporelle et universelle. L’abat-jour de forme triangulaire produit une lumière bien particulière, découpant l’espace de façon architecturale. Sa ligne élégante apparentée à la proue d’un bateau est rehaussée par le cordon textile. L’offre sur mesure de cette collection permet de créer des projets uniques.’’
“ Nuage ” is a stylishly designed and cleverly made lighting system. Its lightness and adaptability has made it Designheure’s bestselling collection.
Chosen for its simplicity and pure lines, this timeless collection takes its inspiration from the prow of a ship. The triangular shade produces a unique light, cutting through space as a boat does through the sea. Elegant lines, enhanced by the textile cord, make Nuage a favorite in both residential and commercial spaces.
6 X Max 100 W - Non fournie/Not included Ampoule LED/LED bulb H.Max 130 mm/H. Max 5.1”
Tissus ou laqué, acier laqué, fil tissé coloré, câble acier Fabric or lacquered, lacquered steel, colored textile cord, steel cable
Possibilité d’ajout de longueurs de fils et câbles/Adding of cords and cables length possible. Possibilité de coloris sur mesure/Custom made colors possible
Lu6gnbbn Blanc bordure noire/White black border
Lu6gncubv Cuivre / Cuivre rose bordure verte/Copper / Pink copper green border
Lu6gnbso Beige satiné / Or/Satin beige / Gold
Lu6gnoo Or satiné / Or/Satin gold / Gold
Lu6gnbco Bleu clair satiné / Or/Satin light blue / Gold
Shipping Nbre de colis/Nber of packs : 1
Certifications
Dimensions : 55 x 55 x 118 cm21.7’’ x 21.7’’ x 46.5’’
Item#: HF7207-G102-BLK
ProductType CollectionNameFremontCollection
FinishBlack
Length-Ext.826in. Width 8.5in.
Height5in. Weight37lbs
Voltage120V-277V
Lumens1260
Listing
LightSourceBULB
BulbQuantity7
BulbWattage3
BulbBaseTypeLED
BulbIncludedYES
DimmableYes
SlopedInstallYes
Warranty1YearLimitedElectricalWarranty
COMPANYNAME:
DATE:
PROJECTNAME:
LOCATION:
APPROVEDBY:
PRODUCTITEMCODE:HF7207-G102-BLK
TYPE LT20 SPEC HORIZON OAKLAND

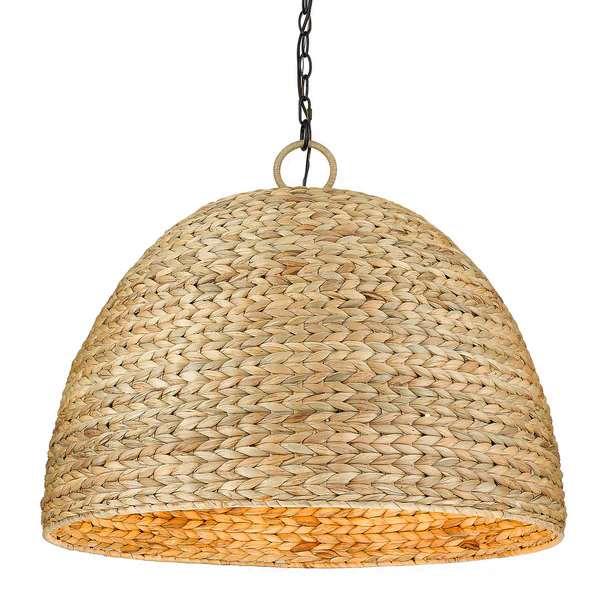

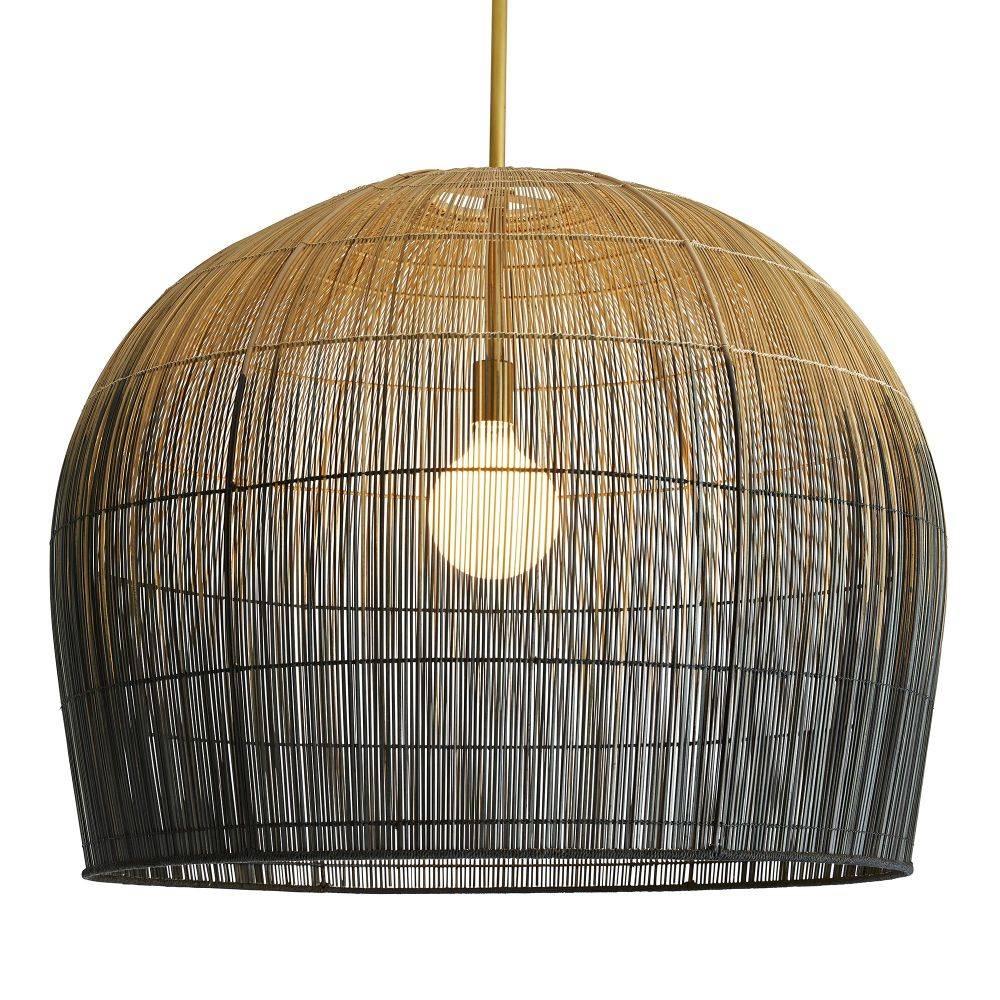

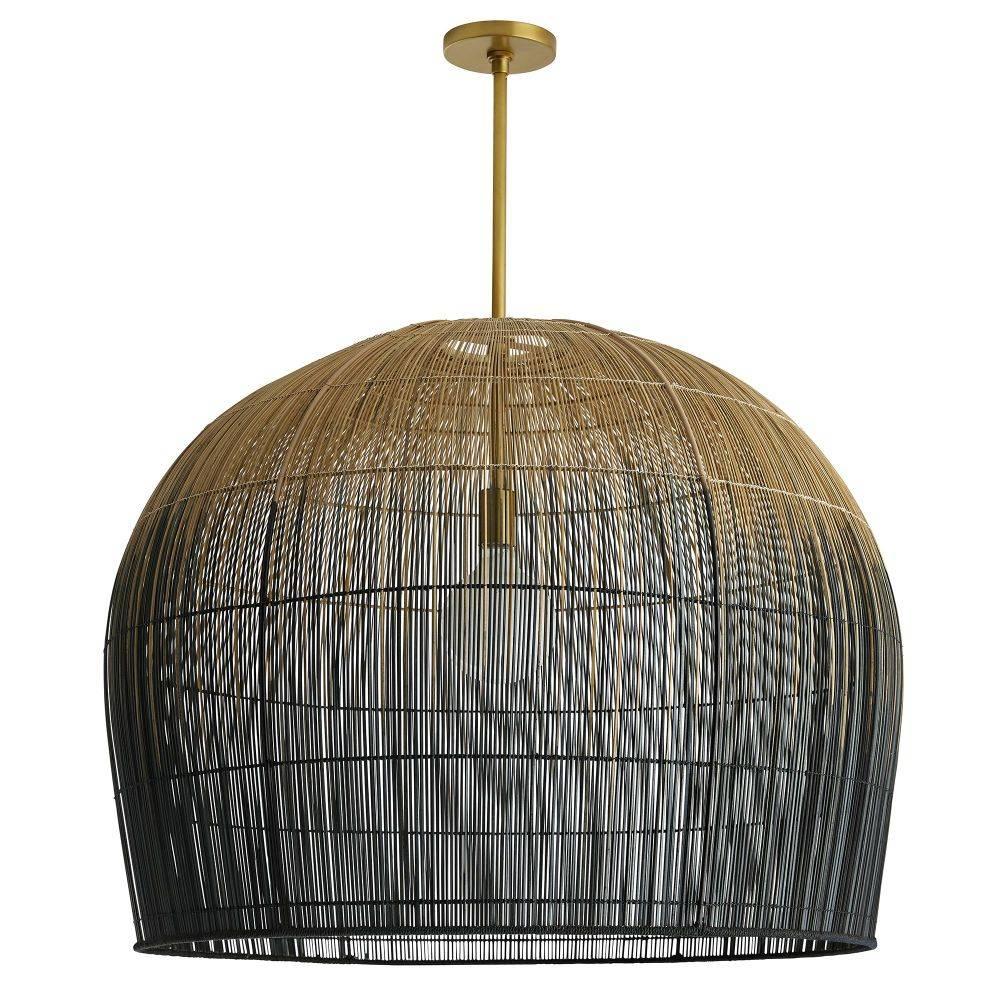

TANYA CHANDELIER
DMS03
H: 40 IN, Dia: 35.00 IN
Natural Rattan
Inspired by woven fisherman’s baskets, the texture-rich Tanya chandelier is crafted with layered woven shapes in dark, natural rattan. Its loose weave allows light to flow through, casting beautiful patterns and shadows. The artisanal accent is designed with a rich, contrasting bronzed steel pipe suspension. Finish will vary.
APPEARANCE
Material Rattan, Steel
Finish Natural, Bronze
Finish Will Vary Yes
Top Coat/Sealant No
DIMENSIONS
Canopy
H: 1.5 IN, Dia: 5.00 IN

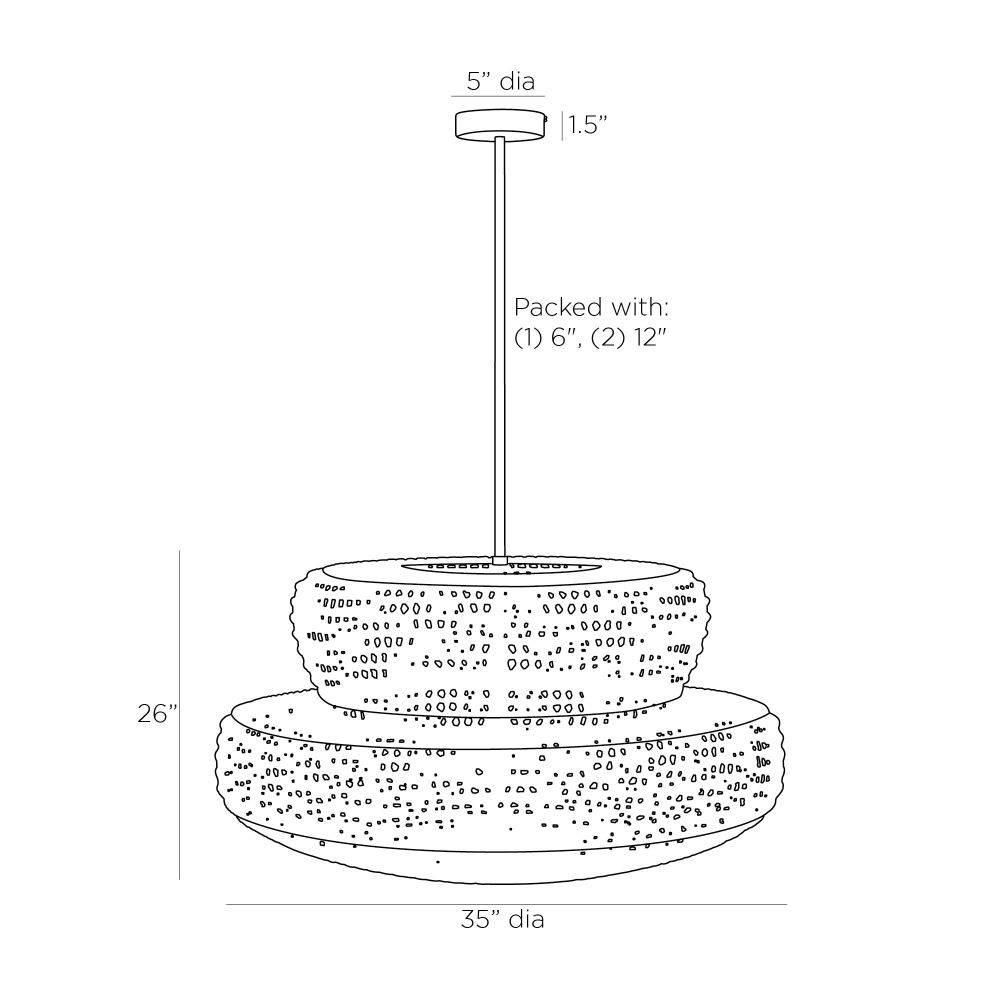

Chandelier H: 18 IN, Dia: 35.00 IN
Minimum HangingH: 26 IN
Max Hanging Height40 in
WIRING
Rating Indoor Only
Cord 10 FT, Clear/Silver, SVT
Socket 3, Type A - E26
Maximum Watt 60
Voltage 110-120 V
CERTIFICATIONS
Certifications
COMPLIANCY
Mexico, United Arab Emirates, European Union, United States, Canada, Australia
UL/ETL Yes
CB Yes
RoHS Yes
SHIPPING
Shipping RequirementsTruckShip
Product Weight14 lbs
Gross Weight 1 29 lbs
Gross Weight 2 0 lbs
Shipping Box 1 H: 34 IN, L: 34 IN, W: 32 IN
Shipping Box 2 H: 0 IN, L: 0 IN, W: 0 IN
ADDITIONAL INFO
Features Sustainable
REPLACEMENT PARTS
Replacement Part 1PIPE-583
Replacement Part 1 Dim(1) 6", (1) 12"
Replacement Part 2CANOPY-647
Replacement Part 2 Dim1" x 5"
CONTRACT
Contract SuitableYes
HORIZON OAKLAND PARK TYPE
TANYA CHANDELIER
DMS03
H: 40 IN, Dia: 35.00 IN
Natural Rattan
Inspired by woven fisherman’s baskets, the texture-rich Tanya chandelier is crafted with layered woven shapes in dark, natural rattan. Its loose weave allows light to flow through, casting beautiful patterns and shadows. The artisanal accent is designed with a rich, contrasting bronzed steel pipe suspension. Finish will vary.
APPEARANCE
Material Rattan, Steel
Finish Natural, Bronze
Finish Will Vary Yes
Top Coat/Sealant No
DIMENSIONS
Canopy
H: 1.5 IN, Dia: 5.00 IN
Chandelier H: 18 IN, Dia: 35.00 IN
Minimum HangingH: 26 IN
Max Hanging Height40 in
WIRING
Rating Indoor Only
Cord 10 FT, Clear/Silver, SVT
Socket 3, Type A - E26
Maximum Watt 60
Voltage 110-120 V
CERTIFICATIONS
Certifications
COMPLIANCY
Mexico, United Arab Emirates, European Union, United States, Canada, Australia
UL/ETL Yes
CB Yes
RoHS Yes
SHIPPING
Shipping RequirementsTruckShip
Product Weight14 lbs
Gross Weight 1 29 lbs
Gross Weight 2 0 lbs
Shipping Box 1 H: 34 IN, L: 34 IN, W: 32 IN
Shipping Box 2 H: 0 IN, L: 0 IN, W: 0 IN
ADDITIONAL INFO
Features Sustainable
REPLACEMENT PARTS
Replacement Part 1PIPE-583
Replacement Part 1 Dim(1) 6", (1) 12"
Replacement Part 2CANOPY-647
Replacement Part 2 Dim1" x 5"
CONTRACT
Contract SuitableYes
TYPE LT21 SPEC HORIZON OAKLAND PARK

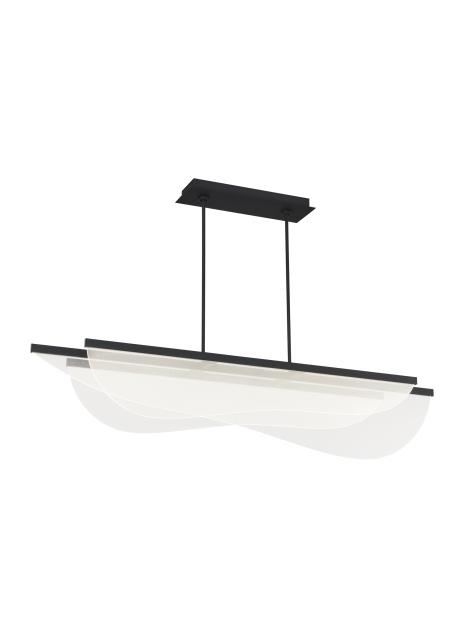

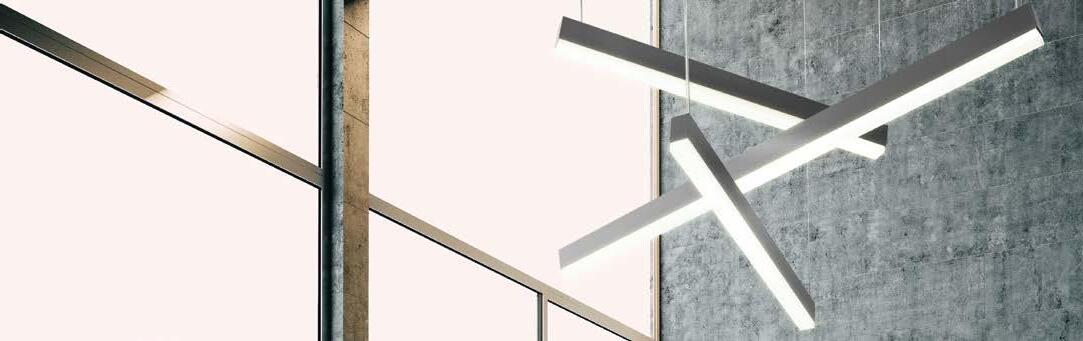

NYRA 60 LINEAR SUSPENSION
PRODUCT FEATURES
From the brand formerly known as Tech Lighting
The Nyra Collection is a modern and artful collection featuring beautiful waves of acrylic LED panels
Offered in modern nishes
• Smooth panels of light guide technology produce an ample amount of general illumination
• Includes (4) 6" and (8) 12" rigid stems in coordinating nish
LAMPING
Includes 79 watts, 6313 total delivered lumens, 3000K or 3500K LED modules. Dimmable with most LED compatible ELV and TRIAC dimmers. Ships with (8) 12" and (4) 6" rigid stems in coordinating nish. Can be installed on a sloped ceiling up to 20°. 120V.
ORDERING INFORMATION
NOTES
HORIZON OAKLAND PARK TYPE
NYRA 60 LINEAR SUSPENSION
PRODUCT FEATURES
From the brand formerly known as Tech Lighting
The Nyra Collection is a modern and artful collection featuring beautiful waves of acrylic LED panels
Offered in modern nishes
• Smooth panels of light guide technology produce an ample amount of general illumination
• Includes (4) 6" and (8) 12" rigid stems in coordinating nish
LAMPING
Includes 79 watts, 6313 total delivered lumens, 3000K or 3500K LED modules. Dimmable with most LED compatible ELV and TRIAC dimmers. Ships with (8) 12" and (4) 6" rigid stems in coordinating nish. Can be installed on a sloped ceiling up to 20°. 120V.
ORDERING INFORMATION
NOTES

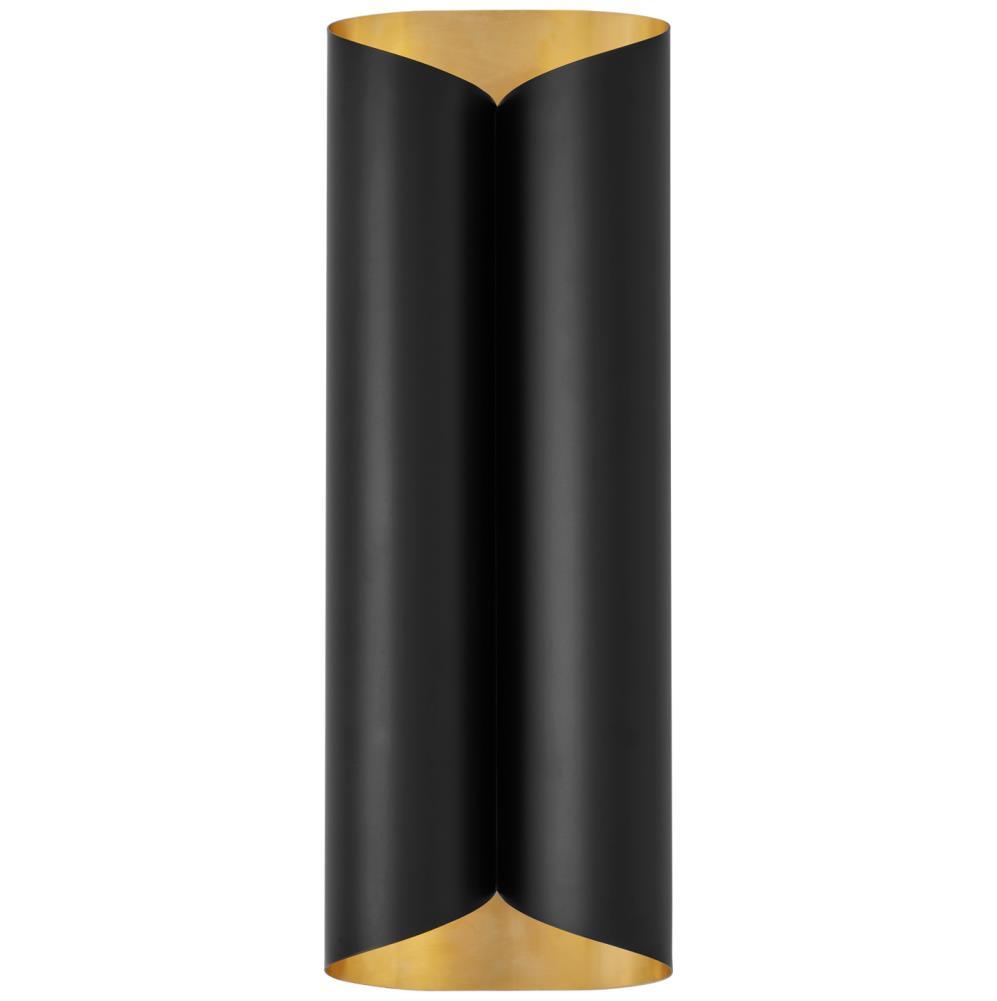

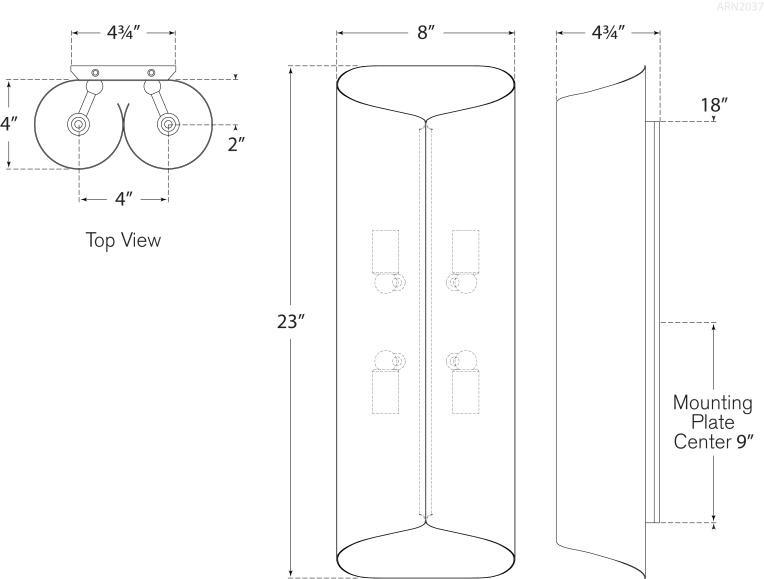

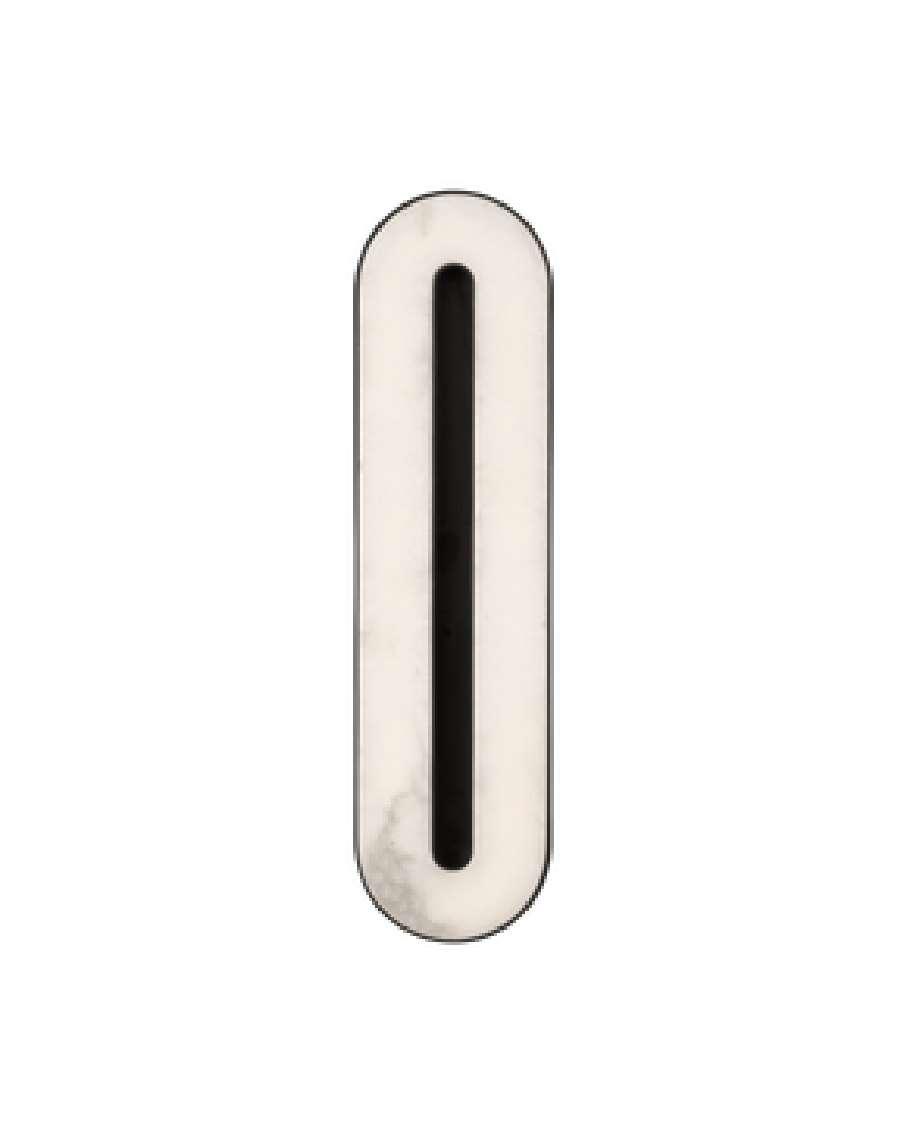

Selfoss Large Sconce
Item # ARN 2037BLK/HAB
Designer: AERIN
Height: 23"
Width: 8"
Extension: 4.75"
Backplate: 4.75" x 18" Rectangle
Finishes: BLK/HAB, BZ/G, PW/G
Socket: 4 - E12 Candelabra
Wattage: 4 - 40 T6
Weight: 11 Pounds
HORIZON OAKLAND PARK
Selfoss Large Sconce
Item # ARN 2037BLK/HAB
Designer: AERIN
Height: 23"
Width: 8"
Extension: 4.75"
Backplate: 4.75" x 18" Rectangle
Finishes: BLK/HAB, BZ/G, PW/G
Socket: 4 - E12 Candelabra
Wattage: 4 - 40 T6
Weight: 11 Pounds

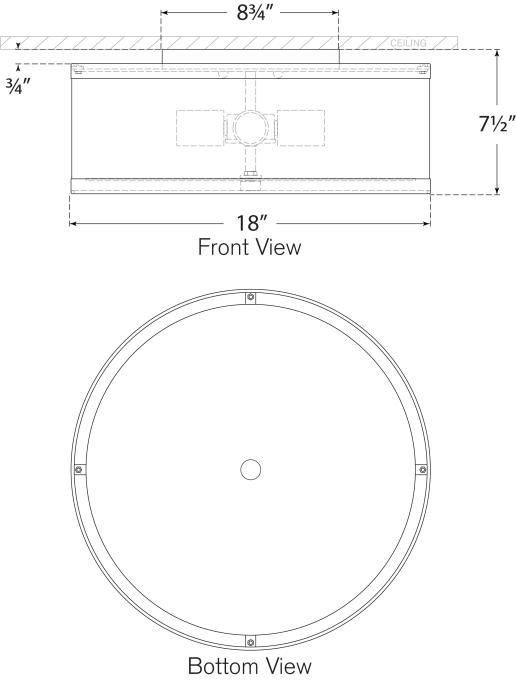

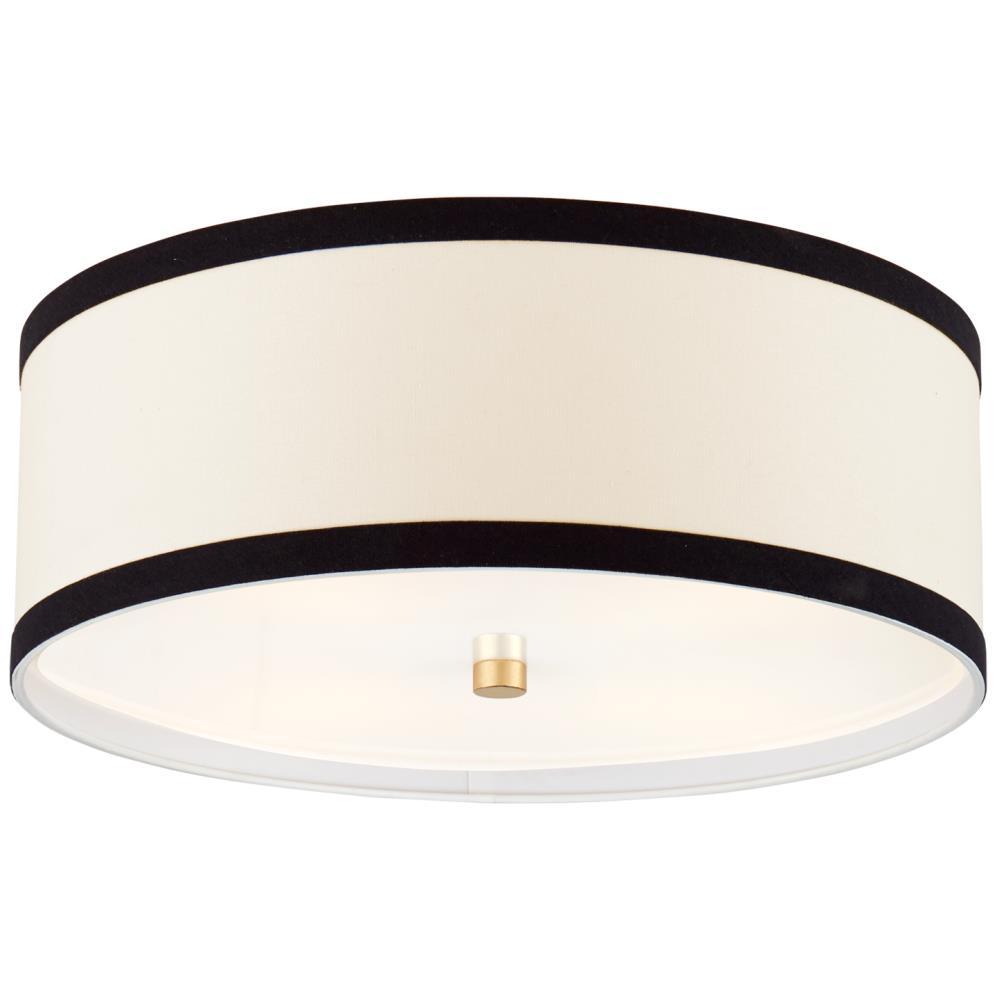

Walker Medium Flush Mount
Item # KS 4071G-L/BL
Designer: kate spade new york
Height: 7.5"
Width: 18"
Canopy: 8.75" Round
Finishes: BSL, G, LC
Shade Treatments: L, L/BL, NL
Socket: 4 - E26 Keyless
Wattage: 4 - 40 A19
Weight: 6 Pounds
HORIZON OAKLAND PARK
Walker Medium Flush Mount
Item # KS 4071G-L/BL
Designer: kate spade new york
Height: 7.5"
Width: 18"
Canopy: 8.75" Round
Finishes: BSL, G, LC
Shade Treatments: L, L/BL, NL
Socket: 4 - E26 Keyless
Wattage: 4 - 40 A19
Weight: 6 Pounds

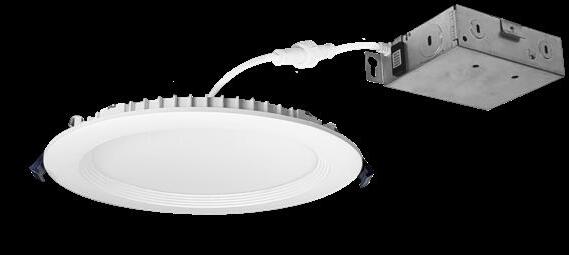

NU essentials

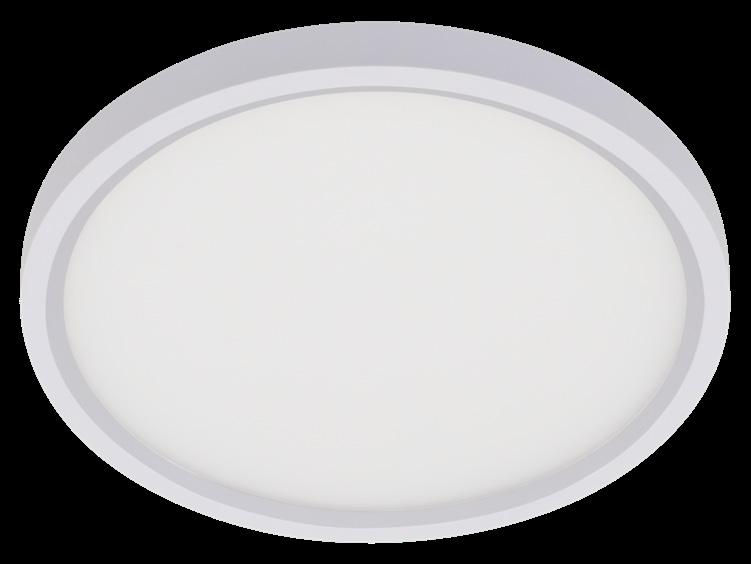

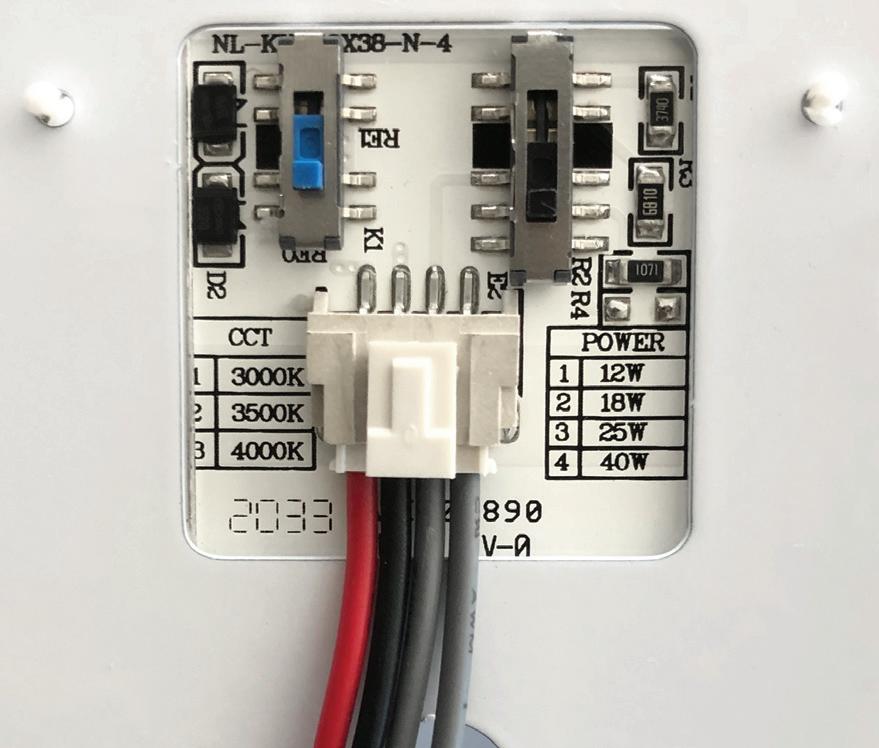

4" Round & Square Downlight Standard White

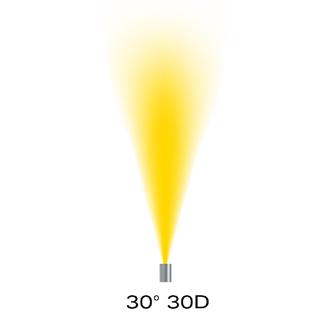

30° - 60° BEAM
(Note: Specifications are subject to change without notice)
9mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
10LM 1070LM @30K/90CRI 11W
13LM 1360LM @30K/90CRI 14W
15LM 1560LM @30K/90CRI 16W
20LM 2000LM @30K/90CRI 21W
Notes
FEATURES
• Economical choice for budget projects
• Thermally optimized for LED longevity
• Fully casted assembly
• 14° - 80° optical beam control
• Packaging material consists of 60-80% post-consumer re cycled fiber LED

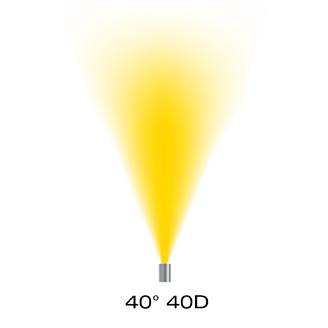

Delivered lumens based on 40D optic with np lens, (see page 2)
14° - 25° BEAM
(Note: Specifications are subject to change without notice) 6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
10LM 970LM @30K/90CRI 11W
15LM 1450LM @30K/90CRI 18W
Notes Delivered lumens based on 25D optic with no lens, (see page 2)
• eldoLED Flicker free 0-10V dimming to 1%
• Leading & trailing edge (Triac/ELV) dimming to 1%
CONSTRUCTION
• Aluminum trim and bezel
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/4" to 1"
LISTING
• ULus Listed to UL1598; cUL Listed to CSA C22.2 #250.0
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• IP44 with lens - suitable for wet location with lens - suitable damp location without lens
• 5 Year Limited warranty
ELECTRICAL
• 120V-277V, 120 only Triac / ELV
• Power factor ≥ 0.9
• 2kV driver input surge protection
• 7W and 10W (T20 CEC) EM 90min battery
• Max. ambient installation temperature 104°F (40°C)
HORIZON OAKLAND PARK TYPE
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing

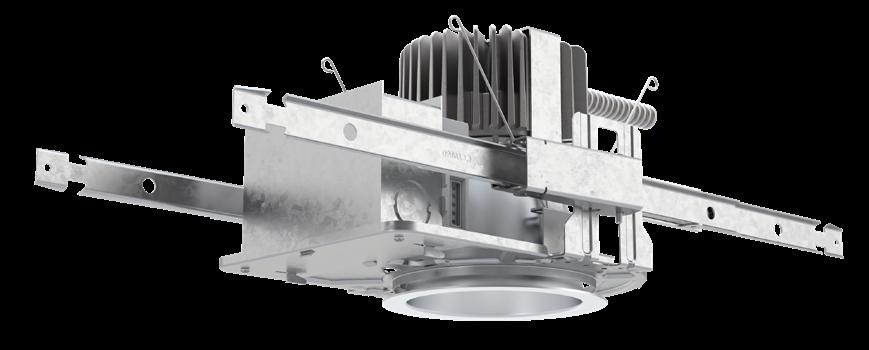

COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail:

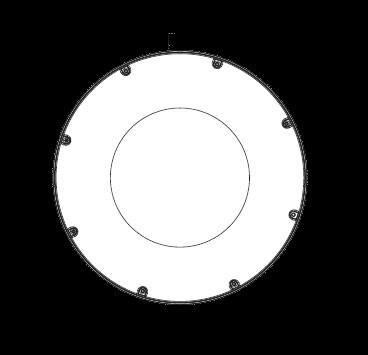

PRODUCT IMAGES & DIMENSIONS NIO-4RNDC
Compatible Housings
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
Delivered lumens based on 40D optic with np lens, (see page 2)
14° - 25° BEAM
(Note: Specifications are subject to change without notice) 6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
10LM 970LM @30K/90CRI 11W
15LM 1450LM @30K/90CRI 18W
Notes Delivered lumens based on 25D optic with no lens, (see page 2)
• eldoLED Flicker free 0-10V dimming to 1%
• Leading & trailing edge (Triac/ELV) dimming to 1%
CONSTRUCTION
• Aluminum trim and bezel
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/4" to 1"
LISTING
• ULus Listed to UL1598; cUL Listed to CSA C22.2 #250.0
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• IP44 with lens - suitable for wet location with lens - suitable damp location without lens
• 5 Year Limited warranty
ELECTRICAL
• 120V-277V, 120 only Triac / ELV
• Power factor ≥ 0.9
• 2kV driver input surge protection
• 7W and 10W (T20 CEC) EM 90min battery
• Max. ambient installation temperature 104°F (40°C)
HORIZON OAKLAND PARK TYPE LT24E ALT
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
NCIC5 new construction with ceiling fitting plate, insulation contact rated (no housing required)
RETIC5 retrofit, no ceiling fitting plate, insulation contact rated (no housing required)
VOLTAGE 120 120V UNV 120V-277V
DIMMING DIM10 eldoLED flicker free 0-10V dimming to 1% ELV16 leading & trailing edge (Triac/ELV) dimming to 1%
ELECTRICAL OPTIONS
EM7 emergency battery backup, 90 minutes at 7W to LED
EM10CA20 emergency battery backup, 90 minutes at 10W to LED, CA title 20
NOTES
1. 14D/2 5D available in 10LM/15LM. Not available with DL lens.
2. NL lens option does not meet requirements for WET/NSF listings.
3. CL/DL/HE T lens options with IC or ICAT housing are JA8 compliant.
4. HCL cannot be used with lens (max 1 media).
5. NCIC/RE TIC are available in 10LM/13LM rated for insulation contact (IC), no “IC-Housing” required.
6. ELV1 available in 120V.
BLANK

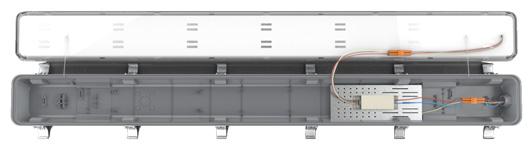

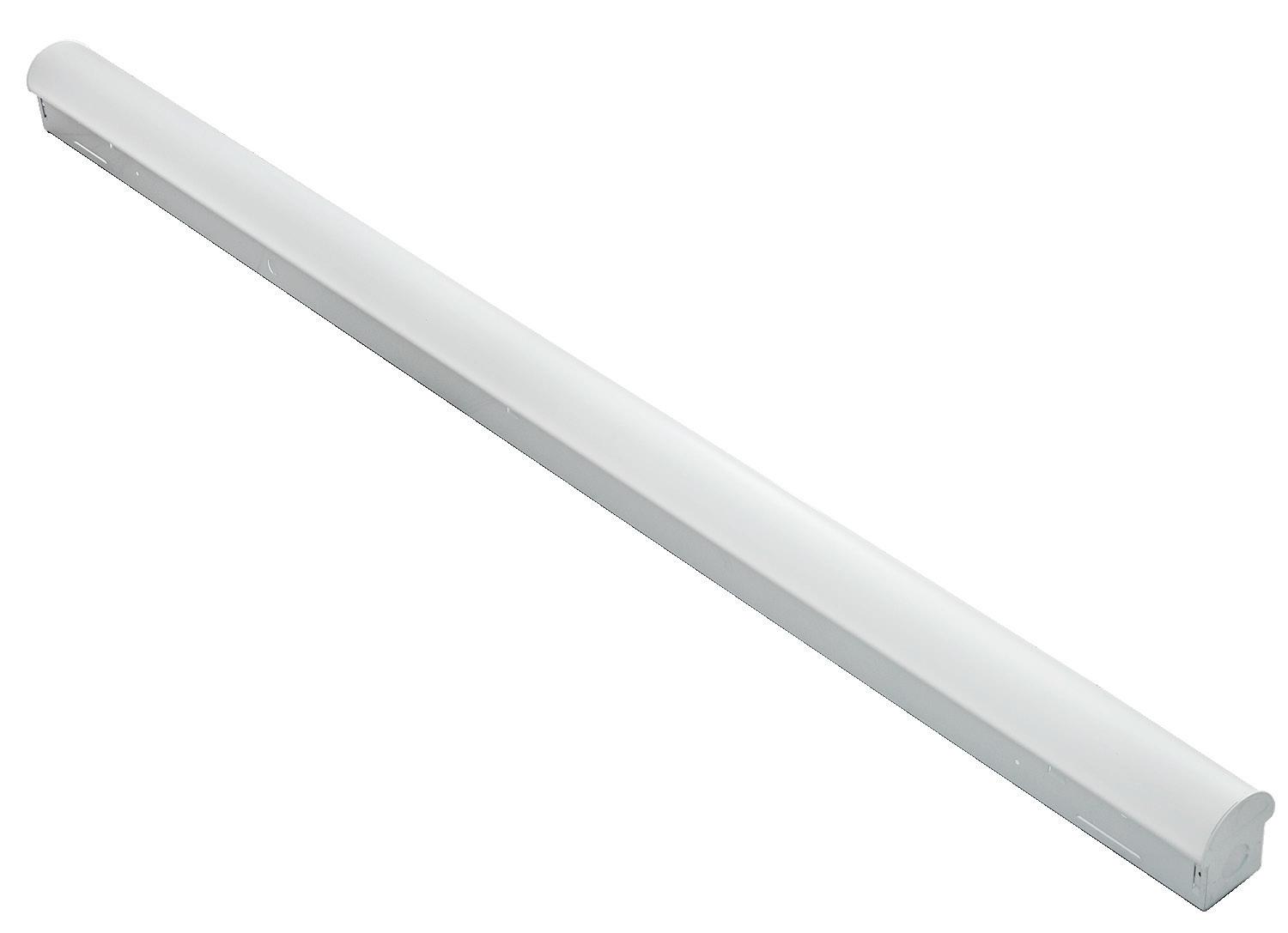

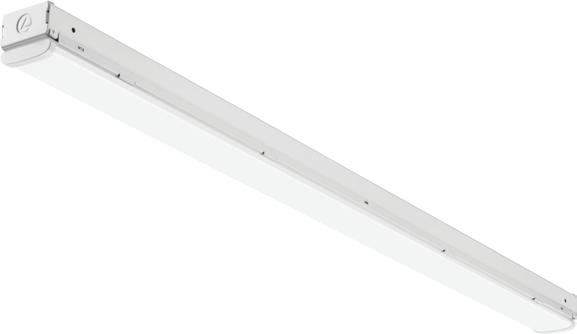

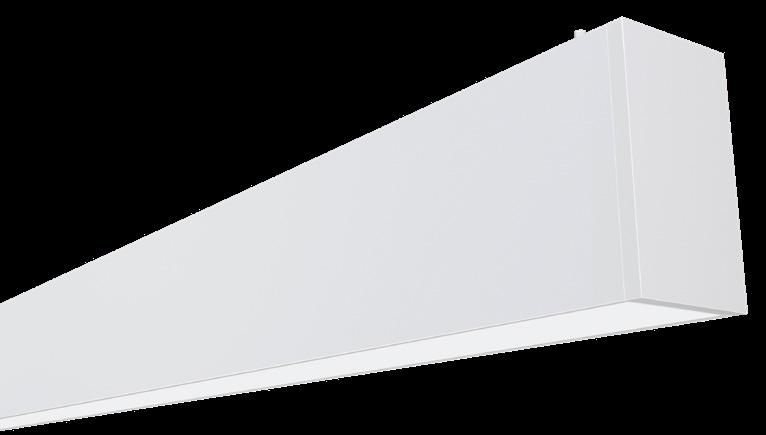

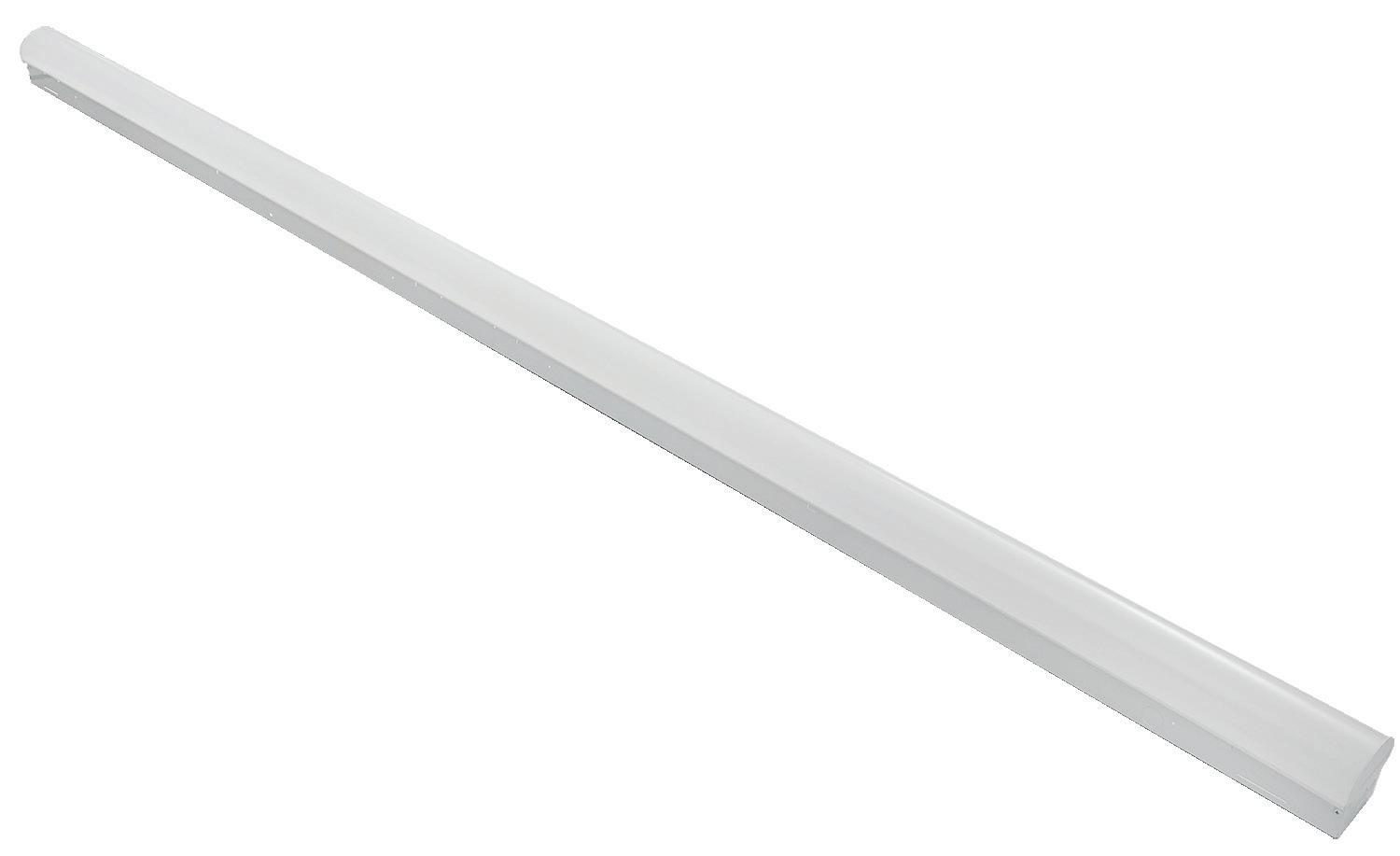

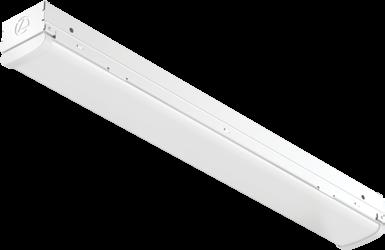

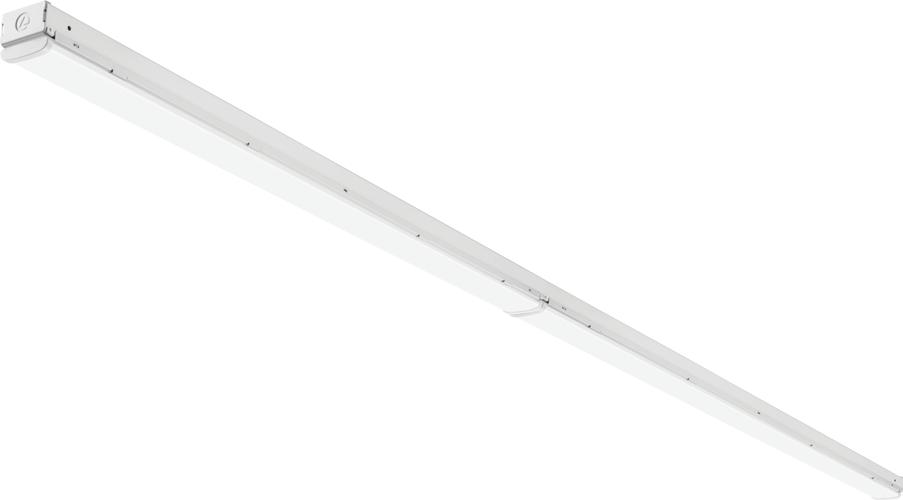

FEATURES & SPECIFICATIONS
INTENDED USE — Available in several color temperatures, lumen packages and lengths. Ideal for use in commercial, retail, office, warehouse and display applications. Certain airborne contaminants can diminish integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components
CONSTRUCTION — Compact-design channel and cover are formed from code compliant, 22 gauge cold-rolled steel.

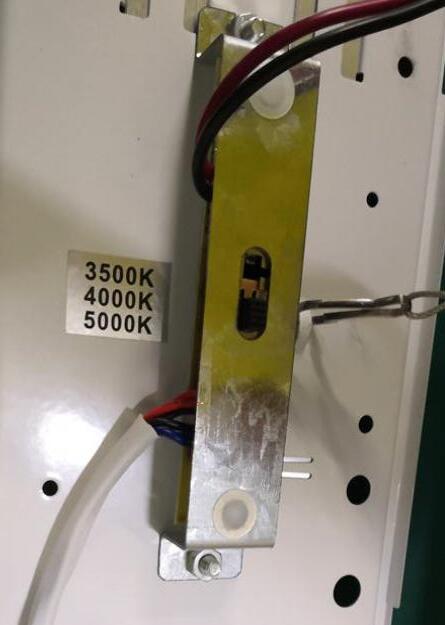

SENSOR SWITCH JUST ONE TOUCH TECHNOLOGY — Single room control wireless technology available for easy install and commissioning to aid in code compliance. The JOT option enables the fixture with Just One Touch pairing capability. The JOTVTX15 option features a luminaire-embedded occupancy and ambient light sensor allows the luminaire to power off when the space is unoccupied or when enough ambient light is entering the space.
SENSOR SWITCH VISIBLE LIGHT PROGRAMMING TECHNOLOGY — Standalone sensor programming via VLP mobile app and smart device's camera flash from up to 8ft away.
FINISH — High-gloss, baked white enamel (standard).
OPTICS — LEDs provide 80+ color rendering index (CRI) at 3500K, 4000K and 5000K. Diffuse polycarbonate lens with ultra-sonically welded end caps provides smooth, linear illumination.
ELECTRICAL — Luminaire Surge Protection Level: Designed to withstand up to 2.5kV/0.75kA per ANSI C82.77-5-2015. For applications requiring higher level of protection additional surge protection must be provided.
Driver is standard 0-10V dimming class 2.
Optional internal pluggable wiring harness for reduced labor cost in row mounting applications.
(See PLR_ ordering information on page 5.)
INSTALLATION — Fixture may be surface mounted to a ceiling or horizontal and vertical wall or suspension mounted with appropriate mounting options (see accessories). Easy to install row aligner bracket included for continuous row mounting.
LISTINGS — CSA certified to US and Canadian safety standards and listed suitable for damp locations. Minimum starting temperature of -22°F (-30°C). Maximum ambient operating temperature of 104˚F (40˚C) for 4ft models and 95˚F (35˚C) for 2ft & 8ft models. See notes for controls temperature restrictions.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Suitable for use within closet spaces when installed per NEC 410.16 spacing requirements.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® or XPoint™ Wireless control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
HORIZON OAKLAND PARK
TYPE LT25 SPEC
LED
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
CSS Contractor Single Strip LED L24 ‡ 22" 2000LM 2000 Lumens
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
rPP20D nLight® air dimming/switching module
SFR7CSS 120/277V field installed On/Off motion sensor, 360° small motion ‡
SFR7CSS 347 347V field installed On/Off motion sensor, 360° small motion ‡ Y J10 Y hanger in multiples of 10 (five pair)
WGCSS Wire Guard with Mounting hardware (one 4ft) ‡ MNLK JBOXCVR M12Junction box cover and hardware, white
‡ Option Value Ordering Restrictions
Option value Restriction
L24
Not available with IE7WCP, IE10WCPHE, JOT, JOTVTX15, VTX15FADC, VTX15FANL, WG, SFR7CSS120/277, SFR7CSS347. ALO15, ALO3, ALO4Not available with 35K, 40K or 50K color temperatures. SWW3 Not available with static lumen packages.
Emergency BatteryNot available with PLR
JOT Enabled Controls Not available with ALO3, ALO4, UVOLT or SWW3. Minimum starting temp of 14°F (-10°C). Maximum operating temp of L48 at 95°F (35°C) & L96 at 86°F (30°C). Controls contained in endcap.
VLP Enabled Sensors Not available with ALO15, ALO3, ALO4, UVOLT or SWW3. See page 5 for default programming and coverage pattern information. Sensors contained in endcap.
SFR Sensors Can only be mounted at the end of continuous row mount applications. On/off function only. Minimum starting temp of 14°F (-10°C). Ensure correct sensor voltage selected for use with UVOLT fixtures based on application. See page 7 for coverage pattern.
SFR7CSS120/277 Sensor operates at ONLY 120V or 277V. Can NOT be used for 208V or 240V operation. Not available with L24. Requires MVOLT.
SFR7CSS347 Sensor operates at 347V ONLY. Not available with MVOLT (120-277V). Not available with L24. Requires UVOLT.
Wire Guard Does not cover SFR controls. Not recommended for use with endcap integrated JOT or VLP enabled controls due to potential detection obstruction.
PLR__ & PLR1LVGNot available with Emergency or Controls. L24 only available with PLR1LVG.
UVOLT Not available with Emergency, JOT or VTX.
ILBHI CP10 HE SD A High voltage emergency driver (347-480V). For use with UVOLT fixtures ONLY at 347V operation.
80CRI
CRI
HORIZON OAKLAND PARK
DESCRIPTION
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LED96/LINEAR/3CCT/3WO/UNV/D/HO
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K - 138
3500K - 133
4000K - 134
5000K - 135
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K - 138
3500K - 133
4000K - 134
5000K - 135
48”
48” 96”
TYPE LT25E SPEC
FEATURES & SPECIFICATIONS
INTENDED USE — Available in several color temperatures, lumen packages and lengths. Ideal for use in commercial, retail, office, warehouse and display applications. Certain airborne contaminants can diminish integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components
CONSTRUCTION — Compact-design channel and cover are formed from code compliant, 22 gauge cold-rolled steel.
SENSOR SWITCH JUST ONE TOUCH TECHNOLOGY — Single room control wireless technology available for easy install and commissioning to aid in code compliance. The JOT option enables the fixture with Just One Touch pairing capability. The JOTVTX15 option features a luminaire-embedded occupancy and ambient light sensor allows the luminaire to power off when the space is unoccupied or when enough ambient light is entering the space.
SENSOR SWITCH VISIBLE LIGHT PROGRAMMING TECHNOLOGY — Standalone sensor programming via VLP mobile app and smart device's camera flash from up to 8ft away.
FINISH — High-gloss, baked white enamel (standard).
OPTICS — LEDs provide 80+ color rendering index (CRI) at 3500K, 4000K and 5000K. Diffuse polycarbonate lens with ultra-sonically welded end caps provides smooth, linear illumination.
ELECTRICAL — Luminaire Surge Protection Level: Designed to withstand up to 2.5kV/0.75kA per ANSI C82.77-5-2015. For applications requiring higher level of protection additional surge protection must be provided.
Driver is standard 0-10V dimming class 2.
Optional internal pluggable wiring harness for reduced labor cost in row mounting applications.
(See PLR_ ordering information on page 5.)
INSTALLATION — Fixture may be surface mounted to a ceiling or horizontal and vertical wall or suspension mounted with appropriate mounting options (see accessories). Easy to install row aligner bracket included for continuous row mounting.
LISTINGS — CSA certified to US and Canadian safety standards and listed suitable for damp locations. Minimum starting temperature of -22°F (-30°C). Maximum ambient operating temperature of 104˚F (40˚C) for 4ft models and 95˚F (35˚C) for 2ft & 8ft models. See notes for controls temperature restrictions.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Suitable for use within closet spaces when installed per NEC 410.16 spacing requirements.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® or XPoint™ Wireless control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
HORIZON OAKLAND PARK
TYPE LT25E SPEC
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
CSS Contractor Single Strip LED L24 ‡ 22" 2000LM 2000 Lumens
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
rPP20D nLight® air dimming/switching module
SFR7CSS 120/277V field installed On/Off motion sensor, 360° small motion ‡
SFR7CSS 347 347V field installed On/Off motion sensor, 360° small motion ‡ Y J10 Y hanger in multiples of 10 (five pair)
WGCSS Wire Guard with Mounting hardware (one 4ft) ‡ MNLK JBOXCVR M12Junction box cover and hardware, white
‡ Option Value Ordering Restrictions
Option value Restriction
L24
Not available with IE7WCP, IE10WCPHE, JOT, JOTVTX15, VTX15FADC, VTX15FANL, WG, SFR7CSS120/277, SFR7CSS347. ALO15, ALO3, ALO4Not available with 35K, 40K or 50K color temperatures. SWW3 Not available with static lumen packages.
Emergency BatteryNot available with PLR
JOT Enabled Controls Not available with ALO3, ALO4, UVOLT or SWW3. Minimum starting temp of 14°F (-10°C). Maximum operating temp of L48 at 95°F (35°C) & L96 at 86°F (30°C). Controls contained in endcap.
VLP Enabled Sensors Not available with ALO15, ALO3, ALO4, UVOLT or SWW3. See page 5 for default programming and coverage pattern information. Sensors contained in endcap.
SFR Sensors Can only be mounted at the end of continuous row mount applications. On/off function only. Minimum starting temp of 14°F (-10°C). Ensure correct sensor voltage selected for use with UVOLT fixtures based on application. See page 7 for coverage pattern.
SFR7CSS120/277 Sensor operates at ONLY 120V or 277V. Can NOT be used for 208V or 240V operation. Not available with L24. Requires MVOLT.
SFR7CSS347 Sensor operates at 347V ONLY. Not available with MVOLT (120-277V). Not available with L24. Requires UVOLT.
Wire Guard Does not cover SFR controls. Not recommended for use with endcap integrated JOT or VLP enabled controls due to potential detection obstruction.
PLR__ & PLR1LVGNot available with Emergency or Controls. L24 only available with PLR1LVG.
UVOLT Not available with Emergency, JOT or VTX.
ILBHI CP10 HE SD A High voltage emergency driver (347-480V). For use with UVOLT fixtures ONLY at 347V operation.
80CRI
CRI
HORIZON OAKLAND PARK TYPE
DESCRIPTION
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LED96/LINEAR/3CCT/3WO/UNV/D/HO
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K - 138
3500K - 133
4000K - 134
5000K - 135
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K - 138
3500K - 133
4000K - 134
5000K - 135
48”
48” 96”
TYPE LT26 SPEC HORIZON OAKLAND PARK

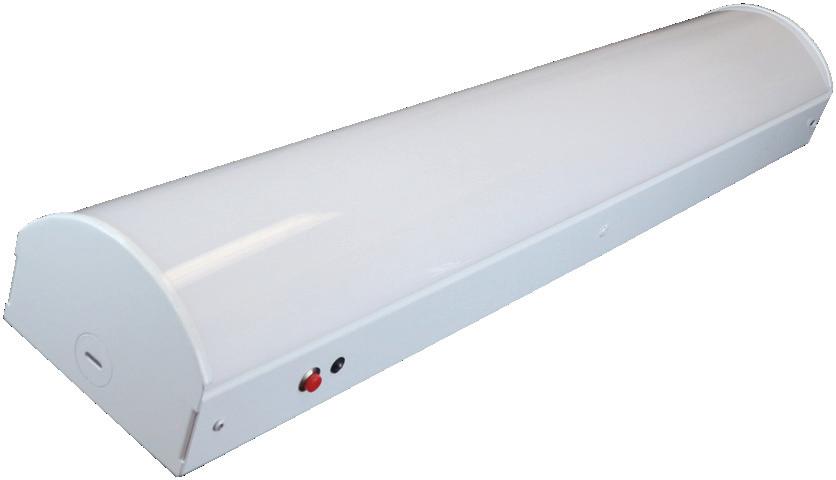

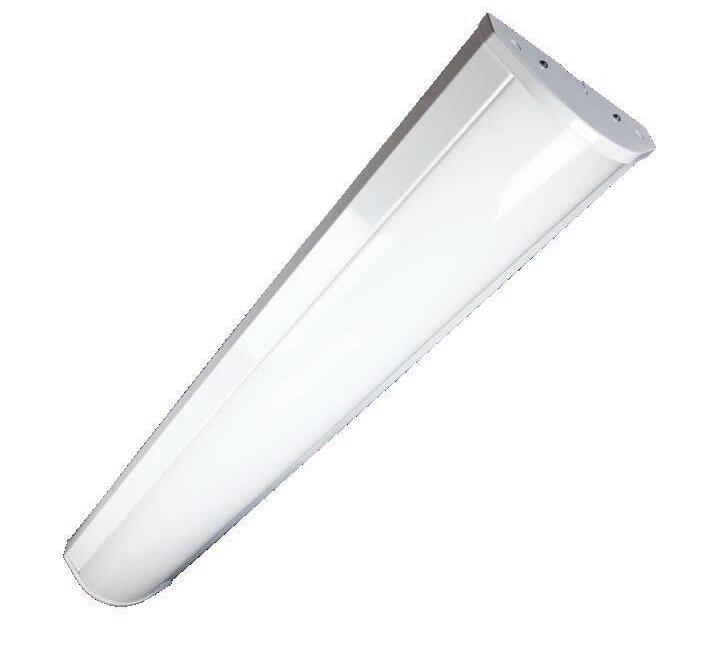

SSF Series
LED Linear Stairwell Fixture
DESCRIPTION
The SSF LED Linear Stairwell Series features a sleek yet robust construction with an IK08 impact-tested steel housing, vandal-proof hardware and UV-stabilized polycarbonate lens. The SSF Series is offered in both 2’ and 4’ configurations and comes standard with an integral microwave sensor centered behind the lens providing 2 or 3 step - level dimming as well as optional daylight harvesting capability. Internal switches allow the user to select the CCT (3000K-3500K-4000K) and the power output (between 10W to 40W, depending on fixture size), providing maximum project flexibility. The SSF is offered with a battery backup option providing 90 minutes of emergency egress lighting. The SSF is a DesignLights Consortium® PREMIUM qualified product in the stairwell and linear ambient category, maximizing energy-savings and utility rebates. Designed for stairwell applications, the SSF can be used in a wide variety of other indoor, general ambient lighting applications including schools, hospitals and stores and is the perfect choice for both new construction and retrofits.
SPECIFICATIONS
Construction:
• Durable 4-3/8” width, 22-gauge steel enclosure in a white powder coated finish, IK08 impact tested, 2’ and 4’ length
• Vandal-resistant Pin-In Torx hardware
• Flanged housing ends secure the lens in place
• Several knockouts across the bottom of the housing and the two ends
• All visible hardware in a white finish to match enclosure
Optics/LEDs:
• UV-stabilized frosted polycarbonate lens offering an even, diffused light
• Units provide a range of lumen packages by simply selecting the wattage desired for your application;
• 2’ unit – wattage selectable from 10W through 30W offering up to 3850 lumens
• 4’ unit – wattage selectable from 12W through 40W offering up to 5320 lumens

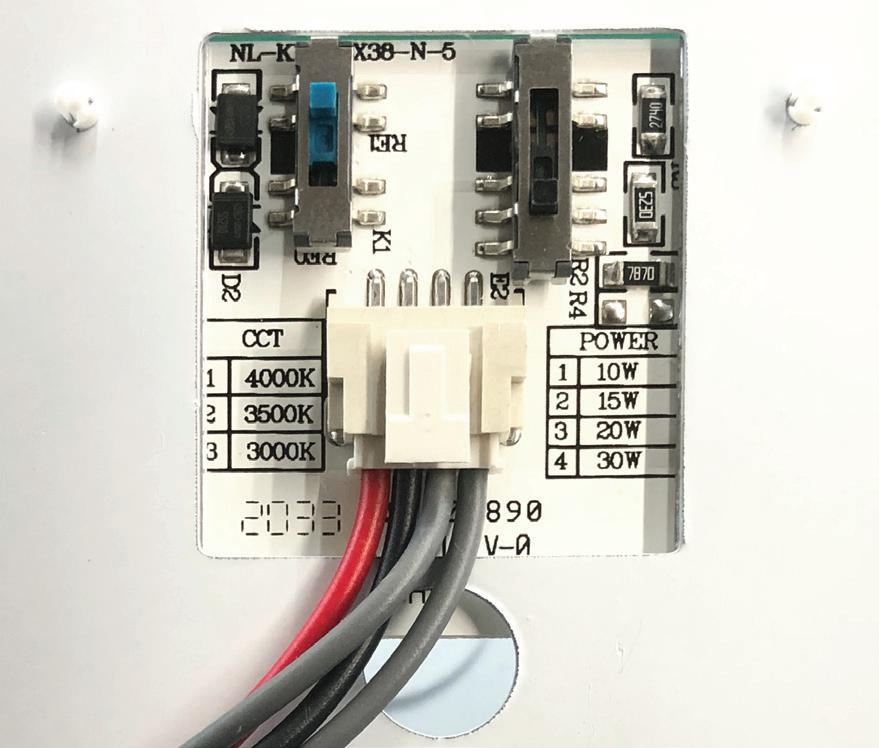

• Switches are located inside fixture
• Significant energy savings compared to traditional light sources with up to 130 LPW
• Color switchable between 3000K, 3500K and 4000K CCT. Switch is located inside the fixture.
• All units are provided with an integral microwave sensor, centered behind the lens. Sensor allows for 2 or 3 step - level dimming and has optional daylight harvesting capabilities. Settings can be adjusted via optional remote control accessory. See sensor details for default sensor settings.
• Sensor can easily be disabled for on/off fixture operation Testing & Compliance:
• cETLus Listed for Damp Locations
• Operating temperatures: -20°C to 40°C (-40°F to 104°F)
• DesignLights Consortium® (DLC) PREMIUM Qualified in the stairwell and linear ambient category (consult QPL for qualified models)
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
Options:
• Integral battery Backup (BB option) offers 875 lumens and over 90 minutes of emergency powered illumination for path of egress. Rated for ambient temperatures of 0°C to 40°C (32°F to 104°F)
Specs at a Glance*
Efficacy (LPW) 130LPW
CCT (K) Switchable (3000K-3500K-4000K)
CRI ≥80
Input Voltage 120-277VAC, 50/60Hz
Operating Temp -20°C to 40°C (-4°F to 104°F)
Certifications cETLus Listed for Damp Locations, DLC PREMIUM Warranty 5 Years
Weight** 4.4 lbs 8.2 lbs
*Nominal wattage. Tested at 4000K CCT.
** Net weight without battery backup (add 0.9 lbs for battery backup)
Note: Environment and application will affect performance. Typical values and 25°C used for testing. Specifications subject to change without notice.
Accessories:
• Remote control for sensor (TL-RC-SCNS) allows field programming of sensor settings. Default sensor settings provided in sensor detail section (this accessory is not required if default settings are acceptable)
• 2' Long, T20 Torx Pin-In security (TRHT-T20-PIN), 1/4" drive bit hex shaft for standard drills
Installation:
• For ceiling or wall surface mount installation
• Several knockouts behind the enclosure and on both ends for flexibility in mounting
• Remove one end cap to slide and snap out the lens for easy access to inside the fixture
• Clips inside the fixture provide simple access for wiring and installation as well as access to the CCT and power selectable switches
• Not suitable for installation in T-bar ceilings without field mounting modifications to be determined by installer
• Includes security cable to hold led tray in place during installation
• Includes quick connect on leads for easy easy wiring

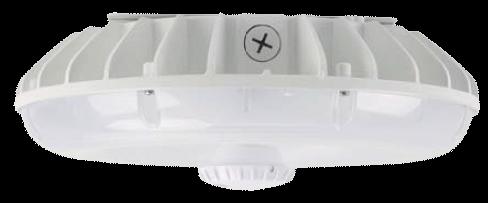

Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
• Wattage selectable 35/45/55W
• Color Selectable 35/40/50K
• O ptional battery backup
Ideal Applications
• Co mmercial settings
• St airways
• Bi-level dimming microwave motion sensor
• S urface or pendant mounting
• Industrial settings
• Warehouses
TYPE LT26 SPEC HORIZON OAKLAND PARK
Ordering Information (Example: SSF-4-CP-SC)
SKU Description
SSF-2-CP-SC
SSF-2-CP-BB-SC
SSF-4-CP-SC
Also available with Bluetooth controls, see SSF-LE spec
2’ Linear Stairwell, Switchable 3000K-3500K-4000K CCT, Switchable 10W-15W-20W-30W, Integral Microwave Sensor, White Finish
2’ Linear Stairwell, Switchable 3000K-3500K-4000K CCT, Switchable 10W-15W-20W-30W, Integral Microwave Sensor, Battery Backup, White Finish
4’ Linear Stairwell, Switchable 3000K-3500K-4000K CCT, Switchable 12W-18W-25W-40W, Integral Microwave Sensor, White Finish SSF-4-CP-BB-SC
4’ Linear Stairwell, Switchable 3000K-3500K-4000K CCT, Switchable 12W-18W-25W-40W, Integral Microwave Sensor, Battery Backup White Finish
Notes
1 Order as a separate line item. Shipped in a separate box for final installation in the field
Specifications are subject to change without notice. Installation must be performed in accordance with Barron Lighting Group installation instructions.
Accessories¹ (Field Installed)
TL-RC-SCNS = Remote control required for sensor field programming TRHT-T20-PIN = 2" Long, T20 Torx Pin-In Security, 1/4" Drive Bit Hex Shaft for Standard Drills
Field Installed Accessories: YTGHANGER - 10’ adjustable cable hang kit
Listings
Five year limited warranty against defects
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
TYPE LT30 SPEC HORIZON OAKLAND PARK

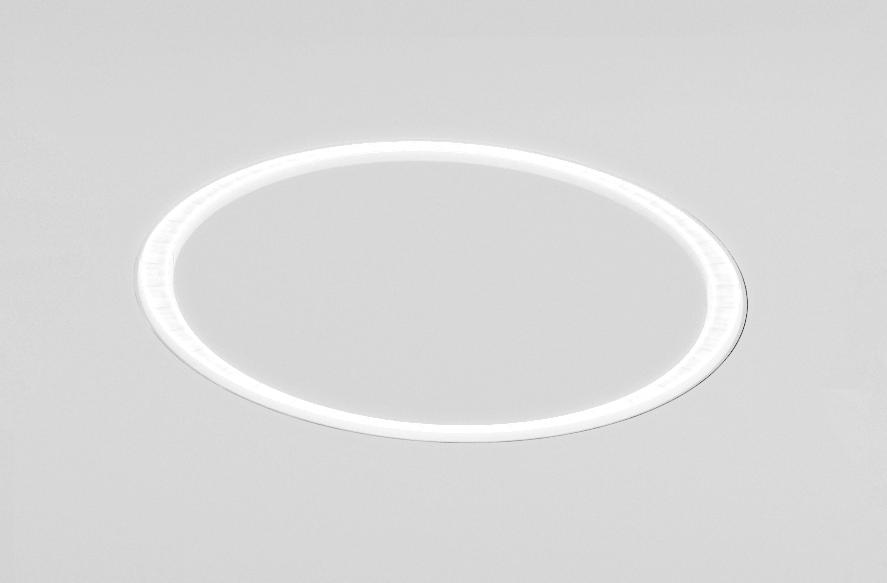

AERA 2" DOWNLIGHT
ROUND RECESSED WALL WASH
NEW CONSTRUCTION & REMODEL
Wash Flanged Trim Wall Wash Trimless Drywall Mudplate
Aera recessed downlights are true to size, encased in minimalist housing, and suitable additions to any interior space where outstanding optical performance, maximal eye comfort, and/or an industryleading wall wash are required.
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable surface gimbals adjust to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
11 A remote driver box is provided, see page 5 for details. 12 Available with 120V only. 13 On-site commissioning is required. 14 For emergency battery, code will be like the following example: RD1+EB
BLANK
TYPE LT35 SPEC HORIZON OAKLAND PARK

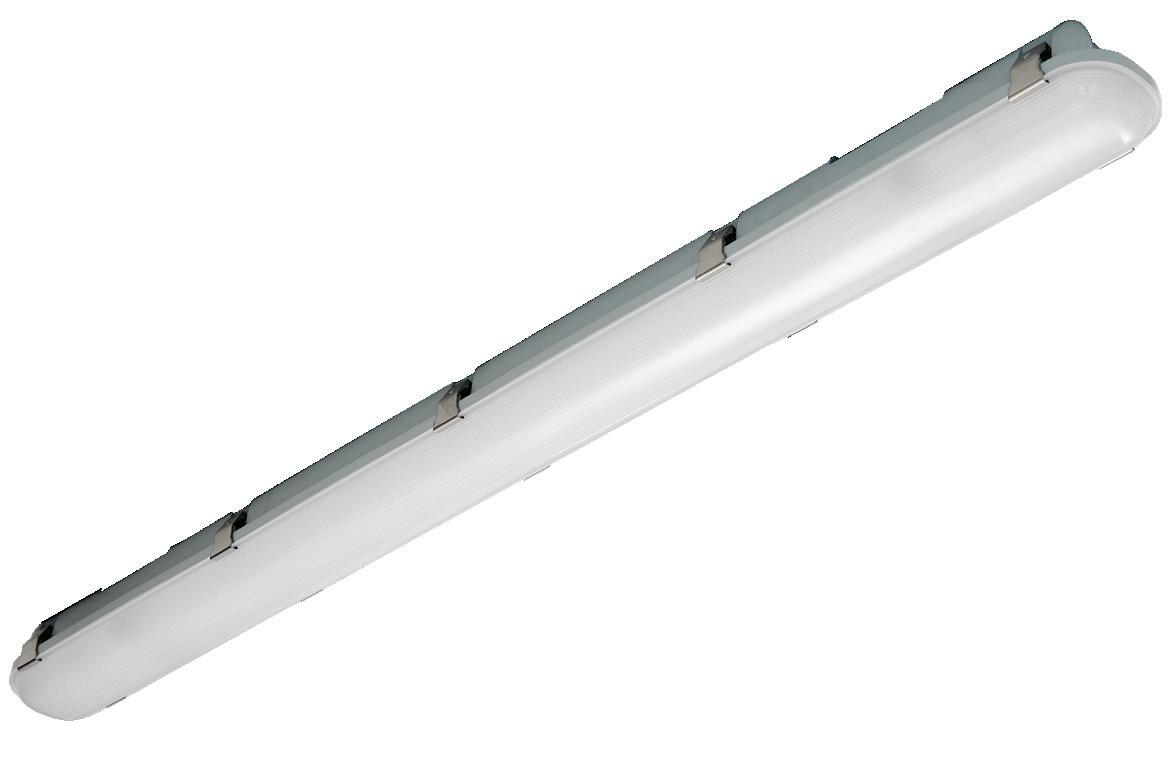

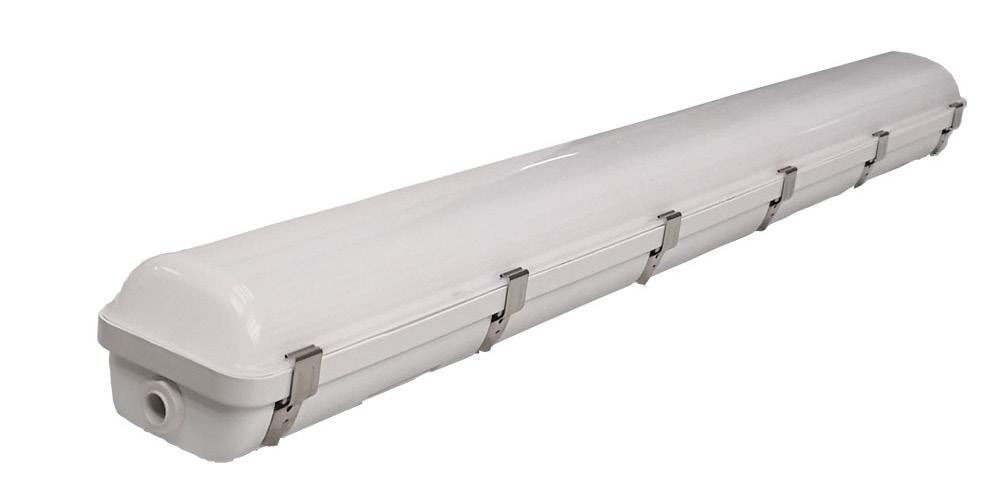

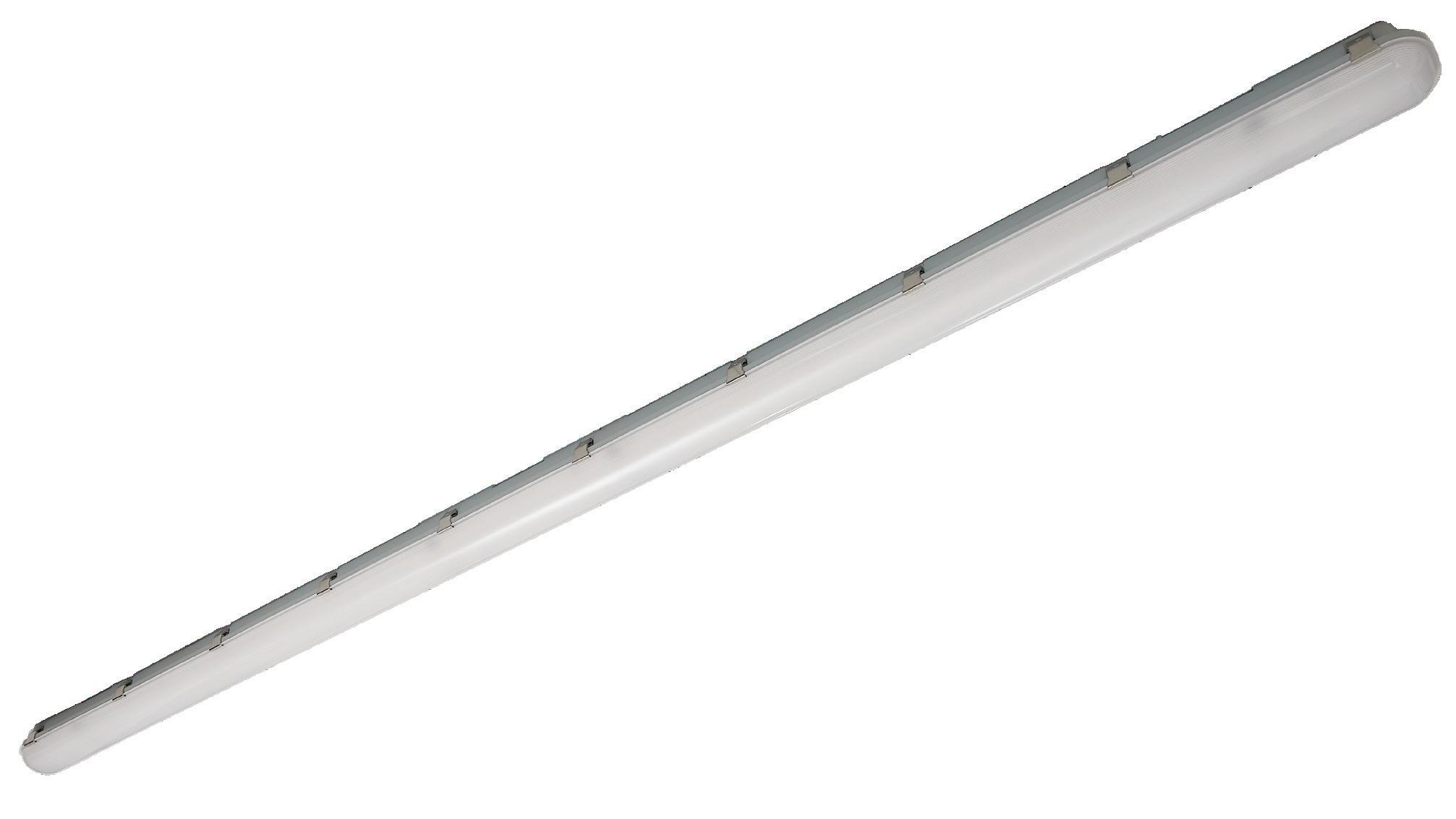

VPA Series
DESCRIPTION
The VPA Series LED linear vaportight features robust construction with an IK08 impact-tested polycarbonate housing designed for easy installation with direct, toolless access to the driver compartment. With its UV-stabilized frosted polycarbonate lens, the VPA Series offers impressive general illumination and is offered in 2’, 4’ and 8’ configurations. Internal switches allow the user to select the CCT between 3500K, 4000K and 5000K to provide project flexibility. An optional integral microwave sensor, centered behind the lens, provides two or three step/ level dimming as well as light thresholds/daylight harvesting capability. A battery backup option provides emergency egress lighting for 90 minutes. The VPA Series is designed for indoor and outdoor covered spaces that require protection from dust, dirt and water with its NEMA 4X rating and can be used in a variety of applications including schools, parking garages, covered pathways, hospitals, stores or facilities where NSF certification is required. This unit is rated for Food Zone, Splash Zone: Equipment surfaces that are subject to splash and food spillage during operation of the equipment as well as Non-Food Zone. This series is an easy to install, robust, cost effective solution that is the perfect choice for both new construction and retrofits.
SPECIFICATIONS
Construction:
• UV-stabilized polycarbonate enclosure in a light gray finish, IK08 impact-tested, 2', 4’ and 8’ lengths
• The fixture is designed with a high-quality polycarbonate lens featuring a unique poured-in gasket to provide superior water and dust ingress protection
• Stainless steel clips secure the lens to the enclosure
• Toolless access to the driver compartment
Optics/LEDs:
• UV-stabilized frosted polycarbonate lens offering an even, diffused light
• General 120° distribution
• Available in three lengths/lumen packages;
• 2' Unit, 25W, 2969 lumens
• 4’ Unit, 40W, 5200 lumens
• 8’ Unit, 80W, 10,400 lumens
• Significant energy savings compared to traditional light sources, up to 130 LPW
• Color switchable between 3500K, 4000K and 5000K CCT. Switch is located inside the fixture
• L70 >100,000 hours
• CRI ≥80
Electrical:
• Class 2 power supply, 120 to 277VAC, 50/60Hz
• 0-10V Dimming driver
Installation:
• For ceiling or wall surface mount installation, includes mounting clips
• Knockouts provided on the back and both ends of the enclosure for flexibility in mounting
• Toolless access to driver compartment - unit opens up directly to the driver compartment and safety cables retain the lens in place for ease of installation and wiring
• Switches are located inside the unit to avoid any tampering and to maintain weatherproofing
• Not suitable for installation in T-bar ceilings without field mounting modifications (determined by installer)
Accessories:
• Bluetooth PIR motion sensor with daylight harvesting, white finish, 12VDC (LE-MS2-HB1)
• Bluetooth wall switches (LE-SWX)
• Optional remote control for Option: SC sensor (TL-MSSW-REMOTE) allows field programming of sensor settings. See sensor detail section for default settings
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
Specifications are subject to change without notice. Installation must be performed in accordance with Barron Lighting Group installation instructions.
Specs at a Glance*
Length 2' 4' 8'
CCT (K) Switchable (3500K-4000K-5000K)
CRI ≥80
Input Voltage 120-277VAC, 50/60Hz, 0-10V Dimming
Operating Temp -30°C to 40°C (-22°F to 104°F)
Certifications cULus Listed for Wet Locations, DLC, NSF, NEMA 4X
Warranty 5 Years
Weight* 5.5 lbs
* Nominal wattage. Tested at 4000K CCT. Values at 120/277VAC.
Note: Environment and application will affect performance. Typical values and 25°C used for testing. Specifications subject to change without notice.
Options:
• Integral battery backup option (BB) offers 875 lumens and over 90 minutes of emergency illumination for path of egress. Rated for ambient temperatures of 0°C to 40°C (32°F to 104°F)
• Integral microwave sensor option (SC) behind the lens. Sensor allows for two or three step/level dimming and has optional daylight harvesting capabilities. Settings can be adjusted via dipswitches on the sensor or optional remote control accessory. See sensor details for default sensor settings
Testing & Compliance:
• cULus Listed for Wet Locations
• NEMA 4X Rated
• NSF Certified for food equipment, rated for Food Zone, Splash Zone and Non Food Zone
• Tested to meet IP65 requirements
• DesignLights Consortium® (DLC) Qualified
• Operating temperatures: -30°C to 40°C (-22°F to 104°F)
HORIZON OAKLAND PARK
TYPE LT35 SPEC
Ordering Information (Example: VPA-4-40-C-SC)
Series Size/Wattage CCT
VPA 2-25 = 2', 25 Watts C = Color Selectable (3500K-4000K-5000K)
4-40 = 4', 40 Watts
8-80 = 8', 80 Watts
Notes
1 Battery Backup (BB) not available with 2' configuration
2 Order as a separate line item, shipped in a separate box for installation in the field
HORIZON OAKLAND PARK
Options (Factory Installed)
BB1 = Battery Backup
SC = Sensor
LiteLogic Accessories³ (Field Installed)
LE-MS2-HB1 = Bluetooth Enabled Motion PIR Sensor with Daylight Harvesting, 120/277VAC
LE-SW2 = Bluetooth Enabled, 5-Button, Battery Powered Wall Switch
LE-SW3 = Bluetooth Enabled, 3-Button, Line Voltage Wall Switch (Neutral Required)
LE-SW4 = Bluetooth Enabled, 7-Button, Line Voltage Wall Switch (Neutral Required)
LE-WP = Wallplate for LE-SW2
TL-MSSW-REMOTE3 = Remote Control for Sensor Field Programming
3 Remote control not required if sensor settings are acceptable, or user prefers adjusting via dipswitches on individual sensors

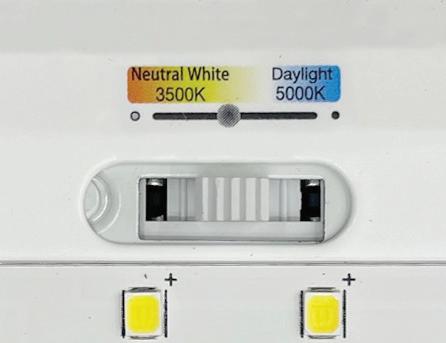

Details - Inside of Unit / Switch Location (VPA-4-40)
VPA-4-40-C; 4000K CCT IES: TYPE II Very Short
MOUNTING HEIGHT: 10’
TILT: ZERO
HORIZONTAL SPACING CRITERIA: 1.22
Specifications are subject to change without notice. Installation must be performed in accordance with Barron Lighting Group installation instructions.
HORIZON OAKLAND PARK TYPE LT35
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
LED96/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO+EM
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
TYPE LT35E SPEC HORIZON OAKLAND PARK
VPA Series
DESCRIPTION
The VPA Series LED linear vaportight features robust construction with an IK08 impact-tested polycarbonate housing designed for easy installation with direct, toolless access to the driver compartment. With its UV-stabilized frosted polycarbonate lens, the VPA Series offers impressive general illumination and is offered in 2’, 4’ and 8’ configurations. Internal switches allow the user to select the CCT between 3500K, 4000K and 5000K to provide project flexibility. An optional integral microwave sensor, centered behind the lens, provides two or three step/ level dimming as well as light thresholds/daylight harvesting capability. A battery backup option provides emergency egress lighting for 90 minutes. The VPA Series is designed for indoor and outdoor covered spaces that require protection from dust, dirt and water with its NEMA 4X rating and can be used in a variety of applications including schools, parking garages, covered pathways, hospitals, stores or facilities where NSF certification is required. This unit is rated for Food Zone, Splash Zone: Equipment surfaces that are subject to splash and food spillage during operation of the equipment as well as Non-Food Zone. This series is an easy to install, robust, cost effective solution that is the perfect choice for both new construction and retrofits.
SPECIFICATIONS
Construction:
• UV-stabilized polycarbonate enclosure in a light gray finish, IK08 impact-tested, 2', 4’ and 8’ lengths
• The fixture is designed with a high-quality polycarbonate lens featuring a unique poured-in gasket to provide superior water and dust ingress protection
• Stainless steel clips secure the lens to the enclosure
• Toolless access to the driver compartment
Optics/LEDs:
• UV-stabilized frosted polycarbonate lens offering an even, diffused light
• General 120° distribution
• Available in three lengths/lumen packages;
• 2' Unit, 25W, 2969 lumens
• 4’ Unit, 40W, 5200 lumens
• 8’ Unit, 80W, 10,400 lumens
• Significant energy savings compared to traditional light sources, up to 130 LPW
• Color switchable between 3500K, 4000K and 5000K CCT. Switch is located inside the fixture
• L70 >100,000 hours
• CRI ≥80
Electrical:
• Class 2 power supply, 120 to 277VAC, 50/60Hz
• 0-10V Dimming driver
Installation:
• For ceiling or wall surface mount installation, includes mounting clips
• Knockouts provided on the back and both ends of the enclosure for flexibility in mounting
• Toolless access to driver compartment - unit opens up directly to the driver compartment and safety cables retain the lens in place for ease of installation and wiring
• Switches are located inside the unit to avoid any tampering and to maintain weatherproofing
• Not suitable for installation in T-bar ceilings without field mounting modifications (determined by installer)
Accessories:
• Bluetooth PIR motion sensor with daylight harvesting, white finish, 12VDC (LE-MS2-HB1)
• Bluetooth wall switches (LE-SWX)
• Optional remote control for Option: SC sensor (TL-MSSW-REMOTE) allows field programming of sensor settings. See sensor detail section for default settings
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
Specifications are subject to change without notice. Installation must be performed in accordance with Barron Lighting Group installation instructions.
Specs at a Glance*
Length 2' 4' 8'
CCT (K) Switchable (3500K-4000K-5000K)
CRI ≥80
Input Voltage 120-277VAC, 50/60Hz, 0-10V Dimming
Operating Temp -30°C to 40°C (-22°F to 104°F)
Certifications cULus Listed for Wet Locations, DLC, NSF, NEMA 4X
Warranty 5 Years
Weight* 5.5 lbs
* Nominal wattage. Tested at 4000K CCT. Values at 120/277VAC.
Note: Environment and application will affect performance. Typical values and 25°C used for testing. Specifications subject to change without notice.
Options:
• Integral battery backup option (BB) offers 875 lumens and over 90 minutes of emergency illumination for path of egress. Rated for ambient temperatures of 0°C to 40°C (32°F to 104°F)
• Integral microwave sensor option (SC) behind the lens. Sensor allows for two or three step/level dimming and has optional daylight harvesting capabilities. Settings can be adjusted via dipswitches on the sensor or optional remote control accessory. See sensor details for default sensor settings
Testing & Compliance:
• cULus Listed for Wet Locations
• NEMA 4X Rated
• NSF Certified for food equipment, rated for Food Zone, Splash Zone and Non Food Zone
• Tested to meet IP65 requirements
• DesignLights Consortium® (DLC) Qualified
• Operating temperatures: -30°C to 40°C (-22°F to 104°F)
HORIZON OAKLAND PARK
TYPE LT35E SPEC
Ordering Information (Example: VPA-4-40-C-SC)
Series Size/Wattage CCT
VPA 2-25 = 2', 25 Watts C = Color Selectable (3500K-4000K-5000K)
4-40 = 4', 40 Watts
8-80 = 8', 80 Watts
Notes
1 Battery Backup (BB) not available with 2' configuration
2 Order as a separate line item, shipped in a separate box for installation in the field
HORIZON OAKLAND PARK
Options (Factory Installed)
BB1 = Battery Backup
SC = Sensor
LiteLogic Accessories³ (Field Installed)
LE-MS2-HB1 = Bluetooth Enabled Motion PIR Sensor with Daylight Harvesting, 120/277VAC
LE-SW2 = Bluetooth Enabled, 5-Button, Battery Powered Wall Switch
LE-SW3 = Bluetooth Enabled, 3-Button, Line Voltage Wall Switch (Neutral Required)
LE-SW4 = Bluetooth Enabled, 7-Button, Line Voltage Wall Switch (Neutral Required)
LE-WP = Wallplate for LE-SW2
TL-MSSW-REMOTE3 = Remote Control for Sensor Field Programming
3 Remote control not required if sensor settings are acceptable, or user prefers adjusting via dipswitches on individual sensors
Details - Inside of Unit / Switch Location (VPA-4-40)
VPA-4-40-C; 4000K CCT IES: TYPE II Very Short
MOUNTING HEIGHT: 10’
TILT: ZERO
HORIZONTAL SPACING CRITERIA: 1.22
Specifications are subject to change without notice. Installation must be performed in accordance with Barron Lighting Group installation instructions.
HORIZON OAKLAND PARK TYPE
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
LED96/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO+EM
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS

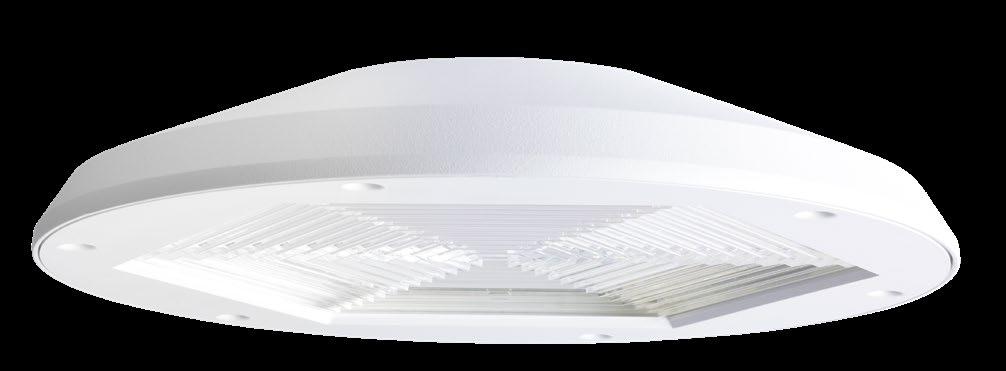

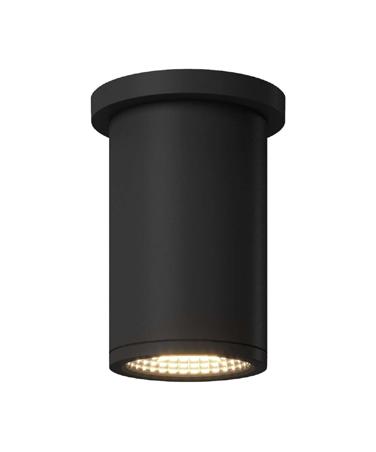

TYPE LT39 SPEC HORIZON OAKLAND PARK
Application
Compact ceiling mounted downlights designed for down lighting atriums, canopies, passages and other interior and exterior locations.
Silicone applied robotically to casting, plasma treated for increased adhesion
Pure anodized aluminum reflector surface
Silicone optic with excellent high temperature and UV stability
BEGA Hybrid Optics®
NRTL listed to North American Standards, suitable for wet locations
Protection class IP 65
Weight: 3.1 lbs.
Electrical
Operating voltage 120-277V AC
Minimum start temperature -30° C
LED module wattage 16.8 W
System wattage 20.0 W
Controllability 0-10V, TRIAC, and ELV dimmable
Color rendering index Ra > 90
Luminaire lumens 2285 lm
LED service life (L70) 60000 hrs
LED color temperature
4000K (K4)
3500K (K35)
3000K (K3)
2700K (K27)
BEGA can supply you with suitable LED replacement modules for up to 20 years after the purchase of LED luminaires - see website for details
Finish
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL, custom, and premium colors provided in polyester powder and/or liquid paint.
Silicone applied robotically to casting, plasma treated for increased adhesion
Pure anodized aluminum reflector surface
Silicone optic with excellent high temperature and UV stability
BEGA Hybrid Optics®
NRTL listed to North American Standards, suitable for wet locations
Protection class IP 65
Weight: 3.1 lbs.
Electrical
Operating voltage 120-277V AC
Minimum start temperature -30° C
LED module wattage 16.8 W
System wattage 20.0 W
Controllability 0-10V, TRIAC, and ELV dimmable
Color rendering index Ra > 90
Luminaire lumens 2285 lm
LED service life (L70) 60000 hrs
LED color temperature
4000K (K4)
3500K (K35)
3000K (K3)
2700K (K27)
BEGA can supply you with suitable LED replacement modules for up to 20 years after the purchase of LED luminaires - see website for details
Finish
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL, custom, and premium colors provided in polyester powder and/or liquid paint.
USA: 3035 E. LONE MOUNTAIN ROAD - LAS VEGAS, NV 89081
Project:
Loca on:

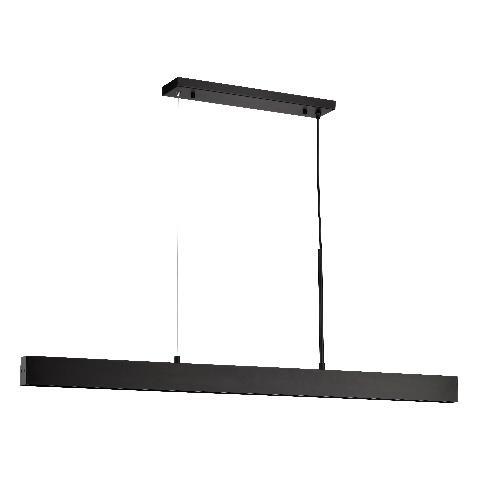

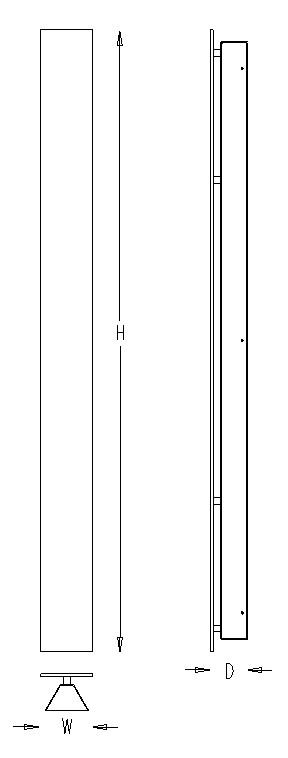

Example: 618-48LED40-BLK-35K 618
This minimalis c fixture is an architect’s delight! With its slim lines and so illumina on, it’s the perfect accent to any façade.
OrderingInforma on/Op ons
Length Wa s
LED13 2000 Lumens
30 LED18 2800 Lumens MVOLT
LED22 3600 Lumens
LED22 3500 Lumens
48 LED30 5000 Lumens MVOLT
LED40 6400 Lumens
LED30 5000 Lumens
60 LED40 6400 Lumens MVOLT
LED50 8200 Lumens
Features:
· The minimalis c design gives this fixture a sophis cated appearance
· Constructed of heavy gauge aluminum for strength and longevity
· Standard 0-10V dimming driver, 120-277V MVOLT, 80 CRI
· Listed and approved for wet loca ons
· Meets all ADA requirements
· Buy American Act Compliant
A 4” octagonal junc on box should be used for installa on MC = Moun ng Center, located at center of fixture unless noted otherwise
Finishes
RAL** RAL Custom Color Model 618 ** Consult factory for RAL Custom Color adder
WHT White BLK Black
Silver
BRZ Bronze BA Brushed Aluminum

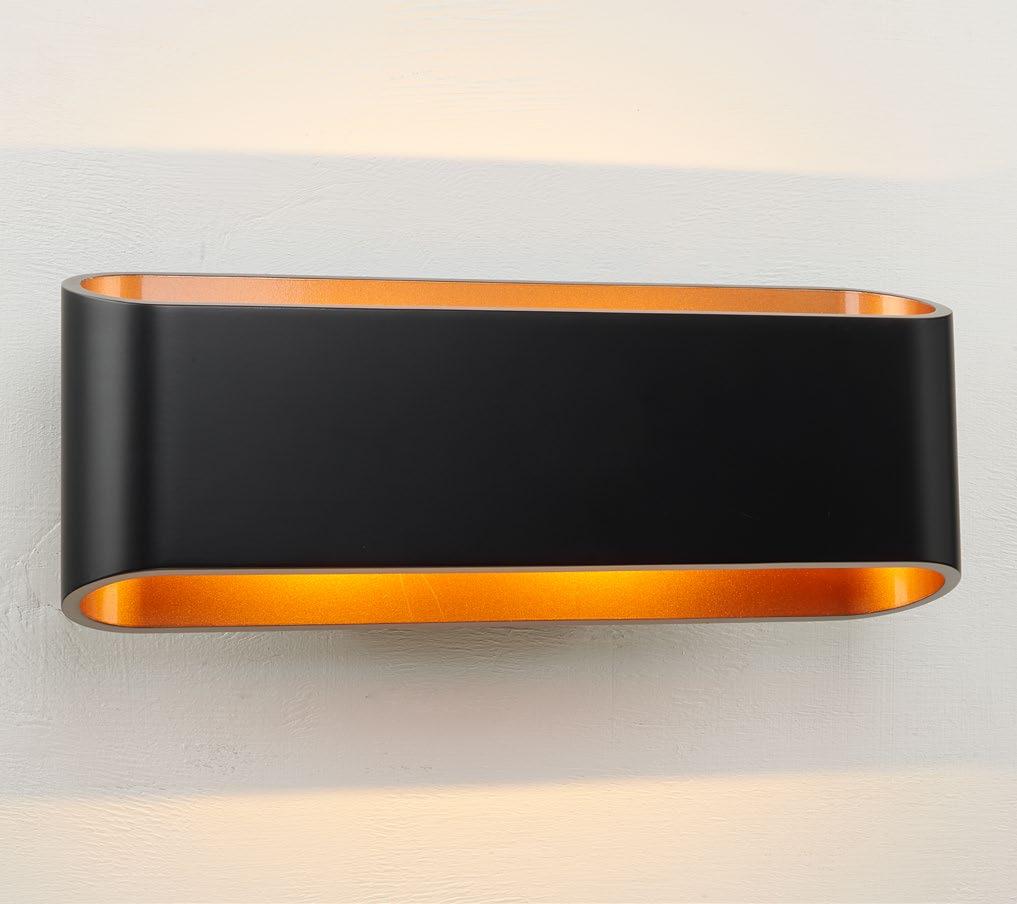

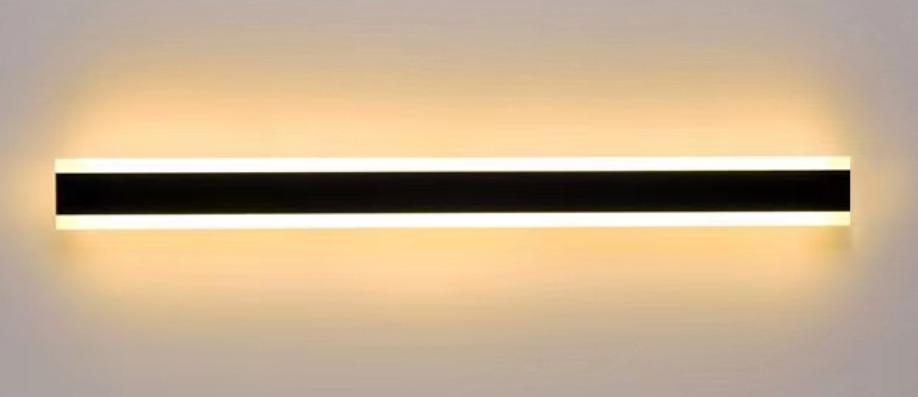

LINEAR
CCT

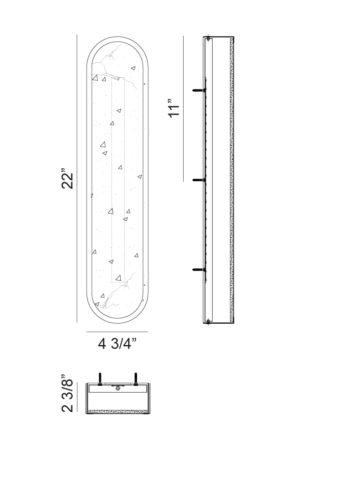

Size see dimensions
Watts 8W, 16W, 25W, 35W
464lm, 725lm, 1015lm
IP Rating IP54
Materials Aluminum, Acrylic
Finish Black
Lens Frosted
Lifespan 20,000 Hours

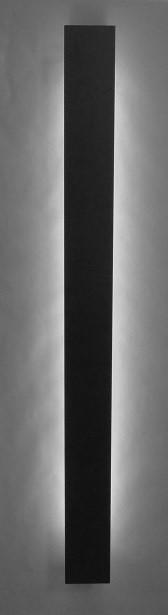

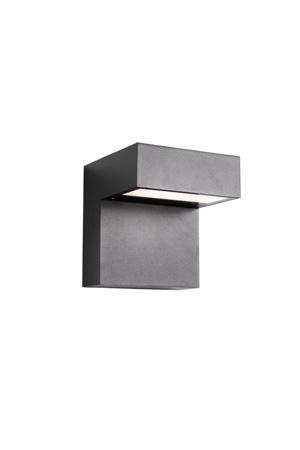

The SARIN Linear Wall Sconce is a modern, outdoor wall sconce that adds functional lighting and brilliance to any area. Constructed from solid aluminum, this fixture boasts a sleek look with a black finish. Designed to create an elegant ambiance, the energy-efficient wall light casts a gentle glow of halo effect from the slimline bar. This minimalist LED wall light can be installed horizontally or vertically, so that it’s easy to adjust it to suit different interior designs.
With an IP54 rating, these sconces are safe to use in wet locations that come in direct contact with rain and water. This decorative LED wall sconce is ideal for any exterior wall on hotels, homes, and offices.
OVERVIEW
Applications: IP54
Efficacy: 29lm/W
Dimming: Non-Dimming
LED Type: SMD
Operating Temp: 5° to 122°F
Operating Humidity: 10% - 90%RH
Lifespan: 20,000 Hours
Warranty: 2 Years
FEATURES
• Protected from the elements with an IP54 rating making it suitable for rainy environments
• Offers three color temperatures with a 140° beam spread
BLANK
ORDER FORM:
Common Stock Models:

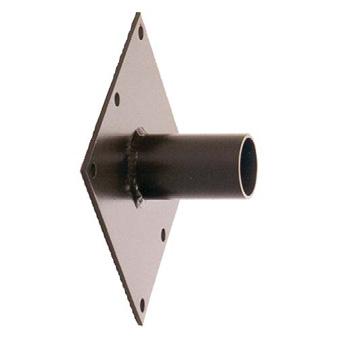

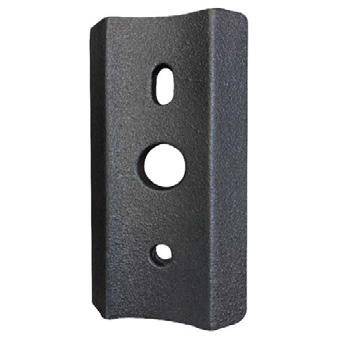

Back Plate
41260-B
6’, 8’ Back Plate
41260-D
Project:
Loca on:
Example: 618-48LED40-BLK-35K 618
This minimalis c fixture is an architect’s delight! With its slim lines and so illumina on, it’s the perfect accent to any façade.
OrderingInforma on/Op ons
Length Wa s
LED13 2000 Lumens
30 LED18 2800 Lumens MVOLT
LED22 3600 Lumens
LED22 3500 Lumens
48 LED30 5000 Lumens MVOLT
LED40 6400 Lumens
LED30 5000 Lumens
60 LED40 6400 Lumens MVOLT
LED50 8200 Lumens
Features:
· The minimalis c design gives this fixture a sophis cated appearance
· Constructed of heavy gauge aluminum for strength and longevity
· Standard 0-10V dimming driver, 120-277V MVOLT, 80 CRI
· Listed and approved for wet loca ons
· Meets all ADA requirements
· Buy American Act Compliant
A 4” octagonal junc on box should be used for installa on MC = Moun ng Center, located at center of fixture unless noted otherwise
Finishes
RAL** RAL Custom Color Model 618 ** Consult factory for RAL Custom Color adder
WHT White BLK Black
Silver
BRZ Bronze BA Brushed Aluminum
LINEAR
CCT
Size see dimensions
Watts 8W, 16W, 25W, 35W
464lm, 725lm, 1015lm
IP Rating IP54
Materials Aluminum, Acrylic
Finish Black
Lens Frosted
Lifespan 20,000 Hours
The SARIN Linear Wall Sconce is a modern, outdoor wall sconce that adds functional lighting and brilliance to any area. Constructed from solid aluminum, this fixture boasts a sleek look with a black finish. Designed to create an elegant ambiance, the energy-efficient wall light casts a gentle glow of halo effect from the slimline bar. This minimalist LED wall light can be installed horizontally or vertically, so that it’s easy to adjust it to suit different interior designs.
With an IP54 rating, these sconces are safe to use in wet locations that come in direct contact with rain and water. This decorative LED wall sconce is ideal for any exterior wall on hotels, homes, and offices.

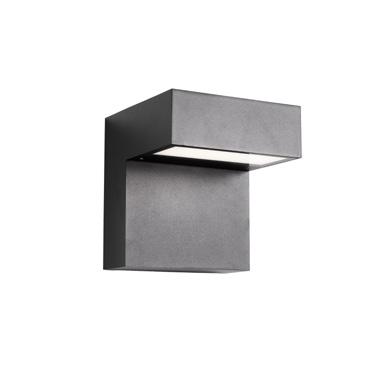

OVERVIEW
Applications: IP54
Efficacy: 29lm/W
Dimming: Non-Dimming
LED Type: SMD
Operating Temp: 5° to 122°F
Operating Humidity: 10% - 90%RH
Lifespan: 20,000 Hours
Warranty: 2 Years
FEATURES
• Protected from the elements with an IP54 rating making it suitable for rainy environments
• Offers three color temperatures with a 140° beam spread
Powerful round, directional 120V - 277V LED modern accent light for commercial environments.
21W, 28W integrated HK LED delivering 2000-2700 lumens.
Wet Location Listed, IP67 Standard.
• Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. 180º vertical and 360º horizontal adjustment via locking swivel stem design.
• Modular components, field changeable LED optical beams, and lenses.
• Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.
• Every fixture tested end of line for water tightness and light quality.
• Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 for details).
Voltage
120V - 277V AC
Wattage
21 or 28W HK delivering 2000 to 2700 lumens.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGBW options available. Consult factory for specialty LED specification details.
Driver/Dimming
Onboard, Integrated LED Driver, Phase Control @120V, 0V-10V @120V-277V DALI or DMX control available, consult factory for details.
Optics
Narrow (16o), Medium (26o), Wide (40o), and Extra Wide (60o) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices. (See page 4 for details).
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

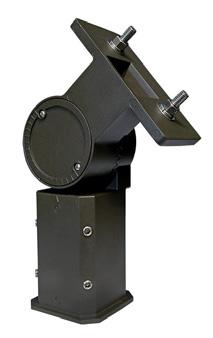

CM5-2-XXX 5 Round Canopy Plate - Double SURFACE MOUNT
CB4.0-XXX 4 Round Surface Box
CB5.5-XXX 5.5 Round Surface Box TREE MOUNT
TM07-JBS-XXX Single Aluminum Tree Mount Box with Stainless Steel Strap (120V)
TM07-JBT-XXX Twin Aluminum Tree Mount Box with Stainless Steel Strap (120V) EXTENSIONS
EX-12-XXX 12 Extension
EX-24-XXX 24 Extension
EL-XXX Elbow Extension
• Consult Accessory Spec Sheet for desired option code.

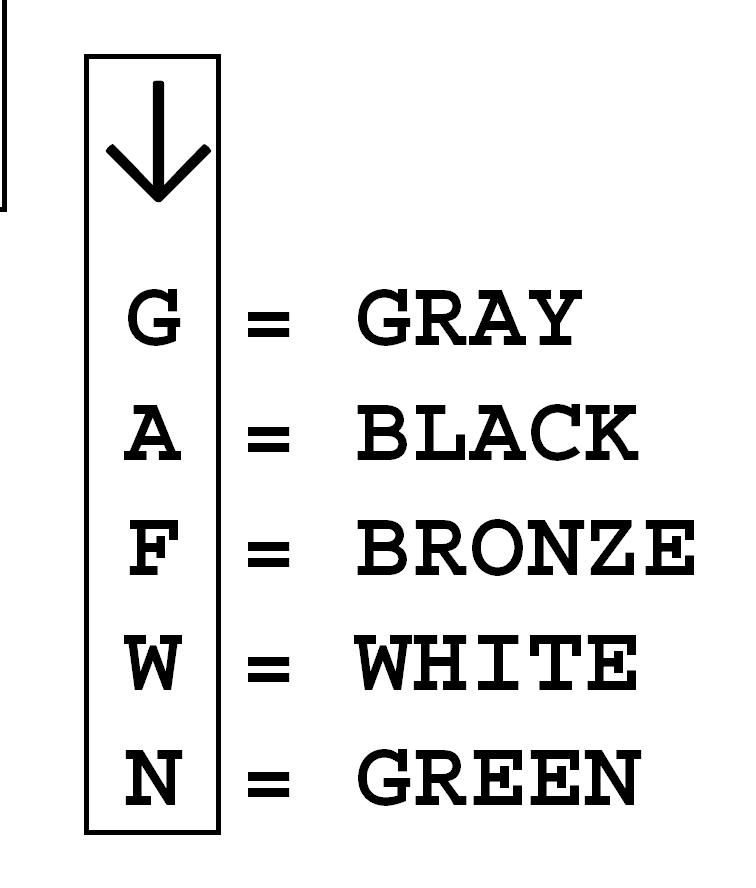

• XXX represents color option.
• Readymade options available in ABL and ABR only unless noted by the part code above.
ADDITIONAL ACCESSORIES (Not installed at time of order)
GLARE SHIELD ACCESSORIES
GSL-20-XXX A/B Glare Shield Long
GSA-20-XXX A/B Glare Shield Angled
GSS-20-XXX A/B Glare Shield Short
CGSL-20-XXX C Glare Shield Long
CGSA-20-XXX C Glare Shield Angled
CGSS-20-XXX C Glare Shield Short
OPTIC ACCESSORIES
LVR-20 Hexcel Louver
OSL-20 Overall Spread Lens
LSL-20 Linear Spread Lens
SOL-20 Solite Soft Focus
DCF-20 Dichroic Filter
OPK-20 Optic Kit - Narrow, Medium, Wide, Extra Wide
BLANK
NO SPECIFICATION

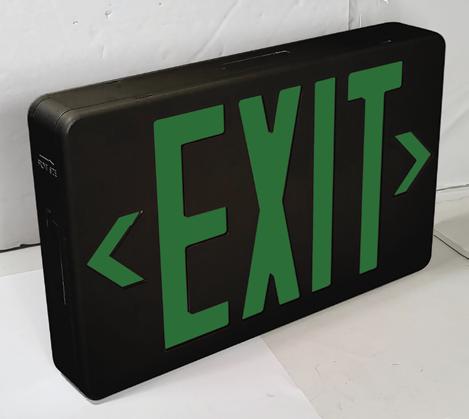

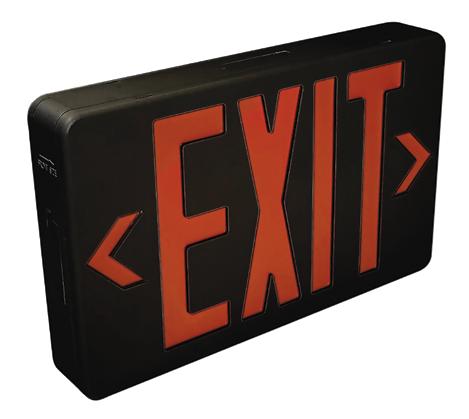

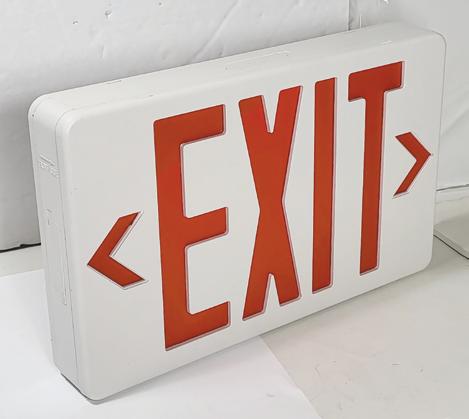

HORIZON OAKLAND PARK TYPE EXIT ALT
Type Project Catalog No.
Notes
PRODUCT DESCRIPTION
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
• 11-13/16" Width X 7-1/4" Height X 1-13/16" Depth
• Injection-molded thermoplastic housing
• Black or White housing finish
FACE
• 6" high text with color diffusion
• Both double and a blank face are included
• Snap-in direction indicators
MOUNTING
• Wall, side, or ceiling
• Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES
NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
UL 924
Rated for Damp Locations (Wet Location when used with NEG-60)
5-Year Limited Warranty
NFPA
Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
Can-less LED recessed downlights are designed for easy installation into new construction or remodel applications. Each downlight includes an Selectable CCT switch located on the junction box. Slim wafer design makes the fixtures ideal for shallow plenums with a regressed baffle trim appearance.
FEATURES
Packaged in case quantities of 12
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes pre-wired junction box
Quick installation and cost savings
IC Air-Tight rated
cETLus Listed for Wet Locations
5-year limited warranty
SPECIFICATION
Construction: Dead front (non-metallic) luminaire with spring clips for easy installation. Regressed lens with sharp baffle cuts reduces aperture brightness. Special polymer lens produces more usable light and lumens per watt.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2" and two 3/8" knockouts and snap on cover. Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6" and Junction box wire length: 10"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/16". New construction frameins are available, see accessories.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NEFLINTW-4OR-MPW: Oversize Ring for 4" Downlight
NEFLINTW-6OR-MPW: Oversize Ring for 6" Downlight
NEFLINTW-EW-4: 4' Quick Connect Linkable Cable
NEFLINTW-EW-20 : 20' Quick Connect Linkable Cable
NEPK-20LEDUNV: Emergency Driver w/Remote Test Switch
NF-R246 : Universal New Construction Frame-In for 4" & 6"
NFC-R430 : New Construction Frame-In with Collar for 4"
NQZ-6R-F: New Construction Frame-In with Collar for 6"
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Wet locations
Certified to the high efficacy requirements of California
RDL series LED Disk Light provides versatile lighting on standard line voltage, yet produces the high energy savings you desire from LED fixtures. The RDL series allows for easy upgrade to your downlighting from the traditional recessed cans to a more modern looking, energy efficient solution. This Disk Light can be mounted on to a junction box or retrofitted into an existing recessed can with the optional hardware mounting adapter (not included).
14.6 H (to lowest point) x 6.9 W (housing) x 9.5 H (top of blade)
-Product Weight (lbs.): 10 N.W. | 12.9 G.W.
-Box (in.): 23.8 L X 9.5 W X 7.5 H
Shipping
-Container Loading:
Motor/Blade Finish
3-Blade | 52" | Wall Control DC MOTOR 120V INTEGRATED LED LIGHT
KIT
Dimensions
White | White & Whitewashed Reversible Plywood Blades 14.6" 6.9"9.5"
(lowest point)
(housing)
(top of blade)
Fan Control Features and Options
-Simple and intuitive design with standard layout.
-Multi-functional fan speed control with fan forward/reverse, light brightness adjustment, and fan/light on/off.
-Hardwired Wall Control (Standard)
•Single Live Wire No Neutral Needed
•Push Button or Knob design available
-Remote (Optional*)
-Pull Chain (Optional*)
*Optional controls at an additional cost
*Data subject to change without notice
Type D1
NO SPECIFICATION

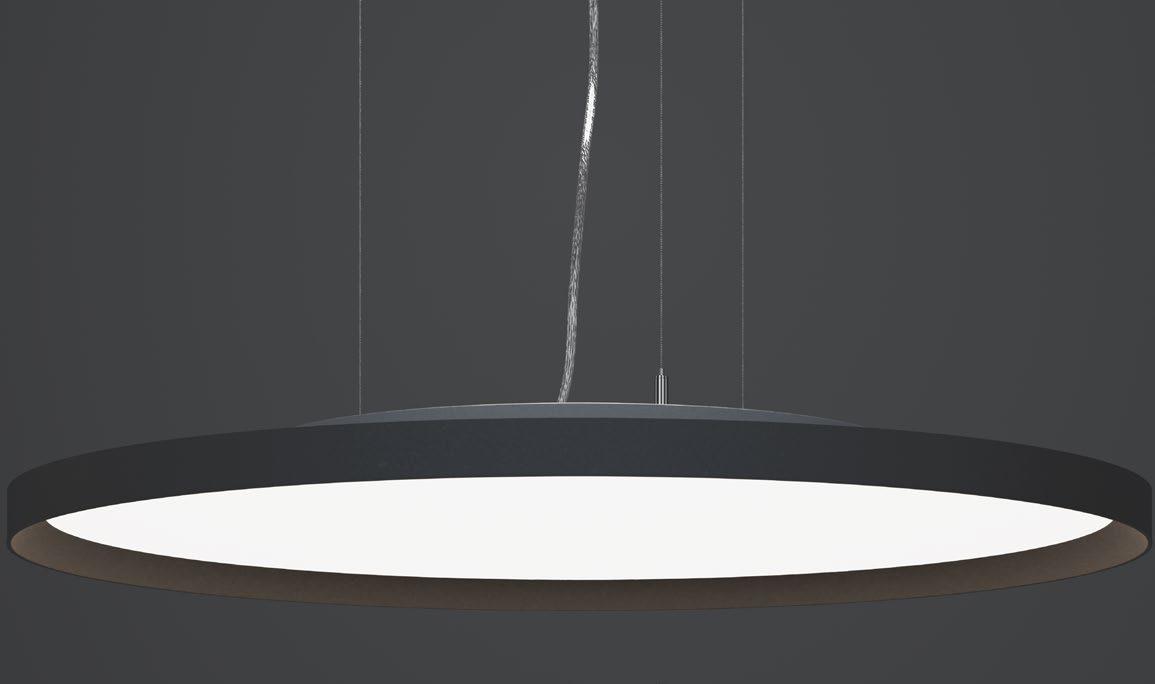

P4524D P4536D P4548D Pendant
Features
Housing
UP and Down Light
Finish Option: -06 White, -09 Silver, -22 Gold, -23 Light Gold, -30 Oil Rubbed Bronze Pendant Mount by 6 Feet Hanging cable
Canopy Size: 18.1”L x 4.3”W x 1.0”H
Optical
Shade: High Transmission Acrylic Create Excellent Light Distribution and Uniformity LED: High Efficiency, High CRI, Binned and Mixed to Reach Uniform Light
Electrical
High Power Factor, Low THD
Lamp
LED Type: Built-in (Color Temperature Option – 3000K, 4000K)
Certifications
ETL/cETL Listed
Warranty
5 Years Warranty on Driver and LED Module
LED Type
~
Hanging Cable Length (H1): 6’, Adjustable
Type E1
NO SPECIFICATION
Features
Housing
Aluminum Extrusion with Die-Form Cold-Rolled Steel Ends
Shade: High Transmission Acrylic Create Excellent Light Distribution and Uniformity
LED: High Efficiency, High CRI, Binned and Mixed to Reach Uniform Light
Electrical
High Power Factor, Low THD
Lamp
LED Type: Built-in (Color Temperature Option – 3000K, 3500K, 4000K, 5000K)
Certification
ETL/cETL Listed for Damp Locations, Energy Star
Warranty
5 Years Warranty on Driver and LED Module
LED Type
TYPE C1 SPEC HORIZON OAKLAND PARK
HELOS™ Luminaires for Parking Garages
PRODUCT FEATURES:
» Unique hexagonal light guide with edge-lit LED light engine provides three distribution optionsType V, Rectangular and Drive Lane
» Lightweight construction (7 lbs) for ease of installation
» Nominal output range of 4,000 to 12,000 lm
» Compatible with TekLink™ lighting control technology
SPECIFICATIONS
HOUSING: Die-cast aluminum and UV-stabilized polycarbonate construction. Standard TGIC polyester powder coat finish on aluminum components with five-step pre-treatment to withstand 1,000 hour salt spray test per ASTM B117. See Ordering Information for available finishes. Closed-cell gasketing seals all housing component interfaces.
MOUNTING: Direct-to-Surface (DTS) mounts over recessed electrical box to ceiling, Quick-Mount (QM) mounts to either surface or recessed electrical box, Trunnion Mount (TK) or pendant-mounted (PM) via ¾" rigid sealed conduit. See Ordering Information for selection. Fixture weight is 7 lbs.
OPTICAL: Type V-Wide (5W), Rectangular Wide (RW) and Drive Lane (DL) optical distribution options. Light guide outer lens constructed of clear UV-stabilized polycarbonate.
ELECTRICAL: Edge-lit mid-power LED light source. See Ordering Information for color temperature options. 80 CRI minimum. 120-277 VAC, 347VAC and 480VAC 50/60Hz input; constant-current dimming driver; <20% THD, >0.90 PF. Minimum 83% electrical efficiency. 0-10V dimming protocol with 1-100% range and dim-to-dark capabilities, 0.2mA source current (90L lamp is 10-100% dimming with dim-to-dark capabilities, 0.45mA source current). Surge and transient protection rated at 6kV per ANSI C62.41-2002 and 10kV per ANSI C82.77-5 2015. 20kA max. transient protection (L-N). Replaceable surge suppressor. Driver is EMC compliant with FCC 47 CFR Part 15, Class B. Passes IEC 61000-4-4 EFT and IEC 61000-4-5 (Class 4) surge evaluation.
TEKLINK™ TL50M/TL50DM: An independent lighting control system integral to the luminaire, featuring its own embedded occupancy sensor and adjustable time-out/dimming settings. TL50DM adds a closed-loop daylight harvesting function for maximum energy savings.
TEKLINK™ TL100: Centralized, wired zonal occupancy and closed-loop daylight harvesting control system. TL100 controllers are standalone devices and ordered separately from luminaire. Click here for specifications.
TEKLINK TL200M/TL200DM: A wireless, zonal occupancy control Bluetooth® Low Energy system (BLE v5.2) with embedded sensor. Mobile app for Android and iOS device allows changes to timeout period, turn-off delay and light level. System commissioning is not required - network is operational upon power-up. TL200DM adds the daylight harvesting function for maximum energy savings.
TEKLINK™ TL1000/2000: An adaptive lighting control system with wired or wireless communication between system nodes. In addition to occupancy detection and daylight harvesting, TL1000 and TL2000 feature advanced scheduling and energy management capabilities with cloud-based management of system settings, task tuning, power/energy monitoring, reporting and notifications. TL1000 utilizes wired (shielded twisted pair) communication to exchange information built on the CAN bus protocol. TL2000 uses wireless communication (900 MHz), designed to the IEEE 802.15.4 standard.
SENSOR & CONTROLS: Optional sensor available with compatible third party controls. To see the full list of compatible controls, click here.
PHOTOMETRICS: Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For photometric data, please go to www.kenall.com.
WARRANTY: Limited five (5) year warranty. Peace of Mind Guarantee® when ordered and installed with direct-to-surface (DTS) mounting.
LISTINGS: Luminaire is certified to UL Standards by Intertek Testing Laboratory for Wet Location. IP66 rating per IEC 60598 standard. Suitable for installation into -35°C to 40°C ambient environments, unless otherwise noted. Passes 3G vibration test per ANSI C136.31-2001. DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Visit https://qpl.designlights.org/ to confirm qualification.
ORDERING INFORMATION (Ex: HPG14-PM-MW-5W-CP-50L-40K8-DIM1-DV-FS-TL200M)
Mounting
DTS Direct-to-Surface
PM Pendant Mount
TK Trunnion Kit
QM Quick Mount System
Finish
MW Matte White (STD)
LG Light Gray
CC Custom Color (consult factory)
Optic Type
5W Type V – Wide Circular
RW Rectangular – Wide
DL Drive Lane / Type 4
Lens Type
CP Clear Polycarbonate
Lamp Power
30L 30W LED (DL optic only)
35L^ 35W LED
40L^ 40W LED
50L^ 50W LED
70W LED 90L* 90W LED
Lamp Color
30K8 3000K/80CRI min
35K8 3500K/80CRI min
40K8 4000K/80CRI min
50K8 5000K/80CRI min
Driver Type
DIM1 0-10V Dimming to 1% with Dim-to-Dark (70L max.)
DIM10I 0-10V Dimming to 10% with Dim-to-Dark
Voltage DV 120-277 Volts (50/60Hz) 347 347 Volts (60Hz) 480 480 Volts (60Hz)
Options
LEL+ Integral 10W Emergency Battery Backup (0°C min. ambient)
CEL+ Integral 10W Cold Weather Battery Backup (-20°C min ambient , requires separate housing enclosure - see Dimensional Data)
GTDU+ UL924 and UL1008 Listed Switch Bypass/Lighting Transfer Switch with 0-10V Dimming Override (not available with LEL/CEL Option)
FS Single Fuse & Holder BG Bird Guard (DTS and QM Mounting only)
Accessories BD Bird Deterrent (PM and TK Mounting only)
TL50M+ Non-Networked Control - Motion Only (Click here for specifications)
TL50DM+ Non-Networked Control -Daylight Harvesting and Motion Sensing (Click here for specifications)
TL200M+ Wireless Networked Control - Motion Only (Click here for specifications)
TL200DM+ Wireless Networked Control -Daylight Harvesting and Motion Sensing (Click here for specifications)
TL1000+ Wired Network Control - Advanced (Click here for specifications)
TL2000+ Wireless Network Control - Advanced (Click here for specifications)
Please consult Kenall Applications when ordering controls. When specifying with integral controls, a mounting height of 10-14’ is recommended for optimal sensor coverage; 20’ maximum with reduced coverage.
Controls Kit < > Factory Assigned Internal Code
^ Not available with DL optic
*Not available with DL and RW optic + DV input voltage only. Not available with 90L lamp power. I 90L lamp only. DV input voltage only.
Mfg Co.

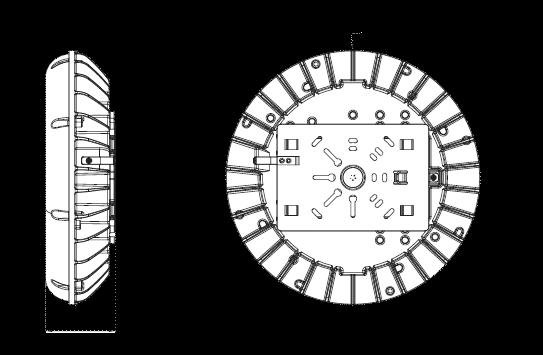

HORIZON OAKLAND PARK TYPE C1
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
-Mounting Bracket suitable for JBox mounting -Supports pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
-DLC Listed
WARRANTY
- 5 Year
ORDERING INFORMATION
Project
Type
Catalog Number
OPTIONS (Factory Installed)
GL9-MS-MCT LED Selectable Canopy
TYPE C1E SPEC HORIZON OAKLAND PARK
HELOS™ Luminaires for Parking Garages
PRODUCT FEATURES:
» Unique hexagonal light guide with edge-lit LED light engine provides three distribution optionsType V, Rectangular and Drive Lane
» Lightweight construction (7 lbs) for ease of installation
» Nominal output range of 4,000 to 12,000 lm
» Compatible with TekLink™ lighting control technology
SPECIFICATIONS
HOUSING: Die-cast aluminum and UV-stabilized polycarbonate construction. Standard TGIC polyester powder coat finish on aluminum components with five-step pre-treatment to withstand 1,000 hour salt spray test per ASTM B117. See Ordering Information for available finishes. Closed-cell gasketing seals all housing component interfaces.
MOUNTING: Direct-to-Surface (DTS) mounts over recessed electrical box to ceiling, Quick-Mount (QM) mounts to either surface or recessed electrical box, Trunnion Mount (TK) or pendant-mounted (PM) via ¾" rigid sealed conduit. See Ordering Information for selection. Fixture weight is 7 lbs.
OPTICAL: Type V-Wide (5W), Rectangular Wide (RW) and Drive Lane (DL) optical distribution options. Light guide outer lens constructed of clear UV-stabilized polycarbonate.
ELECTRICAL: Edge-lit mid-power LED light source. See Ordering Information for color temperature options. 80 CRI minimum. 120-277 VAC, 347VAC and 480VAC 50/60Hz input; constant-current dimming driver; <20% THD, >0.90 PF. Minimum 83% electrical efficiency. 0-10V dimming protocol with 1-100% range and dim-to-dark capabilities, 0.2mA source current (90L lamp is 10-100% dimming with dim-to-dark capabilities, 0.45mA source current). Surge and transient protection rated at 6kV per ANSI C62.41-2002 and 10kV per ANSI C82.77-5 2015. 20kA max. transient protection (L-N). Replaceable surge suppressor. Driver is EMC compliant with FCC 47 CFR Part 15, Class B. Passes IEC 61000-4-4 EFT and IEC 61000-4-5 (Class 4) surge evaluation.
TEKLINK™ TL50M/TL50DM: An independent lighting control system integral to the luminaire, featuring its own embedded occupancy sensor and adjustable time-out/dimming settings. TL50DM adds a closed-loop daylight harvesting function for maximum energy savings.
TEKLINK™ TL100: Centralized, wired zonal occupancy and closed-loop daylight harvesting control system. TL100 controllers are standalone devices and ordered separately from luminaire. Click here for specifications.
TEKLINK TL200M/TL200DM: A wireless, zonal occupancy control Bluetooth® Low Energy system (BLE v5.2) with embedded sensor. Mobile app for Android and iOS device allows changes to timeout period, turn-off delay and light level. System commissioning is not required - network is operational upon power-up. TL200DM adds the daylight harvesting function for maximum energy savings.
TEKLINK™ TL1000/2000: An adaptive lighting control system with wired or wireless communication between system nodes. In addition to occupancy detection and daylight harvesting, TL1000 and TL2000 feature advanced scheduling and energy management capabilities with cloud-based management of system settings, task tuning, power/energy monitoring, reporting and notifications. TL1000 utilizes wired (shielded twisted pair) communication to exchange information built on the CAN bus protocol. TL2000 uses wireless communication (900 MHz), designed to the IEEE 802.15.4 standard.
SENSOR & CONTROLS: Optional sensor available with compatible third party controls. To see the full list of compatible controls, click here.
PHOTOMETRICS: Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For photometric data, please go to www.kenall.com.
WARRANTY: Limited five (5) year warranty. Peace of Mind Guarantee® when ordered and installed with direct-to-surface (DTS) mounting.
LISTINGS: Luminaire is certified to UL Standards by Intertek Testing Laboratory for Wet Location. IP66 rating per IEC 60598 standard. Suitable for installation into -35°C to 40°C ambient environments, unless otherwise noted. Passes 3G vibration test per ANSI C136.31-2001. DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Visit https://qpl.designlights.org/ to confirm qualification.
ORDERING INFORMATION (Ex: HPG14-PM-MW-5W-CP-50L-40K8-DIM1-DV-FS-TL200M)
Mounting
DTS Direct-to-Surface
PM Pendant Mount
TK Trunnion Kit
QM Quick Mount System
Finish
MW Matte White (STD)
LG Light Gray
CC Custom Color (consult factory)
Optic Type
5W Type V – Wide Circular
RW Rectangular – Wide
DL Drive Lane / Type 4
Lens Type
CP Clear Polycarbonate
Lamp Power
30L 30W LED (DL optic only)
35L^ 35W LED
40L^ 40W LED
50L^ 50W LED
70W LED 90L* 90W LED
Lamp Color
30K8 3000K/80CRI min
35K8 3500K/80CRI min
40K8 4000K/80CRI min
50K8 5000K/80CRI min
Driver Type
DIM1 0-10V Dimming to 1% with Dim-to-Dark (70L max.)
DIM10I 0-10V Dimming to 10% with Dim-to-Dark
Voltage DV 120-277 Volts (50/60Hz) 347 347 Volts (60Hz) 480 480 Volts (60Hz)
Options
LEL+ Integral 10W Emergency Battery Backup (0°C min. ambient)
CEL+ Integral 10W Cold Weather Battery Backup (-20°C min ambient , requires separate housing enclosure - see Dimensional Data)
GTDU+ UL924 and UL1008 Listed Switch Bypass/Lighting Transfer Switch with 0-10V Dimming Override (not available with LEL/CEL Option)
FS Single Fuse & Holder BG Bird Guard (DTS and QM Mounting only)
Accessories BD Bird Deterrent (PM and TK Mounting only)
TL50M+ Non-Networked Control - Motion Only (Click here for specifications)
TL50DM+ Non-Networked Control -Daylight Harvesting and Motion Sensing (Click here for specifications)
TL200M+ Wireless Networked Control - Motion Only (Click here for specifications)
TL200DM+ Wireless Networked Control -Daylight Harvesting and Motion Sensing (Click here for specifications)
TL1000+ Wired Network Control - Advanced (Click here for specifications)
TL2000+ Wireless Network Control - Advanced (Click here for specifications)
Please consult Kenall Applications when ordering controls. When specifying with integral controls, a mounting height of 10-14’ is recommended for optimal sensor coverage; 20’ maximum with reduced coverage.
Controls Kit < > Factory Assigned Internal Code
^ Not available with DL optic
*Not available with DL and RW optic + DV input voltage only. Not available with 90L lamp power. I 90L lamp only. DV input voltage only.
Mfg Co.
HORIZON OAKLAND PARK TYPE C1E
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
-Mounting Bracket suitable for JBox mounting -Supports pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
-DLC Listed
WARRANTY
- 5 Year
ORDERING INFORMATION
Project
Type
Catalog Number
OPTIONS (Factory Installed)
GL9-MS-MCT LED Selectable Canopy
TYPE C2 SPEC HORIZON OAKLAND PARK
HELOS™ Luminaires for Parking Garages
PRODUCT FEATURES:
» Unique hexagonal light guide with edge-lit LED light engine provides three distribution optionsType V, Rectangular and Drive Lane
» Lightweight construction (7 lbs) for ease of installation
» Nominal output range of 4,000 to 12,000 lm
» Compatible with TekLink™ lighting control technology
SPECIFICATIONS
HOUSING: Die-cast aluminum and UV-stabilized polycarbonate construction. Standard TGIC polyester powder coat finish on aluminum components with five-step pre-treatment to withstand 1,000 hour salt spray test per ASTM B117. See Ordering Information for available finishes. Closed-cell gasketing seals all housing component interfaces.
MOUNTING: Direct-to-Surface (DTS) mounts over recessed electrical box to ceiling, Quick-Mount (QM) mounts to either surface or recessed electrical box, Trunnion Mount (TK) or pendant-mounted (PM) via ¾" rigid sealed conduit. See Ordering Information for selection. Fixture weight is 7 lbs.
OPTICAL: Type V-Wide (5W), Rectangular Wide (RW) and Drive Lane (DL) optical distribution options. Light guide outer lens constructed of clear UV-stabilized polycarbonate.
ELECTRICAL: Edge-lit mid-power LED light source. See Ordering Information for color temperature options. 80 CRI minimum. 120-277 VAC, 347VAC and 480VAC 50/60Hz input; constant-current dimming driver; <20% THD, >0.90 PF. Minimum 83% electrical efficiency. 0-10V dimming protocol with 1-100% range and dim-to-dark capabilities, 0.2mA source current (90L lamp is 10-100% dimming with dim-to-dark capabilities, 0.45mA source current). Surge and transient protection rated at 6kV per ANSI C62.41-2002 and 10kV per ANSI C82.77-5 2015. 20kA max. transient protection (L-N). Replaceable surge suppressor. Driver is EMC compliant with FCC 47 CFR Part 15, Class B. Passes IEC 61000-4-4 EFT and IEC 61000-4-5 (Class 4) surge evaluation.
TEKLINK™ TL50M/TL50DM: An independent lighting control system integral to the luminaire, featuring its own embedded occupancy sensor and adjustable time-out/dimming settings. TL50DM adds a closed-loop daylight harvesting function for maximum energy savings.
TEKLINK™ TL100: Centralized, wired zonal occupancy and closed-loop daylight harvesting control system. TL100 controllers are standalone devices and ordered separately from luminaire. Click here for specifications.
TEKLINK TL200M/TL200DM: A wireless, zonal occupancy control Bluetooth® Low Energy system (BLE v5.2) with embedded sensor. Mobile app for Android and iOS device allows changes to timeout period, turn-off delay and light level. System commissioning is not required - network is operational upon power-up. TL200DM adds the daylight harvesting function for maximum energy savings.
TEKLINK™ TL1000/2000: An adaptive lighting control system with wired or wireless communication between system nodes. In addition to occupancy detection and daylight harvesting, TL1000 and TL2000 feature advanced scheduling and energy management capabilities with cloud-based management of system settings, task tuning, power/energy monitoring, reporting and notifications. TL1000 utilizes wired (shielded twisted pair) communication to exchange information built on the CAN bus protocol. TL2000 uses wireless communication (900 MHz), designed to the IEEE 802.15.4 standard.
SENSOR & CONTROLS: Optional sensor available with compatible third party controls. To see the full list of compatible controls, click here.
PHOTOMETRICS: Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For photometric data, please go to www.kenall.com.
WARRANTY: Limited five (5) year warranty. Peace of Mind Guarantee® when ordered and installed with direct-to-surface (DTS) mounting.
LISTINGS: Luminaire is certified to UL Standards by Intertek Testing Laboratory for Wet Location. IP66 rating per IEC 60598 standard. Suitable for installation into -35°C to 40°C ambient environments, unless otherwise noted. Passes 3G vibration test per ANSI C136.31-2001. DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Visit https://qpl.designlights.org/ to confirm qualification.
ORDERING INFORMATION (Ex: HPG14-PM-MW-5W-CP-50L-40K8-DIM1-DV-FS-TL200M)
Mounting
DTS Direct-to-Surface
PM Pendant Mount
TK Trunnion Kit
QM Quick Mount System
Finish
MW Matte White (STD)
LG Light Gray
CC Custom Color (consult factory)
Optic Type
5W Type V – Wide Circular
RW Rectangular – Wide
DL Drive Lane / Type 4
Lens Type
CP Clear Polycarbonate
Lamp Power
30L 30W LED (DL optic only)
35L^ 35W LED
40L^ 40W LED
50L^ 50W LED 70L* 70W LED 90L* 90W LED
Lamp Color
30K8 3000K/80CRI min
35K8 3500K/80CRI min
40K8 4000K/80CRI min
50K8 5000K/80CRI min
Driver Type
DIM1 0-10V Dimming to 1% with Dim-to-Dark (70L max.)
DIM10I 0-10V Dimming to 10% with Dim-to-Dark
Voltage DV 120-277 Volts (50/60Hz) 347 347 Volts (60Hz) 480 480 Volts (60Hz)
Options
LEL+ Integral 10W Emergency Battery Backup (0°C min. ambient)
CEL+ Integral 10W Cold Weather Battery Backup (-20°C min ambient , requires separate housing enclosure - see Dimensional Data)
GTDU+ UL924 and UL1008 Listed Switch Bypass/Lighting Transfer Switch with 0-10V Dimming Override (not available with LEL/CEL Option)
FS Single Fuse & Holder BG Bird Guard (DTS and QM Mounting only)
Accessories
BD Bird Deterrent (PM and TK Mounting only)
TL50M+ Non-Networked Control - Motion Only (Click here for specifications)
TL50DM+ Non-Networked Control -Daylight Harvesting and Motion Sensing (Click here for specifications)
TL200M+ Wireless Networked Control - Motion Only (Click here for specifications)
TL200DM+ Wireless Networked Control -Daylight Harvesting and Motion Sensing (Click here for specifications)
TL1000+ Wired Network Control - Advanced (Click here for specifications)
TL2000+ Wireless Network Control - Advanced (Click here for specifications)
Please consult Kenall Applications when ordering controls. When specifying with integral controls, a mounting height of 10-14’ is recommended for optimal sensor coverage; 20’ maximum with reduced coverage.
Controls Kit < > Factory Assigned Internal Code
^ Not available with DL optic
*Not available with DL and RW optic + DV input voltage only. Not available with 90L lamp power. I 90L lamp only. DV input voltage only.
Mfg Co.
HORIZON OAKLAND PARK TYPE C2
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
-Mounting Bracket suitable for JBox mounting -Supports pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
-DLC Listed
WARRANTY
- 5 Year
ORDERING INFORMATION
Project
Type
Catalog Number
OPTIONS (Factory Installed)
GL9-MS-MCT LED Selectable Canopy
TYPE C2E SPEC HORIZON OAKLAND PARK
HELOS™ Luminaires for Parking Garages
PRODUCT FEATURES:
» Unique hexagonal light guide with edge-lit LED light engine provides three distribution optionsType V, Rectangular and Drive Lane
» Lightweight construction (7 lbs) for ease of installation
» Nominal output range of 4,000 to 12,000 lm
» Compatible with TekLink™ lighting control technology
SPECIFICATIONS
HOUSING: Die-cast aluminum and UV-stabilized polycarbonate construction. Standard TGIC polyester powder coat finish on aluminum components with five-step pre-treatment to withstand 1,000 hour salt spray test per ASTM B117. See Ordering Information for available finishes. Closed-cell gasketing seals all housing component interfaces.
MOUNTING: Direct-to-Surface (DTS) mounts over recessed electrical box to ceiling, Quick-Mount (QM) mounts to either surface or recessed electrical box, Trunnion Mount (TK) or pendant-mounted (PM) via ¾" rigid sealed conduit. See Ordering Information for selection. Fixture weight is 7 lbs.
OPTICAL: Type V-Wide (5W), Rectangular Wide (RW) and Drive Lane (DL) optical distribution options. Light guide outer lens constructed of clear UV-stabilized polycarbonate.
ELECTRICAL: Edge-lit mid-power LED light source. See Ordering Information for color temperature options. 80 CRI minimum. 120-277 VAC, 347VAC and 480VAC 50/60Hz input; constant-current dimming driver; <20% THD, >0.90 PF. Minimum 83% electrical efficiency. 0-10V dimming protocol with 1-100% range and dim-to-dark capabilities, 0.2mA source current (90L lamp is 10-100% dimming with dim-to-dark capabilities, 0.45mA source current). Surge and transient protection rated at 6kV per ANSI C62.41-2002 and 10kV per ANSI C82.77-5 2015. 20kA max. transient protection (L-N). Replaceable surge suppressor. Driver is EMC compliant with FCC 47 CFR Part 15, Class B. Passes IEC 61000-4-4 EFT and IEC 61000-4-5 (Class 4) surge evaluation.
TEKLINK™ TL50M/TL50DM: An independent lighting control system integral to the luminaire, featuring its own embedded occupancy sensor and adjustable time-out/dimming settings. TL50DM adds a closed-loop daylight harvesting function for maximum energy savings.
TEKLINK™ TL100: Centralized, wired zonal occupancy and closed-loop daylight harvesting control system. TL100 controllers are standalone devices and ordered separately from luminaire. Click here for specifications.
TEKLINK TL200M/TL200DM: A wireless, zonal occupancy control Bluetooth® Low Energy system (BLE v5.2) with embedded sensor. Mobile app for Android and iOS device allows changes to timeout period, turn-off delay and light level. System commissioning is not required - network is operational upon power-up. TL200DM adds the daylight harvesting function for maximum energy savings.
TEKLINK™ TL1000/2000: An adaptive lighting control system with wired or wireless communication between system nodes. In addition to occupancy detection and daylight harvesting, TL1000 and TL2000 feature advanced scheduling and energy management capabilities with cloud-based management of system settings, task tuning, power/energy monitoring, reporting and notifications. TL1000 utilizes wired (shielded twisted pair) communication to exchange information built on the CAN bus protocol. TL2000 uses wireless communication (900 MHz), designed to the IEEE 802.15.4 standard.
SENSOR & CONTROLS: Optional sensor available with compatible third party controls. To see the full list of compatible controls, click here.
PHOTOMETRICS: Photometry tested to the IESNA LM-79-08 standard by an ILAC/ISO17025 accredited laboratory. For photometric data, please go to www.kenall.com.
WARRANTY: Limited five (5) year warranty. Peace of Mind Guarantee® when ordered and installed with direct-to-surface (DTS) mounting.
LISTINGS: Luminaire is certified to UL Standards by Intertek Testing Laboratory for Wet Location. IP66 rating per IEC 60598 standard. Suitable for installation into -35°C to 40°C ambient environments, unless otherwise noted. Passes 3G vibration test per ANSI C136.31-2001. DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Visit https://qpl.designlights.org/ to confirm qualification.
ORDERING INFORMATION (Ex: HPG14-PM-MW-5W-CP-50L-40K8-DIM1-DV-FS-TL200M)
Mounting
DTS Direct-to-Surface
PM Pendant Mount
TK Trunnion Kit
QM Quick Mount System
Finish
MW Matte White (STD)
LG Light Gray
CC Custom Color (consult factory)
Optic Type
5W Type V – Wide Circular
RW Rectangular – Wide
DL Drive Lane / Type 4
Lens Type
CP Clear Polycarbonate
Lamp Power
30L 30W LED (DL optic only)
35L^ 35W LED
40L^ 40W LED
50L^ 50W LED 70L* 70W LED 90L* 90W LED
Lamp Color
30K8 3000K/80CRI min
35K8 3500K/80CRI min
40K8 4000K/80CRI min
50K8 5000K/80CRI min
Driver Type
DIM1 0-10V Dimming to 1% with Dim-to-Dark (70L max.)
DIM10I 0-10V Dimming to 10% with Dim-to-Dark
Voltage DV 120-277 Volts (50/60Hz) 347 347 Volts (60Hz) 480 480 Volts (60Hz)
Options
LEL+ Integral 10W Emergency Battery Backup (0°C min. ambient)
CEL+ Integral 10W Cold Weather Battery Backup (-20°C min ambient , requires separate housing enclosure - see Dimensional Data)
GTDU+ UL924 and UL1008 Listed Switch Bypass/Lighting Transfer Switch with 0-10V Dimming Override (not available with LEL/CEL Option)
FS Single Fuse & Holder BG Bird Guard (DTS and QM Mounting only)
Accessories
BD Bird Deterrent (PM and TK Mounting only)
TL50M+ Non-Networked Control - Motion Only (Click here for specifications)
TL50DM+ Non-Networked Control -Daylight Harvesting and Motion Sensing (Click here for specifications)
TL200M+ Wireless Networked Control - Motion Only (Click here for specifications)
TL200DM+ Wireless Networked Control -Daylight Harvesting and Motion Sensing (Click here for specifications)
TL1000+ Wired Network Control - Advanced (Click here for specifications)
TL2000+ Wireless Network Control - Advanced (Click here for specifications)
Please consult Kenall Applications when ordering controls. When specifying with integral controls, a mounting height of 10-14’ is recommended for optimal sensor coverage; 20’ maximum with reduced coverage.
Controls Kit < > Factory Assigned Internal Code
^ Not available with DL optic
*Not available with DL and RW optic + DV input voltage only. Not available with 90L lamp power. I 90L lamp only. DV input voltage only.
Mfg Co.
HORIZON OAKLAND PARK TYPE C2E
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
Bocci recommends remote mounting power supplies for ease of long-term maintenance.
Environment Indoor, dry location. IP30
Note Every single Bocci product is handmade. Each one is variously blown, poured, carved, polished, packed and dispatched directly by us. As such, no two products are identical; they are individual, irregular expressions of our research.
Patent # US D762,323 S EU 002633230-0001 - 0003
Certifications
Weight (kg)

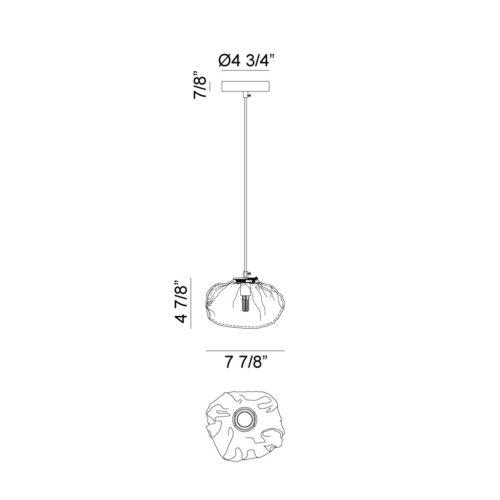

SPECIFICATION SHEET
Finish
Aged Gold Brass
Shade Textured Patterned Glass
Cord Color Black Fabric
Dimension 7 7/8 W x 4 7/8 H
Lamping 1 x 40W G9 120V
Canopy Color
Aged Gold Brass
Canopy Size Ø4 3/4 x 7/8 H
TYPE LT01 SPEC HORIZON OAKLAND PARK
ADJUSTABLE LENGTH
NON-ADJUSTABLE LENGTH
Best practices for wiring multiple single pendant fixtures with remote mounted power supplies:
• Multiple single pendant fixtures should be wired in parallel. DO NOT wire in series.
• Bocci recommends a home run line for each fixture location to avoid significant voltage drop.
• Calculations for distance to the power supply, or required wire guage in order to avoid voltage drop, are the responsibility of the installing party.
dimensions are in millimeters (mm) unless otherwise specified.
BLANK

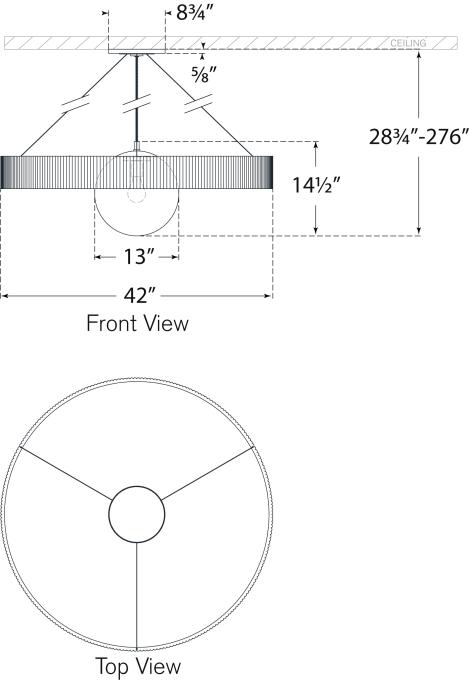

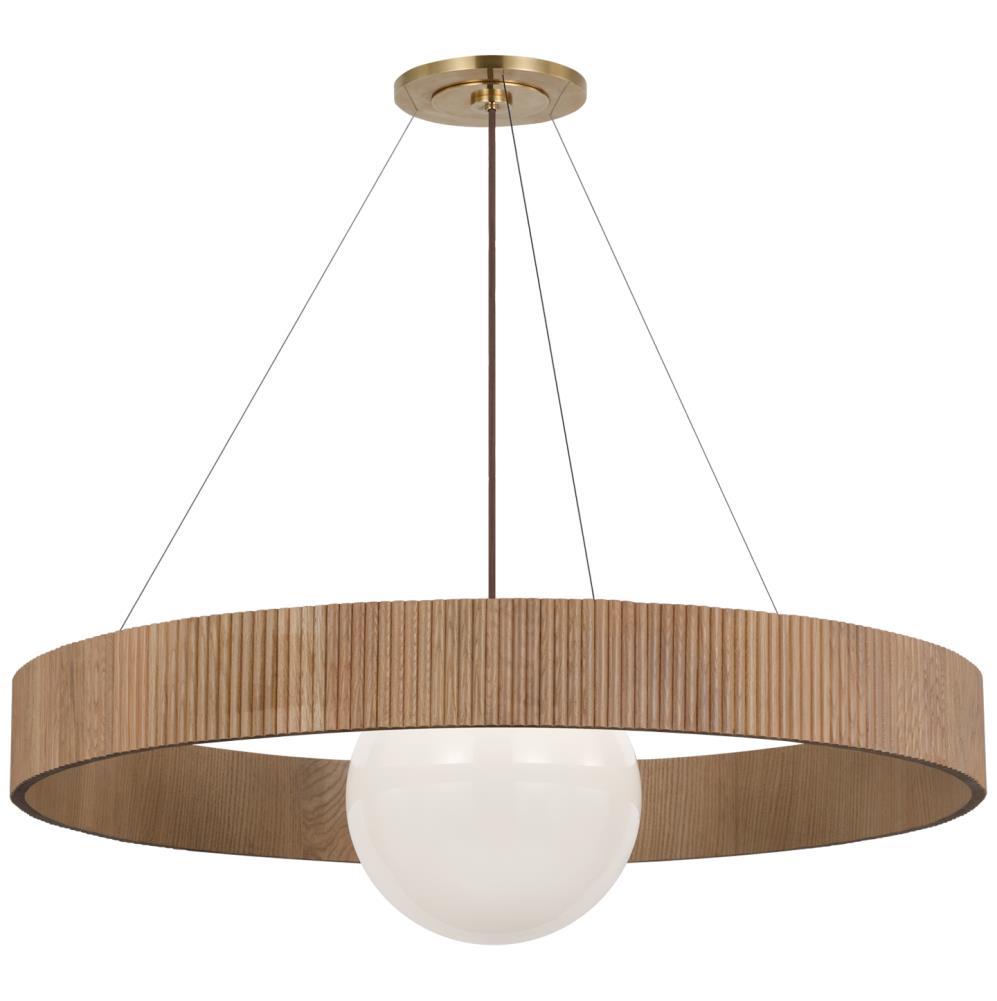

Arena 42" Ring and Globe Chandelier
Item # WS 5001HAB/NO-WG
Designer: Windsor Smith
O/A Height: 28.75" - 276"
Fixture Height: 14.5"
Width: 42"
Canopy: 8.75" Round
Finishes: BZ, HAB, PN
Trim Options: NO, WHT
Socket: E26 Keyless
Wattage: 15 LED A19
Weight: 20 Pounds
Note: Height Not Adjustable After Installation
Arena 42" Ring and Globe Chandelier
Item # WS 5001HAB/NO-WG
Designer: Windsor Smith
O/A Height: 28.75" - 276"
Fixture Height: 14.5"
Width: 42"
Canopy: 8.75" Round
Finishes: BZ, HAB, PN
Trim Options: NO, WHT
Socket: E26 Keyless
Wattage: 15 LED A19
Weight: 20 Pounds
Note: Height Not Adjustable After Installation
HORIZON OAKLAND PARK
Canada: 100-1873 Forge Place Abbotsford, BC V2T 0L2 USA: 6875 Speedway Blvd. Ste 106 Las Vegas, NV 89115 Project: Company:
Location: SPEC #: Approved On: Approved By:

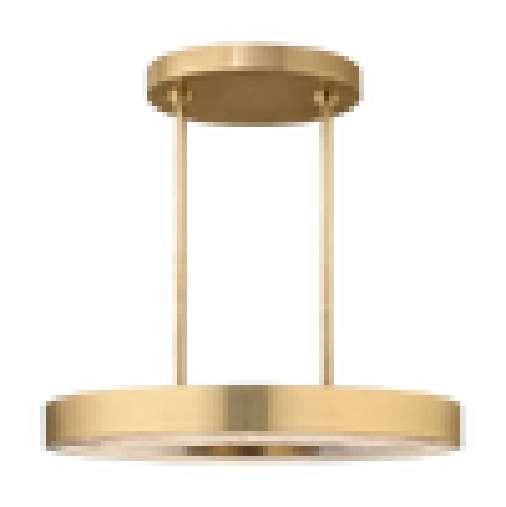

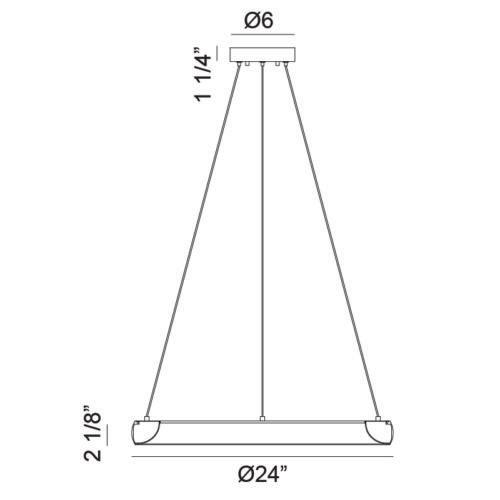

Chandelier
C32724MB
Description
Maverick
The Maverick is a modern family, perfect to update any space. The Brushed Gold and Matte Black metal rims outline the LED light to create a sleek xture. The chandeliers are available in three sizes and the ceiling mount and wall sconces are both available in two sizes.
*Features a 3CCT push-button to adjust the 3 selectable colour temperature
Speci cations Notes
HORIZON OAKLAND PARK

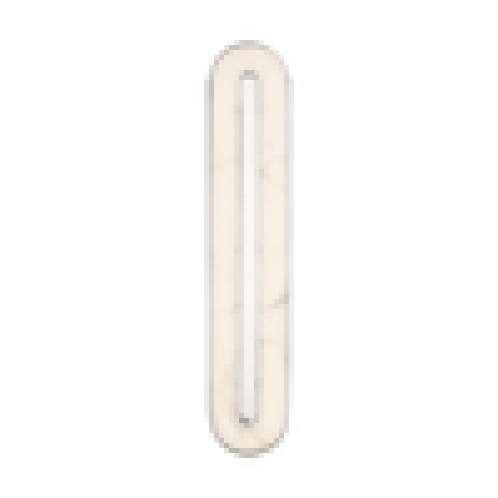

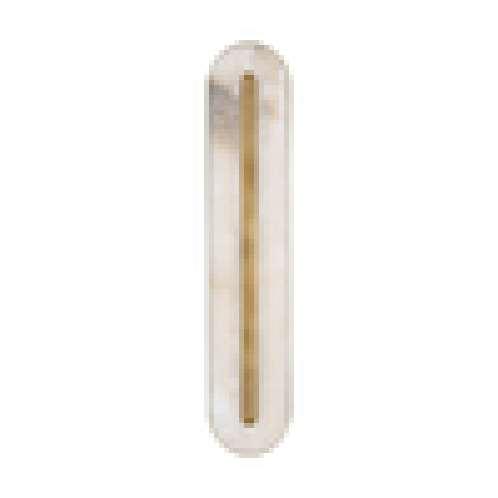

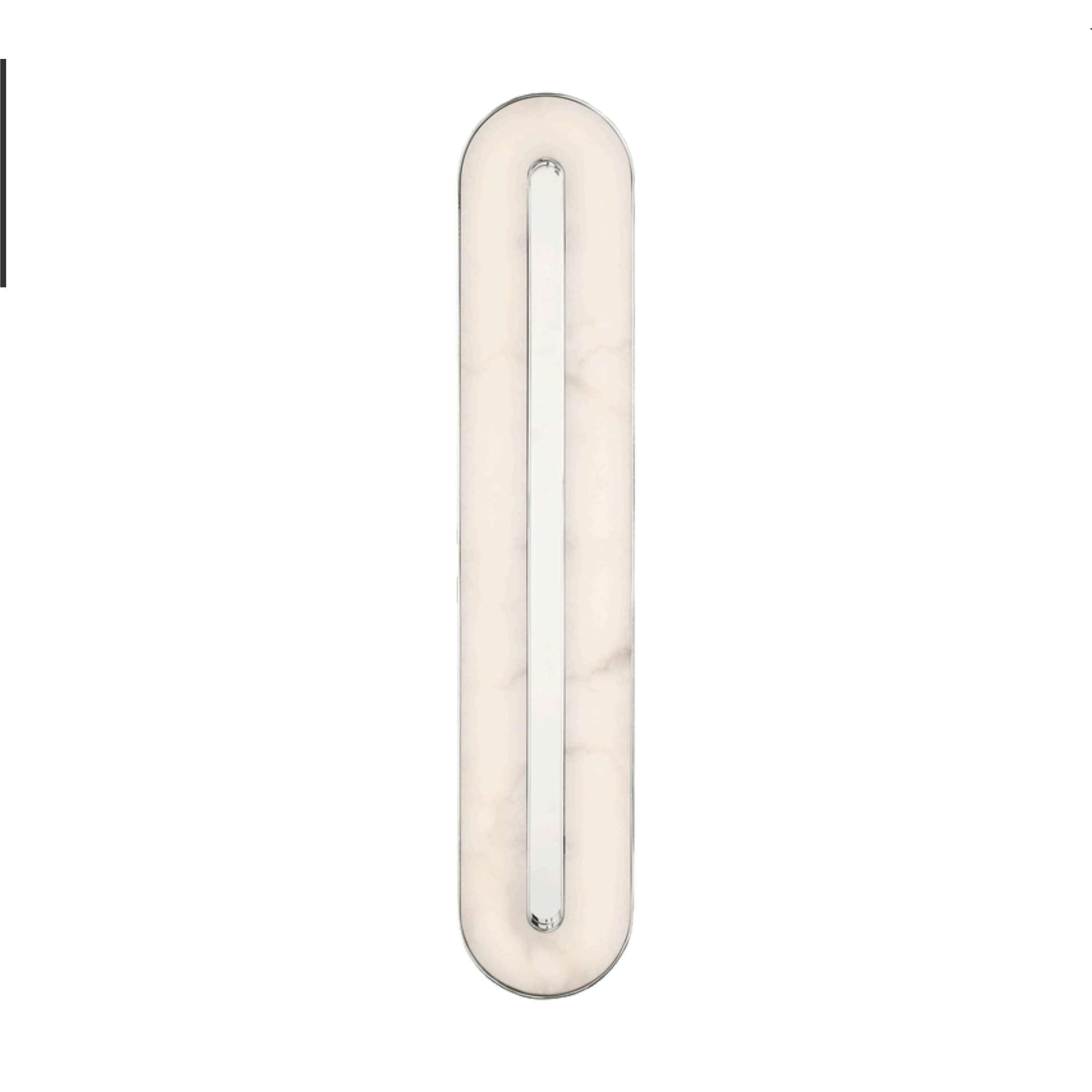

WALL SCONCE
Description
MARBLESTONE
W05922MB
Speci cations
Marblestone a new avant-garde series with a Spanish alabaster di usor. As marble is a natural stone, each xture will be unique and no two patterns will be exactly the same. Available in Aged Gold Brass or Matte Black. The round ceiling mount comes in two sizes and the oval oblong wall sconce in two. The unusual shade will be a show stopper and the soft glow from the marble will create a richness to the room.
*Features a 3CCT switch on the LED module to adjust the 3 selectable colour temperature
Notes

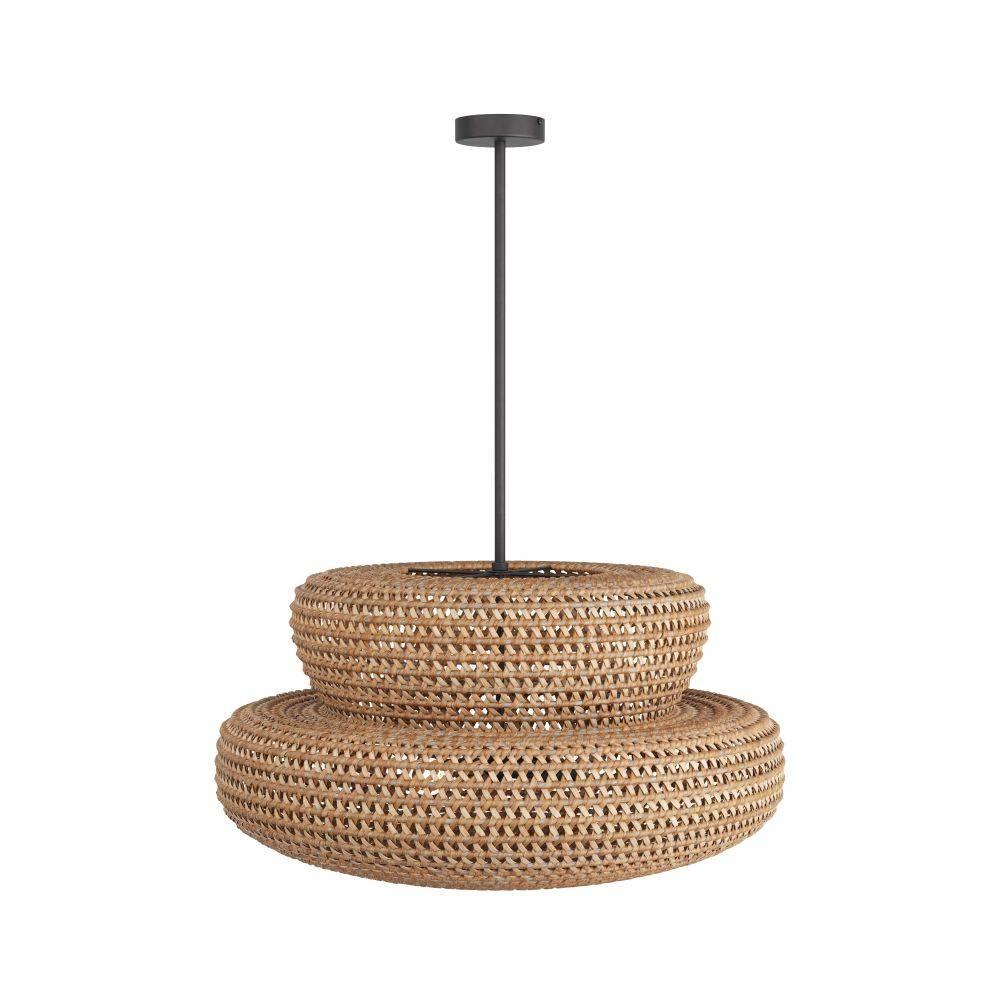

SWAMI LARGE PENDANT
45061
H: 31.5 IN, Dia: 32.00 IN
Natural & Black Ombre Stained Buri
Makers utilize old world techniques to create this luxurious and modern piece. Made with hundreds of thin buri sticks, derived from a palm in the Asian tropics, the pendant is formed using traditional techniques practiced to make fishing baskets. Don’t let the ancient construction techniques fool you, the bell shape, antique brass pipe kit and ombre finish add contemporary flair. Also comes in a smaller scale (45060). Additional pipe available (PIPE-504). Damp-rated, although limited covered outdoor areas may affect finish.
Our versatile, articulating wall light dons a woven wicker shade for a fun, textural mix.Finished in antique brass, it's useful as a reading lamp, picture light or as accent lighting over bookcases. Shown with a 3" frosted globe bulb. Damp-rated, although limited covered outdoor areas may affect finish.
APPEARANCE
Material
Steel, Rattan
Finish Antique Brass, Natural
Top Coat/Sealant Yes
DIMENSIONS
Backplate
H: 4.5 IN, W: 4.5 IN, D: 1 IN
Overall AdjustableH: 19-28.5 IN, D: 15.5-32 IN
Shade Bottom Dia: 12.00 IN
Shade Side H: 5.5 IN
Shade Top Dia: 3.50 IN
WIRING
Rating Damp
Cord 4 FT, Black, SVT
Socket 1, Type A- E26 Uno
Maximum Watt 40
Voltage 110-120 V
CERTIFICATIONS
Certifications
COMPLIANCY
Mexico, United Arab Emirates, European Union, United States, Canada, Russia, Australia
UL/ETL Yes
CB Yes
RoHS Yes
SHIPPING
Product Weight3 lbs
Gross Weight 1 6.6 lbs
Shipping Box 1 H: 11 IN, L: 17 IN, W: 17 IN
CONTRACT
Contract SuitableYes
HORIZON OAKLAND PARK

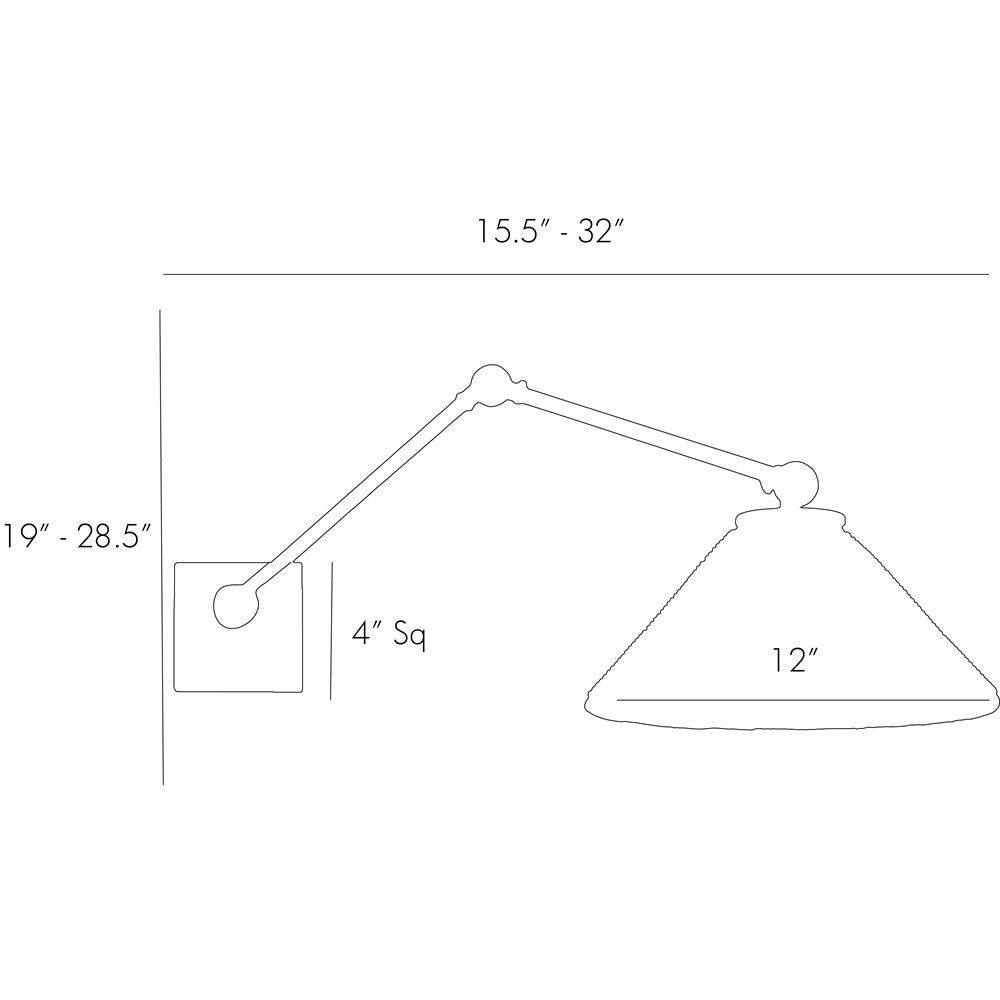

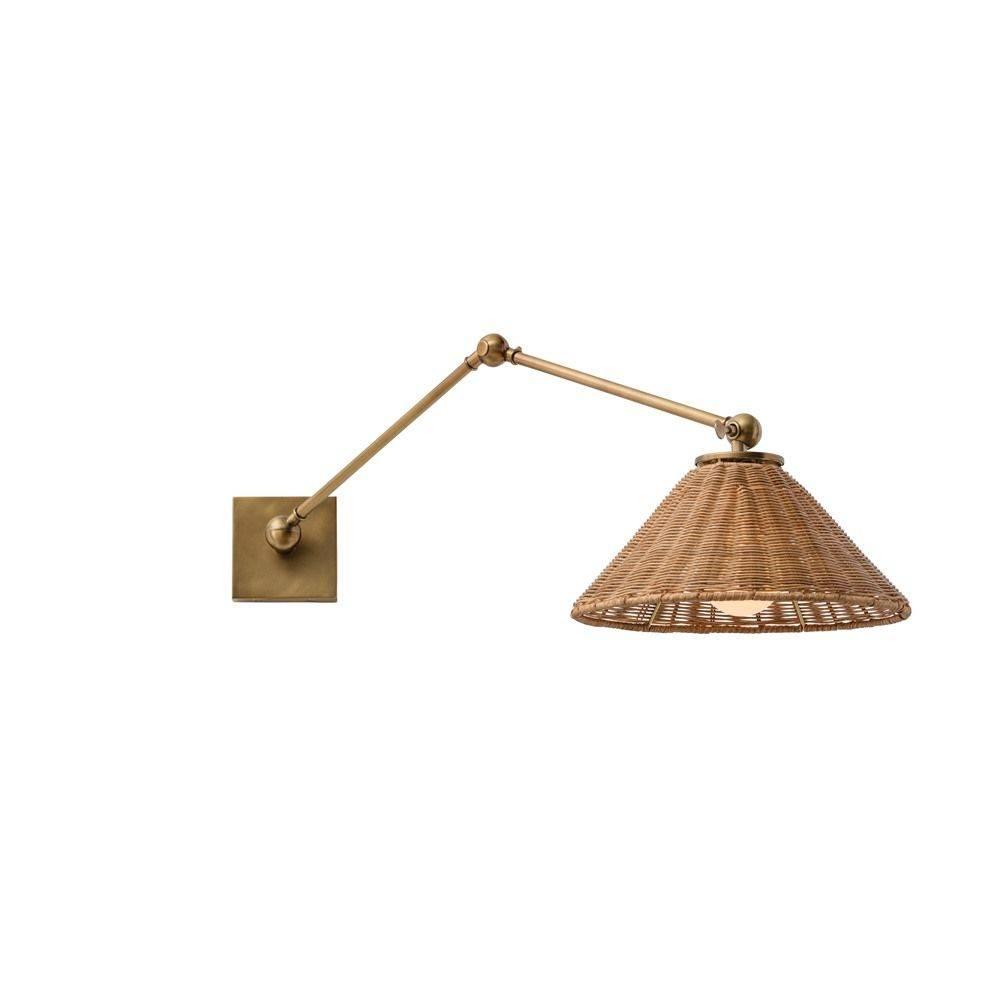

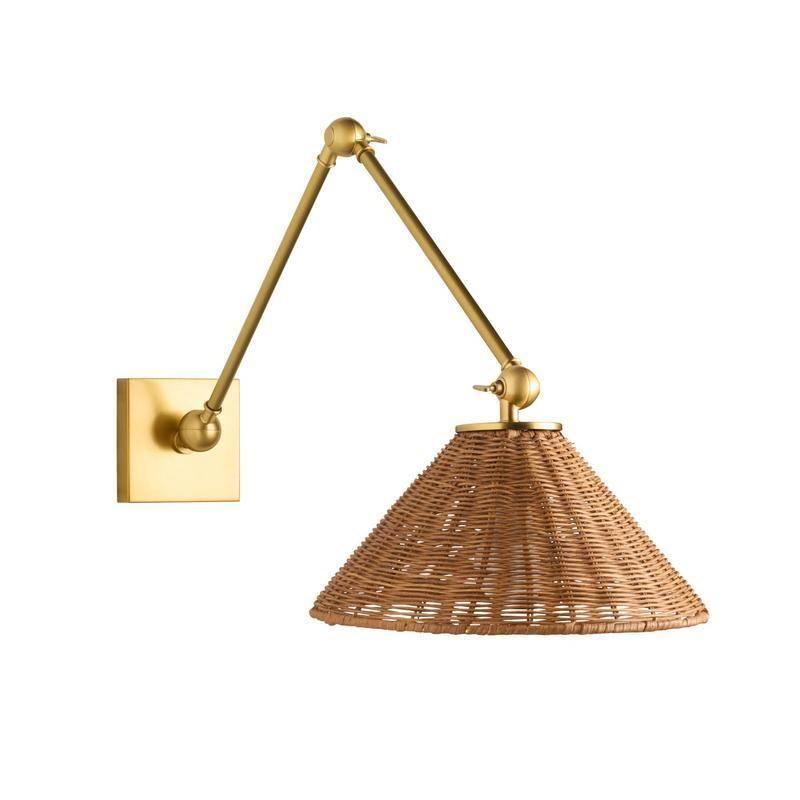

PADMA SCONCE
WINDSOR SMITH
DS49016
W: 12 IN,
Antique Brass, Natural Rattan
Our versatile, articulating wall light dons a woven wicker shade for a fun, textural mix.Finished in antique brass, it's useful as a reading lamp, picture light or as accent lighting over bookcases. Shown with a 3" frosted globe bulb. Damp-rated, although limited covered outdoor areas may affect finish.
APPEARANCE
Material
Steel, Rattan
Finish Antique Brass, Natural
Top Coat/Sealant Yes
DIMENSIONS
Backplate
H: 4.5 IN, W: 4.5 IN, D: 1 IN
Overall AdjustableH: 19-28.5 IN, D: 15.5-32 IN
Shade Bottom Dia: 12.00 IN
Shade Side H: 5.5 IN
Shade Top Dia: 3.50 IN
WIRING
Rating Damp
Cord 4 FT, Black, SVT
Socket 1, Type A- E26 Uno
Maximum Watt 40
Voltage 110-120 V
CERTIFICATIONS
Certifications
COMPLIANCY
UL/ETL
Mexico, United Arab Emirates, European Union, United States, Canada, Russia, Australia
Yes
CB Yes
RoHS Yes
SHIPPING
Product Weight3 lbs
Gross Weight 1 6.6 lbs
Shipping Box 1 H: 11 IN, L: 17 IN, W: 17 IN
CONTRACT
Contract SuitableYes

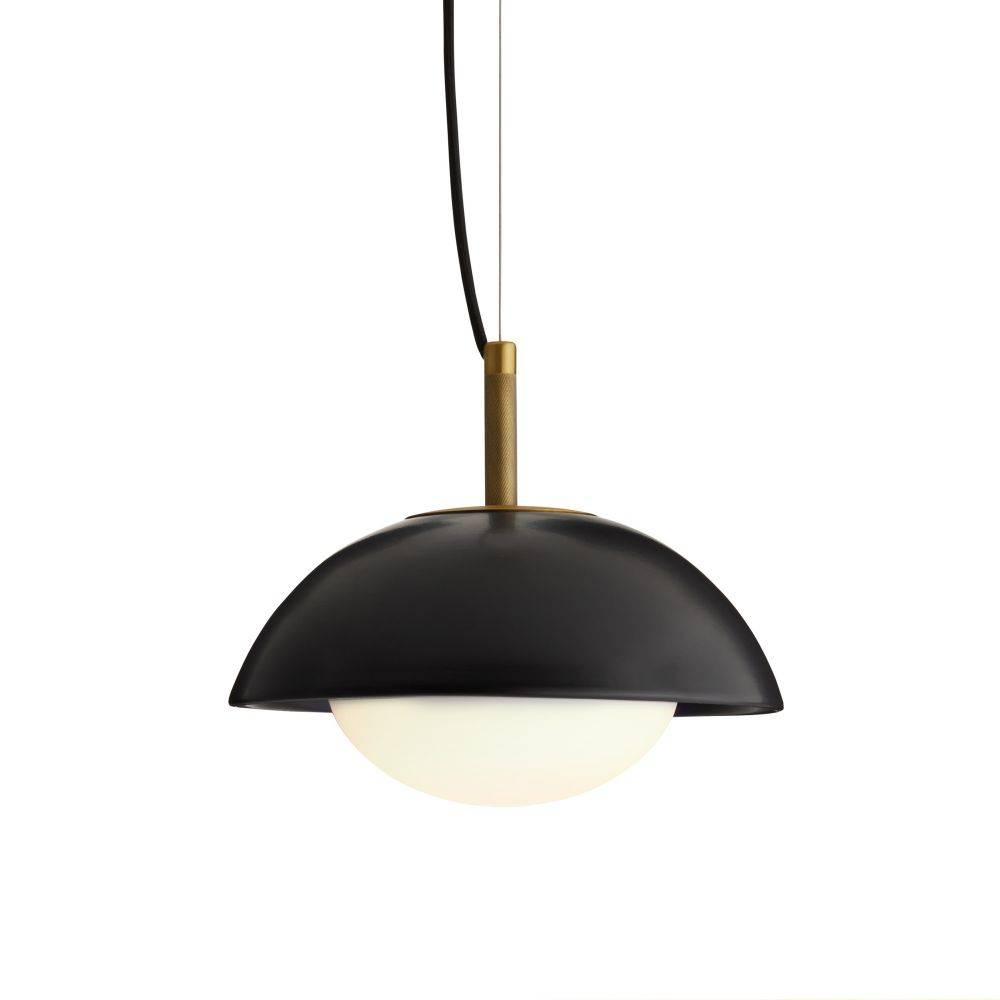

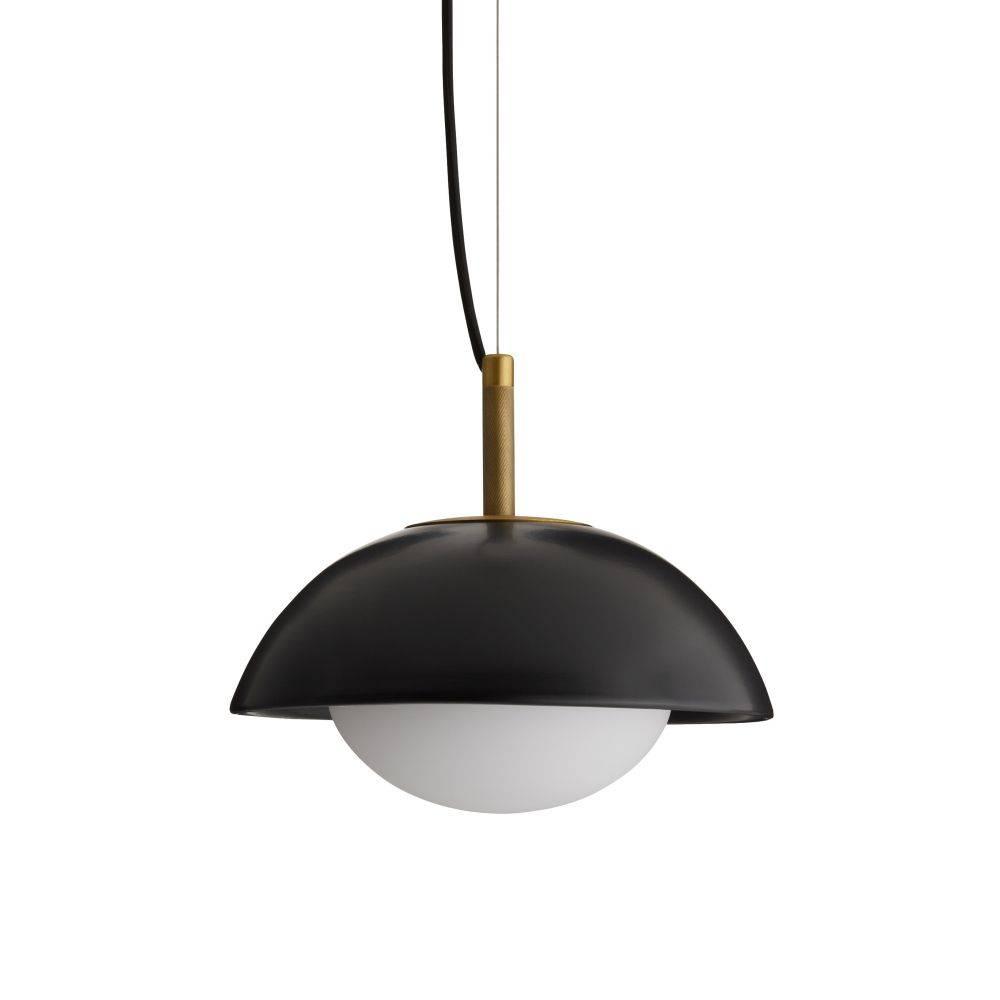

GLAZE PENDANT WORKSHOP/APD
GADPC01
H: 12 IN, Dia: 12.00 IN
Antique Brass, Matte Black Ceramic
An ultra-versatile pendant that offers dynamic contrast through modern and handcrafted materials, light and dark hues and thoughtful detailing. The Glaze pendant's matte black ceramic bowl shade is suspended from a knurled antique brass metal pin and woven black fabric cord. The pendant's opal frosted glass provides a soft, flattering glow that is reflected and diffused by the shade's matte finish. Damp-rated, although limited covered outdoor areas may affect finish.
APPEARANCE
Material Ceramic, Steel, Glass
Material Type Frosted
Finish Matte Black, Antique Brass, Opal
Top Coat/Sealant Yes
DIMENSIONS
Canopy H: 1 IN, Dia: 5.00 IN
Pendant H: 11 IN, Dia: 12.00 IN
Minimum HangingH: 12 IN
Max Hanging Height102 in
WIRING
Rating Damp
Cord 10 FT, Black Cloth, SVT
Socket 1, Type A - E26
Maximum Watt 40
Voltage 110-120 V
COMPLIANCY
RoHS Yes
SHIPPING
Product Weight8 lbs
Gross Weight 1 10.6 lbs
Gross Weight 2 0 lbs
Shipping Box 1 H: 16 IN, L: 16 IN, W: 15.5 IN
Shipping Box 2 H: 0 IN, L: 0 IN, W: 0 IN
REPLACEMENT PARTS
Replacement Part 1DA49001GLS
CONTRACT
Contract SuitableYes

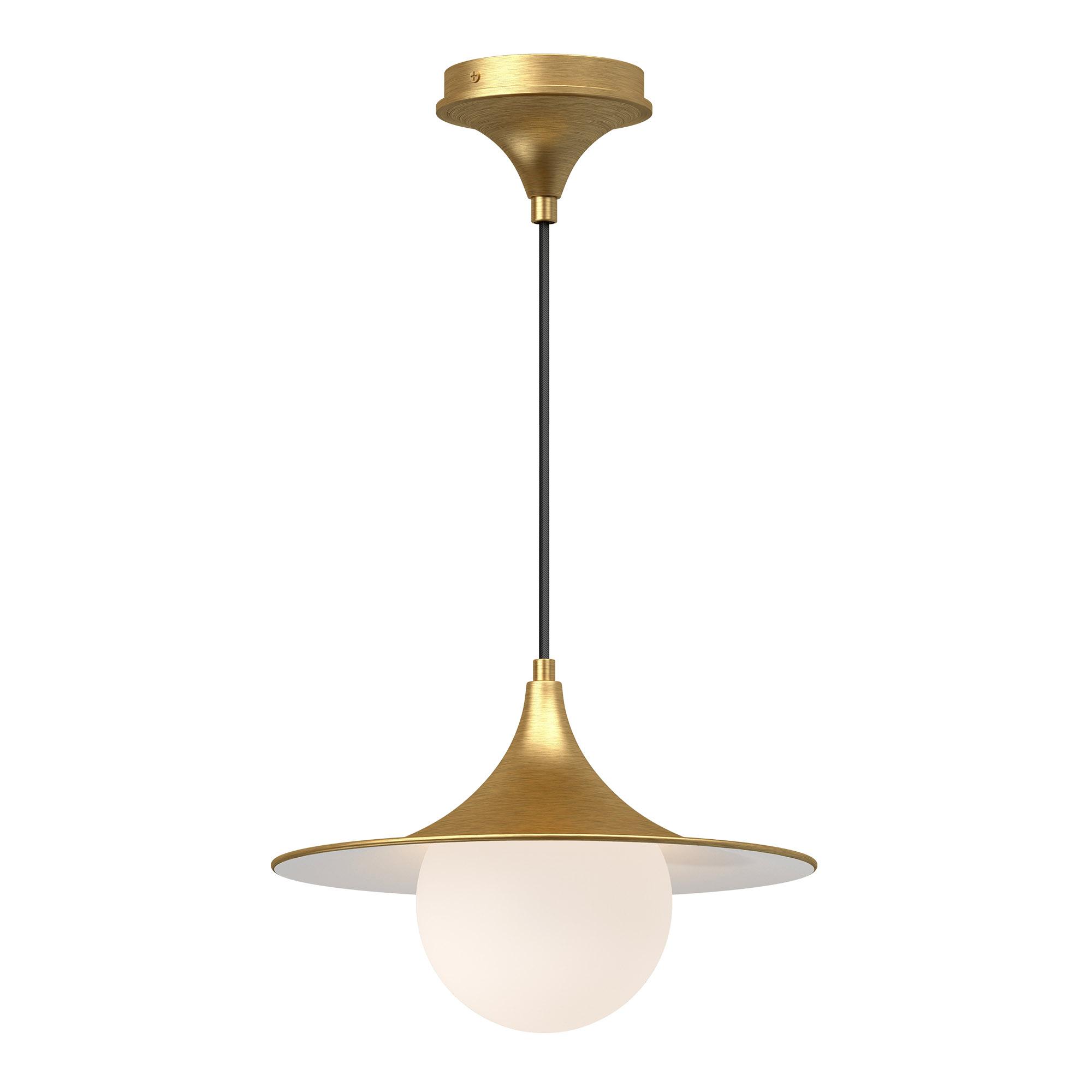

HORIZON OAKLAND PARK TYPE
Ø5-1/8”
Ø5-7/8”
Ø12-1/2”
P. 1.855.855.8926
CANADA:19054 28TH Avenue Surrey - BC V3Z 6M3
USA: 3035 E. Lone Mountain Rd - Las Vegas, NV, 89081
FUJI PD525113
FIXTURE DIMENSIONS
D12-1/2" x H8-3/4"
LAMP TYPE E26
MAX WATTAGE 60W
BULB QTY 1
BULBS INCLUDED No VOLTAGE 120V
GLASS DETAILS Opal Glass
MATERIAL Aluminum; Glass; Steel;
WIRE LENGTH 72"
MINIMUM HANG HEIGHT 14"
SLOPED CEILING ADAPTABLE Yes
LOCATION Dry
CANOPY DIMENSIONS
D5-1/8" x H3"
PAINT FINISH BG02; MB01;
[ D - Diameter, L - Length, W - Width, H - Height, E - Extension ]
Influences ranging from the natural and modern worlds inform our Yahara. Reminiscent of a bee’s nest or Chinese lantern, this tiered design takes a steel structure finished in antique brass wrapped in a cool cocoon of ivory faux vellum. Zen-like in its appeal, this fixture will lend a soothing glow to any space. Damprated, although limited covered outdoor conditions may affect finish. Finish will vary.
APPEARANCE
Material Faux Vellum, Steel
Finish Ivory, Antique Brass
Finish Will Vary Yes
Top Coat/Sealant No
DIMENSIONS
Canopy H: 1 IN, Dia: 6.00 IN
Pendant H: 30 IN, Dia: 30.00 IN
Minimum HangingH: 35 IN
Max Hanging Height65 in
WIRING
Rating Damp
Cord 10 FT, Clear/Silver, SVT
Socket 1, Type A - E26
Maximum Watt 100
Voltage 110-120 V
CERTIFICATIONS
Certifications
COMPLIANCY
Mexico, United Arab Emirates, European Union, United States, Canada, Australia
UL/ETL Yes
CB Yes
RoHS Yes
SHIPPING
Shipping RequirementsTruckShip
Product Weight8.1 lbs
Gross Weight 1 23.1 lbs
Shipping Box 1 H: 33.5 IN, L: 31.9 IN, W: 31.9 IN
REPLACEMENT PARTS
Replacement Part 1PIPE-504
Replacement Part 1 Dim(1) 4", (1) 6", (1) 12"
Replacement Part 2CANOPY-590
Replacement Part 2 Dim1" x 5" DIA
CONTRACT
Contract SuitableYes

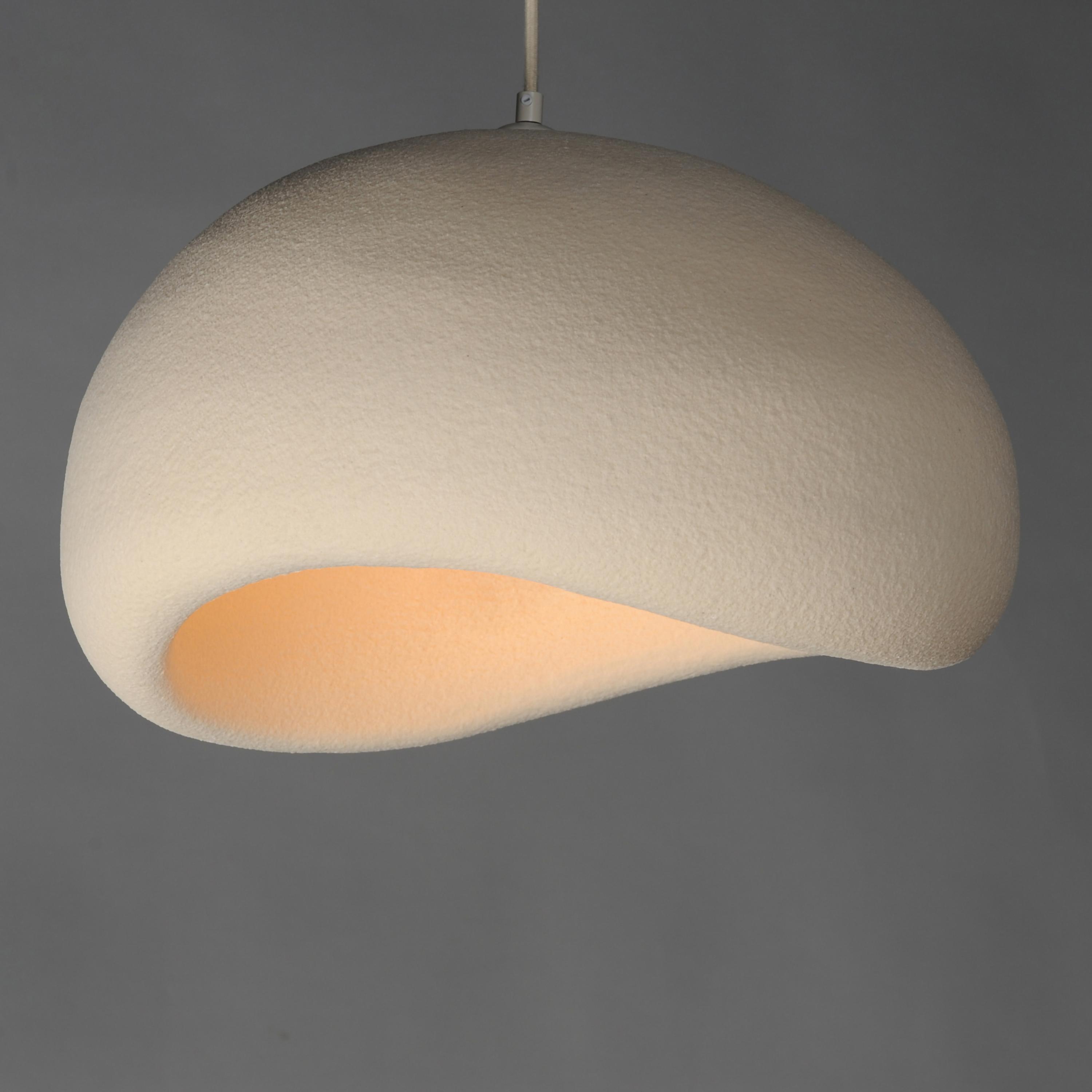

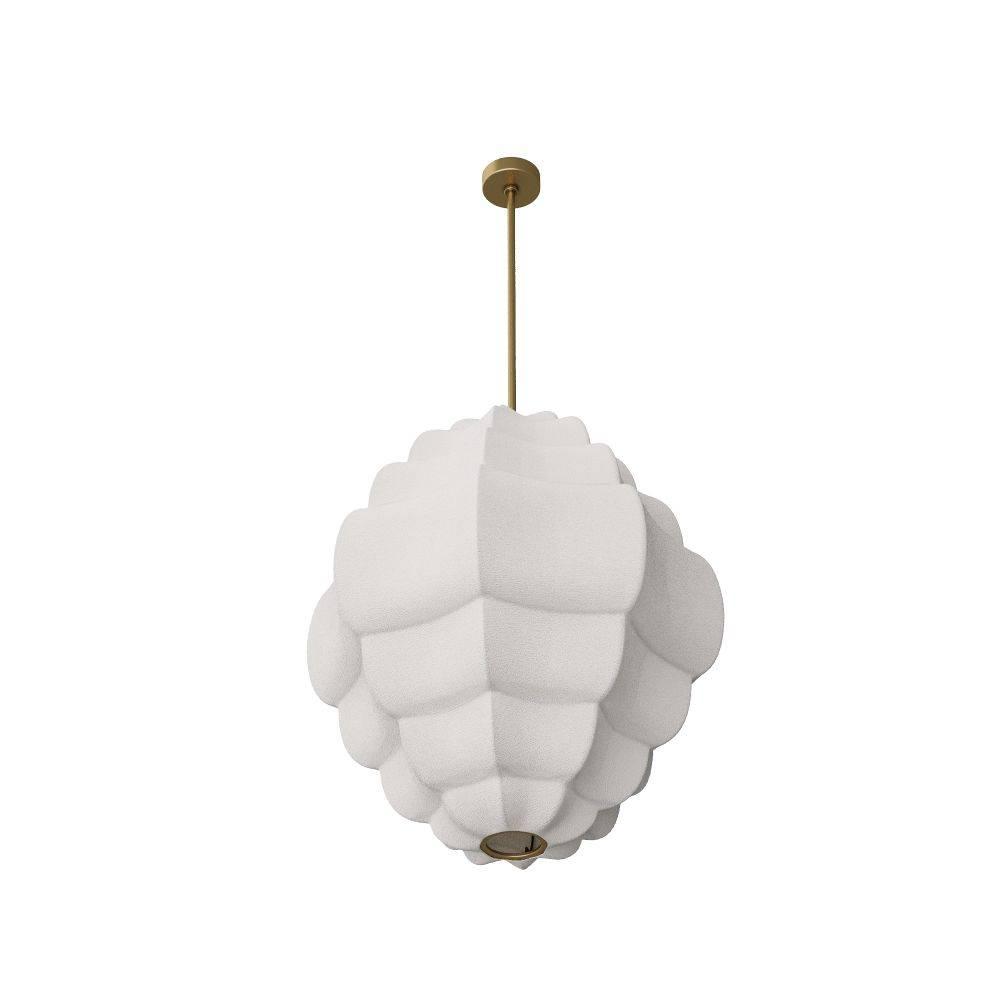

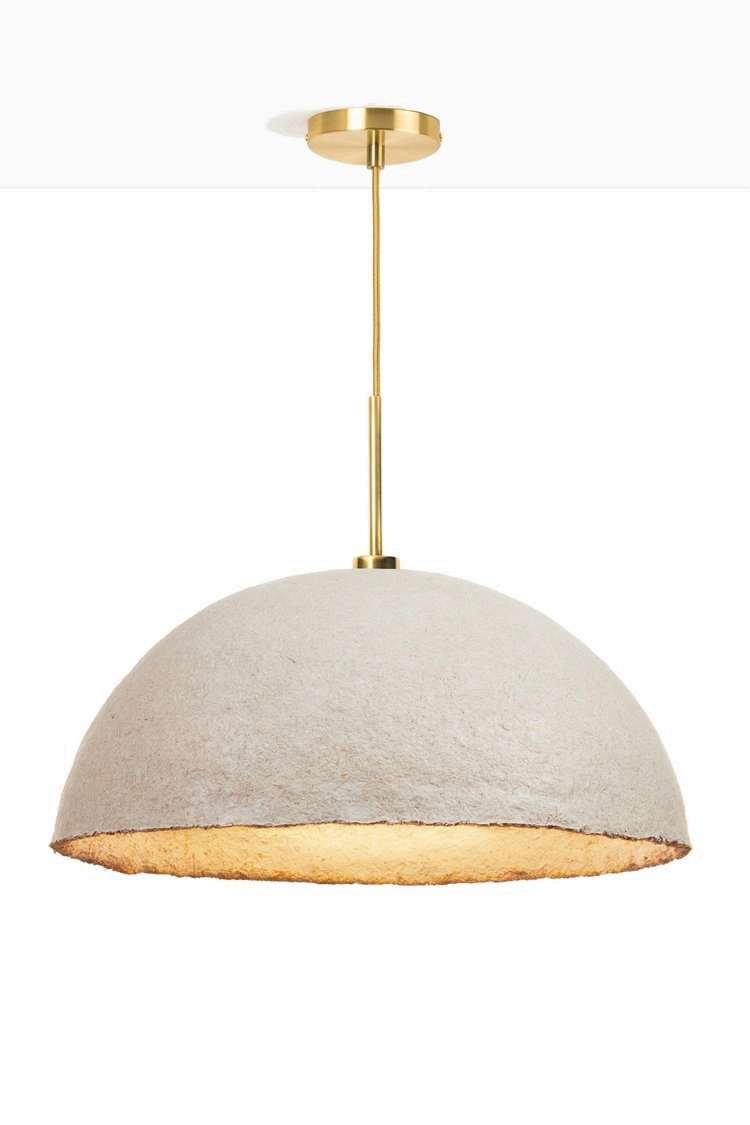

YAHARA PENDANT
DMC15
H: 35 IN, Dia: 30.00 IN Ivory
Influences ranging from the natural and modern worlds inform our Yahara. Reminiscent of a bee’s nest or Chinese lantern, this tiered design takes a steel structure finished in antique brass wrapped in a cool cocoon of ivory faux vellum. Zen-like in its appeal, this fixture will lend a soothing glow to any space. Damprated, although limited covered outdoor conditions may affect finish. Finish will vary.
APPEARANCE
Material Faux Vellum, Steel
Finish Ivory, Antique Brass
Finish Will Vary Yes
Top Coat/Sealant No
DIMENSIONS
Canopy H: 1 IN, Dia: 6.00 IN
Pendant H: 30 IN, Dia: 30.00 IN
Minimum HangingH: 35 IN
Max Hanging Height65 in
WIRING
Rating Damp
Cord 10 FT, Clear/Silver, SVT
Socket 1, Type A - E26
Maximum Watt 100
Voltage 110-120 V
CERTIFICATIONS
Certifications
COMPLIANCY
Mexico, United Arab Emirates, European Union, United States, Canada, Australia
UL/ETL Yes
CB Yes
RoHS Yes
SHIPPING
Shipping RequirementsTruckShip
Product Weight8.1 lbs
Gross Weight 1 23.1 lbs
Shipping Box 1 H: 33.5 IN, L: 31.9 IN, W: 31.9 IN
REPLACEMENT PARTS
Replacement Part 1PIPE-504
Replacement Part 1 Dim(1) 4", (1) 6", (1) 12"
Replacement Part 2CANOPY-590
Replacement Part 2 Dim1" x 5" DIA
CONTRACT
Contract SuitableYes

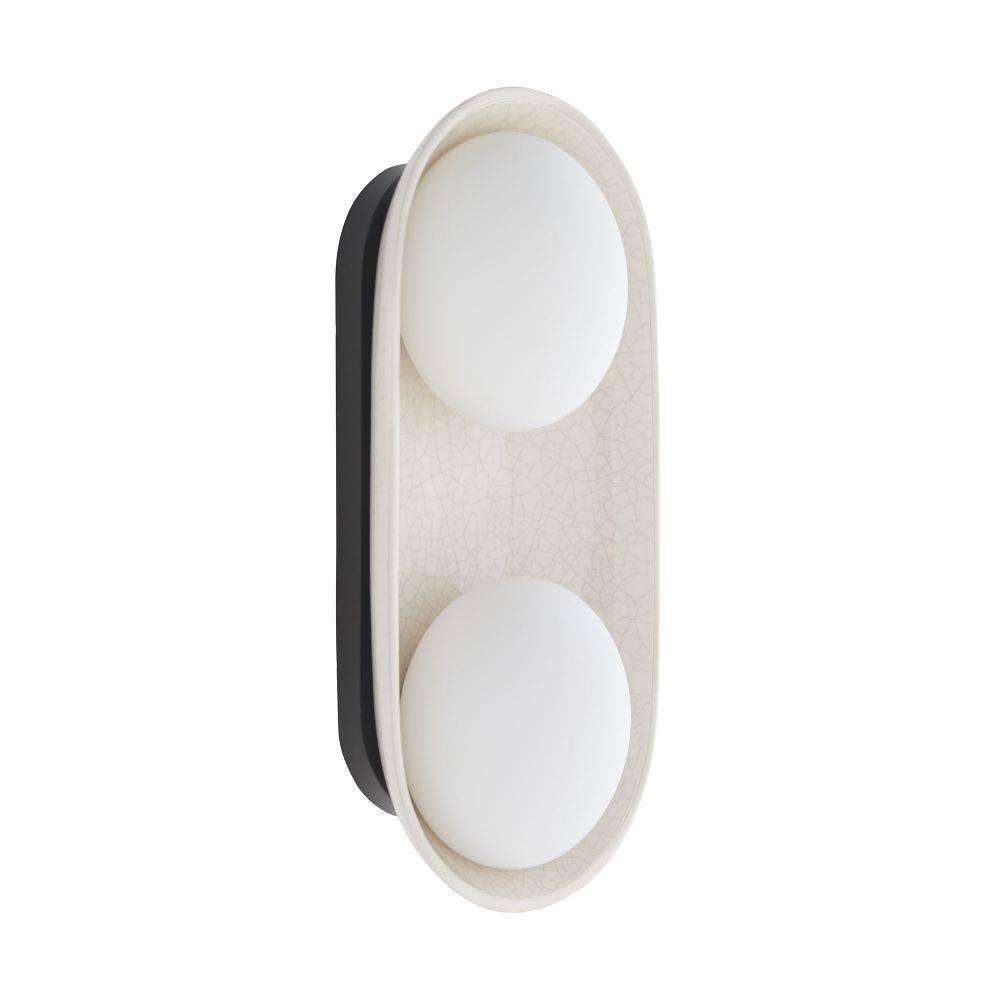

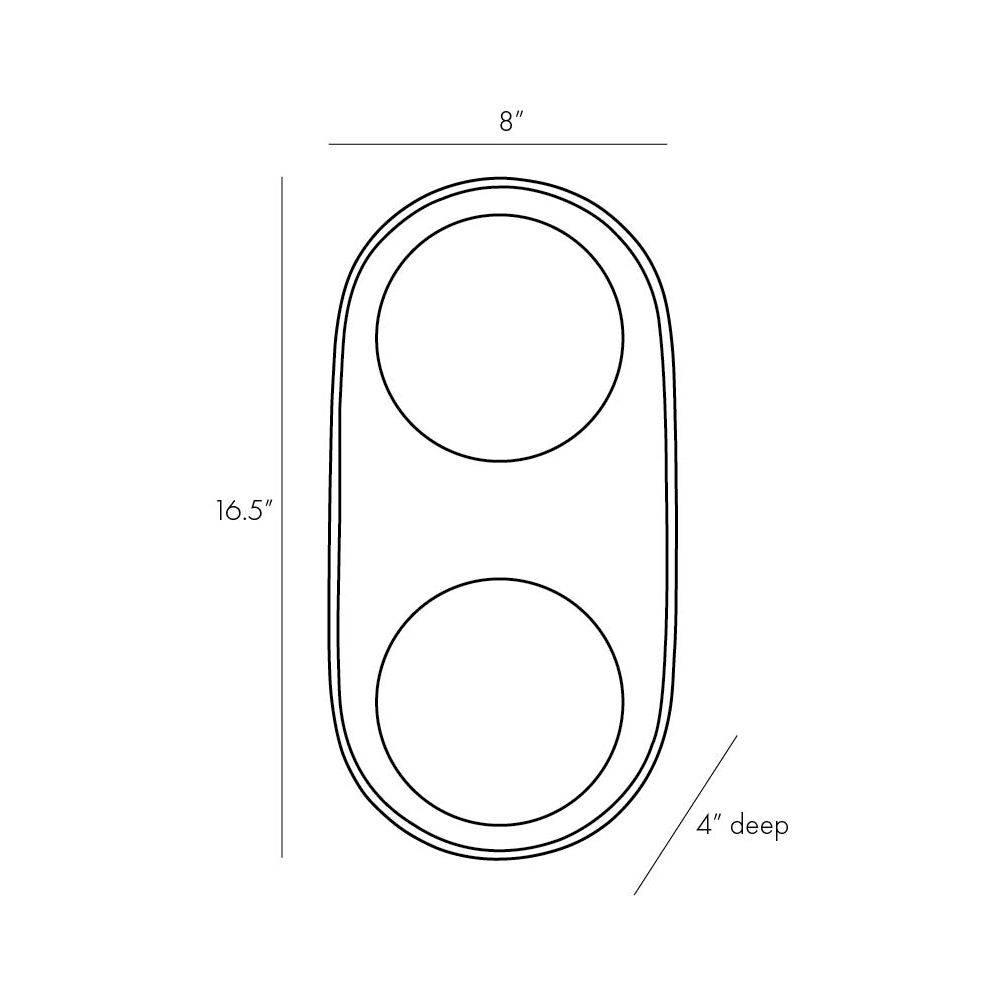

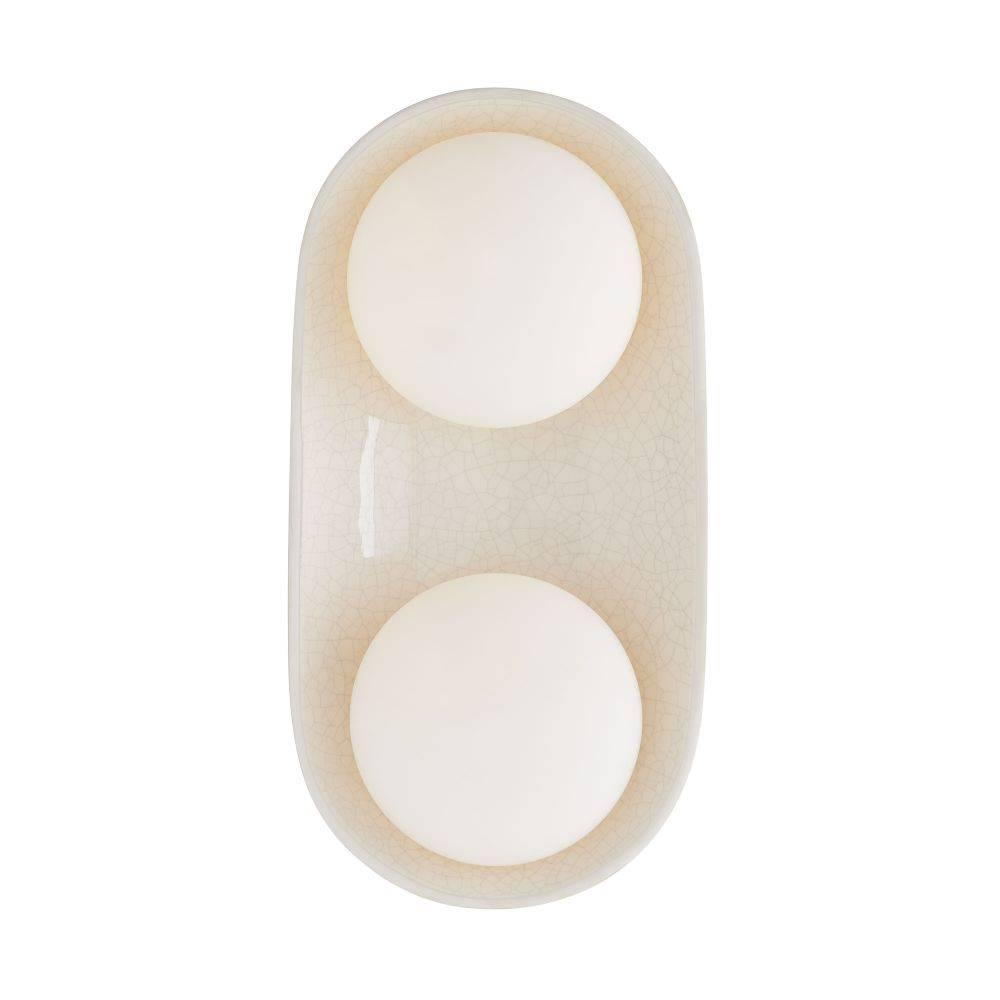

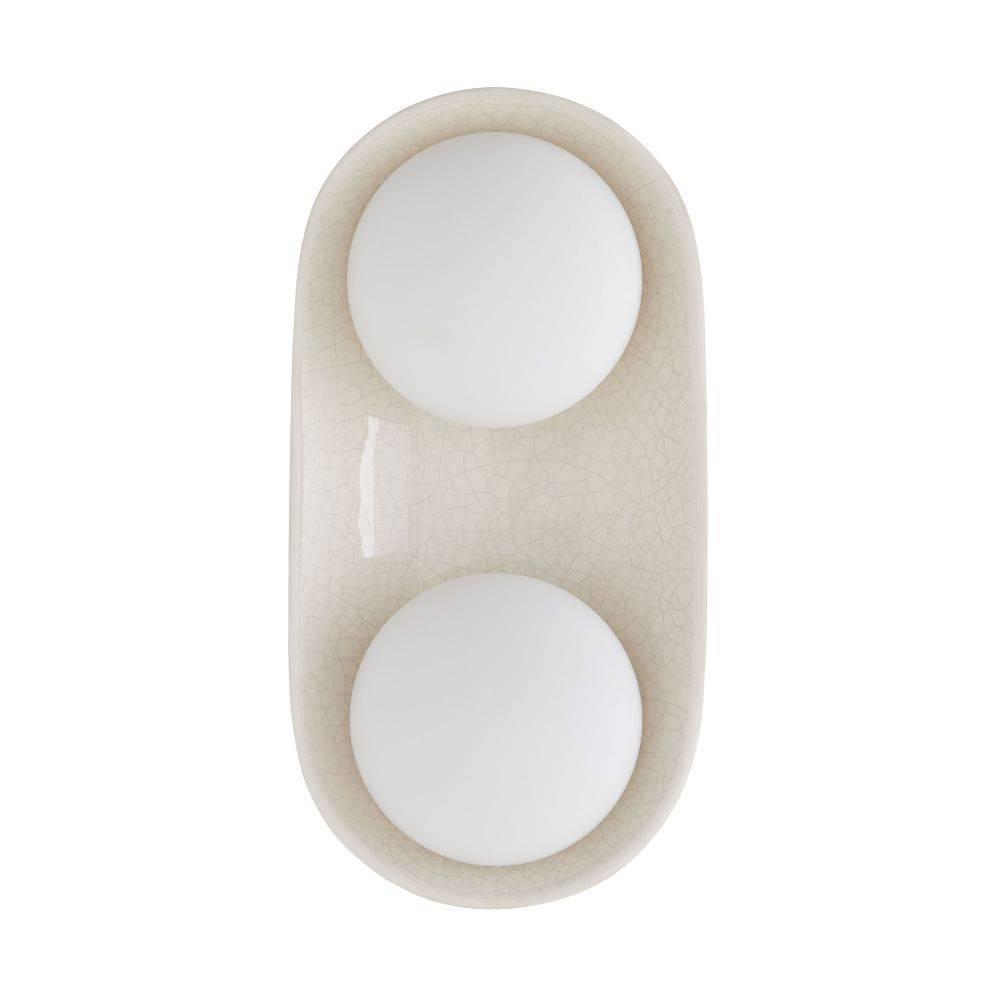

GLAZE LARGE SCONCE
WORKSHOP/APD
DA49006
H: 16.5 IN, W: 8 IN, D: 4 IN, Blackened Steel, Ivory Stained Crackle Ceramic
A stunning ivory stained crackle glaze brings warmth and depth to this uniquely modern, minimalist design. The ceramic shade is complimented by double frosted glass lights that cast a warm, flattering glow. Equally at home in bathrooms and corridors, at the bedside and in hospitality settings, the Glaze large sconce is versatile and playful, offering endless possibilities when paired with additional Glaze single and dome sconces for functional purposes and multi-piece light installations. The Glaze large sconce is ADA compliant. Damp-rated, although
Mexico, United Arab Emirates, European Union, United States, Canada, Australia
UL/ETL Yes
CB Yes
RoHS Yes
SHIPPING
Product Weight6.2 lbs
Gross Weight 1 8 lbs
Gross Weight 2 0 lbs
Shipping Box 1 H: 11.5 IN, L: 9 IN, W: 12.5 IN
Shipping Box 2 H: 0 IN, L: 0 IN, W: 0 IN
ADDITIONAL INFO
Features ADA
CONTRACT
Contract SuitableYes
GLAZE LARGE SCONCE
WORKSHOP/APD
DA49006
H: 16.5 IN, W: 8 IN, D: 4 IN, Blackened Steel, Ivory Stained Crackle Ceramic
A stunning ivory stained crackle glaze brings warmth and depth to this uniquely modern, minimalist design. The ceramic shade is complimented by double frosted glass lights that cast a warm, flattering glow. Equally at home in bathrooms and corridors, at the bedside and in hospitality settings, the Glaze large sconce is versatile and playful, offering endless possibilities when paired with additional Glaze single and dome sconces for functional purposes and multi-piece light installations. The Glaze large sconce is ADA compliant. Damp-rated, although
Mexico, United Arab Emirates, European Union, United States, Canada, Australia
UL/ETL Yes
CB Yes
RoHS Yes
SHIPPING
Product Weight6.2 lbs
Gross Weight 1 8 lbs
Gross Weight 2 0 lbs
Shipping Box 1 H: 11.5 IN, L: 9 IN, W: 12.5 IN
Shipping Box 2 H: 0 IN, L: 0 IN, W: 0 IN
ADDITIONAL INFO
Features ADA
CONTRACT
Contract SuitableYes
PLURAL FACETED 24 PICTURE LIGHT
PRODUCT FEATURES
From the brand formerly known as Tech Lighting Ships with angeless mud-in canopy and custom junction box and additional optional anged canopy Pivots for perfect illumination. Max rotation 35° • 95+ CRI and 2-Step LED binning provides maximum color quality and consistency
• Patent pending
The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. 1")
LAMPING
Includes 17.4 watt, 1131 delivered lumens, 2700K or 3000K 95 CRI LED module. Dimmable with most LED compatible ELV, TRIAC and 0-10V dimmers. 120V-277V. Downlight only.
To view all available nish options, please visit techlighting.com
ORDERING INFORMATION
700PLUF LENGTH (A) FINISH
LAMP 2424" Z DARK BRONZE NBNATURAL BRASS B NIGHTSHADE BLACK N POLISHED NICKEL -LED927 INTEGRATED LED 95 CRI 2700K 120V-277V UNV -LED930 INTEGRATED LED 95 CRI 3000K 120V-277V UNV
700PLUF
JOB NAME
NOTES
Nightshade Black Nightshade Black alt Natural Brass Natural Brass alt
HORIZON OAKLAND PARK
PLURAL FACETED 24 PICTURE LIGHT
PRODUCT FEATURES
From the brand formerly known as Tech Lighting Ships with angeless mud-in canopy and custom junction box and additional optional anged canopy Pivots for perfect illumination. Max rotation 35° • 95+ CRI and 2-Step LED binning provides maximum color quality and consistency
• Patent pending
The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. 1")
LAMPING
Includes 17.4 watt, 1131 delivered lumens, 2700K or 3000K 95 CRI LED module. Dimmable with most LED compatible ELV, TRIAC and 0-10V dimmers. 120V-277V. Downlight only.
To view all available nish options, please visit techlighting.com
ORDERING INFORMATION
700PLUF LENGTH (A) FINISH
LAMP 2424" Z DARK BRONZE NBNATURAL BRASS B NIGHTSHADE BLACK N POLISHED NICKEL -LED927 INTEGRATED LED 95 CRI 2700K 120V-277V UNV -LED930 INTEGRATED LED 95 CRI 3000K 120V-277V UNV
700PLUF
JOB NAME
NOTES
Nightshade Black Nightshade Black alt Natural Brass Natural Brass alt
TYPE LT16 SPEC

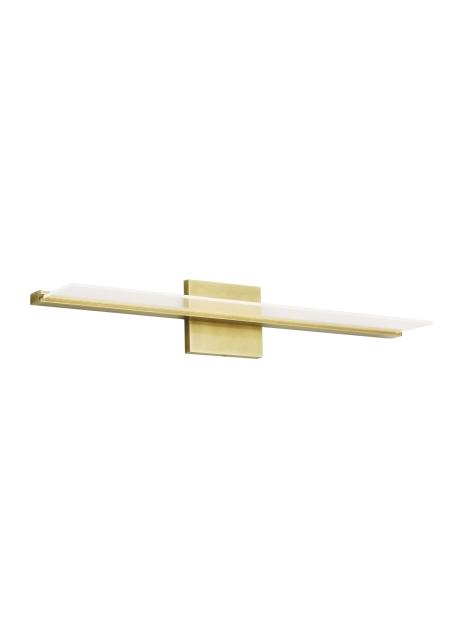

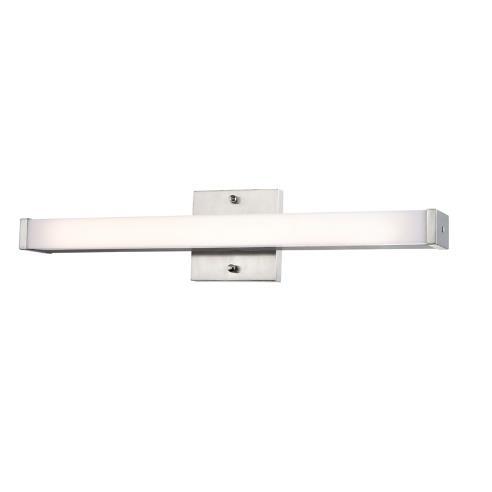

SPAN 24 BATH
PRODUCT FEATURES
From the brand formerly known as Tech Lighting
Ultra-thin, ultra-modern architectural style
Edge-lit light guide technology
Fully dimmable integrated LED lamp
Ideal for bathroom and vanity lighting
•
The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. 1")
LAMPING
Includes 25.5 watt, 1214 total delivered lumens, 3000K LED module. 3500K only available in nightshade black and plated brass nish. Dimmable with most LED compatible ELV dimmers. 277V compatible with 0-10V dimmer. Mounts horizontally or vertically.
ORDERING INFORMATION
700BCSPAN SHAPE OR SIZE LENGTH (A) FINISH LAMP DIRECT/INDIRECT B 2 24" C CHROME B NIGHTSHADE BLACK BRPLATED BRASS S SATIN NICKEL
-LED930 INTEGRATED LED 90 CRI 3000K 120V
-LED930 LED 90 CRI 3000K 120V
-LED930-277 INTEGRATED LED 90 CRI 3000K 277V
-LED930-277 LED 90 CRI 3000K 277V
-LED935 INTEGRATED LED 90 CRI 3500K 120V
-LED935-277 INTEGRATED LED 90 CRI 3500K 277V
700BCSPAN
JOB NAME
NOTES
Plated Brass
Chrome Nightshade Black Plated Brass Satin Nickel
HORIZON OAKLAND PARK TYPE
SPAN 24 BATH
PRODUCT FEATURES
From the brand formerly known as Tech Lighting
Ultra-thin, ultra-modern architectural style
Edge-lit light guide technology
Fully dimmable integrated LED lamp
Ideal for bathroom and vanity lighting
•
The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. 1")
LAMPING
Includes 25.5 watt, 1214 total delivered lumens, 3000K LED module. 3500K only available in nightshade black and plated brass nish. Dimmable with most LED compatible ELV dimmers. 277V compatible with 0-10V dimmer. Mounts horizontally or vertically.
ORDERING INFORMATION
700BCSPAN SHAPE OR SIZE LENGTH (A) FINISH LAMP DIRECT/INDIRECT B 2 24" C CHROME B NIGHTSHADE BLACK BRPLATED BRASS S SATIN NICKEL
-LED930 INTEGRATED LED 90 CRI 3000K 120V
-LED930 LED 90 CRI 3000K 120V
-LED930-277 INTEGRATED LED 90 CRI 3000K 277V
-LED930-277 LED 90 CRI 3000K 277V
-LED935 INTEGRATED LED 90 CRI 3500K 120V
-LED935-277 INTEGRATED LED 90 CRI 3500K 277V
700BCSPAN
JOB NAME
NOTES
Plated Brass
Chrome Nightshade Black Plated Brass Satin Nickel

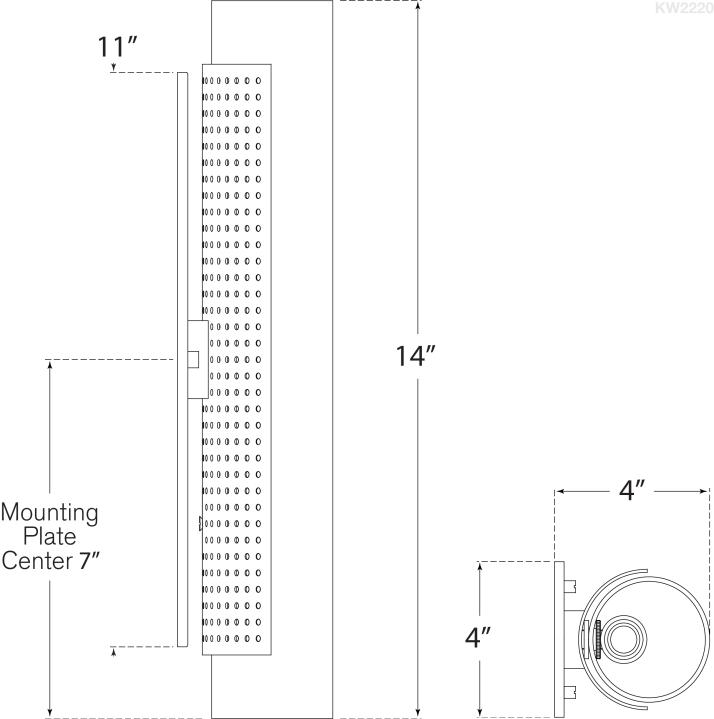

Precision Cylinder Sconce
Item # KW 2220AB-WG
Designer: Kelly Wearstler
Height: 14"
Width: 4"
Extension: 4"
Backplate: 4" x 11" Rectangle
Finishes: AB, BZ, PN
Glass Options: WG
Socket: 2 - E12 Candelabra
Wattage: 2 - 25 B11
Weight: 4 Pounds
Note: Requires Smaller Outlet Box
Precision Cylinder Sconce
Item # KW 2220AB-WG
Designer: Kelly Wearstler
Height: 14"
Width: 4"
Extension: 4"
Backplate: 4" x 11" Rectangle
Finishes: AB, BZ, PN
Glass Options: WG
Socket: 2 - E12 Candelabra
Wattage: 2 - 25 B11
Weight: 4 Pounds
Note: Requires Smaller Outlet Box
TYPE LT19A SPEC HORIZON OAKLAND PARK

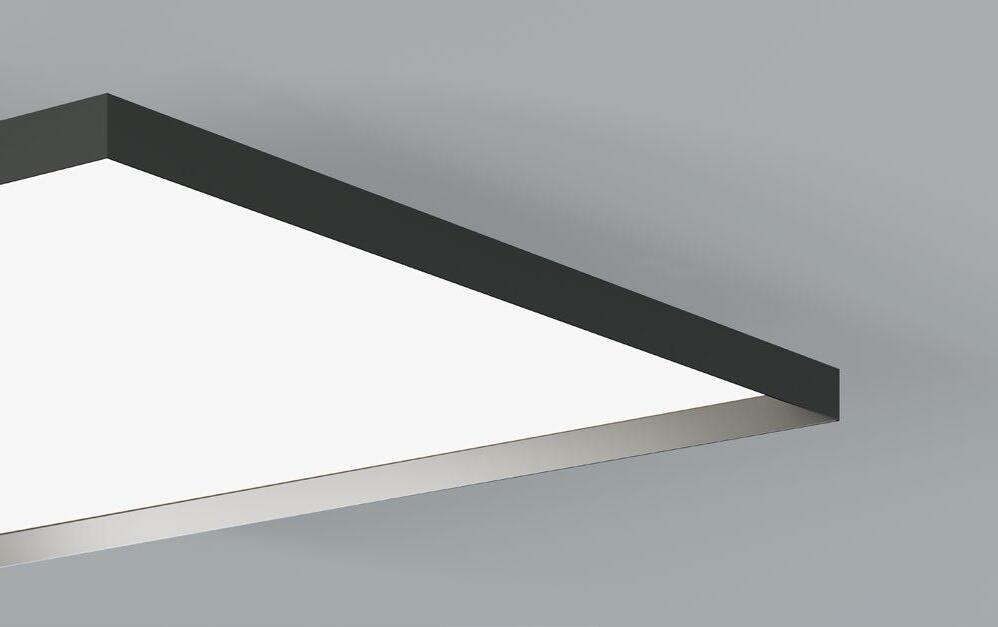

BINA
Round & Square Standard White
FEATURES
- Ultra thin 1.5" profile
- Edge lit illumination
- Black, white, or matte chrome decorative bezel
- Five mounting configurations
HOUSING
- Housing is offered with three finishes with three bezel colors of black, white and matte chrome.
MOUNTING
- Fixture can be mounted on any wall or ceiling.
ELECTRICAL INFO
- 30, 40, 60 and 78 Watt Direct Systems
- 45, 55, 86 and 104 Watt Direct/Indirect Systems
- 120-277Vac, 50/60Hz input
- 0-10V Dimming to 0.1%
LISTING
- IP20 rating
- ETLus Listed to UL1598 (suitable for indoor use and dry locations only)
The TechoLED Moon series features smooth, round LED luminaires made with high-end aluminum extrusion and a PMMA diffuser. With diameters ranging from 11.8” to 47.2” (or a custom size of your choice), direct and direct/indirect illumination, and surface-mounted or pendant installation, it offers a simple yet sleek lighting solution for any modern interior.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct configuration, 115° Beam angle
Construction: Damp location listed. High grade aluminum extrusion, PMMA diffuser, integral driver (inside canopy in pendant version), powder coat finish, custom finishes available.
Installation
Pendant (P)
Surface Mount (SM)
BLANK
Rev. Date: 01/14/2026
Project: Type:
Comments:
Configuration Example
Ordering Guide:
Select one option from each group below. For a custom preference please contact sales@techoled.com
TYPE LT19B SPEC HORIZON OAKLAND PARK
BINA
Round & Square Standard White
FEATURES
- Ultra thin 1.5" profile
- Edge lit illumination
- Black, white, or matte chrome decorative bezel
- Five mounting configurations
HOUSING
- Housing is offered with three finishes with three bezel colors of black, white and matte chrome.
MOUNTING
- Fixture can be mounted on any wall or ceiling.
ELECTRICAL INFO
- 30, 40, 60 and 78 Watt Direct Systems
- 45, 55, 86 and 104 Watt Direct/Indirect Systems
- 120-277Vac, 50/60Hz input
- 0-10V Dimming to 0.1%
LISTING
- IP20 rating
- ETLus Listed to UL1598 (suitable for indoor use and dry locations only)
The TechoLED Moon series features smooth, round LED luminaires made with high-end aluminum extrusion and a PMMA diffuser. With diameters ranging from 11.8” to 47.2” (or a custom size of your choice), direct and direct/indirect illumination, and surface-mounted or pendant installation, it offers a simple yet sleek lighting solution for any modern interior.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct configuration, 115° Beam angle
Construction: Damp location listed. High grade aluminum extrusion, PMMA diffuser, integral driver (inside canopy in pendant version), powder coat finish, custom finishes available.
Installation
Pendant (P)
Surface Mount (SM)
BLANK
Rev. Date: 01/14/2026
Project: Type:
Comments:
Configuration Example
Ordering Guide:
Select one option from each group below. For a custom preference please contact sales@techoled.com
Walker Medium Flush Mount
Item # KS 4071G-L/BL
Designer: kate spade new york
Height: 7.5"
Width: 18"
Canopy: 8.75" Round
Finishes: BSL, G, LC
Shade Treatments: L, L/BL, NL
Socket: 4 - E26 Keyless
Wattage: 4 - 40 A19
Weight: 6 Pounds
HORIZON OAKLAND PARK
Walker Medium Flush Mount
Item # KS 4071G-L/BL
Designer: kate spade new york
Height: 7.5"
Width: 18"
Canopy: 8.75" Round
Finishes: BSL, G, LC
Shade Treatments: L, L/BL, NL
Socket: 4 - E26 Keyless
Wattage: 4 - 40 A19
Weight: 6 Pounds
NU essentials
4" Round & Square Downlight Standard White
30° - 60° BEAM
(Note: Specifications are subject to change without notice)
9mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
10LM 1070LM @30K/90CRI 11W
13LM 1360LM @30K/90CRI 14W
15LM 1560LM @30K/90CRI 16W
20LM 2000LM @30K/90CRI 21W
Notes
FEATURES
• Economical choice for budget projects
• Thermally optimized for LED longevity
• Fully casted assembly
• 14° - 80° optical beam control
• Packaging material consists of 60-80% post-consumer re cycled fiber LED
Delivered lumens based on 40D optic with np lens, (see page 2)
14° - 25° BEAM
(Note: Specifications are subject to change without notice) 6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
10LM 970LM @30K/90CRI 11W
15LM 1450LM @30K/90CRI 18W
Notes Delivered lumens based on 25D optic with no lens, (see page 2)
• eldoLED Flicker free 0-10V dimming to 1%
• Leading & trailing edge (Triac/ELV) dimming to 1%
CONSTRUCTION
• Aluminum trim and bezel
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/4" to 1"
LISTING
• ULus Listed to UL1598; cUL Listed to CSA C22.2 #250.0
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• IP44 with lens - suitable for wet location with lens - suitable damp location without lens
• 5 Year Limited warranty
ELECTRICAL
• 120V-277V, 120 only Triac / ELV
• Power factor ≥ 0.9
• 2kV driver input surge protection
• 7W and 10W (T20 CEC) EM 90min battery
• Max. ambient installation temperature 104°F (40°C)
HORIZON OAKLAND PARK TYPE
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail:
PRODUCT IMAGES & DIMENSIONS NIO-4RNDC
Compatible Housings
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
Delivered lumens based on 40D optic with np lens, (see page 2)
14° - 25° BEAM
(Note: Specifications are subject to change without notice) 6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
10LM 970LM @30K/90CRI 11W
15LM 1450LM @30K/90CRI 18W
Notes Delivered lumens based on 25D optic with no lens, (see page 2)
• eldoLED Flicker free 0-10V dimming to 1%
• Leading & trailing edge (Triac/ELV) dimming to 1%
CONSTRUCTION
• Aluminum trim and bezel
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/4" to 1"
LISTING
• ULus Listed to UL1598; cUL Listed to CSA C22.2 #250.0
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• IP44 with lens - suitable for wet location with lens - suitable damp location without lens
• 5 Year Limited warranty
ELECTRICAL
• 120V-277V, 120 only Triac / ELV
• Power factor ≥ 0.9
• 2kV driver input surge protection
• 7W and 10W (T20 CEC) EM 90min battery
• Max. ambient installation temperature 104°F (40°C)
HORIZON OAKLAND PARK
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
NCIC5 new construction with ceiling fitting plate, insulation contact rated (no housing required)
RETIC5 retrofit, no ceiling fitting plate, insulation contact rated (no housing required)
VOLTAGE 120 120V UNV 120V-277V
DIMMING DIM10 eldoLED flicker free 0-10V dimming to 1% ELV16 leading & trailing edge (Triac/ELV) dimming to 1%
ELECTRICAL OPTIONS
EM7 emergency battery backup, 90 minutes at 7W to LED
EM10CA20 emergency battery backup, 90 minutes at 10W to LED, CA title 20
NOTES
1. 14D/2 5D available in 10LM/15LM. Not available with DL lens.
2. NL lens option does not meet requirements for WET/NSF listings.
3. CL/DL/HE T lens options with IC or ICAT housing are JA8 compliant.
4. HCL cannot be used with lens (max 1 media).
5. NCIC/RE TIC are available in 10LM/13LM rated for insulation contact (IC), no “IC-Housing” required.
6. ELV1 available in 120V.
BLANK
FEATURES & SPECIFICATIONS
INTENDED USE — Available in several color temperatures, lumen packages and lengths. Ideal for use in commercial, retail, office, warehouse and display applications. Certain airborne contaminants can diminish integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components
CONSTRUCTION — Compact-design channel and cover are formed from code compliant, 22 gauge cold-rolled steel.
SENSOR SWITCH JUST ONE TOUCH TECHNOLOGY — Single room control wireless technology available for easy install and commissioning to aid in code compliance. The JOT option enables the fixture with Just One Touch pairing capability. The JOTVTX15 option features a luminaire-embedded occupancy and ambient light sensor allows the luminaire to power off when the space is unoccupied or when enough ambient light is entering the space.
SENSOR SWITCH VISIBLE LIGHT PROGRAMMING TECHNOLOGY — Standalone sensor programming via VLP mobile app and smart device's camera flash from up to 8ft away.
FINISH — High-gloss, baked white enamel (standard).
OPTICS — LEDs provide 80+ color rendering index (CRI) at 3500K, 4000K and 5000K. Diffuse polycarbonate lens with ultra-sonically welded end caps provides smooth, linear illumination.
ELECTRICAL — Luminaire Surge Protection Level: Designed to withstand up to 2.5kV/0.75kA per ANSI C82.77-5-2015. For applications requiring higher level of protection additional surge protection must be provided.
Driver is standard 0-10V dimming class 2.
Optional internal pluggable wiring harness for reduced labor cost in row mounting applications.
(See PLR_ ordering information on page 5.)
INSTALLATION — Fixture may be surface mounted to a ceiling or horizontal and vertical wall or suspension mounted with appropriate mounting options (see accessories). Easy to install row aligner bracket included for continuous row mounting.
LISTINGS — CSA certified to US and Canadian safety standards and listed suitable for damp locations. Minimum starting temperature of -22°F (-30°C). Maximum ambient operating temperature of 104˚F (40˚C) for 4ft models and 95˚F (35˚C) for 2ft & 8ft models. See notes for controls temperature restrictions.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Suitable for use within closet spaces when installed per NEC 410.16 spacing requirements.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® or XPoint™ Wireless control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
HORIZON OAKLAND PARK
TYPE LT25 SPEC
LED
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
CSS Contractor Single Strip LED L24 ‡ 22" 2000LM 2000 Lumens
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
rPP20D nLight® air dimming/switching module
SFR7CSS 120/277V field installed On/Off motion sensor, 360° small motion ‡
SFR7CSS 347 347V field installed On/Off motion sensor, 360° small motion ‡ Y J10 Y hanger in multiples of 10 (five pair)
WGCSS Wire Guard with Mounting hardware (one 4ft) ‡ MNLK JBOXCVR M12Junction box cover and hardware, white
‡ Option Value Ordering Restrictions
Option value Restriction
L24
Not available with IE7WCP, IE10WCPHE, JOT, JOTVTX15, VTX15FADC, VTX15FANL, WG, SFR7CSS120/277, SFR7CSS347. ALO15, ALO3, ALO4Not available with 35K, 40K or 50K color temperatures. SWW3 Not available with static lumen packages.
Emergency BatteryNot available with PLR
JOT Enabled Controls Not available with ALO3, ALO4, UVOLT or SWW3. Minimum starting temp of 14°F (-10°C). Maximum operating temp of L48 at 95°F (35°C) & L96 at 86°F (30°C). Controls contained in endcap.
VLP Enabled Sensors Not available with ALO15, ALO3, ALO4, UVOLT or SWW3. See page 5 for default programming and coverage pattern information. Sensors contained in endcap.
SFR Sensors Can only be mounted at the end of continuous row mount applications. On/off function only. Minimum starting temp of 14°F (-10°C). Ensure correct sensor voltage selected for use with UVOLT fixtures based on application. See page 7 for coverage pattern.
SFR7CSS120/277 Sensor operates at ONLY 120V or 277V. Can NOT be used for 208V or 240V operation. Not available with L24. Requires MVOLT.
SFR7CSS347 Sensor operates at 347V ONLY. Not available with MVOLT (120-277V). Not available with L24. Requires UVOLT.
Wire Guard Does not cover SFR controls. Not recommended for use with endcap integrated JOT or VLP enabled controls due to potential detection obstruction.
PLR__ & PLR1LVGNot available with Emergency or Controls. L24 only available with PLR1LVG.
UVOLT Not available with Emergency, JOT or VTX.
ILBHI CP10 HE SD A High voltage emergency driver (347-480V). For use with UVOLT fixtures ONLY at 347V operation.
80CRI
CRI
HORIZON OAKLAND PARK
DESCRIPTION
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LED96/LINEAR/3CCT/3WO/UNV/D/HO
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K - 138
3500K - 133
4000K - 134
5000K - 135
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K - 138
3500K - 133
4000K - 134
5000K - 135
48”
48” 96”
TYPE LT25E SPEC
FEATURES & SPECIFICATIONS
INTENDED USE — Available in several color temperatures, lumen packages and lengths. Ideal for use in commercial, retail, office, warehouse and display applications. Certain airborne contaminants can diminish integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components
CONSTRUCTION — Compact-design channel and cover are formed from code compliant, 22 gauge cold-rolled steel.
SENSOR SWITCH JUST ONE TOUCH TECHNOLOGY — Single room control wireless technology available for easy install and commissioning to aid in code compliance. The JOT option enables the fixture with Just One Touch pairing capability. The JOTVTX15 option features a luminaire-embedded occupancy and ambient light sensor allows the luminaire to power off when the space is unoccupied or when enough ambient light is entering the space.
SENSOR SWITCH VISIBLE LIGHT PROGRAMMING TECHNOLOGY — Standalone sensor programming via VLP mobile app and smart device's camera flash from up to 8ft away.
FINISH — High-gloss, baked white enamel (standard).
OPTICS — LEDs provide 80+ color rendering index (CRI) at 3500K, 4000K and 5000K. Diffuse polycarbonate lens with ultra-sonically welded end caps provides smooth, linear illumination.
ELECTRICAL — Luminaire Surge Protection Level: Designed to withstand up to 2.5kV/0.75kA per ANSI C82.77-5-2015. For applications requiring higher level of protection additional surge protection must be provided.
Driver is standard 0-10V dimming class 2.
Optional internal pluggable wiring harness for reduced labor cost in row mounting applications.
(See PLR_ ordering information on page 5.)
INSTALLATION — Fixture may be surface mounted to a ceiling or horizontal and vertical wall or suspension mounted with appropriate mounting options (see accessories). Easy to install row aligner bracket included for continuous row mounting.
LISTINGS — CSA certified to US and Canadian safety standards and listed suitable for damp locations. Minimum starting temperature of -22°F (-30°C). Maximum ambient operating temperature of 104˚F (40˚C) for 4ft models and 95˚F (35˚C) for 2ft & 8ft models. See notes for controls temperature restrictions.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Suitable for use within closet spaces when installed per NEC 410.16 spacing requirements.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® or XPoint™ Wireless control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details
HORIZON OAKLAND PARK
TYPE LT25E SPEC
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
CSS Contractor Single Strip LED L24 ‡ 22" 2000LM 2000 Lumens
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")
rPP20D nLight® air dimming/switching module
SFR7CSS 120/277V field installed On/Off motion sensor, 360° small motion ‡
SFR7CSS 347 347V field installed On/Off motion sensor, 360° small motion ‡ Y J10 Y hanger in multiples of 10 (five pair)
WGCSS Wire Guard with Mounting hardware (one 4ft) ‡ MNLK JBOXCVR M12Junction box cover and hardware, white
‡ Option Value Ordering Restrictions
Option value Restriction
L24
Not available with IE7WCP, IE10WCPHE, JOT, JOTVTX15, VTX15FADC, VTX15FANL, WG, SFR7CSS120/277, SFR7CSS347. ALO15, ALO3, ALO4Not available with 35K, 40K or 50K color temperatures. SWW3 Not available with static lumen packages.
Emergency BatteryNot available with PLR
JOT Enabled Controls Not available with ALO3, ALO4, UVOLT or SWW3. Minimum starting temp of 14°F (-10°C). Maximum operating temp of L48 at 95°F (35°C) & L96 at 86°F (30°C). Controls contained in endcap.
VLP Enabled Sensors Not available with ALO15, ALO3, ALO4, UVOLT or SWW3. See page 5 for default programming and coverage pattern information. Sensors contained in endcap.
SFR Sensors Can only be mounted at the end of continuous row mount applications. On/off function only. Minimum starting temp of 14°F (-10°C). Ensure correct sensor voltage selected for use with UVOLT fixtures based on application. See page 7 for coverage pattern.
SFR7CSS120/277 Sensor operates at ONLY 120V or 277V. Can NOT be used for 208V or 240V operation. Not available with L24. Requires MVOLT.
SFR7CSS347 Sensor operates at 347V ONLY. Not available with MVOLT (120-277V). Not available with L24. Requires UVOLT.
Wire Guard Does not cover SFR controls. Not recommended for use with endcap integrated JOT or VLP enabled controls due to potential detection obstruction.
PLR__ & PLR1LVGNot available with Emergency or Controls. L24 only available with PLR1LVG.
UVOLT Not available with Emergency, JOT or VTX.
ILBHI CP10 HE SD A High voltage emergency driver (347-480V). For use with UVOLT fixtures ONLY at 347V operation.
80CRI
CRI
HORIZON OAKLAND PARK TYPE
DESCRIPTION
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LED96/LINEAR/3CCT/3WO/UNV/D/HO
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K - 138
3500K - 133
4000K - 134
5000K - 135
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K - 138
3500K - 133
4000K - 134
5000K - 135
48”
48” 96”
DESCRIPTION
The SSF LED Linear Stairwell Series features a sleek yet robust construction with an IK08 impact-tested steel housing, vandal-proof hardware and UV-stabilized polycarbonate lens. The SSF Series is offered in both 2’ and 4’ configurations and comes standard with an integral microwave sensor centered behind the lens providing 2 or 3 step - level dimming as well as optional daylight harvesting capability. Internal switches allow the user to select the CCT (3000K-3500K-4000K) and the power output (between 10W to 40W, depending on fixture size), providing maximum project flexibility. The SSF is offered with a battery backup option providing 90 minutes of emergency egress lighting. The SSF is a DesignLights Consortium® PREMIUM qualified product in the stairwell and linear ambient category, maximizing energy-savings and utility rebates. Designed for stairwell applications, the SSF can be used in a wide variety of other indoor, general ambient lighting applications including schools, hospitals and stores and is the perfect choice for both new construction and retrofits.
SPECIFICATIONS
Construction:
• Durable 4-3/8” width, 22-gauge steel enclosure in a white powder coated finish, IK08 impact tested, 2’ and 4’ length
• Vandal-resistant Pin-In Torx hardware
• Flanged housing ends secure the lens in place
• Several knockouts across the bottom of the housing and the two ends
• All visible hardware in a white finish to match enclosure
Optics/LEDs:
• UV-stabilized frosted polycarbonate lens offering an even, diffused light
• Units provide a range of lumen packages by simply selecting the wattage desired for your application;
• 2’ unit – wattage selectable from 10W through 30W offering up to 3850 lumens
• 4’ unit – wattage selectable from 12W through 40W offering up to 5320 lumens
• Switches are located inside fixture
• Significant energy savings compared to traditional light sources with up to 130 LPW
• Color switchable between 3000K, 3500K and 4000K CCT. Switch is located inside the fixture.
• All units are provided with an integral microwave sensor, centered behind the lens. Sensor allows for 2 or 3 step - level dimming and has optional daylight harvesting capabilities. Settings can be adjusted via optional remote control accessory See sensor details for default sensor settings.
• Sensor can easily be disabled for on/off fixture operation Testing & Compliance:
• cETLus Listed for Damp Locations
• Operating temperatures: -20°C to 40°C (-40°F to 104°F)
• DesignLights Consortium® (DLC) PREMIUM Qualified in the stairwell and linear ambient category (consult QPL for qualified models)
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
Options:
• Integral battery Backup (BB option) offers 875 lumens and over 90 minutes of emergency powered illumination for path of egress. Rated for ambient temperatures of 0°C to 40°C (32°F to 104°F)
SSF Series
LED Linear Stairwell Fixture
Specs at a Glance*
Efficacy (LPW) 130LPW
CCT (K) Switchable (3000K-3500K-4000K)
CRI ≥80
Input Voltage 120-277VAC, 50/60Hz
Operating Temp -20°C to 40°C (-4°F to 104°F)
Certifications cETLus Listed for Damp Locations, DLC PREMIUM
Warranty 5 Years
Weight** 4.4 lbs
*Nominal wattage. Tested at 4000K CCT.
** Net weight without battery backup (add 0.9 lbs for battery backup)
lbs
Note: Environment and application will affect performance. Typical values and 25°C used for testing. Specifications subject to change without notice.
Accessories:
• Remote control for sensor (TL-RC-SCNS) allows field programming of sensor settings. Default sensor settings provided in sensor detail section (this accessory is not required if default settings are acceptable)
• 2' Long, T20 Torx Pin-In security (TRHT-T20-PIN), 1/4" drive bit hex shaft for standard drills
Installation:
• For ceiling or wall surface mount installation
• Several knockouts behind the enclosure and on both ends for flexibility in mounting
• Remove one end cap to slide and snap out the lens for easy access to inside the fixture
• Clips inside the fixture provide simple access for wiring and installation as well as access to the CCT and power selectable switches
• Not suitable for installation in T-bar ceilings without field mounting modifications to be determined by installer
• Includes security cable to hold led tray in place during installation
• Includes quick connect on leads for easy easy wiring
Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
• Wattage selectable 35/45/55W
• Color Selectable 35/40/50K
• O ptional battery backup
Ideal Applications
• Co mmercial settings
• St airways
• Bi-level dimming microwave motion sensor
• S urface or pendant mounting
• Industrial settings
• Warehouses
TYPE LT26 SPEC HORIZON OAKLAND PARK
Ordering Information (Example: SSF-4-CP-SC)
SKU Description
SSF-2-CP-SC
SSF-2-CP-BB-SC
SSF-4-CP-SC
Also available with Bluetooth controls, see SSF-LE spec
2’ Linear Stairwell, Switchable 3000K-3500K-4000K CCT, Switchable 10W-15W-20W-30W, Integral Microwave Sensor, White Finish
2’ Linear Stairwell, Switchable 3000K-3500K-4000K CCT, Switchable 10W-15W-20W-30W, Integral Microwave Sensor, Battery Backup, White Finish
4’ Linear Stairwell, Switchable 3000K-3500K-4000K CCT, Switchable 12W-18W-25W-40W, Integral Microwave Sensor, White Finish SSF-4-CP-BB-SC
4’ Linear Stairwell, Switchable 3000K-3500K-4000K CCT, Switchable 12W-18W-25W-40W, Integral Microwave Sensor, Battery Backup White Finish
Notes
1 Order as a separate line item. Shipped in a separate box for final installation in the field
Specifications are subject to change without notice. Installation must be performed in accordance with Barron Lighting Group installation instructions.
Accessories¹ (Field Installed)
TL-RC-SCNS = Remote control required for sensor field programming TRHT-T20-PIN = 2" Long, T20 Torx Pin-In Security, 1/4" Drive Bit Hex Shaft for Standard Drills
Delivered lumens based on 40D optic with np lens, (see page 2)
14° - 25° BEAM
(Note: Specifications are subject to change without notice) 6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
10LM 970LM @30K/90CRI 11W
15LM 1450LM @30K/90CRI 18W
Notes Delivered lumens based on 25D optic with no lens, (see page 2)
• eldoLED Flicker free 0-10V dimming to 1%
• Leading & trailing edge (Triac/ELV) dimming to 1%
CONSTRUCTION
• Aluminum trim and bezel
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/4" to 1"
LISTING
• ULus Listed to UL1598; cUL Listed to CSA C22.2 #250.0
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• IP44 with lens - suitable for wet location with lens - suitable damp location without lens
• 5 Year Limited warranty
ELECTRICAL
• 120V-277V, 120 only Triac / ELV
• Power factor ≥ 0.9
• 2kV driver input surge protection
• 7W and 10W (T20 CEC) EM 90min battery
• Max. ambient installation temperature 104°F (40°C)
HORIZON OAKLAND PARK TYPE LT27 ALT
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Compatible Housings
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
Delivered lumens based on 40D optic with np lens, (see page 2)
14° - 25° BEAM
(Note: Specifications are subject to change without notice) 6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
10LM 970LM @30K/90CRI 11W
15LM 1450LM @30K/90CRI 18W
Notes Delivered lumens based on 25D optic with no lens, (see page 2)
• eldoLED Flicker free 0-10V dimming to 1%
• Leading & trailing edge (Triac/ELV) dimming to 1%
CONSTRUCTION
• Aluminum trim and bezel
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/4" to 1"
LISTING
• ULus Listed to UL1598; cUL Listed to CSA C22.2 #250.0
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• IP44 with lens - suitable for wet location with lens - suitable damp location without lens
• 5 Year Limited warranty
ELECTRICAL
• 120V-277V, 120 only Triac / ELV
• Power factor ≥ 0.9
• 2kV driver input surge protection
• 7W and 10W (T20 CEC) EM 90min battery
• Max. ambient installation temperature 104°F (40°C)
HORIZON OAKLAND PARK TYPE LT28 ALT
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Compatible Housings
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
Delivered lumens based on 40D optic with np lens, (see page 2)
14° - 25° BEAM
(Note: Specifications are subject to change without notice) 6mm COB PERFORMANCE DATA
LED LIGHT ENGINE NOMINAL DELIVERED LUMENS SYSTEM WATTAGE
10LM 970LM @30K/90CRI 11W
15LM 1450LM @30K/90CRI 18W
Notes Delivered lumens based on 25D optic with no lens, (see page 2)
• eldoLED Flicker free 0-10V dimming to 1%
• Leading & trailing edge (Triac/ELV) dimming to 1%
CONSTRUCTION
• Aluminum trim and bezel
• Electrocoated 16-gauge cold-rolled steel construction
• Accommodates ceiling thickness from 1/4" to 1"
LISTING
• ULus Listed to UL1598; cUL Listed to CSA C22.2 #250.0
• NSF/ANSI-2 with lens (Non-Food and Splash Zones)
• IP44 with lens - suitable for wet location with lens - suitable damp location without lens
• 5 Year Limited warranty
ELECTRICAL
• 120V-277V, 120 only Triac / ELV
• Power factor ≥ 0.9
• 2kV driver input surge protection
• 7W and 10W (T20 CEC) EM 90min battery
• Max. ambient installation temperature 104°F (40°C)
HORIZON OAKLAND PARK TYPE LT28E ALT
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
• Available with 10% dimming, 1% dimming, or dim to dark
• Batwing distribution with feathered edges provides even illumination on horizontal and vertical surfaces
• UGR of zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg per CIE 117-1995 Discomfort Glare in Interior Lighting. UGR FAQ
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
HORIZON OAKLAND PARK TYPE LT29 ALT
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail:
PRODUCT IMAGES & DIMENSIONS
NIO-4RNDC
Compatible Housings
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm
TYPE LT29 SPEC HORIZON OAKLAND PARK
General Illumination Round Downlight 4"
Luminaire Type: Catalog Number:
EXAMPLE: EVO4 35/25 AR MWD LSS 120 EZ1
GZ10 0-10V driver dims to 10%
GZ1 0-10V driver dims to 1%
EZ10 eldoLED 0-10V ECOdrive. Linear dimming to 10% min.
EZ1 eldoLED 0-10V ECOdrive. Linear dimming to 1% min.
EZB eldoLED 0-10V SOLOdrive. Logarithmic dimming to <1%.
EDAB eldoLED SOLOdrive DALI. Logarithmic dimming to <1%.
EDXB eldoLED POWERdrive DMX with RDM (remote device management). Square Law dimming to <1%. Minimum 1000 lumens. Includes termination resistor. Refer to DMXR Manual
ECOD6 Lutron Ecosystem digital Hi-Lume 1% soft-on, fade to black. Min: 250LLM; Max: 4000LM.
NLTAIRER23,8,9 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit
NLTAIREM23,9 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit with battery pack options.
ACCESSORIES — order as separate catalog numbers (shipped separately)
EL11 Emergency battery pack, 10W, with integral test switch
ELR11 Emergency battery pack, 10W, with remote test switch
ELSD11 Emergency battery pack, 10W, with self-diagnostics, integral test switch
ELRSD11 Emergency battery pack, 10W, with self-diagnostics, remote test switch
E10WCP11 Emergency battery pack, 10W Constant Power, CA Title 20 compliant with integral test switch
E10WCPR11 Emergency battery pack, 10W Constant Power, CA Title 20 compliant with remote test switch
BGTD Bodine generator transfer device. Specify 120V or 277V.
SCA4 Sloped ceiling adapter. Degree of slope must be specified (5D, 10D, 15D, 20D, 25D, 30D). Ex: SCA4 10D. Refer to TECH-190
CTAEVO4 4" Aperture ceiling thickness adapter (extends mounting frame to accommodate ceiling thickness up to 5").
SF Single Fuse. Specify 120V or 277V
TRW12 White painted flange
TRBL13 Black painted flange
FRALTBD2 Flange ring only RAL color for pricing only
FCPC Flange custom paint color
N8014 nLight® Lumen Compensation
GTD generator transfer device. Specify 120V or 277V
90CRI High CRI (90+)
CP15 Chicago Plenum. Specify 120V or 277V for 5000lm and above.
RRL__ RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Available only with RRLA, RRLB, RRLAE, and RRLC12S. Refer to RRL spec sheet on www.acuitybrands. com for RELOC® product specifications. Above ceiling access required.
CTA4-8 YK 4"-8" Aperture ceiling thickness adapter (extends mounting frame to accommodate ceiling thickness up to 5"). For use with CWW/DWW trims, EDXB, CP or nTune options.
ISD BC 0-10V wallbox dimmer. Refer to ISD-BC
ORDERING NOTES
1. Not available with finishes.
2. Replace with applicable RAL number and finish when ready to order. See RAL BROCHURE for available color options. Not available with emergency battery pack options.
3. Not available with emergency battery pack options.
4. Supplied with factory installed step down transformer
5. Refer to TECH-240 for compatible dimmers.
6. Not available with nLight®
7. Must specify voltage.
8. ER for use as UL924 Emergency Operation via power sense lead. Will require an emergency hot feed and normal hot feed. EM for use as UL924 Emergency Operation via power interrupt detection.
9. Not available DALI or DMX drivers. Not available with CP or N80 options. Not recommended for metal ceiling installations.
page 2 of 7
10. When combined with the EZ1, EZ10, or EZB option, normal luminaires (non-emergency) can be used as a normal power sensing device for nearby nLight AIR devices and luminaires with EM emergency options.
11. 11" of plenum depth or top access required for battery pack maintenance.
12. For use with different reflector finish only (i.e. AR, PR, WTR, GR options). Not applicable with WR (white reflector) or FL (flangeless) option.
13. For use with different reflector finish only (i.e. AR, PR, WTR, GR options). Not applicable with BR (black reflector) or FL (flangeless) option.
14. Fixture begins at 80% light level. Must be specified with NLT or NLTER. Only available with EZ10 and EZ1 drivers.
15. Not available with ELR, HAO, or EXAB, or any nLight® AIR dimming options.
Design Select options indicated by this color background.
BLANK
Multiple Layers of Light
General Illumination Round Downlight 4"
Feature Set
• Bounding Ray™ optical design
• Unitized optics mechanically attach the light engine to the lower reflector for complete optical alignment.
• 45° cutoff to source and source image
• Fully serviceable and upgradeable lensed LED light engine
• Available with 10% dimming, 1% dimming, or dim to dark
• Batwing distribution with feathered edges provides even illumination on horizontal and vertical surfaces
• UGR of zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg per CIE 117-1995 Discomfort Glare in Interior Lighting. UGR FAQ
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
HORIZON OAKLAND PARK TYPE LT29E ALT
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail:
PRODUCT IMAGES & DIMENSIONS
NIO-4RNDC
Compatible Housings
Housing Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm
TYPE LT29E SPEC HORIZON OAKLAND PARK
General Illumination Round Downlight 4"
Luminaire Type: Catalog Number:
EXAMPLE: EVO4 35/25 AR MWD LSS 120 EZ1
GZ10 0-10V driver dims to 10%
GZ1 0-10V driver dims to 1%
EZ10 eldoLED 0-10V ECOdrive. Linear dimming to 10% min.
EZ1 eldoLED 0-10V ECOdrive. Linear dimming to 1% min.
EZB eldoLED 0-10V SOLOdrive. Logarithmic dimming to <1%.
EDAB eldoLED SOLOdrive DALI. Logarithmic dimming to <1%.
EDXB eldoLED POWERdrive DMX with RDM (remote device management). Square Law dimming to <1%. Minimum 1000 lumens. Includes termination resistor. Refer to DMXR Manual
ECOD6 Lutron Ecosystem digital Hi-Lume 1% soft-on, fade to black. Min: 250LLM; Max: 4000LM.
NLTAIRER23,8,9 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit
NLTAIREM23,9 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit with battery pack options.
ACCESSORIES — order as separate catalog numbers (shipped separately)
EL11
Emergency battery pack, 10W, with integral test switch
ELR11 Emergency battery pack, 10W, with remote test switch
ELSD11 Emergency battery pack, 10W, with self-diagnostics, integral test switch
ELRSD11 Emergency battery pack, 10W, with self-diagnostics, remote test switch
E10WCP11 Emergency battery pack, 10W Constant Power, CA Title 20 compliant with integral test switch
E10WCPR11 Emergency battery pack, 10W Constant Power, CA Title 20 compliant with remote test switch
BGTD Bodine generator transfer device. Specify 120V or 277V.
SCA4 Sloped ceiling adapter. Degree of slope must be specified (5D, 10D, 15D, 20D, 25D, 30D). Ex: SCA4 10D. Refer to TECH-190
CTAEVO4 4" Aperture ceiling thickness adapter (extends mounting frame to accommodate ceiling thickness up to 5").
SF Single Fuse. Specify 120V or 277V
TRW12 White painted flange
TRBL13 Black painted flange
FRALTBD2 Flange ring only RAL color for pricing only
FCPC Flange custom paint color
N8014 nLight® Lumen Compensation
GTD generator transfer device. Specify 120V or 277V
90CRI High CRI (90+)
CP15 Chicago Plenum. Specify 120V or 277V for 5000lm and above.
RRL__ RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Available only with RRLA, RRLB, RRLAE, and RRLC12S. Refer to RRL spec sheet on www.acuitybrands. com for RELOC® product specifications. Above ceiling access required.
CTA4-8 YK 4"-8" Aperture ceiling thickness adapter (extends mounting frame to accommodate ceiling thickness up to 5"). For use with CWW/DWW trims, EDXB, CP or nTune options.
ISD BC 0-10V wallbox dimmer. Refer to ISD-BC
ORDERING NOTES
1. Not available with finishes.
2. Replace with applicable RAL number and finish when ready to order. See RAL BROCHURE for available color options. Not available with emergency battery pack options.
3. Not available with emergency battery pack options.
4. Supplied with factory installed step down transformer.
5. Refer to TECH-240 for compatible dimmers.
6. Not available with nLight®
7. Must specify voltage.
8. ER for use as UL924 Emergency Operation via power sense lead. Will require an emergency hot feed and normal hot feed. EM for use as UL924 Emergency Operation via power interrupt detection.
9. Not available DALI or DMX drivers. Not available with CP or N80 options. Not recommended for metal ceiling installations.
page 2 of 7
10. When combined with the EZ1, EZ10, or EZB option, normal luminaires (non-emergency) can be used as a normal power sensing device for nearby nLight AIR devices and luminaires with EM emergency options.
11. 11" of plenum depth or top access required for battery pack maintenance.
12. For use with different reflector finish only (i.e. AR, PR, WTR, GR options). Not applicable with WR (white reflector) or FL (flangeless) option.
13. For use with different reflector finish only (i.e. AR, PR, WTR, GR options). Not applicable with BR (black reflector) or FL (flangeless) option.
14. Fixture begins at 80% light level. Must be specified with NLT or NLTER. Only available with EZ10 and EZ1 drivers.
15. Not available with ELR, HAO, or EXAB, or any nLight® AIR dimming options.
Design Select options indicated by this color background.
BLANK
TYPE LT30 SPEC HORIZON OAKLAND PARK
AERA 2" DOWNLIGHT
ROUND RECESSED WALL WASH
NEW CONSTRUCTION & REMODEL
Wash Flanged Trim Wall Wash Trimless Drywall Mudplate
Aera recessed downlights are true to size, encased in minimalist housing, and suitable additions to any interior space where outstanding optical performance, maximal eye comfort, and/or an industryleading wall wash are required.
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable surface gimbals adjust to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
11 A remote driver box is provided, see page 5 for details. 12 Available with 120V only. 13 On-site commissioning is required. 14 For emergency battery, code will be like the following example: RD1+EB
BLANK
TYPE LT35 SPEC HORIZON OAKLAND PARK
VPA Series
DESCRIPTION
The VPA Series LED linear vaportight features robust construction with an IK08 impact-tested polycarbonate housing designed for easy installation with direct, toolless access to the driver compartment. With its UV-stabilized frosted polycarbonate lens, the VPA Series offers impressive general illumination and is offered in 2’, 4’ and 8’ configurations. Internal switches allow the user to select the CCT between 3500K, 4000K and 5000K to provide project flexibility. An optional integral microwave sensor, centered behind the lens, provides two or three step/ level dimming as well as light thresholds/daylight harvesting capability. A battery backup option provides emergency egress lighting for 90 minutes. The VPA Series is designed for indoor and outdoor covered spaces that require protection from dust, dirt and water with its NEMA 4X rating and can be used in a variety of applications including schools, parking garages, covered pathways, hospitals, stores or facilities where NSF certification is required. This unit is rated for Food Zone, Splash Zone: Equipment surfaces that are subject to splash and food spillage during operation of the equipment as well as Non-Food Zone. This series is an easy to install, robust, cost effective solution that is the perfect choice for both new construction and retrofits.
SPECIFICATIONS
Construction:
• UV-stabilized polycarbonate enclosure in a light gray finish, IK08 impact-tested, 2', 4’ and 8’ lengths
• The fixture is designed with a high-quality polycarbonate lens featuring a unique poured-in gasket to provide superior water and dust ingress protection
• Stainless steel clips secure the lens to the enclosure
• Toolless access to the driver compartment
Optics/LEDs:
• UV-stabilized frosted polycarbonate lens offering an even, diffused light
• General 120° distribution
• Available in three lengths/lumen packages;
• 2' Unit, 25W, 2969 lumens
• 4’ Unit, 40W, 5200 lumens
• 8’ Unit, 80W, 10,400 lumens
• Significant energy savings compared to traditional light sources, up to 130 LPW
• Color switchable between 3500K, 4000K and 5000K CCT. Switch is located inside the fixture
• L70 >100,000 hours
• CRI ≥80
Electrical:
• Class 2 power supply, 120 to 277VAC, 50/60Hz
• 0-10V Dimming driver
Installation:
• For ceiling or wall surface mount installation, includes mounting clips
• Knockouts provided on the back and both ends of the enclosure for flexibility in mounting
• Toolless access to driver compartment - unit opens up directly to the driver compartment and safety cables retain the lens in place for ease of installation and wiring
• Switches are located inside the unit to avoid any tampering and to maintain weatherproofing
• Not suitable for installation in T-bar ceilings without field mounting modifications (determined by installer)
Accessories:
• Bluetooth PIR motion sensor with daylight harvesting, white finish, 12VDC (LE-MS2-HB1)
• Bluetooth wall switches (LE-SWX)
• Optional remote control for Option: SC sensor (TL-MSSW-REMOTE) allows field programming of sensor settings. See sensor detail section for default settings
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
Specifications are subject to change without notice. Installation must be performed in accordance with Barron Lighting Group installation instructions.
Specs at a Glance*
Length 2' 4' 8'
CCT (K) Switchable (3500K-4000K-5000K)
CRI ≥80
Input Voltage 120-277VAC, 50/60Hz, 0-10V Dimming
Operating Temp -30°C to 40°C (-22°F to 104°F)
Certifications cULus Listed for Wet Locations, DLC, NSF, NEMA 4X
Warranty 5 Years
Weight* 5.5 lbs
* Nominal wattage. Tested at 4000K CCT. Values at 120/277VAC.
Note: Environment and application will affect performance. Typical values and 25°C used for testing. Specifications subject to change without notice.
Options:
• Integral battery backup option (BB) offers 875 lumens and over 90 minutes of emergency illumination for path of egress. Rated for ambient temperatures of 0°C to 40°C (32°F to 104°F)
• Integral microwave sensor option (SC) behind the lens. Sensor allows for two or three step/level dimming and has optional daylight harvesting capabilities. Settings can be adjusted via dipswitches on the sensor or optional remote control accessory. See sensor details for default sensor settings
Testing & Compliance:
• cULus Listed for Wet Locations
• NEMA 4X Rated
• NSF Certified for food equipment, rated for Food Zone, Splash Zone and Non Food Zone
• Tested to meet IP65 requirements
• DesignLights Consortium® (DLC) Qualified
• Operating temperatures: -30°C to 40°C (-22°F to 104°F)
HORIZON OAKLAND PARK
TYPE LT35 SPEC
Ordering Information (Example: VPA-4-40-C-SC)
Series Size/Wattage CCT
VPA 2-25 = 2', 25 Watts C = Color Selectable (3500K-4000K-5000K)
4-40 = 4', 40 Watts
8-80 = 8', 80 Watts
Notes
1 Battery Backup (BB) not available with 2' configuration
2 Order as a separate line item, shipped in a separate box for installation in the field
HORIZON OAKLAND PARK
Options (Factory Installed)
BB1 = Battery Backup
SC = Sensor
LiteLogic Accessories³ (Field Installed)
LE-MS2-HB1 = Bluetooth Enabled Motion PIR Sensor with Daylight Harvesting, 120/277VAC
LE-SW2 = Bluetooth Enabled, 5-Button, Battery Powered Wall Switch
LE-SW3 = Bluetooth Enabled, 3-Button, Line Voltage Wall Switch (Neutral Required)
LE-SW4 = Bluetooth Enabled, 7-Button, Line Voltage Wall Switch (Neutral Required)
LE-WP = Wallplate for LE-SW2
TL-MSSW-REMOTE3 = Remote Control for Sensor Field Programming
3 Remote control not required if sensor settings are acceptable, or user prefers adjusting via dipswitches on individual sensors
Details - Inside of Unit / Switch Location (VPA-4-40)
VPA-4-40-C; 4000K CCT IES: TYPE II Very Short
MOUNTING HEIGHT: 10’
TILT: ZERO
HORIZONTAL SPACING CRITERIA: 1.22
Specifications are subject to change without notice. Installation must be performed in accordance with Barron Lighting Group installation instructions.
HORIZON OAKLAND PARK TYPE
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
LED96/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO+EM
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
TYPE LT35E SPEC HORIZON OAKLAND PARK
VPA Series
DESCRIPTION
The VPA Series LED linear vaportight features robust construction with an IK08 impact-tested polycarbonate housing designed for easy installation with direct, toolless access to the driver compartment. With its UV-stabilized frosted polycarbonate lens, the VPA Series offers impressive general illumination and is offered in 2’, 4’ and 8’ configurations. Internal switches allow the user to select the CCT between 3500K, 4000K and 5000K to provide project flexibility. An optional integral microwave sensor, centered behind the lens, provides two or three step/ level dimming as well as light thresholds/daylight harvesting capability. A battery backup option provides emergency egress lighting for 90 minutes. The VPA Series is designed for indoor and outdoor covered spaces that require protection from dust, dirt and water with its NEMA 4X rating and can be used in a variety of applications including schools, parking garages, covered pathways, hospitals, stores or facilities where NSF certification is required. This unit is rated for Food Zone, Splash Zone: Equipment surfaces that are subject to splash and food spillage during operation of the equipment as well as Non-Food Zone. This series is an easy to install, robust, cost effective solution that is the perfect choice for both new construction and retrofits.
SPECIFICATIONS
Construction:
• UV-stabilized polycarbonate enclosure in a light gray finish, IK08 impact-tested, 2', 4’ and 8’ lengths
• The fixture is designed with a high-quality polycarbonate lens featuring a unique poured-in gasket to provide superior water and dust ingress protection
• Stainless steel clips secure the lens to the enclosure
• Toolless access to the driver compartment
Optics/LEDs:
• UV-stabilized frosted polycarbonate lens offering an even, diffused light
• General 120° distribution
• Available in three lengths/lumen packages;
• 2' Unit, 25W, 2969 lumens
• 4’ Unit, 40W, 5200 lumens
• 8’ Unit, 80W, 10,400 lumens
• Significant energy savings compared to traditional light sources, up to 130 LPW
• Color switchable between 3500K, 4000K and 5000K CCT. Switch is located inside the fixture
• L70 >100,000 hours
• CRI ≥80
Electrical:
• Class 2 power supply, 120 to 277VAC, 50/60Hz
• 0-10V Dimming driver
Installation:
• For ceiling or wall surface mount installation, includes mounting clips
• Knockouts provided on the back and both ends of the enclosure for flexibility in mounting
• Toolless access to driver compartment - unit opens up directly to the driver compartment and safety cables retain the lens in place for ease of installation and wiring
• Switches are located inside the unit to avoid any tampering and to maintain weatherproofing
• Not suitable for installation in T-bar ceilings without field mounting modifications (determined by installer)
Accessories:
• Bluetooth PIR motion sensor with daylight harvesting, white finish, 12VDC (LE-MS2-HB1)
• Bluetooth wall switches (LE-SWX)
• Optional remote control for Option: SC sensor (TL-MSSW-REMOTE) allows field programming of sensor settings. See sensor detail section for default settings
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
Specifications are subject to change without notice. Installation must be performed in accordance with Barron Lighting Group installation instructions.
Specs at a Glance*
Length 2' 4' 8'
CCT (K) Switchable (3500K-4000K-5000K)
CRI ≥80
Input Voltage 120-277VAC, 50/60Hz, 0-10V Dimming
Operating Temp -30°C to 40°C (-22°F to 104°F)
Certifications cULus Listed for Wet Locations, DLC, NSF, NEMA 4X
Warranty 5 Years
Weight* 5.5 lbs
* Nominal wattage. Tested at 4000K CCT. Values at 120/277VAC.
Note: Environment and application will affect performance. Typical values and 25°C used for testing. Specifications subject to change without notice.
Options:
• Integral battery backup option (BB) offers 875 lumens and over 90 minutes of emergency illumination for path of egress. Rated for ambient temperatures of 0°C to 40°C (32°F to 104°F)
• Integral microwave sensor option (SC) behind the lens. Sensor allows for two or three step/level dimming and has optional daylight harvesting capabilities. Settings can be adjusted via dipswitches on the sensor or optional remote control accessory. See sensor details for default sensor settings
Testing & Compliance:
• cULus Listed for Wet Locations
• NEMA 4X Rated
• NSF Certified for food equipment, rated for Food Zone, Splash Zone and Non Food Zone
• Tested to meet IP65 requirements
• DesignLights Consortium® (DLC) Qualified
• Operating temperatures: -30°C to 40°C (-22°F to 104°F)
HORIZON OAKLAND PARK
LED SURFACE MOUNT LINEAR VAPOR TIGHT - HIGH OUTPUT
TYPE LT35E SPEC
Ordering Information (Example: VPA-4-40-C-SC)
Series Size/Wattage CCT
VPA 2-25 = 2', 25 Watts C = Color Selectable (3500K-4000K-5000K)
4-40 = 4', 40 Watts
8-80 = 8', 80 Watts
Notes
1 Battery Backup (BB) not available with 2' configuration
2 Order as a separate line item, shipped in a separate box for installation in the field
HORIZON OAKLAND PARK
Options (Factory Installed)
BB1 = Battery Backup
SC = Sensor
LiteLogic Accessories³ (Field Installed)
LE-MS2-HB1 = Bluetooth Enabled Motion PIR Sensor with Daylight Harvesting, 120/277VAC
LE-SW2 = Bluetooth Enabled, 5-Button, Battery Powered Wall Switch
LE-SW3 = Bluetooth Enabled, 3-Button, Line Voltage Wall Switch (Neutral Required)
LE-SW4 = Bluetooth Enabled, 7-Button, Line Voltage Wall Switch (Neutral Required)
LE-WP = Wallplate for LE-SW2
TL-MSSW-REMOTE3 = Remote Control for Sensor Field Programming
3 Remote control not required if sensor settings are acceptable, or user prefers adjusting via dipswitches on individual sensors
Details - Inside of Unit / Switch Location (VPA-4-40)
VPA-4-40-C; 4000K CCT IES: TYPE II Very Short
MOUNTING HEIGHT: 10’
TILT: ZERO
HORIZONTAL SPACING CRITERIA: 1.22
Specifications are subject to change without notice. Installation must be performed in accordance with Barron Lighting Group installation instructions.
HORIZON OAKLAND PARK TYPE
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
LED96/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO+EM
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
TYPE LT38A SPEC HORIZON OAKLAND PARK
PROJECT NAME:
ORDERING CODE:
MATERIALS
➀ Heavy cast aluminum top cover with embedded heat sink. ➁ Ø 6” (152mm) High impact white translucent acrylic diffuser UV stabilized.
➂ LED array. ➃ Ø 6” (152mm) Extruded aluminum column.
Lumistik column is made of 6061-T6 extruded aluminum alloy. All other cast parts are corrosion resistant 356 aluminum alloy with a copper (CU) content of less than 0.1%. LED boards are contained in a white UV stabilized high impact acrylic sealed cylinder. The assembly is designed to provide a uniform column illumination. Lumistik column is available in three standard acrylic lengths.
ELECTRICAL DRIVER
Driver is 0-10V dimming-ready (dims to 10%) with: 120-277 multi-volt compatibility (50-60Hz), operating temperature range of -40°C to +55°C/-40°F to +131°F, output over voltage protection, output over current protection and output short circuit protection with autorecovery. Driver for RGBW is DMX512 / RDM compatible.
LED LIGHT ENGINE
Offered in 2700K/3000K/3500K/4000K CCT with 80 CRI. Optional RGBW. 60,000hrs L70B50 (based on IESNA TM-21 Test Method and LM-80 data).
FINISH
Five-stage preparation process includes preheating of cast aluminum parts for air extraction. Polyester powder coating is applied through an electrostatic process, and oven cured for long term finish.
CERTIFICATION
UL Certified to Canadian and U.S. safety standards. Certified for use in wet locations. Rated IP65. Photometric testing performed by an independent laboratory in accordance with IES LM-79-08 standards at 25°C. Actual performance may differ as a result of end-user environment and application.
WARRANTY
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: https://www.acuitybrands.com/ support/warranty/terms-and-conditions
MOUNTING
Lumistik column is designed for ease of access and installation. See mounting details for specific information.
Delivered lumens calculated at 4000K/80CRI except for RGBW. Typical power consumption. Refer to LCF table for outputs at other CCTs. For RGBW, values are for total delivered lumens. For individual maximum output values, refer to RGBW details section.
DECO2 360˚ decorative shroud with vertical slots (factory installed) 8,9
DECO3 180˚ blockout shield (factory installed)8,9
DECO4 180˚ Blockout shield (field installable)9
BKT Jet black
BZT Bronze CHT Champagne
DGT Gun metal
GRT Titanium gray
MST Matte silver
SGT Steel gray WHT Snow white
CMC Custom matched color10 RAL RAL color11
ADG American douglas
BRC Birch
CHN Chestnut
CRY Cherry
KNP Knotty pine MPL Maple
OFL Oak
RSW Rosewood
TEK Teak
WLN Walnut
*- Denotes a required field
1- Not available with 347V, 480V, HVOLT, NLTMSP.
2- RGBW CL620 models can only go to -20˚C. Rest of the RGBW models can go to -40ºC. OAH increases by 1.1” for RGBW models.
3- Available only with RGBW option.
4- Not available with PH.
5- Installed on the side of the fixture.
6- GFI and CGF are installed 26” above grade. GFI and CGF requires 120V feed. 7- CGF cover protrudes by 3.62” (92mm).
8- OAH varies. See option details for more information.
9- Not available with RGBW.
10- Contact factory to coordinate custom matching color.
11- Specify RAL number.
12- Faux wood finish not applied to the fixture head, base cover, hand-hole or accessories. Additional delay required. Not compatible with marine grade paint.
13- Marine grade paint for harsh, coastal environment and exposure to salt water. Additional delay required.
TYPE LT38B SPEC HORIZON OAKLAND PARK
PROJECT NAME:
ORDERING CODE:
MATERIALS
➀ Heavy cast aluminum top cover with embedded heat sink. ➁ Ø 6” (152mm) High impact white translucent acrylic diffuser UV stabilized.
➂ LED array. ➃ Ø 6” (152mm) Extruded aluminum column.
Lumistik column is made of 6061-T6 extruded aluminum alloy. All other cast parts are corrosion resistant 356 aluminum alloy with a copper (CU) content of less than 0.1%. LED boards are contained in a white UV stabilized high impact acrylic sealed cylinder. The assembly is designed to provide a uniform column illumination. Lumistik column is available in three standard acrylic lengths.
ELECTRICAL DRIVER
Driver is 0-10V dimming-ready (dims to 10%) with: 120-277 multi-volt compatibility (50-60Hz), operating temperature range of -40°C to +55°C/-40°F to +131°F, output over voltage protection, output over current protection and output short circuit protection with autorecovery. Driver for RGBW is DMX512 / RDM compatible.
LED LIGHT ENGINE
Offered in 2700K/3000K/3500K/4000K CCT with 80 CRI. Optional RGBW. 60,000hrs L70B50 (based on IESNA TM-21 Test Method and LM-80 data).
FINISH
Five-stage preparation process includes preheating of cast aluminum parts for air extraction. Polyester powder coating is applied through an electrostatic process, and oven cured for long term finish.
CERTIFICATION
UL Certified to Canadian and U.S. safety standards. Certified for use in wet locations. Rated IP65. Photometric testing performed by an independent laboratory in accordance with IES LM-79-08 standards at 25°C. Actual performance may differ as a result of end-user environment and application.
WARRANTY
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: https://www.acuitybrands.com/ support/warranty/terms-and-conditions
MOUNTING
Lumistik column is designed for ease of access and installation. See mounting details for specific information.
Delivered lumens calculated at 4000K/80CRI except for RGBW. Typical power consumption. Refer to LCF table for outputs at other CCTs. For RGBW, values are for total delivered lumens. For individual maximum output values, refer to RGBW details section.
DECO2 360˚ decorative shroud with vertical slots (factory installed) 8,9
DECO3 180˚ blockout shield (factory installed)8,9
DECO4 180˚ Blockout shield (field installable)9
BKT Jet black
BZT Bronze CHT Champagne
DGT Gun metal
GRT Titanium gray
MST Matte silver
SGT Steel gray WHT Snow white
CMC Custom matched color10 RAL RAL color11
ADG American douglas
BRC Birch
CHN Chestnut
CRY Cherry
KNP Knotty pine MPL Maple
OFL Oak
RSW Rosewood
TEK Teak
WLN Walnut
*- Denotes a required field
1- Not available with 347V, 480V, HVOLT, NLTMSP.
2- RGBW CL620 models can only go to -20˚C. Rest of the RGBW models can go to -40ºC. OAH increases by 1.1” for RGBW models.
3- Available only with RGBW option.
4- Not available with PH.
5- Installed on the side of the fixture.
6- GFI and CGF are installed 26” above grade. GFI and CGF requires 120V feed. 7- CGF cover protrudes by 3.62” (92mm).
8- OAH varies. See option details for more information.
9- Not available with RGBW.
10- Contact factory to coordinate custom matching color.
11- Specify RAL number.
12- Faux wood finish not applied to the fixture head, base cover, hand-hole or accessories. Additional delay required. Not compatible with marine grade paint.
13- Marine grade paint for harsh, coastal environment and exposure to salt water. Additional delay required.
TYPE LT38C SPEC HORIZON OAKLAND PARK
PROJECT NAME:
ORDERING CODE:
MATERIALS
➀ Heavy cast aluminum top cover with embedded heat sink. ➁ Ø 6” (152mm) High impact white translucent acrylic diffuser UV stabilized.
➂ LED array. ➃ Ø 6” (152mm) Extruded aluminum column.
Lumistik column is made of 6061-T6 extruded aluminum alloy. All other cast parts are corrosion resistant 356 aluminum alloy with a copper (CU) content of less than 0.1%. LED boards are contained in a white UV stabilized high impact acrylic sealed cylinder. The assembly is designed to provide a uniform column illumination. Lumistik column is available in three standard acrylic lengths.
ELECTRICAL DRIVER
Driver is 0-10V dimming-ready (dims to 10%) with: 120-277 multi-volt compatibility (50-60Hz), operating temperature range of -40°C to +55°C/-40°F to +131°F, output over voltage protection, output over current protection and output short circuit protection with autorecovery. Driver for RGBW is DMX512 / RDM compatible.
LED LIGHT ENGINE
Offered in 2700K/3000K/3500K/4000K CCT with 80 CRI. Optional RGBW. 60,000hrs L70B50 (based on IESNA TM-21 Test Method and LM-80 data).
FINISH
Five-stage preparation process includes preheating of cast aluminum parts for air extraction. Polyester powder coating is applied through an electrostatic process, and oven cured for long term finish.
CERTIFICATION
UL Certified to Canadian and U.S. safety standards. Certified for use in wet locations. Rated IP65. Photometric testing performed by an independent laboratory in accordance with IES LM-79-08 standards at 25°C. Actual performance may differ as a result of end-user environment and application.
WARRANTY
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: https://www.acuitybrands.com/ support/warranty/terms-and-conditions
MOUNTING
Lumistik column is designed for ease of access and installation. See mounting details for specific information.
DECO2 360˚ decorative shroud with vertical slots (factory installed) 8,9
DECO3 180˚ blockout shield (factory installed)8,9
DECO4 180˚ Blockout shield (field installable)9
NOTES
*- Denotes a required field
1- Not available with 347V, 480V, HVOLT, NLTMSP.
BKT Jet black
BZT Bronze
CHT Champagne
DGT Gun metal
GRT Titanium gray
MST Matte silver
SGT Steel gray
WHT Snow white
CMC Custom matched color10 RAL RAL color11
ADG American douglas
BRC Birch
CHN Chestnut
CRY Cherry
KNP Knotty pine
MPL Maple
OFL Oak
RSW Rosewood
TEK Teak
WLN Walnut
2- RGBW CL620 models can only go to -20˚C. Rest of the RGBW models can go to -40ºC. OAH increases by 1.1” for RGBW models.
3- Available only with RGBW option.
4- Not available with PH.
5- Installed on the side of the fixture.
6- GFI and CGF are installed 26” above grade. GFI and CGF requires 120V feed.
7- CGF cover protrudes by 3.62” (92mm).
8- OAH varies. See option details for more information.
9- Not available with RGBW.
10- Contact factory to coordinate custom matching color.
11- Specify RAL number.
12- Faux wood finish not applied to the fixture head, base cover, hand-hole or accessories. Additional delay required. Not compatible with marine grade paint.
13- Marine grade paint for harsh, coastal environment and exposure to salt water. Additional delay required.
TYPE LT39 SPEC HORIZON OAKLAND PARK
Application
Compact ceiling mounted downlights designed for down lighting atriums, canopies, passages and other interior and exterior locations.
Silicone applied robotically to casting, plasma treated for increased adhesion
Pure anodized aluminum reflector surface
Silicone optic with excellent high temperature and UV stability
BEGA Hybrid Optics®
NRTL listed to North American Standards, suitable for wet locations
Protection class IP 65
Weight: 3.1 lbs.
Electrical
Operating voltage 120-277V AC
Minimum start temperature -30° C
LED module wattage 16.8 W
System wattage 20.0 W
Controllability 0-10V, TRIAC, and ELV dimmable
Color rendering index Ra > 90
Luminaire lumens 2285 lm
LED service life (L70) 60000 hrs
LED color temperature
4000K (K4)
3500K (K35)
3000K (K3)
2700K (K27)
BEGA can supply you with suitable LED replacement modules for up to 20 years after the purchase of LED luminaires - see website for details
Finish
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL, custom, and premium colors provided in polyester powder and/or liquid paint.
Silicone applied robotically to casting, plasma treated for increased adhesion
Pure anodized aluminum reflector surface
Silicone optic with excellent high temperature and UV stability
BEGA Hybrid Optics®
NRTL listed to North American Standards, suitable for wet locations
Protection class IP 65
Weight: 3.1 lbs.
Electrical
Operating voltage 120-277V AC
Minimum start temperature -30° C
LED module wattage 16.8 W
System wattage 20.0 W
Controllability 0-10V, TRIAC, and ELV dimmable
Color rendering index Ra > 90
Luminaire lumens 2285 lm
LED service life (L70) 60000 hrs
LED color temperature
4000K (K4)
3500K (K35)
3000K (K3)
2700K (K27)
BEGA can supply you with suitable LED replacement modules for up to 20 years after the purchase of LED luminaires - see website for details
Finish
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL, custom, and premium colors provided in polyester powder and/or liquid paint.
USA: 3035 E. LONE MOUNTAIN ROAD - LAS VEGAS, NV 89081
Project:
Loca on:
Example: 618-48LED40-BLK-35K 618
This minimalis c fixture is an architect’s delight! With its slim lines and so illumina on, it’s the perfect accent to any façade.
OrderingInforma on/Op ons
Length Wa s
LED13 2000 Lumens
30 LED18 2800 Lumens MVOLT
LED22 3600 Lumens
LED22 3500 Lumens
48 LED30 5000 Lumens MVOLT
LED40 6400 Lumens
LED30 5000 Lumens
60 LED40 6400 Lumens MVOLT
LED50 8200 Lumens
Features:
· The minimalis c design gives this fixture a sophis cated appearance
· Constructed of heavy gauge aluminum for strength and longevity
· Standard 0-10V dimming driver, 120-277V MVOLT, 80 CRI
· Listed and approved for wet loca ons
· Meets all ADA requirements
· Buy American Act Compliant
A 4” octagonal junc on box should be used for installa on MC = Moun ng Center, located at center of fixture unless noted otherwise
Finishes
RAL** RAL Custom Color Model 618 ** Consult factory for RAL Custom Color adder
WHT White BLK Black
Silver
BRZ Bronze BA Brushed Aluminum
LINEAR
Size see dimensions
Watts 8W, 16W, 25W, 35W Voltage 90-264V
Lumens
464lm, 725lm, 1015lm
IP Rating IP54
Materials Aluminum, Acrylic
Finish Black
Lens Frosted
Lifespan 20,000 Hours
The SARIN Linear Wall Sconce is a modern, outdoor wall sconce that adds functional lighting and brilliance to any area. Constructed from solid aluminum, this fixture boasts a sleek look with a black finish. Designed to create an elegant ambiance, the energy-efficient wall light casts a gentle glow of halo effect from the slimline bar. This minimalist LED wall light can be installed horizontally or vertically, so that it’s easy to adjust it to suit different interior designs.
With an IP54 rating, these sconces are safe to use in wet locations that come in direct contact with rain and water. This decorative LED wall sconce is ideal for any exterior wall on hotels, homes, and offices.
OVERVIEW
Applications: IP54
Efficacy: 29lm/W
Dimming: Non-Dimming
LED Type: SMD
Operating Temp: 5° to 122°F
Operating Humidity: 10% - 90%RH
Lifespan: 20,000 Hours
Warranty: 2 Years
FEATURES
• Protected from the elements with an IP54 rating making it suitable for rainy environments
• Offers three color temperatures with a 140° beam spread
BLANK
ORDER FORM:
Common Stock Models:
Back Plate
41260-B
6’, 8’ Back Plate
41260-D
Project:
Loca on:
Example: 618-48LED40-BLK-35K 618
This minimalis c fixture is an architect’s delight! With its slim lines and so illumina on, it’s the perfect accent to any façade.
OrderingInforma on/Op ons
Length Wa s
LED13 2000 Lumens
30 LED18 2800 Lumens MVOLT
LED22 3600 Lumens
LED22 3500 Lumens
48 LED30 5000 Lumens MVOLT
LED40 6400 Lumens
LED30 5000 Lumens
60 LED40 6400 Lumens MVOLT
LED50 8200 Lumens
Features:
· The minimalis c design gives this fixture a sophis cated appearance
· Constructed of heavy gauge aluminum for strength and longevity
· Standard 0-10V dimming driver, 120-277V MVOLT, 80 CRI
· Listed and approved for wet loca ons
· Meets all ADA requirements
· Buy American Act Compliant
A 4” octagonal junc on box should be used for installa on MC = Moun ng Center, located at center of fixture unless noted otherwise
Finishes
RAL** RAL Custom Color Model 618 ** Consult factory for RAL Custom Color adder
WHT White BLK Black
Silver
BRZ Bronze BA Brushed Aluminum
LINEAR
CCT
Size see dimensions
Watts 8W, 16W, 25W, 35W Voltage 90-264V
Lumens
464lm, 725lm, 1015lm
IP Rating IP54
Materials Aluminum, Acrylic
Finish Black
Lens Frosted
Lifespan 20,000 Hours
The SARIN Linear Wall Sconce is a modern, outdoor wall sconce that adds functional lighting and brilliance to any area. Constructed from solid aluminum, this fixture boasts a sleek look with a black finish. Designed to create an elegant ambiance, the energy-efficient wall light casts a gentle glow of halo effect from the slimline bar. This minimalist LED wall light can be installed horizontally or vertically, so that it’s easy to adjust it to suit different interior designs.
With an IP54 rating, these sconces are safe to use in wet locations that come in direct contact with rain and water. This decorative LED wall sconce is ideal for any exterior wall on hotels, homes, and offices.
OVERVIEW
Applications: IP54
Efficacy: 29lm/W
Dimming: Non-Dimming
LED Type: SMD
Operating Temp: 5° to 122°F
Operating Humidity: 10% - 90%RH
Lifespan: 20,000 Hours
Warranty: 2 Years
FEATURES
• Protected from the elements with an IP54 rating making it suitable for rainy environments
• Offers three color temperatures with a 140° beam spread
BLANK
ORDER FORM:
Common Stock Models:
Back Plate
41260-B
6’, 8’ Back Plate
41260-D
ACL3ST
ACL3ST combines clean lines with high performance direct distribution, for a functional and aesthetically pleasing slim profile.
Based on static white
page 4.
Mounting options Downlight lens options
HORIZON OAKLAND PARK TYPE
Carisma® 2”
Linear Direct
PROJECT:
Features
TYPE:
Carisma® Pendant is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma®’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . A tailored end cap design and Amerlux’s trusted catch-andlatch mechanism prevents all light leakage.
The Carisma® Pendant offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma® can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounting options, providing designers with the versatility to light up a space with their Carisma®.
Product Overview
Type: Direct distributrion with Pendant, Surface or Wall Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
Dimming (wireless): Lutron Athena (integral wireless RF node) BubblyNet Bluetooth
Certifications
Fixture Summary
Performance Data
Data is based on 4’ fixture, 3500K-80 120V IES files available on website.
Electrical Data Runs
Individual Runs: 2’ - 8’ (specify in 1’ increments)
Continuous Runs: > 8’ (specify to the nearest foot).
Custom: Made to measure lengths available (specify to nearest 1/8” of field dimensions). Requires approval drawings. Added cost & lead time.
Electronic multi-volt (120-277VAC), constant current LED driver.
Standard Patterns
CAR2-D
TYPE LT43 SPEC HORIZON OAKLAND PARK
Need help? Don’t see what you need? We know that having so many options can be overwhelming. Please reach out to our factory for any specific request or questions you have.
Our Design Assist (designassist@alights.com) team is here to make the process move smoothly.
HORIZON OAKLAND PARK TYPE
Carisma® 2”
Linear Direct
Mount (aircraft cable
ASW04 through ceiling tile or gyp board, white, 4’*
ASW10 through ceiling tile or gyp board, white, 10’
ASW20 through ceiling tile or gyp board, white, 20’
ASB04 through ceiling tile or gyp board, black, 4’*
ASB10 through ceiling tile or gyp board, black, 10’
ASB20 through ceiling tile or gyp board, black, 20’
ASW04T over ceiling tee, white, 4’*
ASW10T over ceiling tee, white, 10’
ASW20T over ceiling tee, white, 20’
ASB04T over ceiling tee, black, 4’*
ASB10T over ceiling tee, black, 10’
ASB20T over ceiling tee, black, 20’ * 4’ (xxx04) is standard length, other lengths are additional charge
35 3500K-80+ 309 3000K-90+ ST silver texture
6 6W/ft 40 4000K-80+ 359 3500K-90+ For other RAL color, consult factory
7 7W/ft 409 4000K-90+
8 8W/ft 9 9W/ft
8 Length
Length A Length B Length C
- all patterns - all patterns - PU
- IND - PR (2 lengths of 2) - PZ
- CON
- CUS
9 Configuration
IND1 individual fixture, 2’ to 8’ in 1’ increments
PZ Z shape, (3) straight lengths + (2) 90° corners x x
CON continuous run > than 8’, specify to nearest foot
CUS custom made to measure lengths (specify to nearest 1/8” of field dimensions)
Standard Patterns (see pg 6 for details)
PLL L left, (2) straights + (1) 90° corner, leg right
PLR L right, (2) straights + (1) 90° corner, leg left
PU U shape, (3) straight lengths + (2) 90° corners
emergency circuit requires power feed located in last fixture section (for other locations consult factory) 0-10V 1% electronic dimming , multi-volt 120-277VAC constant current driver (standard)
HILUME-H-ECO Lutron LDE1 Hi-lume® 1% dim Soft-On/Fade-to-Black
DALI DALI dimming 120-277VAC, 1% dim
PF2 Extra power feed for additional circuiting
EMB emergency battery pack (not available for lengths under 4') Wireless
Powerful round, directional 120V - 277V LED modern accent light for commercial environments.
21W, 28W integrated HK LED delivering 2000-2700 lumens.
Wet Location Listed, IP67 Standard.
• Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. 180º vertical and 360º horizontal adjustment via locking swivel stem design.
• Modular components, field changeable LED optical beams, and lenses.
• Available with adjustable Angled, Long, and Shor t Glare Shields and ground, sur face, and canopy mounting options.
• Every fixture tested end of line for water tightness and light quality.
• Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 for details).
Voltage
120V - 277V AC
Wattage
21 or 28W HK delivering 2000 to 2700 lumens.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGBW options available. Consult factory for specialty LED specification details.
Driver/Dimming
Onboard, Integrated LED Driver, Phase Control @120V, 0V-10V @120V-277V
DALI or DMX control available, consult factory for details.
Optics
Narrow (16o), Medium (26o), Wide (40o), and Extra Wide (60o) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices. (See page 4 for details).
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
CM5-2-XXX 5 Round Canopy Plate - Double SURFACE MOUNT
CB4.0-XXX 4 Round Surface Box
CB5.5-XXX 5.5 Round Surface Box TREE MOUNT
TM07-JBS-XXX Single Aluminum Tree Mount Box with Stainless Steel Strap (120V)
TM07-JBT-XXX Twin Aluminum Tree Mount Box with Stainless Steel Strap (120V) EXTENSIONS
EX-12-XXX 12 Extension
EX-24-XXX 24 Extension
EL-XXX Elbow Extension
• Consult Accessory Spec Sheet for desired option code.
• XXX represents color option.
• Readymade options available in ABL and ABR only unless noted by the part code above.
ADDITIONAL ACCESSORIES (Not installed at time of order)
GLARE SHIELD ACCESSORIES
GSL-20-XXX A/B Glare Shield Long
GSA-20-XXX A/B Glare Shield Angled
GSS-20-XXX A/B Glare Shield Short
CGSL-20-XXX C Glare Shield Long
CGSA-20-XXX C Glare Shield Angled
CGSS-20-XXX C Glare Shield Short
OPTIC ACCESSORIES
LVR-20 Hexcel Louver
OSL-20 Overall Spread Lens
LSL-20 Linear Spread Lens
SOL-20 Solite Soft Focus
DCF-20 Dichroic Filter
OPK-20 Optic Kit - Narrow, Medium, Wide, Extra Wide
BLANK
TYPE LT45 SPEC HORIZON OAKLAND PARK
DIMENSIONS
RECESSED 9" (TC1-R09)
CATALOG #
PROJECT
NOTES
PERFORMANCE FOCUS
FEATURES
• Portal reimagines directional and general area illumination. Proprietary optics deliver exceptional lighting control from a minimalist aesthetic.
• To support your design vision, both 5.5" & 9" sizes are available in six mounting variants — Recessed, Semi-Recessed, Semi-Recessed Adjustable, Surface, Surface Adjustable & Pendant.
• Light outputs range from 1200 lm (5.5") to 4100 lm (9") with efficacies exceeding 150 lm/W.
• Flexible lighting schemes are enabled by beam angles of 30°, 45° & 65°, as well as 20 | 80 and 50 | 50 direct/indirect pendant distributions.
• White, Metallic Silver & Black powdercoat finishes (plus RAL colors) can be combined to augment the ceiling design.
• 80 and 90 CRI LEDs are available in four CCTs — 2700 K, 3000 K, 3500 K, 4000 K.
BEAM ANGLES
Wide Beam (75°) Medium Beam (45°)
HORIZON OAKLAND PARK TYPE LT4
NC3-81 / NC3-88
8" Sapphire III LED Reflectors
Source: 13W to 60W
5500lm
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness. The Sapphire III luminaires are proudly assembled in the USA.
Reflector: Deep cone reflector spun from 0.050" high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC 3-88 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Decorative Glass: NC3-88 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-8B/80 8" Tempered Blue Glass with 3-1/8" Open Center
NTG-8CF 8" Tempered Clear Glass with Frosted Center
NTG-8FC 8" Tempered Frosted Glass with Clear Center
Emergency: NC 3-81 is compatible with integral emergency test switch (must specify)
LABELS AND LISTINGS
· cULus Listed for Wet Locations when used with compatible frame-in
5-Year Limited Warranty
ENERGY STAR certified
(Black and Specular Clear finish are not certified) RoHS Compliant
B S W C Black Powdercoat Metallic Silver Powdercoat White Powdercoat Custom Color (RAL) B S W C Black Powdercoat Metallic Silver Powdercoat White Powdercoat Custom Color (RAL)
ECO 0–10 V Dim 1% eldoLED SOLO 0–10 V Dim 0.1% eldoLED ECO DALI-2 DT6 Dim 1%
eldoLED SOLO DALI-2 DT6 Dim 0.1%
Lutron Hi-Lume 1%
EcoSystem (LDE1)
Lutron Hi-Lume Premier 0.1%
EcoSystem (PEQ0) 2
Max Energy C (16 W).
Acuity nLight Air RPP20
Enlighted Smart Sensor
Lutron Athena Wireless
Legrand
Wattstopper PLUS Leviton Intellect Wireless
BLANK
TYPE LT48 SPEC HORIZON OAKLAND PARK

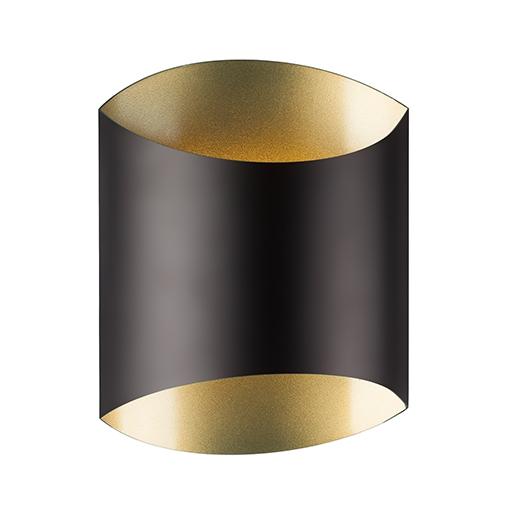

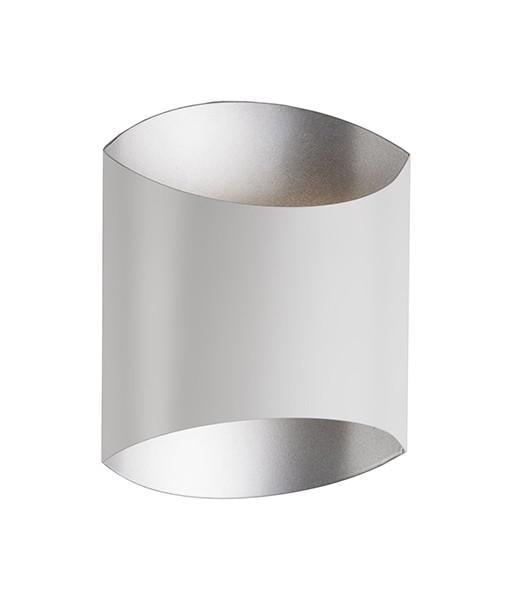

Indirect Wall ECLIPSE 2
DESCRIPTION
Eclipse 2 is a indirect LED sconce made of extruded aluminum. Its contemporary organic design allows for a modern look with a warm classic glow illuminating the wall from either side of its elliptical body. Eclipse 2 includes an onboard driver. It can be easily surface mounted vertically or horizontally and can cover a standard junction box. It is offered in brushed chrome exterior housing with white inner reflector, white exterior housing with white inner reflector, or black exterior housing with gold inner reflector.
HOUSING
- Extruded aluminum housing with white, black/gold, or brushed chrome/white finish.
MOUNTING
- Mount to 3-1/2" to 4" octagonal or 4" square recessed junction box.
ELECTRICAL/CONTROLS
LISTINGS
- ETLus Listed to UL1598 (suitable for dry location only) - cETL Listed to CSA C22.2 #250.0 - ADA Compliant
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
• 11-13/16" Width X 7-1/4" Height X 1-13/16" Depth
• Injection-molded thermoplastic housing
• Black or White housing finish
FACE
• 6" high text with color diffusion
• Both double and a blank face are included
• Snap-in direction indicators
MOUNTING
• Wall, side, or ceiling
• Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES
NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
UL 924
Rated for Damp Locations (Wet Location when used with NEG-60)
5-Year Limited Warranty
NFPA
Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
Can-less LED recessed downlights are designed for easy installation into new construction or remodel applications. Each downlight includes an Selectable CCT switch located on the junction box. Slim wafer design makes the fixtures ideal for shallow plenums with a regressed baffle trim appearance.
FEATURES
Packaged in case quantities of 12
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes pre-wired junction box
Quick installation and cost savings
IC Air-Tight rated
cETLus Listed for Wet Locations
5-year limited warranty
SPECIFICATION
Construction: Dead front (non-metallic) luminaire with spring clips for easy installation. Regressed lens with sharp baffle cuts reduces aperture brightness. Special polymer lens produces more usable light and lumens per watt.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2" and two 3/8" knockouts and snap on cover. Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6" and Junction box wire length: 10"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/16". New construction frameins are available, see accessories.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
Operating Temperature: 0°C to 35°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NEFLINTW-4OR-MPW: Oversize Ring for 4" Downlight
NEFLINTW-6OR-MPW: Oversize Ring for 6" Downlight
NEFLINTW-EW-4: 4' Quick Connect Linkable Cable
NEFLINTW-EW-20 : 20' Quick Connect Linkable Cable
NEPK-20LEDUNV: Emergency Driver w/Remote Test Switch
NF-R246 : Universal New Construction Frame-In for 4" & 6"
NFC-R430 : New Construction Frame-In with Collar for 4"
NQZ-6R-F: New Construction Frame-In with Collar for 6"
Emergency: Luminaire is compatible with NEPK-20LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery.
LABELS AND LISTINGS
cETLus Listed for Wet locations
Certified to the high efficacy requirements of California
RDL series LED Disk Light provides versatile lighting on standard line voltage, yet produces the high energy savings you desire from LED fixtures. The RDL series allows for easy upgrade to your downlighting from the traditional recessed cans to a more modern looking, energy efficient solution. This Disk Light can be mounted on to a junction box or retrofitted into an existing recessed can with the optional hardware mounting adapter (not included).
14.6 H (to lowest point) x 6.9 W (housing) x 9.5 H (top of blade)
-Product Weight (lbs.): 10 N.W. | 12.9 G.W.
-Box (in.): 23.8 L X 9.5 W X 7.5 H
Shipping
-Container Loading:
Motor/Blade Finish
3-Blade | 52" | Wall Control DC MOTOR 120V INTEGRATED LED LIGHT
KIT
Dimensions
White | White & Whitewashed Reversible Plywood Blades 14.6" 6.9"9.5"
(lowest point)
(housing)
(top of blade)
Fan Control Features and Options
-Simple and intuitive design with standard layout.
-Multi-functional fan speed control with fan forward/reverse, light brightness adjustment, and fan/light on/off.
-Hardwired Wall Control (Standard)
•Single Live Wire No Neutral Needed
•Push Button or Knob design available
-Remote (Optional*)
-Pull Chain (Optional*)
*Optional controls at an additional cost
*Data subject to change without notice
Type D1
NO SPECIFICATION
P4524D P4536D P4548D Pendant
Features
Housing
UP and Down Light
Finish Option: -06 White, -09 Silver, -22 Gold, -23 Light Gold, -30 Oil Rubbed Bronze Pendant Mount by 6 Feet Hanging cable
Canopy Size: 18.1”L x 4.3”W x 1.0”H
Optical
Shade: High Transmission Acrylic Create Excellent Light Distribution and Uniformity LED: High Efficiency, High CRI, Binned and Mixed to Reach Uniform Light
Electrical
High Power Factor, Low THD
Lamp
LED Type: Built-in (Color Temperature Option – 3000K, 4000K)
Certifications
ETL/cETL Listed
Warranty
5 Years Warranty on Driver and LED Module
LED Type
~
Hanging Cable Length (H1): 6’, Adjustable
Type E1
NO SPECIFICATION
Features
Housing
Aluminum Extrusion with Die-Form Cold-Rolled Steel Ends
