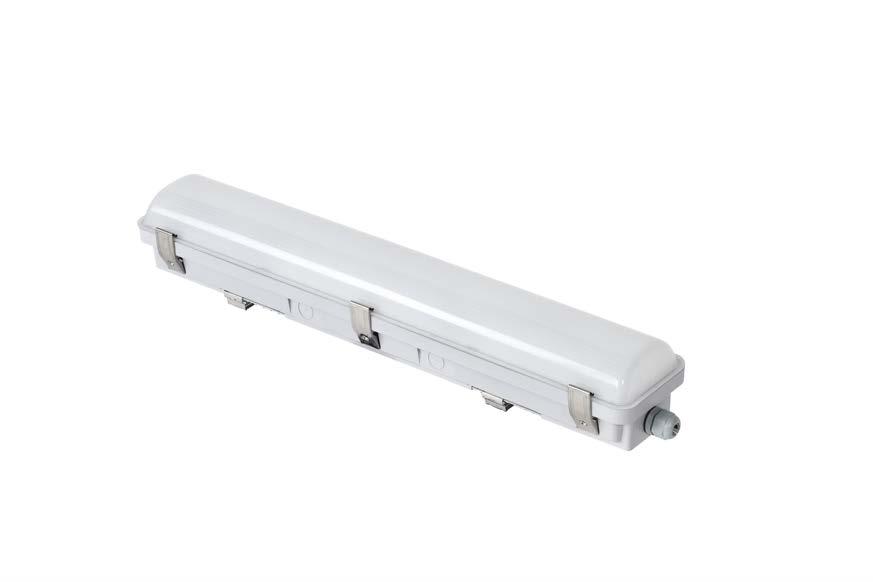

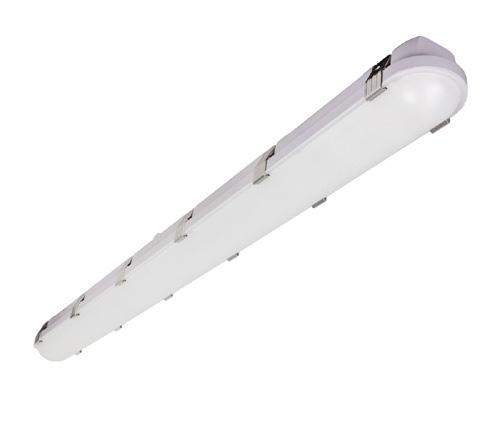

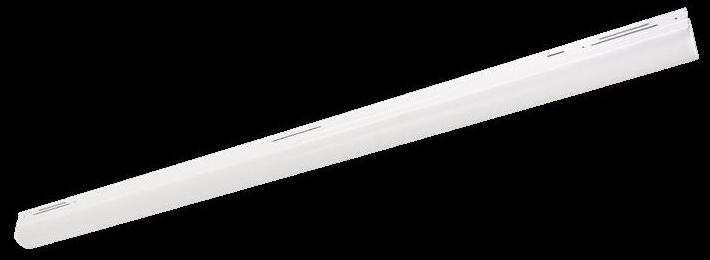

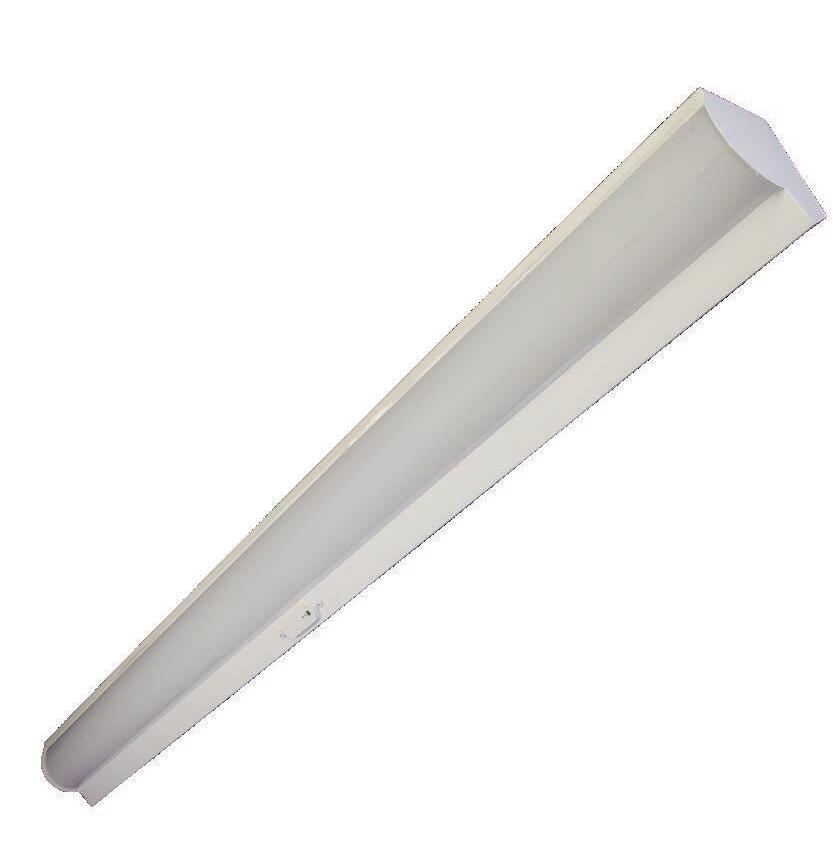

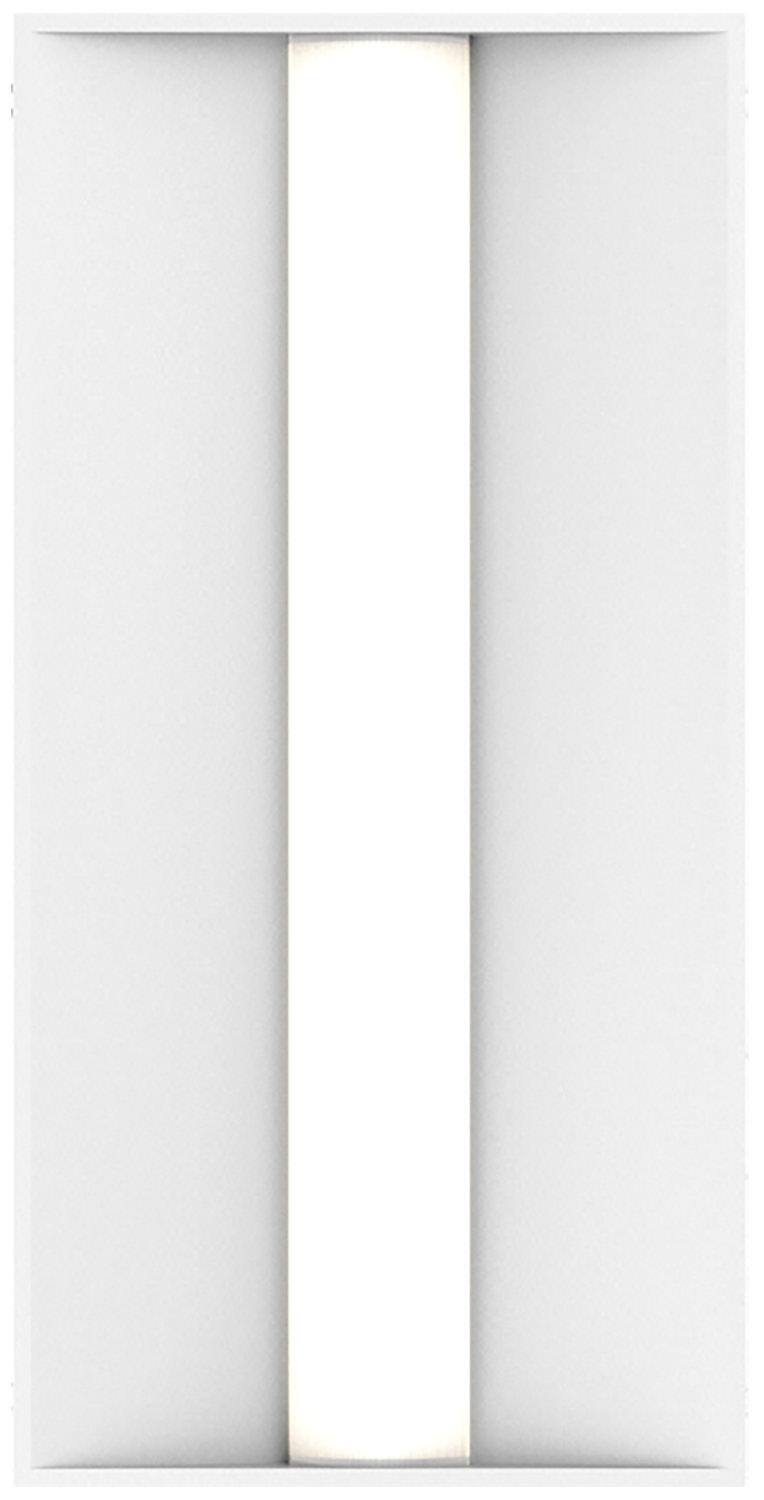

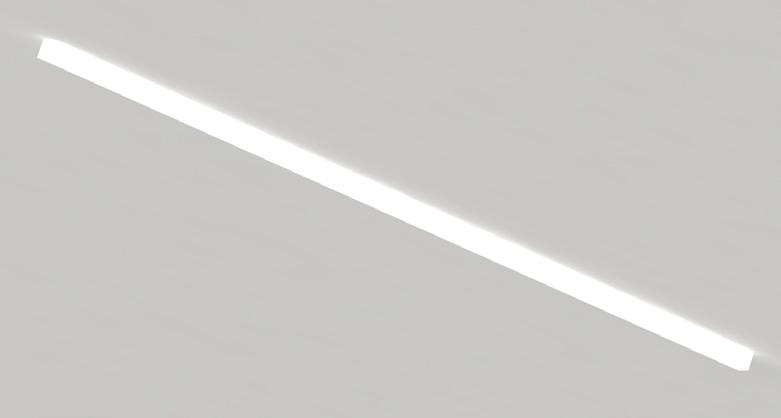

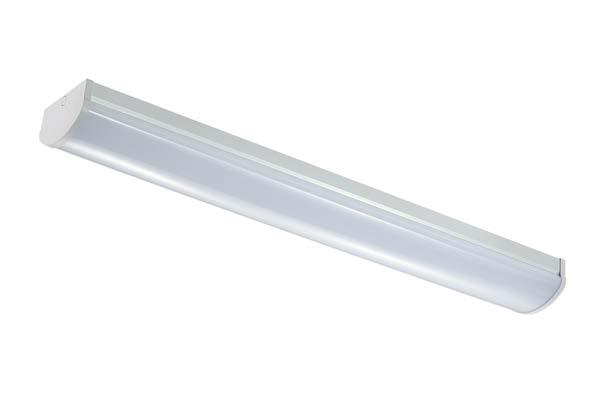

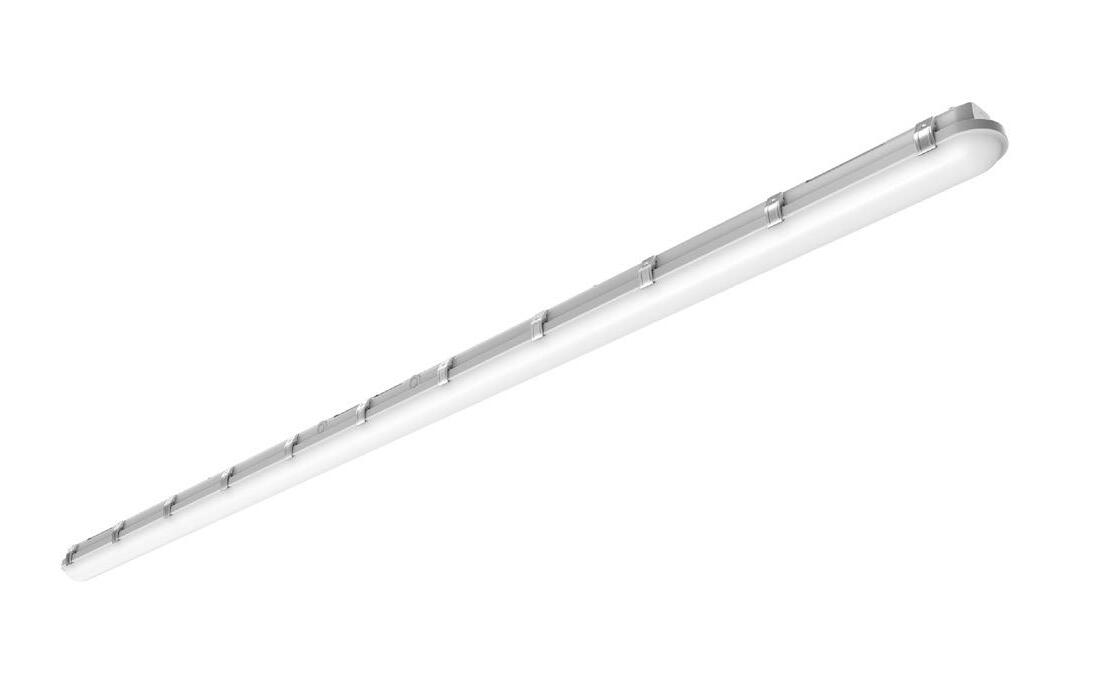

Maxlite’s new LSE Linear Strips are a Value Series introduction for industrial LED strips featuring field-selectable wattages & CCT (3500k - 4000k - 5000k). Available in 4-foot and 8-foot lengths, these DLC certified strips deliver unparalleled value, boasting the most lumens per dollar. Each SKU presents nine versatile options, ensuring comprehensive coverage for distributors and a wide range of projects. The sleek 2-inch profile and evenly diffused lens make the LSE Series an ideal solution for diverse settings, from commercial, industrial, retail and even residential applications.
Features:
• CCT and Wattage selectable (9 possible combinations with each fixture)
• 0-10V dimming standard
• CRI: >80
• Universal voltage 120-277V
• L70 lumen maintenance of 50,000 hours
• Sheet metal (steel) housing and PMMA lens for smooth diffused distribution
• Operating temperature: -4°F to 122°F
• Default setting for WCS models is set to lower wattage and 4000K
• UL listed - Suitable for damp locations
Ordering Structure
1. Default setting for WCS models is set to lowest wattage and 4000K
Maxlite’s new LSE Linear Strips are a Value Series introduction for industrial LED strips featuring field-selectable wattages & CCT (3500k - 4000k - 5000k). Available in 4-foot and 8-foot lengths, these DLC certified strips deliver unparalleled value, boasting the most lumens per dollar. Each SKU presents nine versatile options, ensuring comprehensive coverage for distributors and a wide range of projects. The sleek 2-inch profile and evenly diffused lens make the LSE Series an ideal solution for diverse settings, from commercial, industrial, retail and even residential applications.
Features:
• CCT and Wattage selectable (9 possible combinations with each fixture)
• 0-10V dimming standard
• CRI: >80
• Universal voltage 120-277V
• L70 lumen maintenance of 50,000 hours
• Sheet metal (steel) housing and PMMA lens for smooth diffused distribution
• Operating temperature: -4°F to 122°F
• Default setting for WCS models is set to lower wattage and 4000K
• UL listed - Suitable for damp locations
Ordering Structure
1. Default setting for WCS models is set to lowest wattage and 4000K
Stocked Items
4'
8'

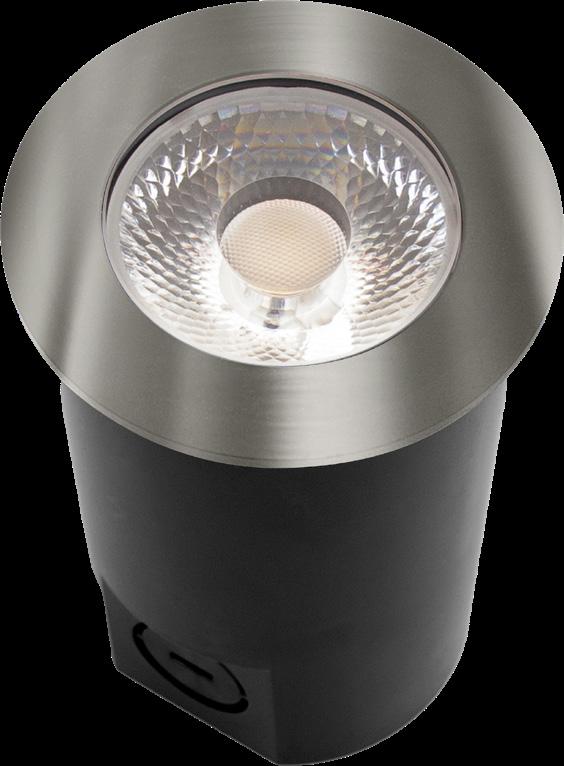

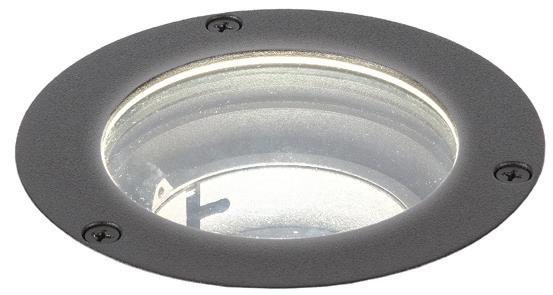

IGL-7W-30K
12V INTEGRATED LED (IN GROUND) LIGHTS
Ideal for Landscape light, Concrete light, Deck light, In floor light.
ELECTRICAL SPECIFICATIONS:
• Voltage: 12VAC/DC
• Wattage: 7W
• Efficacy: 88LM/W
HOUSING SPECIFICATIONS:
• Aluminum Housing
• Stainless Steel Cover, PVC Sleeve
• Silicon-filled Wire Nuts
• 5” SJTW 20AWG Lead Wire
• Operating Temperature: -20°F ~ 110°F
• Lifespan: 50,000hr
• IP Rating: IP67
• Traffic Rated
CERTIFICATIONS:
JOB NAME:
DATE:

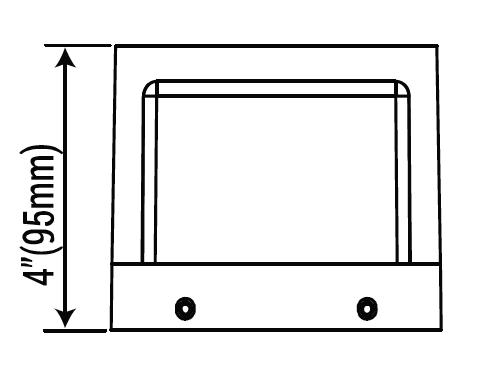

DIMENSIONS:
LIGHTINGSPECIFICATIONS:
• Lens: Glass lens
• Light Source: COB Technology
• Total lumens: 620LM
• Color temperature: 3000K
• Beam angle: 90°
WARRANTY: 1 years

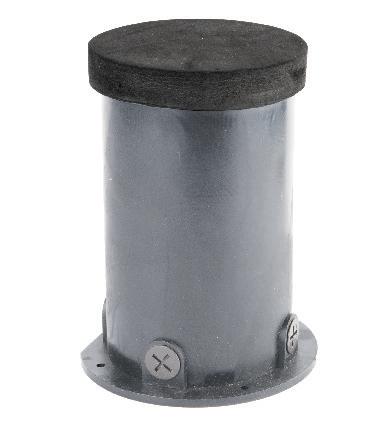

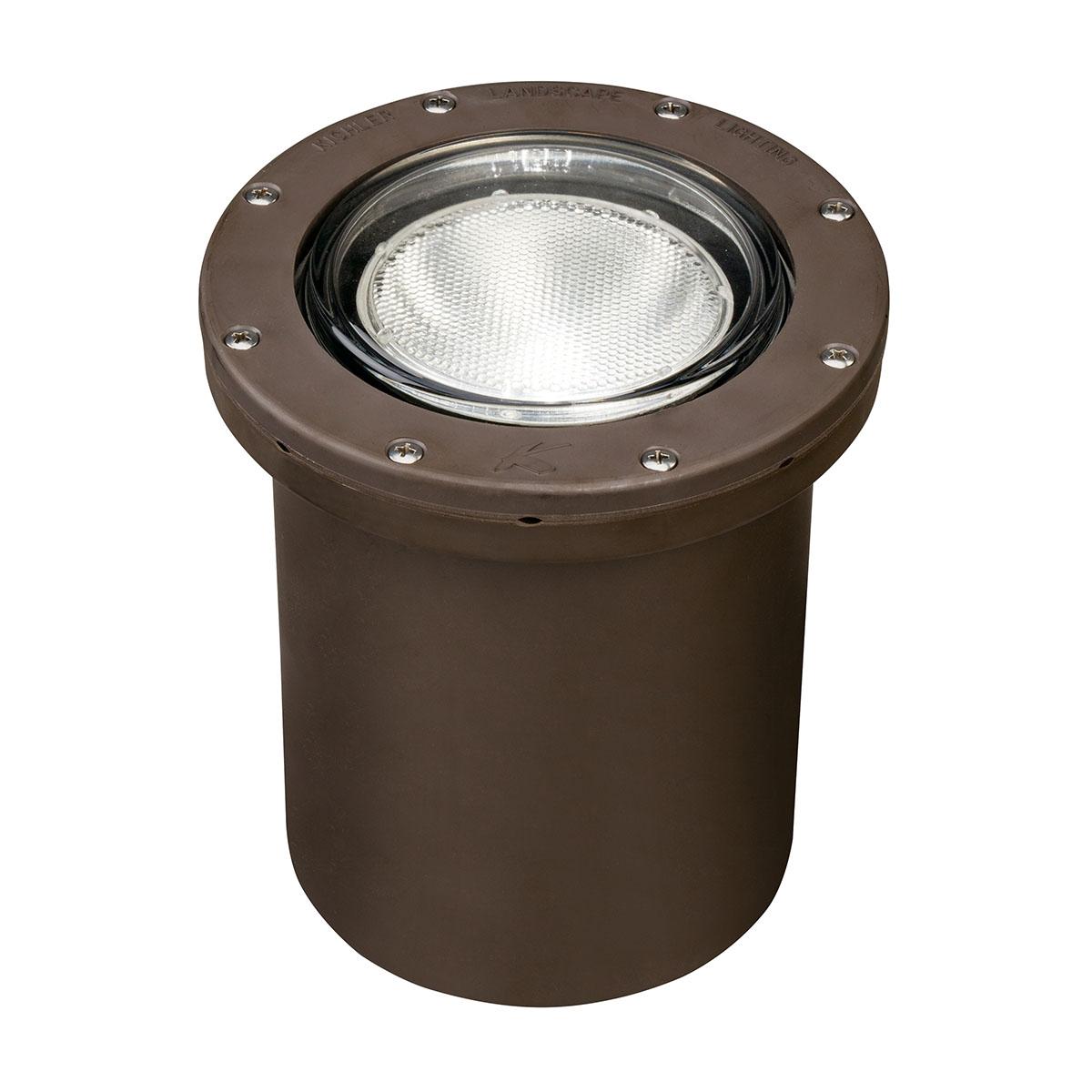

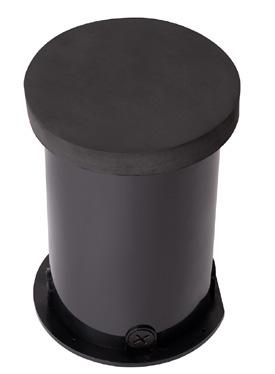

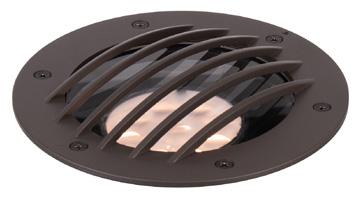

3" ING R OUN D 12V
PRO DU C T D ESCRIPTIO N
Landscape Wall Wash luminaire
FE ATURE S
• Tiltable and adjustable beam angle
• Integral dimmer
• IP67 rated, protected from temporary immersion under water
• Drive over up to 4500lbs
• Solid diecast brass or corrosion resistant aluminum
• Available concrete pour kit
• • Maintains constant lumen output against voltage drop
• UL 1838 Listed
• MLV dimmable with remote MLV dimmers
OR DE RIN G NU M BE R
5031 3" Inground
5031-_______
Example:
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFI CATION S
Input:
Power:
Brightness:
Beam Angle: CRI:
Rated Life: 9 - 15VAC (Transformer is required) 2W to 12W / 2VA - 17VA (Use VA value for sizing the transformer and calculate voltage drop.)
70 lm to 505 lm 15° to 60° 85 55,000 hours
IEC safety Standard Walk overDrive over Resistance to static load testYes (1125lbs)Yes (4496lbs)
Resistance to torque and shear loads test N/A Yes
Module Replacement
2700K M5031LE-27BZ
3000K M5031LE-30BZ
TYPE E1 SPEC GLASSHOUSE

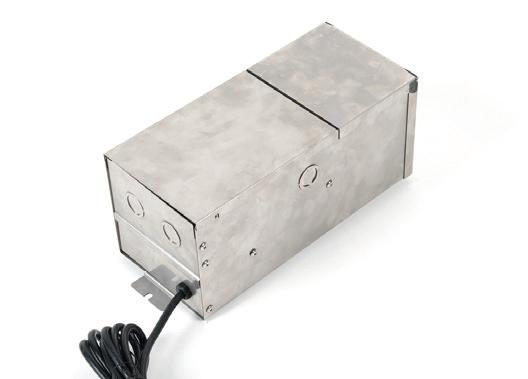

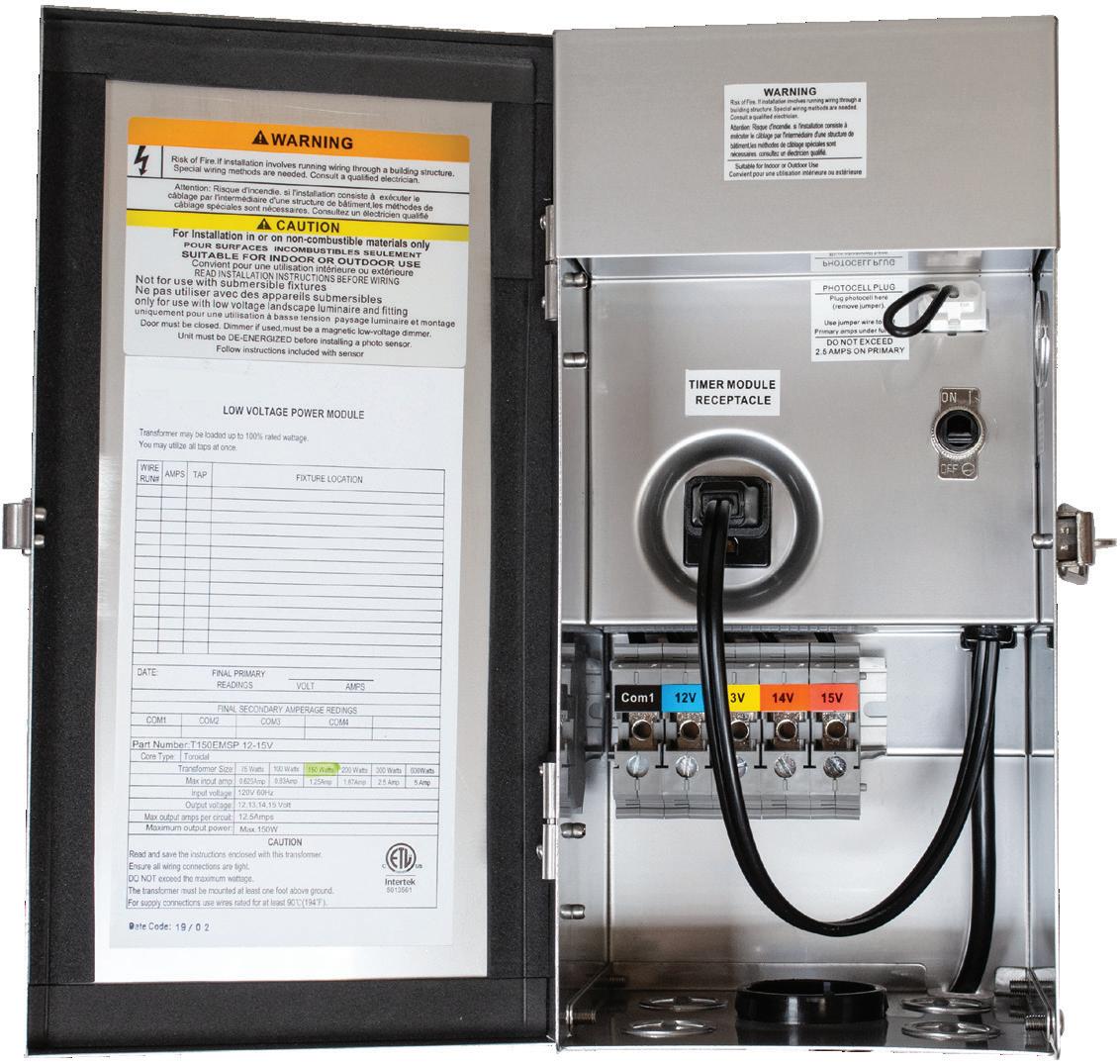

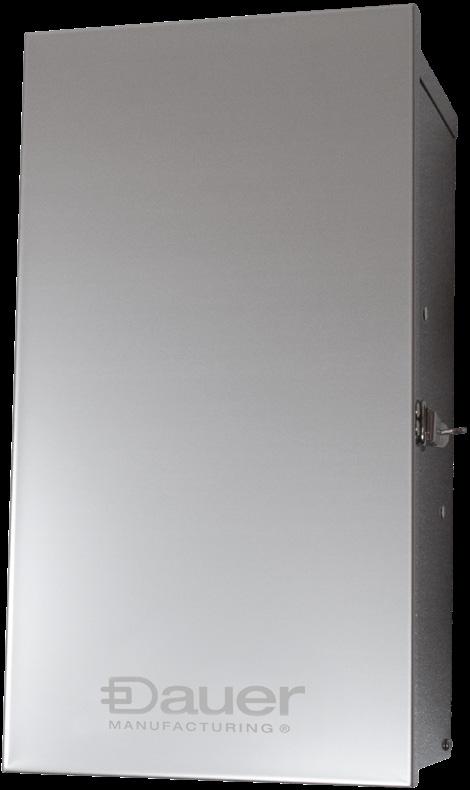

MAGNETIC TRANSFORMER - 150W
PRODUCT DESCRIPTION
Magnetic transformer for Landscape Lighting products.
FEATURES
• IP65 Rated
• Taps for 12V, 13V, 14V, and 15V
• Knock outs for power and photosenser connections
• 3-prong outlet for timer
• Outdoor rated stainless steel transformer contains an outdoor rated 3-prong plug for power
• 6’ lead wire
• UL 1838 Listed
ORDERING NUMBER
9150-TRN-SS 150W Max
ACCESSORIES
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
If transformer is located in a shady spot, this photosensor has a 10 foot cord and a stainless steel bracket to secure in a sunny area
LED Technology: Extremely accurate Color Rendering Index of 95+. Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integrated heat sink. Instant On to Full Brightness technology. No LED pixelation.
Sunset: Sunset color temperature is our dim-to-warm LED technology that allows the color temperature to become warmer as the product is dimmed. Our SUNSET items start at 3000K and go as low as 1800K when dimmed. For Sunset dim technology be sure to order an item with "Sunset" in the Color Temperature (CCT) attribute. HUMAN CENTRIC start at 4000K and go as low as 2200K when dimmed.
Dimmability: Works with 120V Triac and ELV type dimmers. Dims down to 5%. For full list of dimmers, refer to the Dimmer Compatibility List. Industry-leading dimming that dims smoothly with no hot spots or ickering.
Listings: cUL Listed for Damp Locations. RoHS Compliant. Meets Energy Star & California Title 24 JA8-2019 standards.
Warranty: ELCO Products are built to last with a 5-year Limited Warranty.
Product Number Builder
4000K SD Sunset (-09 and -11 only) 6, 7
HC Human Centric (-11 only) 8, 9, 10
CT5 2700K - 5000K 8, 11 4T Tunable White 4000K-1800K
1 Available as 120V, Triac/ELV only
2 Available with 2400K, 2700K and 3000K Color Temperature Only
3 Available with CT5 color temperature only
4 DALI 2, 120/277V
5 120/277V, 0-10V/Triac/ELV
6 Available in -09, -11, & -13 lumen outputs
7 Sunset, Dim to Warm technology, automatically transitions from 3000K to 1800K when dimmed
8 Available as 120V, Triac/ELV only
9 Available with 1150 lumen (-11) outputs only
10 Human Centric, Dim to Warm technology, automatically transitions from 4000K to 2200K when dimmed
11 Available with -08 and -10 lumen outputs only
12 Available with -08AL output only, Dali 2 dimmable and Tunable White
13 Includes 25° and 60° lens in the box
14 Available with 350 and 750 lumen, 2700K and 3000K options only
Standard 38° Lens installed, 25° and 60° lens included with each module - Optional: 18º & 90º lenses available.
Fits 3 ½ and 4 Octagon and Round Junction boxes
Sunset option dims from 3000K to 1800K
Tunable White option dims from 1800K to 4000K
Human Centric option dims from 4000K to 2200K
Title 24 JA8-2022 Compliant
Life span of 50,000 hours L70
Technical Details
Speci cations
Wattage 5W - 12.5W
Lumens 350 lm - 1350 lm
Voltage 120/277V or 120V
Color Temp. 2400K - Tunable WhiteK
Dimmable Triac/ELV, DALI 2 Controlled
Lamp Type LED
Beam Angle 38° CRI 95
Wet Location cUL Listed
Optics: Polycarbonate module lens di uses light evenly throughout while reducing glare with LED technology.
Construction: Integrated driver and light engine with quick connect. Diecast aluminum body with heat ns allows for e cient cooling.
Installation: Twist-on design for tool-less trim installation, for use with Koto Sylo products only.
Electrical: Module connects to 120 power supply. High-e ciency driver with a power factor >0.9. Start time of less than 0.75 seconds.
LED Technology: Extremely accurate Color Rendering Index of 95+. Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integrated heat sink. Instant On to Full Brightness technology. No LED pixelation.
Sunset: Sunset color temperature is our dim-to-warm LED technology that allows the color temperature to become warmer as the product is dimmed. Our SUNSET items start at 3000K and go as low as 1800K when dimmed.
Human Centric: Human Centric color temperature is our dim-to-warm LED technology that allows the color temperature to become warmer as the product is dimmed. Our HUMAN CENTRIC items start at 4000K and go as low as 2200K when dimmed.
Dimmability: Works with 120V Triac and ELV type dimmers. Dims down to 10%. For full list of dimmers, refer to the Dimmer Compatibility List. Industry-leading dimming that dims smoothly with no hot spots or ickering.
Listings: cUL Listed for Wet Locations. RoHS Compliant. Meets Energy Star & California Title 24 JA8-2022 standards.

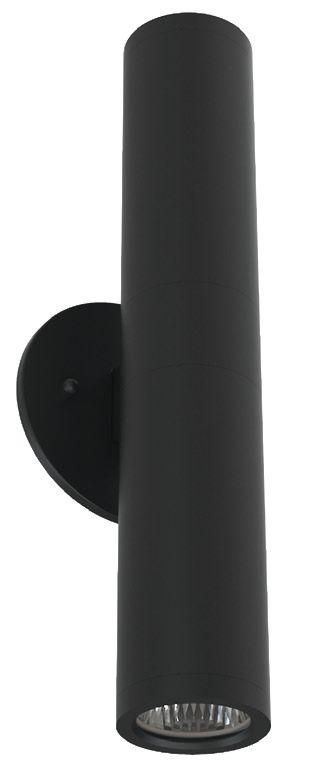

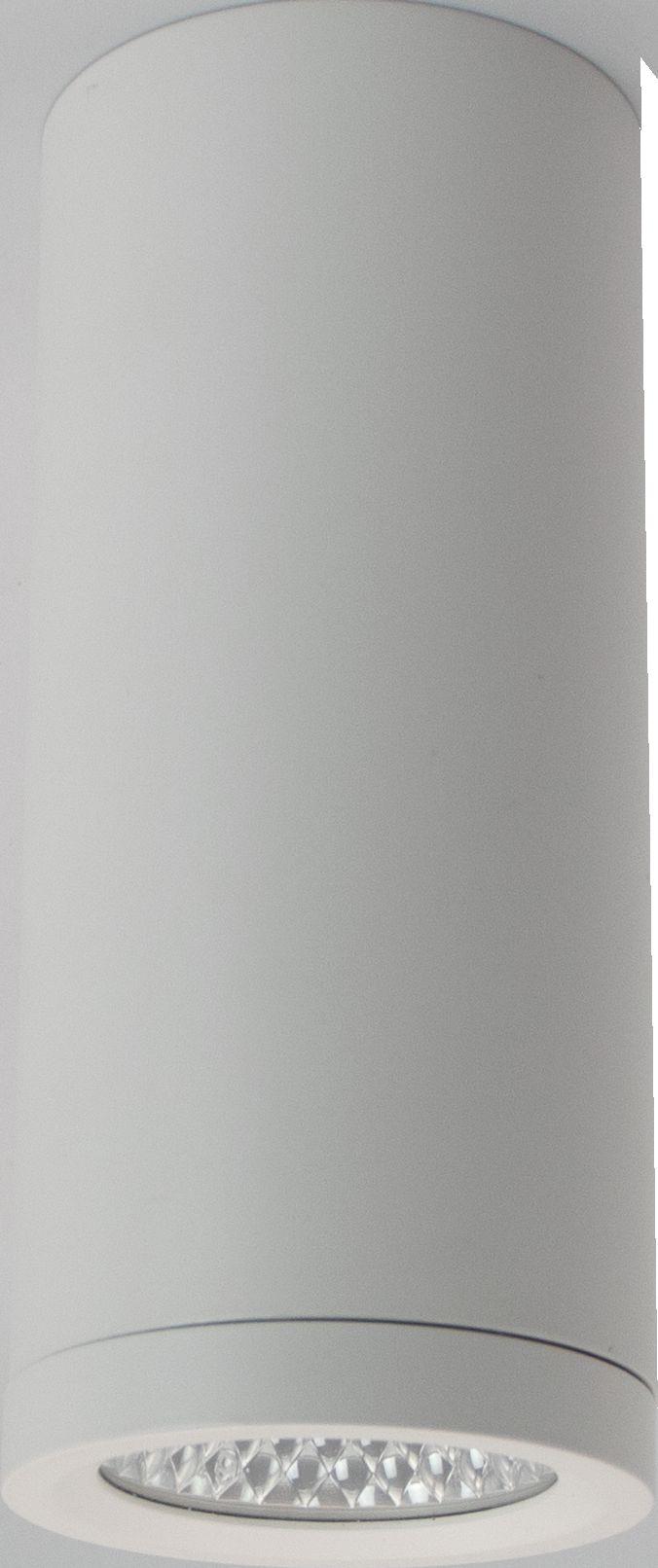

Options
All White All Black

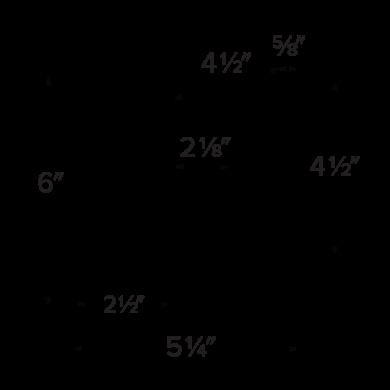

Dimensions
ProjectName:________________
ModelNumber:________________
Type:________________
Product Number Builder
Example: E25NYW-0324
1 Available as 120V, Triac/ELV only
2 Available in 2400K, 2700K & 3000K only
3 Available with CT5 color temperature only
4 DALI 2, 120/277V
5 Available with -09 and -11 lumen outputs only
6 Sunset, Dim to Warm technology, automatically transitions from 3000K to 1800K when dimmed
7 Available with 1150 lumen (-11) outputs only
8 Human Centric, Dim to Warm technology, automatically transitions from 4000K to 2200K when dimmed
9 Available with -08 and -10 lumen outputs only
10 Available with -AL option only, Dali 2 dimmable Tunable White
11 Only available for 950 lumens
12 Includes 25° and 60° lens in the box
13 Available with 350 and 750 lumen, 2700K and 3000K options only
14 90° Frosted Re ector

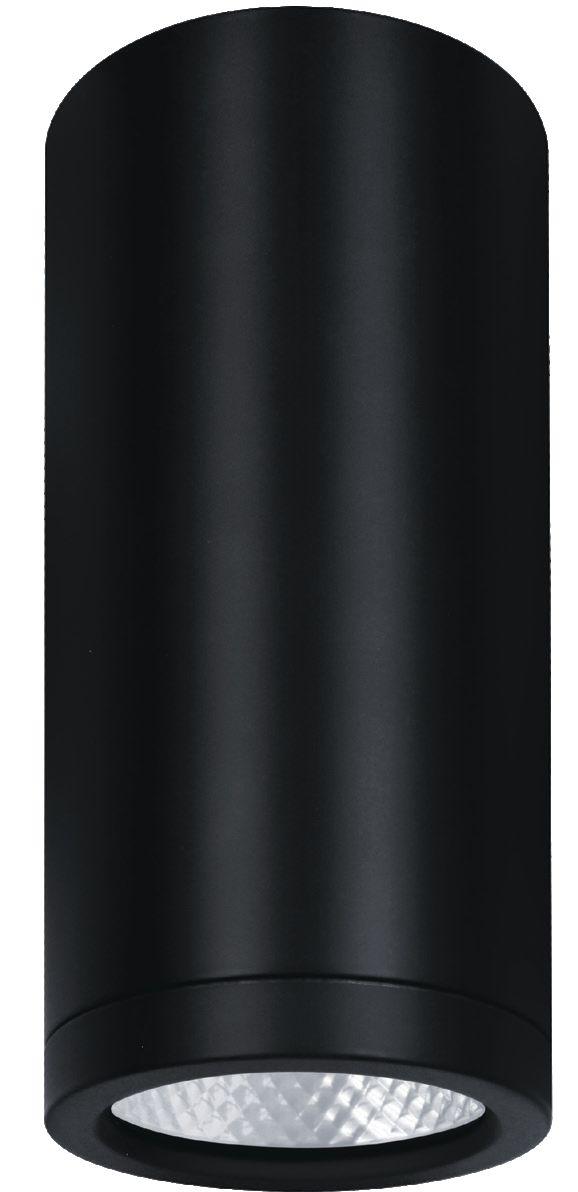

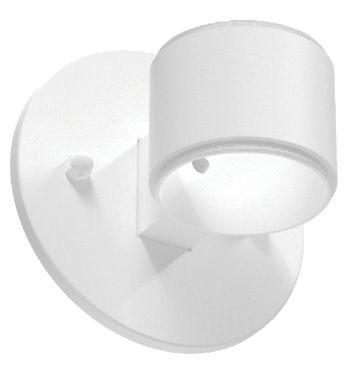

PENNY-ID INDOOR SURFACE
2100 (surface) / 2700 (pendant)
2100
The multifaceted Penny collection is comprised of both indoor (Penny-ID) and outdoor (Penny-OD) rated models. Full breakdown below.
Penny-ID Surface - Model #: 2100 | Penny-ID Pendant - Model #: 2700.
Penny-OD Surface - Model #: 7200 | Penny-OD Pendant - Model #: 7400.
Penny-OD Cantilever - Model #: 7205.
While minimal in terms of aesthetic, it is everything but minimal from an application standpoint. Penny is functional enough for corridor illumination, fun enough for cluster mounting in lobbies and common areas, and durable enough for outdoor environments. Penny can also be wiped down for use in healthcare settings.
FINISHES
LED Page 1 of 2

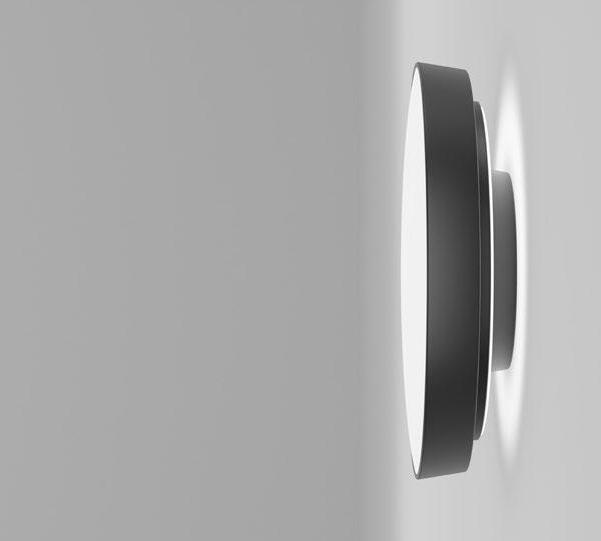

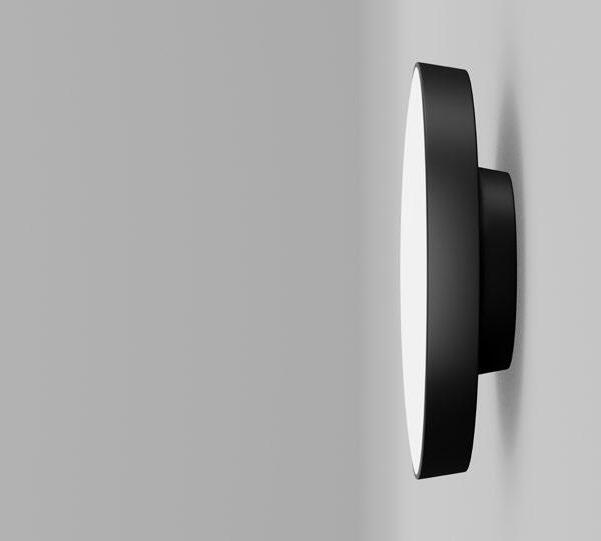

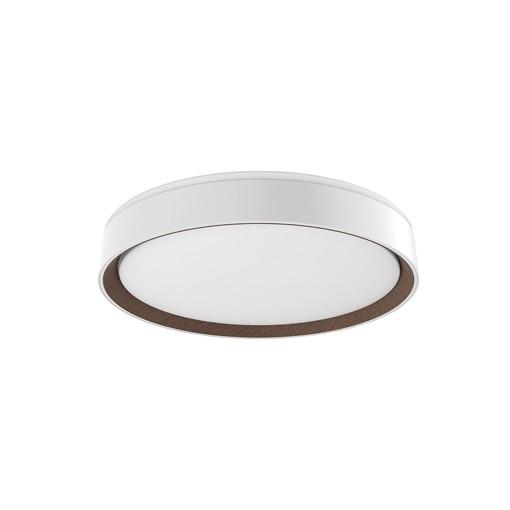

MOON SERIES - DIRECT
Rev. Date: 02/23/2026
Project:
Type:
Comments:
Highlights

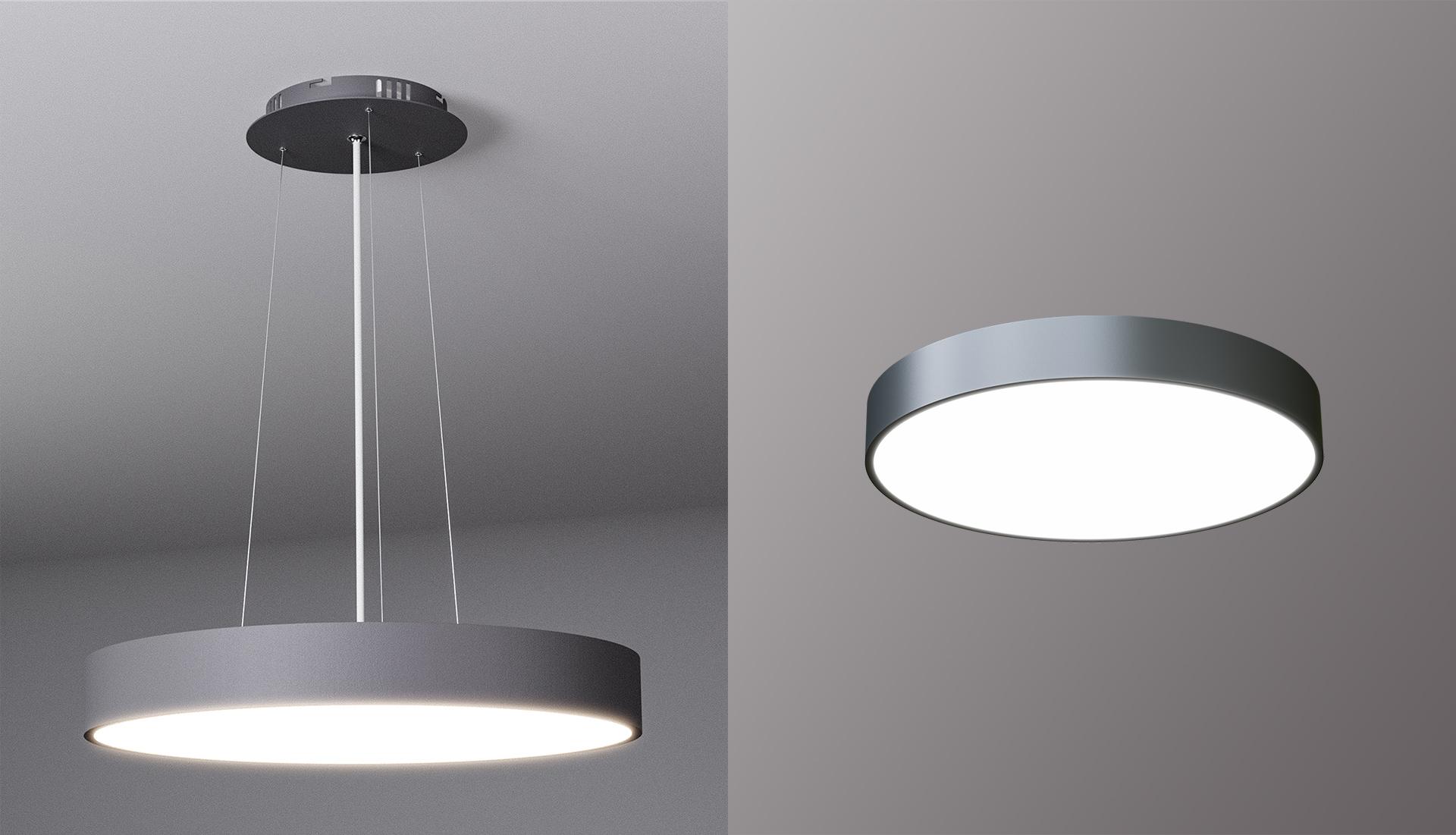

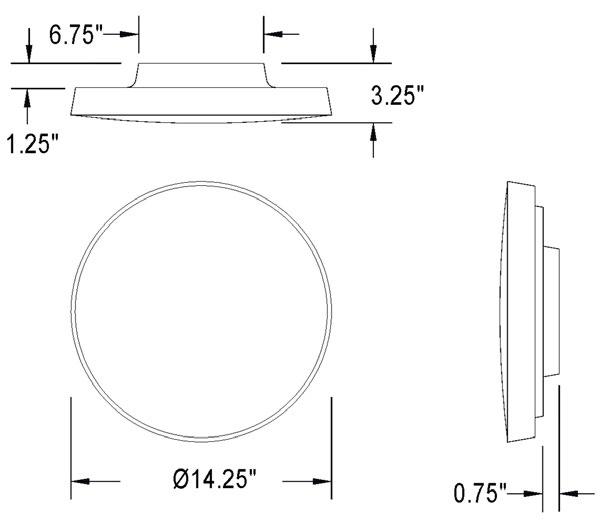

The TechoLED Moon series features smooth, round LED luminaires made with high-end aluminum extrusion and a PMMA diffuser. With diameters ranging from 11.8” to 47.2” (or a custom size of your choice), direct and direct/indirect illumination, and surface-mounted or pendant installation, it offers a simple yet sleek lighting solution for any modern interior.
LED: Samsung LED chips, 2700-5000K, tunable white and RGB/RGBW available, 90CRI, 50,000 hour rated lifespan. Custom lumen packages available.
Optical: Direct configuration, 115° Beam angle
Construction: Damp location listed. High grade aluminum extrusion, PMMA diffuser, integral driver (inside canopy in pendant version), powder coat finish, custom finishes available.
Installation

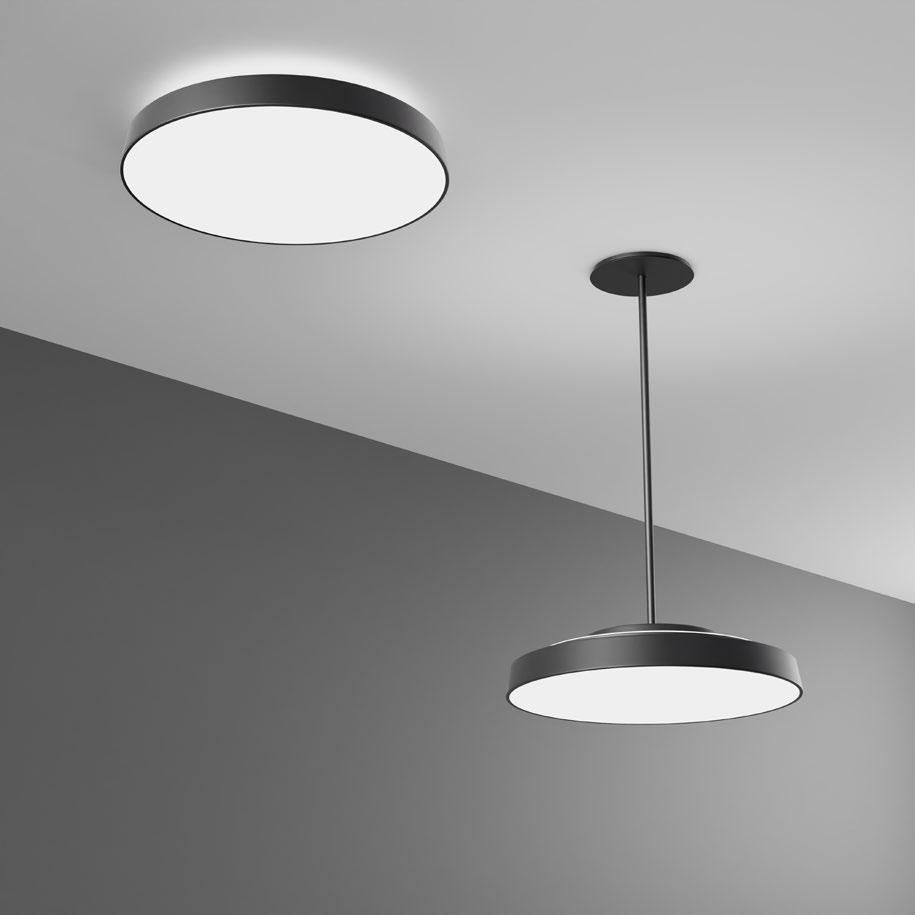

Pendant (P)
Surface Mount (SM)
PENNY-ID INDOOR SURFACE
PROJECT:
MODEL #:
FIXTURE TYPE:
STANDARD SPECIFICATIONS
STANDARD SPECIFICATIONS - INDOOR SURFACE MOUNT (2100)
HOUSING
High quality cast aluminum. No visible hardware when mounted. Closed cell foam gasket at rear of fixture to assist with mounting on moderately uneven surfaces.
Dedicated indirect (up light) component available as an optional offering. Wired to same circuit as direct (down light) output and not independently controllable. Contact factory if independent control is required.
Fixture mounts directly to jbox (by others). Universal crossbar and hardware provided.
FINISH
Parts are prepared using a three step pre-treatment/sealing process, followed by a durable powder coat finish. Custom colors available, contact factory.
WARRANTY
5 year limited warranty on this LED product.
ORDERING INFORMATION
2. FINISH
BL Black
BU Pastel Blue (RAL 5024)
BZ Bronze
GN Pastel Green (RAL 6019)
MG Metallic Gold
NT Nickel Tone
RD Red (RAL 3020)
TB Textured Black
TG Textured Grey
TW Textured White
TZ Textured Bronze
WH White
YL Yellow (RAL 1018)
Note: TB, TG, TW, TZ are ultra fine textured matte finishes. Contact your local representative for color swatches.
Note: Antimicrobial finishes available in a select number of finishes. Refer to the Options section of this sheet for details (“AMF”).
35K 3500K standard color temperature
Note: Contact factory for 2700K color temperature. May require MOQ.
AVAILABLE OPTIONS
90R0 90 CRI (30K & 35K only) MAY ADD TO LEAD TIME *Only applies to L Series direct output Optional indirect component unavailable in 90 CRI.*
AMF Antimicrobial Finish (BL, NT, WH only) (See AMF note)
BAC1 Buy American Compliant (BAA)
DTR4 Triac (Line Voltage) Dimming (120V)
FCL7 French Canadian Label
UP1 Up Light (Indirect) Component - 16W / 1600 lm
UP2 Up Light (Indirect) Component - 22W / 2220 lm
AMF Note: Antimicrobial powder coat is applied to the exposed metal fixture parts and can inhibit the growth of mildew and spoilage causing microbes on the finish. Diffuser is not antimicrobial.
Note: 27k not available on uplight options.
Universal Footnotes (only applies if superscript is shown in Options section): (0) 90R - All LEDs/CCTs are being transitioned to 90 CRI standard over 2025. Inquire for this model’s availability. 1) BAC/BAB - www.brownlee.com/resources/usa. (2) BBI/BBC - cannot combine with ECW or EXT (3) BLD integral microwave motion sensor (step-dim). Cannot combine with DTR. (4) DTR cannot combine with BLD (5) ECW - cannot combine with BBI, BBC or DTR. (7) FCL - cannot combine with BAC. (8) OCC - integral microwave motion sensor (ON/OFF). (9) T24 - includes JA8 labeling and 90 CRI LEDs (10) PCH/PC4 - cannot combine with BLD or OCC.
**BLD - integral microwave motion sensor with step-dim control. 1: Motion is detected, illuminate to 100%.
2: Motion no longer detected, dim to set level. 3: Remain in continuous dimmed state or turn off after set period. Config. via onboard dip switches.
Specifications subject to change without notice.
www.brownlee.com
Project:
Configuration Example
Type:
Comments:
SERIES - DIRECT
Rev. Date: 02/23/2026
Ordering Guide:
Select one option from each group below. For a custom preference please contact sales@techoled.com
D Tunable White
9-DRIVER OPTIONS
DM 0-10V Dimming
2C 2 Channel
DM1% 1% Dimming
LT1 LDE1 Lutron 1%
DA Dali
DMX DMX
TR Triac Dimming
RF RF Wireless X None
10-OPTIONS
RF-D Remote Tunable (RF only)
RF-R Remote RGB/W (RF only)
M Motion Sensor (remote)
BM BubblyNet BT Mesh
CS Casambi
AWNR Lutron Athena Node
AWNS Lutron Athena Node sensor
NL-ES7 nLight - Wired
NL-AIR nLight - AIR
NL-M nLight - Module only X None 11-OPTIONS (CONT.)
EM EM Battery (remote) X None
TYPE E5 SPEC GLASSHOUSE

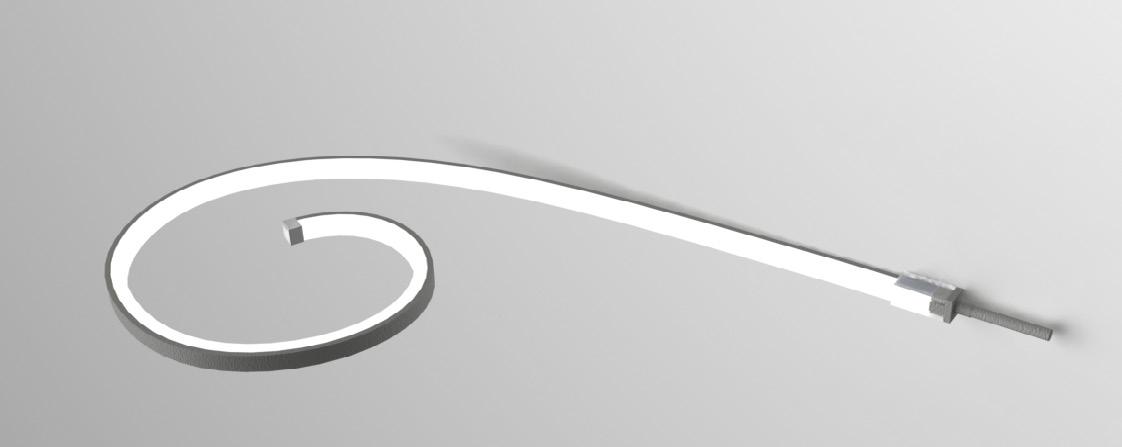

3D Wind
DESCRIPTION

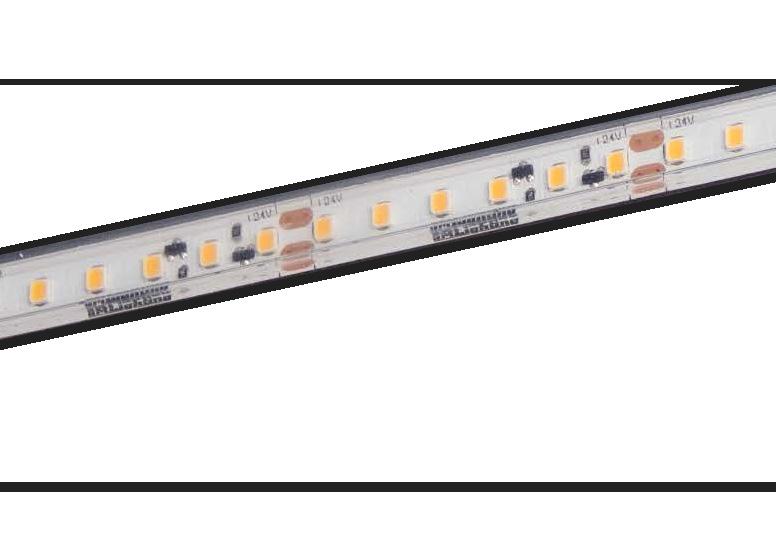

3D Wind is 3 directional, bendable and provides a uniform and smooth illuminated surface. It utilizes flexible and durable silicone extrusion technology that provides a protection layer that is water proof, saltwater resistant, and UV resistant. The accessories for this product allow for quick and easy installation without the need for a channel.
SPECIFICATIONS
• Voltage: 24V
• Watts per foot: 2.8 W/ft
• Lumens per foot: 143 Lm/ft (@ 80 CRI, 3000K)
• 2835 LEDs
• 36LED/Ft.
• Dimmable using dimmable driver
• Working Temperature: -4°F ~ +131°F
• Protection: IP67 Suitable Indoor/Outdoor
• UV Resistant, Saltwater Resistant
• 120º beam angle
• Minimum Bending Radius: 2.36in
• Max Run: 18 Feet
• Specifiable to any length ≤ Max Run
• Not Field Cuttable
• 50,000h long lifespan, 5 years warranty, for indoor use.
• 36,000h long lifespan, 3 years warranty, for outdoor use.
• 80+ CRI
• UL Listed for US and Canada Please see PreciseLED.com for warranty and installation Information.
ORDERING CODE
Example: 3DWD-16’-24V-90C-40K
DIMENSIONS

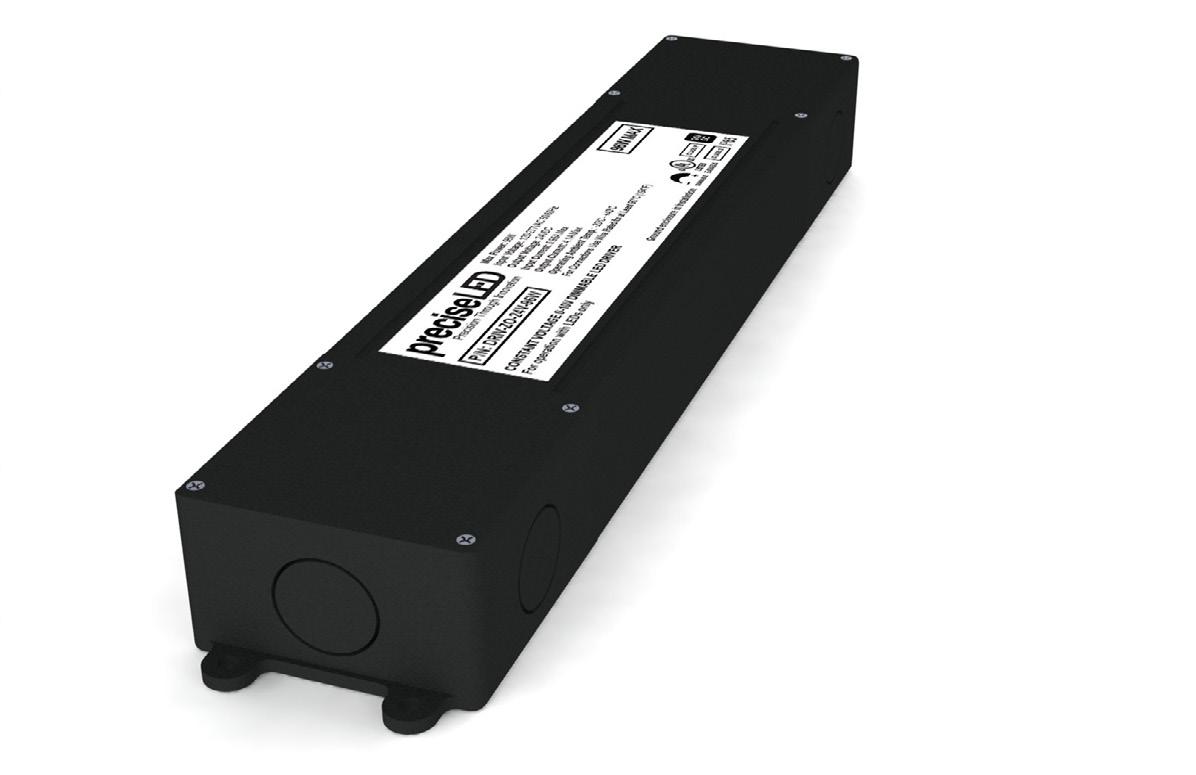

COMPATIBLE TAPE LIGHT DRIVERS
www.preciseled.com

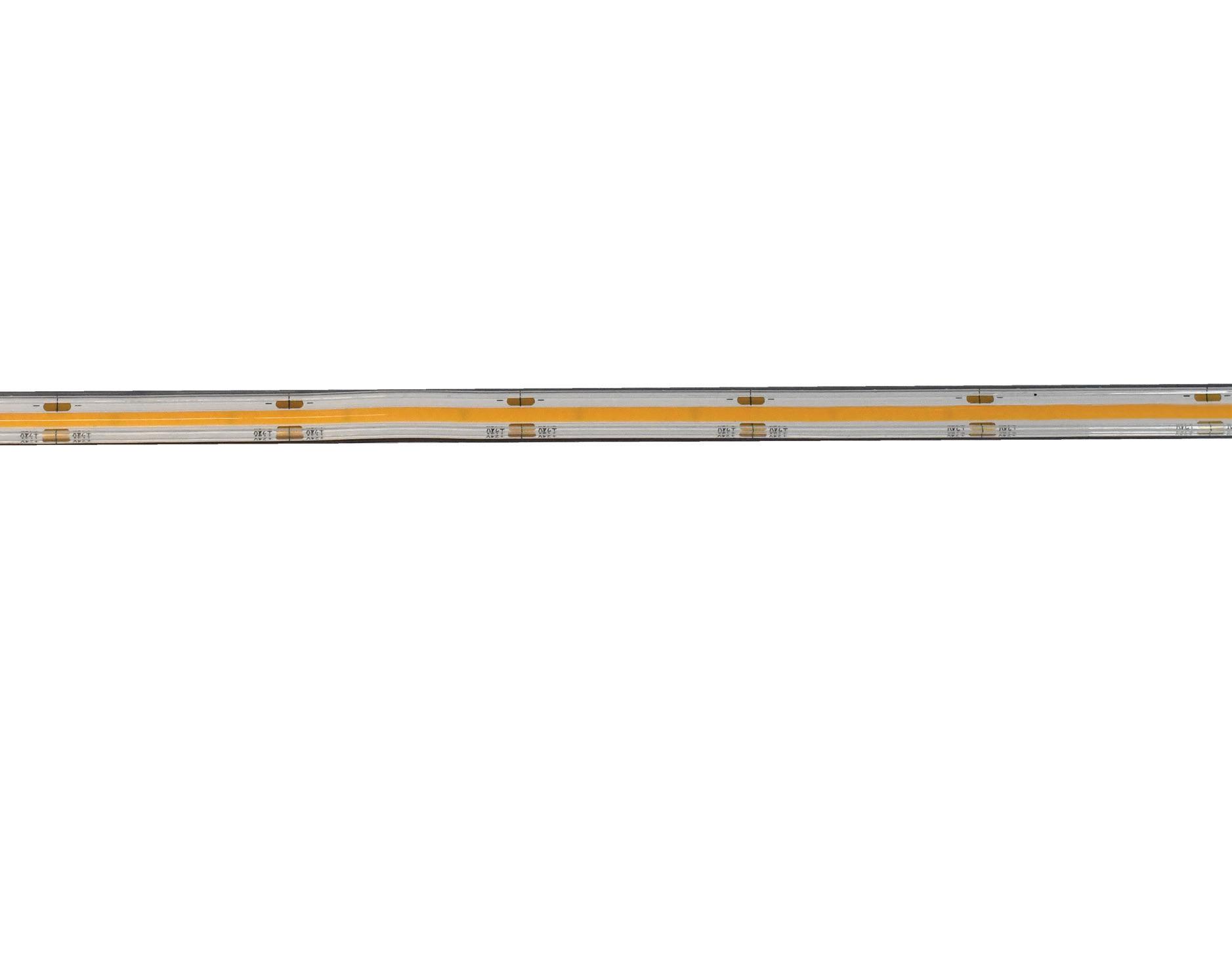

NeoVision24 SideFlex

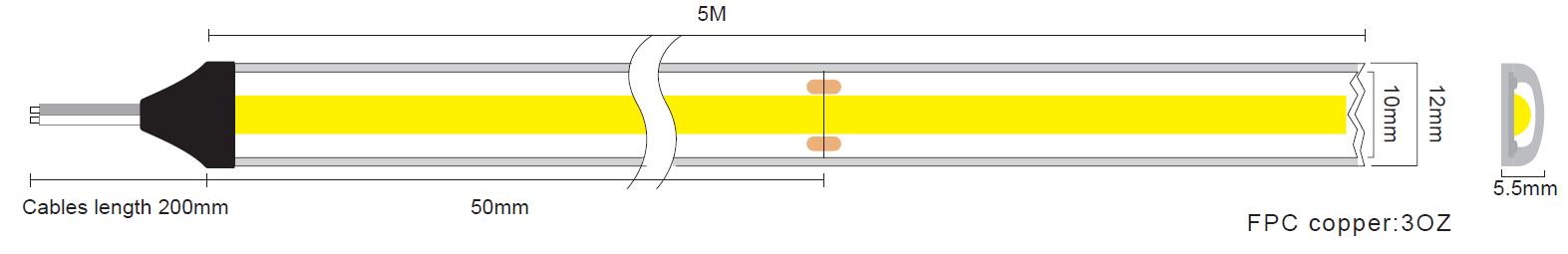

Flexible Neon LED Tape Specification Sheet
PRODUCT OVERVIEW

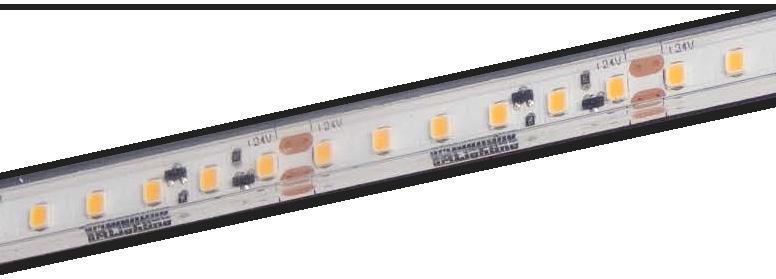

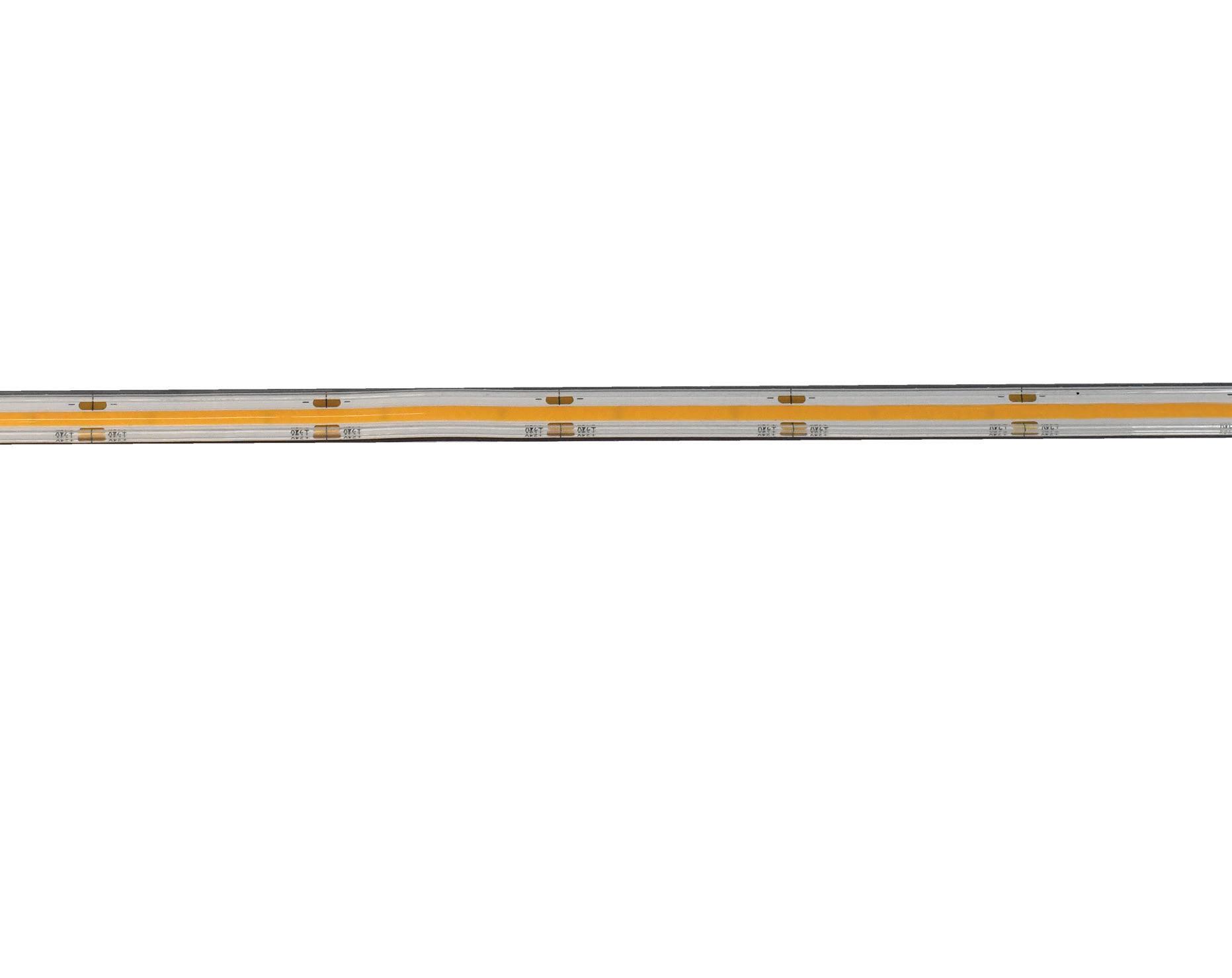

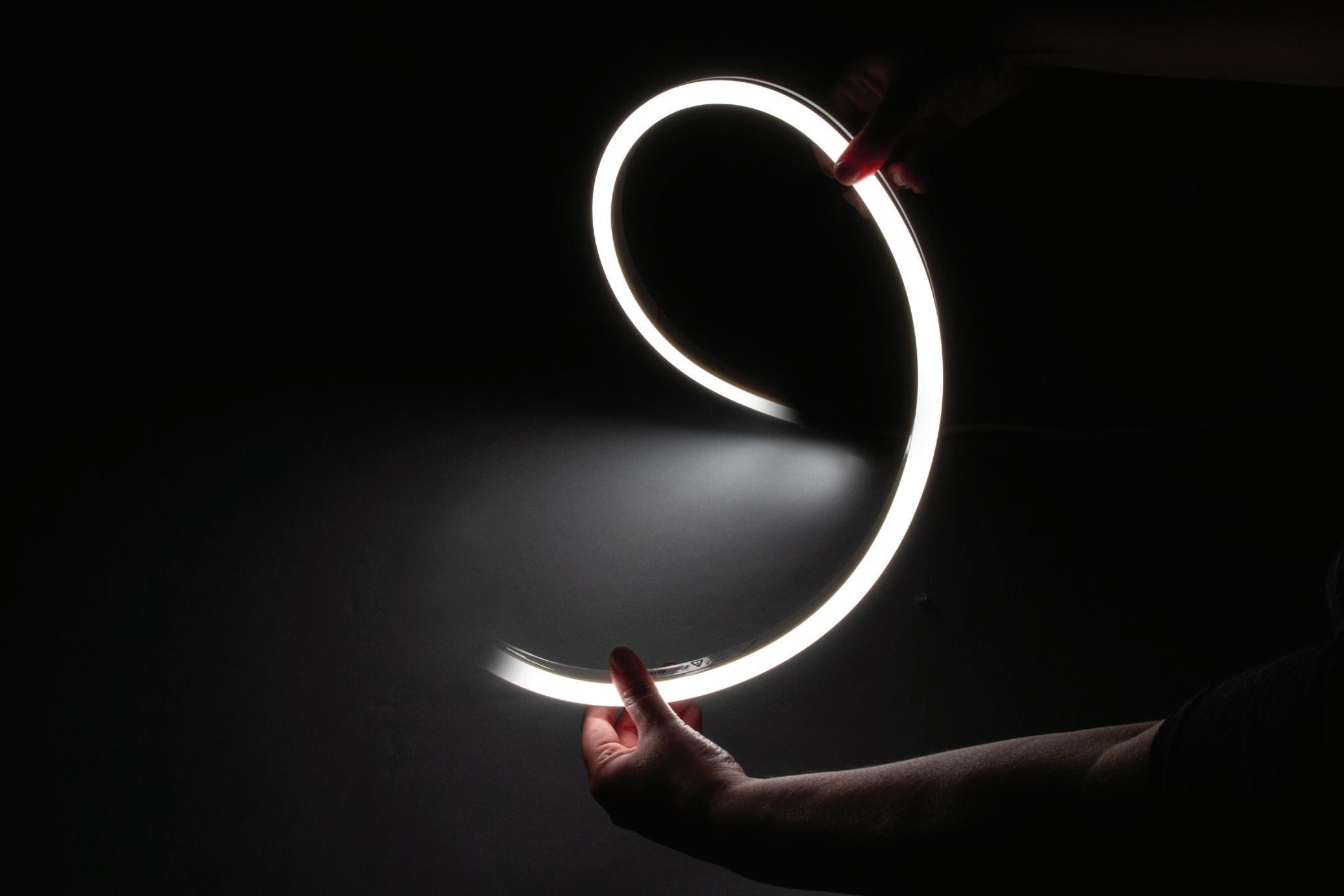

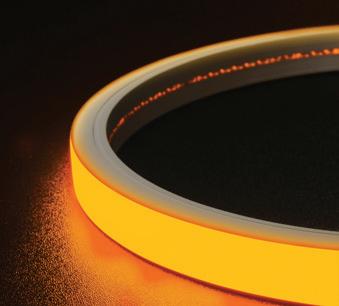

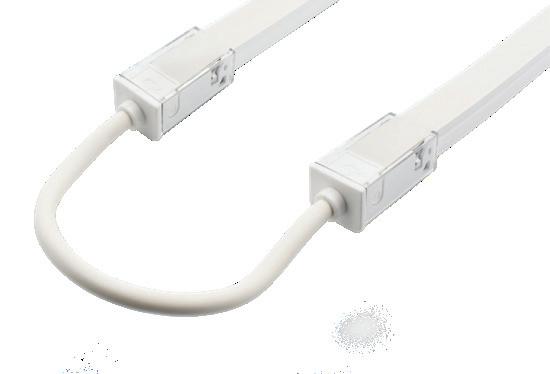

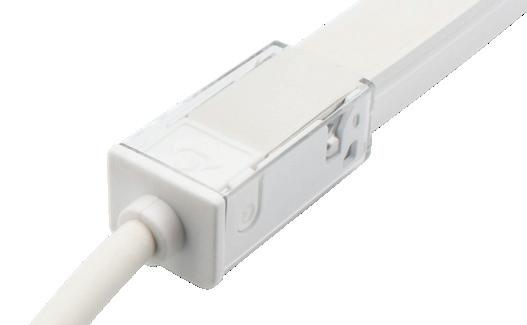

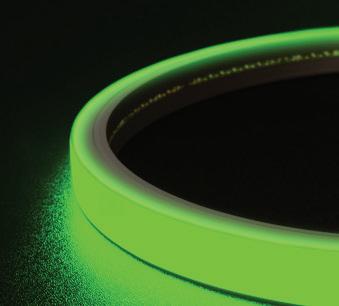

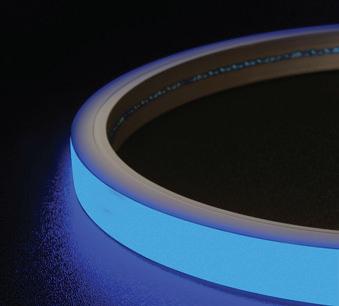

A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables horizontal bending that conforms tape around curvilinear surfaces.
FEATURES
•Multiple power feed options
•Tape encased in UV stable silicone (UV protected)
•Wireless control with LUXcontrol App and controller
•2700K, 3000K, 4000K / Amber, Blue, Green or Red
•120° viewing angle
•Maximum run: 32'-8"
•Cuttable and joinable in two inch increments
•Each run requires an end cap (sold separately)
•No tools required for capping and joining
•Mounting clips included (recommend use one per foot)
SPECIFICATIONS
ELECTRICAL CERTIFICATION
•24VDC •UL
•3W per foot
•IP65
PHOTOMETRIC WARRANTY
•90+ CRI
•5 years when paired
AMBIENT OPERATING TEMP with GM power supply
•-13°F - 131°F
ORDERING INFORMATION White
NV24S-3W-27K-16 16'-4"128lm2700K
NV24S-3W-27K-32 32'-8"128lm2700K
NV24S-3W-30K-16 16'-4"143lm3000K
NV24S-3W-30K-32 32'-8"143lm3000K
NV24S-3W-40K-16 16'-4"135lm4000K
NV24S-3W-40K-32 32'-8"135lm4000K
Colors
NV24S-3W-AM-16 16'-4"N/AAmber
NV24S-3W-AM-32 32'-8"N/AAmber
NV24S-3W-BL-16 16'-4"N/A Blue
NV24S-3W-BL-32 32'-8"N/A Blue
NV24S-3W-GR-16 16'-4"N/AGreen
NV24S-3W-GR-32 32'-8"N/AGreen
NV24S-3W-RD-16 16'-4"N/A Red
NV24S-3W-RD-32 32'-8"N/A Red
Max Run: 32'-8"
Kelvin temperature (color) ±100K.
NOTE: Every reel includes (1) NV24S-PF-EF (tape-to-power feed with 48" of lead). 16' reel includes (16) NV24S-MC-A mounting clips and screws. 32' reel comes with (32) NV24S-MC-A mounting clips and screws.

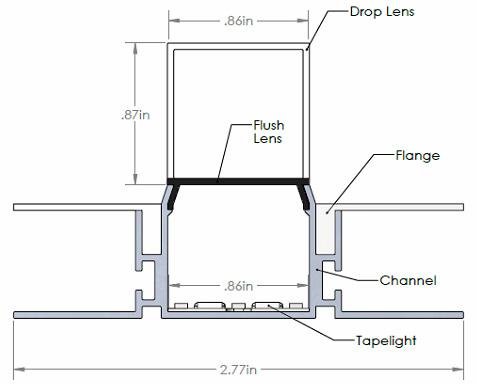

Amber 3000K Blue Green Red .67" .47"

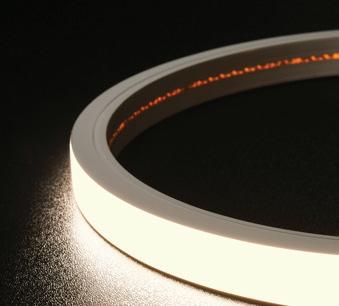

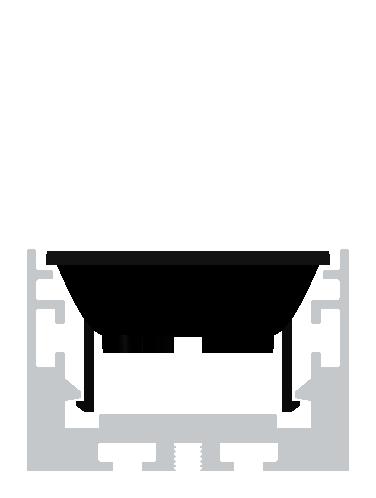

SideFlex Cutaway
TYPE E5 SPEC GLASSHOUSE
GLASSHOUSE

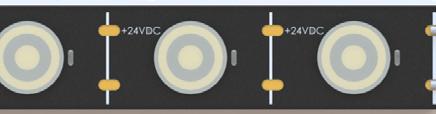

NeoVision24 SideFlex
Flexible Neon LED Tape Specification Sheet
CONNECTORS AND ACCESSORIES
Product

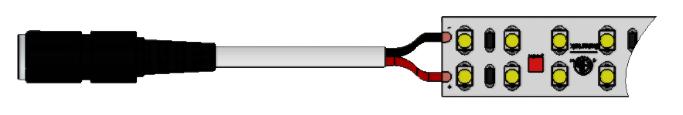

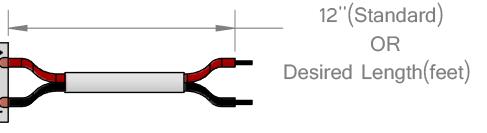

NV24S-PF-EF8
NV24S-PF-BF8
NV24S-SP
NV24S-CHL-A4
NV24S-CHL-A6
Tape-to-Power Flexible End Feed, 8 ft.
Tape-to-Power Flexible Bottom Feed, 8 ft.

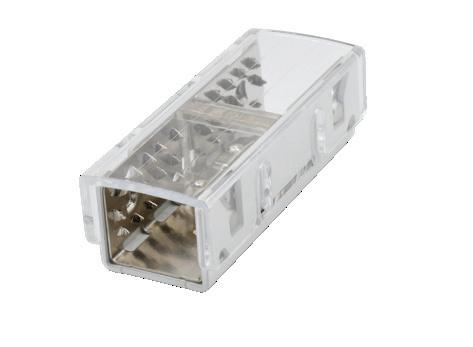

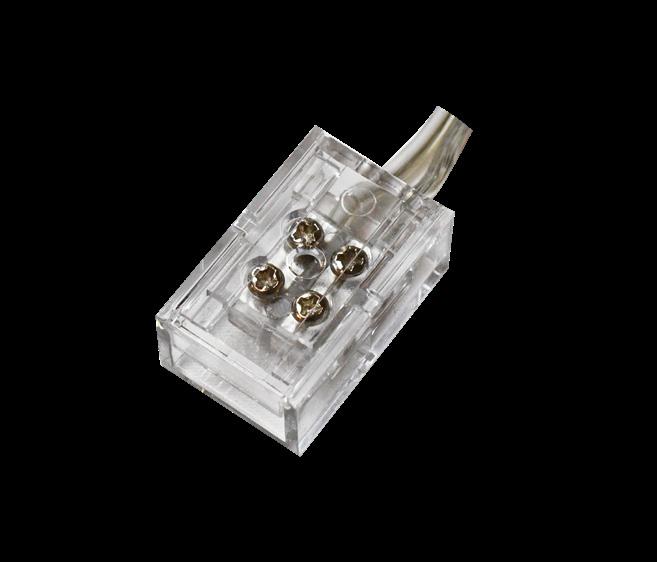

Tape-to-Tape Splice Connector
Aluminum Channel, 4 ft.
Aluminum Channel, 6 ft.
Aluminum Mounting Clips (set of 20)
Product
NV24S-TTC6
NV24S-TTC12
NV24S-TTC24
Tape-to-Tape Flexible Connector, 6"
Tape-to-Tape Flexible Connector, 12"
Tape-to-Tape Flexible Connector, 24"

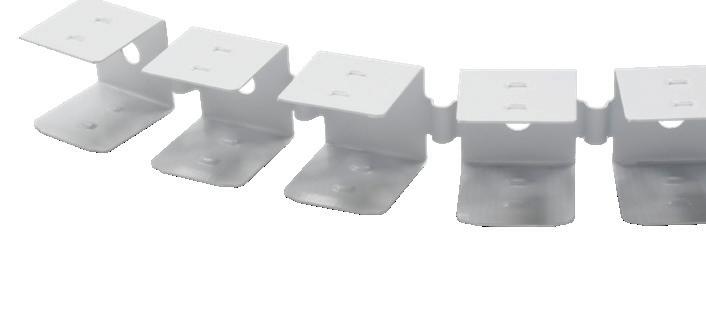

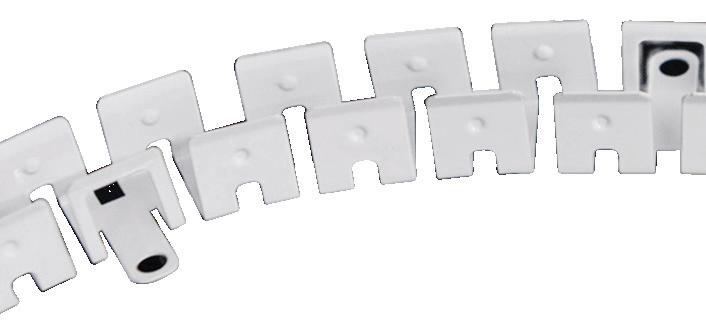

NV24S-FLEX-CHL Flexible Mounting Channel, 39.5"

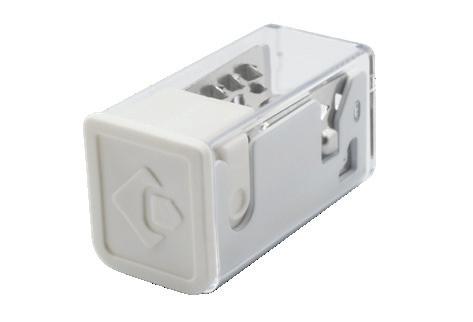

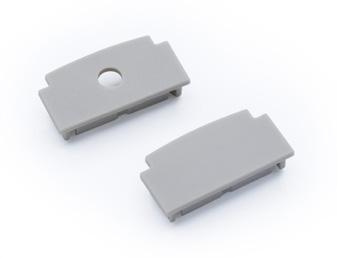

NV24S-EC End Cap
NV24-CT Tape Cutting Tool

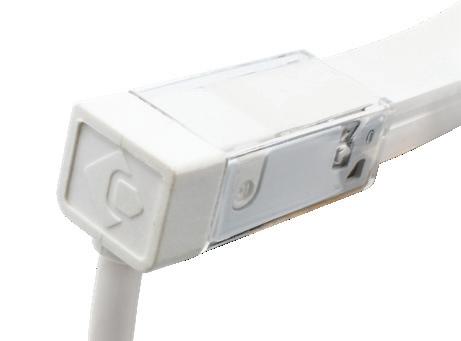

The above connectors, channels, mounting clips and caps are for the exclusive use of NeoVision24 SideFlex Neon Tape and are ordered separately.
End Feed
NV24S-PF-EF8
Splice Connector
NV24S-SP
Bottom Feed
NV24S-PF-BF8
Tape Configuration Example
Aluminum Channel
NV24S-CHL-A4
NV24S-CHL-A6
2-1/2" Minimum Bend Radius
NV24S-CHL-A4
NV24S-CHL-A6
NOTE: Each run requires an end cap (sold separately)
NV24S-EC
End Cap
NV24S-EC
NV24S-FLEX-CHL
NV24S-SP
Mounting Clips NV24S-MC-A
Tape-to-Tape Connector
NV24S-TTC12 |
NV24S-TTC6
NV24S-TTC24
Flexible Mounting Channel
NV24S-FLEX-CHL
NV24S-PF-EF8
NV24S-EC
NV24S-MC-A
NV24S-FLEX-CHL
NV24S-PF-BF8
NV24S-TTC6
NV24S-TTC12
NV24S-TTC24
NV24S-CHL-A4
NV24S-CHL-A6
TYPE E5 SPEC GLASSHOUSE
NeoVision24 SideFlex
Flexible Neon LED Tape Specification Sheet
RF CONTROLLER
LineDrive Power Supply
CM-RF-UNV-5CH RF Controller
Incoming power for (L N G) options can be 120V or 277V. Check power supply for proper input voltage and output power required. Power Supply output voltage must match LED operating voltage. (24VDC) Power supply used MUST NOT BE DIMMED at the input to properly power the controls. See Controller instructions for pairing and wiring details.
Note: Multiple power supplies can be replaced with a single multi-output power supply.
POWER SUPPLIES
LED Tape
NeoVision24
NeoVision24
NeoVision24

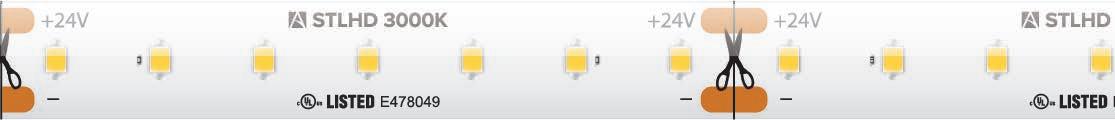

LTR-P Professional Series ®
Wet Location, 24VDC 1.5W / 3.0W / 5.8W
LED Tape Specification Sheet
PRODUCT OVERVIEW

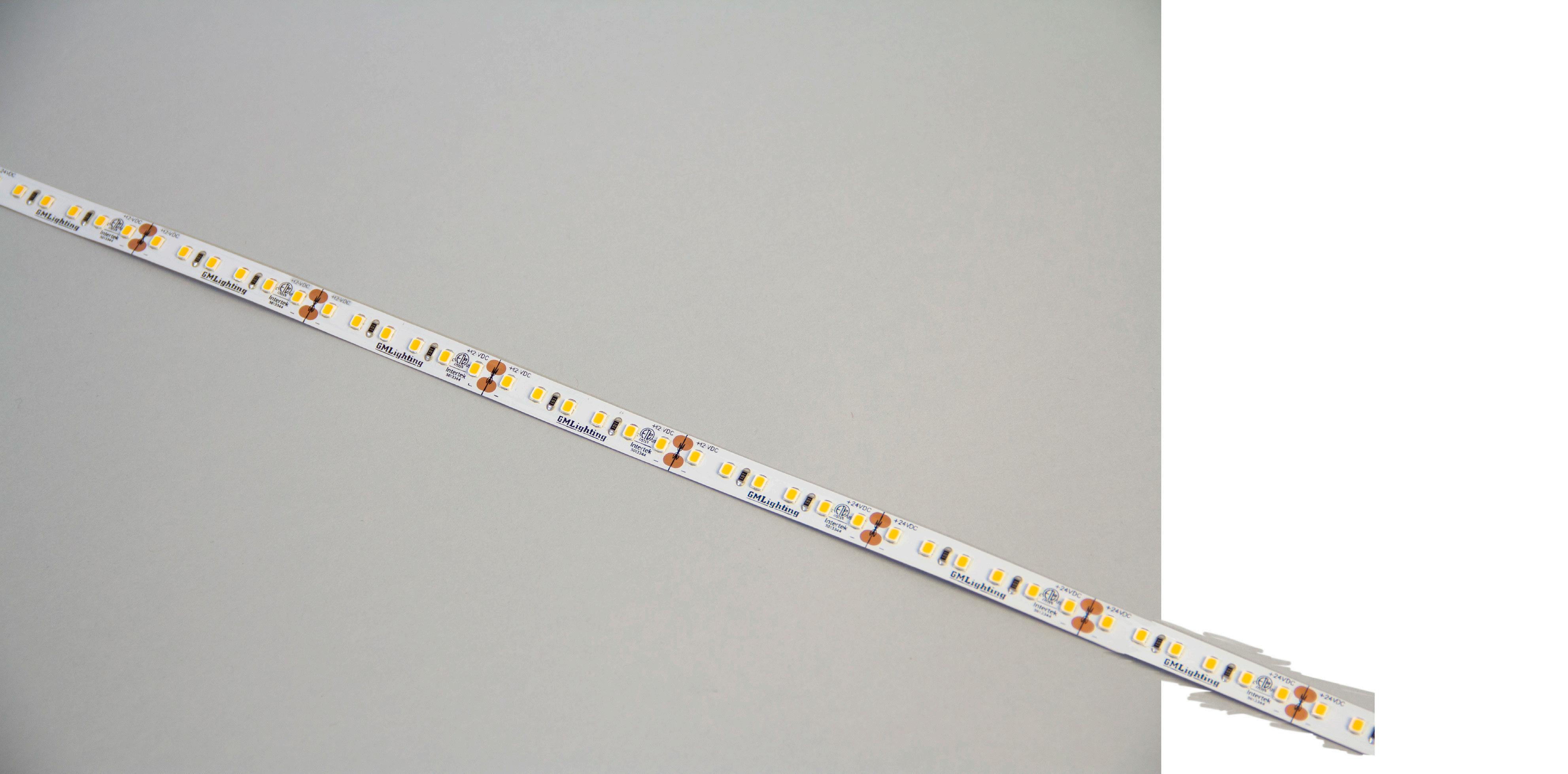

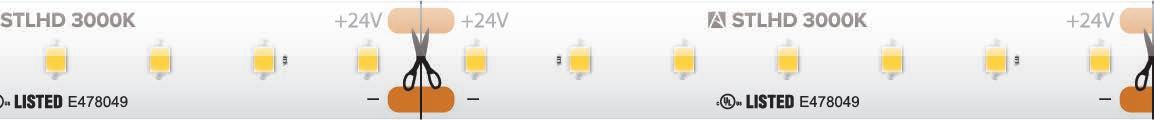

GM’s Professional Outdoor Series Flexible LED Tape combines style and technology with reliability for wet location. Designed for professional installations that demand a high level of quality, the LTR-P Series boasts a wide array of key features and is available in 16’-4” (5M), 98’-6” (30M) reels or custom cuts. Do not submerge in water.
FEATURES
• 24VDC
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K as well as Amber, Red, Green, Blue color temps
• Remote control with GM’s LUXcontrol™ App and controllers (requires NEMA box - by others)
• LM80 / IP65

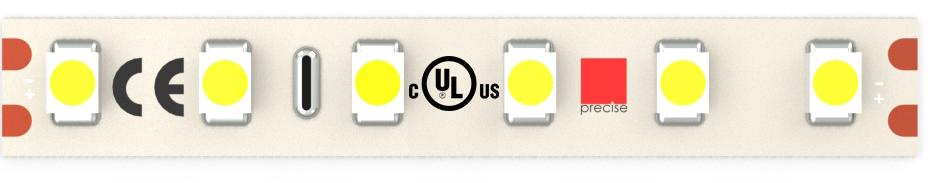

• 120 LEDs per meter
• Cuttable every 2”
• Wet location
• Optical clear UV protected silicone sheath
• Premium diodes
• 120° viewing angle
• Dimmable
• Maximum run on a given lead is 60’ (1.5W), 32’-8” (3.0W), 16’-4” (5.8W)
SPECIFICATIONS
ELECTRICAL
•24V
•1.5W, 3W and 5.8 watts per foot
OPTICS
• 90+ CRI
• -4°F to 122°F
• For proper thermal management, we recommend to mount this product in a channel
ORDERING INFORMATION
CERTIFICATION
•UL
•May comply with Title 24 with select power supplies
•Class 2
•Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5), excluding colors -AM, -BL, -RD, -GR and LTR-P-WP-24V-1.5W
WARRANTY
• 5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
LTR-P Professional Series ®
Wet Location, 24VDC 1.5W / 3.0W / 5.8W
LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Outdoor Series Flexible LED Tape combines style and technology with reliability for wet location. Designed for professional installations that demand a high level of quality, the LTR-P Series boasts a wide array of key features and is available in 16’-4” (5M), 98’-6” (30M) reels or custom cuts. Do not submerge in water.
FEATURES
• 24VDC
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K as well as Amber, Red, Green, Blue color temps
• Remote control with GM’s LUXcontrol™ App and controllers (requires NEMA box - by others)
• LM80 / IP65
• 120 LEDs per meter
• Cuttable every 2”
• Wet location
• Optical clear UV protected silicone sheath
• Premium diodes
• 120° viewing angle
• Dimmable
• Maximum run on a given lead is 60’ (1.5W), 32’-8” (3.0W), 16’-4” (5.8W)
SPECIFICATIONS
ELECTRICAL
•24V
•1.5W, 3W and 5.8 watts per foot
•90+ CRI
•-4°F to 122°F
CERTIFICATION
•UL
•May comply with Title 24 with select power supplies
•Class 2
•5-year warranty when paired with GM power supply OPTICS
• For proper thermal management, we recommend to mount this product in a channel
ORDERING INFORMATION
•Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5), excluding colors -AM, -BL, -RD, -GR and LTR-P-WP-24V-1.5W
WARRANTY
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
LTR-P Professional Series ®
COMPATIBLE CONTROLLERS
SHWC LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, see page 8
SHWD LUXcontrol Smart 2.4 GHz WiFi Dimmer, Standard 12V/24V Low Voltage, see page 8
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC see page 10
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC see page 10
Note: For wet location applications, use NEMA box (by others)
RECOMMENDED DRIVERS
or
LD-E-UNV LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 200W, 300W
LD-MD-UNV LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 150W, 200W,
LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC 60W
LineDrive Electronic Dimmable 0-10V Power Supply, 12VDC or 24VDC 60W, 96W
or 24VDC
Electronic Dimmable Power Supply, 12VDC or 24VDC
Please see our website for updated power supply specifications and information.
BL355 from Lumux is an sturdy architectural bollard that excels at defining spaces, both during the day and at night.
BL355 o ers a distinctively classic design, ideal for illuminating access ways, paths, and plazas. With zero uplight, BL355 is perfect for dark sky applications. BL355 is a powerful LED solution with optional 0-10v dimming, energy-e cient for long-lasting outdoor applications. BL355 is constructed from heavy-duty diecast aluminum, providing durability that meets the highest standards. Part of the Lumux bollard collection, BL355 is a companion to the WS-BL355 wall sconce.
Content of specification sheet subject to change
TYPE E7 SPEC GLASSHOUSE

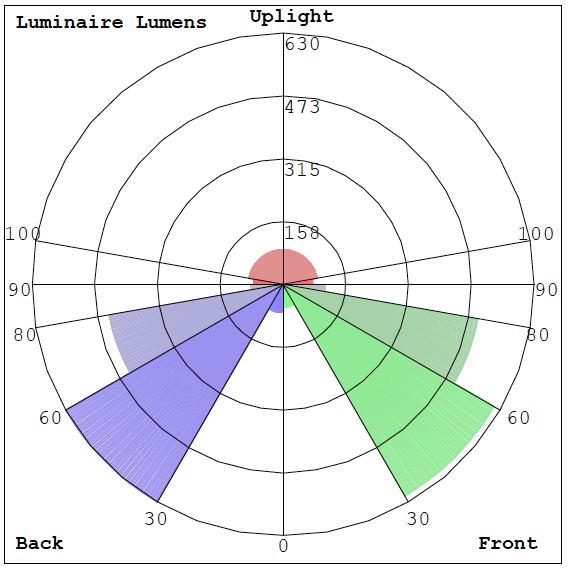

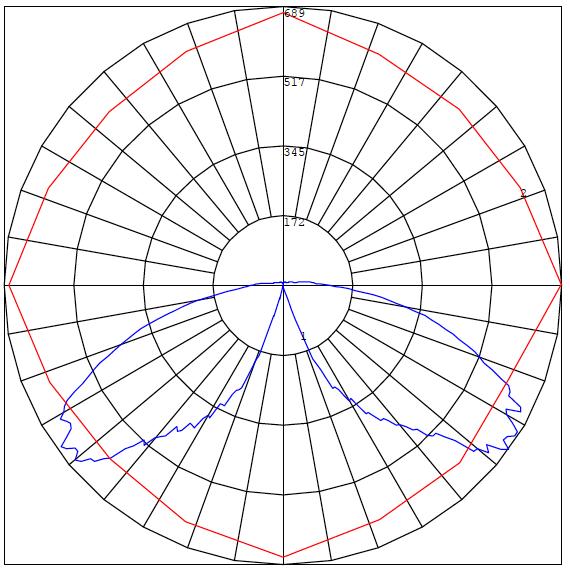

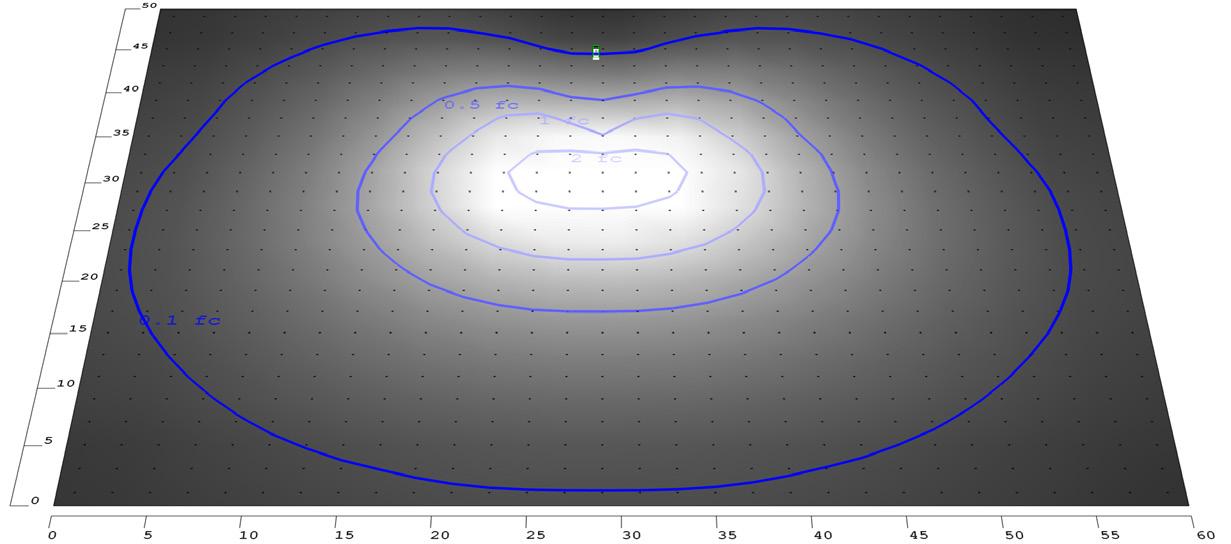

Photometrics: BOL-700-37-МСТP
Performance Table: BOL-700-37-МСТP
Sample Ordering
Accessories:
Blank = No Option For Accessories BOL-700-ABK = Bollard Round Replacement Anchor
Factory-Installed Options:
Blank = No Option For Accessories
OPT-EM-BOL = Emergency Backup Internal Battery, Back Box
OPT-CRL-95(BK/GR/SR/WH) = Paint
OPT-SEN-WMC = Microwave Bi-Level Sensor
OPT-PC-B = Button
BOL-700-ABK Mounting Accessories & Anchor Sold Separately
DATE:
PROJECT: FIRM:
CATALOG NO: COMMENTS:

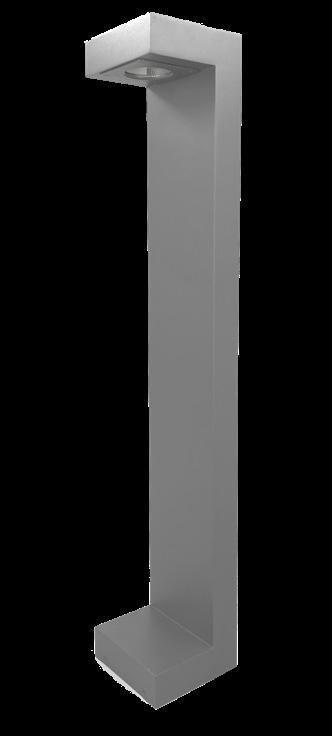

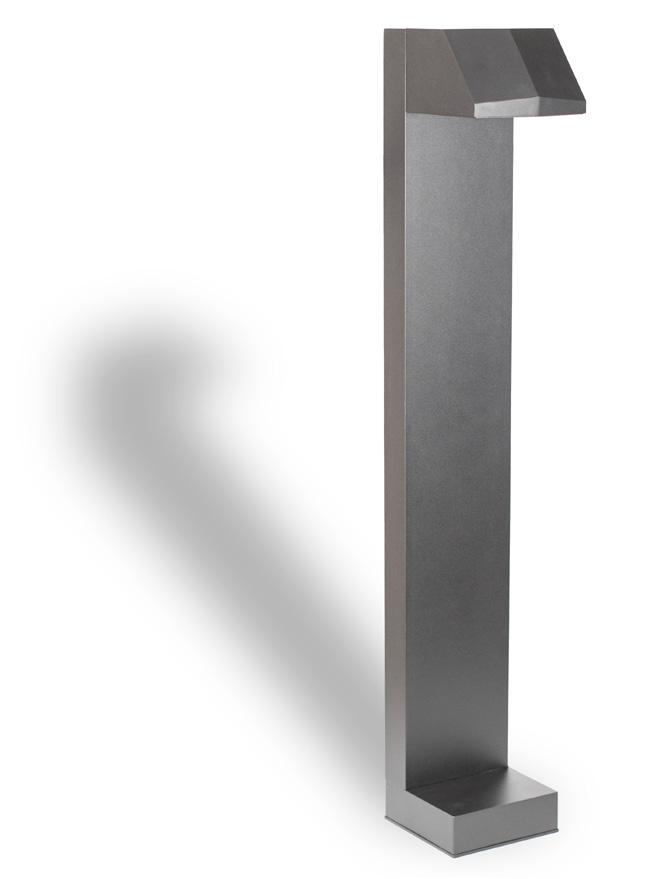

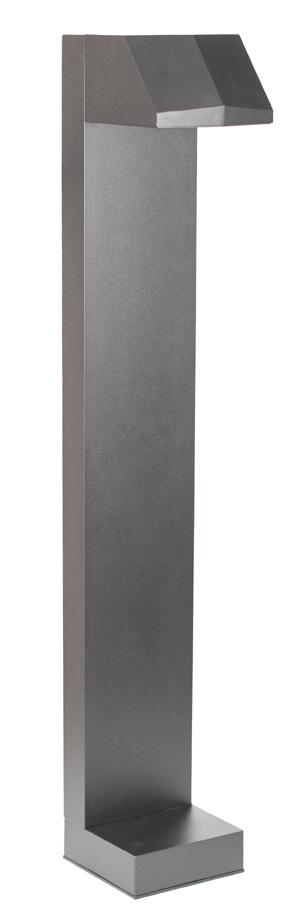

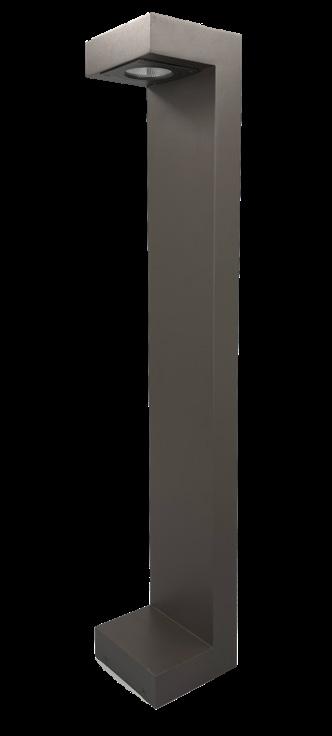

BOLLARD BL355

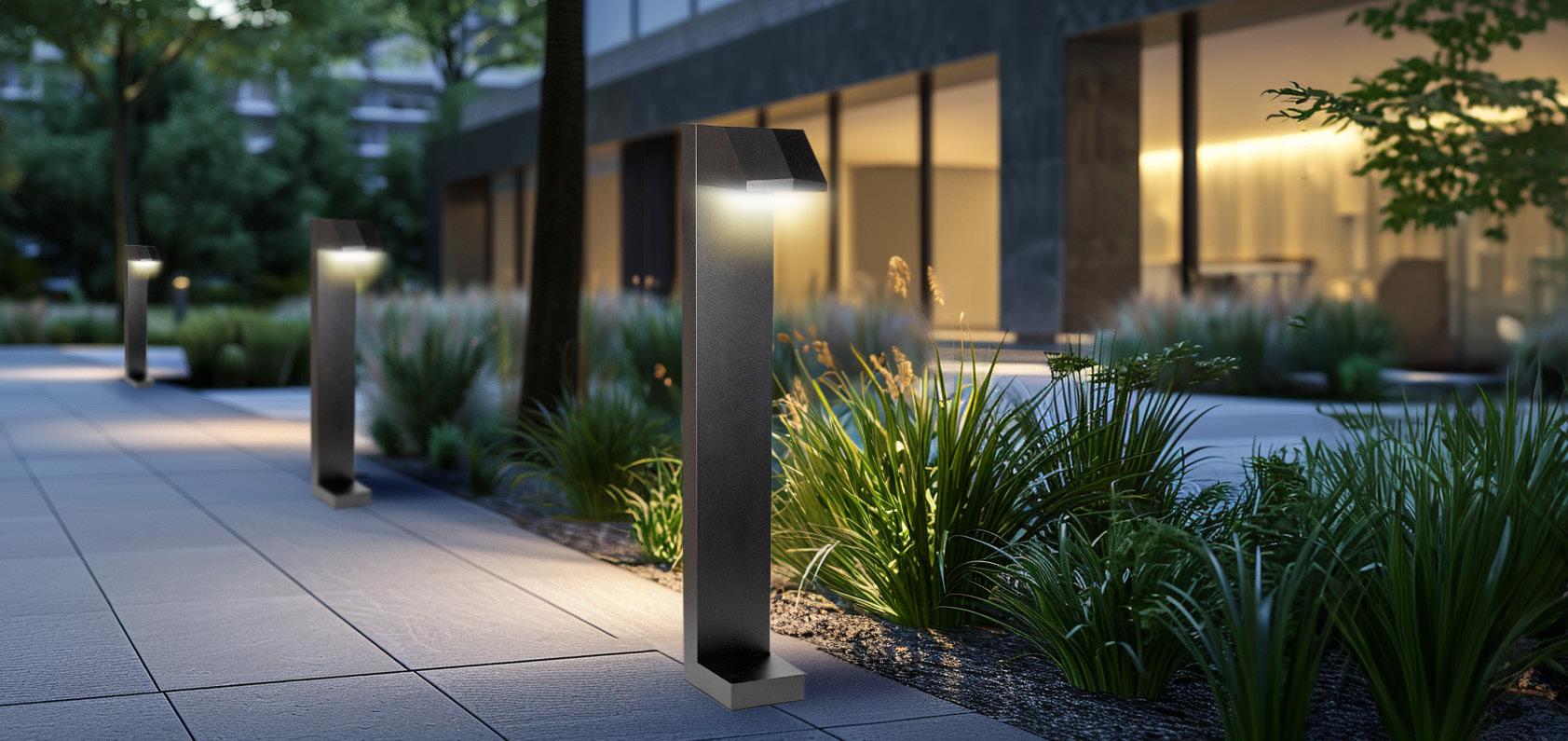

Perfect for path and plaza lighting with zero uplight, BL355 is an classic bollard with optional 0-10v dimming.
Ordering Guide
1Consult factory for additional options
2Consult factory for additional pricing
Performance Specifications
Flux up to 800 lm LER up to 55 lm/W
Power up to 15W 120-277v input voltage
Starting temp. rated to -20˚F Sensor options
0-10v Dimming driver option Dual GFCI option
Lumen Maintenance*: L70 >36,000 hrs Integral Battery Pack option
Catalog No.:
White Photocell
Silver Occupancy Sensor
Bronze GFCI Dual Receptacle
Custom RAL2 Integral Battery Pack
Environmental Specifications
BUG rating: B0-U0-G0 Dark Sky compliant
CRI 80 Color temperature options
IP65 ETL listed for wet-locations
E ective Projected Area 2.2 sq.ft. Marine Grade option
5-year limited warranty Made in the USA
Delivered Lumens & Wattage per color temperature:
Dimensions
For higher lumen packages, please consult the Lumux sales team.
Housing: Heavy-duty construction of corrosion resistant, low copper diecast aluminum. All fasteners are vandal resistant stainless-steel.
Installation: Please refer to installation instructions.
Finish: Zinc polyester powder coat finish in black, white, silver, bronze, or any custom RAL color. Consult factory for marine grade or anti-microbial finish.
Light Engine: Constant Current driver powering high quality LEDs, with optional 0-10v dimming.
Integral Battery Pack: Optional 10W IBP integral emergency battery pack provides 1,000 lumens with a 90 minute battery life.
Content of specification sheet subject to change
OEM LED Emergency Thermoplastic Unit
STANDARD
ILLUMINATION
• Ultra-bright, energy efficient, long-life White LED lamps.
• Two fully adjustable semi-recessed, round lamp heads for optimal light distribution.
• Provides up to 20-ft center-to-center spacing with 3-ft path of egress at 7.5-ft mounting height.
• 1.2 watt (12 LEDs x 0.10 watts) per head.
ELECTRICAL
• Dual 120-277 voltage.
• Unique LED indicator light alerts occupant on battery condition (Red-normal, OFF-check battery).
• Charge rate/power "ON" LED indicator light and push-totest switch for mandated code compliance testing.
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
HOUSING
• Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white finish.
WARRANTY / LISTING
• Five-year warranty on all electronics and housing. Battery prorated for five years.
• Meets UL924, NFPA 101, Life Safety Code, NEC, OSHA, Local and State Codes.
• UL Listed for damp locations (0°C – 40°C).
DIMENSIONS
• Universal knockout pattern on back plate for surface mount.
• Knockouts provided for conduit feed applications.
• Suitable for wall or ceiling mount.
• Spacing: 20-ft center-to-center spacing with 3-ft path of egress at 7.5-ft mounting height.
ORDERING INFORMATION
GLASSHOUSE

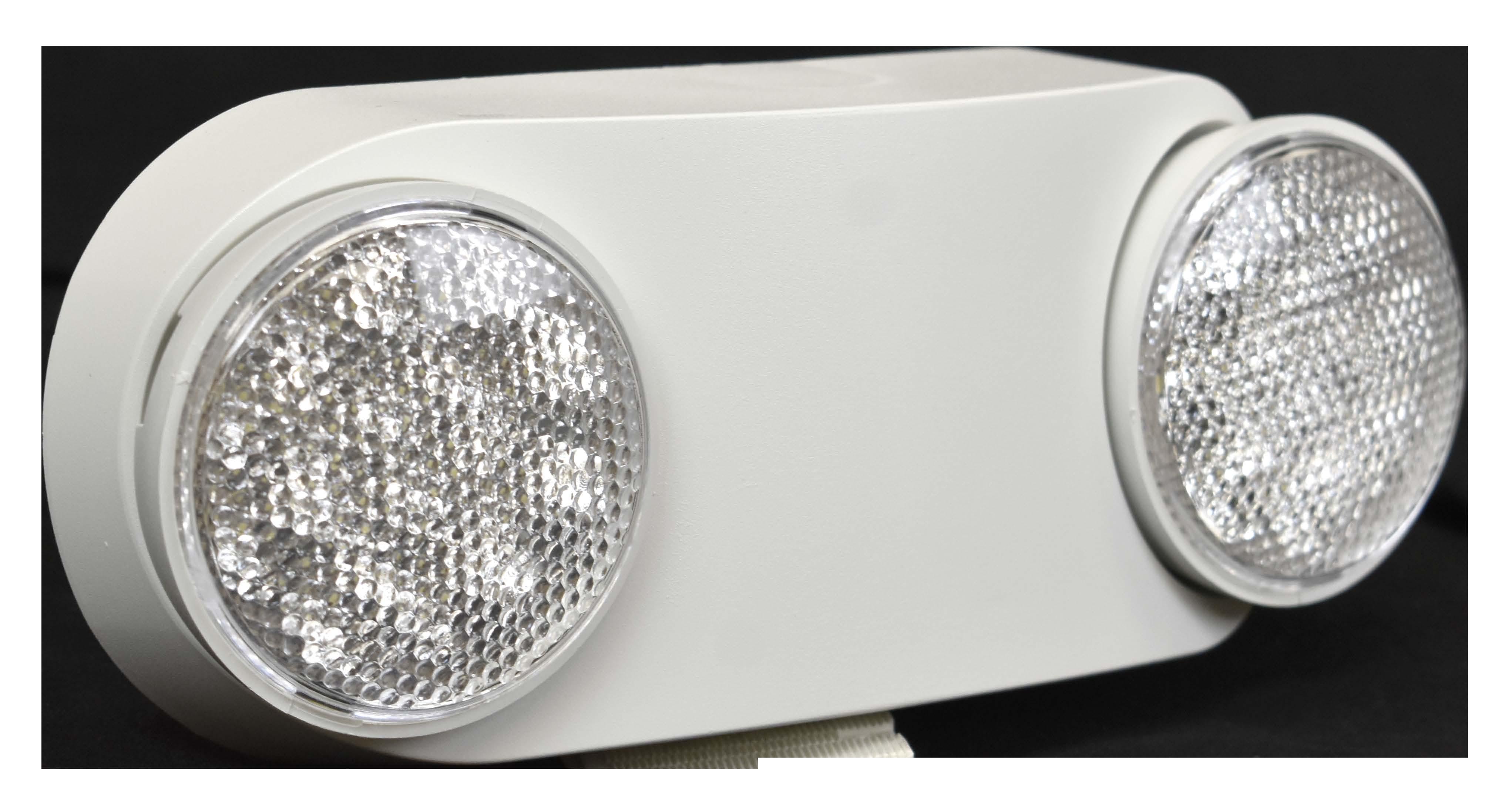

NE-612LED

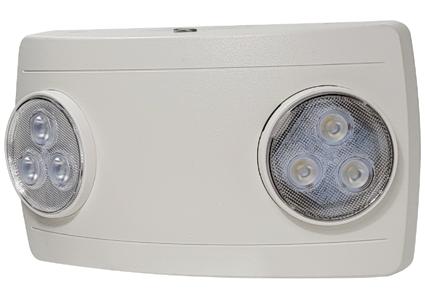

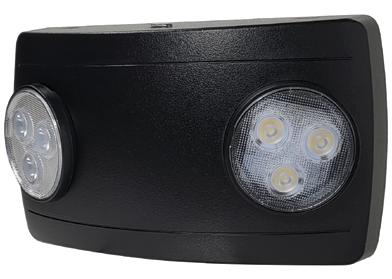

Compact Dual Head LED Emergency Light with Optional Remote Capability
Source: (2) 0.9W or 1W LED (2) 90lm to 150lm
PRODUCT DESCRIPTION
Luminaire provides 90 minutes of light from two adjustable heads for illuminating paths of egress upon failure of normal power. Emergency unit is available in higher lumen output and remote capability.
FEATURES
Compact housing with (2) adjustable LEDs Lightweight snap together design
Self-diagnostic and self-testing option available Ceiling or wall mounted
Universal 120/277VAC input
Remote capability
SPECIFICATION
Construction: Injection-molded thermoplastic ABS housing. Plastic enclosure with 5VA flame retardant. Quick connector design for easy installation. Two fully adjustable glare-free round heads for emergency lighting.
Mounting: Plastic enclosure includes a top and side knockout for conduit application. Suitable for wall mounting or ceiling mounting. Waterproof vandal resistant enclosure available, must specify NEG-602.
Operation: Luminaire will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time per battery.
ELECTRICAL
Input Voltage: 120/277VAC 60Hz
Lumens / Wattage:
NE-612LED: (2) 110lm / 0.9W
NE-612LEDRC: (2) 90lm / 0.9W
NE-612LEDHORC: (2) 150lm / 1W
Color Temperature: 5700K
Operating Temperature: 10˚C to 40˚C ambient temperature (-25°C to 50°C when used with NEG-602)
Batteries: NiMH 3.6V 2W maintenance-free
Remote Option: Luminaire is capable of including an additional 3.6V / 4W battery. Additional battery is used to power an additional remote emergency light. Upon power failure, each additional battery requires an additional 24 hours to recharge.
LABELS AND LISTINGS

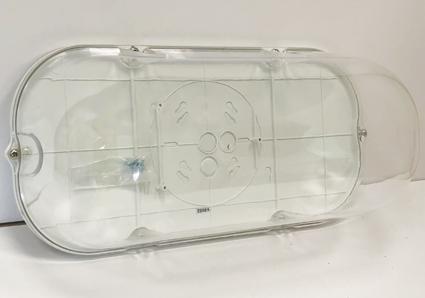

· cULus Listed for Damp Locations (Wet Location Listed when used with NEG-602)
Meets or exceeds all requirements in NFPA 70, NFPA 101 life safety code 5-Year Limited Warranty
Notes
PRODUCT IMAGES & DIMENSIONS

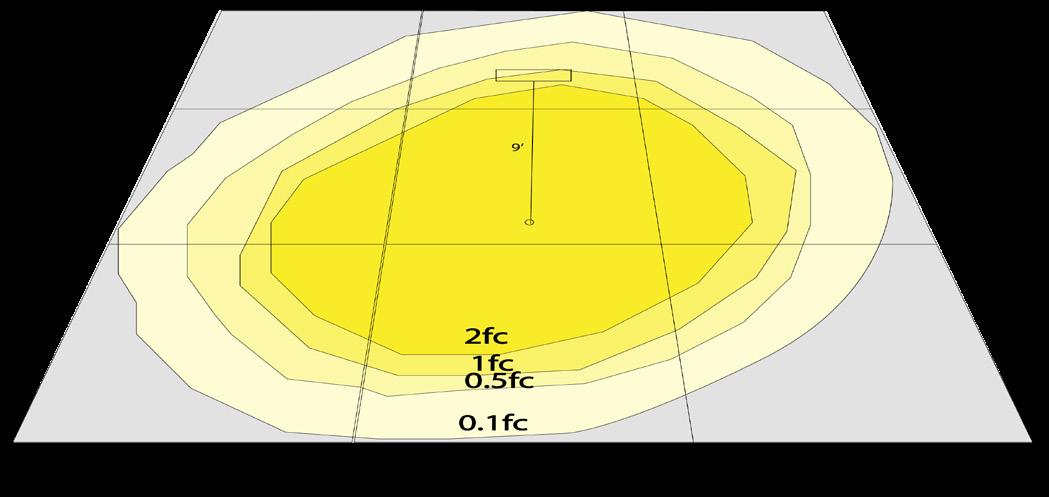

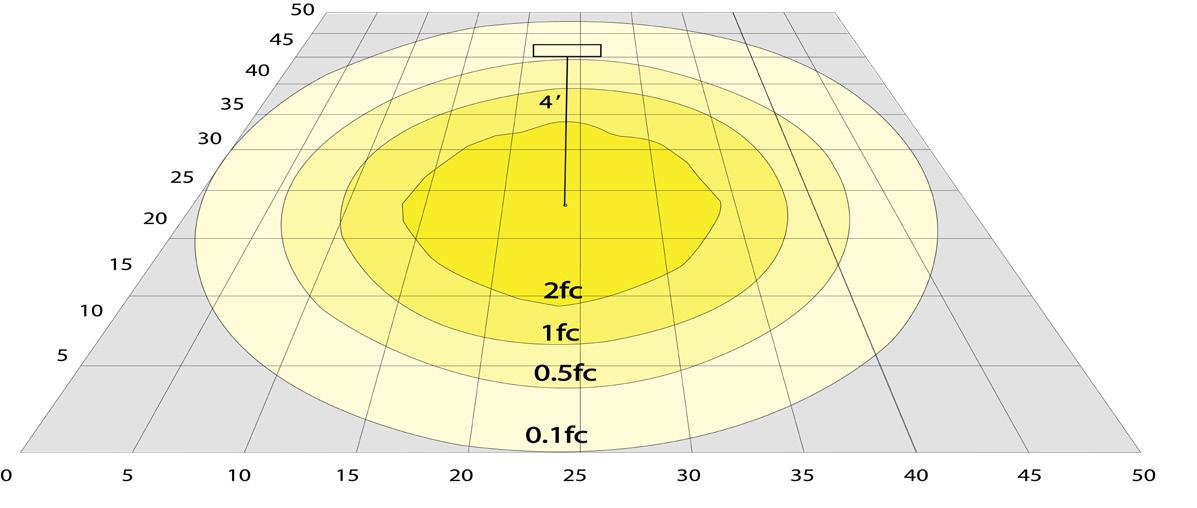

NFPA 101 requires 1.0 foot-candle average and 0.1 foot-candle minimum with a 40:1 maximum/minimum ratio. Below is a recommended mounting height and spacing on surface with reflectance at 80% ceiling, 50% walls, and 20% floor.
Compact Dual Head LED Emergency Light
White Finish
NE-612LEDRCB = (2) 0.9W / 90lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish NE-612LEDRCW = (2) 0.9W
for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish
NE-612LEDHORCW = (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
Example: NE-612LEDHORCW = Compact Dual Head LED Emergency Light with (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics

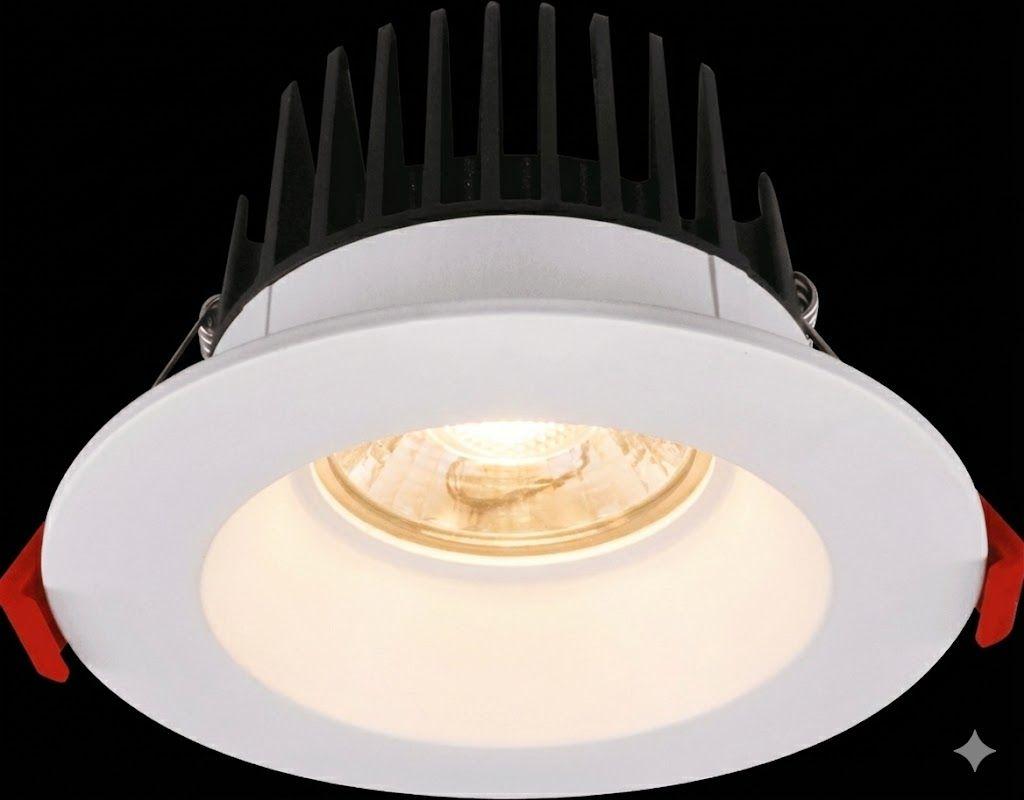

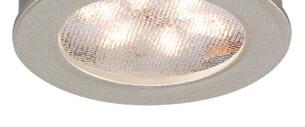

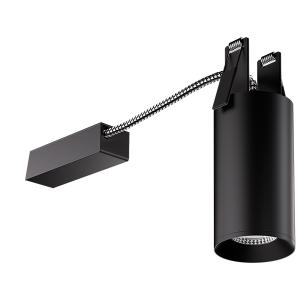

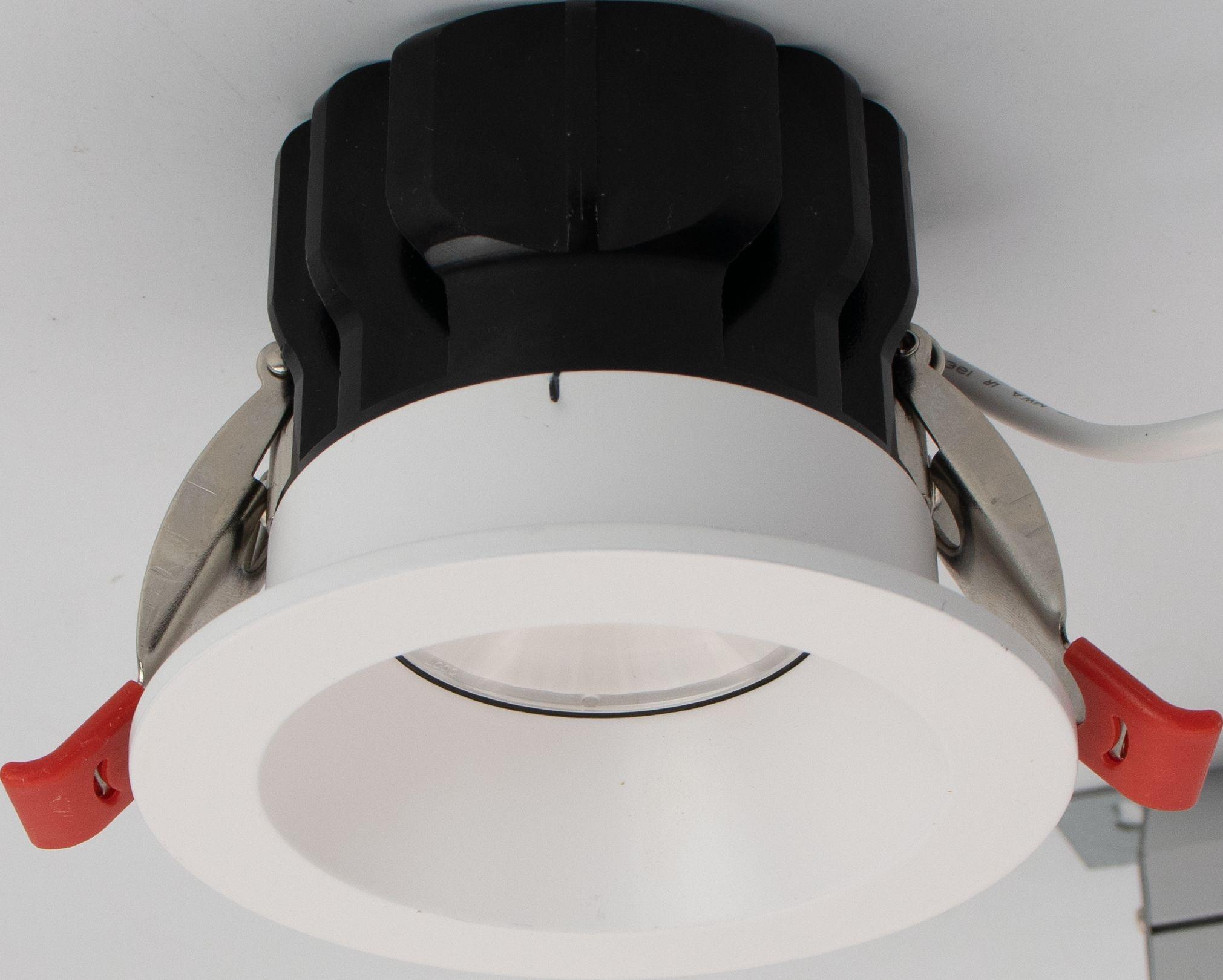

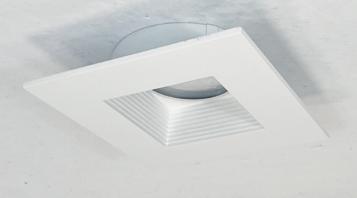

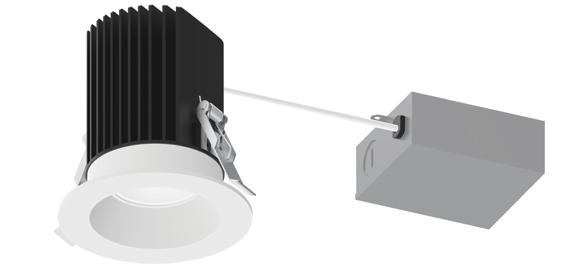

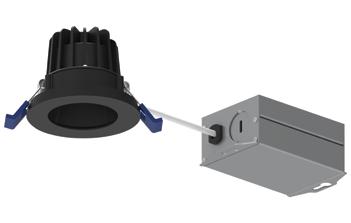

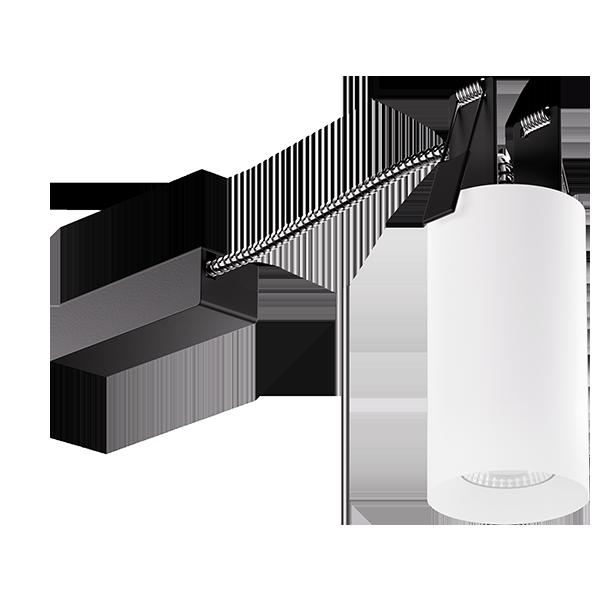

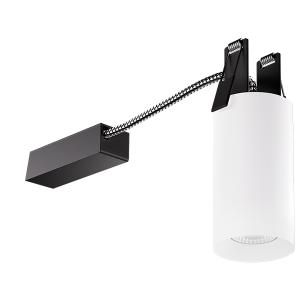

M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into multiple options with trim accessories and produces over 850 lumens.
FEATURES
No housing required - IC Airtight rated
Easy installation for remodel or new construction applications
Variety of trim accessories to configure desired appearance
· Quick disconnect allows for extended lengths
400lm, 600lm or 850lm LED packages
2700K, 3000K or 4000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Open downlight includes a reflector with the same finish as trim ; optional field changeable accessories are available; square trim, pinhole trim, wall wash trim, reflector inserts or baffle inserts.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (400lm/600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7" quick connect wire Luminaire includes 5" (400lm/600lm) or 4" (850lm) quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit s are available, see accessories.
Trims: M2 series is available in three lumen outputs with LED driver Round trims can be converted to baffles, pinholes or wall wash in the field with optional trims and inserts.
2" M2 Round Can-less LED Recessed Downlight
Lumens / Wattage Color Temperature Finish
NM2-2RDC40 = 400lm / 6W 27 = 2700K 30 = 3000K BB = Black MPW = White
NM2-2RDC60 = 600lm / 8W
NM2-2RDC85 1 = 850lm / 10W
Note: 4000K available in black finish only
M2 Trim Accessories
Accessory Type
27 = 2700K
30 = 3000K
40 = 4000K BB = Black MPW = White
OPTIONAL TRIM ACCESSORIES
NM2-2REFL : Reflector Insert for NM2-2RDC, Black or Haze
NM2-2BAF: Baffle Insert for NM2-2RDC, Black or White
NM2-2RPH: Round Pinhole Trim for NM2-2RDC, Black or White
NM2-2RW: Round Wall Wash Trim for NM2-2RDC, Black or White
NM2-2SDT: Square Trim for NM2-2RDC, Black or White
OPTIONAL MOUNTING ACCESSORIES
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2 : Two Head Multiple Lighting System Plate
NM2-MLS3: Three Head Multiple Lighting System Plate
NM2-EW-10 : 10' Quick Connect Linkable Extension Cable\ NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations 5-Year Limited Warranty · FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2025
NM2-2RDCXXXXBB 400lm or 600lm Black Finish
2-1/2" (40/60) 4-3/4" (85) 2" 3-3/16"
NM2-2REFL Reflector Insert
NM2-2RPH Round Pinhole Trim
NM2-2SDT Square Trim
NM2-2RDC85XXMPW 850lm White Finish
Cut out: 2-7/8"
4" (40/60) 3-7/8" (85)
NM2-2BAF Baffle Insert
NM2-2RW Round Wall Wash Trim
NM2-EW Extension Cables
Optional Accessories
Accessory Type Finish
NM2-MLS1 = One Head MLS Plate
NM2-MLS2 = Two Head MLS Plate
NM2-MLS3 = Three Head MLS Plate
Finish
NM2-2REFL = Reflector for NM2-2RDC B = Black HZ = Haze
NM2-2BAF = Baffle for NM2-2RDC
NM2-2RPH = Round Pinhole Trim for NM2-2RDC
NM2-2RW = Round Wall Wash Trim for NM2-2RDC
NM2-2SDT = Square Trim for NM2-2RDC
B = Black MPW = White
Example: NM2-2RDC6030MPW = 2" M2 Round Can-less LED Recessed Downlight, 600lm / 8W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
BB = Black MPW = White
NF-R246 = Universal New Construction Frame-In
NFC-R275 = New Construction Frame-In with Collar
NM2-EW-4 = 4' Quick Connect Extension Cable
NM2-EW-10 = 10' Quick Connect Extension Cable
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into multiple options with trim accessories and produces over 850 lumens.
FEATURES
No housing required - IC Airtight rated
Easy installation for remodel or new construction applications
Variety of trim accessories to configure desired appearance
· Quick disconnect allows for extended lengths
400lm, 600lm or 850lm LED packages
2700K, 3000K or 4000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Open downlight includes a reflector with the same finish as trim ; optional field changeable accessories are available; square trim, pinhole trim, wall wash trim, reflector inserts or baffle inserts.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (400lm/600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7" quick connect wire Luminaire includes 5" (400lm/600lm) or 4" (850lm) quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit s are available, see accessories.
Trims: M2 series is available in three lumen outputs with LED driver Round trims can be converted to baffles, pinholes or wall wash in the field with optional trims and inserts.
2" M2 Round Can-less LED Recessed Downlight
Lumens / Wattage Color Temperature Finish
NM2-2RDC40 = 400lm / 6W 27 = 2700K 30 = 3000K BB = Black MPW = White
NM2-2RDC60 = 600lm / 8W
NM2-2RDC85 1 = 850lm / 10W
Note: 4000K available in black finish only
M2 Trim Accessories
Accessory Type
27 = 2700K
30 = 3000K
40 = 4000K BB = Black MPW = White
OPTIONAL TRIM ACCESSORIES
NM2-2REFL : Reflector Insert for NM2-2RDC, Black or Haze
NM2-2BAF: Baffle Insert for NM2-2RDC, Black or White
NM2-2RPH: Round Pinhole Trim for NM2-2RDC, Black or White
NM2-2RW: Round Wall Wash Trim for NM2-2RDC, Black or White
NM2-2SDT: Square Trim for NM2-2RDC, Black or White
OPTIONAL MOUNTING ACCESSORIES
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2 : Two Head Multiple Lighting System Plate
NM2-MLS3: Three Head Multiple Lighting System Plate
NM2-EW-10 : 10' Quick Connect Linkable Extension Cable\ NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations 5-Year Limited Warranty · FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2025
NM2-2RDCXXXXBB 400lm or 600lm Black Finish
2-1/2" (40/60) 4-3/4" (85) 2" 3-3/16"
NM2-2REFL Reflector Insert
NM2-2RPH Round Pinhole Trim
NM2-2SDT Square Trim
NM2-2RDC85XXMPW 850lm White Finish
Cut out: 2-7/8"
4" (40/60) 3-7/8" (85)
NM2-2BAF Baffle Insert
NM2-2RW Round Wall Wash Trim
NM2-EW Extension Cables
Optional Accessories
Accessory Type Finish
NM2-MLS1 = One Head MLS Plate
NM2-MLS2 = Two Head MLS Plate
NM2-MLS3 = Three Head MLS Plate
Finish
NM2-2REFL = Reflector for NM2-2RDC B = Black HZ = Haze
NM2-2BAF = Baffle for NM2-2RDC
NM2-2RPH = Round Pinhole Trim for NM2-2RDC
NM2-2RW = Round Wall Wash Trim for NM2-2RDC
NM2-2SDT = Square Trim for NM2-2RDC
B = Black MPW = White
Example: NM2-2RDC6030MPW = 2" M2 Round Can-less LED Recessed Downlight, 600lm / 8W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
BB = Black MPW = White
NF-R246 = Universal New Construction Frame-In
NFC-R275 = New Construction Frame-In with Collar
NM2-EW-4 = 4' Quick Connect Extension Cable
NM2-EW-10 = 10' Quick Connect Extension Cable
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
4" M4 Round LED downlight are ideal for remodel or new constructions in residential and light commercial applications. IC Air-Tight rated luminaires require no housing, making installation easy.
FEATURES
No housing required - IC Airtight rated
· Easy installation for remodel or new construction applications
Square trim available for an alternative appearance
Quick disconnect allows for extended lengths
2700K or 3000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Optional field changeable square trim is available.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2" trade size knockouts and snap on cover with 7" quick connect wire. Luminaire includes 6 1/2" quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in s are available, see mounting accessories.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 1100lm / 15W
Color Temperature: 2700K or 3000K
Color Rendering Index: 90+CRI
Beam Spread: 37° Narrow Flood
Operating Temperature: 0°C to 25°C
Lifetime: 50,000 hours @ L70
Dimming: Dimmable down to 10% with Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL TRIM ACCESSORIES
NM4-SDT: Square Baffle Trim for NM4-RDC, Black or White
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations
· 5-Year Limited Warranty FCC compliant
Certified to the high efficacy requirements of California Title 24 JA8-2025

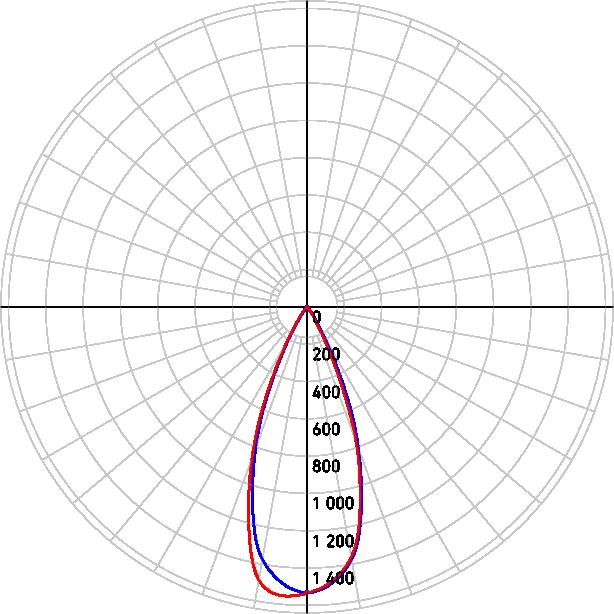

Performance Data
4" M4 Round Can-less LED Recessed Downlight
Color Temperature Finish
NM4-RDC27 = 2700K
NM4-RDC30 = 3000K

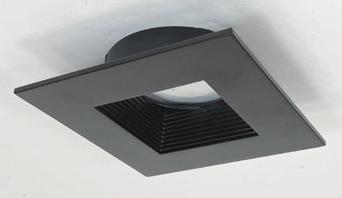

Square Trim Accessory
Description
NM4-SDTB = Square Baffle Trim, Black Finish
NM4-SDTMPW = Square Baffle Trim, White Finish NM4-SDT Square Baffle Trim
Example: NM4-RDC30MPW = 4" M4 Round Can-less LED Recessed Downlight, 1100lm / 15W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
4" M4 Round LED downlight are ideal for remodel or new constructions in residential and light commercial applications. IC Air-Tight rated luminaires require no housing, making installation easy.
FEATURES
No housing required - IC Airtight rated
· Easy installation for remodel or new construction applications
Square trim available for an alternative appearance
Quick disconnect allows for extended lengths
2700K or 3000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Optional field changeable square trim is available.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2" trade size knockouts and snap on cover with 7" quick connect wire. Luminaire includes 6 1/2" quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in s are available, see mounting accessories.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 1100lm / 15W
Color Temperature: 2700K or 3000K
Color Rendering Index: 90+CRI
Beam Spread: 37° Narrow Flood
Operating Temperature: 0°C to 25°C
Lifetime: 50,000 hours @ L70
Dimming: Dimmable down to 10% with Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL TRIM ACCESSORIES
NM4-SDT: Square Baffle Trim for NM4-RDC, Black or White
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations
· 5-Year Limited Warranty FCC compliant
Certified to the high efficacy requirements of California Title 24 JA8-2025
Square Baffle Trim
4" M4 Round Can-less LED Recessed Downlight
Color Temperature Finish
NM4-RDC27 = 2700K
NM4-RDC30 =
Square Trim Accessory
Description
NM4-SDTB = Square Baffle Trim, Black Finish NM4-SDTMPW = Square Baffle Trim, White Finish
Example: NM4-RDC30MPW = 4" M4 Round Can-less LED Recessed Downlight, 1100lm / 15W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
Project Information:
Fixture Type:
NARROWLINE
Project Name:
Narrow Recessed Downlight LED - 1x5 Square

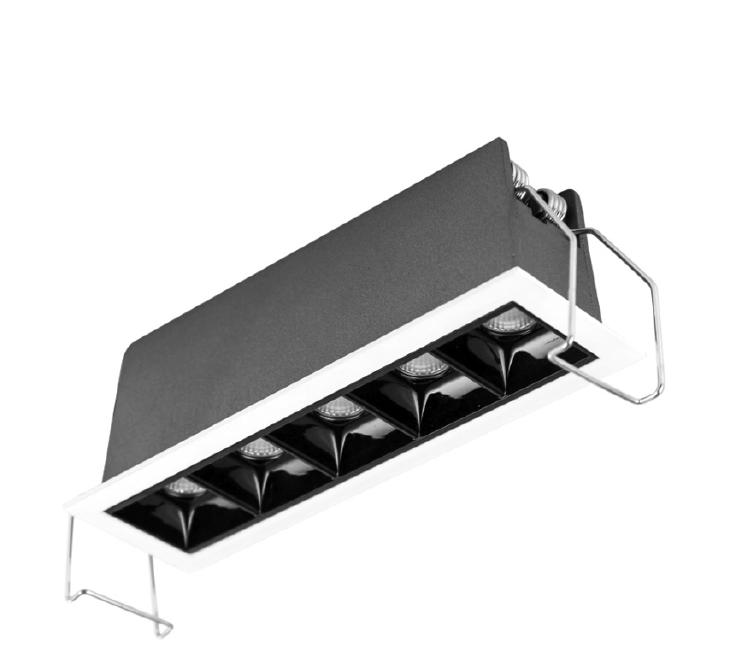

Revolutionary narrow recessed downlight available in slim trim or trimless. Its simplified retrofit installation can be used in both new and existing spaces.
LED lighting engine is high performance, low power that provides outstanding reliability and color quality/consistency. 2700K, 3000K, 3500K, 4000K, 5000K, and 6500K color temperatures are available with 95 CRI.
• Life Rated for 40,000 hours at 70% lumen maintenance
• All testing reports are based on published industry procedures
Quick Info
Application
New Construction / Remodeling
Delivered Lumens
Black Bevel - 685lm (10W) 5x2W | White Bevel - 856lm (10W) 5x2W
Color Temperature
2700K 5000K 3000K 6500K 3500K
4000K
Input Voltage
120/277V
Trims
Slim Trim - Aluminum powder coated
Housing Ratings
N/A
Guarantee
40,000 hrs | 3 years
Color Quality 95 CRI, 2-step SDCM
Light Distribution General
Dimming TRIAC/ELV
Junction Box
IC Rated - REMOTE
Module Ratings Wet Location
Additional Dimming Options 0-10 / DALI Dimming / Lutron EcoSystem
GLASSHOUSE TYPE
DALS LIGHTING

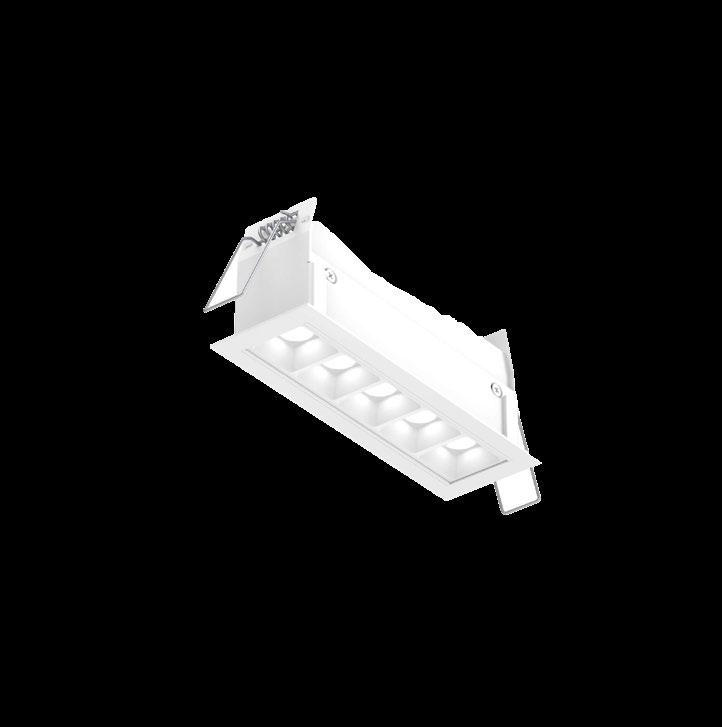

5 Light Microspot LED Recessed downligh NOTES
Providing contemporary and functional style to any space,the MSL Recessed Series with its glossy piano-black reflector is available in various styles and features.

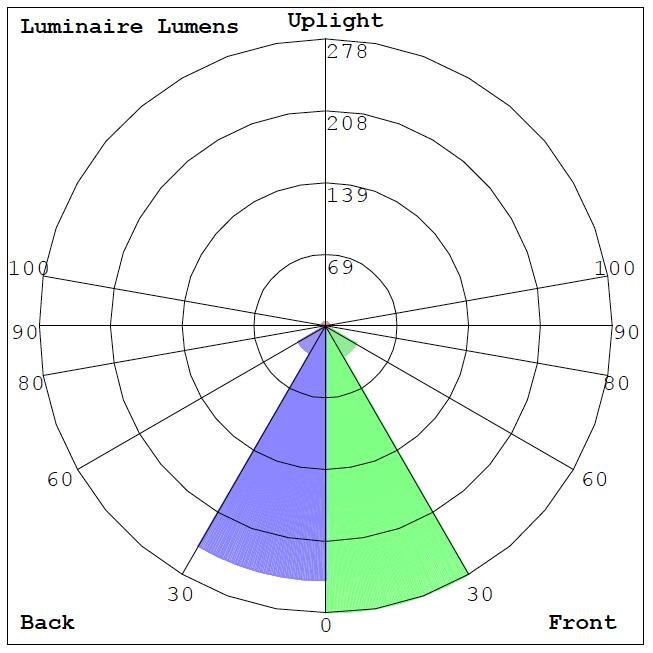

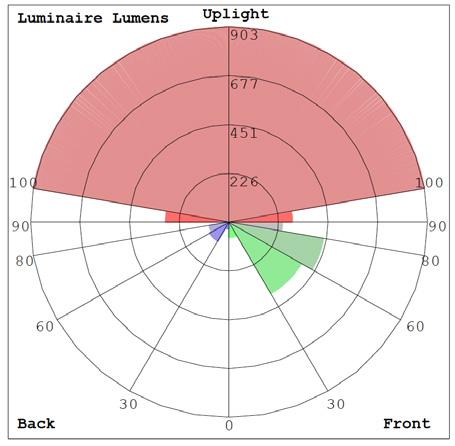

LIGHT DISTRIBUTION
output measured at 3000k
(W)
Delivered lumens*
Voltage (v)
Beam angle (deg)
Cut hole size (in)
Lifespan (hrs)
FT rating
Binning LED model
IP
Input
Output
(V)
(V)
LG-7005
Multiple 5 Cell Narrow Recessed Downlight LED
Ordering Guide
PRODUCT CODE
LG - 7005
MOUNTING (OPTIONAL)
N - New Construction Mounting Plate
COLOR TEMPERATURE
27K - 2700K
30K - 3000K (STANDARD)
35K - 3500K
40K - 4000K
50K - 5000K
65K - 6500K
CRI
95 - 95 CRI
BEAM SPREAD
15 °
30 ° (STANDARD)
45 °
BEVEL COLOR
BBL - Black (STANDARD)
BWH - White
DIMMING OPTION
T - Triac/ELV (STANDARD)
D - DALI
Project Information: Project Name:
Fixture Type: Location:
LENS OPTICAL
SF - Soft Focus (STANDARD)
LI - Linear Spread
PR - Prismatic
FRAME COLOR
WH - White (STANDARD)
BL - Black
ECO - (Hi - lume Premier 0.1% Eco System LED Driver with Soft-on, Fade-to-black dimming technology)
0 - 10
LIGHTANDGREEN.COM
1-800-640-1907
Example Number
N 30K 95 30 SF BBL WH T
Order Number
LG-7005
LG-7005
GLASSHOUSE TYPE F5
WHAT'S IN THE BOX
LED recessed fixture
Junction box
3x Push-in wire connectors
Mounting hardware
Instruction sheet
RECOMMENDED DIMMER LIST*
Lutron DVCL-153PR-WH-C*
Lutron CTCL-153PDH-WH-C*
Lutron STCL-153PH-WH-C*
Lutron MACL-153MRHW-WHC*
Lutron Caseta
Lutron
Low-End Adjustment Feature
Minimal buzzing noise may occur with some dimmers
Drilling plate
REC-CC-EXT8FT
96” extension cord for recessed fixtures
REC-CC-EXT20FT
240” extension cord for recessed fixtures
DALS offers a 5-year warranty from the date of purchase which covers repairs or replacement of defective parts of the housing, optics, and electronics.
To contact DALS customer service call 1-877-430-1818 or send an e-mail to info@dals.com.
Project Information:
Fixture Type:
NARROWLINE
Project Name:

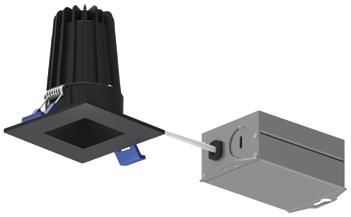

Narrow Recessed Downlight LED - 1x5 Square
Revolutionary narrow recessed downlight available in slim trim or trimless. Its simplified retrofit installation can be used in both new and existing spaces.
LED lighting engine is high performance, low power that provides outstanding reliability and color quality/consistency. 2700K, 3000K, 3500K, 4000K, 5000K, and 6500K color temperatures are available with 95 CRI.
• Life Rated for 40,000 hours at 70% lumen maintenance
• All testing reports are based on published industry procedures
Quick Info
Application
New Construction / Remodeling
Delivered Lumens
Black Bevel - 685lm (10W) 5x2W | White Bevel - 856lm (10W) 5x2W
Color Temperature
2700K 5000K
3000K 6500K 3500K
4000K
Input Voltage
120/277V
Trims
Slim Trim - Aluminum powder coated
Housing Ratings
N/A
Guarantee
40,000 hrs | 3 years
Color Quality 95 CRI, 2-step SDCM
Light Distribution General
Dimming TRIAC/ELV
Junction Box
IC Rated - REMOTE
Module Ratings Wet Location
Additional Dimming Options 0-10 / DALI Dimming / Lutron EcoSystem
GLASSHOUSE TYPE F5E
DALS LIGHTING
5 Light Microspot LED Recessed downligh NOTES
Providing contemporary and functional style to any space,the MSL Recessed Series with its glossy piano-black reflector is available in various styles and features.
LIGHT DISTRIBUTION
output measured at 3000k
(W)
Delivered lumens*
Voltage (v)
Beam angle (deg)
Cut hole size (in)
Lifespan (hrs)
FT rating
Binning LED model
IP
Input
Output
(V)
(V)
Multiple 5 Cell Narrow Recessed Downlight LED
Ordering Guide
PRODUCT CODE
LG - 7005
MOUNTING (OPTIONAL)
N - New Construction Mounting Plate
COLOR TEMPERATURE
27K - 2700K
30K - 3000K (STANDARD)
35K - 3500K
40K - 4000K
50K - 5000K
65K - 6500K
CRI
95 - 95 CRI
BEAM SPREAD
15 °
30 ° (STANDARD)
45 °
BEVEL COLOR
BBL - Black (STANDARD)
BWH - White
DIMMING OPTION
T - Triac/ELV (STANDARD)
D - DALI
Project Information: Project Name:
Fixture Type: Location:
LENS OPTICAL
SF - Soft Focus (STANDARD)
LI - Linear Spread
PR - Prismatic
FRAME COLOR
WH - White (STANDARD)
BL - Black
ECO - (Hi - lume Premier 0.1% Eco System LED Driver with Soft-on, Fade-to-black dimming technology)
0 - 10
LIGHTANDGREEN.COM
1-800-640-1907
Example Number
N 30K 95 30 SF BBL WH T
Order Number
LG-7005
LG-7005
GLASSHOUSE TYPE F5E ALT
WHAT'S IN THE BOX
LED recessed fixture
Junction box
3x Push-in wire connectors
Mounting hardware
Instruction sheet
RECOMMENDED DIMMER LIST*
Lutron DVCL-153PR-WH-C*
Lutron CTCL-153PDH-WH-C*
Lutron STCL-153PH-WH-C*
Lutron MACL-153MRHW-WHC*
Lutron Caseta
Lutron
Low-End Adjustment Feature
Minimal buzzing noise may occur with some dimmers
Drilling plate
REC-CC-EXT8FT
96” extension cord for recessed fixtures
REC-CC-EXT20FT
240” extension cord for recessed fixtures
DALS offers a 5-year warranty from the date of purchase which covers repairs or replacement of defective parts of the housing, optics, and electronics.
To contact DALS customer service call 1-877-430-1818 or send an e-mail to info@dals.com.
TYPE F6 SPEC GLASSHOUSE
STLHD SERIES TAPE LIGHT
24V DC Standard Grade (HD) High Density

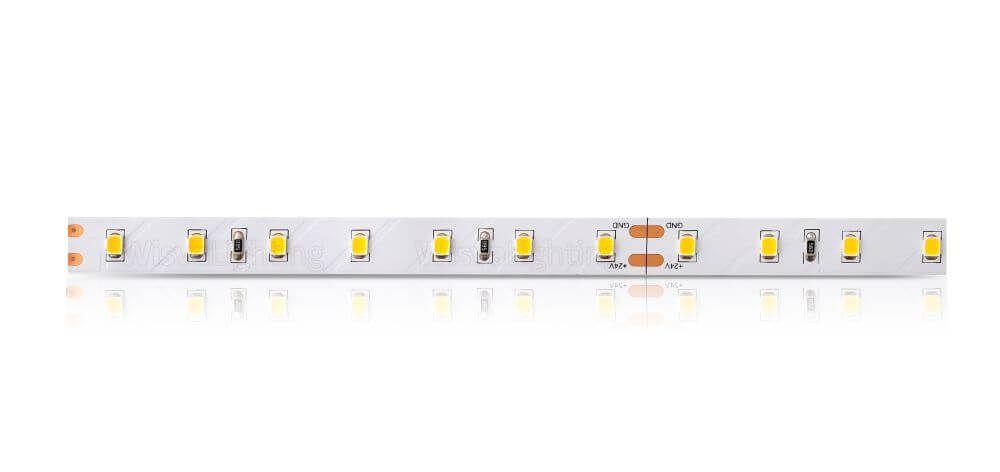

High Density (HD) tape light features highly efficient and compact LED chip sets that allow for tighter spacing without sacrificing lumen loss and more precise cutting increments for greater customization with run lengths up to 32.8 feet.
• High Density (HD) LED spacing in Standard Grade Output
• Available in 2700K, 3000K, 3500K, 4000K, and 5000K
• 90+ color rendering index
• Lumen output ranging from 200Lm to 235Lm per foot
• Suitable for use in closets when used in an enclosed extrusion based on NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5) See page 4 for more details on NEC Code.
STLHD SERIES QUICK SPECS
VOLTAGE 24V DC
WATTAGE 2.19W / ft
LUMENS Up to 235Lm / ft
CCT OPTIONS 2700K / 3000K / 3500K / 4000K / 5000K
CRI 90+
MAX RUN 32.8ft
CUTTING POINTS 2.46” (62.5mm)
IP RATING IP54 - Coated / IP65 Jacketed
DIMMING TRIAC / ELV (5 - 100%)
DIMENSIONS 0.39” (10mm) W x 0.06” (1.65mm) H
BEAM ANGLE 120°
OPERATING TEMP 5°C (41°F) to 70°C (158°F)
CERTIFICATIONS cULus Listed - Dry / Damp Location
RATED LIFE 50,000 Hours
PROJECT:
TYPE:
IP54 (Coated)
Features a light nano-coating applied to the tape light and LED’s that protects from moisture and dust.
Best suited: Indoor dry & damp locations
IP65 (Jacketed)*
Features a clear protective silicone jacketing that protects the tape light from sprayed water and dust. Best suited: Indoor & Outdoor damp & wet locations
*Not suitable for exposure to chemicals or salt.
TRULUX / STLHD SERIES
STLHD SERIES QUICK LOOK
STLHD SERIES IP RATINGS
GLASSHOUSE TYPE F6 (267'TOTAL) ALT
LTR-P Professional Series
3W, 12VDC and 24VDC LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Includes Sure-Tite connectors
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
SPECIFICATIONS
•12V/24V
• 3 watts per foot
•90+ CRI
CERTIFICATION
•ETL (12V) / UL (24V)
• Title 24 compliant when used with used with specific drivers. Consult factory. •Class 2
• Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space
WARRANTY
•5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
LED-CHL2-6-WH White channel, whilte lens, (4) mounting clips, (4) screws
LED-CHL2-6-BK Black channel, whilte lens, (4) mounting clips, (4) screws
LED-CHL2 LENS-4-BK Lens in black for LED-CHL2-4
LED-CHL2 LENS-6-BK Lens in black for LED-CHL2-6
LED-CHL2-ECG (2) End caps for LED-CHL2-CA: light gray, one solid, one with hole
LED-CHL2-ECW (2) End caps for LED-CHL2-WH: white, one solid, one with hole
LED-CHL2-ECB (2) End caps for LED-CHL2-BK: black, one solid, one with hole
LED-CHL2-MC (2) Mounting clips and (2) screws
LED-CHL2-AMC (2) Adjustable mounting clips and (2) screws
TYPE F7 SPEC GLASSHOUSE

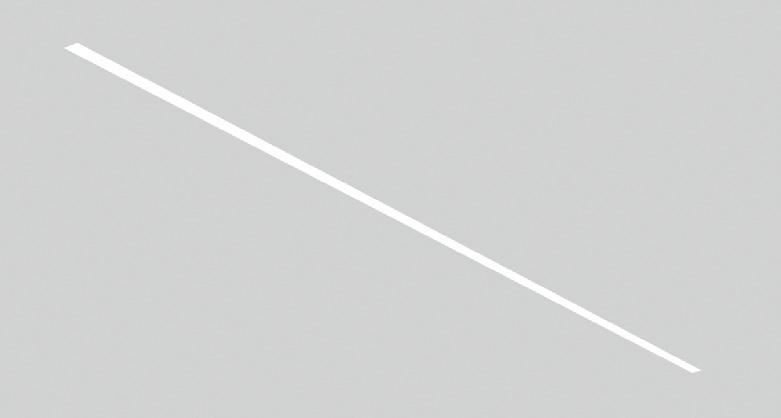

ZENLITE® NC1-2G
1” Recessed LED Lighting System for New Construction
DESCRIPTION
ZENLITE® NC1-2G is an LED Lighting System for 5/8” Drywall Walls/Ceilings. Our patent-pending design allows for projection of clean horizontal, vertical, and diagonal lines of light. Channel is installed directly to studs with 16-inch spacing screw holes. The channel has the ability to connect seamlessly with our ZENLITE® NC1 Pendant Mount and Surface Mounted fixtures; allowing for a variety of configurations. To achieve a certain light output, choose between the different available light modules and color temperatures. Light modules are also dimmable when using a dimmable driver. ZENLITE® NC1-2G is a recessed lighting fixture that can create a seamless line of light and has the ability to achieve various patterns/shapes.

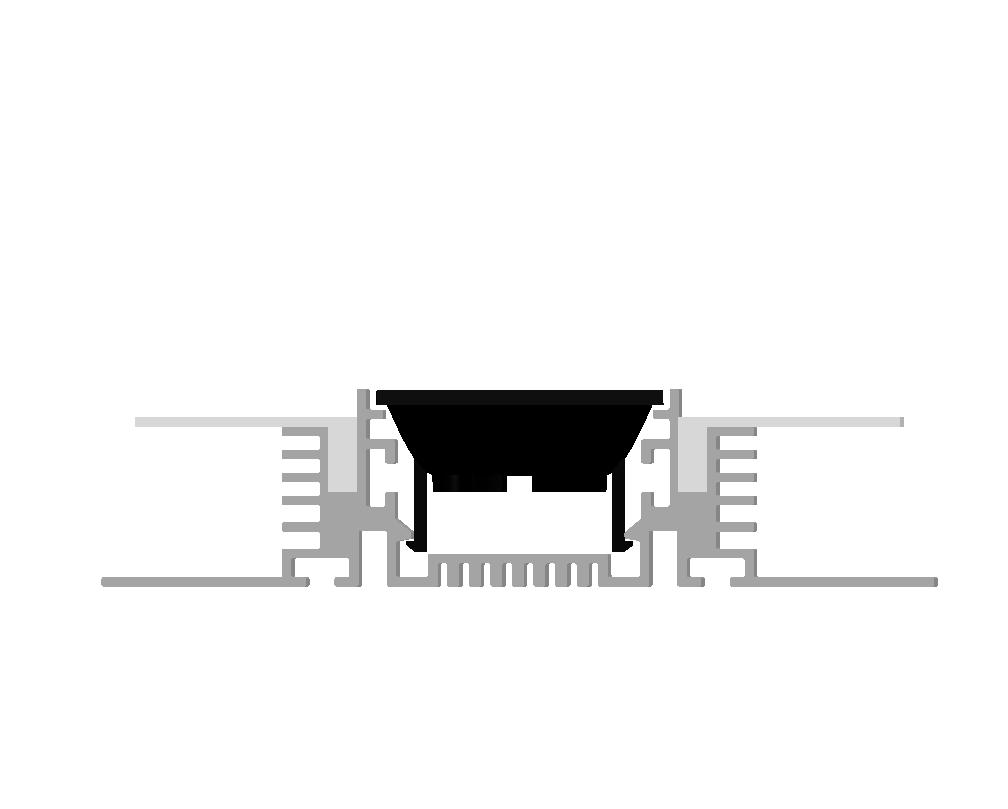

DIMENSIONS
LUMEN OUTPUT PERFORMANCE TABLE
Note: Results were obtained using a 1ft sample with diffused lens
NOTE
Project
Fixture Type:
Name: FIXTURE CLEARANCE
NOTE FROM EXPRESSIVE: PLEASE ADVISE LENS OPTION
NOTE FROM EXPRESSIVE: PLEASE ADVISE FEED OPTIONS
We reserve the right to change specifications without prior notice. 2024 PreciseLED Inc.
Page 1 of 5
52 Railroad Ave www.preciseled.com Valley Stream, NY 11580 info@preciseled.com File Name: ZNLT-NC1-DROPLENS SPEC B04 SD JAN 10, 2024
GLASSHOUSE
LTR-S Specification Series
4.5 COB (Chip On Board) LED Tape Specification Sheet
PRODUCT OVERVIEW
The newest technology in flexible LED tape is the COB (Chip On Board). Tightly spaced diodes are encapsulated into a single phosphor strip that provides a seamless linear light display with no LED pixelation. Available in 2700K, 3000K, 3500K, 4000K and 5000K.
FEATURES
• 24VDC
• 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 146 LEDs per foot
• Cuttable every 2”
• 180° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”
• Includes Sure-Tite connectors
SPECIFICATIONS
ELECTRICAL
• 24V
• 4.5 watts per foot
OPTICS
• 95+ CRI
• -4°F to 122°F
Project
CERTIFICATION
• UL
• Title 24 compliant when used with specific drivers. Consult factory.
WARRANTY
• 5-year warranty when paired with GM power supply.
TYPE
LED Tape Mud-In
Aluminum Channels and Accessories
PRODUCT OVERVIEW

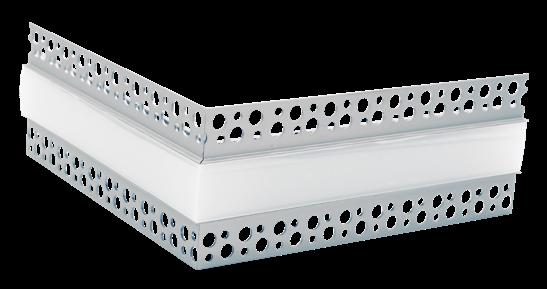

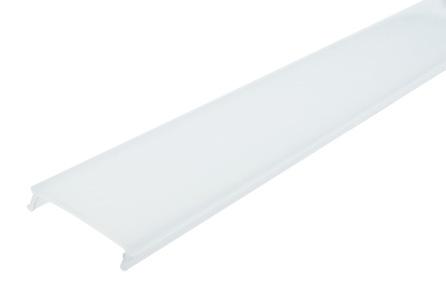

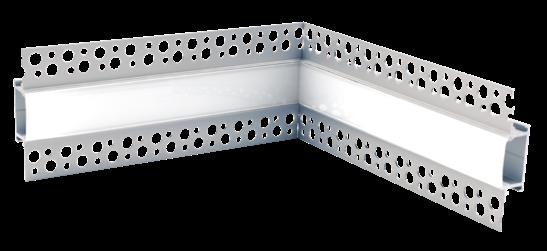

Recess illuminated sections of light for clean looking and creative design options. The aluminum, perforated frame enables easy mud-in installation. Includes snap-on frosted lens to produce even illumination and reduce pixelization. Available in 6’ lengths with pre-made corner sections.
FITS FOLLOWING LEDTASK™ LTR SERIES TAPE
• LTR-E Economy Series
• LTR-P Professional Series (Dry)
• LTR-S COB (Chip On Board)
• LTR-S-DTW (Dim to Warm)
• LTR-S-TW (Twist Task)
• LTR-S-RGBW (Dry)
SPECIFICATIONS
CONSTRUCTION ACCESSORIES
• Extruded aluminum channel • End caps OPTICS USAGE
• Frosted lens (provided) • Dry location only CONNECTORS WARRANTY
• Sure-Tite STW Series • 5 years
• Sure-Tite ESTW Series

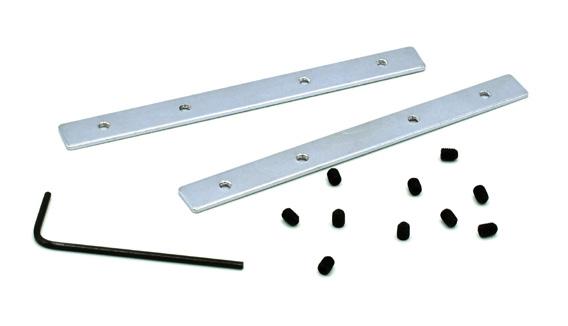

* All corner sections include 4 joiners, set screws, hex key
TYPE
LED Tape Mud-In Aluminum Channels and Accessories
TYPE F7E SPEC GLASSHOUSE
ZENLITE® NC1-2G
1” Recessed LED Lighting System for New Construction
DESCRIPTION
ZENLITE® NC1-2G is an LED Lighting System for 5/8” Drywall Walls/Ceilings. Our patent-pending design allows for projection of clean horizontal, vertical, and diagonal lines of light. Channel is installed directly to studs with 16-inch spacing screw holes. The channel has the ability to connect seamlessly with our ZENLITE® NC1 Pendant Mount and Surface Mounted fixtures; allowing for a variety of configurations. To achieve a certain light output, choose between the different available light modules and color temperatures. Light modules are also dimmable when using a dimmable driver. ZENLITE® NC1-2G is a recessed lighting fixture that can create a seamless line of light and has the ability to achieve various patterns/shapes.
DIMENSIONS
LUMEN OUTPUT PERFORMANCE TABLE
Note: Results were obtained using a 1ft sample with diffused lens
NOTE
Project
Fixture Type:
Name: FIXTURE CLEARANCE
NOTE FROM EXPRESSIVE: PLEASE ADVISE LENS OPTION
NOTE FROM EXPRESSIVE: PLEASE ADVISE FEED OPTIONS
We reserve the right to change specifications without prior notice. 2024 PreciseLED Inc.
Page 1 of 5
52 Railroad Ave www.preciseled.com Valley Stream, NY 11580 info@preciseled.com File Name: ZNLT-NC1-DROPLENS SPEC B04 SD JAN 10, 2024
GLASSHOUSE
LTR-S Specification Series
4.5 COB (Chip On Board) LED Tape Specification Sheet
PRODUCT OVERVIEW
The newest technology in flexible LED tape is the COB (Chip On Board). Tightly spaced diodes are encapsulated into a single phosphor strip that provides a seamless linear light display with no LED pixelation. Available in 2700K, 3000K, 3500K, 4000K and 5000K.
FEATURES
• 24VDC
• 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 146 LEDs per foot
• Cuttable every 2”
• 180° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”
• Includes Sure-Tite connectors
SPECIFICATIONS
ELECTRICAL
•24V
• 4.5 watts per foot
CERTIFICATION
Project
• UL •Title 24 compliant when used with specific drivers. Consult factory.
WARRANTY
•5-year warranty when paired with GM power supply. OPTICS
•95+ CRI
TYPE
LED Tape Mud-In
Aluminum Channels and Accessories
PRODUCT OVERVIEW
Recess illuminated sections of light for clean looking and creative design options. The aluminum, perforated frame enables easy mud-in installation. Includes snap-on frosted lens to produce even illumination and reduce pixelization. Available in 6’ lengths with pre-made corner sections.
FITS FOLLOWING LEDTASK™ LTR SERIES TAPE
• LTR-E Economy Series
• LTR-P Professional Series (Dry)
• LTR-S COB (Chip On Board)
• LTR-S-DTW (Dim to Warm)
• LTR-S-TW (Twist Task)
• LTR-S-RGBW (Dry)
SPECIFICATIONS
CONSTRUCTION ACCESSORIES
• Extruded aluminum channel • End caps OPTICS USAGE
• Frosted lens (provided) • Dry location only CONNECTORS WARRANTY
• Sure-Tite STW Series • 5 years
• Sure-Tite ESTW Series
* All corner sections include 4 joiners, set screws, hex key
TYPE
LED Tape Mud-In Aluminum Channels and Accessories
TYPE F9 SPEC GLASSHOUSE
Topwind
DESCRIPTION
Topwind provides a uniform and smooth illuminated surface with a beam angle of 270 °. It has a flexible and durable protection layer that is water proof, flame resistant, saltwater resistant, and UV resistant. The accessories for this product allow for quick and easy installation without the need for a channel.
SPECIFICATIONS
• Voltage: 24V
• Watts per foot: 4.4W/ft
• Lumens per foot: 417 Lm/ft (3000K)
• Dimmable using dimmable driver
• Ambient Temperature: -4°F ~ +113°F
• Humidity: 40%-70% R
• Protection: IP65, Rated for Outdoor use under canopy
A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. TopFlex enables vertical bending that conforms tape around curvilinear surfaces.
FEATURES
•Multiple power feed options
•Tape encased in UV stable silicone (UV protected)
•Wireless control with LUXcontrol App and controller
•2700K, 3000K, 4000K / Amber
•120° viewing angle
•Maximum run: 32'-8"
•Cuttable and joinable in two inch increments
•Each run requires an end cap (sold separately)
•No tools required for capping and joining
•Mounting clips included (recommend use one per foot)
SPECIFICATIONS
ELECTRICAL
•24VDC
•3W per foot
PHOTOMETRIC
•90+ CRI
AMBIENT OPERATING TEMP
•-13°F - 131°F
NV24T-3W-27K-16 16'-4"218lm2700K
NV24T-3W-27K-32 32'-8"218lm2700K
NV24T-3W-30K-16 16'-4"230lm3000K
NV24T-3W-30K-32 32'-8"230lm3000K
NV24T-3W-40K-16 16'-4"217lm4000K
NV24T-3W-40K-32 32'-8"217lm4000K
Colors
NV24T-3W-AM-16 16'-4"N/AAmber
NV24T-3W-AM-32 32'-8"N/AAmber
NV24T-3W-BL-16 16'-4"N/A Blue
NV24T-3W-BL-32 32'-8"N/A Blue
NV24T-3W-GR-16 16'-4"N/AGreen
NV24T-3W-GR-32 32'-8"N/AGreen
NV24T-3W-RD-16 16'-4"N/A Red
NV24T-3W-RD-32 32'-8"N/A Red
Max Run: 32'-8"
Kelvin temperature (color) ±100K.
NOTE: Every reel includes (1) NV24T-PF-EF (tape-to-power feed with 48" of lead). 16' reel includes (16) NV24T-MC-A mounting clips and screws. 32' reel comes with (32) NV24T-MC-A mounting clips and screws.
Amber Red Blue Green
3000K
TopFlex Cutaway
GLASSHOUSE TYPE F9 (155') ALT
NeoVision24 TopFlex
Flexible Neon LED Tape Specification Sheet
CONNECTORS AND ACCESSORIES
Product
NV24T-PF-EF8
NV24T-PF-BF8
NV24T-SP
NV24T-CHL-A4
NV24T-CHL-A6
NV24T-MC-A
Tape-to-Power Flexible End Feed, 8 ft.
Tape-to-Power Flexible Bottom Feed, 8 ft.
Tape-to-Tape Splice Connector
Aluminum Channel, 4 ft.
Aluminum Channel, 6 ft.
Aluminum Mounting Clips (set of 20)
Product
NV24T-TTC6
NV24T-TTC12
NV24T-TTC24
Tape-to-Tape Flexible Connector, 6"
Tape-to-Tape Flexible Connector, 12"
Tape-to-Tape Flexible Connector, 24"
NV24T-FLEX-CHL Flexible Mounting Channel, 39.5"
NV24T-EC End Cap
NV24-CT
Tape Cutting Tool
The above connectors, channels, mounting clips and caps are for the exclusive use of NeoVision24 TopFlex Neon Tape and are ordered separately.
End Feed
NV24T-PF-EF8
Bottom Feed
NV24T-PF-BF8
Tape Configuration Example
NV24T-EC
NV24T-CHL-A4
NV24T-CHL-A6
2-1/2" Minimum Bend Radius
NOTE: Each run requires an end cap (sold separately)
NV24T-EC
Splice Connector
NV24T-SP
Aluminum Channel
NV24T-CHL-A4
NV24T-CHL-A6
End Cap
NV24T-EC
Mounting Clips
NV24T-MC-A
Tape-to-Tape Connector
NV24T-TTC12 |
NV24T-TTC6
NV24T-TTC24
Flexible Mounting Channel
NV24T-FLEX-CHL
NV24T-MC-A
NV24T-FLEX-CHL
NV24T-FLEX-CHL
NV24T-SP
NV24T-TTC6
NV24T-TTC12
NV24T-TTC24
NV24T-PF-EF8
NV24T-PF-BF8
NV24T-CHL-A4
NV24T-CHL-A6
NeoVision24 TopFlex
Flexible Neon LED Tape Specification Sheet
RF CONTROLLER
LineDrive Power Supply
CM-RF-UNV-5CH RF Controller
Incoming power for (L N G) options can be 120V or 277V. Check power supply for proper input voltage and output power required. Power Supply output voltage must match LED operating voltage. (24VDC) Power supply used MUST NOT BE DIMMED at the input to properly power the controls. See Controller instructions for pairing and wiring details.
Note: Multiple power supplies can be replaced with a single multi-output power supply.
POWER SUPPLIES
LED Tape
NeoVision24
NeoVision24
NeoVision24
Topwind
DESCRIPTION
Topwind provides a uniform and smooth illuminated surface with a beam angle of 270 °. It has a flexible and durable protection layer that is water proof, flame resistant, saltwater resistant, and UV resistant. The accessories for this product allow for quick and easy installation without the need for a channel.
SPECIFICATIONS
• Voltage: 24V
• Watts per foot: 4.4W/ft
• Lumens per foot: 417 Lm/ft (3000K)
• Dimmable using dimmable driver
• Ambient Temperature: -4°F ~ +113°F
• Humidity: 40%-70% R
• Protection: IP65, Rated for Outdoor use under canopy
A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. TopFlex enables vertical bending that conforms tape around curvilinear surfaces.
FEATURES
•Multiple power feed options
•Tape encased in UV stable silicone (UV protected)
•Wireless control with LUXcontrol App and controller
•2700K, 3000K, 4000K / Amber
•120° viewing angle
•Maximum run: 32'-8"
•Cuttable and joinable in two inch increments
•Each run requires an end cap (sold separately)
•No tools required for capping and joining
•Mounting clips included (recommend use one per foot)
SPECIFICATIONS
ELECTRICAL
•24VDC
•3W per foot
PHOTOMETRIC
•90+ CRI
AMBIENT OPERATING TEMP
•-13°F - 131°F
ORDERING
NV24T-3W-27K-16 16'-4"218lm2700K
NV24T-3W-27K-32 32'-8"218lm2700K
NV24T-3W-30K-16 16'-4"230lm3000K
NV24T-3W-30K-32 32'-8"230lm3000K
NV24T-3W-40K-16 16'-4"217lm4000K
NV24T-3W-40K-32 32'-8"217lm4000K
Colors
NV24T-3W-AM-16 16'-4"N/AAmber
NV24T-3W-AM-32 32'-8"N/AAmber
NV24T-3W-BL-16 16'-4"N/A Blue
NV24T-3W-BL-32 32'-8"N/A Blue
NV24T-3W-GR-16 16'-4"N/AGreen
NV24T-3W-GR-32 32'-8"N/AGreen
NV24T-3W-RD-16 16'-4"N/A Red
NV24T-3W-RD-32 32'-8"N/A Red
Max Run: 32'-8"
Kelvin temperature (color) ±100K.
NOTE: Every reel includes (1) NV24T-PF-EF (tape-to-power feed with 48" of lead). 16' reel includes (16) NV24T-MC-A mounting clips and screws. 32' reel comes with (32) NV24T-MC-A mounting clips and screws.
Amber Red Blue Green
3000K
TopFlex Cutaway
TYPE
GLASSHOUSE TYPE F9E
NeoVision24 TopFlex
Flexible Neon LED Tape Specification Sheet
CONNECTORS AND ACCESSORIES
Product
NV24T-PF-EF8
NV24T-PF-BF8
NV24T-SP
NV24T-CHL-A4
NV24T-CHL-A6
NV24T-MC-A
Tape-to-Power Flexible End Feed, 8 ft.
Tape-to-Power Flexible Bottom Feed, 8 ft.
Tape-to-Tape Splice Connector
Aluminum Channel, 4 ft.
Aluminum Channel, 6 ft.
Aluminum Mounting Clips (set of 20)
Product
NV24T-TTC6
NV24T-TTC12
NV24T-TTC24
Tape-to-Tape Flexible Connector, 6"
Tape-to-Tape Flexible Connector, 12"
Tape-to-Tape Flexible Connector, 24"
NV24T-FLEX-CHL Flexible Mounting Channel, 39.5"
NV24T-EC End Cap
NV24-CT
Tape Cutting Tool
The above connectors, channels, mounting clips and caps are for the exclusive use of NeoVision24 TopFlex Neon Tape and are ordered separately.
End Feed
NV24T-PF-EF8
Bottom Feed
NV24T-PF-BF8
Tape Configuration Example
NV24T-EC
NV24T-CHL-A4
NV24T-CHL-A6
2-1/2" Minimum Bend Radius
NOTE: Each run requires an end cap (sold separately)
NV24T-EC
Splice Connector
NV24T-SP
Aluminum Channel
NV24T-CHL-A4
NV24T-CHL-A6
End Cap
NV24T-EC
Mounting Clips
NV24T-MC-A
Tape-to-Tape Connector
NV24T-TTC12 |
NV24T-TTC6
NV24T-TTC24
Flexible Mounting Channel
NV24T-FLEX-CHL
NV24T-MC-A
NV24T-FLEX-CHL
NV24T-FLEX-CHL
NV24T-SP
NV24T-TTC6
NV24T-TTC12
NV24T-TTC24
NV24T-PF-EF8
NV24T-PF-BF8
NV24T-CHL-A4
NV24T-CHL-A6
TYPE
NeoVision24 TopFlex
Flexible Neon LED Tape Specification Sheet
RF CONTROLLER
LineDrive Power Supply
CM-RF-UNV-5CH RF Controller
Incoming power for (L N G) options can be 120V or 277V. Check power supply for proper input voltage and output power required. Power Supply output voltage must match LED operating voltage. (24VDC) Power supply used MUST NOT BE DIMMED at the input to properly power the controls. See Controller instructions for pairing and wiring details.
Note: Multiple power supplies can be replaced with a single multi-output power supply.
POWER SUPPLIES
LED Tape
NeoVision24
NeoVision24
NeoVision24
Topwind
DESCRIPTION
Topwind provides a uniform and smooth illuminated surface with a beam angle of 270 °. It has a flexible and durable protection layer that is water proof, flame resistant, saltwater resistant, and UV resistant. The accessories for this product allow for quick and easy installation without the need for a channel.
SPECIFICATIONS
• Voltage: 24V
• Watts per foot: 4.4W/ft
• Lumens per foot: 417 Lm/ft (3000K)
• Dimmable using dimmable driver
• Ambient Temperature: -4°F ~ +113°F
• Humidity: 40%-70% R
• Protection: IP65, Rated for Outdoor use under canopy
A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. TopFlex enables vertical bending that conforms tape around curvilinear surfaces.
FEATURES
• Multiple power feed options
• Tape encased in UV stable silicone (UV protected)
• Wireless control with LUXcontrol App and controller
• 2700K, 3000K, 4000K / Amber, Blue, Green or Red
• 120° viewing angle
• Maximum run: 32'-8"
• Cuttable and joinable in two inch increments
• Each run requires an end cap (sold separately)
• No tools required for capping and joining
• Mounting clips included (recommend use one per foot)
SPECIFICATIONS
ELECTRICAL
• 24VDC
• 3W per foot
PHOTOMETRIC
• 90+ CRI
AMBIENT OPERATING TEMP
• -13°F - 131°F
ORDERING INFORMATION
NV24T-3W-27K-16 16'-4"218lm2700K
NV24T-3W-27K-32 32'-8"218lm2700K
NV24T-3W-30K-16 16'-4"230lm3000K
NV24T-3W-30K-32 32'-8"230lm3000K
NV24T-3W-40K-16 16'-4"217lm4000K
NV24T-3W-40K-32 32'-8"217lm4000K Colors
NV24T-3W-AM-16 16'-4"N/AAmber
NV24T-3W-AM-32 32'-8"N/AAmber
NV24T-3W-BL-16 16'-4"N/A Blue
NV24T-3W-BL-32 32'-8"N/A Blue
NV24T-3W-GR-16 16'-4"N/AGreen
NV24T-3W-GR-32 32'-8"N/AGreen
NV24T-3W-RD-16 16'-4"N/A Red
NV24T-3W-RD-32 32'-8"N/A Red
Max Run: 32'-8"
Kelvin temperature (color) ±100K.
NOTE: Every reel includes (1) NV24T-PF-EF (tape-to-power feed with 48" of lead). 16' reel includes (16) NV24T-MC-A mounting clips and screws. 32' reel comes with (32) NV24T-MC-A mounting clips and screws.
Amber Red Blue Green
3000K
TopFlex Cutaway
TYPE F9.1 SPEC
GLASSHOUSE TYPE
NeoVision24 TopFlex
Flexible Neon LED Tape Specification Sheet
CONNECTORS AND ACCESSORIES
Product
NV24T-PF-EF8
NV24T-PF-BF8
NV24T-SP
NV24T-CHL-A4
NV24T-CHL-A6
NV24T-MC-A
Tape-to-Power Flexible End Feed, 8 ft.
Tape-to-Power Flexible Bottom Feed, 8 ft.
Tape-to-Tape Splice Connector
Aluminum Channel, 4 ft.
Aluminum Channel, 6 ft.
Aluminum Mounting Clips (set of 20)
Product
NV24T-TTC6
NV24T-TTC12
NV24T-TTC24
Tape-to-Tape Flexible Connector, 6"
Tape-to-Tape Flexible Connector, 12"
Tape-to-Tape Flexible Connector, 24"
NV24T-FLEX-CHL Flexible Mounting Channel, 39.5"
NV24T-EC End Cap
NV24-CT
Tape Cutting Tool
The above connectors, channels, mounting clips and caps are for the exclusive use of NeoVision24 TopFlex Neon Tape and are ordered separately.
End Feed
NV24T-PF-EF8
Bottom Feed
NV24T-PF-BF8
Tape Configuration Example
NV24T-EC
NV24T-CHL-A4
NV24T-CHL-A6
2-1/2" Minimum Bend Radius
NOTE: Each run requires an end cap (sold separately)
NV24T-EC
Splice Connector
NV24T-SP
Aluminum Channel
NV24T-CHL-A4
NV24T-CHL-A6
End Cap
NV24T-EC
Mounting Clips
NV24T-MC-A
Tape-to-Tape Connector
NV24T-TTC12 |
NV24T-TTC6
NV24T-TTC24
Flexible Mounting Channel
NV24T-FLEX-CHL
NV24T-MC-A
NV24T-FLEX-CHL
NV24T-FLEX-CHL
NV24T-SP
NV24T-TTC6
NV24T-TTC12
NV24T-TTC24
NV24T-PF-EF8
NV24T-PF-BF8
NV24T-CHL-A4
NV24T-CHL-A6
TYPE F9.1 SPEC
NeoVision24 TopFlex
Flexible Neon LED Tape Specification Sheet
RF CONTROLLER
LineDrive Power Supply
CM-RF-UNV-5CH RF Controller
Incoming power for (L N G) options can be 120V or 277V. Check power supply for proper input voltage and output power required. Power Supply output voltage must match LED operating voltage. (24VDC) Power supply used MUST NOT BE DIMMED at the input to properly power the controls. See Controller instructions for pairing and wiring details.
Note: Multiple power supplies can be replaced with a single multi-output power supply.
POWER SUPPLIES
LED Tape
NeoVision24
NeoVision24
NeoVision24
Topwind
DESCRIPTION
Topwind provides a uniform and smooth illuminated surface with a beam angle of 270 °. It has a flexible and durable protection layer that is water proof, flame resistant, saltwater resistant, and UV resistant. The accessories for this product allow for quick and easy installation without the need for a channel.
SPECIFICATIONS
• Voltage: 24V
• Watts per foot: 4.4W/ft
• Lumens per foot: 417 Lm/ft (3000K)
• Dimmable using dimmable driver
• Ambient Temperature: -4°F ~ +113°F
• Humidity: 40%-70% R
• Protection: IP65, Rated for Outdoor use under canopy
A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. TopFlex enables vertical bending that conforms tape around curvilinear surfaces.
FEATURES
• Multiple power feed options
• Tape encased in UV stable silicone (UV protected)
• Wireless control with LUXcontrol App and controller
• 2700K, 3000K, 4000K / Amber, Blue, Green or Red
• 120° viewing angle
• Maximum run: 32'-8"
• Cuttable and joinable in two inch increments
• Each run requires an end cap (sold separately)
• No tools required for capping and joining
• Mounting clips included (recommend use one per foot)
SPECIFICATIONS
ELECTRICAL
• 24VDC
• 3W per foot
PHOTOMETRIC
• 90+ CRI
AMBIENT OPERATING TEMP
• -13°F - 131°F
ORDERING INFORMATION
NV24T-3W-27K-16 16'-4"218lm2700K
NV24T-3W-27K-32 32'-8"218lm2700K
NV24T-3W-30K-16 16'-4"230lm3000K
NV24T-3W-30K-32 32'-8"230lm3000K
NV24T-3W-40K-16 16'-4"217lm4000K
NV24T-3W-40K-32 32'-8"217lm4000K Colors
NV24T-3W-AM-16 16'-4"N/AAmber
NV24T-3W-AM-32 32'-8"N/AAmber
NV24T-3W-BL-16 16'-4"N/A Blue
NV24T-3W-BL-32 32'-8"N/A Blue
NV24T-3W-GR-16 16'-4"N/AGreen
NV24T-3W-GR-32 32'-8"N/AGreen
NV24T-3W-RD-16 16'-4"N/A Red
NV24T-3W-RD-32 32'-8"N/A Red
Max Run: 32'-8"
Kelvin temperature (color) ±100K.
NOTE: Every reel includes (1) NV24T-PF-EF (tape-to-power feed with 48" of lead). 16' reel includes (16) NV24T-MC-A mounting clips and screws. 32' reel comes with (32) NV24T-MC-A mounting clips and screws.
Amber Red Blue Green
3000K
TopFlex Cutaway
TYPE F9.1
NeoVision24 TopFlex
Flexible Neon LED Tape Specification Sheet
RF CONTROLLER
LineDrive Power Supply
CM-RF-UNV-5CH RF Controller
Incoming power for (L N G) options can be 120V or 277V. Check power supply for proper input voltage and output power required. Power Supply output voltage must match LED operating voltage. (24VDC) Power supply used MUST NOT BE DIMMED at the input to properly power the controls. See Controller instructions for pairing and wiring details.
Note: Multiple power supplies can be replaced with a single multi-output power supply.
POWER SUPPLIES
LED Tape
NeoVision24
NeoVision24
NeoVision24
TYPE F10 SPEC GLASSHOUSE
BEAM
DESCRIPTION
All PreciseLED tape light products feature a flexible copper core and are cut and soldered to specified length in our factory. PreciseLED tape lights additionally have best-in-class color rendering, color consistency, and, when combined with our dimming drivers, dimming and flickering performance. Our Beam tape light is our most economical tape light. Its ultra-low profile enables installation practically anywhere. It comes with a 3M adhesive back which makes the installation easy, clean, and safe!
DIMENSIONS
Project Name:
Fixture Type:
Notes:
ORDERING CODE
NOTE FROM EXPRESSIVE: WILL PROVIDE LENGTHS AS PER DRAWING
SOLIDWORKS Educational Product. For Instructional
• Voltage: 24V
• Watts per foot: 2.93 W/ft
• Average Lumens per foot: 178 lm/ft
• Cuttable: Every 1.97 inches
• Max Run: 26.24 ft
• Protection: IP20
• Ambient Temperature: -4°F ~ +113°F
• Humidity: 40% ~ 70% R
• Average Life: 50,000 hours
• Dimmable: Using dimmable driver
• Binning: 3 Step Process
• Warranty: 5 years
• CRI ≥ 95 , Rf ≥ 95 , Rg ≥ 100
• UL Listed for US and Canada
LUMEN OUTPUT PERFORMANCE
GLASSHOUSE TYPE F10
LTR-P Professional Series
3W, 12VDC and 24VDC
LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Includes Sure-Tite connectors
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
SPECIFICATIONS
ELECTRICAL
• 12V/24V
• 3 watts per foot
OPTICS
• 90+ CRI
CERTIFICATION
• ETL (12V) / UL (24V)
• Title 24 compliant when used with used with specific drivers. Consult factory.
• Class 2
• Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space
WARRANTY
• 5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for
only and does not cover any labor or incidental charges related to
or warranty.
TYPE F10 SPEC GLASSHOUSE
Figure Slim Channel
DESCRIPTION
PreciseLED’s aluminum channels are a required companion to our tape light modules. With excellent heat sinking and light diffusion capabilities, our channels can also be custom cut and/or painted to virtually any specification. The slim design of the Figure Slim Channel allows for many applications in narrow spaces. Our Figure Slim Channel is our thinnest to date.
SPECIFICATIONS
• Dimenison: .69”W x .28” H
• Materials: Aluminum/PVC
• Maximum Width of LED Tape: .0.51”
TAPE LIGHT COMPATIBILITY
The Figure Slim channel is compatible with the following tape lights:
• Lo-Beam
• Lo-Beam Hi Efficacy
• Lo-Beam Wet
• Beam
• Beam Wet
• Hi-Beam
• Hi Beam RGBW
• COBE
• Dim to Warm
• Hi Beam COB
• Hi Beam COB Wet
• Hi Beam Color Tuning
• Hi Beam Full Spectrum
• Hi Beam Hi Efficacy
• Hi Beam
• Hi Beam RGBW Pixel
• Super Beam
• Ultra High Beam
• Ultra High Beam High Efficiency Wet
ACCESSORIES:
Project Name:
Fixture Type:
DIMENSIONS
www.preciseled.com
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
RECOMMENDED DRIVERS
LD-XD-UNV LineDrive Electronic Multi-Dimmable Power Supply, 12VDC or 24VDC 20W, 40W, 60W, 96W, 180W, 200W, 300W
LD-E-UNV LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 200W, 300W
LD-MD-UNV LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 150W, 200W, 300W View Spec Sheet
LD-EDM LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC 60W
LTP Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
PSD Electronic Dimmable Power Supply, 12VDC or 24VDC 15W, 24W, 60W, 90W
DIMENSION
16’-4” (5M reel) 100’ (30M reel)
(8mm)
(10mm) .039” (1mm) Cuttable every 2” (51mm)
CONNECTORS
TYPE F10 SPEC GLASSHOUSE
DRIV-ZO-24V-60W
LED Driver, Class 2, 1%, 0-10V Dimmable, 24V, 60W
DESCRIPTION
The ZO series LED drivers feature flicker free, 0-10V 1% dimming. It dims evenly across multiple fixtures and all light levels; From low output to full brightness! This driver offers a UL Listed style enclosure which has a built-in junction box for both the input and output. This driver is IP66 rated and is suitable for indoor and outdoor use.
SPECIFICATIONS
• Voltage: 24V/48V
• Watts: 60W
• Input: 120-277V 50/60Hz, 0.59A Max.
• Output: 2.6A
• Efficiency: 84%
• THD Max. Load: <20%
• Load Regulation 3%
• Power Factor :0.95
• IP Rating: IP66 for both indoor and outdoor use
• Dimensions: With a Jbox: 12.1’’ L X 2.4’’ W X 1.4’’ H Without a Jbox: 7.5’’ L X 2.4’’ W X 1.4’’ H
• Dimming: 1% 0-10V dimming
• Dimming Curve: Linear
• Current Consumption: 0.2mA Max Source/ Sinc
• Ambient Operating Temperature: -13°F - 104°F
• Max Case Temp. : 176°F
• Storage Temperature: -40°F - 185°F
• Audible Noise: < 24dB Class A
• Life Expectency: 50k hours (>149°F) Tc
• Overload protection: Current Limit
•Short Circuit Protection: Current Limit
•Over Temperature Protection: Hiccup Mode
•Over Voltage Protection
• Certifications: UL Listed for US and Canada, Class P, Class 2; UL8750, UL2043 Plenum Rated, Title 24/ JAB
•Min. Install space between Driver: 5” •FCC 47 CFR Part 15A Compliant
• 5 Year Warranty
Please see PreciseLED.com for warranty and installation information.
COMPATIBLE DIMMERS
Make Model
Lutron Diva - DVTV
LutronDiva - NFTV
LutronNova T - NTFTV
Leviton illumaTech - IP7
Watt Stopper DCLV1
Lightolier Controls ZP600FAM120
PhillipsSunrise - SR1200ZTUNV
File Name: DRIV-ZO-60W-A04 SD DEC 9, 2025
We
Project Name:
Fixture Type:
DIMENSIONS
WIRING DIAGRAM
Page 1 of 3
www.preciseled.com
info@preciseled.com
GLASSHOUSE
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
COMPATIBLE CHANNELS- FIT CONNECTORS ON PG. 1
LED-CHL-45 Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-45-EC (2) End caps for LED-CHL-45 - one solid, one with hole N/A
LED-CHL-45-MC (2) Mounting clips and screws for LED-CHL-45
LED-CHL-45-1200 Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-45-1200-EC (2) End caps for LED-CHL-45 - one solid, one with hole N/A
LED-CHL-45-1200-MC (2) Additional mounting clips for LED-CHL-45-1200
LED-CHL-W Wide format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-W-6 Wide format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 6’
LED-CHL-W-AMC (2) Adjustable mounting brackets for LED-CHL-W N/A
LED-CHL-W-EC (2) End caps for LED-CHL-W - one solid, one with hole. N/A
LED-CHL-W-MC (2) Additional mounting clips for LED-CHL-W
MUD IN - STANDARD
LED-CHL-MI-ST6 Standard extruded aluminum mud-in channel. Includes snap-on frosted lens.
LED-CHL-MI-ST-EC (2) End caps for LED-CHL-MI-ST6 one solid, one with hole.
STANDARD STRAIGHT
LED-CHL2-4-CA Silver channel, white lens (2) mounting clips, (2) screws
LED-CHL2-4-WH White channel, white lens (2) mounting clips, (2) screws
LED-CHL2-4-BK Black channel, white lens (2) mounting clips, (2) screws
LED-CHL2-6-WH White channel, whilte lens, (4) mounting clips, (4) screws
LED-CHL2-6-BK Black channel, whilte lens, (4) mounting clips, (4) screws
LED-CHL2 LENS-4-BK Lens in black for LED-CHL2-4
LED-CHL2 LENS-6-BK Lens in black for LED-CHL2-6
LED-CHL2-ECG (2) End caps for LED-CHL2-CA: light gray, one solid, one with hole
LED-CHL2-ECW (2) End caps for LED-CHL2-WH: white, one solid, one with hole
LED-CHL2-ECB (2) End caps for LED-CHL2-BK: black, one solid, one with hole
LED-CHL2-MC (2) Mounting clips and (2) screws
LED-CHL2-AMC (2) Adjustable mounting clips and (2) screws
SAUNA COB - STATIC WHITE
24V DC Fully Sealed IP67 Strip Light
The IP67 rated COB Static White strip light is built to withstand the most extreme environments. With the ability to perform in temperatures up to 105° C while being fully encased in a silicone extrusion, the IP67 COB strip light is perfect for adding comforting ambiance and relaxing vibes to any sauna or steam room.
• Available in color temperature options ranging from 1800K to 5000K
• Custom Cut orders with factory assembled leads only - not cuttable in the field
CUTTING POINTS Every 1.97” (50mm) - Custom Orders Only - Factory Sealed
IP RATING IP67 - Wet Location**
DIMMING 10-100%*
OPERATING TEMP -30°C (-22°F) to 105°C (221°F)**
LED SPACING Every 5/8”; 20 per foot
RATING cULus Listed (Void if field cut) †
RATED LIFE 30000 Hours
PROJECT:
TYPE:
LOCATION:
CATALOG NUMBER:
IP67 (Encased) Fully encased tape light in sealed silicone extrusion with matte process for wet location and high temperature capability with non-stick surface Best suited: Indoor & Outdoor wet locations including saunas and steam rooms or where ambient temperature.
SAUNA COB IP RATINGS
LTR-S Specification Series
1.5W / 3W COB (Chip On Board) Wet Location LED Tape Specification Sheet
PRODUCT OVERVIEW
FEATURES
• 24VDC
• 2700K, 3000K, 3500K and 4000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers (Requires NEMA box)
• Suitable for wet locations, IP65
• 156 LEDs per foot
• Cuttable every 2”
• 180° viewing angle
• Dimmable (ELV or MLV or LUXcontrol)
• 3M adhesive back
• Maximum run on a given lead 32’-8”
SPECIFICATIONS
The newest addition in the flexible LED tape is the COBWP (Chip On Board - Wet location) technology. Tightly spaced diodes are encapsulated into a single phosphor strip that provides a seamless linear light display with no LED pixelation. Available in 2700K, 3000K, 3500K and 4000K. ELECTRICAL
• 24V • 1.5 / 3 watts per foot
OPERATING TEMP
• -4°F to 122°F
ACCESSORIES
CERTIFICATION
• UL
• IP65
• 5-year warranty when paired with GM power supply.
• Title 24 compliant when used with specific drivers. Consult factory. Reel Length: 32 = 32’-8”; Custom cuts available, consult factory
LTR-P-WP-TTC-3 3” Tape to tape connector, UV sealed
6” Tape to tape connector, UV sealed
LTR-P-WP-EC End cap for wet location tape
NOTE: Compatible with LED-CHL-XD series channels.
TYPE F11 SPEC GLASSHOUSE
E
LINEAR LIGHTING / SAUNA COB STATIC
COB SERIES CUSTOM CUT ORDERING
IP67 COB
*Custom Cut Orders - Please Allow Up To 2-4 Weeks Order Processing & Delivery* *Custom Cut Orders - Please Allow Up To 2-4 Weeks Order Processing & Delivery* *Custom Cut Orders - Please Allow Up To 2-4 Weeks Order Processing & Delivery*
NOTE FROM EXPRESSIVE: WILL PROVIDE LENGTHS AS PER DRAWING
*Custom Cut Orders - Please Allow Up To 2-4 Weeks Order Processing & Delivery* - Minimum 12”* - List in INCHES - Maximum 197” - 1.97” increments
Custom Cuts: Specify desired length according to cut increment in INCHES. (See page 3 for cut increment chart). Assembly Fee per length of COB Series Custom Cut. Custom orders are deemed Final Sale and are not able to be returned or refunded.
ITEM NUMBER DESCRIPTION
CC-LF-HTL67-COB-2 Lead: 10ft Cable Conkit, Solder
CC-LTF-HTL67-COB-2 Lead IP65: 10ft Cable Conkit, Solder
CC-67-XEP-2 Lead & Tail: 10ft Cable Conkit, Solder COB SERIES CUSTOM CUT ASSEMBLY FEES
*This item is a “Custom Cut” item. Special Orders, Custom Orders, and NCNR (Non Cancelable Non Returnable) Orders are non cancellable and non returnable after the orders are confirmed and accepted for processing.*
SAUNA COB ACCESSORIES
ITEM NUMBER DESCRIPTION
HTL67-COB-12MM-TRACK-1M 1M Polycarbonate mounting channel for 12mm IP67 COB
TL-CLIPS-15 IP67 Mounting Clips - Qty 15
TL-LCLIPS-15 IP67 “L” Mounting Clips - Qty 15
HTL67-COB-12MMTRACK-1M
RECOMMENDED POWER SUPPLIES
TL-CLIPS-15 TL-LCLIPS-15
GLASSHOUSE TYPE
LTR-S Specification Series ®
1.5W / 3W COB (Chip On Board) Wet Location
LED Tape Specification Sheet
COMPATIBLE CONTROLLERS
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
CM-RF-UNV-5CH Universal 1-5 Channel Control Module
Note: For wet location applications, use NEMA box (by others)
RECOMMENDED DRIVERS
Please see our website for updated power supply specifications and information.
Note: NOT for use with LD-EDM series power supplies.
COMPATIBLE CHANNELS - FIT CONNECTORS ON PG. 1
(2) Adjustable mounting brackets for LED-CHL-XD
(2) End caps for LED-CHL-XD. One solid, one with hole.
Extra deep format extruded channel with flange. Includes snap-on frosted lens with mounting clips and screws.
(2) Drywall mounting brackets for LED-CHL-XD-F
(2) End caps for LED-CHL-XD-F. One solid, one with hole.
LED-CHL-45-1200 Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-45-1200-EC (2) End caps for LED-CHL-45 - one solid, one with hole
LED-CHL-45-1200-MC (2) Additional mounting clips for LED-CHL-45-1200
TYPE F12 SPEC GLASSHOUSE
Louvre Cool Beam
DESCRIPTION
All PreciseLED tape light products feature a flexible copper core and are cut and soldered to specified length in our factory. PreciseLED tape lights additionally have best-in-class color rendering, color consistency, and, when combined with our dimming drivers, dimming and flickering performance. Our Louvre Cool Beam tape light has LEDs spaced at specific intervals, that are compatible with our trims that allow for multiple beam spreads, and to achieve a unique look. It comes with a 3M adhesive back which makes the installation easy, clean, and safe!
SPECIFICATIONS
• Voltage: 24V
• Watts per foot: 5.8W/ft
• Average Lumens per foot: 270 Lm/ft (30K)
• 10 LEDs per foot
• Dimmable using dimmable driver
• Backed with 3M Adhesive
• Ambient Temperature: -4°F ~ +113°F
• Protection: IP65
• Tail end field cuttable every 1.18 Inches
• 50,000 Hours Lamp Life
• Max Run: 13.20 Feet
• CRI ≥ 95 , Rf ≥ 95 , Rg ≥ 100
• UL Listed for US and Canada
• 5 Year Warranty
Please see PreciseLED.com for warranty and installation information.
DIMENSIONS
ORDERING CODE
Example: LVCB-16’-24V-95C-30K-90
www.preciseled.com
GLASSHOUSE TYPE F12 (20') ALT
VorteXLED Specification Series ®
5.8W, 24VDC WALL GRAZING LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6” increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• 30° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens
SPECIFICATIONS
ELECTRICAL
• 24VDC
• 5.8 watts per foot
OPTICS
• 90+ CRI
• -4F to 122 F
Project Name Type Catalog # Date
ACCESSORIES
VTX-TTC6 6in tape to tape connector
VTX-TTC12 12in tape to tape connector
VTX-TTC24 24in tape to tape connector
VTX-PCHW8 8ft. hardwired power feed
VTX-EC Tape end cap
Note: For compatible channels, see next page. Accessories included in factory assembled components.
CERTIFICATION
• UL listed for US and Canada
• Title 24 compliant when used with used with specific drivers. Consult factory.
• Class 2
• IP65
WARRANTY
• 5-year warranty when paired with GM power supply
CONTROLLERS
SWD series All in one power supply and wall dimmer HC-RF-UNV-5CH
Note: Use minimum of 2 clips or brackets per 4ft of channel.
DIMENSION
CUTTABLE EVERY 6” (7 LEDS)
TYPE F12 SPEC
DRIV-ZO-24V-60W
LED Driver, Class 2, 1%, 0-10V Dimmable, 24V, 60W
DESCRIPTION
The ZO series LED drivers feature flicker free, 0-10V 1% dimming. It dims evenly across multiple fixtures and all light levels; From low output to full brightness! This driver offers a UL Listed style enclosure which has a built-in junction box for both the input and output. This driver is IP66 rated and is suitable for indoor and outdoor use.
SPECIFICATIONS
• Voltage: 24V/48V
• Watts: 60W
• Input: 120-277V 50/60Hz, 0.59A Max.
• Output: 2.6A
• Efficiency: 84%
• THD Max. Load: <20%
• Load Regulation 3%
• Power Factor :0.95
• IP Rating: IP66 for both indoor and outdoor use
• Dimensions: With a Jbox: 12.1’’ L X 2.4’’ W X 1.4’’ H Without a Jbox: 7.5’’ L X 2.4’’ W X 1.4’’ H
• Dimming: 1% 0-10V dimming
• Dimming Curve: Linear
• Current Consumption: 0.2mA Max Source/ Sinc
• Ambient Operating Temperature: -13°F - 104°F
• Max Case Temp. : 176°F
• Storage Temperature: -40°F - 185°F
• Audible Noise: < 24dB Class A
• Life Expectency: 50k hours (>149°F) Tc
• Overload protection: Current Limit
•Short Circuit Protection: Current Limit
•Over Temperature Protection: Hiccup Mode
•Over Voltage Protection
• Certifications: UL Listed for US and Canada, Class P, Class 2; UL8750, UL2043 Plenum Rated, Title 24/ JAB
•Min. Install space between Driver: 5”
•FCC 47 CFR Part 15A Compliant
• 5 Year Warranty
Please see PreciseLED.com for warranty and installation information.
COMPATIBLE DIMMERS
Make Model
Lutron Diva - DVTV
LutronDiva - NFTV
LutronNova T - NTFTV
Leviton illumaTech - IP7
Watt Stopper DCLV1
Lightolier Controls ZP600FAM120
PhillipsSunrise - SR1200ZTUNV
File Name: DRIV-ZO-60W-A04 SD DEC 9, 2025
We reserve the right to change specifications without prior notice. 2025 PreciseLED Inc.
DIMENSIONS
www.preciseled.com
info@preciseled.com
TYPE F13 SPEC GLASSHOUSE

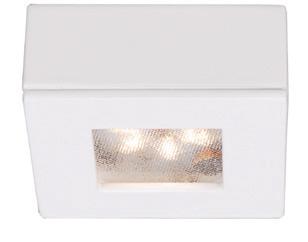

HR-LED87
LEDme Button Light
PRODUCT DESCRIPTION
Designed for recessed or surface mounted installations, delivering strong light output with the latest in LED technology.
Wiring: Includes 72" pre-installed wires that lead out through the top.
Transformers: Class 2, 24V remote and plug-in transformers allow for up to 20 button lights to be wired together. Use a multiple terminal block to wire up to 6 xtures in a neat under cabinet installation without the use of open splices (see below).
Light Source: Six 3000K LEDs.
Dimming: May be dimmed to 10% with an electronic low voltage (ELV) dimmer.
Mounting: Recessed– 28" cutout hole. Compression springs hold xture rmly in place. Surface– Screw housing cover to surface, compress springs and insert into cover. Not recommended for use in ceiling.
Finish: Black (BK), Dark Bronze (DB) and White (WT) powder coat, electroplated Brushed Nickel (BN), Copper Bronze (CB) and Chrome (CH).
Standards: UL & cUL Damp Location Listed.
NOTE FROM EXPRESSIVE: PLEASE ADVISE FINISH
HR-LED87-27
HR-LED87S-27 Round Square
• Minimizes wiring back to transformer
• Minimal voltage drop, power supplied using a variable current
• If one xture goes out the rest remain on
CLASS 2 ELECTRONIC TRANSFORMERS

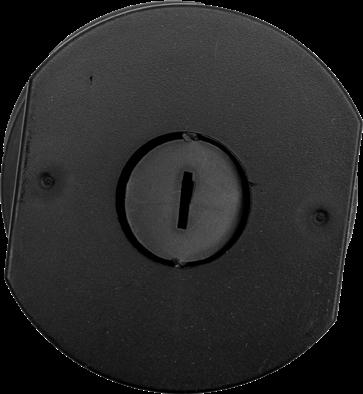

RETROFIT RECESSED HOUSING
Model #Finish
HR- LED-COV BK, BN, CB, CH, DB, WT
Use to replace low voltage HR-88 and HR-86 button lights using existing wiring and cutout.
TypeModel Dim Input OutputPower Up ToDimensions
Remote
EN-2460- RB2
EN-24100-RB2
ELV120V 24V AC/60W12 × LED87
ELV120V24V AC/96W20 × LED87
EN-24100-277- RB2-T 0-10V277V24V DC/96W20 × LED87
Plug-In EN-2460- P- AR ELV120V24V AC/60W12 × LED87 2¾” X
Includes 6' cord and 5 SL-WC-1 clips.
MULTIPLE TERMINAL BLOCK
Model #Dimensions
MTB-01 L: 34"W: 1w"H: d"
12.5A max accommodates up to 6 output connections for 14 AWG wires.
FROSTED LENS ACCESSORY
Model #
LENS-13-FR
Softens light and reduce glare for square or round
up to 20 lights
GLASSHOUSE TYPE
HR-LED87 LEDme Button Light
PRODUCT DESCRIPTION
Designed for recessed or surface mounted installations, delivering strong light output with the latest in LED technology.
FEATURES
• Recessed or surface mounting
• Quick and easy installation
• Includes 72" lead wire
• 3000K color temperature
• 70,000 hour rated life
• UL and CUL Listed
• 5 year WAC Lighting product warranty
FIXTURE PERFORMANCE WattLumensE cacyCRI
ORDER NUMBER
HR - LED87S -27-BN
• Minimizes wiring back to transformer
• Minimal voltage drop, power supplied using a variable current
• If one xture goes out the rest remain on 120V
up to 20 lights
Fixture Type:
Catalog Number:
Project:
Location:
Softens light and reduce glare for square or round 24" 18"
Wiring: Includes 72" pre-installed wires that lead out through the top.
Transformers: Class 2, 24V remote and plug-in transformers allow for up to 20 button lights to be wired together. Use a multiple terminal block to wire up to 6 xtures in a neat under cabinet installation without the use of open splices (see below).
Light Source: Six 3000K LEDs.
Dimming: May be dimmed to 10% with an electronic low voltage (ELV) dimmer.
Mounting: Recessed– 28" cutout hole. Compression springs hold xture rmly in place. Surface– Screw housing cover to surface, compress springs and insert into cover. Not recommended for use in ceiling.
Finish: Black (BK), Dark Bronze (DB) and White (WT) powder coat, electroplated Brushed Nickel (BN), Copper Bronze (CB) and Chrome (CH).
Standards: UL & cUL Damp Location Listed.
RETROFIT RECESSED HOUSING
Model #Finish
CLASS 2 ELECTRONIC TRANSFORMERS
HR - LED - COV BK, BN, CB, CH, DB, WT
Use to replace low voltage HR-88 and HR-86 button lights using existing wiring and cutout.
TypeModel Dim Input OutputPower Up ToDimensions Remote EN -2460- RB2
ELV120V 24V AC/60W12 × LED87
EN -24100- RB2 ELV120V24V AC/96W20 × LED87
EN -24100-277- RB2- T 0-10V277V24V DC/96W20 × LED87
Plug-In EN -2460- P - AR ELV120V24V AC/60W12 × LED87
Includes 6' cord and 5 SL-WC-1 clips.
MULTIPLE TERMINAL BLOCK
Model #Dimensions
MTB-01 L: 34"W: 1w"H: d"
12.5A max accommodates up to 6 output connections for 14 AWG wires.
FROSTED LENS ACCESSORY
Model #
LENS-13-FR
ATLANTIS
the gently-curved shape of this elegant fan
FEATURES
• 3 fan speeds
•Silent AC motor
•Pull chain operation
•Fan is reversible from housing
•Dim using ELV dimmer
AIRFLOW/ENERGY EFFICIENCY
Weighed-Average Airflow/High:
Energy Use (W):
Estimated Yearly Energy Cost ($): Efficiency (CFM/W):
/4116
LUMINAIRE PERFORMANCE
Light Source: Light Wattage: Lumens/Delivered Lumens: Dimming: CRI: Color Temperature:
ATLANTIS GLASSHOUSE
the gently-curved shape of this elegant fan
FEATURES
• 3 fan speeds
•Silent AC motor
•Pull chain operation
•Fan is reversible from housing
•Dim using ELV dimmer AIRFLOW/ENERGY EFFICIENCY 3046/4116 CFM
Weighed-Average Airflow/High: Energy Use (W): Estimated Yearly Energy Cost ($): Efficiency (CFM/W): Max RPM:
OCS - Plug-in Motion Sensor EM - Emergency Battery
- Black Housing (white standard)
- Bronze Housing (white
Type
Catalog Number

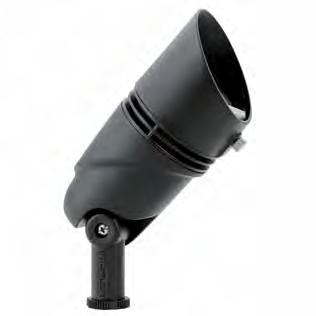

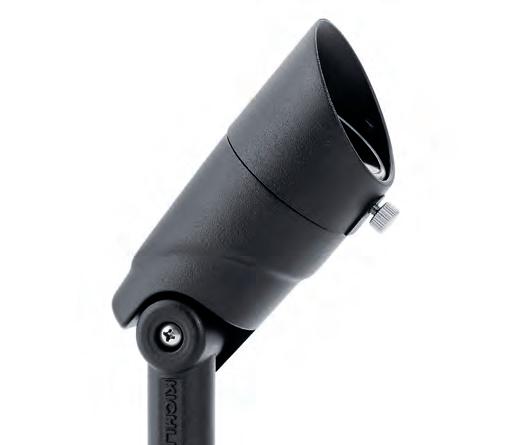

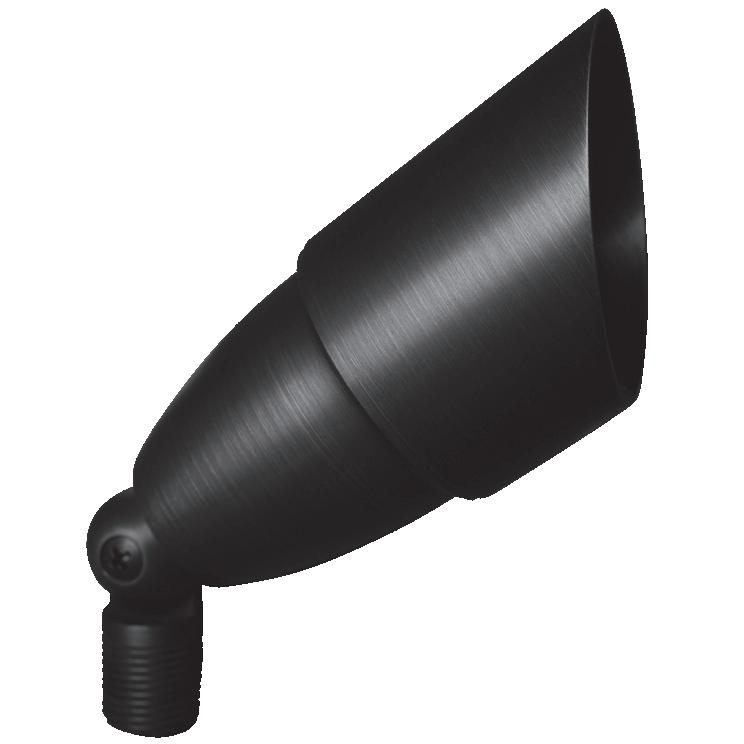

VLO 12V LED Large Accent
One light, three lumen levels.
Our VLO Accent fixture is equipped with the Lumen Effects System, which allows you to easily switch between three lumen outputs: 400, 600, or 835, with the use of the Magnetic Key. Its field configurable design allows for customization based on the needs of the application.
VLO 12V LED Accent with Lumen Effects System makes designing and modifying landscape lighting easier.
Lumen Effects System eliminates the need to mechanically adjust or open the fixture, supporting product longevity.
Flexible Lumen Levels allows you to set and adjust the lumen levels as the landscape needs change.
Sealed and fully encapsulated to safeguard from water ingression and the outdoor elements –helping to extend the life of the product.
Versatile IP66 rated design provides a dust and water tight housing that can protect against strong jets of water that can occur in coastal areas with strong storms or applications close to sprinklers.
6,000-volt system surge protection protects against power surges and irregularities when paired with one of our transformers.
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS: Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
TYPE LA SPEC GLASSHOUSE
Guide (product number breakdown)
2 Product Finish:
GLASSHOUSE
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
490003-BLK
490003-FS (floating socket)
490003-FS-BLK (floating socket)
Composite stake (incl.) 490034
M3 Trident Heavy-Duty 3-Prong Stake 490036
PM Round pier mount 490057
MR Round tapered 3-hole surface mount 490048 MP PVC/Brass post stake 490037 GM Brass gutter mount 490047
TYPE LA SPEC GLASSHOUSE
VLO 12V LED Large Accent Additional Specs
FI N ISH OPTIONS
AZT - Textured Architectural Bronze
BKT - Textured Black
CBR - Centennial Brass
PERFORMANCE
Output Position Level 1Level 2Level 3
Lumen Output 400 lm600 lm835 lm
Input Voltage 9V-15V9V-15V9V-15V
Power (VA) @ 15V AC 8.5VA 12.5VA 17VA
Power (W) @ 15V DC 5.25W 8.5W 12W
Efficacy (lm/W @ DC) 76 lm/W 70 lm/W 69 lm/W
Halogen Equivalents 40W 60W 83.5W
SPECIFICATIONS
Fixture
Light Source Integrated LED
Number of LEDs 1 High Output COB
Color Temperature 2700K, 3000K
Color Rendering Index 80+
Beam Angles 15º, 35º, 60º
Binning 3 Step
Fixture can be used in up or down position.
Input
Input Voltage Range 9 – 15V AC or DC with no loss in light output
Input Frequency 47 - 63Hz
Input Current 2.55A Max @ 9VAC
Inrush Current 9A Max
Efficiency > 70L/W @ 12VDC
Power Factor > 0.7 @ 15V
Environmental
Environmental Protection Rating Wet, IP66
Operation Ambient Temperature -25°C - +40°C
Lumen Maintenance (L70) 50K Hours
Mechanical & Housing Specification
Diameter/Height 2.75" W x 6" L x 4.5" H
Housing Material Cast Aluminum, Cast Brass
Housing Color & Surface AZT, BKT or CBR
Weight 24 oz (Aluminum), 48 oz (Brass)
Lens Material
Tempered, shock resistance glass with high tolerance for thermal expansion and stress.
Wire
18 AWG, 105ºC, 300V 48" of usable #18-2 SPT-1W leads.
Optics
Polycarbonate TIR lens provides superior fixture beam angle. Available in 15º, 35º and 60º.
FIXTURE ATTRIBUTES
Included Accessories
8" Slotted In-ground Stake, 2 Gel-Filled Wire Nuts, Locknut, and Magnetic Key.
Optional Accessories
3" Riser Stem 15509CBR
6" Riser Stem 15645AZT, BKT, 15510CBR
12" Riser Stem 15656AZT, BKT, 15511CBR
18" Riser Stem 15657AZT, BKT, 15512CBR
24" Riser Stem 15658AZT, BKT, 15513CBR
Adjustable Riser Stem 15570AZT, BKT
Stem Coupler 15649AZT, BKT
Mounting Base 15493CBR
Two Fix ture “T” 15515CBR
Surface Flange 15601AZT, BKT

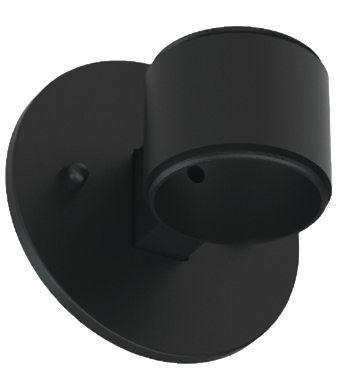

Bracket 15607AZT, BKT, 15516CBR
Tree Mount 15609AZT, BKT, CBR
Elbow 15647AZT, 15514CBR
Gutter Mount 15489CBR
Long Cowl 16068CBR

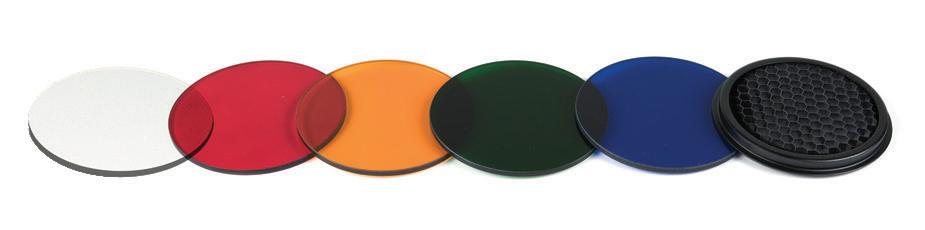

Amber Lens 16072AMB
Green Lens 16072GRN
Hexcell Louver 16075BK
Beam Expander 16091FRO
8" Stake 15575BK
14" Stake 15576BK
Power Post 15276BK
LOAD CHART
Technical Support
GLASSHOUSE
SPECIFICATION SHEET
MR16 7 W LED Lamps
SPECIFICATIONS
BASE: GU5.3 bi-pin base
VOLTAGE: 9-17V AC/DC
WATTAGE: 7W
CRI: 80+
WARRANTY: Five years
The 9-17-volt MR16 7-watt LED lamp is dimmable and utilizes Epistar chip technology. Warrantied for last in most applications for more than 50,000 hours.
486711
LED-BB-MR16-7W-2700K-15°
486712
LED-BB-MR16-7W-2700K-25°
486713 LED-BB-MR16-7W-2700K-40°
486714 LED-BB-MR16-7W-2700K-60°
486715 LED-BB-MR16-7W-2700K-120°
486716
LED-BB-MR16-7W-3000K-15°
486717
LED-BB-MR16-7W-3000K-25°
486718 LED-BB-MR16-7W-3000K-40°
486719
LED-BB-MR16-7W-3000K-60°
486720 LED-BB-MR16-7W-3000K-120°
DIMENSIONS:
TYPE LA SPEC GLASSHOUSE
GLASSHOUSE
Type:
Model:
150W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490541
SPECIFICATIONS
OUTPUT:
150W, 12.5A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT: 120V, 60HZ, 1.25A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 12.5A breaker, heavy-duty grounded 5-foot power cord. suitable for interior or exterior use.
AGENCY LISTINGS: ETL approved (5013561). Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
ORDERING INFORMATION:
To order a transformer with an option, select the appropiate choices from each column as in the following example: EXPAMPLE: 490541-DT200LT
Vapor Tight Wattage & CCT Selectable VE Value Series
Ordering Information
Product Description
A cost-effective vapor tight fixture with tremendous flexibility, the VE Series is both wattage and CCT selectable and provides an emergency batterybackup option. This durable, IP65 rated linear fixture with stainless steel clips is idealfor commercial and industrial environments where water, humidity, and dust may occur, including stairwells, parking garages, utility areas and agricultural applications.
Features
• CCT and Wattage selectable (9 possible combinations with each fixture
• 0-10V dimming standard
• CRI: ≥ 80
• Universal voltage 120-277V
• L70 lumen maintenance of 50,000 hours
• Default setting for WCS models is set to lower wattage and 4000K
Linear Vapor TightValue Series 4= 8= 48" 96" U= 120-277V 23W= 65W= 23/35/47W 60/70/85W
*EM unit is UL924 classified **Default setting for WCS models is set to lowest wattage and 4000K
• UL Listed - Suitable for wet locations Accessories (Sold Separately)
S-479C4Y
S-S1XYLK
Color Selectable (3500K/4000K/5000K) [BLANK]= EM= None Emergency Back-up
Luminaires for Commercial and Industrial Buildings
Linear Ambient Luminaires
Luminaires for Commercial and Industrial Buildings

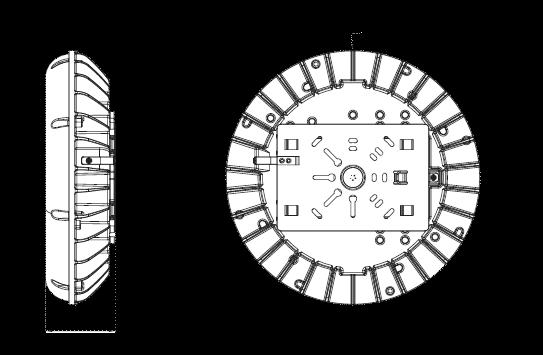

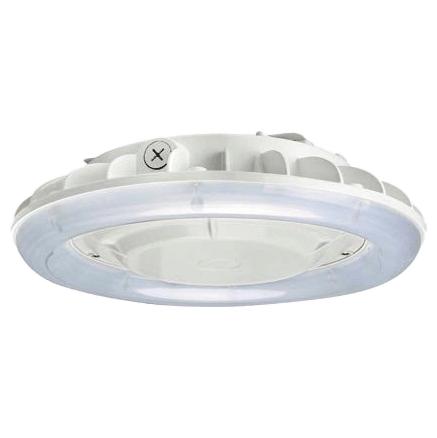

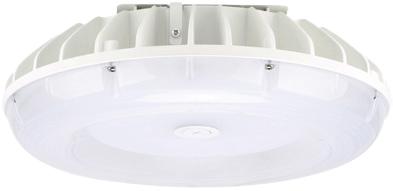

TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP

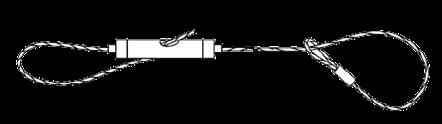

Field Installed Accessories: YTGHANGER - 10’ adjustable cable hang kit
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
VLO 12V LED Small Accent
One light, three lumen levels.
Our VLO Accent fixture is equipped with the Lumen Effects System, which allows you to easily switch between three lumen outputs: 100, 200, or 300, with the use of the Magnetic Key. Its field configurable design allows for customization based on the needs of the application.
VLO 12V LED Small Accent with Lumen Effects System makes designing and modifying landscape lighting easier.
Lumen Effects System eliminates the need to mechanically adjust or open the fixture, supporting product longevity.
Flexible Lumen Levels allows you to set and adjust the lumen levels as the landscape needs change.
Sealed and fully encapsulated to safeguard from water ingression and the outdoor elements –helping to extend the life of the product.
Versatile IP66 rated design provides a dust and water tight housing that can protect against strong jets of water that can occur in coastal areas with strong storms or applications close to sprinklers.
6,000-volt system surge protection protects against power surges and irregularities when paired with one of our transformers. *Factory setting
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS: Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
TYPE SA SPEC GLASSHOUSE
Ordering Guide (product number breakdown) 1 Item Number for Fixture & Beam Angle:
2 Product Finish:
GLASSHOUSE
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
490003-BLK
490003-FS (floating socket)
490003-FS-BLK (floating socket)
Composite stake (incl.) 490034
M3 Trident Heavy-Duty 3-Prong Stake 490036
PM Round pier mount 490057
MR Round tapered 3-hole surface mount 490048 MP PVC/Brass post stake 490037
Brass gutter mount 490047
TYPE SA SPEC GLASSHOUSE
GLASSHOUSE
SPECIFICATION SHEET
MR16 7 W LED Lamps
SPECIFICATIONS
BASE: GU5.3 bi-pin base
VOLTAGE: 9-17V AC/DC
WATTAGE: 7W
CRI: 80+
WARRANTY: Five years
The 9-17-volt MR16 7-watt LED lamp is dimmable and utilizes Epistar chip technology. Warrantied for last in most applications for more than 50,000 hours.
486711
LED-BB-MR16-7W-2700K-15°
486712
LED-BB-MR16-7W-2700K-25°
486713 LED-BB-MR16-7W-2700K-40°
486714 LED-BB-MR16-7W-2700K-60°
486715 LED-BB-MR16-7W-2700K-120°
486716
LED-BB-MR16-7W-3000K-15°
486717
LED-BB-MR16-7W-3000K-25°
486718 LED-BB-MR16-7W-3000K-40°
486719
LED-BB-MR16-7W-3000K-60°
486720 LED-BB-MR16-7W-3000K-120°
DIMENSIONS:
TYPE SA SPEC GLASSHOUSE
GLASSHOUSE
Type:
Model:
150W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490541
SPECIFICATIONS
OUTPUT:
150W, 12.5A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT: 120V, 60HZ, 1.25A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 12.5A breaker, heavy-duty grounded 5-foot power cord. suitable for interior or exterior use.
AGENCY LISTINGS: ETL approved (5013561). Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
ORDERING INFORMATION:
To order a transformer with an option, select the appropiate choices from each column as in the following example: EXPAMPLE: 490541-DT200LT
M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into multiple options with trim accessories and produces over 850 lumens.
FEATURES
No housing required - IC Airtight rated
Easy installation for remodel or new construction applications
Variety of trim accessories to configure desired appearance
· Quick disconnect allows for extended lengths
400lm, 600lm or 850lm LED packages
2700K, 3000K or 4000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Open downlight includes a reflector with the same finish as trim ; optional field changeable accessories are available; square trim, pinhole trim, wall wash trim, reflector inserts or baffle inserts.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (400lm/600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7" quick connect wire Luminaire includes 5" (400lm/600lm) or 4" (850lm) quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit s are available, see accessories.
Trims: M2 series is available in three lumen outputs with LED driver Round trims can be converted to baffles, pinholes or wall wash in the field with optional trims and inserts.
2" M2 Round Can-less LED Recessed Downlight
Lumens / Wattage Color Temperature Finish
NM2-2RDC40 = 400lm / 6W 27 = 2700K 30 = 3000K BB = Black MPW = White
NM2-2RDC60 = 600lm / 8W
NM2-2RDC85 1 = 850lm / 10W
Note: 4000K available in black finish only
M2 Trim Accessories
Accessory Type
27 = 2700K
30 = 3000K
40 = 4000K BB = Black MPW = White
OPTIONAL TRIM ACCESSORIES
NM2-2REFL : Reflector Insert for NM2-2RDC, Black or Haze
NM2-2BAF: Baffle Insert for NM2-2RDC, Black or White
NM2-2RPH: Round Pinhole Trim for NM2-2RDC, Black or White
NM2-2RW: Round Wall Wash Trim for NM2-2RDC, Black or White
NM2-2SDT: Square Trim for NM2-2RDC, Black or White
OPTIONAL MOUNTING ACCESSORIES
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2 : Two Head Multiple Lighting System Plate
NM2-MLS3: Three Head Multiple Lighting System Plate
NM2-EW-10 : 10' Quick Connect Linkable Extension Cable\ NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations 5-Year Limited Warranty · FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2025
NM2-2RDCXXXXBB 400lm or 600lm Black Finish
2-1/2" (40/60) 4-3/4" (85) 2" 3-3/16"
NM2-2REFL Reflector Insert
NM2-2RPH Round Pinhole Trim
NM2-2SDT Square Trim
NM2-2RDC85XXMPW 850lm White Finish
Cut out: 2-7/8"
4" (40/60) 3-7/8" (85)
NM2-2BAF Baffle Insert
NM2-2RW Round Wall Wash Trim
NM2-EW Extension Cables
Optional Accessories
Accessory Type Finish
NM2-MLS1 = One Head MLS Plate
NM2-MLS2 = Two Head MLS Plate
NM2-MLS3 = Three Head MLS Plate
Finish
NM2-2REFL = Reflector for NM2-2RDC B = Black HZ = Haze
NM2-2BAF = Baffle for NM2-2RDC
NM2-2RPH = Round Pinhole Trim for NM2-2RDC
NM2-2RW = Round Wall Wash Trim for NM2-2RDC
NM2-2SDT = Square Trim for NM2-2RDC
B = Black MPW = White
Example: NM2-2RDC6030MPW = 2" M2 Round Can-less LED Recessed Downlight, 600lm / 8W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
BB = Black MPW = White
NF-R246 = Universal New Construction Frame-In
NFC-R275 = New Construction Frame-In with Collar
NM2-EW-4 = 4' Quick Connect Extension Cable
NM2-EW-10 = 10' Quick Connect Extension Cable
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications. Luminaires can be configured into multiple options with trim accessories and produces over 850 lumens.
FEATURES
No housing required - IC Airtight rated
Easy installation for remodel or new construction applications
Variety of trim accessories to configure desired appearance
· Quick disconnect allows for extended lengths
400lm, 600lm or 850lm LED packages
2700K, 3000K or 4000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Open downlight includes a reflector with the same finish as trim ; optional field changeable accessories are available; square trim, pinhole trim, wall wash trim, reflector inserts or baffle inserts.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (400lm/600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7" quick connect wire Luminaire includes 5" (400lm/600lm) or 4" (850lm) quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit s are available, see accessories.
Trims: M2 series is available in three lumen outputs with LED driver Round trims can be converted to baffles, pinholes or wall wash in the field with optional trims and inserts.
2" M2 Round Can-less LED Recessed Downlight
Lumens / Wattage Color Temperature Finish
NM2-2RDC40 = 400lm / 6W 27 = 2700K 30 = 3000K BB = Black MPW = White
NM2-2RDC60 = 600lm / 8W
NM2-2RDC85 1 = 850lm / 10W
Note: 4000K available in black finish only
M2 Trim Accessories
Accessory Type
27 = 2700K
30 = 3000K
40 = 4000K BB = Black MPW = White
OPTIONAL TRIM ACCESSORIES
NM2-2REFL : Reflector Insert for NM2-2RDC, Black or Haze
NM2-2BAF: Baffle Insert for NM2-2RDC, Black or White
NM2-2RPH: Round Pinhole Trim for NM2-2RDC, Black or White
NM2-2RW: Round Wall Wash Trim for NM2-2RDC, Black or White
NM2-2SDT: Square Trim for NM2-2RDC, Black or White
OPTIONAL MOUNTING ACCESSORIES
NM2-MLS1: One Head Multiple Lighting System Plate
NM2-MLS2 : Two Head Multiple Lighting System Plate
NM2-MLS3: Three Head Multiple Lighting System Plate
NM2-EW-10 : 10' Quick Connect Linkable Extension Cable\ NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations 5-Year Limited Warranty · FCC compliant Certified to the high efficacy requirements of California Title 24 JA8-2025
NM2-2RDCXXXXBB 400lm or 600lm Black Finish
2-1/2" (40/60) 4-3/4" (85) 2" 3-3/16"
NM2-2REFL Reflector Insert
NM2-2RPH Round Pinhole Trim
NM2-2SDT Square Trim
NM2-2RDC85XXMPW 850lm White Finish
Cut out: 2-7/8"
4" (40/60) 3-7/8" (85)
NM2-2BAF Baffle Insert
NM2-2RW Round Wall Wash Trim
NM2-EW Extension Cables
Optional Accessories
Accessory Type Finish
NM2-MLS1 = One Head MLS Plate
NM2-MLS2 = Two Head MLS Plate
NM2-MLS3 = Three Head MLS Plate
Finish
NM2-2REFL = Reflector for NM2-2RDC B = Black HZ = Haze
NM2-2BAF = Baffle for NM2-2RDC
NM2-2RPH = Round Pinhole Trim for NM2-2RDC
NM2-2RW = Round Wall Wash Trim for NM2-2RDC
NM2-2SDT = Square Trim for NM2-2RDC
B = Black MPW = White
Example: NM2-2RDC6030MPW = 2" M2 Round Can-less LED Recessed Downlight, 600lm / 8W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
BB = Black MPW = White
NF-R246 = Universal New Construction Frame-In
NFC-R275 = New Construction Frame-In with Collar
NM2-EW-4 = 4' Quick Connect Extension Cable
NM2-EW-10 = 10' Quick Connect Extension Cable
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
TYPE U3 SPEC GLASSHOUSE
ESSEX FM43916 FLUSHMOUNT
FM43916-BK/WT Black/Walnut
FM43916-WH/WT White/Walnut
SPECIFICATIONDETAILS
FixtureDimensions D15-3/4"xH3"
LightSource ACLEDModule
Wattage 32W
TotalLumens 2550lm
DeliveredLumens BK/WT-1092lm;WH/WT-1092lm; Voltage 120V

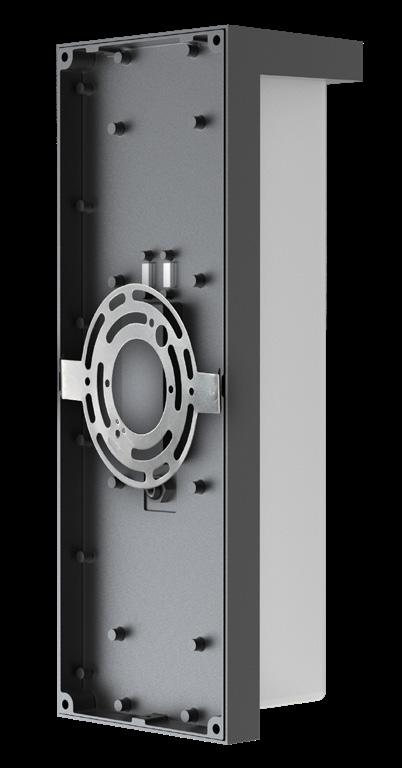

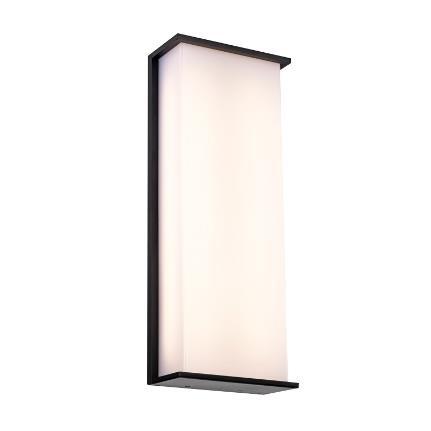

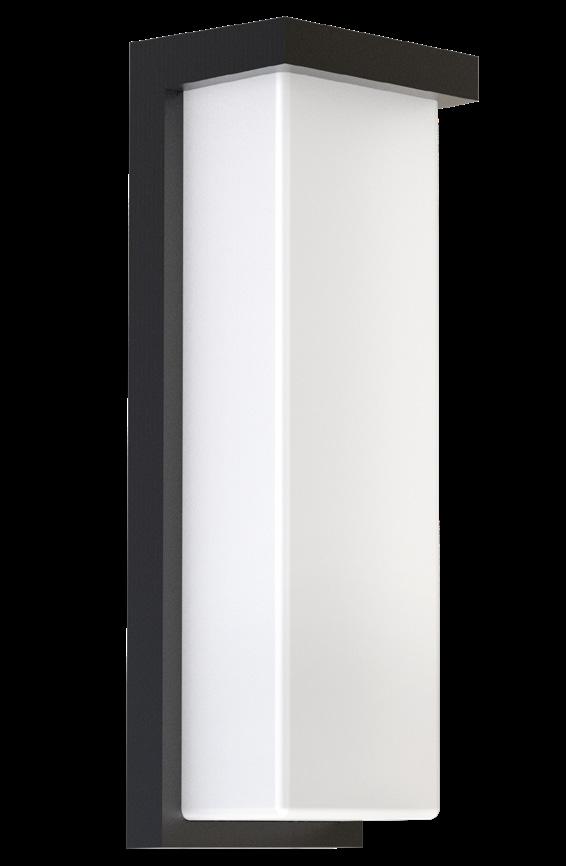

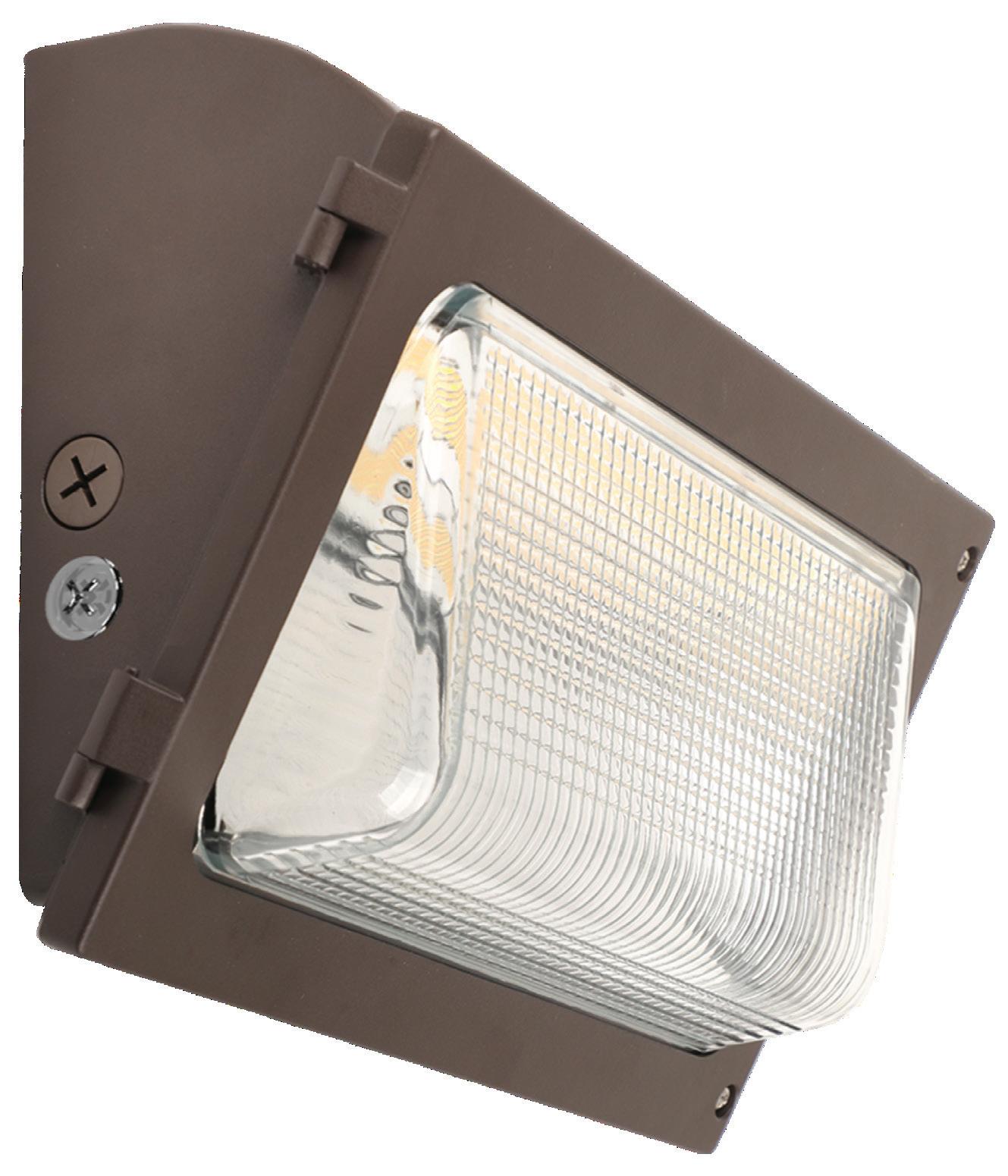

Multi Color Temperature & Multi Power/Wattage (Selectable)

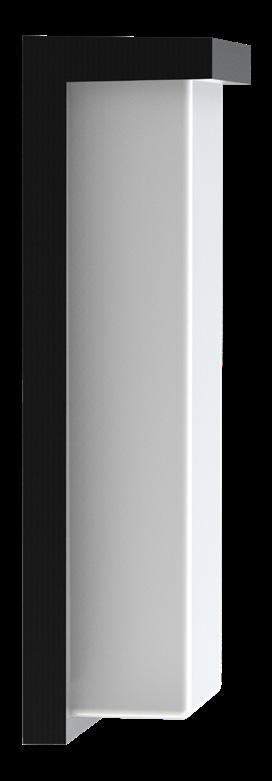

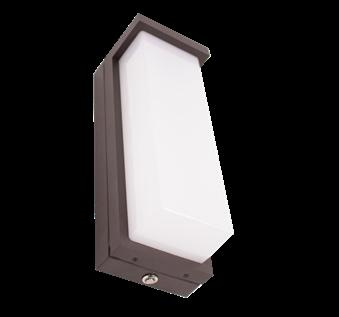

This wall light is a perfect combination of modern style, beautiful appearance, and durability. The lamp design is quite novel with an elegant and fashionable look. The backplate of the entire lamp is integrated with die-cast aluminum to ensure good heat dissipation. The lampshade uses a PC anti-yellow and high-transmittance material to provide excellent light transmission. It is available in two different sizes with three adjustable wattage levels and three adjustable color temperature levels. These decorative wall lights are ideal for balconies, porches, walkways, hallways, entryways, and living and dining spaces in both residential and commercial settings.
Features
• Oil-Rubbed Bronze
• 7-Year Warranty
Technical Specifications
Electrical:
• Voltage: 120VAC 50/60Hz
• Power Factor: >0.90
• Wattage: 18W/20W/22W
• Efficacy: 120 LPW
• Total Harmonic Distortion: ≤20 %
Mechanical:
• Aluminum Housing and Steel Back Plate
• Oil-Rubbed Bronze Finish
• Maximum Ambient Temperature: 50~113°F
• IP66, Suitable for outdoor use
• 7-Year Warranty
Customer Name:
Project Name:
Note: Type:
x 5”(W) x 4”(D)
• Multi CCT & Power (Selectable Switch On The Back )
• Aluminum Housing and Steel Back Plate
• Rated life: 70,000 Hrs
Lighting:
• Multi CCT (Selectable Switch On The Back)
• Lens:Acrylic PC lens
• Total Lumens: 2640LM Max.
• Color Temperatures: 3000K/4000K/5000K
• Color Rendering Index: CRI ≥ 80
• BeamAngle: 120°
• Rated life: 70,000 Hrs
Applications:
• LED outdoor wall light with aluminum housing & powder-coated finish, acrylic diffuser. Ideal for general site lighting, residential buildings, doorway, pathway and parking areas.
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Includes Sure-Tite connectors
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
SPECIFICATIONS
ELECTRICAL
• 12V/24V
• 3 watts per foot
OPTICS
• 90+ CRI
CERTIFICATION
• ETL (12V) / UL (24V)
• Title 24 compliant when used with used with specific drivers. Consult factory.
• Class 2
• Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space
WARRANTY
• 5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for
only and does not cover any labor or incidental charges related to
or warranty.
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
RECOMMENDED DRIVERS
LD-XD-UNV LineDrive Electronic Multi-Dimmable Power Supply, 12VDC or 24VDC 20W, 40W, 60W, 96W, 180W, 200W, 300W
LD-E-UNV LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 200W, 300W
LD-MD-UNV LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 150W, 200W, 300W View Spec Sheet
LD-EDM LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC 60W
LTP Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
PSD Electronic Dimmable Power Supply, 12VDC or 24VDC 15W, 24W, 60W, 90W
DIMENSION
16’-4” (5M reel) 100’ (30M reel)
(8mm)
(10mm) .039” (1mm) Cuttable every 2” (51mm)
CONNECTORS
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
COMPATIBLE CHANNELS- FIT CONNECTORS ON PG. 1
LED-CHL-45 Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-45-EC (2) End caps for LED-CHL-45 - one solid, one with hole N/A
LED-CHL-45-MC (2) Mounting clips and screws for LED-CHL-45
LED-CHL-45-1200 Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-45-1200-EC (2) End caps for LED-CHL-45 - one solid, one with hole N/A
LED-CHL-45-1200-MC (2) Additional mounting clips for LED-CHL-45-1200
LED-CHL-W Wide format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-W-6 Wide format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 6’
LED-CHL-W-AMC (2) Adjustable mounting brackets for LED-CHL-W N/A
LED-CHL-W-EC (2) End caps for LED-CHL-W - one solid, one with hole. N/A
LED-CHL-W-MC (2) Additional mounting clips for LED-CHL-W
MUD IN - STANDARD
LED-CHL-MI-ST6 Standard extruded aluminum mud-in channel. Includes snap-on frosted lens.
LED-CHL-MI-ST-EC (2) End caps for LED-CHL-MI-ST6 one solid, one with hole.
STANDARD STRAIGHT
LED-CHL2-4-CA Silver channel, white lens (2) mounting clips, (2) screws
LED-CHL2-4-WH White channel, white lens (2) mounting clips, (2) screws
LED-CHL2-4-BK Black channel, white lens (2) mounting clips, (2) screws
Landscape high output In-ground luminaire with dynamic beam changing and integral on-board dimming.
FEATURES
• Tiltable and adjustable beam angle
• Integral dimmer
• IP67 rated, protected from temporary immersion under water
• Drive over up to 4500lbs
• Solid diecast brass or corrosion resistant aluminum
• Available concrete pour kit
• 6’ lead wire and direct burial gel filled wire nuts included
• Maintains constant lumen output against voltage drop
• UL 1598 Listed
ORDERING NUMBER
5034-30____
Example: 5034-30BBR
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Input:
IEC safety Standard Walk over Drive over Resistance to static load test Yes (1125lbs) Yes (4496lbs) Resistance to torque and shear loads test N/A Yes
TYPE G-L SPEC GLASSHOUSE
GLASSHOUSE TYPE G-L ALT
GRAND INGROUND 120V
Rock Guard
Protects the fixture face
5830-GRD-BZ Bronze on Aluminum
5830-GRD-BBR Bronze on Brass
Concrete Pour Kit
For installation in concrete Five 2” NPt threaded holes, PC
5830-PIP-PVC
Shown with temporary dense foam cap
TYPE G-L SPEC GLASSHOUSE

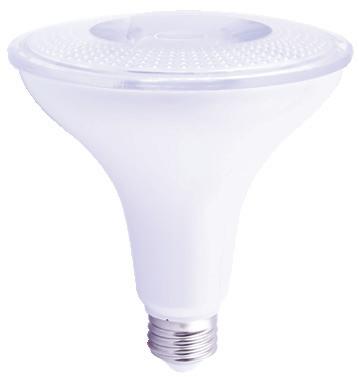

DESCRIPTION
L ED5.5PAR16/FL/27K/D
L ED5.5PAR16/FL/30K/D
L ED5.5PAR16/FL/40K/D
L ED5.5PAR16/FL/50K/D
LED7PAR20/FL40/27K/D
LED7PAR20/FL40/30K/D
LED7PAR20/FL40/35K/D
LED7PAR20/FL40/40K/D
LED7PAR20/FL40/50K/D
LED11PAR30L/FL40/27K/D
LED11PAR30L/FL40/30K/D
LED11PAR30L/FL40/35K/D
LED11PAR30L/FL40/40K/D
LED11PAR30L/FL40/50K/D
LED15PAR38/FL40/27K/D
LED15PAR38/FL40/30K/D
LED15PAR38/FL40/35K/D
LED15PAR38/FL40/40K/D
LED15PAR38/FL40/50K/D
DESCRIPTION
L ED5.5PAR16/FL/27K/D
L ED5.5PAR16/FL/30K/D
L ED5.5PAR16/FL/40K/D
L ED5.5PAR16/FL/50K/D
LED7PAR20/FL40/27K/D
LED7PAR20/FL40/30K/D
LED7PAR20/FL40/35K/D
LED7PAR20/FL40/40K/D
LED7PAR20/FL40/50K/D
LED11PAR30L/FL40/27K/D
LED11PAR30L/FL40/30K/D
LED11PAR30L/FL40/35K/D
2 732-882-1500 luxrite.com
IGLA SERIES
IGLA-7W-30K-BN
INTEGRATED LED WELL LIGHT
LANDSCAPE LIGHTING
Customer Name: Project Name:
Note: Type:
The fixture has classic traditional appearance, professional light distribution design, ideal for park landscaping, garden, architectural landscape lighting, suitable for wet locations
Selection: 2 2/3”(H) x 3”(W)
• Die-cast Aluminum Housing
• Solid State Lighting Technology for Long Life, No Maintenance Needed and High-Efficiency
Technical Specifications Features
Electrical:
• Voltage: 12-24V AC/DC
• Power Factor: >0.9
• Wattage: 7W
• Input current: 1A Max
• Efficacy: 102LPW
Mechanical:
• • Die-castAluminum Housing Traffic Rated: They are not likely to get damaged from activity around the light, including lawn care, as well as foot and auto traffic
• Optical PC Flat Lens
• 4” PVC Sleeve with three 1/2” KO. 2 on sides, 1 on bottom
• Solid State Lighting Technology for Long Life, No Maintenance Needed and High-Efficiency
• High ConductiveAluminum LED Board
• IP Rating: IP67
• Operating Temperature: -4°F to 104°F
• Suitable for Wet Locations
• 1-Year Warranty
Other Models:
• 3W | 320LM | IGLA-3W-30K-BN
• 1-Year Warranty
• Optical PC Flat Lens
• LED: Built in integrated LED
Lighting:
• LED: Built in integrated LED
• Total lumens: 720LM
• Color Temperatures: 3000K
• Color Rendering Index: CRI ≥ 90
• Beam Angle: 70°
• Lifespan: 50,000 Hrs.
Applications:
• The fixture has classic traditional appearance, professional light distribution design, ideal for park landscaping, garden, architectural landscape lighting, suitable for wet locations

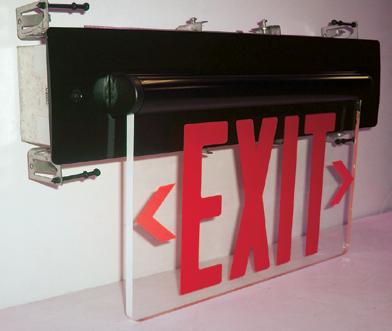

Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: Normal operation: 3.8W / Emergency operation: 0.7W
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery Back-Up (NX-815-LED): NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
Listed
· State & Municipal Certified to the energy efficiency standards of California Title 20
• USA: Substantial transformation assembly in the U.S. complies with "Assembled in USA" under the Buy American Act.
• Five year warranty on all electronics and housing. Battery prorated for five years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL Listed for damp locations (0°C – 50°C).
• Certified to CEC under Title 20 Regulations.
ELECTRICAL INFORMATION
DIMENSIONS
GLASSHOUSE TYPE X2 ALT

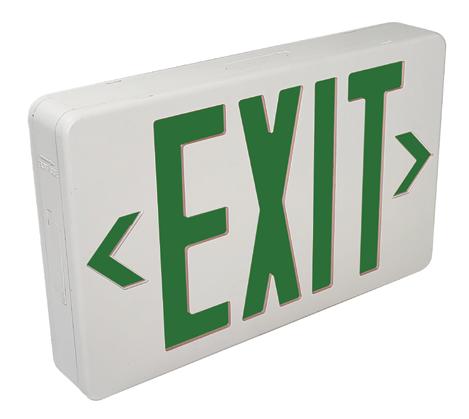

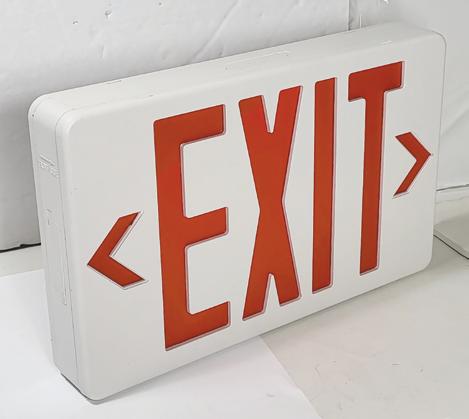

NX-603D-LED
Thermoplastic Dual Color (Red/Green) LED Exit Sign with Battery Backup
Source: 3W normal operation 0.4W emergency operation
PRODUCT DESCRIPTION
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
11-13/16" Width x 7-1/4" Height x 1-13/16" Depth
Injection-molded thermoplastic housing Black or White housing finish
FACE
6" high text with color diffusion
Both double and a blank face are included
Snap-in direction indicators
MOUNTING
Wall, side, or ceiling
Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: Normal operation: 3W / Emergency operation: 0.4W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES
NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
5-Year Limited Warranty UL 924
Rated for Damp Locations (Wet Location when used with NEG-60) NFPA
Certified to the energy efficiency standards of California Title 20
Thermoplastic Dual Color LED Exit Sign with Battery Backup
Type Project Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
· Push-To-Test Switch
High temperature maintenance free NiCad battery 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
5-Year Limited Warranty UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
