DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation for plaster ceilings using 2700K LED source and 15° degree beam. To be supplied with DALI dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED 2542lm, 2700K, CRI 90+
POWER: 39W, 900mA, 120 to 277 Vac
CONTROL: DALI
FIXING METHOD: Mesh kit for seamless/trimless installation as per manufacturer’s instruction
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 2 of 147
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
Collar notch allows for easy alignment between trims.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional emergency battery (EM) available in 4W or 8W versions. Each provides light for a minimum of 90 minutes. EM back box (installed by factory) is required for the 4W version. 4W is accessible from below the ceiling. Ceiling access is required for the 8W version (test switch is remote). EM is UL 924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.

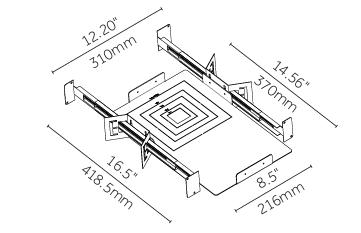

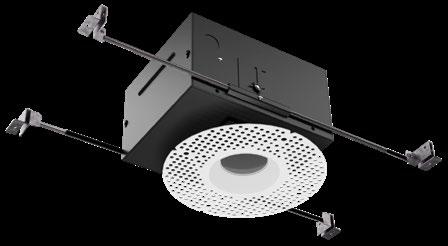

MOUNTING
Universal bar hanger (UH) is designed to mount to wood (two positions) and T-bar ceilings. UH may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.

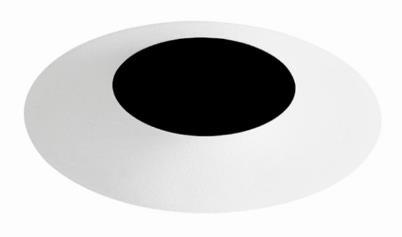

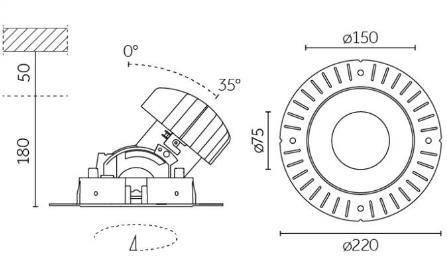

Mood Pro Adjustable Round Cone M - Trimless - Ø80mm
X.KP1DH.HW12
+ 0.26017.0012 – Round curve plate
+ 0.26033.0000 – Honeycomb louver
+ 0.26048.0000 – Antiglare accessory
+ 0.26075.005B – Filter 2700-2500K
+ D.30422.0000 – Driver DALI 2
Interior quality recessed adjustable downlight for trim installation on the beams using 2700K LED source and 32° degree beam. To be supplied with DALI dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED 898lm, 2700K, CRI 90+
POWER: 14W, 1050mA, 120 to 277 Vac
CONTROL: DALI
FIXING METHOD:
COMMENTS:
ILLUSTRATION:
Mesh kit for seamless/trimless installation as per manufacturer’s instruction
UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ISO_LES_2057_FSH_HTL RevE page 8 of 147
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
Collar notch allows for easy alignment between trims.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional emergency battery (EM) available in 4W or 8W versions. Each provides light for a minimum of 90 minutes. EM back box (installed by factory) is required for the 4W version. 4W is accessible from below the ceiling. Ceiling access is required for the 8W version (test switch is remote). EM is UL 924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
MOUNTING
Universal bar hanger (UH) is designed to mount to wood (two positions) and T-bar ceilings. UH may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.

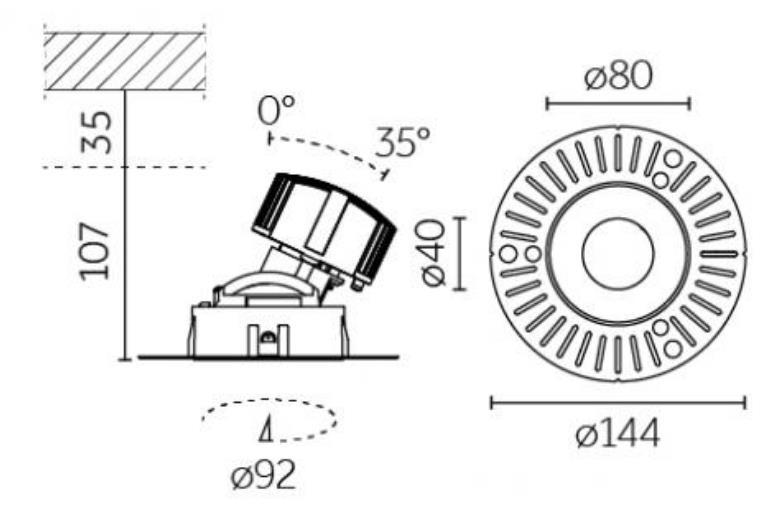

Mood Pro Adjustable Round Cone M - Trimless - Ø80mm
X.KP1DE.HW12
+ 0.26017.0012 – Round curve plate
+ 0.26033.0000 – Honeycomb louver
+ 0.26048.0000 – Antiglare accessory
+ 0.26075.005B – Filter 2700-2500K
+ D.30422.0000 – Driver DALI 2
Interior quality recessed adjustable downlight for trim installation on the beams using 2700K LED source and 22° degree beam. To be supplied with DALI dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED 1074lm, 2700K, CRI 90+
POWER: 14W, 1050mA, 120 to 277 Vac
CONTROL: DALI
FIXING METHOD:
COMMENTS:
ILLUSTRATION:
Mesh kit for seamless/trimless installation as per manufacturer’s instruction
UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ISO_LES_2057_FSH_HTL RevE page 10 of 147
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
Collar notch allows for easy alignment between trims.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional emergency battery (EM) available in 4W or 8W versions. Each provides light for a minimum of 90 minutes. EM back box (installed by factory) is required for the 4W version. 4W is accessible from below the ceiling. Ceiling access is required for the 8W version (test switch is remote). EM is UL 924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
MOUNTING
Universal bar hanger (UH) is designed to mount to wood (two positions) and T-bar ceilings. UH may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
Mood Pro Adjustable Round Cone M - Trimless - Ø80mm
X.KP1DH.HQ12
+ 0.26017.0012 – Round curve plate IP54
+ 0.26033.0000 – Honeycomb louver
+ 0.26048.0000 – Antiglare accessory
+ 0.26075.005B – Filter 2700-2500K
+ D.30422.0000 – Driver DALI 2
Interior quality recessed adjustable downlight for trim installation on the beams using 3000K LED source and 32° degree beam. To be supplied with DALI dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry Areas
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED 1074lm, 3000K, CRI 90+
POWER: 14W, 1050mA, 120 to 277 Vac
CONTROL: DALI
FIXING METHOD:
COMMENTS:
ILLUSTRATION:
Mesh kit for seamless/trimless installation as per manufacturer’s instruction
UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ISO_LES_2057_FSH_HTL RevE page 16 of 147
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
Collar notch allows for easy alignment between trims.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional emergency battery (EM) available in 4W or 8W versions. Each provides light for a minimum of 90 minutes. EM back box (installed by factory) is required for the 4W version. 4W is accessible from below the ceiling. Ceiling access is required for the 8W version (test switch is remote). EM is UL 924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
MOUNTING
Universal bar hanger (UH) is designed to mount to wood (two positions) and T-bar ceilings. UH may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.

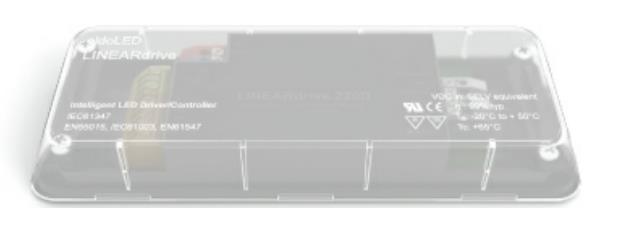

+ Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN

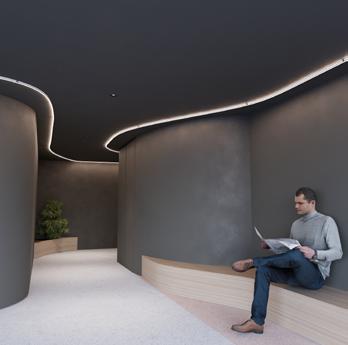

Interior quality 2700K warm white side bend neon type LED mounted into flexible aluminium profile. To be supplied with all connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING Dry
FINISHES: n/a
DIMENSIONS: As shown - final installation length to be confirmed by contractor.
LAMP TYPE & REF: LED 2700K, 168 lm/ft, CRI 90+
POWER: 24V, 4W/ft
CONTROL: DALI
FIXING METHOD: Surface mounted within joinery
COMMENTS: UL listed. Circuited to dimming system. Non dimmable driver and dimming unit by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 26 of 147

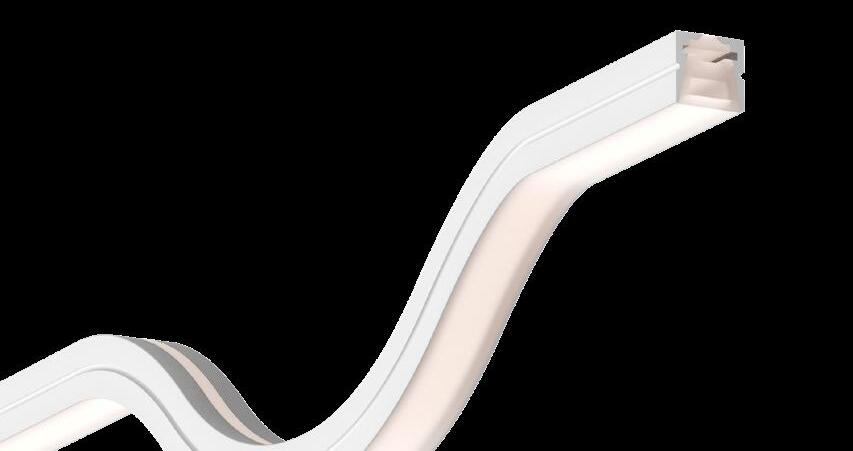

TOP VIEW FLEX NEON FLEX SERIES
PRODUCT DATA SHEET

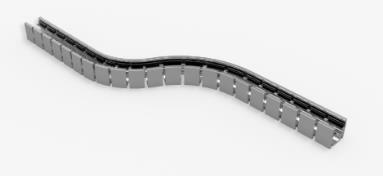

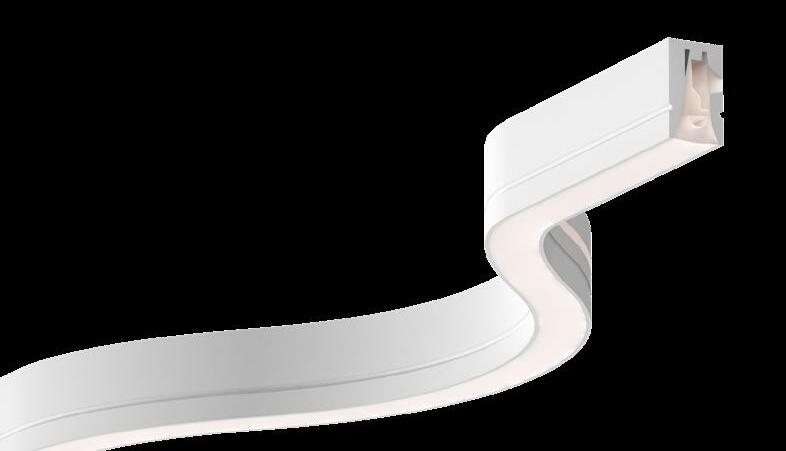

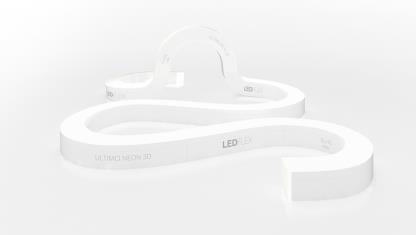

The Top View Neon Flex is a flexible silicone channel that bends up and down on the vertical axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends up and down on the vertical axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
Available in static white, warm dimming, tunable white, RGB, and RGBW
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 150mm (6in)
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations

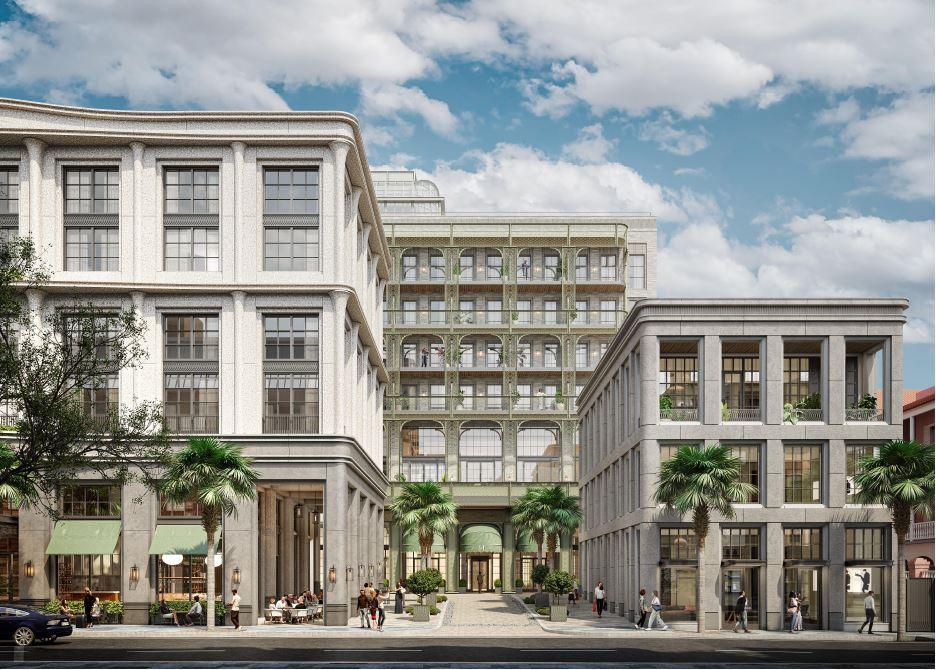

PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas

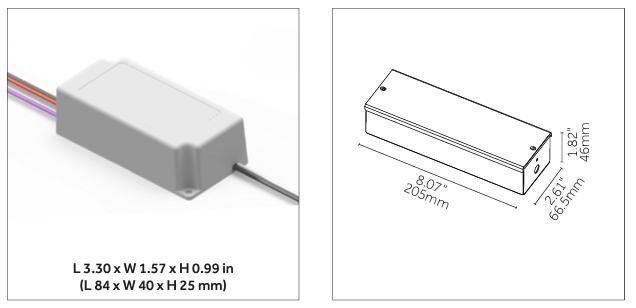

Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 27 of 147
CHARLESTON
35 - 3500K
42 - 4200K LHP - 7.0 W/ft
- ELV dimming 120/277 VAC (Only available in 96W - 24V driver)
VAC
53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only) G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K - 4.4 W/ft
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
- No controller RGB AND TUNABLE WHITE LED TAPE OPTIONS (See Delivered Lumens table in section 1 for details).
TW2 - Tun. White - 5.8 W/ft
TW1 - Tun. White - 3.5 W/ft N/A - Not available with TW and RGB options I - Indoor dry and damp location
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L3a
LOCATION:
Joinery - Throughout Dry Areas
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE: NANO FLEX 240 2300K - NF240-23-2004
+ 021-7309-02 Pro Profile
+ 022-1169-02 Opal Diffuser
+ 021-7309-12 Metal clip
+ End caps

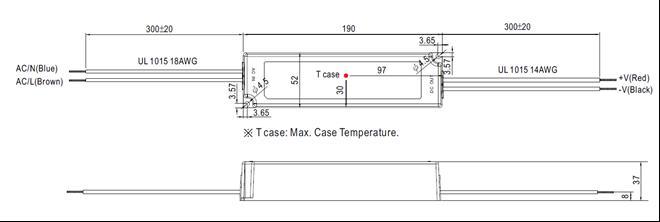

+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
DESCRIPTION:

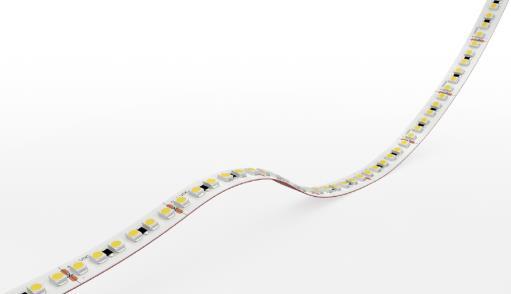

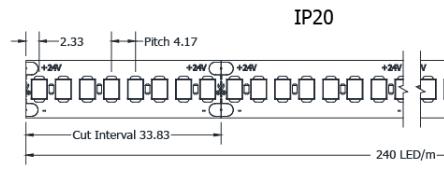

Interior quality nano linear using warm white, 2300K LED tape mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING IP20
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2300K LED, CRI 90, 173 lm/ft
POWER: 1.6W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in millworks
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 30 of 147

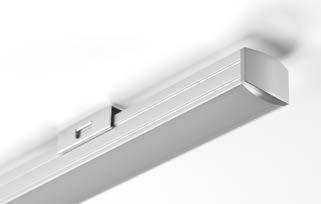

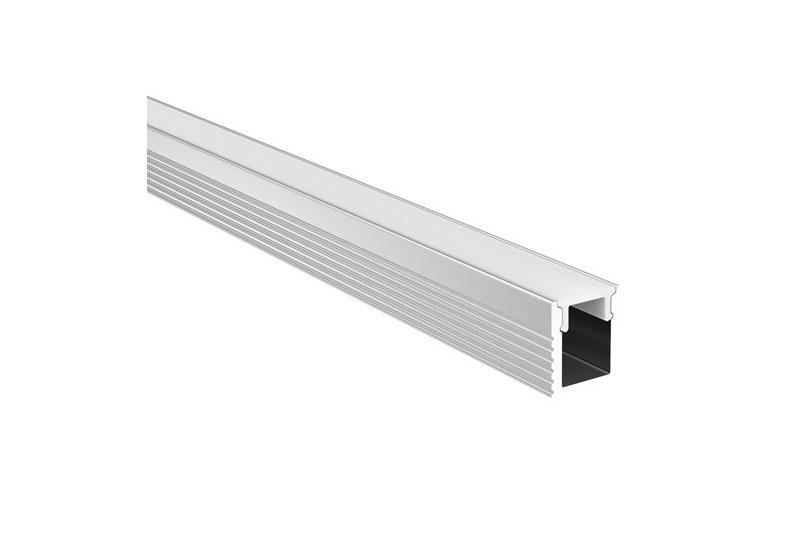

SERIES MURMURATI

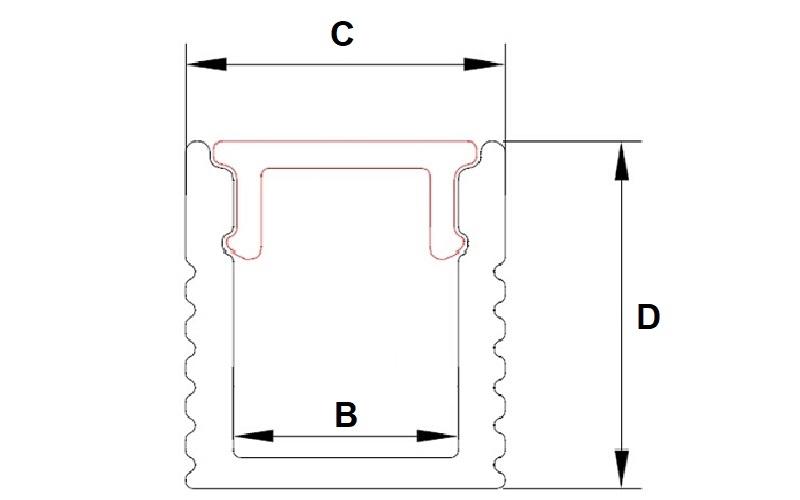

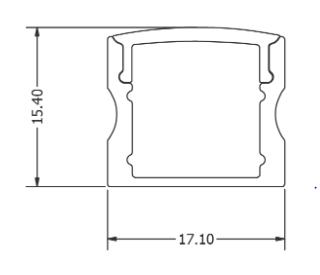

Trimless aluminum profile for surface or recessed mounting
This narrow trimless U-shaped profile series is designed to be either surface or recessed mounted depending on your needs. Discreet, it will perfectly integrate to your decor. It offers several power, lenses and assembly options allowing you to let your creativity run free. Promoting better heat dissipation despite being embedded, this series will offer you uncompromising lighting for many years to come.
FEATURES

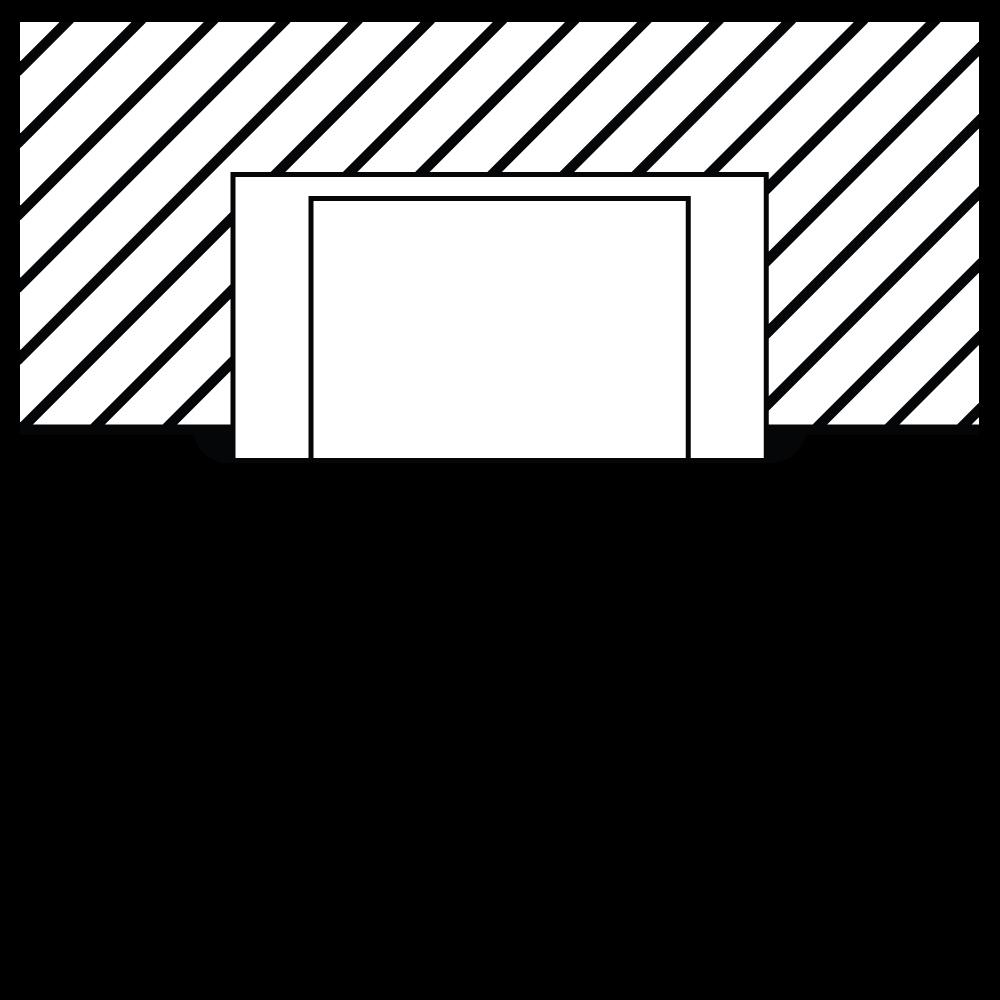

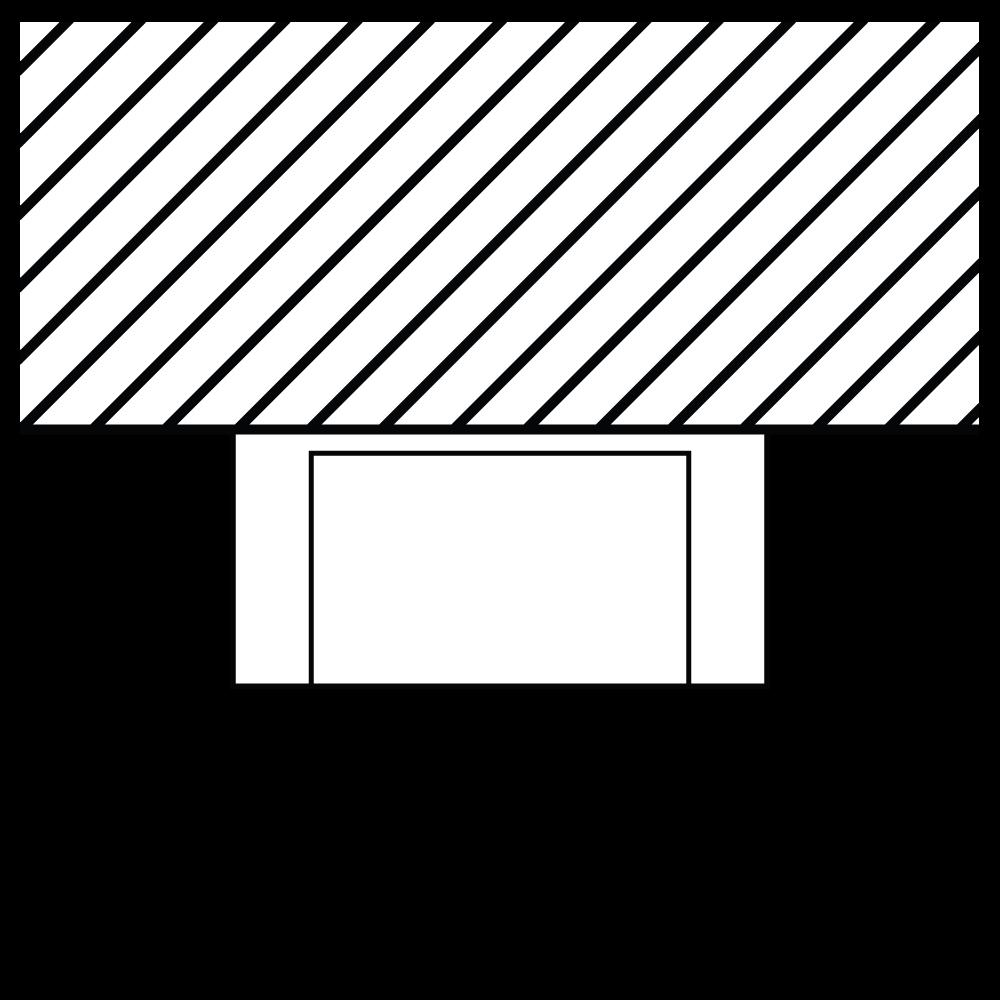

Surface or recessed
Trimless
Can be cut to your needs

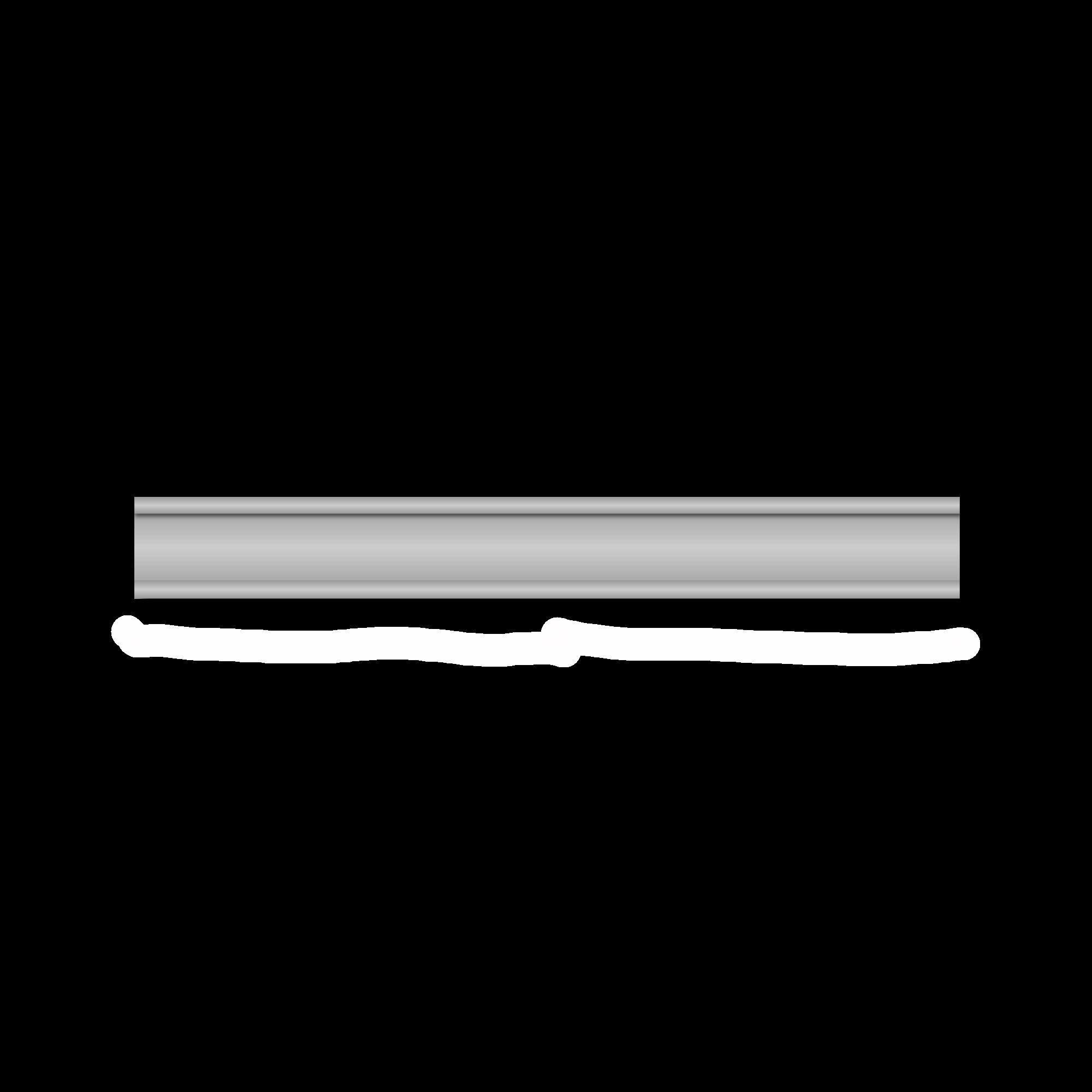

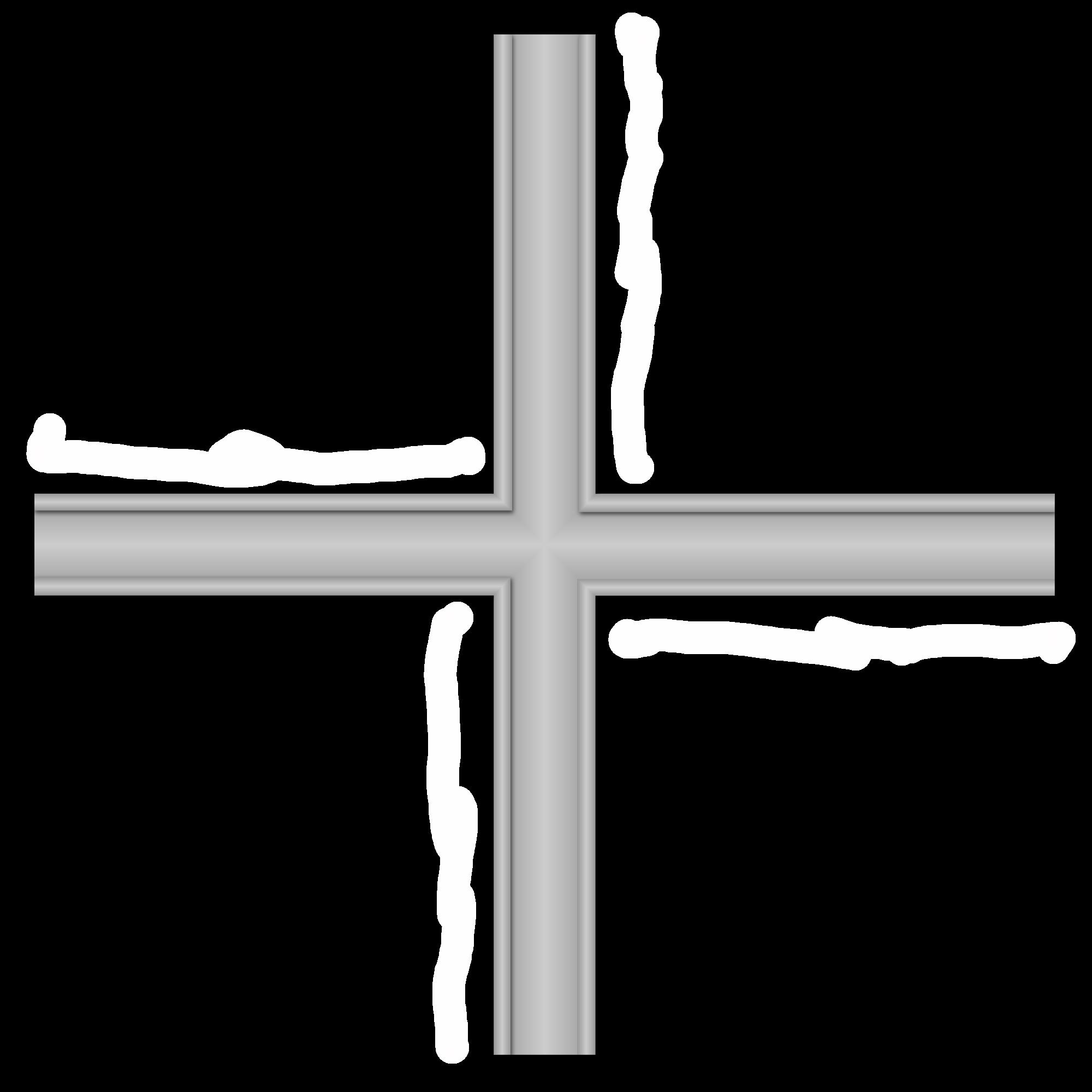

Allows continuous joint mounting

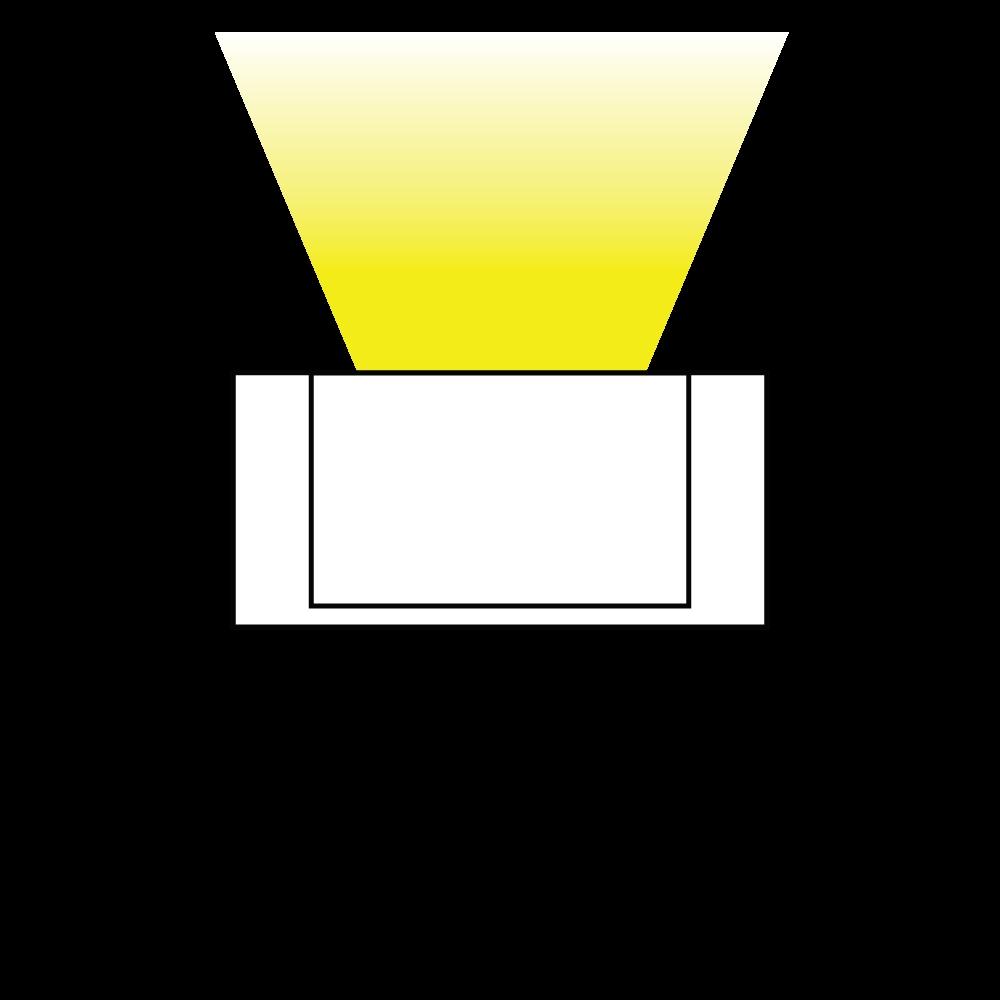

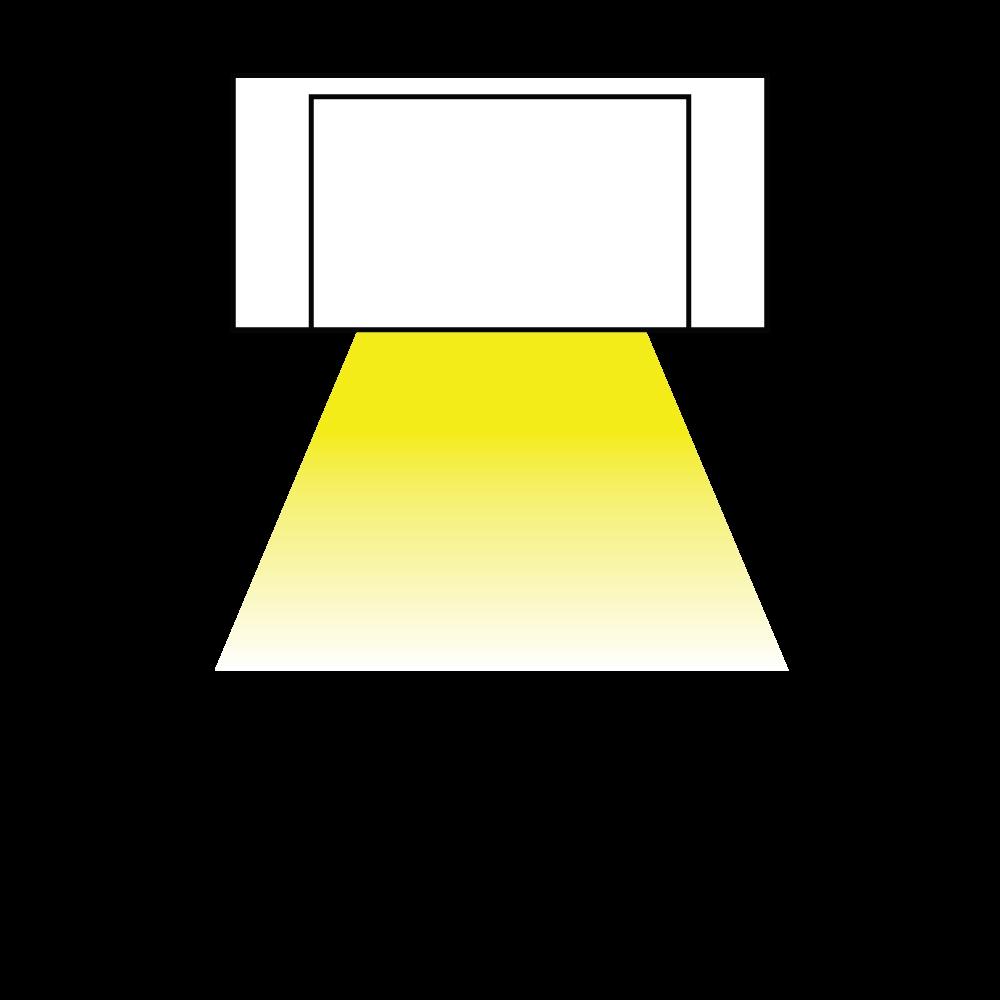

Direct or indirect lighting
Wide choice of lens
Wide choice of colors and finishes
Clear Anodized Aluminum 6063T5
APPLICATION Regular (all purpose)
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 31 of 147

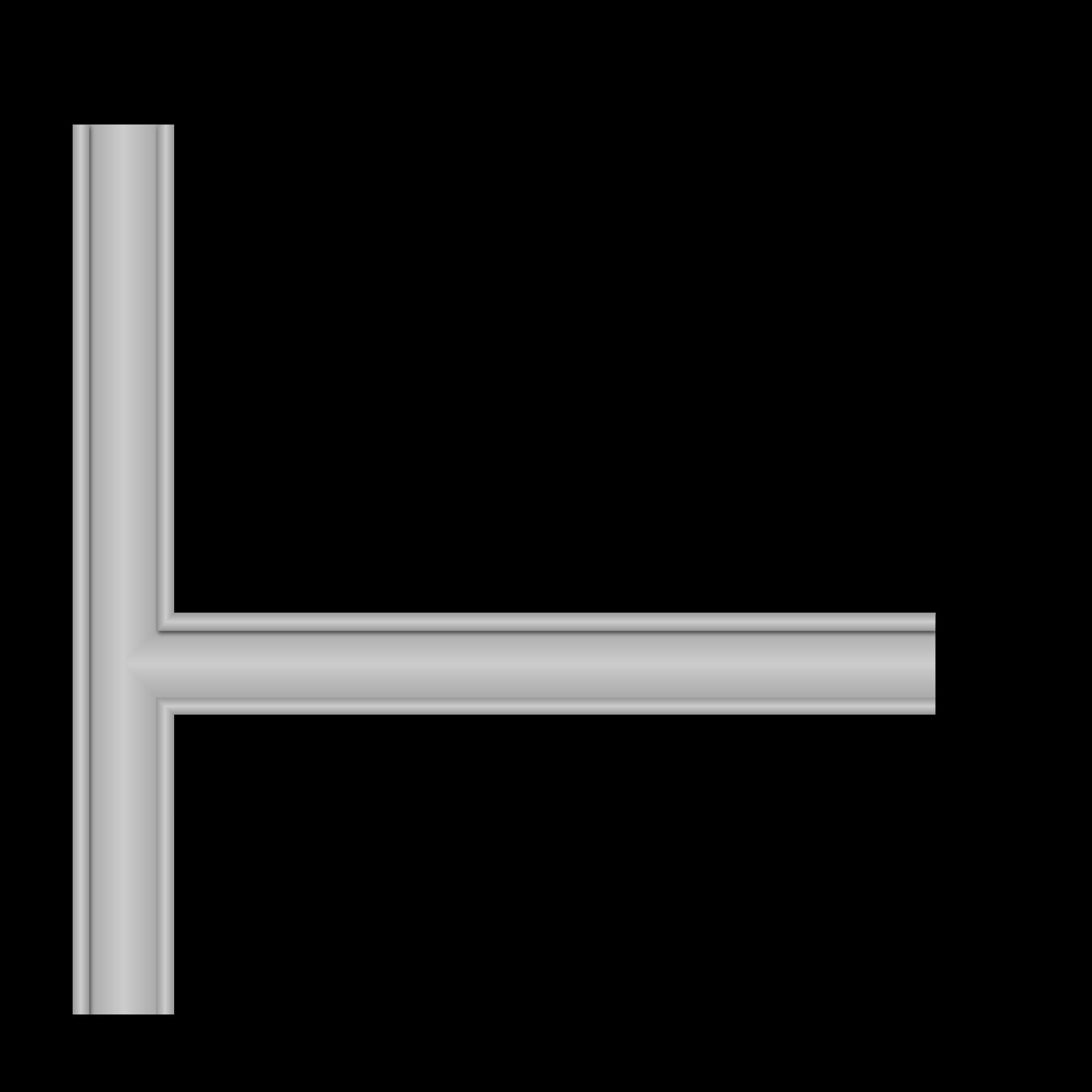

GRADATION
Type
Not dimmable Dimmable Triac Dimmable 0-10 Volt
DIFFUSER
TypeLight diffuseAngle Frost
SHAPE LUMINAIRE COLOR
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L3b
LOCATION:
Joinery - Throughout Damp Areas
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE: NANO FLEX 240 2300K - NF240-23-5404
+ 021-7309-02 Pro Profile
+ 022-1169-02 Opal Diffuser
+ 021-7309-12 Metal clip
+ End caps
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
DESCRIPTION: Interior quality nano linear using warm white, 2300K LED tape mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING IP54 (Damp)
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2300K LED, CRI 90, 173 lm/ft
POWER: 1.6W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in millworks
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 32 of 147

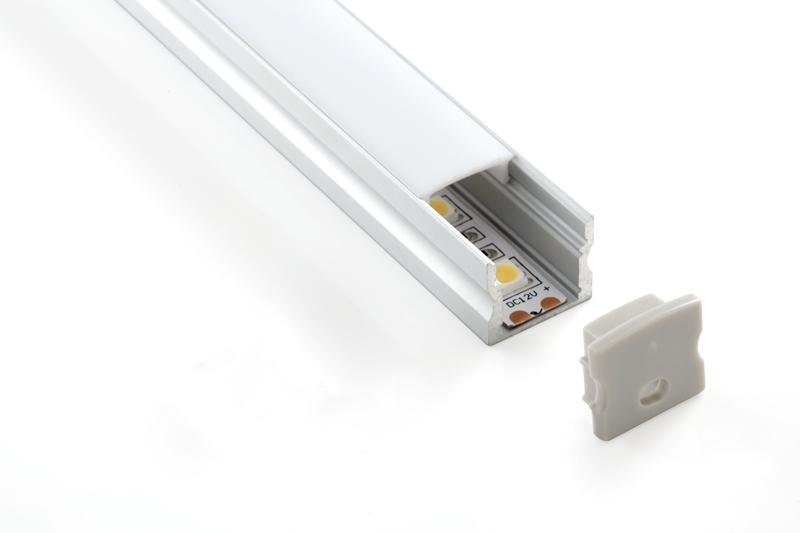

SERIES MURMURATI
Trimless aluminum profile for surface or recessed mounting
This narrow trimless U-shaped profile series is designed to be either surface or recessed mounted depending on your needs. Discreet, it will perfectly integrate to your decor. It offers several power, lenses and assembly options allowing you to let your creativity run free. Promoting better heat dissipation despite being embedded, this series will offer you uncompromising lighting for many years to come.
FEATURES
Surface or recessed
Trimless
Can be cut to your needs
Allows continuous joint mounting
Direct or indirect lighting
Wide choice of lens
Wide choice of colors and finishes
Clear Anodized Aluminum 6063T5
APPLICATION Regular (all purpose)
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 33 of 147
GRADATION
Type
Not dimmable Dimmable Triac Dimmable 0-10 Volt
DIFFUSER
TypeLight diffuseAngle Frost
SHAPE LUMINAIRE COLOR
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L3c
LOCATION: Joinery – Enclosed shelf
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE: NANO FLEX 240 2700K - NF240-27-2004
+ 021-7309-02 Pro Profile + 022-1169-02 Opal Diffuser + 021-7309-12 Metal clip + End caps + Non Dimmable Driver: Meanwell LPV-100-24
DESCRIPTION: Interior quality nano linear using warm white, 2700K LED tape mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING IP20
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90, 173 lm/ft
POWER: 1.6W/ft – 24V
CONTROL: DJS
FIXING METHOD: Fixing in millworks
COMMENTS:
UL/ETL listed. Remote electronic switching driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 34 of 147
SERIES MURMURATI
Trimless aluminum profile for surface or recessed mounting
This narrow trimless U-shaped profile series is designed to be either surface or recessed mounted depending on your needs. Discreet, it will perfectly integrate to your decor. It offers several power, lenses and assembly options allowing you to let your creativity run free. Promoting better heat dissipation despite being embedded, this series will offer you uncompromising lighting for many years to come.
FEATURES
Surface or recessed
Trimless
Can be cut to your needs
Allows continuous joint mounting
Direct or indirect lighting
Wide choice of lens
Wide choice of colors and finishes
Clear Anodized Aluminum 6063T5
APPLICATION Regular (all purpose)
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
ISO_LES_2057_FSH_HTL RevE page 35 of 147 Non Dimmable Driver:
CHARLESTON
GRADATION
Type
Not dimmable Dimmable Triac Dimmable 0-10 Volt
DIFFUSER
TypeLight diffuseAngle Frost
SHAPE LUMINAIRE COLOR
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
+Dimming module: Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
DESCRIPTION: Interior quality 2400K warm white side bend neon type LED mounted into flexible aluminium profile. To be supplied with all connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING Dry
FINISHES: n/a
DIMENSIONS: As shown - final installation length to be confirmed by contractor.
LAMP TYPE & REF: LED 2400K, 147 lm/ft, CRI 90+
POWER: 24V, 4W/ft
CONTROL: DALI
FIXING METHOD: Surface mounted within joinery
COMMENTS: UL listed. Circuited to dimming system. Non dimmable driver and dimming unit by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 44 of 147
SIDE FLEX NEON FLEX SERIES
PRODUCT DATA SHEET
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 45 of 147
CHARLESTON TYPE H-L7 ALT
- 2700K
- 4200K
HWX - Hardwire custom ft
secondary light source
IN
AB - Back feed, side A AS1 - Side feed, side A1
AS2 - Side feed, side A2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
DCX
- ELV dimming 120V AC
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BNO - No feed, closed end cap
AB - Back feed, side A
AS1 - Side feed, side A1
AS2 - Side feed, side A2
ANO - No feed, closed end cap
LENGTH
Custom length by lumen package, in.:
LP1 max. 360"
LP2 max. 316"
TW1 max. 276"
LP3 / WD1 / WD3 / RGB1 max. 209"
LP4 / TW2 / RGB2 max. 158" LHP max. 131"
Casambi
- 7.0 W/ft 53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only)
- Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K - 4.4 W/ft NO - No driver
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
TW1 - Tun. White - 3.5 W/ft
No controller
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L8
LOCATION: Spa Ceiling coves
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE: Lumen Line 240 2300K - LL240-23-2024
+ 021-0402 Pro Profile + 022-0105 Opal Diffuser
+ 021-0213 Metal clip
+ End caps
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
DESCRIPTION:
Interior quality linear using warm white, 2300K LED lamps mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING IP20
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2300K LED, CRI 98, 799 lm/ft
POWER: 7.3W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in ceiling cove
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 46 of 147
SERIES PRUDENS
Aluminum profile for surface or suspended mounting
With its modern look and multiple color and finish options, this series combines style and versatility. It offers several power, lenses and assembly options thus allowing you to create the decors and atmospheres you desire. Promoting better heat dissipation, this series will provide you with uniform and uncompromising lighting for many years to come.
FEATURES
Surface mount or suspended
Modern look
Can be cut to your needs
Allows continuous joint mounting
Direct or indirect lighting
Wide choice of lens
Wide choice of colors and finishes
Clear Anodized Aluminum 6063T5
APPLICATION
Regular (all purpose)
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 47 of 147
CHARLESTON
GRADATION
Type
Not dimmable
Dimmable Triac Dimmable 0-10 Volt
DIFFUSER
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L11a
LOCATION: Gym Ceiling coves
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE: Lumen Line 240 3000K - LL240-23-2024
+ 021-0402 Pro Profile + 022-0105 Opal Diffuser
+ 021-0213 Metal clip
+ End caps
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
DESCRIPTION:
Interior quality linear using warm white, 3000K LED lamps mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING IP20
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 3000K LED, CRI 98, 850 lm/ft
POWER: 7.3W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in ceiling cove
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 52 of 147
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• Motion sensor ready for static white and warm dim options
• Rece ss into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainles s steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suit able for storage and closet areas
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas

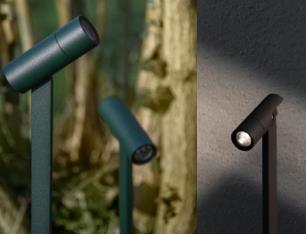

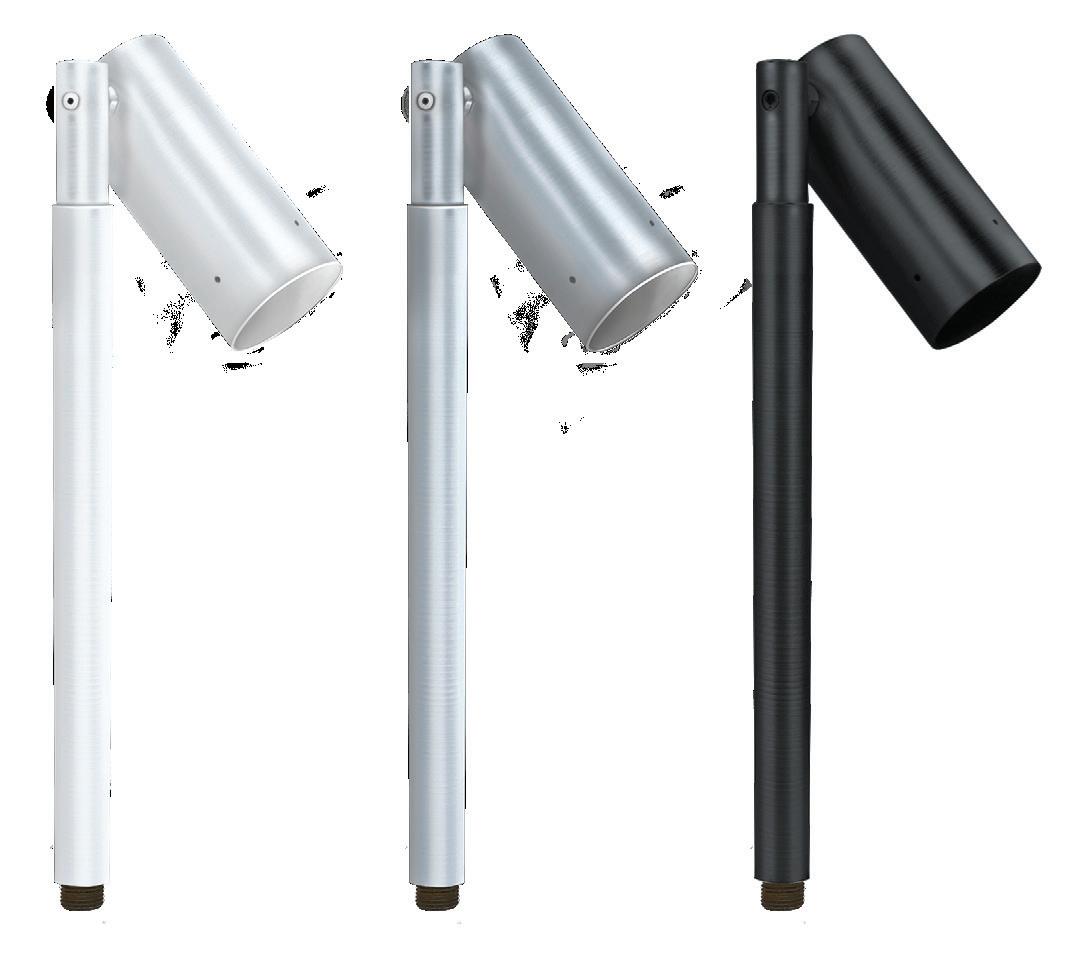

DESCRIPTION: Exterior quality spike mounted spotlight using LED source in warm white 2700K with flood beam 30°. Remote DALI dimmable driver as per manufacturer to compatible with control system to be supplied as additional.
IP / LOCATION RATING Wet Rated
FINISHES: Anthracite ,TBC by Interior Designer
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 30° beam, 2700K, 348 lm
POWER: 24V, 6W
CONTROL: DALI
FIXING METHOD: Spike mounted. Refer to manufacturer’s instructions
COMMENTS: UL listed. Circuited to dimming system. Electronic dimmable transformer by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL
Type:
Model:

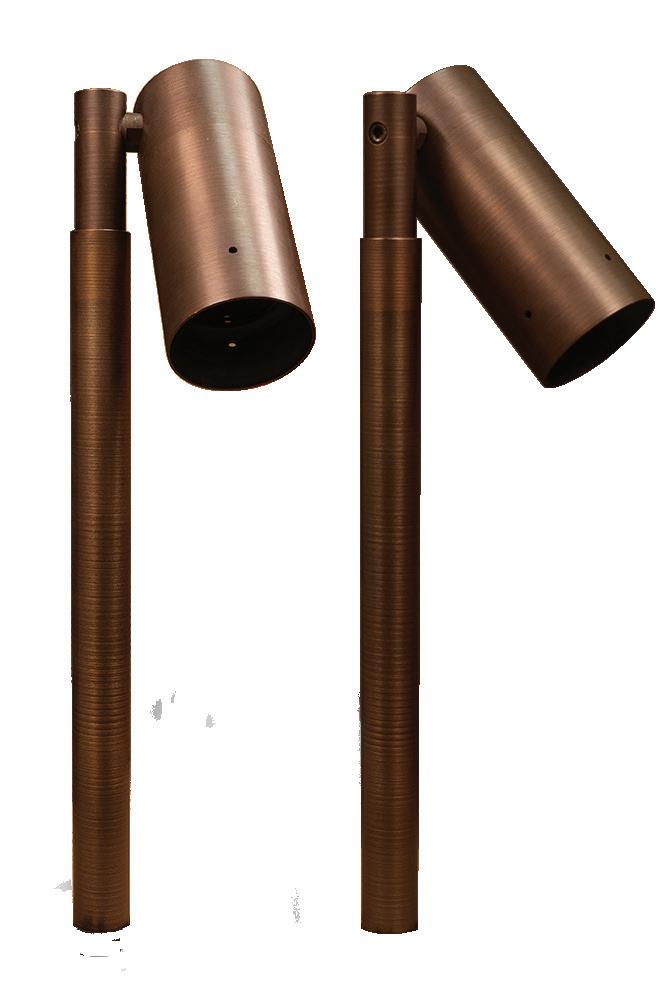

ARIA 16” and 20” LED MR16 Path Light Fixture
ORDERING CODE:
489917-P16 (16”) 489917-P20 (20”)
SPECIFICATIONS
HOUSING:
Solid brass. Threaded with O-ring. Watertight and bug-tight.
FINISH:
Weathered brass. Architectural colors and custom powder coated colors available.
LENS:
Clear flat tempered glass.
SOCKET/LAMP HOLDER:
One fixed ceramic bi-pin socket with stainless steel retaining springs.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stake mount included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
ARCHITECTURAL COLORS:
FINE TEXTURE SILVER
FINE TEXTURE WHITE
FINE TEXTURE BLACK
DIMENSIONS:
Aria 16” Uplight (489917-P16-S)
Aria 20” Uplight (489917-P20-S)
Aria 16” Uplight (489917-P16-WH)
Aria 20” Uplight (489917-P20-WH)
Aria 16” Uplight (489917-P16-BLK)
Aria 20” Uplight (489917-P20-BLK)
SPECIFICATION SHEET
Standard colors: Bronze Aria 16” uplight (489917-P16) / Bronze Aria 20” uplight (489917-P20). Architectural colors and powder coated colors are also available.
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
ISO_LES_2057_FSH_HTL RevE page 72 of 147
SPECIFICATION SHEET Page 2
16” and 20” LED MR16 Path Light Fixture
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 120°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 489917-P16-4W-25-2700K-MS
489917-P16
489917-P16-S
489917-P16 -WH
489917-P16 -BLK
489917-P20
489917-P20-S
489917-P20 -WH
489917-P20 -BLK
MS Composite stake (incl.) 490034
M3 Trident Heavy-Duty 3-Prong Stake 490036
PM Round pier mount 490057
MR Round tapered 3-hole surface mount 490048
MP PVC/Brass post stake 490037
BLANK
SPECIFICATION SHEET

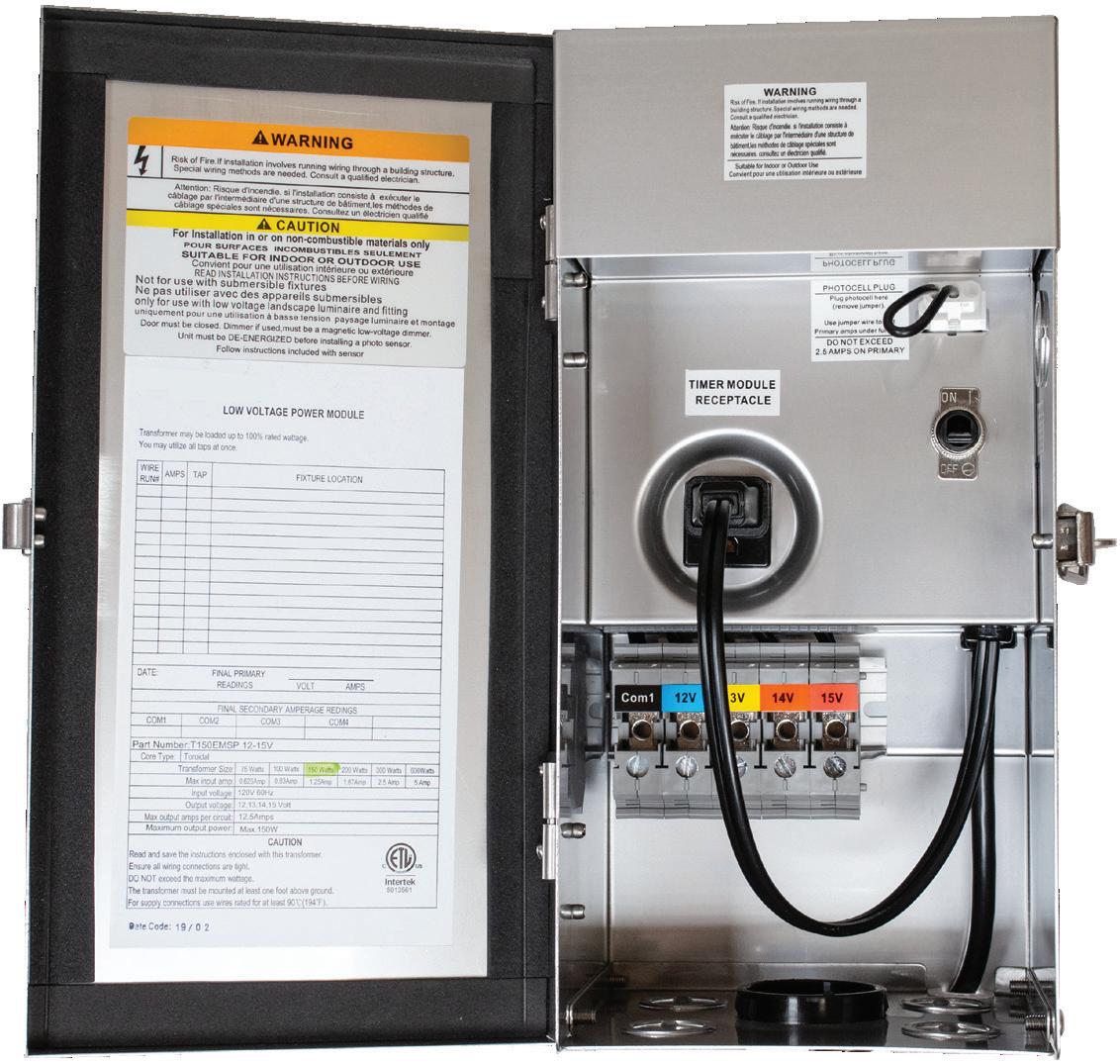

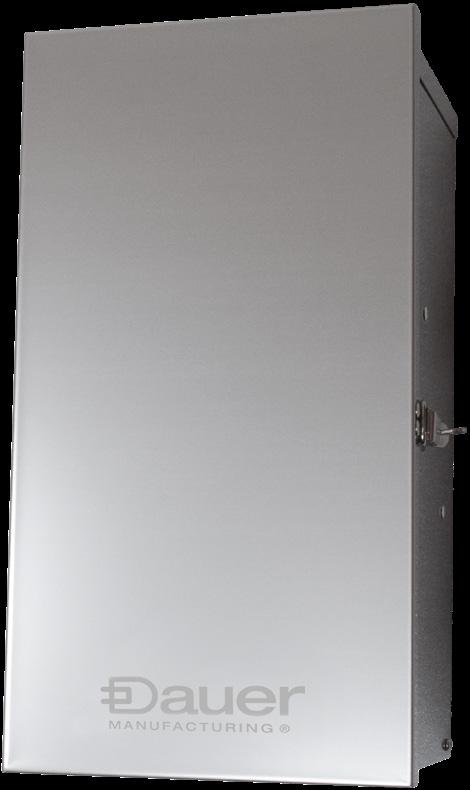

150W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490541
SPECIFICATIONS
OUTPUT:
150W, 12.5A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT: 120V, 60HZ, 1.25A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 12.5A breaker, heavy-duty grounded 5-foot power cord. suitable for interior or exterior use.
AGENCY LISTINGS: ETL approved (5013561). Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
ORDERING INFORMATION:
To order a transformer with an option, select the appropiate choices from each column as in the following example: EXPAMPLE: 490541-DT200LT
