DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation in plasterboard ceilings using 2700K LED source and 25° beam. To be supplied with DALI dimmable driver, honeycomb louvre, Integral IC housing and all accessories for installation.
IP / LOCATION RATING DRY RATED
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 842lm, 2700K, CRI 90
POWER: 11W, 120V input to driver

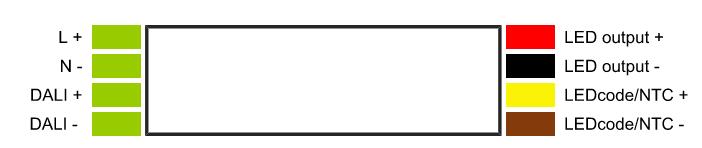

CONTROL: DALI
FIXING METHOD: Mesh kit for seamless/trimless installation as per manufacturer’s instruction
COMMENTS: UL listed. Circuited to lighting control system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:

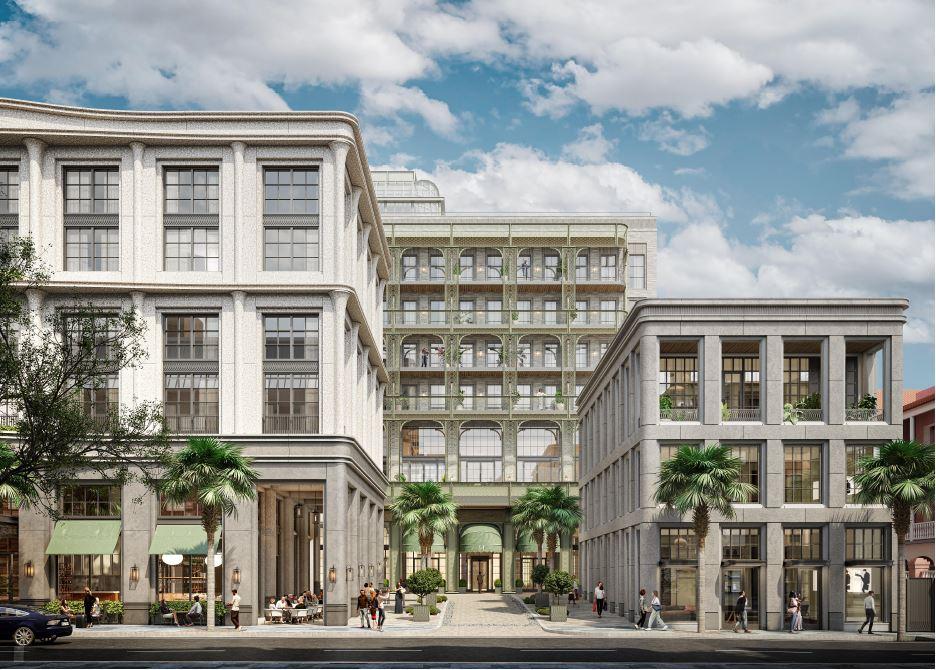

PROJECT: 2057 Charleston Hotel & Residences – Guestrooms ISO_LES_2057_FSH_GTR
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.

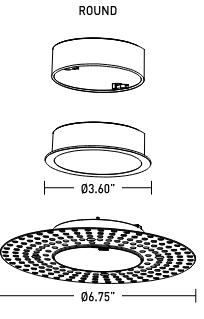

TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING

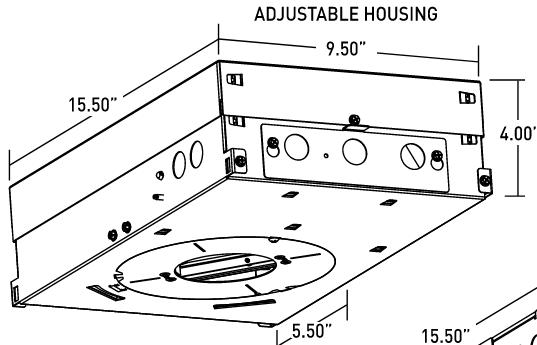

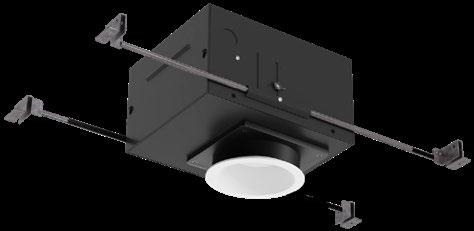

Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.

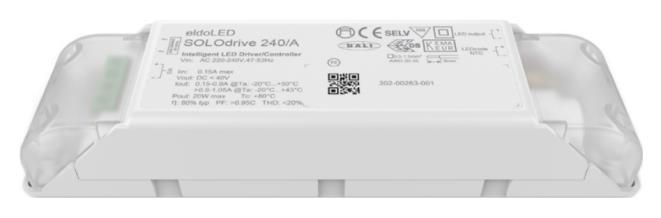

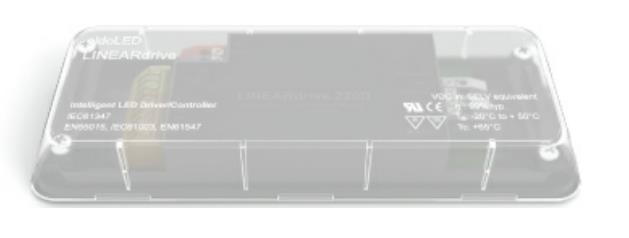

F3RD-2-A-TG-WH-90S-11D-27-25-01-IC-1-ED1 +Honeycomb louver +EldoLED SOLOdrive 240/A DALI dimmable driver SL0240A3
DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation in plasterboard ceilings using 2700K LED source and 25° beam. To be supplied with DALI dimmable driver, honeycomb louvre, Integral IC housing and all accessories for installation.
IP / LOCATION RATING WET RATED IP64
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 842lm, 2700K, CRI 90
POWER: 11W, 120V input to driver
CONTROL: DALI
FIXING METHOD: Mesh kit for seamless/trimless installation as per manufacturer’s instruction
COMMENTS: UL listed. Circuited to lighting control system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Guestrooms ISO_LES_2057_FSH_GTR
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
F3RD-2-A-TG-WH-90S-11D-27-15-01-IC-1-ED1 +Honeycomb louver +EldoLED SOLOdrive 240/A DALI dimmable driver SL0240A3
DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation in plasterboard ceilings using 2700K LED source and 15° beam. To be supplied with DALI dimmable driver, honeycomb louvre, Integral IC housing and all accessories for installation
IP / LOCATION RATING WET RATED IP64
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 842lm, 2700K, CRI 90
POWER: 11W, 120V input to driver
CONTROL: DALI
FIXING METHOD: Mesh kit for seamless/trimless installation as per manufacturer’s instruction
COMMENTS: UL listed. Circuited to lighting control system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Guestrooms ISO_LES_2057_FSH_GTR
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
F3RD-1-A-TG-WH-90S-11D-27-35-01-IC-1-ED1 +Honeycomb louver +EldoLED SOLOdrive 240/A DALI dimmable driver SL0240A3
DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation in plasterboard ceilings using 2700K LED source and 35° beam. To be supplied with DALI dimmable driver, honeycomb louvre, Integral IC housing and all accessories for installation.
IP / LOCATION RATING DRY RATED
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 842lm, 2700K, CRI 90
POWER: 11W, 120V input to driver
CONTROL: DALI
FIXING METHOD: Mesh kit for seamless/trimless installation as per manufacturer’s instruction
COMMENTS: UL listed. Circuited to lighting control system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
• Easily achieve narrow spot to wide flood beam pattern
• Optional filters available upon request
PROJECT: 2057 Charleston Hotel & Residences – Guestrooms
Driver:
Bevel / Flange Finish
3RFOWW - White Bevel / White Flange
3RFOBB - Black Bevel / Black Flange
3RFOHW - Haze Bevel / White Flange
3RFOBZBZ - Bronze Bevel / Bronze Flange
3RFOMTO - Made To Order
3RFOWWEM3- White Bevel / White Flange with E.M. Test Switch
3RFOMTOEM3 - Made To Order with E.M. Test Switch
PERFORMANCE CHART
* Values are listed at 3000K, 90+ CRI
NO SPEC
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
F3RD-1-A-TG-WH-90S-11D-27-35-01-IC-1-ED1 +Honeycomb louver +EldoLED SOLOdrive 240/A DALI dimmable driver SL0240A3
DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation in plasterboard ceilings using 2700K LED source and 35° beam. To be supplied with DALI dimmable driver, honeycomb louvre, Integral IC housing and all accessories for installation.
IP / LOCATION RATING DRY RATED
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 842lm, 2700K, CRI 90
POWER: 11W, 120V input to driver
CONTROL: DALI
FIXING METHOD: Mesh kit for seamless/trimless installation as per manufacturer’s instruction
COMMENTS: UL listed. Circuited to lighting control system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
F3RD-1-A-TG-WH-90S-11D-27-15-01-IC-1-ED1 +Honeycomb louver +EldoLED SOLOdrive 240/A DALI dimmable driver SL0240A3
DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation in plasterboard ceilings using 2700K LED source and 15° beam. To be supplied with DALI dimmable driver, honeycomb louvre, Integral IC housing and all accessories for installation.
IP / LOCATION RATING DRY RATED
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 842lm, 2700K, CRI 90
POWER: 11W, 120V input to driver
CONTROL: DALI
FIXING METHOD: Mesh kit for seamless/trimless installation as per manufacturer’s instruction
COMMENTS: UL listed. Circuited to lighting control system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
• Easily achieve narrow spot to wide flood beam pattern
• Optional filters available upon request
PROJECT: 2057 Charleston Hotel & Residences – Guestrooms
Driver:
CHARLESTON
Bevel / Flange Finish
3RFOWW - White Bevel / White Flange
3RFOBB - Black Bevel / Black Flange
3RFOHW - Haze Bevel / White Flange
3RFOBZBZ - Bronze Bevel / Bronze Flange
3RFOMTO - Made To Order
3RFOWWEM3- White Bevel / White Flange with E.M. Test Switch
3RFOMTOEM3 - Made To Order with E.M. Test Switch
PERFORMANCE CHART
* Values are listed at 3000K, 90+ CRI
PROJECT: 2057 Charleston Hotel & Residences – Guestrooms
FITTING CODE G-L1
LOCATION: Millwork
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE:

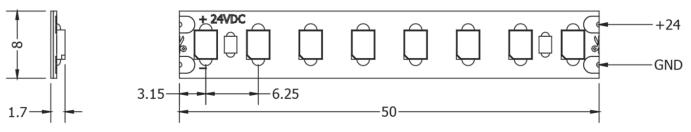

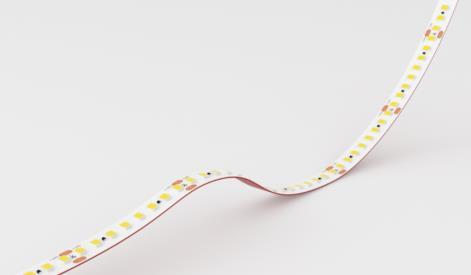

Eco Flex 160- 2700K – EF160-27-2009

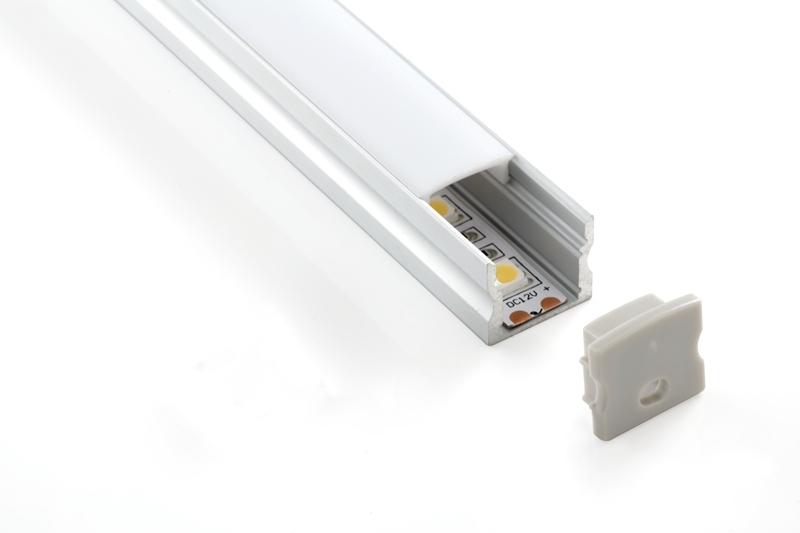

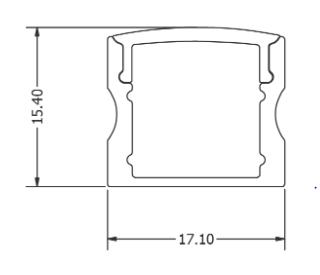

+021-0402 Pro Profile
+022-0105 Opal Diffuser
+021-0213 Metal clip
+End caps

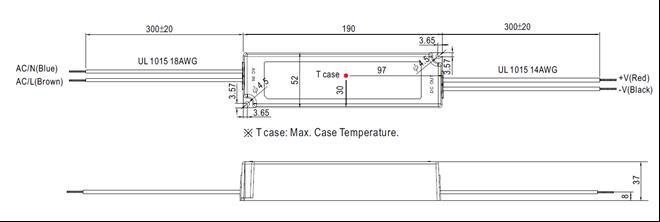

+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: EldoLED Linear Driver 210D: LIN210D1
DESCRIPTION:
Interior quality linear using warm white, 2700K LED lamps mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Requires remote DALI dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING IP20 / Dry
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90
POWER: 2.9 W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in millworks
COMMENTS:
UL/ETL listed. Circuited to lighting control system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:

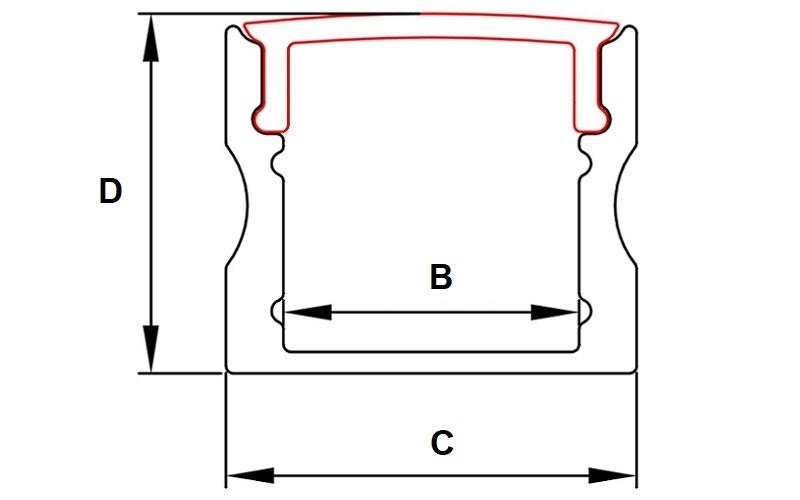

SERIES PRUDENS

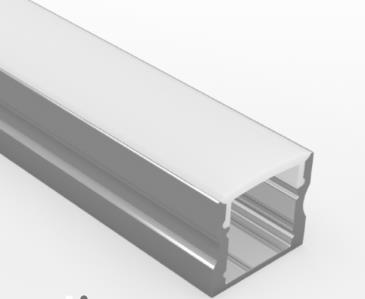

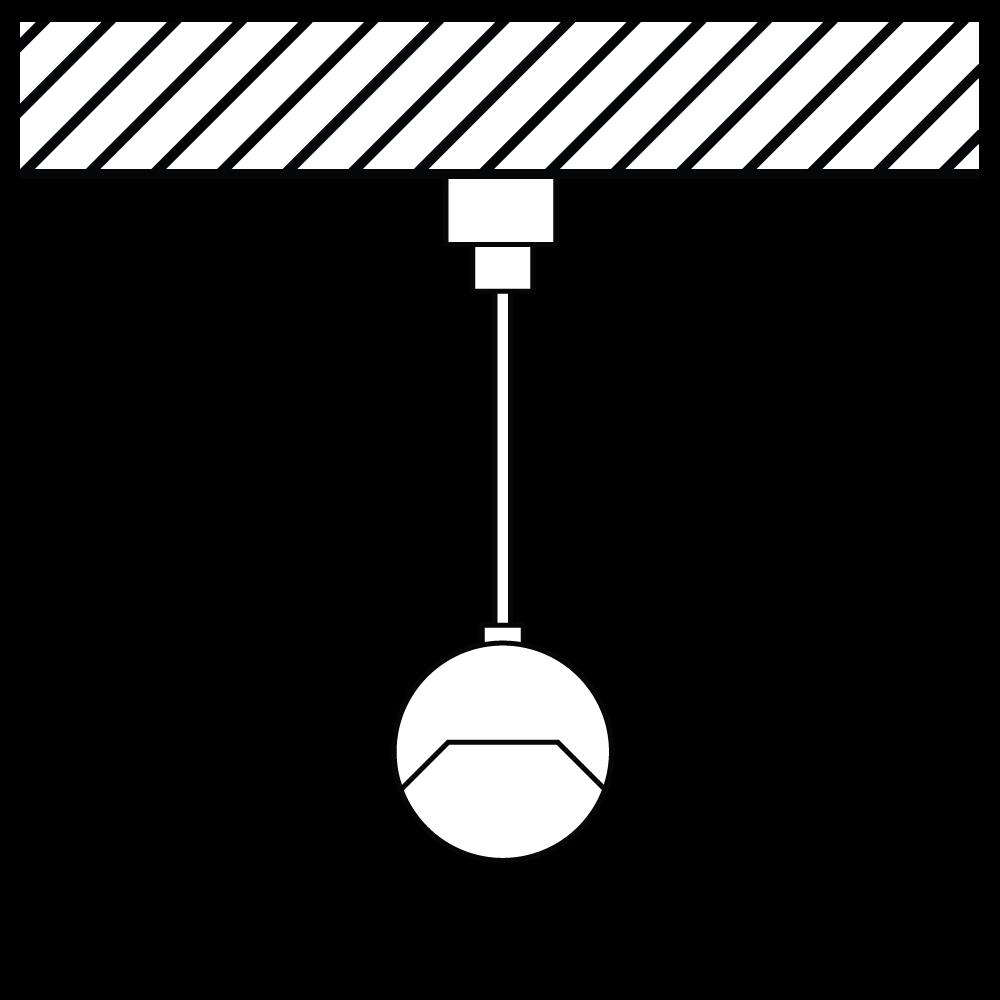

Aluminum profile for surface or suspended mounting
With its modern look and multiple color and finish options, this series combines style and versatility. It offers several power, lenses and assembly options thus allowing you to create the decors and atmospheres you desire. Promoting better heat dissipation, this series will provide you with uniform and uncompromising lighting for many years to come.
FEATURES
Surfacemountorsuspended
Modernlook
Canbecuttoyourneeds
Allowscontinuousjointmounting

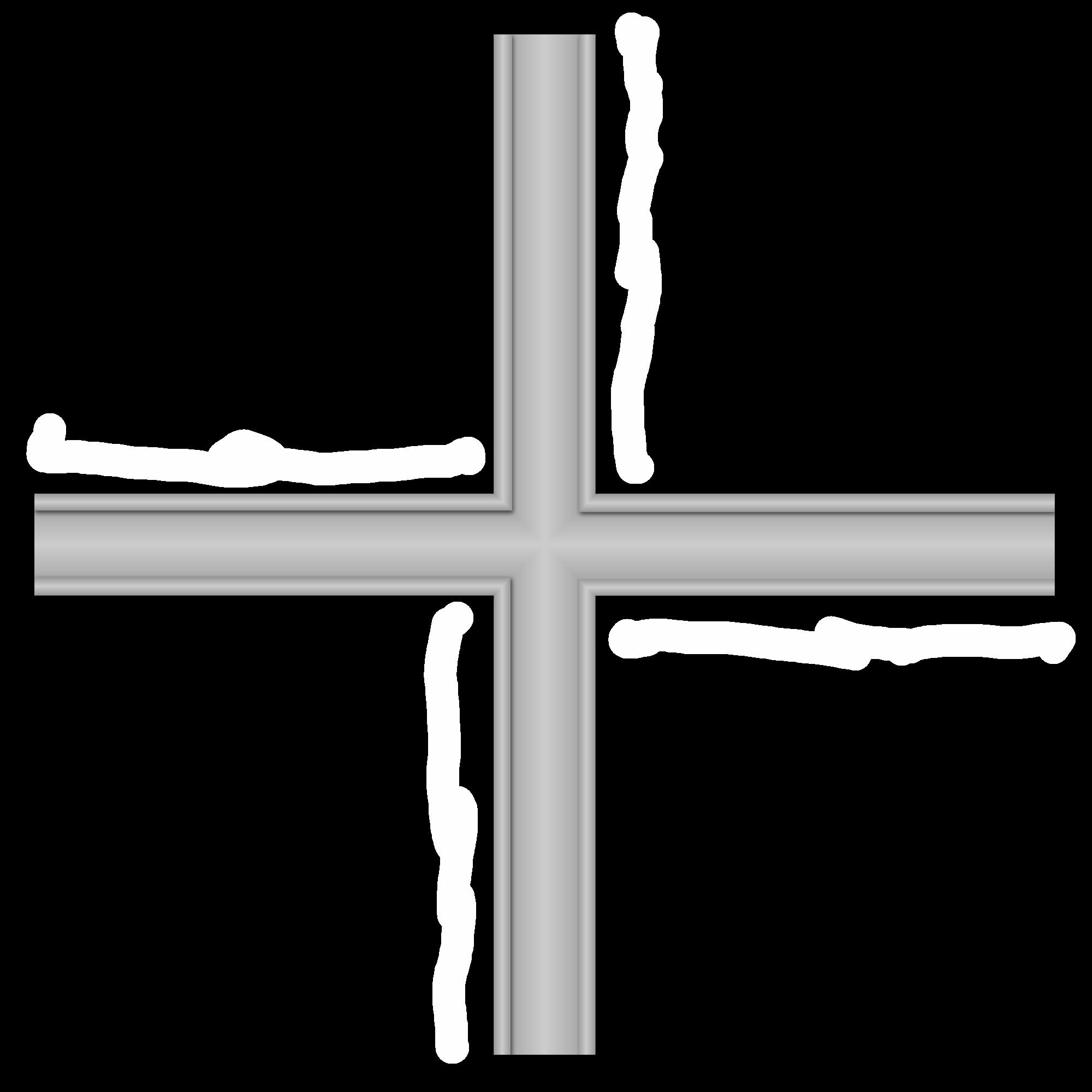

Directorindirectlighting
Widechoiceoflens
Widechoiceofcolorsandfinishes
ClearAnodizedAluminum6063T5
APPLICATION
Regular(allpurpose)
MOUNTING

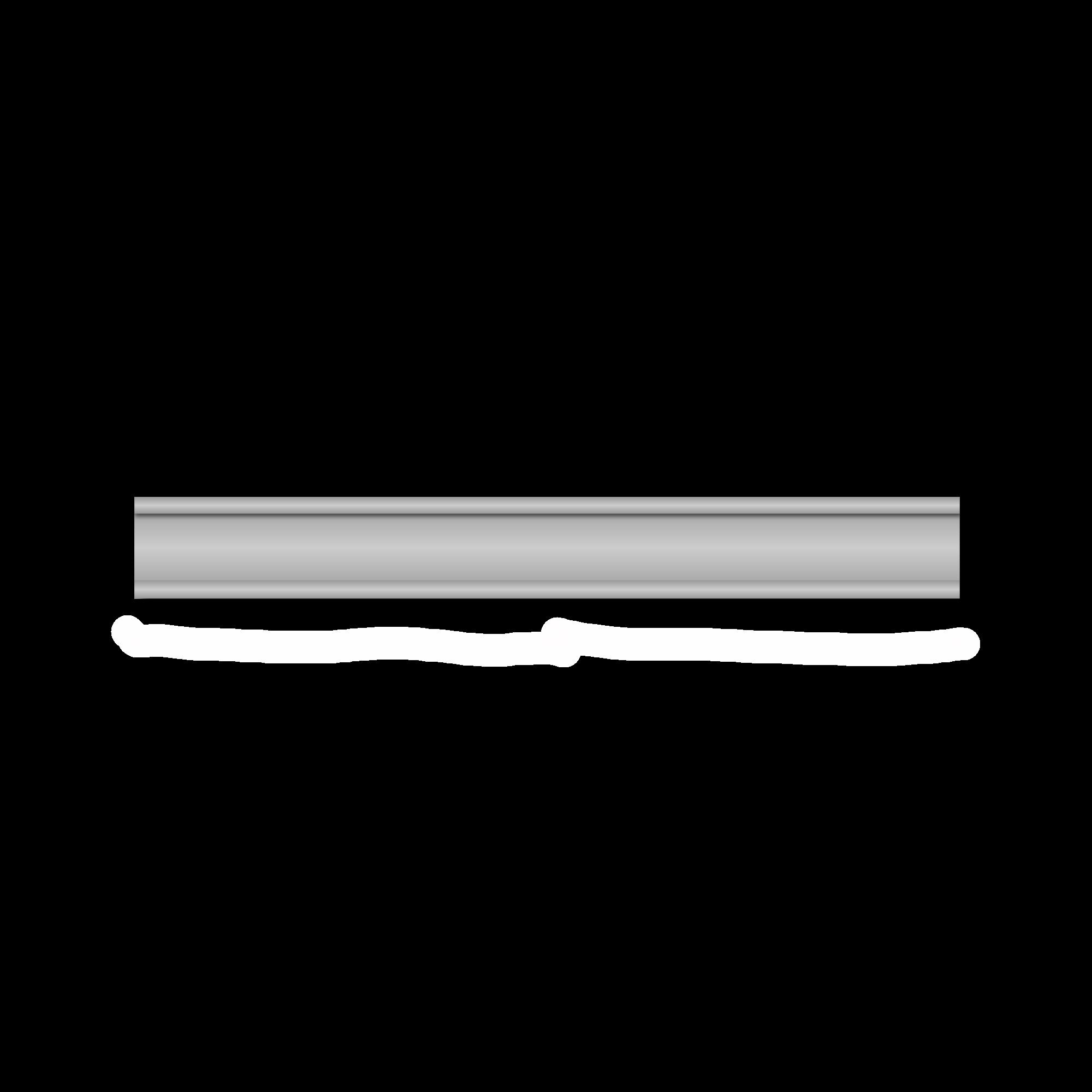

Surfacemount
PROJECT: 2057 Charleston Hotel & Residences – Guestrooms
Non Dimmable Driver:
Dimming module:

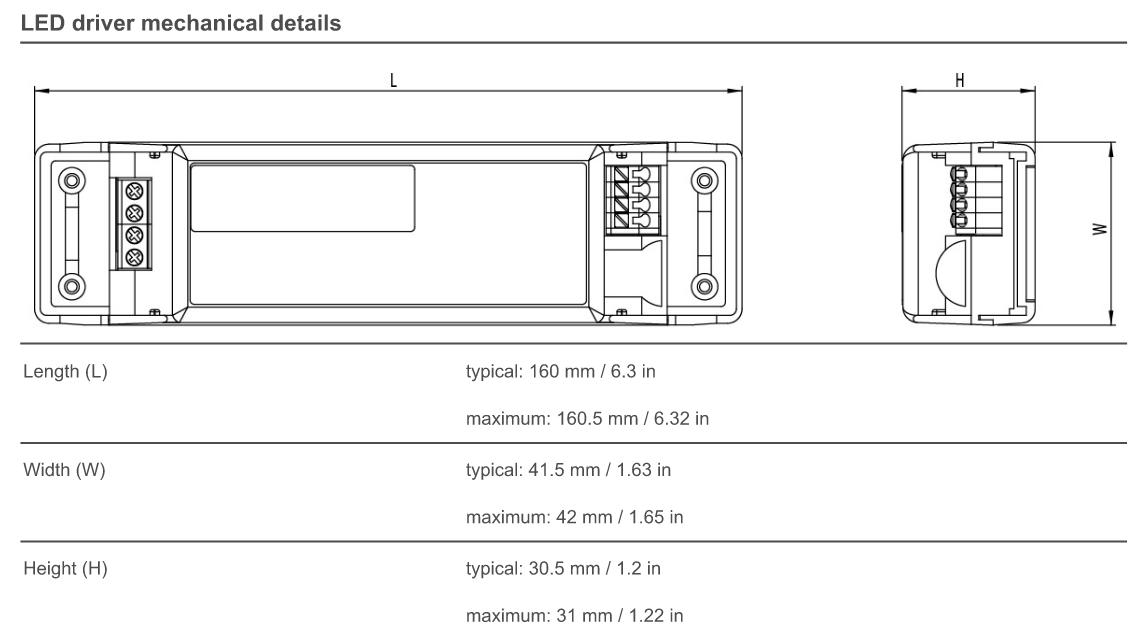

Dimensions: 153x50x23mm
GRADATION
Type
Notdimmable
DimmableTriac
Dimmable0-10Volt

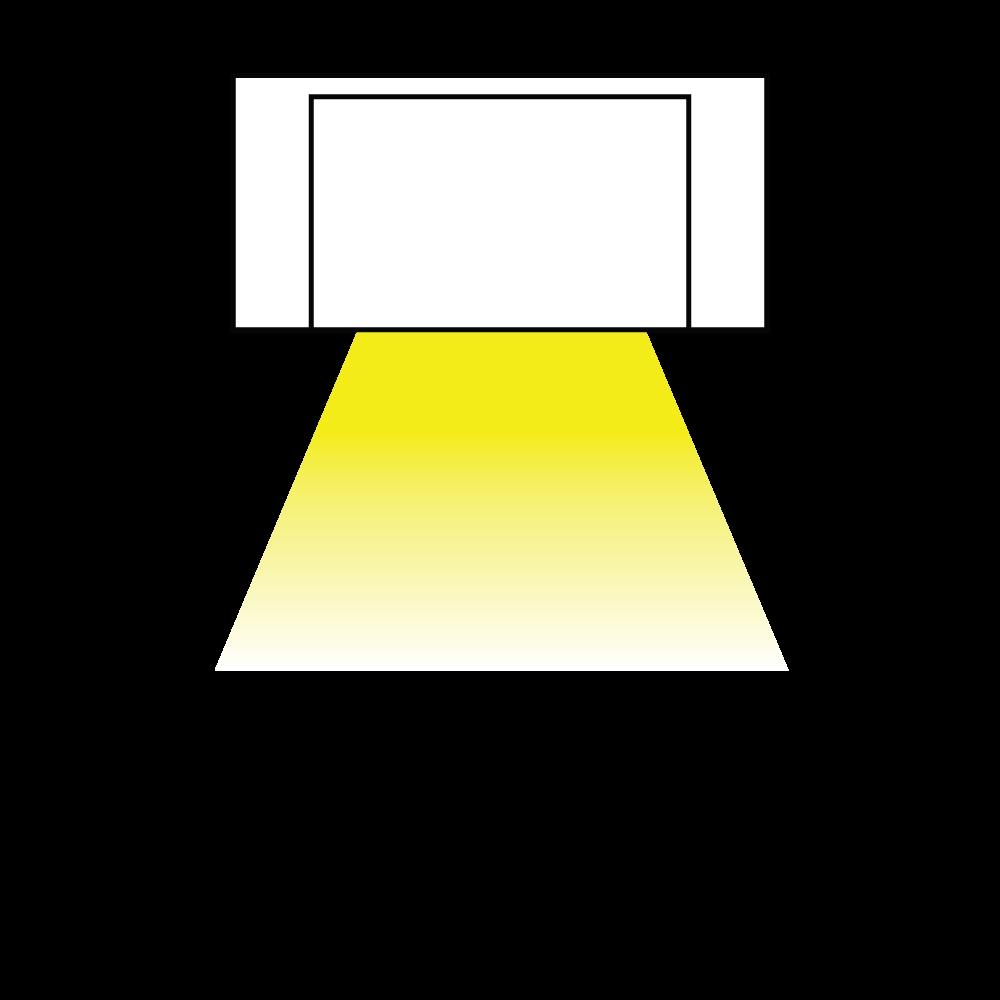

DIFFUSER
TypeLightdiffuseAngle
SHAPE LUMINAIRE COLOR
PROJECT: 2057 Charleston Hotel & Residences – Guestrooms
FITTING CODE G-L2
LOCATION: Bathroom millwork
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE:
Eco Flex 160- 2700K – EF160-27-5409
+021-0402 Pro Profile
+022-0105 Opal Diffuser
+021-0213 Metal clip
+End caps
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: EldoLED Linear Driver 210D: LIN210D1
DESCRIPTION:
Interior quality linear using warm white, 2700K LED lamps mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Requires remote DALI dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING IP54 / Wet
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90
POWER: 2.9 W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in millworks
COMMENTS:
UL/ETL listed. Circuited to lighting control system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
SERIES PRUDENS
Aluminum profile for surface or suspended mounting
With its modern look and multiple color and finish options, this series combines style and versatility. It offers several power, lenses and assembly options thus allowing you to create the decors and atmospheres you desire. Promoting better heat dissipation, this series will provide you with uniform and uncompromising lighting for many years to come.
FEATURES
Surfacemountorsuspended
Modernlook
Canbecuttoyourneeds
Allowscontinuousjointmounting
Directorindirectlighting
Widechoiceoflens
Widechoiceofcolorsandfinishes
ClearAnodizedAluminum6063T5
APPLICATION
Regular(allpurpose)
MOUNTING
Surfacemount
PROJECT: 2057 Charleston Hotel & Residences – Guestrooms
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
GRADATION
Type
Notdimmable
DimmableTriac
Dimmable0-10Volt
DIFFUSER
TypeLightdiffuseAngle
SHAPE LUMINAIRE COLOR
NO SPEC
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
• Easily achieve narrow spot to wide flood beam pattern
• Optional filters available upon request
BLANK
CHARLESTON
Bevel / Flange Finish
3RFOWW - White Bevel / White Flange
3RFOBB - Black Bevel / Black Flange
3RFOHW - Haze Bevel / White Flange
3RFOBZBZ - Bronze Bevel / Bronze Flange
3RFOMTO - Made To Order
3RFOWWEM3- White Bevel / White Flange with E.M. Test Switch
3RFOMTOEM3 - Made To Order with E.M. Test Switch
PERFORMANCE CHART
* Values are listed at 3000K, 90+ CRI
PROJECT: 2057 Charleston Hotel & Residences – Guestrooms
FITTING CODE G-L3
LOCATION: Cove lighting
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE:
Eco Flex 240- 2700K – EF240-27-2019
+021-0802 Pro Profile
+022-0802 Opal Diffuser
+021-0813 Metal clip
+End caps
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: EldoLED Linear Driver 210D: LIN210D1
DESCRIPTION:
Interior quality linear using warm white, 2700K LED lamps mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Requires remote DALI dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING IP20 / Dry
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90
POWER: 5.9 W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in millworks
COMMENTS:
UL/ETL listed. Circuited to lighting control system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
SERIES PRUDENS
Aluminum profile for surface or suspended mounting
With its modern look and multiple color and finish options, this series combines style and versatility. It offers several power, lenses and assembly options thus allowing you to create the decors and atmospheres you desire. Promoting better heat dissipation, this series will provide you with uniform and uncompromising lighting for many years to come.
FEATURES
Surfacemountorsuspended
Modernlook
Canbecuttoyourneeds
Allowscontinuousjointmounting
Directorindirectlighting
Widechoiceoflens
Widechoiceofcolorsandfinishes
ClearAnodizedAluminum6063T5
APPLICATION
Regular(allpurpose)
MOUNTING
Surfacemount
PROJECT: 2057 Charleston Hotel & Residences – Guestrooms
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
GRADATION
Type
Notdimmable
DimmableTriac
Dimmable0-10Volt
DIFFUSER
TypeLightdiffuseAngle
SHAPE LUMINAIRE COLOR
PROJECT: 2057 Charleston Hotel & Residences – Guestrooms
FITTING CODE G-L4
LOCATION: Bathroom coves
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE: Eco Flex 240- 2700K – EF240-27-5419
+ 021-0402 Pro Profile
+ 022-0105 Opal Diffuser
+ 021-0213 Metal clip
+ End caps
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: EldoLED Linear Driver 210D: LIN210D1
DESCRIPTION:
Interior quality linear using warm white, 2700K LED lamps mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Requires remote DALI dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING IP54 / Wet
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90
POWER: 5.9 W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in millworks
COMMENTS:
UL/ETL listed. Circuited to lighting control system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
SERIES PRUDENS
Aluminum profile for surface or suspended mounting
With its modern look and multiple color and finish options, this series combines style and versatility. It offers several power, lenses and assembly options thus allowing you to create the decors and atmospheres you desire. Promoting better heat dissipation, this series will provide you with uniform and uncompromising lighting for many years to come.
FEATURES
Surfacemountorsuspended
Modernlook
Canbecuttoyourneeds
Allowscontinuousjointmounting
Directorindirectlighting
Widechoiceoflens
Widechoiceofcolorsandfinishes
ClearAnodizedAluminum6063T5
APPLICATION
Regular(allpurpose)
MOUNTING
Surfacemount
PROJECT: 2057 Charleston Hotel & Residences – Guestrooms
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
GRADATION
Type
Notdimmable
DimmableTriac Dimmable0-10Volt
DIFFUSER
TypeLightdiffuseAngle
SHAPE LUMINAIRE COLOR
FITTING CODE: G-L7
LOCATION: Shower bench
MANUFACTURER / SUPPLIER: LEDFLEX
PRODUCT REFERENCE:
DESCRIPTION:
https://ledflexgroup.com/
Ultimo Neon High Lumen 10 – UN10-SV-SL-27-9 +Mounting Clips

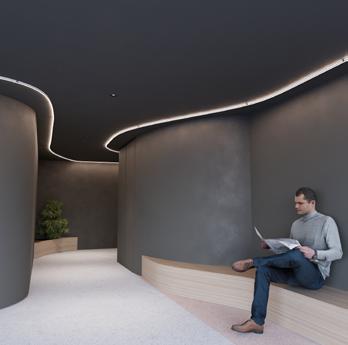

Interior quality 2700K warm white side bend neon type flexible LED mounted into aluminium profile. To be supplied with all connectors / fixing accessories required for installation, remote non dimmable driver and DALI dimming unit.
IP / LOCATION RATING IP67 / Wet
FINISHES: n/a
DIMENSIONS: As shown
LAMP TYPE & REF: LED 2700K, CRI 80
POWER: 2.7 W/ft – 24V
CONTROL: DALI
FIXING METHOD: Surface mounted as per manufacturer instructions.
COMMENTS:
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Guestrooms ISO_LES_2057_FSH_GTR
UL listed. Circuited to lighting control system. Non dimmable driver and dimming unit by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.

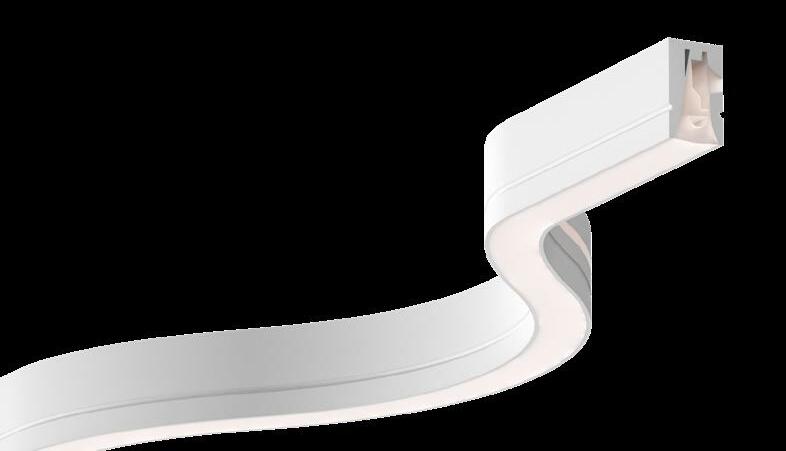

SIDE FLEX NEON FLEX SERIES
PRODUCT DATA SHEET

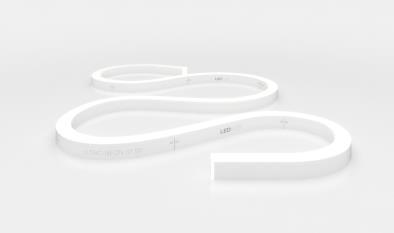

The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
PROJECT: 2057 Charleston Hotel & Residences – Guestrooms
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
CHARLESTON TYPE G-L7 ALT
HWX
secondary light source
AB - Back feed, side A AS1 - Side feed, side A1
AS2 - Side feed, side A2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BNO - No feed, closed end cap
AB - Back feed, side A
AS1 - Side feed, side A1
AS2 - Side feed, side A2
ANO - No feed, closed end cap
LENGTH
Custom length by lumen package, in.:
LP1 max. 360"
LP2 max. 316"
TW1 max. 276"
LP3 / WD1 / WD3 / RGB1 max. 209"
LP4 / TW2 / RGB2 max. 158" LHP max. 131"
- 2700K
- 3.0 W/ft
- Non-dimming DC plug-in 30 - 3000K
- 4.4 W/ft
- 4200K
- ELV dimming 120V AC
- DMX
- Casambi CBU-TED-CV-Trail
- 7.0 W/ft 53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only)
- Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K - 4.4 W/ft NO - No driver
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
TW1 - Tun. White - 3.5 W/ft
No controller
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
