PRODUCT REFERENCE: A960-LED-WH-WT-LED51/2-27-38-120V-ESD-LL45 +Remote DALI dimming power supply
DESCRIPTION: Exterior quality 2700K warm white fixed downlight. To be supplied with remote DALI dimming power supply
IP / LOCATION RATING Wet
FINISHES: To match ceiling (As per architect)
DIMENSIONS: As shown
LAMP TYPE & REF: LED 2700K, 1064 lm/m, CRI 90+
POWER: 350mA, 13.6W
CONTROL: DALI

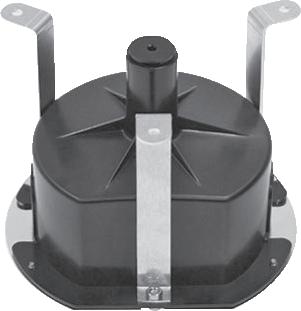

FIXING METHOD: Recessed mounted as per manufacturer instructions.
COMMENTS:
UL listed. Circuited to dimming system. Non dimmable driver and dimming unit by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ISO_LES_2057_FSH_EXT
CHARLESTON TYPE X-D1
USE OF PRODUCT
PRIME

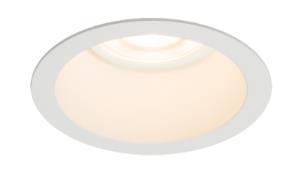

PRIME 4” LED ARCHITECTURAL ROUND FLANGED DOWNLIGHT
The 4" Prime Downlight Series is the ideal product for architectural energy efficient lighting in commercial and residential applications. Available in an assortment of color temperatures, optics, lumen outputs, and dimmable driver options.
PRIME FEATURES
Color Temperature: 2700K, 3000K, 3500K, or 4000K
SDCM: 2 step binning
Color Rendering Index: 93+ CRI
Optical Lens: 18°, 30°, 50°, 80°
Trim: Die cast or anodized
LED Life: 50,000 Hours
LED Type: Cree LED
Driver Info: 120-277V, 50/60 Hz, PF>0.9, THD<0.20
Warranty: 5 year limited warranty
LED ENGINE
LED engine available with CREE LEDs in 2700K, 3000K, 3500K, or 4000K in standard 93+ CRI. 2 Step MacAdam ellipse allows for color consistency between fixtures. LED mounted to aluminum heat sink for maximum life output and thermal management. Light engine provides a quick disconnect with locking strain relief to housing.

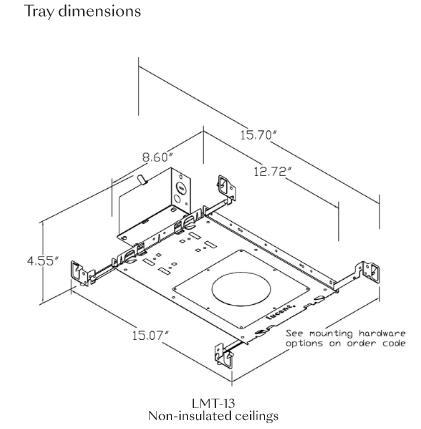

FRAME CONSTRUCTION
Constructed from 16 gauge heavy duty powder coated cold rolled steel frame with a large access junction box.
ADJUSTMENT
- Housing provides for 360º locking rotation
TYPE: JOB INFORMATION
CATALOG NO.
PROJECT NAME:
COMMENTS:
PREPARED BY:
- Aperture collar adjusts 15º± horizontally within frame for square ceiling alignment
- Collar notch allows for easy alignment for square applications.
- Aperture collar compatible up to 1½" ceiling thickness.
- Accommodation for 2” or 3” ceiling thickness available upon request.
OPTICS
Field replaceable optical lens available in 18º, 30º, 50º, and 80º. Easily achieve narrow spot to wide flood beam pattern. Option for frosted, honeycomb, or solite filter (2 maximum).
DIMMING
Available in 8 driver selections. (ID) Standard all-inclusive ELV, Triac, and 0-10V dimming driver called Intelligent Drive, 120-277V. (PEQ0) Lutron Hi-Lume Premier Ecosystem 0.1% w/soft on, fade to black dimming, 120-277V. (LDE1) Lutron Hi-Lume 1% Ecosystem with soft on, fade to black dimming, 120-277V. (LTE) Lutron Hi-Lume 1% 2-wire, 120V. (L3DA) Hi-lume 1% EcoSystem/3-Wire L3D Driver (EEI) eldoLED Eco 1% Dim (0-10V), 120-277V. (EDIO) eldoLED Solo 0.1% Dim(0-10V), 120-277V. (EDID) eldoLED Solo 0.1% Dim(DALI), 120-277V.
THERMAL MANAGEMENT
Ambient temperatures at fixture location should not exceed -20° to 40°C.
EMERGENCY BATTERY
Optional emergency battery available for a minimum of 90 minutes with both integral or remote test switch in 800 or 1700 delivered lumens.
TRIM OPTIONS
- All trims are self flanged die cast or anodized.
- Trim includes standard frosted acrylic diffuser.
- 12% lumens increase if remove standard frosted acrylic diffuser in field.
- Optical Enhancer reflects light evenly across the diffusion lens.
- Trims available in round or square in an assortment of standard or made to order finishes.
LABELS/COMPLIANCE/WARRANTY
- CSA Listed for US and Canada
- Energy Star
- Dry/Damp/Wet location rated.
- Title 24, JA8 Compliant
- 5 Year limited warranty

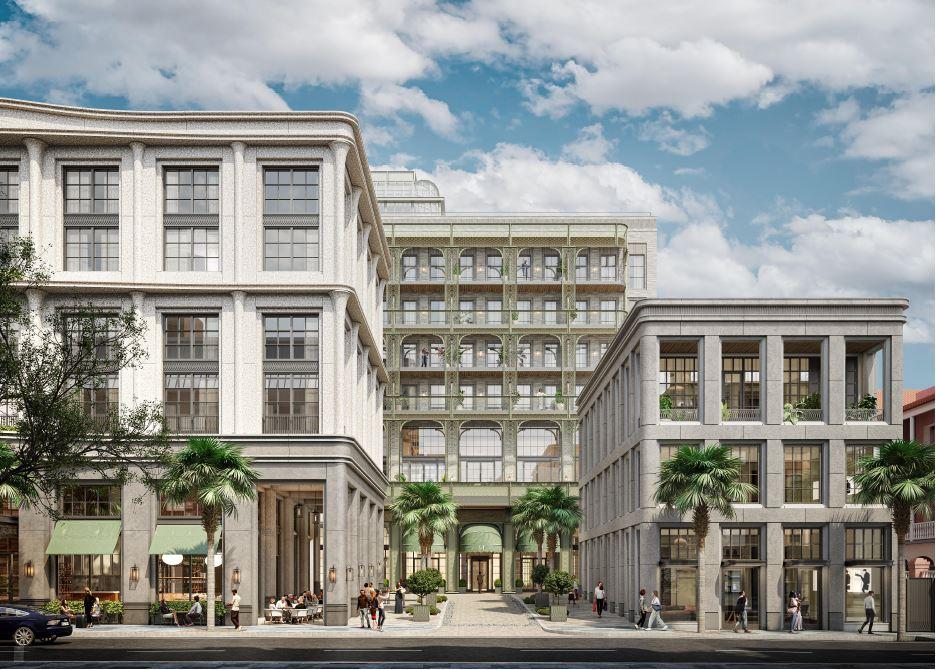

PROJECT: 2057 Charleston Hotel & Residences – Exterior
Exterior quality 2700K warm white flexible side bend neon LED mounted into flexible aluminium profile. To be supplied with all connectors / fixing accessories required for installation, remote non dimmable driver and DALI dimming unit.
IP / LOCATION RATING IP67
FINISHES: n/a
DIMENSIONS: As shown
LAMP TYPE & REF: LED 2700K, 531 lm/m, CRI 80+
POWER: 24V, 3 W/ft
CONTROL: DALI
FIXING METHOD: Surface mounted as per manufacturer instructions.
COMMENTS:
UL listed. Circuited to dimming system. Non dimmable driver and dimming unit by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
ISO_LES_2057_FSH_EXT

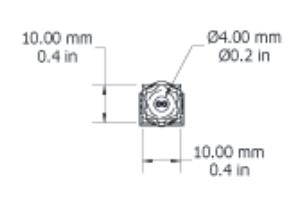

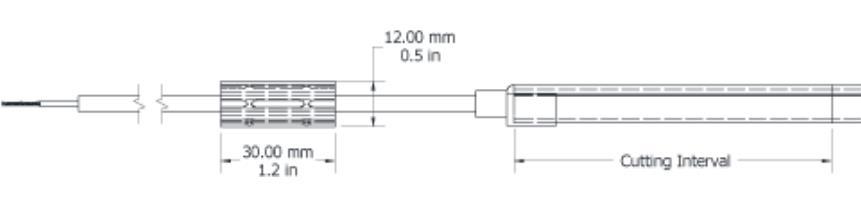

SIDE FLEX NEON FLEX SERIES
PRODUCT DATA SHEET

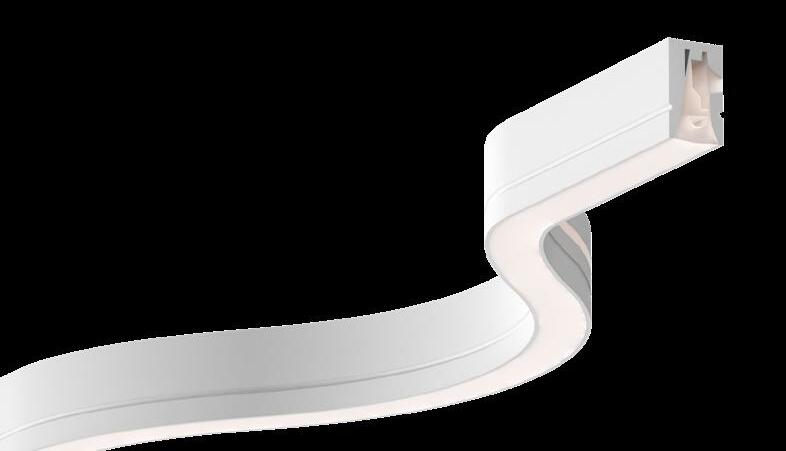

The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)

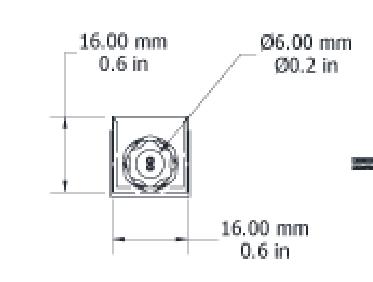

Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
PROJECT: 2057 Charleston Hotel & Residences – Exterior
Driver:
Dimming module:
ISO_LES_2057_FSH_EXT
CHARLESTON TYPE X-L1 ALT
HWX - Hardwire custom ft
secondary light source

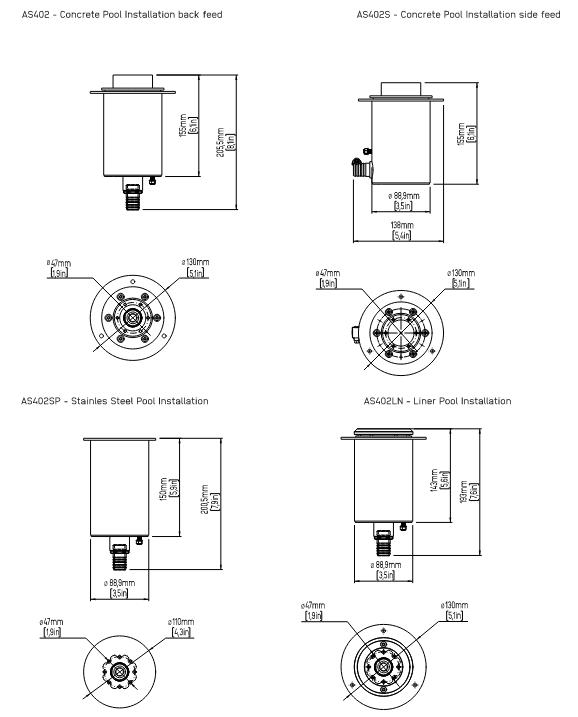

AB - Back feed, side A AS1 - Side feed, side A1 AS2 - Side feed, side A2

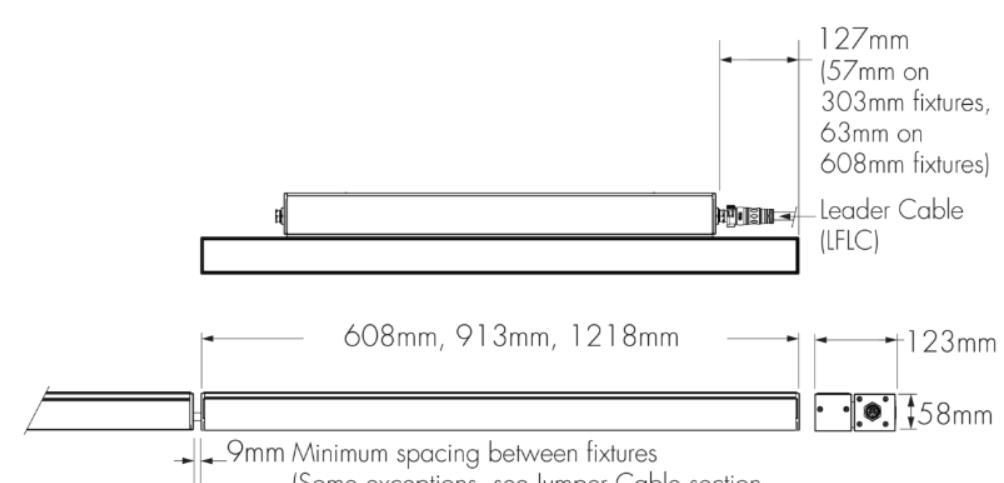

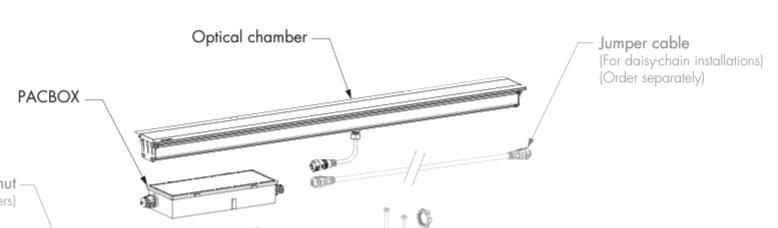

DESCRIPTION: Exterior quality ground-recessed lighting linear using warm white, 2700K LED lamps mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Requires remote DALI dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING Wet – IP65
FINISHES: Aluminum

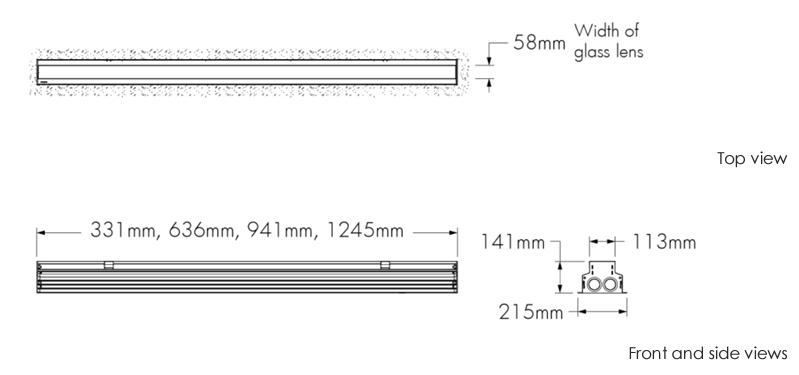

DIMENSIONS: 2’ – 636mm lenth
LAMP TYPE & REF: 2700K LED, CRI 508 lm/m
POWER: 12.2W – 120V
CONTROL: DALI

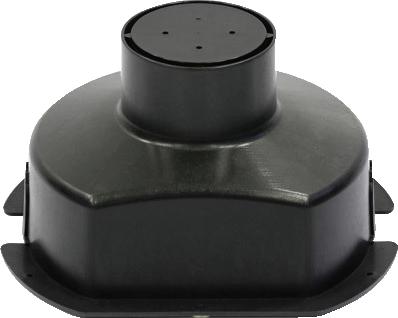

FIXING METHOD: Inground box installation
COMMENTS:
ILLUSTRATION:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
Concrete ceiling and concrete wall with back box, stand alone installation. Ground recessed with back box, stand alone or continuous row installation. Ground recessed installation must have 8" gravel below the luminaire to allow proper drainage.
Integral high efficiency LED driver, rated at 50 000 hours. 6AMP, 120V/277V. Supplied with cables and connectors between modules and 6.5' (2000mm) feed cable for 6.3' and more continuous row compositions.
0-10V dimming (120-277V), down to 1% or DMX-RDM control (120-277V).
Temperature of operation: -22°F to 122°F (-30°C to 50°C)
Glass surface temperature: 104°F (40°C) maximum.
Load capacity:
Finish:
Maximum static load 4409lb (2000kg). Suitable for vehicules with tires. Not suitable for street lanes with horizontal stresses from acceleration, braking or change of direction.
Black (RAL9005), Gray (RAL9007), Rust Brown (RAL8017), and White (RAL9016) painted with a high level of weather and UV resistance. The semi-gloss finish coating is electrostatically applied durable acrylic enamel baked at high temperatures for superior color retentive finish. We provide RAL numbers that are similar, but we cannot guarantee an exact color match. For a more accurate color and gloss match, please contact customer service for a sample chip.
Weight: 2.2lb/ft (1.37kg/ft)
Warranty: 5 year limited warranty.
Ratings: IP67, IK10
Driver:
PROJECT: 2057 Charleston Hotel & Residences – Exterior ISO_LES_2057_FSH_EXT
CHARLESTON TYPE X-L3 ALT

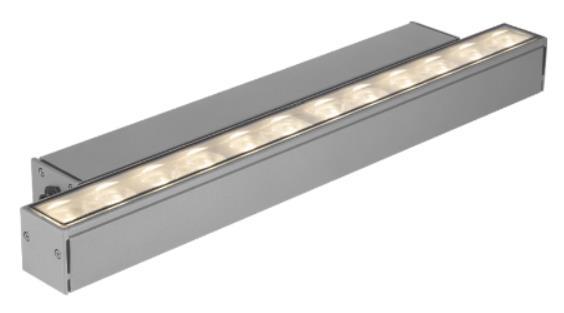

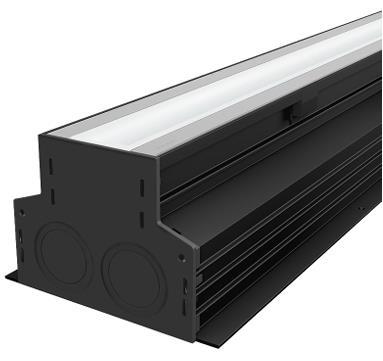

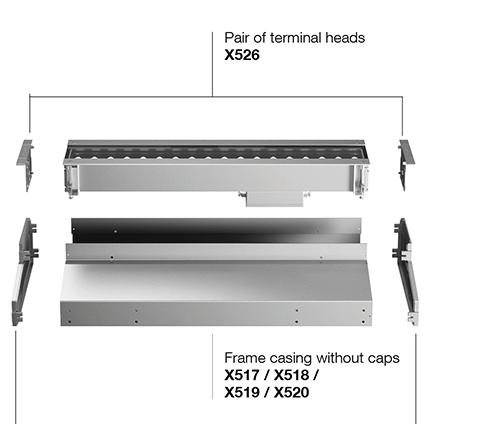

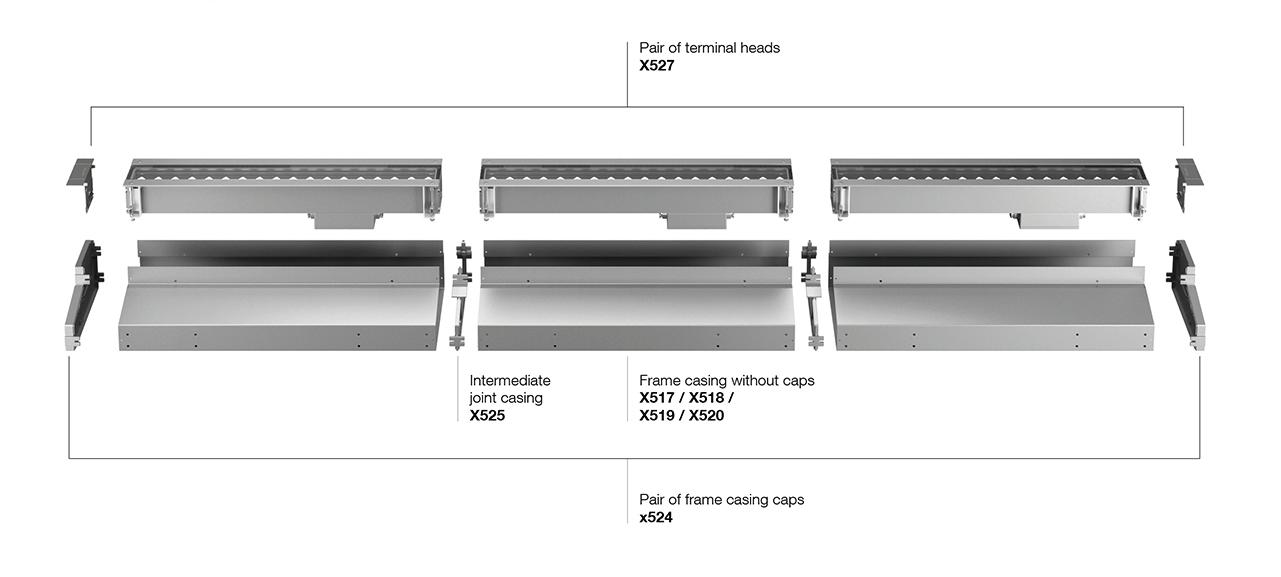

Linealuce 47 Recessed - Integral
Dimming module:
PROJECT: 2057 Charleston Hotel & Residences – Exterior ISO_LES_2057_FSH_EXT
DESCRIPTION: Exterior quality ground-recessed lighting linear using warm white, 2700K LED lamps mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Requires remote DALI dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING Wet – IP65
FINISHES: Aluminum
DIMENSIONS: As Shown – 3’
LAMP TYPE & REF: 2700K LED, CRI 508 lm/m
POWER: 12W/ft – 120V
CONTROL: DALI
FIXING METHOD: Inground box installation
COMMENTS:
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Exterior ISO_LES_2057_FSH_EXT
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
Linealuce 27 Surface - Remote
Luminaire characteristic:
For 3000K, 80 CRI
Source:
Lumen maintenance:
Optic:
Material:
Mounting:
White LED (LM-80 tested), 2200K: 80CRI, 2700K: 80CRI, 3000K: 80CRI, 3500K: 80CRI, 4000K: 80CRI.
85% of initial lumens at 100 000 hours (L85 B10) Ta 77°F and 104°F (25° and 40°)

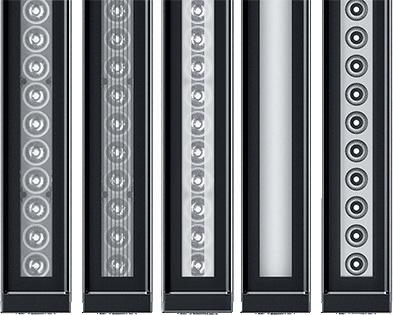

Symmetrical optics: Spot, flood, wide flood or general light.
Wall grazer optics: Spot, medium, wide flood or no-dot. Wall grazer spot, medium and wide flood are also offered with internal micro-louver. Elliptical optic: 22°x60°
Body: Extruded aluminum.
End caps: Die-cast aluminum with silicone seals. Protective screen: ¼ " (5mm) transparent glass. Hardware: Stainless steel.
Ceiling, floor or wall mounted with fix-flat or arm accessories. Ground installation with arms on spike.

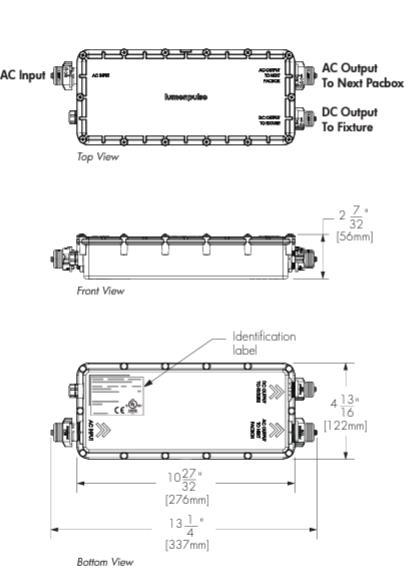

Electrical: 24Vdc remote LED driver. See remote option page 4.
Dimming:
1-10V dimming (120-277V) down to 10% (on full load), DMX RDM (120-277V) or DALI (120-277) down to 0.1%. See dimming options page 4.
Temperature of operation: -22°F to 122°F (-30°C to 50°C)
Glass surface temperature: 104°F (40°C) maximum.
Finish:

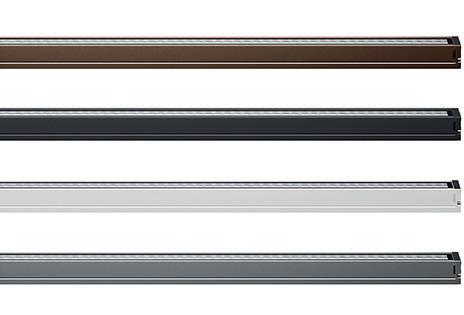

Black, gray (RAL9007), rust brown or white (RAL9016), with a high level of weather and UV resistance. The semi-gloss finish coating is electrostatically applied, durable acrylic enamel baked at high temperatures for superior color retentive finish.
Weight: 0.99lb/ft (0.45kg/ft)
Warranty: 5 year limited warranty.
Ratings: IP66, IK06
Certification: cULus for wet location.
Driver: Integral
Dimming module: Integral
PROJECT: 2057 Charleston Hotel & Residences – Exterior ISO_LES_2057_FSH_EXT
(1) Length 6ft and more are module composition in continuous row
adjustable arms 8-3/4'' (221mm) 10 ⁴ Black single adjustable arm 4-3/4'' (121mm) for 1ft module only
⁴ Stainless steel single adjustable arm 4-3/4'' (121mm) for 1ft module only
Available for mounting G, 1ft module only (2) Elliptic and spot optics are available in 1ft, 2ft and 3ft module. (5) Consult Instruction sheet to see optic/accessory recommandations (3) For Surface flat without arm mounting only (S1) (6) Optics not recommended for wall lighting INCLUDED IN PRODUCT CODE
5ft cable*
*For 1 to 5ft module, 1 cable X169 (femelle) included. For 6 to 20ft compositions, 1 cable X169 (femelle) and 1 cable X173 (male) included.
(if selected)
PROJECT: 2057 Charleston Hotel & Residences – Exterior
FITTING CODE: X-L5
LOCATION: Level 1 Ceiling cove
MANUFACTURER / SUPPLIER:
PRODUCT REFERENCE:
DESCRIPTION:
LEDFLEX
https://ledflexgroup.com/

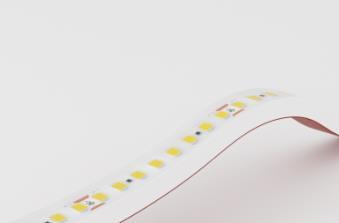

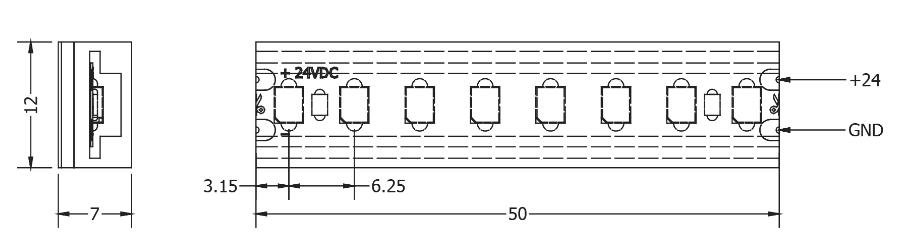

ECO Flex 160-2700K
EF 160-27-6714

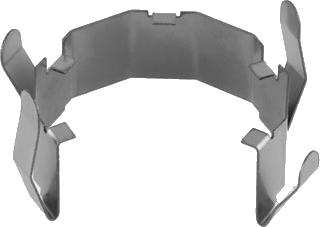

+ Mounting Clips 021-0213
+ Aluminium channel 021-0202
+ End Cap 021-0211
+Opal diffuser 022-0105

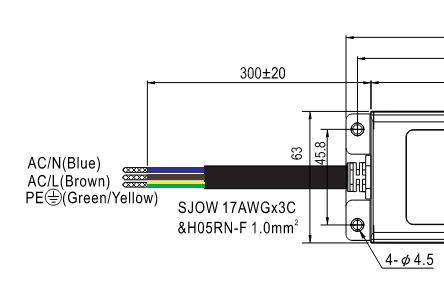

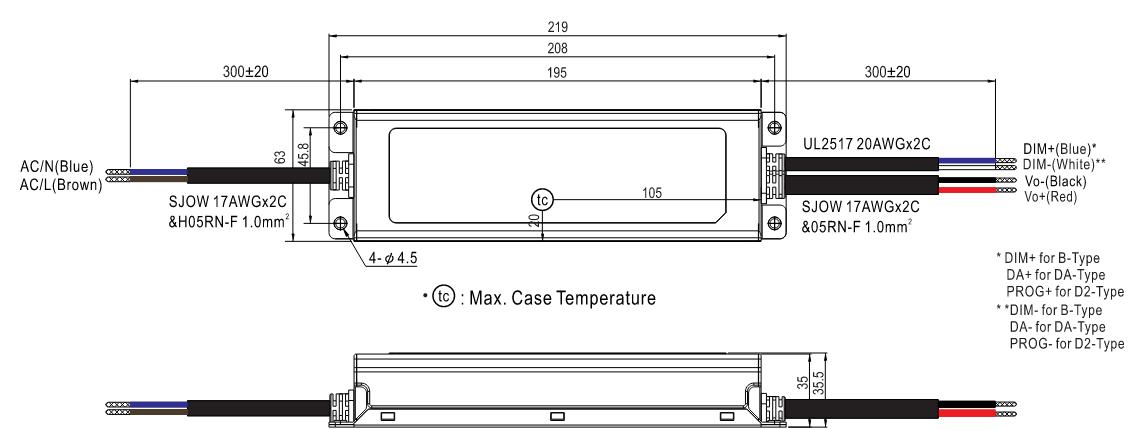

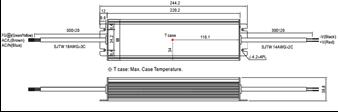

+ Remote driver – Meanwell HLG-240H-24A 240W 24V

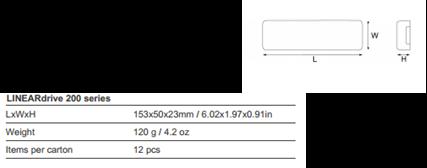

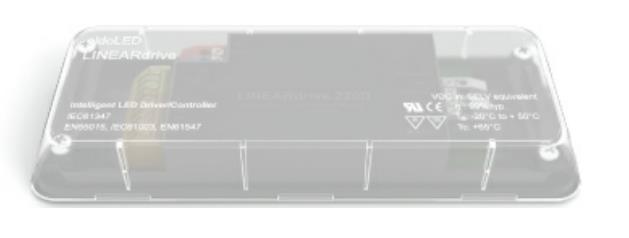

+ Remote dimming unit – Eldo LIN210D1 LOG
Interior quality 2700K warm white LED tape mounted into aluminium profile with opal diffuser. To be supplied with all connectors / fixing accessories required for installation, remote non dimmable driver and DALI dimming unit.
IP / LOCATION RATING IP67
FINISHES: n/a
DIMENSIONS: As shown
LAMP TYPE & REF: LED 2700K, 486 lm/ft, CRI 80+
POWER: 24V, 4.8 W/ft
CONTROL: DALI
FIXING METHOD:
COMMENTS:
ILLUSTRATION:
ISO_LES_2057_FSH_EXT
Surface mounted as per manufacturer instructions.
UL listed. Circuited to dimming system. Non dimmable driver and dimming unit by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.

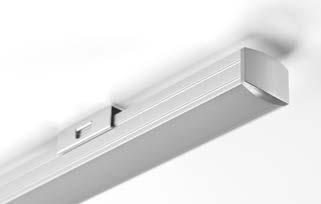

The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• Motion sensor ready for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainle ss steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Inter nal groove guide for easy application of LED strip when field installation is needed
• A selec tion of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
Driver:
PROJECT: 2057 Charleston Hotel & Residences – Exterior ISO_LES_2057_FSH_EXT
Exterior quality surface mounted lighting linear using warm white, 2700K LED lamps mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Requires remote DALI dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING Wet – IP65
FINISHES: Aluminum
DIMENSIONS: As Shown – 4’ length
LAMP TYPE & REF: 2700K LED, CRI 508 lm/m
POWER: 12W/ft – 120V
CONTROL: DALI
FIXING METHOD: Inground box installation
COMMENTS:
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Exterior ISO_LES_2057_FSH_EXT
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
Linealuce 27 Surface - Remote
Luminaire characteristic:
For 3000K, 80 CRI
Source:
Lumen maintenance:
Optic:
Material:
Mounting:
White LED (LM-80 tested), 2200K: 80CRI, 2700K: 80CRI, 3000K: 80CRI, 3500K: 80CRI, 4000K: 80CRI.
85% of initial lumens at 100 000 hours (L85 B10) Ta 77°F and 104°F (25° and 40°)
Symmetrical optics: Spot, flood, wide flood or general light.
Wall grazer optics: Spot, medium, wide flood or no-dot. Wall grazer spot, medium and wide flood are also offered with internal micro-louver. Elliptical optic: 22°x60°
Body: Extruded aluminum.
End caps: Die-cast aluminum with silicone seals. Protective screen: ¼ " (5mm) transparent glass. Hardware: Stainless steel.
Ceiling, floor or wall mounted with fix-flat or arm accessories. Ground installation with arms on spike.
Electrical: 24Vdc remote LED driver. See remote option page 4.
Dimming:
1-10V dimming (120-277V) down to 10% (on full load), DMX RDM (120-277V) or DALI (120-277) down to 0.1%. See dimming options page 4.
Temperature of operation: -22°F to 122°F (-30°C to 50°C)
Glass surface temperature: 104°F (40°C) maximum.
Finish:
Black, gray (RAL9007), rust brown or white (RAL9016), with a high level of weather and UV resistance. The semi-gloss finish coating is electrostatically applied, durable acrylic enamel baked at high temperatures for superior color retentive finish.
Weight: 0.99lb/ft (0.45kg/ft)
Warranty: 5 year limited warranty.
Ratings: IP66, IK06
Certification: cULus for wet location.
Driver: Integral
Dimming module: Integral
PROJECT: 2057 Charleston Hotel & Residences – Exterior ISO_LES_2057_FSH_EXT
(1) Length 6ft and more are module composition in continuous row
adjustable arms 8-3/4'' (221mm) 10 ⁴ Black single adjustable arm 4-3/4'' (121mm) for 1ft module only
⁴ Stainless steel single adjustable arm 4-3/4'' (121mm) for 1ft module only
Available for mounting G, 1ft module only (2) Elliptic and spot optics are available in 1ft, 2ft and 3ft module. (5) Consult Instruction sheet to see optic/accessory recommandations (3) For Surface flat without arm mounting only (S1) (6) Optics not recommended for wall lighting INCLUDED IN PRODUCT CODE
5ft cable*
*For 1 to 5ft module, 1 cable X169 (femelle) included. For 6 to 20ft compositions, 1 cable X169 (femelle) and 1 cable X173 (male) included.
(if selected)
PROJECT: 2057 Charleston Hotel & Residences – Exterior
Exterior quality 2400K warm white flexible side bend neon LED mounted into flexible aluminium profile. To be supplied with all connectors / fixing accessories required for installation, remote non dimmable driver and DALI dimming unit.
IP / LOCATION RATING IP67
FINISHES: n/a
DIMENSIONS: As shown
LAMP TYPE & REF: LED 2400K, 440 lm/m, CRI 80+
POWER: 24V, 3.6 W/ft
CONTROL: DALI
FIXING METHOD: Surface mounted as per manufacturer instructions.
COMMENTS: UL listed. Circuited to dimming system. Non dimmable driver and dimming unit by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
ISO_LES_2057_FSH_EXT
SIDE FLEX NEON FLEX SERIES
PRODUCT DATA SHEET
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
Driver:
Dimming module:
PROJECT: 2057 Charleston Hotel & Residences – Exterior ISO_LES_2057_FSH_EXT
CHARLESTON TYPE X-L7 ALT
- 3000K
- 4200K
- 4.4 W/ft
HWX - Hardwire custom ft
secondary light source
IN
AB - Back feed, side A AS1 - Side feed, side A1
AS2 - Side feed, side A2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
DCX -
- Non-dimming DC plug-in
- ELV dimming 120V AC
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BNO - No feed, closed end cap
AB - Back feed, side A
AS1 - Side feed, side A1
AS2 - Side feed, side A2
ANO - No feed, closed end cap
LENGTH
Custom length by lumen package, in.:
LP1 max. 360"
LP2 max. 316"
TW1 max. 276"
LP3 / WD1 / WD3 / RGB1 max. 209"
LP4 / TW2 / RGB2 max. 158" LHP max. 131"
Casambi
- 7.0 W/ft 53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only)
- Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K - 4.4 W/ft NO - No driver
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
TW1 - Tun. White - 3.5 W/ft
No controller
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
FITTING CODE X-LP
LOCATION: Fountain Logo
SUPPLIER: Applelec https://www.applelec.co.uk/

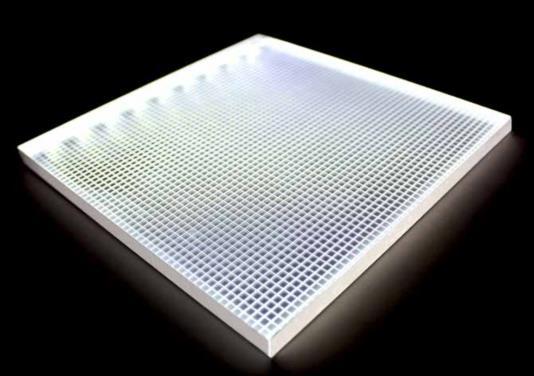

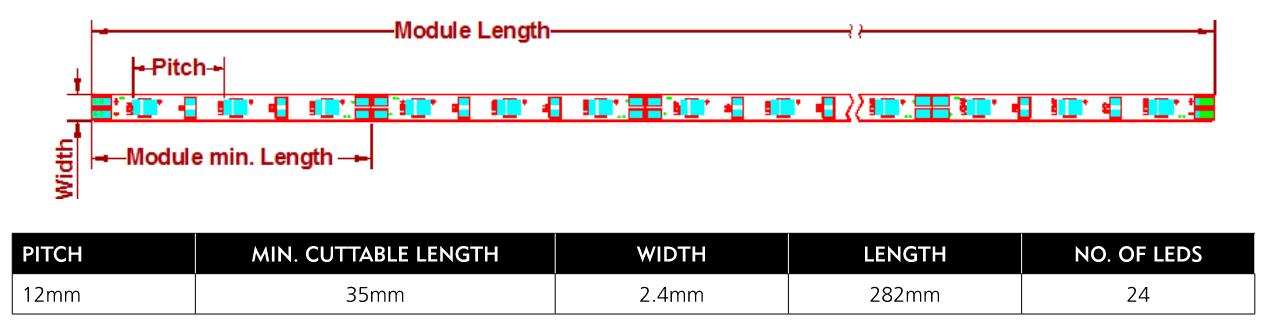

REFERENCE: LED Light Sheet + Acrylic (PMMA) + Reflection sheet and tape + DC power cord + Aluminium heat sink plate
+ Driver Meanwell ELG-150-24DA-3Y
DESCRIPTION: Bespoke light sheet system for backlighting, field cuttable, featuring static integrating dynamic white LED chips.
IP / LOCATION RATING IP54
FINISHES: N/A
DIMENSIONS: As shown
LAMP TYPE & REF: 1482lm/sqm, LED 2700K, 105lm/W, CRI80
POWER: 15W/sqm, 24Vdc
CONTROL: DALI
FIXING METHOD: Integrated in ceiling as per Isometrix’s details.
COMMENTS: To be mocked up with materials to be used.
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Exterior ISO_LES_2057_FSH_EXT
TO BE PROVIDED BY POOL INSTALLERS, NO QUOTE
PROJECT: 2057 Charleston Hotel & Residences – Exterior
PROJECT: 2057 Charleston Hotel & Residences – Exterior ISO_LES_2057_FSH_EXT
UL/ETL listed. Circuited to dimming system. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.

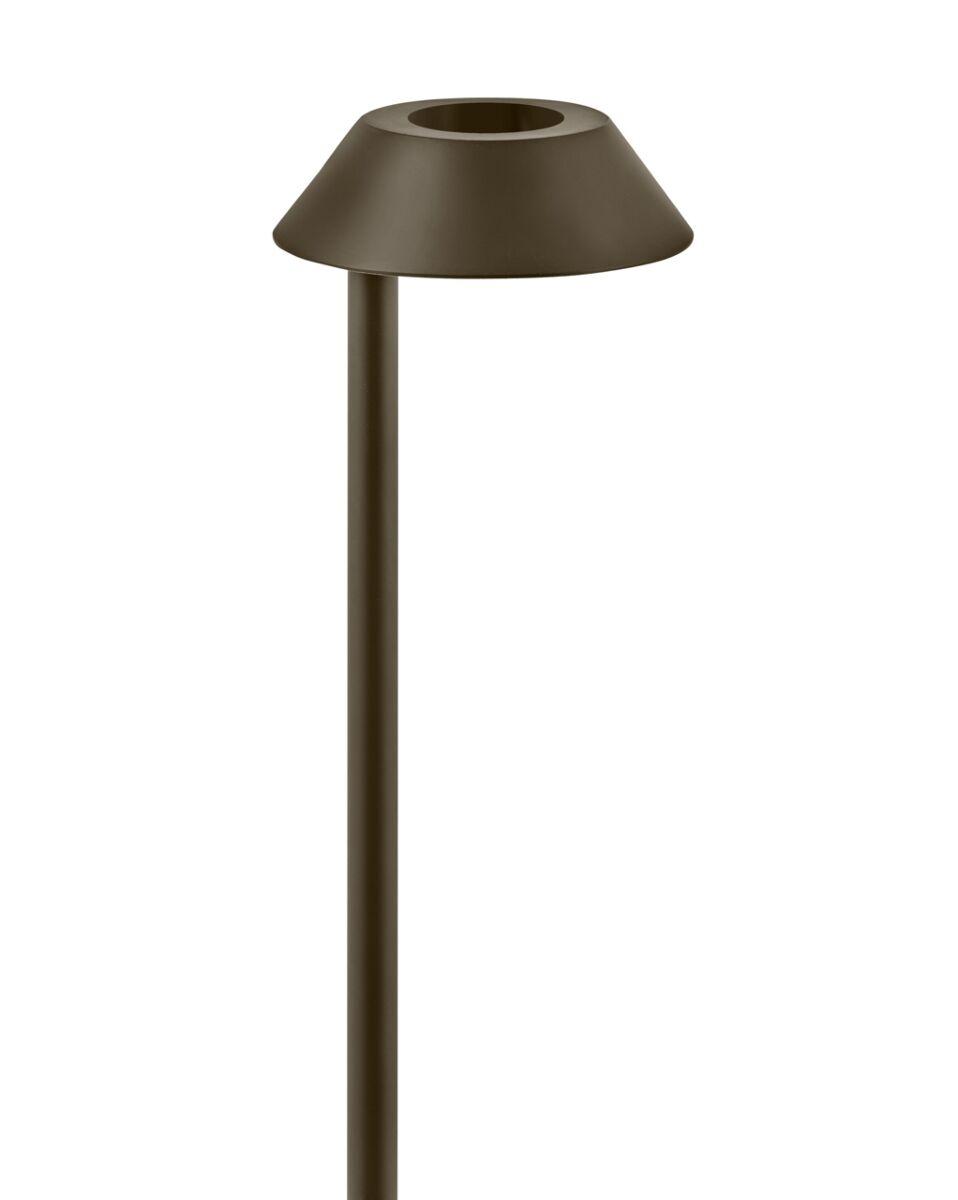

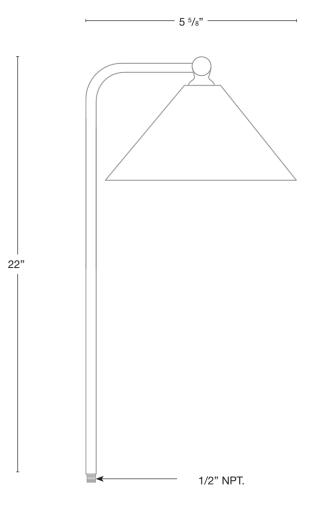

12V LED PATH LIGHT
15540BZ
FINISH: Bronze
GLASS: Acrylic Lens
WIDTH: 7"
HEIGHT: 21.5"
LIGHT SOURCE: Integrated LED
WATTAGE: 1.50w LED *Included
TRANSFORMER REQUIRED: Yes
PHONE: (440) 653-5500 Toll Free: 1 (800) 446-5539
BLANK
SPECIFICATION SHEET

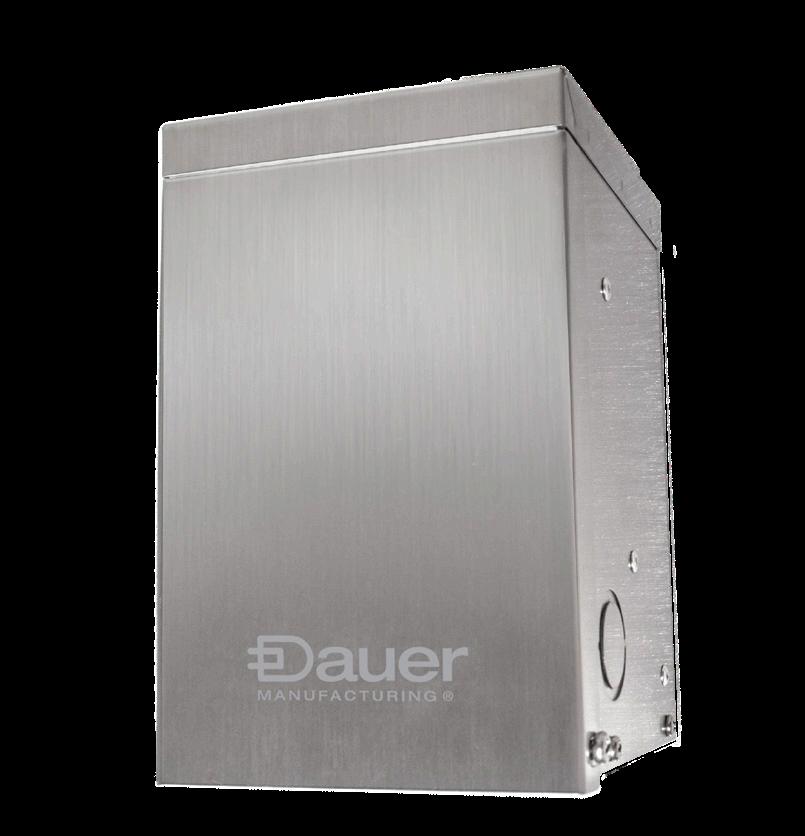

75W INTEGRAL TIMER TRANSFORMER
ORDERING CODE: 490549
SPECIFICATIONS
OUTPUT:
75W, 6.25A. Connectors for 12V and 15V. One common tap.
INPUT:
120V, 60Hz, 0.625A
HOUSING:
Stainless steel housing and removable front panel. Pre-punched bottom and side panels.
FEATURES:
Breaker, analog timer, heavy-duty grounded 5-foot power cord. Photocell plug. Suitable for interior or exterior use.
AGENCY LISTINGS:
ETL approved (5013561). Conforms to ANSI/UL-1838.
WARRANTY: Three years.
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example:
EXAMPLE: 490549-ppc6
DIMENSIONS:
Type:
Model:
PROJECT: 2057 Charleston Hotel & Residences – Exterior
Macro IP67 24V dc with hex louver +Low glare visor + Spike mounting accessories
Driver: DALI dimmable driver from manufacturer
DESCRIPTION: Outdoor spike mounted spotlight with flood optics at 30 deg. Complete with spike mounting accessories, DALI dimmable driver from manufacturer.
IP / LOCATION RATING Wet rated FINISHES: Black, TBC by Interior Designer
DIMENSIONS: As shown
LAMP TYPE & REF: LED 274 lm, 2700K
POWER: 24V, 6W
CONTROL: DALI
FIXING METHOD:
COMMENTS: UL listed. Circuited to dimming system. Electronic dimmable transformer by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
SPECIFICATION SHEET

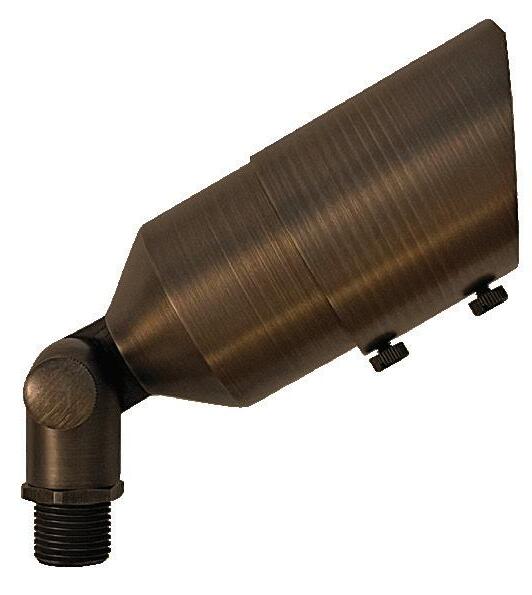

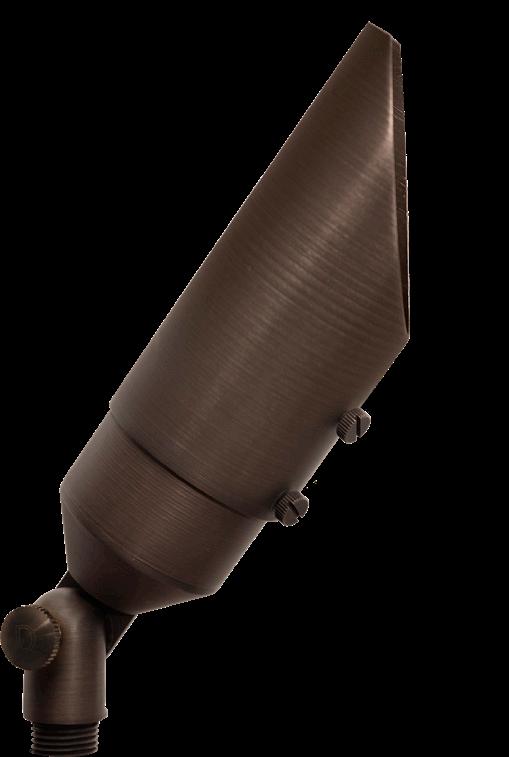

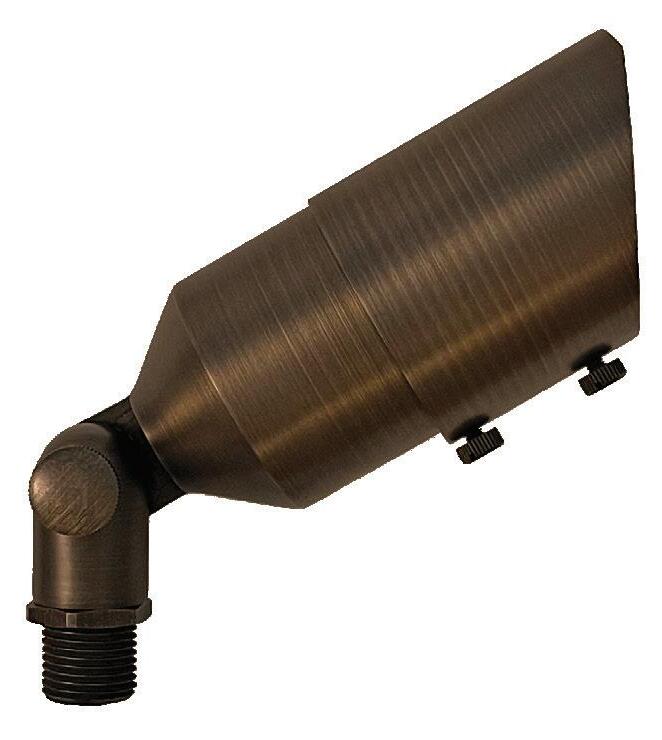

FAIRMONT Shrouded Uplight Fixture
ORDERING CODE:
489920
489920-BLK
489920-FS (floating socket)
489920-FS-BLK (floating socket)
SPECIFICATIONS
HOUSING:
Cast brass. Includes an adjustable 3” shroud with an optional 5” shroud available. Threaded housing with O-ring.
One fixed ceramic bi-pin socket with stainless steel retaining springs.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included. May be mounted into threaded hubs in junction boxes or mounting accessories.
WIRING:
Pre-wired with 5’ pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:

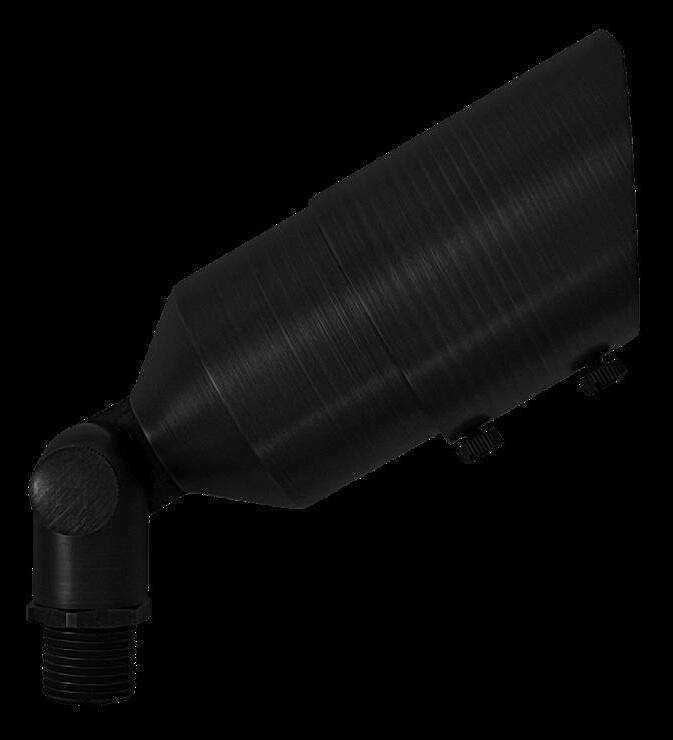

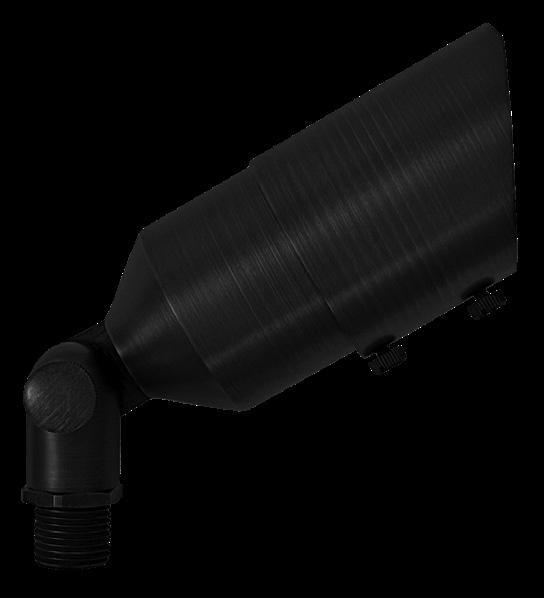

Standard Black offered with 3” shroud only.
The Fairmont uplight has an adjustible 3” shroud to control glare (optional 5” shroud available). Easily adjustable swivel to achieve the optimal effect. Numerous mounting options available. A very wide range of MR16 lamp intensities, beam spreads, and hues are available to maximize your creative expression.
Macro IP67 24V dc with hex louver +Low glare visor +Spike mounting accessories
Driver: DALI dimmable driver from manufacturer
DESCRIPTION: Outdoor spike mounted spotlight with flood optics at 10 deg. Complete with spike mounting accessories, DALI dimmable driver from manufacturer.
IP / LOCATION RATING Wet rated FINISHES: Black, TBC by Interior Designer
DIMENSIONS: As shown
LAMP TYPE & REF: LED 388 lm, 2700K
POWER: 24V, 9W
CONTROL: DALI
FIXING METHOD:
COMMENTS:
UL listed. Circuited to dimming system. Electronic dimmable transformer by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
SPECIFICATION SHEET
FAIRMONT Shrouded Uplight Fixture
ORDERING CODE:
489920
489920-BLK
489920-FS (floating socket)
489920-FS-BLK (floating socket)
SPECIFICATIONS
HOUSING:
Cast brass. Includes an adjustable 3” shroud with an optional 5” shroud available. Threaded housing with O-ring.
One fixed ceramic bi-pin socket with stainless steel retaining springs.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included. May be mounted into threaded hubs in junction boxes or mounting accessories.
WIRING:
Pre-wired with 5’ pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:
Standard Black offered with 3” shroud only.
The Fairmont uplight has an adjustible 3” shroud to control glare (optional 5” shroud available). Easily adjustable swivel to achieve the optimal effect. Numerous mounting options available. A very wide range of MR16 lamp intensities, beam spreads, and hues are available to maximize your creative expression.
Macro IP67 24V dc with hex louver + Low glare visor + Spike mounting accessories
Driver: DALI dimmable driver from manufacturer
DESCRIPTION: Outdoor spike mounted spotlight with flood optics at 30 deg. Complete with spike mounting accessories, DALI dimmable driver from manufacturer.
IP / LOCATION RATING Wet rated FINISHES: Black, TBC by Interior Designer
DIMENSIONS: As shown
LAMP TYPE & REF: LED 343 lm, 2700K
POWER: 24V, 9W
CONTROL: DALI
FIXING METHOD:
COMMENTS:
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Exterior ISO_LES_2057_FSH_EXT
UL listed. Circuited to dimming system. Electronic dimmable transformer by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
SPECIFICATION SHEET
FAIRMONT Shrouded Uplight Fixture
ORDERING CODE:
489920
489920-BLK
489920-FS (floating socket)
489920-FS-BLK (floating socket)
SPECIFICATIONS
HOUSING:
Cast brass. Includes an adjustable 3” shroud with an optional 5” shroud available. Threaded housing with O-ring.
One fixed ceramic bi-pin socket with stainless steel retaining springs.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included. May be mounted into threaded hubs in junction boxes or mounting accessories.
WIRING:
Pre-wired with 5’ pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:
Standard Black offered with 3” shroud only.
The Fairmont uplight has an adjustible 3” shroud to control glare (optional 5” shroud available). Easily adjustable swivel to achieve the optimal effect. Numerous mounting options available. A very wide range of MR16 lamp intensities, beam spreads, and hues are available to maximize your creative expression.
Macro IP67 24V dc with hex louver +Low glare visor +Surface mounting accessories
Driver: DALI dimmable driver from manufacturer
DESCRIPTION: Outdoor surface mounted spotlight with flood optics at 50 deg. Complete with surface mounting accessories, DALI dimmable driver from manufacturer.
IP / LOCATION RATING Wet rated FINISHES: Black, TBC by Interior Designer
DIMENSIONS: As shown
LAMP TYPE & REF: LED 278 lm, 2700K
POWER: 24V, 9W
CONTROL: DALI
FIXING METHOD: Surface mount on the pole of cabana
COMMENTS: UL listed. Circuited to dimming system. Electronic dimmable transformer by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Exterior ISO_LES_2057_FSH_EXT
SPECIFICATION SHEET
FAIRMONT Shrouded Uplight Fixture
ORDERING CODE:
489920
489920-BLK
489920-FS (floating socket)
489920-FS-BLK (floating socket)
SPECIFICATIONS
HOUSING:
Cast brass. Includes an adjustable 3” shroud with an optional 5” shroud available. Threaded housing with O-ring.
One fixed ceramic bi-pin socket with stainless steel retaining springs.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included. May be mounted into threaded hubs in junction boxes or mounting accessories.
WIRING:
Pre-wired with 5’ pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:
Standard Black offered with 3” shroud only.
The Fairmont uplight has an adjustible 3” shroud to control glare (optional 5” shroud available). Easily adjustable swivel to achieve the optimal effect. Numerous mounting options available. A very wide range of MR16 lamp intensities, beam spreads, and hues are available to maximize your creative expression.

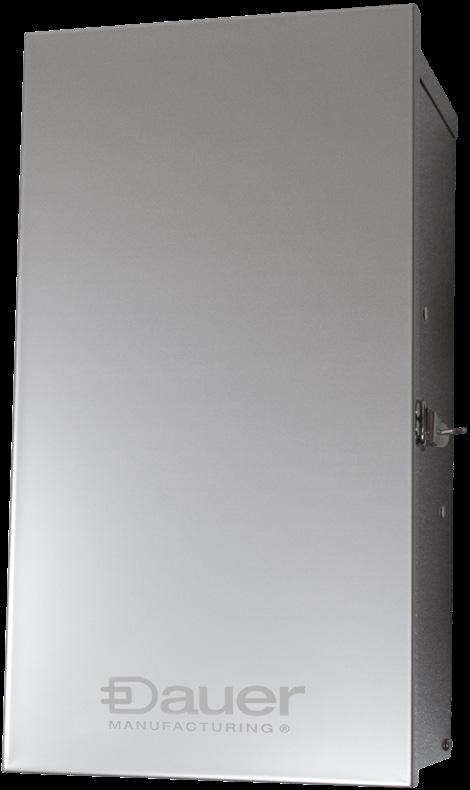

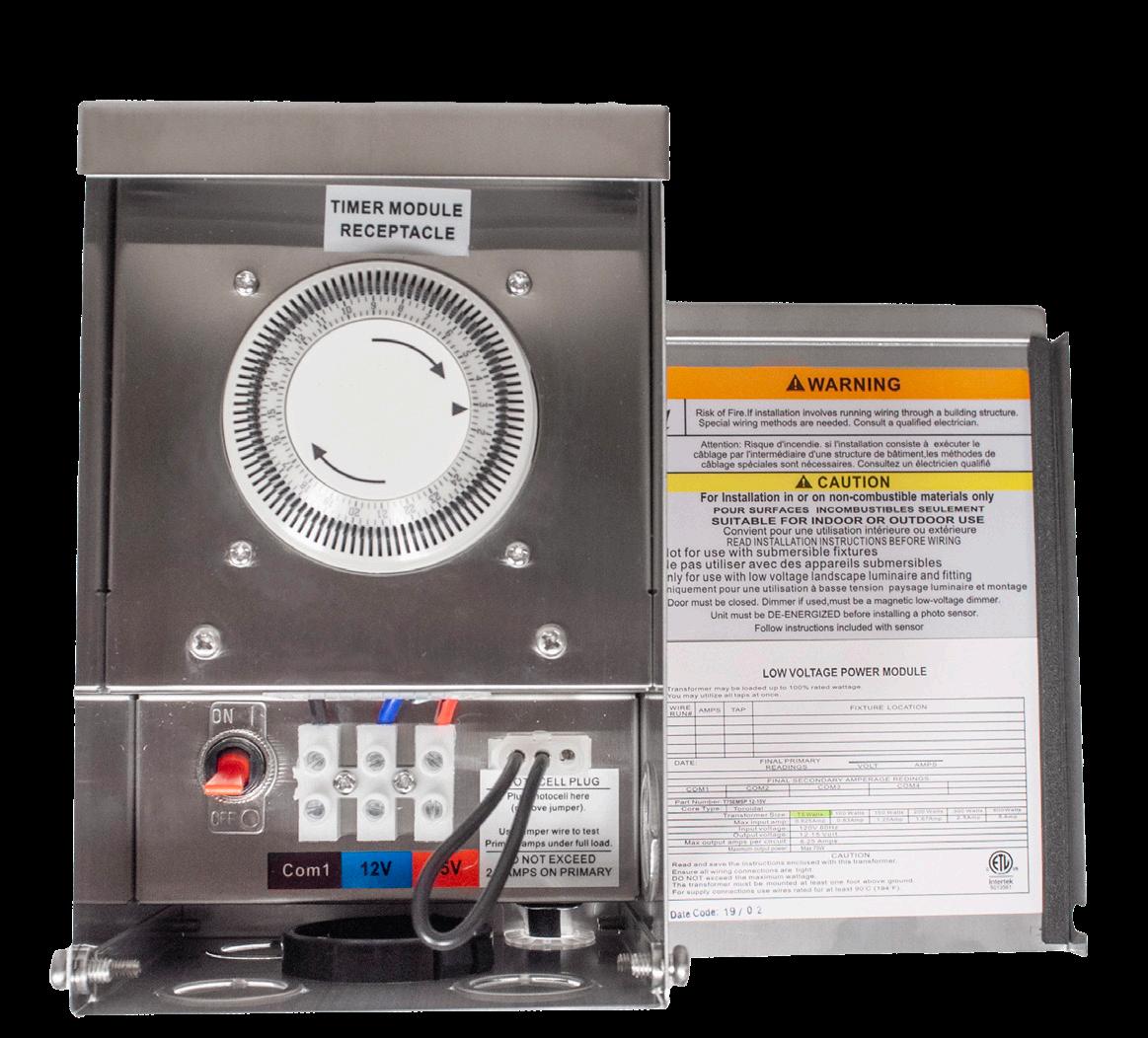

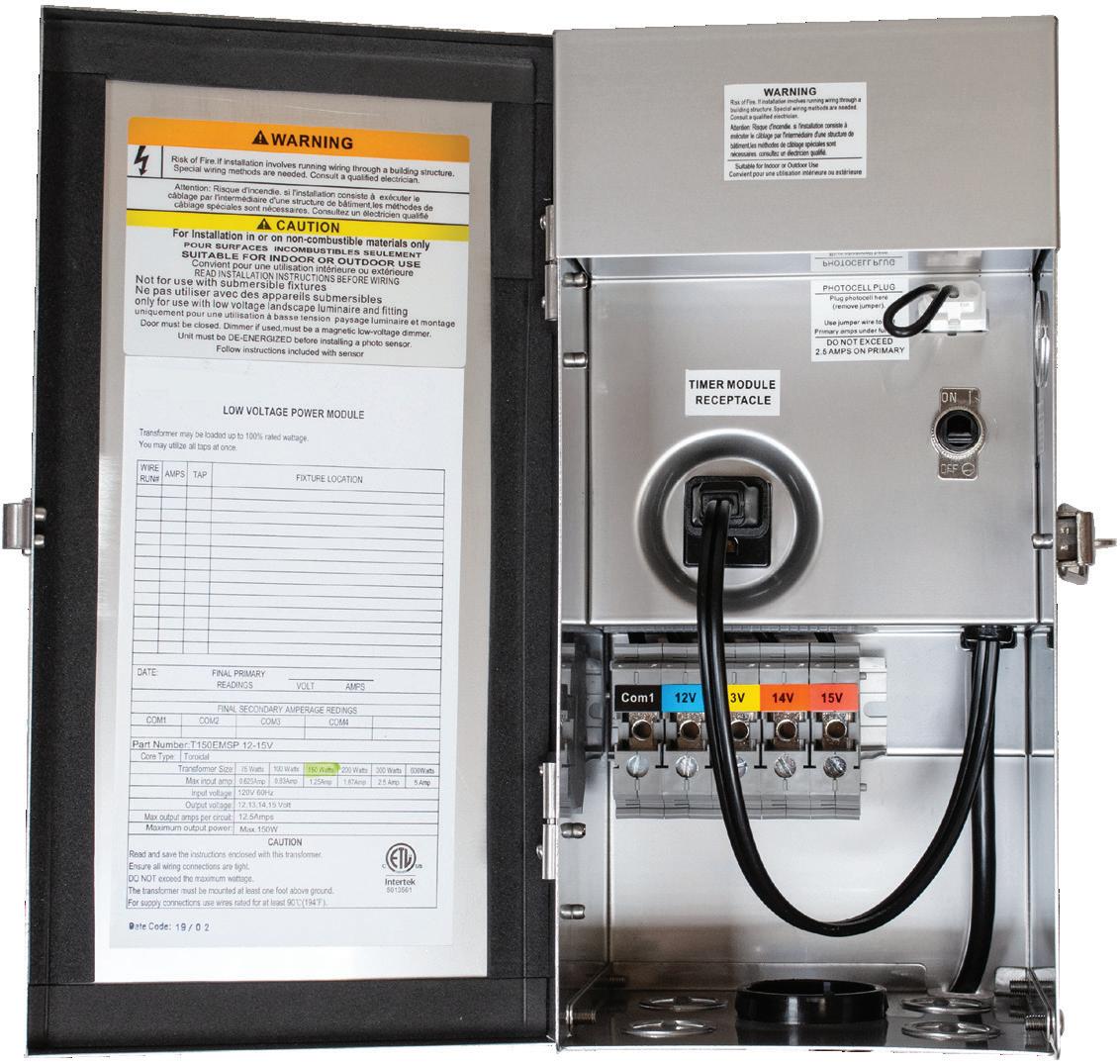

150W, 12.5A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT: 120V, 60HZ, 1.25A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 12.5A breaker, heavy-duty grounded 5-foot power cord. suitable for interior or exterior use.
AGENCY LISTINGS: ETL approved (5013561). Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
ORDERING INFORMATION:
To order a transformer with an option, select the appropiate choices from each column as in the following example: EXPAMPLE: 490541-DT200LT
SPECIFICATION SHEET
DIMENSIONS:
FITTING CODE: X-U3
LOCATION: Facade
MANUFACTURER / SUPPLIER: GRIVEN
https://www.griven-usa.com/

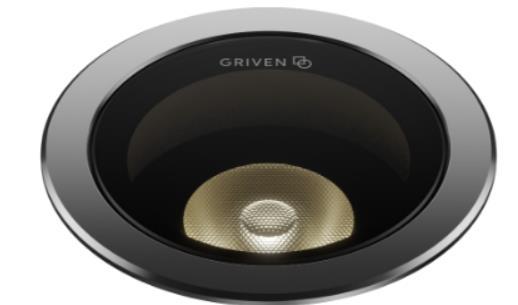

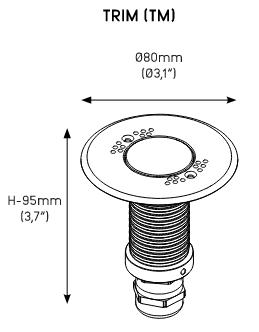

PRODUCT REFERENCE: Moon Marine
MOON-R-DW-DALI-RDM-UNV-NB-LVR
+ Internal Honeycomb louvre

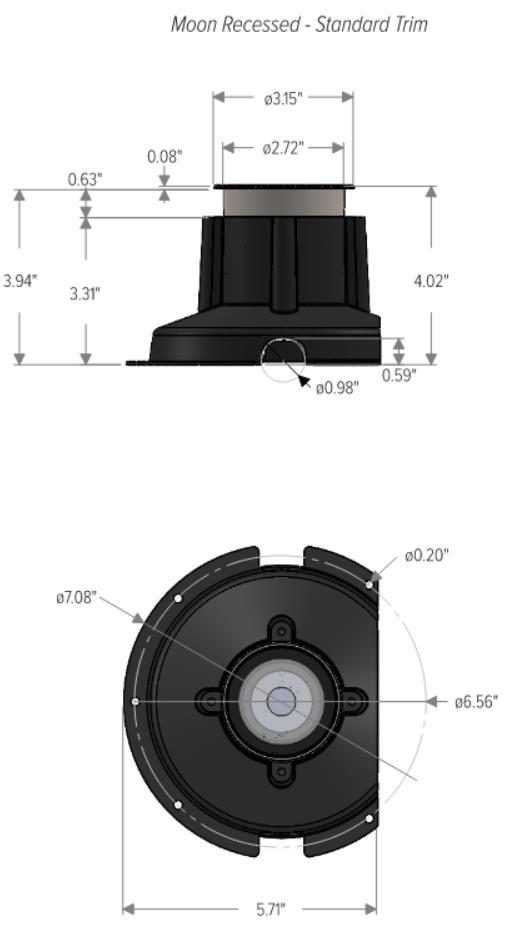

+Recessed installation BOX – MOON-R-RIB
+Remote driver – Meanwell HLG-240H-24A 240W 24V
+Remote dimming unit – Eldo LIN211D1 LOG
DESCRIPTION: Exterior grade minimal adjustable inground-recessed uplight using 14° narrow beam in warm white dynamic. Complete with anti-glare louver to reduce glare.
To be supplied with remote electronic dimmable driver.
IP / LOCATION RATING IP67
FINISHES: Stainless Steel - Colour TBC by interior designer.
DIMENSIONS: As shown
LAMP TYPE & REF: LED, White dinamic, CRI 80, Beam angle: 14° , 211lm
POWER: 3.4W, 120V
CONTROL: DALI
FIXING METHOD: Surface mounted according to manufacturer’s specifications.
COMMENTS: UL listed. Circuited to control system. Remote electronic driver and dimming module by manufacturer to be located in a well-ventilated position. Final position by Electrical Engineer a/o Electrical contractor. Secondary wiring from driver to fitting, sizing and cables to be verified prior to ordering by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with Switching system to confirmed with manufacturer.
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Exterior ISO_LES_2057_FSH_EXT
CHARLESTON

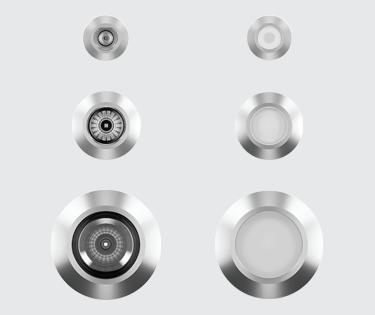

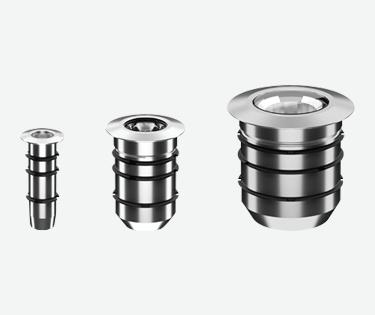

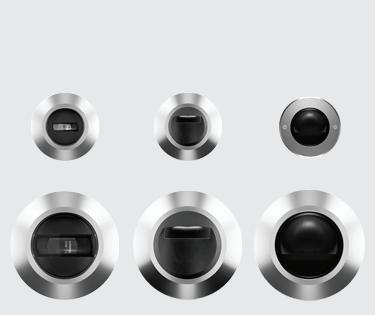

Light Up Orbit
Collection of compact exterior luminaires for architectural lighting. Rugged stainless steel construction, with tempered glass lens, these luminaires are designed to perform in extreme conditions. This serie is available in 3 sizes, that can be installed for in-ground, wall or ceiling applications. Complete range of optic distributions for accent lighting, effects lighting and markers.
ILUO28: 90% of initial lumens at 100 000 hours (L90)
ILUO50: 80% of initial lumens at 98 000 hours (L80)
ILUO80: 80% of initial lumens at 98 000 hours (L80)
Spot, medium, flood, wide flood with Opti Beam technology. Wall washer, diffuse or light blade.
Body and frame : AISI 304 stainless steel
Diffuser: 6 to 8 mm extra-clear or opal sodiumcalcium tempered glass.
Optics: PMMA lens or PE film for diffuse optic, clear, black or metalized polycarbonate reflector
Concrete wall or concrete ceiling recessed installation using polypropylene back box. Concrete or pavement ground recessed installation. Optional mounting springs for floating concrete or pavement panels.
Supplied with 6ft (2m) long outdoor rated power cable. 12" of gravel is required below the luminaire to allow proper drainage.
High efficiency LED driver, rated at 50 000 hours. See remote LED driver options on page 3.
Finish: Stainless steel
Weight:
ILUO28: 0.4lb (0.2kg)
ILUO50: 1.2lb (0.5kg)
ILUO80: 2.8lb (1.3kg)
Load capacity: 4 409lb (2 000kg)
Glass surface temperature: 104°F (40°C)
Operating temperature:
ILUO28: -13 to 95°F (-25 to 35°C)
ILUO50: -13 to 122°F (-25 to 50°C)
ILUO80: -4 to 95°F (-20 to 35°C)
Warranty: 5 year limited warranty
Ratings:
ILUO28: IK09, IP66, IP68*
ILUO50: IK07, IP66, IP68*
ILUO80: IK09, IP66, IP68*
* Complete immersion for 10 minutes, not suitable for use in swimming pools or fountains.
Certification: cULus listed for wet location.
PROJECT: 2057 Charleston Hotel & Residences – Exterior
CHARLESTON
Light Up Orbit
28 1" (28mm) 50 2" (50mm)
1 Available for 50 model.
2 Available for 80 model.
3 Available for 50 model with base output (BO).
4 Available for 28 model.

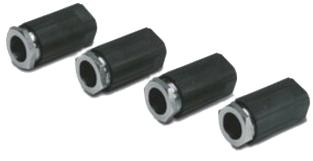

MOUNTING ACCESSORIES
(TO BE ORDERED SEPARATELY)

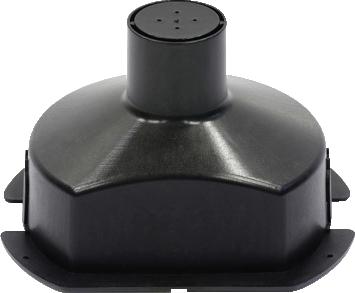

X190-02 - Polypropylene recessed back box for in-ground installation for ILUO28 Ø5½" x 4" (Ø140 x 101mm)
X191-02 - Polypropylene recessed back box for concrete wall and concrete ceiling installation for ILUO28 Ø5½" x 4" (Ø140 x 101mm)
X193-02 - Polypropylene recessed back box for in-ground, concrete wall and concrete ceiling installation for ILUO50 Ø6¾" x 4" (Ø170 x 110mm)
X195-02 - Polypropylene recessed back box for in-ground and concrete wall installation for ILUO80 Ø7½" x 4" (Ø190 x 110mm)
IP68 FIELD CONNECTOR For 0.25 " - 0.375" (5-9.5mm) cable, 2x 16-24 AWG conductors
9015-9016-KIT - Female and male connector. ORDERING
Mounting
WIRING ACCESSORIES
9581-02 - Black watertight connectors (x4), rated IP68. For serial connection.
PROJECT: 2057 Charleston Hotel & Residences – Exterior ISO_LES_2057_FSH_EXT
Driver:
Dimming module:
Light Up Orbit
REMOTE LED DRIVER OPTIONS (TO BE ORDERED SEPARATELY)
4548-0350-006-120-D10
4548-0350-012-120-LTE
4549-0350-019-UNV-ED10
4549-0350-019-UNV-SD10
4548-0500-020-UNV-D10
4548-0500-025-120-LTE
4549-0500-027-UNV-ED10
4549-0500-027-UNV-SD10
4549-0700-030-UNV-ED10
4549-0700-030-UNV-SD10
4444-0350-006-120-D10
4444-0350-012-120-LTE
4443-0350-013-UNV-D2**
4450-0350-019-UNV-D10
4450-0350-019-UNV-ED10
4450-0350-019-UNV-SD10
4450-0500-027-UNV-ED10
4450-0500-027-UNV-SD10
4450-0700-030-UNV-ED10
4450-0700-030-UNV-SD10
* Wattage requirement for one (1) fixture (remote fixture only).
** OEM digital LED driver allotment letter required to order any LUTRON products. Please contact a LUTRON representative for more information.
CODE DRIVER BOX MODEL DESCRIPTION
D10
0-10V
Max distance: 9m (30ft)* (down
D2
Lutron Hi Lume® 1% EcoSystem™ (Soft-on, Fade to Black)
Max distance: 9m (30ft)* (down to 1%)
ED10
0-10V ELDOLED ECOdrive Max distance: 36m (118ft)* (down to 1%)
SD10
0-10V ELDOLED SOLOdrive
Max distance: 36m (118ft)* (down to 0.1%)
LTE
Leading edge and trailing edge (ELV and TRIAC)
Max distance: 100m (330ft)* (down to 15%)
*Max distance cable calculated for 16AWG cable. Contact customer service for longer remote distance.
WIRING DIAGRAMS
Multiple luminaires must be connected in series (home run or fixture chain)
PROJECT: 2057 Charleston Hotel & Residences – Exterior
+ Half moon glare shield +Remote dimmable DALI Driver (As per Manufacturer)
DESCRIPTION: Under water pool light with half moon glare shield. 3000K warm white, 40° flood beam. Installation housing type as per pool type. Must be constantly submersed under normal operation. To be supplied with remote low voltage electronic dimmable driver
UL listed. Circuited to control system. Remote electronic driver and dimming module by manufacturer to be located in a well-ventilated position. Final position by Electrical Engineer a/o Electrical contractor. Secondary wiring from driver to fitting, sizing and cables to be verified prior to ordering by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with Switching system to confirmed with manufacturer.
ISO_LES_2057_FSH_EXT
TO BE PROVIDED BY POOL INSTALLERS, NO QUOTE
PROJECT: 2057 Charleston Hotel & Residences – Exterior
