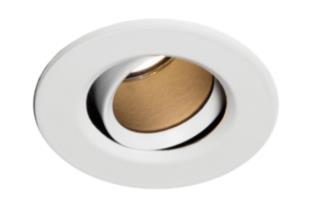

DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation in plasterboard ceilings using 2700K LED source and 32° beam. Adjustability with 358° horizontal axis 40° vertical axis. To be supplied with 0-10V dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry-IP20
FINISHES: White

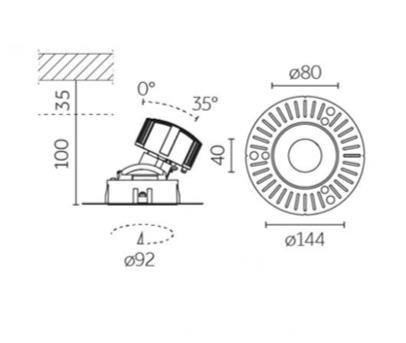

DIMENSIONS: As shown
LAMP TYPE & REF: LED, 898lm, 2700K, CRI>90, 32°
POWER: 14W, 1050mA, 65lm/W
CONTROL: 0-10V
FIXING METHOD: Ceiling recessed with trimless cone. Refer to manufacturer’s instructions.
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor. Manufacturer will provide UL certification as requested.

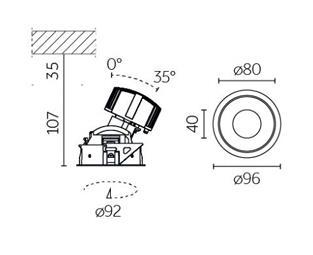

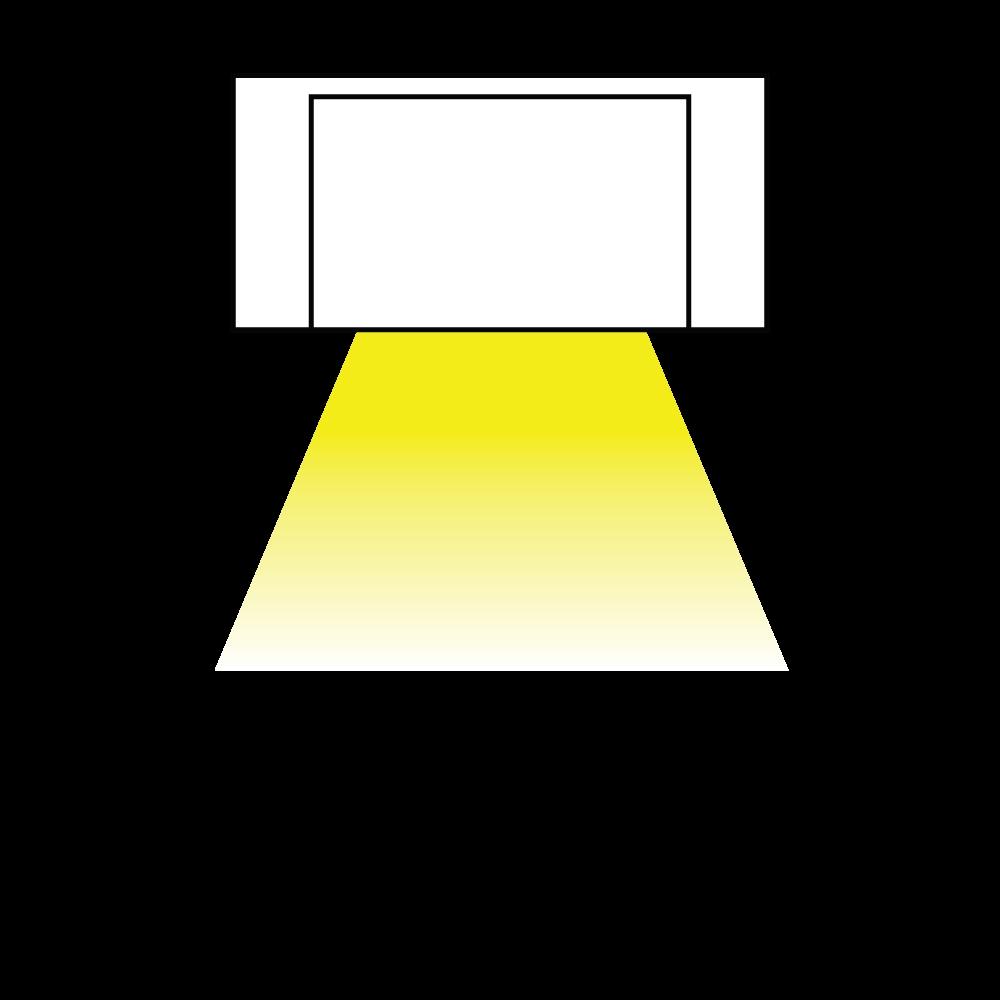

ILLUSTRATION:
ISO_LES_2057_FSH_RES
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.

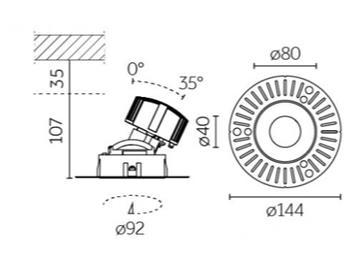

ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING

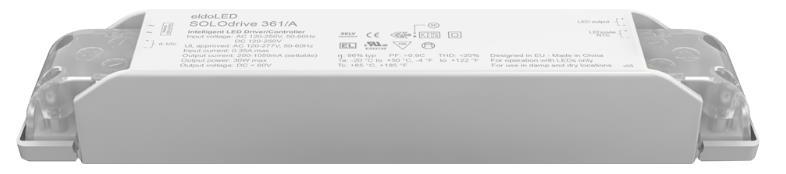

Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING

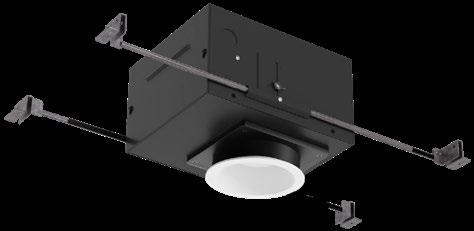

Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation in plasterboard ceilings using 2700K LED source and 12° beam. Adjustability with 358° horizontal axis 40° vertical axis. To be supplied with 0-10V dimmable driver and all accessories for installation.
IP / LOCATION RATING Dry-IP20
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 1054lm, 2700K, CRI>90, 12°
POWER: 14W, 1050mA, 76lm/W
CONTROL: 0-10V
FIXING METHOD: Ceiling recessed with trimless cone. Refer to manufacturer’s instructions.
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor. Manufacturer will provide UL certification as requested.
ILLUSTRATION:

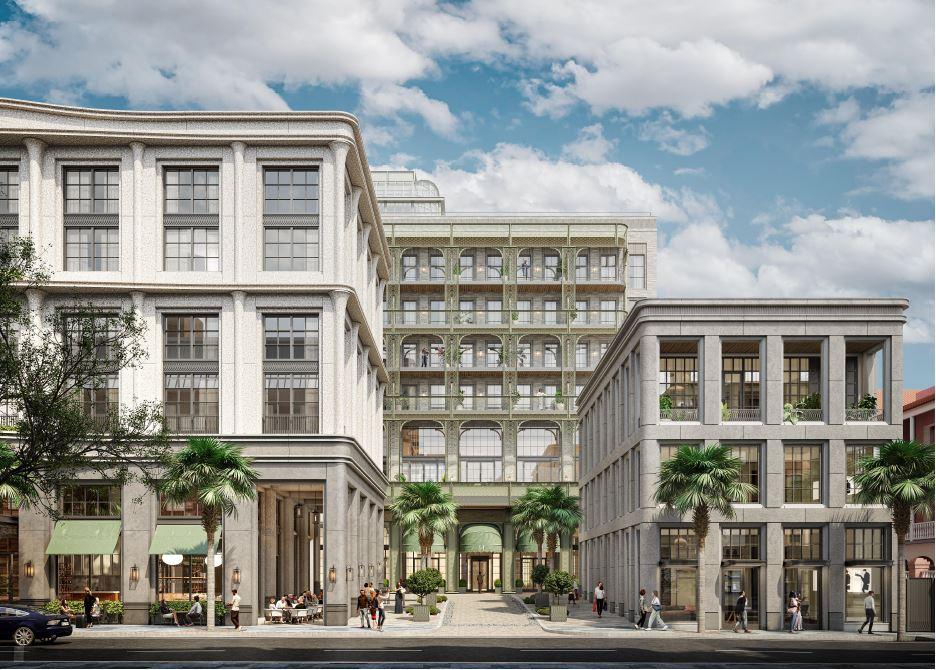

PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area ISO_LES_2057_FSH_RES
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation in plasterboard ceilings using 2700K LED source and 12° beam. Adjustability with 358° horizontal axis 40° vertical axis. To be supplied with 0-10V dimmable driver and all accessories for installation.
IP / LOCATION RATING Wet-IP54
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 1054lm, 2700K, CRI>90, 12°
POWER: 14W, 1050mA, 76lm/W
CONTROL: 0-10V
FIXING METHOD: Ceiling recessed with trimless cone. Refer to manufacturer’s instructions.
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor. Manufacturer will provide UL certification as requested.
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area ISO_LES_2057_FSH_RES
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation in plasterboard ceilings using 2700K LED source and 32° beam. Adjustability with 358° horizontal axis 40° vertical axis. To be supplied with 0-10V dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Wet-IP54
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 898lm, 2700K, CRI>90, 32°
POWER: 14W, 1050mA, 65lm/W
CONTROL: 0-10V
FIXING METHOD: Ceiling recessed with trimless cone. Refer to manufacturer’s instructions.
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor. Manufacturer will provide UL certification as requested.
ILLUSTRATION:
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
DESCRIPTION: Interior quality recessed miniature adjustable downlight for trimless installation using 2700K LED source and 15° beam. To be supplied with DALI dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry-IP20
FINISHES: To match with niche ceiling colour
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 119lm, 2700K, CRI 90
POWER: 1.8W, 500mA, 3V
CONTROL: DALI
FIXING METHOD: Mesh kit for seamless/trimless installation as per manufacturer’s instruction
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area ISO_LES_2057_FSH_RES
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation in plasterboard ceilings using 2700K LED source and 22° beam. Adjustability with 358° horizontal axis 40° vertical axis To be supplied with DALI dimmable driver and all accessories for installation.
IP / LOCATION RATING Dry-IP20
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 1074lm, 2700K, CRI>90, 22°
POWER: 14W, 1050mA, 78lm/W
CONTROL: DALI
FIXING METHOD: Ceiling recessed with trimless cone. Refer to manufacturer’s instructions.
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor. Manufacturer will provide UL certification as requested.
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area ISO_LES_2057_FSH_RES
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation in plasterboard ceilings using 2700K LED source and 32° beam. Adjustability with 358° horizontal axis 40° vertical axis To be supplied with DALI dimmable driver and all accessories for installation.
IP / LOCATION RATING Dry-IP20
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 898lm, 2700K, CRI>90, 32°
POWER: 14W, 1050mA, 65lm/W
CONTROL: DALI
FIXING METHOD: Ceiling recessed with trimless cone. Refer to manufacturer’s instructions.
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor. Manufacturer will provide UL certification as requested.
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area ISO_LES_2057_FSH_RES
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation in plasterboard ceilings using 2700K LED source and 22° beam. Adjustability with 358° horizontal axis 40° vertical axis To be supplied with DALI dimmable driver and all accessories for installation.
IP / LOCATION RATING Dry-IP20
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 1074lm, 2700K, CRI>90, 22°
POWER: 14W, 1050mA, 78lm/W
CONTROL: DALI
FIXING METHOD: Ceiling recessed with trimless cone. Refer to manufacturer’s instructions.
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor. Manufacturer will provide UL certification as requested.
ILLUSTRATION:
ISO_LES_2057_FSH_RES
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation in plasterboard ceilings using 2700K LED source and 22° beam. Adjustability with 358° horizontal axis 40° vertical axis To be supplied with DALI dimmable driver and all accessories for installation.
IP / LOCATION RATING Dry-IP20
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 1074lm, 2700K, CRI>90, 22°
POWER: 14W, 1050mA, 78lm/W
CONTROL: DALI
FIXING METHOD: Ceiling recessed with trimless cone. Refer to manufacturer’s instructions.
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor. Manufacturer will provide UL certification as requested.
ILLUSTRATION:
ISO_LES_2057_FSH_RES
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
• Easily achieve narrow spot to wide flood beam pattern
• Optional filters available upon request
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area
Driver:
Bevel / Flange Finish
3RFOWW - White Bevel / White Flange
3RFOBB - Black Bevel / Black Flange
3RFOHW - Haze Bevel / White Flange
3RFOBZBZ - Bronze Bevel / Bronze Flange
3RFOMTO - Made To Order
3RFOWWEM3- White Bevel / White Flange with E.M. Test Switch
3RFOMTOEM3 - Made To Order with E.M. Test Switch
PERFORMANCE CHART
* Values are listed at 3000K, 90+ CRI
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area
FITTING CODE R-L1
LOCATION: Condo Unit Millwork
SUPPLIER: LEDFLEX https://ledflexgroup.com/

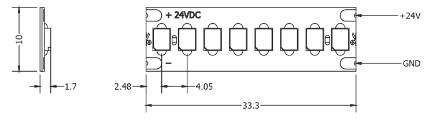

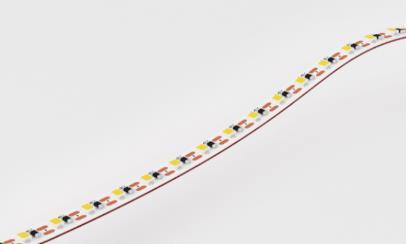

REFERENCE: Eco Flex 160- 2700K – EF160-27-2009

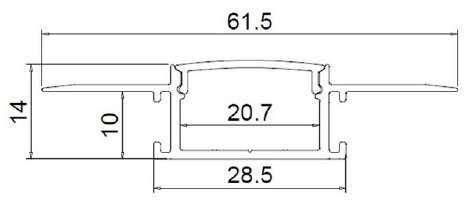

+021-0402 Pro Profile
+022-0105 Opal Diffuser
+021-0213 Metal clip
+End caps
+ Non Dimmable Driver: Meanwell LPV-100-24 + Dimming module: EldoLED Linear Driver 211D: LIN211D1
DESCRIPTION: Interior quality linear using warm white, 2700K LED lamps mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Requires remote 0-10V dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING IP20
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90
POWER: 2.9 W/ft – 24V
CONTROL: 0-10V
FIXING METHOD: Fixing in millworks
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_RES

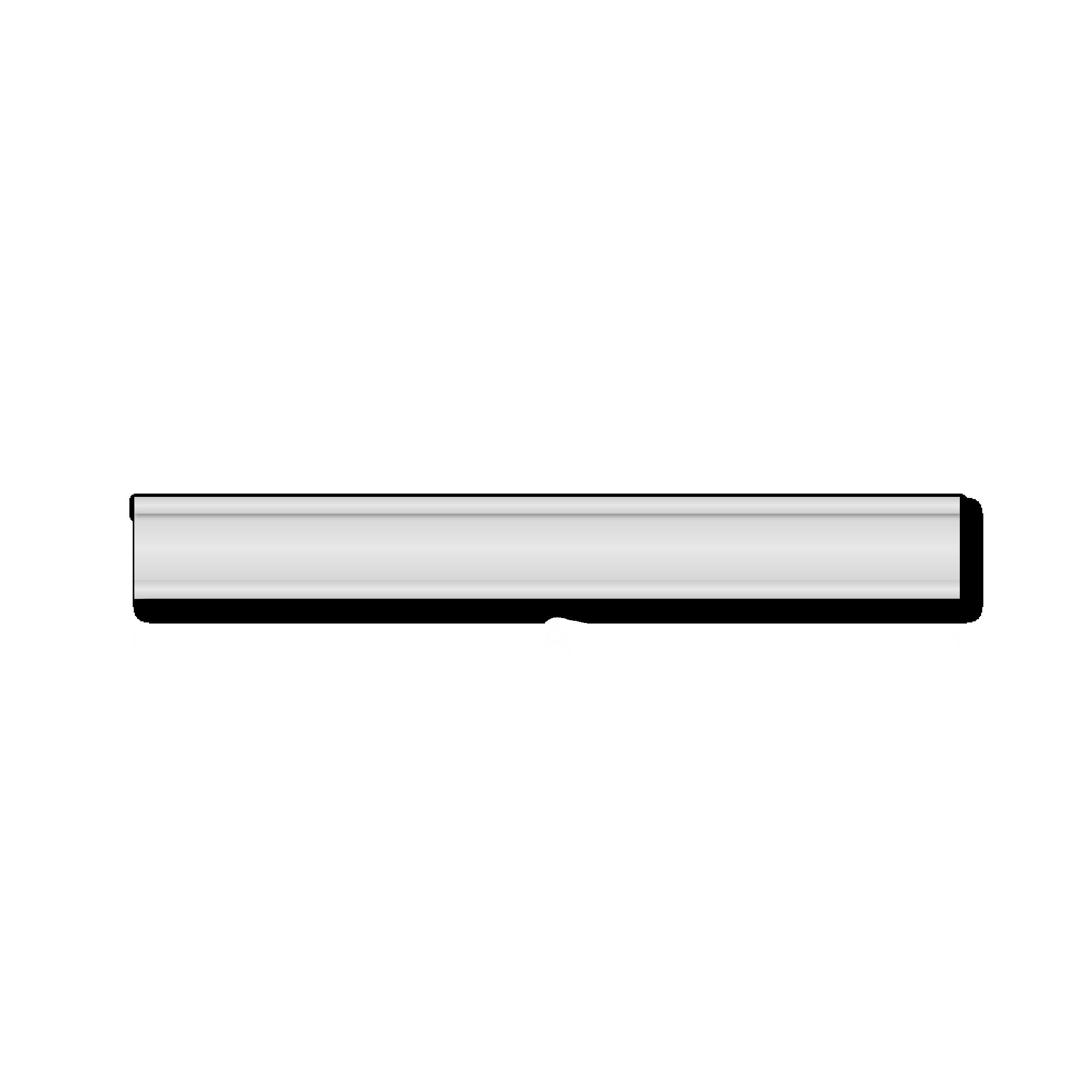

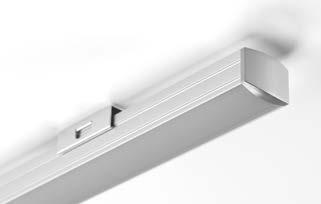

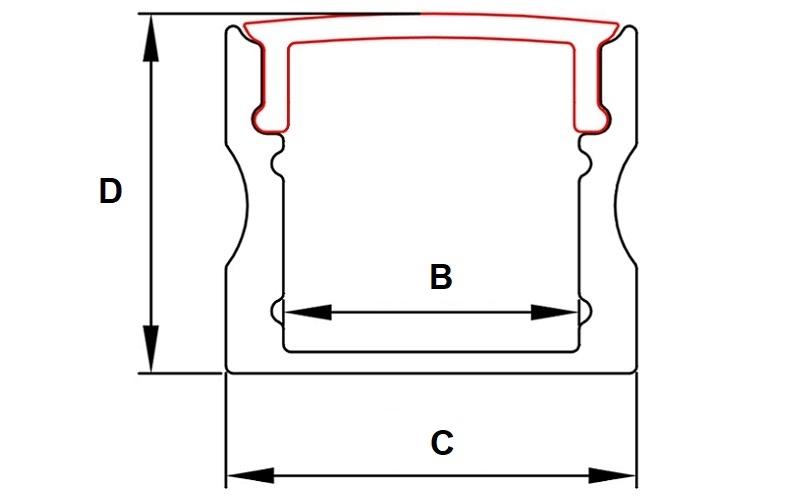

SERIES PRUDENS

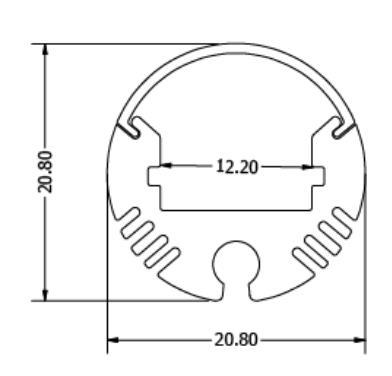

Aluminum profile for surface or suspended mounting
With its modern look and multiple color and finish options, this series combines style and versatility. It offers several power, lenses and assembly options thus allowing you to create the decors and atmospheres you desire. Promoting better heat dissipation, this series will provide you with uniform and uncompromising lighting for many years to come.
FEATURES
Surfacemountorsuspended
Modernlook
Canbecuttoyourneeds
Allowscontinuousjointmounting
Directorindirectlighting
Widechoiceoflens
Widechoiceofcolorsandfinishes
ClearAnodizedAluminum6063T5
APPLICATION
Regular(allpurpose)
MOUNTING
Surfacemount
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
GRADATION
Type
Notdimmable
DimmableTriac Dimmable0-10Volt
DIFFUSER
TypeLightdiffuseAngle
SHAPE LUMINAIRE COLOR
FITTING CODE R-L2
LOCATION: Condo Unit Restroom/kitchen Millwork
SUPPLIER: LEDFLEX
https://ledflexgroup.com/

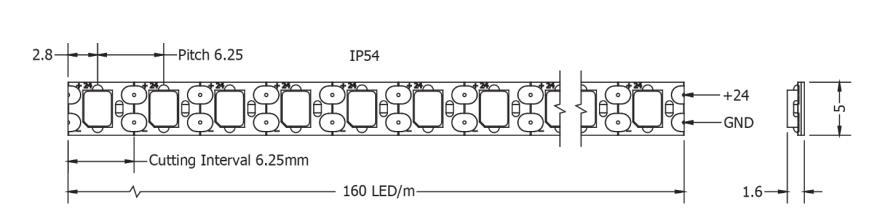

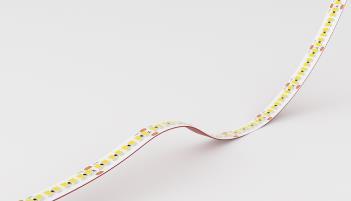

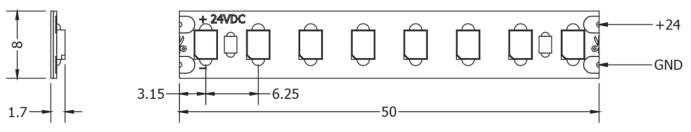

REFERENCE: Nano Flex Solo 160- 2700K – NFS160-27-5409

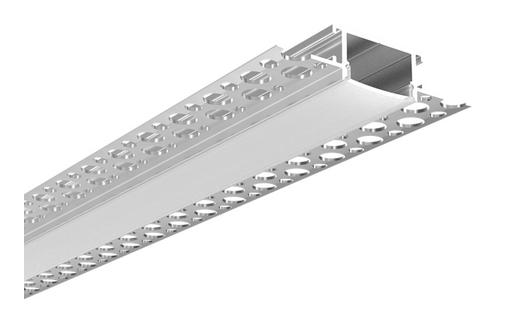

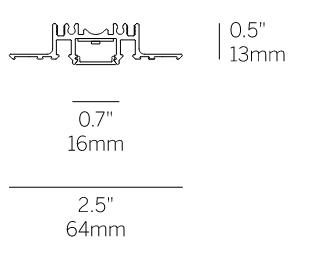

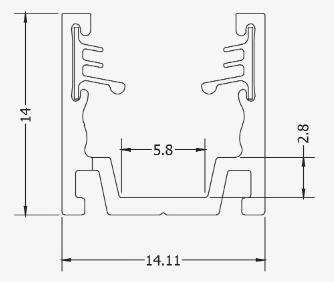

+ 021-7309-02 Nano Profile
+ 022-1169-02 Opal Diffuser
+ 021-7309-12 Metal clip
+ End caps
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: EldoLED Linear Driver 211D: LIN211D1
DESCRIPTION:
Interior quality linear LED strip using warm white, 2700K LED lamps Cutting interval 6.25mm mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Requires remote 0-10V dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING IP54
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90
POWER: 3.2 W/ft – 24V
CONTROL: 0-10V
FIXING METHOD: Fixing in millworks
COMMENTS:
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area ISO_LES_2057_FSH_RES
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
SERIES PRUDENS
Aluminum profile for surface or suspended mounting
With its modern look and multiple color and finish options, this series combines style and versatility. It offers several power, lenses and assembly options thus allowing you to create the decors and atmospheres you desire. Promoting better heat dissipation, this series will provide you with uniform and uncompromising lighting for many years to come.
FEATURES
Surfacemountorsuspended
Modernlook
Canbecuttoyourneeds
Allowscontinuousjointmounting
Directorindirectlighting
Widechoiceoflens
Widechoiceofcolorsandfinishes
ClearAnodizedAluminum6063T5
APPLICATION
Regular(allpurpose)
MOUNTING
Surfacemount
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
GRADATION
Type
Notdimmable
DimmableTriac Dimmable0-10Volt
DIFFUSER
TypeLightdiffuseAngle
SHAPE LUMINAIRE COLOR
FITTING CODE R-L3

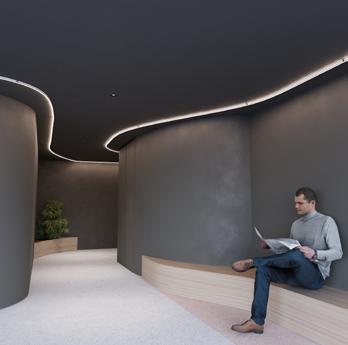

LOCATION: Condo common area ceiling cove
SUPPLIER: LEDFLEX
https://ledflexgroup.com/

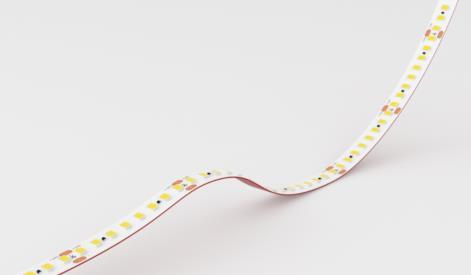

REFERENCE: Eco Flex 240- 2700K – EF240-27-2019
+ 021-0809 Pro Profile + 022-0802 Opal Diffuser + 021-0813 Metal clip
+ End caps
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: EldoLED Linear Driver 210D: LIN210D1
DESCRIPTION:
Interior quality linear using warm white, 2700K LED lamps mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Requires remote DALI dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING IP20
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90
POWER: 5.9 W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in millworks
COMMENTS:
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area ISO_LES_2057_FSH_RES
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
Sale sheet

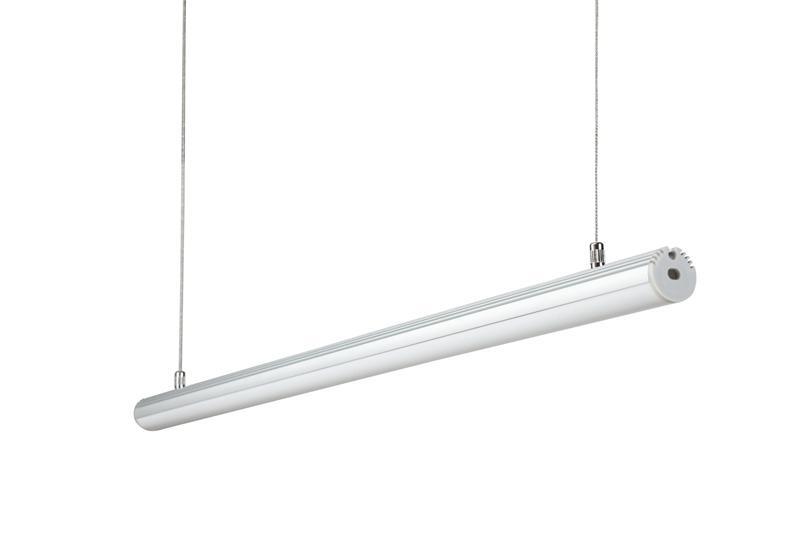

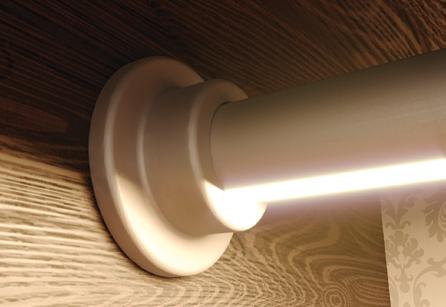

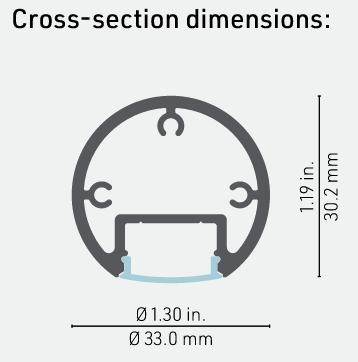

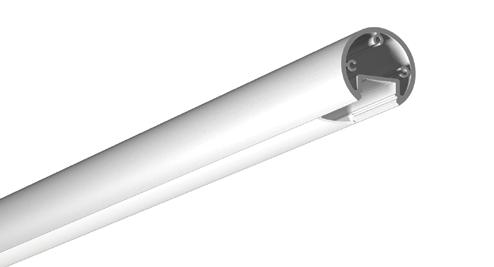

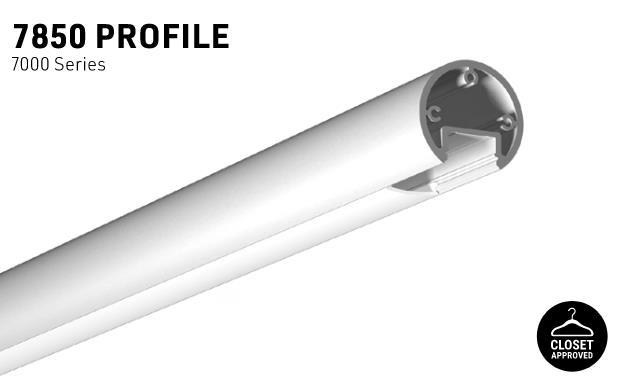

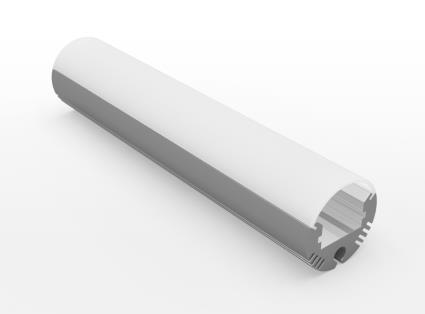

Cylindrical aluminum profile for suspension or wall mounting
04-05-2022 12:21:10
Whether you hang it or decide to mount it on the wall, the cylindrical shape of this series will give your decor a different and unrivaled look. The multiple options of colors, finishes, power, lenses and assembly make it a very versatile series. Fostering better heat dissipation, this serie
Can be cut according to your needs
Allows continuous joint mounting
Direct or indirect lighting
Wide choice of lens
Wide choice of colors and finishes
Clear Anodized Aluminum 6063T5
APPLICATION
Regular (all purpose) MOUNTING
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
Sale sheet
GRADATION
FITTING CODE R-L4
LOCATION: Condo Unit Restroom ceiling cove
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE: Eco Flex 240- 2700K – EF240-27-5419
+021-0402 Pro Profile
+022-0105 Opal Diffuser
+021-0213 Metal clip
+End caps
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: EldoLED Linear Driver 211D: LIN211D1
DESCRIPTION:
Interior quality linear using warm white, 2700K LED lamps mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Requires remote 0-10V dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING IP54
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90
POWER: 5.9 W/ft – 24V
CONTROL: 0-10V
FIXING METHOD: Fixing in millworks
COMMENTS:
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area ISO_LES_2057_FSH_RES
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
SERIES PRUDENS
Aluminum profile for surface or suspended mounting
With its modern look and multiple color and finish options, this series combines style and versatility. It offers several power, lenses and assembly options thus allowing you to create the decors and atmospheres you desire. Promoting better heat dissipation, this series will provide you with uniform and uncompromising lighting for many years to come.
FEATURES
Surfacemountorsuspended
Modernlook
Canbecuttoyourneeds
Allowscontinuousjointmounting
Directorindirectlighting
Widechoiceoflens
Widechoiceofcolorsandfinishes
ClearAnodizedAluminum6063T5
APPLICATION
Regular(allpurpose)
MOUNTING
Surfacemount
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
GRADATION
Type
Notdimmable
DimmableTriac Dimmable0-10Volt
DIFFUSER
TypeLightdiffuseAngle
SHAPE LUMINAIRE COLOR
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area
FITTING CODE R-L5
LOCATION: Condo Unit Foyer
SUPPLIER: Optelma https://optelma.com/
REFERENCE: Neon Flex – Flexible IP Rated Miniature LED + Non Dimmable Driver: Meanwell LPV-100-24 + Dimming module: EldoLED Linear Driver 211D: LIN211D1
DESCRIPTION: Interior quality linear using warm white, 2700K LED lamps mounted into a metal mounting channel with an opal diffuser. To be supplied with any connectors / fixing accessories required for installation. Requires remote 0-10V dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING IP67
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90+, 469 lm/ft
POWER: 4.6 W/ft – 24V
CONTROL: 0-10V
FIXING METHOD: Fixing in millworks
COMMENTS: UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer. Client requested linear in the foyer to be tuned on a power cut. TLC to provide necessary equipment. Emergency lighting outside Isometrix’s scope.
ILLUSTRATION:

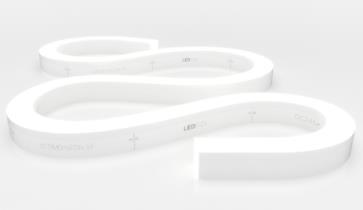

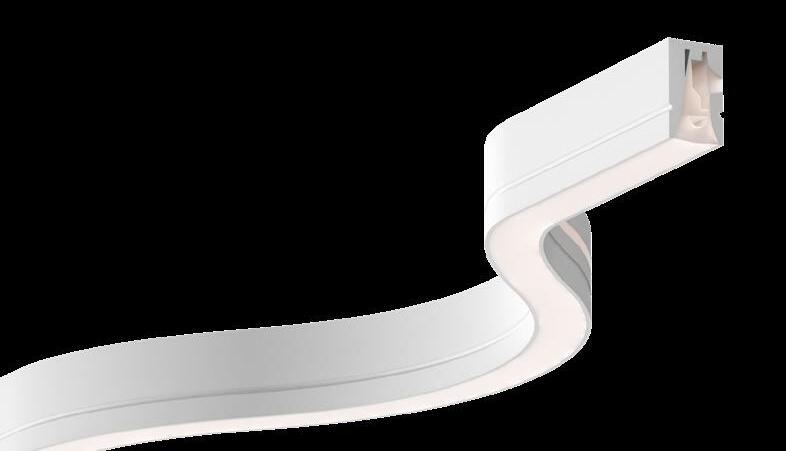

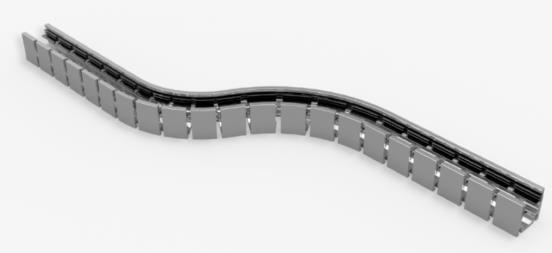

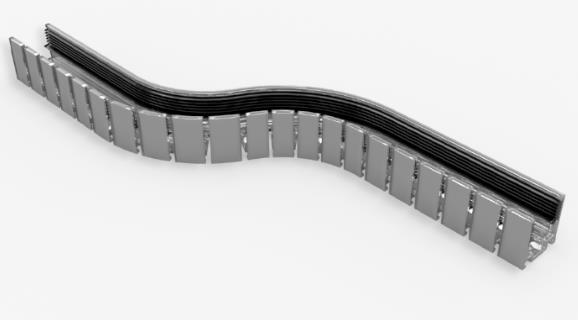

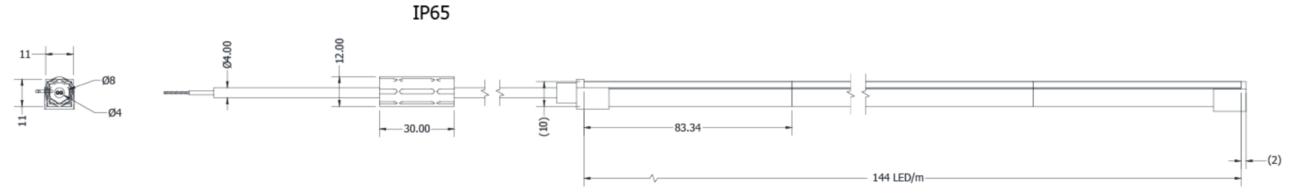

SIDE FLEX NEON FLEX SERIES
PRODUCT DATA SHEET
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area
- Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
Casambi
- Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
WD3 - 2700-3500K - 4.4 W/ft NO - No driver
TW1 - Tun. White - 3.5 W/ft
No controller
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
FITTING CODE R-L6
LOCATION: Condo common area. Skirting Millwork
SUPPLIER: LEDFLEX https://ledflexgroup.com/
REFERENCE: Ultimo Neon 10 2700K SV
UN10-SV-SL-27-4
+ 013-4029 Flexible Grip Profile
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: EldoLED Linear Driver 210D: LIN210D1
DESCRIPTION: Interior quality flexible side bend neon linear using warm white, 2700K LED lamps mounted into a flexible grip profile. To be supplied with any connectors / fixing accessories required for installation. Requires remote DALI dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING IP67
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 80
POWER: 1.4 W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in millworks
COMMENTS:
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area ISO_LES_2057_FSH_RES
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
SIDE FLEX NEON FLEX SERIES
PRODUCT DATA SHEET

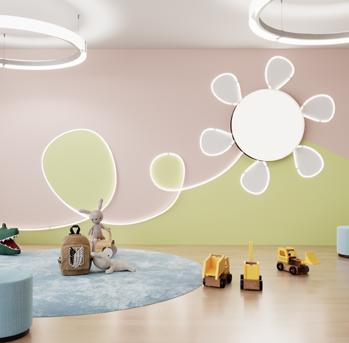

The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
CHARLESTON TYPE R-L6 ALT
- 3000K
- 4200K
- 4.4 W/ft
HWX
secondary light source
AB - Back feed, side A AS1 - Side feed, side A1 AS2 - Side feed, side A2
- Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
Casambi
- Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
WD3 - 2700-3500K - 4.4 W/ft NO - No driver
TW1 - Tun. White - 3.5 W/ft
No controller
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
FITTING CODE R-L7
LOCATION:
Condo common area. Curved Ceiling Cove/ Elevator lobby uplight
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE:
Ultimo Neon High Lumen 16 2700K SV
UN16-SV-SL-27-15
+ 013-3040 Flexible Grip Profile
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: EldoLED Linear Driver 210D: LIN210D1
DESCRIPTION:
Interior quality flexible side bend neon linear using warm white, 2700K LED lamps mounted into a flexible grip profile. To be supplied with any connectors / fixing accessories required for installation. Requires remote DALI dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING IP68
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 80
POWER: 4.6 W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in cove detail
COMMENTS:
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area ISO_LES_2057_FSH_RES
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
SIDE FLEX NEON FLEX SERIES
PRODUCT DATA SHEET
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
CHARLESTON TYPE R-L7 ALT
- 2700K
- 4200K
HWX
secondary light source
AB - Back feed, side A AS1 - Side feed, side A1 AS2 - Side feed, side A2
- Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
Casambi
- Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
WD3 - 2700-3500K - 4.4 W/ft NO - No driver
TW1 - Tun. White - 3.5 W/ft
No controller
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
FITTING CODE R-L8
LOCATION: Straight Ceiling Cove
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE:
Eco Flex 240- 2700K – EF240-27-2019
+021-0402 Pro Profile
+022-0802 Opal Diffuser
+021-0213 Metal clip
+End caps
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: EldoLED Linear Driver 210D: LIN210D1
DESCRIPTION:
Interior quality linear using warm white, 2700K LED lamps mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Requires remote DALI dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING IP20
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90
POWER: 5.9 W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in cove detail
COMMENTS:
ILLUSTRATION:
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area ISO_LES_2057_FSH_RES
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• Motion sensor ready for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainle ss steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Inter nal groove guide for easy application of LED strip when field installation is needed
• A selec tion of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
10 LENGTH*
Length of the luminaire in inches.
*Includes end caps, excludes flanges (when applicable). length no flange flange
5 CCT
K24 - 2400K (not available for LE150)
K27 - 2700K
K30 - 3000K
K35 - 3500K (not available for LE150)
K40 - 4000K (not available for LE150)
K50* - 5000K (LP750 only)
6 APPLICATION
AID - Indoor dry locations
AIW - Indoor wet locations For wet location applications, LED strip will be put inside a waterproof silicone sheath.
K27 - 2700K
K30 - 3000K
K35 - 3500K
K40 - 4000K
11 DRIVER TYPE / SENSOR
PND - Non-dimmable
P010 - 0-10V dimming
PPH - Phase (ELV / MLV) dimming
P5i1 - 5-in-1 (Phase / 0-10V) dimming
PDAL - DALI compatible driver
PDMX - DMX driver
PNO - No driver
MOTION SENSORS
PND-SI05 - 30 sec., embedded
PND-SE05 - 30 sec., external
PND-SI4 - 4 min., embedded
PND-SE4 - 4 min., external
PND-SIP - proximity motion sensor
All motion sensors can only be used with non-dimmable power supplies
- 72W / 24V
- For indoor dry applications
12 GYPSUM COVES, 8ft
CGAP - Apsis
CGLA - Latus
CGNI - Nidus
CGSU - Sulcus
1 PROFILE & FINISH
CA1100 - Anodized aluminum finish
CA1101 - Anodized black finish
CA110W- White (special order)
CA110X - Custom color provide RAL #
7 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
2 MOUNTING
MCF - Flat surface bracket
MC3 - 45° Corner bracket
MC8 - Swivel 180°
M3M - Double face mounting tape
MNO - No mounting
8 INPUT / OUTPUT
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WSL - Simple lead-in, side feed 1
WSR - Simple lead-in, side feed 2
WPE - Pass-through, end feed
WPB - Pass-through, back feed
WPL - Pass-through, side 1
WPR - Pass-through, side 2
3 OPTICS
DCS - Clear lens
DXS - Optiflex lens
DOS - Opal lens
DRS - Prime lens
DBS - Black lens
DSS - Silens
DNO - No lens
9 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges.
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
4
LUMEN PACKAGE
* AID - not for wet location applications
10 LENGTH*
Length of the luminaire in inches.
*Includes end caps, excludes flanges (when applicable). length no flange flange
11
DRIVER TYPE / SENSOR
PND - Non-dimmable
PDMX - DMX driver
PNO - No driver
MOTION SENSORS
PND-SI05 - 30 sec., embedded
PND-SE05 - 30 sec., external
PND-SI4 - 4 min., embedded
PND-SE4 - 4 min., external
PND-SIP - proximity motion sensor
All motion sensors can only be used with non-dimmable power supplies
- 72W / 24V
- For indoor dry applications
6 APPLICATION
AID - Indoor dry locations
AIW - Indoor wet locations
For wet location applications, LED strip will be put inside a waterproof silicone sheath.
12 GYPSUM COVES, 8ft
CGAP - Apsis
CGLA - Latus
CGNI - Nidus
CGSU - Sulcus
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area
FITTING CODE R-L9

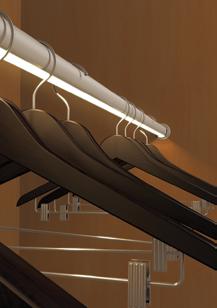

LOCATION: Walk-in wardrobes and pantries
SUPPLIER: WHITEGOODS
https://www.whitegoods.com/
REFERENCE: 20 Linear Paster trim
WG-20LDL-RPT-S-various-M-927-D010-OD-W-C4 + Non Dimmable Driver: Meanwell LPV-100-24 + Dimming module: EldoLED Linear Driver 211D: LIN211D1
DESCRIPTION:
Interior quality, ceiling plaster in linear using warm white, 2700K LED lamps mounted into aluminum profile with opal diffuser. To be supplied with any connectors / fixing accessories required for installation. Requires remote 0-10V dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING IP20
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90
POWER: 7 W/ft – 24V
CONTROL: 0-10V
FIXING METHOD: Ceiling plaster
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
Non Dimmable Driver:
ISO_LES_2057_FSH_RES
SERIES MINIMIS
Sale sheet

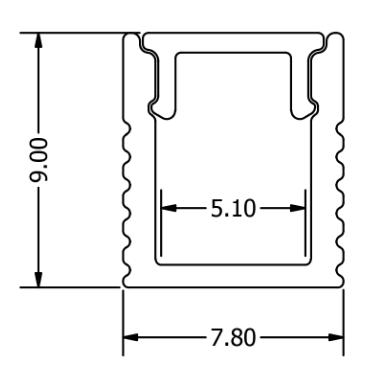

U-shaped aluminum profile without frame and recessed
This narrow 'U' profile series is designed to be recessed and then plastered providing a perfect frameless finish. It will blend into your walls and ceiling with a contemporary and elegant look. It offers several power, lens and assembly options, allowing you to give free rein to your creativity. Promoting better heat dissipation despite being recessed, this series will provide you with uncompromising lighting for many years to come.
A - 61.5 2’’ 7/16
B - 14 9/16
C - 20.7 13/16 D - 10 3/8
- 28.5 1’’ 1/8
FEATURES APPLICATION
Regular (all purpose)
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area
Dimming module:
Dimensions: 153x50x23mm
GRADATION
DIFFUSER SHAPE
Non dimmable
Dimmable Triac
Dimmable 0-10 Volt
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area

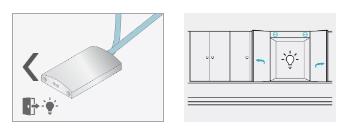

+ Slim door switch and connection gear + Non Dimmable Driver by manufracturer
DESCRIPTION: Interior quality warm white 2700K linear LED strip with aluminium profile and opal diffuser. To be supplied with fixing accessories required for installation. One door sensor per closet door. Requires remote non- dimmable driver by manufacturer
IP / LOCATION RATING IP20
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90
POWER: 4.4 W/ft – 24V
CONTROL: Switch by door sensor

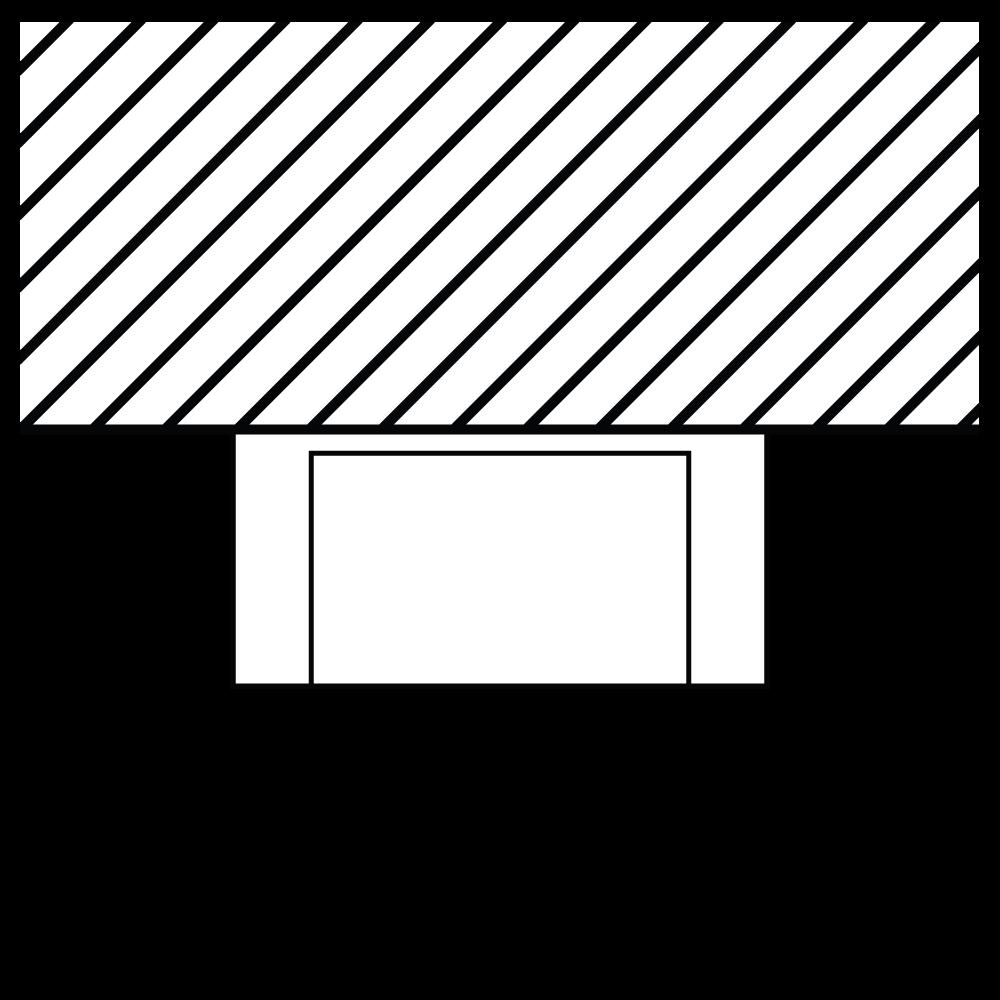

FIXING METHOD: Fixing in closet
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.

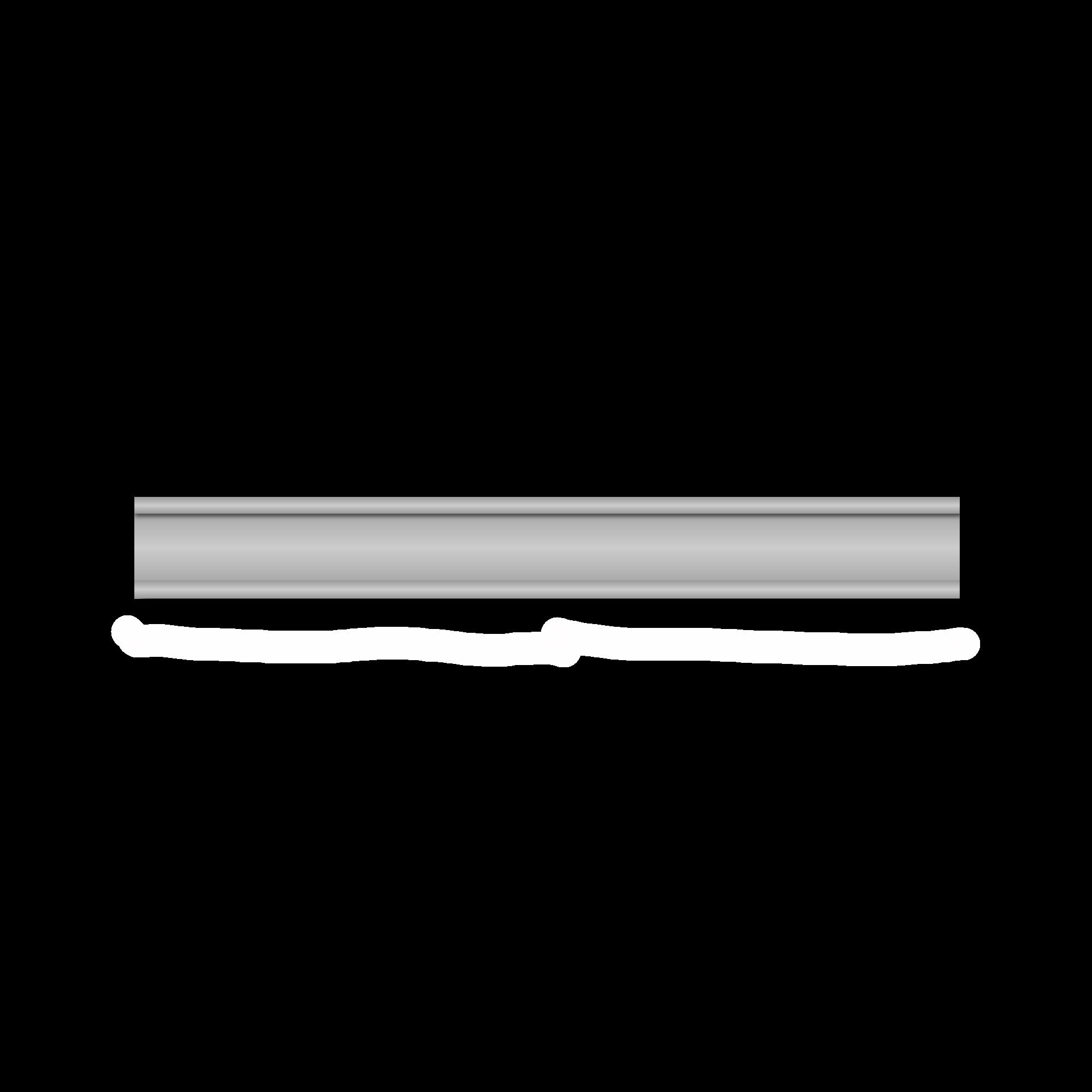

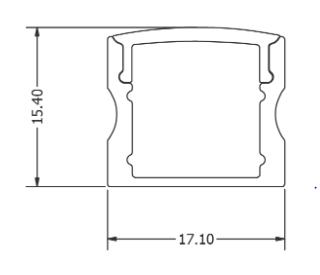

7850 PROFILE
The 7850 profile is designed as an illuminated standard closet rod for an added layer of light within high-end closets and wardrobes. The 7850 series offers a wide selection of lenses, mountings, and LED options to produce a uniform linear light housed within a channel of extruded aluminum and finished with end caps.
FEATURES
–Aluminum construction for superior heat dissipation –Custom lengths for integration into any wardrobe –Support s twelve pounds per foot –Compatible with a wide range of mounting hardware.
–A wide selection of lenses to meet the needs of the task at hand –Motion sensor ready –UL 2108 listed - Suitable for storage and closet areas
OPTIONS
LED ENGINE COMPATIBILITY
IP22: Compatible with LED engines up to 14mm wide.
IP68: Compatible with LED engines up to 10mm wide.
LINEAR WEIGHT
0.442 lbs/ft, 0.658 kg/m (without lens)
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area
CHARLESTON TYPE R-L11
7850 Profile ordering sheet 7000 Series
42 - 4200K LP4 - 488 LM / 5.8W FT / 90+CRI DC3** - DC plug 3 FT E - Non-dimming DC plug in
53 - 5300K (LHP only) LHP - 668 LM / 7.0W FT / 95+CRI DC6** - DC plug 6 FT F - DMX
62 - 6200K (LP only) DC9** - DC plug 9 FT
WD1 - 2200-2700K 14W/m
WD3 - 2700-3500K 14W/m
COBWD - 2200-3200K 14W/m
TW1 - Tunable White 11W/m
TW2 - Tunable White 19W/m
RGB1 - RGB 14W/m
RGB2 - RGB 19W/m
RGBW2- 3000K 4in1 14W/m
DCX** - DC plug custom FT
Lumen Package selection is not available for WD, TW and RGB color options. NO - No lead
For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
I - Casambi CBU-A2D-0/10VDALI-Bluetooth 100/277 VAC
J - Casambi CBU-PWM4-4CHBluetooth 100/277 VAC
K - Casambi CBU-TED-CV-Trail edge dim-Bluetooth 120 VAC

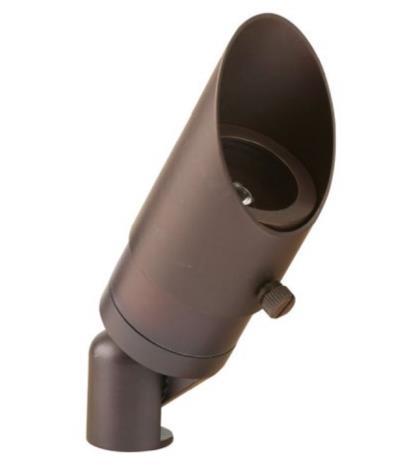

Outdoor spike mounted spotlight with flood optics. Complete with mounting accessories, phase dimmable driver from manufacturer.
Wet rated
Matte bronze, TBC by Interior Designer
As Shown
LAMP TYPE & REF: LED 150lm, 2700K
POWER: 15V, 2W
CONTROL: Switch
FIXING METHOD: spike mounted as per manufacturer instructions
COMMENTS: ILLUSTRATION: UL listed. Electronic remote transformer by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor.
PROJECT: 2057 Charleston Hotel & Residences – Condo Unit and Common Area ISO_LES_2057_FSH_RES
SPECIFICATION SHEET

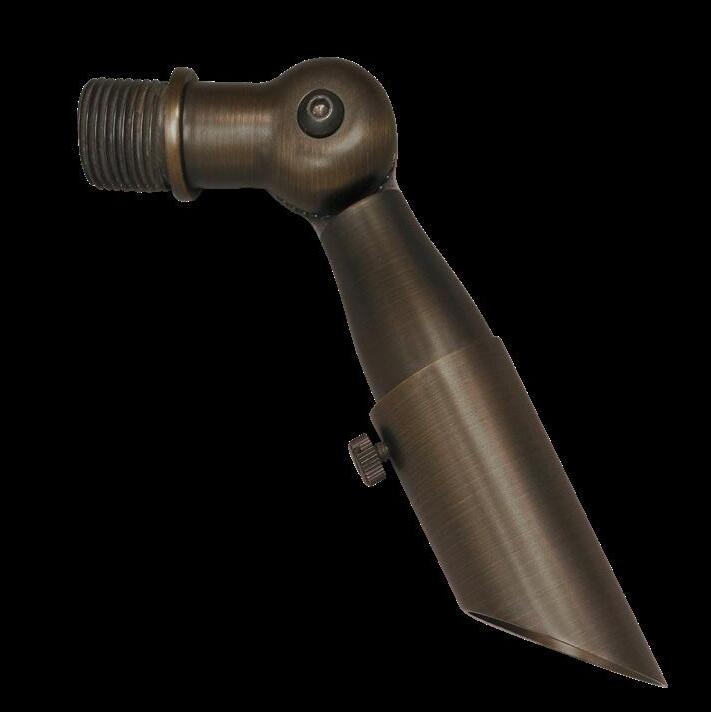

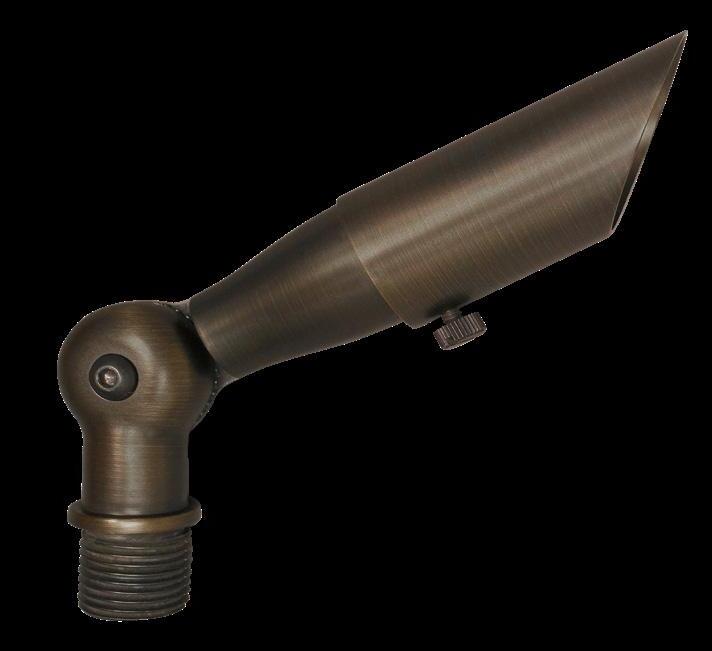

ELEMENT Integrated LED
Uplight/Downlight
Fixture
SPECIFICATIONS
VOLTAGE: 12V AC/DC.
HOUSING:
Cast brass with removable shroud.
FINISH:
Weathered brass.
MOUNTING:
Threaded with 1/2” NPT. Heavy-duty composite stake and locknut included. May be mounted into threaded hubs in junction boxes or mounting accessories.
WIRING:
Pre-wired with a 5’ pigtail of 18/2 cable.
WARRANTY: Ten years.
Type:
The Element features an integrated LED source available in 3.5W. 2700K and 3000K. 25-, 40-, 60- and 100-degree beam spreads.
DIMENSIONS:
CHARLESTON
SPECIFICATION SHEET Page 2 ELEMENT Integrated LED Uplight/Downlight Fixture
LED LAMP SPECIFICATIONS
LAMP TYPE: Integrated LED.
OPTICS:
Integral optics providing available beam spreads from 25° to 100˚.
COLOR TEMPERATURES: 2700K and 3000K.
FIXTURE ORDERING INFORMATION
To order a fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 489891-3.5W-25˚2700K-MS
MS Composite Stake 490034
EX Excalibur Post Stake 490037
MY Y-Bracket Surface Mount - 490045
TH9 Tree Hugger Strap Kit 9”- Max 14” - 490330
TH15 Tree Hugger Strap Kit 15”- Max 22.5” - 490331
TH24 Tree Hugger Strap Kit 24”-
N Newhouse Brass Tree Mount J-Box - 490060
GM Brass Gutter Mount 490047
MSM Brass Micro Surface Mount 490049
TR Trident HD 3-Prong Stake 490036
PM Pier Mount 490057
TSM Tapered Surface Mount 490048
EM Round Electrical Mounting Plate 490043
RMP Rectangular Electrical Mounting Plate 490044
SPECIFICATION SHEET

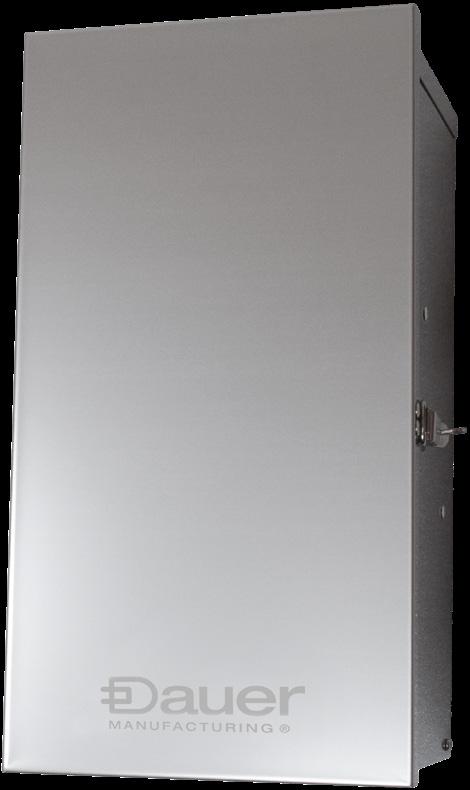

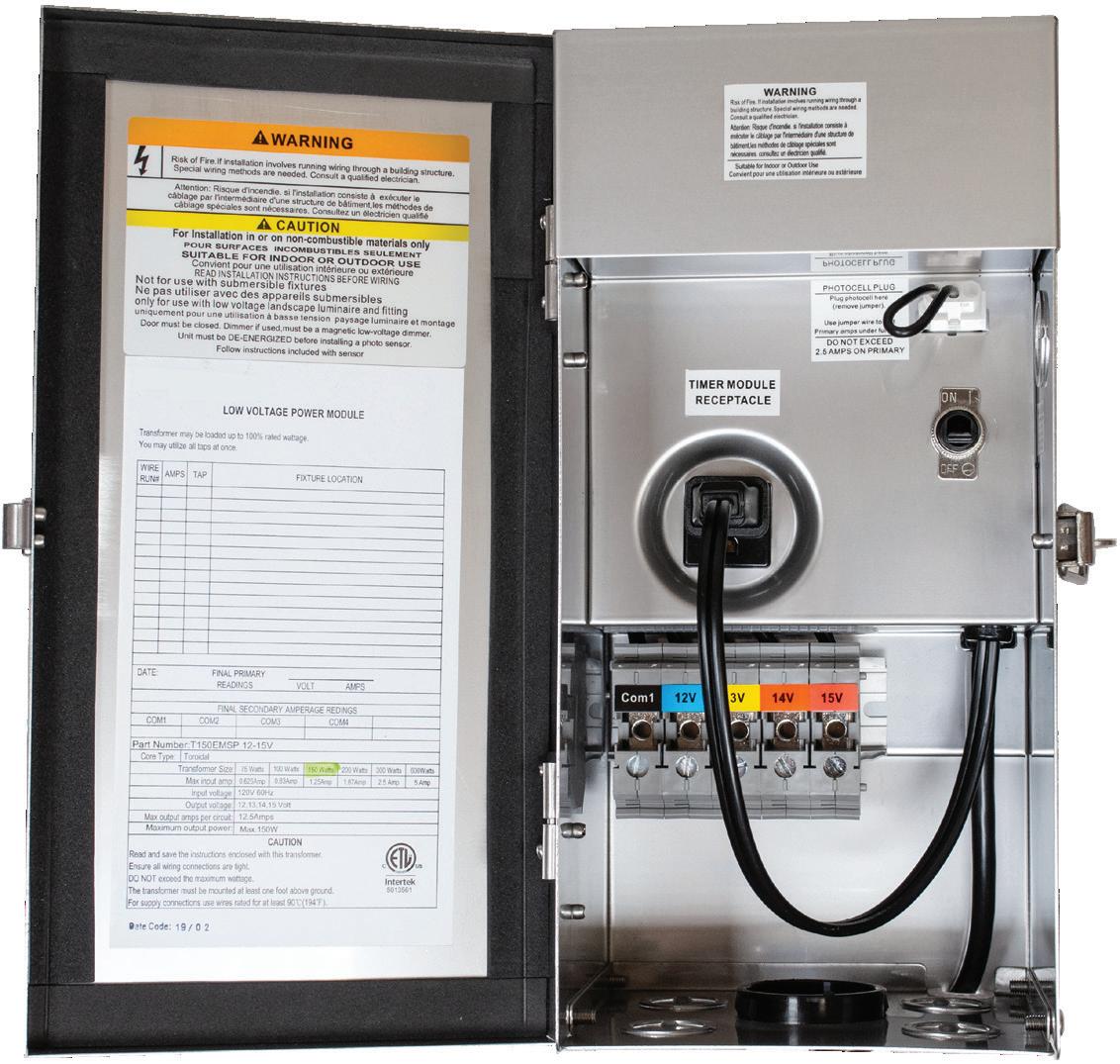

150W STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490541
SPECIFICATIONS
OUTPUT:
150W, 12.5A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT: 120V, 60HZ, 1.25A
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 12.5A breaker, heavy-duty grounded 5-foot power cord. suitable for interior or exterior use.
AGENCY LISTINGS: ETL approved (5013561). Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
ORDERING INFORMATION:
To order a transformer with an option, select the appropiate choices from each column as in the following example: EXPAMPLE: 490541-DT200LT
