2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
PART NUMBER

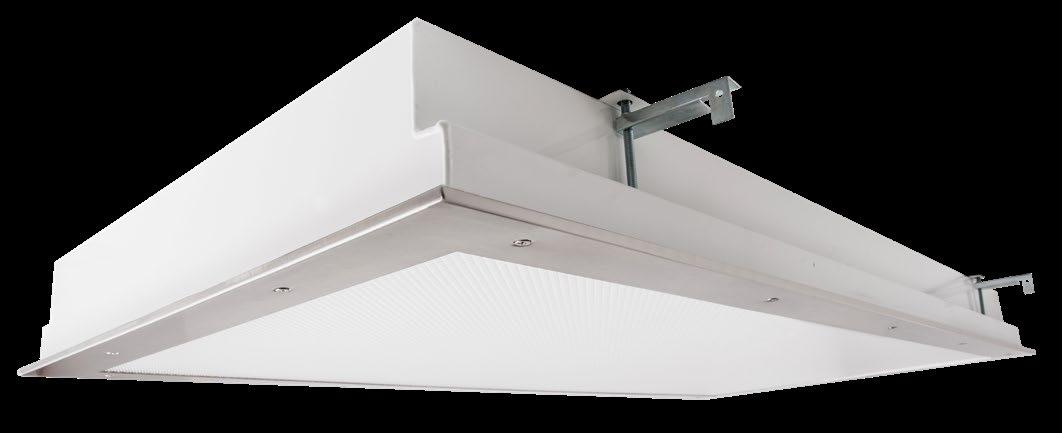

WL-R-4-2x4-2-LEDR-835-UNV-A19
WL-R-4-2x4-2-LEDR-835-UNV-A19
EGA-5L-SA-UNV-840
SW-4-60L-840-UNV-IMUS
SW-4-60L-840-UNV-IMUS-EM
OPS-PD-14L-5Q-UNV-35K8-FINISH-AWN
EG3-8-LED-13L-DA-S-UNV-DIM-35-80-AWN
EGA-5L-SA-UNV-840-AWN
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
COOPER COOPER LEDVANCE
FLR2-WL-24-65-L835-UNV-CA080
FLR2-WL-24-65-L835-UNV-CA080
VAPOR/ILT/S050UNHD8SC7/48
STR4UZDA4CCT
STR4UZDA4CCTB
GL9-MS-1L-QT-MCT
VAPORILT/S100UNHD8SC7/96
VAPOR/ILT/S050UNHD8SC7/48
NX-603D-LED
NX-815-LED-R2MA
NX-603D-LED
NX-815-LED-R2MA
TYPE A SPEC CHARLESTON
Opulence Small Pendant & Surface Mount (OPS PD/SD)
Outdoor Pendant & Surface Mount Luminaire
OVERVIEW
Lumen Package (lm)3,000 - 17,000
Wattage Range (W) 20 - 105
Efficacy Range (LPW) 134 - 177
Weight lbs (kg) 16 (7.3)
Control Options IMSBT, ALBCS
FEATURES & SPECIFICATIONS
Construction
• Rugged die-cast aluminum housing.
• Architecturally pleasing with no visible electronics, hardware, or seams from ground level.
• Fixtures are finished with LSI’s DuraGrip® polyester powder coat finishing process. The DuraGrip finish withstands extreme weather changes without cracking or peeling. Other standard LSI finishes available. Consult factory.
• Optional spun aluminum shroud provides a streamlined transition from stem to luminaire while also deterring nesting (3/4” stem/pendant only).
• External Shield available for field installation (see accessory ordering information and dimensions for details).
Optical System
• High density LED optical system delivers industry leading optical performance and visual comfort.
• Distribution types 2, 3W, 4F, 5Q, 5C, 5R, 5D & AD
• Diffused lens version provides maximum visual comfort with reduced brightness and LED pixelization.
• Patented Uplight Module U.S. Patent No. 11,668,443.
• Available in 5000K, 4000K, 3500K, 3000K and 2700K color temperatures per ANSI C78.377. Also available in Phosphor Converted Amber with Peak intensity at 610nm.
• Minimum CRI of 80 Electrical
• High-performance driver features overvoltage, under-voltage, short-circuit and over temperature protection (6kV surge standard).
QUICK LINKS
• 0-10V dimming (10% - 100%) standard.
• Standard Universal Voltage (120-277 VAC) Input 50/60 Hz or optional High Voltage (347-480 VAC).
• Total harmonic distortion (THD): <20%
• Operating temperature: -40°C to +40°C (-40°F to +104°F).
• Power factor (PF): >.90
• Input power stays constant over life.
• Optional 10kV surge protection device meets a minimum Category C Low operation (per ANSI/IEEE C62.41.2).
• Driver is fully encased in potting material for moisture resistance and complies with FCC standards. Driver and key electronic components can easily be accessed.
• Optional 16w battery backup provides 90-minutes of constant power (~2,0002,500 lumens) to the LED system, ensuring code compliance. A test switch/indicator button is installed on the housing for ease of maintenance. Standard battery rated for 0° to 40° with cold weather battery rated for -20°C to 40°. 120-277V Only.
Controls
• Integral passive infrared Bluetooth™ motion and photocell sensor options. Fixtures operate independently and can be commissioned via an iOS or Android configuration app.
• LSI’s AirLink™ Blue lighting control system is a simple feature rich wireless Bluetooth mesh network. The integrated fixture sensor module provides wireless control of grouped fixtures based on motion sensors, daylight or a fully customizable schedule. Updates and modifications to the control strategy are easily implemented via an intuitive iOS app.
Installation
• Pendant mounting via rigid 3/4” stem (order stem seperately), 36” wire leads provided.
• Direct/surface mounts to a 4” (102mm) square or octagon box (box by others).
• Hinged 16ga galvanized mounting bracket provided for ease of installation and maintenance.
• Optional stainless steel crown for mounting to 2” tenon (order tenon seperately). Wire leads pass through compression seal fitting to prevent water entry. Once-piece silicone gasket provides water and dust tight seal.
• For wall mount arm please reference OPS wall mount spec sheet.
Warranty
• LSI luminaires carry a 5-year limited warranty. Refer to https://www.lsicorp.com/ resources/terms-conditions-warranty/ for more information.
Listings
• Listed to UL 1598 and UL 8750.
• Meets Buy American Act requirements.
• DarkSky approved with 3000K CCT or warmer color temperature selection and fixed mounting arms / non-adjustable brackets.
• Title 24 Compliant; see local ordinance for qualification information.
• Suitable for wet locations.
• IP66 rated Luminaire per IEC 60598-1.
• IK09 rated luminaire per IEC 66262 mechanical impact code with polycarbonate lens (PLY).
• DesignLights Consortium® (DLC) Premium qualified product. Not all versions of this product may be DLC Premium qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
CHARLESTON
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
EXT - 0-10v Dimming leads extended to housing exterior IMSBT1L - Integral Bluetooth™ Motion and Photocell Sensor (8-24’ MH)3 IMSBT2L - Integral Bluetooth™ Motion and Photocell Sensor (25-40’ MH)3
UNV - Universal Voltage (120-277V)
6, 12, 18, 24, 36, 48 inches)7
but not DLC listed.
BLANK

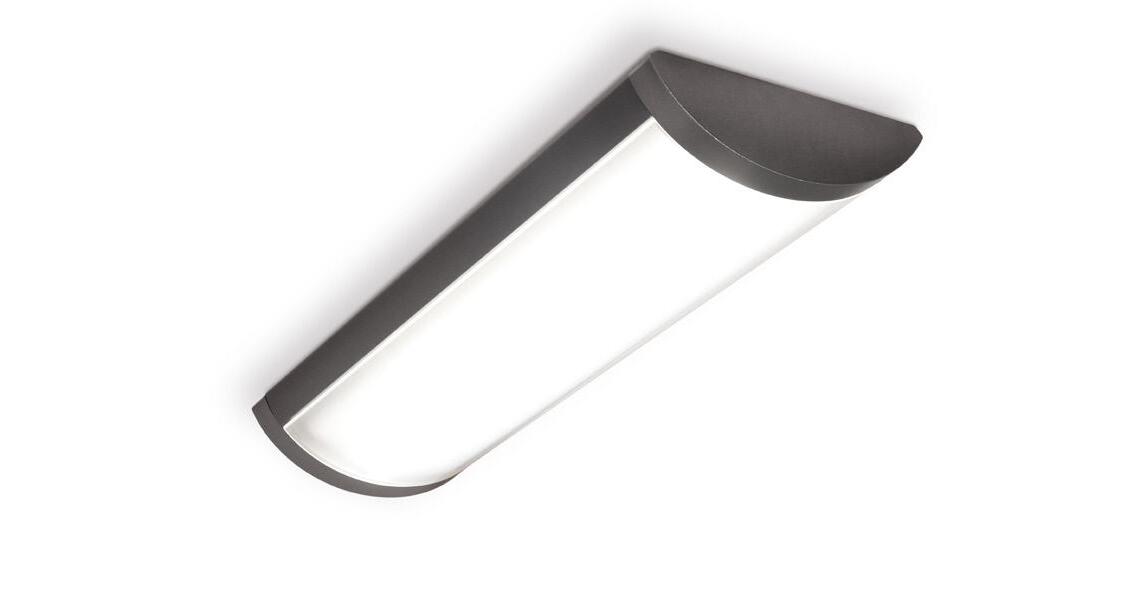

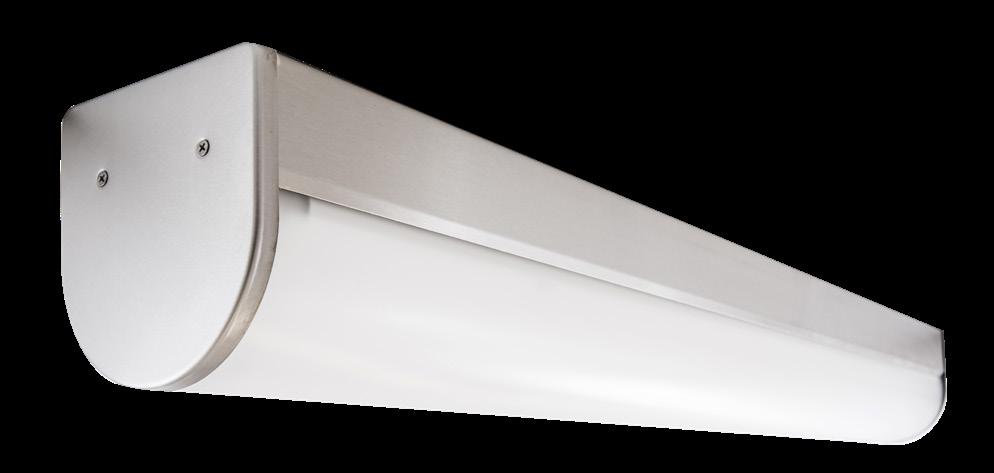

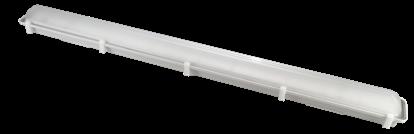

Wet Location Profile Wrap: WL-B LED
- ETL Listed for Wet Locations
- IP65 Rating
- Several Mounting options for surface or suspended installation
- Optionally available for end to end row mounting.
- B.A.A. & B.A.B.A Compliant & Made in the USA by a Family Owned US Corporation

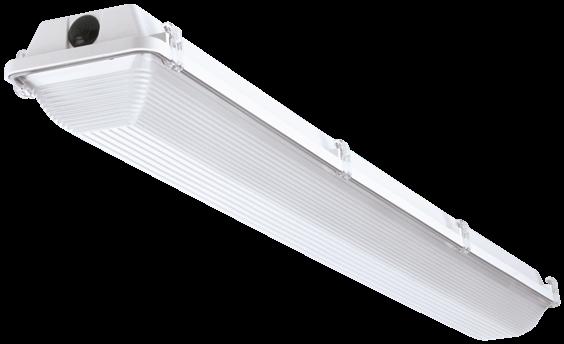

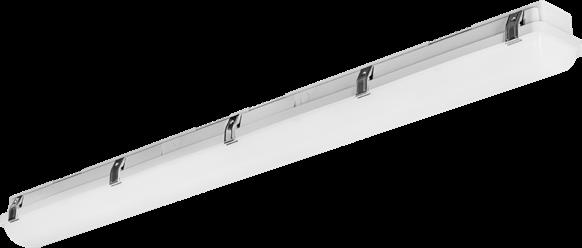

LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog #
Project Type
Prepared by
APPLICATION
Comments

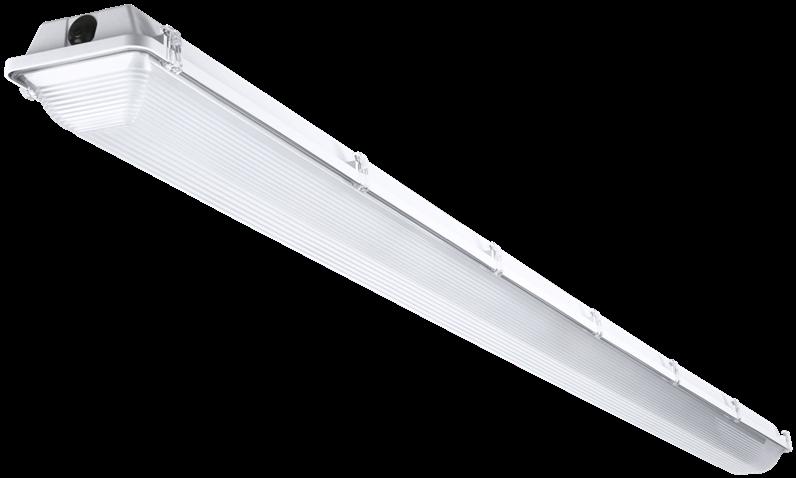

Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available
sensor*
ORDERING INFORMATION
Wet Location Profile Wrap: WL-B LED
-ETL Listed for Wet Locations -IP65 Rating
-Several Mounting options for surface or suspended installation
-Optionally available for end to end row mounting. -B.A.A. & B.A.B.A Compliant & Made in the USA by a Family Owned US Corporation
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog #
Project
Type
Prepared by
APPLICATION
Comments
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
• Surface mount, corner mount, and pendant mount options
• Continuous row mount for pendant, straight runs and corner installations. Unlit center piece connector options available
• Fixtures must be grounded in accordance with national, state and/or local electrical codes. Failure to do so may result in serious personal injury
ELECTRICAL
• Universal voltage, 120 through 277V with a ±10% tolerance. Driver is UL Listed
• High voltage configurations, 347/480. Driver has a 0-10V dimming interface for multi-level illumination options. Driver is UL Listed
• Drivers have greater than a 0.9 power factor, less than 20% harmonic distortion, and be suitable for operation in -40°C to 40°C ambient environments
• Luminaires are capable of operating at 100% brightness in a 40°C environment. Both driver and optical array have integral thermal protection that will dim the luminaire upon detection of temperatures in excess of 85°C
• Dimming range from 1% to 100% through the use of standard 0-10V interface on the programmable driver
• Modular wiring harness in the service area provides user access to the dimming circuitry
• Optional factory programmed dimming profile
• Surge protection: 10kA in parallel
• SF for 120, 277, 347 Line volts DF for 208, 240, 480 Line volts

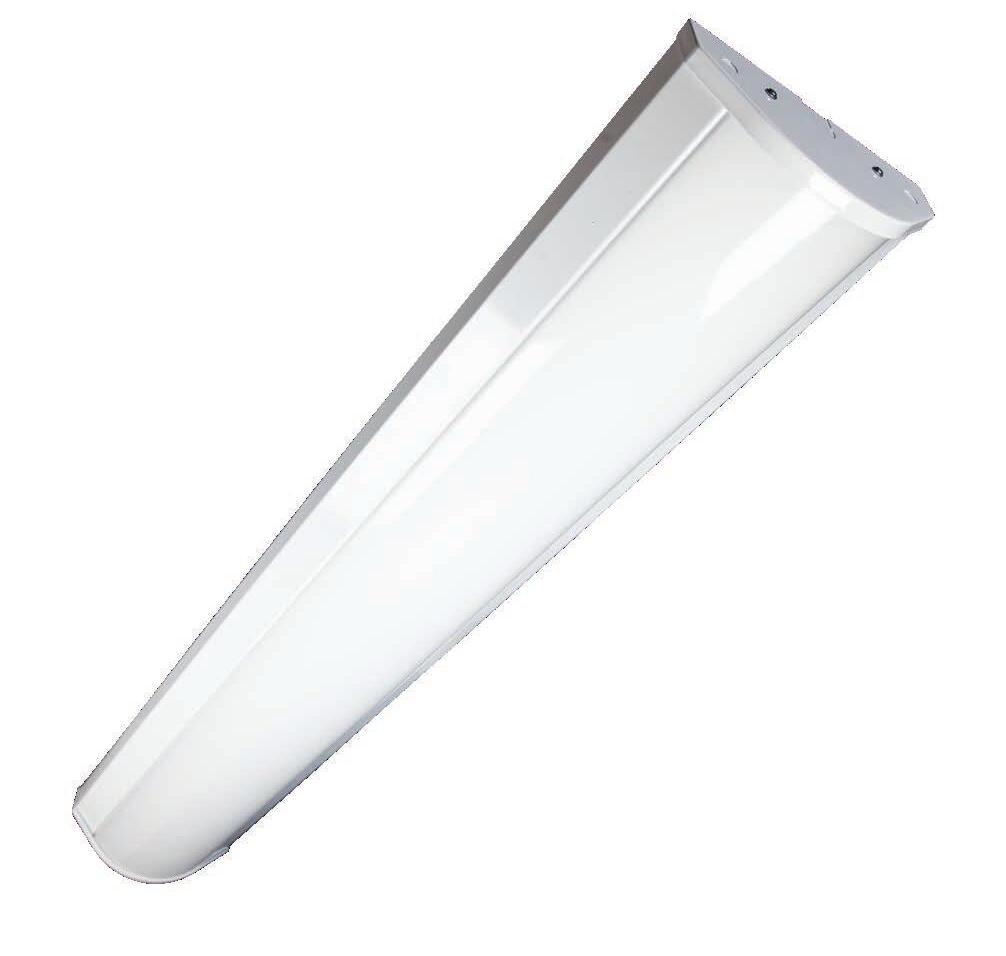

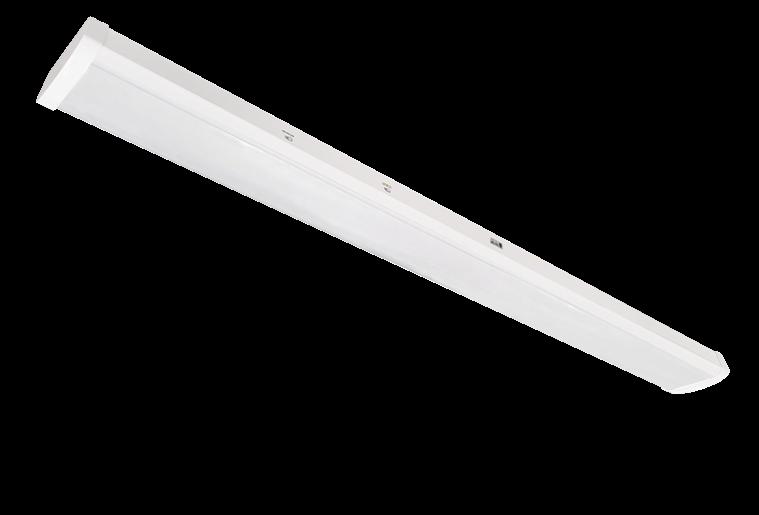

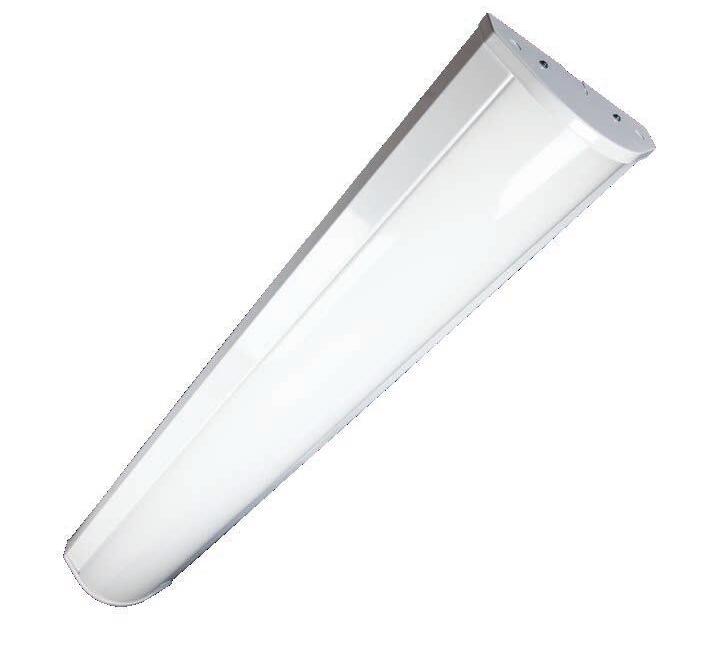

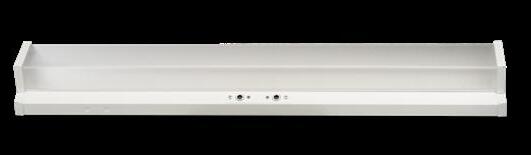

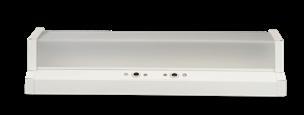

4' Wraparound Light includes an integral CCT switch to change the color temperature at any time! Surface mounted, it’s ideal for commercial, residential, industrial, and retail applications, such as stairwells, hallways, garages, schools, offices, and more. Easy to install and great for replacing outdated fluorescents with an energy efficient, cost saving alternative. The luminaire’s lens is designed to uniformly spread and soften the appearance of the light while maximizing its distribution and output. Each luminaire includes two tunable switches; Selectable Lumens easily allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance so it is perfectly customized to your needs.
FEATURES
cULus Listed
Selectable Lumen switch changes output from 7000lm to 8000lm
Field selectable color temperature (3000K / 3500K / 4000K)
0-10V dimming
120-277V input
DLC Listed
SPECIFICATION
Construction: Steel stamped body. Finished in white powder coat. Top, end and cap knockouts.
Tunable Switches: Each luminaire includes two switches on the top of the driver enclosure. Selectable Lumen switch changes the lumen output and wattage. Seletable CCT switch changes the color temperature.
Mounting: Luminaires can be surface mounted, wall mounted or suspended with pendant kit (ordered separately: NLWPSWA-PK).
ELECTRICAL
Input Voltage: 120-277Vac
Lumens / Wattage: Selectable Lumens: 7000lm / 55W, 7500lm / 60W and 8000lm / 65W (Note: Preset to 65W)
Color Temperature: Selectable CCT (3000K / 3500K / 4000K) (Note: Preset to 3000K)
Color Rendering Index: 80+ CRI
Beam Spread: 100° Wide Flood
Operating Temperature: 0˚C to 45˚C
Lifetime: 60,000 hours @ L70
Dimming: 0-10V
OPTIONAL ACCESSORIES

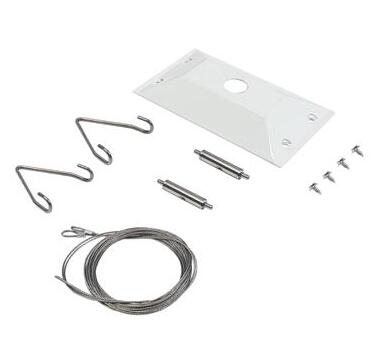

NLWPSWA-PK : 8' Pendant Kit (aircraft cable and hooks)
NLSTRA-MSCONT2 : Remote Control for Motion Sensor (not required)
Optional motion sensor: Microwave motion sensor can detect motion up to 17' away and 120˚ under the luminaire. All MS are preset to dim from 100% to 50% after 1 minute, then turn off after another minute without detected motion. The light sensor is enabled to keep fixture inactive when detecting light levels of 50 Lux or higher for daylight savings. Dip switches or remote control (ordered separately) can be used to change the motion sensor settings). After each power cycle, the fixture will perform a start-up cycle and resume normal operation. Note: 0-10V dimmer cannot be used with MS and EMMS configurations.
Emergency: Luminaire can be specified with an emergency battery with integral test switch. Battery operates luminaire at 8W for 90-minute emergency operation on fully charged battery. Battery may take up to 24 hours to fully charge.
LABELS AND LISTINGS
DLC Listed (Direct Linear, Stairwell and Passageway)
cULus Listed for Damp Locations
5-Year Limited Warranty
FCC Compliant
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and
4' Wraparound with Selectable Lumens & CCT
Description
NLWPSW-4L334W = 4' Wraparound with Selectable Lumens & CCT
Options (blank) = Standard
/EM = Integral Emergency
/MS = Integral Motion Sensor
/EMMS = Integral Emergency and Motion Sensor
Example: NLWPSW-4L334W = 4' Wraparound with Selectable Lumens & CCT
Wireless Radio Module NXRM2 and Bluetooth Programming, without Sensor NXWS NX Networked Wireless Enabled Integral NXSMP2OMNI PIR Occupancy Sensor with Automatic Dimming Photocell and Bluetooth Programming
Contact Factory for pattern configurations. Approval drawings required.
- Several Mounting options for surface or suspended installation
- Optionally available for end to end row mounting.
- B.A.A. & B.A.B.A Compliant & Made in the USA by a Family Owned US Corporation
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog #
Project
Type
Prepared by
APPLICATION
Comments
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available
sensor*
ORDERING INFORMATION
NO SPEC
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog #
Project
Type
Prepared by
APPLICATION
Comments
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available
sensor*
ORDERING INFORMATION
LTR-3RD (SH)
LITEISTRY 3" ROUND
NON-CONDUCTIVE SHOWER DOWNLIGHT
FEATURES
• 3" architectural LED downlight delivering 600 – 1500 lm
• Non-conductive dead-front trim with four regressed lens options
• Suitable for wet locations, covered ceiling
• IP65 rated (room side)
• NSF2 Splash/Non-Food Zone certified
• Anti-microbial finish, optional
• 2700K - 5000K, 80+ and 90+ CRI options
• Available for New Construction (non-IC), IC and Chicago Plenum applications
DATE: LOCATION:
TYPE: PROJECT:
CATALOG #:
• Variety of dimming protocol options including 0-10V, DALI, DMX, and Lutron EcoSystem
SPECIFICATIONS
CONSTRUCTION
• Standard Non-IC. Chicago Plenum and IC options
Painted black durable steel platform with pre-installed bar hangers
• Pre-wired junction box with snap-on covers for easy access
• Snap-in connection from driver compartment allows easy installation
• Light Engine connections use plenum rated (CMP) cable
OPTICS
• Durable, non-conductive trim with 1/2" regressed lens
• Lens options include acrylic, polycarbonate, or tempered glass micro-prism, and clear acrylic Smooth room side lens surface for easy wipe down
• Available in white, black, or anti-microbial white trim color
ELECTRICAL
• Chip-on-board LED with 2 SDCM
• Multiple CCTs, 80+ or 90+ CRI
• Long LED life: L90 at >55,000 hours (TM-21)
• Universal voltage 120V–277V driver, 347V optional
ELECTRICAL (CONTINUED)
• UL Class 2, inherent short circuit and overload protection
• Flicker free 0-10V dimming with 1% or <1% performance
• DALI, DMX, and Lutron EcoSystem options
NX Lighting Controls provides options for standalone and networked functionality with wired or wireless connectivity for NX system deployments
• Emergency battery pack option available with remote test switch and indicator light
INSTALLATION
• Accommodates ceiling thickness up to 2"
• Universal adjustable mounting brackets also accept 1/2" EMT conduit or 1½" or ¾" lathing channel (by others) or Prescolite accessory bar hangers (B24 or B6)
Light Engine serviceable above or below ceiling. Top access required for driver, Controls, EMR, GTD, or DTS component replacement
CERTIFICATIONS
cCSAus certified to UL 1598
• IP65 rated (room side) when properly installed per installation instructions
• NSF2 Splash/Non-Food Zone certified
CERTIFICATIONS (CONTINUED)
• Suitable for wet locations, covered ceiling. EMR: Suitable for damp locations.
• EMR: Certified under UL 924 standard for emergency lighting and power equipment
• EMR: Emergency battery packs are California Energy Commission (CEC) Title 20 Compliant
• Approved for 8 (4 in/4 out) No. 12AWG conductors rated for 90°C through wiring
• For -BAA Option: This product meets federal procurement law requirements under the Buy American Act (FAR 52.225-9)
See Buy America(n) Solutions
• For -TAA Option: Product configurations meet federal procurement law requirements under the Trade Agreements Act (FAR 52.225-11)
See Buy America(n) Solutions
WARRANTY
• 5 year warranty
CHARLESTON TYPE
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
4AM available with White (WT) only. Consult factory for other colors.
5347V requires DM1 driver; not available with Controls, EMR, DTS, GTD or F.
6Housing options (except Fuse, BAA/TAA) not available in combination.
7DTS available with DM1, DM01, or DALI. Not available with NXE.
8CP not available with DMX, Controls, or EMR options.
9IC not available with Controls options.
10Not available with NXE.
2" Iolite Accessories
2" Iolite Round Reflector with Round Aperture
FIELD CHANGEABLE OPTICS
Type Project Catalog No.
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available. Note: Frosted optics and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trims. Dimensions: 7-7/8" diameter 1/2" thick
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
• High-transmission polycarbonate radius lens eliminates bright spots from individual LED’s and provides high vertical illumination and visual comfort. Polycarbonate material also provides impact resistance.
• Available in 3500K, 4000K or 5000K CCT as well as three different lumen output levels, all in one unit using two externally accessible slider switches. The switches can be easily accessed to change the CCT or lumen output before, during or after install depending on the desired light level and color temperature for the application.
• Minimum CRI of 80
Optical System
• High-transmission diffuse acrylic radial lens eliminates bright spots from individual LEDs and provides high vertical illuminance and visual comfort.
• Tunable White with digital control option with a CCT range of 2700K - 6500K
• State of the art LED chips for reliability and extended lumen maintenance
Electrical
• 0-10V volt dimming (10% - 100%) standard.
• Standard Universal Voltage (120-277 VAC) Input 50/60 Hz.
• L70 Calculated Life: >50k Hours
• Total harmonic distortion (THD): <20%
• Power factor (PF): >.90
QUICK LINKS
• Optional 120V-277V integral battery pack is available. Battery backup provides 90 min. of standby lighting in the event of power loss. A remote test switch/indicator button is installed in the housing for ease of maintenance.
• This unit is Non-IC Rated
Controls
• Available with AirLink™ Blue. AirLink Blue (ALB) is a low-power wireless Bluetooth mesh control system. ALB provides significant energy savings while ensuring code compliance and security.
• The optional integrated AirLink Blue fixture controller (ALBC) is used to dim the fixture based on motion or daylight levels continually monitored by external ALB sensors. Available with 3rd party controls. Check out the ordering guide for compatibility.
Installation
• Rigid reflector and end sections are dieformed cold rolled steel for consistency and strength.
• Fixture backplate includes integral T-bar clips for installation onto standard 15/16” and narrow 9/16” T-grid ceilings.
• Default settings for fixture are 4000K and High lumen output.
Warranty
• LSI luminaires carry a 5-year limited warranty. Refer to https://www.lsicorp. com/resources/terms-conditionswarranty/ for more information.
• 1 Year warranty on optional Battery Backup. Test regularly in accordance with local codes.
Listings
• Listed to UL® 1598 and UL® 8750.
• RoHS Compliant.
• Title 24 Compliant; see local ordinance for qualification information.
• IC Rated for direct contact with building insulation.
• Suitable For Damp Locations.
• DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC Premium qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.

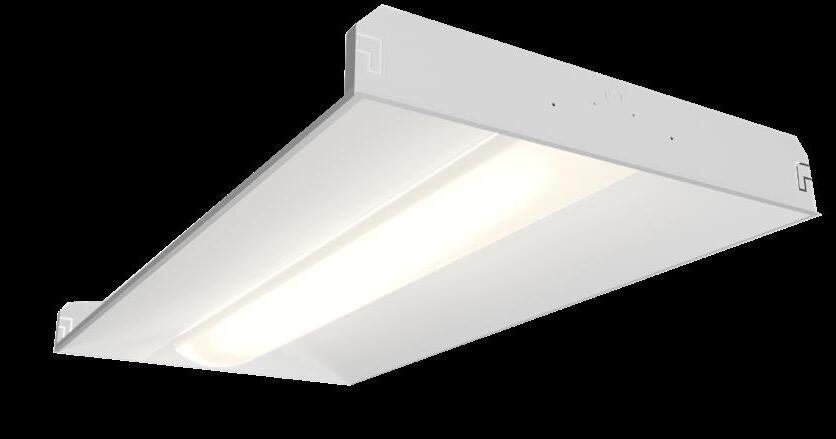

LED Fixed Wattage Volumetric Troffers
Product Specifications
TCP’s LED Volumetric Troffers offer a high-efficiency alternative to T5, T8, and T12 linear fluorescent systems. They provide long-life with consistent color and superior lumen maintenance. Designed to mount in a variety of grid ceilings, the rugged, cold-rolled steel housing is post-painted with a matte white finish. The acrylic diffuser provides a low-glare, wide light distribution, and the sloped reflector softens the contrast between the luminaire and ceiling.
The LED Volumetric Troffers offer a cost-effective solution to maximize savings and take advantage of potential utility rebates where applicable, without sacrificing performance.
Reasons to choose the LED Fixed Wattage Volumetric Troffers from TCP
• Uses up to 61% less energy than fluorescent alternatives
• Long 50,000 hour rated life
• Excellent color consistency and CRI
• Fits standard 1” and 9/16” T-bar grid ceilings
• Acrylic diffuser with sloped housing design
• Slim, low-profile design
• Mercury-free

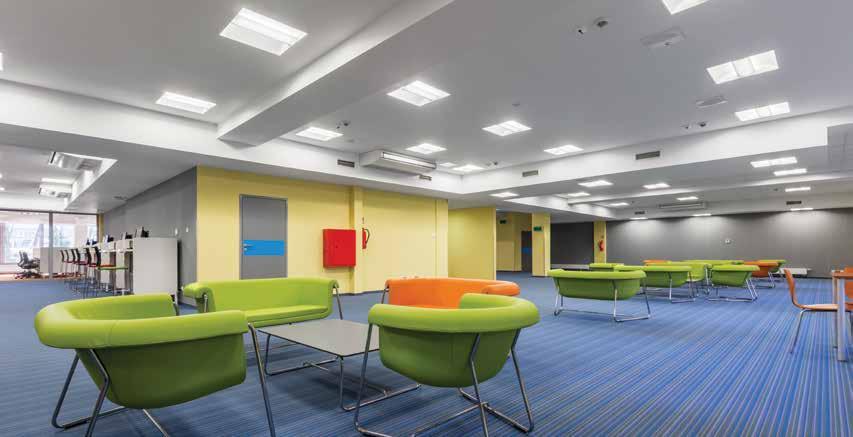

Ideal Applications in T-Bar Ceilings
• O ffices
• Retail Stores
• S chools
• H ospitality
• Re staurants
• H ealthcare
Field Selectable Troffer (OPT FS) Recessed Center Basket Lens Type :
5,0051325,4411445,130136

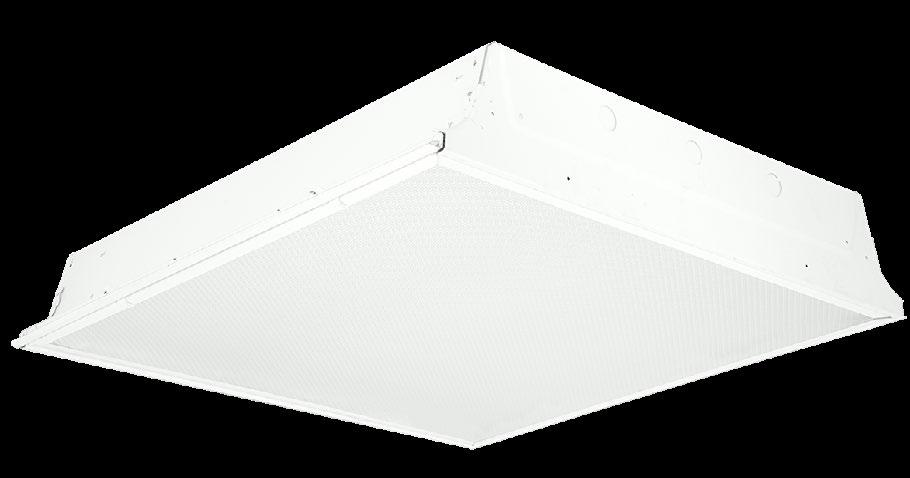

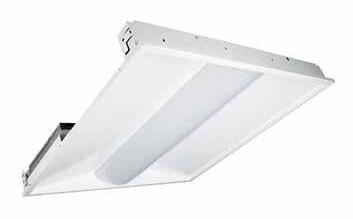

2x2 LED Fixed VolumetricWattage Troffers
Applications
The TCP LED Volumetric Troffers are high-efficiency alternatives to T5, T8 and T12 linear fluorescent troffers. Our intelligent high-performance LED light engines and drivers deliver long-life, consistent color, and superior lumen maintenance. Applications include offices, schools, retail locations, hospitals, and other T-grid ceilings.
Construction
The LED Volumetric Troffer is constructed of rugged cold-rolled steel, post-painted with a matte white finish, and an acrylic diffuser. The housing is designed to mount in a variety of grid ceiling types.
Electrical
All electrical components are cULus listed. TCP high-efficiency drivers provide consistent power to ensure even lighting from the long-life LEDs. Each driver is wattage selectable and paired with a high-quality LED light engine to deliver long life and high-quality light. Full range 0-10V dimming is optional.
Optics
The acrylic diffuser conceals the LEDs while providing a highly-diffused, lowglare light. The smooth white reflector integrates into the diffuser creating soft illumination and distributing the light evenly in a wide pattern. The sloped design also softens the contrast between the luminaire and ceiling.
Catalog Ordering Matrix
Warranty
Seven year limited warranty against defects in manufacturing.
1 Approximate lumen output. Actual performance may vary based on CCT, options selected and end user application.
2 Actual wattage may differ by +/- 5%; when operating between 120-277V +/- 10%.
3 23W and 29W are permanently fixed; 38W is adjustable to 38W, 29W, or 23W.
Accessories: Item NumberDescription
DTFLK2 RECESS MOUNT FLANGE KIT FOR 2X2 TROFFERS AND PANELS (WHITE)
DTSK2 SURFACE MOUNT KIT FOR 2X2 TROFFER (WHITE) NOTE: Not compatible with Battery Backup Units
DRVEXTCABLE 3FT DRIVER EXTENSION CABLE
YHANGER6PK Y FIT CABLE HANGER 6 PACK (HANGS 3 UNITS)
NOTE: EB option is not compatible with DTSK2
Field Selectable Troffer (OPT FS)
Recessed
Center Basket Lens
OVERVIEW
Lumen Range (lm) 2,950 - 6,750
Wattage Range(W) 25 - 48
Efficacy Range (LPW) 120 - 144
Weight lbs (kg)
OPT22 - 9 (4.1)
OPT24 - 15 (6.8)
FEATURES & SPECIFICATIONS
Construction
• High-transmission polycarbonate radius lens eliminates bright spots from individual LED’s and provides high vertical illumination and visual comfort. Polycarbonate material also provides impact resistance.
• Available in 3500K, 4000K or 5000K CCT as well as three different lumen output levels, all in one unit using two externally accessible slider switches. The switches can be easily accessed to change the CCT or lumen output before, during or after install depending on the desired light level and color temperature for the application.
• Minimum CRI of 80
Optical System
• High-transmission diffuse acrylic radial lens eliminates bright spots from individual LEDs and provides high vertical illuminance and visual comfort.
• Tunable White with digital control option with a CCT range of 2700K - 6500K
• State of the art LED chips for reliability and extended lumen maintenance
Electrical
• 0-10V volt dimming (10% - 100%) standard.
• Standard Universal Voltage (120-277 VAC) Input 50/60 Hz.
• L70 Calculated Life: >50k Hours
• Total harmonic distortion (THD): <20%
• Power factor (PF): >.90
QUICK LINKS
• Optional 120V-277V integral battery pack is available. Battery backup provides 90 min. of standby lighting in the event of power loss. A remote test switch/indicator button is installed in the housing for ease of maintenance.
• This unit is Non-IC Rated
Controls
• Available with AirLink™ Blue. AirLink Blue (ALB) is a low-power wireless Bluetooth mesh control system. ALB provides significant energy savings while ensuring code compliance and security.
• The optional integrated AirLink Blue fixture controller (ALBC) is used to dim the fixture based on motion or daylight levels continually monitored by external ALB sensors. Available with 3rd party controls. Check out the ordering guide for compatibility.
Installation
• Rigid reflector and end sections are dieformed cold rolled steel for consistency and strength.
• Fixture backplate includes integral T-bar clips for installation onto standard 15/16” and narrow 9/16” T-grid ceilings.
• Default settings for fixture are 4000K and High lumen output.
Warranty
• LSI luminaires carry a 5-year limited warranty. Refer to https://www.lsicorp. com/resources/terms-conditionswarranty/ for more information.
• 1 Year warranty on optional Battery Backup. Test regularly in accordance with local codes.
Listings
• Listed to UL® 1598 and UL® 8750.
• RoHS Compliant.
• Title 24 Compliant; see local ordinance for qualification information.
• IC Rated for direct contact with building insulation.
• Suitable For Damp Locations.
• DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC Premium qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.

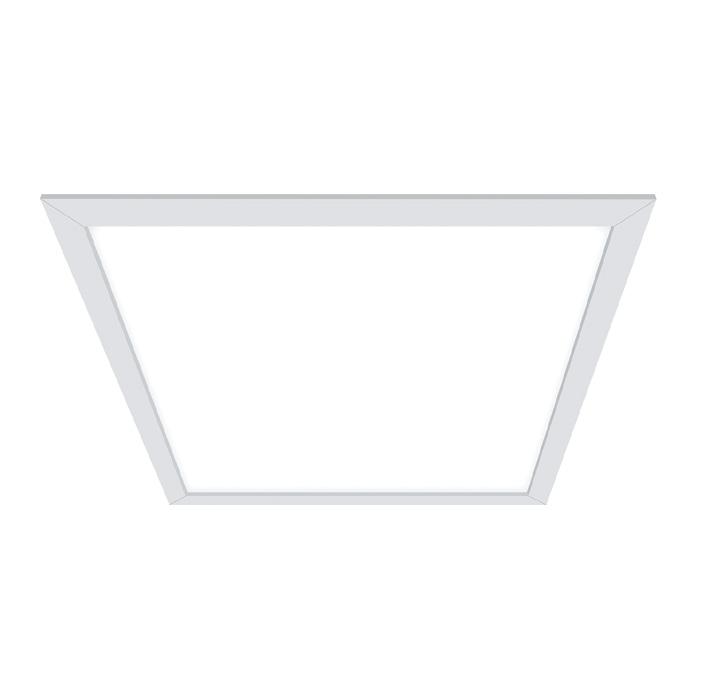

LED Fixed Wattage Volumetric Troffers
Product Specifications
TCP’s LED Volumetric Troffers offer a high-efficiency alternative to T5, T8, and T12 linear fluorescent systems. They provide long-life with consistent color and superior lumen maintenance. Designed to mount in a variety of grid ceilings, the rugged, cold-rolled steel housing is post-painted with a matte white finish. The acrylic diffuser provides a low-glare, wide light distribution, and the sloped reflector softens the contrast between the luminaire and ceiling.
The LED Volumetric Troffers offer a cost-effective solution to maximize savings and take advantage of potential utility rebates where applicable, without sacrificing performance.
Reasons to choose the LED Fixed Wattage Volumetric Troffers from TCP
• Uses up to 61% less energy than fluorescent alternatives
• Long 50,000 hour rated life
• Excellent color consistency and CRI
• Fits standard 1” and 9/16” T-bar grid ceilings
• Acrylic diffuser with sloped housing design
• Slim, low-profile design
• Mercury-free
Ideal Applications in T-Bar Ceilings
• Offices
• Retail Stores
• Sch ools
• Ho spitality
• Restaurants
• He althcare
Field Selectable Troffer (OPT FS) Recessed Center Basket Lens Type :
5,0051325,4411445,130136
Applications
The TCP LED Volumetric Troffers are high-efficiency alternatives to T5, T8 and T12 linear fluorescent troffers. Our intelligent high-performance LED light engines and drivers deliver long-life, consistent color, and superior lumen maintenance. Applications include offices, schools, retail locations, hospitals, and other T-grid ceilings.
Construction
The TCP LED Volumetric Troffer is constructed of rugged cold-rolled steel, post-painted with a matte white finish, and an acrylic diffuser. The housing is designed to mount in a variety of grid ceiling types.
Electrical
All electrical components are cULus listed. TCP high-efficiency drivers provide consistent power to ensure even lighting from the long-life LEDs. Each driver is wattage selectable and paired with a high-quality LED light engine to deliver long life and high-quality light. Full range 0-10V dimming is optional.
Optics
The acrylic diffuser conceals the LEDs while providing a highly-diffused, lowglare light. The smooth white reflector integrates into the diffuser creating soft illumination and distributing the light evenly in a wide pattern. The sloped design also softens the contrast between the luminaire and ceiling.
Catalog Ordering Matrix
1 Approximate lumen output. Actual performance may vary based on CCT, options selected and end user application.
2 Actual wattage may differ by +/- 5%; when operating between 120-277V +/- 10%.
3 23W and 29W are permanently fixed; 38W is adjustable to 38W, 29W, or 23W.
4 46W is permanently fixed.
Accessories:
Item NumberDescription
DTFLK4 RECESS MOUNT FLANGE KIT FOR 2X4 TROFFERS AND PANELS (WHITE)
DTSK4 SURFACE MOUNT KIT FOR 2X4 TROFFER (WHITE) NOTE: Not compatible with Battery Backup Units
DRVEXTCABLE 3FT DRIVER EXTENSION CABLE
YHANGER6PK Y FIT CABLE HANGER 6 PACK (HANGS 3 UNITS)
NOTE: EB option is not compatible with DTSK4
For the most up-to-date specs and warranty information, please visit www.tcpi.com
TYPE B-K1 SPEC CHARLESTON
Food Processing Troffers: FP-R-LED
1x2, 1x4, 2x2 and 2x4 High Efficiency Recessed LED Luminaires
- NSF2 listed for Non-Food & Splash Zones, Optionally rated for Food Zone Non-Contact
- IP66 Rated
- ETL listed for Wet Locations
- Suitable for High Pressure Hosedowns
- Recessed Housing suitable for Tbar Grid and Hardlid installations
- 0-10v 1% Dimming Standard
- B.A.A. & B.A.B.A Compliant & Made in the USA by a Family Owned US Corporation
- Robotically seam welded housing
ORDERING GUIDE
Prepared by Notes
Interactive Menu
• Order Information page 2
• Performance page 4
• Product Warranty
Top Product Features
Fail-Safe
/ FLR2 Fully Luminous Recessed
Wet Location High Abuse (Ligature Resistant)
Medical/Cleanroom
Typical Applications
Product Certification
Product Features
• Fully luminous back-lit luminaire for use in high abuse, medical, wet location, and cleanroom applications
• NSF listed for use in food service/food processing applications - easy cleaning and wipe-down
• Nominal 2-1/2" depth for use in shallow / crowded plenums
• Clear polycarbonate outer lens for use in behavioral health applications (FLR-HA). Ligature resistant.
• Wet location standard, IP65 and IP66 available for water and dust ingress protection
• ISO3-8 certified for use in medical and cleanroom applications (FLR-MC)
• IK10 with polycarbonate lens (FLR-HA) for high abuse applications
• Highly Configurable Make-To-Order
Standard Configurable Dimensional and Mounting Details
Lens Dimensional Information
BLANK
Highly Configurable - Make-To-Order
SAMPLE
with the
(BAA) or Trade Agreements Act of
(TAA), respectively. Please refer to DOMESTIC PREFERENCES website for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
(6) 347V with sensor and/or emergencies only available with HCD. (22) Acrylic lens typically used for wet location (-WL) and medical/ cleanroom (-MC) applications. Polycarbonate lens usually used for high abuse (-HA) applications. (23) Fixtures using CP08 lens, IK09 certified.
[Blank]=CD 0-10V Driver (10%-100% Dimming)
HCD=0-10V Driver (1%-100% Dimming) (15)
5LTD=DALI Driver (1%-100% Dimming) (15)
SD=Step Dimming Driver (50%,100% Dimming) (15)
(7) Fixture height increases to 3-3/4". (8) With remote test switch/ indicator. For approximate delivered lumens multiply the lumens per watt of the desired fixture by the wattage of the emergency battery pack (100 lm/W x 7=700 lumens). IES-format photometry for luminaire under emergency operation available. (9) Used to bypass local control during outage. Device is dual listed to UL 1008 (transfer switch) and UL 924 (switch bypass), 347V not available. (10) Used to bypass local control during outage. Must be used in conjunction with UL 1008 device (provided by others). 347V not available. (20) 4 Brackets included. (21) IP66 exceeds IP65 rating. Suitable for environments requiring IP65 or IP66 compliance.
(11) Fixture height increases to 3-3/4". (12) Multiple options available in online configurator. See additional notes on Flex below. (13) To be used with Modular Wiring System. Refer to MWS Fixture Fitting specification for additional details.(14) MWS Fixture Fitting increases overall fixture height to 4-7/8".
Flexible Metal Conduit Options
Flex options available for 0-10V dimming control, DALI dimming control, emergency and night light functions. 72-inch factory-installed and pre-wired to driver, fitted to luminaire housing access plate with 90° enclosed FMC connector. Not all options may be combined and installation ratings vary by type.
LH=Lutron HiLume (LDE1 series) 1%-100% EcoSystem Driver with Soft-on Fade to Black dimming (15), (F) [Blank]=1 Driver 2=2 Drivers (16) [Blank]=No Sensor WLN=WaveLinx LITE Wireless Control Node, without sensor (18), (A) WPN=WaveLinx PRO Wireless Control Node, without sensor (18), (B)
Notes
(15) Fixture height increases to 3-3/4". Integrated options must be used in conjunction with the associated system and may not be compatible with other options or accessories. Please refer to the following: (F) Consult Marketplace Options - Lutron system pages for additional details and compatibility. Compatible only with driver series shown, and may require two or more drivers. Requires field commissioning to operate or dim. Contact Lutron at www.lutron.com.
Notes
(16) Fixture height increases to 3-3/4”. (17) Fixture height increases to 3-3/4". (18) To be used with CD or HCD driver. Integrated options must be used in conjunction with the associated system and may not be compatible with other options or accessories. Please refer to the following: (A) Consult WaveLinx PRO system pages for additional details and compatibility. (B) WaveLinx LITE devices are not currently compatible with the WaveLinx Wireless Area Controller. Consult WaveLinx LITE system pages for additional details and compatibility.
FLR60=Set of mounting security clips (4 qty) for FLR to secure fixture to grid. Works with lenses up to 0.250" thick
DFCL-2448W-U*=2' x 4' gasketed drywall framing kit. Cut out dimension 24.25" x 48.25" (19)
DFCL-2424W-U*=2' x 2' gasketed drywall framing kit. Cut out dimension 24.25" x 24.25" (19)
DFCL-1248W-U*=1' x 4' gasketed drywall framing kit. Cut out dimension 12.25" x 48.25" (19)
DFVR/FLR-2448W-U*=2' x 4' vandal resistant drywall framing kit. Cut out dimension 24.25" x 48.25" (19)
DFVR/FLR-2424W-U*=2' x 2' vandal resistant drywall framing kit. Cut out dimension 24.25" x 24.25" (19)
DFVR/FLR-1248W-U*=1' x 4' vandal resistant drywall framing kit. Cut out dimension 12.25" x 48.25" (19)
*For Antimicrobial matte white finish, replace the W with AMW. ex. DFCL1248AMW-U. (19) DFCL & DFVR framing kits are used to install the FLR in hard ceiling applications. DFCL is not applicable with IP65 or IP66 options. (20) Accessories sold separately will be separately analyzed under domestic preference requirements. Consult factory for further information.
EGA
Enclosed and Gasketed - Advantage Series
OVERVIEW
Lumen Range 5,000
CCT 4000K, 5000K
Wattage Range 35
Efficacy Range (LPW) 133 - 136
Weight lbs (kg) 12 (5.4)
FEATURES & SPECIFICATIONS
Construction
• 1 piece housing made of durable polycarbonate
• Diffuse lens secured with 10 nylon latches
• 4 foot housing with diffuse acrylic lens
Optical System
• Injection molded diffuse acrylic lens with high impact additive
• Minimum CRI of 80
• Available in 4000K and 5000K
QUICK LINKS
Electrical
• 0-10V dimming (10%-100%) standard
• Standard Universal Voltage (120-277 Vac) Input 47-63Hz
• L80 Calculated Life: >100K hours
• Operating Temperature -40 to +40C (-40F to +104F)
Installation
• Stainless steel surface mount bracket is included with each fixture
Warranty
• Complete warranty terms located at: https://www.lsicorp.com/resources/termsconditions-warranty/
Listings
• Listed to UL 1598 and UL 8750
• NEMA 4X rated
• IP65 Certified
• High pressure hose down (1500 psi)
• Wet Location
• Meets Buy American Act Requirements
• DLC qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
• IK06 rated luminaire per IEC 66262 mechanical impact code
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog #
Project
Type
Prepared by
APPLICATION
Comments
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
*LEDs are frequently updated therefore values are nominal
EGA Enclosed and Gasketed - Advantage Series
*Electrical data at 25C (77F). Actual wattage may differ by +/-10%.
EGA/Lumen Package: 5L
1. Lumen maintenance values at 40C are calculated per TM-21 based on LM-80 data and in-situ testing.
2. In accordance with IESNA TM-21-11, Projected Values represent interpolated value based on time durations that are within six times the IESNA LM-80-08 total test duration for the device under testing.
3. In accordance with IESNA TM-21-11, Calculated Values represent time durations that exceed six times the IESNA LM-80-08 total test duration for the device under testing
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available
sensor*
ORDERING INFORMATION

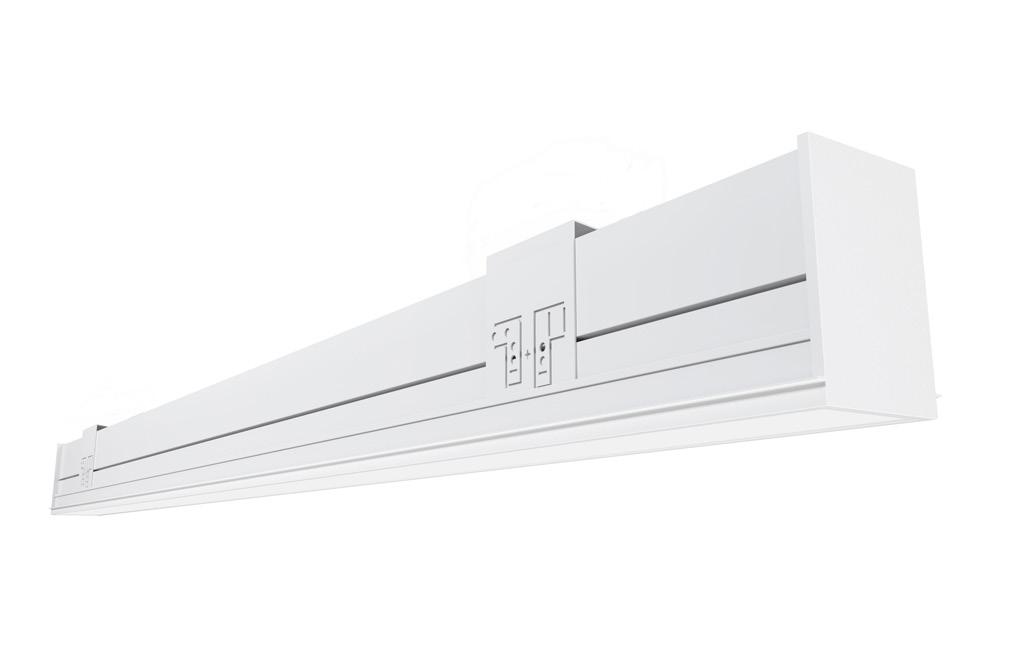

Advantage Linear (ALN)
Affordable and Efficient Contractor Friendly
OVERVIEW
Lumen Package (lm) 3,900 - 7,800
Wattage Range (W) 34 - 68
Efficacy Range (LPW) 112 - 116
Weight lbs (kg)
4ft. - 3.5 (1.6) 8ft. - 8.5 (3.9)
FEATURES & SPECIFICATIONS
Construction
• Recessed, surface, or suspension mounting
• Extruded Aluminum housing
• Acrylic lens material for optimal color stability
• 22-gauge cold rolled steel integrated surface mount
• Operating temperature: -20°C to +35°C (-4°F to 95°F)
• 4” width, 4ft., 8ft. lengths
Optical System
• Edge-lit system for ultra-thin profile
• 3500K or 4000K CCT
• 80 CRI minimum
• Diffuse Acrylic cover lens for glare-free, uniform luminance and high visual comfort
QUICK LINKS
Electrical
• Class 2 driver features over-voltage, under-voltage, short-circuit and overtemperature protection
• 0-10V dimming (10% - 100%) standard
• Standard Universal Voltage (120-277 VAC) Input 50/60 Hz
• L70 Calculated Life: >60k hours (See Lumen Maintenance table)
• Power factor (PF): > 0.90
• Total harmonic distortion (THD): <20%
• Optional factory integrated or remote battery backup for standby lighting (90min.)
Controls
• 0-10V dimming standard
• Compatible with most 0-10V dimmers
• Compatible with LSI AirLinkTM Blue for networked controls
• See controls table for more information
Installation
• Ideal for shallow plenum applications
• Easy access to wiring box for quick installation
• Earthquake clips for secondary retention
• Recessed, surface, stem or suspended mount
Warranty
• LSI luminaires carry a 5-year limited warranty. Refer to https://www.lsicorp. com/resources/terms-conditionswarranty/ for more information.
Listings
• Listed to UL 1598 and UL 8750
• Title 24 Compliant; see local ordinance for qualification information
• Suitable for damp locations
• DLC qualified for state and utility rebates where available
Specifications

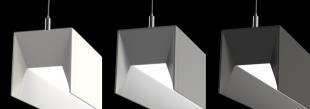

Carisma® 2”
Recessed Linear
PROJECT:
Features
TYPE:
Carisma® Recessed is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma®’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . Wide range of ceiling trim options accommodate most ceiling types.
The Carisma® Recessed offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma® can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounted options, providing designers with the versatility to light up a space with their Carisma®.
Product Overview
Type: Direct distributrion with Recessed Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
CRI: 80+ typ. or 90+ typ.
Dimming (wired): 0-10V, 1% dim (standard)
Lutron LDE1 Hi-lume® 1% Soft-On/Fade-to-Black DALI, 1% dim
Dimming (wireless): Enlighted Sensor
Lutron Athena (integral wireless RF node)
Fixture Summary
Performance Data
Data is based on 4’ fixture, 3500K-80 120V IES files available on website.
Electrical Data
Electronic multi-volt (120-277VAC), constant current LED driver.
Standard Patterns
Certifications
† DLC pending
Runs
Individual Runs: 2’ - 8’ (specify in 1’ increments)
Continuous Runs: > 8’ (specify to the nearest foot).
Custom: Made to measure lengths available (specify to nearest 1/8” of field dimensions). Requires approval drawings. Added cost & lead time.
Advantage Linear (ALN)
ACCESSORY ORDERING INFORMATION
CONTROLS
AirLink Blue Ceiling Mount Motion Sensor 754823ALBWS EO2B WH AirLink Blue Two Button Kinetic Switch 754824ALBWS
Carisma® 2”
Recessed Linear
Ordering Information
5 Finish 6 Voltage 7 Length
HW high reflectance matte white 120/277
- CON - CUS x x
Length A Length B Length C
- all patterns - all patterns - PU - IND - PR (2 lengths of 2) - PZ
8 Configuration 9 Drivers/Controls
IND1 individual fixture, 2’ to 8’ in 1’ increments Wired
CON continuous run > than 8’, specify to nearest foot 0-10V 1% electronic dimming , multi-volt 120-277VAC constant current driver (standard)
CUS custom made to measure lengths (specify to nearest 1/8” of field dimensions)
Standard Patterns (see pg 6 for details)
PLL L left, (2) straights + (1) 90° corner, leg right
PLR L right, (2) straights + (1) 90° corner, leg left
PU U shape, (3) straight lengths + (2) 90° corners
EMC-PF2 emergency circuit requires power feed located in last fixture section (for other locations consult factory)
PF2 Extra power feed for additional circuiting
EMB emergency battery pack (not available for lengths under 4')
1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.
2 Not available with IND (individual) configuration.

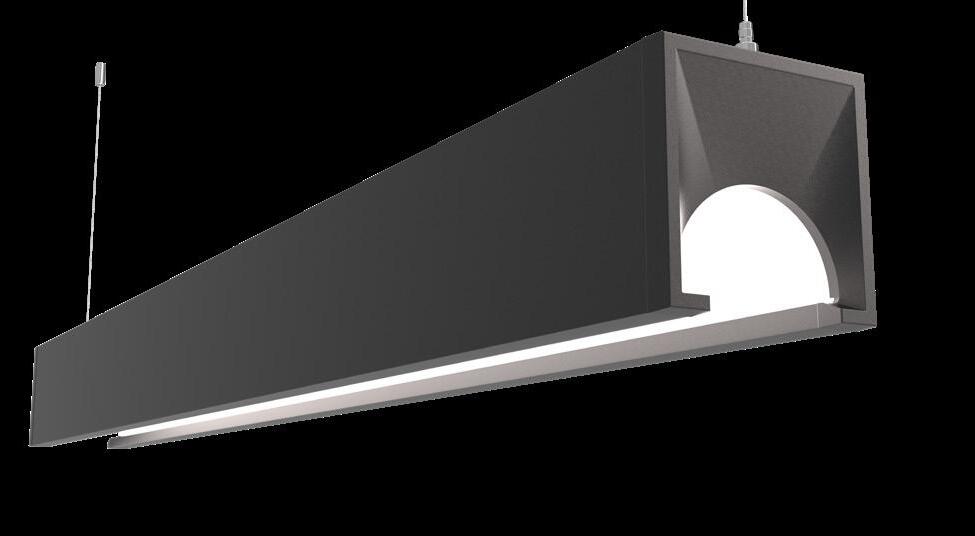

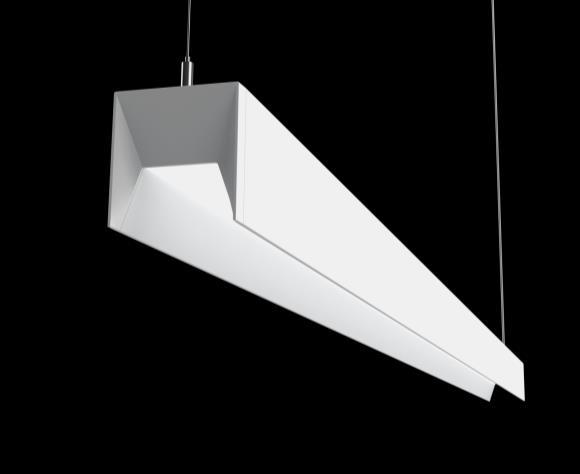

N1B/N1D Linear
Suspended LED Bidirectional or Direct For Ambient Lighting
Finishes
Fixture Options
Example N1B-P-P-500-500-35K-010-M-1C-A4-W-G1-WH-16
Series N1B N1D N1 Linear Indirect/Direct Pendant N1
Product Description
N1 Suspended high performance indirect/direct or direct only linear LED Luminaire Minimalist rectilinear profile with fully luminous regressed lens cavity and elegant knife edge trim. Performance Optics offer Bat Wing lower and upper optical distributions. Integral Driver allows for ease of installation. 4’, 6’ and 8’ individual pendants can be combined to create continuous rows
Construction
The N1 housing is constructed out of extruded aluminum, die cast ends with die formed steel and aluminum components. Finished in standard white, silver, black or custom color powder coat finishes. Lenses are high light transmission UV stable acrylic. Mounting to grid or drywall ceiling via fully adjustable aircraft cables
Light Source
Light source comprised of mid power LEDs that are thermally engineered to ensure optimal efficacy’s up to 125 lumens per watt and 80+ CRI. Luminaire light output guaranteed to achieve a minimum of 70% luminaire output over 100,000 hours at typical 25 deg. C operating conditions LED components and luminaires are compliant with IESNA LM80.
Certification and Warranty
Luminaires carry a limited 5-year warranty and all luminaires are UL listed for indoor damp rated lighting applications.
Performance
Optional Performance ‘Bat Wing’ Optics available for Up Light and Down Light Distributions.
N1B-P-P-500-500-35K P-Performance Optics Up P-Performance Optics Dn 50/50 Distribution
N1B-P-D-500-500-35K P-Performance Optics Up D-Diffuse Lens Dn 50/50 Distribution
System Lumens (System Watts) for 4’ 3500K Fixture Lumens Up Lumens Down 375
Fixture Data for N1B-P-P-35K 4’ Fixture Reduce Lumens/Efficacy
• Polymeric housing provides IP65/66/67 ingress protection and superior chemical resistance.
• Inner gear tray constructed of code gauge steel with a finish coating of high reflectance polyester powder (min 92%).
• All external mounting hardware is constructed of stainless steel.
• High pressure hose down (1500 PSI).
• Lens is secured to housing with standard polycarbonate latches. Optional stainless steel latches are available.
• Car Wash application requires the following options:
• Stainless steel latches & E6CW cord option with nickel plated brass liquid tight metallic cable fittings rated for IP68 ingress protection & NEMA 1, 4X, 6, 12 ratings.
Optical System
• Injection molded acrylic lens with high impact additive.
• Lens is ribbed and frosted to eliminate glare and provides a symmetric distribution.
• Minimum CRI of 80
• Optional high angle distribution optic available for DLC qualified parking garage applications
1.Pair the Parking Garage (PG) optic with the smooth diffuse lens (SA) for best results.
QUICK LINKS
Electrical
• High-performance programmable driver features over-voltage, under-voltage, short-circuit and over-temperature protection. Custom lumen and wattage packages available.
• Driver module is sealed to IP65, IP66, and IP67 standards with a Class A sound rating and 0-10 volt dimming is standard.
• 0-10V dimming (10%-100%) standard
• Standard Universal Voltage (120-277 Vac) Input 50/60 or optional High Voltage (347-480V) L80 Calculated Life: >200K hours
• Total Harmonic distortion: <20%
• Operating Temperature -40 to +40C (-40F to +104F)
• Power factor: >.95
• Optional 120-277V 7.5W integral emergency battery pack is available to meet critical life-safety lighting requirements. A test switch/indicator button will be installed on the end panel of the fixture.
Controls
• Controls Options Include:
– Simple Sensor PIR end mount motion sensor available (OMSx).
– Basic Bluetooth integral passive infrared sensor (IMSBTxL) with bluetooth app available.
– Airlink Blue integral controller (ALBC) or integral controller with motion & photo sensor (ALBCSx).
– LSI’s AirLink Synapse wireless control system options reduce energy and maintenance costs. To order select ALSC or ALSCS (see ordering guide) as the controls option.
Installation
• 2 standard stainless steel mounting brackets are furnished with each fixture.
• Optional stainless steel V bracket or surface bracket accessory available.
Warranty
• For complete warranty terms, refer to https://www.lsicorp.com/resources/termsconditions-warranty/
• 1 Year warranty on optional Battery Backup. Test regularly in accordance with local codes.
• For warranty in car wash application, options E6CW (6’ black 16/3 SEOOW cord and fittings) and SL (stainless steel latches) option must be installed on fixture.
• To maintain warranty, use of UL listed wet location weather proof, waterproof and corrosion resistant junction box with minimum IP65 rating, NEMA 4 or higher and stainless steel cover screws is required (not sold by LSI).
Listings
• List for UL 1598 and UL 8750
• RoHS Compliant
• Luminaire is IP65/IP66/IP67 certified
• NEMA 4X rated
• Suitable for wet locations and vapor tight
• BAA/TAA compliant
• NSF rated (Splash Zone 2)
• DesignLights Consortium® (DLC) Premium qualified product. Not all versions of this product may be DLC Premium qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
• IK08 rated luminaire per IEC 66262 mechanical impact code
LEDVANCE LUMINAIRES

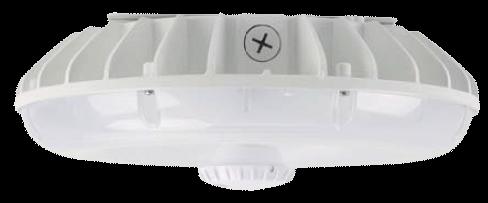

LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
Lens: Precision formed optical assembly drop down door with access to the power supply from underneath the ceiling plane comprised of high specularity reflective paint
Paint: High reflectance baked white enamel finish
Weight: <11lbs
OPTICAL SYSTEM
Lumens: Up to 5500 Lumens
Wattage: Up to 40 Watts
Efficacy: Up to 135 LPW
CCT: 3500K/4000K/5000K
CRI: 80+, R9 >0
Distribution: Medium Lambertian
Color Consistency: Central limit 4-Step MacAdam Ellipse with LED recipe approach for tight unit to unit color control
ELECTRICAL
Input Voltage: 120-277V, 347V
Input Frequency: 50/60 Hz
Standard Dimming Control: 0-10v Dimming
Power Factor (PF)*: >0.9*
Total Harmonic Distortion (THD)*: <20%*
LED Driver Type: Class 2
Surge Protection: ANSI C82.77 Compliant
* PF and THD may vary with options
CUSTOMER NAME
Project Name Date Type
Catalog Number
LBRB 22 Series
Backlit Recessed 2'x2' LED
Lumination® LBR Series Recessed LED Luminaires are for commercial ceilings providing high uniformity, excellent efficiency and reduced glare for T-grid ceiling applications. The lumen maintenance of greater than L85 at 50,000 hours operation, allows for lower maintenance costs. With access to the power supply through a drop down door frame, it is suitable for indoor general lighting for both new construction and retrofit luminaire replacements.
CONTROLS
Dimming: 0-10V Dimming, 1%
LUMEN AMBIENT TEMPERATURE
LUMEN MAINTENANCE
ADDITIONAL FEATURES
• Typical Mounting: Fits standard T-Bar grid (drop ceilings)
• Wiring Access: ½” trade-size KOs on a removable access plate provided
• Surface Mounting: Factory installed Surface Mount option available
• Optional Emergency Battery: Provides 90-minutes of Emergency lighting. Note, EL option is not available with 347V option. Initial design lumen output: 1400 lumens
• Optional Chicago Plenum: Openings in recessed fixture sealed per requirements for CCEA
• Optional Bypass Relay: Overrides dimming when emergency generator is used (see ordering notes for limitations)
• Please refer to the DLC QPL website for the latest and most complete information.www.designlights.org/QPL
DESIGN LIFE & WARRANTY
• Damp Location rated
• All luminaries are built to UL 1598 standards and bear appropriate CSA labels.
• Reliability Testing: Components and systems evaluation
• Current’s Limited 5-year Warranty: Please see website.
Prepared by Notes
Interactive Menu
• Order Information page 2
• Performance page 4
• Product Warranty
Top Product Features
Fail-Safe FLR / FLR2 Fully Luminous Recessed
Wet Location High Abuse (Ligature Resistant)
Medical/Cleanroom
Product Certification Product Features
• Fully luminous back-lit luminaire for use in high abuse, medical, wet location, and cleanroom applications
• NSF listed for use in food service/food processing applications - easy cleaning and wipe-down
• Nominal 2-1/2" depth for use in shallow / crowded plenums
• Clear polycarbonate outer lens for use in behavioral health applications (FLR-HA). Ligature resistant.
• Wet location standard, IP65 and IP66 available for water and dust ingress protection
• ISO3-8 certified for use in medical and cleanroom applications (FLR-MC)
• IK10 with polycarbonate lens (FLR-HA) for high abuse applications
• Highly Configurable Make-To-Order
Standard Configurable Dimensional and Mounting Details
Lens Dimensional Information
Fail-Safe CHARLESTON
Highly Configurable - Make-To-Order
SAMPLE
with the
of
(BAA) or Trade Agreements Act of
(TAA), respectively. Please refer to DOMESTIC PREFERENCES website for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
(6) 347V with sensor and/or emergencies only available with HCD. (22) Acrylic lens typically used for wet location (-WL) and medical/ cleanroom (-MC) applications. Polycarbonate lens usually used for high abuse (-HA) applications. (23) Fixtures using CP08 lens, IK09 certified.
[Blank]=CD 0-10V Driver (10%-100% Dimming)
HCD=0-10V Driver (1%-100% Dimming) (15)
5LTD=DALI Driver (1%-100% Dimming) (15)
SD=Step Dimming Driver (50%,100% Dimming) (15)
(7) Fixture height increases to 3-3/4". (8) With remote test switch/ indicator. For approximate delivered lumens multiply the lumens per watt of the desired fixture by the wattage of the emergency battery pack (100 lm/W x 7=700 lumens). IES-format photometry for luminaire under emergency operation available. (9) Used to bypass local control during outage. Device is dual listed to UL 1008 (transfer switch) and UL 924 (switch bypass), 347V not available. (10) Used to bypass local control during outage. Must be used in conjunction with UL 1008 device (provided by others). 347V not available. (20) 4 Brackets included. (21) IP66 exceeds IP65 rating. Suitable for environments requiring IP65 or IP66 compliance.
(11) Fixture height increases to 3-3/4". (12) Multiple options available in online configurator. See additional notes on Flex below. (13) To be used with Modular Wiring System. Refer to MWS Fixture Fitting specification for additional details.(14) MWS Fixture Fitting increases overall fixture height to 4-7/8".
Flexible Metal Conduit Options
Flex options available for 0-10V dimming control, DALI dimming control, emergency and night light functions. 72-inch factory-installed and pre-wired to driver, fitted to luminaire housing access plate with 90° enclosed FMC connector. Not all options may be combined and installation ratings vary by type.
LH=Lutron HiLume (LDE1 series) 1%-100% EcoSystem Driver with Soft-on Fade to Black dimming (15), (F) [Blank]=1 Driver 2=2 Drivers (16) [Blank]=No Sensor WLN=WaveLinx LITE Wireless Control Node, without sensor (18), (A) WPN=WaveLinx PRO Wireless Control Node, without sensor (18), (B)
Notes
(15) Fixture height increases to 3-3/4".
Integrated options must be used in conjunction with the associated system and may not be compatible with other options or accessories. Please refer to the following: (F) Consult Marketplace Options - Lutron system pages for additional details and compatibility. Compatible only with driver series shown, and may require two or more drivers. Requires field commissioning to operate or dim. Contact Lutron at www.lutron.com.
Notes
(16) Fixture height increases to 3-3/4”. (17) Fixture height increases to 3-3/4". (18) To be used with CD or HCD driver. Integrated options must be used in conjunction with the associated system and may not be compatible with other options or accessories. Please refer to the following: (A) Consult WaveLinx PRO system pages for additional details and compatibility. (B) WaveLinx LITE devices are not currently compatible with the WaveLinx Wireless Area Controller. Consult WaveLinx LITE system pages for additional details and compatibility.
FLR60=Set of mounting security clips (4 qty) for FLR to secure fixture to grid. Works with lenses up to 0.250" thick
DFCL-2448W-U*=2' x 4' gasketed drywall framing kit. Cut out dimension 24.25" x 48.25" (19)
DFCL-2424W-U*=2' x 2' gasketed drywall framing kit. Cut out dimension 24.25" x 24.25" (19)
DFCL-1248W-U*=1' x 4' gasketed drywall framing kit. Cut out dimension 12.25" x 48.25" (19)
DFVR/FLR-2448W-U*=2' x 4' vandal resistant drywall framing kit. Cut out dimension 24.25" x 48.25" (19)
DFVR/FLR-2424W-U*=2' x 2' vandal resistant drywall framing kit. Cut out dimension 24.25" x 24.25" (19)
DFVR/FLR-1248W-U*=1' x 4' vandal resistant drywall framing kit. Cut out dimension 12.25" x 48.25" (19)
*For Antimicrobial matte white finish, replace the W with AMW. ex. DFCL1248AMW-U. (19) DFCL & DFVR framing kits are used to install the FLR in hard ceiling applications. DFCL is not applicable with IP65 or IP66 options. (20) Accessories sold separately will be separately analyzed under domestic preference requirements. Consult factory for further information.
TYPE D1 SPEC CHARLESTON
Wet Location Troffers: WL-R-LED
High Efficiency LED Recessed Luminaires for Wet Locations
- Rated IP55
- ETL Listed for Wet Locations
- Channel Inset Door Frame
- 0-10V 1% dimming comes standard
- Up to 40,000 Lm Delivered @ 133 Lm/W
- Recessed Housing suitable for Tbar Grid & Hardlid installations
- B.A.A. & B.A.B.A Compliant & Made in the USA by a Family Owned US Corporation
GUIDE
Prepared by Notes
Interactive Menu
• Order Information page 2
• Performance page 4
• Product Warranty
Top Product Features
Fail-Safe
/ FLR2 Fully Luminous Recessed
Wet Location High Abuse (Ligature Resistant)
Medical/Cleanroom
Typical Applications
Product Certification
Product Features
• Fully luminous back-lit luminaire for use in high abuse, medical, wet location, and cleanroom applications
• NSF listed for use in food service/food processing applications - easy cleaning and wipe-down
• Nominal 2-1/2" depth for use in shallow / crowded plenums
• Clear polycarbonate outer lens for use in behavioral health applications (FLR-HA). Ligature resistant.
• Wet location standard, IP65 and IP66 available for water and dust ingress protection
• ISO3-8 certified for use in medical and cleanroom applications (FLR-MC)
• IK10 with polycarbonate lens (FLR-HA) for high abuse applications
• Highly Configurable Make-To-Order
Standard Configurable Dimensional and Mounting Details
Lens Dimensional Information
BLANK
Highly Configurable - Make-To-Order
SAMPLE
with the
of
(BAA) or Trade Agreements Act of
(TAA), respectively. Please refer to DOMESTIC PREFERENCES website for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
(6) 347V with sensor and/or emergencies only available with HCD. (22) Acrylic lens typically used for wet location (-WL) and medical/ cleanroom (-MC) applications. Polycarbonate lens usually used for high abuse (-HA) applications. (23) Fixtures using CP08 lens, IK09 certified.
[Blank]=CD 0-10V Driver (10%-100% Dimming)
HCD=0-10V Driver (1%-100% Dimming) (15)
5LTD=DALI Driver (1%-100% Dimming) (15)
SD=Step Dimming Driver (50%,100% Dimming) (15)
(7) Fixture height increases to 3-3/4". (8) With remote test switch/ indicator. For approximate delivered lumens multiply the lumens per watt of the desired fixture by the wattage of the emergency battery pack (100 lm/W x 7=700 lumens). IES-format photometry for luminaire under emergency operation available. (9) Used to bypass local control during outage. Device is dual listed to UL 1008 (transfer switch) and UL 924 (switch bypass), 347V not available. (10) Used to bypass local control during outage. Must be used in conjunction with UL 1008 device (provided by others). 347V not available. (20) 4 Brackets included. (21) IP66 exceeds IP65 rating. Suitable for environments requiring IP65 or IP66 compliance.
(11) Fixture height increases to 3-3/4". (12) Multiple options available in online configurator. See additional notes on Flex below. (13) To be used with Modular Wiring System. Refer to MWS Fixture Fitting specification for additional details.(14) MWS Fixture Fitting increases overall fixture height to 4-7/8".
Flexible Metal Conduit Options
Flex options available for 0-10V dimming control, DALI dimming control, emergency and night light functions. 72-inch factory-installed and pre-wired to driver, fitted to luminaire housing access plate with 90° enclosed FMC connector. Not all options may be combined and installation ratings vary by type.
LH=Lutron HiLume (LDE1 series) 1%-100% EcoSystem Driver with Soft-on Fade to Black dimming (15), (F) [Blank]=1 Driver 2=2 Drivers (16) [Blank]=No Sensor WLN=WaveLinx LITE Wireless Control Node, without sensor (18), (A) WPN=WaveLinx PRO Wireless Control Node, without sensor (18), (B)
Notes
(15) Fixture height increases to 3-3/4".
Integrated options must be used in conjunction with the associated system and may not be compatible with other options or accessories. Please refer to the following: (F) Consult Marketplace Options - Lutron system pages for additional details and compatibility. Compatible only with driver series shown, and may require two or more drivers. Requires field commissioning to operate or dim. Contact Lutron at www.lutron.com.
Notes
(16) Fixture height increases to 3-3/4”. (17) Fixture height increases to 3-3/4". (18) To be used with CD or HCD driver. Integrated options must be used in conjunction with the associated system and may not be compatible with other options or accessories. Please refer to the following: (A) Consult WaveLinx PRO system pages for additional details and compatibility. (B) WaveLinx LITE devices are not currently compatible with the WaveLinx Wireless Area Controller. Consult WaveLinx LITE system pages for additional details and compatibility.
FLR60=Set of mounting security clips (4 qty) for FLR to secure fixture to grid. Works with lenses up to 0.250" thick
DFCL-2448W-U*=2' x 4' gasketed drywall framing kit. Cut out dimension 24.25" x 48.25" (19)
DFCL-2424W-U*=2' x 2' gasketed drywall framing kit. Cut out dimension 24.25" x 24.25" (19)
DFCL-1248W-U*=1' x 4' gasketed drywall framing kit. Cut out dimension 12.25" x 48.25" (19)
DFVR/FLR-2448W-U*=2' x 4' vandal resistant drywall framing kit. Cut out dimension 24.25" x 48.25" (19)
DFVR/FLR-2424W-U*=2' x 2' vandal resistant drywall framing kit. Cut out dimension 24.25" x 24.25" (19)
DFVR/FLR-1248W-U*=1' x 4' vandal resistant drywall framing kit. Cut out dimension 12.25" x 48.25" (19)
*For Antimicrobial matte white finish, replace the W with AMW. ex. DFCL1248AMW-U. (19) DFCL & DFVR framing kits are used to install the FLR in hard ceiling applications. DFCL is not applicable with IP65 or IP66 options. (20) Accessories sold separately will be separately analyzed under domestic preference requirements. Consult factory for further information.
TYPE D2 SPEC CHARLESTON
Wet Location Troffers: WL-R-LED
High Efficiency LED Recessed Luminaires for Wet Locations
- Rated IP55
- ETL Listed for Wet Locations
- Channel Inset Door Frame
- 0-10V 1% dimming comes standard
- Up to 40,000 Lm Delivered @ 133 Lm/W
- Recessed Housing suitable for Tbar Grid & Hardlid installations
- B.A.A. & B.A.B.A Compliant & Made in the USA by a Family Owned US Corporation
GUIDE
Prepared by Notes
Interactive Menu
• Order Information page 2
• Performance page 4
• Product Warranty
Top Product Features
Fail-Safe
/ FLR2 Fully Luminous Recessed
Wet Location High Abuse (Ligature Resistant)
Medical/Cleanroom
Typical Applications
Product Certification Product Features
• Fully luminous back-lit luminaire for use in high abuse, medical, wet location, and cleanroom applications
• NSF listed for use in food service/food processing applications - easy cleaning and wipe-down
• Nominal 2-1/2" depth for use in shallow / crowded plenums
• Clear polycarbonate outer lens for use in behavioral health applications (FLR-HA). Ligature resistant.
• Wet location standard, IP65 and IP66 available for water and dust ingress protection
• ISO3-8 certified for use in medical and cleanroom applications (FLR-MC)
• IK10 with polycarbonate lens (FLR-HA) for high abuse applications
• Highly Configurable Make-To-Order
Standard Configurable Dimensional and Mounting Details
Lens Dimensional Information
BLANK
Highly Configurable - Make-To-Order
SAMPLE
with the
of
(BAA) or Trade Agreements Act of
(TAA), respectively. Please refer to DOMESTIC PREFERENCES website for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
(6) 347V with sensor and/or emergencies only available with HCD. (22) Acrylic lens typically used for wet location (-WL) and medical/ cleanroom (-MC) applications. Polycarbonate lens usually used for high abuse (-HA) applications. (23) Fixtures using CP08 lens, IK09 certified.
[Blank]=CD 0-10V Driver (10%-100% Dimming)
HCD=0-10V Driver (1%-100% Dimming) (15)
5LTD=DALI Driver (1%-100% Dimming) (15)
SD=Step Dimming Driver (50%,100% Dimming) (15)
(7) Fixture height increases to 3-3/4". (8) With remote test switch/ indicator. For approximate delivered lumens multiply the lumens per watt of the desired fixture by the wattage of the emergency battery pack (100 lm/W x 7=700 lumens). IES-format photometry for luminaire under emergency operation available. (9) Used to bypass local control during outage. Device is dual listed to UL 1008 (transfer switch) and UL 924 (switch bypass), 347V not available. (10) Used to bypass local control during outage. Must be used in conjunction with UL 1008 device (provided by others). 347V not available. (20) 4 Brackets included. (21) IP66 exceeds IP65 rating. Suitable for environments requiring IP65 or IP66 compliance.
(11) Fixture height increases to 3-3/4". (12) Multiple options available in online configurator. See additional notes on Flex below. (13) To be used with Modular Wiring System. Refer to MWS Fixture Fitting specification for additional details.(14) MWS Fixture Fitting increases overall fixture height to 4-7/8".
Flexible Metal Conduit Options
Flex options available for 0-10V dimming control, DALI dimming control, emergency and night light functions. 72-inch factory-installed and pre-wired to driver, fitted to luminaire housing access plate with 90° enclosed FMC connector. Not all options may be combined and installation ratings vary by type.
LH=Lutron HiLume (LDE1 series) 1%-100% EcoSystem Driver with Soft-on Fade to Black dimming (15), (F) [Blank]=1 Driver 2=2 Drivers (16) [Blank]=No Sensor WLN=WaveLinx LITE Wireless Control Node, without sensor (18), (A) WPN=WaveLinx PRO Wireless Control Node, without sensor (18), (B)
Notes
(15) Fixture height increases to 3-3/4".
Integrated options must be used in conjunction with the associated system and may not be compatible with other options or accessories. Please refer to the following: (F) Consult Marketplace Options - Lutron system pages for additional details and compatibility. Compatible only with driver series shown, and may require two or more drivers. Requires field commissioning to operate or dim. Contact Lutron at www.lutron.com.
Notes
(16) Fixture height increases to 3-3/4”. (17) Fixture height increases to 3-3/4". (18) To be used with CD or HCD driver. Integrated options must be used in conjunction with the associated system and may not be compatible with other options or accessories. Please refer to the following: (A) Consult WaveLinx PRO system pages for additional details and compatibility. (B) WaveLinx LITE devices are not currently compatible with the WaveLinx Wireless Area Controller. Consult WaveLinx LITE system pages for additional details and compatibility.
FLR60=Set of mounting security clips (4 qty) for FLR to secure fixture to grid. Works with lenses up to 0.250" thick
DFCL-2448W-U*=2' x 4' gasketed drywall framing kit. Cut out dimension 24.25" x 48.25" (19)
DFCL-2424W-U*=2' x 2' gasketed drywall framing kit. Cut out dimension 24.25" x 24.25" (19)
DFCL-1248W-U*=1' x 4' gasketed drywall framing kit. Cut out dimension 12.25" x 48.25" (19)
DFVR/FLR-2448W-U*=2' x 4' vandal resistant drywall framing kit. Cut out dimension 24.25" x 48.25" (19)
DFVR/FLR-2424W-U*=2' x 2' vandal resistant drywall framing kit. Cut out dimension 24.25" x 24.25" (19)
DFVR/FLR-1248W-U*=1' x 4' vandal resistant drywall framing kit. Cut out dimension 12.25" x 48.25" (19)
*For Antimicrobial matte white finish, replace the W with AMW. ex. DFCL1248AMW-U. (19) DFCL & DFVR framing kits are used to install the FLR in hard ceiling applications. DFCL is not applicable with IP65 or IP66 options. (20) Accessories sold separately will be separately analyzed under domestic preference requirements. Consult factory for further information.
EGA
Enclosed and Gasketed - Advantage Series
OVERVIEW
Lumen Range 5,000
CCT 4000K, 5000K
Wattage Range 35
Efficacy Range (LPW) 133 - 136
Weight lbs (kg) 12 (5.4)
FEATURES & SPECIFICATIONS
Construction
• 1 piece housing made of durable polycarbonate
• Diffuse lens secured with 10 nylon latches
• 4 foot housing with diffuse acrylic lens
Optical System
• Injection molded diffuse acrylic lens with high impact additive
• Minimum CRI of 80
• Available in 4000K and 5000K
QUICK LINKS
Electrical
• 0-10V dimming (10%-100%) standard
• Standard Universal Voltage (120-277 Vac) Input 47-63Hz
• L80 Calculated Life: >100K hours
• Operating Temperature -40 to +40C (-40F to +104F)
Installation
• Stainless steel surface mount bracket is included with each fixture
Warranty
• Complete warranty terms located at: https://www.lsicorp.com/resources/termsconditions-warranty/
Listings
• Listed to UL 1598 and UL 8750
• NEMA 4X rated
• IP65 Certified
• High pressure hose down (1500 psi)
• Wet Location
• Meets Buy American Act Requirements
• DLC qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
• IK06 rated luminaire per IEC 66262 mechanical impact code
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
TYPE LE SPEC CHARLESTON
EGA Enclosed and Gasketed - Advantage Series
*LEDs are frequently updated therefore values are nominal
*Electrical data at 25C (77F). Actual wattage may differ by +/-10%.
EGA/Lumen Package: 5L
1. Lumen maintenance values at 40C are calculated per TM-21 based on LM-80 data and in-situ testing.
2. In accordance with IESNA TM-21-11, Projected Values represent interpolated value based on time durations that are within six times the IESNA LM-80-08 total test duration for the device under testing.
3. In accordance with IESNA TM-21-11, Calculated Values represent time durations that exceed six times the IESNA LM-80-08 total test duration for the device under testing
• Housing made of cold rolled die formed steel for strength and durability
• High impact diffuse polycarbonate lens. Meets IK07 impact rating.
• Housing is treated with rust inhibitor post-fabrication. High-reflectance white polyester powder coating maximizes performance.
• Vandal resistant design using tamper-proof hardware
• Dust and insect tight
Optical System
• Prismatic high-transmission cover lens for optimal performance and visual comfort
• Polycarbonate lens material for maximum impact resistance
• Minimum color rendering index of 80
• Up to 1% enhanced dimming
Electrical
• High-performance programmable driver features overvoltage, under voltage, short-circuit and over temperature protection. Custom lumen and wattage options available
Ordering Guide Performance Dimensions
• Meets FCC Part 15 EMI/EMC requirements
• Bi-level dimming (OFF/ 10%/ 25%/ 50%) standard with integrated ultrasonic sensor IMUS.
• Standard Universal Voltage (120-277 VAC) Input 50/60 or optional High Voltage (347 VAC)
• L70 Calculated Life: >100K hours
• Total Harmonic Distortion: <20%
• Power factor: >.95
• Optional 120-277V 10W integral emergency battery pack is available to meet critical life-safety standby lighting requirements. Self diagnostic test capable. CEC Title 20 and 24 compliant
Controls
• Every unit ships with a factory-installed ultrasonic motion sensor
• Available with AirLink™ Blue. AirLink Blue (ALB) is a low-power wireless Bluetooth mesh control system. ALB provides significant energy savings while ensuring code compliance and security The integrated fixture sensor module can control multiple luminaires based on motion or daylight and events can be scheduled based on time of day or an astronomical clock.
• 360 degree coverage to detect motion throughout stairwells
• Field-configurable light levels to maximize energy savings
• See page 2 for more details.
Installation
• Wall or ceiling mount
• Side or top stem mount using trade size knockouts (stem supplied by others)
Warranty
• Complete warrenty terms loacted at https://www.lsicorp.com/resources/termsconditions-warranty/
• 1 Year warranty on optional Battery Backup. Test regularly in accordance with local codes
Listings
• Listed to UL 1598 and UL 8750
• Suitable for damp locations
• BAA/TAA compliant
• Title 20, Title 24 compliant
Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
2 - Consult factory for lead times or custom color options.
3 - 3500lm available in both 2ft and 4ft.
PERFORMANCE
DELIVERED LUMENS1
FOOTNOTES:
1 - All values are subject to ±10% variation based on production tolerances
CONTROLS
Integral Motion Ultrasonic Sensor (IMUS)
LSI’s “IMUS” ultrasonic motion sensor is a 0-10V fixture-integrated sensor for standalone lighting control. Configurable settings include length of time delays, sensor range and dimming level using DIP switches and trimpots. IMUS is designed for 8 -12 ft mounting height and an operating ambient temperature range of -22°F to 158°F (-30°C to 70°C).
• Housing made of cold rolled die formed steel for strength and durability
• High impact diffuse polycarbonate lens. Meets IK07 impact rating.
• Housing is treated with rust inhibitor post-fabrication. High-reflectance white polyester powder coating maximizes performance.
• Vandal resistant design using tamper-proof hardware
• Dust and insect tight
Optical System
• Prismatic high-transmission cover lens for optimal performance and visual comfort
• Polycarbonate lens material for maximum impact resistance
• Minimum color rendering index of 80
• Up to 1% enhanced dimming
Electrical
• High-performance programmable driver features overvoltage, under voltage, short-circuit and over temperature protection. Custom lumen and wattage options available
QUICK LINKS
Ordering Guide Performance Dimensions
• Meets FCC Part 15 EMI/EMC requirements
• Bi-level dimming (OFF/ 10%/ 25%/ 50%) standard with integrated ultrasonic sensor IMUS.
• Standard Universal Voltage (120-277 VAC) Input 50/60 or optional High Voltage (347 VAC)
• L70 Calculated Life: >100K hours
• Total Harmonic Distortion: <20%
• Power factor: >.95
• Optional 120-277V 10W integral emergency battery pack is available to meet critical life-safety standby lighting requirements. Self diagnostic test capable. CEC Title 20 and 24 compliant
Controls
• Every unit ships with a factory-installed ultrasonic motion sensor
• Available with AirLink™ Blue. AirLink Blue (ALB) is a low-power wireless Bluetooth mesh control system. ALB provides significant energy savings while ensuring code compliance and security. The integrated fixture sensor module can control multiple luminaires based on motion or daylight and events can be scheduled based on time of day or an astronomical clock.
• 360 degree coverage to detect motion throughout stairwells
• Field-configurable light levels to maximize energy savings
• See page 2 for more details.
Installation
• Wall or ceiling mount
• Side or top stem mount using trade size knockouts (stem supplied by others)
Warranty
• Complete warrenty terms loacted at https://www.lsicorp.com/resources/termsconditions-warranty/
• 1 Year warranty on optional Battery Backup. Test regularly in accordance with local codes
Listings
• Listed to UL 1598 and UL 8750
• Suitable for damp locations
• BAA/TAA compliant
• Title 20, Title 24 compliant
Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
2 - Consult factory for lead times or custom color options.
3 - 3500lm available in both 2ft and 4ft.
PERFORMANCE
DELIVERED LUMENS1
FOOTNOTES:
1 - All values are subject to ±10% variation based on production tolerances
CONTROLS
Integral Motion Ultrasonic Sensor (IMUS)
LSI’s “IMUS” ultrasonic motion sensor is a 0-10V fixture-integrated sensor for standalone lighting control. Configurable settings include length of time delays, sensor range and dimming level using DIP switches and trimpots. IMUS is designed for 8 -12 ft mounting height and an operating ambient temperature range of -22°F to 158°F (-30°C to 70°C).
Field Installed Accessories: YTGHANGER - 10’ adjustable cable hang kit
Listings
Five year limited warranty against defects
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
TYPE GA SPEC CHARLESTON
Opulence Small Pendant & Surface Mount (OPS PD/SD)
Outdoor Pendant & Surface Mount Luminaire
OVERVIEW
Lumen Package (lm)3,000 - 17,000
Wattage Range (W) 20 - 105
Efficacy Range (LPW) 134 - 177
Weight lbs (kg) 16 (7.3)
Control Options IMSBT, ALBCS
FEATURES & SPECIFICATIONS
Construction
• Rugged die-cast aluminum housing.
• Architecturally pleasing with no visible electronics, hardware, or seams from ground level.
• Fixtures are finished with LSI’s DuraGrip® polyester powder coat finishing process. The DuraGrip finish withstands extreme weather changes without cracking or peeling. Other standard LSI finishes available. Consult factory.
• Optional spun aluminum shroud provides a streamlined transition from stem to luminaire while also deterring nesting (3/4” stem/pendant only).
• External Shield available for field installation (see accessory ordering information and dimensions for details).
Optical System
• High density LED optical system delivers industry leading optical performance and visual comfort.
• Distribution types 2, 3W, 4F, 5Q, 5C, 5R, 5D & AD
• Diffused lens version provides maximum visual comfort with reduced brightness and LED pixelization.
• Patented Uplight Module U.S. Patent No. 11,668,443.
• Available in 5000K, 4000K, 3500K, 3000K and 2700K color temperatures per ANSI C78.377. Also available in Phosphor Converted Amber with Peak intensity at 610nm.
• Minimum CRI of 80 Electrical
• High-performance driver features overvoltage, under-voltage, short-circuit and over temperature protection (6kV surge standard).
QUICK LINKS
• 0-10V dimming (10% - 100%) standard.
• Standard Universal Voltage (120-277 VAC) Input 50/60 Hz or optional High Voltage (347-480 VAC).
• Total harmonic distortion (THD): <20%
• Operating temperature: -40°C to +40°C (-40°F to +104°F).
• Power factor (PF): >.90
• Input power stays constant over life.
• Optional 10kV surge protection device meets a minimum Category C Low operation (per ANSI/IEEE C62.41.2).
• Driver is fully encased in potting material for moisture resistance and complies with FCC standards. Driver and key electronic components can easily be accessed.
• Optional 16w battery backup provides 90-minutes of constant power (~2,0002,500 lumens) to the LED system, ensuring code compliance. A test switch/indicator button is installed on the housing for ease of maintenance. Standard battery rated for 0° to 40° with cold weather battery rated for -20°C to 40°. 120-277V Only.
Controls
• Integral passive infrared Bluetooth™ motion and photocell sensor options. Fixtures operate independently and can be commissioned via an iOS or Android configuration app.
• LSI’s AirLink™ Blue lighting control system is a simple feature rich wireless Bluetooth mesh network. The integrated fixture sensor module provides wireless control of grouped fixtures based on motion sensors, daylight or a fully customizable schedule. Updates and modifications to the control strategy are easily implemented via an intuitive iOS app.
Installation
• Pendant mounting via rigid 3/4” stem (order stem seperately), 36” wire leads provided.
• Direct/surface mounts to a 4” (102mm) square or octagon box (box by others).
• Hinged 16ga galvanized mounting bracket provided for ease of installation and maintenance.
• Optional stainless steel crown for mounting to 2” tenon (order tenon seperately). Wire leads pass through compression seal fitting to prevent water entry. Once-piece silicone gasket provides water and dust tight seal.
• For wall mount arm please reference OPS wall mount spec sheet.
Warranty
• LSI luminaires carry a 5-year limited warranty. Refer to https://www.lsicorp.com/ resources/terms-conditions-warranty/ for more information.
Listings
• Listed to UL 1598 and UL 8750.
• Meets Buy American Act requirements.
• DarkSky approved with 3000K CCT or warmer color temperature selection and fixed mounting arms / non-adjustable brackets.
• Title 24 Compliant; see local ordinance for qualification information.
• Suitable for wet locations.
• IP66 rated Luminaire per IEC 60598-1.
• IK09 rated luminaire per IEC 66262 mechanical impact code with polycarbonate lens (PLY).
• DesignLights Consortium® (DLC) Premium qualified product. Not all versions of this product may be DLC Premium qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
CHARLESTON
HOUSING
- Heavy duty die cast aluminum housing
- White finish standard, black and dark bronze also available
• Polymeric housing provides IP65/66/67 ingress protection and superior chemical resistance.
• Inner gear tray constructed of code gauge steel with a finish coating of high reflectance polyester powder (min 92%).
• All external mounting hardware is constructed of stainless steel.
• High pressure hose down (1500 PSI).
• Lens is secured to housing with standard polycarbonate latches. Optional stainless steel latches are available.
• Car Wash application requires the following options:
• Stainless steel latches & E6CW cord option with nickel plated brass liquid tight metallic cable fittings rated for IP68 ingress protection & NEMA 1, 4X, 6, 12 ratings.
Optical System
• Injection molded acrylic lens with high impact additive.
• Lens is ribbed and frosted to eliminate glare and provides a symmetric distribution.
• Minimum CRI of 80
• Optional high angle distribution optic available for DLC qualified parking garage applications
1.Pair the Parking Garage (PG) optic with the smooth diffuse lens (SA) for best results.
Electrical
• High-performance programmable driver features over-voltage, under-voltage, short-circuit and over-temperature protection. Custom lumen and wattage packages available.
• Driver module is sealed to IP65, IP66, and IP67 standards with a Class A sound rating and 0-10 volt dimming is standard.
• 0-10V dimming (10%-100%) standard
• Standard Universal Voltage (120-277 Vac) Input 50/60 or optional High Voltage (347-480V) L80 Calculated Life: >200K hours
• Total Harmonic distortion: <20%
• Operating Temperature -40 to +40C (-40F to +104F)
• Power factor: >.95
• Optional 120-277V 7.5W integral emergency battery pack is available to meet critical life-safety lighting requirements. A test switch/indicator button will be installed on the end panel of the fixture.
Controls
• Controls Options Include:
– Simple Sensor PIR end mount motion sensor available (OMSx).
– Basic Bluetooth integral passive infrared sensor (IMSBTxL) with bluetooth app available.
– Airlink Blue integral controller (ALBC) or integral controller with motion & photo sensor (ALBCSx).
– LSI’s AirLink Synapse wireless control system options reduce energy and maintenance costs. To order select ALSC or ALSCS (see ordering guide) as the controls option.
Installation
• 2 standard stainless steel mounting brackets are furnished with each fixture.
• Optional stainless steel V bracket or surface bracket accessory available.
Warranty
• For complete warranty terms, refer to https://www.lsicorp.com/resources/termsconditions-warranty/
• 1 Year warranty on optional Battery Backup. Test regularly in accordance with local codes.
• For warranty in car wash application, options E6CW (6’ black 16/3 SEOOW cord and fittings) and SL (stainless steel latches) option must be installed on fixture.
• To maintain warranty, use of UL listed wet location weather proof, waterproof and corrosion resistant junction box with minimum IP65 rating, NEMA 4 or higher and stainless steel cover screws is required (not sold by LSI).
Listings
• List for UL 1598 and UL 8750
• RoHS Compliant
• Luminaire is IP65/IP66/IP67 certified
• NEMA 4X rated
• Suitable for wet locations and vapor tight
• BAA/TAA compliant
• NSF rated (Splash Zone 2)
• DesignLights Consortium® (DLC) Premium qualified product. Not all versions of this product may be DLC Premium qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
• IK08 rated luminaire per IEC 66262 mechanical impact code
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available
sensor*
ORDERING INFORMATION
EGA
Enclosed and Gasketed - Advantage Series
OVERVIEW
Lumen Range 5,000
CCT 4000K, 5000K
Wattage Range 35
Efficacy Range (LPW) 133 - 136
Weight lbs (kg)
FEATURES & SPECIFICATIONS
Construction
• 1 piece housing made of durable polycarbonate
• Diffuse lens secured with 10 nylon latches
• 4 foot housing with diffuse acrylic lens
Optical System
• Injection molded diffuse acrylic lens with high impact additive
• Minimum CRI of 80
• Available in 4000K and 5000K
QUICK LINKS
Electrical
• 0-10V dimming (10%-100%) standard
• Standard Universal Voltage (120-277 Vac) Input 47-63Hz
• L80 Calculated Life: >100K hours
• Operating Temperature -40 to +40C (-40F to +104F)
Installation
• Stainless steel surface mount bracket is included with each fixture
Warranty
• Complete warranty terms located at: https://www.lsicorp.com/resources/termsconditions-warranty/
Listings
• Listed to UL 1598 and UL 8750
• NEMA 4X rated
• IP65 Certified
• High pressure hose down (1500 psi)
• Wet Location
• Meets Buy American Act Requirements
• DLC qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
• IK06 rated luminaire per IEC 66262 mechanical impact code
LEDVANCE LUMINAIRES
LEDVANCE LUMINAIRE SPECIFICATION DATA
Catalog # Comments
Project Type
Prepared by
APPLICATION
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'.
Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI >80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
TYPE GC SPEC CHARLESTON
EGA Enclosed and Gasketed - Advantage Series
*LEDs are frequently updated therefore values are nominal
*Electrical data at 25C (77F). Actual wattage may differ by +/-10%.
EGA/Lumen Package: 5L
1. Lumen maintenance values at 40C are calculated per TM-21 based on LM-80 data and in-situ testing.
2. In accordance with IESNA TM-21-11, Projected Values represent interpolated value based on time durations that are within six times the IESNA LM-80-08 total test duration for the device under testing.
3. In accordance with IESNA TM-21-11, Calculated Values represent time durations that exceed six times the IESNA LM-80-08 total test duration for the device under testing
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available
sensor*
ORDERING INFORMATION
NO SPEC

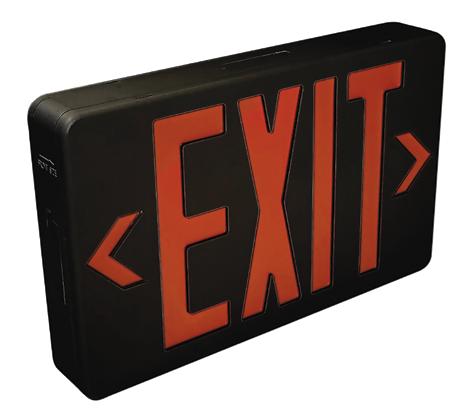

NX-603D-LED
Thermoplastic Dual Color (Red/Green) LED Exit Sign with Battery Backup
PRODUCT DESCRIPTION
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
• 11-13/16" Width X 7-1/4" Height X 1-13/16" Depth
• Injection-molded thermoplastic housing
• Black or White housing finish
FACE
• 6" high text with color diffusion
• Both double and a blank face are included
• Snap-in direction indicators
MOUNTING
• Wall, side, or ceiling
• Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES

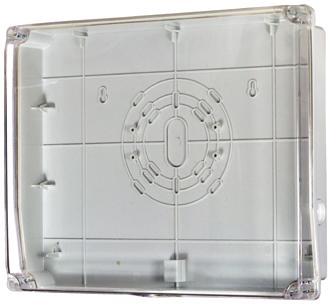

NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS UL 924
R at ed for Damp Locations (Wet Location when used with NEG-60) NFPA
Cer tified to the energy efficiency standards of California Title 20

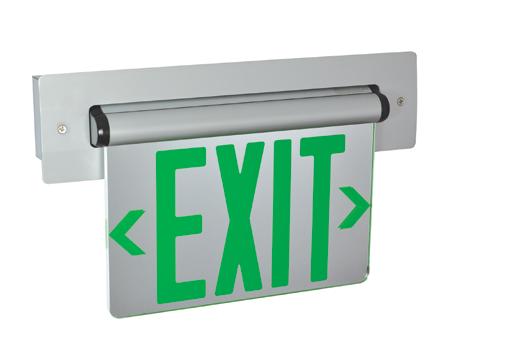

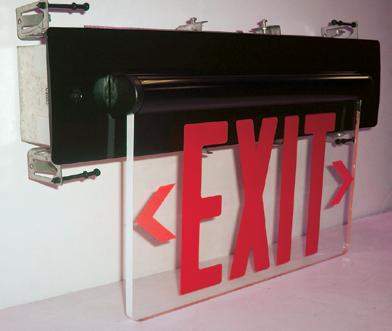

Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
· UL Listed NEC
· State & Municipal
5-Year Limited Warranty
Certified to the energy efficiency standards of California Title 20

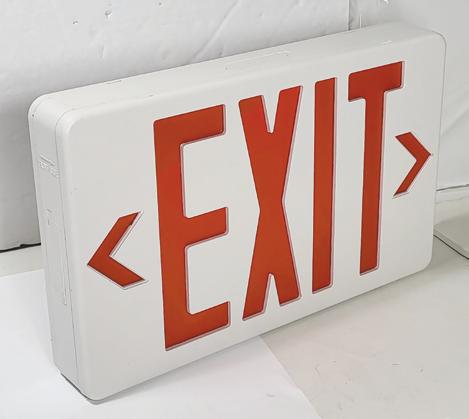

Thermoplastic Dual Color (Red/Green) LED Exit Sign with Battery Backup
PRODUCT DESCRIPTION
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
• 11-13/16" Width X 7-1/4" Height X 1-13/16" Depth
• Injection-molded thermoplastic housing
• Black or White housing finish
FACE
• 6" high text with color diffusion
• Both double and a blank face are included
• Snap-in direction indicators
MOUNTING
• Wall, side, or ceiling
• Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES
NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS UL 924
Rated for Damp Locations (Wet Location when used with NEG-60) NFPA
Certified to the energy efficiency standards of California Title 20
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
· UL Listed NEC
· State & Municipal
5-Year Limited Warranty
Certified to the energy efficiency standards of California Title 20
