DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation for plaster ceilings using 2700K LED source and 15° degree beam. To be supplied with DALI dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry
FINISHES: White

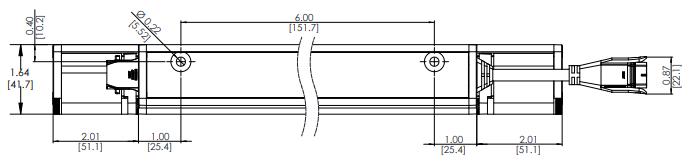

DIMENSIONS: As shown
LAMP TYPE & REF: LED 2542lm, 2700K, CRI 90+
POWER: 39W, 900mA, 120 to 277 Vac

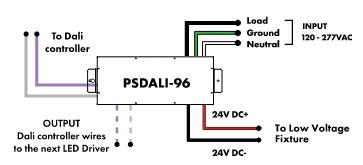

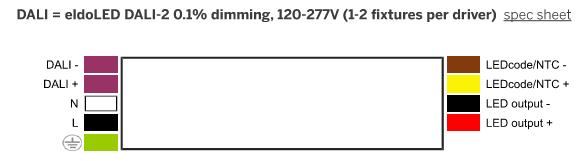

CONTROL: DALI
FIXING METHOD: Mesh kit for seamless/trimless installation as per manufacturer’s instruction
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 2 of 147
CHARLESTON TYPE H-D1
USE OF PRODUCT
PRIME
PRIME 4” LED ARCHITECTURAL ROUND FLANGED DOWNLIGHT
The 4" Prime Downlight Series is the ideal product for architectural energy efficient lighting in commercial and residential applications. Available in an assortment of color temperatures, optics, lumen outputs, and dimmable driver options.
PRIME FEATURES
Color Temperature: 2700K, 3000K, 3500K, or 4000K
SDCM: 2 step binning
Color Rendering Index: 93+ CRI
Optical Lens: 18°, 30°, 50°, 80°
Trim: Die cast or anodized
LED Life: 50,000 Hours
LED Type: Cree LED
Driver Info: 120-277V, 50/60 Hz, PF>0.9, THD<0.20
Warranty: 5 year limited warranty
LED ENGINE
LED engine available with CREE LEDs in 2700K, 3000K, 3500K, or 4000K in standard 93+ CRI. 2 Step MacAdam ellipse allows for color consistency between fixtures. LED mounted to aluminum heat sink for maximum life output and thermal management. Light engine provides a quick disconnect with locking strain relief to housing.

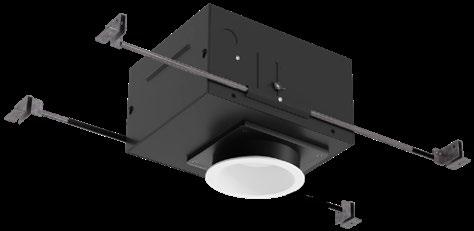

FRAME CONSTRUCTION
Constructed from 16 gauge heavy duty powder coated cold rolled steel frame with a large access junction box.
ADJUSTMENT
- Housing provides for 360º locking rotation
TYPE: JOB INFORMATION
CATALOG NO.
PROJECT NAME:
COMMENTS:
PREPARED BY:
- Aperture collar adjusts 15º± horizontally within frame for square ceiling alignment
- Collar notch allows for easy alignment for square applications.
- Aperture collar compatible up to 1½" ceiling thickness.
- Accommodation for 2” or 3” ceiling thickness available upon request.
OPTICS
Field replaceable optical lens available in 18º, 30º, 50º, and 80º. Easily achieve narrow spot to wide flood beam pattern. Option for frosted, honeycomb, or solite filter (2 maximum).
DIMMING
Available in 8 driver selections. (ID) Standard all-inclusive ELV, Triac, and 0-10V dimming driver called Intelligent Drive, 120-277V. (PEQ0) Lutron Hi-Lume Premier Ecosystem 0.1% w/soft on, fade to black dimming, 120-277V. (LDE1) Lutron Hi-Lume 1% Ecosystem with soft on, fade to black dimming, 120-277V. (LTE) Lutron Hi-Lume 1% 2-wire, 120V. (L3DA) Hi-lume 1% EcoSystem/3-Wire L3D Driver (EEI) eldoLED Eco 1% Dim (0-10V), 120-277V. (EDIO) eldoLED Solo 0.1% Dim(0-10V), 120-277V. (EDID) eldoLED Solo 0.1% Dim(DALI), 120-277V.
THERMAL MANAGEMENT
Ambient temperatures at fixture location should not exceed -20° to 40°C.
EMERGENCY BATTERY
Optional emergency battery available for a minimum of 90 minutes with both integral or remote test switch in 800 or 1700 delivered lumens.

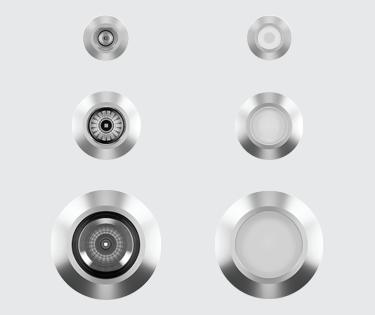

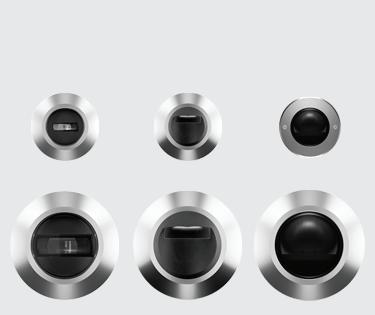

TRIM OPTIONS
- All trims are self flanged die cast or anodized.
- Trim includes standard frosted acrylic diffuser.
- 12% lumens increase if remove standard frosted acrylic diffuser in field.
- Optical Enhancer reflects light evenly across the diffusion lens.
- Trims available in round or square in an assortment of standard or made to order finishes.
LABELS/COMPLIANCE/WARRANTY
- CSA Listed for US and Canada
- Energy Star
- Dry/Damp/Wet location rated.
- Title 24, JA8 Compliant
- 5 Year limited warranty
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas

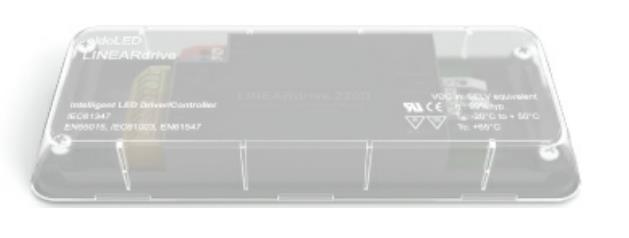

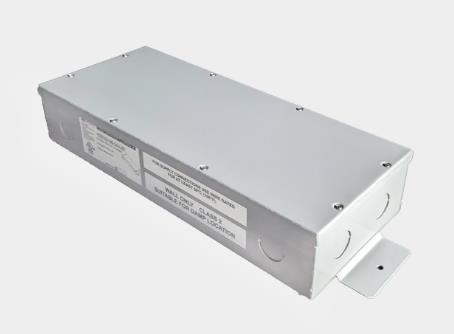

Driver:
ISO_LES_2057_FSH_HTL RevE page 3 of 147
11W1055 Lm 93+ 120-277V
16W1250 Lm 93+ 120-277V
20W1645 Lm 93+ 120-277V
30W2170 Lm 93+ 120-277V
31W2495 Lm 93+ 120-277V
38W3105 Lm 93+ 120-277V
45W3473 Lm 93+ 120-277V
58W4030 Lm 93+ 120-277V

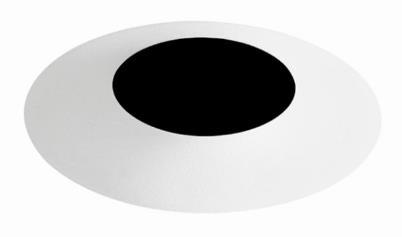

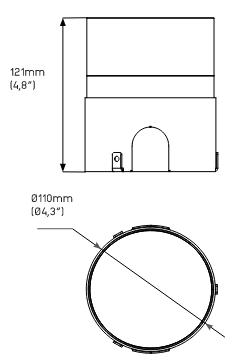

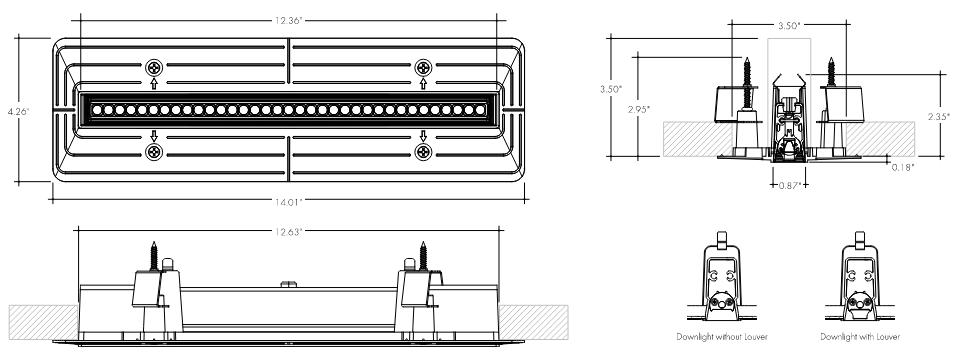

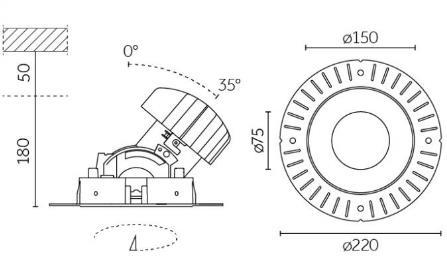

TRIM DIMENSION
Trim Details
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation for plaster ceilings using 2700K LED source and 22° degree beam. To be supplied with DALI dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED 2542lm, 2700K, CRI 90+
POWER: 39W, 900mA, 120 to 277 Vac
CONTROL: DALI
FIXING METHOD: Mesh kit for seamless/trimless installation as per manufacturer’s instruction
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 4 of 147
CHARLESTON TYPE H-D1B
USE OF PRODUCT
PRIME
PRIME 4” LED ARCHITECTURAL ROUND FLANGED DOWNLIGHT
The 4" Prime Downlight Series is the ideal product for architectural energy efficient lighting in commercial and residential applications. Available in an assortment of color temperatures, optics, lumen outputs, and dimmable driver options.
PRIME FEATURES
Color Temperature: 2700K, 3000K, 3500K, or 4000K
SDCM: 2 step binning
Color Rendering Index: 93+ CRI
Optical Lens: 18°, 30°, 50°, 80°
Trim: Die cast or anodized
LED Life: 50,000 Hours
LED Type: Cree LED
Driver Info: 120-277V, 50/60 Hz, PF>0.9, THD<0.20
Warranty: 5 year limited warranty
LED ENGINE
LED engine available with CREE LEDs in 2700K, 3000K, 3500K, or 4000K in standard 93+ CRI. 2 Step MacAdam ellipse allows for color consistency between fixtures. LED mounted to aluminum heat sink for maximum life output and thermal management. Light engine provides a quick disconnect with locking strain relief to housing.
FRAME CONSTRUCTION
Constructed from 16 gauge heavy duty powder coated cold rolled steel frame with a large access junction box.
ADJUSTMENT
- Housing provides for 360º locking rotation
TYPE: JOB INFORMATION
CATALOG NO.
PROJECT NAME:
COMMENTS:
PREPARED BY:
- Aperture collar adjusts 15º± horizontally within frame for square ceiling alignment
- Collar notch allows for easy alignment for square applications.
- Aperture collar compatible up to 1½" ceiling thickness.
- Accommodation for 2” or 3” ceiling thickness available upon request.
OPTICS
Field replaceable optical lens available in 18º, 30º, 50º, and 80º. Easily achieve narrow spot to wide flood beam pattern. Option for frosted, honeycomb, or solite filter (2 maximum).
DIMMING
Available in 8 driver selections. (ID) Standard all-inclusive ELV, Triac, and 0-10V dimming driver called Intelligent Drive, 120-277V. (PEQ0) Lutron Hi-Lume Premier Ecosystem 0.1% w/soft on, fade to black dimming, 120-277V. (LDE1) Lutron Hi-Lume 1% Ecosystem with soft on, fade to black dimming, 120-277V. (LTE) Lutron Hi-Lume 1% 2-wire, 120V. (L3DA) Hi-lume 1% EcoSystem/3-Wire L3D Driver (EEI) eldoLED Eco 1% Dim (0-10V), 120-277V. (EDIO) eldoLED Solo 0.1% Dim(0-10V), 120-277V. (EDID) eldoLED Solo 0.1% Dim(DALI), 120-277V.
THERMAL MANAGEMENT
Ambient temperatures at fixture location should not exceed -20° to 40°C.
EMERGENCY BATTERY
Optional emergency battery available for a minimum of 90 minutes with both integral or remote test switch in 800 or 1700 delivered lumens.
TRIM OPTIONS
- All trims are self flanged die cast or anodized.
- Trim includes standard frosted acrylic diffuser.
- 12% lumens increase if remove standard frosted acrylic diffuser in field.
- Optical Enhancer reflects light evenly across the diffusion lens.
- Trims available in round or square in an assortment of standard or made to order finishes.
LABELS/COMPLIANCE/WARRANTY
- CSA Listed for US and Canada
- Energy Star
- Dry/Damp/Wet location rated.
- Title 24, JA8 Compliant
- 5 Year limited warranty
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Driver:
ISO_LES_2057_FSH_HTL RevE page 5 of 147
11W1055 Lm 93+ 120-277V
16W1250 Lm 93+ 120-277V
20W1645 Lm 93+ 120-277V
30W2170 Lm 93+ 120-277V
31W2495 Lm 93+ 120-277V
38W3105 Lm 93+ 120-277V
45W3473 Lm 93+ 120-277V
58W4030 Lm 93+ 120-277V
TRIM DIMENSION
Trim Details
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
DESCRIPTION: Interior quality recessed adjustable downlight for trim installation on the beams using 2700K LED source and 15° degree beam. To be supplied with DALI dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED 2542lm, 2700K, CRI 90+
POWER: 39W, 900mA, 120 to 277 Vac
CONTROL: DALI
FIXING METHOD: Flange installation as per manufacturer’s instruction
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 6 of 147
CHARLESTON
USE OF PRODUCT
PRIME
PRIME 4” LED ARCHITECTURAL ROUND FLANGED DOWNLIGHT
The 4" Prime Downlight Series is the ideal product for architectural energy efficient lighting in commercial and residential applications. Available in an assortment of color temperatures, optics, lumen outputs, and dimmable driver options.
PRIME FEATURES
Color Temperature: 2700K, 3000K, 3500K, or 4000K
SDCM: 2 step binning
Color Rendering Index: 93+ CRI
Optical Lens: 18°, 30°, 50°, 80°
Trim: Die cast or anodized
LED Life: 50,000 Hours
LED Type: Cree LED
Driver Info: 120-277V, 50/60 Hz, PF>0.9, THD<0.20
Warranty: 5 year limited warranty
LED ENGINE
LED engine available with CREE LEDs in 2700K, 3000K, 3500K, or 4000K in standard 93+ CRI. 2 Step MacAdam ellipse allows for color consistency between fixtures. LED mounted to aluminum heat sink for maximum life output and thermal management. Light engine provides a quick disconnect with locking strain relief to housing.
FRAME CONSTRUCTION
Constructed from 16 gauge heavy duty powder coated cold rolled steel frame with a large access junction box.
ADJUSTMENT
- Housing provides for 360º locking rotation
TYPE: JOB INFORMATION
CATALOG NO.
PROJECT NAME:
COMMENTS:
PREPARED BY:
- Aperture collar adjusts 15º± horizontally within frame for square ceiling alignment
- Collar notch allows for easy alignment for square applications.
- Aperture collar compatible up to 1½" ceiling thickness.
- Accommodation for 2” or 3” ceiling thickness available upon request.
OPTICS
Field replaceable optical lens available in 18º, 30º, 50º, and 80º. Easily achieve narrow spot to wide flood beam pattern. Option for frosted, honeycomb, or solite filter (2 maximum).
DIMMING
Available in 8 driver selections. (ID) Standard all-inclusive ELV, Triac, and 0-10V dimming driver called Intelligent Drive, 120-277V. (PEQ0) Lutron Hi-Lume Premier Ecosystem 0.1% w/soft on, fade to black dimming, 120-277V. (LDE1) Lutron Hi-Lume 1% Ecosystem with soft on, fade to black dimming, 120-277V. (LTE) Lutron Hi-Lume 1% 2-wire, 120V. (L3DA) Hi-lume 1% EcoSystem/3-Wire L3D Driver (EEI) eldoLED Eco 1% Dim (0-10V), 120-277V. (EDIO) eldoLED Solo 0.1% Dim(0-10V), 120-277V. (EDID) eldoLED Solo 0.1% Dim(DALI), 120-277V.
THERMAL MANAGEMENT
Ambient temperatures at fixture location should not exceed -20° to 40°C.
EMERGENCY BATTERY
Optional emergency battery available for a minimum of 90 minutes with both integral or remote test switch in 800 or 1700 delivered lumens.
TRIM OPTIONS
- All trims are self flanged die cast or anodized.
- Trim includes standard frosted acrylic diffuser.
- 12% lumens increase if remove standard frosted acrylic diffuser in field.
- Optical Enhancer reflects light evenly across the diffusion lens.
- Trims available in round or square in an assortment of standard or made to order finishes.
LABELS/COMPLIANCE/WARRANTY
- CSA Listed for US and Canada
- Energy Star
- Dry/Damp/Wet location rated.
- Title 24, JA8 Compliant
- 5 Year limited warranty
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Driver:
ISO_LES_2057_FSH_HTL RevE page 7 of 147
11W1055 Lm 93+ 120-277V
16W1250 Lm 93+ 120-277V
20W1645 Lm 93+ 120-277V
30W2170 Lm 93+ 120-277V
31W2495 Lm 93+ 120-277V
38W3105 Lm 93+ 120-277V
45W3473 Lm 93+ 120-277V
58W4030 Lm 93+ 120-277V
TRIM DIMENSION
Trim Details
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas

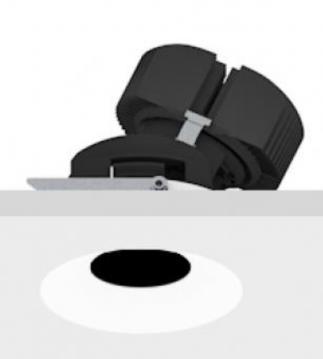

Mood Pro Adjustable Round Cone M - Trimless - Ø80mm
X.KP1DH.HW12
+ 0.26017.0012 – Round curve plate
+ 0.26033.0000 – Honeycomb louver
+ 0.26048.0000 – Antiglare accessory
+ 0.26075.005B – Filter 2700-2500K

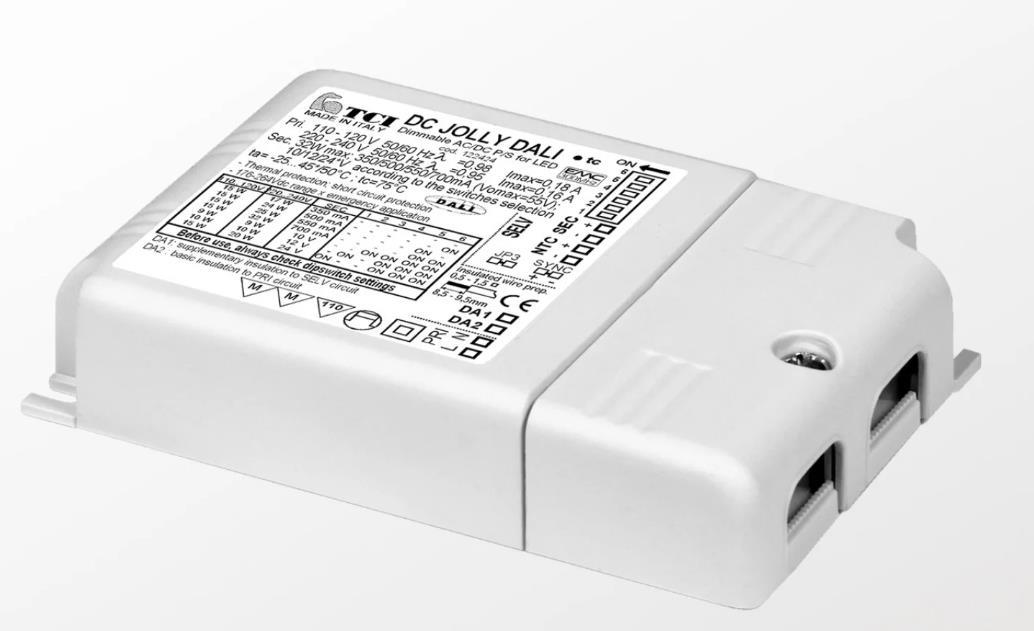

+ D.30422.0000 – Driver DALI 2
Interior quality recessed adjustable downlight for trim installation on the beams using 2700K LED source and 32° degree beam. To be supplied with DALI dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED 898lm, 2700K, CRI 90+
POWER: 14W, 1050mA, 120 to 277 Vac
CONTROL: DALI
FIXING METHOD:
COMMENTS:
ILLUSTRATION:
Mesh kit for seamless/trimless installation as per manufacturer’s instruction
UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ISO_LES_2057_FSH_HTL RevE page 8 of 147
PRODIGY
USE OF PRODUCT

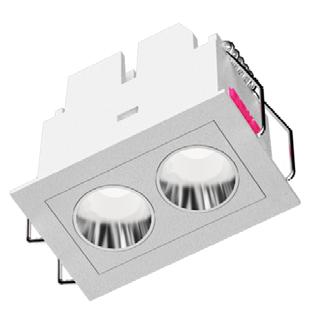

Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.

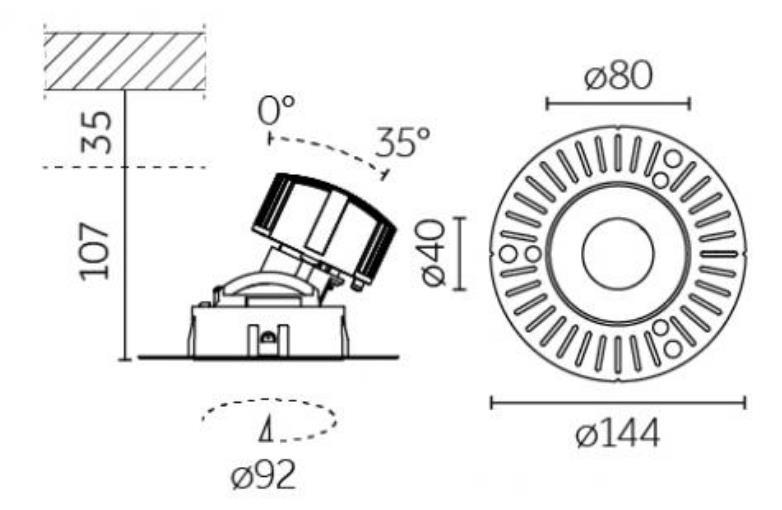

- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%

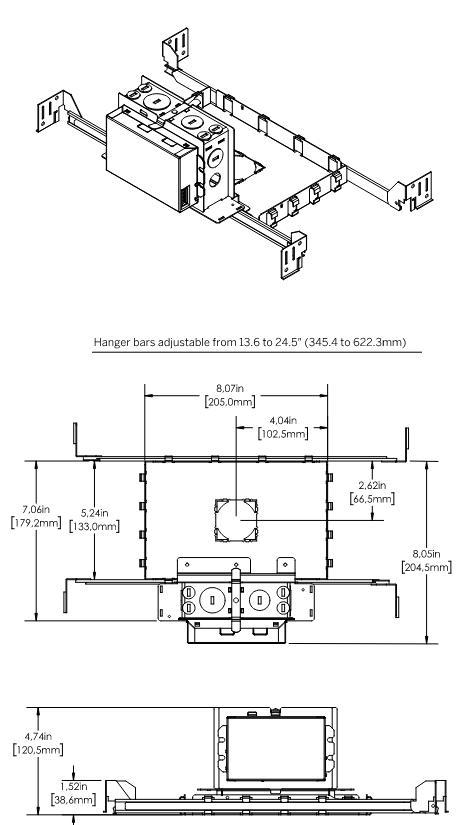

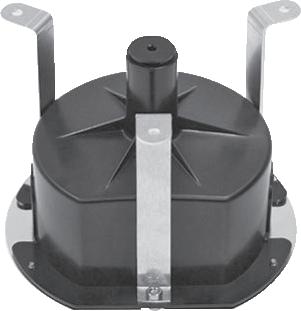

MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.

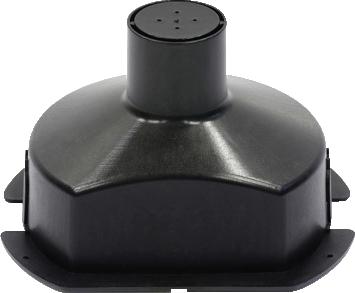

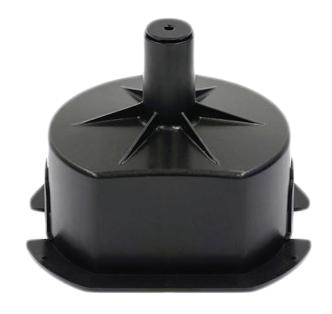

NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
Mood Pro Adjustable Round Cone M - Trimless - Ø80mm
X.KP1DE.HW12
+ 0.26017.0012 – Round curve plate
+ 0.26033.0000 – Honeycomb louver
+ 0.26048.0000 – Antiglare accessory
+ 0.26075.005B – Filter 2700-2500K
+ D.30422.0000 – Driver DALI 2
Interior quality recessed adjustable downlight for trim installation on the beams using 2700K LED source and 22° degree beam. To be supplied with DALI dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED 1074lm, 2700K, CRI 90+
POWER: 14W, 1050mA, 120 to 277 Vac
CONTROL: DALI
FIXING METHOD:
COMMENTS:
ILLUSTRATION:
Mesh kit for seamless/trimless installation as per manufacturer’s instruction
UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ISO_LES_2057_FSH_HTL RevE page 10 of 147
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
Mood Pro Adjustable Round Cone M - Trimless - Ø80mm
X.KP1DA.HW12
+ 0.26017.0012 – Round curve plate
+ 0.26033.0000 – Honeycomb louver
+ 0.26048.0000 – Antiglare accessory
+ 0.26075.005B – Filter 2700-2500K
+ D.30422.0000 – Driver DALI 2
Interior quality recessed adjustable downlight for trim installation on the beams using 2700K LED source and 12° degree beam. To be supplied with DALI dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED 1054lm, 2700K, CRI 90+
POWER: 14W, 1050mA, 120 to 277 Vac
CONTROL: DALI
FIXING METHOD:
COMMENTS:
ILLUSTRATION:

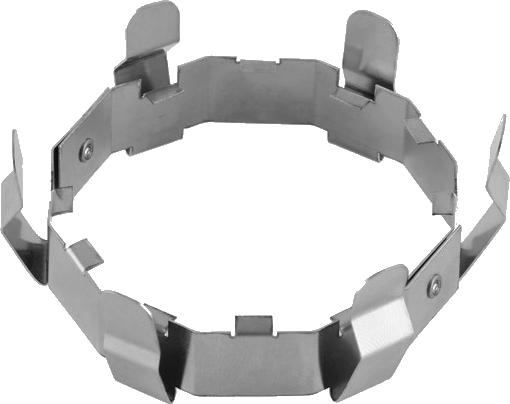

Mesh kit for seamless/trimless installation as per manufacturer’s instruction
UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ISO_LES_2057_FSH_HTL RevE page 12 of 147
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
• Easily achieve narrow spot to wide flood beam pattern
• Optional filters available upon request
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Driver:
ISO_LES_2057_FSH_HTL RevE page 13 of 147
Bevel / Flange Finish
3RFOWW - White Bevel / White Flange
3RFOBB - Black Bevel / Black Flange
3RFOHW - Haze Bevel / White Flange
3RFOBZBZ - Bronze Bevel / Bronze Flange
3RFOMTO - Made To Order
3RFOWWEM3- White Bevel / White Flange with E.M. Test Switch
3RFOMTOEM3 - Made To Order with E.M. Test Switch
PERFORMANCE CHART
* Values are listed at 3000K, 90+ CRI
NO SPEC
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
• Easily achieve narrow spot to wide flood beam pattern
• Optional filters available upon request
BLANK
Bevel / Flange Finish
3RFOWW - White Bevel / White Flange
3RFOBB - Black Bevel / Black Flange
3RFOHW - Haze Bevel / White Flange
3RFOBZBZ - Bronze Bevel / Bronze Flange
3RFOMTO - Made To Order
3RFOWWEM3- White Bevel / White Flange with E.M. Test Switch
3RFOMTOEM3 - Made To Order with E.M. Test Switch
PERFORMANCE CHART
* Values are listed at 3000K, 90+ CRI
NO SPEC
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
Mood Pro Adjustable Round Cone M - Trimless - Ø80mm
X.KP1DH.HQ12
+ 0.26017.0012 – Round curve plate IP54
+ 0.26033.0000 – Honeycomb louver
+ 0.26048.0000 – Antiglare accessory
+ 0.26075.005B – Filter 2700-2500K
+ D.30422.0000 – Driver DALI 2
Interior quality recessed adjustable downlight for trim installation on the beams using 3000K LED source and 32° degree beam. To be supplied with DALI dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry Areas
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED 1074lm, 3000K, CRI 90+
POWER: 14W, 1050mA, 120 to 277 Vac
CONTROL: DALI
FIXING METHOD:
COMMENTS:
ILLUSTRATION:
Mesh kit for seamless/trimless installation as per manufacturer’s instruction
UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ISO_LES_2057_FSH_HTL RevE page 16 of 147
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
Mood Pro Adjustable Round Cone M - Trimless - Ø80mm
X.KP1DE.HQ12
+ 0.26017.0012 – Round curve plate IP54
+ 0.26033.0000 – Honeycomb louver
+ 0.26048.0000 – Antiglare accessory
+ 0.26075.005B – Filter 2700-2500K
+ D.30422.0000 – Driver DALI 2
Interior quality recessed adjustable downlight for trim installation on the beams using 3000K LED source and 22°degree beam. To be supplied with DALI dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry Areas
FINISHES: White
DIMENSIONS: As shown
LAMP TYPE & REF: LED 1074lm, 3000K, CRI 90+
POWER: 14W, 1050mA, 120 to 277 Vac
CONTROL: DALI
FIXING METHOD:
COMMENTS:
ILLUSTRATION:
Mesh kit for seamless/trimless installation as per manufacturer’s instruction
UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ISO_LES_2057_FSH_HTL RevE page 18 of 147
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.

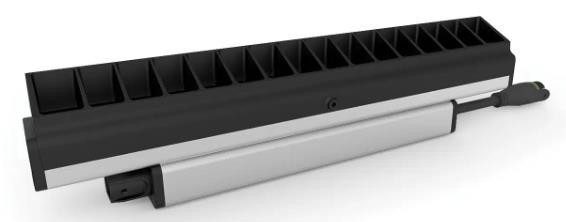

DESCRIPTION: Interior quality cell recessed luminaire using 2700K LED source and 15° beam. To be supplied with DALI dimmable driver, and all accessories for installation.
IP / LOCATION RATING Dry – IP20
FINISHES: Black
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 867 lm, 2700K, CRI 95
POWER: 13W, 24V
CONTROL: DALI
FIXING METHOD: Installation as per manufacturer’s instruction
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 20 of 147

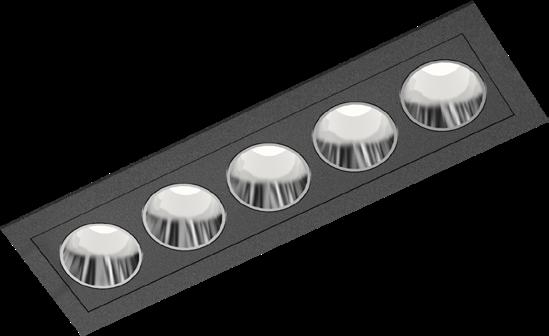

CHARLESTON
FUSION
Fixed Downlight

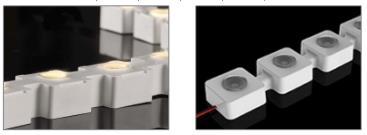

FUSION FIXED DOWNLIGHT
provides a low glare option for highlighting hallways, desks and other horizontal surfaces within commercial, hospitality and retail environments.
It is easy to install and blends into existing ceiling architecture seamlessly.
FEATURES
• Flangeless fixture installation provides a modern minimalist design concept
Mix and match with other FUSION light fixtures for even more design options
Wet location listing are avilable in 3 light, 5 light and 10 light fixture sizes
GOOD TO KNOW
• Flangeless installation available in 5 light and 10 light sizes

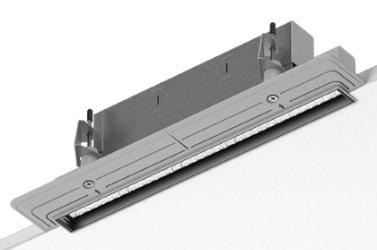

Produces a round beam pattern from a linear form factor fixture

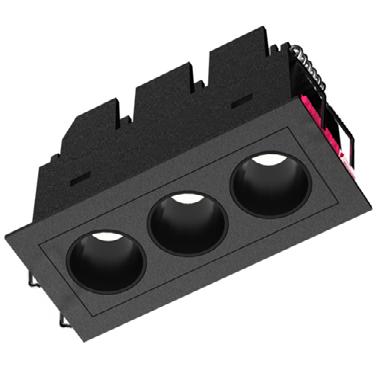

Small light apertures deliver “quiet ceiling” lighting with minimal glare.
SPECIFICATIONS
OPTICAL
MECHANICAL
Die cast fixture body
HOUSING

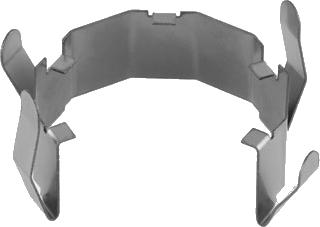

End mounted mouse trap style springs
• Available in self-flanged or flangeless trim versions
Install in ceilings between ½” and 1”
Available in matte black, matte white or custom finish
THERMAL
• Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
• New construction steel frame supplied with universal bar hangers and butterfly brackets
Bar hangers are adjustable from 13-1/4” to 24-1/2 Fixture and driver are serviceable from below the ceiling
COMPLIANCE
ETL listed for Damp locations Optional Wet location rated trim
Universal 120-277V, 50/60Hz, 0-10V or 120V, 60Hz Triac/ELV dimming driver available
• Drivers connect to LED modules using plenum rated, quick connect cable ELECTRICAL
5 Year limited parts warranty WARRRANTY
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Driver:
ISO_LES_2057_FSH_HTL RevE page 21 of 147
CHARLESTON TYPE H-D7 ALT
FUSION
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas

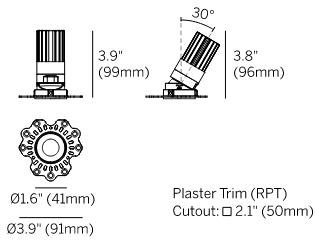

DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation for plaster ceilings using 2700K LED source and 20° degree beam. To be supplied with DALI dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry
FINISHES: To be confirm by interior designer
DIMENSIONS: As shown
LAMP TYPE & REF: LED 514 lm, 2700K, CRI 90+
POWER: 9W, 500mA, 120 to 277 Vac
CONTROL: DALI
FIXING METHOD: Mesh kit for seamless/trimless installation as per manufacturer’s instruction
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 22 of 147

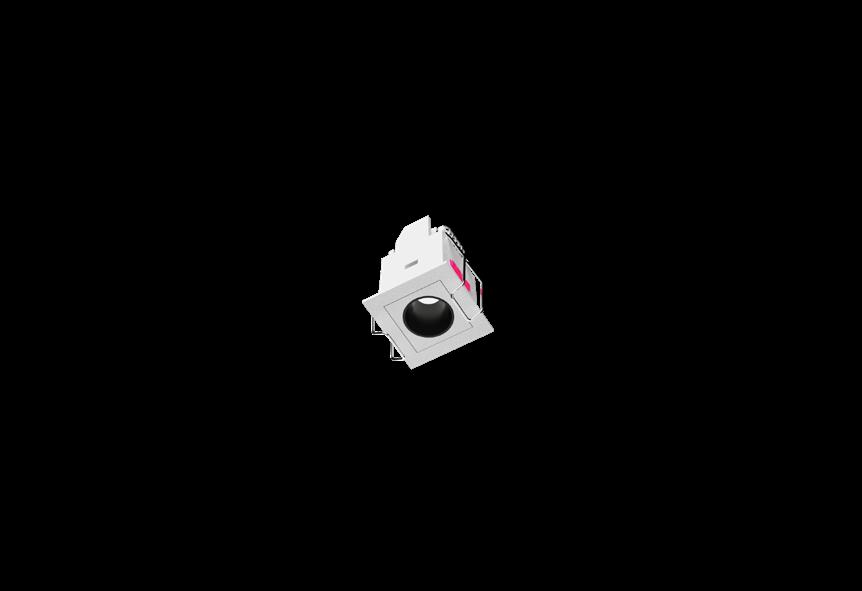

PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE

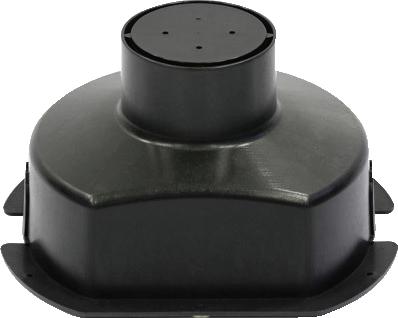

2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.

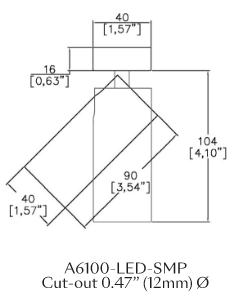

DESCRIPTION: Interior quality recessed adjustable downlight for trimless installation for plaster ceilings using 2700K LED source and 35° degree beam. To be supplied with DALI dimmable driver, honeycomb louvre and all accessories for installation.
IP / LOCATION RATING Dry
FINISHES: To be confirm by interior designer
DIMENSIONS: As shown
LAMP TYPE & REF: LED 599 lm, 2700K, CRI 90+
POWER: 9W, 500mA, 120 to 277 Vac
CONTROL: DALI
FIXING METHOD: Mesh kit for seamless/trimless installation as per manufacturer’s instruction
COMMENTS: UL listed. Circuited to dimming system. Integral electronic dimmable driver by manufacturer to be coordinated with control system prior ordering. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 24 of 147
PRODIGY
USE OF PRODUCT
Prodigy is an architectural fixture that is available in fixed, wall wash, or adjustable configurations. Meticulously engineered to offer an assortment of color temperatures, optics, filters, lumen outputs, and dimmable drivers. This series is suitable for residential and commercial applications in flange or flangeless appearance in an assortment of trim selections. May be utilized where fire-rating is required.
LED MODULE
Cree LEDs in static white or warm dim, in 90+ CRI, with 2-step binning which allows for color consistency between fixtures. Module may be interchangeable from downlight, wall wash, or adjustable by utilization of appropriate module holder. Module is accessible from below the ceiling.
ALIGNMENT/ADJUSTABILITY
- Collar notch allows for easy alignment between trims.
- Square collar provides mechanism to adjust +/- 5° before and after dry wall installation.
- Adjustable module may rotate 359° (horizontally) and tilt 35° (vertically), both positions may be locked.
- Adjustable module has dial indicator to determine tilt.
OPTICS AND FILTERS
Optical lens available in 18°, 25°, 30°, 40°, 50° and 80°. Easily achieve narrow spot to wide flood beam pattern. Optional frosted, honeycomb, or solite filter available upon request. Optics and filters are field-replaceable and are accessible from below the ceiling.
*Detailed performance chart may be found on page 2
DIMMING
Intelligent Drive (ID) is the standard, all-inclusive driver which is Triac (120V), ELV (120V), and 0–10V (120V–277V). Optional driver selections include eldoLED. All drivers are accessible from below the ceiling.
THERMAL MANAGEMENT
Ambient temperature at fixture location should not exceed -20°C to 40°C.
TRIM
Die-cast trims are available in an assortment of finishes in round/square, flange/flangeless. Consult factory for made-to-order finishes. Flanged trim is compatible with all ceiling materials. Flangeless available for plaster ceilings. Frosted acrylic diffuser on trim is standard and allows it to meet wet location applications. Acrylic diffuser may be removed in the field. Wing bracket on trim accommodates for varying ceiling depths.
EMERGENCY BATTERY
Optional 4-watt emergency battery (E.M.) provides light for a minimum of 90 minutes. E.M. back box is required and is installed by factory. Ceiling access is necessary to service the E.M. unit. E.M. test switch is remote. E.M. is UL924 certified, CEC Title 20 approved, and provides sufficient lumens to comply with NFPA 101 safety code.
Delivered Lumens GENERAL PERFORMANCE CHART
Initial Lumens
* Values are listed at 3000K, 90+ CRI with trim. Delivered lumens range based on beam spread. Performance may vary +/- 5%
MOUNTING
Universal bar hanger (U.H.) is designed to mount to wood (two positions) and T-bar ceilings. U.H. may be adjusted vertically to accommodate varying ceiling depths.
NOTE
2-hour fire-rated ceiling assembly can be maintained when installed according to the International Building Code, Section 714. Metallic outlet boxes with metallic or non-metallic cover plates may be used in floor-ceiling and roof-ceiling assemblies with ratings not exceeding 2 hours. These assemblies should have gypsum board membranes. The metallic outlet boxes should be securely fastened to the joists and the opening in the gypsum board facing should be cut so that the clearance between the box and the gypsum board does not exceed 1/8". The surface area of individual boxes should not exceed 16 square inches. The aggregate surface area of the boxes should not exceed 100 square inches per 100 square feet of ceiling surface.
+ Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
Interior quality 2700K warm white side bend neon type LED mounted into flexible aluminium profile. To be supplied with all connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING Dry
FINISHES: n/a
DIMENSIONS: As shown - final installation length to be confirmed by contractor.
LAMP TYPE & REF: LED 2700K, 168 lm/ft, CRI 90+
POWER: 24V, 4W/ft
CONTROL: DALI
FIXING METHOD: Surface mounted within joinery
COMMENTS: UL listed. Circuited to dimming system. Non dimmable driver and dimming unit by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 26 of 147

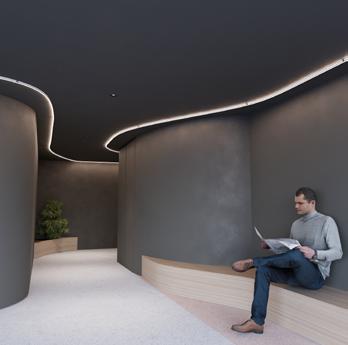

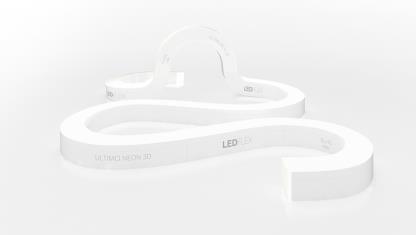

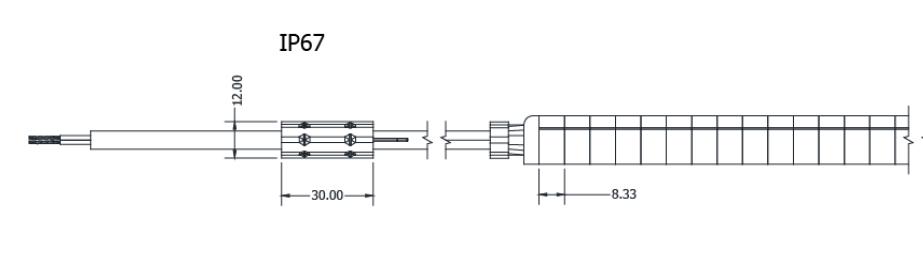

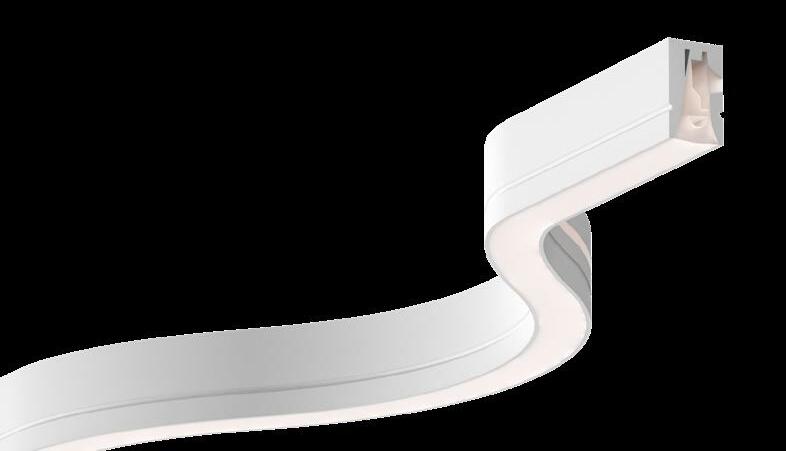

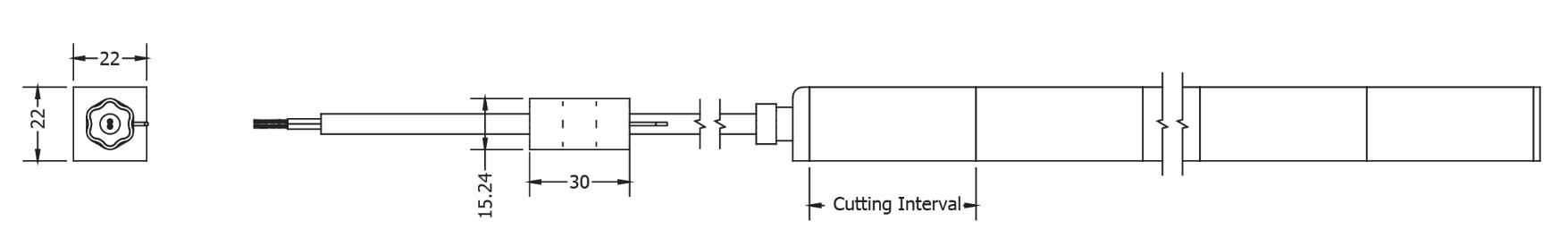

SIDE FLEX NEON FLEX SERIES
PRODUCT DATA SHEET

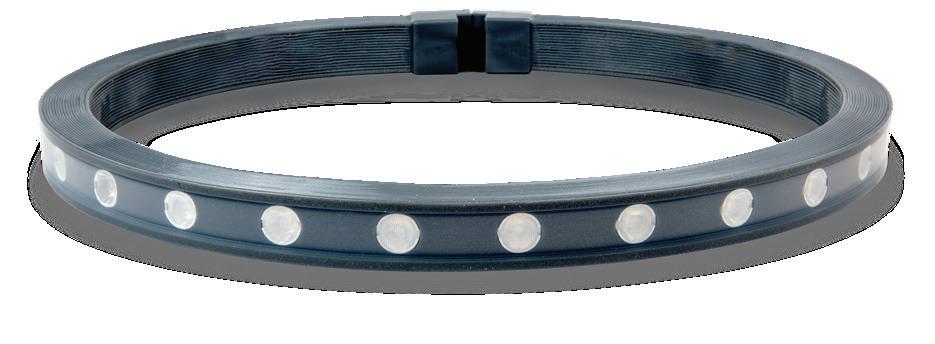

The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas

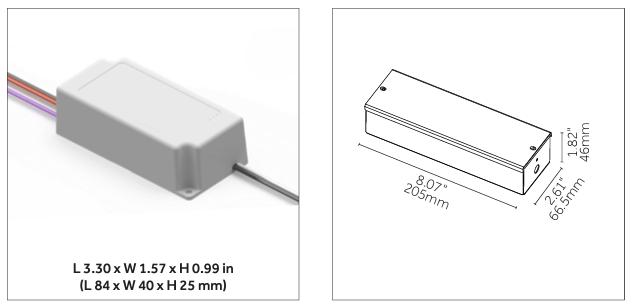

Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 27 of 147
CHARLESTON TYPE H-L1 ALT
secondary light source
AB - Back feed, side A AS1 - Side feed, side A1 AS2 - Side feed, side A2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BNO - No feed, closed end cap
AB - Back feed, side A
AS1 - Side feed, side A1
AS2 - Side feed, side A2
ANO - No feed, closed end cap
LENGTH
Custom length by lumen package, in.:
LP1 max. 360"
LP2 max. 316"
TW1 max. 276"
LP3 / WD1 / WD3 / RGB1 max. 209"
LP4 / TW2 / RGB2 max. 158" LHP max. 131"
- 2700K
- 3.0 W/ft
- Non-dimming DC plug-in 30 - 3000K
- 4.4 W/ft
- DMX
- ELV dimming 120V AC
dim-Bluetooth 120 VAC 35 - 3500K
- Casambi CBU-TED-CV-Trail
53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only)
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
- Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K - 4.4 W/ft NO - No driver NO - No controller RGB AND TUNABLE WHITE
TW1 - Tun. White - 3.5 W/ft
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft NO - No driver
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L2
LOCATION: Ceiling coves -Throughout
SUPPLIER: LEDFLEX
https://ledflexgroup.com/

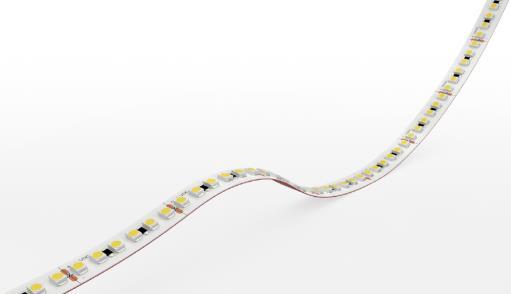

REFERENCE: Lumen Line 240 2700K - LL240-27-0015
+ 021-0402 Pro Profile
+ 022-0105 Opal Diffuser
+ 021-0213 Metal clip
+ End caps

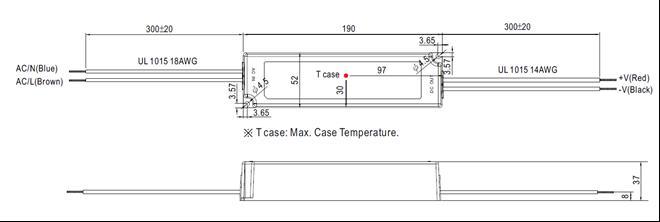

+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
DESCRIPTION: Interior quality linear using warm white, 2700K LED lamps mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING IP20
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 93, 799 lm/ft
POWER: 7.3W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in millworks
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 28 of 147

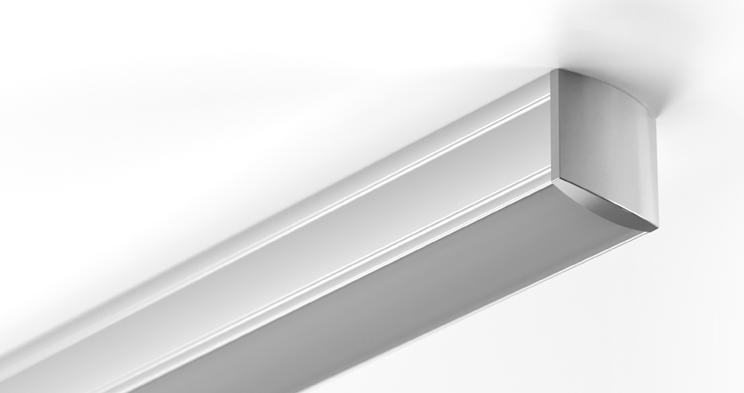

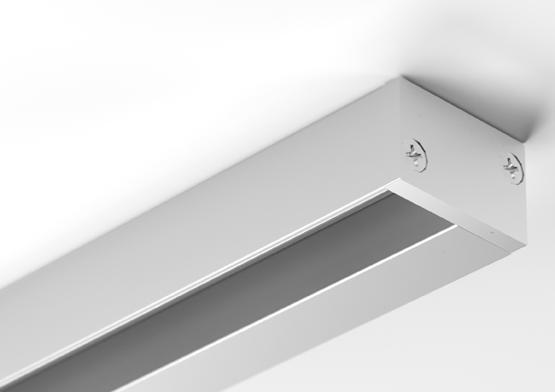

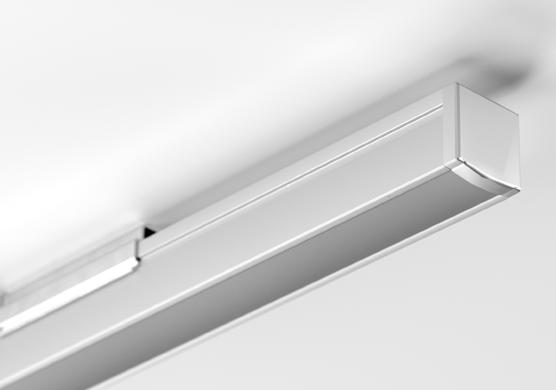

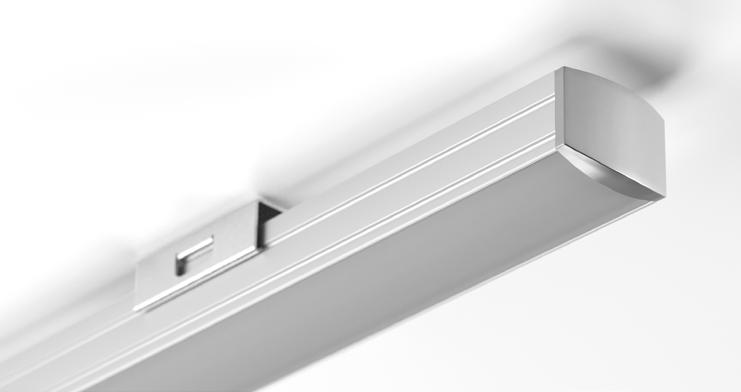

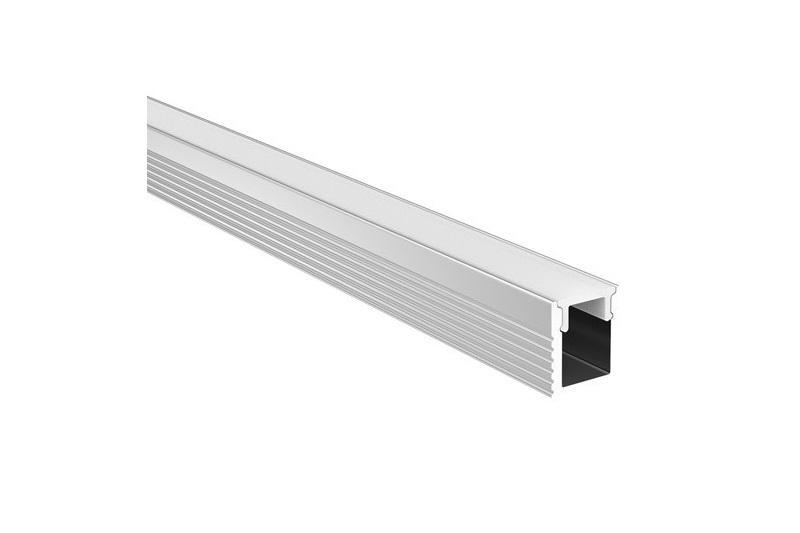

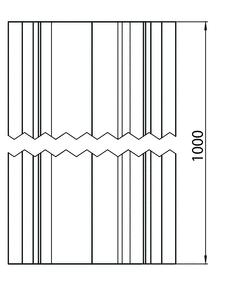

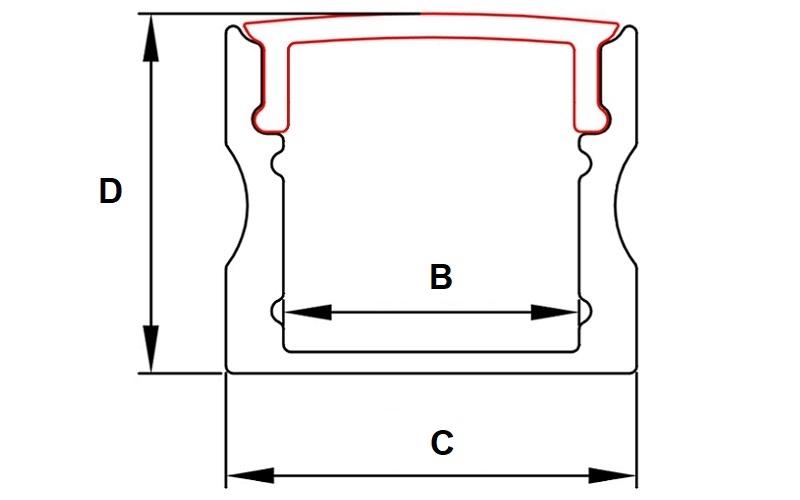

SERIES PRUDENS

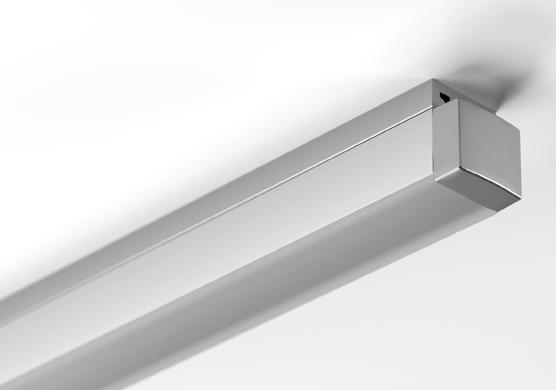

Aluminum profile for surface or suspended mounting
With its modern look and multiple color and finish options, this series combines style and versatility. It offers several power, lenses and assembly options thus allowing you to create the decors and atmospheres you desire. Promoting better heat dissipation, this series will provide you with uniform and uncompromising lighting for many years to come.
FEATURES
Surfacemountorsuspended
Modernlook

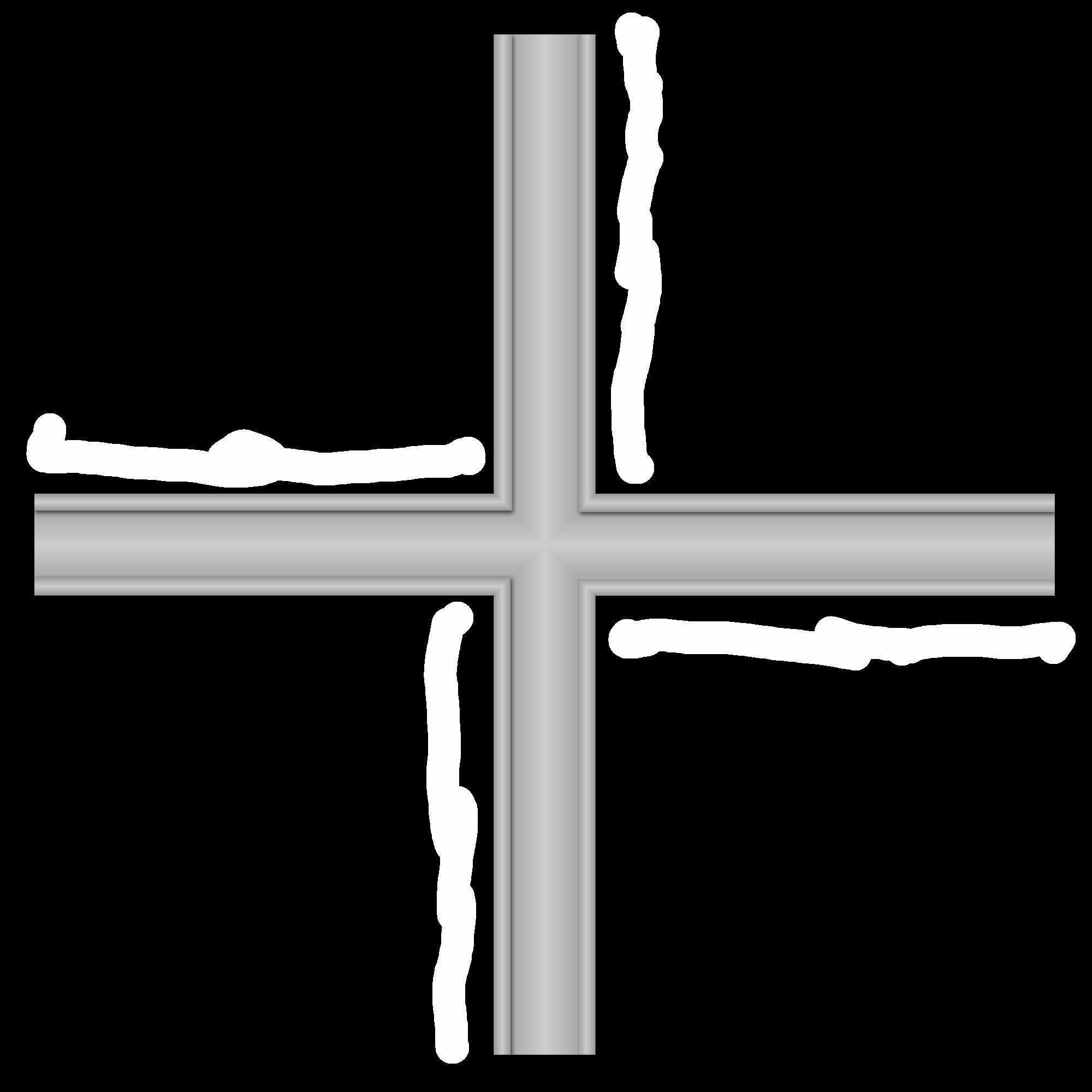

Canbecuttoyourneeds
Allowscontinuousjointmounting
Directorindirectlighting
Widechoiceoflens
Widechoiceofcolorsandfinishes
ClearAnodizedAluminum6063T5
APPLICATION
Regular(allpurpose)

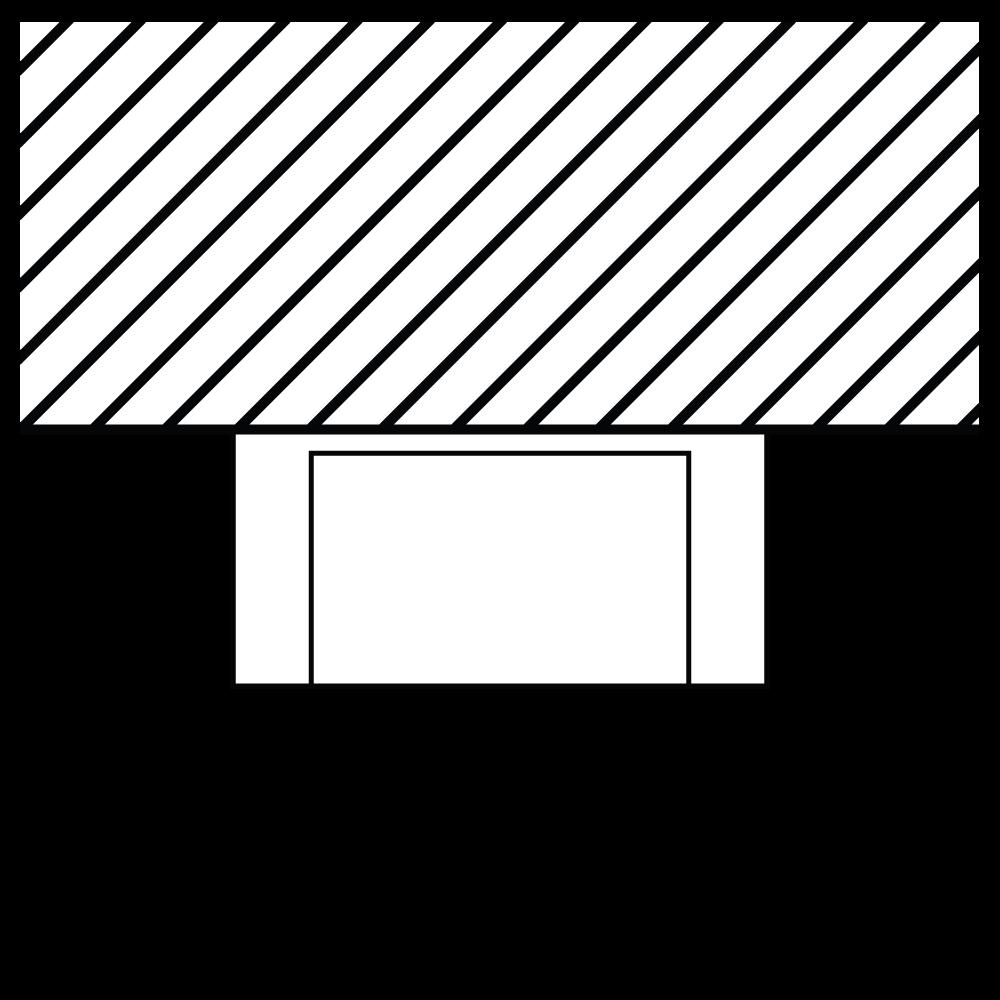

MOUNTING
Surfacemount
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 29 of 147
GRADATION
Type
Notdimmable
DimmableTriac Dimmable0-10Volt
DIFFUSER
TypeLightdiffuseAngle

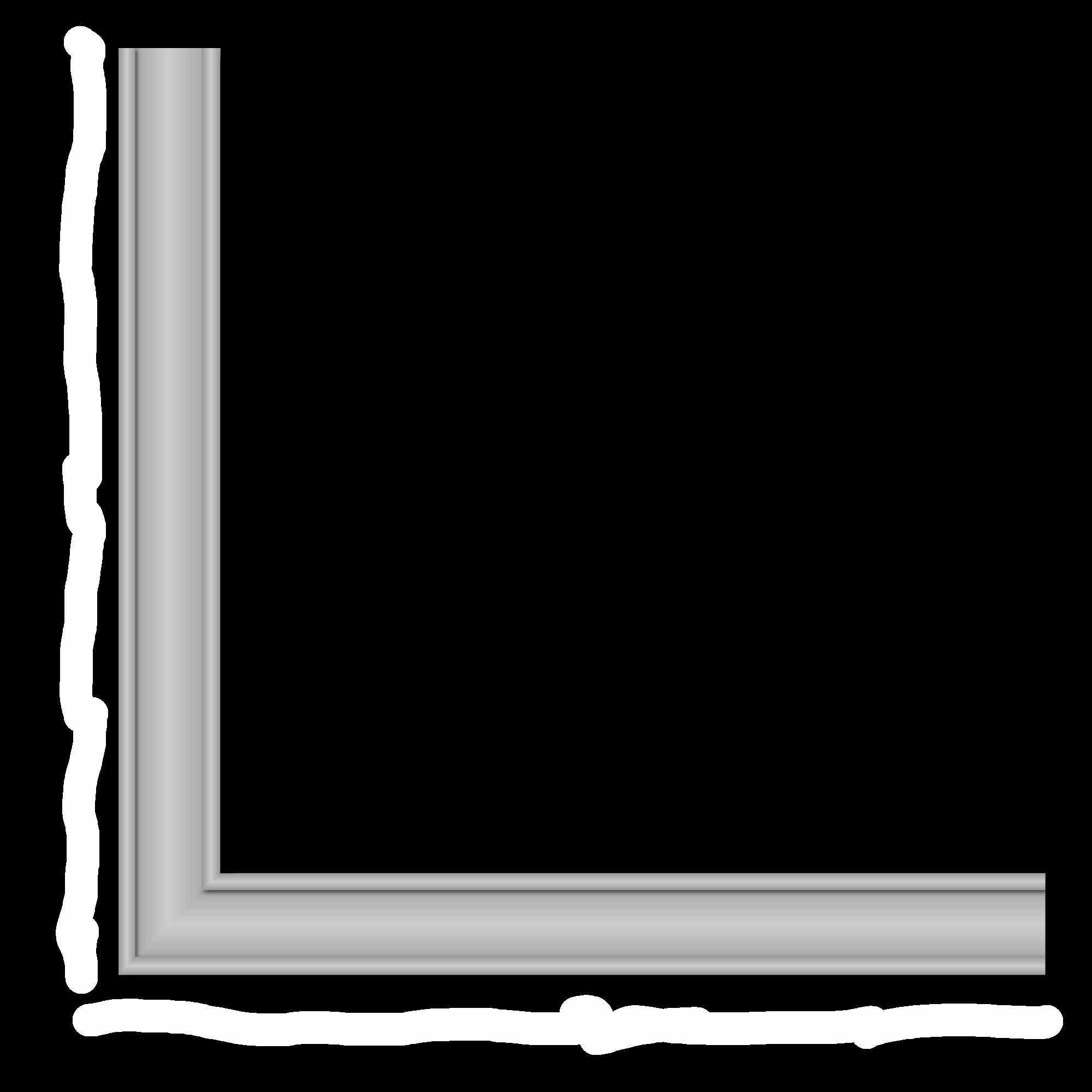

SHAPE LUMINAIRE COLOR
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L3a
LOCATION:
Joinery - Throughout Dry Areas
SUPPLIER: LEDFLEX
https://ledflexgroup.com/

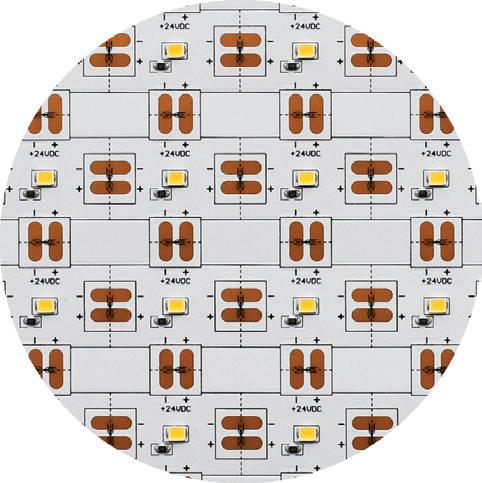

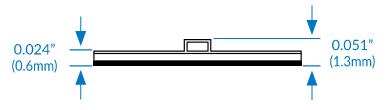

REFERENCE: NANO FLEX 240 2300K - NF240-23-2004
+ 021-7309-02 Pro Profile
+ 022-1169-02 Opal Diffuser
+ 021-7309-12 Metal clip
+ End caps
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
DESCRIPTION:

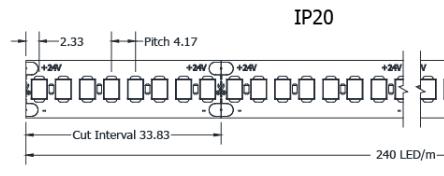

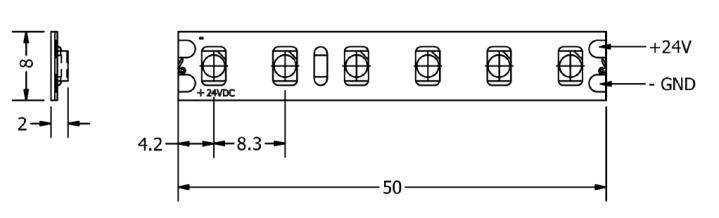

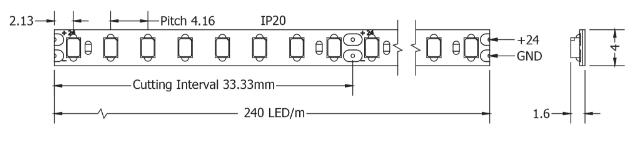

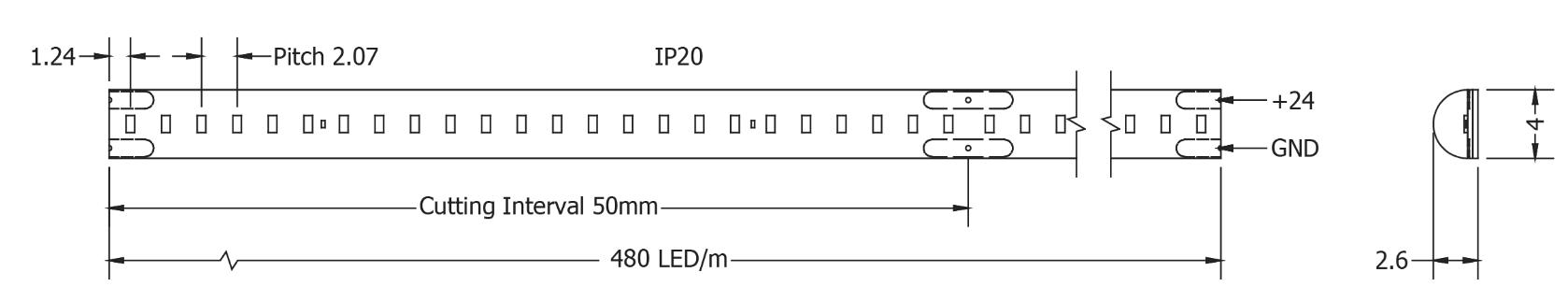

Interior quality nano linear using warm white, 2300K LED tape mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING IP20
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2300K LED, CRI 90, 173 lm/ft
POWER: 1.6W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in millworks
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 30 of 147

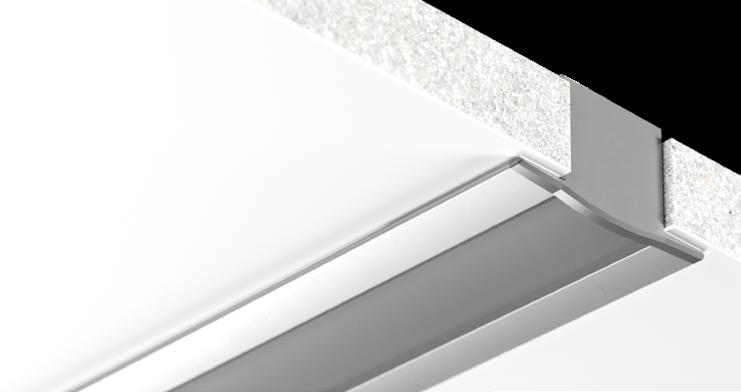

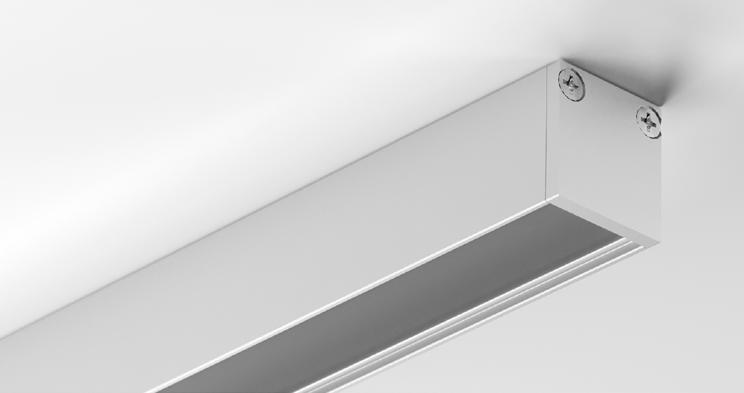

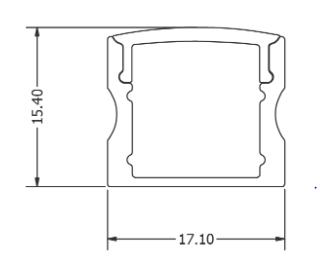

SERIES MURMURATI

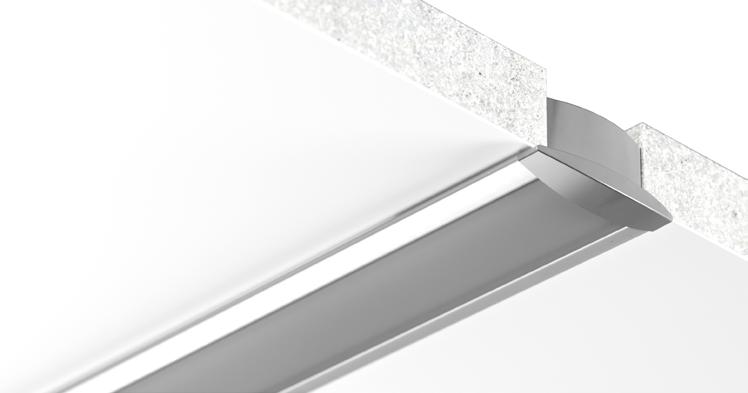

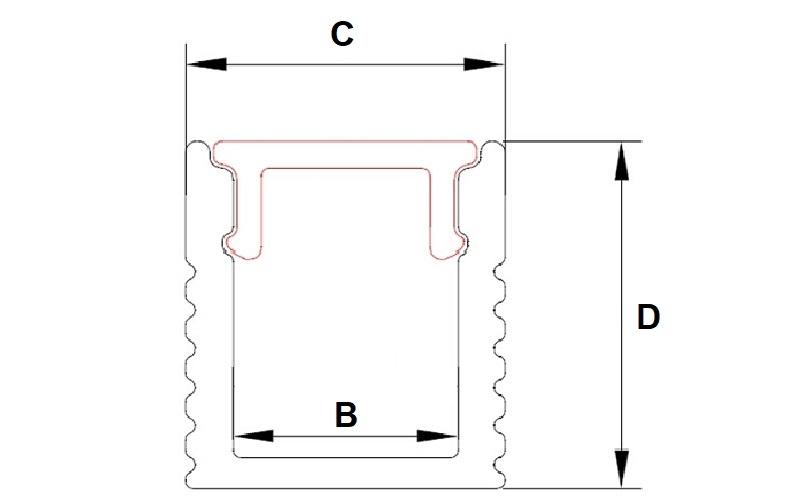

Trimless aluminum profile for surface or recessed mounting
This narrow trimless U-shaped profile series is designed to be either surface or recessed mounted depending on your needs. Discreet, it will perfectly integrate to your decor. It offers several power, lenses and assembly options allowing you to let your creativity run free. Promoting better heat dissipation despite being embedded, this series will offer you uncompromising lighting for many years to come. Description
FEATURES
Surfaceorrecessed
Trimless
Canbecuttoyourneeds
Allowscontinuousjointmounting

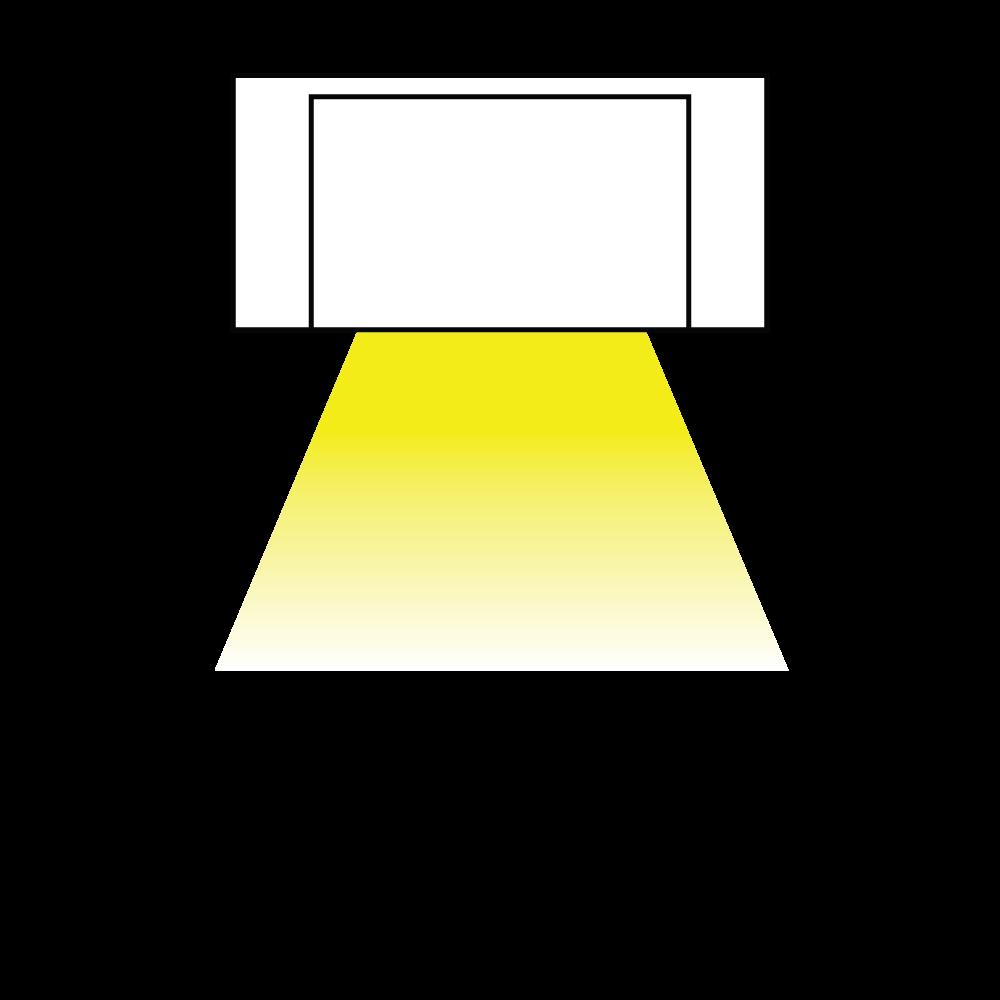

Directorindirectlighting
Widechoiceoflens
Widechoiceofcolorsandfinishes
ClearAnodizedAluminum6063T5
APPLICATION
Regular(allpurpose)
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 31 of 147
GRADATION
Type
Notdimmable DimmableTriac Dimmable0-10Volt

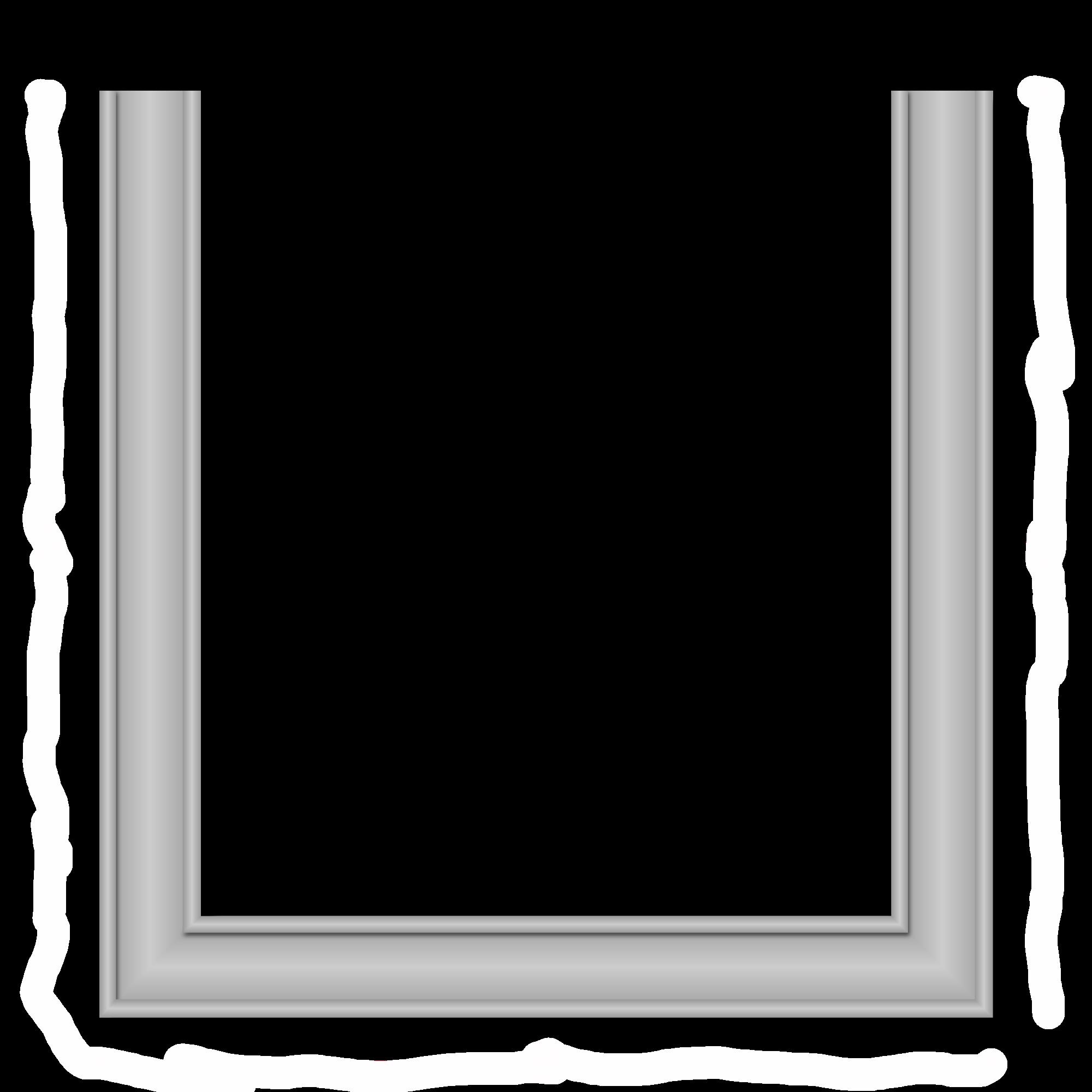

SHAPE
DIFFUSER
TypeLightdiffuseAngle
Frost 78% 120°
LUMINAIRE COLOR
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L3b
LOCATION:
Joinery - Throughout Damp Areas
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE: NANO FLEX 240 2300K - NF240-23-5404
+ 021-7309-02 Pro Profile
+ 022-1169-02 Opal Diffuser
+ 021-7309-12 Metal clip
+ End caps
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
DESCRIPTION: Interior quality nano linear using warm white, 2300K LED tape mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING IP54 (Damp)
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2300K LED, CRI 90, 173 lm/ft
POWER: 1.6W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in millworks
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 32 of 147
SERIES MURMURATI

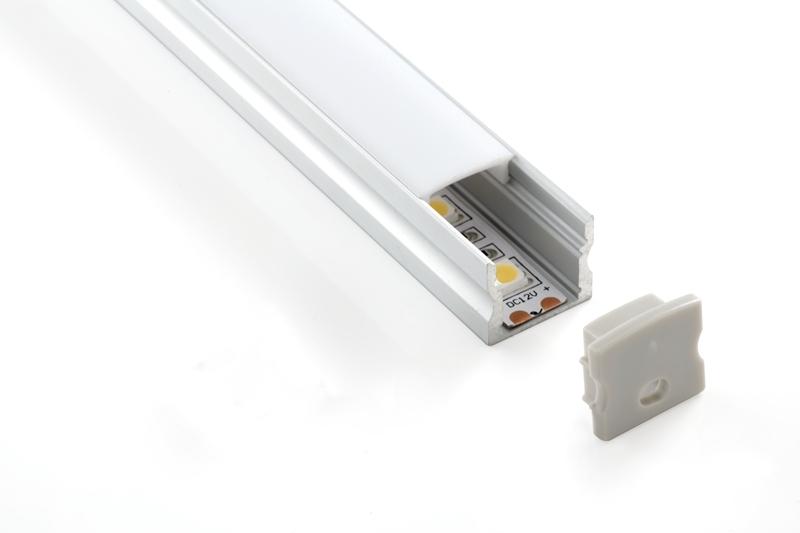

Trimless aluminum profile for surface or recessed mounting
This narrow trimless U-shaped profile series is designed to be either surface or recessed mounted depending on your needs. Discreet, it will perfectly integrate to your decor. It offers several power, lenses and assembly options allowing you to let your creativity run free. Promoting better heat dissipation despite being embedded, this series will offer you uncompromising lighting for many years to come. Description
FEATURES
Surfaceorrecessed
Trimless
Canbecuttoyourneeds
Allowscontinuousjointmounting
Directorindirectlighting
Widechoiceoflens
Widechoiceofcolorsandfinishes
ClearAnodizedAluminum6063T5
APPLICATION
Regular(allpurpose)
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 33 of 147
GRADATION
Type
Notdimmable DimmableTriac Dimmable0-10Volt
SHAPE
DIFFUSER
TypeLightdiffuseAngle
Frost 78% 120°
LUMINAIRE COLOR
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L3c
LOCATION: Joinery – Enclosed shelf
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE: NANO FLEX 240 2700K - NF240-27-2004
+ 021-7309-02 Pro Profile + 022-1169-02 Opal Diffuser + 021-7309-12 Metal clip
+ End caps + Non Dimmable Driver: Meanwell LPV-100-24
DESCRIPTION: Interior quality nano linear using warm white, 2700K LED tape mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING IP20
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90, 173 lm/ft
POWER: 1.6W/ft – 24V
CONTROL: DJS
FIXING METHOD: Fixing in millworks
COMMENTS:
UL/ETL listed. Remote electronic switching driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 34 of 147
SERIES MURMURATI
Trimless aluminum profile for surface or recessed mounting
This narrow trimless U-shaped profile series is designed to be either surface or recessed mounted depending on your needs. Discreet, it will perfectly integrate to your decor. It offers several power, lenses and assembly options allowing you to let your creativity run free. Promoting better heat dissipation despite being embedded, this series will offer you uncompromising lighting for many years to come. Description
FEATURES
Surfaceorrecessed
Trimless
Canbecuttoyourneeds
Allowscontinuousjointmounting
Directorindirectlighting
Widechoiceoflens
Widechoiceofcolorsandfinishes
ClearAnodizedAluminum6063T5
APPLICATION
Regular(allpurpose)
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
ISO_LES_2057_FSH_HTL RevE page 35 of 147 Non Dimmable Driver:
GRADATION
Type
Notdimmable DimmableTriac Dimmable0-10Volt
SHAPE
DIFFUSER
TypeLightdiffuseAngle
Frost 78% 120°
LUMINAIRE COLOR
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L3d
LOCATION:
Joinery - Throughout Dry Areas
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE: NANO FLEX 240 2700K - NF240-27-2004
+ 021-7309-02 Pro Profile
+ 022-1169-02 Opal Diffuser
+ 021-7309-12 Metal clip
+ End caps
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
DESCRIPTION:
Interior quality nano linear using warm white, 2700K LED tape mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING IP20
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90, 173 lm/ft
POWER: 1.6W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in millworks
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 36 of 147
SERIES MURMURATI
Trimless aluminum profile for surface or recessed mounting
This narrow trimless U-shaped profile series is designed to be either surface or recessed mounted depending on your needs. Discreet, it will perfectly integrate to your decor. It offers several power, lenses and assembly options allowing you to let your creativity run free. Promoting better heat dissipation despite being embedded, this series will offer you uncompromising lighting for many years to come. Description
FEATURES
Surfaceorrecessed
Trimless
Canbecuttoyourneeds
Allowscontinuousjointmounting
Directorindirectlighting
Widechoiceoflens
Widechoiceofcolorsandfinishes
ClearAnodizedAluminum6063T5
APPLICATION
Regular(allpurpose)
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 37 of 147
GRADATION
Type
Notdimmable DimmableTriac Dimmable0-10Volt
SHAPE
DIFFUSER
TypeLightdiffuseAngle
Frost 78% 120°
LUMINAIRE COLOR
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L4
LOCATION: 1F Reception lobby
SUPPLIER: Vexica
https://vexica.tech/

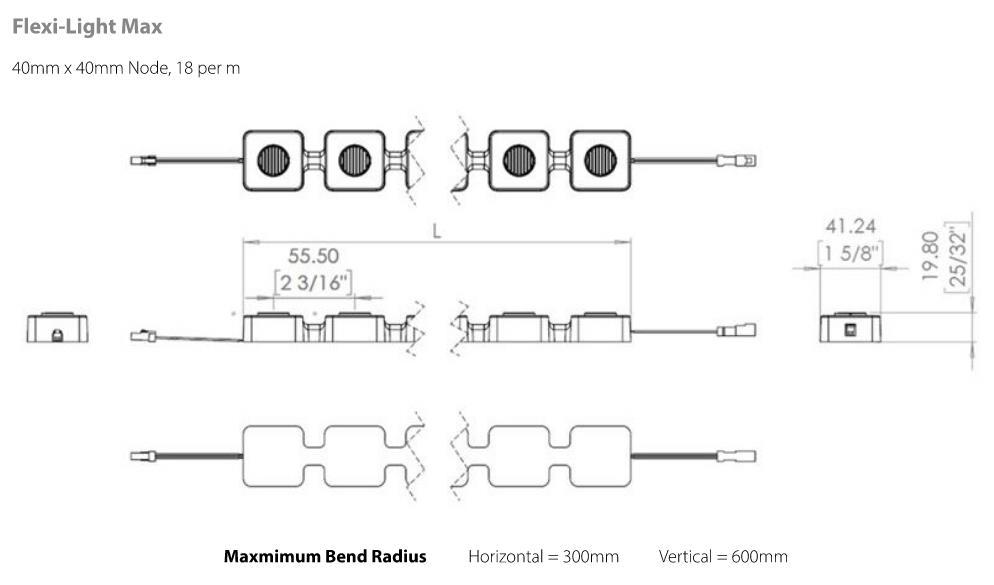

REFERENCE: Flexi-Light Max custom TW 2200K-4000K VEX-FLEXI-LIGHT-DIF-2200-4000K-XXXX-24W-IP67-DIF + Mounting accessories + DALI dimmable driver as per manufacturer.
DESCRIPTION:
Exterior quality 3D bendable flexible linear light module string using custom turnable white from 2200K to 4000K LED module. Diffuse lens cover. To be supplied with any connectors / fixing accessories required for installation. Requires remote DALI dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING Dry
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2200K to 4000K LED, CRI 90, 800 lm/ft
POWER: 8W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing cove details
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 38 of 147
CHARLESTON
PROJECT: TYPE: QUANTITY:
18K, 22K, 27K, 3K, 35K, 4K, 65K, 27K+65K RGB, RGBW, RGBDMX, DIM TO WARM
Tested to UL & CSA by Intertek For Use in USA & CANADA.
TO WARM + DMX
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
ISO_LES_2057_FSH_HTL RevE page 39 of 147
CHARLESTON
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L5
LOCATION: 1F Reception lobby
SUPPLIER: Vexica
https://vexica.tech/
REFERENCE:
Flexi-Light Max custom TW 2200K-4000K
VEX-FLEXI-LIGHT-TIR-2200-4000K-XXXX-24W-IP67-47x14 + Mounting accessories + DALI dimmable driver as per manufacturer.
DESCRIPTION: Exterior quality 3D bendable flexible linear light module string using custom turnable white from 2200K to 4000K LED module. 47x14° beam lens. To be supplied with any connectors / fixing accessories required for installation. Requires remote DALI dimmable driver for smooth dimming down to 0% by manufacturer
IP / LOCATION RATING Dry
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2200K to 4000K LED, CRI 90, 800 lm/ft
POWER: 8W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing cove details
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL
CHARLESTON
PROJECT: TYPE:
QUANTITY:
18K, 22K, 27K, 3K, 35K, 4K, 65K, 27K+65K RGB, RGBW, RGBDMX, DIM TO WARM
Tested to UL & CSA by Intertek For Use in USA & CANADA.
DIM TO WARM + DMX CUSTOM RGB + RGBW DMX
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
ISO_LES_2057_FSH_HTL RevE page 41 of 147
CHARLESTON
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE: H-L6
LOCATION: 1F Bar lounge
MANUFACTURER / SUPPLIER:
PRODUCT REFERENCE:
Vexica https://vexica.tech/
VEX-FLEXI-MINILINE-TW-15W-IP67-DIF
+ Mounting accessories + DALI dimmable driver
DESCRIPTION: Interior quality 2500K-4500K turnable white LED tape. It is to be supplied with all connectors / fixing accessories required for installation, remote nondimmable driver, and DALI dimming unit.
IP / LOCATION RATING Dry
FINISHES: n/a
DIMENSIONS:
As shown - final installation length to be confirmed by contractor.
LAMP TYPE & REF: LED 2500K-4500K, 325 lm/ft, CRI 80+
POWER: 24V, 5W/ft,
CONTROL: DALI
FIXING METHOD: Surface mounted as per manufacturer instructions.
COMMENTS: UL listed. Circuited to dimming system. Non dimmable driver and dimming unit by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
LED tape + Aluminium channel:
ISO_LES_2057_FSH_HTL
SIDE FLEX NEON FLEX SERIES
PRODUCT DATA SHEET
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 43 of 147
CHARLESTON TYPE H-L6 ALT
secondary light source
AB - Back feed, side A AS1 - Side feed, side A1 AS2 - Side feed, side A2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BNO - No feed, closed end cap
AB - Back feed, side A
AS1 - Side feed, side A1
AS2 - Side feed, side A2
ANO - No feed, closed end cap
LENGTH
Custom length by lumen package, in.:
LP1 max. 360"
LP2 max. 316"
TW1 max. 276"
LP3 / WD1 / WD3 / RGB1 max. 209"
LP4 / TW2 / RGB2 max. 158" LHP max. 131"
- 2700K
- 3.0 W/ft
- Non-dimming DC plug-in 30 - 3000K
- 4.4 W/ft
- 4200K
- ELV dimming 120V AC
- Casambi CBU-TED-CV-Trail
- 7.0 W/ft 53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only)
- Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K - 4.4 W/ft NO - No driver
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
- No controller RGB AND TUNABLE WHITE
TW1 - Tun. White - 3.5 W/ft
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
+Dimming module: Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
DESCRIPTION: Interior quality 2400K warm white side bend neon type LED mounted into flexible aluminium profile. To be supplied with all connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING Dry
FINISHES: n/a
DIMENSIONS: As shown - final installation length to be confirmed by contractor.
LAMP TYPE & REF: LED 2400K, 147 lm/ft, CRI 90+
POWER: 24V, 4W/ft
CONTROL: DALI
FIXING METHOD: Surface mounted within joinery
COMMENTS: UL listed. Circuited to dimming system. Non dimmable driver and dimming unit by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer and electrical contractor.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 44 of 147
SIDE FLEX NEON FLEX SERIES
PRODUCT DATA SHEET
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 45 of 147
CHARLESTON TYPE H-L7 ALT
secondary light source
AB - Back feed, side A AS1 - Side feed, side A1 AS2 - Side feed, side A2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BNO - No feed, closed end cap
AB - Back feed, side A
AS1 - Side feed, side A1
AS2 - Side feed, side A2
ANO - No feed, closed end cap
LENGTH
Custom length by lumen package, in.:
LP1 max. 360"
LP2 max. 316"
TW1 max. 276"
LP3 / WD1 / WD3 / RGB1 max. 209"
LP4 / TW2 / RGB2 max. 158" LHP max. 131"
- 2700K
- 3.0 W/ft
- Non-dimming DC plug-in 30 - 3000K
- 4.4 W/ft
- ELV dimming 120V AC
- Casambi CBU-TED-CV-Trail
dim-Bluetooth 120 VAC 35 - 3500K
- 4200K
- ELV dimming 120/277 VAC (Only available in 96W - 24V driver)
- 7.0 W/ft 53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only)
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
- Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K - 4.4 W/ft NO - No driver NO - No controller RGB AND TUNABLE WHITE
TW1 - Tun. White - 3.5 W/ft
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft NO - No driver
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L8
LOCATION: Spa Ceiling coves
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE: Lumen Line 240 2300K - LL240-23-2024
+ 021-0402 Pro Profile + 022-0105 Opal Diffuser
+ 021-0213 Metal clip
+ End caps
+ Non Dimmable Driver: Meanwell LPV-100-24
+ Dimming module: Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
DESCRIPTION:
Interior quality linear using warm white, 2300K LED lamps mounted into aluminum profile with opal diffuser and end caps. To be supplied with any connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING IP20
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2300K LED, CRI 98, 799 lm/ft
POWER: 7.3W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in ceiling cove
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 46 of 147
SERIES PRUDENS
Aluminum profile for surface or suspended mounting
With its modern look and multiple color and finish options, this series combines style and versatility. It offers several power, lenses and assembly options thus allowing you to create the decors and atmospheres you desire. Promoting better heat dissipation, this series will provide you with uniform and uncompromising lighting for many years to come.
FEATURES
Surfacemountorsuspended
Modernlook
Canbecuttoyourneeds
Allowscontinuousjointmounting
Directorindirectlighting
Widechoiceoflens
Widechoiceofcolorsandfinishes
ClearAnodizedAluminum6063T5
APPLICATION
Regular(allpurpose)
MOUNTING
Surfacemount
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 47 of 147
GRADATION
Type
Notdimmable
DimmableTriac Dimmable0-10Volt
DIFFUSER
TypeLightdiffuseAngle
SHAPE LUMINAIRE COLOR
NO SPEC
SIDE FLEX NEON FLEX SERIES
PRODUCT DATA SHEET
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
BLANK
CHARLESTON TYPE H-L11 ALT
secondary light source
AB - Back feed, side A AS1 - Side feed, side A1 AS2 - Side feed, side A2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BNO - No feed, closed end cap
AB - Back feed, side A
AS1 - Side feed, side A1
AS2 - Side feed, side A2
ANO - No feed, closed end cap
LENGTH
Custom length by lumen package, in.:
LP1 max. 360"
LP2 max. 316"
TW1 max. 276"
LP3 / WD1 / WD3 / RGB1 max. 209"
LP4 / TW2 / RGB2 max. 158" LHP max. 131"
- 2700K
- 3.0 W/ft
- Non-dimming DC plug-in 30 - 3000K
- 4.4 W/ft
- 4200K
- ELV dimming 120V AC
- DMX
- Casambi CBU-TED-CV-Trail
- 7.0 W/ft 53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only)
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
- Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K - 4.4 W/ft NO - No driver NO - No controller RGB AND TUNABLE WHITE
TW1 - Tun. White - 3.5 W/ft
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L12
LOCATION: L1 Courtyard Lounge
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE: Nano Line 480 2700K - NL480-27-2009 + VHB tape + Non Dimmable Driver: Meanwell LPV-100-24 + Dimming module: Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
DESCRIPTION: Interior quality linear using warm white, 2700K LED lamps mounted into joinery detail with VHB tape. To be supplied with any connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING IP20
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90+, 242 lm/ft
POWER: 2.9W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in joinery detail
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 56 of 147

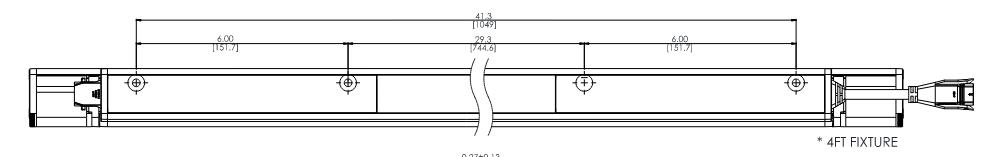

WHEN A SMOOTH LINE OF LIGHT ELEVATES DESIGN FREEDOM… CHARLESTON
ADVANCED SOFT-WHITE LED TECHNOLOGY
Introducing the Linear Light-emitting Surface (LLES) technology behind NEAT™. Unlike common COB (chip-on-board) strips displaying uneven yellow/blue tinges, LLES features a white/clear silicone optical element that produces continuous, diffuse all-white light. As a result, the NEAT™ lighting platform is a versatile, streamlined, high efficacy soft white luminous building material that fits in well practically anywhere. With its clean appearance, 1/4" cut and uniquely appealing white-light signature, NEAT™ delivers new lighting opportunities for lighting designers and architects, including new levels of customized integration and surface installation into structures.
PRODUCT FEATURES
• Patent-pending technology
• Sof t, uniform, continuous all-white light
• LLES (Linear Light-emitting surface) remains white at all times, blends in with surroundings when light is turned off
• Diffuse effect produced by exclusive white/clear silicone optical element and precision-binned LEDs
• Can be dimmed to 0.1% (dimming below 50% may result in slight pixelation)
DR10 - Prime lens DO14†† - Opal lens 1450 Series DR14†† -
DS10††† - SiLens, silicone
DNO - No lens
† Optics not recommended for direct view applications
†† Optics compatible only with the 1450 channel (CA145x)
††† Optics not compatible with the 1450 channel (CA145x)
AIM - Indoor damp locations 10-11 LENGTH*
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WPE - Pass-through, end feed
WPB - Pass-through, back feed
Length of the luminaire in inches.
*Includes end caps, excludes flanges (when applicable). length no flange flange
PND - Non-dimmable
P010 - 0-10V dimming
PELV - ELV/MLV dimming
P5i1 - 5 in 1 dimming
PDAL - DALI2
PNO - No power supply
* See the last page for the list of compatible power supplies
BLANK
CHARLESTON TYPE H-L12 ALT
3 MOUNTING
0 - Anodized aluminum finish
- Painted white finish
- Custom color provide RAL #
7 APPLICATION
AIM - Indoor damp locations
8 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
MC11* - Flat surface bracket
MI1S** - Spring bracket
MNO - No mounting
* Mounting hardware compatible only with the 1300 channel (CA13x)
** Mounting hardware compatible only with the 1500 channel (CA15x)
9 INPUT / OUTPUT
WSB - Simple lead-in, back feed
WPB - Pass-through, back feed
DC10† - Clear lens
DO10 - Opal lens
DR10 - Prime lens
DS10 - SiLens, silicone
DNO - No lens
† Optics not recommended for direct view applications
10-11 LENGTH*
Length of the luminaire in inches.
*Includes end caps, excludes flanges (when applicable). length no flange flange
12 POWER SUPPLY TYPE*
PND - Non-dimmable
P010 - 0-10V dimming
PELV - ELV/MLV dimming
P5i1 - 5 in 1 dimming
PDAL - DALI2
PNO - No power supply
* See the last page for the list of compatible power supplies
BLANK
CHARLESTON TYPE H-L12 ALT
Notes:
All 4000 series profiles are not compatible with strip-to-strip connectors, strip-to-wire connectors and jumpers. 4250 and 4260 series can be used without optics for higher light output
1 CHANNEL
CA425* - 4250
CA426* - 4260
CA44** - 4400
CA445***† - 4450
7 APPLICATION
AIM - Indoor damp locations
2 FINISH
0 - Anodized aluminum finish X - Custom color provide RAL #
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L13
LOCATION: L1 Courtyard Lounge
SUPPLIER: LEDFLEX
https://ledflexgroup.com/
REFERENCE:
ULTIMO NEON 22 2700K SV - UN22-SV-SL-27-16
+Mounting accessories
+Non Dimmable Driver: Meanwell LPV-100-24
+Dimming module: Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
DESCRIPTION: Interior quality 2700K warm white side bend neon type LED mounted into flexible aluminium profile. To be supplied with all connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING Dry
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90+, 313 lm/ft
POWER: 5.5W/ft – 24V
CONTROL: DALI
FIXING METHOD: Fixing in ceiling cove
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 58 of 147
SIDE FLEX NEON FLEX SERIES
PRODUCT DATA SHEET
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 59 of 147
CHARLESTON TYPE H-L13 ALT
- 3000K
- 4200K
- 4.4 W/ft
secondary light source
AB - Back feed, side A AS1 - Side feed, side A1 AS2 - Side feed, side A2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BNO - No feed, closed end cap
AB - Back feed, side A
AS1 - Side feed, side A1
AS2 - Side feed, side A2
ANO - No feed, closed end cap
LENGTH
Custom length by lumen package, in.:
LP1 max. 360"
LP2 max. 316"
TW1 max. 276"
LP3 / WD1 / WD3 / RGB1 max. 209"
LP4 / TW2 / RGB2 max. 158" LHP max. 131"
- Non-dimming DC plug-in
- ELV dimming 120V AC
- Casambi CBU-TED-CV-Trail
- 7.0 W/ft 53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only)
- Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K - 4.4 W/ft NO - No driver
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
- No controller RGB AND TUNABLE WHITE
TW1 - Tun. White - 3.5 W/ft
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE H-L14
LOCATION: L1 Courtyard Lounge
SUPPLIER: Filix
https://www.filixlighting.com/
REFERENCE: Zero G Inground linear uplight – Graze optic
ZQ-XX-H-27-GR-24
+ Installation housing and any mounting accessories
+ End cap
+ Non Dimmable Driver: Meanwell LPV-100-24
+Dimming module: Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
DESCRIPTION: Exterior quality 2700K warm white inground recessed linear light 10 x 50 grazer optics. To be supplied with all connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit. Module length required subject to site measurement and confirmation with lighting designer. Maximum 50mm gap between fixtures for continuous lighting effect.
IP / LOCATION RATING IP67
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: 2700K LED, CRI 90+, 220 lm/ft
POWER: 12W/ft – 24V
CONTROL: DALI
FIXING METHOD: Inground recessed
COMMENTS: UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
Concrete ceiling and concrete wall with back box, stand alone installation. Ground recessed with back box, stand alone or continuous row installation. Ground recessed installation must have 8" gravel below the luminaire to allow proper drainage.
Integral high efficiency LED driver, rated at 50 000 hours. 6AMP, 120V/277V. Supplied with cables and connectors between modules and 6.5' (2000mm) feed cable for 6.3' and more continuous row compositions.
0-10V dimming (120-277V), down to 1% or DMX-RDM control (120-277V).
Temperature of operation: -22°F to 122°F (-30°C to 50°C)
Glass surface temperature: 104°F (40°C) maximum.
Load capacity:
Finish:
Maximum static load 4409lb (2000kg). Suitable for vehicules with tires. Not suitable for street lanes with horizontal stresses from acceleration, braking or change of direction.
Black (RAL9005), Gray (RAL9007), Rust Brown (RAL8017), and White (RAL9016) painted with a high level of weather and UV resistance. The semi-gloss finish coating is electrostatically applied durable acrylic enamel baked at high temperatures for superior color retentive finish. We provide RAL numbers that are similar, but we cannot guarantee an exact color match. For a more accurate color and gloss match, please contact customer service for a sample chip.
Weight: 2.2lb/ft (1.37kg/ft)
Warranty: 5 year limited warranty.
Ratings: IP67, IK10
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
ISO_LES_2057_FSH_HTL RevE page 61 of 147
CHARLESTON

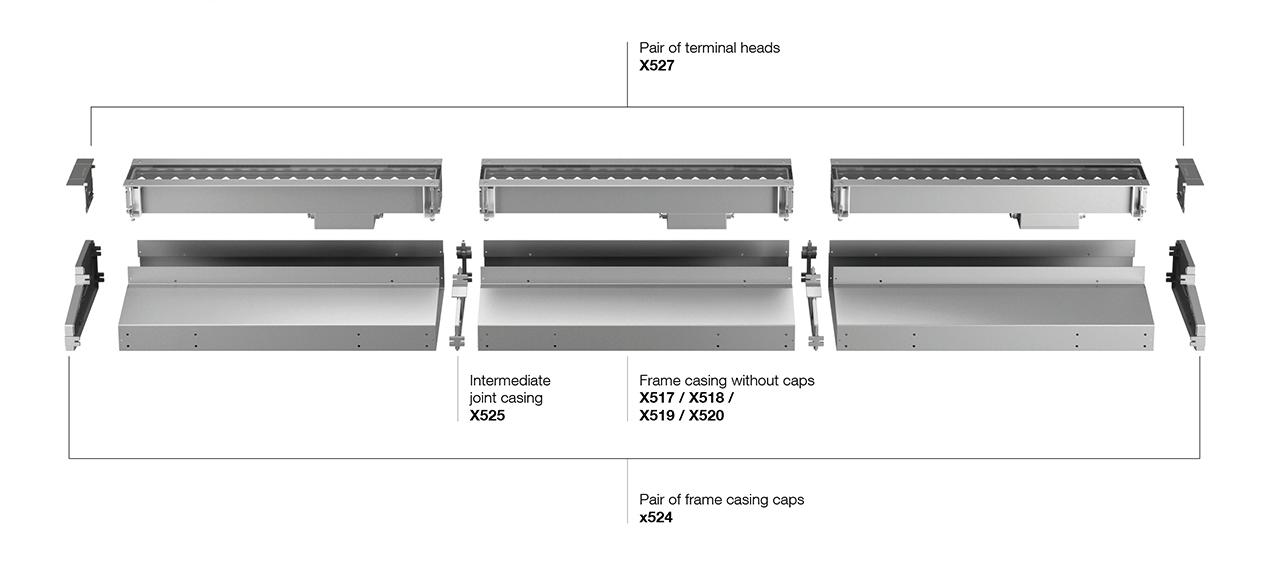

Linealuce 47 Recessed - Integral
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 62 of 147
BLANK
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
+Dimming module: Dimming module: EldoLED Linear Driver 210D: LIN210D1-LIN
DESCRIPTION: Interior quality 2200K-4000K warm white side bend neon type LED mounted into flexible aluminium profile. To be supplied with all connectors / fixing accessories required for installation. Remote non dimmable transformer and DALI dimming unit.
IP / LOCATION RATING IP68
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 63 of 147
SIDE FLEX NEON FLEX SERIES
PRODUCT DATA SHEET
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
Non Dimmable Driver:
Dimming module:
Dimensions: 153x50x23mm
ISO_LES_2057_FSH_HTL RevE page 64 of 147
CHARLESTON TYPE H-L15 ALT
- 3000K
- 4200K
- 4.4 W/ft
secondary light source
AB - Back feed, side A AS1 - Side feed, side A1 AS2 - Side feed, side A2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BNO - No feed, closed end cap
AB - Back feed, side A
AS1 - Side feed, side A1
AS2 - Side feed, side A2
ANO - No feed, closed end cap
LENGTH
Custom length by lumen package, in.:
LP1 max. 360"
LP2 max. 316"
TW1 max. 276"
LP3 / WD1 / WD3 / RGB1 max. 209"
LP4 / TW2 / RGB2 max. 158" LHP max. 131"
- Non-dimming DC plug-in
- ELV dimming 120V AC
- Casambi CBU-TED-CV-Trail
- 7.0 W/ft 53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only)
- Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K - 4.4 W/ft NO - No driver
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
- No controller RGB AND TUNABLE WHITE
TW1 - Tun. White - 3.5 W/ft
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas

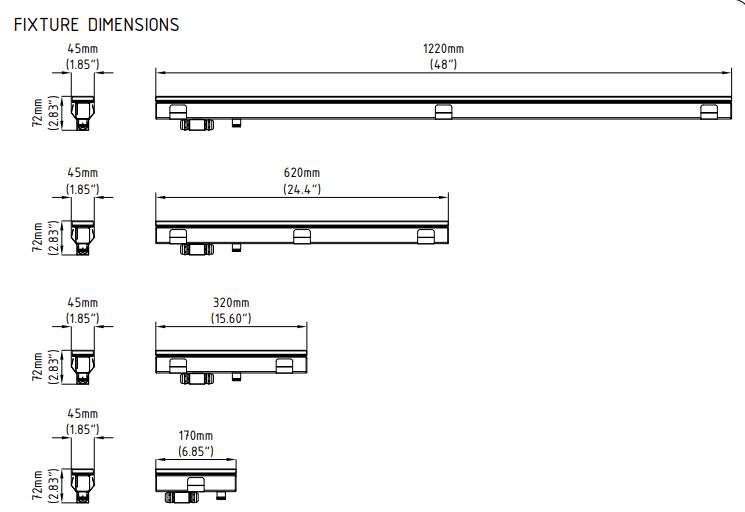

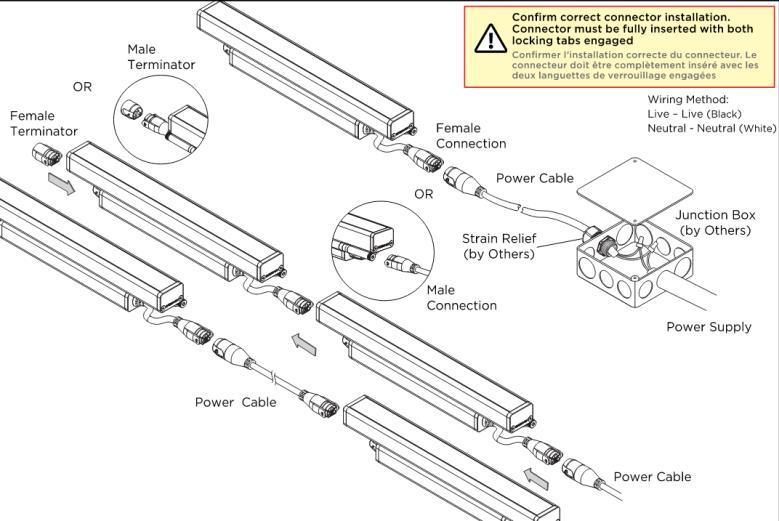

L50-I-48”-08-27-90-MULT-9x17 (1.2ft) and L50-I-12”-08-27-90-MULT-9x17 (1ft) To match required overall length +Terminator +Asymmetric Louver
DESCRIPTION: Interior quality linear grazer complete with 2700K warm white colour. Oval beam angle 9° x 17°. With integrated driver. High colour rendering 90+.
IP / LOCATION RATING IP66
FINISHES: N/A
DIMENSIONS: As Shown – final installation length to be confirmed by contractor.
LAMP TYPE & REF: LED, 864 Lumens/ft, 2700K, CRI 90+,
POWER: 8W/ft – 120V
CONTROL: Phase (Reverse phase)
FIXING METHOD: Fixing in ceiling light trough
COMMENTS:
UL/ETL listed. Circuited to dimming system. Remote electronic dimmable driver by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ISO_LES_2057_FSH_HTL RevE page 65 of 147

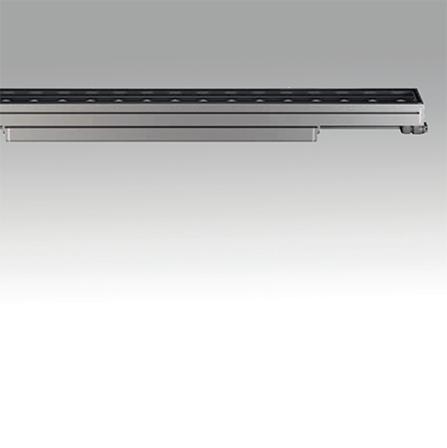

Linealuce 47 Surface - Remote
High efficiency linear system for exterior applications. Patented optic Opti Beam linear delivers superior performance with 8 distributions, symmetric, asymmetric grazer and elliptical distributions. Integral honeycomb, longitudinal and transversal louver for improved visual comfort.
Design: Jean-Michel Wilmotte
Luminaire characteristic:
Power input: 4W/ft, 7W/ft or 12W/ft
Lumens: Up to 1010lm/ft (for 3000K, 80CRI)
Luminaire efficacy: Up to 117lm/W
Source: White LED (LM-80), 2700K, 3000K, 4000K: 80CRI.
Lumen maintenance: 100 000 hours L80 for maximum wattage.

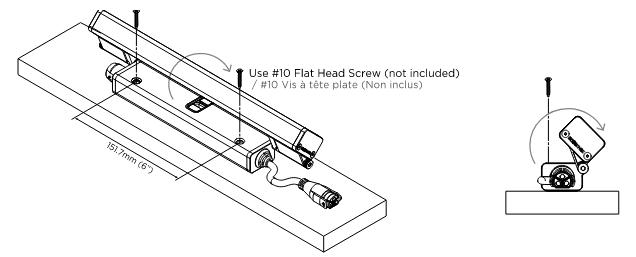

Universal Surface mounting, using mounting accessories (included). Supplied with 6.5' (2000mm) long cable (page 6).
48Vdc nominal voltage (44 to 52Vdc).
Down to 1%, 0-10V dimming (120-277V) or down to 0%, DMX RDM (120-277V) (page 2).
Temperature of operation: -22°F to 113°F (-30°C to 45°C)
Glass surface temperature: 104°F (40°C) maximum.
Finish:
Gray painted (RAL9007) with a high level of weather and UV resistance. The semi-gloss finish coating is electrostatically applied, durable acrylic enamel baked at high temperatures for superior color retentive finish.
Weight: 1.9lb/ft (0.86kg/ft)
Warranty: 5 year limited warranty.
Ratings: IP66, IK05
Certification: cULus listed for wet location
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
ISO_LES_2057_FSH_HTL RevE page 66 of 147
CHARLESTON
Linealuce 47 Surface - Remote
(1) To specify longer lengths, multiple product code must be used. See page 7 for example.
(2) Not compatible with internal accessories (A3, A4, A5).
(3) Ground spike with 3⅞" adjustable arms (G4) not compatible with external accessories (A1, A2). (4) Available for surface (M) mounting. ILM47 - - - - - REM
NO SPEC
SIDE FLEX NEON FLEX SERIES
PRODUCT DATA SHEET
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
BLANK
CHARLESTON TYPE H-L17 A
- 3000K
- 4200K
- 4.4 W/ft
secondary light source
AB - Back feed, side A AS1 - Side feed, side A1 AS2 - Side feed, side A2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BNO - No feed, closed end cap
AB - Back feed, side A
AS1 - Side feed, side A1
AS2 - Side feed, side A2
ANO - No feed, closed end cap
LENGTH
Custom length by lumen package, in.:
LP1 max. 360"
LP2 max. 316"
TW1 max. 276"
LP3 / WD1 / WD3 / RGB1 max. 209"
LP4 / TW2 / RGB2 max. 158" LHP max. 131"
- Non-dimming DC plug-in
- ELV dimming 120V AC
- Casambi CBU-TED-CV-Trail
- 7.0 W/ft 53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only)
- Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K - 4.4 W/ft NO - No driver
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
- No controller RGB AND TUNABLE WHITE
TW1 - Tun. White - 3.5 W/ft
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
NO SPEC
SIDE FLEX NEON FLEX SERIES
PRODUCT DATA SHEET
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Choose from 5 lumen packages and 7 color temperatures. Designed to illuminate downward along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
PRODUCT FEATURES
Flexible sleeve bends side to side on the horizontal axis
Silicone material, resistant to yellowing and high temperature
Uniform light without spots
*Maximum length up to 30 feet with a 1.5w/ft LED. (See table for all max lengths)
Minimum inner bend radius 90mm (3.54in)
Available in static white, warm dimming, tunable white, and RGB
Includes mounting brackets of extruded anodized aluminum and screws (1 set every 6 inches)
Suitable for indoor use in dry and damp locations
BLANK
CHARLESTON TYPE
- 3000K
- 4200K
- 4.4 W/ft
secondary light source
AB - Back feed, side A AS1 - Side feed, side A1 AS2 - Side feed, side A2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BB - Back feed, side B
BS1 - Side feed, side B1
BS2 - Side feed, side B2
BNO - No feed, closed end cap
AB - Back feed, side A
AS1 - Side feed, side A1
AS2 - Side feed, side A2
ANO - No feed, closed end cap
LENGTH
Custom length by lumen package, in.:
LP1 max. 360"
LP2 max. 316"
TW1 max. 276"
LP3 / WD1 / WD3 / RGB1 max. 209"
LP4 / TW2 / RGB2 max. 158" LHP max. 131"
- Non-dimming DC plug-in
- ELV dimming 120V AC
- Casambi CBU-TED-CV-Trail
- 7.0 W/ft 53 - 5300K (LHP only) D - 0/10V dimming 120/277 VAC I - Casambi CBU-A2D-0/10V-DALIBluetooth 100/277 VAC
62 - 6200K (LP only)
- Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K - 4.4 W/ft NO - No driver
WD1 - 2200-2900K - 4.4 W/ft Lumen Package selection is not available for WD color options.
- No controller RGB AND TUNABLE WHITE
TW1 - Tun. White - 3.5 W/ft
TW2 - Tun. White - 5.8 W/ft E - Non-dimming DC plug-in J - Casambi CBU-PWM4-4CHBluetooth 100/277VAC
RGB1 - RGB - 4.4 W/ft
RGB2 - RGB - 5.8 W/ft
RGBW2 - 3000K 4in1 - 4.4 W/ft
- No driver
N/A - Not available with TW and RGB options I - Indoor dry and damp location A - Non-dimming F - DMX
- No controller
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE: H-LP1
LOCATION: 1F Reception lobby
MANUFACTURER / SUPPLIER: TBC TBC
PRODUCT REFERENCE: TBC
DESCRIPTION: Turnable white illuminated sky light
IP / LOCATION RATING Dry Location
FINISHES: -
DIMENSIONS: TBC
LAMP TYPE & REF: LED
POWER: TBC
CONTROL: DMX
FIXING METHOD: TBC
COMMENTS:
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 67 of 147
NO QUOTE, BY FURNITURE
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas

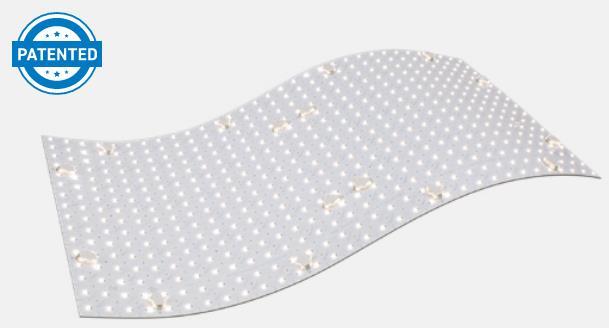

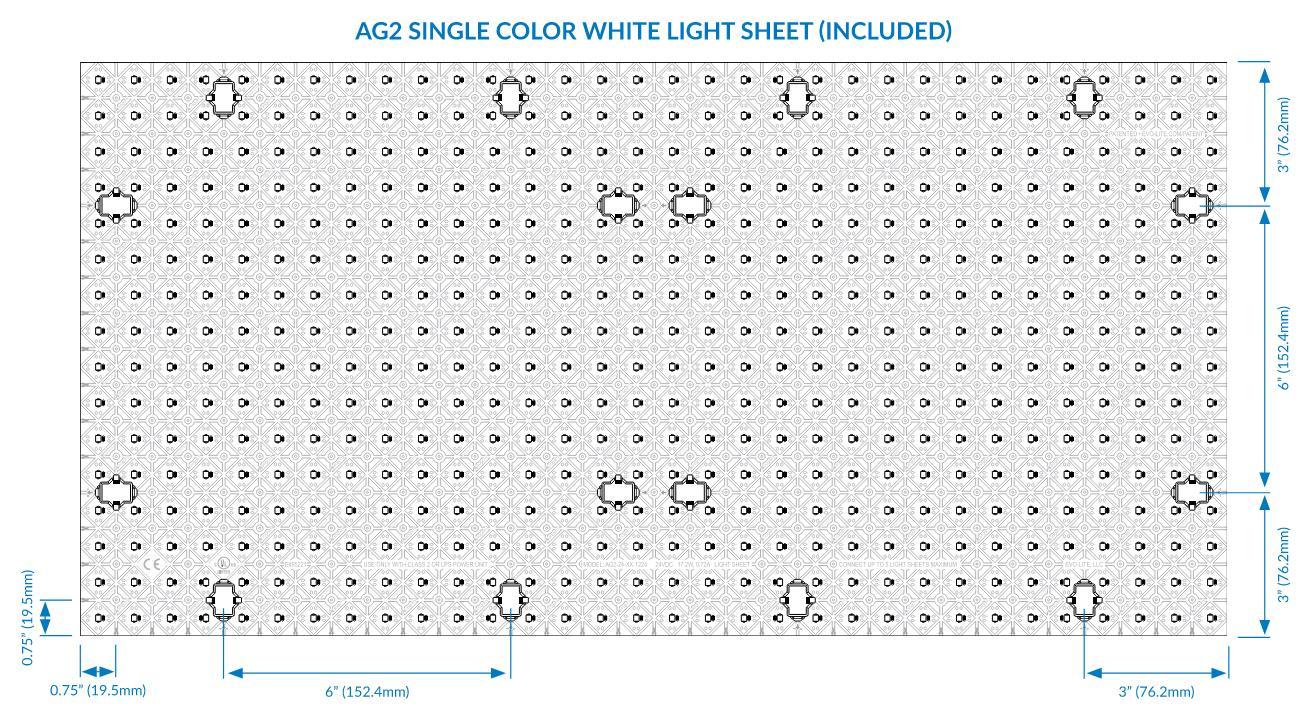

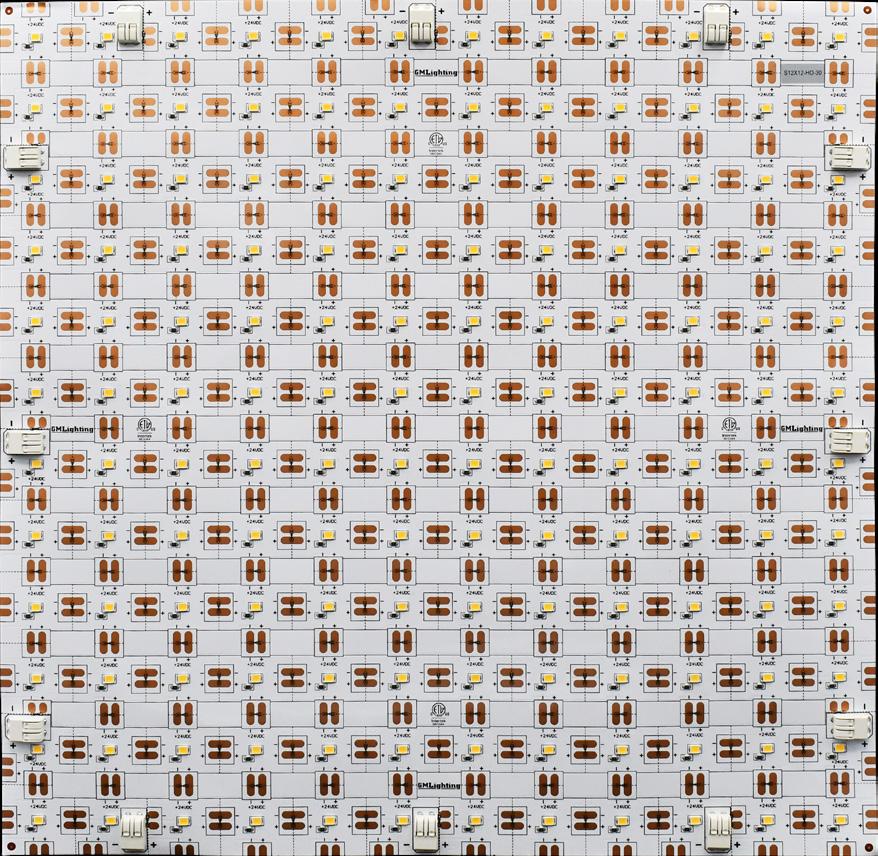

PRODUCT REFERENCE: Auragami Gen2 AG2-24-27-1224 (Colour temp to be confirmed by mock up)
+ 24V Remote DALI dimmable driver– TBC by manufacturer

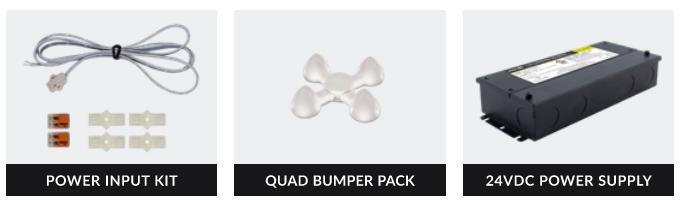

+ Power input kit

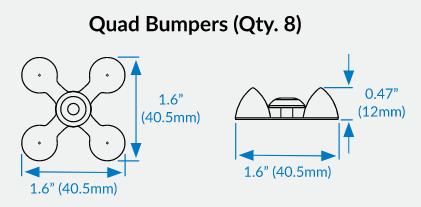

+ Quad bumper pack + 030 Perspex diffuser
DESCRIPTION: Interior quality single white flexible LED sheet in (2700K)
IP / LOCATION RATING Dry Location
FINISHES: -
DIMENSIONS:
12” x 24” per sheet, field cuttable. Required sheet quantity and size to be confirmed and cut to match bar top layout by contractor.
LAMP TYPE & REF: LED, (2700K – CRI92)
POWER: 8.6 W/ft2 24V
CONTROL: DALI
FIXING METHOD: Surface mounted within millwork as per manufacturer instruction
COMMENTS:
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 68 of 147
Lamina
24VDC Configural Laminated Sheet
PRODUCT OVERVIEW
Lamina is a 24VDC flexible light sheet that can be cut in the field into geometric or irregular shapes, creating limitless illumination for signage, light panels, retail display, back lighting and themed lighting applications. Easy installation with no heat sink required. Standard 12” x 12” sheets make it easy to plan your layout and install (see next page).
FEATURES
• Flexible - conforms to curvilinear shapes like round columns
• Dimmable
• 12” x 12” with 48” leads and sheet to sheet connectors
• 1/8” depth
• Connectible via integral push-in connectors
• 3M backing layer adheres to most flat or curved surfaces
• 3M tape, staple or screw mounting options
• Invisible Stand-Off support option allows even illumination with translucent panels (by others) easily raises diffusion translucent panels 0.91” - 2.0” above Lamina. For horizontal surface use only.
• Not intended for outdoor use
• Operating temp. -4°F - 122°F*
SPECIFICATIONS
ELECTRICAL
• 24VDC
• SO: 5W / Sq. Ft.
LABEL
• ETL
• Closet Rated HO: 10W / Sq. Ft.
• Connectors every 4” around perimeter
OPTICS
• 2700K, 3000K, 3500K, 4000K
• 90+ CRI
ORDERING INFORMATION
WARRANTY
• 5-years
CONNECTORS
S12X12-SSC Sheet to Sheet Wire Connector
S12X12-HO-30
Project Name Type Catalog #
EVEN ILLUMINATION FIELD CUT VERSATILITY
Tight diode to diode spacing for even illumination and no
NOTE: Even illumination will vary depending on materials, please verify offset for even illumination.
1” Cut Lines (shown in horizontal format direction)
1” Cut Lines (shown in vertical format direction)
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
CHARLESTON
24VDC Configural Laminated Sheet
Note: Stand-offs come in sets of 4
COMPATIBLE CONTROLLERS
SHWC LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
DESCRIPTION: Exterior quality spike mounted spotlight using LED source in warm white 2700K with flood beam 30°. Remote DALI dimmable driver as per manufacturer to compatible with control system to be supplied as additional.
IP / LOCATION RATING Wet Rated
FINISHES: Anthracite ,TBC by Interior Designer
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 30° beam, 2700K, 348 lm
POWER: 24V, 6W
CONTROL: DALI
FIXING METHOD: Spike mounted. Refer to manufacturer’s instructions
COMMENTS: UL listed. Circuited to dimming system. Electronic dimmable transformer by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL
Type:
Model:

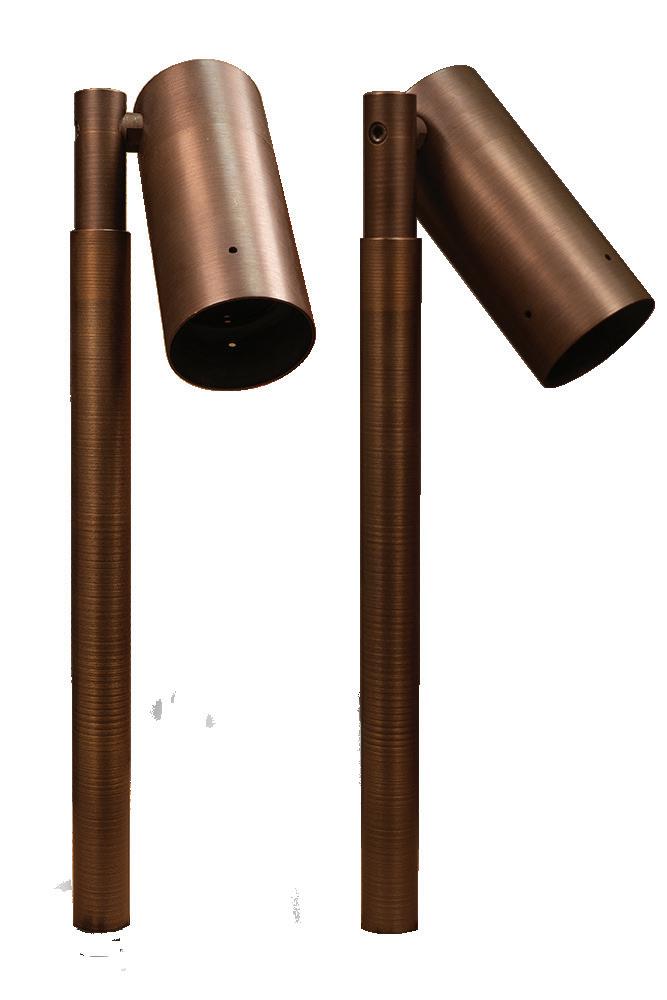

ARIA 16” and 20” LED MR16 Path Light Fixture
ORDERING CODE:
489917-P16 (16”) 489917-P20 (20”)
SPECIFICATIONS
HOUSING:
Solid brass. Threaded with O-ring. Watertight and bug-tight.
FINISH:
Weathered brass. Architectural colors and custom powder coated colors available.
LENS:
Clear flat tempered glass.
SOCKET/LAMP HOLDER:
One fixed ceramic bi-pin socket with stainless steel retaining springs.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stake mount included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
ARCHITECTURAL COLORS:
FINE TEXTURE SILVER
FINE TEXTURE WHITE
FINE TEXTURE BLACK
DIMENSIONS:
Aria 16” Uplight (489917-P16-S)
Aria 20” Uplight (489917-P20-S)
Aria 16” Uplight (489917-P16-WH)
Aria 20” Uplight (489917-P20-WH)
Aria 16” Uplight (489917-P16-BLK)
Aria 20” Uplight (489917-P20-BLK)
SPECIFICATION SHEET
Standard colors: Bronze Aria 16” uplight (489917-P16) / Bronze Aria 20” uplight (489917-P20). Architectural colors and powder coated colors are also available.
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
ISO_LES_2057_FSH_HTL RevE page 72 of 147
SPECIFICATION SHEET Page 2
16” and 20” LED MR16 Path Light Fixture
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 120°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 489917-P16-4W-25-2700K-MS
489917-P16
489917-P16-S
489917-P16 -WH
489917-P16 -BLK
489917-P20
489917-P20-S
489917-P20 -WH
489917-P20 -BLK
MS Composite stake (incl.) 490034
M3 Trident Heavy-Duty 3-Prong Stake 490036
PM Round pier mount 490057
MR Round tapered 3-hole surface mount 490048
MP PVC/Brass post stake 490037
BLANK
SPECIFICATION SHEET
SPECIFICATION SHEET
150W

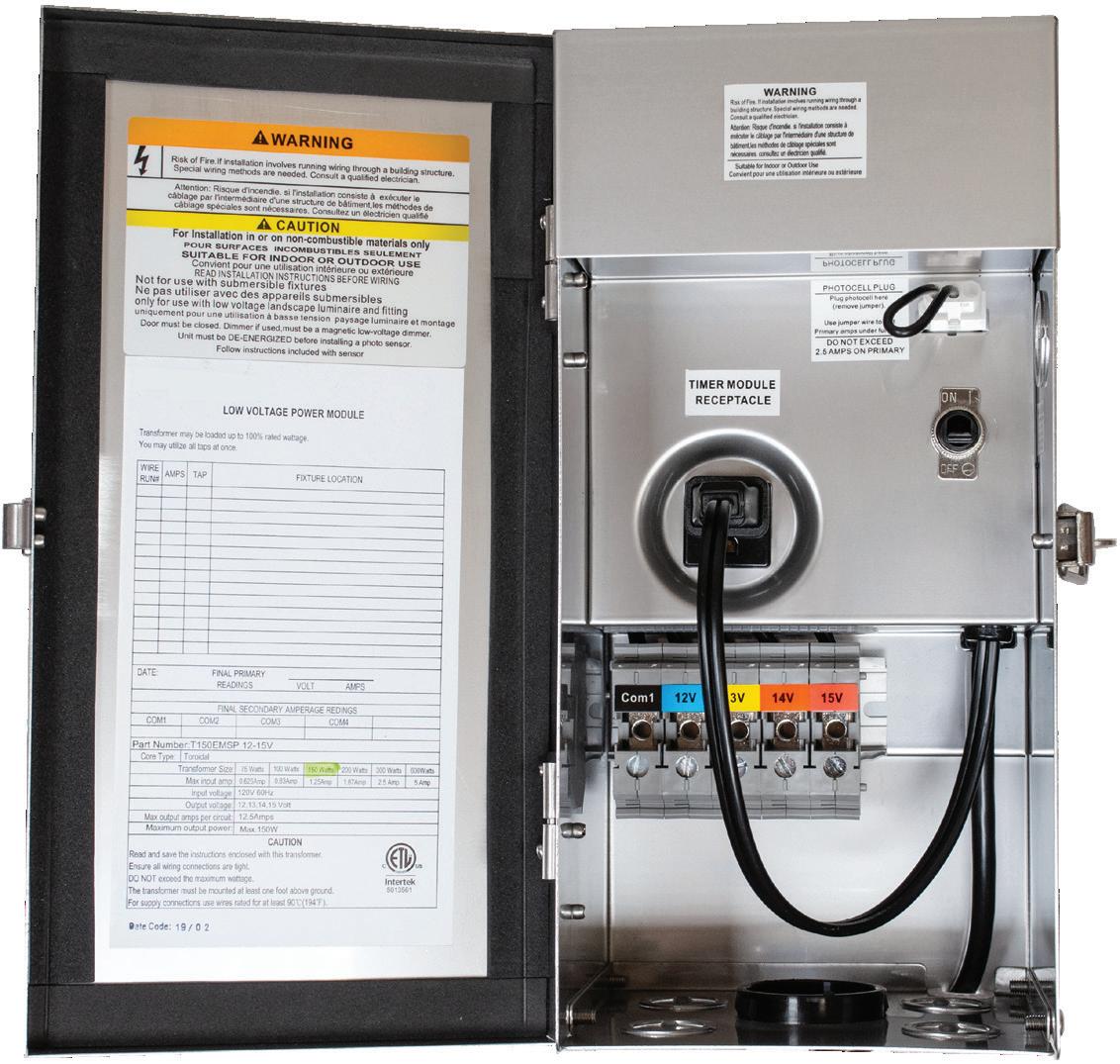

STAINLESS SMALL BOX TRANSFORMER
ORDERING CODE: 490541
MODEL: 490541 150-Watt Small Box Professional Grade Low-Voltage Transformer
SPECIFICATIONS
SPECIFICATIONS
OUTPUT:
150W, 12.5A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT:
OUTPUT:
150W, 12.5A. Taps for 12V, 13V, 14V, 15V. One common tap.
INPUT:
120V, 60HZ, 1.25A
120V, 60Hz, 1.25A
HOUSING:
HOUSING:
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
FEATURES:
FEATURES:
DIN rail, photocell receptacle, timer plug, primary amp loop, 12.5A breaker, heavy-duty grounded 5-foot power cord. suitable for interior or exterior use.
DIN rail, photocell receptacle, timer plug, primary amp loop, 12.5A breaker, heavy-duty grounded 5-foot power cord. Suitable for interior or exterior use.
AGENCY LISTINGS:
AGENCY LISTINGS:
ETL approved (5013561). Conforms to ANSI/UL 1838.
ETL approved (5013561). Conforms to ANSI/UL 1838.
WARRANTY: Lifetime.
WARRANTY: Lifetime.
ORDERING INFORMATION:
ORDERING INFORMATION:
To order a transformer with an option, select the appropriate choice from each column as in the following example: EXAMPLE: 490541-DT200LT
To order a transformer with an option, select the appropiate choices from each column as in the following example: EXPAMPLE: 490541-DT200LT
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas

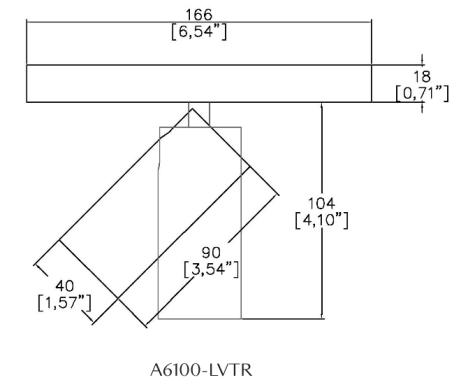

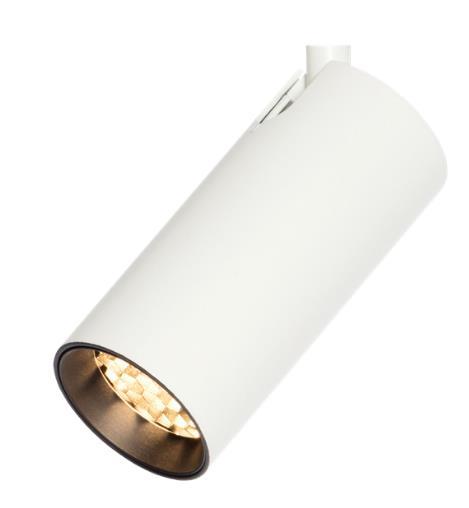

A6100-LED-27-15-D-LVTR- LS45-33mm + Honeycomb louver + Warm tone lens
Driver: DALI dimmable driver from manufacturer
DESCRIPTION: Interior quality low voltage track mount spotlight with 15° spot optics. Complete with mounting accessories, DALI dimmable driver from manufacturer.
IP / LOCATION RATING IP20 - Dry rated
FINISHES: White, TBC by Interior Designer
DIMENSIONS: As shown
LAMP TYPE & REF: LED 511 lm, 2700K
POWER: 48V, 7.4W
CONTROL: DALI
FIXING METHOD: Track mounted as per manufacturer instructions
COMMENTS: UL listed. Circuited to dimming system. Electronic dimmable transformer by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 73 of 147
CHARLESTON TYPE H-SP2 ALT
SPECIFICATION CODE
PROJECT T YPE
SPECIFIER MEMO
ORDERING CODE BREAKDOWN
LCN LUCIE
MAINFEATURES
▪ 95 CRI Standard
▪ 359° rotation; 0-90° head tilt
▪ Delivering up to 700 lumens at 8W
▪ Custom integrated driver meets IEEE 1789-2015
Low Risk flicker category across dimming range
▪ Custom TIR optic platform to ensure smooth beams and excellent light control with no need for a solite lens
▪ Accommodates up to two accessories in addition to snoot
▪ Concealed adapters designed to be used with Solais' Architectural Gaia+ 120-277V track systems
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
FITTING CODE: H-T1
LOCATION:
MANUFACTURER / SUPPLIER:
PRODUCT REFERENCE:
DESCRIPTION:
Level 2 Ballroom
Lucent Lighting https://lucent-lighting.com/na/

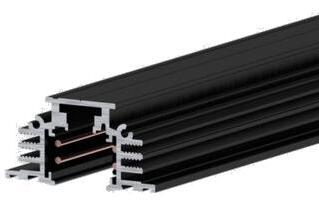

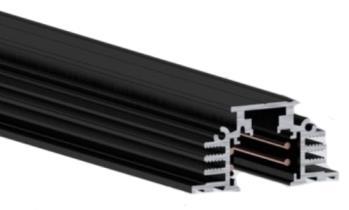

Low Voltage Recessed Trimless Track – EVO
LV-9500-ST3-XX-BK-E + End Feed + Connectors + End caps
Driver: DALI dimmable driver from manufacturer
Interior quality low voltage recessed trimless track. Complete with integrated data bus for DALI, connector, end feed, end cap and mounting accessories, DALI dimmable driver from manufacturer.
IP / LOCATION RATING IP20 - Dry rated
FINISHES: Black, TBC by Interior Designer
DIMENSIONS: As shown
LAMP TYPE & REF: -
POWER: 48V
CONTROL: DALI
FIXING METHOD:
COMMENTS: UL listed. Circuited to dimming system. Electronic dimmable transformer by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 78 of 147
CHARLESTON TYPE H-T1 ALT
SPECIFICATION CODE
ORDERING CODE BREAKDOWN
SCATTO | SCRT
TRACK SYSTEM SHORT RECESSED FLANGELESS | GYPSUM
MAINFEATURES
▪ Designed for recessed flangeless applications with ⅝” gypsum
▪ Designed for linear luminaires to extend past the track and trackhead adapters to sit flush
▪ Great for use in architectural and high-end applications
A6100-LED-27-15-D-WH- SMP + Honeycomb louver + Warm tone lens
Driver: DALI dimmable driver from manufacturer
DESCRIPTION: Interior quality surface mount spotlight with 15° spot optics. Complete with mounting accessories, DALI dimmable driver from manufacturer.
IP / LOCATION RATING IP20 - Dry rated
FINISHES: White, TBC by Interior Designer
DIMENSIONS: As shown
LAMP TYPE & REF: LED 511 lm, 2700K
POWER: 350mA, 7.4W
CONTROL: DALI
FIXING METHOD: Surface mounted on side wall
COMMENTS: UL listed. Circuited to dimming system. Electronic dimmable transformer by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 75 of 147
CHARLESTON TYPE H-SP4A ALT
SPECIFICATION CODE
PROJECT T YPE
SPECIFIER MEMO
ORDERING CODE BREAKDOWN
LCN LUCIE
MAINFEATURES
▪ 95 CRI Standard
▪ 359° rotation; 0-90° head tilt
▪ Delivering up to 700 lumens at 8W
▪ Custom integrated driver meets IEEE 1789-2015
Low Risk flicker category across dimming range
▪ Custom TIR optic platform to ensure smooth beams and excellent light control with no need for a solite lens
▪ Accommodates up to two accessories in addition to snoot
▪ Concealed adapters designed to be used with Solais' Architectural Gaia+ 120-277V track systems
A6100-LED-27-24-D-WH- SMP + Honeycomb louver + Warm tone lens + Linear spread lens
Driver: DALI dimmable driver from manufacturer
Interior quality surface mount spotlight with 24° spot optics. Complete with mounting accessories and linear spread lens, DALI dimmable driver from manufacturer.
IP / LOCATION RATING IP20 - Dry rated FINISHES: White, TBC by Interior Designer
DIMENSIONS: As shown
LAMP TYPE & REF: LED 511 lm, 2700K
POWER: 350mA, 7.4W
CONTROL: DALI
FIXING METHOD: Surface mounted on side wall
COMMENTS: UL listed. Circuited to dimming system. Electronic dimmable transformer by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 76 of 147
CHARLESTON TYPE
SPECIFICATION CODE
PROJECT T YPE
SPECIFIER MEMO
ORDERING CODE BREAKDOWN
LCN LUCIE
MAINFEATURES
▪ 95 CRI Standard
▪ 359° rotation; 0-90° head tilt
▪ Delivering up to 700 lumens at 8W
▪ Custom integrated driver meets IEEE 1789-2015
Low Risk flicker category across dimming range
▪ Custom TIR optic platform to ensure smooth beams and excellent light control with no need for a solite lens
▪ Accommodates up to two accessories in addition to snoot
▪ Concealed adapters designed to be used with Solais' Architectural Gaia+ 120-277V track systems
A6100-LED-27-36-D-WH- SMP + Honeycomb louver + Warm tone lens
Driver: DALI dimmable driver from manufacturer
DESCRIPTION: Interior quality surface mount spotlight with 36° flood optics. Complete with mounting accessories, DALI dimmable driver from manufacturer.
IP / LOCATION RATING IP20 - Dry rated
FINISHES: White, TBC by Interior Designer
DIMENSIONS: As shown
LAMP TYPE & REF: LED 511 lm, 2700K
POWER: 350mA, 7.4W
CONTROL: DALI
FIXING METHOD: Surface mounted on side wall
COMMENTS: UL listed. Circuited to dimming system. Electronic dimmable transformer by manufacturer to be located in a well-ventilated position, within manufacturer’s specified distance to avoid overheating. Final position by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with dimming system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL RevE page 77 of 147
CHARLESTON TYPE H-SP4C
SPECIFICATION CODE
PROJECT T YPE
SPECIFIER MEMO
ORDERING CODE BREAKDOWN
LCN LUCIE
MAINFEATURES
▪ 95 CRI Standard
▪ 359° rotation; 0-90° head tilt
▪ Delivering up to 700 lumens at 8W
▪ Custom integrated driver meets IEEE 1789-2015
Low Risk flicker category across dimming range
▪ Custom TIR optic platform to ensure smooth beams and excellent light control with no need for a solite lens
▪ Accommodates up to two accessories in addition to snoot
▪ Concealed adapters designed to be used with Solais' Architectural Gaia+ 120-277V track systems
+ Trimless installation housing RD100T + Remote dimmable Driver( As per Manufacturer)
DESCRIPTION: IP67 Inground recessed trimless uplight using 31° flood beam in warm white 2700K. To be supplied with remote DALI dimmable driver and housing box for installation.
IP / LOCATION RATING Wet
FINISHES: Staintless steel type 304 flange
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 2700K, CRI 85, 700 lm
POWER: 10W, 24V
CONTROL: DALI
FIXING METHOD: Ground recessed with housing box according to manufacturer’s specifications.
COMMENTS:
UL listed. Circuited to control system. Remote electronic driver and dimming module by manufacturer to be located in a well-ventilated position. Final position by Electrical Engineer a/o Electrical contractor. Secondary wiring from driver to fitting, sizing and cables to be verified prior to ordering by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with Switching system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL
CHARLESTON TYPE

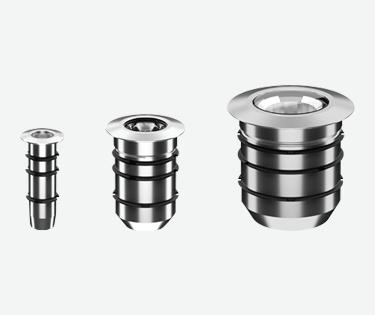

Light Up Orbit
Collection of compact exterior luminaires for architectural lighting. Rugged stainless steel construction, with tempered glass lens, these luminaires are designed to perform in extreme conditions. This serie is available in 3 sizes, that can be installed for in-ground, wall or ceiling applications. Complete range of optic distributions for accent lighting, effects lighting and markers.
ILUO28: 90% of initial lumens at 100 000 hours (L90)
ILUO50: 80% of initial lumens at 98 000 hours (L80)
ILUO80: 80% of initial lumens at 98 000 hours (L80)
Spot, medium, flood, wide flood with Opti Beam technology. Wall washer, diffuse or light blade.
Body and frame : AISI 304 stainless steel
Diffuser: 6 to 8 mm extra-clear or opal sodiumcalcium tempered glass.
Optics: PMMA lens or PE film for diffuse optic, clear, black or metalized polycarbonate reflector
Concrete wall or concrete ceiling recessed installation using polypropylene back box. Concrete or pavement ground recessed installation. Optional mounting springs for floating concrete or pavement panels.
Supplied with 6ft (2m) long outdoor rated power cable. 12" of gravel is required below the luminaire to allow proper drainage.
High efficiency LED driver, rated at 50 000 hours. See remote LED driver options on page 3.
Finish: Stainless steel
Weight:
ILUO28: 0.4lb (0.2kg)
ILUO50: 1.2lb (0.5kg)
ILUO80: 2.8lb (1.3kg)
Load capacity: 4 409lb (2 000kg)
Glass surface temperature: 104°F (40°C)
Operating temperature:
ILUO28: -13 to 95°F (-25 to 35°C)
ILUO50: -13 to 122°F (-25 to 50°C)
ILUO80: -4 to 95°F (-20 to 35°C)
Warranty: 5 year limited warranty
Ratings:
ILUO28: IK09, IP66, IP68*
ILUO50: IK07, IP66, IP68*
ILUO80: IK09, IP66, IP68*
* Complete immersion for 10 minutes, not suitable for use in swimming pools or fountains.
Certification: cULus listed for wet location.
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
ISO_LES_2057_FSH_HTL RevE page 80 of 147
CHARLESTON
Light Up Orbit
28 1" (28mm) 50 2" (50mm)
1 Available for 50 model.
2 Available for 80 model.
3 Available for 50 model with base output (BO).
4 Available for 28 model.
MOUNTING ACCESSORIES
(TO BE ORDERED SEPARATELY)
X190-02 - Polypropylene recessed back box for in-ground installation for ILUO28 Ø5½" x 4" (Ø140 x 101mm)
X191-02 - Polypropylene recessed back box for concrete wall and concrete ceiling installation for ILUO28 Ø5½" x 4" (Ø140 x 101mm)
X193-02 - Polypropylene recessed back box for in-ground, concrete wall and concrete ceiling installation for ILUO50 Ø6¾" x 4" (Ø170 x 110mm)
X195-02 - Polypropylene recessed back box for in-ground and concrete wall installation for ILUO80 Ø7½" x 4" (Ø190 x 110mm)
IP68 FIELD CONNECTOR For 0.25 " - 0.375" (5-9.5mm) cable, 2x 16-24 AWG conductors
9015-9016-KIT - Female and male connector. ORDERING
Mounting
WIRING ACCESSORIES
9581-02 - Black watertight connectors (x4), rated IP68. For serial connection.
BLANK
Light Up Orbit
REMOTE LED DRIVER OPTIONS (TO BE ORDERED SEPARATELY)
4548-0350-006-120-D10
4548-0350-012-120-LTE
4549-0350-019-UNV-ED10
4549-0350-019-UNV-SD10
4548-0500-020-UNV-D10
4548-0500-025-120-LTE
4549-0500-027-UNV-ED10
4549-0500-027-UNV-SD10
4549-0700-030-UNV-ED10
4549-0700-030-UNV-SD10
4444-0350-006-120-D10
4444-0350-012-120-LTE
4443-0350-013-UNV-D2**
4450-0350-019-UNV-D10
4450-0350-019-UNV-ED10
4450-0350-019-UNV-SD10
4450-0500-027-UNV-ED10
4450-0500-027-UNV-SD10
4450-0700-030-UNV-ED10
4450-0700-030-UNV-SD10
* Wattage requirement for one (1) fixture (remote fixture only).
** OEM digital LED driver allotment letter required to order any LUTRON products. Please contact a LUTRON representative for more information.
CODE DRIVER BOX MODEL DESCRIPTION
D10
0-10V
Max distance: 9m (30ft)* (down
D2
Lutron Hi Lume® 1% EcoSystem™ (Soft-on, Fade to Black)
Max distance: 9m (30ft)* (down to 1%)
ED10
0-10V ELDOLED ECOdrive Max distance: 36m (118ft)* (down to 1%)
SD10
0-10V ELDOLED SOLOdrive
Max distance: 36m (118ft)* (down to 0.1%)
LTE
Leading edge and trailing edge (ELV and TRIAC)
Max distance: 100m (330ft)* (down to 15%)
*Max distance cable calculated for 16AWG cable. Contact customer service for longer remote distance.
WIRING DIAGRAMS
Multiple luminaires must be connected in series (home run or fixture chain)
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
+ Trimless installation housing RD100T + Remote dimmable Driver( As per Manufacturer)
DESCRIPTION: IP67 Inground recessed trimless uplight using 17° spot beam in warm white 2700K. To be supplied with remote DALI dimmable driver and housing box for installation.
IP / LOCATION RATING Wet
FINISHES: Staintless steel type 304 flange
DIMENSIONS: As shown
LAMP TYPE & REF: LED, 2700K, CRI 85, 700 lm
POWER: 10W, 24V
CONTROL: DALI
FIXING METHOD: Ground recessed with housing box according to manufacturer’s specifications.
COMMENTS:
UL listed. Circuited to control system. Remote electronic driver and dimming module by manufacturer to be located in a well-ventilated position. Final position by Electrical Engineer a/o Electrical contractor. Secondary wiring from driver to fitting, sizing and cables to be verified prior to ordering by Electrical Engineer a/o Electrical contractor. Dimming protocol compatibility with Switching system to confirmed with manufacturer.
ILLUSTRATION:
ISO_LES_2057_FSH_HTL
CHARLESTON
Light Up Orbit
Collection of compact exterior luminaires for architectural lighting. Rugged stainless steel construction, with tempered glass lens, these luminaires are designed to perform in extreme conditions. This serie is available in 3 sizes, that can be installed for in-ground, wall or ceiling applications. Complete range of optic distributions for accent lighting, effects lighting and markers.
ILUO28: 90% of initial lumens at 100 000 hours (L90)
ILUO50: 80% of initial lumens at 98 000 hours (L80)
ILUO80: 80% of initial lumens at 98 000 hours (L80)
Spot, medium, flood, wide flood with Opti Beam technology. Wall washer, diffuse or light blade.
Body and frame : AISI 304 stainless steel
Diffuser: 6 to 8 mm extra-clear or opal sodiumcalcium tempered glass.
Optics: PMMA lens or PE film for diffuse optic, clear, black or metalized polycarbonate reflector
Concrete wall or concrete ceiling recessed installation using polypropylene back box. Concrete or pavement ground recessed installation. Optional mounting springs for floating concrete or pavement panels.
Supplied with 6ft (2m) long outdoor rated power cable. 12" of gravel is required below the luminaire to allow proper drainage.
High efficiency LED driver, rated at 50 000 hours. See remote LED driver options on page 3.
Finish: Stainless steel
Weight:
ILUO28: 0.4lb (0.2kg)
ILUO50: 1.2lb (0.5kg)
ILUO80: 2.8lb (1.3kg)
Load capacity: 4 409lb (2 000kg)
Glass surface temperature: 104°F (40°C)
Operating temperature:
ILUO28: -13 to 95°F (-25 to 35°C)
ILUO50: -13 to 122°F (-25 to 50°C)
ILUO80: -4 to 95°F (-20 to 35°C)
Warranty: 5 year limited warranty
Ratings:
ILUO28: IK09, IP66, IP68*
ILUO50: IK07, IP66, IP68*
ILUO80: IK09, IP66, IP68*
* Complete immersion for 10 minutes, not suitable for use in swimming pools or fountains.
Certification: cULus listed for wet location.
PROJECT: 2057 Charleston Hotel & Residences – Hotel Public Areas
ISO_LES_2057_FSH_HTL RevE page 82 of 147
CHARLESTON
Light Up Orbit
28 1" (28mm) 50 2" (50mm)
1 Available for 50 model.
2 Available for 80 model.
3 Available for 50 model with base output (BO).
4 Available for 28 model.
MOUNTING ACCESSORIES
(TO BE ORDERED SEPARATELY)
X190-02 - Polypropylene recessed back box for in-ground installation for ILUO28 Ø5½" x 4" (Ø140 x 101mm)
X191-02 - Polypropylene recessed back box for concrete wall and concrete ceiling installation for ILUO28 Ø5½" x 4" (Ø140 x 101mm)
X193-02 - Polypropylene recessed back box for in-ground, concrete wall and concrete ceiling installation for ILUO50 Ø6¾" x 4" (Ø170 x 110mm)
X195-02 - Polypropylene recessed back box for in-ground and concrete wall installation for ILUO80 Ø7½" x 4" (Ø190 x 110mm)
IP68 FIELD CONNECTOR For 0.25 " - 0.375" (5-9.5mm) cable, 2x 16-24 AWG conductors
9015-9016-KIT - Female and male connector. ORDERING
Mounting
WIRING ACCESSORIES
9581-02 - Black watertight connectors (x4), rated IP68. For serial connection.
BLANK
Light Up Orbit
REMOTE LED DRIVER OPTIONS (TO BE ORDERED SEPARATELY)
4548-0350-006-120-D10
4548-0350-012-120-LTE
4549-0350-019-UNV-ED10
4549-0350-019-UNV-SD10
4548-0500-020-UNV-D10
4548-0500-025-120-LTE
4549-0500-027-UNV-ED10
4549-0500-027-UNV-SD10
4549-0700-030-UNV-ED10
4549-0700-030-UNV-SD10
4444-0350-006-120-D10
4444-0350-012-120-LTE
4443-0350-013-UNV-D2**
4450-0350-019-UNV-D10
4450-0350-019-UNV-ED10
4450-0350-019-UNV-SD10
4450-0500-027-UNV-ED10
4450-0500-027-UNV-SD10
4450-0700-030-UNV-ED10
4450-0700-030-UNV-SD10
* Wattage requirement for one (1) fixture (remote fixture only).
** OEM digital LED driver allotment letter required to order any LUTRON products. Please contact a LUTRON representative for more information.
CODE DRIVER BOX MODEL DESCRIPTION
D10
0-10V
Max distance: 9m (30ft)* (down
D2
Lutron Hi Lume® 1% EcoSystem™ (Soft-on, Fade to Black)
Max distance: 9m (30ft)* (down to 1%)
ED10
0-10V ELDOLED ECOdrive Max distance: 36m (118ft)* (down to 1%)
SD10
0-10V ELDOLED SOLOdrive
Max distance: 36m (118ft)* (down to 0.1%)
LTE
Leading edge and trailing edge (ELV and TRIAC)
Max distance: 100m (330ft)* (down to 15%)
*Max distance cable calculated for 16AWG cable. Contact customer service for longer remote distance.
WIRING DIAGRAMS
Multiple luminaires must be connected in series (home run or fixture chain)
