Accessories SB Square base 07967 BABAA Build America Buy America Act compliant (not available for all options)
Base Details on following page
NO SPEC

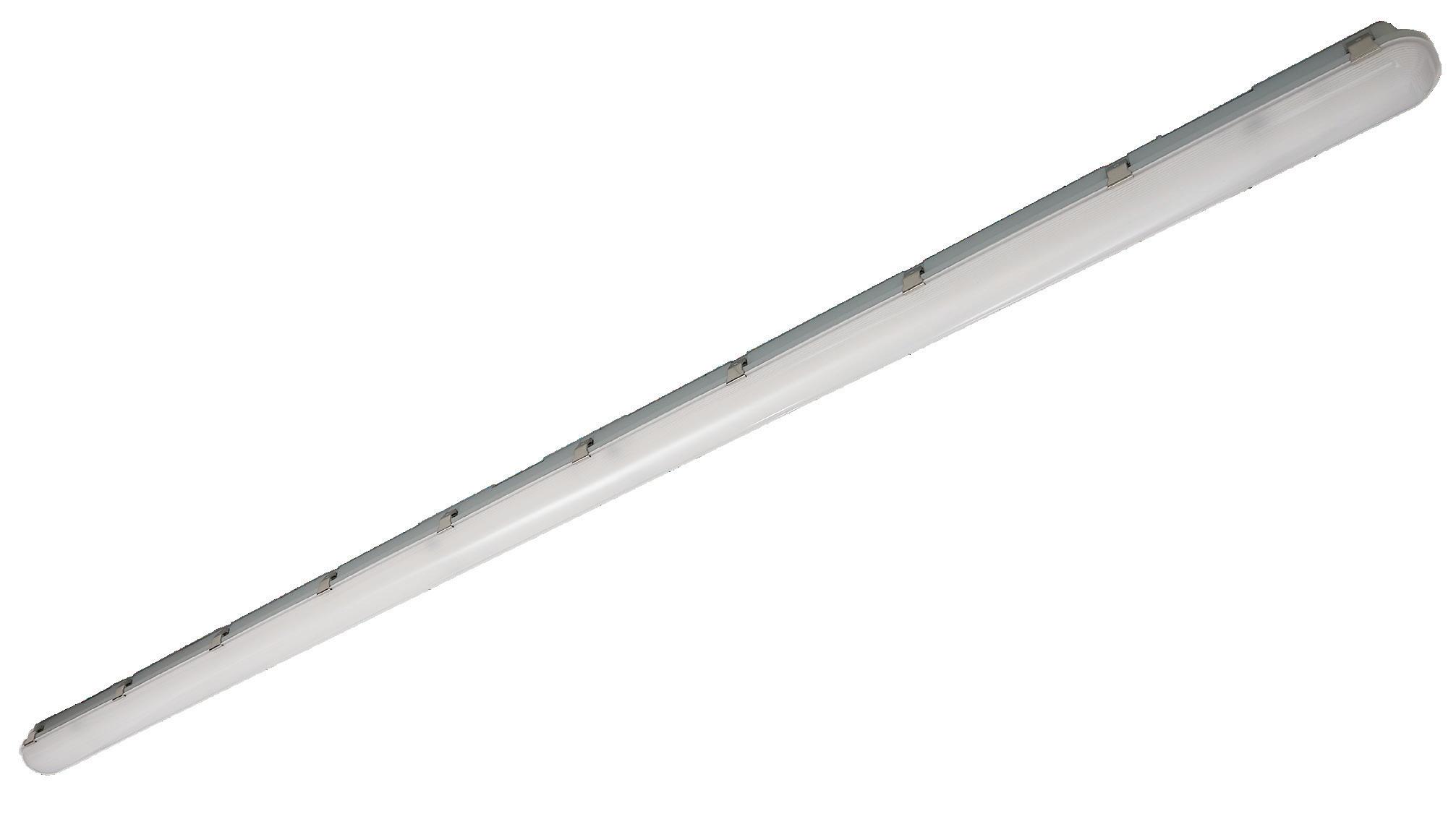

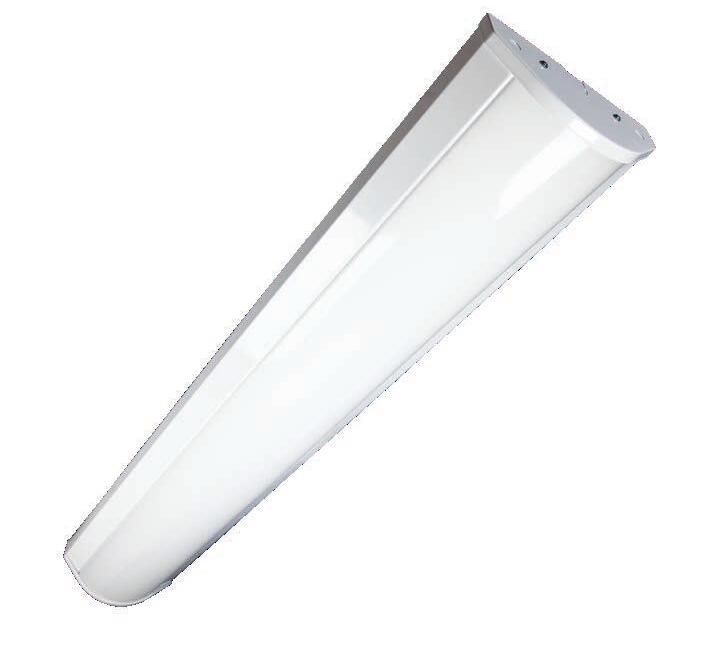

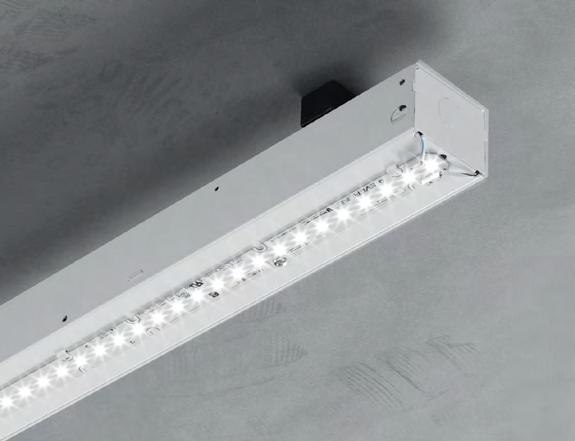

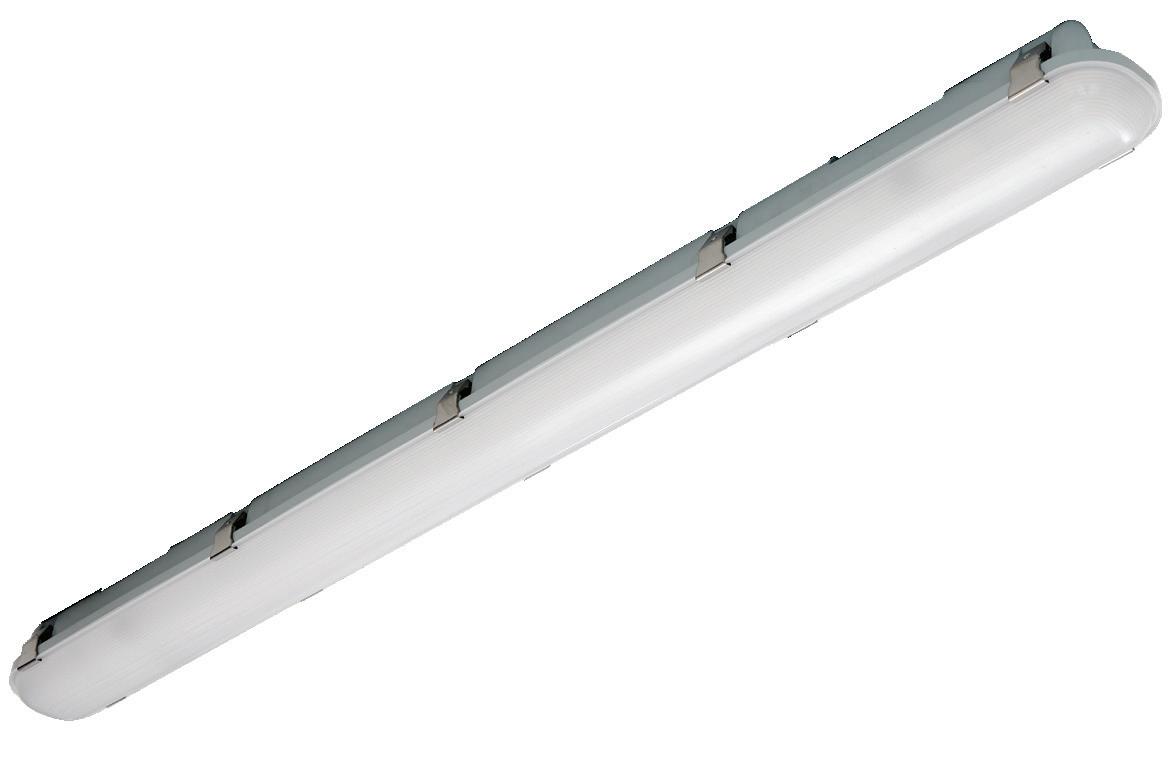

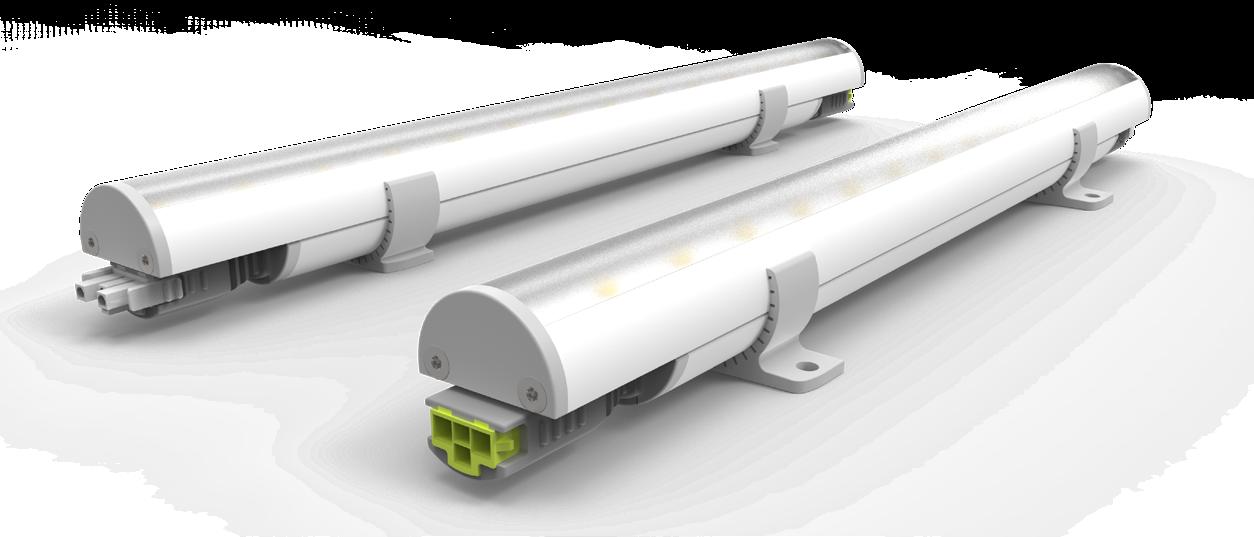

• IP65 rated exterior linear luminaire designed for demanding environments for protection against water, dust, oil, and non-corrosive material.
• Vandal resistant 1/4" thick lens 08 IK Rating
• Rugged three-sided .125" thick aluminum housing with welded seams and end caps. Housing standard finish is electrostatically applied textured white power coat paint. Optional silver, black, or custom color paints finishes.
• Long life distributed LED array in a variety of lumen output packages. LED color is available in 3000K, 3500K or 4000K with a CRI of 80 or 90. Custom outputs are available. Module is replaceable. L90≥100,000 hrs.
• Fully sealed gasketed lens and electrical fittings.
ORDERING INFORMATION
SAMPLE NUMBER: RXT-F-D-09-H40-UNV-D-11-FRF-WH
REGOLO IP65 RATED
RXT-F
NO SPEC

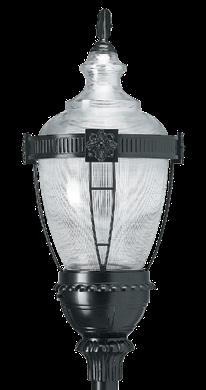

Refractive globe with LumiLock LED engine GX4
Whether you are looking to beautify or add a sense of security and well-being to your outdoor space, the highly configurable Hadco LED refractive post tops paired with the latest LumiLock light engine GX4 will help you achieve your goals. A multitude of exterior luminaire styles allow you to create promenades and areas exuding timeless, historical charm both day and night. The configurable LED light engine GX4 is an ideal alternative to HID sources, providing you with significant energy savings, and more choices for light levels, optics and controls. Includes Service Tag, Hadco's innovative way to provide assistance throughout the life of the product.
Project:
Location:
Cat.No:
Type:
Lamps: Qty:
Notes:
Tall round fluted
Round contemporary
Round fluted long
Decorative leaf w/scalloped petals
1 Cannot be used with B roof.
2 Twistlock photocell receptacle (R) only available in A, B, G, H, L and T
will fit and communicate properly - other nodes need to be confirmed. Does not fit with B and D roofs.
7
5 Optional
6 When SP2 option is selected,
Ordering guide
Example: RL32
Series
RL32 Narrow Body Type 3
NO SPEC

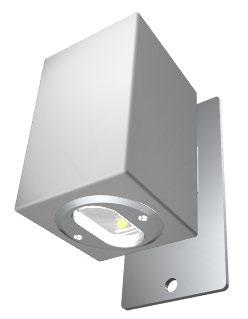

MIMIK30
Wallmountseries.Fixturesconsistof:
-, Multi-steppowder-coatpaintingprocess, optimized against UVraysandcorrosion.
-, Custom MCPCButilized tomaximize heatdissipation and promotelong LED life.
-, Tobe used with a 24V low-voltage driver (ordered separately, consult factory formoreinformation).
Lumen Output
smr(14111ll1)
-, The luminaire may be configuredwithnumerous optionsandmultiplestandardfinishes. Notalloptions areavailableinallconfigurations. Consultfactory for more information about specification sheet details to buildyour light.
-, 5-year warranty.
-, Consultfactory for any Buy American Act (BAA) or Build America Buy America Act (BABAA) requirements.
2621 Keys Pointe Conyers GA30013- United States Tel: 770 822 2115
BLANK

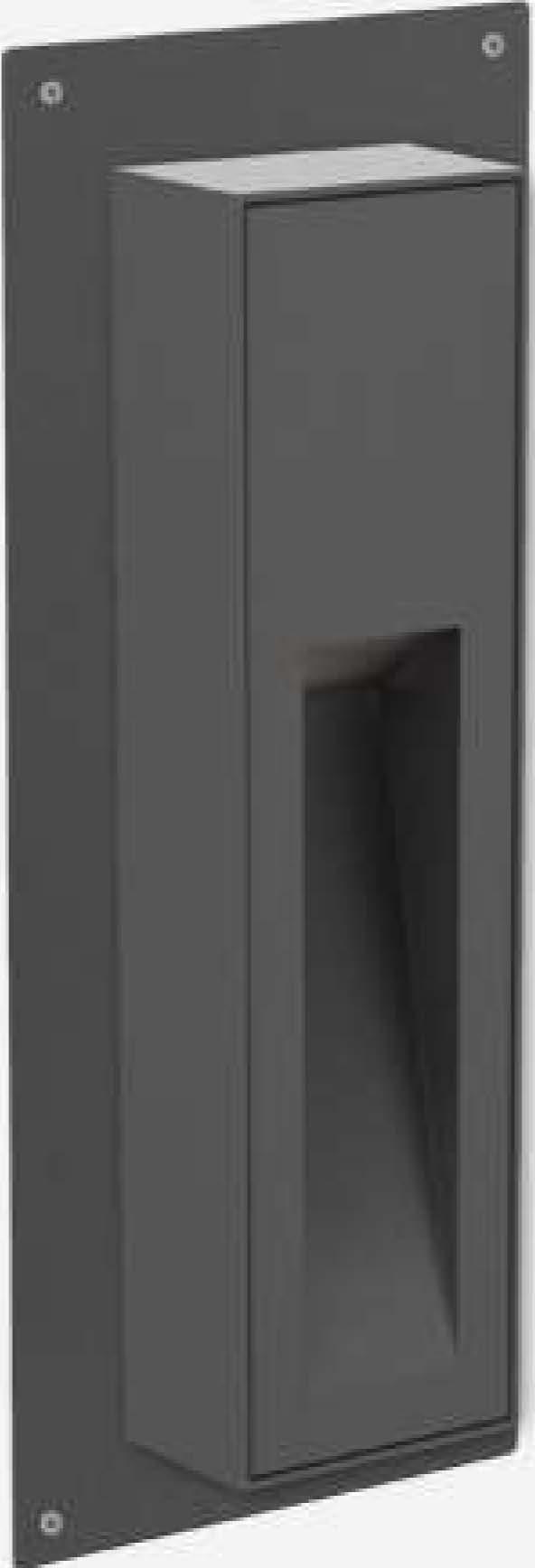

Order Guide - INSERT+0 SM
Order code example:
l+0SM 5 30K AM 24V RDR

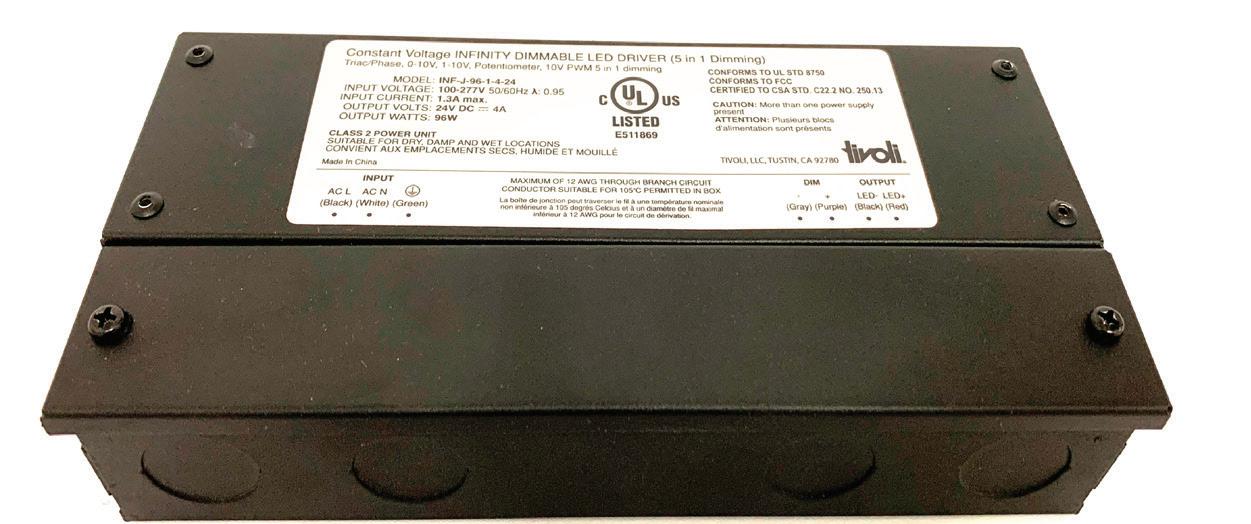

lnsert+0 SM SW* 3000K Aluminum 24V Remote (max) 40K Metallic* Low-voltage LED Driver 4000K only (One Per IG Fixture) Iron Gray* 17097
IR RDRDIM
Iron Rust Remote 0-10V LED
BK Driver
Textured (1-15 Black Fixtures) 17029
WH BABAA
Textured
Build America White* Buy America Act
cc compliant Custom (not available Color for all options)
*STANDARD OPTION, SHORTER LEAD TIME, NO MOQ* 80 CRI STANDARD - OTHER OPTIONS AVAILABLE
NO SPEC
17200 Av. Centrale
Saint-Hyacinthe QC Canada J2T 4J7
Phone: 1-450-774-5238
Toll Free: 1-800-461-7662
Fax: 1-450-774-1954
info@snoc.com snoc.com

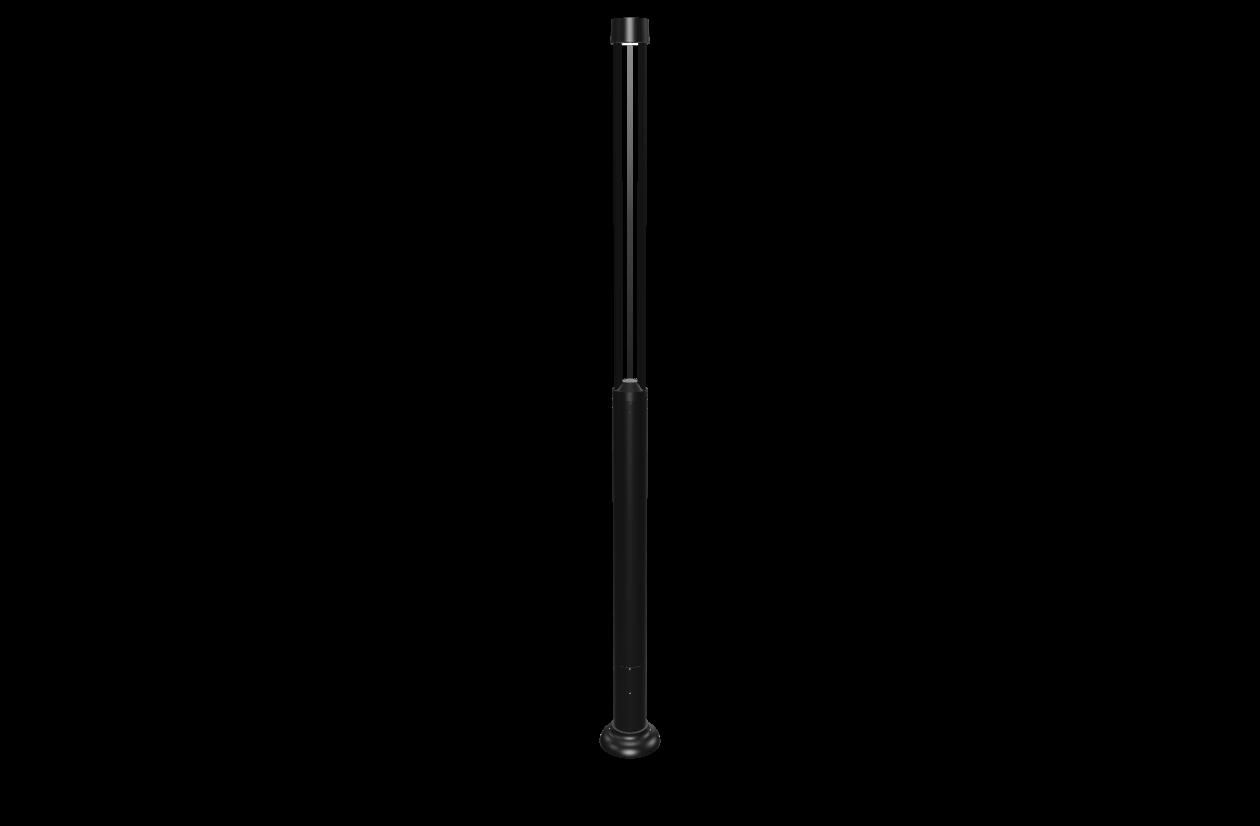

Quantity 1
Catalog number: B214460D1003EDB
Height 144 inches [144]
LED source power 60watts [60]
LED source color 3000K [D]
Tension 120 - 277 volts [1]
Optic None [0]
Module DEL Normal [0]
IES Types Type III [3]
Glass Clear tempered glass [E]
Fuses No []
Photocell No []
Outlet No []
Finish
Project
Customer
Representative
Quote # 2-18-2026
Textured black super durable [DB]
1 - MECHANICAL Fixtures in this collection are made from cast aluminum parts that are resistant to oxidation. All finishes, plain and antique, are obtained by the application of polyester-based powder paint treated against UV rays. The globe or glass are fully sealed to prevent water or insects from entering (IP66 certified). The converter, located in the IP66 waterproof area, is mounted under the lamp to prevent overheating and extend the life of the converter.
2 - ELECTRICAL For LED lighting systems, an electronic converter is used. The choice of a standard voltage between 120V and 277V, or 347V, is offered. For other types of voltages, see SNOC.
3 - OPTICS SNOC LED luminaires do not use conventional refractors or reflectors. The LEDs, installed in the bonnet, have their own optics which redirect the light where it is needed. These fixtures are an excellent choice for applications where minimizing glare and uplight is important. Refer to the brochure for more information.
4 - COLOR TEMPERATURE The standard color temperature is 3000K, 4000K, and amber. For other options, see SNOC.
5 - OPTIONS Standard options available are fuses, photocell, house side baffle and dimmer. For other special requirements, consult SNOC.
6 - WARRANTY • LED lighting system: 10 year warranty. • The finish obtained by the application of exterior powder paint is guaranteed 5 years against chipping. • Converter: SNOC honors converter manufacturer's warranties. • Cast Aluminum Components: SNOC warrants availability of all parts for 20 years.
7 - CERTIFICATION All SNOC luminaires are certified according to applicable CSA (CSA) and UL standards
NO SPEC
Project Name:
Specifier:
Fixture Type:

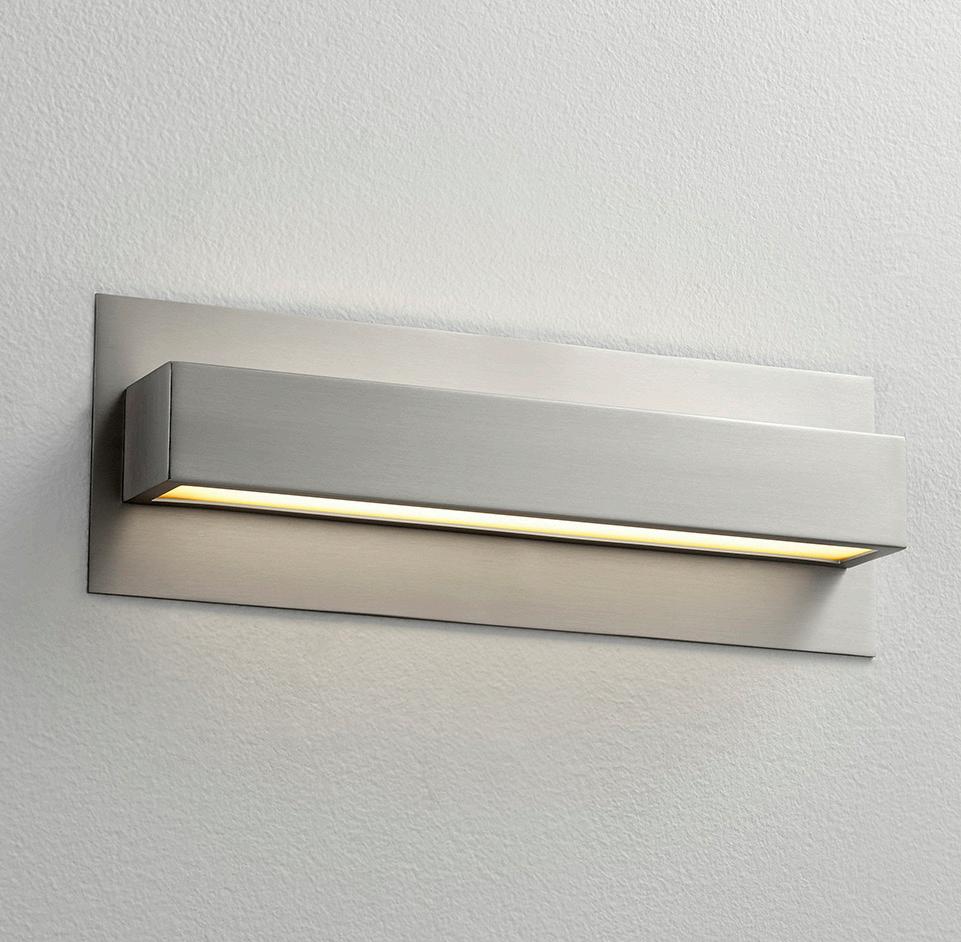

KLIKMISTIKTM Rectangle
DESCRIPTION
Asleek,surface-mountedminimalistLEDsconcethatisdiscreet and easy to install. Suitable for a wide range of exterior and interior surfaces, including railing stanchions, posts, walls, awnings,canopies,andtrellises.Offeredinbothasymmetricand symmetricdesignswithvariouslensoptionsavailable.
HOUSING
The product features an IP65 and IK10 rated brushed 316 stainless steel body, designed with options for either a flat or curved mounting plate, ideal for variety of round posts or surfaces.Itisalsoavailableinarangeofpowder-coatedcolors.
-, Custom MCPCButilized tomaximize heatdissipation and promotelong LED life.
-, Tobe used with a 24V low-voltage driver (ordered separately, consult factory formoreinformation).
Lumen Output
smr(14111ll1)
-, The luminaire may be configuredwithnumerous optionsandmultiplestandardfinishes. Notalloptions areavailableinallconfigurations. Consultfactory for more information about specification sheet details to buildyour light.
-, 5-year warranty.
-, Consultfactory for any Buy American Act (BAA) or Build America Buy America Act (BABAA) requirements.
, Theluminaire may beconfigured withnumerous optionsand multiplestandard finishes. Notalloptions areavailableinallconfigurations. Consultfactory for more information aboutspecificationsheet details to build your light.
, Consultfactory for any Buy American Act (BAA) or Build America Buy America Act (BABAA) requirements.
FINISHES
• AN-96/Irongray/Textured
0 GR-94/Aluminum metallic/Textured
0 WH-87/White/Textured
• BK-81/Black/Textured
• RB-10/lronrust/Textured
4318'(111rrrn)
PERFORMANCEiN LIGHTINGreservestherightto makeallnecessarychangeswithout priornotice PERFORMANCEiN LIGHTINGUSA,Inc. 2621 Keys Pointe Conyers GA30013- United States Tel: 770 822 2115
BLANK

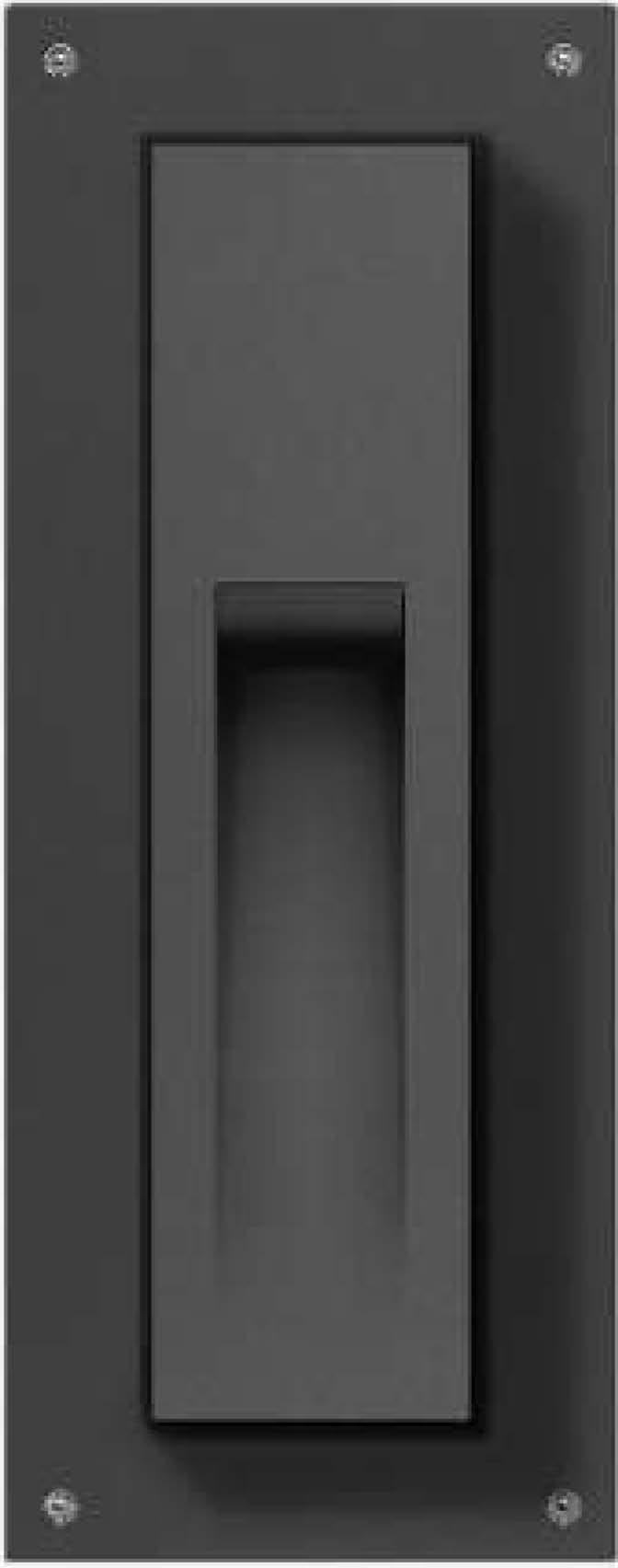

Order Guide - INSERT+1 SM
Order code example: I+1V SM-SW-30K-WH
I+1V SM
SERIES
I+1V SM
Insert+1V SM
Hidden mounting plate option
Voltage Controls Accessories
RDR
Remote

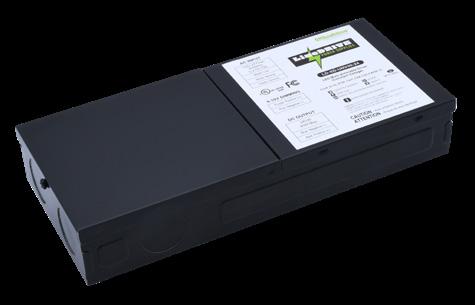

Low-voltage LED Driver only (One Per Fixture) 17097
RDRDIM Remote 0-10V LED Driver (1-15 Fixtures) 17029
HP Hidden Mounting Plate
BABAA
Build America
Contact Buy America Factory for Act compliant Remote driver (not available options for all options *STANDARD OPTION, SHORTER LEAD TIME, NO MOQ* 80 CRI STANDARD - OTHER OPTIONS AVAILABLE
Design by Diez Office

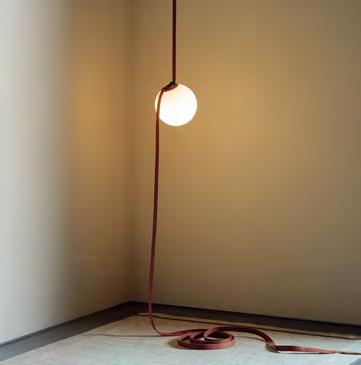

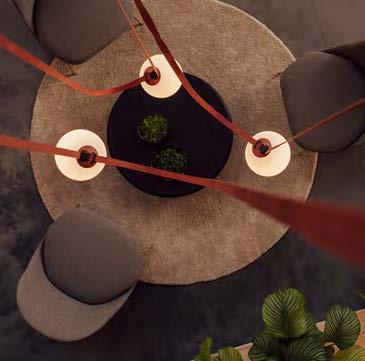

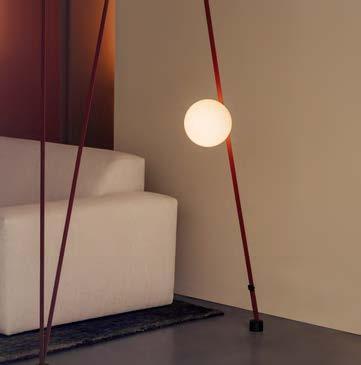

Plusminus is a versatile lighting system that takes the concept of the light rail to a new level. The conductive textile ribbon at its core allows for free placement of the luminaires and the creation of unique light solutions on the spot. The professional area at Vibia.com offers a dynamic space for designers to create their projects for a seamless ordering process.
Luminaire finishes 11 Black (NCS S 8500-N)
LED color temperature
Dimming control options
Electrical connection options
24 Beige M1 (NCS S 2005-Y50R)
37 Terra Red (NCS S 4040-Y70R)
42 Blue M1 (NCS S 5010-B10G)
53 Green M1 (NCS S 6005-G80Y)
2700 K / 3000 K / 3500 K. On/ Off.
Simultaneous line DALI, 0-10V, Push, Casambi. Casambi integrated on each individual luminaire (P2P).
Surface
Remote Surface Remote Recessed Plug-in
Remarks
Maximum 96 feet length per electrical connection point.
Fire Hazard Testing. GW-960. Fulfills the requirements of: standards EN 60695-2-10:2013; EN 60695-2-11:2015; EN 60695-2-12:2011 / A1:2014
Installation and assembly: Please, see the installation manual.
www.vibia.com Professional area and together with the product you’ll receive a personalized installation guide with all the details of your composition and guidance for its correct and easy installation.
6230 / F Simultaneous line DALI, 0-10V, Push, Casambi
1
Dimming control
BLANK

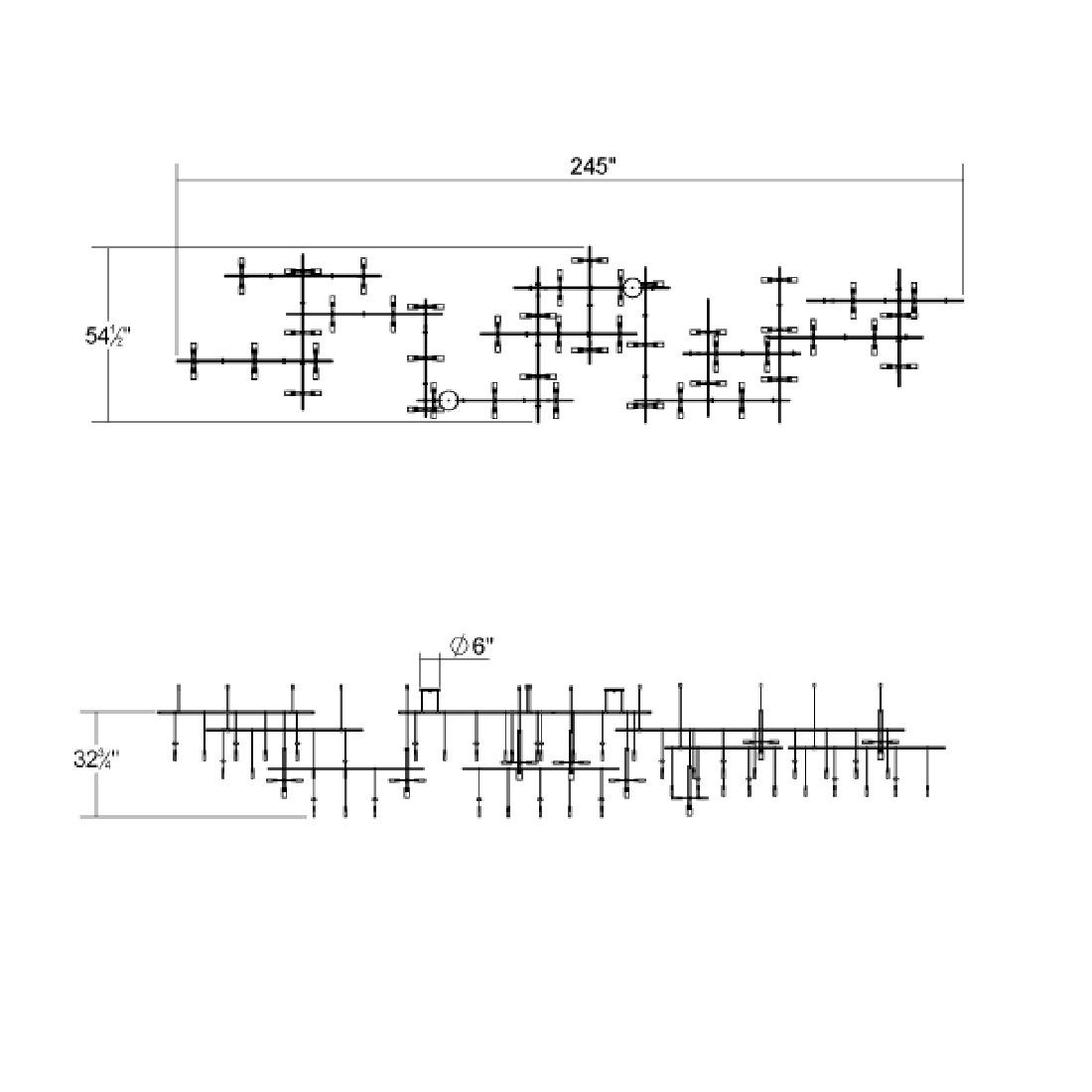

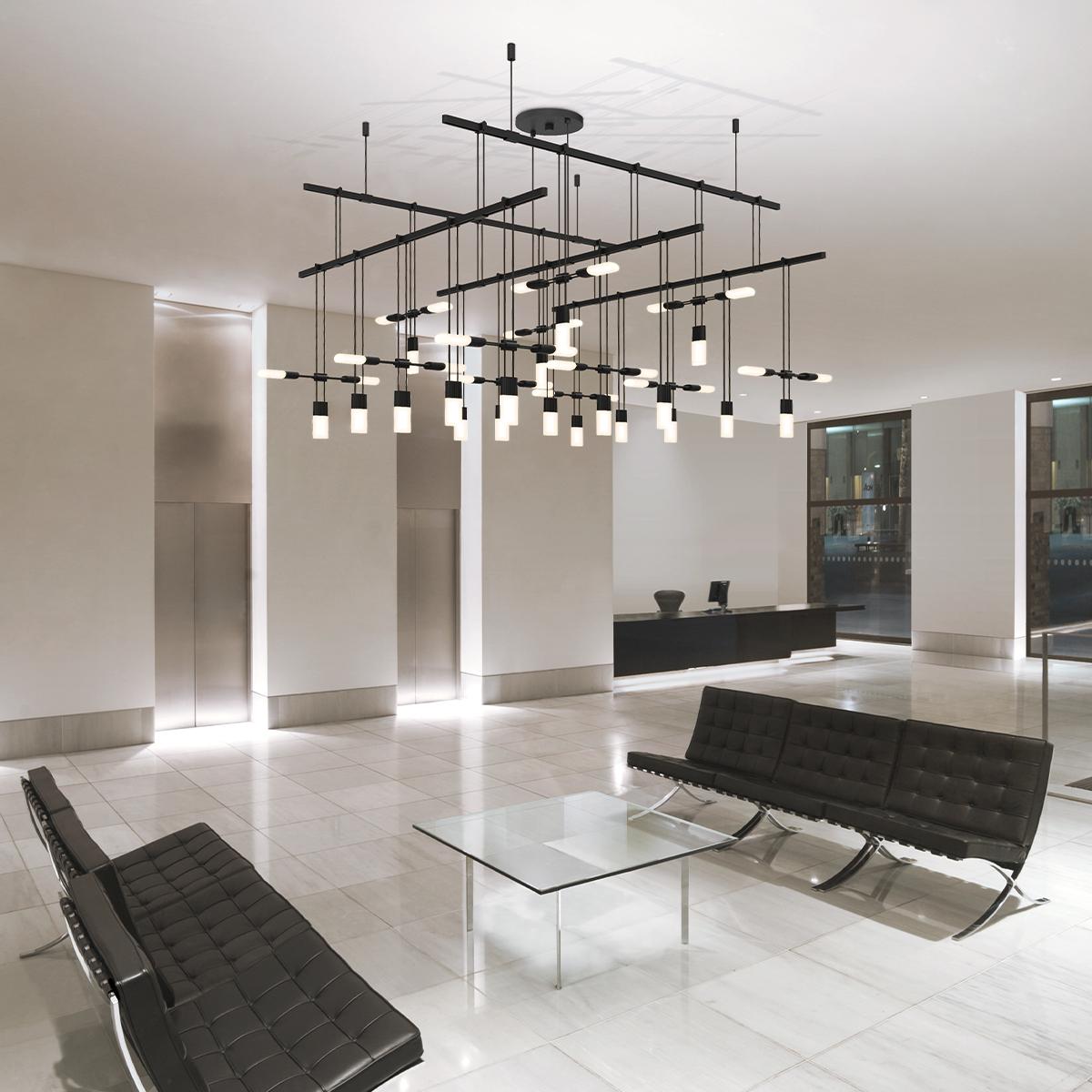

Project: Suspenders 36" 2-Tier
Grid with Etched Chiclet Luminaire
Spec Sheet
SKU: S1H36K-RR180612-SC02
Perpendicular Power Bars on two tiers create a cube-like volume from a skeletal structural frame. Alternating etched glass Chiclet and Chiclet Cluster Luminaires reinforce the directional composition of this powerful architectural structure. Learn more: https://sonnemanlight.com/suspenders-36-22-2-tier-grid-with-etchedchiclet-luminaire-combo
Type #:
Dimensions
Electrical Specs
Installation
General Listings
Available Color Temperatures
Dimensions
Electrical Specs
General Listings

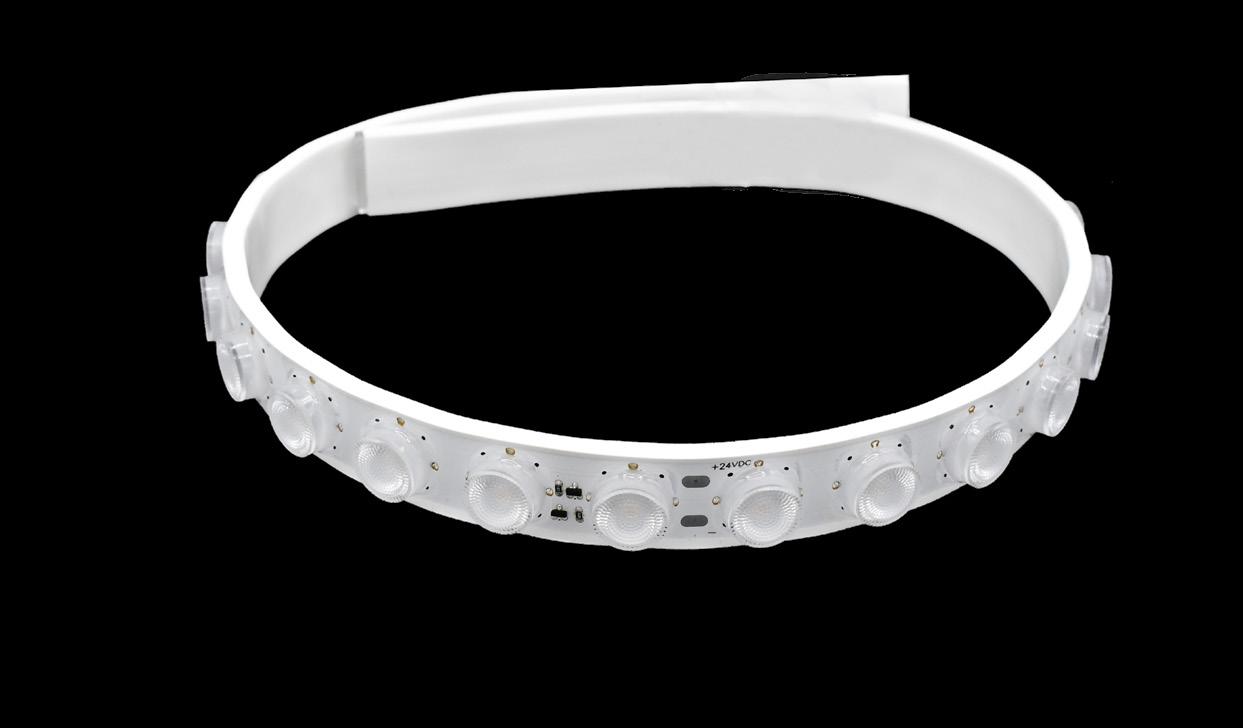

24V Array
INSP-ARY-096
INSP-ARY-120 INSP-ARY-144
Project:
Type:

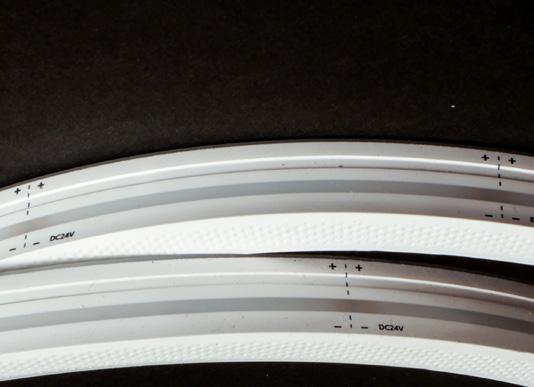

•High luminous efficiency with LM80 report
•UV Stabilized with food-grade environmental silicone housing (no yellowing or cracking)
From the brand formerly known as Tech Lighting Sophisticated mid-century modern design with its clean sharp lines
Meticulously hand-spun metal shade
• Available in multiple colors and modern nishes
• Fully dimmable LED lamping to create the desired ambiance in your unique space
• Monopoint version - The LED Driver is housed within the junction box. (L. 3.05" | W. 1.5" | H. .98")
LAMPING
Rated for (1) low-voltage, 50 watt max bi-pin lamp (Lamp not included). LED includes 12 volt 6 watt, 275 delivered lumens, 3000K replaceable LED Tech Lighting module. Ships with six feet of eld-cuttable cable. Dimmable with low-voltage electronic or magnetic dimmer (based on transformer).
ORDERING INFORMATION
700 SYSTEM COLOR
FJ FREEJACK KL KABLE LITE MP MONOPOINT MO MONORAIL
Y MATTE CHARCOAL GRAY WMATTE WHITE Z ANTIQUE BRONZE C CHROME S SATIN NICKEL
Note: Note: MP includes 4" Round Flush Canopy. Antique Bronze is not available for Kable Lite. Chrome not offered on Monorail & Two~Circuit Monorail.
-LEDS93012 VOLT LED 90 CRI 3000K (T20/T24)
Charcoal Gray White
Ø5-1/8”
P. 1.855.855.8926
CANADA:19054 28TH Avenue Surrey - BC V3Z 6M3
USA: 3035 E. Lone Mountain Rd - Las Vegas, NV, 89081
EMIKO PD523013
FIXTURE DIMENSIONS
D13" x H9-1/4"
LAMP TYPE E26
MAX WATTAGE 60W
BULB QTY 1
BULBS INCLUDED No VOLTAGE 120V
SHADE DIMENSIONS D13" x H8-5/8"
MATERIAL Aluminum; Steel;
WIRE LENGTH 72"
MINIMUM HANG HEIGHT 15"
SLOPED CEILING ADAPTABLE Yes
LOCATION Dry
CANOPY DIMENSIONS D5-1/8" x H3"
PAINT FINISH BG02; MB01; [ D - Diameter, L - Length, W - Width, H - Height, E - Extension ]

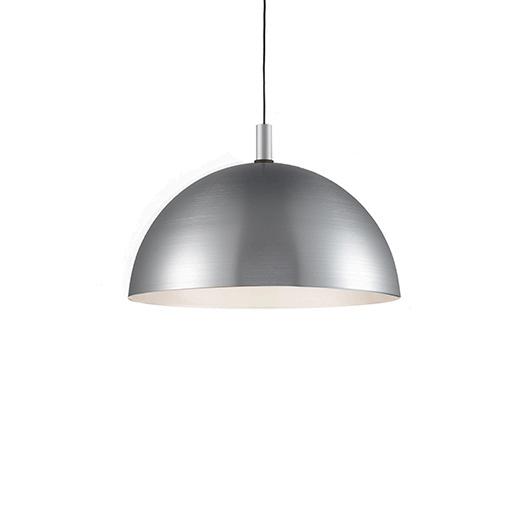

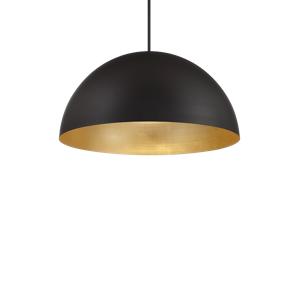

Dome like aluminum made direct luminaire, available in three different shade sizes. Comes standard with field adjustable 60” aircraft cables. Compatible with Triac and 0-10V dimmers.
Suspension en forme de dôme à éclairage direct, fait d’aluminium, disponible en trois tailles d’abat-jour. Livré de façon standard avec câbles d’acier ajustables de 60”. Compatible avec gradateurs Triac et 0-10V.
PRODUCT CODE • CODE DE PRODUIT
MODEL • MODÈLE P80
LUMINAIRE SIZE • TAILLE DU LUMINAIRE -18 -24 -30 -35
18” OVERALL DIAMETER, 14 lbs • DIAMÈTRE HORS-TOUT DE 457 mm, 6.5 KG
24” OVERALL DIAMETER, 19 lbs • DIAMÈTRE HORS-TOUT DE 610 mm, 9 KG
30” OVERALL DIAMETER, 28 lbs• DIAMÈTRE HORS-TOUT DE 762 mm, 13 KG
34.5” OVERALL DIAMETER, 35 lbs • DIAMÈTRE HORS-TOUT DE 876 mm, 16 KG
LED
LED
Ø28.79" Ø731mm
Ø34.50" Ø876mm
SIZE 35 SHOWN ABOVE, SEE NEXT PAGE FOR OTHER SIZES SPECIFICATIONS • TAILLE 35 ILLUSTRÉE CI-DESSUS, VOIR PAGE SUIVANTE POUR SPÉCIFICATIONS DES AUTRES TAILLES
LISTED CM C US 8.00" 203mm 60.00" 1524mm 21.38" 543mm
Designed with a attened metal shade that covers a frosted glass globe creates a Mid-Century Modern look
Available in modern nishes
• Compliment your look with other geometric orbed xtures from the Orbel Family
• Fixture provided with six feet of eld-cuttable black cloth cord
Lamping options are compatible with most dimmers
LAMPING
Rated for rated for (1) 5 watt max. G9 Bi-Pin lamp (Lamp Not Included). LED includes 4.7 watt, 302 total delivered lumens, 3000K, LED G9 BiPin lamp. Dimmable with most LED compatible ELV and TRIAC dimmers. Fixture provided with six feet of eld-cuttable black cloth cord. Canopy nish matches nish selection.
ORDERING INFORMATION
700 SYSTEM
TDLINE-VOLTAGE PENDANTS/SUSPENSION
Matte Black
Matte Black Aged Brass
PIRLO PENDANT
PRODUCT FEATURES
From the brand formerly known as Tech Lighting
Designed with a attened metal shade that covers a frosted glass globe creates a Mid-Century Modern look
Available in modern nishes
• Compliment your look with other geometric orbed xtures from the Orbel Family
• Fixture provided with six feet of eld-cuttable black cloth cord
Lamping options are compatible with most dimmers
LAMPING
Rated for rated for (1) 5 watt max. G9 Bi-Pin lamp (Lamp Not Included). LED includes 4.7 watt, 302 total delivered lumens, 3000K, LED G9 BiPin lamp. Dimmable with most LED compatible ELV and TRIAC dimmers. Fixture provided with six feet of eld-cuttable black cloth cord. Canopy nish matches nish selection.
ORDERING INFORMATION
700 SYSTEM
TDLINE-VOLTAGE PENDANTS/SUSPENSION
Matte Black
Matte Black Aged Brass
TYPE DC8 SPEC 275 5TH STREET
lightology.com 866-954-4489 10-22-25
Vertigo Pendant
By Petite Friture
Description
The Vertigo Pendant is simultaneously ethereal and graphic, adapting to both large and small spaces where it creates it's own intimate space. With its ultra light fiberglass structure, stretched with velvety polyurethane ribbons, this pendant lamp fascinates as it comes to life swaying in the soft air currents that surround it.
Project:
Company:
Location: Fixture Type:
SPEC #: PFT571878
Approved On: Approved By:
Specifications
Notes:
Shown in black / black CLICK
lightology.com 866-954-4489 10-22-25
Vertigo Pendant
By Petite Friture
Description
The Vertigo Pendant is simultaneously ethereal and graphic, adapting to both large and small spaces where it creates it's own intimate space. With its ultra light fiberglass structure, stretched with velvety polyurethane ribbons, this pendant lamp fascinates as it comes to life swaying in the soft air currents that surround it.
Project:
Company:
Location: Fixture Type:
SPEC #: PFT571878
Approved On: Approved By:
Specifications
Notes:
Shown in black / black
TYPE DC8A SPEC 275
lightology.com 866-954-4489 10-22-25
Vertigo Pendant
By Petite Friture
Description
The Vertigo Pendant is simultaneously ethereal and graphic, adapting to both large and small spaces where it creates it's own intimate space. With its ultra light fiberglass structure, stretched with velvety polyurethane ribbons, this pendant lamp fascinates as it comes to life swaying in the soft air currents that surround it.
Project:
Company:
Location: Fixture Type:
SPEC #: PFT571878
Approved On: Approved By:
Specifications
Notes:
Shown in black / black CLICK
lightology.com 866-954-4489 10-22-25
Vertigo Pendant
By Petite Friture
Description
The Vertigo Pendant is simultaneously ethereal and graphic, adapting to both large and small spaces where it creates it's own intimate space. With its ultra light fiberglass structure, stretched with velvety polyurethane ribbons, this pendant lamp fascinates as it comes to life swaying in the soft air currents that surround it.
Project:
Company:
Location: Fixture Type:
SPEC #: PFT571878
Approved On: Approved By:
Specifications
Notes:
Shown in black / black
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLEFINISHES:
Yolo
PD-55735
PRODUCTDESCRIPTION
Clean, contemporary, the YOLO pendant is imbued with a large spun-metal dome. Luxuriously hand applied leaf finish. Beautiful warm ambient lighting. FEATURES
• 277V option available for special order.
• ACLED driverless technology
• Twist-lock glass diffuser
• Three 12” and one 6” down rods included (additional sold separately)
• Universal voltage driver (120V-220V-277V) installs within junction box (18" and 26" sizes only)
•For 277V special order, add an "F" before the finish: PD-55735F-SL
For custom requests please contact customs@modernforms.com
Project:
Location:
Fixture Type:
Catalog Number:
AVAILABLEFINISHES:
Yolo
PD-55735
PRODUCTDESCRIPTION
Clean, contemporary, the YOLO pendant is imbued with a large spun-metal dome. Luxuriously hand applied leaf finish. Beautiful warm ambient lighting. FEATURES
• 277V option available for special order.
• ACLED driverless technology
• Twist-lock glass diffuser
• Three 12” and one 6” down rods included (additional sold separately)
• Universal voltage driver (120V-220V-277V) installs within junction box (18" and 26" sizes only)

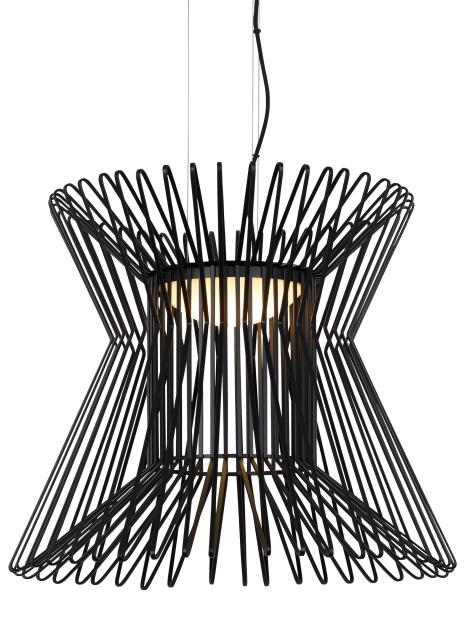

Striking modern style hand assembled from dozens of machined metal rods
•
Large scale with functional light output to make an impressive statement within your space
• Available in multipe sizes – a sizable 19” height and an oversized 38” height for dramatic impact.
On-trend modern nish options
• Fully dimmable, high quality integrated LED lamping with glarefree light diffusion
LAMPING
Includes 17.4 watt, 461 total delivered lumen, 3000K or 3500K LED module. Dimmable ELV, Triac and 0-10v 120-277V universal driver. Matte Black nish provided with twelve feet of eld-cuttable black cloth cord. Satin Gold nish ships with twelve feet of eld-cuttable cord.
ORDERING INFORMATION
700 SYSTEM COLOR LAMP
TDLINE-VOLTAGE PENDANTS/SUSPENSION
INTEGRATED LED 90 CRI 3500K 120V-277V UNV
700 JOB NAME NOTES
Matte Black
Matte Black Satin Gold
SYRMA PENDANT
PRODUCT FEATURES
From the brand formerly known as Tech Lighting
Striking modern style hand assembled from dozens of machined metal rods
•
Large scale with functional light output to make an impressive statement within your space
• Available in multipe sizes – a sizable 19” height and an oversized 38” height for dramatic impact.
On-trend modern nish options
• Fully dimmable, high quality integrated LED lamping with glarefree light diffusion
LAMPING
Includes 17.4 watt, 461 total delivered lumen, 3000K or 3500K LED module. Dimmable ELV, Triac and 0-10v 120-277V universal driver. Matte Black nish provided with twelve feet of eld-cuttable black cloth cord. Satin Gold nish ships with twelve feet of eld-cuttable cord.
ORDERING INFORMATION
700 SYSTEM COLOR LAMP
TDLINE-VOLTAGE PENDANTS/SUSPENSION B MATTE BLACK G SATIN GOLD -LED930 INTEGRATED LED 90 CRI 3000K 120V-277V UNV -LED935 INTEGRATED LED 90 CRI 3500K 120V-277V UNV
700 JOB NAME NOTES
Matte Black
Matte Black Satin Gold
5-1/2”
P. 1.855.855.8926
CANADA:19054 28TH Avenue Surrey - BC V3Z 6M3
USA: 3035 E. Lone Mountain Rd - Las Vegas, NV, 89081
FRANCESCA SF517112
FIXTURE DIMENSIONS
D11-7/8" x H5-1/2"
LAMP TYPE E26
MAX WATTAGE 60W
BULB QTY 1
BULBS INCLUDED No
VOLTAGE 120V
GLASS DETAILS Clear Glass
MATERIAL Glass; Steel;
LOCATION Dry
CANOPY DIMENSIONS
D4-3/4" x H7/8"
PAINT FINISH AG01; MB01;
[ D - Diameter, L - Length, W - Width, H - Height, E - Extension ]
Perimeter illumination top and bottom with a white acrylic diffuser. For use in kitchen, dining, foyers or anywhere general lighting is needed. Provides lighting in residential, commercial and hospitality applications. This fixture mounts to a standard junction box (not included).
Construction
Extruded aluminum housing. The canopy fits over a standard junction box. Power supply connections must be made inside a junction box (not included).
Finish
Black, Satin Brass or Satin Nickel finish.
Diffuser
White acrylic diffuser.
Electrical
Input 120 VAC 60 Hz.
Compatible with residential TRIAC and ELV dimmers.
LED
Integrated LED modules capable of producing: 40W = 2675 delivered lumens 3000K (CCT) rated for 50,000 hrs., 90 CRI.
Certification
All fixtures are cETLus listed for indoor damp locations. Title 24/JA8 Compliant
Warranty
Limited warranty: This fixture is free from defects in materials and workmanship for a period of 5 years from date of purchase.
Specifications and dimensions subject to change without notice.
Ordering Information:
DATE
Glo LED Linear GLOL Series
Features
Perimeter illumination top and bottom with a white acrylic diffuser. For use in kitchen, dining, foyers or anywhere general lighting is needed. Provides lighting in residential, commercial and hospitality applications. This fixture mounts to a standard junction box (not included).
Construction
Extruded aluminum housing. The canopy fits over a standard junction box. Power supply connections must be made inside a junction box (not included).
Finish
Black, Satin Brass or Satin Nickel finish.
Diffuser
White acrylic diffuser.
Electrical
Input 120 VAC 60 Hz.
Compatible with residential TRIAC and ELV dimmers.
LED
Integrated LED modules capable of producing: 40W = 2675 delivered lumens 3000K (CCT) rated for 50,000 hrs., 90 CRI.
Certification
All fixtures are cETLus listed for indoor damp locations. Title 24/JA8 Compliant
Warranty
Limited warranty: This fixture is free from defects in materials and workmanship for a period of 5 years from date of purchase.
Specifications and dimensions subject to change without notice.
LOCATION
PREPARED BY
COMMENTS
CATALOG NUMBER
Ordering Information:
LOCATION
PREPARED BY
COMMENTS
CATALOG NUMBER
Metropolitan LED Sconce METS Series
Features
Sleek contemporary styling with die-cast metal backplate. Ideal use in hallways, entrances or anywhere general lighting is needed. Provides lighting in residential, commercial and hospitality applications. Fixture mounts to standard junction box (not included).
Construction
Back plate is die-formed of 22-gauge steel. Standard mounting holes and hardware are included. Power supply connections must be made inside a junction box (not included).
Finish
Black, Satin Brass or Satin Nickel.
Diffuser
White glass diffuser.
Electrical
Input 120 VAC 60 Hz.
Compatible with residential TRIAC and ELV dimmers.
LED
Integrated LED modules capable of producing: 10W = 575 delivered lumens 3000K (CCT) rated for 50,000 hrs., 90 CRI.
Certification
All fixtures are cETLus listed for indoor damp locations.
Warranty
Limited warranty: This fixture is free from defects in materials and workmanship for a period of 5 years from date of purchase.
Specifications and dimensions subject to change without notice.
DATE
Metropolitan LED Sconce METS Series
Features
Sleek contemporary styling with die-cast metal backplate. Ideal use in hallways, entrances or anywhere general lighting is needed. Provides lighting in residential, commercial and hospitality applications. Fixture mounts to standard junction box (not included).
Construction
Back plate is die-formed of 22-gauge steel. Standard mounting holes and hardware are included. Power supply connections must be made inside a junction box (not included).
Finish
Black, Satin Brass or Satin Nickel.
Diffuser
White glass diffuser.
Electrical
Input 120 VAC 60 Hz.
Compatible with residential TRIAC and ELV dimmers.
LED
Integrated LED modules capable of producing: 10W = 575 delivered lumens 3000K (CCT) rated for 50,000 hrs., 90 CRI.
Certification
All fixtures are cETLus listed for indoor damp locations.
Warranty
Limited warranty: This fixture is free from defects in materials and workmanship for a period of 5 years from date of purchase.
Specifications and dimensions subject to change without notice.
LOCATION
PREPARED BY
COMMENTS
CATALOG NUMBER
P. 1.855.855.8926
CANADA:19054 28TH AvenueSurrey - BCV3Z 6M3
USA: 3035 E. Lone MountainRd- Las Vegas, NV, 89081
NOUVEAU VL505125
FIXTUREDIMENSIONS W25-5/8" x H11-7/8"x E8-1/4"
HEIGHT FROM CENTER 9-1/2"
EXTENSION 8-1/4"
LAMP TYPE E26
MAXWATTAGE 40W
BULBQTY 3
BULBS INCLUDED No
VOLTAGE 120V
GLASS DETAILS Opal Glass
MATERIAL Glass; Steel; INSTALLOPTIONS Up/Down; Wall; LOCATION Damp
CANOPY DIMENSIONS D4-3/4"x E1"
PAINT FINISH AG01; MB01; [ D - Diameter, L - Length, W - Width, H - Height, E - Extension ]
Gardco SoftView LED parking garage luminaires feature edge lit comfort optics technology, providing uniform indirect illumination that minimizes glare and creates a welcoming environment. Luminaires come standard with 80CRI for improved visibility and an uplight feature that fosters a sense of openness and security by reducing the cave effect. With up to 18,000 lumens, four optical distributions, and five mounting options, SoftView offers a customizable solution for your garage and low/high bay lighting needs. Brighten your space with SoftView and appreciate long-lasting performance, peace of mind, and optimal user experience.
Ordering guide
DALI options6,11,12
SRDR14
WIAP3,13,15
(Zhaga 4-pin)
1. T3A not available with A06, A07, A08, A09, A10 or A11 configurations due to thermal and fit restrictions.
2. TRN not available with combination of both DLEA and EM options due to fit restrictions; TRN is available with each individually (either DLEA or EM).
3. BL20 m ust be combined with MW Microwave Sensor. BLBT must be combined with Sensing option L2, L3 or L7. WIAP must be combined with Sensing option LW or HW. Choose only 1: either BL20-MW or BLBT-L# or WIAP-xW.
4. DLEA luminaire has 0-10V dimming wires exiting the luminaire for dimming controls by others.
5. MW available with 120V, 208V, 240V, 277V, UNV or 347V only.
6. Avai lable with 120V, 208V, 240V, 277V or UNV only.
7. Must s pecify input voltage. UNV and HVU not valid.
8. Choo se either Emergency option EM or EC cold. EM only available with A01, A02, A03 or A06 and EC cold only available with A01, A02, A03, or A06 due to thermal restrictions. EC cold not available with DLEA or BL20-MW or BLBT-L# due to fit restrictions; EM is available with DLEA or BL20-MW or BLBT-L# (does fit).
9. Mus t contact factory prior to ordering.
Project:
Location:
Cat.No:
Type:
Lamps: Qty:
Notes:
Example: SVPG-A06-840-5RD-SUR-UNV-BLBT-L3-SP2-MG
10. Exte nded lead times apply. Contact factory for details.
11. A09, A10, A11 each have 2 drivers therefore due to fit restrictions not available with BL20 or BLBT options. For A09, A10, or A11 with 347V, 480V, HVU, SRDR, WIAP -contact factory.
12. SRDR o r WIAP not available with Emergency options EM or EC cold due to thermal and fit restrictions.
13. ER10 0 suitable for use in 40C ambient with A01, A02, A03, A04, A06 or A07 (72W max.); suitable for use in 35C ambient with A05 or A08 (90W max.); not available above 90W: no A09, A10 or A11. ER100 must be installed in conjunction with a UL 1008 device (such as a transfer switch at the electrical panel) and only for use with Wireless Interact dimming sensor (WIAP-xW). ER100 is 120V-277V. For PI Detection with TRN Trunnion, must be wired at factory; contact factory for details
14. When o rdering SRDR, controller (by others) to be plugged into socket must be SR compatible (see Specifications for more details). Consult factory for lead time.
15. CAU T ION: It is advised not to configure WIAP with WAL due to potential adverse impacts on Daylight Dependent Regulation (DDR) functionality (which supports photocontrol and daylight harvesting).
SPECIFICATIONS
HOUSING
- Sealed die cast housing
ELECTRICAL
- Quad Tap (QT) - 120/208/240/277V
- Dimmable driver standard
OPTICAL SYSTEM
- Available in 4000K and 5000K
- Offered in Low Bay or Parking Garage (wide) distributions
MOUNTING
-Suitable for JBox or Pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
- Meets DLC Requirements
WARRANTY
- 5 Year
- 10 Year Warranty Available
ORDERING INFORMATION
CATALOG # Wattage Lumens Color
GL9-30L-QT-50K 30W 3800 Lumens 5000K
GL9-45L-QT-50K 45W 5500 Lumens 5000K
GL9-60L-QT-50K 60W 7600 Lumens 5000K
OPTIONS (Factory Installed)
PG - Parking Garage (wide) Distribution Goes after ‘GL9’ in part number
40K - 4000K (special order)
EBLED - Emergency Ballast
OCS - Occupancy Sensor
10YR - 10 Year Warranty
Type
Catalog Number
GL9-LED LED Canopy
Garage & Canopy
SVPG with comfort optics
Gardco SoftView LED parking garage luminaires feature edge lit comfort optics technology, providing uniform indirect illumination that minimizes glare and creates a welcoming environment. Luminaires come standard with 80CRI for improved visibility and an uplight feature that fosters a sense of openness and security by reducing the cave effect. With up to 18,000 lumens, four optical distributions, and five mounting options, SoftView offers a customizable solution for your garage and low/high bay lighting needs. Brighten your space with SoftView and appreciate long-lasting performance, peace of mind, and optimal user experience.
Ordering guide
SRDR14
WIAP3,13,15
(Zhaga 4-pin)
1. T3A not available with A06, A07, A08, A09, A10 or A11 configurations due to thermal and f it restrictions.
2. TRN not available with combination of both DLEA and EM options due to fit restrictions; TRN is available with each individually (either DLEA or EM).
3. BL20 mu st be combined with MW Microwave Sensor. BLBT must be combined with Sensing option L2, L3 or L7. WIAP must be combined with Sensing option LW or HW. Choose only 1: either BL20-MW or BLBT-L# or WIAP-xW.
4. DLEA luminaire has 0-10V dimming wires exiting the luminaire for dimming controls by others.
5. MW available with 120V, 208V, 240V, 277V, UNV or 347V only.
6. Avail able with 120V, 208V, 240V, 277V or UNV only.
7. Must sp ecify input voltage. UNV and HVU not valid.
8. Choos e either Emergency option EM or EC cold. EM only available with A01, A02, A03 or A06 and EC cold only available with A01, A02, A03, or A06 due to thermal restrictions. EC cold not available with DLEA or BL20-MW or BLBT-L# due to fit restrictions; EM is available with DLEA or BL20-MW or BLBT-L# (does fit).
9. Must contact factory prior to ordering.
Project:
Location:
Cat.No:
Type:
Lamps: Qty:
Notes:
Example: SVPG-A06-840-5RD-SUR-UNV-BLBT-L3-SP2-MG
10. Exte n ded lead times apply. Contact factory for details.
11. A09, A1 0, A11 each have 2 drivers therefore due to fit restrictions not available with BL20 or BLBT options. For A09, A10, or A11 with 347V, 480V, HVU, SRDR, WIAP -contact factory.
12. SRDR or W IAP not available with Emergency options EM or EC cold due to thermal and fit restrictions.
13. ER100 s uitable for use in 40C ambient with A01, A02, A03, A04, A06 or A07 (72W max.); suitable for use in 35C ambient with A05 or A08 (90W max.); not available above 90W: no A09, A10 or A11. ER100 must be installed in conjunction with a UL 1008 device (such as a transfer switch at the electrical panel) and only for use with Wireless Interact dimming sensor (WIAP-xW). ER100 is 120V-277V. For PI Detection with TRN Trunnion, must be wired at factory; contact factory for details
14. When ordering SRDR, controller (by others) to be plugged into socket must be SR compatible (see Specifications for more details). Consult factory for lead time.
15. CAUT I ON: It is advised not to configure WIAP with WAL due to potential adverse impacts on Daylight Dependent Regulation (DDR) functionality (which supports photocontrol and daylight harvesting).
SPECIFICATIONS
HOUSING
- Sealed die cast housing
ELECTRICAL
- Quad Tap (QT) - 120/208/240/277V
- Dimmable driver standard
OPTICAL SYSTEM
- Available in 4000K and 5000K
- Offered in Low Bay or Parking Garage (wide) distributions
MOUNTING
-Suitable for JBox or Pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
- Meets DLC Requirements
WARRANTY
- 5 Year
- 10 Year Warranty Available
ORDERING INFORMATION
CATALOG # Wattage Lumens Color
GL9-30L-QT-50K 30W 3800 Lumens 5000K
GL9-45L-QT-50K 45W 5500 Lumens 5000K
GL9-60L-QT-50K 60W 7600 Lumens 5000K
OPTIONS (Factory Installed)
PG - Parking Garage (wide) Distribution Goes after ‘GL9’ in part number
40K - 4000K (special order)
EBLED - Emergency Ballast
OCS - Occupancy Sensor
10YR - 10 Year Warranty
Type
GL9-LED LED Canopy
Garage & Canopy
SVPG with comfort optics
Gardco SoftView LED parking garage luminaires feature edge lit comfort optics technology, providing uniform indirect illumination that minimizes glare and creates a welcoming environment. Luminaires come standard with 80CRI for improved visibility and an uplight feature that fosters a sense of openness and security by reducing the cave effect. With up to 18,000 lumens, four optical distributions, and five mounting options, SoftView offers a customizable solution for your garage and low/high bay lighting needs. Brighten your space with SoftView and appreciate long-lasting performance, peace of mind, and optimal user experience.
Ordering guide
DALI options6,11,12
SRDR14
WIAP3,13,15
(Zhaga 4-pin)
1. T3A not available with A06, A07, A08, A09, A10 or A11 configurations due to thermal and fit restrictions.
2. TRN not available with combination of both DLEA and EM options due to fit restrictions; TRN is available with each individually (either DLEA or EM).
3. BL20 m ust be combined with MW Microwave Sensor. BLBT must be combined with Sensing option L2, L3 or L7. WIAP must be combined with Sensing option LW or HW. Choose only 1: either BL20-MW or BLBT-L# or WIAP-xW.
4. DLEA luminaire has 0-10V dimming wires exiting the luminaire for dimming controls by others.
5. MW available with 120V, 208V, 240V, 277V, UNV or 347V only.
6. Avai lable with 120V, 208V, 240V, 277V or UNV only.
7. Must s pecify input voltage. UNV and HVU not valid.
8. Choo se either Emergency option EM or EC cold. EM only available with A01, A02, A03 or A06 and EC cold only available with A01, A02, A03, or A06 due to thermal restrictions. EC cold not available with DLEA or BL20-MW or BLBT-L# due to fit restrictions; EM is available with DLEA or BL20-MW or BLBT-L# (does fit).
9. Mus t contact factory prior to ordering.
Project:
Location:
Cat.No:
Type:
Lamps: Qty:
Notes:
Example: SVPG-A06-840-5RD-SUR-UNV-BLBT-L3-SP2-MG
10. Exte nded lead times apply. Contact factory for details.
11. A09, A10, A11 each have 2 drivers therefore due to fit restrictions not available with BL20 or BLBT options. For A09, A10, or A11 with 347V, 480V, HVU, SRDR, WIAP -contact factory.
12. SRDR o r WIAP not available with Emergency options EM or EC cold due to thermal and fit restrictions.
13. ER10 0 suitable for use in 40C ambient with A01, A02, A03, A04, A06 or A07 (72W max.); suitable for use in 35C ambient with A05 or A08 (90W max.); not available above 90W: no A09, A10 or A11. ER100 must be installed in conjunction with a UL 1008 device (such as a transfer switch at the electrical panel) and only for use with Wireless Interact dimming sensor (WIAP-xW). ER100 is 120V-277V. For PI Detection with TRN Trunnion, must be wired at factory; contact factory for details
14. When o rdering SRDR, controller (by others) to be plugged into socket must be SR compatible (see Specifications for more details). Consult factory for lead time.
15. CAU T ION: It is advised not to configure WIAP with WAL due to potential adverse impacts on Daylight Dependent Regulation (DDR) functionality (which supports photocontrol and daylight harvesting).
SPECIFICATIONS
HOUSING
- Sealed die cast housing
ELECTRICAL
- Quad Tap (QT) - 120/208/240/277V
- Dimmable driver standard
OPTICAL SYSTEM
- Available in 4000K and 5000K
- Offered in Low Bay or Parking Garage (wide) distributions
MOUNTING
-Suitable for JBox or Pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
- Meets DLC Requirements
WARRANTY
- 5 Year
- 10 Year Warranty Available
ORDERING INFORMATION
CATALOG # Wattage Lumens Color
GL9-30L-QT-50K 30W 3800 Lumens 5000K
GL9-45L-QT-50K 45W 5500 Lumens 5000K
GL9-60L-QT-50K 60W 7600 Lumens 5000K
OPTIONS (Factory Installed)
PG - Parking Garage (wide) Distribution Goes after ‘GL9’ in part number
40K - 4000K (special order)
EBLED - Emergency Ballast
OCS - Occupancy Sensor
10YR - 10 Year Warranty
Type
GL9-LED LED Canopy
Garage & Canopy
SVPG with comfort optics
Gardco SoftView LED parking garage luminaires feature edge lit comfort optics technology, providing uniform indirect illumination that minimizes glare and creates a welcoming environment. Luminaires come standard with 80CRI for improved visibility and an uplight feature that fosters a sense of openness and security by reducing the cave effect. With up to 18,000 lumens, four optical distributions, and five mounting options, SoftView offers a customizable solution for your garage and low/high bay lighting needs. Brighten your space with SoftView and appreciate long-lasting performance, peace of mind, and optimal user experience.
Ordering guide
SRDR14
WIAP3,13,15
(Zhaga 4-pin)
1. T3A not available with A06, A07, A08, A09, A10 or A11 configurations due to thermal and f it restrictions.
2. TRN not available with combination of both DLEA and EM options due to fit restrictions; TRN is available with each individually (either DLEA or EM).
3. BL20 mu st be combined with MW Microwave Sensor. BLBT must be combined with Sensing option L2, L3 or L7. WIAP must be combined with Sensing option LW or HW. Choose only 1: either BL20-MW or BLBT-L# or WIAP-xW.
4. DLEA luminaire has 0-10V dimming wires exiting the luminaire for dimming controls by others.
5. MW available with 120V, 208V, 240V, 277V, UNV or 347V only.
6. Avail able with 120V, 208V, 240V, 277V or UNV only.
7. Must sp ecify input voltage. UNV and HVU not valid.
8. Choos e either Emergency option EM or EC cold. EM only available with A01, A02, A03 or A06 and EC cold only available with A01, A02, A03, or A06 due to thermal restrictions. EC cold not available with DLEA or BL20-MW or BLBT-L# due to fit restrictions; EM is available with DLEA or BL20-MW or BLBT-L# (does fit).
9. Must contact factory prior to ordering.
Project:
Location:
Cat.No:
Type:
Lamps: Qty:
Notes:
Example: SVPG-A06-840-5RD-SUR-UNV-BLBT-L3-SP2-MG
10. Exte n ded lead times apply. Contact factory for details.
11. A09, A1 0, A11 each have 2 drivers therefore due to fit restrictions not available with BL20 or BLBT options. For A09, A10, or A11 with 347V, 480V, HVU, SRDR, WIAP -contact factory.
12. SRDR or W IAP not available with Emergency options EM or EC cold due to thermal and fit restrictions.
13. ER100 s uitable for use in 40C ambient with A01, A02, A03, A04, A06 or A07 (72W max.); suitable for use in 35C ambient with A05 or A08 (90W max.); not available above 90W: no A09, A10 or A11. ER100 must be installed in conjunction with a UL 1008 device (such as a transfer switch at the electrical panel) and only for use with Wireless Interact dimming sensor (WIAP-xW). ER100 is 120V-277V. For PI Detection with TRN Trunnion, must be wired at factory; contact factory for details
14. When ordering SRDR, controller (by others) to be plugged into socket must be SR compatible (see Specifications for more details). Consult factory for lead time.
15. CAUT I ON: It is advised not to configure WIAP with WAL due to potential adverse impacts on Daylight Dependent Regulation (DDR) functionality (which supports photocontrol and daylight harvesting).
SPECIFICATIONS
HOUSING
- Sealed die cast housing
ELECTRICAL
- Quad Tap (QT) - 120/208/240/277V
- Dimmable driver standard
OPTICAL SYSTEM
- Available in 4000K and 5000K
- Offered in Low Bay or Parking Garage (wide) distributions
MOUNTING
-Suitable for JBox or Pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
- Meets DLC Requirements
WARRANTY
- 5 Year
- 10 Year Warranty Available
ORDERING INFORMATION
CATALOG # Wattage Lumens Color
GL9-30L-QT-50K 30W 3800 Lumens 5000K
GL9-45L-QT-50K 45W 5500 Lumens 5000K
GL9-60L-QT-50K 60W 7600 Lumens 5000K
OPTIONS (Factory Installed)
PG - Parking Garage (wide) Distribution Goes after ‘GL9’ in part number
40K - 4000K (special order)
EBLED - Emergency Ballast
OCS - Occupancy Sensor
10YR - 10 Year Warranty
Type
GL9-LED LED Canopy
Garage & Canopy
SVPG with comfort optics
Gardco SoftView LED parking garage luminaires feature edge lit comfort optics technology, providing uniform indirect illumination that minimizes glare and creates a welcoming environment. Luminaires come standard with 80CRI for improved visibility and an uplight feature that fosters a sense of openness and security by reducing the cave effect. With up to 18,000 lumens, four optical distributions, and five mounting options, SoftView offers a customizable solution for your garage and low/high bay lighting needs. Brighten your space with SoftView and appreciate long-lasting performance, peace of mind, and optimal user experience.
Ordering guide
DALI options6,11,12
SRDR14
WIAP3,13,15
(Zhaga 4-pin)
1. T3A not available with A06, A07, A08, A09, A10 or A11 configurations due to thermal and fit restrictions.
2. TRN not available with combination of both DLEA and EM options due to fit restrictions; TRN is available with each individually (either DLEA or EM).
3. BL20 m ust be combined with MW Microwave Sensor. BLBT must be combined with Sensing option L2, L3 or L7. WIAP must be combined with Sensing option LW or HW. Choose only 1: either BL20-MW or BLBT-L# or WIAP-xW.
4. DLEA luminaire has 0-10V dimming wires exiting the luminaire for dimming controls by others.
5. MW available with 120V, 208V, 240V, 277V, UNV or 347V only.
6. Avai lable with 120V, 208V, 240V, 277V or UNV only.
7. Must s pecify input voltage. UNV and HVU not valid.
8. Choo se either Emergency option EM or EC cold. EM only available with A01, A02, A03 or A06 and EC cold only available with A01, A02, A03, or A06 due to thermal restrictions. EC cold not available with DLEA or BL20-MW or BLBT-L# due to fit restrictions; EM is available with DLEA or BL20-MW or BLBT-L# (does fit).
9. Mus t contact factory prior to ordering.
Project:
Location:
Cat.No:
Type:
Lamps: Qty:
Notes:
Example: SVPG-A06-840-5RD-SUR-UNV-BLBT-L3-SP2-MG
10. Exte nded lead times apply. Contact factory for details.
11. A09, A10, A11 each have 2 drivers therefore due to fit restrictions not available with BL20 or BLBT options. For A09, A10, or A11 with 347V, 480V, HVU, SRDR, WIAP -contact factory.
12. SRDR o r WIAP not available with Emergency options EM or EC cold due to thermal and fit restrictions.
13. ER10 0 suitable for use in 40C ambient with A01, A02, A03, A04, A06 or A07 (72W max.); suitable for use in 35C ambient with A05 or A08 (90W max.); not available above 90W: no A09, A10 or A11. ER100 must be installed in conjunction with a UL 1008 device (such as a transfer switch at the electrical panel) and only for use with Wireless Interact dimming sensor (WIAP-xW). ER100 is 120V-277V. For PI Detection with TRN Trunnion, must be wired at factory; contact factory for details
14. When o rdering SRDR, controller (by others) to be plugged into socket must be SR compatible (see Specifications for more details). Consult factory for lead time.
15. CAU T ION: It is advised not to configure WIAP with WAL due to potential adverse impacts on Daylight Dependent Regulation (DDR) functionality (which supports photocontrol and daylight harvesting).
SPECIFICATIONS
HOUSING
- Sealed die cast housing
ELECTRICAL
- Quad Tap (QT) - 120/208/240/277V
- Dimmable driver standard
OPTICAL SYSTEM
- Available in 4000K and 5000K
- Offered in Low Bay or Parking Garage (wide) distributions
MOUNTING
-Suitable for JBox or Pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
- Meets DLC Requirements
WARRANTY
- 5 Year
- 10 Year Warranty Available
ORDERING INFORMATION
CATALOG # Wattage Lumens Color
GL9-30L-QT-50K 30W 3800 Lumens 5000K
GL9-45L-QT-50K 45W 5500 Lumens 5000K
GL9-60L-QT-50K 60W 7600 Lumens 5000K
OPTIONS (Factory Installed)
PG - Parking Garage (wide) Distribution Goes after ‘GL9’ in part number
40K - 4000K (special order)
EBLED - Emergency Ballast
OCS - Occupancy Sensor
10YR - 10 Year Warranty
Type
GL9-LED LED Canopy
Garage & Canopy
SVPG with comfort optics
Gardco SoftView LED parking garage luminaires feature edge lit comfort optics technology, providing uniform indirect illumination that minimizes glare and creates a welcoming environment. Luminaires come standard with 80CRI for improved visibility and an uplight feature that fosters a sense of openness and security by reducing the cave effect. With up to 18,000 lumens, four optical distributions, and five mounting options, SoftView offers a customizable solution for your garage and low/high bay lighting needs. Brighten your space with SoftView and appreciate long-lasting performance, peace of mind, and optimal user experience.
Ordering guide
DALI options6,11,12
SRDR14
WIAP3,13,15
(Zhaga 4-pin)
1. T3A not available with A06, A07, A08, A09, A10 or A11 configurations due to thermal and fit restrictions.
2. TRN not available with combination of both DLEA and EM options due to fit restrictions; TRN is available with each individually (either DLEA or EM).
3. BL20 m ust be combined with MW Microwave Sensor. BLBT must be combined with Sensing option L2, L3 or L7. WIAP must be combined with Sensing option LW or HW. Choose only 1: either BL20-MW or BLBT-L# or WIAP-xW.
4. DLEA luminaire has 0-10V dimming wires exiting the luminaire for dimming controls by others.
5. MW available with 120V, 208V, 240V, 277V, UNV or 347V only.
6. Avai lable with 120V, 208V, 240V, 277V or UNV only.
7. Must s pecify input voltage. UNV and HVU not valid.
8. Choo se either Emergency option EM or EC cold. EM only available with A01, A02, A03 or A06 and EC cold only available with A01, A02, A03, or A06 due to thermal restrictions. EC cold not available with DLEA or BL20-MW or BLBT-L# due to fit restrictions; EM is available with DLEA or BL20-MW or BLBT-L# (does fit).
9. Mus t contact factory prior to ordering.
Project:
Location:
Cat.No:
Type:
Lamps: Qty:
Notes:
Example: SVPG-A06-840-5RD-SUR-UNV-BLBT-L3-SP2-MG
10. Exte nded lead times apply. Contact factory for details.
11. A09, A10, A11 each have 2 drivers therefore due to fit restrictions not available with BL20 or BLBT options. For A09, A10, or A11 with 347V, 480V, HVU, SRDR, WIAP -contact factory.
12. SRDR o r WIAP not available with Emergency options EM or EC cold due to thermal and fit restrictions.
13. ER10 0 suitable for use in 40C ambient with A01, A02, A03, A04, A06 or A07 (72W max.); suitable for use in 35C ambient with A05 or A08 (90W max.); not available above 90W: no A09, A10 or A11. ER100 must be installed in conjunction with a UL 1008 device (such as a transfer switch at the electrical panel) and only for use with Wireless Interact dimming sensor (WIAP-xW). ER100 is 120V-277V. For PI Detection with TRN Trunnion, must be wired at factory; contact factory for details
14. When o rdering SRDR, controller (by others) to be plugged into socket must be SR compatible (see Specifications for more details). Consult factory for lead time.
15. CAU T ION: It is advised not to configure WIAP with WAL due to potential adverse impacts on Daylight Dependent Regulation (DDR) functionality (which supports photocontrol and daylight harvesting).
SPECIFICATIONS
HOUSING
- Sealed die cast housing
ELECTRICAL
- Quad Tap (QT) - 120/208/240/277V
- Dimmable driver standard
OPTICAL SYSTEM
- Available in 4000K and 5000K
- Offered in Low Bay or Parking Garage (wide) distributions
MOUNTING
-Suitable for JBox or Pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
- Meets DLC Requirements
WARRANTY
- 5 Year
- 10 Year Warranty Available
ORDERING INFORMATION
CATALOG # Wattage Lumens Color
GL9-30L-QT-50K 30W 3800 Lumens 5000K
GL9-45L-QT-50K 45W 5500 Lumens 5000K
GL9-60L-QT-50K 60W 7600 Lumens 5000K
OPTIONS (Factory Installed)
PG - Parking Garage (wide) Distribution Goes after ‘GL9’ in part number
40K - 4000K (special order)
EBLED - Emergency Ballast
OCS - Occupancy Sensor
10YR - 10 Year Warranty
Type
GL9-LED LED Canopy
Garage & Canopy
SVPG with comfort optics
Gardco SoftView LED parking garage luminaires feature edge lit comfort optics technology, providing uniform indirect illumination that minimizes glare and creates a welcoming environment. Luminaires come standard with 80CRI for improved visibility and an uplight feature that fosters a sense of openness and security by reducing the cave effect. With up to 18,000 lumens, four optical distributions, and five mounting options, SoftView offers a customizable solution for your garage and low/high bay lighting needs. Brighten your space with SoftView and appreciate long-lasting performance, peace of mind, and optimal user experience.
Ordering guide
SRDR14
WIAP3,13,15
(Zhaga 4-pin)
1. T3A not available with A06, A07, A08, A09, A10 or A11 configurations due to thermal and f it restrictions.
2. TRN not available with combination of both DLEA and EM options due to fit restrictions; TRN is available with each individually (either DLEA or EM).
3. BL20 mu st be combined with MW Microwave Sensor. BLBT must be combined with Sensing option L2, L3 or L7. WIAP must be combined with Sensing option LW or HW. Choose only 1: either BL20-MW or BLBT-L# or WIAP-xW.
4. DLEA luminaire has 0-10V dimming wires exiting the luminaire for dimming controls by others.
5. MW available with 120V, 208V, 240V, 277V, UNV or 347V only.
6. Avail able with 120V, 208V, 240V, 277V or UNV only.
7. Must sp ecify input voltage. UNV and HVU not valid.
8. Choos e either Emergency option EM or EC cold. EM only available with A01, A02, A03 or A06 and EC cold only available with A01, A02, A03, or A06 due to thermal restrictions. EC cold not available with DLEA or BL20-MW or BLBT-L# due to fit restrictions; EM is available with DLEA or BL20-MW or BLBT-L# (does fit).
9. Must contact factory prior to ordering.
Project:
Location:
Cat.No:
Type:
Lamps: Qty:
Notes:
Example: SVPG-A06-840-5RD-SUR-UNV-BLBT-L3-SP2-MG
10. Exte n ded lead times apply. Contact factory for details.
11. A09, A1 0, A11 each have 2 drivers therefore due to fit restrictions not available with BL20 or BLBT options. For A09, A10, or A11 with 347V, 480V, HVU, SRDR, WIAP -contact factory.
12. SRDR or W IAP not available with Emergency options EM or EC cold due to thermal and fit restrictions.
13. ER100 s uitable for use in 40C ambient with A01, A02, A03, A04, A06 or A07 (72W max.); suitable for use in 35C ambient with A05 or A08 (90W max.); not available above 90W: no A09, A10 or A11. ER100 must be installed in conjunction with a UL 1008 device (such as a transfer switch at the electrical panel) and only for use with Wireless Interact dimming sensor (WIAP-xW). ER100 is 120V-277V. For PI Detection with TRN Trunnion, must be wired at factory; contact factory for details
14. When ordering SRDR, controller (by others) to be plugged into socket must be SR compatible (see Specifications for more details). Consult factory for lead time.
15. CAUT I ON: It is advised not to configure WIAP with WAL due to potential adverse impacts on Daylight Dependent Regulation (DDR) functionality (which supports photocontrol and daylight harvesting).
SPECIFICATIONS
HOUSING
- Sealed die cast housing
ELECTRICAL
- Quad Tap (QT) - 120/208/240/277V
- Dimmable driver standard
OPTICAL SYSTEM
- Available in 4000K and 5000K
- Offered in Low Bay or Parking Garage (wide) distributions
MOUNTING
-Suitable for JBox or Pendant mounting
CODE COMPLIANCE
- cULus Listed for Wet Locations
- Meets DLC Requirements
WARRANTY
- 5 Year
- 10 Year Warranty Available
ORDERING INFORMATION
CATALOG # Wattage Lumens Color
GL9-30L-QT-50K 30W 3800 Lumens 5000K
GL9-45L-QT-50K 45W 5500 Lumens 5000K
GL9-60L-QT-50K 60W 7600 Lumens 5000K
OPTIONS (Factory Installed)
PG - Parking Garage (wide) Distribution Goes after ‘GL9’ in part number
Code compliant for use in fire-rated assemblies up to a maximum of 2-hours
STC/IIC Sound Rated
CP
Chicago Plenum
RoHS Compliant
Spot
Warranty
5 year limited warranty; 50,000 hours
DarkSky Approved 2
Module and Trim
UL Listed for Wet Location/IP66
Configurations Available 3
NSF Listed 4
1 For use with Standard New Construction, Spray Foam, Chicago Plenum and Double Housing
2 Downlight only, CCT less than or equal to 3000K, nondecorative trims only
3 Flanged trims, under covered areas only
4 White and Black Finish Only
NIO-4RNDC
4" Iolite Round Reflector
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
· Certified to the high efficacy requirements of California Title 24 JA8-2025
Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm
TYPE H1 SPEC 275 5TH STREET
EXAMPLE: M4NCRS
M SERIES TRIM
M4TRH Hyperbolic 12 BK Black
M4TRP Pinhole 5,12 BZ Bronze
M4TRL Wall Wash/Sloped Ceiling 13 CW Clear Diffuse, White Flange
Open, Frosted 6,14,15
Closed, Frosted 6,14,15
EXAMPLE: DRD2M07924GAT
EXAMPLE: M4TRSWH
Closed, Clear, Frosted Side 6,14,15 CC Custom Color (RAL Colors)
Decorative: Closed, Clear, Frosted Inside 6,14,15 FL Flangeless 16,18 DF Dead Front 3,14,17 IP Coastal Marine Grade/IP66 19
12 Only available in White, Black or Custom Color finish
M4XRMUD Flangeless Mud Plate (Required for Flangeless Trim drywall installation)
M4KRTEMPLATE Router Template (Recommended for wood installation)
M4CREXT Extension Collar 1(for ceiling install up to 3")
1 Only available in Standard rating
2 Not Compatible with Coastal Marine Grade Trim
3 Not available in DALI-2 dimming
4 Only available in Fire Rated Rating
5 Only available for 750 lm or 1000 lm
6 Not available for Flangeless applications
7 DarkSky approved only applicable to configurations with CCT Options 3000K or less and not compatible with Decorative trims
8 Only available in 1000 lm
9 Only available in 1000 lm, DALI-2 dimming
10 Not available in Warm Dim CCT or Tunable White
11 Only available in 1000 lm Tunable White or Warm Dim and 1250 lm static CCT
13 Recommended with General Ambient beam spread for general wallwashing and Spot beam spread for Sloped Ceiling; Not available in Bronze finish
14 Only available in Standard style, White finish
15 Only available with General Ambient beam spread
16 Not available for Decorative option, Concrete Construction or Remodel housing; Not available in Clear Diffuse finish
17 Only available for 750 lm
18 Mudplate is required for all Flangeless trims except for wood ceiling applications
19 Only available in Standard style, White or Black Marine Grade Finish; Only Compatible with New Construction, Chicago Plenum, Double Housing, or Spray Foam housings
NHIOICD-415
/ NHIOICD-420 / NHIOICD-425
NHIOICDCP-415 / NHIOICDCP-420 / NHIOICDCP-425
4" Iolite IC Air-Tight High Lumen New Construction Housing
Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Airtight (AT) <2CFM (cubic feet per minute) in accordance to ASTM 283.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) 5-Year Limited Warranty RoHS compliant FCC compliant Patent #D824567S
Airtight in accordance to ASTM E283
4" Iolite ICAT High Lumen New Construction Housing - Compatible with NIO-4 trims (except PLUS square trims)
NHIOICD-415 = IC Air-Tight, 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum, 1500lm / 20W
NHIOICD-420 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum, 2000lm / 24W
NHIOICD-425 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
DAL = 120-277V input; DALI 1% dimming
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
Example: NHIOICD-420LE4 = 4" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V input; Triac / ELV / 0-10V dimming
Code compliant for use in fire-rated assemblies up to a maximum of 2-hours
STC/IIC Sound Rated
CP
Chicago Plenum
RoHS Compliant
Spot
Warranty
5 year limited warranty; 50,000 hours
DarkSky Approved 2
Module and Trim
UL Listed for Wet Location/IP66
Configurations Available 3
NSF Listed 4
1 For use with Standard New Construction, Spray Foam, Chicago Plenum and Double Housing
2 Downlight only, CCT less than or equal to 3000K, nondecorative trims only
3 Flanged trims, under covered areas only
4 White and Black Finish Only
NIO-4RNDC
4" Iolite Round Reflector
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
· Certified to the high efficacy requirements of California Title 24 JA8-2025
PRODUCT IMAGES & DIMENSIONS
Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming curve than 2" & 4" Iolite
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
NIO-4RNDC
Reflector with Round Aperture
Compatible Housings
Type
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-48 = Chicago Plenum / 800-1000lm
TYPE H1A SPEC 275 5TH STREET
EXAMPLE: M4NCRS
M SERIES TRIM
M4TRH Hyperbolic 12 BK Black
M4TRP Pinhole 5,12 BZ Bronze
M4TRL Wall Wash/Sloped Ceiling 13 CW Clear Diffuse, White Flange
Open, Frosted 6,14,15
Closed, Frosted 6,14,15
EXAMPLE: DRD2M07924GAT
EXAMPLE: M4TRSWH
Closed, Clear, Frosted Side 6,14,15 CC Custom Color (RAL Colors)
Decorative: Closed, Clear, Frosted Inside 6,14,15 FL Flangeless 16,18 DF Dead Front 3,14,17 IP Coastal Marine Grade/IP66 19
12 Only available in White, Black or Custom Color finish
M4XRMUD Flangeless Mud Plate (Required for Flangeless Trim drywall installation)
M4KRTEMPLATE Router Template (Recommended for wood installation)
M4CREXT Extension Collar 1(for ceiling install up to 3")
1 Only available in Standard rating
2 Not Compatible with Coastal Marine Grade Trim
3 Not available in DALI-2 dimming
4 Only available in Fire Rated Rating
5 Only available for 750 lm or 1000 lm
6 Not available for Flangeless applications
7 DarkSky approved only applicable to configurations with CCT Options 3000K or less and not compatible with Decorative trims
8 Only available in 1000 lm
9 Only available in 1000 lm, DALI-2 dimming
10 Not available in Warm Dim CCT or Tunable White
11 Only available in 1000 lm Tunable White or Warm Dim and 1250 lm static CCT
13 Recommended with General Ambient beam spread for general wallwashing and Spot beam spread for Sloped Ceiling; Not available in Bronze finish
14 Only available in Standard style, White finish
15 Only available with General Ambient beam spread
16 Not available for Decorative option, Concrete Construction or Remodel housing; Not available in Clear Diffuse finish
17 Only available for 750 lm
18 Mudplate is required for all Flangeless trims except for wood ceiling applications
19 Only available in Standard style, White or Black Marine Grade Finish; Only Compatible with New Construction, Chicago Plenum, Double Housing, or Spray Foam housings
NHIOICD-415
/ NHIOICD-420 / NHIOICD-425
NHIOICDCP-415 / NHIOICDCP-420 / NHIOICDCP-425
4" Iolite IC Air-Tight High Lumen New Construction Housing
Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2".
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Meets requirments of Airtight (AT) <2CFM (cubic feet per minute) in accordance to ASTM 283.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box. Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required. 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) 5-Year Limited Warranty RoHS compliant FCC compliant Patent #D824567S
Airtight in accordance to ASTM E283
4" Iolite ICAT High Lumen New Construction Housing - Compatible with NIO-4 trims (except PLUS square trims)
NHIOICD-415 = IC Air-Tight, 1500lm / 20W
NHIOICDCP-415 = Chicago Plenum, 1500lm / 20W
NHIOICD-420 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum, 2000lm / 24W
NHIOICD-425 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
DAL = 120-277V input; DALI 1% dimming
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
Example: NHIOICD-420LE4 = 4" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V input; Triac / ELV / 0-10V dimming
Optimized for Versatile Applications Brilliant illumination and reliable performance for your entire space
Brightness Switch Easily select level of illumination with the flip of a switch
True to Life Colors Accurate color rendering means every detail, finish, and person in your space appears exactly as it should
LIGHT OUTPUT & DISTRIBUTION
Module Downlight
Lumens (Power)
Integrated Brightness Switch
350 lm (5W), 750 lm (9W), 950lm (12W)
Color Quality
90+ CRI, 3-step SDCM
Beam Spread Color Temperature
General (90°+)
– 2200K)
Warranty
5 year limited warranty; 50,000 hours
POWER & CONTROLS
Input Voltage 120V
Dimming
TRIAC/ELV (5%)
RATINGS & CERTIFICATIONS
Housing
IC (Insulation Contact) Rated
ASTM E283 Certified Air Tight
RoHS Compliant
Code Compliant for use in FIre Rated Assemblies up to a maximum of 2-hours (Option) V
Module and Trim
UL Listed for Wet Location
(Adjustable Trim Damp Only)
NSF Listed
NPR-4RNDC
4" Pearl 120V LED Round Retrofit Reflector with Round Aperture
Source: 12W LED 1200lm
PRODUCT DESCRIPTION
Pearl LED Retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The 4" retrofit luminaires deliver over 1200 lumen s with deep regressed cone reflector for optim al visual cut-off.
FEATURES
Medium base socket adapter included Retrofit existing 4" recessed housings
Comfort Dim (warm dimming) is available in 900lm only 2700K, 3000K, 3500K, 4000K @ 90+ CRI
Field changeable optics included (Spot, Narrow Flood and Flood - installed)
Integral dimmable driver 5-year limited warranty
· cULus classified for wet locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 22° and 26° TIR optics are also available
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 900lm only Dimming: Triac (leading edge) or ELV (trailing edge) Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
COMPATIBLE HOUSINGS
Pearl retrofit s are compatible with most 4" IC and Non-IC housings by Nora and others.
Fire Box
NFBIC-4LMRATA* ICAT Dedicated LED
NFBIC-4INCATA ICAT Line Voltage
New Construction
NSIC-4LMRAT * Max. Adjustability ICAT Dedicated LED
* Nora Dedicated LED housings are cULus listed for use only with Nora LED Retrofits.
Retrofit: Pearl retrofit series includes medium base screw-socket adapter (NRA-211SM) for retrofitting into existing medium base downlight housings. GU24 socket adapter is available for use with GU24 housings, must specify NRA-212SM.
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2.
LABELS AND LISTINGS
cUL us classified for Wet Locations
· RoHS compliant
5-Year Limited Warranty
Cer tified to the high efficacy requirements of California Title 24 JA8-2022
4" Pearl 120V LED Round Retrofit Reflector with Round Aperture
Color Temperature Finish
NPR-4RNDC27 X = 2700K
NPR-4RNDC30X = 3000K
NPR-4RNDC35 X = 3500K
NPR-4RNDC40X = 4000K
NPR-4RNDCCDX = Comfort Dim
BB = Black / Black
BW = Black / White
BZ = Bronze / Bronze
CHMPW = Champagne / Matte Powder White
CMPW = Specular Clear / Matte Powder White
HW = Haze / White
HZMPW = Haze / Matte Powder White
MPW = Matte Powder White
NN = Natural Metal / Natural Metal
WW = White / White
Example: NPR-4RNDC27XWW = 4" Pearl 120V LED Round Retrofit Reflector with Round Aperture, 2700K, White finish
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
1218lm4000KSpot NPR-4RNDC40XMPW 1225lm4000KNarrow NPR-4RNDC40XMPW 1200lm4000KFlood Delivered lumens will vary depending on CCT, optic and finish
PRODUCT BUILDER - EMBEDDED TRIAC/ELV
HOUSING COMPATIBILITY
The H Series luminaire recessed housings (H3BH, H3RM) are UL Certified and intended for use with the H Series module (HM27, HM30, HM3C) or other certified 3" retrofit conversion kits (light source) that meet the following criteria: maximum height 3-3/8", maximum wattage 13W.
EXAMPLE: H3BH
H3T
Pearl LED Retrofit Accessories
4" Pearl LED Round Retrofit Reflector with Round Aperture
FIELD CHANGEABLE OPTICS
Type Project Catalog No.
Notes
Pearl luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available. Note: Premium TIR optics are not compatible with Comfort Dim LED modules.
LED Module/Driver
Frosted Optics
NIO-REFL38FR 60° Optic
Optic
NIO-REFL60FR 73° Optic
Replaces optics that are included with each LED module.
ACCESSORIES
Die-cast Trim
Pearl accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
LED Module/Driver
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Accessory
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Die-cast Trim
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Premium TIR Optics
NIO-REFLTIR15 22° Optic NIO-REFLTIR25 26° Optic
Premium TIR (total internal reflection) optics create optimal spot and narrow flood beam spread. Not compatible with Comfort Dim (CDX) LED module
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
DarkSky Approved (Downlight only, CCT less than or equal to 3000K)
WARRANTY
5 year limited warranty; 50,000 hours
V102523
Source: 40W LED 2000lm
PRODUCT DESCRIPTION
iLENE Series of dedicated LED Mini Cylinders are available in three sizes and outputs, with pendant or surface mount options. Using Cree® COB technology, the iLENE produces 90+ CRI with excellent cut-off for visual comfort. Each cylinder includes three field-changeable optics for spot, narrow flood and flood (installed) beam spreads.
FEATURES
2000lm / 40W LED
Cree® LED COB or Comfort Dim Technology technology
Stem, Surface or Cable Mounted
2700K, 3000K, 3500K, 4000K or Comfort Dim @ 90+ CRI
Flood (installed), narrow flood and spot optics included 120-277V input and Triac, ELV or 0-10V dimming
Black, silver or white cylinder finish
· 5-year limited warranty
SPECIFICATION
Construction: Extruded aluminum cylinder with aluminum vented top. Driver is mounted in the canopy to dissipate heat away from the LED module and extend life expectancy.
Reflector: Deep set reflector for minimal aperture brightness. Reflector finish matches cylinder finish.
INSTALLATION (Canopy includes driver & mounts over j-box)
Cable: Cylinder includes 8' field adjustable aircraft cable Surface: Cylinder is connected to canopy and mounts directly over junction box.
Stem: Cylinder can be stem mounted up to 7', must specify stem length (12" increments). Stems are internally threaded and can be connected together, below are configurations included:
Stem LengthStem(s) Included
12" (1') (1) 12" Stem
24" (2') (1) 24" Stem
36" (3')(1) 12" & (1) 24" Stems
48" (4') (2) 24" Stems
60" (5')(2) 24" & (1) 12" Stems
72" (6') (3) 24" Stems
84" (7')(3) 24" & (1) 12" Stems
5" iLENE LED Mini Cylinder with Stem
ELECTRICAL
Input Voltage: 120-277VAC
Lumens / Wattage: 2000lm / 40W (1800lm with Comfort Dim)
Color Temperature: 2700K, 3000K, 3500K or 4000K
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Comfort Dim delivers up to 1800 lumens.
Color Rendering Index: 90+ CRI
Optics: Three field-changeable optics included Dimming: Triac, ELV or 0-10V
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
LABELS AND LISTINGS
cULus Listed for Damp Locations
· 5-Year Limited Warranty
·Certified to the high efficacy requirements of California Title 24 JA8-2022
2 Only available in Downlight Stem; 750, 1000, 1250, 1500 or 2000 lm; with Round Standard, Decorative, or Low Profile Trim
3 Only available in 750 or 1000 lm; Damp Location moisture rating; Round Standard or Hyperbolic trim
4 Sum of Lumens cannot be greater than 1500 lm for Small size, 2000 lm for Medium size, 3000 lm for Large size
5 Not available in Adjustable
6 Only available in 0-10V
7 Only available in 750 lm, 1000 lm, 1250 lm, or 1500 lm
8 Only available for Adjustable; Not available with DALI-2
9 Not available in Warm Dim or Tunable White
10 Only applicable to Medium or Large size mounts; Otherwise, select None; Uplight cannot be Adjustable
11 Only available in 1000 lm; Not available in Narrow Spot
12 Only available in 1000 lm downlight and 750 lm Adjustable; Not available in Narrow Spot; DALI-2 only
13 Only available in 1000 lm Warm Dim, Tunable White or 1250 lm Static CCT Downlight and 1000 lm Warm Dim or Static CCT and 750 lm Tunable White Adjustable
14 Not available in Uplight; TRIAC/ELV driver utilizes micro inverter; 0-10V drivers utilize EM Kit mounted above ceiling with emergency LED driver & remote test switch
DarkSky Approved (Downlight only, CCT less than or equal to 3000K)
WARRANTY
5 year limited warranty; 50,000 hours
V102523
Source: 40W LED 2000lm
PRODUCT DESCRIPTION
iLENE Series of dedicated LED Mini Cylinders are available in three sizes and outputs, with pendant or surface mount options. Using Cree® COB technology, the iLENE produces 90+ CRI with excellent cut-off for visual comfort. Each cylinder includes three field-changeable optics for spot, narrow flood and flood (installed) beam spreads.
FEATURES
2000lm / 40W LED
Cree® LED COB or Comfort Dim Technology technology
Stem, Surface or Cable Mounted
2700K, 3000K, 3500K, 4000K or Comfort Dim @ 90+ CRI
Flood (installed), narrow flood and spot optics included 120-277V input and Triac, ELV or 0-10V dimming
Black, silver or white cylinder finish
· 5-year limited warranty
SPECIFICATION
Construction: Extruded aluminum cylinder with aluminum vented top. Driver is mounted in the canopy to dissipate heat away from the LED module and extend life expectancy.
Reflector: Deep set reflector for minimal aperture brightness. Reflector finish matches cylinder finish.
INSTALLATION (Canopy includes driver & mounts over j-box)
Cable: Cylinder includes 8' field adjustable aircraft cable Surface: Cylinder is connected to canopy and mounts directly over junction box.
Stem: Cylinder can be stem mounted up to 7', must specify stem length (12" increments). Stems are internally threaded and can be connected together, below are configurations included:
Stem LengthStem(s) Included
12" (1') (1) 12" Stem
24" (2') (1) 24" Stem
36" (3')(1) 12" & (1) 24" Stems
48" (4') (2) 24" Stems
60" (5')(2) 24" & (1) 12" Stems
72" (6') (3) 24" Stems
84" (7')(3) 24" & (1) 12" Stems
5" iLENE LED Mini Cylinder with Stem
ELECTRICAL
Input Voltage: 120-277VAC
Lumens / Wattage: 2000lm / 40W (1800lm with Comfort Dim)
Color Temperature: 2700K, 3000K, 3500K or 4000K
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Comfort Dim delivers up to 1800 lumens.
Color Rendering Index: 90+ CRI
Optics: Three field-changeable optics included Dimming: Triac, ELV or 0-10V
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
LABELS AND LISTINGS
cULus Listed for Damp Locations
· 5-Year Limited Warranty
·Certified to the high efficacy requirements of California Title 24 JA8-2022
2 Only available in Downlight Stem; 750, 1000, 1250, 1500 or 2000 lm; with Round Standard, Decorative, or Low Profile Trim
3 Only available in 750 or 1000 lm; Damp Location moisture rating; Round Standard or Hyperbolic trim
4 Sum of Lumens cannot be greater than 1500 lm for Small size, 2000 lm for Medium size, 3000 lm for Large size
5 Not available in Adjustable
6 Only available in 0-10V
7 Only available in 750 lm, 1000 lm, 1250 lm, or 1500 lm
8 Only available for Adjustable; Not available with DALI-2
9 Not available in Warm Dim or Tunable White
10 Only applicable to Medium or Large size mounts; Otherwise, select None; Uplight cannot be Adjustable
11 Only available in 1000 lm; Not available in Narrow Spot
12 Only available in 1000 lm downlight and 750 lm Adjustable; Not available in Narrow Spot; DALI-2 only
13 Only available in 1000 lm Warm Dim, Tunable White or 1250 lm Static CCT Downlight and 1000 lm Warm Dim or Static CCT and 750 lm Tunable White Adjustable
14 Not available in Uplight; TRIAC/ELV driver utilizes micro inverter; 0-10V drivers utilize EM Kit mounted above ceiling with emergency LED driver & remote test switch
DarkSky Approved (Downlight only, CCT less than or equal to 3000K)
WARRANTY
5 year limited warranty; 50,000 hours
V102523
Source: 40W LED 2000lm
PRODUCT DESCRIPTION
iLENE Series of dedicated LED Mini Cylinders are available in three sizes and outputs, with pendant or surface mount options. Using Cree® COB technology, the iLENE produces 90+ CRI with excellent cut-off for visual comfort. Each cylinder includes three field-changeable optics for spot, narrow flood and flood (installed) beam spreads.
FEATURES
2000lm / 40W LED
Cree® LED COB or Comfort Dim Technology technology
Stem, Surface or Cable Mounted
2700K, 3000K, 3500K, 4000K or Comfort Dim @ 90+ CRI
Flood (installed), narrow flood and spot optics included 120-277V input and Triac, ELV or 0-10V dimming
Black, silver or white cylinder finish
· 5-year limited warranty
SPECIFICATION
Construction: Extruded aluminum cylinder with aluminum vented top. Driver is mounted in the canopy to dissipate heat away from the LED module and extend life expectancy.
Reflector: Deep set reflector for minimal aperture brightness. Reflector finish matches cylinder finish.
INSTALLATION (Canopy includes driver & mounts over j-box)
Cable: Cylinder includes 8' field adjustable aircraft cable Surface: Cylinder is connected to canopy and mounts directly over junction box.
Stem: Cylinder can be stem mounted up to 7', must specify stem length (12" increments). Stems are internally threaded and can be connected together, below are configurations included:
Stem LengthStem(s) Included
12" (1') (1) 12" Stem
24" (2') (1) 24" Stem
36" (3')(1) 12" & (1) 24" Stems
48" (4') (2) 24" Stems
60" (5')(2) 24" & (1) 12" Stems
72" (6') (3) 24" Stems
84" (7')(3) 24" & (1) 12" Stems
5" iLENE LED Mini Cylinder with Stem
ELECTRICAL
Input Voltage: 120-277VAC
Lumens / Wattage: 2000lm / 40W (1800lm with Comfort Dim)
Color Temperature: 2700K, 3000K, 3500K or 4000K
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Comfort Dim delivers up to 1800 lumens.
Color Rendering Index: 90+ CRI
Optics: Three field-changeable optics included Dimming: Triac, ELV or 0-10V
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
LABELS AND LISTINGS
cULus Listed for Damp Locations
· 5-Year Limited Warranty
·Certified to the high efficacy requirements of California Title 24 JA8-2022
2 Only available in Downlight Stem; 750, 1000, 1250, 1500 or 2000 lm; with Round Standard, Decorative, or Low Profile Trim
3 Only available in 750 or 1000 lm; Damp Location moisture rating; Round Standard or Hyperbolic trim
4 Sum of Lumens cannot be greater than 1500 lm for Small size, 2000 lm for Medium size, 3000 lm for Large size
5 Not available in Adjustable
6 Only available in 0-10V
7 Only available in 750 lm, 1000 lm, 1250 lm, or 1500 lm
8 Only available for Adjustable; Not available with DALI-2
9 Not available in Warm Dim or Tunable White
10 Only applicable to Medium or Large size mounts; Otherwise, select None; Uplight cannot be Adjustable
11 Only available in 1000 lm; Not available in Narrow Spot
12 Only available in 1000 lm downlight and 750 lm Adjustable; Not available in Narrow Spot; DALI-2 only
13 Only available in 1000 lm Warm Dim, Tunable White or 1250 lm Static CCT Downlight and 1000 lm Warm Dim or Static CCT and 750 lm Tunable White Adjustable
14 Not available in Uplight; TRIAC/ELV driver utilizes micro inverter; 0-10V drivers utilize EM Kit mounted above ceiling with emergency LED driver & remote test switch
DarkSky Approved (Downlight only, CCT less than or equal to 3000K)
WARRANTY
5 year limited warranty; 50,000 hours
V102523
Source: 40W LED 2000lm
PRODUCT DESCRIPTION
iLENE Series of dedicated LED Mini Cylinders are available in three sizes and outputs, with pendant or surface mount options. Using Cree® COB technology, the iLENE produces 90+ CRI with excellent cut-off for visual comfort. Each cylinder includes three field-changeable optics for spot, narrow flood and flood (installed) beam spreads.
FEATURES
2000lm / 40W LED
Cree® LED COB or Comfort Dim Technology technology
Stem, Surface or Cable Mounted
2700K, 3000K, 3500K, 4000K or Comfort Dim @ 90+ CRI
Flood (installed), narrow flood and spot optics included 120-277V input and Triac, ELV or 0-10V dimming
Black, silver or white cylinder finish
· 5-year limited warranty
SPECIFICATION
Construction: Extruded aluminum cylinder with aluminum vented top. Driver is mounted in the canopy to dissipate heat away from the LED module and extend life expectancy.
Reflector: Deep set reflector for minimal aperture brightness. Reflector finish matches cylinder finish.
INSTALLATION (Canopy includes driver & mounts over j-box)
Cable: Cylinder includes 8' field adjustable aircraft cable Surface: Cylinder is connected to canopy and mounts directly over junction box.
Stem: Cylinder can be stem mounted up to 7', must specify stem length (12" increments). Stems are internally threaded and can be connected together, below are configurations included:
Stem LengthStem(s) Included
12" (1') (1) 12" Stem
24" (2') (1) 24" Stem
36" (3')(1) 12" & (1) 24" Stems
48" (4') (2) 24" Stems
60" (5')(2) 24" & (1) 12" Stems
72" (6') (3) 24" Stems
84" (7')(3) 24" & (1) 12" Stems
5" iLENE LED Mini Cylinder with Stem
ELECTRICAL
Input Voltage: 120-277VAC
Lumens / Wattage: 2000lm / 40W (1800lm with Comfort Dim)
Color Temperature: 2700K, 3000K, 3500K or 4000K
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Comfort Dim delivers up to 1800 lumens.
Color Rendering Index: 90+ CRI
Optics: Three field-changeable optics included Dimming: Triac, ELV or 0-10V
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
LABELS AND LISTINGS
cULus Listed for Damp Locations
· 5-Year Limited Warranty
·Certified to the high efficacy requirements of California Title 24 JA8-2022
2 Only available in Downlight Stem; 750, 1000, 1250, 1500 or 2000 lm; with Round Standard, Decorative, or Low Profile Trim
3 Only available in 750 or 1000 lm; Damp Location moisture rating; Round Standard or Hyperbolic trim
4 Sum of Lumens cannot be greater than 1500 lm for Small size, 2000 lm for Medium size, 3000 lm for Large size
5 Not available in Adjustable
6 Only available in 0-10V
7 Only available in 750 lm, 1000 lm, 1250 lm, or 1500 lm
8 Only available for Adjustable; Not available with DALI-2
9 Not available in Warm Dim or Tunable White
10 Only applicable to Medium or Large size mounts; Otherwise, select None; Uplight cannot be Adjustable
11 Only available in 1000 lm; Not available in Narrow Spot
12 Only available in 1000 lm downlight and 750 lm Adjustable; Not available in Narrow Spot; DALI-2 only
13 Only available in 1000 lm Warm Dim, Tunable White or 1250 lm Static CCT Downlight and 1000 lm Warm Dim or Static CCT and 750 lm Tunable White Adjustable
14 Not available in Uplight; TRIAC/ELV driver utilizes micro inverter; 0-10V drivers utilize EM Kit mounted above ceiling with emergency LED driver & remote test switch
15 Only available in General Ambient beam spread
BLANK
MICRO FLARE
SHORT SPECIFICATION
SHEET
1 HOW TO ORDER
1.LUMINAIRE
MFLR1P Direct
MFLR2P Direct/Indirect
All data based on max values, consult Performance Data download for more details. One power cord for every 50 linear feet.
2. LENGTH OF RUN
Order in 2ft increments starting at 4ft
SFA_ _ _ _
Order in 2ft increments starting at 4ft
3.MAX LENGTH PER SECTION
You can select the preferred maximum length per segment, to account for transportation and building constraints. Example: If a 40ft run is required and SL12 (3658mm) is selected, we would provide 4 3048mm segments. For special requirements, please contact sales@betacalco.com
*Total length = length of run + 2.35in
4. LM/FT (DIRECT)
Linear Series - Void 2
CABLE SUSPENDED
4 - 3/8”
3 - 1/8”
NOTE: ALL OPTIONS ITALICIZED
SOFT GLOW FROSTED
PREMIUM LEDS WITH VARIOUS COLOR TEMPERATURES AND
MACHINED END CAPS
INTEGRAL DRIVER (WITH STANDARD OPEXTRUDED ALUMINUM HOUSING
FEATURES:
• 1/16” AIRCRAFT CABLE SUSPENSION SYSTEM
• HIGH TRANSMISSION FROSTED LENSES WITH NO
• DIODE IMAGING
• NO VISIBLE FASTENERS
• EXTRUDED ALUMINUM HOUSING
DIMMABLE/PROGRAMMABLE DRIVERS FOR CONTROLLABLE LIGHT OUTPUT
• HIGH EFFICACY LEDS WITH 5 YEAR WARRANTY
• UNDER 2 STEPS MACADAMS ELLIPSE BINNING
• 3/8” THICK MACHINED END CAPS
BI-DIRECTIONAL FIXTURE
• 360 ° ROTATION OPTION - WITH MECHANICAL LOCKING
CSR Cable SuspendedBidirectional Cable SuspendedDirect Only Cable SuspendedROTATIONAL SC SW MB CF Satin Clear Anodize (Standard) Satin White (Powder Coat) Matte Black (Powder Coat) Custom Finish* (Consult Factory)
HOUSING FINISH
Continuous Run (Specify length in nominal feet)
are for reference only. Contact factory for more specific information or shop drawings. **Odd lengths may incur slightly
per foot pricing. NOTE: MF option is strongly recommended. Other options will result in higher costs and potentially longer lead times. *“Hardware” refers to the end caps and knuckles (knuckles only for the “Rotational”
NOTE: All options italicized in gray may increase lead times and/or incur higher costs - please consult factory with questions.
GENERAL
All fixtures are UL listed for dry and damp locations. INTEGRAL DRIVER for all options. Please contact the factory with any specification ques-
Bidirectional (CS) for downlight and uplight applications. Direct (CSD) for downlight applications. Rotational (CSR) for adjustable applications: 360 degree rotational capacity with locking mechanism.
(4w/ft.)
695 lumens/ft. (6w/ft.) Standard Output 910 lumens/ft. (8w/ft.) High Output 1,140 lumens/ft. (10w/ft.) Very High Output 1,330 lumens/ft. (12w/ft.)
1) NON-DIMMING: As described... this fixture will not dim.
2) DIMMING: 0-10v: 1%, 10% :: Lutron: 2-wire Forward phase (Hi-Lume 1%), Ecosystem to 1% (Soft On), Ecosystem to 5% (5 Series). “DALI” - Specify driver. See “Dimming Options” on subsequent pages for more information. For other dimming options, consult the factory.
3)EMERGENCY: Specify EMB under the Options/ Customization category at the end of the cut sheet along with the desired lumen output (600 or 1,000 lumens - the latter is slightly more costly).
4) Drivers are programmed according to our standard lumen packages or to custom watt/lumen package requirements.
5) Consult factory with any questions or specification requirements.
FINISHES:
The standard finish is a Satin Clear anodized housing with Machine Finished hardware. Machined finish is preferable for machined components (Hardware Detail) - Powder coating these parts may result in additional costs. Consult the factory with any questions about standard or custom finishing options.
CUSTOMIZATION:
We have numerous custom options available. However, if there is something unique required for a project, from simple options to complete custom requests, we are more than willing to entertain any creative notions you might have. Just ask.
MICRO FLARE - SUSPENDED CONTINUOUS
SHORT SPECIFICATION SHEET
5. LM/FT (INDIRECT) LPG000 Not required
800 lm/ft
6. CRI
7.CCT CTA27 2700K
8.DIRECT LENS
DD3 Diffused Light
9.INDIRECT LENS
UD0 Not required UD1 Clear (Batwing distribution) UD3 Asymmetric ¹
¹ Available up to 1000 lms/ft.
10.INDIRECT BLACKOUT PLATE
UB00 Not required UB_ _ Blackout plate ¹
¹ Available on a per foot basis. May be required to prevent lighting up of duct work in loft style applications.
11.VOLTAGE
¹ Not available in North America.
² Only available with DA01 dimming.
³ Only available with DA45 dimming.
12.DIMMING
0-10V Dimming 1.0%
¹ Not available with V3.
² Not available in North America.
³ Only available with V4.
CR90 CRI 90+
BLANK
13. CEILING TYPE
G1 Grid ceiling ¹ H1 Hard ceiling ²
¹ Combo kit includes installation to T-bar and through tile mount.
FA01 White - Textured FA02 Black Metallic - Textured FA20 Silver Metallic - Textured FA53 Red Metallic Textured
16.INSIDE TRIM FINISH FB01 White
Black Metallic - Textured
Silver Metallic - Textured
Gold Metallic - Textured FB53 Red Metallic - Textured
17.CANOPY FINISH CF01 White CF02 Black Metallic - Textured CF20 Silver Metallic - Textured CF53 Red Metallic Textured
18.EMERGENCY
E0 Not required E2 Emergency system - Remote ¹ E3 Emergency generated circuit ²
¹ Only available with 0-10V 1% dimming. An extra power cord will be supplied to each section of the fixture when ordering emergency.
² Available upon request, consult factory for details. Not available with 347V.
19.CIRCUITS
CS1 Single circuit CS2 Dual circuit ¹
20.SENSORS
Compatible with Avi-On, Casambi, Enlighted, Lutron Vive, nLight, NX Lighting Controls, Osram, Philips, and others. Consult factory.
BLANK
TYPE H5 SPEC 275 5TH STREET
THE L50 INCLUDES PATENTED OPTICAL DESIGN THAT DELIVERS THE WIDEST RANGE OF BEAM ANGLE OPTIONS FOR PRECISE COVE, WALL GRAZING, WALL WASHING OR LINE OF LIGHT APPLICATIONS. EXCLUSIVE FLIP TO FLAT™ HINGE DESIGN PROVIDES FLEXIBILITY WHEN MANAGING SMALL COVE DETAILS. TROV OFFERS SMOOTH, FLICKER FREE DIMMING DOWN TO 0%.
FEATURES :
• DIM TO 0%, ELV REVERSE PHASE 24 BEAM ANGLES
• MULTI-VOLT
• FLIP TO FLAT™
• 6 CCT OPTIONS
• 80+ AND 90+ CRI OPTIONS
• IP54 INTERIOR AND IP66 EXTERIOR OPTIONS
ON DEMAND SHIPPING
BUILD TO ORDER SHIPPING
EXAMPLE: L50-I-48-10-27-90-MULT-15x65 *90 CRi not available in 2200K or 5000K **120 is only available with Exterior option. See L35 spec sheet for interior cove options. ***Red is not available in 12W or 10W. ****Green is not available in 12W.
ALL LUMEN DATA IS FROM 4000K 80CRI FIXTURES. PLEASE SEE PHOTOMETRY SPEC
RENDERING INDEX
NOTE: Information on this Spec Sheet is subject to change, please visit
VorteXLED Specification Series ®
5.8W, 24VDC WALL GRAZING
LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6” increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• 30° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens
SPECIFICATIONS
ELECTRICAL
•24VDC
CERTIFICATION
•UL listed for US and Canada
•Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
•IP65
WARRANTY
•5-year warranty when paired with GM power supply
Note: Includes 48” leads. Factory sealed. *Reel Length: XX = per foot
CONTROLLERS
VTX-TTC6 6in tape to tape connector
VTX-TTC12 12in tape to tape connector
VTX-TTC24 24in tape to tape connector
VTX-PCHW8 8ft. hardwired power feed
VTX-EC Tape end cap
Note: For compatible channels, see next page. Accessories included in factory assembled components.
Note: Use minimum of 2 clips or brackets per 4ft of channel.
DIMENSION
CUTTABLE EVERY 6” (7 LEDS)
BLANK
LineDRIVE Power Supply
24VDC Electronic Dimmable Single Output Drivers Specification Sheet
PRODUCT OVERVIEW
Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.
FEATURES
• Output: Class 2, 24VDC, constant voltage
•Input: 120V / 277V
•Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming
•Minimum dimming: 1%
•Stable operation, flicker-free dimming
•Compatible with typical phase dimmers and 0-10V controls
• Integrated wiring compartments with separate line voltage and low voltage sections
• Line voltage compartment meets NEC code, up to (3) 12 AWG conductors
•Over-current, over-voltage and over-temperature protection
TYPE H5A SPEC 275 5TH STREET
THE L50 INCLUDES PATENTED OPTICAL DESIGN THAT DELIVERS THE WIDEST RANGE OF BEAM ANGLE OPTIONS FOR PRECISE COVE, WALL GRAZING, WALL WASHING OR LINE OF LIGHT APPLICATIONS. EXCLUSIVE FLIP TO FLAT™ HINGE DESIGN PROVIDES FLEXIBILITY WHEN MANAGING SMALL COVE DETAILS. TROV OFFERS SMOOTH, FLICKER FREE DIMMING DOWN TO 0%.
FEATURES :
• DIM TO 0%, ELV REVERSE PHASE 24 BEAM ANGLES
• MULTI-VOLT
• FLIP TO FLAT™
• 6 CCT OPTIONS
• 80+ AND 90+ CRI OPTIONS
• IP5 4 INTERIOR AND IP66 EXTERIOR OPTIONS
ON DEMAND SHIPPING
BUILD TO ORDER SHIPPING
EXAMPLE: L50-I-48-10-27-90-MULT-15x65 *90 CRi not available in 2200K or 5000K **120 is only available with Exterior option. See L35 spec sheet for interior cove options. ***Red is not available in 12W or 10W. ****Green is not available in 12W.
ALL LUMEN DATA IS FROM 4000K 80CRI FIXTURES. PLEASE SEE PHOTOMETRY
COLOR RENDERING INDEX
NOTE: Information on this Spec Sheet is subject to change, please visit
VorteXLED Specification Series ®
5.8W, 24VDC WALL GRAZING
LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6” increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• 30° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens
SPECIFICATIONS
ELECTRICAL
•24VDC
CERTIFICATION
•UL listed for US and Canada
•Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
•IP65
WARRANTY
•5-year warranty when paired with GM power supply
Note: Includes 48” leads. Factory sealed. *Reel Length: XX = per foot
CONTROLLERS
VTX-TTC6 6in tape to tape connector
VTX-TTC12 12in tape to tape connector
VTX-TTC24 24in tape to tape connector
VTX-PCHW8 8ft. hardwired power feed
VTX-EC Tape end cap
Note: For compatible channels, see next page. Accessories included in factory assembled components.
Note: Use minimum of 2 clips or brackets per 4ft of channel.
DIMENSION
CUTTABLE EVERY 6” (7 LEDS)
BLANK
LineDRIVE Power Supply
24VDC Electronic Dimmable Single Output Drivers Specification Sheet
PRODUCT OVERVIEW
Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.
FEATURES
• Output: Class 2, 24VDC, constant voltage
•Input: 120V / 277V
•Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming
•Minimum dimming: 1%
•Stable operation, flicker-free dimming
•Compatible with typical phase dimmers and 0-10V controls
• Integrated wiring compartments with separate line voltage and low voltage sections
• Line voltage compartment meets NEC code, up to (3) 12 AWG conductors
•Over-current, over-voltage and over-temperature protection
Note: Drawings not to scale. * - SHO ribbon only *SHO ribbon must be mounted in channel
Interval : 2.19” Standard Output (SO)
SO (3 05watts)
(4 27watts)
(5.49watts)
CC @XX (custom cut, specify footage)
Features:
• 170⁰ beam angle
• 24 Volt
• CRI 90+
• No diode imaging
• Dimmable: ELV,MLV,TRIAC or 0-10V
• Field cuttable
• 50,000 hour life
• 5 year warranty
• IP20
Omnilight products are tested and warrantied for use exclusively with Omnilight power supplies
SIDE FLEX
NEON FLEX SERIES
The Neon Side Flex is a flexible silicone channel that bends side to side on the horizontal axis. With a variety of LED options to choose from it provides a beautifully diffused uniform linear light. Designed to illuminate along curved surfaces, it follows the contours of objects or elements of your décor. Used to highlight bars, shelving, under-cabinet, displays, toe kicks, coves, and anywhere you are looking to add an accent of light.
Secton 6 - Input: Code indication of the lead-in wire (back view)
back of the sleeve (L) has a transparent window to locate cutting lines
4 CCT
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length
FC3 - DC plug, 3ft wire
FC6 - DC plug, 6ft wire
FC9
FCX -
9 DRIVER TYPE
PND - Non-dimmable
PDMX - DMX driver
PNO - No driver
CFSF - MNO - LRGB30 - FH3 - WSE2 - QO72 PND
6 INPUT / OUTPUT
WSB1 - Simple lead-in, back feed, side 1
WSB2 - Simple lead-in, back feed, side 2
WSL1 - Simple lead-in, side feed L, side 1
WSL2 - Simple lead-in, side feed L, side 2
WSR1 - Simple lead-in, side feed R, side 1
WSR2 - Simple lead-in, side feed R, side 2
WPB1 - Pass-through, back feed, side 1
WPB2 - Pass-through, back feed, side 2
WPL1 - Pass-through, side feed L, side 1
WPL2 - Pass-through, side feed L, side 2
WPR1 - Pass-through, side feed R, side 1
WPR2 - Pass-through, side feed R, side 2
TYPE H7 SPEC 275 5TH STREET
3G-DZ45R
4" ROUND ZOIE DOWNLIGHT
4" diameter, high performance Zoie downlight
Regressed LED source provides maximum visual comfort, UGR <10
High gloss black or white louvers with proprietary optics
Delivered lumen range up to 3500lm with performance up to 141 LPW
20° to 60° beam angle options suitable for various applications
Companion to 3G's Zoie Cylinder product family
PROJECT:
CATALOG#:
3G-DZ45R
LUMEN OUTPUT
10 - 1000 LUMENS
15 - 1500 LUMENS
20 - 2000 LUMENS
25 - 2500 LUMENS
30 - 3000 LUMENS
35 - 3500 LUMENS 1
All lumen outputs are delivered lumens
DRIVER
DIM - 0-10V (STANDARD 100-1%)
LE - PHASE DIM (TRIAC/ELV, 100-1%) 3
D01 - 0-10V (100-0.1%) 4
DALI - DALI (100-1%) 4
CRI
S80 - 80+ CRI
H90 - 90+ CRI
MWF - FLANGELESS (MILLWORK) 5 CAT. NO
DHL2 - LUTRON HI-LUME (1% ECOSYSTEM)
DMX - DMX (100-0%) 4
OPTIONS
CP - CHICAGO PLENUM 7
FLANGE TYPE
BT - BLACK TRIM
WT - WHITE TRIM
ST - SILVER TRIM
XTR - TRIMLESS
COLOR TEMP
27K - 2700K 1
30K - 3000K
35K - 3500K
40K - 4000K 1
TYPE:
DATE: QTY:
BEAM ANGLE
20D - 20°
40D - 40°
UNV - 120/277V
- 120V
- 347V 2
LOUVER FINISH
BLV - BLACK
WLV - WHITE
HOUSING TYPE
RMD - REMODEL (NON-IC)
NCF - NEW CONSTRUCTION FRAME (NON-IC)
SH - SHALLOW HOUSING (IC RATED) 6
NC - NEW CONSTRUCTION HOUSING
IC - NEW CONSTRUCTION IC HOUSING 6
BH - C-CHANNEL BAR HANGERS (FOR NC & IC HOUSINGS ONLY)
EMR - EMERGENCY BATTERY (REMOTE) 8
EMB - INTEGRAL EMERGENCY BATTERY (ABOVE CEILING ACCESS REQUIRED) 9
NCF and SH housings ship nailer type bar hangers NC and IC housings available with optional C-channel bar hangers
1 3500lm not available in 90CRI. 2700K only available in 90CRI and 4000K only available in 80CRI
2 347V available in 0-10V only (100-1%)
3 Phase dimming options available in 120V only
4 D01, DALI and DMX available up to 3000lm. DALI-2 (Type 6) provided as standard. Consult factory for DALI Type 8 option
5 MWF not available with Remodel (NON-IC)
6 IC rated Shallow Housing & New Construction IC housing available up to 2500lm
7 Chicago Plenum option available with Shallow Housing (2500lm max) and New Construction Housing
8 Emergency battery installed remotely by others. Not accessible through the inside of the fixture
9 Available with NCF (New construction frame housing) only. Above ceiling access required. Not acessible through fixture aperture
NC3-41 / NC3-46 / NC3-48
4" Sapphire III LED Reflectors
Source:
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness.
FEATURES
· Signify ® Fortimo COB LED technology
Specifiable beam spreads 4" deep cone reflectors, wall wash and deco glass 2700K, 3000K, 3500K and 4000K @ 90+ CRI 5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050 high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC 3- 48 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Decorative Glass: NC3-48 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-4SPH-HC 4" Tempered Clear Glass with Frosted Center and 3-1/8" Open Center
Emergency: All reflectors are compatible with remote test switch only.
LABELS AND LISTINGS
cULus Listed for Wet Locations when used with compatible frame-in
5-Year Limited Warranty
ENERGY STAR certified
(Black and Specular Clear finish are not certified)
RoHS Compliant
FCC Compliant
Color Temperature
2700K, 3000K, 3500K or 4000K
Color Rendering Index 90+ CRI
Beam Spread 38° Spot, 53° Narrow Flood or 64° Flood
Compatible Frame-In
| www.noralighting.com
nora@noralighting.com
TYPE H7-EM SPEC 275 5TH STREET
3G-DZ45R
4" ROUND ZOIE DOWNLIGHT
4" diameter, high performance Zoie downlight
Regressed LED source provides maximum visual comfort, UGR <10
High gloss black or white louvers with proprietary optics
Delivered lumen range up to 3500lm with performance up to 141 LPW
20° to 60° beam angle options suitable for various applications
Companion to 3G's Zoie Cylinder product family
PROJECT:
CATALOG#:
3G-DZ45R
LUMEN OUTPUT
10 - 1000 LUMENS
15 - 1500 LUMENS
20 - 2000 LUMENS
25 - 2500 LUMENS
30 - 3000 LUMENS
35 - 3500 LUMENS 1
All lumen outputs are delivered lumens
DRIVER
DIM - 0-10V (STANDARD 100-1%)
LE - PHASE DIM (TRIAC/ELV, 100-1%) 3
D01 - 0-10V (100-0.1%) 4
DALI - DALI (100-1%) 4
DHL2 - LUTRON HI-LUME (1% ECOSYSTEM)
DMX - DMX (100-0%) 4
OPTIONS
CP - CHICAGO PLENUM 7
CRI
S80 - 80+ CRI
H90 - 90+ CRI
FLANGE TYPE
BT - BLACK TRIM
WT - WHITE TRIM
ST - SILVER TRIM
XTR - TRIMLESS
MWF - FLANGELESS (MILLWORK) 5
BH - C-CHANNEL BAR HANGERS (FOR NC & IC HOUSINGS ONLY)
EMR - EMERGENCY BATTERY (REMOTE) 8
EMB - INTEGRAL EMERGENCY BATTERY (ABOVE CEILING ACCESS REQUIRED) 9
NCF and SH housings ship nailer type bar hangers NC and IC housings available with optional C-channel bar hangers
1 3500lm not available in 90CRI. 2700K only available in 90CRI and 4000K only available in 80CRI
2 347V available in 0-10V only (100-1%)
3 Phase dimming options available in 120V only
COLOR TEMP
27K - 2700K 1
30K - 3000K
35K - 3500K
40K - 4000K 1
LOUVER FINISH
BLV - BLACK
WLV - WHITE
TYPE:
DATE: QTY:
BEAM ANGLE
20D - 20°
40D - 40°
UNV - 120/277V
- 120V
- 347V 2
4 D01, DALI and DMX available up to 3000lm. DALI-2 (Type 6) provided as standard. Consult factory for DALI Type 8 option
5 MWF not available with Remodel (NON-IC)
6 IC rated Shallow Housing & New Construction IC housing available up to 2500lm
7 Chicago Plenum option available with Shallow Housing (2500lm max) and New Construction Housing
8 Emergency battery installed remotely by others. Not accessible through the inside of the fixture
9 Available with NCF (New construction frame housing) only. Above ceiling access required. Not acessible through fixture aperture
HOUSING TYPE
RMD - REMODEL (NON-IC)
NCF - NEW CONSTRUCTION FRAME (NON-IC)
SH - SHALLOW HOUSING (IC RATED) 6
NC - NEW CONSTRUCTION HOUSING
IC - NEW CONSTRUCTION IC HOUSING 6
NC3-41 / NC3-46 / NC3-48
4" Sapphire III LED Reflectors
Source:
PRODUCT DESCRIPTION
The architectural grade Sapphire III high lumen LED downlights are a perfect solution for lobbies, corridors, offices and conference rooms. The Sapphire III utilizes Signify® Fortimo COB LED technology for better optic control with three specified beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The reflectors have been designed for the high efficiency (LPW) while providing low aperture brightness.
FEATURES
· Signify ® Fortimo COB LED technology
Specifiable beam spreads 4" deep cone reflectors, wall wash and deco glass 2700K, 3000K, 3500K and 4000K @ 90+ CRI 5-year limited warranty
SPECIFICATION
Reflector: Deep cone reflector spun from 0.050 high grade aluminum provides even illumination and visual comfort. The deep cone reflectors provide 55+ degree cut-off. NC 3- 48 includes 3 studs mounted in the flange for attaching decorative glass. Decorative glass will reduce the amount of usable light by 10 to 30%, depending on the selected glass.
Reflector Assembly: The reflector assembly includes the LED optical package and heat sink mounted on top. Reflector assembly easily wires to dedicated frame with lockable quick connect.
Decorative Glass: NC3-48 is compatible with up to two decorative glass options (ordered separately). Each glass includes mounting hardware (NRA-203).
NTG-4SPH-HC 4" Tempered Clear Glass with Frosted Center and 3-1/8" Open Center
Emergency: All reflectors are compatible with remote test switch only.
LABELS AND LISTINGS
cULus Listed for Wet Locations when used with compatible frame-in
5-Year Limited Warranty
ENERGY STAR certified
(Black and Specular Clear finish are not certified)
RoHS Compliant
FCC Compliant
Color Temperature
2700K, 3000K, 3500K or 4000K
Color Rendering Index 90+ CRI
Beam Spread 38° Spot, 53° Narrow Flood or 64° Flood
Compatible Frame-In
www.noralighting.com
INSTALLATION
Ceiling Thickness
New Construction: 5/8"
Fire/Plenum Rated: 0" to 1 1/4"
Remodel: 5/8" up to 1 1/4"
Ceiling Material
Drywall
TRIMS
Aperture
3"
Style
Round, Square, Flush, Adjustable
Finish
White, Black
3" Downlighting
Optimized for Versatile Applications Brilliant illumination and reliable performance for your entire space
Brightness Switch Easily select level of illumination with the flip of a switch
True to Life Colors Accurate color rendering means every detail, finish, and person in your space appears exactly as it should
LIGHT OUTPUT & DISTRIBUTION
Module Downlight
Lumens (Power)
Integrated Brightness Switch
350 lm (5W), 750 lm (9W), 950lm (12W)
Color Quality
90+ CRI, 3-step SDCM
Beam Spread Color Temperature
General (90°+)
– 2200K)
Warranty
5 year limited warranty; 50,000 hours
POWER & CONTROLS
Input Voltage 120V
Dimming
TRIAC/ELV (5%)
RATINGS & CERTIFICATIONS
Housing
IC (Insulation Contact) Rated
ASTM E283 Certified Air Tight
RoHS Compliant
Code Compliant for use in FIre Rated Assemblies up to a maximum of 2-hours (Option) V
Module and Trim
UL Listed for Wet Location
(Adjustable Trim Damp Only)
NSF Listed
NPR-4RNDC
4" Pearl 120V LED Round Retrofit Reflector with Round Aperture
Source: 12W LED 1200lm
PRODUCT DESCRIPTION
Pearl LED Retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The 4" retrofit luminaires deliver over 1200 lumen s with deep regressed cone reflector for optim al visual cut-off.
FEATURES
Medium base socket adapter included Retrofit existing 4" recessed housings
Comfort Dim (warm dimming) is available in 900lm only 2700K, 3000K, 3500K, 4000K @ 90+ CRI
Field changeable optics included (Spot, Narrow Flood and Flood - installed)
Integral dimmable driver 5-year limited warranty
· cULus classified for wet locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 22° and 26° TIR optics are also available
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 900lm only Dimming: Triac (leading edge) or ELV (trailing edge) Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
COMPATIBLE HOUSINGS
Pearl retrofit s are compatible with most 4" IC and Non-IC housings by Nora and others.
Fire Box
NFBIC-4LMRATA* ICAT Dedicated LED
NFBIC-4INCATA ICAT Line Voltage
New Construction
NSIC-4LMRAT * Max. Adjustability ICAT Dedicated LED
* Nora Dedicated LED housings are cULus listed for use only with Nora LED Retrofits.
Retrofit: Pearl retrofit series includes medium base screw-socket adapter (NRA-211SM) for retrofitting into existing medium base downlight housings. GU24 socket adapter is available for use with GU24 housings, must specify NRA-212SM.
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2.
LABELS AND LISTINGS
c ULus classified for Wet Locations
· R oHS compliant
5 -Year Limited Warranty
C ertified to the high efficacy requirements of California Title 24 JA8-2022
4" Pearl 120V LED Round Retrofit Reflector with Round Aperture
Color Temperature Finish
NPR-4RNDC27 X = 2700K
NPR-4RNDC30X = 3000K
NPR-4RNDC35 X = 3500K
NPR-4RNDC40X = 4000K
NPR-4RNDCCDX = Comfort Dim
BB = Black / Black
BW = Black / White
BZ = Bronze / Bronze
CHMPW = Champagne / Matte Powder White
CMPW = Specular Clear / Matte Powder White
HW = Haze / White
HZMPW = Haze / Matte Powder White
MPW = Matte Powder White
NN = Natural Metal / Natural Metal
WW = White / White
Example: NPR-4RNDC27XWW = 4" Pearl 120V LED Round Retrofit Reflector with Round Aperture, 2700K, White finish
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
1218lm4000KSpot NPR-4RNDC40XMPW 1225lm4000KNarrow NPR-4RNDC40XMPW 1200lm4000KFlood Delivered lumens will vary depending on CCT, optic and finish
PRODUCT BUILDER - EMBEDDED TRIAC/ELV
HOUSING COMPATIBILITY
The H Series luminaire recessed housings (H3BH, H3RM) are UL Certified and intended for use with the H Series module (HM27, HM30, HM3C) or other certified 3" retrofit conversion kits (light source) that meet the following criteria: maximum height 3-3/8", maximum wattage 13W.
EXAMPLE: H3BH
H3T
Pearl LED Retrofit Accessories
4" Pearl LED Round Retrofit Reflector with Round Aperture
FIELD CHANGEABLE OPTICS
Type Project Catalog No.
Notes
Pearl luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available. Note: Premium TIR optics are not compatible with Comfort Dim LED modules.
LED Module/Driver
Frosted Optics
NIO-REFL38FR 60° Optic
Optic
NIO-REFL60FR 73° Optic
Replaces optics that are included with each LED module.
ACCESSORIES
Die-cast Trim
Pearl accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
LED Module/Driver
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Accessory
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Die-cast Trim
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Premium TIR Optics
NIO-REFLTIR15 22° Optic NIO-REFLTIR25 26° Optic
Premium TIR (total internal reflection) optics create optimal spot and narrow flood beam spread. Not compatible with Comfort Dim (CDX) LED module
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Optimized for Versatile Applications Brilliant illumination and reliable performance for your entire space
Brightness Switch Easily select level of illumination with the flip of a switch
True to Life Colors Accurate color rendering means every detail, finish, and person in your space appears exactly as it should
LIGHT OUTPUT & DISTRIBUTION
Module Downlight
Lumens (Power)
Integrated Brightness Switch
350 lm (5W), 750 lm (9W), 950lm (12W)
Color Quality
90+ CRI, 3-step SDCM
Beam Spread Color Temperature
General (90°+)
– 2200K)
Warranty
5 year limited warranty; 50,000 hours
POWER & CONTROLS
Input Voltage 120V
Dimming
TRIAC/ELV (5%)
RATINGS & CERTIFICATIONS
Housing
IC (Insulation Contact) Rated
ASTM E283 Certified Air Tight
RoHS Compliant
Code Compliant for use in FIre Rated Assemblies up to a maximum of 2-hours (Option) V
Module and Trim
UL Listed for Wet Location
(Adjustable Trim Damp Only)
NSF Listed
NPR-4RNDC
4" Pearl 120V LED Round Retrofit Reflector with Round Aperture
Source: 12W LED 1200lm
PRODUCT DESCRIPTION
Pearl LED Retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The 4" retrofit luminaires deliver over 1200 lumen s with deep regressed cone reflector for optim al visual cut-off.
FEATURES
Medium base socket adapter included Retrofit existing 4" recessed housings
Comfort Dim (warm dimming) is available in 900lm only 2700K, 3000K, 3500K, 4000K @ 90+ CRI
Field changeable optics included (Spot, Narrow Flood and Flood - installed)
Integral dimmable driver 5-year limited warranty
· cULus classified for wet locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 22° and 26° TIR optics are also available
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 900lm only Dimming: Triac (leading edge) or ELV (trailing edge) Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
COMPATIBLE HOUSINGS
Pearl retrofit s are compatible with most 4" IC and Non-IC housings by Nora and others.
Fire Box
NFBIC-4LMRATA* ICAT Dedicated LED
NFBIC-4INCATA ICAT Line Voltage
New Construction
NSIC-4LMRAT * Max. Adjustability ICAT Dedicated LED
* Nora Dedicated LED housings are cULus listed for use only with Nora LED Retrofits.
Retrofit: Pearl retrofit series includes medium base screw-socket adapter (NRA-211SM) for retrofitting into existing medium base downlight housings. GU24 socket adapter is available for use with GU24 housings, must specify NRA-212SM.
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2.
LABELS AND LISTINGS
cULus classified for Wet Locations
· RoHS compliant
5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
4" Pearl 120V LED Round Retrofit Reflector with Round Aperture
Color Temperature Finish
NPR-4RNDC27 X = 2700K
NPR-4RNDC30X = 3000K
NPR-4RNDC35 X = 3500K
NPR-4RNDC40X = 4000K
NPR-4RNDCCDX = Comfort Dim
BB = Black / Black
BW = Black / White
BZ = Bronze / Bronze
CHMPW = Champagne / Matte Powder White
CMPW = Specular Clear / Matte Powder White
HW = Haze / White
HZMPW = Haze / Matte Powder White
MPW = Matte Powder White
NN = Natural Metal / Natural Metal
WW = White / White
Example: NPR-4RNDC27XWW = 4" Pearl 120V LED Round Retrofit Reflector with Round Aperture, 2700K, White finish
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
1218lm4000KSpot NPR-4RNDC40XMPW 1225lm4000KNarrow NPR-4RNDC40XMPW 1200lm4000KFlood Delivered lumens will vary depending on CCT, optic and finish
PRODUCT BUILDER - EMBEDDED TRIAC/ELV
HOUSING COMPATIBILITY
The H Series luminaire recessed housings (H3BH, H3RM) are UL Certified and intended for use with the H Series module (HM27, HM30, HM3C) or other certified 3" retrofit conversion kits (light source) that meet the following criteria: maximum height 3-3/8", maximum wattage 13W.
EXAMPLE: H3BH
H3T
Pearl LED Retrofit Accessories
4" Pearl LED Round Retrofit Reflector with Round Aperture
FIELD CHANGEABLE OPTICS
Type Project Catalog No.
Notes
Pearl luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available. Note: Premium TIR optics are not compatible with Comfort Dim LED modules.
LED Module/Driver
Frosted Optics
NIO-REFL38FR 60° Optic
Optic
NIO-REFL60FR 73° Optic
Replaces optics that are included with each LED module.
ACCESSORIES
Die-cast Trim
Pearl accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
LED Module/Driver
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Accessory
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Die-cast Trim
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Premium TIR Optics
NIO-REFLTIR15 22° Optic NIO-REFLTIR25 26° Optic
Premium TIR (total internal reflection) optics create optimal spot and narrow flood beam spread. Not compatible with Comfort Dim (CDX) LED module
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
• Uninterrupted ribbon of light for single or row mount applications
• Optional integral emergency battery pack
• Decorative injection molded ABS material endcaps
Modular replaceable LED boards and driver accessible for future maintenance or upgrades
• Surface mount, stem mount or cable mount
DLC® (Design Lights Consortium) Qualified, with some Premium Qualified configurations - see www.designlights.org
BUY AMERICAN SOLUTIONS
See Certification Specifications
CONTROLS TECHNOLOGY
SPECIFICATIONS
CONSTRUCTION
• Housing, and wireway are formed from code-gauge steel
• Back of housing knockouts are provided for electrical access and mounting
• Decorative injection molded ABS material endcaps
SHIELDING
• Round frosted acrylic lens offers a smooth appearance and even light distribution
FINISH
• White painted parts are treated with a five-stage phosphate bonding process and finished with high reflectance baked enamel
ELECTRICAL
• Long-life LEDs are rated for 60,000 hours at L80 lumen maintenance
• Driver options include fixed output for on/ off function, step dimming (high/low/off), or continuous 0–10V dimming
• Superior drivers and long-life LEDs provide quality illumination for prolonged service life. Drivers < 10% THD at 120V, power factor > 0.95
CONTROLS
• Optional SpectraSyncTM offers two modes of tunable white solutions and integrates seamlessly into a variety of control systems
• NX Lighting Controls provides options for standalone and networked integrated sensor with wired or wireless connectivity for NX system deployments
CERTIFICATION
• All luminaires are built to UL 1598 and 2108 standards, and bear appropriate CSA labels.
• Damp location labeling is standard
• CSA certified to UL 924 standards with battery pack or DTS (Dimming Bypass Module) options
• Adheres to LM79, LM80, and TM21 industry standards
The DTS, Dimming Bypass Module, is for emergency circuit control loads including sensors and wireless systems CSA certified to UL 924. See page 6 for wiring diagram.
(215.9mm)
VIEW (ALL SIZES)
CERTIFICATION (CONTINUED)
This product qualifies as a “designated country construction material” per FAR 52.225-11 Buy American-Construction Materials under Trade Agreements effective 06/01/2020.
OUR NEWEST MEMBER OF THE TROV FAMILY REPRESENTS THE FUTURE OF HIGH-PERFORMANCE, LOW-COST LINEAR, OFFERING A DIMMABLE, CONSISTENT OUTPUT IN A PLUGAND-PLAY PACKAGE THAT’S EASIER THAN EVER TO INSTALL.
FEATURES:
• INTEGRAL 0-10V CONTROL
• FLICKER-FREE DIMMING TO 5%
• FLEXIBLE CONNECTORS ALLOW UP TO 90° BENDS
• MULTI-VOLT 120-277V INPUT
• 90CRI STANDARD
lm/FT (2218 lm/m)
LUMEN DEPRECIATION / RATED LIFE L90 @ 25C
*REPORTED HOURS COMPLY WITH TM-21 GUIDELINES THAT EXTRAPOLATIONS CANNOT EXCEED SIX TIMES LM-80 TESTED LED HOURS. WATTS
*RUN LENGTHS LONGER THAN 150FT MAY EXPERIENCE NOTICABLE LIGHT OUTPUT DIFFERENCES BETWEEN THE FIRST AND LAST FIXTURE IN THE RUN DUE TO 0-10V VOLTAGE DROP. CONTACT YOUR ECOSENSE REPRESENTATIVE FOR MORE INFORMATION.*
OPERATING VOLTAGE 120-277VAC, 50/60Hz
DRIVER
INTEGRAL PROPRIETARY 0-10V DRIVER. ONE DRIVER PER FOOT.
STARTUP TEMPERATURE -4˚F TO 122˚F (-20˚C TO 50˚C)
OPERATING TEMPERATURE -4˚F TO 122˚F (-20˚C TO 50˚C)
STORAGE TEMPERATURE -40˚F TO 185˚F (-40˚C TO 85˚C)
CONTROL DIMMING
FIXTURE RATING & CERTIFICATIONS UL AND CE LISTED RoHS COMPLIANT TITLE 24 JA8-2019 ENERGY STAR IP40 AND IK07
LIMITED WARRANTY 5 YEARS
INTEGRAL 0-10V, 5%-100%, CURRENT SINKING, 100 u A/FT
VorteXLED Specification Series ®
5.8W, 24VDC ASYMMETRIC
LED Tape Specification Sheet
PRODUCT OVERVIEW
Our VorteXLED Series provides the ultimate architectural-grade optic tape option. Incorporating features that define the VorteXLED Series as truly state of the art linear LED tape for applications that not only require, but demand the specialized optics for wall grazing and asymmetric effects.
FEATURES
• Available in 2700K, 3000K and 4000K
• Order in 6 inches increments
• All configurations are factory built to order
• Compatible with LUXcontrol WiFi system
• Asymmetric distribution, 45° beam angle
• Dimmable
• Suitable for wet locations - IP65
• 3M adhesive back
• Maximum run on a given lead is 16’
• Factory cut only
• Field cuttable channel and lens SPECIFICATIONS
ELECTRICAL
•24VDC
•5.8 watts per foot
OPTICS
•90+ CRI
•Class 2 •IP65
WARRANTY
•5-year warranty when paired with GM power supply
ORDERING INFORMATION Example: VTX-A-24V-5.8W-27K-16
Note: Includes 48” leads. Factory sealed.
VTX-PCHW8 8ft. hardwired power feed
VTX-PCHW8-AF 8ft. hardwired power feed - alternate feed
VTX-EC Tape end cap
Note: For compatible channels, see next page.
Accessories included in factory assembled components. See selecting feed direction in this document to choose power feed. ACCESSORIES
Note: Use minimum of 2 clips or brackets per 4ft of channel.
DIMENSION
CUTTABLE EVERY 6” (7 LEDS)
BLANK
LineDRIVE Power Supply
24VDC Electronic Dimmable Single Output Drivers Specification Sheet
PRODUCT OVERVIEW
Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.
FEATURES
• Output: Class 2, 24VDC, constant voltage
•Input: 120V / 277V
•Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming
•Minimum dimming: 1%
•Stable operation, flicker-free dimming
•Compatible with typical phase dimmers and 0-10V controls
• Integrated wiring compartments with separate line voltage and low voltage sections
• Line voltage compartment meets NEC code, up to (3) 12 AWG conductors
•Over-current, over-voltage and over-temperature protection
Seem® 2 Grid Ceiling
DIMENSIONAL DATA
FEATURES
Narrow extruded aluminum 2.5" aperture recessed slot LED. Individual units and continuous runs in 1" increments.
Frosted acrylic lens provides uninterrupted illumination, without pixels or shadows.
LED position and lens material optimized to provide the perfect blend of high performance and visual comfort.
Tunable White: Supports human activity, well-being, and preferences with a light quality that evolves throughout the day.
Connected Solutions: Integrates with wired and wireless building lighting control systems.
PoE compatible: Integrates with Power over Ethernet lighting systems via standard, low-voltage wires.
DISTRIBUTIONS
Carisma® 2”
Recessed Linear
PROJECT:
Features
TYPE:
Carisma® Recessed is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma®’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . Wide range of ceiling trim options accommodate most ceiling types.
The Carisma® Recessed offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma® can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounted options, providing designers with the versatility to light up a space with their Carisma®.
Product Overview
Type: Direct distributrion with Recessed Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
CRI: 80+ typ. or 90+ typ.
Dimming (wired): 0-10V, 1% dim (standard) Lutron LDE1 Hi-lume® 1% Soft-On/Fade-to-Black DALI, 1% dim
Data is based on 4’ fixture, 3500K-80 120V IES files available on website.
Electrical Data Runs
Individual Runs: 2’ - 8’ (specify in 1’ increments)
Continuous Runs: > 8’ (specify to the nearest foot).
Custom: Made to measure lengths available (specify to nearest 1/8” of field dimensions). Requires approval drawings. Added cost & lead time.
Electronic multi-volt (120-277VAC), constant current LED driver.
Standard Patterns
4' PERFORMANCE CHART
10 DAY
Options in orange qualify for the Quickship program. 1000' total, 48' maximum per pattern section. Refer to Quickship Guide for complete details including EM/EC options.
STANDARD WHITE
Luminaire Series FSM2L
Seem 2 LED Grid
Color Temperature
2700K, 80+ CRI or 90+ CRI 27K or 927K 3000K, 80+ CRI or 90+ CRI 30K or 930K 3500K, 80+ CRI or 90+ CRI
Consult Ordering Guide on page 5 for multiple circuiting and zoning
Control System & Dimming Level 0-10V - 10% Dimming LD1 0-10V - 1% Dimming L11
Low Voltage, PoE compatible (No driver. Not available with EM or EC. LV Voltage only.) LVN
Lutron Hi-Lume EcoSystem (LDE1)1% Dimming LH1 DALI 1% Dimming D11
Wattstopper DLM - 1% Dimming (Not available with CP) ** DLM1
Wattstopper Fixture Sensor Low Density – 1% Dimming See sensor layout guide **1 LMFS1
Wattstopper Fixture Sensor
High Density – 1% Dimming See sensor layout guide **1 LMFSD
Lutron Athena Wireless Node** ² LAW1
Lutron Athena Wireless Sensor**1 2 LAWS
Acuity nLight - 1% Dimming (Not available with CP.) ** NLT1
BN-BT-OCC-WH-SR BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, D4i/DALI-2
BN-BT-OCC-WH-010 BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, 0-10V
EMC-PF2 emergency circuit requires power feed located in last fixture section (for other locations consult factory)
PF2 Extra power feed for additional circuiting
EMB emergency battery pack (not available for lengths under 4')
1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.
2 Not available with IND (individual) configuration.
INSTALLATION
Ceiling Thickness
New Construction: 5/8"
Fire/Plenum Rated: 0" to 1 1/4"
Remodel: 5/8" up to 1 1/4"
Ceiling Material
Drywall
TRIMS
Aperture
3"
Style
Round, Square, Flush, Adjustable
Finish
White, Black
3" Downlighting
Optimized for Versatile Applications Brilliant illumination and reliable performance for your entire space
Brightness Switch Easily select level of illumination with the flip of a switch
True to Life Colors Accurate color rendering means every detail, finish, and person in your space appears exactly as it should
LIGHT OUTPUT & DISTRIBUTION
Module Downlight
Lumens (Power)
Integrated Brightness Switch
350 lm (5W), 750 lm (9W), 950lm (12W)
Color Quality
90+ CRI, 3-step SDCM
Beam Spread Color Temperature
General (90°+)
– 2200K)
Warranty
5 year limited warranty; 50,000 hours
POWER & CONTROLS
Input Voltage 120V
Dimming
TRIAC/ELV (5%)
RATINGS & CERTIFICATIONS
Housing
IC (Insulation Contact) Rated
ASTM E283 Certified Air Tight
RoHS Compliant
Code Compliant for use in FIre Rated Assemblies up to a maximum of 2-hours (Option) V
Module and Trim
UL Listed for Wet Location
(Adjustable Trim Damp Only)
NSF Listed
NPR-4RC
4" Pearl 120V LED Round Adjustable Cone Retrofit
Source: 12W LED 1250lm
PRODUCT DESCRIPTION
Pearl LED Retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The 4" retrofit luminaires deliver over 1250 lumen s with die-cast adjustable cone for optim al visual cut-off and adjustability to aim the light source in desired direction.
FEATURES
Medium base socket adapter included Retrofit existing 4" recessed housings
Delivering up to 1250 lumens
Comfort Dim (warm dimming) is available in 950lm only 2700K, 3000K, 3500K, 4000K @ 90+ CRI
Field changeable optics included (Spot, Narrow Flood and Flood - installed)
Integral dimmable driver · 5-year limited warranty cULus classified for damp locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 22° and 26° TIR optics are also available
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 950lm only Dimming: Triac (leading edge) or ELV (trailing edge) Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
COMPATIBLE HOUSINGS
Pearl retrofit s are compatible with most 4" IC and Non-IC housings by Nora and others. Fire Box
NFJB-R4* ICAT Junction Box
NFBIC-4LMRATA* ICAT Dedicated LED
NFBIC-427LMRATA* Shallow ICAT Dedicated LED
NFBIC-4INCATA ICAT Line Voltage
New Construction
NSIC-4LMRAT * Max. Adjustability ICAT Dedicated LED
* Nora Dedicated LED housings are cULus listed for use only with Nora LED Retrofits.
Retrofit: Pearl retrofit series includes medium base screw-socket adapter (NRA-211SM) for retrofitting into existing medium base downlight housings. GU24 socket adapter is available for use with GU24 housings, must specify NRA-212SM.
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus classified for Damp Locations
RoHS compliant
5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
4" Pearl 120V LED Round Adjustable Cone Retrofit
Color Temperature Finish
NPR-4RC27 X = 2700K
NPR-4RC30X = 3000K
NPR-4RC35 X = 3500K
NPR-4RC40X = 4000K
NPR-4RCCDX = Comfort Dim
BB = Black / Black
BW = Black / White
BZ = Bronze / Bronze
CMPW = Specular Clear / Matte Powder White
HW = Haze / White
HZMPW = Haze / Matte Powder White
MPW = Matte Powder White
NN = Natural Metal / Natural Metal
WW = White / White
Example: NPR-4RC27XWW = 4" Pearl 120V LED Round Adjustable Cone Retrofit, 2700K, White finish
Standard Housings / Junction Box: 25° Shallow Housings: 10°
PRODUCT BUILDER - EMBEDDED TRIAC/ELV
HOUSING COMPATIBILITY
The H Series luminaire recessed housings (H3BH, H3RM) are UL Certified and intended for use with the H Series module (HM27, HM30, HM3C) or other certified 3" retrofit conversion kits (light source) that meet the following criteria: maximum height 3-3/8", maximum wattage 13W.
EXAMPLE: H3BH
H3T
Pearl LED Retrofit Accessories
FIELD CHANGEABLE OPTICS
Notes
Pearl luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available. Note: Premium TIR optics are not compatible with Comfort Dim LED modules.
LED Module/Driver
Frosted Optics
NIO-REFL38FR 60° Optic
Optic
NIO-REFL60FR 73° Optic
Replaces optics that are included with each LED module.
ACCESSORIES
Die-cast Trim
Pearl accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
LED Module/Driver
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Accessory
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Die-cast Trim
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Premium TIR (total internal reflection) optics create optimal spot and narrow flood beam spread. Not compatible with Comfort Dim (CDX) LED module
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Note: Drawings not to scale. * - SHO ribbon only *SHO ribbon must be mounted in channel
Interval : 2.19” Standard Output (SO)
Type:
Length
(3 05watts)
(4 27watts)
CC @XX (custom cut, specify footage)
Features:
• 170⁰ beam angle
• 24 Volt
• CRI 90+
• No diode imaging
• Dimmable: ELV,MLV,TRIAC or 0-10V
• Field cuttable
• 50,000 hour life
• 5 year warranty
• IP20
Omnilight products are tested and warrantied for use exclusively with Omnilight power supplies
PRODUCT OVERVIEW
Our Specification Series provides the ultimate architectural-grade option. Incorporating features that defines the Spec Series as truly state of the art linear LED tape for applications that not only require, but demand the best optics in the industry.
FEATURES
• Available in multiple color temps
• 280 LED’s/meter
• 10mm PCB width
• Cuttable every 1”
• Remote control with GM’s LUXcontrol™ App and controllers
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 32’-8”
• Includes Sure-Tite connectors
SPECIFICATIONS
ELECTRICAL
•24V
•2.5W or 5.8 watts per foot
OPTICS
•95+ CRI
Note: For proper thermal management, use mounting channel to mount the 5.8W product.
CERTIFICATION
•UL
•Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
•Closet Rated. Compliant with NFPA
WARRANTY
•5-year warranty when paired with GM power supply
BLANK
Aluminum Mounting Channel
4’ / 6’ Wide Format
PRODUCT OVERVIEW
GM Lighting’s LED-CHL-W channel accepts all low voltage GM Lighting LED tape. Available in 48” and 72” lengths, these wide format mounting channels are the perfect vessel that not only insures an architectural quality installation, but also minimizes diode imaging due to the frosted lens that is included with each channel.
FEATURES
• Available in 4ft (48in) and 6ft (72in)
• Silver Anodized finish
• Includes 2 mounting clips and screws with 4ft, 4 mounting clips and screws with 6ft
• Includes acrylic frosted lens
• End caps sold separately
• For LTR Series Tape - LTR-P, LTR-S and LTR-E
• Custom lengths available - consult factory
• Dry location only
Note: For Vision120, use V120-CHL channels.
SPECIFICATIONS
ELECTRICAL
• Fits 12V/24V LEDtask LED tape
WARRANTY
• 5-year warranty
BLANK
LineDRIVE Power Supply
24VDC Electronic Dimmable Single Output Drivers Specification Sheet
PRODUCT OVERVIEW
Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.
FEATURES
• Output: Class 2, 24VDC, constant voltage
•Input: 120V / 277V
•Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming
•Minimum dimming: 1%
•Stable operation, flicker-free dimming
•Compatible with typical phase dimmers and 0-10V controls
• Integrated wiring compartments with separate line voltage and low voltage sections
• Line voltage compartment meets NEC code, up to (3) 12 AWG conductors
•Over-current, over-voltage and over-temperature protection
Focus™ Wall Wash
DIMENSIONAL DATA
FEATURES
Low profile LED wall wash provides a glowing transition between wall and ceiling and shadow-free illumination.
Housing creates 6" architectural slot with extruded splay to conceal light source from view.
Infinite lengths with the ability for pattern creation with 90° inside and outside corners.
Ease of installation and maintenance with rough-in housing and separate snap and lock LED light module.
Integrated sliding sleeve extends to meet precise dimensions of a finished space with +/- 2" adjustment.
Preferred Light: Lighting for better color rendition and human preference.
PERFORMANCE
Delivered Lumens:2700lm
Total System Watts: 28W
PRODUCT
Lumen Output: 1500-5700lm
Wattage: 15-63W
LPW: 88-100
SDCM: 3
6' Luminaire, 450 Lumens per foot
Grüv® 2.5” Perimeter Cove
Recessed Linear LED
PROJECT:
Features
Designed to provide high-performance, visually comfortable, high efficient comfortable perimeter ambient lighting with a 2.5” aperture for commercial and office environments. Featuring a 2.5” regress and a choice of ceiling interface options, Gruv 2.5 Cove is an effective and aesthetically pleasing way of lighting space perimeters.
TYPE:
Product Overview
Type: Recessed Linear, Direct
Wattage: 5W/ft, 10W/ft (other wattages available see p2)
Color Temp: 2700K, 3000K, 3500K, 4000K; Tunable White (2700K-5700K)
Proprietary linear LED module incorporates premium LEDs on a robust platform to achieve excellent thermal management. Module is available in 2700K, 3000K, 3500K or 4000K with CRI > 80 or CRI>90. LED module and driver are replaceable from below.
Construction
One-piece, 22Ga. steel rough-in housing powder coated in matte satin white. Housing includes extruded splay in a matte satin white finish and steel alignment bracket. Light engine module constructed with 22Ga. steel and finished in matte satin white. Light engine must be installed after rough-in housing installation. Inside/outside corners and sliding sleeve fabricated with 22Ga. steel and include extruded aluminum splay.
Optic
Semi-specular aluminum optical reflector with .020" thick diffuser lens.
Electrical
Light engine module includes driver and wiring harness. Single power drop can power up to 40' or more in a single run. Galvanized feed box with access plate provided for every start of run luminaire and installed in the field. Emergency circuit feed locations are field located by positioning of feed box. Standard 120-277V driver includes 0-10V analog dimming. Power factor > .9.
Labels
UL and cUL listed. Suitable for Dry or Damp Locations, indoor use only. Suitable for wood ceiling applications.
Emergency Battery
Bodine BSL-310LP. Emergency output for 90 minutes. Maximum mounting height: 12ft.
Finish
Polyester powder coat applied over a multi-stage pre–treatment.
(Derived from EPA TM-21 calculator. Based on typical conditions, consult factory for additional data.)
Reliability
At Focal Point, our products are designed to stand the test of time. Each luminaire is engineered using superior components, manufactured with the utmost care and rigorously tested. Contact us for reliability data.
Warranty
LED system rated for operation in ambient environments up to 25°C. 5 year limited warranty.
6' PERFORMANCE CHART
ORDERING
Luminaire Series FWSL
Focus Wall WashFWSL
Shielding FL
Frosted LensFL
Lumen Output
250 Lumens per foot250LF
450 Lumens per foot450LF
650 Lumens per foot650LF
800 Lumens per foot800LF (Not available with DALI)
950 Lumens per foot950LF
(Not available with Lutron or DALI drivers)
Color Temperature
2700K, 80+ CRI or 90+ CRI27K or 927K
3000K, 80+ CRI or 90+ CRI 30K or 930K
3500K, 80+ CRI or 90+ CRI 35K or 935K
4000K, 80+ CRI or 90+ CRI 40K or 940K
3500K, Preferred LightP35K (6" increments only)
Circuits 1C Single Circuit1C
Voltage 120/277 UNVUNV 347 Volt347 (650LF & LD1 driver only)
FC section at the end of the row designed to be field cuttable up to 6” to provide on-site fixture length flexibility
EMB emergency battery pack (not available for lengths under 4')
† The "A" refers to the sequential revision in a year and "XX" refers to the year of update. Updates coincide with improved performance while not changing the overall fixture aesthetic and are reflected in the published performance data. Please contact your Amerlux representative for explanations of changes.
1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.
2 Not available with IND (individual) configuration.
75 LED Narrow Strip
FEATURES
■ Small fixture profile allows inconspicuous placement in coves or confined spaces
■ Companion round and square lensed fixtures preserve continuity, see hew.com/75
■ Row applications produce continuous light with minimal interruption between fixtures
■ Variety of mounting accessories for surface and suspended applications
■ Special reflectors are available to provide precise light distribution
■ HE option delivers superior efficacies up to 192 lm/W
■ Optional wireguard provides added protection
■ Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
■ 2′, 3′, 4′, and 8′ lengths available
■ Wireless in-fixture control solutions available
■ Made Right Here® in the USA
SPECIFICATIONS
■ HOUSING – 22-gauge die-formed C.R.S.
■ FINISH – 92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
■ ELECTRICAL – High-quality mid-power LED board. L70 > 72,000 hours per IES TM-21. L80 > 102,000 hours with HE option. 25°C maximum ambient operating temperature. 50°C max with HA50 Option. 50/60 Hz constant current driver.
■ MOUNTING – Surface (ceiling or wall) or suspended (hanging hardware required).
■ LISTINGS –
■ cETLus conforms to UL STD 1598. Certified to CAN/CSA STD C22.2 No. 250.0. Suitable for damp locations
■ UL 924 available, see Options.
■ Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american
■ WARRANTY – 5-year limited warranty, see hew.com/warranty
OPTIONS [2]
CATALOG #:
TYPE :
PROJECT: 2″ 2-3/4″
See page 4 for FINISH OPTIONS. See page 4 for SPECIAL REFLECTOR OPTIONS.
GEN Approved for UL 924 emergency generator circuit through-feed wiring [12]
SP1 10kV surge protection, 120 or 277V
SP2 10kV surge protection, 208 or 240V
SP3 10kV surge protection, 347V
AIRCRAFT CABLES (EXAMPLE: ACF/D48) [13]
Prefix Type Length
ACF/ Feeder
ACJ/ Joiner D 1″ grid & hardpan N 9/16″ grid S Slot grid
AVI-LVFA-PIR Avi-on wireless fixture control with high bay PIR motion and daylight sensor, bottom mount [16]
AVI-LVFA-CS2-PIR Avi-on wireless fixture control with PIR motion and daylight sensor, bottom mount [17]
AWNR Lutron Athena wireless node integral fixture control, RF only [18]
AWNS Lutron Athena wireless node integral fixture control, RF with daylight and occupancy sensing [19]
NOTES
1 Lumen output based on 80 CRI/3500K CCT. Actual performance may vary +/-5%, see page 2 for FIXTURE PERFORMANCE DATA . Additional lumen packages available, see options.
2 Remote EM batteries: max remote distance 50′, including suspension length. Large remote box provided. Specify CEC in the option code when California Energy Commission regulations are required. See page 3 for REMOTE MOUNT BATTERY DETAILS.
3 Not available with 2′ fixtures, 4′ L120 or 8′ L240 lumen packages.
4 Not available with 90 CRI, 3′ Length, 2′ L15, 4′ L30, or 8′ L60 lumen packages. See page 2 for FIXTURE PERFORMANCE DATA.
5 Not available with 2′ L60, 4′ L120 and 8′ L240 lumen packages. Lumen restrictions apply. See page 2 for FIXTURE PERFORMANCE DATA.
6 Lumen restrictions apply: L32 max for 2′, L40 max for 3′, L65 max for 4′, L130 max for 8′. Not available with EM batteries.
7 Ships separately, field-installed. Not available with special reflectors.
8 Required when row mounting with aircraft cables.
See page 8 for ADDITIONAL DRIVER OPTIONS.
DIM Driver with external 0-10V dimming wires
DRV Driver without external dimming wires
DA Driver with 12V auxiliary power, without external dimming wires [20]
DSR Sensor-ready driver without external dimming wires (D4i DALI-2) [21]
9 Cord recommended, ships separately. See page 3 for MOUNTING ACCESSORY DETAILS. Field-adjustable up and down in 7-1/2° increments.
10 Specify in increments of 100 nominal lumens. Option must be specified with next higher lumen package.
11 See page 4 for QUICK-CONNECT OPTIONS.
12 Maximum mounting height is 15.4′ (4.7 m). Minimum lumen output is 400 lm/ft. See hew.com/UL924 for details.
13 Units specified with aircraft cable require cord and RA-75 row aligner. See page 3 for MOUNTING ACCESSORY DETAILS.
14 See page 4 for SENSOR & NODE PLACEMENT DETAILS. See page 5 for AVI-ON BLUETOOTH WIRELESS CONTROL DETAILS.
15 DA Driver only.
16 DA Driver only.
17 DA driver only.
18 DA and DSR Drivers only.
19 DA and DSR Drivers only.
20 Avi-on, Lutron Athena, and LV-ZLS05 Controls only.
21 Lutron Vive and Athena Controls only.
22 Not available with EM batteries, DA, or DSR drivers.
BLANK
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LR25185+EM
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LR25185+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+MS
LR25185+EM+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
75 LED Narrow Strip
FEATURES
■ Small fixture profile allows inconspicuous placement in coves or confined spaces
■ Companion round and square lensed fixtures preserve continuity, see hew.com/75
■ Row applications produce continuous light with minimal interruption between fixtures
■ Variety of mounting accessories for surface and suspended applications
■ Special reflectors are available to provide precise light distribution
■ HE option delivers superior efficacies up to 192 lm/W
■ Optional wireguard provides added protection
■ Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
■ 2′, 3′, 4′, and 8′ lengths available
■ Wireless in-fixture control solutions available
■ Made Right Here® in the USA
SPECIFICATIONS
■ HOUSING – 22-gauge die-formed C.R.S.
■ FINISH – 92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
■ ELECTRICAL – High-quality mid-power LED board. L70 > 72,000 hours per IES TM-21. L80 > 102,000 hours with HE option. 25°C maximum ambient operating temperature. 50°C max with HA50 Option. 50/60 Hz constant current driver.
■ MOUNTING – Surface (ceiling or wall) or suspended (hanging hardware required).
■ LISTINGS –
■ cETLus conforms to UL STD 1598. Certified to CAN/CSA STD C22.2 No. 250.0. Suitable for damp locations
■ UL 924 available, see Options.
■ Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american
■ WARRANTY – 5-year limited warranty, see hew.com/warranty
OPTIONS [2]
CATALOG #:
TYPE :
PROJECT: 2″ 2-3/4″
See page 4 for FINISH OPTIONS. See page 4 for SPECIAL REFLECTOR OPTIONS.
GEN Approved for UL 924 emergency generator circuit through-feed wiring [12]
SP1 10kV surge protection, 120 or 277V
SP2 10kV surge protection, 208 or 240V
SP3 10kV surge protection, 347V
AIRCRAFT CABLES (EXAMPLE: ACF/D48) [13]
Prefix Type Length
ACF/ Feeder
ACJ/ Joiner D 1″ grid & hardpan N 9/16″ grid S Slot grid
AVI-LVFA-PIR Avi-on wireless fixture control with high bay PIR motion and daylight sensor, bottom mount [16]
AVI-LVFA-CS2-PIR Avi-on wireless fixture control with PIR motion and daylight sensor, bottom mount [17]
AWNR Lutron Athena wireless node integral fixture control, RF only [18]
AWNS Lutron Athena wireless node integral fixture control, RF with daylight and occupancy sensing [19]
NOTES
1 Lumen output based on 80 CRI/3500K CCT. Actual performance may vary +/-5%, see page 2 for FIXTURE PERFORMANCE DATA . Additional lumen packages available, see options.
2 Remote EM batteries: max remote distance 50′, including suspension length. Large remote box provided. Specify CEC in the option code when California Energy Commission regulations are required. See page 3 for REMOTE MOUNT BATTERY DETAILS.
3 Not available with 2′ fixtures, 4′ L120 or 8′ L240 lumen packages.
4 Not available with 90 CRI, 3′ Length, 2′ L15, 4′ L30, or 8′ L60 lumen packages. See page 2 for FIXTURE PERFORMANCE DATA.
5 Not available with 2′ L60, 4′ L120 and 8′ L240 lumen packages. Lumen restrictions apply. See page 2 for FIXTURE PERFORMANCE DATA.
6 Lumen restrictions apply: L32 max for 2′, L40 max for 3′, L65 max for 4′, L130 max for 8′. Not available with EM batteries.
7 Ships separately, field-installed. Not available with special reflectors.
8 Required when row mounting with aircraft cables.
See page 8 for ADDITIONAL DRIVER OPTIONS.
DIM Driver with external 0-10V dimming wires
DRV Driver without external dimming wires
DA Driver with 12V auxiliary power, without external dimming wires [20]
DSR Sensor-ready driver without external dimming wires (D4i DALI-2) [21]
9 Cord recommended, ships separately. See page 3 for MOUNTING ACCESSORY DETAILS. Field-adjustable up and down in 7-1/2° increments.
10 Specify in increments of 100 nominal lumens. Option must be specified with next higher lumen package.
11 See page 4 for QUICK-CONNECT OPTIONS.
12 Maximum mounting height is 15.4′ (4.7 m). Minimum lumen output is 400 lm/ft. See hew.com/UL924 for details.
13 Units specified with aircraft cable require cord and RA-75 row aligner. See page 3 for MOUNTING ACCESSORY DETAILS.
14 See page 4 for SENSOR & NODE PLACEMENT DETAILS. See page 5 for AVI-ON BLUETOOTH WIRELESS CONTROL DETAILS.
15 DA Driver only.
16 DA Driver only.
17 DA driver only.
18 DA and DSR Drivers only.
19 DA and DSR Drivers only.
20 Avi-on, Lutron Athena, and LV-ZLS05 Controls only.
21 Lutron Vive and Athena Controls only.
22 Not available with EM batteries, DA, or DSR drivers.
BLANK
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LR25185+EM
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LR25185+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+MS
LR25185+EM+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
75 LED Narrow Strip
FEATURES
■ Small fixture profile allows inconspicuous placement in coves or confined spaces
■ Companion round and square lensed fixtures preserve continuity, see hew.com/75
■ Row applications produce continuous light with minimal interruption between fixtures
■ Variety of mounting accessories for surface and suspended applications
■ Special reflectors are available to provide precise light distribution
■ HE option delivers superior efficacies up to 192 lm/W
■ Optional wireguard provides added protection
■ Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
■ 2′, 3′, 4′, and 8′ lengths available
■ Wireless in-fixture control solutions available
■ Made Right Here® in the USA
SPECIFICATIONS
■ HOUSING – 22-gauge die-formed C.R.S.
■ FINISH – 92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
■ ELECTRICAL – High-quality mid-power LED board. L70 > 72,000 hours per IES TM-21. L80 > 102,000 hours with HE option. 25°C maximum ambient operating temperature. 50°C max with HA50 Option. 50/60 Hz constant current driver.
■ MOUNTING – Surface (ceiling or wall) or suspended (hanging hardware required).
■ LISTINGS –
■ cETLus conforms to UL STD 1598. Certified to CAN/CSA STD C22.2 No. 250.0. Suitable for damp locations
■ UL 924 available, see Options.
■ Build America, Buy America (BABA) and Buy American Act (BAA) compliant. Request certification at hew.com/buy-american
■ WARRANTY – 5-year limited warranty, see hew.com/warranty
OPTIONS [2]
CATALOG #:
TYPE :
PROJECT: 2″ 2-3/4″
See page 4 for FINISH OPTIONS. See page 4 for SPECIAL REFLECTOR OPTIONS.
GEN Approved for UL 924 emergency generator circuit through-feed wiring [12]
SP1 10kV surge protection, 120 or 277V
SP2 10kV surge protection, 208 or 240V
SP3 10kV surge protection, 347V
AIRCRAFT CABLES (EXAMPLE: ACF/D48) [13]
Prefix Type Length
ACF/ Feeder
ACJ/ Joiner D 1″ grid & hardpan N 9/16″ grid S Slot grid
AVI-LVFA-PIR Avi-on wireless fixture control with high bay PIR motion and daylight sensor, bottom mount [16]
AVI-LVFA-CS2-PIR Avi-on wireless fixture control with PIR motion and daylight sensor, bottom mount [17]
AWNR Lutron Athena wireless node integral fixture control, RF only [18]
AWNS Lutron Athena wireless node integral fixture control, RF with daylight and occupancy sensing [19]
NOTES
1 Lumen output based on 80 CRI/3500K CCT. Actual performance may vary +/-5%, see page 2 for FIXTURE PERFORMANCE DATA . Additional lumen packages available, see options.
2 Remote EM batteries: max remote distance 50′, including suspension length. Large remote box provided. Specify CEC in the option code when California Energy Commission regulations are required. See page 3 for REMOTE MOUNT BATTERY DETAILS.
3 Not available with 2′ fixtures, 4′ L120 or 8′ L240 lumen packages.
4 Not available with 90 CRI, 3′ Length, 2′ L15, 4′ L30, or 8′ L60 lumen packages. See page 2 for FIXTURE PERFORMANCE DATA.
5 Not available with 2′ L60, 4′ L120 and 8′ L240 lumen packages. Lumen restrictions apply. See page 2 for FIXTURE PERFORMANCE DATA.
6 Lumen restrictions apply: L32 max for 2′, L40 max for 3′, L65 max for 4′, L130 max for 8′. Not available with EM batteries.
7 Ships separately, field-installed. Not available with special reflectors.
8 Required when row mounting with aircraft cables.
See page 8 for ADDITIONAL DRIVER OPTIONS.
DIM Driver with external 0-10V dimming wires
DRV Driver without external dimming wires
DA Driver with 12V auxiliary power, without external dimming wires [20]
DSR Sensor-ready driver without external dimming wires (D4i DALI-2) [21]
9 Cord recommended, ships separately. See page 3 for MOUNTING ACCESSORY DETAILS. Field-adjustable up and down in 7-1/2° increments.
10 Specify in increments of 100 nominal lumens. Option must be specified with next higher lumen package.
11 See page 4 for QUICK-CONNECT OPTIONS.
12 Maximum mounting height is 15.4′ (4.7 m). Minimum lumen output is 400 lm/ft. See hew.com/UL924 for details.
13 Units specified with aircraft cable require cord and RA-75 row aligner. See page 3 for MOUNTING ACCESSORY DETAILS.
14 See page 4 for SENSOR & NODE PLACEMENT DETAILS. See page 5 for AVI-ON BLUETOOTH WIRELESS CONTROL DETAILS.
15 DA Driver only.
16 DA Driver only.
17 DA driver only.
18 DA and DSR Drivers only.
19 DA and DSR Drivers only.
20 Avi-on, Lutron Athena, and LV-ZLS05 Controls only.
21 Lutron Vive and Athena Controls only.
22 Not available with EM batteries, DA, or DSR drivers.
BLANK
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LR25185+EM
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LR25185+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+MS
LR25185+EM+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
ILLUMINA® BS101LED ECO E
■ The ILLUMINA® BS101LED ECO E is an economical solution for wet location illumination and is corrosion, flame and vandal resistant.
■ DIFFUSER: The frosted UV stabilized polycarbonate diffuser eliminates glare and provides even light distribution.
■ LUMENS:
• 4000K: 4090 lm
• 5000K: 4156 lm
■ OPERATING TEMP:
• HT (AC Only) -40°F to 104°F (-25°C to 40°C)
• SA (AC & EM) 32°F to 104°F (0°C to 40°C)
■ WEIGHT: 9 lbs / 4.08 kg
ORDERING INFORMATION
APPLICATION: The ILLUMINA® BS101LED-ECO-E provides ideal illumination for canopies, warehouses, schools, breeze-ways and service corridors. It can be installed both indoor & outdoor.
(surface mount standard)
CONTROLS & ACCESSORIES
1SPKxWBS143,4 (swivel pivot kit, white x=length
NOTE 1: Emergency pack 120-277V; 10W/1170 lm.
NOTE 2: JM direct j-box mount maintains fixtur3e's IP66 rating
NOTE 3: Standard pendant lengths "x" = 12 (12"), 24 (24"), and 48 (48")
NOTE 4: Consult factory for non-standard lengths
NOTE 5: Quick Mount bracket requires JM mount
TECHNICAL INFORMATION
LED SURFACE MOUNT LINEAR VAPOR TIGHT - HIGH OUTPUT
BLANK
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
LED96/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO+EM
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
ILLUMINA® BS101LED ECO E
■ The ILLUMINA® BS101LED ECO E is an economical solution for wet location illumination and is corrosion, flame and vandal resistant.
■ DIFFUSER: The frosted UV stabilized polycarbonate diffuser eliminates glare and provides even light distribution.
■ LUMENS:
• 4000K: 4090 lm
• 5000K: 4156 lm
■ OPERATING TEMP:
• HT (AC Only) -40°F to 104°F (-25°C to 40°C)
• SA (AC & EM) 32°F to 104°F (0°C to 40°C)
■ WEIGHT: 9 lbs / 4.08 kg
ORDERING INFORMATION
APPLICATION: The ILLUMINA® BS101LED-ECO-E provides ideal illumination for canopies, warehouses, schools, breeze-ways and service corridors. It can be installed both indoor & outdoor.
(surface mount standard)
CONTROLS & ACCESSORIES
1SPKxWBS143,4 (swivel pivot kit, white x=length
NOTE 1: Emergency pack 120-277V; 10W/1170 lm.
NOTE 2: JM direct j-box mount maintains fixtur3e's IP66 rating
NOTE 3: Standard pendant lengths "x" = 12 (12"), 24 (24"), and 48 (48")
NOTE 4: Consult factory for non-standard lengths
NOTE 5: Quick Mount bracket requires JM mount
TECHNICAL INFORMATION
LED SURFACE MOUNT LINEAR VAPOR TIGHT - HIGH OUTPUT
BLANK
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
LED96/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO+EM
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
ILLUMINA® BS101LED ECO E
■ The ILLUMINA® BS101LED ECO E is an economical solution for wet location illumination and is corrosion, flame and vandal resistant.
■ DIFFUSER: The frosted UV stabilized polycarbonate diffuser eliminates glare and provides even light distribution.
■ LUMENS:
• 4000K: 4090 lm
• 5000K: 4156 lm
■ OPERATING TEMP:
• HT (AC Only) -40°F to 104°F (-25°C to 40°C)
• SA (AC & EM) 32°F to 104°F (0°C to 40°C)
■ WEIGHT: 9 lbs / 4.08 kg
ORDERING INFORMATION
APPLICATION: The ILLUMINA® BS101LED-ECO-E provides ideal illumination for canopies, warehouses, schools, breeze-ways and service corridors. It can be installed both indoor & outdoor.
(surface mount standard)
CONTROLS & ACCESSORIES
1SPKxWBS143,4 (swivel pivot kit, white x=length
NOTE 1: Emergency pack 120-277V; 10W/1170 lm.
NOTE 2: JM direct j-box mount maintains fixtur3e's IP66 rating
NOTE 3: Standard pendant lengths "x" = 12 (12"), 24 (24"), and 48 (48")
NOTE 4: Consult factory for non-standard lengths
NOTE 5: Quick Mount bracket requires JM mount
TECHNICAL INFORMATION
LED SURFACE MOUNT LINEAR VAPOR TIGHT - HIGH OUTPUT
BLANK
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
LED96/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO+EM
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
HP2 LED (INTEGRAL DRIVER)
*Only available with x58-x63
**Only available with x43-x45, x70-x71, & x76
***Select up to 2. Accessory Holder required.
****120V
*****Aluminum only.
CATALOG NUMBER LOGIC
Example: HP2 - LED - TR - x61 - SP - SAP - 10/11 - INC - MT - AH - TC MATERIAL
(Blank) - Aluminum B - Brass S - Stainless Steel SERIES
HP2 - In-grade with Flush Mounted Faceplate OptiLock®
ELV - Dimming Driver (For use with Electronic Low Voltage Dimmer)****
INC - Dimming Driver (For use with Incandescent Dimmer)****
010 - 0-10V Dimming Driver (Dimming 1 - 100%)
INPUT VOLTAGE
MT - 120/208/240/277 Multi Tap
OPTIONS
AH - Accessory Holder
TC - Traction Control Lens
GM-R - Round Grout Mask
GM-S - Square Grout Mask
GS - Glare Shield*****
HD - Half Dome*****
RG - Rock Guard****
RO - Rock Guard with Optical Opening*****
AdjustableIn-GroundMono40W
Description
The latest innovation of in-ground fixture allows field adjustment of beam angle from -5° to 25° with level turning by 25°. Both faceplate and recess burial box are made of stainless steel Better designed built-in louver to reduce glare. RGBW 4in-1 chips for betting color blending. Many optics to create the ideal lighting effect. The fixture is designed to withstand the impact of pedestrian traffic and occasional loads from cars driving over it
Compliance
Conforms to ETL/FCC/CE standards
Features
LED Chip:
Input Wattage:
Operating Temperature: Optics:
4 Pieces of Cree chips Up to 40W (delivered lumen 2208lm at 3000K 20 degree)
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 16’-4”
• Includes Sure-Tite connectors
SPECIFICATIONS
• For proper thermal management, we recommend to mount this product in a channel
CLOSET
BLANK
ALUMINUM MOUNTING CHANNEL
4’ / 6’ MINI-DEEP FORMAT
PRODUCT OVERVIEW
GM Lighting’s LED-CHL-XD-MD channel accepts all low voltage GM Lighting LED tape. Available in 48” and 72” lengths, these mounting channels are the perfect vessel that not only insures an architectural quality installation, but also minimize diode imaging due to the frosted lens that is included with each channel.
FEATURES
• Available in 4ft (48in) and 6ft (72in)
• Silver Anodized, Black Anodized, White Powder Coated
•Includes 2 mounting clips and screws with 4ft, 4 mounting clips and screws with 6ft
•Includes acrylic frosted lens
• End caps sold separately
•Available with or without flange (see LED-CHL-XD-MD-F spec sheet for flange option ordering information)
•For LTR Series Tape - LTR-P, LTR-S and LTR-E
•Custom lengths available - consult factory
•Dry location only
Note: For Vision120, use V120-CHL channels.
This channel will not fit the LTR-P and LTR-S-24V-RGBW connectors.
SPECIFICATIONS
ELECTRICAL
•Fits 12V/24V LEDtask LED tape
WARRANTY
•5-year warranty
BLANK
LineDRIVE Power Supply
24VDC Electronic Dimmable Single Output Drivers Specification Sheet
PRODUCT OVERVIEW
Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.
FEATURES
• Output: Class 2, 24VDC, constant voltage
• Input: 120V / 277V
• Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming
• Minimum dimming: 1%
• Stable operation, flicker-free dimming
• Compatible with typical phase dimmers and 0-10V controls
• Integrated wiring compartments with separate line voltage and low voltage sections
• Line voltage compartment meets NEC code, up to (3) 12 AWG conductors
• Over-current, over-voltage and over-temperature protection
TYPE H32 SPEC 275 5TH STREET
3G-4RLI
3.5" RECESSED LINEAR
3.5” aperture with one piece extruded aluminum housing
Lumen output up to 1500 lumens per foot
LED system with performance up to 151 lumens per watt
Individual or continuous runs available in multiple run configurations
Suitable for drywall, wood, grid ceiling, and other architectural ceilings
Extruded acrylic lens available in flush, 1” and 2” drop lens options
*Universal mounting brackets used for all grid ceiling types only. See mounting section for details
CUS____ (CUSTOM LAYOUT - PROVIDE DRAWING)
*Individual units available from 2’ to 8’ Continuous runs available in 1” increments as standard
1 D250 (250LM/FT) not available in 2’ length. Specify minimum DC400
2 S80 (80+ CRI) not available with 27K
3 H90 (90+ CRI) available up to 1250 lm/ft
4 347 available in "DIM" 0-10V only (100-1%). Available up to 1250 lm/ft
5 DALI-2 (Type 6) provided as standard. Please consult factory for DALI (Type 8) options
6 DD1 (1" drop lens) and DD2 (2" drop lens) available with straight run type only
*DLC listing available with 80CRI
LENS OPTION
FL - FLUSH LENS
DD1 - 1” DROP LENS 6
DD2 - 2” DROP LENS 6
*DLC listing available with 35K
DWSO - WIDESPREAD LENS (BATWING)
DASY - ASYMMETRIC LENS
OPTIONS
EMB - EMERGENCY BATTERY * (INTEGRAL)
EMC - EMERGENCY CIRCUIT
MC2 - MULTIPLE CIRCUITS (2 ZONES)
MC3 - MULTIPLE CIRCUITS (3 ZONES)
CP - CHICAGO PLENUM
*Minimum 4’ section
DLC listing starting at 500 lumens per foot (D500) Available with 80CRI and 3500K
Carisma® 2”
Recessed Linear
PROJECT:
Features
TYPE:
Carisma® Recessed is part of a family of architectural linear luminaires that offer excellent performance, quality, visuals and value. A sleek edge-to-edge lens design results in an elegant aesthetic with clean lines. Carisma®’s patent pending design includes an integrated optical system that minimizes optical losses, allowing for industry-leading efficacy that meets the stringent requirements for DLC Listing (DLC Listing pending) . Wide range of ceiling trim options accommodate most ceiling types.
The Carisma® Recessed offers luminaires with 2” and 3” wide apertures, delivering seamless lighting as discrete individual fixtures, continuous rows or patterns. Carisma® can be specified to the nearest 1/8” and is available in pendant, surface, wall and recessed mounted options, providing designers with the versatility to light up a space with their Carisma®.
Product Overview
Type: Direct distributrion with Recessed Mounting
Wattage: 5W/ft, 10W/ft (or specify wattage between 3W/ft and 10W/ft)
Color Temp: 2700K*, 3000K, 3500K, 4000K (* 90+ CRI only)
CRI: 80+ typ. or 90+ typ.
Dimming (wired): 0-10V, 1% dim (standard) Lutron LDE1 Hi-lume® 1% Soft-On/Fade-to-Black DALI, 1% dim
BN-BT-OCC-WH-SR BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, D4i/DALI-2
BN-BT-OCC-WH-010 BubblyNet Bluetooth node, Occupancy & Daylight sensor, white, 0-10V
EMC-PF2 emergency circuit requires power feed located in last fixture section (for other locations consult factory)
PF2 Extra power feed for additional circuiting
EMB emergency battery pack (not available for lengths under 4')
1 Lengths less than 4' may have restrictions based upon wattage, lengths, drivers or other options.
2 Not available with IND (individual) configuration.
WHEN A SMOOTH LINE OF LIGHT ELEVATES DESIGN FREEDOM…
ADVANCED SOFT-WHITE LED TECHNOLOGY
Introducing the Linear Light-emitting Surface (LLES) technology behind NEAT™. Unlike common COB (chip-on-board) strips displaying uneven yellow/blue tinges, LLES features a white/clear silicone optical element that produces continuous, diffuse all-white light. As a result, the NEAT™ lighting platform is a versatile, streamlined, high efficacy soft white luminous building material that fits in well practically anywhere. With its clean appearance, 1/4" cut and uniquely appealing white-light signature, NEAT™ delivers new lighting opportunities for lighting designers and architects, including new levels of customized integration and surface installation into structures.
PRODUCT FEATURES
• Patent-pending technology
• Soft, uniform, continuous all-white light
• LLE S (Linear Light-emitting surface) remains white at all times, blends in with surroundings when light is turned off
• Diffuse effec t produced by exclusive white/clear silicone optical element and precision-binned LEDs
• C an be dimmed to 0.1% (dimming below 50% may result in slight pixelation)
■ FINISH – 92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
■ ELECTRICAL – High-quality mid-power LED board. Rated for 50,000 hours at 70% lumen maintenance (L70). 25°C maximum ambient operating temperature. 50/60 Hz constant current driver.
■ MOUNTING – Wall and surface mount.
■ LISTINGS –
■ cCSAus certified as luminaire suitable for dry or damp locations.
■ IK10 rated
■ DesignLights Consortium qualified product. Not all versions of this product may be DLC qualified, see the DLC Qualified Products List at www.designlights.org/QPL
■ Complies with the Buy American Act and other federal regulations. Request certification at hew.com/baa
PSBR/120 Single-circuit bottom-mounted pull switch on right [7]
PSBL/120 Single-circuit bottom-mounted pull switch on left [8] AMW Anti-microbial white finish
HIA Frosted high-impact acrylic, lens secured with Phillips head screws.
HIA/TP Frosted high-impact acrylic with tamper resistant screws. [2]
CONTROL [3]
See page 5 for ADDITIONAL CONTROL OPTIONS.
– None AVI-LVFA Avi-on wireless fixture control [9] AVI-LVFA-PIR Avi-on wireless fixture control with high bay PIR motion and daylight sensor, bottom mount [10]
AWNR Lutron Athena wireless node integral fixture control, RF only [11]
AWNS Lutron Athena wireless node integral fixture control, RF with daylight and occupancy sensing [12]
DRIVER
See page 3 for ADDITIONAL DRIVER OPTIONS.
DIM Driver with external 0-10V dimming wires
DRV Driver without external dimming wires
DA Driver with 12V auxiliary power, without external dimming wires [13]
DSR Sensor-ready driver without external dimming wires (D4i DALI-2) [14]
■ WARRANTY – 5-year limited warranty, see hew.com/warranty NOTES
1 Lumen output based on 80 CRI/3500K CCT. Actual performance may vary +/-5%, see page 2 for FIXTURE PERFORMANCE
DATA . Additional lumen packages available, see Options.
2 Tamper-resistant (TPSN-8) tool is required with HIA/TP option, must be ordered separately, see Accessories.
3 See page 3 for SENSOR PLACEMENT DETAILS. See page 4 for AVI-ON BLUETOOTH WIRELESS CONTROL DETAILS.
4 4′ only.
5 2′ only.
6 Specify in increments of 100 nominal lumens. Option must be specified with next higher lumen package.
7 120V only
8 120V only.
9 DA Driver only.
10 DA Driver only.
11 DA and DSR Drivers only.
12 DA and DSR Drivers only.
13 Avi-on and Lutron Athena Controls only.
14 Lutron Vive and Athena Controls only.
15 When specified with occupancy sensor option, one leg of the driver will be tied to the sensor by default.
16 When specified with occupancy sensor option, one leg of the driver will be tied to the sensor by default.
17 Not available with EM batteries, DA, or DSR drivers.
18 Required with HIA/TP Shielding. Tamper-resistant tool must be ordered separately. Please specify quantity required per project.
Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
Field Installed Accessories: YTGHANGER - 10’ adjustable cable hang kit
Listings
Five year limited warranty against defects
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
Job: Model:
SURFACE/RECESSED EDGE-LIT EXIT SIGN
Type:
Date:
internal
AC only and Self-Powered models come standard configured with high output, high efficiency LED’s. 120/277V input. Nickelcadmium batteries provide a minimum 90 minutes of emergency duration. Optional 120 minute duration battery is available. Solid state charger & transfer. Fuse protection is standard.
The standard OL2 is constructed from durable 20 gauge steel, including the surface mount housing, recessed backbox and trim plate. The brushed aluminum finish option (BA) is available for recessed models only with the trim place constructed of aluminum. The high clarity acrylic face plate is available in both single face or double face versions, with a clear, white, or mirrored background (please specify). Field adjustable chevrons are standard. White, baked powder coat finish is standard on all versions. Available in custom colors (please specify). External LED monitor light and test switch are standard on self-powered versions.
ordering
Accessories
1PKxB4 (single pendant kit, black, x=length)
1PKxB4 (single pendant kit, brushed aluminum, x=length)
NOTE 1: Available in single face only
NOTE 2: For AC only
NOTE 3: Only available for recessed models (aluminum trim plate)
(end surface)
(ceilling recess)
(ceilling surface)
recess)
1 (wall surface)
1PKxB4 (single pendant kit, black, x=length) OL2BBOX (recessed back box, standard)
NOTE 4: Standard pendant lengths "x" = 12 (12"), 24 (24"), 48 (48"). BA available in 12" length only.
(120 minute emergency)
(autotest - for SA model only)
aluminum)
(custom color)
(inverted face)
(special wording- specify)
Recessed Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
& Municipal Certified to the energy efficiency standards of California Title 20
AC only: 120/277V input. Self-Powered: 120/277V input. The PACO PX self powered version uses a rechargeable, maintenance free 3.6V 900mAH nickel cadmium battery. The circuit board features an onboard solid state transformer, low voltage disconnect and brownout protection. Red or green LEDs totaling less than 2W.
external
The PACO PX features performance and reliability in a compact, attractive and low profile package. It is constructed from high impact, injection molded thermoplastic. The PX comes standard in white, black is optional. Field adjustable chevrons are standard. The PX can be universally mounted single or double face (extra faceplate included). The SA version includes an integrated test switch / monitor LED, which gives immediate unit status. Damp location rated.
dimensions (in,mm.)
■ ordering information
Model
PXGHT
PXGSA
PXGSARC
Description
Paco exit, AC only, green LED, universal face, white
Paco exit, Ni-Cd battery, green LED, universal face, white
Paco exit, Ni-Cd battery, green LED, universal face, 3.4W remote capable, white
PXRHT Paco exit, AC only, red LED, universal face, white
PXRSA Paco exit, Ni-Cd battery, red LED, universal face, white
PXRSAAT
PXRSAATRC
Paco exit, Ni-Cd battery, red LED, universal face, autotest, white
Paco exit, Ni-Cd battery, red LED, universal face, autotest, 3.4W remote capable, white
PXRSAB Paco exit, Ni-Cd battery, red LED, universal face, black
PXRSARC Paco exit, Ni-Cd battery, red LED, universal face, 3.4W remote capable, white
Accessories
WG3DX16.5LX14WWHT Wire guard (wall mount), white
PXGSAAT Paco exit, Ni-Cd battery, green LED, universal face, autotest, white www.beghelliusa.com
NX-603-LED
Thermoplastic LED Exit Sign with Battery Backup
Source: 2W normal operation 3.5W emergency operation
PRODUCT DESCRIPTION
Compact, low profile LED exit signs are as brilliant and visible as standard incandescent signs, yet use a fraction of the power. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
12-1/8" Width x 8-3/4" Height x 1-3/4" Depth
Injection-molded thermoplastic housing
Black or white housing finish
FACE
6" high text with color diffusion
Both double and a blank face are included
Replaceable knockout directional chevrons
MOUNTING
· Wall, side, or ceiling
Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 2W normal operation, 3.5W emergency operation
Light Source: LED
Circuit Protection: Isolated surge and short circuit protection. Disconnect for deep discharge.
Remote Capability: None
BATTERY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
LIFE EXPECTANCY
LED sources and PC circuitry are rated for a minimum of 25 years with no change in illumination level
ACCESSORIES
NEXL-R : Spare Red Lens
NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
5-Year Limited Warranty UL 924 Compliant
NFPA
NEC
State & Municipal Certified to the energy efficiency standards of California Title 20
Type
Project
Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS
NX-603-LED/R Red Letters / White Housing
NX-603-LED/BG Green Letters / Black Housing
NX-603-LED LED Exit SIgn with Battery Backup
NEG-60 Wet Location Enclosure
Thermoplastic LED Exit Signs
NX-603-LED/G = Green Letters / White Housing (Discontinued, direct replacement: NX-603D-LED)
NX-603-LED/BG = Green Letters / Black Housing
NX-603-LED/R = Red Letters / White Housing
Example: NX-603-LED/R = Thermoplastic LED Exit Sign, Battery Backup, Red Letters / White Housing Letter Color / Housing Color
= Spare Red Lens
= Wet Location Enclosure
NX-603-LED/BR = Red Letters / Black Housing (Discontinued, direct replacement: NX-603D-LED/B)
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
Linear LED outdoor egress with both emergency lighting and night lighting function. The MUE series is designed to mount directly on mullion frames used in typical glass panel entrance structures, with vertical mounting surface as small as 2”. High efficiency LEDs and full 90° cut-off provide uniform emergency and night lighting on the extended egress pathway. All models are outdoor rated, UL wet location, ADA compliant, and exceed requirements of UL Standard 924 and NFPA 101. Designed and manufactured in the USA, complies with ARRA (American Recovery and Reinvestment Act) and Buy American requirements.
SPECIAL FEATURES
• Very low profile extruded aluminum housing and mount bracket blend seamlessly with structural metal frames
•Remote power supply for 10W and 20W BB and AC model single fixtures, or Central Battery System power for RE model multiple fixtures.
•Option for 20 watt models to operate for 2 hours in emergency mode
•Options for mount bracket height, from 2” to 5”
•Standard finishes include Brushed Aluminum, Satin White, Bronze or Black. Custom colors available on request
•Custom satin finishes for extended outdoor use are available to match any surface
•IP66 housing seals against heavy water spray and fine dust
•Universal side or top mount
•Wide lighting distribution designed for entrance walkways
•10W or 20W emergency power models
•Optional normal-on switch allows timed control of night lighting
•Self-Test Diagnostics is standard for central battery models and optional for integral battery models.
•Certified IP66 housing withstands multi direction water spray and fine dust ingress
•Wall mount version available (see Series MAE)
•Standard CRI 5000K, with optional color corrections filters for 2900K, 3200K and 3800K.
FIXTURE ORDERING INFORMATION EXAMPLE: MUEBB10AW-DG
PROJECT:
TYPE:
CATALOG #:
Self-test diagnostics (BB models
SD Night Lighting Control Switch for models with DG option (120/277VAC)
SB120 Night Lighting Control Switch for standard BB models (120VAC)
SB277 Night Lighting Control Switch for standard BB models (277VAC)
REC 20W RPS panel recessed mount
2EM 2 hrs emergency operation for BB models
CW1 Color temp. - 3800K
CW2 Color temp. - 3200K
CW3 Color temp. - 2900K
DAC Dual AC input
2HT 2” Mount Bracket height
5” Mount Bracket height
NE-902LED
Outdoor Slim LED Emergency Light with Photosensor
PRODUCT DESCRIPTION
Slim architectural outdoor LED wallpack with photosensor for dusk to dawn security lighting. Unique luminaire includes general lighting for everyday use and emergency lighting when power failure occurs.
FEATURES
Universal 120/277VAC input
Outdoor luminaire with general and emergency lighting
Test switch and LED indicator
Self-diagnostic and self-testing unit
Available in three finishes with UV coating: white, black, or bronze IP65 rated
General illumination can be controlled with a photosensor or wall switch
CONSTRUCTION
Architectural, low profile decorative design with die-cast aluminum housing. Enclosure is IP65 rated and suitable for outdoor applications, and includes a UV Resistant polycarbonate lens.
Operating Temperature: 0°C to 50°C ambient temperature Battery: NiCad 7.2V 2A maintenance-free
OPERATION
Luminaire has dual operations; general and emergency lighting. General lighting can be achieved with photosensor that will turn on the luminaire with absence of light, or with wall switch. Emergency lighting will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time.
LABELS AND LISTINGS
5-Year Limited Warranty
cULus Listed for Wet Locations
IP65 Rated
Outdoor Slim LED Emergency Light with Photosensor
Type Project
Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS
Example: NE-902LEDB = Outdoor Slim LED Emergency Light with Photosensor, Black
Linear LED outdoor egress with both emergency lighting and night lighting function. The MUE series is designed to mount directly on mullion frames used in typical glass panel entrance structures, with vertical mounting surface as small as 2”. High efficiency LEDs and full 90° cut-off provide uniform emergency and night lighting on the extended egress pathway. All models are outdoor rated, UL wet location, ADA compliant, and exceed requirements of UL Standard 924 and NFPA 101. Designed and manufactured in the USA, complies with ARRA (American Recovery and Reinvestment Act) and Buy American requirements.
SPECIAL FEATURES
• Very low profile extruded aluminum housing and mount bracket blend seamlessly with structural metal frames
•Remote power supply for 10W and 20W BB and AC model single fixtures, or Central Battery System power for RE model multiple fixtures.
•Option for 20 watt models to operate for 2 hours in emergency mode
•Options for mount bracket height, from 2” to 5”
•Standard finishes include Brushed Aluminum, Satin White, Bronze or Black. Custom colors available on request
•Custom satin finishes for extended outdoor use are available to match any surface
•IP66 housing seals against heavy water spray and fine dust
•Universal side or top mount
•Wide lighting distribution designed for entrance walkways
•10W or 20W emergency power models
•Optional normal-on switch allows timed control of night lighting
•Self-Test Diagnostics is standard for central battery models and optional for integral battery models.
•Certified IP66 housing withstands multi direction water spray and fine dust ingress
•Wall mount version available (see Series MAE)
•Standard CRI 5000K, with optional color corrections filters for 2900K, 3200K and 3800K.
FIXTURE ORDERING INFORMATION EXAMPLE: MUEBB10AW-DG
PROJECT:
TYPE:
CATALOG #:
Self-test diagnostics (BB models
SD Night Lighting Control Switch for models with DG option (120/277VAC)
SB120 Night Lighting Control Switch for standard BB models (120VAC)
SB277 Night Lighting Control Switch for standard BB models (277VAC)
REC 20W RPS panel recessed mount
2EM 2 hrs emergency operation for BB models
CW1 Color temp. - 3800K
CW2 Color temp. - 3200K
CW3 Color temp. - 2900K
DAC Dual AC input
2HT 2” Mount Bracket height
5” Mount Bracket height
NE-902LED
Outdoor Slim LED Emergency Light with Photosensor
PRODUCT DESCRIPTION
Slim architectural outdoor LED wallpack with photosensor for dusk to dawn security lighting. Unique luminaire includes general lighting for everyday use and emergency lighting when power failure occurs.
FEATURES
Universal 120/277VAC input
Outdoor luminaire with general and emergency lighting
Test switch and LED indicator
Self-diagnostic and self-testing unit
Available in three finishes with UV coating: white, black, or bronze IP65 rated
General illumination can be controlled with a photosensor or wall switch
CONSTRUCTION
Architectural, low profile decorative design with die-cast aluminum housing. Enclosure is IP65 rated and suitable for outdoor applications, and includes a UV Resistant polycarbonate lens.
Operating Temperature: 0°C to 50°C ambient temperature Battery: NiCad 7.2V 2A maintenance-free
OPERATION
Luminaire has dual operations; general and emergency lighting. General lighting can be achieved with photosensor that will turn on the luminaire with absence of light, or with wall switch. Emergency lighting will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time.
LABELS AND LISTINGS
5-Year Limited Warranty
cULus Listed for Wet Locations
IP65 Rated
Outdoor Slim LED Emergency Light with Photosensor
Type Project
Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS
Example: NE-902LEDB = Outdoor Slim LED Emergency Light with Photosensor, Black
8" round area light for lighting smaller spaces including bathrooms, closets
Extends just 0.6" below the ceiling plane to minimize visual profile
multiple ratings to meet the a wide range of situations
Aperture 4" Octagonal Junction Box
Delivered Lumens 1500 lm (17W) Color Quality
CRI, < 3-step SDCM
Color Temperature Input Voltage
Emergency Lighting
Optional Emergency LED Driver for lighting up to 90 minutes in event of power failure
Housing
Code compliant for use in appropriate fire-rated assemblies up to a maximum of 2-hours
hrs | 5 years
Listed for Wet Location
Brim Round LED Surface Mount Disc Light
BRMF Series
Features
This ultra low profile design provides a dramatic look and frameless construction. Products can be used in various applications including corridors, closets, hallway, kitchen and anywhere general lighting is needed.
Indoor use only - Wall or ceiling mount. Outdoor use only - Covered ceiling mount.
Construction
Edge-lit technology housing is injection molded with aluminum backplate. Twist-N-Lock
Mounts to standard junction box (not included).
Power supply connections must be made inside junction box.
Finish White finish.
Diffuser
White acrylic diffuser.
Electrical
Input 120 VAC 60 HZ. (D1)
Input 120-277V (D4)
Compatible with residential (TRIAC/ELV) dimmers.
LED
Fixture includes a LED modules capable of producing:
General New Construction DRDHNJO Octagonal Junction Box PRODUCT BUILDER
DRDH Housing N New Construction JO SurfaceFrame Octagonal Junction Box [Blank] Integrated Driver JC 15OSEMS EM Driver 1, 0-10V
LED MODULE
DRD5S Module 8 8" Diameter R Round 15 1500 lm 9 90+ CRI 27 2700K [Blank] TRIAC/ELV 30 3000K O 0-10V 35 3500K A Alternate 1 1 EM option (housing) and Alternate driver (module) must be selected together
BLANK
24W Flushmount Matte White with White Diffuser Height 2''
Width/Length 11.75'' LED Compatible Integrated LED Depth 11.75'' Total Wattage 24W Weight 2 lbs
Body Material Metal
Finish/Color Matte White
Second Material Plastic
Second Finish/Color White Type of Finish Painted
Light Qty 1
Rated For Damp Location
Light Base LED Voltage 120V
Light Max Watt 24
Light Inc Yes Approval cUL or equivalent
Light Lumens 2000-2100 (Initial), 1200-1300 (Delivered) Warranty 3 Years Limited
Light CRI 80+ Install Position Ceiling
Light CCT 3000K,4000K,5000K
Light Life 30000 Hours
Date:
Fixture Type: Job Name:
Notes:
• Light segments in various lengths can be mounted individually or to each other — using snap-in magnetic stand-off connectors — to create linear fixture configurations up to 24 ft (nominal)
• Segments can individually rotate 360°
• 24 VDC output Class 2 constant voltage power supply
• Wall brackets / standoffs mount directly to surface
• Standoff distances from wall are ideal for applications such as undercabinet lighting, vanity/display lighting, and picture lighting
• CRI 95+
• R9 90+
• 90 LM/W delivered efficacy
• 300 LM per linear foot (maximum)
• Frosted lens with 90° beam spread
Example:
JPR-THEW-MONO-XXX-090-000044-XX-XX
8′ nominal (2 light segments)
Linear
SDS Selectable Strip
2ft, 4ft & 8ft
The SDS Selectable Strip LED from Day-Brite/CFI is an economical, lumen and CCT field selectable luminaire which can be used for commercial or residential applications.
Project:
Location:
Cat.No:
Type:
Lumens: Qty:
Notes:
Ordering guide
SDS Selectable Strip LED 2 2' length 1224L 1200/1800/2400lm 8CST 80 CRI, Color Select (3500/4000/5000K)
4 4' length 2448L 2430/3640/4850lm
8 8' length 4998L 4900/7350/9800lm
1. Nominal delivered lumens at 25°C ambient.
Accessories (order separately)
• MD360 Field installable motion detector (120-277V)
• FKR-126 Two 5' chains and "V" hooks
• SV5F12 12" White stem and canopy kit (1/4" trade size with locknuts included)
• SV5F18 18" White stem and canopy kit (1/4" trade size with locknuts included)
• SV5F24 24" White stem and canopy kit (1/4" trade size with locknuts included)
• SV5F36 36" White stem and canopy kit (1/4" trade size with locknuts included)
• SV5F48 48" White stem and canopy kit (1/4" trade size with locknuts included)
• DACHxx Adjustable cable hanger kit (single)
• DACHxx-1-SC Adjustable cable hanger kit with white straight 18/3 cord (single)
• DACHxx-2-SC Adjustable cable hanger kit with white straight 18/4 cord (single)
• DACHxx-1D-SC Adjustable cable hanger kit with white straight 18/5 cord with dimming leads (single) (xx=cable length in inches, enter 48" to 180" lengths in 12" increments)
Many luminaire components, such as reflectors, lenses, sockets, lampholders, and LEDs are made from various types of plastics which can be adversely affected by airborne contaminants. If sulfur based chemicals, petroleum based products, cleaning solutions, or other contaminants are expected in the intended area of use, consult factory for compatibility.
Features
• White painted metal housing for durability.
• Frosted polycarbonate lens for even, low glare lighting.
• Field CCT and Lumen selectable.
• Safety cable between lens/LED assembly and housing for ease of service and installation.
• Easy hanging installation with holes provided in housing.
• cULus listed to meet UL 1598 standard s for -20C to 40C ambient.
• Suitable for damp locations.
• L70 LED predicted lumen maintenance >50,000 hours.
• 5 year limited luminaire warranty. Visit www.signify.com/warranties for complete warranty information.
• DesignLights Consortium qualified. Please see the DLC QPL list for exact catalog numbers (www.designlights.org/QPL)
• Light segments in 2′ and 3′ nominal lengths are attached together using simple snap-in magnetic connector rings to create suspended geometric configurations
• Segments can individually rotate 360°
• 24 VDC output Class 2 constant voltage power supply
nominal Example (Square): JPR-THES-SQR1-XXX-03-XX-XX
Example (Rhombus):
TRI1 Triangle
SQR1 Square
RHM1 Rhombus
DMC Juniper Power Hub — Custom Power Supply included
CMR 5″ Canopy, Center Mount Remote Power Supply not included
CMP 5″ Canopy, Center Mount Remote Power Supply included
CML Juniper Power Hub White, Center Mount Power Supply included
CMC Juniper Power Hub Custom, Center Mount Power Supply included
CCR 5″ Canopy, Center Mount with Collar Remote Power Supply not included
CCP 5″ Canopy, Center Mount with Collar Remote Power Supply included
CCL Juniper Power Hub White, Center Mount with Collar Power Supply included
CCC Juniper Power Hub Custom, Center Mount with Collar Power Supply included
mounting/spacing configurations and dimensions for various fixture lengths.
Canopy (can be replaced with DMC/CML/CMC/CCL/CCC)
Light Segment (360° rotation) CMR/CMP/CCR/CCP
Triangular (Optional Cable Collar for Center-Mounting) Square / Rhombus (Optional Cable Collar for Center-Mounting) POWER FEED OPTIONS
CMR/CMP/CCR/CCP 5″ Canopy (Remote PSU)
DMC/CML/CMC/CCL/CCC Juniper Power Hub (Local PSU & Enclosure)
For detailed photometrics, see Photometric Data. IES files available.
1. Subfamily2. Mounting
P4524D P4536D P4548D
Pendant
Features
Housing
UP and Down Light
Finish Option: -06 White, -09 Silver, -22 Gold, -23 Light Gold, -30 Oil Rubbed Bronze Pendant Mount by 6 Feet Hanging cable Canopy Size: 18.1”L x 4.3”W x 1.0”H
Optical
Shade: High Transmission Acrylic Create Excellent Light Distribution and Uniformity LED: High Efficiency, High CRI, Binned and Mixed to Reach Uniform Light
Electrical
High Power Factor, Low THD
Lamp
LED Type: Built-in (Color Temperature Option – 3000K, 4000K)
Certifications
ETL/cETL Listed
Warranty
5 Years Warranty on Driver and LED Module
LED Type
~
Hanging Cable Length (H1): 6’, Adjustable
Cylinder
Description:
Project: Fixture Type:
Location:
Contact:
Wall Mounted • Wet Location Listed
5” LED wall cylinder/wall lantern in Metallic Gray. The P5674 Series are ideal for a wide variety of interior and exterior applications including residential and commercial. The Cylinders feature a 120V alternating current source and eliminates the need for a traditional LED driver. This modular approach results in an encapsulated luminaire that unites performance, cost and safety benefits.
Specifications:
Metallic Gray finish. Die-cast aluminum construction with durable powder coated finish 788 lumens 46 lumens/watt (source) 3000K color temperature, 90+ CRI
• Meets California Title 24 high efficacy requirements for outdoor use only.
• Dimmable to 10% brightness (See Dimming Notes)
• Back plate covers a standard 4” recessed outlet box: 4.5 in W.,
• Mounting plate for outlet box included 6 in of wire supplied
Performance:
Number of Modules 1 Input
Lumens/LPW (Source)
Lumens/LPW (Delivered)
(LM-82)
(LM-79) CCT
CRI Life (hours) 60000 (L70/TM-21)
EMI/RFI FCC Title 47, Part 15, Class B
Max. Operating Temp 30 °C
Warranty 5-year Limited Warranty
Labels
cCSAus Wet Location Listed
P5674-82/30K
Dimensions:
Width: 5 in Height: 7-1/2 in Depth: 8 in H/CTR: 2-1/2 in
Canopy / Canopé 4 1/4” (109 mm) x 4 1/4” (109 mm) x 1/4” (7.5 mm)
Weight / Poids 1.499 LBS 0.68 KG
LIGHT SOURCE / SOURCE LUMINEUSE
Light Source / Source lumineuse 1 x 50W GU10 (Not Included / Non incluse)
Dimmable* / Luminosité variable* Yes / Oui
SPECIFICATIONS / CARACTÉRISTIQUES
Input Voltage / Tension d’entrée 120V, 60Hz
System Type / Type de système Hardwire / Relié à la boîte électrique
Location Rating / Emplacement Wet / Moullié
Mounting Direction / Montage Wall Mount Only / Murale seulement
Warranty (Years) / Garantie (AN) 1
PRODUCT IMAGE & DIMENSION DRAWING IMAGE DE PRODUIT & DIMENSIONS
AVAILABLE FINISHES / FINI DISPONIBLES
83998A Stainless Steel / Acier inoxydable
83999A Anthracite / Anthracite
1 / 1
WHEN A SMOOTH LINE OF LIGHT ELEVATES DESIGN FREEDOM…
ADVANCED SOFT-WHITE LED TECHNOLOGY
Introducing the Linear Light-emitting Surface (LLES) technology behind NEAT™. Unlike common COB (chip-on-board) strips displaying uneven yellow/blue tinges, LLES features a white/clear silicone optical element that produces continuous, diffuse all-white light. As a result, the NEAT™ lighting platform is a versatile, streamlined, high efficacy soft white luminous building material that fits in well practically anywhere. With its clean appearance, 1/4" cut and uniquely appealing white-light signature, NEAT™ delivers new lighting opportunities for lighting designers and architects, including new levels of customized integration and surface installation into structures.
PRODUCT FEATURES
• Patent-pending technology
• Soft, uniform, continuous all-white light
• LLE S (Linear Light-emitting surface) remains white at all times, blends in with surroundings when light is turned off
• Diffuse effec t produced by exclusive white/clear silicone optical element and precision-binned LEDs
• C an be dimmed to 0.1% (dimming below 50% may result in slight pixelation)
One fixed ceramic bi-pin socket with stainless steel retaining springs.
LAMP TYPE:
12V MR16. LED recommended. 35W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included. May be mounted into threaded hubs in junction boxes or mounting accessories.
WIRING:
Pre-wired with 5’ pigtail of 18/2 cable.
WARRANTY: Lifetime.
ARCHITECTURAL COLORS:
FINE TEXTURE SILVER
FINE TEXTURE WHITE
FINE TEXTURE BLACK
DIMENSIONS:
490007-S
490007-WH
490007-BLK
Type:
Model:
The sleek Astor uplight features a tempered glass convex lens that illuminates foliage and outdoor scenery with soft, mellow light. Crafted from cast brass with a brass-knobbed swivel for creative directionality. A “lock-and load“ shroud features double O-rings for long-lasting protection.
BLANK
SPECIFICATION SHEET Page 2 ASTOR LED MR16 Uplight Fixture
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
The 9-17-volt MR16 7-watt LED lamp is fully dimmable and utilizes Epistar chip technology. Warrantied for applications for more than 50,000 hours.
NO SPEC
NeoVision24 SideFlex ®
24VDC 3W LED Tape Specification Sheet
PRODUCT OVERVIEW
A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables horizontal bending that conforms tape around curvilinear surfaces.
FEATURES
•24VDC operation
•Wet location - IP65
•Multiple power feed options
•Tape encased in UV stable silicone (UV protected)
•Dimmable
•Wireless control with LUXcontrol App and controller
•3000K or 4000K / Amber, Blue, Green or Red
•120° viewing angle
•Maximum run: 32’-8”
•Field cuttable and joinable in 2 inch increments while retaining IP65
•Each run requires an end cap (sold separately)
•No tools required for capping and joining
•Mounting clips included (recommend use 1 per foot)
SPECIFICATIONS
ELECTRICAL
•24VDC
•3.0 watts per foot
OPTICS
•90+ CRI
WARRANTY
•5-year warranty when paired with GM power supply
CERTIFICATION
•24VDC UL compliant
•IP65
ACCESSORIES
•LineDRIVE 24V Power
Supplies
•Aluminum Channels (below)
•Connectors (below)
•Tape Cutting Tool (below)
(AM) Blue (BL)
CONTROLLERS
NV24S-FLEX-CHL
NV24S-EC
BLANK
LineDRIVE Power Supply
24VDC Electronic Dimmable Single Output Drivers Specification Sheet
PRODUCT OVERVIEW
Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.
FEATURES
• Output: Class 2, 24VDC, constant voltage
•Input: 120V / 277V
•Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming
•Minimum dimming: 1%
•Stable operation, flicker-free dimming
• Compatible with typical phase dimmers and 0-10V controls
• Integrated wiring compartments with separate line voltage and low voltage sections
• Line voltage compartment meets NEC code, up to (3) 12 AWG conductors
•Over-current, over-voltage and over-temperature protection
