ARCH 342: DESIGN PORTFOLIO

Grace Langley

FORM + FUNCTION

Needs:

- Residential

- Retail

- Parking

- Communal Area for Residents

- Service Areas

- Circulation (Vertical and Horizontal)

Desires:

- Plaza/Courtyard - Gardens - Green space

- Residential

Retail - Plaza/Courtyard - Communal Area for Residents - Gardens

Green space - Parking - Service Areas

- Circulation (Vertical and Horizontal)

Residential

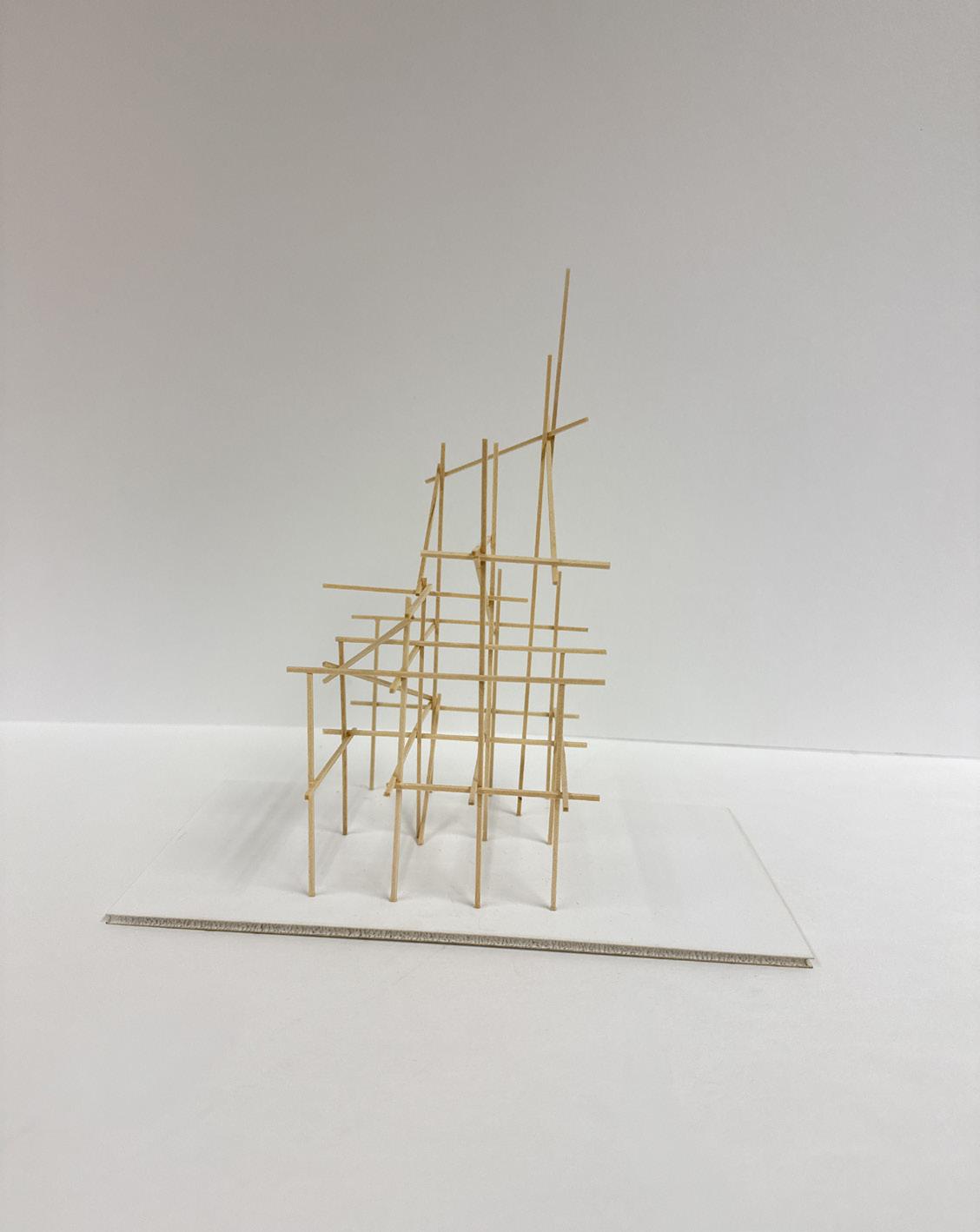

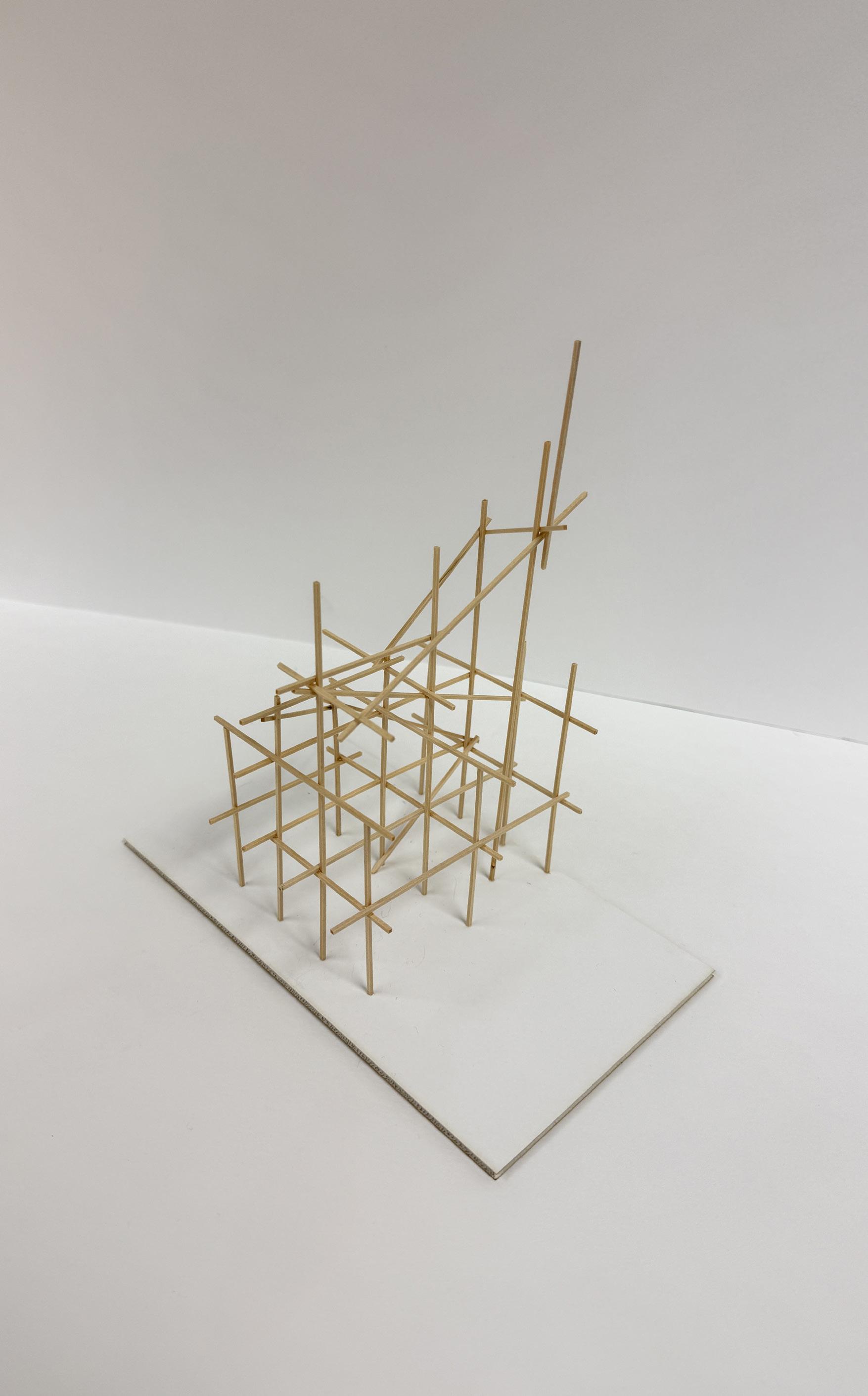

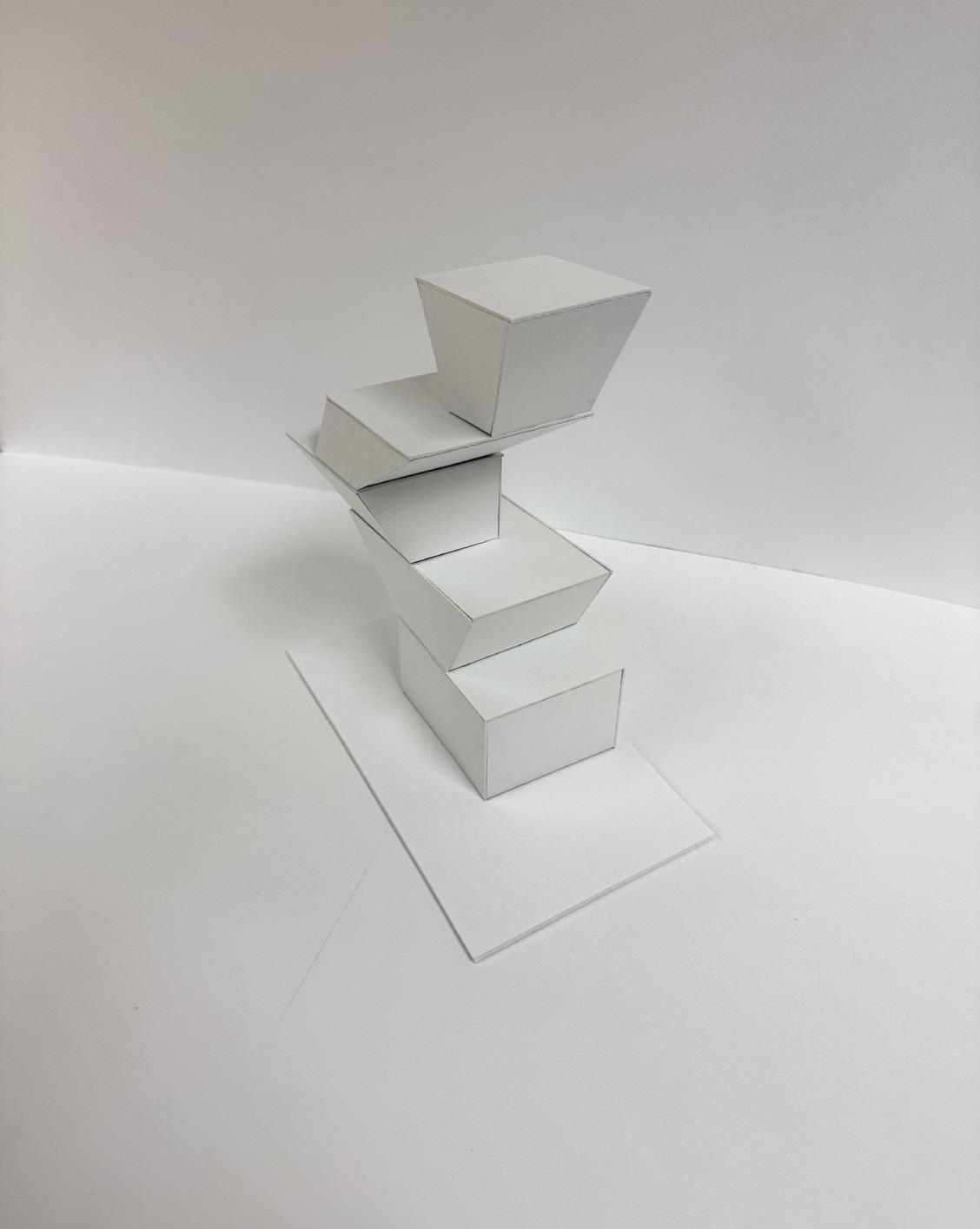

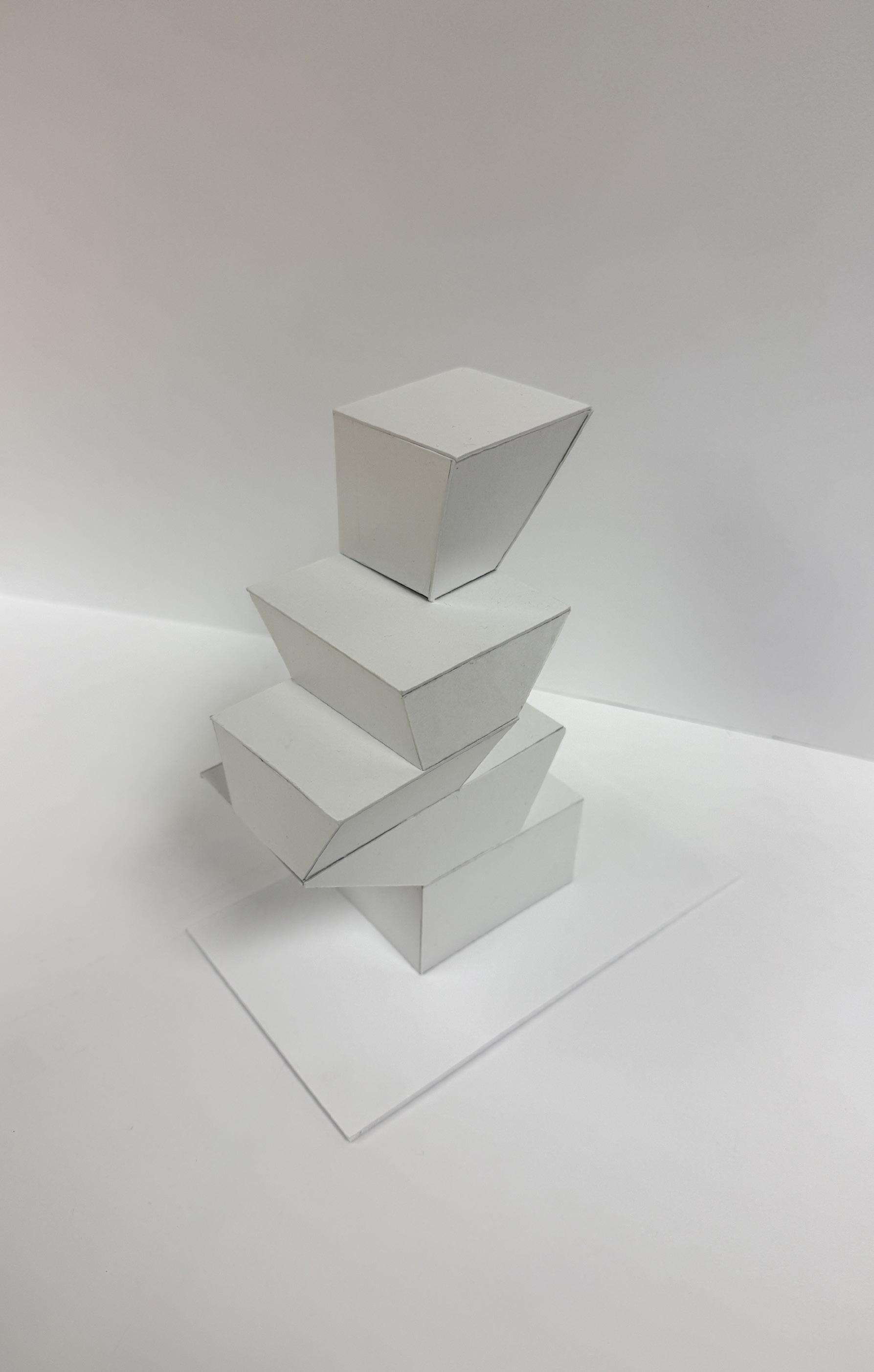

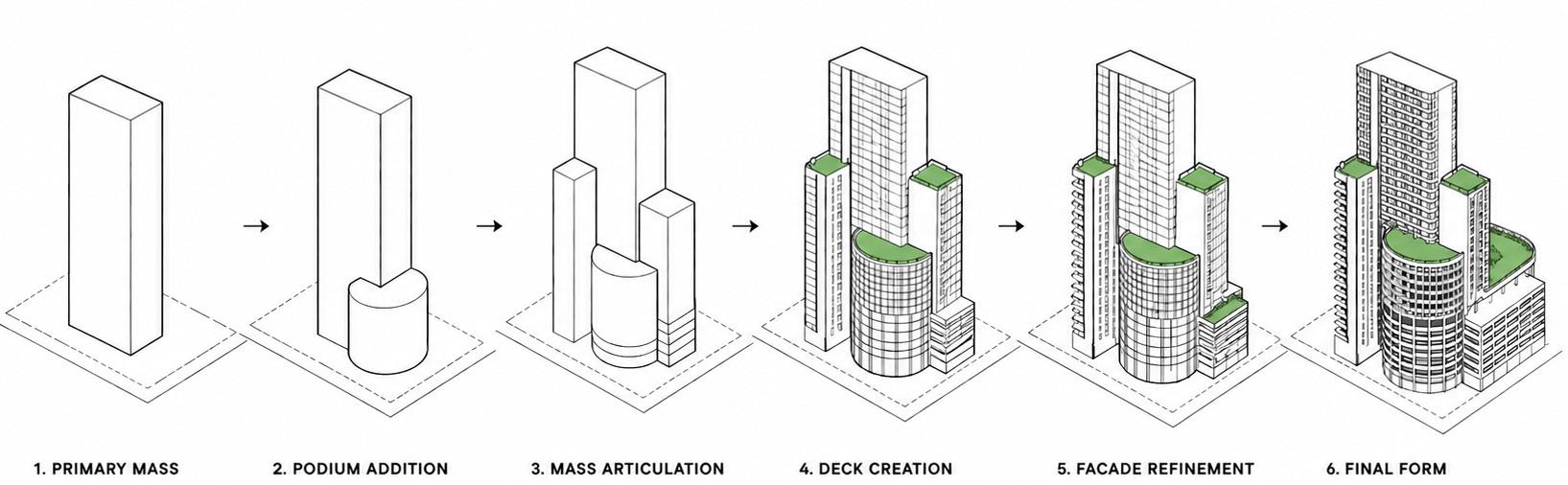

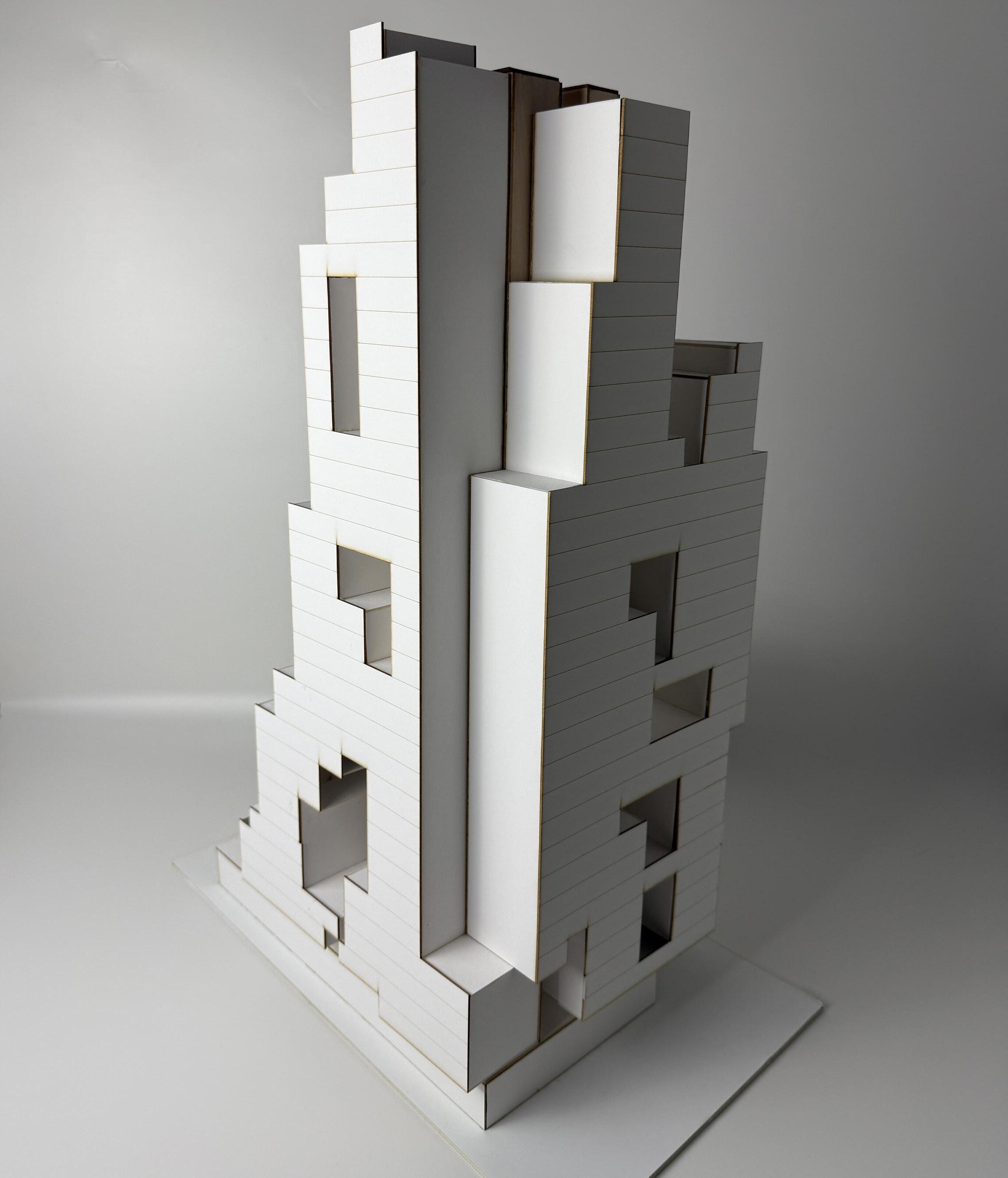

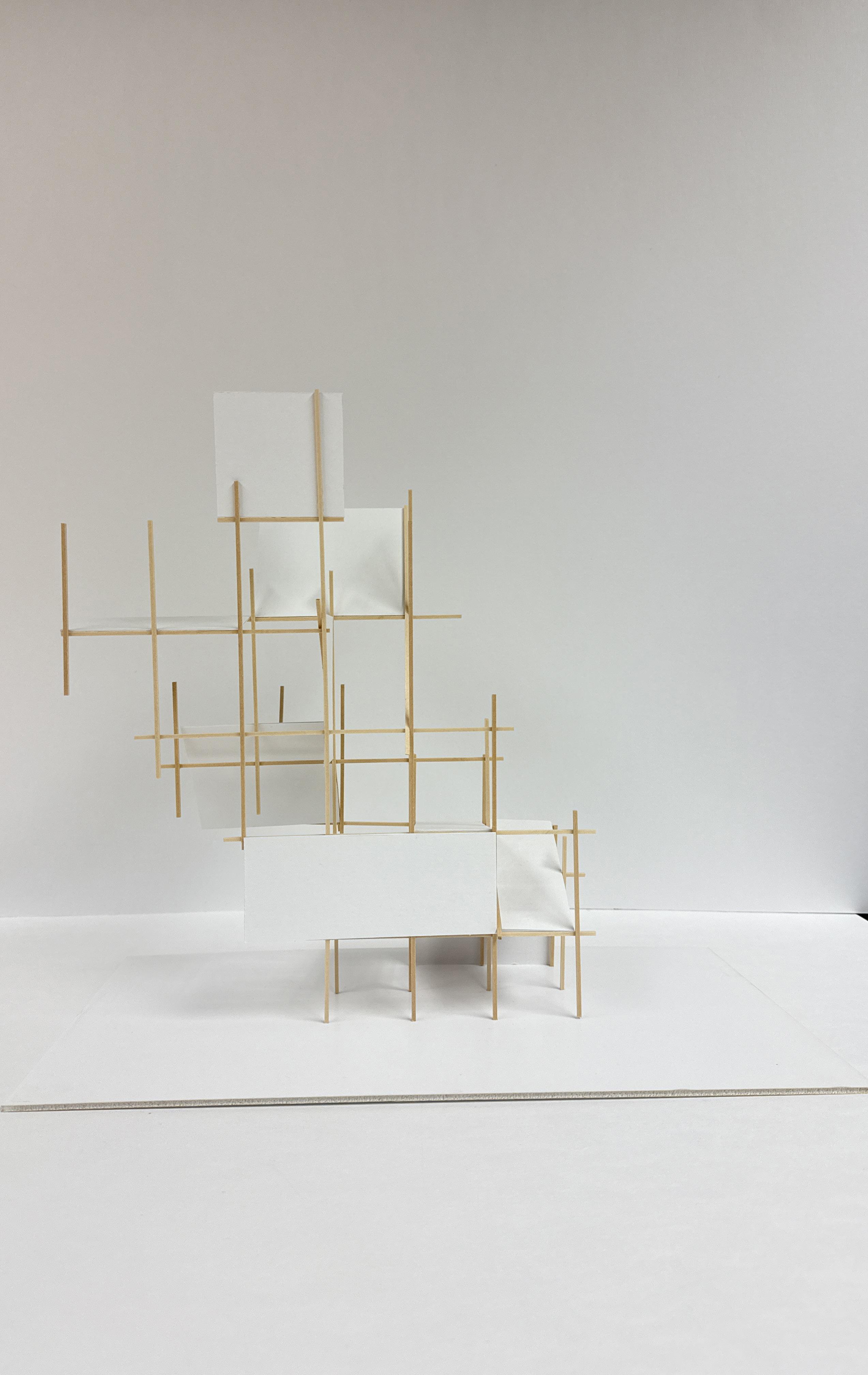

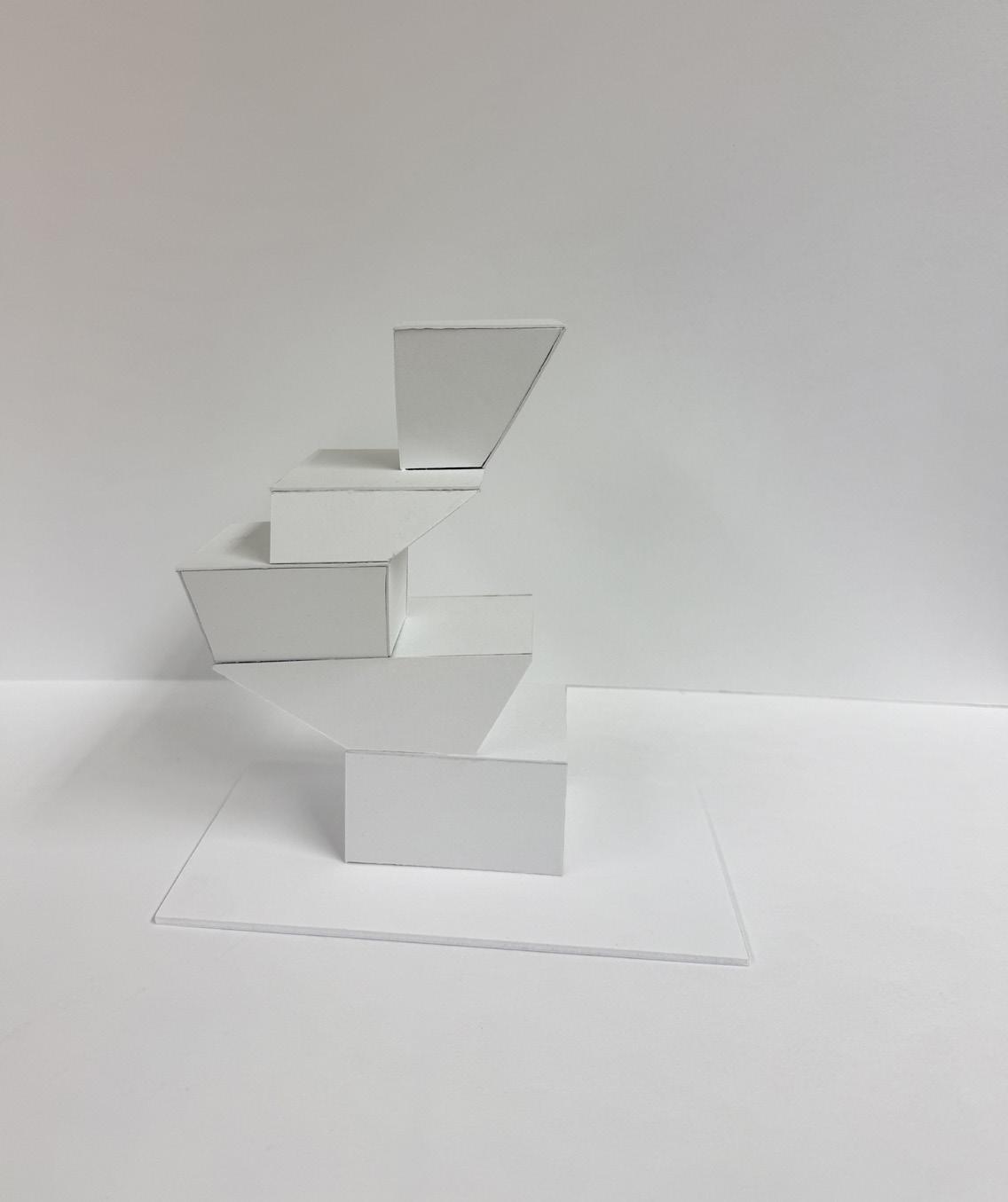

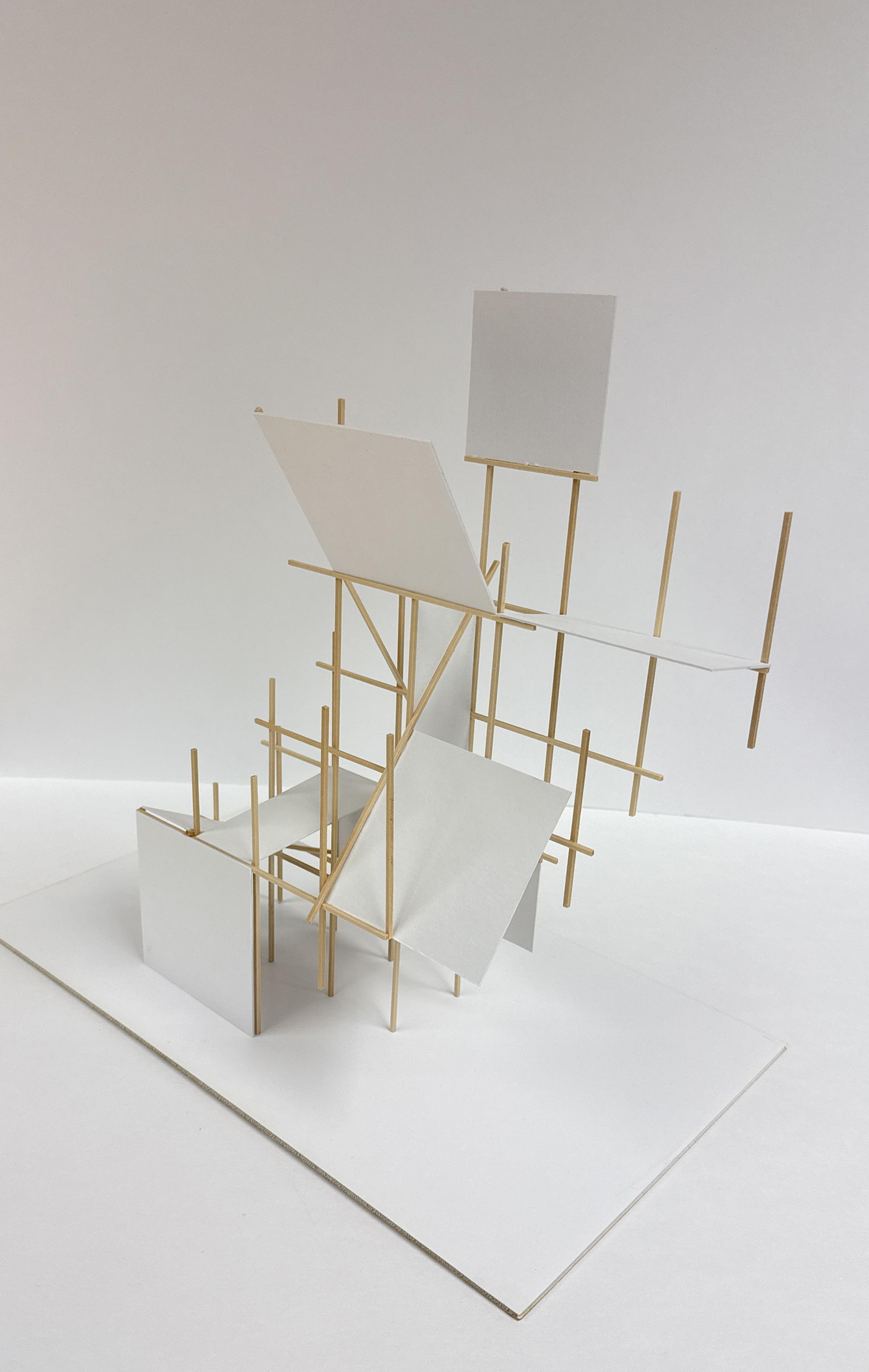

sculpting

integration

TRANSLATION: NATIVE HAWAIIAN VALUES

Grace Langley

Pawehe ideas

values spatial order iterations

“Hawaiian architecture is a living manifestation of the ancestors.”

Urban design can connect man to the deities in Hawaiian culture, a goal in which high-rise design can contribute. The project must be designed with a holistic view, with the flow of information being from source, to translation, ending the process with the interpretation.

The sun path and the alignment of the project with the sun is important in Hawaiian values. Circulation and sun path are connected because they traditionally follow East and West trajectories.

The moʻolelos, stories, of Mōʻiliʻili and its past should also inform the design. Incorporating themes of hawaiian architecture, the kauhale, landscape, and history will help us build conciously and cohesively.

Source: Batolina, Zachary. 2012. Genealogy of a Living Manifestation of Hawaiian Architecture.

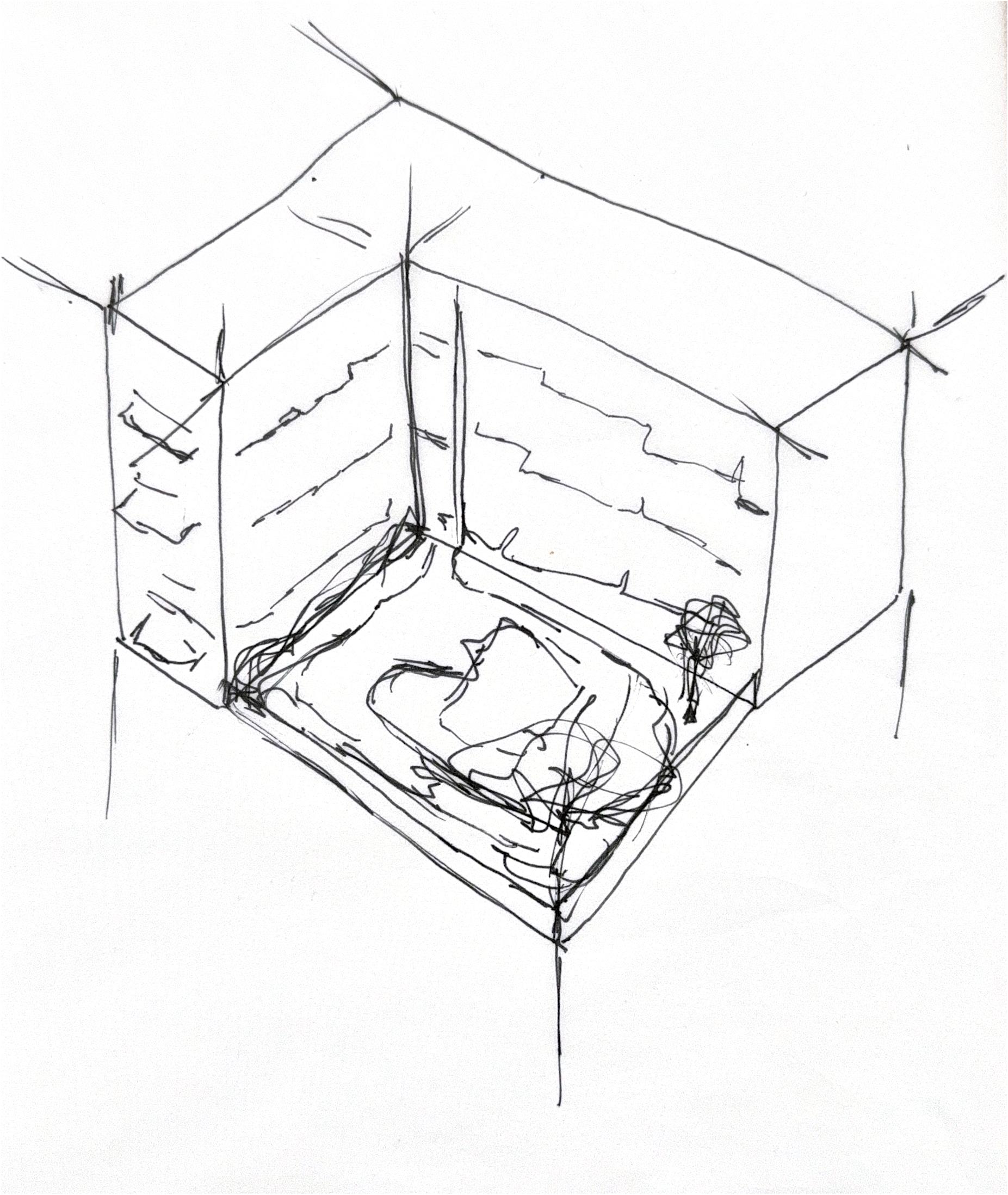

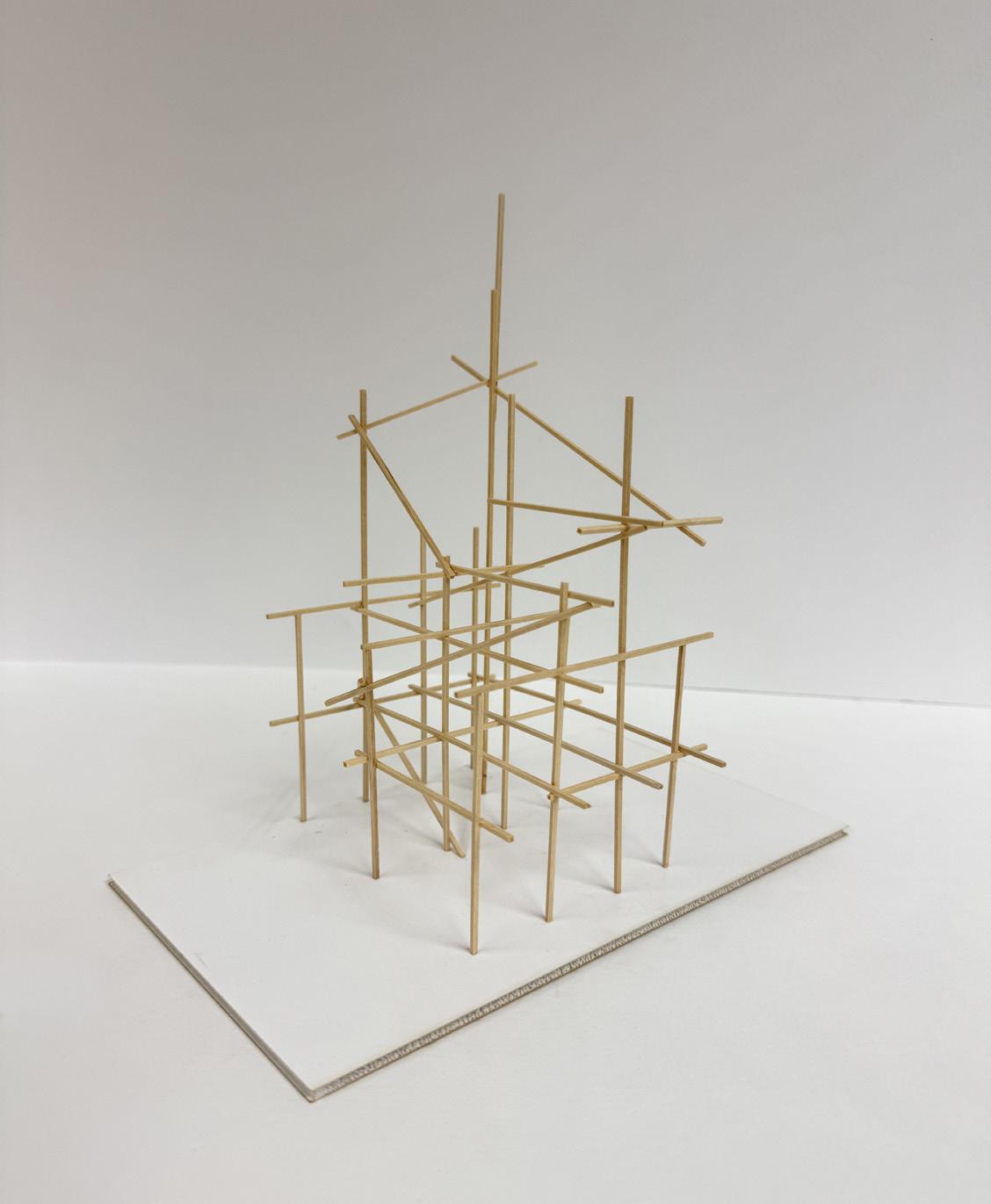

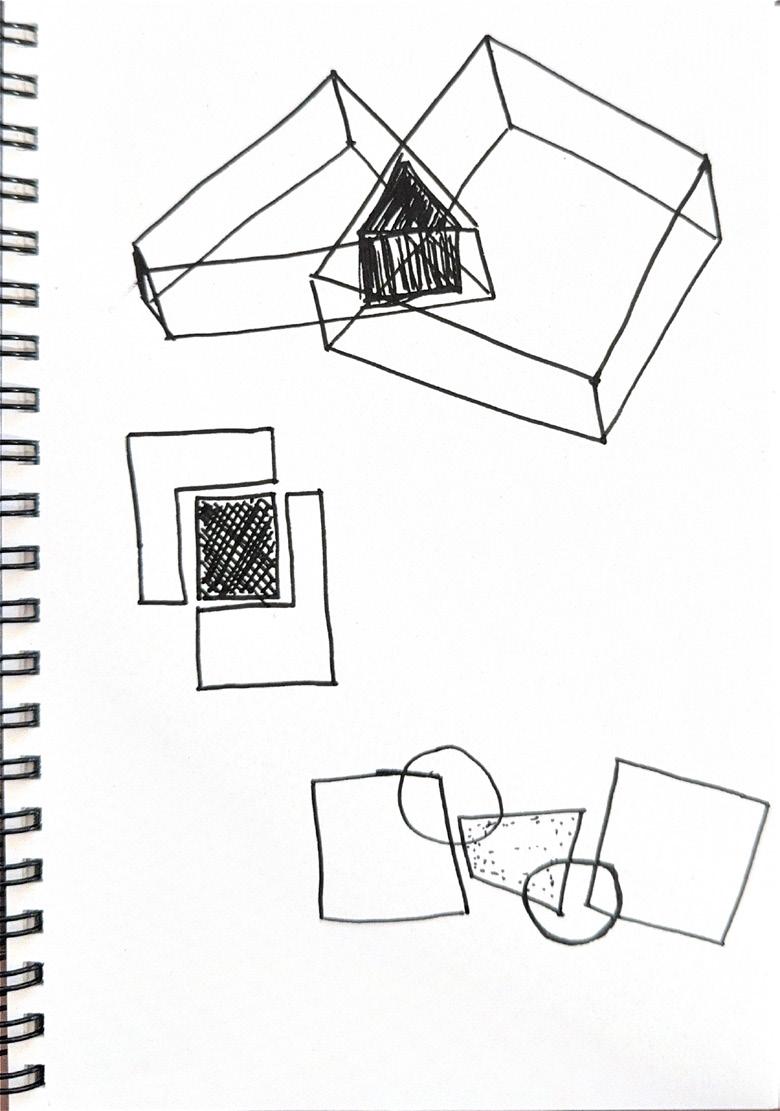

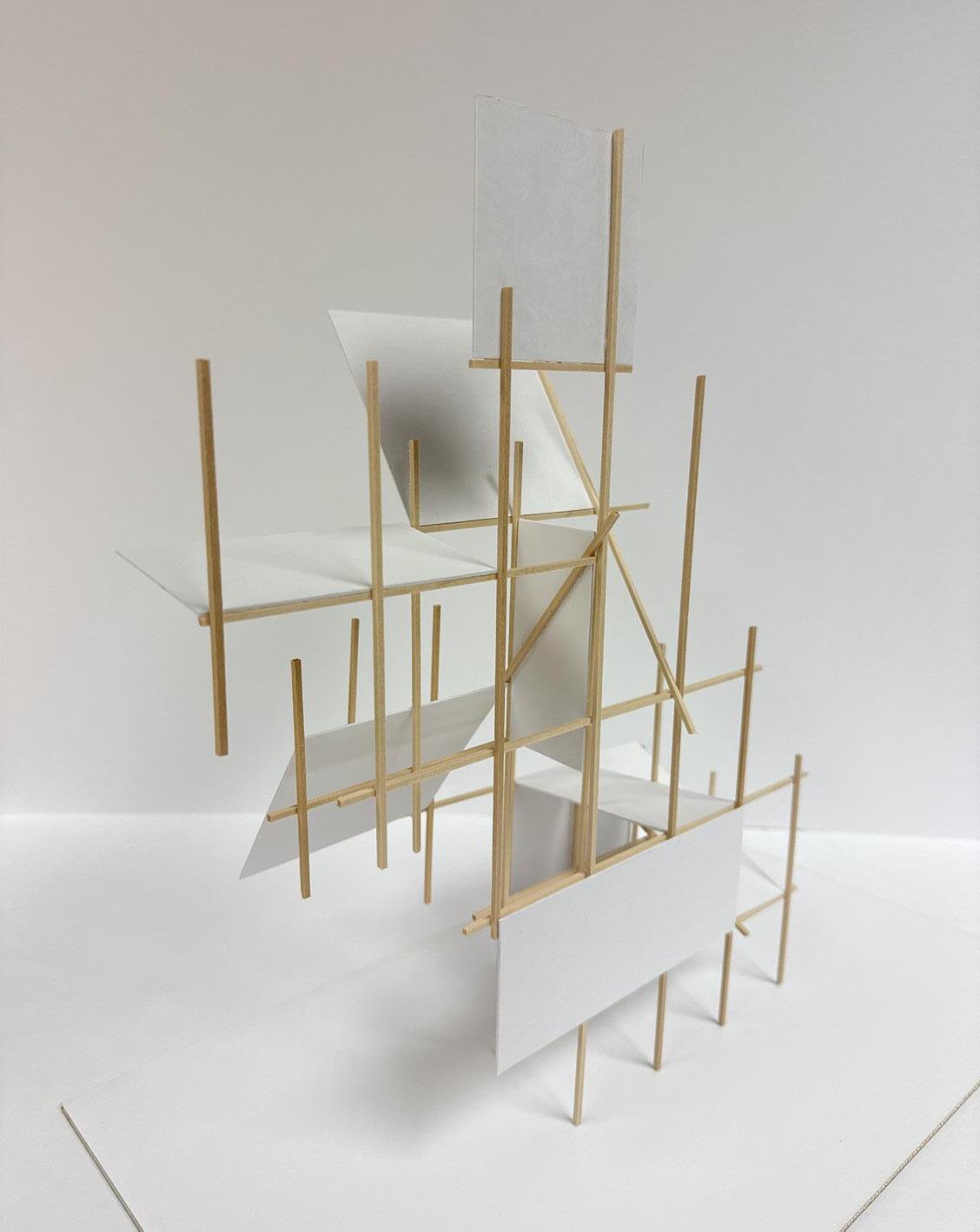

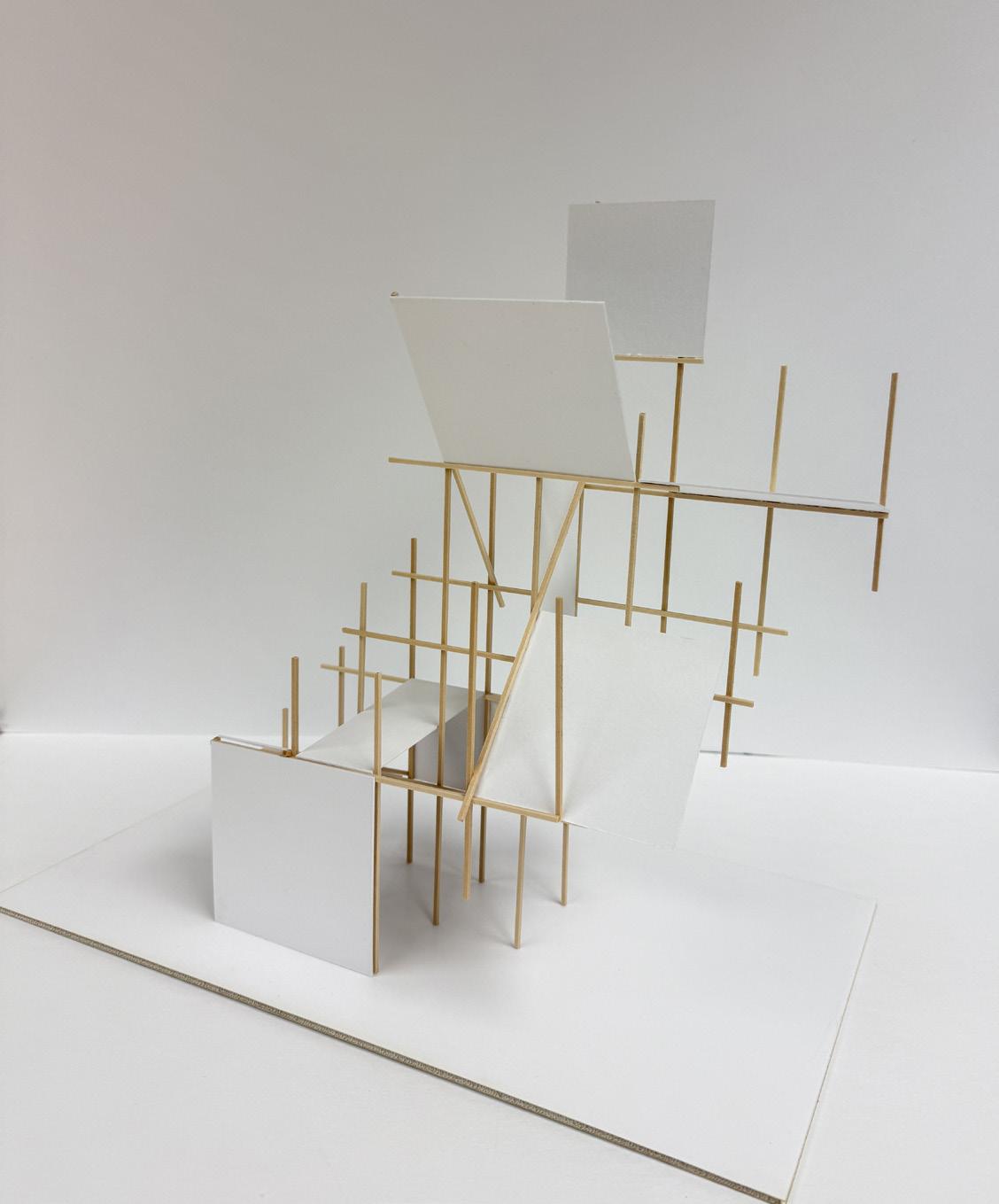

Interlocking Spaces

A shared space can be created by overlapping two fields of separate space. These spaces can be connected through a linked and open, shared, or designated communal spatial form. The spaces that interlock will not change in definition, but the space in between and its shape is up to the designer’s intepretation.

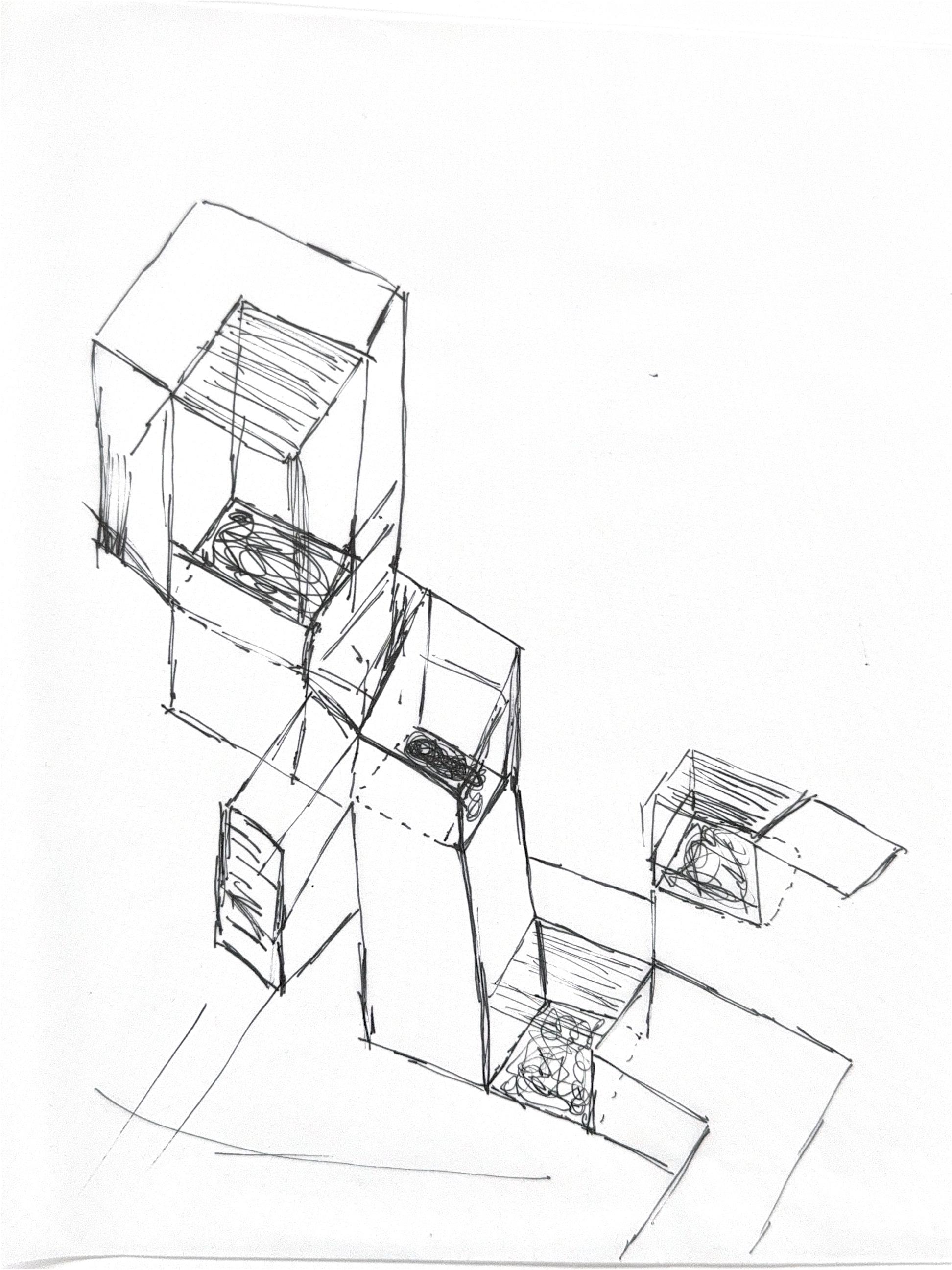

Spaces Linked by Common Space

The linkage of intermediate form can differ in shape to express its function or purpose. For example, its shape could be defined by the residual space in the two forms and what their characteristics are (shown below).

Spatial arrangement depends on priorities, spatial hierarchy, and the project’s requirements for light, view, and access.To incorporate traditional and contemporary values, I plan to explore designs that emphasize viewpoints, sun path, and circulation.

Source: Ching, Francis D.K. 2007. Form, Space, & Order. 3rd Edition. John Wiley & Sons, Inc.

ʻiliʻili - pebbles

concept

ʻiliʻili - pebbles

Location: Mōʻiliʻili

The Place of Lizard Pebbles

In the moʻolelo behind the name of Mōʻiliʻili, Hiʻiaka, younger sister of Pēlē, defeats a michievious moʻo (lizard) and the pieces of his body become small hills/rocks that designate the area as Kamōʻiliʻili. Kamōʻiliʻili means “the place of lizard pebbles.”

Source: Mo’ili’ili: A Historical Overview

imagery symbol

ʻŌhā wai / Hāhā - endemic plants

concept

ʻŌhā wai / Hāhā - endemic plants

Location: Kōnāhuanui

Endemic Trees/Ferns

Found in few places today, both these trees are found in the forest on Kōnāhuanui, the highest point in the Koʻolau range, reaching 3,150 ft. ‘Ōhā (Clermontia oblongifolia) and hāhā (Cyanea humboldtiana). Both species produce fruit and bloom flowers and only live in rainforest climates across the Hawaiian archipelago. Unique in form and rare in thought, these plants can represent perserverance and forward-thinking in the design for Hale Kōnāhuanui.

Source: Bishop Museum, Plants of Hawaiʻi Database.

imagery symbol

‘Ōhā or ʻōhā wai (Clermontia oblongifolia)

Hāhā (Cyanea humboldtiana)

Kapaʻakea Springs

concept

Kapaʻakea Springs

Location: Mōʻiliʻili

Mōʻiliʻili History

Plants connect people to the ʻāina and improve wellbeing. Representing a plant endemic to the place in the design would direct the future of Mōʻiliʻili, now urban and densely populated, towards a place of reconnection to the vegetation and wildlife that lived there before development.

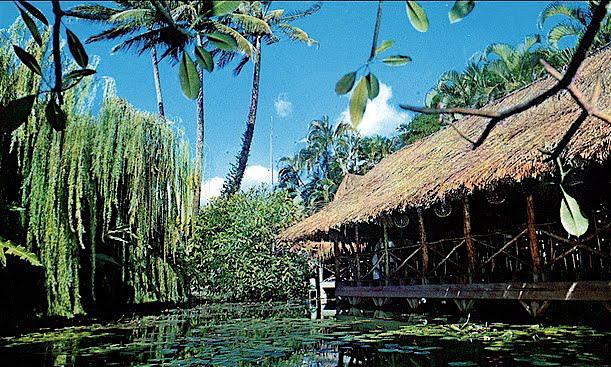

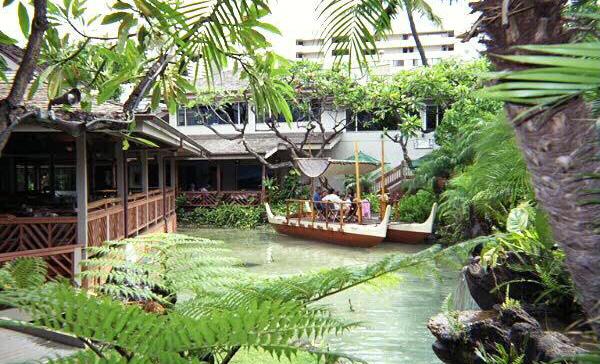

Kapaʻakea Springs - a perched water table with a pond and springs fed from the caves were a sightseeing attraction, place where people would vacation.

Source: Mo’ili’ili: A Historical Overview

imagery symbol

Before renovation

After renovation

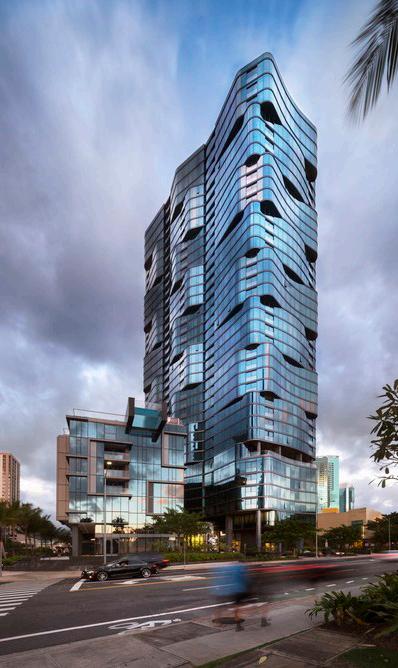

ANAHA

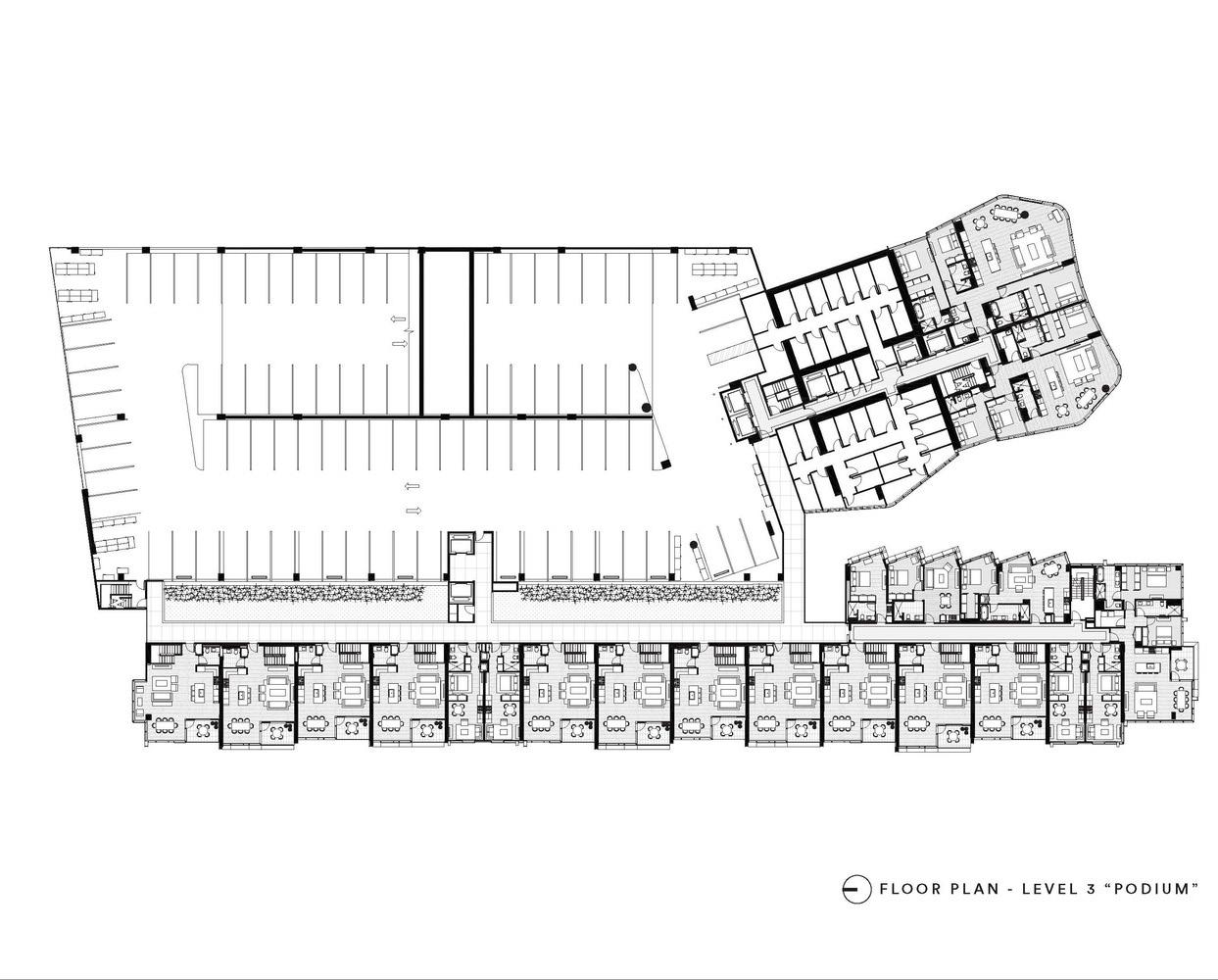

Local Case Study: Precedent

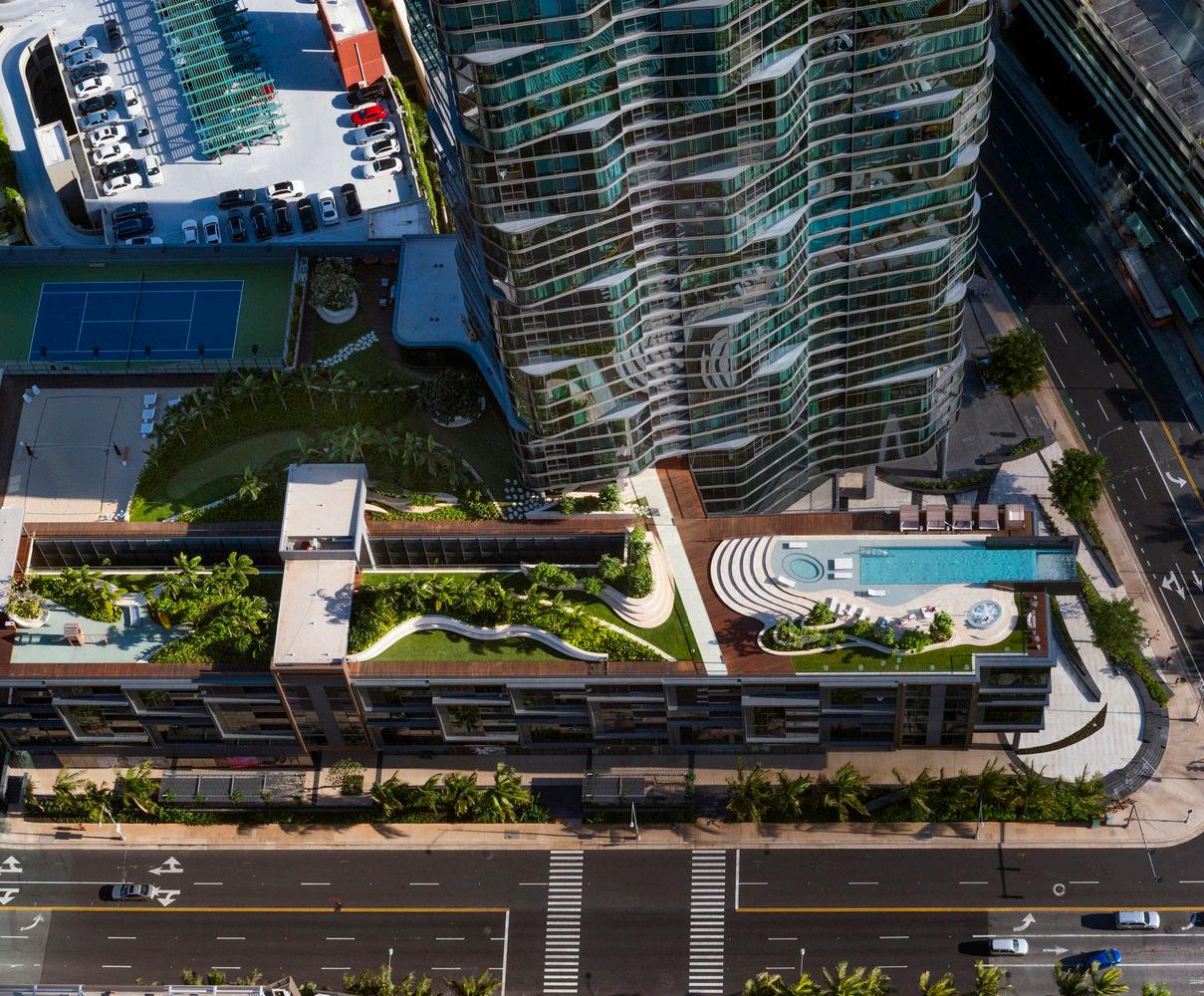

Building name: ANAHA

Architect: SCB

Location: Honolulu, Hawaiʻi

Building Type: Mixed Use

Climate Zone: Tropical

Height: 40 Floors

311 Units

Part of the largest LEED Platinum Neighborhood Development in the country, ANAHA is a mixed-use building with condominiums of varying sizes. The building in located in Ward Village, in Kakaʻako. Anaha means “reflection of light” in Hawaiian. The tower’s undulating form was inspired by the island’s artistic tradition of abstracting waves. While the project is on a much bigger site, its organization of space is a helpful precedent for this project.

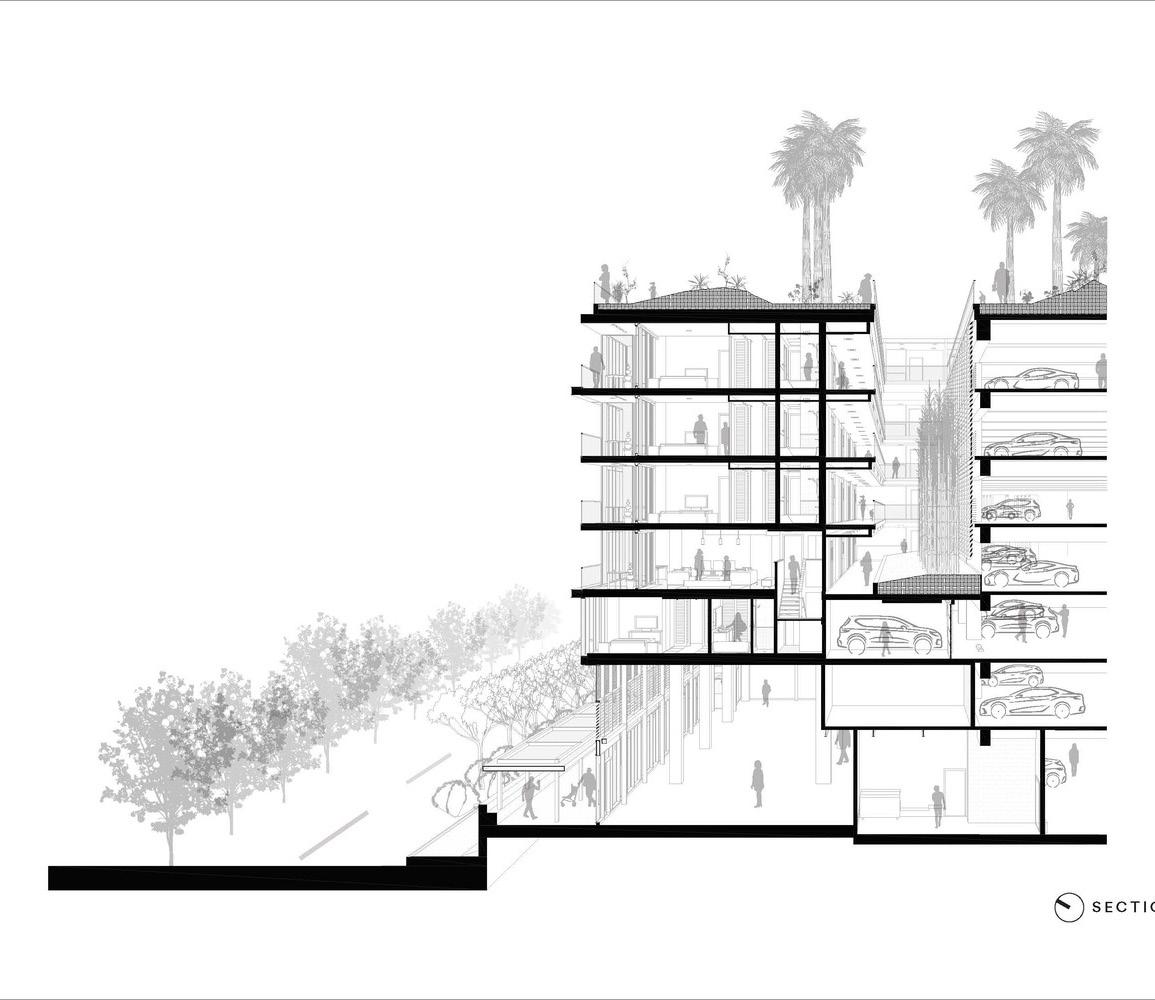

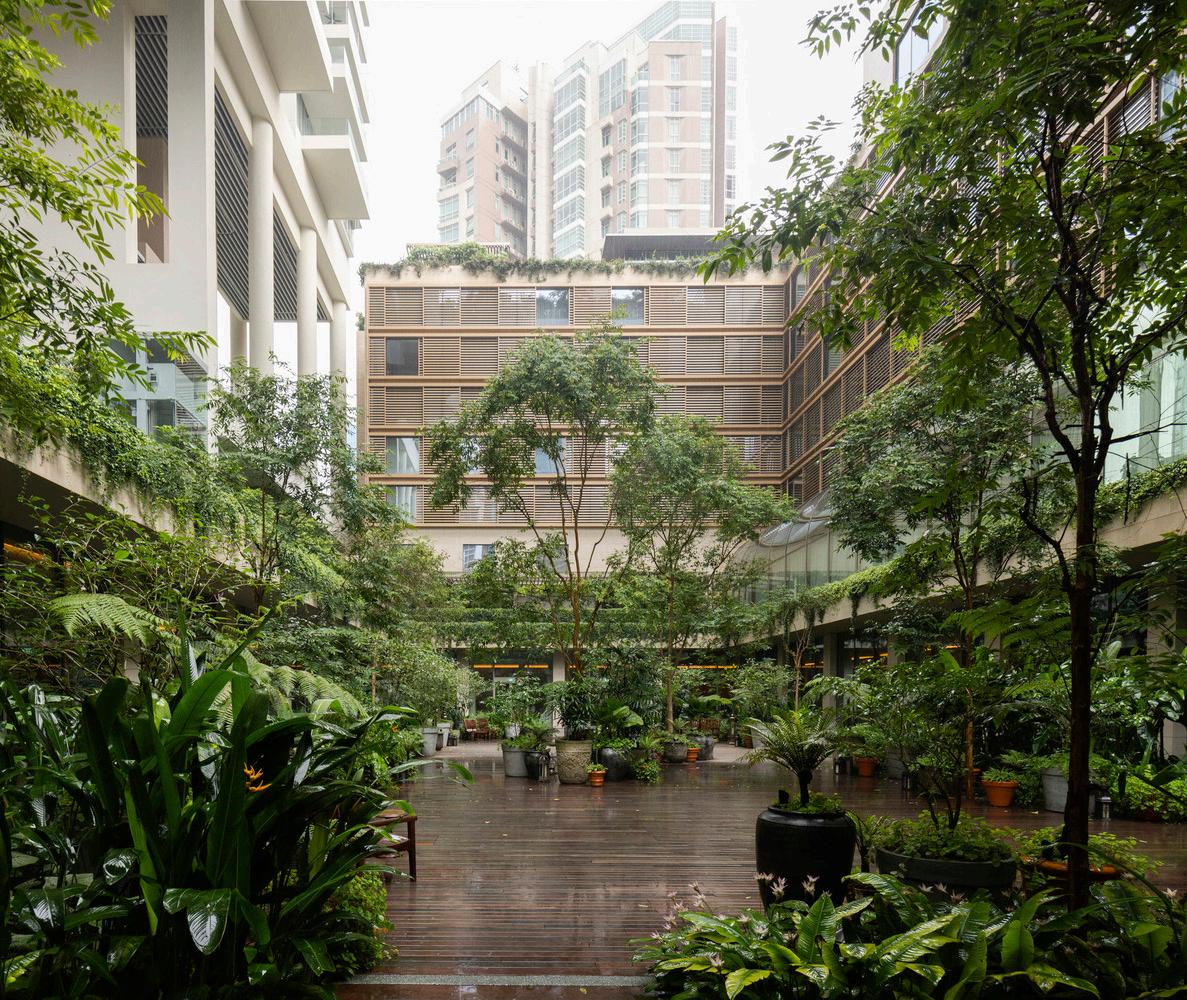

Boulevard 88 and EDITION

International Case Study: Precedent

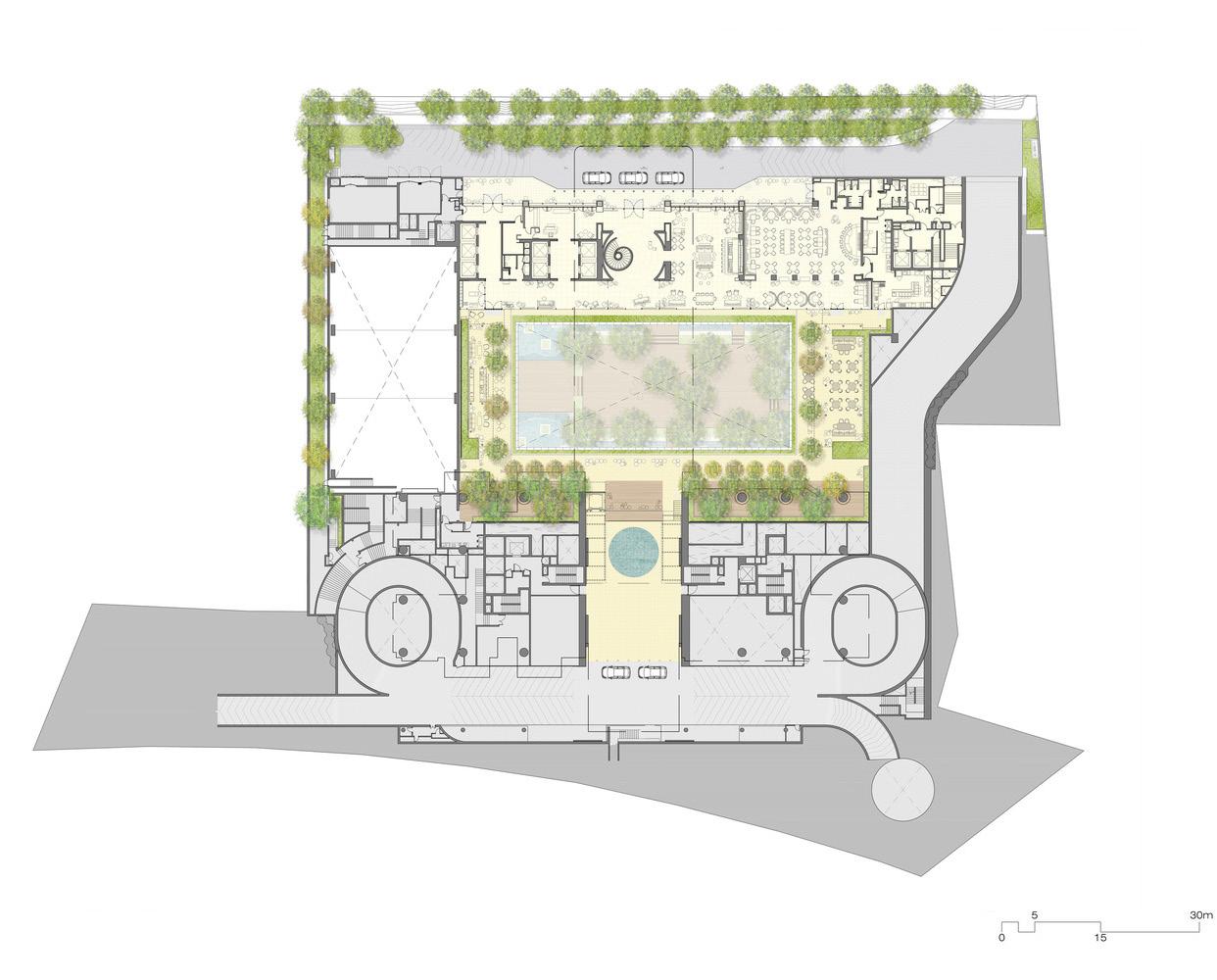

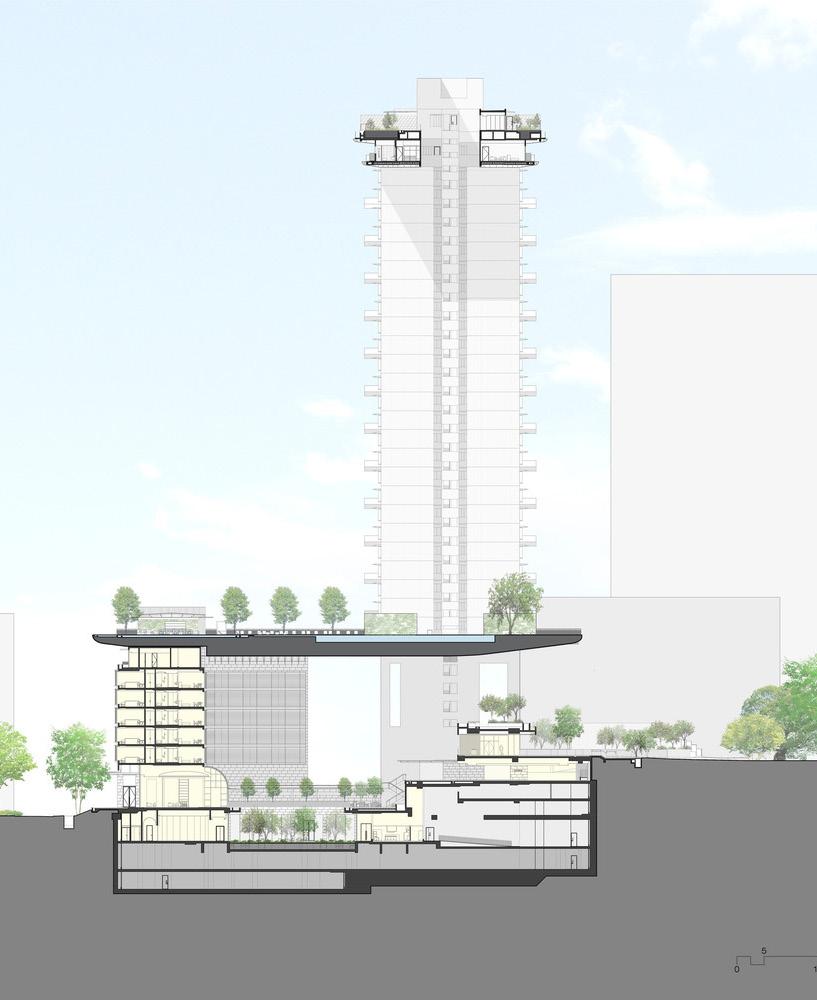

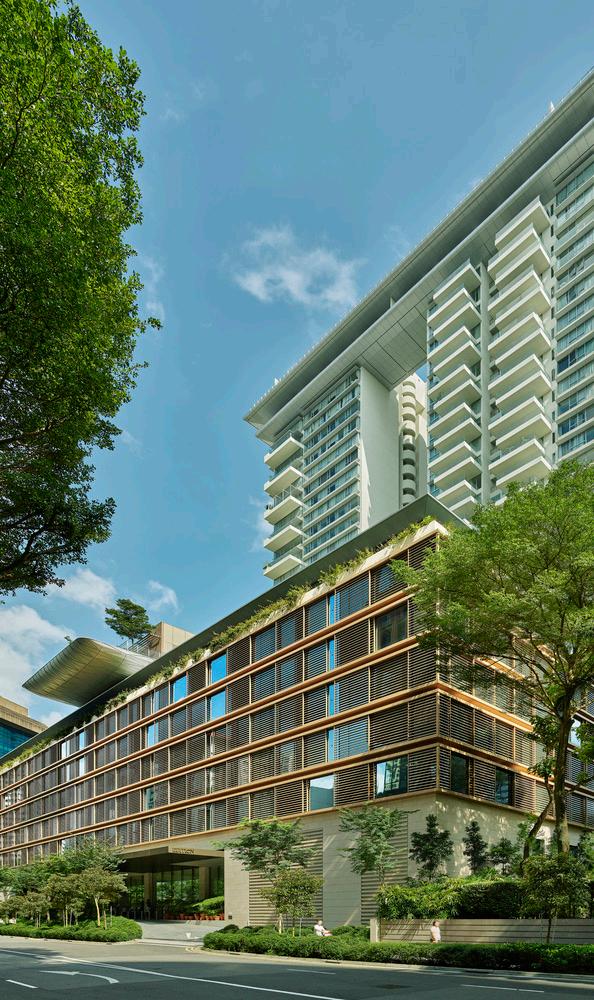

Building name: Boulevard 88 and EDITION

Architect: Safdie Architects

Location: Singapore

Building Type: Residential and Hospitality

Climate Zone: Tropical Height: 40 Floors

The building combines the Boulevard 88 luxury residential towers with EDITION Singapore, a hotel, both with separate and shared amenities. Maximizing the compact site, the design organizes spaces to create a range of environments for its occupants.

Unit Mix

Site Analysis

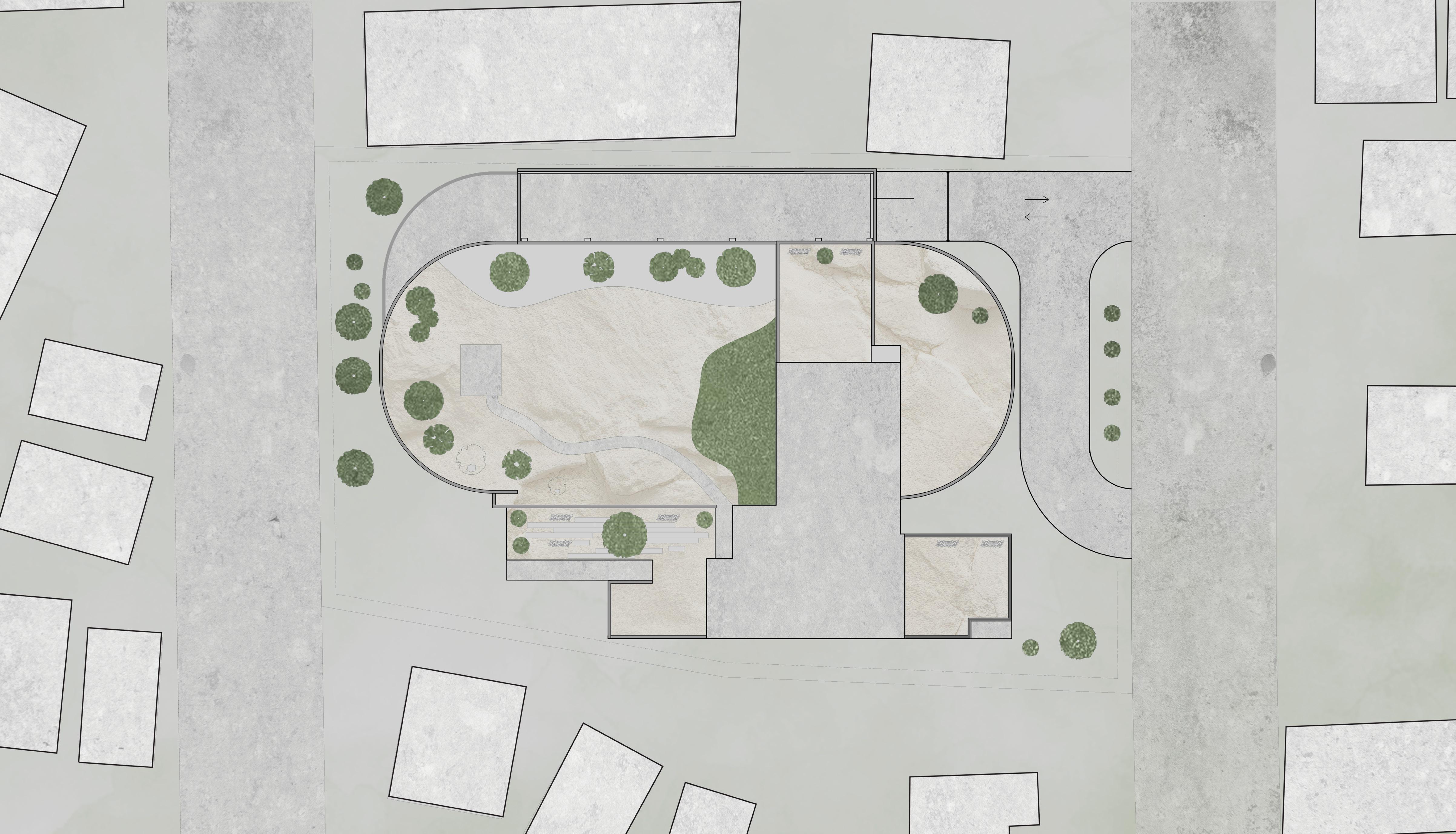

Axial Design/Site features

Noise Diagram

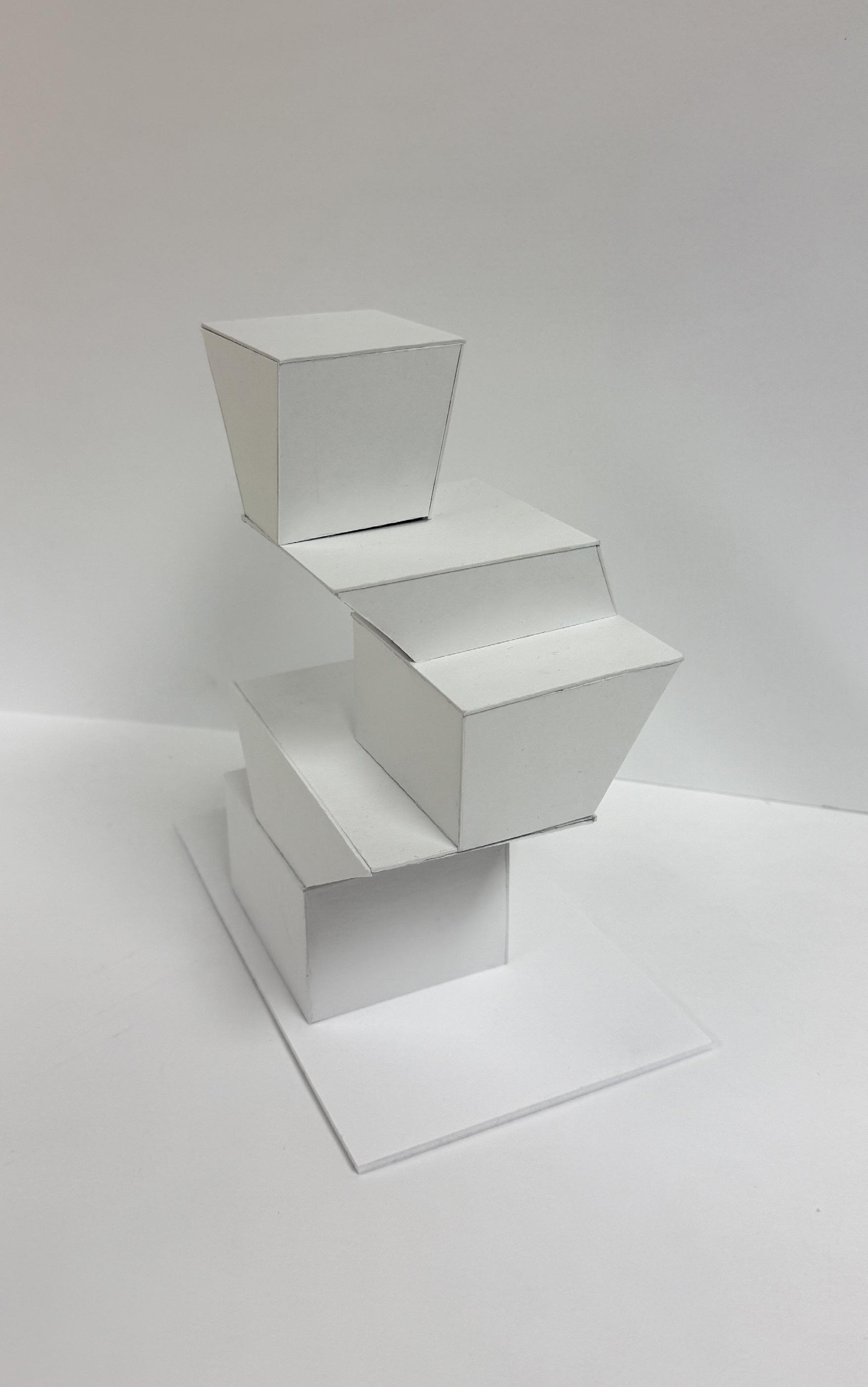

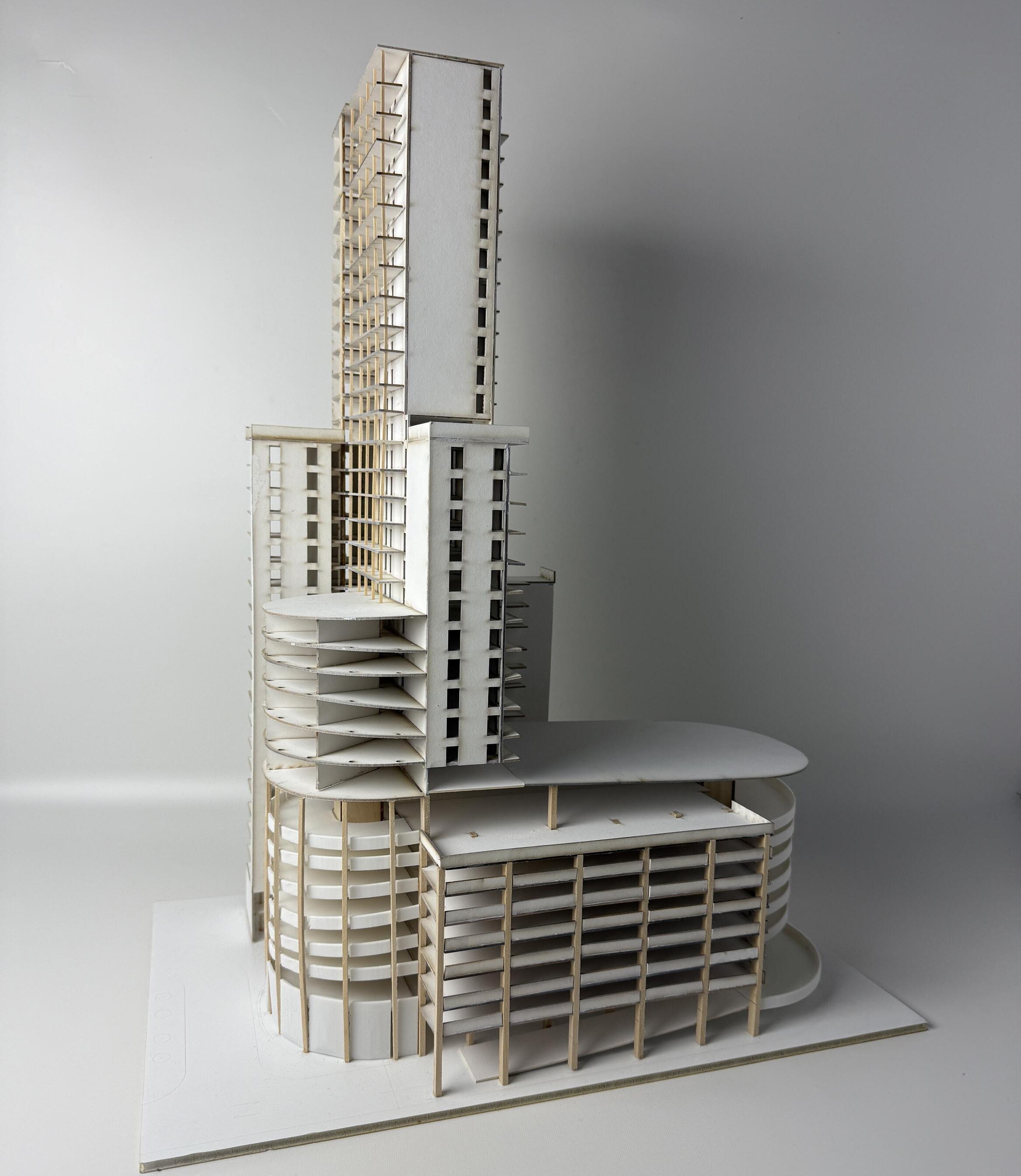

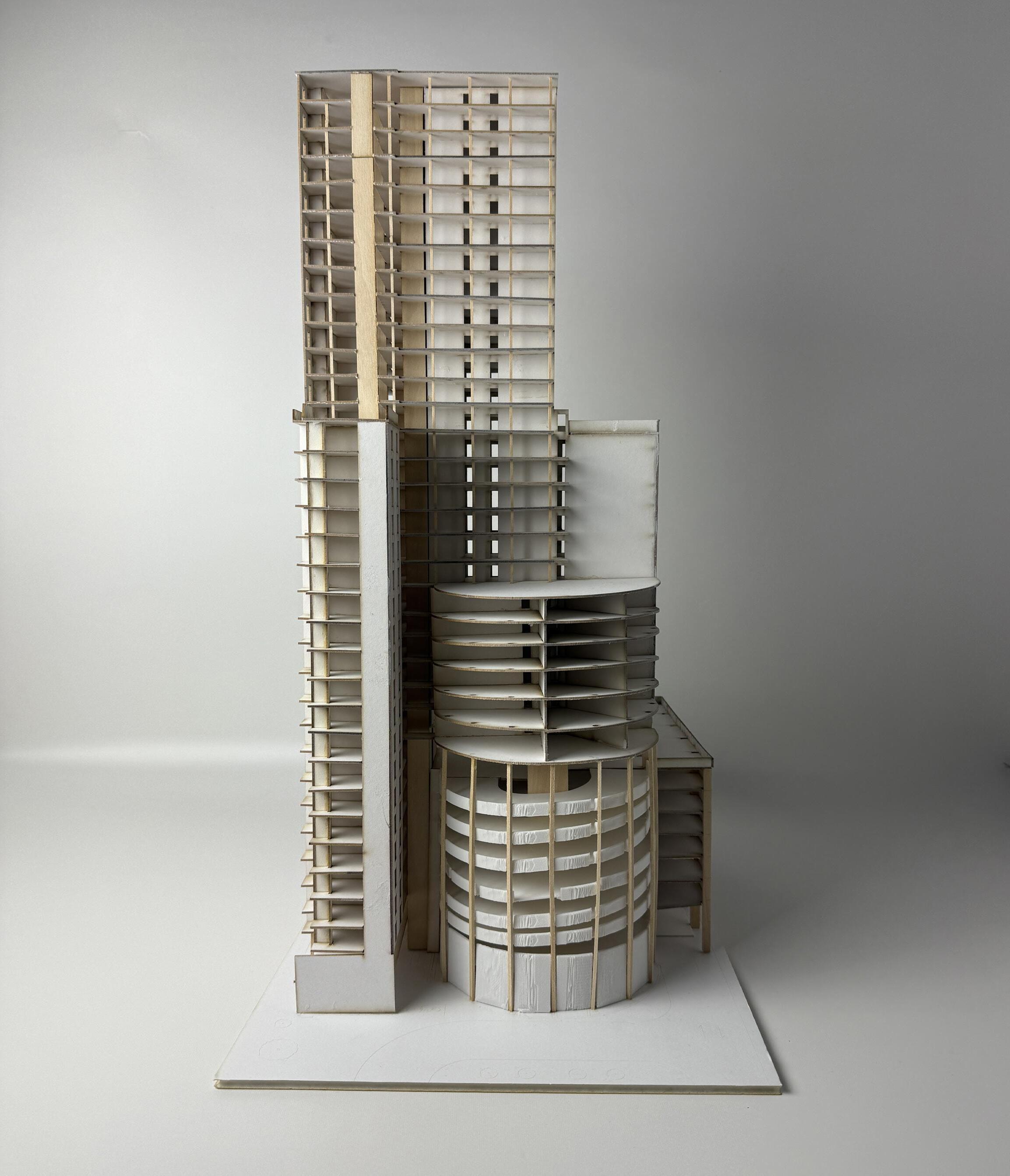

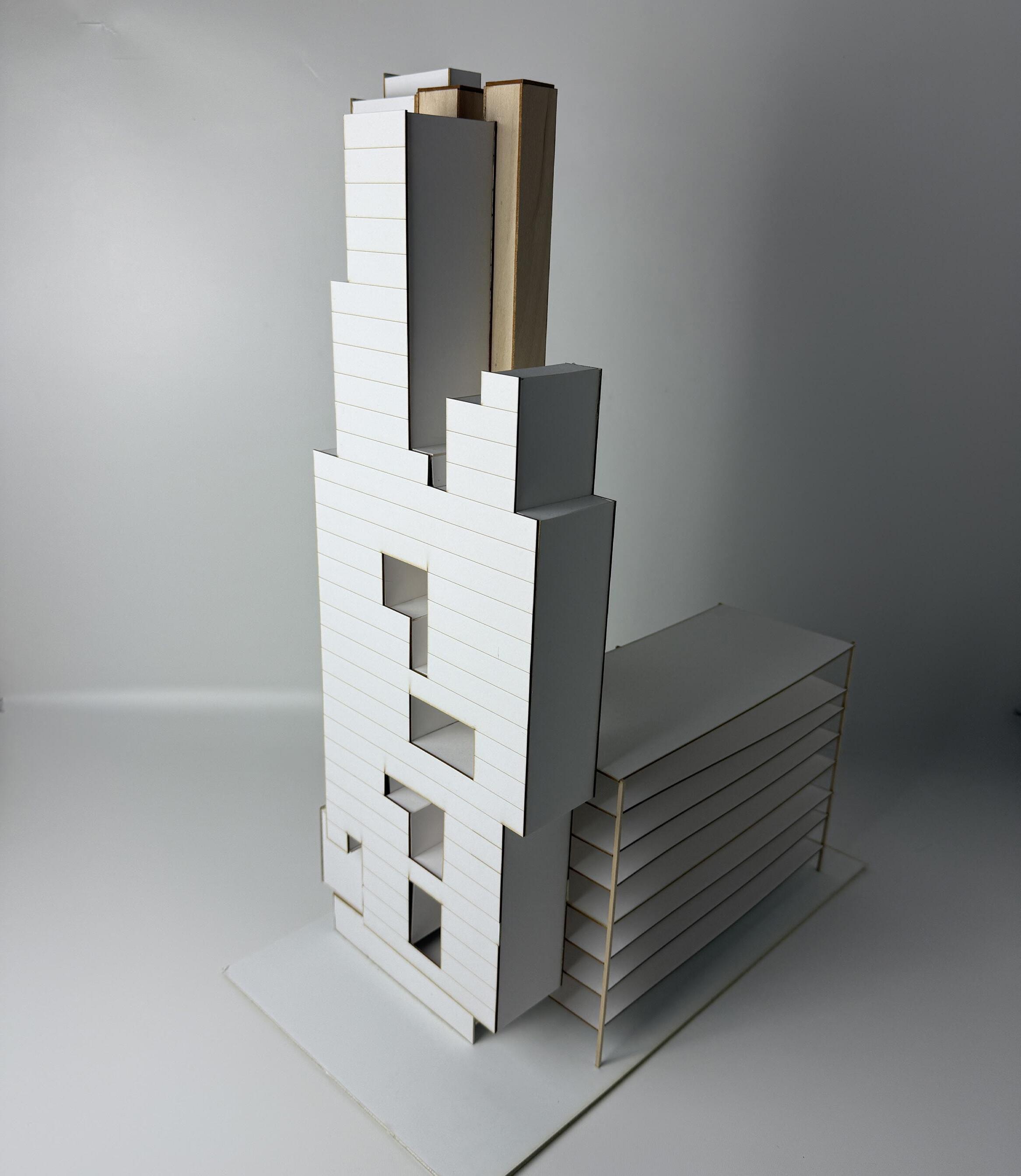

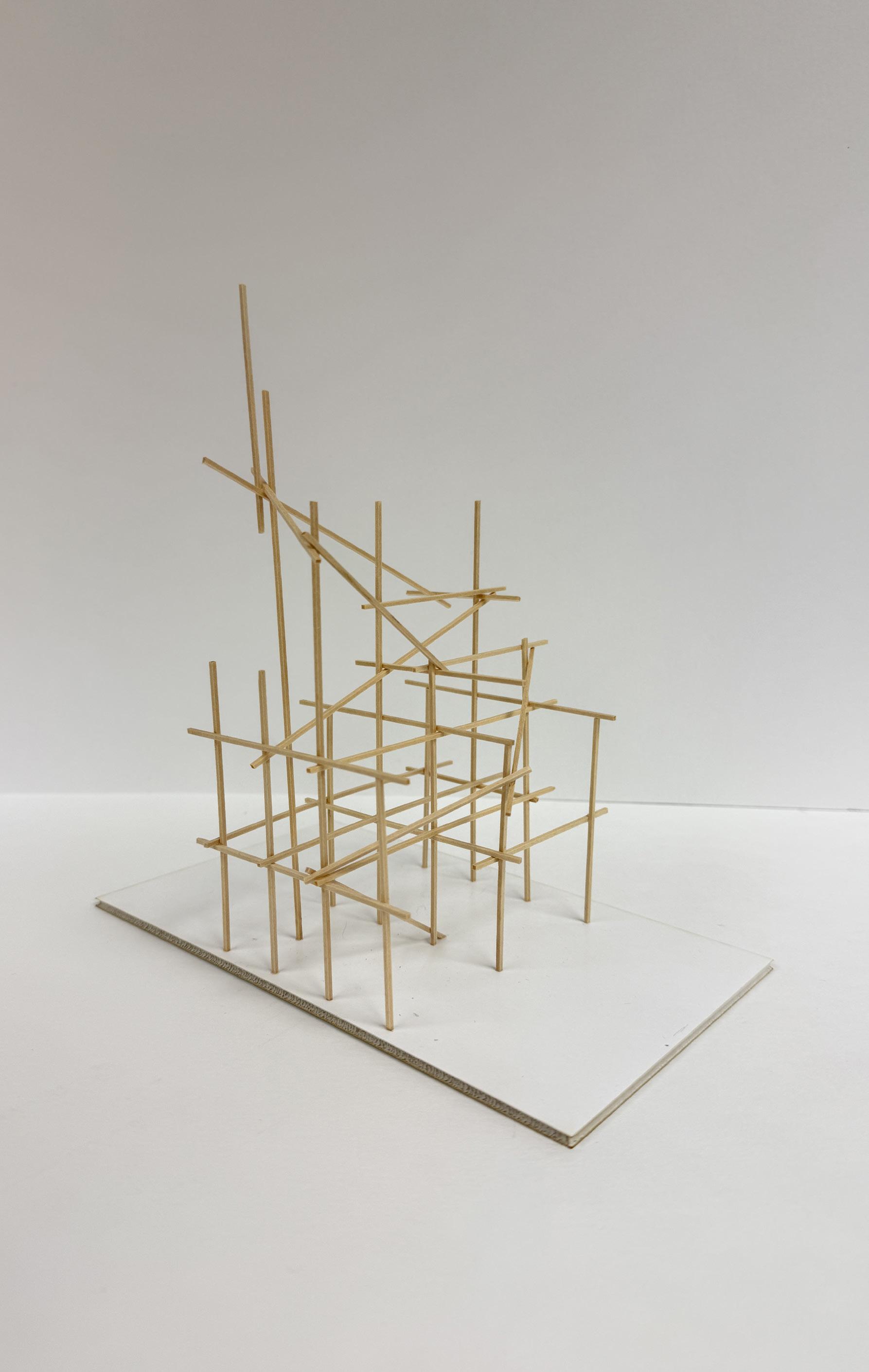

Midterm Model

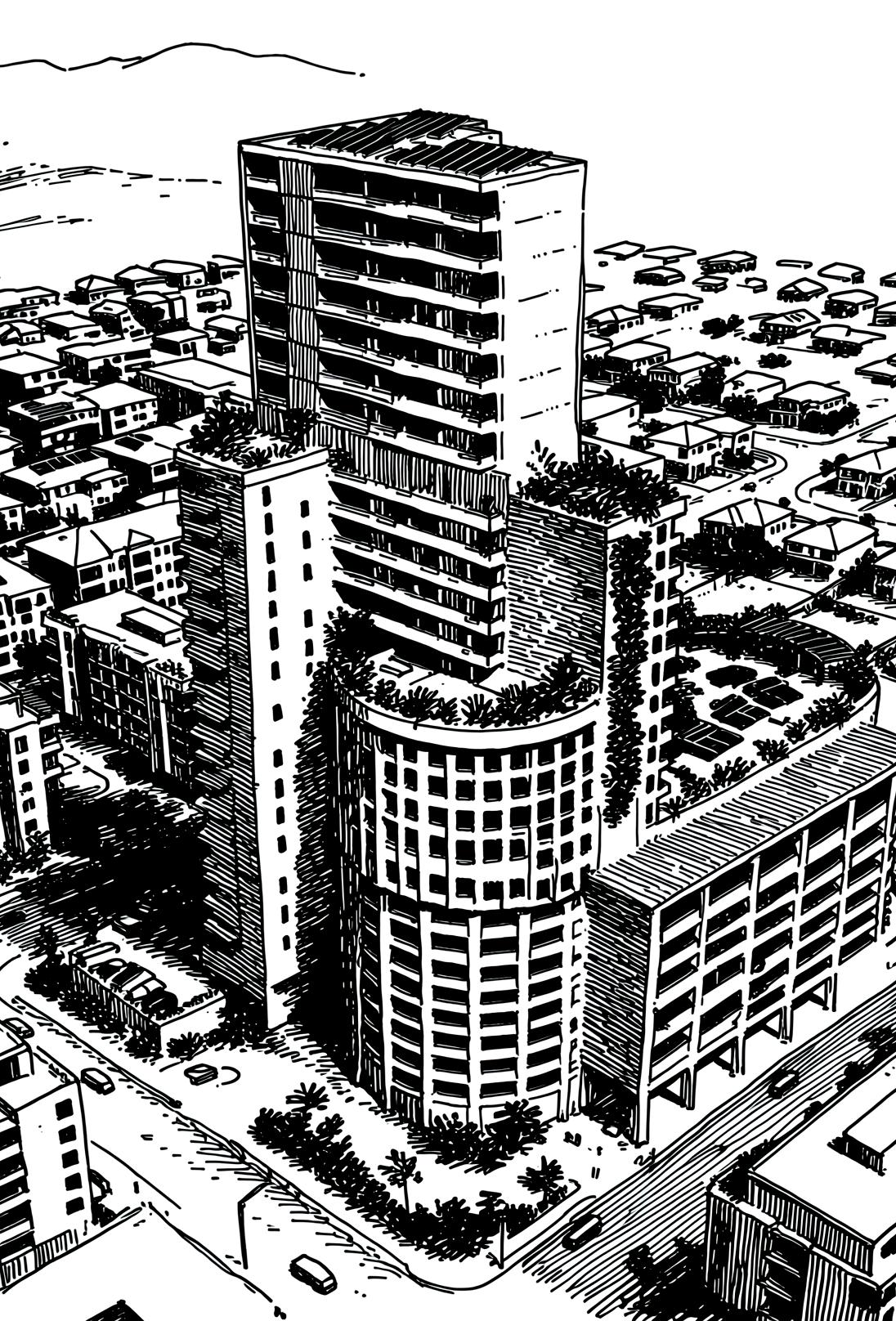

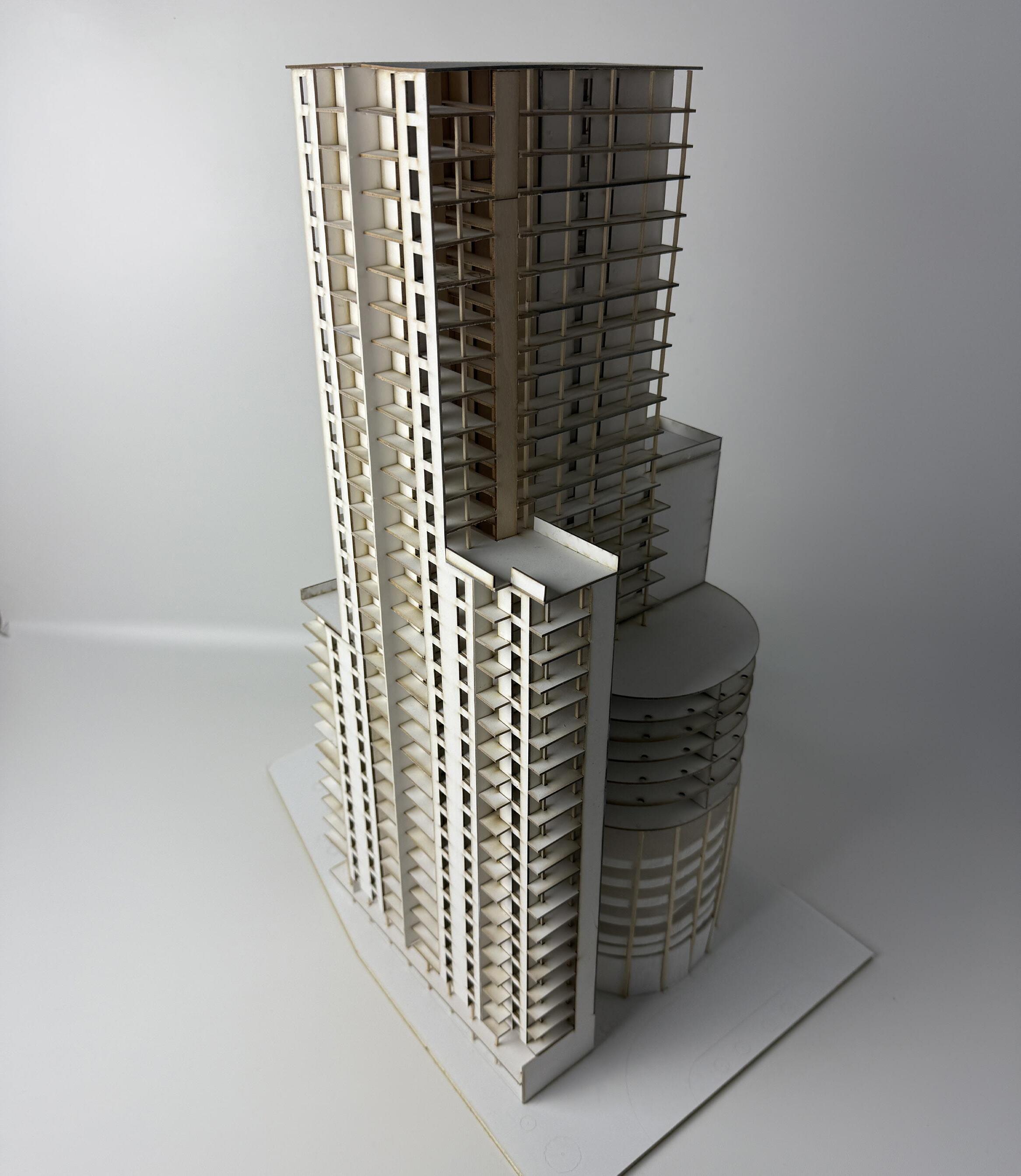

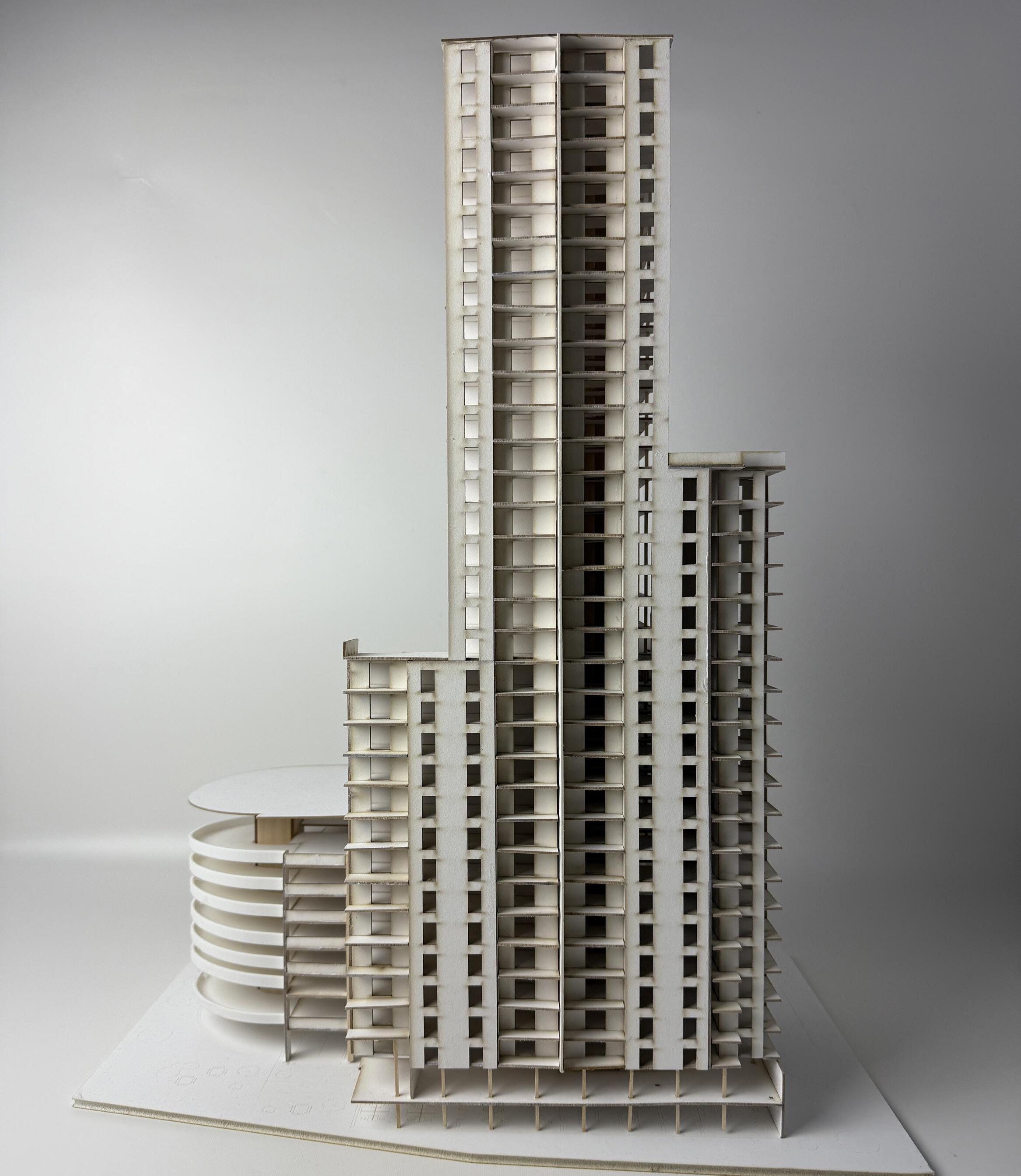

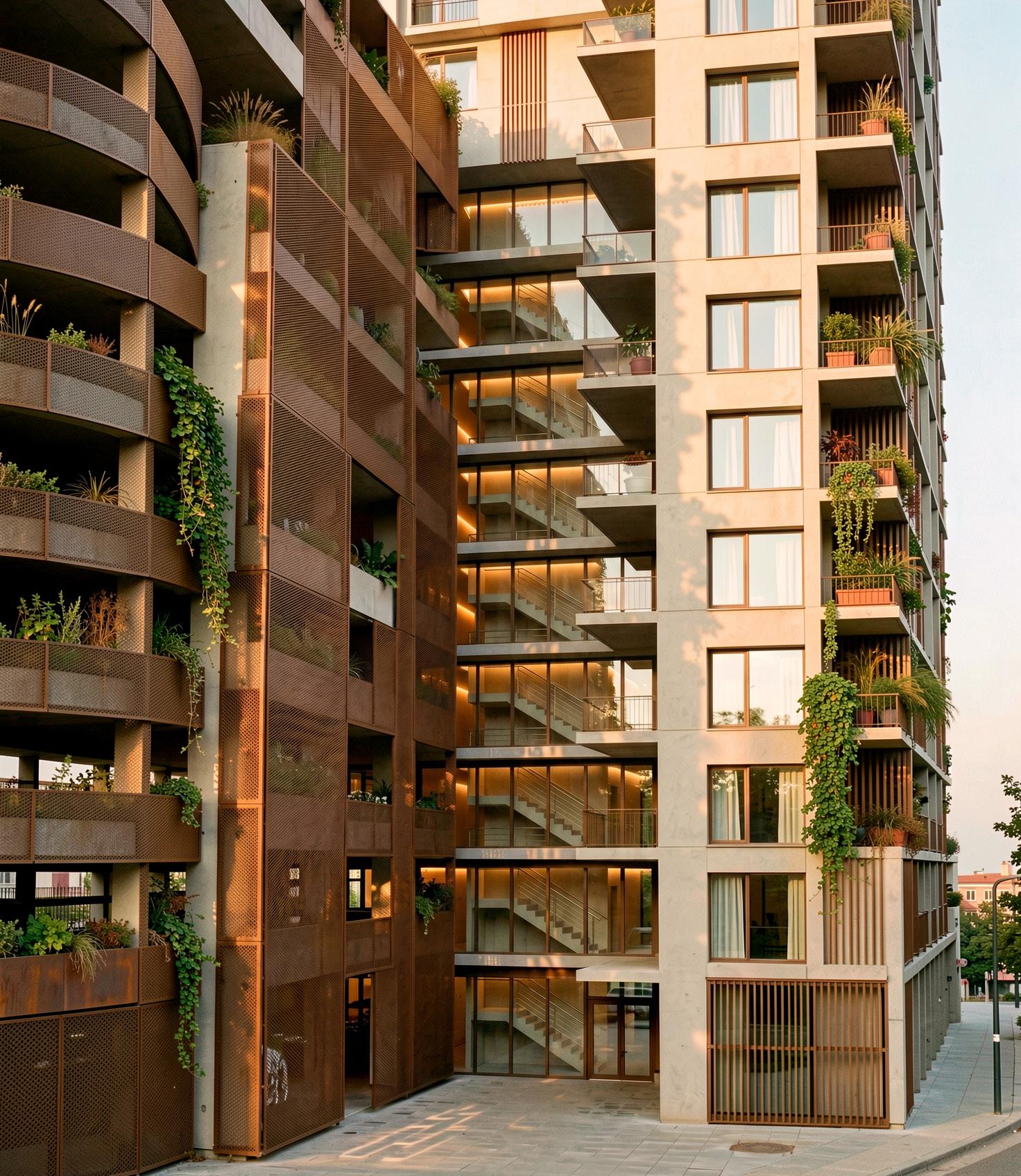

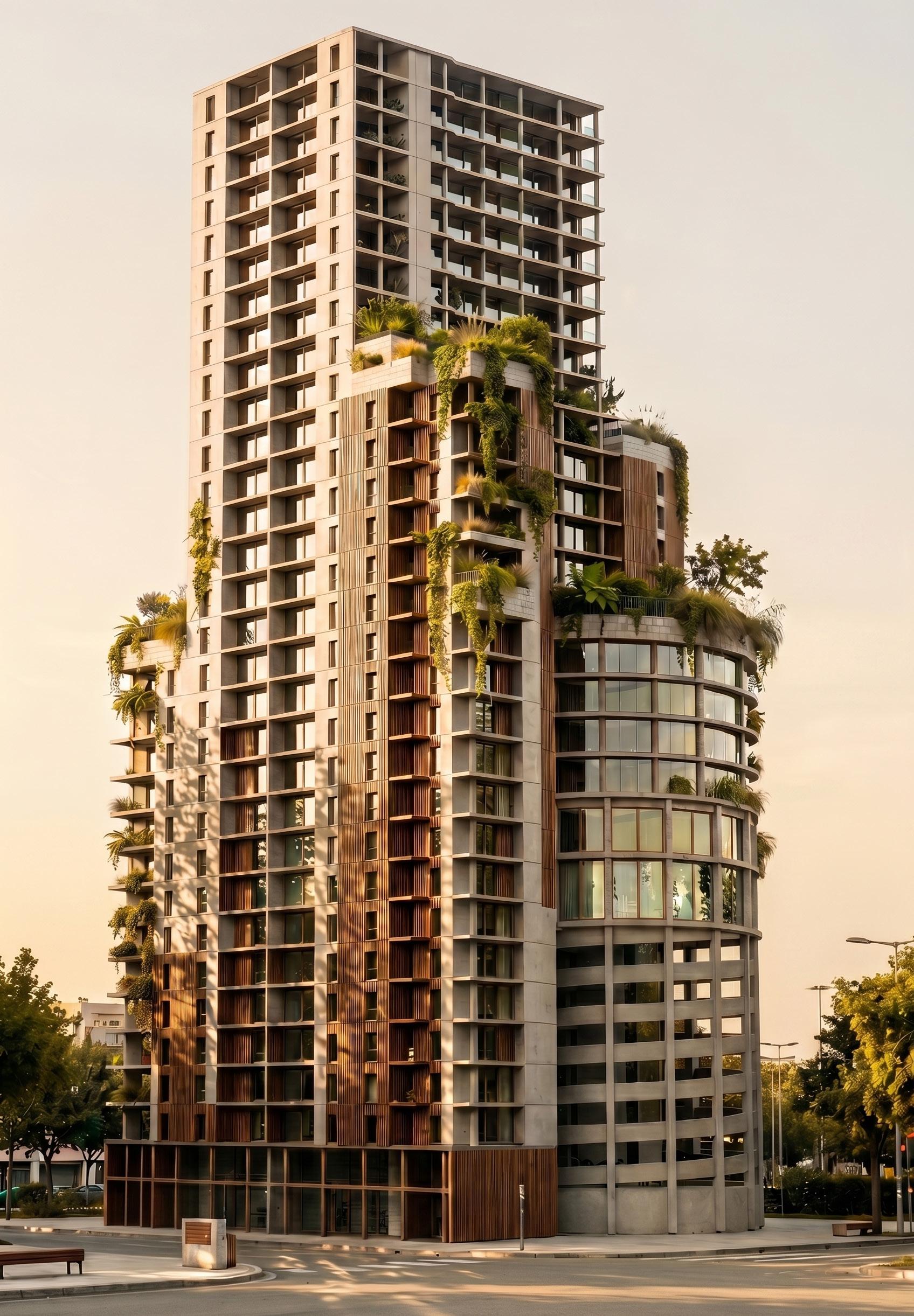

HALE NĀ KŌNĀHUANUI FINAL

Grace Langley

Introduction

concept

Location: Mōʻiliʻili

Location: Honolulu, Hawaiʻi

Building Type: Mixed Use

Climate Zone: Tropical Height: 32 Floors

215 Units

The sun path and the alignment of the project with the sun is important in Hawaiian values. Circulation and sun path are connected because they traditionally follow East and West trajectories.

The moʻolelos, stories, of Mōʻiliʻili and its past should also inform the design. Incorporating themes of hawaiian architecture, the kauhale, landscape, and history will help us build conciously and cohesively.

Source: Batolina, Zachary. 2012. Genealogy of a Living Manifestation of Hawaiian Architecture.
