Ufkes Greentec produce Wood chippers, Stump grinders and Grapple saws for sale to professionals worldwide. All stages of design, production and testing are done in house by the Ufkes Greentec Team. We offer full after sales service through our in house engineers and network of approved dealers worldwide.
Modern production factory
Our Ufkes Greentec machines are entirely designed and produced in our state-of-the-art 4500 m2 factory located in Drachten, the Netherlands.
Sales and Service - the Netherlands
Displaying the extensive range of machinery available, while also providing product servicing and maintenance.
Our Ufkes Thomas aerial platforms are entirely designed and produced in our state-of-the-art 2400 m2 factory located near Brussel, Belgium. Production Belgium
Having spent years working in the design, sales and servicing of forestry and arboricultural equipment, in 2004 Jippe Ufkes used his extensive experience to start designing and producing his own equipment better able to meet the demands and requirements of professional users. A new factory was opened in 2009 in Drachten in the North of the Netherland. Since then the product range has expanded to include woodchippers in a wide variety of configurations, PTO, Trailer – with or without bin, engine powered, track and truck mounted as well as stump grinders, grapple saws, forestry mulchers and grinders. Additional facilities have been added over the years, a new dedicated production facility of 4400 m2 and a separate after sales and service department.
Providing onsite service, maintenance and repairs, by our highly skilled team of professionals. Service
Parts
Because we produce our machines in house, we have all parts readily available in our 7,000 m² warehouse.
The Greentec team
Our passionate and enthusiastic team is our greatest asset, providing a friendly, competent and complete customer service experience.
Drum chippers
Stainless steel control box with minimal electronic parts.
The big drum, 960mm wide, cuts all material in the centre of the drum, the benefit of this is that all material is
The chute has replaceable Hardox wear plates
Worm wheel, slewing ring with ball bearings
PTO machines have an integrated freewheel in the drive pully with oil bearings*
*Except the GT942 wheel and combi option.
Greentec machines are manufactured with S355 steel. Sandblasted and double powder coated

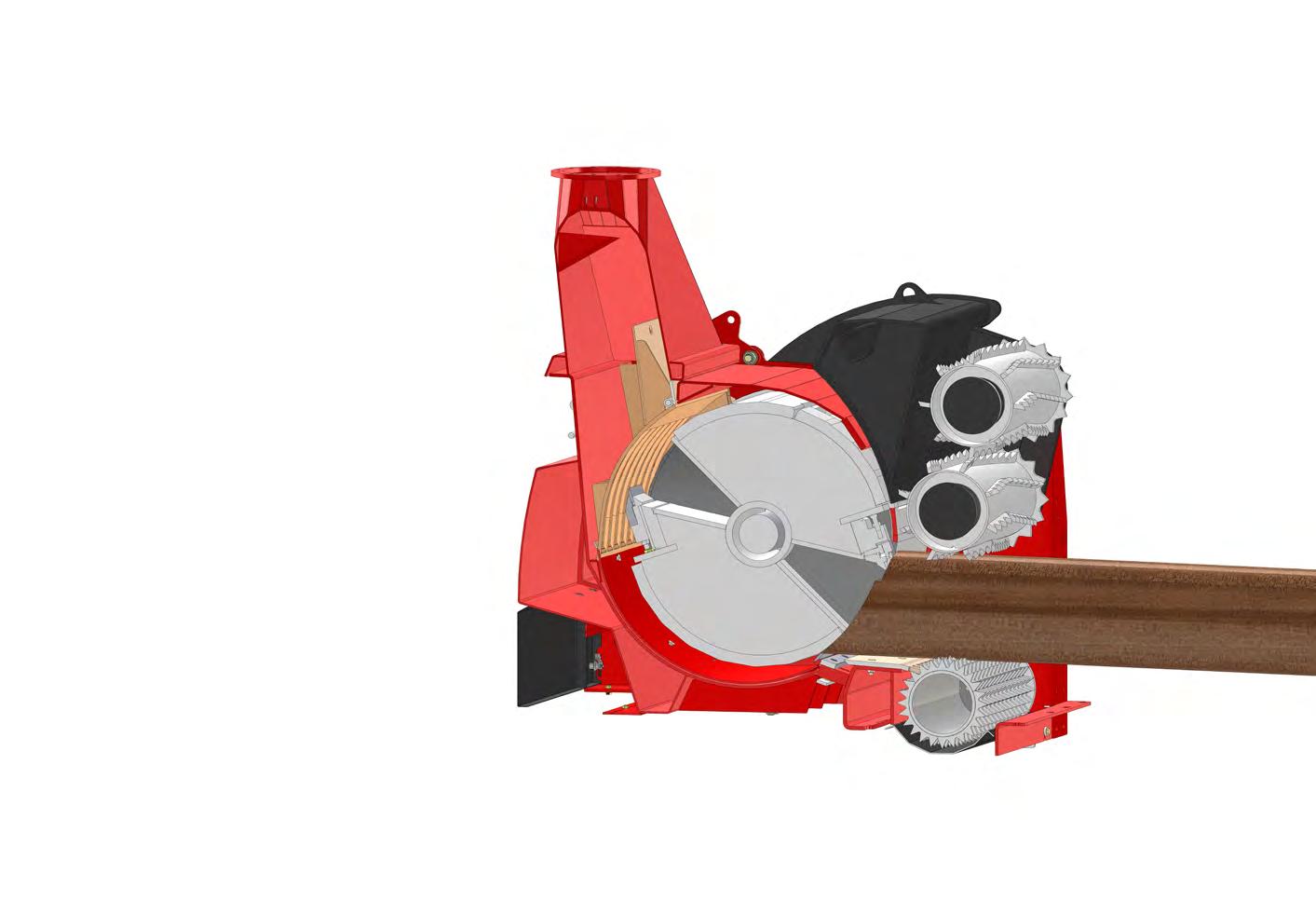

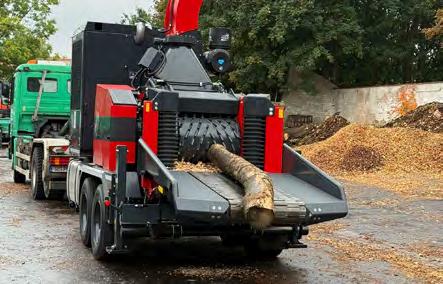

The massive heavy-duty drum produces uniform wood chips from either heavy logs or branches
The specially designed anvil cuts small branches and large logs at different angles, producing uniform wood chips. The wood chip size can be easily adjusted by changing the grate unit or by adjusting the speed of the infeed rollers

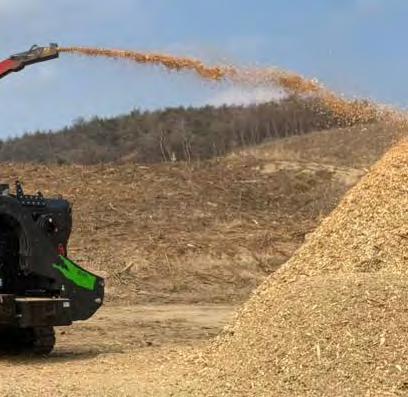

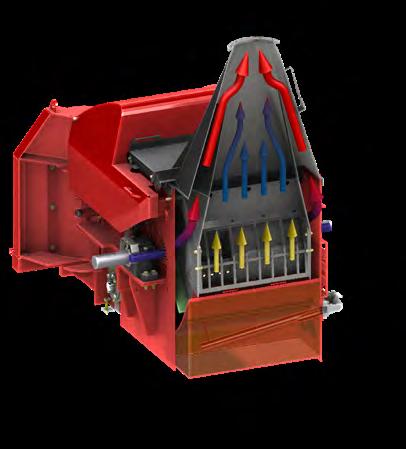

The Venturi system in combination with the integrated blower system produces an extra powerful discharge of chips

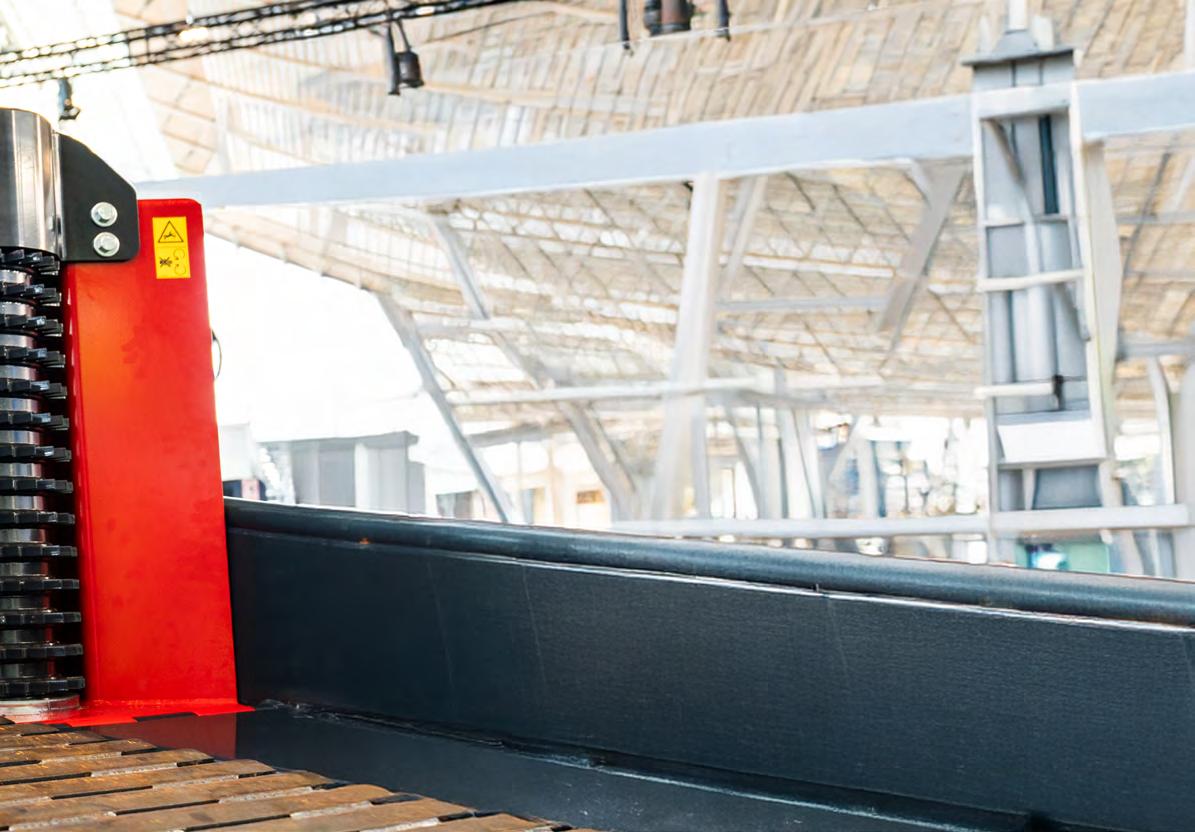

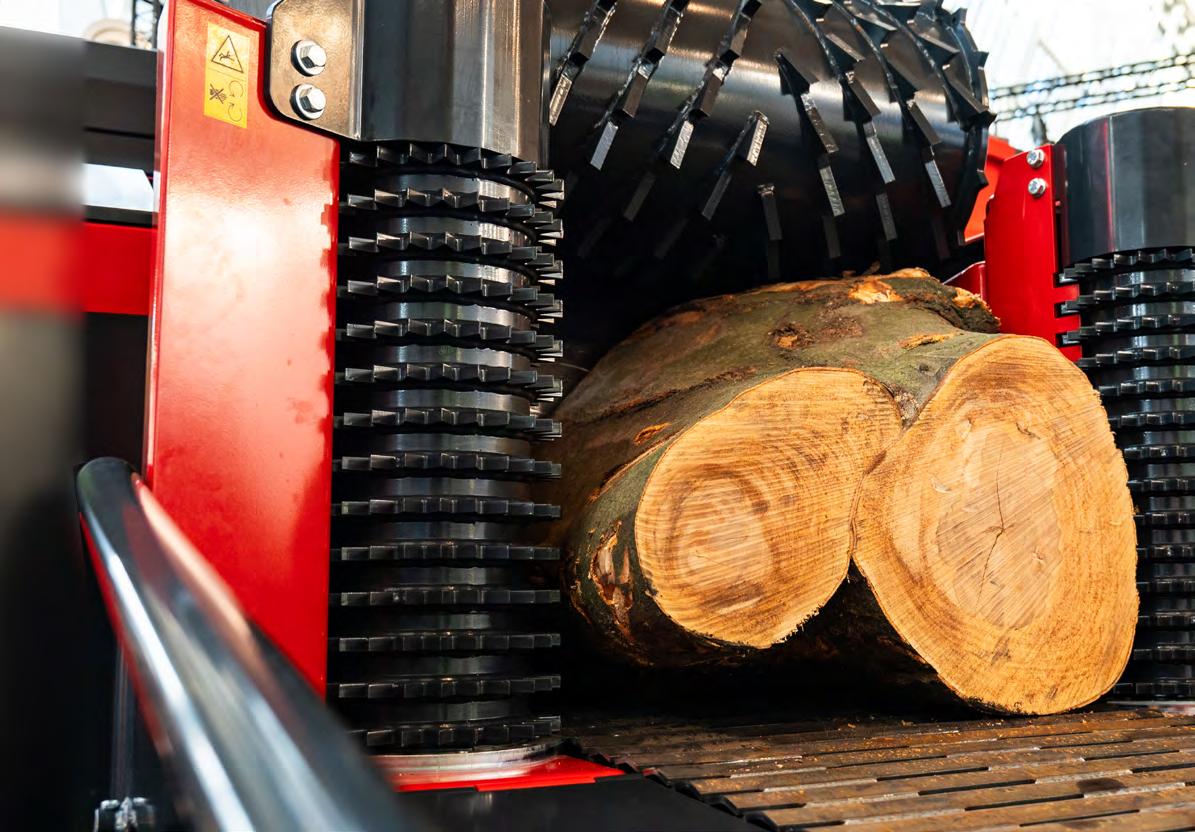

Greentec drum chippers have an extra wide infeed opening. Combined with the vertical feed rollers, bundles of branches and tree tops feed through easily
system left and right of the drum
Blower
Blowing power Vacuum Woodchips
Venturi
Grate unit

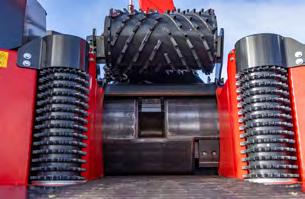

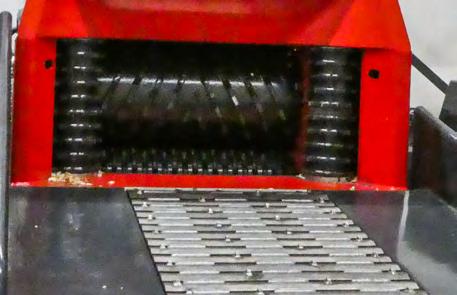

Vertical infeed rollers
Greentec 962
Powerful feed rollers internally driven
A very compact model in its class yet designed for the toughest jobs
Max chipping capacity 25.5inch (75cm)
The drum has a 40mm solid outside wall, and a 125mm center shaft
6 knives spread over the drum results in even loading and a smooth transition of the material
The solid blades are adjustable to 34mm (quick change blades max. 30 mm) outside the drum, making the machine well suited to producing large wood chips with minimum dust
Easy and powerful feeding due to large Ø 620 mm feed roller with integrated Poclain wheel motor. Powered by hydraulic high-pressure system of 350 bar max.
No openings or obstacles in the outer wall of the infeed due to our integrated drive.
Anvil knife options
Knife options
Top roller powered by a heavy-duty Poclain motor
Widia tempered steel

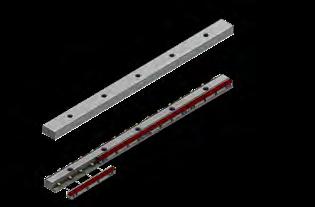

Anvil made with Widia tempered steel segments
Motor built on
Motor 40/80 km/h

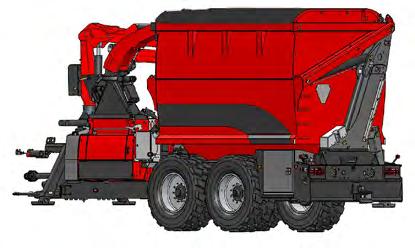

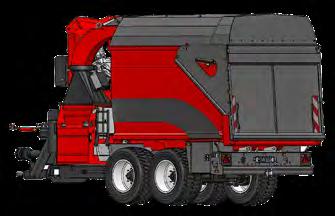

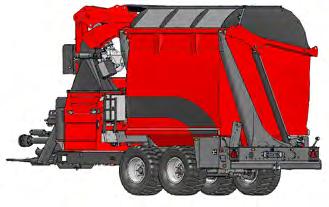

Hightipper 20/25 m3

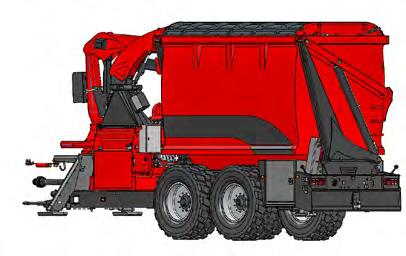

Tandem chassis
Single axle chassis
Greentec 952MEGA
The original classic in our range
The all-round machine with an extra-large top infeed roller, is powered by two internal hydraulic motors, 500x1450mm wide
This model is an excellent choice for processing whole trees and big tree canopies
The drum has 4 knives with a 25mm overbite producing uniform wood chips
The 952MEGA model is built for high productivity. Producing 100 to 150m3 an hour with a powerful chip discharge.
Widia tempered steel
Motor built on
Track
Motor
Hightipper VC20/25
Tandem chassis
Chassis Heavy
Greentec 942
Suitable for chipping green waste, pruning material and large bundles with heavy branches and logs up to Ø 550 mm
Everything goes in effortlessly, no blind spots, no grooves in the outer wall
The large top roller with internal drive quickly steps on logs and pulls them in with force
The machine has a modern look and everything is safely concealed under an easy-to-open hood for periodic service
Electric

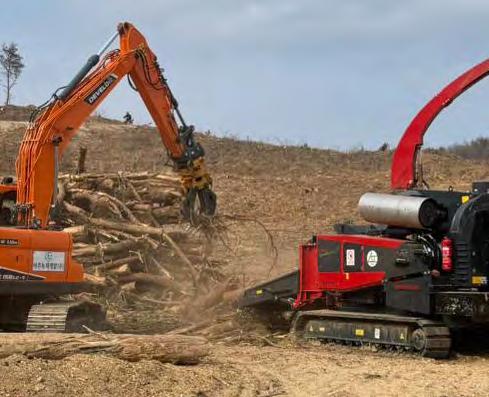

Track
Motor
Hightipper VC20
Rear tipper VC16
Rear infeed
Hightipper VC13
Chassis Heavy duty 3-point linkage mounted

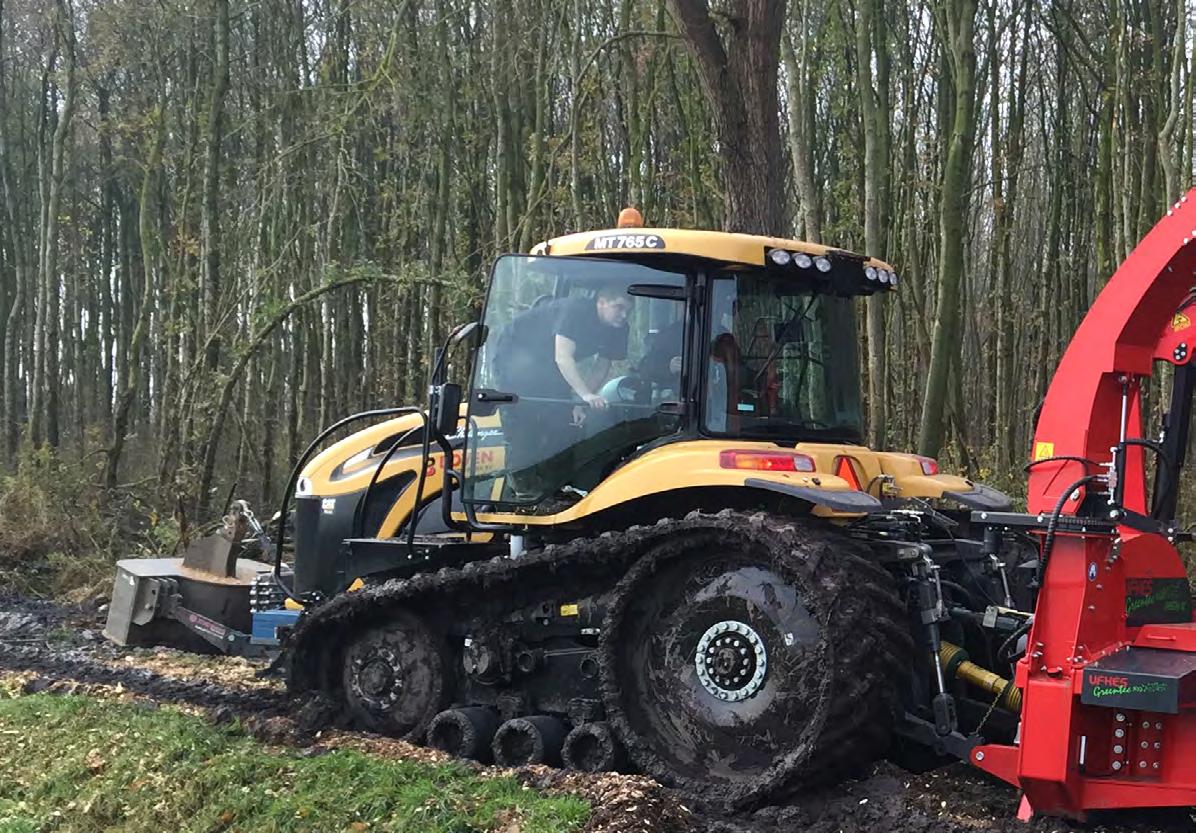

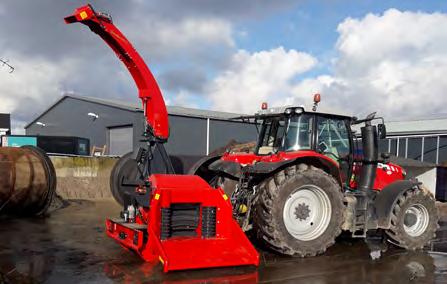

PTO Disc Chippers

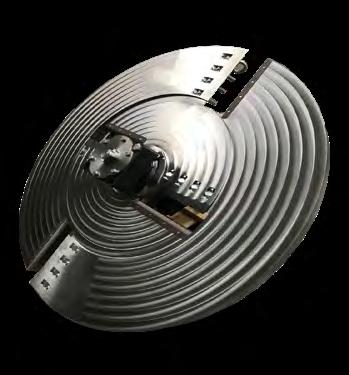

4 knives divided over a large disc Ø 1450mm

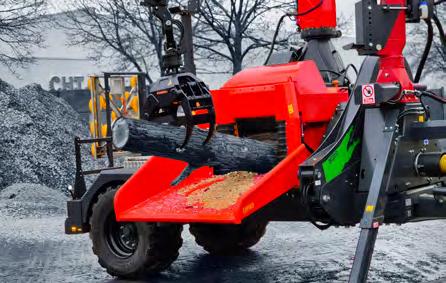

Cheetah 45

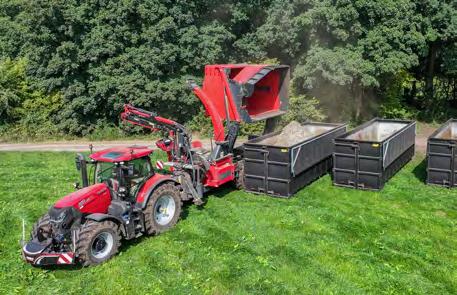

The Greentec PTO Cheetah 45 is a compact disc chipper for tractors from 200HP to 450HP
A heavy-duty power train and a disc of nearly 80mm thick gives a huge capacity
50 degrees cut angel, 3 aggressive infeed rollers, and 3 blades provide a triple action pull and a very powerful infeed
The machine has no dead space, so no material gets caught up
The infeed rollers are powered by internal heavy duty Poclain Hydraulic motors, max working pressure 320 bar
The machine produces uniform course woodchips, with a low dust percentage
The large disc is equipped with special blower blades giving a powerful discharge, allowing a 5m long chute over the tractor
An ergonomically mounte crane (if required) eliminates visual obstructions
One control, for the woodchipper, crane and diesel engine
Everything is on an easily programmable 7” touchscreen
4 program options to choose from: Heavy logs, Soft wood, Hardwood & Branches. The various settings adjust the infeed roller pressure & speed to accommodate different materials.
Auto feed function (No stress) is designed to monitor the engine rpm and oil pressure simultaneously. This dual sensor system activates the infeed rollers ‘Stop & Reverse’ feature when either the engine rpm or oil pressure move out of their normal parameters.
Eco Program option: runs the machine on a lower engine speed to save on fuel, reducing noise and produce bigger chips with less dust.
Chip size can be adjusted at any time while the chipper is running.
System can be set in 5 languages Dutch, English, French,
