Novelties 2025

Lighting forward

Today more than ever, the ability to look ahead, read, and interpret change is a crucial factor for a company’s success.

Once again, Simes makes innovation, design, and well-being its manifesto, presenting its latest creations with the enthusiasm of those who seek to amaze and offer their vision of change. A forward-looking approach, already focused on the next step in interpreting light in all its forms.

Our “lighting forward” philosophy translates into a constant pursuit of beauty. A beauty that stems from the harmonious proportions of an object in dialogue with space and architecture; from the well-being provided by controlled, adjustable, and comfortable lighting; and from the study of flexible solutions capable of meeting designers’ needs and inspiring new lighting configurations.

Continuous interaction with the market and industry professionals, combined with collaborations with designers who can interpret the company’s identity, sparks new creative scenarios.

AIR-LIGHTING, the new aerial lighting system, which Simes will unveil at Euroluce 2025, is one of the most representative examples of this fusion of intent and inspiration. Originally conceived as an outdoor floor lamp, the project has evolved into an innovative suspended system, composed of a network of taut ropes and cables. Its extraordinary spatial flexibility, combined with Simes’ signature technical and minimalist aesthetics, makes it a unique, expandable, and adaptable solution, capable of responding to complex design requirements.

This year, Simes takes the concept of the urban pole to the next level by integrating multiple functions into a single element designed to enhance comfort, security, and connectivity in both public and private spaces.

With the new SHIFT PRO, the extreme lighting flexibility made possible by modular and adjustable light heads, is complemented by the possibility to integrate surveillance cameras, audio speakers, Wi-Fi access points, and charging sockets. This ensures a smart and ever-evolving city meets its growing needs.

The company further strengthens its stylistic identity through the development of MOOD, a new bulkhead without any protective glass, which combines front light and back light effects. Its minimalist shape and the balance between proportions, details, and technical and technological functionality make it an emblematic example of the Simes method in conceiving the lighting object.

The research on light control continues to be a key pillar in the development of any new solution. Thanks to FIELD, the new bollard equipped with motion sensors and optics designed to prevent light dispersion towards the sky, it is possible to achieve effective, efficient, and sustainable lighting.

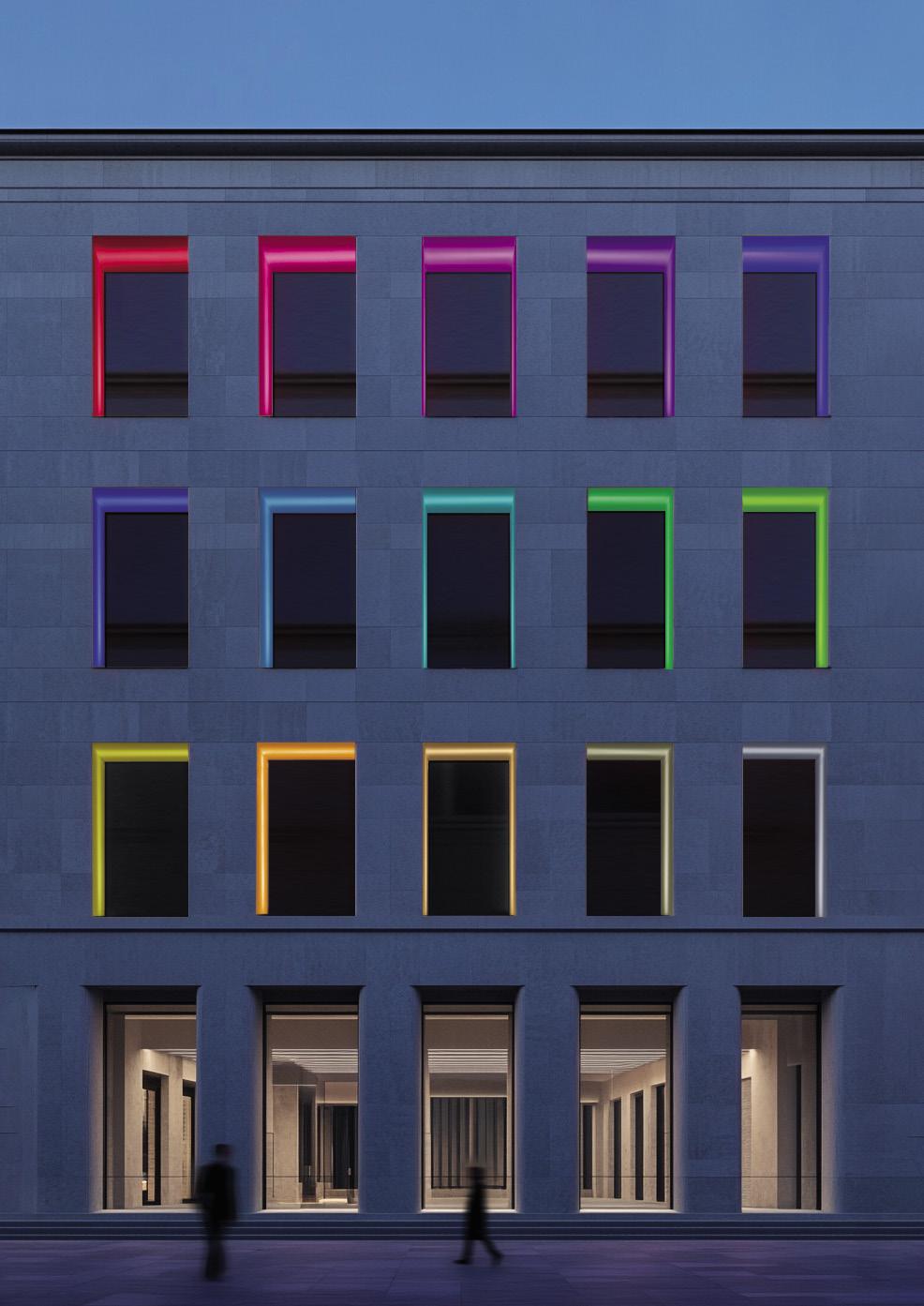

Exploration in the field of color, both in RGBW and Tunable White technologies, continues to be a growing trend. The decision to introduce new versions and an expanded range with different chromatic possibilities, paves the way for increasingly customizable solutions.

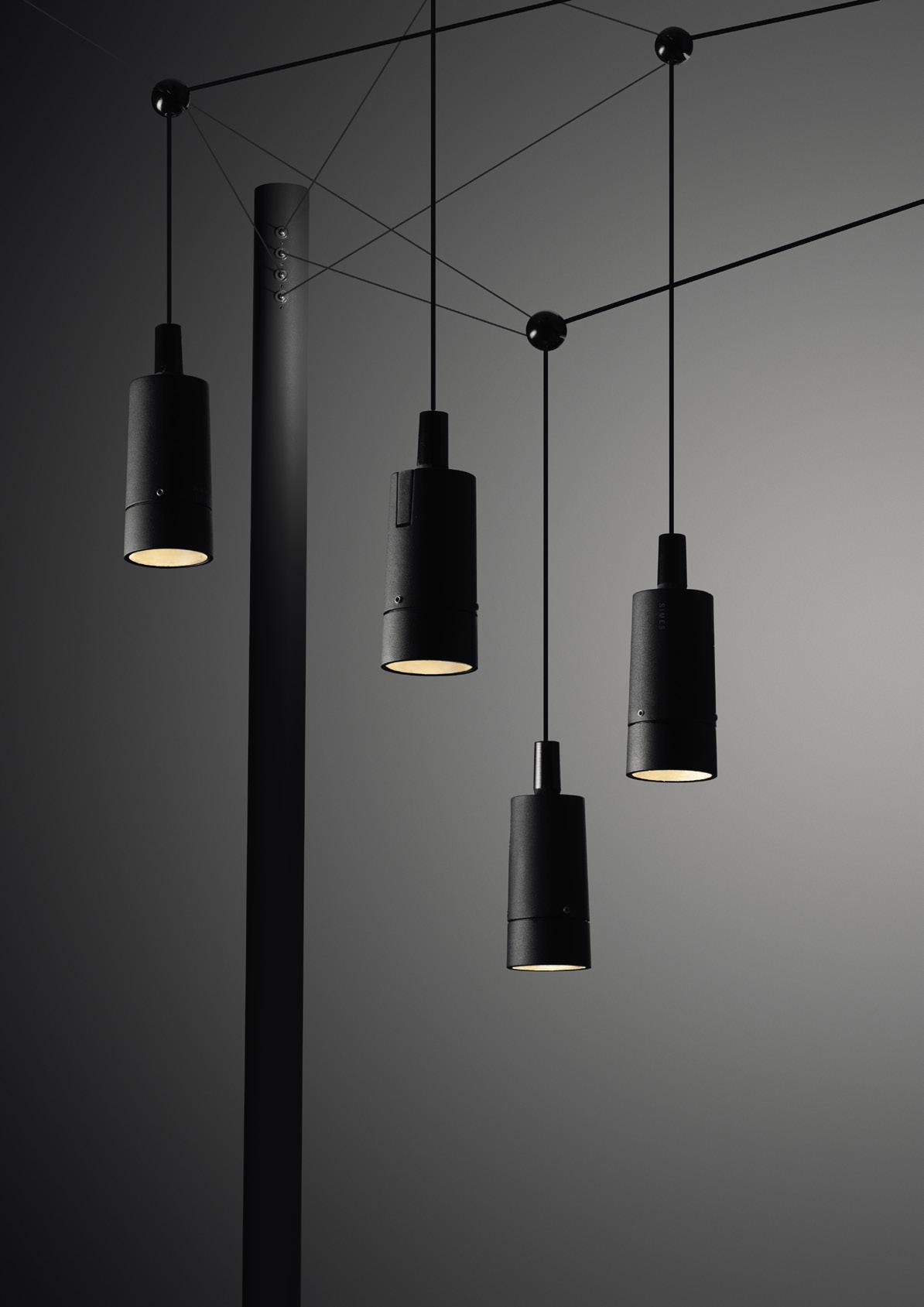

Air-Lighting

AIR-LIGHTING

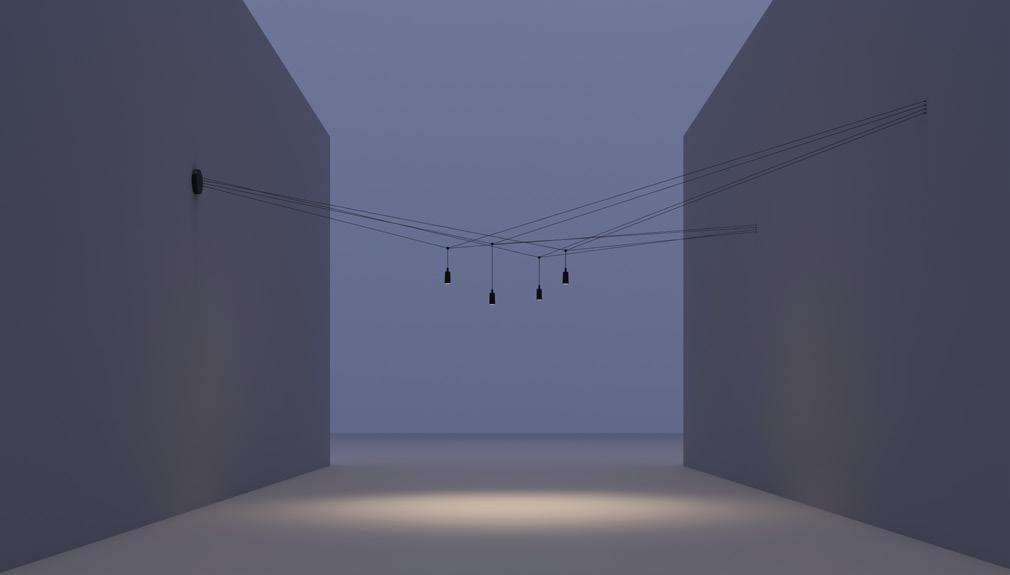

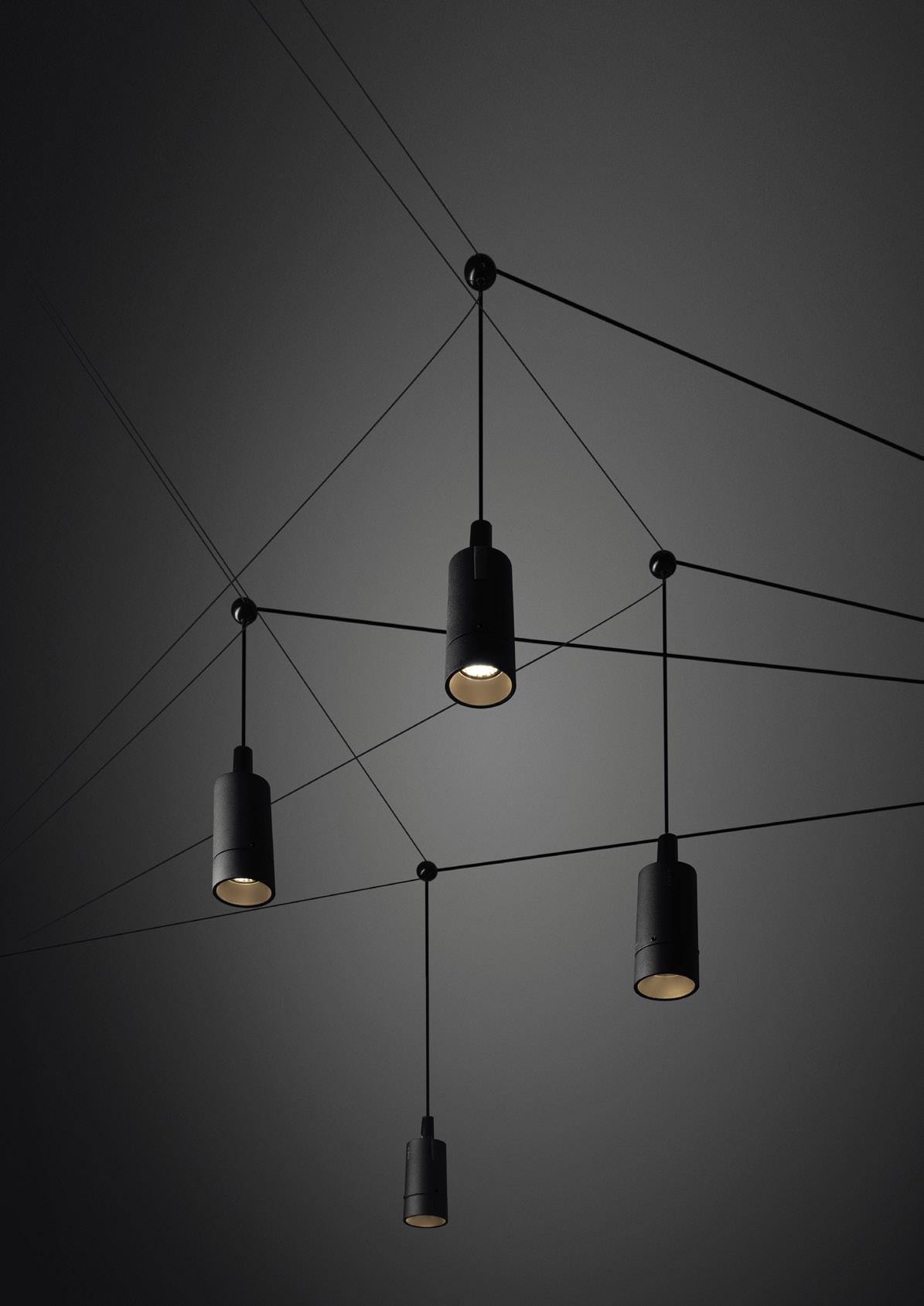

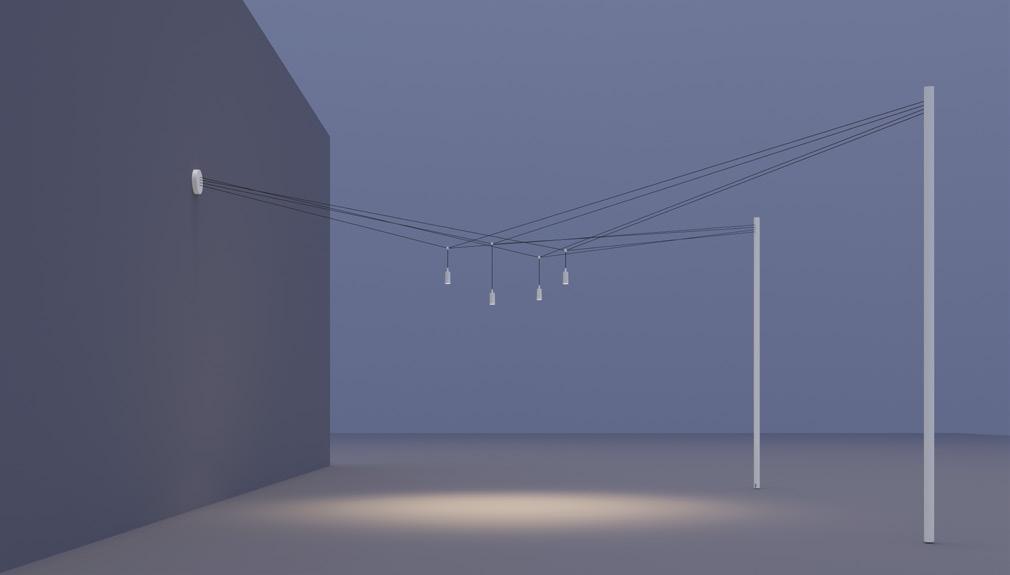

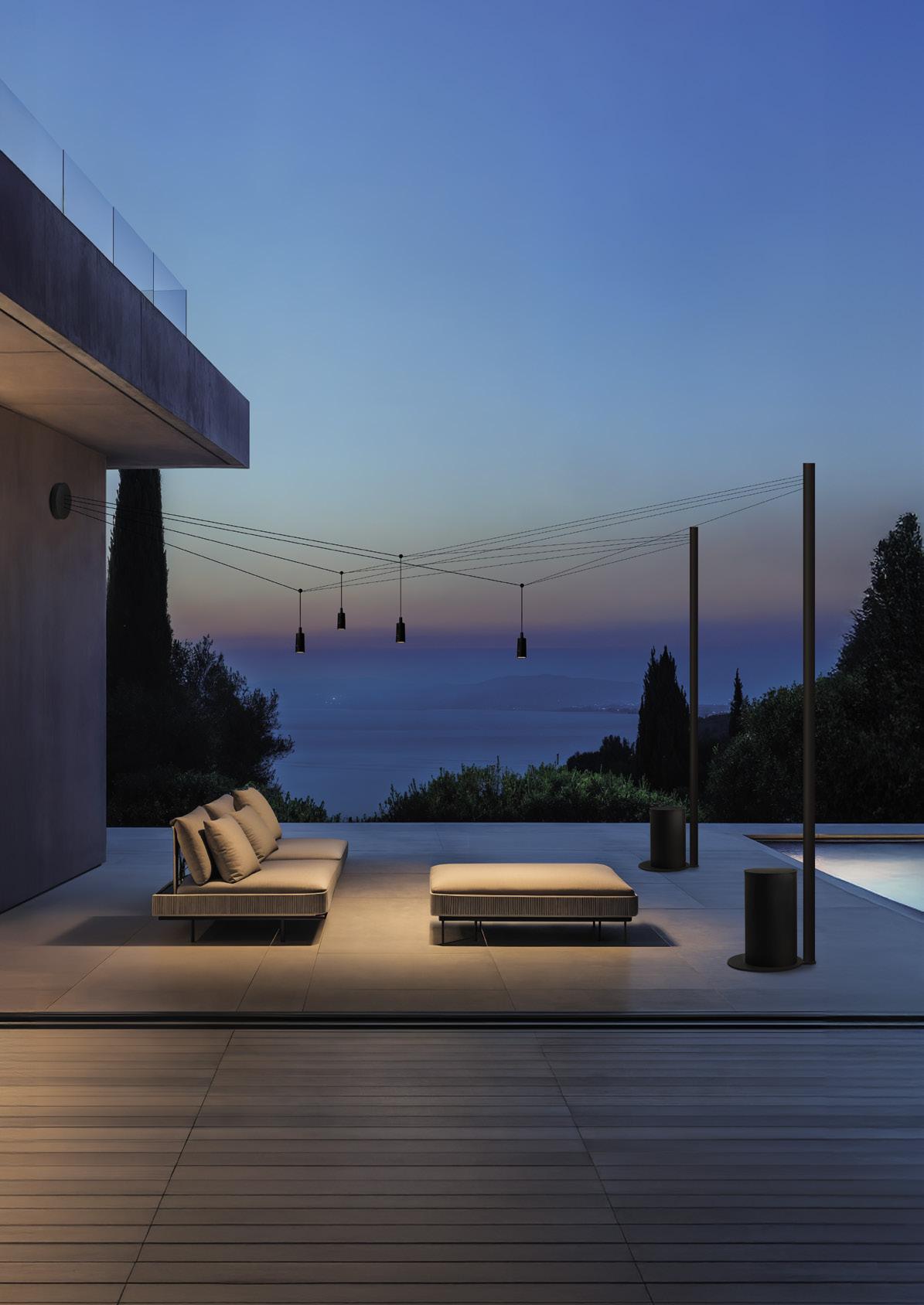

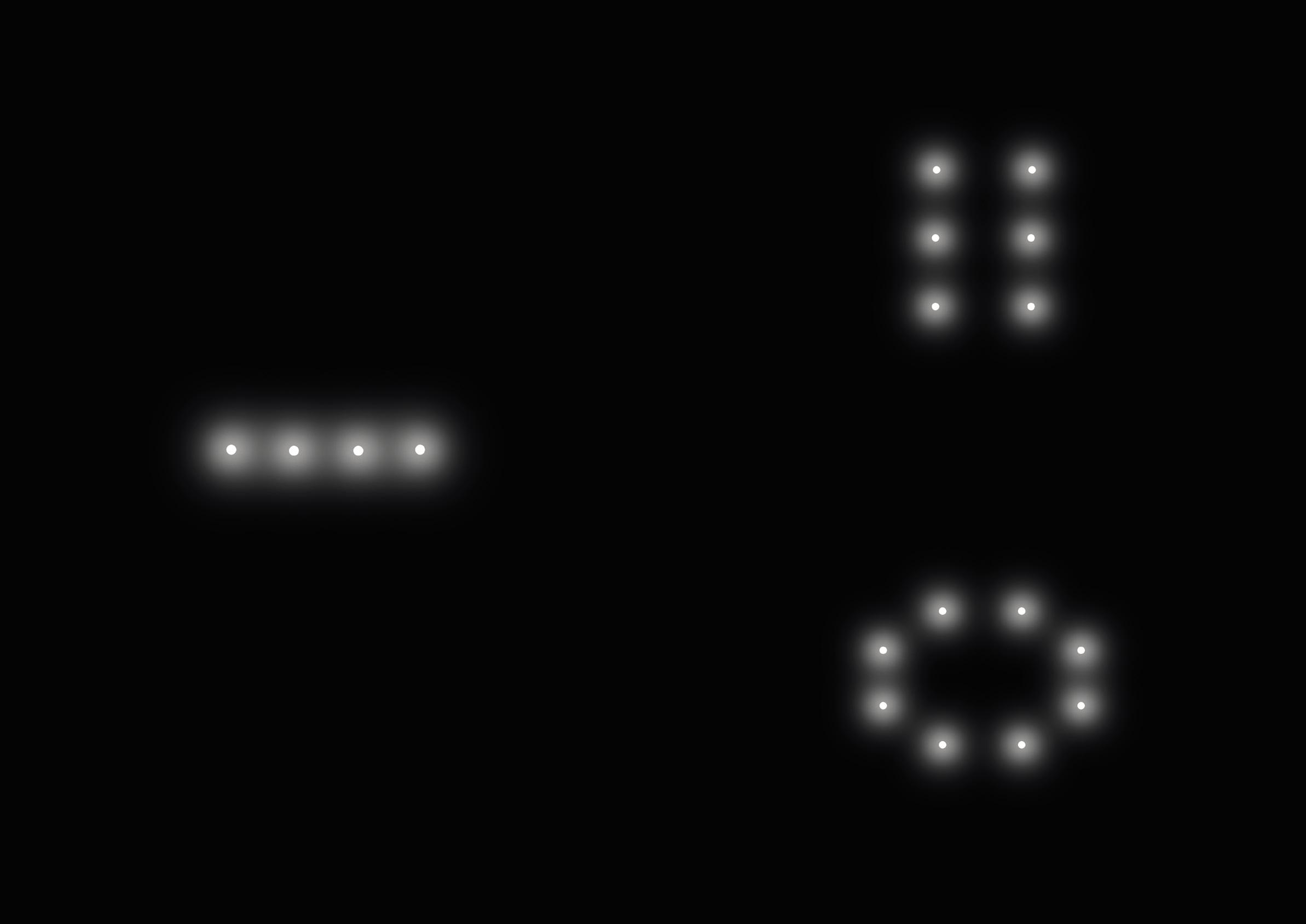

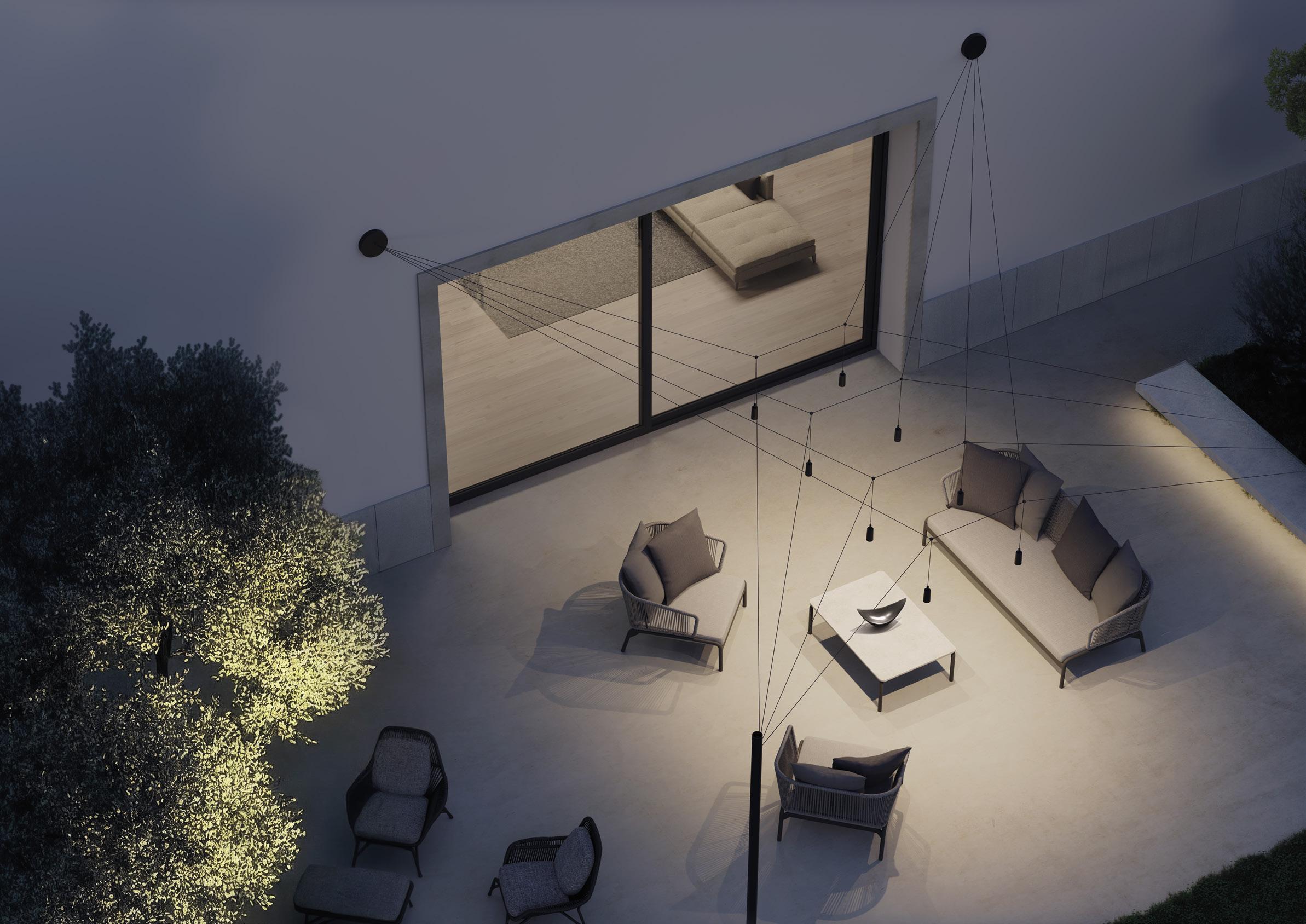

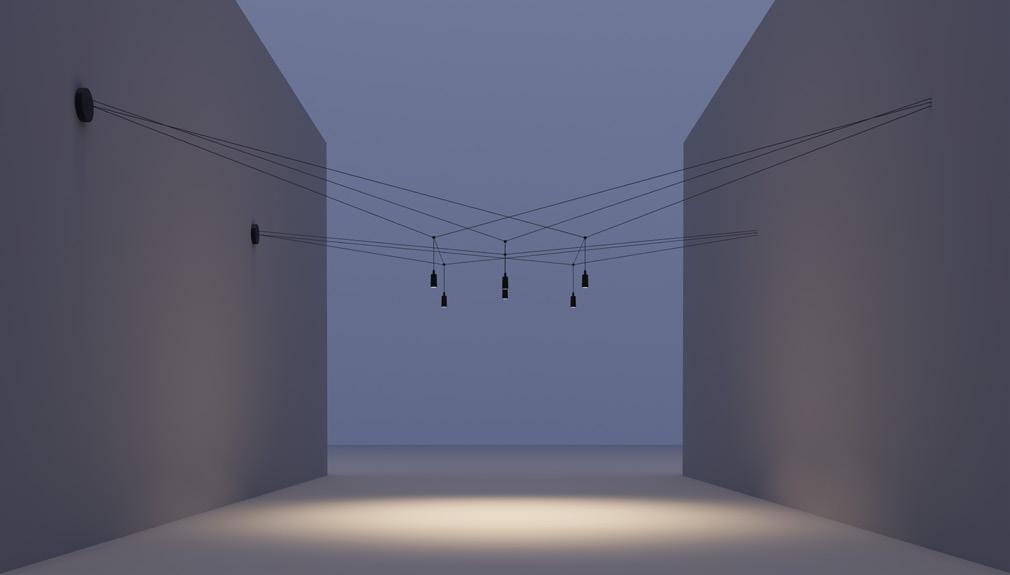

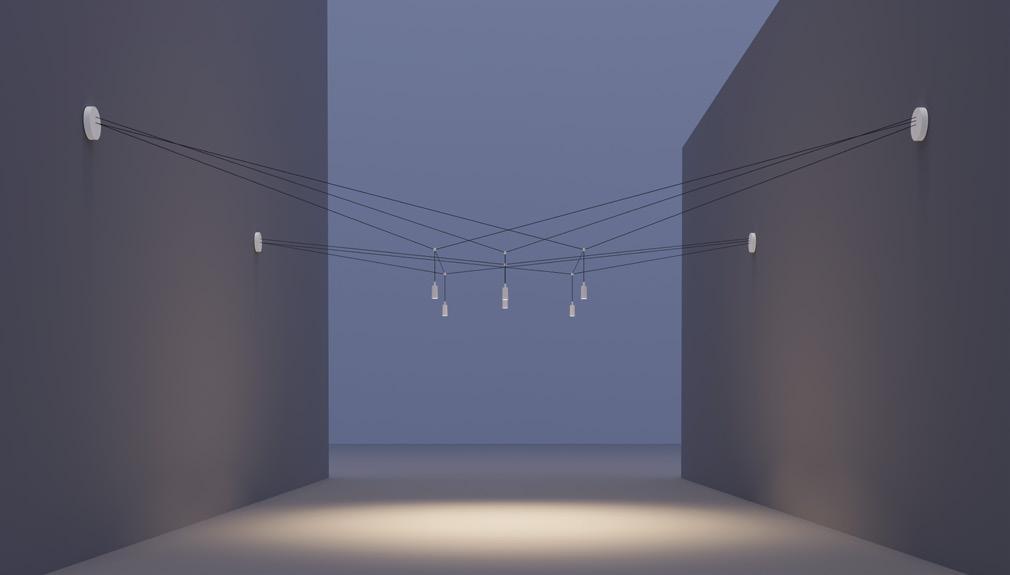

Air-Lighting is an innovative outdoor pendant lighting system also ideal for indoor environments, designed to guarantee maximum freedom of installation and a clean and contemporary aesthetics.

Thanks to its steel wire ropes and its multiple anchorage points, it allows customised configurations for every context.

The anchoring can be done to the wall or ceiling using roses (for support or electrification) or, in the absence of anchoring surfaces, also via a support pole to be buried in the concrete or using a base with a counterweight container.

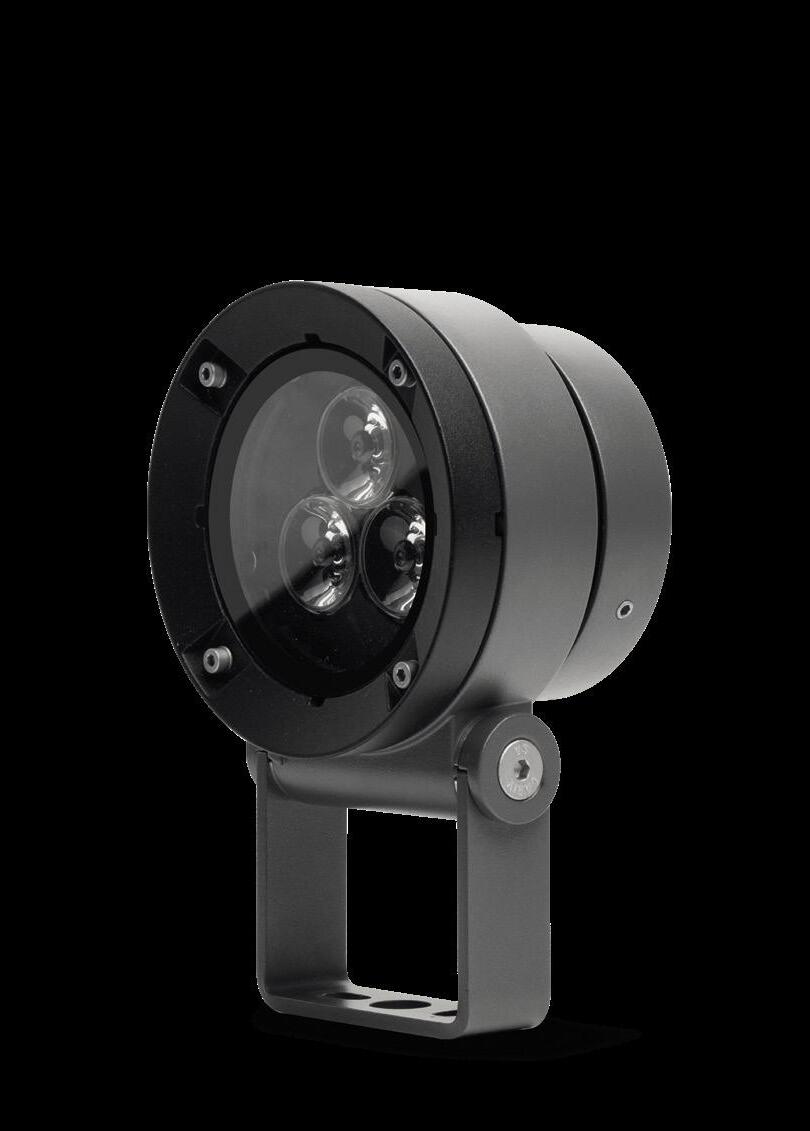

The adjustable Flower Zoom 60 Comfort (adjustable optic from 22° to 43°) ensures dynamic, high-quality lighting, while the high mechanical resistance (IK07) and IP65 protection make it a durable and reliable solution over time.

Available in different variants and with remote power supply, Air-Lighting transforms any environment into a suspended space without clutter, creating an exclusive scenic effect.

MODULE 3000K CRI90 880lm 8,3W (on request 2700K CRI90 833lm) (on request 4000K CRI90 955lm) 24Vdc PWM Requires constant voltage remote power supply 24Vdc

for Support and Counterweight Container

CONFIGURATION WITH 1 ROSE + WIRE TENSION CLAMPS

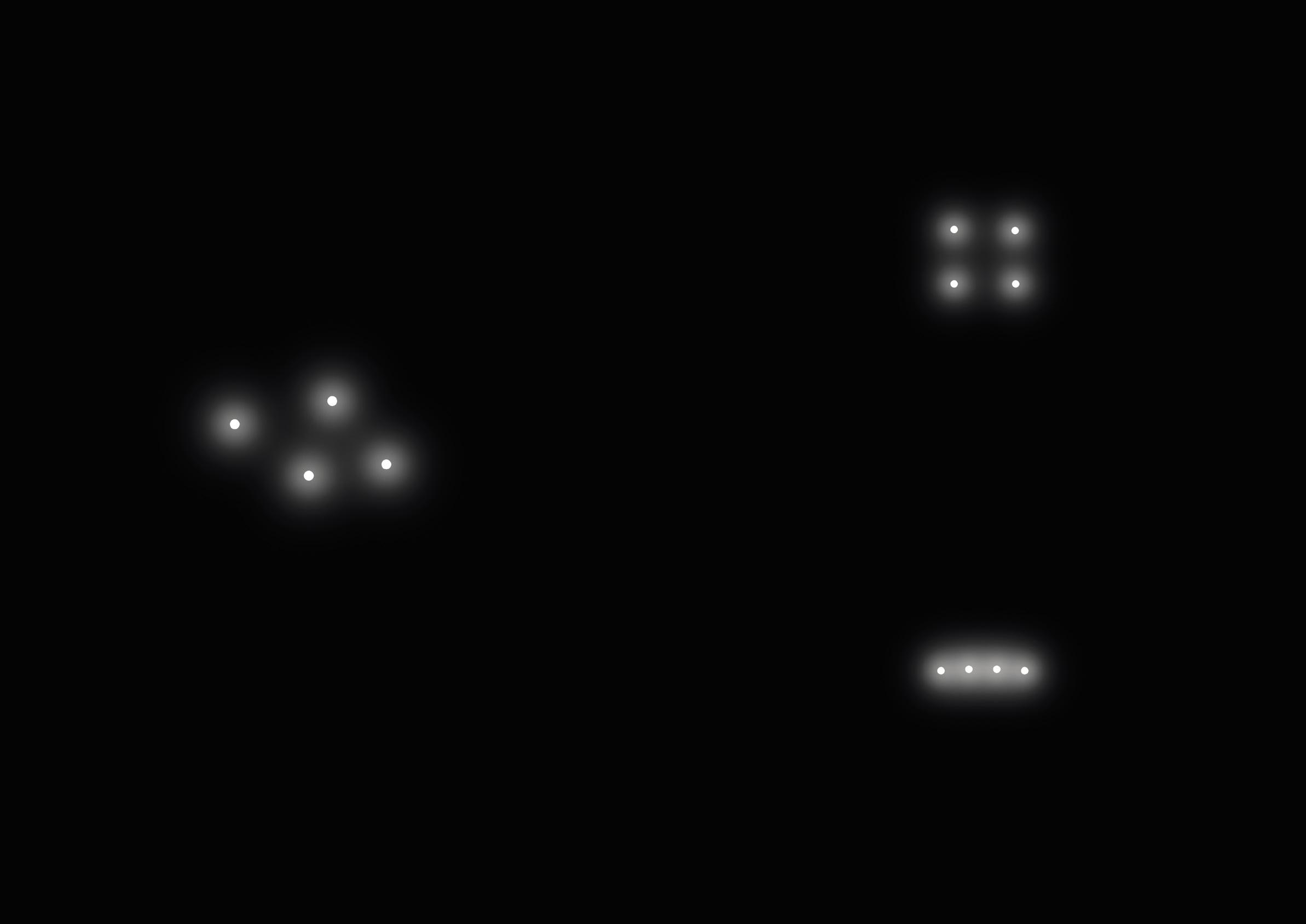

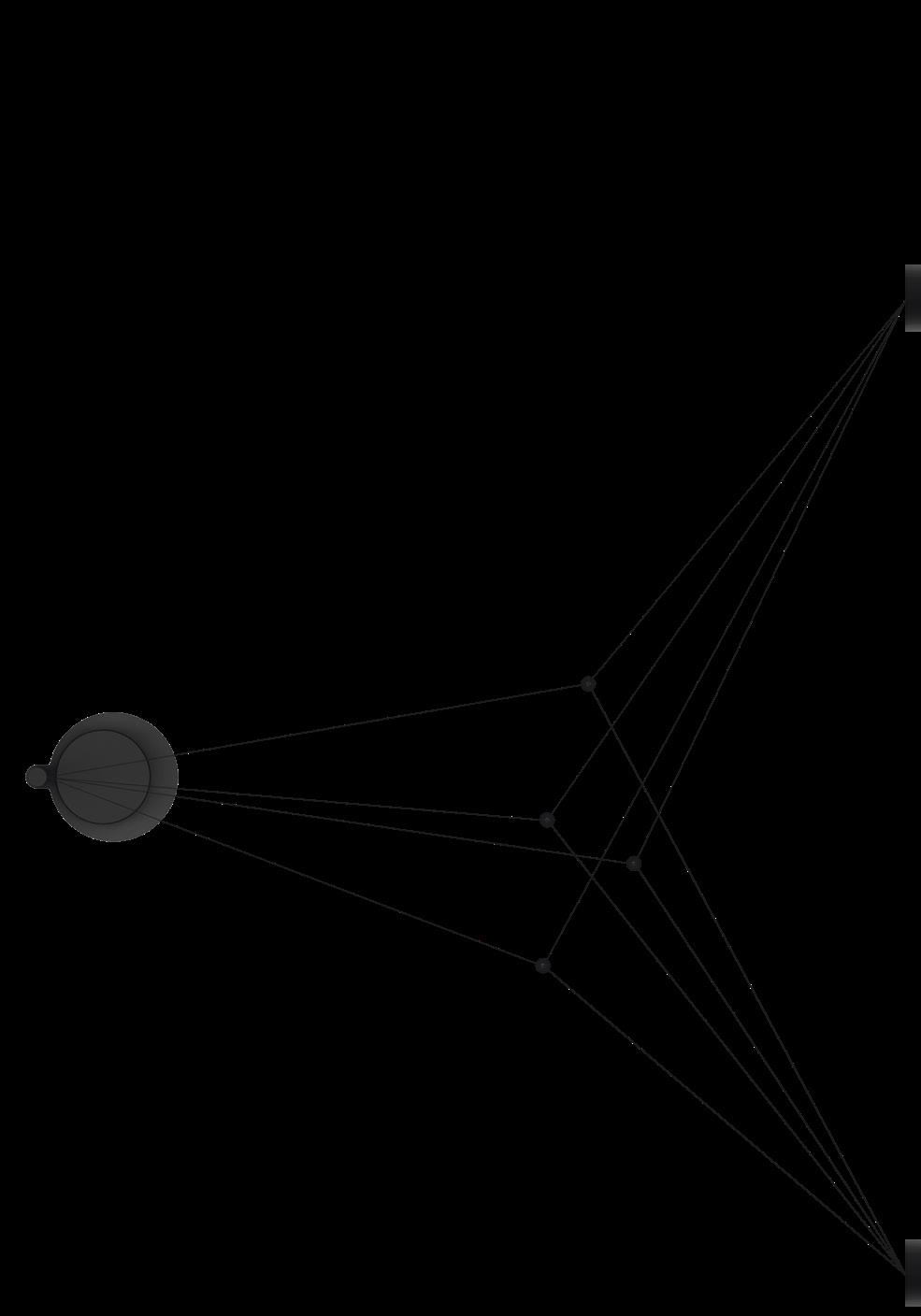

AIR-LIGHTING “triangle”

CONFIGURATION WITH 3 ROSES

AIR-LIGHTING “triangle” (1

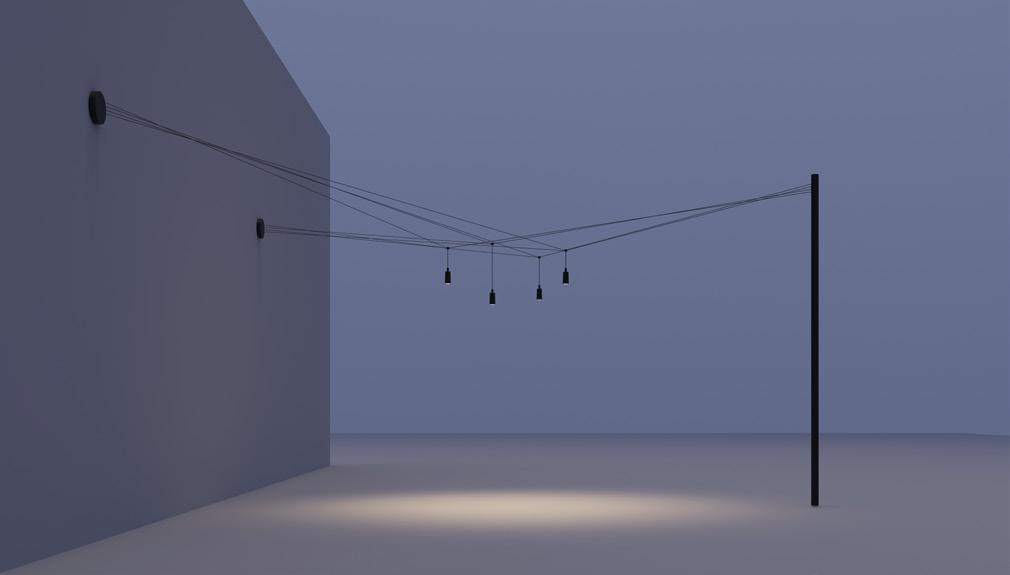

CONFIGURATION WITH 2 ROSES + 1 SUPPORT POLE

The electrical cables can be connected to a rose or a pole wired to the power line, while the support ropes are anchored to the other two non-electrified points (rose + pole or two roses).

Suspension system with 2 x Flower Zoom 60 Comfort 24Vdc 8,3W with 2 roses and 1 support pole (Require remote power supply, see page 8)

Suspension system with 4 x Flower Zoom 60 Comfort 24Vdc 8,3W with 2 roses and 1 support pole (Require remote power supply, see page 8)

MANDATORY ACCESSORIES FOR EACH POLE:

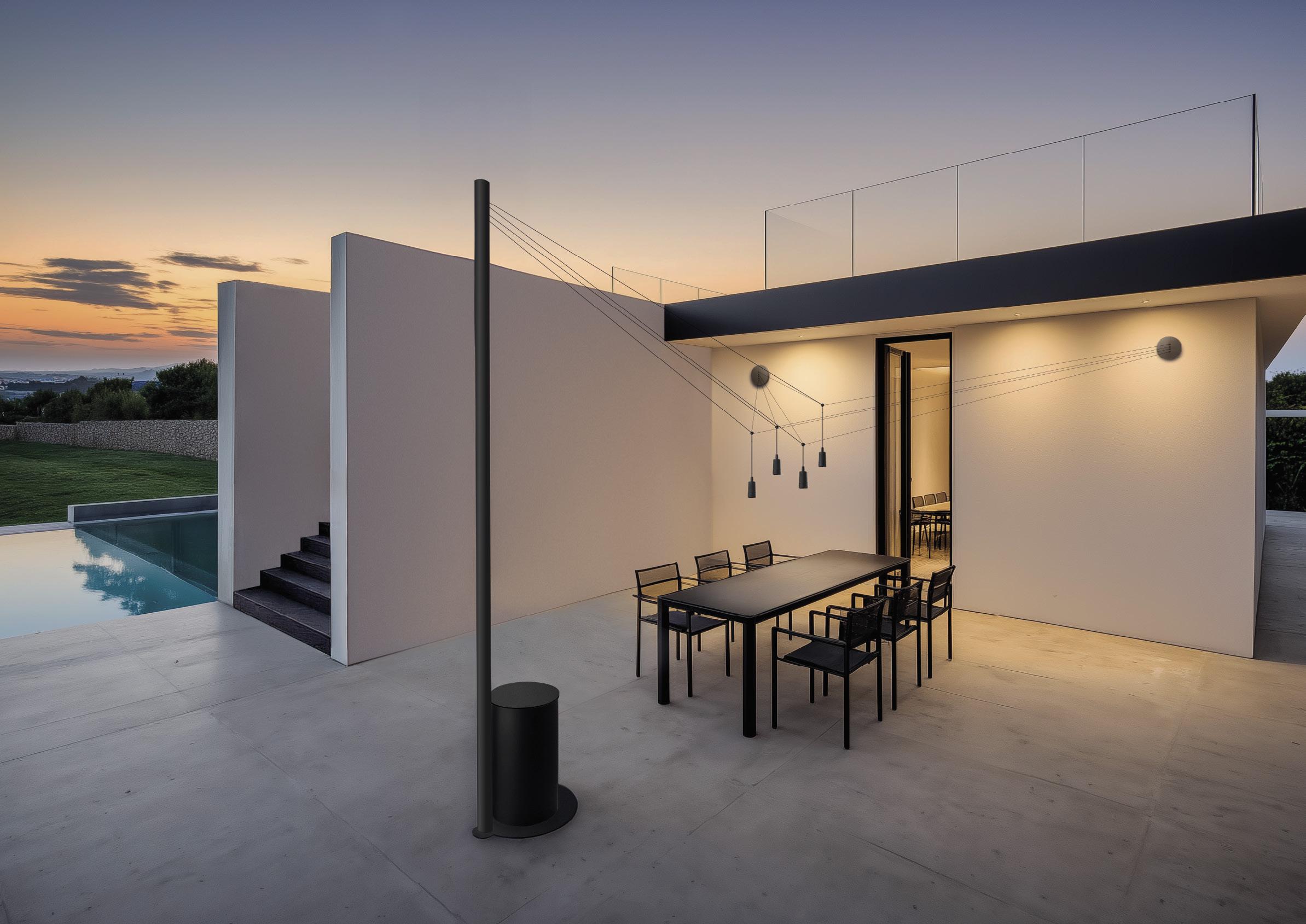

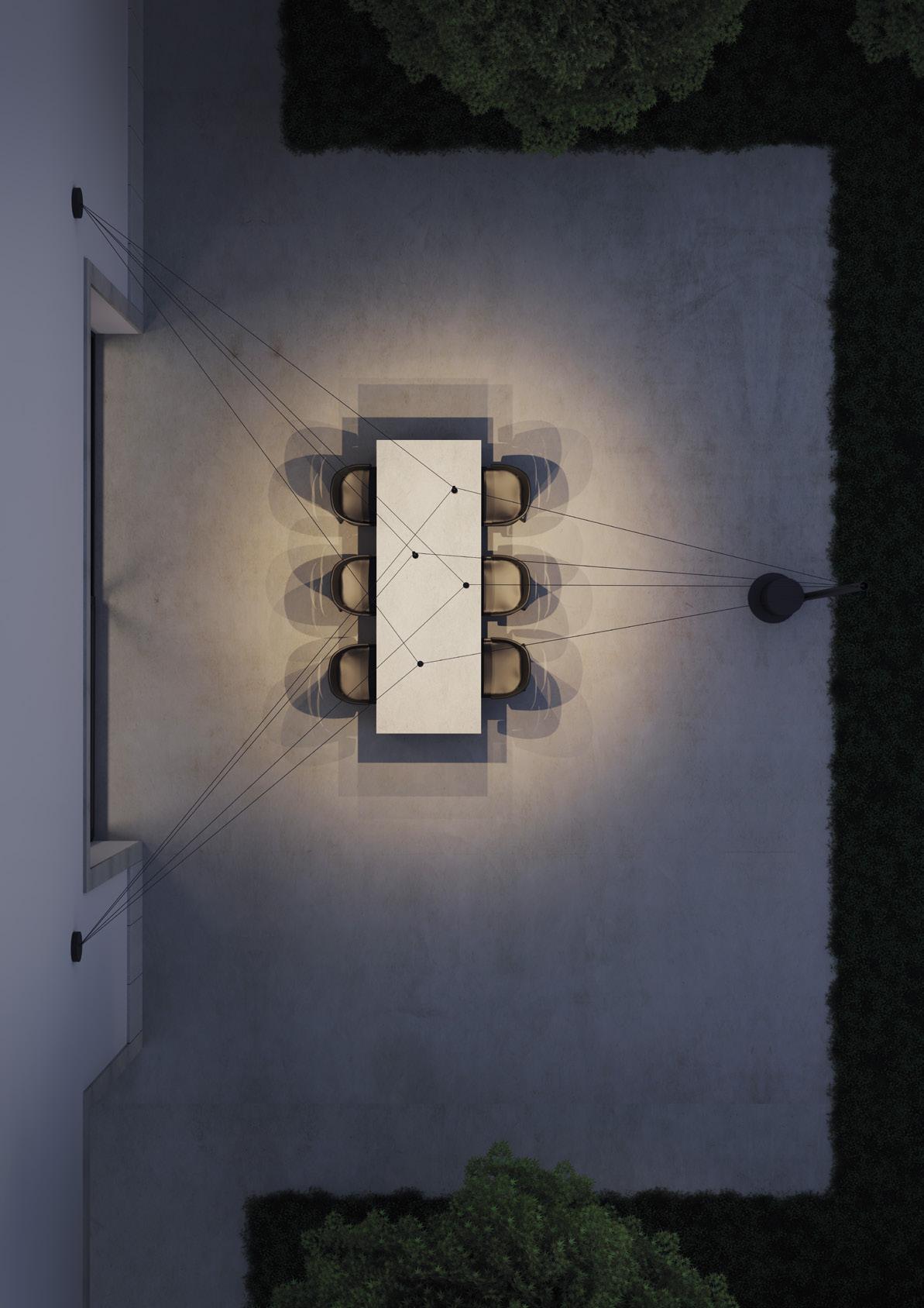

CONFIGURATION WITH 1 ROSE + 2 SUPPORT POLES

The electrical cables can be connected to a rose or a pole wired to the power line, while the support ropes are anchored to the other two non-electrified points (rose + pole or two poles).

Suspension system with 2 x Flower Zoom 60 Comfort 24Vdc 8,3W with 1 rose and 2 support poles (Require remote power supply, see page 8)

Suspension system with 4 x Flower Zoom 60 Comfort 24Vdc 8,3W with 1 rose and 2 support poles (Require remote power supply, see page 8)

MANDATORY ACCESSORIES FOR EACH POLE:

(In this configuration, two accessories are required, choosing between a Flange or a Support Base)

AIR-LIGHTING “triangle” (1 power supply point)

CONFIGURATION WITH 3 SUPPORT POLES

The electrical cables are connected to a pole wired to the power line, while the support ropes are anchored to the other two non-electrified poles.

Suspension system with 2 x Flower Zoom 60 Comfort 24Vdc 8,3W with 3 support poles (Require remote power supply, see page 8)

Suspension system with 4 x Flower Zoom 60 Comfort 24Vdc 8,3W with 3 support poles (Require remote power supply, see page 8)

MANDATORY ACCESSORIES FOR EACH POLE:

AIR-LIGHTING “rectangle” (2 power supply points)

CONFIGURATION WITH 2 ROSES + WIRE TENSION

CLAMPS

AIR-LIGHTING “rectangle” (2 power supply points)

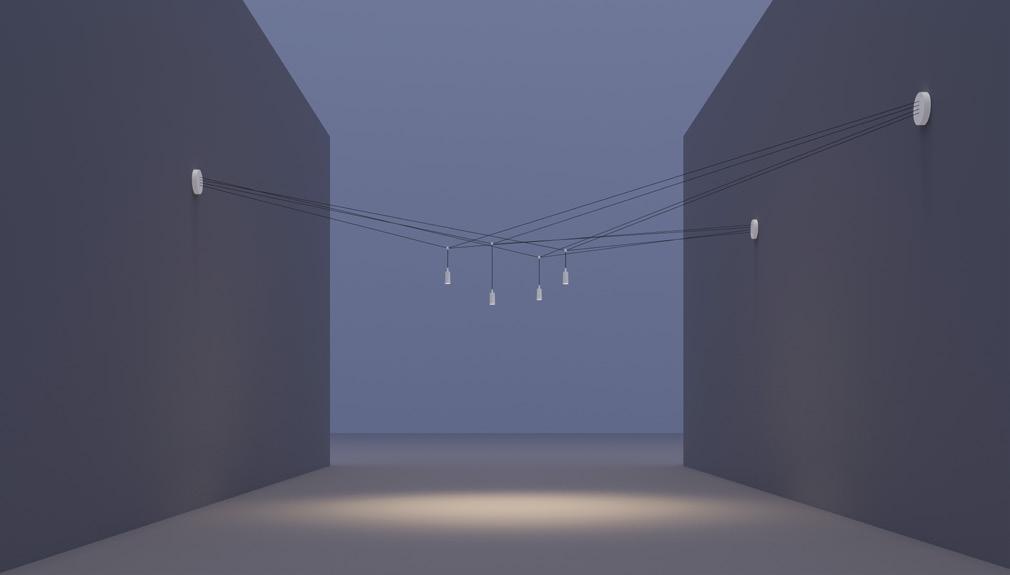

CONFIGURATION WITH 4 ROSES

The electrical cables are connected to two roses wired to the power line, while the support ropes can be anchored using tension clamps, which can be individually positioned at any point on the wall or ceiling. The electrical cables are connected to two roses wired to the power line, while the support ropes are anchored to two other non-electrified roses positioned at two points on the wall or

Suspension system with 4 x Flower Zoom

Comfort 24Vdc 8,3W with 2 roses and wire tension clamps (Require remote power supply) Suspension

(Require

(Require

Suspension system with 6 x Flower

Suspension system with 4 x Flower Zoom 60 Comfort 24Vdc 8,3W with 4 roses (Require remote power supply, see page 18) Suspension system with 8 x Flower Zoom

Comfort 24Vdc 8,3W with 4 roses (Require remote power supply, see page 18)

Comfort 24Vdc 8,3W with 4 roses (Require remote power supply, see page 18)

AIR-LIGHTING “rectangle” (2 power supply points)

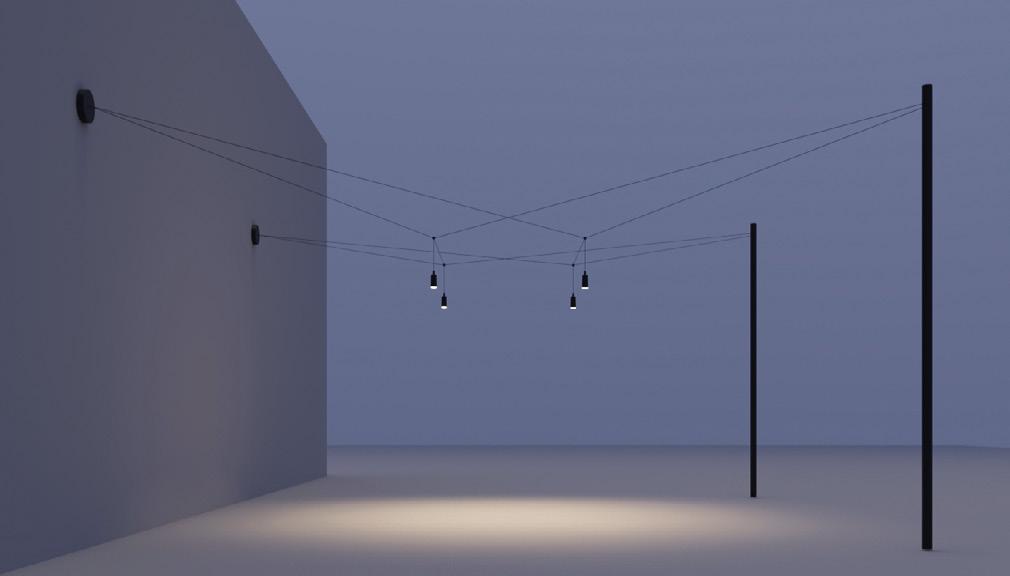

CONFIGURATION WITH 2 ROSES + 2 SUPPORT POLES

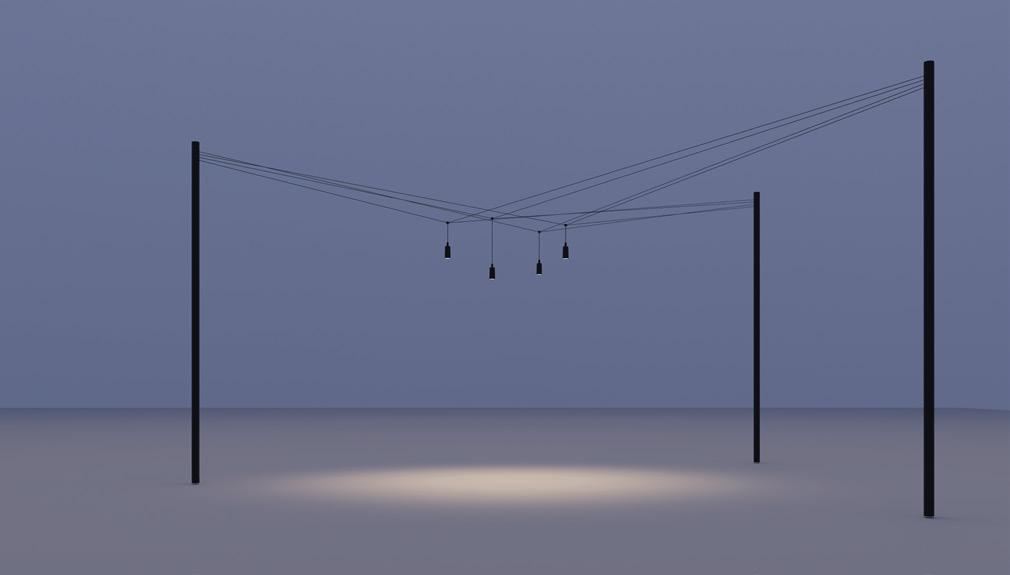

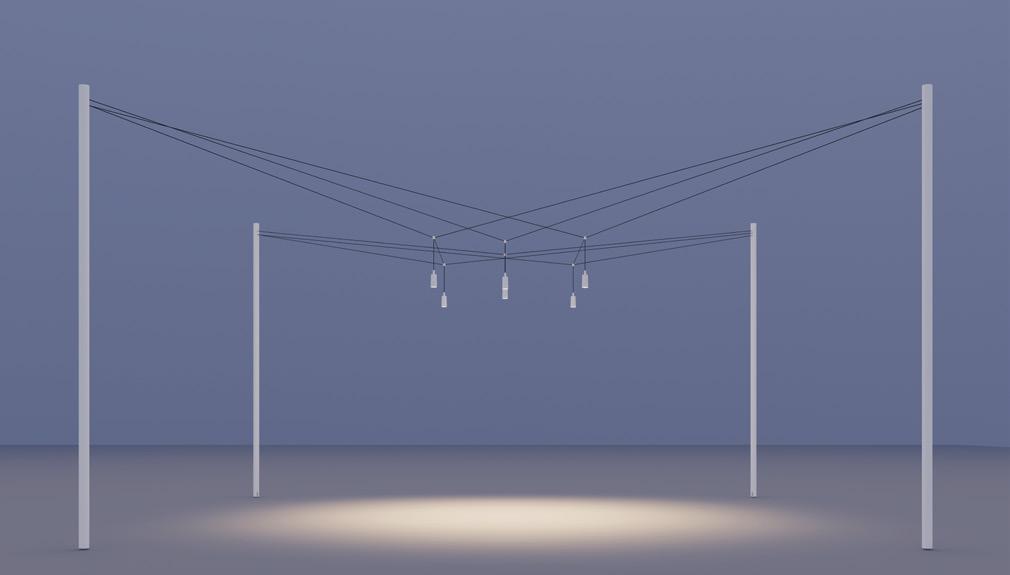

CONFIGURATION WITH 4 SUPPORT POLES

The electrical cables can be connected to two roses or two poles wired to the power line, while the support ropes are anchored to the other two non-electrified points (roses or poles). The electrical cables are connected to two poles wired to the power line, while the support ropes are anchored to the other two non-electrified poles.

Suspension system with 4 x Flower Zoom 60 Comfort 24Vdc 8,3W with 2 roses and 2 support poles (Require remote power supply, see page 18)

MANDATORY ACCESSORIES FOR EACH POLE:

Suspension system with 4 x Flower Zoom 60 Comfort 24Vdc 8,3W with 4 support poles (Require remote power supply, see page 18)

Suspension system with 6 x Flower Zoom 60 Comfort 24Vdc 8,3W with 4 support poles (Require remote power supply, see page 18)

ACCESSORIES FOR EACH

Suspension system with 8 x Flower Zoom

Comfort 24Vdc 8,3W with 4 support poles (Require remote power supply, see page 18)

AIR-LIGHTING “rectangle” (2 power supply points)

Mood

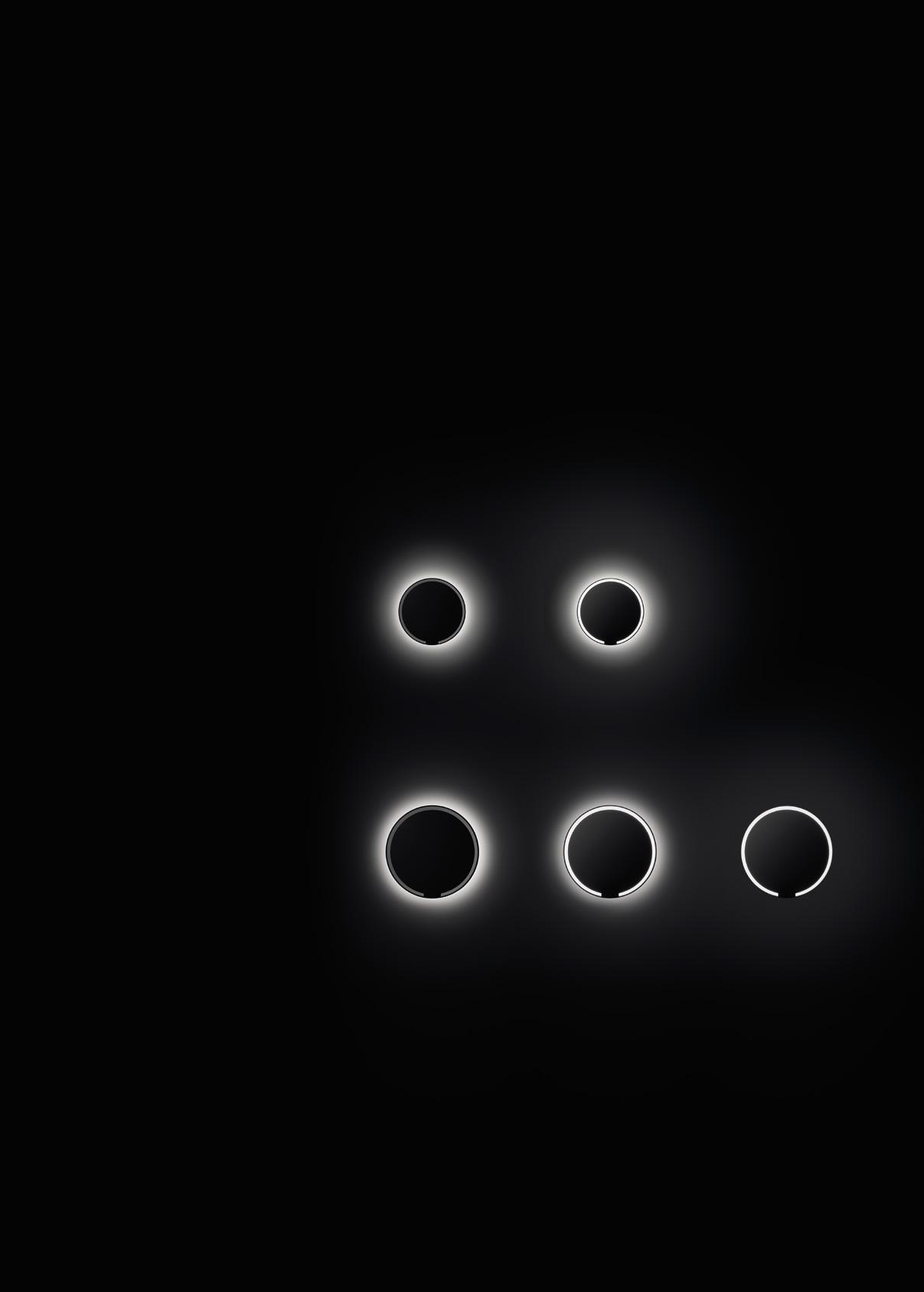

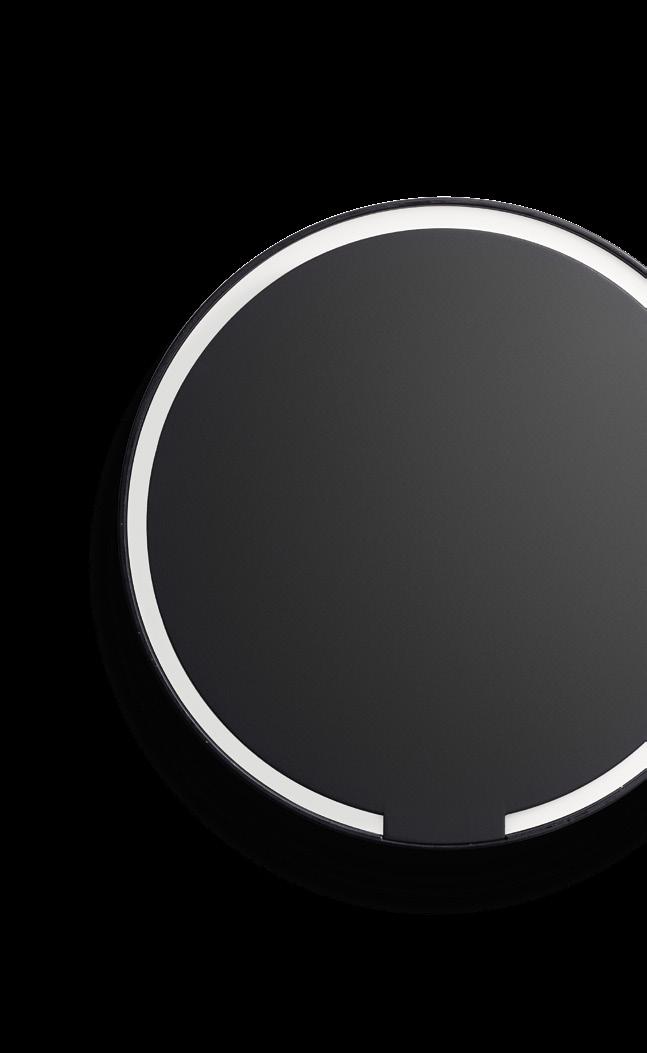

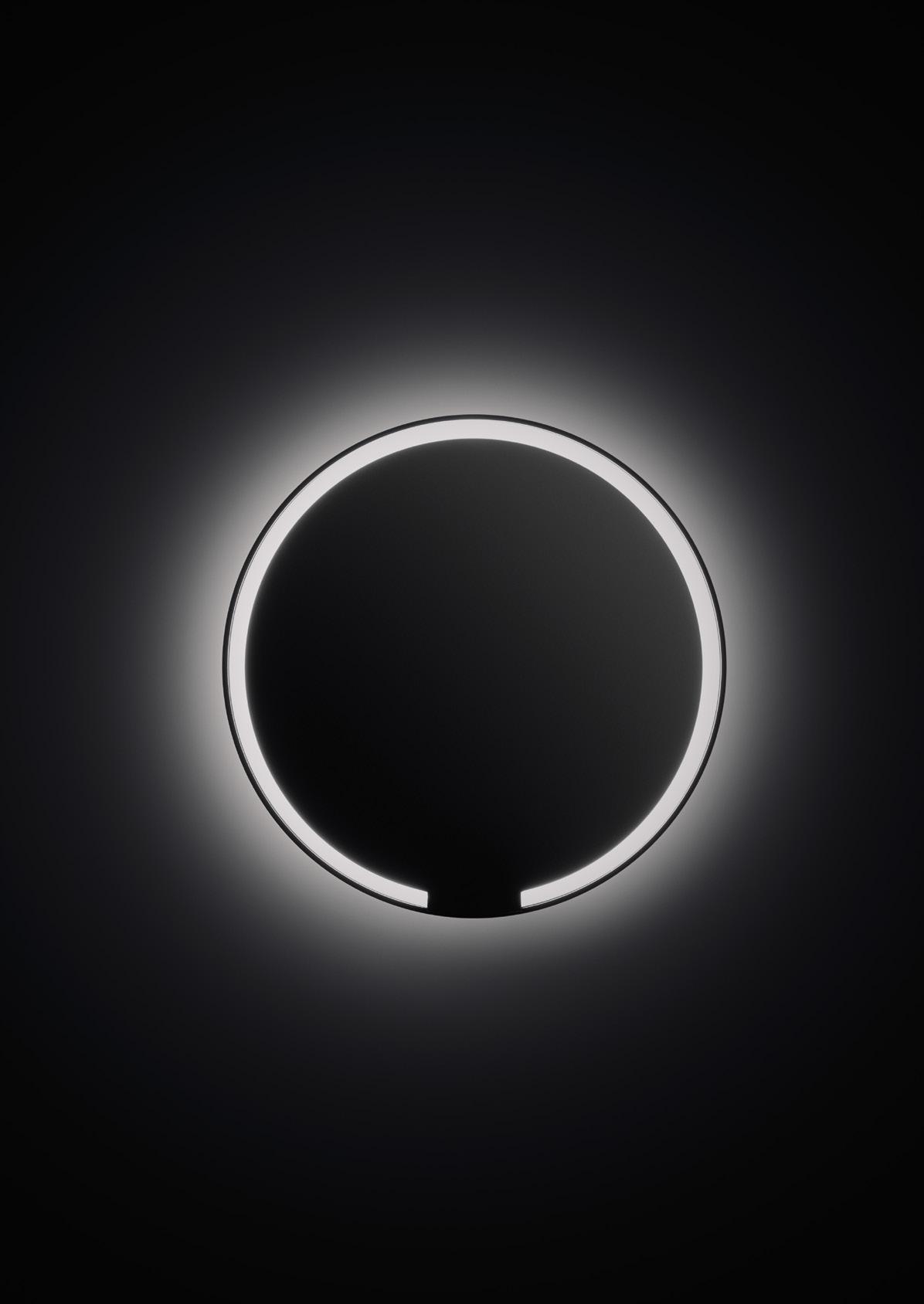

Ceiling and wall mounted double emission bulkhead

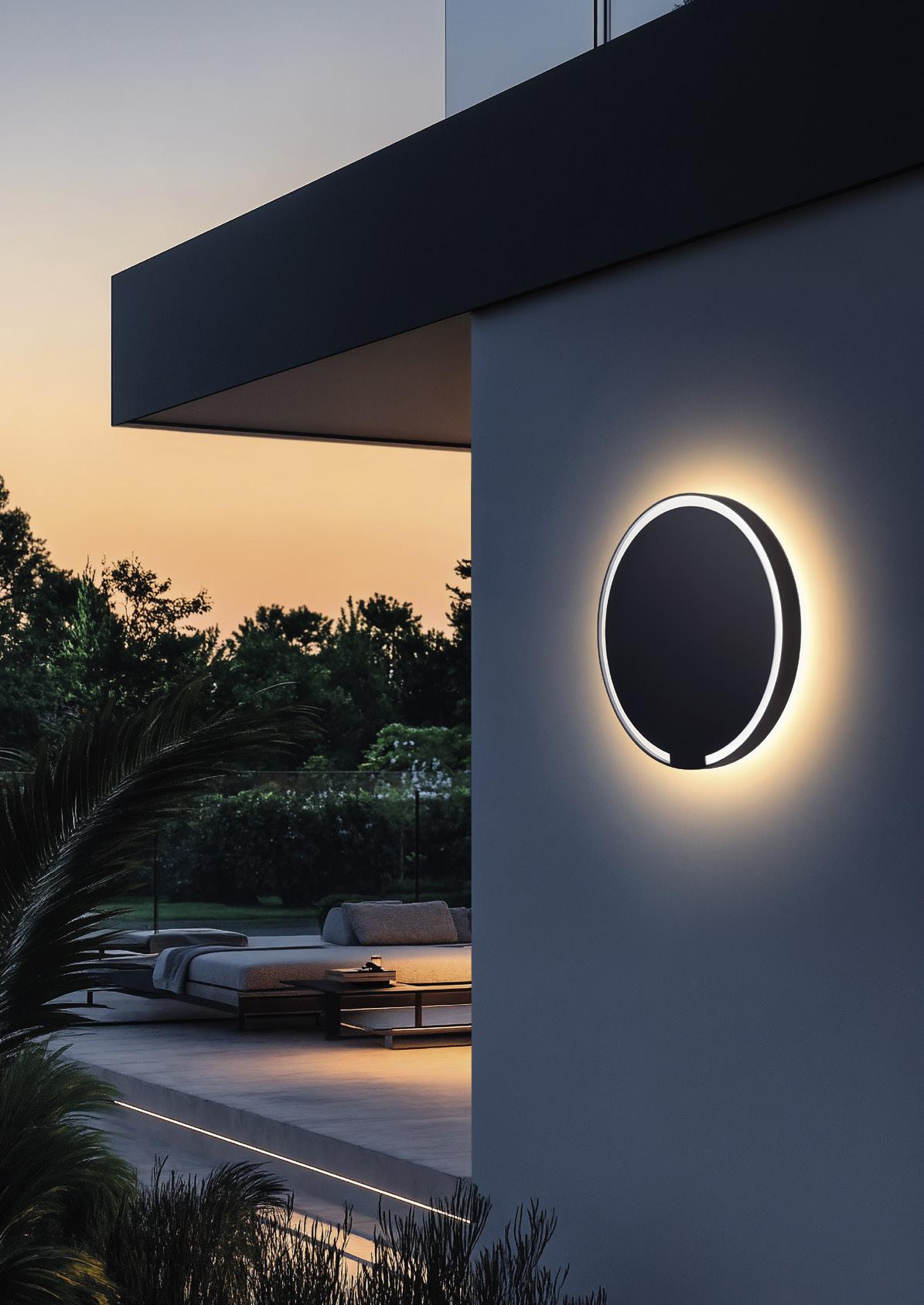

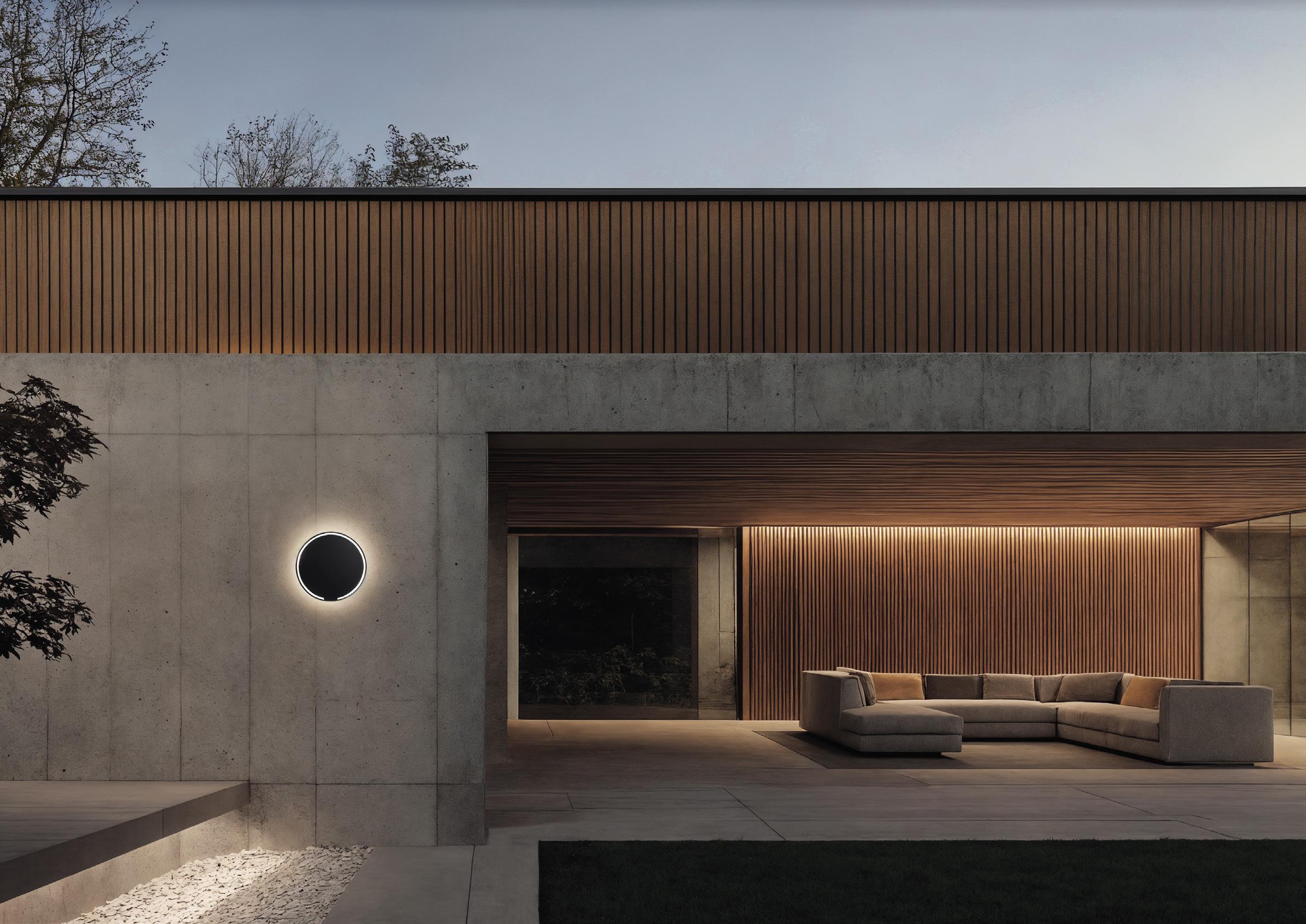

Mood is a wall and ceiling light that combines essential aesthetics and advanced technology to create customised lighting scenarios.

Mood does not use diffusing or protective glass because it is equipped with two silicone strip LEDs: one positioned at the front for direct light emission and the other placed at the back of the fixture for an indirect lighting effect towards the wall. Mood creates a soft and charming atmosphere, ideal for residential, commercial, and high-end hospitality spaces.

Thanks to the Tunable White (2200K-4000K) and RGBW (W=3000K), along with compatibility with DALI and DMX systems, Mood allows flexible lighting management of lighting, for integration into different design scenarios. The absence of glass, together with IP65 protection and IK10 resistance, ensures reliability over time even in the most exposed outdoor environments.

MOOD 250 MONOCHROME

In the MOOD 250 version, the Front Light and Back Light can be switched on, switched off and dimmed at the same time. However it is possible to switch off the Front Light only to leave the indirect light effect of Back Light.

TECHNICAL DESCRIPTION

Die cast aluminium housing with high corrosion resistance. Stainless steel Allen screws with insulating treatment against galvanic corrosion. Silicone gaskets. Double powder paint.

REGISTERED DESIGN PATENTED

MOOD 350 MONOCHROME

In the MOOD 350 version, the Front Light and Back Light can be switched on, off and dimmed separately and independently.

LED MODULE 3000K CRI90 1008lm 14,5W (on request 2700K CRI90 940lm) (on request 4000K CRI90 1100lm) 220V-240Vac 50/60Hz Dimmable DALI 2 / PUSH

BOX POWER SUPPLY DALI DIMMABLE FOR TUNABLE WHITE

60W (2 channels) 230V/24V PWM

DIMMABLE DALI DT6 (operating mode BALANCE & DIM)

DALI addresses: 2

DMX51224VPWM

Both strip LEDs (Front Light and Back Light) are connected to the same power supply, so they can be turned on, off, and dimmed simultaneously. It is also possible to turn the Front Light on and off, while the Back Light strip LEDs is on.

LED MODULE TUNABLE WHITE 2200K-4000K CRI90 715lm 17,2W 24Vdc PWM

Requires constant voltage remote power supply for TUNABLE WHITE and DMX or DALI controll

LED MODULE 3000K CRI90 1472lm 21W (on request 2700K CRI90 1384lm) (on request 4000K CRI90 1620lm) 220V-240Vac 50/60Hz Dimmable DALI 2 PUSH

The strip LEDs (Front Light and Back Light) are connected to two different power supplies, allowing them to be turned on, off, and dimmed independently from each other.

LED MODULE RGB-W (W=3000K) CRI90 21W 24Vdc PWM

Requires constant voltage remote power supply for RGBW and DMX controll

N.B.

Dimensions 260mm x260mm x100mm N.B.

In the Tunable White and RGBW versions, the strip LEDs (Front Light and Back Light) can only be turned on, off, and dimmed simultaneously.

BOX POWER SUPPLY FOR RGBW 60W (15W for 4 channels) 230V/24V PWM

DMX address included controlled by DMX (type S.2451) protocol IP55 CLASS II SELV Dimensions 260mm x260mm x100mm

S.2475

POWER SUPPLY DALI DIMMABLE FOR TUNABLE WHITE

75W (2 channels) 230V/24V PWM

DIMMABLE DALI DT8 (operating mode BALANCE & DIM)

DALI addresses: 1

IP20 CLASS II SELV

Dimensions 293mm x43mm x30mm

50/60Hz Dimmable DALI

LED MODULE RGB-W (W=3000K) CRI90 30,5W

50/60Hz Dimmable DMX

N.B.

In the Tunable White and RGBW versions, the strip LEDs (Front Light and Back Light) can only be turned on, off, and dimmed simultaneously.

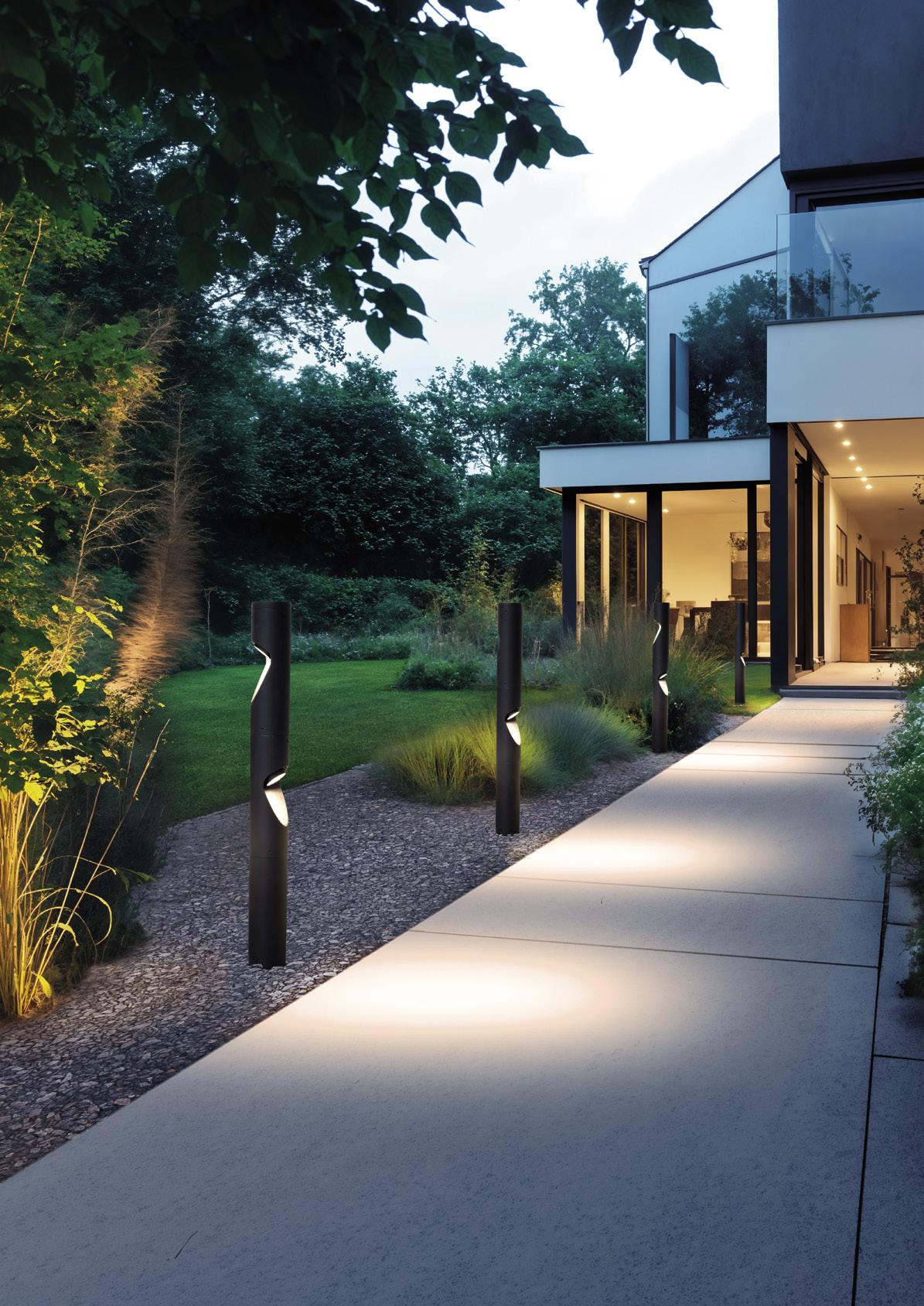

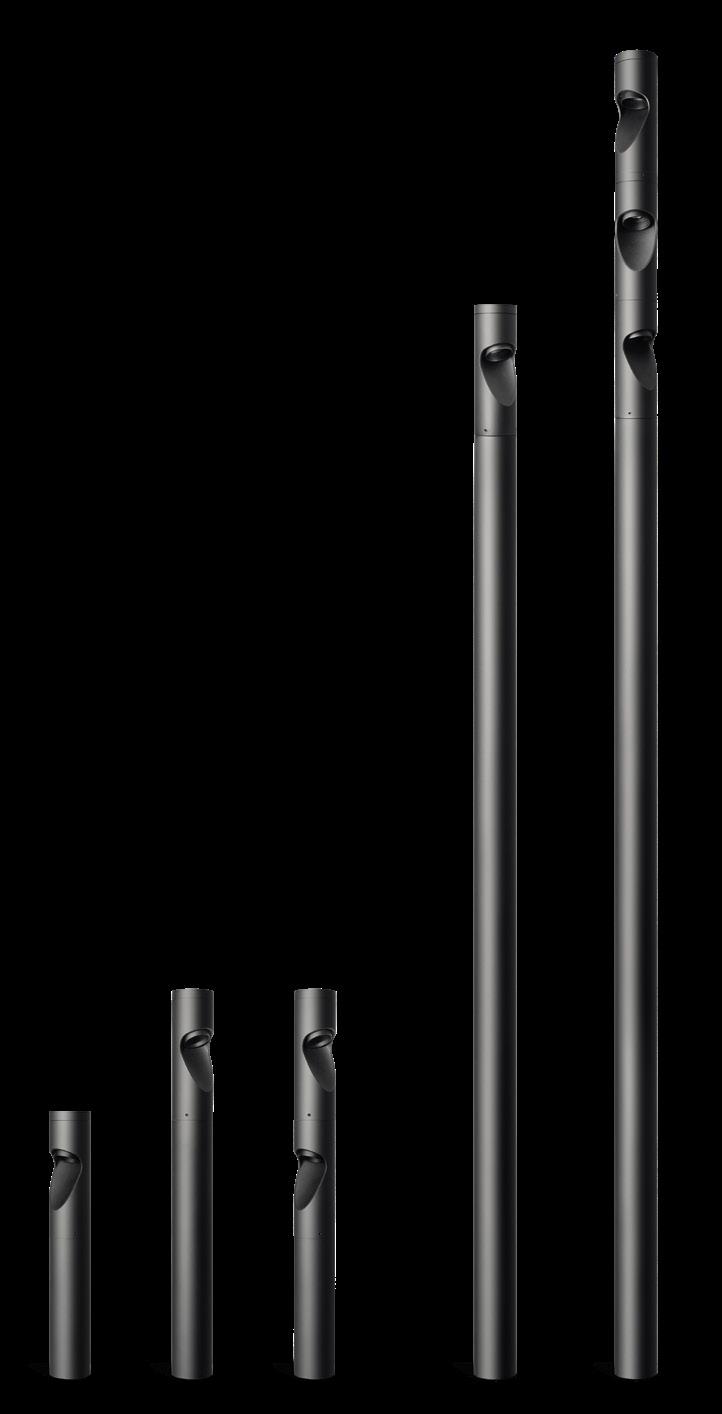

Minishift

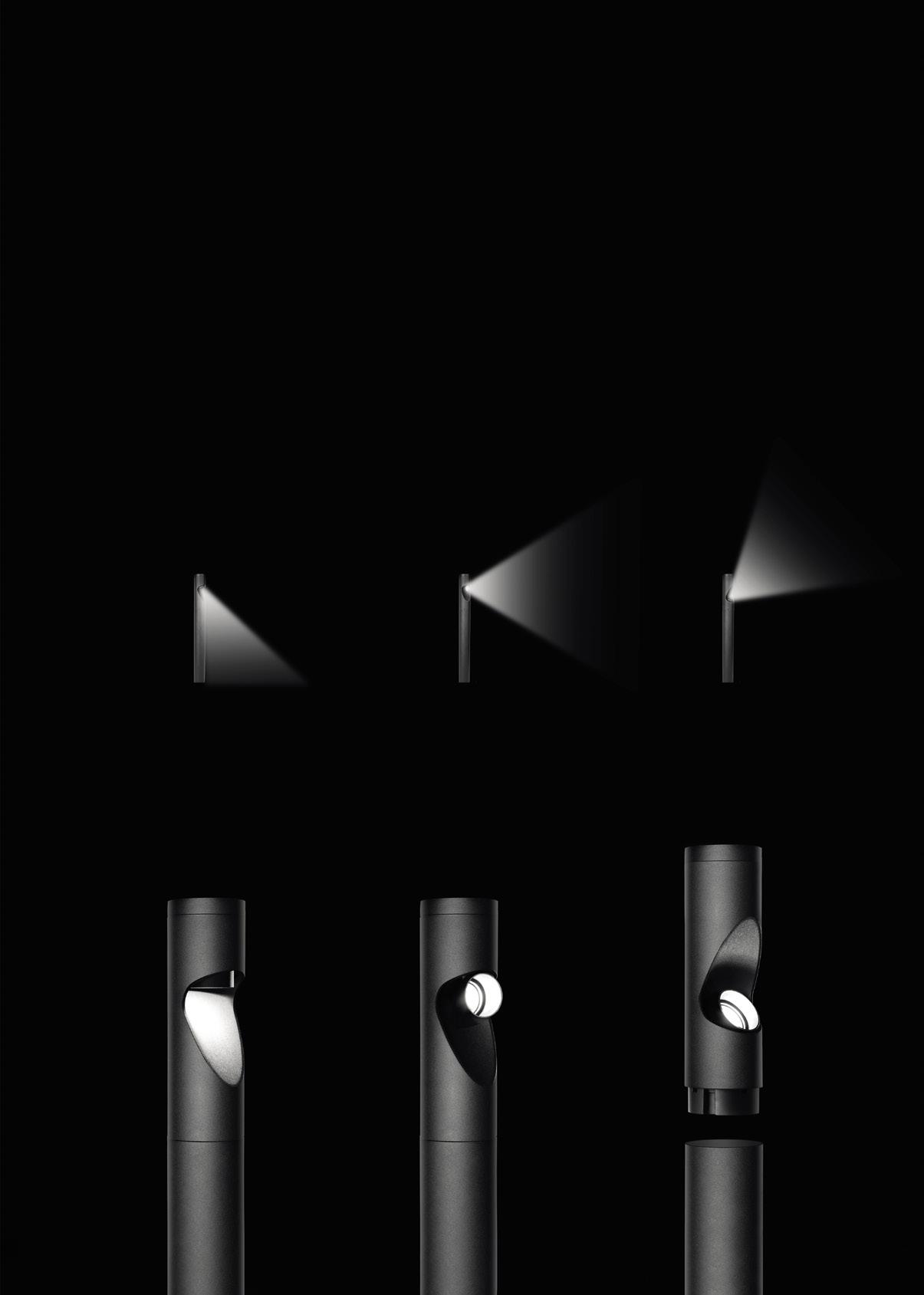

MINISHIFT

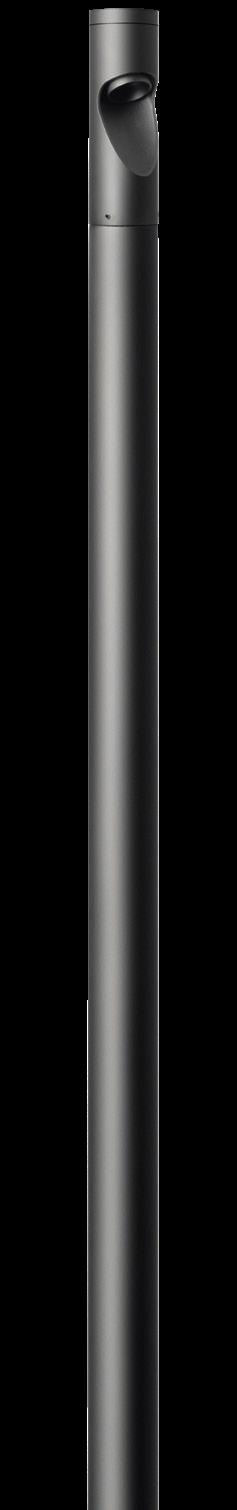

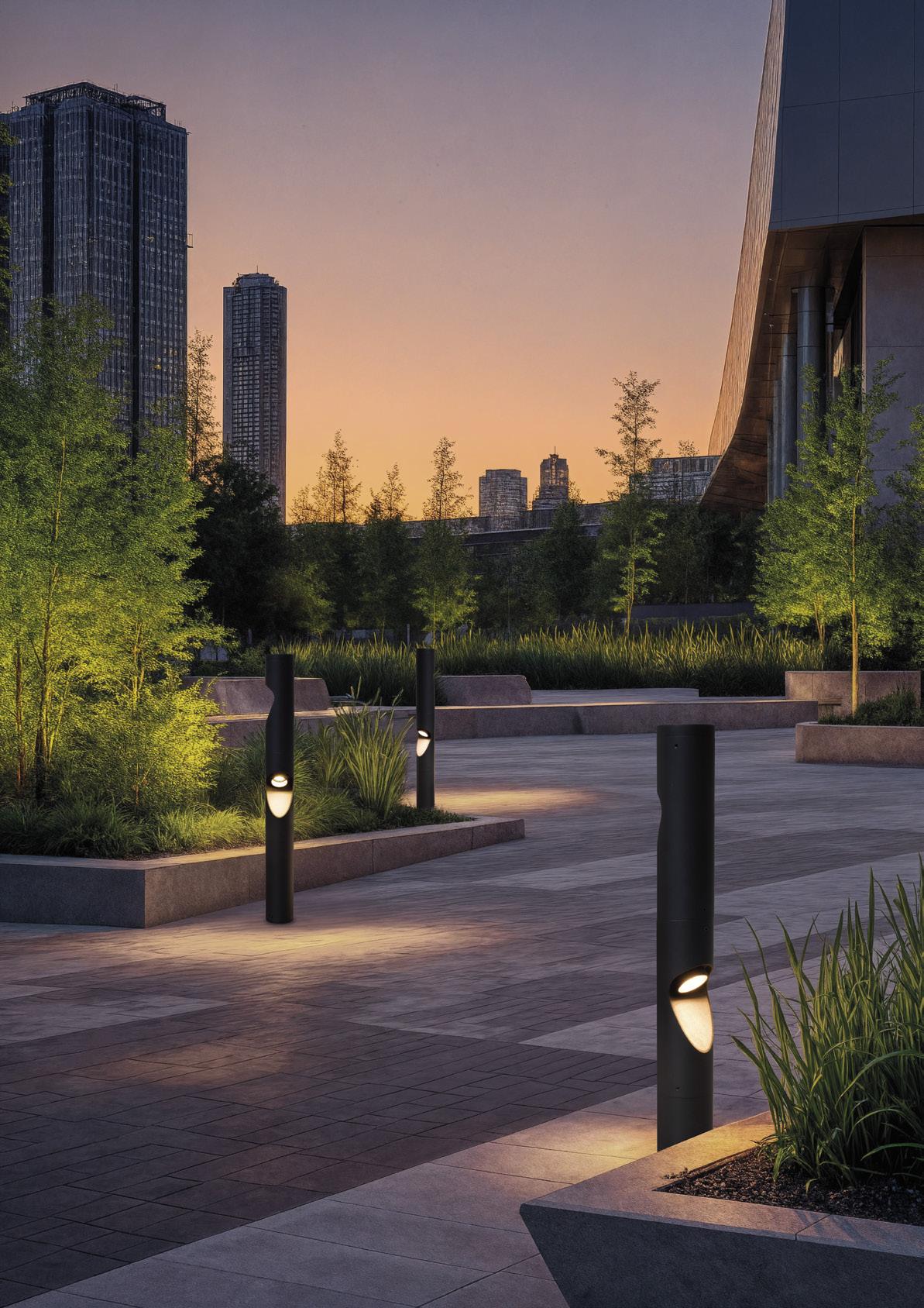

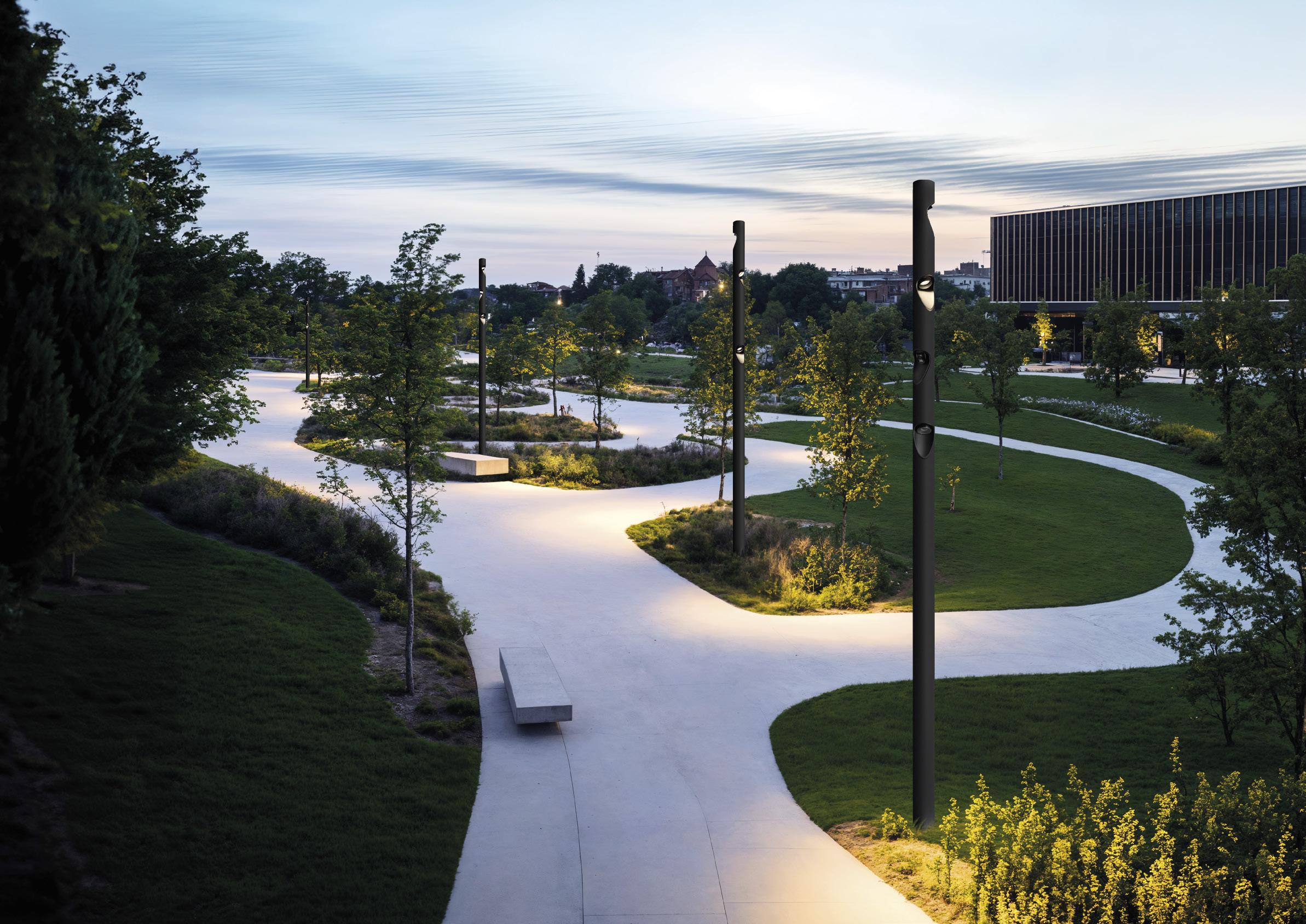

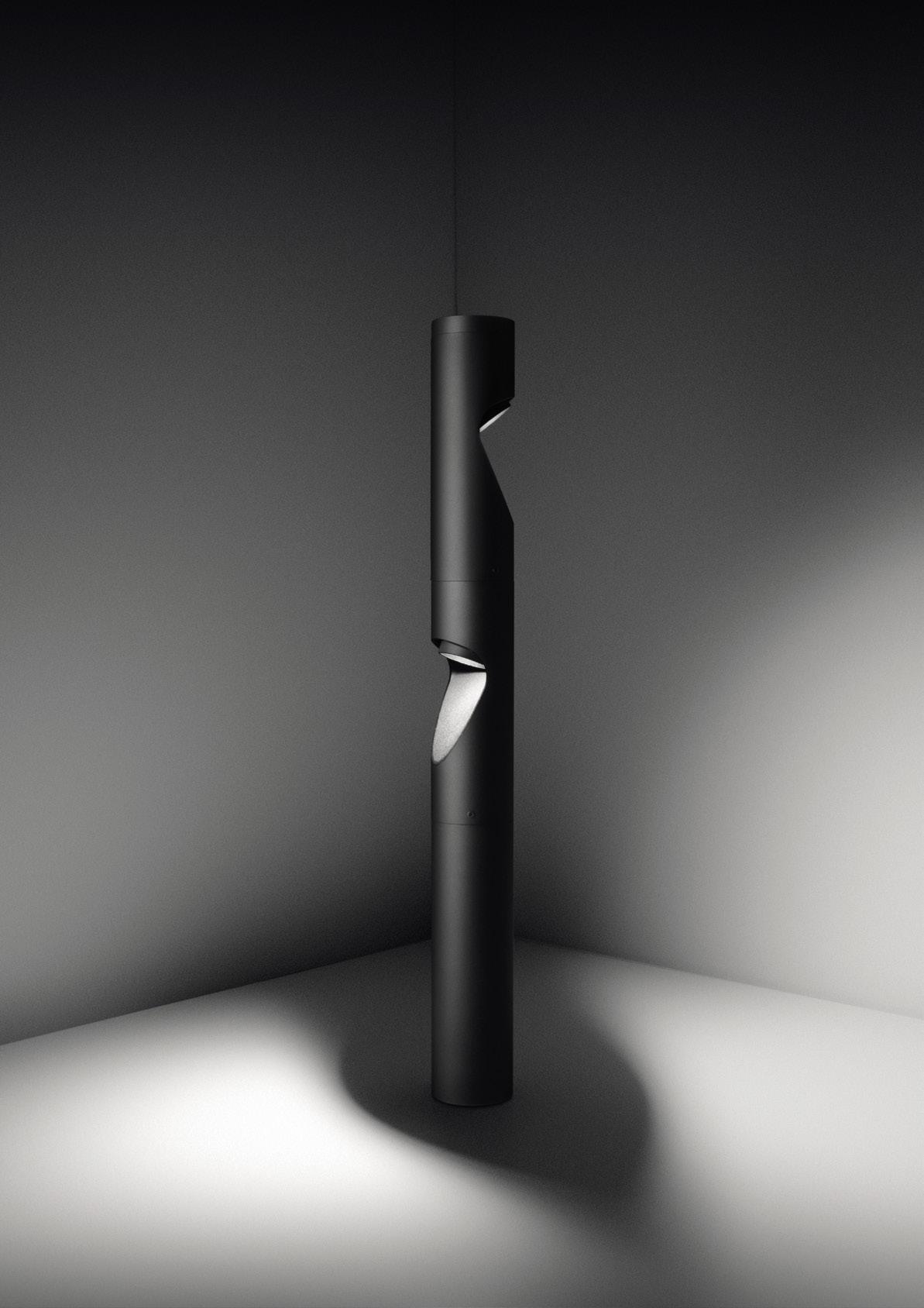

Minishift is a family of poles and urban elements with an elegant design, equipped with adjustable LED spotlights integrated in the cylindrical structure. Each head can rotate 360° and tilted upside down while the integrated spotlight can tilt up to 90° and direct the light beam everywhere.

Available in three standard versions (H635, H950, H3285), it gives the possibility of adding up to two additional heads. Made of aluminium with IP66 protection and resistance IK10, it is ideal for parks, squares and pedestrian paths.

TECHNICAL DESCRIPTION

Extruded aluminium profile (pole), diecast aluminium housing (top and lighting element) with high corrosion resistance. Transparent extra-clear toughened glass diffuser 5mm thick. Stainless steel Allen screws with insulating treatment against galvanic corrosion. Luminaire supplied with 2 x neoprene H05RN-F cables and connectors for multiple head connections. Double powder paint. REGISTERED DESIGN

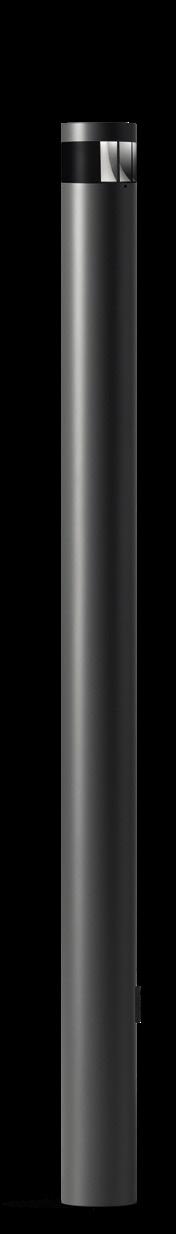

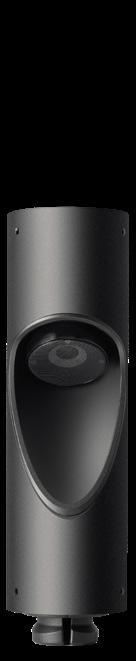

MINISHIFT BOLLARD

MINISHIFT BOLLARD H 635mm 1

MINISHIFT BOLLARD H 950mm 1 HEAD

BOLLARD 1 HEAD WITH 51° OPTIC

LED MODULE 3000K CRI90 1432lm 12,8W

(on request 2700K CRI90 1356lm)

(on request 4000K CRI80 1529lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

BOLLARD 1 HEAD WITH ELLIPTICAL OPTIC

LED MODULE 3000K CRI90 1432lm 12,8W

(on request 2700K CRI90 1356lm)

(on request 4000K CRI80 1529lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

FLANGE ACCESSORY FOR MINISHIFT BOLLARD Flange to be buried in concrete

Additional heads (see following pages)

Possibility to add to MINISHIFT BOLLARD H635 up to two additional heads, obtaining a configuration of two or maximum three heads.

MINISHIFT POLE

BOLLARD 1 HEAD WITH 51° OPTIC

LED MODULE 3000K CRI90 1432lm 12,8W

(on request 2700K CRI90 1356lm)

(on request 4000K CRI80 1529lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

BOLLARD 1 HEAD WITH ELLIPTICAL OPTIC

LED MODULE 3000K CRI90 1432lm 12,8W (on request 2700K CRI90 1356lm) (on request 4000K CRI80 1529lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

FLANGE ACCESSORY FOR MINISHIFT BOLLARD

Flange to be buried in concrete

Additional heads (see following pages)

Possibility to add to MINISHIFT

accessory to be choosen between Anchoring or Fixing Base for Minishift Poole

(see

MINISHIFT ADDITIONAL HEADS

Additional heads

Possibility to add to MINISHIFT BOLLARD AND MINISHIFT POLE up to two additional heads, obtaining a configuration of two or maximum three heads.

ADDITIONAL HEAD WITH 16° OPTIC

LED MODULE 3000K CRI90 1432lm 12,8W

(on request 2700K CRI90 1356lm)

(on request 4000K CRI80 1529lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

ADDITIONAL HEAD WITH 51° OPTIC

LED MODULE 3000K CRI90 1432lm 12,8W

(on request 2700K CRI90 1356lm)

(on request 4000K CRI80 1529lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

ADDITIONAL HEAD WITH ELLIPTICAL OPTIC

LED MODULE 3000K CRI90 1432lm 12,8W

(on request 2700K CRI90 1356lm)

(on request 4000K CRI80 1529lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

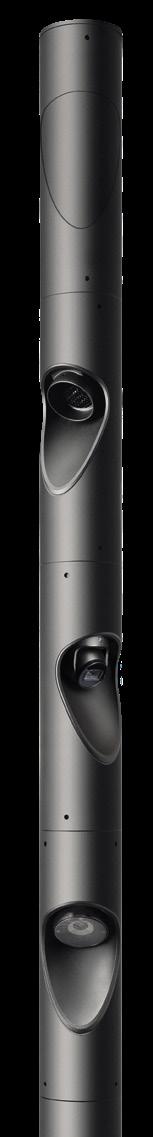

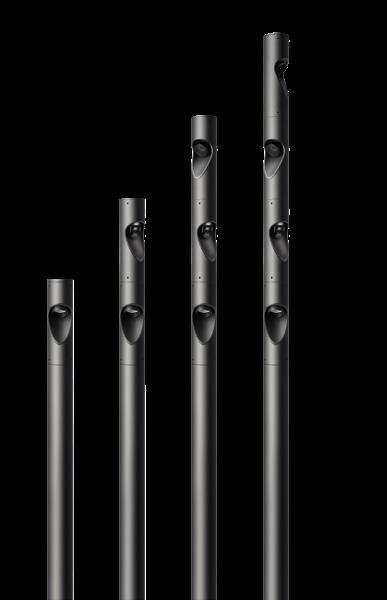

Shift Pro

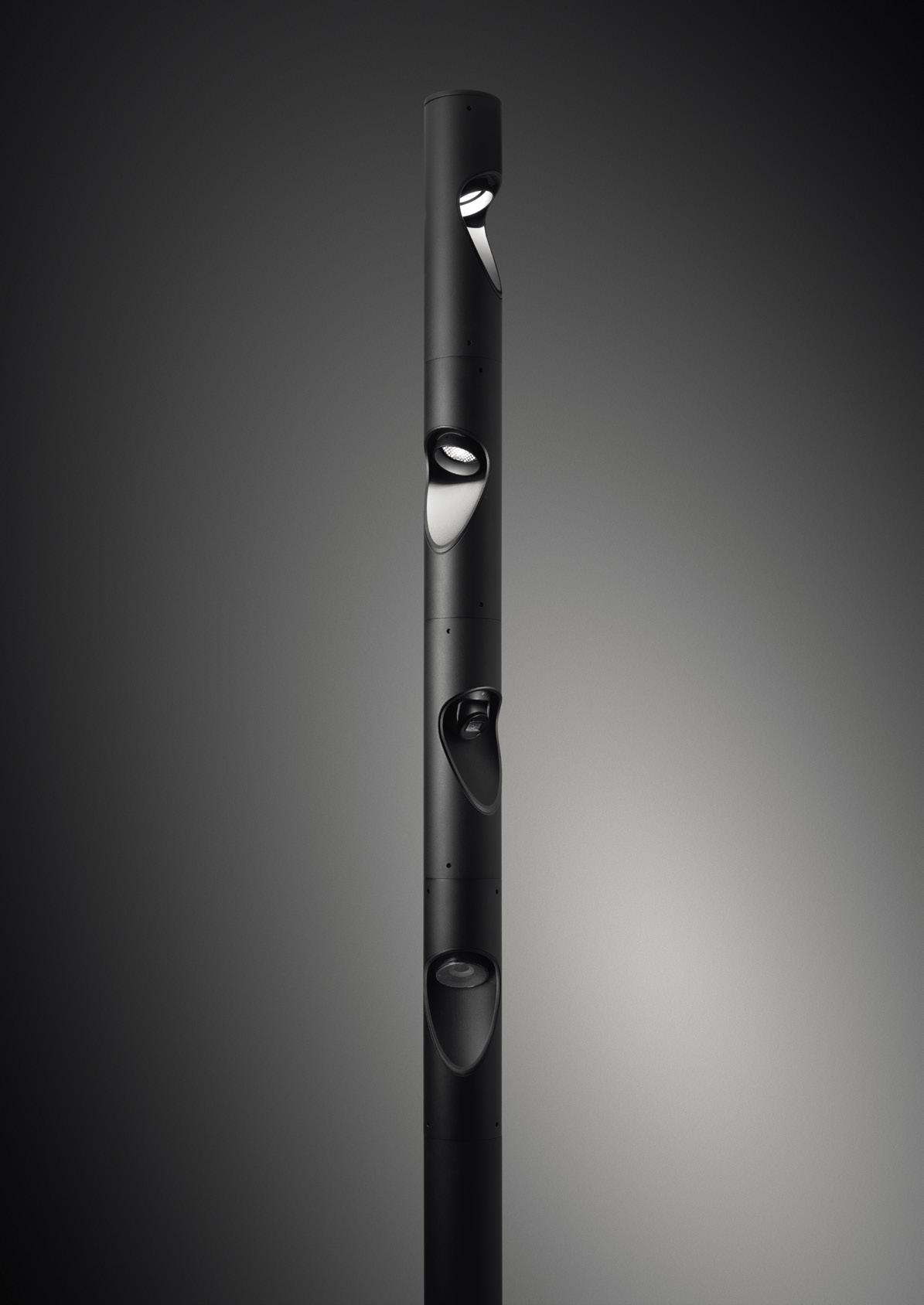

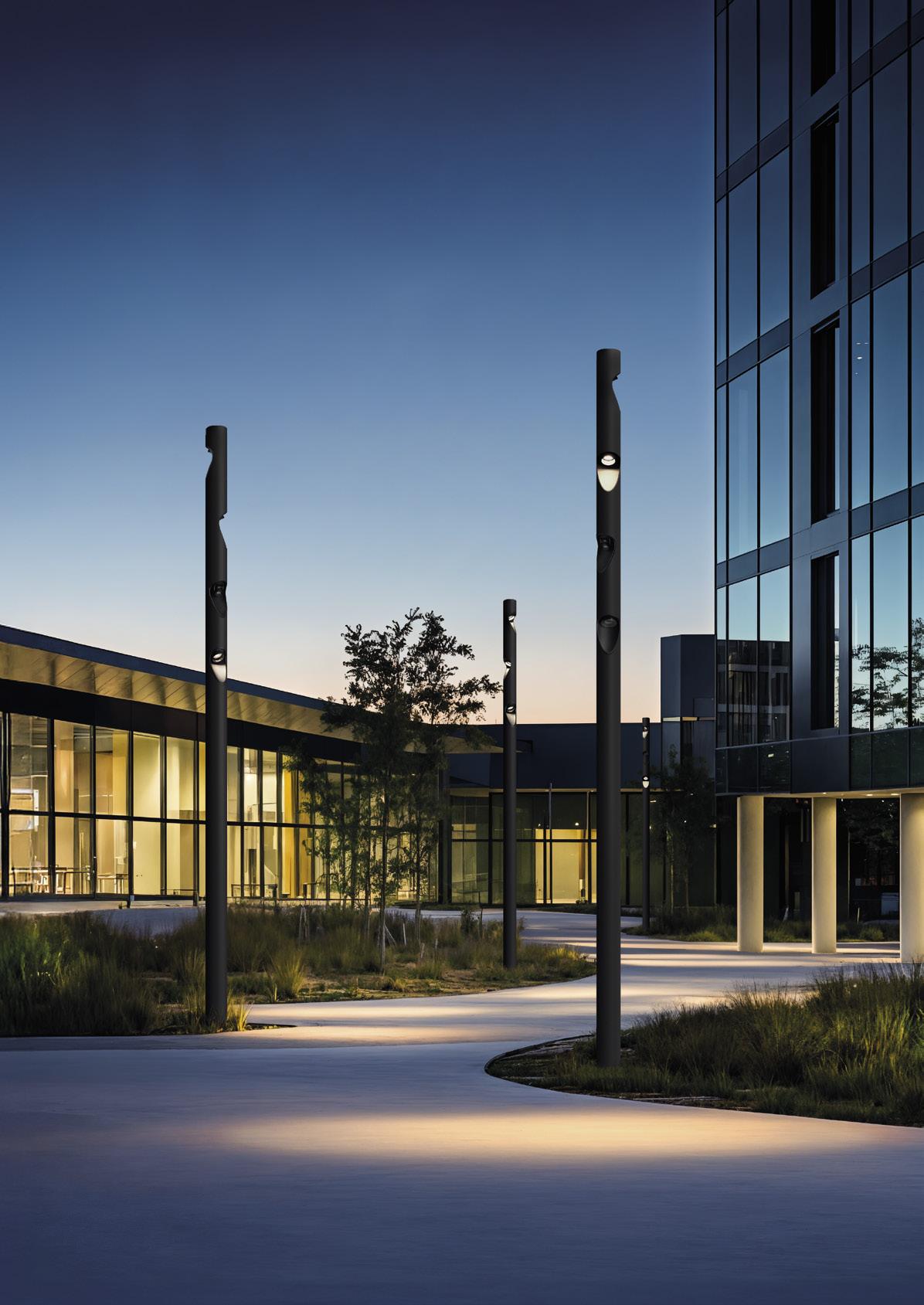

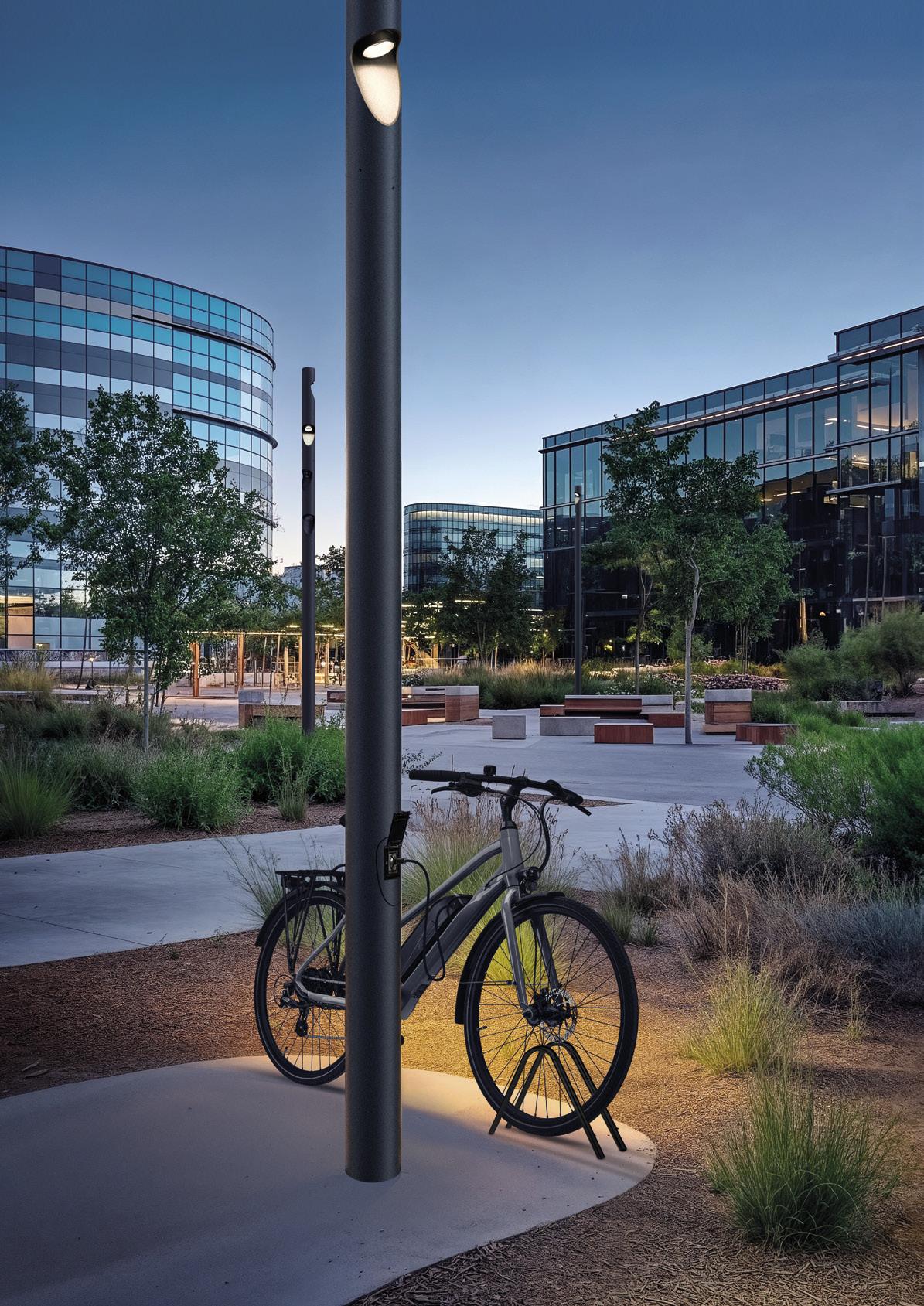

SHIFT PRO is the evolution of the MINISHIFT family: a larger (Ø150 mm), more powerful, and versatile urban element that can be equipped with up to four heads with different functions. The standard pole comes with an adjustable and DALI-dimmable Lighting Head, to which up to three additional heads can be added, chosen from: additional lighting elements, an IP67 security camera, an IP65 acoustic speaker or top head ready for a Wi-Fi access point.

A door with an electrical socket for charging scooters or e-bikes is also available as an accessory. This flexibility makes it a multifunctional element for security and smart management of public spaces, urban areas, and private environments.

With an IP66 protection rating and IK10 impact resistance, it is designed to ensure reliability and durability in any setting. A true technological hub that seamlessly combines lighting, security, and connectivity into one elegant and highperformance solution.

TECHNICAL DESCRIPTION

Extruded aluminium profile (pole and top), die-cast aluminium housing (lighting element) with high corrosion resistance. Transparent extra-clear toughened glass diffuser 8mm thick. Stainless steel Allen screws with insulating treatment against galvanic corrosion. Luminaire supplied with 2 x neoprene H05RN-F cables and connectors for multiple head connections. Double powder paint.

REGISTERED DESIGN PATENTED

Lighting fitting

Security camera Acoustic speaker

Top Head ready for Wi-Fi Access point

Door with electrical plug (type Schüko)

SHIFT PRO ADDITIONAL HEADS

POLE 1 HEAD WITH 19° OPTIC

LED MODULE 3000K CRI80 4216lm 26,7W

(on request 2700K CRI80 3996lm)

(on request 4000K CRI80 4267lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

POLE 1 HEAD WITH 56° OPTIC

LED MODULE 3000K CRI80 4216lm 26,7W

(on request 2700K CRI80 3996lm)

(on request 4000K CRI80 4267lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

POLE 1 HEAD WITH ELLIPTICAL OPTIC

LED MODULE 3000K CRI80 4216lm 26,7W

(on request 2700K CRI80 3996lm)

(on request 4000K CRI80 4267lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

Aluminium pole Ø 150 H 2950mm included. Pole must be fixed to the anchoring base (S.1489) to be securly buried in concrete, or fixing base (S.1488).

Mandatory accessory to be choosen between Anchoring or Fixing Base for Shift Pro Pole or

Additional heads (see following pages)

Possibility to add to SHIFT PRO POLE H3464 up to three additional heads, obtaining a configuration of maximum four heads.

Additional heads

Possibility to add to SHIFT PRO POLE up to three additional heads, obtaining a configuration of maximum four heads.

Accessory

IP54 DOOR WITH SCHÜKO ELECTRICAL PLUG

Hatch IP54 and with an integrated electrical plug type SCHÜKO to power electronic devices in the outdoor.

Available upon request with European electrical sockets.

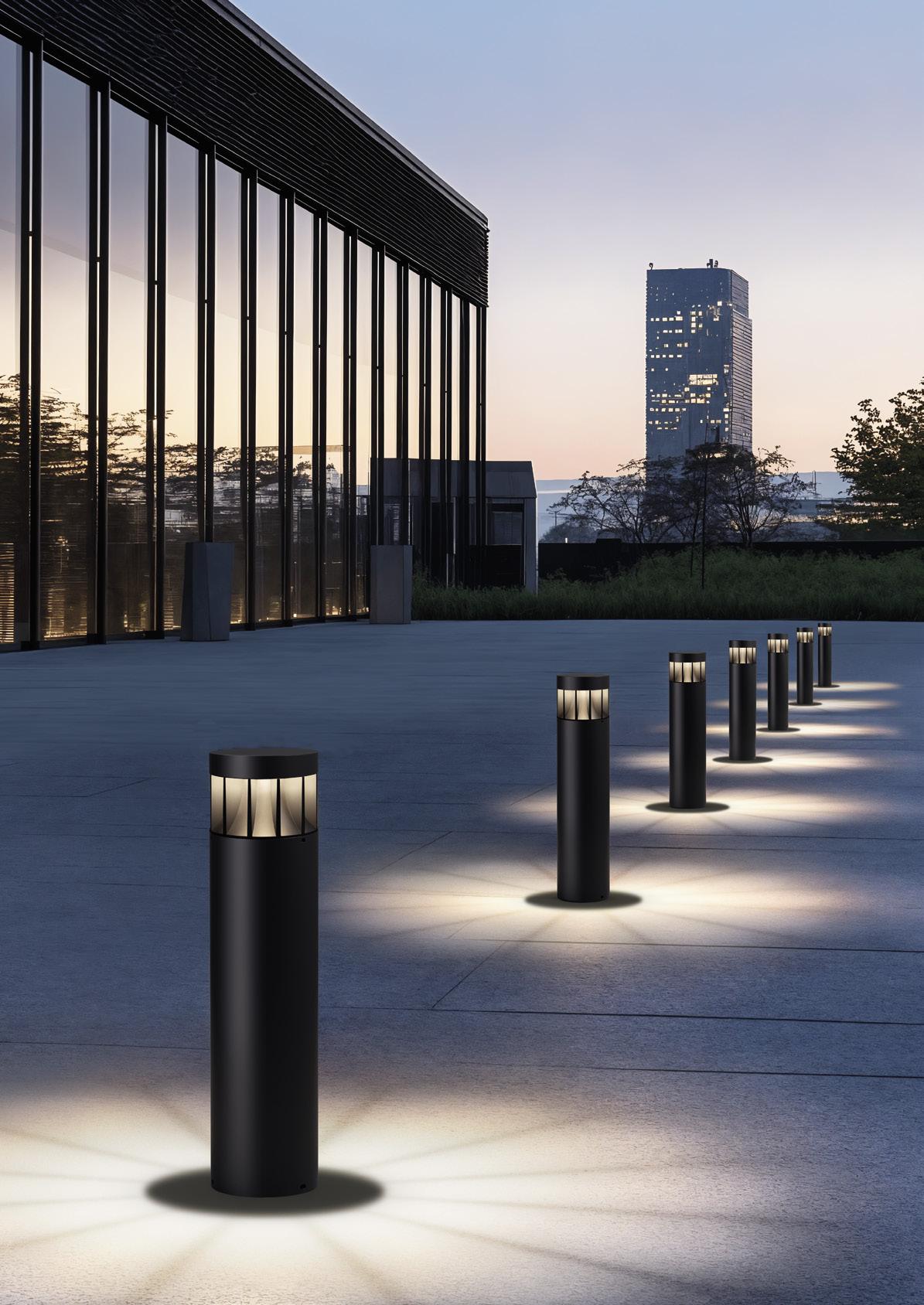

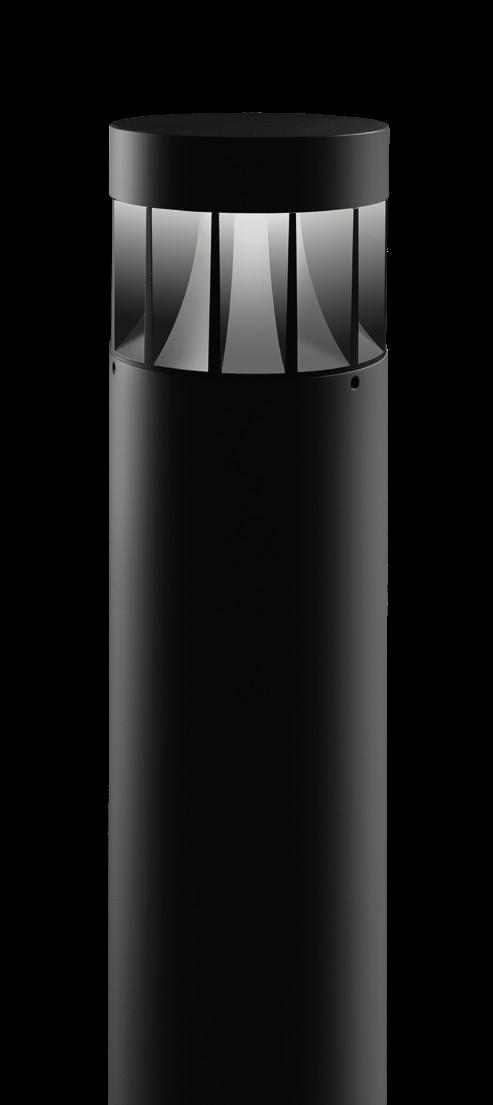

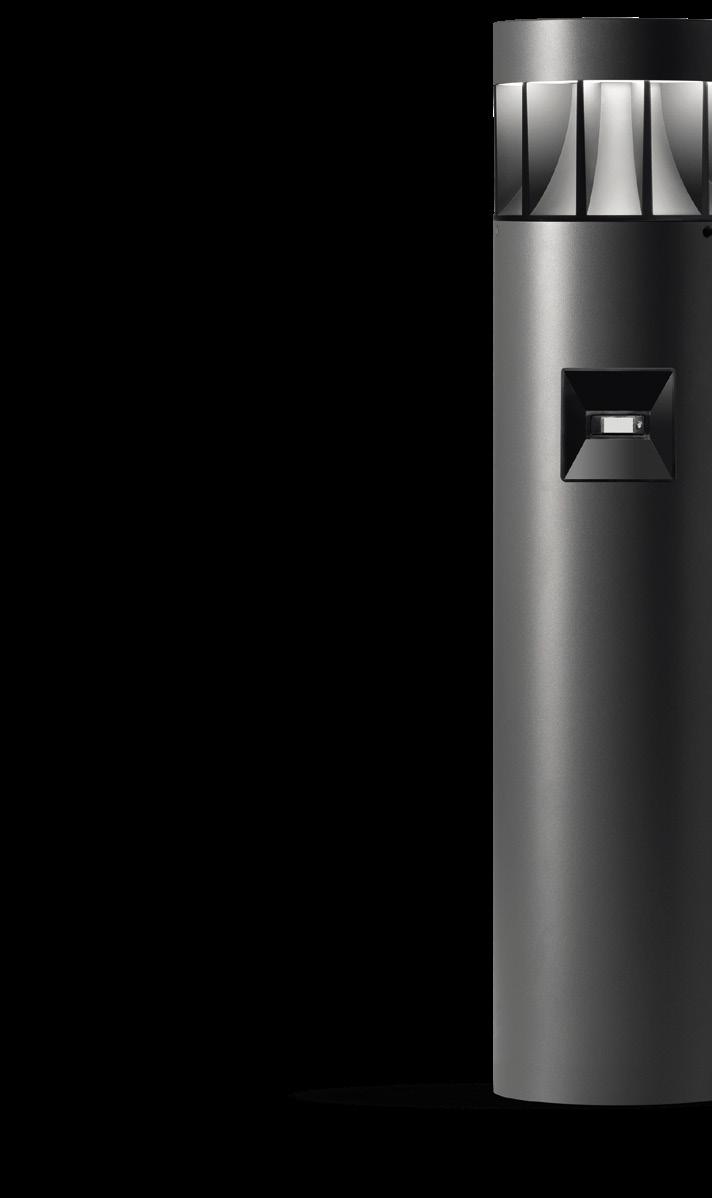

FIELD

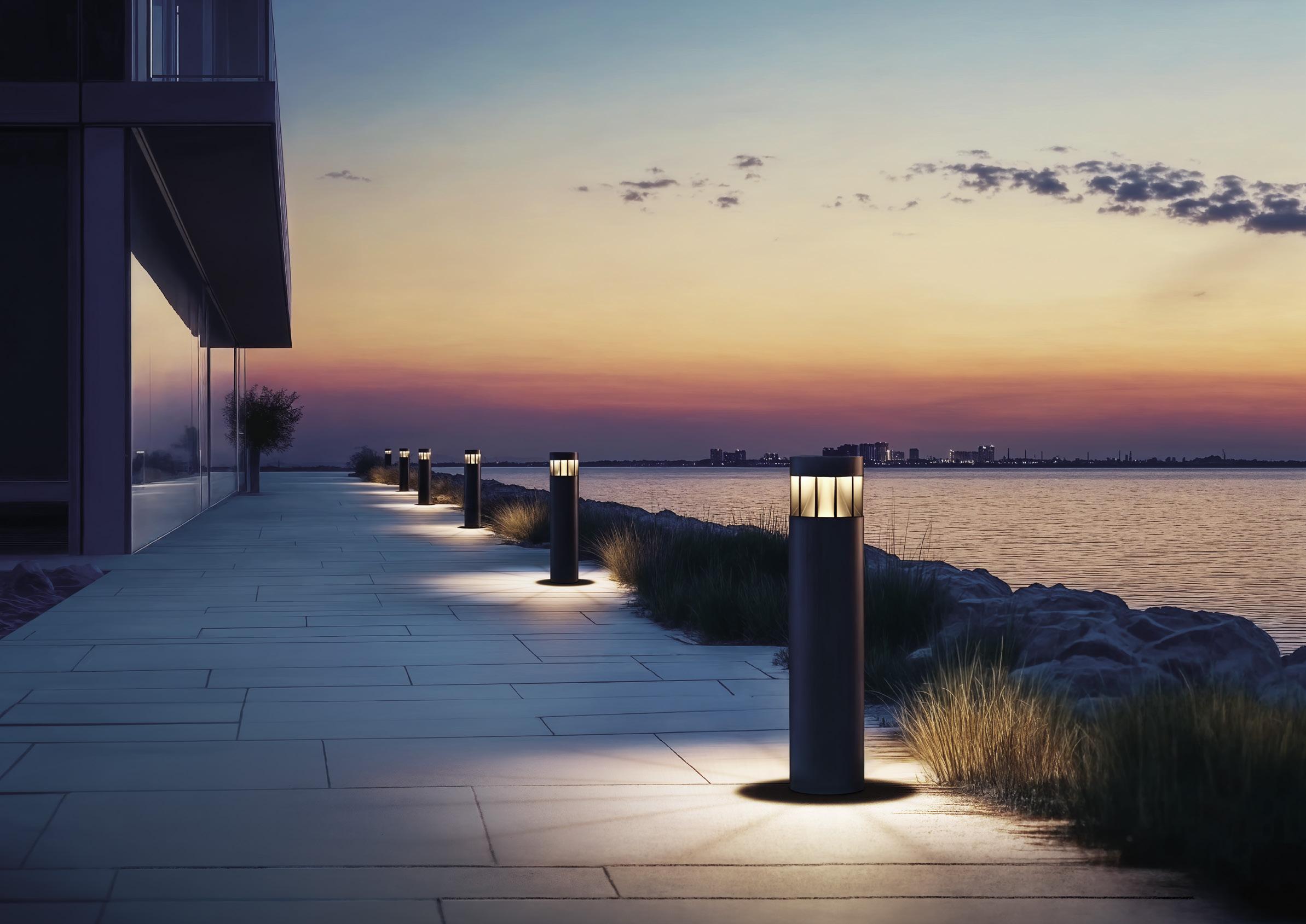

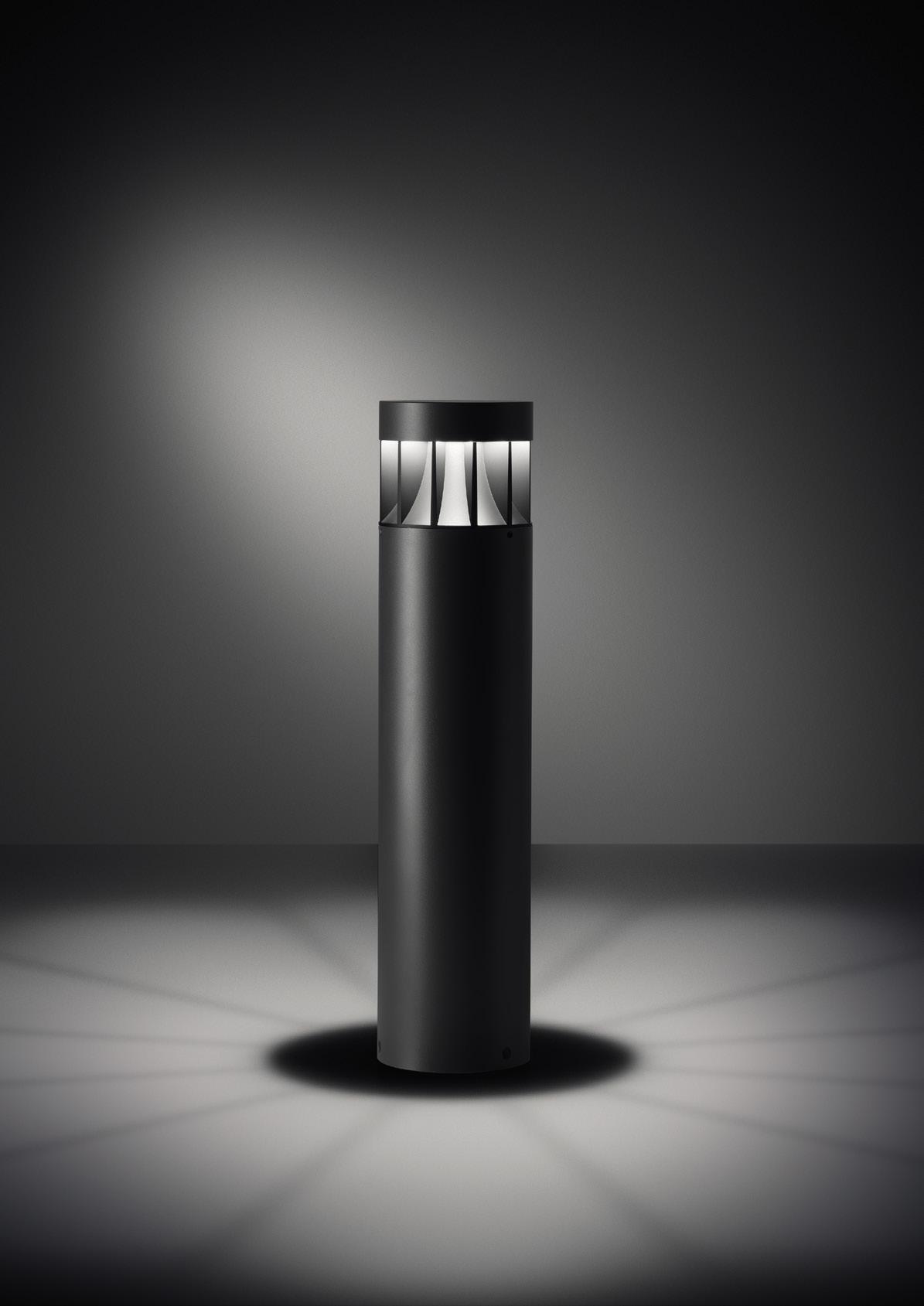

Field is an urban bollard and pole designed for high lighting performance in public and residential settings. With a solid structure and a clean, contemporary aesthetic, Field diffuses a homogeneous and welldistributed light and it is available in 180° emission (with 6 windows) or 360° emission (with 12 windows), adapting perfectly to pedestrian paths, parks and squares. The integration of the DALI driver allows dynamic brightness control, improving efficiency and visual comfort. FIELD is also available in PLUG version and SENSOR version.

FIELD PLUG integrates an IP54-rated door with an electrical socket to power electronic devices outdoors.

FIELD SENSOR is equipped with an IP65-rated presence sensor, allowing the activation and configuration of a sequence of connected bollards when a person passes close to the sensor.

TECHNICAL DESCRIPTION

Extruded aluminium profile, head and base in die-cast aluminium with high corrosion resistance. Trasparent extra-clear toughened glass diffuser. Stainless steel Allen screws with insulating treatment against galvanic corrosion. Luminaire supplied with neoprene H05RN-F cable. Silicone gaskets. Double powder paint. REGISTERED DESIGN

FIELD PLUG is equipped with hatch IP54 and with an integrated electrical plug type SCHÜKO to power electronic devices in the outdoor (available upon request with european electrical sockets).

FIELD SENSOR is equipped with DALI STAND-ALONE presence sensor IP65 (not interfaced to DALI home automation) and it switches on when something is detected. Through a specific APP it is possible to set the product on the desired amount of light (up to a maximum of 32 products in cascade).

S.4000W

LED MODULE 3000K CRI80 688lm 3,6W

(on request 2700K CRI80 653lm)

(on request 4000K CRI80 724lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

S.4002W

LED MODULE 3000K CRI80 1376lm 7,2W

(on request 2700K CRI80 1307lm)

(on request 4000K CRI80 1448lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

S.4004W

LED MODULE 3000K CRI80 688lm 3,6W (on request 2700K CRI80 653lm) (on request 4000K CRI80 724lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

S.4005W

LED MODULE 3000K CRI80 1376lm 7,2W (on request 2700K CRI80 1307lm) (on request 4000K CRI80 1448lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

S.4004WSEN1

LED MODULE 3000K CRI80 688lm 3,6W

(on request 2700K CRI80 653lm)

(on request 4000K CRI80 724lm)

220V-240Vac 50/60Hz with DALI STAND-ALONE presence sensor IP65

(not interfaced to DALI home automation)

S.4005WSEN1

LED MODULE 3000K CRI80 1376lm 7,2W

(on request 2700K CRI80 1307lm) (on request 4000K CRI80 1448lm)

S.4004WPLG1

LED MODULE 3000K CRI80 688lm 3,6W

(on request 2700K CRI80 653lm)

(on request 4000K CRI80 724lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH with IP54 door and SCHÜKO electrical plug

S.4005WPLG1

220V-240Vac 50/60Hz with DALI STAND-ALONE presence sensor IP65 (not interfaced to DALI home automation) LED

3000K CRI80 1376lm 7,2W

(on request 2700K CRI80 1307lm)

(on request 4000K CRI80 1448lm)

50/60Hz

Dimmable DALI 2 / PUSH with IP54 door and SCHÜKO

S.4015W

LED MODULE 3000K CRI80 2752lm 14,5W (on request 2700K CRI80 2614lm) (on request 4000K CRI80 2897lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

S.4015WSEN1

LED MODULE 3000K CRI80 2752lm 14,5W (on request 2700K CRI80 2614lm) (on request 4000K CRI80 2897lm)

220V-240Vac 50/60Hz with DALI STAND-ALONE presence sensor IP65 (not interfaced to DALI home automation)

S.4014WPLG1

electrical plug

S.4015WPLG1

LED MODULE 3000K CRI80 2752lm 14,5W (on request 2700K CRI80 2614lm) (on request 4000K CRI80 2897lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH with IP54 door and SCHÜKO electrical plug

LED MODULE 3000K CRI80 1376lm 7,2W

(on request 2700K CRI80 1307lm)

(on request 4000K CRI80 1448lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

S.4018W

LED MODULE 3000K CRI80 2752lm 14,5W (on request 2700K CRI80 2614lm)

(on request 4000K CRI80 2897lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

S.4017WSEN1

LED MODULE 3000K CRI80 1376lm 7,2W

(on request 2700K CRI80 1307lm)

(on request 4000K CRI80 1448lm)

220V-240Vac 50/60Hz with DALI STAND-ALONE presence sensor IP65 (not interfaced to DALI home automation)

S.4018WSEN1

LED MODULE 3000K CRI80 2752lm 14,5W

(on request 2700K CRI80 2614lm)

(on request 4000K CRI80 2897lm)

220V-240Vac 50/60Hz with DALI STAND-ALONE presence sensor IP65

(not interfaced to DALI home automation)

Flange Accessories for Field Ø 150mm and Field Ø 200mm

S.4017WPLG1

LED MODULE 3000K CRI80 1376lm 7,2W

(on request 2700K CRI80 1307lm)

(on request 4000K CRI80 1448lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH with IP54 door and SCHÜKO electrical plug

S.4018WPLG1

LED MODULE 3000K CRI80 2752lm 14,5W (on request 2700K CRI80 2614lm) (on request 4000K CRI80 2897lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH with IP54 door and SCHÜKO electrical plug

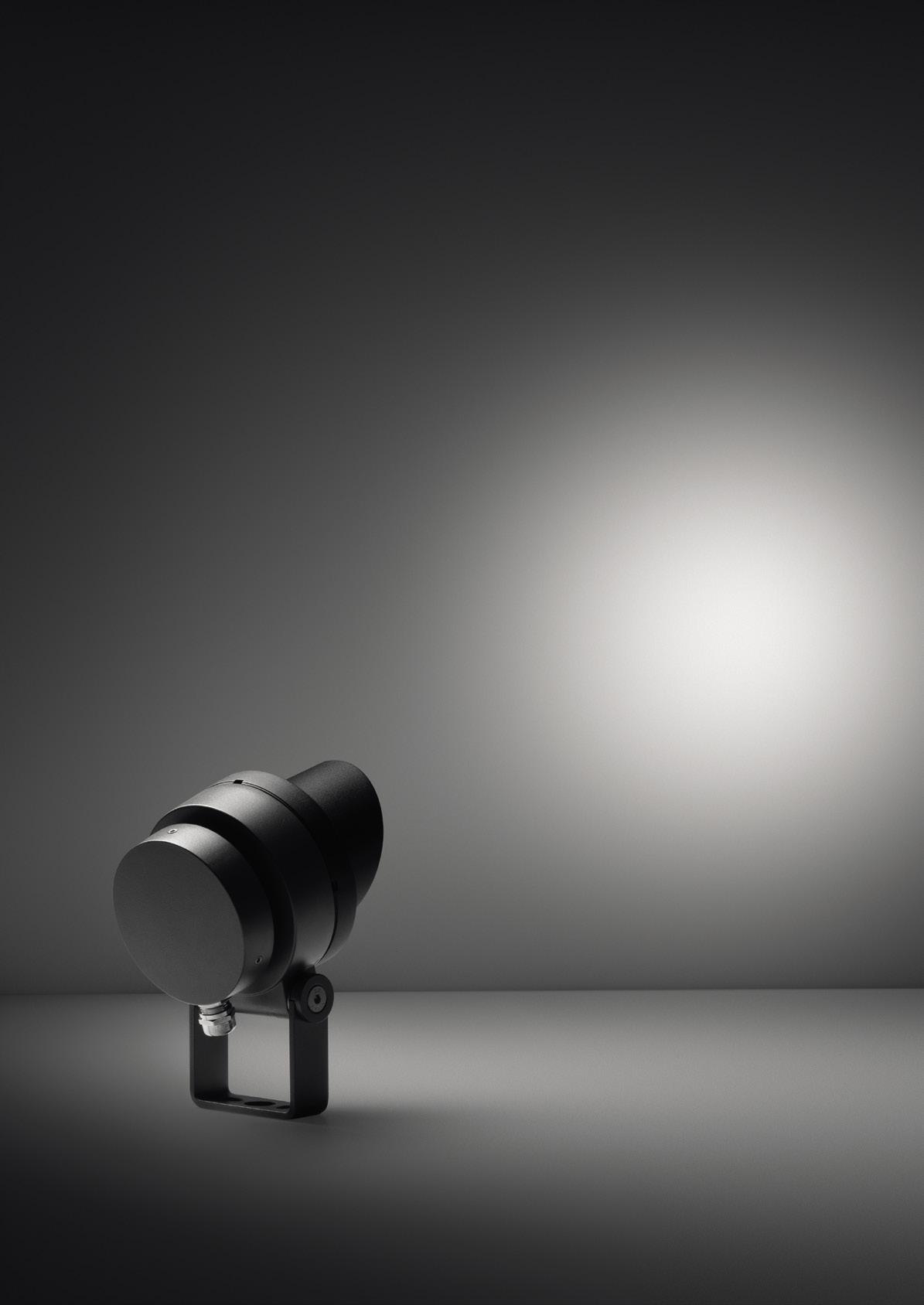

POINTER

Pointer is a family of high performance projectors available in different sizes, with Spot and Superspot light beams and a wide range of internal and external filters and accessories to modify the beam, offering a wide range of solutions.

It expresses the synthesis of the essential characteristics of a professional spotlight: design, strength, precision, visual comfort, high efficiency and luminous flexibility.

The family now consists of four different sizes. With MicroPointer, the range is completed by an even more compact version featuring a three-LED monochromatic circuit, reduced dimensions, and performance suited to various design situations.

MiniPointer, Pointer e MegaPointer are available in White, Tunable White or RGBW versions for maximum design freedom.

MiniPointer is also available with DIGITAL BEAM optics. This version uses LensVector™ technology to digitally control the shape of the light by modulating the beam directly from mobile devices or advanced control systems.

TECHNICAL DESCRIPTION

Die-cast aluminium housing with high corrosion resistance. Clear polycarbonate lenses. Transparent extra-clear toughened glass diffuser: 5mm MICROPOINTER, 5mm MINIPOINTER, 6mm POINTER, 8mm MEGAPOINTER. Stainless steel Allen screws with insulating treatment against galvanic corrosion. Silicone gaskets. Double powder paint.

MICROPOINTER

Luminaire supplied with neoprene 5,0m H05RN-F cable.

MINIPOINTER, POINTER AND MEGAPOINTER Luminaire supplied with neoprene 0,5m H05RN-F cable and connector.

POINTER RGBW AND MEGAPOINTER RGBW Luminaire supplied with neoprene 0,5m H05RN-F cable and connector + N°2 DMX 0,5m cables and connectors.

REGISTERED DESIGN

INSULATION

II q MICROPOINTER, MINIPOINTER (White LED) CLASS III  MINIPOINTER (Tunable, RGBW, Digital Beam)

CLASS II q POINTER and MEGAPOINTER MECHANICAL RESISTANCE IK 08

IK 09 MINIPOINTER e POINTER IK 10 MEGAPOINTER

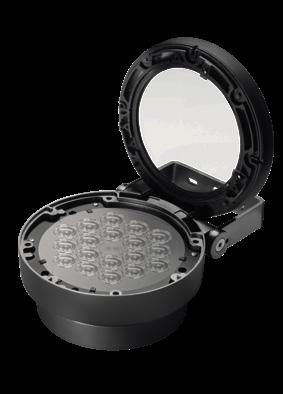

Interchangeable filters

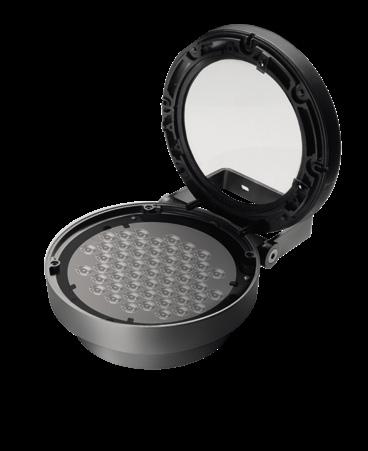

The Pointer has remarkable light flexibility thanks to the use of interchangeable filters that can modify the shape and width of the beam.

The optical system has been designed with hinges and anti-loss screws to allow filters to be easily replaced or added. The honeycomb accessory shields the source when maximum visual comfort is required and is also fitted inside the optical compartment, in a protected position between the source and the glass.

S.2760W

LED MODULE 3000K CRI80 663lm 6,0W

(on request 2700K CRI80 603lm)

(on request 4000K CRI80 687lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

S.2761W

LED MODULE 3000K CRI80 900lm 6,1W

(on request 2700K CRI80 840lm)

(on request 4000K CRI80 960lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

Internal accessories: holographic filters Holographic filters can be added to the standard optics to modify the beam and obtain a 30° medium beam, or 60° Wide Flood beam or an 60°x10° elliptical beam. The filters can be used in combination with all other internal and external accessories.

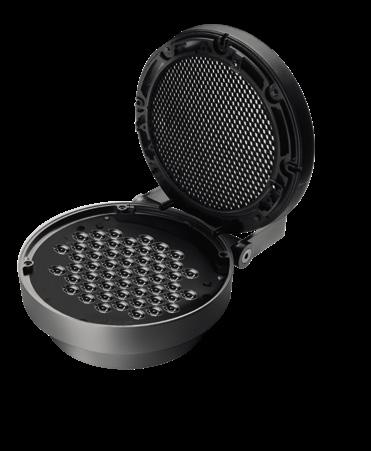

Internal accessory: honeycomb

External accessory: visor

The elliptical filter can be rotated freely to determine the direction of the major axis of the beam

HONEYCOMB Colour: black (code .09)

External accessory: snoot

VISOR

Colour: black (code .09) Length 100mm Diameter 127mm

SNOOT

Colour: black (code .09)

.09)

S.2700W

Super Spot beam 7LEDs with lenses

LED MODULE 3000K CRI80 2321lm 20,8W

(on request 2700K CRI80 1808lm)

(on request 4000K CRI80 2405lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

S.2701W

Internal accessories: holographic filters Holographic filters can be added to the standard optics to modify the beam and obtain a 30° medium beam, or 60° Wide Flood beam or an 60°x10° elliptical beam. The filters can be used in combination with all other internal and external accessories.

LED MODULE 3000K CRI80 3150lm 21,3W

(on request 2700K CRI80 2970lm)

(on request 4000K CRI80 3360lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

LED MODULE TUNABLE WHITE 2200K-4000K CRI80 2340lm 17,6W max 1050mA (Vf 9,0V for channel)

Requires constant current Vout 120Vdc max remote power supply

S.2703J

Spot beam 7LEDs with lenses Spot beam 6LEDs with lenses Spot beam 7LEDs with lenses

LED MODULE RGBW (W=3000K) 2047lm 18,9W 24V PWM

Requires constant voltage remote power supply for RGBW

S.3414

BOX POWER SUPPLY FOR TUNABLE WHITE

44,1W (2 channels) 230V/1050mA

DALI address included

controlled by DALI protocol

IP67 CLASS II SELV Dimensions 175,5mm x86,5mm x43mm

S.3411

BOX POWER SUPPLY FOR RGBW

60W (15W for 4 channels) 230V/24V PWM

DMX address included

controlled by DMX (type S.2451) protocol

IP55 CLASS II SELV Dimensions 260mm x260mm x100mm

S.2705W S.2701T

From Spot to Large adjustable beam

LED MODULE 3000K CRI90 1360lm 12,8W (on request 2700K CRI90 1292lm) (on request 4000K CRI90 1428lm) 48Vdc

Requires constant voltage 48Vdc remote power supply ON-OFF

Requires DALI controll to connect to the product

S.2448

POWER SUPPLY ON-OFF

31W 230V/48Vdc

IP67 CLASS II SELV Dimensions 120mm x38mm x25mm

13LEDs

LED MODULE 3000K CRI80 3283lm 29,5W

(on request 2700K CRI80 2985lm)

(on request 4000K CRI80 3402lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

LED MODULE 3000K CRI80 4457lm 30,2W

(on request 2700K CRI80 4160lm)

(on request 4000K CRI80 4754lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

LED MODULE 3000K CRI80 6299lm 56,6W

(on request 2700K CRI80 5726lm)

(on request 4000K CRI80 6527lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

LED MODULE 3000K CRI80 8550lm 57,9W

(on request 2700K CRI80 7980lm)

(on request 4000K CRI80 9120lm)

220V-240Vac 50/60Hz

Dimmable DALI 2 / PUSH

LED MODULE TUNABLE WHITE 2200K-4000K CRI80 5349lm 40,3W

220V-240Vac 50/60Hz

Dimmable DALI

POINTER Ø 255

Internal accessories: holographic filters

Holographic filters can be added to the standard optics to modify the beam and obtain a 30° medium beam, or 60° Wide Flood beam or an 60°x10° elliptical beam. The filters can be used in combination with all other internal and external accessories.

Internal accessory: honeycomb

LED MODULE RGBW (W=3000K) 3184lm 29,4W

220V-240Vac 50/60Hz

Dimmable DMX

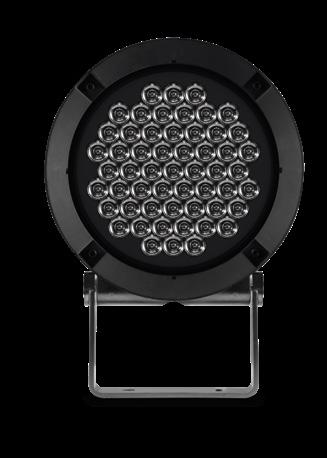

Super Spot beam 55LEDs with lenses

LED MODULE 3000K CRI80 12155lm 109,3W

(on request 2700K CRI80 11050lm)

(on request 4000K CRI80 12595lm)

220V-240Vac 50/60Hz Dimmable DALI 2 PUSH

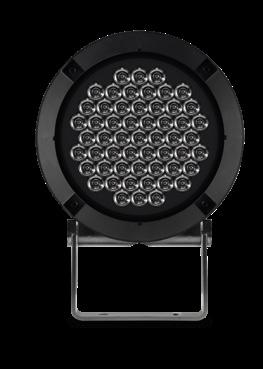

Spot beam 55LEDs with lenses

LED MODULE 3000K CRI80 21214lm 143,6W

(on request 2700K CRI80 19800lm)

(on request 4000K CRI80 22629lm)

220V-240Vac 50/60Hz Dimmable DALI 2 PUSH

Spot beam 52LEDs with lenses

LED MODULE TUNABLE WHITE 2200K-4000K CRI80 20280lm 82W

220V-240Vac 50/60Hz Dimmable DALI

Spot beam 52LEDs with lenses

LED MODULE RGBW (W=3000K) 13304lm 122,9W 220V-240Vac 50/60Hz Dimmable DMX

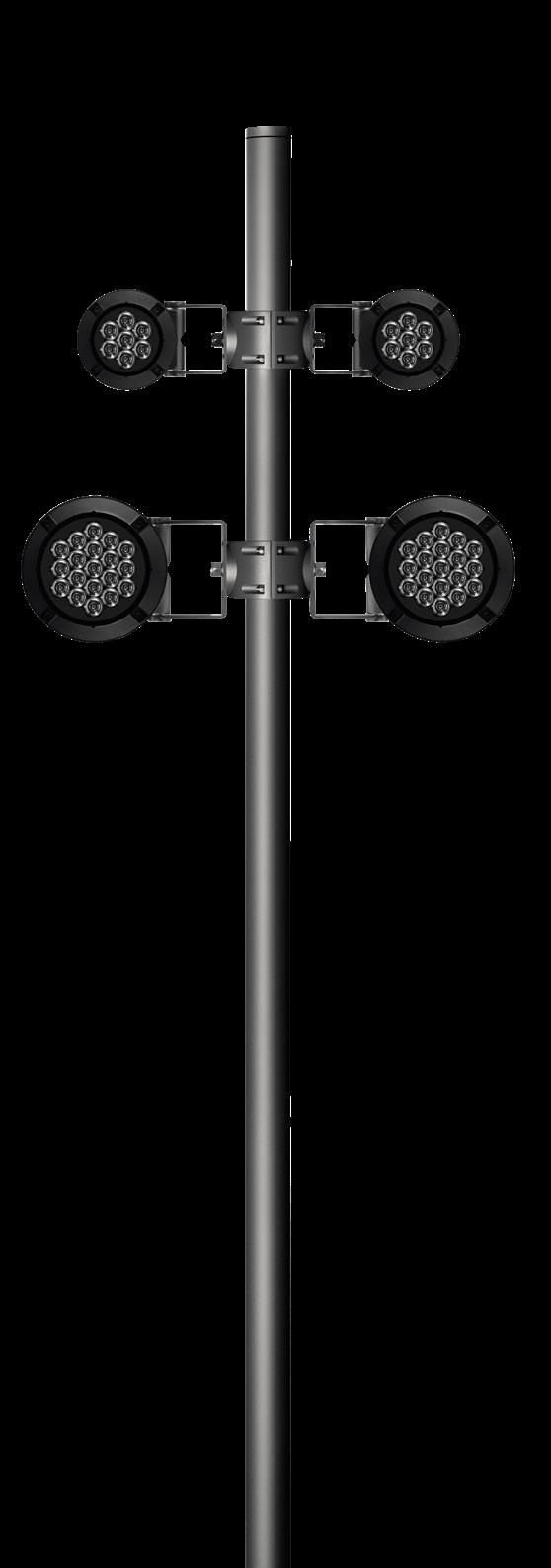

Brackets for pole installation

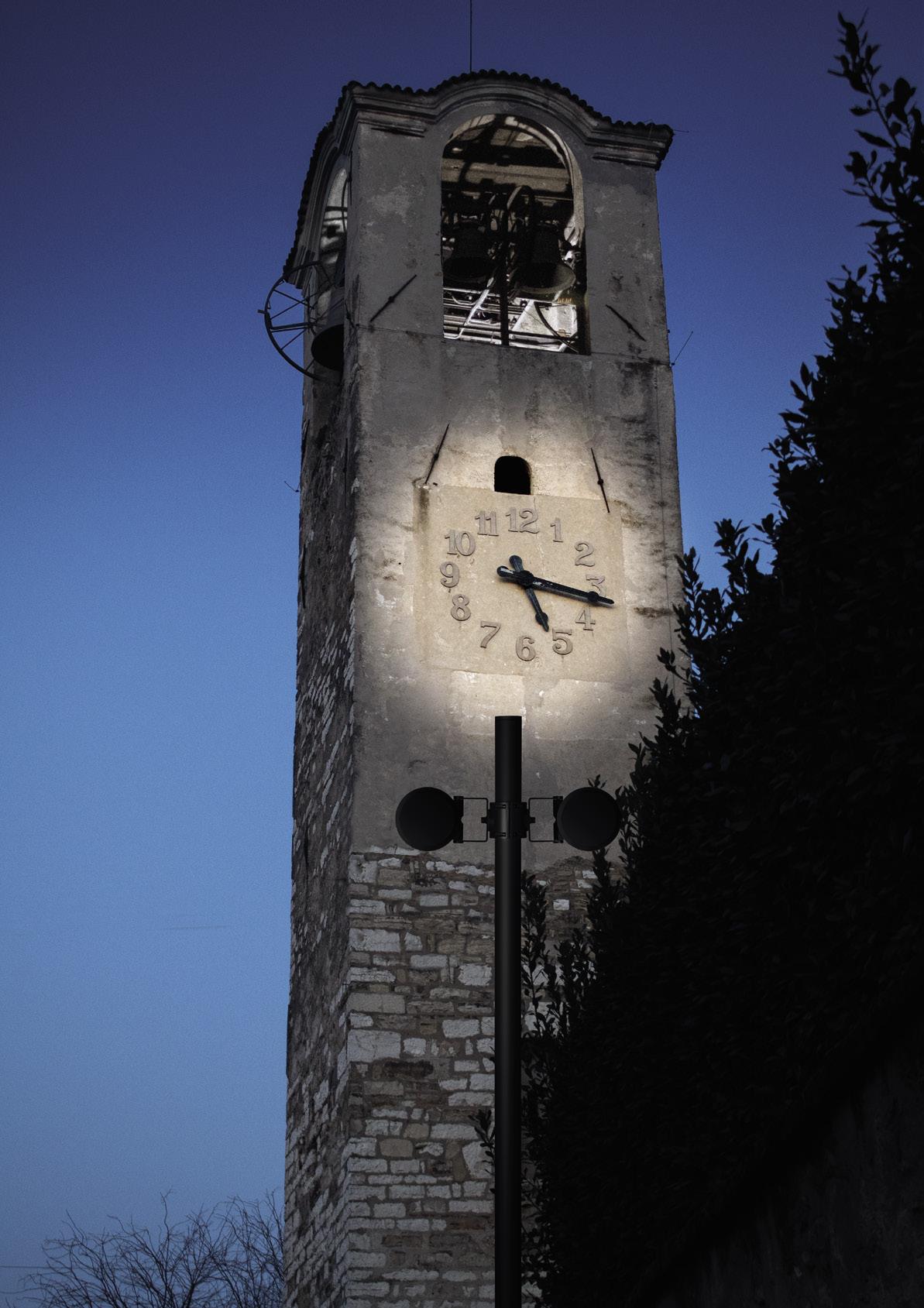

MicroPointer 125, MiniPointer 175, Pointer 255, MegaPointer 390 can be installed on a pole using anchor brackets.

BRACKET FOR POLE Ø 60mm INSTALLATION

Bracket in die-cast aluminium for MicroPointer 125, MiniPointer 175 and Pointer 255, suitable only for Ø 60mm poles. The Bracket can be used for maximum 2 projectors, one for each side.

S.1085

BRACKET FOR POLE Ø 76mm INSTALLATION

Bracket in die-cast aluminium for MicroPointer 125, MiniPointer 175 and Pointer 255, suitable only for Ø 76mm poles. The Bracket can be used for maximum 2 projectors, one for each side.

BRACKET FOR POLE Ø 102mm INSTALLATION

Bracket in die-cast aluminium for MiniPointer 175, Pointer 255 and MegaPointer 390, suitable only for Ø 102mm poles. The Bracket can be used for maximum 2 projectors, one for each side.

S.1239

BRACKET FOR POLE Ø 120mm INSTALLATION

Bracket in die-cast aluminium for MiniPointer 175, Pointer 255 and MegaPointer 390, suitable only for Ø 120mm poles. The Bracket can be used for maximum 2 projectors, one for each side.

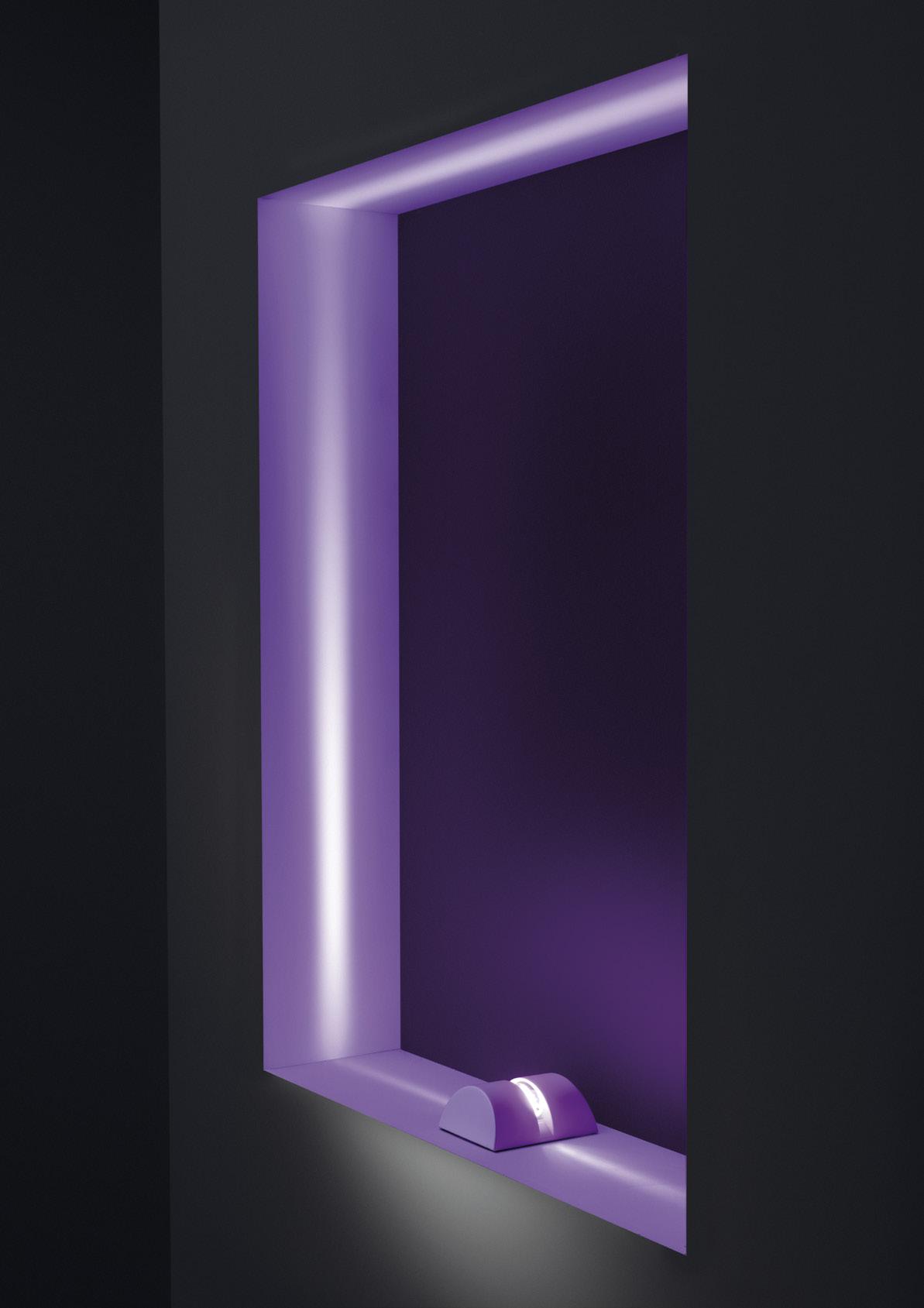

SHAPE

Shape creates uniform light on the window frames, producing charming light effects on residential, public, historical and artistic façades. Miniaturized, versatile and high performing: those are the characteristics of this luminaire which is able to illuminate even wide openings with a minimum energy consumption and its high functionality level.

The new RGBW version uses a single multichip LED which, thanks to the integrated DMX control, allows for the creation of colorful lighting effects.

In both monochromatic and RGBW versions, the LED is combined with a special 170°x6° radial emission lens.

The light fitting inclination can be easily adjusted to adapt to different tilted window sills for a proper lighting distribution.

TECHNICAL DESCRIPTION

Die-cast aluminium housing with high corrosion resistance. Protective Cover with clip locking system in Stainless steel with insulating treatment against galvanic corrosion. No visible screws. Clear policarbonate diffuser. Mini-shape Semicylindrical and Shape Rectangular supplied with 1x1,5m neoprene H05RN-F cable for connection with remote connection box. Shape Semi-cylindrical supplied with 2x5,0m in neoprene H05RN-F cables loopin loop-out. Luminaire. Silicone gaskets. Double powder paint.

REGISTERED DESIGN

AUTOMATED DMX/RDM MANAGEMENT

Shape Semi-cylindrical is equipped with a DMX/RDM module that allows automatic addressing of RGBW devices without manual configuration. The system assigns DMX addresses sequentially without external intervention. If necessary, each device can be managed individually via RDM protocol, avoiding the use of physical DIP switches for address configuration. Once programming is complete, the addressing module can be removed without affecting the system.

Minishape Semi-cylindrical

Shape Semi-cylindrical

SHAPE RECTANGULAR

Shape Rectangular

S.6425W S.6420W

Blade of Light beam with lens

LED MODULE 3000K CRI80 360lm 3,2W

(on request 2700K CRI80 305lm

(on request 4000K CRI80 360lm)

1200mA Vf 3,2V max With radial lens 170°x6°

Requires constant current Vout 120Vdc max remote power supply

Accessory for Minishape Semi-cylindrical

S.2414

DIMMABLE POWER SUPPLY DALI2, 0-10V e 1-10V

60W 230V/1200mA (Vout min 10V-Vout max 50V)

IP68 CLASS II SELV Dimensions 135mm x80mm x31mm

Blade of Light beam with lens

LED MODULE 3000K CRI80 360lm 3,2W (on request 2700K CRI80 305lm (on request 4000K CRI80 360lm) 220V-240Vac 50/60Hz ON/OFF Not Dimmable With radial lens 170°x6°

S.6430J

Blade of Light beam with lens

LED MODULE RGBW (W=3000K) 3,0W 24V PWM

Dimmable DMX RDM

Equipped with 2x 5,0m input/output cables for self-chaining. With radial lens 170°x6°

Requires constant voltage remote power supply 24Vdc (ON-OFF) and DMX controll

Accessories for Shape Semi-cylindrical

REMOTED DRIVER IP20 230V/24V

16W 230V/24Vdc IP20 CLASS II SELV Dimensions 110mm x50mm x20mm

S.2430 S.2435

REMOTED DRIVER IP67 230V/24V 16W 230V/24Vdc IP67 CLASS II SELV

Dimensions 175,5mm x86,5mm x43mm

S.3460

DMX512 / RDM LED CONTROLLER

Allows automatic addressing of RGBW products with integrated DMX via the RDM protocol. Once the addressing procedure is complete, this accessory can be removed from the system.

IP20 Dimensions 125mmx33mmx20mm

by Euroteam Srl Brescia - Italy

The present catalogue can not be reproduced even partially. All rights reserved.

Due to continual luminaire development and improvement, any photographs, luminaire descriptions, measurements, illustrations, drawings and specifications in this catalogue may be approximations, and the company is not liable. We reserve the right to change specifications without prior notice. The technical data contained in this catalogue is update up to the date of print (April 2025). For updated data, see technical sheets and installing instructions available on the website. The images in this catalog have been partially created with the help of generative AI tools and subjected to final human processing and review for quality and accuracy.

Luminaires in this catalogue are REGISTERED and/or PATENTED.
