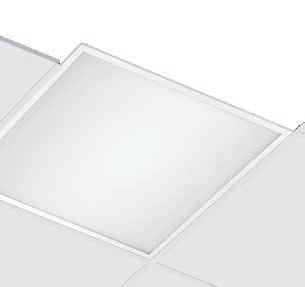

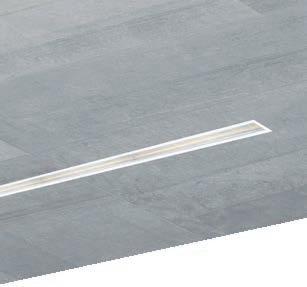

Toledo recessed LED ceiling fixture with a very slender design and high-efficiency 3000K/4000K LED sources, offers a very bright and diffused lighting, while keeping energy consumptions extremely low and setting itself as the ideal solution for general and functional lighting applications.
Housing and frame: housing in galvanised steel sheet, and frame in aluminium, contact mounting on the cross T structure.
Wiring: rapid wiring connection, the fixture does not need to be opened.
UGR glare index: UGR<19 (in any situation). - EN 12464.
LED: luminous flux maintenance 90%; 80.000h (L90B10). Power factor ≥0.95.
Photobiological safety class: exempt group
Upon request:
• available Toledo and Toledo HP with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NONMETALLIC false ceilings/panels). For further information see chapter Technical components.
LOOP IN
Diffuser: in prismatic engineering plastic with high thermal transmittance.
LED: power factor ≥0.95. Luminous flux maintenance 90%; 80.000h (L90B10).
Toledo HE allows you to create a “LOOP-IN”: a system to connect two or more luminaires to the power supply. As standard, Toledo HE comes with a terminal that allows the installer to connect the power line cable to the internal circuit through automatic wire clamps.
EM power kit
1h 22096035-00
3h 22096037-00
EM (emergency) lamp power kit complete with connectors. Max 54W.
LOOP-IN
Diffuser: in prismatic engineering plastic with high thermal transmittance.
LED: power factor ≥0.95. Luminous flux maintenance 90%; 80.000h (L90B10).
Toledo HE allows you to create a “LOOP-IN”: a system to connect two or more luminaires to the power supply. As standard, Toledo HE comes with a terminal that allows the installer to connect the power line cable to the internal circuit through automatic wire clamps.
EM power kit
1h 22096035-00
3h 22096037-00
EM (emergency) lamp power kit complete with connectors. Max 54W.
Standard hook for steel safety cord.
Toledo HP - UGR<19
Toledo
Toledo
HP R2 - UGR<19
Diffuser: in prismatic engineering plastic with high thermal transmittance.
v.a.
v.l.
Diffuser: in prismatic engineering plastic with high thermal transmittance.
LED: power factor ≥0.95. Luminous flux maintenance 90%; 80.000h (L90B10).
Remote control - 22099041-00
Remote control to change parameters after installation, without opening the fixture.
Toledo - UGR<19
Toledo
Diffuser: in prismatic engineering plastic with high thermal transmittance.
Built-in RADAR SENSOR (sub-code -19): an electronic device that immediately detects any presence entering its range. When the sensor reads motion inside its range, lights will stay on. When it no longer senses motion and based on the lighting level in its range, the sensor will turn off the lights after a pre-programmed time.
Toledo R2 - UGR<19
Toledo R4: supplied standard with double drivers; suitable for loop in wiring connection with subcode -90.
LED: power factor ≥0.95. Luminous flux maintenance 90%; 80.000h (L90B10).
Toledo R4 - UGR<19
The power supply current can be adjusted (request through our office), customising energy efficiency and shielding to meet any design requirement.
Toledo HP - UGR<22
Toledo HP - UGR<22
Diffuser: in opal engineering plastic with high transmittance.
Diffuser: in opal engineering plastic with high transmittance.
LED: power factor ≥0.95. Luminous flux maintenance 90%; 80.000h (L90B10).
Toledo - UGR<22
Toledo - UGR<22
EM power kit
1h 22096035-00
3h 22096037-00
EM (emergency) lamp power kit complete with connectors. Max 54W.
Diffuser: in opal engineering plastic with high transmittance.
Toledo R2 - UGR<22
Toledo R4: supplied standard with double drivers; suitable for loop in wiring connection with subcode -90.
LED: power factor ≥0.95. Luminous flux maintenance 90%; 80.000h (L90B10).
Toledo
R4 - UGR<22
The power supply current can be adjusted (request through our office), customising energy efficiency and shielding to meet any design requirement.
EM power kit
1h 22096035-00
3h 22096037-00
EM (emergency) lamp power kit complete with connectors (for half circuit). Max 54W.
• MacAdams 3
• Colour temperature adjustment range from 2700K to 6500K on a linear scale
• Full 3% to 100% dimming range
• ≤4% flicker
• Constant colour temperature over the entire dimming range
• Constant luminous flux
Toledo TW - UGR<19
TECHNICAL CHARACTERISTICS - TW BASIC VERSION
colourSWITCH function: a conventional pushbutton can be used to control the system via colourSWITCH. Use of pushbutton with indicator lamp is not permitted. If the device is controlled via DALI/DSI, colourSWITCH is not available. For control via a pushbutton different settings can be made:
• Short press: setting the colour temperature via colourSWITCH mode with 9 values between 2,700 and 6,500 K.
• Long press (> 1 s): stepless setting of colour temperature. After completion the colour temperature direction will be inverted. In installations with LED Drivers with different colour temperature or opposite colour temperature directions (e.g. after a system extension), all LED Drivers can be synchronized to 4,500 K by a 10 s push.
CENTRICHUMANLIGHT
• Colour temperature adjustment range from 2700K to 6500K on a linear scale
• Full 3% to 100% dimming range
• Switch-off fading
• <4% flicker
• Constant colour temperature over the entire dimming range • LED driver that automatically adjusts lights to the desired colour temperature and the required luminous flux
Diffuser: in prismatic engineering plastic with high thermal transmittance.
LED: power factor ≥0.95. Luminous flux maintenance 90%; 80.000h (L90B10).
switchDIM function: integrated switchDIM function allows a direct connection of a pushbutton for dimming and switching. Brief push (< 0.6 s) switches LED Driver ON and OFF. The dim level is saved at power-down and restored at power-up. When the pushbutton is held, LED modules are dimmed. After releasing and pushing the LED modules are dimmed in the opposite direction. In installations with LED Drivers with different dimming levels or opposite dimming directions (e.g. after a system extension), all LED Drivers can be synchronized to 50 % dimming level by a 10 s push. Use of pushbutton with indicator lamp is not permitted.
Toledo HCL - UGR<19
The Dynamic White function allows adjusting the colour temperature from 2700K to 6500K to create a sense of the passing of time (circadian rhythm) and to set the mood and ambiance of a space according to our daily activities. Circadian lighting obtained with the Dynamic White function is the best solution to implement Human Centric Lighting (HCL) in classrooms, university campuses, offices and hospitals where lights can mimic the natural trend of daylight throughout the entire day.
Diffuser: in prismatic engineering plastic with high thermal transmittance.
LED: power factor ≥0.95. Luminous flux maintenance 90%; 80.000h (L90B10).
The standard version of the fixture comes with a wireless device and can be easily controlled from a smartphone/tablet via a free app
DYNAMIC WHITE OPERATION AREA
Accessories
1) Assembly the frame according to the following illustration (fig.1)
Frame for Toledo - 600x600 h70
white 22097003-00
Frame in white-coated aluminium; to be used for ceiling installation.
Frame for Toledo - 600x1200 h76 white 22097005-00
Frame in white-coated aluminium; to be used for ceiling installation.
2) Installation
R Frame for Toledo - 1200x300 h70 white 22097004-00
Frame in white-coated aluminium; to be used for ceiling installation.
• Drill 4 holes at marking position with expansion screws and self-tapping screws (not screw too tight).
• Install the frame on the roof.
• Move and fix the ceiling frame (lift to right, or right to left) through hardy hole.
• Tighten self-tapping screws.
• Open the frame B on one side, insert the panel into the frame, then seal the frame with tightening screws.
Springs for Toledo x 4 22024301-00
Springs for recess installation, not for surface-mount on plasterboard
Safety cord
22004112-00
Steel safety cord, to be used for safety installation of the fixtures inside false ceilings.
R Frame - 1200x300 22097014-00
Ideal for mounting the fixture in false ceilings with hidden structure.
Frame - 600x600 22097010-00
Ideal for mounting the fixture in false ceilings with hidden structure.
Frame - 620x620 22097015-00
Ideal for mounting the fixture in plasterboard false ceilings
Ceiling mounted installation with frame

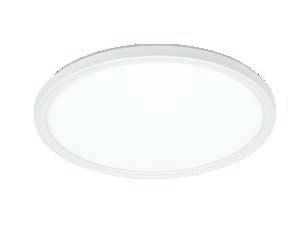

Pannello luminoso - LED
Frame: in aluminium.
Inner slab: in PMMA.
Diffuser: in opal engineering plastic with high transmittance.
Wiring: equipped with fast connector.
LED: high-efficiency light sources.
Low Flicker: product with a very low flicker; uniform light for greater eye protection.
Upon request:
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
Pannello luminoso - LED
Construction quality is an important factor for the product’s aesthetics and performance, turning into a key element to ensure reliability over time. In the case of Fosnova’s Pannello and PanelTech, the slab is made in top-notch material, PMMA (poly methyl methacrylate), a polymer that keeps its characteristics unaltered in time and prevents the lens from yellowing.
Fosnova has produced Pannello and PanelTech with materials that ensure long lasting operation to save its original technical characteristics: 80% lumen maintenance for 40000÷50000h (L80B20), perfect colour rendering (CRI≥80 or CRI>90 - CRI 93), no glare (UGR<19) and low flicker level.
154 Pannello B
Pannello B
Inner slab: in PMMA.
Pannello B - DIP SWITCH
Pannello
1h
Inner slab: in PMMA.
LED: luminous
1h
PanelTech - UGR<19
PanelTech A - UGR<19
Inner slab: in PMMA.
Diffuser: in prismatic engineering plastic with high transmittance.
LED: luminous flux maintenance 80%: 50.000h (L80B20). Power factor ≥0.95.
PanelTech R2 - UGR<19
Inner slab: in PMMA.
Diffuser: in prismatic engineering plastic with high transmittance.
LED: luminous flux maintenance 80%: 50.000h (L80B20). Power factor ≥0.95.
v.a. IP20 IK05
v.l. IP40 IK05
PanelTech - DIP SWITCH -
Inner slab: in PMMA.
Diffuser:
LED: luminous flux maintenance
80%: 50.000h (L80B20). Power factor ≥0.95.
PanelTech
v.a.
1h
Inner slab: in PMMA.
Diffuser: in prismatic engineering plastic with high transmittance.
LED: luminous flux maintenance
80%: 50.000h (L80B20).
PanelTech R2 - UGR<19 - DIP
1h
3h 22096037-00 EM (emergency) lamp power kit complete with connectors. Max 54W.
To increase energy
you may request the addition of:
• external
• WIRELESS lighting management systems
PanelTech HP A2 - UGR<19
To increase energy savings, you may request the addition of:
• external motion and light sensors
• WIRELESS lighting management systems
PanelTech HP R2 - UGR<19
Inner slab: in PMMA.
Diffuser:
LED:
1h
3h
plete
Inner slab: in PMMA.
Diffuser: in prismatic engineering plastic with high transmittance.
LED: luminous flux maintenance
80%:
(L80B20).
1h
3h
plete
Accessories
Ceiling mounted installation with frame
Frame - 600x600 h44
1) Assembly the frame according to the following illustration (fig.1)
white 22097001-00
Frame in white-coated aluminium; to be used for ceiling installation.
2) Installation
R Frame - 1200x300 h44
white 22097002-00
Frame in white-coated aluminium; to be used for ceiling installation.
• Drill 4 holes at marking position with expansion screws and self-tapping screws (not screw too tight).
• Install the frame on the roof.
• Move and fix the ceiling frame (lift to right, or right to left) through hardy hole.
• Tighten self-tapping screws.
• Open the frame B on one side, insert the panel into the frame, then seal the frame with tightening screws.
Suspension
silver 22003171-00
white 22003112-00
Complete with steel wire (l = 100cm) and millimetre adjustment device. Max load: 20 kg.
Suspension with Y cable
steel 22003411-00
Ideal for suspending luminaires with 2 fixing points. The Y cable ensures the balance of the fixture Kit supplied with Ø 1.5 mm steel cable (L=2 m standard). Load: max 15 kg. 2 per pack.
Simple suspension
galvanised 22003166-00
Supplied with steel wire (L=150 cm) and millimetre adjustment device (2pcs). Max load: 20Kg.
Suspension with wire
silver 22003176-00
white 22003118-00
Complete with steel wire (L = 150cm) and millimetre adjustment device. Max load: 20 kg.
3P powered suspension with wire
silver 22003174-00
white 22003190-00
Supplied with steel wire (L = 150cm) and millimetre adjustment device and power cord. Max load: 20 kg.
5P powered suspension with wire
white 22003120-00
Supplied with steel wire (L = 100cm) and power cord. Max loading: 20Kg. For electric gear in EM and DIMM DALI versions.
5P WIRELESS powered suspension
white 22003125-00
Supplied with steel wire (L = 150cm) and power cord. For the WIRELESS management of DIMM DALI versions (Out DALI : Max 7mA). Max load: 20 kg.
Safety cord 22004112-00
Steel safety cord, to be used for safety installation of the fixtures inside false ceilings.
Alignment brackets
steel 22026960-00
Utilize for the installation in continuous line.
Frame - 600x600
22097010-00
Ideal for mounting the fixture in false ceilings with hidden structure.
Frame - 620x620 22097015-00
Ideal for mounting the fixture in plasterboard false ceilings
R Frame - 1200x300 22097014-00
Ideal for mounting the fixture in false ceilings with hidden structure.
Springs for recessed x 4 22001491-00
x 6 22001492-00
Ideal for mounting the fixture in plasterboard false ceilings
Pannello version min/max recessed
Frame LED - light frame designed for false ceilings
Frame LED is a light frame designed for false ceilings, offering easy installation and an ideal aesthetic finish for accent lighting. Perfect for enhancing spaces such as corridors, libraries, restaurants, and meeting rooms, it combines modern design with high lighting efficiency to create an elegant and welcoming atmosphere.
v.a. IP20 IK05
v.l. IP40 IK05
Housing/Frame: painted sheet steel, contact mounting on the cross T structure.
LED: luminous flux maintenance 80%: 30.000h (L80B50). Power factor ≥0.9.
Sky Panel
Housing: painted sheet steel complete with mounting bracket and frame in aluminium
Comfort optics: secondary lenses in PMMA with metallized anti-glare polycarbonate reflector for improved visual comfort
Diffuser: transparent polycarbonate with high transmittance.
Wiring: rapid wring connection, the fixture does not need to be opened; equipped with fast connector.
LED: power factor: ≥0,9. luminous flux maintenance 80%: 50.000h (L80B20).
Photobiological safety class: exempt group
Upon request: version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
Sky Panel
Sky Panel is a range of recessed ceiling lighting fixtures designed to bring the natural effect of sunlight and open skies indoors. It is a series of LED luminaires made to recreate the effect of natural daylight in windowless rooms. This type of artificial light supports the body’s circadian rhythm, contributing to improved mood, reduced stress, and overall enhanced wellbeing. Moreover, it creates a naturally bright, spacious, and comfortable environment. Once installed, the comfort optics installed in Sky Panel emit a soft beam of light, calling to mind sunlight streaming through a window on a clear day.
It is a perfect choice for anyone who wants to enjoy the benefits of natural sunlight indoors: THE BENEFITS of using this ceiling lighting fixture are:
PHYSIOLOGICAL:
• Enhances visual comfort
• Regulates sleep–wake cycles
• Supports overall bodily balance
PSYCHOLOGICAL:
• Reduces anxiety and stress
• Improves mood
• Boosts productivity
ARCHITECTURAL:
• Enhances and improves the environment and the materials of the fittings within it
• Creates a greater sense of space and serves as a decorative element
164 Sky Panel
STEP 1): Drill a hole in the false ceiling.
STEP 2): Bend the installation bracket to 90°. Attach one end of the supplied safety cable inside the false ceiling and the other to the fixture’s safety hole. Connect the ceiling light to the driver using the quick connector and connect the driver to the mains.
STEP 3): Lift the installation springs and insert that side of the fixture.
STEP 4): Repeat with the opposite side, ensuring the fixture is fully secured in place.
STEP 1): Remove three panels from the ceiling T-beams.
STEP 2): Detach the springs from the fixture.
STEP 3): Position the fixture to rest on the T-beams
STEP 4): Bend the installation bracket to 90°, then attach the supplied safety cable inside the false ceiling and to the safety hole on the fixture.
STEP 5): Connect the ceiling light to the driver using the quick connector and connect the driver to the mains.
STEP 6): Reinsert the removed panels in the T-beams.
STEP 1): Drill holes in the ceiling to align with the fixture’s mounting points and insert the supplied wall plugs.
STEP 2): Attach one end of the safety cable to the ceiling suspension bracket and secure it.
STEP 3): Fasten the safety cable to the fixture using the suspension brackets. Connect the ceiling light to the driver with the quick connector, and connect the driver to the mains.
STEP 4): Rest the fixture on the T-beams and adjust the safety cable length until tight, ensuring the fixture’s weight is supported. Bend the fixture’s supplied suspension hook to attach it directly to the ceiling T-beams.

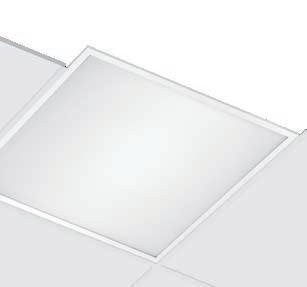

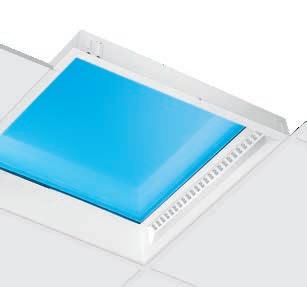

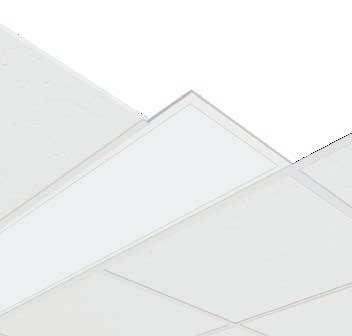

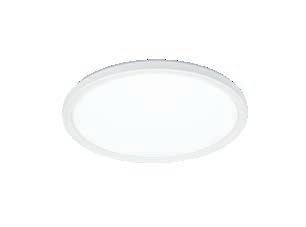

Sky Panel B
v.a. IP20 IK07
v.l. IP40 IK07
LED: luminous flux maintenance
80%: 50.000h (L80B20). Power factor ≥0.95.

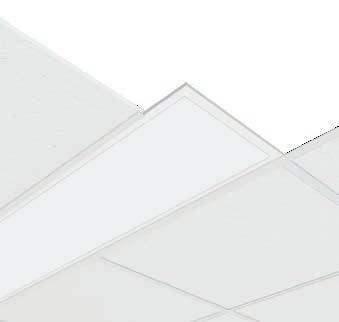

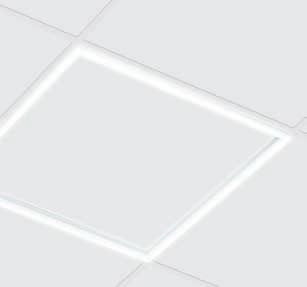

Sky Panel
Sky Panel A
v.a. IP20 IK07
v.l. IP40 IK07
LED: luminous flux maintenance
80%: 50.000h (L80B20). Power factor ≥0.95.

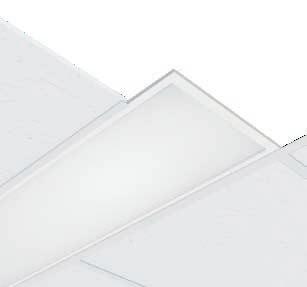

Sky Panel R2
SINTESI
DIP SWITCH
168 Liset 2.0 - System
Liset 2.0 is a real multi-purpose lighting system studiet to make the best use of the LED technology. Its clean lines and luminous efficiency ensure extraordinary light and colour effects. The system’s extreme flexibility is guaranteed by the numerous compositions that can be made using the angular module to create ALL LIGHT solutions, which can offer uniform lighting of the space and constant visual comfort. he system’s main feature is the possibility to integrate a wide selection of additional recessed lights, ceiling spotlights and projectors from the Matrix Q series. Thanks to the different combinations of power, lumen, light beams and aesthetic finishes, Liset 2.0 System can perfectly fit into any architectural structure, enhancing both the showroom space and the items on display.
Housing: made of extruded aluminium.
Heads: in die cast aluminium.
LED: luminous flux maintenance 80%: 100.000h (L80B10). Power factor: ≥0,92.
Photobiological safety class: exempt group.
CASAMBI VOICE available soon: an innovative interface to control DALI devices at the same time using the CASAMBI app through Bluetooth and voice control using assistants, such as AMAZON ALEXA/GOOGLE HOME/MATTER through Wi-Fi.
CASAMBI and AMAZON ALEXA/GOOGLE HOME/MATTER are independent systems that are designed to communicate with and update each other.
Assist a
Classification of UGR values by applications
≤ 16 Very demanding applications (technical drawings)
UGR
The UGR (unified glare rating) is an international unified measure developed by the CIE (Commission International de l’Eclairage) to assess the direct glare generated by a lighting system. The European standard regulating the lighting of indoor work places (UNI-EN 12464-1) recommends a specific UGR value for different applications ranging between 10 and 30; the lower the UGR value, the lower the glare. The exact value of this index differs by project type because it depends on the position of the luminaires, room characteristics (dimensions, reflections) and on the point of observation of viewers.
≤ 19 Offices and schools (reading, writing, business meetings, computer work)
≤ 22 Industrial applications, craftsmen
> 28 High glare
170 Liset 2.0 - System

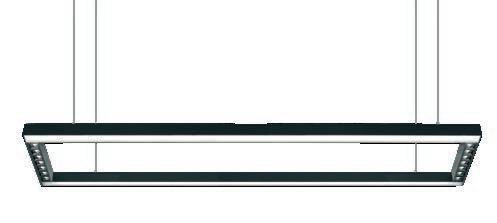

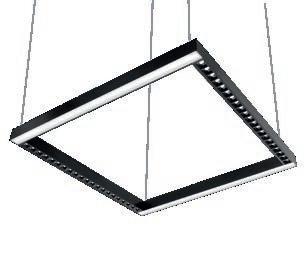

Anything is possible!
Creating lighting scenarios with Liset 2.0 has never been so exciting!

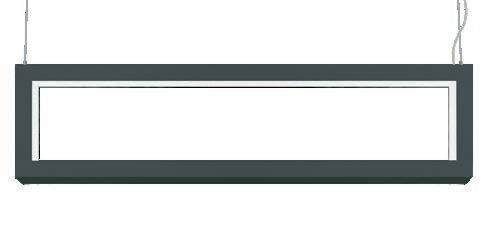

Thanks to the seamless material manufacturing, you can design ALL LIGHT linear patterns, with hidden 45° intersections for maximum freedom and creativity.
Liset 2.0 is a linear and modular lighting system that is easily customisable and capable of offering a series of lighting solutions in any setting, including retailing, artistic and cultural spaces or in entrance lobbies and/or hospitality facilities.

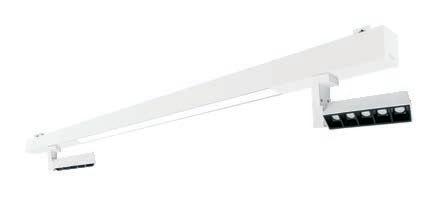

Compact, elegant, flexible and small, Liset 2.0 is simple to install as a recessed, ceiling, suspension or track lamp.
172 Liset 2.0 - System

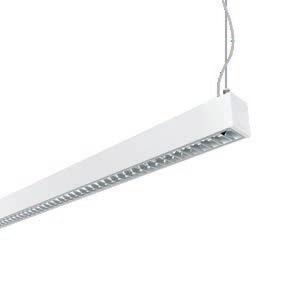

Liset 2.0 is available in versions with polycarbonate HE optics, with dark light lamellar optics with UGR<19, or with either white, black and dark polycarbonate comfort optics and polycarbonate opal diffuser. The entire range has latest generation 3000K/4000K LED sources with 80 CRI, making these products easy to fit into any lighting design project.

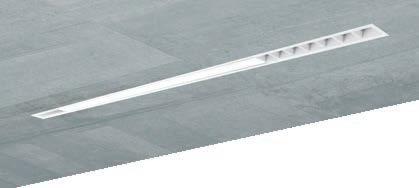

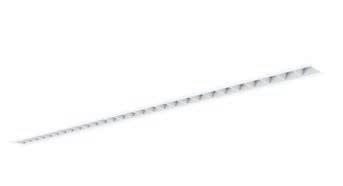

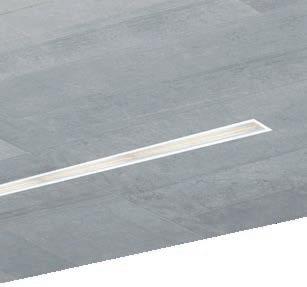

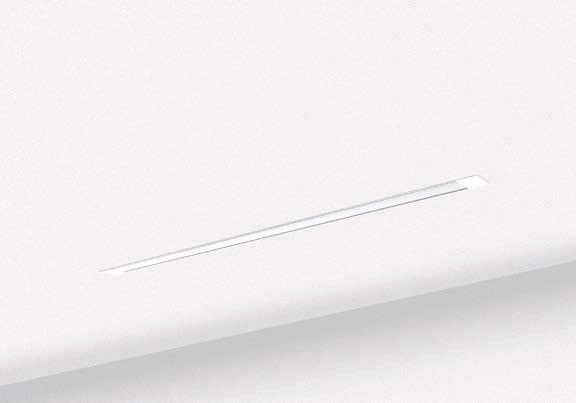

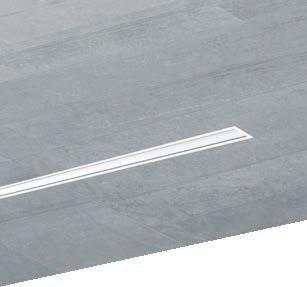

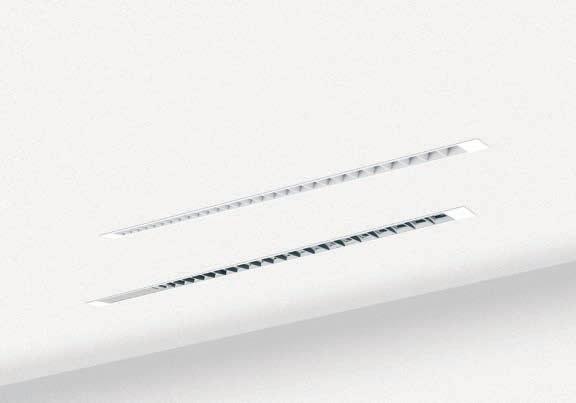

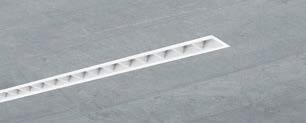

Recessed and Trimless

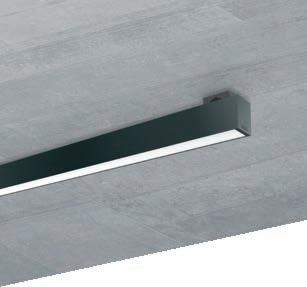

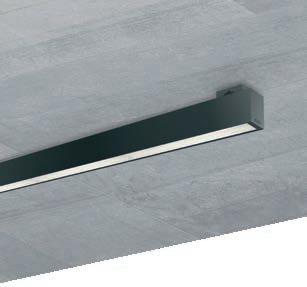

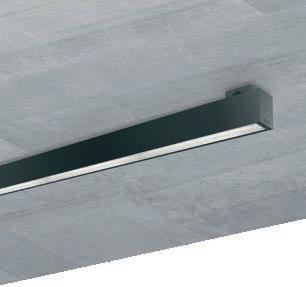

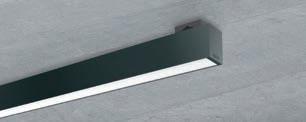

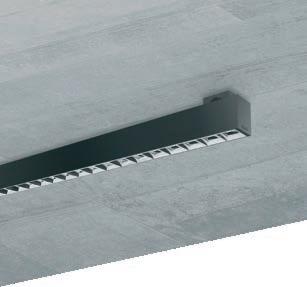

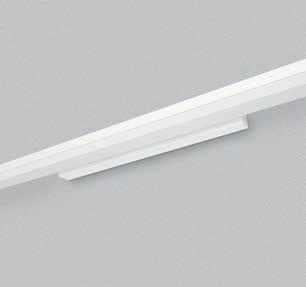

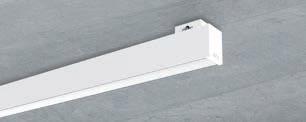

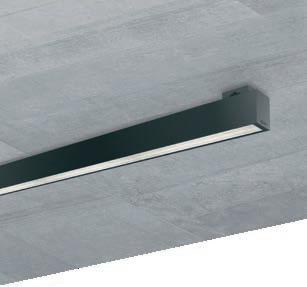

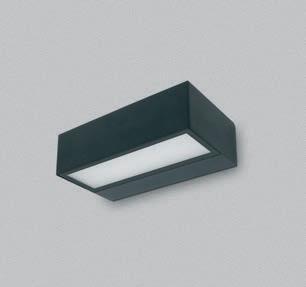

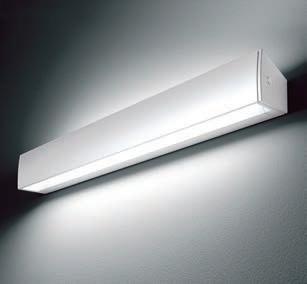

Ceiling and Wall

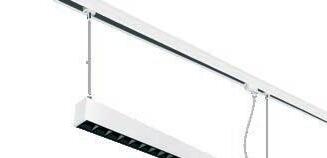

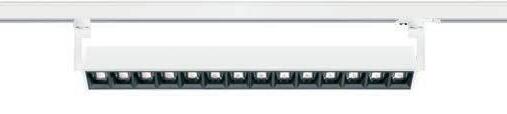

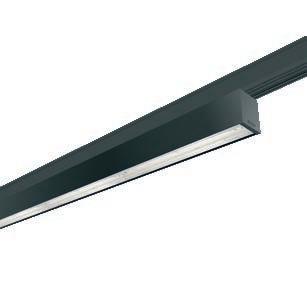

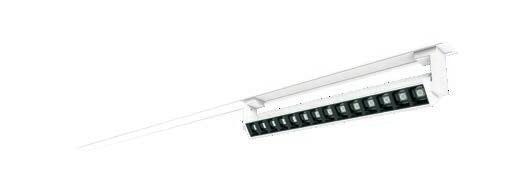

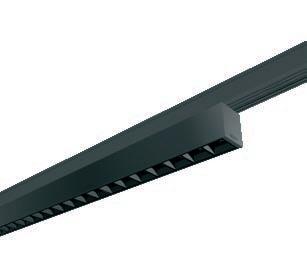

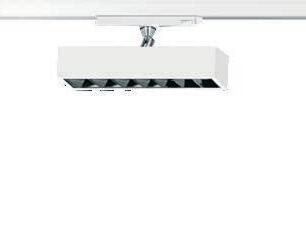

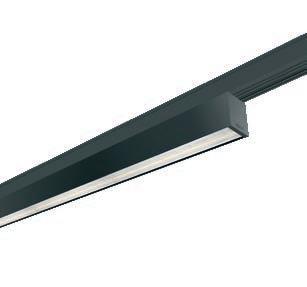

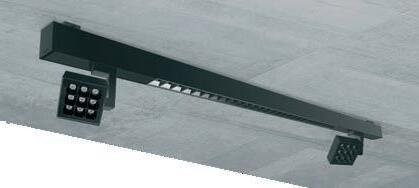

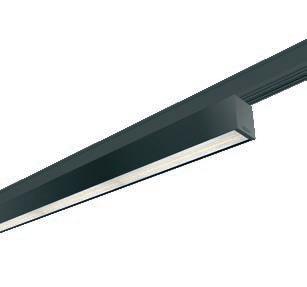

Track
smooth matt white smooth matt black
Colours and finishes:
173 Liset 2.0 - System

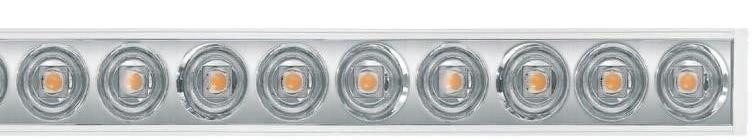

High-Efficiency polycarbonate optics with very low glare coefficient, resistant to high temperature and UV radiation.

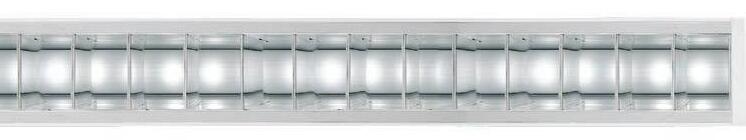

light louvre: double parabolic louvres, in high-gloss 99.99 aluminium, anti-glare and anti-iridescence, very low luminance with PVD treatment.
Comfort optics: in black, white (upon request) and dark metallized anti-glare polycarbonate for improved visual comfort. Upon request available Versions with round optics
Diffuser in opal polycarbonate, anti-glare, shatterproof and self-extinguishing V2 polycarbonate, UV-stabilised.
Dark
Upon request: CRI>90 (3000K-4000K)
• version with black housing
Liset 2.0 HE - wide beam 90°
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
Upon request: CRI>90 (3000K-4000K)
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
Optics: in polycarbonate, with very low glare coefficient, resistant to high temperature and UV radiation
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
Liset 2.0 HE - wide beam 90°
LED 4
Upon request: CRI>90 (3000K-4000K)
Optics: in polycarbonate, with very low glare coefficient, resistant to high temperature and UV radiation
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
22303036-39
• DIMM-DALI version with sub-code -1241 (4000K) or -3941 (3000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K); KIT EM for OMINTRACK PLUS to be purchased separately (see chapter Tracks)
Complete with millimetre adjustment device; sospensions to be purchased separately (see accessories page). Upon request: CRI>90 (3000K-4000K)
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
Liset 2.0 HE - 30° x 80° elliptical
Optics: in polycarbonate, with very low glare coefficient, resistant to high temperature and UV radiation
LED: luminous flux maintenance
80%: 100.000h (L80B10). Power factor ≥0.92
Upon request: CRI>90 (3000K-4000K)
• version with black housing
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or
Optics: in polycarbonate, with very low glare coefficient, resistant to high temperature and UV radiation
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
Upon request: CRI>90 (3000K-4000K)
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM
(4000K) or -3957 (3000K)
Optics: in polycarbonate, with very low glare coefficient, resistant to high temperature and UV radiation
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
Liset 2.0 HE - 30° x 80° elliptical
Upon request: CRI>90 (3000K-4000K)
• DIMM-DALI version with sub-code -1241 (4000K) or -3941 (3000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K); KIT EM for OMINTRACK PLUS to be purchased separately (see chapter Tracks)
Optics: in polycarbonate, with very low glare coefficient, resistant to high temperature and UV radiation
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
Complete with millimetre adjustment device; sospensions to be purchased separately (see accessories page). Upon request: CRI>90 (3000K-4000K)
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
Liset 2.0 HE - asymmetric 25°
Optics: in polycarbonate, with very low glare coefficient, resistant to high temperature and UV radiation
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
Upon request: CRI>90 (3000K-4000K)
• version with black housing
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM
with subcode -09 (4000K) or -0928 (3000K) - 3h
(3000K)
• PUSH-DIMM version
Optics: in polycarbonate, with very low glare coefficient, resistant to high temperature and UV radiation
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
Optics: in polycarbonate, with very low glare coefficient, resistant to high temperature and UV radiation
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
Liset 2.0 HE - asymmetric 25°
Upon request: CRI>90 (3000K-4000K)
• DIMM-DALI version with sub-code -1241 (4000K) or -3941 (3000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K); KIT EM for OMINTRACK PLUS to be purchased separately (see chapter Tracks)
Optics: in polycarbonate, with very low glare coefficient, resistant to high temperature and UV radiation
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
Complete with millimetre adjustment device; sospensions to be purchased separately (see accessories page). Upon request: CRI>90 (3000K-4000K)
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
Liset 2.0 HE - UGR<19
Optics: in polycarbonate, with very low glare coefficient, resistant to
LED:
80%:
(L80B10).
Power factor ≥0.92
Upon request: CRI>90 (3000K-4000K)
• version with black housing
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
Optics: in polycarbonate, with very low glare coefficient, resistant to high temperature and UV radiation
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
Upon request: CRI>90 (3000K-4000K)
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
Optics: in polycarbonate, with very low glare coefficient, resistant to high temperature and UV radiation
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
- CRI>80 black 22303435-39
Upon request: CRI>90 (3000K-4000K)
• DIMM-DALI version with sub-code -1241 (4000K) or -3941 (3000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K); KIT EM for OMINTRACK PLUS to be purchased separately (see chapter Tracks)
Optics: in polycarbonate, with very low glare coefficient, resistant to high temperature and UV radiation
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
Complete with millimetre adjustment device; sospensions to be purchased separately (see accessories page). Upon request: CRI>90 (3000K-4000K)
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)

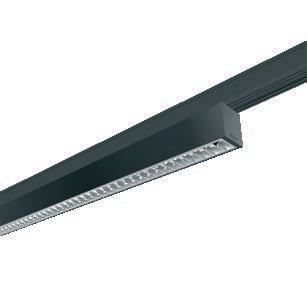

Liset 2.0 - dark light - UGR<19

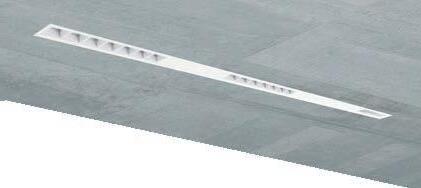

Liset 2.0 - recessed - Dark light - UGR<19
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• version with black housing
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
• version with pass-through wiring for continuous line mounting with
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM
with subcode -09 (4000K) or -0928 (3000K) - 3h

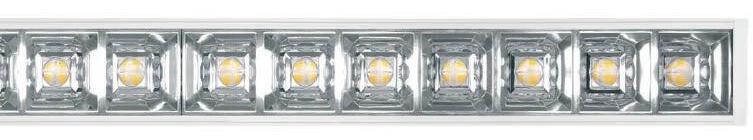

Dark light louvre: double parabolic louvres, in high-gloss 99.99 aluminium, anti-glare and anti-iridescence, very low luminance with PVD treatment.
Liset 2.0 - dark light - UGR<19
Dark light louvre: double parabolic louvres, in high-gloss 99.99 aluminium, anti-glare and anti-iridescence, very low luminance with PVD treatment. Liset 2.0 - track - Dark
LED 4 modules white 1160
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• DIMM-DALI version with sub-code -1241
• PUSH-DIMM version with sub-code -1245
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K); KIT EM for OMINTRACK PLUS to be purchased separately (see chapter Tracks)

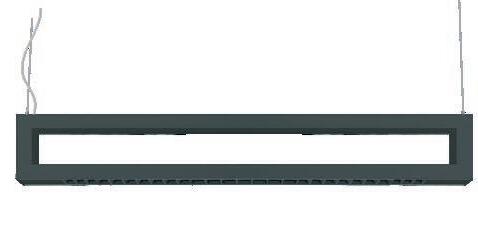

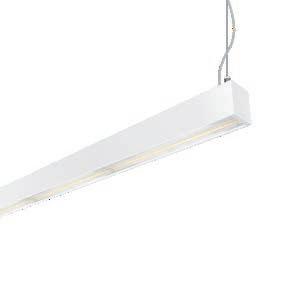

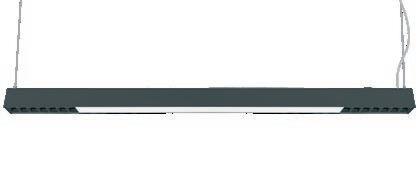

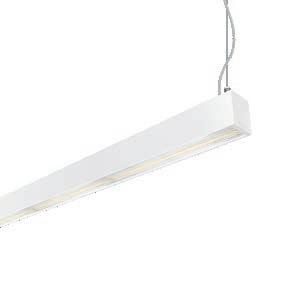

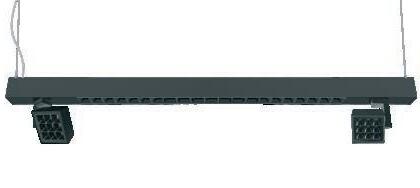

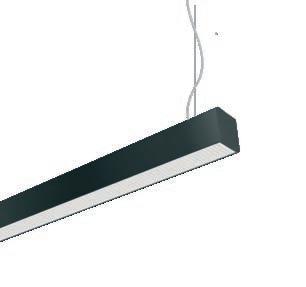

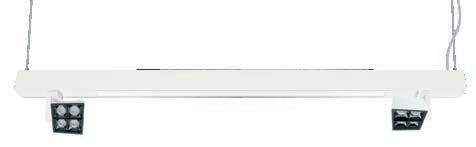

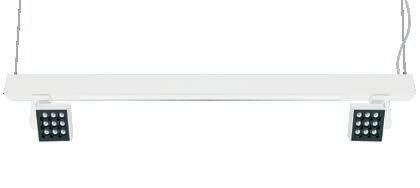

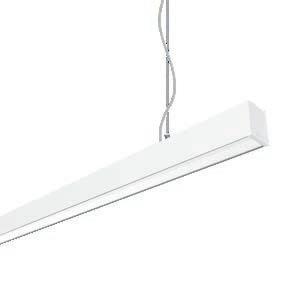

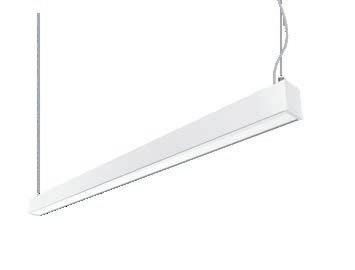

Liset 2.0 - suspension

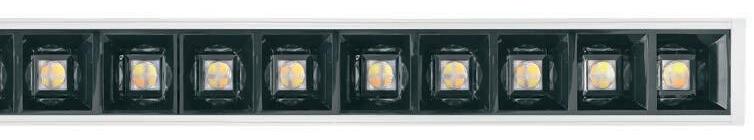

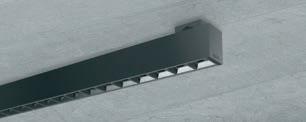

Liset 2.0 - with DARK comfort optics - UGR<19
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• version with black housing
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
• 76° beam version
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
• 76° beam version
DARK comfort optics: in metallized anti-glare polycarbonate for improved visual comfort.
LED: luminous flux maintenance
80%: 100.000h (L80B10). Power factor ≥0.92
Liset 2.0 - with DARK comfort optics - UGR<19
Upon request: 76° beam
DARK comfort optics: in metallized anti-glare polycarbonate for improved visual comfort.
LED housing L (mm) weight code W tot K - ølm - CRI - degrees
LED 14 lenses white 575 1,60 22303907-00 18 4000K - 2578lm - CRI>80 - 65° black 22303937-00
LED 28 lenses white 1135 2,90 22303908-00 22 4000K - 3446lm - CRI>80 - 65° black 22303938-00
LED 35 lenses white 1415 3,60 22303909-00 30 4000K - 4804lm - CRI>80 - 65° black 22303939-00
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• DIMM-DALI version with sub-code -1241 (4000K) or -3941 (3000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K); KIT EM for OMINTRACK PLUS to be purchased separately (see chapter Tracks)
Complete with millimetre adjustment device; sospensions to be purchased separately (see accessories page).
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
• 76° beam version

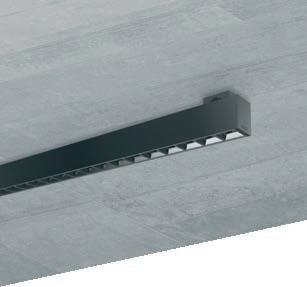

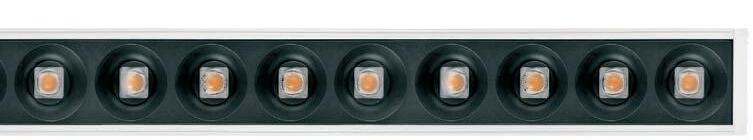

Liset 2.0 - with comfort optics - UGR<19
LED:
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• version with black housing
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
• 76° beam version
• 76° beam version
Comfort optics: in black anti-glare polycarbonate for improved visual comfort (the white colour version is available upon request).
Comfort optics: in black anti-glare polycarbonate for improved visual comfort (the white colour version is available upon request).
LED: luminous flux maintenance 80%: 100.000h (L80B10). Power factor ≥0.92
Upon request: CRI>90 (3000K-4000K)
• DIMM-DALI version with sub-code -1241 (4000K) or -3941 (3000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K); KIT EM for OMINTRACK PLUS to be purchased separately (see chapter Tracks)
Complete with millimetre adjustment device; sospensions to be purchased separately (see
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
• 76° beam

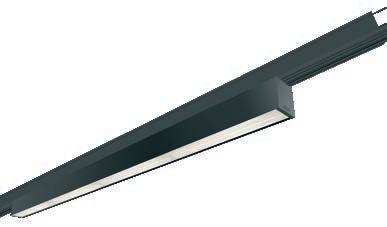

Liset 2.0 - with polycarbonate diffuser
Diffuser: in polycarbonate.
LED: luminous flux maintenance
80%: 100.000h (L80B10). Power factor ≥0.92
Upon request: CRI>90 (3000K - 4000K)
• version with black housing
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h
with subcode -31 (4000K) or -3957 (3000K)
Diffuser: in polycarbonate.
LED: luminous flux maintenance
80%: 100.000h (L80B10). Power factor ≥0.92
Diffuser: in polycarbonate.
LED: luminous flux maintenance
80%: 100.000h (L80B10). Power factor ≥0.92
Liset 2.0 - with polycarbonate diffuser
LED
LED
LED
Upon request: CRI>90 (3000K - 4000K)
• DIMM-DALI version with sub-code -1241 (4000K) or -3941 (3000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K); KIT EM for OMINTRACK PLUS to be purchased separately (see chapter Tracks)
Diffuser: in polycarbonate.
LED: luminous flux maintenance
80%: 100.000h (L80B10). Power factor ≥0.92
Complete with millimetre adjustment device; sospensions to be purchased separately (see accessories page).
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)

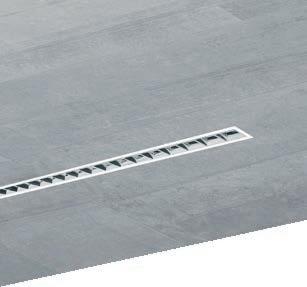

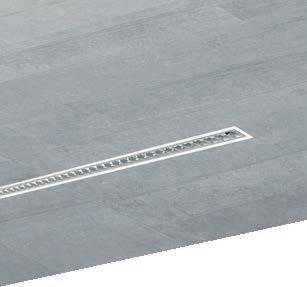

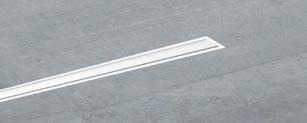

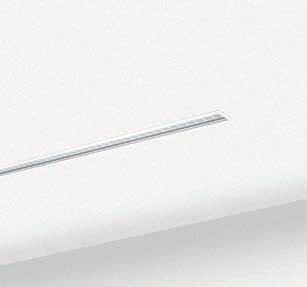

Liset 2.0 - TRIMLESS recessed mounting in plasterboard false
Equipment: equipped with galvanised steel support brackets which guarantee perfect attachment to suspended ceiling from 12,5 mm to 13 mm thick.
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
Dark light louvre: double parabolic louvres, in high-gloss 99.99 aluminium, anti-glare and anti-iridescence, very low luminance with PVD treatment.
LED: luminous flux maintenance 80%: 100.000h (L80B10) Power factor ≥0.92
Liset 2.0 - TRIMLESS recessed mounting in plasterboard false ceilings
Diffuser: in polycarbonate.
80%:
(L80B10) Power factor ≥0.92
Liset 2.0 Trimless - with polycarbonate diffuser
Upon request: CRI>90 (3000K-4000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
Comfort optics: in white anti-glare polycarbonate for improved visual comfort (the black colour version is available upon request).
DARK comfort optics: in metallized anti-glare polycarbonate for improved visual comfort.
LED: luminous flux maintenance 80%: 100.000h (L80B10) Power factor ≥0.92
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
Upon request: 3000K
• version with black housing
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
• 76° beam version
Liset 2.0 - special compositions with recessed lamp
Upon request: special versions with other spotlights of the Matrix Q series CRI>90 - 3000K or 4000K
IP20 IK07

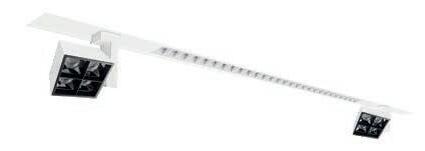

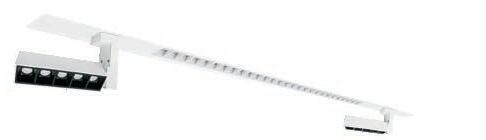

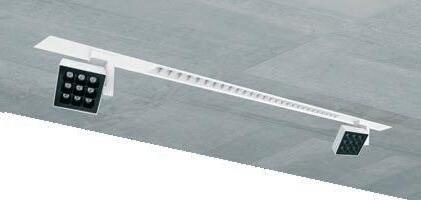

Liset 2.0 - A+2M - recessed
white 2020 3,00 22302301-00 22302301-1241 53
Standard composition: Liset 2.0 with diffuser + 2 modules with 65° white comfort optics (upon request with 76° beam angle). Standard version includes double switching. Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
Liset 2.0 -
IP40 IK07 v.a. IP20 IK07
IP40 IK07
LED housing L (mm) weight code
LED white 2020 3,90 22302302-00 22302302-1241 101 4000K - 3479lm - CRI>80 4000K - 2x2220lm - CRI>80 - 32°

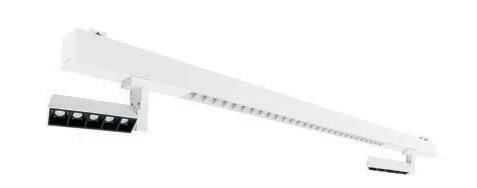

Standard composition: Liset 2.0 with diffuser + 2 modules with 32° spotlight (upon request with 50° beam angles). Standard version includes double switching. Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
v.a. IP20 IK07
v.l. IP40 IK07

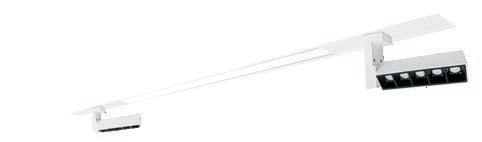

Liset 2.0 - special compositions with recessed lamp
Upon request: special versions with other spotlights of the Matrix Q series
- 3000K or 4000K
LED white 2020 3,10 22302303-00
Standard composition: 3 modules with 65° white comfort optics (upon request with 76° beam angle).
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
• with RADAR SENSOR: sub-code -19
v.a. IP20 IK07
v.l. IP40 IK07

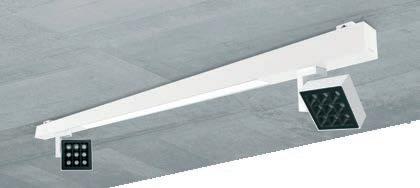

Liset 2.0 - A+M+2S - recessed - UGR<19
LED housing L (mm) weight code
Standard composition: Liset 2.0 with 65° white comfort optics + 2 modules with 32° spotlight (upon request with 76° comfort optics + 50°
Standard version includes double switching.
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• version with pass-through wiring for continuous line mounting with subcode -0072
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)

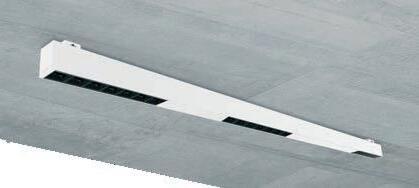

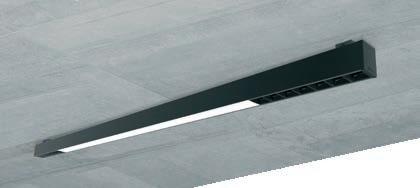

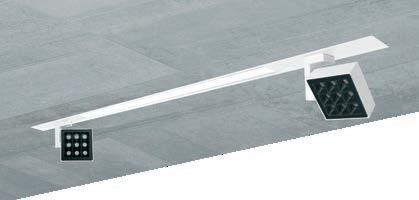

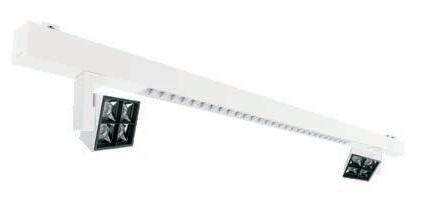

Liset 2.0 - special compositions with ceiling lamp
Upon request: special versions with other spotlights of the Matrix Q series CRI>90 - 3000K or 4000K
Liset 2.0 -
Standard composition: Liset 2.0 with diffuser + 2 modules with 65° black comfort optics (upon request with 76° beam angle). Standard version includes double switching. Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K) Liset
2.0 - B+2S - ceiling
Standard composition: Liset 2.0 with diffuser + 2 modules with 32° spotlight (upon request with 50° beam angles). Standard version includes double
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
Liset 2.0 - special compositions with
Upon request: special versions with other spotlights of the Matrix Q series CRI>90 - 3000K or 4000K
-00
-00
Standard composition: 3 modules with 65° black comfort optics (upon request with 76° beam angle). Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
• with RADAR SENSOR: sub-code -19
Liset 2.0 - B+M+2S - ceiling - UGR<19
Standard composition: Liset 2.0 with 65° black comfort optics + 2 modules with 32° spotlight (upon request with 76° comfort optics +
Standard version includes double switching.
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)

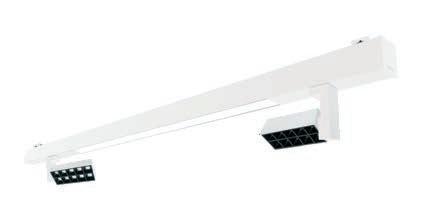

Liset 2.0 - special compositions with suspension lamp
Upon request: special versions with other spotlights of the Matrix Q series CRI>90 - 3000K or 4000K
Complete with millimetre adjustment device; sospensions o be purchased separately (see accessories page).
Standard composition: Liset 2.0 with diffuser + 2 modules with 65° black comfort optics (upon request with 76° beam angle). Standard version includes double switching. Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
housing L (mm)
Complete with millimetre adjustment device; sospensions o be purchased separately (see accessories page).
Standard composition: Liset 2.0 with diffuser + 2 modules with 32° spotlight (upon request with 50° beam angles). Standard version includes double switching. Upon request: CRI>90
• 3000K version with sub-code -39
• PUSH-DIMM version with sub-code -1245
• 1h EM version with subcode -09 and 3h EM with subcode -31
Liset 2.0 - special compositions with suspension lamp

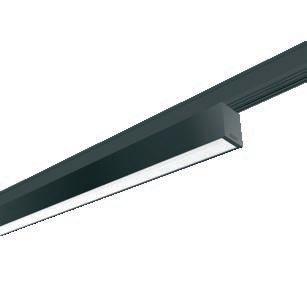

3P/5P suspension attachment for track
black 3P 22091432-00
white 22091412-00
black 5P 22091432-1241
white 22091412-1241
black 5P 22091432-09
white 22091412-09
Supplied with steel wire, mechanical adapter (2 per pack), power adapter with 3P power cord for Omintrack, DALI 5P power cord for Omintrack Plus, 5P power cord + EM KIT (to be purchased separately) for Omintrack Plus. (see chapter Tracks)
Complete with millimetre adjustment device; sospensions o be purchased separately (see accessories page).
Standard composition: 3 modules with 65° black comfort optics (upon request with 76° beam angle).
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
• with RADAR SENSOR: sub-code -19

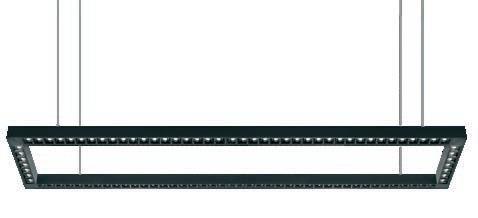

Liset 2.0 - C+M+2S - suspension - UGR<19
Complete with millimetre adjustment device; sospensions o be purchased separately (see accessories page).
Standard composition: Liset 2.0 with 65° black comfort optics + 2 modules with 32° spotlight (upon request with 76° comfort optics + 50° spotlights).
Standard version includes double switching.
Upon request: 3000K version with subcode -39. CRI>90 (3000K-4000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
IP40 IK07

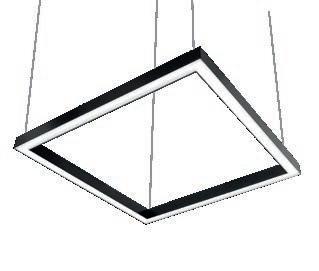

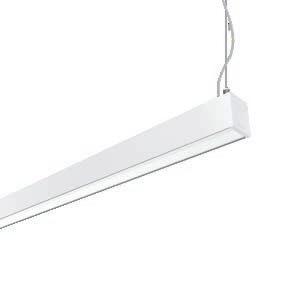

Liset 2.0 “INFINITY” suspension - without diffuser screen
Housing: extruded aluminium. Roll diffuser: opal polycarbonate (to be purchased separately)
Équipement: supplied standard, versions complete with 2 mm adjustments for installation as pendant lamps (suspensions to be purchased separately).
Upon request version:
• emergency wiring CLD E with sub-code -09.
• emergency wiring with centralized power supply CLD EC with subcode -0050.
• CLD D-D (DALI) wiring with subcode -1241.
• available in different colours and surface finishes to coordinate with any architectural design (example exemple smooth anodic ice, smooth silver, smooth bronze, gold).
•
•
Standard version: with 2 mm adjustments.
LED: luminous flux maintenance 80%: 100.000h (L80B10) Power factor ≥0.92
Suspension
Liset 2.0 “INFINITY” suspension - without diffuser screen
galvanised 22003166-00
Supplied with steel wire (L=150 cm) and millimetre adjustment device (2pcs). Max load: 20Kg.
End cap
white 22028010-00
black 22028030-00
To be used to close the two terminal ends (2 pcs).
ACCESSORIES AND CONTINUOUS LINE INSTALLATION
Joining bracket 22025877-00
It permits mechanical connection of the profiles.
Liset 2.0 “INFINITY“ with pass-through wiring with subcode -0072 to be completed with acc. opal diffuser Roll.
Opal polycarbonate Roll
L = 30m 22025843-00
Opal polycarbonate Roll must always be used on Liset 2.0 “INFINITY” for continuous and uninterrupted “all light” lines. Upon request, UGR<19 prismatic roll is available.
Powered suspension with wire
white 22003190-00
black 22003130-00
Supplied with steel wire (L = 150cm) and millimetre adjustment device and power cord. Max load: 20 kg.
5P Powered suspension
white 22003120-00
black 22003121-00
Supplied with steel wire (L = 150cm) and power cord. For electric gear in EM and DIMM DALI versions. Max load: 20 kg. Roll order example
Liset 2.0 “INFINITY” Roll
L = 2802mm (x 10 pcs) L = 30m
Installation sequence:
1) Insert the junction bracket accessory (to be purchased separately)
2) Tighten the locking screw onto the luminaire’s body
3) Connect the luminaires until they are fully aligned with the junction bracket, then tighten the locking screws
4a) Assemble the provided end cap to the junction bracket; 4b) hook it onto the luminaires’ bodies, ensuring they are aligned in a continuous row
5) Align the end cap (to be purchased separately) and securely tighten it with the locking screw
Liset 2.0 TW - recessed - comfort optics - UGR<19
CLD D-DIG (DALI)
LUMEN OUTPUT (tq= 25 °C)
LED housing L (mm) weight code W tot K - ølm - CRI - degrees
Upon request: CRI>90
• black colour housing version
Upon request: CRI>90
Upon request:

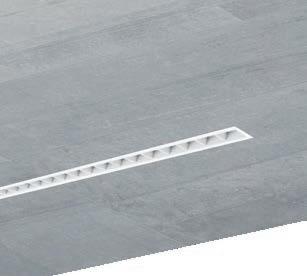

Liset 2.0 TW - ceiling - comfort optics - UGR<19
Comfort optics: in white anti-glare polycarbonate for improved visual comfort (the black and DARK metallized colour version are available upon request).
LED: luminous flux maintenance
80%: 100.000h (L80B10)
Power factor ≥0.92
Upon request:
Complete with millimetre adjustment device; sospensions o be purchased separately (see accessories page). Upon request: CRI>90
Comfort optics: in black anti-glare polycarbonate for improved visual comfort (the white and DARK metallized colour version are available upon request).
Comfort optics: in black anti-glare polycarbonate for improved visual comfort (the white and DARK metallized colour version are available upon request).
• Colour temperature adjustment range from 2700K to 6500K on a linear scale
• Full 3% to 100% dimming range
• ≤4% flicker
• Constant colour temperature over the entire dimming range
• Constant luminous flux
A conventional pushbutton can be used to control the system via colourSWITCH. Use of pushbutton with indicator lamp is not permitted. If the device is controlled via DALI/DSI, colourSWITCH is not available. For control via a pushbutton different settings can be made:
• Short press: setting the colour temperature via colourSWITCH mode with 9 values between 2,700 and 6,500 K.
• Long press (> 1 s): stepless setting of colour temperature. After completion the colour temperature direction will be inverted. In installations with LED Drivers with different colour temperature or opposite colour temperature directions (e.g. after a system extension), all LED Drivers can be synchronized to 4,500 K by a 10 s push.
switchDIM function
Integrated switchDIM function allows a direct connection of a pushbutton for dimming and switching. Brief push (< 0.6 s) switches LED Driver ON and OFF. The dim level is saved at power-down and restored at power-up. When the pushbutton is held, LED modules are dimmed. After releasing and pushing the LED modules are dimmed in the opposite direction. In installations with LED Drivers with different dimming levels or opposite dimming directions (e.g. after a system extension), all LED Drivers can be synchronized to 50 % dimming level by a 10 s push. Use of pushbutton with indicator lamp is not permitted.
Comfort optics: in white anti-glare polycarbonate for improved visual comfort (the black and DARK metallized colour version are available upon request).
Comfort optics: in black anti-glare polycarbonate for improved visual comfort (the white and DARK metallized colour version are available upon request).
LED: luminous flux maintenance
80%: 100.000h (L80B10) Power factor ≥0.92
Upon request: CRI>90
Comfort optics: in black anti-glare polycarbonate for improved visual comfort (the white and DARK metallized colour version are available upon request).
LED: luminous flux maintenance
80%: 100.000h (L80B10) Power factor ≥0.92 Upon
• Colour temperature adjustment range from 2700K to 6500K on a linear scale
• Full 3% to 100% dimming range
• Switch-off fading
• <4% flicker
• Constant colour temperature over the entire dimming range • LED driver that automatically adjusts lights to the desired colour temperature and the required luminous flux
The Dynamic White function allows adjusting the colour temperature from 2700K to 6500K to create a sense of the passing of time (circadian rhythm) and to set the mood and ambiance of a space according to our daily activities. Circadian lighting obtained with the Dynamic White function is the best solution to implement Human Centric Lighting (HCL) in classrooms, university campuses, offices and hospitals where lights can mimic the natural trend of daylight throughout the entire day.
The standard version of the fixture comes with a wireless driver. Liset 2.0 can be easily controlled from a smartphone/tablet via a free app
Liset 2.0 HCL - ceiling - comfort optics - UGR<19
Liset 2.0 TW - BASIC - with polycarbonate diffuser

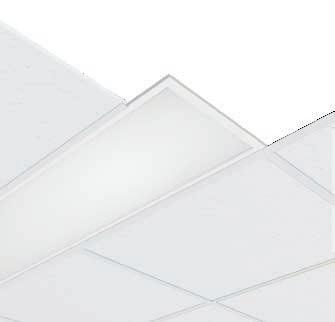

Liset 2.0 TW - recessed - with polycarbonate diffuser
CLD D-DIG (DALI)
LUMEN OUTPUT (tq= 25 °C)
LED housing L (mm) weight code W tot K - ølm - CRI
LED 4 modules white 1140 1,60 22302201-0024 40 2700K÷6500K
Liset 2.0 TW - ceiling - with polycarbonate diffuser CLD D-DIG (DALI) LUMEN OUTPUT (tq= 25 °C) LED
LED 5 modules
Diffuser: in polycarbonate.
LED: luminous flux maintenance
80%: 100.000h (L80B10)
Power factor ≥0.92
Diffuser: in polycarbonate.
LED: luminous flux maintenance
80%: 100.000h (L80B10)
Power factor ≥0.92
1415 3,10
- 3044÷3524lm - CRI>90 black 22302234-0024

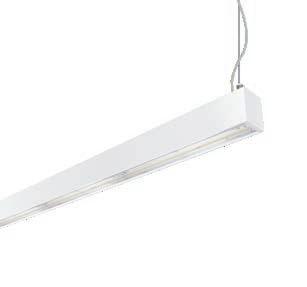

Liset 2.0 TW - suspension - direct light - with polycarbonate diffuser
LED 4 modules white 1135 2,50
2700K÷6500K - 2899÷3357lm - CRI>90 black 22302238-0024
LED 5 modules white 1415 3,10 22302209-0024
2700K÷6500K - 3044÷3524lm - CRI>90 black 22302239-0024
Complete with millimetre adjustment device; sospensions o be purchased separately (see accessories page).
Diffuser: in polycarbonate.
LED: luminous flux maintenance
80%: 100.000h (L80B10)
Power factor ≥0.92
• MacAdams 3
colourSWITCH function
• Colour temperature adjustment range from 2700K to 6500K on a linear scale
• Full 3% to 100% dimming range
• ≤4% flicker
• Constant colour temperature over the entire dimming range
• Constant luminous flux
A conventional pushbutton can be used to control the system via colourSWITCH. Use of pushbutton with indicator lamp is not permitted. If the device is controlled via DALI/DSI, colourSWITCH is not available. For control via a pushbutton different settings can be made:
• Short press: setting the colour temperature via colourSWITCH mode with 9 values between 2,700 and 6,500 K.
• Long press (> 1 s): stepless setting of colour temperature. After completion the colour temperature direction will be inverted. In installations with LED Drivers with different colour temperature or opposite colour temperature directions (e.g. after a system extension), all LED Drivers can be synchronized to 4,500 K by a 10 s push.
switchDIM function
Integrated switchDIM function allows a direct connection of a pushbutton for dimming and switching. Brief push (< 0.6 s) switches LED Driver ON and OFF. The dim level is saved at power-down and restored at power-up. When the pushbutton is held, LED modules are dimmed. After releasing and pushing the LED modules are dimmed in the opposite direction. In installations with LED Drivers with different dimming levels or opposite dimming directions (e.g. after a system extension), all LED Drivers can be synchronized to 50 % dimming level by a 10 s push. Use of pushbutton with indicator lamp is not permitted.
Diffuser: in polycarbonate.
LED:
80%:
(L80B10)
Power factor ≥0.92
Liset 2.0 HCL - WIRELESS - with polycarbonate diffuser
Liset 2.0 HCL - recessed - with polycarbonate diffuser
Diffuser: in polycarbonate.
LED: luminous flux maintenance
80%: 100.000h (L80B10)
Power factor ≥0.92
Diffuser: in polycarbonate.
LED: luminous flux maintenance
80%: 100.000h (L80B10)
Power factor ≥0.92
Liset 2.0 HCL - ceiling - with polycarbonate diffuser
Liset 2.0 HCL - suspension - direct light - with polycarbonate diffuser
• Colour temperature adjustment range from 2700K to 6500K on a linear scale
• Full 3% to 100% dimming range
• Switch-off fading
• <4% flicker
• Constant colour temperature over the entire dimming range • LED driver that automatically adjusts lights to the desired colour temperature and the required luminous flux
TECHNICAL CHARACTERISTICS - HCL WIRELESS VERSION
The Dynamic White function allows adjusting the colour temperature from 2700K to 6500K to create a sense of the passing of time (circadian rhythm) and to set the mood and ambiance of a space according to our daily activities. Circadian lighting obtained with the Dynamic White function is the best solution to implement Human Centric Lighting (HCL) in classrooms, university campuses, offices and hospitals where lights can mimic the natural trend of daylight throughout the entire day.
HCL
The standard version of the fixture comes with a wireless driver. Liset 2.0 can be easily controlled from a smartphone/tablet via a free app
Liset 2.0 - extra modules and accessories
Connecting bracket 22025877-00
It permits mechanical connection of the profiles. For ceiling / suspension versions “S”.
S recessed angle module
black 22302632-03
white 22302612-03
It permits angle connection of Liset 2.0
Use with acc. 22025877-00.
S suspension/ceiling angle module
black 22302630-03
white 22302610-03
It permits angle connection of Liset 2.0
Use with acc. 22025877-00.
S suspension/ceiling T angle module
black 22302634-03
white 22302614-03
It permits T angle connection of Liset 2.0. Use with acc. 22025877-00.
S suspension/ceiling X angle module
black 22302635-03
white 22302615-03
It permits X angle connection of Liset 2.0. Use with acc. 22025877-00.
Suspension angle module “ALL LIGHT” with polycarbonate diffuser
black 22302630-00
white 22302610-00
14W 4000K - CRI>80
It permits angle connection of Liset 2.0 with polycarbonate diffuser. Equipped for continuous line. Upon request: CRI>90. DIMM DALI version with subcode -1241 3000K version with subcode -39. Kg= 1,1.
Ceiling angle module “ALL LIGHT“ with polycarbonate diffuser
black 22302631-00
white 22302611-00
14W 4000K - CRI>80
It permits angle connection of Liset 2.0 with polycarbonate diffuser. Equipped for continuous line. Upon request: CRI>90. DIMM DALI version with subcode -1241 3000K version with subcode -39. Kg= 1,1.
Recessed angle module “ALL LIGHT“ with polycarbonate diffuser
black 22302632-00
white 22302612-00
14W 4000K - CRI>80
It permits angle connection of Liset 2.0 with polycarbonate diffuser. Equipped for continuous line. Upon request: CRI>90. DIMM DALI version with subcode -1241
3000K version with subcode -39. Kg= 1,1.
“Wall-to-ceiling” recessed module “ALL LIGHT“ with polycarbonate diffuser
black 22302633-00 14W 4000K - CRI>80
white 22302613-00
Wall-to-ceiling recessed module for Liset 2.0 with polycarbonate diffuser. Equipped for continuous line. Upon request: CRI>90. DIMM DALI version with subcode -1241. 3000K version with subcode -39. Kg= 1,1.
S recessed linear module
black 22385632-03
white 22385612-03
It permits linear connection of Liset 2.0 Use with acc. 22025877-00.
S suspension linear module
black 22385630-03
white 22385610-03
It permits linear connection of Liset 2.0
Use with acc. 22025877-00.
S ceiling linear module
black 22385631-03
white 22385611-03
It permits linear connection of Liset 2.0
Use with acc. 22025877-00.
120° suspension angle module
black on request white
It permits 120° angle connection of Liset 2.0
22
Liset 2.0 - extra modules and accessories
Example of application with RECESSED LAMP AND ACCESSORIES
22
Suspension with wire
black 22003138-00
white 22003118-00
Complete with steel wire (L = 150cm) and millimetre adjustment device. Max load: 20 kg.
3P powered suspension with wire
black 22003130-00
white 22003190-00
Supplied with steel wire (L = 150cm) and millimetre adjustment device and power cord. Max load: 20 kg.
5P powered suspension with wire
black 22003121-00
white 22003120-00
Supplied with steel wire (L = 150cm) and power cord. For electric gear in EM and DIMM DALI versions. Max load: 20 kg.
5P WIRELESS Powered suspension
black 22003135-00
white 22003125-00
Supplied with steel wire (L = 150cm) and power cord. For the WIRELESS management of DIMM DALI versions (Out DALI : Max 7mA). Max load: 20 kg.
Example of application with SUSPENSION/ CEILING LAMP AND ACCESSORIES
3P/5P suspension attachment for track
black 3P 22091432-00
white 22091412-00
black 5P 22091432-1241
white 22091412-1241
black 5P 22091432-09
white 22091412-09
Supplied with steel wire, mechanical adapter (2 per pack), power adapter with 3P power cord for Omintrack, DALI 5P power cord for Omintrack Plus, 5P power cord + EM KIT (to be purchased separately) for Omintrack Plus. (see chapter Tracks)
Safety cord 22004112-00
Steel safety cord, to be used for safety installation of the fixtures inside false ceilings.
Suspension angle module
Ceiling vangle module
Recessed angle module
MATRIX
206 Liset 2.0 System
Lighting of excellence for stylish interiors.
The product’s mounting freedom offers the possibility to create elegant and sophisticated lighting atmospheres.
The clean-cut geometry of Liset 2.0 blends seamlessly into any modern, refined setting.
Carefree Design!
Liset 2.0 “SQ” - square compositions
Liset 2.0 “SQ” - 4D - “ALL LIGHT”
Complete with millimetre adjustment device; sospensions o be purchased separately (see accessories page).
Diffuser: in polycarbonate.
LED: luminous flux maintenance 80%: 100.000h (L80B10). Power factor ≥0.92
Diffuser: in polycarbonate.
Comfort
(L80B10). Power factor ≥0.92
Liset 2.0 “SQ” - square compositions
Liset 2.0 “SQ” - 2D+2M
Complete
(see accessories page).
Comfort optics: in black anti-glare polycarbonate for improved visual comfort (the white and DARK metallized colour version are available upon request).
LED: luminous flux maintenance
80%: 100.000h (L80B10). Power factor ≥0.92
Liset 2.0 “SQ” - 4M
LED white 990 10,00 22302910
Complete
Liset 2.0 “RT” - special rectangular compositions
Diffuser: in polycarbonate.
Liset 2.0 “RT” - special rectangular compositions
Diffuser: in polycarbonate.
Comfort optics: in black anti-glare polycarbonate for improved visual comfort (the
tallized colour version are available upon request).
LED:
(L80B10).
Liset 2.0 “RT” - 2M+2D
Comfort optics: in black anti-glare polycarbonate for improved visual comfort (the white and DARK metallized colour version are available upon request).
LED: luminous flux maintenance 80%: 100.000h (L80B10). Power factor ≥0.92
Liset 2.0 “RT” - 4M
Complete
Diffuser: in polycarbonate.
Comfort optics: in black/white antiglare polycarbonate for improved visual comfort (DARK metallized colour version are available upon request).
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
Liset 2.0 - special ‘light blade’ compositions
Diffuser: in polycarbonate.
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
Standard: complete with mounting brackets for wall mount applications.
Diffuser: in polycarbonate.
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
Upon request: CRI>90 version (3000K-4000K)
• PUSH-DIMM version with subcode -1245 (4000K) or -3945 (3000K)
• EM version for direct light only:
- 1h EM version with subcode -09 (4000K) or -0928 (3000K)
- 3h EM version with subcode -31 (4000K) or -3957 (3000K)
Liset 2.0 - wall version with diffuser
Standard: complete with mounting brackets for wall mount applications.
Diffuser: in polycarbonate.
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
Upon request: CRI>90 version (3000K-4000K)
• PUSH-DIMM version with subcode -1245 (4000K) or -3945 (3000K)
• EM version for direct light only:
- 1h EM version with subcode -09 (4000K) or -0928 (3000K)
- 3h EM version with subcode -31 (4000K) or -3957 (3000K)
Liset 2.0 - wall version with comfort optics - UGR<19
Standard: complete with mounting brackets for wall mount applications.
Comfort optics: in black anti-glare polycarbonate for improved visual comfort (white/DARK metallized colour version are available upon request).
LED: luminous flux maintenance 80%: 100.000h (L80B10). Power factor ≥0.92
Upon request: CRI>90 version (3000K-4000K)
• PUSH-DIMM version with subcode -1245 (4000K) or -3945 (3000K)
• EM version for direct light only: - 1h EM version with subcode -09 (4000K) or -0928 (3000K)
- 3h EM version with subcode -31 (4000K) or -3957 (3000K)
Standard: complete with mounting brackets for wall mount applications.
Comfort optics: in black anti-glare polycarbonate for improved visual comfort (white/DARK metallized colour version are available upon request).
Diffuser: in polycarbonate.
LED: luminous flux maintenance 80%: 100.000h (L80B10). Power factor ≥0.92
Upon request: CRI>90 version (3000K-4000K)
• PUSH-DIMM version with subcode -1245 (4000K) or -3945 (3000K)
• EM version for direct light only: - 1h EM version with subcode -09 (4000K) or -0928 (3000K)
- 3h EM version with subcode -31 (4000K) or -3957 (3000K) Upon request:
Liset 2.0 - asymmetric - wall version with comfort optics - UGR<19
Comfort optics: in metallized antiglare polycarbonate for improved visual comfort.
LED: luminous flux maintenance
80%: 100.000h (L80B10).
Power factor ≥0.92
Upon request: CRI>90 version (3000K-4000K)
• PUSH-DIMM version with subcode -1245 (4000K) or -3945 (3000K)
• 1h EM version with subcode -09 (4000K) or -0928 (3000K) - 3h EM version with subcode -31 (4000K) or -3957 (3000K)
Standard: complete with mounting brackets for wall mount applications.
Comfort optics: in metallized antiglare polycarbonate for improved visual comfort.
Diffuser: in polycarbonate.
LED: luminous flux maintenance
80%: 100.000h (L80B10). Power factor ≥0.92
Upon request: CRI>90 version (3000K-4000K)
• PUSH-DIMM version with subcode -1245 (4000K) or -3945 (3000K)
Liset 2.0 - orientable - UGR<19
Upon request: CRI>90 (3000K-4000K)
• DIMM-DALI version with sub-code -1241 (4000K) or -3941 (3000K)
• PUSH-DIMM version with sub-code -1245 (4000K) or -3945 (3000K)
• 76° beam version
Comfort optics: in black anti-glare polycarbonate for improved visual comfort (the white and DARK metallized colour version are available upon request).
LED: luminous flux maintenance 80%: 100.000h (L80B10). Power factor ≥0.92
Comfort optics: in black anti-glare polycarbonate for improved visual comfort (the white and DARK metallized colour version are available upon request).
LED: luminous flux maintenance 80%: 100.000h (L80B10). Power factor ≥0.92
• DIMM-DALI version with sub-code -1241 (4000K) or -3941 (3000K)
Comfort optics: in black anti-glare polycarbonate for improved visual comfort (the white and DARK metallized colour version are available upon request).
LED: luminous flux maintenance 80%: 100.000h (L80B10). Power factor ≥0.92
Liset
Upon request: CRI>90 (3000K-4000K)
• DIMM-DALI version with
• 76° beam version.

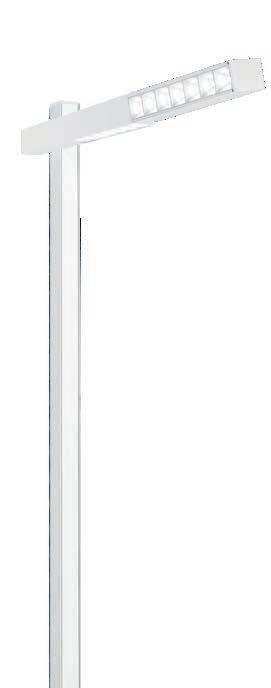

220 Liset 2.0 OFFICE
Liset 2.0 floor lamp (or upon request in Tunable WhiteHCL, with CASAMBI automation lighting control system and integrated light / presence sensor versions) is a small-sized lighting fixture that can create amazing and elegant light effects by correctly managing the luminous intensity of the lights. This version of the standard lamp is particularly versatile thanks to the possibility to choose from different combinations of power and fluxes.
Colours and finishes:
smooth bronze
smooth silver smooth anodic ice
smooth golden beach gold
smooth matt black
smooth matt white
Diffuser: in polycarbonate.
Comfort optics: in black/white antiglare polycarbonate for improved visual comfort (DARK metallized colour version are available upon request).
LED: luminous flux maintenance 80%: 100.000h (L80B10). Power factor ≥0.92
Liset 2.0 OFFICE
Liset
222 Liset 2.0 HOME
Liset 2.0 floor lamp (or upon request in Tunable WhiteHCL, with CASAMBI automation lighting control system and integrated light / presence sensor versions) is a small-sized lighting fixture that can create amazing and elegant light effects by correctly managing the luminous intensity of the lights. This version of the standard lamp is particularly versatile thanks to the possibility to choose from different combinations of power and fluxes.
Colours and finishes:
smooth bronze
smooth silver smooth anodic ice
smooth golden beach gold
smooth matt black
smooth matt white
Diffuser: in polycarbonate.
Comfort optics: in black/white antiglare polycarbonate for improved visual comfort (DARK metallized colour version are available upon request).
LED: luminous flux maintenance 80%: 100.000h (L80B10). Power factor ≥0.92
223 Liset 2.0 HOME
Diffuser: in polycarbonate.
LED:
80%: 100.000h (L80B10).

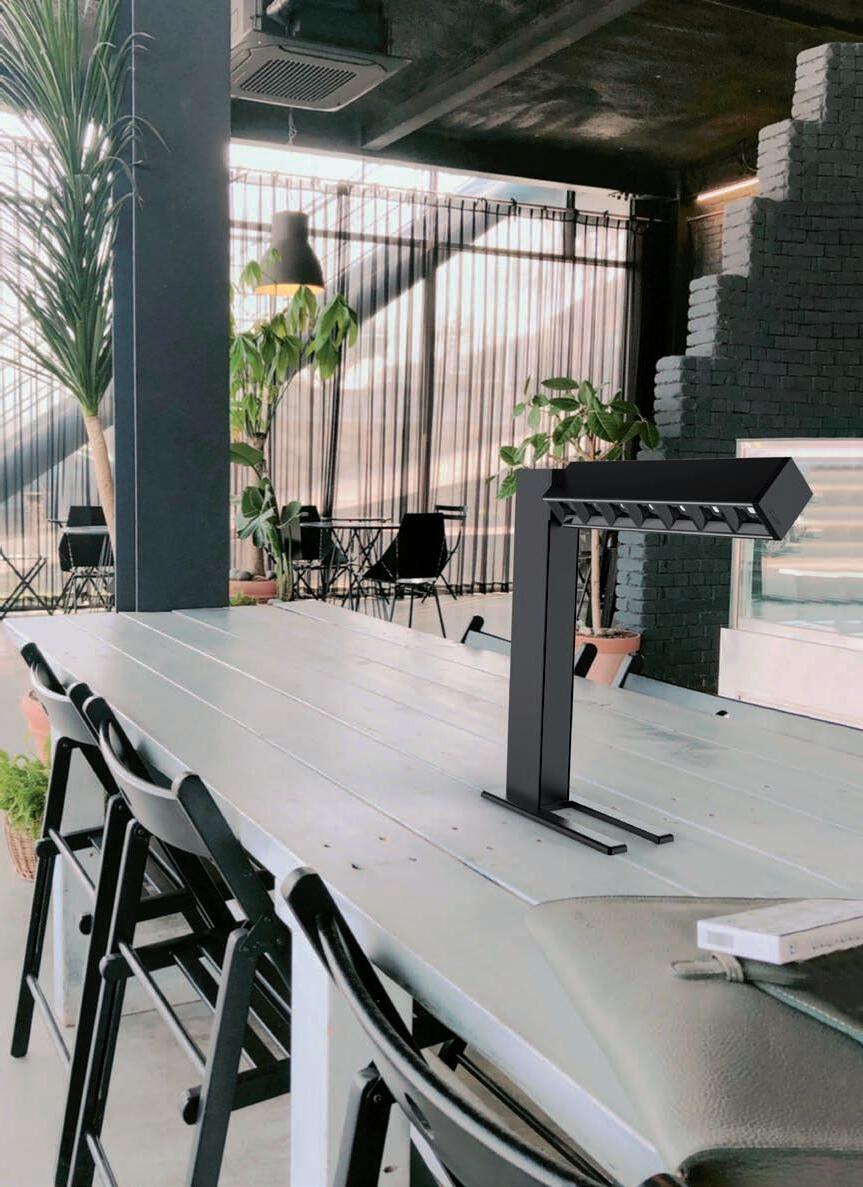

Liset 2.0 tabletop
Liset 2.0
Complete
Comfort optics: in black/white antiglare polycarbonate for improved visual comfort (DARK metallized colour version are available upon request).
LED: luminous flux maintenance
80%: 100.000h (L80B10). Power factor ≥0.92
Liset 2.0
Complete
INFINITY
Housing: extruded aluminium. Roll diffuser : opal/prismatic polycarbonate (to be purchased separately)
Équipement: supplied standard, versions complete with mounting brackets for installation as pendant lamps (suspensions to be purchased separately) and as ceiling fixtures.
LED: power factor: ≥0,92
Luminous flux maintenance 80%: 80.000h (L80B10)
Photobiological safety class: exempt group
Upon request version:
• emergency wiring CLD E with sub-code -09.
• emergency wiring with centralized power supply CLD EC with subcode -0050.
• CLD D-D (DALI) wiring with subcode -1241.
• white colour.
To
**Lumen output with prismatic roll diffuser.
Sintesi “INFINITY” DIP SWITCH -
End cap
black 22028031-00
To be used to close the two terminal ends (2pcs).
Suspension
galvanised 22003166-00
Supplied with steel wire (L=150 cm) and millimetre adjustment device (2pcs). Max load: 20Kg.
Junction brackets 22025879-00
Utilize for the suspension/ceiling installation in continuous line of Sintesi.
CEILING VERSION
SUSPENSION VERSION
Sintesi “INFINITY“ with pass-through wiring with subcode -0072 to be completed with acc. opal/prismatic diffuser Roll.
Opal polycarbonate Roll
L = 30m 22025844-00
Opal polycarbonate Roll must always be used on Sintesi “INFINITY” for continuous and uninterrupted “all light” lines.
UGR<19 prismatic polycarbonate roll
L = 30m 22025844-33
Prismatic polycarbonate roll must always be used on Sintesi “INFINITY” for continuous and uninterrupted “all light” lines.
Powered suspension with wire
3P black 22003130-00
5P 22003121-00
Supplied with steel wire (L = 150cm) and millimetre adjustment device and power cord. 5P suspension for EM and DIMM DALI versions. Max load: 20 kg.
Installation sequence:
1) Insert acc. junction bracket to be purchased separately (purchase nr.2 acc. junction bracket for suspension version)
2) Pair the luminaires until they are aligned, then tighten the locking screws.
3) Screw the locking screws and lock the end cap.
Roll order example
Sintesi “INFINITY” Roll L = 2242mm (x 13
(x
CEILING VERSION SUSPENSION VERSION

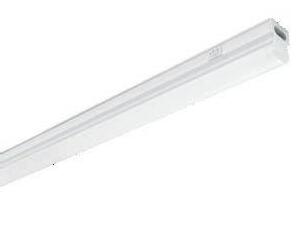

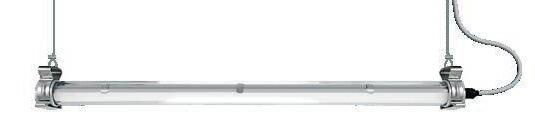

Compact, clean-cut and easy-toinstall lamp, even in continuous line, thanks to the supplied accessories. It is ideal for the general lighting of interiors (entrance halls, corridors, basements, stairways) and can be easily fitted under kitchen cabinets, above bathroom mirrors, inside wardrobes, walk-in closets, corridors, etc.
Housing: in polycarbonate.
Diffusore: in polycarbonate.
Equipment: complete with ON/OFF switch and power cable
• version with CASAMBI automation lighting control system. For further information see chapter Technical components.
IP65 box for 700mA standard version
-00
Fixed intermediate bracket for Micro Liset inox 22025979-00
To be used to install Micro Liset with lengths over 1500mm.

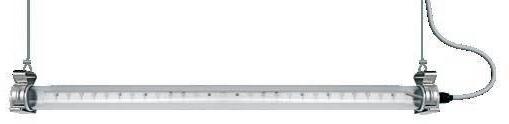

Micro Liset Professional
For standard version of MIcro Liset (L max=1475mm) use IP65 - 700mA power supply box: 34W cod. 22092055-00; for special MIcro Liset (L >1475mm) use IP67-24V driver : 100W cod. 22092036-00 - 150W cod. 22092038-00. * CLD D-DIG version equipped with DALI driver.
Version with aluminium screen, ideal for reducing glare and creating striking lighting effects. Fixed bracket code 22025961-00 to be purchased separately
For standard version of MIcro Liset (L max=1600mm) use IP65 - 700mA power supply box: 34W cod. 22092055-00; for special MIcro Liset (L >1600mm)use IP67-24V driver: 100W cod. 22092036-00 - 150W cod. 22092038-00.
* CLD D-DIG version equipped with DALI driver. Upon request: versions available in different colours and surface finishes to coordinate with any architectural design (example white, black).
LED 5
luminous flux maintenance
50.000h (L80B20).

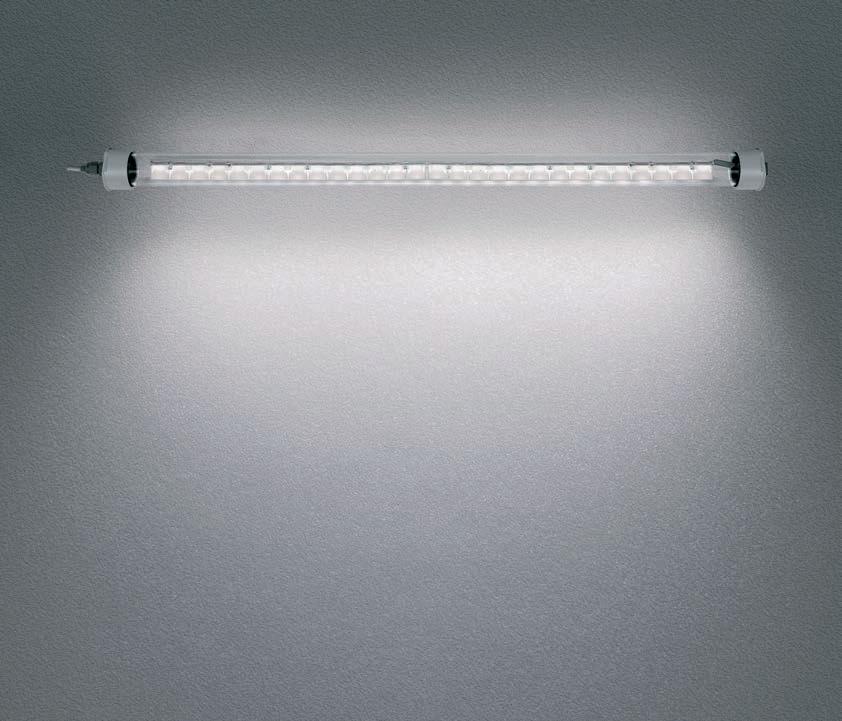

Micro Liset Professional - with LENSES
For standard version of MIcro Liset (L max=1475mm) use IP65 - 500mA power supply box: 22W cod. 22092057-00. * CLD D-DIG version equipped with DALI driver.
BOX
Suspension galvanised 22003166-00
Supplied with steel wire (L=150 cm) and millimetre adjustment device (2pcs). Max load: 20Kg.
INSTALLATIONS AND ACCESSORIES
Fixed bracket for Micro Liset inox 220
To be used to install Micro Liset. Contains 2 pieces.
Fixed intermediate bracket for Micro Liset inox 22025979-00
To be used to install Micro Liset with lengths over 1500mm.
Micro Liset Professional - recessed with LENSES
Micro Liset Professional with lens, extruded aluminium, featuring end caps and springs for recessed installation in plasterboard ceilings.
Upon request: 1h EM version (EM (emergency) power KIT complete with connectors cod. 22096035-00 to be purchased separately).
Upon request: available special version of Microliset with lenses complete with slats.
ON-OFF or DALI driver to be purchased separately
ON/OFF Driver - 400mA wattage code
22W 22090723-00
Driver complete with a connection plug featuring a protective cover and EPN3MO cable clamp with male thread. DALI Driver - 400mA wattage code 22W 22090723-1241
Driver complete with a connection plug featuring a protective cover and EPN5MO cable clamp with male thread.
ON/OFF Driver - 2x400mA wattage code
40W 22090724-00
Driver complete with a connection plug featuring a protective cover and EPN3MO cable clamp with male thread. DALI Driver - 2x400mA
Driver
with male thread. Micro Liset - recessed in slats with LENSES - PROFESSIONAL
Range of profiles in extruded aluminium for the installation of Strip LED. Their easy installation and linear design ensure multiple applications with an architectonic effect.
Housing: in extruded aluminium.
Diffusor: opal.
Accessories always included: end caps, connectors to ceiling and/or walls.
A Profile - angular
S
colour L mm code
nat. oxi. 2000 22012210-00
To be used with IP20 STRIP.
Profiles for Strip LED
B Profile - recessed
S
colour L mm code
nat. oxi. 2000 22012211-00
To be used with IP20 STRIP.
C Profile
S
colour L mm code
nat. oxi. 2000 22012212-00
To be used with IP20 STRIP.
D Profile
S
colour L mm code
nat. oxi. 2000 22012213-00
To be used with IP20/IP65 STRIP.
Range of profiles of different shapes used to house the LED strips, specifically designed to meet multiple lighting applications.
ATTENTION:
• A-B-C-D profile can house all CRI 80 and CRI 90 - IP20 adhesive LED Strips featured in this section of the catalogue (see following page).
• D profile can house all CRI 80 and CRI 90 - IP65 adhesive LED Strips featured in this section of the catalogue (see following page).
Example of application with CEILING/WALL B-C-D PROFILE
Example of application with CEILING/SUSPENSION A-B-C-D PROFILE
Description: Strips to be applied on smooth, clean and dry surfaces with 3M adhesive tape. Avoid installation on sharp surfaces and pay attention not to damage components.
The product is supplied in 5-meter strips wrapped around support rolls, including a package containing connection accessories.
Strips can be cut at preset distances. For intermediate cuts, use the end caps included in the package and make sure that all cut ends are perfectly sealed.
Fosnova does not take responsibility for cuts made after the material has been delivered.
Upon request: version with CASAMBI automation lighting control system. For further information see chapter Technical components.

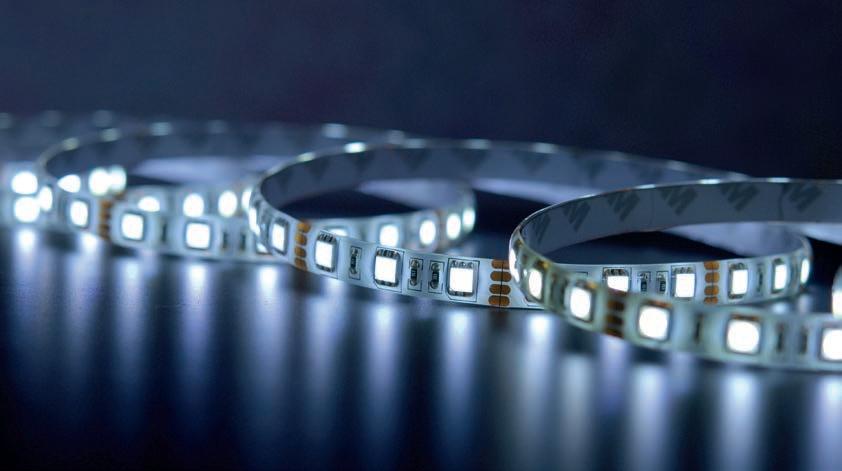

240 Strip - LED - CRI>90
3,000
MacAdam Ellipse: 3SDCM
4
MacAdam Ellipse: 3SDCM
Strip LED: 24 V constant voltage stripe, ideal for application on aluminum extrusions but also for various decorative lighting applications such as cove lighting, façade accent lighting etc.
Features and benefits :
• Extremly narrow pitch distance enables short distance to diffuser and outstanding homogeneity
• High colour rendering, CRI>90
• Luminous flux range of 600, 1,200, 1,800 and 2,500 lm/m
• Colour temperature 3,000, 4,000 K
• High design freedom due to 5 cm cut-options
• Self-adhesive 3M tape at the backside for simple mounting on different surfaces
• PCB to PCB and wire to PCB connectors for toolless handling and connection
• Small colour tolerance (MacAdam 3)
• Life-time 60,000 hours
• System solution in combination with constant voltage LED Driver (fixed output and dimmable)
• Connector noti ncluded
Technical data
Beam characteristic 120°
Ambient temperature range -25 ... +50 °C
tp rated / tc 65 °C / 75 °C
Supply voltage DC 24 V
Supply voltage range DC (1) 21,6 – 26,4 V
Insulation test voltage 0,5 kV
Risk group (EN 62471:2008) 0
Classification acc. to IEC 62031 Built-in
Type of protection IP00 (1) Exceeding the max. operating voltage leads to an overload on the Strip. This may in turn result in a significant reduction in life-time or even in destruction.
Ellipse: 3SDCM
Luminous flux maintenance:
CONNECTOR AND DRIVER
Plug connector with wire
L=500 22028212-00
Connector complete with wire L = 500mm. Upon request L=100/2000mm.
Continuous line connector 22028213-00 To connect Strip-LED in continuous line.
Connector for connection of LED strip modules:
• Easy assembly: remove adhesive 3M tape on the backside of the LED Strip in the connection area, insert the LED Strip into the connector and lock it by pressing down the top of the connector.
• The insertion length of the LED Strip must be at least 4 mm (cut the LED Strip at the dotted lines).
Driver: choose the most suited ones. Upon request: CASAMBI version
Strip - LED - CRI>80
Strip LED: 24 V constant voltage stripe, ideal for application on aluminum extrusions but also for various decorative lighting applications such as cove lighting, façade accent lighting etc.
Features and benefits :
• Extremly narrow pitch distance enables short distance to diffuser and outstanding homogeneity
• Luminous flux range of 600, 1,200, 1,800 lm/m
• Colour temperature 3,000, 4,000 and 6,500 K upon request
• High design freedom due to 5 cm cut-options
• Self-adhesive 3M tape at the backside for simple mounting on different surfaces
• PCB to PCB and wire to PCB connectors for toolless handling and connection
• Small colour tolerance (MacAdam 3)
• Life-time 60,000 hours
• System solution in combination with constant voltage LED Driver (fixed output and dimmable)
• Connector noti ncluded
Technical data
Beam characteristic 120°
Ambient temperature range -25 ... +50 °C
tp rated / tc 65 °C / 75 °C
Supply voltage DC 24 V
Supply voltage range DC (1) 21,6 – 26,4 V
Insulation test voltage 0,5 kV
Risk group (EN 62471:2008) 0
Classification acc. to IEC 62031 Built-in
Type of protection IP00
(1) Exceeding the max. operating voltage leads to an overload on the Strip. This may in turn result in a significant reduction in life-time or even in destruction.
MacAdam Ellipse: 3SDCM
MacAdam Ellipse:
MacAdam Ellipse: 3SDCM
MacAdam Ellipse: 3SDCM
MacAdam Ellipse: 3SDCM
Luminous flux maintenance:
Upon request 6500K version.
Plug connector with wire
L=500 22028212-00
Connector complete with wire L = 500mm. Upon request L=100/2000mm.
Continuous line connector 22028213-00 To connect Strip-LED in continuous line.
Connector for connection of LED strip modules:
• Easy assembly: remove adhesive 3M tape on the backside of the LED Strip in the connection area, insert the LED Strip into the connector and lock it by pressing down the top of the connector.
• The insertion length of the LED Strip must be at least 4 mm (cut the LED Strip at the dotted lines).
AND DRIVER
Driver: choose the most suited ones. Upon request: CASAMBI version
CONNECTOR
Driver for Strip/Strip SILICONE NEON
INDOOR for RGB-RGBW LED Strip - IP20
IMPORTANT: the watertight connector for connecting the driver to the power supply or to the Strip LED fixture must always be purchased separately.
Continuous line connector with cable
8mm 2 PIN 22028302-00
10mm 2 PIN 22028301-00
10mm 4 PIN 22028322-00
10mm 5 PIN 22028323-00
IP65 connector with wire (L=150mm); to connect IP65 Strip LED in continuous line (also to be used for IP20 LED Strips).
Corners connector
8mm 2 PIN
28304-00
10mm 2 PIN 22028303-00
IP65 connector; to connect IP65 Strip LED to corners (also to be used for IP20 LED Strips).
Strip - LED
LED Strip - IP20 - CRI 80 - 24V
LED Strip - IP20 - CRI 80 - 24V
LED Strip - IP65 - CRI 80 - 24V
LED Strip - IP65 - CRI 80 - 24V
CONNECTOR / ACCESSORIES FOR STRIP
Continuous line corners connector with cable
8mm 2 PIN 22028306-00
10mm 2 PIN 22028305-00
10mm 4 PIN 22028324-00
10mm 5 PIN 22028325-00
IP65 connector with wire (L=150mm); to connect IP65 Strip LED in continuous line/corners (also to be used for IP20 LED Strips).
End cap
8mm 22028320-00
10mm 22028321-00
End cap for IP65 Strip LED.
Continuous line connector
8mm 2 PIN 22028308-00
10mm 2 PIN 22028309-00
10mm 4 PIN 22028326-00
10mm 5 PIN 22028327-00
IP65 connector; to connect IP65 Strip LED in continuous line (also to be used for IP20 LED Strips).
LED Strip: 24 V constant voltage stripe, ideal for application on aluminum extrusions but also for various decorative lighting applications such as cove lighting, façade accent lighting etc.
Note: never use scissors for cutting, use a cutter instead. To ensure proper operation and the correct IP level, restore the strip cabling to the original configuration. For intermediate cuts, use the end caps and make sure that all cut ends are perfectly sealed. Fosnova does not take responsibility for cuts made after the material has been delivered. This note applies to all LED strips.
The STRIP SILICONE NEON luminaires are made in ecological silicone material with high light transmittance and an IP67 degree of protection. They provide excellent resistance to heat, cold, ageing, yellowing and UV radiation. These luminaires are suitable for both indoor and outdoor lighting, such as urban evening settings, decorative lighting of architectural details, roof corners and corridors.
TOP BEND SIDE BEND
Note: bend the “TOP BEND” NEON STRIPS only as shown in the instructions.
Note: Bend the “SIDE BEND” NEON STRIPS only as shown in the instructions.
Note: never use scissors for cutting, use a cutter instead. To ensure proper operation and the correct IP level, restore the strip cabling to the original configuration. For intermediate cuts, use the end caps and make sure that all cut ends are perfectly sealed. Fosnova does not take responsibility for cuts made after the material has been delivered. This note applies to all LED strips. no yes
WARNINGS FOR INSTALLING SILICONE STRIPS
Closing end cap
22028512-00
Closing end cap without hole for IP67 SILICONE NEON 12x12 strip.
Strip 12x12 / 06x12 - SILICONE NEON - LED
Strip - SILICONE NEON “TOP BEND” 12x12 -
Strip - SILICONE NEON “SIDE BEND” 06x12 -
CONNECTOR / ACCESSORIES FOR “TOP BEND” 12x12 STRIP
Side/bottom end cap
22028513-00
End cap with outlet from side/bottom for IP67 SILICONE NEON 12x12 strip.
Fixing clips
22028611-00
Fixing clips for IP67 SILICONE NEON 12x12 strip.
L= 1000mm
Fixing profile
22028613-00
Fixing aluminium profile for IP67 SILICONE NEON 12x12 strip.
L= 1000mm
Bendable fixing profile
22028618-00
Bendable fixing profile made of aluminium for SILICONE NEON Strip IP67 12x12.
Closing end cap
22028514-00
Closing end cap without hole for IP67 SILICONE NEON 06x12 strip.
CONNECTOR / ACCESSORIES FOR “SIDE BEND” 06x12 STRIP
Side end cap
22028515-00
End cap with outlet from side for IP67 SILICONE NEON 06x12 strip.
Fixing clips
22028612-00
Fixing clips for IP67 SILICONE NEON 06x12 strip.
L= 1000mm L= 1000mm
Fixing profile
22028616-00
Fixing aluminium profile for IP67 SILICONE NEON 06x12 strip.
Bendable fixing profile
22028619-00
Bendable fixing profile made of aluminium for SILICONE NEON Strip IP67 06x12.
Closing end cap
22028511-00
Closing end cap without hole for IP67 SILICONE NEON 16x16 strip.
End cap with outlet from side/bottom for IP67 SILICONE NEON 16x16 strip.
Fixing clips
22028610-00
Fixing clips for IP67 SILICONE NEON 16x16 strip.
Fixing profile
22028614-00
Fixing aluminium profile for IP67 SILICONE NEON 16x16 strip.
L= 1000mm
Bendable fixing profile
22028615-00
Bendable fixing profile made of aluminium for SILICONE NEON Strip IP67 16x16.
WARNINGS FOR INSTALLING SILICONE STRIPS
The STRIP SILICONE NEON luminaires are made in ecological silicone material with high light transmittance and an IP67 degree of protection. They provide excellent resistance to heat, cold, ageing, yellowing and UV radiation. These luminaires are suitable for both indoor and outdoor lighting, such as urban evening settings, decorative lighting of architectural details, roof corners and corridors.
TOP BEND
SIDE BEND
Note: bend the “TOP BEND” NEON STRIPS only as shown in the instructions.
Note: Bend the “SIDE BEND” NEON STRIPS only as shown in the instructions.
Note: never use scissors for cutting, use a cutter instead. To ensure proper operation and the correct IP level, restore the strip cabling to the original configuration. For intermediate cuts, use the end caps and make sure that all cut ends are perfectly sealed. Fosnova does not take responsibility for cuts made after the material has been delivered. This note applies to all LED strips.
Luminaires
Vision 2.0 - suspension for busbar
Housing: die-cast aluminium with cooling vents.
Reflector: in polished aluminium, high efficiency and anti-glare.
Coating: Power-coated with a UV-resistant polyester epoxy pain. Regulations: Manufactured in accordance with EN 60598-1-CEI 34.21 standards. Degrees of protection in accordance with EN60529 standards.
LED: high-efficiency light sources (CRI>90).
Upon request: version with CASAMBI automation lighting control system. For further information see chapter Technical components. Upon request:
Equipment: complete with suspension and safety cable (L=1.20 m) with jamming cord grip for mounting bracket (not included) and electrical cable with connecting plug.
To reduce
BUSBAR
Standard supply: supplied with suspension cable (L=2,80m) and ceiling rose.
LED: luminous flux maintenance
80%: 70.000h (L80B10). Power factor >0.95.
Vision 2.0 - suspension
Standard supply: supplied with suspension cable (L=2,80m)
LED: luminous flux maintenance
80%: 70.000h (L80B10). Power factor >0.95.
Vision 2.0 big C -
Upon request: 23° and 38° beam
Upon request: 23° and
beam
Vision 2.0 - ceiling
Upon request, special versions with base + support rods or Flex tube are available. Easily surface-mounted, these versions are ideal for retail, architectural and museum lighting applications. Thanks to the swivelling luminaire, you will be able to enhance any type of interior design.
Vision 2.0 - ceiling
Themis - UGR<19 - with optic
Themis stands out for its simple design and high-quality lighting output delivered by latest generation LED sources. Studied to deliver direct lighting, it is equipped with a highly efficient reflector (adjustable) or with lenses to enhance the light beam Designed to be easily installed inside ceilings thanks to its mounting bracket, it is capable of illuminating full and empty spaces, bringing out all the potential of architectonic details and giving rhythm and colour to important interiors.
Housing: made of die-cast aluminium with clear polycarbonate diffuser.
Standard supply: ceiling version supplied with bracket for installation; suspension version supplied with suspension cable (L=1,70m) and ceiling rose
Upon request: version with CASAMBI automation lighting control system. For further information see chapter Technical components.
installation sequence with bracket and separate driver as standard.
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (2700K-3000K-4000K), adjusting its emission to most lighting installations.
Lens: in PMMA with high efficiency output and very low glare rate
LED: luminous flux maintenance 80%:
= 2700K (warm white)
Reflector: metallized and prismatic aluminium.
LED: luminous flux maintenance 80%: 50.000h (L80B20). Power factor >0,9.
Themis - UGR<19 - CCT / DIP SWITCH
Reflector: metallized and prismatic aluminium.
LED: luminous flux maintenance
80%: 50.000h (L80B20). Power factor >0,9.
Themis
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (3000K-4000K-6000K), adjusting its emission to most lighting installations.
Silent is a pendant lighting fixture, featuring a decorative ring made of sound-absorbing fabric. This ring is shaped to effectively absorb frequency sounds, reducing the noise in the room where it is installed.
Moreover, colour temperature control with the built-in CCT switch makes it an ideal luminaire to meet the lighting and application needs in the hospitality and retail sectors.
A noisy environment and poor lighting can negatively affect both health and wellbeing. Installing lighting fixtures such as Silent, which comes equipped with a sound-absorbing fabric ring as standard, offers an ideal solution to this issue.
WHAT IS SOUND ABSORPTION?
Sound absorption occurs when a surface converts sound wave energy into negligible thermal energy through friction within the material’s pores.
The more sound energy a surface absorbs, the less is reflected back into the room as noise, reverberation, echo or vibration
CLASSIFICATION OF NOISE REDUCTION COEFFICIENT (NRC)
The table below presents sound absorption data based on measurements in a reverberant room. In typical indoor environments, noise frequencies generally fall within the 500–2000 Hz range (in which the device performs effectively), taking into account the following factors: - the level of noise generated by people and equipment in the space; - the activities taking place in the environment and the extent to which occupants are sensitive to disruptive noise or excessive reverberation.
Housing: polycarbonate designed for suspension installation, complete with cable base as standard
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (3000K-4000K-5700K), adjusting its emission to most lighting installations.
Sequence for mounting the luminaire as a pendant with a sound-absorbing ring using a baseplate and standard cable.
262 Slim 3 - UGR
With Slim, LED lighting makes a step forwards. With a simple form, which is the result of a complex design, Slim is an object full of technological innovation designed by Fosnova. It has the typical appeal of new design trends and the quality of industrial products: small, simple-to-use, versatile, and with technologically advanced performance. Instant start with no shimmer and absolutely silent operation. Energy saving of over 50% compared to traditional lights to fluorescent tubes. Efficiency of the LEDs (95%), overheating protection, current control and ability to work with stabilized voltages.
Housing: in aluminium.
Inner slab: in PMMA.
Diffuser: in prismatic engineering plastic with high thermal transmittance.
UGR<19 (in any situation). EN 12464.
LED: luminous flux maintenance 80%: 50.000h (L80B20). Power factor ≥0.95.
Upon request: version with CASAMBI automation lighting control system. For further information see chapter Technical components.
Upon
LED: luminous flux maintenance 80%: 50.000h (L80B20). Power factor ≥0.95
Flex angle joint
30 cm 22022890-00
For continuous line and L- junctions of two fixtures.
Slim 3 - UGR
ALIGNMENT JOINTS
SPECIAL VERSION
SPECIAL VERSION FOR CONTINUOUS LINE: central module to order with subcode -0072
Linear joint steel 22022870-00
For continuous line and junction of two fixtures.
Simple suspension
galvanised 22003166-00
Supplied with steel wire (L=150 cm) and millimetre adjustment device (2pcs). Max load: 20Kg.
Suspension with Y cable
1pcs steel 22003410-00
2pcs steel 22003411-00
Kit supplied with Ø 1.5 mm steel cable (L=2 m standard). Load: max 15 kg.
Simple suspension with Y cable white 22003140-00
Kit supplied with Ø 1.5 mm steel cable (L=2 m standard). Load: max 15 kg.
Powered suspension with Y cable white 22003149-00
Kit supplied with Ø 1.5 mm steel cable (L=2 m standard) and power cord. Load: max 15 kg.
Suspensions with Y cable: ideal for suspending luminaires with 2 fixing points. The Y cable ensures the balance of the fixture. Fixtures can be hung accurately thanks to the useful release and adjustment button on the side of the terminal.
SPECIAL VERSION FOR CONTINUOUS LINE: end module to order with subcode -0086
SUSPENSION ACCESSORIES
Simple suspension white 22003112-00
Complete with steel wire (L = 100cm) and millimetre adjustment device. Max load: 20 kg.
Powered suspension white 22003113-00
Supplied with steel wire (L = 100cm) and millimetre adjustment device and power cord. Max loading: 20Kg.
3P powered suspension with wire silver 22003174-00 white 22003190-00
Supplied with steel wire (L = 150cm) and millimetre adjustment device and power cord. Max load: 20 kg.
5P powered suspension with wire white 22003120-00
Supplied with steel wire (L = 100cm) and power cord. Max loading: 20Kg. For electric gear in EM and DIMM DALI versions.
5P WIRELESS powered suspension white 22003125-00
Supplied with steel wire (L = 150cm) and power cord. For the WIRELESS management of DIMM DALI versions (Out DALI : Max 7mA). Max load: 20 kg.

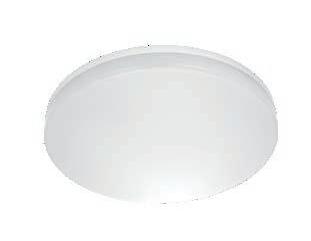

External housing: in semi-opal polyethylene.
Internal reflector: made of V2 shatterproof and self-extinguishing clear polycarbonate, with anti-glare micro frosted finish.
Prismatic on the inside for improved light control, UV stabilized. Scratchresistant coating.
Equipment: can be fixed directly onto the ceiling.
Available Upon request: double socket-pin terminal block for dual switching.
Standard: version with CASAMBI automation lighting control system. For further information see chapter Technical components.
Venere
CASAMBI SYSTEM
Casambi is an advanced automation lighting control system, the simplest and natural way to control your own lamps. It is a bluetooth low energy (BLE). It is a bluetooth low energy (BLE) solution. BLE is a latest generation wireless technology and the only low-voltage wireless. Thanks to the intuitive simplicity of the app anyone can create and manage a lighting network singlehandedly by controlling every fixture individually or in groups depending on the needs and the functions required, using a smart phone or any other mobile device. Casambi technology can be integrated into luminaires, LED-drivers and even within LED-modules or bulbs, creating an optimal solution in terms of ease of installation and functionality with minimal additional hardware and deployment costs.
The Casambi devices are smart on their own. All the intelligence is replicated in each node leaving no single point of failure. The system itself is in constant consensus based synchronisation.
WIRELESS & BLUETOOTH LOW ENERGY
The Casambi network is based on the Bluetooth Low Energy protocol, which is the most energy ecient and future proof of wireless technologies. The low energy functionality of BLE allows developers to make products that run on small coincell batteries or energyharvesting devices, making BLE the best protocol to be used in wireless lighting control applications.
NETWORK STRUCTURE
The Casambi solution is based on a network structure. Casambi units are paired to networks. 127 units can be paired to one network. All the units that are physically in the same area, that the user want to access at the same time or that should have the same functionality at the same time should be paired to the same network. A network should cover an area that all the users in that area are allowed to control as the access rights are defined per whole network.
Mesh network: Low Latency
Low Power
Low Cost
Good Range Robust Auto Config
Smart control from wall switches
MAIN FEATURES
CONNECTED
The Casambi devices are connected when needed. An Internet connection is not necessary for general operation and day to day functionality. Bluetooth Low Energy is already implemented in smartphones and tablets, so communication can be done without any additional gateways.
NO GATEWAYS
BLE was built for Internet of Things (IoT) and has been implemented in all modern smartphones, tablets and even smart watches since the beginning of 2012. This means that no gateway modules or any kind of dongle is needed to control lighting via BLE, which makes a BLE - based lighting control solution more cost effective than solutions built on other wireless technologies.
USER FRIENDLY
The system is intuitive. When connecting for the first time nodes are automatically pairing. The system can be used and modified by anyone, no commissioning experts are needed.
COMMUNICATION
direct Bluethoot smart connection
All Casambi units form a wireless mesh network. The mesh network contains an algorithm that drives towards a consensus state between each participant. Once consensus is reached the communication will stop. If a unit goes oine it is no longer considered to be part of the consensus group but once it comes back online it will join the group again and catch up with others. In this way the casambi network is more like a consensus based syncronisation engine, rather than a classic mesh network. The communication range between two Casambi units is highly dependant on the surrounding and obstacles, such as walls and building materials. In indoor environments the range can be up to 30 m and in outdoor conditions up to 50 m. It is recommended to make communication tests in environments with a lot of signal disturbing materials. Longer ranges can be achieved by using multiple Casambi units. It is also important to consider that in the majority of applications either the user with a smart device or adjacent luminaires containing Casambi units are only ever 5 to 10 meters away from each other to provide excellent reliability in the communication network.
APP AND FEATURES
With Casambi, lighting can be controlled via smartphones, tablets, smart watches, push buttons, switches or wireless switch. To access all the functionality of the Casambi networks an app is needed. The app can be downloaded for free from Apple App Store or Google Play Store with the name Casambi. The Casambi app is continuously update to mantein compatibility with operating systems.
• Turn on and off your luminaires
• Dim the lighting
• Group luminaires and turn on, o and dim the group as one
• Configure, save and recall scenes
• Configure, save and recall animations
• Fade time adjustments for scenes and animations
• Use the Timer to turn on and o scenes or animations based on time and date
• Adjust colours
• Adjust colour temperatures
• Use motion sensors
• Bluetooth signal strength for geo locationing
• Take pictures from your spaces or upload your lighting layout drawings and add lighting control directly to your picture
• Take sunrise and sunset into account while defining timers
• Get status information from the system
• Update the firmware over-the-air
• System functionality updates over-the-air
• Commissioning support within the app
A series of fixtures for interior wall mounting with energy saving lamps. Their extremely rapid and easy installation together with their simple yet elegant design, make this series of products ideal for offices, lobbies and open-space areas.
Slimcover: wall product characterized by luminous effects designed to fade the depth of a room. The light emitted by Slimcover products enables to play with space to create an optical depth which is different from the real dimensions of the space around. Simple shape, precious materials. Single lighting fixture. Suitable for installation in villas or luxury offices.
Housing: extruded aluminium
LED: luminous flux maintenance 80%: 50.000h (L80B20). Power factor >0.95.
Upon request: version with CASAMBI automation lighting control system. For further information see chapter Technical components.
Slimcover
Housing: extruded aluminium.
Reflector: adjustable angle matt opal polycarbonate diffuser.
LED: luminous flux maintenance
80%: 50.000h (L80B20). Power factor >0.95.
Housing: extruded aluminium.
Reflector: adjustable angle matt opal polycarbonate diffuser.
LED: luminous flux maintenance
80%: 50.000h (L80B20). Power factor >0.95.
Upon request: Emergency version (3 hours).
Curve is an oval shape wall sconce with energy efficiency LED sources. Its design allows obtaining a soft, evenly distributed glow for direct or indirect lighting.
Housing: in painted aluminium, designed for wall-mounting.
LED: luminous flux maintenance
70%: 36.000h (L70B50). Power factor >0.9.
CCTSWITCH
Housing: in painted aluminium, designed for wall-mounting.
LED: luminous flux maintenance
80%: 50.000h (L80B50). Power factor >0.9.
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (3000K-4000K), adjusting its emission to most lighting installations.
270 CurveLine
CurveLine
CurveLine is a very small wall sconce, which displays a smooth and compact design making it suitable for decorative lighting applications.
Housing: in painted aluminium with matt polycarbonate diffuser, designed for wall-mounting.
LED: luminous flux maintenance 80%: 50.000h (L80B50). Power factor >0.9.
Taco is a small wall sconce, ideal for direct/indirect lighting; easy to install, it features a double rotating shaft that allows the luminaire to be rotated 350° horizontally and 28° vertically to screen the light and create surprising effects.
Housing: in painted galvanised steel sheet with matt polycarbonate diffuser, designed for wallmounting.
LED: luminous flux maintenance 80%: 50.000h (L80B50). Power factor >0.9.
Taco - V Moon
V Moon is a modern yet elegant wall sconce, ideal for rooms where diffused and comfortable lighting is needed.
Housing: in painted aluminium with matt polycarbonate diffuser, designed for wall-mounting.
LED: luminous flux maintenance 80%: 50.000h (L80B50). Power factor >0.9.
V Moon
Standard version with: separate switching and dimming touch button for individual control of spotlight and backlight, mobile phone charging stand and 5V 1500mA USB interface (one per side).
Thanks to separate switching and dimming functions, made possible by two convenient touch buttons, you can obtain indirect backlighting for night-time use, or a pleasant light for reading with the swivelling spotlight with anti-glare optics.
Buddy is a wall sconce ideally suited for bedrooms. The front features a swivelling spotlight with 30° comfort optics while the back has a diffuser to emit soft indirect light, perfect for night-time use.
Housing: painted aluminium with (horizontally and vertically) swivelling front spotlight and opal polycarbonate diffuser for indirect lighting. Mobile phone/tablet charging stand, designed for wall mounting.
LED: luminous flux maintenance 80%: 50.000h (L80B50). Power factor >0.9.
Roby 2.0, linear wall sconce for a modern and contemporary design, ideal for bathroom mirror lighting or to provide accent lighting and emphasize decorative elements on vertical surfaces.
Roby 2.0 - Solus
Housing: in painted aluminium with matt polycarbonate diffuser, designed for wall-mounting.
LED: luminous flux maintenance
80%: 50.000h (L80B50). Power factor >0.9.
The lighting fixture can be rotated vertically to emit
Solus is a wall sconce with a linear design and compact dimensions. Its high degree of protection (IP54) makes it ideal for indoor and outdoor lighting applications.
Housing: in painted aluminium with matt polycarbonate diffuser, designed for wall-mounting.
LED: luminous flux maintenance
80%: 50.000h (L80B50). Power factor >0.9.
Roby 2.0 - adjustable
Solus
Hecto - adjustable
Direct and indirect beam angles (30°÷120°) can be selected by means of the integrated dimming fins.
Hecto is a wall sconce that provides a wide range of lighting effects by adjusting the fins to the desired light beam angle from 30° to 120°. Its high degree of protection (IP65) makes it ideal for indoor and outdoor lighting applications.
Housing: in painted aluminium with clear polycarbonate diffuser, designed for wall-mounting.
LED: luminous flux maintenance 80%: 60.000h (L80B10). Power factor >0.9.
Light ball is a wall sconce designed to serve as a decorative element. The lenses, strategically placed around its surface, create striking plays of light. Its high degree of protection (IP65) makes it ideal for indoor and outdoor lighting applications.
Housing: in painted aluminium with clear polycarbonate lenses, designed for wall-mounting.
LED: luminous flux maintenance
80%: 60.000h (L80B10). Power factor >0.9.
Supplied standard with CCT SWITCH to choose the colour temperature from 3000K-4000K5700K.
Light Ball / Button - CCT SWITCH
CCTSWITCH
- 718lm - CRI>80
CCTSWITCH
Buttonis a wall sconce featuring an elegant and contemporary design, perfect for seamlessly fitting into any architectural setting. Its bright and uniform light distribution, along with a high protection rating (IP65), makes it ideal for both indoor and outdoor lighting applications.
Housing: in painted aluminium, with diffuser in matt polycarbonate, designed for wall-mounting.
LED: luminous flux maintenance
80%: 50.000h (L80B50). Power factor >0.9.
Supplied standard with CCT SWITCH to choose the colour temperature from 3000K-4000K5700K.
Button - CCT SWITCH
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (3000K-4000K-5700K), adjusting its emission to most lighting installations.
Flat 1 - with WALLWASHER lens
Flat is a wall sconce with an ultraslim design. With very small dimensions, it can be easily fitted into any architectural context, while its high degree of protection (IP65) makes it ideal for indoor and outdoor lighting applications.
Housing: in painted aluminium, wallwasher lens version in clear polycarbonate, designed for wallmounting.
LED: luminous flux maintenance 80%: 50.000h (L80B50). Power factor >0.9.
Flat 2 - with diffuser
Housing: in painted aluminium, diffuser version in matt polycarbonate, designed for wall-mounting.
LED: luminous flux maintenance 80%: 50.000h (L80B50). Power factor >0.9.
Tile is a wall sconce with a linear design and compact dimensions, which includes a special reflector to achieve wall washing lighting effects. Its high degree of protection (IP65) makes it ideal for indoor and outdoor lighting applications.
Housing: in painted aluminium with matt glass diffuser, designed for wall-mounting.
LED: luminous flux maintenance 80%: 60.000h (L80B10). Power factor >0.9.
Tile - Vertical Line
Tile - WALLWASHER
Tile - WALLWASHER - direct light
Vertical Line is a wall sconce with a linear and compact dimensions; Its design allows obtaining a soft, evenly distributed glow for direct or indirect lighting. Its high degree of protection (IP65) makes it ideal for indoor and outdoor lighting applications.
Housing: in painted aluminium with glass diffuser, designed for wallmounting.
LED: luminous flux maintenance 80%: 60.000h (L80B10). Power factor >0.9.
Vertical Line
278 Cortesia - Mistral
Cortesia and Mistral recessed spotlights are ideal for illuminating passageways to serve as a courtesy light or to create ambient lighting. Each of these areas needs the right lighting in order to enhance the space while ensuring safety and visual comfort.
Mistral mounting examples:
• Ceiling-mounted Mistral Q spotlights are used to enhance interiors and decor items.
• Wall-mounted Mistral R spotlights are ideal for illuminating corridors, passageways and stairways in order to create an elegant and safe environment; the ceiling-mount version is ideal for creating accent lighting on vertical furniture elements by focusing the light beam on the desired points.
easy to install on walls/ceilings, including plasterboards and drywalls, thanks to the use of mounting springs.
equipped with LED CRI 90 - 3000K to ensure high efficiency and low consumption to create a warm and cosy light.
ideal for homes, offices, shops, supermarkets, bars, cafés, exhibition rooms, museums, restaurants, etc. Also suited for bedrooms, hotels, corridors, stairways
Mistral R
Mistral R
Mistral Q
Mistral Q
Cortesia 1
v.a. IP20 IK08
v.l. IP40 IK08
AMBER
Cortesia - Mistral
Housing: made of sheet steel complete with spring for recessed mounting
1 - AMBER
v.a. IP20 IK08
v.l. IP40 IK08
CRI>90
Housing: made of aluminium complete with spring for recessed mounting and Mistral R with adjustable LED module (up to 25°)
Lens: in PMMA with high efficiency output and very low glare rate.
LED: luminous flux maintenance
80%: 50.000h (L80B20).
Power factor >0.9.
R - adjustable
Mistral
Mistral
Cortesia
CRI90
Pathway Q
These small-size, have the advantage of requiring very basic maintenance. Ideal for transit areas and stairs.
Housing: made of aluminium complete with spring for recessed mounting
Lens: directional, with high efficiency output and very low glare rate. LED: luminous flux maintenance 80%: 50.000h (L80B20).
Upon request: 2700K-6500K version.
CRI90
Pathway R
v.a. IP20 IK07
These small-size, have the advantage of requiring very basic maintenance. Ideal for transit areas and stairs.
Housing: made of aluminium complete with spring for recessed mounting
Lens: directional, with high efficien
LED: luminous flux maintenance
50.000h (L80B20).
Upon request: 2700K-6500K version.
v.a. IP20 IK07
v.l. IP44 IK07
CRI90
These small-size, have the advantage of requiring very basic maintenance. Ideal for transit areas.
Housing: made of aluminium complete with spring for recessed mounting
Lens: directional, with high efficiency output and very low glare rate.
Ceiling-mounted LED wall sconce with a modern, ultra-slim design, available in round or square versions, easy to install on the wall or ceiling.
Cosmic serves as a stylish furnishing solution to create soft, diffused, and decorative lighting and backlighting effects in hotel lounges, shopping cen-tre corridors, restaurant entrances and executive offices.
Housing/ diffuser: thermoplastic material, resistant to small impacts; designed for wall/ceiling mounting
LED: luminous flux maintenance
80% 30.000h (L80B10)
Power factor >0.9.
Photobiological safety class: exempt group.
IP40 IK04
Housing/ diffuser:
LED: luminous flux maintenance
80% 30.000h (L80B10)
Power factor >0.9.
Photobiological safety class: exempt group.
CCTSWITCH
Housing/ diffuser: thermoplastic material, resistant to small impacts; designed for wall/ceiling mounting
LED: luminous flux maintenance
80% 30.000h (L80B10)
Power factor >0.9.
Photobiological safety class: exempt group.
CCTSWITCH
- 2574lm - CRI>80
- 3835lm - CRI>80
- 4340lm - CRI>80
- 4051lm - CRI>80
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (3000K-4000K-5700K), adjusting its emission to most lighting installations. Cosmic R - CCT
Rond surface-mounted luminaire with multiple decorative possibilities, ideal for creating lighting effects in the hospitality sector.
Housing: ABS; designed for wall/ ceiling mounting.
• switch from warm light (3000K) to neutral light (4000K) or cold light (5700K)
• dim the intensity of the lights (nondimmable perimeter light)
The main feature of this luminaire is the “colour-changing” technology: with the included remote
you can choose the desired colour temperature (3000K-4000K-5700K), adjusting its
installations.
- 2565m - CRI>80
- 2700lm - CRI>80
- 2700lm - CRI>80
Mini Pastilla - recessed
Mini Pastilla Q
Mini Pastilla is an energy-efficiency LED fixture, suited for the retrofitting of traditional lamps for any application. The adjustable fastening bracket allows recessed installation into holes having a diameter ranging between 66 mm and 166 mm.
Mini Pastilla
Mini Pastilla is an energy-efficiency LED fixture, suited for the retrofitting of traditional lamps for any application. The adjustable fastening bracket allows recessed installation into holes having a diameter ranging between 66 mm and 166 mm.
Housing/heatsink: die-cast aluminium
Diffuser: In clear polycarbonate, anti-dazzle, vandal resistant.
Equipment: complete with adjustable fastening bracket for recess mounting.
LED: luminous flux maintenance
80% 30.000h (L80B20) Power factor >0.9.
Photobiological safety class: exempt group.
Housing/heatsink: die-cast aluminium
Diffuser: In clear polycarbonate, anti-dazzle, vandal resistant.
Equipment: complete with adjustable fastening bracket for recess mounting.
Diffuser: In clear polycarbonate, anti-dazzle, vandal resistant.
Equipment: supplied with bracket for ceiling/wall installation.
LED: luminous flux maintenance
80% 50.000h (L80B20)
Power factor >0.9.
Photobiological safety class: exempt group.
Pastilla
Pastilla - with light / presence sensor (stepDIM)
Built-in stepDIM RADAR SENSOR (sub-code -19): an electronic device that immediately detects any presence entering its range. When the sensor reads motion inside its range, lights will stay on. When it no longer senses motion and based on the lighting level in its range the sensor will either dim lights after a standby time according to the defined step or turn them off after a pre-programmed time.
The package includes a standard remote control, allowing you to quickly and easily adjust or change parameters after installation, without the need to access the device directly.
ON OFF Press the “ON/OFF” button to toggle the light on/off, disabling the sensor. Short press the “M/R” button to activate the sensor.
Short press the “DIM+/DIM-” button to adjust brightness. The level of brightness will adjust in 5% increments, from 50% to 100%. M/R Short press the “M/R” button to restore all parameters back to the last settings. Long press the “M/R” button to reset all parameters to factory settings.
Stand-by dim level: sets the stand-by dim level to 10%/30%.
EXAMPLE OF SAFETY MODE OPERATION (LIGHTING LEVEL OFF)
As soon as the sensor detects motion, it will change the lights to their full brightness (100%).
EXAMPLE OF ENERGY-SAVING MODE OPERATION (LIGHTING LEVEL OFF)
Lights will stay on at their full brightness for a previously set hold time (5sec/1min/5min/10min).
Stand-by period: sets the stand-up time to 0s/1min/30min/+∞
Daylight sensor: sets daylight threshold to 5lux/15lux/50lux/disabled
Hold time: sets the hold time to 5s/1min/5min/10min
sensor will turn the lights off after a
programmed hold time.
As soon as the sensor detects motion, it will change the lights to their full brightness (100%).
Lights will stay on at their full brightness for a previously set hold time (5sec/1min/5min/10min).
When motion is no longer detected and the hold time has elapsed, the sensor will dim the lights to the previously set brightness (10% or 30).
