Environmental advantages
Extremely long working life
Reduced maintenance costs
Growing efficiency
Instant switch-on mode
Dimming option with no colour temperature variations
Filter-free direct coloured light emission
Complete colour spectrum
Dynamic colour control mode (DMX, DALI)
Can be switched on also at low temperature rates (-35°C)
Low-voltage DC power supply
Unidirectional light emission
(light is shed only upon the desired object or area)
Photobiological safety.
Fosnova LED Catalogue
2026
General advantages
Mercury-free
No IR or UV components can be found in the visible light spectrum
Reduced use of renewable and non-renewable energy sources
Environment enhancement
No light pollution
Less power
Less power installed in each lighting point
Design-related advantages
Wide choice of design solutions
Bright, saturated colours
Vibration resistant lights
Advantages for users
A wide range of different colours together with compact and flexible modules enable many creative and innovative design solutions. Lower energy consumption, longer working life and reduced maintenance facilitate the creation of interesting applications.
Excellent reliability guarantees safety even in difficult operating conditions
LED fixtures overview

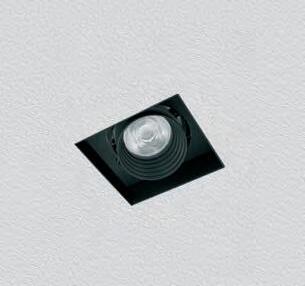

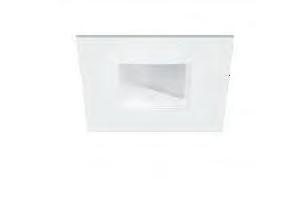

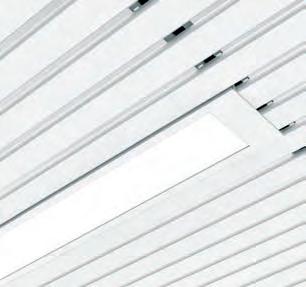

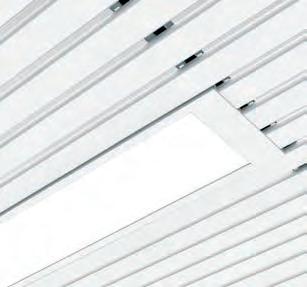

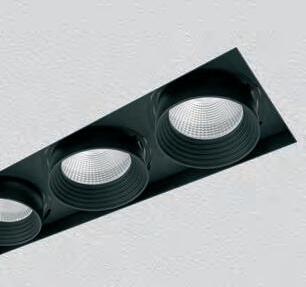

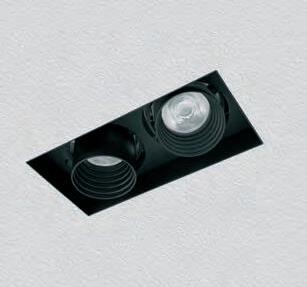

Trimless
LED fixtures overview

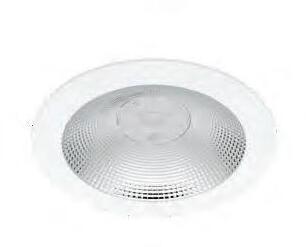

Recessed downlights
FENIX
CCT/DIP SWITCH

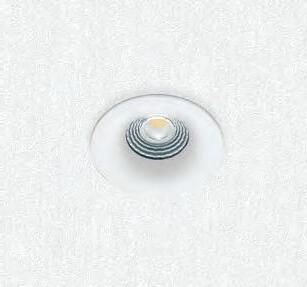

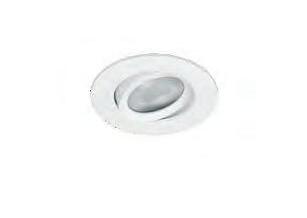

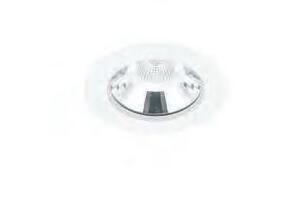

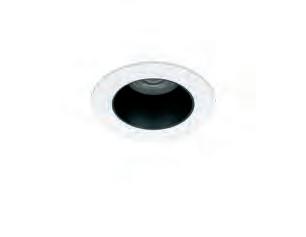

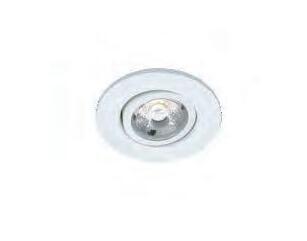

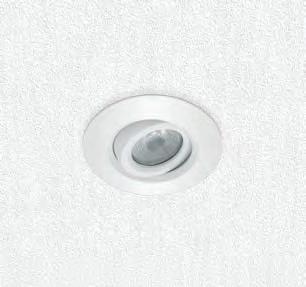

Rubin is a recessed spotlight designed to enhance interiors with refined lighting effects, thanks to sophisticated aesthetic finishes. Its versatility lies in the option to choose from 3 colour temperatures (3000K, 4000K, 5700K) and 2 power outputs, allowing for complete customisation to suit the specific needs of any exhibition or interior space.
Housing: made of heat-conductive plastic coated in aluminium with springs for recessed mounting.
Reflector: made of high-performance metallised polycarbonate.
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (3000K-4000K-5700K), adjusting its emission to most lighting installations.
• select 3 different colour temperatures, adjusting to most installations:
WW = 3000K (warm white)
NW = 4000K (neutral white)
CW = 5700K (cold white)
Available with reflectors in a variety of colour finishes, it complements a wide range of design styles, from contemporary to classic, delivering a focused, functional light. The straightforward installation allows the fixture to blend seamlessly with the interior design. Perfect for creating intimate atmospheres or highlighting key decor elements, it is the ideal solution for achieving an elegant balance between visual appeal and high performance.
LED: luminous flux maintenance
80%: 50.000h (L80B20).
Power factor >0.9.
Rubin medium - CCT / DIP
Upon request: DIMM DALI (-1241) version.
EM power kit
1h 22096035-00
3h 22096037-00

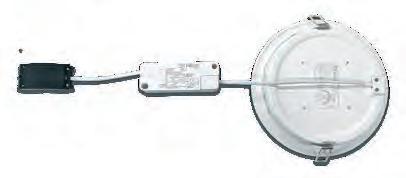

EM (emergency) lamp power kit complete with connectors.
LED: luminous flux maintenance
80%: 50.000h (L80B20).
Power factor >0.9.
Upon request: DIMM DALI (-1241) version.
EM power kit
1h 22096035-00
3h 22096037-00
EM (emergency) lamp power kit complete with connectors.
Accessories: versions available in different colours and surface finishes to coordinate with any architectural design.
Available with reflectors in a variety of colour finishes, it complements a wide range of design styles, from contemporary to classic, delivering a focused, functional light. The straightforward installation allows the fixture to blend seamlessly with the interior design. Perfect for creating intimate atmospheres or highlighting key decor elements, it is the ideal solution for achieving an elegant balance between visual appeal and high performance.
CCTSWITCH
LED: luminous flux maintenance
80%: 50.000h (L80B20). Power factor >0.9.
Rubin medium - CCT / DIP SWITCH
Upon request: DIMM DALI (-1241) version.
1h 22096035-00
3h 22096037-00
EM (emergency) lamp power kit complete with connectors.
LED: luminous flux maintenance
80%: 50.000h (L80B20). Power factor >0.9. EM power kit
1h 22096035-00
3h
EM (emergency) lamp power kit complete with connectors. EM power kit
Rubin big - CCT / DIP
Upon request: DIMM DALI (-1241) version.

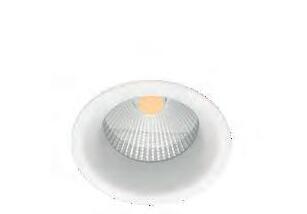

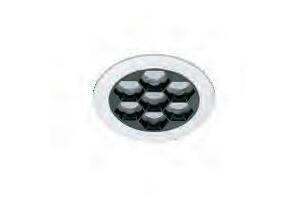

Custom lighting – the Honey range is designed for any architectural vision!
The Honey range of recessed and ceiling lighting fixtures was developed to meet the most sophisticated demands of contemporary architectural design. With its geometric precision optics and wide selection of refined finishes, Honey offers the perfect balance of advanced lighting technology and bespoke aesthetics. Each luminaire is designed for seamless integration across a variety of settings (retail, commercial, public, cultural, and more), providing fully customisable solutions in terms of light output, shape, and colour. The geometric optics deliver controlled, flexible light distribution, while the versatile colour options offer full creative freedom, highlighting surrounding materials and architectural elements.
Housing: fixed donwlight in die cast aluminium.
Lens: in PMMA lens with high efficiency output and very low glare rate.
Optic: in anti-glare metalized plastic material.
Equipment: equipped with galvanised steel support brackets, with housing for springs for attachment to the false ceilings.
UGR glare index: UGR<19 - EN 12464.
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor ≥0.9.
Photobiological safety class: exempt group.
Upon request:
• available DIMM-DALI (-1241) version
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (2700K-3000K-4000K), adjusting its emission to most lighting installations. WW = 2700K (warm
Upon request: with black rim and DIMM DALI (-1241) versions.
250 10 4000K - 1249lm - CRI>90
Ø190 - CCT /
Upon request: with black rim and DIMM DALI (-1241) versions.
- 2104lm - CRI>90
- 2383lm - CRI>90
- 2413lm - CRI>90
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.95.
I out
500 17 3000K - 1749lm - CRI>90
550 19 3000K - 1882lm - CRI>90
600 21 3000K - 2054lm - CRI>90
500
500 17 3000K - 2288lm - CRI>90
550 19 3000K - 2511lm - CRI>90
600 21 3000K - 2740lm - CRI>90
Upon request: with black rim and DIMM DALI (-1241) versions.
3h
(emergency) lamp power kit complete with connectors.
500 17 3000K - 2406lm - CRI>90
550 19 3000K - 2640lm - CRI>90
600 21 3000K - 2881lm - CRI>90
20 Saving - DIP SWITCH
ADAPT THE CURRENT TO ACHIEVE OPTIMAL LUMINOUS FLUX
DIP SWITCH SETTING: the fixture comes with a DIP SWITCH driver for THE SETTING OF THE OUTPUT CURRENT. In this way you, can ENSURE THE BEST LUMINOUS FLUX for any lighting design.
The possibility to choose the correct drive current for LEDs will allow you to have the right power under specific design conditions. Using a lower current will improve the efficiency of fixtures and therefore increase energy savings, whilst a higher current will result in a higher light flux so that you can reduce the number of fixtures.
Housing: in die cast aluminium
Reflector: optics in aluminium to optimise light efficiency.
Standard supply: is equipped with galvanised steel support brackets, with housing for springs for attachment to the false ceilings.
LED: luminous flux maintenance 80%: 50.000h (L80B10). Power factor >0.9.
Upon request:
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
Upon request: DIMM DALI (-1241) version. LED: luminous
(L80B10). Power factor >0.9. Saving
Saving - DIP SWITCH
193 - DIP
Upon request: DIMM DALI (
plete
Saving 245 - DIP

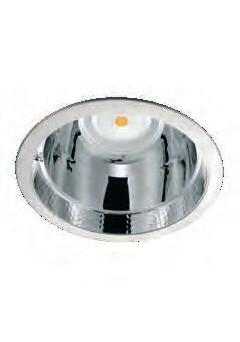

A range of recessed spotlights,incorporating latest generation LED modules. This line of products was created to meet the needs of lighting systems used for the decoration of interior spaces that are becoming more demanding every day. Lighting systems are required to be energy-efficient and flexible in order to define spaces according to different needs, offer striking visual impact, ensure low management costs, and guarantee long service life.
Housing: fixed donwlight in die cast aluminium complete with spring clips for recessed mounting.
Reflector: optics in high gloss, anti-glare aluminium to optimise light efficiency.
Lens: supplied with sun shielding and anti-glare cover.
LED: luminous flux maintenance 80%: 50.000h (L80B20). Power factor >0.9.
Photobiological safety class: exempt group.
Upon request:
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
ADAPT THE CURRENT TO ACHIEVE OPTIMAL LUMINOUS FLUX
DIP SWITCH SETTING: the fixture comes with a DIP SWITCH driver for THE SETTING OF THE OUTPUT CURRENT. In this way you, can ENSURE THE BEST LUMINOUS FLUX for any lighting design.
The possibility to choose the correct drive current for LEDs will allow you to have the right power under specific design conditions. Using a lower current will improve the efficiency of fixtures and therefore increase energy savings, whilst a higher current will result in a higher light flux so that you can reduce the number of fixtures.
Accessories: versions available in different colours and surface finishes to coordinate with any architectural design.
Ring - Techno B 114 black 22093030-00
Ring - Techno B 174 black 22093033-00
Ring - Techno B 232 black 22093036-00
Ring with glass - Techno B 114 white 22093011-00 black 22093031-00
Ring with glass - Techno B 174 white 22093014-00 black 22093034-00
Ring with glass - Techno B 232 white 22093017-00 black 22093037-00
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (3000K-4000K5700K), adjusting its emission to most lighting installations.
Square ring - Techno B 114 white 22093012-00 black 22093032-00
Square ring - Techno B 174 white 22093015-00 black 22093035-00
Square ring - Techno B 232 white 22093018-00 black 22093038-00
B 114 - CCT /
WW = 3000K (warm white)
NW = 4000K (neutral white)
CW = 5700K (cold white)
1h 22096035-00
3h 22096037-00
Techno B 174 - CCT / DIP SWITCH
EM (emergency) lamp power kit complete with connectors.
Housing: in die cast aluminium with clear polycarbonate diffuser.
Reflector: optics in high gloss, anti-glare aluminium to optimise light efficiency.
Lens: in PMMA with high efficiency output and very low glare rate.
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.9.
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
Studio B - URG<22
Studio - URG<19
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.9.
Studio 193 - DIP SWITCH
Upon request: available DIMM DALI (-1241 and -3941) version
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors.
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.9.
Studio 220 - DIP SWITCH
Upon request: available DIMM DALI (-1241 and -3941) version
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors.
28 Studio B - DIP SWITCH -
Studio B 140 - DIP SWITCH
Studio B 165 - DIP SWITCH
LED: luminous flux maintenance
80%: 70.000h (L80B10). Power factor >0,9.
Studio B - DIP SWITCH -
Studio B 193 -
Upon request: available DIMM DALI (-1241 and -3941) version
plete with connectors.
LED: luminous flux maintenance
80%: 70.000h (L80B10). Power factor >0,9.
Upon request: available
1h 22096015-00
3h 22096033-00 EM (emergency) lamp power kit com
plete with connectors.

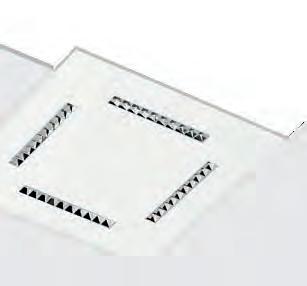

A family of fixtures designed to combine high energy saving with excellent light quality, to address diverse needs concerning both safety and maintenance. The fixture’s design is extremely clean and functional. Manufactured in accordance with standards EN12464 for VDT.
Housing-reflector: in V2 shatterproof, self-extinguishing polycarbonate, coated with high-performance aluminium powder and equipped with antireflection and anti-glare optics. Perimeter border on the false ceiling has white or aluminium coloured photogravure finishing. Support bracket in galvanised steel with housings for fastening springs made in galvanised steel wire for false ceiling mounting. Shielding at 65°.
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.95.
Photobiological safety class: exempt group
Upon request:
• available DIMM-DALI (-1241 and -3941) version
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
ADAPT THE CURRENT TO ACHIEVE OPTIMAL LUMINOUS FLUX
DIP SWITCH SETTING: the fixture comes with a DIP SWITCH driver for THE SETTING OF THE OUTPUT CURRENT. In this way you, can ENSURE THE BEST LUMINOUS FLUX for any lighting design.
The possibility to choose the correct drive current for LEDs will allow you to have the right power under specific design conditions. Using a lower current will improve the efficiency of fixtures and therefore increase energy savings, whilst a higher current will result in a higher light flux so that you can reduce the number of fixtures.
Dark light reflector: V2 self-extinguishing polycarbonate; metalized aluminium powder coated through a C.V.D. hard-vacuum process for greater light control and efficiency.
Office 1 DARK - DIP SWITCH
Upon request: version with white rim and DIMM DALI (-1241 and -3941) version.
Dark light reflector: V2 self-extinguishing polycarbonate; metalized aluminium powder coated through a C.V.D. hard-vacuum process for greater light control and efficiency.
Office 1 DARK - DIP SWITCH
Upon request: version with white rim and DIMM DALI (-1241 and -3941) version.
- 3241lm - CRI>90
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.95.
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.95.
Upon request: version with white rim and DIMM DALI (-1241 and -3941) version.
EM power kit
1h 22096035-00
3h 22096037-00
EM (emergency) lamp power kit complete with connectors.
nium powder coated through a C.V.D. hard-vacuum process for greater light control and efficiency.
Dark light reflector: V2 self-extinguishing polycarbonate; metalized aluminium powder coated through a C.V.D. hard-vacuum process for greater light control and efficiency.
DIP SWITCH SETTING LUMEN OUTPUT (tq= 25 °C)
DIP SWITCH SETTING LUMEN OUTPUT (tq= 25 °C)
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (3000K-4000K-6000K), adjusting its emission to most lighting installations.
Adequate lighting ensures proper perception of the environment and enables us to feel comfortable with our surroundings. This is the concept underlying the creation of the Milano recessed floodlight, ideal for quick, low-cost installation in any exhibition setting and fulfil interior decorators’ artificial lighting requirements.
Housing: made in aluminium with spring clips for recessed mounting
Reflector: made in metallized and prismatic aluminium
Lens: supplied with sun shielding and anti-glare cover.
Upon request:
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components. CLD D-DIG (DALI)
LED white 0,40 22083101-1241 17
3000K - 1728lm - CRI>80 - 66°
4000K - 1819lm - CRI>80 - 66°
6000K - 1733lm - CRI>80 - 66°
LED colour weight
Milano big - UGR<19 - CCT / DIP SWITCH
1h 22096035-00
3h 22096037-00
EM (emergency) lamp power kit complete with connectors.
80%:
(L80B20). Power factor >0,9.
EM (emergency) lamp power kit complete with connectors. EM power kit
power kit
1h 22096035-00
3h 22096037-00
Housing: fixed donwlight in die cast aluminium complete with spring clips for recessed mounting
Reflector: dark light optics in high gloss, anti-glare aluminium to optimise light efficiency. Version with matt wide beam optics upon request.
LED: high Energy Saving. Luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.9.
Photobiological safety class: exempt group.
3-4 Version with matt wide beam optics upon request.
Jet Q 170 - IP65 (2)
Jet 230 - IP65 (1)
Jet Q 220 - IP65 (2)
3-4 Version with matt wide beam optics
ADAPT THE CURRENT TO ACHIEVE OPTIMAL LUMINOUS FLUX
DIP SWITCH SETTING: the fixture comes with a DIP SWITCH driver for THE SETTING OF THE OUTPUT CURRENT. In this way you, can ENSURE THE BEST LUMINOUS FLUX for any lighting design.
The possibility to choose the correct drive current for LEDs will allow you to have the right power under specific design conditions. Using a lower current will improve the efficiency of fixtures and therefore increase energy savings, whilst a higher current will result in a higher light flux so that you can reduce the number of fixtures.
Housing: fixed downlight in die cast aluminium complete with spring clips for recessed mounting
Reflector: dark light optics in high gloss, anti-glare aluminium to optimise light efficiency.
Lens: in polycarbonate with high efficiency output and very low glare rate
Upon request:
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels).
For further information see chapter Technical components.
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.95.
LED: luminous flux maintenance
80%: 70.000h (L80B10). Power factor >0.95.
Jet Q 170 - IP44 - DIP SWITCH
Upon request: available DIMM DALI (-1241 and -3941) version
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors.
LED: luminous flux maintenance
80%: 70.000h (L80B10). Power factor >0.95.
Jet Q 220 - IP44 - DIP SWITCH
Upon request: available DIMM DALI (-1241 and -3941) version
1h
lamp power kit complete with connectors.
Jet 140 - IP44 - DIP SWITCH
LED: luminous flux maintenance
80%: 70.000h (L80B10). Power factor >0.95.
Upon request: available DIMM DALI (
1h
3h
LED: luminous flux maintenance
80%: 70.000h (L80B10). Power factor >0.95.
Equipped with ring; can act as both an aesthetic finishing and to cover fitting holes with diameters up to 245mm. Upon request: available DIMM DALI (-1241 and -3941) version

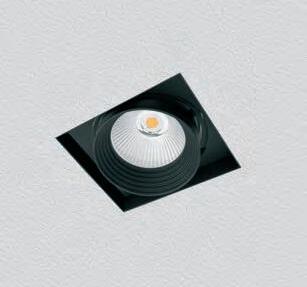

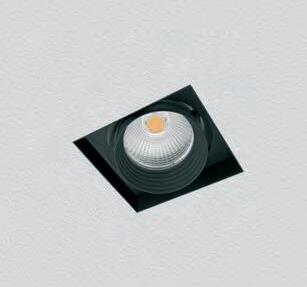

Luthor - DIP SWITCH -
The range of Luthor recessed spotlights is expanded with three sizes. This enables to fit the spotlights in all fitting holes of the same line of products. Luthor adjustable recessed LED spotlights offer technologically advanced light and are a very solid product with high quality and high performance to illuminate large commercial spaces.
Housing: adjustable angle, made of die-cast aluminium with spring clips for recessed mounting
Reflector: high-efficiency prismatic and polished aluminium with glass screen
Coating: dust painted, using polyester epoxy paint to withstand UV rays.
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.95.
Photobiological safety class: exempt group.
Upon request:
• available DIMM-DALI (-1241 and -3941) and PUSH-DIMM (-1245 and -3945) version
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
ADAPT THE CURRENT TO ACHIEVE OPTIMAL LUMINOUS FLUX
DIP SWITCH SETTING: the fixture comes with a DIP SWITCH driver for THE SETTING OF THE OUTPUT CURRENT. In this way you, can ENSURE THE BEST LUMINOUS FLUX for any lighting design.
The possibility to choose the correct drive current for LEDs will allow you to have the right power under specific design conditions. Using a lower current will improve the efficiency of fixtures and therefore increase energy savings, whilst a higher current will result in a higher light flux so that you can reduce the number of fixtures.
- DIP SWITCH -
Upon request: available in 4000K black/ gold colour version (subcode -170027).
Luthor Small - DIP SWITCH -
COB white 0.50 22087808-00
Upon request: DIMM DALI (-1241 and -3941) and PUSH-DIMM (-1245 and -3945) version.
Upon request: available in 4000K black/ gold colour version (subcode -170027). On request: version with 23° beam. On request: version with 19° and 34° beam.
Luthor Medium - DIP SWITCH - PROFESSIONAL
luminous flux maintenance
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.9.
Luthor - DIP SWITCH - PROFESSIONAL -
Luthor Big -
1,70 22085910-00
Upon request: DIMM DALI (-1241 and -3941) and PUSH-DIMM (-1245 and -3945) version.
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors.
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.9.
On request: version with 23° and 32° beam.
On request: version with 23° and 32° beam.
COB white 1,70
85912-00
85932-00 COB white 1,70
85912-39
black 22085932-39
Upon request: DIMM DALI (-1241 and -3941) and PUSH-DIMM (-1245 and -3945) version.
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors.
Eco Lex - DIP SWITCH
Eco Lex: wide range of recessed luminaires designed to meet the increasingly demanding lighting needs of shopping centres, stores and museums. Moreover, its extraordinary versatility, given a number of different dimensions, allows for simple application and makes them suitable to meet any need. In particular, a pre-existing system can be replaced without changing the entire structure. Maintenance and installation are extremely easy.
Housing: in die cast aluminium.
Diffuser: the shield consists of a polycarbonate laser-cut slab that serves as a lens for its effect of concentric circles. These decorations create a pattern with variable distances; the closer they get to the centre, the closer they come together, thereby achieving excellent visual comfort without glare.
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
ADAPT THE CURRENT TO ACHIEVE OPTIMAL LUMINOUS FLUX
DIP SWITCH SETTING: the fixture comes with a DIP SWITCH driver for THE SETTING OF THE OUTPUT CURRENT. In this way you, can ENSURE THE BEST LUMINOUS FLUX for any lighting design.
The possibility to choose the correct drive current for LEDs will allow you to have the right power under specific design conditions. Using a lower current will improve the efficiency of fixtures and therefore increase energy savings, whilst a higher current will result in a higher light flux so that you can reduce the number of fixtures.
v.a. IP20 IK07
v.l. IP65 IK07
LED: luminous flux maintenance
80%: 50.000h (L80B20). Power factor >0.9.
Eco Lex 1 - DIP SWITCH
Upon request:
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors.
v.a. IP20 IK07
v.l. IP65 IK07
LED: luminous flux maintenance
80%: 50.000h (L80B20). Power factor >0.9.
Upon
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors.
Upon
1h
3h
plete with
1h
3h
EM (emergency) lamp power kit com
plete with connectors.
Eco Lex - DIP SWITCH - CRI>90
Eco Lex Q1 - DIP SWITCH
Upon request: available DIMM-DALI (-1241) version Eco
Housing: in die cast aluminium. Diffuser: polycarbonate panel
Upon request: available DIMM-DALI (-1241) version
Housing: in die cast aluminium.
Diffuser: polycarbonate panel
LED: luminous flux maintenance
80%: 50.000h (L80B20). Power factor >0.9.
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors.
Housing: in die cast aluminium.
Diffuser: polycarbonate panel
LED: luminous flux maintenance
80%: 50.000h (L80B20). Power factor >0.9.
Upon request: available
EM (emergency) lamp power kit complete with connectors. EM power kit
1h 22096015-00
3h 22096033-00
Eco Lex Q4 - DIP
CASAMBI
CASAMBI
Energy: wide range of recessed luminaires designed to meet the increasingly demanding lighting needs of shopping centres, stores and museums. Moreover, its extraordinary versatility, given a number of different dimensions, allows for simple application and makes them suitable to meet any need. In particular, a pre-existing system can be replaced without changing the entire structure. Maintenance and installation are extremely easy.
Housing: fixed donwlight in die cast aluminium complete with spring clips for recessed mounting.
Coating: power-coated with a UV-resistant polyester epoxy paint.
Regulations: Manufactured in accordance with EN 60598-1-CEI 34.21 standards. Degrees of protection in accordance with EN60529 standards.
LED: luminous flux maintenance 80%: 55.000h (L80B20). Power factor ≥0,95
Photobiological safety class: exempt group.
Upon request:
• available DIMM-DALI (-1241 and -3941) version
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
ADAPT THE CURRENT TO ACHIEVE OPTIMAL LUMINOUS FLUX
DIP SWITCH SETTING: the fixture comes with a DIP SWITCH driver for THE SETTING OF THE OUTPUT CURRENT. In this way you, can ENSURE THE BEST LUMINOUS FLUX for any lighting design.
The possibility to choose the correct drive current for LEDs will allow you to have the right power under specific design conditions. Using a lower current will improve the efficiency of fixtures and therefore increase energy savings, whilst a higher current will result in a higher light flux so that you can reduce the number of fixtures.
56 Energy - DIP SWITCH - CRI 95
Energy 2130 - DIP SWITCH
Energy 2180 - DIP SWITCH
Upon
Energy 2245 - DIP SWITCH
1h
3h
EM (emergency) lamp power kit complete with connectors.
Energy 2245 -
Upon
1h
3h
For16Amagnetothermicswitch:
B16=max30pieces
C16=max50pieces
QUICK INSTALLATION!!!
LOOP IN

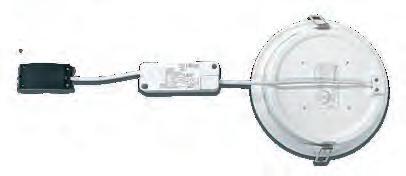

Slim Lex P allows you to create a “LOOP-IN”: a system to connect two or more luminaires to the power supply. As standard, Slim Lex P comes with a terminal that allows the installer to connect the power line cable to the internal circuit through automatic wire clamps.
Housing: made in aluminium with spring clips for recessed mounting
Ring/diffuser: in thermoplastic material
LED:
(L70)
Housing: made in aluminium with spring clips for recessed mounting
Ring/diffuser: in thermoplastic material
LED: luminous flux maintenance 70%: 50.000h (L70)
LOOP-IN
plete with connectors.
Housing: in die cast aluminium.
Diffuser:
Slim Lex allows you to create a “LOOP-IN”: a system to connect two or more luminaires to the power supply. As standard, Slim Lex comes with a terminal that allows the installer to connect the power line cable to the internal circuit through automatic wire clamps.
white 0,20 22159517-00 12
- ølm - CRI
- 850lm - CRI>80
- 900lm - CRI>80
- 900lm - CRI>80
Housing: in die cast aluminium.
Diffuser: panel in PMMA
LED: luminous flux maintenance
70%: 25.000h (L70B50)
Slim Lex allows you to create a “LOOP-IN”: a system to connect two or more luminaires to the power supply. As standard, Slim Lex comes with a terminal that allows the installer to connect the power line cable to the internal circuit through automatic wire clamps.
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (3000K-4000K-6000K), adjusting its emission to most lighting installations.
Standards: manufactured pursuant to EN 60598-1-CEI 34.21 and with a degree of protection pursuant to EN 60529. Silicone rubber protection gasket compliant with French low-energy building standards (BBC). Upon request: DIMM DALI (-1241) version.
Housing: in die-cast aluminium with springs for recess mounting. Diffuser: anti-glare opal plastic matetrial.
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.9
Housing: made of die-cast aluminium. Diffuser: in matt polycarbonate
Adjustable: ideal to light up walls or decor items.
LED: luminous flux maintenance
80% 70.000h (L80B10). Power factor >0.9.
- 880lm - CRI>90
- 967lm - CRI>90
- 983lm - CRI>90
Upon request: DIMM DALI (-1241) version.
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors.
Housing: made of die-cast aluminium. Diffuser: in matt polycarbonate Adjustable: ideal to light up walls or decor items.
EM (emergency) lamp power kit complete with connectors.
Speaker 3 B
Speaker 1
Speaker 2
Housing/Reflector:
70%: 30.000h (L70B50). Power factor >0.95.
Speaker 1 -
EM power kit
1h 22096035-00
3h 22096037-00
EM (emergency) lamp power kit complete with connectors.
Reflector: made in high gloss aluminium
LED: luminous flux maintenance
70%: 30.000h (L70B50). Power factor >0.95.
Speaker 2 - MIRROR
EM power kit
1h 22096035-00
3h 22096037-00
EM (emergency) lamp power kit complete with connectors.

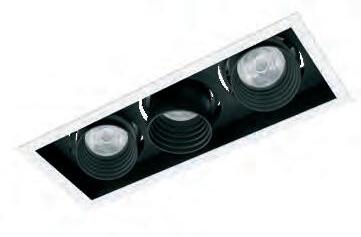

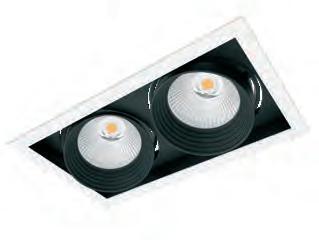

The range of Arq recessed LED spotlights are the perfect solution for installations that are designed to hide their physical presence once fitted. These spotlights are shaped to blend perfectly into the false ceilings where they are fitted. Moreover they can be easily installed in any type of space, to create amazing light effects.
Housing: adjustable angle, made of die-cast aluminium with spring clips for recessed mounting
Lens: in PMMA with high efficiency output and very low glare rate
Coating: dust painted, using polyester epoxy paint to withstand UV rays.
LED: luminous flux maintenance 80%: 50.000h (L80B20). Power factor >0.95.
Photobiological safety class: exempt group.
Upon request: version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.

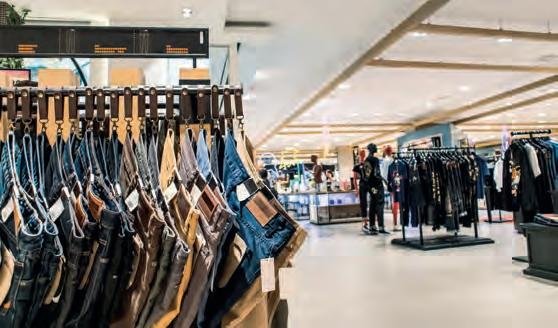

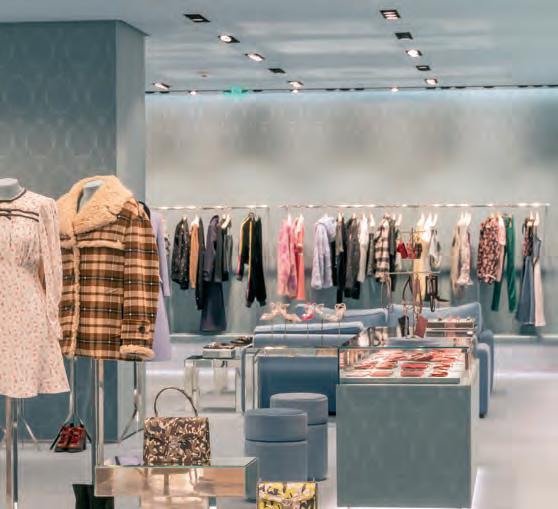

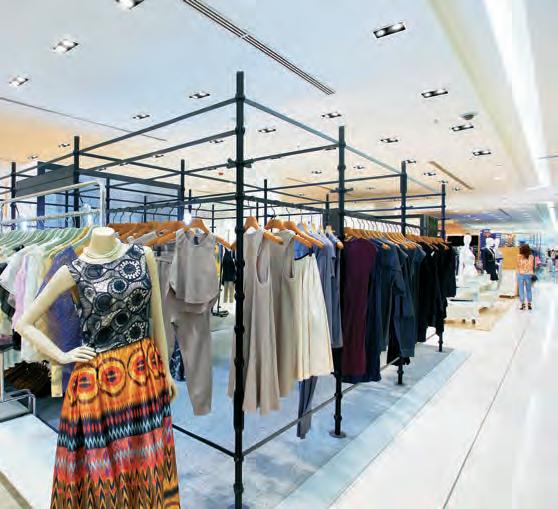

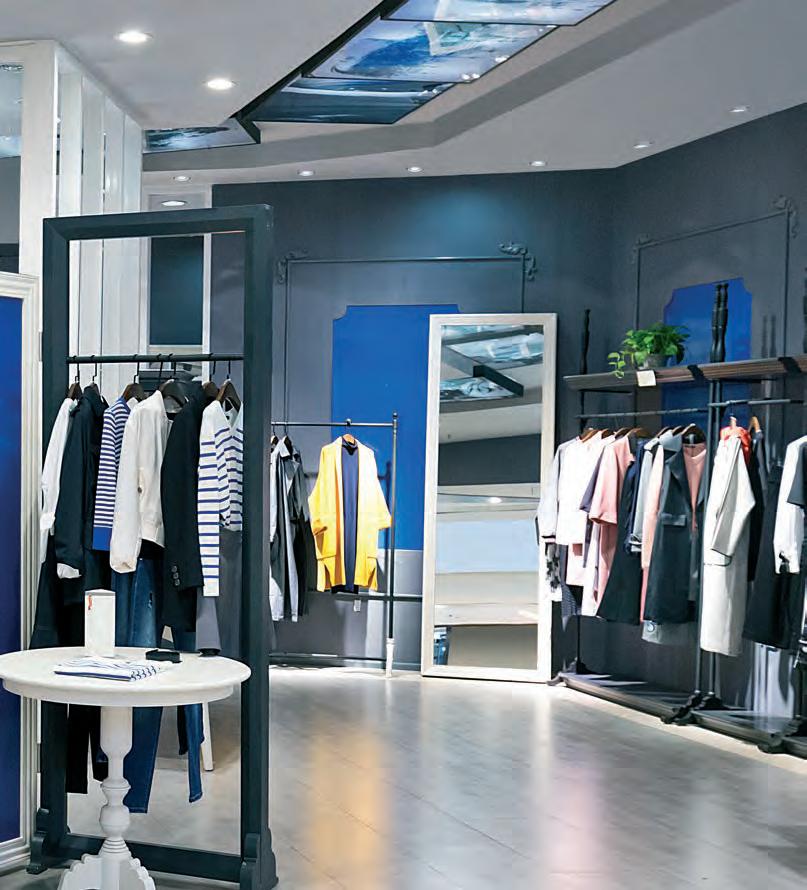

The right lighting and fixture play a vital role in facilitating sales. This is the reason why LED fixtures with a CRI>90 are being requested. Therefore, the current trend is geared towards the manufacturing of more flexible fixtures, which also emit an excellent quality of light, while guaranteeing remarkable energy savings and lower maintenance costs.
The Colour Rendering Index (CRI) indicates how truthfully the artificial light source is able to reproduce the colours of objects. It varies from a range of 0 to 100, where 0 represents the minimum and 100 is the maximum. Daylight is the best source of light from a physiological point of view because it contains the full colour spectrum. Therefore, a lamp with a high colour rendering index is very important to ensure the wellbeing and comfort of the occupants of a room and it is absolutely necessary in rooms where good visibility is required.
ARQ - CRI 90
v.l. IP40 IK07
LED: luminous flux maintenance 80%: 50.000h (L80B20). Power factor >0.95.
LED: luminous flux maintenance
80%: 50.000h (L80B20). Power factor >0.95.
Upon request: available DIMM-DALI (
Another unique feature of this spotlight is the option to choose the beam angle with an adjustment ring on the fixture’s body. In a very simple and intuitive way, you can obtain the desired light beam within a range from 15° to 50°, in a smooth and gradual manner, maintaining excellent visual comfort.
80%:
ARQ - CRI 90
ARQ - CRI 90
Upon
LED: luminous flux maintenance
80%: 50.000h (L80B20). Power factor >0.95.
ARQ - CRI 90
v.a. IP20 IK07
v.l. IP40 IK07
LED: luminous flux maintenance
80%: 50.000h (L80B20). Power factor >0.95.
Upon request: available DIMM-DALI (
Whether in the round or square version, this recessed LED spotlight is the perfect solution for installations that are designed to hide their physical presence once fitted. These spotlights are shaped to blend perfectly into the false ceilings where they are fitted. Moreover, thanks to the high IP65 protection rating, they can be easily installed in any type of space, to create amazing light effects.
Housing: in die-cast aluminium with heat sink.
Installation: equipped with galvanised steel support brackets, with housing for springs for attachment to the false ceilings.
Coating: epoxy polyester powder coating resistant to UV rays.
Equipment: silicone rubber protection gasket compliant with French low-energy building standards (BBC).
Standards: manufactured pursuant to EN 60598-1-CEI 34.21 and with a degree of protection pursuant to EN 60529.
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.95.
Photobiological safety class: exempt group. Upon request: available version with 2700K / 5000K LED.
Upon request: version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
Reflector: screened anti-glare. With lens for better light distribution.
LED: luminous flux maintenance
80%: 70.000h (L80B10).
Snow 1
Conformity with BBC regulations (Bâtiment Basse Consommation).
Equipped with cable L=1,5m , cable gland and steel screws with special anticorrosion treatment.
Upon request: version complete with IP65 driver.
Reflector: screened anti-glare. With lens for better light distribution.
LED: luminous flux maintenance
80%: 70.000h (L80B10).
Snow 2
Conformity with BBC regulations (Bâtiment Basse Consommation).
Equipped with cable L=1,5m , cable gland and steel screws with special
Upon request: version complete with IP65 driver. IP65 protection rating with silicone rubber gasket IP65 protection rating with silicone rubber gasket
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (2700K-3000K-4000K), adjusting its emission to most lighting installations.
WW = 2700K (warm white)
WW = 3000K (warm white)
Safety cord 22004112-00
NW = 4000K (neutral white)
Steel safety cord, to be used for safety installation of the fixtures inside false ceilings.
Protection guard for Snow 3-4 black 22095130-00 For insulation in the ceiling.
Interchangeable LED module precision lens
Interchangeable LED module lens, ideal for precision lighting.
power kit
EM (emergency) lamp power kit complete with connectors.
(L80B10). Power factor >0.9.
Upon request: DIMM DALI (-1241) version.
Lens:
LED:
80%: 70.000h (L80B10).
Power factor >0.9.
Snow 4 - CCT / DIP SWITCH

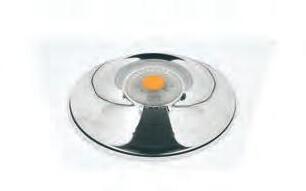

COB chromé 0,40 22082760-39
Upon request: DIMM DALI (-1241 and -3941) version.
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (2700K-3000K-4000K), adjusting its emission to most lighting installations.
WW = 2700K (warm white)
WW = 3000K (warm white)
NW = 4000K (neutral white)
Interchangeable LED module lens, ideal for precision lighting.
Lens: in PMMA with high efficiency output and very low glare rate
LED: luminous flux maintenance
80%: 70.000h (L80B10). Power factor >0.9.
Upon request: DIMM DALI (-1241) version.
- 833lm - CRI>90 - 38°
- 888lm - CRI>90 - 38°
- 924lm - CRI>90 - 38°
plete with connectors.
Frame: made of aluminium; complete with springs to suspended ceiling from 1mm to 25 mm thick.
Upon request: DIMM DALI (-1241) version. Safety cord 22004112-00
Steel safety cord, to be used for safety installation of the fixtures inside false ceilings.
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (2700K-3000K-4000K), adjusting its emission to most lighting installations.
Housing: made of die-cast aluminium with spring clips for recessed mounting
Optics: Snow 70-111 made in polycarbonate anti-glare, screened optics.
Lens: Snow 50 in PMMA with high efficiency output and very low glare rate
Upon
Interchangeable LED module lens, ideal for precision lighting.
Coating: dust painted, using polyester epoxy paint to withstand UV rays. Safety cord 22004112-00
Steel safety cord, to be used for safety installation of the fixtures inside false ceilings.
Snow - DIP SWITCH -
Snow 70 - DIP SWITCH
Upon request: 21° and 28° light beam versions.
1h
Snow 111 - DIP SWITCH
82816-00
82835-00
Upon request: 15° and 25° light beam versions.
1h
The ideal retrofit of existing iSpot spotlights, it represents the technological benchmark of recessed spotlights. The main advantages of this latest generation product are energy-efficiency, great flexible use and superior lighting quality. With latest generation LEDs you can save up to 80% of energy compared to old products, plus a service life that can reach up to 70,000 hours guaranteeing an excellent luminous flux.
Housing: made of die-cast aluminium with spring clips for recessed mounting
Lens: in PMMA with high efficiency output and very low glare rate
Coating: epoxy polyester powder coating resistant to UV rays.
Upon request: version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (2700K-3000K-4000K), adjusting its emission to most lighting installations.
Interchangeable LED module lens, ideal for precision
WW = 2700K (warm white)
WW = 3000K (warm white)
NW = 4000K (neutral white)
Honeycomb screen for iSpot 1-2-3 22005132-00 To reduce glare.
- 833lm - CRI>90 - 38°
- 888lm - CRI>90 - 38°
- 924lm - CRI>90 - 38°
Upon request: DIMM DALI (-1241) version.
Protection guard for iSpot 1-2-3 black 22095130-00 For insulation in the ceiling.
EM (emergency) lamp power kit complete with connectors.
ADAPT THE CURRENT TO ACHIEVE OPTIMAL LUMINOUS FLUX
DIP SWITCH SETTING: the fixture comes with a DIP SWITCH driver for THE SETTING OF THE OUTPUT CURRENT. In this way you, can ENSURE THE BEST LUMINOUS FLUX for any lighting design.
The possibility to choose the correct drive current for LEDs will allow you to have the right power under specific design conditions. Using a lower current will improve the efficiency of fixtures and therefore increase energy savings, whilst a higher current will result in a higher light flux so that you can reduce the number of fixtures.
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (2700K-3000K-4000K), adjusting its emission to most lighting installations.
WW = 2700K (warm white)
WW = 3000K (warm white)
NW = 4000K (neutral white)
v.a. IP20 IK04
Low Glare 1/2 - CCT / DIP SWITCH - CRI>90
CRI>90 CCTSWITCH
Housing: made in aluminium, adjustable with springs.
Lens: in PMMA with high efficiency output and very low glare rate
LED: luminous flux maintenance
80%: 70.000h (L80B10).
Power factor >0.9.
Upon request: DIMM DALI (-1241) version.
v.a. IP20 IK04
v.l. IP40 IK04
CRI>90 CCTSWITCH
Housing: made in aluminium, adjustable with springs.
Lens: in PMMA with high efficiency output and very low glare rate
LED: luminous flux maintenance
80%: 70.000h (L80B10).
Power factor >0.9.
CLD
Sun T - HIGH QUALITY
Housing: in die-cast aluminium with spring clips for recessed mounting
Lens: in PMMA with high efficiency output and very low glare rate.
LED: luminous flux maintenance 90%: 60.000h (L90B10). Power factor >0.9.
LED colour weight code code W tot K - ølm - CRI - degrees
COB white
65514-00
65513-00
CLD
65513-12
CLD-D (1-10V)
Safety cord
22004112-00
Steel safety cord, to be used for safety installation of the fixtures inside false ceilings.
OUTPUT (tq= 25 °C)
power kit complete with connectors.
High-efficiency light LED HIGH QUALITY sources (CRI>95). The LED series was designed with a new technology that ensures uniform colour saturation. This is why these lamps are particularly suited in settings where reflections, transparencies, good colour and white quality are very important.
Light evolution
Compared to a conventional light source, the LED HIGH QUALITY series ensures perfectly saturated colours and is capable of representing the entire range of hues. In addition, this product is ideal to display the texture of objects and improves the viewer’s overall impression of the illuminated object.
Much more vividness for LED lighting
In addition to LEDs that allow high colour rendering indexes, the market is also demanding LEDs capable of enhancing the colours of objects, making them look more vivid and bright.
Colour Saturation
The LED HIGH QUALITY series was developed based on a new parameter of “Colour Saturation”, so that an illuminated object appears more beautiful in the visible light domain.
Evaluation of colour saturation
The LED HIGH QUALITY source maintains the ΔC*ab value in the positive zone, so as to bring out the original colours of the illuminated object.
ΔC*ab is an index that represents the chroma difference.
Housing: in die-cast aluminium with spring clips for recessed mounting Lens: in PMMA with high efficiency output and very low glare rate.
LED: luminous flux maintenance 90%: 60.000h (L90B10). Power factor >0.9.
Upon request: available DIMMDALI (-1241) version
white 0,30
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors.
15 colours in the Colour Quality Scale (CQS) measured by the CIELAB allow the measurement of the saturation of colours against a standard lighting source.
In different commercial sectors, lighting systems should meet specific requirements, such as for example, emphasise the colour of food or create the right setting for displaying garments, household articles as well as the most exclusive items.
2700K - CRI>95 Bread,
Warm golden light enhances the feeling of freshly made bread and makes cheese and dairy products look more inviting.
White warm light enhances the reds of meats and makes fruit and vegetables look fresher, displaying more saturated colours, enhancing the appearance and the characteristics of the wares on display.
Cold white light makes whites look cleaner and brighter, eliminating the yellowing effect of conventional LED lamps and enhancing the human eye’s perception of “pure white”.
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (2700K-3000K-4000K), adjusting its emission to most lighting installations.
Range of adjustable recessed spotlights for stores, homes and accommodation facilities. Their LED sources allow considerable energy savings and excellent quality light emission.
Housing: in die cast aluminium, adjustable with spring clips for recessed mounting
Lens: in PMMA with high efficiency output and very low glare rate
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.9.
Interchangeable LED module precision lens
WW = 2700K (warm white)
WW = 3000K (warm white)
NW = 4000K (neutral white)
Interchangeable LED module lens, ideal for precision lighting.
Upon request: DIMM DALI (-1241 and -3941) version.
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (3000K-4000K-6500K), adjusting its emission to most lighting installations.
Upon request: terminal block for double insulation electrical wiring with the possibility for loop-in connection.
Housing: made of sheet steel, adjustable ideal for transit areas.
LED: luminous flux maintenance
70%: 25.000h (L70B50).
Housing: made of sheet steel, adjustable ideal for transit areas.
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.9.
Equipment: silicone rubber protection gasket compliant with French low-energy building standards (BBC). Standards: manufactured pursuant to EN 60598-1-CEI 34.21 and with a degree of protection pursuant to EN 60529.
Marte 4 - CCT / DIP
EM (emergency) lamp power kit complete with connectors.
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (2700K-3000K-4000K), adjusting its emission to most lighting installations.
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (2700K-3000K-4000K), adjusting its emission to most lighting installations.
Adjustable: ideal to light up walls or decor items.
LED: luminous flux maintenance
80% 70.000h (L80B10). Power factor >0.9.
Marte 7
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors.
Marte 9
IP65 CRI92
Housing: made of die-cast aluminium complete with spring clips for recessed mounting
Lens: in PMMA with high efficiency output and very low glare rat
Adjustable: ideal to light up walls or decor items.
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.9.
v.a. IP20 IK07
v.l. IP44 IK07
Housing:
Lens:
LED:
80%:
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors.
v.a. IP20 IK07
v.l. IP44 IK07
Housing:
Lens:
LED: luminous flux maintenance
80%: 70.000h (L80B10).
Marte - CRI 92
Power factor >0.9. Marte
10
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors.
Marte 11
This series of compact recessed LED spotlights is designed for accent lighting in modern, refined interiors. With their minimalist, easy-to-install design, these spotlights are perfectly suited to smaller spaces, delivering bright, focused lighting without compromising the aesthetic harmony of the environment.
Ideal for highlighting architectural features, artworks, or specific areas within a room, they provide precise, directional lighting with extraordinary energy efficiency. Advanced LED technology ensures a long lifespan and low power consumption, offering both environmental and economic advantages.
Housing: in die cast aluminium complete with spring clips for recessed mounting.
Lens: in PMMA with high efficiency output and very low glare rate
Coating: epoxy polyester powder coating resistant to UV rays.
The right lighting and fixture play a vital role in facilitating sales. This is the reason why LED fixtures with a CRI>90 are being requested. Therefore, the current trend is geared towards the manufacturing of more flexible fixtures, which also emit an excellent quality of light, while guaranteeing remarkable energy savings and lower maintenance costs.
The Colour Rendering Index (CRI) indicates how truthfully the artificial light source is able to reproduce the colours of objects. It varies from a range of 0 to 100, where 0 represents the minimum and 100 is the maximum. Daylight is the best source of light from a physiological point of view because it contains the full colour spectrum. Therefore, a lamp with a high colour rendering index is very important to ensure the wellbeing and comfort of the occupants of a room and it is absolutely necessary in rooms where good visibility is required.
M40 - CRI 90
M40 A - fixed
M40 B - fixed
M40 C - adjustable
Housing: in aluminium complete with spring clips for recessed mounting.
Lens: in PMMA with high efficiency output and very low glare rate
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (2700K-3000K-4000K), adjusting its emission to most lighting installations.
WW = 3000K (warm white)
= 4000K (neutral white)
2700K (warm white)
v.a. IP20 IK04
v.l. IP65 IK04
Housing: made of die-cast aluminium and polycarbonate reflector.
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.9.
New Mini iSpot Comfort
New Mini iSpot Comfort AS - asymmetric
Housing: made of die-cast aluminium and polycarbonate reflector.
LED: luminous flux maintenance
80%: 70.000h (L80B10).
Power factor >0.9.
New iSpot Comfort 1 - CCT
Universally applicable, suitable to replace downlights with cut out diameters ranging from 65 mm to 67 mm. The supplied ring can act as both an aesthetic finishing and to cover fitting holes with greater diameters. Upon request: DIMM DALI (-1241) version.
New iSpot Comfort - CCT /
Upon request: available in white/orange, black/orange and black/gold colour
Upon request: available in white/orange, black/orange and black/gold colour version. finishing ring included
Universally applicable, suitable to replace downlights with cut out diameters ranging from 75 mm to 78 mm. The supplied ring can act as both an aesthetic finishing and to cover fitting holes with greater diameters. Upon request: DIMM DALI (-1241) version.
Version with fixed 15° asymmetric housing. Universally applicable, suitable to replace downlights with cut out diameters ranging from 75 mm to 78 mm. The supplied ring can act as both an aesthetic finishing and to cover fitting holes with greater diameters. Upon request: DIMM DALI (-1241) version.
CASAMBI
CASAMBI
New iSpot Comfort - CCT / DIP SWITCH - CRI>90
Housing: made of die-cast aluminium and polycarbonate reflector.
LED: luminous flux maintenance
80%: 70.000h (L80B10).
Power factor >0.9.
Universally applicable, suitable to replace downlights with cut out diameters ranging from 85 mm to 88 mm. The supplied ring can act as both an aesthetic finishing and to cover fitting holes with greater diameters. Upon request: DIMM DALI (-1241) version.
Housing: made of die-cast aluminium and polycarbonate reflector.
LED: luminous flux maintenance
80%: 70.000h (L80B10).
Power factor >0.9.
finishing ring included finishing ring included New iSpot Comfort 3 - CCT /
New iSpot
Comfort 4
- CCT / DIP SWITCH
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (2700K-3000K-4000K), adjusting its emission to most lighting installations.
Upon request: DIMM
WW = 2700K (warm white)
WW = 3000K (warm white)
NW = 4000K (neutral white)
CRI>90 CCTSWITCH
S

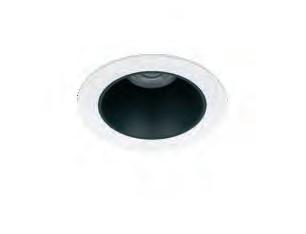

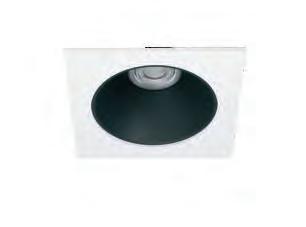

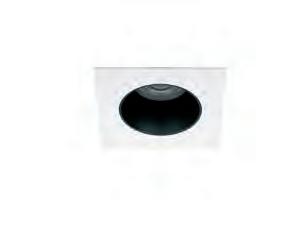

Spark a range of recessed spotlights, available in both fixed and adjustable configurations, featuring sleek round and square designs and an elegant black finish. Perfect for seamlessly integrating into any architectural setting that demands refined accent lighting.
Housing: made of die-cast aluminium with spring clips for recessed mounting
Reflector: made in painted black aluminium.
Lens: in PMMA with high efficiency output and very low glare rate
Coating: dust painted, using polyester epoxy paint to withstand UV rays.
Upon request white+white version available.
Interchangeable LED module precision lens
Interchangeable LED module lens, ideal for precision lighting.
LED: luminous flux maintenance
80%: 70.000h (L80B10).
Power factor >0.9
Upon request: DIMM DALI (-1241) version.
LED: luminous flux
80%: 70.000h (L80B10).
Power factor >0.9
Upon
118 Spark - CCT / DIP
Spark R105 - CCT / DIP SWITCH
Upon request: DIMM DALI (-1241) version.
- 1100lm - CRI>90 -
- 1209lm - CRI>90 - 38°
- 1229lm - CRI>90 - 38°
Upon request: DIMM DALI (-1241) version.
- 1229lm - CRI>90 - 38°
LED: luminous flux maintenance
80%: 70.000h (L80B10).
Power factor >0.9 LED: luminous flux maintenance
Spark 1 - Q120 -
Upon request: DIMM DALI (-1241) version.
80%: 70.000h (L80B10).
Power factor >0.9
Upon

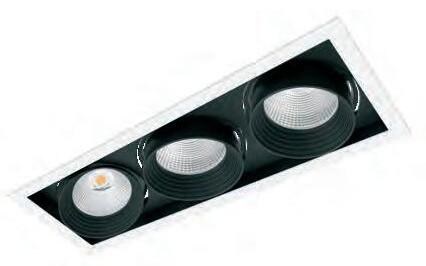

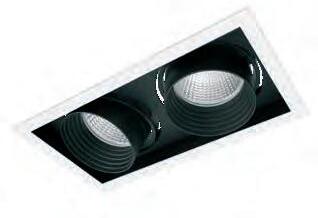

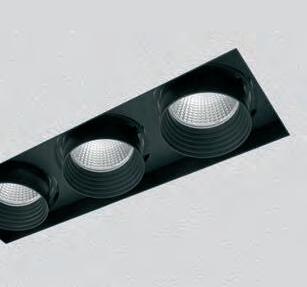

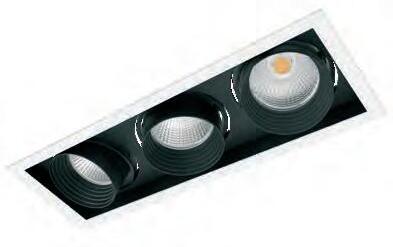

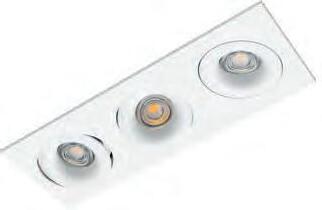

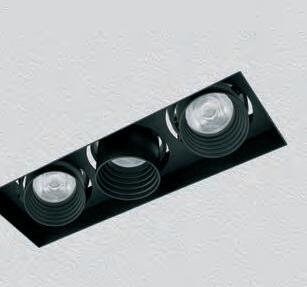

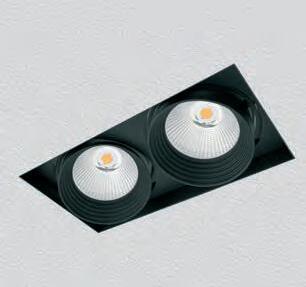

Overview of recessed lights with separate modules
The system’s main feature is the possibility to integrate a wide selection of additional recessed, ceiling and. Thanks to the different combinations of power, lumen, light beams and aesthetic finishes, Liset 2.0 System can perfectly fit into any architectural structure, enhancing both the showroom space and the items on display.
The system is made up of individual modules that can be installed into ceilings or recessed mounting in plasterboard false ceilings thanks to their remarkably small dimensions, allowing them to fit perfectly into any space. These modules are characterised by high-definition optics in thermally conductive plastic with metallic finish, combined with a special diffuser to optimise the luminous output and significantly reduce direct glare.
Separate modules - RECESSED DOWNLIGHTS
M5x2
M9
M9 Big FS
M9 Big FL
Overview of recessed lights with separate modules
Upon request: versions available with different aesthetic finishes ideal to create amazing light effects.
Separate modules - RECESSED DOWNLIGHTS FOR PLASTERBOARD
Separate modules - CEILING SPOTLIGHTS
SPOT M1-A
SPOT M2
SPOT M3
SPOT M5
SPOT MW

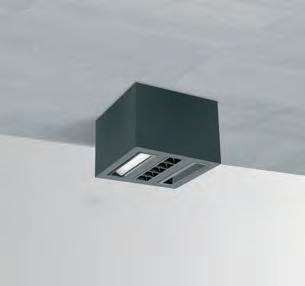

WALLWASHER
SPOT PANEL 1
SPOT M1-B
W5x2 W9 W9 Big FS W9 Big FL W4
Recessed lights with separate modules - UGR<16
This series of luminaires (M1-M2-M3-M5M10-M15) allows you to adjust the position of the LED module inside the lamp in two very simple steps:
1) unhook the supplied screen M1 - recessed - UGR<16
2) push the LED module forward until it hooks onto the border of the luminaire
M2 - recessed - UGR<16
Recessed lights with separate modules - UGR<16
- recessed - UGR<16
M15 - recessed - UGR<16
M9 Big FS - recessed
M9 Big FL -
Recessed
W9 Big FS -
Ceiling lights with separate modules - UGR<19

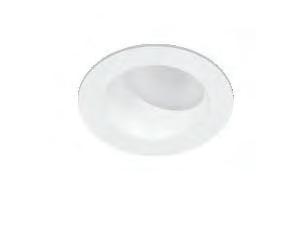

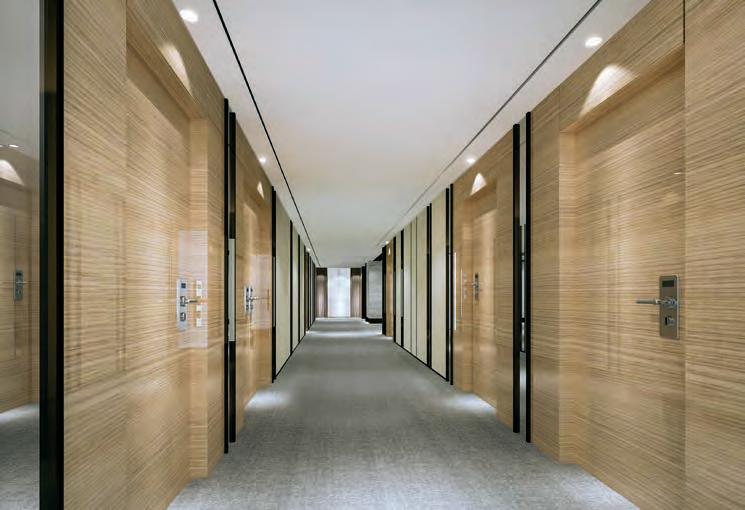

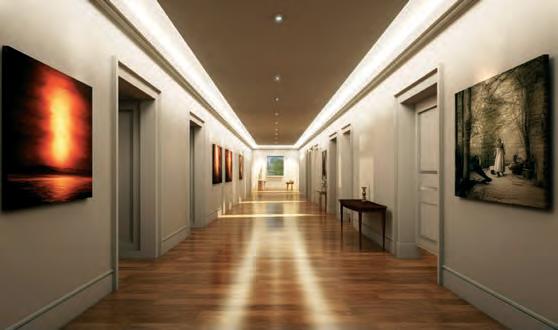

The innovative wall washer optic was designed to guarantee uniform lighting of walls, avoiding ant-aesthetic shadow areas. Suited for installation in transit areas or corridors.
LED: luminous flux maintenance 80%: 50.000h (L80B20). Power factor ≥0,92.
Upon request: 30° version. Driver inside.
Ceiling lights with separate modules - UGR<16
Spot
M1-A - ceiling - UGR<16
CLD S+L LUMEN
- CRI>90 - 20°
Upon request: 15°-30° version. Driver not included, to insert into the ceiling.
Upon request: 15°-30° version. Driver not included, to insert into the ceiling.
The system is made up of individual spotlights that can be installed into ceilings thanks to their remarkably small dimensions, allowing them to fit perfectly into any space. These modules are characterised by high-definition comfort optics in metallized polycarbonate, ideal to optimise the luminous output and significantly reduce direct glare.
Housing: painted sheet steel, contact mounting on the cross T structure.
Comfort optics: in metallized antiglare polycarbonate for improved visual comfort
LED: luminous flux maintenance 80%: 50.000h (L80B20). Power factor ≥0,92.
Spot panel - UGR<16
Classification of UGR values by applications
≤ 16 Very demanding applications (technical drawings)
The UGR (unified glare rating) is an international unified measure developed by the CIE (Commission International de l’Eclairage) to assess the direct glare generated by a lighting system. The European standard regulating the lighting of indoor work places (UNI-EN 12464-1) recommends a specific UGR value for different applications ranging between 10 and 30; the lower the UGR value, the lower the glare. The exact value of this index differs by project type because it depends on the position of the luminaires, room characteristics (dimensions, reflections) and on the point of observation of viewers.
UGR

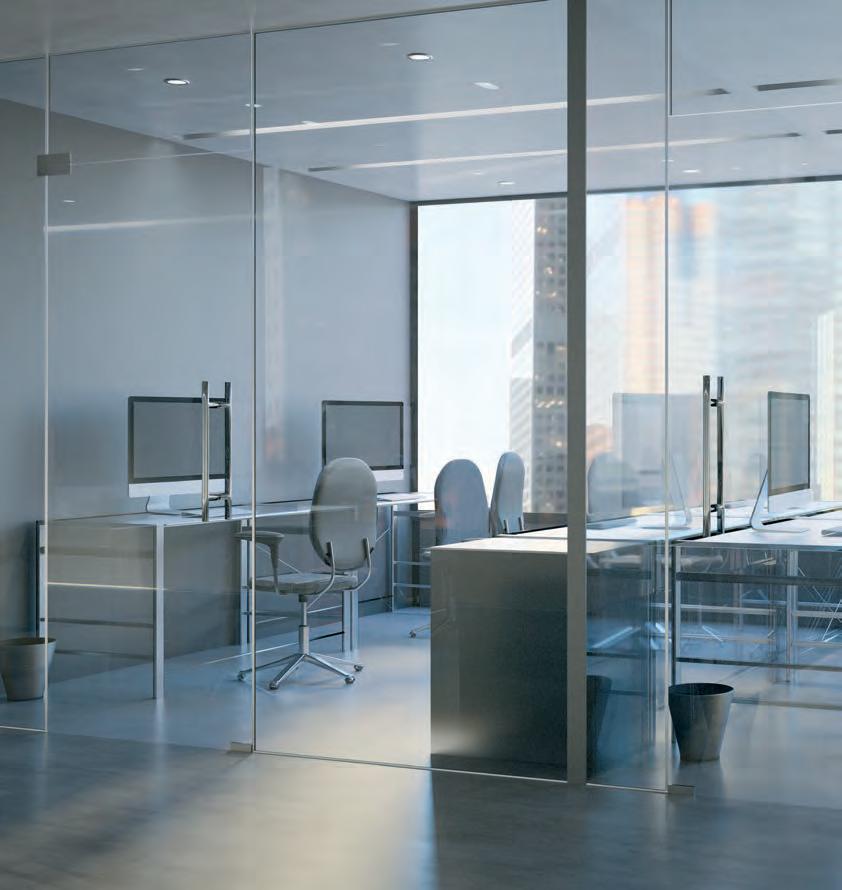

≤ 19 Offices and schools (reading, writing, business meetings, computer work)
≤ 22 Industrial applications, craftsmen
> 28 High glare
Upon request version CLD D-D (DALI) wiring with sub-code -1241.
Spot panel 1
made up of 4
Safety cord 22004112-00
Steel safety cord, to be used for safety installation of the fixtures inside false ceilings.
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (2700K-3000K-4000K), adjusting its emission to most lighting installations.
WW = 2700K (warm white)
WW = 3000K (warm white)
NW = 4000K (neutral white)

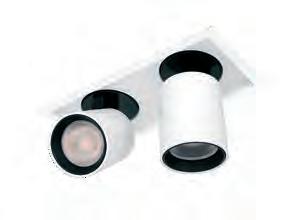

Housing: in die-cast aluminium with adjustable and tilting spotlights.
Equipment: equipped with galvanised steel support brackets which guarantee perfect attachment to suspended ceiling from 12 mm to 25 mm thick.
Lens: in PMMA with high efficiency output and very low glare rate
LED: luminous flux maintenance 80%: 70.000h (L80B10). Power factor >0.95.
Upon request:
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels).
For further information see chapter Technical components.
Interchangeable LED module precision lens
Interchangeable LED module lens, ideal for precision lighting.
Upon request: DIMM DALI (-1241) version.
Safety cord
22004112-00
Steel safety cord, to be used for safety installation of the fixtures inside false ceilings.

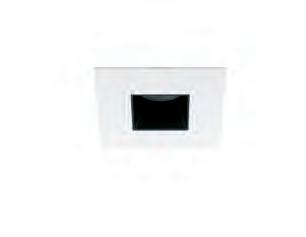

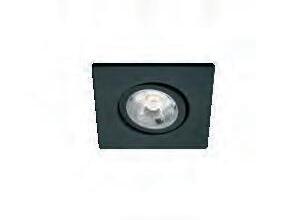

Trimless
Trimless 50 - A2 - CCT / DIP
Upon request: DIMM DALI (-1241) version.
Trimless 50 - A3 - CCT / DIP SWITCH
Upon request: DIMM DALI (-1241) version.
false ceilings
Housing: in die-cast aluminium with adjustable and tilting spotlights.
Equipment: equipped with galvanised steel support brackets which guarantee perfect attachment to suspended ceiling from 12 mm to 25 mm thick.
Lens: in PMMA with high efficiency output and very low glare rate
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
(emergency) lamp power kit complete with connectors.
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors. For one single emergency lamp.
Trimless 70 - A2
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors. For one single emergency lamp.
Housing: in die-cast aluminium with adjustable and tilting spotlights.
Equipment: equipped with galvanised steel support brackets which guarantee perfect attachment to suspended ceiling from 12 mm to 25 mm thick.
Lens: in PMMA with high efficiency output and very low glare rate
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels).
For further information see chapter Technical components.
EM (emergency) lamp power kit complete with connectors.
Trimless 111 A - adjustable - CRI>90 - recessed mounting in plasterboard false ceilings
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors. For one single emergency lamp.
Trimless 111 - A3
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit com
plete with connectors. For one single emergency lamp.
Trimless 50 B -
The main feature of this luminaire is the “colour-changing” technology: with the built-in selector switch positioned on the fixture’s body, you can choose the desired colour temperature (2700K-3000K-4000K), adjusting its emission to most lighting installations.
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
Interchangeable LED module precision lens
Interchangeable LED module lens, ideal for precision lighting.
Safety cord 22004112-00
Steel safety cord, to be used for safety installation of the fixtures inside false ceilings.
DIP SWITCH - CRI>90
Upon request: DIMM DALI (-1241) version.
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors. For one single emergency lamp.
Upon
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors. For one single emergency lamp.
Trimless 70 B - adjustable - CRI>90
Housing: in die-cast aluminium with
and tilting spotlights.
Equipment: equipped with galvanised steel support brackets which guarantee perfect attachment to suspended ceiling from 12 mm to 25 mm thick.
Lens: in PMMA with high efficiency output and very low glare rate
• available version with terminal block for double insulation electrical wiring with the possibility for loop-in connection (-90)
• version with CASAMBI automation lighting control system (fixtures to be installed in NON-METALLIC false ceilings/panels). For further information see chapter Technical components.
Upon request: available in black colour version.
(emergency) lamp
kit complete with connectors.
Trimless 70 B - adjustable - CRI>90
Trimless 70 - B2
Upon request: available in black colour version.
COB
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors. For one single emergency lamp.
Upon request: available in black colour version.
EM power kit
1h 22096015-00
3h 22096033-00
EM (emergency) lamp power kit complete with connectors. For one single emergency lamp.
Trimless 111 B - adjustable - CRI>90
Housing: in die-cast aluminium with adjustable and tilting spotlights.
Equipment: equipped with galvanised steel support brackets which guarantee perfect attachment to suspended ceiling from 12 mm to 25 mm thick.
Lens: in PMMA with high efficiency output and very low glare rate
