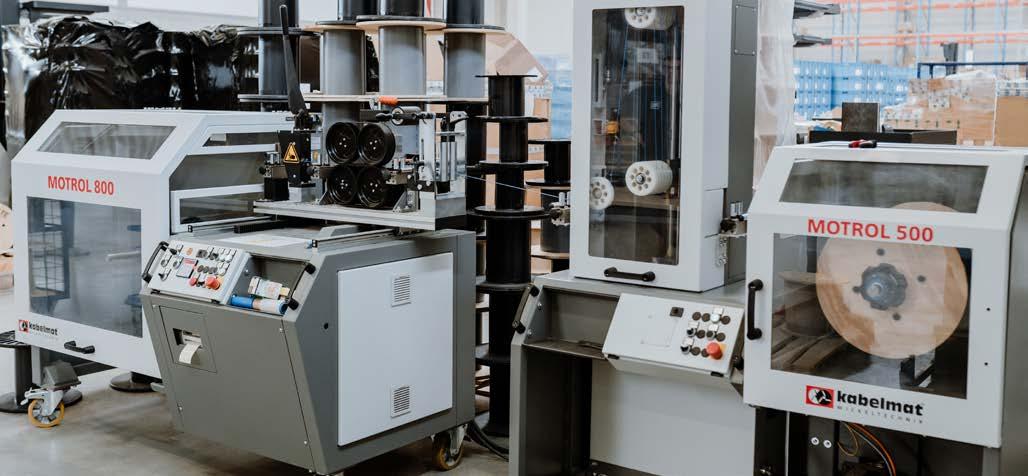

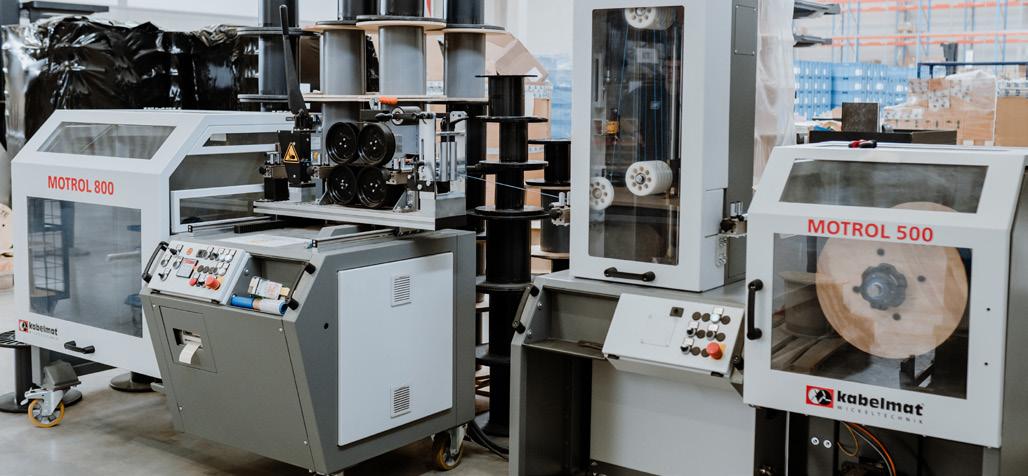

•Value Added Services Connector assembly is one of the most important value-added services at TTI, Inc. –Europe. We are specialized in distributing manufacturer controlled and certified connectors and interconnect solutions from globally leading suppliers. Thanks to a large inventory level of connector components, TTI, Inc. – Europe can serve any market requirements.

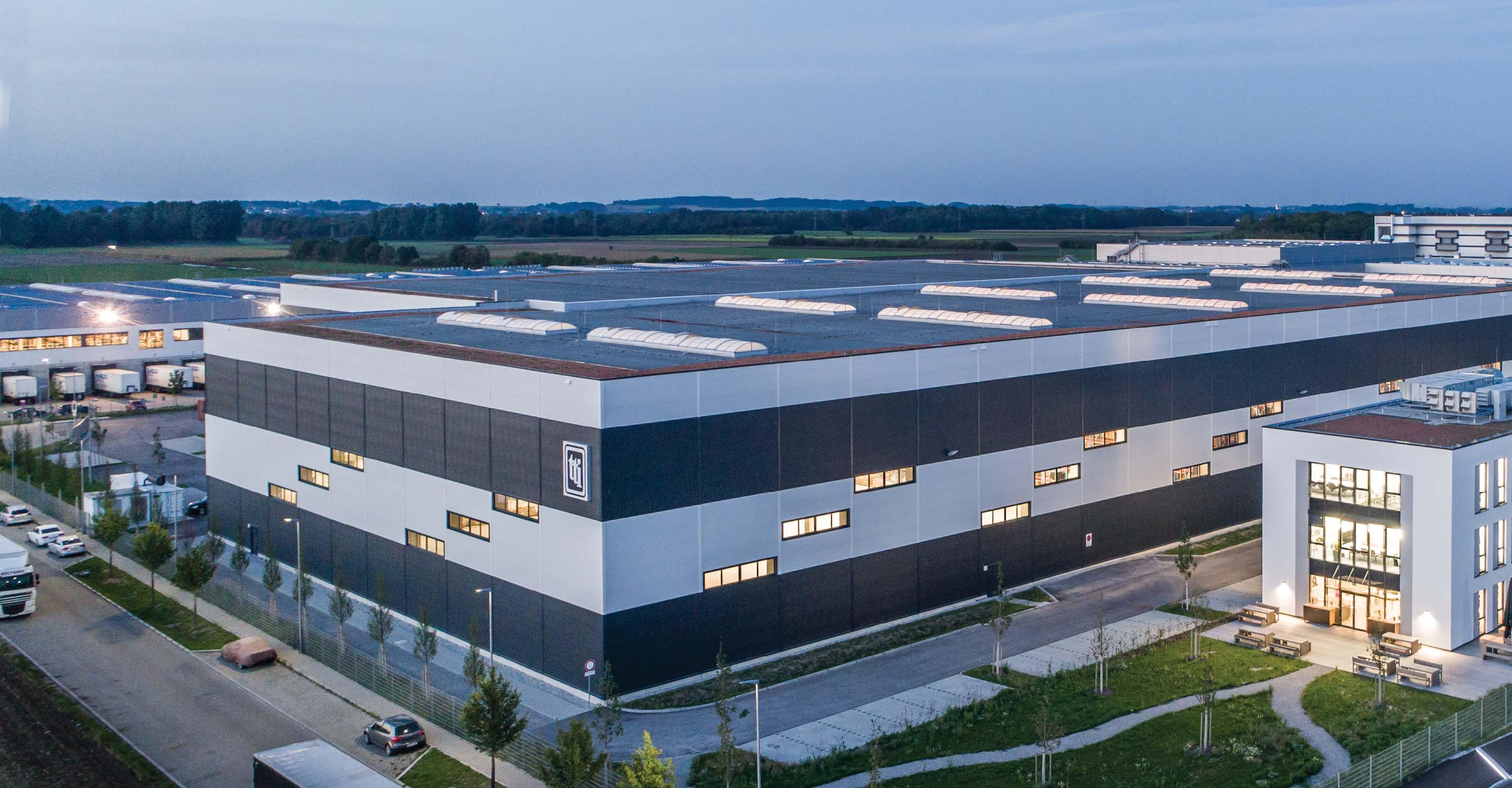

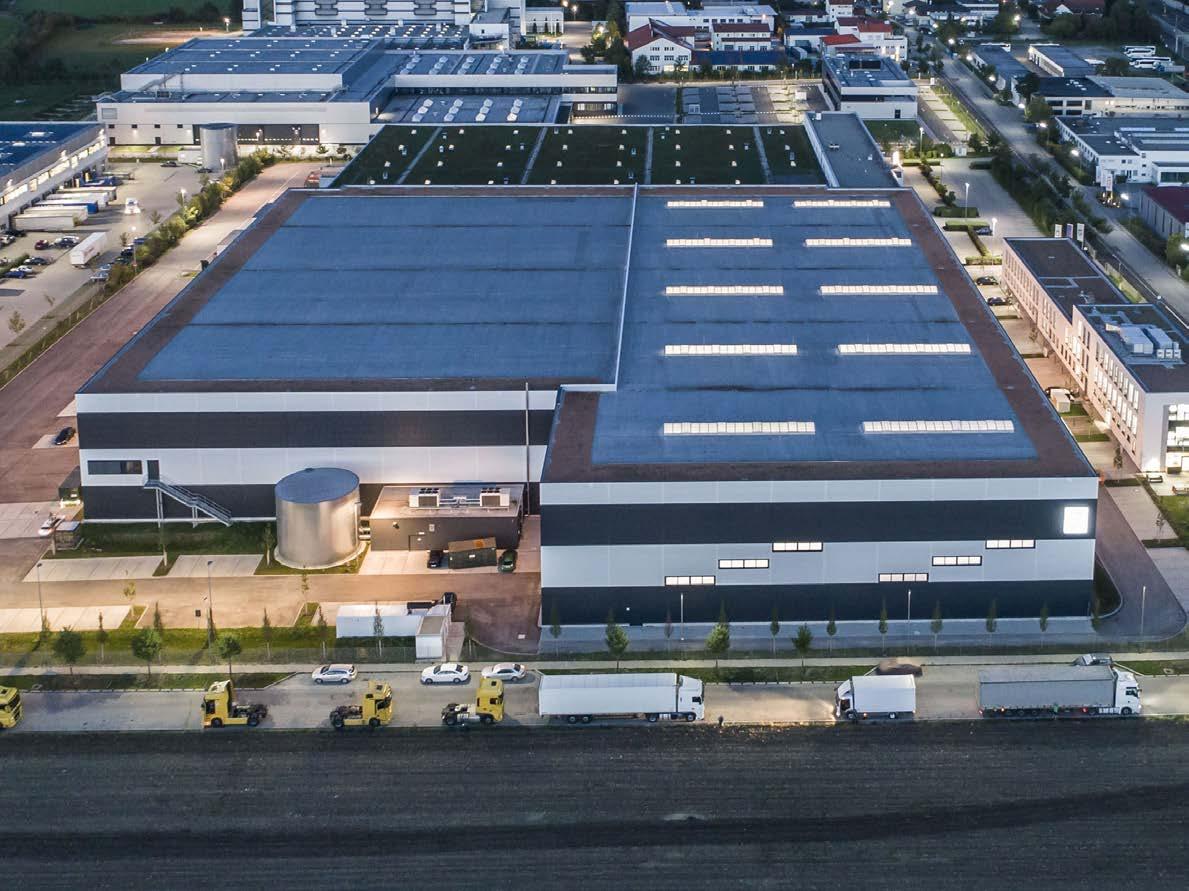

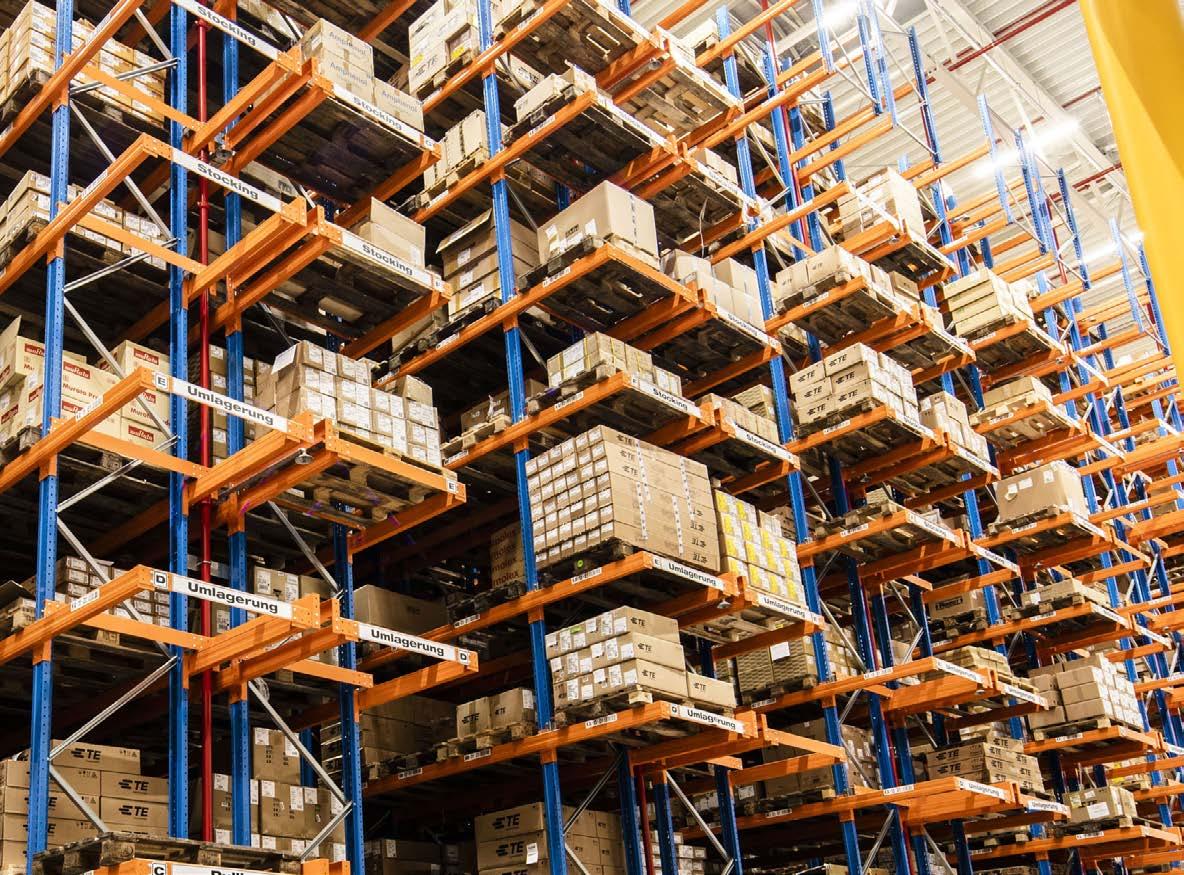

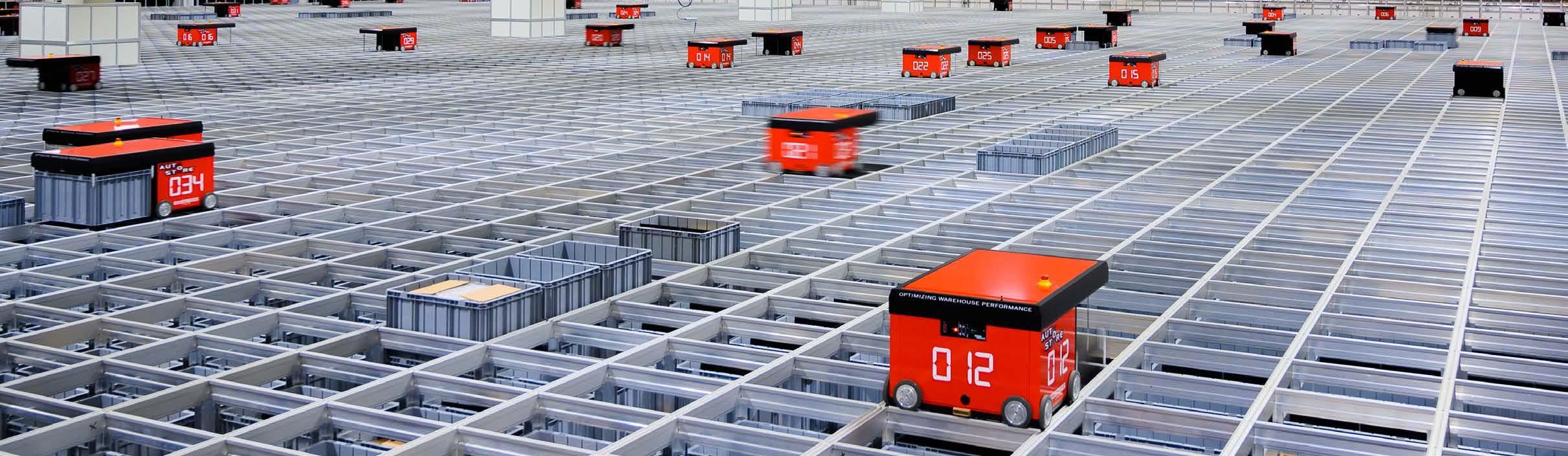

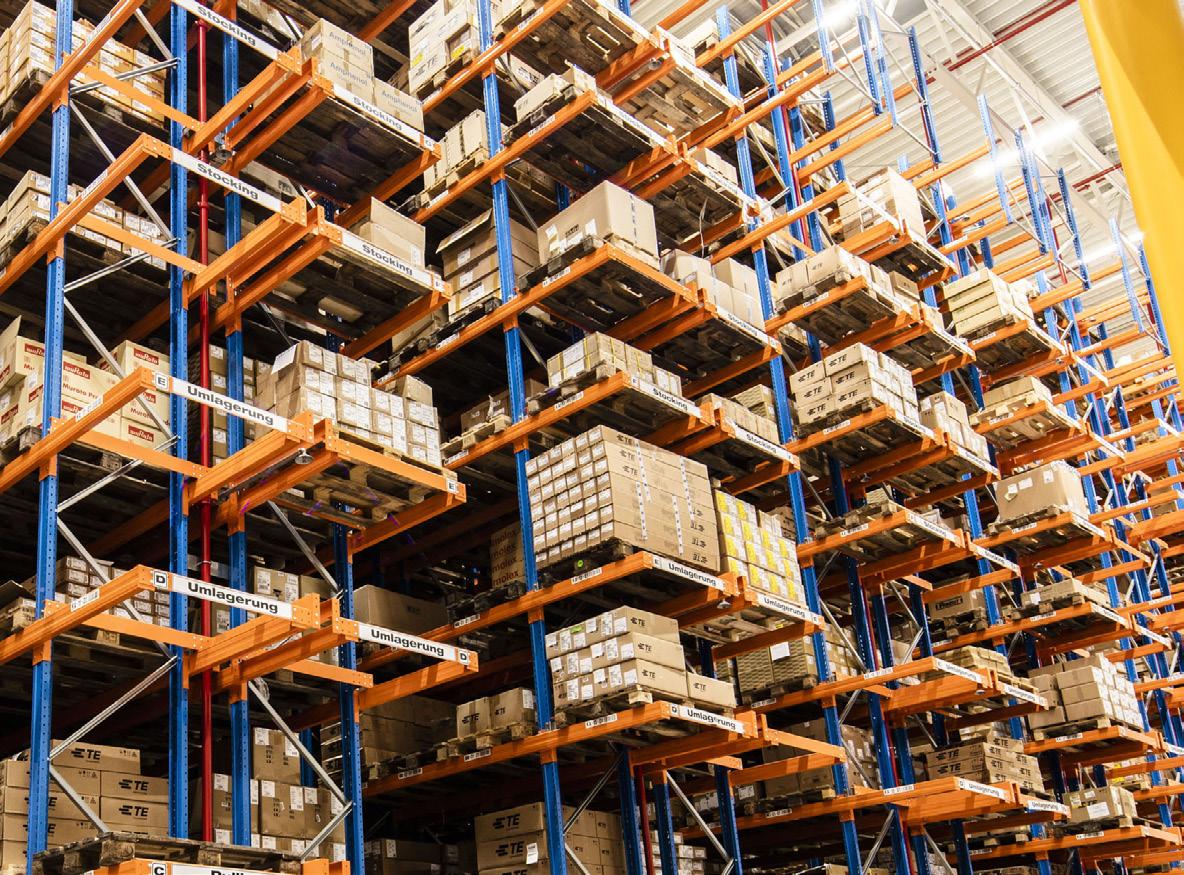

•Global Distribution Centers Our European headquarters is located just outside of Munich, Germany in Maisach-Gernlinden. In total, we have 45.000m² of dedicated warehouse space and local sales and technical support in over 40 locations across Europe. TTI has more than 195.000m² of automated warehousing in North America, Europe and Asia. All are linked into a global warehouse management system that provides superior customer service and overall business efficiencies. Wherever you are in the world, TTI can support you. Year after year, customers rate our inventory availability, on-time delivery and accuracy among the very best in the industry –contact us today to find out what a true specialist has to offer.
•Quality and Reliability TTI’s global warehouses are all ISO-registered and have received certification to the ISO 9001 and ISO 14001 Standards. TTI Europe is also certified to EN9120/EN9100, IECQ-CECC and ISO/IEC 27001 Standards. Additionally, our European sales branches are ISO 9001 certified. TTI has one global documentation system that ensures that every TTI branch and warehouse in the world follows the same processes.

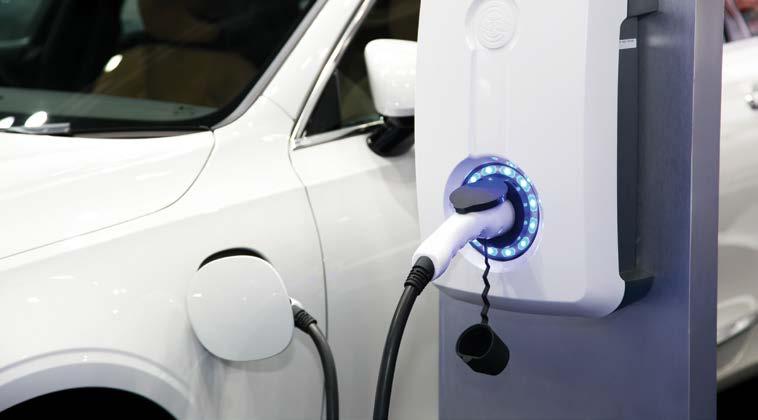

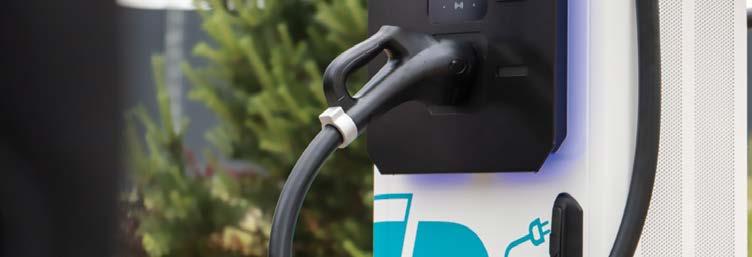

Charging Equipment
Charging Equipment Applications
Charging Infrastructures
• Fleet charging
• Private charging
• Public charging
• Residential charging
• Workspace charging
Charging Technologies
• Autonomous charging
• Battery swapping
• Capacitive charging
• Conductive charging
• DC fast charging
• Hydrogen-powered charging
• Inductive charging
• Liquid cooled charging
• Mobile charging
• Off-grid charging
• Overhead/Pantograph charging
• Robotic charging
• Solar-powered charging
• Vehicle to home/grid charging
• Wireless charging
Charging Standards
• AC Type 1 – SAE
• AC Type 2 – ISO / IEC
• AC GBT
• DC CCS 1 & CCS2 CharIN
• DC CHAdeMO
• DC ChaoJi
• DC GBT
• DC Tesla supercharger
• DC North American Charging Standard (NACS)
• DC Megawatt Charging Standard (MCS)
• Wireless SAE J2954

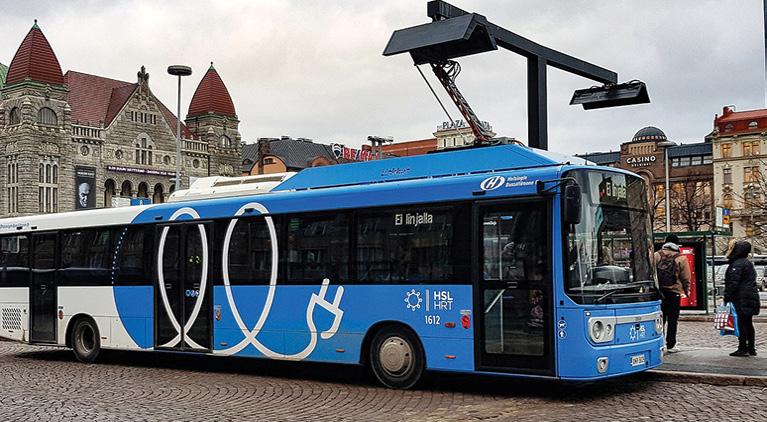

Overhead
Charging Equipment

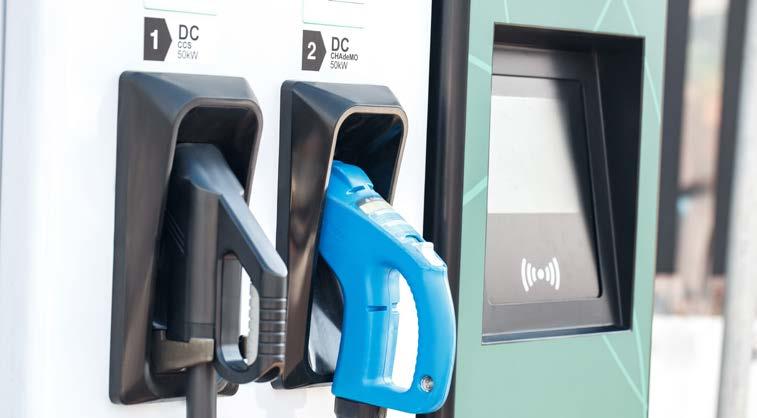

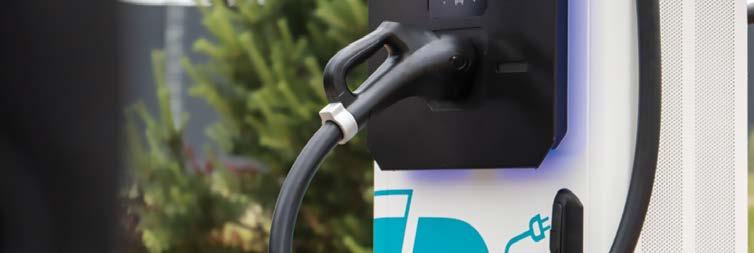

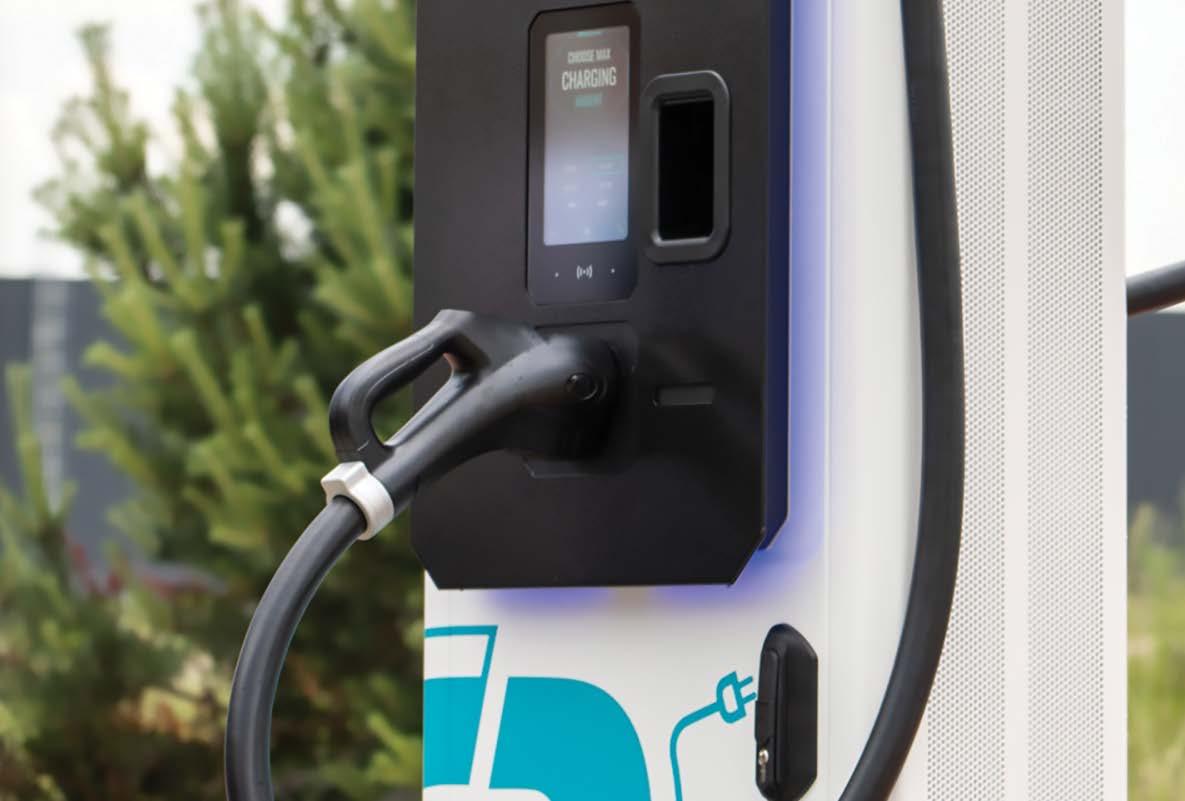

DC Fast Charging Equipment

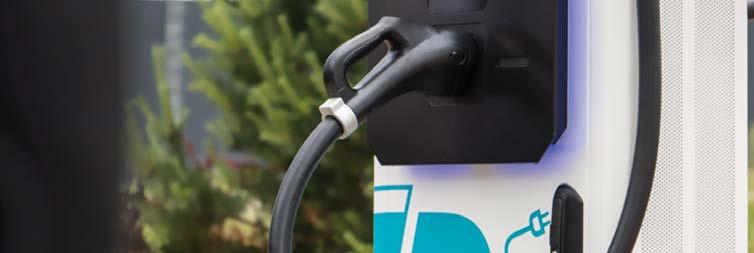

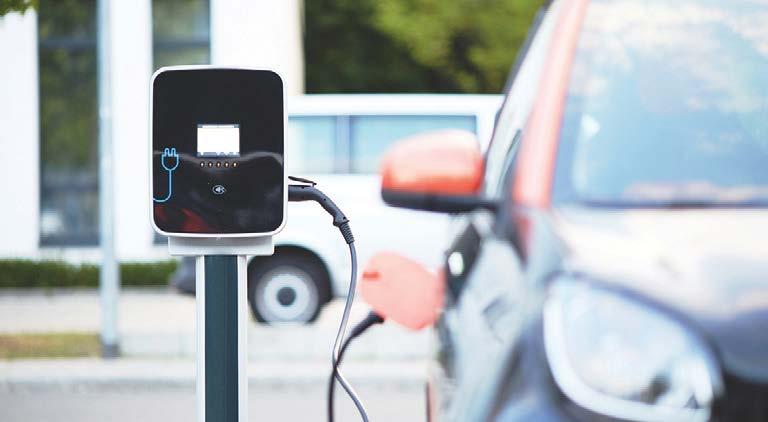

AC Public Charging Equipment
AC Private Charging Equipment
AC Wallboxes
Charging Equipment Technology Trends

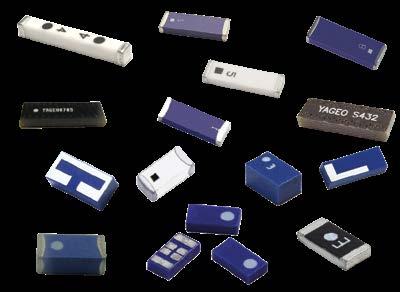

Antennas
• Wireless modules supporting Wi-f & bluetooth
• Internal & External antenna for 4G/5G and GPS / Glonass

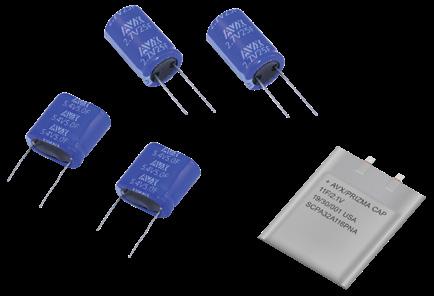

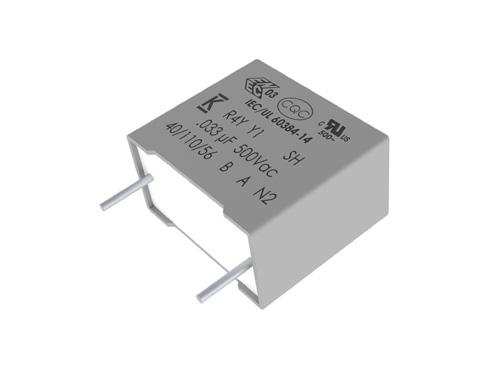

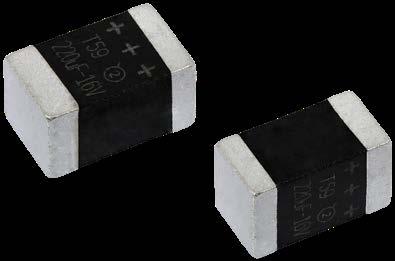

Capacitors
• Wider temperature range

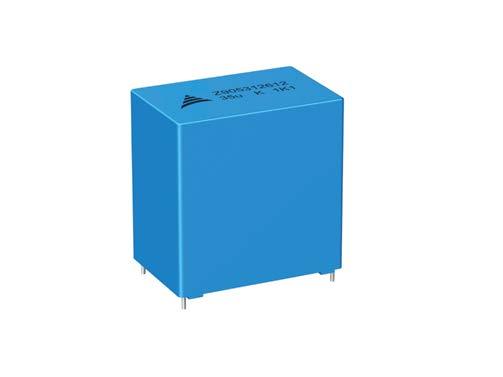

• Custom HV Film Capacitors

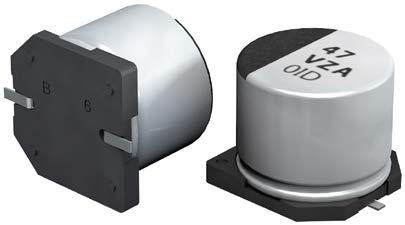

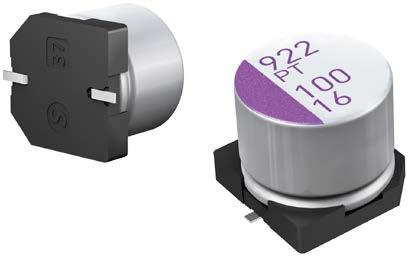

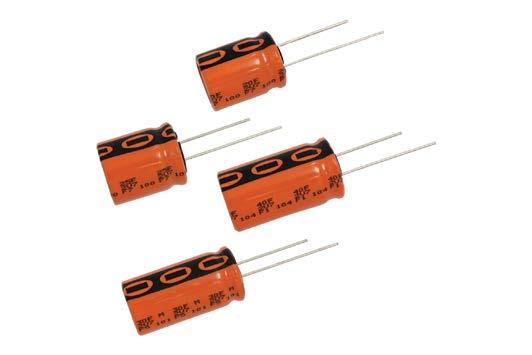

• Increased use of Hybrid and Polymer Capacitors

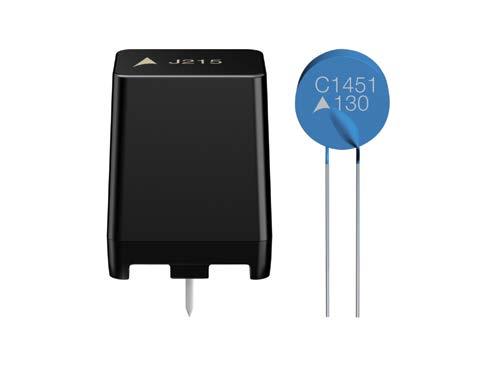

Circuit Protection

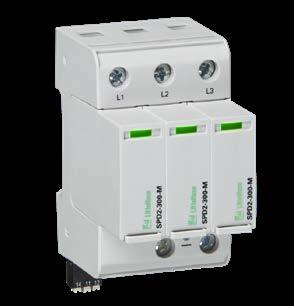

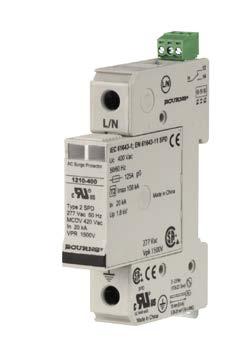

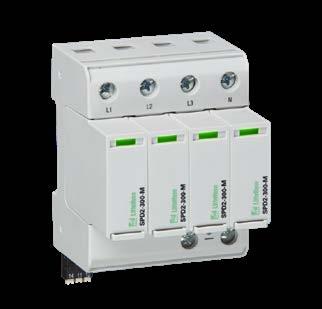

• Din-rail Surge Protection in DC Chargers

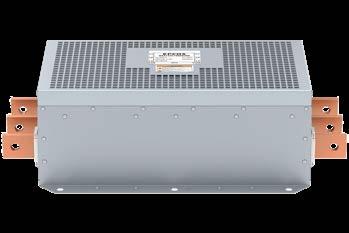

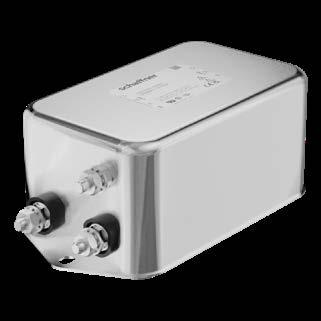

• DC Busbar EMC Filters for DC Fast Chargers

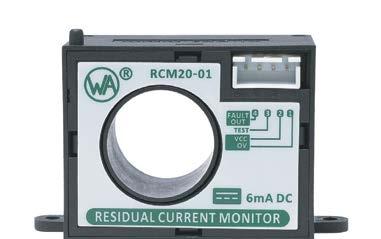

• Residual Current Modules for AC Chargers
Connectors
• New charging standards - NACS / MCS - Up to 1500A
• More use of busbar technology
• Liquid cooling for currents above 500A
• Shutter outlets being used on AC Charging Equipment
Discrete Semiconductors
• 600V & 1200V Mosfet solutions
• Low voltage Mosfets and TVS protection diodes

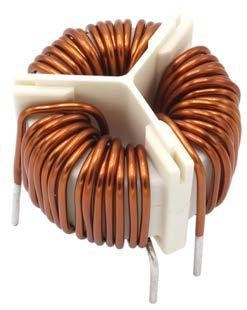

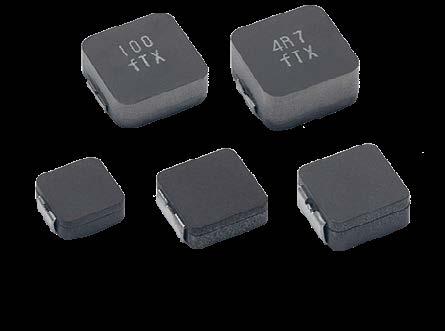

Electromagnetic

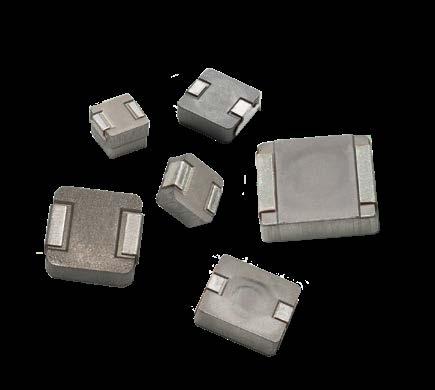

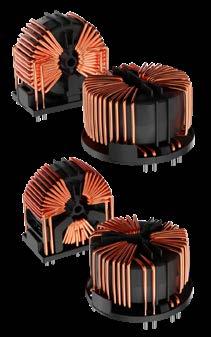

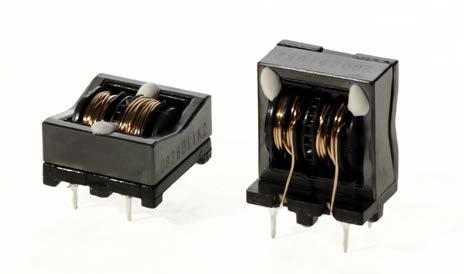

• Custom high power inductors and transformers in DC units
• EMI suppression and fltering

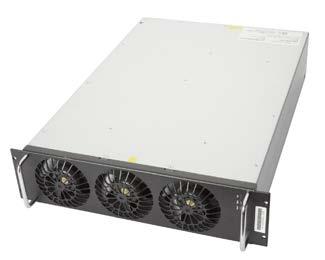

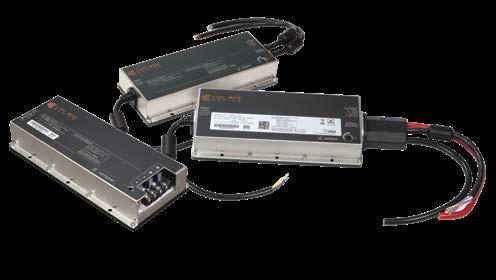

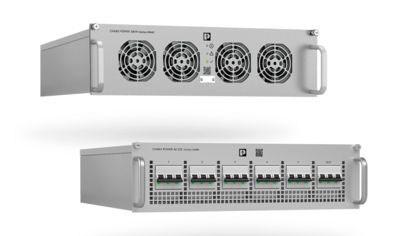

Power Supplies
• New DC charging units exceeding 400kW Capacity

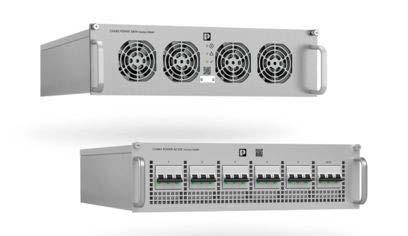

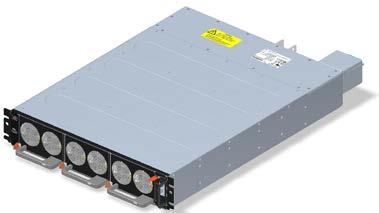

• Fast charge systems using modular rack power supplies

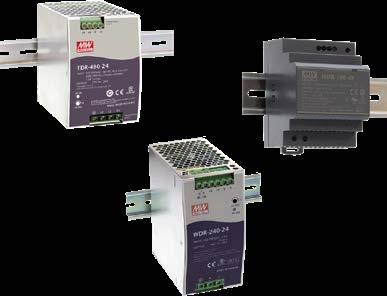

• Din-rail auxiliary power supplies used in AC Chargers

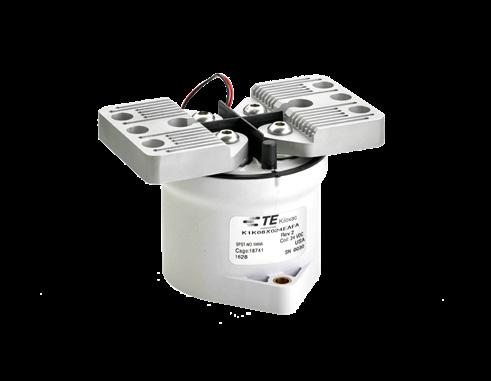

Relays

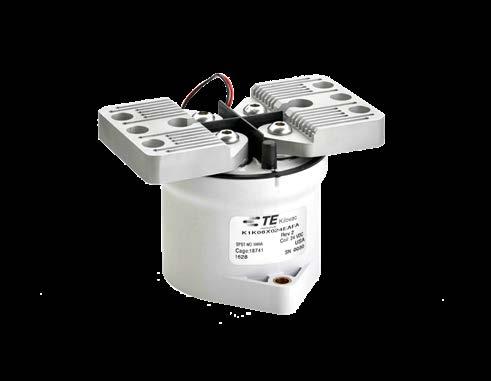

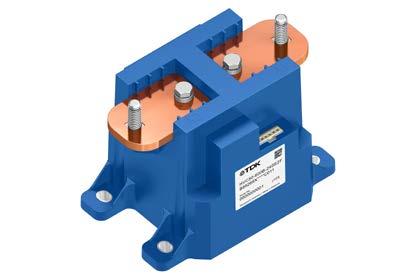

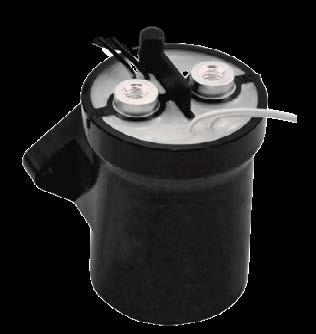

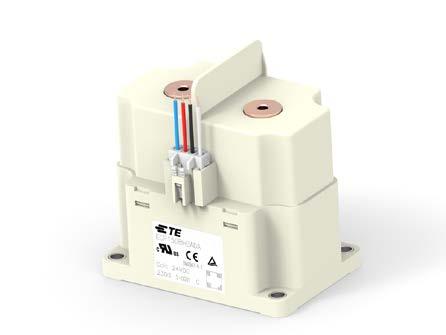

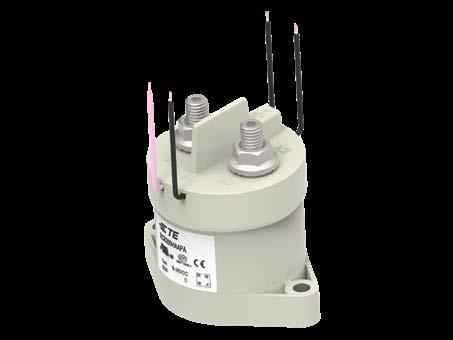

• 1500V contactors for DC applications

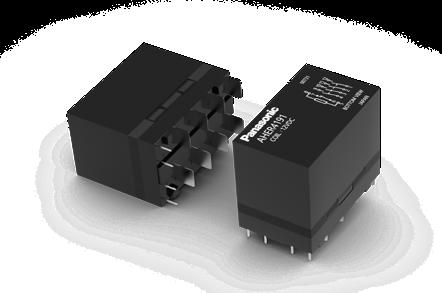

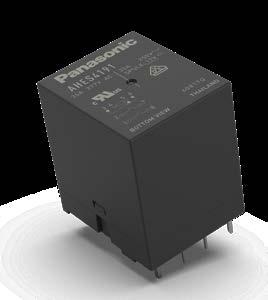

• 4 Pole Relays for AC Applications
Resistors
• Power Metal Strip current sense resistors

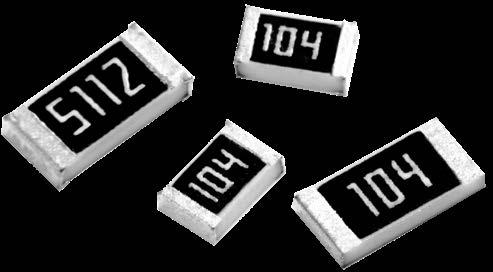

• Surface mount Thick Film power resistor technology

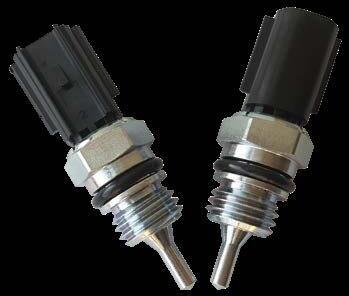

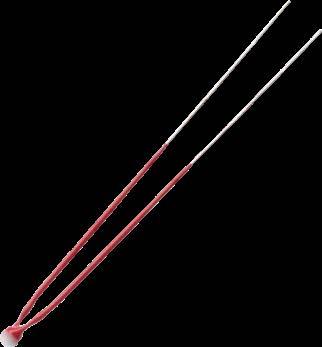

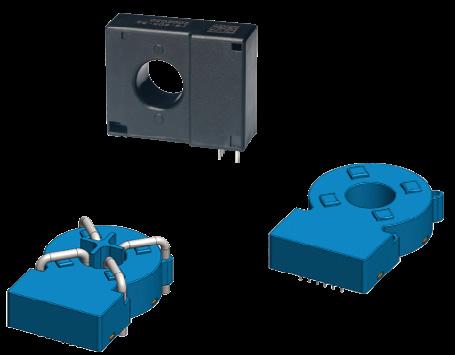

Sensors

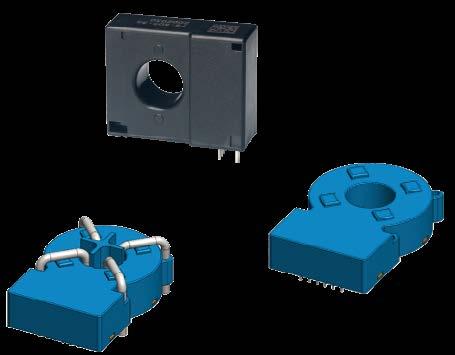

• Higher current sensors for both cable and busbars

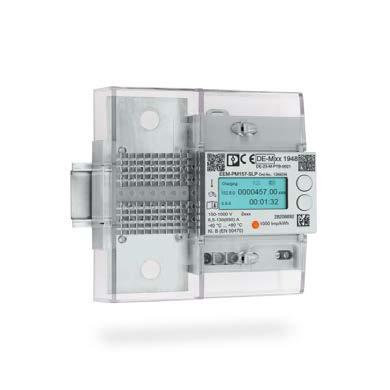

• Energy meters being used to monitor AC & DC Current use

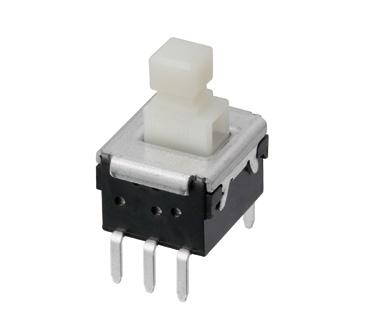

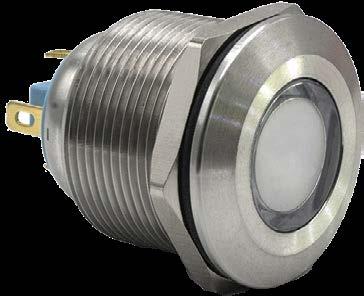

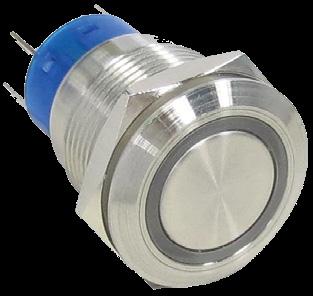

Switches
• Enhanced sealing performance
• Need for emergency stops
• Anti-vandal proof switches

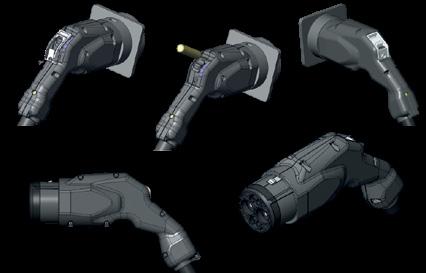

Charging Connectors

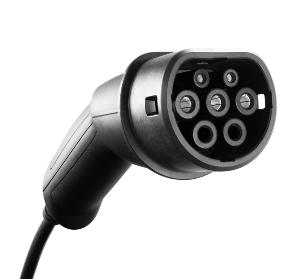

IEC Type 2
Vehicle Connectors
• 500V AC
• 16A, 32A, 1 and 3 Phase
• 2.5 to 6mm2
• TUV Certifed, IP55 Mated

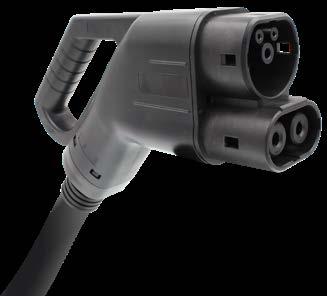

IEC Combo 2 CCS2
Vehicle Connectors
• 1000V DC
• Up to 200A
• 16 to 70 mm2
• TUV Certifed, IP44 Mated
MCS - Liquid Cooled
• 1500V DC, 350A or 1500A
• IEC TS 63379 / IEC 61851-23-3
• Cooling - 1 feed pipe and 2 outlet pipes
• IP67 / IP69
IEC Type 2 Mode 3 Connectors
• 500V AC
• 16A, 32A, 1 and 3 Phase
• 2.5 to 6mm2
• TUV Certifed, IP55 Mated
IEC Combo 2 CCS2 Vehicle Connector Plus
• 1000V DC
• 400A - Air Cooled
• 100 mm2 (2 x 50mm2) cables
• CE Certifed, IP44 Mated

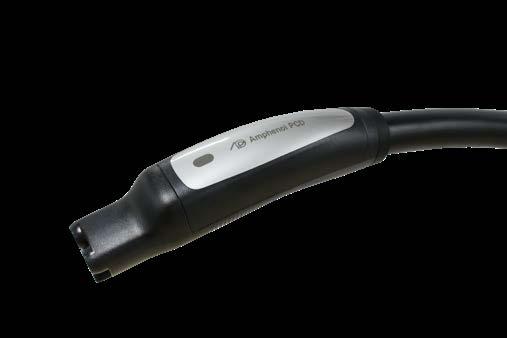

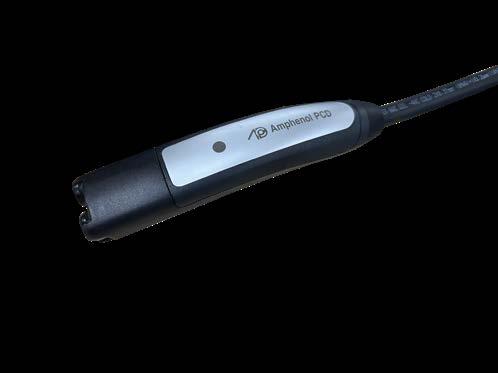

North American Charging Standard - AC
• 600V AC, 40A, 50A, 80A
• SAE J1772, SAE J3400, UL2251
• > 10,000 Mating Cycles
• Type 3S IP67

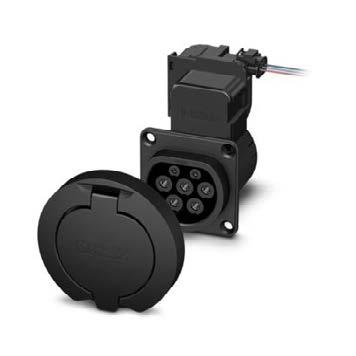

IEC Type 2 Standard socket-outlet
• 500V AC
• 16A, 32A, 1 and 3 Phase
• 2.5 to 10mm2
• TUV Certifed, IP54 with Cap
IEC Combo CCS 2 - Liquid Cooled
• 1000V DC, 600A Max.
• IEC 62196-2, IEC 62196-3
• > 10000 cycles
• IP67 Enclosure, IP69
North American Charging Standard - DC
• 1000V DC, 200A to 600A
• SAE J3400, UL2251
• > 20,000 Mating Cycles
• IP67 / IP69

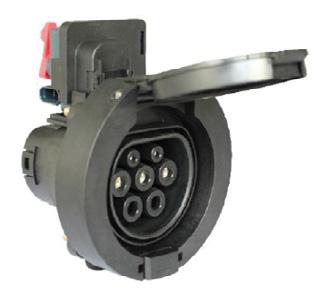

IEC Type 2 Outlet with Shutter
• 250V, 32A, 1-Phase
• 480V, 32A, 3-Phase
• Electronic Lock Available
• IEC 62196-2 standard 2-II a

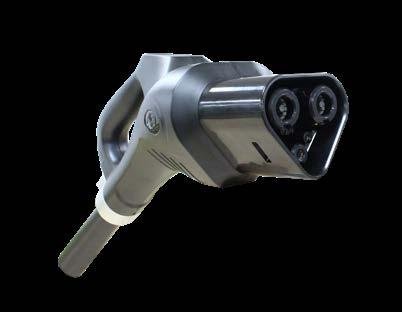

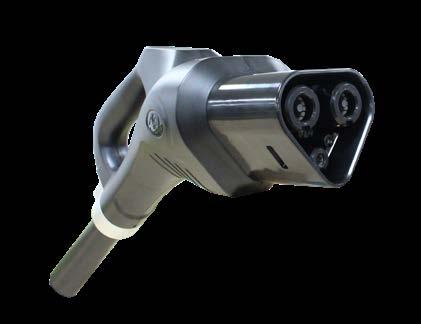

Megawatt Charging Standard
• 1500V DC, 350A
• IEC TS 63379 / IEC 61851-23-3
• > 20,000 Mating Cycles
• IP67 / IP69

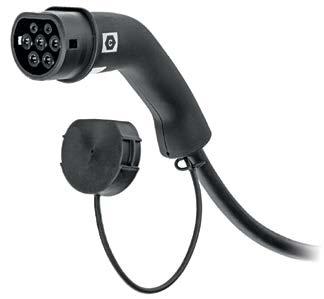

AC Charging Pigtails –Type 2
• IEC62196 Type II, Up to 32A,
• 1- or 3-Phase
• Superior product durability
• CE Certifed Versions
Charging Connectors

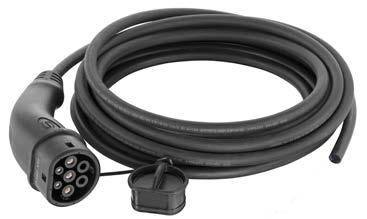

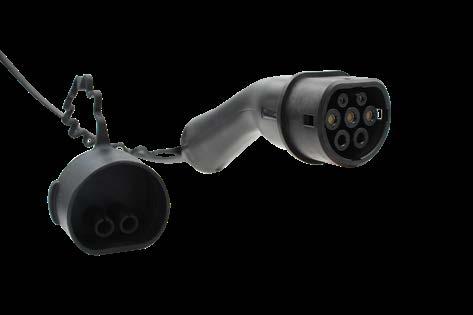

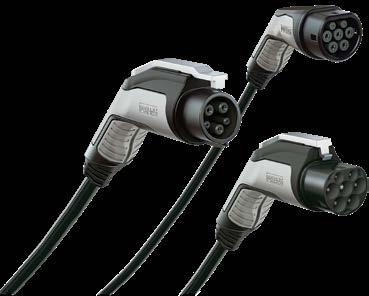

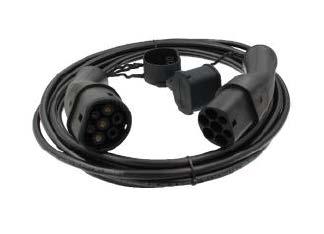

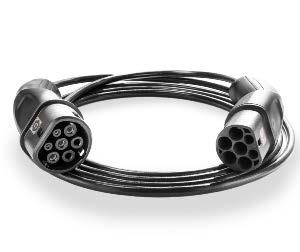

AC Mode 3 Jumper Cables
• IEC62196-2-1,IEC62196-2-2 and GB/T 20234
• 14,000 cycles
• CE and CQC certifcation

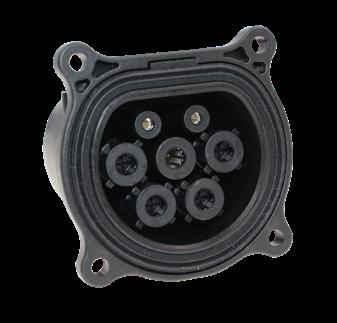

AC IEC Type 2 Outlet (ECIER Series)
• IEC 62196 Type 2 Connector
• EVSE Rear mount outlet
• 20A, 32A, 63A
• 1 or 3-Phase

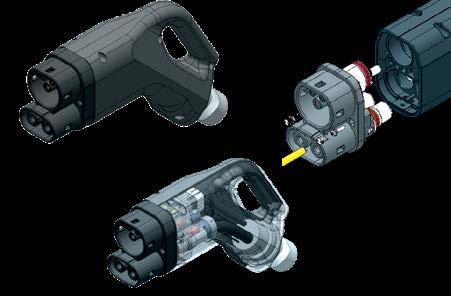

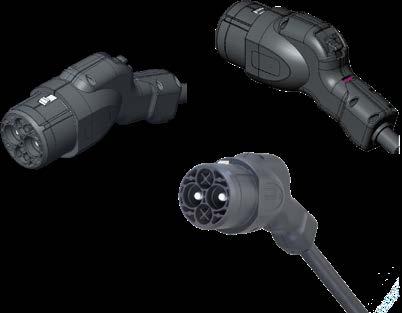

CCS2 Fast Charging Connectors
• 200A, 250A and 300A
• Boost mode up to 500A
• Exchangeable mating face
• Uncooled

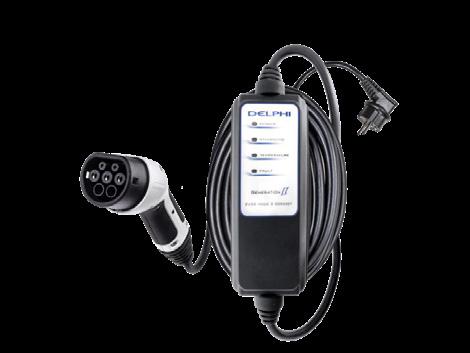

AC Mode 2 Gen2 Charging Plugs
• EVSE restarts in the event of power grid fault
• IEC62752 standard
• IP67 Protection
ACI3 Coupler IEC Type 2 Plug
• IEC 62196 Type 2 pigtail
• 20A, 32A, 63A
• 1 or 3-Phase
• Custom solutions available
AC Charging Solutions
• Standard ISO/IEC 62196-2
• 230 V/400 V, 16 A, 1 / 3 phases
• 400 V, 32 A, 3 phases
• 400 V, 63 A, 3 phases
ACI3-J2 Connection Cable IEC Type 2 Plug (Mode 3)
• IEC 62196 Type 2 mode 3
• EVSE to vehicle coupler
• 20A, 32A, 63A
• 1 or 3-Phase
DC Fast Charging Solutions
• 1000V, 80A, 200A, 250A
• Tested according to IEC 62196
• Ergonomic functional design
• Different lengths available
AC IEC Type 1 Plug (EJCV Series)
• IEC 62196 Type 1 Connector vehicle inlet
• 20A, 32A
• Single phase (240VAC)
CCS2 - Liquid Cooled KW01C / KW01E Series (CE) KW02C Series
• Charging up to 500A at 1,000V
• CCS 1 and CCS 2 variants
• Dielectric liquid cooled cable
• Minimized cable diameter and weight

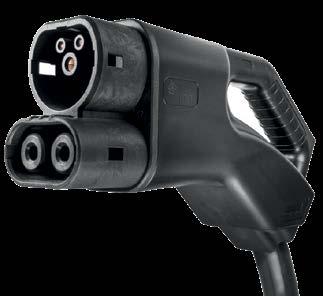

• CHAdeMO 1.2
• V2H Guideline 2.1
• IEC62196-3
• 150A (@40°C) /125A (@50°C),
500 VDC
• CE Certifed
• CHAdeMo 1.2
• V2H Guideline 2.1
• IEC62196-3
• 37 A, 500 VDC
• CE Certifed

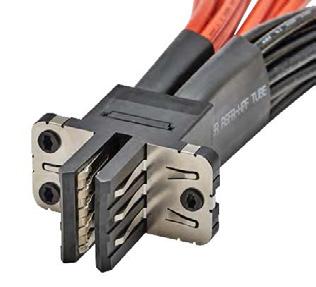

Charging & Power Connectors
KW04 / KW11 / KW21 Series AC Infrastructure Charging Sockets CCS Charging Cables CCS Charging Cables
• CCS Type-2
• IEC62196-3
• 150A; 200A, 1000 VDC
• CE Certifed (TÜV Rheinland)
• Removable front cover
• 250V / 440V, 16A / 32A
• 1- or 3-phase
• Protective covers available
• Optional shutter

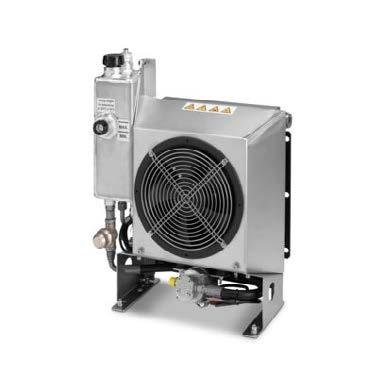

HPC CCS Charging Cables HPC Cooling Unit
• Type 1 and Type 2 versions
• Up to 500 kW charging power
• Built in temperature sensors
• Replaceable mating face
• Customizable logo
• Cooling equipment required
• 100A per contact
• Blind-mating
• GCS® plating provides low resistance
• Press-ft and solder tail termination
• Our passive cooling unit provides demand-oriented and effcient cooling for our liquidcooled HPC charging cables CHARX connect professional.
• Up to 60A/contact
• Modular power+ signal contacts
• Low profle improves airfow
• Type 1 and Type 2 versions
• Up to 250 kW charging power
• Built in temperature sensors
• Replaceable mating face
• Customizable logo
• Type 1 and Type 2 versions
• Up to 250 kW charging power
• Built in temperature sensors
• Replaceable mating face
• Customizable logo
BarKlip® Series BarKlip® OCP 48V BK500 IO
• 10 points of contact for high reliability
• Low halogen housing
• Wide operating temperature -40°C to +150°C
• PCB & Pluggable Types
• Through-hole and SMT

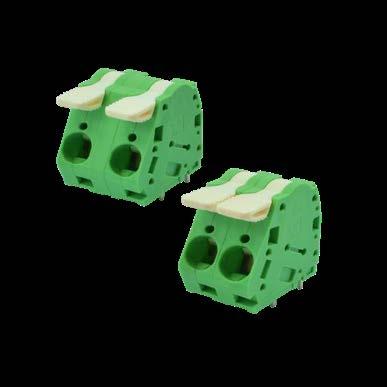

• DIN Rail Terminal Blocks
• Barrier Types
• Up to 500A per contact
• Supports 48V Power Rack Architecture
• Confgurable plug-and-play solutions
• Ultra-low contact resistance of 0.5mΩ
• Wide range of power outputs: 8.0 - 23.0A
• UL 94V-0 and glow wire compatible
• Positive locking

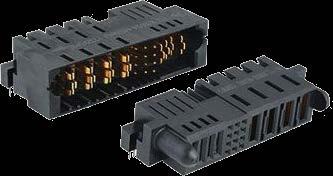

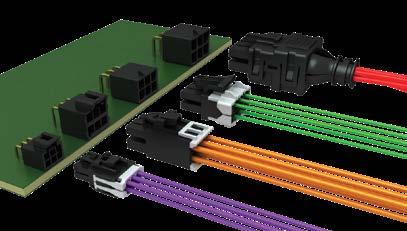

Power Connectors
Extreme
• 600V, 80.0A, 2-6 circuits
• 6 points of contact
• Positive locking housing
• Isolated receptacle terminals
• Up to 60A per power blade
• Available with 0 to 40 signal pins
• 10mm low profle height
PowerWize SW1 Interconnects
• Up to 1,000V and 190.0A.
• Two sizes, 6.00 and 8.00mm
• Headers can be mounted on either PCBs or busbars.

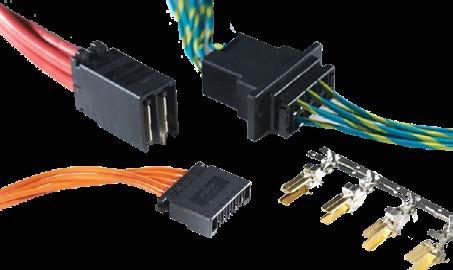

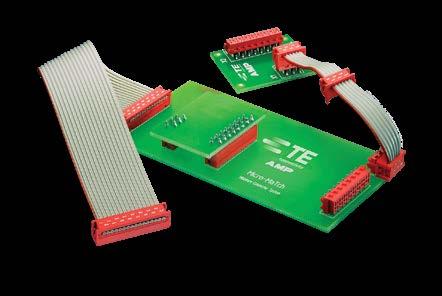

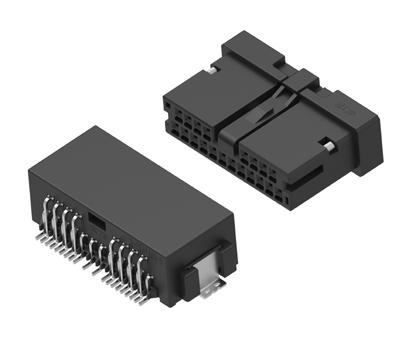

Micro-MaTch Connector Family
• Tin plated contact design
• One of the smallest systems available at 1.27mm
• UL-recognized
• WtB/Wire-to-Busbar
• 6.00mm (120.0A), 8.00mm (185.0A) and 11.00mm (300.0A)
• Unique positive-locking design

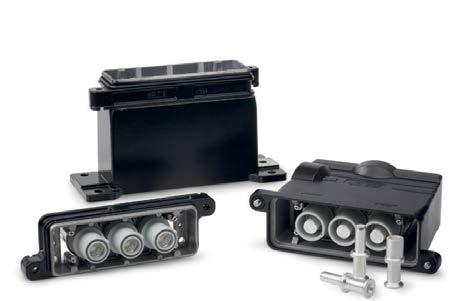

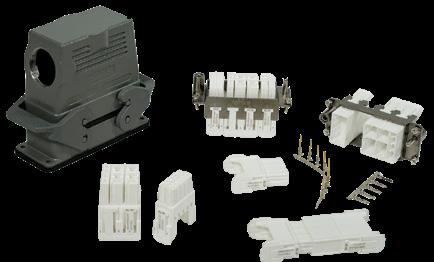

Duty Connectors with Dynamic Inserts
• Designed for harsh environments
• Improved operational effciency
• Reliable and high density contact
• Molex offers a range of busbar solutions to meet your specifc power and design needs.
PowerPlane Busbar Connectors
• Multiple points of contact
• Low-voltage drop
• Current: 80.0 to 300.0A
• Various termination styles
Mini Series Dynamic Series Connectors
• Second lock design and protective latch concept
• low profle
• SMT refow capability
• 250 A / 350 A
• Aluminum alloy housing
• IP68 protection degree
• salt spray resistance of up to 500 H
• Vibration resistant
• Housings are keyed, preventing mis-mating and misalignment
• Positive audible locking sound
Quick Disconnect Power Connectors
• Snap-on, quick disconnect
• Shrouded design option
• Color coded and keyed
• Single piece installation
Discrete Semiconductors

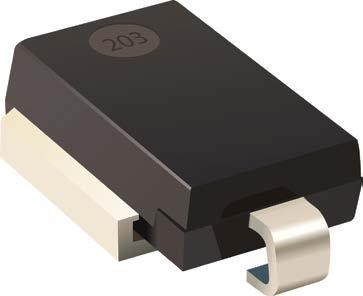

SM8S-Q TVS Diode Series
• Maximum Peak Power Dissipation: 6600 watts
• Meets ISO 7637-2 / ISO 16750-2
• Compact DO-218 package
DMA10I1600PA 1600V Standard Rectifer
• Planar passivated chips
• Very low leakage current
• Very low forward voltage drop
• Improved thermal behavior

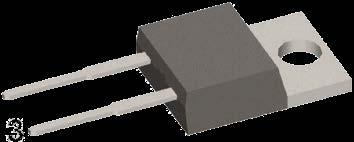

TRS8E65F - 650V SiC Schottky Barrier Diodes
• Low VF 1.45V
• 2A single to 24A dual options

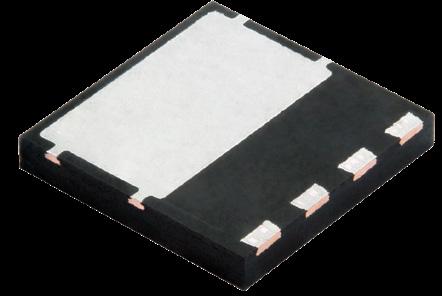

• TO-220 / TO-247 / DFN8x8 package options
15KPA-SD-Q TVS Diode Series
• Maximum peak pulse power (10/1000 µs): 15 kW
• Maximum peak pulse current (8/20 µs): 1 kA
• Standoff Voltage: 16 to 66 volts

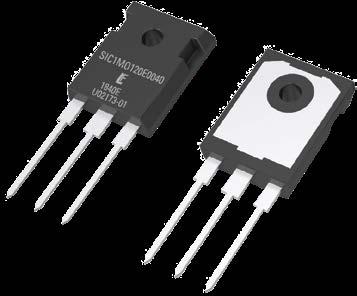

LSIC1MO120E0160
1200v SIC MOSFET
• Extremely low gate charge and output capacitance
• Low gate resistance for highfrequency switching
• Ultra-low on-resistance
SIHH11N60E - 600V Power MOSFET
• Low fgure-of-merit Ron x Qg
• Low input capacitance (Ciss)
• Reduced switching & conduction losses
• Ultra low gate charge (Qg)
621-Series Heavy Duty TriColor PMI
• Nonmagnetic, corrosion resistant
• Secured to prevent dirt, dust, and water penetration
• IP66/IP67, IK10 and NEMA 4X

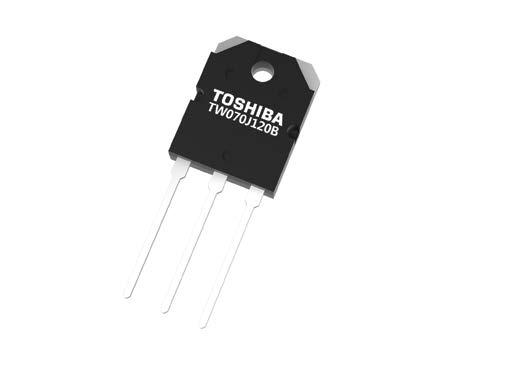

TW070J120B
1200V SiC MOSFET
• 1200V / 70mOhm
• Embedded 1.35V SiC SBD
• Robust gate drive

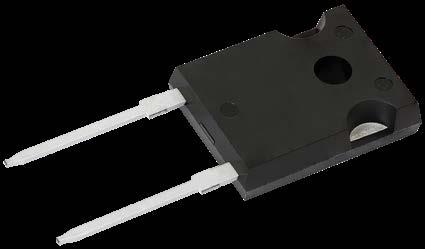

VS-E5PX7506L Hyperfast Rectifer
• Hyperfast and optimized Qrr
• Best in class forward voltage drop and switching losses trade off
• Optimized for high speed operation

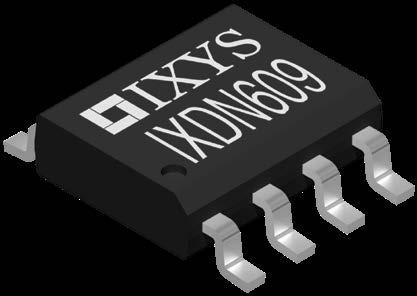

IXDN609 9A Ultrafast MOSFET Driver
• Wide Operating Voltage Range: 4.5V to 35V
• Matched Rise and Fall Times
• Low Propagation Delay Time
• Low Output Impedance
TK040N65Z Si SuperJunction MOSFET
• Fast switching, low Qg, low Coss
• 650V, 40..190mOhm
• TO-220(SIS), TO-247(-4), TOLL, DFN8x8 package options

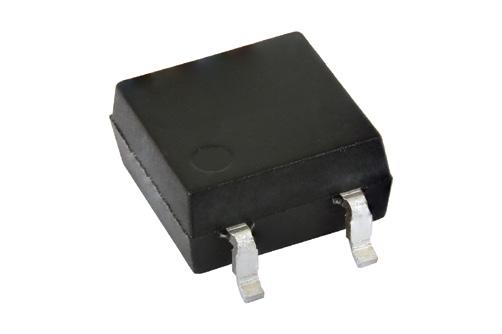

VOMA617A Series
VOMA618A Series
• AEC-Q101 qualifed
• High CTR with low input current
• SOP-4 low profle package
• High collector emitter voltage, VCEO = 80 V
Passives
Gas Discharge Tubes
• High voltage series
• High current series
• Fast acting series

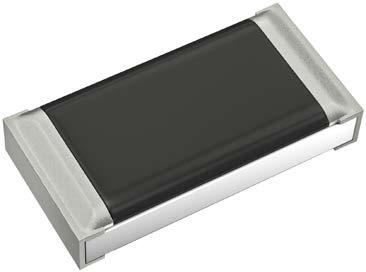

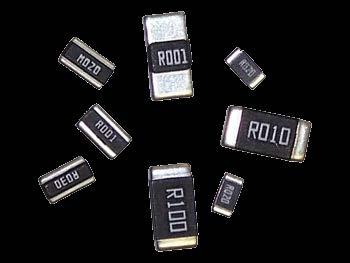

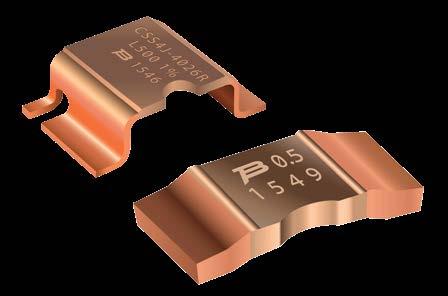

Current Sense Resistors
• Excellent long term stability
• Low inductance
• Low thermal EMF
• AEC-Q200 compliant
• Power rating up to 15 W @ 70 °C
Nanocrystalline common mode choke coil (FW Series)
• Style: Toroidal
• Category temp range -40°C ~ +130°C
• Rated current: 10 ~ 50A
• Rated inductance: 1.0~1 5.7mH, 100kHz
• Maximum DCR: 1.2 ~ 18 mΩmax
• AEC-Q200 qualifed
Radial supercap (DKH Serie) High Voltage MLCC HPC Ceramic Pulse Resistors
• Style: Radial
• Category temp range:-20~+85oC
• Rated voltage: 3V
• Cap tolerance: -10 ~ +10%(K) / 25oC
• Endurance: 65oC/ 2,000hrs
DC Filtering Film Capacitors (FFLI / FFLR Series)
• Voltage Range: 600V to 3800V
• Capacitance Range: 105uF to 3000uF
• Aluminum cylindrical case flled with self extinguishing Polyurethane Resin.
• Safety capacitors with 305Vac rating
• Safety capacitors with 1kVdc rating
• Approvals to TÜV and UL specifcations
Supercaps
• Superior reliability, passes 4000 hours life tests
• Customized options for modules
• Molded encapsulation and prismatic case options
• Full ceramic body for HV and surge currents
• 25 kV pulse voltage (HPC 3 - 5)
• Power rating up to 5 W
• Non-inductive
• AEC-Q200 tested

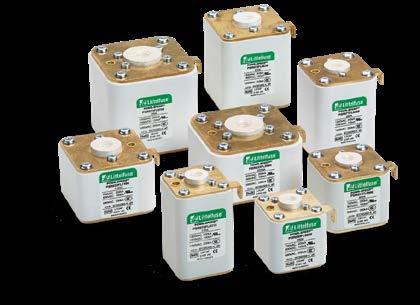

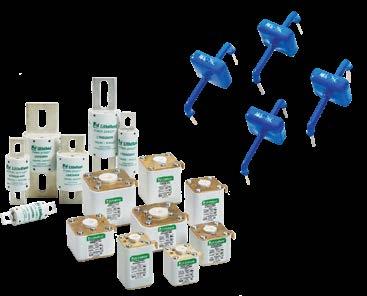

PSR Series
• Best-in-class DC performance
• Bolted blade-style mounting
• Ceramic body material
• Extremely current limiting
• Fast-acting

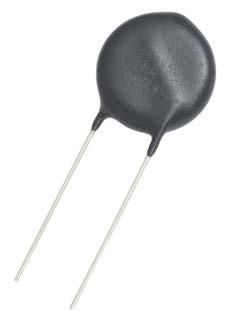

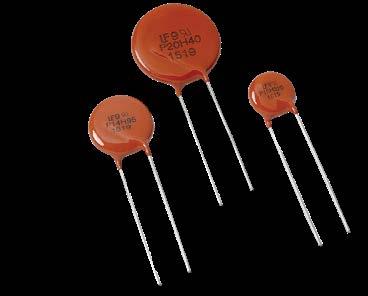

Non-fammable Metal Oxide Varistor (SV Series)
• Style: Radial
• Category temp range: -40 ~ +125°C
• Varistor voltage: 22 ~ 1,000V
• Dimension: Ø5 ~ Ø20
• Non-fammable varistor
• AEC-Q200 qualifed
1005392F0 – 5G/4G & Wi-Fi FPC Embedded Combo Antenna
• Flexible substrate for easier integration
• High performance and isolation characteristics
• 114 x 30 x 0.2 mm
SPDx Surge Protection Devices
• This globally-compliant, costeffective Type 2 Surge Protective Device has higher nominal and total discharge current protection.
Passives
HMOV Varistors Circuit Protection Power Solutions DE1 Series Safety Caps High Power Transformers
• High isolation voltage of 2500V
• Thermal shock tested from -55ºC to +125ºC, 1000 cycles
• High operating temperature of 125°C
• Meets UL 1449 & IEC 60950-1
Aluminum Solid Capacitors OS-CON (SVPF series)
• Voltage of 16-50 VDC
• Capacitance of 10-1000 µF
• ESR of 12-40 mΩ
• Excellent current-limiting
• High short-circuit current rating
• Precise clamping voltage
• No wear-out mechanism

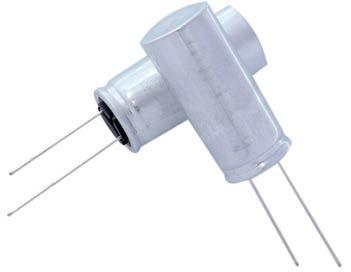

Hybrid Aluminum Electrolytic Capacitors (ZA series)
• Operating Voltage Range: 25 to 63 VDC
• Rated Capacitance Range: 10 μF to 330μF
• Operating Temperature Range: -55°C to +105°C
3-Phase Filters - FN Series EMC / RFI ChokesRT / RV Series
• Broad choice of EMC/RFI flters
• Standardized and customerspecifc solutions
• Improves the immunity and safety of electrical and electronic equipment.
• Rated currents from 6 to 63 A
• Up to 600 VAC and VDC
• 2- and 3-wire confgurations
• Horizontal and vertical PCB mounting types
• DIN 60384-14
• EN 60384-14
• UL 60384-14
• IEC 60384-14
• Wide power range options: 30kW to 400kW
• Up to 5kV input output isolation, higher isolation possible
• Over 99.5% effciency
High Temperature Thick Film Chip Resistor (ERJH series) Hi-Cap MLCC
• High reliability: Metal glaze thick flm resistive element
• Achieve maximum category temperature 175°C and rated category temperature 105°C
• AEC-Q200 qualifed
• VW 80808-2 qualifed
• Improved reliability due to Soft Termination Technology
Fuse Holders 2 / 3 / 4 Line EMC Filters
• Holders for a wide range of diverse fuses sizes
• SMD or THT variants as well as panel mount
• Horizontal and vertical mounting versions
• 2-line up to 1600A, 3-line up to 2500A, 4-line up to 600A
• Available with low Y-Cap
• EMC support and accrediated measurements (IEC 6185121-2)
Passives
DC Link
• High reliability for severe ambient conditions
• Long life - 50.000h (85°C, rated voltage)
• AEC-Q200 qualifed capacitors available on request
T59 Ultra-low ESR Polytan Capacitors
• 100 % surge current tested
• Extended voltage range up to 75VDC
• Molded case 7343 EIA size
• Lead (Pb)-free L-shaped facedown terminations
PTC
Inrush Current Limiters
• Reduction of inrush current during charging process
• Circuit protection in failure cases
• Resettability
LRMA Series
• Metal Alloy 0.5mΩ to 500mΩ, to 0.5% tolerance
• High temperature to 170°C
• High power & Low thermal EMF versions
• AEC-Q200
EDLC Energy Storage Capacitors
• High lifetime up to 2000 h at 85 °C
• Rated voltage: 3 V
• High power density to 6,3 Wh/kg
• Capacitance values from 5 F to 100 F
IHLP Inductors MKP 1848 Series - DC Link Film Capacitor Auto Grade Surge Resistors
• Short lead times - good availability
• Ten different package sizes in several material compositions
• Inductance range up to 100uH
AC Line Filters Dual Mode Coils
• Combine two functions, normal mode and common mode, in one coil
• High impedance & High permeability
Metalized Polypropylene Y1-certifed capacitor
• AC Input/Output EMI fltering
• Class Y1 (IEC 60384-14) + THB Grade IIB
• AECQ–200
• Flame retardant
• High durability
• High pulse capabilities
• High ripple current capabilities
• Low ESL & Low ESR
• AEC-Q200 qualifed
• Excellent pulse loading performance
• EIA case size: 0402 to 2512
• Narrow tolerance down to ±0.5%
Power Inductors Wireless - Chip Antenna
• One turn coil ferrite
• Up to +125°C
• High switching frequency
• Low core loss
• Low DCR
• For Sub-GHz, WLAN/BT/ ISM, GPS/GNSS, UWB LTCC technology
• AEC-Q200 qualifed
• Technical support for tuning
Power Products & Supplies
FCM 30 kW Evergreen™ Shelf AC-DC
• Instant customization - Fast delivery of tailored solutions
• Modularity - Quick power scaling
• 38 W/in3 - More power in less space
• > 95% effciency - Reduced utility costs

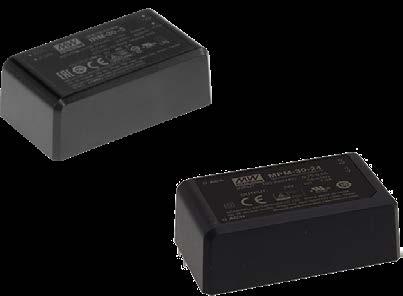

IRM/MPM Series AC/DC Power Supplies
• 1-90W miniature encapsulated universal AC input with high effciency
• Wide operating temperature and robust design
LCC Series
• 250W/ 650W full power
• IP64 rating with wide operating range
• No fan needed as conduction / convection cooled
HDR, TDR, WDR Din Rail Power Supplies
• Class I & Class II Isolation
• DIN Rail TS 35/ 7.5 or 15 mountable
• No load power consumption <0.75W (features can vary per each series)
Surge Protection Device - 1210 Series
• 100 kA max. discharge current rating
• Multi-pole uni-block design
• DIN Rail mountable
Surge Protection DeviceSPD2-550-3P0-R
• Capability to clamp and withstand high-energy transients
• Compact footprint
• UL 60691 compliant integrated thermal disconnect

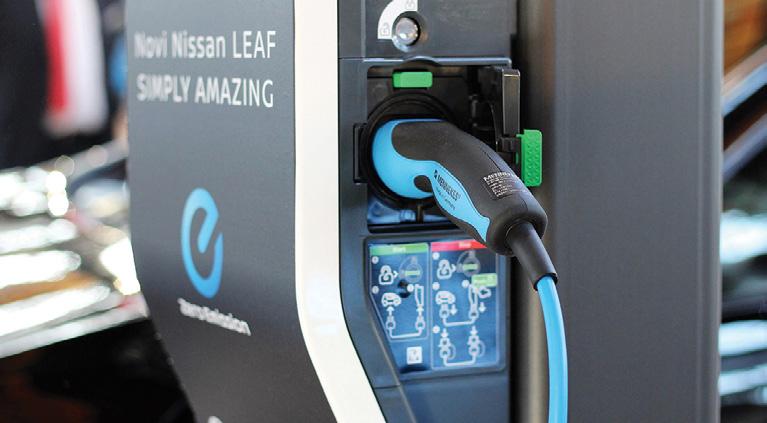

EV100 / EV101 DC Fast Charger
• Output voltage of 150 to 1,000 – Volts DC (settable)
• Maximum output power of 30 kW
• Peak effciency >96%
Charx - charging controllers Charx - Power Electronics & Distribution Charx - Surge Protection
• AC and DC charging controllers with scalable range of functions for private, commercial, and public charging stations
• AC/DC and DC/DC converter modules and matching distribution modules for 19" rack mounting for stablesupply of fast charging stations – highly effcient, scalable, and quick to install.
• Special surge arresters for protecting charging stations and electric vehicles against damage due to lightning strikes and switching operations – for permanent availability.
• Visual life indicator
• Pluggable modules
Charx - DC Energy Meters
• Our MID-certifed EMpro DC energy meters are suitable for the exact billing of HPC charging processes.
• The meters are optimized for e-mobility applications.
• MID D Certifed
• Direct connect to 100 A
• Easy to program and Din Rail mount
• Accurate and Cost effective
Relays & Contactors
DCNLEV50 DCNEVT500 G7EB PCB AC-Power Relay
• High current (50A) and high voltage (900V) contactor for charging applications
• Epoxy resin ensures hermetic sealing
• IP67 sealed
G9KC PCB Power Relay
• High Capacity - 480V AC, 40 A
• 4-pole High Power Relay
• Low contact resistance: 6 mΩ max.
• Contact gap: 3.6 mm min.
HVC45 Series
• Up to 1000V DC and 300A DC
• Bi-directional design
• High short circuit handling capability up to 10 kA
• Very compact size
• High current (500A) and high voltage (1800V) contactor for charging applications
• Ceramic arc chamber
• Withstand higher pressures and temperatures longer
• High Power and high temperature type Power Relay with 480 VAC 100 A current
G9KA PCB-Power Relay
• High Power and high temperature type Power Relay with 800 VAC 200 A current
HER Series HES Series
• High Capacity - 480V AC, 40A
• Terminals for a 3-phase system
• Compact size
• Contact gap: Min. 3.6mm
• Size 2a and 2a1b 40A power relays
• Max Switching Current 40A
• Contact gap 3.2mm (VDE0126)
• EN60947-4-1 mirror contact compliant
HVC50 Series
• Up to 1500V DC and 600V DC
• Dual coil with coil termination
• Coil termination with TVS diode
• Main terminals without polarity
ECK Series ECP Series K1K 1000V/1.000A High Power Relays
• 1000V DC, up to 250A DC
• Hermetically sealed with ceramic technology
• Switching voltage up to 1000VDC
• Bi-directional contacts
• Up to 1500VDC at 1000A
• Continuous current capacity of 800A
• Hermetically sealed with ceramic technology
• Allows bi-directional load
• High Performance in a Compact, Lightweight, Hermetically Sealed Contactor
• Designed for up to 1000 V / 1000 A in Harsh Environment
Sensors & Switches
Type NKA
NTC Chip Thermistors
• Versatile NTC chip thermistors with SN-coated Alloy 52 leads
• Three coating options:
Epoxy – max 155°C
HTF1 – max 170°C
CR1 – max 190°C
PBA-Series
• Sealed to IP68 or IP69K, easy to clean robust metal surface
ESB33 Push Switches
• Automotive qualifed
• Low profle, h=6.0 mm
• SMD type (Embossed taping) available
• 2-pole 2-throws are available

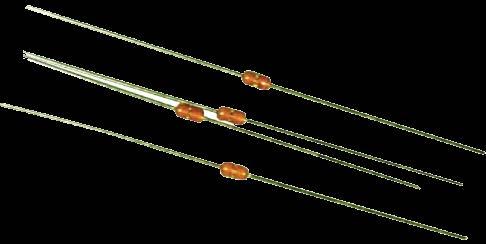

Type DK & GE Glass Encapsulated NTC Thermistors
• Hermetic glass seal, voltage isolation and excellent stability
• Temp. range -40 to + 300 °C
• Resistant to corrosive atmospheres and harsh environments
CSNV1500 Series
• Measures up to 1500 A
• High accuracy, low temperature drift
• Excellent stability, reliability and EMC performance
• CAN communication
AV Series Vandal Resistant Switches
• 250VAC and 5A push button switch
WTF083B001 Coolant Temperature Sensors
• Versatile coolant temp. sensor
• Compact IP67 design with integrated connector
• Operating temp. range -40 to +100 °C
FG-RO5 Current Sensors
• AC and DC leak current sensor
• Digital output fault detection
• Complies to IEC62752:2016
• New revisions coming

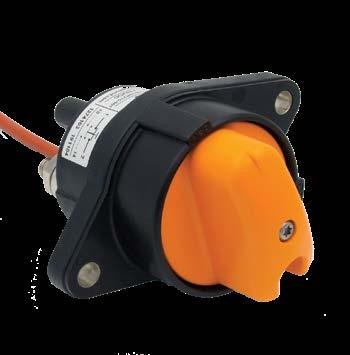

35H / 1-Position HV Rotary Switches
• Mechanical switch which can handle switching currents up to 550A and a voltage of 1000VDC

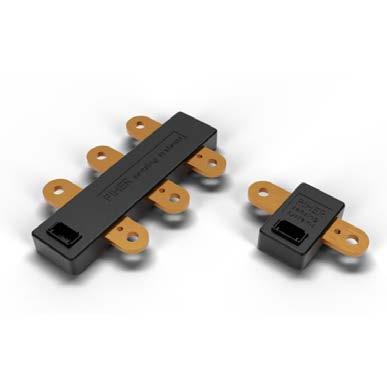

TMR Current Sensor
• Open loop current transducer based on Hall effect
• 3-phase busbar mount // 3 simple analog ratiometric outputs
• Galvanic separation between power and control
RCM14 residual current monitor Series
• Multiple models to support global standards for Level 2 (UL2231-2), Mode 2 (IEC62752) and Mode 3 (IEC62955) AC EV chargers
• UL2231-2 compliant model

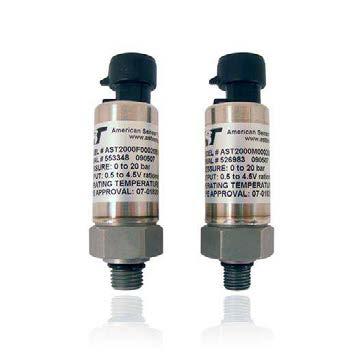

AST2000H2 series hydrogen pressure transducer
• One piece design
• All 316L wetted material for optimal compatibility
• No oil-flled cavities leave no chance of containment
• Digitally compensated
ezBuy
Buy now, Pay with agreed terms
Advanced Parts Search Functionally
Search by TTI Manufacturer part number or your contracted internal part numbers.
Contract or VIP Pricing
Quickly access your contract or VIP pricing.
No Credit Cards Needed
TTI pre-fills your billing and shipping information for faster checkout.
TTI Europe Webshop
The deepest and broadest IP&E inventory at just one click.
For all your IP&E requirements In one place … Available 24/7
Corporate Headquarters
TTI, Inc.
2441 Northeast Parkway, Fort Worth, Texas 76106 U.S.A.
T: +1 817 740 9000 | F: +1 817 740 9898
E: information@ttiinc.com
European Sales Offices
Austria
Vienna
T: +43 (0) 18 79 85 90
E: sales.vienna@at.ttiinc.com
Belgium
Gent
T: +32 9 274 0670
E: sales.benelux@nl.ttiinc.com
Bulgaria
Varna
T: +359 52 51 10 59
E: sales.varna@bg.ttiinc.com
Czech/Slovak Republic
Brno
T: +420 541 126 714
E: sales.brno@cz.ttiinc.com
Denmark
Brondby
T: +45 (0) 43 29 35 35
E: sales.copenhagen@dk.ttiinc.com
Risskov
T: + 45 (0) 38 41 31 00
E: sales.copenhagen@dk.ttiinc.com
Estonia
Tallinn
T: +372 664 81 00
E: sales.estonia@ee.ttiinc.com
Finland & Baltic Region
Espoo
T: +358 98 94 65 200
E: sales.finland@fi.ttiinc.com
France
Brive
T: +33 (0) 5 55 92 92 93
E: sales.france@fr.ttiinc.com
Bron
T: +33 (0) 472 81 2030
E: sales.lyon@fr.ttiinc.com
Bruz
T: +33 (0) 2 99 77 60 84
E: sales.rennes@fr.ttiinc.com
La Ciotat
T: +33 (0) 442 84 4142
E: sales.marseille@fr.ttiinc.com
Montigny Le Bretonneux
T: +33 (0) 130 13 7380
E: sales.paris@fr.ttiinc.com
Germany
Berlin
T: +49 (0) 30 8877 40 200
E: sales.berlin@de.ttiinc.com
Dortmund
T: +49 (0) 2301 91 304 0
E: sales.dortmund@de.ttiinc.com
Frankfurt
T: +49 (0) 6102 5999 100
E: sales.frankfurt@de.ttiinc.com
Hanover
T: +49 (0) 5 11 7 80 59 0
E: sales.hannover@de.ttiinc.com
Munich
T: +49 (0) 81 42 66 80 110
E: sales.munich@de.ttiinc.com
Pforzheim
T: +49 (0) 7231 14788 0
E: sales.stuttgart@de.ttiinc.com
Hungary
Budapest
T: +36 1 40 22 111
E: sales.budapest@hu.ttiinc.com
Ireland
T: +44 (0)1494 460000
E: sales.ireland@ie.ttiinc.com
Israel/Ray-Q Ltd.
Airport City
T: +972 3 975 3333
E: sales@ray-q.com
Italy
Civitanova Marche
T: +39 0733 81 8655
E: sales.milan@it.ttiinc.com
Florence
T: +39 (0) 55 094 63 76
E: sales.milan@it.ttiinc.com
Milan
T: +39 02 822 521
E: sales.milan@it.ttiinc.com
Naples
T: +39 081 4245719
E: sales.milan@it.ttiinc.com
Padova
T: +39 049 7802311
E: sales.milan@it.ttiinc.com
Rome
T: +39 0774 57 1302
E: sales.rome@it.ttiinc.com
European Headquarters
Inc.
Netherlands
Eindhoven
T: +31 (0) 40 290 1616
E: sales.benelux@nl.ttiinc.com
Norway
Drammen
T: +47 (0) 92 66 87 66
E: sales.norway@no.ttiinc.com
Poland
Krakow
T: +48 605 475 479
E: sales.poland@pl.ttiinc.com
Kwidzyn
T: +48 55 279 67 57
E: sales.poland@pl.ttiinc.com
Portugal
Vila Nova de Famalicao
T: +351 252 493084
E: sales.barcelona@es.ttiinc.com
Romania
Cluj Napoca
T: +40 (0) 733 339 002
E: sales.romania@ro.ttiinc.com
South Africa
Pretoria
T: +27 86 111 2844
E: sales.southafrica@za.ttiinc.com
Spain
Barcelona
T: +34 (0) 93 645 25 75
E: sales.barcelona@es.ttiinc.com
Madrid
T: +34 (0) 91 416 11 90
E: sales.madrid@es.ttiinc.com
Vizcaya
T: +34 (0) 94 623 25 80
E: sales.bilbao@es.ttiinc.com
Sweden
Gothenburg
T: +46 (0) 31 741 12 90
E: sales.gothenburg@se.ttiinc.com
Stockholm
T: +46 (0) 8 594 11 800
E: sales.stockholm@se.ttiinc.com
Switzerland
Baar
T: +41 (0) 41 76741 90
E: sales.swiss@ch.ttiinc.com
Algeria, Egypt & Tunisia
T: +216 (0) 71 862 693
E: sales.tunis@fr.ttiinc.com
Morocco
T: +33(0) 555 92 92 93
E: sales.morocco@de.ttiinc.com
Turkey
Istanbul
T: +90 (0) 216 688 91 75 76
E: sales.turkey@tr.ttiinc.com
United Kingdom
High Wycombe
T: +44 (0)1494 460000
E: sales.london@uk.ttiinc.com
Manchester
T: +44 (0)161 872 2019
E: sales.london@uk.ttiinc.com
Resellers or Distributors
TTI Connect - Europe
T: +49 8142 6680 168
E: service@tticonnect.com
