Communication 2 - Posters

PREVIOUS FINDINGS

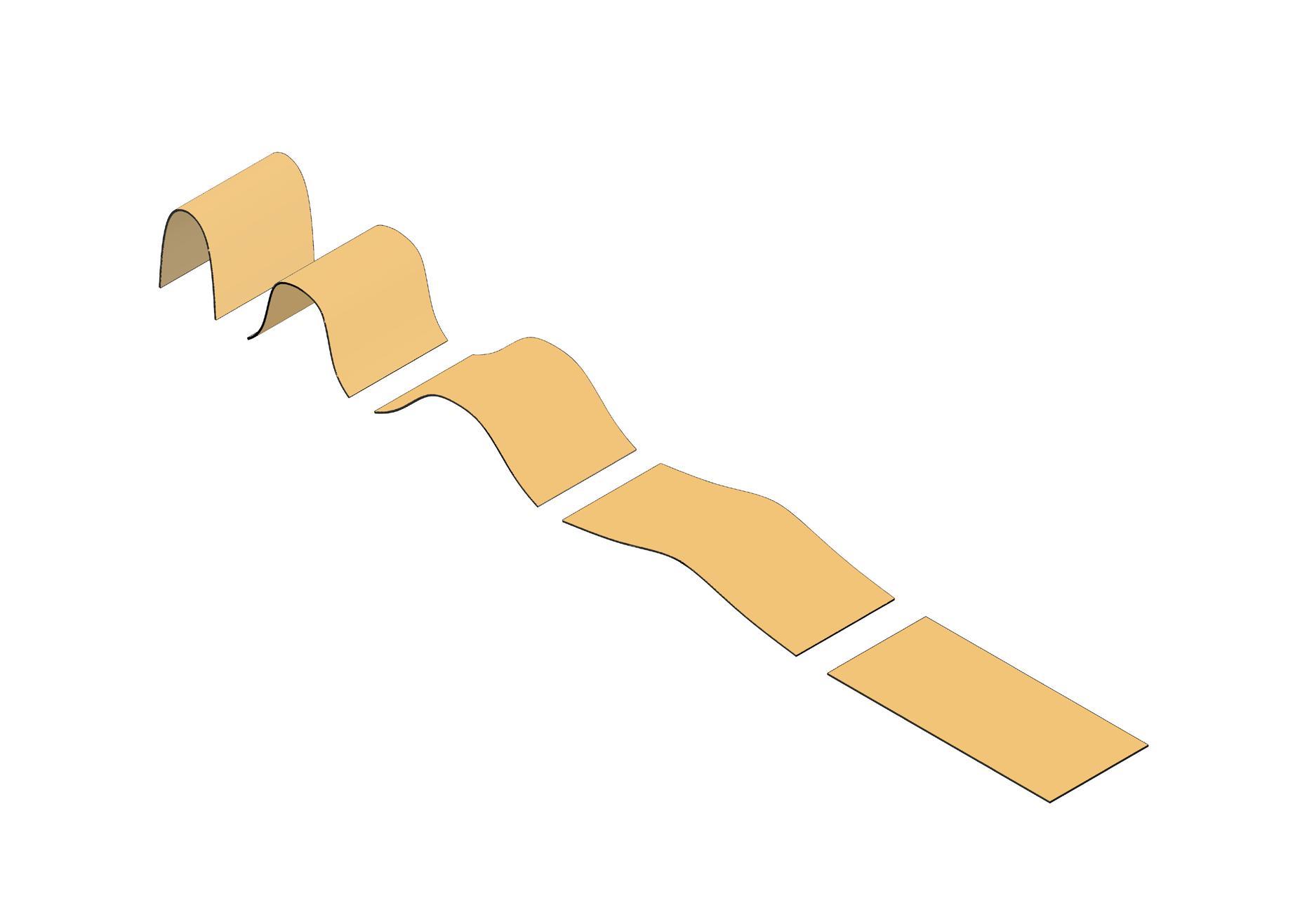

Wing adjusting with tension involved (tightening). Wing adjusting with tension involved (loosening). Bridge adjusting with tension involved (tightening).

GEOMETRY & EFFECT

Bridge adjusting with tension involved (loosening).

APPLICATION

VARIATIONS & MECHANISM

VARIATIONS

Zig-Zag Iteration

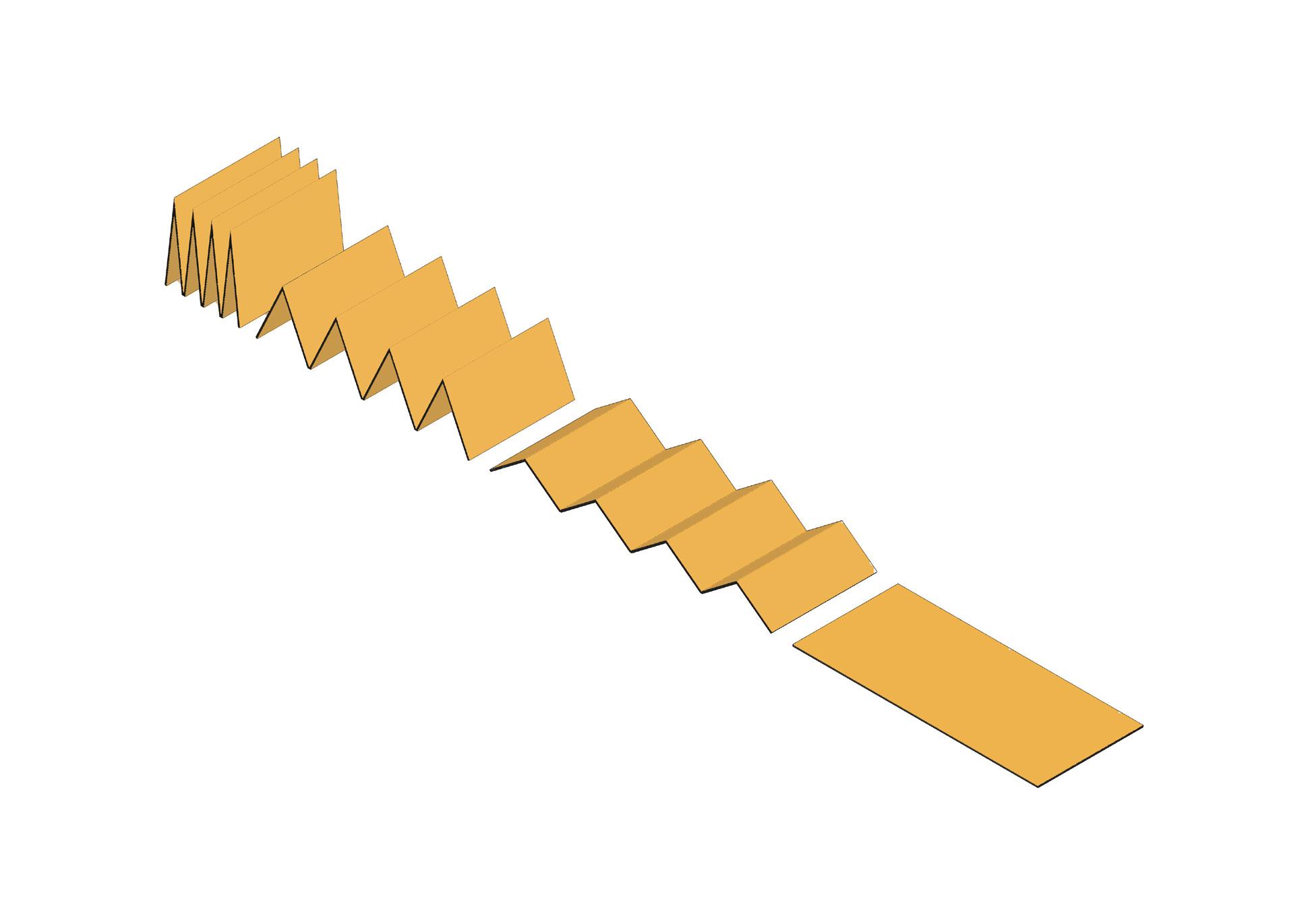

The bridge folds in a zig-zag formation. This requires more joins in the bridge, as well as structural material to create the effect.

Folding Iteration

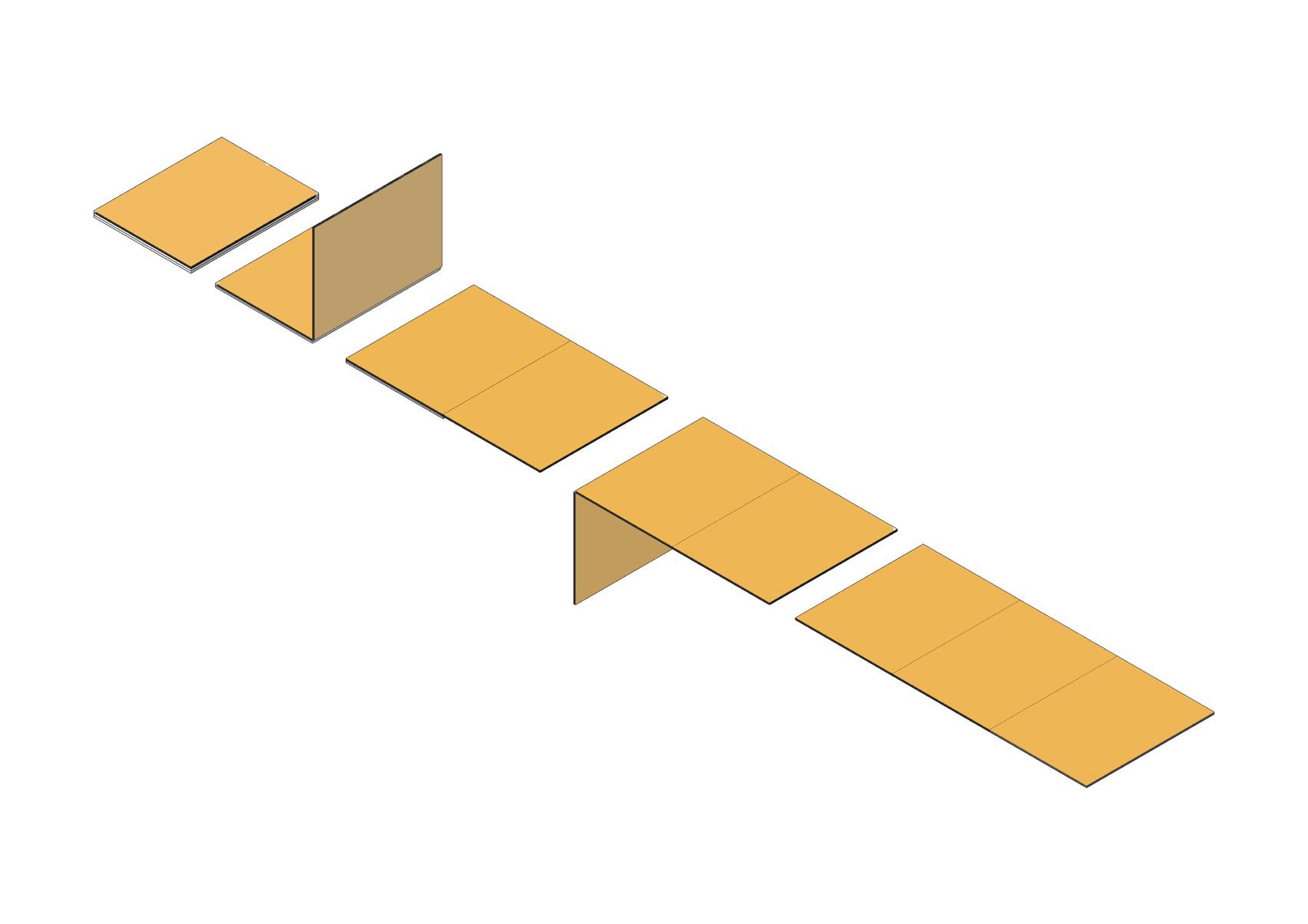

This iteration requires 3 identical structural components. Initially stacked on top of one another, to gradually fold out gaining access to walk across the bridge.

CHOSEN VARIATION

Tension Iteration

This iteration flows seamlessly through the use of tension. Using a tightening and loosening mechanism. The above method has been used in the design process. Represents freedom and clarity.

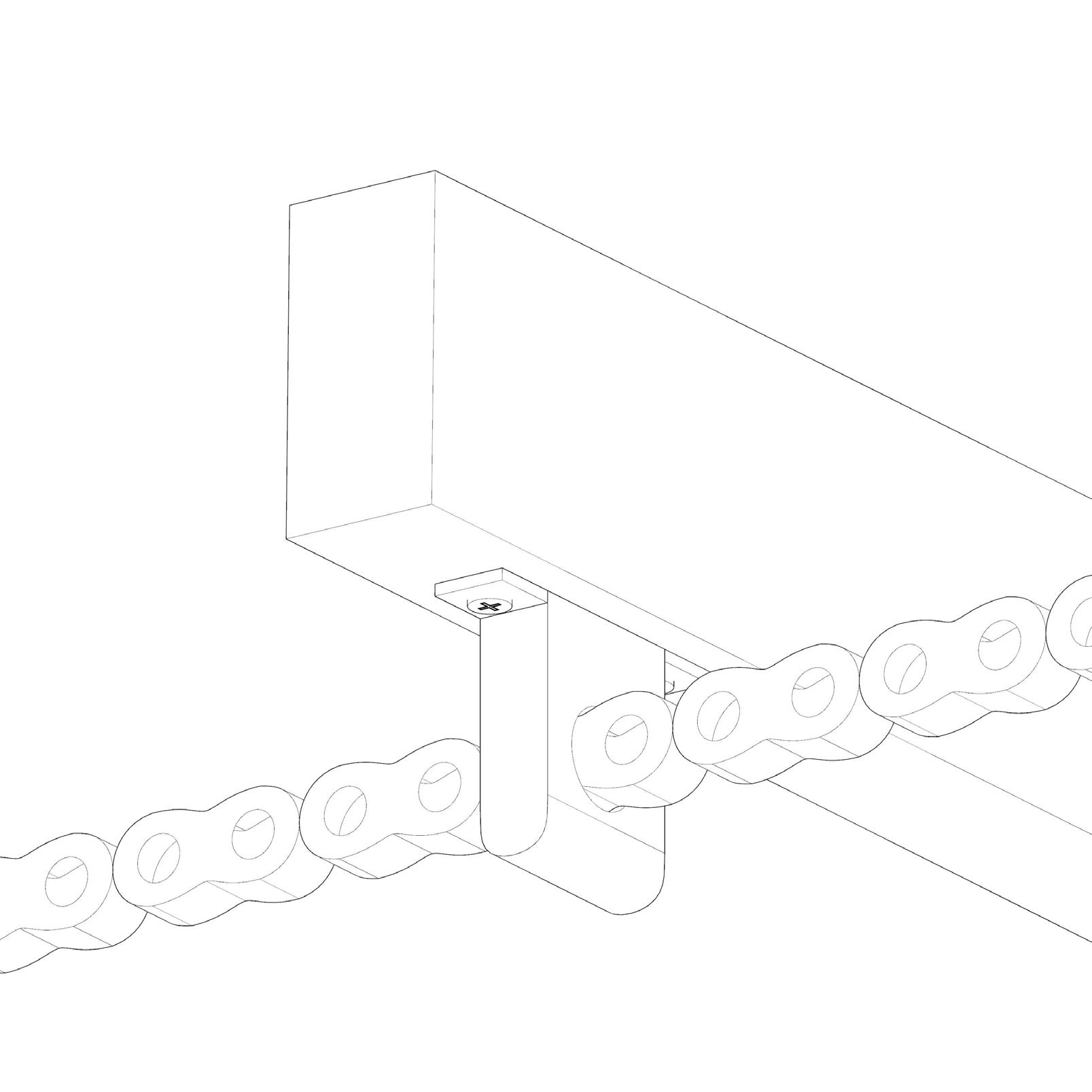

Chain Attachment

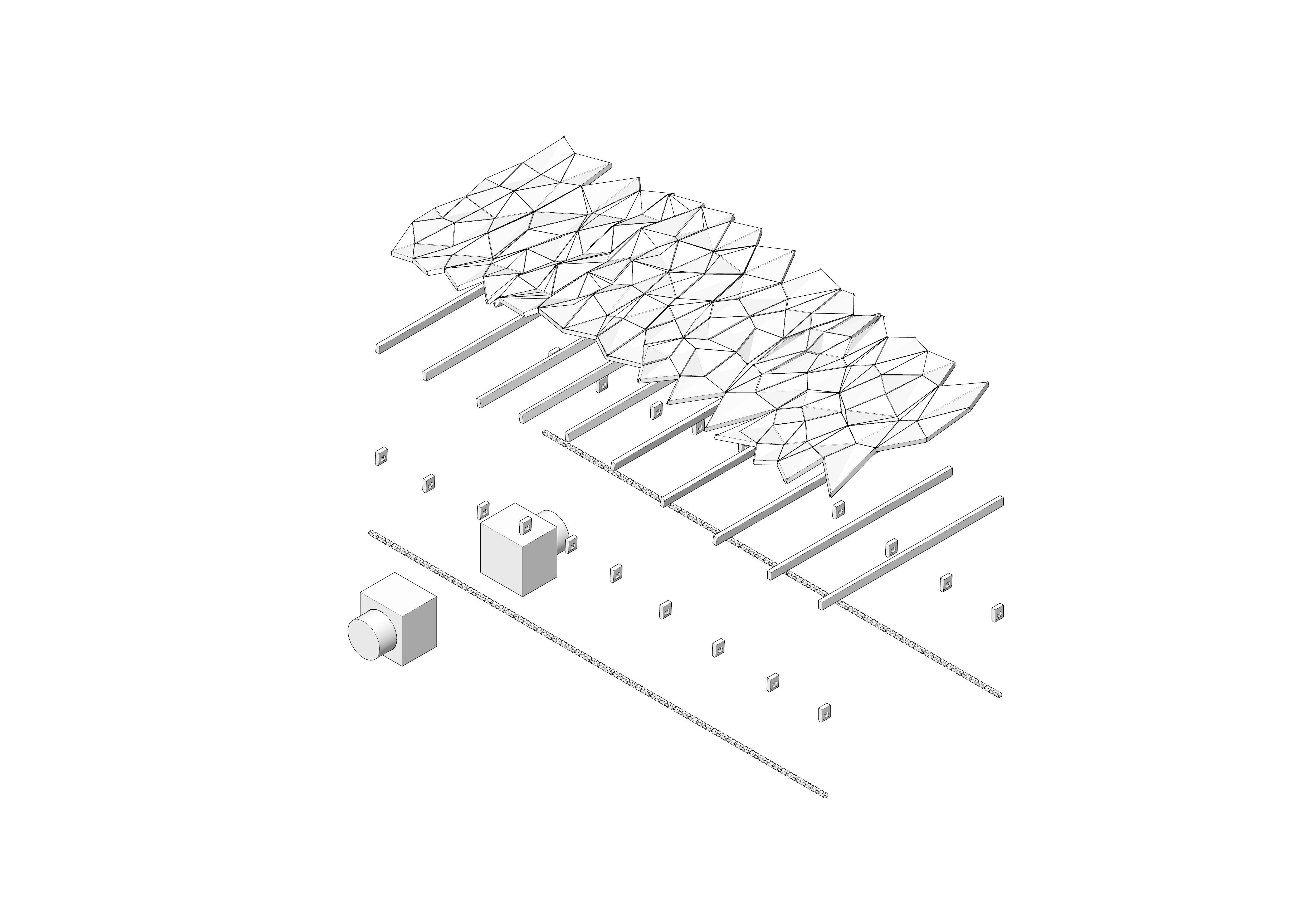

Tension System

Bridge Material Chains
