SCRIPTED PHOTOREAL

Graphic Perf® – Quality, Performance, Value

Customizable System

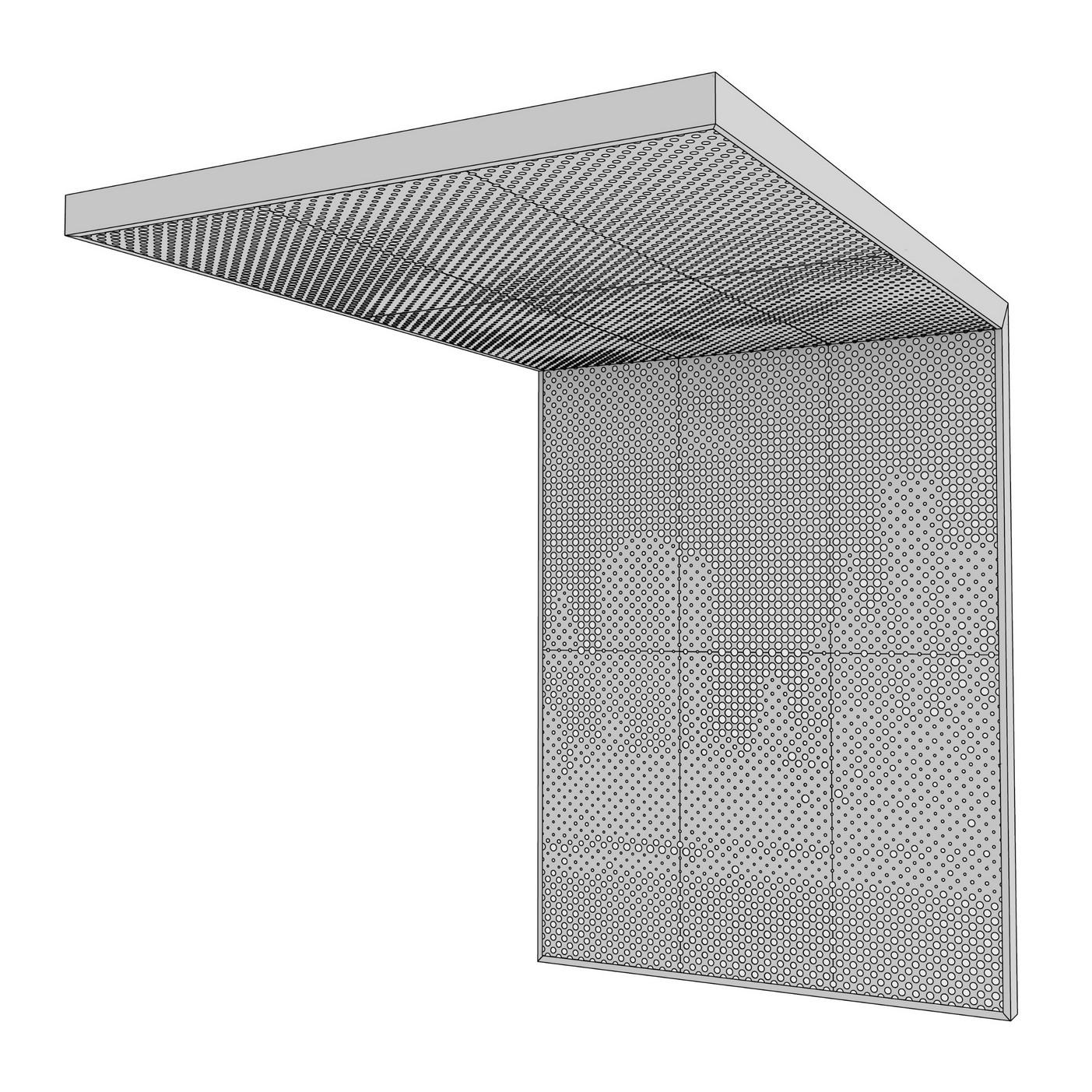

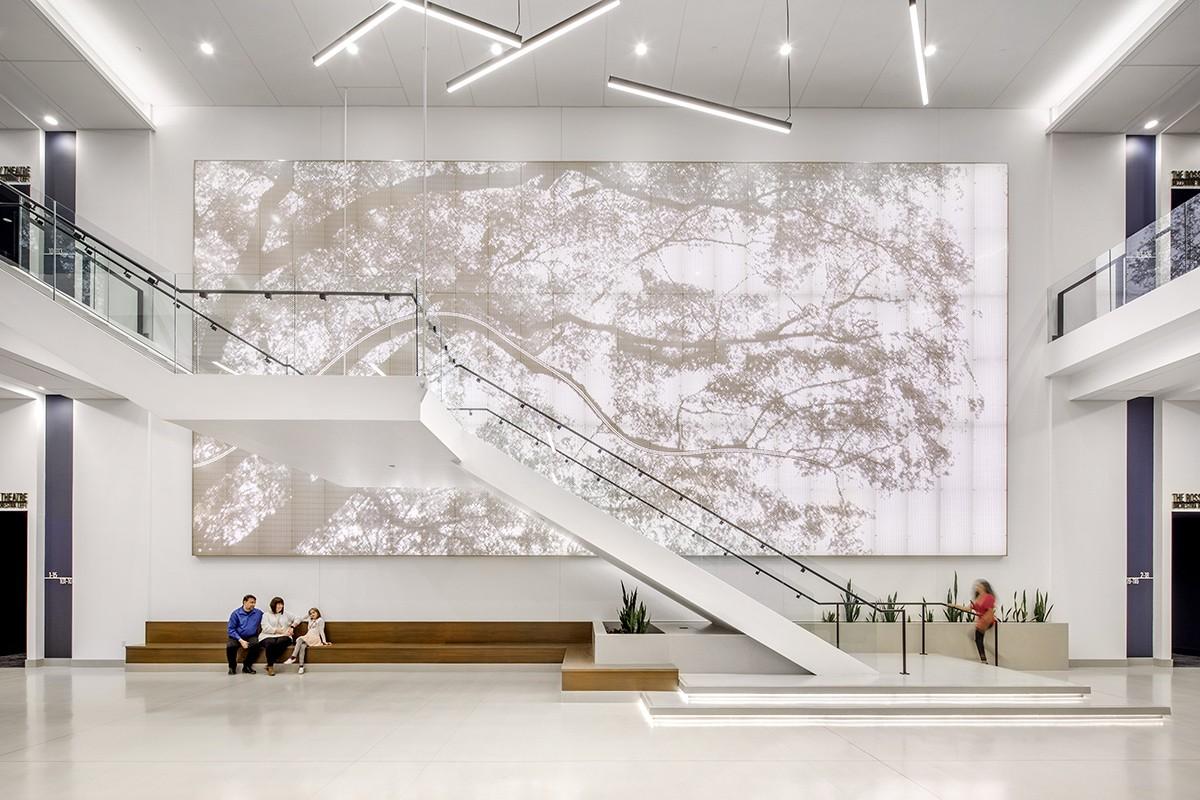

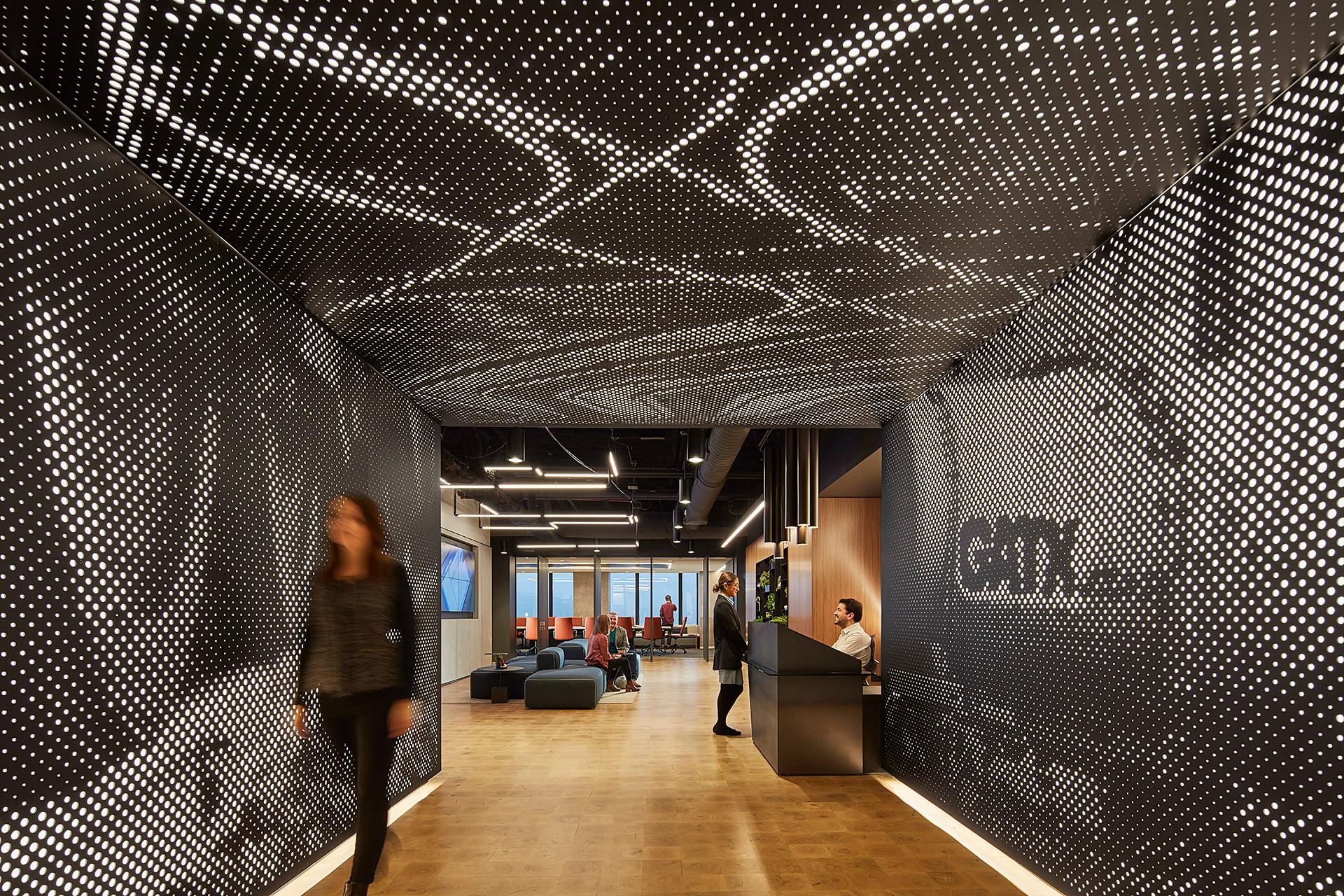

Apply your creative vision to a standard system. We turn your image or custom pattern into easy-to-install perforated panels to create your desired effect across walls and ceilings.

Collaborative Process

Our project managers translate your goals and design opportunities into a precise workflow. We factor in all base building criteria, then produce detailed softwaregenerated shop drawings to guide our precision manufacturing.

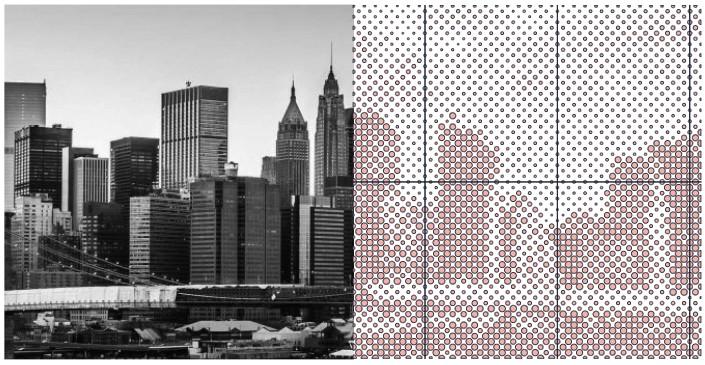

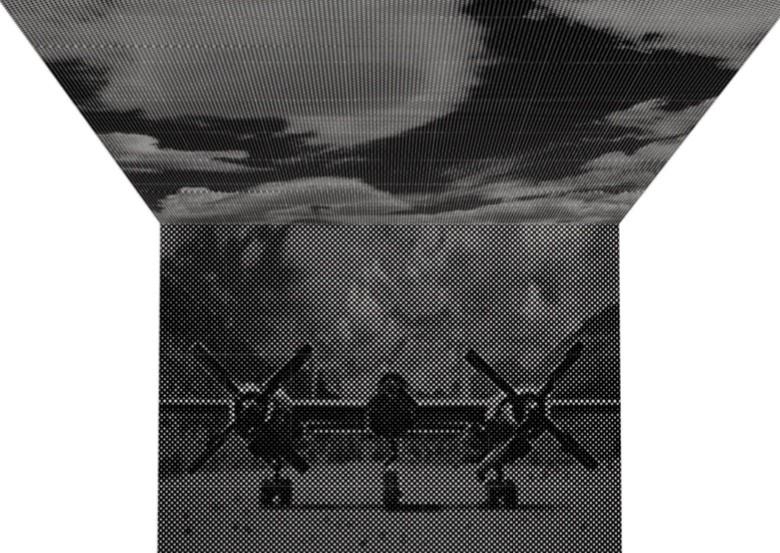

Continuous Pattern Aesthetic

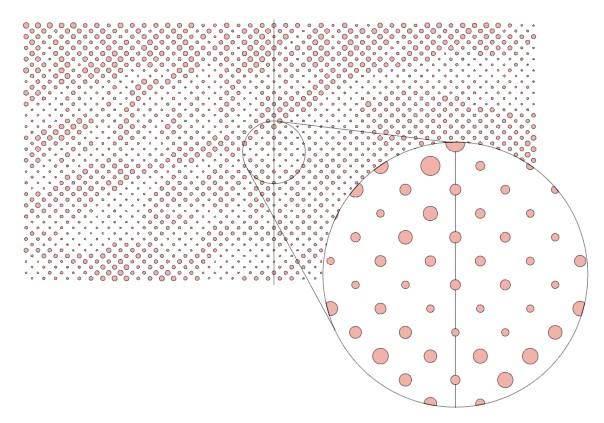

Achieve uninterrupted patterning across your space. Graphic Perf® perforations bridge the seams between panels, resulting in a continuous pattern or graphic.

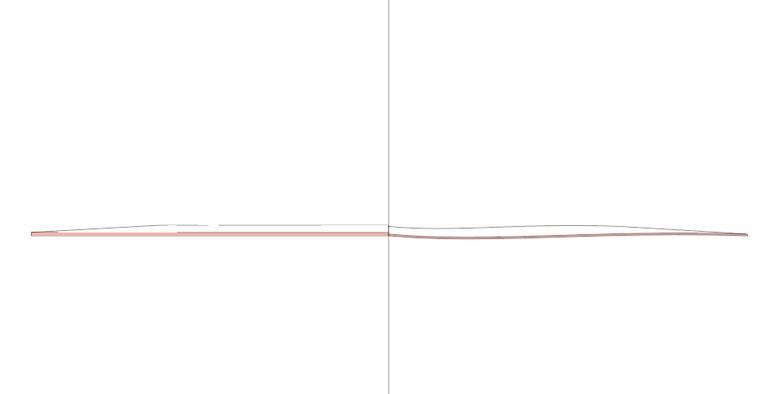

Superior Flatness & Durability

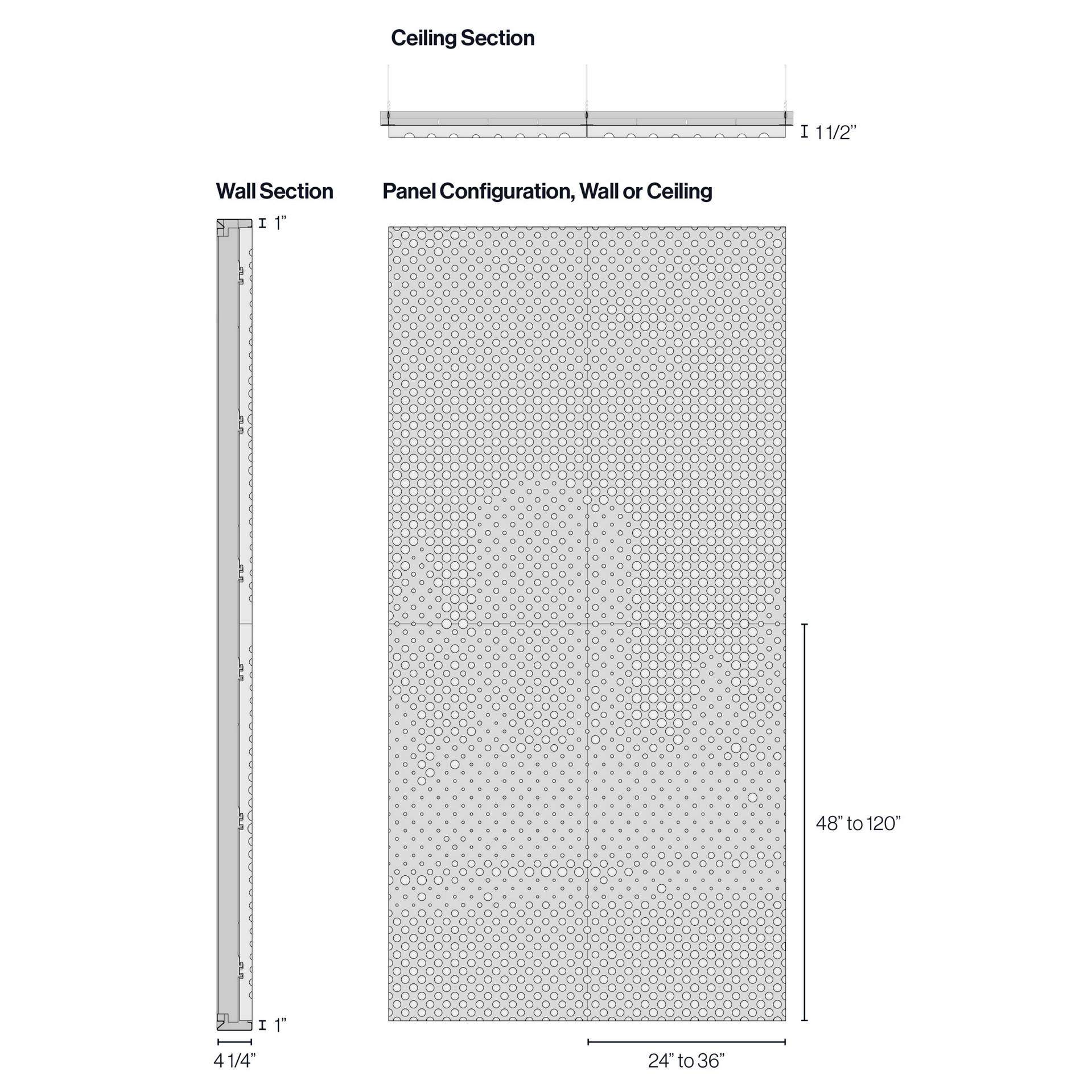

Graphic Perf® panels may be comprised in 1/8", 3/16”, ¼" or 1/2” thickness, which, in combination with our precision processes, results in unrivaled flatness and performance.

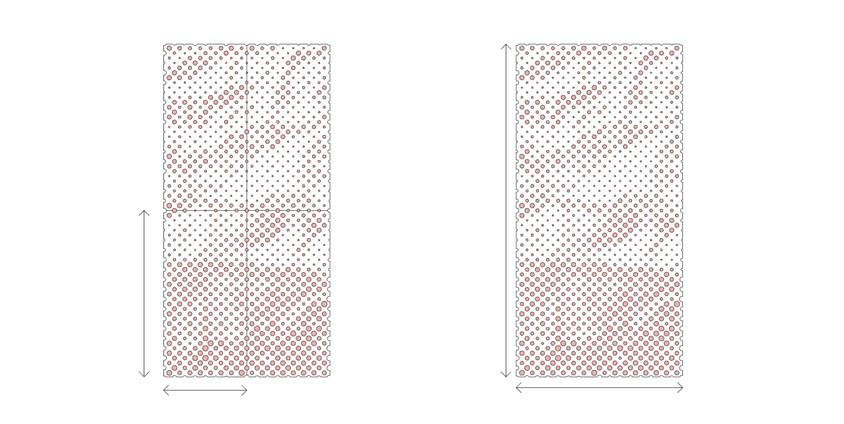

Larger Panel Sizes

With a range in panel sizing, Graphic Perf® allows for larger panel specification resulting in fewer seams and lower installation time.

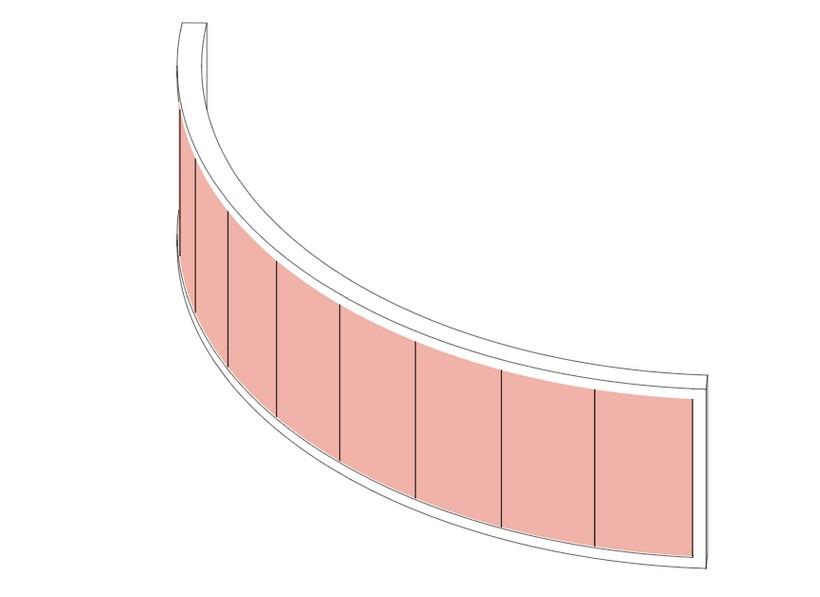

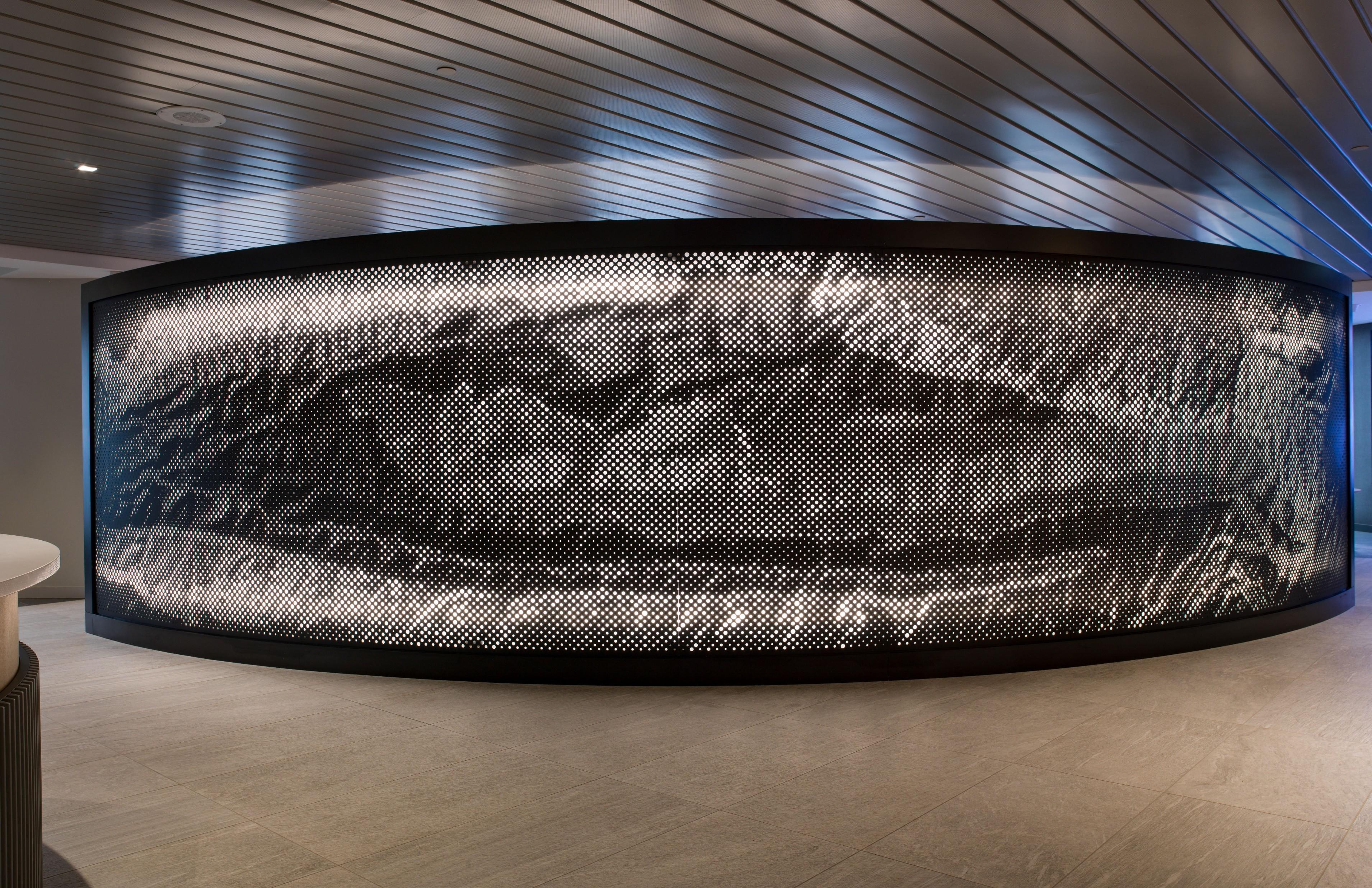

Ability to Curve Panels

Graphic Perf® panels can be rolled to result in smoothed, radiused applications. Curves may be tailored to adapt to almost any architectural design.

Graphic Perf® – How to Specify

Project Quoting

In a quick and highly informative way, our sales support team gathers all pertinent project data to help you consider critical project factors.

Design Stage

The Graphic Perf® system is tailored and customized through our proven design process. Then detailed design and shop drawings are created for your review, input, and final approval.

Manufacturing Detailing

From the moment we receive your design approval, we work diligently to capture all final details in our easy-to-understand and highly specific shop drawings.

Engineering Review

Whether coordinating with your own engineering resources or leveraging our engineering team, every Graphic Perf® is carefully evaluated prior to final production.

Advanced Manufacturing

Our facilities, equipment, and personnel combine to offer precision-driven results. We integrated custom software and precision manufacturing to ultimately benefit you, your client, and your finished installation.

Shipping & Delivery

Our team handles all the logistics from start to finish. We organize the crating sequence right down to the fasteners. All this ensures your product is safely packed and arrives undamaged and on time.

Installation

Let us connect you with our network of trusted installers. Our team of project managers is here to help you along the way.

Vapor® Graphic Perf®

Vapor® Graphic Perf® turns wall and ceiling tiles into a limitless canvas, combining the best aspects of two of Arktura’s most popular offerings – Vapor® and Graphic Perf® – into one versatile system. Let Arktura apply its proprietary, algorithmic software and manufacturing expertise to transfer any image or pattern into perforated metal torsion spring panels. Like our Vapor® Family of Products, these are fully compatible with Arktura’s Vertika® wall channel and standard grid systems, to make installation across walls and ceilings effortless. Add available custom color, Soft Sound® acoustic backer panels, and Arktura’s integrated lighting, and the opportunities are truly endless.
