TMR 43
Conceived as a space where the sea is experienced and shared to the fullest. Its design prioritizes spaciousness, comfort, and safety on board, creating the ideal environment for long family days. Every area of the vessel has been designed to promote social interaction, relaxation, and a connection with the surroundings. Boasting a stable and reliable ride, the TMR 43 invites you to cruise the Caribbean with peace of mind, making every voyage a memory to cherish.
300 HP x 3
425 HP x 3

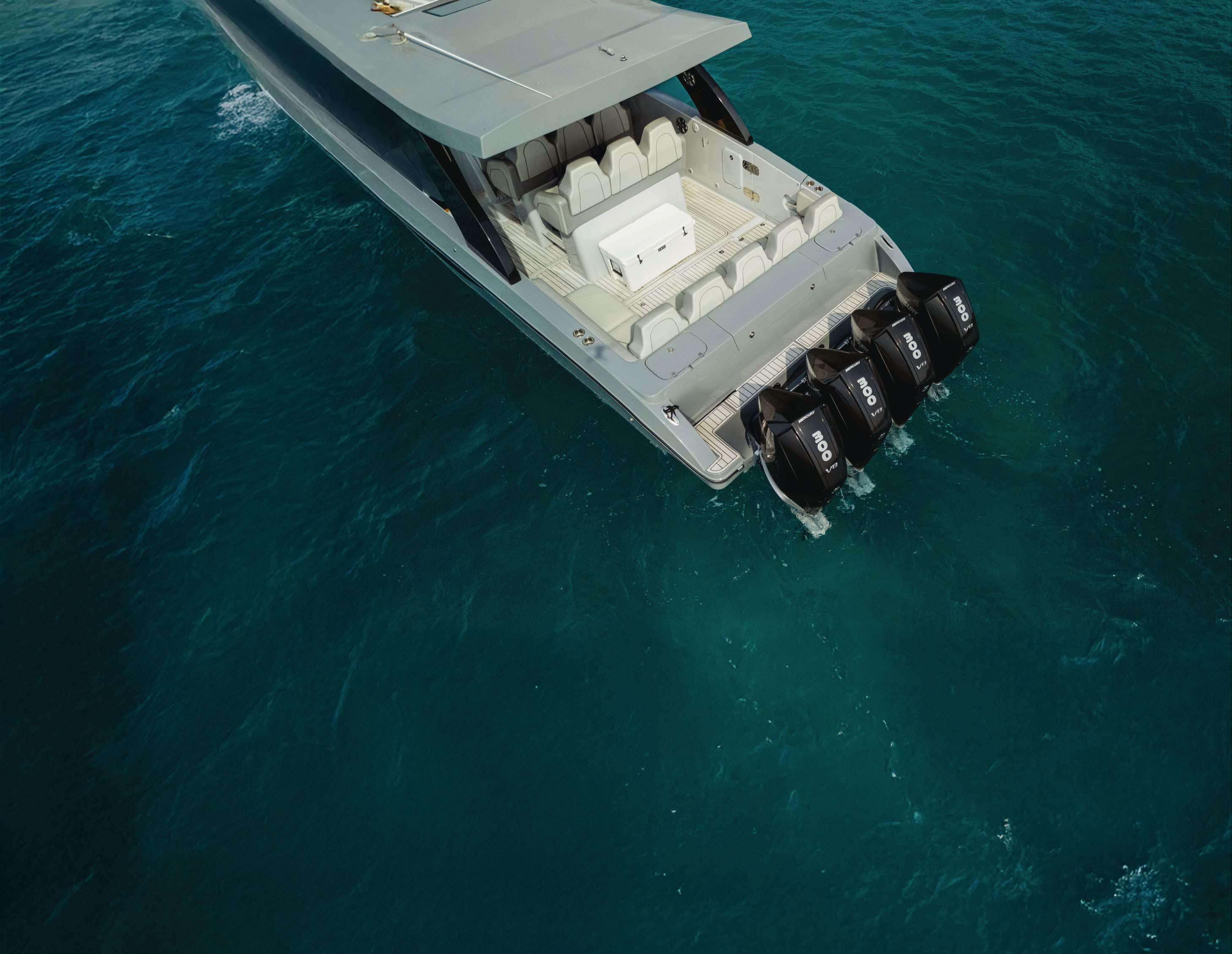

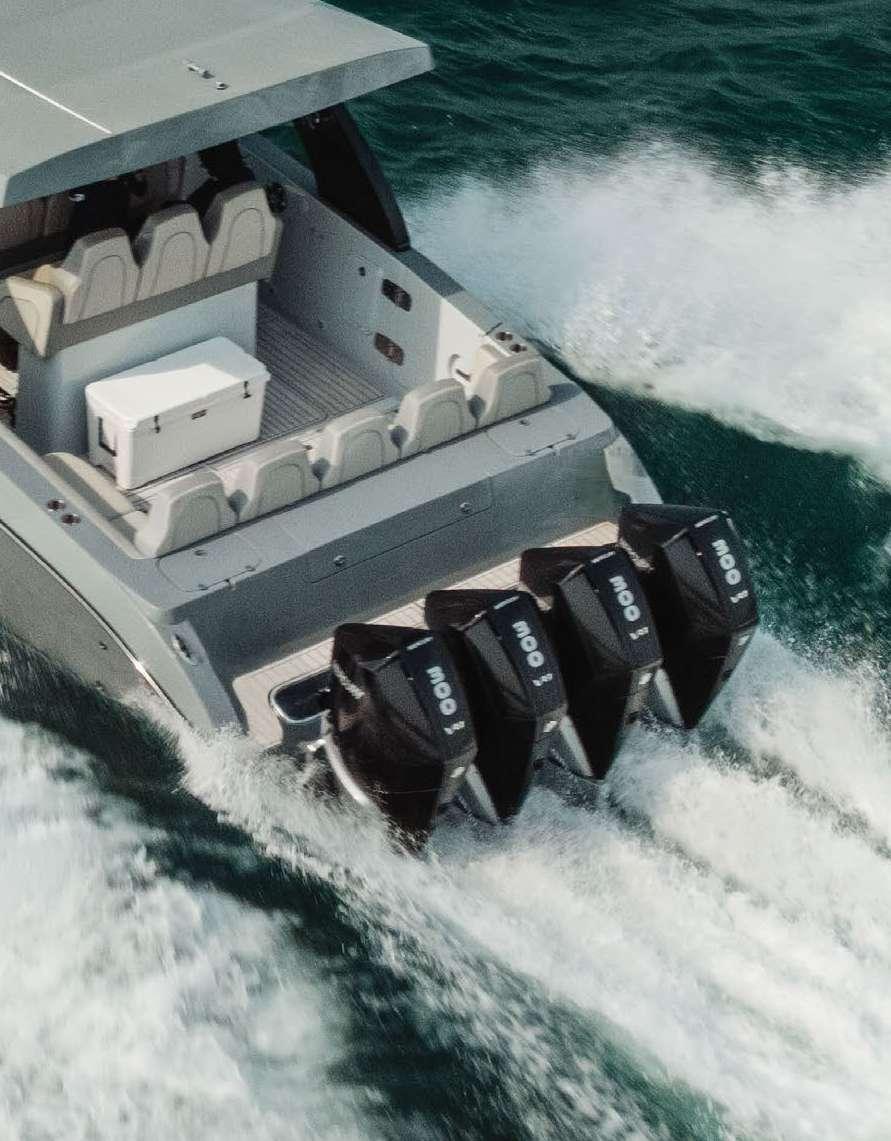

TAKE CONTROL WITH THE POWER OF MERCURY
Configure the engines to your preference:
350 HP x 3
425 HP x 4
300 HP x 4
350 HP x 4
500 HP x 4 600 HP x 3

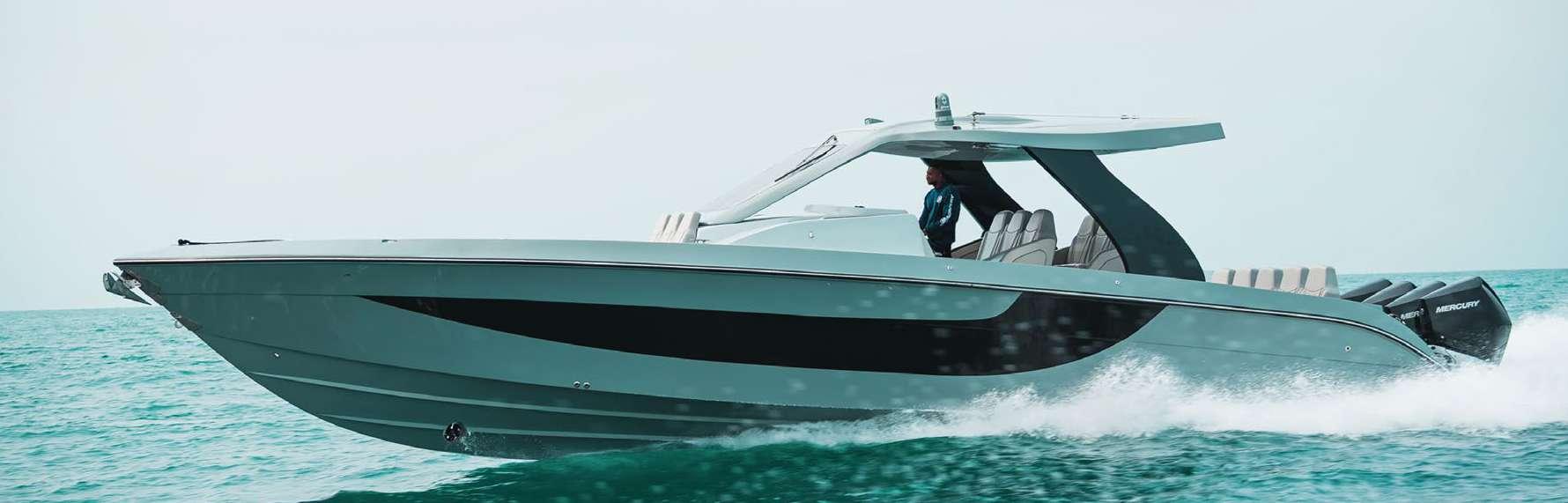

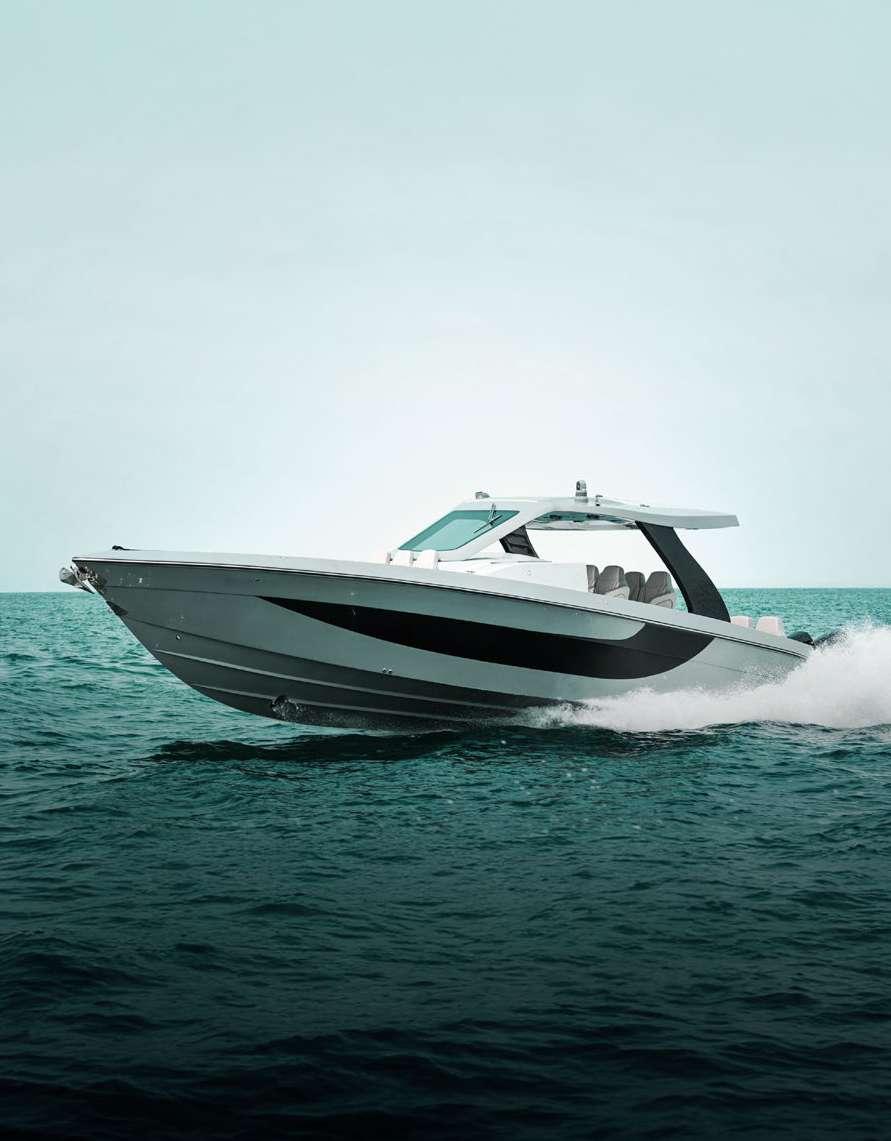

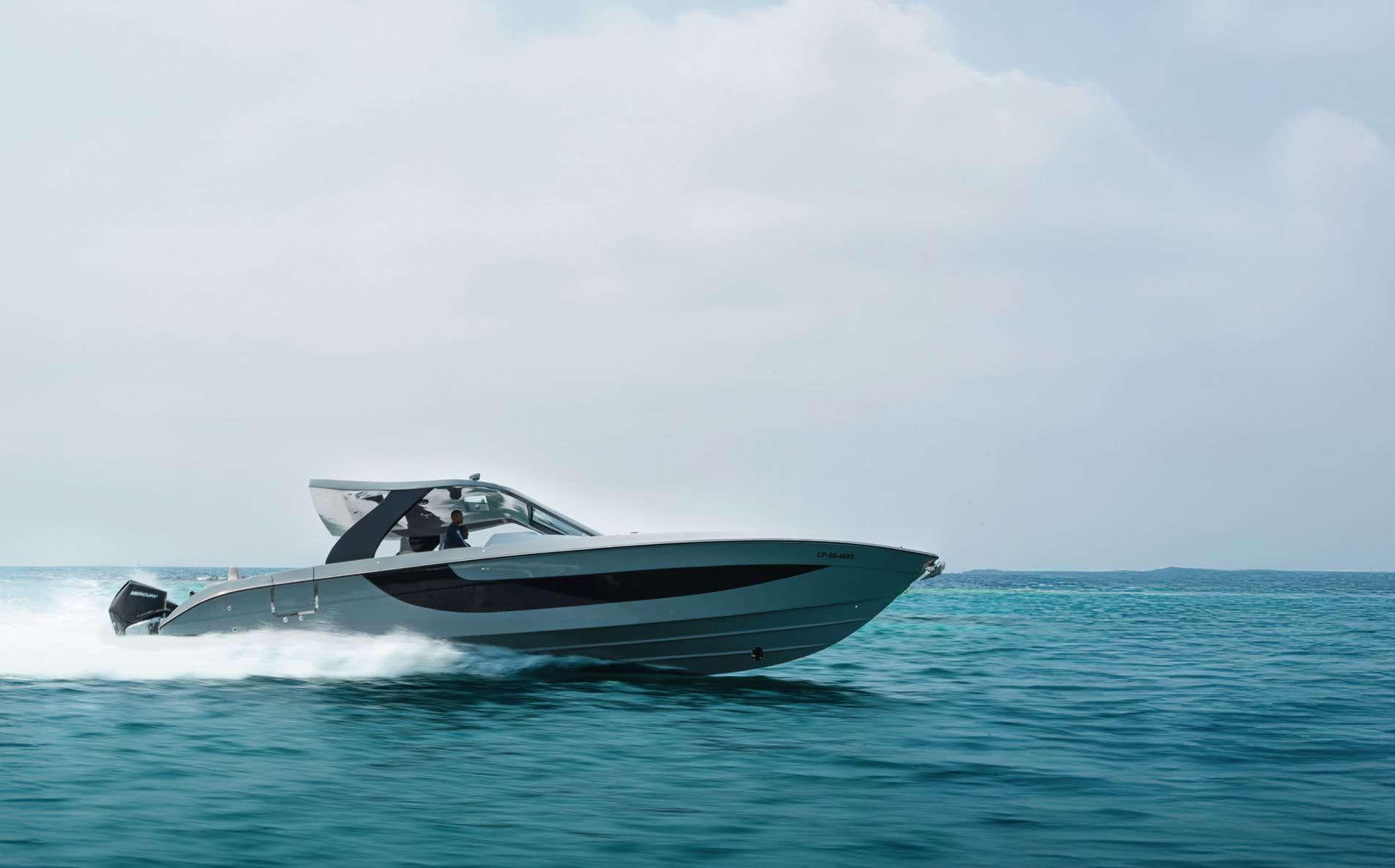

NAVIGATION PERFORMANCE

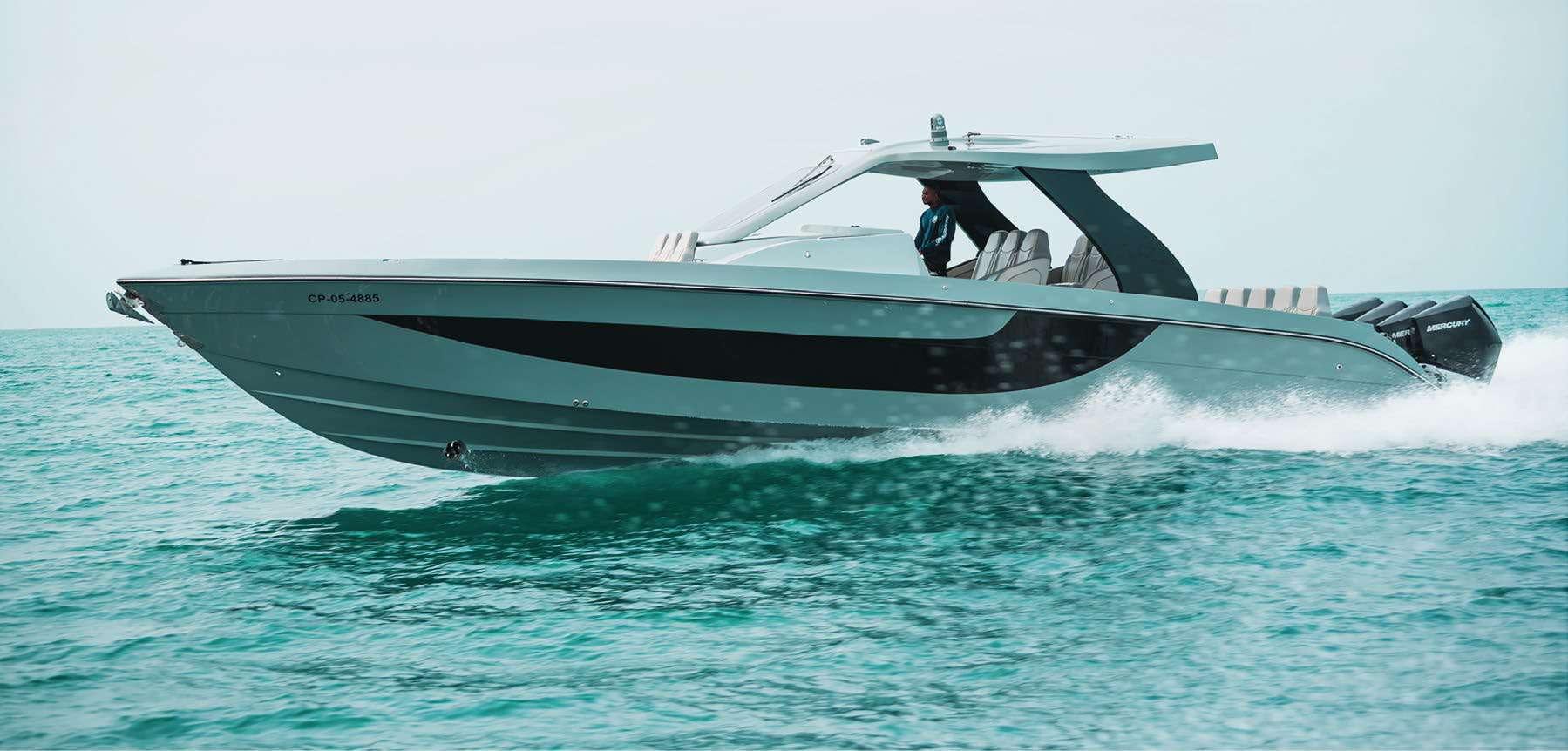

Deep V Hull
The TMR 43 features a Deep V hull developed to offer a smooth and stable ride, ideal for long days at sea. Its geometry allows for efficient wave cutting, reducing impact and improving comfort for everyone on board. This hydrodynamic architecture provides stability and control even in variable Caribbean conditions. The result is a vessel designed to enjoy the journey with tranquility, safety, and enhanced family well-being.
DURABILITY AND SAFETY
Hull and Deck
It features a hull laminated in biaxial fiberglass, a structural system that reinforces the rigidity and durability of the vessel during navigation. This type of lamination better distributes the loads and stresses on the hull, providing greater strength against sea conditions. Its deck has been designed to offer safety and stability while underway, facilitating movement on board throughout the day. The result is a robust, reliable vessel prepared to enjoy the sea with peace of mind.

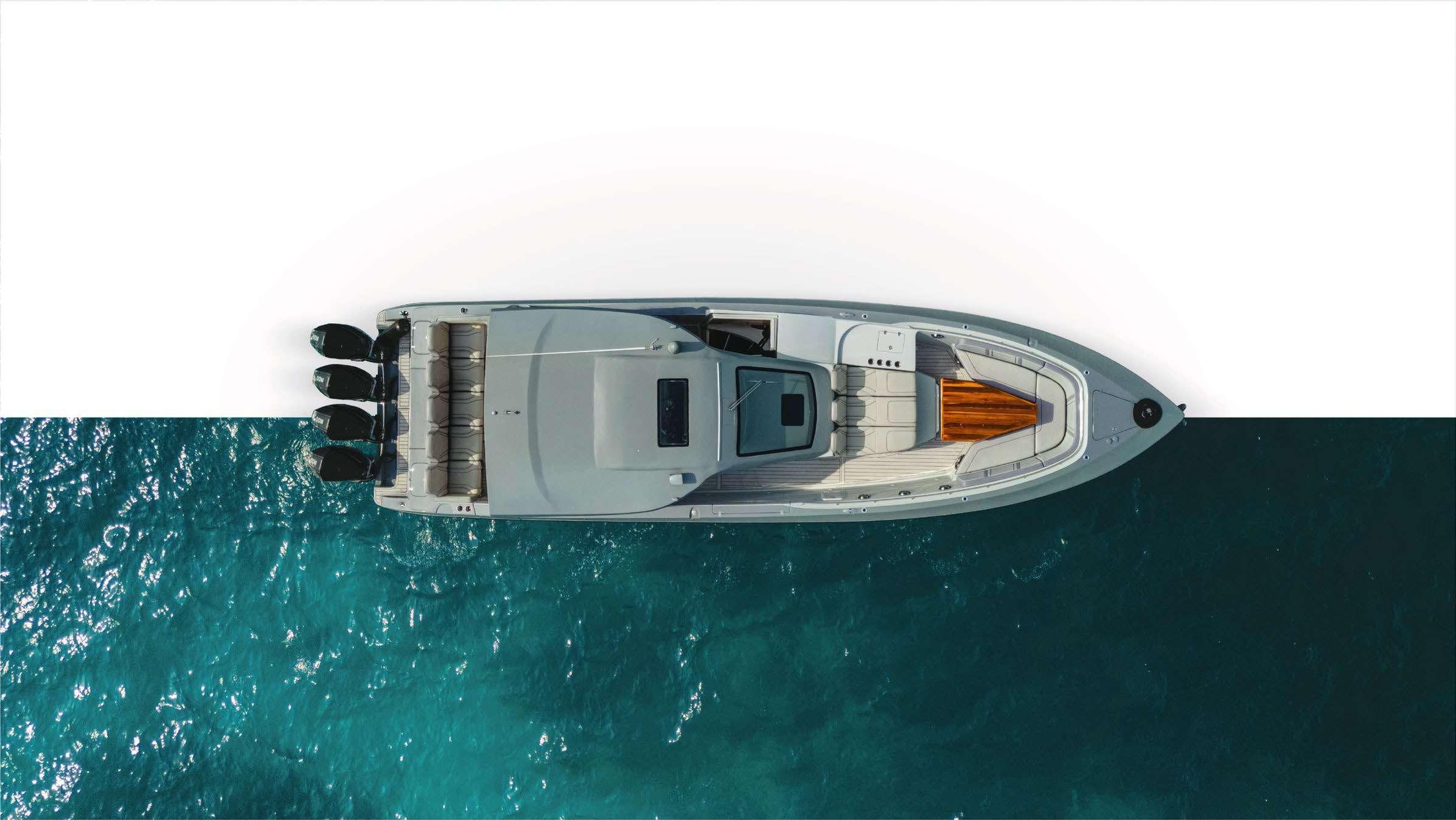

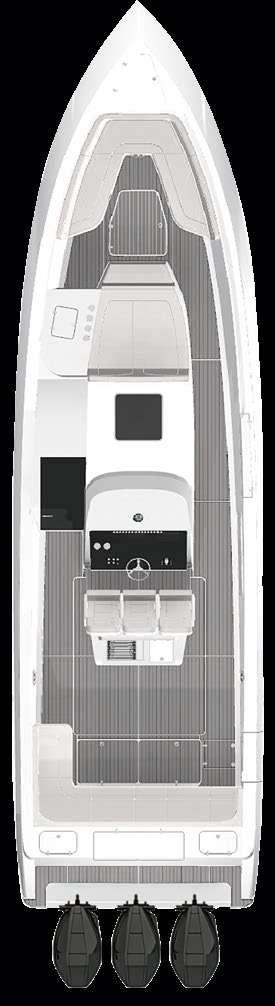

ASYMMETRIC CONSOLE LAYOUT
Anchor locker.
V-shaped bow lounge.
Bow storage/bilge.
Cooler compartment.
Double seating.
Side access walkway.
Helm station.
Cabin access door.
Pilot seats.
Summer kitchen or lounge bench option.
L-shaped aft lounge.
Ladder compartment.
Access door.
Starboard storage with cooler.
Outboard engine bracket.
Removable 3-position table / sunbed.

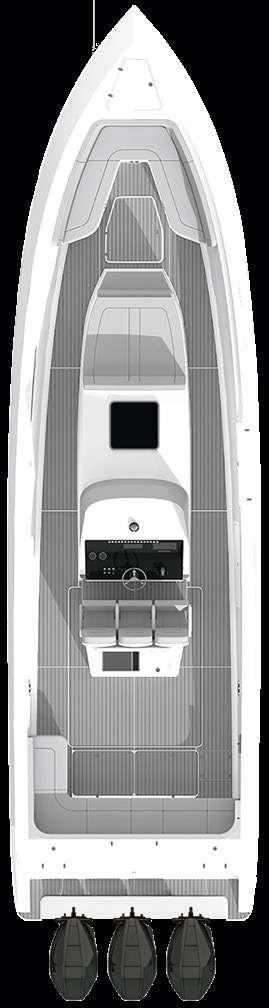

CENTER CONSOLE LAYOUT
Anchor locker.
V-shaped bow lounge.
Bow storage/bilge.
Double seating.
Side access walkways.
Cabin access door.
Helm station.
Pilot seats.

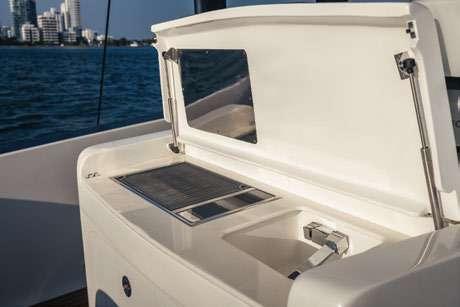

Summer kitchen or lounge bench option.
L-shaped aft lounge.
Ladder compartment. Access door.
Starboard storage with cooler.
Outboard engine bracket.
Removable 3-position table / sunbed.

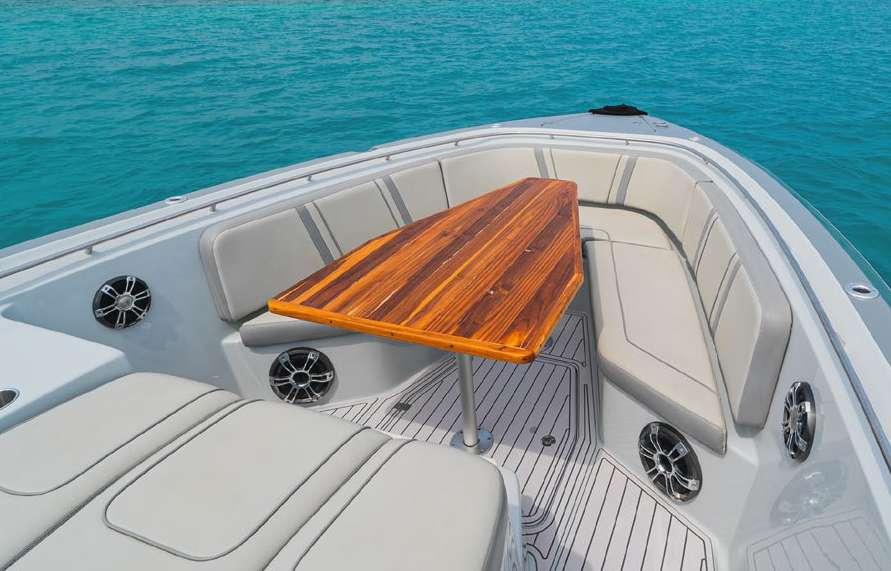

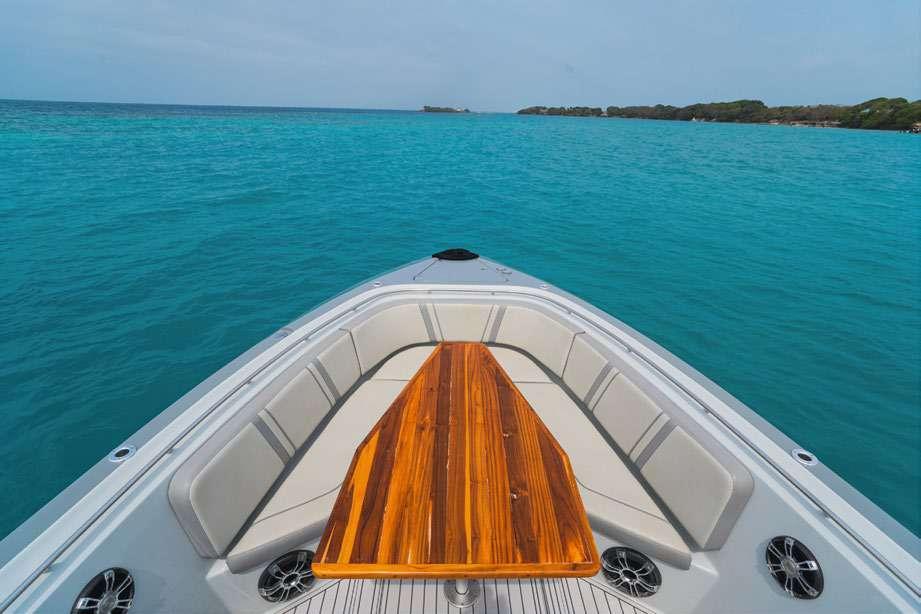

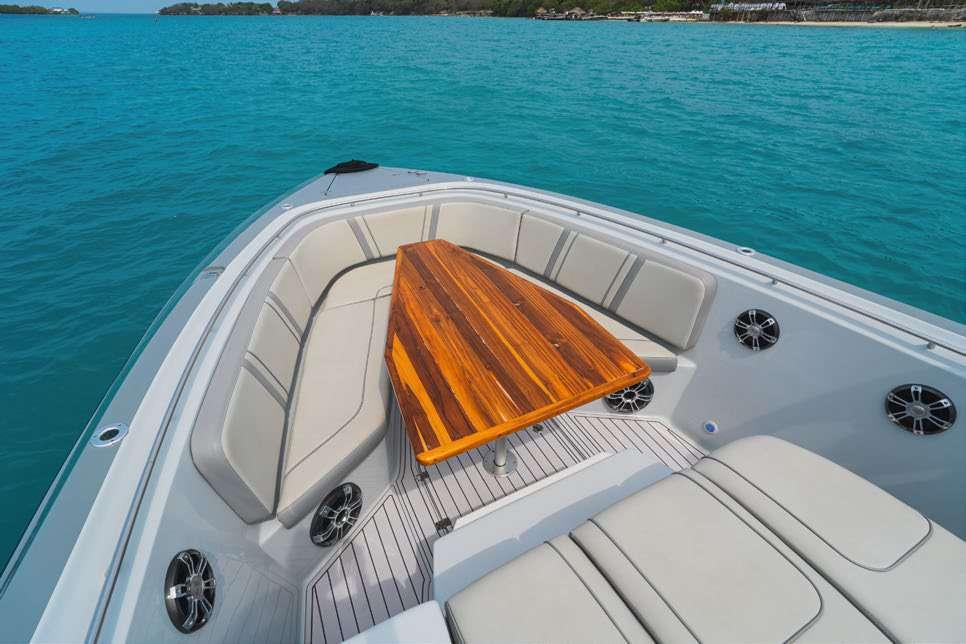

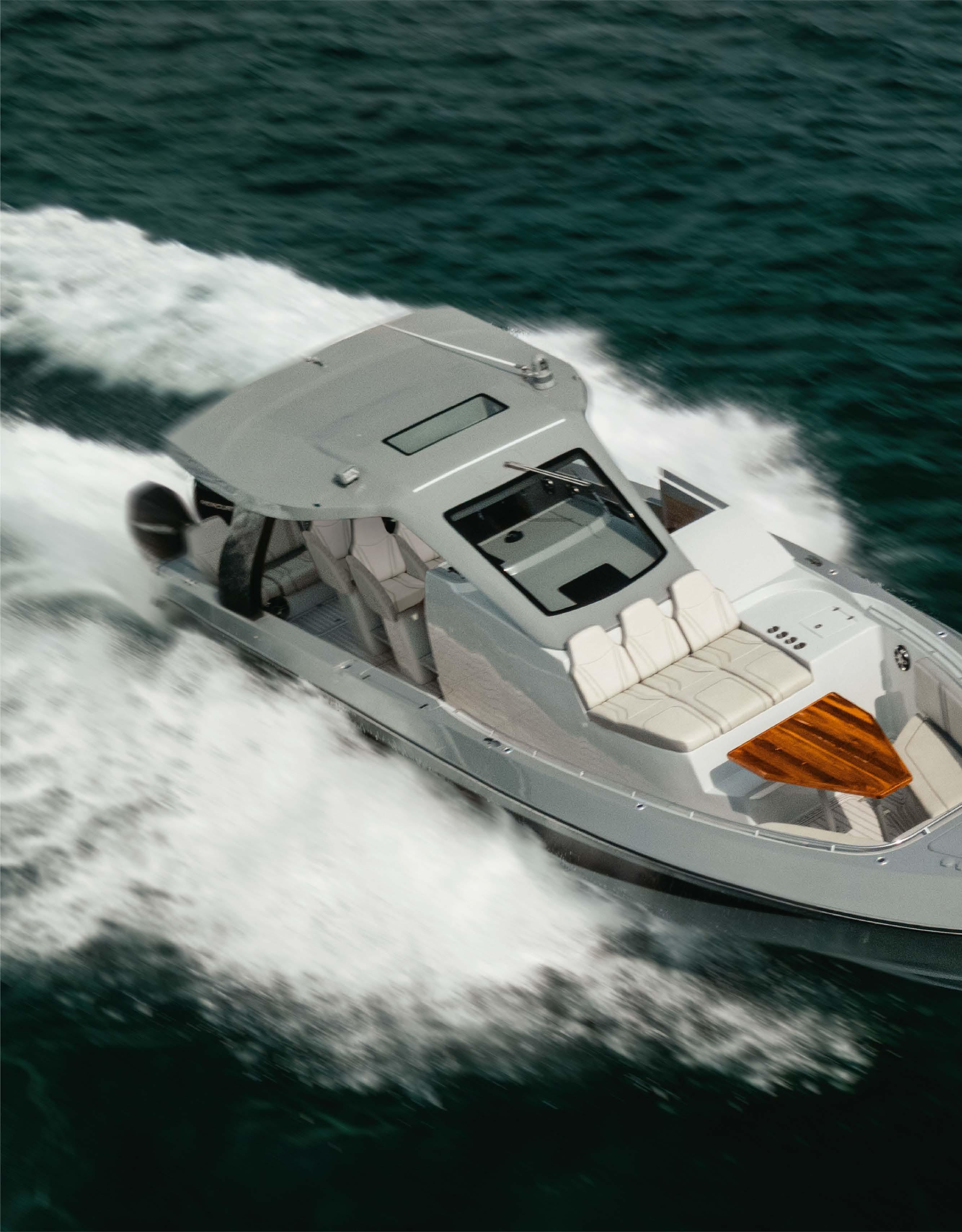

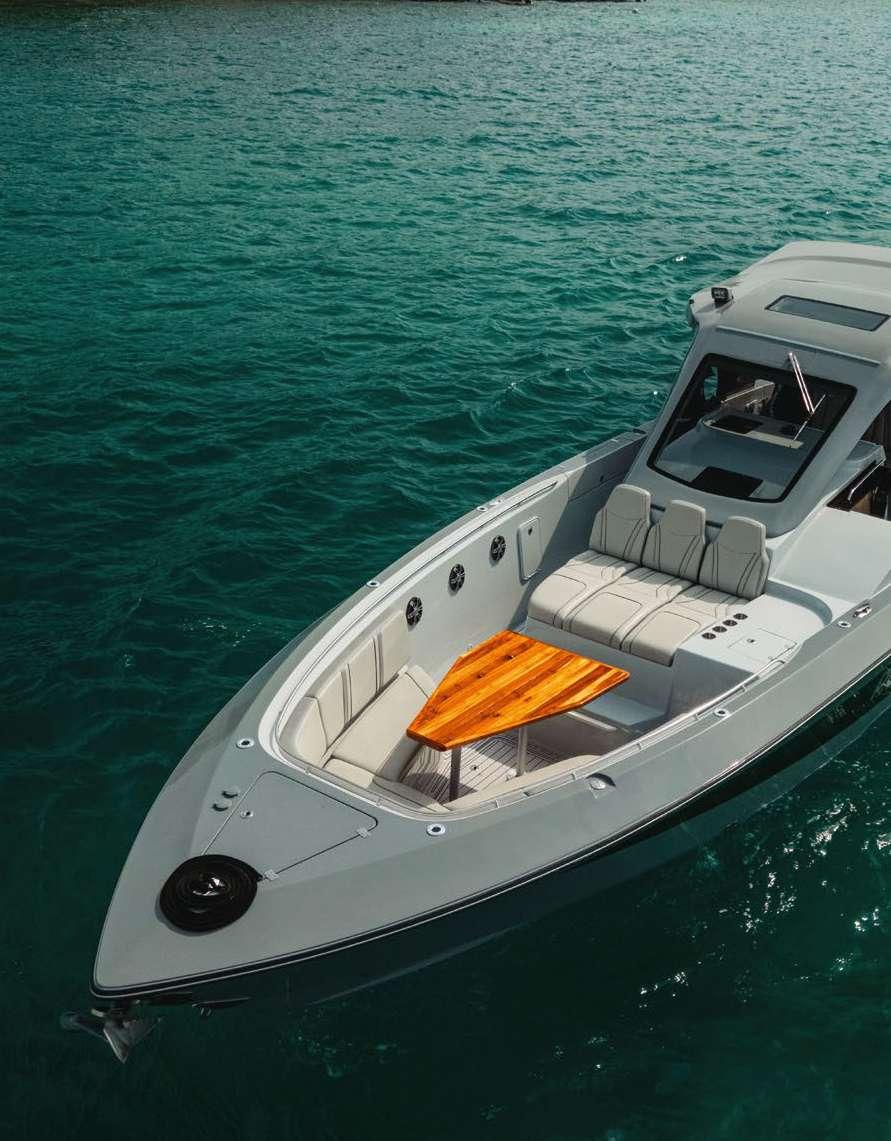

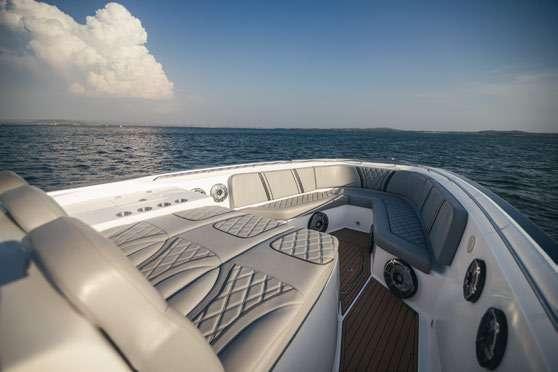

BOW LOUNGE
The bow lounge of the TMR 43 has been conceived as a spacious and welcoming area designed for family sharing. Its V-shaped layout organizes the area naturally, creating an ideal environment for gathering,
Pensada para convertirse en uno de los espacios más disfrutables a bordo, la proa del TMR 43 ofrece un entorno amplio y bien integrado para compartir durante cada travesía. Su diseño favorece la comodidad de los pasajeros, permitiendo disfrutar del recorrido con una vista abierta al mar. La disposición de los asientos crea un ambiente relajado y seguro, ideal tanto para navegar como para descansar en fondeo. Un espacio donde cada momento a bordo se vive con mayor cercanía y tranquilidad.

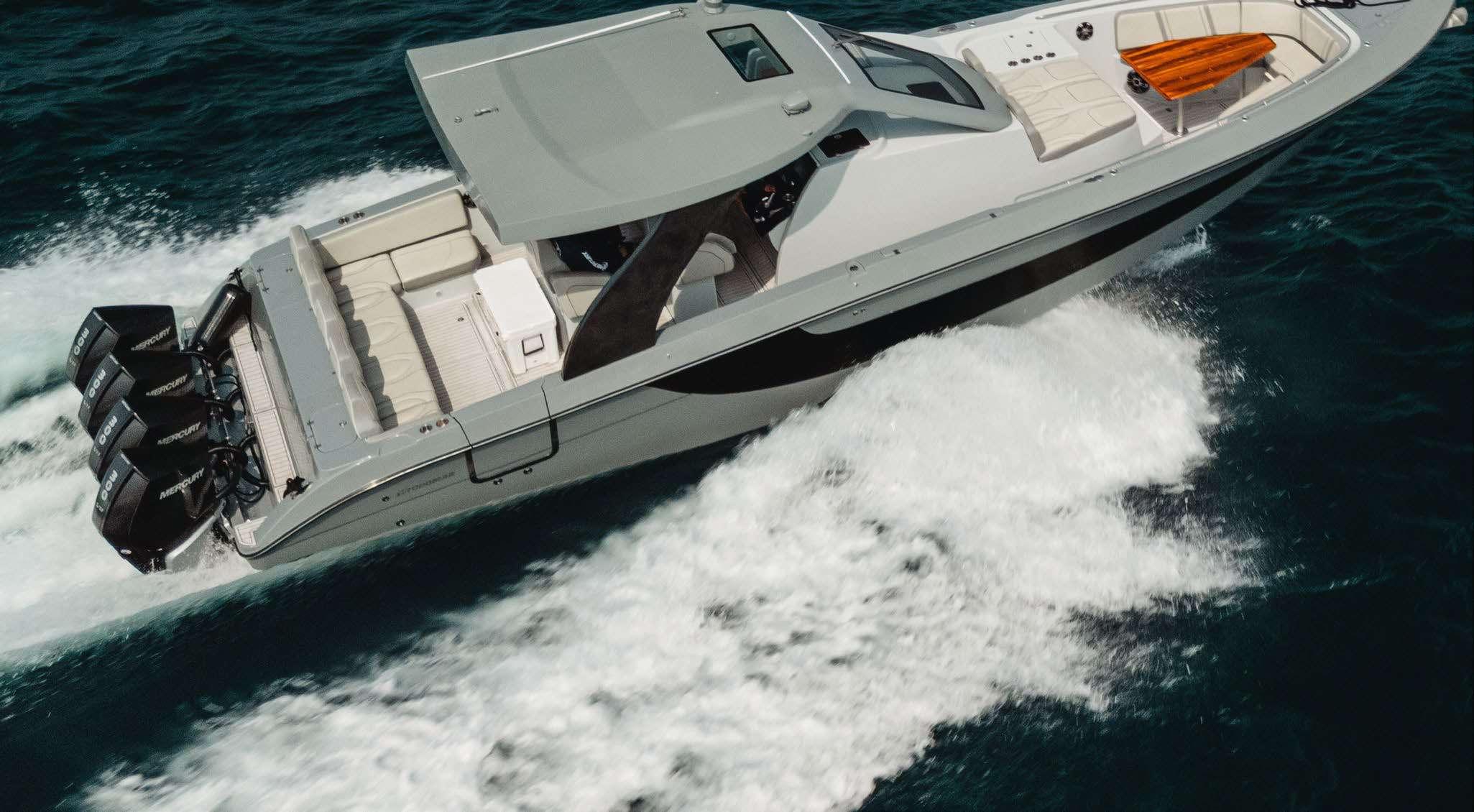

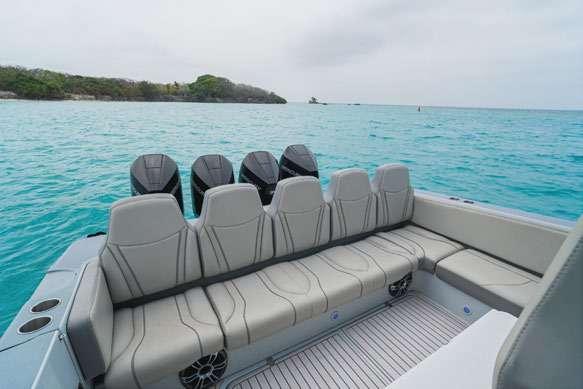

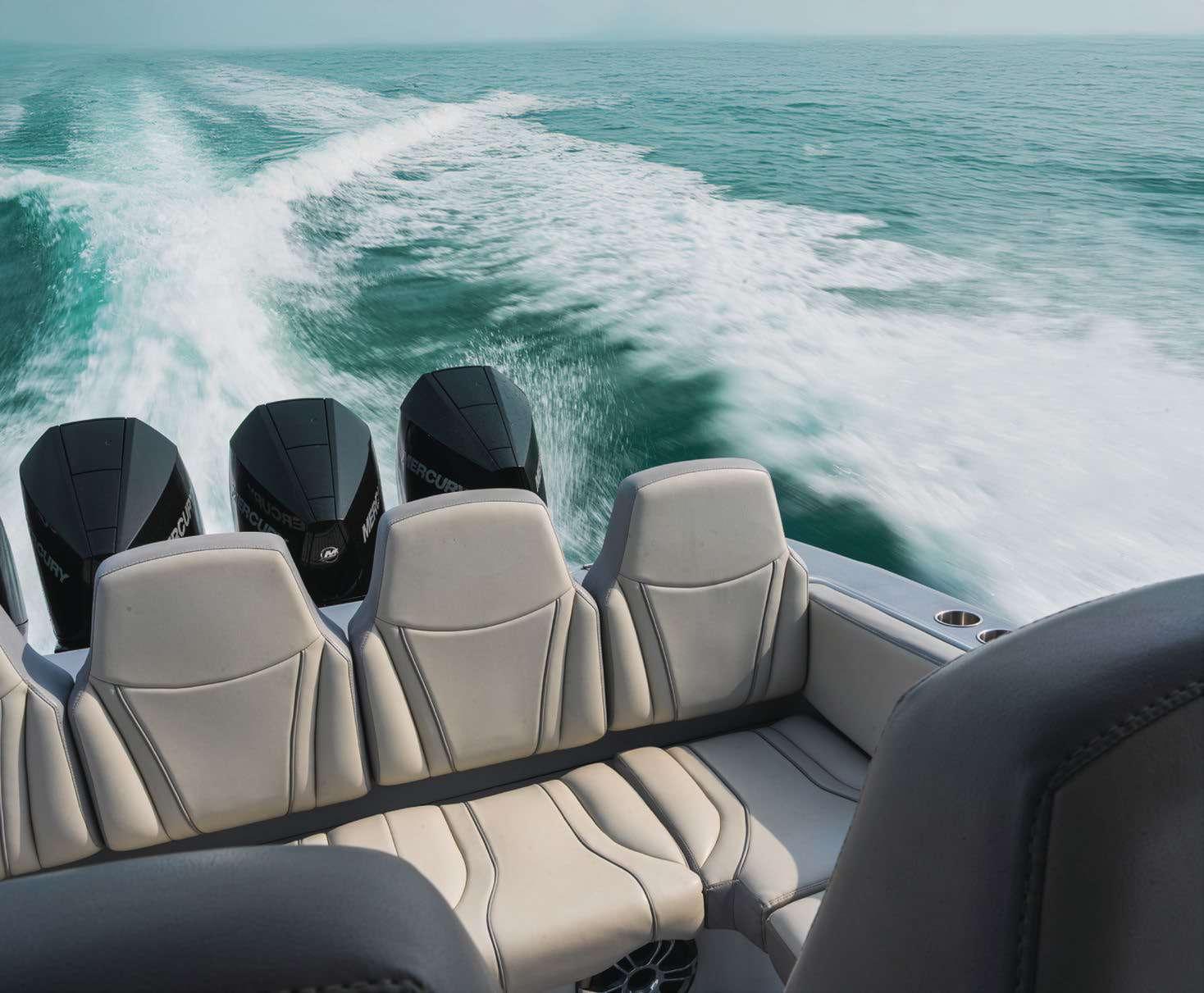

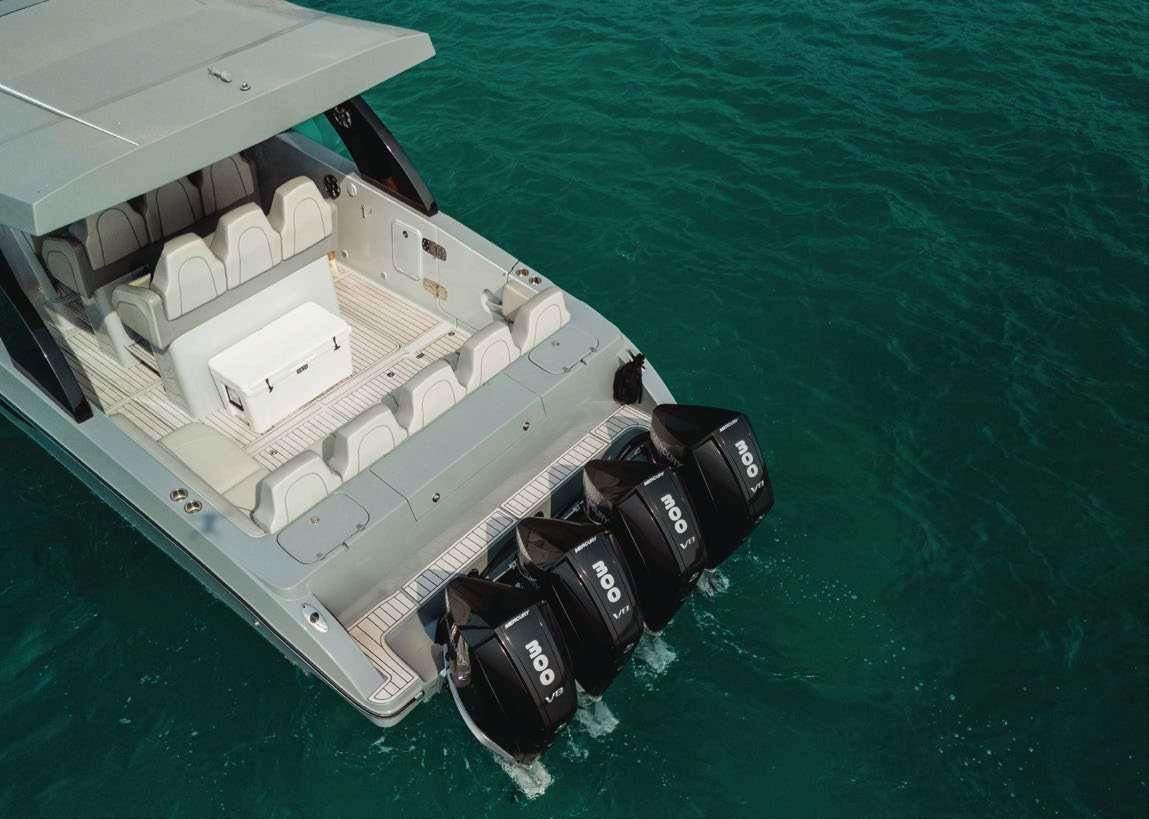

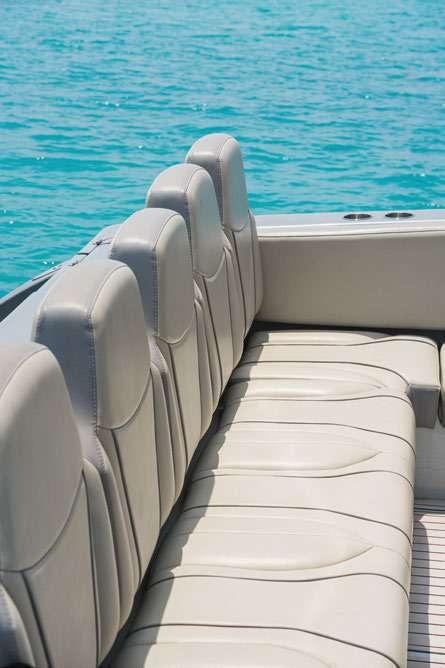

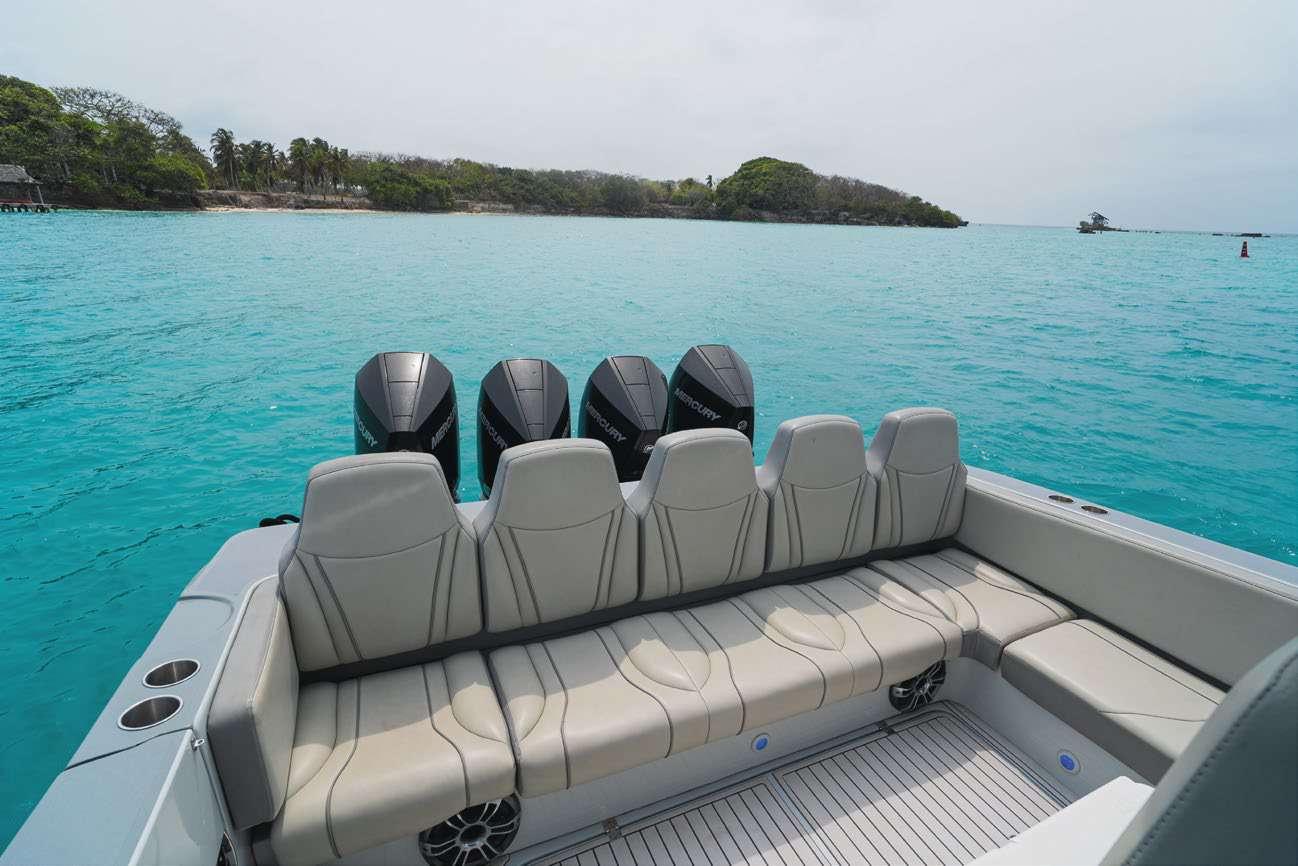

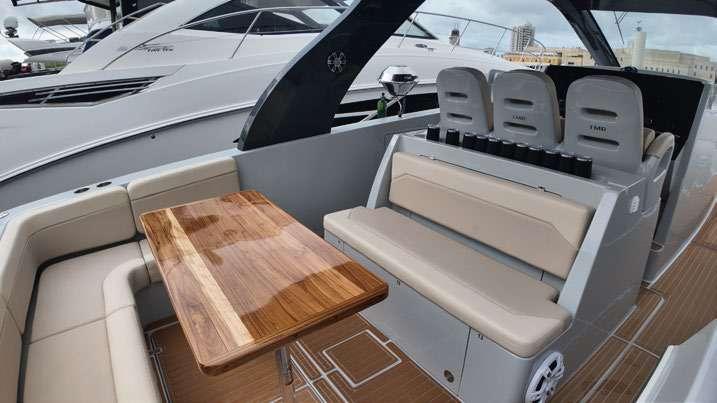

AFT LOUNGE
The aft lounge of the TMR 43 has been designed as a versatile space that adapts to different navigation styles and social needs. Its design allows the area to be configured according to each owner's needs, integrating solutions that combine comfort, functionality, and space organization. Available options include configurations with helm seats, benches, and L-shaped furniture, as well as versions incorporating a summer kitchen for extended days at sea. This flexibility transforms the stern into an ideal environment for sharing, relaxing, and enjoying the view.

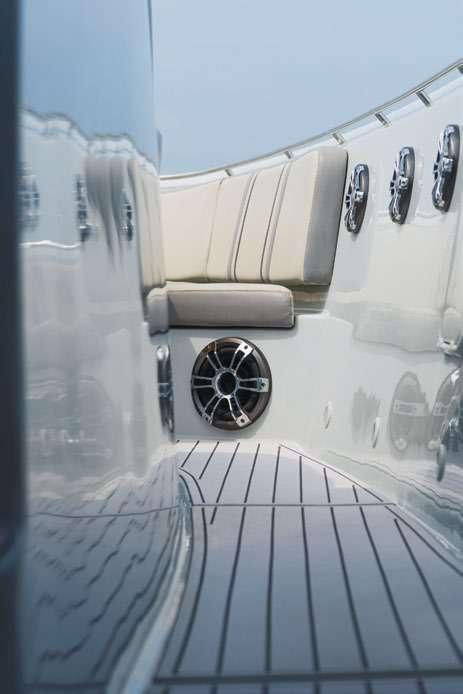

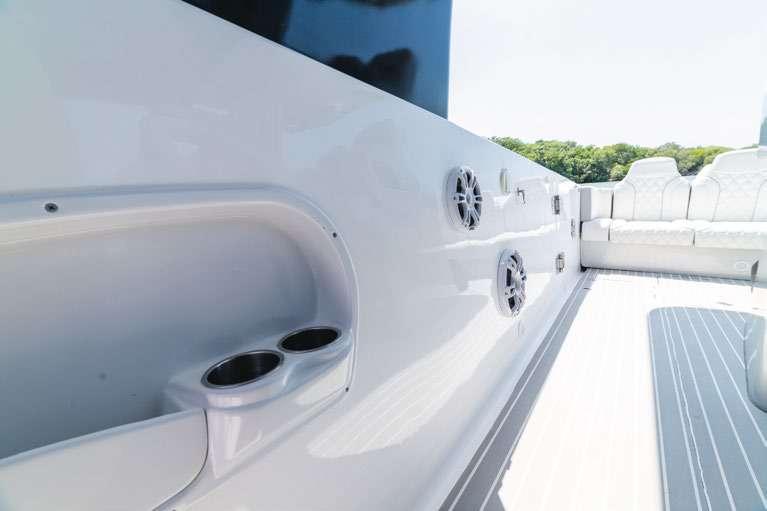

The walk-around design has been carefully crafted to maintain comfortable and safe circulation, even when the vessel is in full use. In addition to the L-bench configurations, the TMR 43 allows for the incorporation of double helm seats or combinations with linear furniture and a summer kitchen, expanding the space's possibilities. Each alternative seeks to balance ergonomics, comfort, and functionality on board. Thus, the stern becomes an adaptable area that responds to various cruising plans, from calm family outings to full days on the water.
REST AND PRIVACY

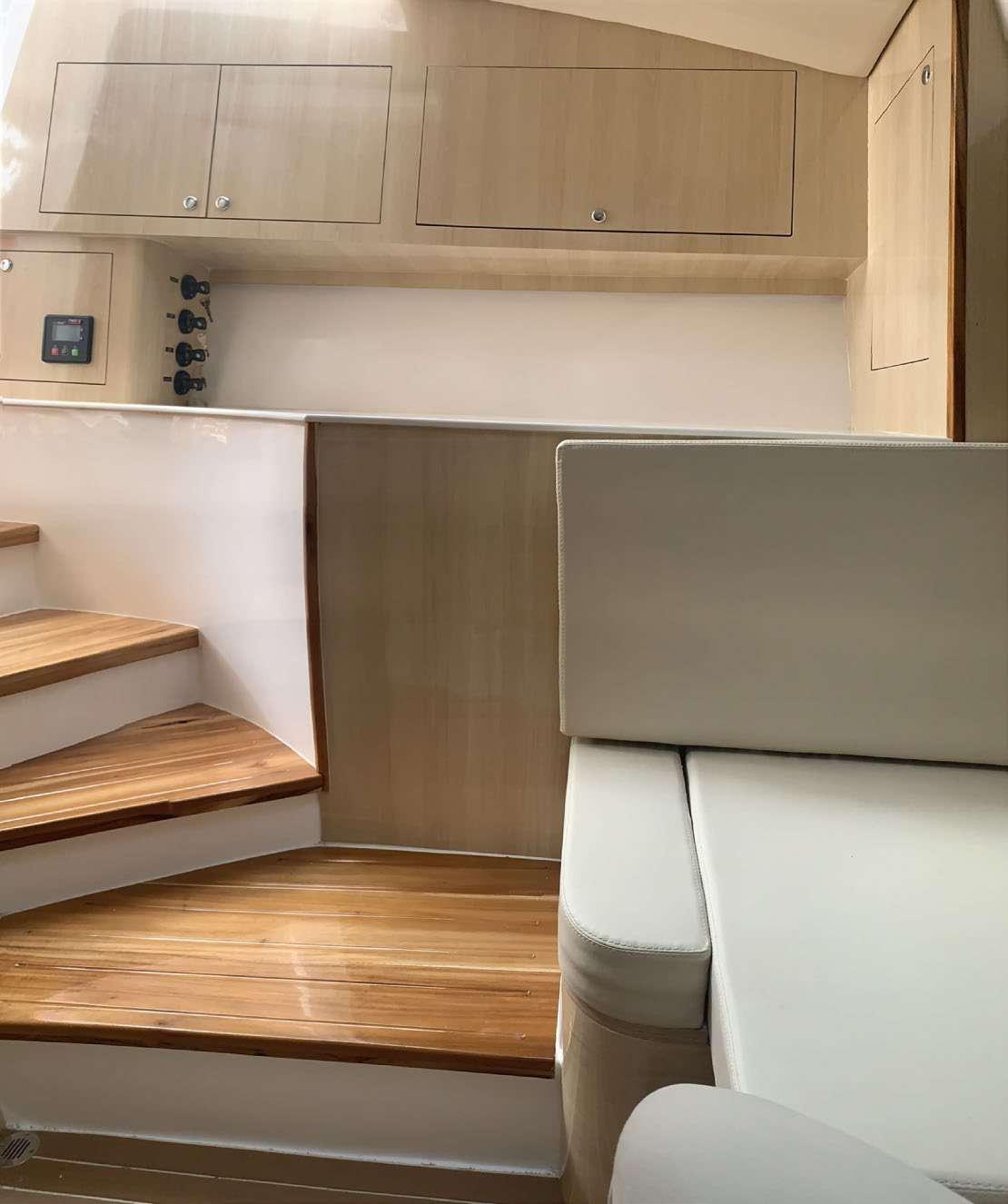

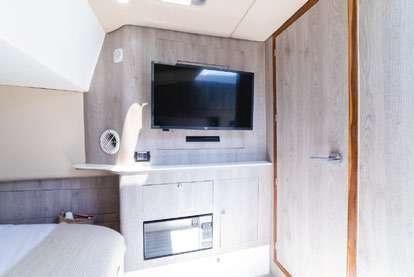

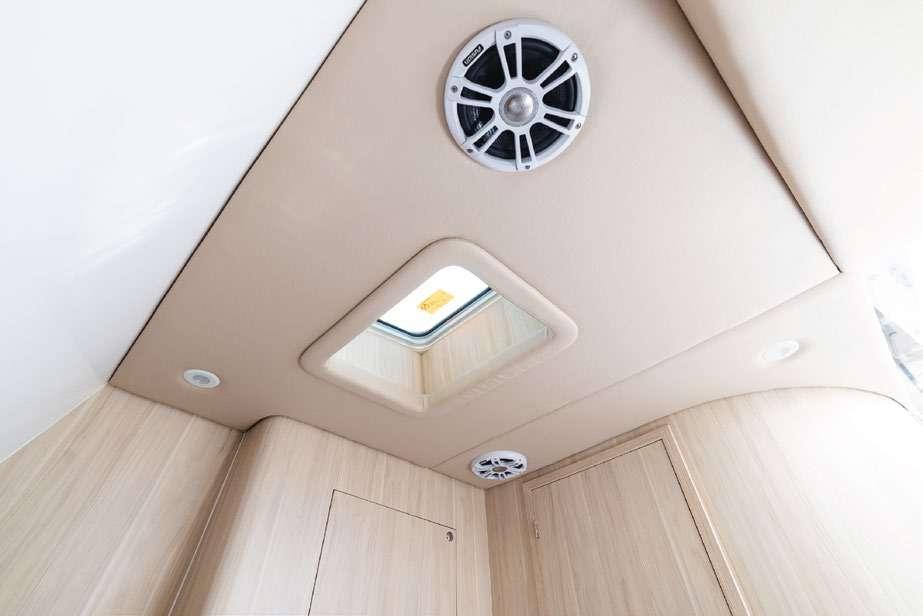

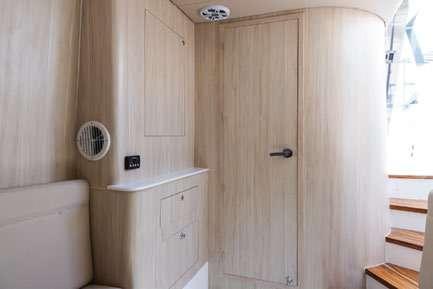

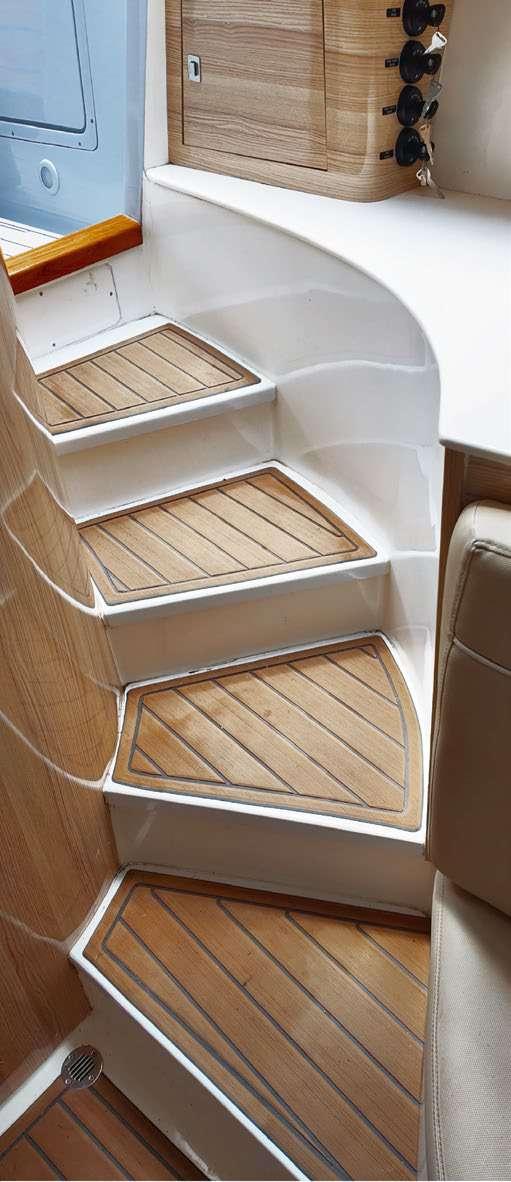

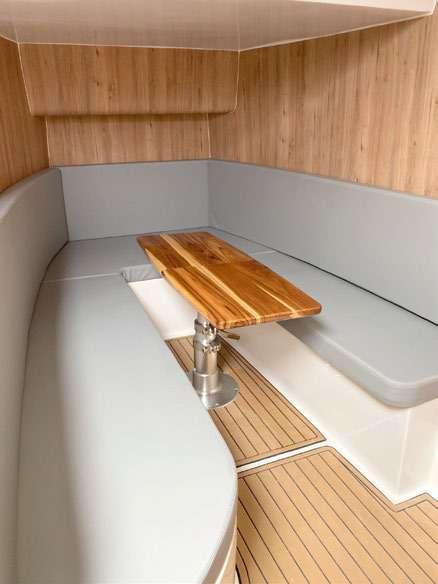

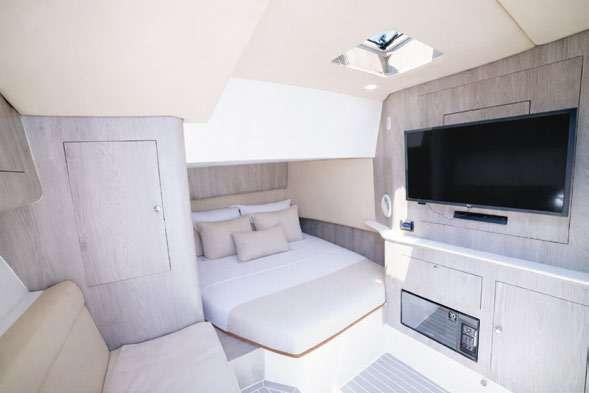

Cabin
Designed to offer a comfortable and private space during days at sea. Its configuration allows it to be used as a sleeping area with a bed or transformed into a lounge for moments of tranquility on board. The interior environment makes careful use of the available space, creating a cozy and well-integrated atmosphere. The vessel's head (bathroom) is located in this same compartment, equipped with a shower, providing greater autonomy and comfort during the voyage. A space designed for the rest, privacy, and well-being of the passengers.
INTERNAL LAYOUT
• Bed (U-shaped configuration available as an option).
• Interior furniture in PVC and laminate.
• Granite on the entrance counter and opposite counter.

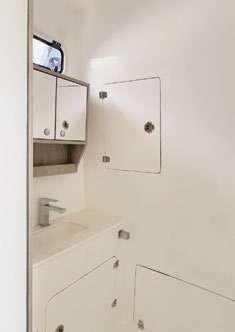

THE HEAD
INCLUDES:
• Shower head.
• Sink faucet.
• Countertop.
• 12V Head unit.
• Acrylic mirror on door.
• Acrylic mirror for electrical system access.

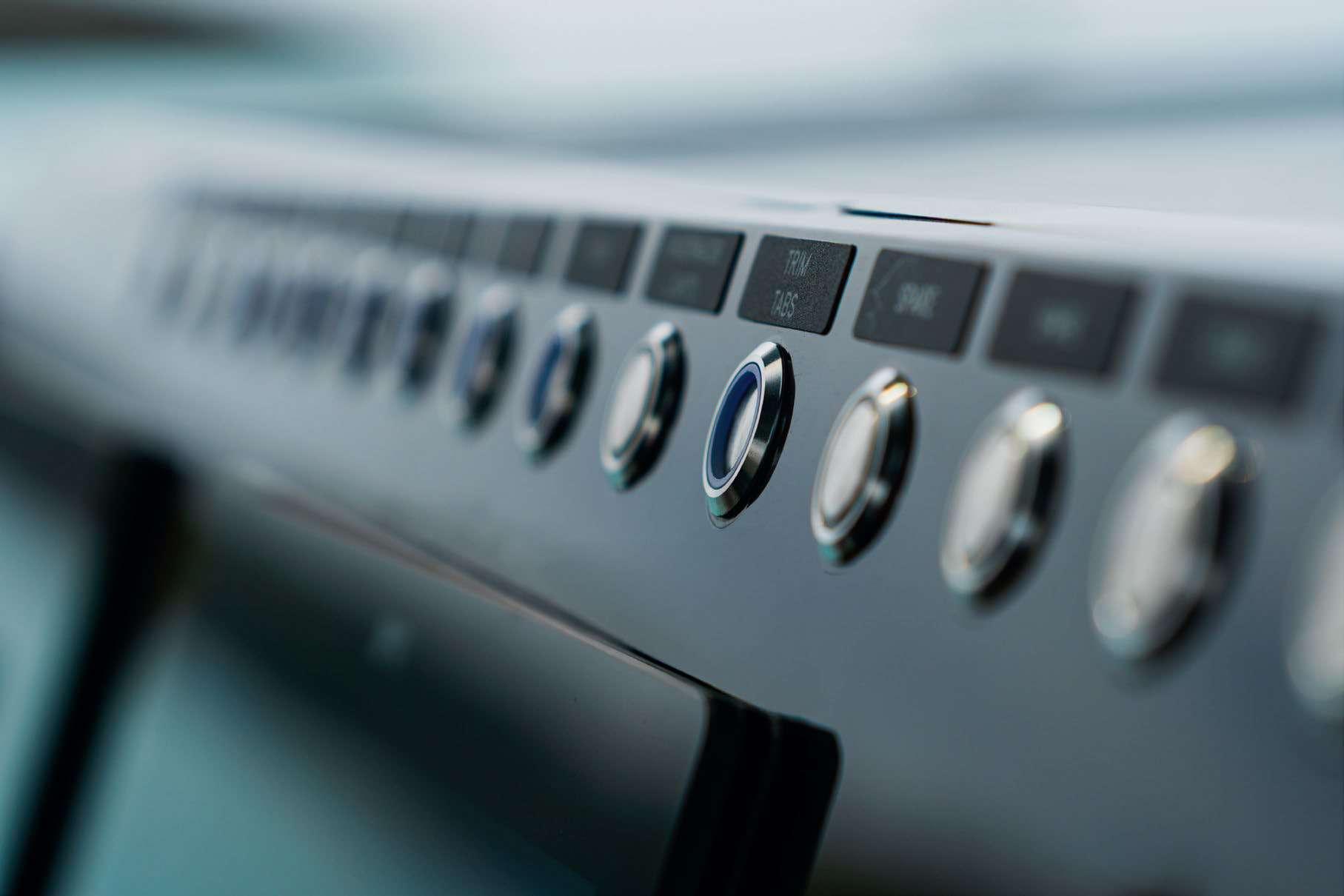

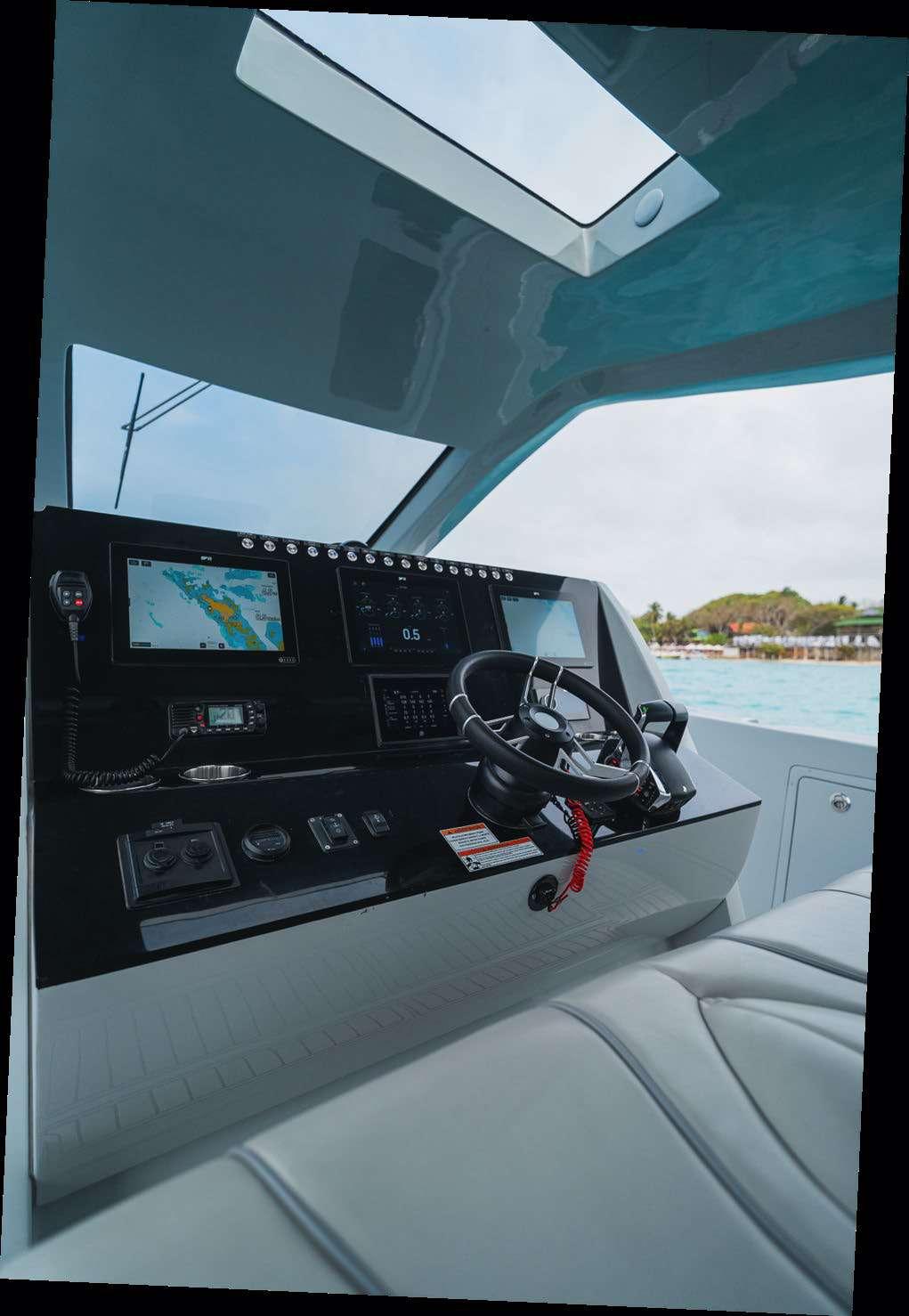

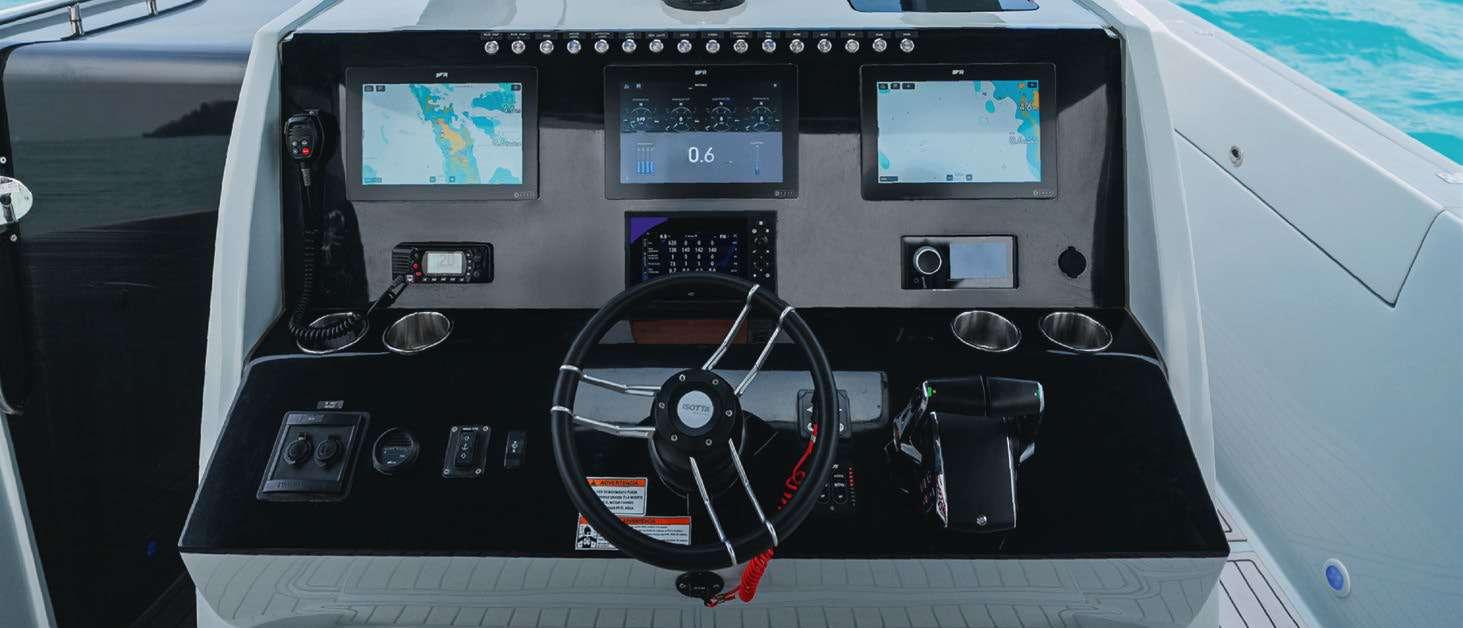

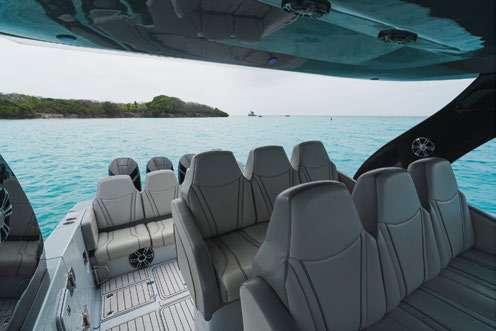

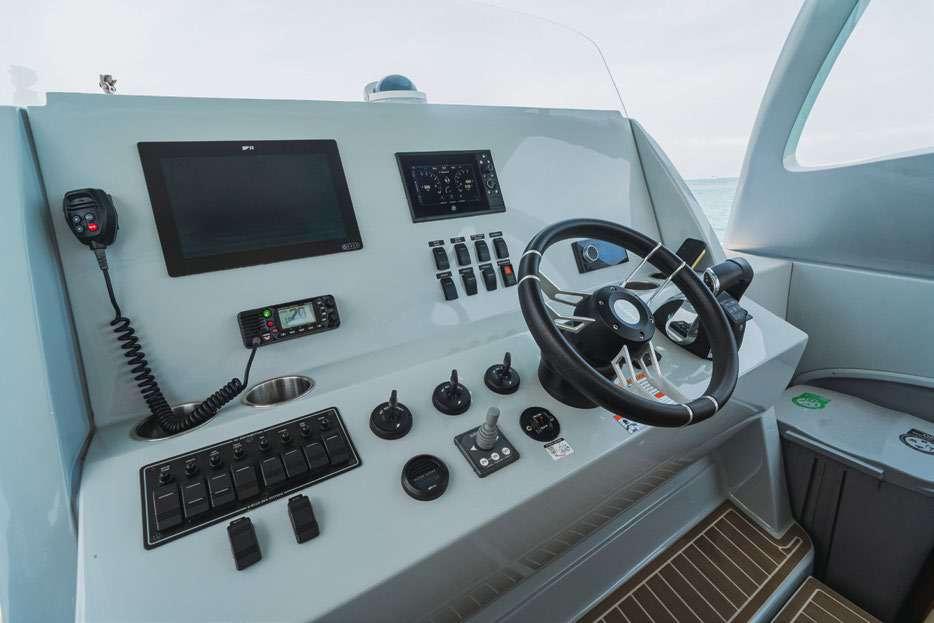

HELM STATION
Comfort and Technology
The helm station of the TMR 43 has been designed to deliver precise control, clear visibility, and lasting comfort throughout the voyage. Its layout ensures an unobstructed view of the surroundings, allowing the helmsman to read the sea and handle the vessel with confidence at all times. The helm seats and command layout support a natural, comfortable posture, even on extended passages. Every element has been carefully integrated to create a balanced piloting environment, where technology, ergonomics, and seamanship come together in perfect harmony.
DETAILS
Every element of the TMR 43 has been carefully developed to offer a balanced and comfortable onboard experience. From material selection to the integration of various spaces, every detail reflects attention to functionality, durability, and aesthetics. Finishes, hardware, and surfaces have been designed to withstand the marine environment while maintaining a sense of quality and solidity. This dedication to detail is perceived in every area of the vessel, creating an environment where design, comfort, and navigation meet naturally.
Length: 43 ft
Beam: 11.80 ft
HULL & DECK
TECHNICAL SPECIFICATIONS
Weight: 23,009 lbs
Fuel Capacity: 489 gallons
• Fiberglass hull with biaxial lamination
• Fiberglass deck
• Finish: Gelcoat
• Color: White
DECKING
• Self-draining deck system
• Non-skid finish
CONSOLE
• Finish: White gelcoat
• (1) Glass windshield
• (1) Windshield wiper
• (1) Upper glove compartment with USB-C outlet
• (1) Footrest platform

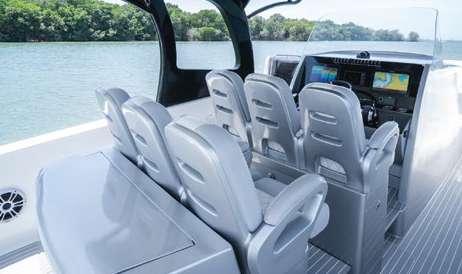

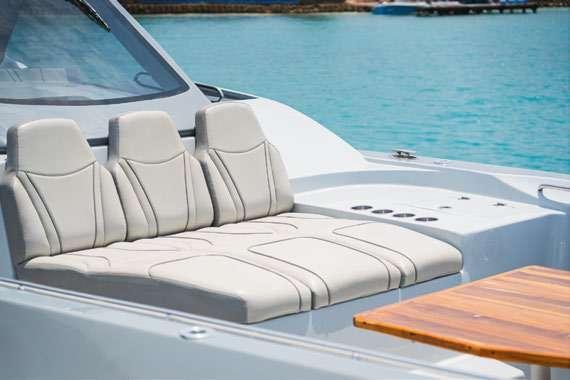

HELM SEATING
• (3) High-performance helm seats
CABIN
• Convertible lounge to berth
• Interior PVC cabinetry with Formica finish
• Granite countertops at cabin entry and portside unit
• Fully equipped head:
• (1) Shower with showerhead and mixer
• (1) Sink faucet
• (1) Fiberglass sink with granite finish
• (1) Electric toilet
• (1) Acrylic mirror
• (1) Holding tank
BOW & STERN LOUNGE AREAS
• (1) Aft L-shaped seating
• (1) Seating behind helm console
• (1) Forward U-shaped seating
• Integrated forward sun pads connected to console
Fresh Water Capacity: 120 gallons
Engines: (3) Mercury 300 HP
Courtesy lighting:
o (2) Lights in head
o (2) Lights in aft seating
o (2) Lights in cabin
o (1) Light in bow seating
o (7) Corridor lights
o (6) Overhead lights
o (1) Red overhead light above helm seat
• (2) House batteries
• (3) Engine batteries
• (1) DC control panel
• (1) Compass

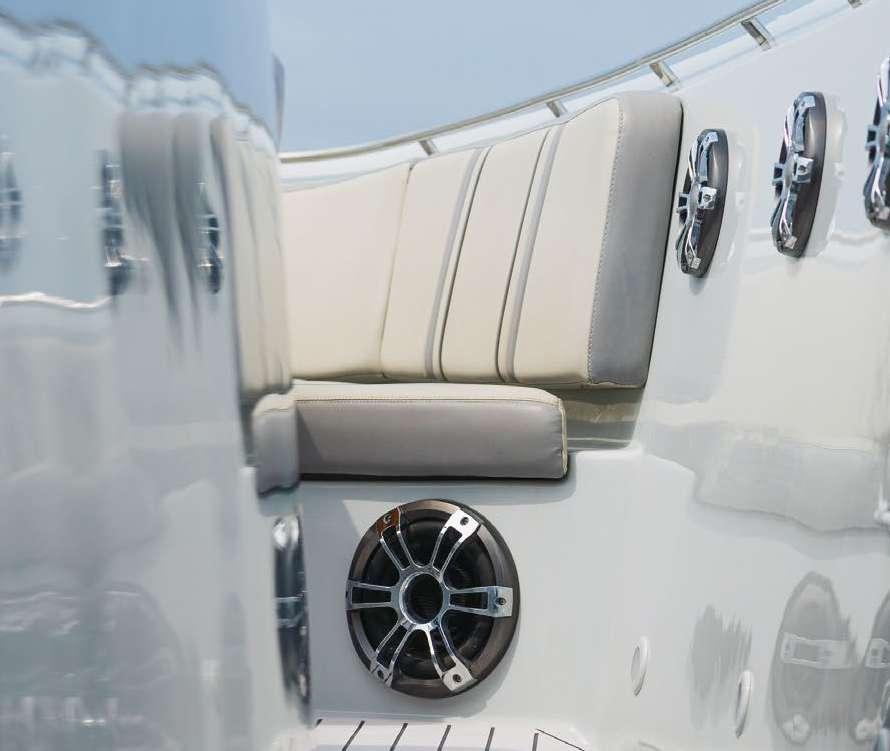

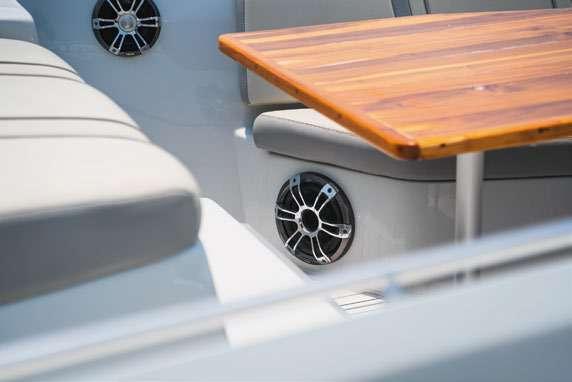

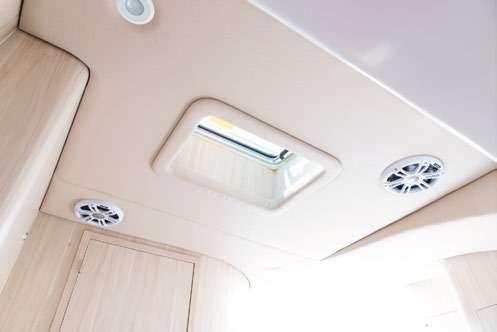

AUDIO SYSTEM
• (1) Apollo AM/FM radio with Bluetooth
• (6) Overhead speakers
• (1) 4-channel amplifier
• (1) USB/AUX input
NAVIGATION SYSTEM
• (1) 12” Raymarine display with charting
• (1) Transducer
COMMUNICATION SYSTEM
• Navigation lights set:
◦ ((1) Masthead light (tower-mounted)
◦ (1) Stern all-round light
◦ (1) Bow navigation lights (red/green)
◦ (1) VHF radio with GPS
◦ (1) VHF antenna
TRIM TAB SYSTEM
• (2) Trim tabs:
• (1) Port
• (1) Starboard
• (1) Indicator switch
FUEL SYSTEM
• Marine-grade aluminum fuel tank
• (3) Engine fuel pickups
• (1) Fuel level sensor
• (3) Fuel filters
• (1) Fuel/air separator
PERFORMANCE
• (3) Mercury 300 engines – 43 knots
• (4) Mercury 300 engines – 47 knots
• (4) Mercury 425 engines – 60 knots
THRUSTER SYSTEM
• (1) 12V thruster
• (1) 18m harness
• (1) Joystick control
• (1) Battery
FRESH WATER SYSTEM
• (1) 4.5 GPM shower pump
• (1) Stern-side shower
• (1) Grey water tank
SISTEMA DE ACHIQUE
•(2) Bombas de achique de 2000 GPH en sentina.
•(1) Sensor de nivel de agua en sentina.
STRUCTURE, RAILS & HARDTOP
• Structural framework
• Fiberglass hardtop with white gelcoat finish
• Stainless steel bow rails
• Stainless steel side entry handrails

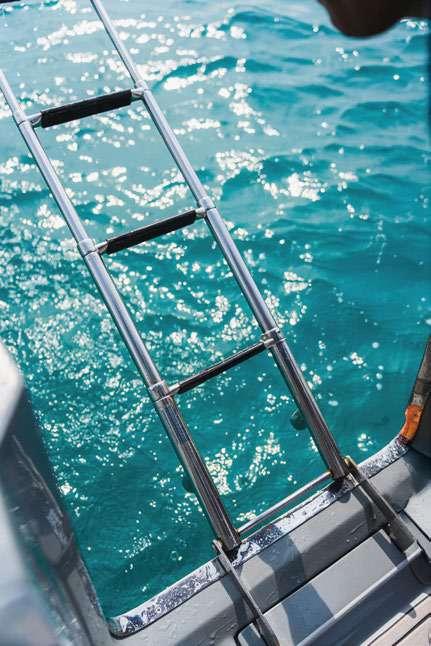

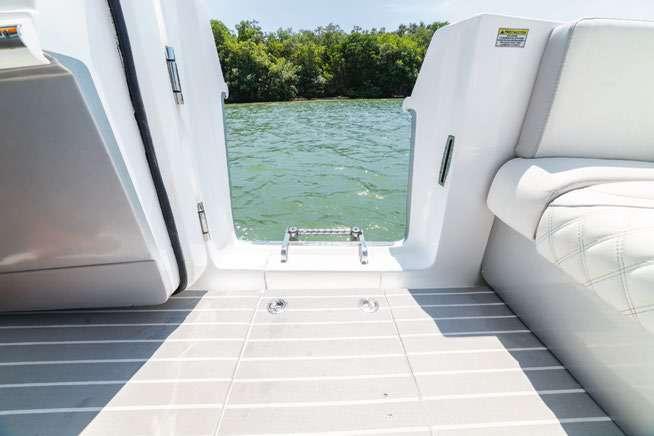

SWIM LADDER
• (1) 4-step telescopic ladder at side door.
COOLERS
• Finish: Gelcoat
• Color: White
• (1) Located portside at sun pad
• (2) Integrated into aft seating
• (1) Portside lateral cooler
STORAGE
• Finish: Gelcoat
• Color: White
• (3) Forward storage compartments
• (2) Aft storage compartments
• (1) In-deck storage
• (1) Aft storage between coolers
HARDWARE
• (10) Cleats:
• (2) 8” forward
• (2) 8” aft
• (2) 6” side cleats
• (4) fender cleats

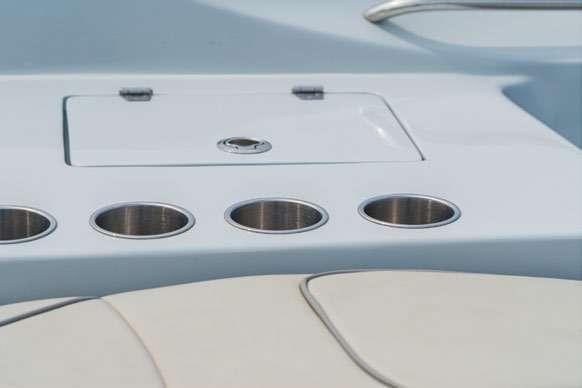

• (20) Stainless steel rod holders
• Stainless steel hinges, handles, and latches
• (3) Tow eyes
• (2) Hawse pipes
• (1) Stainless steel fuel fill
• (1) Stainless steel water fill
• (2) Flush-mounted tank vents (90°)
ACCESSORIES
• 69 meters of rope
• (4) Fenders
• Anchor mooring kit (includes chain, shackle, and anchor)
