Technical specifications
OBS
Læs altid manualen.
ATTENTION
Always read the manual.
BITTE BEACHTEN
Bitte lesen Sie die Bedienungsanleitung
Service DK: +45 97 14 14 40 DE: +49 711 34238732 SE: +46 036 2937502

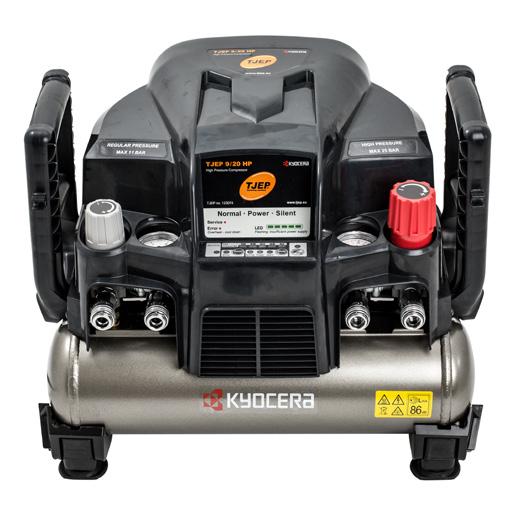

Model TJEP 9/20 HP
Declaration of conformity
Manufacturer: Hitachi Industrial Equipment Systems Co., Ltd.
AKS Bldg., 3, Kanda Neribei-cho, Chiyoda-ku, Tokyo 101-0022, Japan
Herewith declares conformity of the product:
Type: TJEP 9/20 HP
With applicable regulations below
EC Directive: Machinery Directive: 2006/42/EC
EMC Directive: 2014/30/EU
Noise Directive: 2000/14/EC
RoHS Directive: 2011/65/EU
Harmonized European Standards applied:
EN 60335-1 : 2012 +A1, +A2, +A11, +A12, +A13, +A14
EN 1012-1 : 2010
(see TUV Rheinland test report No. 50054363 001)
EN 61000-6-4 : 2007 +A1 : 2011
EN 61000-6-2 : 2005
(see TUV Rheinland test report No. 50059430 001)
EN ISO 3744 : 1995
(see EC conformity certificate No. SNCH*2000/14*2005/88*2993*01)
Authorized representative in EU / TCF holder: Kyocera Unimerco Fastening A/S Drejervej 2, DK-7451 Sunds, Denmark
Division: Hitachi Industrial Equipment Systems Co., Ltd.
Japan 19th February, 2019
Place and Date
General Manager
Name/Signature/Position
Note: This Declaration certifies conformity with the above mentioned Directives, but gives no assurance of proporties within the meaning of the Law concerning product liability. It becomes invalid if any technical or other modifications are carried out without manufacturers consent.
Assembly Drawing and Parts List

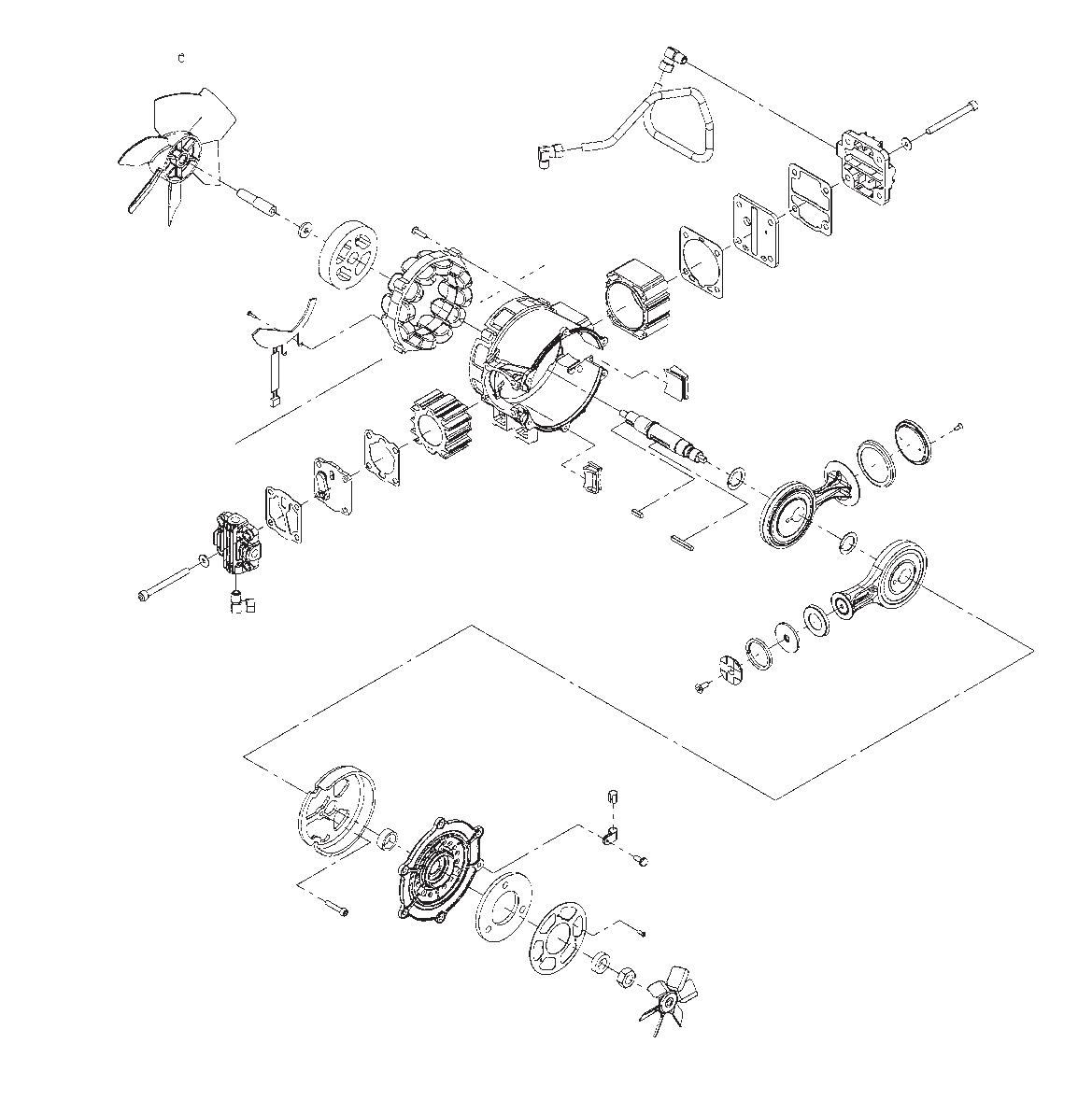

1
Figure
- Assembly Drawing of Compressor Head

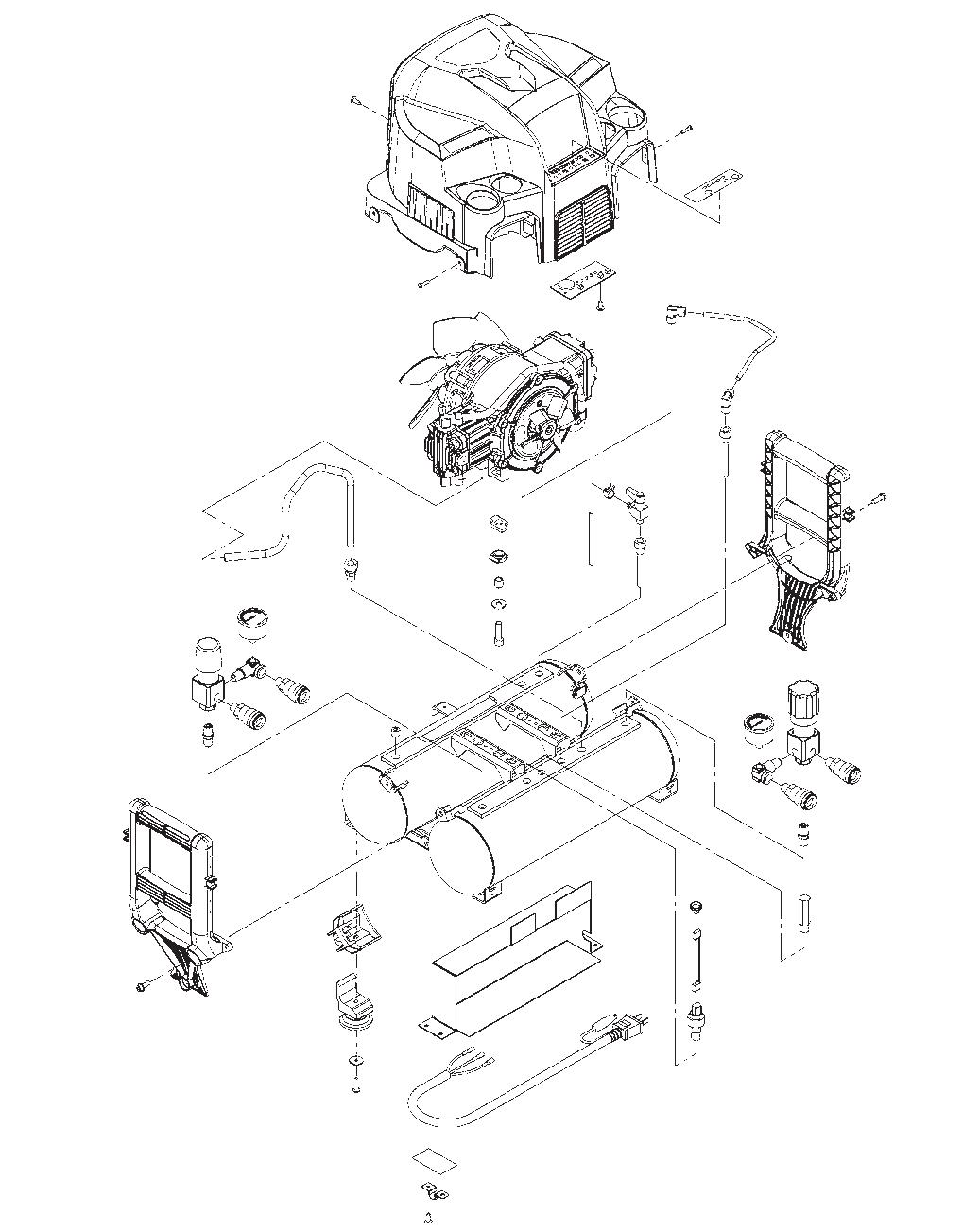

Figure 2 - Assembly Drawing of Product Assy
779910
(Communicating)
(Communicating) Set
760520 Cord
760536 Saddle
755374 Installation Rubber Holder
744159 Installation Rubber
760537 Tapping Screw
760527 Handle
744164 Bolt (with Flange)
760522 Cover Assy
760538 Tapping Screw
760539 Tapping Screw
760518 Switch Terminal Board
743432 Tapping Screw 10
760528 Switch Sheet
744168 Rubber Plate
760544 Rubber Plate
760517 Motor Cord
743779 Valve Knob (H)
743778 Valve Knob (L)
