Cabinet Connectors

Cabinet Connectors

System 1

System 2

System 3

System 4

System 5

System 6

Connectors Information

Why Choose Titus?

Titus connectors add value to furniture and to furniture manufacturing

Titus connectors improve the quality of furniture and lower the cost of manufacturing and assembly while ensuring a high degree of customer satisfaction.

The most advanced range of connectors available on the market

Precise and efficient product design.

The broadest possible range of drilling tolerances ensures reliable assembly and consistently strong joints

'Klix' locking feature, the engagement of interlocking teeth on cam and dowel, to prevent joint loosening in service or transit.

Expanding function provides degrees of variation in out-of-tolerance drillings ensuring stronger joints and improved quality of furniture.

Twinstart thread for faster and more stable insertion.

Depth stop collar prevents over-insertion. Firm tightening for greater confidence in use.

Cam locks at 230° assuring smooth tightening action and greater dowel pull-up.

Quickfit for hand dowel insertion.

Quickfit TL5, new generation steel dowel with quickfit expando technology for insertion in Ø5mm dowel holes.

Quickfit TL2, TL4 with the built-in self adjustment feature for higher drilling tolerances.

Quickloc one piece fitting for faster assembly with integrated expanding cam and dowel.

Zinc+steel dowel for optimal strength and performance.

Precise dowel manufacturing high precision of zinc and strength of steel assures 100% dimensional accuracy.

Easy and quick consumer friendly self-assembly of furniture

Self-assembly furniture offers consumers good value and instant availability of products.

With the aim of providing consumer with simpler instructions, fewer parts and an easier assembly process, Titus has significantly reduced and simplified the number of fittings traditionally required in furniture production.

Titus connectors provide consumers with easy assembly and furniture producers with increased productivity:

· reduced number of assembly parts

· easy assembly instructions

· security of packed parts during transit

Easy and Quick Furniture Assembly

CAF formula

CAF=Consumer Assembly Friendliness

Titus CAF formula provides a comparative measure for customer satisfaction. By using it manufacturers are able to evaluate their products internally or against those of their competitors.

While offering consumers easier and faster assembly, there are obvious advantages also for furniture manufacturers – buying, counting, bagging and stocking of fittings can be greatly reduced.

How does it work?

Comparative CAF scores to assemble a hand held demonstrator

Connecting screw (traditional assembly)

Cam & dowel with single start thread

Cam & dowel with twinstart thread

Cam & TL2 dowel (self-assembly)

Cam & TL2 dowel (factory pre-inserted)

Fully assembled demonstrator

Cabinet Connectors

Consumer Assembly

Friendliness - CAF principle

· Quick assembly with less parts and less assembly steps

· Simple instructions

· Easy and intuitive assembly

High drilling tolerances

· Optimal cabinet joint even in cases of inaccurate drilling

· In-built self adjustment feature ensures perfectly aligned and precise joints

Strong and reliable joints

· High performance joints

· Great cabinet strength even at repeatable assembly or disassembly

· Enhanced resilience even in more demanding applications in tall wardrobes or office furniture

Reliable and comfortable locking

· Smooth and firm tightening at 2 o'clock lock

· Great dowel pull-up for optimal performance

· Strong and reliable joint

Expando function

· Expanding sleeve on dowels assures high resistance to pull-out

· Firm fixing in the dowel hole

Factory pre-insertion

· With Quickfit TL5 and TL2 dowels

· Perfect for RTA market: easier packing and transportation

· The insertion of cams and dowels can be automated using Lama FastFit machine

System 1 Fittings for Rigid Assembly Systems

System Features

Zinc diecast for precision

Titus Double locking carcase screw makes an almost invisible connection Collar under the head to pull panels together

2nd ‘lower’ thread pulls against a ‘faster’ thread to provide maximum connection force and prevents overdriving of fastener Almost invisible in position Head can be ‘fastcapped’ or filled

System 1 Fittings for Rigid Assembly Systems

Double Locking Carcase Screw

High performance from widely spaced primary thread

Finer secondary thread provides additional holding power and positive stop (no stripping)

Increased support for vertical panel is gained from the funnel head with collar at its base

One-piece fitting

System 1 Fittings for Rigid Assembly Systems

Hi-Lo™ Screw and Barrel Nut

Hi-Lo™ screws have a twin thread for faster insertion ‘Hi’ threads and ‘Lo’ threads combine to give excellent pull out in chipboard

Funnel head design means no countersinking Steel is case hardened for extra strength

10000 Pcs (00062)

9000 Pcs (00068)

5000 Pcs (06074)

7000 Pcs (00071)

4000 Pcs (00077)

3000 Pcs (00172, 06077, 06080)

> pozi, philips

System 2 Fittings for Face-boring Applications

Range of fixing blocks for multiple applications

Face drilling only required

Durable plastic material is flexible providing greater holding power

Choose screw fastening or hammer insertion

02077 >

System 3 Fittings for Face and Edge Boring

System Features

Titus System 3 is a two component rigid face and edge drilled fastening with half turn to fasten. System 3 offers almost full concealment and wide tolerances in use.

Automatic or in-factory placement

Pre-location pin ensures ease of assembly

Less than one turn of a screwdriver to fasten

Shelf edge installation of pin means maximum shelf cut size tolerance

Can be used on 12mm shelf panels

No loose parts for maximum convenience in RTA

Drawer front fixing, cabinet construction

System 3

Fittings for Face and Edge Boring

Concealed Housing

· One turn locking system reduces assembly time, both in the factory and home

· Pre-assembly feature for consumer convenience

· Choice of dowels to suit drilling

· Hi-Lo screw feature for faster insertion

X, Y - depends on board thickness

X, Y - depends on board thickness

X, Y - depends on board thickness

System 4 Fittings for Face-boring Only

System Features

Cost effective one piece fittings with face boring benefits

One-piece connector

The integrated housing and dowel make Quickloc™ the most user-friendly and tolerant product available.

Flush and block components

Face-boring only

Good tolerances

One piece connectors

· Angledriv versions fastening with maximum driving power and flexibility

Quickloc™ versions need only one turn to tighten for fast assembly

Foolproof consumer home insertion

· High degree of drilling tolerance

Push-in design

Tool-free insertion

Integrated expanding housing and dowel provide consistently stronger joints

· ‘Klix’ locking system

Assembly

System 4 Quickloc™

One Piece Expanding

Connector

An innovative, one-piece connector, capable of hand insertion

Highly tolerant and tightens in less than one turn Face-bored product

Offers a high degree of drilling tolerance and is the only connector of its type to provide pull-up of cabinet panels when tightened

System 4

Flushbloc™ / Flushfix™

The Angeldriv screw provides high level of tolerance

Face drilling only required

Corner joint and shelf fixing options

System 4

Fittings for Face-boring Only

Minibloc™ / Twinbloc™

One-piece connector range

Face drilling only required

Easy to use, foolproof home insertion

Angeldriv screw tolerates good levels of inaccurate drilling increasing consumer confidence

System 5 Cams and Dowels

System Features

The most advanced cam and dowel range

Titus System 5 is a comprehensive range of cam and dowel connecting fittings with 'Klix' and Quickfit features for all cabinet applications: panel-to-panel, panel-to-hollow profile, back-to-back

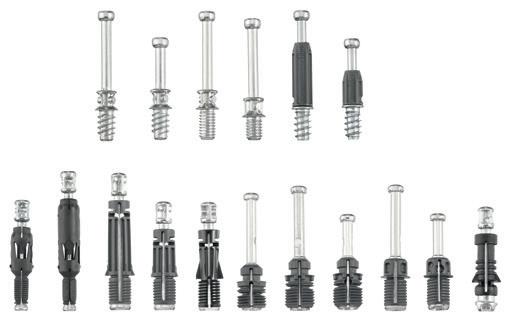

Dowels

• Quickfit TL5, 'Full metal jacket' a high performance Quickfit dowel for use in multiple wooden materials

• Quickfit TL2, TL4, TL5 dowels a unique solution for factory pre-insertion, high level of drilling tolerances

• Quickfit dowels quick hand insertion, easy assembly

• Diecast dowels (zinc) precise manufacturing, optimal shape and design

• Turned dowels (steel) ‘traditional’ design, smooth surface, best strength performance

• Combi dowels (zinc and steel) high precision of zinc, strength of steel, 100% dimensional accuracy and optimal performance

Dowel insertion time comparison

Titus 'Klix' locking system ensures the engagement of the interlocking teeth on cam and dowel providing:

· vibration-proof joint

· rigid construction that will not loosen in service or transit

2 o'clock lock

Smooth closing

Linear cam profile assures smooth, firm tightening action and greater pull-up. The cam always locks at 2 o'clock lock (230°), enabling greater consumer confidence in use while improving furniture quality.

Drilling tolerances

Zinc/Combi dowel

Optimal performance and perfect joint even with inaccurate drillings.

Tolerance range

Quickfit TL5 dowel, Quickfit TL2 dowel

Tolerance range

Quickfit TL4 dowel

Tolerance range

ETHC=Edge To Hole Center

Optimal performance and perfect joint even with inaccurate drillings.

Quickfit dowels for factory insertion

Quickfit TL5, Quickfit TL4, and Quickfit TL2 are the only dowel solutions designed for factory pre-insertion

· Optimised packaging processes

· Reduced risk of quality issues and claims

· Ideal for the RTA market

System 5 Cams and Dowels

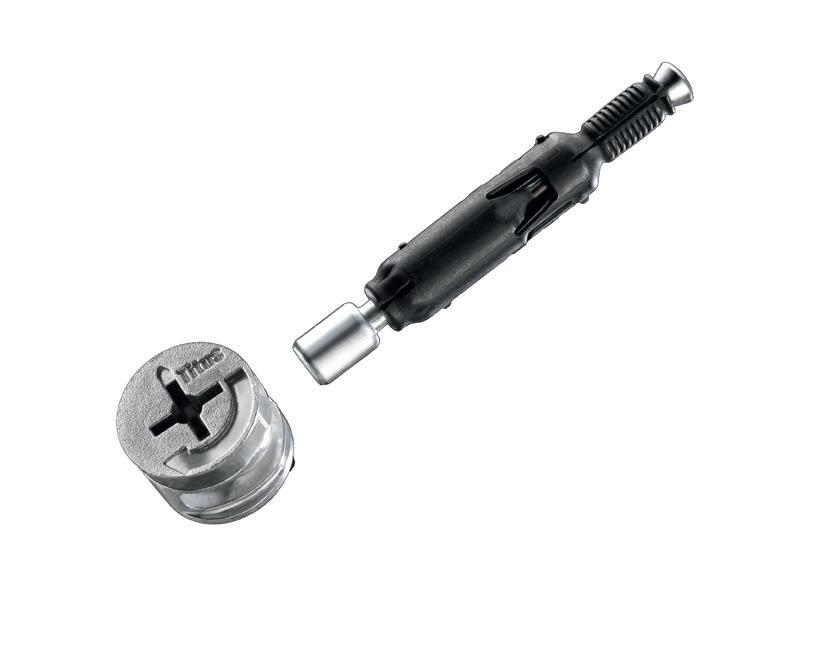

Cam5000

Highly resistant joint for strong cabinet construction

Reinforced cam evenly engages the hole and prevents cam tilting and cam bursting.

Increased joint resistance enables effective performance in wider tolerance range.

Linear cam profile

Linear cam profile ensures:

· Smooth tightening action

· Greater dowel pull-up

Cam retaining pips

Cam retaining pips ensures:

· The cam is held in position prior to assembly

· Secure cam positioning during transport and handling

· Accurate factory insertion

2 o'clock lock

Smooth and noticeable locking at the 2 o'clock position guarantees:

· always-right tightening for home assembly

· strong and rigid cabinet construction

Optimal performance with all Titus dowels

System 5 Cams and Dowels

Quickfit Connectors

It is the fastest assembly system on the market. The Quickfit™ dowel may be inserted by hand, using only finger pressure. This eliminates the labour intensive process of screw-in assembly and the potential panel damage.

The Quickfit™ range of dowels has been extended to provide a complete family of fittings available in diameters of 5mm, 8mm, 10mm and lenghts of 24mm and 34mm. These dowels are compatible with the range of Titus Ø15mm cams.

Assembly

1. Press the cam into face board

2. Insert the dowel into side panel

3. Assemble the panels

4. Tighten the cam to lock dowel

5. Assembled panels

Quickfit TL Connectors

Quickfit-TL™ dowel offers furniture manufacturers a fast assembly system providing high drilling tolerances. It has a built-in self-adjustment feature, which enables common drilling inaccuracies to be overcome.

Drilling tolerances

Marginal inconsistencies of drilling and the problems associated with the natural movement of wood panels, no longer present problems.

For the self-assembly furniture consumer, Titus Quickfit-TL™ is the most consumer friendly fitting on the market. Apart from the benefit of fully tightened joints and easy locking into the same position, Quickfit-TL™ provides an exceptionally smooth action when tightened, requiring very little effort.

1. Press the cam into face board

Quickfit-TL™ provides a tolerance of +1/-1mm on drilling operation while ensuring that the final result is a perfectly precise and aligned joint. No other assembly fittings system can offer such tolerances and still maintain a perfect joint.

Assembly

2a. Either push dowel into edge hole or...

2b. Insert the dowel into side panel

3. Assemble the panels

4. Tighten cam to lock dowel

System 5 Cams and Dowels

Quickfit TL5 'Full Metal

Jacket'

Effective performance in multiple wooden materials

Smooth and noticeable locking at the 2 o'clock position position guarantees:

· tight joints

· always-right tightening at home assembly

· strong and rigid cabinet construction

Strong and reliable joint

Expanding steel sleeve assures high resistance to torsion and pull-out.

High drilling tolerances

An extended dowel head design works as a positive stop against the cam and provides an ETHC tolerance of min. +/-1mm

Fully tightened joint assured even at marginal inconsistencies of drilling and problems associated with the natural movement of wood panels.

Tolerance range

ETHC-Edge To Hole Center

of dowel sleeve

· Acts as a positive stop when face inserted · Ensures correct insertion depth

Tool-free insertion for Ø5mm dowel holes

Quickfit TL5 reliably engages the 5mm dowel hole. It enables the usage of tool-less Quickfit dowel insertion technology across a wide range of applications.

50% less time to assemble the cabinet at home

When edge inserted the dowel engages the cam and remains securely positioned until the boards are locked together.

For maximum efficiency the insertion process can be automated using the Titus proprietary Lama FastFit machine.

Fast and easy cabinet assembly at home.

System 5 Cams and Dowels

Zinc+steel Combi Dowels

Zinc+steel technology for optimal strength and performance

The Combi dowel combines steel and a small amount of zinc to ensure high precision and dimensional accuracy, essential to provide furniture manufacturers with the broadest possible range of drilling tolerances.

toroidal head form

zinc body

twinstart thread

The steel neck and head provide better resistance to torsion and pull-out enabling a high performance joint

steel neck and head positive stop collar

Zinc body:

Positive stop collar ensures correct insertion depth

Twinstart for faster and more stable insertion

The toroidal dowel head form transfers the forces between cam and dowel more effectively resulting in a small cam bursting force.

100% dimensional accuracy assured

System 5 Cams and Dowels

Quickfit TL5 'Full Metal Jacket'

Drilling tolerances of +1/-1mm when edge inserted

Expanding steel sleeve assures a strong joint, highly resistant to pull-out

Tool-free insertion technology for Ø5mm holes in multiple wooden materials (chipboard, MDF, solid wood) For use with Cam5000

System 5

Cams and Dowels

Quickfit TL Dowels

Available in Ø5mm and Ø8mm for panel-to-panel applications

Suitable for use with all Ø15mm Cam3000 S and Cam5000 products

‘Klix’ locking feature provides a strong, vibration proof joint

Quickfit dowel Ø10mm stran 1.30

Highly tolerant in edge-inserted, TL4 also in face-inserted applications

Quickfit TL4 stran 1.29

Quickfit TL2 stran 1.29

D2=Ø5mm

Quickfit dowel Ø10mm stran 1.30

Quickfit dowel Ø8mm stran 1.30

Quickfit dowel Ø10mm stran 1.30

Quickfit TL4 stran 1.29

Quickfit TL2 stran 1.29

Quickfit dowel Ø10mm stran 1.30

Quickfit dowel Ø8mm stran 1.30

System 5 Cams and Dowels

Quickfit Dowels

Available in Ø8mm and Ø10mm

Suitable for use with all Ø15mm Cam3000 and Cam5000

‘Klix’ locking feature provides a strong, vibration proof joint

Depth stop collar for accurate insertion

System 5 Cams and Dowels

Quickfit P2F Dowels

Made of zinc, plastic

The only product to enable standard panel drilling and connection of panel and hollow profile

· Available in Ø8mm for panel-to-hollow metal profile applications

For use with all Cam3000 S and Cam5000 products ‘Klix’ locking feature provides a strong, vibration proof joint

System 5

Cams and Dowels

Combi Dowel

High quality zinc-steel dowel with greater resistance to torsion and pull-out

Suitable for use with all Ø12mm and Ø15mm Cam2000, Cam3000 and Cam5000 products · ‘Klix’ locking feature provides a strong, vibration proof joint Twinstart thread for faster and reliable insertion

System 5 Cams and Dowels Double-ended Dowel

Available in Ø7mm

Suitable for use with all Ø12mm and Ø15mm Cam2000, Cam3000 and Cam5000 products

No circlip for increased tolerance

Available in a variety of lengths to suit most panel-to-panel applications

Technical and mounting details

without circlip Made of steel

2000 Pcs (05929)

1000 Pcs (05757)

500 Pcs (05778)

250 Pcs (05753)

*B=0 > no panel required

System 5 Cams and Dowels

Cam5000 Ø15mm

Improved central shape for highly resistant joint Suitable for use with all Titus dowels

‘Klix’ locking feature provides a strong, vibration proof joint · Cam retaining pips ensure that a cam is held in panel position prior to assembly

Use

System 5

and Dowels

Ø15mm

Its optimised shape provides a more efficient cam profile with smooth tightening action and greater dowel pull-up

Suitable for use with Combi dowels, forged steel dowels, Quickfit dowels and Quickfit TL dowels

‘Klix’ locking feature provides a strong, vibration proof joint

· Cam-retaining pips ensure that a cam is held in panel position prior to assembly

System 5 Cover Caps

Available in a variety of colors

· Suitable for use with both pozi and hex cam drive features

Suitable for use with various diameter cams

Both domed and flat versions available

Technical and mounting details

Other colors on request

Works with PZ2 drive caps: 05644, 09533, 09495, 09690, 09695

Other colors on request

Works with HEX drive cams: 05654, 05656, 09692, 09536, 09537

System 6 Information

System Features

Applications

A face boring connector family for 32mm system drilling with full range of panel and application variants for all cabinet manufacturing applications.

· Minimum drilling requirements Linear cam design for constant tightening loads when driving Angledriv feature on cam for maximum driving comfort Interchangeable pins for wood, plastic and steel applications

Pins with twinstart drive for fast insertion Interchangeable Quickfit pin fastenings available

· Tool-less fastening capable versions

· Back-to-back fastenings for common vertical panel fixing of shelves

Titus System 6 is ideal for use in high volume production of case goods, closet and garage storage systems. Because no

System 6 consists of a range of 20mm diameter housing, Quickfit™ and conventional dowels, end dowels and double ended dowels.

Housings are made from high grade plastic or zinc, with zinc cams.

Wedgefix-6 connector is a special fastener without cam, simply to snap onto a pre-inserted dowel.

Side-entry Drop-on

Side-entry insertion of shelf panel: from the side or from the top

edge boring is required, it is an excellent choice for manufacturing environments with limited drilling capacity. Drop-on insertion of shelf panel: only from the top

Using drop-on connections allows for one-man installation

Angledriv feature

The angledriv feature on the cam allows for the angled position of the screwdriver with the locking action creating a tight and secure joint.

System Features

Outrigger/ Non outrigger

Expando function

Expanding housings and dowels provide a tight joint.

System 6

Expanding Dowels

Available in Ø5mm for panel-to-panel, panel-to-hollow profile and back-to-back applications

· Suitable for applications with all Titus Ø20 and Sys 6 housings

‘Klix’ locking feature provides a strong, vibration proof connection

Depth stop collar for accurate insertion

06408 > 880 5

Ø5mm

x 12.5

x 12.5

x 12.5

x 12.5

Pcs

Dowel Ø5 x 7.5 back-to-back applications

Made of zinc, plastic

of zinc, plastic

x 7.5 Ø10 x 12.5

x 7.5 Ø10 x 12.5

06479 > 880

System 6

Available in Ø5mm thread forms for screw-in, knock-in and/or ‘spiked’ hole applications

· Suitable for applications with all Titus Ø20mm and Sys 6 housings

‘Klix’ locking feature provides a strong, vibration proof connection

Dowels feature an integral skirt which acts as a positive stop during insertion

System 6

Double-ended Dowels

End Dowels

For 16mm, 18mm and 19mm board

Suitable for applications with all Titus Ø20mm and Sys 6 housings

‘Klix’ locking feature provides a strong, vibration proof connection

Double-ended dowel

Double-ended dowel

System 6

Available in 15mm/16mm and 18mm/19mm versions for drop-on and/or side-entry applications

Available in all-metal or plastic/metal options

‘Klix’ locking feature provides a strong vibration proof connection

Compatible with all Sys 6 screw-in and Quickfit dowels

System 6

20mm Knock-in Housing Outrigger

Available in 15mm/16mm and 18mm/19mm versions for drop-on and/or side-entry applications

Available in all-metal or plastic/metal options ‘Klix’ locking feature provides a strong vibration proof connection Compatible with all Sys 6 screw-in and Quickfit dowels

System 6 Wedgefix Housing (no Inner Cam)

Available in 12mm, 15mm/16mm and/or 18mm/19mm versions for Quickfit-6 and/or Standard Dowel applications

Available in a variety of plastic colors

Wedgefix-6 housing allows easy customer hand-assembly or factory automated insertion

When used with Quickfit-6 dowels this provides a true tool-less fastening system

System 6

Flush 20mm Knock-in Housing

Non-outrigger

A face-boring connector with the flush housing permits easy flat-pack transportation without panel damage

Available for 19mm board thickness for drop-on and/or side-entry applications

‘Klix’ locking feature provides a strong vibration proof connection

Compatible with all Sys6 screw-in and Quickfit dowels

Housing made of plastic, cam made of zinc

Pcs

Drill bit for Flush 20mm Knock-in housing

Housing made of plastic, cam made of zinc

20mm Knock-in Housing

Available in 15mm/16mm and 18mm/19mm versions for drop-on and/or side-entry applications

Available in plastic-metal options

‘Klix’ locking feature provides a strong vibration proof connection

Compatible with all Sys screw-in and Quickfit dowels

System 7

High Strength Connectors Contract Fix™ System

High performance fastener

Thread design gives repeatability

Multi-drive recess

Higher than average pull up

Cabinet Accessories

Adjustable Cabinet

Toe-kick clip

Adjustable legs

Wide adjustment range to fit all toe-kick heights

Vertical adjustment

Simple push on attachment to sockets

Weight/load capacity = 800 Ibs/leg

Toe-kick clip

Spring design eliminates the need for drilling and fits into any position on plinth

The screw in version can sit in variable plinth positions

Toe-kick is reversible for corner applications

002593.835.550

002666.835 (4 pcs)

002558.835 (4 pcs)

002523.835 (2 pcs)

25 Sets

002609.835.550

002666.835 (4 pcs)

002559.835 (4 pcs)

002523.835 (2 pcs)

25 Sets

Adjustable Cabinet Legs

Base Sockets

Shelf Supports Drawer Front Adjuster

Shelf supports

Retainer feature traps the shelf in place for security Folding design allows the shelf to be post mounted in an assembled cabinet

Suits a wide range of shelf thicknesses

· Pad for metal shelf support when using glass

Drawer Front Adjuster

Multi-direction adjustment +/-2mm Locking screw to fasten M4 x TBD

Note: M4 screw

Shelf Q-Peg

Structural cabinet stabilty through shelf-to-panel connection

Minimalistic appearance

Backfix Connector

Push-in design for quick installation

Structural stability assured with Quarter turn lock

Suitable for hardboard, chipboard, and MDF back panels

· For factory and home assembly
