Page 1


Titus Group

Technical Catalogue and Manual

Furniture Fittings Systems

Technical information

Our catalogue strives for information accuracy, but as our products are continually updated, we recommend verifying the latest specifications before placing an order. We retain the right to make unannounced changes due to ongoing product improvements.

User responsibility

Users are responsible for ensuring that our hardware suits their intended purpose. We suggest conducting appropriate tests and reaching out to our technical representatives for assessment.

Intellectual property

Titus Group possesses global intellectual property rights, including trademarks, patents, copyrights, designs, illustrations, drawings, and the proprietary knowledge embedded in our products’ design and production. We also respect competitors’ rights and other relevant product design rights. Our products are not known to infringe upon any intellectual property rights, but we take infringements seriously and will vigorously defend our rights within the bounds of the law.

Non-preferred articles

Items marked with * in the catalogue are non-preferred and may have extended delivery times.

Trademarks

Titus and Titusonic are registered trademarks of Titus International Ltd. Lama is a registered trademark of Titus d.o.o. Dekani. WoodWelding is a registered trademark of WW SA.

Cabinet Connectors

Cabinet Connectors

System 1

System 2

System 3

System 4

System 5

System 6

System 6.2

Connectors Information

Why Choose Titus?

Titus connectors add value to furniture and to furniture manufacturing

Titus connectors improve the quality of furniture and lower the cost of manufacturing and assembly while ensuring a high degree of customer satisfaction.

The most advanced range of connectors available on the market

Precise and efficient product design.

The broadest possible range of drilling tolerances ensures reliable assembly and consistently strong joints

'Klix' locking feature, the engagement of interlocking teeth on cam and dowel, to prevent joint loosening in service or transit.

Expanding function provides degrees of variation in out-of-tolerance drillings ensuring stronger joints and improved quality of furniture.

Twinstart thread for faster and more stable insertion.

Depth stop collar prevents over-insertion. Firm tightening for greater confidence in use.

Cam locks at 230° assuring smooth tightening action and greater dowel pull-up.

Quickfit for hand dowel insertion.

Quickfit TL5, new generation steel dowel with quickfit expando technology for insertion in Ø5mm dowel holes.

Quickfit TL2, TL4 with the built-in self adjustment feature for higher drilling tolerances.

Quickloc one piece fitting for faster assembly with integrated expanding cam and dowel.

Zinc+steel dowel for optimal strength and performance.

Precise dowel manufacturing high precision of zinc and strength of steel assures 100% dimensional accuracy.

Easy and quick consumer friendly self-assembly of furniture

Self-assembly furniture offers consumers good value and instant availability of products.

With the aim of providing consumer with simpler instructions, fewer parts and an easier assembly process, Titus has significantly reduced and simplified the number of fittings traditionally required in furniture production.

Titus connectors provide consumers with easy assembly and furniture producers with increased productivity:

· reduced number of assembly parts

· easy assembly instructions

· security of packed parts during transit

Easy and Quick Furniture Assembly

CAF formula

CAF=Consumer Assembly Friendliness

Titus CAF formula provides a comparative measure for customer satisfaction. By using it manufacturers are able to evaluate their products internally or against those of their competitors.

While offering consumers easier and faster assembly, there are obvious advantages also for furniture manufacturers – buying, counting, bagging and stocking of fittings can be greatly reduced.

How does it work?

Comparative CAF scores to assemble a hand held demonstrator

Connecting screw (traditional assembly)

Cam & dowel with single start thread

Cam & dowel with twinstart thread

Cam & TL2 dowel (self-assembly)

Cam & TL2 dowel (factory pre-inserted)

Fully assembled demonstrator

Cabinet Connectors

Consumer Assembly

Friendliness - CAF principle

· Quick assembly with less parts and less assembly steps

· Simple instructions

· Easy and intuitive assembly

High drilling tolerances

· Optimal cabinet joint even in cases of inaccurate drilling

· In-built self adjustment feature ensures perfectly aligned and precise joints

Strong and reliable joints

· High performance joints

· Great cabinet strength even at repeatable assembly or disassembly

· Enhanced resilience even in more demanding applications in tall wardrobes or office furniture

Reliable and comfortable locking

· Smooth and firm tightening at 2 o'clock lock

· Great dowel pull-up for optimal performance

· Strong and reliable joint

Expando function

· Expanding sleeve on dowels assures high resistance to pull-out

· Firm fixing in the dowel hole

Factory pre-insertion

· With Quickfit TL5 and TL2 dowels

· Perfect for RTA market: easier packing and transportation

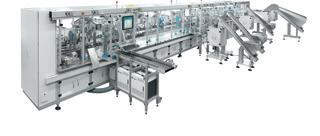

· The insertion of cams and dowels can be automated using Lama FastFit machine

System 1 Fittings for Rigid Assembly Systems

Double locking carcase screw System Features

Zinc diecast for precision

Titus Double locking carcase screw makes an almost invisible connection Collar under the head to pull panels together

2nd ‘lower’ thread pulls against a ‘faster’ thread to provide maximum connection force and prevents overdriving of fastener Almost invisible in position Head can be ‘fastcapped’ or filled

System 1 Fittings for Rigid Assembly Systems

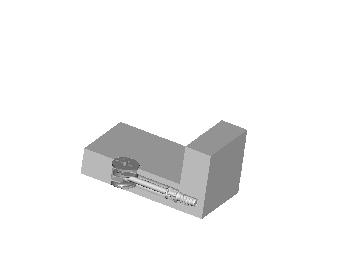

Double Locking Carcase Screw

High performance from widely spaced primary thread

Finer secondary thread provides additional holding power and positive stop (no override)

Increased support for vertical panel is gained from the funnel head with collar at its base

One-piece fitting

Insert screw to shoulder in face board
Screw into Ø5mm hole

System 2 Fittings for Face-boring Applications

System Features

A family of face boring only fasteners with wide tolerances and the high clamping force of an angled screw.

Factory or site component installation

Wide tolerances

Face boring only

For kitchen, furniture storage, office and store fixture applications

Non twist rail fastener versions

Screw fastening or hammer insertion

System 2 Fittings for Face-boring Applications

Range of fixing blocks for multiple applications

· Face drilling only required

· Durable plastic material is flexible providing greater holding power

Choose screw fastening or hammer insertion

System 3 Fittings for Face and Edge Boring

System Features

Titus System 3 is a two component rigid face and edge drilled fastening with half turn to fasten. System 3 offers almost full concealment and wide tolerances in use.

Automatic or in-factory placement

Pre-location pin ensures ease of assembly

Less than one turn of a screwdriver to fasten

Shelf edge installation of pin means maximum shelf cut size tolerance

Can be used on 12mm shelf panels

No loose parts for maximum convenience in RTA

Drawer front fixing, cabinet construction

System 3

Fittings for Face and Edge Boring

Concealed Housing

· One turn locking system reduces assembly time, both in the factory and home

· Pre-assembly feature for consumer convenience

· Choice of dowels to suit drilling

· Hi-Lo screw feature for faster insertion X, Y - depends on board thickness X, Y - depends on board thickness

C D D2

System 4 Fittings for Face-boring Only

System Features

Cost effective one piece fittings with face boring benefits

One-piece connector

The integrated housing and dowel make Quickloc™ the most user-friendly and tolerant product available.

Flush and block components

Face-boring only

Good tolerances

One piece connectors

· Angledrive versions fastening with maximum driving power and flexibility

Quickloc™ versions need only one turn to tighten for fast assembly

Foolproof consumer home insertion

· High degree of drilling tolerance

Push-in design

Tool-free insertion

Integrated expanding housing and dowel provide consistently stronger joints

· ‘Klix’ locking system

Assembly

1. Press Quickloc into the face board
3. Tighten in less than one turn
2. Assemble the panels
Quickloc™
Quickloc™

System 4 Quickloc™

One Piece Expanding

Connector

An innovative, one-piece connector, capable of hand insertion

Highly tolerant and tightens in less than one turn Face-bored product

Offers a high degree of drilling tolerance and is the only connector of its type to provide pull-up of cabinet panels when tightened

System 4 Fittings for Face-boring Only

Flushbloc™ / Flushfix™

The Angledrive screw provides high level of tolerance

Face drilling only required

Corner joint and shelf fixing options

System 4 Fittings for Face-boring Only

Minibloc™ / Twinbloc™

One-piece connector range

Face drilling only required

Easy to use, foolproof home insertion

Angledrive screw tolerates good levels of inaccurate drilling increasing consumer confidence

System 4 Fittings for Face-boring Only Cambloc

Screw-on and knock-in versions are available

Plastic housings are available in different colours

Quick and intuitive assembly when fittings are pre-mounted on furniture

System 5 Cams and Dowels

System Features

The most advanced cam and dowel range

Titus System 5 is a comprehensive range of cam and dowel connecting fittings with 'Klix' and Quickfit features for all cabinet applications: panel-to-panel, panel-to-hollow profile, back-to-back

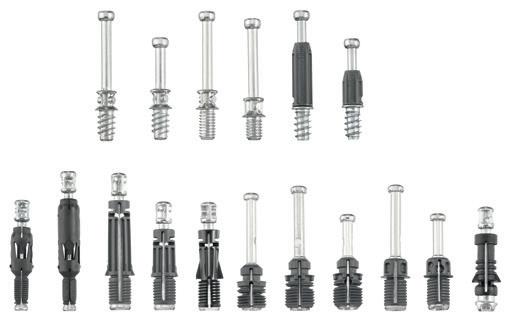

Dowels

• Quickfit TL5, 'Full metal jacket' a high performance Quickfit dowel for use in multiple wooden materials

• Quickfit TL2, TL4, TL5 dowels a unique solution for factory pre-insertion, high level of drilling tolerances

• Quickfit dowels quick hand insertion, easy assembly

• Diecast dowels (zinc) precise manufacturing, optimal shape and design

• Turned dowels (steel) ‘traditional’ design, smooth surface, best strength performance

• Combi dowels (zinc and steel) high precision of zinc, strength of steel, 100% dimensional accuracy and optimal performance

Dowel insertion time comparison

Titus 'Klix' locking system ensures the engagement of the interlocking teeth on cam and dowel providing:

· vibration-proof joint

· rigid construction that will not loosen in service or transit

2 o'clock lock

Smooth closing

Linear cam profile assures smooth, firm tightening action and greater pull-up. The cam always locks at 2 o'clock lock (230°), enabling greater consumer confidence in use while improving furniture quality.

Titus 'Klix'™

Drilling tolerances

Zinc/Combi dowel

Quickfit TL5 dowel, Quickfit TL2 dowel

Optimal performance and perfect joint even with inaccurate drillings.

Quickfit dowels for factory insertion

Quickfit TL5, Quickfit TL4, and Quickfit TL2 are the only dowel solutions designed for factory pre-insertion

· Optimised packaging processes

· Reduced risk of quality issues and claims

· Ideal for the RTA market

System 5 Cams and Dowels

Cam5000

Highly resistant joint for strong cabinet construction

Reinforced cam evenly engages the hole and prevents cam tilting and cam bursting.

Increased joint resistance enables effective performance in wider tolerance range.

Linear cam profile

Linear cam profile ensures:

· Smooth tightening action

· Greater dowel pull-up

Cam retaining pips

Cam retaining pips ensures:

· The cam is held in position prior to assembly

· Secure cam positioning during transport and handling

· Accurate factory insertion

2 o'clock lock

Smooth and noticeable locking at the 2 o'clock position guarantees:

· always-right tightening for home assembly

· strong and rigid cabinet construction

Optimal performance with all Titus dowels

Quickfit TL, Quickfit, Combi, end, double ended, angled and other screw-in dowels
Optimised cam profile
Optimised cam profile ensures smooth and tight joint with no gap between panels.

System 5 Cams and Dowels

Quickfit Connectors

It is the fastest assembly system on the market. The Quickfit™ dowel may be inserted by hand, using only finger pressure. This eliminates the labour intensive process of screw-in assembly and the potential panel damage.

The Quickfit™ range of dowels has been extended to provide a complete family of fittings available in diameters of 5mm, 8mm, 10mm and lenghts of 24mm and 34mm. These dowels are compatible with the range of Titus Ø15mm cams. Assembly

1. Press the cam into face board

2. Insert the dowel into side panel

3. Assemble the panels

4. Tighten the cam to lock dowel

5. Assembled panels

Quickfit TL Connectors

Quickfit-TL™ dowel offers furniture manufacturers a fast assembly system providing high drilling tolerances. It has a built-in self-adjustment feature, which enables common drilling inaccuracies to be overcome.

Drilling tolerances

Marginal inconsistencies of drilling and the problems associated with the natural movement of wood panels, no longer present problems.

For the self-assembly furniture consumer, Titus Quickfit-TL™ is the most consumer friendly fitting on the market. Apart from the benefit of fully tightened joints and easy locking into the same position, Quickfit-TL™ provides an exceptionally smooth action when tightened, requiring very little effort.

1. Press the cam into face board

Quickfit-TL™ provides a tolerance of +1/-1mm on drilling operation while ensuring that the final result is a perfectly precise and aligned joint. No other assembly fittings system can offer such tolerances and still maintain a perfect joint.

Assembly

2a. Either push dowel into edge hole or...

2b. Insert the dowel into side panel

3. Assemble the panels

4. Tighten cam to lock dowel

System 5 Cams and Dowels

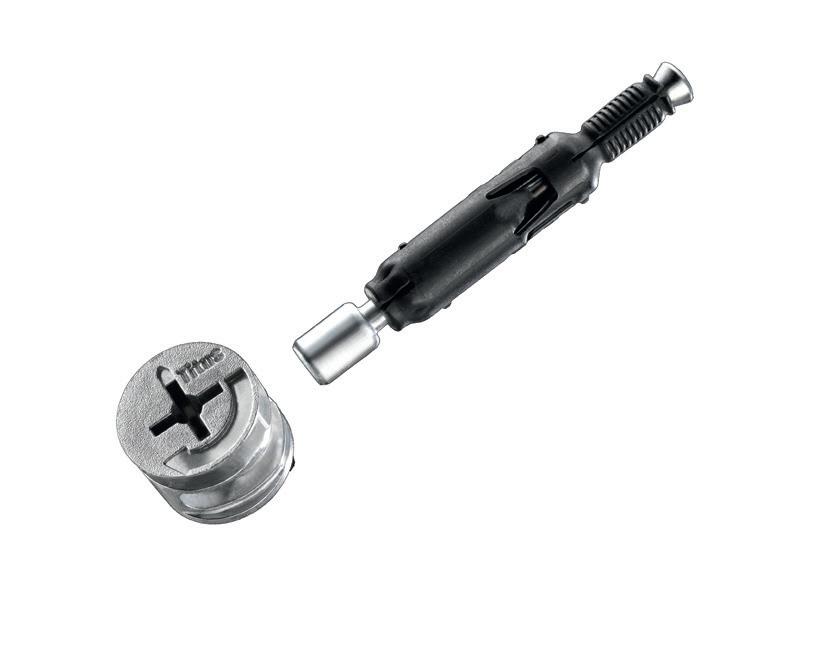

Quickfit TL5 'Full Metal Jacket'

Effective performance in multiple wooden materials

Smooth and noticeable locking at the 2 o'clock position position guarantees:

· tight joints

· always-right tightening at home assembly

· strong and rigid cabinet construction

Strong and reliable joint

Expanding steel sleeve assures high resistance to torsion and pull-out.

High drilling tolerances

An extended dowel head design works as a positive stop against the cam and provides an ETHC tolerance of min. +/-1mm

Fully tightened joint assured even at marginal inconsistencies of drilling and problems associated with the natural movement of wood panels.

Tolerance range ETHC-Edge To Hole Center

of dowel sleeve

· Acts as a positive stop when face inserted · Ensures correct insertion depth

Tool-free insertion for Ø5mm dowel holes

Quickfit TL5 reliably engages the 5mm dowel hole. It enables the usage of tool-less Quickfit dowel insertion technology across a wide range of applications.

50% less time to assemble the cabinet at home

When edge inserted the dowel engages the cam and remains securely positioned until the boards are locked together.

For maximum efficiency the insertion process can be automated using the Titus proprietary Lama FastFit machine.

Fast and easy cabinet assembly at home.

Shape

System 5 Cams and Dowels

Zinc+steel Combi Dowels

Zinc+steel technology for optimal strength and performance

The Combi dowel combines steel and a small amount of zinc to ensure high precision and dimensional accuracy, essential to provide furniture manufacturers with the broadest possible range of drilling tolerances.

head form

zinc body

steel neck and head positive stop collar

twinstart thread

The steel neck and head provide better resistance to torsion and pull-out enabling a high performance joint

Zinc body: Positive stop collar ensures correct insertion depth

Twinstart for faster and more stable insertion

The toroidal dowel head form transfers the forces between cam and dowel more effectively resulting in a small cam bursting force.

100% dimensional accuracy assured

small bursting angle
Cam
Dowel
toroidal
Dowel small bursting angle
Cam

System 5 Cams and Dowels

Quickfit TL5 'Full Metal Jacket'

Drilling tolerances of +1/-1mm when edge inserted

Expanding steel sleeve assures a strong joint, highly resistant to pull-out

Tool-free insertion technology for Ø5mm holes in multiple wooden materials (chipboard, MDF, solid wood) For use with Cam5000

System 5

Cams and Dowels

Quickfit TL Dowels

Available in Ø5mm and Ø8mm for panel-to-panel applications

For use with all Cam3000 S and Cam5000 products ‘Klix’ locking feature provides a strong, vibration proof joint

Quickfit dowel Ø10mm stran 1.30

Highly tolerant in edge-inserted, TL4 also in face-inserted applications

Quickfit TL4 stran 1.29

Quickfit TL2 stran 1.29

Quickfit dowel Ø10mm stran 1.30

Quickfit dowel Ø8mm stran 1.30

Quickfit dowel Ø10mm stran 1.30

Quickfit TL4 stran 1.29

Quickfit TL2 stran 1.29

Quickfit dowel Ø10mm stran 1.30

Quickfit dowel Ø8mm stran 1.30

System 5

and Dowels

Pcs (05556,05552)

Pcs (05563, 05554)

Quickfit dowel Ø10mm

Quickfit dowel For back-to-back application Ø10mm

Available in Ø5mm, Ø8mm and Ø10mm for panel-topanel applications

For use with all Cam3000 S and Cam5000 products ‘Klix’ locking feature provides a strong, vibration proof joint

Depth stop collar for accurate insertion

System 5 Cams and Dowels

Quickfit P2F Dowels

The only product to enable standard panel drilling and connection of panel and hollow profile

· Available in Ø8mm for panel-to-hollow metal profile applications

For use with all Cam3000 S and Cam5000 products ‘Klix’ locking feature provides a strong, vibration proof joint

Quickfit P2F

System 5 Cams and Dowels

Combi Dowel

High quality zinc-steel dowel with greater resistance to torsion and pull-out

· For use with all Cam3000 S and Cam5000 products

· ‘Klix’ locking feature provides a strong, vibration proof joint

Twinstart thread for faster and reliable insertion Technical and

market only

M6 insert to suit
Combi dowel
Combi dowel M6

System 5

Cams and Dowels

Combi Dowel

Combi dowel Full body

High quality zinc-steel dowel with greater resistance to torsion and pull-out

· For use with all Cam3000 S and Cam5000 products

· ‘Klix’ locking feature provides a strong, vibration proof joint Twinstart thread for faster and reliable insertion

head

PZ2

System 5 Cams and Dowels

Combi-P Dowel

· Full body assures a strong joint highly resistant to torsion and pull-out, even in low density chipboard Accurate insertion with positive stop

Combi-P Dowel

System 5

Cams and Dowels Double-ended Dowel

Available in Ø7mm

For use with all Cam3000 S and Cam5000

No circlip for increased tolerance

Available in a variety of lengths to suit most panel-to-panel applications

250 Pcs (05753) 500 Pcs (05857) 1000 Pcs (05929)

250 Pcs 500 Pcs (05775, 05774)

Dowel without circlip
Dowel with circlip Made

System 5 Cams and Dowels

Angled Dowels

For applications requiring angled joints For use with all Cam3000 S and Cam5000 Adjustable angle from 90° to 180°

Angled dowel

Distance x in mm

fixed Angled dowel

Zinc plated

System 5

Available in a variety of head and length combinations to suit most end panel applications

For use with all Cam3000 S and Cam5000 ‘Klix’ locking feature provides a strong, vibration proof joint

Both ‘mushroom’ and countersunk headed versions available

Pcs (05610, 05611)

System 5 Cams and Dowels

Improved central shape for highly resistant joint

For use with all Titus dowels

‘Klix’ locking feature provides a strong, vibration proof joint

· Cam retaining pips ensure that a cam is held in panel position prior to assembly

upon request

PZ2 drive

System 5

Cams and Dowels

Cam5000 Ø15mm

· Improved central shape for highly resistant joint

For use with all Titus dowels

‘Klix’ locking feature provides a strong, vibration proof joint

Cam retaining pips ensure that a cam is held in panel position prior to assembly

System 5

and Dowels

Innovative design offers optimal performance with maximum cost effectiveness

· For use with Combi dowels, forged steel dowels and Quickfit dowels

‘Klix’ locking feature provides a strong, vibration proof joint

Cam-retaining pips ensure that a cam is held in panel position prior to assembly

System 5

Cams and Dowels

Cam2000S Ø12mm

For all Titus screw-in dowels

Available in a variety of head, drive recess and board thickness versions to suit most applications

· Particularly suited to drawer front attachment applications

‘Klix’ locking feature provides a strong, vibration proof joint

System 5 Cover Caps

· Available in a variety of colours

· For use with both pozi and hex cam drive features

Suitable for use with various diameter cams

Both domed and flat versions available

Technical and mounting details

*American market only

Other colours on request

Suitable for cams with Pozi 2 recess

Other colours on request

Suitable for cams with Hex recess

Cover cap Ø17mm
Cover cap Ø17mm
Made of plastic
Made of plastic

System Features

Applications

A face boring connector family for 32mm system drilling with full range of panel and application variants for all cabinet manufacturing applications.

· Minimum drilling requirements Linear cam design for constant tightening loads when driving Angledrive feature on cam for maximum driving comfort Interchangeable pins for wood, plastic and steel applications Pins with twinstart drive for fast insertion Interchangeable Quickfit pin fastenings available

· Tool-less fastening capable versions

· Back-to-back fastenings for common vertical panel fixing of shelves

Titus System 6 is ideal for use in high volume production of case goods, closet and garage storage systems. Because no

System 6 consists of a range of 20mm diameter housing, Quickfit™ and conventional dowels, end dowels and double ended dowels.

Housings are made from high grade plastic or zinc, with zinc cams.

Wedgefix-6 connector is a special fastener without cam, simply to snap onto a pre-inserted dowel.

Side-entry

Drop-on

Side-entry insertion of shelf panel: from the side or from the top

edge boring is required, it is an excellent choice for manufacturing environments with limited drilling capacity. Drop-on insertion of shelf panel: only from the top Using drop-on connections allows for one-man installation

Outrigger/ Non outrigger

Expando function

Expanding housings and dowels provide a tight joint.

3. Assemble the panels
4. Tighten the joint
Assembly
Outrigger
1. Press the housing into face board
2. Press the dowel into side panel
Non outrigger

i System 6 Quickfit-Expando Expanding Dowels

· Available in Ø5mm, Ø8mm for panel-to-panel, and back-to-back applications

For applications with all Titus Ø20 and Sys 6 housings ‘Klix’ locking feature provides a strong, vibration proof connection Depth stop collar for accurate insertion

D2= Ø5mm

ØD2 x 12.5

x 12.5

D2= Ø8mm

Dowel Ø5 x 7.5 back-to-back applications

x 12.5

x 12.5

Made of zinc, plastic

x 7.5

x 7.5

06479 > 880

Made of zinc, plastic

x 12.5

x 12.5

Dowel

System 6 Quickfit-Expando Dowels

Available in various Ø3mm and/or Ø5mm thread forms for screw-in, knock-in and/or ‘spiked’ hole applications

· For applications with all Titus Ø20mm and Sys 6 housings

‘Klix’ locking feature provides a strong, vibration proof connection

Dowels feature an integral skirt which acts as a positive stop during insertion

Dowel Ø5
Dowel Ø5 x 11 knock-in
Dowel M4 x 7
Dowel Ø3 x 11.5

System 6

For 16mm, 18mm and 19mm board For applications with all Titus Ø20mm and Sys 6 housings

‘Klix’ locking feature provides a strong, vibration proof connection

Double-ended dowel

System 6

For 16mm, 18mm and 19mm board

For applications with all Titus Ø20mm and Sys 6 housings

‘Klix’ locking feature provides a strong, vibration proof connection

End dowel

System 6

Quickfit-Expando

20mm Expanding Housing

Non-outrigger

Available in 15mm/16mm and 18mm/19mm versions for drop-on and/or side-entry applications

Available in all-metal or plastic/metal options ‘Klix’ locking feature provides a strong vibration proof connection Compatible with all Sys 6 screw-in and Quickfit dowels

System 6

Quickfit-Expando 20mm Expanding Housing

Outrigger

Available in 15mm/16mm and 18mm/19mm versions for drop-on and/or side-entry applications

Available in all-metal or plastic/metal options ‘Klix’ locking feature provides a strong vibration proof connection Compatible with all Sys 6 screw-in and Quickfit dowels

System 6

Quickfit-Expando Expanding Wedgefix

Housing (no Inner Cam)

Available in 12mm, 15mm/16mm and/or 18mm/19mm versions for Sys 6 screw-in and Quickfit dowel applications

Available in a variety of plastic colours

Wedgefix housing allows easy customer hand-assembly or factory automated insertion

When used with Sys 6 Quickfit dowels this provides a true tool-less fastening system

System 6 20mm Knock-in Housing

Non-outrigger

Available in 15mm/16mm and 18mm/19mm versions for drop-on and/or side-entry applications

Available in plastic-metal options

‘Klix’ locking feature provides a strong vibration proof connection

Compatible with all Sys 6 screw-in and Quickfit dowels

Side-entry

Other colours on request

Other

System 6

Flush 20mm Knock-in Housing

Non-outrigger

A face-boring connector with the flush housing permits easy flat-pack transportation without panel damage

Available for 19mm board thickness for drop-on and/or side-entry applications

‘Klix’ locking feature provides a strong vibration proof connection

Compatible with all Sys6 screw-in and Quickfit dowels

Housing made of plastic, cam made of zinc

Housing made of plastic, cam made of zinc Drop-on

*American market only *American market only

System 6.2

System Features

A face boring connector family for 32mm system drilling with full range of panel and application variants for all cabinet manufacturing applications.

· Minimum drilling requirements Anti-rotation ribs prevent rotation during tightening for reliable product performance

Angledrive feature on cam for maximum driving comfort

Interchangeable pins for wood, plastic and steel applications

Pins with twinstart drive for fast insertion

Interchangeable Quickfit pin fastenings available

· Tool-less fastening capable versions Back-to-back fastenings for common vertical panel fixing of shelves

System 6.2 consists of a range of 20mm diameter housing, Quickfit™ and conventional dowels, end dowels and double ended dowels.

Housings are made from high grade plastic with zinc cams.

Wedgefix connector is a shelf fastener without cam, simply to snap onto a pre-inserted dowel.

Applications

Titus System 6.2 is ideal for use in high volume modular cabinet production: closets, wardrobes, garage storage systems, and shelving units.

Because no edge boring is required, it is an excellent choice for manufacturing environments with limited drilling capacity.

Side-entry Drop-on

Side-entry insertion of shelf panel: from the side or from the top

Drop-on insertion of shelf panel: only from the top

Using drop-on connections allows for one-man installation

Efficient square design

Square shape guides the eye to easy insertion parallel to the board panel and allows a larger surface of the product

to rest on the panel when tightened for optimal positioning and ease at tightening.

Ribs on housing prevent rotation in panel

The anti-rotation ribs on the housing prevent cam rotation and the resultant panel shift.

Comfortable tightening with Angledriv

The Angledriv feature on the cam guides the screwdriver to a 27° angle for comfortable access. The locking action creates a tight, secure fit.

Easy and quick assembly with Quickfit dowel

Improved ‚at-home‘ assembly experience.

System 6.2

Quickfit Dowels

5000 Pcs Made of zinc, plastic

Quickfit dowel Ø5mm for back-to-back application

Made of zinc, plastic 5000 Pcs

5000 Pcs

Made of zinc, plastic

· Tool-free insertion

· Depth stop collar assures accurate insertion

· Available in Ø5mm and Ø8mm

· For applications with all Titus Sys 6.2 Ø20mm housings

x 12.5

x 11.5

Quickfit dowel Ø5mm
Quickfit dowel Ø8mm

System 6.2 Screw-in Dowels

Available in Ø3mm and Ø5mm thread forms for screw-in, knock-in and ‘spiked’ hole applications

For applications with all Titus Sys 6.2 Ø20mm housings

Dowels feature an integral skirt which acts as a positive stop during insertion

Dowel Ø5
Dowel Ø5 x 11 knock-in
Dowel M4 x 7
Dowel Ø3 x 11.5

System 6.2 Double-ended Dowels

For 16mm, 18mm and 19mm board

· For applications with all Titus Sys 6.2 Ø20mm housings ‘Klix’ locking feature provides a strong, vibration proof connection

and

System 6.2

Dowels

For 16mm, 18mm and 19mm board

· For applications with all Titus Sys 6.2 Ø20mm housings ‘Klix’ locking feature provides a strong, vibration proof connection

System 6.2 20mm Knock-in Housing

Available in 15mm/16mm and 18mm/19mm versions for drop-on and side-entry applications

Metal cover cap option

· ‘Klix’ locking feature provides a strong vibration proof connection

Compatible with all Sys 6.2 screw-in dowels and Quickfit dowels

Side-entry

System 6.2 20mm Knock-in Housing Outrigger

Available in 15mm/16mm and 18mm/19mm versions for drop-on and side-entry applications

Metal cover cap option

· ‘Klix’ locking feature provides a strong vibration proof connection

Compatible with all Sys 6.2 screw-in dowels and Quickfit dowels

System 6.2 Wedgefix Housing (no Inner Cam)

Available in 15mm/16mm and 18mm/19mm versions

Compatible with all Sys 6.2 screw-in dowels and Quickfit dowels

· Wedgefix housing allows easy customer hand assembly or factory automated insertion

When used with Sys 6.2 Quickfit dowels this provides a true toolless fastening system

System 6.2

Add-on Cover Caps

Metal cover caps for retrofit mounting Enhanced look and contemporary design Fits all Sys 6.2 plastic housings

Cover cap for 20mm housing

Cover cap for 20mm outrigger housing

System 7 Heavy Duty Connectors

System Features

A family of heavy duty cams and dowels for offices and public furniture.

Heavy-duty cam and dowel connector with excellent pull-out and racking strength

Designed for applications requiring high strength and high performance

Simple and fast installation

Suitable for materials such as pine, MDF, and chipboard

Uses common components with standard drilling patterns

Suitable for medium to high-value furniture as well as cost-efficient furniture

Applications

· Suitable for factory insertion and home assembly

Heavy-duty cabinets, desks, bookcases and large wardrobes, computer furniture, modular panel systems, in-store and retail fixtures, contract office furniture, and platform-style furniture.

System 7

Heavy Duty Ø20mm

Cam and Dowel

Dowel available with Ø10mm eurothread and cam available in Ø20mm for a variety of panel thicknesses ‘Klix’ locking feature provides strong, vibration proof joint High strength product that eliminates the need for time consuming metal inserts

Cam Ø20
Dowel Ø7 Ø10 mm thread Made
Made

System 7 High Strength Connectors Contract Fix™ System

High performance fastener

Thread design gives repeatability

Multi-drive recess

Higher than average pull-up

Grub screw
05971 > 883
05960
05917 > 885
M6 Dowel 7x34 Made

Accessories for Connectors

Inserts

Available in both zinc and plastic for use in various applications For use with various threaded dowels

· For use with various panel thicknesses

· Knock-in and screw-in versions available

Pcs

Pcs

Pcs

Pcs (275-4058) 20000 Pcs (275-4035)

Ø8 x 9
Ø9.5 x 18
Ø12 x 15
Ø9 x 13
Ø10 x 13/M6 nut

Cabinet Accessories

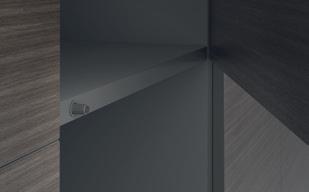

Shelf Q-Peg

Easy and quick installation

Structural cabinet stabilty through shelf-to-panel connection

Minimalistic appearance

In line with the shelf surface

Shelf Q-Peg Square

Shelf Supports

Hold down feature traps the shelf in place for security

Folding design allows the shelf to be post mounted in an assembled cabinet

· To suit a wide range of shelf thicknesses

Pad for metal shelf support when using glass

Shelf Supports

Pin Ø5x10 (screw-on)

1000 Pcs

For glass shelves (rock-in)

1000 Pcs

Pin Ø5x10 (rock-in)

1000 Pcs

Shelf support Ø3mm with pin 2000 Pcs

Shelf Supports

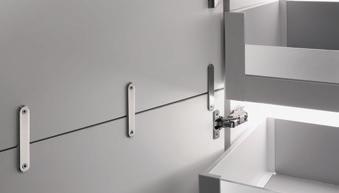

Joining Plates

Rigid and strong No pre-drilling

Spacer pegs provide an even 2mm gap

Sleek design

Joining plate 105mm 500

Joining

Backfix Connectors

Push-in design

No tools required for Backfix insertion

The handle acts as a stop during locking, providing greater accuracy and speed of insertion

Barbs provide a quality fastener for rigid cabinet construction

Corrosil

Back Wall Connectors

Panel Brackets

To be used to fix face frames to carcases without additional drilling to cabinet Designed for carcase side panel of 18mm thickness Edge to hole centre = 28mm · Easier fixing of frames due to parts that remain in holes once inserted

90° Bracket (screw-in/rock-in peg)
90° Bracket (screw-in)
Corner bracket (rock-in)

Adjustable Cabinet Legs

in)
(screw on)

Lip provides additional support to end panel and gives extra strength

The side fix has twin dowel mounting for positive location

· Rivet fix design gives quick fastening of socket Choice of dowel or screw on sockets

Invert second clip for corner plinth fixing

Rivet fix/skid

(4 screws) screw on (4 dowels + lip) dowel/lip (4 screws + lip) screw/lip

2 dowels/2 screws Screw on Dowels Leg top

200 Pcs Made of plastic
Made of plastic
Rivet fix/ no rivet
200 Pcs 100 Pcs Made of plastic

Adjustable Cabinet

Adjustable Leg, Extension and Foot

Adjustable leg

Pcs (02570)

Legs are supplied assembled at a pre-set height

· Wide adjustment range to fit all common plinth heights

Jacking point adjustment feature Simple push on design to sockets

Adjustable Cabinet

Spring design eliminates the need for drilling and fits into any position on plinth

The screw in version can sit in variable plinth positions

When taking plinth around the corner, the fitting is reversible

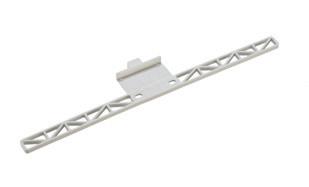

Plinth clip 38 screw
Plinth clip
Plinth clip

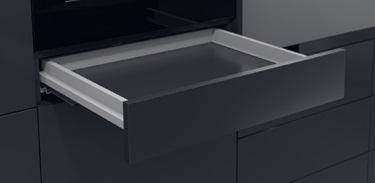

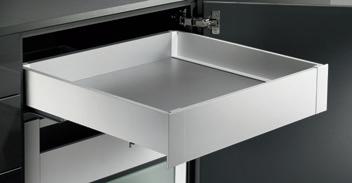

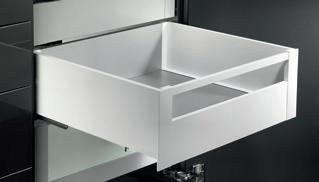

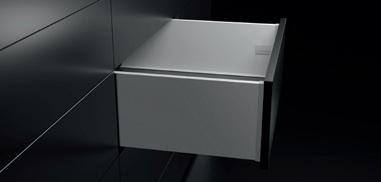

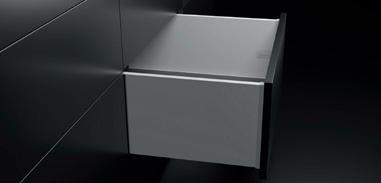

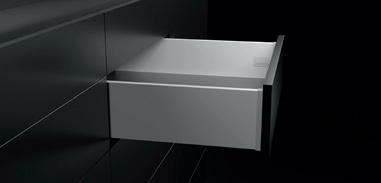

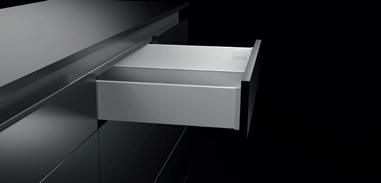

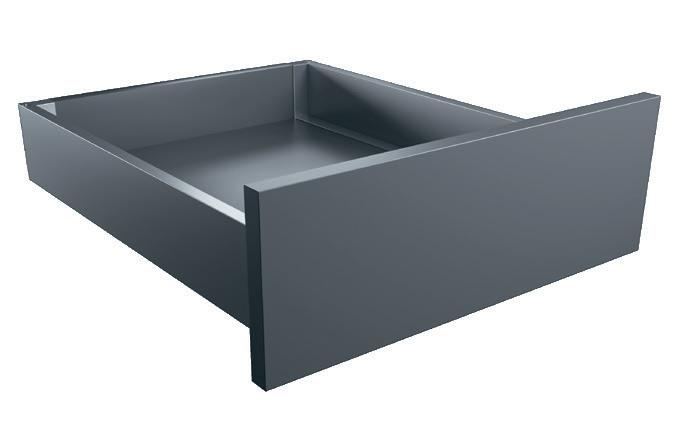

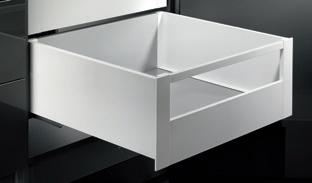

Drawer Solutions

Drawer Front Adjuster (DFA)

Multi-direction adjustment

Locking screw to fasten

Independent of drawer system

One piece housing

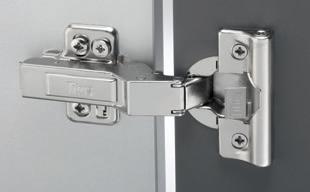

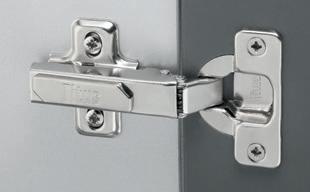

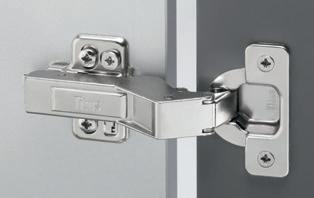

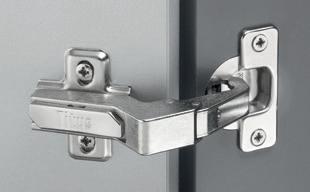

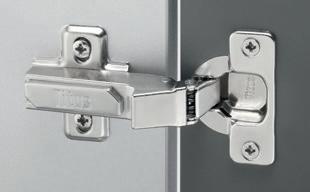

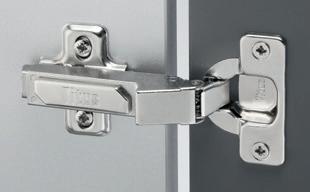

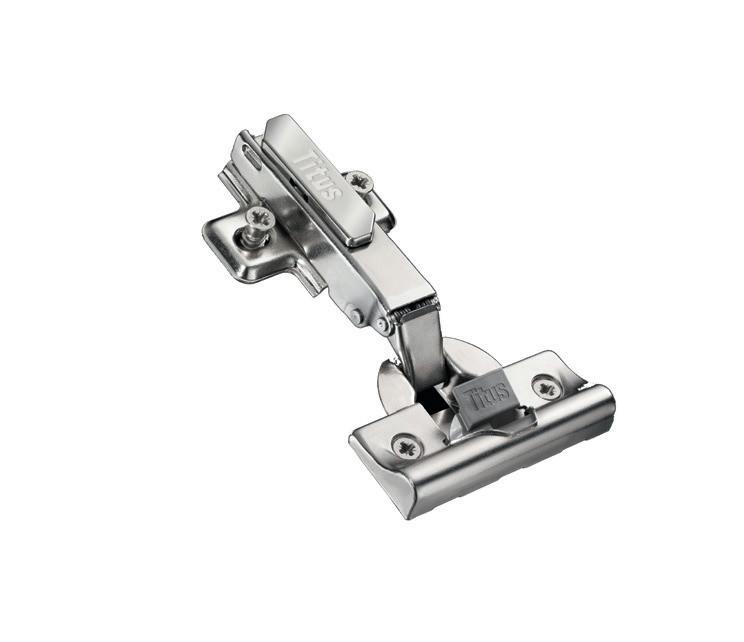

Concealed Hinges

Concealed Hinges A Comprehensive Range

Quick furniture assembly and consistent performance on wide range of doors

3Way snap-on mounting

Highly tolerant

Press-to tool-free hinge cup fixing

Touch opening for handleless furniture

Simple snap-on mounting system

Easy assembly and disassembly

ConfidentClose

Touch opening for handleless furniture

Rigid attachment

Reliable slide-on mounting system

ConfidentClose

Reliable door closing

Simplicity and versatility

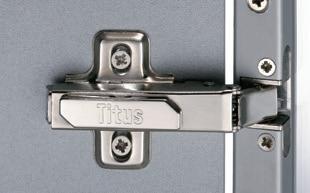

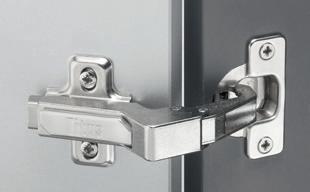

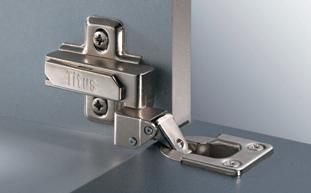

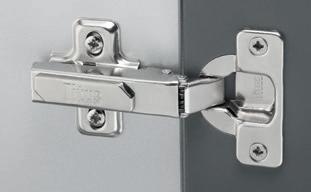

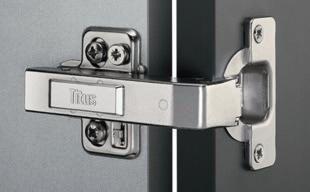

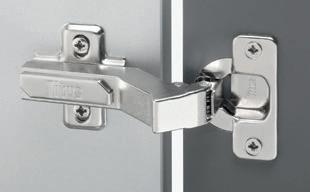

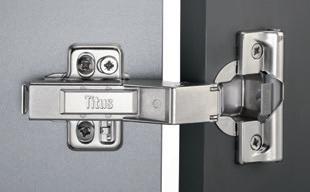

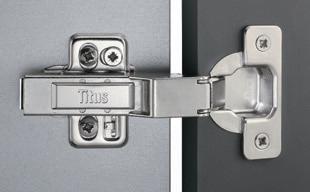

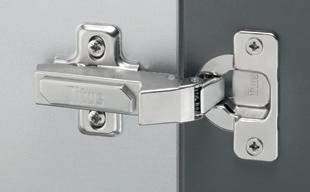

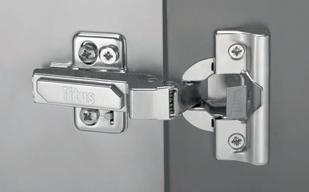

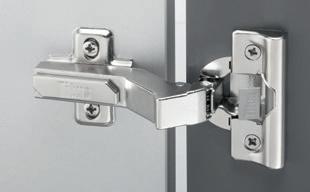

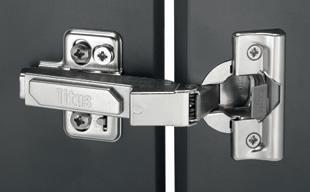

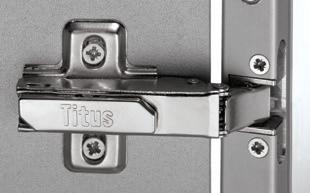

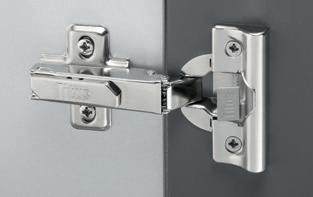

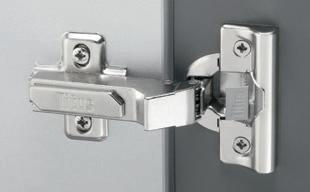

T-type hinge

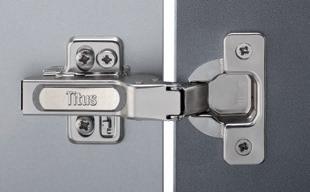

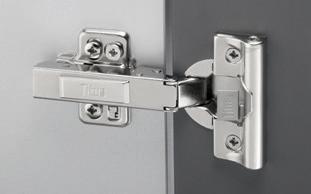

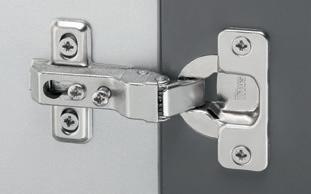

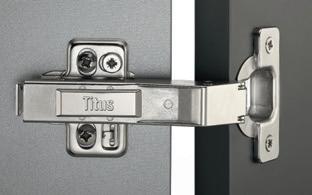

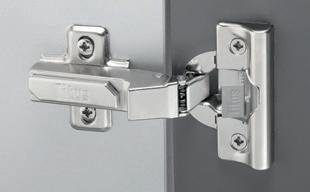

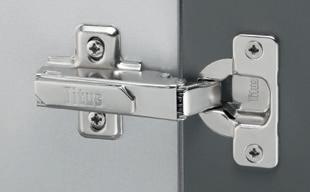

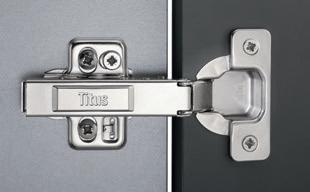

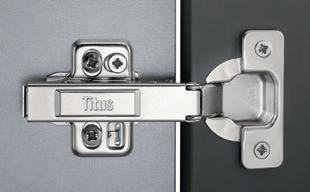

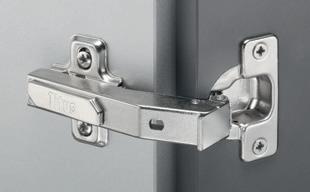

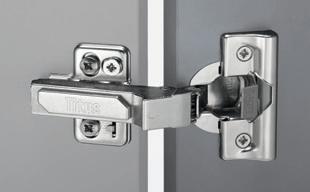

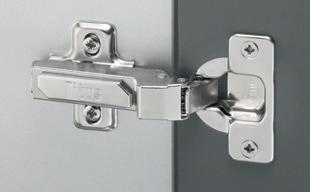

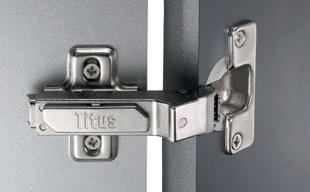

S-type hinge

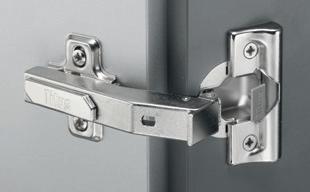

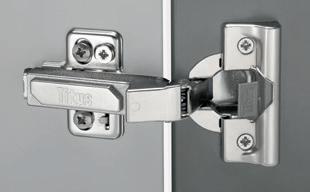

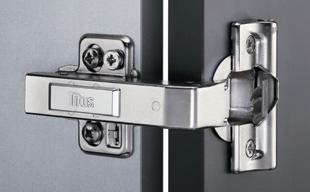

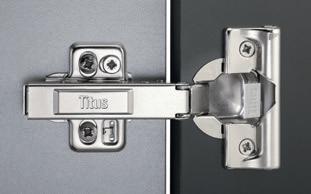

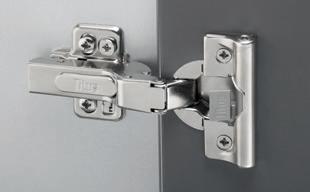

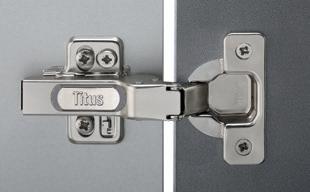

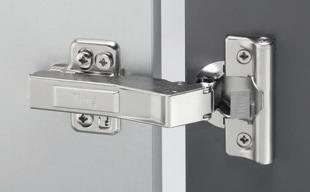

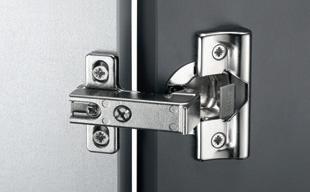

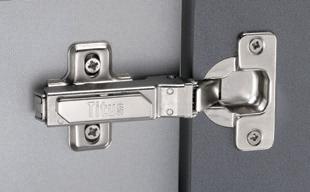

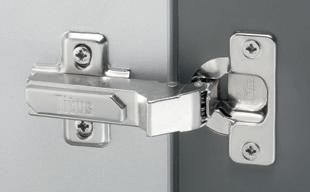

B-type hinge

0mm 1mm 2mm 3mm 4mm 5mm 6mm 9mm 18mm

Concealed Hinges Product Guide

T-type

S-type

S-type

B-type

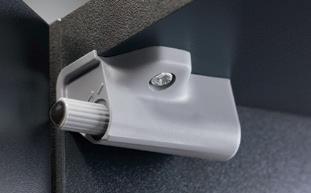

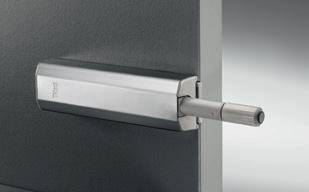

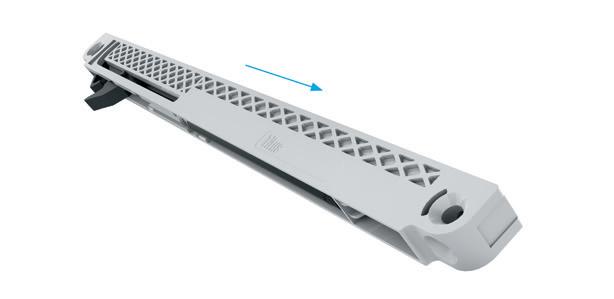

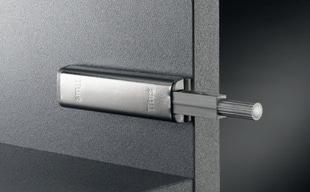

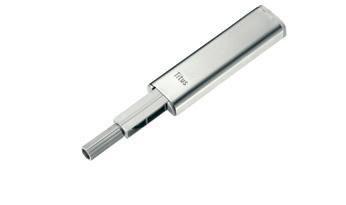

Glissando Soft Closing Systems for Hinges

Concealed Hinges Door Overlay

How to Achieve the Desired Door Overlay?

By choosing the hinge of appropriate cranking

Concealed hinges with specific hinge arms are available for different door overlays. The most common overlays are:

Cabinet side Door

1. Full overlay Use a hinge with 0mm cranking

3. Inset door Use a hinge with 15mm or 17mm cranking

By choosing the mounting plates of appropriate thickness

To achieve the desired overlay (x) while using a determined drilling distance (K), a mounting plate of appropriate

2. Partial overlay for double doors Use a hinge with 5mm or 9mm cranking

By choosing the appropriate drilling distance K

To achieve the desired door overlay (x) while using a determined mounting plate thickness (D), an appropriate drilling distance K must be chosen.

thickness (D) must be chosen from the enclosed table or calculated with given formula.

Through side adjustment

Side adjustment is made by rotating the appropriate screw on the hinge arm.

Door clearance and gap

Door clearance (F≥Fmin) and gap (Z) represent the minimal necessary space needed for the correct opening and closing of the door. The minimal required values depend on the cup drilling distance (K), door thickness (V)

and the type of hinge. The minimum clearance scale can be found on product pages > see Door clearance chart. When using hinges with partial overlay the door clearance must be twice as large (F≥2Fmin).

Concealed Hinges

How to Mount the Hinge on the Door?

There are cup type symbols listed on product pages beside item numbers. Below you can find their explanation.

There are cup type symbols listed on product pages beside item numbers. Below you can find their explanation.

No pre-mounting

PressTo

PressTo tool-less mounting

The hinge is fixed on the door with two screws. 3mm pilot holes recommended.

The hinge is inserted into cup hole and locked in place without tools

EasyFix

Quarter turn fixing for 8mm holes (interaxis 45/9.5) or 10mm holes (interaxis 48/6 and 52/5.5).

Machine insertion ready hinge cup

Pre-mounted dowels suitable for machine insertion into 8mm holes (interaxis 45/9.5) or 10mm holes (interaxis 48/6 and 52/5.5)

Pre-mounted expanding dowels with triple-start screw for fast fixing, suitable for 8mm holes.

FastFix

Concealed Hinges

Drilling Details

Drilling Patterns for Hinge Cup

Interaxis

45mm, 48mm and 52mm*

T-type, S-type, B-type

*Available on special request > see page 0.3 Interaxis is the distance between two

Concealed Hinges

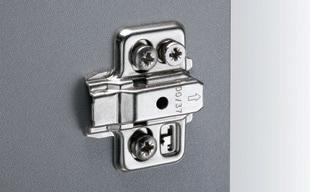

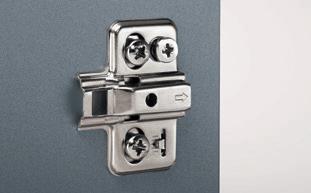

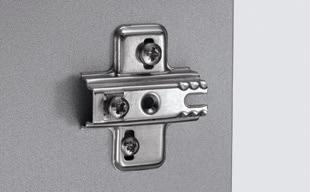

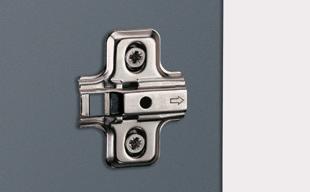

Mounting Plate Type

How to Fix the Mounting Plate on the Cabinet Side?

There are mounting plate type symbols listed on product pages beside item numbers. Below you can find their explanation.

Chipboard screw-on ready

Mounting plate is fixed with two chipboard screws or equivalent. 3mm pilot holes recommended.

Euro screw ready

Machine insertion ready

Fixing with 6.3mm euro screws into pre-drilled 5mm holes. To choose appropriate head and length for use with this mounting plate is recommended.

Pre-mounted dowels for machine insertion into pre-drilled 10mm holes.

Pre-mounted euro screws

Euro screws for 5mm holes are pre-mounted on the mounting plate. Available lengths: 11mm, 13mm and 15mm

Pre-mounted expanding dowels

Pre-mounted expanding dowels for 5mm holes.

Available lengths: 7.5mm and 10.5mm

Pre-mounted Ø4.5mm screws

Mounting plate is fixed with two pre-mounted chipboard screws. 3mm pilot holes recommended.

Concealed Hinges

How to Assemble the Hinge and the Mounting Plate?

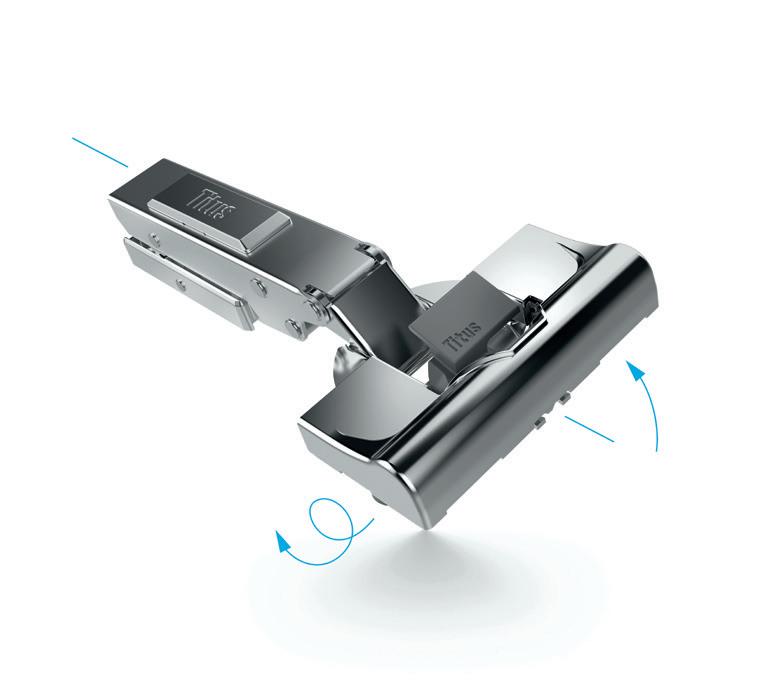

T-type

3Way snap-on

3Way snap-on mounting for intuitive hinge-to-plate assembly in three directions:

rear assembly front assembly

top assembly

disassembly: for disassembly press rear lever on the hinge arm.

from the hinge arm front from the hinge arm rear from the top

S-type snap-on

Door is assembled on the cabinet side simply by positioning the two hooks under the hinge arm on the outer part of the mounting plate and pressing gently on the rear part of the hinge arm.

For disassembly press the rear button on the hinge arm.

B-type slide-on

Hinge is assembled by sliding the hinge arm over the mounting plate. The hinge adjustment screw must fit into the groove on the mounting plate.

After adjusting the door depth, the mounting procedure is finished by tightening the fixing screw.

Key-hole

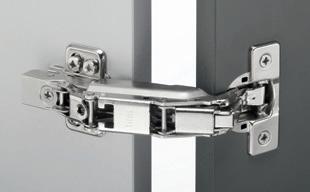

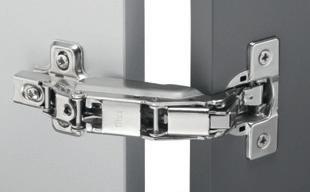

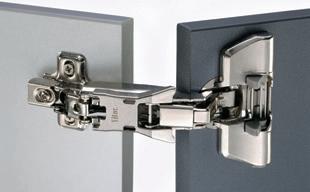

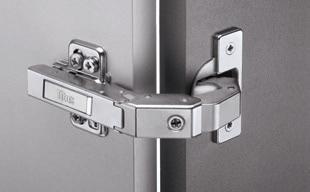

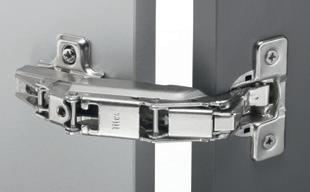

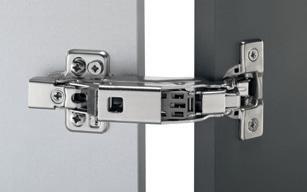

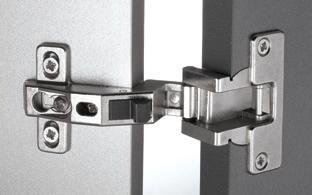

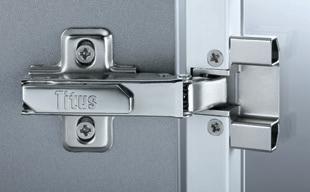

Wide angle hinge

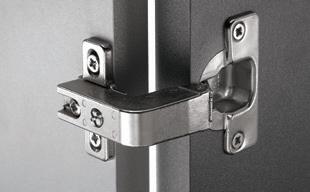

· Refrigerator cabinet door hinge

Hinge is assembled on the mounting plate by inserting the fixing screw on the appropriate hole on the hinge arm.

After adjusting the door depth, the mounting procedure is finished by tightening the fixing screw.

Concealed Hinges Loads

How Many Hinges per Door?

Check the enclosed recommendation for the number of recommended hinges per door by considering door height and weight.

Hinges to be positioned as far apart as possible.

Self-closing hinges

Hinges without spring

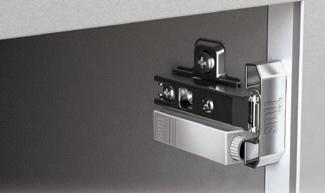

· Hinges with integrated damping

T-type

T-type-i

Hinges with integrated damping can be combined with non-damped hinges from standard hinge range. A trial mounting is always recommended.

Recommendation:

Use the appropriate number of hinges, not exceeding door height and weight as shown below.

Concealed Hinges Adjustments

Side Adjustment

By rotating the adjustment screw

· T-type S-type B-type

Side adjustment aligns the door with the side of the cabinet.

Side adjustment is made by rotating the screw on the hinge arm.

Adjustment range can be found on the product pages.

By temporarily loosening the fixing screw

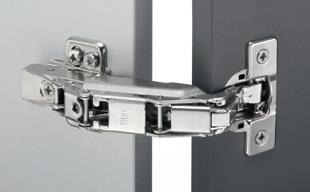

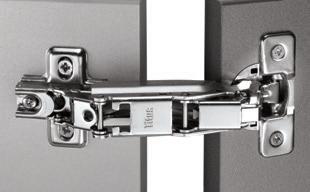

Wide angle hinge 270°

· Refrigerator cabinet hinge

For the side adjustment:

1. Release the fixing screw

2. Make the necessary adjustment by rotating the appropriate screw

3. Tighten the fixing screw Without releasing the fixing screw no side adjustment is possible.

Adjustment range

Adjustment range

Concealed Hinges Adjustments

Height Adjustment

By rotating the cam adjuster

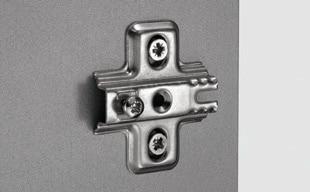

T-type with cam adjustable cruciform mounting plate

S-type with cam adjustable cruciform mounting plate

Height adjustment is necessary to achieve optimal vertical door position.

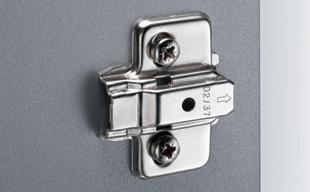

T-type with cam adjustable horizontal mounting plate

Height adjustment is made by rotating the cam adjuster on the mounting plate.

By releasing the fixing screws

T-type, S-type and B-type with cruciform mounting plate

Wide angle hinge 270° Refrigerator cabinet hinge

For height adjustment the two mounting plate fixing screws have to be temporarily released while making the manual adjustment.

Concealed Hinges Adjustments

Depth Adjustment

By rotating the cam adjuster

T-type

The system enables easy adjustment of the gap between door and cabinet.

Rotate the cam adjuster on the hinge arm.

By releasing the fixing or adjustment screw

· S-type

· B-type

The depth adjustment is made by temporarily releasing the adjustment screw (S-type) or fixing screw (B-type). After the adjustment is made the screw has to be re-tightened.

be

Concealed Hinges Adjustments

Damping Adjustment

T-type-i

The damping action can be adjusted to fit different door weights and sizes which enables optimal door functioning.

Damping is factory pre-set to the medium damping value. Turn towards ‘+’ to increase and ‘-’ to decrease the damping.

Key Design Choices

ConfidentClose

The hinge is designed to provide consumer preferred way of soft closing action.

Based on results of Titus researches made in UK, Germany and Slovenia

One-for-all efficiency principle

Damping on the hinge cup

Damper, positioned transversal to the hinge cup allows for easy introduction of hinge versions

Damped and non-damped version on one mounting plate platform

Adjustable damping

Flexibility to tune performance for all applications

Consistent performance over a wide range of doors of different sizes and weights

· Easy accessible adjustment button for intuitive and quick adjustment

Efficient damping at any closing speed Reliable closing Damping force consistency

Titus Damper Inside
Adjustable damping zone and force
Fast closing
Late start of deceleration action
Quiet landing with SoftTouch

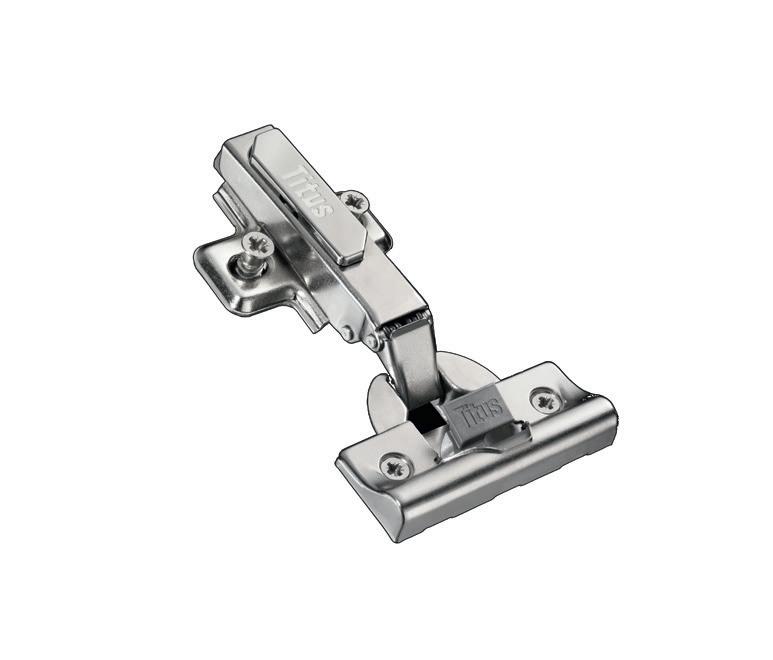

T-type Hinges

T-type PressTo

Tool-free hinge cup fixing

· Effortless press-in locking

· Confident locking action

· Reliable door attachment

· Confident and repeatable assembly

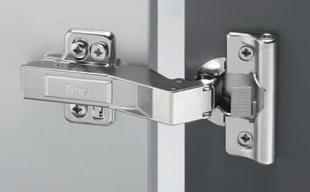

T-type-i 170

· Wide angle hinge with integrated damping

· Zero-protrusion opening angle makes it ideal for interior drawers application

3Way snap-on mounting

· Mounting from three directions: rear, front, top

· Reduced assembly time

Easy door installation even on tall and heavy door

Easy door installation even in cases of 4-5 hinges per door

· Easy mounting of doors with four or more hinges

Highly tolerant

Highly tolerant

· Efficient performance in edge value of tolerances

Reliable door closing in ca se of accide ntal mis alignme nt ‘Confide ntClose’ a s sure d Ef ficie nt pe r for mance in ma rginal value s of tole rance s

· Reliable door closing in case of accidental misalignment

· ConfidentClose assured

Rigidity

Rigidity

Hinge -to -plate at tachme nt a s sure s stabilit y and rigidit y Smooth pe r for mance

· Tight hinge-to-plate joint improves hinge stability and reduces door sag

· Enhanced door stability

· Smooth performance

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm, 12.5mm PressTo

· Hinge on plate mounting system 3Way snap-on

150 Pcs Made of steel

150 Pcs Made of steel

Hinge angle restrictor > see page 2.171

Mounting details

Drawings show application on D=0mm mounting plate

Mounting plate

Mounting plate thickness table

Drawings show application on D=0mm mounting plate

Cranking 9mm

150

Mounting details

Drawings show application on D=0mm mounting plate

Drawings show application on D=2mm mounting plate

Mounting plate

Mounting plate thickness table For

T-type-i 110/15°

15° angled application for wood doors

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm

· Hinge on plate mounting system 3Way snap-on

Cranking 9mm

Drilling patterns for hinge cups > see page 2.15

Mounting plates > see pages 2.79-2.84 Hinge cup screws If not pre-mounted

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

820-6328-050

Pcs TouchControl solutions > see pages 2.193-2.204

Mounting details

Drawings show application on D=0mm mounting plate

Mounting plate drilling distance

Mounting plate

T-type-i 110/30°

Cover caps for hinge arm > see page 2.173 Mounting plates > see pages 2.79-2.84

Hinge angle restrictor > see page 2.171

30° angled application for wood doors

Drilling patterns for hinge cups > see page 2.15

820-6328-050

Pcs TouchControl solutions > see pages 2.193-2.204

701-0957-054-00

Drawing show application on D=0mm thick mounting plate

Drawings show application on D=0mm mounting plate

Drawing show application on D=0mm thick mounting plate

Drawing show application on D=0mm thick mounting plate

L=41 for thickness D=1 L=40 for thickness D=2 L=40 for thickness D=3 L=39 for thickness D=4 701-0957-054-00

L=41 for thickness D=0

L=41 for thickness D=0

L=41 for thickness D=1

L=40 for thickness D=2

L=40 for thickness D=3

L=39 for thickness D=4

T-type-i 110/45°

9mm

17mm

Mounting details

701-0933-054-00

701-0933-054-00

Drawings show application on D=0mm mounting plate

Drawing show application

Drawings show application on D=0mm mounting plate

Drawing show application

Hinge T110 45° ID C9 45-9.5 SO on D=0mm thick mounting plate

Hinge T110 45° ID C9 45-9.5 SO on D=0mm thick mounting plate

Mounting plate drilling distance

For further explanation > see pages 2.20-2.22

Mounting plate thickness table For further explanation > see page 2.11

T-type-i 110/45°

45° angled application for wood doors

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm

· Hinge on plate mounting system 3Way snap-on

Cranking 23mm

Drilling patterns for hinge cups > see page 2.15

Mounting plates > see pages 2.79-2.84 Hinge cup screws If not pre-mounted

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

820-6328-050

Pcs TouchControl solutions > see pages 2.193-2.204

Door adjustment

Mounting details

Mounting plate drilling distance

Mounting plate thickness table For further explanation > see page 2.11

For wood door cabinets with blind panels

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm

· Hinge on plate mounting system 3Way snap-on

Cranking 17mm

Drilling patterns for hinge cups > see page 2.15

Mounting details

Drawing shows application on D=2mm mounting plate

Drawing shows application on D=2mm mounting plate

Mounting plate drilling distance

Cover caps for hinge arm > see page 2.173 Mounting plates > see pages 2.79-2.84 Hinge cup screws If not pre-mounted

820-6328-050

Pcs TouchControl solutions > see pages 2.193-2.204

Mounting details

further explanation > see pages 2.20-2.22

Mounting plate thickness table

Drawings show application on D=0mm mounting plate

T-type-i 95 Thick Door Hinge

Cranking 0mm Screw-on 708-0XT0-054 708-0XS0-054

Machine insertion 708-0XT1-054 708-0XS1-054

150 Pcs Made of steel EasyFix

Cranking 5mm

150 Pcs Made of steel

solutions > see pages 2.193-2.204

708-0YT4-054 708-0YS4-054 Drilling patterns for hinge cups > see page 2.15 · Opening angle

Drilling patterns for hinge cups > see page 2.15

Screw-on

Mounting details

Mounting plate thickness table For

Gap Z

T-type-i 95 Thick Door Hinge

· Opening angle

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm · Hinge on plate mounting system 3Way snap-on

Cranking 9mm

708-0ZT0-054 708-0ZS0-054

Screw-on

Machine insertion 708-0ZT1-054 708-0ZS1-054

150 Pcs Made of steel EasyFix

Cranking 17mm

150 Pcs Made of steel

708-0ZT4-054 708-0ZS4-054

Drilling patterns for hinge cups > see page 2.15

708-0WT0-054

Screw-on

Machine insertion

708-0WS0-054

708-0WT1-054 708-0WS1-054

708-0WT4-054 708-0WS4-054

Drilling patterns for hinge cups > see page 2.15

Cover caps for hinge arm > see page 2.173 Mounting plates > see pages 2.79-2.84 Hinge cup screws If not pre-mounted

solutions > see pages 2.193-2.204

820-6328-050

Pcs

Mounting details

Drawings show application on D=0mm mounting plate

For further explanation > see page 2.23 For further explanation > see pages 2.20-2.22

Drawings show application on D=2mm mounting plate

Mounting plate drilling distance

Mounting plate thickness table For

Door clearance at R=1mm For further explanation > see page 2.12

Gap Z

· Opening angle 165˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm, 12.5mm PressTo

Cranking 0mm

PressTo 701-0ET6-054

Drilling patterns for hinge cups > see page 2.15

Mounting plates > see pages 2.79-2.84

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

TouchControl solutions > see pages 2.193-2.204

Hinge cup screws If not pre-mounted

820-6328-050 10000 Pcs

Mounting details

Drawings show application on D=0mm mounting plate

T-type-i 170

Wide Angle Hinge with Integrated Damping

Zero protrusion with D=0 mounting plate

Zero door protrusion at 90° opening

3-Way snap-on mounting free extraction of internal drawers and pull-outs Allows for intuitive hinge-to-plate mounting in three directions

adjustment

For further explanation > see pages 2.20-2.22

Mounting plate thickness table For further explanation > see page 2.11

Mounting plate drilling distance C value with D=0 mounting plate

No door protrusion in 90° position Door clearance at R=1mm

T-type-i 170

Cranking 5mm

50 Pcs Made of steel and zinc

Cranking 9mm

50 Pcs Made of steel and zinc

· Opening angle 165˚ · Drilling diameter for hinge cup 35mm · Drilling depth 12mm, 12.5mm PressTo

Drawings show application on D=0mm mounting plate

Drawings show application on D=0mm mounting plate

Zero protrusion with D=0 mounting plate

Zero door protrusion at 90° opening

3-Way snap-on mounting free extraction of internal drawers and pull-outs Allows for intuitive hinge-to-plate mounting in three directions

Mounting plate drilling distance

Drawing show application on D=0mm mounting plate

Cranking 0mm

150 Pcs Made of steel

Cranking 5mm

Mounting details

Drawings show application on D=0mm mounting plate

Drawings show application on D=0mm mounting plate

Mounting plate drilling

Mounting plate thickness table

Cranking 9mm

150 Pcs Made of steel

Cranking 17mm

150 Pcs Made of steel

Mounting details

Drawings show application on D=0mm mounting plate

Drawings show application on D=2mm mounting plate Mounting plate

T-type 110/15°

15° angled application for wood doors

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm

· Hinge on plate mounting system 3Way snap-on

Cranking 9mm

Drilling patterns for hinge cups > see page 2.15 100 Pcs Cup made of steel, arm made of zinc

Mounting plates > see pages 2.79-2.84

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

Hinge cup screws If not pre-mounted

820-6328-050 10000 Pcs

Mounting details

Drawings show application on D=0mm mounting plate

Mounting plate drilling

Mounting

T-type 110/30°

30° angled application for wood doors

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm

· Hinge on plate mounting system 3Way snap-on

Cranking 9mm

Drilling patterns for hinge cups > see page 2.15 100 Pcs Cup

Mounting plates > see pages 2.79-2.84

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

Hinge cup screws If not pre-mounted

820-6328-050 10000 Pcs

701-0956-054-00

Drawings show application on D=0mm mounting plate

Drawing show application on D=0mm thick mounting plate

L=41 for thickness D=0

L=41 for thickness D=1

Drawing show application on D=0mm thick mounting plate

L=40 for thickness D=2

L=40 for thickness D=3

L=39 for thickness D=4

T-type 110/45°

Cranking 9mm

100 Pcs Cup made of steel, arm made of zinc

17mm

100 Pcs Cup made of steel, arm made of zinc

701-0932-054-00

701-0932-054-00

Hinge T110 45° SD C9 45-9.5 SO

Mounting details

Hinge T110 45° SD C9 45-9.5 SO

Mounting plate drilling distance

For further explanation > see pages 2.20-2.22

Mounting plate thickness table For

Drawings show application on D=0mm mounting plate

Drawing show application on D=0 tick mounting plate

Drawing show application on D=0 tick mounting plate

Drawing show application on D=0 tick mounting plate

Drawing show application on D=0 tick mounting plate

Drawings show application on D=0mm mounting plate

L=49 for thickness D=0

L=49 for thickness D=0

L=48 for thickness D=1

L=47 for thickness D=2

L=48 for thickness D=1

L=47 for thickness D=2

L=46 for thickness D=3

L=45 for thickness D=4

L=46 for thickness D=3

L=45 for thickness D=4

For wood door cabinets with blind panels

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm

Cranking 17mm

Drilling patterns for hinge cups > see page 2.15

Hinge angle restrictor > see page 2.171 Cover caps for hinge arm > see page 2.173 Mounting plates > see pages 2.79-2.84

· Hinge on plate mounting system 3Way snap-on Hinge cup screws If not pre-mounted

820-6328-050 10000 Pcs

Mounting details

Door adjustment

Drawing shows application on D=2mm mounting plate

Drawing shows application on D=2mm mounting plate

For further explanation > see pages 2.20-2.22

Mounting plate drilling distance

· Opening angle

· Drilling diameter for hinge cup

· Drilling depth 12mm

Cranking 0mm

Drilling patterns for hinge cups > see page 2.15

Mounting plates > see pages 2.79-2.84

Cover caps for hinge arm > see page 2.173

· Hinge on plate mounting system 3Way snap-on Hinge cup screws If not pre-mounted 820-6328-050

Pcs

Mounting details

Drawings show application on D=0mm mounting plate

Mounting plate

further explanation > see pages 2.20-2.22

Mounting plate thickness table

T-type 95 Thick Door Hinge

Cranking 0mm

150 Pcs Made of steel EasyFix

Cranking 5mm

150 Pcs Made of steel EasyFix 707-0YK4-054

Cover caps for hinge arm > see page 2.173 Mounting plates > see pages 2.79-2.84

Drilling patterns for hinge cups > see page 2.15 · Opening angle 95˚ · Drilling diameter for hinge cup

Drilling patterns for hinge cups > see page 2.15

820-6328-050 10000 Pcs

Mounting details

Drawings show application on D=0mm mounting plate

Mounting plate thickness table For

5

8

Drawings show application on

Gap Z

T-type 95 Thick Door Hinge

· Opening angle 95˚ · Drilling diameter for hinge cup 35mm

· Drilling depth 12mm · Hinge on plate mounting system 3Way snap-on

Cranking 9mm

150 Pcs Made of steel

Cranking 17mm

150 Pcs Made of steel

Screw-on

Machine insertion

EasyFix

707-0ZK0-054 707-0ZL0-054

707-0ZK1-054 707-0ZL1-054

707-0ZK4-054 707-0ZL4-054

Drilling patterns for hinge cups > see page 2.15

Screw-on

Machine insertion

EasyFix

707-0WK0-054

707-0WL0-054

707-0WK1-054 707-0WL1-054

707-0WK4-054 707-0WL4-054

Drilling patterns for hinge cups > see page 2.15

Cover caps for hinge arm > see page 2.173

Mounting plates > see pages 2.79-2.84 TouchControl solutions > see pages 2.193-2.204

Hinge cup screws If not pre-mounted

820-6328-050 10000 Pcs

closing systems > see pages 2.183-2.190

Mounting details

Drawings show application on D=0mm mounting plate

Mounting plate

Mounting plate thickness table For further explanation > see page 2.11

Drawings show application on D=2mm mounting plate

Gap Z

T-type 110 Unsprung Hinge

Cranking 0mm

Cranking 5mm

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm

· Hinge on plate mounting system 3Way snap-on

· Concealed hinge without spring to be used with PushOpen mechanisms with magnet > see pages 2.207-2.210

Mounting details

T-type 110 Unsprung Hinge

· Opening angle

· Drilling diameter for hinge cup

· Drilling depth

· Hinge on plate mounting system

Cranking 9mm

Drilling patterns for hinge cups > see page 2.15 150 Pcs Made of steel

adjustment

· Concealed hinge without spring to be used with PushOpen mechanisms with magnet > see pages 2.207-2.210 For further explanation > see pages

Mounting details

Mounting plate thickness table For further explanation > see page 2.11

T-type 170

· Opening angle 165˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm

· Hinge on plate mounting system 3Way snap-on

Cranking 0mm Screw-on

Machine insertion 702-0EK1-054 702-0EL1-054

702-0EK4-054 702-0EL4-054

EasyFix

Drilling patterns for hinge cups > see page 2.15

plates

2.79-2.84

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm see page 2.173

Hinge cup screws If not pre-mounted

820-6328-050 10000 Pcs

Mounting details

Drawings show application on D=0mm mounting plate

No door protrusion in 90° position

Mounting plate drilling distance

For further explanation > see pages 2.20-2.22

Mounting plate thickness table For further explanation > see page 2.11

D=13+K-X

C value with D=0 mounting plates

T-type 170

· Opening angle 165˚

· Drilling diameter for hinge cup 35mm

Cranking 5mm

50 Pcs Made of steel and zinc

Cranking 9mm

50 Pcs Made of steel and zinc

Drilling patterns for hinge cups > see page 2.15

Mounting details

Drawings show application on D=0mm mounting plate

Wide Angle Hinge with Integrated Damping

Zero door protrusion at

Zero protrusion with D=0 mounting plate

3-Way snap-on mounting free extraction of internal drawers and pull-outs Allows for intuitive hinge-to-plate mounting in three directions

Mounting plate drilling distance

Mounting plate thickness table For further explanation > see page

Drawings show application on D=0mm mounting plate

Drawing show application on D=0mm mounting plate

T-type for Pie-cut Corner Cabinet

· Opening angle

For wood doors

70˚/25°

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm

· Hinge on plate mounting system 3Way snap-on

Corner cabinet Screw-on 721-0PK0-650 721-0PL0-650

EasyFix 721-0PK4-650 721-0PL4-650

PressTo 721-0PK6-650

Drilling patterns for hinge cups > see page 2.15

50 Pcs Cup made of zinc, arm made of steel

Mounting plates see pages 2.79-2.84 TouchControl solutions > see pages 2.193-2.204

Cover caps for hinge arm > see page 2.173

Hinge cup screws If not pre-mounted

820-6328-050

Pcs

Mounting details

For further explanation > see pages 2.20-2.22

Drawings show application on D=2mm mounting plate Middle gap adjustment +6/-6mm

Mounting plate drilling distance

Adjustments

Any T-type mounting plate can be used

The adjustment of the gap between two doors is done by rotating the adjustment screw as shown on the drawing

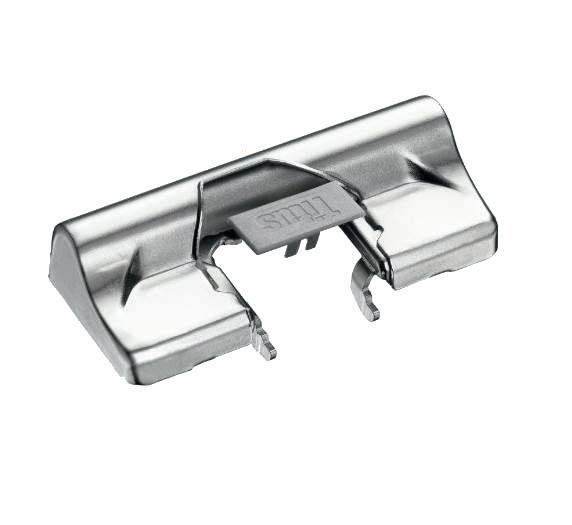

T-type Mounting Plates

Cam adjustable cruciform mounting plate 37mm

150 Pcs Made of steel

Cam adjustable linear mounting plate

150 Pcs Made of steel and zinc

Mounting plate thickness

Mounting plate thickness (D)

0mm 700-0KC0-054 700-0KB0-054 700-0KF0-054 700-0KA0-054

1mm 700-0KC1-054 700-0KB1-054 700-0KF1-054 700-0KA1-054

2mm 700-0KC2-054 700-0KB2-054 700-0KF2-054 700-0KA2-054

3mm 700-0KC3-054 700-0KB3-054 700-0KF3-054 700-0KA3-054

4mm 700-0KC4-054 700-0KB4-054 700-0KF4-054 700-0KA4-054

0mm 700-0LC0-650 700-0LB0-650 700-0LF0-650

2mm 700-0LC2-650 700-0LB2-650 700-0LF2-650

3mm 700-0LC3-650 700-0LB3-650 700-0LF3-650

Legend of mounting plate type symbols

T-type Mounting Plates

Cruciform mounting plate 37mm

Fixing screw for cruciform mounting plate If not pre-mounted Drilling

150 Pcs Made of steel

Chipboard screws 820-6328-050 10000 Pcs

3Way snap-on mounting

Mounting plate thickness

Mounting plate type

Mounting plate thickness (D)

0mm 700-0NA0-054 700-0NC0-054 700-0NB0-054 700-0NF0-054 700-0NE0-054

1mm 700-0NA1-054 700-0NC1-054 700-0NB1-054 700-0NF1-054 700-0NE1-054

2mm 700-0NA2-054 700-0NC2-054 700-0NB2-054 700-0NF2-054 700-0NE2-054

3mm 700-0NA3-054 700-0NC3-054 700-0NB3-054 700-0NF3-054 700-0NE3-054

4mm

9mm

T-type Mounting Plates for Face Frame Cabinets

Cam adjustable face frame mounting plate

150 Pcs Made of steel and zinc

Cam adjustable face frame mounting plate inset mounting

150 Pcs Made of steel and zinc

Fixing screw for cruciform mounting plate If not pre-mounted

0mm

3mm

6mm

700-0KW0-650

700-0KW3-650

700-0KW6-650

S-type Hinges

Snap-on mounting system

· Easy and quick assembly and disassembly

· Flexibility for the furniture user

· Tight hinge-to-plate joint improves hinge stability and reduces door sag

Easily accesible height adjustment with cam

· Intuitive and quick height adjustment

· Consumer friendly

ConfidentClose

· 1 Fast closing

· 2 Late start of deceleration action

· 3 Quiet landing with SoftTouch

T-Type Hinges

Titus Damper Inside

‘Titus Damper Inside’

· Titus proprietary multi-purpose damping technology

T itus proprieta r y multi-pur pose damping te chnology

Soft closing options

Proven Glissando concept

· Integrated

· Glissando add-on

Dampe r is positione d transve r s al on the hinge cup

Touch opening

· Guarantees effortless opening

· Elegant cabinet design

Reliable and consiste nt life -long damping No rebounce

· Reliable and consistent life-long damping

· Stand-alone

Reliable pe r for mance

· Doors without handles

Cranking 0mm

200 Pcs Made of steel and plastic Cranking 9mm

Mounting details

Drawings show application on D=0mm mounting plate

Drawings show application on D=0mm mounting plate

Mounting plate drilling

Drawings show application on D=3mm mounting plate

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth min. 11mm

· Hinge on plate mounting system snap-on

Cranking 9mm

Drilling patterns for hinge cups > see page 2.15

200 Pcs Made of steel and plastic

Mounting plates > see pages 2.123-2.128

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

TouchControl Solutions > see pages 2.193-2.204

Hinge cup screws If not pre-mounted

820-6308-050

10000 Pcs

Mounting details

Drawings show application on D=0 and K=4mm mounting plate

Mounting plate drilling distance

Mounting plate thickness table

S-type-i3 110/24° For wood doors

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth min. 11mm

· Hinge on plate mounting system snap-on

Cranking 9mm

242-0W48-650

Screw-on

Drilling patterns for hinge cups > see page 2.15

200 Pcs Made of steel and plastic

Mounting plates > see pages 2.123-2.128

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

TouchControl Solutions > see pages 2.193-2.204

Hinge cup screws If not pre-mounted

820-6308-050

10000 Pcs

Mounting details

Drawings show application on D=0mm mounting plate

S-type-i3 110/30°

110°

Cranking 9mm

30° angled application for wood doors

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth min. 11mm

· Hinge on plate mounting system snap-on

100 Pcs Cup made of steel and plastic, arm made of zinc

Mounting plates > see pages 2.123-2.128

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

TouchControl Solutions > see pages 2.193-2.204

Drilling patterns for hinge cups > see page 2.15

Hinge cup screws If not pre-mounted 820-6308-050

Pcs

Mounting details

adjustment

For further explanation > see pages 2.20-2.22

Drawings show application on D=3mm mounting plate

Mounting plate drilling distance Door clearance For

Mounting plate thickness table For further explanation > see page 2.11

S-type-i3 110/45°

110°

Cranking 9mm

45° angled application for wood doors

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth min. 11mm

· Hinge on plate mounting system snap-on

100 Pcs Cup made of steel and plastic, arm made of zinc

Cranking 18mm

100 Pcs Cup made of steel and plastic, arm made of zinc

Cover caps for hinge arm > see page 2.173

Hinge angle restrictor > see page 2.171

Drilling patterns for hinge cups > see page 2.15

820-6308-050

Pcs

Mounting details

Mounting

S-type-i3 110/90°

110°

Cranking 18mm

For wood door cabinets with blind panels

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth min. 11mm

· Hinge on plate mounting system snap-on

100 Pcs Cup made of steel and plastic, arm made of zinc

Mounting plates > see pages 2.123-2.128

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

TouchControl Solutions > see pages 2.193-2.204

Drilling patterns for hinge cups > see page 2.15

Hinge cup screws If not pre-mounted

820-6308-050

Pcs

Mounting details

For further explanation > see pages 2.20-2.22

Drawings show application on D=0mm mounting plate

Drawing shows application on D=3mm mounting plate Door aligned with blind panel

Mounting plate

S-type 110

Mounting details

Drawings show application on D=0mm mounting plate

Drawings show application on D=0mm mounting plate

Mounting plate drilling distance

Mounting plate thickness table For

Drawings show application on D=3mm mounting plate

S-type 110/-15°

110°

Cranking 0mm

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 11.5mm

· Hinge on plate mounting system snap-on

Drilling patterns for hinge cups > see page 2.15

100 Pcs Cup made of steel, arm made of zinc

Mounting plates > see pages 2.123-2.128

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

TouchControl Solutions > see pages 2.193-2.204

Hinge cup screws If not pre-mounted

820-6308-050 10000 Pcs

Mounting details

adjustment

Drawings show application on D=0mm mounting plate

Mounting plate drilling distance

For further explanation > see pages 2.20-2.22

Mounting plate thickness table For further explanation > see page 2.11

S-type 110/15°

110°

Cranking 9mm

100 Pcs Cup made of steel, arm made of zinc

Mounting plates > see pages 2.123-2.128

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

15° angled application for wood doors

· Opening angle

· Drilling diameter for hinge cup 35mm

· Drilling depth 11.5mm

· Hinge on plate mounting system snap-on

Drilling patterns for hinge cups > see page 2.15

Hinge cup screws If not pre-mounted

820-6308-050 10000 Pcs TouchControl Solutions > see pages 2.193-2.204 Soft closing systems > see pages 2.183-2.190

Mounting details

Drawings show application on D=0 and K=4mm mounting plate

Mounting plate

adjustment

For further explanation > see pages 2.20-2.22

Mounting plate thickness table For further explanation > see page 2.11

S-type 110/24°

110°

Cranking 9mm

100 Pcs Cup made of steel, arm made of zinc

24° angled application for wood doors

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 11.5mm

· Hinge on plate mounting system snap-on

insertion 248-0V47-050 248-0V48-050

Drilling patterns for hinge cups > see page 2.15

Cover caps for hinge arm > see page 2.173

Mounting plates > see pages 2.123-2.128 TouchControl Solutions > see pages 2.193-2.204

Hinge cup screws If not pre-mounted

Hinge angle restrictor > see page 2.171

820-6308-050 10000 Pcs

Mounting details

Drawings show application on D=0mm mounting plate

Mounting plate

adjustment

For further explanation > see pages 2.20-2.22

Mounting plate thickness table For further explanation > see page 2.11

S-type 110/30°

30° angled application for wood doors

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

Cranking 9mm

· Drilling depth 11.5mm

· Hinge on plate mounting system snap-on

Drilling patterns for hinge cups > see page 2.15 200 Pcs Cup made of steel, arm made of zinc 110°

insertion 248-0N12-050 248-0N13-050

Cover caps for hinge arm > see page 2.173

Mounting plates > see pages 2.123-2.128 TouchControl Solutions > see pages 2.193-2.204

Hinge cup screws If not pre-mounted

Hinge angle restrictor > see page 2.171

820-6308-050 10000 Pcs

Mounting details

Drawings show application on D=3mm mounting plate

Mounting plate drilling distance

For further explanation > see pages 2.20-2.22

Mounting plate thickness table

For further explanation > see page 2.11

Door clearance

For further explanation > see page 2.12

S-type 110/45°

Cranking 9mm

200 Pcs Cup made of steel, arm made of zinc

18mm

Pcs Cup made of steel, arm made of zinc

45° angled application for wood doors

Mounting details

Drawings show application on D=3mm mounting plate

Mounting plate drilling distance

Mounting plate thickness table For further explanation > see page 2.11

Drawings show application on D=0mm mounting plate

Drawing shows application on D=0mm mounting plate

For further explanation > see pages 2.20-2.22 Door clearance For further explanation > see page 2.12

S-type 110/90°

For wood door cabinets with blind panels

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 11.5mm

· Hinge on plate mounting system snap-on

Cranking 18mm

Drilling patterns for hinge cups > see page 2.15

Cover caps for hinge arm > see page 2.173 Mounting plates > see pages 2.123-2.128

Hinge angle restrictor > see page 2.171

Hinge cup screws If not pre-mounted

820-6308-050 10000 Pcs

For further explanation > see pages 2.20-2.22

Drawings show application on D=0mm mounting plate

Drawing shows application on D=3mm mounting plate Door aligned with blind panel Mounting plate drilling distance

clearance For further explanation > see page 2.12

S-type 110 AL

Cranking 0mm

200 Pcs Cup made of zinc, arm made of steel

Screws included

Cranking 9mm Screw-on

200 Pcs Cup made of zinc, arm made of steel

* Screws included

Cranking 15mm Screw-on

200 Pcs Cup made of zinc, arm made of steel

* Screws included

Pcs Cover caps for hinge arm > see page 2.173 Mounting plates > see pages 2.123-2.128 TouchControl Solutions > see pages 2.193-2.204

Mounting details

Drawings show application on D=0mm mounting plate

Mounting plate drilling distance

Drawings show

D=0mm mounting plate

Drawings

D=3mm mounting plate

Drilling pattern

details

S-type 110 Unsprung Hinge

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 11.5mm

· Hinge on plate mounting system snap-on

Cranking 0mm

200 Pcs Made of steel

Cranking 9mm

Drilling patterns for hinge cups > see page 2.15

Screw-on

Cover caps for hinge arm > see page 2.173

Mounting plates > see pages 2.123-2.128 TouchControl Solutions > see pages 2.193-2.204

Hinge cup screws If not pre-mounted

820-6308-050 10000 Pcs

Hinge angle restrictor > see page 2.171

· Hinge without spring

· Effortless opening with just a light touch

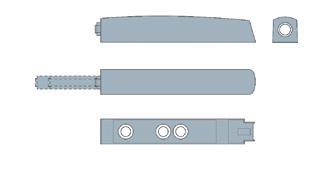

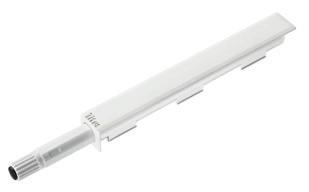

· Use with PushOpen mechanisms with magnet > see pages 2.197-2.200

Mounting details

Drawings show application on D=0mm thick mounting plate

Mounting plate drilling distance

Drawings show application on D=0mm thick mounting plate

S-type 170

· Opening angle 170°

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm

· Hinge on plate mounting system snap-on

Cranking 0mm

insertion 248-0M73-050 248-0R13-050

Drilling patterns for hinge cups > see page 2.15

50 Pcs Made of steel and zinc

Mounting plates > see pages 2.123-2.128

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

Hinge cup screws If not pre-mounted 820-6308-050 10000 Pcs

TouchControl Solutions > see pages 2.193-2.204 Soft closing systems > see page 2.185

Mounting details

Drawings show application on D=0mm mounting plate

No protrusion in 90° position

T-type-i 170

Wide Angle Hinge with Integrated Damping

Zero door protrusion at 90° opening

Zero protrusion with D=0 mounting plate

3-Way snap-on mounting

free extraction of internal drawers and pull-outs Allows for intuitive hinge-to-plate mounting in three directions

For further explanation > see pages 2.20-2.22

Mounting plate drilling distance

Mounting plate thickness table For further explanation > see page 2.11

C value with D=0 mounting plates

Door clearance

For further explanation > see page 2.12

· Opening angle 170°

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm

· Hinge on plate mounting system snap-on

Drilling patterns for hinge cups > see page 2.15

Mounting details

Drawings show application on D=0mm mounting plate

Mounting plate thickness table

Mounting plate drilling distance C value with D=0 mounting plates

Drawing shows application on D=0mm mounting plate

Drawing shows application on D=9mm mounting plate

Drawing shows application on D=18mm mounting plate

S-type for Pie-cut Corner Cabinet

For wood doors

· Opening angle 90˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 11.5mm

· Hinge on plate mounting system snap-on

Drilling patterns for hinge cups > see page 2.15

100 Pcs Cup made of steel, arm made of zinc

Mounting plates > see pages 2.123-2.128

Cover caps for hinge arm > see page 2.173

TouchControl Solutions > see pages 2.193-2.204

Hinge cup screws If not pre-mounted

820-6308-050 10000 Pcs

Mounting details

Mounting plate drilling distance

For further explanation > see pages 2.20-2.22

Adjustments

The diagonal adjustment is made by rotating the appropriate screw as shown on the drawing

Drawing shows application on D=3mm mounting plate

S-type Mounting Plates

S-type snap-on mounting

Cam adjustable cruciform mounting plate 37mm
Pcs Made of steel

Mounting plate thickness

Mounting plate type

Mounting plate thickness (D)

0mm 244-0258-050 244-0261-050 *244-0264-050 *244-0342-050 244-0270-050

2mm 244-0259-050 244-0262-050 *244-0265-050 *244-0343-050 244-0271-050

3mm 244-0260-050 244-0263-050 *244-0266-050 *244-0344-050 244-0272-050

* Available upon special request > see page 0.3

Legend of mounting plate type symbols

S-type Mounting Plates

Cruciform mounting plate

200 Pcs Made of steel

Zinc diecast cruciform mounting plate 37mm

200 Pcs Made of zinc

Fixing screws for mounting plates If not pre-mounted

821-6304-050 L=11

821-6323-050 L=13

821-6332-050 L=15

S-type snap-on mounting

* Available upon special request > see page 0.3 Mounting plates with premounted 7.5mm expanding dowels available upon special request > see page 0.3

S-type Face Frame

Mounting Plates

Face frame adapter for S-type hinges

200 Pcs Made of zinc alloy

Fixing screw for mounting plates

If not pre-mounted

S-type snap-on mounting

0mm 244-3653-650

3mm 244-3654-650

6mm 244-3655-650

Screw-on

T-Type Hinges

B-type Hinges

Slide-on mounting system

ConfidentClose

Titus Damper Inside

Rigidity Proven Low hinge cup drilling depth

Hinge -to -plate at tachme nt a s sure s stabilit y and rigidit y Smooth pe r for mance

· Proven and reliable hinge-to-plate mounting solution

· Cost-per-door effectiveness

· Proven solution for RTA furniture, household application and tall cabinets

· 1 Fast closing

· 2 Late start of deceleration action

Enable s application on door thick ne s se s from 15mm on

· 3 Quiet landing with SoftTouch

‘Titus Damper Inside’

· Titus proprietary multi-purpose damping technology

T itus proprieta r y multi-pur pose damping

te chnology

· Reliable and consistent life-long damping

Reliable and consiste nt life -long damping

No rebounce

Da tra Re

Soft closing options

· Hinge integrated

· Stand-alone

· Add-on with Glissando ready hingecup

· Fast and simple mounting

B-type-i3

· Reliable open-close

· Consistent performance

· ConfidentClose

· Low 11mm hinge depth cup

Touch opening

· Guarantees effortless opening

· Elegant cabinet design

· Doors without handles

Cranking 0mm

200

9mm

Mounting

Drawings show application on D=0mm mounting plate

Drawings show application on D=0mm mounting plate

Drawings

110°

Cranking 9mm

30° angled application for wood doors

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth min. 11mm

· Hinge on plate mounting system slide-on

100 Pcs Cup made of steel and plastic, arm made of zinc

Mounting plates > see pages 2.163-2.166

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

TouchControl solutions > see pages 2.193-2.204

Drilling patterns for hinge cups > see page 2.15

Hinge cup screws If not pre-mounted

820-6308-050 10000 Pcs

Mounting details

Mounting plate drilling distance

Mounting plate thickness table For further explanation > see page 2.11 Door adjustment

For further explanation > see pages 2.20-2.22

110°

Cranking 9mm

45° angled application for wood doors

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth min. 11mm

· Hinge on plate mounting system slide-on

200 Pcs Cup made of steel and plastic, arm made of zinc

Mounting plates > see pages 2.163-2.166

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

TouchControl Solutions > see pages 2.193-2.204

Drilling patterns for hinge cups > see page 2.15

Hinge cup screws If not pre-mounted

820-6308-050 10000 Pcs

Mounting details

Drawings show application on D=3mm mounting plate

Mounting

Mounting plate thickness table

110°

Cranking 18mm

45° angled application for wood doors

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth min. 11mm

· Hinge on plate mounting system slide-on

200 Pcs Cup made of steel and plastic, arm made of zinc

Mounting plates > see pages 2.163-2.166

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

TouchControl Solutions > see pages 2.193-2.204

Drilling patterns for hinge cups > see page 2.15

Hinge cup screws If not pre-mounted

820-6308-050 10000 Pcs

Drawings show application on D=0mm mounting plate L=36 for

B-type-i3 110/90°

For wood door cabinets with blind panels

· Opening angle 95˚

· Drilling diameter for hinge cup 35mm

· Drilling depth min. 11mm

· Hinge on plate mounting system slide-on

Cranking 18mm Screw-on 242-0Y48-650 242-0Y49-650

Drilling patterns for hinge cups > see page 2.15

200 Pcs Cup made of steel and plastic, arm made of zinc

Blind panel mounting plate Screw-on 244-0810-650 15 244-0P28-650

200 Pcs Made of zinc 13 244-0C32-650

This mounting plate can be only used with B-type-i 110/90° hinges. Information about mounting plate symbols > see page 2.164

Hinge cup screws If not pre-mounted

Pcs Hinge

Mounting details

plate

adjustment

further explanation > see pages 2.20-2.22

B-type 110

Cranking 0mm

200 Pcs Made of steel Drilling patterns for

Cranking 9mm

200 Pcs Made of steel

15mm

200 Pcs

Pcs

Mounting details

Drawings show application on D=0mm mounting plate

Drawings show application on D=0mm mounting plate

Mounting plate drilling distance

Mounting plate thickness table For

Drawings show application on D=3mm mounting plate

D=-2+K+F

B-type 110/30°

110°

Cranking 9mm

30° angled application for wood doors

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 11.5mm

· Hinge on plate mounting system slide-on

insertion 248-0G82-050 248-0L72-050

Drilling patterns for hinge cups > see page 2.15 200 Pcs Cup

Mounting plates > see pages 2.163-2.166

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

Hinge cup screws If not pre-mounted

820-6308-050 10000 Pcs

Mounting details

Drawings show application on D=3mm mounting plate

Mounting plate drilling distance

For further explanation > see pages 2.20-2.22

Mounting plate thickness table

For further explanation > see page 2.11

Door clearance

For further explanation > see page 2.12

B-type 110/45°

110°

Cranking 9mm

Pcs

Mounting plates > see pages 2.163-2.166

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

45° angled application for wood doors

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 11.5mm

· Hinge on plate mounting system slide-on

insertion 248-0N38-050 248-0L71-050

Drilling patterns for hinge cups > see page 2.15

Hinge cup screws If not pre-mounted

820-6308-050 10000 Pcs

Mounting details

For further explanation > see pages 2.20-2.22

Drawings show application on D=3mm mounting plate

Mounting plate thickness table For further explanation > see page 2.11

Mounting plate drilling distance Door clearance

B-type 110/45°

110°

Cranking 18mm

Pcs

Mounting plates > see pages 2.163-2.166

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

45° angled application for wood doors

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 11.5mm

· Hinge on plate mounting system slide-on

Machine insertion 248-0L46-050 248-0L70-050

Drilling patterns for hinge cups > see page 2.15

Hinge cup screws If not pre-mounted

820-6308-050 10000 Pcs

Mounting details

For further explanation > see pages 2.20-2.22

Mounting plate drilling distance

Drawing shows application on

Drawings show application on D=3mm mounting plate Door clearance For further explanation > see page 2.12

B-type 110/90°

200 Pcs Cup made of steel, arm made of zinc

18mm

200 Pcs Cup made of steel, arm made of zinc

200 Pcs Made of zinc

For wood door cabinets with blind panels

Mounting details

For further explanation > see pages 2.20-2.22

B-type 110 AL

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 11.5mm

· Hinge on plate mounting system slide-on

Cranking 0mm Screw-on

200 Pcs Cup made of zinc, arm made of steel

Cranking 9mm

200 Pcs Cup made of zinc, arm made of steel

Cranking 15mm

200 Pcs Cup made of zinc, arm made of steel

Mounting plates > see pages 2.163-2.166

Hinge angle restrictor > see page 2.171

Cover caps for hinge arm > see page 2.173

TouchControl Solutions > see pages 2.193-2.204

Hinge cup screws If not pre-mounted

* Fixing screws included

950-0T49-050

Screw-on

* Fixing screws included

Screw-on 950-0T51-050

* Fixing screws included

820-6350-050 10000 Pcs

Mounting details

Dimensions shown on m.pl. D=0mm

Mounting plate drilling distance

Dimensions shown on m.pl. D=0mm

Dimensions shown on m.pl. D=3mm

Drilling pattern for aluminium frame hinges

Mounting details Screws included

Mounting plate thickness table

B-type 110 AL

For aluminium frame doors Glissando AL soft closing ready

· Opening angle 110˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 11.5mm

· Hinge on plate mounting system slide-on

Cranking 0mm

200 Pcs Made of steel and zinc

Cranking 9mm

200 Pcs Made of steel and zinc

Cranking 15mm

200 Pcs Made of steel and zinc

Hinge angle restrictor > see page 2.171 Cover caps for hinge arm > see page 2.173 Mounting plates > see pages 2.163-2.166

* Fixing screws included

* Fixing screws included

Fixing screws included

Pcs

· Hinge for aluminium frame door which can be used with Glissando AL for soft closing solution

Mounting details

Dimensions shown on m.pl. D=0mm

Dimensions shown on m.pl. D=0mm

Dimensions shown on m.pl. D=3mm

Drilling pattern for aluminium frame hinges Mounting details

Door adjustment

plate

For further explanation > see pages 2.20-2.22 Door clearance

D=-2+K+F

B-type 170

· Opening angle 170°

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm

· Hinge on plate mounting system slide-on

Cranking 0mm

insertion 248-0L51-050 248-0R12-050

Drilling patterns for hinge cups > see page 2.15

50 Pcs Made of steel and zinc

Mounting plates > see pages 2.163-2.166

Hinge angle restrictor > see page 2.171

Hinge cup screws If not pre-mounted 820-6308-050

Pcs TouchControl Solutions > see pages 2.193-2.204

closing systems > see page 2.185

Mounting details

Drawings show application on D=0mm mounting plate

No door protrusion in 90° position

T-type-i 170

Wide Angle Hinge with Integrated Damping

Zero protrusion with D=0 mounting plate

Zero door protrusion at 90° opening

free extraction of internal drawers and pull-outs

3-Way snap-on mounting

Allows for intuitive hinge-to-plate mounting in three directions

Mounting plate drilling distance

Mounting plate thickness table For further explanation > see page 2.11 Door adjustment

For further explanation > see pages 2.20-2.22

C value with D=0 mounting plates

Door clearance For further explanation > see page 2.12

B-type 170

· Opening angle 170°

· Drilling diameter for hinge cup 35mm

· Drilling depth 12mm

· Hinge on plate mounting system slide-on

Drilling patterns for hinge cups > see page 2.15 50 Pcs Made of steel and zinc

Drawings

adjustment

For further explanation > see pages 2.20-2.22

Mounting plate thickness table For further explanation > see page 2.11

Drawing shows application on D=0mm mounting plate

Drawing shows application on D=9mm mounting plate

Drawing shows application on D=18mm mounting plate

clearance

B-type for Pie-cut Corner Cabinet

For wood doors

· Drilling diameter for hinge cup 35mm

· Drilling depth 11.5mm

· Hinge on plate mounting system slide-on

Drilling patterns for hinge cups > see page 2.15

100 Pcs Cup made of steel, arm made of zinc

Mounting plates > see pages 2.163-2.166

Cover caps for hinge arm > see page 2.173

TouchControl Solutions > see pages 2.193-2.204

Hinge cup screws If not pre-mounted 820-6308-050

Pcs

Mounting details

Mounting plate drilling distance

For further explanation > see pages 2.20-2.22

Adjustments

The diagonal adjustment is made by rotating the appropriate screw as shown on the drawing.

Drawings show application on D=3 mm mounting plate.

B-type Flap door hinge

For wood doors

· Opening angle 90˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 11.5mm

· Hinge on plate mounting system slide-on

Cranking 0mm

* For application it is mandatory to order left and right hinge

200 Pcs Cup made of steel

Mounting plates > see pages 2.163-2.166

Cover caps for hinge arm > see page 2.173

TouchControl Solutions > see pages 2.193-2.204 Hinge cup screws If not pre-mounted 820-6308-050

Pcs

For further explanation > see pages 2.20-2.22

Mounting details

Mounting plate thickness table For further explanation > see page 2.11

0 1 2 3

20 21 22 23

X=22.5 + K - A

Door clearance For further explanation > see page 2.12

B-type Mounting Plates

Cruciform mounting plate

200 Pcs Made of steel

Zinc diecast cruciform mounting plate

200 Pcs Made of zinc

Fixing screws for mounting plates If not pre-mounted

821-6304-050 L=11

821-6323-050 L=13

821-6332-050 L=15

B-type slide-on mounting

* Available upon special request > see page 0.3 4mm

* Available upon special request > see page 0.3

244-0175-650

B-type Mounting Plates

Cruciform mounting plate

· Back-to back application

200 Pcs Made of steel

B-type slide-on mounting

Wide Angle Hinge 270

· Opening angle 270˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 12.5mm

· Hinge on plate mounting system key-hole

D=0mm

Pre-mounted

D=2mm

Pre-mounted

D=6mm

Hinge cup screws If not pre-mounted

Pre-mounted

This mounting plate can be only used with Wide angle hinge 270. Information about mounting plate symbols > see page 2.16

820-6308-050

10000 Pcs

For further explanation > see pages 2.20-2.22

Mounting details

Drawing shows application on D=0 mounting plate and S=18 side panel.

Drawing shows application on D=6mm mounting plate

Refrigerator Cabinet

· Opening angle 100˚

· Drilling diameter for hinge cup 35mm

· Drilling depth 11mm

· Hinge on plate mounting system key-hole

Cranking 0mm Screw-on

200 Pcs Cup made of steel, arm made of zinc

Cruciform mounting plate

500 Pcs Made of steel

248-0R09-050 248-0K10-050

248-0M41-050

Machine insertion

Drilling patterns for hinge cups > see page 2.15

Screw-on

244-0655-050 13 244-0846-050

This mounting plate can be only used with Refrigerator Cabinet Hinge. Information about mounting plate symbols > see page 2.16

Mounting details

For further explanation > see pages 2.20-2.22

Drawings show application on mounting plate

Mounting plate

drilling distance Door clearance

For further explanation > see page 2.12

Hinge Angle Restrictors

For 110 hinges

For 170 hinges

Hinge Angle Restrictor T-type

200 Pcs Made of plastic 80° Hinge Angle

Restrictor S-type, B-type

200 Pcs Made of plastic

Restrictor

200 Pcs Made of plastic

Hinge angle restrictor limits opening angle

Prevents door damage

Easy and quick mounting and dismounting

Mounting details

Open the door to approximately 75° and position angle restrictor to follow the hinge cup form

Push to fully open. Audible click indicates angle restrictor is in the right position

Close the door to remove the restrictor holder (cracks by itself while closing the door)

Hinge has to be in closed position

Insert angle restrictor into the hinge cup

Recommended to insert angle restrictor while doors are not mounted on the cabinet

When angle restrictor is in the right position push it down

Cover Caps For 110 hinges

T-type

5000 Pcs Made of steel

T-type

5000 Pcs Made of steel

S-type B-type

4000 Pcs Made of steel For

Titus 728-1286 > 054 without 728-1283 > 054

Not for 5mm, 9mm, 17mm hinge cranking

Titus 728-1287 > 054 without 728-1284 > 054

For all T-type range

Titus 248-1646 > 050 without 248-1712 > 050

Concealed

Glissando Soft Closing Systems for Hinges

ConfidentClose

· 1 Fast closing

· 2 Late start of deceleration action

· 3 Quiet landing with ‘SoftTouch’

Tool-less mounting

· Reduced assembly time

· Flexible usage also as a retrofit option

Consistent Performance

· Only one Glissando for two to three hinges

· Allows for consistent performance on a wide range of door dimensions and weights

One-for-all

· One item fits multiple applications

· Same item can be used on all crankings and angled hinges

Titus Damper Inside

· Titus proprietary multi-purpose damping technology

· Efficient modular design

· Relaible and consistent damping

Glissando Add-on Soft Closing Range

How to Choose the Right Glissando?

Glissando TT

Glissando TL3

Glissando TL 170

Glissando CR

Glissando AL

Titus Glissando soft closing system is available for the whole range of hinge applications. The user can choose between add-on or stand-alone solutions.

Concealed hinges

Add-on hinge soft closing solutions

Stand-alone door soft closing solution

Glissando TT Glissando TL3 Glissando TL 170 Glissando CR Glissando AL

T-type 95 X X X

T-type 110 X X X

T-type 110/15° X

T-type 110/30° X

T-type 110/45° X

T-type 110/90° X

T-type 120 X X X

T-type 170 X X X

S-type 110 X X X

S-type 110/15° X

S-type 110/24° X

S-type 110/30° X

S-type 110/45° X

S-type 110/90° X

S-type 170 X X X

S-type 110 AL X

B-type 110 X X X

B-type 110/30° X

B-type 110/45° X

B-type 110/90° X

B-type 170 X X X

B-type 110 AL X

Glissando Application

Glissando TT 'One-for-all'

T-type

One item fits multiple applications Same item can be used on all crankings and angled hinges Designed to fit the concealed hinge cup

T-type 95 0mm

T-type 110 0mm

T-type 110

5mm

T-type 110 17mm T-type 110 9mm

T-type 120 0mm

Titus Glissando soft closing devices can't be used with unsprung and reverse spring hinges.

Tool-less mounting

Suitable for different types of cabinets for kitchens, living rooms, bathrooms and other furniture

T-type 110/15° 9mm

T-type 110/30° 9mm

T-type 110/45° 9mm

T-type 110/45° 17mm

T-type 110/45° 23mm

T-type 110/90° 17mm

Glissando Soft

Glissando Application

Glissando

TL3 'One-for-all'

S-type B-type

One item fits multiple applications

Same item can be used on all crankings and angled hinges Adjustable damping enables perfect functioning on every door

S-type 110 0mm

S-type 110 9mm

S-type 110 15mm

S-type 110/15° 9mm

S-type 110/24° 9mm

S-type 110/30° 9mm

S-type 110/45° 9mm

S-type 110/45° 18mm

S-type 110/90° 18mm

Designed to fit the concealed hinge cup

Tool-less mounting

Suitable for different types of cabinets for kitchens, living rooms, bathrooms and other furniture

B-type 110 0mm

B-type 110 9mm

B-type 110 15mm

B-type 110/30° 9mm

B-type 110/45° 9mm

B-type 110/45° 18mm

B-type 110/90° 18mm

Glissando Number per Door and Positioning

How Many Glissandos per Door?

Add-on hinge soft closing solution

Glissando TT

Glissando TL3

Glissando TL 170

Number of Glissando per door depends on door dimensions, door weight, hinge arrangement. Trial mounting is recommended.

TT

TL3 Glissando TL170

Glissando TT

No. of hinges No. of hinges

TL3/ Glissando TL 170

Stand-alone soft closing solution

Glissando CR

Glissando AL

Recommended number per door

Recommended number per door

No. of hinges

Recommended number per door

Glissando Soft Closing
No. of Glissando TT
No. of
Glissando TL3/ Glissando TL 170
No. of Glissando CR/ Glissando AL
Mount Glissando CR/AL on the hinged side of the cabinet on the top or bottom.
Glissando
Glissando
Glissando
Glissando CR/ Glissando AL

Glissando Mounting

How to Mount Glissando?

Tool-less mounting

Glissando TL3

Glissando TT

Glissando TL 170

Simple tool-less assembly: Insert Glissando into the holes on the hinge and press down with hand.

Screw-on into the cabinet corner

Glissando CR

Glissando CR is mounted into the cabinet corner by using chipboard screws 20mm long.

Glissando dampers’ discreet design enhances the look of the door and occupies minimal space in the cabinet interior.

The tool-less ‘snap on’ version for reduced assembly time and flexibility of application. Glissando TL can be mounted at any time after furniture assembly so can be offered as a retro fit option by the installer.

Screw-on onto the mounting plate

Glissando AL

Position the mounting plate below the hinge arm and fix with two screws. Use hinge mounting plate as a reference.

plate

Slide Glissando AL onto the mounting

Glissando Damping Adjustment

How to Adjust Damping?

Add-on hinge soft closing solution

Glissando TL 170

Glissando features quarter turn adjustment to provide optimal closing speed for any door dimensions and weight.

The damping function can be adjusted to fit different door weights which enables

· perfect door functioning

· use of the same type of Glissando for various doors

Adjustable damping zone

Stand-alone soft closing solution

Glissando CR

Glissando AL

Turn towards ‘+’ to increase or towards ‘-’ to decrease the damping.

Turn towards ‘+’ to increase and ‘-’ to decrease the damping

Simple mounting

· Intuitive damping adjustment

Damping adjustment

Turn towards ‘+’ to increase and ‘-’ to decrease the damping

Glissando Soft Closing

Glissando TT Glissando TL3

Add-on Hinge Damper

Glissando TT

T-type 95

T-type 110 · T-type 120

200 Pcs Made of steel and plastic

Glissando TL3

· S-type 110

For 95°, 110° and 120° hinges

110°, 120° 729-0K71-054

· B-type 110 110° 951-0D45-054

200 Pcs Made of steel and plastic

Same item can be used on most of crankings and angled hinges

Intuitive snap-on mounting

Low protrusion in cabinet interior

Consistent performance across a broad range of furniture doors

Mounting details

Tool-less mounting

Press down

Dismounting details

Use flat screwdriver

A trial mounting is always recommended.

Recommended number of Glissandos per door

Glissando
Insert Glissando TL3 into the holes on the hinge
Glissando TT
Glissando TL3/ Glissando TL 170

Glissando TL 170

Add-on Hinge Damper

Glissando TL 170
Pcs Made of steel, plastic and zinc
Striking plate

Gentle and reliable soft closing on doors with wider opening angle

Fits perfectly 45/9.5mm, 48/6mm and 52/5.5mm hinge cups

ConfidentClose

· Tool-less mounting

Damping adjustment

Mounting details

Tool-less mounting

Turn towards ‘+’ to increase and ‘-’ to decrease the damping

Recommended number of Glissandos per door

No. of hinges

Glissando
Insert Glissando TL 170 into the holes on the hinge cup
Place the striking plate into the hole on the hinge arm
Press down
Press down
No. of Glissando TL3/ Glissando TL 170
Glissando TL3/ Glissando TL 170

Glissando AL Add-on Hinge Damper

Simple mounting Intuitive damping adjustment

Use with B-type AL hinges

Mounting procedure

Damping adjustment

Position the mounting plate below the hinge arm and fix it with two screws. Use hinge mounting plate as a reference.

plate.

Turn towards ‘+’ to increase and ‘-’ to decrease the damping

number per door

Glissando
Slide Glissando AL onto the mounting
No. of hinges
No. of Glissando CR/ Glissando AL
Glissando CR/ Glissando AL

Glissando CR Stand-alone

Damper

Glissando CR for full overlay hinges

100 Pcs Made of plastic

Glissando CR for half overlay hinges

100 Pcs Made of plastic

For full overaly and half overaly concealed hinges

*Fixing screw included in a set

*Fixing screw included in a set

Intuitive ‘place and fix’ installation in the corner of the cabinet

Tool-less damping adjustment

One item for a wide range of doors

Reliable performance

· Can be paired with all self-closing hinges

Damping adjustment

Mounting details

Turn towards ‘+’ to increase and towards ‘-’ to decrease the damping

Glissando
Glissando
Glissando
Mount Glissando CR on the hinged side of the cabinet
Mount Glissando CR on the hinged side of the cabinet
One screw fixing One screw fixing
No. of Glissando CR/ Glissando AL
Glissando CR/ Glissando AL

TouchControl Solutions

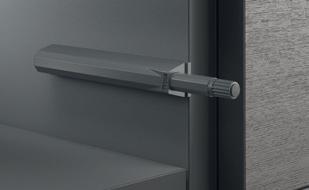

Push Latch S3

· Soft push opening system controls the outward motion for smooth, silent, and bounceless door movement

· Integrated damper ensures a soft landing, protecting the cabinet and enhancing user comfort

Built-in SafeGuard

· For enhanced safety, adjustment button can't be removed

· Prevents from misuse

Noir, elegant and discreet dark finish

· Seamless integration of hardware into the furniture

· Uniform and discreet surface

Toolless door gap adjustment

· Easy to compensate any door gaps that might occur during installation

· Adjustment button designed for smooth, hand-operated adjustment

Titus damper inside

· Push latch S2 and S3 version ensure controlled, soft and silent door opening

· Smooth user experience without door rebound

· Cushioned door landing

Reliable performance

· Reliable door opening and closing through the life-time

Push Latch S3

Soft and silent push opening

Door gap adjustment ensures reliable closing and consistent performance

'Safety click' feature for easy detachment of the mechanism from its mounting plate

Lip on the mounting plate assures accurate positioning Adjustment +3.5/-0mm

Door

+3.5/-0mm

Positioning

Mounting position close to the ‘touch opening point’ on the side opposite to hinges.

For application on cabinets with more than 2 hinges and cabinets with narrow doors we recommend a trial mounting.

Drilling pattern
Mounting
Depth adjustment

Push Latch S3 For

Soft and silent push opening

Door gap adjustment ensures reliable closing and consistent performance

Positioning lip assures accurate position

Door gap adjustment +3.5/-0mm

Mounting position close to the ‘touch opening point’ on the side opposite to hinges.

For application on cabinets with more than 2 hinges and cabinets with narrow doors we recommend a trial mounting.

Drilling pattern
Mounting
Depth adjustment
Positioning

Push Latch S2

200 Sets Made of steel and plastic

For wood doors

Set consists of:

200 Sets

Push Latch S2
Push Latch S2
Linear mounting plate with lip

Bounceless and reliable door opening and closing

Safety detachment feature of the mechanism from its mounting plate

Depth adjustment assures reliable and consistent push-to-open action

Compatibility with damped or non-damped hinges ensures soft landing of the door

Push latch S2 works with standard hinges with and without damping

Door gap adjustment +4/-1mm

Mounting position close to the ‘touch opening point’ on the side opposite to hinges.

For application on cabinets with more than 2 hinges and cabinets with narrow doors we recommend a trial mounting.

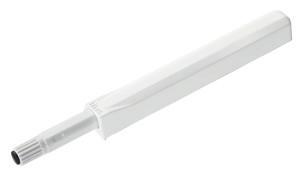

Push Latch

Push Latch

Effortless opening with just a light touch

Depth adjustment ensures reliable closing and consistent performance in case of inaccurate drilling ‘Safety click’ feature for easy detachment of the mechanism from its mounting plate

Push latch with bumper works with standard hinge Push latch with magnet works with reverse spring hinges or unsprung hinges Door gap adjustment +4.5/-1mm

Mounting position close to the ‘touch opening point’ on the side opposite to hinges.

For application on cabinets with more than 2 hinges and cabinets with

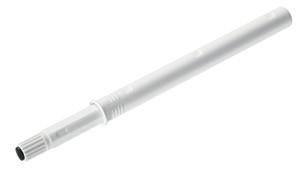

PushOpen Short

Effortless opening with just a light touch

Depth adjustment ensures reliable opening

PushOpen with bumper works with standard hinge

PushOpen with magnet works with reverse spring or unsprung

hinges Door gap adjustment +4/-0mm

Drilling pattern and mounting procedure Depth adjustment

Without housing

Adjustment made by rotating the depth adjustment screw

With housing

Positioning

Close to the ‘touch opening point’ on the side opposite to hinges Sticking or knock-in position

x 10mm

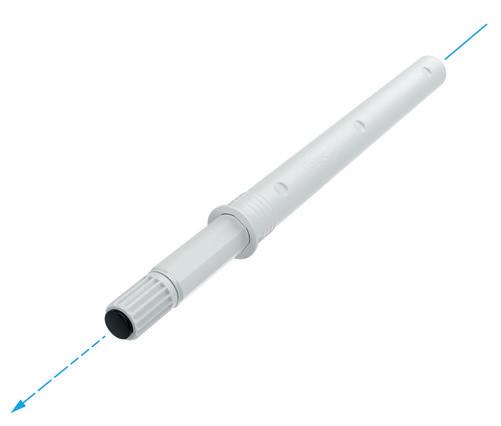

PushOpen Long

Effortless opening with just a light touch

Depth adjustment ensures reliable opening

PushOpen with bumper works with standard hinge

PushOpen with magnet works with reverse spring or unsprung hinges

Door

adjustment +4/-0mm

Drilling pattern and mounting procedure Depth adjustment Without housing With housing

Adjustment made by rotating the depth adjustment screw

Pre-drilled hole

Sticking or knock-in position

Close to the ‘touch opening point’ on the side opposite to hinges

Tekform Slimline+ Drawer

Tekform Slimline+ Drawer

Swift assembly with enhanced front panel engagement

· Improved front panel connection ensures secure engagement and effortless disengagement

3D drawer front alignment with easy access

· Convenient front access for side, height, and tilt adjustment

· Colour-coded adjustment cams for easy identification

· Ensures uniform gap layouts for evenly aligned drawer fronts

Tilt adjustment

· Accessible at the front of the drawer side

· For an intuitive drawer front positioning through the mechanical stop

Smooth and effortless performance

· Titus Damper Inside with ART function for smooth and controlled movement, regardless of the closing speed

· Low pull-out force

· Optimal closing performance and life-long consistent damping

Push-to-open compatibility for handleless cabinets

· Intuitive mounting without pre-drilling

· One-for-all: one mechanism for all Tekform Slimline+ drawers from 350mm onwards

· Easily adjustable push-to-open activation with only 1.5mm gap to operate

· Same runner for standard and push-to-open application

EasyFix front panel attachment

· Simple hand insertion

· Comfortable locking action at 90° turn of screwdriver

· Expando function for firm and reliable front attachment

Tekform Slimline+ Drawer

Inner Drawer Front for Tekform Slimline+ Drawer

Tekform Slimline+ Drawer Information

Technical Guide

How to choose the appropriate drawer dimension?

Select the drawer size based on the available cabinet space. Please refer to the chart below, which indicates the

minimum space required in the cabinet to choose the appropriate drawer system.

NL = Tekform Slimline+ drawer nominal length (mm)

Tekform Slimline+ drawer Min.

Tekform Slimline+ drawer

Tekform Slimline+ drawer

Tekform Slimline+ drawer

Tekform Slimline+ drawer

How to fix drawer sides to the front panel?

Screw-in front connector

The Tekform Slimline+ drawer is available with EasyFix or screw-in front connectors

Front connector

· reliable connection

· fixing with Ø 3.5x15mm screws (screws are not included)

EasyFix front connector

· hand insertion

· quarter turn locking system

· expandable dowel

· easy assembly and disassembly of front panel

Front connector

Planning

Bottom panel and back panel cutting dimensions

Dimensions of bottom and back panel depends on:

cabinet width nominal drawer length drawer height

NL = Tekform Slimline+ drawer nominal length (mm)

Cabinet width

ECW: External cabinet width

ICW: Internal cabinet width

NL: Nominal length of drawer

Back panel cutting dimensions

Back panel height depends on the selected drawer height

DWD70 68

DWD100 100

DWD145 151

DWD182 183

Bottom panel cutting dimensions

NL = Slimline+ drawer nominal length (mm)

L = Length in case of wood back panel

Lst: Length in case of steel back panel

*For drawers with steel back panel L = NL - 20

Tekform

Tekform Slimline+ Drawer Information

Technical Guide

How to choose the appropriate drawer runner fixing positions?

Tekform Slimline+ drawer front positioned outside the carcass

The drawer's fixing position depends on its functional placement.

When the drawer front is positioned outside the carcass, use the third hole on the drawer runner for fixing.

Tekform Slimline+ drawer front positioned inside the carcass

When the drawer front is positioned inside the carcass, use the second hole on the drawer runner for fixing.

Expanded tolerances

Tekform Slimline+ drawer provides wider tolerances in cabinet construction and assures:

· precise drawer alignment

· smooth and silent operation

· improved drawer stability in open position

· Tekform Slimline+ drawer provides a tolerance of +/-1mm on bottom panel width size

Adjustment needs to be done on both sides of the drawer

Adjustments

How to adjust the drawer front panel?

The Tekform Slimline+ drawer offers effortless three-dimensional front panel alignment, providing convenient access for side, height, and tilt adjustment positioned

at the front of the drawer side. Enhanced with colour-coded adjustment cams, for easy identification and precise alignment, guaranteeing uniform gap layouts.

Height adjustment

Side adjustment

+/- 1.5 mm

Height adjustment

+/- 1.5 mm

Tilt adjustment

Side adjustment

Side adjustment is done by rotating the grey coloured cam adjuster on the drawer side.

Tilt adjustment

Height adjustment is done by rotating the red coloured cam adjuster on the drawer side.

Tilt adjustment is done by rotating the yellow coloured cam adjuster on the drawer side.

Tekform Slimline+ Drawer

Key Design Choices

CAF Consumer Assembly Friendliness

EasyFix front panel connector with expandable dowels provides:

· Quick, toolless insertion

· Quarter turn lock

· Repeatable assembly and disassembly

Compatible with Tacto push-opening system:

· For convenient, handle-free opening

· Same runner for both, standard and Tacto push-to-open applications

· The Tacto mechanism can be simply added as a retrofit option at any time after the drawer assembly

· For all drawers from a 300mm nominal length onwards

Front connector

Response to speed

Designed and produced in-house

· Reliable and consistent lifelong damping

· Smooth closing

· Consistent damping performance guaranteed across high-volume production runs

· 100% automated quality check

Even and smooth soft closing action

· Soft and reliable closing

Response to speed defines the increase in damping force in relation to the closing speed of the damping object.

Standard

The damping force increase is approximately linear to the increasing speed of closing.

ART - Adaptive Response Technology

Adaptive Response Technology fine-tunes the damper's performance and damping force by adjusting to the drawer's weight and speed. It provides smooth and reliable damping at any closing speed, while reducing the force needed to open the drawer.

Flat damping curve shows the uniform action produced during damper closing at a defined speed.

force

Damping action
Titus Damper inside
Damping force
Stroke
Damping

Tekform Slimline+ Drawer DW70

Tekform Slimline+

Chipboard screw Ø3.5 x 15
x

Tekform Slimline+

Tekform Slimline+

Front panel
Back panel

Inner Drawer Front for Tekform Slimline+ Drawer

NL=270mm

NL=300mm

NL=350mm

NL=400mm NL=450mm

Inner Drawer Front for

NL=300mm

NL=350mm

NL=400mm NL=450mm

Inner Drawer Front for Tekform

NL=270mm

NL=300mm

NL=350mm

NL=400mm

NL=450mm

TouchControl Solutions

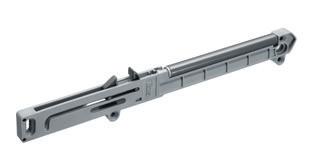

Tacto 2.0

Intuitive mounting

One-for-all – One item fits all Slimline+ drawers from NL=300mm

Easily adjustable push-to-open activation with only 1.5mm gap to operate Easy opening, reliable closing

sets Made of plastic

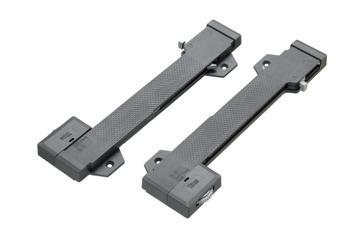

Accessories Marking Jig

Marking jig for

Slimline+

DW70 and DW100

1 set Made of plastic and steel

Marking jig for Tekform Slimline+ drawer DW145 and DW182

1 set Made of plastic and steel

Accessories

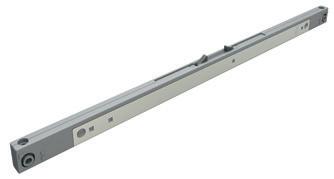

Steel Back Panel

Tekform Slimline DW45

Cutting dimensions details

· Drawer runner type

Load

Minimum

Back panel

·

i Works with or without Tacto Mechanism

Soft Closing Systems for Doors and Drawers

Soft Closing Systems for Doors and Drawers

Titus Damper Inside

· Smooth and even soft closing action on various door dimensions and weights

· Silent closing without a rebounce

· Consistent performance in hot/cold environment

Titusoft for drawers

· For metal box and roller runners

Simple and intuitive mounting

· No pre-drilling required

· Non-handed

· User friendly

Set 200s

· Reliable damping for bottom running sliding doors in two- and three-door wardrobes

· Quick, intuitive installation without the need for pre-drilling

Comfortable door opening

· Low pull-open force

· Effortless opening

Fully controllable damping curve

· Ability to fine tune performance to specific applications

· Precise definition of forces over the whole damping action

Titusoft WD

Soft Closing System for Wooden Drawer

For wooden drawer with roller runners

973-4451 > 973-0X35 >

Bag of 1 973-0X35-380-K2

1 Titusoft mechanism

1 activator

2 screws Ø3.5mm x 20mm

2 screws Ø3.5mm x 12mm

1 mounting instruction sheet

Bag of 2 973-0X35-380-K1

2 Titusoft mechanisms

2 activators

4 screws Ø3.5mm x 20mm

4 screws Ø3.5mm x 12mm

1 mounting instruction sheet

· Works with most roller runner drawer slides

· Easy, intuitive mounting

· Smooth, soft closing action independent of drawer hardware

· Optimal closing speed

· Non-handed design

Mounting details

A trial mounting is always recommended. Please contact Titus Group or your local distributor for further technical assistance.

Mount 1 or 2 Titusoft mechanisms depending on drawer weight and width

Position the Titusoft mechanism on the top of the drawer slide
1. Rest the activator against the drawer front
2. Align the vertical position of the activator with the top of the Titusoft mechanism and mark the screw locations

Titusoft MD

Soft Closing System for Metal Box

Activator

Mounting jig

Bag of 1 973-0X39-380-K2

· 1 Titusoft mechanism

1 activator

1 mounting jig

4 screws

Bag of 2 973-0X39-380-K1

2 Titusoft mechanisms

2 activators 1 mounting jig

8 screws 1 mounting instruction sheet Titusoft mechanism for factory mounting

90 Bags

1 mounting instruction sheet

60 Bags

Made of plastic
Titusoft MD

· One-for-all soft closing for single skin metal boxes

· Allows for easy factory mounting or retrofit application

· Intuitive positioning

· Preserve the life-time of the drawer

Mounting details
Retrofit mounting
Factory mounting

Titusoft FF Soft Closing System for Face Frame Cabinets with Wooden Drawer

For wooden drawer with roller runners Titusoft

Activator

973-4451 >

Bag of 1

973-0M99-380-K1

1 Titusoft mechanism

1 activator grey

2 screws Ø3.5mm x 25mm

300 Bags

2 screws Ø3.5mm x 12mm

1 mounting instruction sheet

Titusoft

· Works with most roller runner drawer slides

· Easy, intuitive mounting

· Smooth, soft closing action independent of drawer hardware

· Non-handed design

details

A trial mounting is always recommended. Please contact Titus Group or your local distributor for further technical assistance.

Position the Titusoft on the top of a drawer slide
Align the activator with the top of the Titusoft mechanism and fix with two screws
Screw the Titusoft mechanism to the face frame
Fix with 2 (3) screws L=12mm
Mounting
Mount 1 or 2 Titusoft mechanisms depending on drawer weight and width

Set 200s Sliding Door Mechanism

For bottom running sliding door systems

X = space available between top and bottom panel

Rails For Set 200

Accessories

Slidix Soft Closing Systems

20 sets (610-9196-380-K2)

(610-9196-380-K3)

Slidix Solo 50
Slidix Centro 50 for middle door
Slidix Centro 50

Titus Group

Products. People. Relationships.

We are proud to support furniture manufacturers, designers, distributors and OEM partners worldwide with solutions that are precise, reliable and simple to work with.

From our engineering centres to your production line, and from first contact to long-term support, we’re here to help you build better – with less complexity, more clarity, and total confidence.

Titus Group

Titus Group designs and manufactures precision-engineered components that simplify furniture assembly, improve functionality, and ensure long-term reliability. Our core solutions – including connectors, hinges, dampers, softclose systems, and drawer technologies – are trusted by manufacturers across a wide range of industries, from furniture and kitchens to home appliances and beyond.

With engineering, manufacturing, and customer support facilities across Europe, Asia, North America, and Australasia, we combine global consistency with local responsiveness.

Our vertically integrated operations support fast development, reliable delivery, and consistently high quality across markets.

For decades, we have been driven by a clear principle: Engineered for Purpose. This defines how we design, how we manufacture, and how we collaborate with our partners. Through engineering simplicity, we help our customers work more efficiently, reduce complexity, and bring better products to market – with confidence and consistency.

1973

Titus established

1975

Revolution in particleboard panel processing productivity

1977

Titus launches concealed cabinet connector

1980

Titus USA office and manufacturing established 1990

Launch of innovative Quickfit technology

2005

Titusonic ultrasound fastening technology introduced

2006

Merger with Lama d.d. Launch of Glissando

2007

Titus becomes Titus+ Specialist in precision components engineering

2009

Damper development and engineering

2014

Acquisition of Tekform, Australia

2017

Launch of T-type full hinge programme

2019

Launch of TeraBlack product range

2020

Acquisition of Simon Kinetics, Germany

2022

Acquisition of Titus Precision, USA

2023

Launch of T-type PressTo toolless mounting

Our Vision

To be the world’s best in engineering for precision components.

Our Mission

To provide manufacturers with component solutions that improve their competitiveness.

Our Principles

• Gain total knowledge of our customers and their markets.

• Focus on identifying and creating high-volume component niches.

• Meet our customers’ expectations with global consistency.

• Build long-term associations with customers, suppliers, colleagues and shareholders.

• Invest in the abilities of individuals at every level.

• Continuously enhance input efficiency and sustainability.

• Provide equal opportunities to all.

Product Groups

Cabinet Hardware

Cabinet connectors, concealed hinges, soft-close systems, kitchen drawers and accessories, RV hardware

Damping and Kinetics

Hydraulic dampers and Slidix soft-close systems for custom applications in home equipment

Titus Technologies

Automated assembly systems

Die casting technologies

Titusonic – Ultrasound fastening

FastFit insertion technology

Totally Integrated Engineering

At Titus, Totally Integrated Engineering means bringing together product design, proprietary manufacturing technologies, and fully controlled in-house operations into a single, seamless process. This integrated approach allows us to develop, produce, and deliver precision-engineered components that are consistent, reliable, and tailored to purpose.

It’s not just about what we do – it’s how we do it. By maintaining control across the entire development and production chain, we deliver measurable advantages to our customers: consistent product quality, faster time to market, and meaningful product benefits that lower total installed cost.

Our approach is guided by a set of core principles that define who we are and how we operate:

Manufacturing Operations

Fully controlled in-house operations

A wide range of proprietary technologies and services enabling high-volume production of precision components with consistency and speed.

Manufacturing Technologies

Process optimisation through proprietary innovation

Advanced manufacturing technologies that increase productivity, ensure repeatable quality, and support scalable growth.

Precision Components

Engineered for consistency, reliability, and purpose

Precision components designed to meet exacting performance standards – delivering built-in value from concept to final assembly.

Product Design

Component design for repeatable excellence Unique components engineered for consistent quality, functional simplicity, and efficient integration into high-volume systems.

Engineered for Purpose

At Titus Group, engineering is never about excess. It’s about intention. Every product, every feature, every process is developed with a clear purpose: to solve a real problem and deliver lasting value.

Engineered for Purpose is more than a slogan – it’s our mindset.

It defines how we innovate, how we manufacture, and how we collaborate.

Focused on what matters

We don’t follow trends for the sake of it. We listen to our customers, understand their needs, and deliver what works. Our solutions are built to perform in the real world

– in real kitchens, real bedrooms, real production lines.

This focus allows us to eliminate unnecessary complexity and design components that are not only technically advanced, but also intuitive and dependable.

A solution provider, not just a manufacturer

We go beyond hardware. We work alongside our customers to co-create solutions that integrate seamlessly into their production processes and business models. From idea to implementation, we ensure speed, precision, and consistency — globally.

Whether it’s:

• Developing smart connectors that tolerate drilling inaccuracies,

• Designing hinges that make tall doors align effortlessly, or

• Engineering soft-close systems that deliver just the right resistance,

… we always have a purpose in mind: to make furniture manufacturing easier, faster, and more competitive.

Built on experience. Proven by performance.

We apply decades of engineering knowledge across industries and markets, ensuring that our solutions are both reliable and scalable. Every new product is tested, refined, and validated to ensure that it performs consistently – across regions, materials, and applications.

Because to us, engineered for purpose means engineered for you.

Titus Group Companies Worldwide

This map shows Titus Group companies only. For distribution partners, visit titusplus.com.

Engineered for Purpose

Titus is committed to providing its customers with products and services that improve their competitiveness, while reducing manufacturing and assembly costs.

09631 1.42 09651 1.30 09652 1.30 09690 1.40 09692 1.40 09695 1.40 09699 1.40

241-0043-650 2.167

241-0050-650 2.167

242-0824-650 2.95

242-0885-650 2.93

242-0886-650 2.93

242-0924-650 2.133

242-0967-054 2.131

242-0968-054 2.131

242-0970-054 2.87

242-0971-054 2.87

242-0973-054 2.131

242-0974-054 2.131

242-0976-054 2.87

242-0977-054 2.87

242-0979-054 2.131

242-0980-054 2.131

242-0997-054 2.87

242-0998-054 2.87

242-0C27-650 2.135

242-0D14-650 2.135

242-0G76-650 2.95

242-0H17-650 2.95

242-0H34-650 2.133

242-0H48-650 2.137

242-0H49-650 2.137

242-0P81-650 2.95

242-0W48-650 2.91

242-0W71-650 2.89

242-0W72-650 2.89

242-0Y45-650 2.97

242-0Y46-650 2.97

242-0Y48-650 2.139

242-0Y49-650 2.139

244-0062-650 2.164

244-0063-650 2.164

244-0067-650 2.164

244-0085-650 2.126

244-0095-650 2.126

244-0118-050 2.126

244-0119-050 2.126

244-0120-050 2.126

244-0134-050 2.126

244-0135-050 2.126

244-0136-050 2.126

244-0137-050 2.126

244-0166-050 2.126

244-0167-050 2.126

244-0175-650 2.164

244-0232-650 2.164

244-0258-050 2.124

244-0259-050 2.124

244-0260-050 2.124

244-0261-050 2.124

244-0262-050 2.124

244-0263-050 2.124

244-0264-050 2.124

244-0265-050 2.124

244-0266-050 2.124

244-0270-050 2.124

244-0271-050 2.124

244-0272-050 2.124

244-0342-050 2.124

244-0343-050 2.124

244-0344-050 2.124

244-0561-050 2.126

244-0562-050 2.126

244-0565-050 2.126

244-0566-050 2.126

244-0567-050 2.126

244-0568-050 2.126

244-0655-050 2.169

244-0810-650 2.139, 2.149

244-0813-650 2.149

244-0846-050 2.169

244-0848-650 2.167

244-0866-050 2.164

244-0867-050 2.164

244-0907-650 2.167

244-0914-650 2.164

244-0929-050 2.164

244-0930-050 2.164

244-0965-050 2.164

244-0B12-650 2.164

244-0C32-650 2.139, 2.149

244-0D46-650 2.167

244-0D47-650 2.167

244-0D99-650 2.167

244-0E02-650 2.167

244-0G19-050 2.164

244-0H64-050 2.164

244-0H65-050 2.164

244-0K95-050 2.164

244-0K96-050 2.164

244-0K97-650 2.164

244-0K98-650 2.164

244-0L26-050 2.164

244-0L29-050 2.164

244-0L37-650 2.164

244-0L38-650 2.164

244-0L39-050 2.164

244-0L40-050 2.164

244-0L50-050 2.164

244-0L98-050 2.164

244-0M28-650 2.164

244-0M29-650 2.164

244-0M33-650 2.126

244-0P24-050 2.164

244-0P25-050 2.164

244-0P26-050 2.126

244-0P27-050 2.126

244-0P28-650 2.139, 2.149

244-0P29-650 2.126

244-0P41-650 2.164

244-0S65-050 2.164

244-0S66-050 2.164

244-0S67-050 2.164

244-0S68-050 2.164

244-0T14-650 2.164

244-0T28-050 2.164

244-0T40-050 2.164

244-0V19-050 2.126

244-0V50-050 2.166

244-0V64-050 2.164

244-0Z26-050 2.126

244-0Z51-050 2.126

244-0Z63-050 2.126

244-1136-050 2.126

244-1137-050 2.126

244-1138-050 2.126

244-1139-050 2.126

244-1228-050 2.126

244-1229-050 2.126

244-1233-050 2.126

244-1234-050 2.126

244-1645-050 2.126

244-3016-650 2.126

244-3651-650 2.126

244-3653-650 2.128

244-3654-650 2.128

244-3655-650 2.128

248-0080-050 2.103

248-0160-050 2.157

248-0L73-050 2.149

248-0M41-050 2.169

248-0M73-050 2.117

248-0N12-050 2.107

248-0N13-050 2.107

248-0N16-050 2.109

248-0N17-050 2.109

248-0N20-050 2.109

248-0N21-050 2.109

248-0N24-050 2.111

248-0N25-050 2.111

248-0N38-050 2.145

248-0N62-050 2.111

248-0P43-050 2.155

248-0R09-050 2.169

248-0R10-050 2.155

248-0R12-050 2.155

248-0R13-050 2.117

248-0R14-050 2.117

248-0R17-050 2.117

248-0T80-050 2.159

248-0T81-050 2.159

248-0U13-050 2.159

248-0U14-050 2.159

248-0U16-050 2.121

248-0U21-050 2.121

248-0U22-050 2.121

248-0V14-050 2.101

248-0V15-050 2.121

248-0V18-050 2.105

248-0V39-050 2.101

248-0V41-050 2.101

248-0V42-050 2.101

248-0V45-050 2.105

248-0V47-050 2.105

248-0V48-050 2.105

248-0V62-050 2.103

248-0V66-050 2.149

248-1646 2.173

248-1712 2.173

248-4668 2.171

248-4672 2.171 275-4035 1.70 275-4058 1.70 277-4225 1.44

1.44 279-9187 1.19 338-3686 1.75

1.75

1.75

1.79

1.79

1.77

360-1230 1.77

408-3166 1.70

408-3391 1.70

408-3423 1.70

408-3424 1.70

610-9099-040 4.11

610-9103-070-K1 4.13

610-9106-070-K1 4.13

610-9109-070-K1 4.13

610-9196-380 4.14

655-7273 3.31

655-7F01 3.29

655-7F02 3.29 655-7F03 3.29 655-7F04 3.29 655-7F05 3.29

3.29

655-7F08 3.29

655-7F09 3.29

655-7F10 3.29

655-7F12 3.29

655-7F30 3.29

655-7F40 3.29

655-7F50 3.29

655-7F60 3.29

655-7F70 3.29

655-7F80 3.29

655-7F90 3.29

655-7H01 3.30

655-7H02 3.30

655-7H03 3.30

655-7H04 3.30

655-7H05 3.30

655-7H06 3.30

655-7H07 3.30

655-7H08 3.30

655-7H09 3.30

655-7H10 3.30

655-7H12 3.30

655-7H30 3.30

655-7H40 3.30

655-7H50 3.30

655-7H60 3.30

655-7H70 3.30

655-7H80 3.30

655-7H90 3.30

655-7L01 3.29

655-7L02 3.29

655-7L03 3.29

655-7L04 3.29

655-7L05 3.29

655-7L06 3.29

655-7L07 3.29

655-7L08 3.29

655-7L09 3.29

655-7L12 3.29

655-7L30 3.29

655-7L40 3.29

655-7L50 3.29

655-7L60 3.29

655-7L70 3.29

655-7L80 3.29

655-7L90 3.29

655-7L90 3.29

655-7M01 3.30 655-7M02 3.30

655-7M03 3.30

655-7M04 3.30

3.30

655-7M07 3.30

655-7M08 3.30

655-7M09 3.30

655-7M10 3.30

655-7M12 3.30

655-7M30 3.30

655-7M40 3.30

655-7M50 3.30

655-7M60 3.30

655-7M70 3.30

655-7M80 3.30

655-7M90 3.30

655-8046 3.31

655-8047 3.31

656-0H66-380-00 3.13, 3.15

656-0H67-380-00 3.17, 3.19

656-8048 3.21, 3.23, 3.25

656-8053 3.21, 3.23, 3.25

656-8126 3.23, 3.25

656-8132 3.23, 3.25

656-8334

700-0KC0-054 2.80

700-0KC1-054 2.80

700-0KC2-054 2.80

700-0KC3-054 2.80

700-0KC4-054 2.80

700-0KF0-054 2.80

700-0KF1-054 2.80

700-0KF2-054 2.80

700-0KF3-054 2.80

700-0KF4-054 2.80

700-0KW0-650 2.84

700-0KW3-650 2.84

700-0KW6-650 2.84

700-0KWN-054 2.84

700-0LB0-650 2.80

700-0LB2-650 2.80

700-0LB3-650 2.80

700-0LC0-650 2.80

700-0LC2-650 2.80

700-0LC3-650 2.80

700-0LF0-650 2.80

700-0LF2-650 2.80

700-0LF3-650 2.80

700-0NA0-054 2.82

700-0NA1-054 2.82

700-0NA2-054 2.82

700-0NA3-054 2.82

700-0NA4-054 2.82

700-0NA9-650 2.82

700-0NB0-054 2.82

700-0NB1-054 2.82

700-0NB2-054 2.82

700-0NB3-054 2.82

700-0NB4-054 2.82

700-0NC0-054 2.82

700-0NC1-054 2.82

700-0NC2-054 2.82

700-0NC3-054 2.82

700-0NC4-054 2.82

700-0NC9-650 2.82

700-0NE0-054 2.82

700-0NE1-054 2.82

700-0NE2-054 2.82

700-0NE3-054 2.82

700-0NE4-054 2.82

700-0NF0-054 2.82

700-0NF1-054 2.82

700-0NF2-054 2.82

700-0NF3-054 2.82

700-0NF4-054 2.82

700-0NF9-650 2.82

701-0A96-650 2.39

701-0A98-650 2.39

701-0AS0-054 2.27

701-0AS1-054 2.27

701-0AS4-054 2.27

701-0AT0-054 2.27

701-0AT1-054 2.27

701-0AT4-054 2.27

701-0AT6-054 2.27

701-0B08-650 2.35

701-0B10-650 2.35

701-0BS0-054 2.27

701-0BS1-054 2.27

701-0BS4-054 2.27

701-0BT0-054 2.27

701-0BT1-054 2.27

701-0BT4-054 2.27

701-0BT6-054 2.27

701-0C54-650 2.35

701-0C56-650 2.35

701-0C78-650 2.35

701-0C80-650 2.35

701-0CS0-054 2.29

701-0CS1-054 2.29

701-0CS4-054 2.29

701-0CT0-054 2.29

701-0CT1-054 2.29

701-0CT4-054 2.29

701-0CT6-054 2.29

701-0D30-650 2.39

701-0D32-650 2.39

701-0D36-650 2.39

701-0D38-650 2.39

701-0D64-650 2.31

701-0D66-650 2.31

701-0D70-650 2.31

701-0D72-650 2.31

701-0D76-650 2.31

701-0D78-650 2.31

701-0D82-650 2.35

701-0D84-650 2.35

701-0D88-650 2.35

701-0D90-650 2.35

701-0D98-650 2.35

701-0DS0-054 2.29

701-0DS1-054 2.29

701-0DS4-054 2.29

701-0DT0-054 2.29

701-0DT1-054 2.29

701-0DT4-054 2.29

701-0DT6-054 2.29

701-0E32-650 2.35

701-0E52-650 2.33

701-0E54-650 2.33

701-0E58-650 2.33

701-0E60-650 2.33

701-0E64-650 2.33

701-0E66-650 2.33

701-0ES0-054 2.47

701-0ES1-054 2.47

701-0ES4-054 2.47

701-0ET0-054 2.47

701-0ET1-054 2.47

701-0ET4-054 2.47

701-0ET6-054 2.47

701-0FS0-054 2.49

701-0FS1-054 2.49

701-0FS4-054 2.49

701-0FT0-054 2.49

701-0FT1-054 2.49

701-0FT4-054 2.49

701-0FT6-054 2.49

701-0GS0-054 2.49

701-0GS1-054 2.49

701-0GS4-054 2.49

701-0GT0-054 2.49

701-0GT1-054 2.49

701-0GT4-054 2.49

701-0GT6-054 2.49

701-0US0-054 2.41

701-0US1-054 2.41

701-0US4-054 2.41

701-0UT0-054 2.41

701-0UT1-054 2.41

701-0UT4-054 2.41

701-0W59-650 2.37

701-0W60-650 2.37

701-0W62-650 2.37

701-0W63-650 2.37

701-0W65-650 2.37

701-0W66-650 2.37

702-0A95-650 2.61

702-0A97-650 2.61

702-0AK0-054 2.51

702-0AK1-054 2.51

702-0AK4-054 2.51

702-0AK6-054 2.51

702-0AL0-054 2.51

702-0AL1-054 2.51

702-0AL4-054 2.51

702-0B07-650 2.59

702-0B09-650 2.59

702-0BK0-054 2.51

702-0BK1-054 2.51

702-0BK4-054 2.51

702-0BK6-054 2.51

702-0BL0-054 2.51

702-0BL1-054 2.51

702-0BL4-054 2.51

702-0C53-650 2.59

702-0C55-650 2.59

702-0C77-650 2.59

702-0C79-650 2.59

702-0CK0-054 2.53

702-0CK1-054 2.53

702-0CK4-054 2.53

702-0CK6-054 2.53

702-0CL0-054 2.53

702-0CL1-054 2.53

702-0CL4-054 2.53

702-0D29-650 2.61 702-0D31-650 2.61 702-0D35-650 2.61 702-0D37-650 2.61

702-0D63-650 2.55

2.55

2.55

2.55

2.55

2.55

2.59

2.75

702-0GL4-054 2.75

702-0UK0-054 2.63

702-0UK1-054 2.63

702-0UK4-054 2.63

702-0UL0-054 2.63

702-0UL1-054 2.63

702-0UL4-054 2.63

704-0553-054 2.69

704-0593-054 2.69

704-0595-054 2.71

704-0604-054 2.69

704-0661-054 2.69

704-0672-054 2.69

704-0673-054 2.69

704-0674-054 2.71

704-0697-054 2.71

707-0WK0-054 2.67

707-0WK1-054 2.67

707-0WK4-054 2.67

707-0WL0-054 2.67

707-0WL1-054 2.67

707-0WL4-054 2.67

707-0XK0-054 2.65

707-0XK1-054 2.65

707-0XK4-054 2.65

707-0XL0-054 2.65

707-0XL1-054 2.65

707-0XL4-054 2.65

707-0YK0-054 2.65

707-0YK1-054 2.65

707-0YK4-054 2.65

707-0YL0-054 2.65

707-0YL1-054 2.65

707-0YL4-054 2.65

707-0ZK0-054 2.67

707-0ZK1-054 2.67

707-0ZK4-054 2.67

707-0ZL0-054 2.67

707-0ZL1-054 2.67

707-0ZL4-054 2.67

708-0WS0-054 2.45

708-0WS1-054 2.45

708-0WS4-054 2.45

708-0WT0-054 2.45

708-0WT1-054 2.45

708-0WT4-054 2.45

708-0XS0-054 2.43

708-0XS1-054 2.43

708-0XS4-054 2.43

708-0XT0-054 2.43

708-0XT1-054 2.43

708-0XT4-054 2.43

708-0YS0-054 2.43

708-0YS1-054 2.43

708-0YS4-054 2.43

708-0YT0-054 2.43

708-0YT1-054 2.43

708-0YT4-054 2.43

708-0ZS0-054 2.45

708-0ZS1-054 2.45

708-0ZS4-054 2.45

708-0ZT0-054 2.45

708-0ZT1-054 2.45

708-0ZT4-054 2.45

721-0PK0-650 2.77

721-0PK4-650 2.77

721-0PK6-650 2.77

721-0PL0-650 2.77

721-0PL4-650 2.77

728-1283 2.173

728-1284 2.173

728-1286 2.173

728-1287 2.173

728-4669 2.171

729-0K71-054 2.183

820-6308-050 2.87, 2.89, 2.91, 2.93, 2.95, 2.97, 2.99, 2.101, 2.103, 2.105, 2.107, 2.109, 2.111, 2.115, 2.117, 2.119, 2.121, 2.131, 2.133, 2.135, 2.137, 2.139, 2.141, 2.143, 2.145, 2.147, 2.149, 2.155, 2.157, 2.159, 2.161, 2.167, 2.169

820-6328-050 1.77, 2.27, 2.29, 2.31, 2.33, 2.35, 2.37, 2.39, 2.41, 2.43, 2.45, 2.47, 2.49, 2.51, 2.53, 2.55, 2.57, 2.59, 2.61, 2.63, 2.65, 2.67, 2.69, 2.71, 2.73, 2.75, 2.77, 2.81, 2.83, 2.125, 2.127, 2.163, 2.193, 2.197, 2.199, 2.201, 2.203

820-6350-050 2.113, 2.151, 2.153

821-6304-050 2.125, 2.163

821-6323-050 2.125, 2.163, 2.193, 2.197, 2.199

821-6332-050 2.125, 2.163

915-0320 2.199

915-0D22 2.199

915-0D22-381-K1 2.199

915-0D22-381-K2 2.199

915-0W34 2.197

915-0X59 2.199

915-0X59-381-K1 2.199

915-0X59-381-K2 2.199

915-4175 2.199

915-4183 2.199

915-7159-050 2.199, 2.201, 2.203

915-7185 2.201

915-7186 2.203

915-7187 2.201

915-7188 2.203

915-7190-050 2.199, 2.201, 2.203

915-7192 2.201 915-7193 2.203

915-7196-050 2.199, 2.201, 2.203

915-7199-050 2.199, 2.201, 2.203

915-9276 2.195

915-9277 2.193

915-9278 2.195

915-9900-072 2.195

926-0A26-050 2.161

926-0A27-050 2.161

950-0464-050 2.153

950-0465-050 2.153 950-0466-050 2.153

950-0T26-050 2.151

950-0T27-050 2.113

950-0T49-050 2.151

950-0T50-050 2.113 950-0T51-050 2.151 950-0T52-050 2.113

951-0D45-054 2.183

951-0F15-650 2.185

972-0420 2.187

972-0X19 2.189

972-0X34 2.189

972-4564 2.187

972-4565 2.187

972-4566 2.187

973-0M99 4.9

973-0M99-380-K1 4.9

973-0X35 4.5

973-0X35-380-K1 4.5

973-0X35-380-K2 4.5

973-0X39 4.7

973-0X39-380-K1 4.7

973-0X39-380-K2 4.7

973-0X95 4.7

973-4125 4.7

973-4126 4.7

973-4451 4.5, 4.9

Turn static files into dynamic content formats.

Create a flipbook
