Exam Style Questions
Ensure you have: Pencil, pen, ruler, protractor, pair of compasses and eraser
You may use tracing paper if needed
Guidance
1. Read each question carefully before you begin answering it.
2. Don’t spend too long on one question.
3. Attempt every question.
4. Check your answers seem right.
5. Always show your workings
Revision for this topic
© CORBETTMATHS 2016

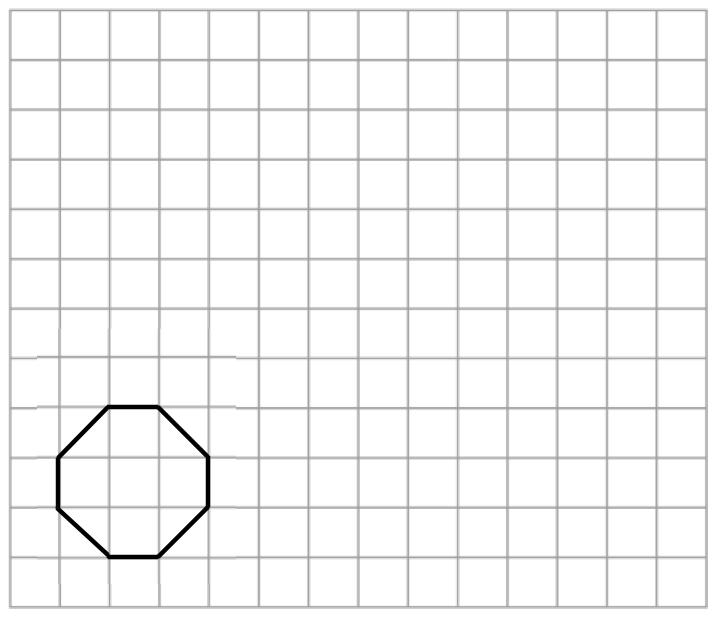

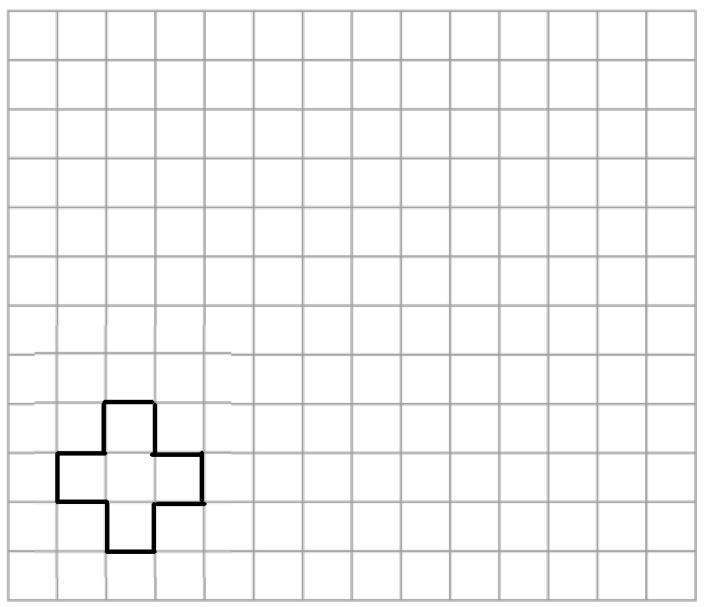

(a) Name the shape drawn on the grid.
(1)
(b) On the grid, enlarge the shape using a scale factor of 2
(2)
1.
© CORBETTMATHS 2016

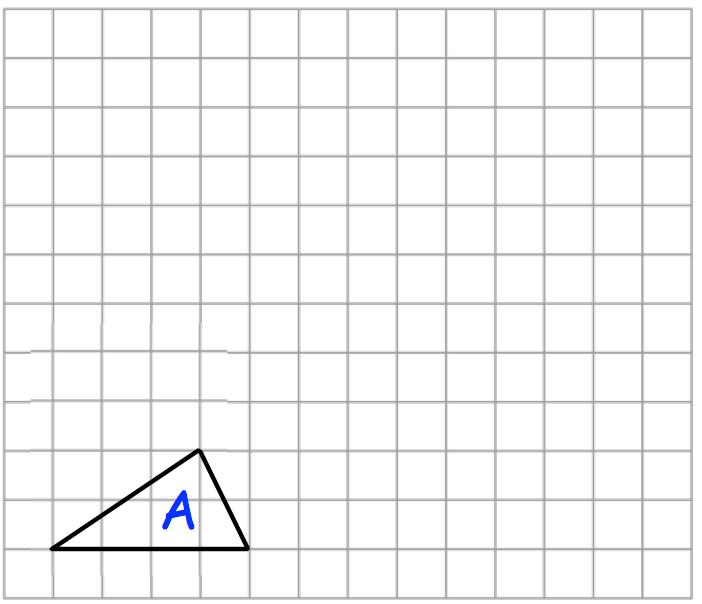

On the grid, enlarge the shape using a scale factor of 3.
2.
© CORBETTMATHS 2016
(2)

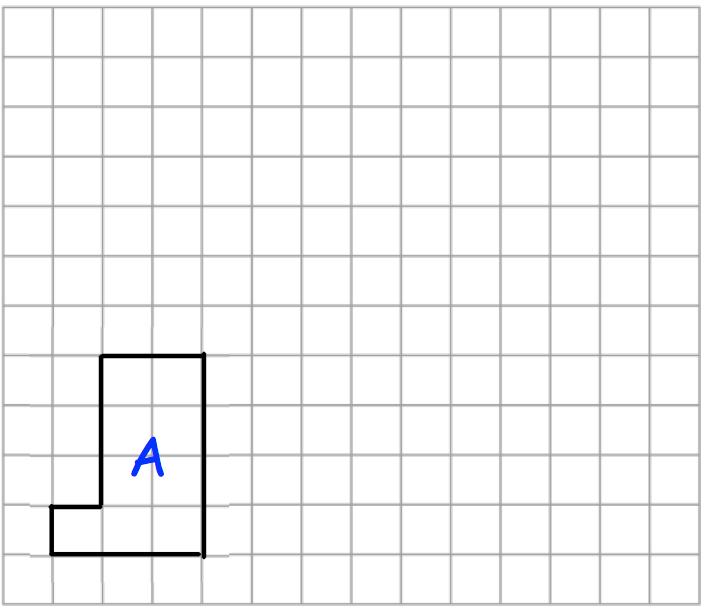

On the grid, draw an enlargement of shape A with a scale factor of 2.
3.
© CORBETTMATHS 2016
(2)

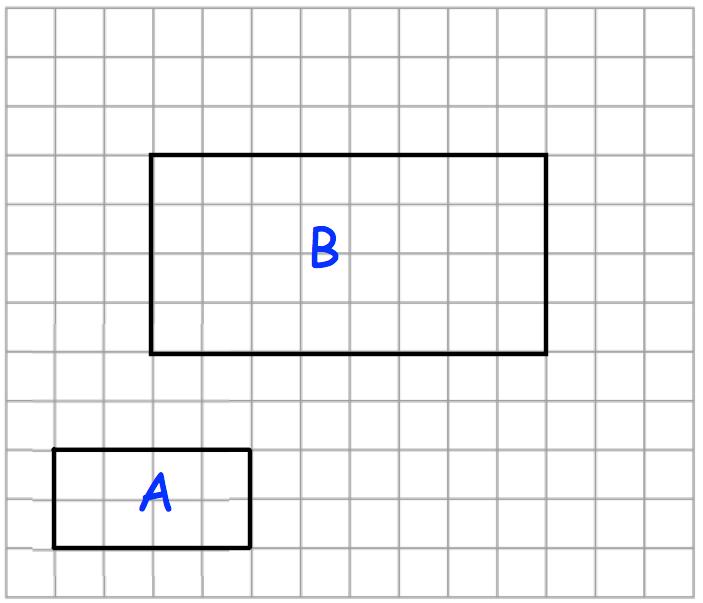

4.Two rectangles, A and B, are drawn on a centimetre grid.
(a) Work out the area of rectangle A.
Rectangle B is an enlargement of rectangle A.
(b) What is the scale factor of the enlargement?
.........................cm² (1)
........................... (1) © CORBETTMATHS 2016
5.The diagram shows a triangle.
The dotted line is a side of an enlargement of the triangle.
(a) What is the scale factor of the enlargement?
(1)
(b) Complete the enlarged triangle.
(2)
© CORBETTMATHS 2016
Work out the area of the L-shape after an enlargement of scale factor 2.
(2)
²
6.Shown below is an L shape that has area 9cm
.........................cm²
© CORBETTMATHS 2016

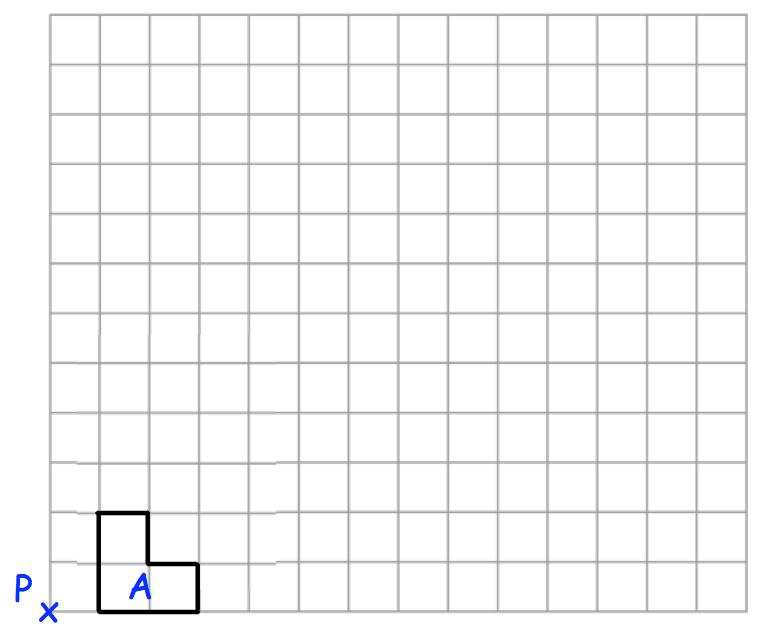

Enlarge shape A by scale factor 4, using the point P as centre of enlargement. (3)
7.
© CORBETTMATHS 2016

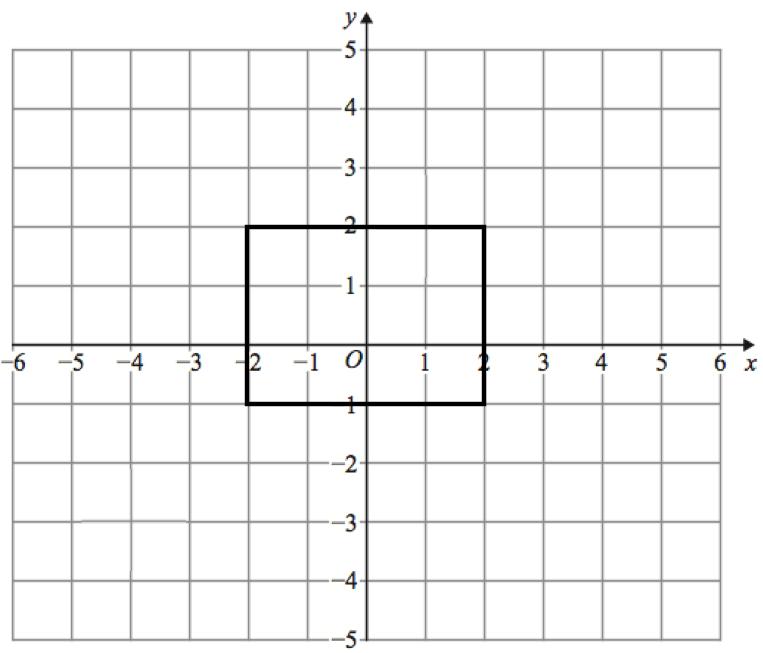

Enlarge the rectangle by scale factor 2, using centre of enlargement (−1, 0).
(3)
8.Shown below is a rectangle drawn on a coordinate grid.© CORBETTMATHS 2016
9.
Enlarge triangle ABC by scale factor 2, using the point P as the centre of enlargement.
© CORBETTMATHS 2016
(3)

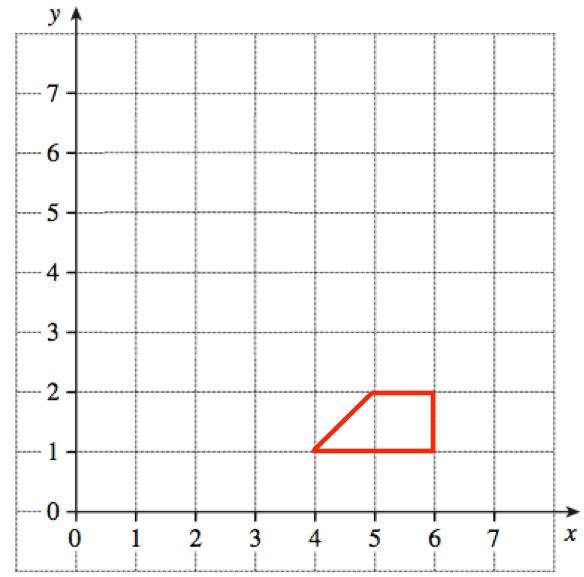

Enlarge the trapezium by scale factor 3, centre (6, 0).
10.
© CORBETTMATHS 2016
(2)

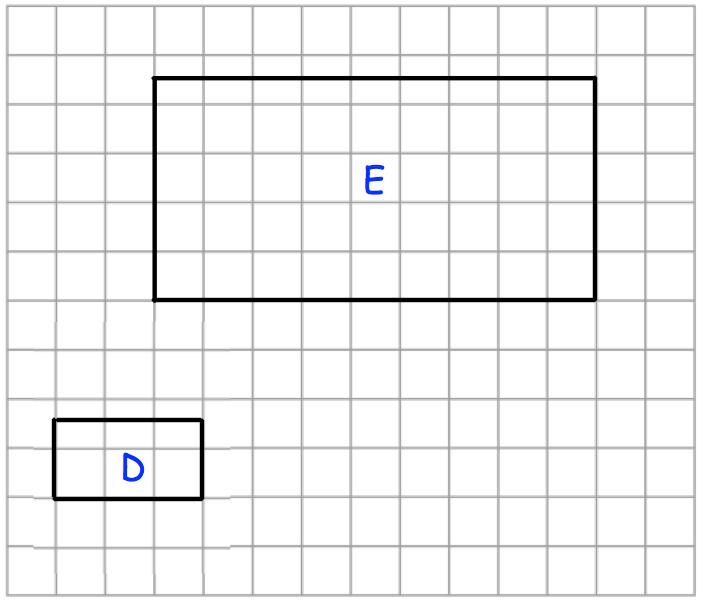

11.Rectangle E is an enlargement of rectangle D on the centimetre grid.
(a) What is the scale factor of the enlargement?
(1)
Rectangle E is enlarged by scale factor 20 to give rectangle F.
(b) Write down the length and width of rectangle F.
Length ...........................cm Width ...........................cm
© CORBETTMATHS 2016
(2)
12.
© CORBETTMATHS 2016

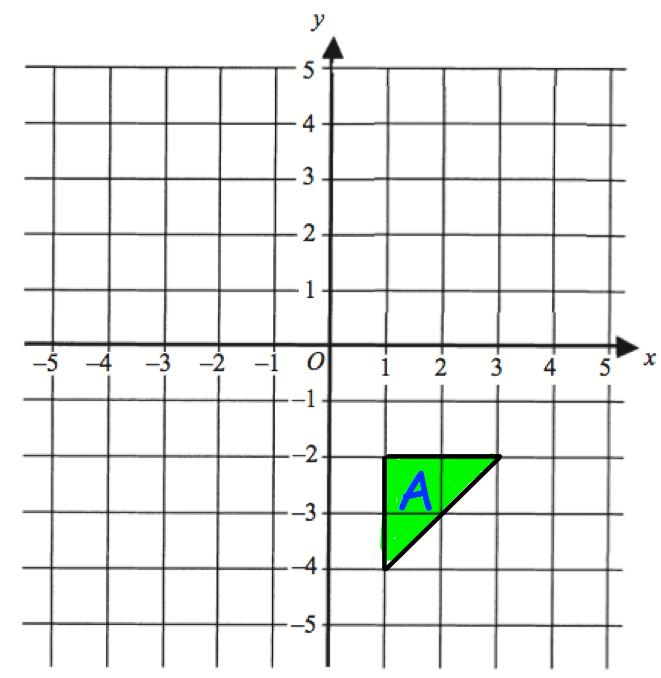

Enlarge triangle A by scale factor 2, using centre of enlargement (5, 5). (3)

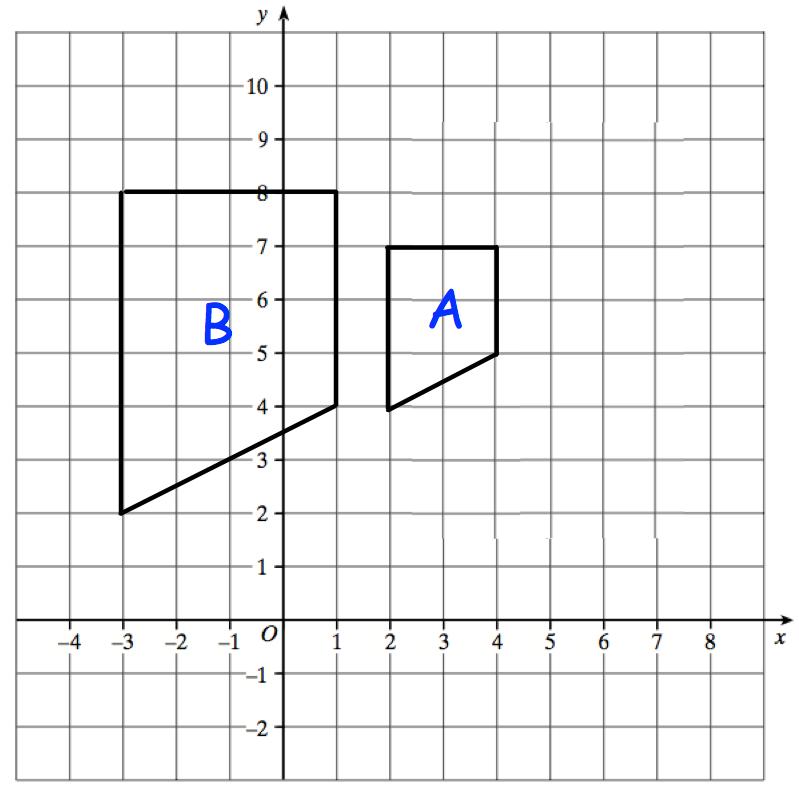

Describe fully the single transformation that maps shape A onto shape B.
13.
..................................................................................................................................... ..................................................................................................................................... (2) © CORBETTMATHS 2016

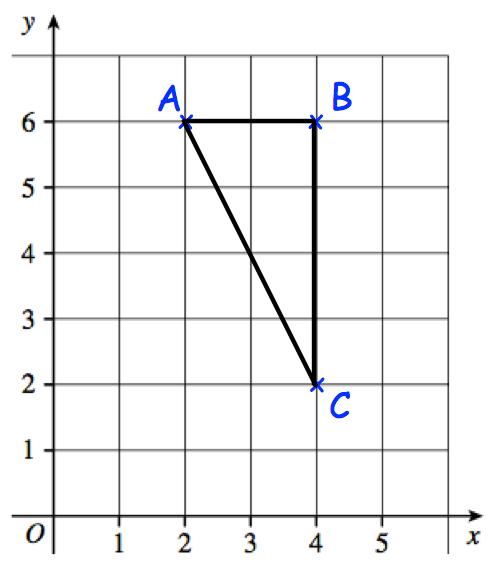

Triangle ABC is drawn on the grid.
Enlarge triangle ABC with scale factor ½ and centre (0,0)
14.
© CORBETTMATHS 2016
15.The
diagram shows shape A
© CORBETTMATHS 2016
Draw the enlargement of shape A with scale factor ⅓ and centre of enlargement (1,1).
(3)

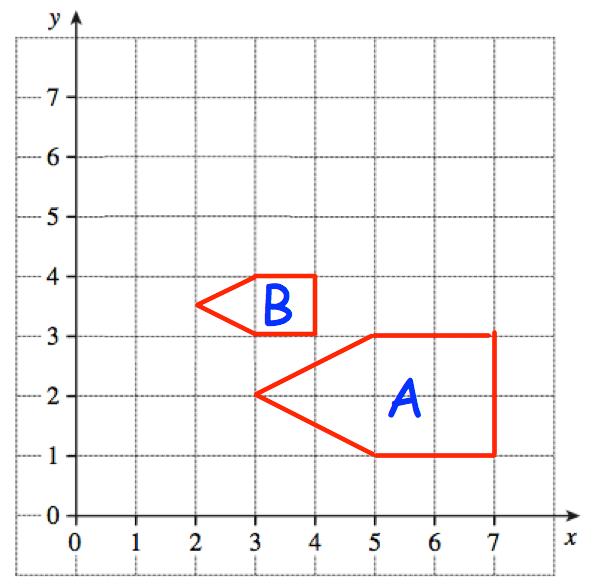

Describe fully the single transformation that maps shape A onto shape B.
16.
..................................................................................................................................... .....................................................................................................................................
© CORBETTMATHS 2016
(2)
