ENGINEERED

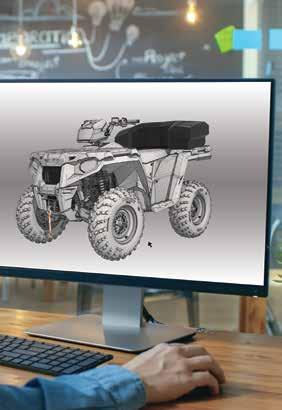

Ensuring Polaris Engineered™ Accessories fit and work in sync with your machine is the most critical phase of testing and validation. With seamless integration, you can trust that any Polaris® accessory you install will enhance your interaction beyond your expectations.

FOR MORE

Lock & Ride ® mounting locations allow for limitless customization to let you work the way you want.

INTEGRATED WINCH MOUNT & PRE-WIRED

Designated mounting points and pre-wired contactors ensure a perfect fit and the strongest place to attach the Polaris Engineered ™ winch - the most dependable winch for your Sportsman ® With wiring built right into the vehicle, we made this the easiest Sportsman ® winch ever made to install.

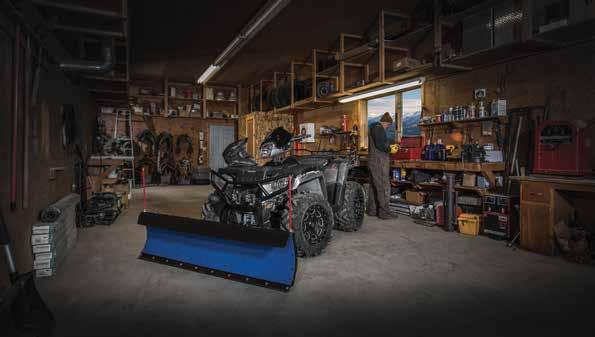

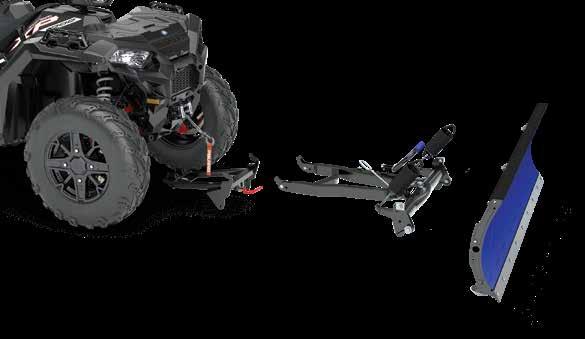

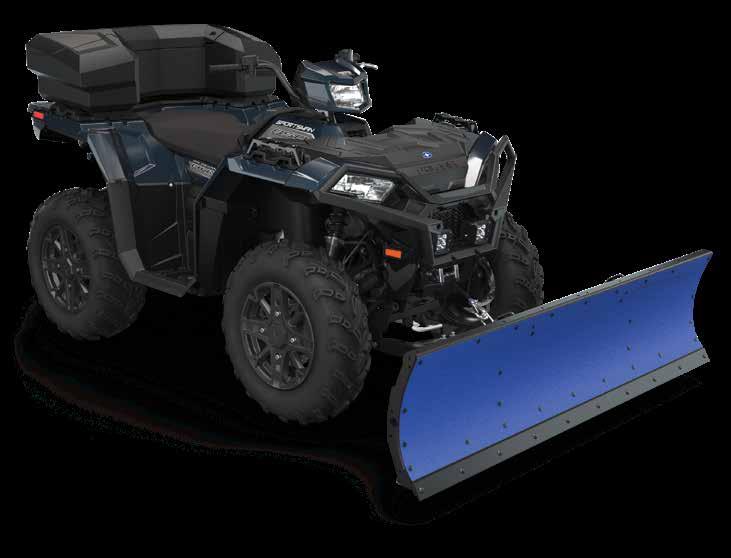

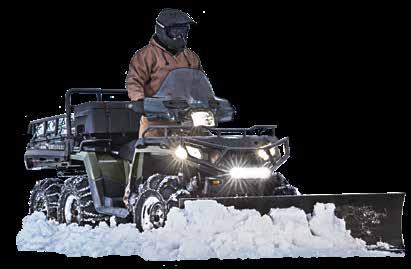

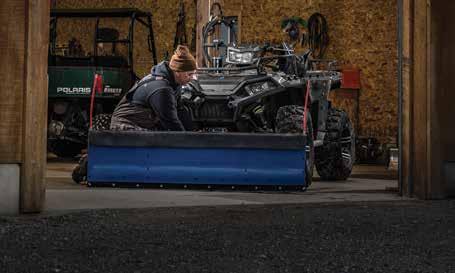

The attachment points for the best-in-class Glacier ® Plow System are integrated right at the factory and feature an innovative drive-up and go installation process.

INTEGRAT ION

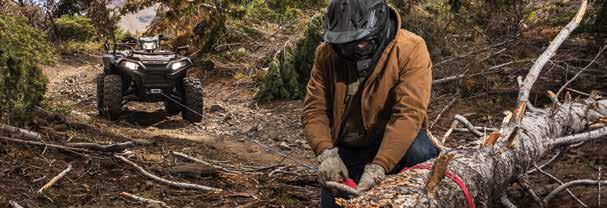

WINCHES

POLARIS.COM/WINCHES

POLARIS ® WINCH FEATURES

PRE-WIRED CHASSIS

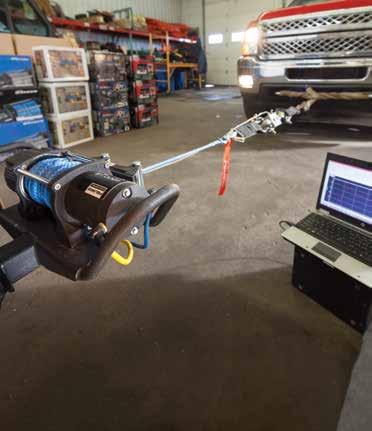

Tested 1,200+ pulls at max load, it works when you need it to

Built to withstand - 20 ° F temperatures

Sealed motor & heavy duty gears OPERATE FULLY SUBMERGED UNDERWATER MILITARY tested & approved

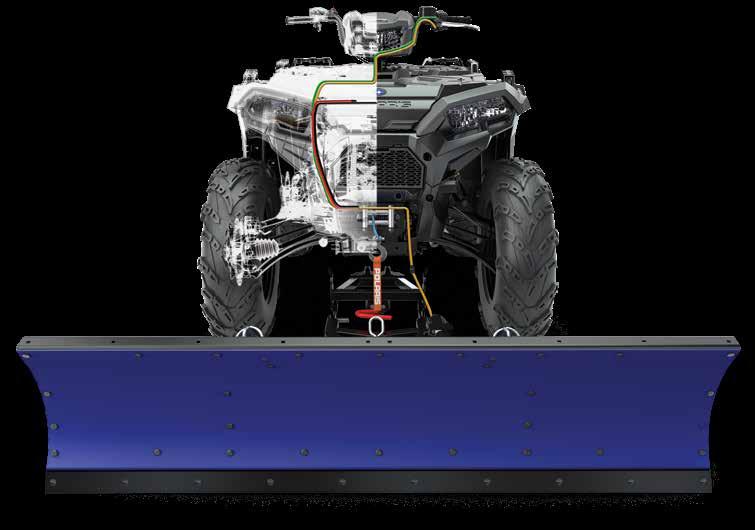

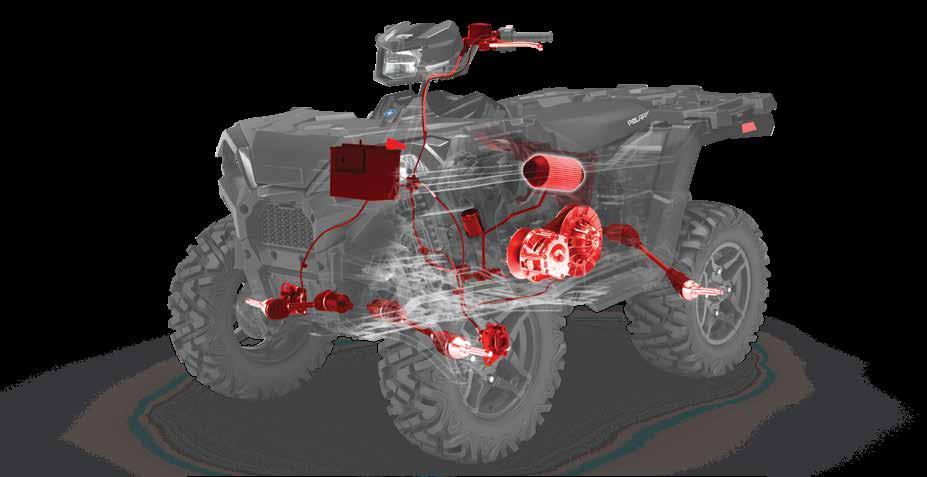

Right from the factory, your vehicle is built to make essential accessories like winches and plows easy to use day-in and day-out. Mounting brackets are designed into the oversized factory bumper and wiring is routed securely and properly. When it comes to Sportsman® Polaris Engineered™ Accessories make work easier so you can get more done.

WINCHES PLOWS

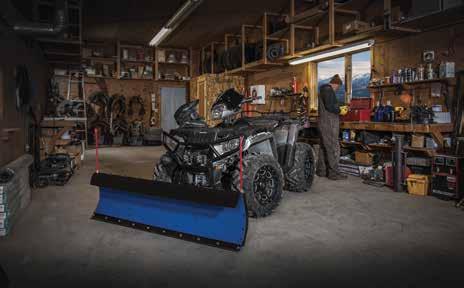

Easily engage and disengage the plow system from your Polaris® Sportsman®.

No loss of factory ground clearance when not plowing.

Don’t have to crawl under the machine to release the plow blade from the vehicle.

No trimming of vehicle plastic or fascia required to mount plow or winch.

•

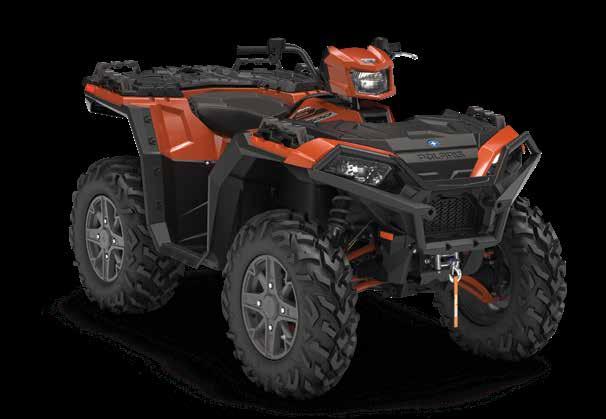

SPORTSMAN ®

1000 S XP 1000

•

SPORTSMAN ®

SCRAMBLER ® XP 1000 S

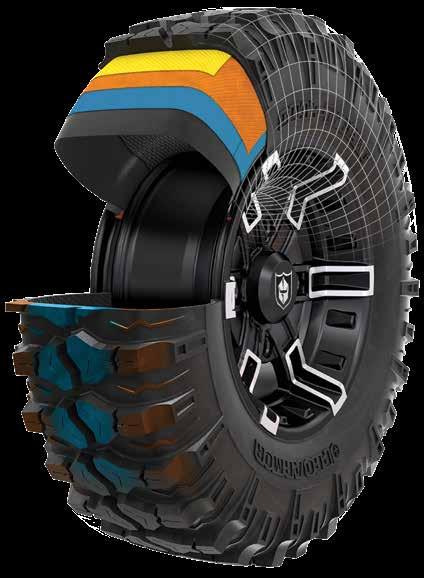

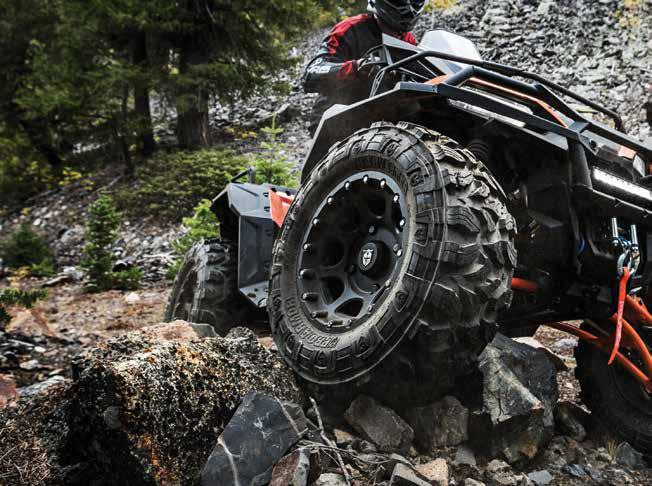

PRO ARMOR® DUAL-THREAT

• Dual-compound technology and radial construction offer performance in all terrains

• Softer durometer rubber on outer edge for overall superior grip and feel

• Harder

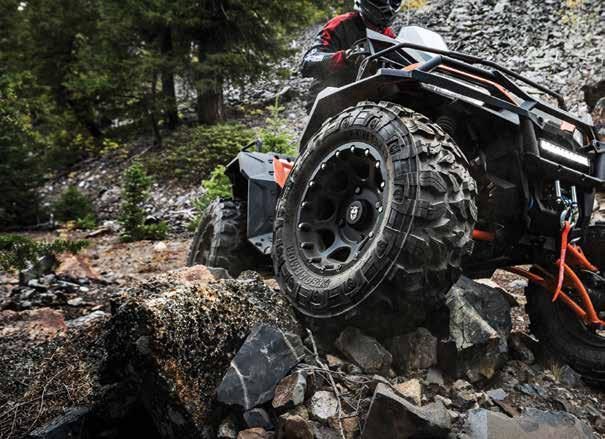

PRO ARMOR® ATTACK

•

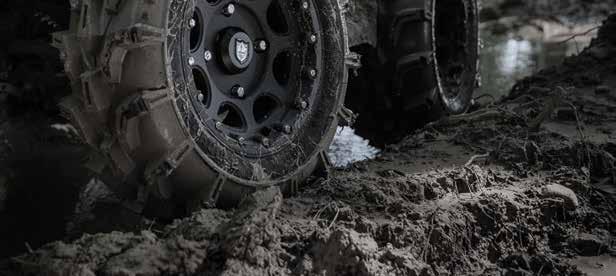

WHEELS

ALL–TERRAIN TRACTION

FOR THE LIFE OF YOUR RIDE ONLY THE BEST WILL DO

To create the best oil for any terrain, we invest in rigorous testing to ensure our oil delivers the consistency and performance you demand. The results are Polaris Engineered Lubricants ™ that are tested and perfected to deliver excellent total engine protection for the life of your ride.

WHAT COUNTS IN OIL

TESTING:

1. Does it protect the engine at high temperatures?

2. Does it keep the engine free from carbon and buildup?

3. Does the oil hold its viscosity over time?

ENGINE CHECKPOINTS

When evaluating an engine oil and its ability to protect and preserve the engine’s power output and lifespan, Polaris engineers focus on key areas within the engine, some of the most critical ones include:

RING LANDS: Poor oxidative performance can lead to carbon and varnish buildup, which results in poor ring seal and loss of power, combustion blow by and fuel dilution of the oil.

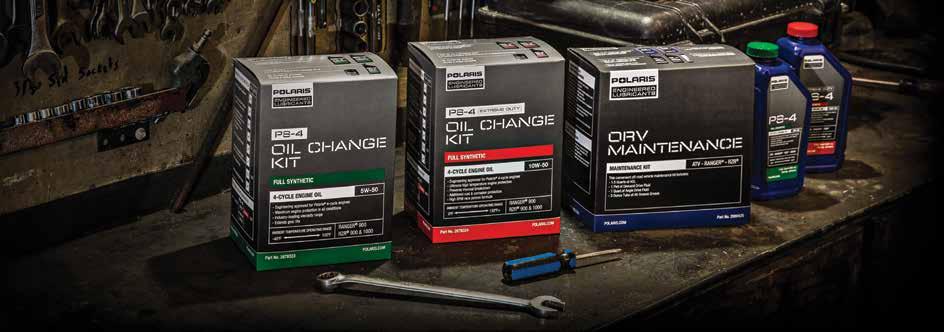

OIL CHANGE KITS

(OIL & FILTER)

These convenient kits include everything you need to change your oil. The correct filter and oil volume for your vehicle.

PISTON RINGS: During the combustion process, extreme pressures are placed on the top ring, forcing it outward toward the cylinder wall, sealing the combustion chamber. With so much force applied, poor oil film strength between the top ring and the cylinder wall can lead to cylinder wear and loss of power.

ROD BEARINGS: Engine bearings ride on an extremely thin hydrodynamic film of oil. Poor oil film strength or using an oil with a thinner viscosity, can lead to premature bearing wear or even engine failure. Using an oil with high film strength and a strong viscosity, like PS-4 full synthetic, will extend the service life of your engine.

CAMSHAFT: Direct Acting Overhead Camshafts are used on many Polaris ® Prostar ® Engines. In this application the camshaft pushes directly on the valve, creating very high contact pressures compared to other camshaft configurations. These forces are so great that inferior oil can break down and be forced out of the contact area leading to increased wear. PS-4 full synthetic additives are specifically designed to provide wear protection against this.

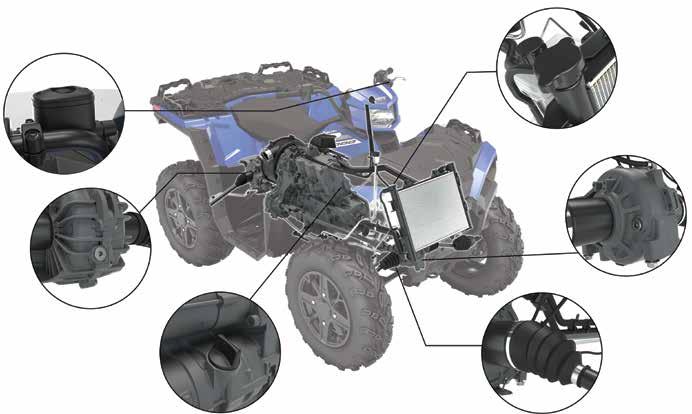

MAINTENANCE FLUIDS

ANTI–FREEZE

SUSPENSION/U–JOINT

FOR THE LIFE OF YOUR RIDE

BATTERIES

PERIOD

POLARIS® ENGINEERS PARTS THAT PUSH THE LIMITS WITHOUT SACRIFICING STRENGTH AND DURABILITY. We build our products so anyone with the right tools can maintain their vehicle from their own garage - and get them back on the trails where they belong.

BRAKE PADS

Check

OIL FILTERS

All Polaris® parts are developed and tested to help you get the most out of your ride. Now, we’re taking the passion of our riders, workers, and outdoor enthusiasts to the next level with HD Parts. These heavyduty parts are engineered for riders who want greater durability and enhanced performance. HD Parts are designed and tested to handle greater wear and tear under all weather conditions. This means longer ride times with less service interruptions and related costs.
