2023 SURFBOARDS
Elemnt Surfboards, Byron Bay, Australia
by Adam Dalli SURFBOARDS
Alternative surfboards for Everyday waves… Make every surf count.
Adam Dalli designs surfboards that are user friendly, easy to surf, with an emphasis on high quality materials and craftsmanship.
Elemnt Surfboards focus is building a diverse range of beautiful and purpose built boards for a growing community of surfers all over the world.

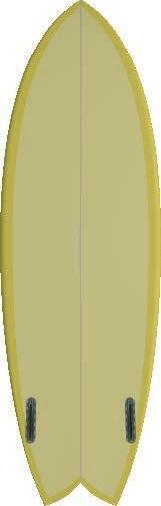

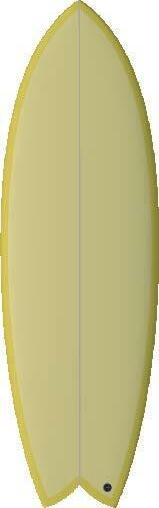

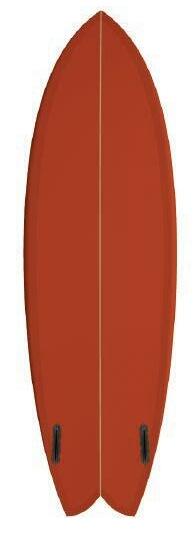

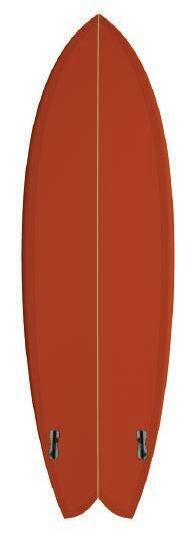

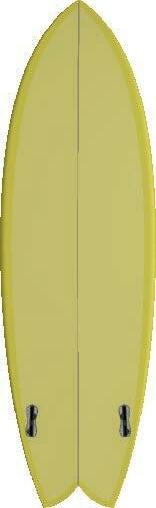

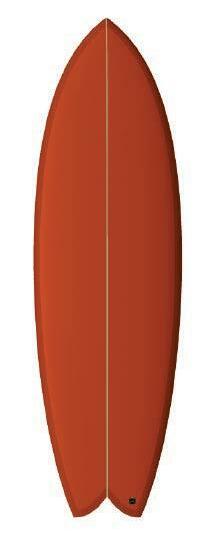

Elemnt Twin Fin A traditional keel fish outline shape combined with a modern bottom contour and rail volume, which produces a super fast surfboard, still with lots of glide that you’d expect from a twin fin but with increased drive and manoeuvrability. 5’6” x 20 1/8” x 2 3/8” – 27.46L 5’8” x 20 1/2” x 2 1/”2 – 30.45L 5’10” x 21” x 2 5/8” – 33.72L 5’11” x 21 1/4” x 2 11/16” – 35.50L 6’0” x 21 1/2” x 2 3/4” – 37.17L 6’2” x 21 3/4” x 2 13/16” – 39.55L 6’4” x 21 7/8” x 2 7/8” – 42.38L CORE: PU with 3.6mm plywood stringer LAMINATION: Polyester resin - 4x4x4 FIN SYSTEM: FCSII or Futures FIN CONFIGURATION: TWIN ROCKER: Low RAIL: Medium BOTTOM CONTOUR: Single to double concave + Vee through tail TAIL: Deep Swallow FINISH: Sanded COLOUR: Burnt orange , Lemon
Elemnt Scrambled Egg
shape,
nose &
rocker
contour starting
into
allows
very well and
and middle
to
into
of
easily
through turns.

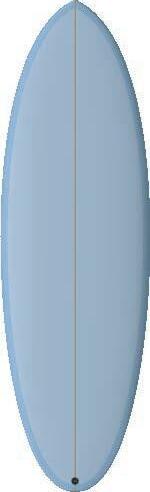

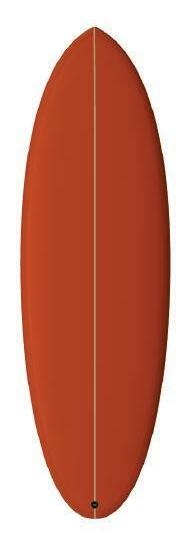

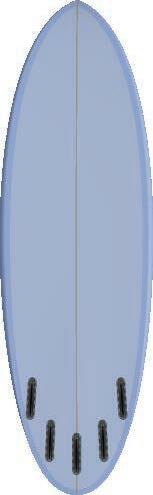

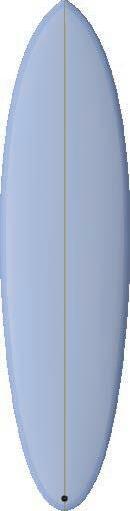

The Scrambled Egg has a constant curve outline
the
is low through middle of board with late
tail kick, combined with a very subtle single concave bottom
from the nose
section, which feeds
a double concave and vee out the tail area. This design
the board
fit easily
the curve
the wave, paddles
will
flow
5’6” x 20 1/2” x 2 3/8” – 29.87L 5’8” x 20 3/4” x 2 7/16” – 32L 5’10” x 21” x 2 1/2” - 34.24L 6’0” x 21 1/2” x 2 5/8” – 37.79L 6’2“ x 21 3/4” x 2 11/16” – 40.28L 6’4” x 2”2 x 2 3/4 “– 42.73L 6’6” x 22 1/2” x 2 13/16” - 45.77L CORE: PU with 3.6mm plywood stringer LAMINATION: Polyester resin - 4x4x4 FIN SYSTEM: FCSII or Futures FIN CONFIGURATION: TWIN ROCKER: Low with late nose and tail kick RAIL: Medium BOTTOM CONTOUR: Subtle single to double concave TAIL: Round FINISH: Sanded COLOUR: Burnt orange , Sky
Double Yoke
Elemnt

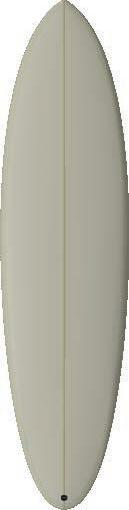

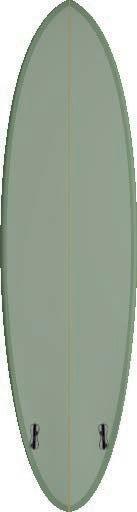

The Double yolk, is a mid length egg twin fin model that can paddle and cruise like a midlength, but with more hold, drive and manoeuvrability. Its design has a medium to low rocker curve, and a combination of pronounced vee and deep double concave bottom contours with low rails. Can be ridden in small slow mushy conditions, yet still perform when its overhead and hollow 6’4” x 21 1/2” x 2 5/8” - 36.85 6’8” x 21 3/4” x 2 5/8” - 39.45L 7’0” x 22” x 2 3/4” - 44L 7’2” x 22 1/4” x 2 13/16” - 46.75 7’6” x 22 5/8” x 2 7/8” - 50.80L CORE: PU with 3.6mm plywood stringer LAMINATION: Polyester resin - 4x4x4 FIN SYSTEM: FCSII or Futures FIN CONFIGURATION: TWIN ROCKER: Medium RAIL: Low to medium BOTTOM CONTOUR: Vee to subtle single and deep double concave TAIL: Pulled in round tail FINISH: Sanded COLOUR: Dune, Smoke green

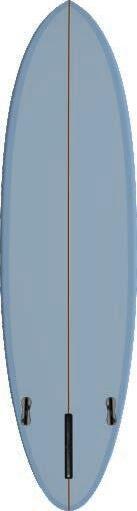

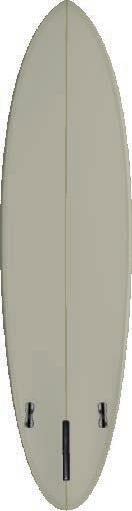

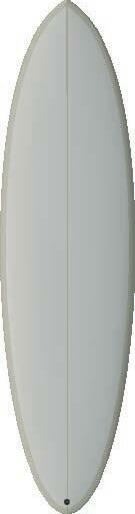

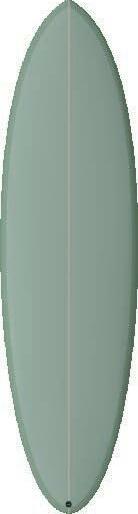

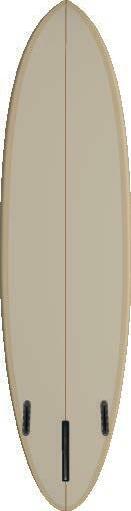

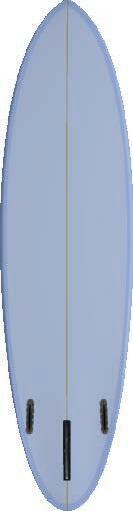

Elemnt Midlength An easy to ride mid size all rounder, classic concept with a modernised design. Low rocker and a combination of single to double concave plus vee, medium rails with forward volume. Paddles extremely well, goes fast with lots of drive, comes with a 1 plus 2 fin set up, single fin box plus sides. 6’8” x 21” x 2 3/4” - 40.50L 7’0” x 21 1/8” x 2 13/16” - 44.50L 7’2” x 21 1/4” x 2 7/8” - 46.50L 7’6” x 21 3/4” x 2 15/16” - 51L 7’10” x 22” x 3” - 56.50L CORE: PU with 3.6mm plywood stringer LAMINATION: Polyester resin - 4x4x4 FIN SYSTEM: FCSII or Futures side + Single fin box FIN CONFIGURATION: TWIN ROCKER: Low RAIL: Medium to full BOTTOM CONTOUR: Rolled vee, single-double concave with vee at tail TAIL: Round tail FINISH: Sanded COLOUR: Sky, Dune
SURFBOARDS
