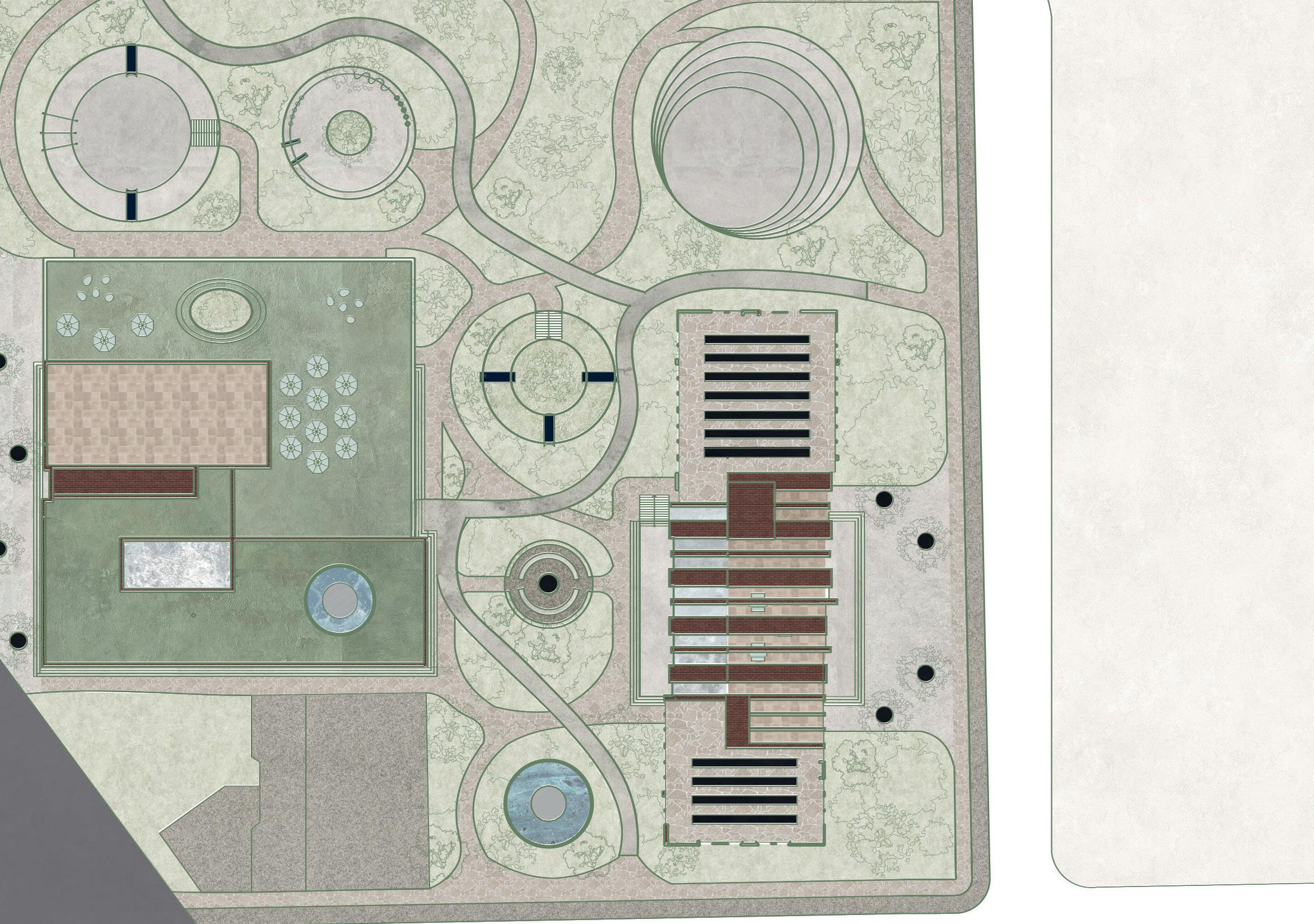

STRATEGY

CIRCULATION LOGIC

0 3 10

LEVEL 0 HORIZONTAL CIRCULATION

VERTICAL CIRCULATION

SEASONAL ADAPTATION

THE URBAN LANDSCAPE, PARTICULARLY IN THE UNITED STATES, IS INCREASINGLY DEFINED BY PRIVATIZED SPACES AND AMENITY ACCESS CONDITIONED BY SOCIO-ECONOMIC CLASS. OUR DESIGN RESPONDS TO THE CRITICAL NEED FOR GENUINELY UNCONDITIONAL PUBLIC REALM SPACES THAT EXIST OUTSIDE OF PRIVATE BUILDING ENVELOPES AND REQUIRE NO ECONOMIC TRANSACTION FOR ENGAGEMENT. TO ENSURE THESE FOUNDATIONAL PUBLIC SPACES REMAIN VIBRANT, SAFE, AND TRULY DEMOCRATIC YEAR-ROUND, THE DESIGN IS ROOTED IN SEASONAL ADAPTATION. EACH CIRCULAR MODULE IS DESIGNED WITH A DUALITY THAT MAXIMIZES UTILITY ACROSS CHICAGO’S EXTREME CLIMATE SHIFTS, PREVENTING THE OBSOLESCENCE, VACANCY, AND SUBSEQUENT INSECURITY THAT PLAGUES SINGLE-USE PUBLIC AREAS DURING OFF-SEASONS. THIS STRATEGIC APPROACH ENSURES SUSTAINED USER OCCUPANCY AND CONTINUOUS COMMUNAL BENEFIT.

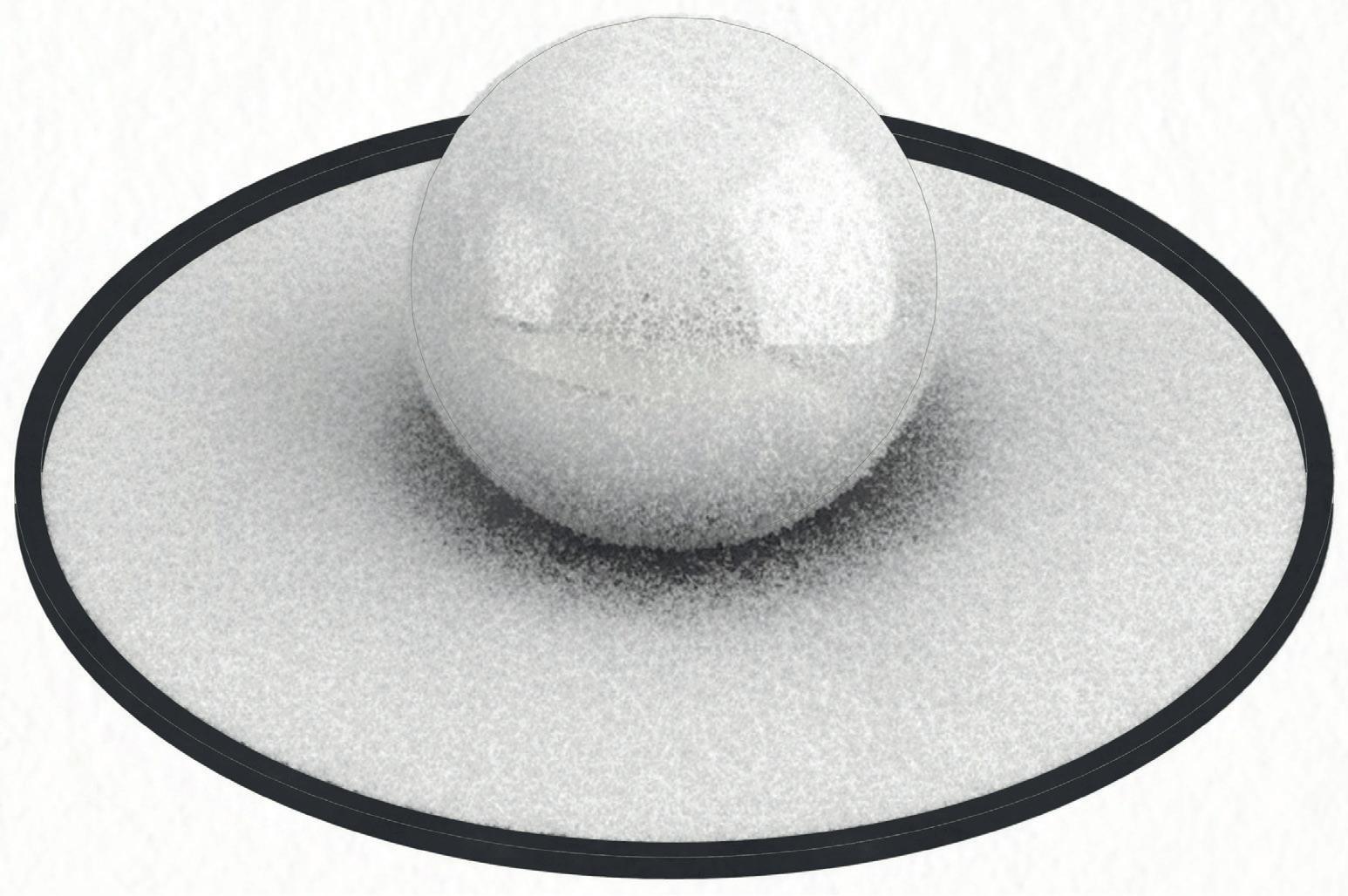

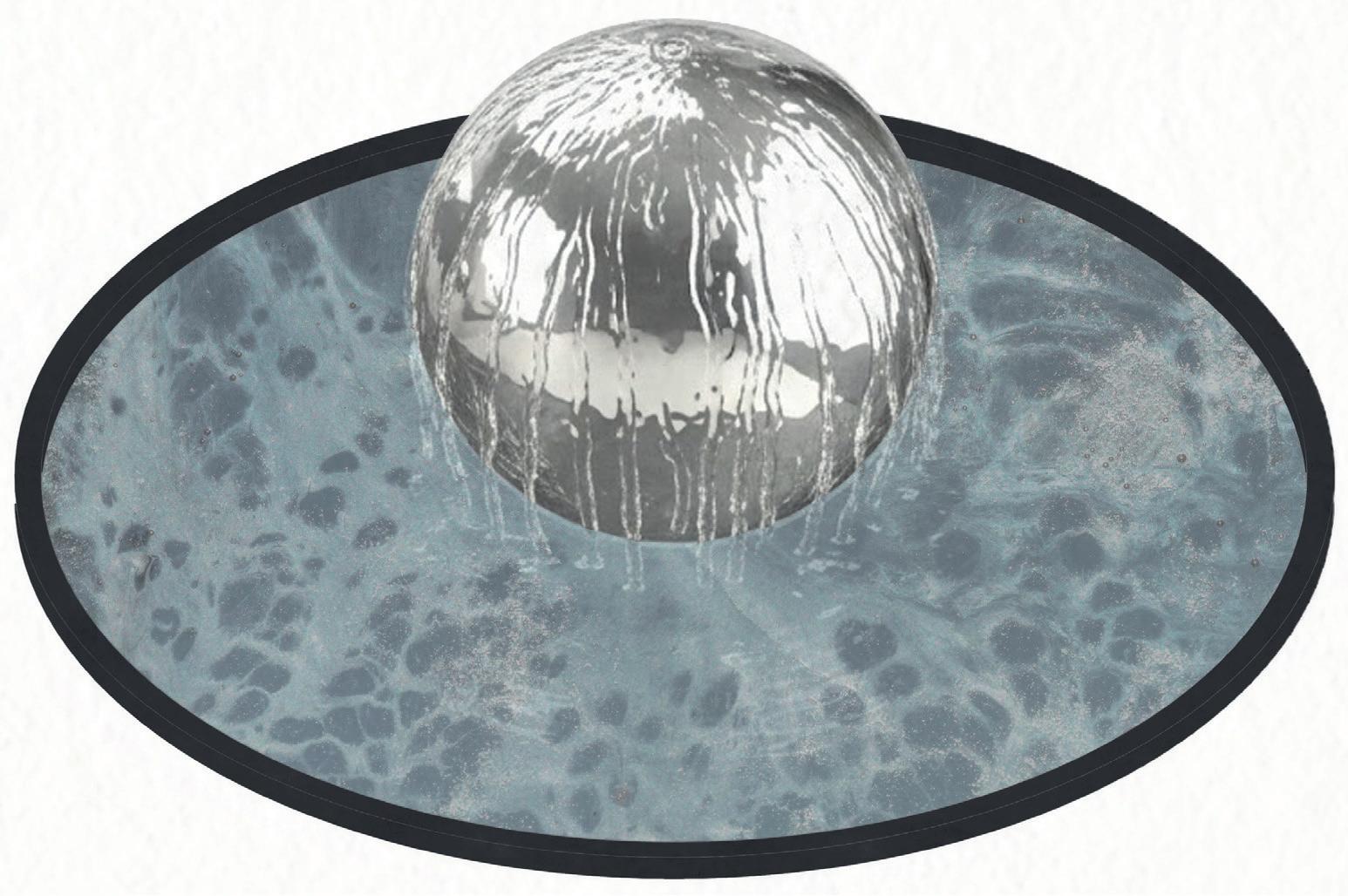

FOUNTAIN

THIS AREA FEATURES A LARGE SPHERICAL SCULPTURE THAT FUNCTIONS AS A DYNAMIC WATER FOUNTAIN. WATER FLOWS CONTINUOUSLY OVER THE HIGHLY REFLECTIVE METAL SURFACE AND INTO THE SURROUNDING BASIN, CREATING A VISUAL AND AUDITORY FOCAL POINT THAT WELCOMES VISITORS.

IN WINTER, THE SPHERE TRANSITIONS INTO A STATIC WINTER SCULPTURE. THE WATER FLOW CEASES, AND THE ENTIRE INSTALLATION, INCLUDING THE BASIN, CAN BE COVERED IN A LAYER OF SNOW AND ICE, REFLECTING THE HARSH ENVIRONMENT WHILE MAINTAINING ITS FUNCTION AS AN ICONIC, WELCOMING ELEMENT TO THE PARK.

IT SERVES AS A GREEN PAVILION, OFFERING A SERENE, SHELTERED SPACE PERFECT FOR A QUIET MOMENT OF PAUSE AND RELAXATION, ENHANCED BY THE SURROUNDING VEGETATION.

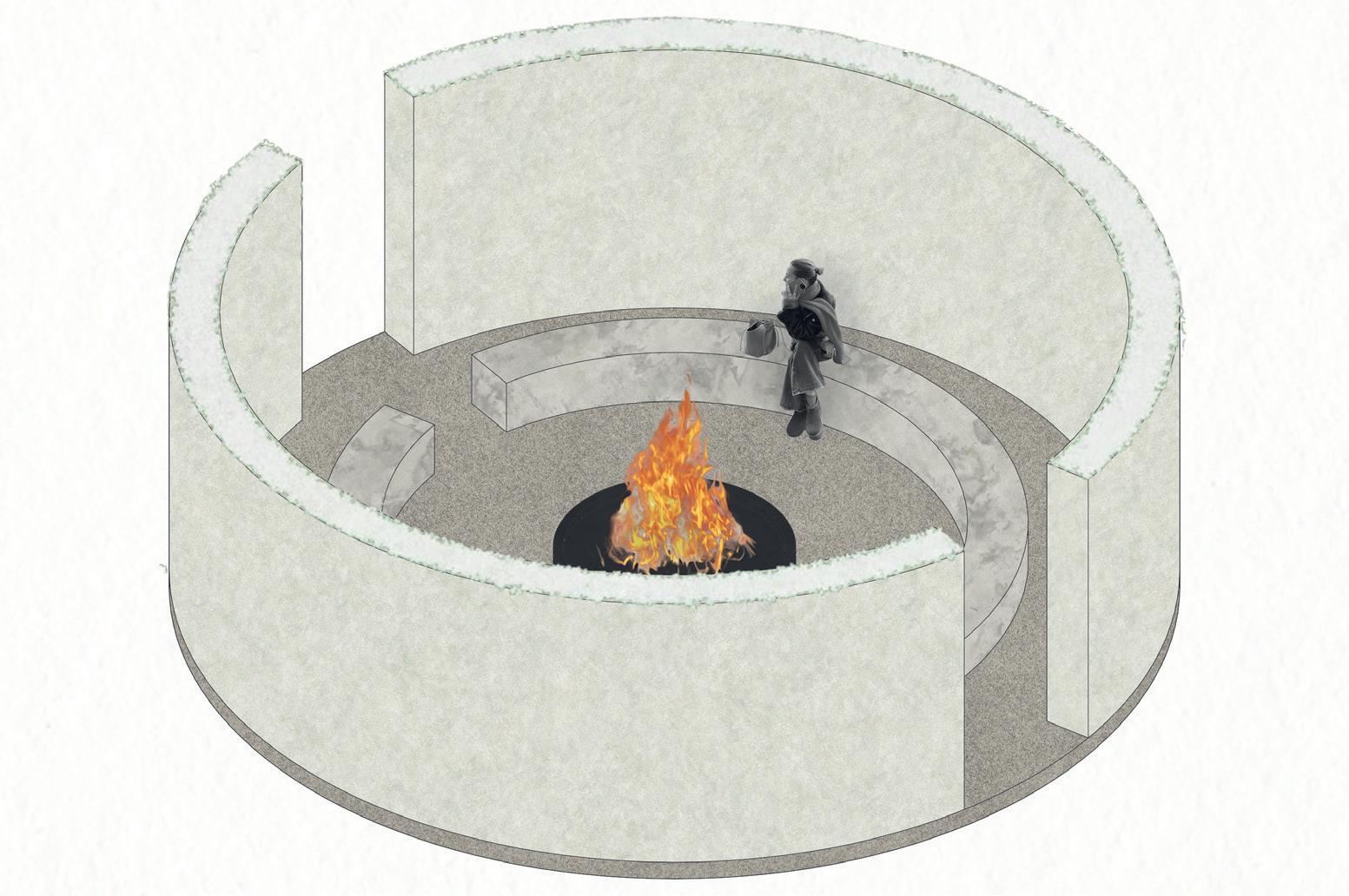

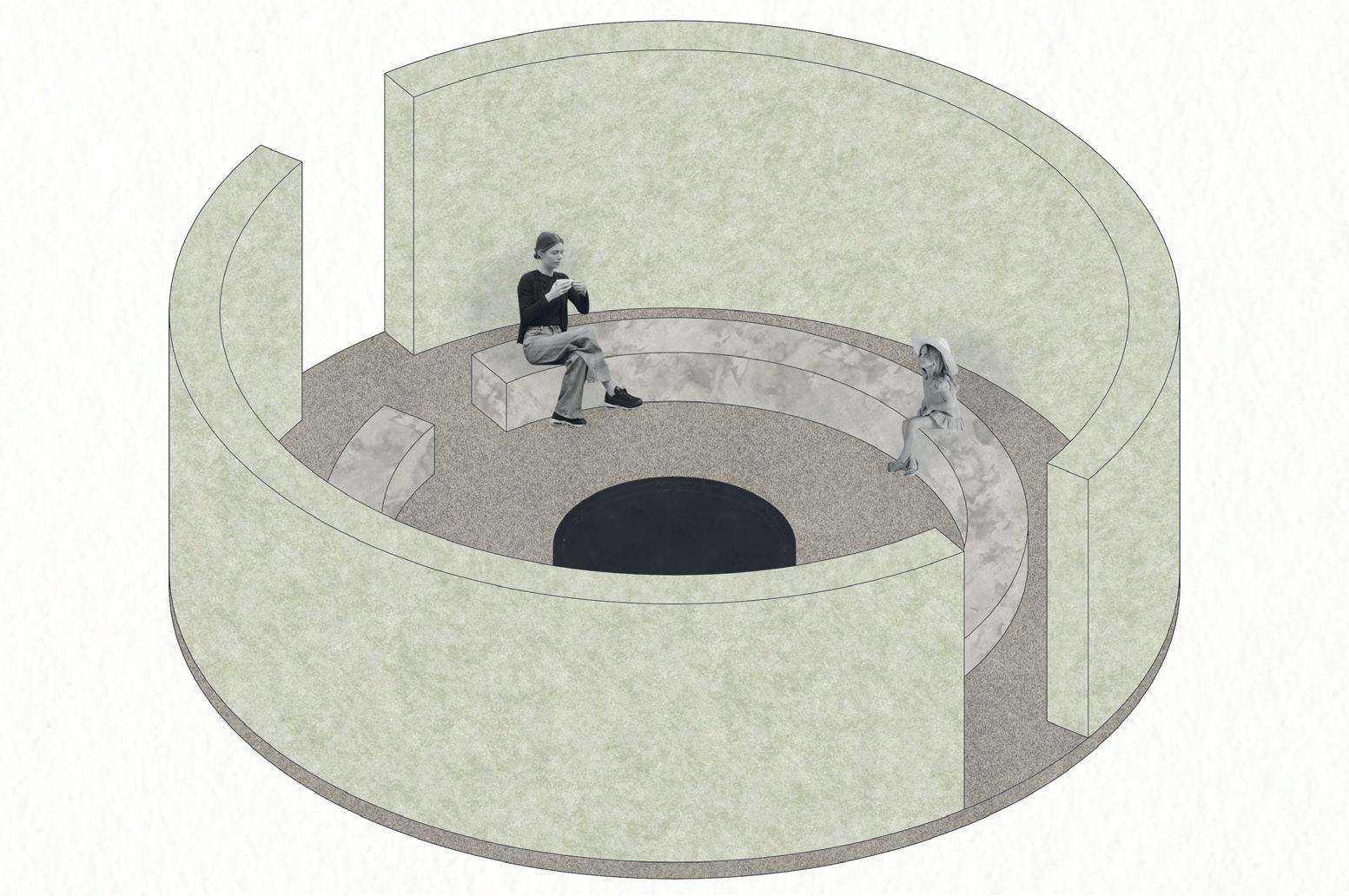

THE STRUCTURE CONTINUES TO BLOCK HARSH WINDS, BUT THE ADDITION OF A CENTRAL CAMPFIRE CREATES A PROTECTED OUTDOOR MICROCLIMATE. THIS TRANSFORMS THE PAVILION INTO A CRUCIAL GATHERING SPOT, ALLOWING USERS TO SAFELY ENJOY THE OUTDOORS EVEN DURING CHICAGO’S EXTREME COLD.

SENSORY GARDEN

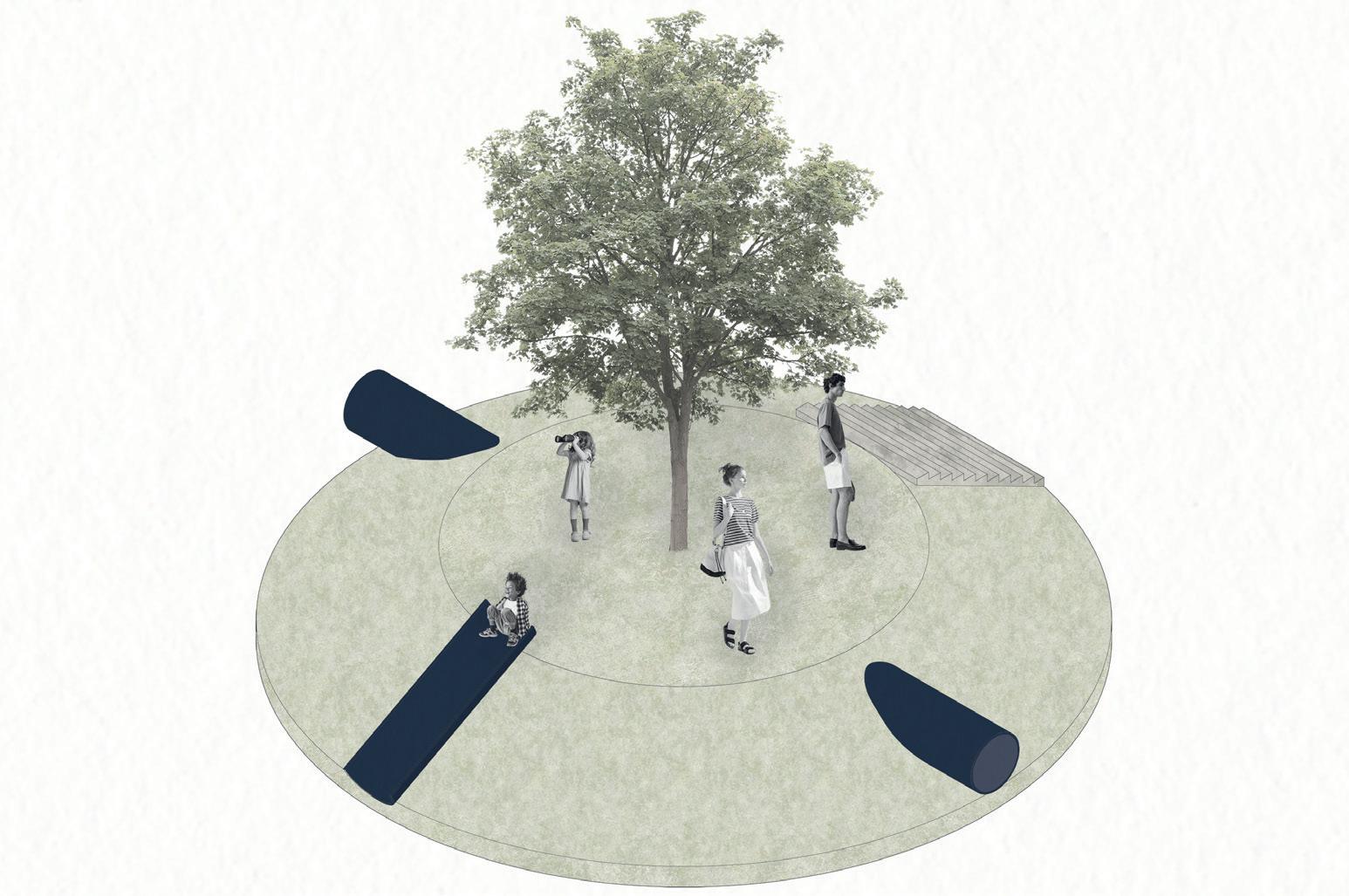

THIS SLIGHTLY ELEVATED CIRCULAR GARDEN PROVIDES A DISTINCT PERSPECTIVE, ALLOWING VISITORS TO VIEW THE SURROUNDING PARK FROM A HIGHER PHYSICAL VANTAGE POINT FOR A UNIQUE SENSORY EXPERIENCE. DURING THE WARMER MONTHS THE SPACE FUNCTIONS AS A PLAYFUL INSTALLATION AREA, WHERE THE CENTRAL TREE PROVIDES SHADE AND STRUCTURES ENCOURAGE CHILDREN’S IMAGINATIVE PLAY.

IN THE WINTER MONTHS THE AREA RETAINS ITS ELEVATED PERSPECTIVE, WHICH BECOMES MORE DRAMATIC AS THE CENTRAL TREE LOSES ITS LEAVES. THE EXISTING PLAY INSTALLATIONS ARE REPURPOSED TO CONTINUE ALLOWING CHILDREN TO ENGAGE IN ACTIVE, SEASONAL PLAY, MAINTAINING ITS FUNCTION AS A YEAR-ROUND RECREATIONAL ASSET.

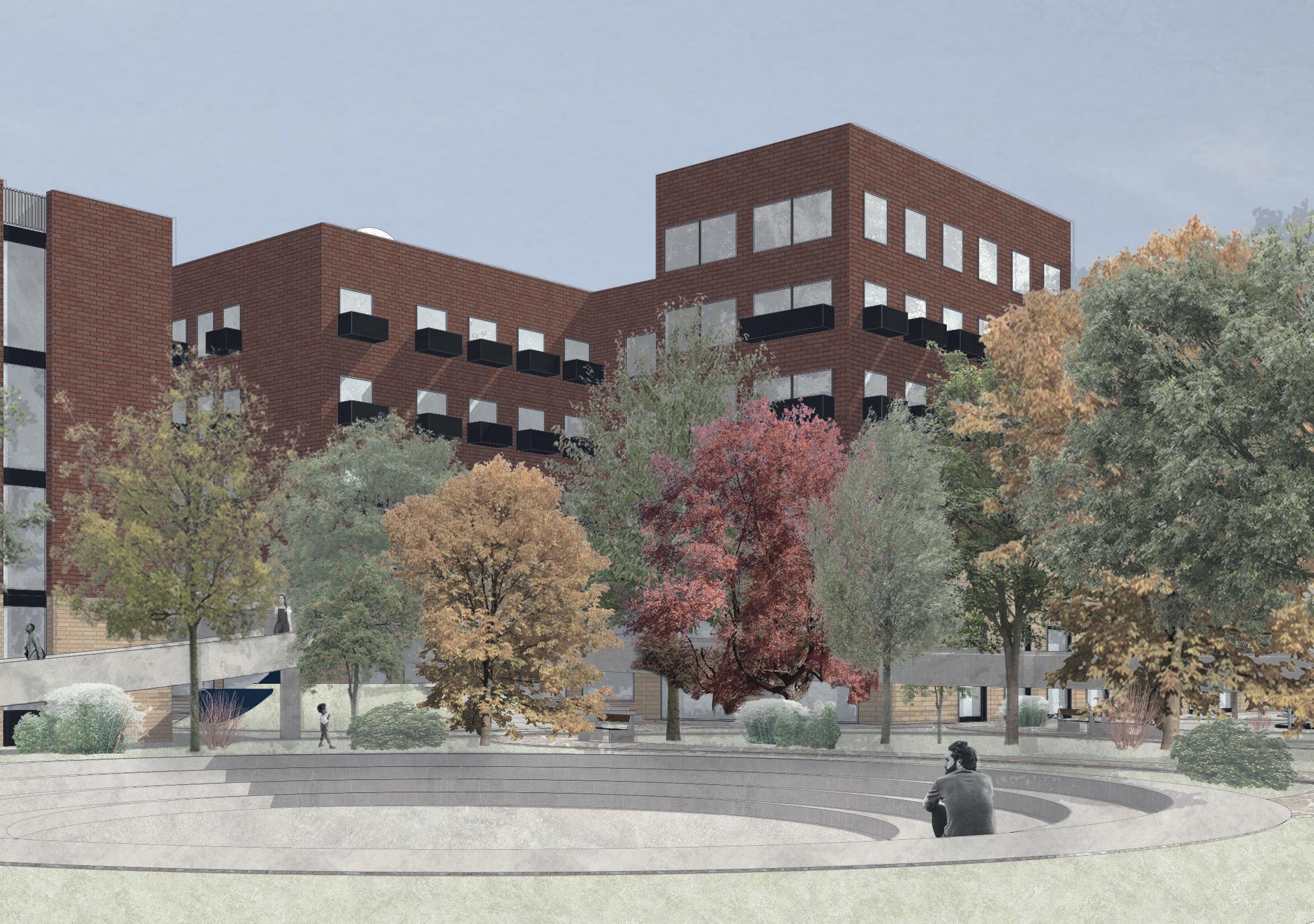

AMPHITHEATER

THIS TERRACED CIRCULAR AREA FUNCTIONS AS AN AMPHITHEATER, PROVIDING STEPPED SEATING FOR GATHERINGS, RELAXATION, AND PERFORMANCES. VISITORS

CAN BE SEEN READING, PLAYING MUSIC, OR SIMPLY ENJOYING THE OUTDOORS IN A COMMUNAL SETTING.

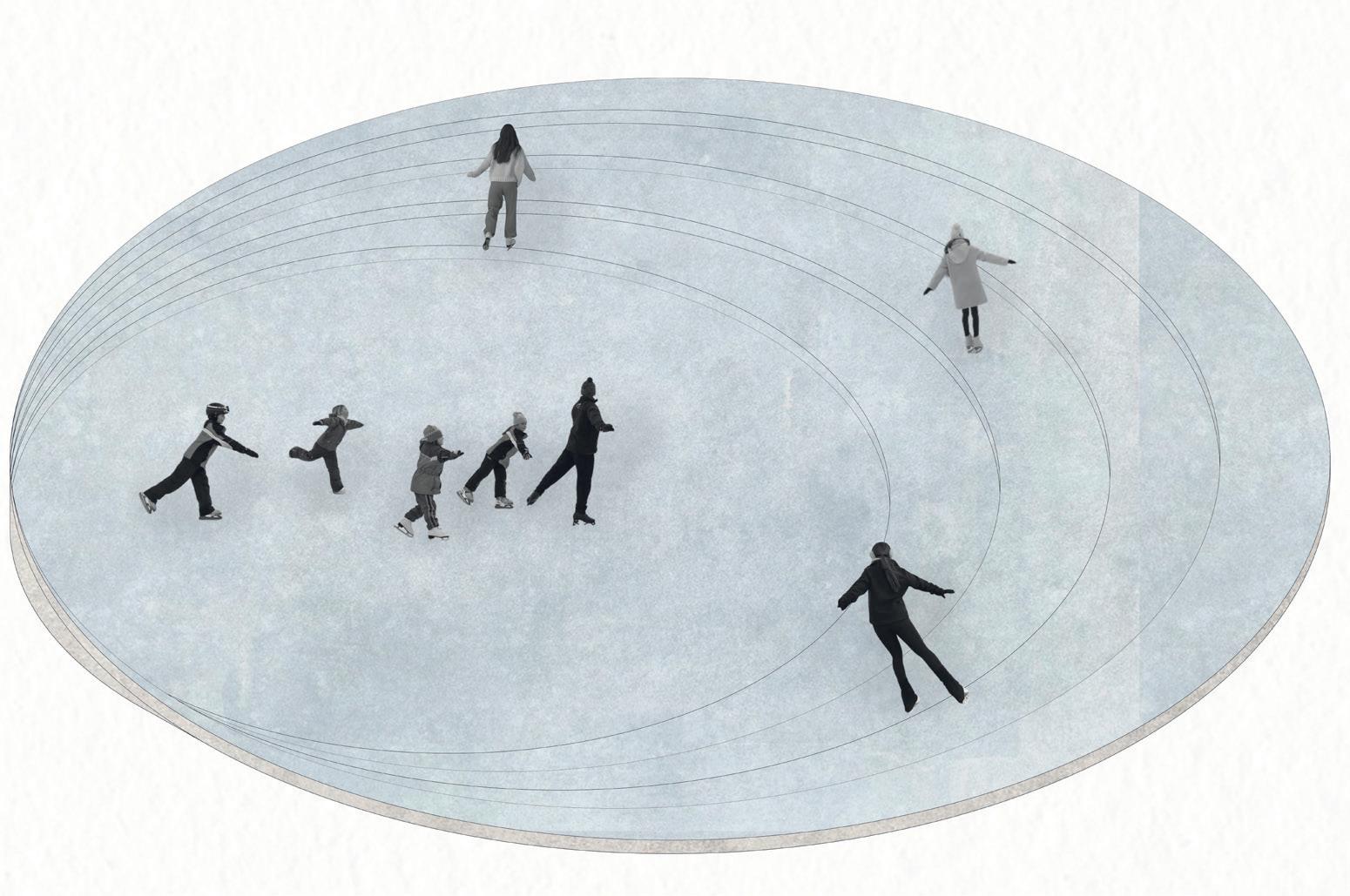

WITH THE ARRIVAL OF COLD WEATHER, THE AMPHITHEATER FLOOR IS TRANSFORMED INTO A SEASONAL ICE SKATING RINK. MAKING THE CIRCLE A FOCAL POINT FOR ACTIVE WINTER RECREATION AND COMMUNITY GATHERING.

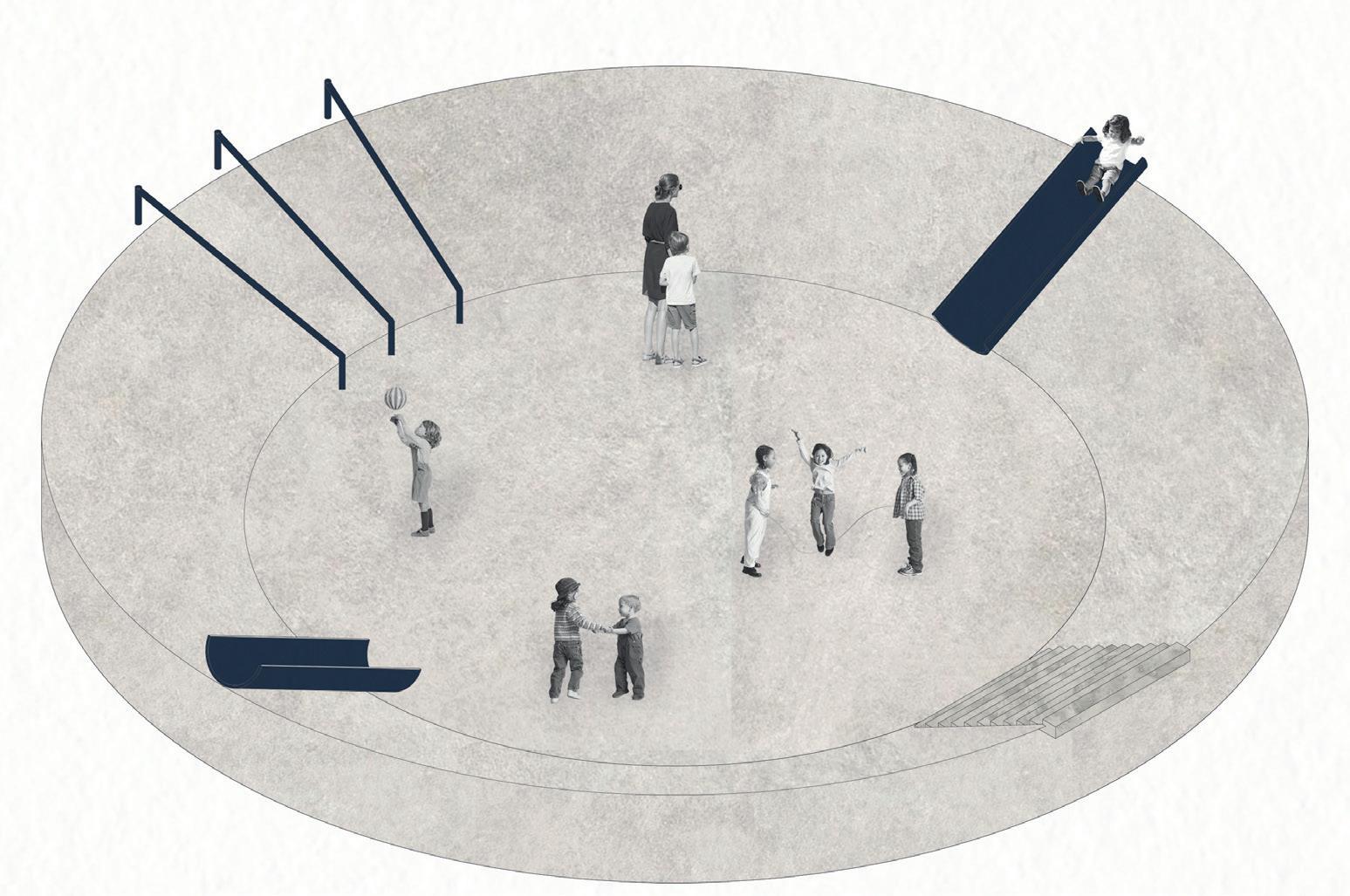

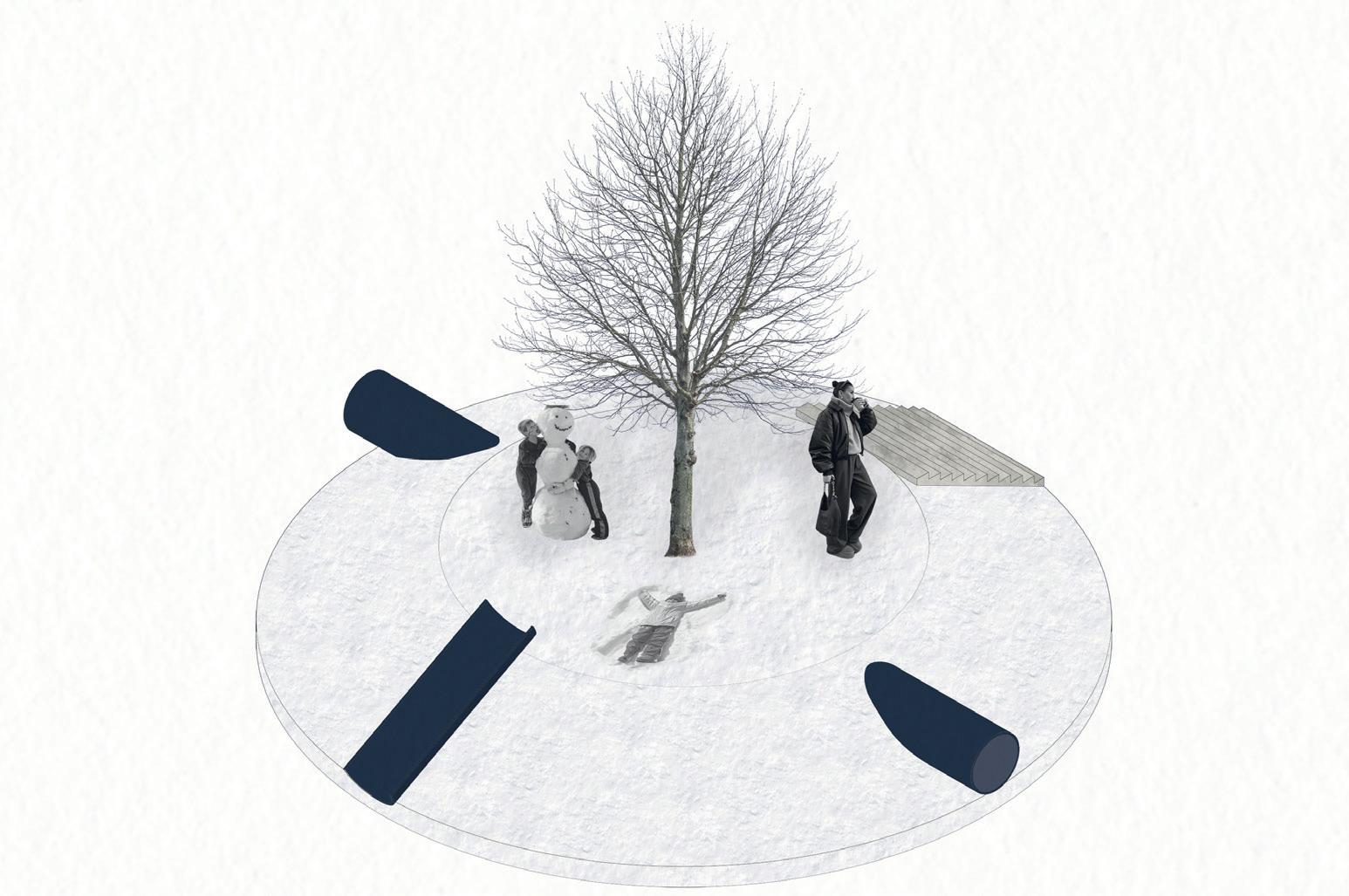

PLAYGROUND 1

DURING THE WARMER MONTHS, THE CIRCLES FUNCTION AS TRADITIONAL PLAY INSTALLATIONS WHERE CHILDREN ACTIVELY ENGAGE WITH THE BUILT-IN STRUCTURES AND GROUND SURFACE.

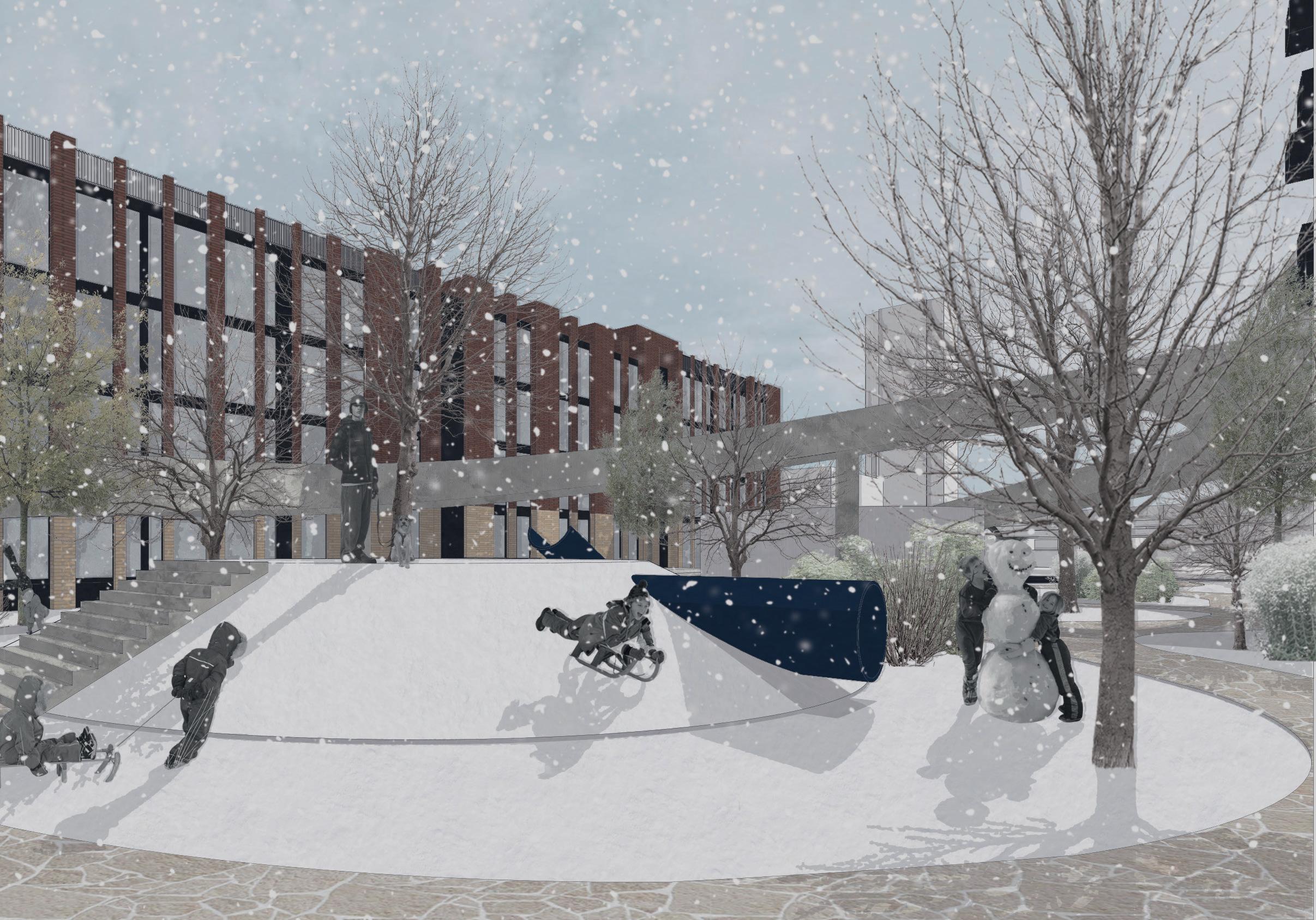

IN WINTER, THE SAME STRUCTURES ARE REPURPOSED. THE INSTALLATIONS TRANSFORM INTO SLEDDING AND TUBING RAMPS, ADAPTING THE PLAY DYNAMICS FOR EXTREME WEATHER AND ENSURING THE CIRCULAR AREA REMAINS A VIBRANT HUB FOR FUN AND PHYSICAL ACTIVITY. THE ENTIRE AREA IS COVERED IN SNOW, ENCOURAGING A UNIQUE FORM OF WINTER PLAY.

PLAYGROUND 2

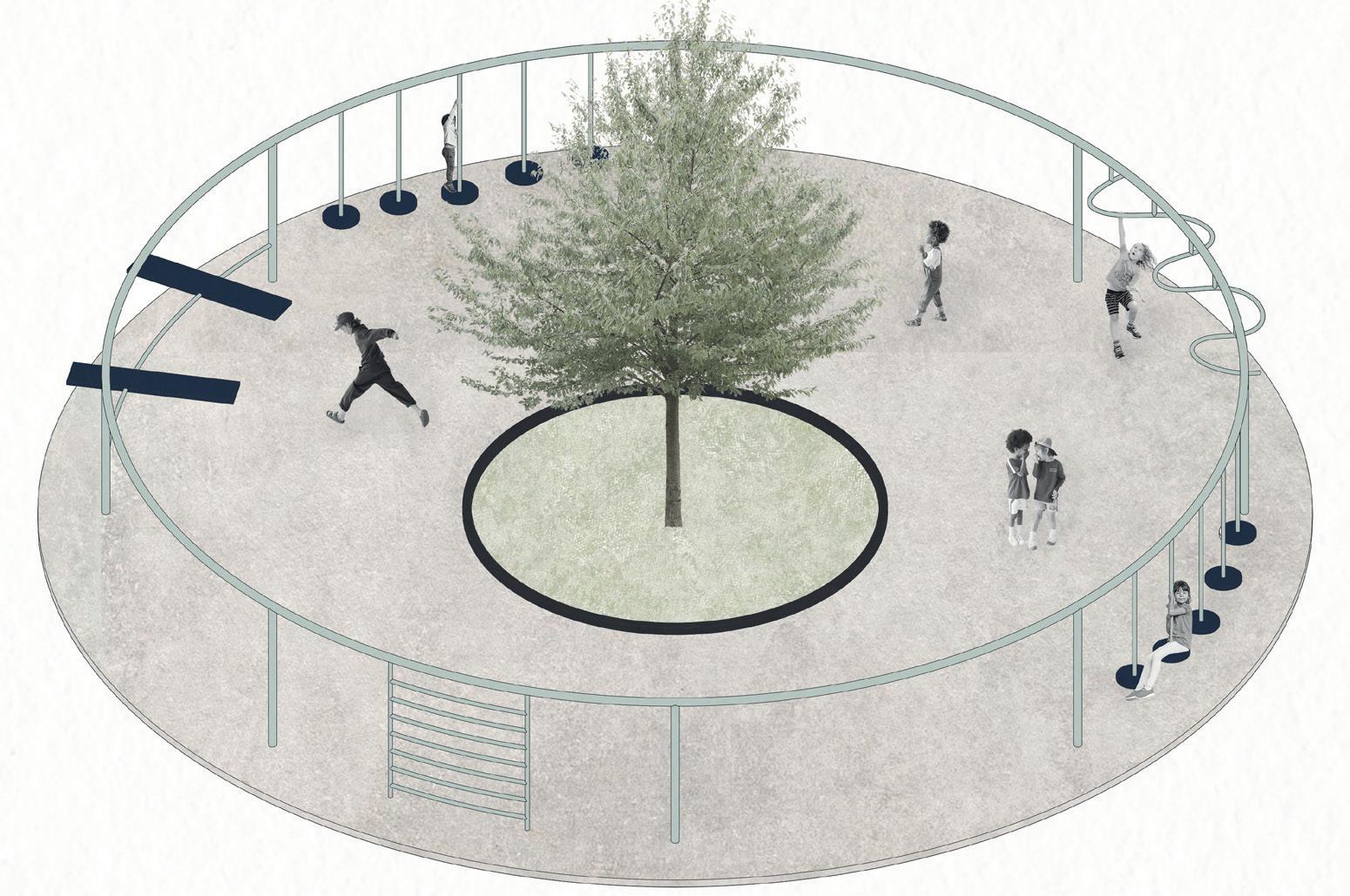

THIS SPACE FEATURES A CENTRAL TREE PROVIDING SHADE AND INCLUDES MONKEY BARS AND OTHER ACTIVE PLAY STRUCTURES. CHILDREN ENJOY CLIMBING AND SWINGING, UTILIZING THE AREA FOR DYNAMIC PHYSICAL ACTIVITY DURING WARMER MONTHS.

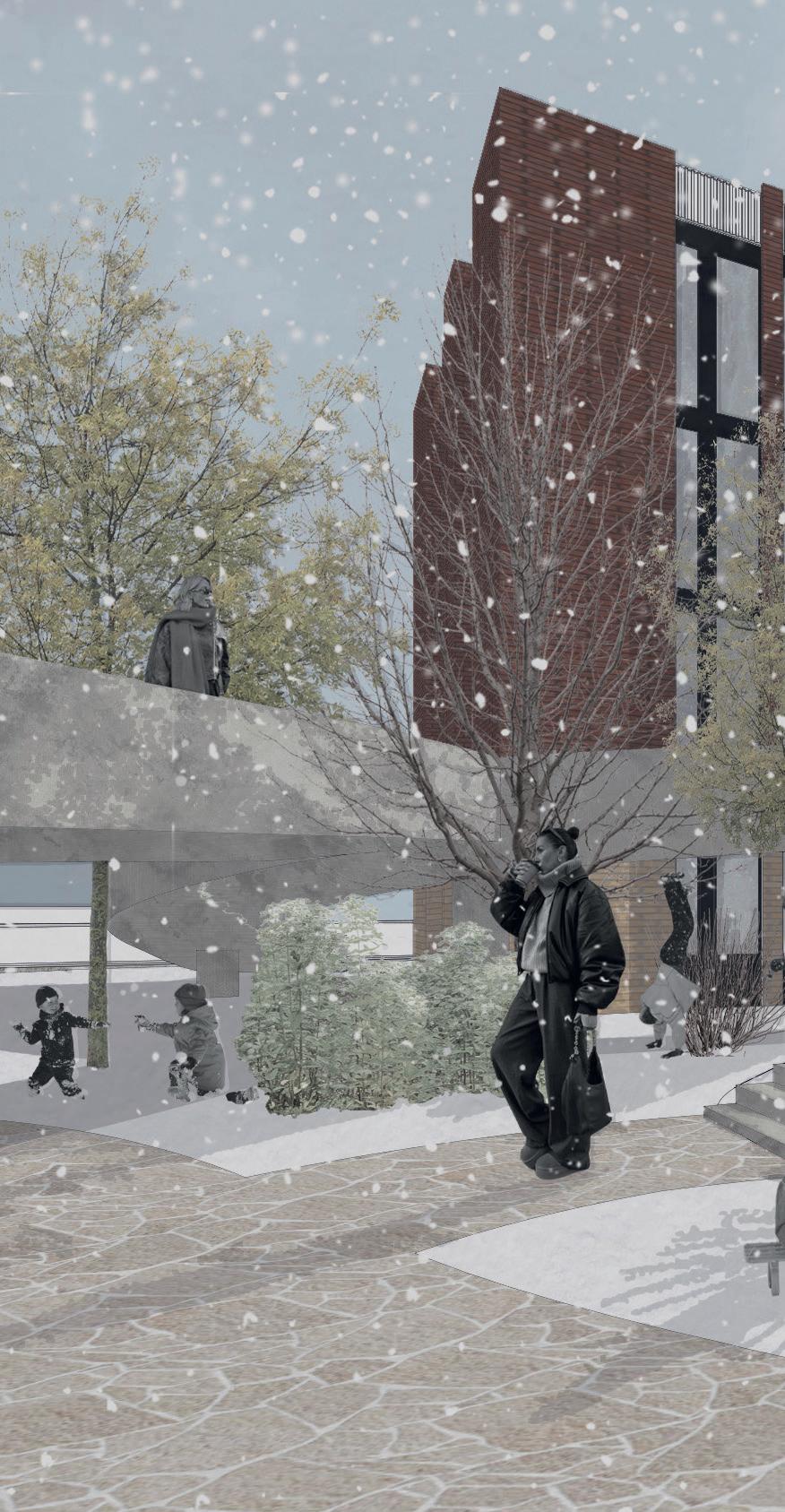

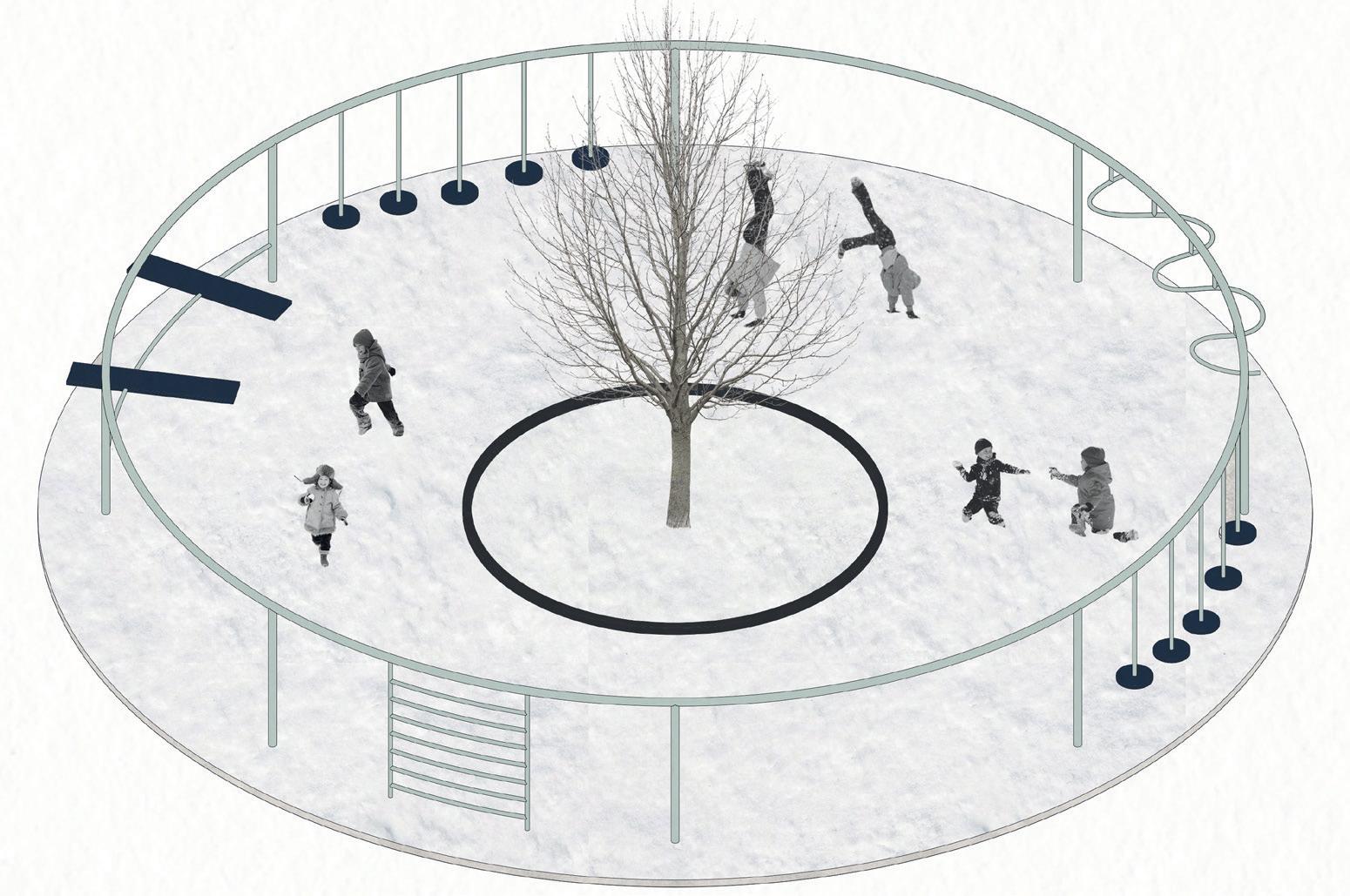

IN WINTER, THE MONKEY BARS AND STRUCTURES REMAIN, BUT THE GROUND BECOMES A SEMI-OPEN SNOWY EXPANSE. THIS AREA OFFERS A DIFFERENT KIND OF PLAY, ALLOWING FOR FREE MOVEMENT, SNOW ACTIVITIES, OR SIMPLY A CONTEMPLATIVE SPACE WITHIN THE WINTER LANDSCAPE

(7:00-18:00)

NIGHT (18:30-23:00)

A T E R R E Q U I R E M E N T

TREES

EDIBLE PLANTS

SUMMER HARVEST

CHERRY TOMATOES (SOLANUM LYCOPERSICUM)

PEPPERS & CHILIES (CAPSICUM ANNUUM)

ZUCCHINI / SUMMER SQUASH (CUCURBITA PEPO)

BASIL (OCIMUM BASILICUM)

STRAWBERRIES (FRAGARIA × ANANASSA)

BUSH BEANS (PHASEOLUS VULGARIS)

WINTER HARVEST

KALE / LACINATO KALE (BRASSICA OLERACEA)

RAINBOW CHARD (BETA VULGARIS)

SPINACH (SPINACIA OLERACEA)

CARROTS (DAUCUS CAROTA)

RADISHES (RAPHANUS SATIVUS)

CHIVES (ALLIUM SCHOENOPRASUM)

SEASONAL CROP ROTATION

PROTECTION & MAINTENANCE

EXISTING TREES & MAINTENANCE PLAN

8

IRRIGATION SYSTEMS

IRRIGATION AND WATER COLLECTION INSTALLATION

7

REMOVAL OF EXISTING PAVEMENT

DEMOLITION OF CONCRETE & SITE CLEANING

1

CURRENT SOIL EVALUATION

2

COMPACTION, PH, NUTRIENTS, DRAINAGE & CHEMICALS

SPECIES SELECTION

NATIVE OR ADAPTED TREES & SPECIES

6

PARK DESIGN & GREEN AREAS

5

LAYOUT OF PLANTING ZONES & PERMEABLE AREAS.

DECOMPACTION & AERATION

3

REMOVAL OF HARDENED LAYERS TO ALLOW ROOT GROWTH

SOIL

IMPROVEMENTS

INCORPORATION OF TOPSOIL, COMPOST & ORGANIC MATTER ACCORDING TO THE SOIL ANALYSIS

4

KEY

RAIN GARDEN

EVAPORATIVE FOUTNTAIN

TERRACE RAINWATER

TERRACE RAINWATER

TERRACE RAINWATER

RAINWATER HARVESTING

TOTAL STORAGE CAPACITY: 120,000 LITERS (120 M3)

RAIN GARDEN

GROUNDFLOOR RAINWATER

GROUNDFLOOR RAINWATER

GROUNDFLOOR RAINWATER

EVAPORATIVE FOUNTAIN 1 2

SOURCE: ROOF COLLECTION (HOSPITALITY + RESIDENTIAL) & PARK

POTABLE WATER

POTABLE WATER

POTABLE WATER

TERRACE RAINWATER

GRAYWATER

GRAYWATER

GRAYWATER

GROUNDFLOOR RAINWATER

POTABLE WATER

EVAPORATIVE FOUNTAIN 1 2

SEASONAL USE: LANDSCAPE IRRIGATION (SUMMER) / ICE RINK GENERATION (WINTER)

POTABLE WATER CISTERN

POTABLE WATER CISTERN

GRAYWATER

POTABLE WATER CISTERN

POTABLE WATER CISTERN

GRAYWATER TREATMENT PLANT

GRAYWATER TREATMENT PLANT

GRAYWATER TREATMENT PLANT

GRAYWATER TREATMENT PLANT

RAINWATER CISTER

RAINWATER CISTERN

RAINWATER CISTERN

ICE RINK

RINK

ICE RINK

RAINWATER CISTERN

ICE RINK

RAINWATER HARVESTING

TOTAL STORAGE CAPACITY: 120,000 LITERS (120 M3)

SOURCE: ROOF COLLECTION (HOSPITALITY + RESIDENTIAL) & PARK

POTABLE WATER STORAGE (CITY SUPPLY)

ATLR HOSPITALITY ( SALVATION ARMY): 67,500 LITERS (67.5 M3)

RAINWATER HARVESTING

SEASONAL USE: LANDSCAPE IRRIGATION (SUMMER) / ICE RINK GENERATION (WINTER)

SUPPLY RESERVE FOR 66 GUEST ROOMS + AMENITIES.

POTABLE WATER STORAGE (CITY SUPPLY)

TOTAL STORAGE CAPACITY: 120,000 LITERS (120 M3)

ATLR HOSPITALITY ( SALVATION ARMY): 67,500 LITERS (67.5 m3)

SOURCE: ROOF COLLECTION (HOSPITALITY + RESIDENTIAL) & PARK

SUPPLY RESERVE FOR 66 GUEST ROOMS + AMENITIES.

SEASONAL USE: LANDSCAPE IRRIGATION (SUMMER) / ICE RINK GENERATION (WINTER)

ATLR RESIDENTIAL (REHABILITATION): 30,000 LITERS (30 M3)

RAINWATER HARVESTING

SUPPLY RESERVE FOR 30DWELLING UNITS + AMENITIES.

POTABLE WATER STORAGE (CITY SUPPLY)

TOTAL STORAGE CAPACITY: 120,000 LITERS (120 M3)

ATLR RESIDENTIAL (REHABILITATION): 30,000 LITERS (30 M3)

ATLR HOSPITALITY ( SALVATION ARMY): 67,500 LITERS (67.5 m3)

GREY WATER RECYCLING (ON-SITE TREATMENT)

ATLR HOSPITALITY: 12,000 L DAILY CAPACITY.

SOURCE: ROOF COLLECTION (HOSPITALITY + RESIDENTIAL) & PARK

SUPPLY RESERVE FOR 66 GUEST ROOMS + AMENITIES.

CO-LIVING BUILDING SYSTMEN: 6,000 L DAILY CAPACITY.

PROCESS: SHOWER/SINK DRAINAGE - FILTRATION - TOILET FLUSHING REUSE

SEASONAL USE: LANDSCAPE IRRIGATION (SUMMER) / ICE RINK GENERATION (WINTER)

ATLR RESIDENTIAL (REHABILITATION): 30,000 LITERS (30 M3)

SUPPLY RESERVE FOR 30 DWELLING UNITS + AMENITIES.

SUPPLY RESERVE FOR 30DWELLING UNITS + AMENITIES.

POTABLE WATER STORAGE (CITY SUPPLY)

GREY WATER RECYCLING (ON-SITE TREATMENT)

ATLR HOSPITALITY ( SALVATION ARMY): 67,500 LITERS (67.5 m3)

ATLR HOSPITALITY: 12,000 L DAILY CAPACITY.

SUPPLY RESERVE FOR 66 GUEST ROOMS + AMENITIES.

CO-LIVING BUILDING SYSTMEN: 6,000 L DAILY CAPACITY.

PROCESS: SHOWER/SINK DRAINAGE - FILTRATION - TOILET FLUSHING REUSE

ATLR RESIDENTIAL (REHABILITATION): 30,000 LITERS (30 M3)

SUPPLY RESERVE FOR 30DWELLING UNITS + AMENITIES.

GREY WATER RECYCLING (ON-SITE TREATMENT)

ATLR HOSPITALITY: 12,000 L DAILY CAPACITY.

CO-LIVING BUILDING SYSTMEN: 6,000 L DAILY CAPACITY.

PROCESS: SHOWER/SINK DRAINAGE - FILTRATION - TOILET FLUSHING REUSE

GREY WATER RECYCLING (ON-SITE TREATMENT)

ATLR HOSPITALITY: 12,000 L DAILY CAPACITY.

CO-LIVING BUILDING SYSTMEN: 6,000 L DAILY CAPACITY.

PROCESS: SHOWER/SINK DRAINAGEFILTRATION - TOILET FLUSHING REUSE

CAPTURE FROM ROOFS, TERRACES AND PARK RUNOFF

ON-SITE FILTRATION & STORAGE

UNDERGROUND CISTERN

SEASONAL REUSE: IRRIGATION (SUMMER) / ICE RINK (WINTER)

GREYWATER COLLECTION (SHOWER/SINKS)

TREATMENT PLANT

RAIN

RAIN CHAIN

RAIN CHAIN RUNOFF

INDOOR BIORETENTION LAYERS (SOIL, SAND, GRAVEL)

OVERFLOW PIPE TO CENTRAL PARK CISTERN

SOLAR AND WIND BEHAVIOR

FROM COMMUNITY TO INTIMACY

PUBLIC & COEXISTANCE

CULTURAL & ARTISTIC

WELLBEING & RECREATION

SOCIAL & GASTRONOMIC

HOUSING & LODGING

SERVICES & SUPPORT

CHAPTER

4

ARCHITECTURAL DESIGN

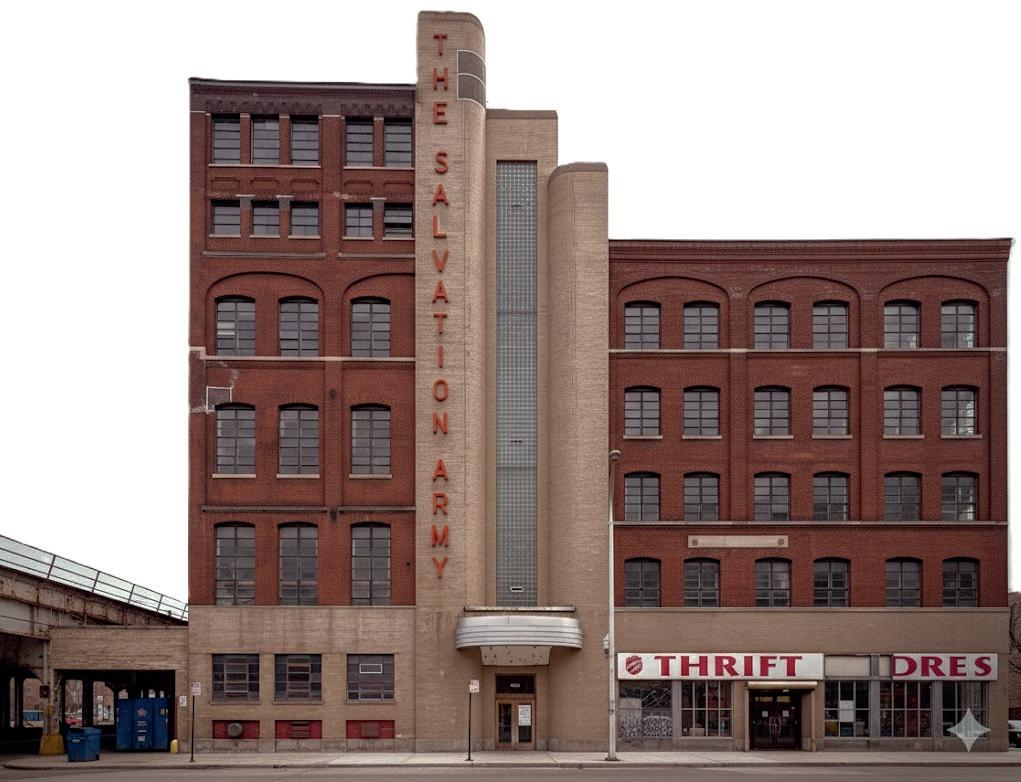

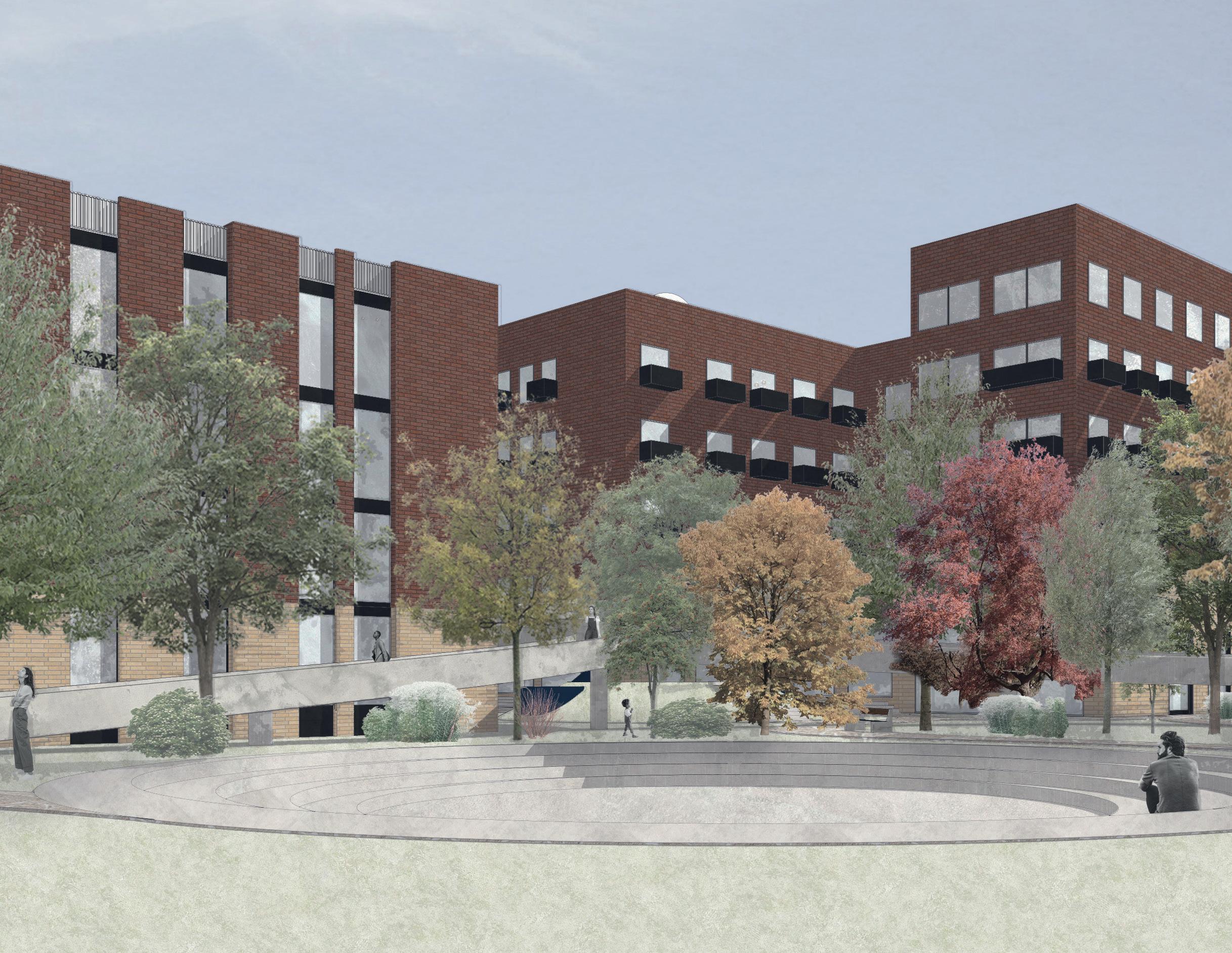

PRESERVATION AND ADAPTIVE REUSE

REGARDING THE INTERIOR, THE MAIN STRUCTURAL GRID REMAINS, BUT THE INTRODUCTION OF THE NEW PROGRAM CREATED AN OPEN GROUND FLOOR PLAN LAYOUT. NEW ELEVATORS WERE ADDED ON THE HOTEL LEVELS. NEW INTERNAL WALLS WERE STRATEGICALLY ADDED TO CONCEAL SERVICES AND ENSURE MAXIMUM PROGRAMMATIC FLEXIBILITY.

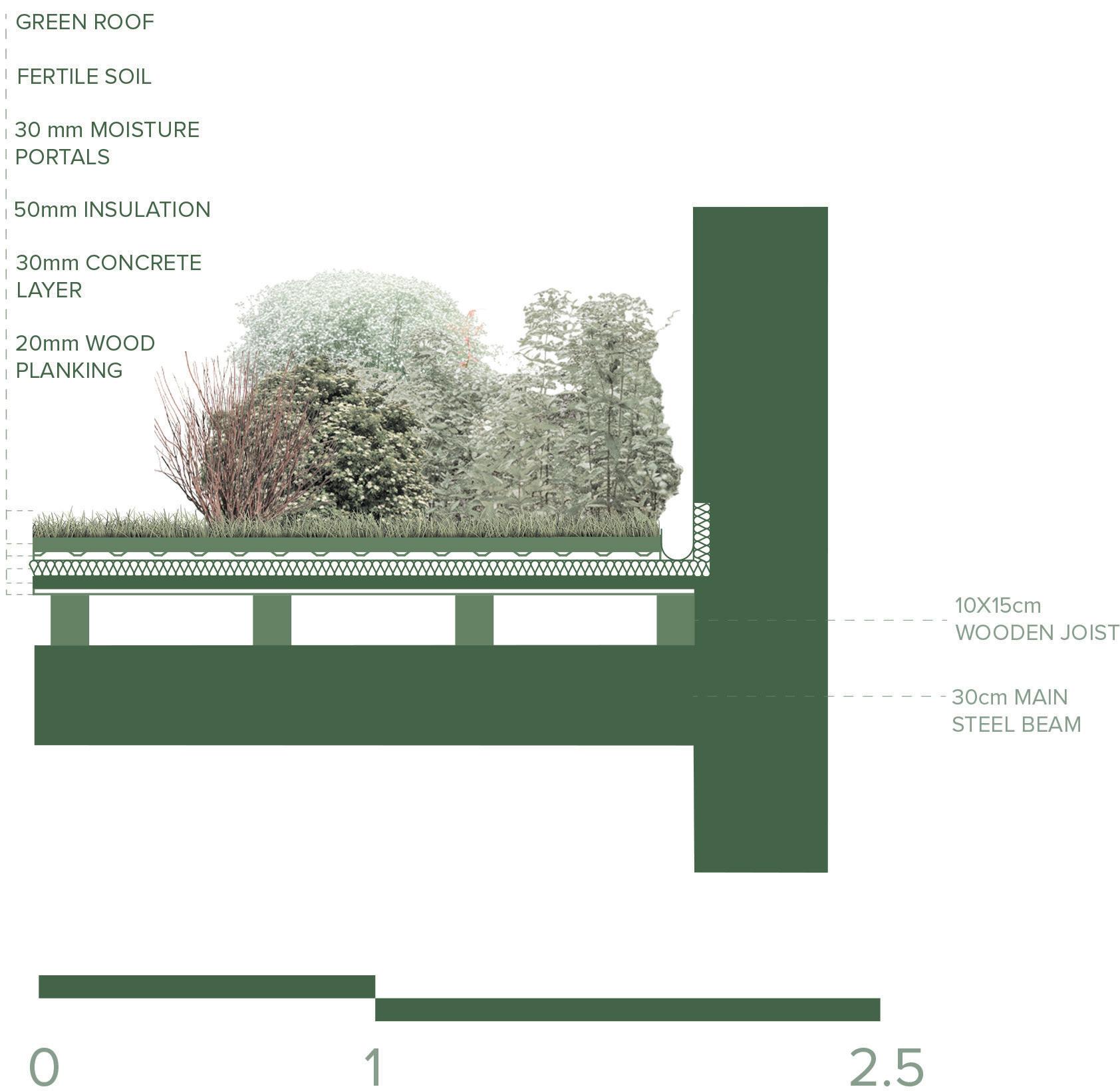

STRUCTURALLY, THE SLABS IN THE NORTH HALF WERE MODIFIED TO MATCH THE REST OF THE BUILDING, AN ADJUSTMENT VISIBLE IN THE SECTIONS AND FAÇADE. FURTHERMORE, SLABS WERE MODIFIED WITH OPENINGS TO CREATE AN INTERNAL GARDEN AND SKYLIGHTS SPANNING FROM LEVEL 2 TO LEVEL 4..

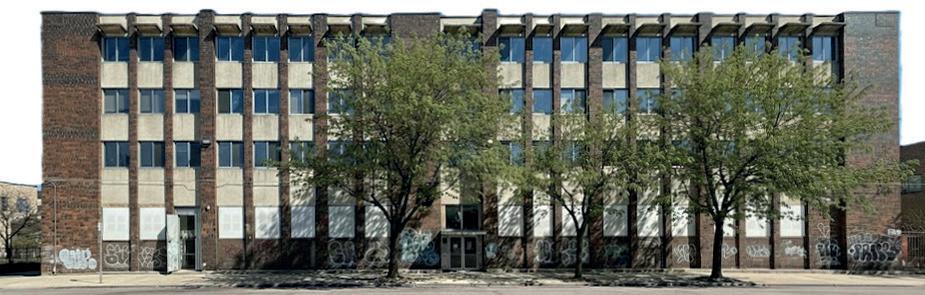

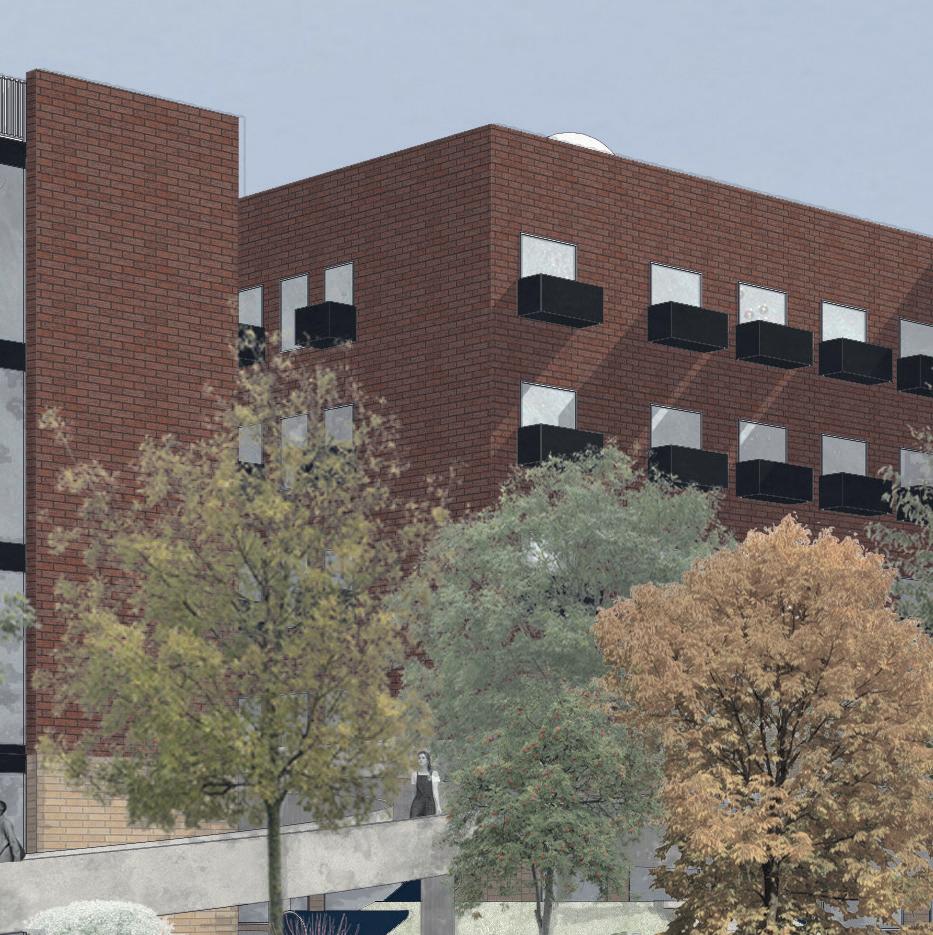

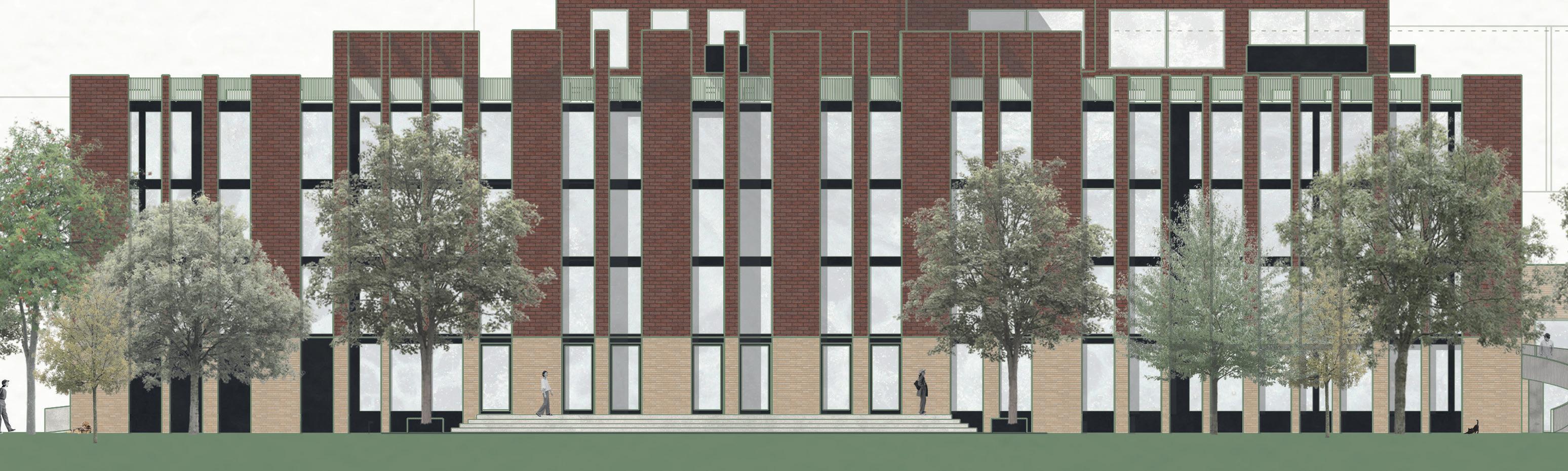

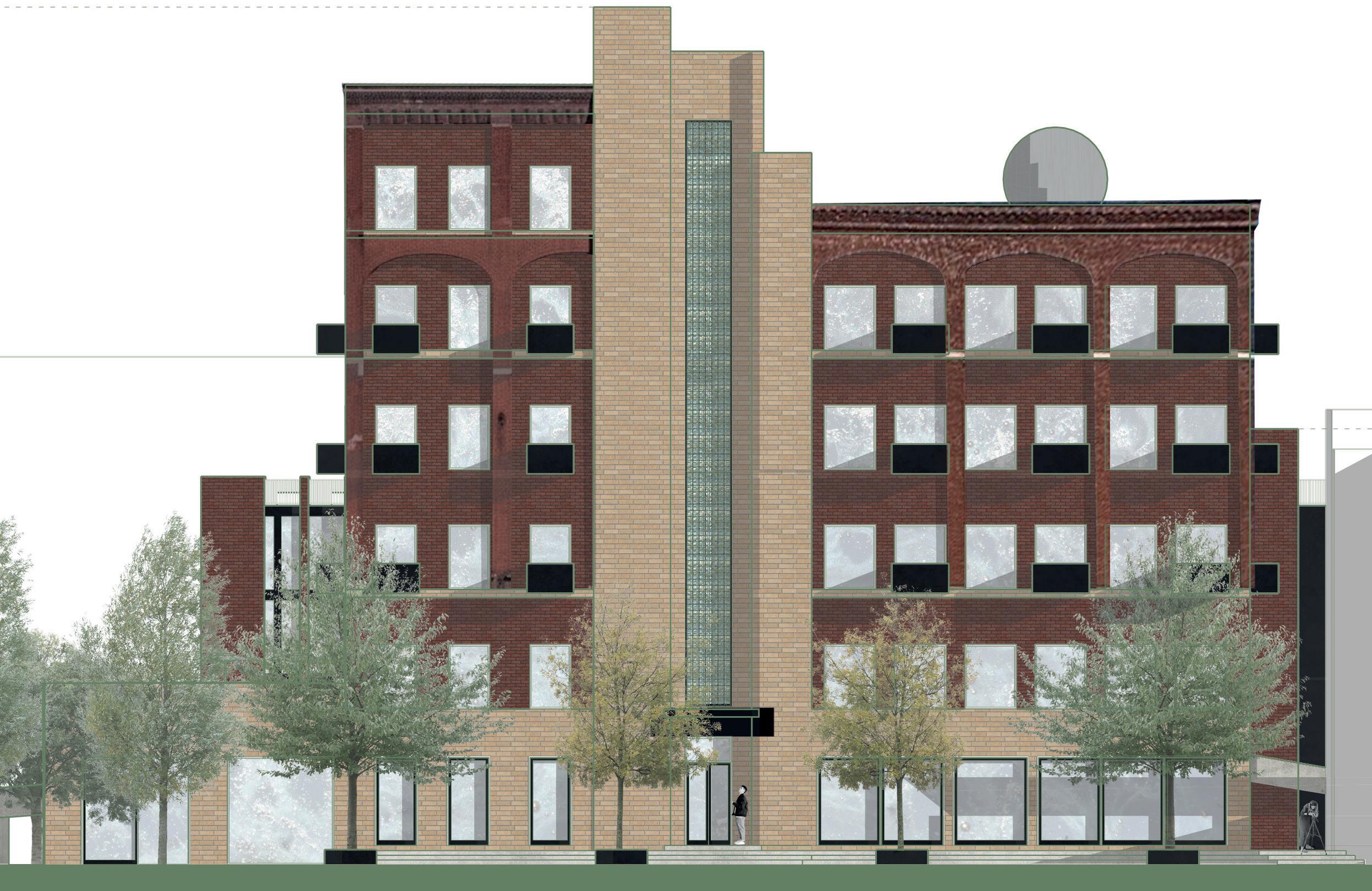

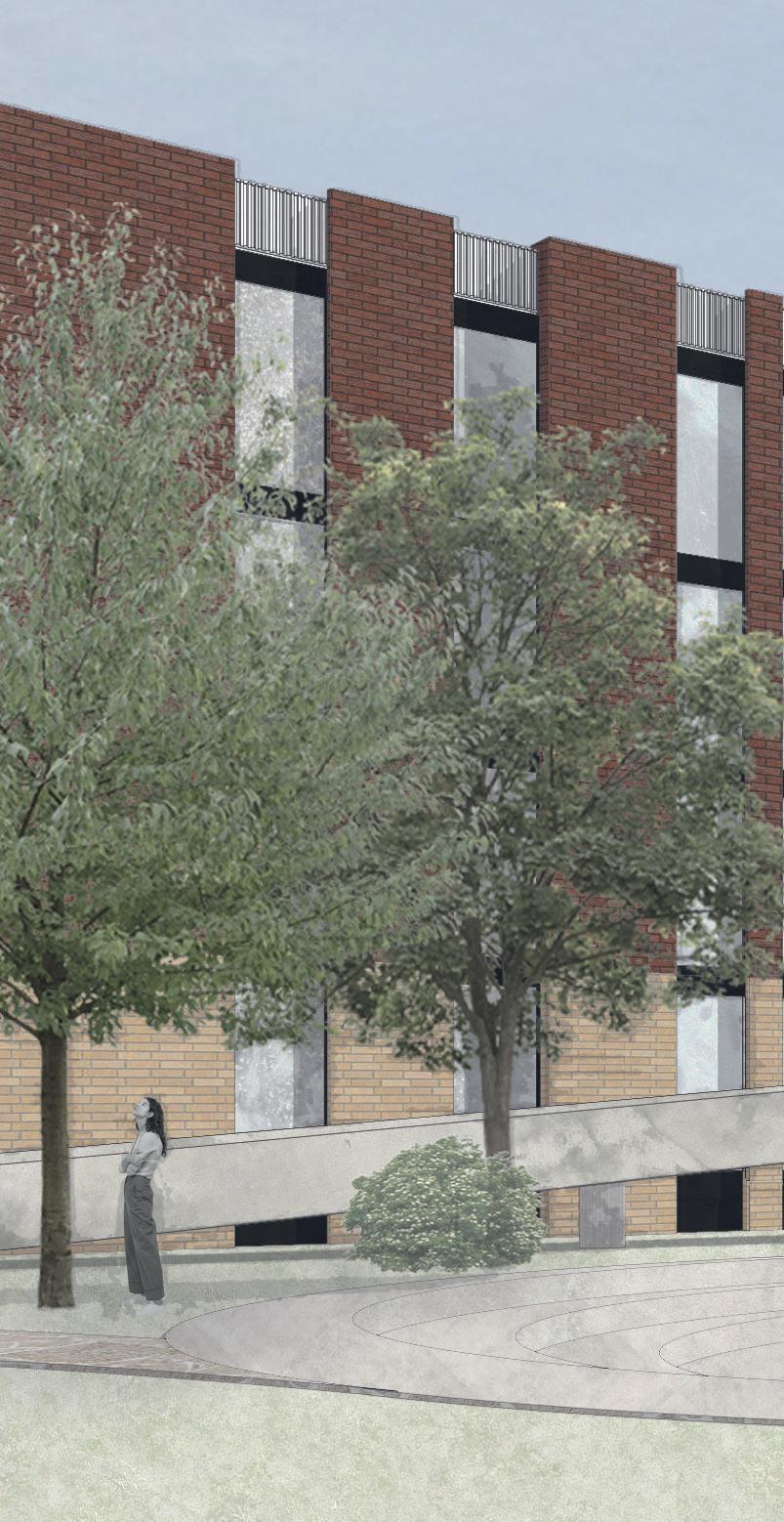

THE RENOVATION OF THE FORMER REHAB BUILDING INTO THE RESIDENTIAL BLOCK INVOLVED A SIGNIFICANT REDESIGN OF THE FAÇADE WHILE MAINTAINING HISTORICAL ELEMENTS. THE NEW DESIGN REIMAGINES THE VERTICALITY OF THE ORIGINAL BY INCORPORATING LARGER WINDOWS WITHIN THE EXISTING BRICK FRAMEWORK. TO CREATE VISUAL COHESION WITH THE ADJACENT HOSPITALITY BUILDING (FORMER SALVATION ARMY), THE ORIGINAL GROUND FLOOR BRICKS WERE REPLACED WITH LIGHTER COLORED BRICKS. THE VERTICAL EMPHASIS IS FURTHER EXTENDED TO THE NEW ADDITIONS ON THE ROOFTOP.
