Functional Landscapes

Functional Landscapes: Assessing Elements of Seattle Green Factor

Appendix: Designing Facade Greening Systems

Table of Contents

Why Green Factor?

The focus of The Berger Partnership 2008 Summer Internship was Sustainable Strategies for Landscape Architecture. The research component sought out innovative strategies that blurred the line between aesthetic and functioning landscapes. We quickly honed in on Seattle’s Green Factor as a newly established, yet still developing, framework for assessing landscapes serving multiple purposes.

The first of its kind in the US, Seattle’s Green Factor provides a flexible approach to building the city’s green infrastructure through development regulation. Basing its requirements on amount of functional systems rather than adherence to rigid standards is an innovative but untested approach, with unknown outcomes.

As Green Factor grows in scope and the program matures, the number of projects it influences will grow throughout the city. Using Green Factor as framework to create functioning sites can create a higher level of diversity in designs, further develop the connection between the form of architecture and landscape and improve ecological systems of the city.

While it will take time to understand the impact Green Factor will have on the city, it is actively being refined and is an ongoing experiment in designing our cities.

Understanding the system, the value, the costs of its elements and how it’s going to change design will be important to each site. Graphically articulating the benefits of Green Factor and functional landscapes to clients and design partners is the goal of this project.

Background on Green Factor

History

Seattle Green Factor (Green Factor) has been designed to allow development of new projects a higher degree of flexibility while increasing ecological function and aesthetic qualities of the landscape. The selected strategies encourage layers of vegetation and increased stormwater infiltration in order to shift the ecological function of the urban landscape toward pre-development conditions.

Green Factor has been modeled on established programs in Berlin, Germany and Malmo, Sweden. Seattle is the first city in the United States to implement a similar program, and as such is in the process of refining the system. Categories and point values from the Berlin Biotope Area Factor and the Malmo Quality Program were reviewed during development of Green Factor, but the unique environmental conditions of Seattle were the basis for Green Factors goals.

Upcoming Changes

Green Factor was implemented in January 2007 with a revision planned for the summer of 2008. The revision will address criticisms of the previous requirements, change point values for some elements and add some new categories to the system. A draft copy of the revised worksheet (next page) has been annotated to show the upcoming changes in calculating point values.

The largest change to the upcoming Green Factor requirements is the inclusion of a category for multifamily dwellings. While all projects will be judged according to the same criteria and using the same worksheet, the required Green Factor score for multifamily will be 0.6 compared to 0.3 for commercial projects. Also, in the future, projects in the central business district may be included in Green Factor.

Functional Landscapes

The information contained in this report is a review of Green Factor, its functional elements and how the different elements can impact the proposed design of a project. The actual process of applying for Green Factor will not be discussed in depth, as it has been covered extensively by literature from the Seattle Department of Planning and Development (DPD). For further reading on Green Factor or related programs a list of sources has been included at the end of this document. It is also important to note that as of August 2008, no projects subject to Green Factor have been constructed. The impact of of Green Factor on the public environment will take some time to fully assess.

Required Areas

Commercial Zones

Anticipated Multifamily Zones

Green Factor requirements in these areas apply to:

Any new structure containing more than 4 dwelling units

Any new structure containing more than 4,000 square feet of nonresidential uses

Any new parking lot containing more than 20 parking spaces for automobiles

Green Factor Calculation Revisions

the Score Green Factor Site Plan

Green Factor Planting Area Spreadsheet

Green Factor Dynamic Spreadsheet

Be aware that the documentation DPD requires for Green Factor includes several spreadsheets, annotated site plans and other pieces described in detail through the Draft Directors Rule and other sources on the DPD website.

Depending on the elements which contribute to the final score, the actual documentation requirements may vary. Green Factor is being continually reviewed and adaptated and as such future requirments will change. Current revision requirments should be reviewed and understood before making decisions which pertain to Green Factor.

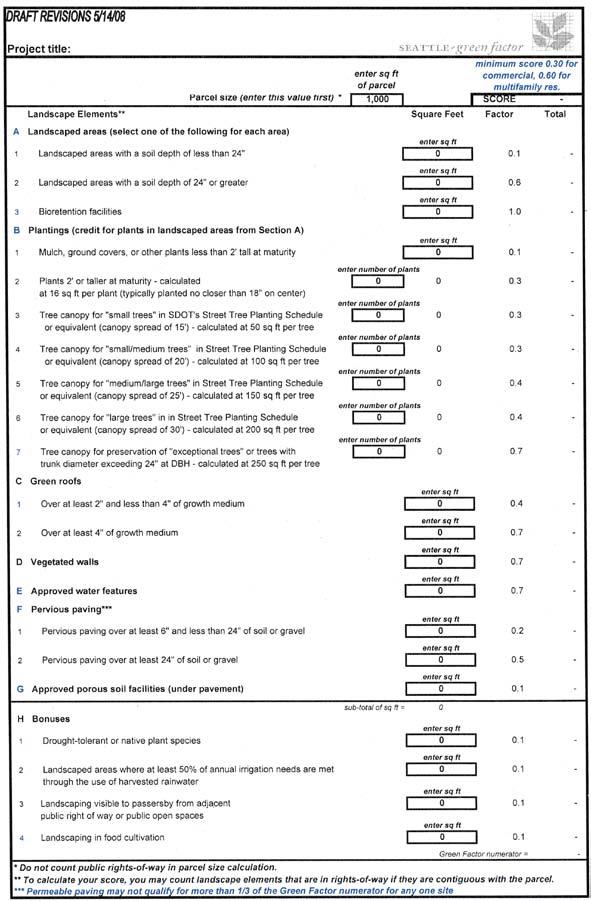

The upcoming revision worksheet at right has been annotated to describe the changes to Green Factor. This worksheet is a copy of the draft from May 2008, and may not reflect the final when it is released.

Revision Changes

Point values included for commercial and multifamily projects

Soil depths are now calculated separate from their overlying plantings

Bioretention facilities point factor raised from 0.7 to 1.0

Plant heights changed to comply with SDOT plant heights

Exceptional trees factor raised from 0.4 to 0.7

Thin profile green roof category added

Water features must meet requirements of Director’s Rule and be approved for use in Green Factor

Pervious paving point values based on underlying material and no longer required to be self draining

soils category added

Native plants count towards bonuses

Landscaping in food cultivation count towards bonuses

Maximum point values specified for pervious paving

Elements and Descriptions

Green Factor Composite Model

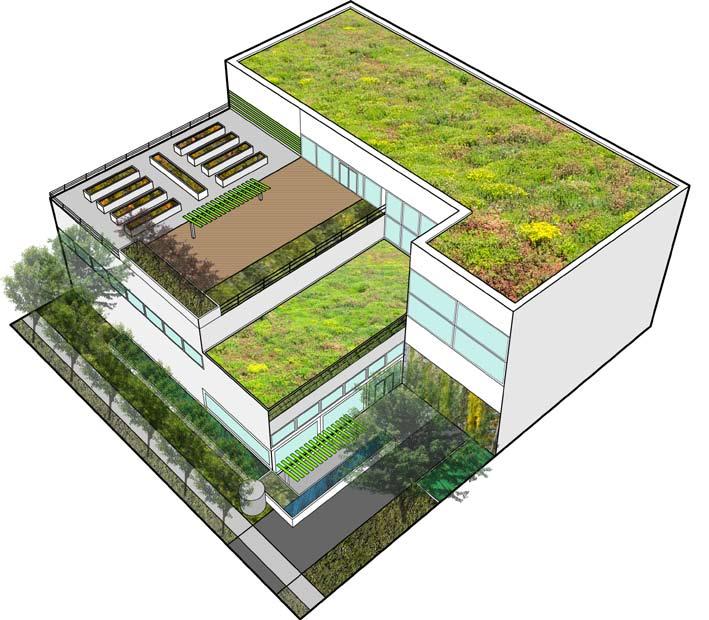

This composite model graphically describes the elements of Green Factor and how they might relate spatially to a building and landscape in a conceptual project. The amount of Green Factor elements in this model is inflated compared to what would be included in an actual project in order to show as many as possible.

Example Element

Each functional element in Green Factor will be examined on the following pages. The description box below names and discusses each element, its functional benefits, resource considerations, costs and Green Factor score. Element imagery shows how examples of how each element could appear, with some of the more complex examples being broken down into each of its typical pieces for easier understanding of construction and function.

A - Modular Trellis

B -Raised Bed Planters

C - Planting Area

D - Overhead Structure

E - 2” Green Roof

F - Roof Deck

G - Planting Area

H - 4” Green Roof

I - Overhanging Plants

J - Vines on Cable System

- Stormwater Planter

L - Overhead Structure M - Water Feature N - Rain Garden

- Cistern

- Entry Court

R - Planting Strip with Street

S - Street

Element: Soils

Landscaped areas provide spaces for plants and all their associated benefits. Stormwater infiltration and increased plant growth are the results of properly designed soil conditions. Green Factor encourages planting at grade in part to optimize deep soil depths.

Landscaped areas are characterized by Green Factor for soil depth. 24” is the depth cutoff for deciding the point factor awarded to most landscaped areas. Factors for overlying shrubs and trees (from Section B on the worksheet) are counted in addition to the factor awarded for landscaped areas.

>24” Soil Depth

<24” Soil Depth

Structural Soils

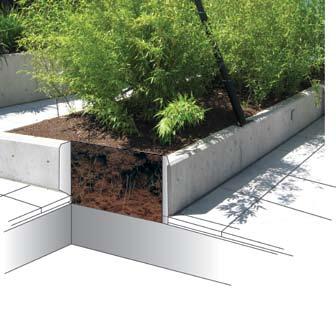

Landscaped Areas < 24”

Green Factor awards a factor of 0.1 for soil depth less than 24”. While this number is low, the addition of vegetation and the use of bonuses can add significant points. This soil depth can be placed on structure if designed correctly, allowing previously unused space to count toward Green Factor.

Landscaped Areas > 24”

Green Factor awards a high factor of 0.6 for soils greater than 24” in depth. One of the main goals of Green Factor is layering vegetation at street level, and this category addresses that goal. Utilizing a 24” soil profile with large shrubs, trees and bonuses can easily yield a factor over 1.5.

A1

Element - <24” Soil

Functional Benefits

Stormwater detention

Plant growth area

Heat island reduction

Environmental Considerations

Amending onsite soils

Approved Porous Soil Facilities

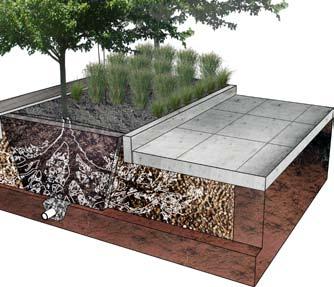

Structural soils are an engineered soil mix designed to allow three functions: reduce sidewalk heaving and breakage; improve stormwater infiltration; and improve tree growth. By using a gap graded soil mix, tree roots are free to grow below sidewalks without pushing the slab upward. Trees planted in these soils have improved root and crown growth and increased lifespans. Structural soils can also improve stormwater infiltration if covered with a porous paving material.

Element - >24” Soil Functional Benefits

Stormwater infiltration Improved plant growth

Heat island reduction

Environmental Considerations

Amending onsite soils

shipping

Element - Structural Soils

Functional Benefits

Improved Tree Growth

Reduced Sidewalk Heave

Possible stormwater Infiltration Environmental Considerations Amending onsite soils

Element: Bioretention Facilities

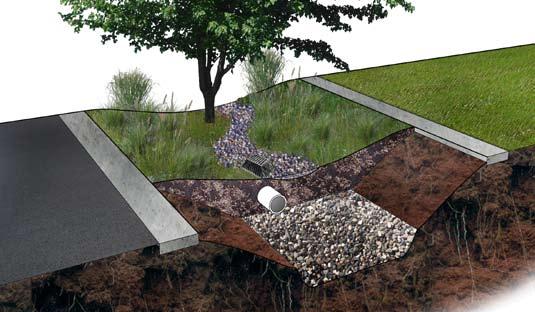

Bioretention facilities are the third category of landscaped areas defined by Green Factor. Their initial factor of 1.0 is the highest of any category and can be combined with planting factors and bonuses, for combined factors of over 1.8. These high factors reflect the functional benefits of the stormwater cleansing and volume reduction, habitat creation and aesthetic improvment that come with the construction of well designed bioretention areas.

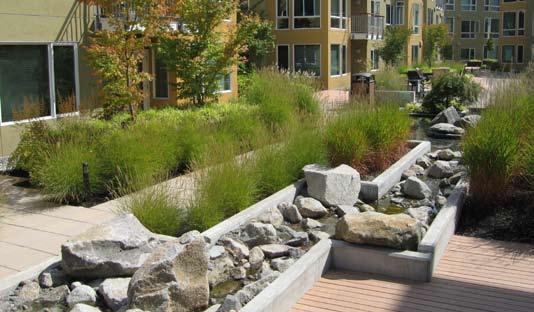

Rain gardens and bioswales are typically vegetated depressions located on grade. Their main functional value is the retention and infiltration of stormwater. Acting as a filter for runoff from pervious surfaces, they reduce pollutants which enter storm systems. Often simple in design and construction, they create a high level of function for a low cost. Larger space on grade, with properly draining soils are required for the construction of these features. When calculating Green Factor values, only calculate the surface area of the rain garden.

A3

Element- Bioswale or Rain Garden Functional

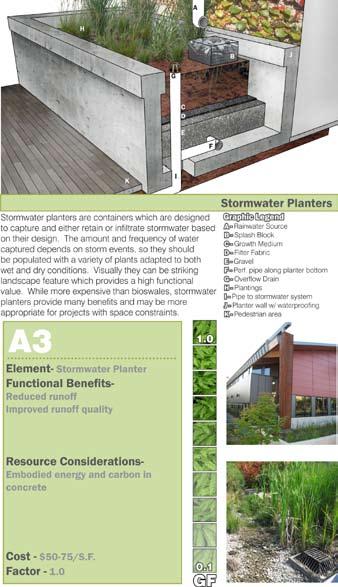

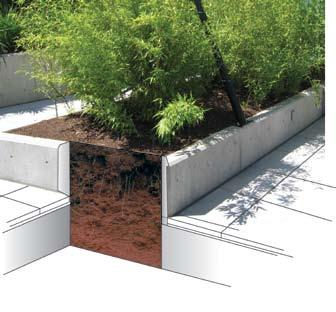

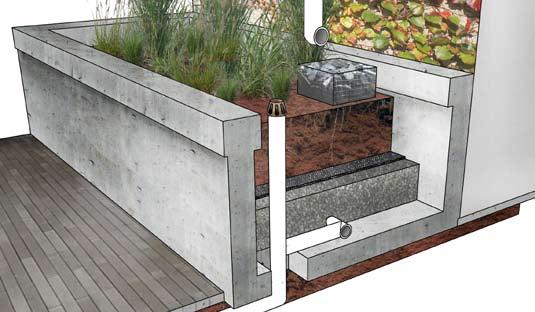

Stormwater planters are containers designed to capture and either retain or infiltrate stormwater based on their design. The amount and frequency of water captured depends on storm events, so they should be populated with a variety of plants adapted to both wet and dry conditions. Visually they can be striking landscape features providing a high functional value. While more expensive than bioswales, stormwater planters provide many benefits and are appropriate for areas with space constraints or on structure.

Element- Stormwater Planter

Element: Planted Areas

Increasing size and quality of planted areas is a main focus of Green Factor. Using a layered approach to planting enhances the functional benefits of these areas. Benefits include providing stormwater retention or infiltration, creating habitat and reducing heat island effect. Planted areas also create aesthetic interest and can make temperatures of surrounding areas more comfortable through evapotranspiration.

Planted Area <2’

Planted Areas >2’

Groundcovers < 2’ tall at maturity

This category includes low planted groundcovers, turf and vegetated paving such as Grasspave. While cheap and easy to use, groundcovers in Green Factor can be combined with overlying plant materials in sections B2 through B7 to contribute to a higher score.

Many groundcovers are tough and drought tolerant, making them well suited to use in right-of-way planting buffers. Seattle Public Utilities regulations to aquire Master Use Permits require these plantings to be 50% drought tolerant as well as being under 3’ tall for visibility.

B1

Element - Groundcovers <2’

Functional Benefits

Evapotranspiration

Habitat creation

Vegetation slows stormwater events

Environmental Considerations

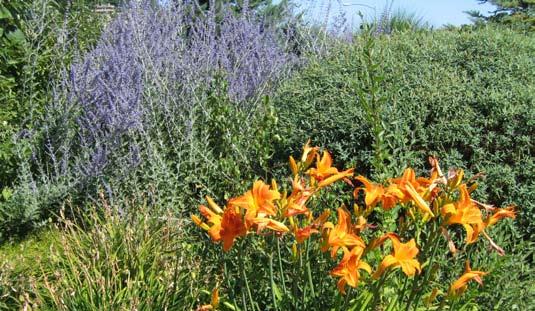

Plants > 2’ tall at maturity

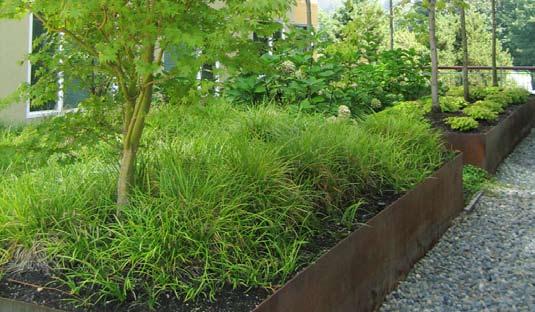

Larger shrubs, grasses and perennials are an important component of any landscape. Their increased functional benefits over groundcovers are reflected in the larger score awarded by Green Factor. Larger plants provide all the same functional benefits of groundcovers, but on a larger scale. Their growth requirements are reflective of their increased function, and they require adequate space and regular maintenance to meet their full potential.

A wide variety of plants are available to meet the requirements of any site, with Pacific Northwest natives being well suited to most applications.

B2

Element- Plants >2’

Functional Benefits

Increased evapotranspiration

Habitat Creation

Vegetation slows stormwater events

Environmental Considerations

Possible irrigation

Possible imported soils

- $5.00 - $7.00/S.F.

- 0.3

Element: Trees

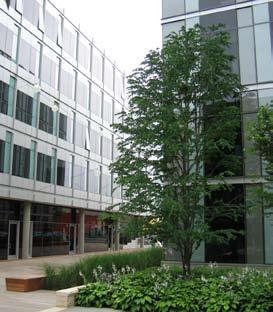

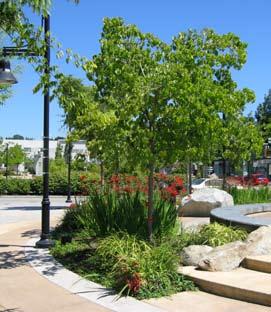

More than any other component, trees provide the functional benefits needed to create livable cities. Fresh air, shading and cooling all enhance the feeling of areas near trees. Their use in defining space can bring the urban experience down to human scale and make everyday places more interesting. Plus, all of their functional benefits increase with age. Growing and maintaining an exceptional urban forest can be achieved by including trees in every project.

All trees should be 2” cal. at installation. Green factor requires a minimum mature height of 15’ for small trees and a minimum of 25’ for medium/small.

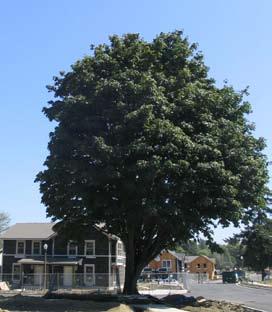

Large

B3

Element - Small Tree

Functional Benefits

Reduces heat island

Evapotranspirative cooling

Slows stormwater events

Habitat creation

Environmental Considerations Maintenance

B5

Element - Medium Tree

Functional Benefits

Reduces heat island

Evapotranspirative cooling

Slows stormwater events Habitat creation

B6

Element - Large Tree

Functional Benefits

Reduces heat island

Evapotranspirative cooling

Slows stormwater events

Habitat creation

Environmental Considerations

Maintenance

Irrigation

Planting area requirments

Cost - $300 - $350/Tree

Preserving exceptional trees helps define the character of a site as well as preserve the functions they are already performing. The updated Green Factor worksheet has raised the points awarded to exceptional trees from 0.4 to 0.7. This means that after calculating for points, each exceptional tree is worth the same amount as a 250 sq. ft. section of green roof. A tree must be 24” DBH to qualify as an exceptional tree.

- Exceptional Tree

stormwater events

Element: Green Roofs

Green Roofs offer a dramatic functional improvement over conventional roofs. They provide habitat for insects and birds, improve stormwater quality while reducing runoff quantity, and they reduce the heat island effect. Their use in building design can count toward LEED® certification, reduce heating and cooling costs, and almost double the lifespan of the roof. They are becoming more common and can be useful in educating the public about the benefits of green building practices.

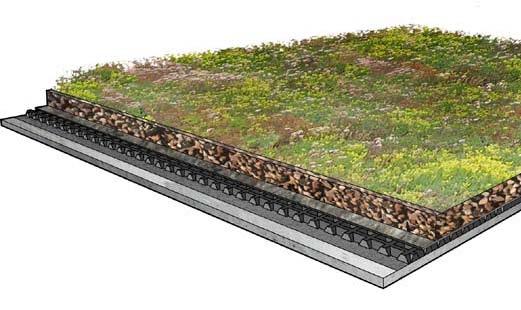

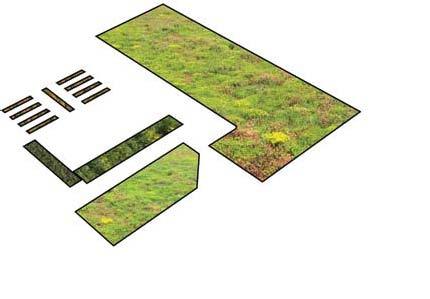

2” to 4” of growth medium

Thin profile green roofs have the advantage of reduced structural load on a building, while offering many of the benefits of a thicker profile roof. Even thin profile roofs can capture and retain 60% of the precipitation that falls on them.

Green Factor defines green roofs as any planting which is on top of a structure at least one floor above the level of the at grade entrance. Green roofs with less than a 2” soil profile will be categorized as landscaping areas with less than 24” of soil.

C1

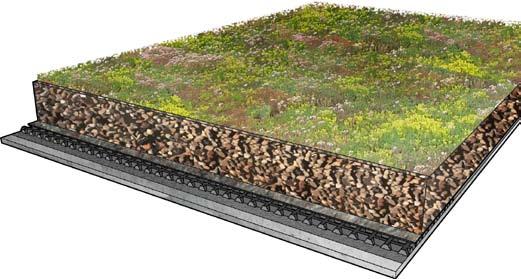

Element - 2-4” Green Roof

Functional Benefits

Reduction of runoff

Reduction of heat island

Habitat creation

Environmental Considerations

Petroleum products

Green roofs with a thicker soil profile can support a wider range of plants than a roof with a 2” profile. The increased plant diversity can create a wider range of possible habitats for native insects and birds. Heating and cooling benefits are increased due to increased insulation, and the stormwater are improved. While a wide variety of roof systems are available, proper design, installation and maintenance are crucial to a successful project.

Element - >4”

Functional

Further runoff reduction

Reduction of heat island

More diverse habitat

Environmental Considerations

Petroleum

Element: Green Walls

Green walls have historically been used for ornamental rather than functional purposes, but if designed properly they can benefit the natural environment, building performance and aesthetic qualities of a space. While green walls are currently not a common landscape element, their range of costs and ability to raise a Green Factor score without reducing a building’s footprint means they may be appropriate for many projects in the future.

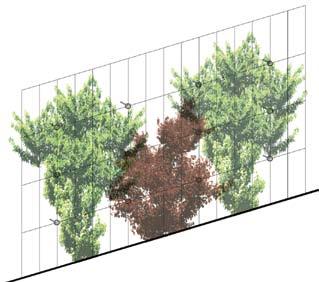

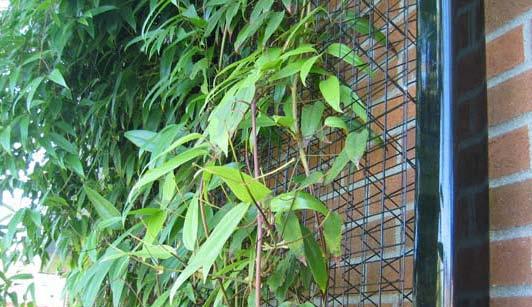

Cable system plantings

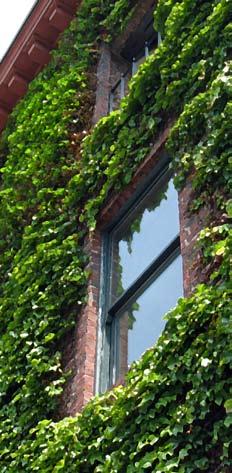

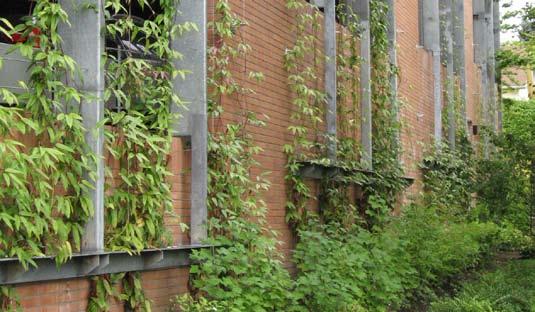

Vines growing on or overhanging a building facade qualify as a green wall for the purposes of Green Factor. A well established vine can produce many of the same benefits as a more expensive engineered system, including evapotranspiration, stormwater slowing and aesthetic improvement. However, providing for the needs of the plant does require some important design considerations. Most vines require some additional support to climb a building facade. Varieties of Parthenocissus, as well as Trumpet Vine and Climbing Hydrangea are some of the vines that can adhere to a bare wall. (See Appendix A for additional detail.) Any green wall system designed to receive points from Green Factor, should be calculated for area of coverage after 5 years growth with a maximum height of 30’.

Cable systems can provide support to climbing plants, and allow for a wider range of design flexibility. Cable systems can be aesthetically striking because the component parts are usually of high quality, and are adaptable to a variety of design styles. Budget should be a consideration in the design of a commercial system due to possible high costs. Custom built systems are an option which can be much lower in cost and provide even more flexibility in design, but may not be able to work in larger scale applications.

Plants which are able to climb a facade without support should not be specified for use with a cable system. Plants which use twining and tendrils for support are appropriate. Scrambling plants can be used if the cable systems are designed properly.

D

Element - Facade Plants

Functional Benefits

Evapotranspirative cooling

Vegetation slows stormwater events

Air cleansing

Environmental Considerations

Requires adequate planting area

Some plants may be difficult to remove

- $1.50 - $3.00/F.F.

D

Element- Plants on Cable System

Functional Benefits

Improved climbing plant growth

Evapotranspirative cooling

Vegetation slows stormwater events

Air cleansing

Environmental Considerations

Requires adequate planting area

Cable materials

Cost - $12 - $45/F.F.

Element: Green Walls

Green walls can provide buildings with facade protection and climatic benefits if designed well. The human experience can be improved through their use, both by reducing noise and creating microclimates through evapotranspiration. Green walls may also play a role in temporarily holding stormwater after rain events, reducing peak loads on drainage systems. Most green wall benefits will grow over time, but modular living walls, such as the G-Sky system, can offer these benefits immediately after installation.

Modular Trellis System

Overhead Trellis

Plants hanging over parapet

Cable system plantings

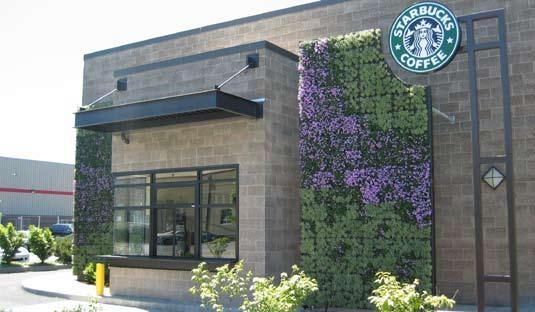

Modular trellis products come in a variety of sizes and shapes to fit almost any project. Their design creates support for a wide range of plant types, and they can be installed as a free standing structure or next to a building facade. Both sides of a freestanding green wall can be counted, as long as there is 5’ of clearance with any adjacent walls. Their modular nature makes them easy to combine with cables or other climbing mechanisms. Being able to support a variety of plants allows a higher degree of flexibility in planting design. This means that shorter plants can be combined with more vigorous growers, for a higher level of coverage and seasonal variety. Plants which support themselves through twining, tendrils and some scrambling plants can grow on most modular trellis systems.

Modular green walls consist of a support framework populated by pre-planted trays. The functional and aesthetic benefits of green walls are near their maximum the day they are constructed. Though they do provide “instant green”, the associated maintenance and resource useage, as well as the high cost, should be considered when designing a modular green wall. They provide the benefits of cooling the surrounding areas and can be adapted to use stormwater in their irrigation system. A growing variety of plants are available for use in these systems, including native, fragrant and flowering plants.

As these systems have only recently begun to be constructed, their long term viability and maintenance requirements are unknown.

D

Element - Plants on Modular Trellis

Functional Benefits

Improved climbing plant growth

Evapotranspirative cooling

Vegetation

Element- Modular Green Wall

Functional Benefits

Evapotranspirative cooling

Vegetation slows stormwater events

Air cleansing

Environmental Considerations

Plastic & stainless steel components

Irrigation

Fertilizer

Cost - $90 - $110/F.F.

- 0.7

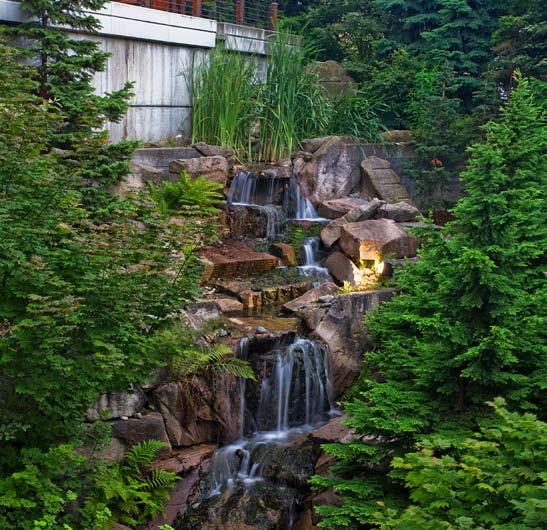

Element: Water Features

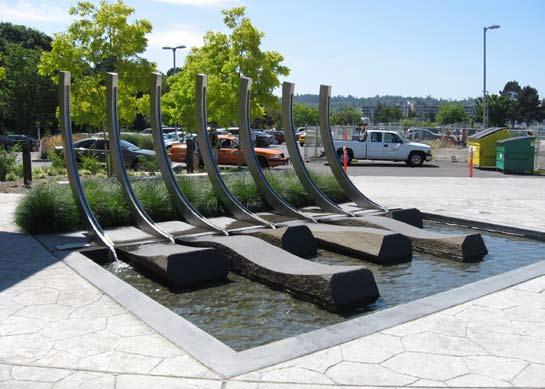

Water features make a space more enjoyable for people. Also, they can use stormwater, reducing the load on drainage systems. But they must meet some functional goals to count toward points for Green Factor. The change of phrasing on the new worksheet from “water features” to “approved water features” indicates an increased scrutiny toward points awarded for water features.

While the factor of 0.7 may initially seem high in comparison to other elements, the opportunity to add plants or use bonus factors is difficult to do with water features, making them an element with a low final value.

Water features are often the defining element in a landscape. Their contribution in many cases will be a small component in a Green Factor score, but their wide range of design styles and possible functional attributes can make them useful elements for aesthetic as well as habitat purposes.

To qualify for Green Factor, a water feature must use roof runoff or on-site stormwater for at least 50% of its annual flow, as well as keep water in the feature for at least nine months of the year. Drainage or plumbing documents which demonstrate compliance are required to count the points toward Green Factor.

Element - Water Feature

Functional Benefits

Use of stormwater on site

Cools immediate area

Muffles nearby sounds

Environmental Considerations

Use of additional water to supplement flow

Impacts of materials used to construct the water feature

Mechanical and electrical requirements

Cost - Highly variable but often

Element: Pervious Paving

The inclusion of a pervious paving credit in Green Factor addresses the need for sites to infiltrate stormwater in a way similar to natural systems. Reducing and slowing the amount of runoff from sites significantly reduces peak loading on engineered stormwater systems. Pervious pavements also restrict non-point source pollution from entering surface water bodies, which helps keep our streams clean. Pervious pavements can also help contribute toward LEED® credits.

Paving over 24” base material

Paving over 6” base material

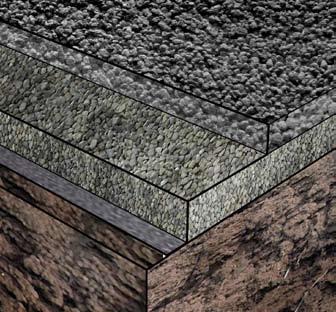

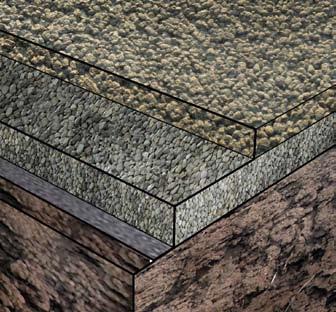

Pervious asphalt can be used in some cases to replace traditional asphalt and allow for infiltration of stormwater.

Points awarded by Green Factor are based on the underlying material depth of the pervious paving (0.2 points for 6-24” and 0.5 points for depths over 24”) Pervious paving should not be used in areas which store or process hazardous waste.

FElement - Pervious Asphalt

Functional

Increased

Pervious concrete can be used in place of impervious concrete in many non-driving situations. Its use in parking lots can help reduce the amount of stormwater runoff and non-point source pollution reaching our streams. Its design and use is in some ways more complex than traditional concrete and it is not always appropriate in some situations. However, the high functional benefits should be considered along with the higher complexity and cost.

FElement - Pervious Concrete

Functional Benefits

Increased infiltration

Reduced runoff

Reduced stormwater facilities requirements

Environmental Considerations

Embodied energy

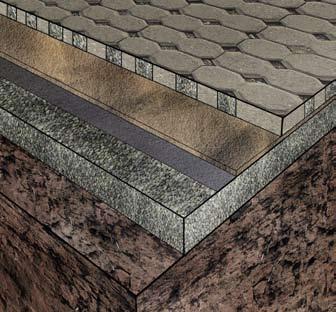

Green factor allows designed permeable pavers, as well as non-permeable unit pavers placed on top of water-holding materials, to be considered as permeable paving (provided water can flow to the water holding material).

An overflow drain must be installed in storage areas to allow capacities which exceed the storage area to escape.

Element - Pervious Pavers

Functional

Increased

Reduced runoff

Reduced

Cost -$5.00 - $8.00/S.F. does not include

Environmental Considerations

Embodied

Element: Bonuses

Green Factor bonuses are options to add functionality to other elements of the landscape. In some cases, such as native plants or public visibility, they are very easy to receive credit for and can be applied to large areas of a project. Other bonuses, such as the harvested rainwater irrigation credit, may be more difficult to achieve, or (as in the case of areas of food cultivation), more appropriate to some projects than others.

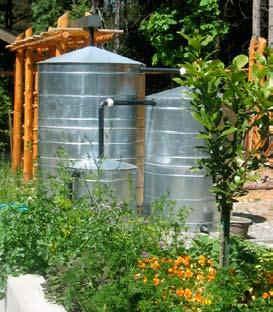

Harvesting

Native plants are both beautiful and regionally adapted. They are often low in maintenance and create habitat. Drought tolerant plants must be separated at least 2’ from plants requiring irrigation to receive credit. A list of drought tolerant plants is available from DPD, otherwise two references are required to show drought tolerance. All right-of-way plantings must meet SDOT requirements to be applicable to Green Factor. Drought Tolerant/Natives

Rainwater irrigation reduces the amount of potable water used for landscape irrigation. Rainwater harvesting can be achieved through the use of cisterns, rainwater barrels or other means of storage. These elements can be designed as aesthetic and educational pieces on a site. Any landscaped area which has >50% of its irrigation supplied from harvested rainwater can receive this bonus.

One of the goals of Green Factor is to encourage the planting of layers of vegetation near publicly accessible space. This bonus is available to almost any landscape at grade as well as any spaces visible from public areas.

Green Factor. Growing food at home has multiple benefits including production of healthy food, reduction of reliance on fossil fuels for transport and as a recreational pastime. It also creates habitat for urban creatures such as insects, birds and pollinating bees. Multifamily projects are often well suited to including food cultivation areas.

Comments

Recommendations for Achieving Green Factor

Have open space situated on-grade when possible. Doing so allows spaces to be awarded much higher point values as well as reducing costs for some elements.

Using drought tolerant and native plants is the easiest way to increase function and gain points on Green Factor.

Rain gardens relatively low cost, coupled with high functional benefits and point values make them a good choice for Green Factor.

Flexibility of design and cost makes green walls suitable for use in many projects. Their aesthetic and functional benefits, coupled with a high Green Factor score means they can be a useful choice for meeting project goals.

Permeable paving is a functional low cost alternative to traditional paving. If placed on grade it provides an additional 0.5/S.F. factor.

Conclusions

Currently Green Factor is changing how projects in Seattle are designed. In the future, its influence will cause functional elements to feature more prominently in the landscape. While this can be a good thing, Green Factor only addresses the quantity, not the quality of these elements. The same points are awarded for features regardless of whether they are designed well or designed poorly. So, while Green Factor can be framework for creating a functional landscape, the responsibility for improving functional value and human experience lies with the people who design and build these projects.

So how does Green Factor impact the rest of the city? Industrial areas, pieces of infrastructure and private residences make up large portions of the city that are not subject to its regulations. These portions of the city could be designed to integrate ecological processes as well as be experientially meaningful. Hopefully, Green Factor will improve the development of commercial and multifamily projects and be an example for similar guidelines in the rest of Seattle and elsewhere.

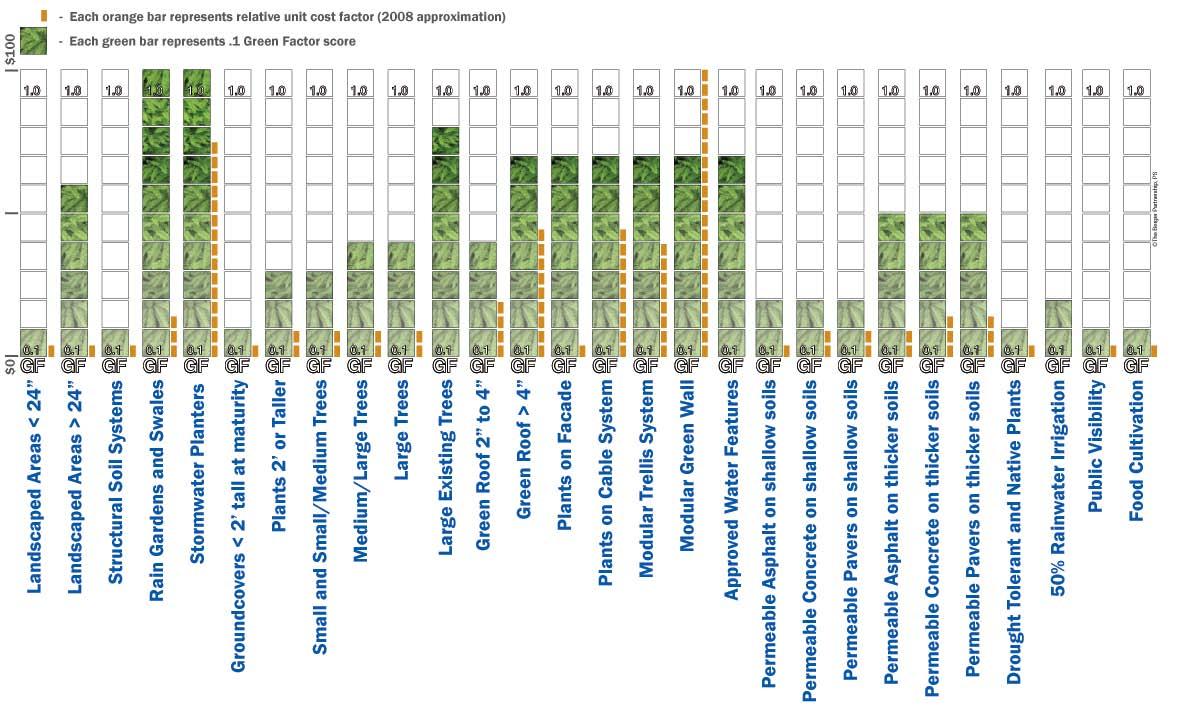

Comparative Points and Costs

Designing Facade Greening Systems

Most climbing plants can be categorized into two general groups for the purposes of facade greening: self supporting plants and plants which require auxillary support.

Self supporting plants are traditional facade growing plants which include ivies, Climbing Hydrangea and Trumpet Vine. These plants are capable of clinging to flat surfaces and in most cases should not need additional support.

Plants requiring additional support include Clematis, Wisteria and Climbing Rose. Support requirements vary for these types of plants and should be researched before design of the support system. Many of these plants can become massive with age, requiring a robust and adaptable system to continue their support.

During design of a facade greening system the surface to be covered should be matched to the proper support system and plant combination for best results. Improper design can lead to the installation of a support system which can be either underutilized by the plants, or subject to breakage by plants with vigorous growth.

This category of plants includes Parthenocissus.

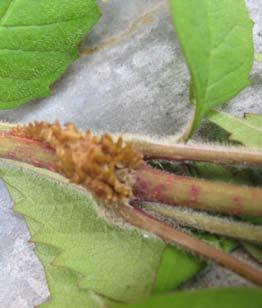

Plants with holdfasts should not be provided with additional supports to grow on. Metal, plastic or polished stone facades are not the best choice for these plants, but most others will work well. These plants are often highly phototrophic, so they can be planted in a corner farthest from the sun to facilitate growth.

These plants are much less likely to damage a facade than a plant with aerial roots, but can be difficult to remove if established.

Tendrils

or Adhesive PadsSelf Supporting

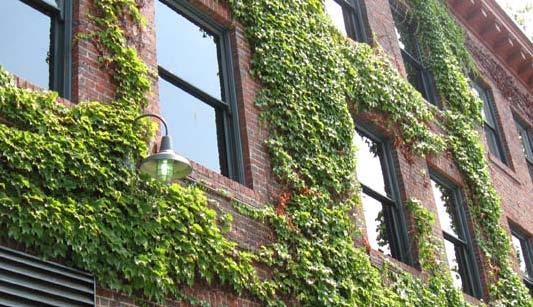

The aerial roots category of climbing plants includes Climbing Hydrangea and Trumpet Vine.

Plants with aerial roots do not require an additional support added to a wall, but some facade characteristics are important. Walls must have some kind of roughness for roots to attach to but should not have cracks or seams for the plant to penetrate and grow behind. Limewashed walls and timber covered walls are both unacceptable. Walls with soft mortar or similar material will be damaged by the roots, so these plants should be placed with care.

The twining plants category includes the largest portion of facade greening plants.

Nearly vertical supports provide the best attachment, but may need some kind of friction to support larger plants. Round cross sections with a diameter between 0.2 and 1.2 inches are best. Spacing should be between 7”-15” slower climbers and 15”-30” for vigorous climbers.

Twining plants have a very strong vertical tendency and may require frequent tying or pruning. Large plants can eventually become woody and pull supports.

Twining PlantsRequires Support

Plants which use tendrils for support include grapes and Passionflower.

These plants grow best on a trellis structure for support, with vertical and horizontal members intersecting at between 4 and 20 inch intevals depending on variety. Spacing should be between 6”x10” for slower climbers and 12”x20” for vigorous climbers.

Some plants may prefer the support members to have an angled cross section.

Plants of this type tend to be strong growers which prefer a high amount of sun.

Plants with TendrilsRequires Support

This category of plants includes ramblers, scramblers and plants which use thorns or some other mechanism to grow vertically. Climbing Roses and Solanum are included in this category. Due to the improvised nature of the climbing mechanism, these plants won’t climb up most artificial supports. A rhomboid trellis structure with dimensions between 10 and 20 inches is the best option, but be prepared for constant training and tying to get plants to stay up. These plants will grow much better horizontally than vertically.

Rhomboid or Horizontal Supports

Planting

Tips for Planting

While some vines thrive in harsh conditions many require proper conditions to do well. Ample supplies of water along with a generous root zone will help most vines thrive.

Specifying a plant which is larger than the available climbing structure causes vegetation to clump near the top, resulting in increased plant maintenance.

Plant size and vigor also determine the length of standoffs used to offset a cable or trellis system from an adjacent surface. Moderately growing climbers should have an offset of around 3” while vigorous climbers should have offsets of about 6”.

Bear in mind that many vines can become massive with age and stress supports. Live loads placed on supports by plants and environmental conditions can be over three times the plant weight. Proper understanding of plant and support system characteristics are vital to prevent breakage.

Designing a diverse planting scheme can make a project more robust and interesting than planting a monoculture. Plants selected should be matched for growth requirements and vigor to prevent one plant from overgrowing another. Varied easonal color and flowering time can be combined for interesting effects.

Layering planting heights can provide more coverage than a single plant alone. Vigorous plants often become woody and lose foliage in their lower portion resulting in bare spots. Shorter growing vines can be matched with these plants to fill in these areas.

Further Information

Additional Resources

Seattle DPD Green Factor

http://www.seattle.gov/dpd/Permits/GreenFactor/

Seattle DPD Draft Directors Rule - Landscape Standards

http://www.seattle.gov/dpd/codes/Dr/ddr2007-8.pdf

Berlin Biotope Area Factor

http://www.stadtentwicklung.berlin.de/umwelt/landschaftsplanung/bff/index_en.shtml

Malmo Quality Programme

http://www.map21ltd.com/scan-green/bo01.htm#points

Planting Green Roofs and Living Walls

By Nigel Dunnett and Noel Kingsbury - Timber Press

Water Management Strategies: A case study based exploration of local projects

By Matt Martenson and The Berger Partnership

Seattle Flow Control Technical Requirements Manual

http://www.ci.seattle.wa.us/dclu/Codes/dr/DR2000-26.pdf

Native Plants

http://www.wnps.org/

Food Cultivation

http://www.cityfarmer.org/

Product Manufacturers

G-Sky

http://www.g-sky.com/ ELT

http://www.eltlivingwalls.com/ Xero Flor

http://www.xeroflora.com/ Jakob

http://www.jakob.ch/12/ Greenscreen

http://www.greenscreen.com/

Project Credits

Green Factor Page

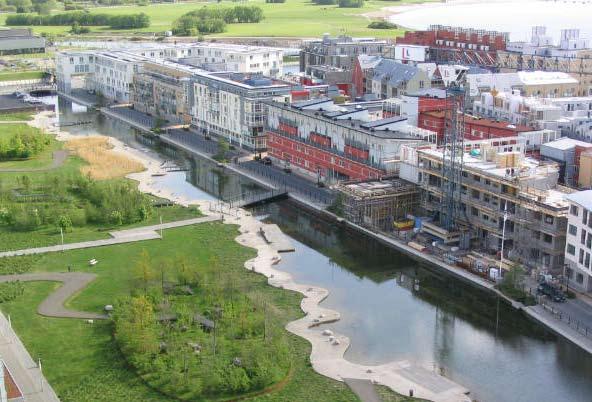

Malmo Western Harbor

Various Designers

Photo by Guy Michaelsen

Stormwater Planters

Broadview Library - Top Photo

Arch. - Miller Hayashi Architects

L.A. - Karen Kiest Landscape Architects

Kitsap County Administration Building - Bottom Photo

Arch. - Miller/Hull

L.A. - Site Workshop

Eng. - SVR

Medium Trees

University of Washington School of Medicine -SLU

Arch. - Perkins + Will

L.A. - Gustafson Guthrie Nichol

Green Roof 2”

Bertschi School - Top Photo

Arch. - Miller/Hull

L.A. - Weisman Design Group

Photo by Matt Martensen

Plants on Facade

Columbia and Yesler Building - Main Photo

Designer Unknown

Belltown P-Patch - Top Photo

Designer Unknown

OHSU Center for Health and Healing - Bottom Photo

Arch. - GBD Architects

L.A. - Walker/Macy

Acknowledgements

Thank you to: Dave LaClergue and Steve Moddemayer of Seattle DPD

Special thanks to:

Plants on Cable System

Providence Regional Cancer Center - Main Photo

Designer Unknown

MFO Park - Top Photo

Burckhardt + Partner AG

Raderschall Landschaftsarchitekten AG

Modular Trellis System

Boeing Plaza - Top Photo

L.A. - Gustafson Guthrie Nichol

Borealis Apartments - Bottom Photo

Arch. - Runberg Arch. Group

L.A. - Macdonald Environmental Planning

Modular Green Wall

Starbucks Green Wall - Main Photo

Starbucks Design

ELT Green Wall - Top Photo

Designer Unknown

Vancouver Aquarium - Bottom Photo

Designer - Sharp & Diamond L.A.

Water Features

Sculptural Water Feature - Bottom Right Photo

“Groundswell” by Laura Hadad and Tom Drugan

Project Designers - Mithun

The staff of The Berger Partnership for welcoming me into the office and making my internship a great experience. And in particular Jonathan and Katie, for guidance and assistance throughout the summer.
