The XT range of fertiliser spreaders, delivering outstanding durability, ease of use and an accurate spread pattern.
OUR RANGE

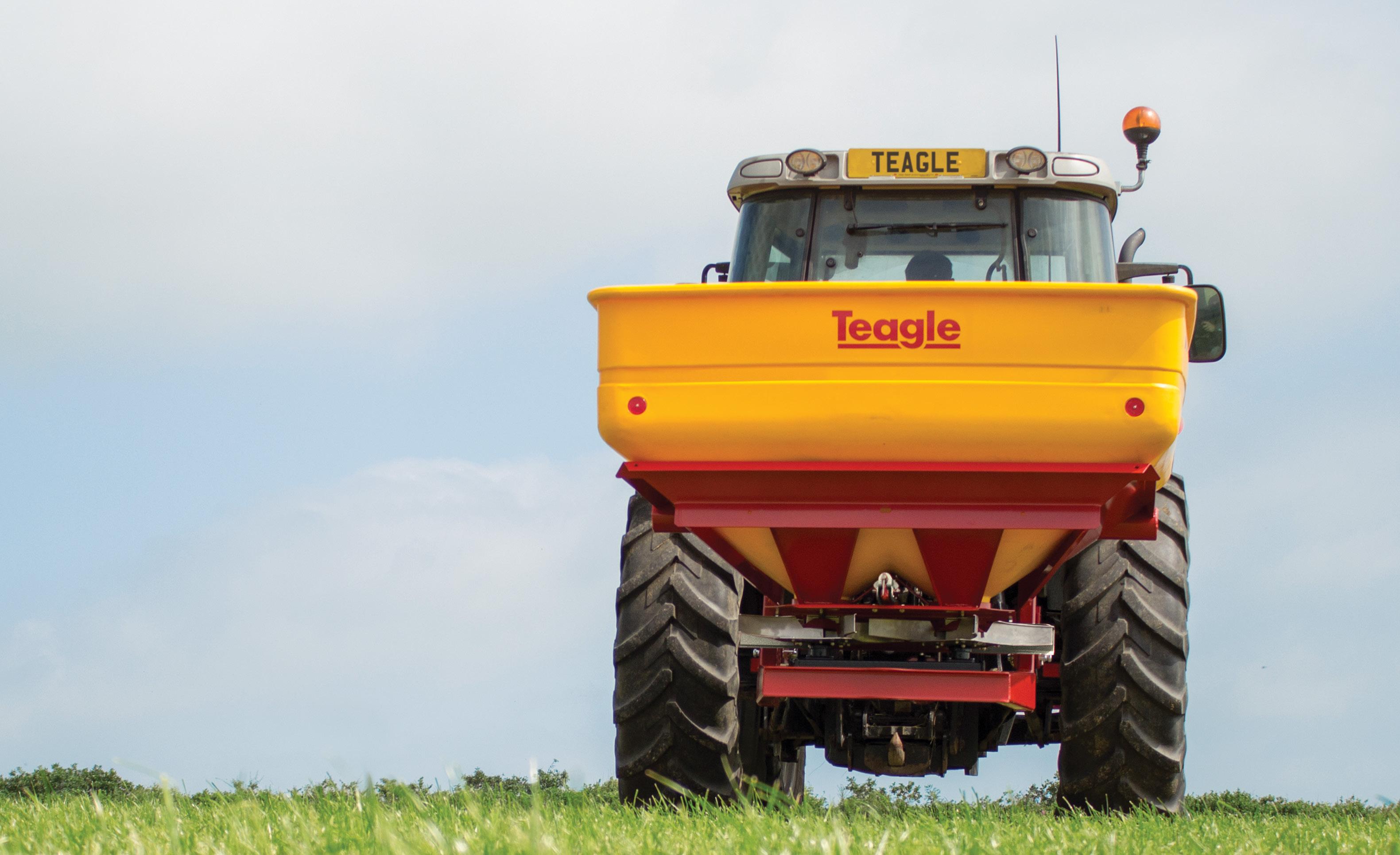

XT24
675 LITRE CAPACITY. Up to 12 m working width. Twin disc spreader.
XT48
1,350 LITRE CAPACITY. Up to 12 m working width. Twin disc spreader.
Established in 1937, Teagle Machinery manufactured our first fertiliser spreader in 1951. We remain a family business focussed on meeting the needs of our customers whether just around the corner, or in one of the 50 countries worldwide to which we regularly ship machinery. From the outset, our machinery has been designed to be simple, robust and easy to use.
We still stand by these values, with all our products being tested extensively on farms throughout the world to ensure that they perform reliably day-in day-out, under the toughest conditions. As sales of our products continue to grow, the reasons that customers return time after time to buy from Teagle are twofold:
Product Focus - We actively invest in research, design and manufacturing technology to ensure that our product range constantly evolves to remain at the cutting edge, whilst being available at a competitive price. Through our focus on agricultural machinery over the last 85 years we are able to offer a machine to fulfil your needs.

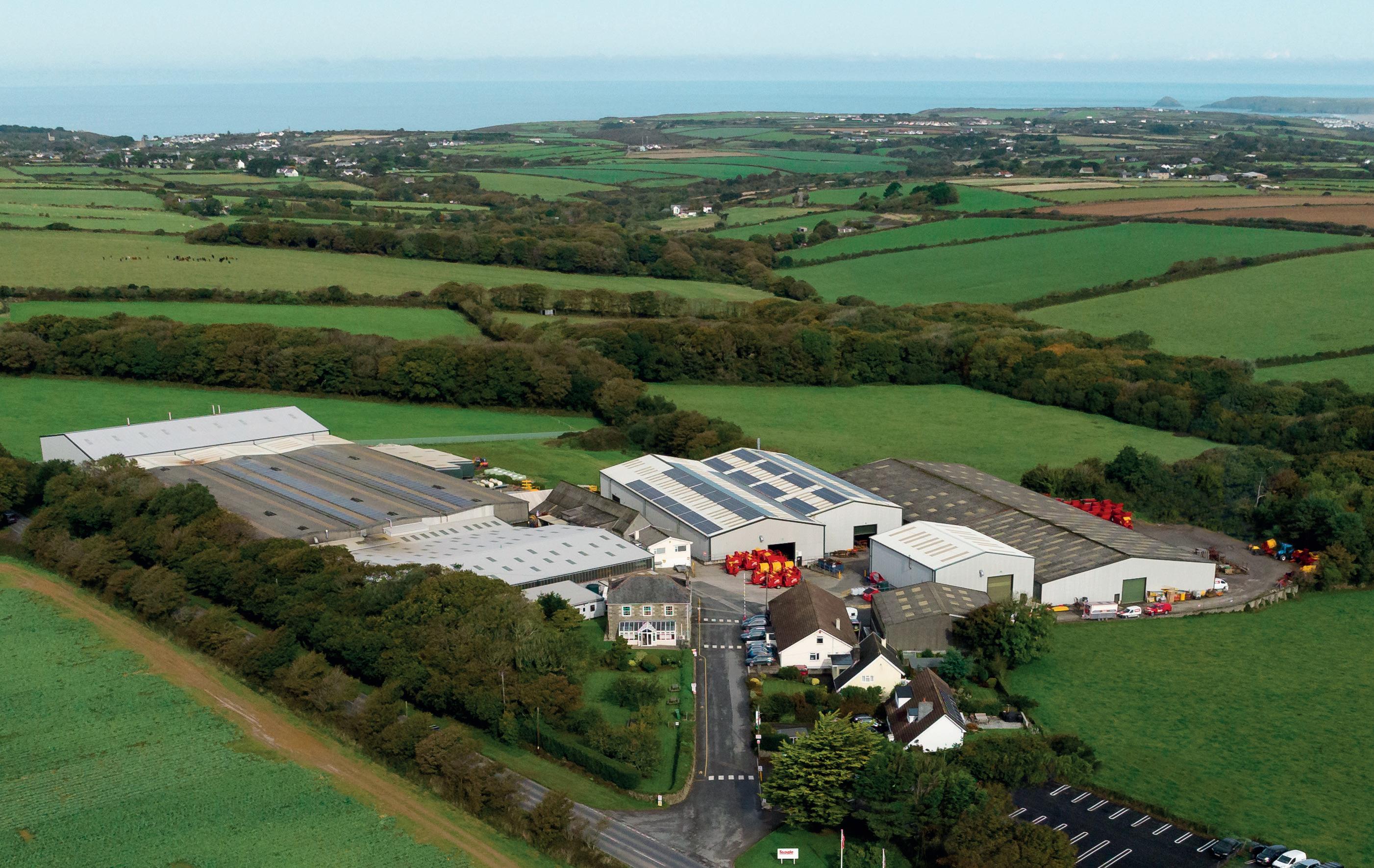

Backup – After-sales support is our priority, requiring commitment to a comprehensive parts stock and effective dealer network. We dedicate part of our 27,000m2 facility in Cornwall to a substantial stock of wearing and non-wearing parts to keep you up and running.
YOUR ADVANTAGE
Build quality that ticks all the boxes
As a measure of Teagle’s quality and reliability, we offer a 3 year warranty* on all XT24 and XT48 models.
DURABILITY

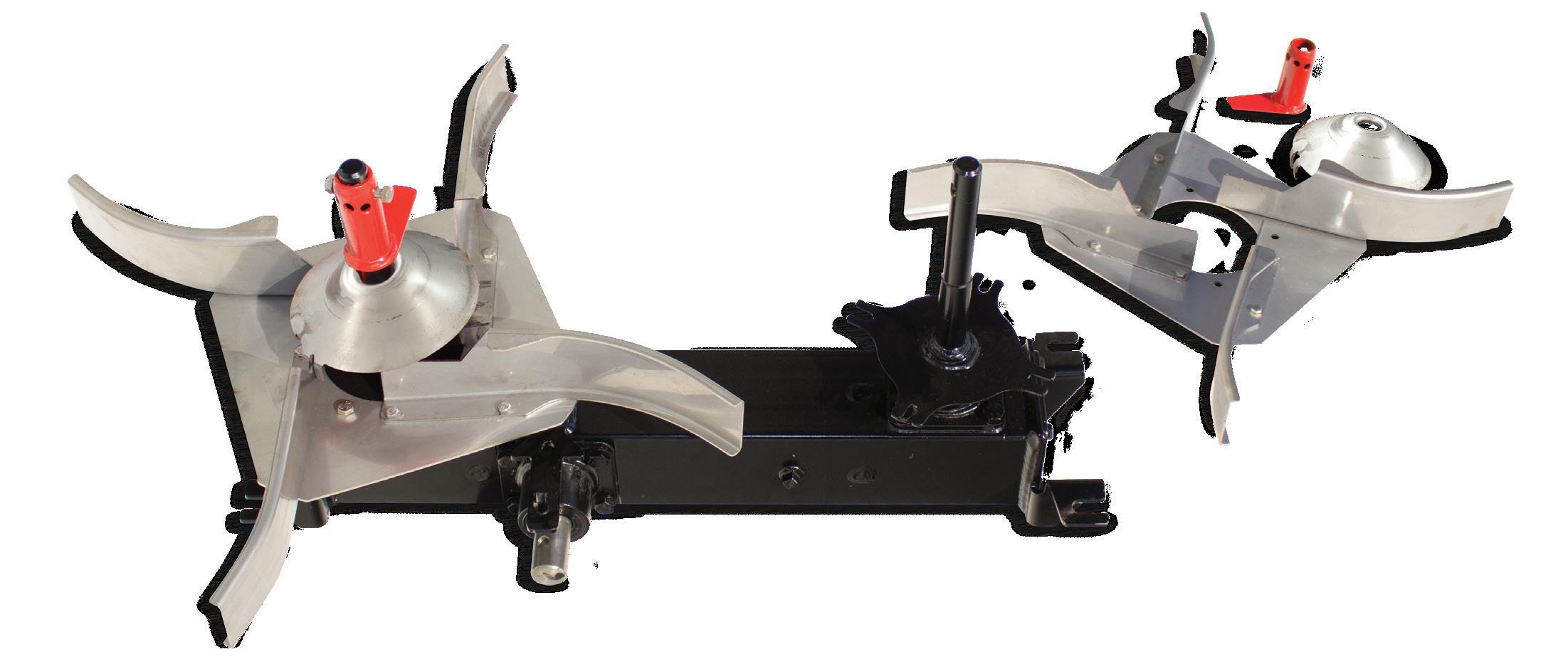

For outstanding durability, stainless steel is used extensively in the spreading components, which are driven through a low maintenance driveline.
MAINTENANCE
Cleaning and maintenance of the spreading system is straightforward thanks to its clean lines, simple construction and ease of access.
STRAIGHTFORWARD SETTING
1 Check
Check your fertiliser and identify the required spreader settings.
2 Set
Set the machine height, working angle and application rate.
3 Go
Accurate no-nonsense spreading from the name you can trust.
As the only volume manufacturer of fertiliser spreaders in the UK, Teagle are able to offer superior service and support through our extensive dealer network. SUPPORT
*Parts only in years 2 and 3.
How quadruple overlap works:
Fertiliser is spread to each piece of ground 4 times to create a Quadruple Overlap. 1 2 3 4 1 2
QUADRUPLE OVERLAP
The XT achieves consistency through applying little and often for outstanding coverage.
In a single pass, the twin inward spinning discs both spread fertiliser to the next tramline on both sides of the tractor.
Choose a spreading system that systematically improves tolerance to produce outstanding results.
1 2 Resilient Accuracy
Wind, driving errors and variation in fertiliser can combine and result in an uneven spread pattern. The gentle taper of the ‘triangular‘ spread pattern produced by the XT distributes any variation across the full width of the bout.
BOUNDARY SPREADING
Consistent Coverage
Not only is fertiliser spread to each piece of ground 4 times through the Quadruple Overlap, each disc has 4 vanes which divide the flow further, resulting in multiple deliveries of fertiliser to each piece of ground.

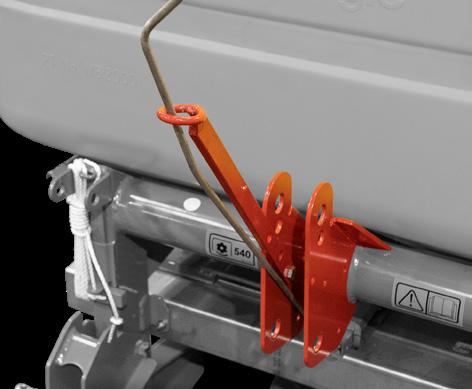

To spread headlands, the XT48 is fitted with a tilt system that concentrates the spread pattern in the area between the boundary and the first tramline, so that it accurately covers in 1 pass:
• To activate the tilt mechanism the machine is dropped to the ground and a cord pulled from the tractor seat.
• When the machine is raised again it will tilt to the right hand side for counter clockwise spreading.
• To reset the machine for normal spreading it is simply dropped to the ground again, the cord released and then raised to the operating height.
• For frequent headland work with the XT48 the optional hydraulic tilt kit is recommended.

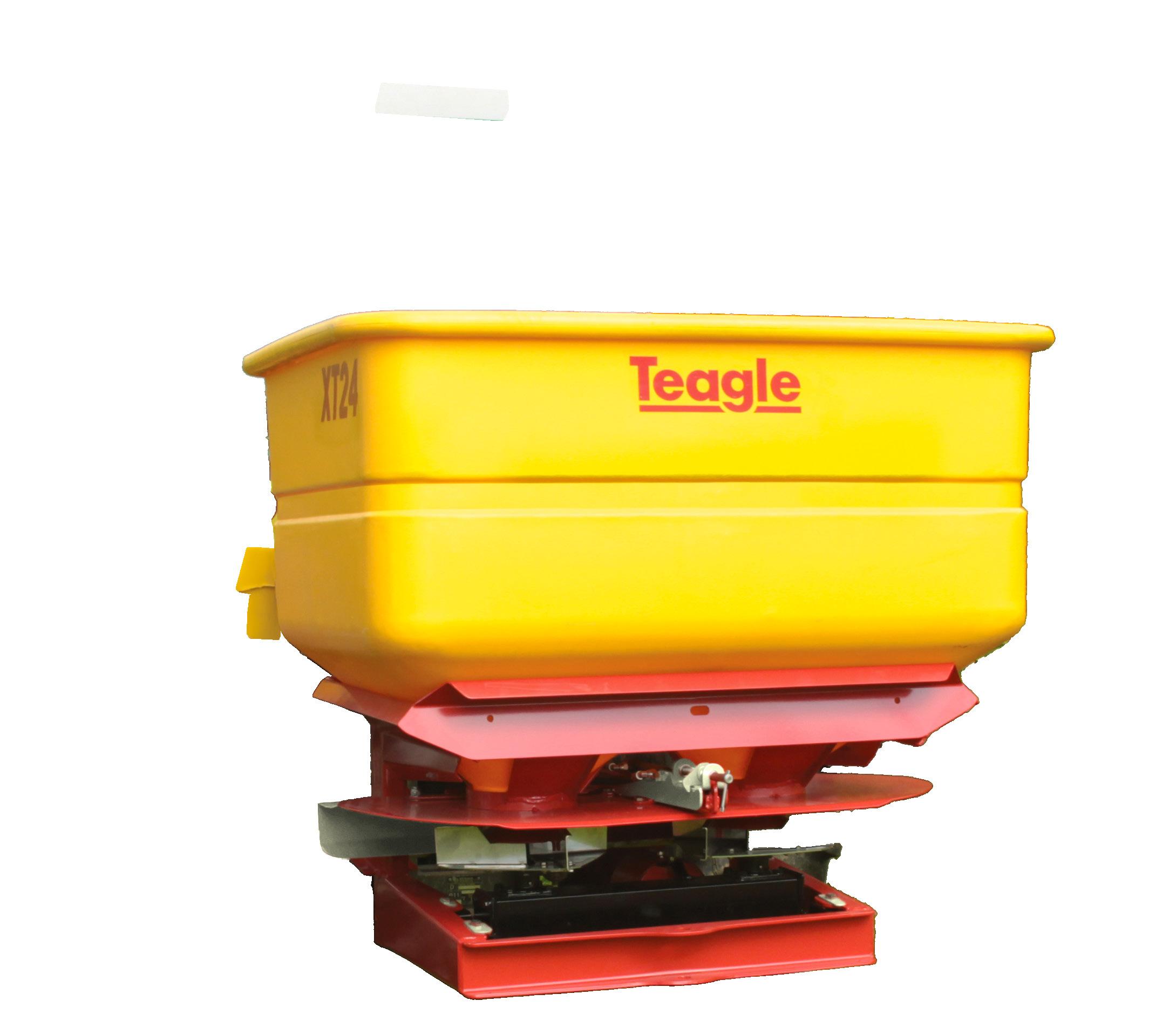

XT24
SUITABLE FOR: Smaller tractors in agriculture, amenity, sports fields and orchards.

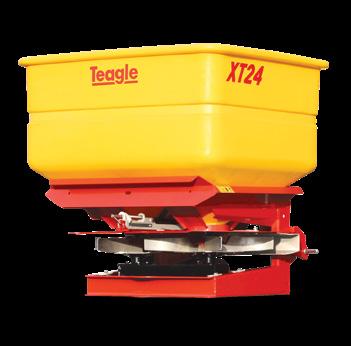

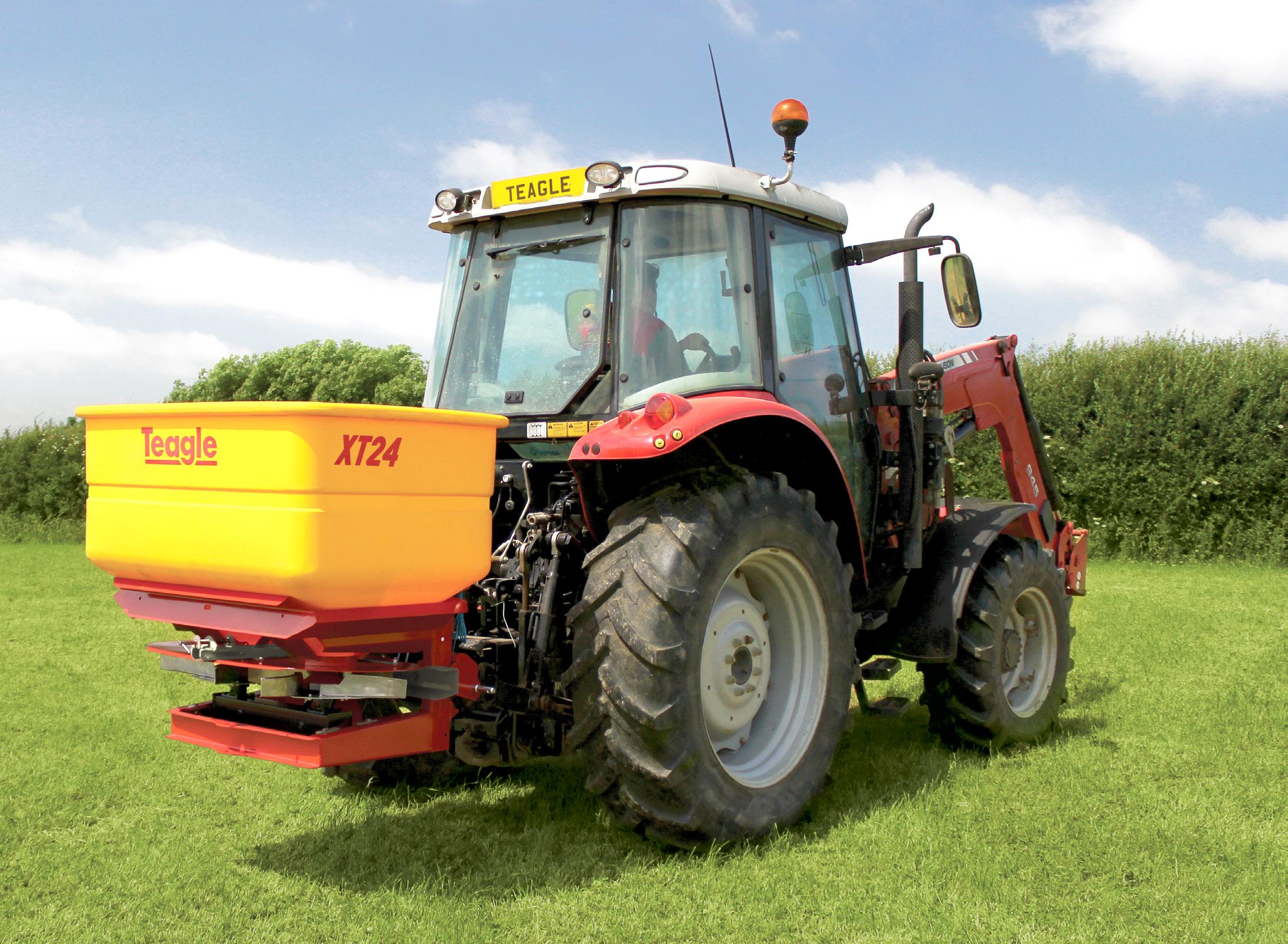

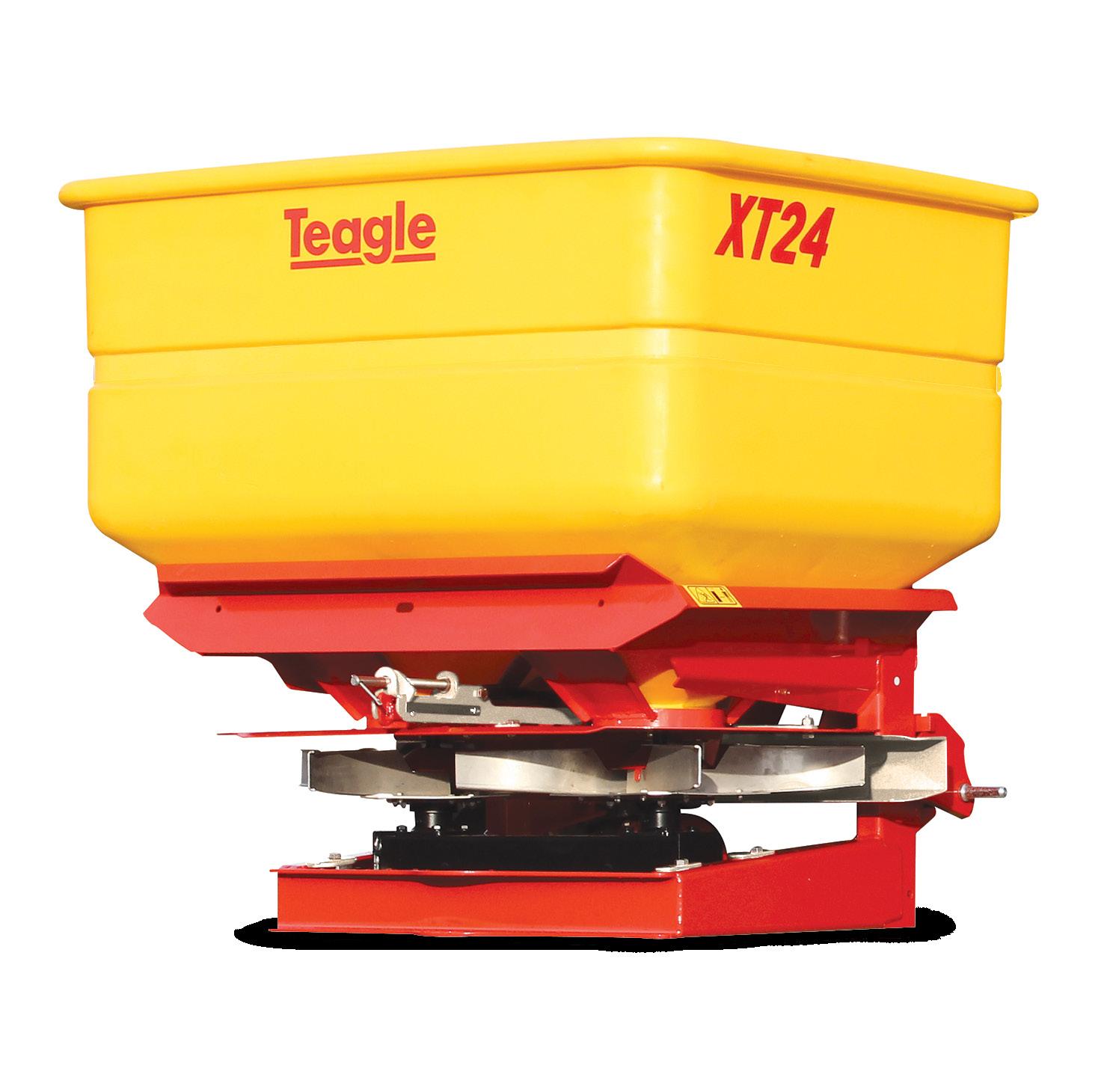

XT24 | TWIN DISC SPREADER
COMPACT AND ACCURATE
The compact XT24 lends itself well to work in tight spaces and is suitable for band spreading in orchards and vineyards (see band spreading option on p. 6). Features as standard a quadruple overlap spread pattern (see p.2), stainless steel spreading mechanism, new double powder coated frame (see p.7) and removable LDPE hopper for straightforward cleaning.
SUITABLE FOR: Grassland applications requiring a 2 bag capacity.

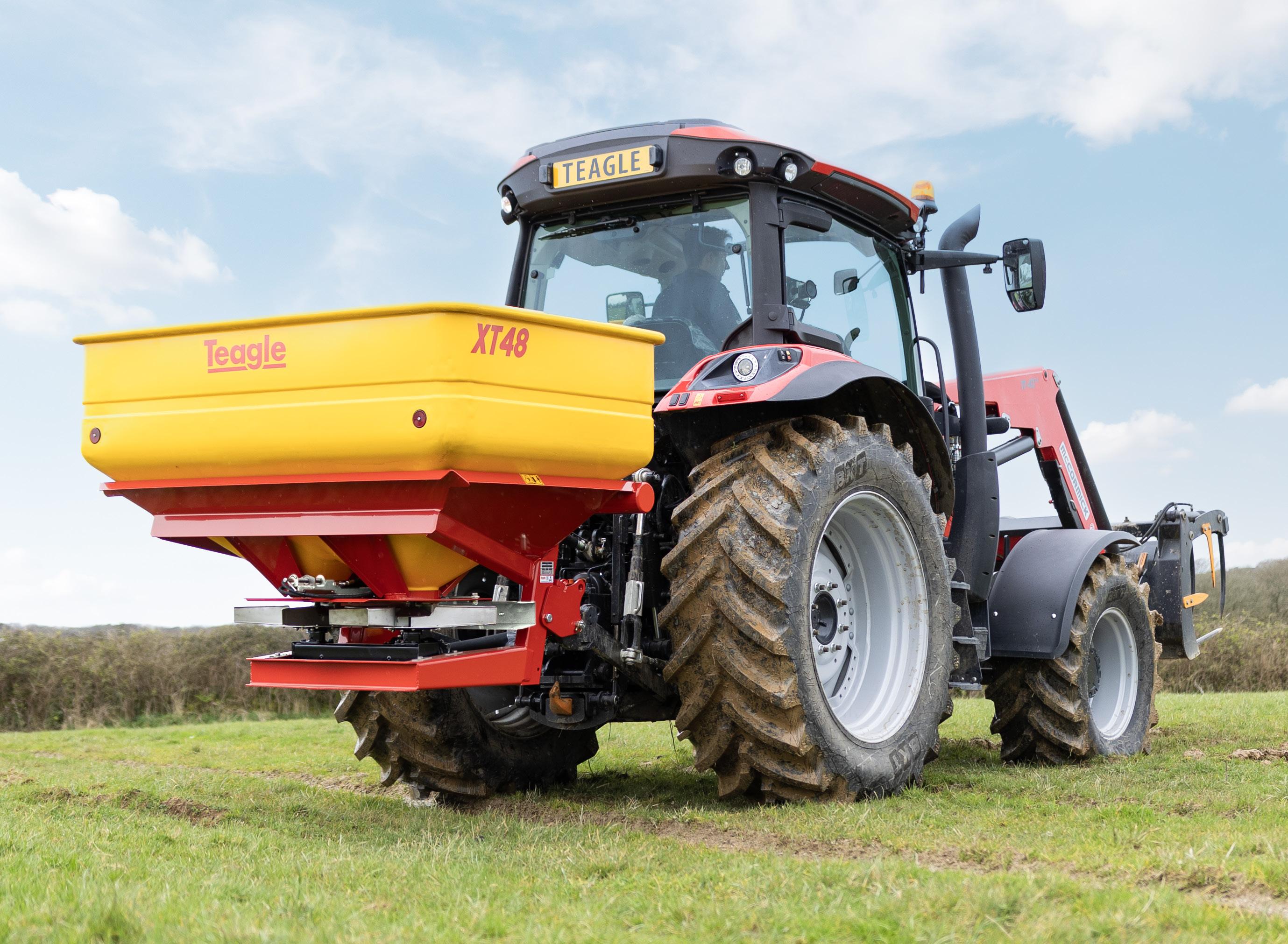

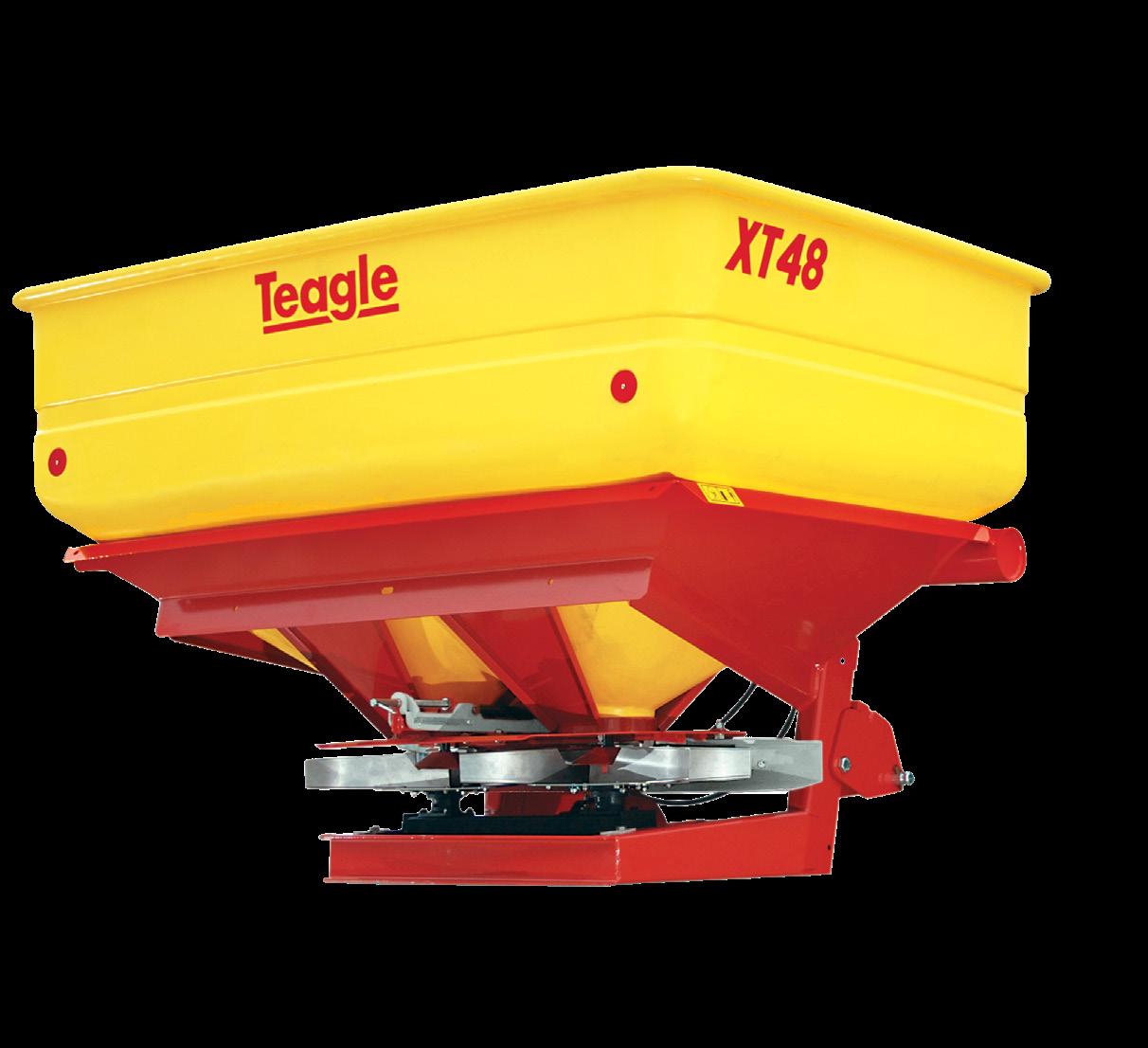

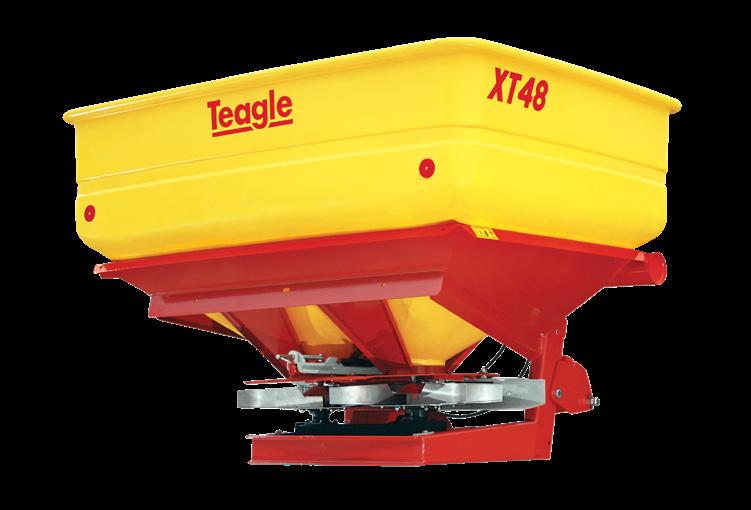

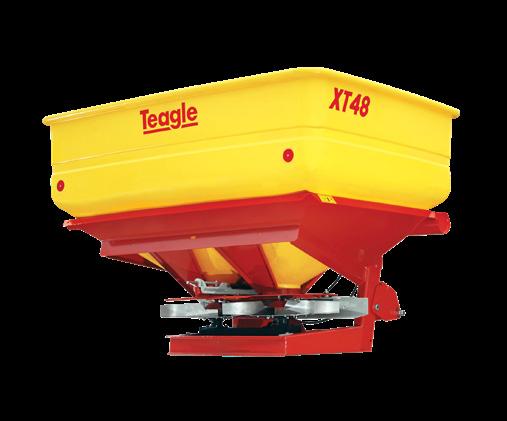

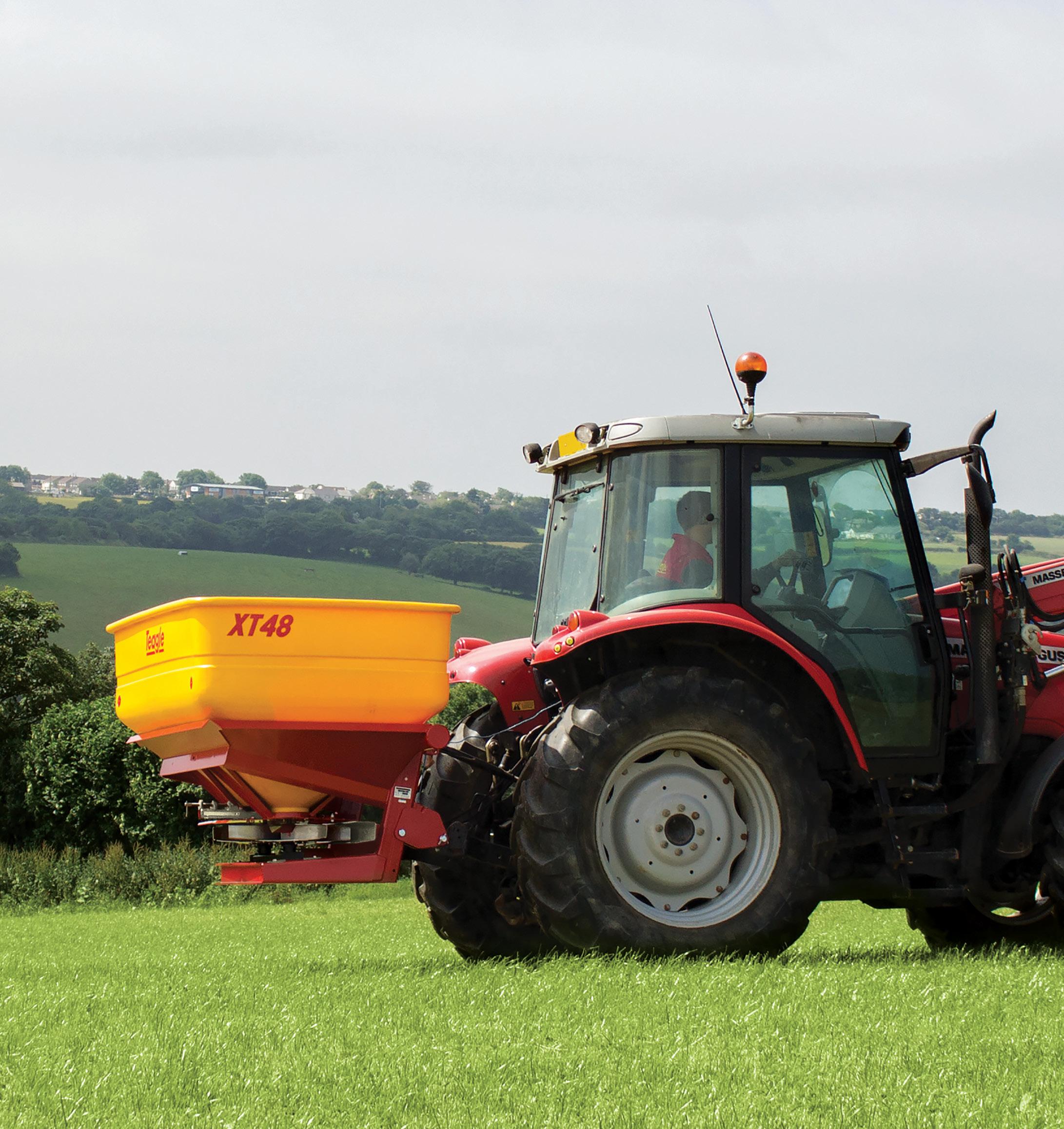

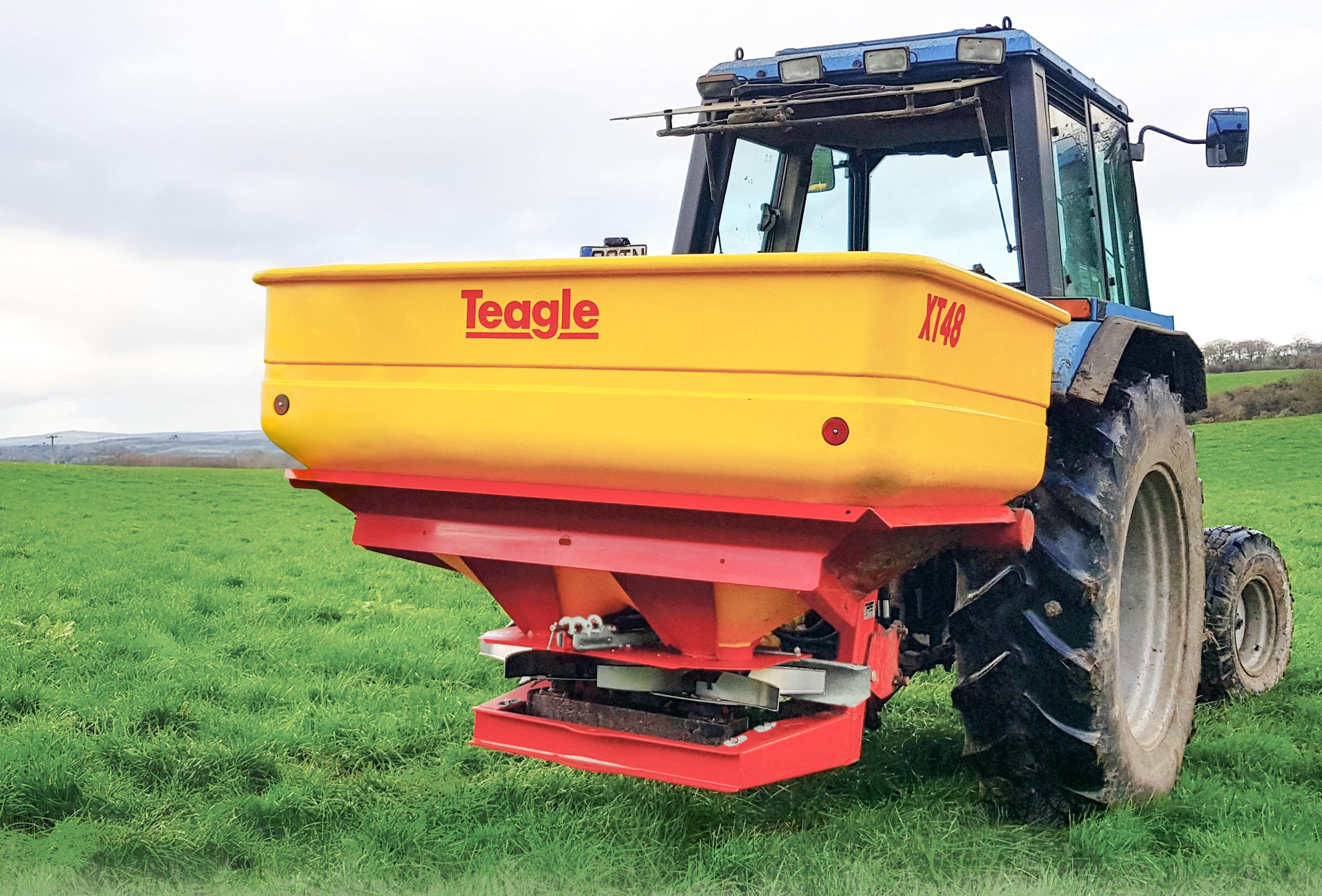

XT48 | TWIN DISC SPREADER
OUR MOST POPULAR SPREADER
The XT48 can be found operating accurately and reliably worldwide. It features as standard a manual border spreading tilt system (hydraulic option available), quadruple overlap spread pattern (see p.2), stainless steel spreading mechanism, new double powder coated frame (see p.7) and removable LDPE hopper for straightforward cleaning.
customer REVIEW
“PLANNING FOR GRASS GROWTH”
Dominic Sharpe runs a 200 acre Dairy farm near Roscrea, Co. Tipperary in Ireland, operating a Spring and Autumn calving system where planning for good grass growth is critical to the success of the business.
Dominic has owned Teagle XT Spreaders for over 20 years, saying, “It is very straightforward to set the spread rate compared to other spreaders. The machine is robust, and maintenance
SIMPLE MAINTENANCE
straightforward. I like that the removable hopper gives great access to the spreader for cleaning after use. Once cleaned and greased there is very little maintenance. Teagle have always had good, reliable, user friendly products, and with the build quality we can run the machines for longer before having to change them”. Furthermore, Dominic adds that, “The XT range suits the farm because of its accuracy and simplicity. The overlap and

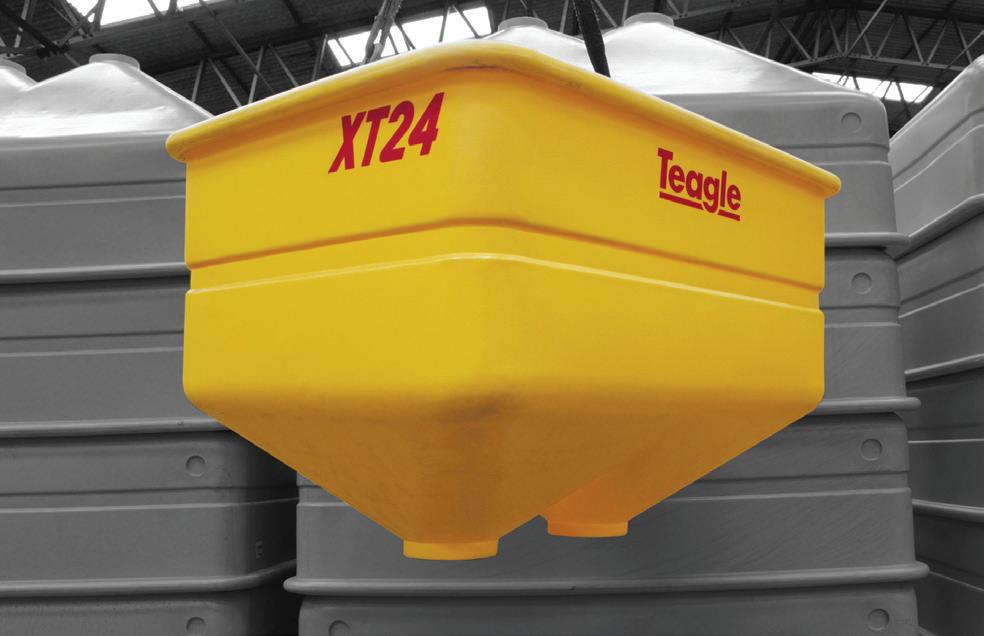

Removable corrosion resistant hopper
Manufactured from flexible LDPE with UV inhibitors, the robust hopper will give many years of trouble-free service. The hopper is easily removed for cleaning with a single pin.
spreading system of the XT spreader allows me to achieve a very even broadcast of fertiliser and seeds”. The hydraulic tilt option was specified by Dominic for his current XT48 because there are lots of smaller paddocks in the farm’s grass management system so it makes it easier and faster to spread the field boundaries.

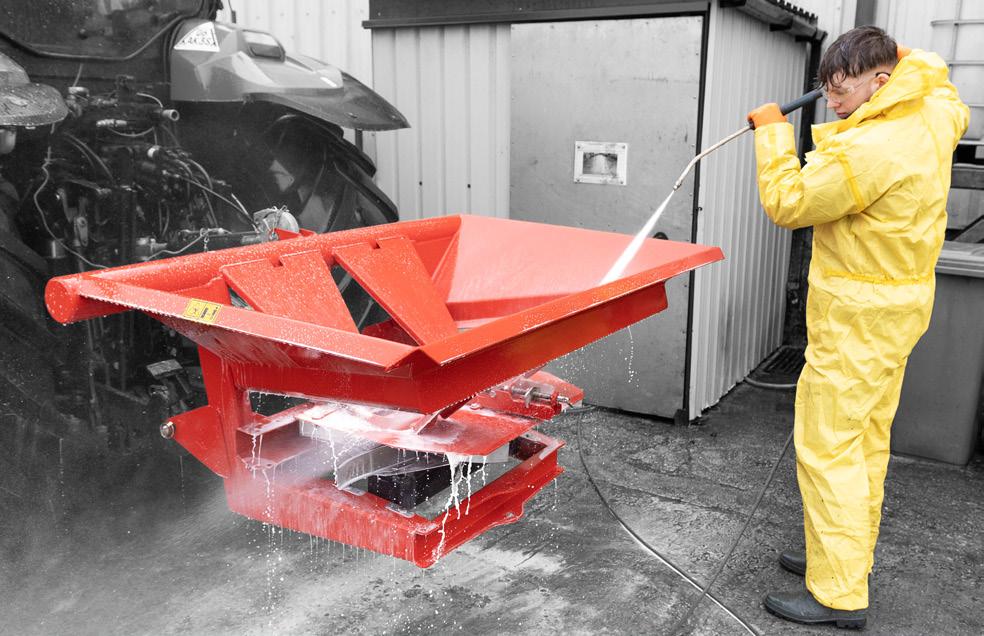

Easy cleaning
With hopper removed, the base can be easily washed after use, helping to prevent corrosion and extend machine life when handling fertiliser.

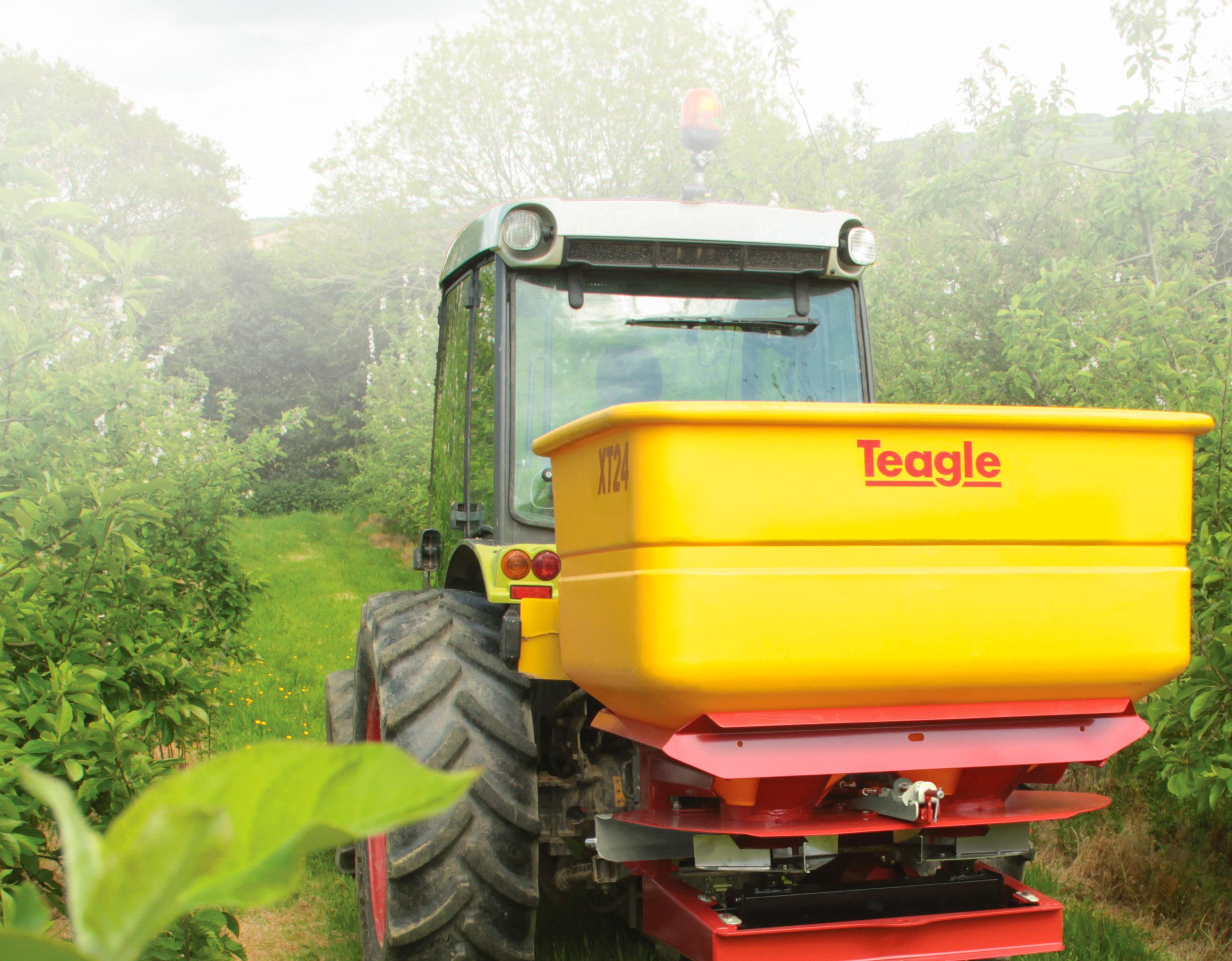

BAND SPREADING
FOR ORCHARDS, VINEYARDS AND SOFT FRUIT
Reduce Waste: Target fertiliser where required
The spreading system delivers fertiliser in bands to each side of the spreader.
Ideal orchard machine
Designed with low spread trajectory – avoids fertiliser impact damage to leaves, flowers and fruit.
TAILOR YOUR SPREAD PATTERN
Produce simply outstanding results
Simple setting of application rate and row width – no vanes to adjust, no rotors to change. Just set the height, spread rate and PTO engine speed and away you go!
The band spreading kit is available for both XT24 and XT48 as a factory build or optional extra.
Spread pattern for a 6.5 m row spacing
Band spreading kit.

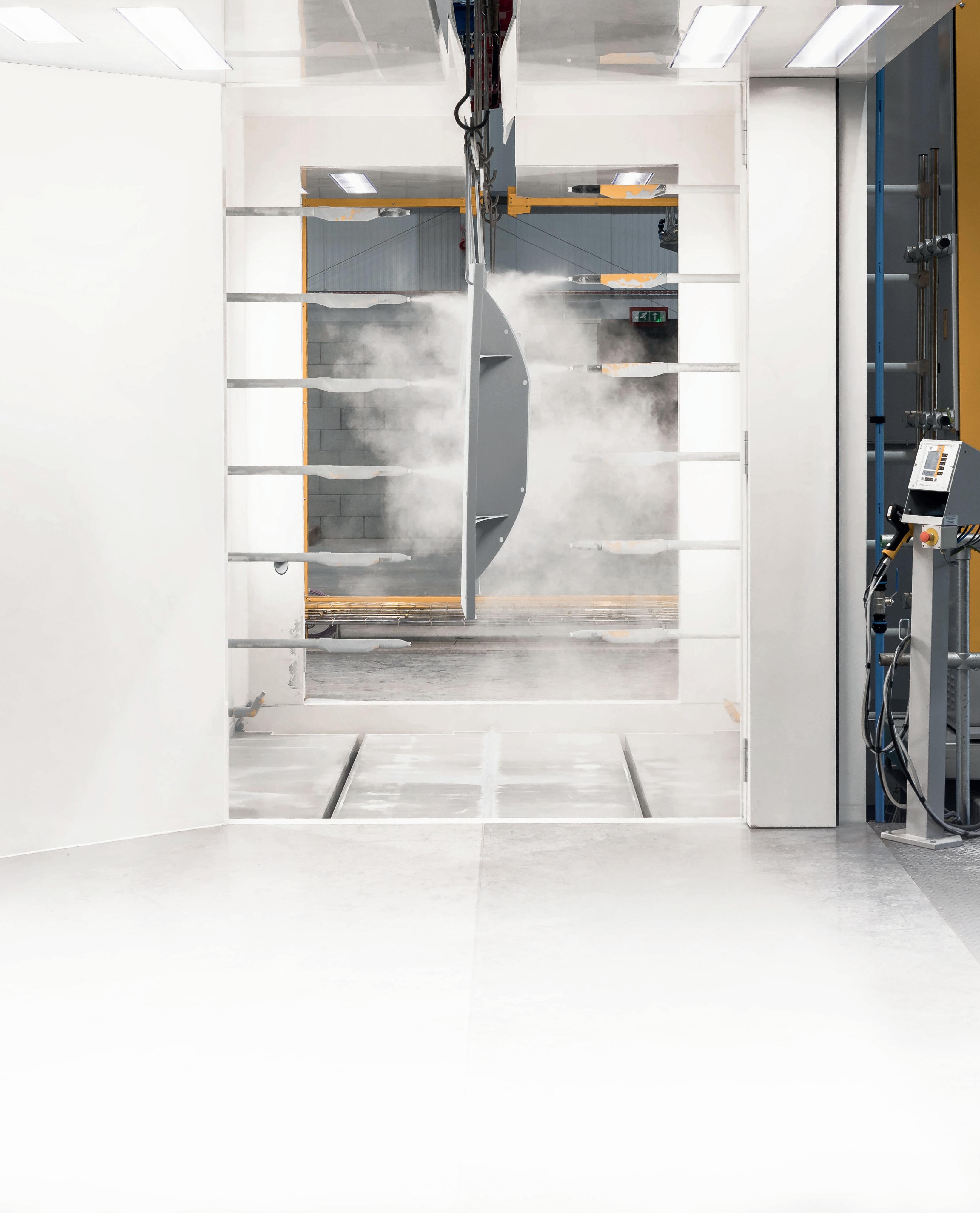

PAINT LINE investment
State of the art automated

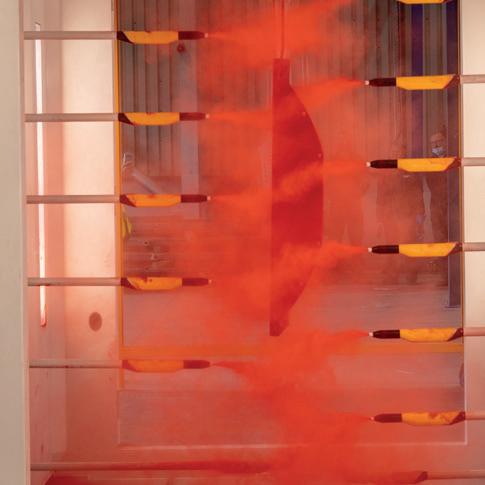

Primer Powder Booth
As part of our commitment to improving product quality, we have invested heavily into an ALL-NEW DOUBLE POWDER COAT PAINT LINE facility which became operational at the start of 2023.
Housed in a new purpose built 1,900m2 building, our new paint line replaces our previous single power coat line and delivers market leading paint quality.
The new system features state of the art automation through the following processes:

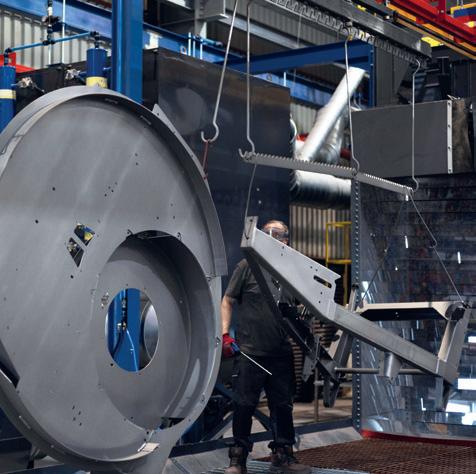

Shot blasting
Primer Powder Application
Green Cure Oven
Top Coat Powder Application
Final Cure Oven

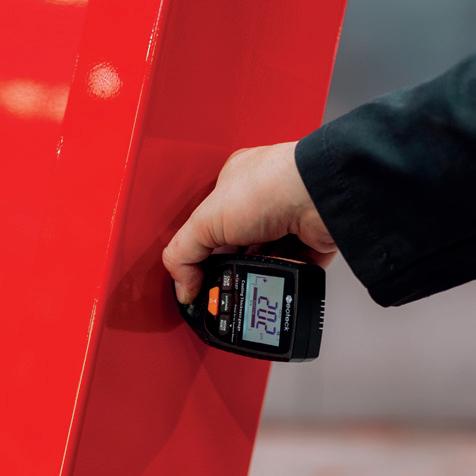

Quality Inspection
The full powder recovery system cleans and recycles unused powder resulting in zero waste.
To improve paint adhesion, we have also invested further in our prepaint
processes, with parts cleaned and processed through a linishing machine, removing sharp edges and reducing the risk of paint failure on edges.
The result is a rounded edge, benefiting from two applications of powder coat paint which offers much greater protection from corrosion and chemical attack.
Our in-house quality control includes 1,000 hours of salt spray testing on sample parts to replicate a 10 year operating life.

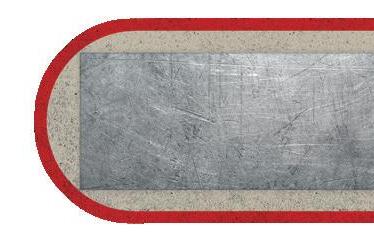

Right: Cross section of paint layers
SPECIFICATIONS & OPTIONS

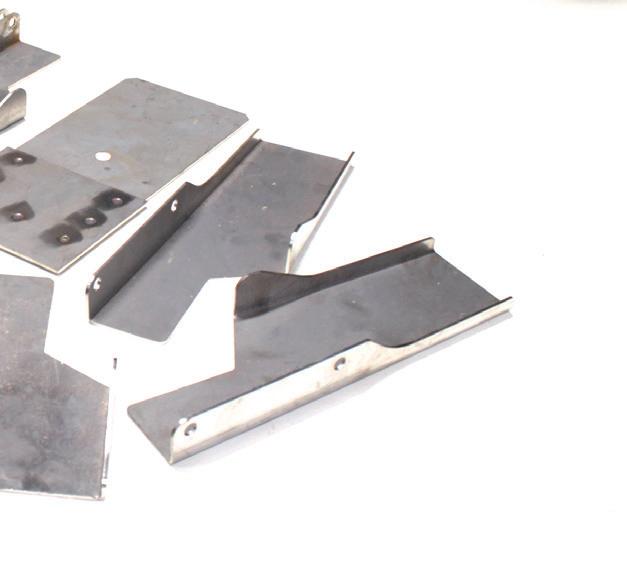

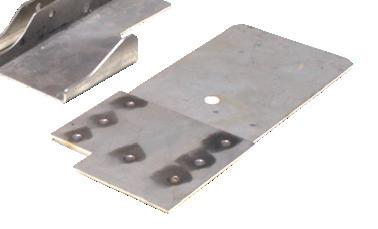

Stainless steel shutter mechanism
Both models in the XT range are now fitted with low level
OPTIONS

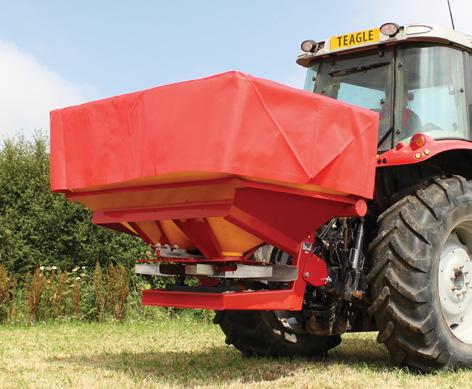

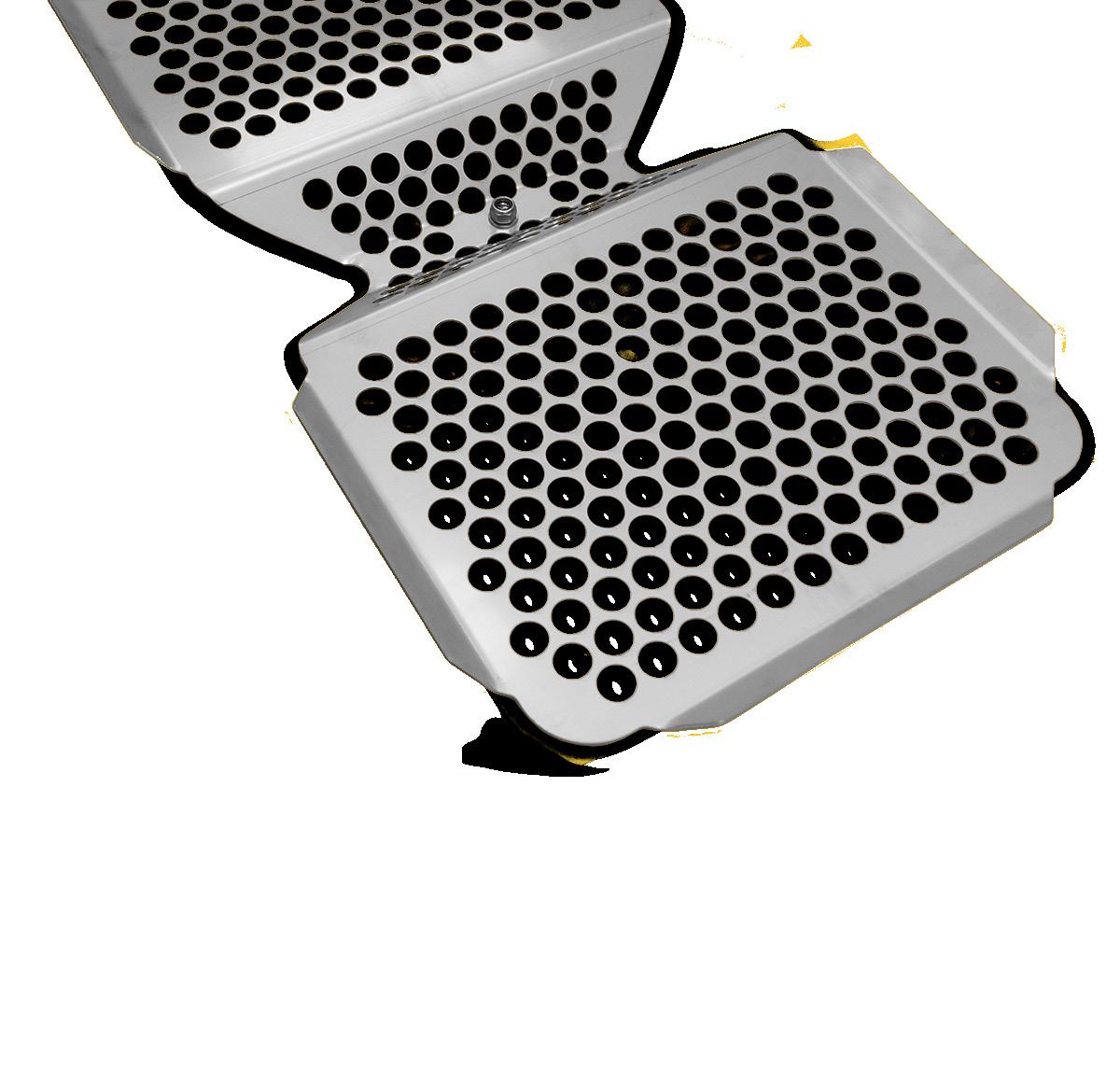

Hopper cover
Available for XT24 and XT48 models.

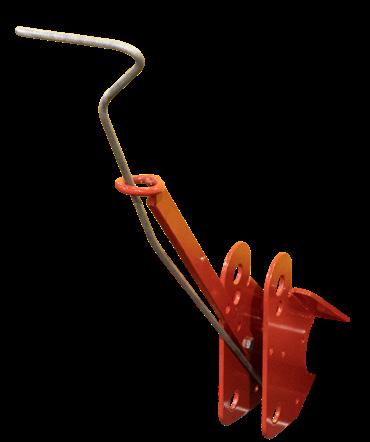

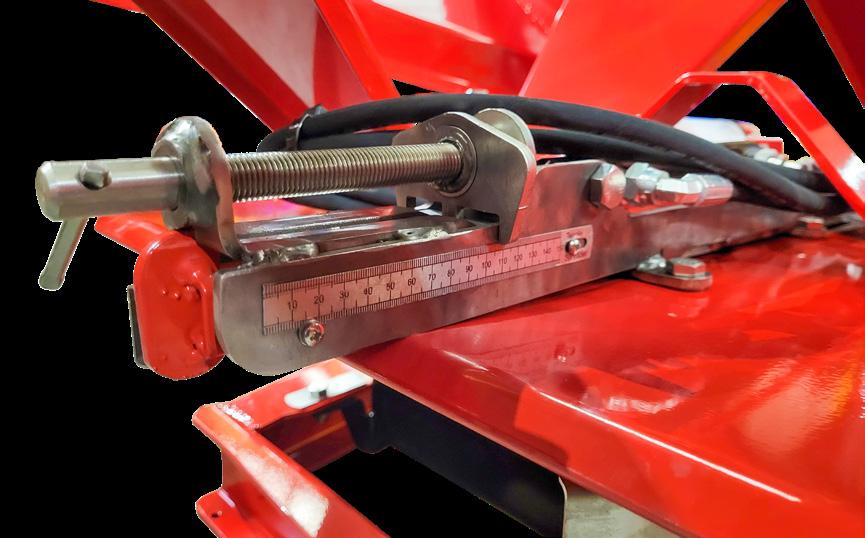

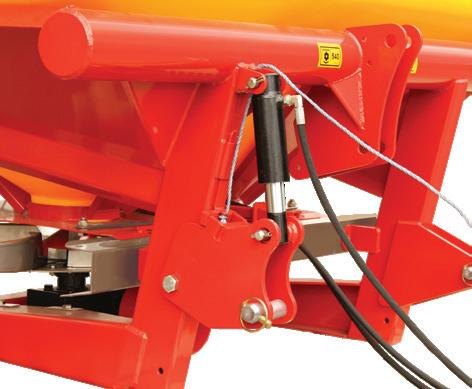

Hydraulic tilt kit
Available on the XT48 only, a hydraulic tilt ram enables straightforward boundary spreading from the tractor seat.
The stainless steel shutter controls fertiliser flow with precision, resisting corrosion and wear. It’s available in double acting hydraulic shutter (no springs) or manual operation for smooth, reliable spreading.
Manual shutter
When a hydraulic service is not available on the tractor, a manual shutter control can be specified for the XT24 model only.

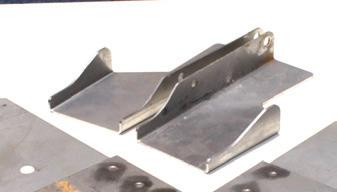

Band spreading kit
Vanes and shutters are designed to achieve a broad, rounded spread pattern with minimum fertiliser spread between the rows. See page 6 for more.
With over 85 years experience in designing and manufacturing of agricultural machinery you can be confident when you choose Teagle.
Contact us today to discuss your individual requirements.
