TOMAHAWK
6000 Series Bale Processors
BEDDING

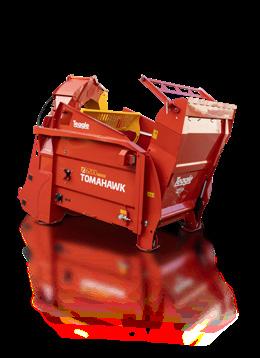

TOMAHAWK 6100 HyDrive
CAPACITY 1.7m3
Distance : 12m
Handler : 1.4 tonnes (min.)
Oil Flow: 40 l/minute (min.)
TOMAHAWK 8200 | M
CAPACITY 3.2m3
Distance : 20m
Tractor : 140HP (min.)
TOMAHAWK 8250 | M
CAPACITY 3.2m3
Distance : 20m
Tractor : 150HP (min.)

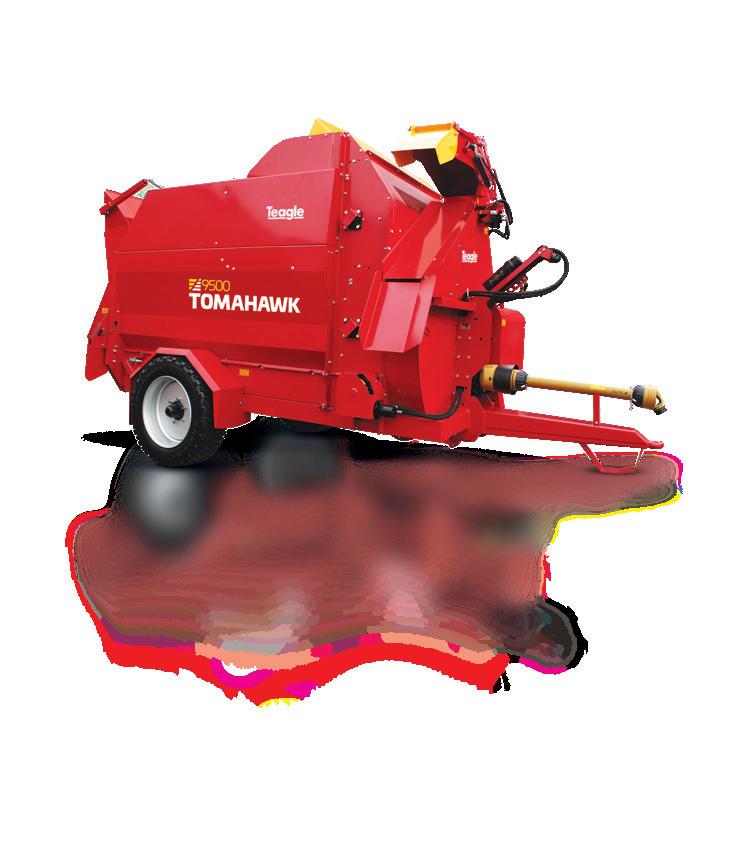

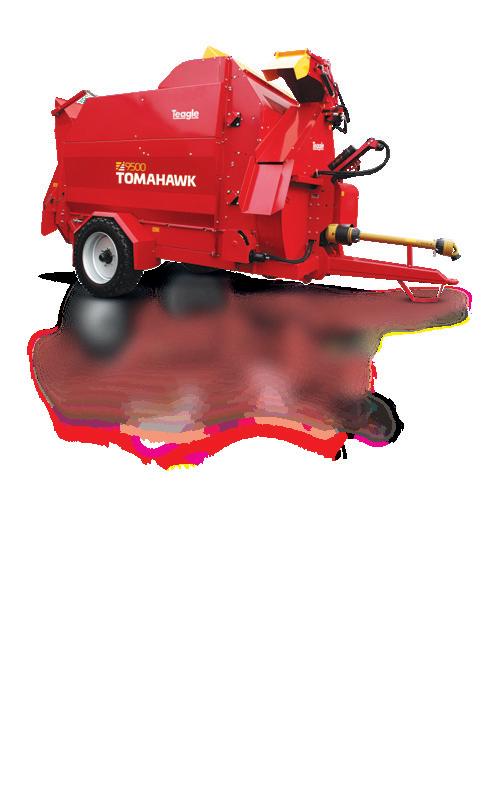

TOMAHAWK 9500
CAPACITY 8.0m3
Distance : 22-25m
Tractor : 80HP (min.)
TOMAHAWK 6200 HyDrive
CAPACITY 2.5m3
Distance : 13.5m
Handler : 2.8 tonnes (min.)
Oil Flow: 60 l/minute (min.)
FEEDING | BEDDING
TOMAHAWK 6200 Power Drive
CAPACITY 2.5m3
Distance : 13.5m
Tractor : 2.8 tonnes (min.)
Oil Flow: 60 l/minute (min.)
TOMAHAWK 8200 | T
CAPACITY 3.2m3
Distance : 20m Tractor : 60HP (min.)
FEEDING | BEDDING | PROCESS

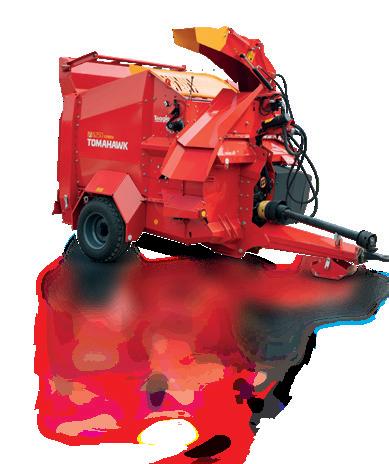

TOMAHAWK 8250 | T
CAPACITY 3.2m3
Distance : 20m
Tractor : 80HP (min.)
FEEDING | BEDDING

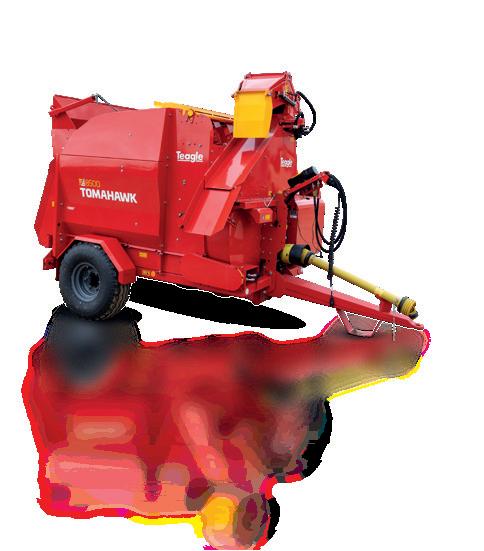

TOMAHAWK 8500
CAPACITY 4.5m3
Distance : 22-25m Tractor : 80HP (min.)

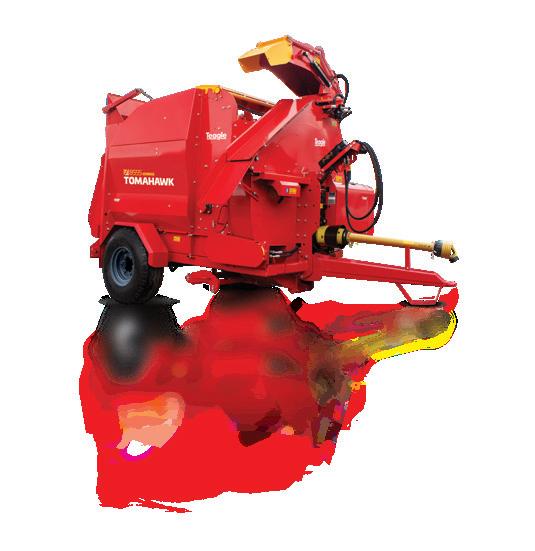

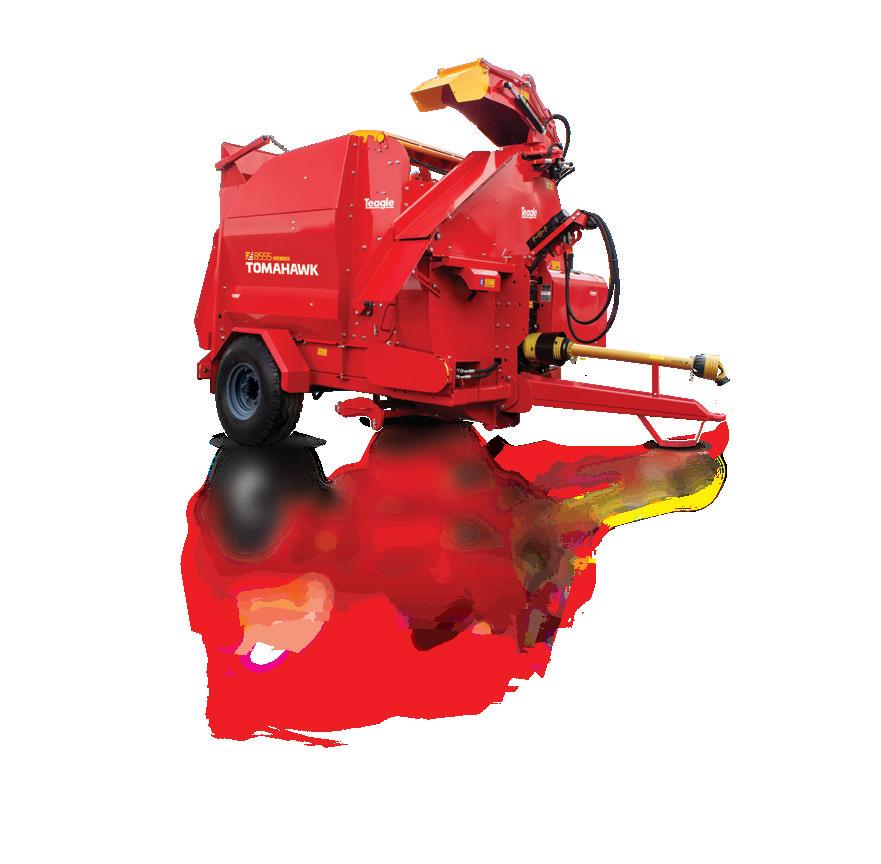

TOMAHAWK 8555
CAPACITY 4.5m3
Distance : 22-25m Tractor : 80HP (min.)

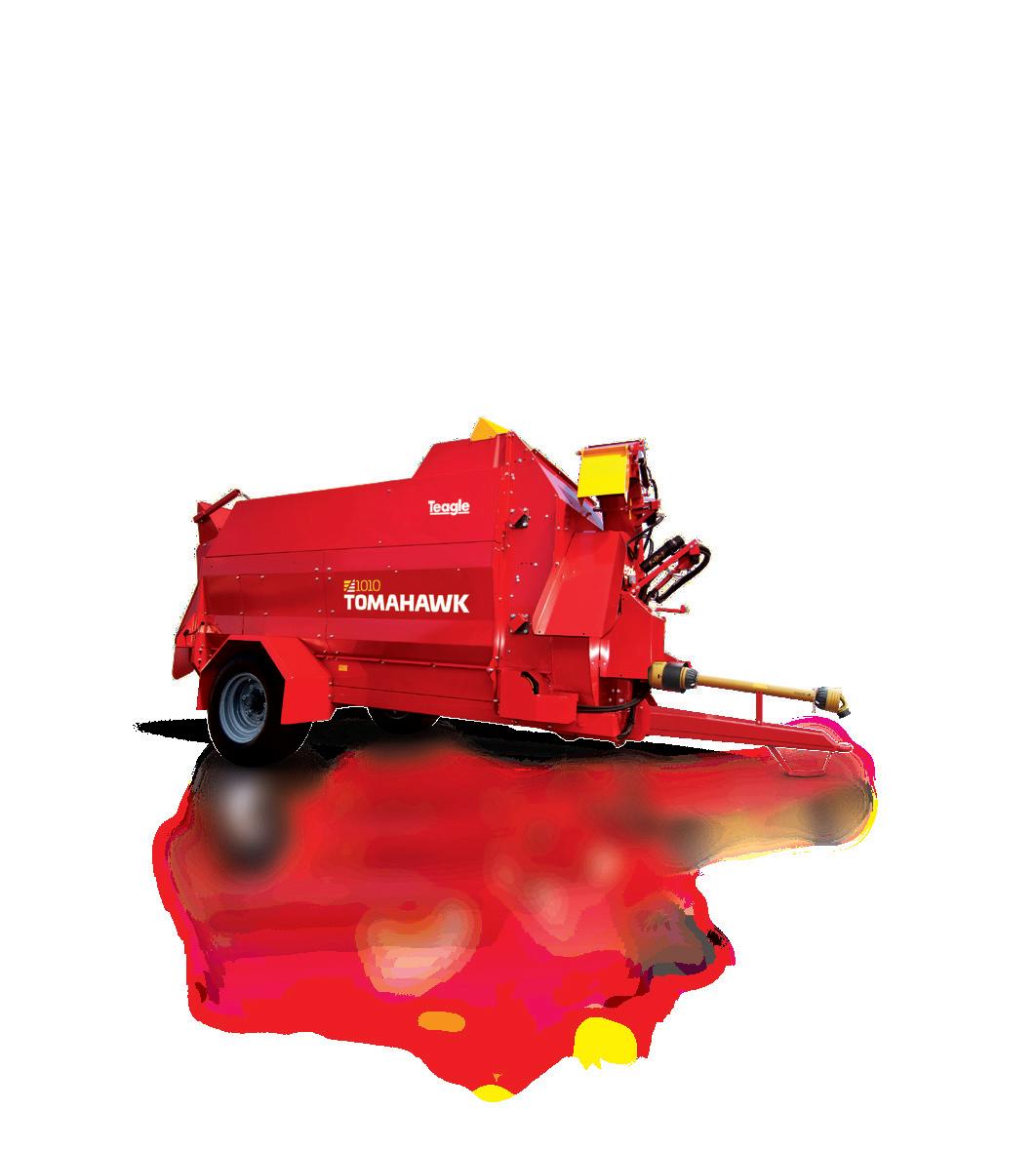

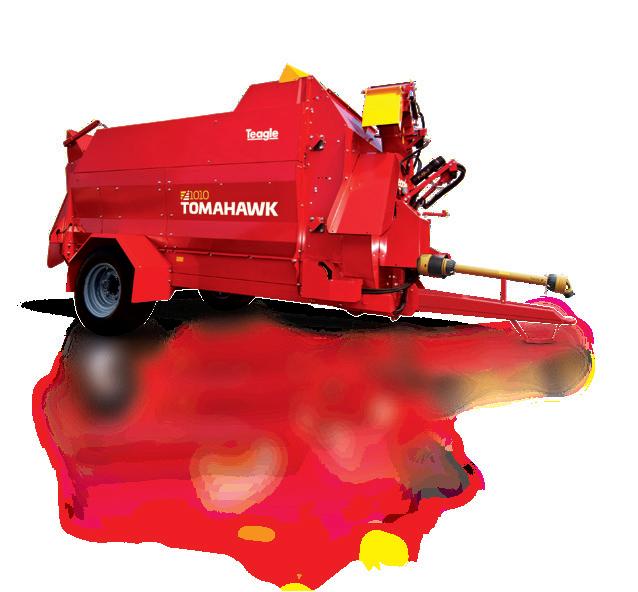

TOMAHAWK 1010
CAPACITY 10.0m3
Distance : 22-25m
Tractor : 80HP (min.)

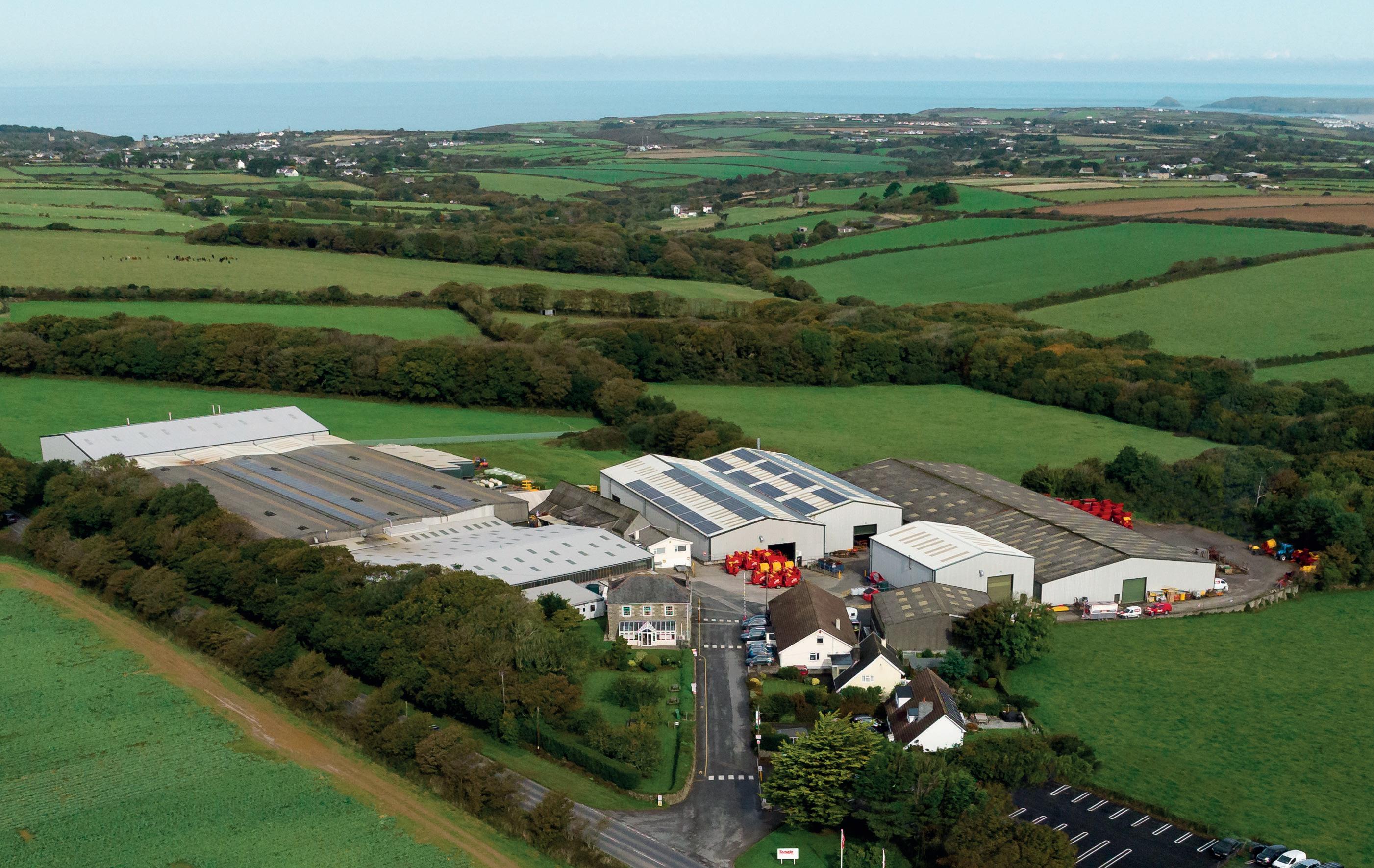

Established in 1937, Teagle Machinery began manufacturing the Tomahawk bale processor in 1983. We remain a family business focussed on meeting the needs of our customers whether just around the corner, or in one of the 50 countries worldwide to which we regularly ship machinery. From the outset, our machinery has been designed to be simple, robust and easy to use.
We still stand by these values, with all our products being tested extensively on farms throughout the world to ensure that they perform reliably day-in day-out, under the toughest conditions. As sales of Tomahawk bale processors continue to grow, the reasons that customers return time after time to buy from Teagle are twofold:
Product Focus - We actively invest in research, design and manufacturing technology to ensure that our product range constantly evolves to remain at the cutting edge, whilst being available at a competitive price. Through our focus on feeding and bedding machinery over the last 40 years we are able to offer a machine to fulfil your needs.
Backup – After-sales support is our priority, requiring commitment to a comprehensive parts stock and effective dealer network. We dedicate part of our 27,000m2 facility in Cornwall to a substantial stock of wearing and non-wearing parts to keep you up and running.
teagle.co.uk
BENEFITS
WHY OWN A TEAGLE TOMAHAWK?
Forward thinking bale processors.
VERSITILE RANGE
Our bale processor range is designed to work seamlessly with tractors, skid steers and telehandlers, providing flexible, reliable solutions for both bedding and feeding operations.
SAVE 30% STRAW
Owners report straw savings of 25-30% compared to manual bedding, while still producing a well-structured, highly absorbent bed that supports livestock comfort and cleanliness.
PROCESS STRAW
Teagle bale processors are designed to efficiently process straw to suit a wide range of applications, including bedding, Total Mixed Rations (TMR) and biomass, helping to improve material handling, consistency and overall operational efficiency.
VALUE FOR MONEY
Existing Tomahawk owners have calculated an excellent return on investment when considering commodity values, tractor operating costs, hourly labour rates, improved livestock welfare and resale value.
BEDDING CLOSE TO NATURE
Reduce dust for Loose Housing
The low speed crossbeater with auto-reverse function gently teases the bale apart, minimising the amount of dust that is created.
Straw is left long to create an effective bed structure, keeping livestock comfortable.
2 YEAR WARRANTY
To offer our customers total piece of mind, we offer a two year extended warranty on all Teagle manufactured products.
Also for : LANDSCAPING MULCHING POULTRY BEDDING

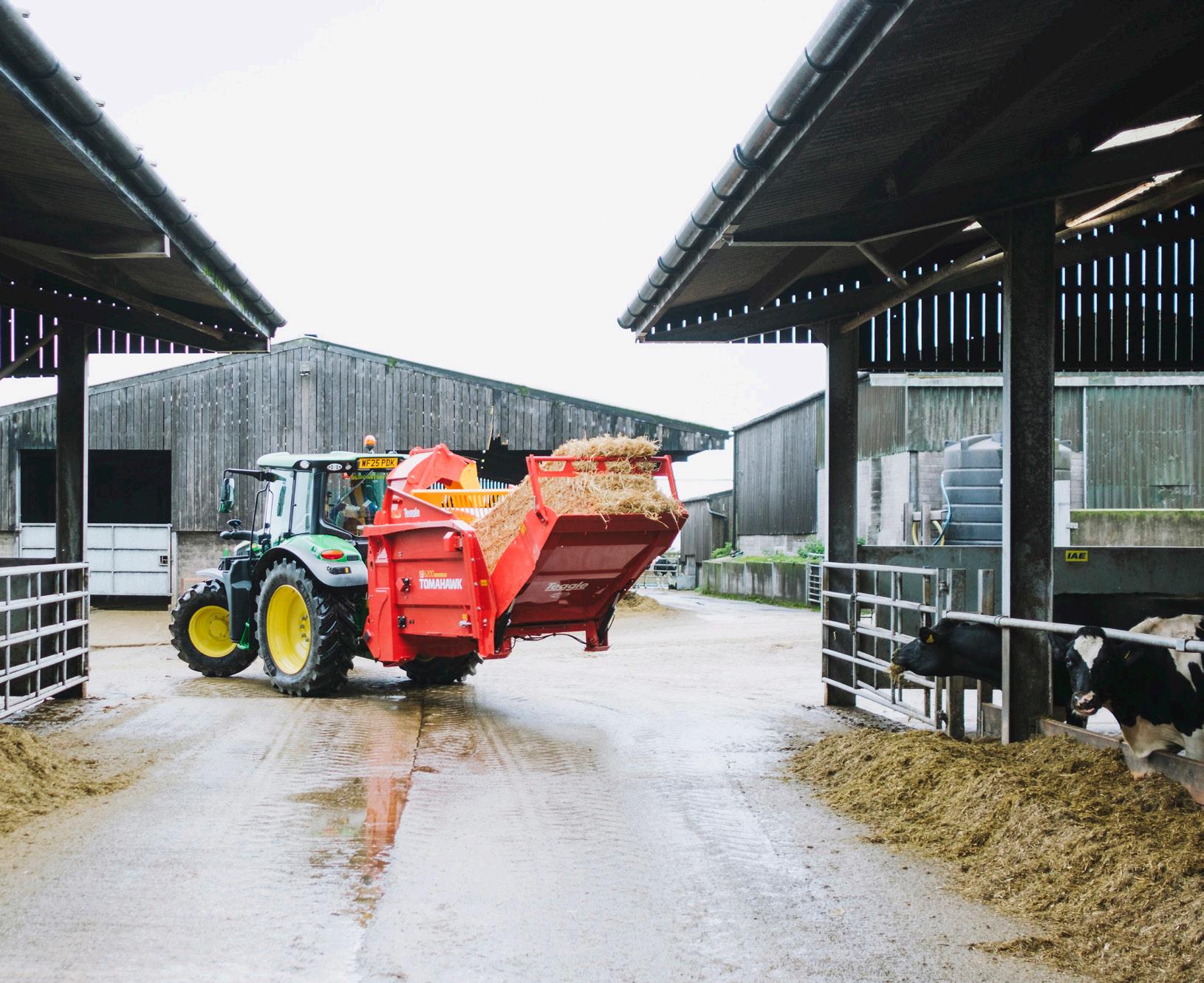

Bedding down is straightforward so straw can easily be applied 'little and often' to keep livestock clean, whilst maximising straw savings.
POWER WHERE IT COUNTS. Control when you need it.

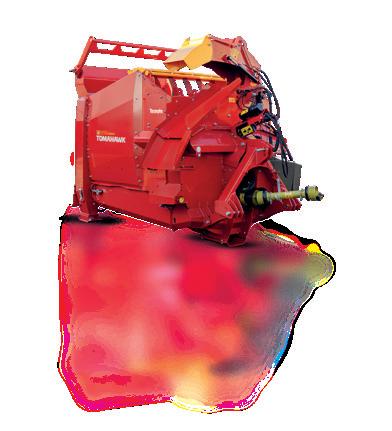

The latest addition to the market-leading 6000 series, the Tomahawk 6200 Power Drive combines PTO fan power with hydraulic control.
At 1,577 kg unladen, it suits tractors from 90 HP for efficient straw and dry hay processing.
OVERVIEW
The Tomahawk 6200 Power Drive can accommodate a full 4’ x 4’ x 8’ (1.2 x 1.2 x 2.4m) rectangular bale, or a 5’ (1.5m) round bale.
INTELLIGENT CONTROL
at the touch of a button
Electrohydraulic controls carefully balance the oil flow between the Bedchain, Crossbeater and Chute Control so you can focus on the job at hand.

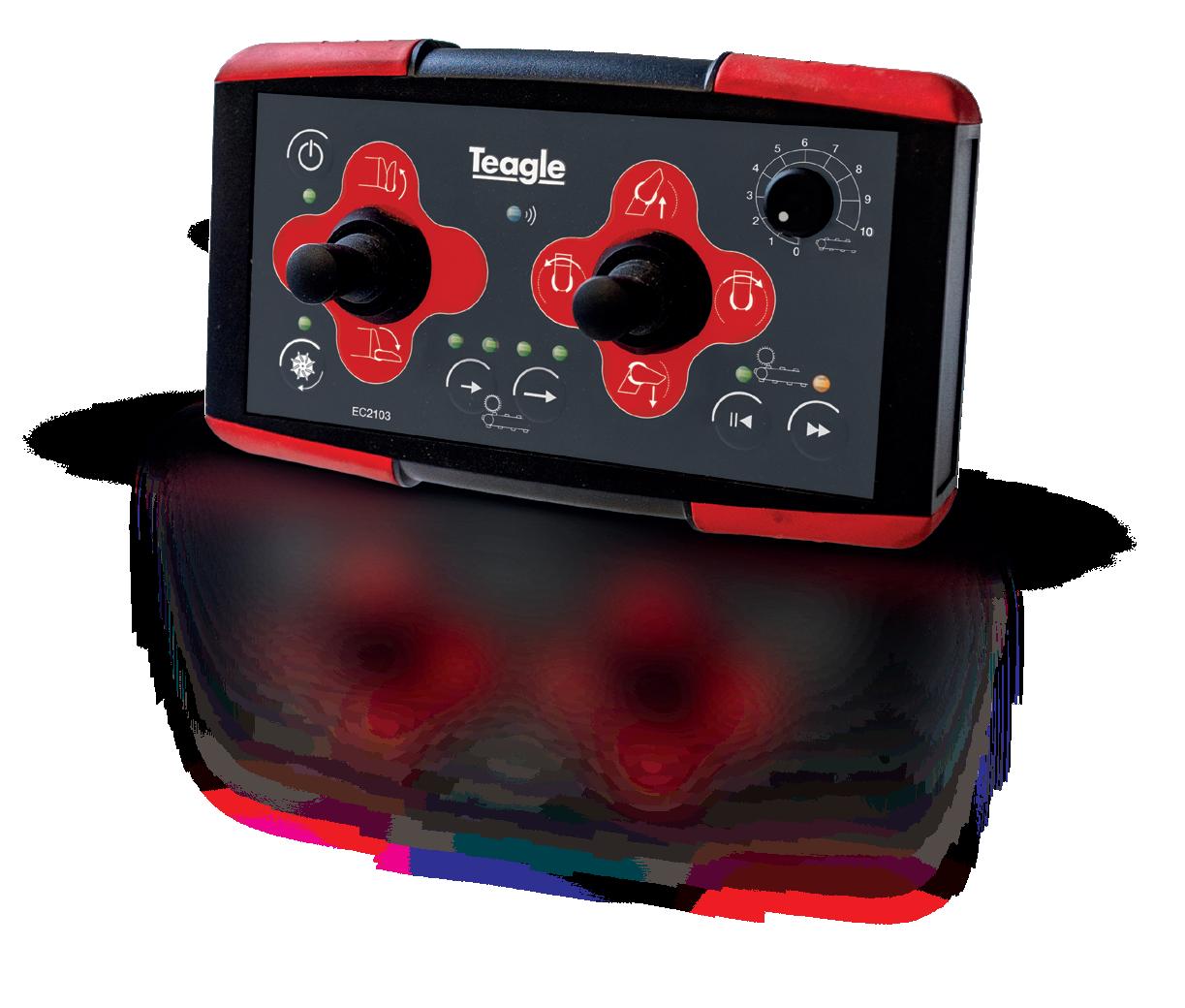

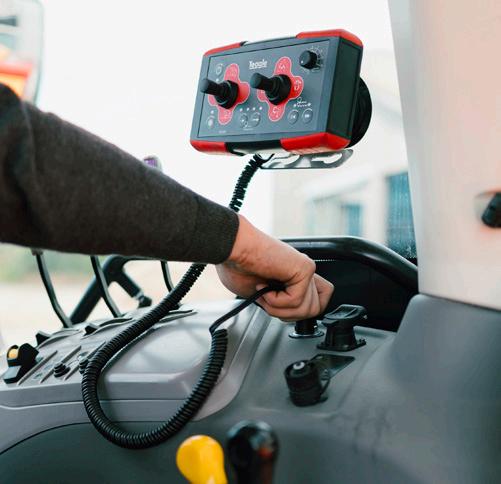

1 | Wireless control

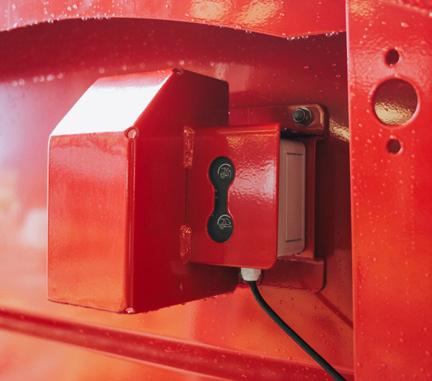

A tried and tested tethered Wi-Fi control box communicates with the Tomahawk machines. A 12V supply is the only wired connection to the machine.
2 | Push button operation
Start / Pause / Stop the machine at the touch of a button. Tailgate and Chute rotation/elevation also controlled via the intuitive control desk.
3 | Load sensing
To prevent blocking, a pressure switch monitors the load on the crossbeater and automatically reverses the bedchain and crossbeater when overloaded.
4 | Start/stop crossbeater
For reliable & flexible processing, the crossbeater has priority oil flow. If you need to move between pens, or avoid water troughs, you can pause & restart the flow of straw at the touch of a button.
5 | Optimised processing
The bed and beater reverse time can be adjusted using the control box to optimise the performance with round / rectangular bales. The activation pressure for reversing is also adjustable using a thumb screw.
BEDDING

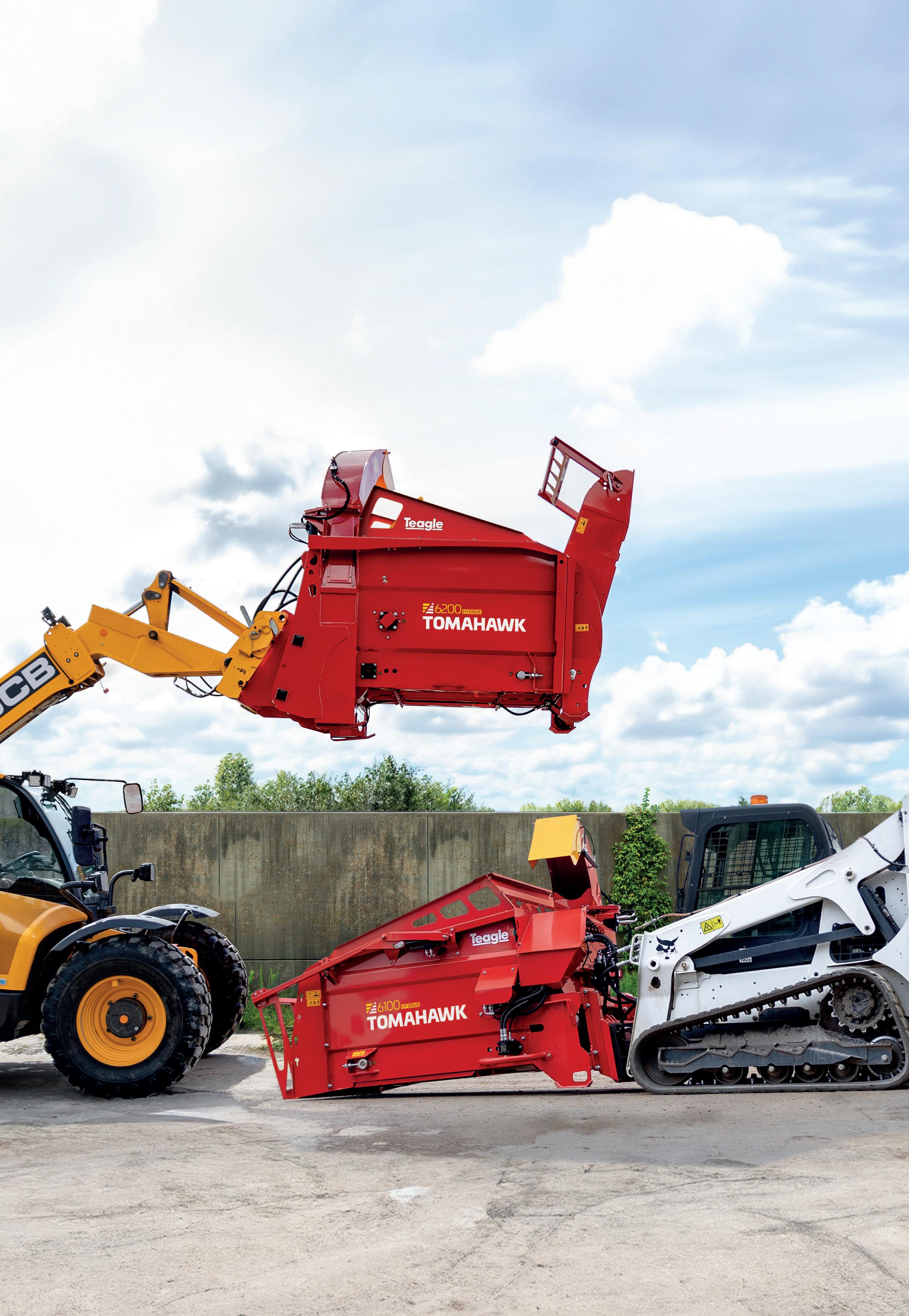

6100 HyDrive | Skid Steer / Tractor (front or rear mounted) / Compact Handler

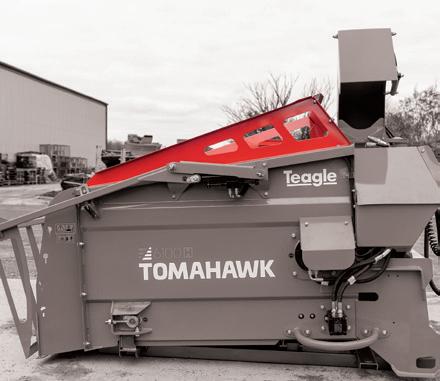

No PTO required! Quickly mounted on a skid steer, compact handler, tractor loader or rear 3-point linkage the 6100 HyDrive is the perfect machine when space around sheds and yards is limited.
Bale Processing - Simplified

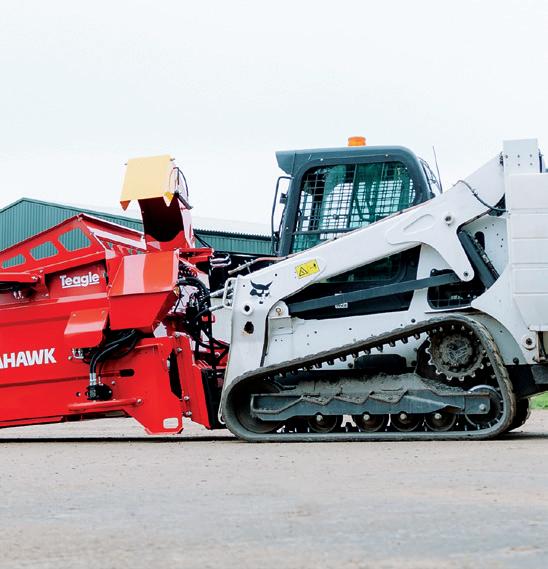

Skid Steer
Compact Wheeled Loader

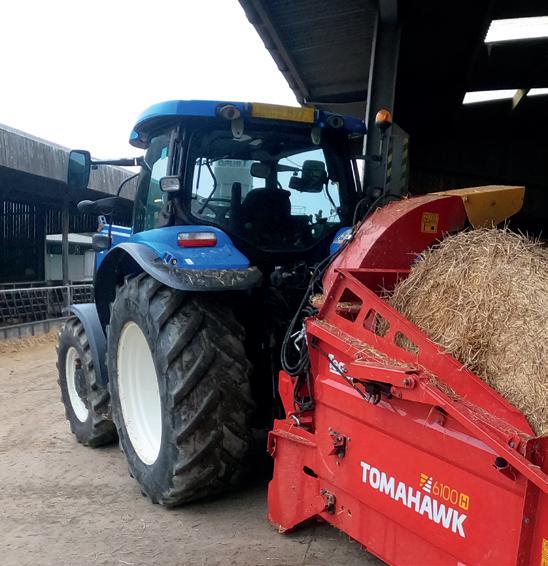

Tractor Rear
6100 HyDrive | HANDLER / TRACTOR
TYPE SPREAD STRAW
Hydraulic drive to both fan & crossbeater.
Standard equipment
Electronic in-cab Wi-Fi controls | Swivel chute with 280° deg. rotation | Single crossbeater | Load sensing crossbeater | Start/stop fan
Optional equipment
Hydraulic bale clamp | Side extensions | Telehandler brackets | Skid steer bracket/plate | Tractor loader brackets
Tractor rear 3 point linkage brackets | Hydraulic oil filter
Handler / Tractor requirements (minimum)
* Oil flow at headstock. ** The hydraulic system requires a single acting valve with an unrestricted return. Maximum return line pressure: 20 bar (290psi).

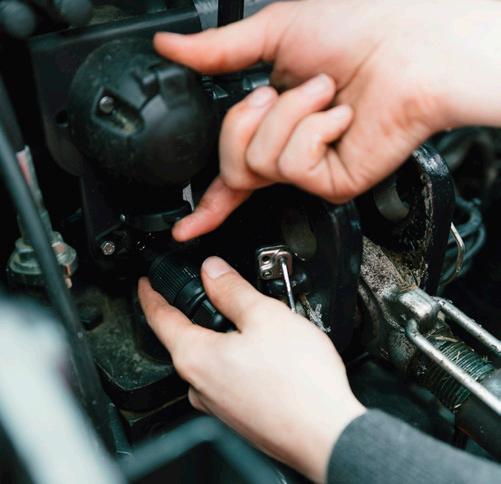

Electrical / Hydraulic
Electrical - In-cab Wi-Fi control box has a cigarette lighter connection. A cable is supplied to connect to the 6100 HyDrive direct to the vehicle battery.
OPTIONS

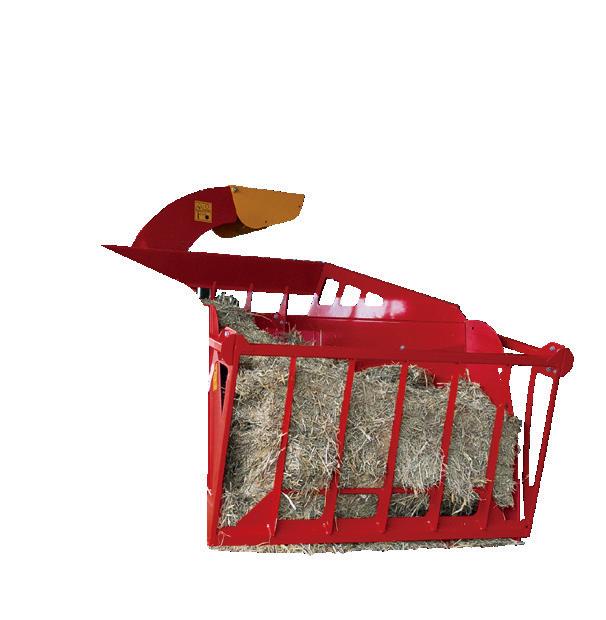

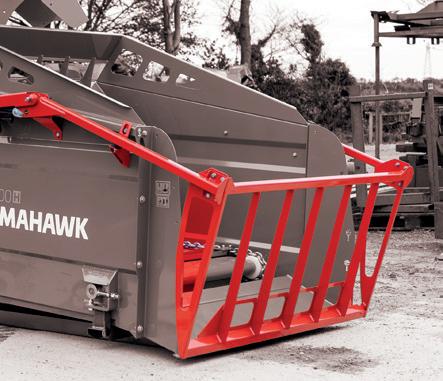

Bale clamp
Hydraulic lift/lower via in-cab tethered Wifi control box.
Side Extensions For extra capacity from the same compact bale processor.
Hydraulic - A 3/4" freeflow return is advised to optimise performance for high output users.

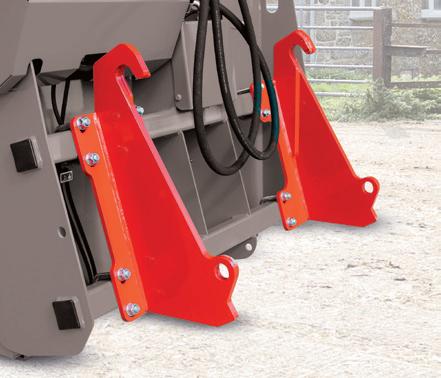

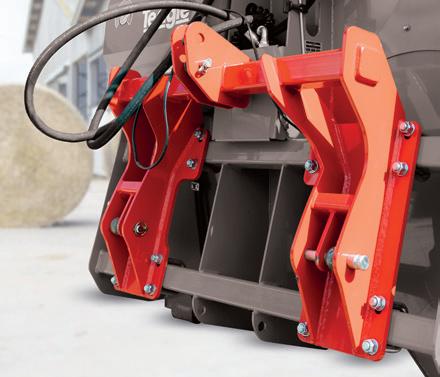

Tractor Bracket Is available to fit Category II and III linkages.
Telehandler / Skid Steer Bracket Are available for most Skid Steer, Telehandler and Pivot Steer models.
BEDDING

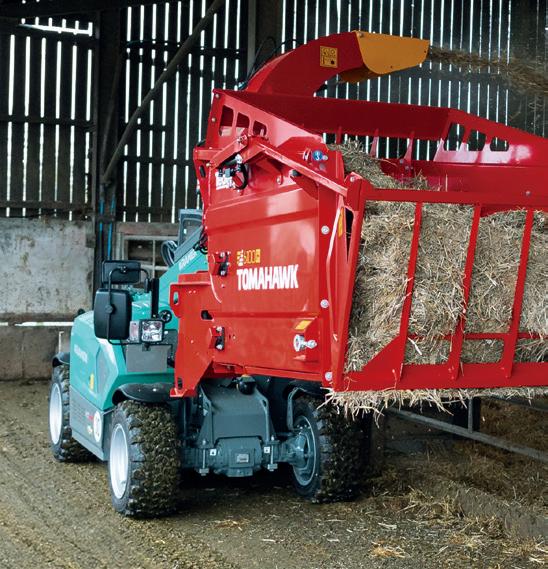

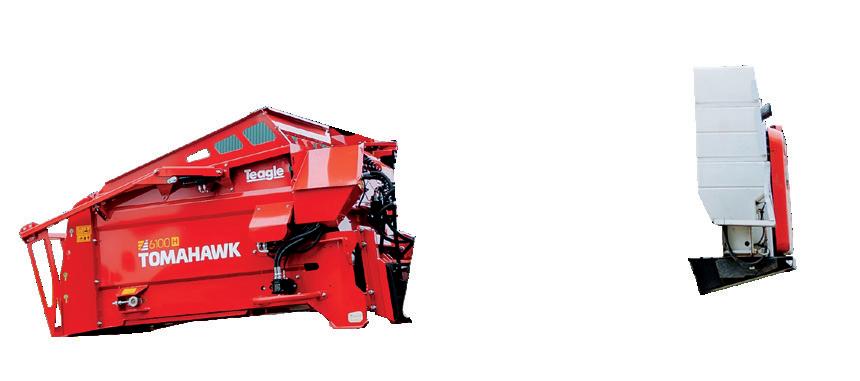

6200 HyDrive | Handler / Tractor

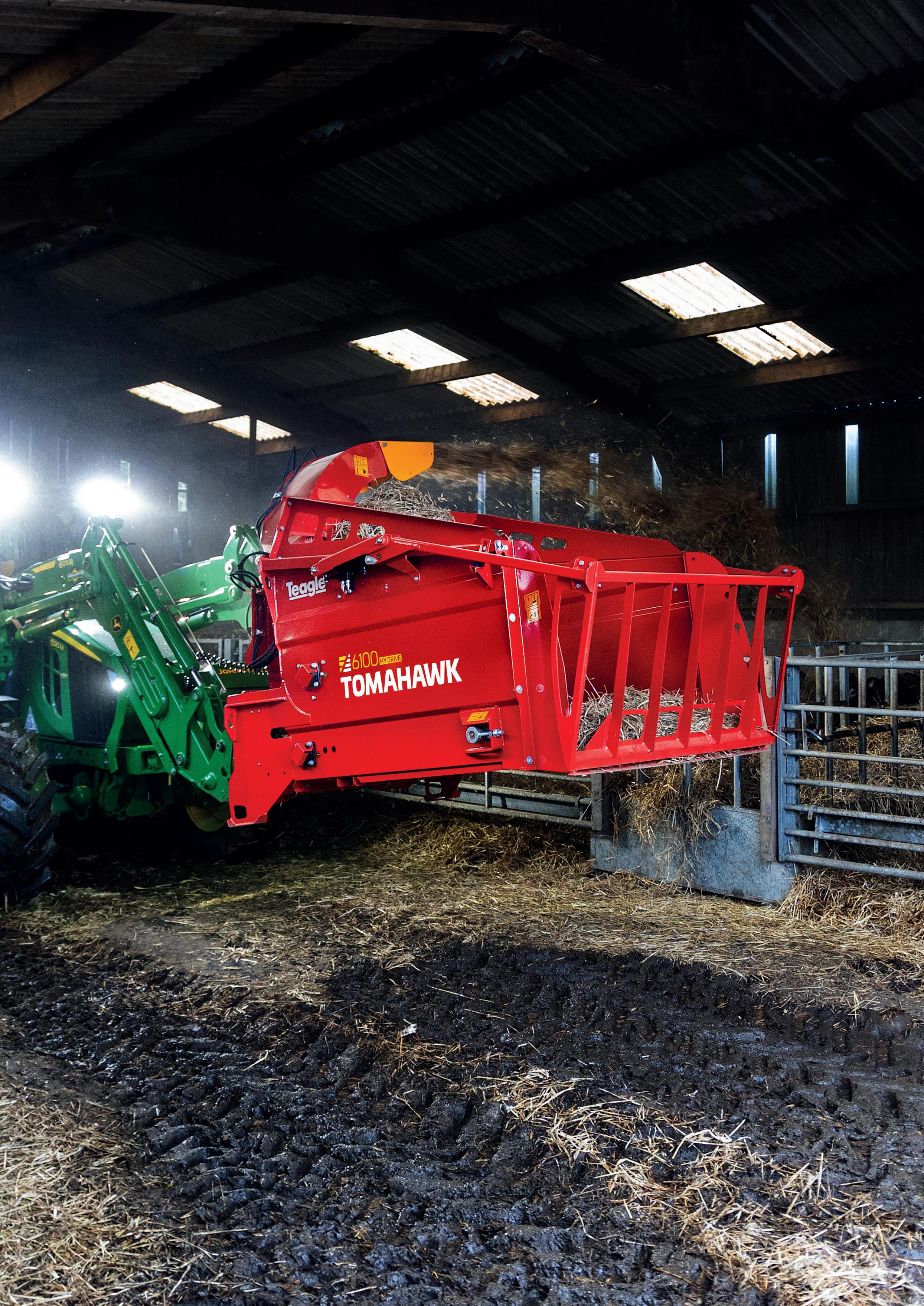

Access all areas with the handler mounted Tomahawk 6200 HyDrive. Front mounting offers unsurpassed visibility of the livestock when bedding down.
No PTO required! Quickly hitch up and connect hydraulic and electric supplies. The three-point tractor bracket allows the machine to be mounted either in front or behind the tractor.
Bale Processing - Simplified
Scan for VIDEO
Tractor Rear
6200 HyDrive | HANDLER / TRACTOR
TYPE SPREAD STRAW
Hydraulic drive powered to both fan & crossbeater.
Standard equipment
Electronic in-cab Wi-Fi controls | Swivel chute with 280° deg. rotation | Single crossbeater | Hydraulic loading gate
Load sensing crossbeater | Start/stop fan
Optional equipment
Hydraulic filter | LED road lighting kit | Blade kit | Ski-jump chute | Remote tailgate switch | Flow divider
Handler / Tractor requirements (minimum)
* Oil flow at headstock or back of tractor . ** The hydraulic system requires a single acting valve with an unrestricted return. Maximum return line pressure: 20 bar (290psi).
Electrical / Hydraulic
Electrical - In-cab Wi-Fi control box has a cigarette lighter connection. A cable is supplied to connect to the 6200 HyDrive direct to the vehicle battery.
OPTIONS
Ski Jump Chute
Hydraulically controlled and requires an auxiallary service. Designed for bedding pig arcs and mulching beneath fruit trees.

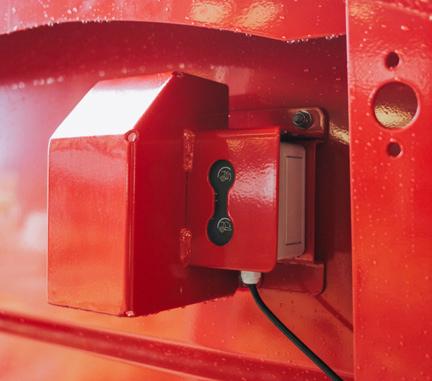

Loading Gate Switch
Control the loading gate and bed chain from the ground when loading with the remote loading gate switch.
Hydraulic - A 3/4" freeflow return is advised to optimise performance for high output users.

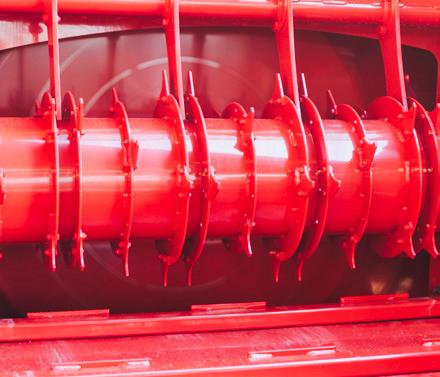

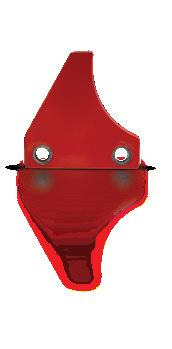

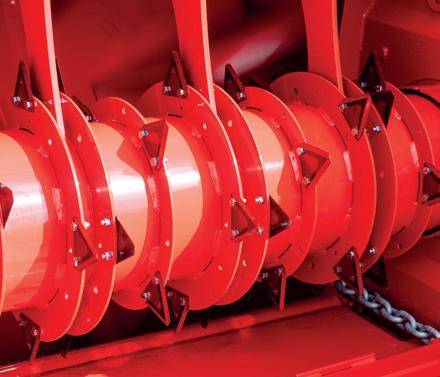

Blades or hooks
Hooks are fitted to the crossbeater as standard to minimise dust. Blades (shown above) available as an option for difficult materials.
Other • In-Line High Pressure Filter prevents contamination damaging the valve equipment. Options • Hydraulic Flow Divider

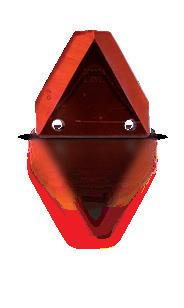

Road Lighting Kit
Essential for highway use, the rear markers ensure that you operate safely when travelling on the road.
BEDDING

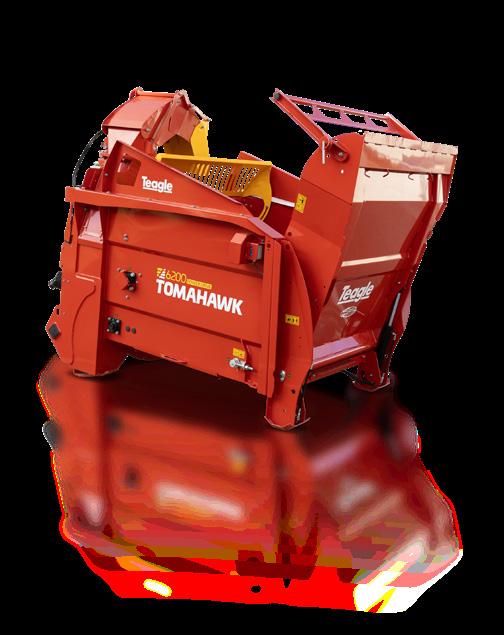

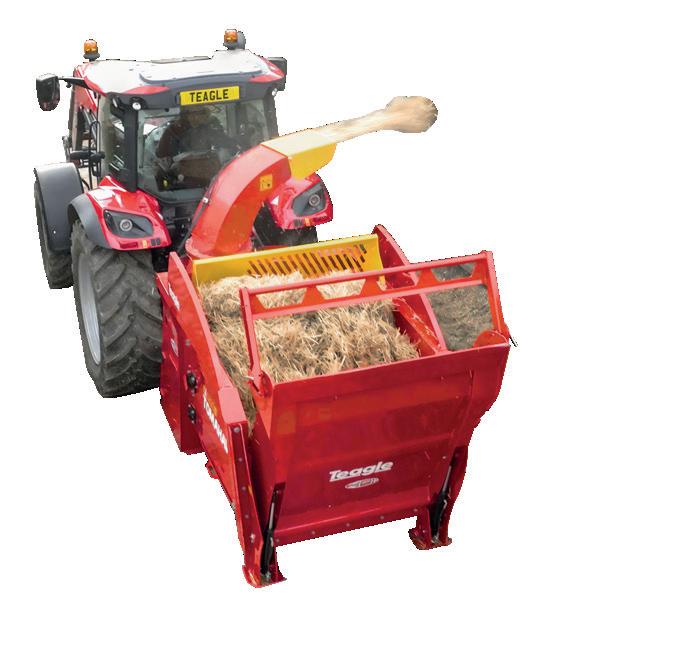

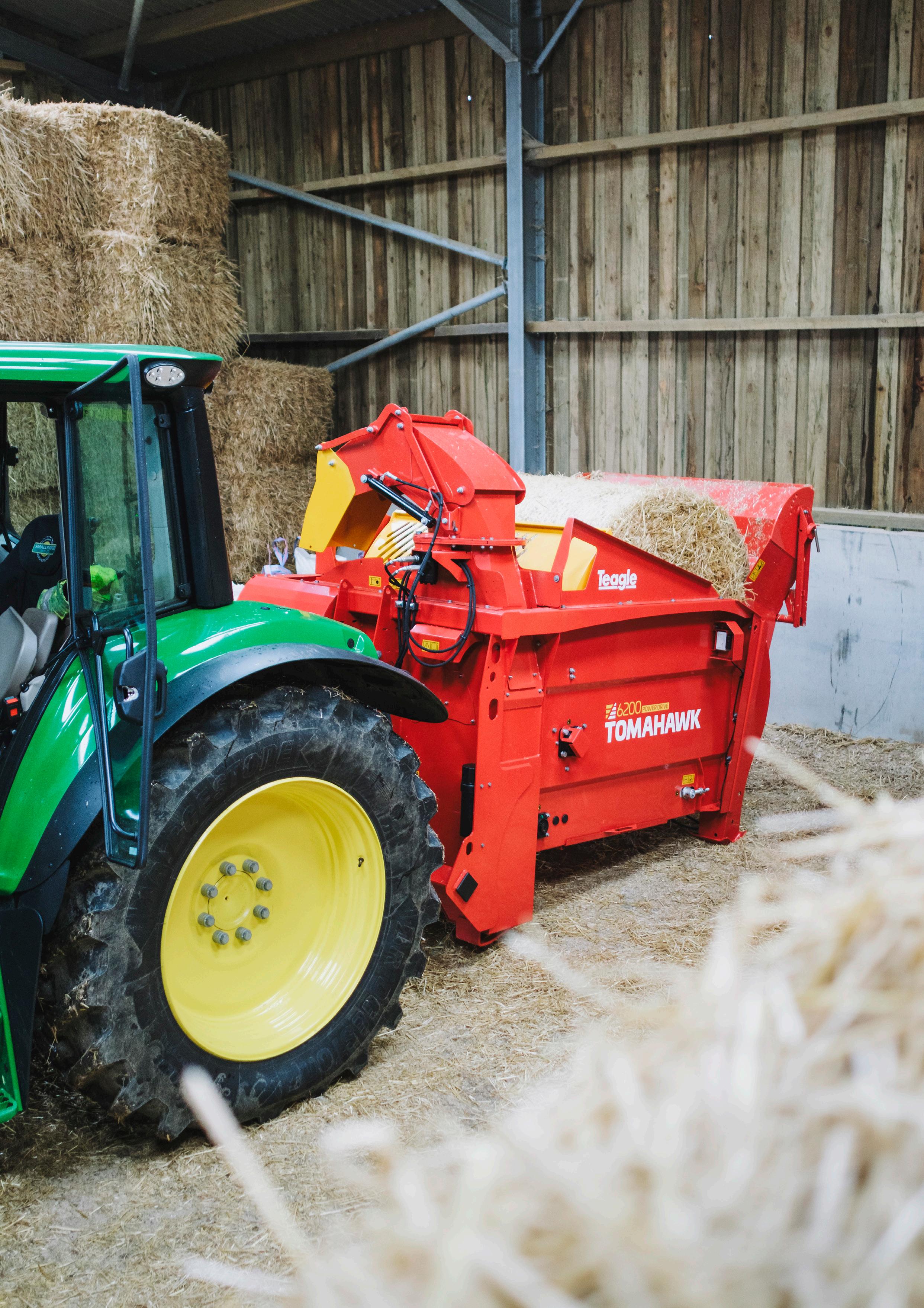

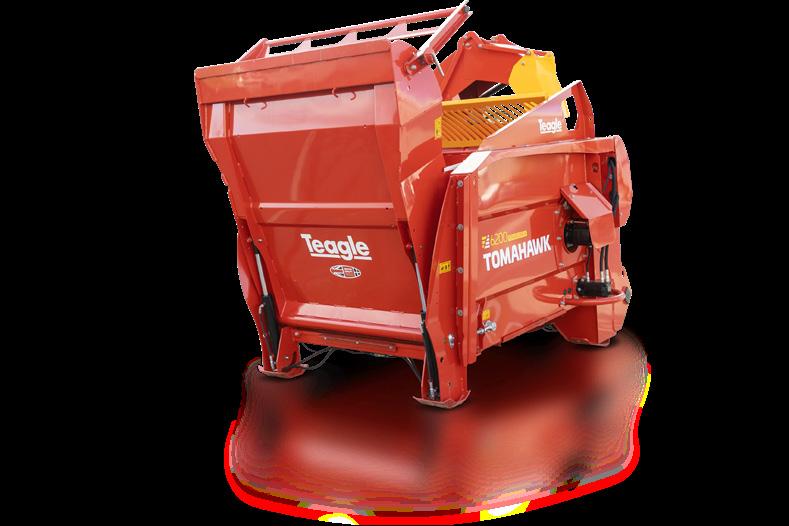

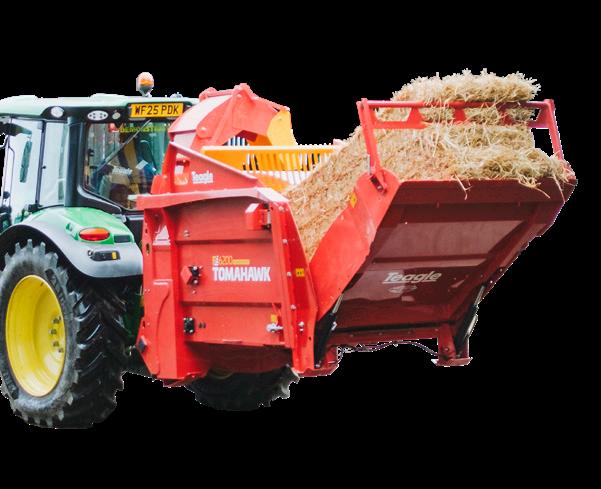

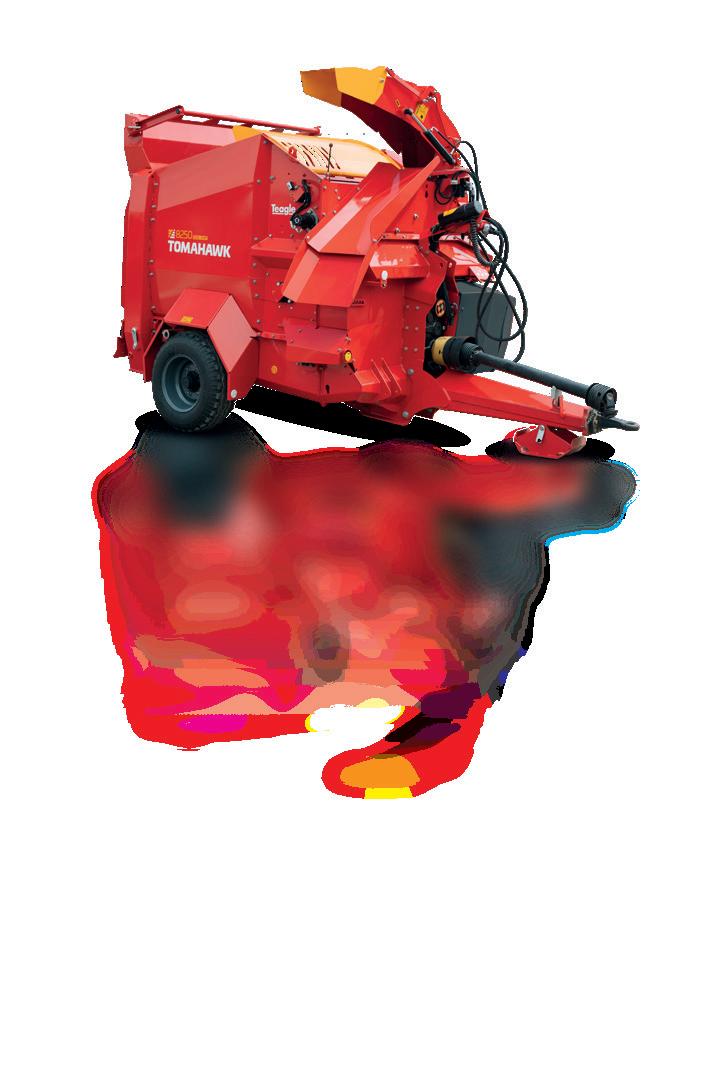

6200 Power Drive | Tractor

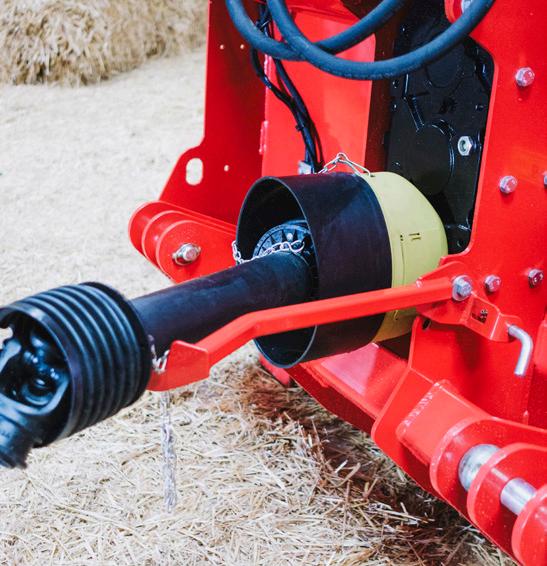

Perfectly suited to your tractor! Combine the Power of PTO fan drive, with the convenience of our latest hydraulic drive and control system for processing straw and dry hay bales.
Bale Processing - Simplified
6200 Power Drive | TRACTOR
TYPE SPREAD STRAW

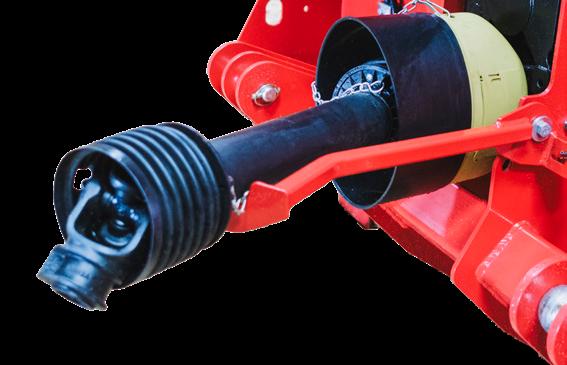

PTO drive fan for maximum blowing performance + hydraulic drive crossbeater for precise control.
Standard equipment
Electronic in-cab Wi-Fi controls | Swivel chute with 280° deg. rotation | Single crossbeater | Load sensing crossbeater | Shearbolt PTO
Optional equipment
Hydraulic filter | LED road lighting kit | Blade kit | 3-stage chute | Remote tailgate switch | Flow divider
STANDARD

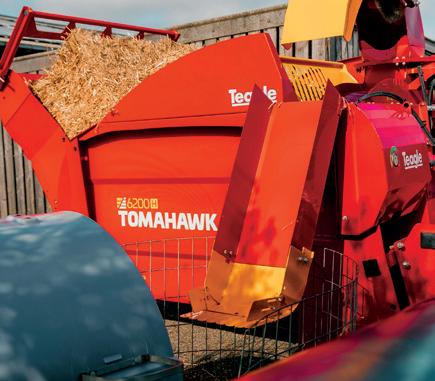

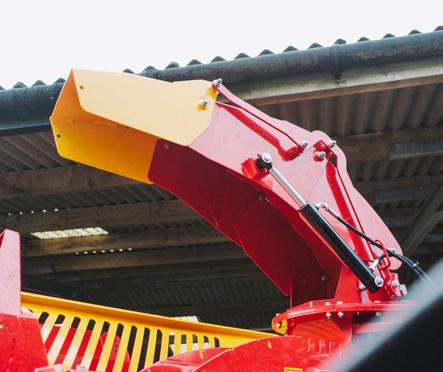

3-stage Chute
For accurate placement of processed bales, the machine is fitted with a 3 stage chute, with Hardox wearing surfaces.
Blades or hooks
Blades (shown above) are fitted as standard. Hooks are available as an option to minimise dust.
Electrical
In-cab Wi-Fi control box has a cigarette lighter connection. A cable is supplied to connect to the 6200 Power Drive direct to the vehicle battery.
OPTIONS
Loading Gate Switch
Control the loading gate and bed chain from the ground when loading with the remote loading gate switch.
Other • In-Line High Pressure Filter prevents contamination damaging the valve equipment.

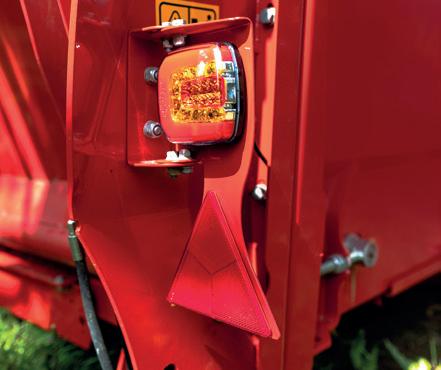

Road Lighting Kit
Essential for highway use, the rear markers ensure that you operate safely when travelling on the road.
customer REVIEW
bales manually, which was very time-consuming. After trying the Teagle Telehawk T2, we quickly saw the benefits. We tested it on a barn that normally required four bales but was nearly covered after just two, showing us, we would save significantly on straw.”
TELEHAWK T2
(NOW KNOWN AS THE 6200 HyDrive)
STRAW SAVING
“ James also highlights the machine’s efficiency: “The 280º swivel chute allows us to spread straw evenly while moving through the yard. The way the Telehawk teases apart the bales creates a more absorbent bed, leading to better manure consistency. The load-sensing mode prevents even the most challenging bales from jamming and keeps the straw flowing smoothly." He adds, “The Wifi controls are extremely convenient, staying in the telehandler cab all winter for easy access - one less thing to plug in and out."
James concludes, Thanks to the Telehawk, we’ve reduced our straw usage from 65 bales a week to just 45. I highly recommend giving this machine a try—it never left our farm after the demo.”

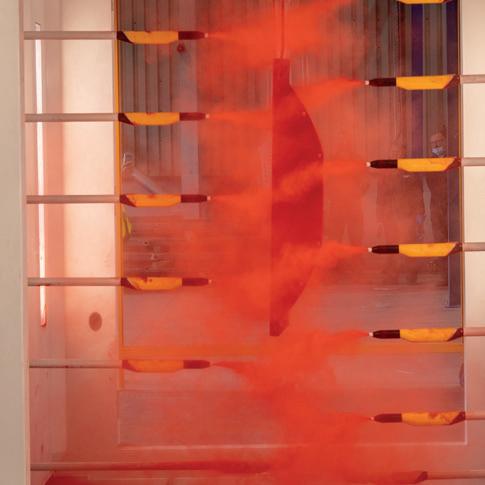

State of the art automated

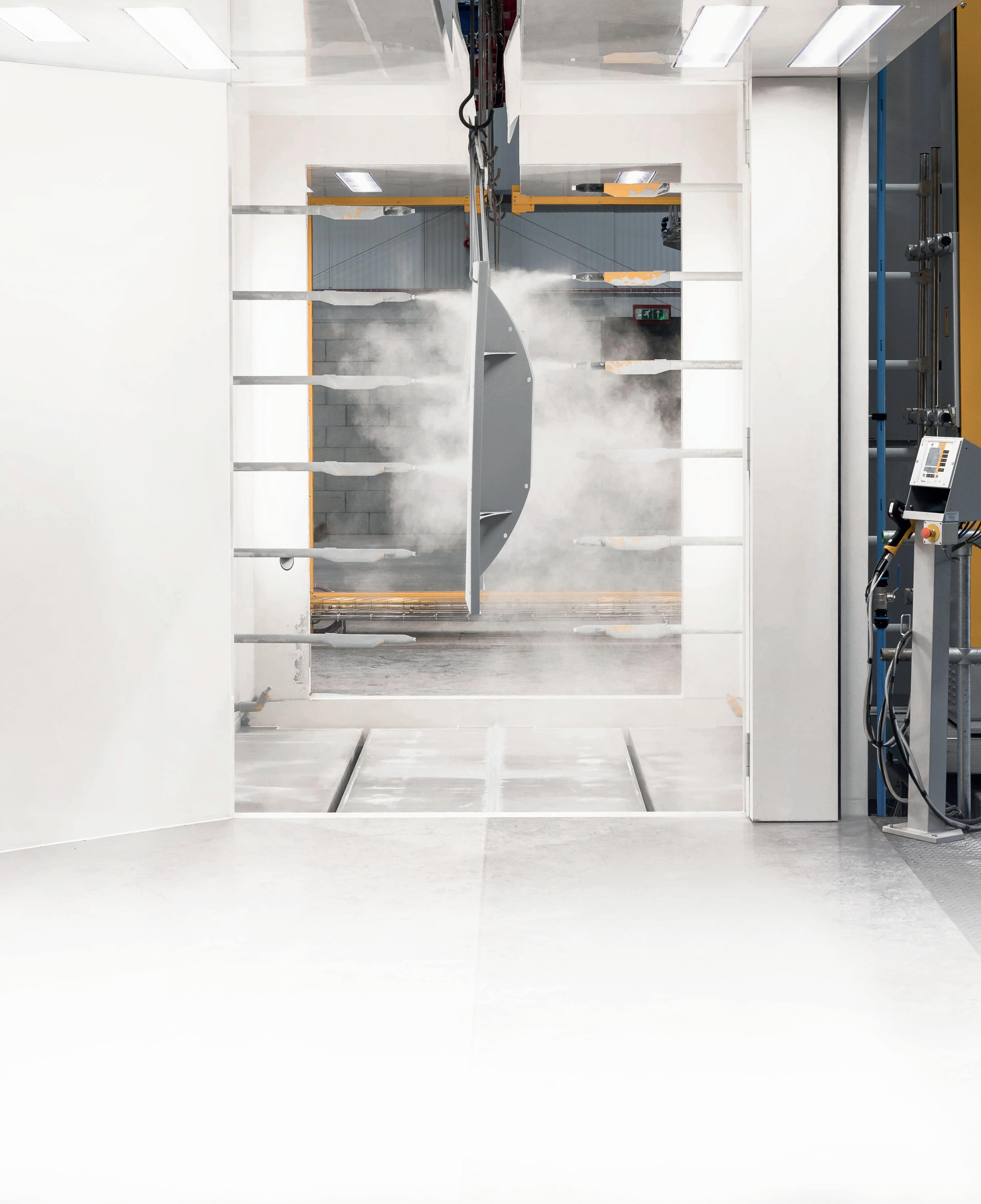

Primer Powder Booth

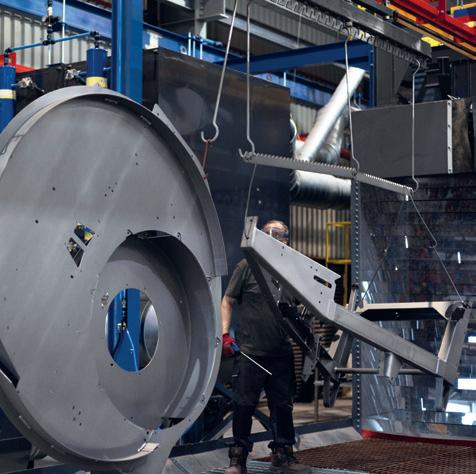

As part of our commitment to improving product quality, we have invested heavily into an ALL-NEW DOUBLE POWDER COAT PAINT LINE facility which became operational at the start of 2023.
Housed in a new purpose built 1,900m2 building, our new paint line replaces our previous single power coat line and delivers market leading paint quality.
The new system features state of the art automation through the following processes:
PAINT LINE investment
Shot blasting
Primer Powder Application
Green Cure Oven
Top Coat Powder Application
Final Cure Oven
Quality Inspection
The full powder recovery system cleans and recycles unused powder resulting in zero waste.
To improve paint adhesion, we have also invested further in our prepaint
processes, with parts cleaned and processed through a linishing machine, removing sharp edges and reducing the risk of paint failure on edges.
The result is a rounded edge, benefiting from two applications of powder coat paint which offers much greater protection from corrosion and chemical attack.

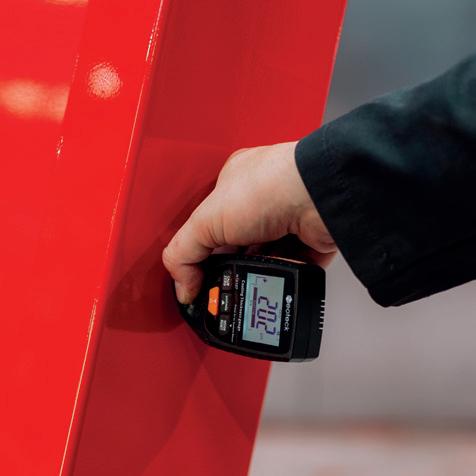

Our in-house quality control includes 1,000 hours of salt spray testing on sample parts to replicate a 10 year operating life.

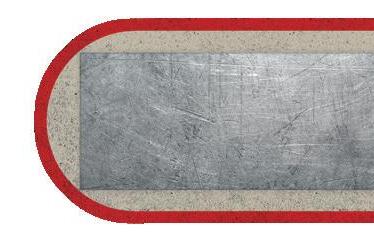

Right: Cross section of paint layers
SPECIFICATIONS
= standard machine = with bale clamp fitted
usable for round bale silage unless
The company’s policy is one of continuous improvement and development, therefore specifications are subject to change without prior notice. 8250 T 8500 SC 8555 SC 9500 9500 SC
With over 85 years experience in designing and manufacturing of agricultural machinery you can be confident when you choose Teagle.
Contact us today to discuss your individual requirements.
