MONTEL MULTI-FUNCTIONAL HIGH-DENSITY CULTIVATION SOLUTIONS

Discover new square footage you didn’t know you had and reap the benefits in terms of better service and more sales with Montel’s configurable, space-saving solutions. We’re the one-stop shop for all your agricultural growing needs.

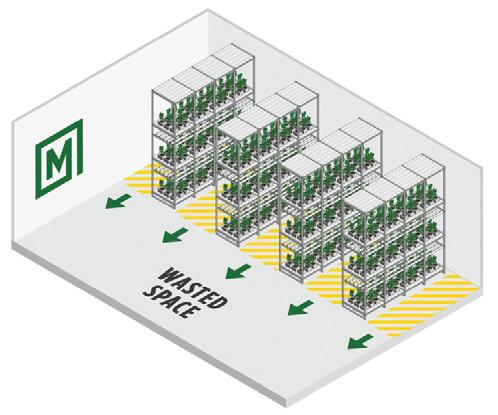

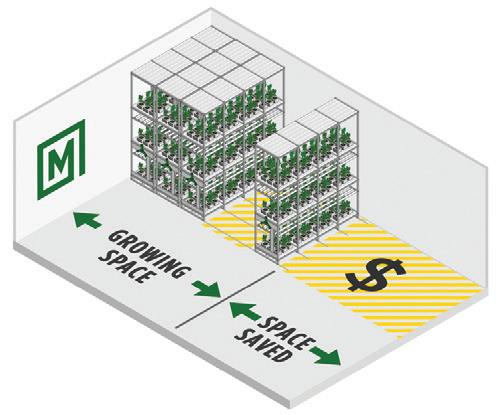

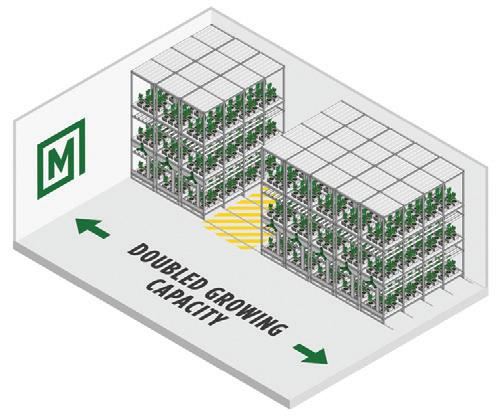

MONTEL HIGH-DENSITY GROWING SYSTEMS MAXIMIZE THE USE OF AVAILABLE SPACE, WHETHER TO INCREASE GROWING CAPACITY, FREE UP ROOM FOR GROW OPERATIONS, OR GET RID OF SPACE YOU DO NOT NEED TO PAY FOR.

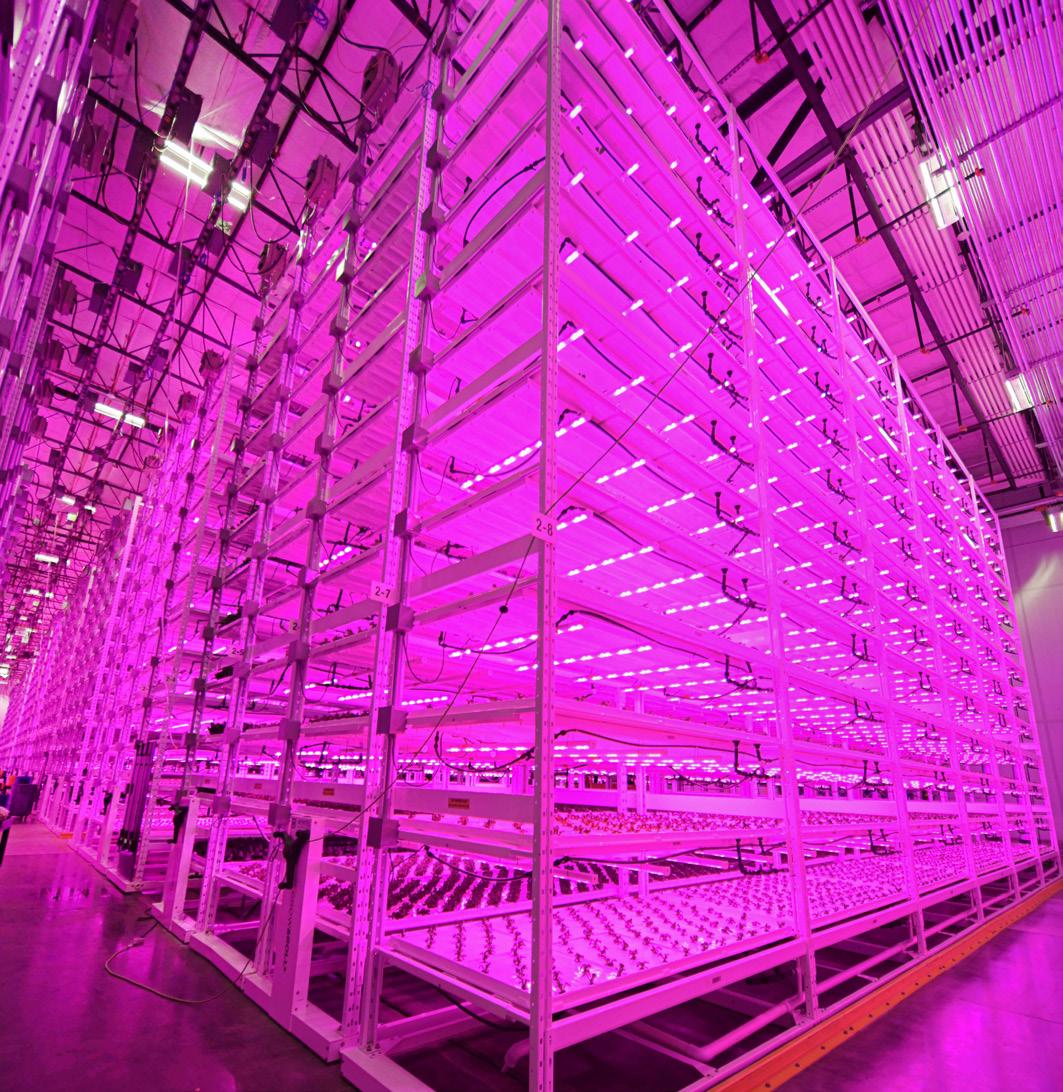

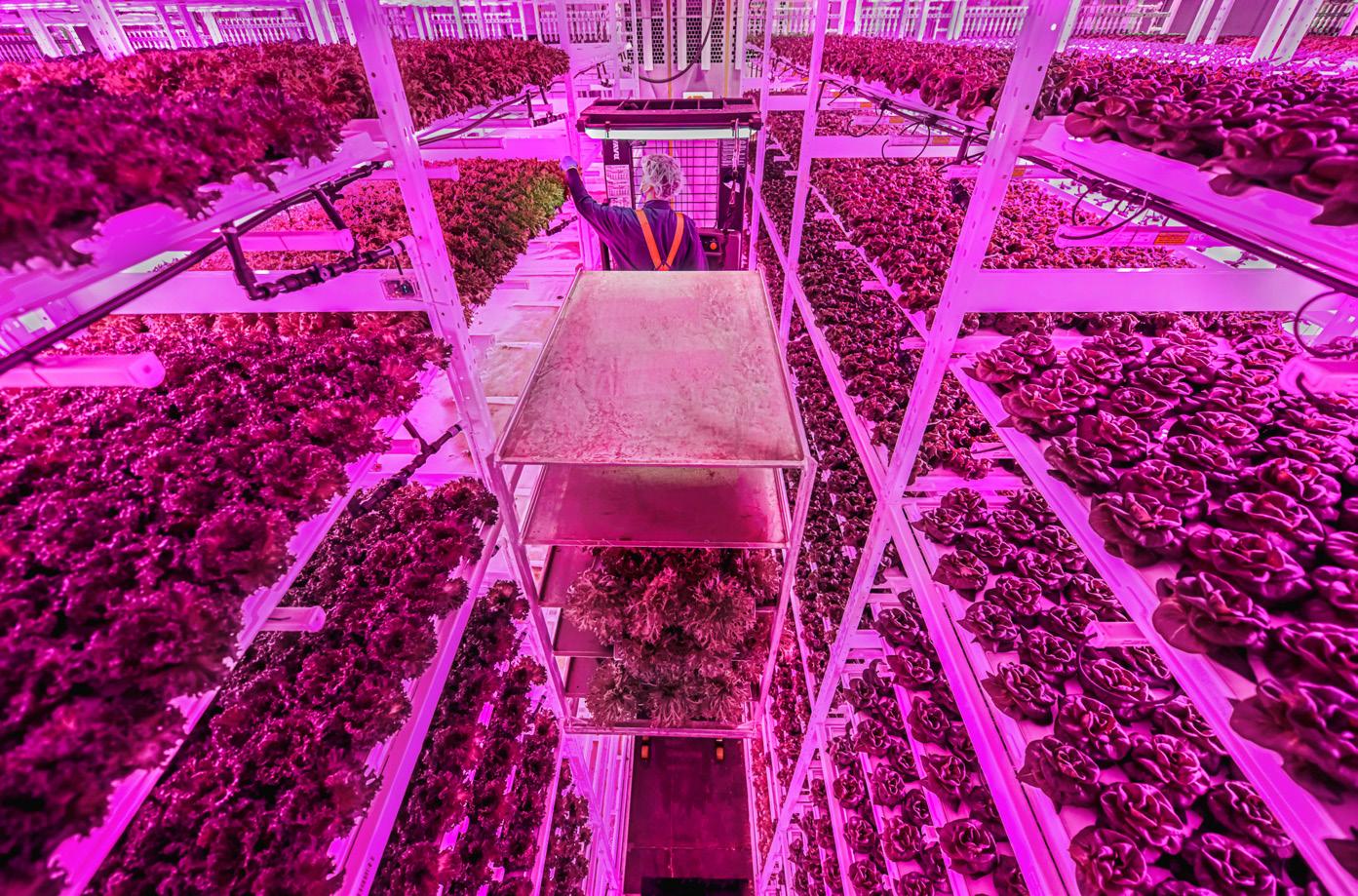

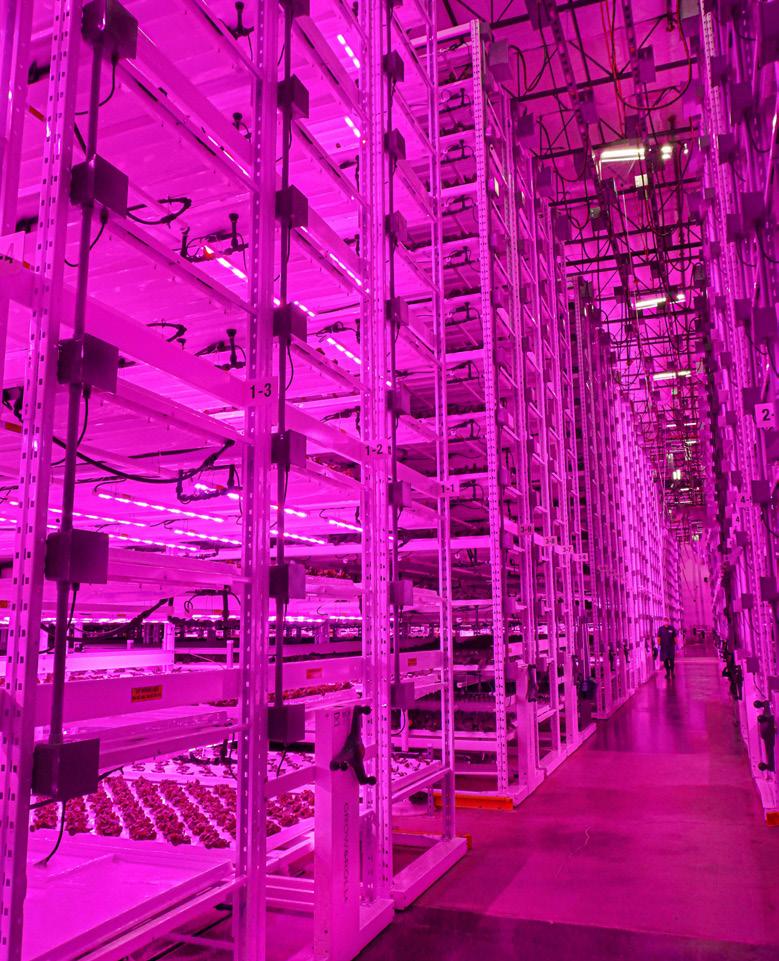

HIGH-DENSITY VERTICAL FARMING SYSTEMS

GreenRak 2.0 ®

MECHANICAL-ASSIST MOBILE CARRIAGE DIMENSIONS & LOAD CAPACITY

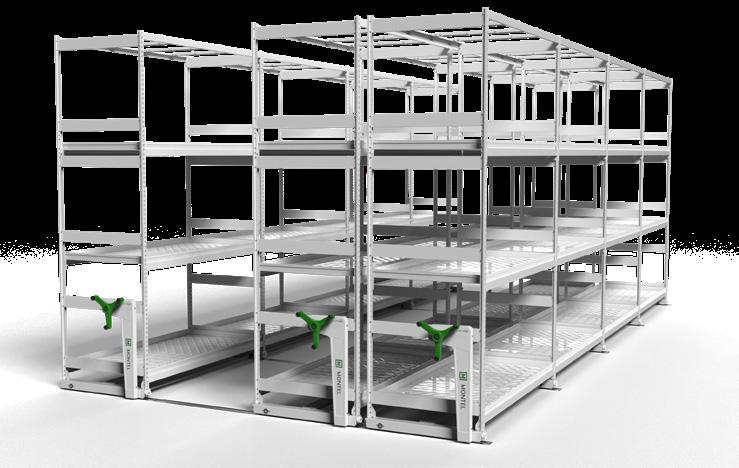

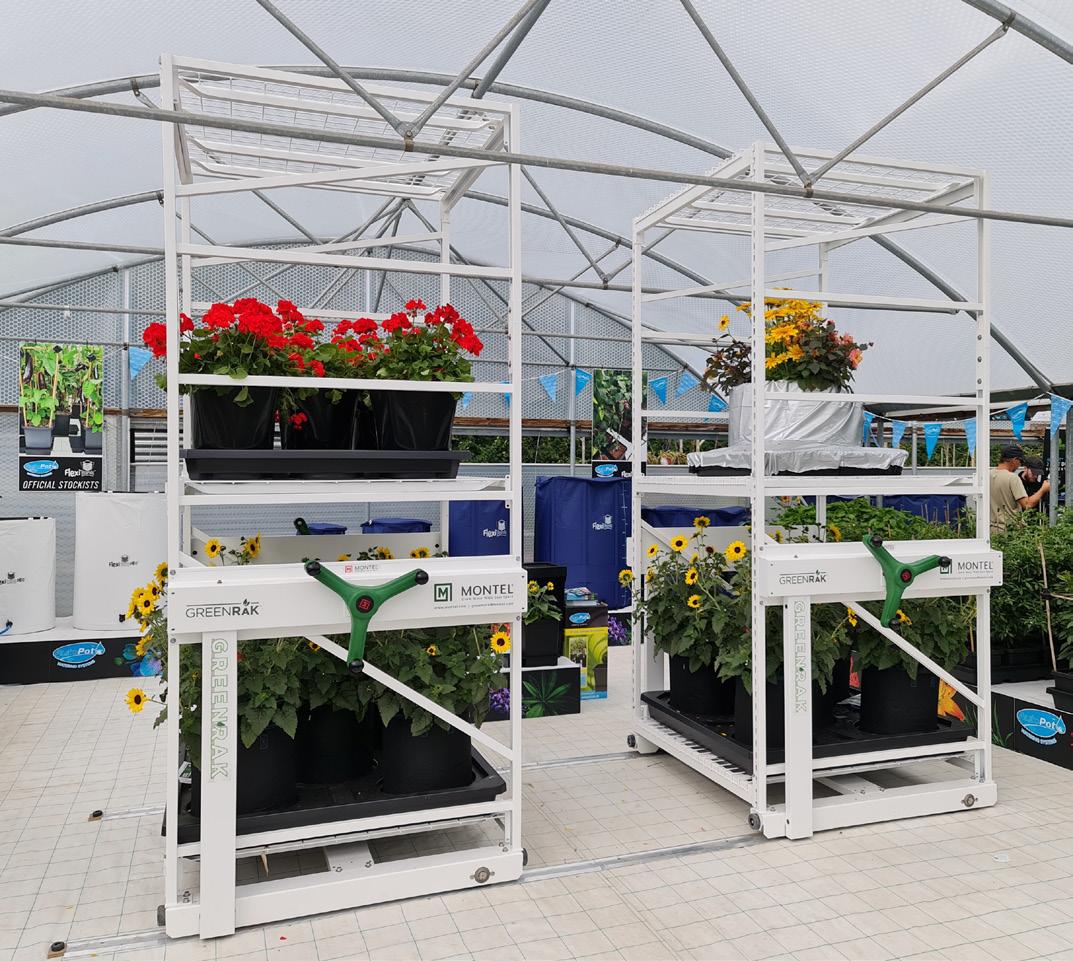

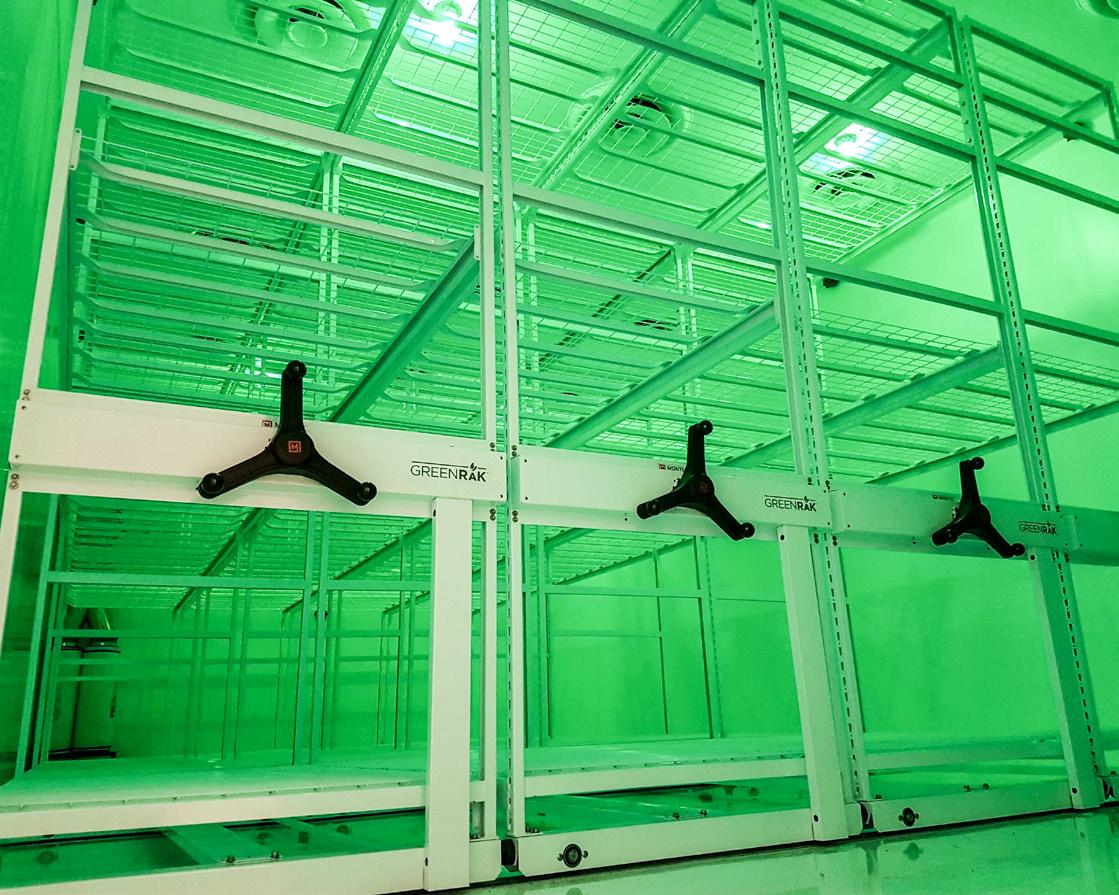

Developed specifically for your indoor grow operation, the GREENRAK® mobile system is lightweight, resistant to rust, and simple in design, which allows for easy installation, use, and maintenance.

Going from grow to grow, I saw many of the mistakes people make by shortcutting things and not creating the right environment to maximize your space. I come from a manufacturing background, and the utilization of space is paramount.

2.0 TM

Compatible with Montel’s GREENRAK®2.0 and GROW&ROLL® 8MA mobile grow systems.

Maximum Load Capacity Per Mobile Carriage: 18,000 lb (8,165 kg)

Maximum Load Capacity Per Bay: 2,400 lb (1,089 kg)

Maximum Carriage Length: 50’ (15.24 m)

Maximum Racking Height Mounted on Mobile Carriage: 20’ (6.1 m)

Note: Up to 23’ (7.01 m) high available if approved by Montel’s engineering department.

Michael Ward | CEO & Founder Harbor Farmz, Kalamazoo, Michigan

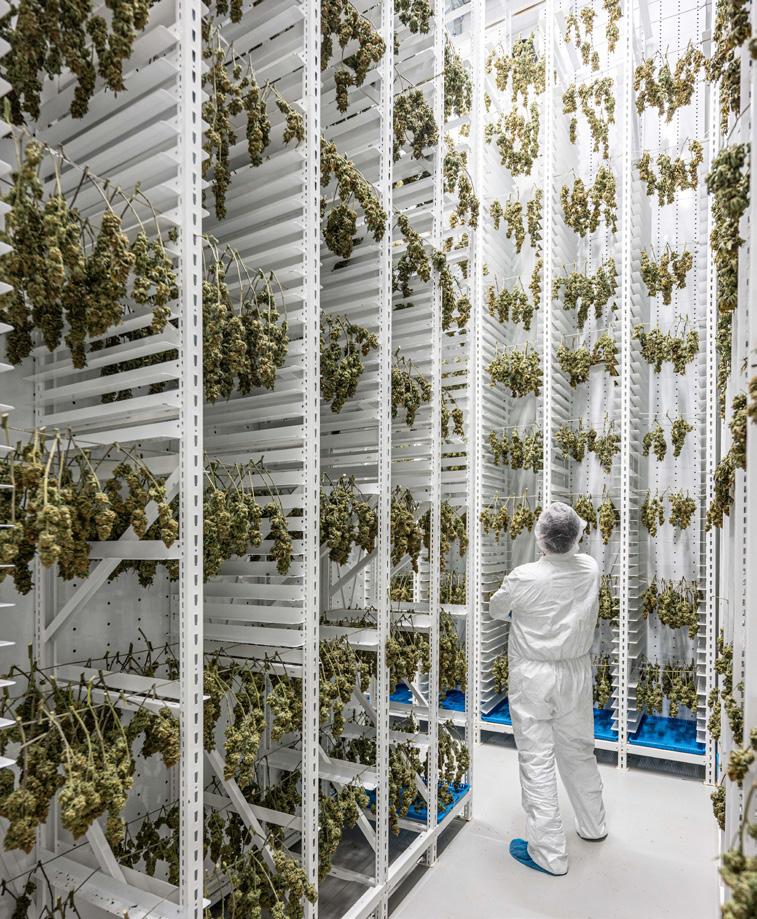

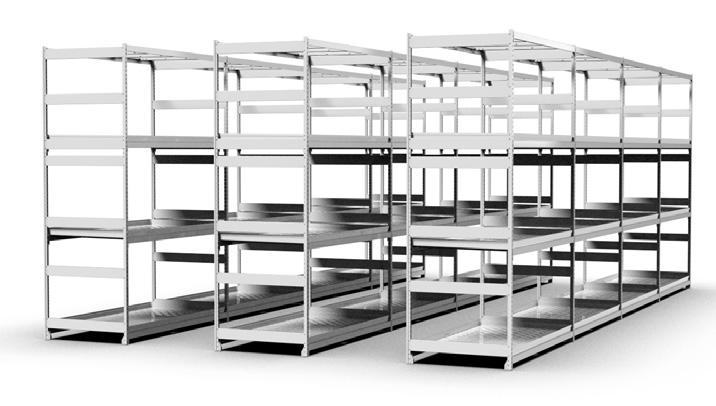

STATIC GROW RACK

Montel’s GROWRAK™ 2.0 was engineered with the vertical farming application mindset by improving corrosion resistance and flexibility. Its bolted design allows it to be fully customizable to free up space between frames at each level by providing plenty of clearance for better airflow, ventilation system ducts, lighting fixtures and enough spacing for oversize trays to pass through between frames.

EXPAND YOUR SYSTEM VERTICALLY ON-DEMAND

Upgrade your mobile system to a 2-tier, 3-tier, 4-tier or 5-tier system for flowering and vegetation rooms.

Up to 14-tier for microgreens, leafy greens, berries, etc

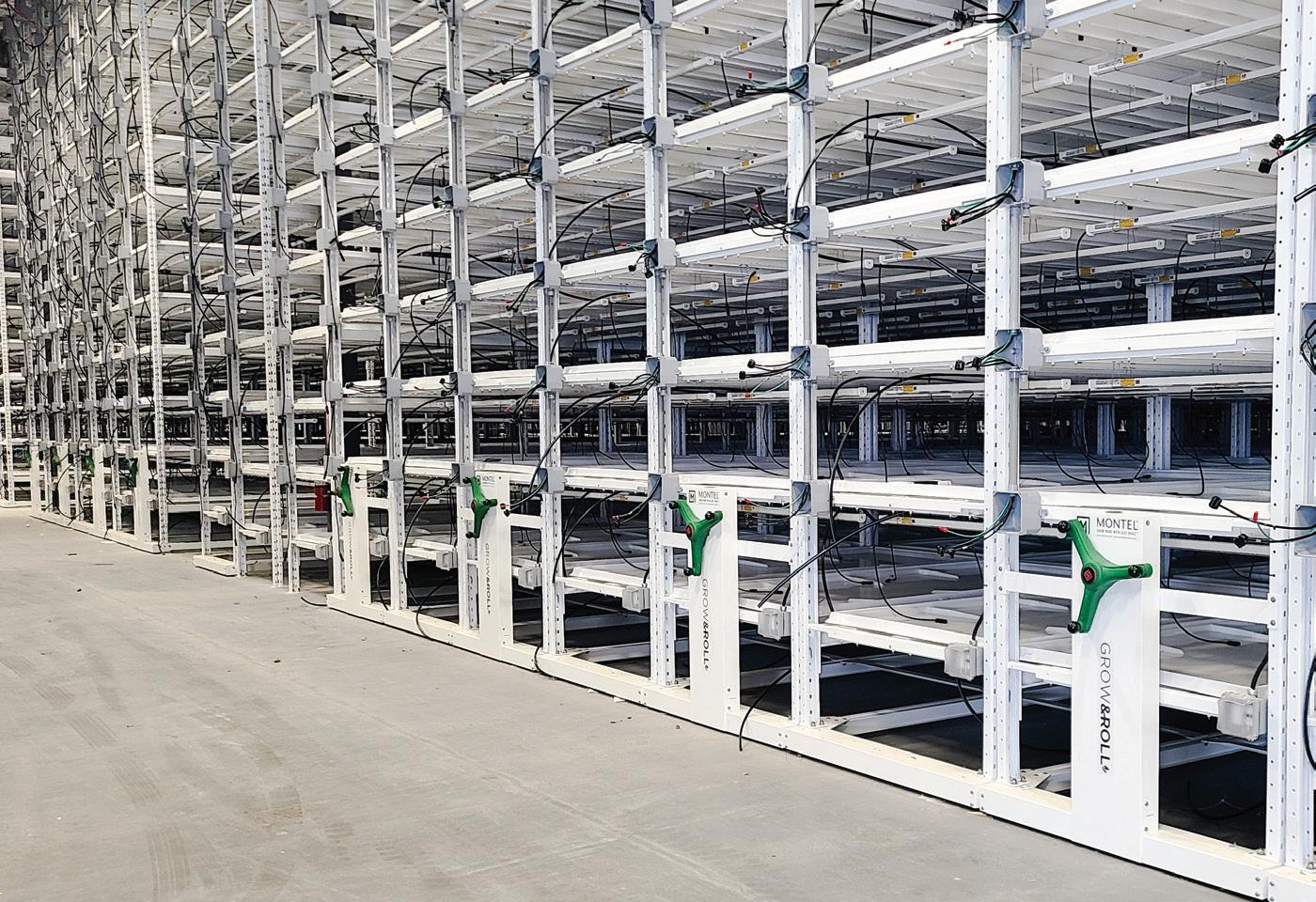

Grow&Roll ®

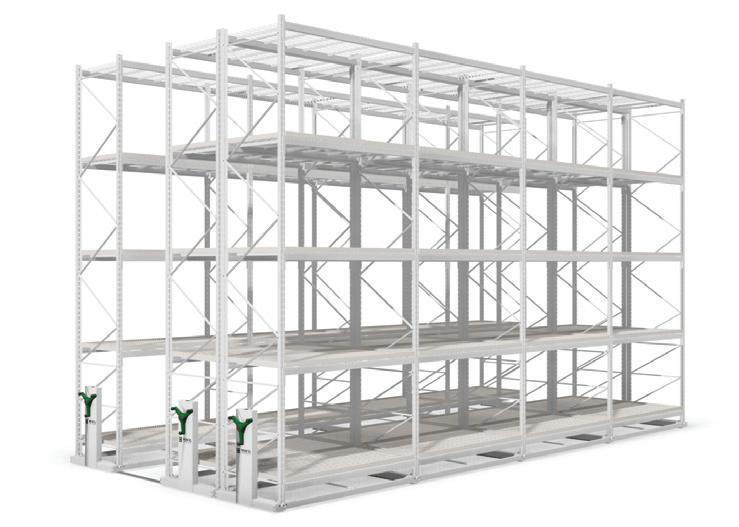

HEAVY-DUTY MECHANICAL-ASSIST MOBILE CARRIAGE

Grow even more with the GROW&ROLL® 8MA (mechanicalassist) mobile system, the heavy-duty version of Montel’s GREENRAK™. The GROW&ROLL® carriages can withstand up to 8,000 lb per bay (3,630 kg). With our SafeCrank technology, you can easily open up aisles and access your plants quickly.

DIMENSIONS & LOAD CAPACITY

Maximum Load Capacity Per Mobile Carriage: 24,000 lb (10,886 kg)

Maximum Load Capacity Per Bay: Up to 8,000 lb (3,629 kg)

Maximum Carriage Length: 50’ (15.24 m)

Note : 56’ (17.07 m) long carriages available if approved by Montel’s technical department

Maximum Racking Height Mounted on Mobile Carriage: 26’ (7.92 m)

Note: Racking higher than this requires approval from Montel’s technical department.

VERTICAL FARMING SOLUTIONS

GreenWalk TM SmartDrainTM LoopAir

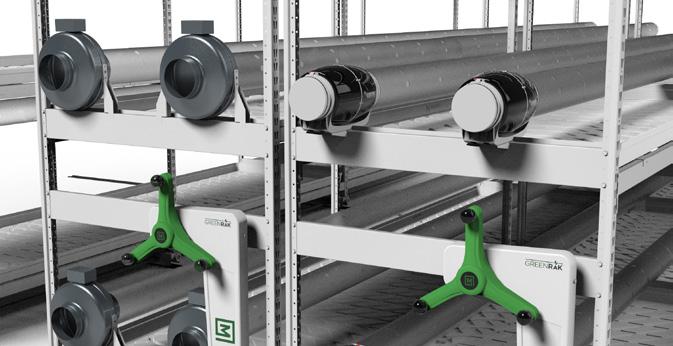

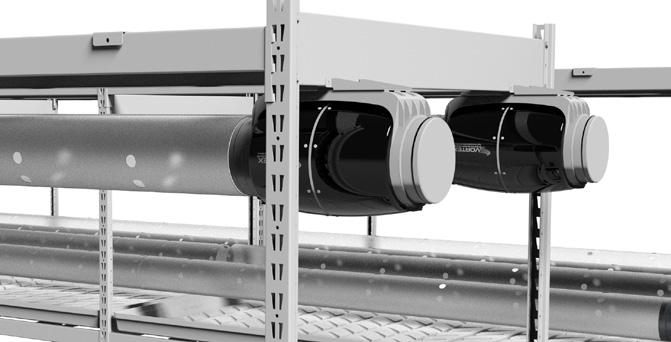

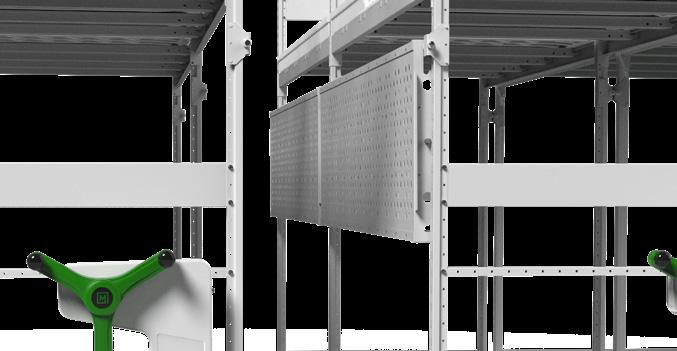

Montel’s patent-pending LoopAir®2.0 is the ideal air circulation solution for high-density mobile grow systems such as Montel’s GREENRAK®2.0, GROW&ROLL®8MA and GROWRAK™2.0 racking. This innovative solution distributing fresh air at all levels from the sides of the top or bottom, creating a stable environment for the plants to grow evenly. LoopAir®2.0 solves microclimate issues by regulating air flow, evaporation, and transpiration for each vertical tier.

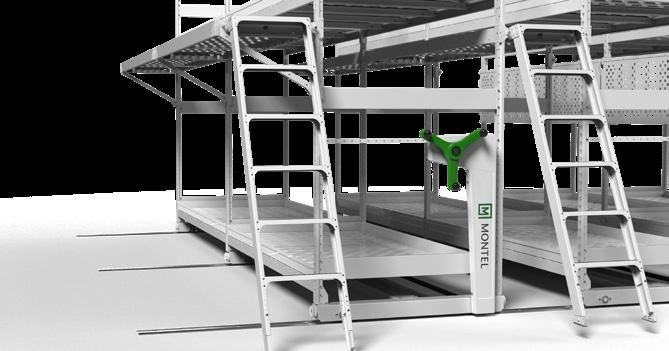

The superior choice for vertical farming growers, Montel’s patent pending GREENWALK™, an integrated catwalk system revolutionizing Montel’s high-density GREENRAK mobile system, empowering growers with unmatched safety, accessibility, efficiency, and adaptability.

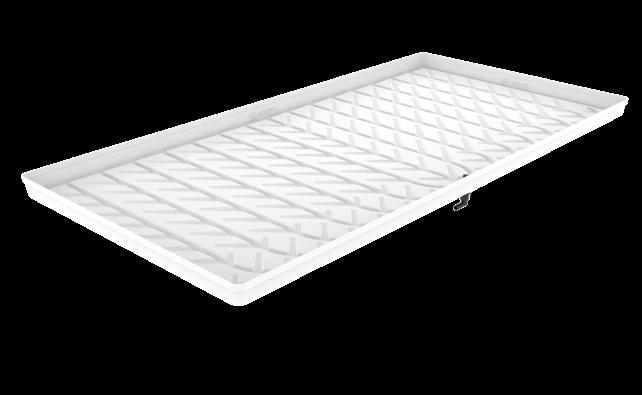

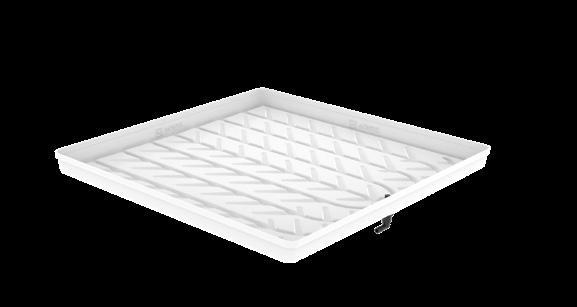

Montel’s SmartDrain™ Grow Trays feature an innovative channel pattern engineered to maximize the drainage flow and reduce any standing water while maintaining a sturdy construction to properly support the load of the plants. The material is FDA compliant and its smooth finish creates an easy-to-clean surface to minimize the time and effort put into the cleaning process. It is designed to be installed with a slope on Montel’s sloped tray supports for your Montel GREENRAK mobile grow system.
