Montel offers fully integrated, turnkey solutions tailored to the unique requirements of modern cannabis cultivation. From initial planning through to dispensary-ready systems, our solutions are crafted to optimize every square foot, enhancing efficiency and maximizing yield.

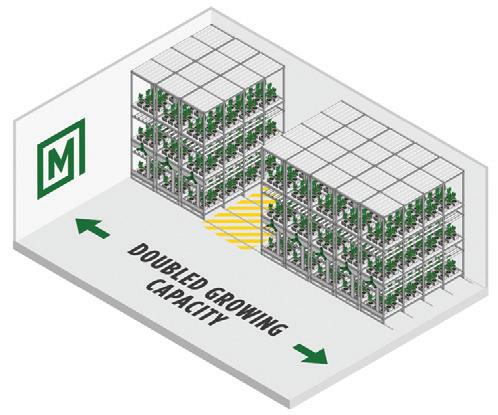

MONTEL HIGH-DENSITY GROWING SYSTEMS MAXIMIZE THE USE OF AVAILABLE SPACE, WHETHER TO INCREASE GROWING CAPACITY, FREE UP ROOM FOR GROW OPERATIONS, OR GET RID OF SPACE YOU DO NOT NEED TO PAY FOR.
VERTICAL FARMING SYSTEMS
CUSTOM MADE FOR YOUR NEEDS

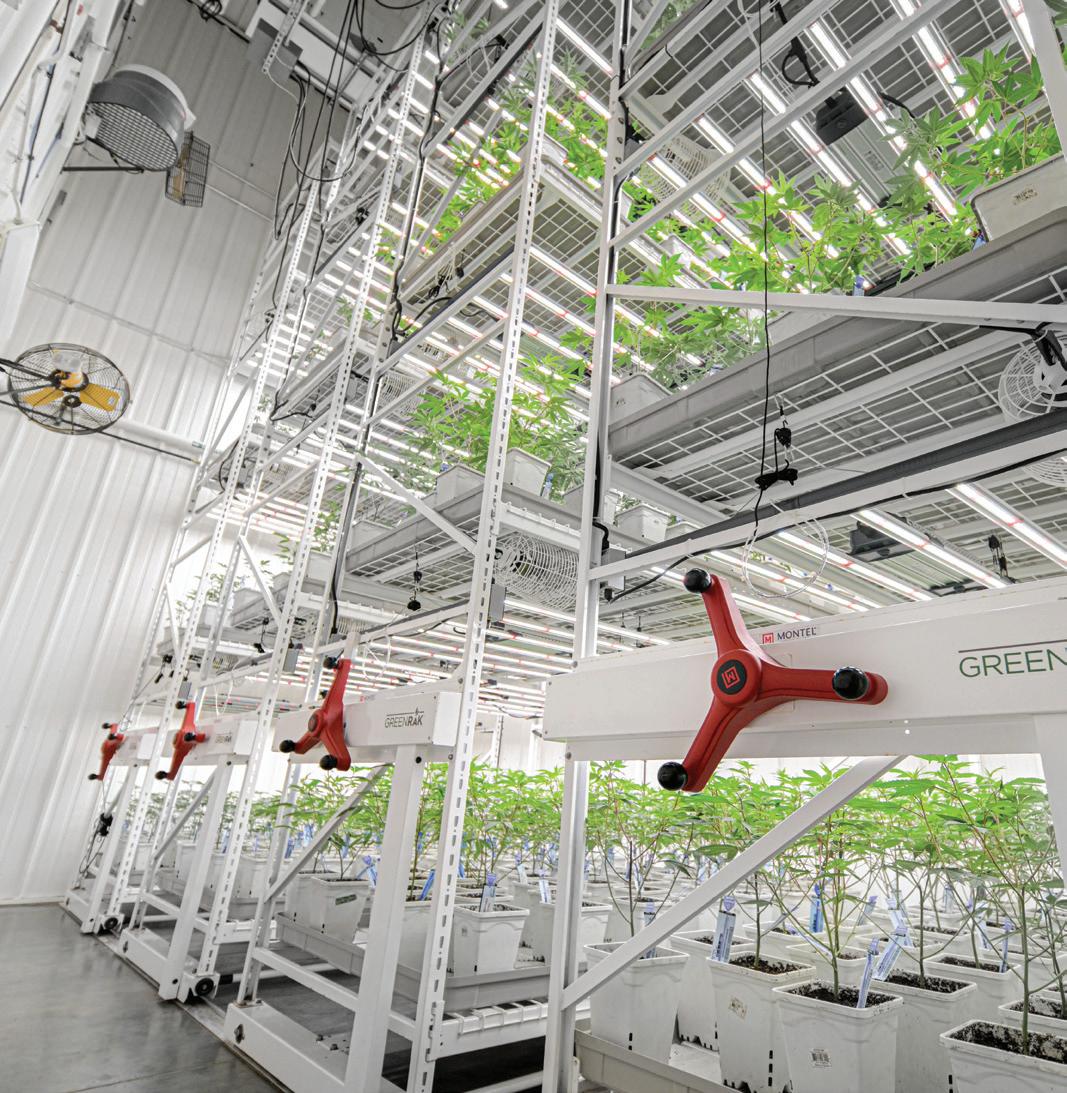

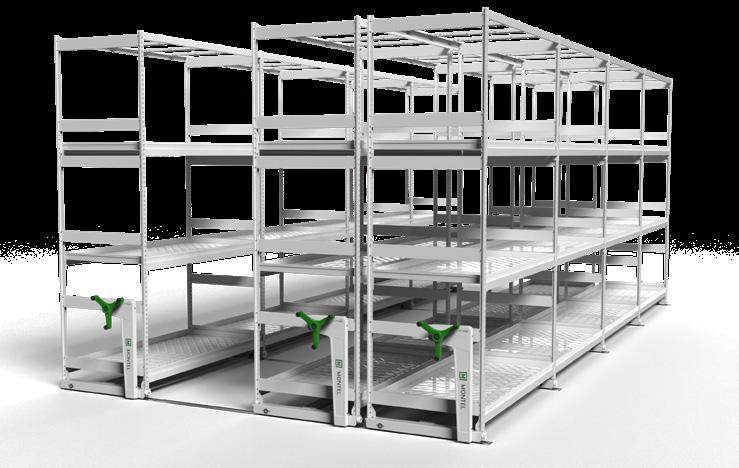

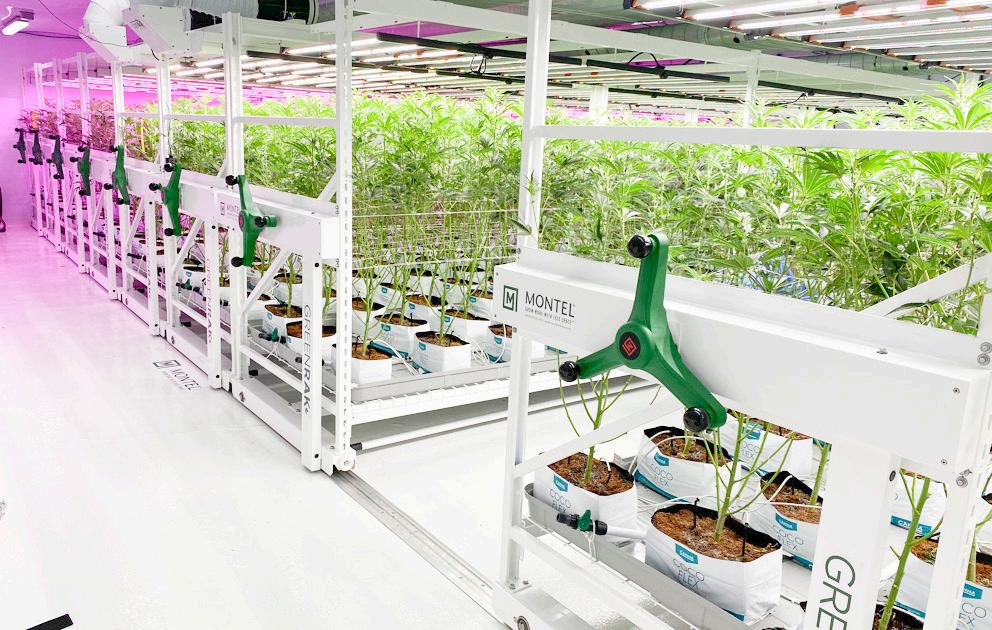

MECHANICAL-ASSIST MOBILE CARRIAGE

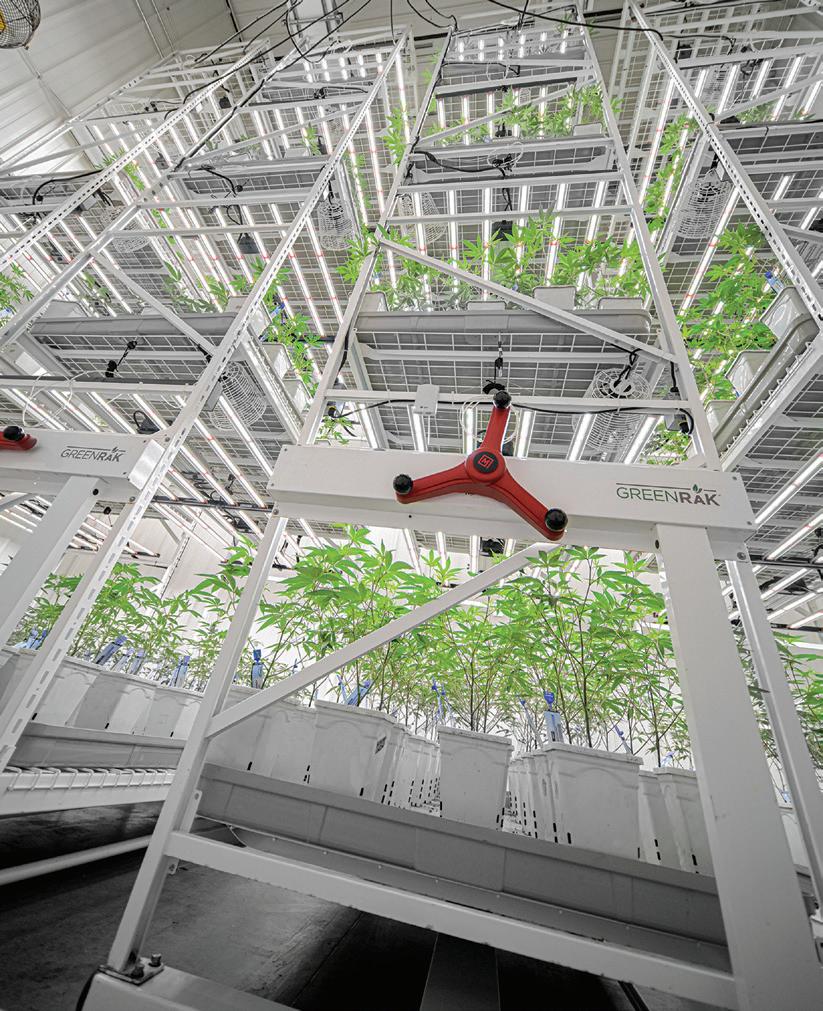

Developed specifically for your indoor grow operation, the GREENRAK® mobile system is lightweight, resistant to rust, and simple in design, which allows for easy installation, use, and maintenance.
DIMENSIONS & LOAD CAPACITY
Maximum Load Capacity Per Mobile Carriage: 18,000 lb (8,165 kg)
Maximum Load Capacity Per Bay: 2,400 lb (1,089 kg)
Maximum Carriage Length: 50’ (15.24 m)
Maximum Racking Height Mounted on Mobile Carriage: 20’ (6.1 m)
Note: Up to 23’ (7.01 m) high available if approved by Montel’s engineering department.
Going from grow to grow, I saw many of the mistakes people make by shortcutting things and not creating the right environment to maximize your space. I come from a manufacturing background, and the utilization of space is paramount.
Michael Ward | CEO & Founder Harbor Farmz, Kalamazoo, Michigan
Compatible with Montel’s GREENRAK®2.0 and GROW&ROLL® 8MA mobile grow systems.

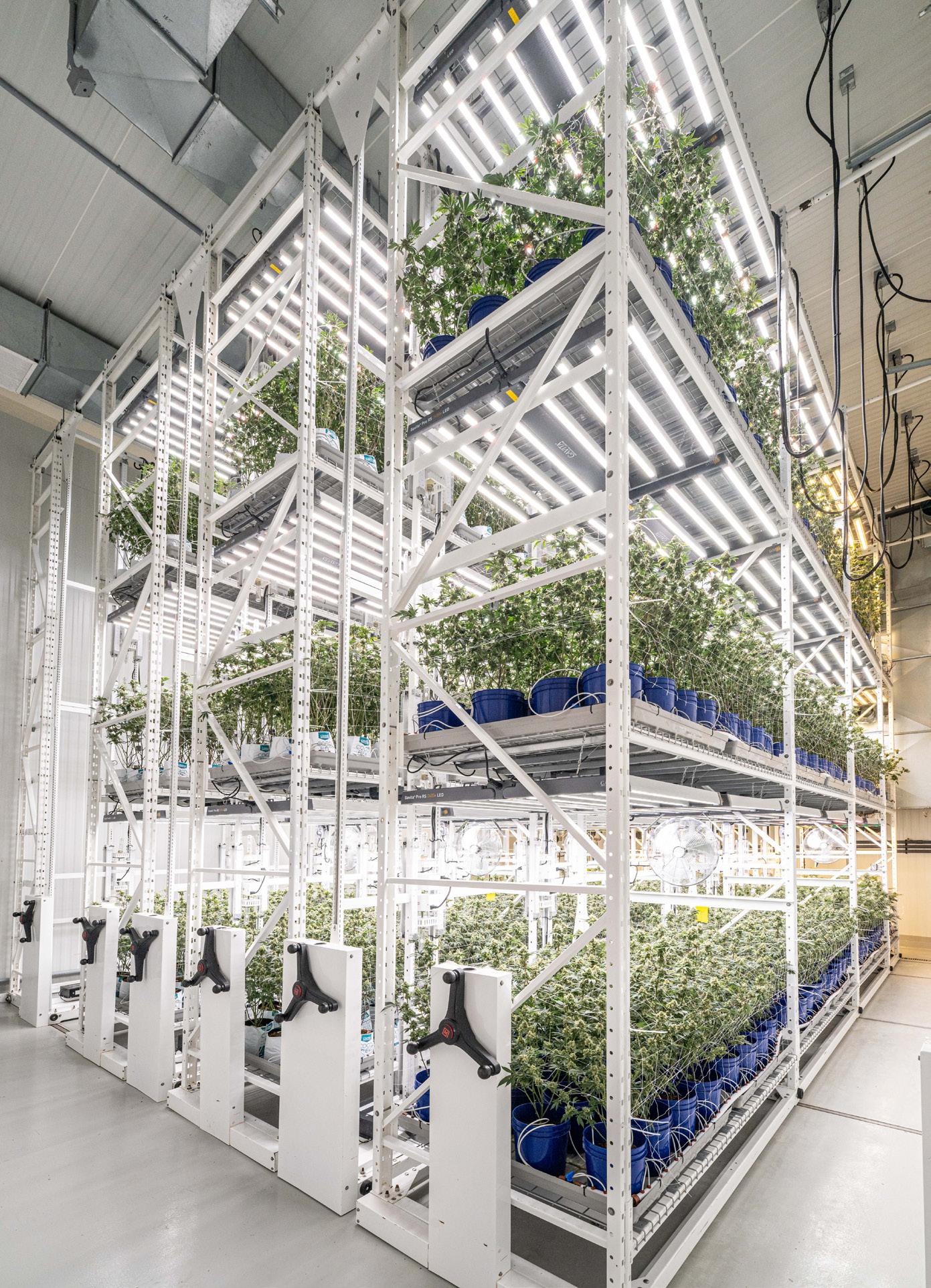

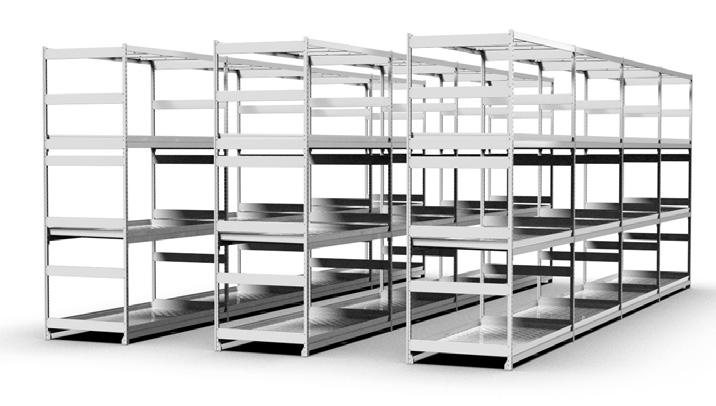

STATIC GROW RACK
Montel’s GROWRAK™ 2.0 was engineered with the vertical farming application mindset by improving corrosion resistance and flexibility. Its bolted design allows it to be fully customizable to free up space between frames at each level by providing plenty of clearance for better airflow, ventilation system ducts, lighting fixtures and enough spacing for oversize trays to pass through between frames.
EXPAND YOUR SYSTEM VERTICALLY ON-DEMAND
Upgrade your mobile system to a 2-tier, 3-tier, 4-tier or 5-tier system for flowering and vegetation rooms.
Up to 14-tier for microgreens, leafy greens, berries, etc

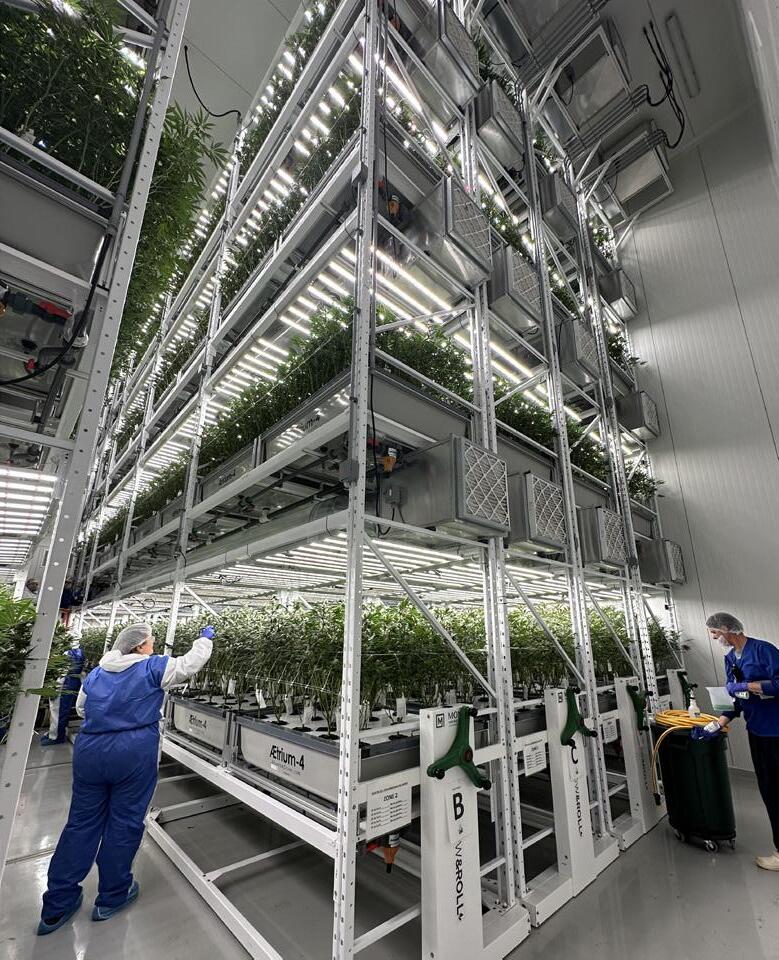

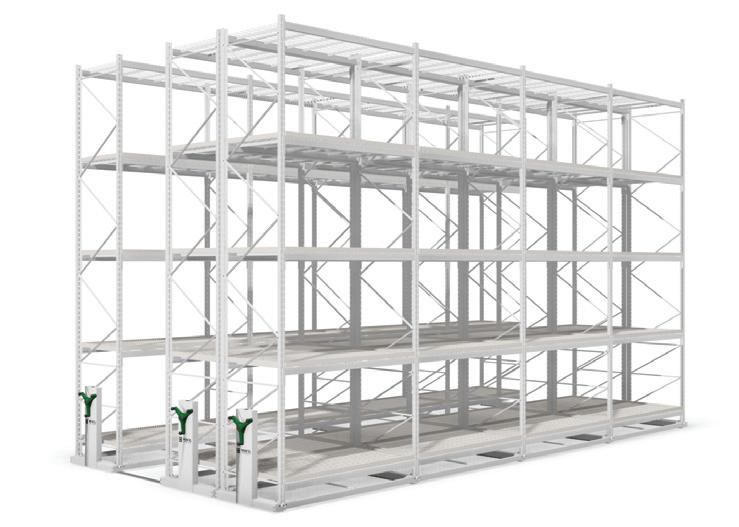

HEAVY-DUTY MECHANICAL-ASSIST MOBILE CARRIAGE
Grow even more with the GROW&ROLL® 8MA (mechanicalassist) mobile system, the heavy-duty version of Montel’s GREENRAK™. The GROW&ROLL® carriages can withstand up to 8,000 lb per bay (3,630 kg). With our SafeCrank technology, you can easily open up aisles and access your plants quickly.
DIMENSIONS & LOAD CAPACITY
Maximum Load Capacity Per Mobile Carriage: 24,000 lb (10,886 kg)
Maximum Load Capacity Per Bay: Up to 8,000 lb (3,629 kg)
Maximum Carriage Length: 50’ (15.24 m)
Note : 56’ (17.07 m) long carriages available if approved by Montel’s technical department
Maximum Racking Height Mounted on Mobile Carriage: 26’ (7.92 m)
Note: Racking higher than this requires approval from Montel’s technical department.
INTEGRATED EQUIPMENT TO STREAMLINE YOUR GROW OPERATION
GreenWalk
SmartDrain

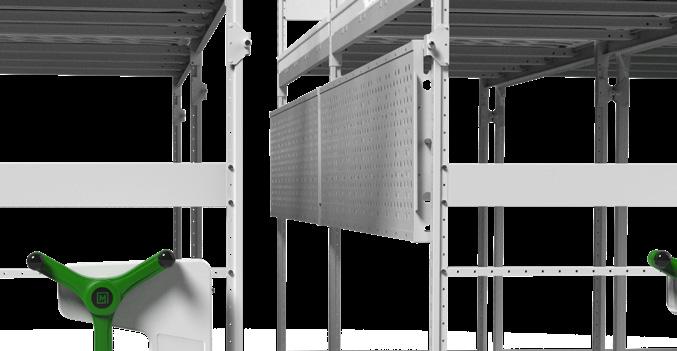

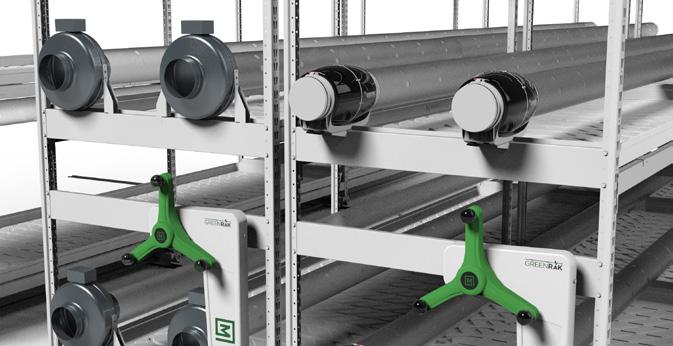

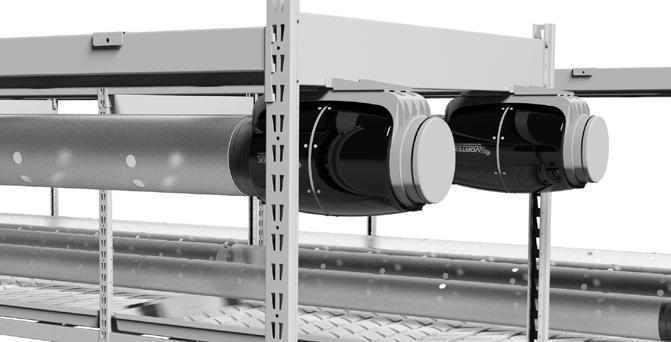

Montel’s patent-pending LoopAir®2.0 is the ideal air circulation solution for high-density mobile grow systems such as Montel’s GREENRAK®2.0, GROW&ROLL®8MA and GROWRAK™2.0 racking. This innovative solution distributing fresh air at all levels from the sides of the top or bottom, creating a stable environment for the plants to grow evenly. LoopAir®2.0 solves microclimate issues by regulating air flow, evaporation, and transpiration for each vertical tier.
DIMENSIONS
Diameters 6", 8" Length
Thickness 0.004"

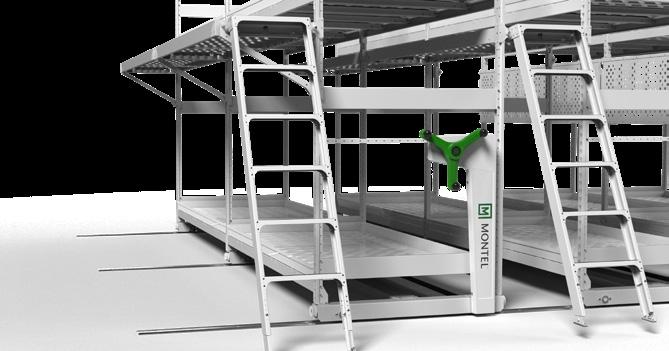

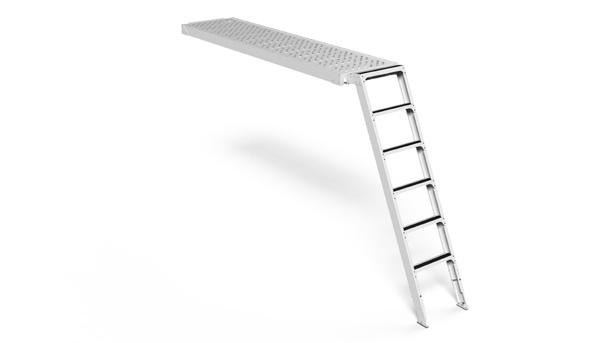

The superior choice for vertical farming growers, Montel’s patent pending GREENWALK™, an integrated catwalk system revolutionizing Montel’s high-density GREENRAK mobile system, empowering growers with unmatched safety, accessibility, efficiency, and adaptability.
DIMENSIONS
Lenght: 4’, 8’ (1.2 m, 2.4 m)
Width: 23’’ (58.4 cm)
Weight Capacity: 650 lbs per 8’ section (295kg per 3.4m section)
Step Ladder: 3’ to 10’ (0.9m to 3.0m)

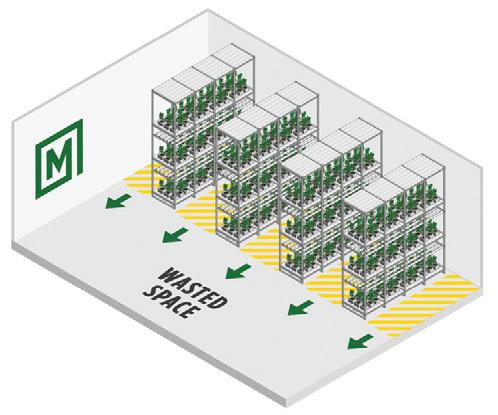

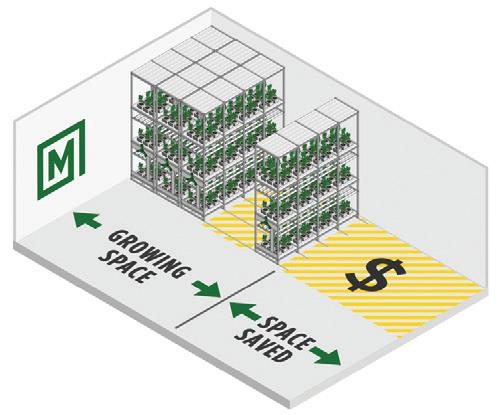

WHY HIGH-DENSITY VERTICAL FARMING SYSTEMS?

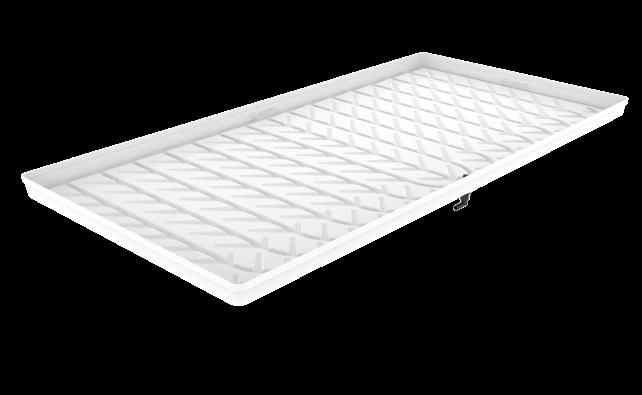

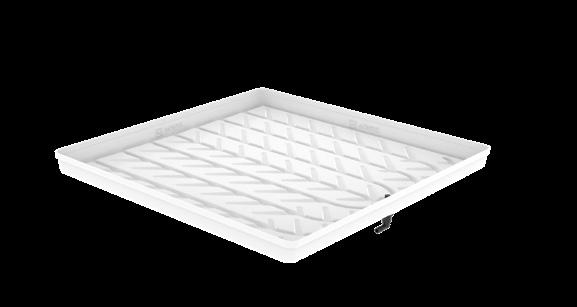

Montel’s SmartDrain™ Grow Trays feature an innovative channel pattern engineered to maximize the drainage flow and reduce any standing water while maintaining a sturdy construction to properly support the load of the plants. The material is FDA compliant and its smooth finish creates an easy-to-clean surface to minimize the time and effort put into the cleaning process. It is designed to be installed with a slope on Montel’s sloped tray supports for your Montel GREENRAK mobile grow system.
DIMENSIONS
Width: 48’’, 96’’ (1.2 m, 2.4 m)
Depth: 48’’ (1.2 m)
Height: 3.5’’ (89 mm)
Weight: 11 lbs, 26 lbs (5.0 kg, 11.8 kg)
We set quality at a highest point. So we wanted the same for our equipment.
