Preserving More Than a Century of Automotive History

For over 100 years, Sykes-Pickavant has been designing and supplying specialist automotive tools to workshops around the world. Throughout that time, every catalogue, brochure and product guide has documented not only our products, but also the changing face of the automotive industry.

The SP Archive is an ongoing project dedicated to preserving this history. Thousands of historic catalogues, products, photographs and documents have been carefully collected, restored and digitised, creating a unique record of the company’s heritage from its earliest days through to the present.

The collection featured on this catalogue’s front cover represents just a small selection of the many publications produced over the decades. From the early J.W.Pickavant and J.F.Sykes catalogues to modern Sykes-Pickavant editions, each one reflects the innovation, engineering and specialist knowledge that has shaped the business for generations.

Today, while our products continue to evolve alongside modern vehicle technology, our commitment remains unchanged: providing professional technicians with the specialist tools they need to do the job right.

The SP Archive ensures that this history is preserved for future generations, celebrating the people, products and publications that have helped define Sykes-Pickavant for more than a century.

SUSPENSION

COIL SPRING COMPRESSION

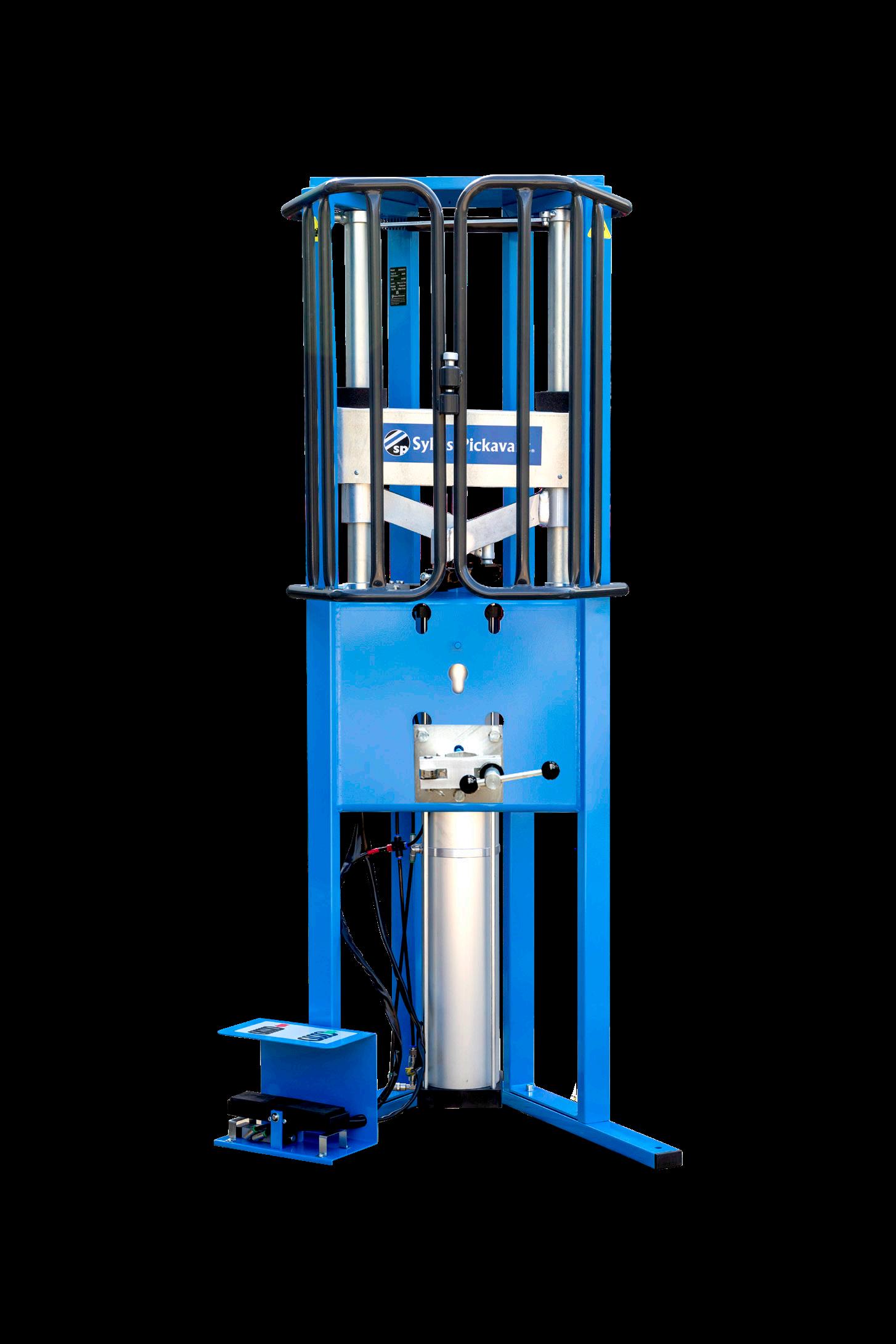

PNEUMATIC COIL SPRING COMPRESSOR WORKSTATION

385801SP

Specifications

» Dimensions: 1600 x 520 x 300mm

» Max Working Pressure: 8 bar (116 psi)

» Compression Force: 2452 kg (24500N)

» Cylinder Stroke: 330mm

» CE approved

» Universal piece of equipment for assembling and disassembling struts and coil springssuitable for Cars, 4WDs and LCV’s.

» Automatic jaw levelling pivots to compensate and hold all coil springs including left hand coils.

» Interchangeable jaws / vice to suit different springs.

» Up to 2452kg of force (at 8 bar) at the touch of a pedal.

» Full height steel safety gates.

» Top arms and jaws adjust and lock to secure spring.

» Unique double depth front plate allows safe work on extra long strut assemblies.

» 4 x 10mm floor mounting holes for insurance company compliance.

» Safety cut-out for de-activation of cylinder when safety gates are opened.

» ALS Auto Leveling System - Auto levelling upper arms simplify working on conical and misaligned springs.

» Brackets System - Front and side spring clamps designed for fast changeover using unique Brackets System.

» Aluminium Cylinder can be used on extra-long shock absorbers (e.g. commercials) due to the long (330mm) stroke of the cylinder.

» Manufactured from light alloy and resin to eliminate risk of corrosion and internal parts failure.

Contents:

» GO388- Upper Bracket

» Bracket A: 78 - 130mm (38481200)

» Bracket C: 105 - 182mm (38481400)

A3, A4, Q3, TT, A5

» Strut Vice » Safety Gates

1, Series 2, Series 3, Series 4, Series 5, X1, X3, X2

Orlando Dacia Duster, Logan Fiat/Chrysler Doblo,

Tesla S

Kia Ceed, Venga, Soul

Bravo, Fiorino, 159, Delta

Honda Accord, Civic Hyundai ix35, i30, i10, ix20

Mazda Cx-7, 3, 5

Seat Leon Mini Cooper, Mini Countryman Mitsubishi Asx, Lancer, Outlander, Pajero

Peugeot Rcz, 3008, 5008, 508, 607, 407, Partner Renault

Skoda Yeti, Roomster, Superb, Octavia

Vauxhall/ Opel Astra, Insignia, Meriva, Zafira

Audi A5, A6, A8, Q5, Q7, A6

Fiat/ Chrysler Ducato, Scudo, Jeep Cherokee, Jeep Grand Cherokee, Jeep Renegade, Jeep Wrangler, Freemont

Hyundai SantaFè, Tucson

Lexus RX, CT, GS, LS

Suzuki

Fluence, Grand Scenic, Koleos, Megane Iii, Kangoo, Laguna, Scenic, Espace, Latitude, Master III, Kadjar

Sx4

Volkswagen Golf 6, Scirocco, Polo, Caddy, Touran, Tiguan, Sharan

Nissan Qashqai, Juke, Leaf, Cube

Mercedes Classe-B, Classe-A, Classe-C, E, Vito

Toyota Avensis, Prius, Verso, Auris

Ford Focus, Kuga, Fusion, Mondeo, C-Max, Transit

Ford EcoSport, Edge, S-MAX, Transit Honda Doblo, 500L, Bravo, Fiorino, 159, Delta

Kia Sorento, Spartage Land Rover

Mazda 6, CX5, CX7

Freelander, Discovery 4, Discovery Sport, Evoque, Range Rover

Mercedes Classe-E, Vito, Classe-M, Classe-G, GLA, GLC, GLE, GLK, GLS, ML, Classe-V Nissan Qashqai Peugeot Expert, Traveller Porshe Cayenne, Macan Renault Trafi c, Megane Initial, Kadjar, Master Ssangyong Korando, Rexton, Tivoli Suzuki Sx4, Vitara, S-Cross, Jimny Toyota Land Cruiser, RAV4

Volvo V50, C30, XC70, XC60, XC90

Vauxhall/ Opel Mokka, Antara, Vivaro, Movano Volkswagen Passat, Crafter, Touareg, T5, T6

COIL SPRING COMPRESSION

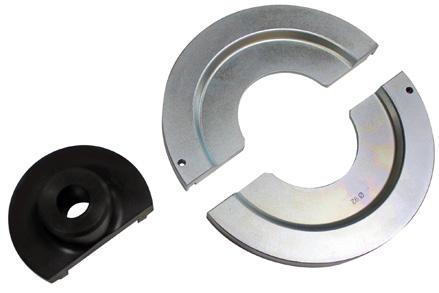

UPPER TOP MOUNT BRACKET

» Universal bracket with a rotatable & lockable mounting plate with unique hole pattern, designed to cover a large range of applications.

» NOTE: Only suitable for 3858 workstations dated 2015 onwards.

The design is ideal for:

» Springs with limited access for jaws, preventing jaws getting stuck between the coils.

» Simplifying dismantling and assembly operations

Applications Include

» Nissan Qashqai, Renault Talisman, Megane, Master 3° Series, Kojar, Koleos, Peugeot 208, 3008, 5008, Tesla S, Ford Transit, Mercedes Class A, B, C, E’ Mini Clubman F54 (11.2014 -), Countryman F60 (10.2016 -), BMW (Series 1, 2, X1, X2), 1 F52 Sedan (01.2017 -), 1 Hatchback F40 (07.2019 -), 2 Active Tourer F45 (11.2013 -), 2 Gran Coupe F44 (11.2019 -), 2 Gran Tourer F46 (07.2014 -), X1 F48 (11.2014 -), X1 Van F48 (11.2015 -), X2 F39

ADDITIONAL ACCESSOIRES

» Additonal accessories for use with Coil Spring Compressor Workstations

GO324

» Mercedes Class C bracket, starting from 2010

GO367

» For use with GO338 to maintain shock absorber top mount contact with the body.

» Top bracket plate For the new FORD Ranger all-wheel drive models.

38580400

» Coil spring clamp to secure springs during compression

» Improves safety and stability

» Compatible with workstations

» Suitable for various spring sizes

385800-60

» Workstation arm extenders to increase reach and versatility, allowing secure handling of a wider range of spring sizes and configurations

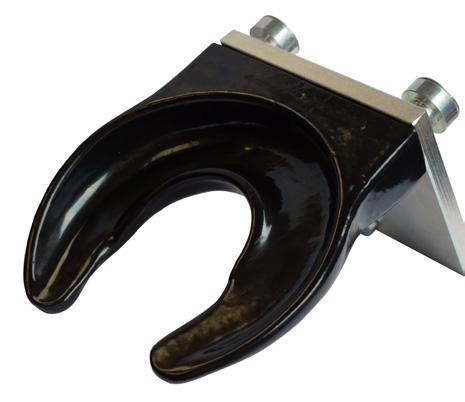

STANDARD BRACKET

38481200

» Standard bracket for use with coil spring compressor workstation

» Size: Ø 78 - Ø 130mm

» Up to 2.5 Ton

MEDIUM BRACKET

GO327

» Medium bracket for use with coil spring compressor workstation

» Size: Ø 105 mm to Ø 182 mm

» Up to 2.5 Ton

LARGE BRACKET

GO328

» Large bracket for use with coil spring compressor workstation

» Size: Ø 125 to Ø 205 mm

» Up to 2.5 Ton

38480600

» Suitable for Nissan Qashqai left handed springs

» Up to 2.5 ton

GO333

38480200

» Upper Jaw set for high compression springs (Toyota / Honda etc)

» Double depth vice for use with extra long strut assemblies

» From Ø 40 to Ø 60 mm

» Up to 3 Ton

» Suitable for Chrysler Voyager

3858COVER

» Protective cover for compressor workstations

» Shields equipment from dust and debris

» Extends the workstations lifespan

385800-61

» Swivel jaws designed to maintain constant, adaptive contact with coil springs for safer compression on both left- and right-handed setups

COIL SPRING COMPRESSION

PNEUMATIC COIL SPRING COMPRESSOR WORKSTATION

GO312EASY

Specifications

» CE approved machine in compliance with 2006/42/CE (Machine Directive)

» Working pressure: max 8 bar

» Cylinder stroke: 330 mm

» Vacuum Cycle Consumption: 0.07 m³/h 1.17 lt/min

» Load Cylcle Consumption: 0.03 m³/h 0.5 lt/min

» SAL- Self-levelling system: the two self-levelling arms allows work on both conical and offset springs.

» Cylinder, stroke and thrust: thanks to a stroke of 330 mm it is also possible to use this machine for long shock absorbers of cars and minivans. With an operating pressure of max. 8 bar the machine exerts a compression force of 1226 kg without losing power.

» Aluminum Technology: the cylinder is made from a light alloy and nylon resin with fibreglass to avoid corrosion and oxidation.

» Bracket holder system: the front bracket holder guarantees an easy replacement and positioning of the bracket

» Control valve: the control pedal works only when the machine is connected to the compressed air system. Consequently, the machine can be disconnected without any danger, guaranteeing maximum safety.

» Fixed position not removable

Chevrolet Matiz, Spark Lexus

Citroen C1, C3, Ds3, C2, C3, Picasso

RX, CT

Mazda CX-3, 2

Seat Ibiza,

Skoda Citigo, fabia, Rapid Dacia Logan, Sandero, Duster

Mini Cooper, Mini, Clubman Smart Fortwo, Forfour Ford Fiesta, Fusion, Kia Mitsubishi Colt, Space, Star Suzuki Alto, Splash, Swift, Celerio Audi A1 Nissan Cube, Pixo, Micra, Note Tata Nano Honda Insight, Jazz, Civic, Crz Opel Agila, Corsa, Adam, Karl Toyota Yaris, IQ, prius, Auris, Aygo Hyundai i20, i10,ix20, i30, Genesis, i40 Peugeot 206, 107,208, Rcz, 207, 308 Volkswagen Polo, Golf 4, Golf 5, Up!, Fox

SUPER HEAVY DUTY PNEUMATIC COIL SPRING COMPRESSOR WORKSTATION

387800SP

Specifications

» Basic unit 3.000 kg

» Standard clamping jaw, Ø 78 - Ø 130 mm

» Medium clamping jaw, Ø 105 - Ø 185 mm

» GO338 Upper Top Mount Bracket

» Vice clamping jaw for absorber tube, Ø 40-60 mm

» CE approval for the unit documents the unit’s conformity with 2006/42/EC (machinery directive)

» Working pressure max. 8 bar

» Cylinder stroke 330 mm

» Universal piece of equipment for assembling and disassembling the strongest struts and coil springs on cars, 4WDs & LCVs.

» Comprehensive safety concept includes pneumatic cylinder, foot pedal, safety cage, shock absorber drop guard and pedestal to ensure maximum safety for the user.

» The station includes one small clamping jaw , one medium clamping jaw, GO338 and a vice that allows the compression of almost all the coil springs of the market. Other optional special accessories are available.

» Two clamping jaw mounts on the basic unit permit a maximum opening width of up to 350 mm. Particularly important for many current models with extra-long vehicle springs.

» Protective cage with high-strength polycarbonate panels ensures a high level of protection in the event of incorrect operation or accidental splintering of the material.

» The two adjustable upper gripper jaws can be set to the required coil diameter. They can be moved upwards and downwards, tilted and fixed in place for maximum adaptability to any type of spring.

» Patented innovative shape of jaw design fits most vehicle types and sizes of springs

Key Features

» TUV approved

» Jaws diameter 80-200mm

» Supplied with 1 x pair of universal MULTIPURPOSE jaws

» Overload shear pin for safe operator use

» Safety wire included. Note: The use of safety wire 084000-01 is recommended when in use.

Specification:

» Maximum load capacity: 1800kg

» Dismantles McPherson struts safe and easy and handles approximately 90% of all cars

Key Features

» Ergonomic adjusting handle for easy jaw positioning

» Jaws feature safety lip to prevent spring slippage

» TUV approved with safety factor 4

» Note: The use of safety wire 084000-01 is recommended when in use. Available separately.

Specification:

» Maximum load capacity: 1500kg

» Safety wire for securing spring during compression.

Key Features

» Enhances operator safety preventing spring displacement

» Universal safety wire for use with any brand of spring compressor including the Sykes-Pickavant 08395000 & 08400000

» Easy to install

» Additonal jaw options for 08395000 & 08400000 Spring Compressors

» Extra small jaw (80-120mm)

» Jaw for conical springs (80-145mm)

» Jaw for Mercedes C Class » Jaw for Mercedes E Class

» Jaw for BMW 3 Series E46, E90, 5 Series E39, E60, F10, Renault Megane 2 & 3

» For counter clockwise springs (145-195mm) typically found on Honda HR-V/CR-V & Prelude vehicles

» Jaw for Mercedes C Class W204, W205, Mercedes E Class Coupe W207

Note:

» All optional specialist jaws are supplied as singles.

» For use on BLMC Minis fitted with rubber cone suspension units

Key Features

» Supplied with both Metric & Imperial extension screws, to cover all applications

COIL SPRING COMPRESSION

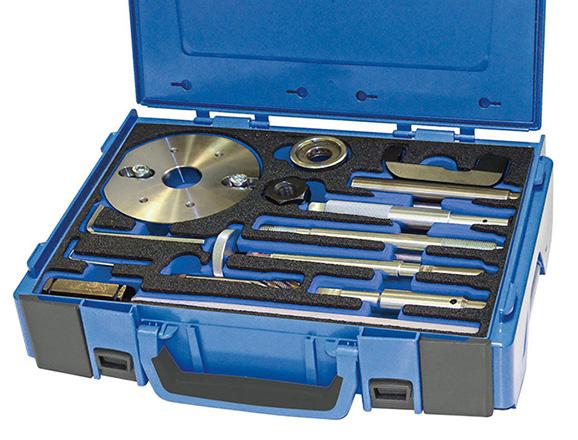

SHOCK ABSORBER TOOL KIT

08921000

» 39 piece tool kit to aid in the repairing and replacement of shock absorbers (spare parts available - see website for more details)

Key Features

» Protects struts, mounts and surrounding suspension components from damage

» Go-through design enables secure piston rod holding for safer, controlled operation

» Built from high-quality materials for demanding workshop use

Applications:

» Removal and installation of shock absorbers on McPherson strut suspension systems

» Will cover most popular European, Asian, Australian & American vehicles, see downloads on the website for application list & contents.

UNIVERSAL PROTECTIVE CLAMP FOR STRUT INSERT PISTONS

» Protective clamp designed to securely retain strut piston rods during suspension servicing.

Key Features

» Helps reduce the risk of damage to internal strut components.

» Includes 70mm pins for expanded vehicle coverage and greater versatility.

Applications

» Suitable for a broad range of MacPherson strut suspension systems.

UNIVERSAL STRUT CONTROLLER

Specifications

» Stem: min. 12 mm - max. 28 mm

» Material: Acetalic resin and aluminum (to protect the stem)

» Thickness: 20 mm

Key Features

» Accessory tool for stabilising piston rods during compression

» Enables quick assembly and disassembly of shock absorbers

» Built-in buffer absorbs impact at end of stroke to protect components

» Maintains shock absorber integrity during operation

» Universal clamp keeps cylinder stem extended during spring compression

Applications

» VW, Audi, Fiat, BMW, Mercedes, Citroen, Peugeot, Opel, Ford, Nissan, Toyota (models that are equipped with Bilstein shock absorbers)

SHOCK ABSORBER STRUT TOOL WITH OVAL PIN

Specifications

» Suitable for all shock absorbers with oval pin

» With 2 different sizes per tool: 5 x 8mm and 6 x 9mm

Key Features

» Holds shock absorber strut securely during assembly and disassembly

» Allows safe loosening of fixing nut on upper support bearing

» Safer and easier to use than traditional locking pliers

Applications

» VW, Ford, Opel and Audi Vehicles

MECHANICAL COIL SPRING COMPRESSOR

Specifications

» Max. load: 800 kg/8.000 N

» Clamping width: Ø100 - 300 mm

» Clamping range: short spindle 90 - 180 mm long spindle 110 - 315 mm

Key Features

» Suitable for MacPherson struts, rear axle springs, and broken springs

» Allows removal of spring strut without dismantling surrounding components

» Eliminates need to lower the sub-frame during operation

» Non-slip design with right- and left-hand threaded spindles

BALL JOINT REMOVAL

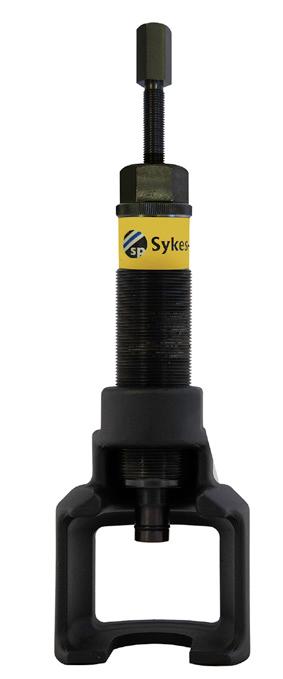

BALL JOINT SEPARATOR - HGV HYDRAULIC UPGRADE KIT

Specifications

» Jaw Opening: 70mm

» Throat Width: 36mm

» Throat Depth: 50mm

» Heavy-duty separator designed for safe, damage-free removal of ball joints on HGVs and heavy machinery.

Key Features

» Reinforced fork and lever for high force application

» Upgradeable to hydraulic operation (up to 12T)

» Compact scissor-action for confined spaces

» Reduces hammering and protects components

Applications

» HGVs, agricultural and construction equipment (Volvo, Scania, RVI Mercedes)

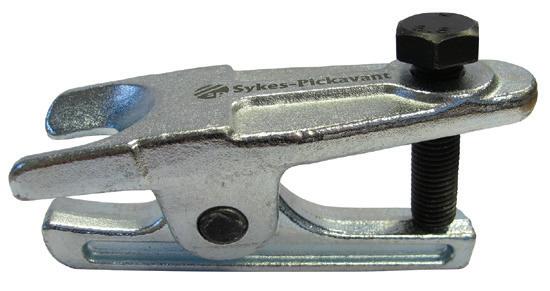

BALL JOINT SEPARATOR - ADJUSTABLE

Specifications

» Capacity: 30–65mm

» Spindle: M24

» Fork Sizes: 24 / 27 / 31mm

» Versatile separator with interchangeable jaw sizes for multiple applications.

Key Features

» Interchangeable jaws: 24, 27, 31mm

» Adjustable 3-position configuration

» Suitable for a wide range of vehicles, including: Ideal for use on: Audi / VW (A3, A4 and A6 with double wishbone), BMW & Mercedes

» Optional 36mm fork available, P/N: 080650-36

Specifications

» Jaw Opening: 45mm

» Jaw Throat Width: 19mm

» Jaw Throat Depth: 30mm

Key Features:

» Suitable for cars and light commercial vehicles (LCVs)

» Ensures secure grip for accurate joint separation

» Ideal for tie-rod end and general workshop applications

» Upgrade kit to convert mechanical separator (08070000) to hydraulic operation

» Delivers up to 12 tonne of force

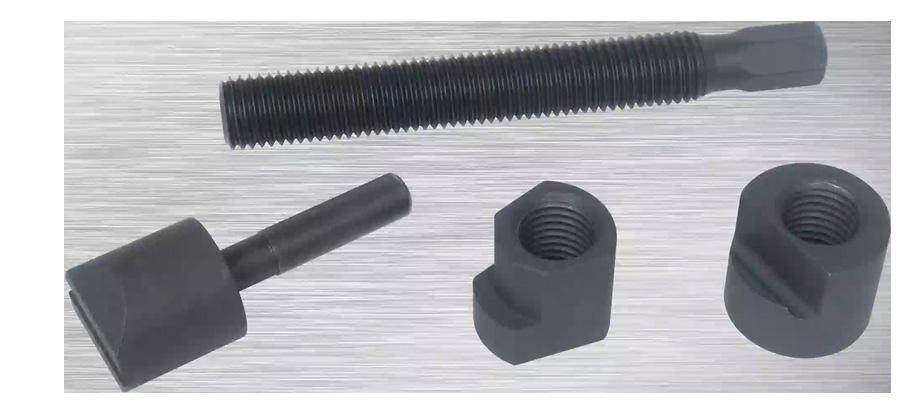

Spare Parts:

» 18071170 - Adjustable Screw

» 18071200 - Adjustable Plunger

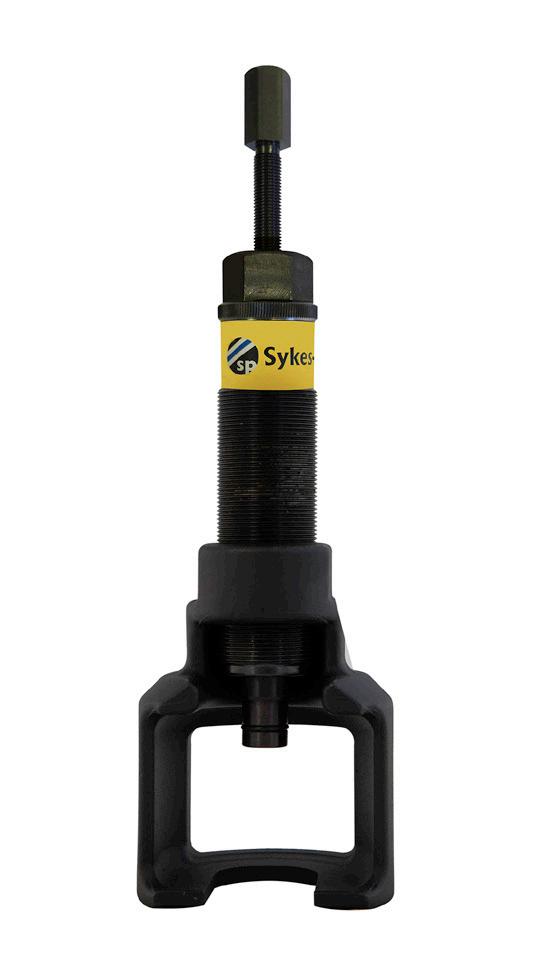

12T HYDRUALIC BALL JOINT SEPARATOR

Includes

» 08070000 - Ball Joint Separator - HGV

» 080750V2 - Hydraulic Upgrade Kit

» 12 tonne hydraulic force output Combined hydraulic and mechanical operation

» Reinforced heavy-duty construction

» Ideal for seized or stubborn joints

4-WAY BALL JOINT SEPARATOR

Specifications

» Jaw Options: 24 / 30 / 40 / 45mm

» Throat Width: 19mm

» Throat Depth: 30mm

» Adjustable separator designed for cars and light commercial vehicles.

Key Features

» 4-way adjustable jaw positions (24–45mm)

» Slim tapered jaws for tight access

» Durable coated finish

» Suitable for multiple suspension types

Specifications

» Jaw Opening: 50mm

» Jaw Throat Width: 15mm

» Jaw Throat Depth: 69mm

Key Features

» Suitable for most popular car applications

» Provides controlled, efficient separation

» Compact for improved access in tight space

BALL JOINT REMOVAL

Specification

» Jaw Width: 39mm

» Ball joint separator for extracting joints from axle retainers.

Key Features

» Suitable for connecting rods, tie rod ends and support joints

» For use with hydraulic ram

» Compatible with 150000V2 8T ram

» Compatible with 180000V2 12T ram

Part Numbers:

» 08010000 supplied without ram

» 18010000 supplied with 12T hydraulic ram

182560V2

» Suitable for the removal and installation of lower front ball joints on Ford Transit models.

Key Features

» Designed for Ford Transit and Ford Custom from approx. 2000 onward

» Enables on-vehicle operation

» Reaches difficult ball joint position

Part Numbers:

» 082560V2 supplied without ram, includes screw convertor for use with exisiting SP 12T ram

» 182560V2 supplied with 12T hydraulic ram

Specifications

» Length: 170mm

» Height: 130mm

» Width: 29mm

» Depth: 35mm

» Heavy-duty separator for selected Land Rover applications

Applications

» Discovery, Discovery 3, Range Rover 3, Freelander 2.0, Range Rover Sport

Reference

» OE Reference: 205-754A

Specifications

» Length: 400mm

» Jaw Throat Width: 18mm

» Jaw Throat Depth: 70mm

» Long reach splitter for deep-set or obstructed suspension components.

Key Features

» Heavy-duty steel construction

» Precision fork for clean separation

» Reduces need for hammering or prying

Applications

» Cars and light commercial vehicles

DROP ARM PULLER – LAND ROVER / TRANSIT

Specifications

» Jaw Spread Capacity: 60mm

» Jaw Reach Capacity: 80mm

» Extra heavy-duty drop arm puller for stubborn steering components.

Key Features

» Designed for difficult drop arm removal

» Force screw delivers impact/shock motion

» Built for heavy-duty work

» For use after steering box removal

Applications

» Land Rover Discovery 1 & 2, Range Rover P38, Land Rover Defender, Ford Transit

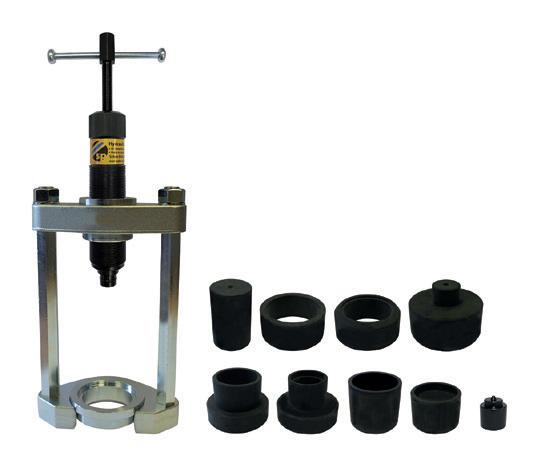

MERCEDES SPRINTER BALL JOINT REMOVAL

» Adaptor set for ball joint removal and installation on Mercedes Sprinter and related vehicles.

Key Features

» Updated cup design for popular aftermarket control arms

» Covers early and later Mercedes Sprinter models

» Also suitable for VW Crafter, Sprinter and VW LT applications

» Designed to streamline suspension service work

Applications

» Mercedes Sprinter 1995–2006 and 2006 onwards

» Models 901, 902, 903, 904, 906

» VW Crafter / Sprinter 2006 onwards

» VW LT 1996–2006

Part Numbers

» 187403V3 ball joint adaptor set

» 187413V3 ball joint adaptor set, press frame and hydraulic ram

BALL JOINT REMOVAL

LAND ROVER SWIVEL BALL JOINT REMOVAL

» Suitable for on-vehicle removal and replacement of twin swivel ball joints.

Key Features

» On-vehicle twin swivel ball joint solution

» Delivers 12 tonnes of force when used with compatible press frame and ram

» Built for front axle swivel ball joint replacement

Applications

» Land Rover Discovery 2 1998–2004

» Range Rover P38A 1994–2002

Part Numbers

» 18771000 ball joint adaptor set

» 18771200 ball joint adaptor set and press frame

» 18771100 ball joint adaptor set, press frame and hydraulic ram

OPEL MOVANO / RENAULT MASTER / NISSAN INTERSTAR BALL JOINT REMOVAL

» Suitable for on-vehicle removal and replacement of upper and lower ball joints on selected van platforms

Key Features

» For removal and installation of upper and lower ball joints

» Enables work to be carried out on the vehicle

» Vehicle-specific application

Applications

» Nissan Interstar 2002 onwards

» Opel Movano 1998 onwards

» Renault Master II 1998 onwards

Part Numbers

» 187502V3 ball joint adaptor set 1 (for upper ball joints)

» 187503V3 ball joint adaptor set 2 (for lower ball joints)

» 187512V3 ball joint adaptor set 1 and 2, press frame and hydraulic ram

GENERAL SUSPENSION TOOLS

» Specialist remover set for seized VW multi-link suspension bolts.

Key Features

» Designed for long, tight, corrosion-prone suspension bolts

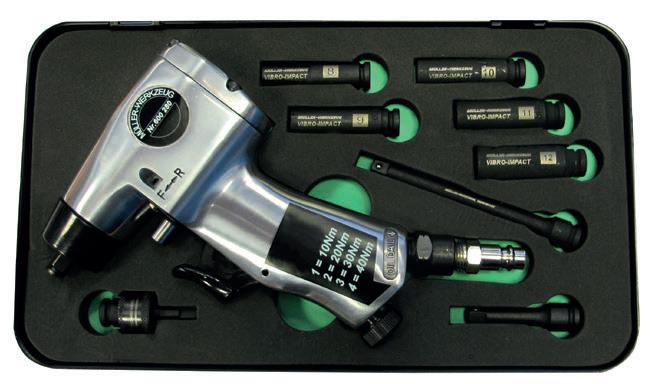

» Used with vibro-impact air hammer 90206000

» Sleeve guides the impact tool, helping to loosen seized bolts and drive the bolt through the housing

» Includes extension adaptor for bolts driven deep into housing

Applications

» VW alloy 4-link suspension systems

CV JOINT PULLER

Specifications

» Hole Internal Diameter: 30mm

» Working Dimension: 104mm

» Specialist puller for removing CV joints on front-wheel-drive vehicles.

Key Features

» Eliminates need for full axle removal

» Hammer-free operation reduces damage risk

» Pulls CV joints cleanly without disassembling whole front axle

» Approved genuine VW Group service tool

Applications

» Audi, SEAT, Skoda, Volkswagen, VW Group Ref: T20181

150000V2

» Versatile compatibility with pullers, extractors and suspension tools

Specifications:

» Maximum force: 8 tonne

» Preload: Features a 30mm pre-loading hex (up to 4 Ton)

» Stroke: 15 mm

» Ram body diameter: 1½″

» Thread: 16 tpi Whitworth

» Supplied with 2″ (50mm) extension and foam storage tray

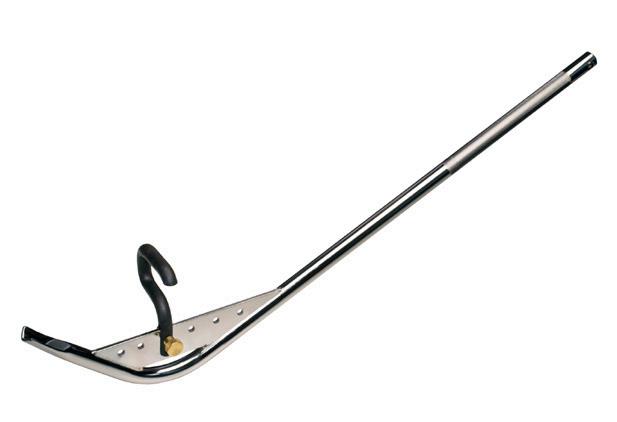

» Lever tool for lowering suspension arms and separating components with less effort.

Key Features

» Uses technician bodyweight to apply leverage

» Adjustable multi-position swing point

» Suitable for LH and RH applications

» Robust workshop construction

Spare Parts

» 08080170 Location Pin

» 08080270 Replacement Hook

» Specialist tool designed for the quick removal of drive shafts from gearboxes.

Key Features

» Inserted between drive shaft and gearbox for direct application

» Uses slide hammer action to break the internal fixing circlip

» Eliminates the need to access hard-to-reach circlip positions

» Fork design provides central traction for controlled extraction

» 12 tonne hydraulic ram delivering 50% more power than 8 tonne models

Specifications:

» Maximum force: 12 tonne

» Preload: Features a 30mm pre-loading hex (up to 4 Ton)

» Stroke: 15 mm

» Ram body diameter: 1½″

» Thread: 16 tpi Whitworth

» Supplied with 2″ (50mm) extension and foam storage tray

» Designed to convert hydraulic pullers to mechanical operation with added shock force for releasing stubborn components

» Impact screw with floating plunger provides additional shock action

» Compatible with hub puller range

Specifications:

» Shock handle length: 203 mm

» Impact force screw: 285 mm

» Thread: 16 tpi Whitworth

BUSH REMOVAL & INSTALLATION

3/4

KIT

» Complete solution for bush removal and installation on Land Rover Discovery platforms

Key Features

» Designed for Discovery 3/4 and Range Rover Sport

» Allows on-vehicle bush replacement

» Reduces need to replace full suspension arm

» Works with press frame and hydraulic ram

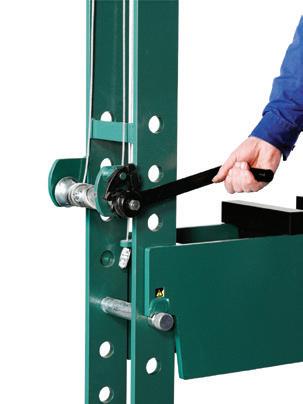

» Hydraulic press frame for bush and bearing work.

Specifciations:

» Open frame design - 200mm of clearance through the press frame

Key Features

» 12 Tonne Hydraulic force

» Can be used as a stand alone tool

» Compatible with universal press & pull sleeve kits

» Ideal for use with individual model specific press piece sets

» Designed for efficient removal and refitting of suspension bushes on traditional Land Rover models.

Key Features

» Suitable for radius arm, panhard and general suspension bushes

» Dedicated press pieces ensure correct positioning and alignment

» Compatible with Defender, Discovery 1 & 2, Classic Range Rover, P38A and older Series models

FORD / VOLVO TRAILING ARM BUSH TOOL KIT

» Tool kit for rear trailing arm bush removal and installation.

Key Features

» On-car solution saves time and labour

» Designed for Ford and Volvo applications

» Accurate press piece system

» Improves workshop efficiency

Applications

» Ford: Mondeo ˜07- / Mondeo Estate ˜07- / S-Max & Galaxy ˜06-

» Volvo: XC70 & V70 ˜07- / XC60 ˜08- / S60 & V60 ˜10-

UNIVERSAL C-CLAMP

Specifications:

» Jaw Opening 245mm » Throat Depth 100mm

» Universal C-clamp designed for the removal and installation of suspension bushes and components.

» Suitable for on-vehicle use, offering

Key Features

» Compatible with 08780000 and XS Sleeve kits

» Trapezoidal threaded screw for high force application

» Can be used with impact gun or hydraulic ram (1500 & 1800 Series)

BUSH REMOVAL & INSTALLATION

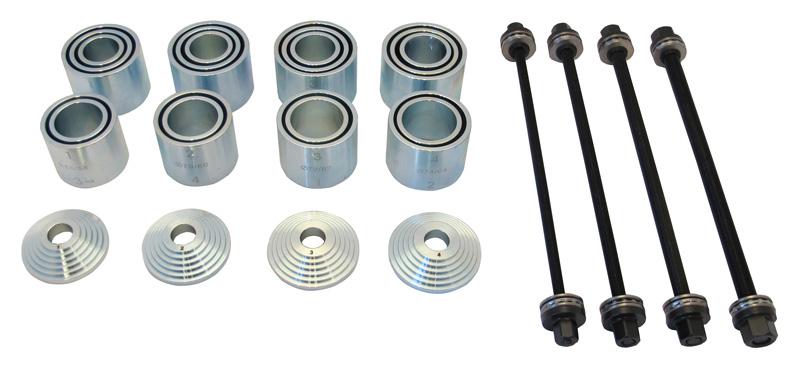

PUSH & PULL SLEEVE KITS

» A universal system for the removal and installation of Suspension Bushes, Bearings, Seals etc.

» By selecting the appropriate diameter sleeves, the bush / bearing / seal is Pressed, or Pulled by the action of turning the spindle nuts in opposing directions.

» Fully universal applications for Cars, LCVs HGVs etc, with a range of kit options to suit individual requirements.

Press & Pull Sleeve Kits can be used in the following formats:

» As a stand alone set of tools

» With a standard workshop press

» With a Universal Press Frame (187000V2)

» With a Universal C Clamp - Large (18780200)

08780000

» Suitable for cars, LCVs and HGVs

» Modular system with upgrade option

Contents

» 20 x Press Sleeves - ID 34-72mm / OD 44-82mm

» 4 x Spindles & Nuts - M10-M16

» 4 x Step Plates

XL BASIC KIT

» Kit for larger vehicles including SUVs ad LCVs

Contents

» 8 x Press Sleeves - ID 82-88mm & 98-104mm / OD 92-98mm & 108-114mm

» 4 x Step Plates

» 2 x TR20 Pulling Spindles & Nuts (Short & Long)

» Complete system for SUVs, LCVs, PSVs and HGVs

Contents

» 20 x Press Sleeves - ID 74-112mm / OD 84-122mm

» 4 x Spindles & Nuts - M10-M16

» 4 x Step Plates

» 2 x TR20 Pulling Spindles & Nuts (Short & Long)

» With a Universal C Clamp (18780500)

» With selected model specific Press Piece sets and in conjunction with optional hydraulic upgrade kits

XS SLEEVE MASTER KIT

08786500

» Compact sleeve kit for smaller bush and bearing applications.

Contents

» 10 x Press Sleeves - ID 14-32mm / OD 24-32mm

» 2 x Spindles & Nuts - M10-M12

» 4 x Step Disces

» 1 x TR20 Pulling Spindle & Nut

XL SLEEVE UPGRADE

» Upgrade kit to convert XL Basic Kit (0879000) to full comprehensice system (08797500).

Contents

» 12 x Press Sleeves - ID 74-80mm, 90-98mm & 106-112mm / OD 84-90mm, 100-106mm & 116-222mm

» 4 x Spindles & Nuts - M10-M16

BUSH REMOVAL & INSTALLATION

HYDRAULIC

UPGRADE KITS

Specifications

» 18782500 - 8mm stroke

» 18792500 - 40mm stroke

Key Features

» Provides up to 12 tonnes of hydraulic force

» Designed for use with 08780000 and 08797500 kits

» Helps reduce manual effort during press and pull operations

» Offers controlled force application for heavy-duty workshop tasks

» Includes hydraulic-rated spindles for safe, compatible use

PUSH & PULL SLEEVE CONTENT & SPARES

WHEEL BEARING REMOVAL & INSTALLATION

SPIGOT BEARING TOOL

» Time-saving tool designed for the removal of damaged or seized spigot bearings in confined spaces where conventional pullers or slide hammers cannot be used.

» Faster and safer operation

» No need for grinding or cutting

» Suitable for multiple vehicle brands including Ford Transit / Mercedes / Volkswagen

OEM References

» Ford: OE-1096277 / OE-YC1R-7600-AA

» Mercedes-Benz: OE-018 981 25 10 / OE-A 018 981 25 10

TWIN CONE WHEEL BEARING KIT

Specifications

» Spindle: 305mm with 20mm thread radius

» Includes 6 cones in three sizes: 45 x 23mm, 60 x 28mm, 71 x 28mm

» Universal solution for removing screw type wheel bearings.

Key features

» Twin cone system for secure connection

» Designed for use with slide hammer

» Covers multiple bearing sizes

MERCEDES-BENZ VITO REAR GEN2 BEARING KIT

08122500

» Specialist bearing kit designed for the removal and installation of rear wheel bearings and hubs on Mercedes-Benz Vito (W639) vehicles.

Key Features

» On-vehicle solution, removes and installs bearing without dismantling hub assembly

» Accommodates larger 92mm bearing used on this application

» Allows work to be completed without removing ABS sensor, reducing damage risk

» Includes large finely threaded spindle, eliminating the need for hydraulics

» Provides controlled alignment during installation for accurate fitment

Applications

» Mercedes-Benz Vito (W639) - 2003 onwards

» Mercedes-Benz Viano (W639) - 2003 onwards

» Mercedes-Benz Vito Mixto / Minibus (W639) - 2003 onwards

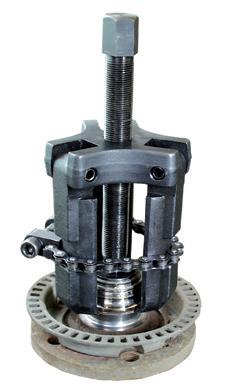

FORD TRANSIT BEARING PRESS KIT

» Workshop press kit for bearing removal and installation

Key Features

» Removes inner and outer bearing races

» Suitable for 5 and 6 stud hubs

» Includes multiple adaptors and supports

Applications

» Ford Transits 2000-2013

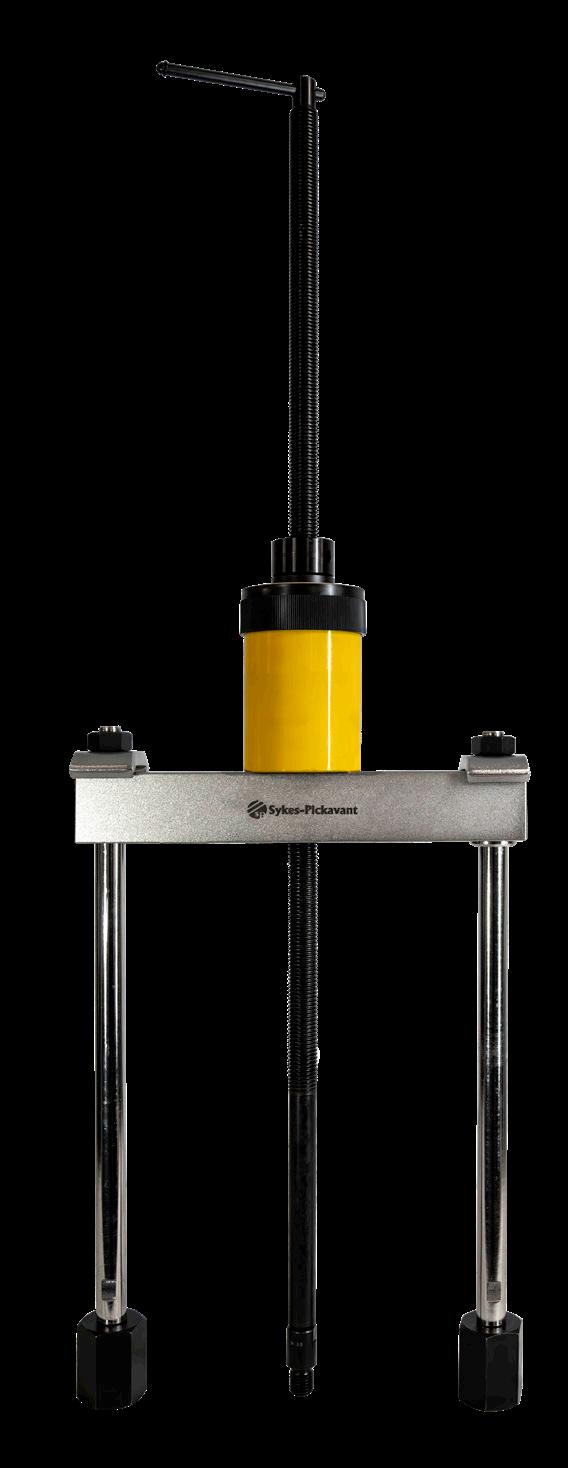

FORD TRANSIT FRONT BEARING REMOVAL KIT

08758000

» Heavy-duty kit for GEN 3 bearing removal.

Key Features

» Allows reuse of bearing and disc

» 5-rod design for extra strength

» Suitable for front and rear wheel drive vehicles

» Designed for modern Transit models

Applications

» Ford Transit Custom 2012 onwards & Ford Transit 2013 onwards

WHEEL BEARING REMOVAL & INSTALLATION

GO054

Installation:

» 1 x HSS size 1 for Ø 62 mm

» 1 x HSS size 2 for Ø 66, 68 mm

» 1 x HSS size 3 for Ø 72, 75, 78 mm

» 1 x HSS size 4 for Ø 82, 85 mm

Key Features

Removal:

» 1 x HSS for Ø 62, 66, 68, 72, 75, 78, 82, 85 mm

» Comprehensive set for removal and installation of compact bearing hub units (62–85 mm)

» Enables on-vehicle repairs with no need for dismantling

» Special half shells ensure even snap ring engagement and prevent bearing damage

» Durable mechanical system with optional 12-tonne hydraulic upgrade for heavy-duty use

HALF SHELL COUPLING FOR BEARING FRONT AXLE Ø92 GEN2 BEARING REMOVAL

GO039

» For use with GO030 - GEN2 Wheel Bearing Master Kit.

Applications:

» Citroen, Opel, Peugeot, Toyota:

» 9819074780, SU001 A6528

» FAG: 713 6506 80

» SKF: VKBA 7120

UNIVERSAL BEARING & HUB INSTALLATION & REMOVAL TOOL KIT

GO017

» Universal tool set for removing and inserting bearings & hubs

Specifications

» 60-76mm Outer Diameter

» M20 x 300mm spindle

Key Features

» Suitable for wheel bearing extraction and installation

» Designed for applications where hub and bearing are separate

» Includes a wide range of bushings and washers for broad vehicle coverage

» Manual application with M20 screw or with optional hydraulic cylinder & long screw

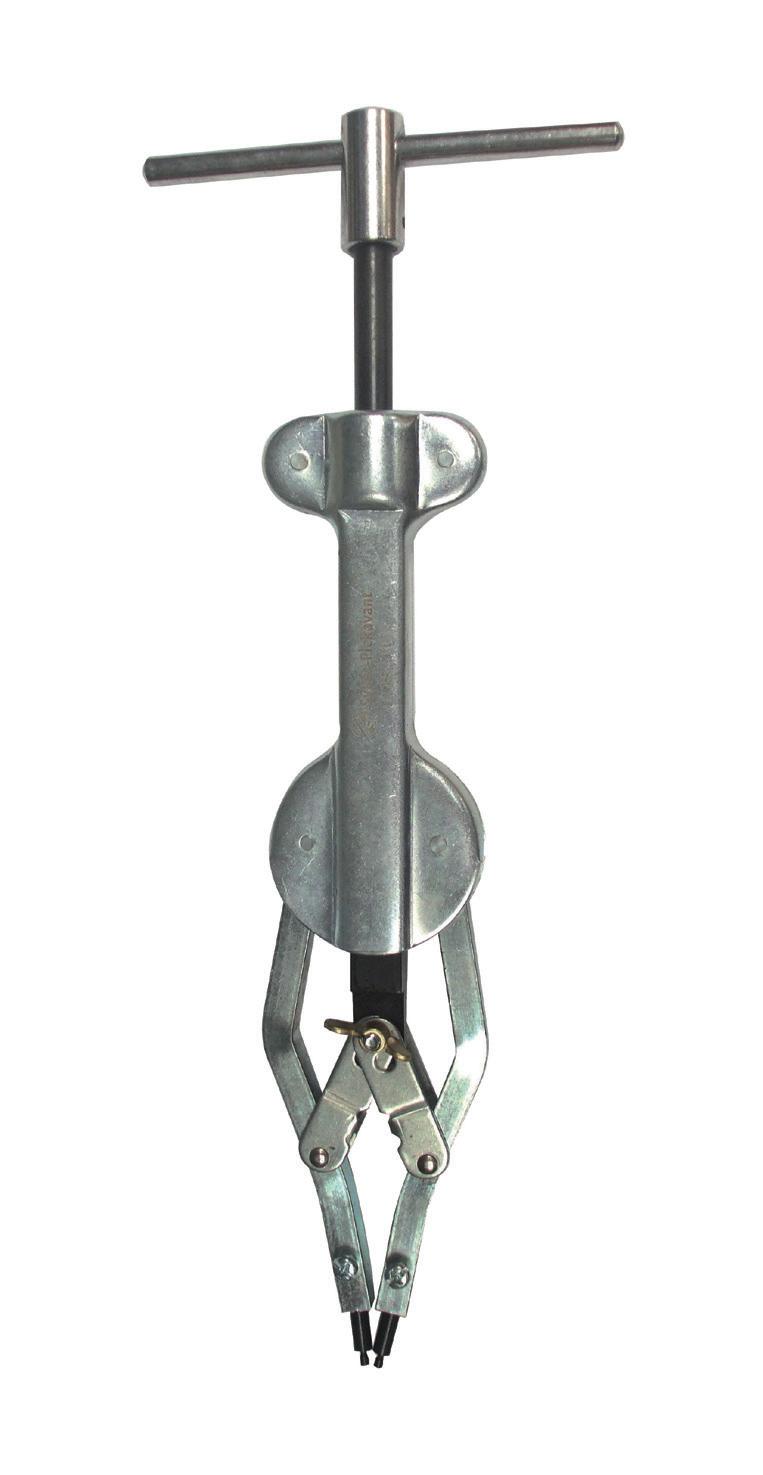

UNIVERSAL BEARING RING PULLER

Specifications

» Spread: 40-60mm

» Reach: 85mm

» Removes bearing rings, races and sleeves without cutting tools

» Pulling legs grip securely behind the ring for effective extraction

» Even force distribution prevents distortion and damage

» Delivers fast, controlled and efficient removal across multiple applications

UNIVERSAL BEARING & HUB INSTALLATION & REMOVAL TOOL KIT

GO018

» Universal tool set for removing and inserting bearings & hubs

Specifications

» 60-76mm Outer Diameter

» M20 x 300mm spindle

Key Features

» Suitable for removal and installation of bearings and hubs

» Ideal for applications where hub and bearing are separate

» Modular system allows multiple configurations for different sizes

» Manual application with M20 screw or with optional hydraulic cylinder & long screw

» Compatible with additional Govoni bearing and silent block tool sets

STEERING & SUSPENSION

Specifications

» Maximum Opening: approx. 15mm

» Maximum Torque: 13Nm

» Double-ended hub knuckle spreader for holding split hubs open during strut work.

Key Features

» Makes suspension strut removal and installation easier

» Double-ended design for upper and lower split hubs

Applications

» Audi, BMW, Citroën, Ford, Peugeot, Volkswagen

Specifications:

» Weight: 9kg

» Length: 770mm

» Connection Thread: M18 x 1.5

Key Features

» Approx. 8 tonne pulling force

» Helps minimise damage during use

» Suitable for larger upper split hubs and lower ball joint split hubs

» Suitable for injectors, hubs and joints

» Robust construction

» Multiple accessory compatibility

Specifications:

» M18 x 1.5

» Suitable for use with hooks, extractor hooks and pull clamps

» Enables GO526 and GO527 tools to be used with slide hammers

Specifications:

» Connection thread: M18 x 1.5

Applications

» Universal but especially for use on Ford Mondeo, Mercedes-Benz Vito front axle etc

» 1 x system adaptor tool, M18 x 1.5/M22x2.0 SUSPENSION

» Compatible with 10mm wrenches

Specifications:

» Weight: 9 kg

» Total length: 770 mm

» Connection Thread: M18 x 1.5 & M22 x 2.0

Key Features

» Steel shot-filled slide hammer maximises impact force and prevents rebound

» Delivers strong, controlled force while reducing strain on joints

» Modular design allows use as a 1.5 kg sliding hammer

» Multiple accessory compatibility

Specifications:

» Universal slide hammer use when paired with GO522 M18 x 1.5 adaptor

» Universal fit for chain ends and tension brackets with notch cone or conical collar

Specifications:

HOOK FOR

» Universal slide hammer use when paired with GO522 M18 x 1.5 adaptor

» Suitable for use with 10 mm steel chains

» Special hook design ensures reliable fitting

Adaptors:

» 1 x system adaptor tool, M18 x 1.5 with mounting bore

» 1 x system adaptor tool, M18x1.5/1-1/2 inch for wheel hub puller

» 1 x universal adaptor with flexible ball joint, M18x1.5

MERCEDES REAR AXLE ALIGNMENT WRENCH

» Specialist tool for adjusting rear axle alignment on Mercedes vehicles

Key Features

» Allows toe adjustment without removing underbody covers

» Prevents damage to plastic fasteners

» Saves time during alignment work

» Designed for workshop efficiency

Applications

» Mercedes C-Class, E-Class, CLS, SLK, SLC, GLK, GLC (various years)

PRY BAR ADAPTORS

» Designed to convert a ratchet or breaker bar into a compact pry tool for use in tight and restricted areas.

Key Features

» Converts standard ratchets or breaker bars into a versatile pry tool

STEERING & SUSPENSION

ECCENTRIC TURN CHUCK SET

» Designed for fast and efficient removal and installation of tie-rod ends in professional workshop environments

Key Features

» ½″ drive provides strong, reliable power for workshop use

» Eccentric turn chuck opens bi-directionally for maximum flexibility

» Simplifies removal and installation of tie-rod ends

» Suitable for both tie-rod replacement and wheel alignment tasks

» Ideal for use in confined, awkward or hard-to-reach spaces

» High-strength steel construction for durability in demanding environments

» Corrosion-resistant finish for long service life

Part Numbers

» 80095000 - Square Drive: 3/8”, Hex: 24mm

» 80096000 - Square Drive: 1/2”, Hex: 24mm

» Designed to accurately position the rear lower suspension arm at its correct ride height for precise reassembly.

Key Features

» Essential for work on suspension arms, hubs, springs and related components

» Enables OEM-level accuracy during installation and setup

OEM reference

» Tesla OEM part reference 1137855-00-A

MACPHERSON STRUT SUPPORT

Specifications

» Capacity: 120kg

» Support tool used with a transmission jack to stabilise the strut during suspension work.

Key Features

» Prevents shock absorber from dropping during removal

» Improves safety and control

» Compatible with standard transmission jacks

Includes

» Safety bracket

» Reduction sleeves for piston rods Ø 25 and 30 mm.

» Reduction for MacPherson Strut Support 60mm

» Designed to accurately set the initial ride height position of the front upper suspension control arm for precise reassembly.

Key Features

» Ensures correct suspension geometry and alignment

» Essential when replacing front upper suspension arms

» Enables accurate and consistent ride height setup

OEM reference

» Tesla OEM part reference 1450399-00-A

SUSPENSION REMOVAL AIDS

1KW INPUT - 1 KW OUTPUT

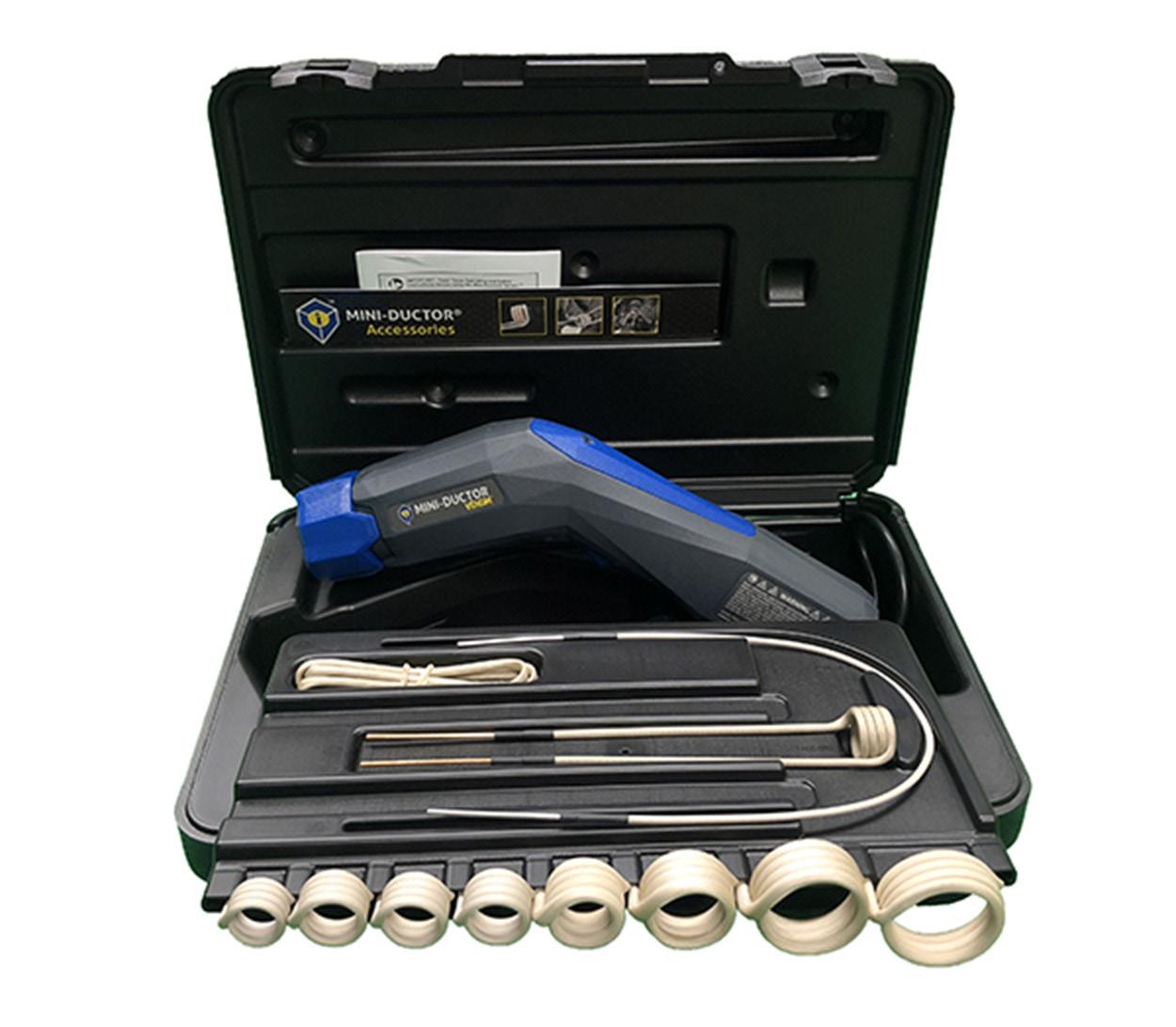

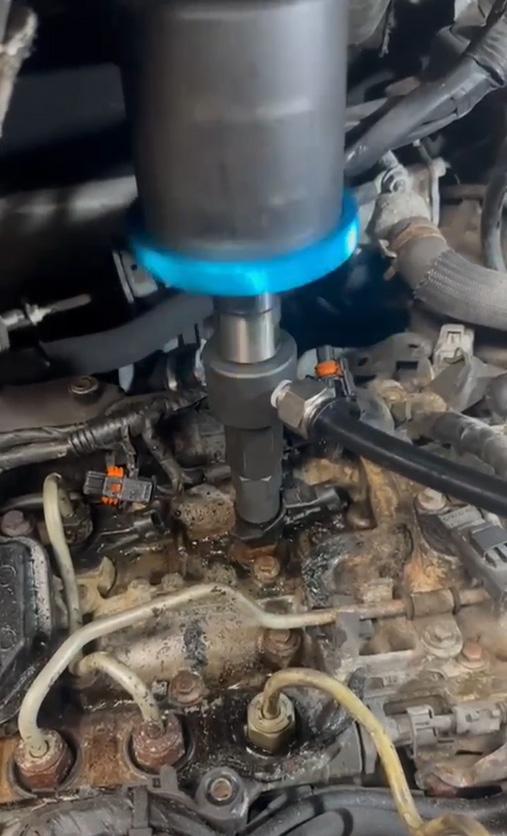

» An ergonomic, compact, and flame-free heating solution that generates Invisible Heat® to release corroded and thread-locked metal components quickly and safely without the risks associated with an open flame. Ideal for workshop environments where precision, safety and efficiency are essential.

Key Features

» 1 kilowatt input – 1 kilowatt output ensures fast, controlled heating performance.

» Angled Design with Trigger: Lightweight, ergonomic design allows easy access to Hard-to-reach areas.

» Coil Twist Lock™ System: Coils secure with a simple twist for fast, tool-free changes.

» LED Usage Indicator: Green LED confirms active heating; red LED indicates fault conditions.

» Fault Override Delay: Built-in protection system activates a three-second lockout under fault conditions to safeguard the tool.

» Enhanced Cooling Fan Operation: Fan continues running after trigger release to reduce thermal cycle time and improve durability.

» User-Controlled LED Switch: Allows operator control of LED function while tool is powered.

Part Numbers

» 96040000 includes Venom™ Induction Heater, 1 x Coil, 1 x String, 1 x Bearing Buddy

» 960400SP includes Venom™ Induction Heater, 1 x U-Form Coil, 1 x Bearing Buddy PLUS 9 preformed coils from 4” - 10” long, up to 1 1/2” diameter

OTHER INDUCTION MODELS AVAILABLE

9602012V

» 12V Induction Heater – Compact, portable solution ideal for on-vehicle and mobile repairs

Key Features

» Votage: 12V

» Amperage: 70 amp

» Wattage: 840 watt

» Includes 3 x coil attachments

» 1 year warranty - Parts/Labour

96021100

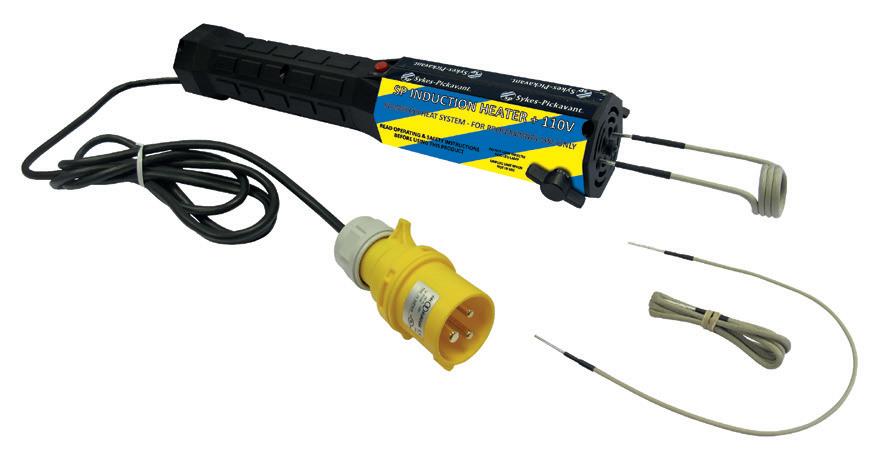

» 110V Induction Heater – Versatile unit for workshop and site use where 110V supply is required

Key Features

» Votage: 110V

» Amperage: 10 amp

» Wattage: 1000 watt

» Includes rope, u-form and pre-formed coils

» 1 year warranty - Parts/Labour

INCLUDES THREE YEAR WARRANTY

SPEEDLINE906

» High-performance workshop system for frequent, heavy-duty applications

Key Features

» Votage: 230V

» Amperage: 6 amp

» Wattage: 1000 watt

» Includes rope, u-form and pre-formed coils

» 1 year warranty - Parts/Labour

SUSPENSION REMOVAL AIDS

ADDITIONAL INDUCTION HEATER COILS & ACCESSORIES

» Additonal induction heater coils suitable for use with 96040000, 960400SP, 9602012V, SPEEDLINE906 and

» For use with 1kw of power

» Note: all single coils available, see website for further details

» 3pc interchangable coils

» Sizes: 19mm, 21mm & 26mm

» 4pc thin wall coil pack

» Sizes: 19mm, 21mm, 22mm, 25mm

» 8pc interchangable coils

» Sizes: 19mm, 22mm x 2, 26mm x 2, 32mm, 38mm, 45mm

» 8pc extra long coils - 330mm

» Sizes: 19mm, 22mm x 2, 26mm x 2, 32mm, 38mm, 45mm

HEAVY DUTY INDUCTION HEATERS

» 1pc rope coil

» Length: 762mm

» SP heat pad designed to soften adhesive for easy removal of decals, graphics, emblems, and body mouldings

» Professional induction heating systems designed for fast, controlled, and flameless heating of metal components. Ideal for automotive and industrial applications, these units use high-frequency electromagnetic fields to generate heat directly within the material, allowing safe operation even near heat-sensitive components.

» The Govoni range offers multiple power options to suit different workshop requirements, from general servicing to heavy-duty industrial use.

Key Features

» Flameless induction heating for improved safety and efficiency

» Ideal for releasing seized or corroded bolts, nuts, and bearings

» Suitable for straightening, bending, and preheating before welding

» Precise, localised heat application with minimal surrounding damage

» Multiple power outputs available (5kW – 18kW) for varied applications

» Liquid-cooled systems for consistent performance during extended use

» User-friendly controls with adjustable power and temperature settings

» * ± 5% ambient temperature maximum power.

» See the website for additional accessories and spares.

» 3pc rope coil

» Length: 762mm

» Heat-resistant mat that protects rope coils from wear and overheating

» Dimensions: 152 x 305mm

HGV SPLIT BUSH MASTER KIT

GO1310R

» Comprehensive heavy-duty kit designed for the removal and installation of split and spring eye bushes on HGV vehicles. The system allows bushes to be extracted and refitted without damage, with the ability to work directly on the vehicle, reducing the need for major component removal.

Key Features

» Suitable for removal and installation of HGV split and spring eye bushes

» Unique clamping system with interchangeable shell sizes (56mm–75mm)

» Allows on-vehicle use, reducing disassembly time

» Conical design enables removal and reuse of bushes without damage

» Locking device ensures even, controlled pressing and prevents slippage

» Suitable for use with workshop press or hydraulic pump systems

Note: Due to the high forces involved, particularly during removal, the use of a hydraulic cylinder is recommended. The Govoni 12-ton hydraulic cylinder is ideally suited for integration (see kit GO1310R supplied with GO1012 Hydraulic Cylinder).

Related

» 20017000 or 20017500 Hand Operated Hydraulic Aluminium Pump or similar is required in order to operate the kit

Part Numbers:

» GO1310 - supplied without the ram

» GO1310R - supplied with the ram (Ram P/N: GO1012)

SAF PIVOT BUSH TOOL

08799000

» Specialist tool designed for the removal and installation of SAF axle pivot eye bushes on Intradisc Plus and Integral axles

» Enables efficient servicing of the 3D pivot bush, an integral suspension component that absorbs wheel movement, side tilt, and braking forces to maintain vehicle stability.

Key Features

» Designed for SAF axle pivot eye bushes (IU / IO Intradisc Plus & Integral axles)

» Allows easy removal and installation of pivot bushes

» Compatible with impact wrench operation for faster servicing

» No separate tool required for removal of old bushes

» Supports safe handling of critical suspension components

DUAL WHEEL SEPARATOR SET

» Designed for the safe separation of seized or corroded dual wheels on commercial vehicles.

Key Features

» Suitable for trucks, buses, vans, RVs and trailers

» Heat-treated pusher screw for high-force application

» Delivers controlled force to break corrosion without damaging the wheel

» Prevents damage during wheel separation

» Interchangeable adaptors for secure fit

HGV HUB PULLER KIT

Specifications

» Pitch Circle Range: up to 445mm

» Thread Adaptors: M18, M20, M22, M24, M30, 7/8” BSF

» Heavy-duty hub puller kit designed for the safe and efficient removal of HGV wheel hubs. Ideal for use on stubborn or seized hubs caused by corrosion or high torque, ensuring controlled extraction without damage to components or risk to the operator.

Key Features

» Includes multiple thread adaptors for different stud types

» Applies force evenly to prevent damage and improve safety Applications

» DAF, MAN, Mercedes-Benz, Renault, Scania, Volvo

» 21027600 Add-On Puller Set

HGV HUB PULLER ADD-ON KIT

Key Features

» Designed for use with 21027500 HGV Hub Puller Kit

» Converts hub puller into a conventional puller system

» Suitable for both internal and external pulling applications

» Expands workshop capability across multiple removal tasks

» Includes components for balanced and controlled pulling operation

HGV HYDRAULIC WHEEL PULLER

» Heavy-duty hydraulic wheel puller designed for the removal of 10-stud 22.5” HGV wheels.

» Delivers powerful, controlled extraction of seized or corroded wheels, allowing safe removal from both single and twin wheel hubs.

Key Features

» 12-tonne hydraulic system designed for tough, repeated use.

» Two spigot ring sizes (281 mm & 221 mm) cater to most hub configurations.

» Includes chains, internal and external hooks, connecting rods, plus convenient trolley and metal case for easy transport and storage.

» Suitable for alloy or steel wheels with the addition of Soft coated hooks (20882400 sold separately).

SOFT COATED HOOK SETS

» For use with 20880000 HGV Hydraulic Wheel Puller for alloy wheels

» 4pc Internal Hooks » 4pc External Hooks

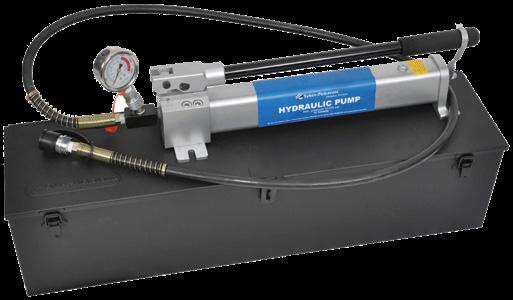

HYDRAULIC ALUMINIUM PUMPS

» Portable, lightweight aluminium construction

» Supplied with gauge, heavy-duty hose and hydraulic coupler

» 10,000 psi / 700 bar pressure rating

20017000

Key Features

» Hydraulic / Hand Operated

» Manual hand operation for controlled use

» Automatic two-speed system for efficient performance

» High flow for low resistance, low flow for high resistance

» Designed for single-acting cylinders

» Automatic overload relief valve for component protection

20017500

Key Features

» Air / Foot Operated

» Foot pedal control for hands-free operation

» Low-noise exhaust system for improved working comfort

» Ideal for applications requiring continuous or controlled foot operation

20T KING PIN PRESS KIT FOR OPTARE / MAN

21207500

» Heavy-duty 20 tonne hydraulic press kit designed for the removal and installation of king pins on Optare and MAN vehicles.

» Portable, stand-alone system suitable for on-vehicle use, improving efficiency in workshop and field applications.

Key Features

» 20 tonne hydraulic power for high-force applications

» Portable press frame for on-vehicle use

» Suitable for Optare and MAN king pin applications

» Includes wide beam set for MAN vehicles

» Comprehensive range of extractor and pushing pins

» Auto-grip collar ensures secure alignment during operation

20T HYDRAULIC PIN PULLER

20960000

» Heavy-duty 20 tonne hydraulic pin puller designed for controlled, high-force extraction where traditional pullers are not suitable. Utilises an internal threaded connection to provide a secure and precise pulling solution for demanding applications.

» 20 tonne hydraulic capacity for high-force extraction

» Internal threaded pulling system for secure engagement

» Ideal where traditional legged pullers cannot be used

» Suitable for removal and installation of shafts and components

» Supplied with multiple thread adaptors (M12–M20)

» Compatible with hydraulic pump systems for flexible operation

Specifications

» Reach - 830mm

» Thread adaptors - M12 / M14 / M16 / M18 / M20

» Hydraulic Cylinder - 20 Tonne

» Min Spread - 104mm (140mm from centre of threads)

» Max Spread - 293mm (328mm from centre of threads)

NEW

75T KING PIN PRESS

20700100

» Designed to deliver controlled, high-force removal of pins and pivots in heavy-duty suspension systems - with precision, safety, and flexibility built into every component

This press is particularly essential in:

» Independent front suspension (IFS) systems

» Ball joint and steering pivot assemblies

» Double wishbone or MacPherson strut setups

» Torsion beams or strut-based setups with steering knuckles

» By applying controlled, straight-line hydraulic force, a king pin press helps extract components cleanly without damaging surrounding structures or suspensions.

Specifications

» Length: 1.3m

» Width: 1.1m

» Weight: 110kg

» Height: 80.9m

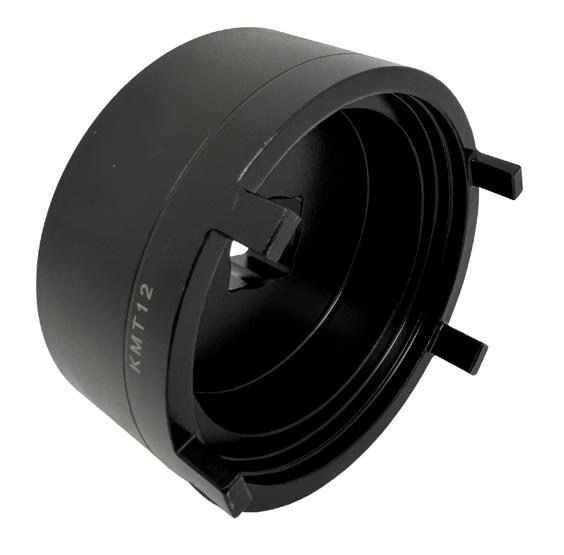

HUB SOCKETS

» Maximum Force/Capacity: 75 ton

» Power Control Unit: 5:1 Ration, up to 700 bar

GO1309 99/102mm N/A Mercedes 6/12 Teeth

3/4” Mercedes 6 Teeth

77mm 1” MAN 6 Teeth

133mm 1” Mercedes 6 Teeth GO1322 76.5mm 3/4” MAN 6 teeth

GO1323 160mm 1” Renault Hexagon

GO1324 140mm 1” SAF Hexagon

GO1325 83mm 1” Iveco Polygon

GO1326 117mm 1” TGA/MAN/Mercedes 6 Teeth

GO1327 92.5mm 1” TGA/MAN 6 Teeth

GO1328 101mm 1” Mercedes 6 Teeth

GO1329 126mm N/A R.O.R Octagon

GO1330 90mm 1” Mercedes 12 Teeth

GO1331 75mm 3/4” Mercedes 6 Teeth

GO1332 91mm 1” Scania 4 Teeth

GO1333 83mm N/A R.O.R Octagon

GO1334 110mm N/A Fruehauf Hexagon

GO1335 56x71mm 1” DAF/Mercedes Rectangle

GO1336 60x76mm 1” MAN/Mercedes Rectangle

GO1337 90mm 1” BPW N/A

GO1338 74mm 1” BPW N/A

GO1339

GO1342 80mm 1” Renault Hexagon

GO1343 80mm 1” Renault Hexagon

GO1344 95mm 1” Renault, Volvo, Fiat Hexagon

GO1345 115.7mm 1” Renault Hexagon

GO1346 68mm 1” Renault 4 Teeth

GO1347 105.4mm 1” Renault, Volvo, Fiat, DAF Hexagon

GO1348 74mm 1” BPW N/A

GO1349 105mm 1” Renault Hexagon

GO1350 90mm 1” Iveco Hexagon

GO1351 80.5mm 41mm Scania Octagon

GO1354 63mm 1/2” MB Sprinter 6 Teeth

HUB PULLERS

» The Sykes Pickavant Hub Puller range comprises of a wide variety of puller types, all using interchangeable components

- whether Hydraulic, Impact or Mechanical, all parts can be used in more than one format, therefore providing flexible pulling options and value for money.

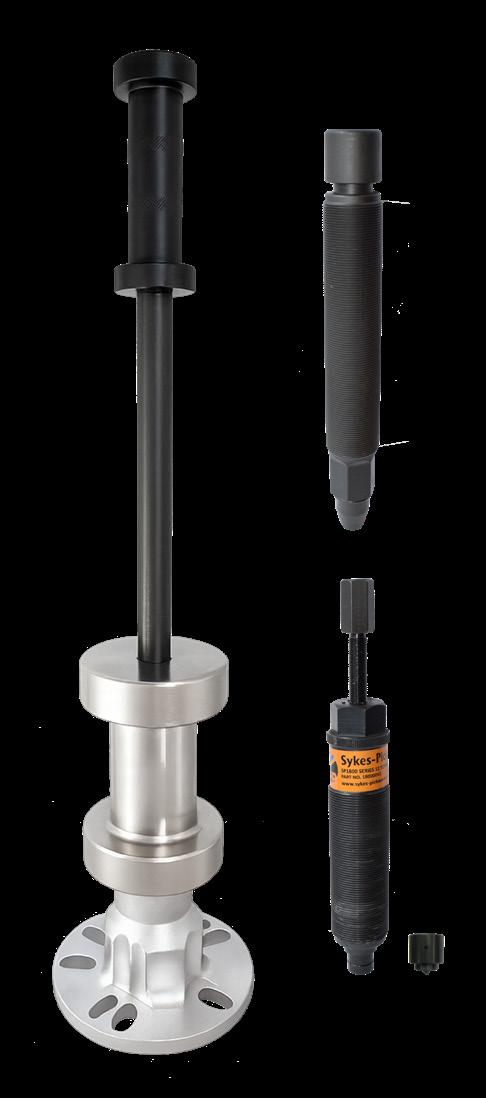

MASTER HUB PULLER KIT

Specifications

» Plate Diameter: 145mm » Stud Range: 84–140mm

» Comprehensive hub puller system for removing stubborn or seized wheel hubs across multiple vehicle types.

Key Features

» Complete kit with hydraulic, mechanical and slide hammer options

» Interchangeable components for flexible use

» Suitable for cars, LCVs and heavy-duty applications

» Designed for high-force hub removal

Includes

» 08520800 Hub Puller Plate (8-slot)

» 180000V2 12T Hydraulic Ram

» 12731100 Mechanical Force Screw

» 08520900 5kg Slide Hammer

» 08531270 Adaptor for slide hammer

ADDITIONAL HUB PULLER OPTIONS

Includes

» 08520800 Hub Puller Plate (8-slot)

HUB PULLERS

Includes » 08520800 Hub Puller Plate (8-slot)

» 180000V2 12T Hydraulic Ram

Includes » 08520800 Hub Puller Plate (8-slot)

» 12731100 Mechanical Force Screw

» The hub puller can be used on a variety of wheel stud pattern applications - 4, 5, 6 stud hubs, with a pitch circle up to 203mm and can be used in 3, 4 or 5 leg combinations

Specifications

» Leg reach: 160 mm

» Spread capacity: 100-180 mm

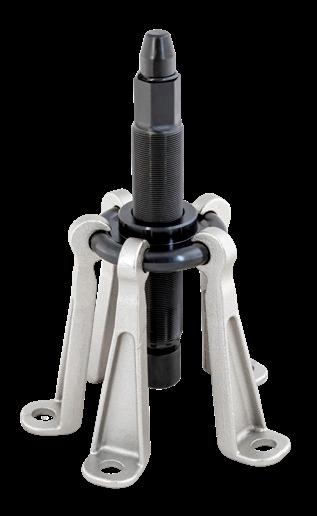

BODY & LEGS ONLY

Includes

» 12741000 – Individual Legs x 3 / x 5

» 12741100 – Body

Part Numbers:

» 12742300 - 3 Leg Kit

» 12742500 - 5 Leg Kit

» Stud hole diameter: 18mm

Includes » 08520800 Hub Puller Plate (8-slot)

» 08520900 5kg Slide Hammer

» 08531270 Adaptor for slide hammer

MECHANICAL HYDRUALIC

Includes

» 12741000 – Individual Legs x 3 / x 5

» 12741100 – Body

» 12731100 – Mechanical Impact Screw

Part Numbers:

» 12740300 - 3 Leg Kit

» 12740500 - 5 Leg Kit

Includes

» 12741000 – Individual Legs x 3 / x 5

» 12741100 – Body

» 150000V2 – 8T Hydraulic Ram

Part Numbers:

» 12741300 - 3 Leg Kit

» 12741500 - 5 Leg Kit

SLIDE HAMMERS

08520900

» Slide hammer

Specifications

» Weight: 5kg

» Thread: 5/8” x 18

» Length: 780mm

» Compatible with hub puller plate 08520800 (requires adaptor 08531270)

08530900

» Slide hammer

Specifications

» Weight: 4.1Kg

» Slide Hammer Shaft Thread: M20 x 2.5

» Adaptor Thread: 1 1/2” 16tpi Whitworth

» Length: 840mm

» Working Length: 700mm

» Compatible with hub puller plate 08520800

HUB PULLERS

08532000

» Slide hammer with double ended threads

Specifications

» Weight: 2kg

» Thread: 5/8” x 18 & 1/2” x 20

» Length: 514mm

» Compatible with hub puller plate 08520800 (requires adaptor 08531270)

» Removable 1/2” male thread gives the slide hammer a 1/2” 20h UN female thread option

Specifications:

» Weight: 9kg

» Length: 770mm

» Connection Thread: M18 x 1.5

Key Features

Specifications:

» Weight: 9 kg

» Total length: 770 mm

» Approx. 8 tonne pulling force

» Suitable for injectors, hubs and joints

» Robust construction

» Multiple accessory compatibility

Specifications:

» Connection thread: M18 x 1.5

Applications

» Universal but especially for use on Ford Mondeo, Mercedes-Benz Vito front axle etc

» Connection Thread: M18 x 1.5 & M22 x 2.0

Key Features

» Steel shot-filled slide hammer maximises impact force and prevents rebound

» Delivers strong, controlled force while reducing strain on joints

» Modular design allows use as a 1.5 kg sliding hammer

» Multiple accessory compatibility

Adaptors:

» 1 x system adaptor tool, M18 x 1.5 with mounting bore

» 1 x system adaptor tool, M18 x 1.5/1-1/2 inch for wheel hub puller

» 1 x universal adaptor with flexible ball joint, M18 x 1.5

» 1 x system adaptor tool, M18 x 1.5/M22 x 2.0

STUD EXTRACTION

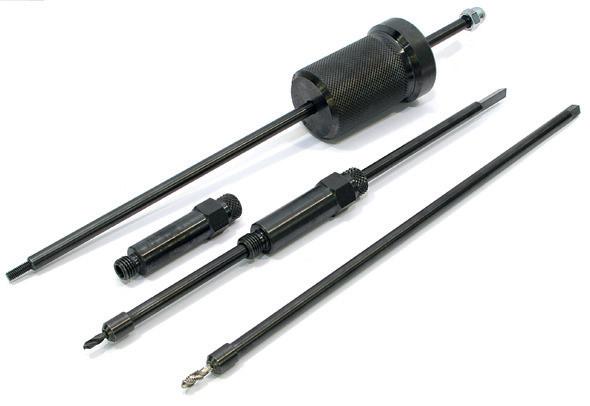

THREADED STUD EXTRACTOR

Specifications

» Hammer weight: 400g

» Thread: M10 (Direct use for M10 Studs)

» Adaptors: M4, M5, M6, M8

» Compact slide hammer extractor kit designed for the removal of threaded studs and tapped dowels.

Key Features

» Suitable for M4–M10 threaded studs

» Slide hammer delivers controlled impact for efficient removal

» Simple, easy-to-use extraction process

» Supplied in compact storage tin with foam inlay

DOWEL PIN PULLER SET

Specifications

» Hammer Weight 1.3Kg

» Length: 550mm

» Working Length: 425mm

» Thread: M20 x 2.5

» Collet sizes: 6mm, 8mm, 10mm, 12mm, 14mm & 16mm

» Collet-style puller set designed for the safe and controlled removal of dowel pins and studs, even with minimal thread exposure.

Key Features

» Suitable for dowel pins and studs (6–16mm)

» Tapered collets grip securely with minimal thread engagement

» Reduces risk of thread damage and shearing

» Prevents bottoming or damage to workpiece

» Slide hammer provides controlled extraction force

Specifications

» Spiral LH screw extractors (easyouts)

» 3 - 19mm capacity

» Screw removal kit including five spiral left-hand “easy-out” extractors, designed to handle stubborn, broken, or seized screws and bolts ranging from 3 mm to 19 mm.

THREADED STUD EXTRACTOR

Specifications

» Hammer weight: 1Kg

» Thread: ½” UNF (plus 2 adaptors 3/8” & 5/8”)

» Adaptors: M6, M8, M10, M12, M14, M16, M18, and M20.

» Heavy-duty slide hammer extractor kit designed for the removal of threaded studs and tapped dowels up to M20.

Key Features

» Suitable for M6–M20 threaded studs

» Heavy slide hammer delivers high impact force for difficult removals

» Supplied in storage case with foam inlay

IMPACT DRIVER & BIT SET

040101V2

» A heavy-duty impact driver and bit set designed for loosening seized, stubborn or thread-locked screws, nuts and fasteners.

Specification

» 8mm Hex (5/16”)

» For more information visit page 57.

» Designed for removing damaged Phillips and Allen screws

» Suitable for Phillips, JIS, and Pozidriv heads

» Triangular extractor tip for improved penetration and grip

» Designed to be used with an impact driver like the 040101V2 for greater efficiency

» Designed for controlled and effective removal of seized suspension components and other stubborn parts without causing damage.

Key Features

» Air-powered Vibro Impact system delivers controlled, precise force

» Integrated shock absorber protects tool and components from overloading » Low vibration design reduces user fatigue during extended use » Supplied with interchangeable hammers and wall-mounted storage bracket

Features » High-performance air hammer for conical seats, bearings, bushes and rusted fixings » Vibro-Impact system delivers controlled, adjustable force

Available with inserts

Built-in shock absorber reduces risk of damage from overloading

Low vibration design improves user comfort during operation

BRAKING

BRAKE BLEEDING

34313000 34313500

Specifications

» 34313000 - Portable 20L

» Capacity: 20 Litres

» Pressure Range: 0.5–4.5 Bar

» Power Supply: 12V/optional mains/ M12

Milwaukee Battery

» Hose Length: 5m

» 34313500 - 60L with Trolley

» As per 34313000

» Capacity: 60 Litres

» Trolley-mounted for workshop use

» Professional electronic brake and clutch bleeders designed for fast, safe, and controlled fluid replacement. Available in portable 20L and workshop 60L trolley-mounted versions, offering flexibility for both mobile and high-volume workshop applications.

Key Features

» Adjustable bleeding pressure (0.5–4.5 bar / 7–65 psi) for precise control

» Power operation: 12V battery, optional mains adaptor, M12 Milwaukee Battery

» Colour LCD display with intuitive 4-button control panel

» Automatic shut-off for low fluid, abnormal pressure, or pause mode

» Automatic reservoir levelling for consistent fluid flow

» Compatible with multiple DOT fluids via interchangeable container system

» Multilingual interface (6 languages EN, FR, DE, IT, NL, ES)

» Supplied with SP Euro cap with additional cap options available

» Optional Extra - 34313100 - Trolley to upgrade 20L to 60L versions

» Optional Extra - 34313200 - 220-12V Charger Lead

12V AUTOMATIC BRAKE BLEEDER

343001V2

Specifications

» Power Supply: 12V

» Pressure Range: 0–3.5 Bar

» Hose Length: 4m

» Capacity: 5 Litres

» Compact 12V automatic brake and clutch bleeder designed for fast, single-operator use. Provides controlled pressure bleeding with a built-in pump system, ideal for workshop and mobile applications.

Key Features

» Allows one-man operation for brake and clutch bleeding

» Adjustable pressure regulator (0–3.5 bar) for controlled operation

» Compatible with ABS systems

» 12V powered with reverse polarity protection

» Stainless steel construction for durability

» Automatic shut-off and low-level protection

POWER SUPPLY OPTIONS:

12V Battery,Mains Adaptor or M12 Milwaukee Battery

240V ELECTRIC BRAKE BLEEDER

34400500

Specifications

» Voltage: 240V AC

» Pressure Range: 0–4 Bar

» Hose Length: 3.2m

» Capacity: Up to 5L

» Electric brake and clutch bleeder designed for fast, single operator use in workshop environments. Provides controlled pressure bleeding with a robust, portable design for efficient servicing.

Key Features

» Allows one-man operation for brake and clutch bleeding

» Adjustable pressure output (0–4 bar) for controlled operation

» Compatible with ABS systems

» Long 3.2m hose for use on raised vehicles

» Large internal storage for brake fluid containers

» Supplied with SP Euro angled cap for wide vehicle coverage

» Rugged impact-resistant housing for workshop durability

BRAKE BLEEDING

BRAKE BLEEDER CAPS

» The ‘343’ range of brake bleeder caps are compatible with both older & newer Sykes Pickavant electric brake bleeders: 343001V2, 34400500, 34313000 & 34313500.

STARTER CAP SET BRAKE BLEEDER CAP SET

Includes:

» 34301000 - Fiesta Cap

» 34301100 - Nissan / Asian Cap

» 34301500 - Euro Standard Cap

NISSAN BRAKE BLEEDER CAP SET

» Approved by Nissan Motor GB Ltd.

Includes:

» 34301000 - Fiesta Cap

» 34301100 - Nissan / Asian Cap

» 34301200 - Pixo / Matiz Cap

» 34301300 - Micra Cap

» 34301500 - Euro Standard Cap

» Includes 5 brake bleeding caps and convertor that is compatible with common brake bleeders.

Includes:

» N3580100 - Micra/Leaf

» N3580200 - Juke

» N3580300 - Qashqai/Navara

» N3580400 - Pixo

» N3580500 - X Trail

» N3580600 - Converter

» N3580700 - Cap Seal Set

INDIVIDUAL BRAKE BLEEDING CAPS

» Cap Adaptor - Chevrolet, Daewoo, Ford, Mazda, Opel/Vauxhall, Ford Fiesta.

» Mitsubishi models - L200 2014 onwards, outlander 3 2012 onwards.

» Chevrolet, Nissan, Renault, Suzuki, Pixo & Matiz (Bayonet Type Cap).

» Subaru, Toyota, Lexus (Bayonet Type).

» Nissan Micra (Bayonet Type Cap).

» Restricted Access - Hyundai, Kia & Nissan.

» Mitsubishi (75mm) and Volvo.

» Asian Bent - Hyundai, Kia, Renault.

BRAKE BLEEDING

» Cap Adaptor - Chrysler, Citroen, Fiat, Hyundai, Kia, Mazda, Mitsubishi, Nissan, Peugeot, Renault, Subaru, Suzuki, Toyota, Nissan & Asian (Bayonet Type Cap).

34301500

» Cap Adaptor - Alfa Romeo, Audi, BMW, Chevrolet, Chrysler, Citroen, Dacia, Daewoo, Fiat, Ford, Jaguar, Kia, Land Rover, MercedesBenz, Mini, Nissan, Opel/Vauxhall, Peugeot, Porsche, Renault, SAAB, Seat, Skoda, Suzuki, Toyota, Volkswagen & Volvo.

» Converter for Sykes-Pickavant brake caps to be used with other brand machines

Specifications

» Cap Diameters: 41mm, 52mm, 63mm, 72mm

» Cap Adaptor - Alfa Romeo, Audi, BMW, Citroen, Dacia, Fiat, Ford, Jaguar, Land Rover, Mercedes-Benz, Mini, Mitsubishi, Opel/Vauxhall, Peugeot, Porsche, Renault, SAAB, Seat, Skoda, Toyota, Volkswagen & Volvo.

34302100

» Cap Adaptor - Chrysler - 300C Touring, Sedam, Neon, PT Cruiser, Viper, Voyager LE, SE, LX, Fiat, Jeep - Cherokee, Grand Cherokee, Wrangler, Wrangler Sport.

» Converter to allow other brand caps to be used with Sykes-Pickavant brake bleeder machines

» The 34309000 Universal Brake Bleeder Cap is a versatile adaptor designed to easily connect to master cylinder reservoirs for pressure bleeding.

Key Features

» Universal compatibility with most brake bleeders (including 343001V2, 34400500, 34313000, 34313500)

» 90° quick coupler for easy access in tight spaces

» Tool-free clamp design for fast, secure attachment

» Fully adjustable fit for different reservoir sizes

» Supplied with 4 interchangeable rubber cones for wide application coverage 34301100

INDUSTRIAL PUMP SPRAYER

Specifications

» Size – 1Litre

» Material – Polyurethane

*Important: Always check product compatibility before use.

Key Features

» Designed for use with a wide range of workshop chemicals

» Suitable for detergents, solvents and brake cleaners*

» Viton seals for chemical resistance

» Adjustable brass nozzle for controlled spray pattern

BRAKE FLUID AUTO FILLER

Specifications

» Capacity: 600ml

» Standalone brake fluid auto filler designed to automatically maintain fluid levels in the master cylinder reservoir during bleeding operations.

Key Features

» Helps prevent air ingress and ensures continuous, efficient bleeding.

» Airtight tap keeps fluid clean and uncontaminated

» Reduces waste and extends fluid shelf life

» Ideal companion for 03480000 vacuum brake bleeder

BRAKE FLUID TESTER

BRAKE BLEEDER BOTTLE C/W NON-RETURN VALVE

Specifications

» Capacity: 500cl

Key Features

» Enables one-person brake and clutch bleeding

» Built-in non-return valve prevents air re-entry

» Suitable for cars, vans and motorcycles

» Compact and easy-to-use design for workshop use

VACUUM BRAKE BLEEDER

Specifications

» Capacity: 1.5 Litres

» Vacuum-operated brake bleeder designed to simplify and speed up fluid changes by extracting fluid directly from the master cylinder reservoir.

Key Features

» Ideal for hard-to-access applications where pressure sealing is difficult

» Vacuum system extracts fluid directly from reservoir

» Faster fluid changes without full system bleeding

» No need for pressure-tight seal on reservoir

» Operates from standard workshop compressed air supply (70–170 psi)

» Can be combined with auto filler 03481100 unit for one-man operation

» Advanced brake fluid tester designed to quickly measure the wet boiling point of brake fluid, allowing accurate assessment of fluid condition and moisture contamination.

Key Features

» Measures brake fluid boiling point in °C and °F

» Compatible with DOT 3, DOT 4, DOT 4+, DOT 5 and DOT 5.1 fluids

» Simple one-button operation with clear digital display

» Powered directly from 12V vehicle battery for on-vehicle use

» Fast test cycle (approx. 30 seconds)

» Automatic protection and battery condition alerts

» Removable heating element for easy cleaning

BRAKE PIPE FLARING

FLAREMASTER2 - BRAKE PIPE FLARING TOOL

» The Flaremaster range of brake flaring tools long trusted by automotive professionals allows technicians to create high-quality brake pipe flares directly on the vehicle.

Key Features

» Hydraulic operation delivers controlled, high-force flaring with minimal effort

» Quick-release chuck ensures secure and efficient punch engagement

» Fast-turn coarse thread allows rapid setup and operation

» Magnetic interchangeable dies for quick and easy changeover

» Creates SAE & DIN single and double flares

» Kits with SS suffix are suitable for flaring stainless steel pipe

FLAREMASTER2 STAINLESS

STEEL UPGRADE KIT

» Stainless steel pipe is much more difficult to work with than standard cupro-nickel, copper or mild steel pipe. Flaring stainless steel brake pipes requires greater force and care to produce good results.

Key Features

» Enables flaring of stainless steel brake pipes

» Includes upgraded hydraulic ram for increased forming force

» Supplied with metal forming compound for improved material flow

FLAREMASTER2 - 6MM UPGRADE KIT

Key Features

COATED BRAKE PIPE DIES

– 4.75MM (3/16”)

» Specialist die set designed for forming coated brake pipes using the Flaremaster2 system. Ensures clean, accurate flares while protecting the pipe coating from damage during the flaring process.

» Designed to upgrade the Flaremaster2 brake pipe flaring tool for 6 mm applications

» Ensures accurate and consistent flares

BRAKE PIPE FLARING

270 SERIES - BRAKE PIPE FLARING TOOL

» The 270 Series brake pipe flaring tools are workshop trusted for automotive and engineering applications. Built to withstand high-volume use, each tool securely mounts in a bench vice for accuracy, speed, precision, and repeatability.

Key Features

» Vice-mounted design provides maximum stability and accuracy during operation

» Dial a Size turret for fast, tool-free size changes

» Automatic punch extraction for faster flaring cycles

» Precision screw clamp ensures perfect die alignment every time

» Produces SAE (single/double lap) and DIN (single convex) brake flares

» Available in kit formats covering 3/16” to 1/2” (SAE) and 4.75 mm to 12 mm (DIN/metric)

» Full range of replacement parts and accessories for long-term serviceability

‘270’ SERIES - INDIVIDUAL PUNCH & DIE SELECTION CHART

02707100 1/4” 02705200 02703200

02707100 5/16” 02705300 02703300

02707200 3/8” 02705300 02703400

02707200 1/2” 02705500 02703500

02707200 4.75mm 02705100

02707100 6mm 02705200 02704200

02707100

8mm 02705300 02704300

02707200 10mm 02705400 02704400

02707200

02707300

BRAKE & PIPE SERVICE

Specifications

» Pipe Sizes: 4.75mm (3/16”)

» Brake pipe forming pliers designed for accurate shaping and bending of 4.75mm (3/16”) brake and clutch pipes.

Key Features

» Enables precise shaping without kinking or flattening the pipe

» Ideal for on-car repairs and pipe routing adjustments

» Ideal for use in restricted space and for use on the vehicle

» Can also be used for quick tube nut thread alignment and as a guide when cutting tube

PIPE TUBE CUTTER

Specifications

» Wide capacity 3-32mm

Key Features

» Grooved rollers for accurate cutting when working close to flared or curved pipe ends

» Clean up rough edges with foldaway deburring blade

» Spare wheels available : 02210100

Specifications

» Pipe Sizes 4.75mm (3/16”) and 6mm (1/4”)

» Dual-size brake pipe forming pliers designed for accurate shaping and bending of both 4.75mm (3/16”) and 6mm (1/4”) brake pipes.

Key Features

» Enables precise shaping without kinking or flattening the pipe

» Ideal for on-car repairs and pipe routing adjustments

» Dual-size - one tool two sizes

Specifications

» Capacity 3-25mm

Key Features

COMPACT PIPE & TUBE CUTTER BRAKE PIPE COATING REMOVAL

Specifications

» Handles small to moderately large brake pipes 3-16mm (1/8″ - 5/8″)

Key Features

» Ensure clean, reliable brake-pipe flares with this specialist tool designed for removing protective nylon coatings - common on certain VAG and GM brake-pipe assemblies - before flaring.

» Ideal for professional brake-pipe servicing, ensuring safe, leakfree joints on coated brake lines.

» Grooved rollers for accurate cutting when working close to flared or curved pipe ends

» One-hand operation makes it ideal for use on vehicles where access is restricted

BRAKE PIPE CORROSION TOOL

Key Features

» Enables fast and easy inspection of brake pipe condition

» Dual scraper areas remove dirt and corrosion for clear assessment

» Improves visibility of pipe surface for accurate checks

» Simple, practical tool for routine maintenance

BRAKE & PIPE SERVICE

RATCHETING LINE WRENCH SET

» Designed for fast, precise work on brake, fuel and hydraulic lines in confined spaces.

Key Features

» Ratcheting mechanism enables quick and efficient operation in tight areas

» Pressure-locking grip prevents slippage and rounding of fittings

» Slim open-end design allows access without removing lines

» Perfect for working on a brake system, fuel line or hydraulic connection

» 4 pack

» 4 sizes per wrench

» Supplied in foam, ideal for tool boxes

Includes sizes:

» 8 x 9 mm, 5/16” x 11/32” SAE

» 10 x 11 mm, 3/8” x 7/16” SAE

» 12 x 13 mm, 15/32” x 1/2” SAE

» 14 x 15 mm, 9/16” x 19/32” SAE

» 2 pack

» 4 sizes per wrench

» Supplied in foam, ideal for tool boxes

Includes sizes:

» 16 x 17mm (5/8” x 11/16” SAE)

» 18 x 19mm (3/4” x 23/32” SAE)

VEHICLE FLUID CHANGE SYRINGE VEHICLE FLUID CHANGE SYRINGE

Specifications

» Capacity: 200 cc

» Material: Composite plastic

» Designed for easy fluid transfer and monitoring during vehicle servicing.

Key Features

» Transparent body allows clear visibility of fluid levels

» Suitable for both suction and supply of vehicle fluids

» Resistant to brake fluid and antifreeze for safe use

» Quick disconnect tube for fast and convenient operation

» Replacement seals 660504-01

PIPE BENDER

Specifications

» Suitable for 4.75mm (3/16”) to 6mm (1/4”) pipe sizes

Key Features

» Unique rolling action for smooth, controlled bending

» Forms bends up to 180°

» Helps prevent abrasion damage to plastic or epoxy-coated pipes

» Handle lug allows bench use with a vice for where control & repeatability are important

Specifications

» Capacity: 1.5L

» Material: Composite plastic

» Designed for easy fluid transfer and monitoring during vehicle servicing.

Key Features

» Transparent body allows clear visibility of fluid levels

» Suitable for both suction and supply of vehicle fluids

» Resistant to engine oil, gear oil and differential fluid

» Rotative shut-off switch for improved control

» Replacement seals 660951-01

PIPE DEBURRING TOOL

» Double-ended deburring tool designed for cleaning brake and fuel pipe ends prior to flaring

Key Features

» Suitable for brake and fuel pipes

» Double-ended design for internal and external deburring

» Prevents swarf contamination inside pipes

» Compatible with copper, steel and brass pipes

BRAKE & PIPE SERVICE

BRAKE & FUEL LINE CLAMP DUO DRIVE SPLINE

» Lightweight, non-conductive nylon clamp designed to safely restrict flow in brake and fuel lines without crushing the hose

» Ideal for extended use during servicing.

IMPACT SOCKET SET

03665000

» Duo Drive® system for use with 1/2” square drive or 24mm hex

Key Features

» Impact-quality 12-point spline sockets for durability

» Suitable for a wide range of applications, including VAG vehicles

Contents:

» M12, M14, M16, M18 – 40mm (Short)

» M12, M14, M16, M18 – 75mm (Long)

» Designed to remove corrosion, rust and debris from brake caliper brackets and sliding surfaces.

Specifications

03620100 - Universal

» File length 135 mm

» Width 12.4 mm

» Depth 6mm

» Total length 260 mm

BRAKE CALIPER CLEANING FILES BRAKE

DISC MEASURING TOOL

Specifications

» Measurement range:

» 200–400 mm

03620200 - Extra Slim

» File length 130 mm

» Width 9.5 mm

» Depth 6mm

» Total length 250 mm

» 03620200 - Ideal for Japanese vehicles

ABS REAMER SET

» Designed to quickly and accurately measure brake disc diameter on the vehicle, ensuring the correct replacement part is selected first time.

» Key Features

» Measures brake discs from 200–400 mm, covering most cars and LCVs

» Slim design allows access in tight or obstructed areas

» Enables accurate on-car measurement to reduce ordering errors

» Simple, quick operation for efficient workshop use

» Tool kit for thorough cleaning of the ABS sensor mounting hole on the wheel bearing housing.

» After cleaning, the sensor can be installed without damage and without knocking.

» Broken sensors can be removed with the help of the included twist drill.

» The swiveling ratchet wrench allows access even in narrow areas.

» The cleaning of the guide bore is recommended by the brake parts manufacturer GO375

Contents:

» 1 x ABS reamer Ø10mm x 150mm for VW Golf 5, Polo 9N, T5, Škoda Fabia, Seat Ibiza, Opel Insignia

» 1 x ABS reamer Ø11mm x 84mm for VW Beetle, Golf Plus + V + VI + VII, Jetta III + IV, Passat + CC, etc. (2003→) / Audi A3, Q3 (2013→), TT / Seat Altea, Leon, Toledo III (2004→), Skoda (2004→)

» 1 x ABS reamer Ø14mm x 32mm für BMW E38, E39, E52, E60, E61, E63, E64, E65, E66, E70, E71

» 1 x ABS reamer Ø15mm x 23mm for Mercedes-Benz class A, Mazda, Ford

» 1 x ABS reamer Ø18mm x 23mm for Audi, VW, BMW E36, E46, Seat, Skoda

» 1 x ABS reamer Ø18mm x 34mm for Audi, VW, Seat, Skoda, commercial vehicles

» 1 x Twist drills Ø10mmx133mm

» 1 x Ratchet spanners SW15, swiveling

» 3 x Cleaning brush Ø13 - 16 - 19mm

BRAKE DISC RUN OUT SET

07610100

» Measures brake disc run-out for accurate diagnostics

Key Features

» Powerful magnetic base with on/off lever for quick positioning

» Suitable for flat and round surfaces

» High-quality dial test indicator gauge with floating scale

» Universal clamp with fine adjustment for precise setup

» Magnetic base available seperately. P/N: 07610000.

BRAKE CALIPER BRUSH SET

Specifications

» Length: 225mm 03620500

Key Features

» Includes steel and brass brushes

» Suitable for aluminium and steel calipers

» Removes brake dust and contamination

» Improves servicing efficiency

AIR ASSISTED CALIPER PISTON WIND BACK TOOL KIT

» Professional air-assisted tool for retracting brake caliper pistons quickly and efficiently during brake servicing.

Key Features

» Air-operated ram applies consistent pressure to the caliper piston

» Manual rotation handle for controlled wind-back operation

» Magnetic head for quick, secure adaptor fitment

» Reversible for both right-hand and left-hand threaded pistons

» Suitable for wind-back and push-back brake calipers

» Works with standard workshop air supply

Contents

» Air-assisted wind-back tool with magnetic head

» 9 adaptors covering a wide range of popular vehicles

» 3/8” converter for compatibility with adaptors from older kits

SLOGGING BRAKE CALIPER WRENCH

» Designed for effective removal and installation of brake caliper fixing screws on heavy-duty vehicles.

Key Features

» Ideal for front and rear axle brake work on heavy vehicles

» Hammer strike capability helps release stubborn screws

» ¾″ square drive allows use with torque wrench for precise tightening

» Laser-marked torque conversion ensures accurate application

TORQUE WRENCHES

SPEEDLINE ® TORQUE WRENCH RANGE

» The Speedline Torque Range delivers reliable torque accuracy and long service life with its proven ratchet mechanism and robust design. It gives dependable performance across a wide range of automotive and industrial applications.

» Accurate to ±3% of reading which meets and exceeds ISO6789:2003.

» Light and fast adjustment saves operator time and effort.

» N.m scale applying to the primary torque units for simple and error free setting.

» ‘Push through’ ratchets allow torque control in both clockwise and anti-clockwise directions.

» Tough ratchets with narrow engagement angles allow for easy positioning of the tool in confined spaces. 5° for models up to 200 N.m and 6° for models 300 N.m and above.

» Pull/push lock is fast and intuitive to use and prevents accidental adjustment of the set torque.

» Convenient hanger feature for tool storage also aids wrench unlocking and adjustment.

‘MOTORQ’ PROFESSIONAL TORQUE WRENCH RANGE

» The ‘Motorq’ Professional range of torque wrenches offer accuracy, comfort and ease of use.

» Accurate to +/-3% of reading which meets the requirements of ISO 6789-2:2017.

» Supplied with a traceable ‘Calibration Certificate’ allowing end-users to adhere to more stringent quality control processes.

» 60% larger scale for better visibility and improved accurate setting.

» Scale adjusts 40% faster and the effort required to adjust is reduced.

» Improved serviceability means longer life and reduced ownership costs.

» Superior, ergonomic handle and shape - Soft-feel, high grip material and more comfortable to use.

» Now includes a push/pull type lock for faster use; the coloured band on the lock clearly shows that the wrench is unlocked.

TORQUE WRENCHES

PROTRONIC ® TORQUE WRENCH

» High-precision electronic torque and angle wrench

» The ProTronic® is a high-precision electronic torque and angle wrench with a large backlit LCD display and comfortable high grip handle.

» Audible, visual and tactile signals alert the user when a pre-set torque or angle target is approached. Various features of the wrench can be configured to suit individual preferences and application requirements.

» Accuracy of ±2% when operating between 20% to 100% of tool capacity.

» Accuracy of ±4% when operating between 5% to 19% of tool capacity.

» Tough and dependable push-through square-drive ratchets.

» Narrow engagement angle allows work in tight spaces.

» Large LCD screen with bright back-light; numbers become larger and bolder during active torque for optimal viewing.

» Dual progressive LEDs positioned both sides of the wrench provide an easy visual representation of torque progress allowing the user to more easily anticipate torque target.

» Handle designed for a comfortable and secure grip.

» Battery cap has been designed to prevent accidental loosening.

PROTRONIC ® PLUS

» High-precision electronic torque and angle wrench with Bluetooth®

» The ProTronic® Plus retains all the features available in the ProTronic® standard versions with more advanced features included. Equipped with Bluetooth®, the ProTronic® Plus will work alongside a specially created app for more intuitive control when out in the field.

» ProTronic® Plus ratchets are detachable on models 100, 200 and 340 allowing for easy customisation of end fittings.

» Tough and dependable ratchets on all wrench models, reversible style on models 10, 30 and 800. Push-through ratchet on models 100, 200 and 340.

TORQUE WRENCHES

XR PRO TORQUE WRENCHES

» Designed to meet the demands of high-torque applications, the XR Professional is available in torque ranges up to 1000 Nm, delivering exceptional strength, accuracy and reliability for today’s most challenging industrial applications.

» Easy to Read Scale: a large, easy to read scale with smooth, rapid adjustment, minimising operator time and effort.

» Push through Ratchet: allows clockwise and counter clockwise operations

» Push / Pull Lock: Prevents accidental adjustment of the set torque

» Split Design: Can be split for easier transport, reduced storage footprint and field service efficiency

» Alignment Pin: The alignment pin physically prevents the use of incompatible attachments, thereby reducing the risk of improper set up

» Carry Case: Supplied in a sturdy carry case for storage and protection

TORQUE TOOLS

EVOTORQUE ® BATTERY TOOL RANGE

» The EvoTorque® Battery Tool (EBT) is a fast, reliable and accurate battery torque tool which features a brushless motor, data memory and data transfer capabilities.

» Test and record the torque on every bolt.

» Keep full electronic records for your fleet.

Kit Contents:

» EBT Battery Tool and reaction.

» Operator’s Manual.

» USB with EvoLog software and operator’s manual translations.

» Quick Reference guide.

» Secondary Handle.

» Drive Square (spare).

» 4 mm Allen key.

» 2 m USB cable.

» USB Bluetooth Smart Adaptor.

» Battery Charger, three-bay.

» Battery Charger Instruction Manual.

» Battery x 2.

» Battery Instruction Manual.

TORQUE TOOLS

EVOTORQUE® COMPACT BATTERY TOOL RANGE

» Delivering up to 20% more portability without sacrificing performance, this compact tool features intelligent joint sensing technology for exact torque application every time.

» Patented cooling system allows for continuous operation under heavy use, maintaining optimal performance.

» Advanced Torque modes include: Torque, Torque then Angle, Angle Only, Torque with Angle and Audit Mode.

» Clear top-mounted display provides real-time torque data and allows for quick and easy adjustments to settings.

» Supplied with 2 batteries, 1 single-bay battery charger, cranked reaction, operator’s manual, and a convenient carry case.

» Supplied with torque and angle calibration certificate.

» Typical storage capacity: 4,000 readings (Results Only mode) or 1,500 readings (Results + Graph mode).

TRUCHECK™ 2

» Allows torque tool performance to be monitored and tools kept in peak condition.

» Supplied with traceable calibration certificate.

» Limited settable options. Ideal for non-expert users with click type torque wrenches.

» Inbuilt Micro USB 2.0 port enables power from any USB power source.

» Accuracy: ±1% torque reading accuracy (±2% when below 10% of range for the 1,100 N·m TruCheck™ 2 model).

» Display: LCD Display.

» Temp Range - Operating: 0°C to +50°C.

» Temp Range - Storage: -20°C to +70°C.

» Power Consumption: 0.5W.

» Environment: IP 40.

» Electromagnetic Compatibility (EMC) Directive: Designed to comply with EN 61326-1.

» UKAS accredited calibration is optional.

Plus Models Only:

» Allows a selection of torque units

» Three modes of operation (Click, Dial and Track)

» The ability to store up to 15 targets and select from 12 languages

» Allows operator to set a target value and tolerance

‘MOTORQ’ HEAVY DUTY TORQUE MULTIPLIERS

Key Features

» Single stage epicyclic gears, producing a 5 : 1 multiplication ratio.

» Use with conventional torque wrenches for heavy duty applications.

» Supplied with reaction bars, in plastic storage case.

» After-sales service available.

RATCHETING RING TORQUE ADAPTOR SET - 3/8” SD 10-19MM

80094000

» Ideal for accessing fasteners in confined or awkward spaces

Key Features

» 3/8” Drive Bi-Hex (12-point) adaptors with built-in reversible 120-tooth ratchet mechanism

» Metric sizes included: 10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm

» Chrome vanadium construction with corrosion-resistant black phosphate finish

» Supplied in a precision-cut EVA foam tray for organised storage

‘MOTORQ’ ANGULAR TORQUE GAUGE

Key Features

» For turning torqued fasteners through a further angle, as per vehicle manufacturers’ specifications.

» Oil resistant, non-reflective surface and adjustable reaction arm.

» Supplied with both male and female square drives.

TORQUE SCREWDRIVER

» Versatile, Accurate and easy torquing for smaller fasteners and restricted spaces.

Key Features

» Easy adjustment with no additional tools required

» Locking mechanism prevents accidental setting changes

» Slip mechanism avoids over-tightening

» Comfortable, durable dual-material grip

» Includes 1/4” hex bit holder (4mm stem)

» Supplied with ISO 6789-1:2017 Declaration of Conformance

PRE-SET TORQUE ADAPTOR

» Convert your 3/8” ratchet or breaker bar into an accurate torque tool with this preset torque accessory set.

Key Features

» Ideal for automotive, machinery, and workshop use

» 3/8” square drive compatible with standard ratchets and sockets

» One-way torque limiting prevents over-tightening

» Allows unrestricted loosening

» Compact, durable design for tight spaces

» Protects threads and ensures correct component sealing

WORKSHOP TOOLS

GENERAL WORKSHOP TOOLS

UNIVERSAL FLOW STOP KIT

» Maintain a clean and safe workshop environment with our extensive range of Flowstops.

Key Features

» Comprehensive Plug Range – available in sizes from 1-130mm

» Chemical Resistance: Constructed from silicone free rubber, the plugs are highly resistant to chemicals, acids, and aggressive fluids.

» Wide Temperature Tolerance: Operates effectively within a temperature range of -25°C to +90°C

» Tool Free Application: Easy to use - simply insert, push, and twist to create a secure seal without the need for additional tools.

UNIVERSAL SPANNER EXTENDERS

» The range of Sykes Pickavant Universal Spanner Extenders are robust tool extensions designed to transform ordinary spanners and hand tools into high-torque, long-reach solutions.

Key Features

» Torque Amplification: Multiplies the input force, delivering more rotational torque to stubborn bolts or nuts.

» Leverage Increase: The extra length dramatically improves mechanical advantage, making tough jobs easier.

» Extended Reach: Access deep, recessed, or obstructed fasteners without disassembling surrounding components.

» Accessory Attachment: Designed as an add-on to standard open-ended or ring spanners - simply insert and extend.

» Square Drive Compatible: Allows it to be used with breaker bars or ratchets for extra torque

INDUSTRIAL PUMP SPRAYER CHISEL SCRAPER SET

Specifications

» Size – 1Litre

» Material – Polyurethane

» *Important: Always check product compatibility before use.

Key Features

» Designed for use with a wide range of workshop chemicals

» Suitable for detergents, solvents and brake cleaners*

» Viton seals for chemical resistance

» Adjustable brass nozzle for controlled spray pattern

Specifications

» 230 x 32 x 2.6mm

» 190 x 20 x 2.6mm

» 230 x 32 x 1.2mm

» 190 x 20 x 1.2mm

Key Features

» 4-piece chisel scraper set designed for workshop scraping, cleaning and removal tasks

» Stainless steel blade runs through the handle making it suitable for use with hammer when extra force is required

» The blades can be easily re-sharpened, helping to extend tool life

» 2 piece scraper set designed for the fast and effective removal of stubborn build-up in workshop and automotive applications

Key Features

GENERAL WORKSHOP TOOLS

» Ideal for cleaning gaskets, corrosion, paint, glue residue and carbon deposits, even in hard-to-reach areas.

» The double-edged blade design allows the tool to be used as both a push and pull scraper

» Durable carbide tips for extended tool life

Specifications

» Screw: M10 x 1.0

» Connection: SW 17mm

» Fork width: 16 – 38mm

» Working height: 48mm

Key Features

» Universal extractor for removing wiper arms from the shaft

» Ultra-thin fork design for access in restricted spaces

» Aluminium turning head helps prevent shaft damage

» Heavy-duty construction for seized or blocked wipers

» Wide radius design suitable for larger wiper arms

» Wide adjustment range covers multiple vehicle applications

» Spring mechanism balances pressure on the fork for controlled extraction

SPOT WELD DRILL

Specifications

» Diameter: 8mm

» Length: 80mm

» Type: Stubby spot weld drill

Key Features

» Stubby design for the fast and accurate removal of spot welds without distorting surrounding panels.

» High-speed cobalt steel construction

» Suitable for automotive bodyshop and panel repair applications

» Durable cutting performance with excellent heat resistance

» A complete scraper and blade set designed for fast and effective removal of gaskets, sealants, adhesives, paint and other stubborn deposits.

» Includes a durable scraper handle together with 5 steel blades & 5 plastic blades

Spare Parts

» 70101000 - 10 x plastic blades

» 70102000 - 10 x steel blades

HOOK, PICK & SCRAPER SET

» A practical 9-piece set designed for everyday workshop and garage use

» Includes four standard hooks and picks, four mini hooks and picks, plus one straight-edge scraper - ideal for gasket work and detailed tasks.

» Suitable for working with O-rings, seals, bushes, springs, cotter pins, fuses and similar small components.

Contents

» 4 × standard hooks & picks

» 4 × mini hooks & picks

» 1 × straight-edge scraper

AIR BLOW GUN

» A versatile air blow gun designed for cleaning, drying and debris removal in automotive and workshop environments.

Key Features

» Fingertip control for infinitely variable airflow

» 100mm high-velocity cranked nozzle for improved access

» Suitable for cleaning carburettor jets, fuel lines and brake pipes

» 1/4” BSP threaded connection

» Suitable for use with workshop air systems and quick couplers

WIRE HAND BRUSH

» Durable wire hand brush for workshop and automotive use

» Ideal for removing rust, corrosion, paint and debris

» Suitable for surface preparation and cleaning tasks

GENERAL WORKSHOP TOOLS

Specifications

» Leg opening range: 0–90mm

» Suitable for circlips with diameters from 90–175mm

Tip Sizes

» Bent 20°: 3mm, 3.8mm, 4.6mm

» Bent 72°: 3mm, 3.8mm, 4.6mm

» A heavy-duty circlip tool designed for the safe installation and removal of extra-large internal and external circlips

Key Features

» Compound screw lever mechanism for controlled operation

» Supplied with durable colour-coded alloy tips and hex key

» Packed in a robust black blow-moulded storage case

FASTENER TOOLS

MECHANICAL NUT SPLITTERS

» Effortlessly and safely remove stubborn nuts ranging between 4 mm and 36 mm

Key Features

» Anti-Rotation Design: The flat upper edge prevents nuts from spinning during operation, delivering a clean and precise split.

» Superior Chisel Positioning: Its enhanced nut placement design and perpendicular chisel alignment enable efficient splitting while preserving bolt integrity.

» High Torque Capacity: Ideal for tackling tough, high-torque situations.

» Optional high performance blades available for cutting stainless steel

CIRCLIP TOOL WITH PEG SET (70MM)

02830000

Specifications

» Maximum circlip capacity: 70mm spread

Tip sizes

» 2.29mm

» 3.00mm

» 3.91mm

» 4.32mm

Key Features

*High performance blades have a double angle cutting edge, and a vanadis 4 steel construction up to 64 HRC suitable for stainless steel nuts.

» Multi-purpose circlip tool with interchangeable peg set

» Suitable for internal and external circlips

» Adjustable configuration for a wide range of applications

» Supplied with assorted pegs for improved versatility

HYDRAULIC NUT SPLITTERS NEW

» A new range of high-performance Hydraulic Nut Splitters that combine the proven cutting head of our Mechanical Nut Splitters with the robust hydraulic power of our 180000V2 12 Tonne Ram.

Key Features

» Ram-Actuated Design: Replaces the traditional mechanical screw with a 12 Tonne hydraulic ram for effortless cutting power and superior user control.

» High-Strength Cutting Head Cuts Steel Nuts: up to M24 (grade 8.8) and Stainless Steel Nuts: up to M22

» Wide Compatibility: Ideal for hex nuts ranging from M6 to M24, commonly found in a wide range of industrial, mechanical, automotive, and construction applications.

*03372500 - Includes 2x Splitters and 1x Hydraulic Ram

» Designed for tight spaces and tough jobs, this Micro Impact Driver Set includes everything you need to remove seized and damaged fasteners with ease.

» Includes 6 x bits, bit adaptor and 6 x fluted extraction sockets designed to grip the sides of rounded or damaged fixings for secure removal

Contents

» Micro Impact Driver 3/8” SD

» Adaptor: 5/16 Bit adaptor

» Compact Storage Case: Keeps everything organized and portable

Bit Selection

» Standard Length (36mm) - Phillips PH2, PH3 | Flat 8mm, 10mm

» Long Length (80mm) - Phillips PH2 | Flat 8mm

Fluted Extraction Sockets (6 sizes):

» 8mm, 10mm, 11mm, 12mm, 13mm, 14mm

Specifications

» Drive Size: 1/2” Square

» Stud Capacity: 6-19mm

» Mechanism: eccentric grip wheel

Key Features

» Powerful eccentric wheel design delivers powerful grip for both setting new studs or removing stubborn and corroded studs.

» 1/2” sq. drive ensures reliable engagement with standard ratchets or torque tools.

» Suitable for stud diameters from 6mm to 19mm - a wide range covering light to heavy duty applications.

» Designed to make both installation and extraction of studs efficient and reliable

EXTRACTOR SET

Specifications

» Spiral LH screw extractors (easyouts)

» 3 - 19mm capacity

» Screw removal kit including five spiral left-hand “easy-out” extractors, designed to handle stubborn, broken, or seized screws and bolts ranging from 3 mm to

FASTENER TOOLS

» A heavy-duty impact driver and bit set designed for loosening seized, stubborn or thread-locked screws, nuts and fasteners.

Specification

» 8mm Hex (5/16”)

Key Features

» Internal cam mechanism converts hammer force into turning torque

» Helps reduce damage to screw and fastener heads

» Suitable for high-torque automotive and workshop applications

» Supplied in durable storage case

» Includes 14 interchangeable impact-rated bits

SCREW EXTRACTOR BITS

» Designed for removing damaged Phillips and Allen screws

Specification

» 8mm Hex (5/16”)

» Suitable for Phillips, JIS, and Pozidriv heads

» Triangular extractor tip for improved penetration and grip

» Designed to be used with an impact driver like the 040101v2 for greater efficiency

» A high-quality kit crafted for removing broken studs, screws, or bolts between 6 mm and 12 mm in diameter.

Key Features

» Includes 5 drill bits, 10 drill guides to ensure precise alignment, 5 straight-fluted extractor assemblies

» Ideal for broken, rusted, or seized studs, screws, and bolts, situations where the fastener head has snapped off or is flush with the surface

FASTENER TOOLS

THREAD RESTORERS

» Designed for repairing damaged internal or external threads where a standard die cannot be used due to accessibility or damage.

» Available in BSW/BSF, SAE/UNF, BSP and metric, each tool covers 8 pitch sizes

01560000 BSW / BSF 11, 12, 14, 16, 18, 20, 22, 26

01560100 SAE / UNF 12, 13, 14, 16, 18, 20, 24, 28

01560200 METRIC 0.75, 1.00, 1.25, 1.50, 1.75, 2.00, 2.50, 3.00

01560300 BSP 11, 12, 14, 16, 19, 20, 22, 28

RATCHETING RING TORQUE ADAPTOR SET - 3/8” SD 10-19MM

80094000

» Ideal for accessing fasteners in confined or awkward spaces

Key Features

» 3/8” Drive Bi-Hex (12-point) adaptors with built-in reversible 120-tooth ratchet mechanism

» Metric sizes included: 10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm

» Chrome vanadium construction with corrosion-resistant black phosphate finish

» Supplied in a precision-cut EVA foam tray for organised storage

RATCHETING LINE WRENCH SET

» Designed for fast, precise work on brake, fuel and hydraulic lines in confined spaces.

Key Features

» Ratcheting mechanism enables quick and efficient operation in tight areas

» Pressure-locking grip prevents slippage and rounding of fittings

» Slim open-end design allows access without removing lines

» Perfect for working on a brake system, fuel line or hydraulic connection

» 4 pack

» 4 sizes per wrench

» Supplied in foam, ideal for tool boxes

Includes sizes:

» 8 x 9 mm, 5/16” x 11/32” SAE

» 10 x 11 mm, 3/8” x 7/16” SAE

» 12 x 13 mm, 15/32” x 1/2” SAE

» 14 x 15 mm, 9/16” x 19/32” SAE

» 2 pack

» 4 sizes per wrench

» Supplied in foam, ideal for tool boxes

Includes sizes:

» 16 x 17mm (5/8” x 11/16” SAE)

» 18 x 19mm (3/4” x 23/32” SAE)

SILBERTOOL ® THREAD REFORMER

» Our new range of External Thread Reform Tools uses innovative non-cutting technology to return threads from M5 – M110 back to their original shape.

» Allows original parts to be reused rather than replaced.

» Works on all types of thread including metric, fine and imperial with compatible rollers.

» No external energy source is required; process is completed by hand.

» Threads are not weakened during the reforming process; cold hardening leaves the thread 39% harder than those which have been cut.

» Threads reformed with the Silbertool® withstand the same static and dynamic loads as a new undamaged thread, with a higher fatigue endurance limit.

» The finished surface is smoother than if cut which reduces the chance of corrosion and improves thread lifespan.

Roller packs must be used with the thread reformer; available in sets of 3, they are interchangeable and available to purchase separately

M5 - M16 THREAD REFORMER MAIN ASSEMBLY

» Pitch: 0.5mm - 2.0mm.

» Max. Radius of Action: 35mm while

The shape of the original thread is reformed by using Silbertool® compared to cut threads where material is taken away - improving the threads durability and lifespan

014216-341 BSW/BSF/BSPP/BS ROLLER SET R16

014216-342

BSW/BST/BSPP/BS ROLLER SET R16

014216-343 BSW/BST/BSPP/BS ROLLER SET R16

014216-344

BSW/BST/BSPP/BS ROLLER SET R16

014216-345 BSW/BST/BSPP/BS ROLLER SET R16 20tpi

014216-346

014216-347

014216-348

014216-349

014216-350

014216-351

BSW/BST/BSPP/BS ROLLER SET R16 19tpi

BSW/BSF/BSPP/BS ROLLER SET R16 18tpi

BSW/BSF/BSPP/BS ROLLER SET R16 16tpi

BSW/BSF/BSPP/BS ROLLER SET R16 14tpi

BSW/BSF/BSPP/BS ROLLER SET R16 12tpi

BSW/BSF/BSPP/BS ROLLER SET R16 11tpi

SILBERTOOL ® THREAD REFORMER

M10 - M36 THREAD REFORMER MAIN ASSEMBLY

» Pitch: 0.5mm - 4.0mm.

» Max. Radius of Action: 115mm while working with ø 10mm.

014236-242 BSW/BSF/BSPP/BS ROLLER SET R36 12tpi

014236-243 BSW/BSF/BSPP/BS ROLLER SET R36 11tpi

014236-244 BSW/BSF/BSPP/BS ROLLER SET R36

014236-247 BSW/BSF/BSPP/BS ROLLER SET R36 7tpi

014236-248 BSW/BSF/BSPP/BS ROLLER SET R36 6tpi

014236-249 BSW/BSF/BSPP/BS ROLLER SET R36 5tpi

M10 - M60 THREAD REFORMER MAIN ASSEMBLY

» Max. Radius of Action: 162mm while working with ø 10mm.

014311-123 UNC/UNF/UNEF SET R60/R110 20tpi

014311-124 UNC/UNF/UNEF SET R60/R110 18tpi

014311-125 UNC/UNF/UNEF SET R60/R110

SET R60/R110

014311-127

SET R60/R110 12tpi 014311-128 UNC/UNF/UNEF SET R60/R110 11tpi

014311-129 UNC/UNF/UNEF SET R60/R110 10tpi

014311-130 UNC/UNF/UNEF SET R60/R110 9tpi

014311-141

BSW/BSF/BSPP/BS SET R60/R110 19tpi

014311-142 BSW/BSF/BSPP/BS SET R60/R110 18tpi

014311-143

014311-144

014311-145

014311-146

014311-147

014311-148

BSW/BSF/BSPP/BS SET R60/R110 16tpi

BSW/BSF/BSPP/BS SET R60/R110 14tpi

BSW/BSF/BSPP/BS SET R60/R110 12tpi

BSW/BSF/BSPP/BS SET R60/R110 11tpi

BSW/BSF/BSPP/BS SET R60/R110 10tpi

BSW/BSF/BSPP/BS SET R60/R110 9tpi

SILBERTOOL ® THREAD REFORMER

M50 - M110 THREAD REFORMER MAIN ASSEMBLY

014311-143 BSW/BSF/BSPP/BS SET R60/R110

014311-146 BSW/BSF/BSPP/BS SET R60/R110

014311-147 BSW/BSF/BSPP/BS SET R60/R110

014311-148 BSW/BSF/BSPP/BS SET R60/R110 9tpi

SOCKETRY

KM SOCKETS

» The Sykes-Pickavant KM Sockets are designed for the safe, accurate installation and removal of KM locknuts - These nuts feature slots around their circumference, which means a standard socket or spanner cannot be used without risking damage to the nut or shaft.

» KM sockets are purpose-built to engage directly with the nut’s slots, providing a positive drive connection that distributes torque evenly.

» This prevents slippage, rounding, or distortion - and helps maintain the integrity of both the locknut and the component it secures.

» A range of extensions are also available to enable the removal of deeply seated locknuts in hard to reach spaces.

KM EXTENSIONS

» Designed as an accessory to the KM sockets, the KM Extension Tubes enable tightening and removal of deeply seated locknuts in confined or hard-to-reach spaces - particularly useful with bearings mounted on tapered journals, adaptor sleeves, or withdrawal sleeves

696800-KM11EXT

696800-KM12EXT

696800-KM13EXT

KM SOCKETS SETS

» Check out page 62 for individual socket dimensions

KMT SOCKETS

» The Sykes-Pickavant KMT Sockets are designed for the safe, accurate installation and removal of KMT locknuts.

» These nuts feature slots around their circumference, which means a standard socket or spanner cannot be used without risking damage to the nut or shaft.

» KMT sockets are purpose-built to engage directly with the nut’s slots, providing a positive drive connection that distributes torque evenly.

» This prevents slippage, rounding, or distortion - and helps maintain the integrity of both the locknut and the component it secures.

3/4” IMPACT SOCKET SET

Specifications

» Square Drive: 3/4”

» 1 x Extension: 175mm

» Heavy-duty 3/4” drive

» 7 x sockets: 24, 27, 30, 32, 33, 36 and 41mm

PRE-SET TORQUE ADAPTOR

» Convert your 3/8” ratchet or breaker bar into an accurate torque tool with this preset torque accessory set.

Key Features

» Ideal for automotive, machinery, and workshop use

» 3/8” square drive compatible with standard ratchets and sockets

» One-way torque limiting prevents over-tightening

» Allows unrestricted loosening

» Compact, durable design for tight spaces

» Protects threads and ensures correct component sealing

» Special Grinder used to clean the wheel stud contact surface, designed for vehicles with stud bolts - corrosion is quickly and easily removed.

Contents:

» 1 holder

» 5 x 60mm discs

» 5 x 40mm discs

» 160mm alloy wheel cleaning disc designed for effective removal of corrosion from wheel contact surfaces.

Key Features

» 160mm diameter cleaning disc.

» Removes burnt-on corrosion from the inner wheel contact surface.

» Helps prevent corrosion-related distortion of wheel bolt tightening torque.

» Designed for use on the inside of aluminium rims, particularly prior to wheel balancing.

» Porous abrasive material and cup-shaped grinding plate minimise dust generation.

» Velcro-backed discs allow quick and easy replacement.

» Optimised for modern wheel rims with an internal diameter of 75mm.

Part Numbers

» 66195500 - Inner Rim Cleaner & 1 Disc

» 661927SP - Inner Rim & Hub Cleaning Kit 66195500 plus 3x 66192700 75mm Spare Discs

» Special Grinder used to clean the wheel stud contact surface, designed for vehicles with stud bolts - corrosion is quickly and easily removed.

Contents:

»

» Special grinder designed for cleaning wheel centring surfaces and wheel-to-hub contact faces.

Key Features

» Cleans wheel centring devices and wheel-to-hub mounting surfaces.

» Quickly removes stubborn corrosion and residue.

» Fast processing time of approximately 3–25 seconds per hub.

UNIVERSAL TRIM TOOL

» A fast, safe, and efficient solution for a wide range of vehicle trim removal tasks.

» Three-sided blade design allows access to tight spaces, minimising the risk of damage to surrounding components

Applications

» Wheel weight removal

CONICAL ERASER FOR RIMS

Designed for rapid removal of wheel weight adhesive residue

Key Features

» Interior and exterior trim removal

» Rear light removal assistance

» Panel separation tasks

» General automotive workshop use

» Conical shape provides improved access and control on wheel surfaces

» Helps reduce the risk of scratching or damaging alloy rims

» Suitable for use with standard electric or cordless drills

» Supplied with drill chuck adaptor for quick installation P/N

68010300

Applications

» Removal of adhesive left by stick-on wheel weights

» Preparation of wheel surfaces before re-balancing

» Alloy wheel refurbishment and detailing

» Workshop wheel maintenance

» Tyre fitting and wheel service operations

LOCKING LUG NUT REMOVER KIT

» The ultimate tool to remove the most difficult locking wheel nuts in the quickest and safest way.

» Designed to accommodate even the newest locking wheel nuts featuring complex designs and harder material.

» Ideal for use in place of lost or damaged locking wheel nut keys.

» Removes the most difficult locking wheel nuts.

» Professional kit : made of solid material that can work on the hardest wheel nuts.

» Very easy and quick to use : 4 to 8 minutes per wheel.

» Works on all types of sockets from any brand.

» Works on all modern cars with oddly shaped wheel nuts.

» Also works on damaged wheel nuts.

Contents

» 4 x Nylon internal centering guides

» 3 x metal external centering guides

» 1 x metal centering guide for free turning wheel nuts

INSPECTION TOOLS

» Corrosion Assessment Tool for accurately assessing vehicle bodywork and structural corrosion during MOT inspections.

Key Features

» Approved for MOT corrosion inspections

» Designed to Vehicle Inspectorate (VI) specifications

» Ideal for assessing bodywork and structural corrosion

» Combines tapping hammer, blunt scraper, and short lever functions

» Compact 90mm width for improved access and control

MAGNETIC PICK UP TOOL

Specifications

» Overall Length: 400mm

» Lifting Capacity: Up to 300g

Key Features

» Flexible shaft for access into confined and awkward spaces

» Powerful magnetic tip lifts ferrous objects up to 300g

» Ideal for retrieving dropped nuts, bolts, screws, washers, and small tools

HOSE TOOLS

Specifications

» Length: 350mm

» Jaw Capacity: 0-127mm

» Hose Diameter: Up to 50mm

Key Features

» Multi-directional operation: Suitable for both ring and flat band hose clamps, even in restricted access areas.

» A simple, accurate, and MOT-approved tool designed for fast tyre tread inspections.

Key Features

» MOT-approved tyre tread depth gauge

» Measures tread depth from 0–26mm

» Clear 1mm incremental scale for accurate readings

» Includes 1.6mm legal tread depth reference

» Pocket-sized design with integrated pocket clip

MAGNETIC TELESCOPIC PICK-UP TOOL

Specifications

» Telescopic magnetic extension with a working length from 135mm to 480mm

Key Features

» Strong magnetic head that securely grips bolts, nuts, screws or other ferrous debris without slipping.

» Wide jaw capacity: Opens from 0–127 mm to suit hoses up to 50 mm diameter.

» Waffle groove jaws: Provide a secure clamp grip with minimal alignment required.

» Rotating jaw design: Allows easy clamp turning and removal in confined engine bays.

Double-X Hose Clamp Pliers for the removal and installation of spring-band hose clamps in hard to reach areas and confined engine bays.

Key Features

» Double-X linkage mechanism for increased leverage and reach

» Multi-angle gripping head for improved clamp engagement

» Ratchet lock holds clamps open during servicing

» Overall Length 440mm

Part Numbers

» 03277000 - Straight version

» 03278000 - Bent version

» Designed for controlled and effective removal of seized suspension components and other stubborn parts without causing damage.

Key Features

» Air-powered Vibro Impact system delivers controlled, precise force

» Integrated shock absorber protects tool and components from overloading » Low vibration design reduces user fatigue during extended use

» Supplied with interchangeable hammers and wall-mounted storage bracket

Key Features » High-performance air hammer for conical seats, bearings, bushes and rusted fixings » Vibro-Impact system delivers controlled, adjustable force

Built-in shock absorber reduces risk of damage from overloading

Low vibration design improves user comfort during operation » Available with inserts

AIR TOOLS

VIBRO IMPACT GLOW PLUG REMOVER

085900V2

Specifications

» Square Drive ¼”

» Max Torque- Right 40Nm

» Max Torque - Left 10 / 20 / 30 / 40Nm

» Air Inlet ¼”

» Air Consumption 250 ltrs / min

» Speed 12,000 rpm

» Air Supply 6.3bar / 90psi

» Professional vibration tool designed for the safe removal of seized glow plugs.

Key Features

» Uses controlled vibration to loosen seized glow plugs

» Reduces risk of snapping plugs or damaging cylinder heads

» Adjustable torque settings (10 - 40Nm) for controlled operation

» Supplied with long-reach sockets (8 - 12mm) and extensions

» Also suitable for small threaded fixings and spark plugs

Applications

» Ideal for stubborn or carbon-seized glow plugs

» First-stage removal tool before extraction

PISTOL GRIP NEEDLE SCALER

» Heavy Duty Industrial Surface Preparation Tool to remove rust,coatings and tough residues with ease

Key Features

MICRO DIE GRINDER & BIT SET NEW

» Removes rust, coatings, and tough residues with ease

» Ideal for corrosion removal, coating removal, cleaning cast steel, stone preparation, and surface prep prior to painting or coating processes.

» Equipped with durable 3 mm precision needles (11 needles total) for reliable, consistent cleaning performance.

Spare Parts

» 902080-01- Replacement Needles

» High-speed micro die grinder allows for accurate material removal and detailed surface finishing.

» Compact & Lightweight - Perfect for intricate work where space and accuracy are critical.

» Includes a range of high-quality bits made of Tungsten Carbide, with five shaped ends suitable for precision work (90213500)

Applications

» Automotive repair and fabrication

» Tool and die work

» Metalworking and surface preparation

» Model making and fine detailing

Part Numbers

» 902140SP - Die Grinder & Bit Set

» 90214000 - Die Grinder

» 90213500 - Bit Set (contains one of each shaped bit below)

MINI ANGLE DISC CUTTER & 10 DISC

902970SP

Specifications

» Disc diameter: 50mm

» Centre bore: 10mm

» Free Speed Rpm: 16,500

» Air Inlet: 1/4”

» Air Hose: 3/16”

» Air Pressure: 5.5 bar / 80 psi

» Air Consumption: 8.5 cfm / 0.26m3/min

» Length: 101mm

» Weight: 0.4 Kg

» Designed for controlled cutting and grinding where access is limited or where a standard grinder is too large.

Key Features

» Compact design for hard-to-reach areas

» Uses 50mm cutting/grinding discs with 10mm centre bore

Part Numbers

» 902970SP - Grinder & 10 cutting discs

» 90297000 - Grinder only

» 90297500 - Cutting discs (10 pack)

1/2” IMPACT WRENCH

Key Features

» Adjustable spark protector included

» Includes 10 cutting discs (90297500)

» High quality impact wrench with smart design and ergonomic handle with » 7 vanes for extra power and single switch can be easily changed for forward or reverse operation

» Easily adjustable torque regulator

» Can be configured for right and left hand use

» Features 3-step power control and a lightweight magnesium composite housing

» Available in black, signal green or neon orange

» Twin-hammer

» Variable speed trigger

» One handed operation

AIR TOOLS

IMPACT WRENCH RANGE

Key Features

» Compact, smart design with ergonomically designed handle

» Lightweight magnesium composite housing

» Very low air consumption

» Single-switch can be changed for easy forward or reverse operation

» Easily adjustable torque regulator

» Can be configured for right and left handed use

» 3 step power control

1” IMPACT WRENCH- SHORT ANVIL

90204600

Specifications:

» Drive 1”

» Max Torque Nm (Reverse) 3100

» Torque Nm (Forward) 2200

» Noise (dBA) 94

» Air Consumption (l/min) 305

» Weight (KG) 6.80

» Powerful twin hammer mechanism

» 4 step power control

» Smart design and ergonomically designed handle

» Single-switch can be changed for easy forward or reverse operation

» Easily adjustable torque regulator

» Can be configured for right and left handed use

» Lightweight magnesium composite housing

» 38mm short anvil & 190mm long anvil

SIGNAL HOSE

90210000

Key Features

» Length: 10 metres.

» High-visibility hose to reduce trip hazard.

» Abrasion resistant outer cover.

» N.B. Hose supplied without fittings.

RUBBER BOOT FOR 90201000

90201100

» For use with 90201000 1/2” Impact Wrench.

» Protects gun from accidental damage.

» *Impact wrench not included.

UNIVERSAL AIR SWIVEL JOINT INLET

90220000

» 2 x 360° rotation.

» Industrial quality.

» Heat treated connecting screw.

Specifications:

» 10mm / 3/8” ID.

» Working temp range -40°c to +65°c.

» Working pressure 300psi.

» Break pressure 1000psi.

BIONIGRIP HEAVY DUTY STRAIGHT

DIE GRINDER

90211000

Specifications

» Weight: 0.5kg

» Length: 175mm

» Precision Collet: 6mm

» Maximum RPM: 23,000

» Air Inlet: 1/4” NPT

» Hose Min. 10mm

» Air Consumption: 116/min

Key Features

» Provides ultimate power and perfect handling due to the ‘Bionigrip’ anti-slip surface

» Low noise level and minimal vibration provides less “kick back” from cutters

» Includes stepless trigger and air exhaust to the rear

» Precision collet: 6.0mm instead of the usual 1/4” clamps carbide cutters over the entire length

STORAGE

UNIVERSAL HOOK KIT

04554000

» A versatile 2-piece hook kit designed to safely support and position components during vehicle maintenance and repair.

Key Features

» Ideal for brake calipers, hoses, cables and wiring

» Bendable hooks allow custom shaping to suit the task

» Helps prevent damage caused by unsupported components

» Suitable for automotive, commercial and industrial use

MAGNETIC HOLDER

04575000

Specifications

» Dimensions: 72 x 72 x 86mm

» Holding Power: up to 8 kg

NEW

» High strength magnetic holders, perfect for securing tools, parts, and accessories where you need them most.

Key Features

» Strong magnetic holding power will hold up to 8 kg

» The durable rubber coating, is oil resistant and protects surfaces from scratches

» Ideal for benches, shelving, panels and mobile workstations

BIONIGRIP HEAVY DUTY 90 DEGREE AIR DIE GRINDER

90212000

Specifications

» Weight: 0.82kg

» Length: 177mm

» Precision Collet: 6.35mm

» Maximum RPM: 23,000

» Air Inlet: 1/4” NPT

» Hose Min. 10mm

» Air Consumption: 116/min

Key Features

» Provides perfect handling due to the ‘Bionigrip’ surface.

» Low noise level and minimal vibration provides less “kick back” from cutters

» Includes stepless trigger and air exhaust to the rear

DEEP MAGNETIC BOWL

7710BLUE

Specifications

» Diameter: 152mm

» Overall Height: 135mm

» Maximum Internal Depth: 113mm

Keep tools, fixings and components organised and within easy reach during service and repair work

Key Features

» Strong magnetic base securely attaches to toolboxes & vehicle bodywork

» Deep bowl design helps prevent tools and components from Falling out

» Can be positioned vertically or horizontally

» PVC-coated magnet protects painted and finished surfaces from scratches

BATTERY MOUNTS

Key Features

» Keep your spare batteries organised and right where you need them

» Made from strong injection moulded ABS plastic with holes for mounting

» Batteries ‘click’ into place and can be held at any angle

» Can be mounted at varying distance from one another and in very small spaces for maximum workshop efficiency

BM-MW18-RED-6 BATTERY MOUNTS - MILWAUKEE M18 18V - RED (6PK)

BM-MK18-BLU-6 BATTERY MOUNTS - MAKITA 18V - BLUE (6PK)

BM-MW12-BLK-6 BATTERY MOUNTS - MILWAUKEE M12 - BLACK (6PK)

BM-DW20-YLW-6 BATTERY MOUNTS - DEWALT XR 20V - YELLOW (6PK)

BM-BO18-BLU-6 BATTERY MOUNTS - BOSCH 18V - BLUE (6PK)

BM-FT18-GRN-6 BATTERY MOUNTS - FESTOOL 18V - GREEN (6PK)

BM-MHH18-GRN-6 BATTERY MOUNTS - HIKOKI/METABO HPT/HITACHI 18V - GREEN (6PK)

BM-DW12-BLK-6 BATTERY MOUNTS - DEWALT 12V - BLACK (6PK) Part no.

BH-MK-S-BLU-2 STUBBY BIT HOLDER - MAKITA - BLUE (2PK)

BH-M18-S-RED-2 STUBBY BIT HOLDER - MILWAUKEE M18 - RED (2PK)

BH-BO-S-BLK-2 STUBBY MAGNETIC BIT HOLDER - BOSCH - BLACK (2PK)

BH-MHH-S-BLK-2 STUBBY BIT HOLDER - HIKOKI/METABO/HTP/HITACHI - BLACK (2PK)

BH-FT-S-BLK-2 STUBBY MAGNETIC BIT HOLDER - FESTOOL - BLACK (2PK)

HYDRAULIC CYLINDERS & PUMPS

GO1010

Specifications

» Mechadraulic Cylinder

» 12 tons

» Dimensions: Ø80 x 55 mm

» Stroke: 8 mm

» Driving torque: 67Nm

» Weight: 2.5 Kg

» Hole: Ø21.5 mm

GO1012

Specifications

» Hydraulic Cylinder

» 12 tons - Steel

» Dimensions: Ø80 x 55 mm

» Stroke: 8 mm

» Pressure: max. 700 Bar

» Hole: Ø21.5 mm

» Connection: 3/8“ -18 NPT

GO1060

Specifications

» Hydraulic Cylinder

» 12 tons - Steel. Long Stroke

» Dimensions: Ø90 x 155 mm

» Stroke: 43 mm

» Pressure: max. 700 Bar

» Hole: Ø20 mm.

» Connection: 3/8“ -18 NPT.

» Mounting Thread: 2” 3/4-16 UN.

» Adaptors: M10/M12/M14/M16/M18.

HYDRAULIC CYLINDERS & PUMPS

18592000

Specifications

» Hydraulic Cylinder

» 12 tons

» Hollow, self-retracting design

» Stroke: 8mm

» Hole: Ø16mm

» Dimensions: Ø78 x 62mm

GO1061

Specifications

» Hydraulic Cylinder

» 17 tons - Aluminium

» Dimensions: Ø90 x 155 mm

» Adaptors: M10, M12, M14, M16 and M18

» Pressure: Max 700 Bar

» Connection: 3/8”- 18NPT

» Stroke: 43mm

» Mounting Thread: 2” 3/4-16 UN.

GO1070

Specifications

» Hydraulic Cylinder

» 32 tons - Aluminium

» Dimensions: Ø104 x 261 mm

» Stroke: 50 mm

» Pressure: max. 700 Bar

» Hole: Ø21.5 mm

» Connection: 3/8“ -18 NPT

» Inner thread: M24 x 2

» Outside connection thread: 2” 3/4-16 UN

18592100

Specifications

» Hydraulic Cylinder

» 12 tons - Long Stroke

» Dimensions: Ø80 x 55 mm

» Stroke: 40 mm

» Hole: Ø16 mm

» Dimensions: Ø78 x 124mm

GO1020

Specifications

» Hydraulic Cylinder

» 20 tons - Steel

» Dimensions: Ø100 x 60

» Stroke: 8 mm

» Pressure: 700 Bar

» Weight: 3.04 Kg

» Coupling connection thread 3/8“ -18 NPT.

20017000

Hand operated hydraulic aluminium pump.

Specifications

» Pressure Rating: 10,000 psi / 700 bar

» Two Speed Operation

» Connection: 3/4”

» Automatic overload relief valve

» Available without storage tin, P/N: 20017170.

GO1017

Specifications

» Hydraulic Cylinder

» 17 tons

» Dimensions: Ø90 x 155 mm

» Stroke: 43 mm

» Pressure: max. 700 Bar

» Hole: Ø20 mm

» Connection: 3/8“ -18 NPT

» Outside connection thread: 2” 3/4-16 UN

GO1032

Specifications

» Hydraulic Cylinder

» 32 tons - Steel

» Dimensions: Ø104 x 261 mm

» Stroke: 50 mm

» Pressure: max. 700 Bar

» Hole: Ø21.5 mm

» Connection: 3/8“ -18 NPT

» Inner thread: M24 x 2

» Outside connection thread: 2” 3/4-16 UN

20017500

Air powered/foot operated hydraulic aluminium pump.

Specifications

» Pressure Rating: 10,000 psi / 700 bar

» Foot pedal control

» Connection: 3/4”

» Automatic overload relief valve

» Unique inlet and outlet design features a low noise exhaust system

WORKSHOP EQUIPMENT

Key features

» High quality, heavy duty construction provides years of trouble free use.

» CNC machined components for excellent fit and durability.

» Hardened and tempered finely ground jaws for superior grip.

» Scratch resistant hammered blue finish.

» Replacement parts available including jaws and handle.

» LIFETIME WARRANTY - excluding jaws and handle.

Key features

» Made from high quality Spheroid Graphite Iron for long lasting performance and resistance to wear.

» Integrated anvil for hammering and shaping tasks, offering added versatility.

» Replaceable Steel Jaws.

» Precision threaded spindle ensures reliable, smooth jaw movement under pressure.

» LIFETIME WARRANTY - excluding jaws and handle.

Key features

» Crafted from high-quality materials to withstand rigorous use and provide years of reliable service with scratch resistant finish

» Components are CNC machined to ensure excellent fit and long-term durability

» Quick-action clutch release mechanism: enables rapid jaw adjustment, reducing setup time and allowing faster positioning of workpieces.

» LIFETIME WARRANTY - excluding jaws and handle.

Key features

» Allows 360° rotation of Mechanics Vice for better access.

» Lockable to most convenient angle.

» Not compatible with anvil and vice, P/N 53360400 & 53360600

MAGNETIC VICE JAWS

» Designed for use with any vice that matches the corresponding jaw size.

» They are fitted with a highly powerful magnetic strip, allowing the jaws to attach quickly and securely to the vice for fast setup. The magnet is engineered to work only against the vice jaws, meaning it will not attract debris or metal filings to the clamping surface, nor will it magnetise the workpiece.

» Each jaw features a strong neodymium magnet. For example, a 100 mm jaw provides a holding force of approximately 3.5 kg (34 N).

» These magnetic jaws can be combined for different applications:

» For taper pins or thin-walled tubes, use the Neutral or Prism/Vee Pipe jaw together with the Rubber jaw.

» For irregularly shaped parts with one flat surface, use a Fibre-covered jaw on the flat side and a Rubber-covered jaw on the profiled side.

POLYURETHANE CROSS SERRATED

» Polyurethane with small cross serrations for a firm grip with a shore hardness of A82. ”Bites onto” the work piece without damaging or scratching it and is so flexible, that it returns to its original shape after deformation.

NEUTRAL

» Hardened aluminium alloy 6063, T66F25 with magnesium and silicon as alloying elements. Offers superior corrosion resistance along with excellent surface finish making the alloy the ideal material for securing your item firmly in the vice while still protecting the surfaces of your delicate objects.

» Hardened aluminium jaws with fibre cover for high finish machined workpieces.

POLYURETHANE GROOVED

» Polyurethane with grooves with a shore hardness of A82. ”Bites onto” the work piece without damaging or scratching it and is so flexible, that it returns to its original shape after deformation.

PRISM/VEE PIPE

» Designed for versatile use, providing secure clamping while protecting the workpiece. Suitable for horizontal clamping of flat and round objects, as well as vertical clamping of round objects

» For thread cutting, use only one prism jaw to prevent damage. The vee-groove aligns the workpiece, while the opposite vice jaw holds it in place.

RUBBER COVERED

» For assembly and for irregularly shaped parts, thin walled tubes and delicate items etc.

BRAKE BLEEDING

AUTOMATIC BRAKE PRO BLEEDER

34313000 34313500

» Specifications

» 34313000 - Portable 20L

» Capacity: 20 Litres

» Pressure Range: 0.5–4.5 Bar

» Power Supply: 12V/optional mains/ M12

Milwaukee Battery

» Hose Length: 5m

» 34313500 - 60L with Trolley

» As per 34313000

» Capacity: 60 Litres

» Trolley-mounted for workshop use

» Professional electronic brake and clutch bleeders designed for fast, safe, and controlled fluid replacement. Available in portable 20L and workshop 60L trolley-mounted versions, offering flexibility for both mobile and high-volume workshop applications.

Key Features

» Adjustable bleeding pressure (0.5–4.5 bar / 7–65 psi) for precise control

» Power operation: 12V battery, optional mains adaptor, M12 Milwaukee Battery

» Colour LCD display with intuitive 4-button control panel

» Automatic shut-off for low fluid, abnormal pressure, or pause mode

» Automatic reservoir levelling for consistent fluid flow

» Compatible with multiple DOT fluids via interchangeable container system

» Multilingual interface (6 languages EN, FR, DE, IT, NL, ES)

» Supplied with SP Euro cap with additional cap options available

» Optional Extra - 34313100 - Trolley to upgrade 20L to 60L versions

» Optional Extra - 34313200 - 220-12V Charger Lead

12V AUTOMATIC BRAKE BLEEDER

343001V2

» Specifications

» Power Supply: 12V

» Pressure Range: 0–3.5 Bar

» Hose Length: 4m

» Capacity: 5 Litres

» Compact 12V automatic brake and clutch bleeder designed for fast, single-operator use. Provides controlled pressure bleeding with a built-in pump system, ideal for workshop and mobile applications.

Key Features

» Allows one-man operation for brake and clutch bleeding

» Adjustable pressure regulator (0–3.5 bar) for controlled operation

» Compatible with ABS systems

» 12V powered with reverse polarity protection

» Stainless steel construction for durability

» Automatic shut-off and low-level protection

12V Battery,Mains Adaptor or M12 Milwaukee Battery

240V ELECTRIC BRAKE BLEEDER

34400500

» Specifications

» Voltage: 240V AC

» Pressure Range: 0–4 Bar

» Hose Length: 3.2m

» Capacity: Up to 5L

» Electric brake and clutch bleeder designed for fast, single operator use in workshop environments. Provides controlled pressure bleeding with a robust, portable design for efficient servicing.

Key Features

» Allows one-man operation for brake and clutch bleeding

» Adjustable pressure output (0–4 bar) for controlled operation

» Compatible with ABS systems

» Long 3.2m hose for use on raised vehicles

» Large internal storage for brake fluid containers

» Supplied with SP Euro angled cap for wide vehicle coverage

» Rugged impact-resistant housing for workshop durability

MANUAL PRESSURE BRAKE BLEEDER

» Compact pressure bleeding solution designed for efficient one-man brake servicing.

Key Features

» Compact and portable design – no power or air supply required

» Combination of Mityvac pressure bleeder and SP aluminium pressure bleed cap

» OE recommended solution for pressure brake bleeding

» Hand pump with pressure gauge for controlled output and precise operation.

BRAKE & PARTS CLEANER

Key Features

» Specially formulated for the removal of most contaminants and will also stop disc brake ‘squeal’.

EQUIPMENT

BRAKE BLEEDING

MITYVAC FLUID DISPENSING SYSTEM

MV6400

» Portable fluid dispensing unit designed for topping off reservoirs and supporting transmission refill and pressure bleeding applications.

Key Features

» Designed for topping off fluid reservoirs including master cylinders, gearboxes, transmissions and power steering reservoirs

» Large 5-litre fluid capacity for extended use

» 5-foot hose with dispensing wand and flow control valve for easy access to hard-to-reach reservoirs and fill plugs

» Compatible with Mityvac ATF and pressure bleed adaptors for transmission refill and pressure bleeding applications

» Fluid dispensed under pressure for smooth, continuous flow

» Integrated manual pump adds air above fluid level to prevent aeration

» Internal pump components sealed against fluid exposure for improved durability

» Convenient ON/OFF and flow control valve located near fluid output

Important: Not suitable for use with flammable liquids such as petrol or diesel, or with fluids above 80°C

DUAL TANK INJECTOR MAX MACHINE

» Professional 6-in-1 cleaning system designed to remove deposits from fuel and exhaust systems on petrol and diesel engines without injector removal.

Key Features

» Removes deposits from combustion chambers, injectors, throttle bodies, inlet valves, EGR systems, manifolds and DPFs, restoring the original fuel flow for maximum fuel efficiency

» Suitable for both petrol and diesel engines

» Dual tank system prevents cross-contamination of fluids

» Air operated design for simple workshop use

» Robust and reliable workshop-quality machine

» Universal fitting kit included

» Premixed fluids ready to use

After Service Benefits

» Cleans DPF and catalytic filters

» Reduces exhaust emissions

» Restores fuel economy and engine performance

» Removes carbon deposits

» Cleans injectors

Compatible Fluids

» INJDRTG – Injector Max Diesel RTG

» INJPRTG – Injector Max Petrol RTG

» FREGEN – Injector Max DPF Regen

» FDPFREST – DPF Restore

EQUIPMENT

AUTOMATIC TRANSMISSION FLUSH (ATF) MACHINE

35070000

» Automatic transmission fluid exchange system for modern gearboxes.

NEW

ATF ADAPTOR KIT NO 4

35090000

» Comprehensive set of ATF adaptors to suit a wide range of vehicles.

» 140 pieces.

» Visit the website for a full list of applications.

ATF FLUID CONROL ADAPTOR

35070100

» Designed for JLR and Ford vehicles with thermostats in oil cooler lines.

Key Features

» 100% fluid replacement in approx. 15–20 minutes

» Fully automatic operation

» Compatible with ATF, DSG, CVT systems

» Includes adaptor kits for wide vehicle coverage

OPTIONAL ADAPTOR KITS

FDATFM-KIT1

FDATFM-KIT2

Key Features

» Improves safety and ease during oil exchanges

» Allows setup while the vehicle is cold, reducing burn risk

» Vehicle warms up safely while machine heats oil to 80°C

» Connects directly to the ATF machine with oil pipes attached

AUTOMATIC TRANSMISSION FLUSH KIT

Benefits

» Smoother and quieter operation.

» Safely removes varnish, sludge and oxidized fluids.

Key Features

» 100% of ATF replaced during service operation.

» Optimise transmission efficiency.

» Prolong transmission life.

» Fast and efficient way of completely exchanging transmission fluid—15-20 minutes per Service.

» Fully automatic, user friendly, safe and reliable operation.

» Safe and compatible service kit includes Flush and Conditioning Treatment

FDATFM-KIT3

COOLANT FLUSH MACHINE

53401000

Specifications

» Capacity: 15L (new & used tanks)

» Pressure Range: -1 to 5 bar

» Max Working Pressure: 3 bar

» Includes 53401200 - Coolant Exchange Adaptor Set which includes a selection of steel hose clamps, connecting tubes and stepped hose adaptors to fit a range of vehicle applications

» Professional machine for fast and clean coolant replacement without removing hoses.

Key Features

» Vacuum-based system removes and replaces coolant in minutes

» Prevents air pockets in cooling system

» Dual function: suction or gravity feed

» Reduces service time significantly

COOLANT EXCHANGE ADAPTOR SET

53401200

» Includes a selection of steel hose clamps, connecting tubes and stepped hose adaptors to fit a range of vehicle applications

OIL DRAINERS

65L PNEUMATIC OIL EXTRACTOR

SPEEDLINE1053

» 65 litre oil drainer designed for fast, clean recovery of engine oil from cars, vans and commercial vehicles.

» Designed for ease of use and long-term durability, this fluid emptying system allows oil to drain naturally by gravity, ensuring a thorough recovery without unnecessary complexity.

Specifications

» Tank Capacity – 65L

» Dimensions – 470 x 410 x 1000 (Bowl height 580mm)

VORTEX PNEUMATIC RADIATOR & BATTERY COOLANT EXCHANGE MACHINE - 4 TANKS

GO980PRO

Specifications

» Four 20-litre transparent tanks

Dedicated tanks:

» 1 × tank for exhausted fluid

» 1 × coolant tank for EV systems

» 2 × tanks for internal combustion engine (ICE) coolant

» Designed around a Venturi system and pressure gauge, it enables you to drain, clean, pressure-test, vacuum-purge, and refill the entire cooling circuit, without disconnecting any hoses

Key Features

» Intuitive coolant selection and switching, compatible with nearly all vehicle models

» Built-in pressure relief valve on the waste-fluid tank.

» Efficient removal of air bubbles from the circuit

» Compressed-air powered operation

» Eco-conscious design

Key Features

» Gravity-fed oil collection system for efficient oil recovery

» Pneumatic tank emptying system for controlled discharge

» Visual oil level indicator for quick monitoring

» Metal drip tray with anti-surge grid and filter drain

» Wheeled mobile design for workshop use

OIL DRAINERS

80L PNEUMATIC OIL EXTRACTOR

53380000

» A professional pneumatic oil extractor designed for rapid and reliable engine oil recovery from a wide range of vehicle types.

Specifications

» Tank Capacity – 80L

» Dimensions – 540 x 620 x 1250 (Bowl height 580mm)

Key Features

» Pneumatic extraction from the engine sump even when oil is at a high temperature (~66 °C)

» Includes six probes and four quick-fit adaptors tailored for Mercedes, BMW, Volkswagen, and PSA vehicles - ideal for integrated suction systems

» Visual oil level indicator for easy monitoring

» Drain bowl with filter grid and pressure safety valve

80L PNEUMATIC OIL EXTRACTOR WITH 10L PLASTIC VIEWER

53380500

» Pneumatic oil extractor designed for fast recovery of engine oil with 10 litre plastic viewing chamber for visual monitoring during extraction.

Specifications

» Tank capacity 80L

» Viewing Chamber Capacity 10L

» Dimensions 540 x 620 x 1350mm (Bowl Height 580mm)

Key Features

» 10 litre plastic viewer for visual monitoring of oil flow

» Pneumatic extraction from the engine sump

» Includes six probes and four quick-fit adaptors tailored for Mercedes, BMW, Volkswagen, and PSA vehicles - ideal for integrated suction systems

» Stop ring and locking holder prevent bowl damage during use

» Fitted with oil-resistant wheels for workshop mobility

120L OIL EXTRACTOR WITH UNDER-VEHICLE TRAY

53380400

» 120 litre pneumatic oil extractor designed for efficient gravity or suction oil removal from cars, vans and heavy-duty vehicles.

Specifications

» Tank capacity 120L

» Tray Capacity 51L

» Dimensions 660 x 780 x 1520mm (Extended depth 2920mm)

Key Features

» Dual extraction modes for gravity drainage or pneumatic suction

» 51 litre tray that can be positioned beneath vehicles or used traditionally above the tank

» Includes six probes of varying sizes for hot oil extraction (70–80°C)

» Pressure relief valve set at 4 bar for safe operation

» Drain plug for cleaning and internal inspection

WORKSHOP PRESSES

‘SILVER SERIES’ HYDRAULIC WORKSHOP PRESSES

» Professional workshop press for general pressing applications.

Key Features

» Two-speed manual pump for improved control

» Overload safety valve for protection

» Automatic ram return system

» Pressure gauge for accurate monitoring

PEDAL KITS

534360-16

534362-16

» Pedal Kits are designed as an optional accessory to enhance the operation of compatible Silver Series workshop presses.

UNIVERSAL PRESS GUARD

534551V3

Enhance safety of your workshop press with the Universal Press Guard

Key Features

» Universal Compatibility – works with virtually all brands of hydraulic presses, including the Sykes Pickavant Silver Series

» Mounted at the front of the press and easily adjustable in any direction to suit a range of tasks and press setups

UNIVERSAL PRESS RING

» The universal Press Block provides a stable and adaptable base that supports the accurate installation or removal of components such as bearings, seals and bushings.

Key Features

» Compatible with standard workshop presses up to 30 Tonnes

» Swivel element and adjustable height anvil bolts provide multiple support configurations, to suit varying shapes and sizes.

» Fully compatible with all Sykes Pickavant Press & Pull Sleeve Systems

Specifications

» Height: 160 mm

» External Diameter: 179 mm

Key Features

» Compatible with standard workshop presses up to 30 Tonnes

» The universal press ring provides a notable void area to hold large hubs and assist in extracting wheel bearings

» Serves as a robust alternative to traditional V blocks and worn bearing casings

» Enhances stability and alignment when pressing out wheel hubs.

WORKSHOP PRESSES

» For use with the Sykes Pickavant Silver Series Presses, these plates are specifically shaped to fit the press bed with a central hole for controlled component support and pressing.

» Ideal for storing press pieces and other essential workpieces.

Specifications

» Width 165 mm

» Depth 122mm

UNIVERSAL ACCESSORY TRAY PRESS PIECES

53451600

Specifications

» 450 x 150 x 80(H) mm

» Inside hook depth 25mm

» Hook height 175mm

Please note: press pieces not included

» Helps maintain a tidy workspace and protects small parts from damage or loss

HYDRAULIC WORKBENCH PRESSES

» Compact, bench mounted presses, ideal for workshops where floor space is at a premium.

» Moveable hydraulic cylinder for greater flexibility when working with off-centre components

» Each set contains six press pieces and one adaptor for various applications

» Sizes - 5 mm, 10 mm, 14 mm, 18 mm, 24 mm, and 29 mm

» Height 100mm

» Hook Depth 55 mm

» Double-speed hand pump for quicker operation and improved efficiency

» Automatic ram return to reduce downtime between jobs

» Overload safety valve to help protect both the operator and the press

» Chromium-plated piston rod for enhanced durability and corrosion resistance

» Integrated pressure gauge for accurate monitoring of applied force

» Supplied with V-blocks for secure support of round and irregular components

WORKSHOP PRESSES

HEAVY-DUTY WORKSHOP PRESSES

» Range of heavy-duty presses rated from 60 - 100 tonne featuring:

» Fast and safe adjustment of the press table height.

» Movable cylinder.

» Hard chrome piston with 300mm of stroke.

ThreeYEARWARRANTY

HYDRAULIC WORKSHOP PRESS

» Combining manual hydraulic power with pneumatic assistance, these workshop presses are ideal for high-volume environments

» The foot-operated air-assisted system enables quick ram positioning while leaving the operator’s hands free to position components.

» The moveable hydraulic cylinder allows pressing force to be applied exactly where needed

» The press table can be adjusted quickly and safely using the integrated braked winch system, helping to reduce setup times

» Fast Air Return Speeds up operation between pressing cycles

ELECTRO HYDRAULIC PRESS

» Electro-Hydraulic workshop presses, designed to reduce operator fatigue, built for high volume professional use.

» The electrically powered hydraulic system delivers smooth, controlled pressing action while significantly reducing manual effort.

» The single-action cylinder provides one-way pressing force and is particularly suited to applications where heavy tooling is not mounted directly to the piston

» The moveable cylinder allows the pressing force to be positioned precisely where it is needed

» 90° Hinged Pump Unit Designed to allow easier insertion and handling of longer workpieces

» The press bed can be adjusted safely & efficiently with the braked winch system

» The Multi-Adjustable Pressure Valve Provides greater control over applied force, allowing operators to tailor pressure levels to specific applications

HEAVY-DUTY WORKSHOP PRESSES GUARDS

» Enhanced Operator Protection for High-Capacity Workshop Presses

» Provides an additional level of protection between the operator and the pressing area

» Engineered specifically for selected Sykes-Pickavant workshop presses, ensuring straightforward installation and reliable integration with the machine.

LIFTING, HANDLING, EV

BATTERY MAINTENANCE TABLE

» The Intermediate Hybrid Battery Maintenance Table is part of a new range of battery maintenance tables designed to support the removal of electric batteries from vehicles in a safe and secure manner.

» Batteries are usually heavy and irregular in design but generally have one flat surface which makes them easy to secure.

» Unique hole feature covers a wide range of batteries in all shapes and sizes.

» Aids safe removal and transportation in the workshop.

» Provides a stable platform for maintenance and repair activities.

» Hole design with peg system secures the battery to the table for transportation in the workshop.

» A range of peg sets are available to customise the table for the batteries size and shape.

» The hybrid battery table can be mounted onto an existing hydraulic table, otherwise it can be supplied as part of the package.

» The table can also be used for engine/gearbox removal as well as battery maintenance.

Tables with tilting capabilities:

» Tilts to allow for bleeding of the battery if required.

» Four central lifting pads allow for the battery to be removed safely without technicians trapping fingers under the battery. Also allows for a smooth installation of the battery back into the vehicle.

» Peg system helps hold the battery in place while tilting.

» The tilting mechanism also allows for space saving storage when the table is not in use.

EV SAFE

» EV-SAFE provides real-time battery status verification and four-wheel lockout for electric and hybrid vehicles, helping prevent unintended movement and supporting safer incident response, recovery, transport, and repair operations. Due to the high-voltage components used in EV and hybrid propulsion systems, including batteries, electric motors, and inverter/converter units, these vehicles present unique safety risks that require continuous monitoring and control.

Specifications

» Vehicle Charging: Single Phase AC current max 8A (rated 6A), voltage max 230v AC, freq. 50-60hz with a mandatory ground connection

» Integrated current leakage (differential sensor and self-diagnostic detection of blocked relay)

» Wi-Fi interface: 802.11 b/g/n; WPA/WPA2; WEP/TKIP/AES

» Compatible connector: IEC 62196 type 2 (optional adapter for j1772 type 1), IEC power socket for internal battery charging.

» Internal battery: Li-ion battery from 600mAh. Estimated

LIFTING & HANDLING

EV BATTERY & TRANSMISSION LIFTING TABLES

» As electric vehicle servicing becomes an increasingly important part of workshop operations, specialist lifting equipment is essential for safely handling high-voltage battery packs.

» The Govoni range of lifting tables provides solutions for handling EV batteries while retaining the flexibility to support traditional transmission and engine work.

Key Features

» Designed to safely support heavy EV battery packs, automatic transmissions, engines and chassis assemblies

» Ideal for EV Battery Removal & Installation: The sliding platform design allows convenient access during battery removal and installation procedures, helping to safely position and manoeuvre battery packs during service operations

» Extendable & Tilting Platform: The tabletop can be extended and tilted using a mechanical adjustment system, allowing to accurately align components during removal and installation procedures

» Lateral Position Adjustment: The platform can be moved laterally, enabling precise positioning underneath vehicles without the need to reposition the entire lifting table

» Pneumatic & Electro-Hydraulic Models Available: Choose from pneumatic or electro-hydraulic lifting tables to match your workshop’s requirements

SPACER KIT FOR LIFTING TABLES

» Ideal for safely raising EV batteries or transmissions from the table surface, providing improved access for servicing, bolt removal, and secure lifting operations

» Key Features

» 15 Piece Spacer Kit

» Improved underside access and reduces metal contact: Raises batteries or transmissions off the table surface to allow easier access to bolts and fixings

Workshop-Safe Design: Supports safer and more convenient battery and transmission handling procedures.

BATTERY LIFTING ACCESSORY KIT

» Securely supports EV battery packs, engines and transmissions during lifting operations

Key Features

» Adjustable support columns allow precise height positioning

» Slotted mounting feet enable fast repositioning on the lifting platform

» Threaded upper supports accept rubber pads and spacers for component protection

» Compatible with lifting tables featuring M8 or M10 threaded mounting points

» Ideal for use with Govoni EV battery and transmission lifting tables

LIFTING & HANDLING

EV BATTERY LIFTING HOIST

Specifications

» Max capacity 1.5T

» Adjustable between 650mm and 2250mm

» Works with standard engine crane

» Includes levelling bar

Kit Contents:

» 2 x Spreader beam

» 1 x Leveller

» 13 x Bow Shackle

» 6 x 0.5m Nylon Straps

» 6 x 0.6m Nylon Straps

» 6 x 0.7m Nylon Straps

» 6 x M10 Eye Bolt & Nut

» 6 x M12 Eye Bolt & Nut

6 x M16 Eye Bolt & Nut

35KG MANUAL WHEEL LIFTER

TESLA BATTERY LIFTING EXTENSION KIT

» Includes extended threaded eye bolts that provide the additional reach required to securely attach the lifting frame to Tesla battery assemblies

» Designed specifically for use with the Sykes-Pickavant 929750V2

Electric Battery Lifting Frame when servicing Tesla vehicles with double-skinned battery packs

Kit Contents:

» 2 x 0.5m Nylon Straps

» 2 x 0.75m Nylon Straps

» 2 x M16 Eye Bolts & NutsExtended Thread 92975100

» 2 x 1.0m Nylon Straps

» Operated using battery power or pneumatic screwdriver with 1/2” square socket

Key Features

» Four heavy duty swivel wheels for excellent maneuverability

» Low centre of gravity and lightweight column for ease of handling and stability against tipping

» Special handle shape provides a convenient point of grip and minimum interference during the mounting/ dismounting operation of the tyres

» Lowering of the base bracket allows for easy wheel loading

» Designed to assist with the removal and installation of medium and small vehicle wheels up to 60 kg

Key Features

» 60kg lifting capacity for the safe handling of medium and small vehicle wheels.

» Battery-powered lifting mechanism provides smooth, effortless raising and lowering.

» Simple push-button controls integrated into the handle for easy operation.

» Two-speed lift control for improved positioning and accuracy.

» Four locking swivel castors provide excellent manoeuvrability.

» Powered by two 12V 12Ah rechargeable batteries with LED charge level indicators.

LIFTING & HANDLING

100KG BATTERY POWERED WHEEL LIFTER

» Designed for commercial vehicle workshops, tyre centres and fleet maintenance facilities, holding heavy wheels up to 100 kg

Key Features

» 100kg lifting capacity for HGV, truck and commercial vehicle wheel assemblies.

» Battery-powered lifting mechanism provides smooth, controlled raising and lowering.

» Simple push-button controls on the handle enable easy one-handed operation.

» Extended lifting height with a maximum wheel hub height of 1790mm, making it suitable for taller commercial vehicles.

» Suitable for tyre diameters from 750–1000mm, covering a wide range of truck and commercial vehicle applications.

» Four heavy-duty swivel castors provide excellent manoeuvrability and precise positioning.

» Low centre of gravity improves stability when handling large, heavy wheels.

» Powered by two 12V 12Ah rechargeable batteries with LED charge level indicators.

/ PARTS LIFTER

34185000

» Designed to safely support, position and install vehicle doors and large body panels.

Key Features

» Battery-powered lifting system with one-handed push-button control

» Designed for safe removal and installation of vehicle doors and body panels

» Adjustable support system accommodates different door sizes

» Handles doors and components up to 1350mm in height

» Four heavy-duty swivel castors for excellent workshop manoeuvrability

» Low-effort positioning for precise alignment during refitting

» Twin 12V batteries provide multiple operating cycles between charges

» Available as an upgrade kit for wheel lifter 34196000 P/N 34185100

DOOR / PARTS LIFTER KIT FOR WHEEL LIFTER

» Converts the 34196000 Wheel Lifter into a door and vehicle parts lifting system.

Key Features

» Designed for safe removal and installation of vehicle doors and body panels

» Adjustable support system accommodates different door sizes

» Handles doors and components up to 1350mm in height

LIFTING & HANDLING

» Suitable for gearboxes, automatic transmissions, DSG units and differential assemblies

Key Features

» 150kg load capacity suitable for gearboxes, DSGs and differential units

» Adjustable front and rear support arms for a secure, tailored fit

» Variable tilt control

» Allows precise positioning during installation and removal

» Maintains a stable grip throughout movement

» Includes 30mm adaptor for transmission stand piston rod

Specifications:

» Max. load bearing capacity: 150 kg

» Length/width: 490 mm/460 mm

» Assembly: 40 mm

» Forwards/backwards tilt: ±35°

» Left/right tilt: ±5°

» Gives support to the engine when the side engine bracket is removed

Key Features

» Heavy Duty Capacity: Supports up to 240 kg, making it suitable for most passenger vehicles and light commercials.

» Fully Adjustable: Extendable arms and adjustable supports allow for a secure fit across a wide variety of engine bays.

» Robust Construction: Durable steel frame with rubber coated mounting feet ensures stability without damaging vehicle surfaces.

» Improved Access: Frees up working space by supporting the engine from above, essential when working on subframes, clutches or transmissions.

Specifications

» Telescopic arm: to 230 mm

» Load capacity: 240 kg

» Sliding telescopic arm extension: min. 657/max 887

» Side-arms extension: min. 322/max 566.

Key Features

» Suitable for removing and installing gearboxes, transmissions, engines, and other heavy components

HYDRAULIC TRANSMISSION JACKS GO1450

» Chrome-plated hydraulic piston for durability and corrosion resistance

» Foot-operated hydraulic pump for smooth, controlled lifting

» Four swivel castors for excellent manoeuvrability

» Integrated transport handle for easy positioning

» Compact design ideal for light-duty workshop applications

» Heavy-duty construction suitable for professional use

GO1450 Hydraulic Transmission Jack 0.6 Tonne

GO1451 Hydraulic Transmission Jack 0.3 Tonne

GO1452 Hydraulic Transmission Jack 1 Tonne

GO1453 Hydraulic Transmission Jack 1.5 Tonne

GO1454 Hydraulic Transmission Jack 1.5 Tonne, 2 Piston

GO1455 Hydraulic Transmission Jack 5 Tonne, 2 Piston

GO1457 Hydraulic Transmission Jack 15 Tonne

GENERAL WORKSHOP EQUIPMENT

HOSE REEL - AIR/WATER

53359500

53359600

Key Features

» 15m hose provides excellent reach around the workshop.

» Suitable for compressed air or cold water applications up to 20 bar working pressure.

» Automatic hose locking mechanism secures the hose at the required working length.

» Automatic spring rewind quickly retracts the hose after use.

» Integrated hose guide rollers help ensure smooth extension and retraction.

» Safety hose stop prevents the hose from retracting fully into the housing.

» Enclosed polypropylene casing protects the hose from dirt, damage and workshop wear.

» Adjustable wall mounting bracket allows the reel to be positioned for maximum accessibility.

HOSE REEL - AIR ONLY

53359700

53359800

Key Features

» Suitable for compressed air up to 20 bar working pressure.

» Automatic spring rewind retracts the hose quickly and neatly after use.

» Automatic hose locking device secures the hose at the desired working length.

» Durable ABS casing protects the hose and internal mechanism.

» Adjustable wall mounting bracket provides flexible positioning.

» Integrated hose roller guide ensures smooth hose extension and retraction.

» Safety hose stop prevents the hose from retracting completely into the housing.

HOSE REEL - AIR /WATER

53399000

53399100

Key Features

» Heavy-duty rubber hose manufactured to ISO EN 2398 standard provides excellent reach around the workshop.

» Suitable for compressed air or cold water up to 17 bar working pressure.

» Spring-driven automatic rewind keeps the hose neatly stored after use.

» Durable polypropylene housing protects the hose and internal mechanism.

» Wall mounting bracket included for convenient installation.

GENERAL WORKSHOP EQUIPMENT

INSPECTION PIT BRIDGES

» Safe Working Platforms for Vehicle Inspection Pits

» Designed to provide a safe and stable working platform over vehicle inspection pits, the Sykes-Pickavant Pit Bridge range is suitable for both flat-edge and rail-type pits. Each bridge features a heavy-duty steel construction, an adjustable width of 870–1150mm, a 400kg load capacity, and is available with or without integrated handrails to suit your workshop’s safety requirements

Key Features

» Suitable for flat or rail-type inspection pits

» Adjustable width 870–1150mm to suit most pit sizes

» 400kg working load capacity

» Heavy-duty steel construction

» Non-slip working platform

» Available with or without handrails

» Optional handrail kit available for existing pit bridges

» Ideal for garages, commercial workshops and fleet maintenance facilities

GENERAL WORKSHOP EQUIPMENT

AUTOMOTIVE SMOKE DIAGNOSTIC MACHINE

Specifications:

» Rated Voltage: DC12V

» Rated Power: 100W

Key Features

» Fast leak detection – Produces up to 30 L/min of dense, highly visible smoke for quickly locating leaks.

» Powerful 100W output – Delivers a consistent smoke flow for efficient diagnostics.

» Wide range of applications – Ideal for EV battery seals, vacuum systems, intake systems, exhausts, HVAC components and more.

» Universal vehicle compatibility – Suitable for most cars, motorcycles and light commercial vehicles.

» Universal inflatable adaptor – Creates a secure seal without the need for model-specific adaptors.

» Three taper adaptors included – Allows connection to a wide variety of system openings.

» Quickly pinpoints even small leaks, helping to minimise unnecessary component replacement.

» MOT approved for professional headlight beam testing.

Key Features

» Smoke Output: 20-30L/MIN

» Working pressure: 1.3 Bar Delivery (0-18PSI)

» Available for Light Vehicle (LV) and Heavy Goods Vehicle (HGV) applications.

» Suitable for halogen, Xenon and other approved headlamp technologies.

» Rotating optical column with adjustable mirror visor for accurate alignment.

» Integrated MOT beam checking panel for rapid beam pattern assessment.

» Analogue luxmeter provides accurate light intensity measurement.

» Self-lubricating vertical slide mechanism ensures smooth height adjustment.

» Supplied complete with rail installation kits for secure, accurate positioning.

» Robust construction designed for daily workshop and MOT station use. 02695000

Key Features

» Features rotating column with adjustable mirror visor for accurate alignment to vehicle.

» Luxmeter with graduated analogue scale for accurate light intensity measurement.

» Easily adjustable vertical sliding mechanism by self lubricating sliders.

» Features built in MOT beam checking panel.

» Suitable for all headlight types including Xenon.

» Portable base on 3 wheels (self install only).

» Column height: 1.66m.

BATTERY CARE

BATTERY BOOSTER PACKS

SPEEDLINE BATTERY BOOSTERS

» The SPEEDLINE AGM Booster Pack range is designed to deliver reliable starting power for professional automotive, fleet and recovery applications

Key Features

» AGM battery technology for powerful and reliable starting performance

» Suitable for petrol, diesel, commercial and fleet vehicles

» Available in 12V and 12/24V configurations

» Heavy-duty clamps and cables for professional durability

» Compact portable and trolley-mounted models available

» Integrated safety protection and battery status indicators

» Fuse located in handle for easy access

SPEEDLINE3100 SPEEDLINE3200

» Booster Pack 12V AGM

» Cranking Amps: 1200

» Peak Amp: 3100

» Booster Pack 12V AGM & Docking Station

» Cranking Amps: 1200

» Peak Amp: 3100

» Booster Pack 12/24V AGM

» Cranking Amps: 2000/1000

» Peak Amp: 5000/2500

SPEEDLINE6200

12/24V

» Booser Pack with trolley 12/24V AGM

» Cranking Amps: 2400/1000

» Peak Amp: 6200/3100

12/24V

» Booster Pack 12/24V AGM

» Cranking Amps: -----

» Peak Amp: 6400/3200

BATTERY BOOSTER PACKS

» The SPEEDLINE Professional Pro-Cap boosters are the ultimate high-performance booster packs designed for busy professional workshops, fleet operators and recovery technicians who demand fast, reliable starting power every time.

Key Features

» Recharges from the vehicle battery in seconds

» Start multiple vehicles consecutively without loss of power

» Lightweight design – around half the weight of traditional booster packs

» High-performance Pro-Cap technology for instant power delivery

» Suitable for both 12V and 24V vehicle systems

» Ideal for workshops, commercial fleets, agricultural and recovery applications

» Trolley-mounted design available for easy mobility and convenience

ANDERSON CONNECTOR

» Peak Amps: 10500A

» Weight: 18kg

» Trolley and Anderson Connector

» Fuse: 500A

» Peak Amps: 10000A

» Weight: 10kg

» Fuse: 500A

BATTERY SUPPORT UNITS

FLASH BATTERY SUPPORT UNITS

» Detect, analyze, charge and maintain all types of lead-acid (AGM, MF, EFB, WET) and Lithium LiFePO4 batteries with this multifunction battery support unit.

893035SP

12/24V

893150SP

» Features a backlit LCD display, copper cables and fully insulated professional clamps.

» Safety features include over-voltage and over-current protection, power down alarm, short circuit protection, reverse polarity protection, high temperature alarm during charging process.

» 893155SP includes curved heavy-duty clamps.

FLASH BATTERY SUPPORT TROLLEY

893100SP

» A quality mobile workstation designed for use with the Flash Battery Chargers

» Provides organised storage, cable management and a stable working area for workshop battery support and ECU programming applications

» Dimensions: 516 x 558 x 1159mm

» Weight: 32 kg

SMART BATTERY CHARGERS

» Mobility: 4 x 360° rotating wheels

» Designed to charge, maintain and recover all types of lead-acid batteries

» The intelligent charging process allows the charger to be left permanently and safely connected to a battery to provide continuous maintenance once charged.

» The chargers come with three charging accessories: clamps, eyelets and 12V auxillary connector.

» An easy to read display with LED’s, shows the charging status in percentage as well as the selected mode.

START & STOP BATTERY & ELECTRICAL SYSTEM ANALYSER

03202500

» Test batteries, charging systems and starting systems quickly and accurately with this professional Start & Stop Battery & Electrical System Analyser

Key Features

» Tests 6V and 12V batteries

» Tests 12V and 24V charging and starting systems

» Suitable for Start & Stop battery systems

» Integrated digital display

» Bad connection warning

» Operating range: 40–2000 CCA

» Tests EFB, VRLA/GEL, AGM flat plate, AGM spiral and standard wet batteries

» Supports SAE/CCA, DIN, EN, IEC and JIS rating systems

» Intergrated thermal printer

BATTERY ACID HYDROMETER

03200500

» Quickly and accurately check the condition of lead acid batteries with this professional Battery Acid Hydrometer

Key Features

» Measures the specific gravity of battery acid to determine the battery’s state of charge.

» Easy-to-read red/green scale provides a clear indication of battery condition

BATTERY TESTER AND PRINTER 12V/24V

03204500

» Designed for 12V and 24V battery, starter, alternator and ground tests, and compatible with WET, AGM, EFB, GEL, SPIRAL batteries

Key Features

» Integrated thermal printer (+ 1 spare paper roll)

» Equipped with a full colour interface, LCD display, touchpad with sensor technology

» Input and keep track of the customers details

» Share the results of each test via a printed QR code

» Keeps track of how many tests are done daily for each test category

Optional Extra:

» 032045-10 - Optional Test Lead available to test the alternator directly through the 12V plug of a vehicle

ANTIFREEZE & COOLANT HYDROMETER - ETHYLENE GLYCOL

03200000

» Quickly check coolant strength and antifreeze protection levels with this easy-to-use Antifreeze & Coolant Hydrometer for Ethylene Glycol systems

Key Features

» Measures Ethylene Glycol concentration in cooling systems

» Quickly checks antifreeze protection levels

» Safe to use from -5°C to -40°C

AUTOMOTIVE REFRACTOMETER

BATTERY ACID HYDROMETER

ANTIFREEZE & COOLANT HYDROMETER - PROPYLENE GLYCOL

03200200

» Quickly and accurately check coolant strength and freeze protection levels with this Antifreeze & Coolant Hydrometer for Propylene Glycol systems

Key Features

» Measures Propylene Glycol concentration in cooling systems

» Quickly checks antifreeze protection levels

» Suitable for modern cooling systems and aluminium alloy engines

» Temperature range: -5°C to -40°C

03201000

Specifications

» Coolant: 0 to -50°

» Battery: 1.1 to 1.4kg / ltr

» Windscreen: 0 to -40°

» AdBlue: 30% to 35%

Key Features

» Tests Coolant, Battery Acid, Screen wash and Ad Blue using an optical prism test technique

» Includes an internal Light feature for ease of use in poor light

» Provides fast, accurate readings for workshop diagnostics

» Clear scale for easy interpretation of results

» Compact, lightweight and easy to use

ENGINE

INJECTOR REMOVAL

INJECTOR EXTRACTOR KIT

18590000

18590100

» Universal injector extractor kit complete with hydraulic cylinder, designed for the removal of seized diesel injectors. Can be used mechanically in confined spaces or hydraulically for maximum extraction force.

Key Features

» 12 tonne hydraulic cylinder for high-force extraction

» Can be used as mechanical or hydraulic system depending on access

» Suitable for Bosch, Delphi, Denso, Siemens and Toyota injectors

» Allows in-situ removal to reduce labour time

» Adjustable support feet for optimal positioning

» Modular frame system adapts to different engine configurations

» Hydraulic version requires 20017000 hydraulic pump or similar (not included)

Part Numbers

» 18590000 - includes hydraulic cylinder

» 18590100 - without hydraulic cylinder

18590000 Applications » M17 x 1.0 - Bosch

M14 x 1.0 - Delphi

M16 x 1.0 - Toyota

PNEUMATIC VIBRO INJECTOR PULLER WITH HANDLE

08588000

M20 x 1.0 - Denso

M25 x 1.0 - Siemens

M27 x 1.0 – Siemens

» Next-generation air-powered injector puller designed to remove seized or stubborn diesel injectors with minimal engine disassembly. Uses vibration to break carbon and corrosion, allowing fast, safe removal without excessive force.

Key Features

» Air-powered vibration system (20–30Nm) for efficient injector release

» Reduces risk of damage to cylinder head and components

» Suitable for a wide range of injector types (Bosch, Delphi, Denso, Siemens)

» Low-profile ergonomic handle for use in confined engine bays

» Comprehensive adaptor set for multiple thread sizes

» Improves workshop efficiency by eliminating manual extraction methods

Pneumatic vibro injector puller with handle Connection fittings Storage case

M16 x 1.5 - Adaptor

M17 x 1.0 - Adaptor

M18 x 0.75 - Adaptor

M18 x 1.5 - Adaptor

M20 x 1.0 - Adaptor

M20 x 1.5 - Adaptor

M22 x 1.5 - Adaptor Contents Description

M25 x 0.5- Adaptor

M25 x 1.0 - Adaptor

M26 x 0.75- Adaptor

M27 x 0.75- Adaptor

M27 x 1.0 (x2)- Adaptor

M29 x 1.0- Adaptor

M31 x 0.75- Adaptor

M8 x 1.0- Adaptor

M8 x 1.25- Adaptor

M8 x 1.5- Adaptor

INJECTOR REMOVAL

HEAVY DUTY SLIDE HAMMER INJECTOR PULLER KIT

08587000

» Heavy-duty puller kit for removing seized diesel injectors across a wide range of engines.

Key Features

» Suitable for Bosch, Delphi, Denso and Siemens injectors

» Includes multiple internal and external adaptors

» Flexible joint allows access in confined spaces

» Hooks and connectors eliminate need to dismantle injectors

» Reduces risk of losing internal components

Contents

Description

Injector Adaptor - M16 x 1.0 OT

Injector Adaptor - M17 x 1.0 OT

Injector Adaptor - M20 x 1.0 OT

Injector Adaptor - M25 x 1.0 OT

Injector Adaptor - M27 x 1.0 OT

Injector Adaptor - M16 x 1.5 IT

Injector Adaptor - M14 x 1.5 IT

2x Injector Adaptor - M25 x 0.5 IT

Injector Adaptor - M27 x 1.0 IT

Contents

Contents

Description

Injector Solenoid Removers - M25

Injector Solenoid Removers - M27

Injector Solenoid Removers - M29

Injector Solenoid Removers - M30

Hook - 12mm

Hook - 13.5mm

Hook - 16mm

Hook - 26mm

Universal Joint - M18 x 1.5

MULTI-STAGE INJECTOR PULLER KIT FOR M9R 2.0 DCI ENGINES

GO426

» Specialist injector puller kit designed for the removal of seized or damaged injectors on M9R 2.0 DCI engines. The multi-stage system allows extraction of injectors in various failure conditions.

Key Features

» Designed for injector removal on M9R engines

» Multi-stage system allows removal in different breakage scenarios

» Supports mechanical or optional mechadraulic extraction

» Engine-specific frame mounts directly to engine fixing points

» Reduces removal time and avoids cylinder head removal

Applications:

» Injectors: Bosch Piezo, Bosch CR on Renault, Nissan & Opel

INJECTOR REMOVAL SOCKETS

Description

Nozzle Extractor - 6mm Tamper proof10mm Hex

Nozzle Extractor - 7mm Tamper proof10mm Hex

Adaptor - M16 x 1.5mm

Adaptor - M25 x 0.5mm

Adaptor - M25 x 0.75mm

Adaptor - M27 x 1.0mm

Heavy Duty Slide Hammer - 4.3kg

INJECTOR EXTRACTOR KIT FOR 2.0 DIESEL M9R

GO537

» Heavy-duty injector extractor kit designed for the removal of seized, damaged, or broken injectors on M9R 2.0 diesel engines.

Key Features

» Features multiple extraction methods

» Multi-stage system enables removal in various injector conditions

» Supplied with 12 tonne Mechadraulic cylinder for high pulling force

Applications

» Brand Renault, Nissan, Opel, Motor 2.0 diesel

» Engine code M9R, Injectors Bosch CR, Bosch Piezo

» Specialist socket designed for the removal of injectors without dismantling.

Part Numbers:

» GO519: Suitable for Ford 2.0 ecoblue TDCI from 2016 (Ford Galaxy, S-max, Mondeo, Focus C-Max, Transit and Custom (from 2018) etc

» GO441: Suitable for Bosch injectors (CH29 and CH30)

INJECTOR REMOVAL

INJECTOR REMOVAL SET - FORD 2.0 ECOBLUE

GO434

» Specialist injector removal set designed specifically for Ford 2.0L EcoBlue engines. Enables the safe extraction of seized injectors without dismantling the cylinder head, reducing repair time and risk of damage.

Key Features

» Designed for Ford 2.0L EcoBlue diesel engines

» Allows removal of seized injectors without cylinder head removal

» Reduces risk of injector and engine damage during extraction

» Enables in-situ operation for improved workshop efficiency

» Supplied with model-specific adaptors and tooling

Applications:

» Ford 2.0 Eco Blue - engines from 2016 in Galaxy/S-Max/Mondeo/ Focus C-Max/Transit and Custom (from 2018) etc.

MASTER SLIDE HAMMER INJECTOR SET WITH CR ADAPTORS

GO507

GO449

» Comprehensive injector extraction kit designed for the removal of diesel injectors using slide hammer force.

Key Features

» Slide hammer operation provides controlled pulling force

» Allow removal without dismantling the injector head

» Multiple extraction methods using pliers, adaptors and specialist socket

» Includes CR adaptors (M12x1.5 and M14x1.5) for common rail applications

» Enables injector removal while keeping components intact where possible

» Please note: GO507 includes a special socket for Bosch CR (CH29-CH30 mm)

EXPANSION KIT FOR FORD

INJECTOR END – FORD 2.0 ECOBLUE

GO545

» Designed to extract Ford EcoBlue 2.0L injectorsincluding the piezo injector end - in one complete piece.

Key Features

» Removes injector nozzle bodies after initial extraction

» Allows recovery where internal threads are damaged or torn

» Creates new thread where required for continued extraction

» Supports complete injector removal without cylinder head removal

Applications

» OEM equivalent to Ford tool (303-1706)

» See website for more application information

ELECTRONIC DIESEL INJECTOR REMOVAL SOCKET SET (4PC)

01513500

» Socket set designed for the removal of electrical solenoids from modern diesel injectors prior to extraction.

Key Features

» Suitable for Bosch and Siemens injector types

» 1/2” square drive with 100 mm length for accessibility

Includes

» 01512500 - 25mm Hex - Siemens Injectors - 2.0 Hdi (DW Series) As found on PSA, Ford, Toyota etc.

» 01512700 - 27mm Hex - Siemens Piezo Injectors, 2.0 Hdi Piezo (DW Series) As found on PSA etc.

» 01512900 - 29mm Hex - Bosch type injectors, Bosch Cdi / Hdi engines.

» GO430 - 30mm Hex - Bosch type injectors, Bosch Renault / Nissan 1.9dCi

DIESEL INJECTOR PULLERFORD ECOBLUE 2.0L

GO544

» Designed for the removal of seized injectors on Ford 2.0L EcoBlue diesel engines.

Key Features

» Removes two-piece injectors in one operation without dismantling

» Allows injectors to be removed intact for possible refitting

» Heavy-duty force screw system provides controlled extraction

» Engine-mounted bridge ensures stable alignment during use

Applications

» Ford 2.0 ecoblue TDCI from 2016

» Ford Galaxy, S-max,Mondeo,Focus C-Max, Transit and Custom (from 2018), etc

INJECTOR ADAPTOR – FORD ECOBLUE 2.0

07900500

» Specialist adaptor for servicing injectors on EcoBlue 2.0L engines.

Includes adaptors for three slide hammer threads:

» M16 X 2.0

» M14 x 1.5

» 1/2” x 20 UNF (Compatible with 08542100 slide hammer)

Applications

» Suitable for Ford models equipped with 2.0L EcoBlue diesel engines, including:

» Edge

» Focus

» Galaxy

» S-Max (from 2018)

» Kuga

OEM

» Mondeo

» Ranger (from 2019)

» Tourneo and Transit (from 2016)

» Provides a professional alternative to OEM tool 303-1706

INJECTOR REMOVAL

INJECTOR REMOVAL FORKFORD 2.0 ECOBLUE TDCI

GO455

Specifications

» Fork width: 19mm

» Connection thread: M18 x 1.5

» Height: 98 mm

Key Features

» Injector removal fork designed for use with Ford 2.0 EcoBlue TDCi engines. Used in conjunction with GO434, it allows the injector to be released using forked leverage, providing a simple and controlled removal method where access permits

» Please note - not suitable for use on seized injectors

Applications

» Ford 2.0 ecoblue TDCI from 2016

» Ford Galaxy, S-max,Mondeo,Focus C-Max, Transit and Custom (from 2018), etc

EXTRACTION ADAPTOR FOR 2.0L DW10 + DW10FC FUEL INJECTOR

GO566

» Designed for the mechanical removal of injectors on 2.0L DW10FC and DW10FU engines (Delphi systems).

Key Features

» Enables mechanical injector removal using a slide hammer or pneumatic impact puller

» No partial engine disassembly required

» Helps keep the injector reusable after extraction

» Compatible with M18 x 1.5 thread systems, including GO520 slide hammer

Applications

» 2.0L (DW10FC / DW10FU) Delphi Engines

» 2.2L (DW12RU) EURO 6 - Production up to 2019

INJECTOR REMOVAL

12 TONNE MECHADRAULIC CYLINDER

GO1010

Specifications:

» Force: 12 Tonnes

» Stroke: 8 mm

» Dimensions: 80 x 55 mm

» Hole: Ø 21.5 mm

» Driving torque: 67Nm

Key Features

» Combines hydraulic force with mechanical control for precision

» Designed to deliver high-force extraction and installation across a wide range of workshop applications including injector removal, hub installation, and general workshop use

12 TONNE MECHADRAULIC CYLINDER & ADAPTOR KIT

GO1015

Specifications:

» Force: 12 Tonnes

» Stroke: 8 mm

» Dimensions: 98 x 80 x 50(h) mm

» Hole: Ø 21.5 mm

» Driving torque: 56 Nm

Key Features

» Combines hydraulic force with mechanical control for precision

» Designed to deliver high-force extraction and installation across a wide range of workshop applications including injector removal, hub installation, and general workshop use

» Includes adaptors (M10, M12, M14, M16, M18) for multiple applications

17 TONNE HYDRAULIC CYLINDER

GO1017

Specifications:

» Force: 17 Tonnes

» Stroke: 43 mm

» Body dimensions: 90 x 155 mm

» Hole: Ø 20 mm

Key Features

» Delivers powerful, controlled force in a compact design. Ideal for removing injectors, bearings, and other tightly fitted components.

12 TONNE HYDRAULIC CYLINDER - ALUMINIUM

GO1050

Specifications:

» Force: 12 Tonnes

» Stroke: 8 mm

» Dimensions: 80 x 50(h) mm

» Hole: Ø 21.5 mm

» Connection: 3/8”-18 NPT

Key Features

» Lightweight aluminium compact hydraulic cylinder designed to deliver high pulling force for extraction and installation tasks

» 12 tonne hydraulic force for high-load applications

» Supplied with threaded adaptors (M10, M12, M14, M16, M18) for versatility

17 TONNE HYDRAULIC CYLINDER - ALUMINIUM

GO1061

Specifications:

» Force: 17 Tonnes

» Dimensions: 90 x 155 mm

» Stroke: 43 mm

» Hole: Ø 20 mm

» Connection: 3/” -18 NPT

Key Features

» 17 tonne hydraulic cylinder designed for high-load applications

» Suitable for injector, bearing, hub and silent block operations

» Ideal for releasing very tight or seized mechanical components

» Lightweight aluminium construction for improved handling

» Supplied with threaded adaptors (M10, M12, M14, M16, M18) for versatility

DIESEL INJECTOR SEAL EXTRACTOR

08581000

» Specialist tool designed for the removal of stuck copper injector seals from the cylinder head.

Key Features

» Designed for removal of seized injector base seals

» Split collet design grips and extracts seals securely

» Eliminates need for picks, hooks or improvised tools

» Reduces risk of damage to cylinder head

» Adjustable range (approx. 6.5–8.0 mm) for different seal sizes

INJECTOR REMOVAL

UNIVERSAL INJECTOR SEAT CLEANER SET

01745000

» Designed to thoroughly clean injector seats following removal. Ideal for ensuring a precise, debris-free finish to your service work.

Includes

» Metal cleaning brushes: Ø20 mm and Ø25 mm – for the injector hole cleaning

» 2 specialised front brushes – designed for cleaning the injector seat surface

» 1 extension piece – for added reach or awkward angles

» 1 seal plug – closes off the injector hole during cleaning for safety and control

» 1 seal plug holder – to assist positioning and removal of the plug securely

» 1 sanding kit – for final surface preparation and finishing

DIESEL INJECTOR SEAT CLEANER SET

01750000

» Designed for cleaning and reconditioning diesel injector seats. Supplied with a centering pilot and a T-handle, it ensures accurate alignment and a clean sealing surface to support correct injector seating.

Specifications

» 01750170 - 19mm flat cleaner - For Mercedes CR systems

» 01750270 - 17mm flat cleaner - For BMW, PS, Renault applications

» 01750370 - 15mm flat cleaner - For Universal applications

» 01750470 - 21mm angled cleaner - For Fiat, Iveco

» 01750570 - 19mm angled cleaner - For Fiat, Iveco

GLOWPLUG SERVICE

GLOW PLUG TIP EXTRACTION SET

GO451

» Master extraction kit designed for the removal of broken or seized glow plug tips from cylinder heads.

UNIVERSAL GLOW PLUG TIP EXTRACTION SET – DEEP DESIGN

GO452

» Designed for the removal of broken glow plug tips from cylinder heads. The deep design allows access where the heating element has snapped below the seat.

Key Features

» Suitable for M8, M9 and M10 glow plug applications

» Double pulling system for controlled extraction

» Removes broken or seized glow plug electrode tips

» Can be used with slide hammer or threaded extractor

» Ideal for cases where standard removal is not possible

Key Features

» Suitable for a wide range of diesel engines with M8, M9 and M10 glow plugs

» Deep design for removing tips snapped below the seat

» Guided drilling using existing thread to protect cylinder head

» Controlled extraction using rod and striking hammer

» Helps remove broken tips safely and effectively

GLOWPLUG SERVICE

UNIVERSAL GLOW PLUG REMOVAL MASTER KIT

» A comprehensive modular kit for the controlled removal of seized or broken glow plugs.

Key Features

» Modular master kit covering multiple common glow plug thread sizes

» Suitable for M8, M9, M10 x 1.0 and M10 x 1.25 applications

» Allows controlled removal of seized or broken glow plugs

» Includes special sockets and milling cutters for removing the central electrode

» Sliding rod, extension and slide hammer help extract glow plug residues from the seat

» Supports thread restoration before fitting the replacement glow plug

Applications:

» M8x1: Mercedes, Smart, VW, Fiat, Opel, Ford etc.

» M9x1: Opel, Fiat, Alfa, Lancia (e.g. 1.3-2.3-3.0 JTD) etc.

» M10x1: VW, Audi, Mercedes, BMW, Opel, PSA, Renault, Ford, Suzuki etc.

» M10x1.25: VW, Audi, Toyota, Suzuki, Opel, Isuzu, Mercedes etc.

INDIVIDUAL GLOWPLUG REMOVAL KITS

» All the kits listed below are included in the GO470 - Universal Glow Plug Removal Master Kit

» Note GO471 / GO472 / GO473 require the GO471 basic tool kit module, they are not intended for standalone use.

Part no.

GO471

GO472

GO473

GO474

Product Description

Core tooling for broken and seized glow plug removal

Controlled breakage and drilling of the centre electrode

Slide hammer extraction system for removing glow plug remains

Magnetic retrieval tool for collecting fragments and swarf

Removal of broken and seized M8 x 1.0 glow plugs including Mercedes, Smart, VW, Fiat, Opel, Ford etc

Removal of broken and seized M8 x 1.0 glow plugs including Opel, Fiat, Alfa, Lancia (e.g. 1.3-2.3-3.0 JTD) etc

Removal of broken and seized glowplugs including (M10x1.0) VW, Audi, Mercedes, BMW, Opel, PSA, Renault, Ford, Suzuki etc (M10x1.25) VW, Audi, Toyota, Suzuki, Opel, Isuzu, Mercedes etc

VIBRO IMPACT GLOW PLUG REMOVER

085900V2

Specifications

» Square Drive ¼”

» Max Torque- Right 40Nm

» Max Torque - Left 10 / 20 / 30 / 40Nm

» Air Inlet ¼”

» Air Consumption 250 ltrs / min

» Speed 12,000 per min

» Air Supply 6.3bar / 90psi

» Professional vibration tool designed for the safe removal of seized glow plugs.

Key Features

» Uses controlled vibration to loosen seized glow plugs

» Reduces risk of snapping plugs or damaging cylinder heads

» Adjustable torque settings (10 - 40Nm) for controlled operation

» Supplied with long-reach sockets (8 - 12mm) and extensions

» Also suitable for small threaded fixings and spark plugs

Applications

» Ideal for stubborn or carbon-seized glow plugs

» First-stage removal tool before extraction

GLOWPLUG SERVICE

GLOWPLUG REMOVER & REAMER

08591000

08592000

» Specialist diesel glow plug removal kits designed to cleanly remove broken components and prepare the thread for a replacement glow plug.

Key Features

» Safely removes broken or damaged heater plugs

» Helps prevent damage to the engine block

» Leaves a clean-cut thread ready for replacement plug fitting

Part Numbers

» 08591000 - M8 x 1.0

» 08592000 - M10 x 1.0

» Designed for accurate, controlled glow plug removal.

» With extraction bushes, it seats precisely around the glow plug to support clean and effective removal.

BELTS & PULLEYS

GLOWPLUG TIP EXTRACTION KIT

08596800

08596100

» Designed for the safe and effective removal of broken or seized glow plug electrode tips from diesel engines.

Key Features

» Removes snapped or seized glow plug electrode tips

» Compatible with M8/ M9 /M10 glow plugs

» Protects cylinder head threads during extraction

Part Numbers

» 08596800 - Compatible with M8 glow plugs. Suitable for M9 applications using M8 tooling.

» 08596100 - Suitable for M10 x 1.0 and M10 x 1.25 threads

FLEXIBLE STARTER FOR SPARK AND GLOW PLUGS

08595000

» Flexible starter tool designed for the safe installation of spark plugs and glow plugs in confined or difficult-to-access areas.

Key Features

» Helps prevent cross-threading during installation

» Enables accurate alignment before final tightening

» Ideal for use in modern compact engine layouts

Specifications

» Input Drive: 1/2” square

» Max Input Torque: 300 Nm

» OEM equivalent to Ford tools 303-1611, 303-1611-01, 303-1611-02 80062000

» Output Drive: 3/4” square

» Max Output Torque: 1,500 Nm

» Specialist tool designed for the installation and removal of elastic (stretch) drive belts without causing damage. Provides controlled fitting and removal, preventing twisting, overstressing, and incorrect belt installation.

Key Features

» 5:1 torque multiplier provides smooth, controlled tightening and loosening

» Handles up to 1,500 Nm output torque for high-load applications

» Ideal for crankshaft pulley bolts on Ford 1.0 EcoBoost and 1.1 engines

» Supplied with 21 mm and 24 mm sockets for OE bolt compatibility

» Stage torquing eliminates need for torque conversion, ensuring accurate tightening

» Supports safe bolt seating and reduces risk of over-tightening

OEM Reference

BELTS & PULLEYS

VW STUD TORQUE ADAPTOR

02253000

» Specialist torque adaptor designed for the installation and removal of timing belt tensioner mounting studs on VAG diesel engines.

Key Features

» Helps remove seized studs caused by steel-to-aluminium corrosion

» Suitable for most 1.9L and 2.0L TDI VAG applications

» Compatible with M8 fine and M8 to M10 coarse stepped studs

» Schaeffler approved for professional workshop use

Applications

» VAG 1.9L & 2.0L TDI diesel engines

CLUTCH & GEARBOX

CRANKSHAFT PULLEY REMOVAL

» Vehicle-specific tool for removing crankshaft vibration damper pulleys.

Key Features

» Designed for Ford 2.0L EcoBlue engines

» Removes bonded pulleys without damage

» Maintains integrity of rubber damper section

» Essential for correct service procedure

Engine Codes:

» 2.0L EcoBlue diesel BC2X / YL2X / YN2X

Applications:

OEM Ref: » 303-1657

» Ford Kuga, Ranger & Transit Custom (from 2019)

» Ford FWD Transit (from 2018)

» Ford RWD Transit (from 2018)

DUAL MASS FLYWHEEL SPECIAL TOOL

081100SP

» Specialist tool developed in conjunction with LUK for accurate testing of dual mass flywheels (DMF) directly on the vehicle

Key Features

» Enables on-vehicle testing with gearbox removed

» Provides accurate assessment of flywheel wear and condition

» Includes application-specific data for correct evaluation

» Supplied with data wheel and instructional materials for guided use

» Helps prevent unnecessary replacement of serviceable components

» Ideal for modern diesel engines where vibration control is critical

REAR CRANKSHAFT SEAL INSTALLER

» Designed for accurate and damage-free installation of rear crankshaft seals across a wide range of Fiat, Alfa Romeo, Opel, GM, and Stellantis engines, including Fiat Ducato (2021-on)

Key Features

» Engineered to match OEM specifications, this tool ensures correct alignment and seating of the seal every time, reducing the risk of leaks, premature wear, or costly rework.

OEM Cross-Reference

» Genuine Part Number: 2054900080

» Compatible Seal: 55272147 Rear Crankshaft Seal

SELF ADJUSTING CLUTCH (SAC) INSTALLER MASTER KIT

GO900

» Designed for safe, accurate installation of self-adjusting clutches

Key Features

» 14-piece specialist centring tool set for vehicles without crankshaft pilot bearings

» Helps install self-adjusting clutches correctly

» Prevents erratic adjustment of the clutch mechanism

» Supports smooth and reliable clutch operation

» Includes 3-arm truss for 6-bolt flywheels and 4-arm truss for 8-bolt flywheels

Applications

» Alfa Romeo, Audi, BMW, Fiat, Ford, Mercedes, VW and more

DSG CLUTCH REMOVAL KIT VW GROUP

GO903

» Professional tool kit for the removal and installation of DSG (Direct-Shift Gearbox) clutch assemblies

Key Features

» Designed for the removal and installation of clutch housings, clutch packs and gearbox components

» Suitable for 6-speed (08D) and 7-speed (0AM) VAG DSG transmissions

» Services dual clutch assemblies (K1 & K2) and multiple gearbox shafts

» Suitable for VAG vehicles manufactured from 2004 to 2012

Applications

» Audi, SEAT, Sokda and Volkswager

CLUTCH & GEARBOX

SELF-ADJUSTING CLUTCH (SAC) INSTALLER KIT

GO901

» Professional tool kit for the removal and installation of self-adjusting clutch (SAC) assemblies

Key Features

» Uses the manufacturer-approved installation method

» Enables pre-tensioning of the pressure plate before removal and refitting

» Prevents clutch plate distortion and accidental damage during installation

» Reduces risk of vibration and premature clutch wear

» Covers 120° (3-screw) SAC clutch assemblies

Applications

» Alfa Romeo, Audi, BMW, Fiat, Ford, Mercedes, VW and more

FIFTH GEAR PULLER FORD

08550500

» A specialist tool designed for the fast and efficient removal of the fifth gear on Ford front-wheel drive transmissions, ideal for use prior to internal gearbox repairs.

Key Features

» Fast and simple removal of fifth gear components

» Designed specifically for Ford FWD transmissions

» Split collar and retaining sleeve for secure, positive location

Applications

» B5 gearboxes (pre-1995, 5-speed manual)

» IB5 gearboxes (1995 onwards – Fiesta, Ka, Focus)

» MTX-75 (Focus, Mondeo, Jaguar X-Type, C-Max)

» VXT-75 (Galaxy, Transit FWD, Transit Connect)

GM GEARBOX BEARING/RACE REMOVER

08550300

» Specialist puller designed for the removal of taper bearing cups from clutch housings in M32, MT20-6 and MT32-6 manual gearboxes.

Key Features

» Even load distribution prevents casing damage or cracking

» Provides controlled, safe extraction of bearing races

» Widely used across GM, Saab and Fiat group vehicles

Applications

» Widely used in GM, Saab and Fiat Group.

CLUTCH & GEARBOX

GEARBOX & AUTOMATIC TRANSMISSION SUPPORT - 150KG

Specifications

» Max. load bearing capacity: 150 kg

» Length/width: 490 mm/460 mm

» Assembly: 40 mm

» Forwards/backwards tilt: ±35°

» Left/right tilt: ±5°

» Designed to provide a secure, stable hold when working on gearboxes, automatic transmissions, DSG units and differential assemblies

Key Features

» 150kg load capacity suitable for gearboxes, DSGs and differential units

» Adjustable front and rear support arms for a secure, tailored fit

» Variable tilt control

» Allows precise positioning during installation and removal

» Includes 30mm adaptor for transmission stand piston rod

ENGINE & GEARBOX SUPPORT – 240KG

Specifications

» Load capacity: 240 kg

» Sliding telescopic arm extension: min. 657/max 887

» Telescopic arm: to 230 mm

» Side-arms extension: min. 322/max 566. GO640

» Designed to safely support engines or gearboxes during essential maintenance, particularly when front end components such as engine mounts, subframes or suspension units are removed. With a strong 240 kg capacity and versatile adjustable design, this support tool is ideal for a wide range of engine and transmission configurations.

Key Features

» Adjustable beam with extendable support arms for wide vehicle coverage

» Durable steel construction for strength and stability

» Protective feet to help prevent damage to vehicle surfaces

» Quick Setup: Easy to install and adjust

HYDRAULIC TRANSMISSION JACKS

Key Features

» Suitable for removing and installing gearboxes, transmissions, engines, and other heavy components

» Chrome-plated hydraulic piston for durability and corrosion resistance

» Foot-operated hydraulic pump for smooth, controlled lifting

» Four swivel castors for excellent manoeuvrability

» Integrated transport handle for easy positioning

» Compact design ideal for light-duty workshop applications

» Heavy-duty construction suitable for professional use

GO1450 Hydraulic Transmission Jack 0.6 Tonne

GO1451 Hydraulic Transmission Jack 0.3 Tonne

GO1452 Hydraulic Transmission Jack 1 Tonne

GO1453 Hydraulic Transmission Jack 1.5 Tonne

GO1454 Hydraulic Transmission Jack 1.5 Tonne, 2 Piston

GO1455 Hydraulic Transmission Jack 5 Tonne, 2 Piston

GO1457 Hydraulic Transmission Jack 15 Tonne

03800000

Specifications

Cranked Offset Jaws

» A - Jaw (mm) Min 75mm Max 165mm

» B - Throat (mm) 245mm

Straight Jaws

» A - Jaw (mm) Min 95mm Max 186mm

» B - Throat (mm) 245mm

CYLINDER HEAD & ENGINE BLOCK

» Heavy-duty valve spring compressor designed for the removal and installation of valve springs with the cylinder head in place.

Key Features

» Suitable for use on a wide range of commercial, agricultural and industrial engines - petrol and diesel

» Designed for on-vehicle and bench-top cylinder head work

» Parallel-lift jaw design ensures controlled, even compression

» Fully adjustable legs for different engine configurations

» Supplied with straight and offset jaws for flexibility

VALVE SPRING COMPRESSOR –OHC ENGINES

66043000

Specifications

» Jaw capacity: 63–129mm

» Throat depth: 158mm

» A valve spring compressor for the safe removal and refitting of valves on OHC engines.

Key Features

Specifications

» Jaw Capacity (A): 70mm – 135mm

» Throat Depth (B): 150mm

» A valve spring compressor for safe removal and refitting of valves on OHV engines.

Key Features

» Suitable for small and medium OHV engines

» Cam-action mechanism provides a smooth, controlled and parallel lift

» Helps reduce risk of valve or component damage during operation

» Automatic locking feature for safer, hands-free working

» Adjustable straight jaws for improved access and versatility

» Designed for ease of use in confined engine bay areas

VALVE SPRING COMPRESSOR –MULTIVALVE ENGINES

» Suitable for OHC petrol and diesel engines, with compatibility for many smaller OHV engines

» Cam-action mechanism provides a smooth, controlled parallel lift

» Helps minimise risk of valve distortion or component damage during use

» Open collet-type jaws improve visibility in restricted or difficult access areas

» Designed for improved access when working on multivalve cylinder heads

» Adjustable jaw range to suit a variety of applications

03950000

Specifications

» Jaw capacity: 35-140mm

» Throat depth: 150mm

» Valve spring compressor designed for servicing multivalve petrol and diesel engines.

Key Features

» Suitable for removal and installation of valve springs, valves and stem seals

» Cam-action mechanism ensures smooth, parallel compression

» Supplied with 25 mm and 30 mm adaptors for different applications

CYLINDER HEAD & ENGINE BLOCK

66037000

» A medium-capacity piston ring compressor designed for use on cars and light commercial vehicles.

Key Features

» Spring-assisted ratchet locking mechanism

» Supplied complete with square drive key

» Standard 80mm depth

» Capacity: 57–125mm

03220000

» A heavy-duty, long-reach piston ring compressor designed for large engines with deeper cylinder bores, including commercial, industrial and agricultural applications.

Key Features

» Spring-assisted ratchet locking mechanism for controlled compression

» Supplied with square drive key for ease of adjustment

» Double-depth: 165mm

» Capacity: 90–175mm

CYLINDER HONING SET (13–89MM)

02800000

» Cylinder honing and deglazing set designed for restoring cylinder bores in small engines and hydraulic components

Key Features

» Suitable for cylinder bores from 13–89 mm diameter

» Flexible drive shaft for use with air or electric drills

» Supplied with medium grade 220 grit stones

PISTON RING COMPRESSORRATCHET ACTIONLARGE CAPACITY

66037300

» A heavy-duty piston ring compressor designed for larger engines, including commercial, industrial and agricultural applications.

Key Features

» Spring-assisted ratchet locking mechanism

» Supplied with square drive key for easy adjustment

» Standard 80mm depth

» Capacity: 90–175mm

VALVE GRINDING STICKS

66090200 66090300 66090400 66090500

» Designed for precision valve grinding and lapping to restore sealing surfaces

CYLINDER HONING SET (50–180MM)

02810000

» Large diameter cylinder honing and deglazing set designed for restoring engine cylinder bores.

Key Features

» Suitable for cylinder bores from 50–180 mm diameter

» Flexible drive shaft for use with air or electric drills

» Supplied with medium grade 220 grit stones

CYLINDER HEAD & ENGINE BLOCK

MANUAL VALVE SPRING COMPRESSOR – BENCH TYPE

Specifications

» Dimensions: 785x500x625 mm

» Stroke: 265 mm

» Cylinder head: 750 mm

» Length: min. 185 mm

» Inclination angle = 0° - 30°

» Total weight: 25.5 Kg

» Bench-mounted valve spring compressor designed for precise removal and installation of valve springs during cylinder head work. The adjustable frame and controlled compression system allow accurate positioning and repeatable operation across a wide range of engine types.

Key Features

» Adjustable frame for different cylinder head configurations

» Rotating frame (0-30°) for improved access and positioning

» Travel limit device ensures consistent compression stroke

» Locking pin holds spring in compressed position for safe operation

» Extended adjustment for deep valve chambers

FUEL & EXHAUST

NOX SENSOR REPAIR KIT

GO800-X

» Kit designed for cleaning and restoring damaged NOx and lambda sensor threads in exhaust systems.

Key Features

» Restores damaged sensor threads in exhaust systems

» Suitable for NOx and lambda sensor applications

» Ideal for seized or difficult-to-remove sensors

» Helps avoid replacement of catalytic converter

» Complete kit for cleaning, repairing and refitting

Applications

» NOX (nitrogen oxide) sensors

» Exhaust system thread restoration

» Lambda (oxygen) sensors

» Cars and commercial vehicles

INDIVIDUAL NOX SENSOR REAMERS

» Thread repair taps designed for restoring damaged NOx and lambda sensor threads in exhaust systems.

Key Features

» Restores damaged threads in-situ, reducing downtime and costs

» Suitable for blind holes, ensuring full thread regeneration to the end of the bore

» 6 tensioning grooves for smooth cutting and optimal chip removal

» Compact hex drive (SW13) for easy use in restricted spaces

» Manufactured from HSCO steel for durability & long service life

FUEL & EXHAUST

SOCKET SET FOR NOX & PARTICULATE SENSORS

Specifications

» Drive: 1/2”

» Total Length: 85 mm

» 24 & 32mm Sockets

» 17, 14, 22 & 24mm Socket Adaptors

Key Features

» Professional socket set for removing and installing exhaust NOx and particulate sensors

» Designed for high-torque applications

» Closed 6-point profile to help loosen tight or seized sensors & helps prevent slipping and sensor-profile damage

» Side-entry socket design allows the sensor cable to sit safely outside the tool, helping prevent damage to the cable

DIESEL CIRCUIT METAL TRAP KIT

» Tool designed to detect early signs of wear in diesel fuel systems by capturing and highlighting metal particles in the fuel circuit.

Key Features

» Detects metal particles in the diesel supply circuit

» Identifies early signs of high pressure pump wear

» Helps prevent repeated injector replacement

» Installed in-line before the high pressure pump

» Suitable for diesel diagnostics and preventative maintenance

OXYGEN (LAMBDA) SENSOR SOCKET SET

» Socket set designed for the removal and installation of oxygen (lambda) sensors and pressure / vacuum switches.

Key Features

» Suitable for heated and unheated oxygen sensors

» Includes slotted and offset sockets for access

3 LEG

Specifications

» Suitable for filters 62 - 93 mm

» 3/8” square drive with adaptor for 1/2” drive or 19 mm hex

» Spider-type oil filter remover with geared legs that automatically tighten as force is applied.

Key Features

» 3-leg design for secure grip on oil filters

» Geared legs tighten, automatically adapting to the filter size

HEAVY

DUTY CHAIN TYPE OIL FILTER REMOVER

Specifications

» Working range 25–150 mm diameter

» 1” hex or 1/2” square drive 03890000

» Heavy duty chain type oil filter remover designed for loosening stubborn, large diameter oil filters.

Key Features

» Heavy duty leaf type chain

» Adjustable steel chain grips filters securely

» Ideal for HGV, plant and industrial applications

» Suitable for cars and light commercial vehicles

OIL SERVICE

ADJUSTABLE BAND TYPE OIL FILTER REMOVER –

LCV/HGV

03830000

Specifications

» Working range: 110 - 155 mm diameter

» Adjustable band type oil filter remover designed for safe and efficient removal of oil filters on light commercial and heavy goods vehicles.

Key Features

» Die-cast screw mechanism for secure tightening

» Ideal for filters in confined engine compartments

» Suitable for LCV and HGV applications

Spare Parts

03830100 Replacement Band

03840000

Specifications

» Range: 66 -100 mm diameter

FILTER

» Adjustable band type oil filter remover designed for safe and efficient removal of oil filters on cars and light commercial vehicles.

Key Features

» Die-cast screw mechanism used to tighten the band

» Ideal for filters in tight engine compartments

» Suitable for cars, vans and light commercial vehicles

Spare Parts

03840100 Replacement Band

OIL FILTER WRENCH KIT (60–80MM)

GO605

Specifications

» Working range Ø 60–80 mm with extensions

» Oil filter wrench kit designed for loosening and tightening fuel and oil filters

Key Features

» Suitable for oil filters and fuel filters

» Works with filters with or without guide profiles

» Includes two toothed extension half-shells

» Extensions attach directly to the wrench jaws and secure in place

STRAP TYPE OIL FILTER REMOVER

03860000

Specifications

» Range: 20 to 300mm diameter

» Strap Size: 1 metre long & 40 mm wide

» Double ended 13/16” Hex shank with female 3/8” & 1/2” sq. dr

» Multi-purpose strap wrench designed for safe removal of oil filters without damaging the housing.

Key Features

» Strong steel shank with tough polyester strap

» Self-tightening band for fast, secure filter removal

» Non-marking strap protects aluminium and plastic housings

» Suitable for use in tight engine spaces

Spare Parts 03860500 Replacement Strap

HEAVY DUTY STRAP WRENCH

015500V2

Specifications

» Range 50–260 mm diameter

» Multipurpose heavy duty strap wrench designed for HGV oil filter removal and industrial applications.

Key Features

» Suitable for HGV oil filter removal and industrial applications

» Strong cast iron handle for high leverage

» Polyester webbing strap for secure grip

Spare Parts

015512V2 Replacement Strap

VEHICLE FLUID CHANGE SYRINGE

Specifications

» 66050400 capacity: 200 cc

» Material: Composite plastic

» Designed for easy fluid transfer and monitoring during vehicle servicing.

Key Features

» Transparent body allows clear visibility of fluid levels

» Suitable for both suction and supply of vehicle fluids

» Resistant to brake fluid and antifreeze for safe use

» Quick disconnect tube for fast and convenient operation

» Replacement seals 660504-01

OIL SERVICE

VEHICLE FLUID CHANGE SYRINGE

Specifications

» 66095100 capacity: 1.5L

» Material: Composite plastic

» Designed for easy fluid transfer and monitoring during vehicle servicing.

Key Features

» Transparent body allows clear visibility of fluid levels

» Suitable for both suction and supply of vehicle fluids

» Resistant to engine oil, gear oil and differential fluid

» Rotative shut-off switch for improved control

» Replacement seals 660951-01

ENGINE OIL FILLER KIT (20PC)

SPEEDLINE1038

» Engine oil filler kit designed for fast, clean and precise oil refilling without spills or contamination.

Key Features

» Universal compatibility - Includes 20 locking adaptors for a wide range of vehicles

» The secure locking system holds the funnel firmly in place, leaving both hands free to handle the oil safely.

» The transparent funnel body allows full visibility of the oil flow and level, minimizing the risk of spills or overfilling.

» Quick-connect design for fast and efficient oil changes

65L PNEUMATIC OIL EXTRACTOR

SPEEDLINE1053

» 65 litre oil drainer designed for fast, clean recovery of engine oil from cars, vans and commercial vehicles.

» Designed for ease of use and long-term durability, this fluid emptying system allows oil to drain naturally by gravity, ensuring a thorough recovery without unnecessary complexity.

Specifications

» Tank Capacity – 65L

» Dimensions – 470 x 410 x 1000 (Bowl height 580mm)

Key Features

» Gravity-fed oil collection system for efficient oil recovery

» Pneumatic tank emptying system for controlled discharge

» Visual oil level indicator for quick monitoring

» Metal drip tray with anti-surge grid and filter drain

» Wheeled mobile design for workshop use

PRESET TORQUE ADAPTOR

Specifications

» Square Drive: 3/8”

» Ideal for oil sump plugs

» Convert your 3/8” ratchet or breaker bar into an accurate torque tool with this preset torque accessory set.

» One-way torque limiting Prevents over tightening when fitting components, while allowing unrestricted loosening

» Slim profile for access in tight engine bays

83002500 25Nm

83003500 35Nm

83004000 40Nm

83000100 25Nm/35Nm/40Nm

OIL SERVICE

80L PNEUMATIC OIL EXTRACTOR

53380000

» A professional pneumatic oil extractor designed for rapid and reliable engine oil recovery from a wide range of vehicle types.

Specifications

» Tank Capacity – 80L

» Dimensions – 540 x 620 x 1250

(Bowl height 580mm)

Key Features

» Pneumatic extraction from the engine sump even when oil is at a high temperature (~66 °C)

» Includes six probes and four quick-fit adaptors tailored for Mercedes, BMW, Volkswagen, and PSA vehicles - ideal for integrated suction systems

» Visual oil level indicator for easy monitoring

» Drain bowl with filter grid and pressure safety valve

80L PNEUMATIC OIL EXTRACTOR WITH 10L PLASTIC VIEWER

53380500

» Pneumatic oil extractor designed for fast recovery of engine oil with 10 litre plastic viewing chamber for visual monitoring during extraction.

Specifications

» Tank capacity 80L

» Viewing Chamber Capacity 10L

» Dimensions 540 x 620 x 1350mm (Bowl Height 580mm)

Key Features

» 10 litre plastic viewer for visual monitoring of oil flow

» Pneumatic extraction from the engine sump

» Includes six probes and four quick-fit adaptors tailored for Mercedes, BMW, Volkswagen, and PSA vehicles - ideal for integrated suction systems

» Stop ring and locking holder prevent bowl damage during use

» Fitted with oil-resistant wheels for workshop mobility

120L OIL EXTRACTOR WITH UNDER-VEHICLE TRAY

53380400

» 120 litre pneumatic oil extractor designed for efficient gravity or suction oil removal from cars, vans and heavy-duty vehicles.

Specifications

» Tank capacity 120L

» Tray Capacity 51L

» Dimensions 660 x 780 x 1520mm (Extended depth 2920mm)

Key Features

» Dual extraction modes for gravity drainage or pneumatic suction

» 51 litre tray that can be positioned beneath vehicles or used traditionally above the tank

» Includes six probes of varying sizes for hot oil extraction (70–80°C)

» Pressure relief valve set at 4 bar for safe operation

» Drain plug for cleaning and internal inspection

TESTING

COOLING SYSTEM TESTING

315 SERIES COOLING SYSTEM TESTING – CARS / LCVS

» The 315 Series Pressure Test Kit is an essential tool for identifying leaks and faults within automotive cooling systems. Suitable for modern vehicles with in-built overflow at the top of expansion tank.

» Quick Fault Detection: Efficiently pressurises the cooling system to simulate operating conditions, helping to identify leaks in hoses, radiators and heater cores.

» Integrated Pressure Gauge: Easy to read analogue gauge delivers accurate pressure readings for confident diagnostics.

» Wide Vehicle Compatibility: A wide range of cap adaptors suitable for a broad range of cars and light commercial vehicles.

» Expandable Range: All cap adaptors are available separately, and we’re continuously expanding the range to support an even wider selection of vehicles.

315’ SERIES COOLING SYSTEM PRESSURE TEST KIT

331595V3

» Our most comprehensive cooling kit for cars / LCV’s, includes 16 cooling caps

Contents

» Hand Pump with Pressure Gauge & Quick-Release fitting (33150100)

» Hose Assembly c/w quick-release fitting (33150300)

» 16 x Threaded cap adaptors

» 3 x Bayonet Fitting cap adaptors

» 1 x Cap Adaptor wrench

Applications Include

» Vauxhall: Adam, Astra J, Cascade, Corsa E, Meriva B, Mokka & Zafira Tourer C, Saab: 9-5 2010-, BMW 4.4/4.8/6.0 engines: 5 Series (F07/10/11) 2010-, 6 Series (F06/F12/13) 2011-, 7 Series (F01/02/03) 2009-, X5 (E70) 2008-, X6 (E71/E72) 2008-, and BMW i3 2013-, Mini models: F54, F55, F56, F57, R50, R52, R53, R56, R57, R58, R59 & R60.

» For full application list see the website.

Spare Parts

Part No. Description

33150400 Seal Kit

COOLING SYSTEM TEST KIT - FERRARI

33159000

» Supplied with two caps specifically matched to common Ferrari cooling-system neck dimensions - ensures reliable sealing for pressure tests.

» Fully compatible with the 315 Series cap system

Contents

» 33150100 - Pump

» 33150300 - Hose Assembly

» 33156100 - Cap 22

» 33151500 - Cap 3

Applications

» 33156100 - Cap 22 - Ferrari: 296 / 488 / 812 / California / Portofino / Roma

» 33151500 - Cap 3- Ferrari: 28 / 355 / 456 / Testarossa / Mondial

COOLING CAP SET

33159700

» Set of 5 additional cap adaptors to update 33159500 to 331595V3

Contents:

» 33156100 - Alfa, BMW, Citroen, fiat & Mini

» 33157200 - Mondeo

» 33157500 - Saab

» 33157600 - Cadillac, Chevrolet, Daewoo, GM & Saab

» 33156300 - Mercedes

COOLING CAP SET

33159400

» Set of 5 additional cap adaptors to futher update the coverage of 331595V3

Contents:

» 33158100 - Tesla Model 3 & Y

» 33158200 - Tesla Model S & X

» 33158300 - MG

» 33158400 - BYD

» 33158500 - Hyundai & Kia

INDIVIDUAL CAPS

33153500

» Cap adaptor 9

» Audi

33155500

» Cap adaptor 12

» Ford

33156300

» Cap adaptor 16

» Mercedes

33157500

» Cap adaptor 20

» Saab - Echo

COOLING CAP SET

33159800

» Set of 2 additional cap adaptors to update 331595V2 to 331595V3

Contents:

» 33156100 - Alfa, BMW, Citroen, fiat & Mini

» 33157600 - Cadillac, Chevrolet, Daewoo, GM & Saab

COOLING CAP SET

33159300

» Set of 7 additional cap adaptors to update coverage of the 331595V2 to present coverage

Contents:

» 331581000 - Tesla Model 3 & Y

» 33158200 - Tesla Model S & X

» 33158300 - MG

» 33158400 - BYD

» 33158500 - Hyundai/Kia

» 33157600 - Cadillac, Chevrolet, Daewoo, GM & Saab

» 33156100 - BMW, Citroen, Fiat & Mini

33154100

» Cap adaptor 13

» Mercedes

33156500

» Cap adaptor 17

» BMW

33152200

» Cap adaptor 8

» Seat & Volkswagen

33157200

» Cap adaptor 14

» Mondeo - Export

33155600

» Cap adaptor 18

» Ford, Seat, Volkswagen

33154800

» Cap adaptor 10

» BMW, Land Rover & Rover

33151200

» Cap adaptor 11

» Audi & Porsche

33155800

» Cap adaptor 19

» Subaru & Toyota

TESTING

COOLING SYSTEM TESTING

33157300

» Cap adaptor 21

» Alfa Romeo, Fiat, Saab, Ford, Opel & Vauxhall

33151600

» Cap adaptor 7

» Alfa Romeo, Citroen, Dacia, Fiat, Land Rover, Mercedes, Mini, Nissan, Peugeot, Renault, Suzuki, Mitsubishi, Toyota & Volvo

33158100

33156800

» Cap adaptor 15

» Ford, Jaguar, Mazda & Volvo

33156700

» Cap adaptor 4

» Citroen, Honda, Nissan, Peugeot, Kia

Daihatsu, Hyundai, Mazda, Subaru, Mitsubishi, Suzuki & Toyota

33151700

» Cap adaptor 6

» Chevrolet, Ford, Jaguar, Land Rover, Mazda, Opel, Vauxhall, Saab & Daewoo

33157100

» Cap adaptor 5

» Opel, Fiat Vauxhall, Citroen, Honda, Nissan, Kia, Daihatsu, Mazda, Suzuki, Toyota, Mitsubishi & Hyundai

33157600

» Cap adaptor 21C

» Rolls Royce, Cadillac, Chevrolet, Opel, Daewoo, Saab & Vauxhall

33156100

» Cap adaptor 22

» BMW, Mini Clubman, Mini Cooper, Mini Countryman, Mini Coupe, Mini one, Mini Roadstar 33158200 33158300

» Tesla Model 3 & Y » Tesla Model S & X

33158500

» Hyundai & Kia

» Note: 315’ Series Caps can be used with 318’ Series Pump using adaptor 03186870. » MG

33157800

» 315 Series Cap Adaptor.

» Dennis Dart & Optare Solo.

» Pressure test kit with 2 common adaptors for most common vehicles

» Fits directly via an in-line connection to the expansion tank, no need for cap

» Connects directly to 331595V3 Cooling kit pump (33150100)

33151500

» Cap Adaptor 3

» Chrysler, FCA, Land Rover, Mercedes & Peugeot

HOSE ASSEMBLY

» Replacement hose assembly

» Includes quick-release connector and bleed valve

» Length: 600mm

33158400

» BYD Models including hybrid and battery vehicles

03186870

» Allows use of older 318 series hand pump with 315 Series cooling kits

» Replacement hand pump (less hose) » C/W pressure gauge 0-2.5 bar 0-35 psi

COOLING SYSTEM TESTING

3314 XL COOLING SYSTEM TESTING

» The 3314 Series XL Cooling System Pressure Test Kit features an expanded range of radiator and reservoir caps, making it ideal for servicing a broader array of vehicles - from heavy-duty trucks to agricultural and construction equipment.

Key Features

» Heavy-Duty Metal Hand Pump – Delivers reliable and consistent pressure.

» Quick-Connect Hose Assembly – Enables fast, tool-free connection for efficient testing.

» Dual-Scale Pressure Gauge – Measures in both PSI (0–35) and bar (0–2.5) scales for versatility.

» Expandable Range: All cap adaptors are available separately, and we’re continuously expanding the range to support an even wider selection of vehicles.

XL COOLING SYSTEM PRESSURE TEST KIT

331400V3

» Cooling kit with 10 caps to cover a wide range of HGV’s, Plant, Construction and Agricultural machinery.

Contents

» 10 x Reservoir & Radiator Pressure Caps:

» 10 x Caps

» High capacity metal bodied hand pump (33140100).

» Quick-Connect Hose Assembly (33140300).

» Dual Gauge measures both p.s.i (0-35) and bar (0-2.5).

» Additional Pressure Caps available - refer to applications guide.

Applications Include

» DAF / Iveco / MAN / Mercedes / Renault / Scania / Volvo plus wide ranging coverage for Plant / Construction / Military & Agricultural solutions.

INDIVIDUAL CAPS

33142800

» Bus Applications: B11 2011 onwards, BSTL 2013 onwards, B8 2013 onwards

» Truck Applications: FH 2012 onwards, FM 2013 onwards, FMX 2010 onwards

33141500

» MAN - E2000, F2000, L2000, TGA

33141300

» Volvo - FH12

33141600

» DAF - LF55, Mercedes - Actros, Atego, Axor, Eco 8401, MAN - F90, F2000, TGA/L/M/S, Iveco - Euro Star, Euro Tech, Euro Trakker, Euro Strahlis, Volvo - FL, FM

33141800

» Case/ County/ David Brown/ Ford/ Leyland Marshall/ Massey Ferguson/ New Holland - Agricultural Tractors (Bayonet Type Cap), DAF, JCB, John Deere Tractors & Mercedes-Benz (Sprinter)

33142500

» Allows 314 series pump to be used with 315 caps

33147800

» Dennis Dart PSVs/Optare Solo PSVs and related models.

33141100

» DAF - XF95, XF105 & ERFEC

33142000

» DAF - LF45, LF55, Fendt TractorsHeader Tanks (M48), Renault - D Series

33141200

» SCANIA - 94, 113, 114, 124, 125, 144, 164 , 4 Series

33141400

» Iveco - Daily, 2000, C series , Renault - Kerax, Magnum, Midlum, Premium.

33141700

» MercedesSprinter, Vito, Deutz - 1015

COOLING SYSTEM TESTING

» For use with HGV Cooling System Pressure Test Kit (331400V3)

» For use with HGV Cooling System Pressure Test Kit (331400V3)

319 SERIES EXPANSION PLUG SYSTEM TESTING

» The 319 Expansion Plug System is a versatile solution for diagnosing cooling system issues in vehicles. Designed for use with a hand pump or airline adaptor, this kit is compatible with 318 Series threaded caps and adaptors, extending its application range.

Key features:

» Comprehensive Testing: Facilitates leak detection, temperature testing, and assessment of thermostat and thermo switch operation.

» Universal Fit: Patented tapered rubber cone design allows expansion plugs to fit radiator and header tank neck diameters ranging from 21mm to 65mm, covering a wide array of vehicles from small cars to commercial vehicles and heavy plant.

» Safety retaining clamp: Enhances safety by reducing the risk of plug slippage, especially in plastic expansion bottles, extreme temperatures, or when cleaning the aperture neck is impractical.

» Self Testing Hand Pump: Features a metal hand pump with a precision gauge and a specially designed pressure release valve for safe depressurising of cooling systems.

» Temperature Monitoring: Includes a dual calibrated thermometer (°C and °F) for accurate temperature assessments during testing.

CAR KIT (21-50MM)

Contents:

» 03190100 - Pump, gauge and hose assembly.

» 03191100 - Expansion Plug (21-38mm)

» 03191200 - Expansion Plug (27-42mm)

» 03191300 - Expansion Plug (33-50mm)

» 03192500 - Cooling System Thermometer

» 031916V2 - Asian Cap Adaptor

PLUGS

COMMERCIAL KIT (33-65MM)

Contents:

» 03193000 - Airline Adaptor & Pressure Gauge Assembly

» 03191300 - Expansion Plug (33-50mm)

» 03191400 - Expansion Plug (40-65mm)

» 03192500 - Cooling System Thermometer

» Featuring a self-testing metal hand pump and precision gauge, with specially designed pressure release valve for safe de-pressurising cooling systems.

» Ideal for detecting leaks in radiators, heater matrix, hoses, cylinder heads, engine blocks, water pumps etc.

» 317 series pump assembly can also be used with more modern 315 Series Cooling System.

» Optional adaptor 03186870 allows use with 319 Series Caps.

COOLING SYSTEM TESTING

COMBUSTION LEAKAGE TESTING

» A combustion leak tester is an essential diagnostic tool for detecting leaks between the combustion chamber and the cooling system - most commonly caused by blown cylinder head gaskets, cracked cylinder heads, or warped engine blocks.

Typical uses include:

» Verifying suspected head gasket failure.

» Checking for cracks in cylinder heads or engine blocks.

» Confirming internal coolant leaks before costly repairs.

XL COMBUSTION LEAKAGE TESTER

Key Features

» Quick connector for use with 33140000 and 331400V2 cap adaptors

» Suitable for use with both petrol & diesel engines

» Supplied with standard and sensitive reaction test fluid (250ml)

COMBUSTION LEAKAGE TESTER

33195000

Key Features

» Quick connector for use with 315 / 316 / 317 Series Cap Adaptors

» Suitable for use with both Petrol & Diesel Engines

» Supplied with standard and sensitive reaction test fluid (250ml)

AUTOMOTIVE REFRACTOMETER

03201000 Specifications

UNIVERSAL COMBUSTION LEAKAGE TESTER- HGV

Key Features

» Includes 25 to 50mm cone for a universal fit across a broad range of HGV inlet sizes

» Suitable for use with both petrol & diesel HGV engines

» Supplied with standard and sensitive reaction test fluid (250ml)

REACTION FLUID

» 250ml replacement bottle of Combustion Reaction Fluid for use with SP Combustion Leakage Testers: 33195000 / 33145500 / 33145000. 33194400

33194200

» Standard Reaction Fluid

Part Numbers

» 33194200 - Individual

» 331942SP - Pack of 6

» Sensitive Reaction fluid

Part Numbers

» 33194400 - Individual

» 331944SP - Pack of 6

» Coolant: 0 to -50° » Battery: 1.1 to 1.4kg / ltr » Windscreen: 0 to -40° » AdBlue: 30% to 35%

» A fast and accurate diagnostic tool designed for checking the condition and concentration of key vehicle fluids.

Key Features

» Tests Coolant, Battery Acid, Screen wash and Ad Blue using an optical prism test technique

» Includes an internal light feature for ease of use in poor light

» Provides fast, accurate readings for workshop diagnostics

» Clear scale for easy interpretation of results

UNIVERSAL DIGITAL PRESSURE TESTING

UNIVERSAL DIGITAL PRESSURE TESTER

» The updated digital pressure tester includes a new improved menu, with a more powerful processor and increased menu. It also features wi-fi connection and faster charging via USB-C

Key Features

» Versatile Testing: Suitable for compression (Petrol/Diesel), oil pressure**, turbo pressure, cooling system, Adblue, fuel low pressure, vacuum pressure and particle filter pressure

» Digital Precision: Offers clearer readings than traditional analogue gauges, essential for accurate diagnostics.

» Data Management: Save, export, print and share test results easily.

» Future Proof: Pre-programmed for upcoming add-on kits and compatible with existing Sykes Pickavant gauge products.

» A Wireless Communication Module* Can be placed under the vehicles bonnet to communicate directly with the tablet via a wireless connection.allowing the user to use the table inside the vehicle without a wired connection.

*included in 331050V2 version only - available as an add on to kit 331000V2 ref part no 331250V2 – note the wireless module is not compatible with earlier versions of the digital pressure testers (33100000)

331000V2

Key Features

331050V2

» Compatible with both petrol and diesel engines

» High pressure sensor range 0-300 Bar

» Comprehensive adaptor set

» Add on items available to further extend the kits capabilities

Contents

» Tester

» Sensor 0 to 300 Bar

» Sensor 1 - 3 Bar

» Universal Diesel Compression Adaptor

» Universal Petrol Compression Adaptor

» Eight specific professional quick coupling adaptors

» Vacuum adaptors

» Wireless communication module P/N: 331250V2 (331050V2 only)

» **Adaptors required for entry via oil pressure sensor

» Wireless communication module P/N: 331250V2 (included in kit 331050V2 only)

UNIVERSAL DIGITAL PRESSURE TESTING

ADDITIONAL KITS

» A range of additional kits and adaptors designed to maximise the potential of the 33100000 / 331000V2 digital pressure testers

ADAPTORS

Part no. Adaptors

331000-01

331000-02

331000-03

331000-04

WI-FI MODULE

331250V2

Male & Female 9.89mm

Female & Female 90° 9.89mm

Male & Female 6.30mm

Female 90° 9.89mm

» This module is an upgrade to the 331000V2 Digital Pressure tester

» It can be placed under the vehicles bonnet to communicate directly with the tablet via a wireless connection.

» Please note this is only suitable for use with the newer version 331000V2 (not the previous 33100000 version)

ENGINE & TURBO OIL PRESSURE ADAPTOR SET (15PC)

33100200

Contents:

» 10 x adapters to fit most of the oil pressure sensors

» 4 x adapters fit the most turbo banjos

» 1 x 90° Elbow quick connector

» This kit allows you to test the engine and turbo oil pressure of most popular engines

COMMON RAIL CAP SET

33100400

Contents:

» 6 x M12 x 150 plugs

» 6 x M14 x 150 plugs.

» Use with kit 33100100, to close the fuel inlet injectors directly on the common rail to identify if is leaking

» Works for 3, 4, 5 & 6 cylinder engines

Part no. Adaptors

331000-05

Male and Female 90° 7.89mm

331000-06 Vacuum Connector

331000-07

331000-08

Male 9.89mm & Female 90° 11.5mm

Male 9.89m & Female 90° 12mm

DIESEL HIGH PRESSURE KIT

33100100

Contents:

» 2000 Bar Sensor

» Sensor Plug for direct pump pressure

» Retrieving Reservoir

» 2 x M12 x 150 Hoses for most common applications

» This kit includes all the necessary hardware, including special sensors, plugs, and hoses, to perform precise and accurate testing when used with the digital pressure tester

» The included hoses enable measurement and diagnosis on most common rail engines

PETROL HIGH PRESSURE KIT

33100300

Contents:

» HP1 = M12x150

» HP2 = M12x125

» HP3 = M14x150

» HP4 = M10x100

» HP5 = M8x100

» Using this kit alongside the 0-300bar sensor included in the 331000V2, it’s possible to test the high pressure of most popular petrol engines (FSI, TFSI, TCE, T-Jet, etc).

COMMON RAIL DUMMY REGULATOR SET

33100500

Contents:

» 8 different dummys to seal any regulator port

» When used with the 33100100, this set enables the pump regulator to be bypassed, allowing accurate pressure measurement for the diagnosis of regulator and high-pressure pump faults

UNIVERSAL DIGITAL PRESSURE TESTING

GLOWPLUG COMPRESSOR ADAPTOR

33100600

Contents:

» 4 x Screw-in adapter (M8x1, M9x1, M10x1 and M10x1,25)

» 4 x Sealing cones (Ø 8.2/60°, Ø 8.2/90°, Ø 6.8/90°, Ø 6.8/120°

» Universal false glow plug to be mounted in place of the OEM glow plug to perform a Diesel compression test

PRESSURE PRO

DIESEL HIGH PRESSURE ADAPTORS

33100700

Contents:

» 6 adaptors featuring a M1 x 150 thread, the other ends are as followed

» 2 x M12 x 125

» 2 x M14 x 150

» 1 x M14 x 100

» 1 x M16 x 100

» Suitable for most popular cars on the market including Delphi, Siemens, Bosch and Denso pumps

THE NEXT GENERATION OF ACCURACY - NOW CONNECTED

» Fast, real-time pressure monitoring with seamless connectivity to the free Pressure Pro iOS and Android apps for live display, data logging and CSV export

» High-precision measurement up to 60 bar

» Sensor-only setup or a full digital readout

» Connect the new SP Pressure Pro Digital gauges to your smart device using the dedicated app

» Upgrade your analogue gauge to our new PRESSURE PRO range

SWAP YOUR ANALOGUE GAUGE FOR PRESSURE PRODESIGNED TO FIT ANY 1/4” BSP CONNECTION

DIESEL

» Comprehensive test kit designed for a wide range of modern Common Rail Diesel engines

Key Features

» Checks engine compression under cranking conditions

» Enables cylinder access through dummy injector and glow plug adaptors

» Built-in pressure relief valve enables repeat tests without dismantling

» Professional compression test kit for checking compression on both direct and indirect commercial diesel injected engines

Key Features

» Quick connection system for fast assembly and repeat testing

» Compact starter kit of adaptors and clamping plates for commercial vehicle applications

Applications

» Suitable for heavy duty diesel engine applications including: Industrial, Plant, Marine, Agricultural

» Note: All kits are available with either a bluetooth sensor or digital gauge and are compatible with analogue gauge 31420100

DIESEL COMPRESSION

314200DG

314200BT

» Comprehensive glow plug compression test kit for common diesel engines

Key Features

» Checks engine compression under cranking conditions

» Enables cylinder access through glow plug adaptors

» Built-in pressure relief valve enables repeat tests without dismantling

Applications

» Alfa, BMW, Citroën, Dacia, Fiat, Ford, MINI, Nissan, Peugeot, Saab, Subaru, Suzuki, VW Group & Volvo applications

DIESEL COMPRESSION TESTER

LANDROVER

314285DG

314285BT

» Comprehensive diesel compression testing kit for Land Rover applications

Key Features

» Enables testing through dummy glow plug adaptors

» Built-in pressure relief valve allows repeat tests without dismantling

» Updated kit includes NEW TD5 Compression Tester

Applications

» Defender MK2 & MK3, Discovery 2, 3 & 4, Range Rover Sport, Range Rover 3, Evoque, Freelander 1 & 2

» Note: All kits are available with either a bluetooth sensor or digital gauge and are compatible with analogue gauge 31420100

/

/

/ Opel /

/ BMW / Citroen / Dacia / Honda / Hyundai / Kia / Land Rover / Mercedes / Mini / Nissan / Opel / Vauxhall / Peugeot / Renault / Rover / Seat / Skoda / Subaru / Suzuki / Toyota / VW / Volvo

/ BMW / Chrysler / Citroen / Fiat / Honda / Land Rover / Nissan / Opel / Vauxhall / Peugeot / Renault / Rover / Seat / Skoda / Toyota / Volkswagen /

UNIVERSAL COMMON RAIL INJECTOR SET

31434900

» A universal adaptor set designed for diesel compression testing through the injector port

Key Features

» Can be connected to dummy glow plugs to extend reach and improve access

» Adjustable locking brackets help secure the adaptor during testing

» Includes adjustable centre body and detachable injector end

» Compatible with Sykes Pickavant 314 Kits and Pressure Pro Gauges & Bluetooth Sensors

DIESEL COMPRESSION ADAPTOR SET - FORD

314294V2

» A specialist diesel compression adaptor set designed to extend the application range of diesel compression testing equipment for Ford diesel engines

Key Features

» Designed for Ford diesel engine compression testing

» Covers both glow plug and dummy injector testing applications

» Suitable for modern Ford diesel engines including Duratorq applications

» Compatible with Sykes Pickavant 314 Kits and Pressure Pro Gauges & Bluetooth Sensors

» Older 014 Series kits require adaptor 31429700

Applications

Glow Plug Applications

» Ford 1.8DT / TDCi / TDDi / 2.0 16V TDCi / 2.0 / 2.2 / 2.4 / 3.2 DDDi

Dummy Injector Applications

» Ford Duratorq 2.0 / 2.2 / 2.4

LAND ROVER TD5 COMPRESSION TESTER

31424700

» A specialist compression testing adaptor designed specifically for Land Rover TD5 diesel engines

Key Features

» Suitable for engines manufactured between 1998 – 2005

» Enables full compression testing across all 5 cylinders

» Fits directly in place of the original high-pressure fuel injector

» Uses original injector clamps to create a secure gas-tight seal

» Compatible with Sykes Pickavant 314 Kits and Pressure Pro Gauges & Bluetooth Sensors

Applications

» Suitable for Land Rover TD5 diesel engines fitted to vehicles including: Defender and Discovery

DIESEL COMPRESSION ADAPTOR SET - PSA

314291V2

» A specialist diesel compression adaptor set designed to extend the application range of diesel compression testing equipment for PSA diesel engines.

Key Features

» Designed for PSA diesel engine compression testing

» Suitable for glow plug and injector port testing applications

» Covers a wide range of PSA HDi diesel engines

» Compatible with Sykes Pickavant Pressure Pro Gauges & Bluetooth Sensors

» Older 014 Series kits require adaptor 31429700

Applications:

» Citroen 1.4, 1.6, 2.0, 2.2, 2.7HDI, Fiat Scudo Ulysse 2.0JDT, 2.2JTD, 2.2JTDM, Ford 1.4, 1.6, 2.0, 2.2TDCI, Jaguar / Land Rover 2.2, 2.7TD, Peugeot 1.4, 1.6, 2.0, 2.2, 2.7HDI, Volvo 1.6, 2.0, 2.4D

DIESEL COMPRESSION

DIESEL FUEL FILTER FILLER / BLEEDER

51502700

» Designed for fast, clean and hassle-free filling and bleeding of diesel fuel filters. It helps remove air from the low-pressure side of the fuel system, from the tank through to the filter.

Key Features

» Ideal for filling and bleeding diesel filters

» Bleeds the low-pressure fuel supply side from tank to filter

» Helps reduce mess and speed up filter replacement jobs

» Includes three flexible rubber connection pipes 5–12mm male fuel pipe fittings

» Suitable for many diesel vehicles, including VW, SEAT, Skoda, Audi, Mercedes CDI, Peugeot HDI, Renault and Fiat applications

PETROL COMPRESSION

COMBINED PETROL & DIESEL CYLINDER LEAKAGE TESTER KIT

31370000

31370500

» A complete cylinder leakage testing solution for both petrol and diesel engines

31370000

» Designed as an alternative to a conventional compression tester, this kit helps identify where pressure is escaping in individual cylinders, making engine fault diagnosis faster and more accurate.

Key Features

» Measures the rate of compression loss in individual cylinders

» Helps identify the source of internal engine leakage

» Suitable for most modern petrol vehicles

» Supplied with M12 and M14 brass quick-release spark plug adaptors

» Compatible with adaptors from Sykes-Pickavant petrol compression and diesel common rail kits

Part Numbers

» 31370000 - Combined Petrol and Diesel Cylinder Leakage Tester Kit

» 31370500 - Petrol Only Compression Tester Kit

DIESEL CIRCUIT METAL TRAP KIT

33198000

» Detect early signs of wear in low pressure diesel fuel systems before costly damage occurs with the metal trap kit

Key Features

» Placed in the system before the high pressure pump it captures & highlights metal particles in diesel fuel

» Quickly reveals metal debris in the diesel supply circuit, an early indicator of high pressure pump wear

» Early detection helps prevent major failure or repeated injector replacements

» For use on low pressure systems only

OIL PRESSURE TEST KIT

31470000

Specifications

» Gauge Scale: 0–10 bar / 0–150 psi

» Gauge Diameter: 80mm

» Hose Length: 1m flexible oil-primed hose

» Connector: 1/8 BSP female quick connector

» Gauge manufactured to DIN16005, DIN16063 and BS1780 standards

» Oil pressure testing kit designed for fast and accurate diagnosis of engine lubrication system faults.

Key Features

» Quickly diagnoses oil pressure related faults

» Suitable for testing engine oil pressure systems on a wide range of vehicles

» Helps identify worn oil pumps, engine wear, faulty pressure switches, pressure warning indicator faults.

» Includes 11 x Quick-coupling adaptors with built-in shut-off valve for fast, secure connection

Spare Parts

Part no.

Product Description

31470100 Gauge Assembly 10 bar

PETROL COMPRESSION

GAUGE ASSEMBLY - 10 BAR

31470100

» Replacement gauge assembly for the 31470000 Oil Pressure Test Kit, designed for accurate engine oil pressure testing.

Specifications

» Gauge Scale: 0–10 bar / 0–150 psi

» Gauge Diameter: 80mm

» Connector: 1/8 BSP female quick connector

» Hose Length: 1m flexible oil-primed hose

» Manufactured to DIN16005, DIN16063 and BS1780 standards

PREMIER LOW PRESSURE FUEL TEST KIT

31469000

» Designed for fast and accurate diagnosis of fuel supply and delivery system faults on petrol engines

Key Features

» Designed for testing low pressure petrol fuel systems

» Quickly diagnoses fuel delivery and pressure faults

» Dual-scale pressure gauge for accurate readings

» Comprehensive adaptor assortment for wide vehicle coverage

Helps identify

» Weak or failing fuel pumps

» Faulty pressure regulators

Appplications

» Blocked fuel lines or filters

» Fuel pressure leaks

» Alfa, Audi, BMW, Chrysler, Citroen, Ferrari, Fiat, Ford, GM, Jaguar, Land Rover, Mercedes, Mini, Peugeot, Renault, VW and Volvo

FUEL INJECTION PRESSURE TEST KIT FOR SCHRADER TEST PORTS

31489500

» Designed for fast and accurate diagnosis of petrol fuel injection systems fitted with Schrader test ports

Key Features

» Quickly diagnoses fuel pressure and fuel delivery faults

» Easy-to-read dual-scale pressure gauge

» Flexible hose assembly for improved access in confined engine bays

» Quick-connect fittings for fast and secure connection

Helps identify

» Weak or failing fuel pumps

» Faulty fuel pressure regulators

Applications

» Blocked fuel filters or lines

» Fuel pressure leaks

» 8mm Schrader valve connector - as fitted on some BMW, Ford, Mini, PSA, VAG and Volvo models

» 7/16 Schrader valve connector - as fitted on some Chrysler, Mercedes, Vauxhall and Opel models

» M8 Quick release Schrader valve connector - as fitted to Alfa Romeo, Fiat and new Ford Ka

PETROL COMPRESSION

COMPREHENSIVE SCHRADER VALVE TEST SET

31485300

» Schrader valve adaptor set designed for fast and secure connection to fuel injection pressure test systems fitted with Schrader test ports.

Key Features

» Suitable for petrol fuel injection systems fitted with Schrader test ports

» Allows fast and secure connection to fuel rails and test ports

» Can be used to bleed air from the Schrader valve test port on specific vehicles - e.g. Saab.

» Compatible with selected Sykes-Pickavant fuel pressure testing kits and fuel injection diagnostic equipment

Helps diagnose:

» Fuel pressure faults

» Weak fuel pumps

Applications

» Pressure regulator issues

» Fuel delivery restrictions

» Suitable for a wide range of modern petrol vehicles fitted with Schrader-type fuel pressure test ports, including Alfa Romeo, BMW, Fiat, Ford, Jaguar, Land Rover, Mercedes, Mini, Saab, Vauxhall and Volvo

EMISSIONS TESTING

GAS EXHAUST ANALYSER

Key Features

» Diagnose engine / exhaust / catalytic converter faults quickly.

» Unique Non-Dispersive Infrared (NDIR) sensors designed to meet official test standards.

» Supplied with an integrated printer and transport backpack

» Pre-compliance & roadside testing

» Stores over 200 tests.

» Rechargeable battery with minimum 4 hour life.

0-21% CO2 0-20% 0-20%

NO N/A 0-1500ppm

HC 0-5000ppm 0-5000ppm

Carbon Monoxide (CO) 0-10%

Carbon Dioxide (CO₂) 0-20%

Hydrocarbons (HC) 0-5000ppm

Oxygen (O₂) 0-21%

Lambda Air/Fuel Ratio (AFR)

WIRELESS PRESSURE PROBE X2

32620100

» Wireless pass through pressure probes for heat pump, A/C & refrigeration system pressure tests.

» Connects to 4 and 5 gas analysers 32620000 & 32625000.

Cars and vans

Workshop emissions testing Mobile and roadside diagnostics

Emissions failures

Excessive fuel consumption Engine performance problems

WIRELESS PIPE CLAMP PROBE X2

32620200

Specifications

» Work in tight spaces for pipe diameters up to 38mm

» Range: 0 - 80°C

» 100m line of sight range

» Wirelessly measure and display system temperatures including:

» Flow & return.

» Boiler commissioning test.

» Monobloc Heat Pump.

» Connects to 4 and 5 gas analysers 32620000 & 32625000

GENERAL DIAGNOSTICS

WIRELESS ELECTRONIC STETHOSCOPE KIT - “CHASSISEAR”

» The Sykes-Pickavant ChassisEAR™ is a professional diagnostic tool designed to accurately detect and isolate troublesome vehicle noises such as rattles, squeaks, and air ingress during operation. Ideal for use during road tests, it enables technicians to diagnose issues in real-time under actual driving conditions

Key Features

» Contains four wireless transmitters, operating on separate channels, allowing simultaneous monitoring of multiple vehicle components.

» Effectively identifies faults in wheel bearings, CV joints, differentials, transmissions, injectors, alternators, water pumps, AC compressors and more.

» Suitable for a wide range of vehicles, including cars, vans, trucks and buses without the limitations of cable lengths.

» Magnetic clamps and Velcro straps ensure stable placement of transmitters on various vehicle parts, even during dynamic testing.

» Advanced filtering focuses on metallic sounds, minimizing background noise to highlight potential problem areas.

AUTOMOTIVE SMOKE DIAGNOSTIC MACHINE

53400800

Specifications

» Power: 12V DC, 100W - operates directly from a vehicle battery

» Pressure Range: 1.3 bar (0-18psi)adjustable to match various systems

» Smoke Output: 20-30 L/min

Key Features

» Designed to quickly detect leaks in automotive systems

» Suitable for intake, exhaust, vacuum, EVAP, and turbo systems

» Produces visible smoke to accurately identify leaks and faults

» Compact and portable design for workshop use

» Fast setup and simple operation

» The universal inflatable adaptor and three taper fittings make it compatible with most cars, bikes and light vans, eliminating the need for extra attachments.

SONOSCOPE - MECHANICAL DIAGNOSTIC STETHOSCOPE

» Super sensitive sound detector, with a built-in diaphragm which amplifies noise, for assisting in the diagnostic process.

» Robust metal and plastic construction, with 550mm hose and 290mm probe.

Helps to diagnose many vehicle problems, including:

» Noisy water pumps

» Faulty wheel bearings

» Alternator and power steering problems

» Air conditioning compressor bearings

» Camshaft and crankshaft knocks

GENERAL DIAGNOSTICS

DUAL LASER INFRA-RED THERMOMETER

30044000

» A high precision non-contact infra-red thermometer designed for fast and accurate surface temperature measurement across a wide range of automotive and industrial applications.

Key Features

» Dual laser targeting for improved accuracy and surface identification

» Fast response time for quick diagnostics

» Clear backlit digital display for easy reading in low-light environments

» Automatic data hold & display resolution

» °C and °F selectable display

Specifications

» Temperature range: -50° to 550°C » Accuracy: +/- 1.5% at 550°C

CIRCUIT & ELECTRICAL TESTING

INTELIPROBE 6-24V TESTER

30042600

» A professional multi-function circuit tester designed for fast and accurate diagnosis of 6V to 24V automotive electrical systems

Key Features

» Suitable for 6V–24V DC automotive electrical systems

» Activates electrical components directly from the tester

» Integrated LED worklight for improved visibility in low-light areas

» Clear polarity indication with audible and visual alerts

» Long reach cable for improved access around the vehicle

Fuctions

» Power and ground testing

» Continuity testing

» Component activation

» Relay and sensor testing

» Circuit tracing and fault finding

» Short-circuit detection

CORDLESS CIRCUIT TESTER

30042400

Key Features

» Suitable for testing 3V–28V DC circuits

» Cordless operation – no ground wire or clips required

» Three-way voltage indication: LED illumination / Audible buzzer / Vibration alert

» Unique V-groove needle accessory for wire piercing

» Safe for use on modern engine management systems, including: ECMs / Sensors / Transducers

PROFESSIONAL CIRCUIT TESTER

01490000

» This heavy-duty circuit tester is designed for reliable performance in automotive and professional electrical work

Key Features

» Operates on 6V / 12V / 24V volt systems.

» Features a rugged handle with a hardened steel probe for secure, precise contact.

» Supplied with a 1.5m heavy duty rubber insulated lead for safe, manoeuvrable testing.

» Utilises a standard automotive bulb to provide a clear visual indication of circuit continuity.

VACUUM & FLUID EVACUATING

MITYVAC SILVERLINE ELITE AUTOMOTIVE KIT

MV8550

» The MV8550 Silverline Elite is a hand-operated vacuum and pressure pump built to handle diagnostics, brake bleedling and pressure testing with in one versatile workshop kit

» The kit offers vacuum and pressure - up to 4 bar (60 psi)

» Dual functionality: Easily switch between vacuum and pressure modes

» 480ml capacity reservoir: Reduces interruptions with its large fluid holding capability

» Comprehensive accessories: Everything you need for diagnostics and brake maintenance included

Applications

» EVAP sensor testing

» Cooling system leak detection

» Diagnostics, fluid transfer, evacuation, and sampling

» Brake bleeding and much more

SELECTLINE AUTOMOTIVE TUNE-UP & BRAKE BLEEDING KIT

MV8000

» A compact hand vacuum kit for brake bleeding and basic vacuum diagnostic checks

Key Features:

» Ideal for one-person brake bleeding.

» Suitable for vacuum-based engine and vehicle diagnostics.

» Tests vacuum-operated components including EGR valves, vacuum actuators and sensors.

» Lightweight PVC hand vacuum pump with integrated gauge.

» Chemical and corrosion-resistant construction.

» 135ml fluid reservoir with transfer lid for clean fluid collection.

» Includes bleed screw adaptors, manifold plugs, tubing and connectors for a wide range of applications.

» Compact carry case keeps components organised and protected.

» Simple manual operation - no compressed air or electrical supply required.

MITYVAC FLUID EVACUATOR PLUS

MV7201

» A versatile manual fluid evacuator designed for both extracting and dispensing automotive fluids quickly and cleanly

Key Features

» Suitable for fluid evacuation and dispensing

» Simple push-button changeover from vacuum to pressure

» Large 9L reservoir with stabilising base

» Automatic shut-off system helps prevent overfilling

» Manual pump operation – no compressed air or electricity required

» Durable chemical-resistant construction

» Quick-drain design for easier emptying and cleaning

» Ideal for use with Engine oil, Transmission fluid, Gear oil, Brake fluid, Power steering fluid, Coolant

MITYVAC FLUID DISPENSING SYSTEM

MV6400

» A fluid dispensing system designed for clean, controlled topping-up and refilling of automotive fluid reservoirs

» Suitable for topping up:

» Master cylinders

» Gearboxes

» Transmissions

» Power steering reservoirs

» Coolant reservoirs

Key Features

» Large 5L fluid capacity reduces refill interruptions

» Pressurised dispensing system provides smooth, continuous fluid flow

» Integrated manual pump helps prevent fluid aeration

» 1.5m hose with dispensing wand and flow control valve for improved access and precision

Important information

» Not suitable for use with flammable liquids such as petrol or diesel, or with fluids above 80°C

PANEL BEATING

BODY REPAIR KIT - THATCHAM

058500TH

» General purpose 13 piece set of Body Repair Tools approved by Thatcham for Insurance Approved Body Repair work.

Key Features

» The first Body Repair Tool Kit to achieve Thatcham accreditation.

» Supplied in steel tool box (52700000).

» Ideal for apprentices.

Contents:

» 052900V2 - Panel Beater Straight Pein and Finish Flat Face

» 053000V2 - Panel Beater Pick and Finishing Flat Face

» 053700V2 - Panel Beater Pein and Finish Crowned Face

» 056900V2 - Panel Beater Flat Face and Shrinking Face

» 054301V2 - Thin Curved Dolly

» 054801V2 - Thin Toe Dolly

» 055201V2 - Utility Dolly

» 05730000 - Pry & Surfacing Spoon

» 05940000 - Bumping Tool - Flat

» 05710100 - Adjustable Body Blade Holder

» 05711100 - 9tpi Standard Cut Body Blade

» 05711200 - 12tpi Fine Cut Body Blade

» 05711500 - 6tpi Plasticut Body Blade

PANEL BEATERS

» High quality investment casting alloy steel heads with hardened striking surfaces.

» Fine quality octagonal wooden shafts fitted as standard.

» Wood and steel wedged handles ensure maximum head retention with improved safety.

» The heads have a tapered centre allowing the shaft to expand into the head and are secured with a double wedge.

FLAT FACED HAMMERS

» Flat Faced Hammers: Traditional flat faced hammers are designed to construct or reconstruct sheet metal vehicle components, as well as for the removal of small imperfections in sheet metal surfaces. The flat surface minimises distortion and limits the stretching effect of the hammer blow. Flat surface hammers require a high degree of precision so as not to crease the metal surface.

052900V2

Specifications

» Round Face: 41mm

» Head Width: 130mm

» Weight: 0.425kg

» Medium-weight, flat face finishing panel beaters with straight pein.

05680000

Specifications

» Round Face: 32mm

» Square Face: 25mm

» Head Width: 89mm

» Weight: 0.37kg

053000V2

Specifications

» Round Face: 38mm

» Head Width: 135mm

» Weight: 0.43kg

» Medium-weight, flat face panel beater with round point pick head designed to remove low spots when finishing

056900V2

» Light-weight, flat face panel beater suitable for applying measured force in areas of light damage or on thinner gauge metal.

Specifications

» Round Face: 41mm

» Square Face: 38mm

» Head Width: 97mm

» Weight: 0.425kg

056000V2

Specifications

» Round Face: 41mm

» Square Face: 38mm

» Head Width: 97mm

» Weight: 0.425kg

» Medium-weight, flat face panel beater suitable for straightening thicker gauge metals

» Medium-weight, flat face shrinking hammer, specifically designed for panel beating on slightly stretched areas of metal.

PANEL BEATING

CROWNED FACE HAMMERS

» Crowned Faced Hammers: Used for the same general purposes as flat faced hammers but are less likely to cause a crease if the hammer blow is not precise. The crowned face does however, produce more marked stretching around the impact area

056100V2

Specifications

» Round Face: 41mm

» Square Face: 38mm

» Head Width: 97mm

» Weight: 0.425kg

» Medium-weight, crowned face panel beater suitable for straightening thicker gauge metals where significant corrective force is required

056600V2

Specifications

» Round Face: 38mm

» Head Width: 135mm

» Weight: 0.43kg

05620000

Specifications

» Round Face: 32mm

» Square Face: 25mm

» Head Width: 89mm

» Weight: 0.37kg

» Light-weight, crowned face panel beater suitable for applying measured force in area of light damage or on thinner gauge metal

» Medium-weight crowned face panel beater with round point pick head designed to remove low spots when finishing.

GENERAL HAMMERS

053700V2

Specifications

» Round Face: 41mm

» Head Width: 142mm

» Weight: 0.425kg

056500V2

Specifications

» Round Face: 41mm

» Head Width: 130mm

» Weight: 0.425kg

» Medium-weight, crowned face finishing panel beater with straight pein.

» Medium-weight, crowned face finishing panel beater with curved pein for use where access is restricted.

» Useful in the final stages of panel finishing when slightly stretched areas of metal can be encountered. In using this type of beater, small amounts of metal are forced into the spaces created by the cross milling. They can also be used on cold aluminium but working on sheet steel will be quicker if heat is applied to the area. Whenever possible, such beating should be carried out on the inside of the panel to minimise resurfacing needed prior to painting. Sykes-Pickavant does not recommend using the same individual tools on aluminium and steel.

05280000

» Panel beater double ended shrinking hammer

Specifications

» Round Face: 41mm

» Square Face: 38mm

» Head Width: 97mm

» Weight: 0.425kg

» Medium-weight, flat face shrinking hammer, specifically designed for panel beating on slightly stretched areas of metal

» Specially designed cross milled heads improves stretched areas by forcing small amounts of metal into spaces created by cross milling

05602000

» Replacement hammer shaft for panel beating hammers

69026500

Key Features

» Dead blow hammer - 12oz

» Ideal for assembly and maintenance applications.

» Composite Handle.

69027500

Key Features

» Soft face hammer - 12oz

» Ideal for light assembly applications.

» Comfortable anti-slip grip.

GENERAL HAMMERS

COPPER/RAWHIDE HAMMER

05320000

Specifications:

» Conical Wedging.

» Length: 260mm.

Key Features

» Heavy duty club hammer with ash handle.

DOLLIES

054301V2

Specifications

» Length: 125mm

» Width: 55mm

» Depth: 37mm

» Weight: 0.90kg

» Lightweight curved dolly suitable for a wide variety of panel beating tasksreforming beads and moulding, reshaping panel, raising low spots

05500100

Specifications

» Length: 120mm

» Width: 58mm

» Depth: 28mm

» Weight: 1.16kg

» Grid toe dolly with convex curved grid-pattern face which assists in shrinking stretched areas of metal

05550100

Specifications

» Length: 56mm

» Width: 56mm

» Depth: 56mm

» Weight: 0.73kg

» Double-ended round wedge dolly for re-shaping rounded and contoured panels

054801V2

Specifications

» Length: 115mm

» Width: 56mm

» Depth: 25mm

» Weight: 0.86kg

CLUB HAMMER - 1000G

05330000

Specifications:

» Conical Wedging.

» Length: 260mm.

Key Features

» Heavy duty club hammer with ash handle.

» 1x Flat Face and 1x Curved Face

» Lightweight thin toe dolly enables access in difficult to reach areas

055201V2

Specifications

» Length: 76mm

» Width: 57mm

» Depth: 58mm

» Weight: 1.15kg

» Double-ended general purpose utility dolly with two curved faces

05570100

Specifications

» Length: 56mm

» Width: 56mm

» Depth: 56mm

» Weight: 0.73kg

» Double-ended round head dolly for re-shaping rounded and contoured panels

SPOONS & BUMPING

054901V2

Specifications

» Length: 102mm

» Width: 72mm

» Depth: 62mm

» Weight: 1.40kg

» General purpose anvil dolly with two curved faces

05540100

Specifications

» Length: 80mm

» Width: 61mm

» Depth: 30mm

» Weight: 0.65kg

» Heel dolly - 1x Flat Face and 1x Convex Face

» Semi-circular model, ideal for rounded and contoured panels

055801V2

Specifications

» Length: 125mm

» Width: 60mm

» Depth: 30mm

» Weight: 1.37kg

» 1x Flat Face and 1x Convex Face

» Heavy weight toe dolly enables access in difficult to reach areas

» Spoons are used for bumping, prying and can also be used instead of a dolly when direct access to the rear of a panel is obstructed. The choice of spoon depends on the original contour of the metal, the amount of access available and the proposed action (i.e. roughing or leveling).

05730000

Specifications

» Length: 295mm

» Width: 50mm

» Weight: 0.85kg

» Specially designed for panel beating work in restricted areas and for separating outer panels from inner frame structure.

05740000

Specifications

» Length: 295mm

» Width: 40mm

» Weight: 1.10kg

05780000

Specifications

» Length: 185mm

» Width: 45mm

» Weight: 1.56kg

» Multi-purpose double-ended spoon for panel beating in restricted spaces, used to separate outer panels from the inner frame.

» Multi-purpose surface spoon with angled head for panel beating in restricted areas, used to separate outer panels from inner frames.

05120100

Specifications

» Length: 405mm

» Width: 63mm

» Weight: 1.48kg

» Heavy duty pry spoon for prying, levering, and panel beating in hard-to-reach areas, designed to separate outer panels from inner frames.

05940000

Specifications

» Flat bumping tool suitable for removing bumps, dents and flattening wavy surfaces.

» Milled serrations help prevent metal stretch.

» 350 x 35mm.

PANEL REPAIR

05100000

Specifications

» Slim spoon designed for panel beating work in restricted areas, particularly on smaller vehicles

» Blade features a slow taper along its length

ADJUSTABLE BODY BLADE HOLDER WITH FILE BLADE BODY BLADES

05710000

05710100

» Adjustable blade holder, suitable for forming & shaping fillers and metal during body repair work.

Key Features

05711100

05711200

05711500

Specifications

» Length: 356mm

» Maximum Deflection of 14mm

Key Features

» Supplied with a standard flat cut 9tpi blade.

» Compatible with most flat profile 356mm body blades.

» Robust construction with steel tension adjuster, sole plate and tough plastic handle.

» 2 position handle for vertical or horizontal use.

Part Numbers

» 05710000 - supplied with the blade

» 05710100 - supplied without the blade

PFERD ADJUSTABLE HOLDER

KFH300MM

KFH350MM

» Permits individual tensioning of car body file blades to match the surface contour of the workpiece

Key Features

» Ergonomic, lightweight holder for reduced fatigue

» Stepless bending radius control

» Can be used straight or curved for versatile applications

» Vibration-damping rubber pad for comfort and control

» Durable plastic design without plasticizers

Part Numbers

» KFH300MM - suitable for 300mm body blade

» KFH350MM - suitable for 350mm body blade

» Specially heat treated alloy steel provides hardness with flexibility.

» Precision cut teeth.

» Blade edge chamfered.

Part Numbers

» 05711100 - Standard Flat Cut - 9tpi

» 05711200 - Fine Flat Cut - 12tpi

» 05711500 - Plasticut Flat Cut - 6tpi

PREMIUM CAR BODY FILES

299B300C1 300mm - Coarse 9tpi

299B300C2 300mm - Medium 10tpi

299B300C3 300mm - Fine 12tpi

299B350C0 350mm - Very Coarse 8tpi

299B350C00 350mm - Extra Coarse 7tpi

299B350C1 350mm - Coarse 9tpi

299B350C2 350mm - Medium 10tpi

299B350C3 350mm - Fine 12tpi

299E350SC 350mm - Special Cross Cut

299C350C1 350mm - Tanged 5pc 9tpi

299C350C1-1 350mm - Tanged 1pc 9tpi

299C350C3 350mm - Tanged 5pc 12tpi

299C350C3-1 350mm - Tanged 1pc 12tpi

Key Features

» Individually tensioned blades adapt to surface contours

» Stepless bending radius adjustment

» Convex file shape helps prevent scratches

» Suitable for precise, focused work

» Razor-sharp tooth edges for efficient cutting

DOOR & TRIM

WIRE BRUSH FILES GRIP WRENCH

66093500

IMPACT DRIVER & BIT SET

040101V2

» A heavy-duty impact driver and bit set designed for loosening seized, stubborn or thread-locked screws, nuts and fasteners.

Specification

» 8mm Hex (5/16”)

Key Features

» Internal cam mechanism converts hammer force into turning torque

» Helps reduce damage to screw and fastener heads

» Suitable for high-torque automotive and workshop applications

» Supplied in durable storage case

» Includes 14 interchangeable impact-rated bits

67065000

67065200 Slotted Blade 3/18 x 36mm

67065400 Slotted Blade 1/2 x 36mm

67066000 XPT

67066200 XPT

67066400 XPT

67066600

» One handed operation and smooth action release trigger.

MICRO IMPACT DRIVER SET

04010500

» Designed for tight spaces and tough jobs, including everything you need to remove seized and damaged fasteners with ease.

Contents:

» 1x Micro Impact Driver (3/8” Square Drive)

» 4x Standard Bits (36mm): PH2, PH3, Flat 8mm, Flat 10mm

» 2x Long Bits (80mm): PH2, Flat 8mm

» 1x 5/16” Bit Adaptor

» 6x Fluted Extraction Sockets: 8mm, 10mm, 11mm, 12mm, 13mm, 14mm

Part no.

67051270

67051470

67051870 Hex Bit 10 x 36mm

67059670 T30 Torx Bit

67059870 T40 Torx Bit

67060070 T45 Torx Bit

67060270 T50 Torx Bit

Description

040105-01 5/16 Adpator

040105-02 Fluted Extraction Socket - 8mm

040105-03 Fluted Extraction Socket - 10mm

040105-04 Fluted Extraction Socket - 11mm

040105-05 Fluted Extraction Socket - 12mm

040105-06 Fluted Extraction Socket - 13mm

040105-07 Fluted Extraction Socket - 14mm

040105-08 Long Length Bit 80mm - Phillips PH2

040105-09 Long Length Bit 80mm - Flat 8mm

040105-10 Standard Length Bit 36mm - Phillips PH2

040105-11 Standard Length Bit 36mm - Phillips PH3

040105-12 Standard Length Bit 36mm - Flat 8mm

040105-13 Standard Length Bit 36mm - Flat 10mm

04310000

Specifications

» Length: 310mm

» Handles: 200mm

» Jaws Width: 16mm

» Nylon Block 50 x 22mm

» Weight: 0.81kg

Key Features

» Portable hand-held tool for bending and crimping flanges

» Ideal for replacing door skins and body panels

» Replaceable nylon pads prevent surface damage

» 50mm wide pad for faster crimping on straight edges

» Chrome-plated for durability with comfortable PVC handles

5PC TRIM TOOL SET

04550000

» Flexible, non-marking levers for fast, damage-free interior trim and mouldings

Key features

» Prevents scratches

» Five profiles for roof linings, door cards, dash panels and mouldings

» Slim tips reach tight gaps; rigid cores for controlled leverage

» Safe on painted, plated and plastic surfaces

Contents

» Angled puller – thin tip for tight panel gaps

» Wide lever – for longer mouldings

» Panel puller – U-slot for clip heads

» Wedge lever – lift & hold panels

» Finishing tool – tidy edges & clips

5PC TRIM CLIP LIFTER SET

04625000

» For plastic fasteners, plastic clips, upholstery or door panels.

Contents:

» 1x Clip Lifter

» 1x 7mm Clip Lifter

» 1x 5mm Half-Round Clip Lifter

» 1x 11mm S Form Clip Lifter
