Woodland
CourtStudentAccommodation
Universityof Bath (UK)
Theproject

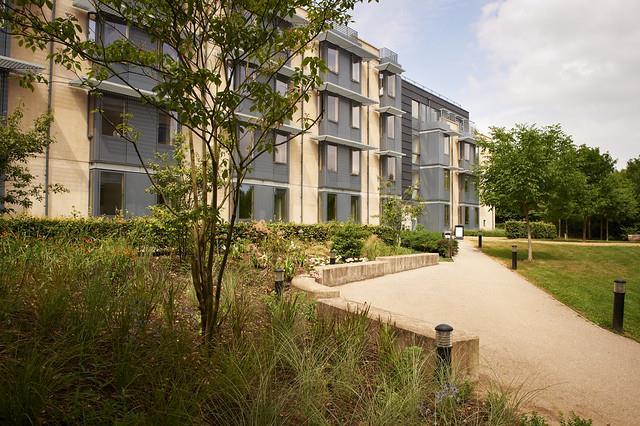

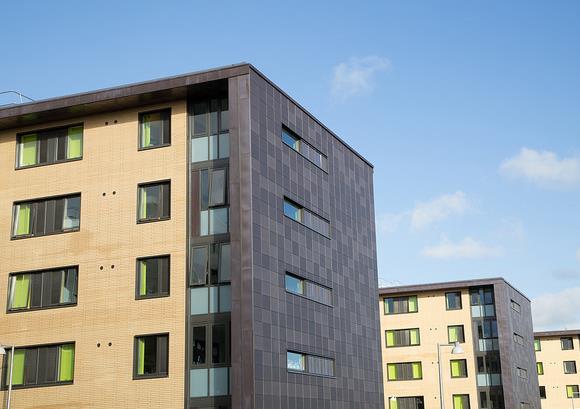

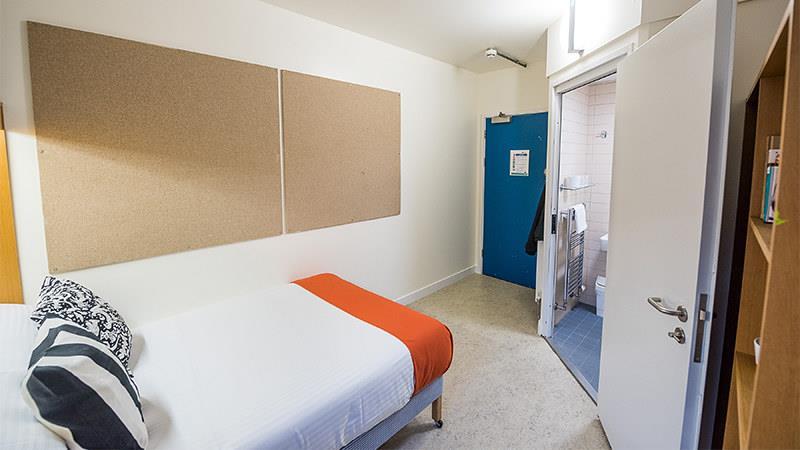

The WoodlandCourtStudent Accommodation at the UniversityofBath (UK) is a student residence designed to accommodateapproximately 400 students, with ensuite rooms arranged in different living configurations.
Commissioned by HBGConstructionLtd, the project involved the supply of 356 MonolithicBathroomPods, developed in 7 differentlayouts to meet the various spatial requirements of the development.
The complexity of the supply required a high level of customisation, with pods designed to optimise available space and provide dedicated solutions also for accessibility requirements.
The prefabricated approach ensured production accuracy,quality control and consistent execution across a large-scale project.

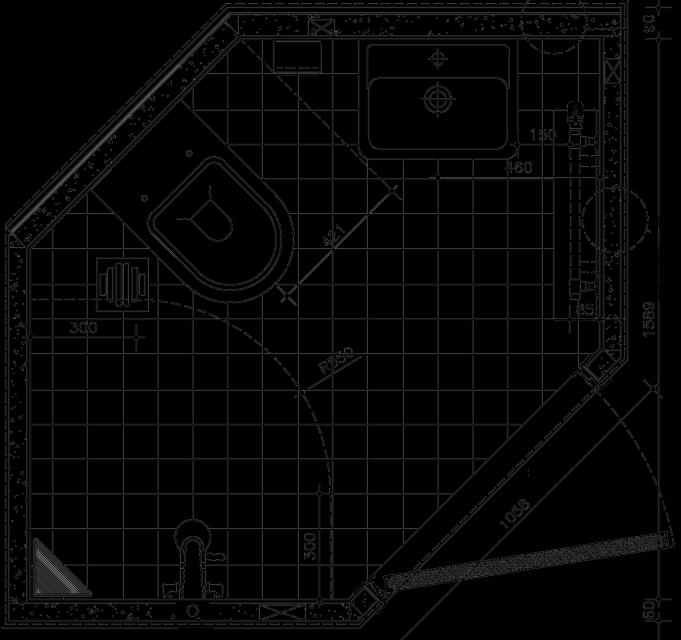

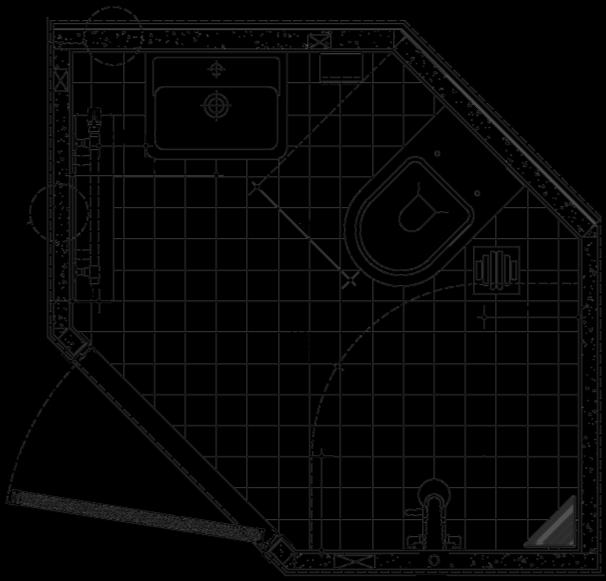

MonolithicBathroom Pod with shower and 135° angled walls
MODEL1
MODEL1
MonolithicBathroom Pod with shower and 135° angled walls
MODEL2

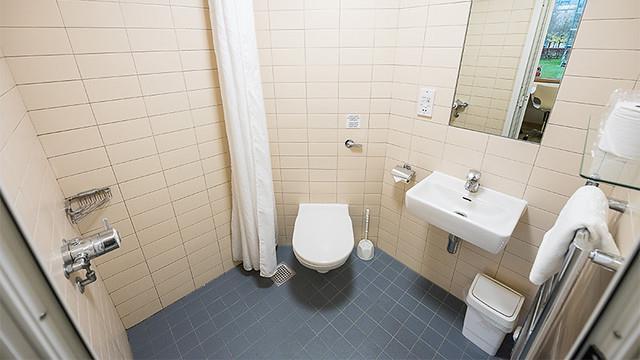

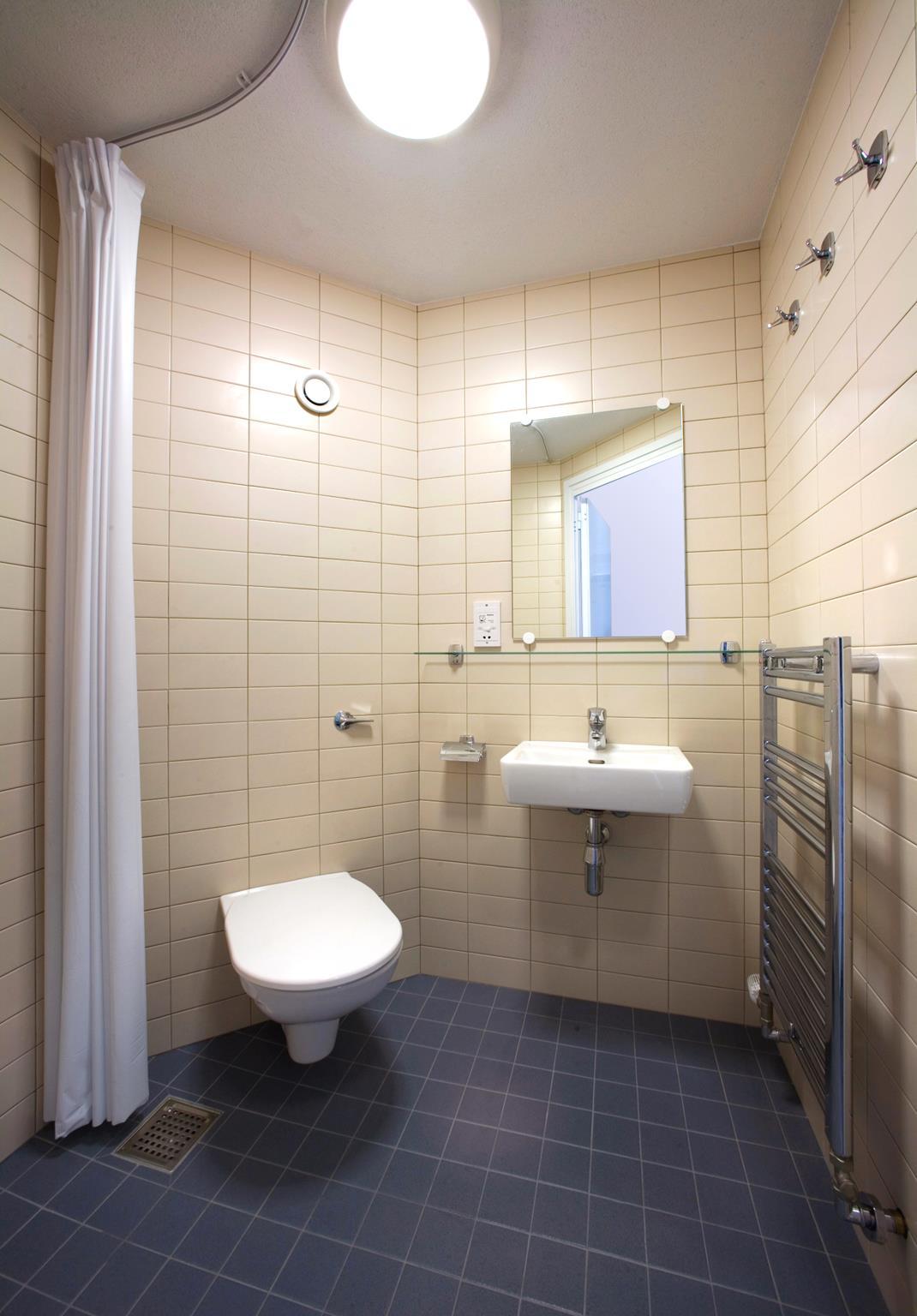

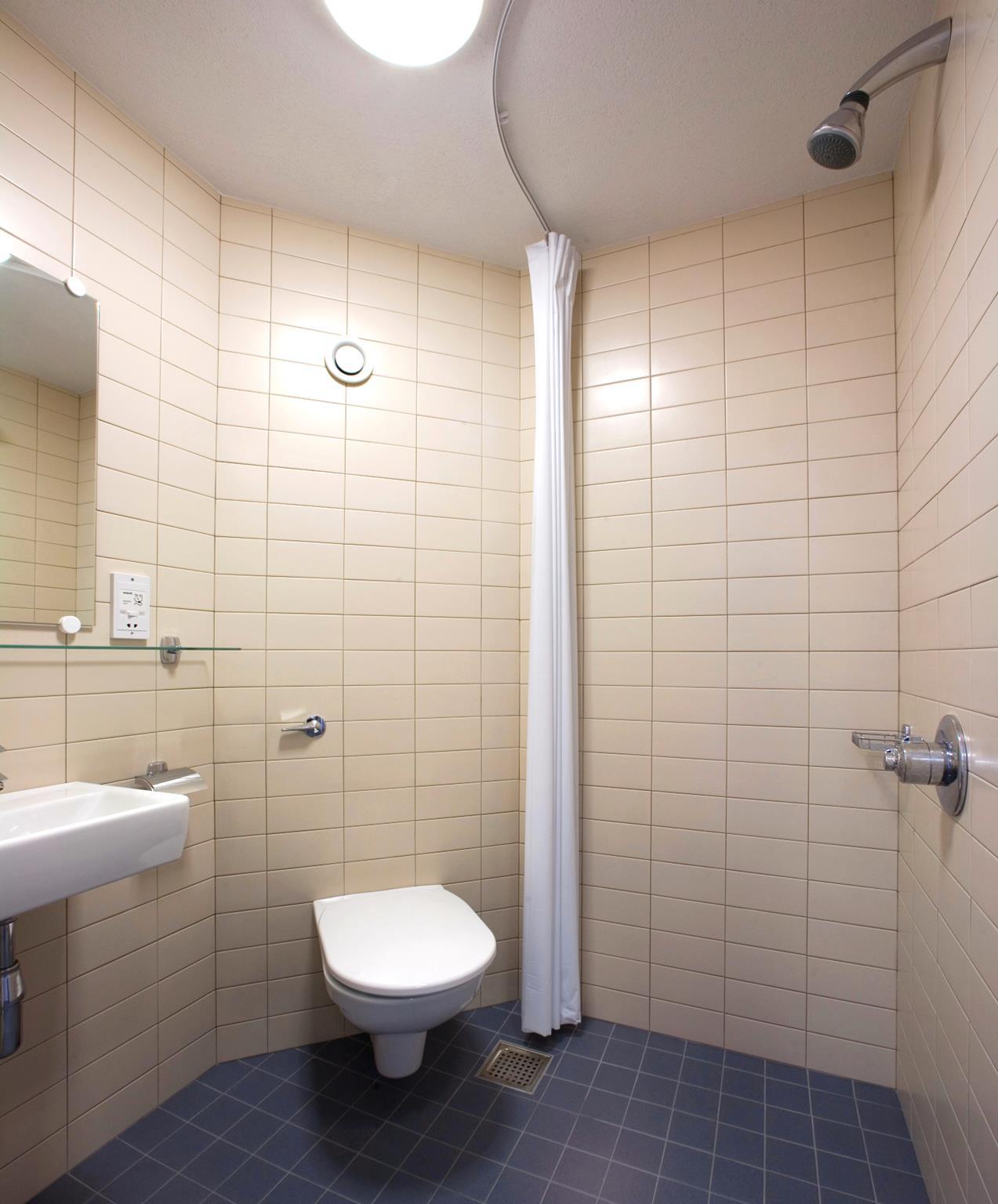

Concrete Bathroom Pod with shower

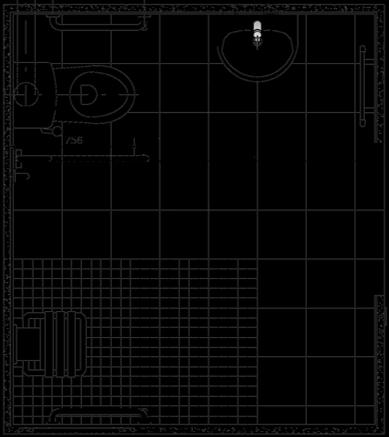

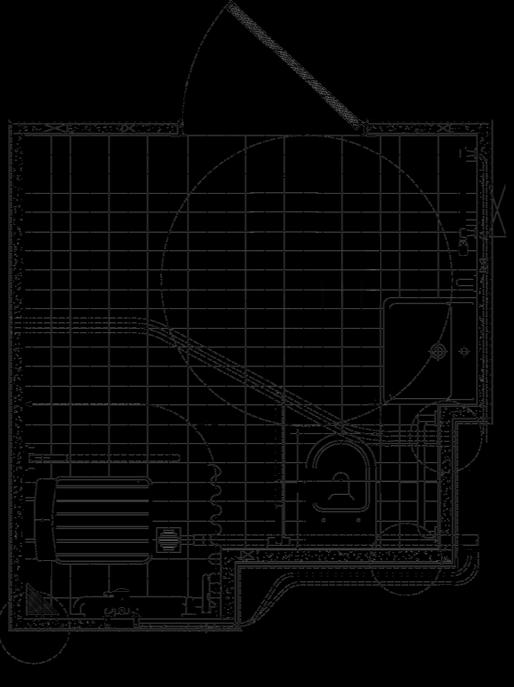

Concrete Bathroom Pod with shower for disabled
MODEL3
Concrete Bathroom Pod with shower for disabled
MODEL4

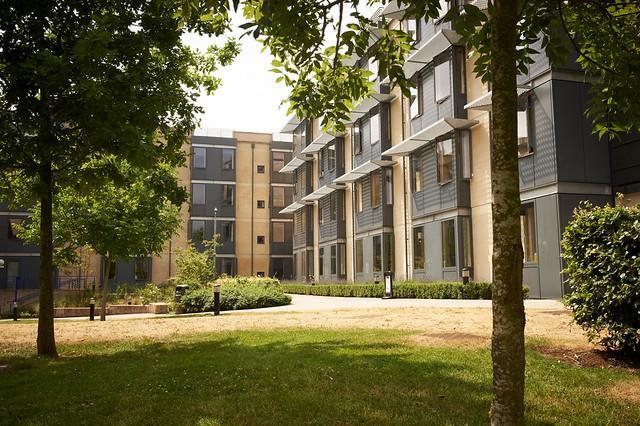

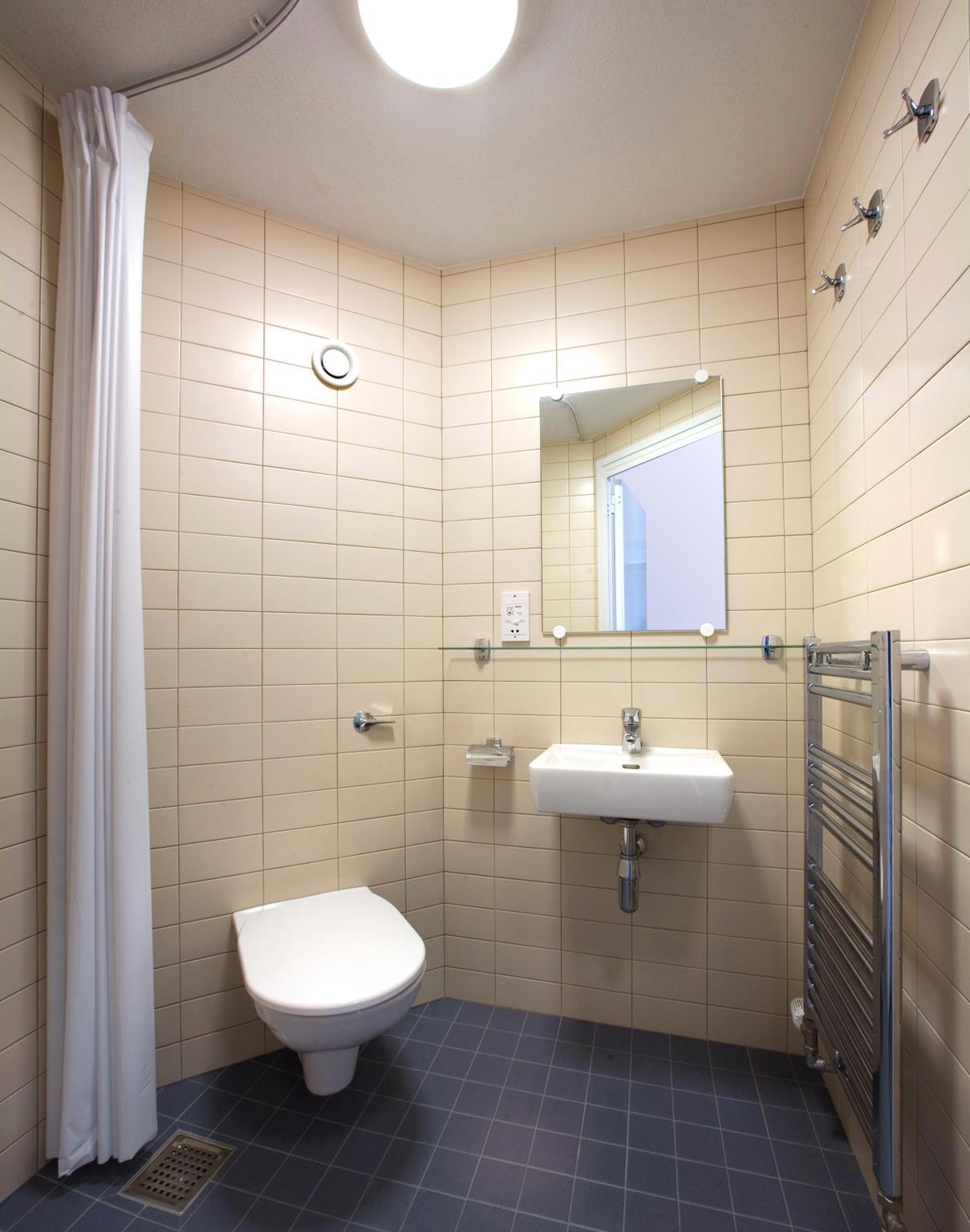

Woodland Court,University of Bath (UK)

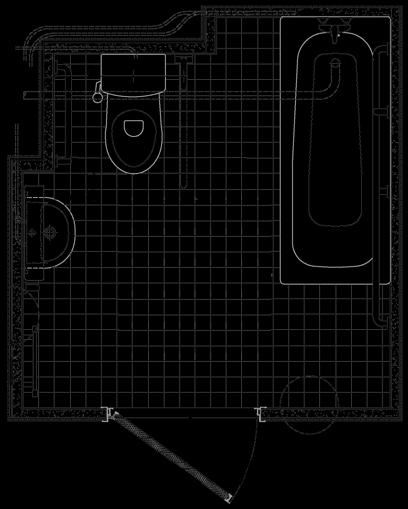

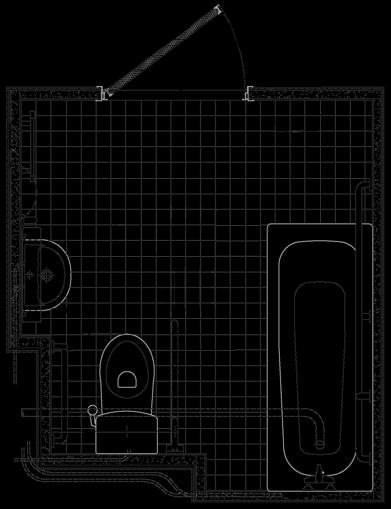

Concrete Bathroom Pod with bathtub MODEL6

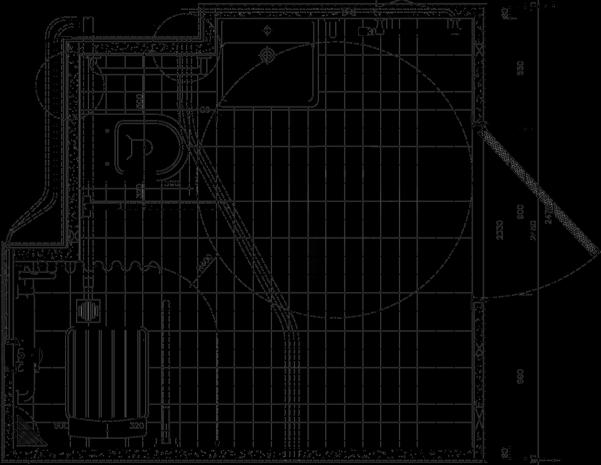

Concrete Bathroom Pod with shower for disabled MODEL7
Concrete Bathroom Pod with bathtub MODEL5
Woodland Court,University of Bath
Materialsandtechnologies
• Structure:base, walls and ceiling made in concrete
• Floorfinishing: single-fired tiles 10x10 cm - Vogue / Grip
• Wallsfinishing: single-fired tiles 20x10cm - Vogue / Interni
• Sanitaryfittings: Lufen / PRO
• Taps: Grohe / Eurosmart
• Plumbinginstallation:in parallel with manifolds, sheathed and removable crosslinked polyethylene pipes-Uponor
• Electricalinstallation:shaver socket – Crabtree
• Lightfittings: ceiling light - Sylvania / Giotto
• Heatingsystem: water chromed radiator - IRSAP / Ares with valve and lockshield valve Samson
• Ventilation:inlet valve D.125 mm - Halton / ULA
