CoburgNursingHome Germany
Coburgnursinghome

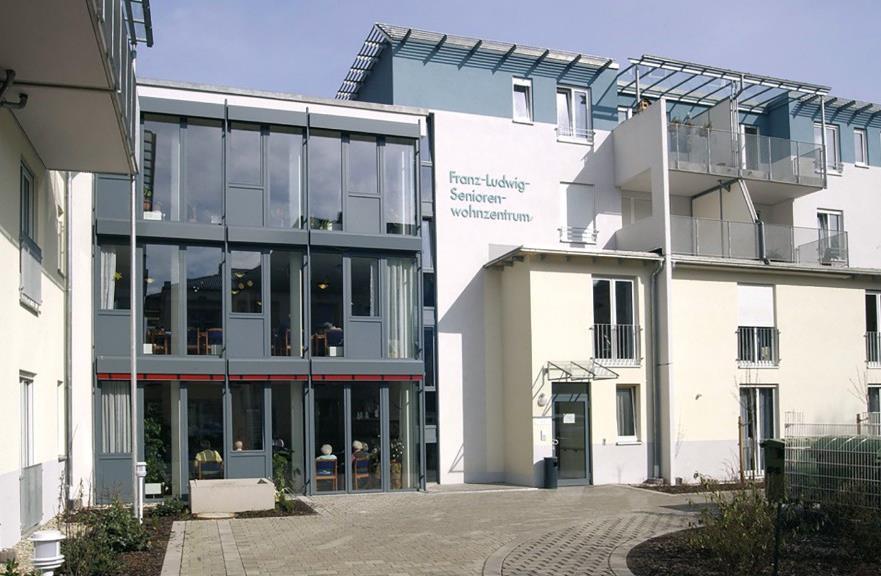

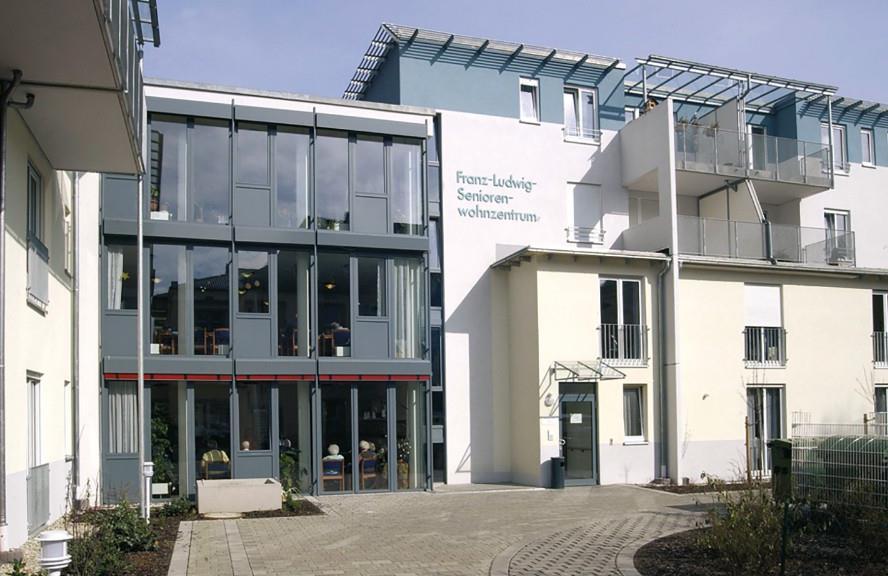

The RSACoburg is a healthcare facility designed to provide safe and comfortable environments for residents, combining functionality and quality of care.
Developed in collaboration with HansMaussKG, the project involved the supply of 79Monolithic BathroomPods, developed in 2differentmodels to meet the specific requirements of the facility.
The pods were designed with particular attention to accessibility, hygiene and user comfort, with coordinated finishes and dedicated solutions for the care sector. The prefabricated approach ensured construction precision, controlled quality and consistent productionstandards.

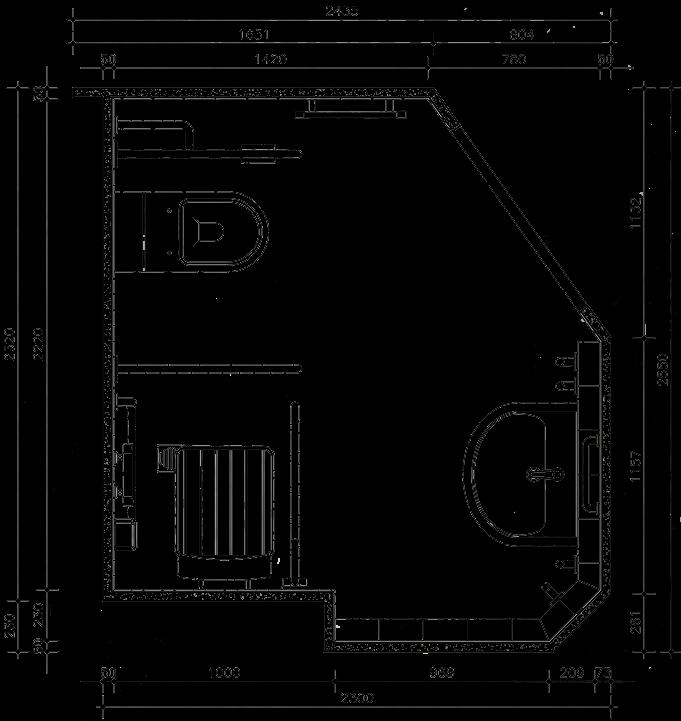

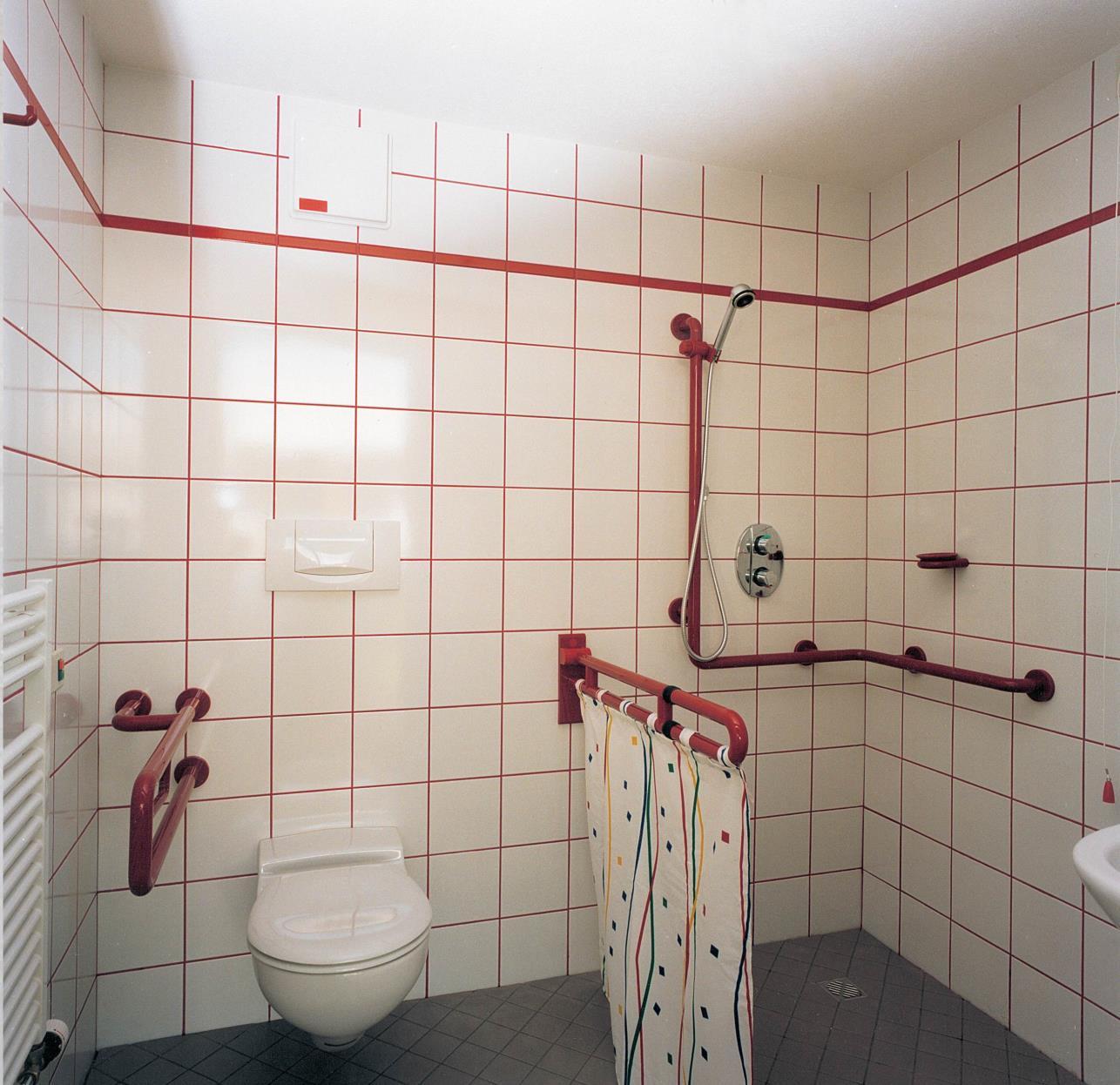

Concrete Bathroom Pod with shower
MODEL1

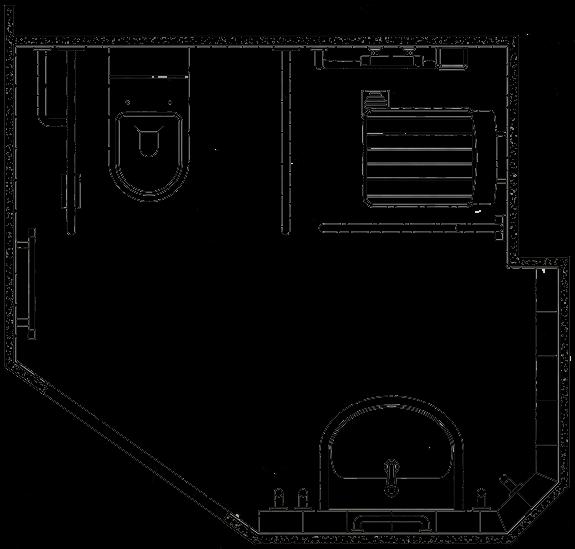

Concrete Bathroom
Pod with shower
MODEL2
MATERIALSANDTECHNOLOGIES

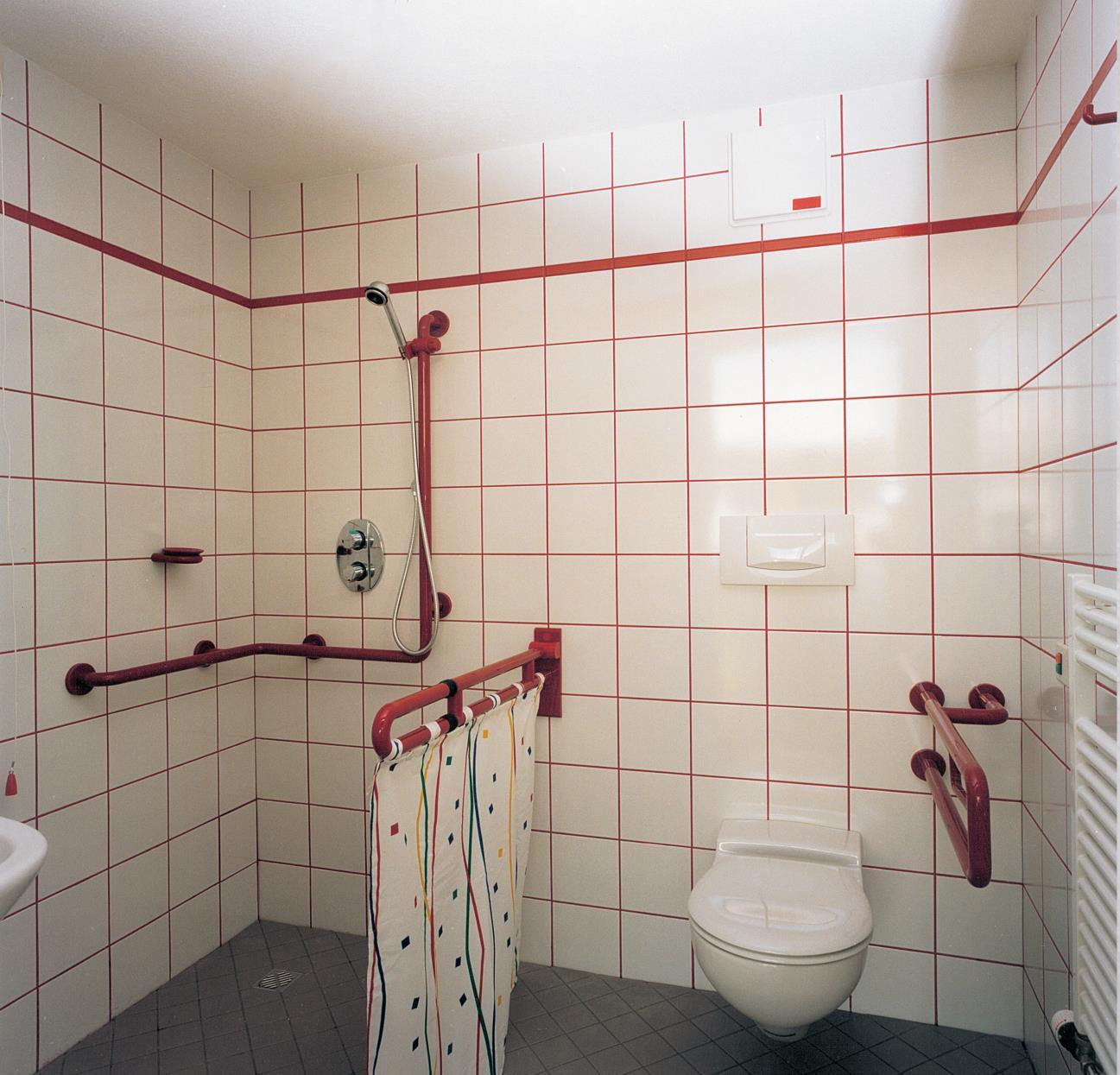

• Structure:base, walls and ceiling made in concrete
• Floorfinishing: single-fired tiles 10x10 cm – Marazzi / Quartieri grey color
• Wallsfinishing: single-fired tiles 10x20cm - Marazzi / New Panda color white, with inserted strips 3x20 cm - Nike / LNR color red; grouting made of red Mapei with non-shrinkingred grout
• Sanitaryfittings: White vitreous china washbasin Duravit / Duraplus; White vitreous china Wc Duravit / Architec with pvc seat;
• Taps: Single lever washbasin mixer Ideal Standard / Ceramix1; recessed shower thermostatic mixer Ideal Standard / Idealtherm; showerhead Ideal Standard
• Safetyhandles: Aluminum coated in red nylon – PBA
• Plumbinginstallation:in parallel with manifolds; isolated, reticular polyethylene pipes
• Electricalinstallations:switches Buss & Jagher
• Ventilation:: timed inlet valve Meltem /G-4-K
• Heatingsystem: Steel water radiator IRSAP / Laser
