THEPROJECT
Forthe Viest Hotel inVicenza,developedfor the clientDe FacciS.p.A.,36monolithicbathroom pods were suppliedandinstalled,designedin 5 differentmodels to meet the varieddesign requirements ofthe building.
The solutionsincludeconfigurationsequippedwith whirlpoolbathtubsor combinedbathandshower units.

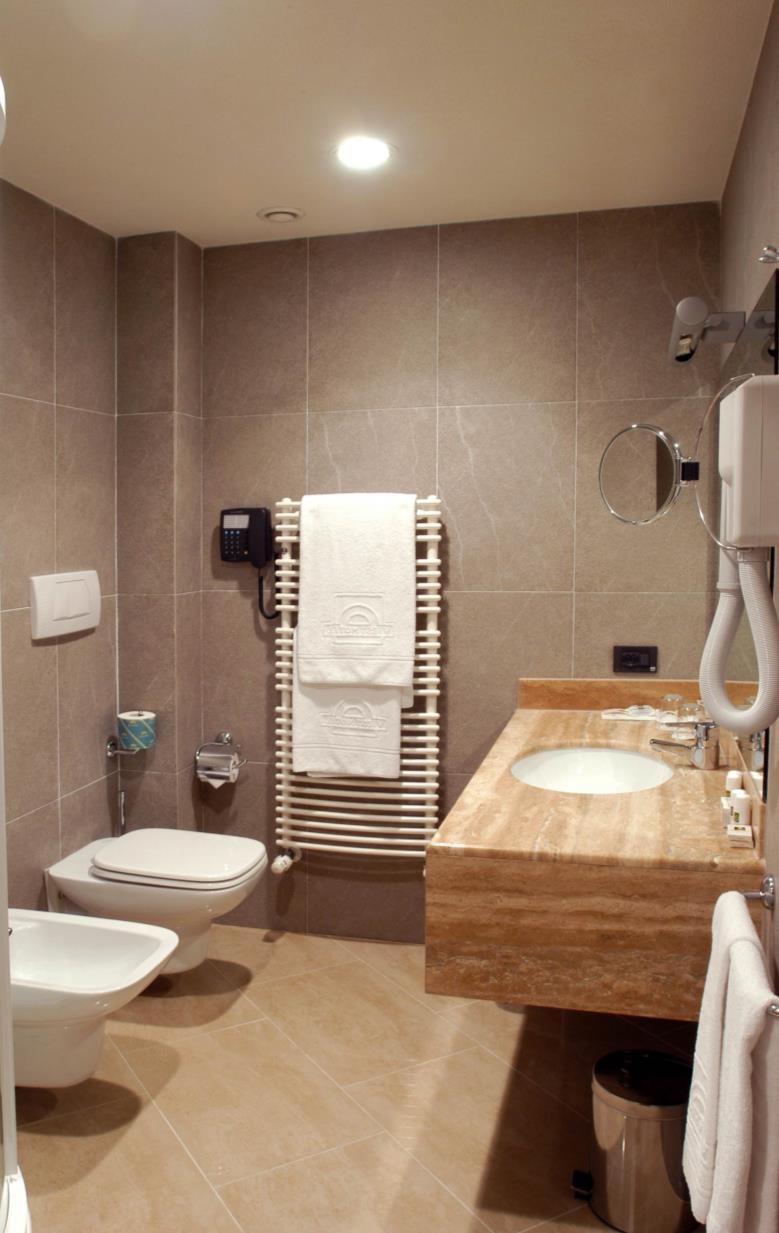

The bathroomsare completedwith Travertino Nocemarble tops,contributingtoa refined and consistentinterior finishacrossthe rooms.

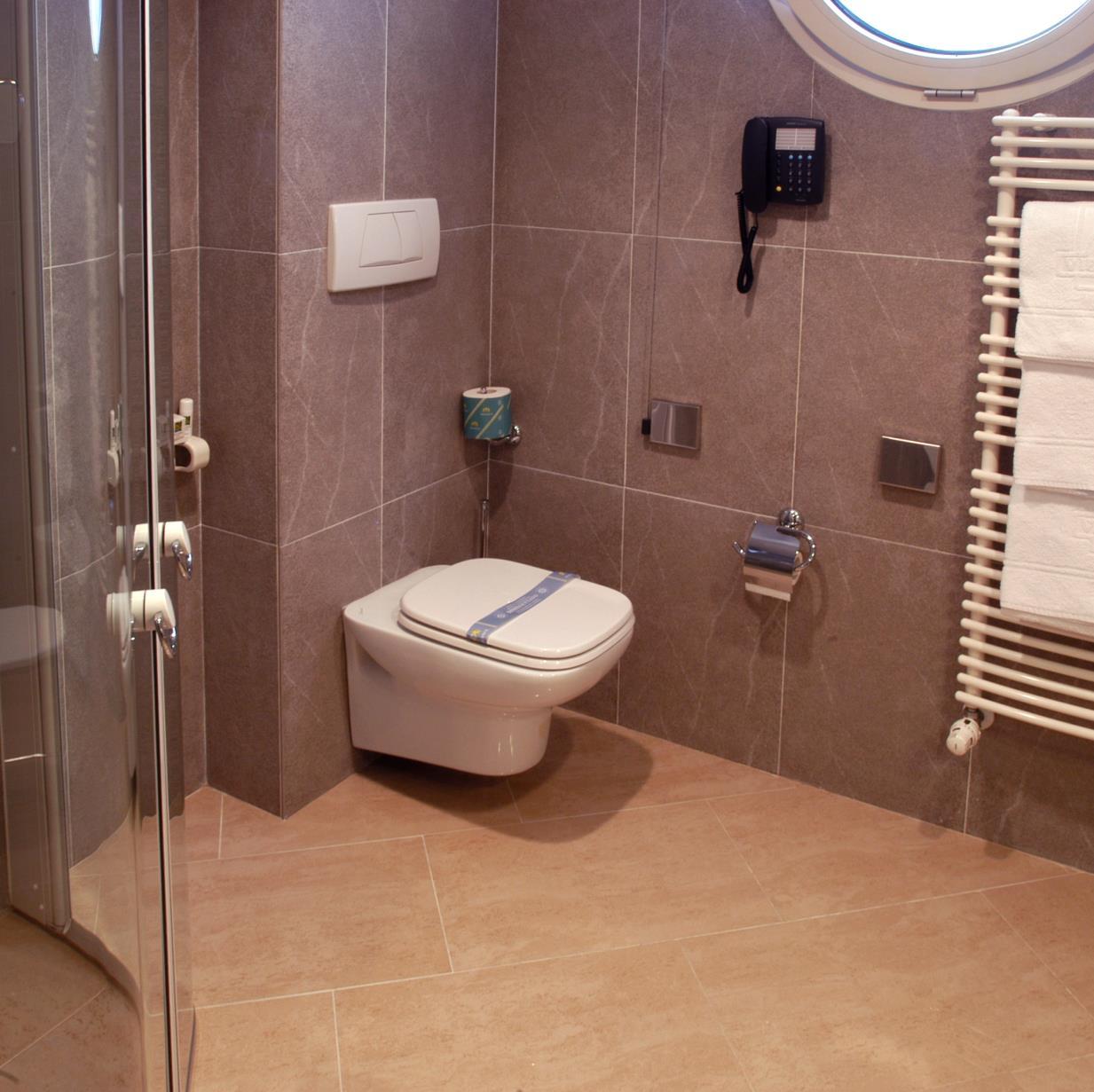

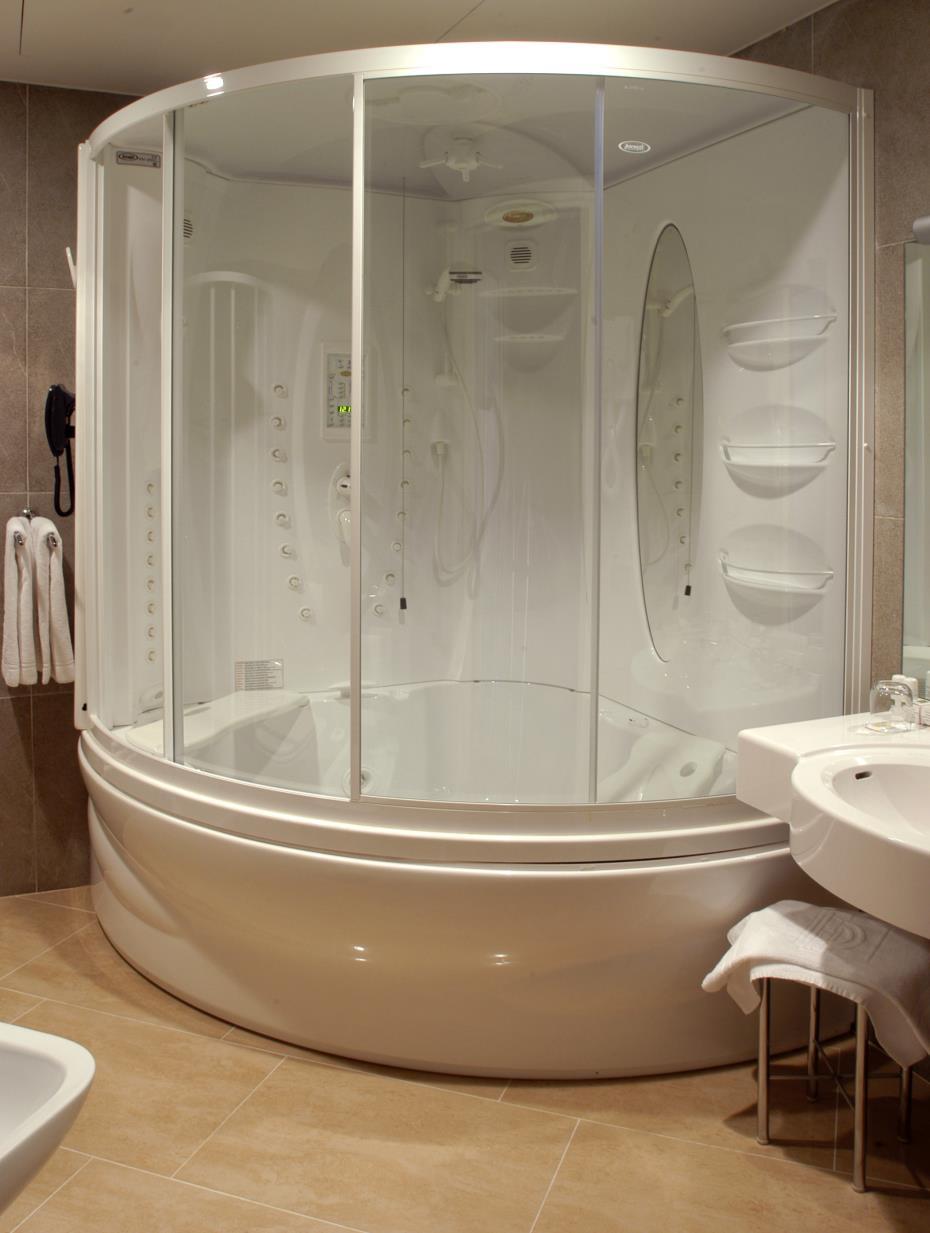

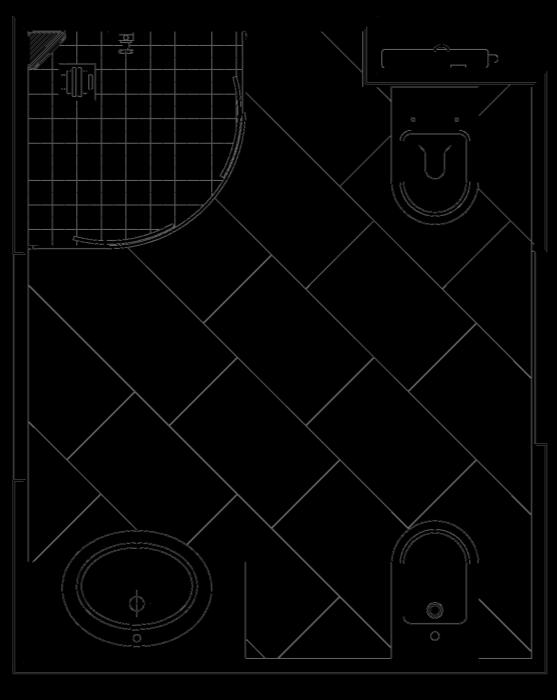

Concrete Bathroom pod with hydromassage shower

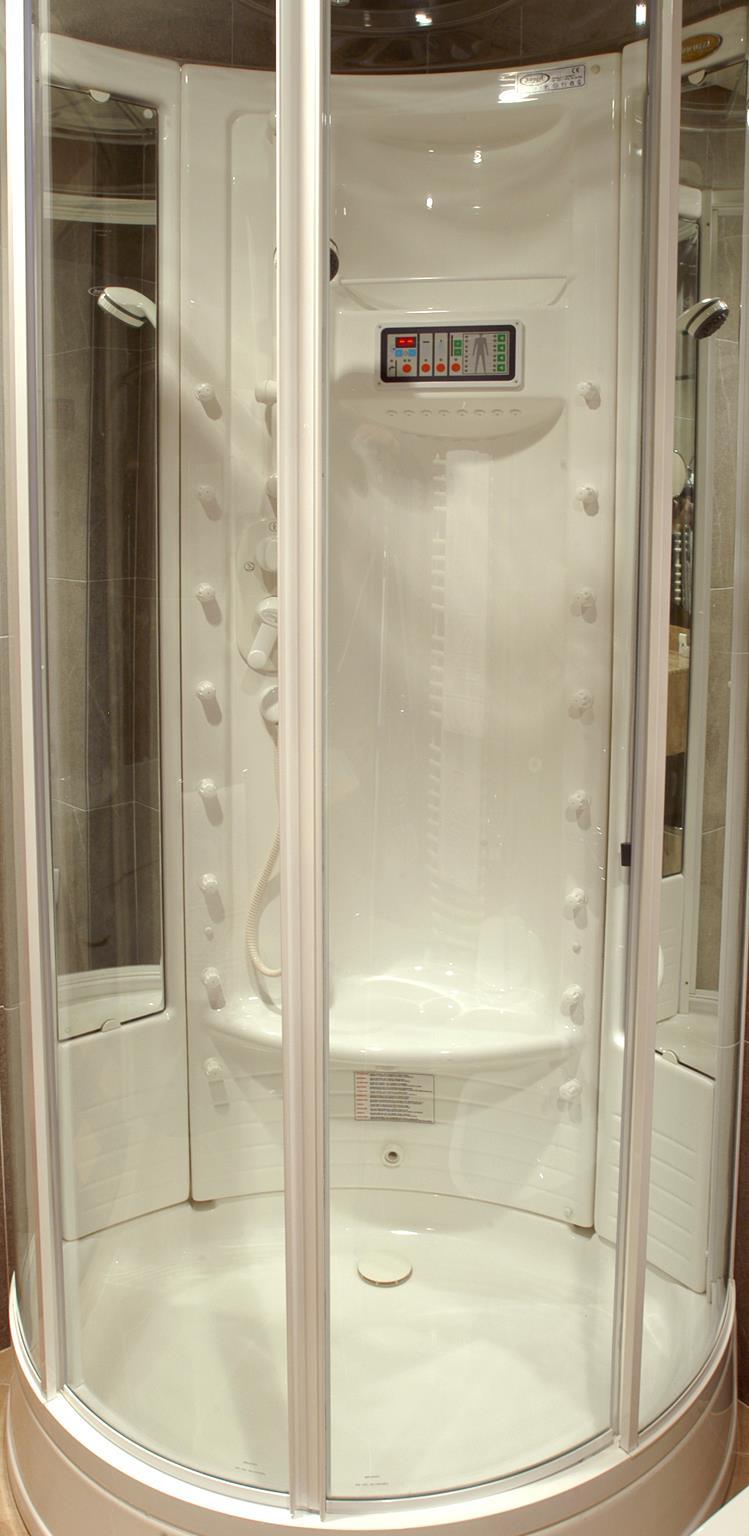

Concrete Bathroom Pod with hydro-massage shower

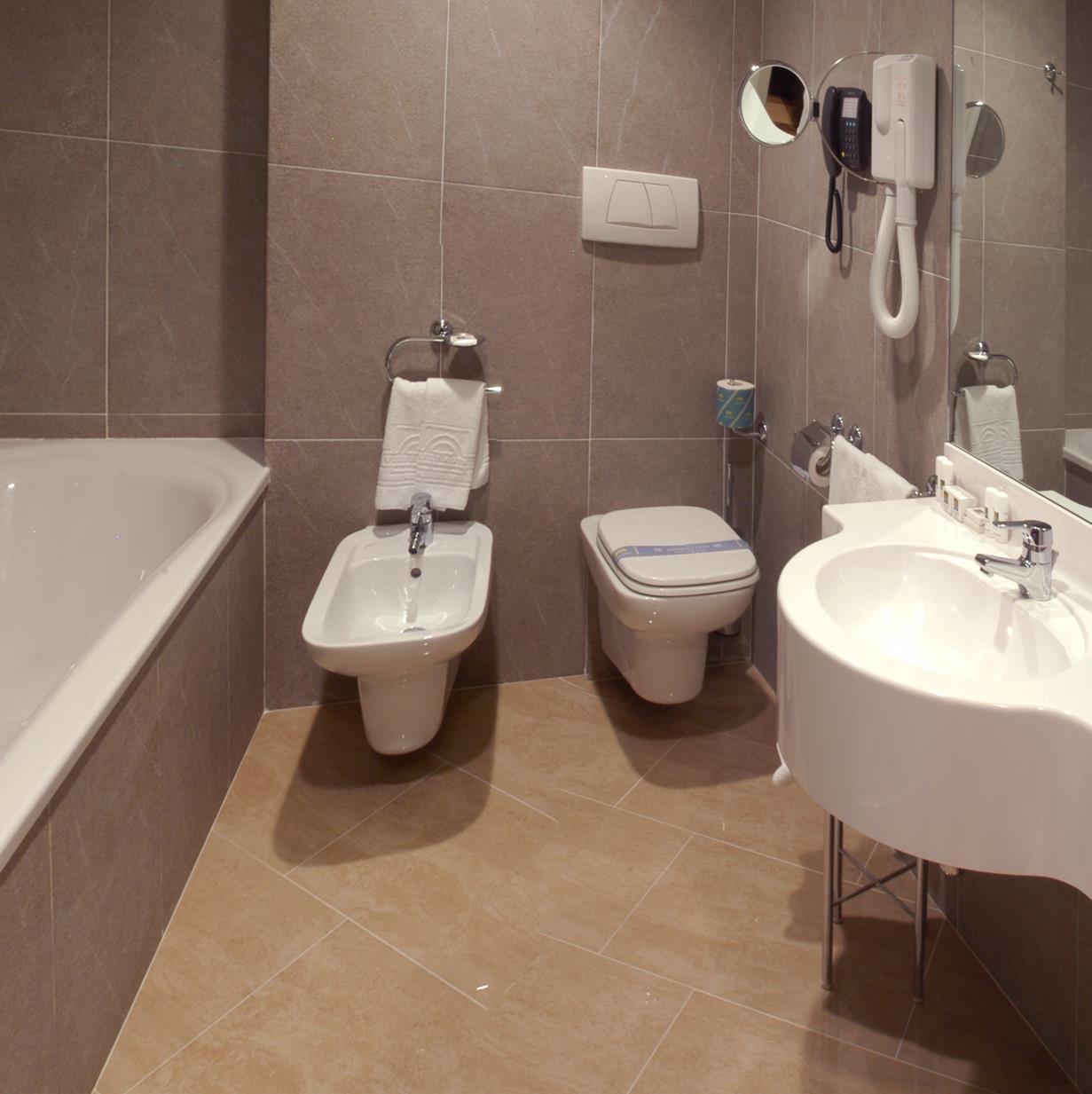

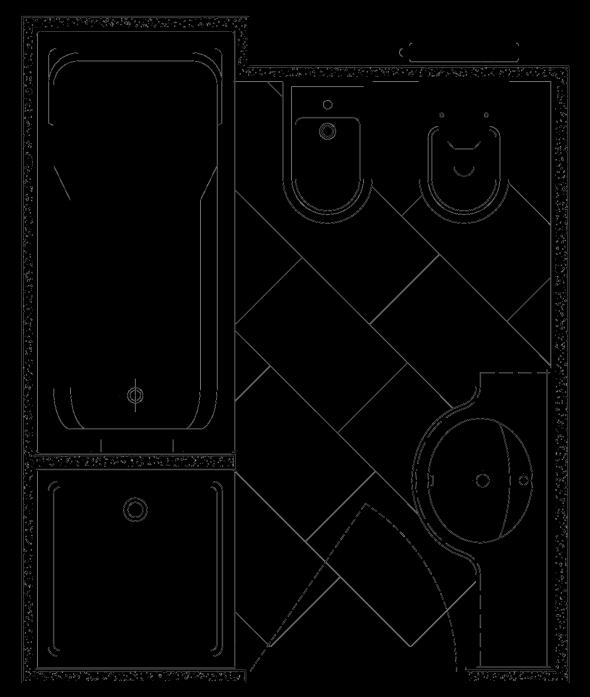

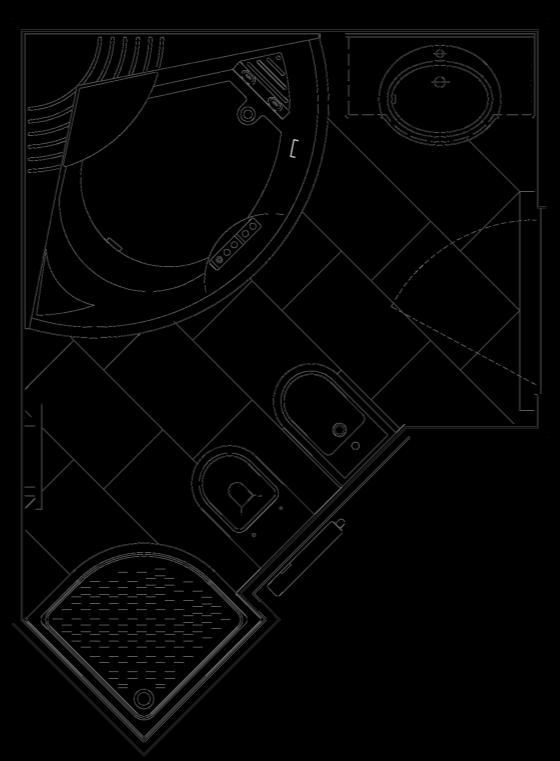

Concrete Bathroom Pod with bathtub and shower

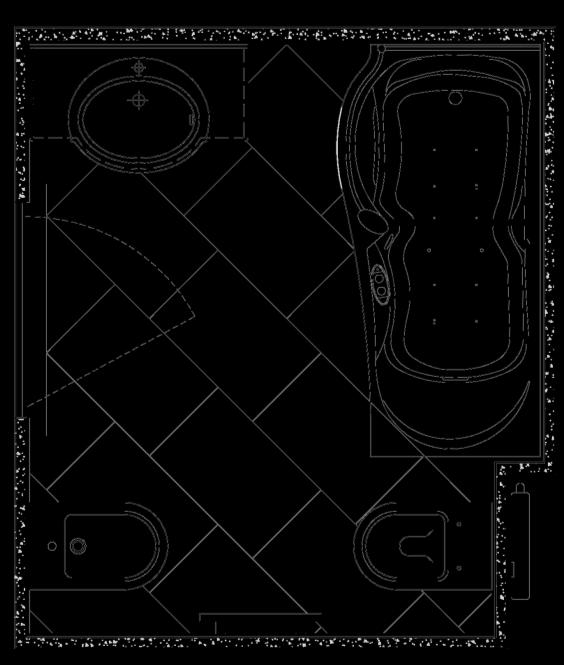

Concrete Bathroom Pod with hydro-massage bathtub MODEL3
MODEL4

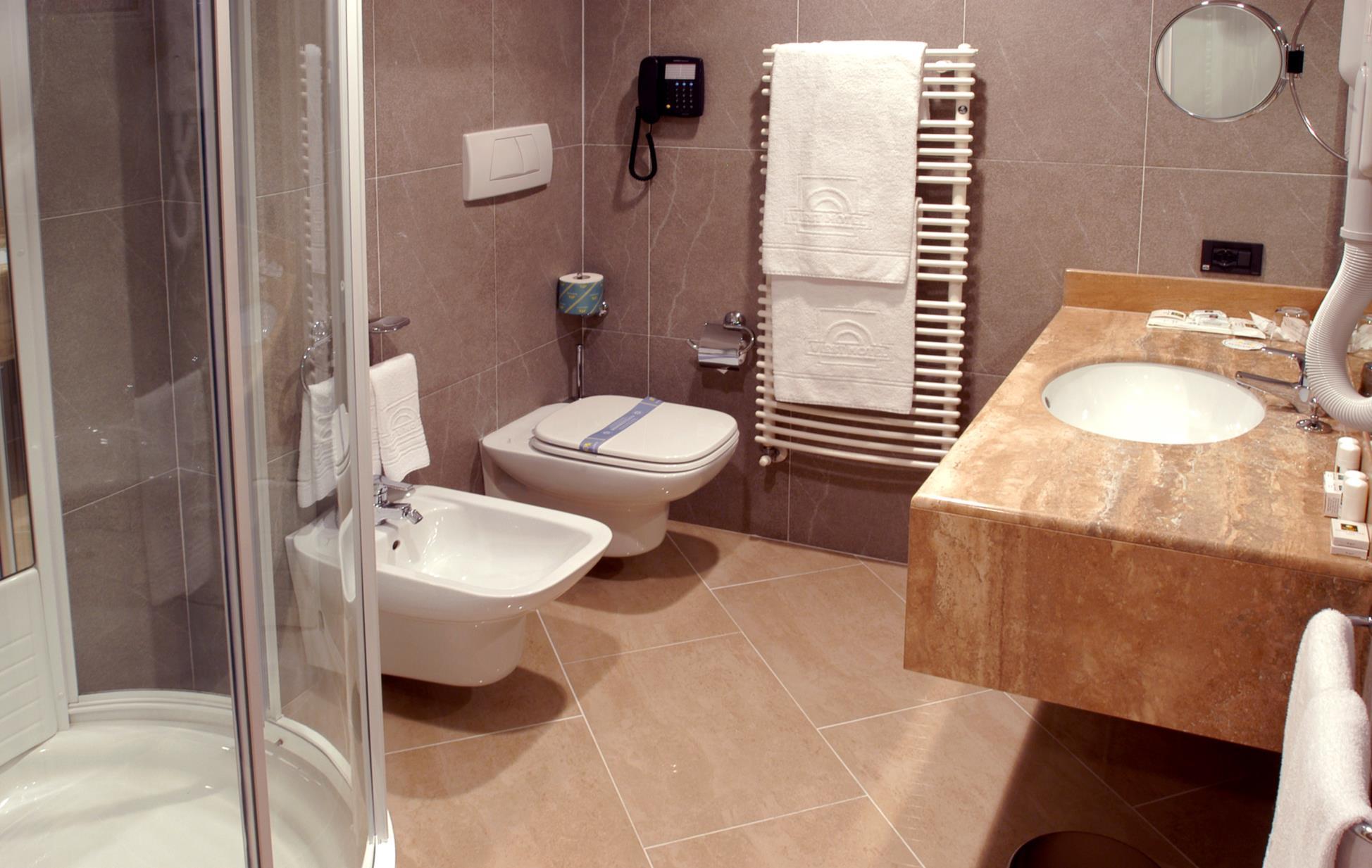

Concrete Bathroom Pod with shower and window
MODELLO5

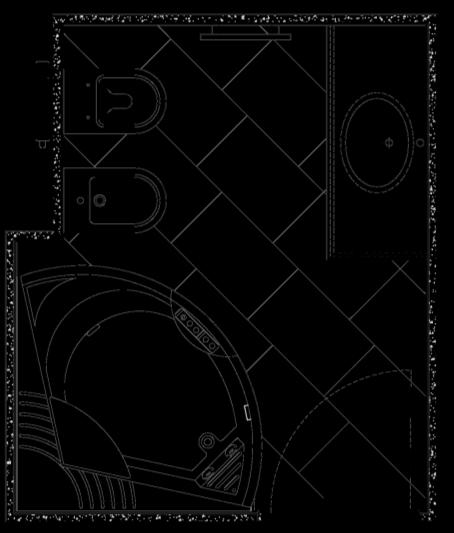

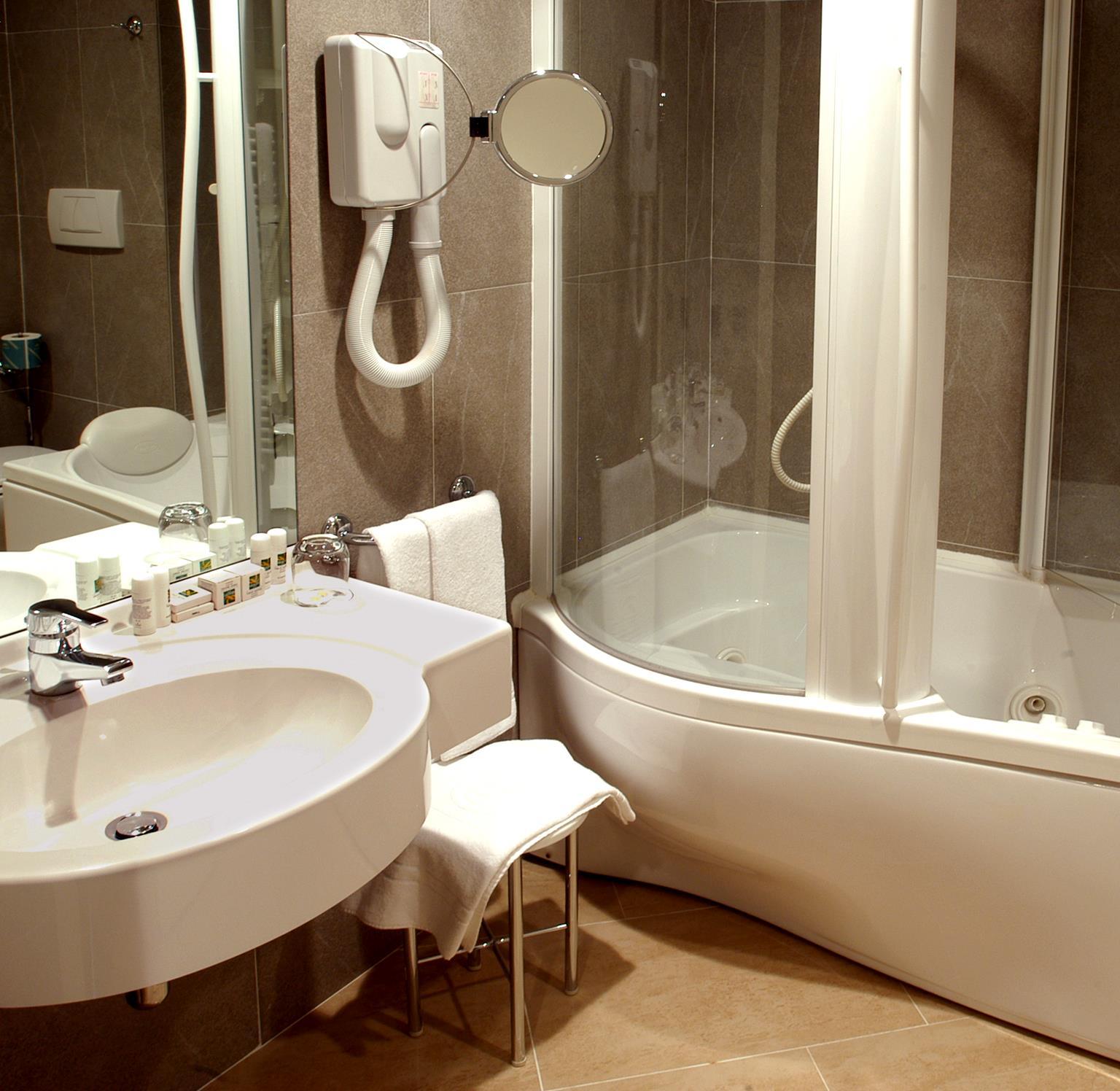

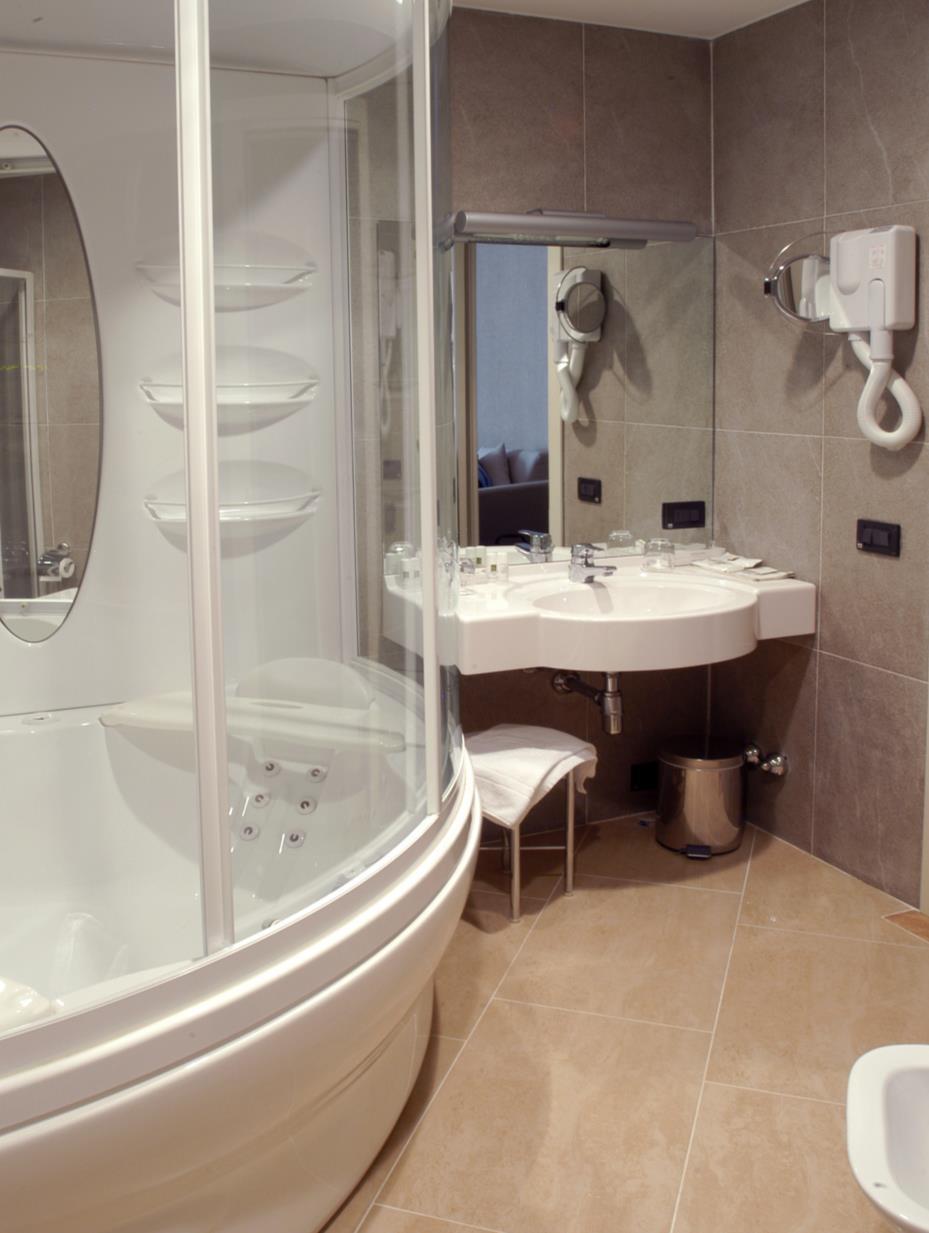

Concrete Bathroom Pod with shower and hydromassage bathtub
MODEL5

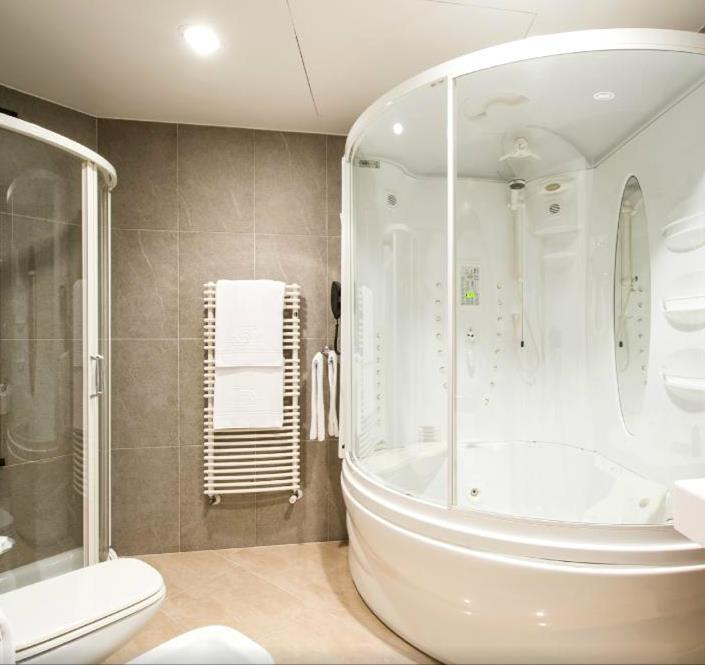

Concrete Bathroom Pod with shower and hydro-massage bathtub
MATERIALSANDTECHNOLOGIESFORMODEL1
• Structure:base, walls and ceiling made in concrete
• Floorfinishing: Gres porcelain tiles 40x60cmGraniti Fiandre / Pietre Secolari
• Wallfinishing: Gres porcelain tiles 40x60 cmGraniti Fiandre / Pietre Secolari smoothed
• Washbasintop: made in resin marble Helopal / Gala
• Sanitaryfittings: Dolomite / Rio; acrylic bathtub Dolomite / Clodia
• Taps: Grohe / Euroeco; shower columnJacuzzi
• Plumbinginstallations:in parallel with manifolds; sheathed and removable cross linked polyethylene pipes – Uponor
• Ventilation:air inlet valve D.100 mm – FCR
• Heatingsystem: painted steel radiator Irsap / Novo
• Electricalinstallations: switches Vimar / Idea
• Lightfittings: recessed downlights Side / Top18
MATERIALSANDTECHNOLOGIESFORMODEL2-5
• Structure:base, walls and ceiling made in concrete
• Floorfinishing: Gres porcelain tiles 40x60cm –
Graniti Fiandre / Pietre Secolari
• Wallfinishing: Gres porcelain tiles 40x60 cm –Graniti Fiandre / Pietre Secolari smoothed
• Washbasin: made in Marmo Travertino Noce; complete with undertop washbasin - Dolomite
• Sanitaryfittings: Dolomite / Rio; hydro-massage bathtub Jacuzzi
• Taps: Grohe / Euroeco; shower columnJacuzzi
• Plumbinginstallations:in parallel with manifolds; sheathed and removable cross-linked polyethylene pipes - Uponor
• Ventilation:air inlet valve D.100 mm. FCR
• Heatingsystem: painted steel radiator Irsap / Novo
• Electricalinstallations: switches Vimar / Idea
• Lightfittings: recessed downlights Side / Top 18

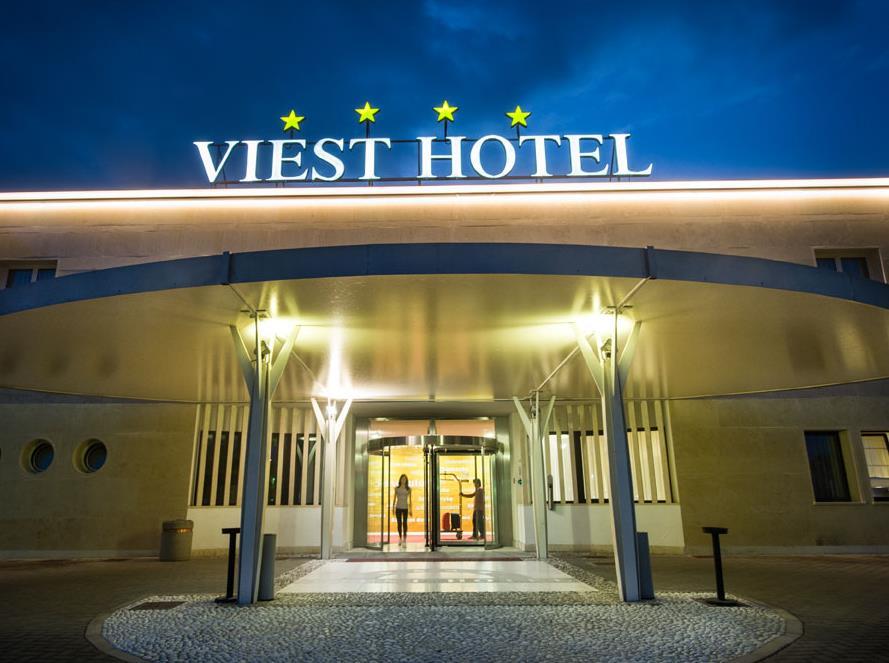

Viest Hotel,Vicenza (IT)
MATERIALSANDTECHNOLOGIESFORMODEL3
• Structure:base, walls and ceiling made in concrete
• Floorfinishing: Gres porcelain tiles 40x60cm
Graniti Fiandre / Pietre Secolari
• Wallfinishing: Gres porcelain tiles 40x60 cm Graniti
Fiandre / Pietre Secolari smoothed
• Washbasintop: made in resin marble Helopal / Gala
• Sanitaryfittings: Dolomite / Rio; hydro massage bathtub Jacuzzi
• Taps: Grohe / Euroeco
• Plumbinginstallations:in parallel with manifolds; sheathed and removable cross linked polyethylene pipes - Uponor
• Ventilation:air inlet valve D.100 mm. FCR
• Heatingsystem: painted steel radiator Irsap / Novo
• Electricalinstallations: switches Vimar / Idea
• Lightfittings: recessed downlights- - Side / Top 18
MATERIALSANDTECHNOLOGIESFORMODEL4
• Structure:base, walls and ceiling made in concrete
• Floorfinishing: Gres porcelain tiles 40x60cm – Graniti
Fiandre / Pietre Secolari
• Wallfinishing: Gres porcelain tiles 40x60 cm – Graniti
Fiandre / Pietre Secolari smoothed
• Washbasintop:made in resin marble Helopal / Gala
• Sanitaryfittings: Dolomite / Rio
• Taps: Grohe / Euroeco – hydro-massage bathtub Jacuzzi
• Safetyhandlebargrips: removable; in covered steel Pontegiulio
• Plumbinginstallations:in parallel with manifolds; sheathed and removable cross linked polyethylene pipes Uponor
• Ventilation:air inlet valve D.100 mm. FCR
• Heatingsystem: painted steel radiator Irsap / Novo
• Electricalinstallations:switches Vimar / Idea
• Lightfittings: recessed downlights- Side / Top 18

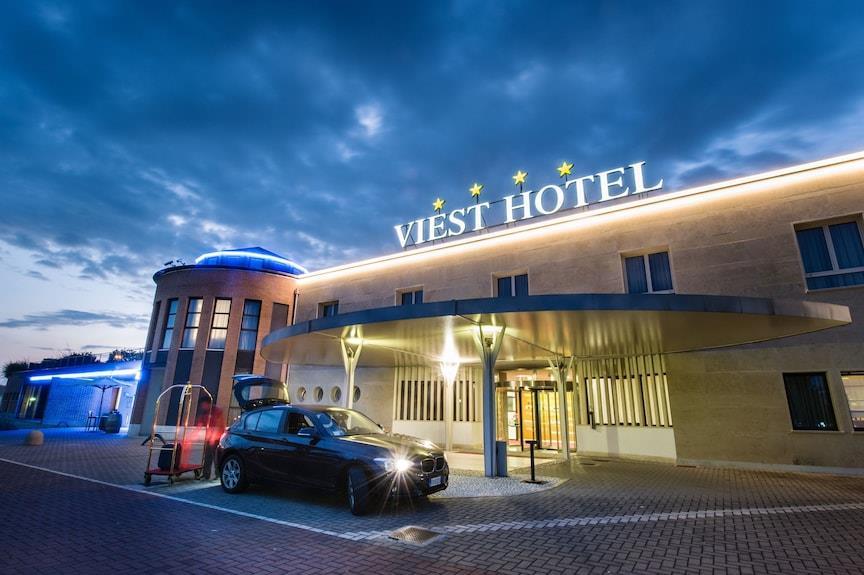

Viest Hotel,Vicenza (IT)
