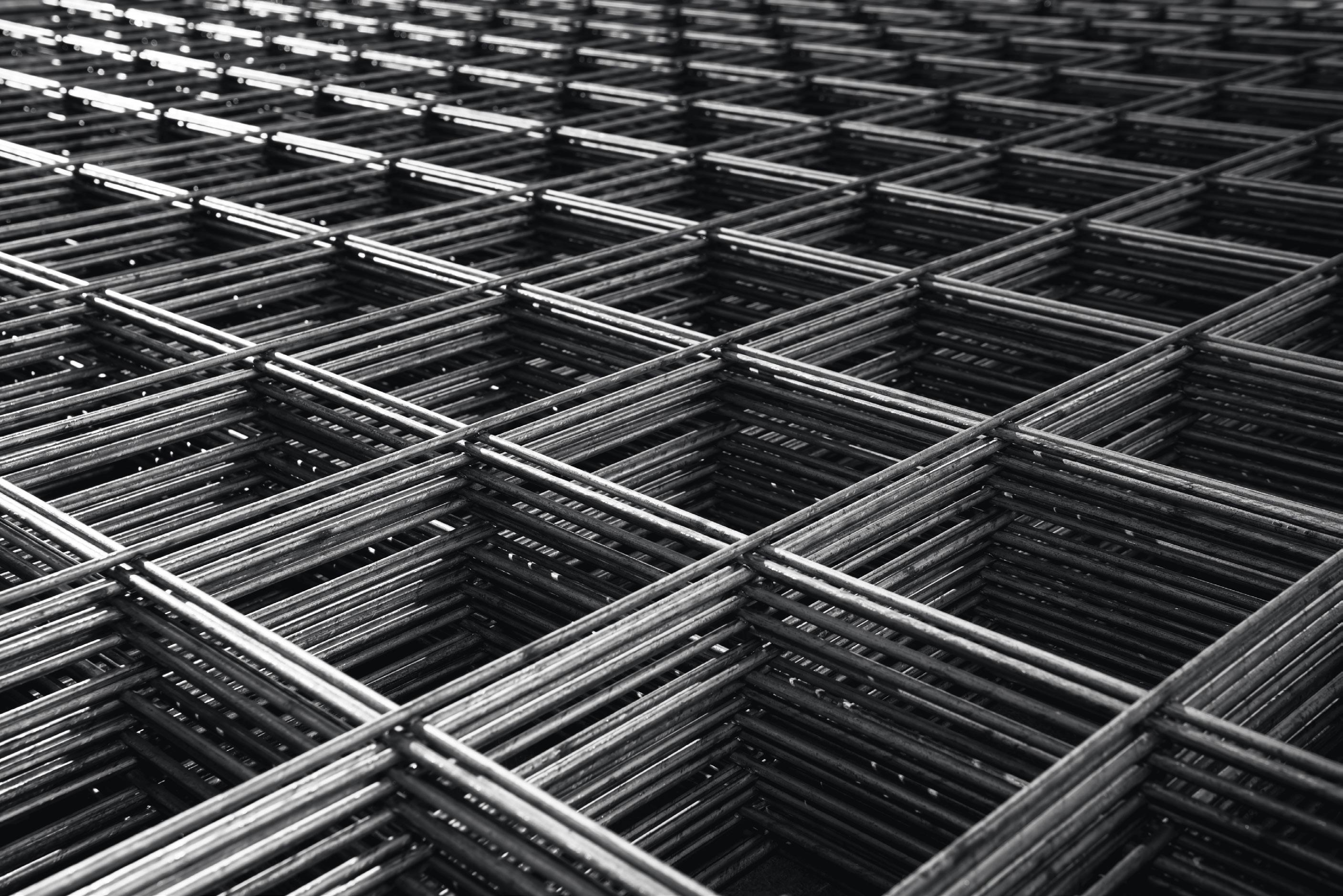

Hurricane Seismic Mesh: SE62
HURRICANE SEISMIC MESH SE62
Hurricane Seismic Mesh: SE62 2440
NET AREA= 12.36m²
2440
NET AREA= 12.36m² 6040 6040
20
20
200
50
250
200
200
50
50
50 20
20
250
290
TYPICAL OVERLAP End Detail
200
50
200
20
20
50
250
200
200
20
50
290
TYPICAL OVERLAP Side Detail
290
250
200
290
TYPICAL OVER Side Deta
TYPICAL OVERLAP TYPICAL OVERLAP End Detail Side and End Detail
MESH SPECIFICATION SE62
Wire Dia (mm)
Spacing (mm)
Length (mm)
No. of Wires
Overhang (mm)
Longitudinal Wire
6.1 Plain
200
6040
13
20
Cross Wire
6.1 Plain
200
2440
31
20
Design of Reinforced Concrete Structures: NZS 3101-1 clause 8.7.6(a) is considered the primary clause to determine the overlap from a mesh point of view. The concrete Designer may, with knowledge of the wider design requirements, be able to adjust the overlap, or to review it under 8.76.6(b) © 2024 Copyright in this document is the property of Steel & Tube Holdings Limited. All rights reserved.
MESH PROPERTIES Sheet Gross Area
Nett Coverage
Cross Sectional Area/Width
(m2)
(m2)
(mm2/m)
12.36
146.12
14.74
Sheet Mass (kg)
Sheet Mass/Area
No. of Sheets/ Bundle
Bundle Mass
25
884.16
(kg)
(kg/m2)
35.37
2.40
Design of Reinforced Concrete Structures: NZS 3101-1 clause 8.7.6(a) is considered the primary clause to determine the overlap from a mesh point of view. The concret knowledge of the wider design requirements, be able to adjust the overlap, or to review it under 8.76.6(b)
DESIGN OF REINFORCED CONCRETE STRUCTURES
© 2024 Copyright in this document is the property of Steel & Tube
NZS 3101.1 clause 8.7.6(a) is considered the primary clause to determine the overlap from a mesh point of view. The concrete Designer may, with knowledge of the wider design requirements, be able to adjust the overlap, or to review it under 8.7.6(b) C:\Users\mikko.anzano\Downloads\Hurricane-LogoLockup-White.png
0800 478 335 steelandtube.co.nz Disclaimer: this data should be used as a guide only, for exact applications you should engage the services of a qualified engineer. © 2025 Copyright Steel & Tube Holdings Limited.
www.steelan
AUG 2025
SE62
SPECIFICATION SHEET
