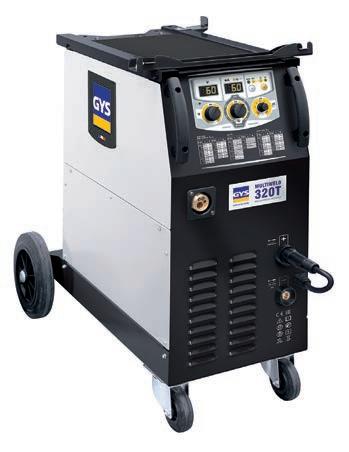

The MULTIWELD 320T is a semi automatic 3-phase welding machine, combining MIG/ MAG, cored wire and MMA welding processes. Its intuitive interface integrates digital displays for easy and precise adjustment. Fitted with a powerful and precise 4 drive roller feeding system, with optional rollers for Ø 1.2mm wire
steel wire: Ø 0.6–1.2 mm
stainless steel wire: Ø 0.8–1.2 mm aluminium wire: Ø 0.8 and 1.0 mm cored wire (reverse polarity): Ø 1.9–1.2 mm
basic and rutile electrodes (up to Ø 6mm).
OPTIMISED MIG/MAG SETTINGS
Choice of the trigger mode: 2T or 4T. Welding guide: tables assist the user to adjust and fine tune the voltage and the diameter of the filler wire according to the thickness of the material being welded.
• INTEGRATED WIRE FEEDER
- Compatible with reels: 5kg / 15kg.
Supply 3 phase 400 volts (+/-15%).
Fuse rating 16 amps.
Welding range 40–320 amps.
Duty cycle (MIG) .. 60% @ 240 amps.
Welding wire size .0.6–1.2 mm.

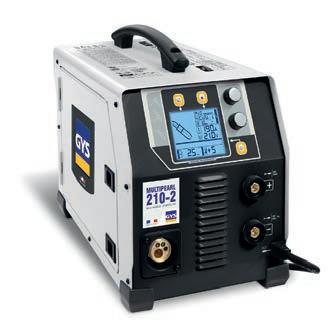

GYS MULTIPEARL 210-2 (single phase) 200A
Inverter / MIG Welder
3-in-1, the MULTIPEARL 210-2, is a multi-process power source capable of performing MIG/MAG, TIG DC and MMA welding with high precision. It features 9 welding synergies to enable welding in all positions. Versatile, but also equipped with a single-phase power supply with PFC/FV technology, it is the perfect tool in the workshop or on site.
3 WELDING PROCESSES: MIG-MAG
- 2 roller motor: 5kg and 15kg reels
- Adjustable manually or synergistically
- SPOT and DELAY functions available
- Can weld sheets from 0.6–6mm thick TIG
- TIG DC welding and TIG Lift ignition with optional TIG EURO torch
- Adjustable post gas & downslope (arc downslope) MMA
- Welds different types of coated electrodes up to ø5mm (rutile, basic, stainless steel, steel, cast iron)
- Adjustable Hot Start (0 to100%): facilitates ignition and can be adjusted
- Arc Force adjustable (0 to100%): regulates the arc length deviations

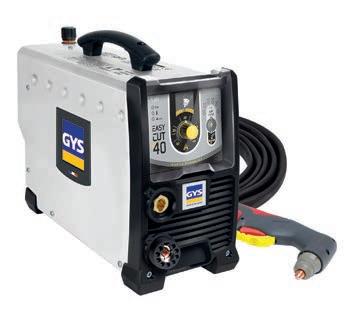

Ultra compact (just 8 kg), the EASYCUT 40 is a plasma cutter with a HF-free starting voltage, perfect for cutting all types of metal up to 20mm thick. With a power output of 40A, it excels in precision cutting at low intensity. Ideal for use in the workshop or car bodyshop, the EASYCUT 40 is portable and high performance. Inverter technology guarantees quality cutting on all types of steels (soft, stainless, hardened, HLE), aluminium, copper, etc.
Quick and easy installation of consumables
Intuitive controls with automatic torch detection
Manual setting of the air pressure (2.5 < 6.5 bars) using front panel
HF-free ignition to prevent disturbances that could interfere with nearby electronic equipment
Protection against overvoltage and overcurrent
Indication of insufficient air pressure or torch detection

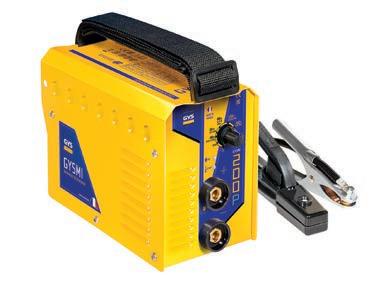

Portable and compact 200 amp arc welding inverter, weighing just 5kg. Features revolutionary arc dynamic, can be used with all types of electrodes: rutile, basic, stainless steel, cast iron in direct current. TIG capable (scratch start).
MMA Features:
- Immediate start thanks to its very high no-load voltage
- Constant welding power – Very smooth melting due to the direct current
- Not sensitive to supply current fluctuations or to the arc length
- Very good penetration and perfect arc stability
- Suitable for use with voltage stable output generators (min. 7.5Kva)
• HOT START: Increased power at start
• ANTI-STICKING: Prevents the electrode sticking
• ARC FORCE: Instantaneous increase of the current in difficult welding situations
17855 200 amp arc welding inverter (GYSMI 200P) c/w electrode holder, earth clamp with 1.6m cables and plastic carry case.
FROM STOCK:

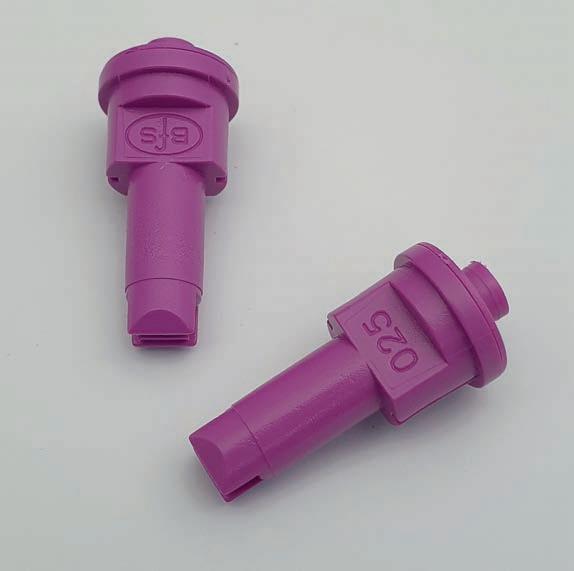

Award winning , internationally renowned and industry leading range of air induction nozzles. Manufactured in Britain; these precision-made LERAP 3 star rated nozzles are suitable for most sprayers including VLV, HV applications and knapsacks. Ten nozzle variations are available with application rates ranging from 20–905 litres per hectare.
BFS Billericay

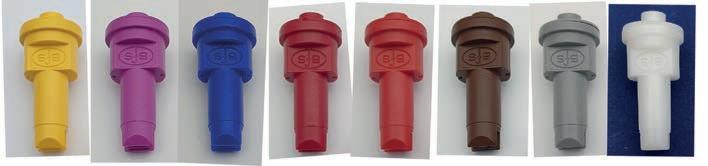

Air Bubble Jet Nozzles
• LERAP 3★ Rating
• Up to 75% Drift Reduction
LEADING AIR INDUCTION NOZZLES
19350 Yellow 0.2mm (NNB003002). Single.
19351 Lilac 0.25mm (NNB003000). Single. 19352 Blue 0.3mm (NNB003003). Single.
19353 Red/Brown 0.35mm (NNB002992). Single.
19354 Red 0.4mm (NNB003004). Single. 19355 Brown 0.5mm (NNB003005). Single.
19356 Grey 0.6mm (NNB003006). Single. 19357 White 0.8mm (NNB003008). Single.

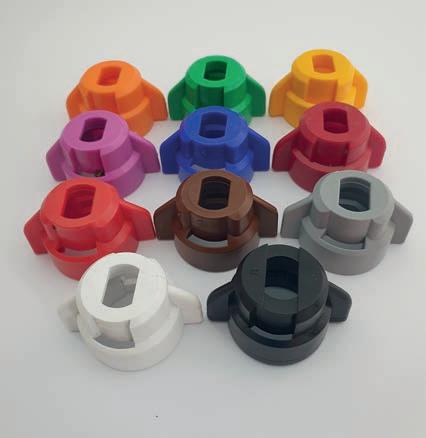

BFS Standard 8mm Caps
Standard 8mm nozzle caps supplied with washer.
19370 Yellow standard cap (NCA000002). Single.
19371 Lilac standard cap (NCA000000). Single.
19372 Blue standard cap (NCA000003). Single.
19373 Red/Brown std. cap (NCA002992). Single. 19374 Red standard cap (NCA000004). Single.
19375 Brown standard ca (NCA000005). Single. 19376 Grey standard cap (NCA000006). Single. 19377 White standard cap (NCA000008). Single.
19378 Black standard cap (NCA000010). Single.
18823 Sealing washer. Pack of 10.
• Improved coverage
• Increased chemical efficiency
• Increased disease control

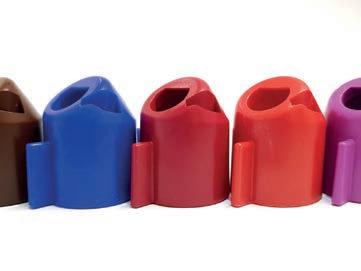

Offers the operator the benefit of angling the spray 30°, forwards or backwards along the spray boom whilst using their existing 8mm air induction or flat fan nozzles. Supplied with seal, Angled caps eliminate the need to purchase expensive replacement nozzles.
BFS 30° Angled Caps
• Improved spray performance
19360 Yellow angled cap (NCF000120). Single. 19361 Lilac angled cap (NCF000125). Single. 19362 Blue angled cap (NCF000130). Single. 19363 Red/Brown angled cap (NCF000135). Single. 19364 Red angled cap (NCF000140). Single. 19365 Brown angled cap (NCF000150). Single. 19366 Grey angled cap (NCF000160). Single. 19367 White angled cap (NCF000180). Single. 19359 Black angled cap (NCF000100). Single. 19368 Replacement seal (NCF000101). Single.
BFS – NOZZLES FOR ACCURATE SPRAY APPLICATION

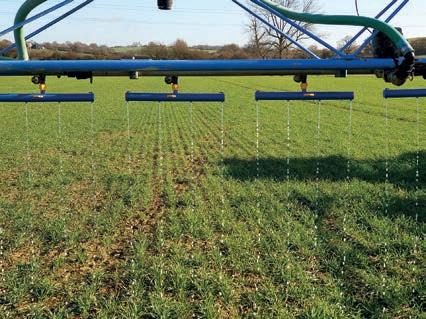

LIQUID FERTILISER APPLICATION

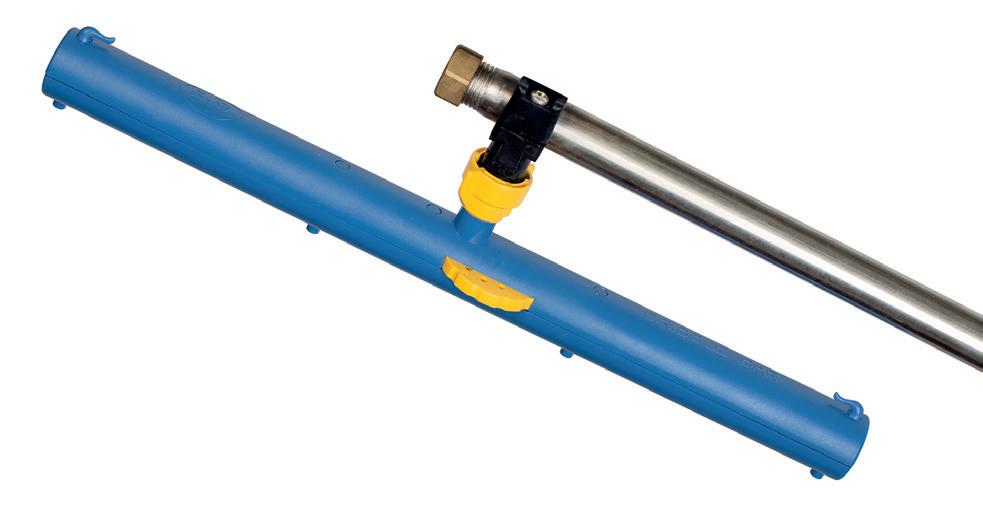

Hook – use stabiliser band (19386) to ensure alignment with neighbouring dribble bar
flow dial. Rates can be simply altered in the field without removing the dribble bars from the boom.
� Accurate: Allows precision targeting of liquid fertiliser and eradicates application overlap.
� Effective: Provides an efficient and flexible method of application. Ensures liquid fertiliser can be applied under a wide range of climatic and ground conditions.
� Economic: Offers increased speed and reduces waste.
� Safe: Removes risk of drift contamination, run-off to ditches and hedgerows and minimises crop scorch.
19385 Dribble Bar II (NFB200401).
Fitting type: TeeJet/EF3/Euro.
19386 Stabilizer band for Dribble Bar II (NCF200412). Slips over the hook on the Dribble Bar to keep them in line.

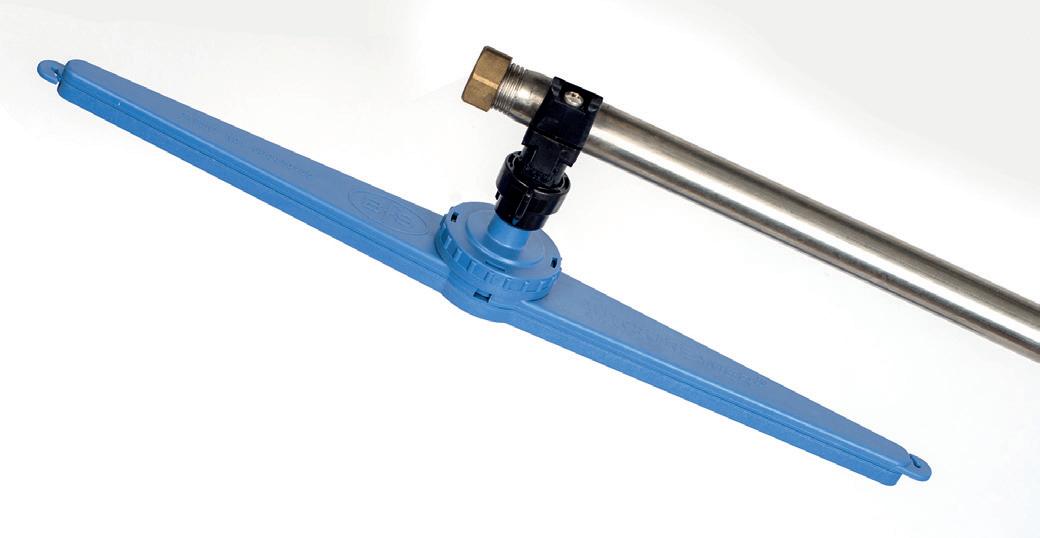

Autostreamer–No leaving the cab, no flow dials to rotate or slide.
� Precision: Ensures the accurate placement of liquid fertilisers and avoids application overlap.
� Efficient: Allows liquid fertilisers to be applied under a range of conditions and right up to field boundaries.
� Economic: Less waste, increased speed of application and better utilisation of labour and machinery.
� Protection: Removes risk of drift contamination, runoff to ditches and hedgerows minimises crop scorch.
19387 AutoStreamer (NFB500001).
Fitting type: TeeJet/EF3/Euro.
19388 Stabilizer band for Autostreamer (NFB300004). Slips over the hook on the AutoStreamer to keep them in line.
5 Star Plus – Variable rate liquid fertiliser nozzle
