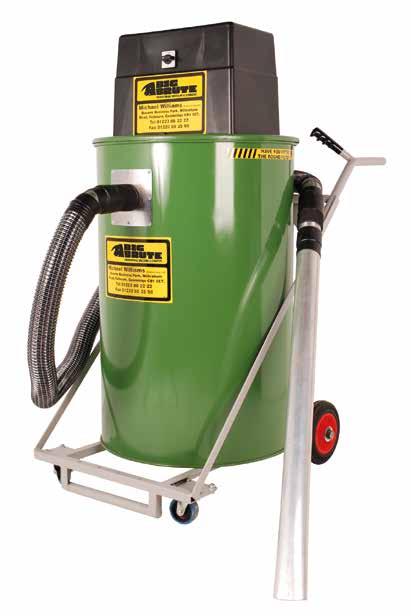

BIG BRUTE POPULAR
230V INDUSTRIAL VACUUM CLEANER
Designed and built for use in industry and agriculture
BIG BRUTE POPULAR, DRY ONLY
STANDARD SPECIFICATIONS:
Power 3 x 1 2 kW motors
Capacity 180 litres, with heavy duty inlet spigot
Filters Standard
Hose Ø63mm with steel bends and rubber couplers (length as selected)
Trolley Heavy duty, 4-wheeled with rubber wheels
Tool 1 metre long Ø63mm aluminium scraper
Cable 10m with 16A plug
Max air flow rate 8,100 ltr/min
Noise levels
77 3 dB(A) @ 1m, 67 2 dB(A) @ 3m
Dimensions L1010 x W600 x H12900 mm
MODEL CHOICE:
BB101 Popular Dry Only, 230v c/w 5m hose & scraper tool
BB102 Popular Dry Only, 230v c/w 10m hose & scraper tool
BB103 Popular Dry Only, 230v c/w 15m hose & scraper tool
BB100 Popular Dry Only, 230v c/w 10m hose & scraper tool plus Easy Empty Lift Out Spigot
BB104 Popular Dry Only, 230v with Suck & Blow power unit, 10m hose & scraper tool
ACCESSORIES:
BB110 Dry Floor Wall & Ceiling Hand Tool Kit Ø38mm (FWC-DRY)
BB112 710mm Front-Mounted Floor Tool Dry, 830mm hose (FMFT-DRY-01)
BB111 Extra Large Primary Round Filter (V39A) Recommended for fine dust applications (eg grain stores)
BB113 Easy Empty Lift-Out Bag (V313)*
BB212 Black Bags (400g – 25” x 38” x 47”) Pack of 80 (DWB – 80)*
*NB Bags only suitable for use with Easy Empty Lift Out Spigot
SPARES:
BB136 Big Brute 230v Replacement Dry Power Unit (V148)
BB132 240v DAF Lamb Motor DL21104T plus gasket (V1004)
BB130 3 Position Switch - 0,1, 2, 3 (V1500)
BB432 Standard Primary Round Filter (V39)
BB433 Secondary Square Filter c/w Cage & Holes (V40)
BB434 Motor Mount Ring 143mm OD x 100mm ID (use with BB433) For replacement hoses and scraper tool see over leaf
BUILT TOUGH IN THE UK

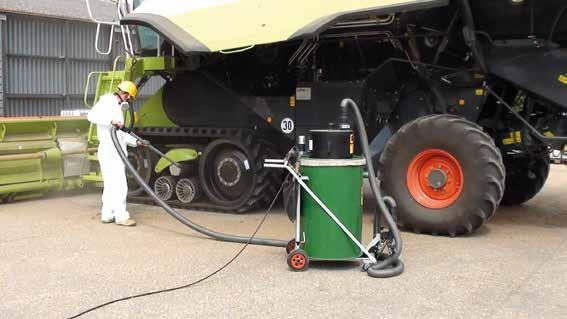

The Big Brute Popular has tremendous suction power which means you can attach very long suction hoses without losing suction Clean the furthest reaches of your grain store, warehouse or production workshop

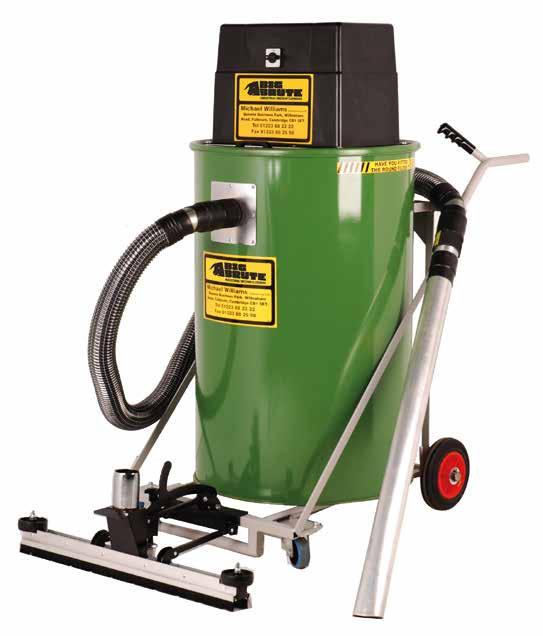

BIG BRUTE WAREHOUSEMAN
ONLY

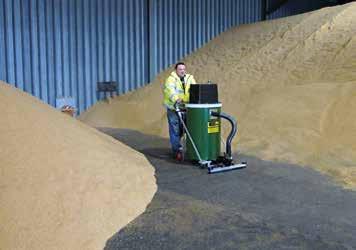

The Big Brute Warehouseman Industrial Vacuum Cleaners clean large floor areas quickly, easily and without stirring up the dust It quickly cleans up extra fine dusts that have been ground up by your forklifts wheels leaving the floor really clean – you won’t be left with that gritty feeling underfoot
Simply lower the 710mm (28") wide front floor brush onto the floor, switch on and off you go Clean at walking speed, pushing the machine along easily on its four wheels by means of the ‘easy push, no-strain’ handles It is as easy and simple as that .
230V INDUSTRIAL VACUUM CLEANER
Clean large floor areas quickly, easily and without stirring up the dust . DRY
BIG BRUTE WAREHOUSEMAN, DRY ONLY
STANDARD SPECIFICATIONS:
Power 3 x 1 2kW motors
Capacity 180 litres, with heavy duty inlet spigot
Filters Standard
Hose Ø63mm with steel bends and rubber couplers (length as selected)
Trolley Heavy duty, 4-wheeled with brake
Floor Brush Front mounted 710mm wide floor brush kit
Tool .
. . . 1 metre long Ø63mm aluminium scraper
Cable . . . . . . . . 10m long with16A plug .
Max air flow rate . . 8,100 ltr/min .
Noise levels . . . . . 77 3 dB(A) @ 1m, 67 . 2 dB(A) @ 3m
Dimensions . . . . . L1350 x W760 x H1290 mm .
MODEL CHOICE:
BB201 Warehouseman Dry Only, 230v with 5m hose & scraper tool
BB202 Warehouseman Dry Only, 230v with 10m hose & scraper tool
BB203 Warehouseman Dry Only, 230v with 15m hose & scraper tool
BB200 Warehouseman Dry Only, 230v with 10m hose & scraper tool plus Easy Empty Lift Out Spigot
BB204 Warehouseman Dry Only, 230v with Suck & Blow power unit, 10m hose & scraper tool plus Easy Empty Lift Out Spigot
ACCESSORIES:
BB110 Dry Floor Wall & Ceiling Hand Tool Kit Ø38mm (FWC-DRY)
BB111 Extra Large Primary Round Filter (V39A) Recommended for fine dust applications (eg grain stores)
BB113 Easy Empty Lift-Out Bag (V313)*
BB212 Black Bags (400g – 25” x 38” x 47”) Pack of 80 (DWB – 80)*
*NB Bags only suitable for use with Easy Empty Lift Out Spigot
SPARES:
BB136 Big Brute 230v Replacement Dry Power Unit (V148)
BB132 240v DAF Lamb Motor DL21104T plus Gasket (V1004)
BB130 3 Position Switch – 0,1, 2, 3 (V1500)
BB432 Standard Primary Round Filter (V39)
BB433 Secondary Square Filter c/w cage & holes (V40)
BB434 Motor Mount Ring 143mm OD x 100mm ID (use with BB433)
BB230 830mm Hose for floor mtd brush (post 2005 WHMN) (V96)
REPLACEMENT HOSES & SCRAPER TOOL:
BB133 5m Hose, Ø63mm with bent ends (V32D)
BB134 10m Hose, Ø63mm with bent ends (V32B)
BB135 15m Hose, Ø63mm with bent ends (V32)
BB131 63mm Dia Aluminium Scraper Tool, 1 metre long (V37)

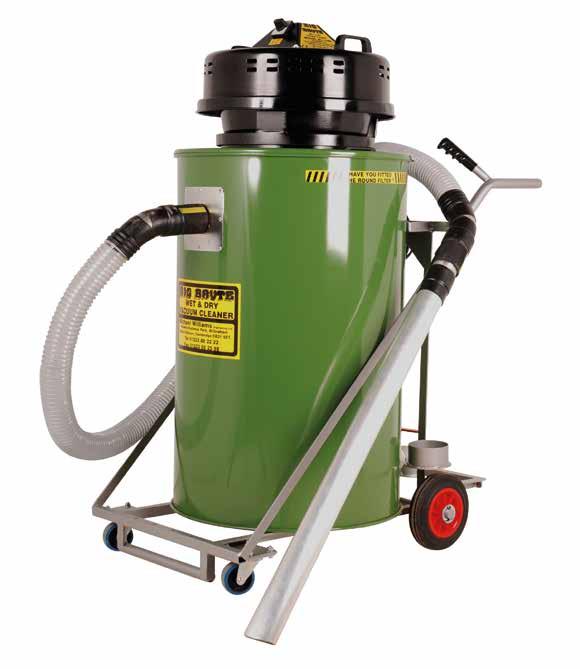

BIG BRUTE W ET & DRY
230V INDUSTRIAL VACUUM CLEANER
The amazing Big Brute Wet and Dry will suck up water at the rate of ONE GALLON per second .
The Big Brute Wet and Dry will suck up water at the rate of one gallon per second!
It can also tackle the same jobs as any Big Brute Popular and Warehouseman, combining the best of both worlds
It is easy to empty and will deal with large recovery of water, mud, sludge, oils and coolants
BIG BRUTE WET & DRY
STANDARD SPECIFICATIONS:
Power 3 x 1 2kW by-pass motors
Capacity 180 litres, with heavy duty inlet spigot

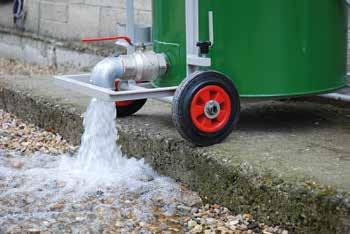

Drain valve 51mm (2”)
Filters Wet and Dry with liquid overfill protection
Hose Ø63mm polyurethane with steel bends & rubber cuffs
Trolley Heavy duty 4-wheeled rubber braked
Tool 1 metre Ø63mm aluminium scraper tool
Cable 10m long with plug
Max air flow rate 8,100 ltr/min
Noise levels 77 3 dB(A) @ 1m, 67 2 dB(A) @ 3m
Dimensions L1010 x W600 x H1300 mm
MODEL CHOICE:
BB400 Wet & Dry, 230v with 2” drain valve, 5m hose & scraper tool plus Easy Empty Spigot .
BB401 Wet & Dry, 230v with 2” drain valve, 10m hose & scraper tool plus Easy Empty Spigot .
BB402 Wet & Dry, 230v with 2” drain valve, 15m hose & scraper tool
BB403 Big Brute Wet Only , 230v with 2” drain valve, 300mm deep removable sieve, 5m hose & scraper tool
ACCESSORIES:
BB411 Wet & Dry Floor Wall & Ceiling Tool Kit Ø38mm (FWC-WD)
BB410 710mm Front Mounted Squeegee Tool, 830mm hose (FMFT-WET-01)
BB112 710mm Front Mounted Floor Tool Dry, 830mm hose (FMFT-DRY-01)
BB111 Extra Large Primary Round Filter (V39A), for dry mode only
BB113 Easy Empty Lift-Out Bag (V313)*
BB212 Black Bags (400g – 25” x 38” x 47”) Pack of 80 (DWB – 80)*
*NB Bags only suitable for use with Easy Empty Lift Out Spigot
SPARES:
BB137 Big Brute 230v Replacement Wet & Dry Power Unit (V151)
BB430 230v Lamb Bypass Motor BL21104RP (V438)
BB431 Wet & Dry Float Assembly (V175)
BB432 Standard Primary Round Filter (V39), for dry mode only For replacement hoses and scraper tool see opposite page
BIG BRUTE SUCK & DUMP
230V INDUSTRIAL VACUUM CLEANER
Ideal for safely emptying heavy, free-flowing waste into high-sided skips or hoppers
The Big Brute Suck & Dump models are ideal for safely emptying heavy, free-flowing waste into high-sided skips or hoppers, without the need for heavy lifting Their 4-wheeled trolleys have built-in forklift sockets so you can raise the whole Big Brute up and move it over to your waste skip The quick-release flap on the base allows you to discharge contents quickly and without mess Ideal for recycling material into process hoppers
Two versions are available: The Flat Base is an entry-level model ideal for use where cross-contamination isn’t critical The Cone Base model, with its angled hopper base, empties completely and is ideal for processing freeflowing waste where preventing cross-contamination is more critical Both models use the same accessories/options as the Big Brute Popular & Warehouseman

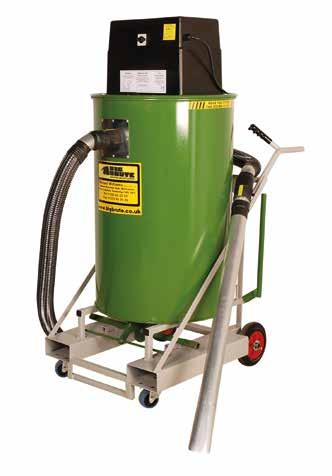

SUCK & DUMP, DRY – FLAT BASE
STANDARD SPECIFICATIONS:
Power 3 x 1 2 kW motors, 230v
Capacity 180 litres, with heavy duty inlet spigot
Emptying Via quick-release base flap
Filters Standard
Hose Ø63mm with steel bends and rubber couplers (length as selected)
Trolley Heavy duty, 4-wheeled, forklift trolley c/w rubber wheels
Forklift sockets Centres at 479mm (each W150 x H75mm)
Tool 1 metre long Ø63mm aluminium scraper
Cable 10 metres with 16A plug
Max air flow rate 8,100 ltr/min
Noise levels 77 3 dB(A) @ 1m, 67 2 dB(A) @ 3m
Dimensions L1010 x W640 x H1460 mm
MODEL CHOICE:
BB300 Suck & Dump, Dry Only –Flat Base, 230V c/w 5m hose & scraper tool
BB301 Suck & Dump, Dry Only – Flat Base, 230V c/w 10m hose & scraper tool
SUCK & DUMP, DRY – FLAT BASE & CONE BASE
ACCESSORIES
BB110 Dry Floor Wall & Ceiling Hand Tool Kit, 38mm (FWC-DRY)
BB311 710mm Front Mtd Floor Tool Dry, 1,020mm hose (FMFT-DRY-02) fits BB300/1
BB111 Extra Large Primary Round Filter (V39A) Recommended for fine dust applications (eg grain stores)
BB131 63mm dia Aluminium Scraper Tool, 1 metre long (V37) For replacement hoses and see previous pages

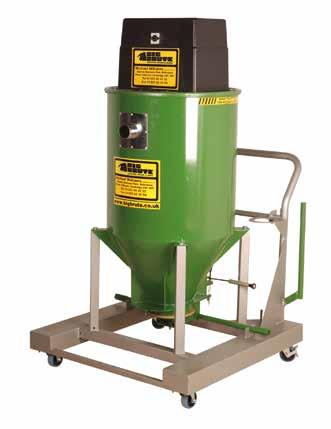

SUCK & DUMP, DRY - CONE BASE
STANDARD SPECIFICATIONS:
3 x 1 2 kW motors, 230v 180 litres, with heavy duty inlet spigot Via cone with quick-release flap
Standard
Hose Ø63mm with steel bends and rubber couplers (length as selected)
Trolley Heavy duty, 4-wheeled, forklift trolley c/w super-glide wheels
Forklift sockets BB302 : Centres at 827mm (each W200 x H75mm)
BB303 : Centres at 752mm (each W125 x H75mm)
Tool 1 metre long Ø63mm aluminium scraper
Cable 10 metres with 16A plug
Max air flow rate 8,100 ltr/min
Noise levels 77 3 dB(A) @ 1m, 67 2 dB(A) @ 3m
Dimensions L1100 x W1040 x H1460 mm
MODEL CHOICE:
BB302 Suck & Dump, Dry Only – Cone Base WT, 230V c/w 5m hose & scraper tool
BB303 Suck & Dump, Dry Only – Cone Base ST, 230V c/w 10m hose & scraper tool
SPARES
BB136 Big Brute 230v Replacement Dry Power Unit (V148)
BB132 240v DAF Lamb Motor DL21104T (drilled and tapped) plus gasket (V1004)
BB130 3 Position Switch – 0,1, 2, 3 (V1500)
BB432 Standard Primary Round Filter (V39)
BB433 Secondary Square Filter c/w cage & holes (V40)
BB434 Motor Mount Ring 143mm OD x 100mm ID (use with BB433)
