Introducing Trex Composite Decking

Trex Composite Decking is a wood-plastic composite (WPC) decking system that replicates the look of timber boards, providing a slip resistant alternative to wood that is versatile, durable and requires less maintenance than traditional timber decking. Trex is the leading name in wood alternative decking and offer a range of products to suit the aesthetics and budget of any project.

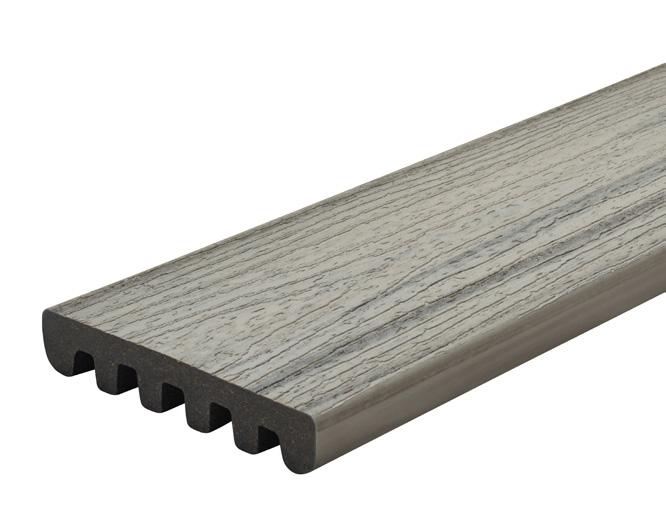

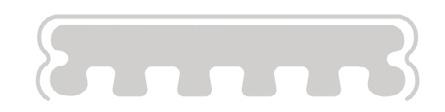

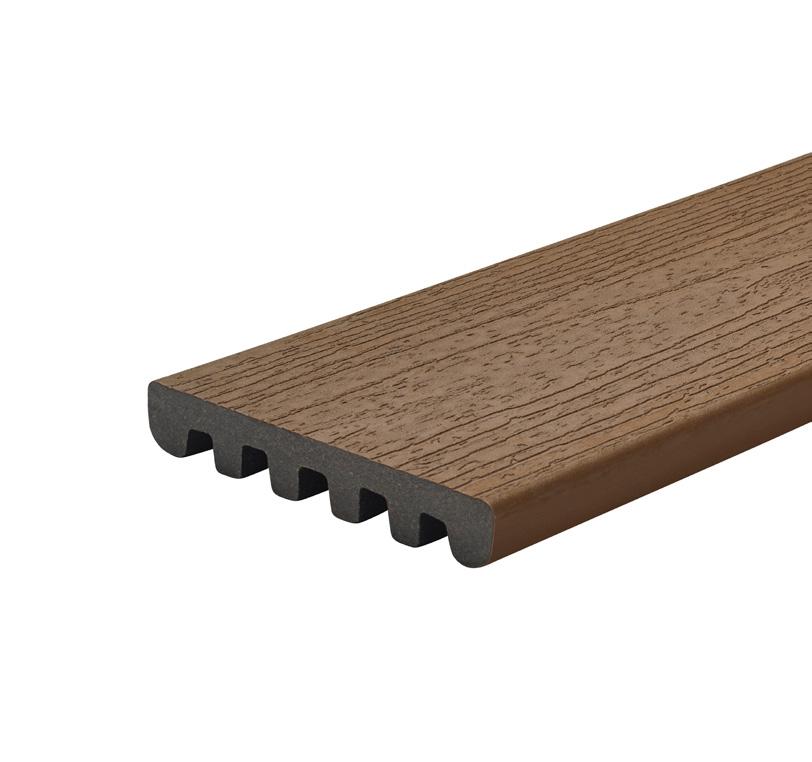

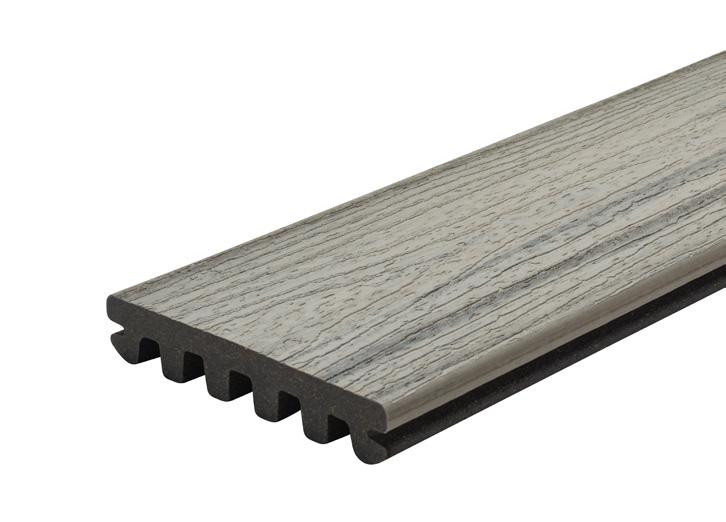

Enhance is available in two collections; Basics and Naturals. These boards feature a unique scalloped underside that helps reduce the amount of material used without sacrificing strength or how far the boards can span between supports.

Transcend is Trex’s original decking board system, available in Tropical and Lineage collections. This range combines Trex’s most durable scratch resistant surface with their strongest core to create a decking solution that will last a lifetime.

Signature is a premium decking range launched in 2024 that offers the most lifelike natural wood appearance of any WPC available on the market, with subtle tone variations and realistic woodgrain texture creating a luxurious but low maintenance aesthetic for any outdoor space.

Board types

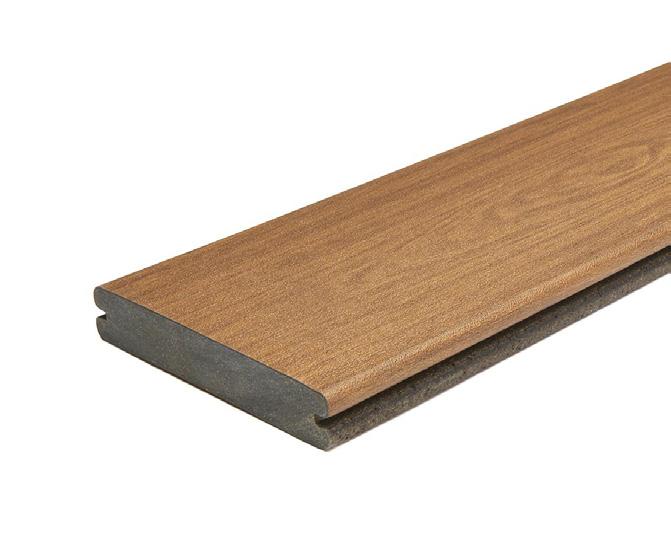

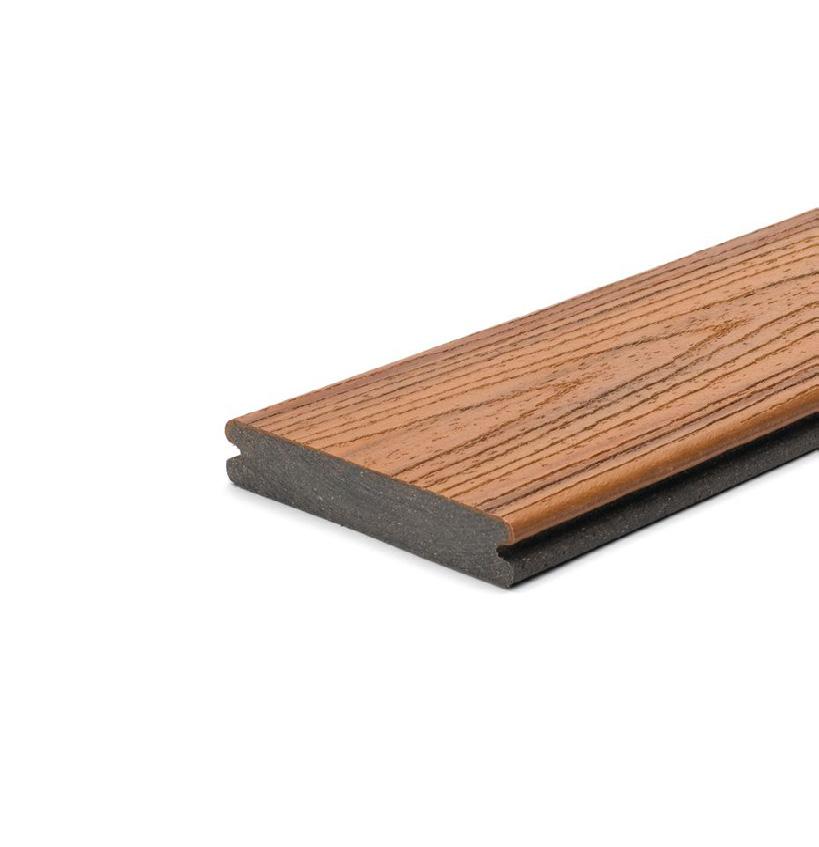

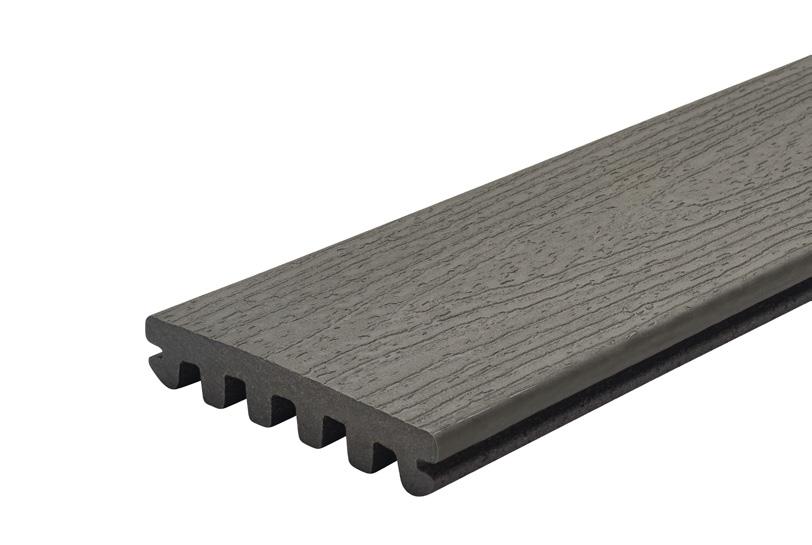

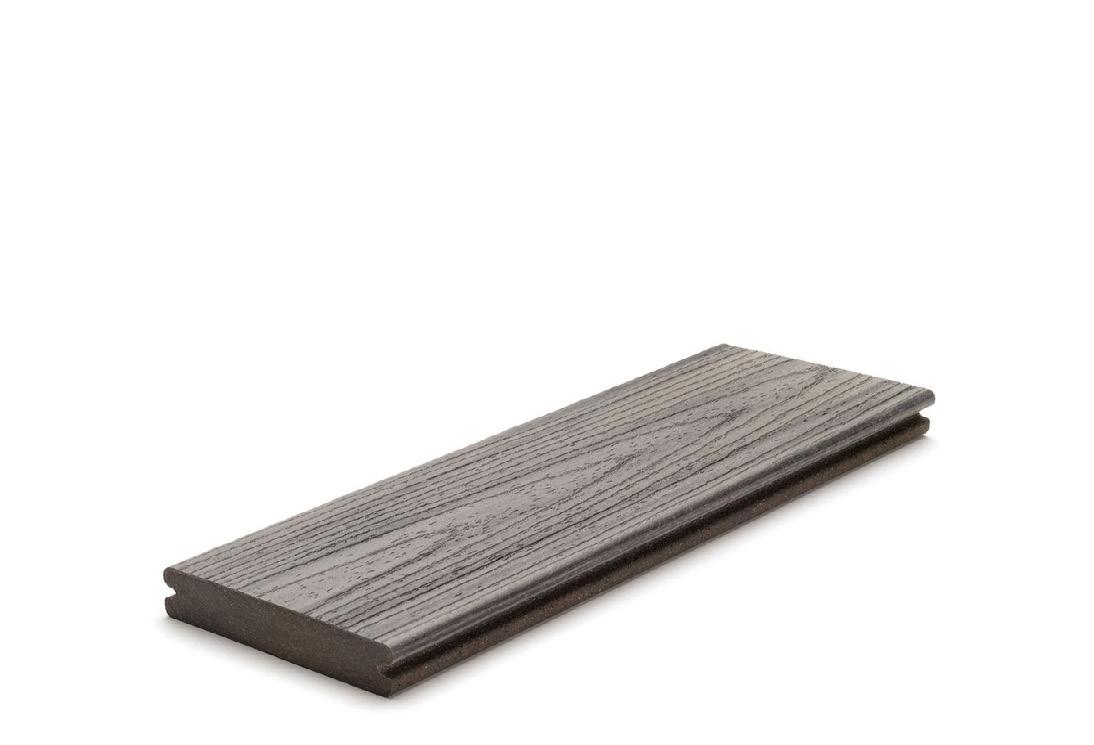

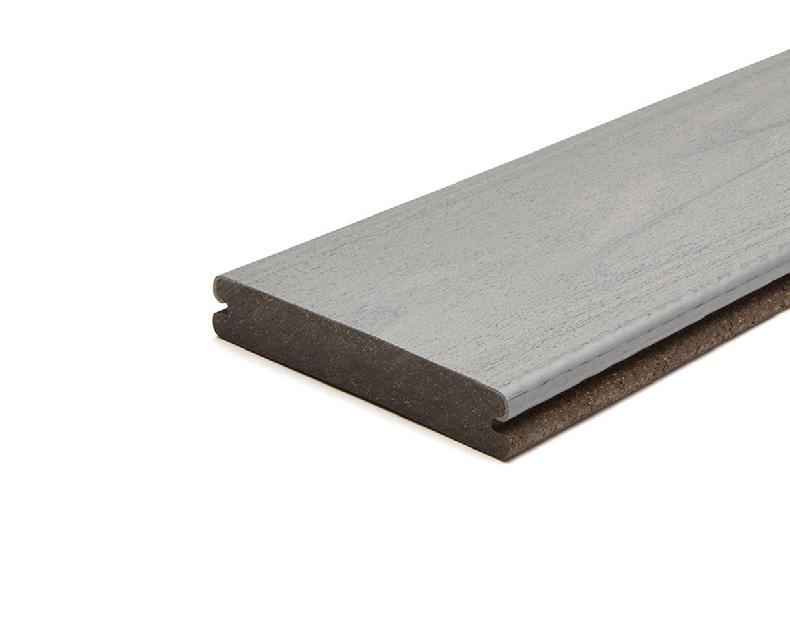

Grooved edge

These boards typically comprise the majority of a decking project.

Installation requires Trex Hidden Fasteners, which securely hold the boards in place while allowing for thermal expansion and contraction without the need to fix through the surface of the board.

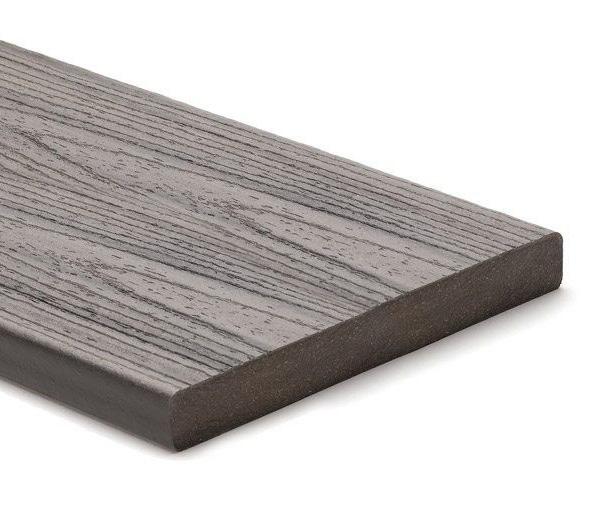

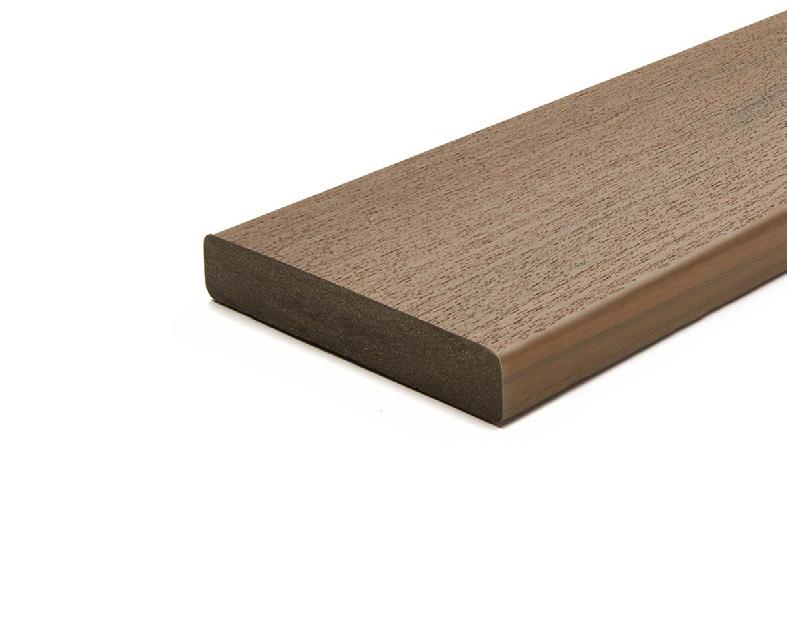

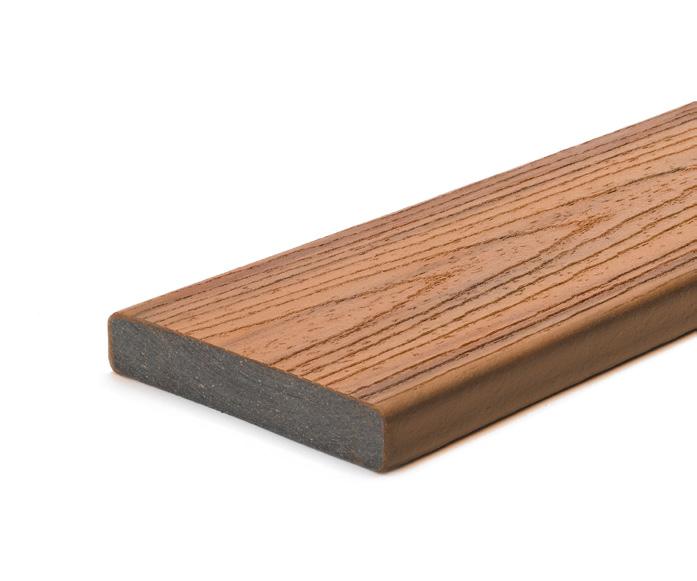

Square edge

These boards provide a tidy visible edge for boards used around the perimeter of a deck.

Square boards are often used to frame the main deck, on stairs and for fascia applications.

Square edge boards can be fastened through the face of the board using colour-matched screws or Pro-Plug fixing systems.

Square boards are often used to frame the main deck, on stairs and for fascia applications. Square edge boards can be fastened through the face of the board using colour-matched screws or ProPlug fixing systems.

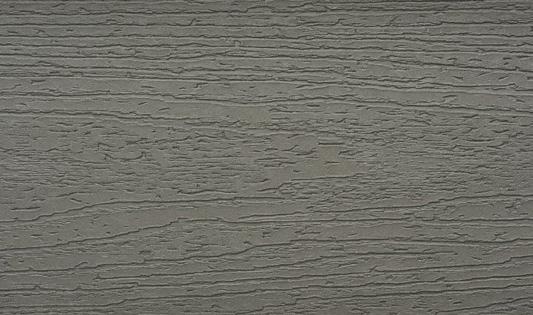

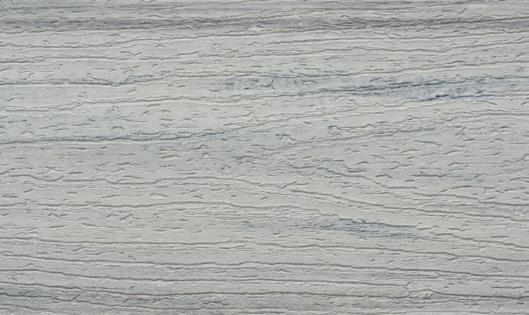

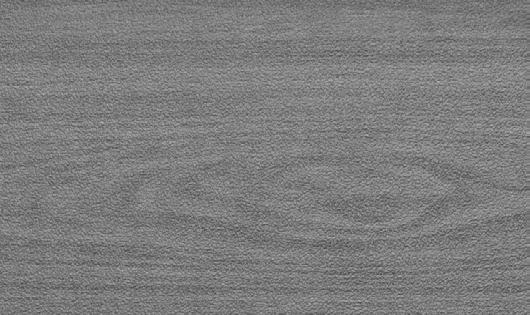

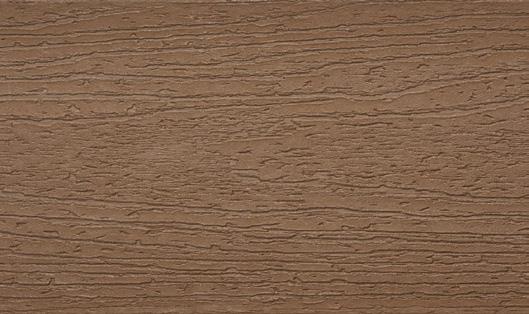

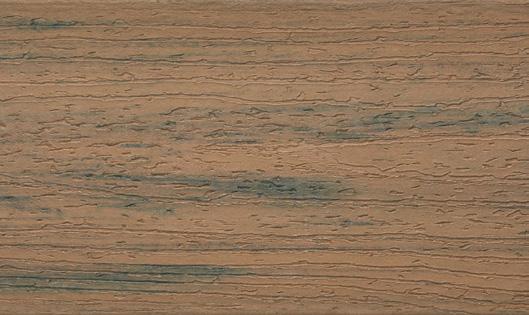

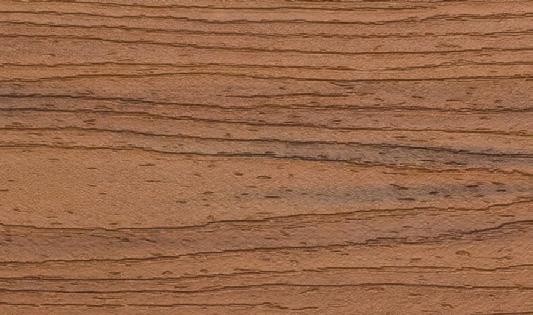

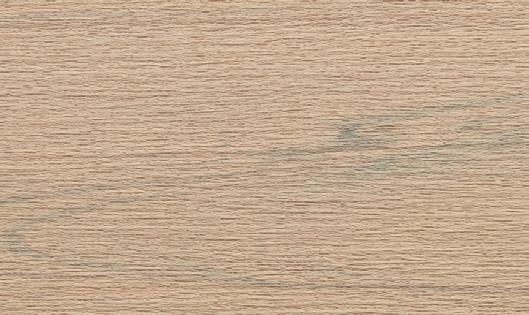

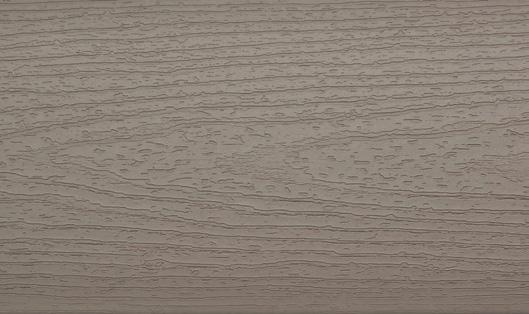

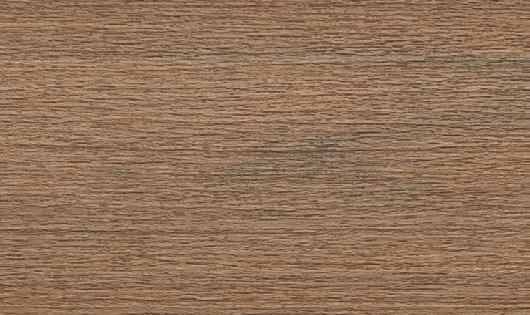

Colours and textures

The right colour decking can set the tone for any outdoor area. With this in mind, Trex has developed an array of rich, fade resistant colours to complement all kinds of exterior space.

A selected range of Enhance and Transcend decking is held in stock at Southern Sheeting. The luxury Signature line is available to order.

Enhance Basics

Enhance Naturals

Transcend Tropicals

Transcend Lineage

Please note this chart is to be used as a colour reference guide only.

Printer or screen display setting can vary and so we recommend choosing a colour based on a physical sample piece.

*While stocks last

Clam Shell CS Saddle* SA

Calm Water CW Foggy Wharf FW

Rocky Harbor RH Toasted Sand TS

Biscayne BI Jasper JA

Island Mist IM Tiki Torch* TT

Rainier RA

Ocracoke

Tide Pool

Carmel CL

Trex Composite Decking Ranges

Trex offers three ranges, each providing a slip-resistant alternative to traditional wood decking that is versatile, durable and requires less maintenance.

Whether your project prioritises unparalleled aesthetics, superior durability, or an attractive price point, Trex has the perfect deck board solution to elevate any outdoor area.

Available Lengths:

4.88m Grooved edge (from stock) Code: TX1EBGB4.88-**

3.66m Grooved Edge (from stock) Code: TX1EBGB3.66-**

4.88m Square Edge (from stock) Code:TX1EBSB4.88-**

Available in three solid colours, this is a great entry-level product that will out-perform all competitor composites within the same price-point.

Width: 140mm

Thickness: 25mm

Residential Warranty: 25 years

Commercial Warranty: 10 years

Colour Swatches: CS Clam Shell, SA Saddle*, TP Tide Pool

Available Lengths:

4.88m Grooved edge (from stock) Code: TX1ENGB4.88-**

3.66m Grooved Edge (from stock) Code: TX1ENGB3.66-**

4.88m Square Edge (from stock) Code: TX1ENSB4.88-**

Available in four popular colours, streaked to ensure each board has a unique pattern.

Width: 140mm

Thickness: 25mm

Residential Warranty: 25 years

Commercial Warranty: 10 years

Colour Swatches: CW Calm Water, FW Foggy Wharf, RH Rocky Harbour, TS Toasted Sand

Available Lengths:

4.88m Grooved edge (from stock) Code: TX1TGB4.88-**

3.66m Grooved Edge (from stock) Code: TX1TGB3.66-**

4.88m Square Edge (from stock) Code: TX1TSB4.88-**

Available Lengths:

4.88m Grooved edge (from stock) Code: TX1TGB4.88-**

3.66m Grooved Edge (to order) Code: TX5TGB3.66-**

4.88m Square Edge (from stock) Code: TX1TSB4.88-**

Available Lengths:

4.88m Grooved edge (to order) Code: TX5SGB4.88-**

3.66m Grooved Edge (to order) Code: TX5SGB3.66-**

4.88m Square Edge (to order) Code: TX5SSB4.88-**

Solid board with hard-wearing shell that incorporates a deep embossed woodgrain effect.

Width: 140mm

Thickness: 25mm

Residential Warranty: 50 years

Commercial Warranty: 10 years

Colour Swatches: IM Island Mist, TT Tiki Torch*

A smooth-sanded finish that maintains great durability and high slip-resistance.

Width: 140mm

Thickness: 25mm

Residential Warranty: 50 years

Commercial Warranty: 10 years

Colour Swatches: BI Biscayne, CL Carmel, JA Jasper, RA Rainier

Market leading decking board manufactured using new technology that allows a lifelike hardwood timber appearance with a highly scratch and impact resistant, yet clear, shell capping.

Width: 140mm

Thickness: 25mm

Residential Warranty: 50 years

Commercial Warranty: 10 years

Colour Swatches: OC Ocracoke, WD Whidbey

CL JA

WD OC

Trex fixings and accessories

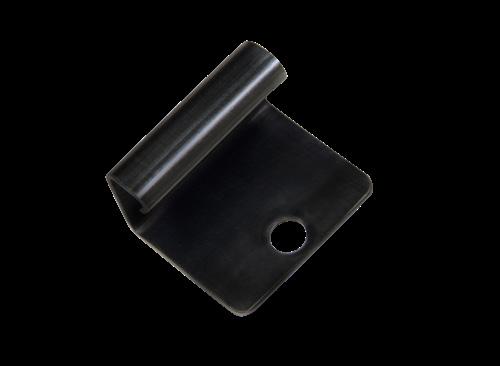

Trex starter clips (bag of 36)

Some fixing ranges are available with screws suitable for aluminium and steel substructures. Please ask our team for more details

The world’s No 1 decking brand

Code: TX1STACLIP (from stock)

Used to fasten the first board in a run of grooved edge boards. 36 clips and screws per bag. Allow 2.5 clips per linear metre from starting or finishing board.

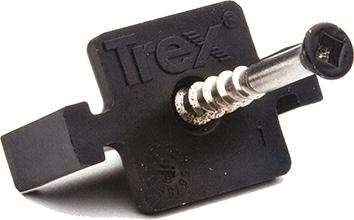

Trex hidden fasteners (box of 90)

Code: TX1STACLIP (from stock)

Used to fix grooved edge boards. A box of 90 hidden fasteners will cover (on average) 4.5m² of decking.

Supplied with stainless steel screws attached to fasteners and drill bit in bag.

Trex hidden fasteners (bucket of 900)

Code: TX1HIDCLIPBUK (from stock)

Used to fix grooved edge boards. A bucket of 900 hidden fasteners will cover (on average) 45m² of decking.

Supplied with stainless steel screws attached to fasteners and drill bit in bucket.

Decking Screws

Decking Plugs

Trex protect tape

Decking Screws

Screws designed for face-fixing square edge boards. To be used in combination with matching Trex decking plugs for a clean, invisible finish.

Code: TX1SCREW63 (from stock)

Box of 350

63mm screw suitable for Transcend/Lineage/Signature

Code: TX1SCREW51 (from stock)

Box of 400 51mm screw suitable for Enhance only

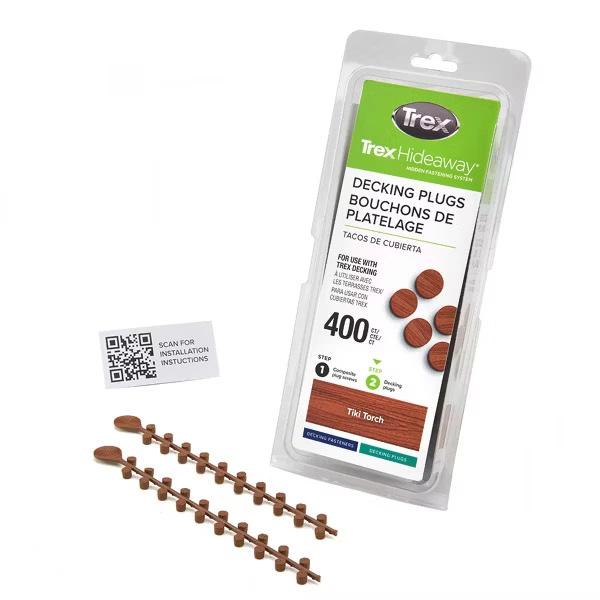

Decking Plugs

Colour-matched plugs for use with decking screws. Conceals fixings for a seamless finish.

Code: TX1DPLUG-XX (from stock)

Box of 400 Colour matched plugs suitable for Transcend/Lineage/Signature

Code: TX1ENDPLUG-XX

Box of 416

Suitable for Enhance only

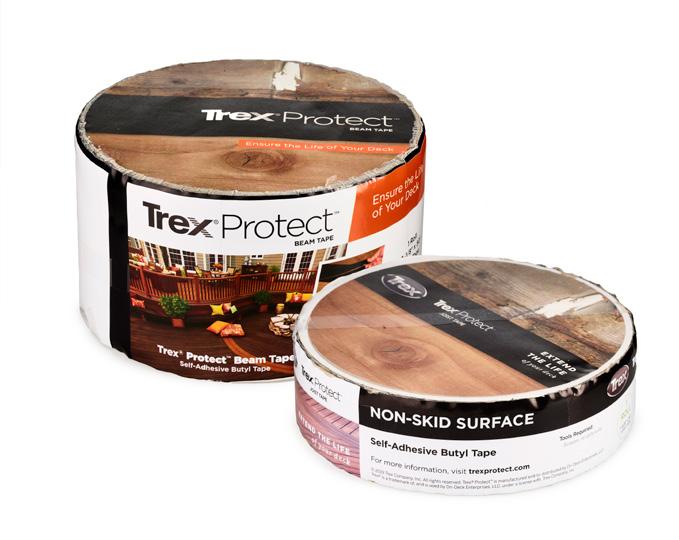

Code: TX1TAPE (from stock)

Available sizes:

20m long roll x 50mm - Joist Tape TX1TAPE-50

20m long roll x 100mm wide - Beam Tape TX1TAPE-100

15.24m long roll x 280mm wide - Rim Tape TX1TAPE-280

Self-adhesive butyl tape used along the top of timber joists to extend the life of the subframe while still allowing the timber to breathe. Backed by a 25-year warranty.

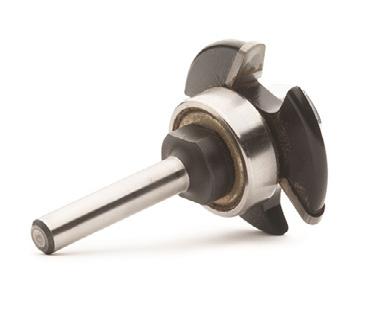

Code: TX1CUTTER (from stock)

Router tool used to create grooves in square edge boards so that they can be fixed with hidden fasteners and starter clips if needed.

Trex groove cutter

Trex fixings and accessories

Fascia boards

Trex railing systems

Signature railing system

Signature glass railing system

Code: TX5TFB184-** (to order)

3.66m long x 184mm wide x 14mm

Trex fascia boards are available to suit every decking board colour and finish, as well as Woodgrain White.

184mm depth to allow for deeper cover of skirting and stair risers than standard deck boards.

These thinner 14mm-thick boards allows fascia boards to be shaped around curved applications.

Trex fascia boards are a non-stock item. Please enquire for availability.

For a quote, please contact our Sales team with dimensions

An easy-to-install, hard-wearing powder coated post and rail system.

Available in both black and brown to compliment your choice of decking board. Innovative system elements enable easy install on both straight runs and stair runs.

Trex Signature Railings are non-stock items. Please enquire for availability.

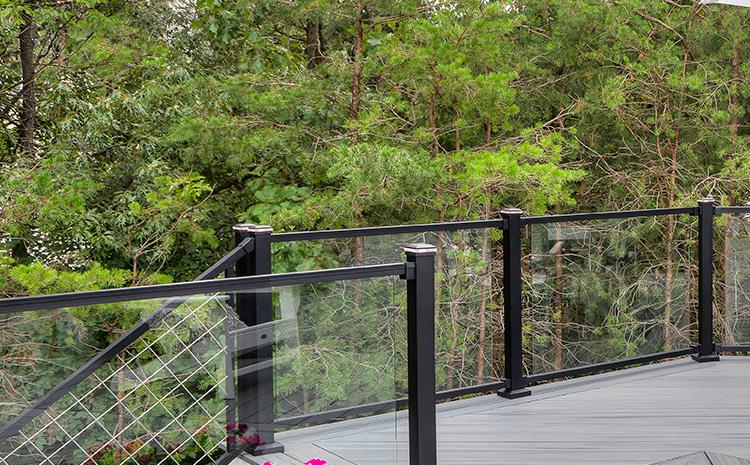

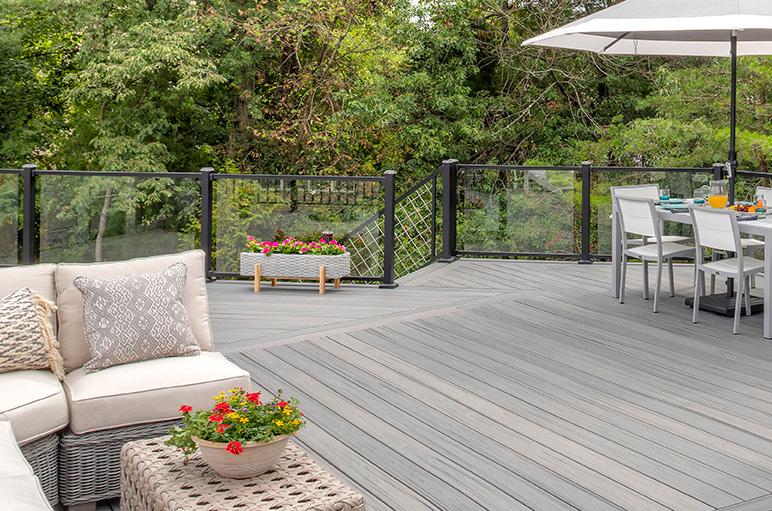

Combines the traditional Trex Signature aluminium posts system with tempered glass infill panels for a contemporary, minimalist aesthetic.

Trex Signature Railings are non-stock items. Please enquire for availability.

Other railing systems, which incorporate stainless steel posts or frameless finishes are also available, please contact our sales team for more information

Subframes

Recycled plastic posts and joists

UC4 treated timber joists

Subframe fixings

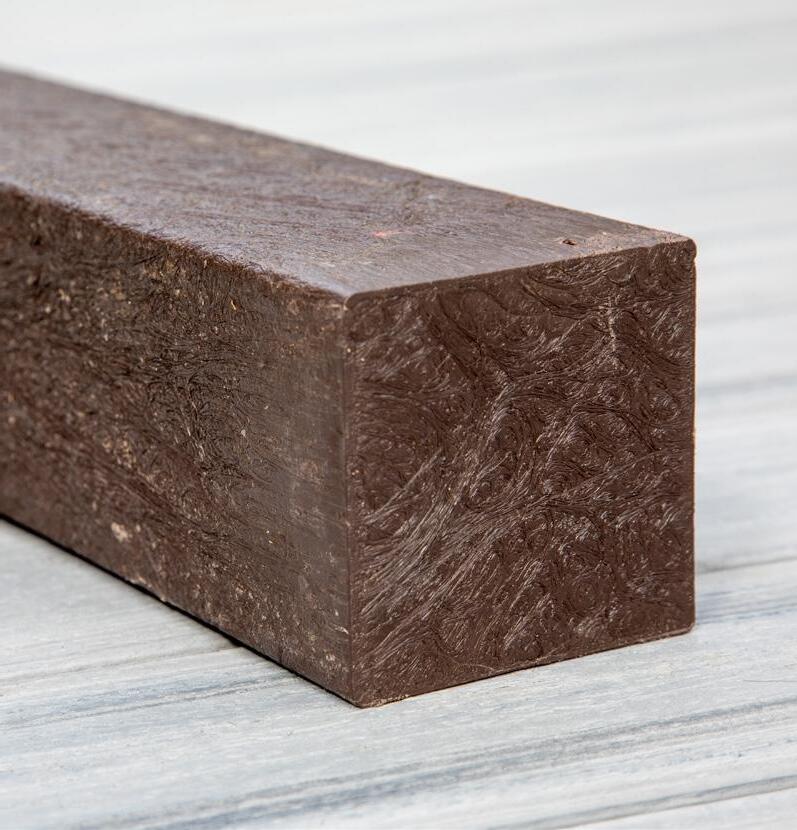

Arborjoist posts and joists are manufactured from 100% recycled plastic ensuring a strong, durable subframe for your Trex Composite decking project. All ArborJoist products are also supplied with a 20-year manufacturer’s warranty.

Available sizes:

3000mm x 100mm x 100mm Posts (from stock) Code: TX1ARBJO-100

3000mm x 50mm x 50mm Posts (to order) Code: TX5ARBJO-50

3000mm x 100mm x 50mm Joist (to order) Code: TX5ARBJO-50/100

3000mm x 125mm x 50mm Joist (to order) Code: TX5ARBJO-125

3000mm x 150mm x 50mm Joist (to order) Code: TX5ARBJO-150

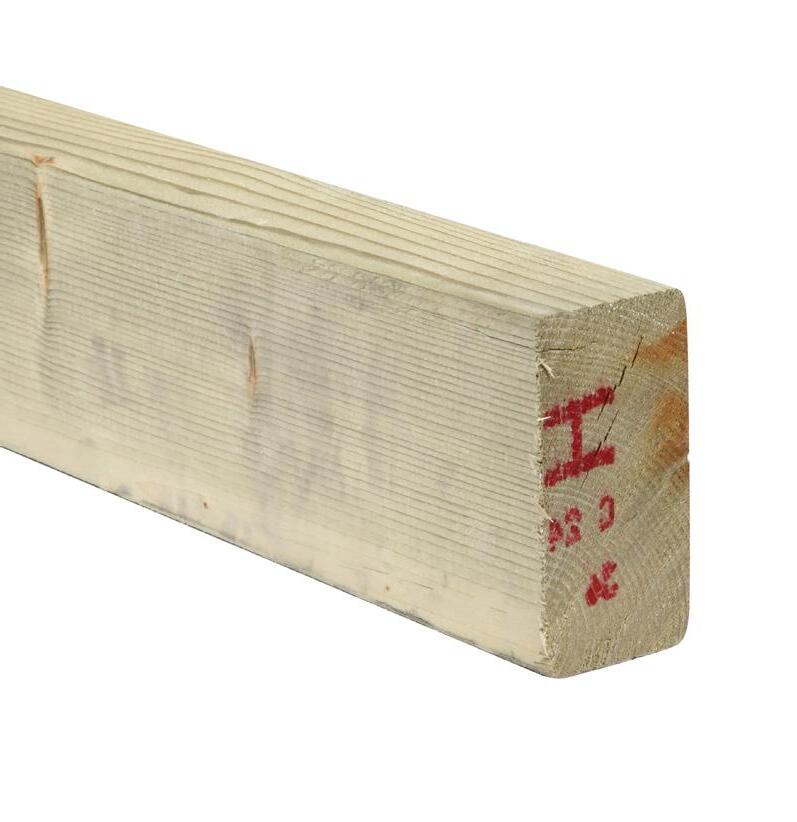

UC4 timber is specially treated to withstand direct contact with the ground and frequent exposure to moisture. This makes it the ideal choice for decking subframes, ensuring the structure endures as long as the deck surface. UC4 treated timber creates a solid, stable base that prevents rot and extends the overall lifespan of a decking area.

Available in 4x2 and 6x2 lengths:

3600mm x 100mm x 47mm (from stock) Code: TI1UC4100x47-3.6

4800mm x 100mm x 47mm (from stock) Code: TI1UC4100x47-4.8

3600mm x 150mm x 47mm (from stock) Code: TI1UC4150x47-3.6

4800mm x 150mm x 47mm (from stock) Code: TI1UC4150x47-4.8

End Grain Timber Preserve – 1 litre (from stock) Code: TI1ENDCOAT

Carpenters Mate Pro Hex Head screws are the ideal self-drilling screws to assemble your decking subframe. Features a selfcountersinking head with wide washer for increased holding power. An 8mm driver socket is included in each box.

Available fixings:

Size: Box of 250 x 90mm long x 6.3mm diameter (from stock)

Code: TL1HEXSCREW-90

Size: Box of 250 x 140mm long x 6.3mm diameter (from stock)

Code: TL1HEXSCREW-140

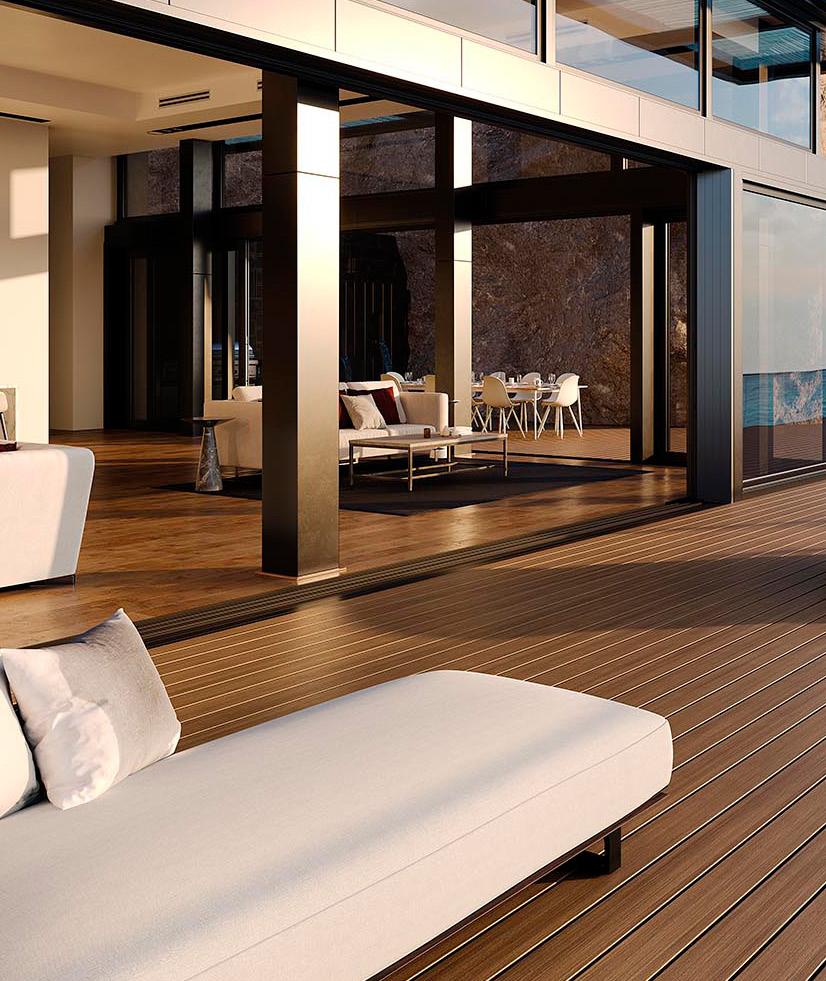

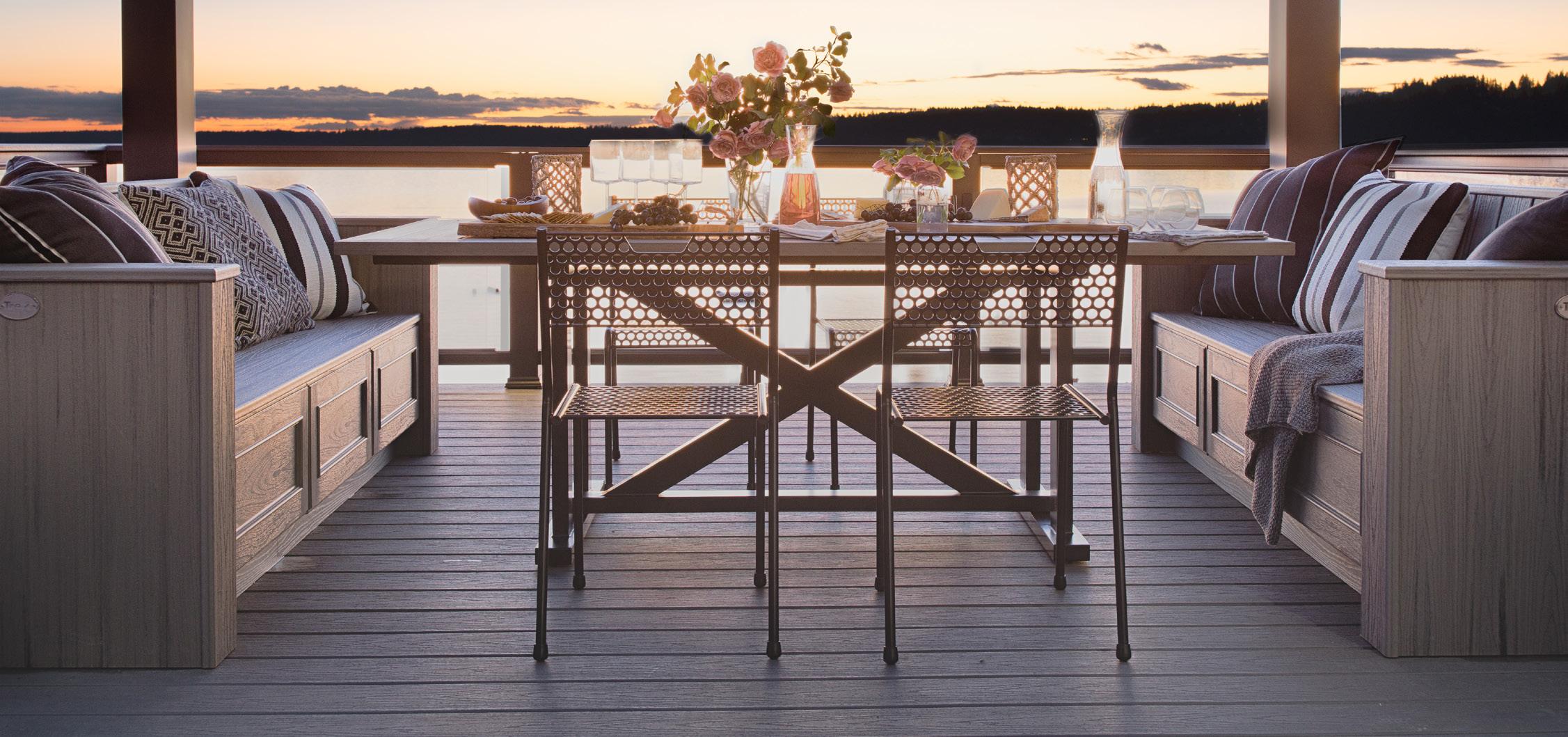

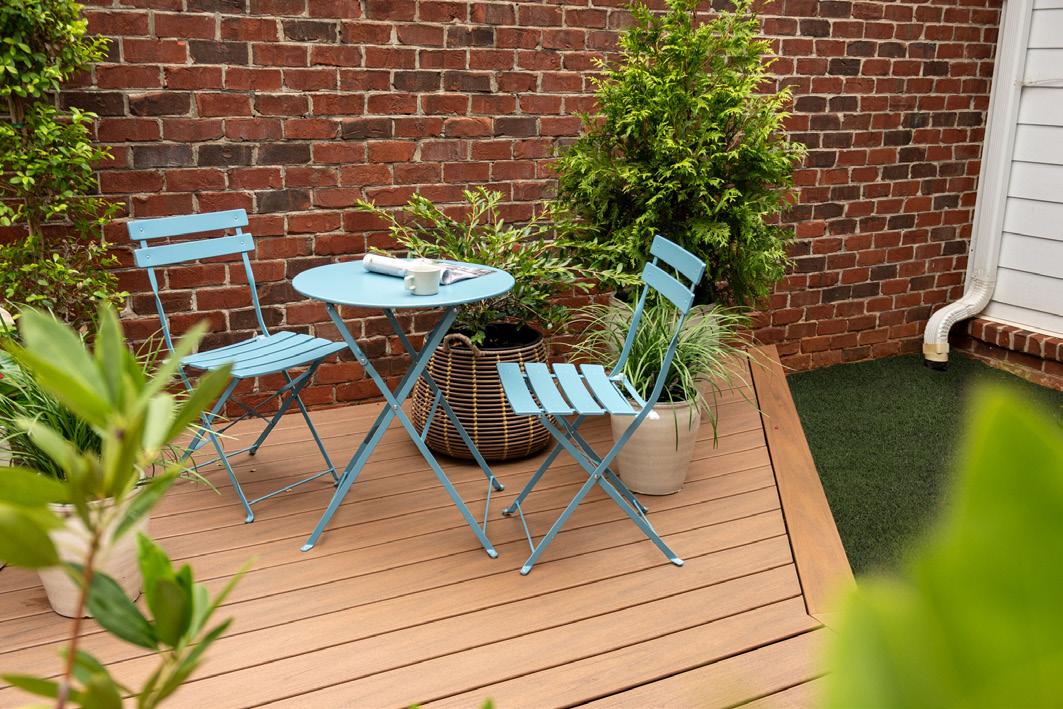

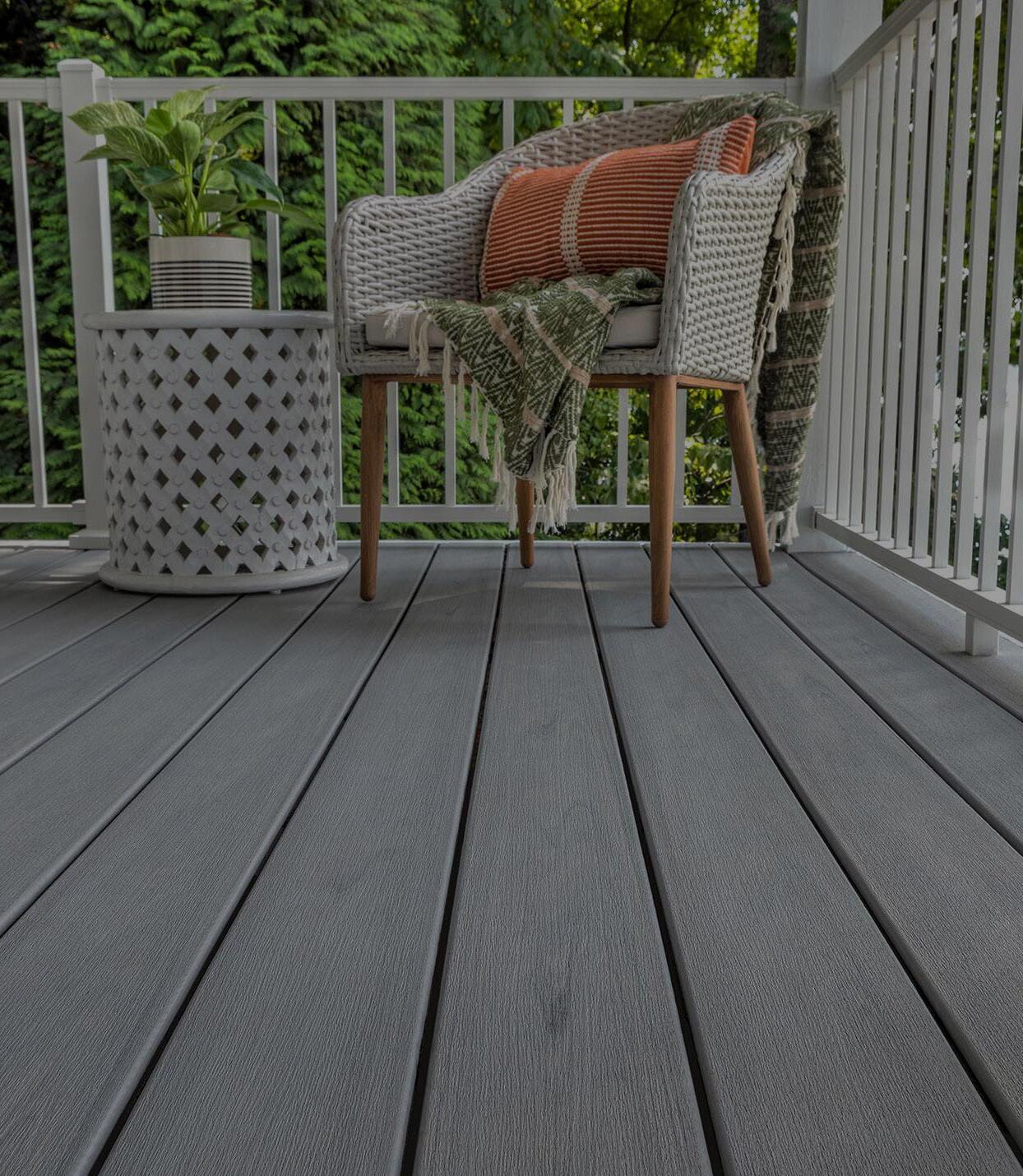

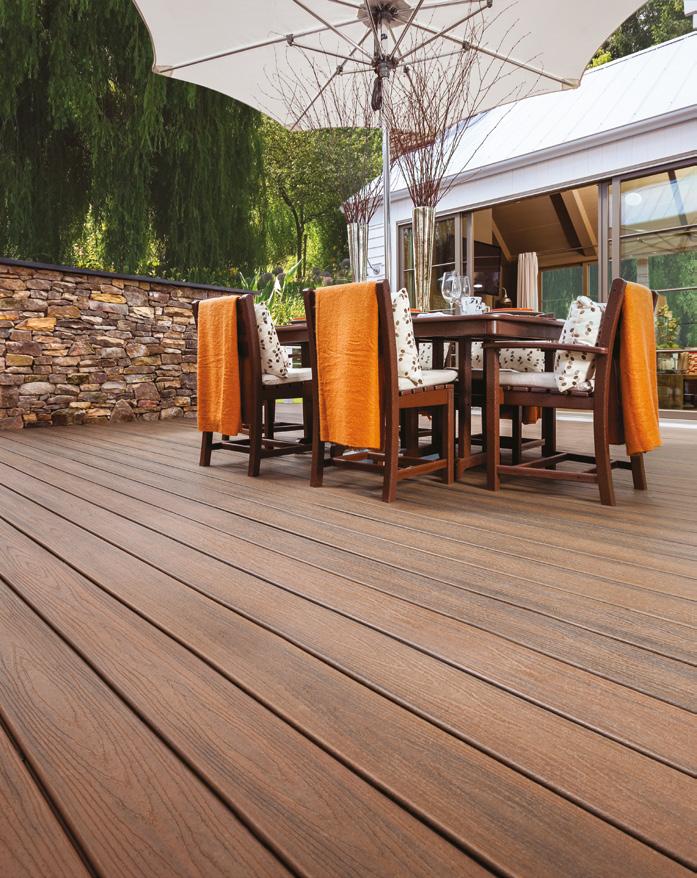

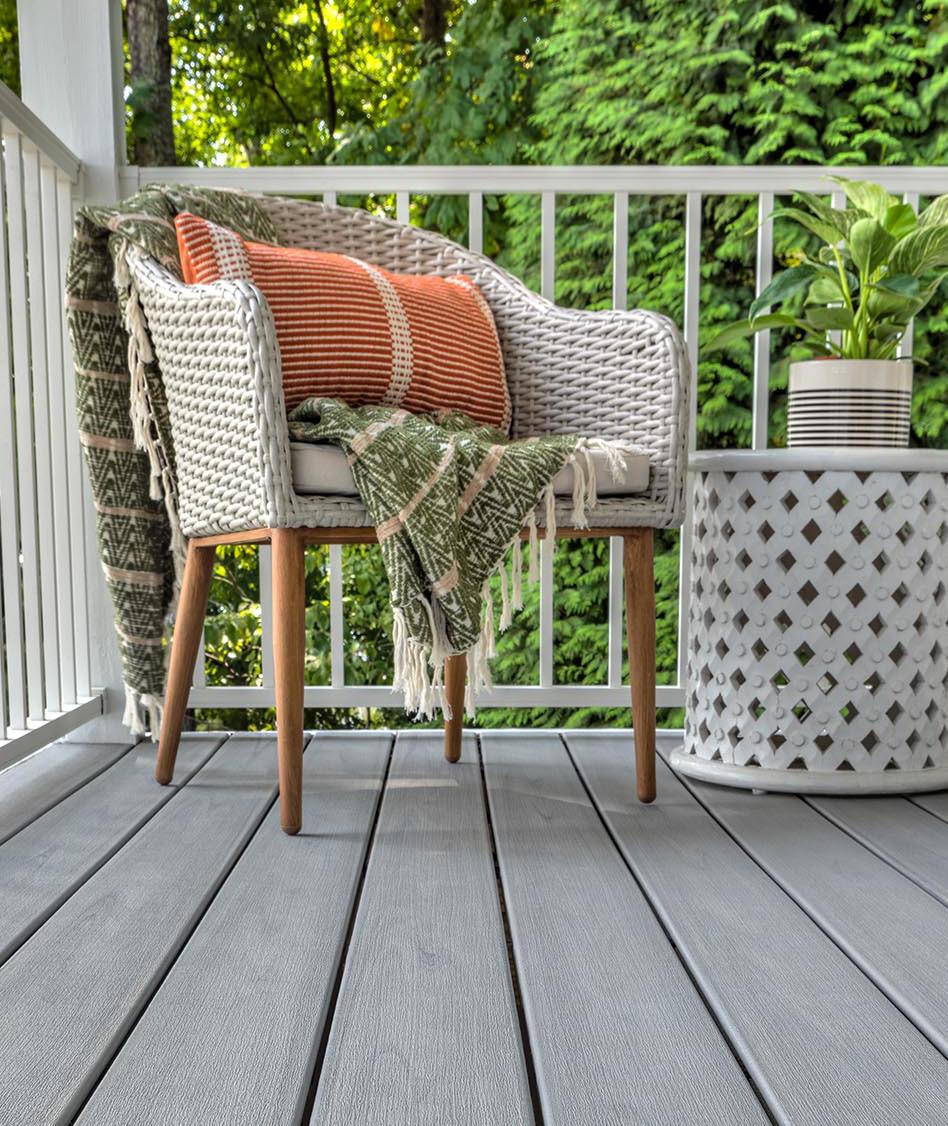

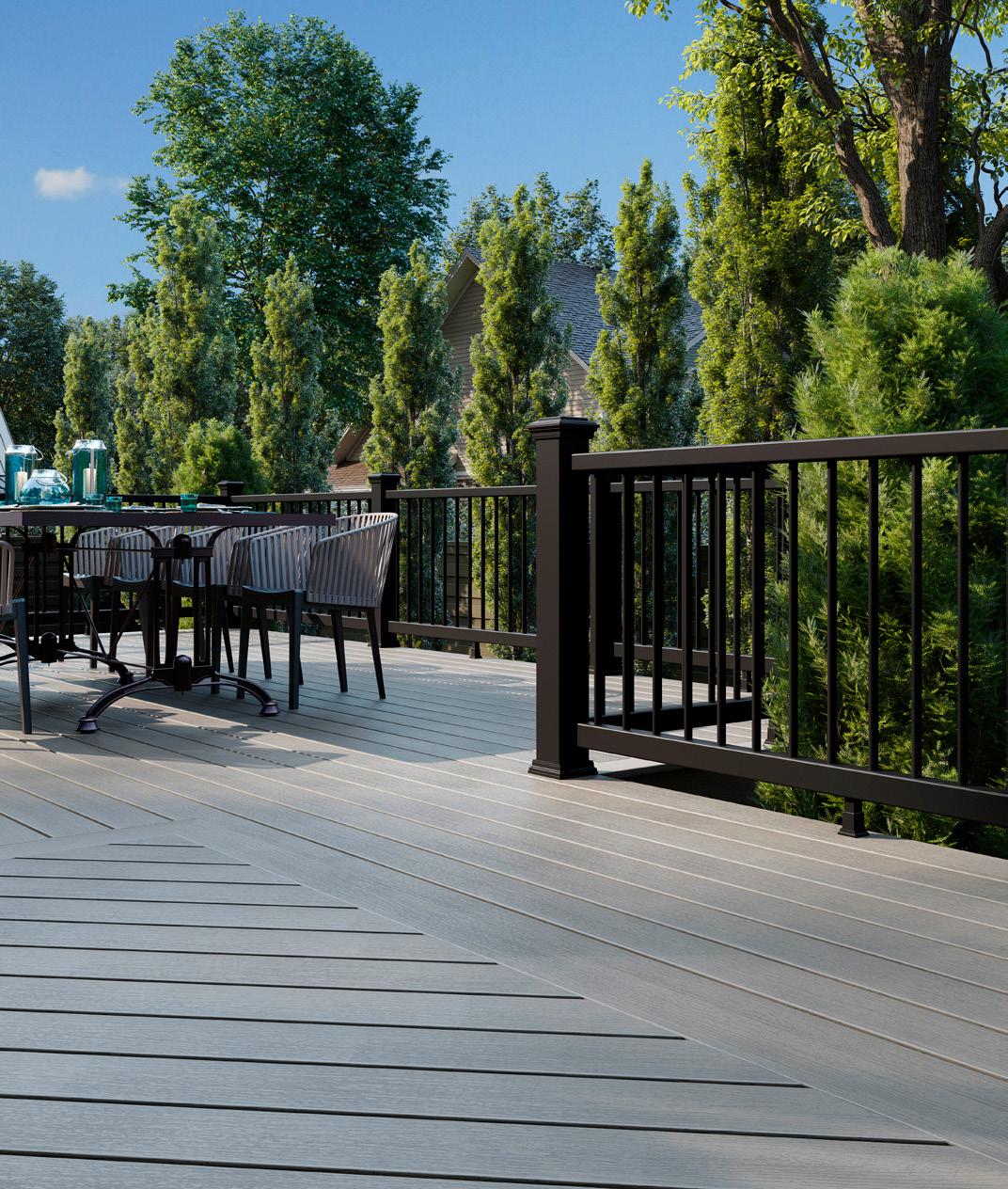

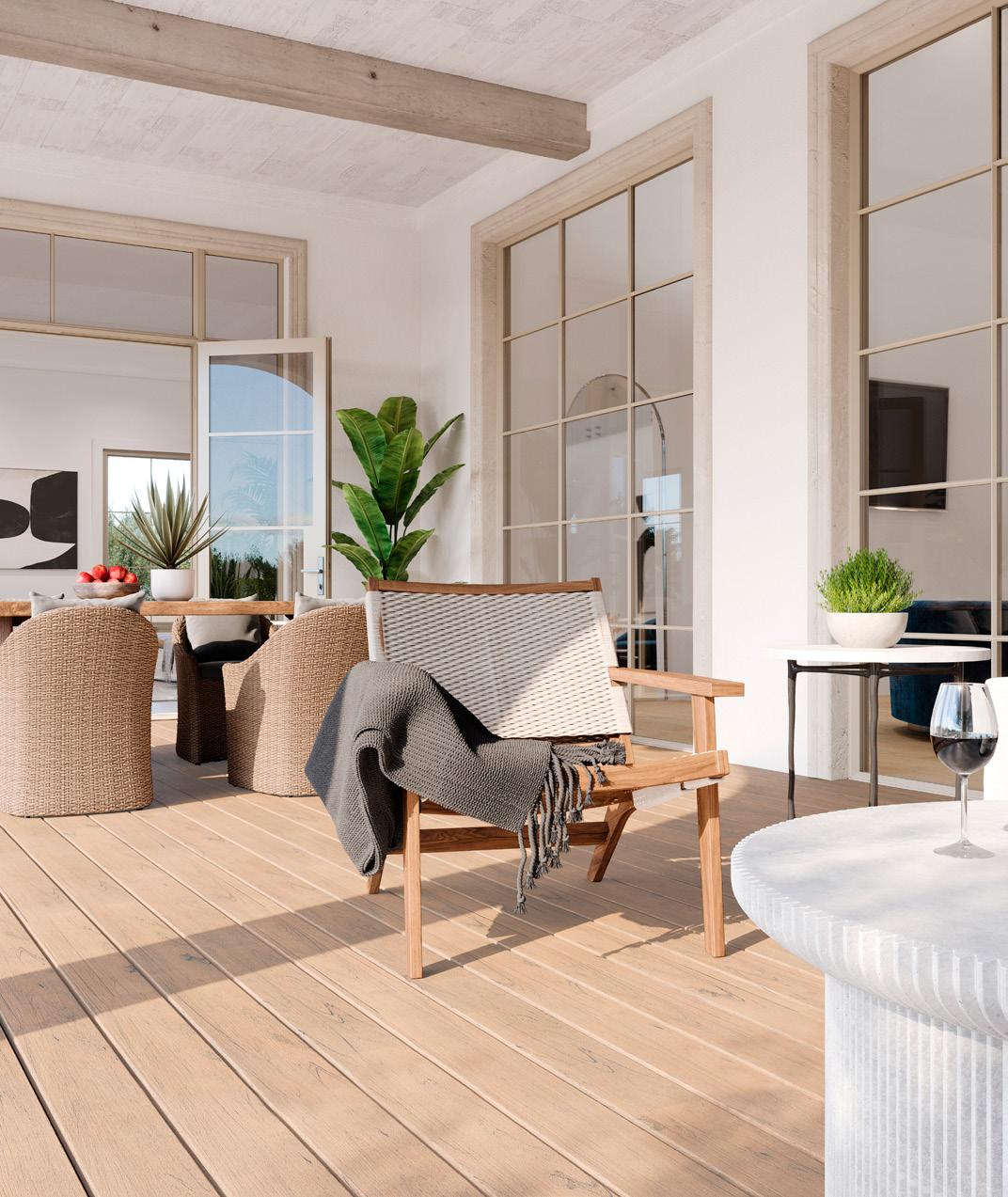

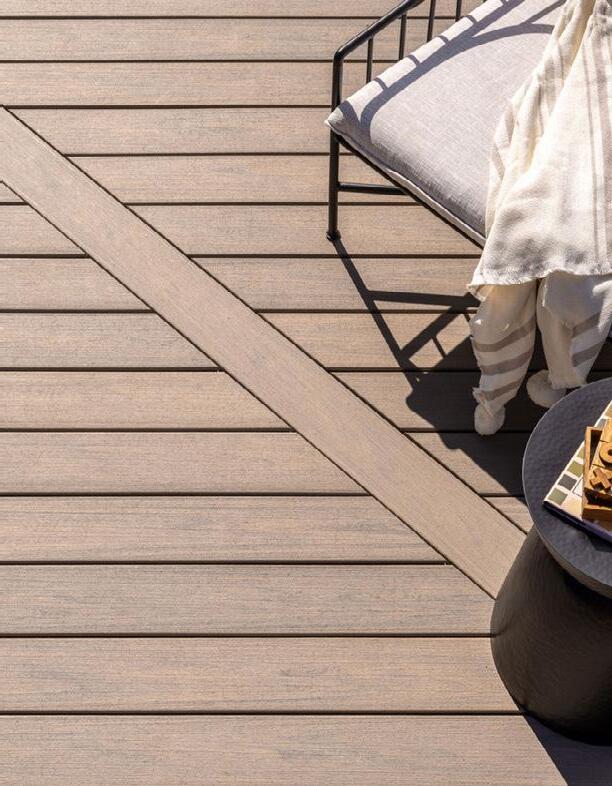

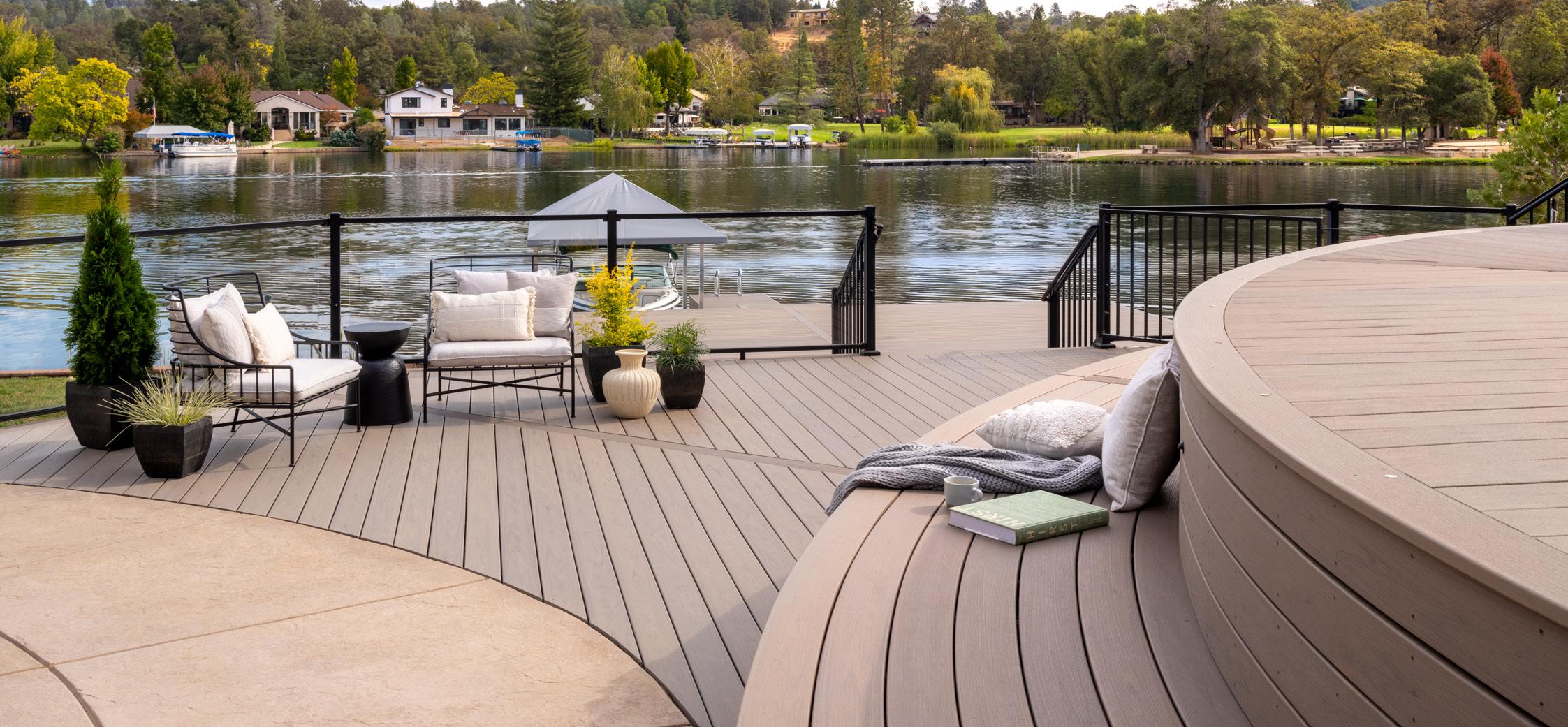

Lifestyle images

The world’s No 1 decking brand

Explore the stunning possibilities that Trex decking products bring to any outdoor space. The versatility, durability, and aesthetic appeal of Trex can transform any outside area into a stylish and functional retreat.
