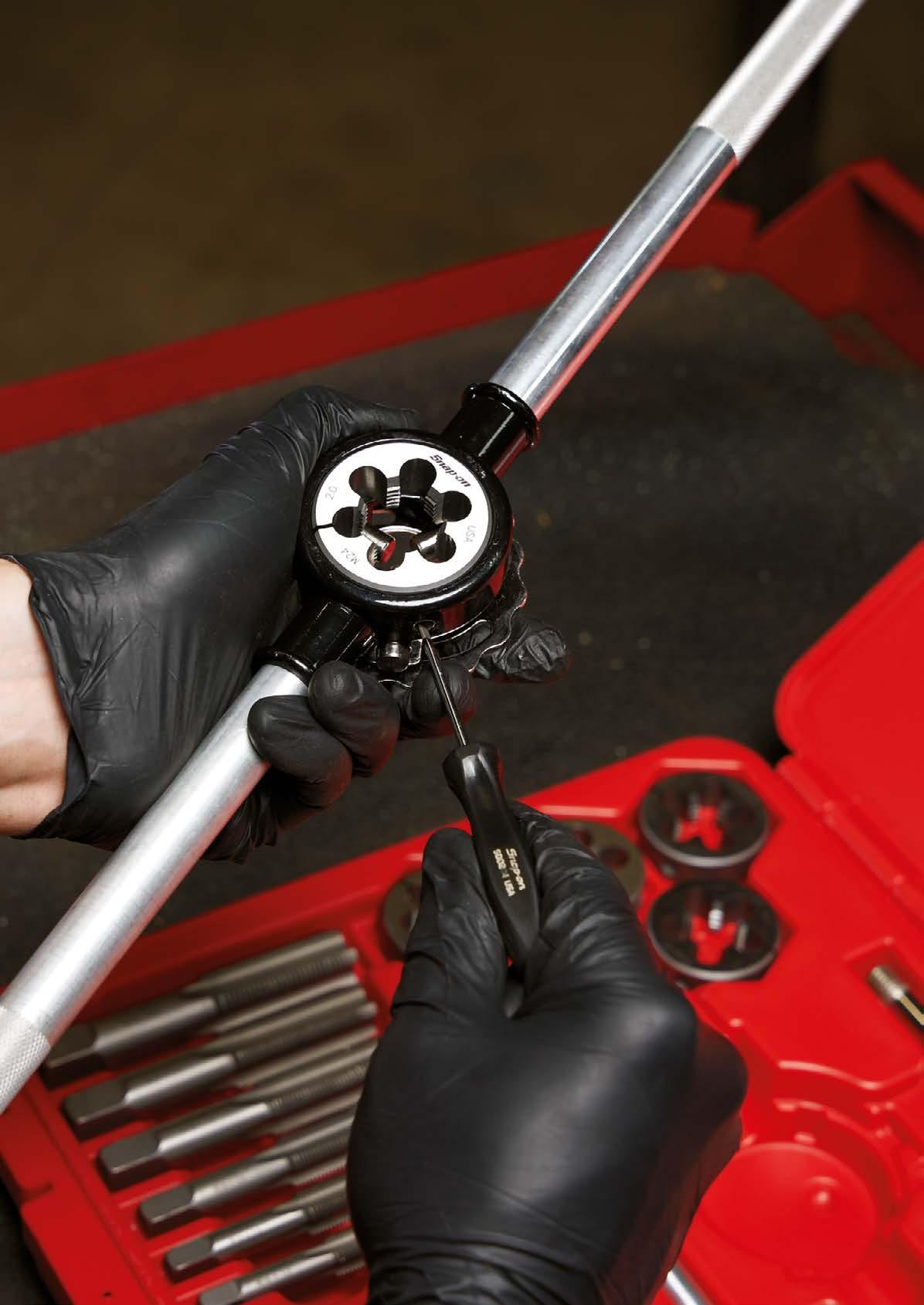

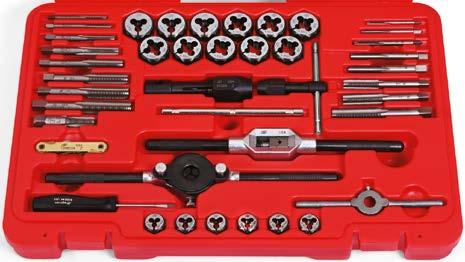

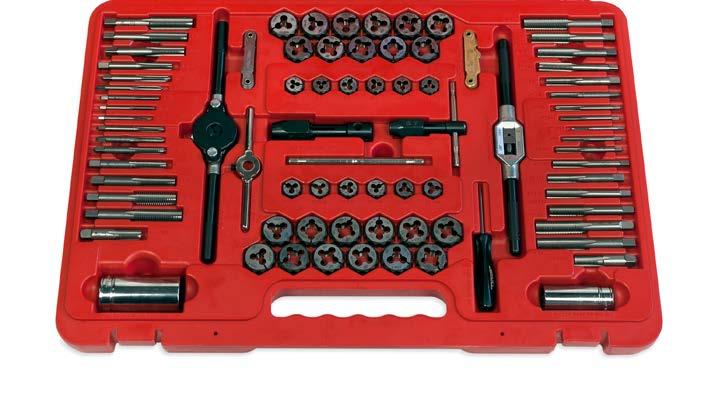

TAP & DIE SETS
This metric thread range is ideal for heavy duty applications
This metric thread range is ideal for everyday jobs
Snap-on taps and dies are manufactured in the USA from tough, long-lasting carbon steel
All taps & dies are backward-compatible with past Snap-on sets
Set includes a huge range of tap wrenches, die stocks, thread gauges and exclusive die sockets, ideal for all your tapping needs
Wider tapped flutes for faster swart clearing
Double hex precision dies allow for improved grip & control during thread cutting and rethreading applications

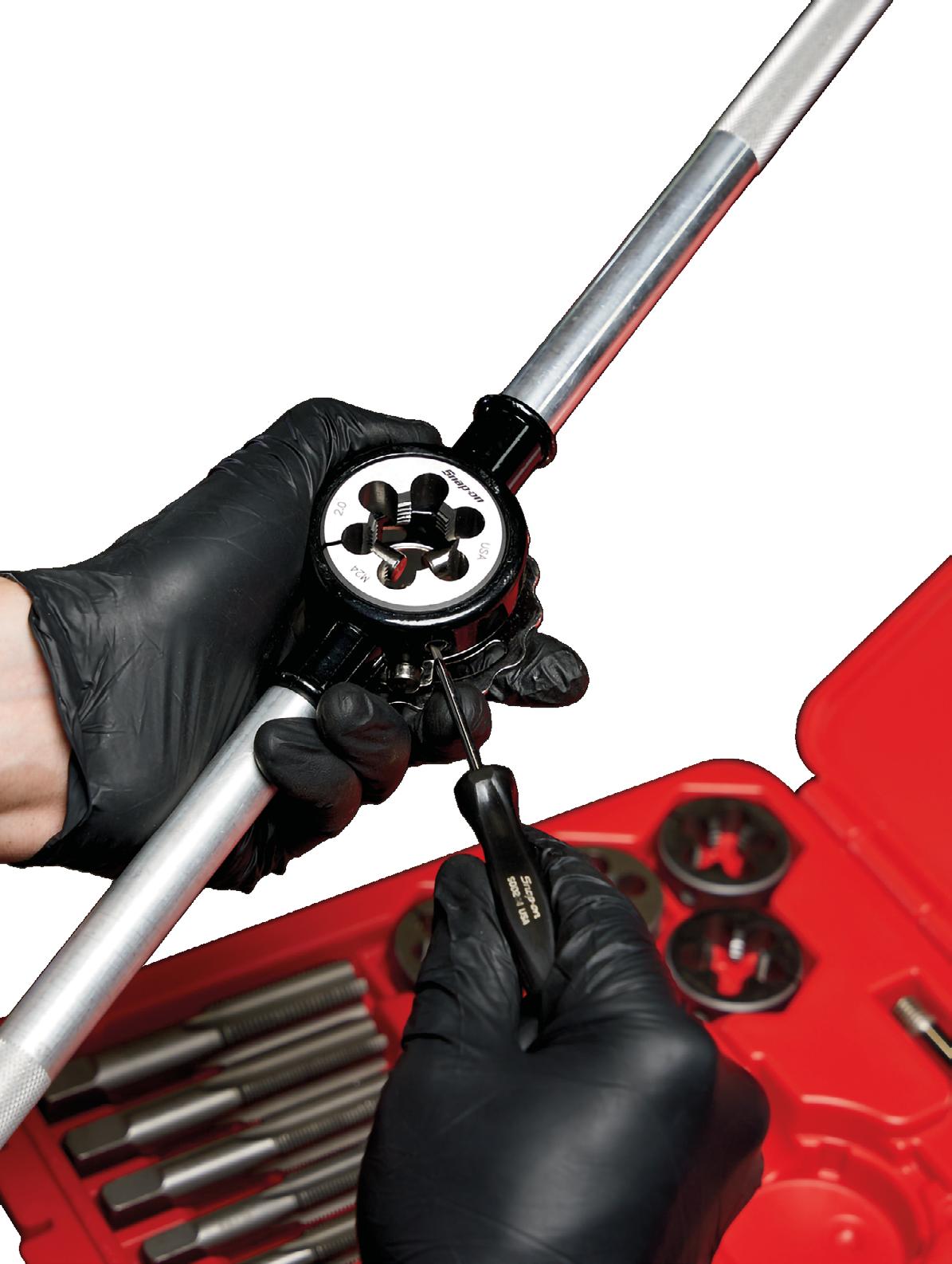

Adjustable dies allow accurate control for the amount of material removed

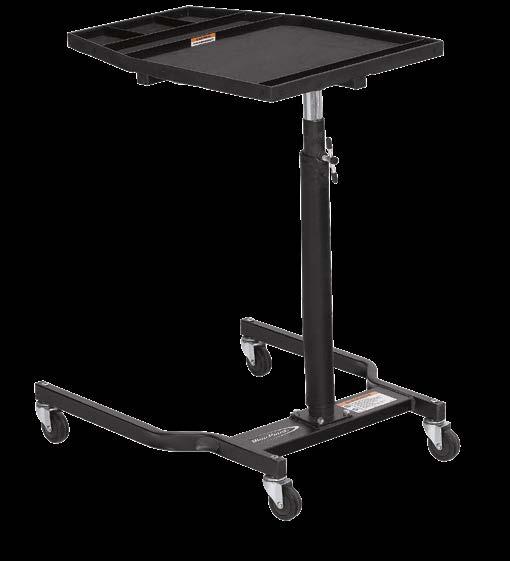

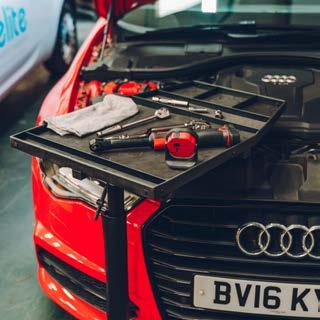

Underhood Service Tray (Blue-Point®) (Matte Black) BLPUHSTPC
• 24" leg clearance allows the service tray to slide under the hood from the front or the side of the vehicle
• Parts dividers and screwdriver holders built into the tray
• Protective bumpers included for top tray and support post
• 3" heavy-duty swivel casters
• Height-adjustable support post adjusts from 35-13/16-48-3/8" for the tray to clear the fender or front end of most vehicles
• EVA pads in all tray compartments
• Maximum load capacity: 75lb (34kg)

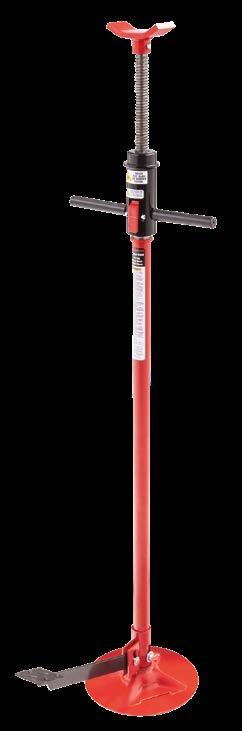

3/4-Ton Underhoist Utility Stand UHS1500
• Release mechanism quickly places saddle at service height
• Foot pedal is ideal for aligning components to keep hands free
• Precise height adjustment is accomplished with hand crank
• Saddle is configured to adapt to various under car components and resists turning
• Foot pedal can be folded for compact storage

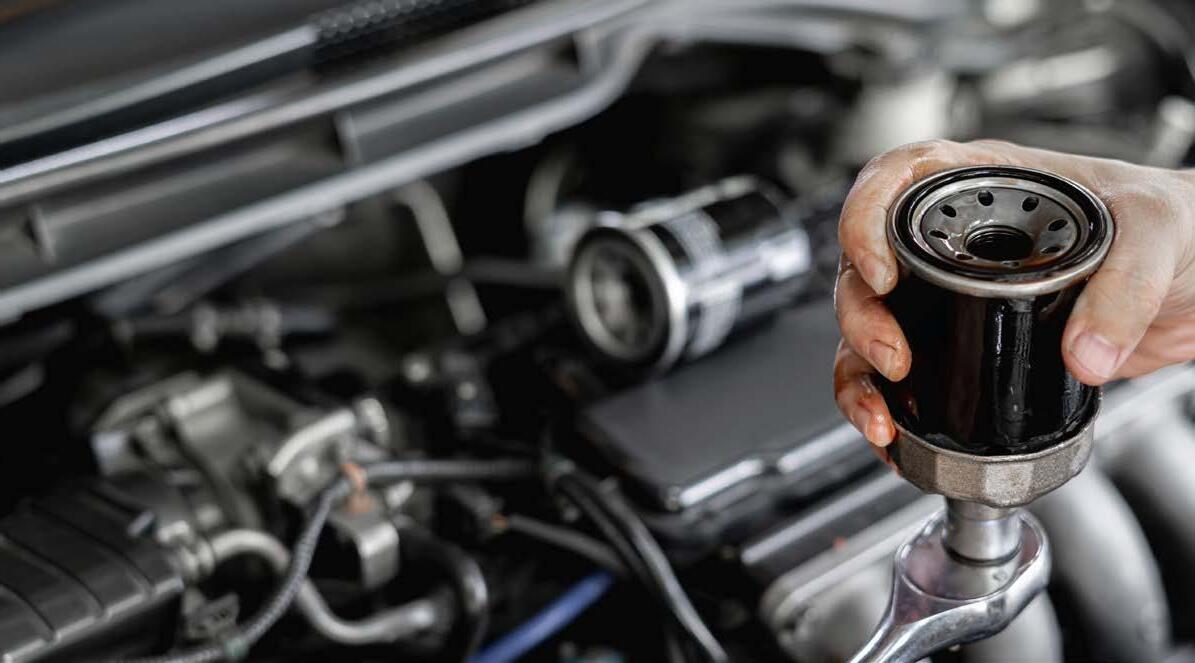

73–153mm Spider Filter Wrench with Adaptor OFCA3HDKT
• Provides lower clearance in tight spots and can used with 3/8" drive ratchet
• Longer legs have been sharpened and heattreated for improved strength, durability and to provide better engagement
• Chrome plated finish for easy clean-up
Engine Oil Pressure Set EEPV507
• Used on diesel and gasoline engines
• Includes SAE and metric adaptors for cars, trucks, tractors and stationary engines
• Includes a 0-100 PSI gauge assembly
• 6’ flexible hose with fluid coupler

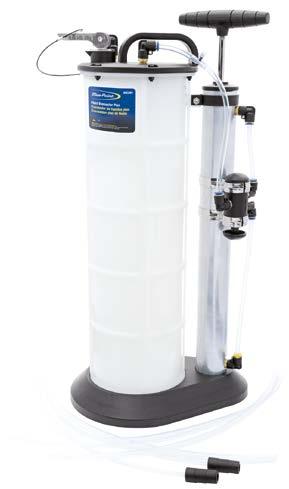

Manual Fluid Evacuator/ Dispenser (Blue-Point®) VAC201
• Complete system includes a manual, fluid evacuator, main hose assembly (5/16 I.D. x 54" long) and 2 rigid dipstick tubes for engine oil removal
Offers a light, portable and power free solution for evacuating liquids and dispensing them. From Engine Oil using the rigid dipstick tubes to coolant transfer, this complete out the box solution does it all including a safety cut off feature to prevent the reservoir from over filling.

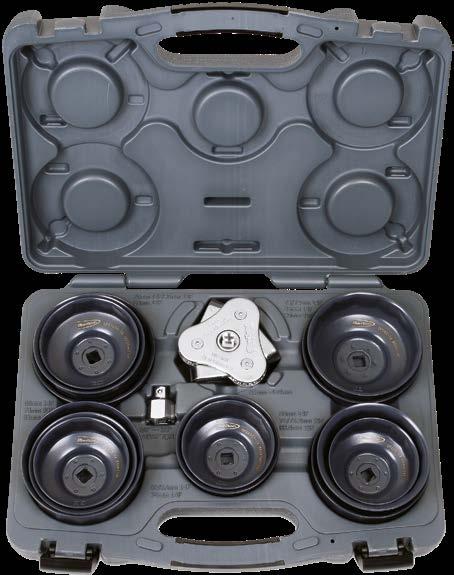

14pc Heavy-Duty End Cap Filter Wrench Set (Blue-Point®) (Gray)
OFC14KT
• Comprehensive set covering more applications than ever before; includes 13 end caps that fit 17 sizes
• Includes plated spider wrench with 61–124mm range
• Butt plate located on outside of wrench provides more clearance and is heat-treated to resist square drive round out
• Wire welds used in addition to spot welds for added strength
• Removable adaptor provides lower clearance in tight spots

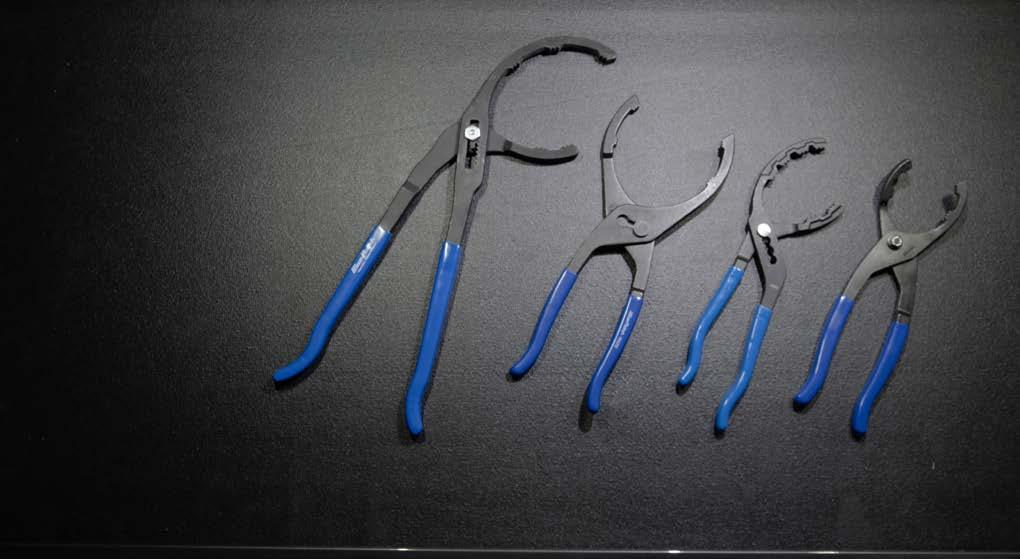

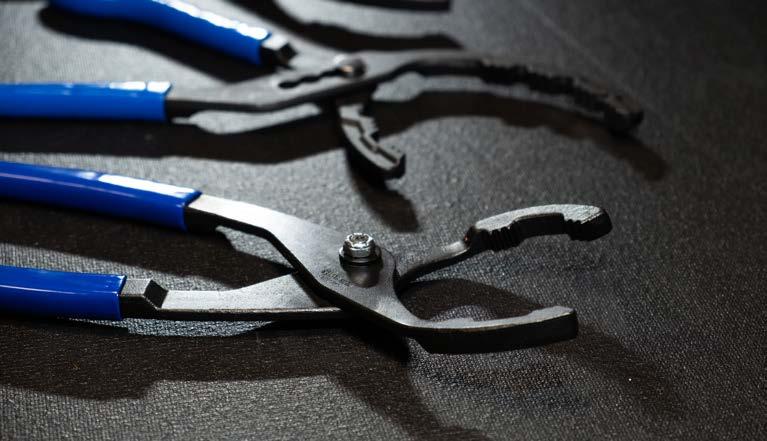

OIL FILTER PLIERS
Oil Filter Pliers (Blue-Point®)
YA4275
• For use on filters 4-1/4-7" (108-178mm) diameter
• Spring action size adjustment assures a solid grip on the filter 1 2 3 4 3 2 1 OFF 10%
Oil Filter Pliers (Blue-Point®)
YA4274A
Oil Filter Pliers (Blue-Point®)
YA4250
• Slip-joint design provides a jaw opening range of 3-5/8-6"
• 12" overall length
Oil Filter Pliers (Blue-Point®)
YA4050B
• For use on filters 2-1/2 to 5-1/4" diameter
• Offset handle offers increased accessibility
• 13-1/2" overall length
• Jaws are offset 20° from handle to increase accessibility
• Jaw opening range of 2-1/4-4"
•
•
•
•
•
•
•
•
•
•
•
•
•

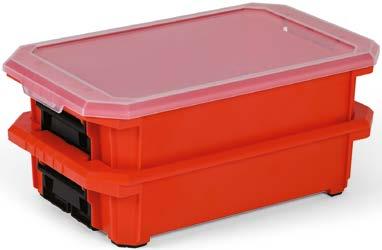

Stackable Parts Trays
• Parts trays lock together for secure portability and storage
• Quick-release lever allows for secure attachment and easy separation of trays
• See-through lid keeps contents secure and allows you to easily see what is inside

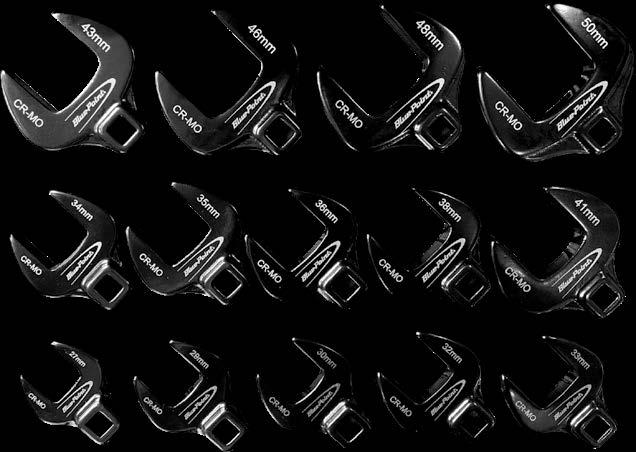

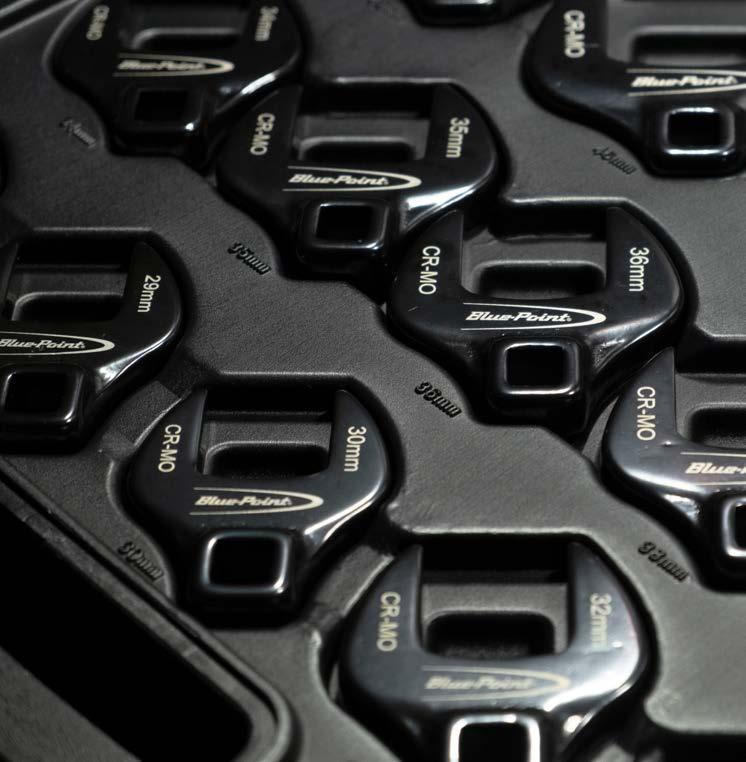

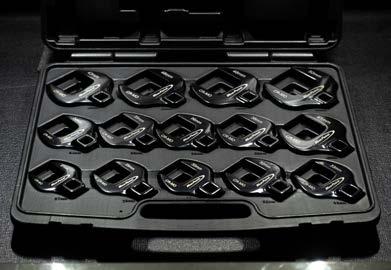

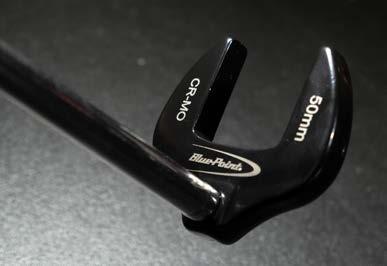

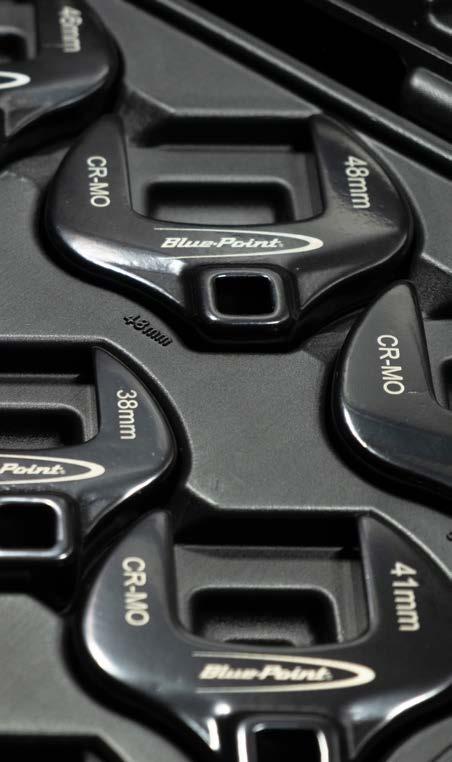

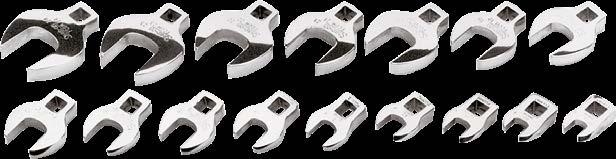

Snap-on Crowfoot Wrenches

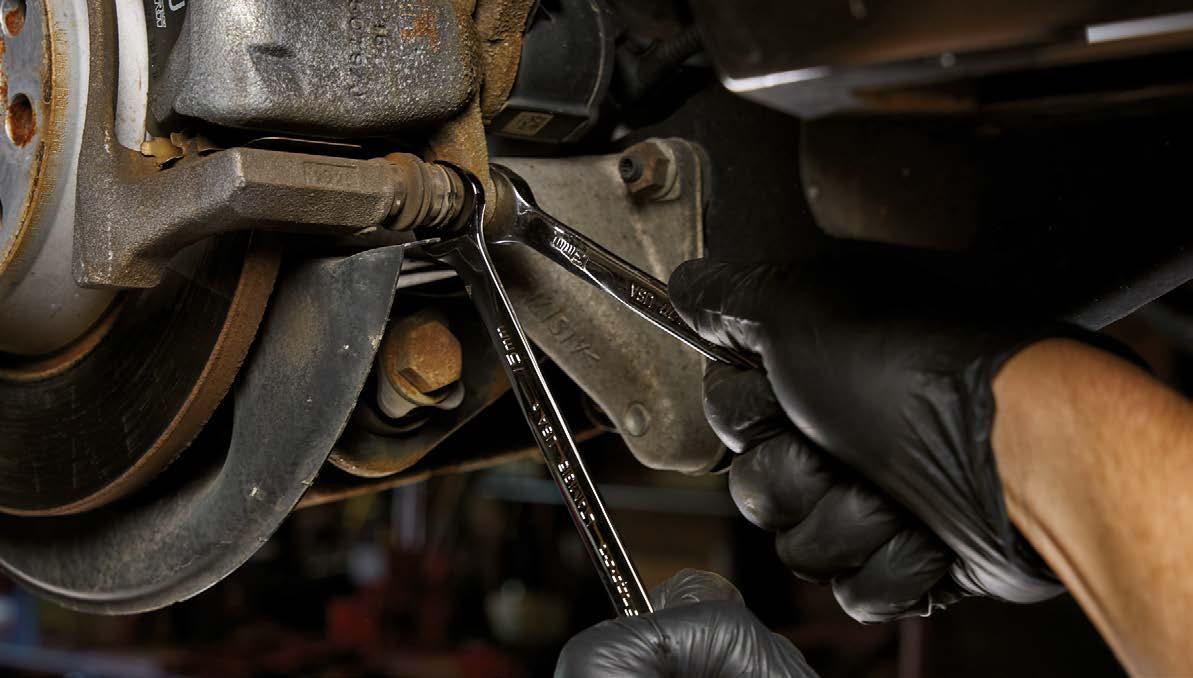

Crowfoot wrenches are specialised tool attachments designed to reach and turn fasteners in tight or obstructed spaces where a standard wrench or socket cannot fit. They feature a square drive opening that connects to a ratchet, extension bar, or torque wrench.
These Are Ideal For:
• Confined Access: They are essential for reaching fasteners recessed behind pipes, brackets, hoses or brake system hoses (ABS modules)
• Torque-Sensitive Fittings: Used with a torque wrench to precisely tighten critical components like brake lines, fuel lines, or hydraulic connections that require specific OEM specifications.
• Obstruction Navigation: When accessing engine components near the firewall, a crowfoot can be used with extensions to operate from a distance in low access areas.
SPECIALIST WRENCHES

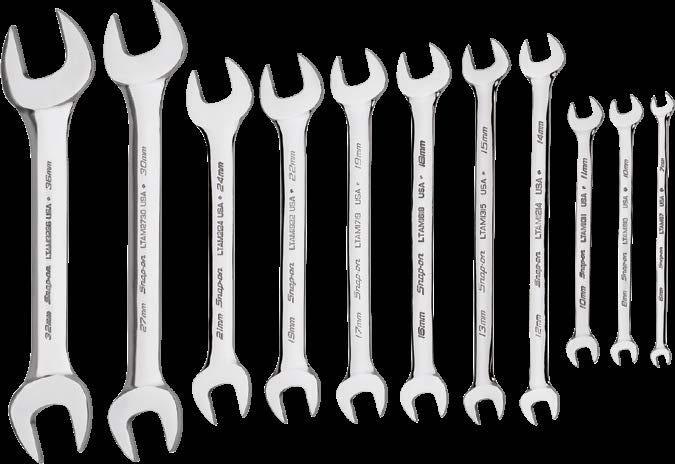

11pc Metric 15° Offset Low Torque Slimline Open-End Wrench Set (6-36mm) LTAM811
• Narrow profile design allows access to hard-to-reach fasteners
• Heads on both ends of wrench are offset 15° to the handle
• Wrenches are sized for optimum comfort and balance
• Nickel-chrome plating helps protect against corrosion and makes it easy to wipe clean
• Includes 6-36mm in a storage bag

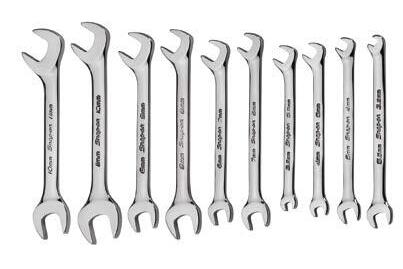

10pc Metric 15°/ 60° Offset Open-End Ignition Wrench Set (3.2-11mm) DSM810K
• Includes DSM3.25.5-DSM1110 (3.25-11mm) in a storage bag
• Same size on both ends, with different offset angles, allows wrench to be used in four positions
• Wrenches are sized for optimum comfort and balance
• Nickel-chrome plating helps protect against corrosion and makes it easy to wipe clean

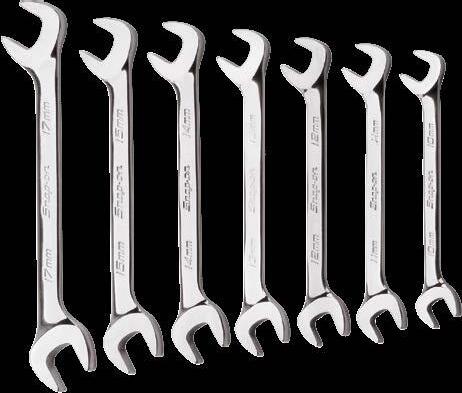

7pc Metric 30°/ 60° Four-Way Angle Open-End Wrench Set (10-15 and 17mm) VSM807B
• Includes VSM5210B-VSM5215B and VSM5217B (10-15mm and 17mm) in a storage tray
• Flank-Drive® Plus wrenching profile on open end, "bites" into the fastener, preventing slipping and rounding of the fasteners, while providing up to 62% more turning power and strength
• Angled head of wrenches are the same size on both ends to permit use of one wrench in four different positions
• Heads are offset at 30° and 60° to the wrench handle
• Nickel-chrome plating helps protect against corrosion and makes it easy to wipe clean
• Sized for optimum comfort and balance
ACCESS THE WORLD’S REPAIR EXPERTS
1,000,000,000
REPAIR EVENTS & EXPERT KNOWLEGE
Di a g n os t i c s F oc u s – Sur eTr a ck® Repair G u i d a n c e
SureTrack® is the industry’s most comprehensive source of expert knowledge for professional technicians, it combines real-world insights with repair time-savers and detailed parts replacement records
Snap-on® captures information from the repairs made in tens of thousands of repair workshops every day It’s like having 70,000 techs with 40 years of experience by your side Sure Track® can help technicians build a diagnostic strategy with Real Fixes, Top Repairs, Cause and Fixes and more that can reduce diagnostic time and increase accuracy.
Real Fixes are based on expert knowledge from professional technicians who have solved the same vehicle issues you may be facing and cover just about every year/make/model combination that you’re likely to see in your workshop
• Based on billions of repair records and hundreds of billions of diagnostic sessions
S u r eTra c k® Community Has Your Ba c k
• Professional technicians author SureTrack® Real Fixes and Fixed It community fixes from SureTrack® Community members
By purchasing a Snap-on® diagnostic tool with SureTrack®, you’ll be joining a thriving community of fellow technicians and diagnostic tool users who have faced and resolved the same issues you encounter daily.
Why is Sur eTr a ck® Important ?
• Adds real-world experience to OEM-level data • Helps to diagnose and fix problems faster and correctly the first time

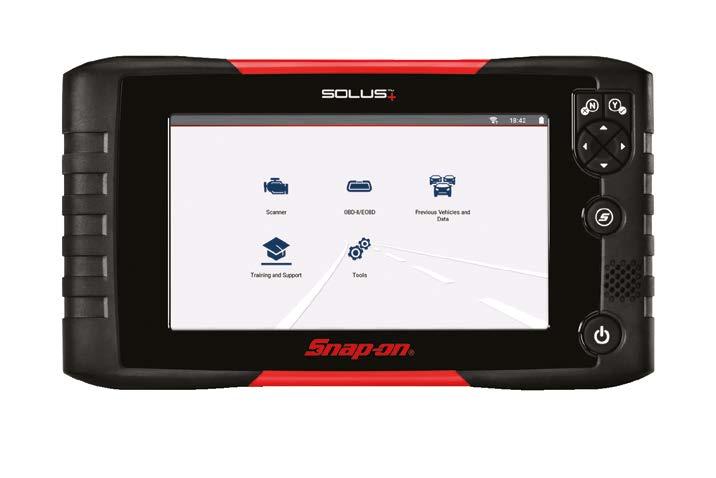

SureTrack® is built into SOLUS™ APOLLO™, TRITON™, & ZEUS™ series products running the current software
FOR MORE INFORMATION
TRAINING EPISODE: THE POWER OF INFORMATION
ARE YOU PLAYING?

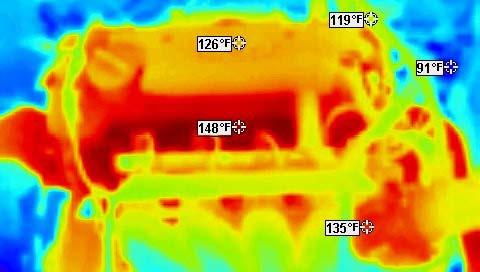

SEE THE POWER OF THERMAL IMAGERY

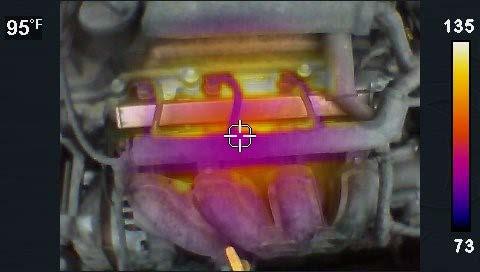

Thermal Imager Use Cases
• Point at any area of to see detailed images of an object’s heat signature
• Shows extreme temperature ranging from -20°C to 450°C

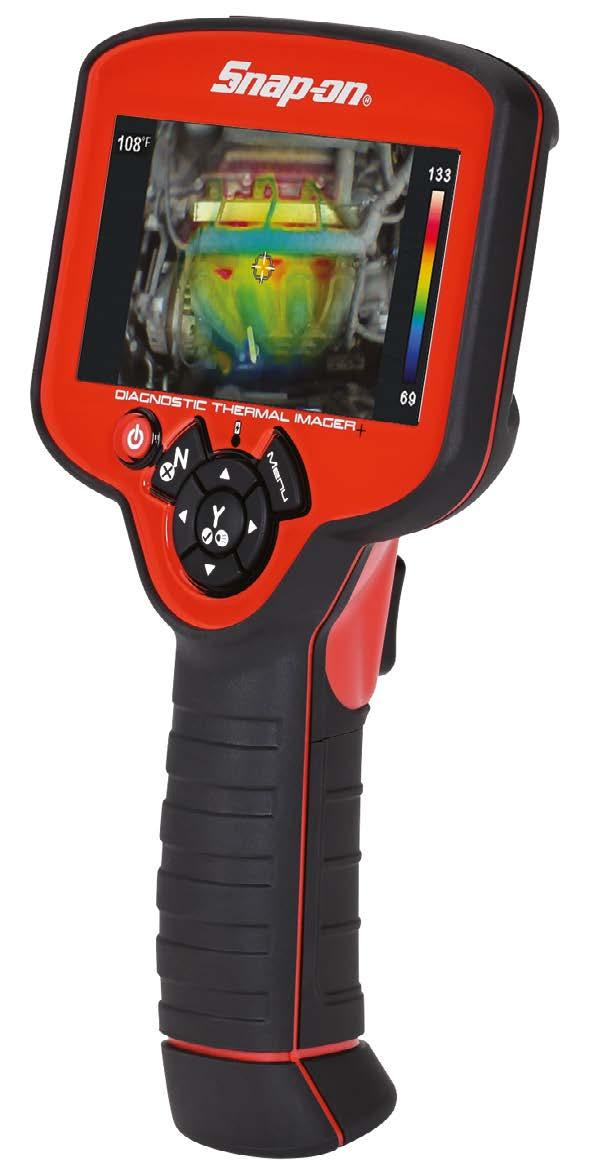

DIAGNOSTIC THERMAL IMAGER +
Diagnostic Thermal Imager+
EETHGB312A
• Exclusive database of guided tests shows dozens of applications
• Choose between thermal, sepia and plasma color palettes for flexible and accessible viewing options
• Use Wi-Fi® to upload images to ALTUSDRIVE.com, to print, store and share images captured on the Thermal Imager+
• Customised views on screen assist in diagnosis and pinpointing location; choose from picture in picture, full thermal, or side by side
• Pull the trigger to capture images; use saved images for reference and to create convincing repair orders
• Pistol-grip ergonomics for comfort & convenient access to tight locations
• Rechargeable high-power Lithium-ion battery with four-hour charge life and convenient battery level indicator
• Image refresh rate: 9x per second
SOLVE THOSE INVISIBLE PROBLEMS
• Detect problems all around the vehicle: brakes failures, heated seats, misfires, HVAC, identifying parasitic drains, malfunctioning thermostats, overheating bearings, belts, emission controls and many more
• Thermal to standard image blending allows for easy identification and location of component or area being viewed
Thermal Imager Specs & Features
• Reference images show normal components and failed components so you know exactly what to look for
• Large 4.3" IPS color screen with 120 x 90 thermal sensor resolution
• Freeze function: Cursor moves the crosshair which enables multiple still images with temperature readings from five different points per image
• Color reference scale automatically calibrates, showing the temperature of everything in the image
DETAILED GUIDANCE ON WHAT TO LOOK FOR
