SRV Series Cycloidal Gearbox – Compact, Shock‑Resistant Drive for Industrial Automation

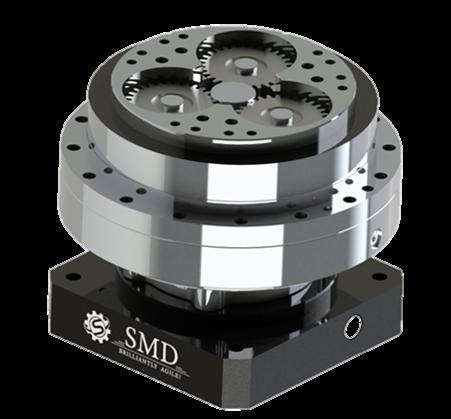

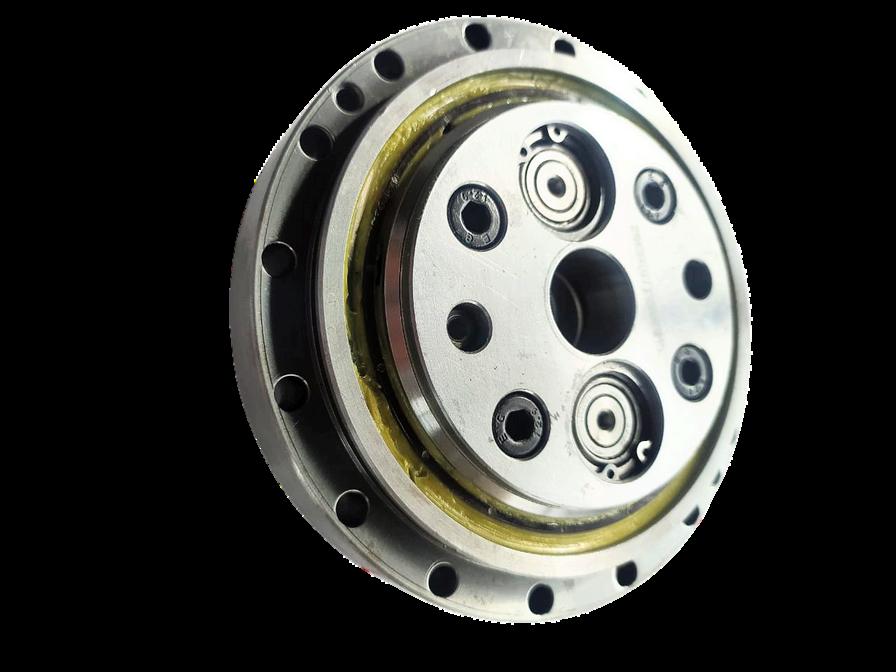

SMD Cycloidal Gearbox - SRV Series

What is Cycloidal Gearbox ?

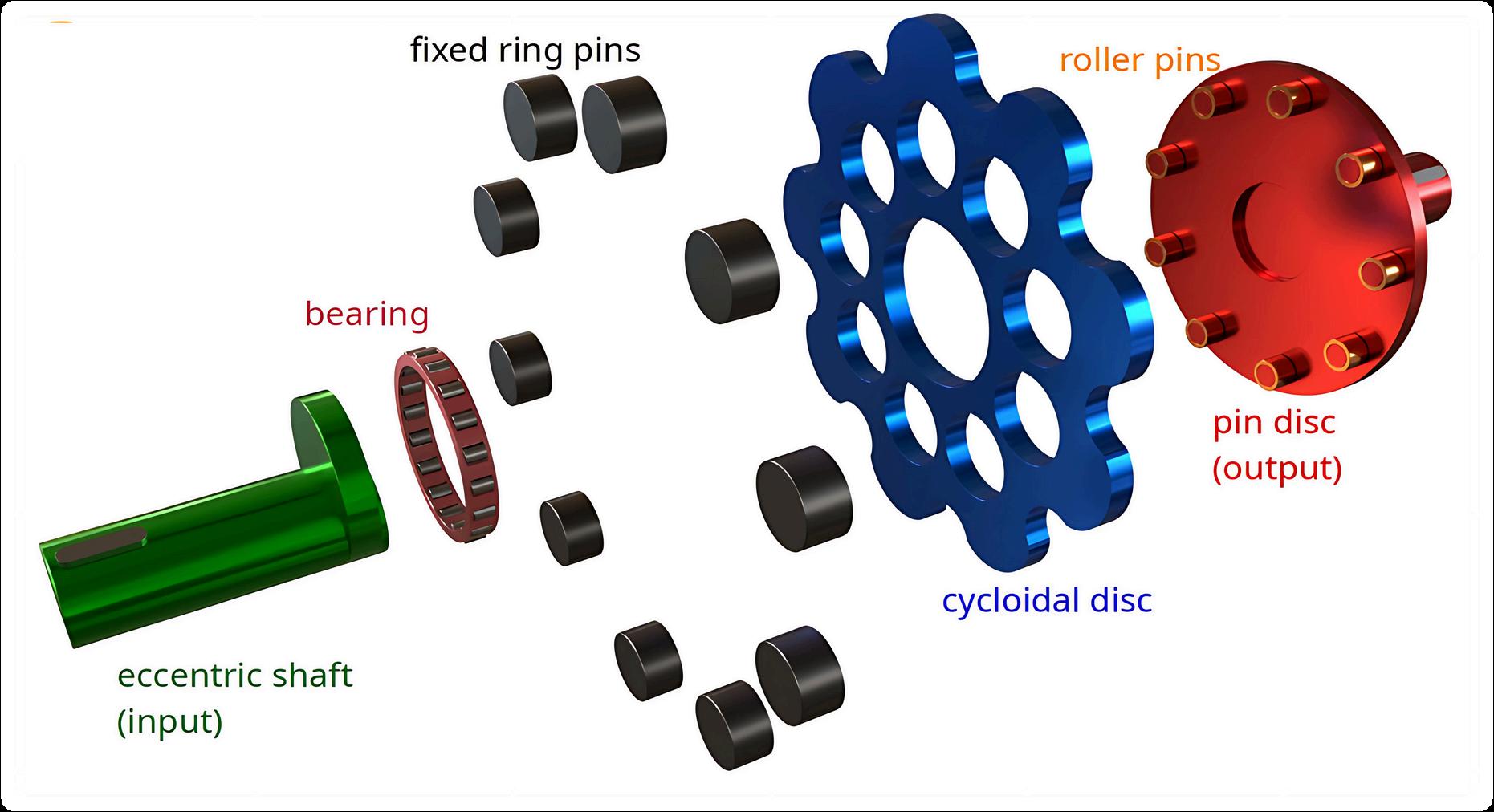

SMD SRV series (also called a cycloidal drive or cyclo drive) is a type of speed reducer known for its high torque capacity, compact size, and shock-load resistance. It works on the principle of a rolling motion of a cycloidal disc inside a housing with pins.

Technical Details:

Rated Output Torque : 72Nm to 4410Nm

Backlash : Less than 1 Arc-min.

Ratio : 1:83 to 1:301 for case run

Applications:

Heavy load machine

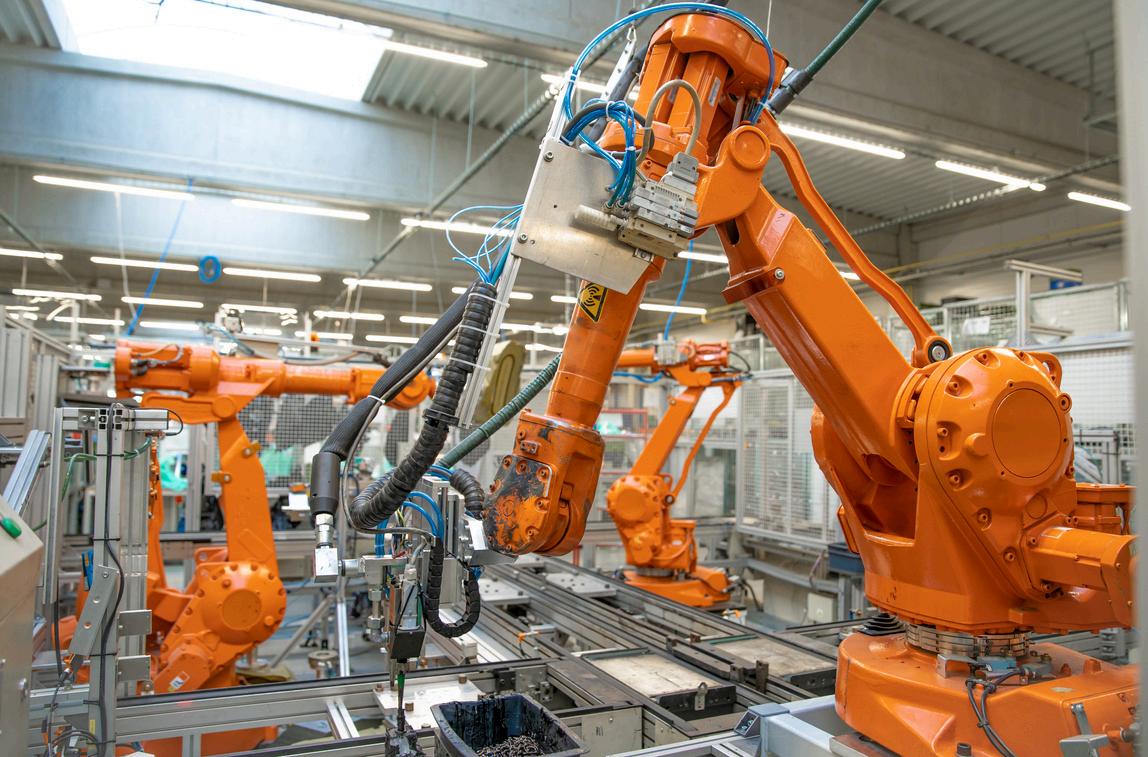

Robotics Arms

Turn static files into dynamic content formats.

Create a flipbook

SRV Series Cycloidal Gearbox – Compact, Shock‑Resistant Drive for Industrial Automation

Published on Dec 6, 2025

SMD Gearbox

The SMD SRV Series cycloidal gearbox is engineered for applications that demand high torque, precise speed reduction, and excellent shock‑load resistance in a compact footprint. Using a robust pin‑and‑disc cycloidal mechanism, the SRV Series delivers rated output torque from medium to very high ranges, with backlash kept to extremely low values for accurate positioning in automation systems, robots, and medical imaging equipment such as CT scan and MRI machines. Its large flange rotary face, high load‑carrying capacity, and wide reduction ratios make it suitable for indexing, conveying, and precision motion tasks in food processing, packaging, and other continuous‑duty environments Get more information about the product here: https://www.smdgearbox.com/cycloidal-gearbox. #SMDGearbox #CycloidalGearbox #CycloidalDrive #SMDSRVSeries #CTScanMachine #MRIMachine #FoodProcessing
