Introduction:

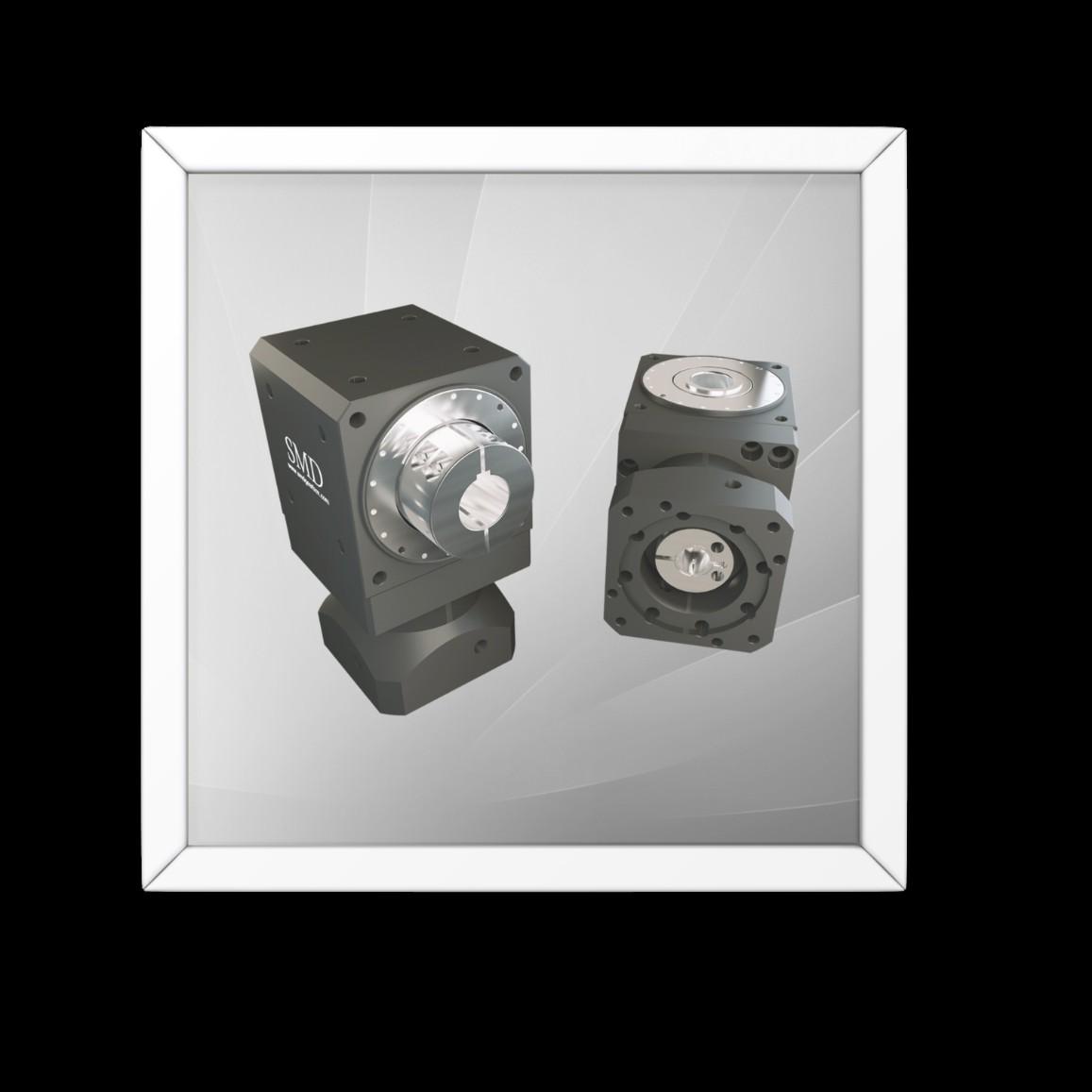

The SS Series of right-angle gearbox is designed so the input and output shafts meet at a 90° angle, allowing power to change direction smoothly and efficiently.
This design enables effective transfer of speed, torque, and motion to a perpendicular axis while saving space and improving overall machine layout flexibility
Technical Details:
• Nominal Torque : 44Nm to 1390Nm.
• Backlash : 3-15 Arc-Min.
• Available reduction ratios: 1:1 to 1:100
• High Load Carrying Capacity
• Structure: T Type Gearbox
• Compatible with Planetary Gearbox
Application Areas:
• Special Purpose Machines (SPM)
• Conveyors & Material Handling Systems
• CNC machines & Tool changers
• Packaging and Assembly lines
• Automation Equipment Requiring Compact Layouts
