SDTRACK RANGE
RIGID LINEAR FALL ARREST
ANCHORING DEVICE - TYPE D
RIGID LINEAR FALL ARREST ANCHORING DEVICE
TYPE D RANGE SDTRACK

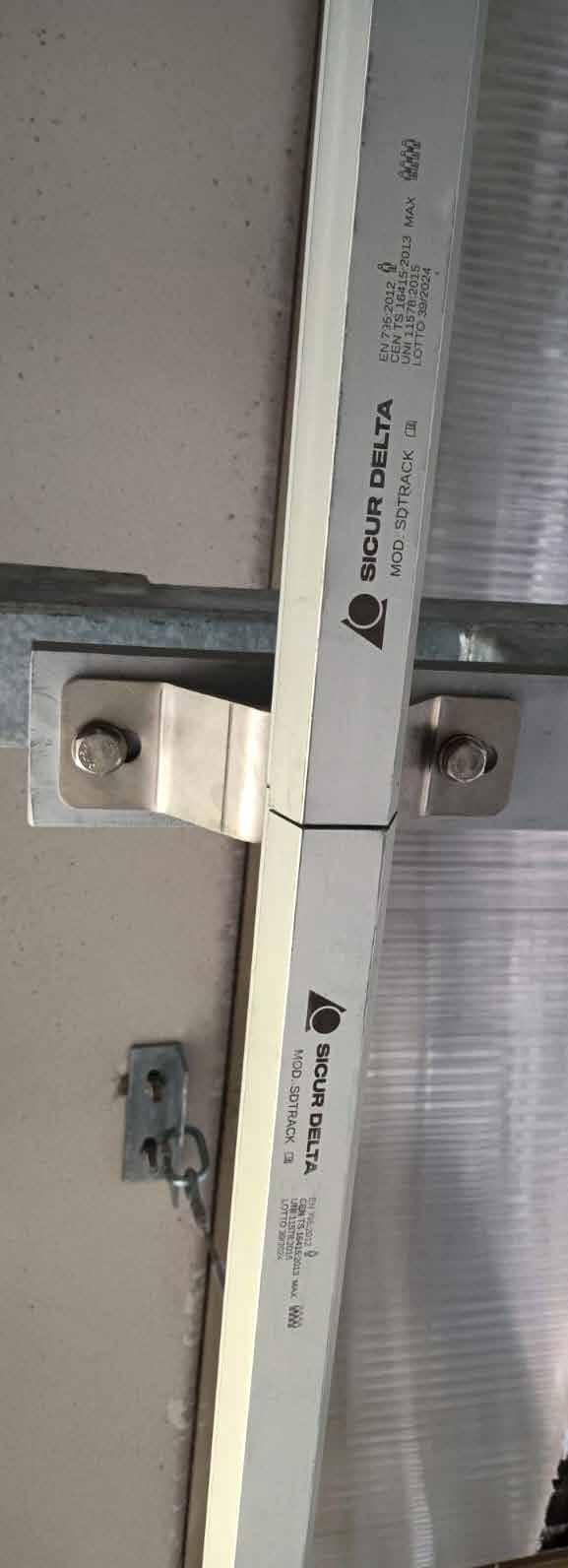

The rigid rail fall arrest system of the SDTRACK range allows maintenance work at height to be carried out in complete safety. The centre-to-centre spacing between fixing brackets can reach up to 6 metres depending on the chosen configuration and the direction of use of the sliding trolley.
The rail profiles can be joined together by means of dedicated joints and connectors, which can be installed near the fixing brackets or along the rail profile.
The SDTRACK range has been tested and has passed the tests required by the applicable technical standards for both fall arrest and suspension use for up to 4 people.
MATERIAL
Aluminium 6082 T6
Stainless steel AISI 304
OPERATORS

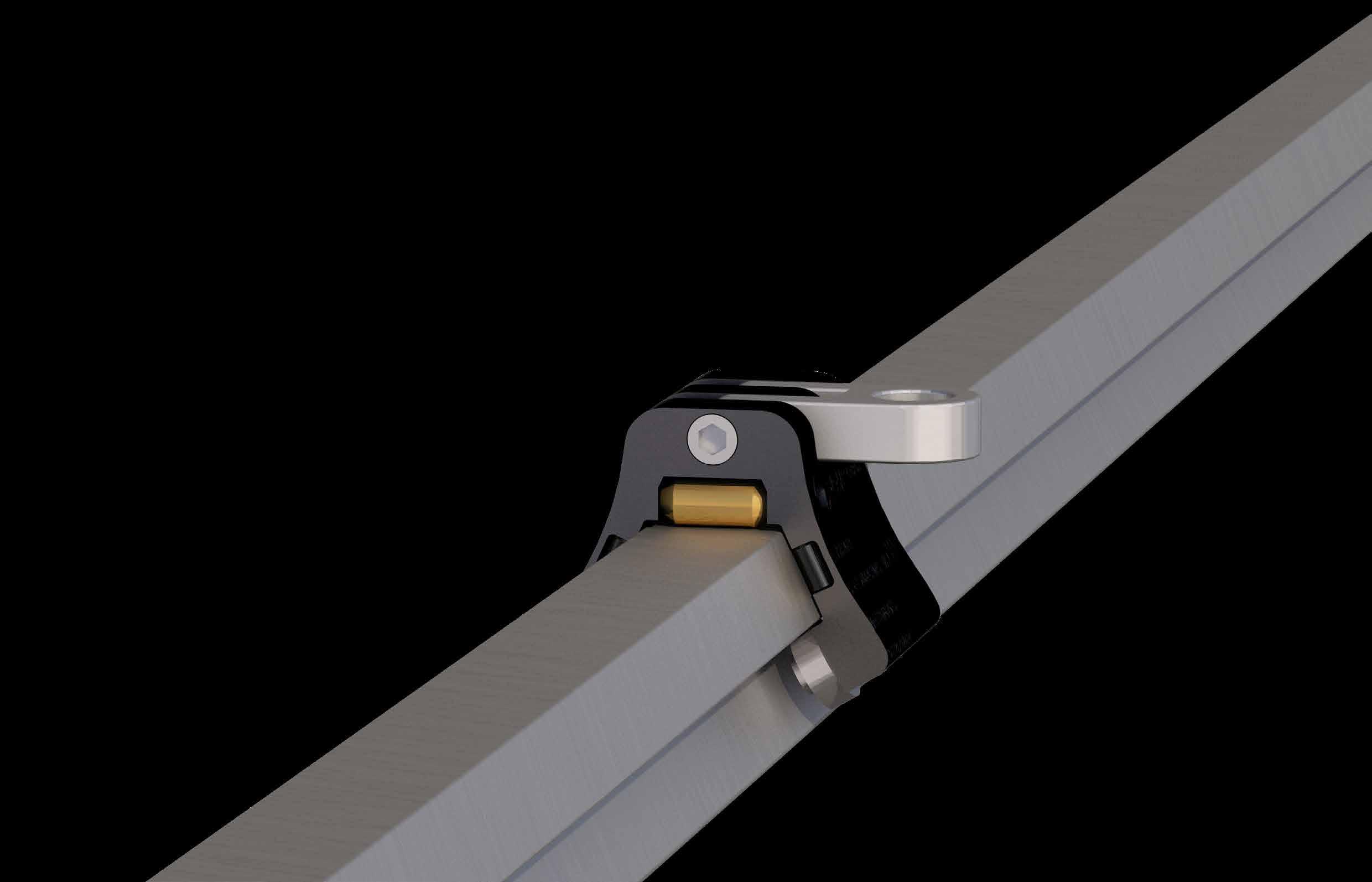

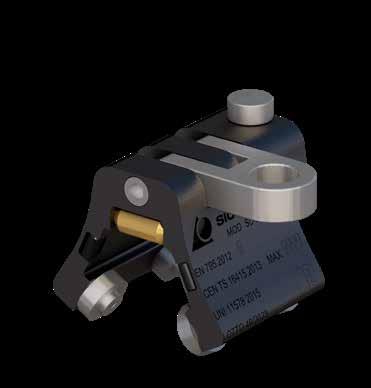

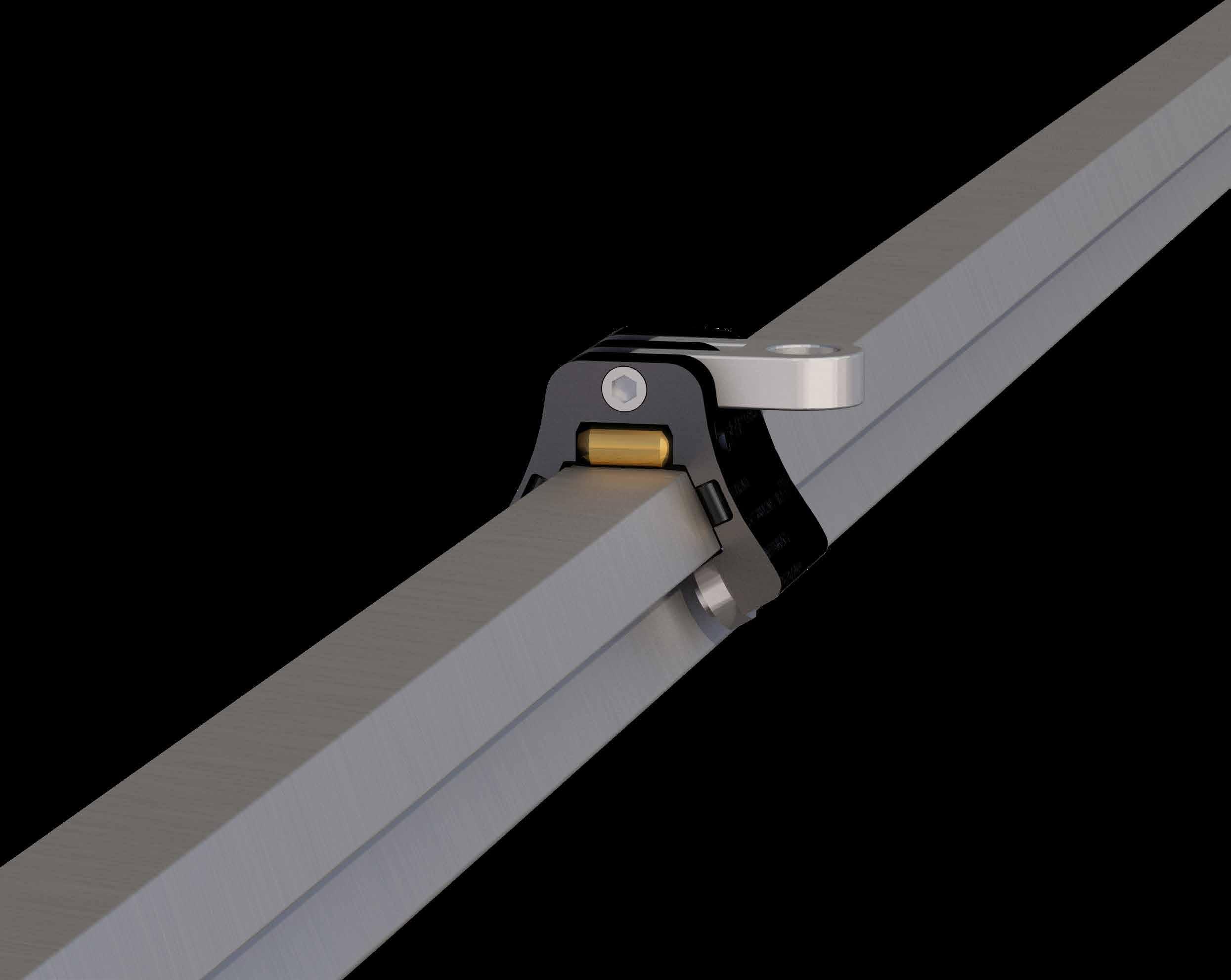

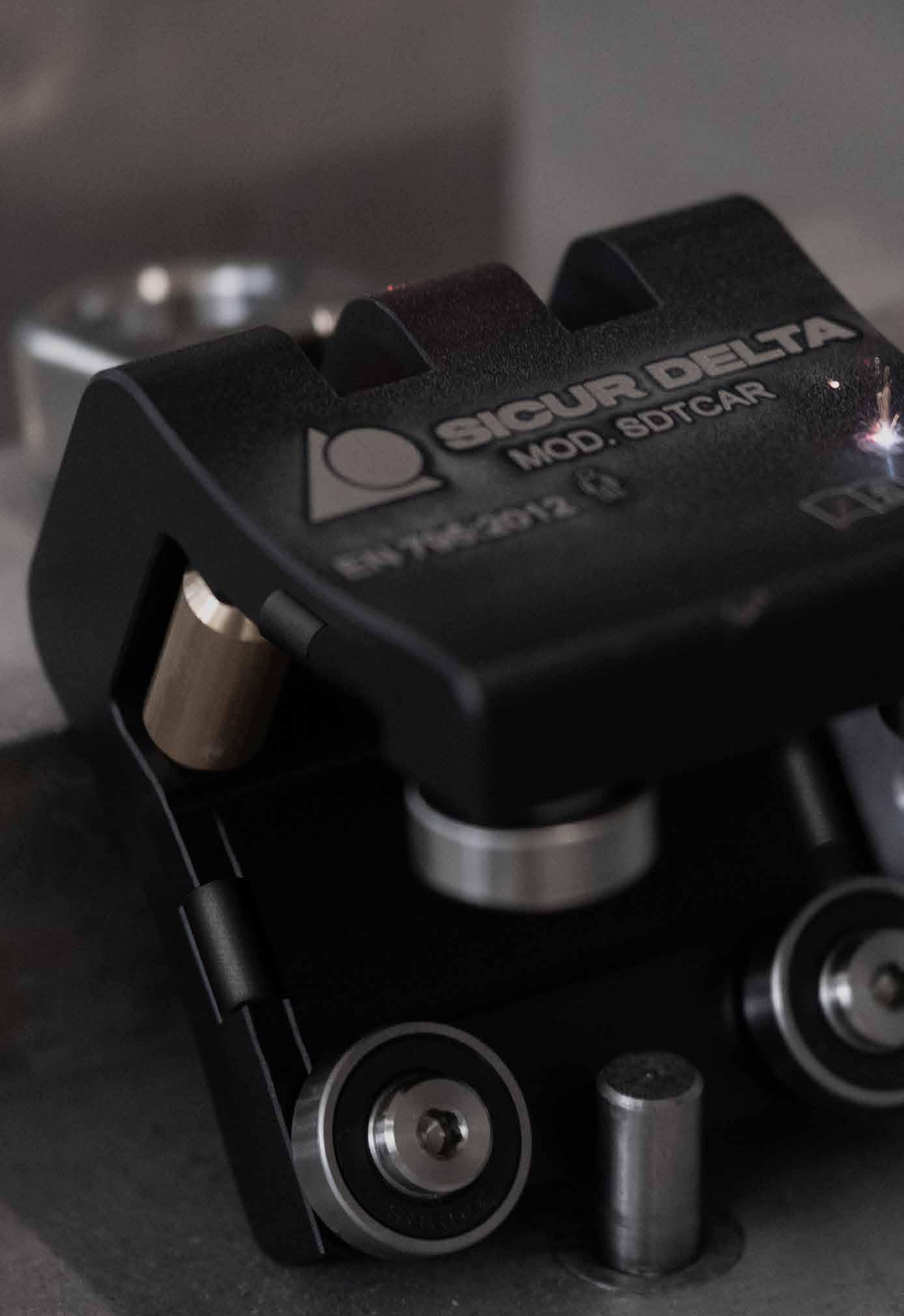

TROLLEY
BRACKETS

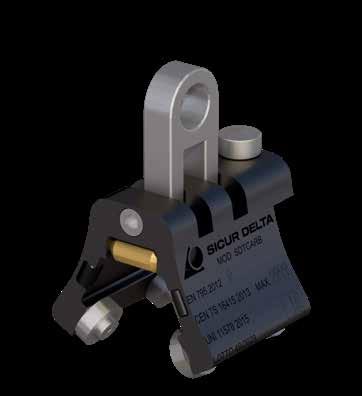

TROLLEY WITH POSITIONING PIN
Fixing brackets for the rail profiles to the structures. Available in 8 types with different geometries.

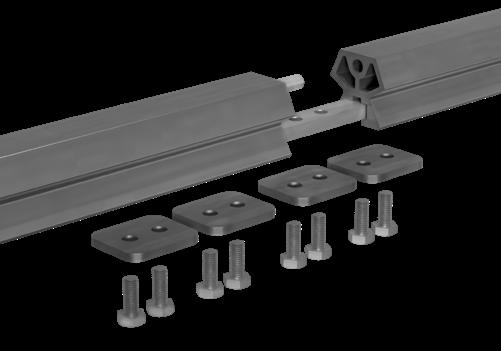

JOINTS
2 joints required for the rail profiles.

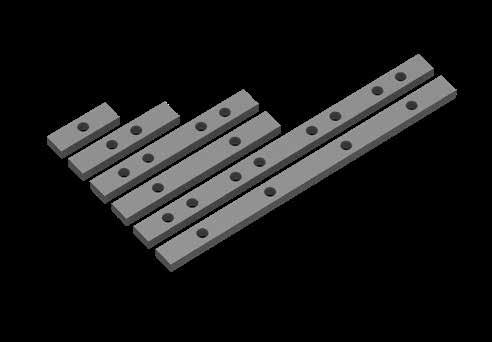

CONNECTORS
The SDTRACK range connectors are required to assemble the brackets of the rail sliding profiles.

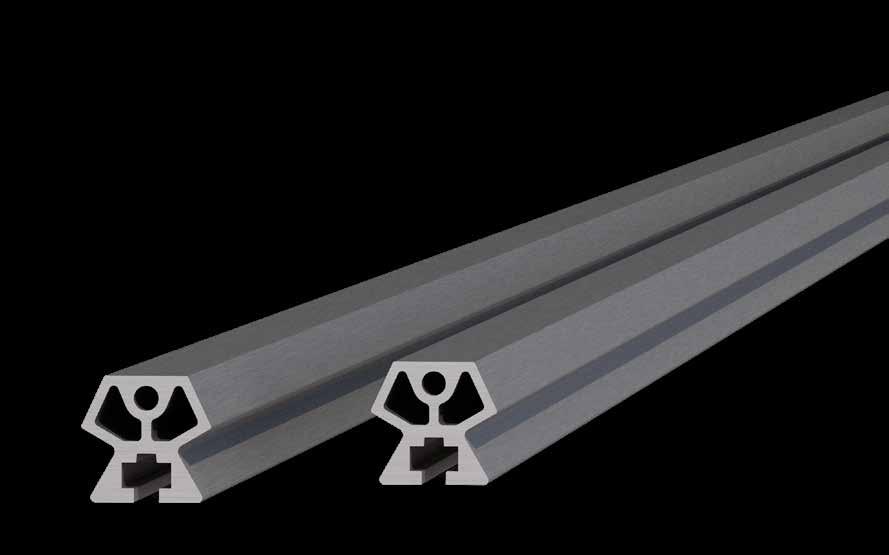

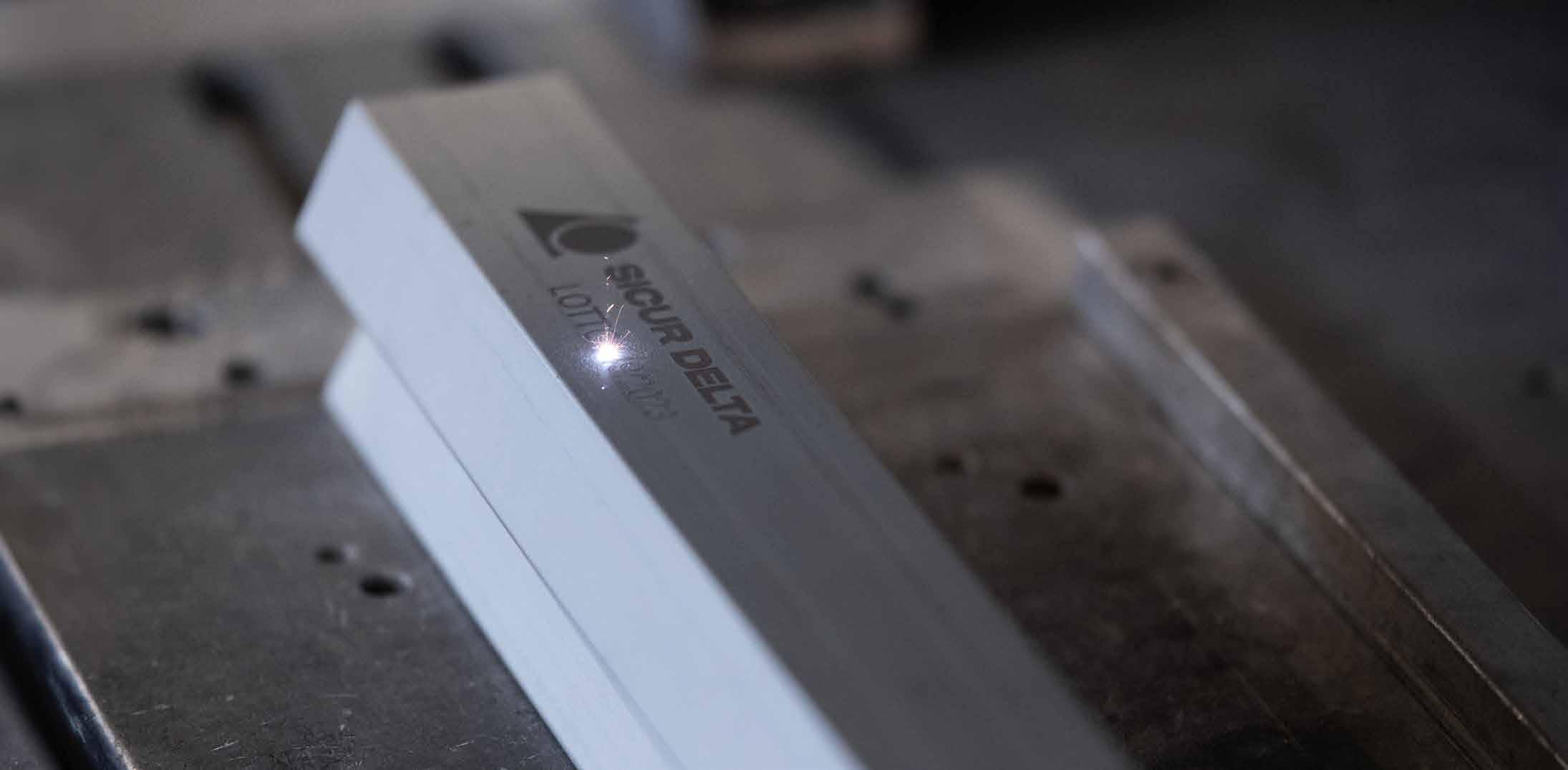

RAIL PROFILES
System featuring aluminium profiles in 4 different lengths: 3, 4, 5 and 6 metres.

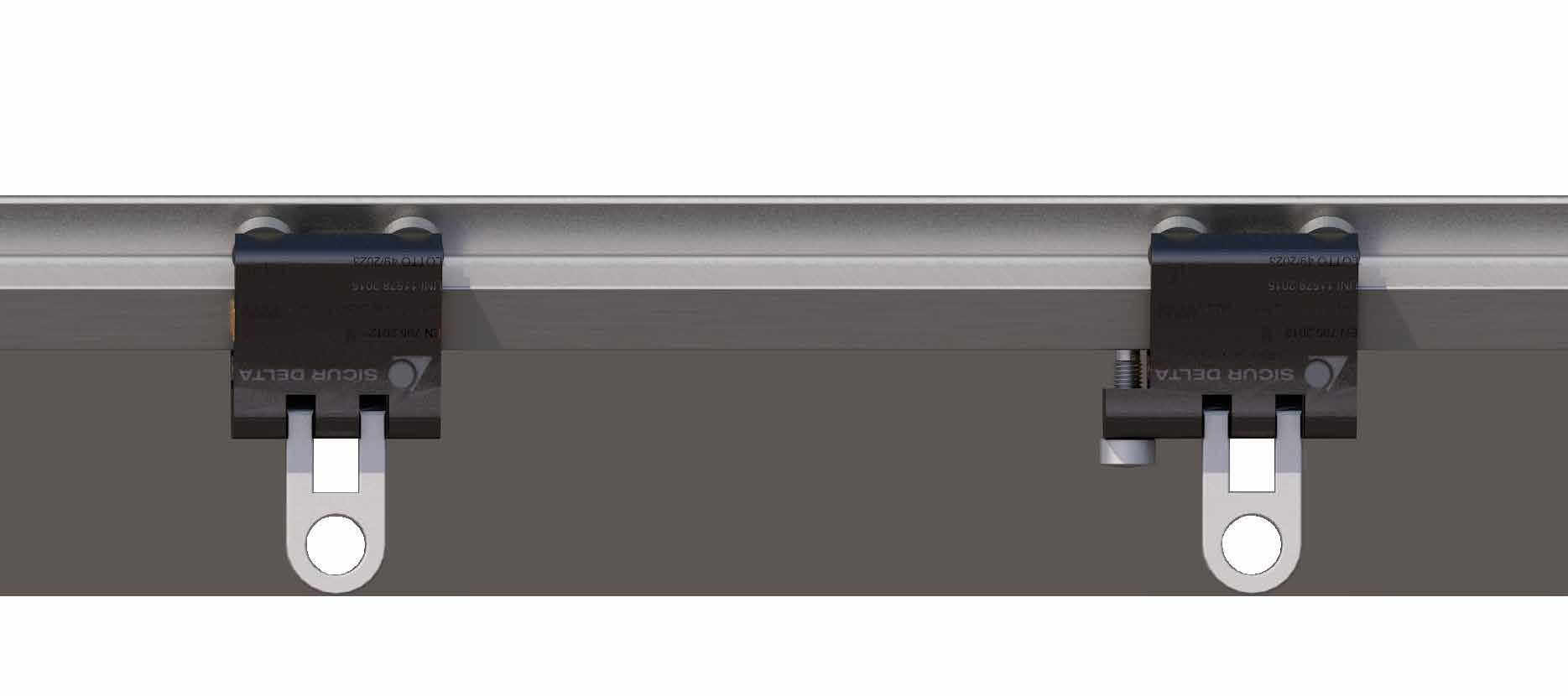

USE IN: SUSPENSION
When the rail is used as an anchoring system for suspension work, each user must be anchored to two trolleys, each with its own EN 362 connector.
To follow the operator’s movements as closely as possible, the anchor point can rotate 180°.
0 < x ≤ 1500 mm
N° MAX OPERATORS: 2
SDTRACK

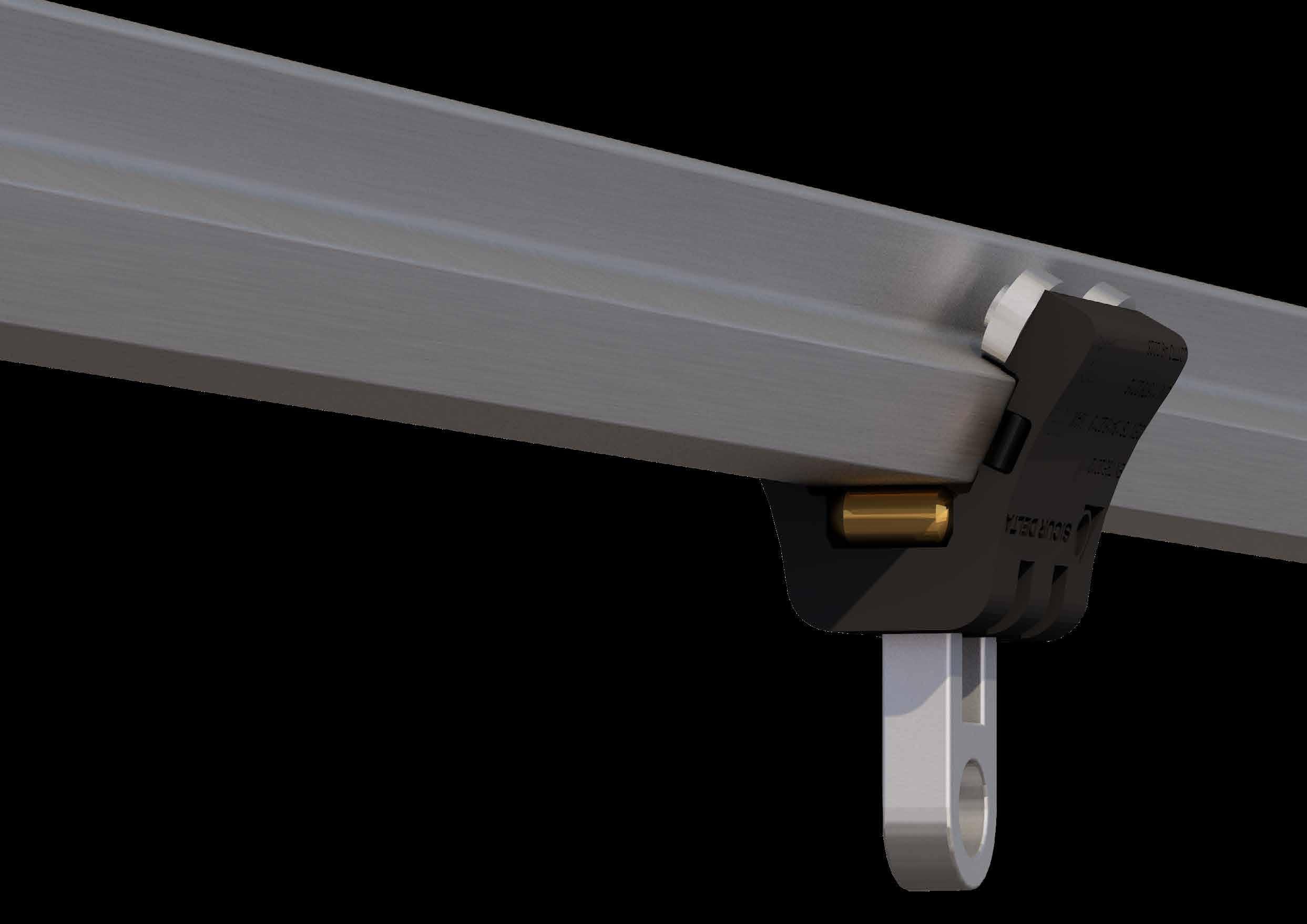

USE IN: FALL ARREST / WORK RESTRAINT
When the rail is used as a fall arrest anchoring system, each user must be anchored with their own EN 362 connector to the trolley, which is the only usable mobile sliding point.
To follow the operator’s movements as closely as possible, the anchor point can rotate 180°.
0 < x ≤ 6000 mm
SDTRACK SDTRACK
