STRUCTURAL ANCHORS SD76 RANGE WALL LINE
LIFELINE WALL LINE

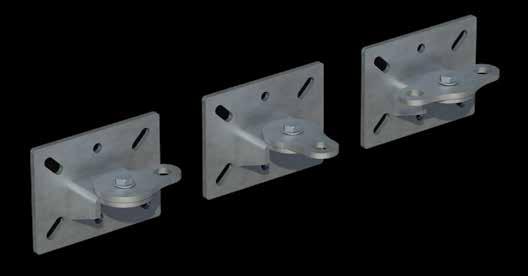

CURVE SUPPORTS END HEADS

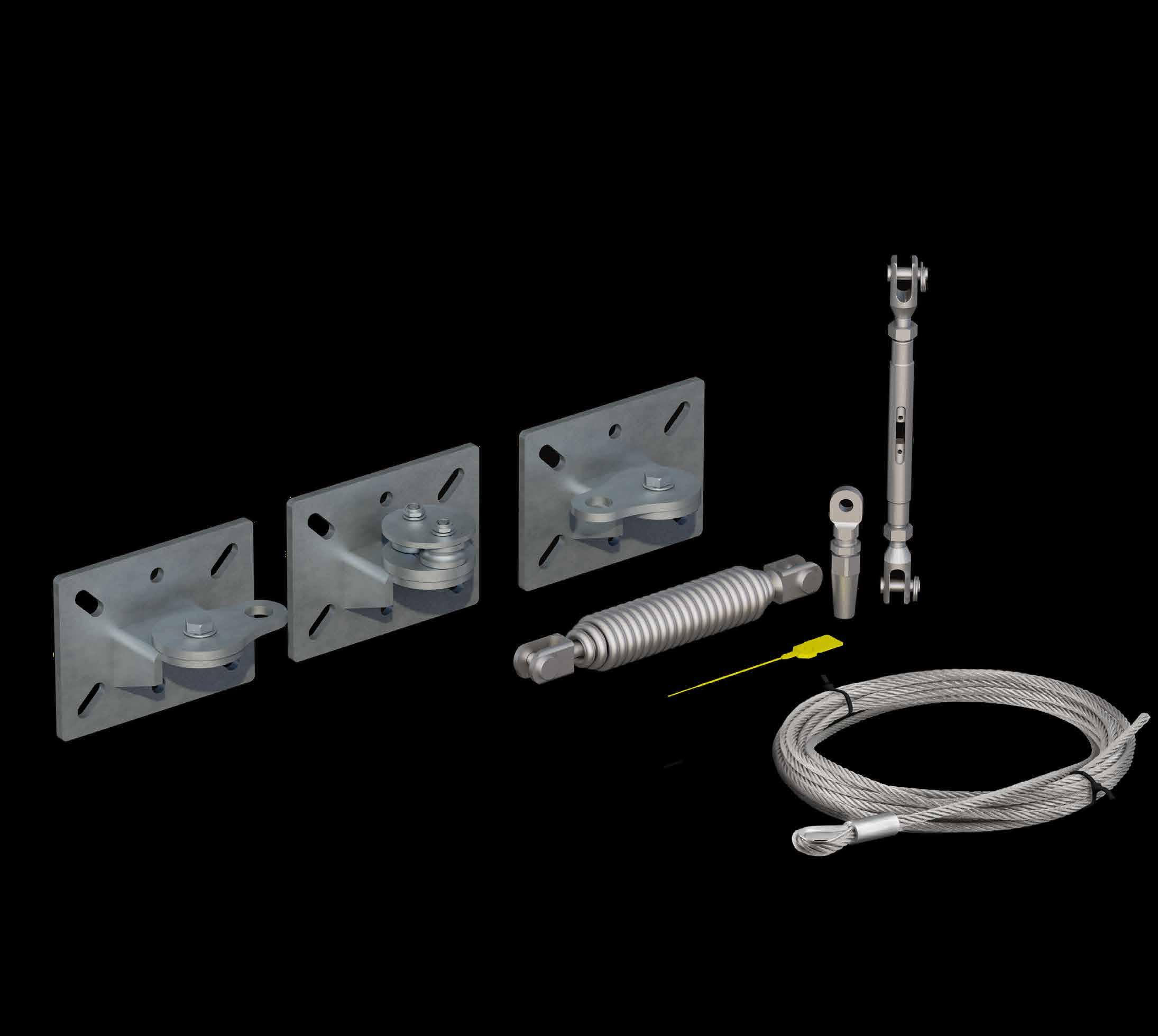

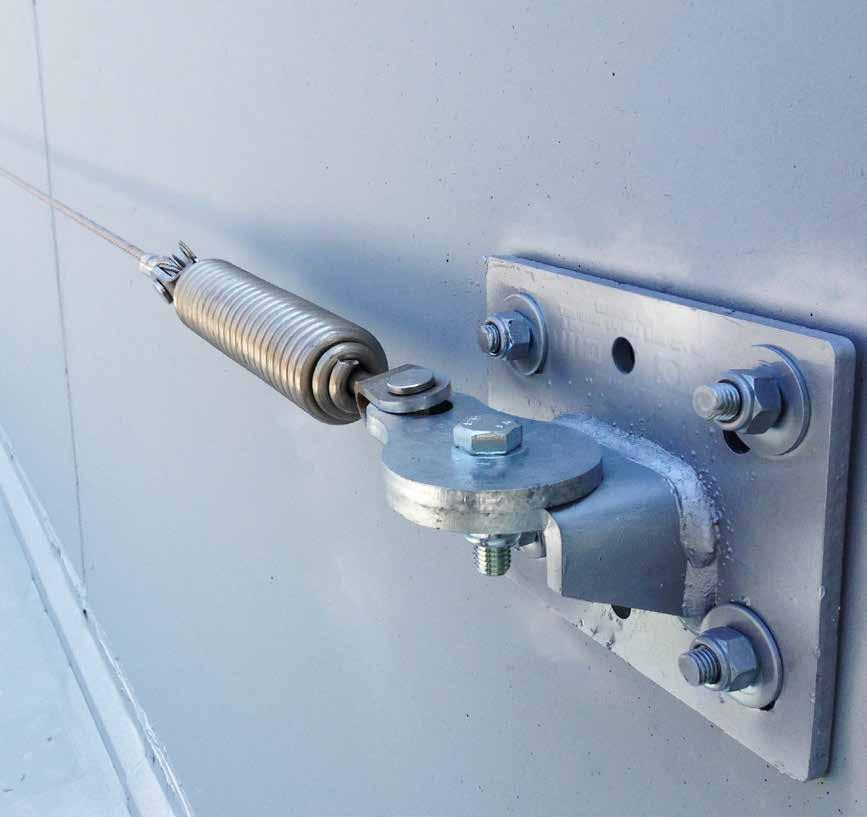

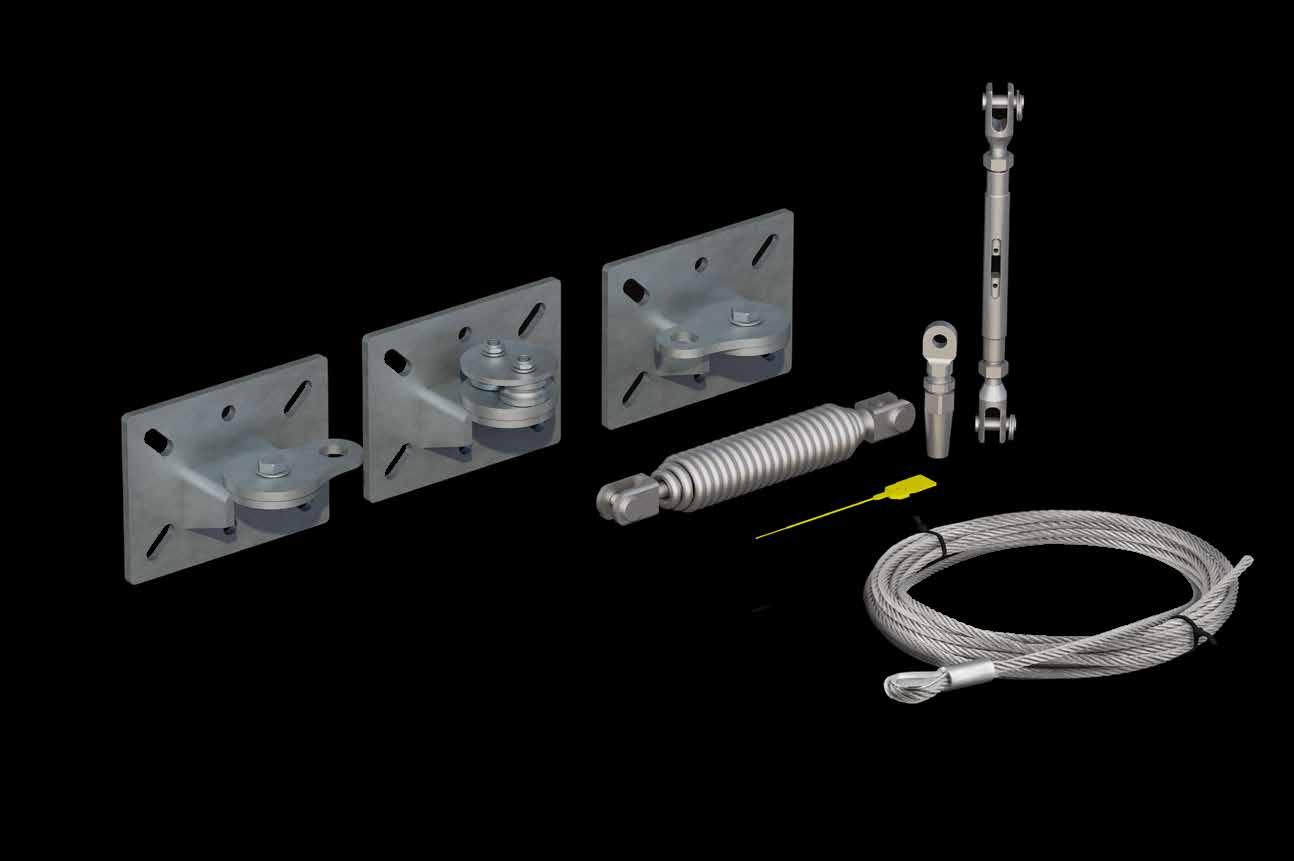

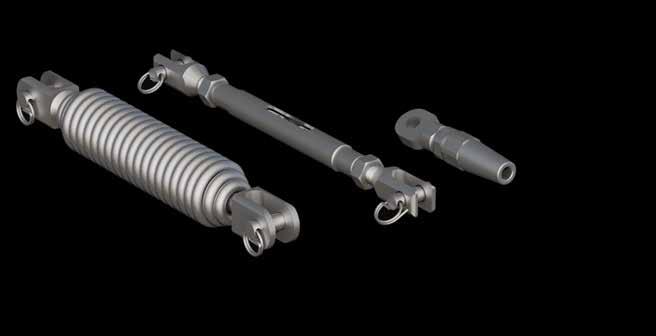

END COMPONENTS

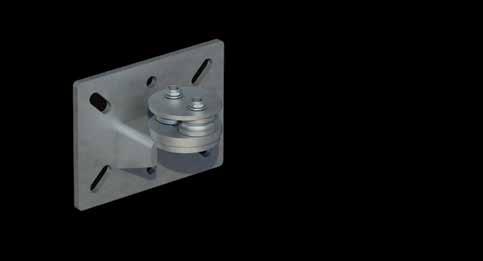

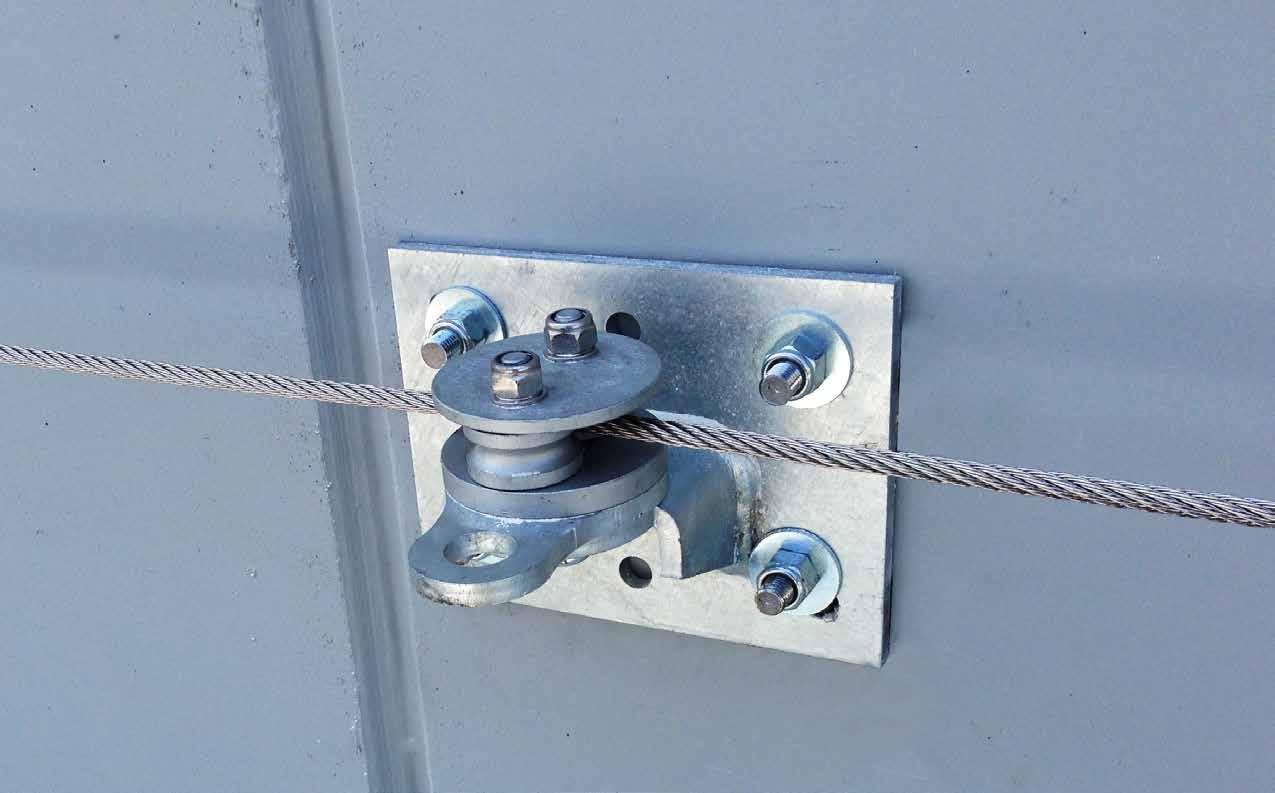

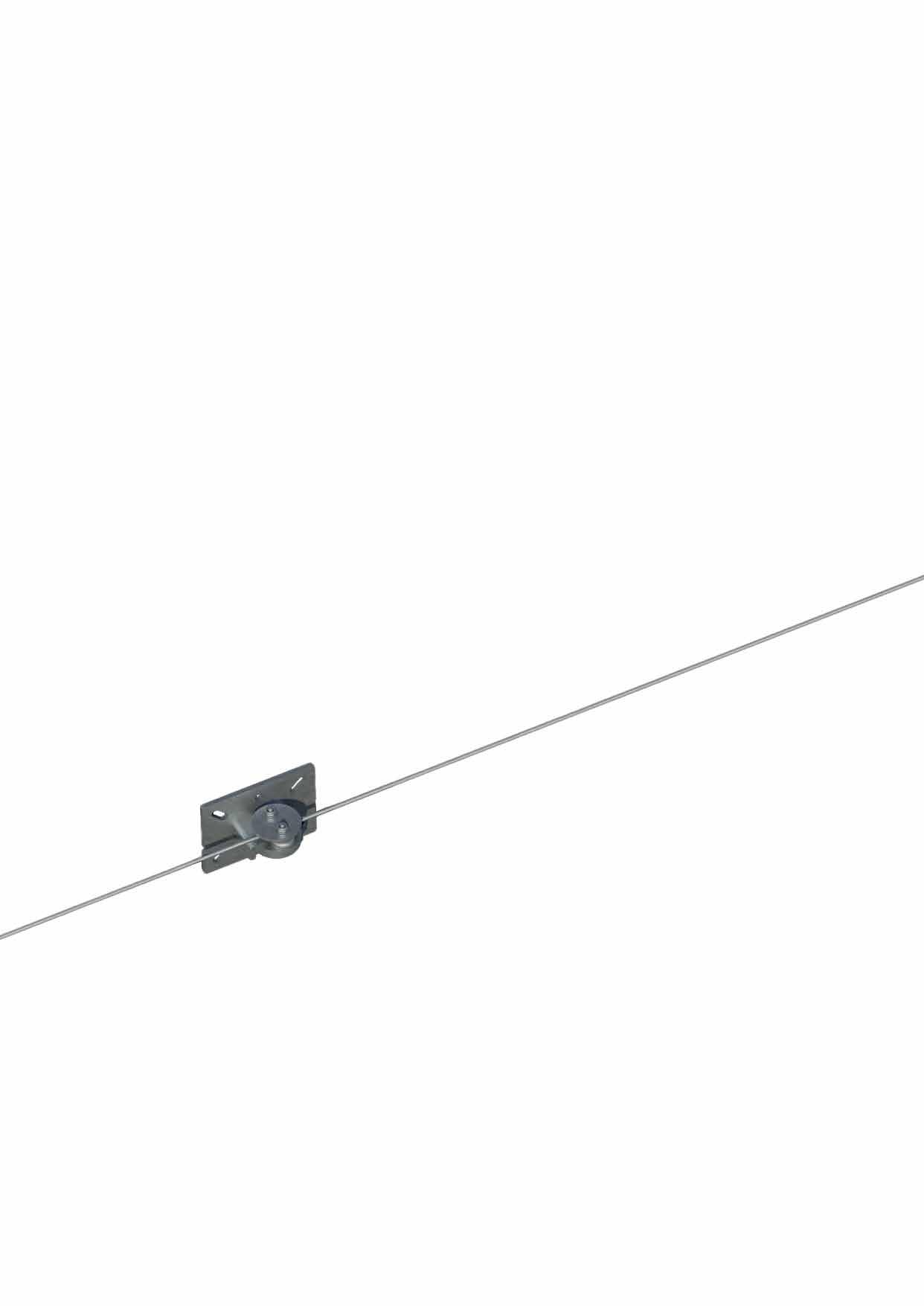

INTERMEDIATE SUPPORT

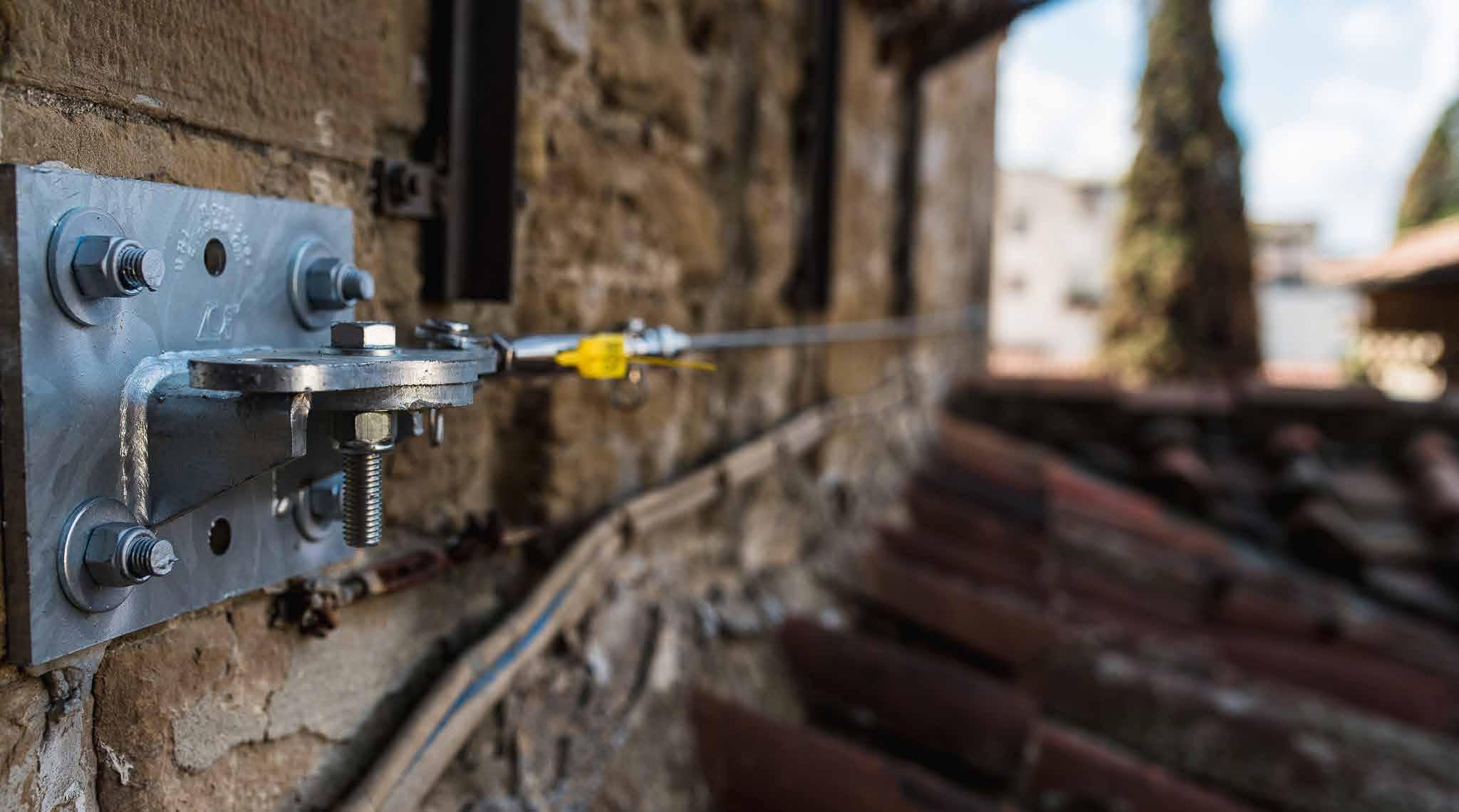

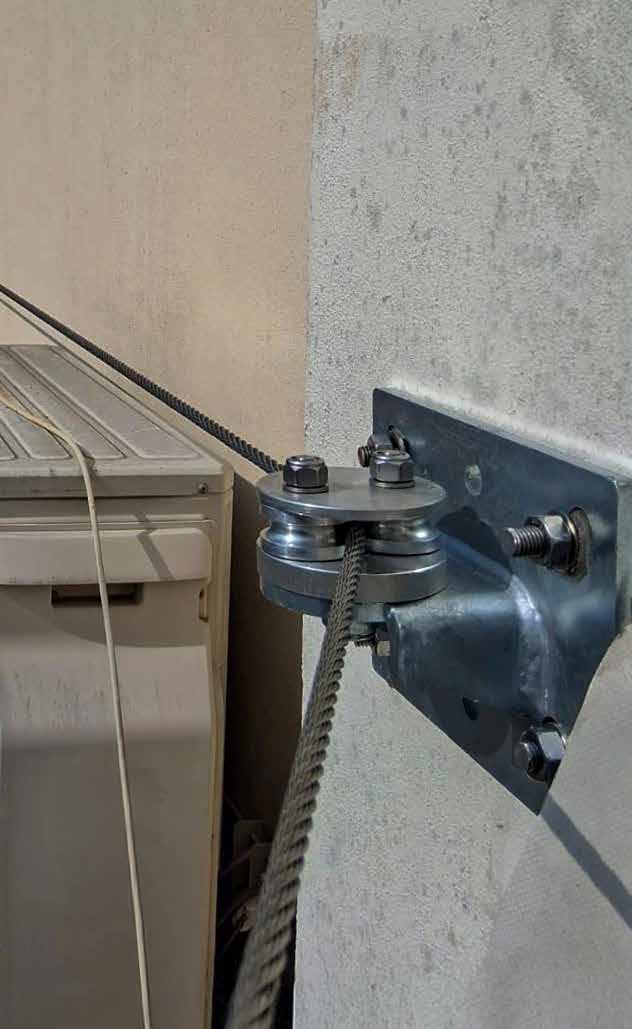

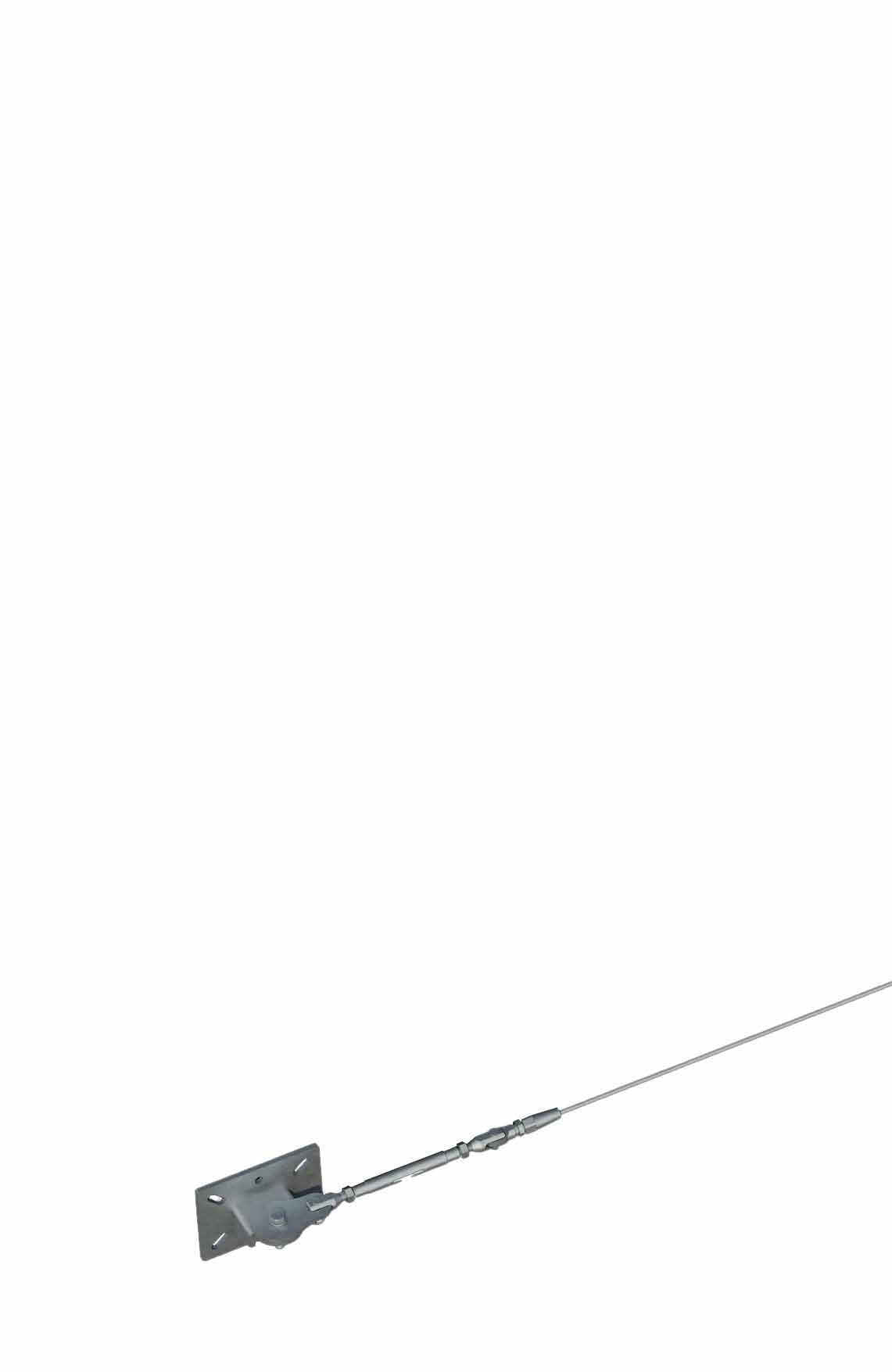

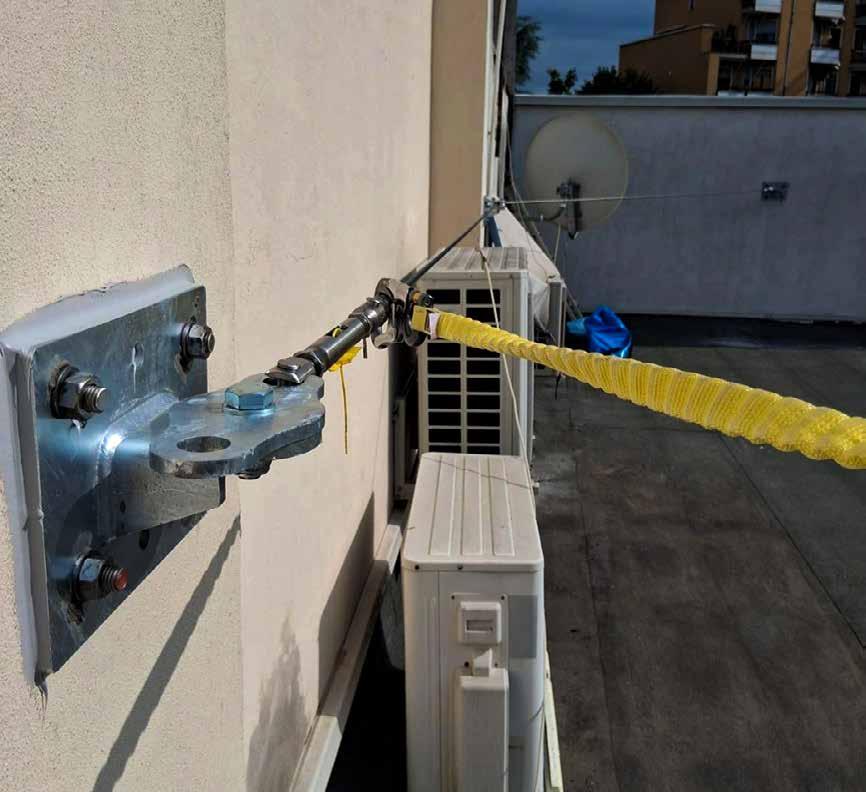

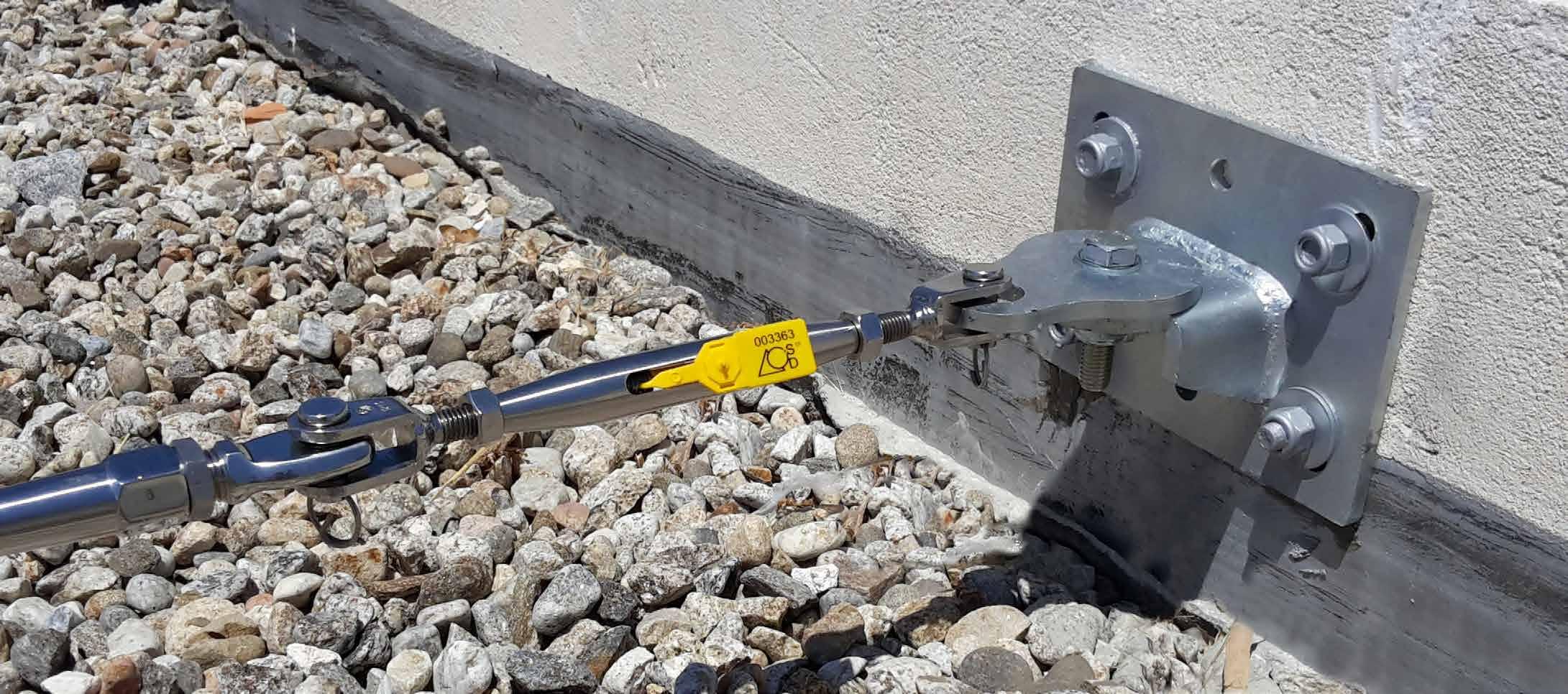

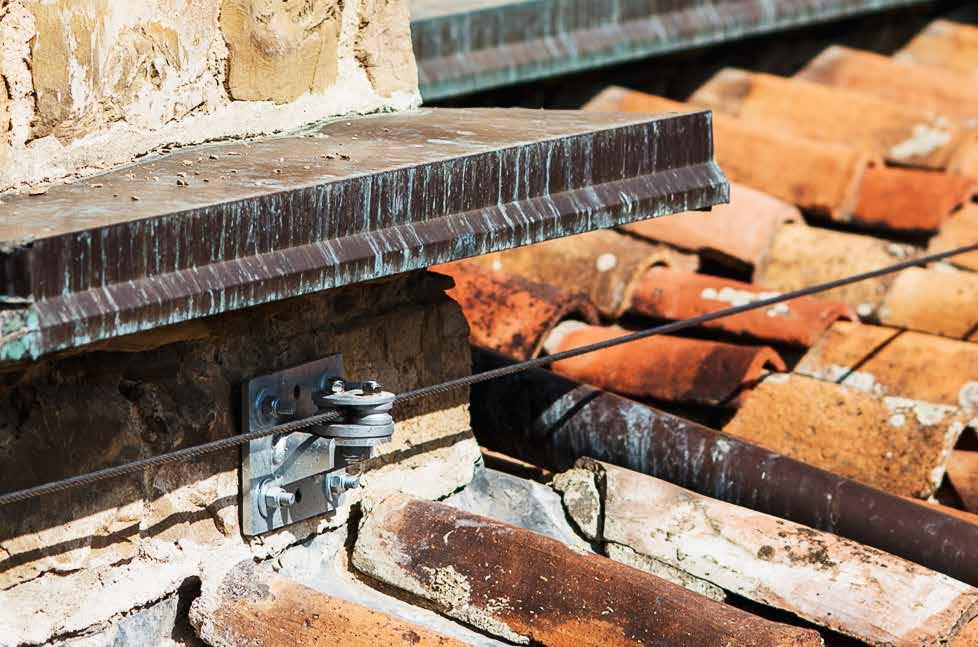

The system is designed for installation on vertical surfaces such as walls, and can be integrated with both Roof Lines and Flat Lines, offering a flexible solution for various roofing configurations. It can be fixed directly to steel, timber, masonry or reinforced concrete structures. Multiple head elements can also be installed on the same support, allowing shared use with different anchoring systems. Curves are permitted through the use of a dedicated support combined with a curved head.
The line can cover a minimum span of 3 metres and a maximum of 15 metres; beyond this length an intermediate support is required. End head supports can be single or double, while intermediate heads are available in standard or curved versions.
The system is manufactured in S235 hot-dip galvanised steel and the maximum number of operators is four.
The system is certified according to the following standards:
UNI EN 795 : 2012
CEN/TS 16415 : 2013
SD76 RANGE TYPE C
WALL LINE
SD76 RANGE
