STRUCTURAL ANCHORS SD76 RANGE
VERTICAL
LIFELINE VERTICAL

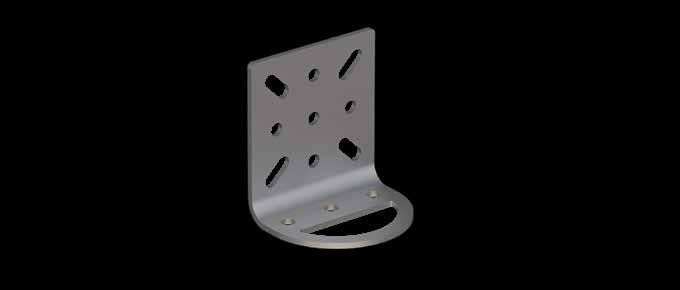

END AND INTERMEDIATE SUPPORT
Accessory for lines orthogonal to vertical walls

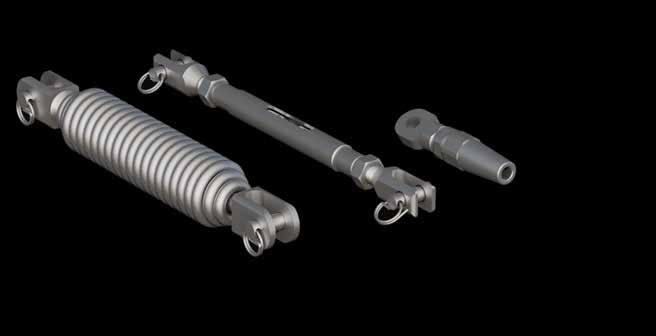

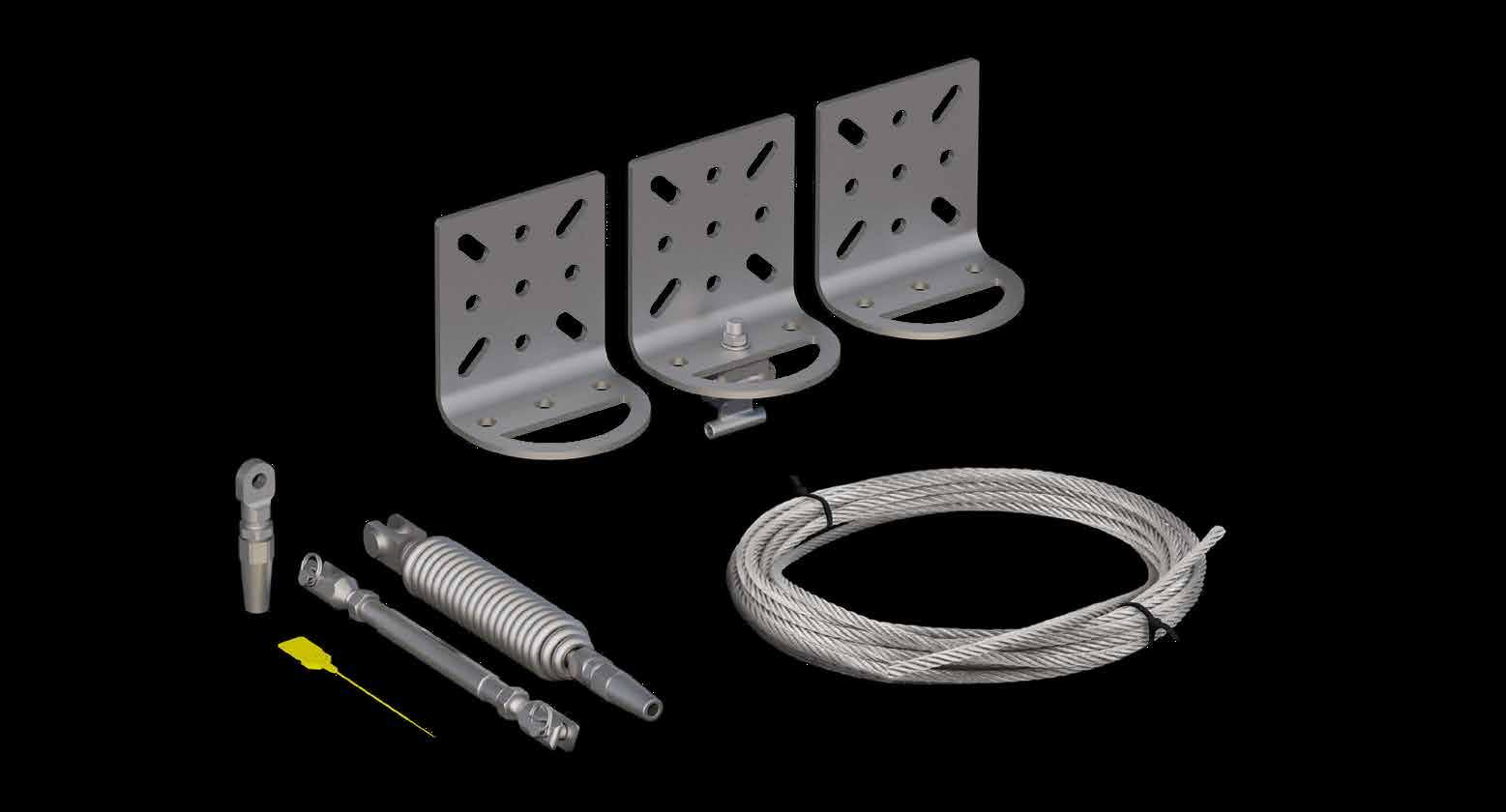

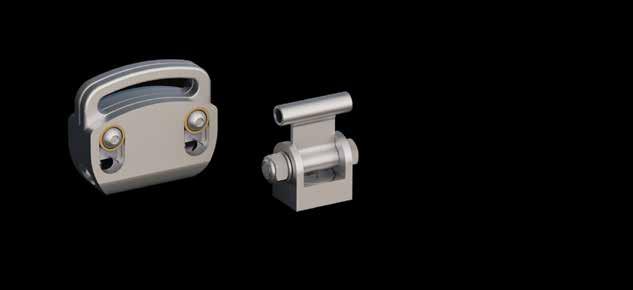

END COMPONENTS

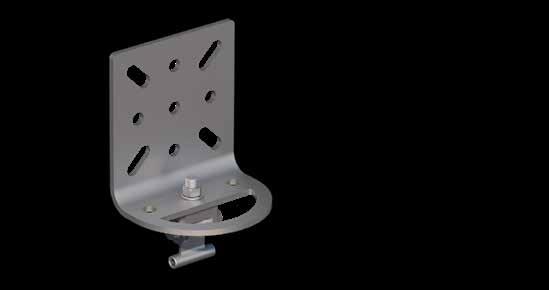

INTERMEDIATE HEAD

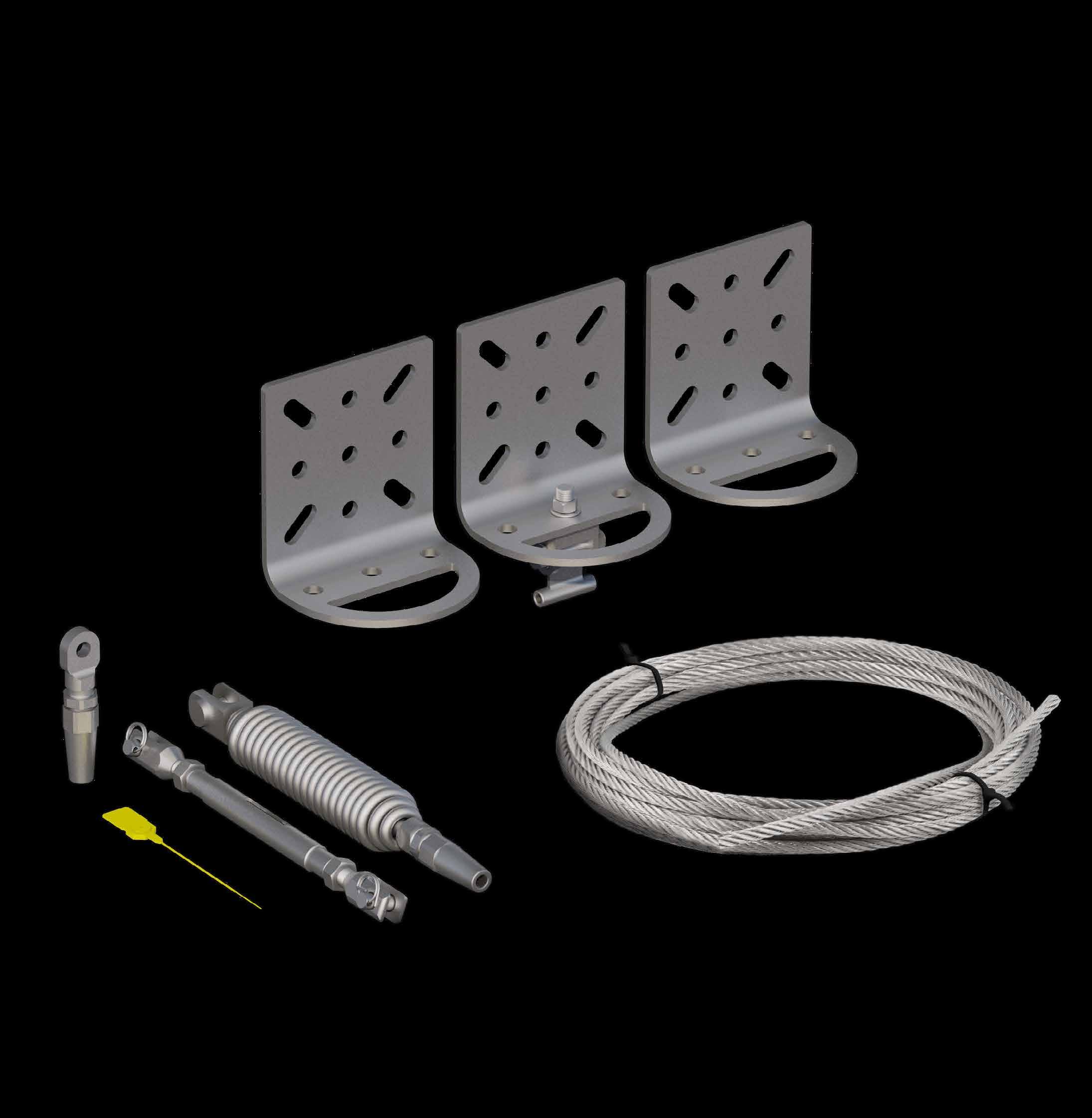

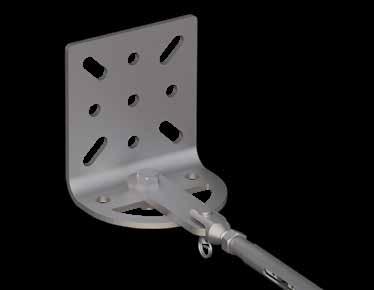

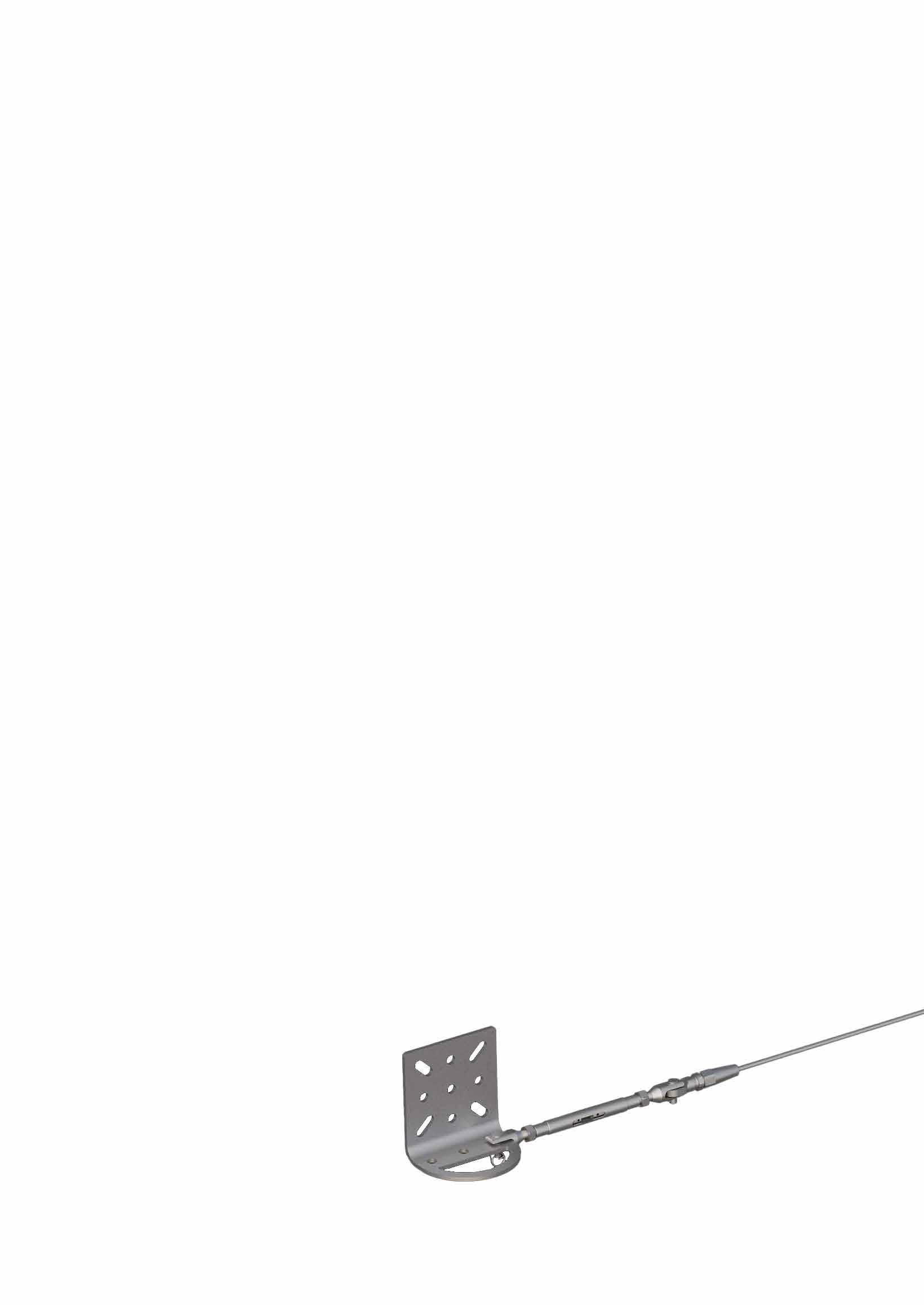

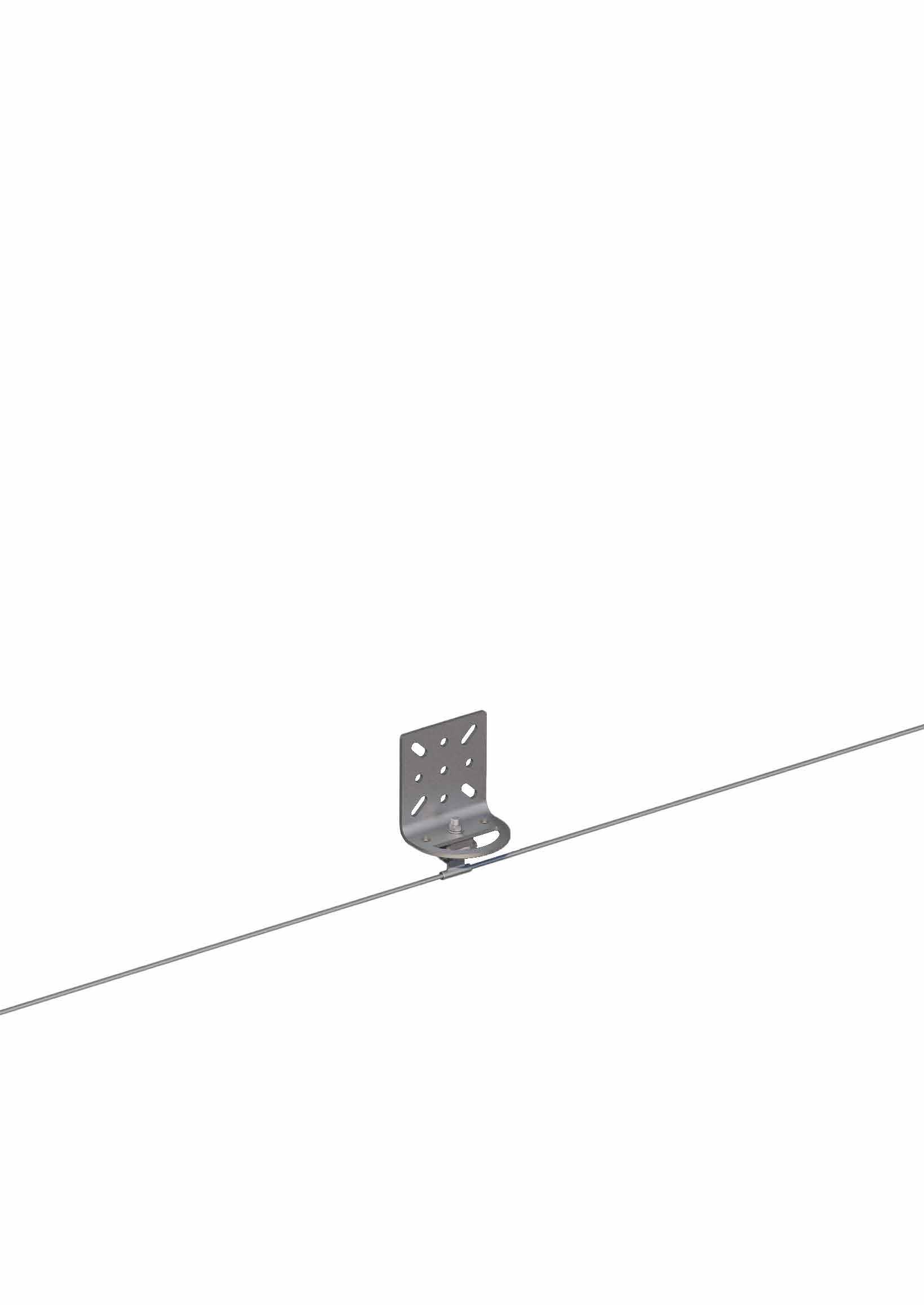

The system features a single anchor support, designed to be used either in the Type C lifeline configuration with flexible cable, or as a Type A single-point anchor when installed individually.

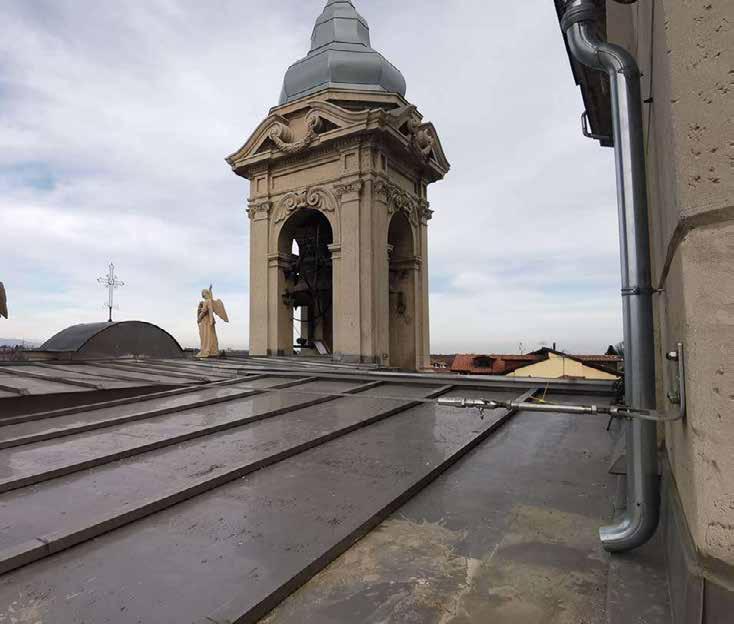

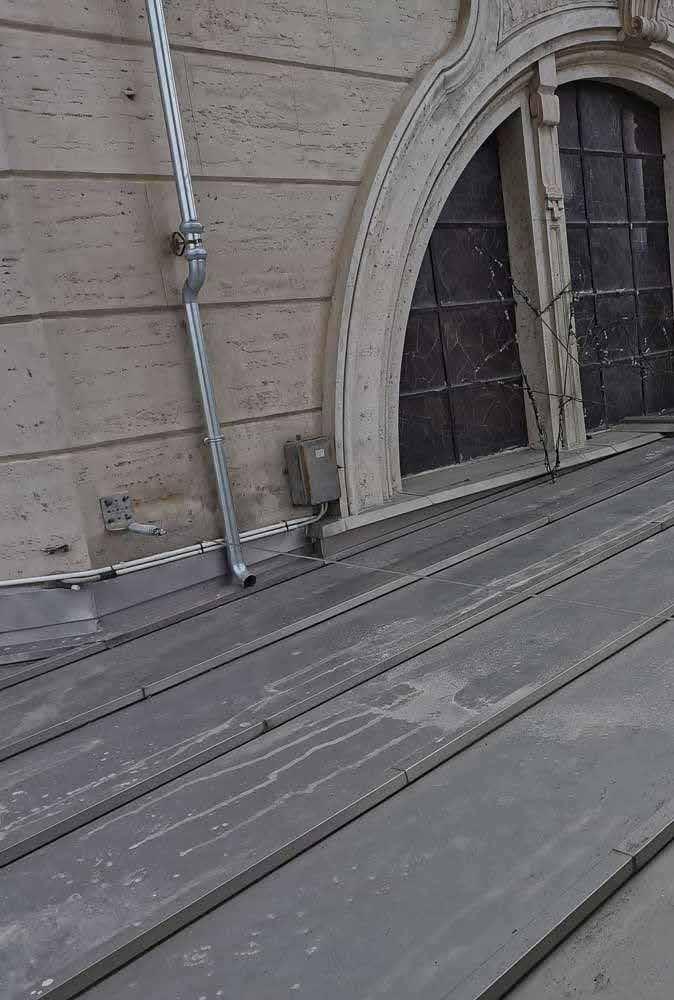

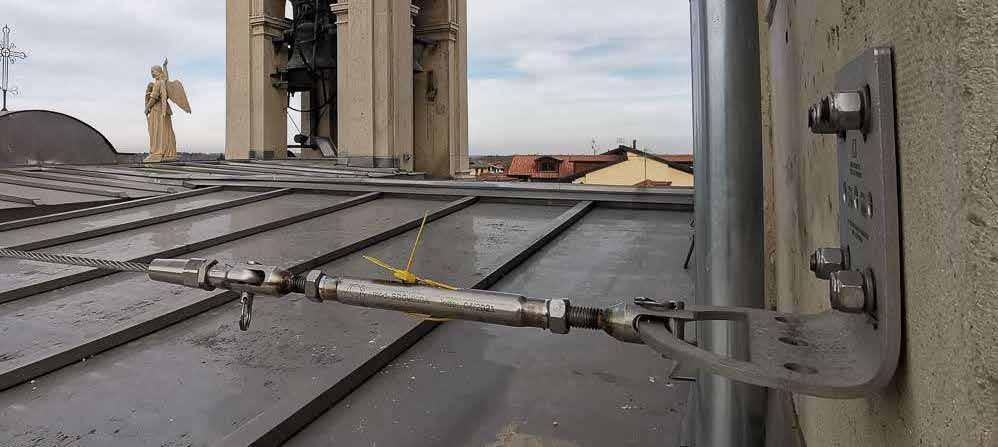

The solution is designed for installation on vertical surfaces such as walls, and allows direct fixing to various types of structures including steel, timber, masonry and reinforced concrete.
The lifeline can cover a minimum span of 3 metres and a maximum of 15 metres; for longer runs an intermediate support is required. The system is manufactured in AISI 316L stainless steel.
Regarding the number of users, the maximum is four in the Type C lifeline configuration, two when used as a Type A single-point anchor, and up to four in the combined Type C / Type A configuration.
The system is certified according to the following standards:
UNI EN 795 : 2012
CEN/TS 16415 : 2013
