SHEET METAL ROOFING SDLAM RANGE
LIFELINES SDLAM RANGE TYPE C

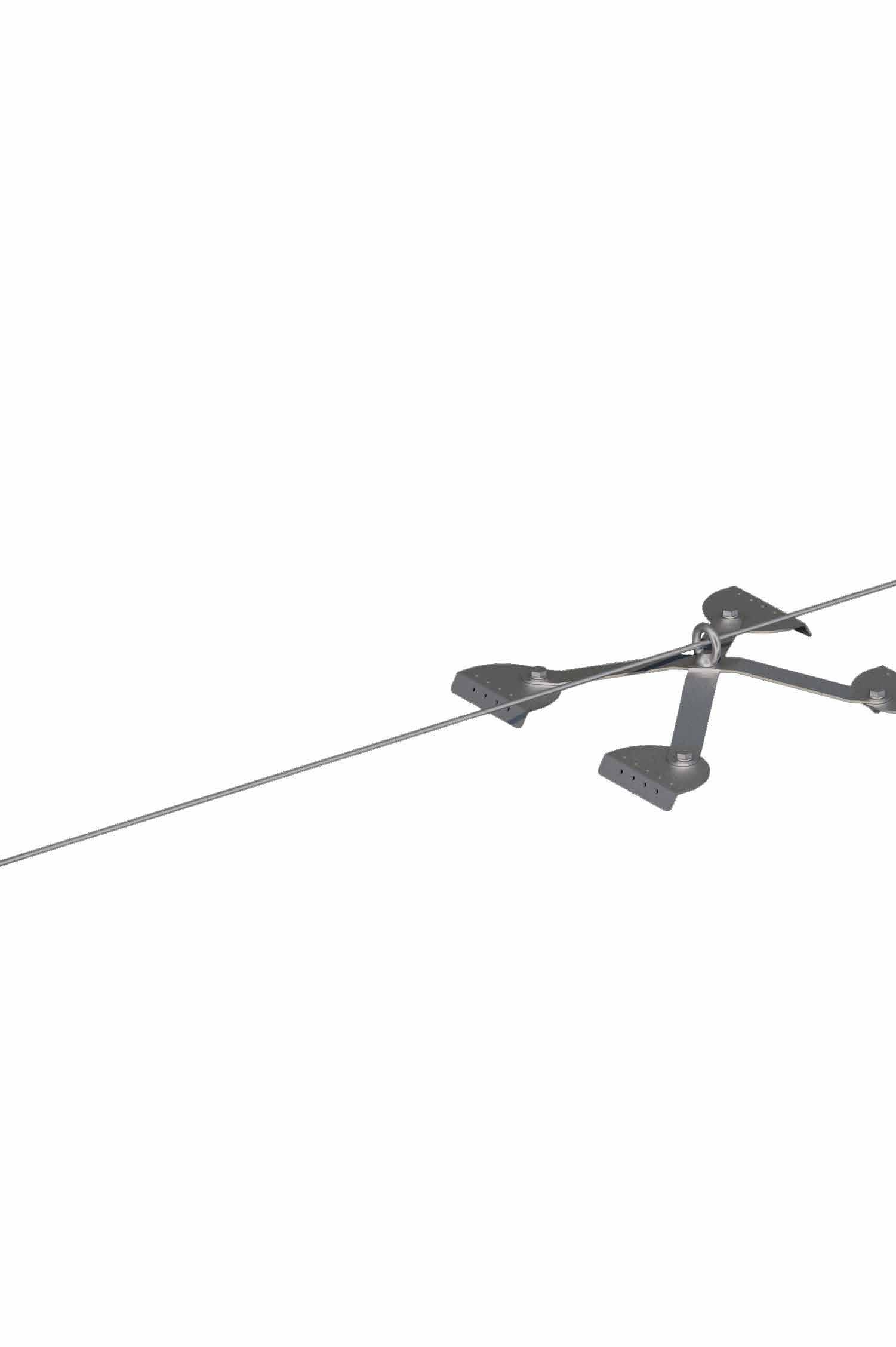

INTERMEDIATE ANCHOR
END ANCHOR END COMPONENTS

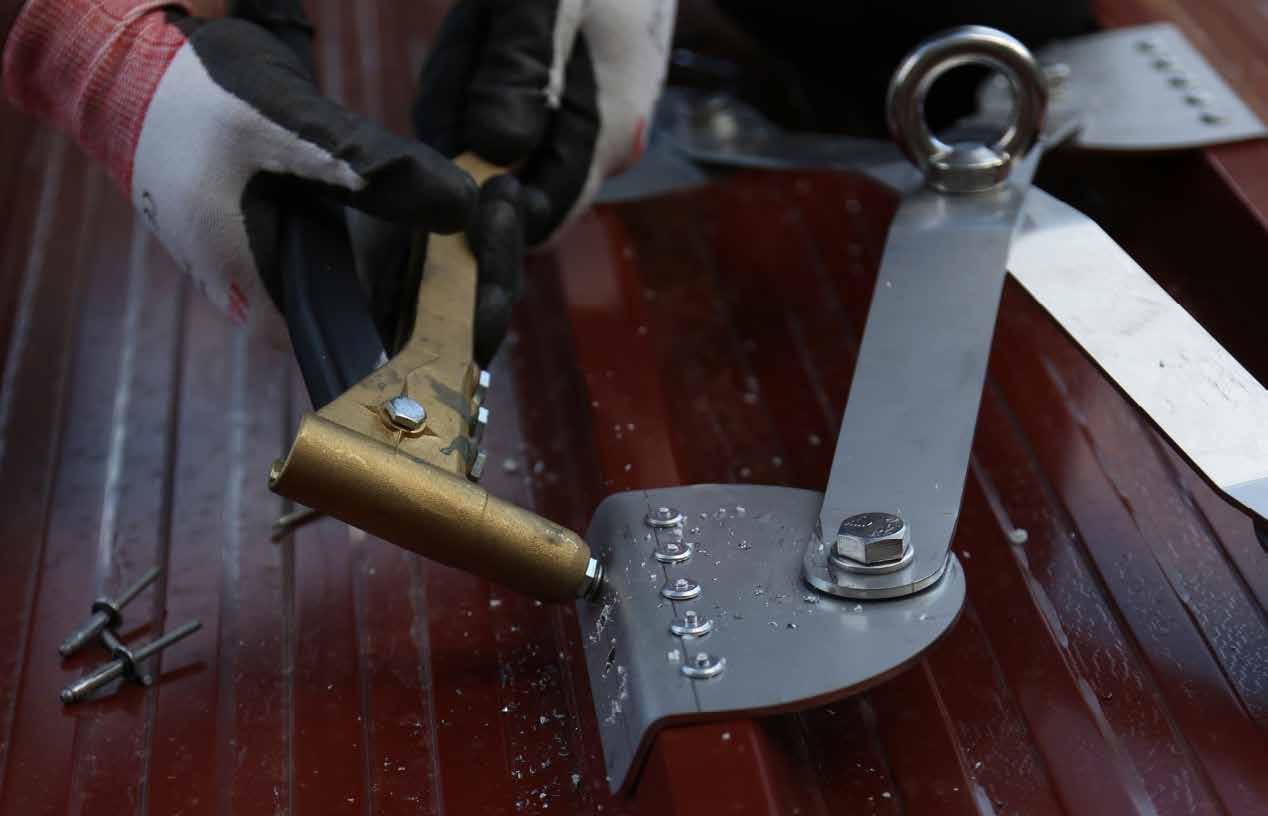

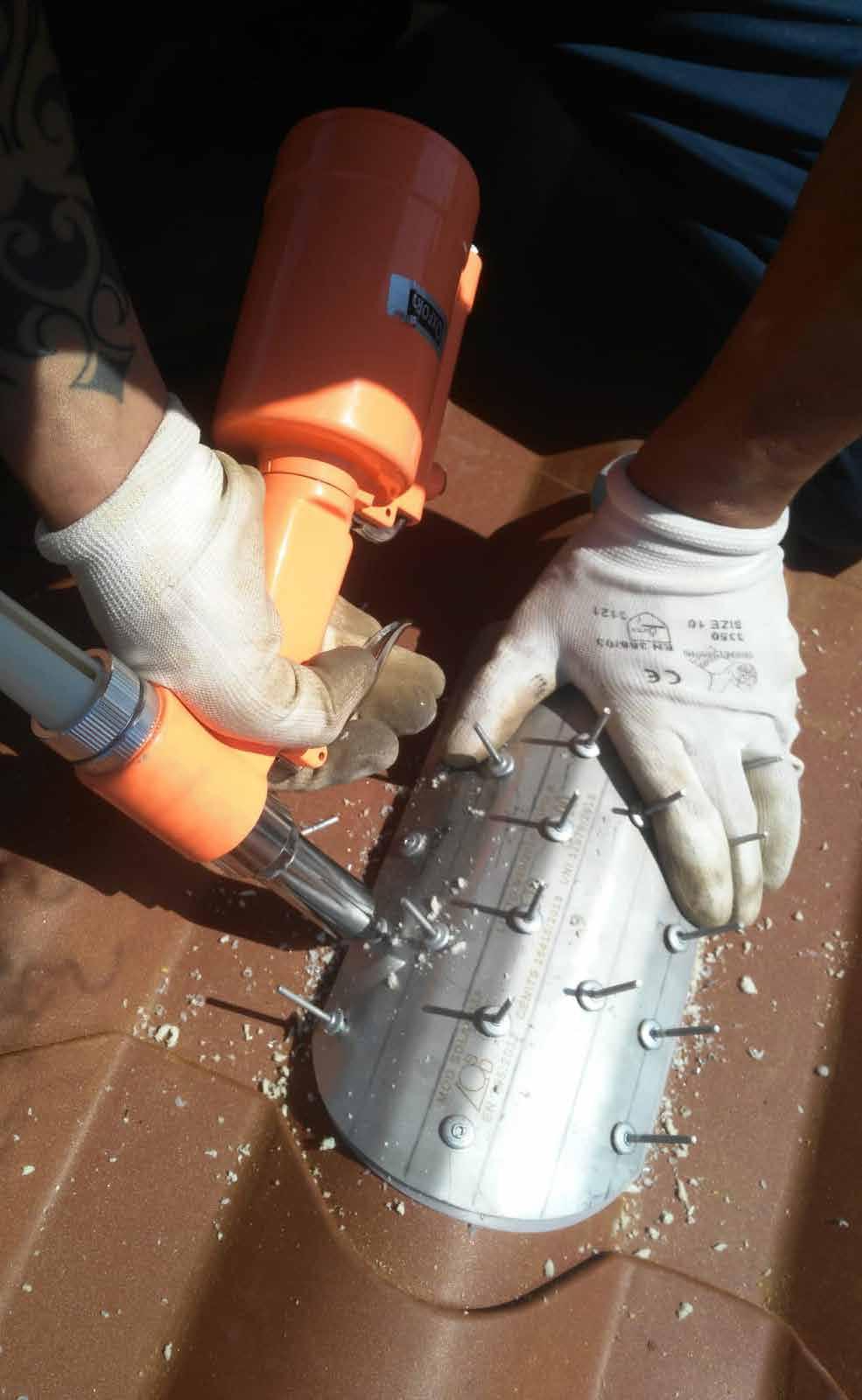

The upper fixing of the system is carried out using rivets, already tested and certified on simulated supports in the test field, ensuring a safe and standard-compliant installation.
Regarding minimum substrate thicknesses, for sandwich panels a minimum thickness of 0.4 mm is required for steel and 0.6 mm for aluminium. For sheet metal panels, the minimum required thickness is 0.6 mm for steel, with a possible variant of 0.5 mm in certain configurations, while for aluminium a minimum thickness of 0.7 mm is required.
The material used in the system is AISI 304 stainless steel, known for its corrosion resistance and longterm durability.

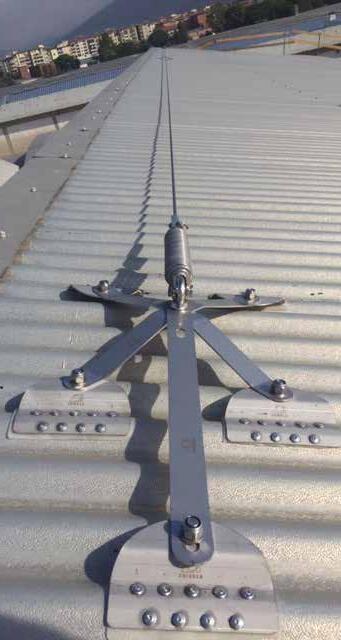

The system base can be flat, corrugated or mock-tile profile, adapting to various roofing types. The line length can range from a minimum span of 3 metres to a maximum of 15 metres, beyond which an intermediate support is required.
The system is designed for use by a maximum of three operators at the same time, ensuring safe and efficient operation.

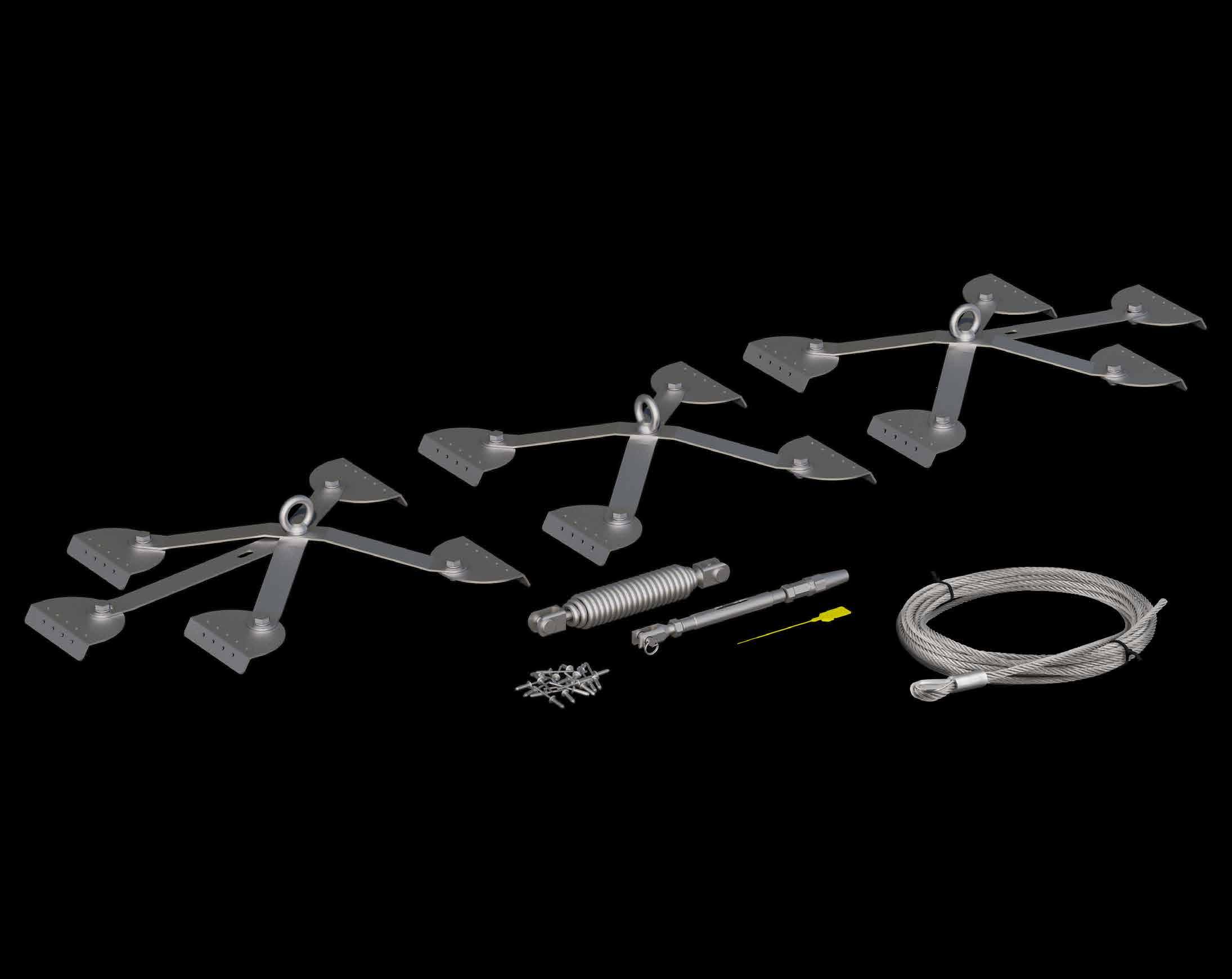

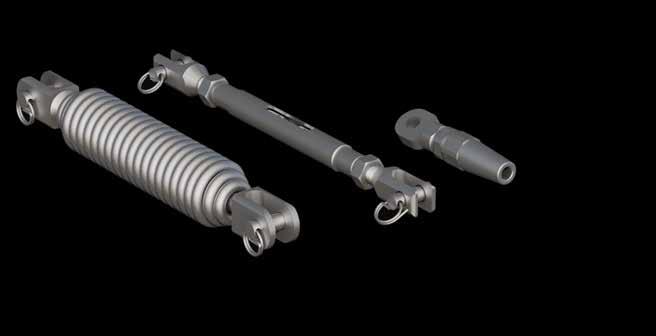

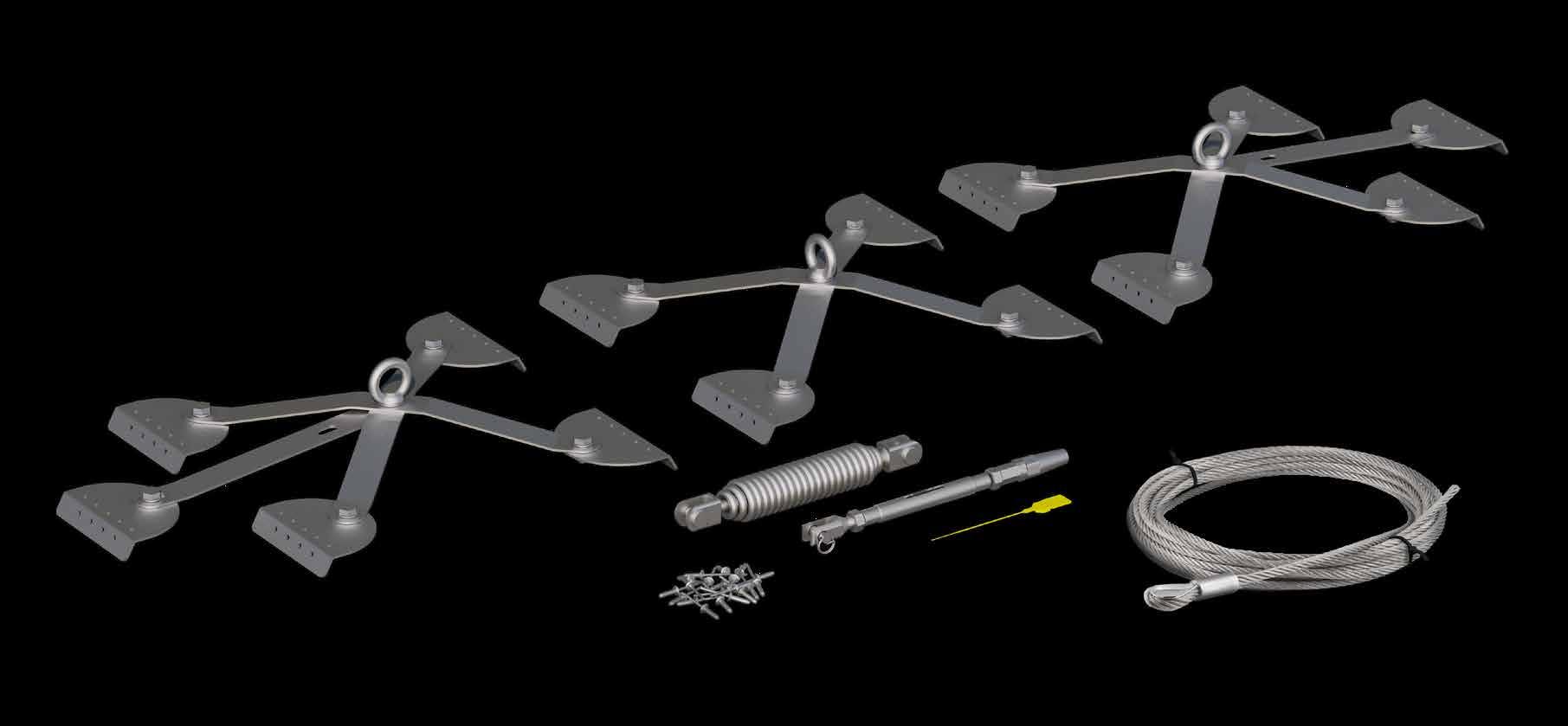

The SDLAM kit includes two end anchors complete with fixing rivets, an energy absorber with tensioner, the hardware required for assembly, gaskets, the installation, use and maintenance manual, as well as the identification label and warranty seal.
The system is certified according to the following standards
UNI EN 795 : 2012
CEN/TS 16415 : 2013
BASE TYPE flat, corrugated, mock-tile profile
SDLAM RANGE TYPE C
LIFELINES SDLAM RANGE TYPE A
SDLAM01A
SDLAM02A
SDLAM03A
SDLAMCAV
The upper fixing of the system is carried out using rivets, already tested and certified on simulated supports in the test field, ensuring a safe and standard-compliant installation.
Regarding minimum substrate thicknesses, for sandwich panels a minimum thickness of 0.4 mm is required for steel and 0.6 mm for aluminium.
For sheet metal panels, the minimum required thickness is 0.6 mm for steel, with a possible variant of 0.5 mm in certain configurations, while for aluminium a minimum thickness of 0.7 mm is required.
The material used in the system is AISI 304 stainless steel.

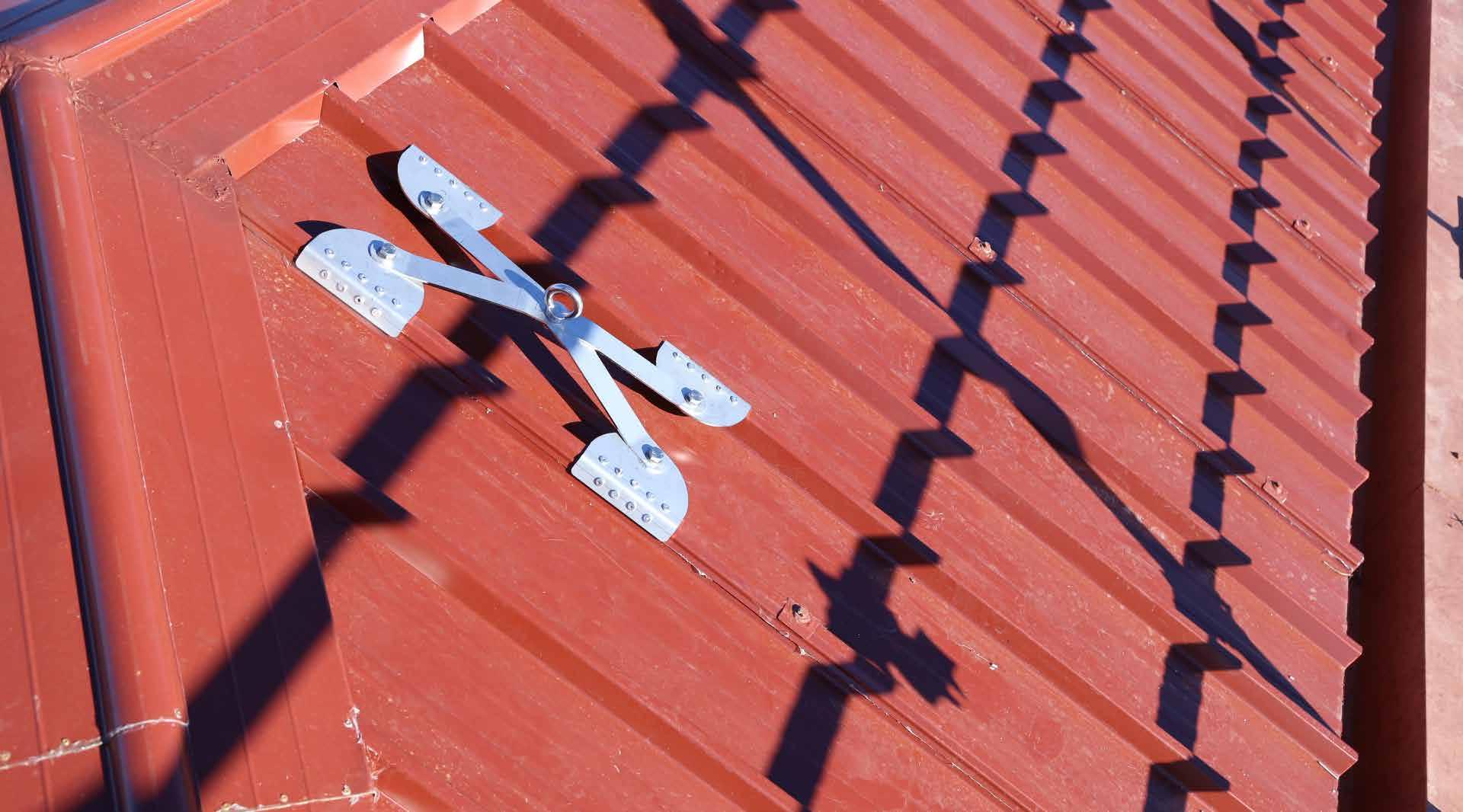

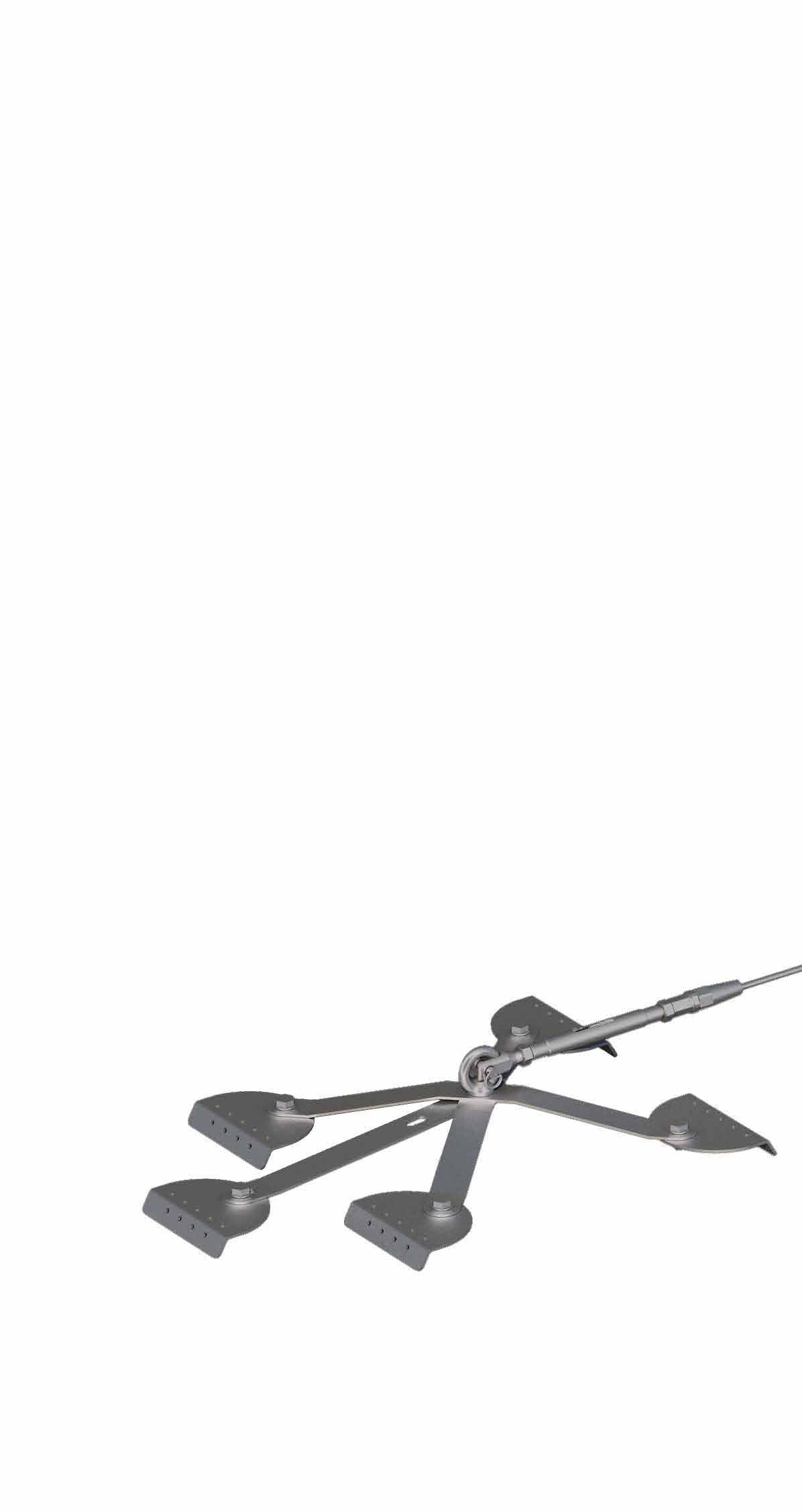

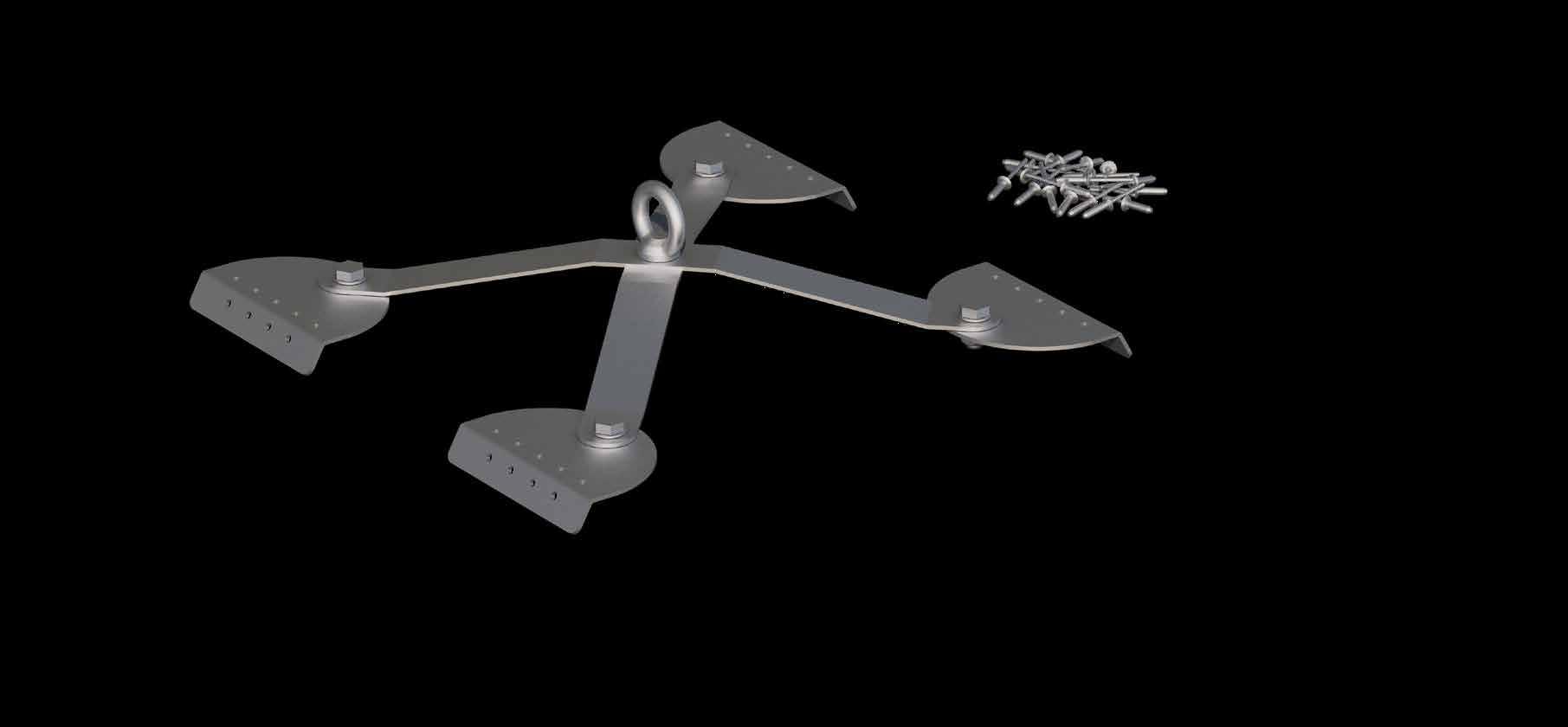

The SDLAM01A model is multi-directional, with a four-pin configuration, compatible with corrugated, mocktile or flat sheet metal roofing.

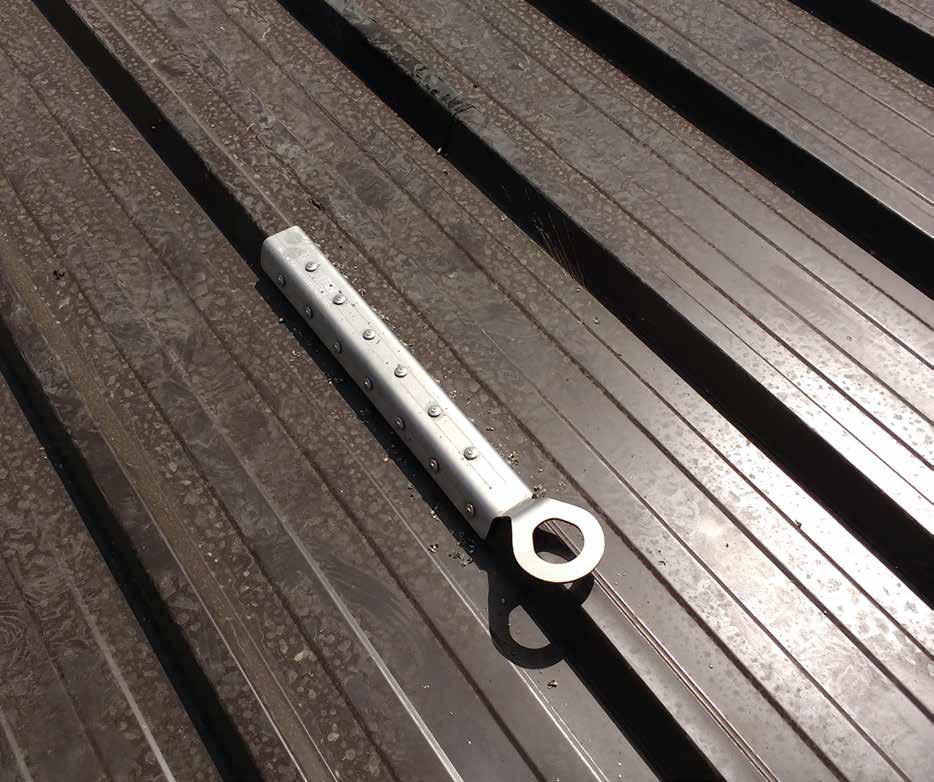

The SDLAM02A model is single-rib and uni-directional, designed for use on corrugated sheet metal, while the SDLAM03A model is also single-rib and uni-directional, designed for use on mock-tile sheet metal.

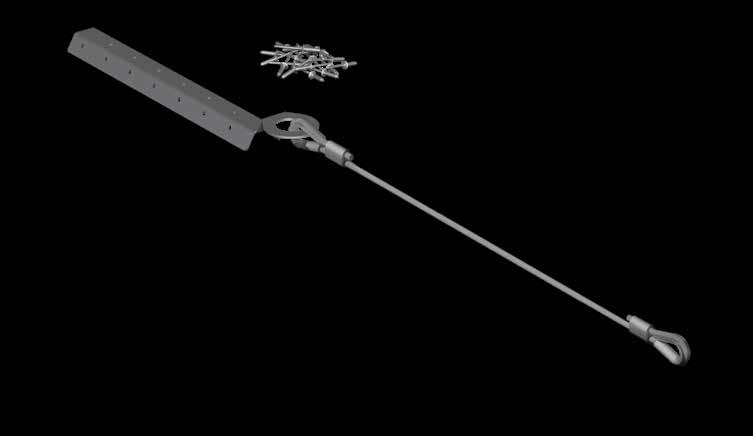

The SDLAMCAV variant combines the features of the SDLAM02A model with a flexible cable, for use where a tile roof is positioned on top of a sheet metal panel. The system is designed for use by a maximum of two operators at the same time, ensuring safety and functionality during use.
The system is certified according to the following standards:
UNI EN 795 : 2012
CEN/TS 16415 : 2013
SDLAM01A
Multi-directional with 4-pin configuration
Compatible with corrugated, mock-tile or flat sheet metal roofing.
