STRUCTURAL ANCHORS SD20DEF RANGE
LIFELINES SD20DEF RANGE TYPE C/A
SINGLE SUPPORT END/INTERMEDIATE
AVAILABLE BASES

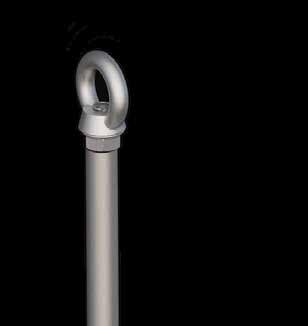

INTERMEDIATE HEADS

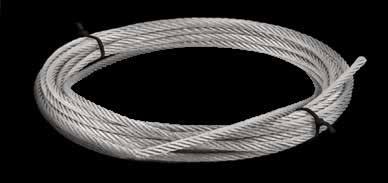

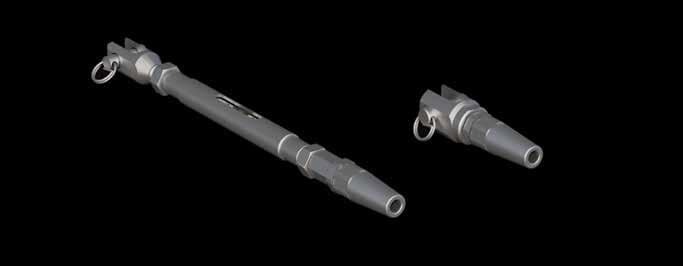

END COMPONENTS

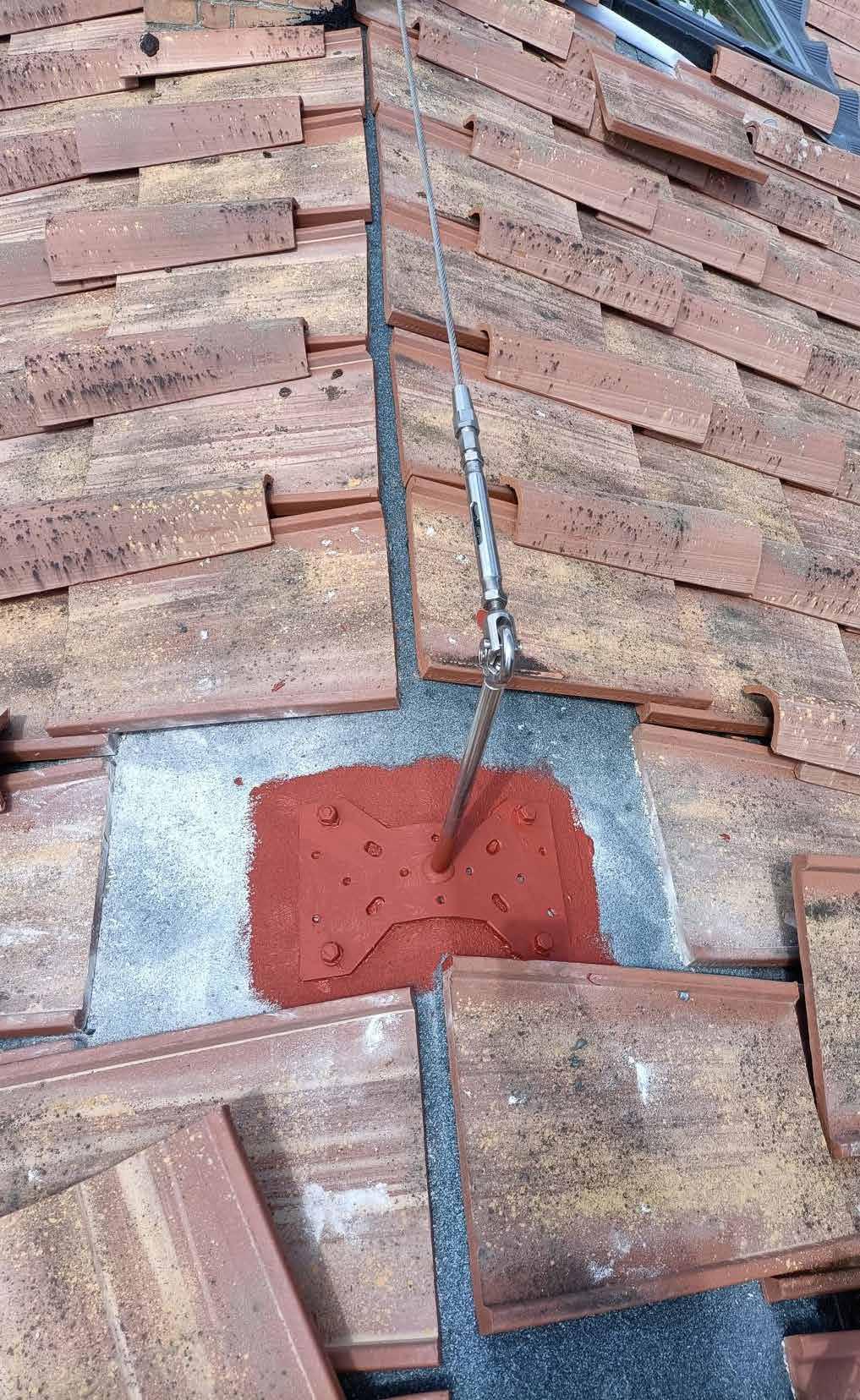

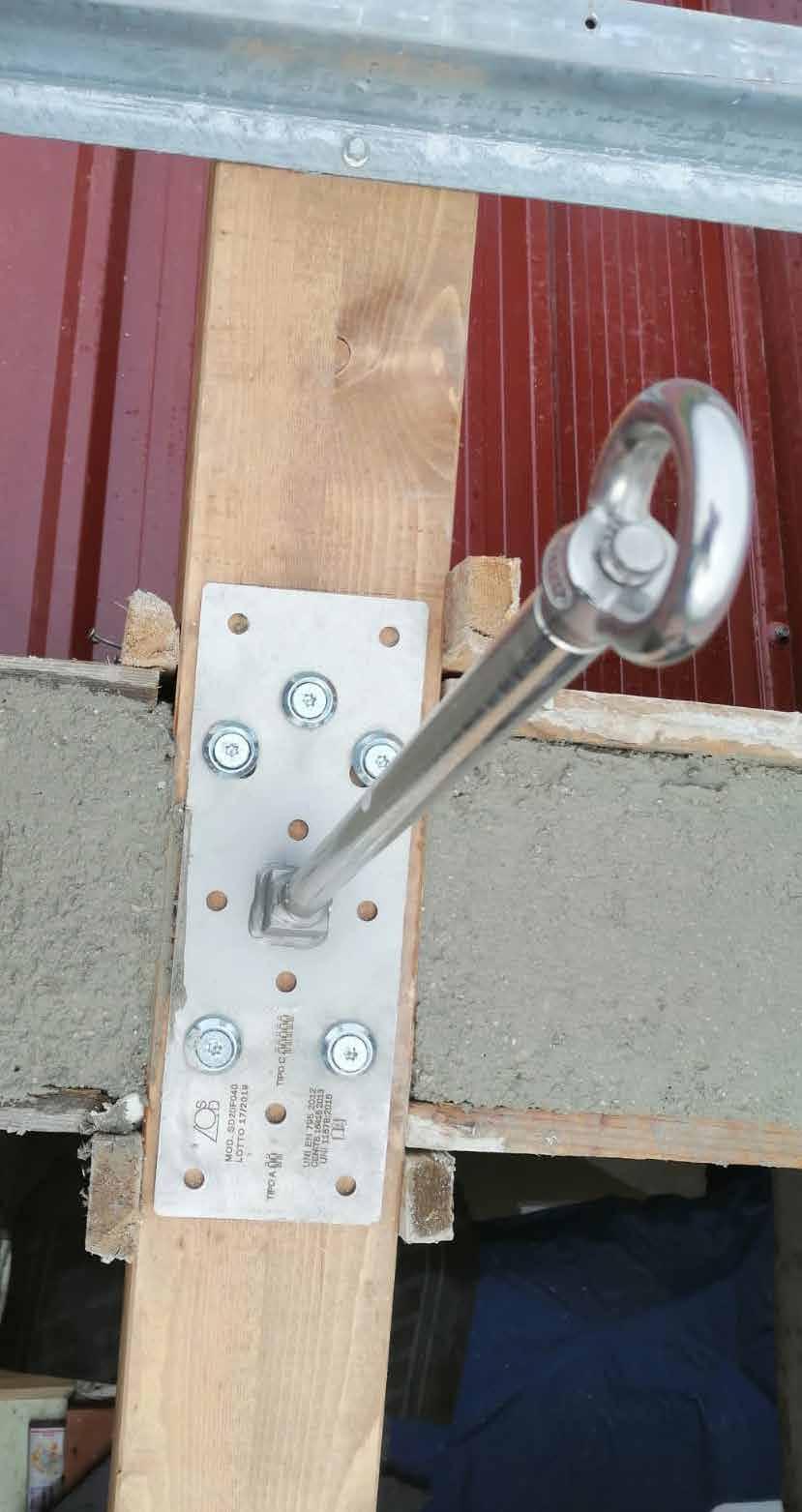

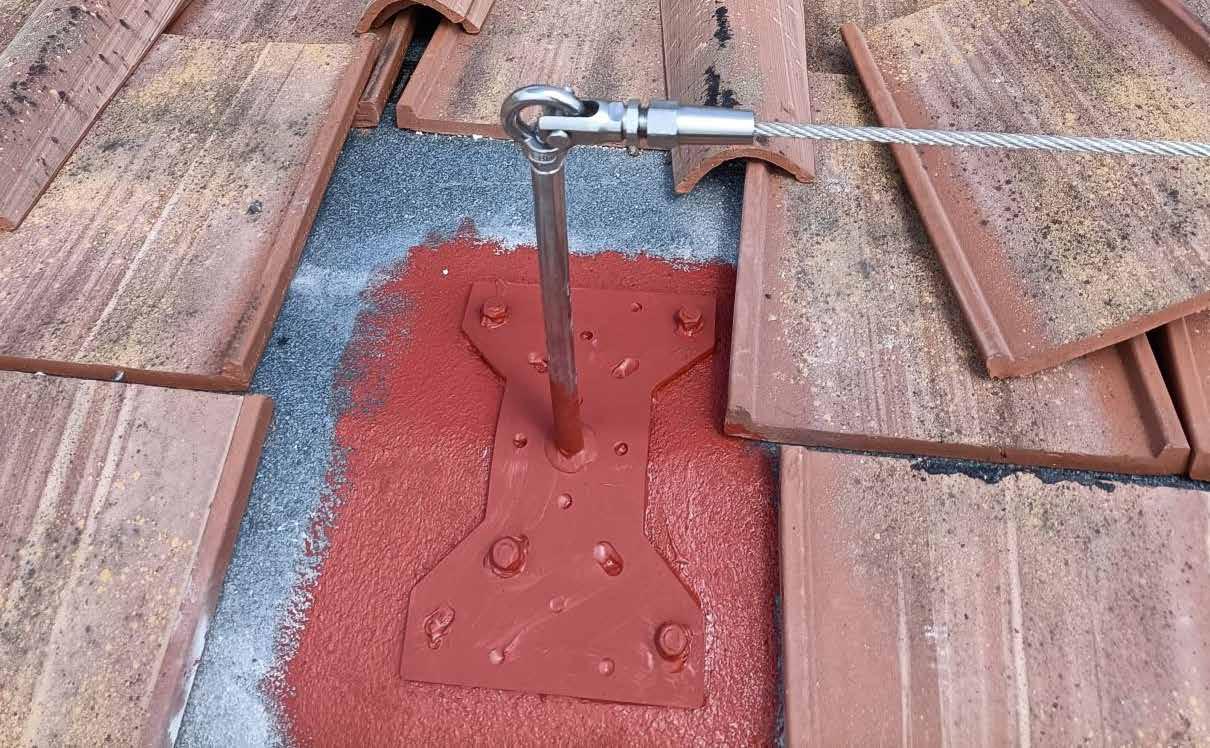

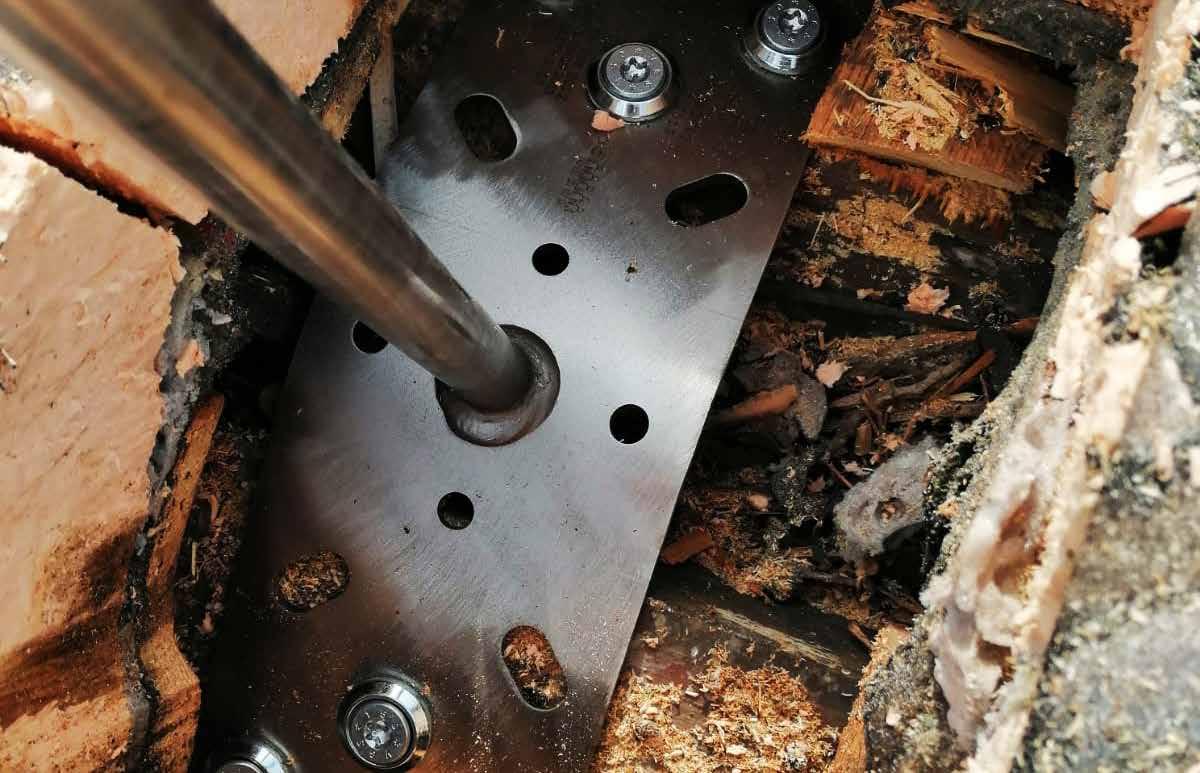

The system stands out for its use of deformable anchor supports, making it modular and adaptable to various base configurations. These bases are also available for hollow-core concrete slab structures or low-resistance substrates, offering great versatility during installation. The anchor supports can also be used individually as Type A single-point anchors, further expanding the range of possible applications.

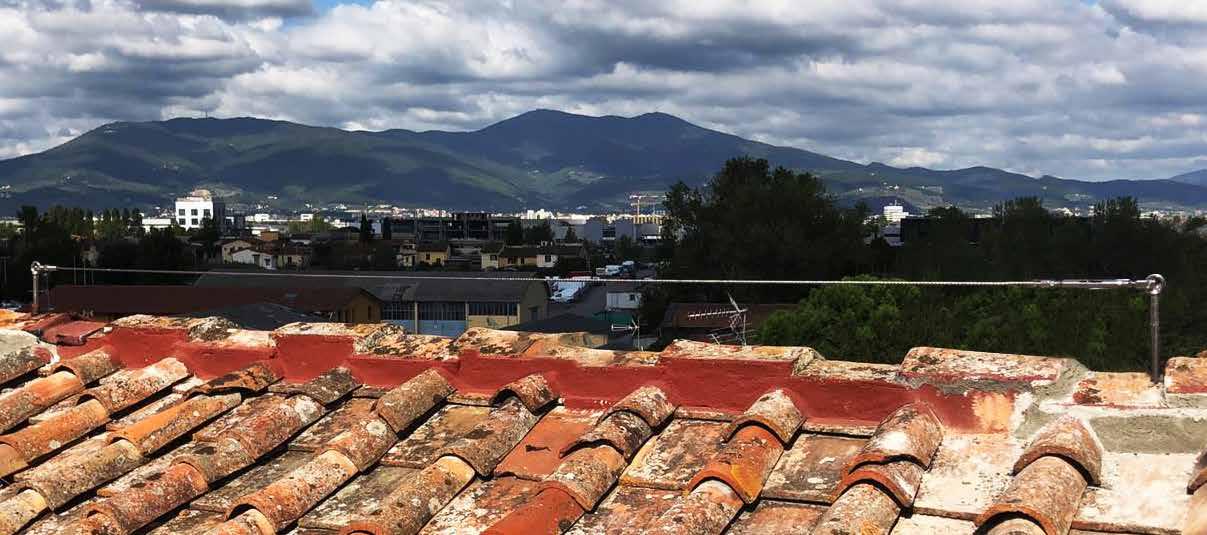

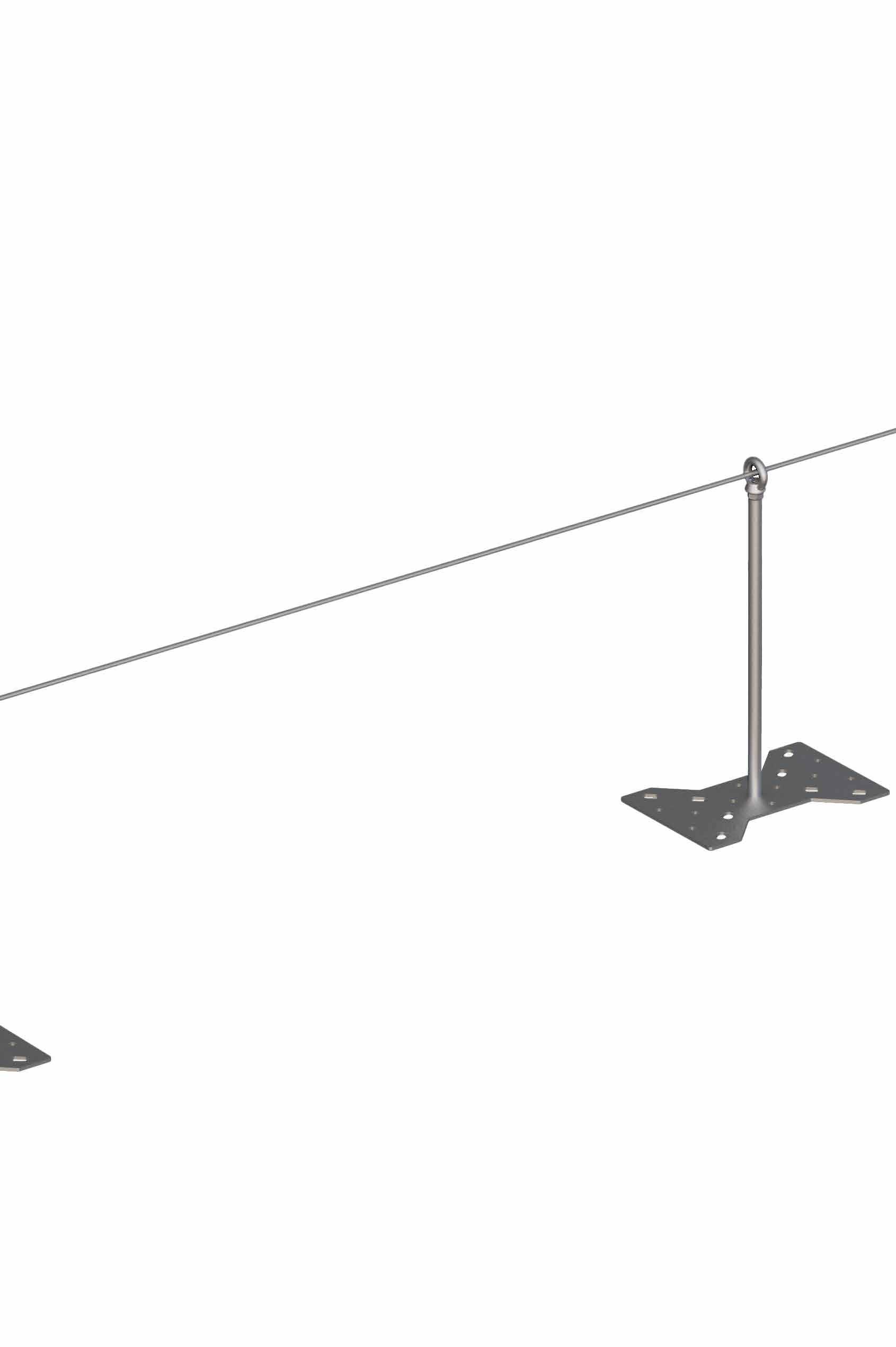

The line length can range from a minimum span of 3 metres to a maximum of 15 metres, provided that an intermediate support is included to ensure system stability and safety. The material used is AISI 316L stainless steel, chosen for its outstanding corrosion resistance and durability.

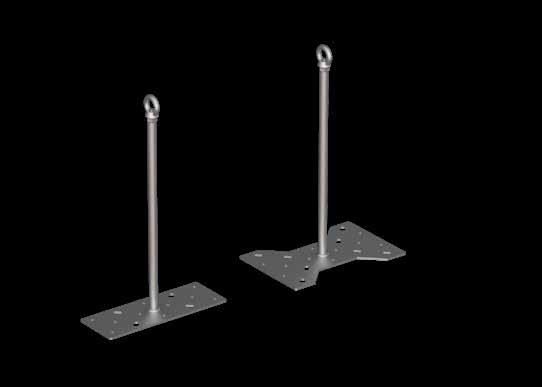

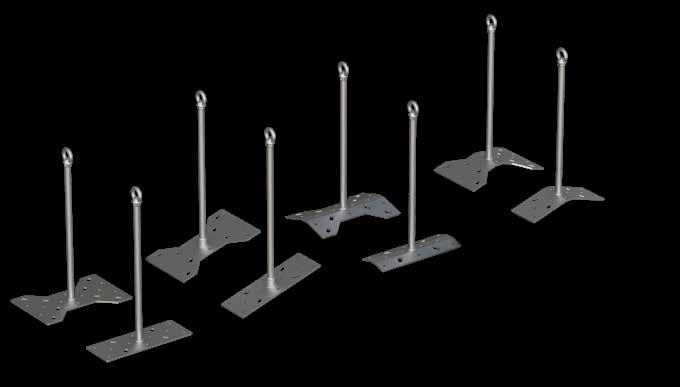

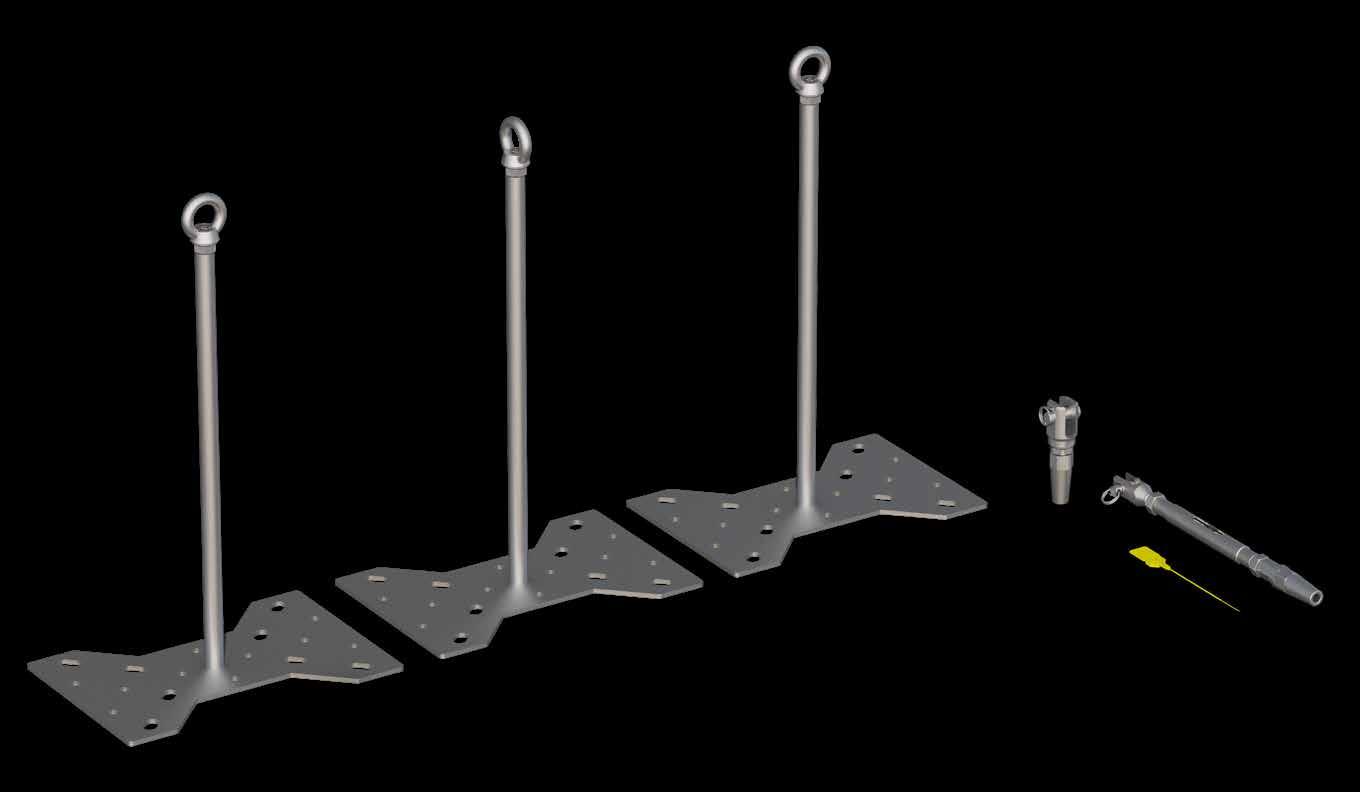

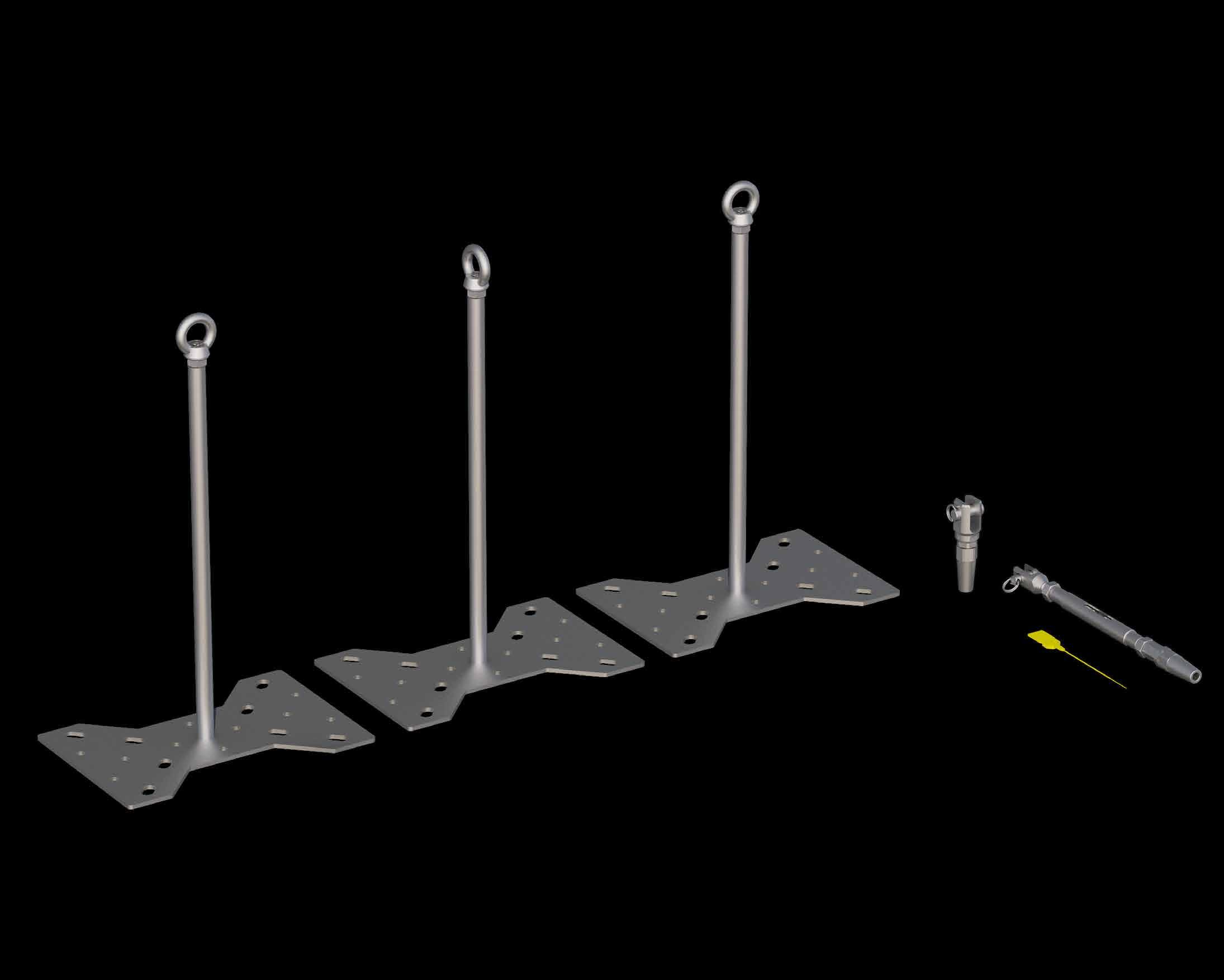

Available bases include flat, pitched and ridge versions, in both short and long formats. The base type can be standard or specific for hollow-core concrete slabs, depending on the substrate characteristics. In terms of height, the system offers options of 40, 50 and 60 cm, allowing adequate customisation based on site requirements.
Finally, the maximum number of users varies depending on the configuration: when using the supports as a Type C lifeline, the system can accommodate up to five users; when used as a Type A single-point anchor, the limit is two users.
The system is certified according to the following standards:
UNI EN 795 : 2012
CEN/TS 16415 : 2013
Standard Cable guide compatible with shuttle
SD20DEF RANGE TYPE C/A
SD20DEF RANGE
