STRUCTURAL ANCHORS SD76 RANGE
ROOF LINE
LIFELINE ROOF LINE
EXTREMITY HEADS
Single Double

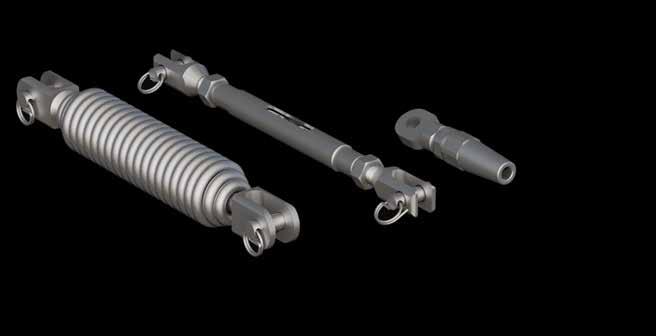

END COMPONENTS

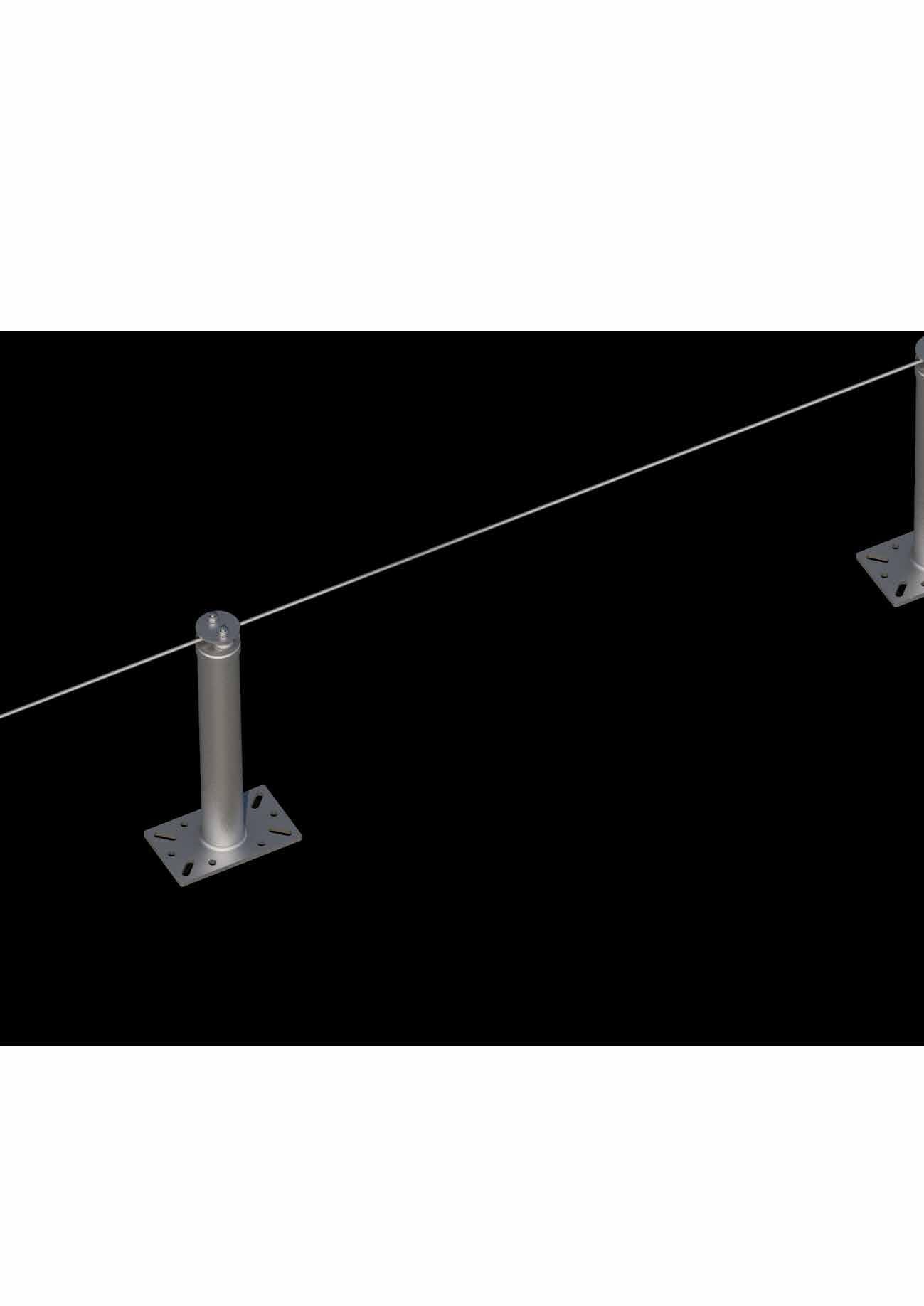

INTERMEDIATE HEAD
Intermediate Curved Cable guide with trolley

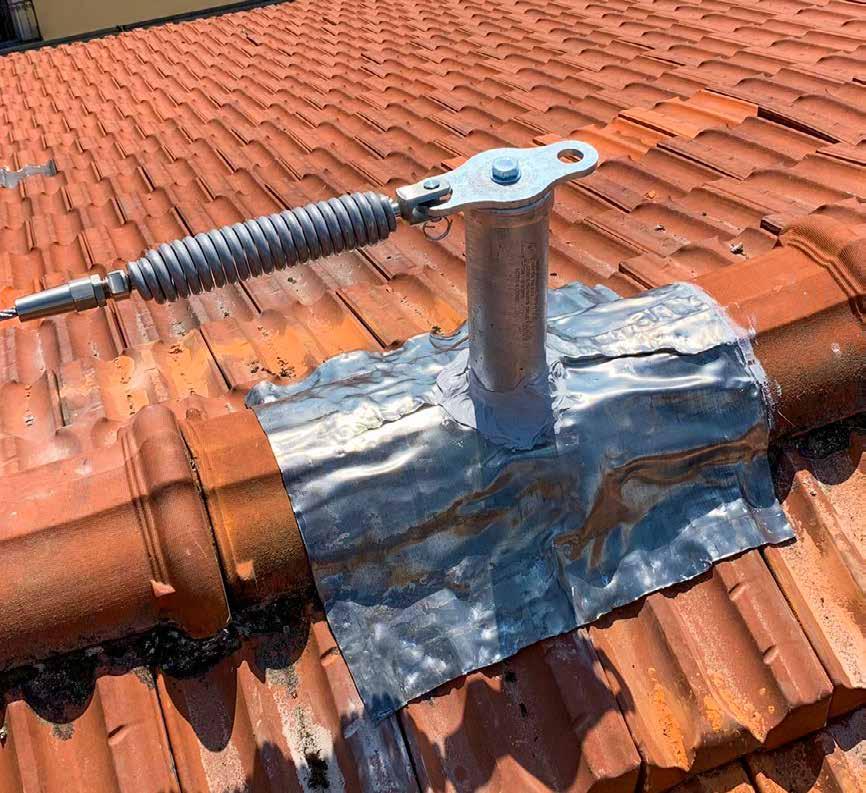

BASES Flat Pitched Colmo

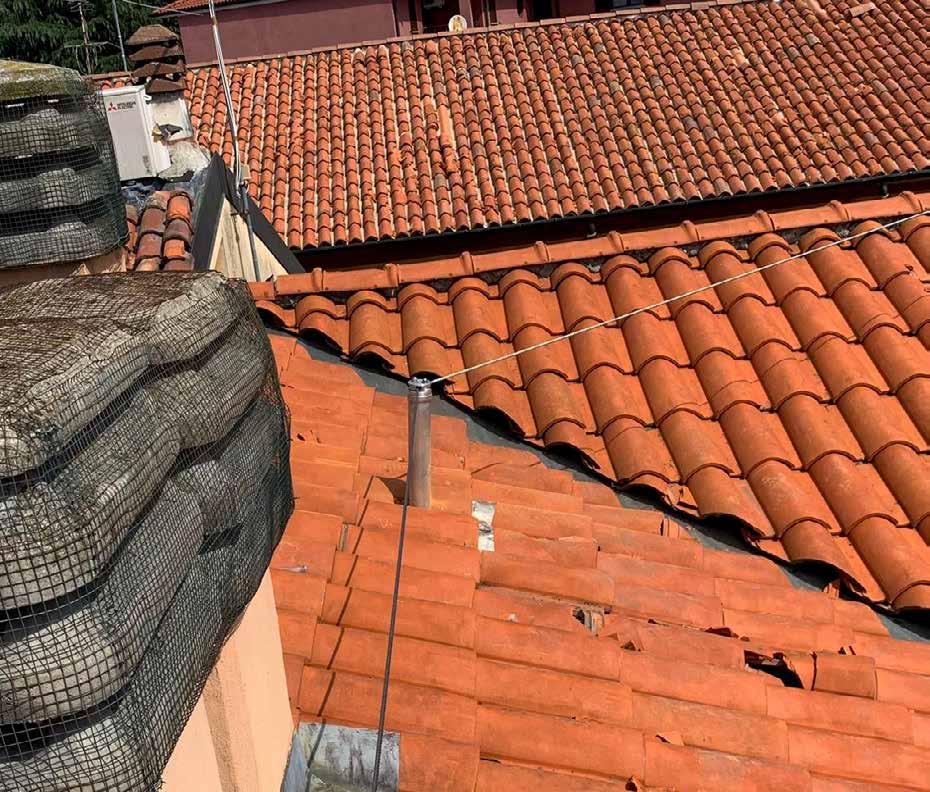

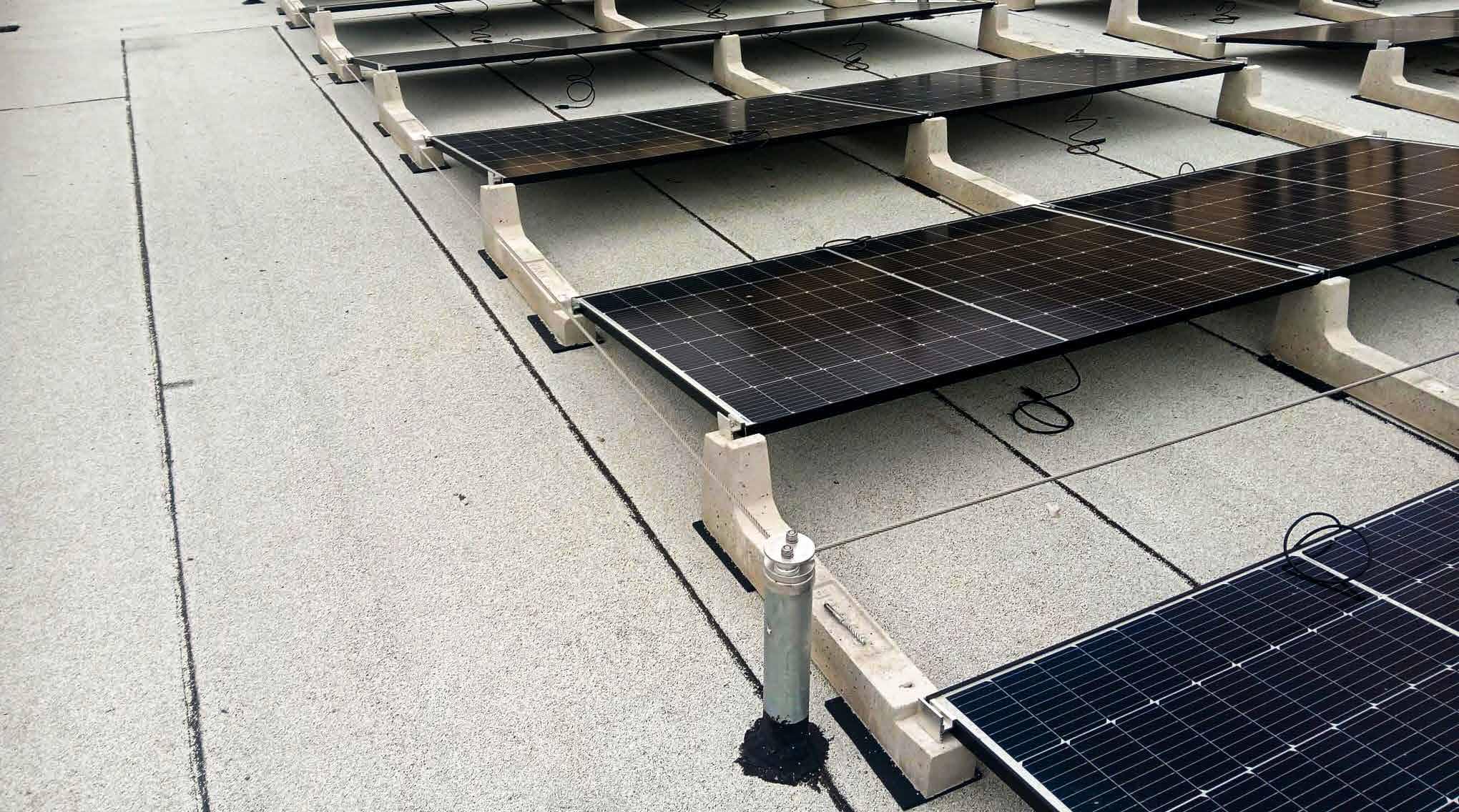

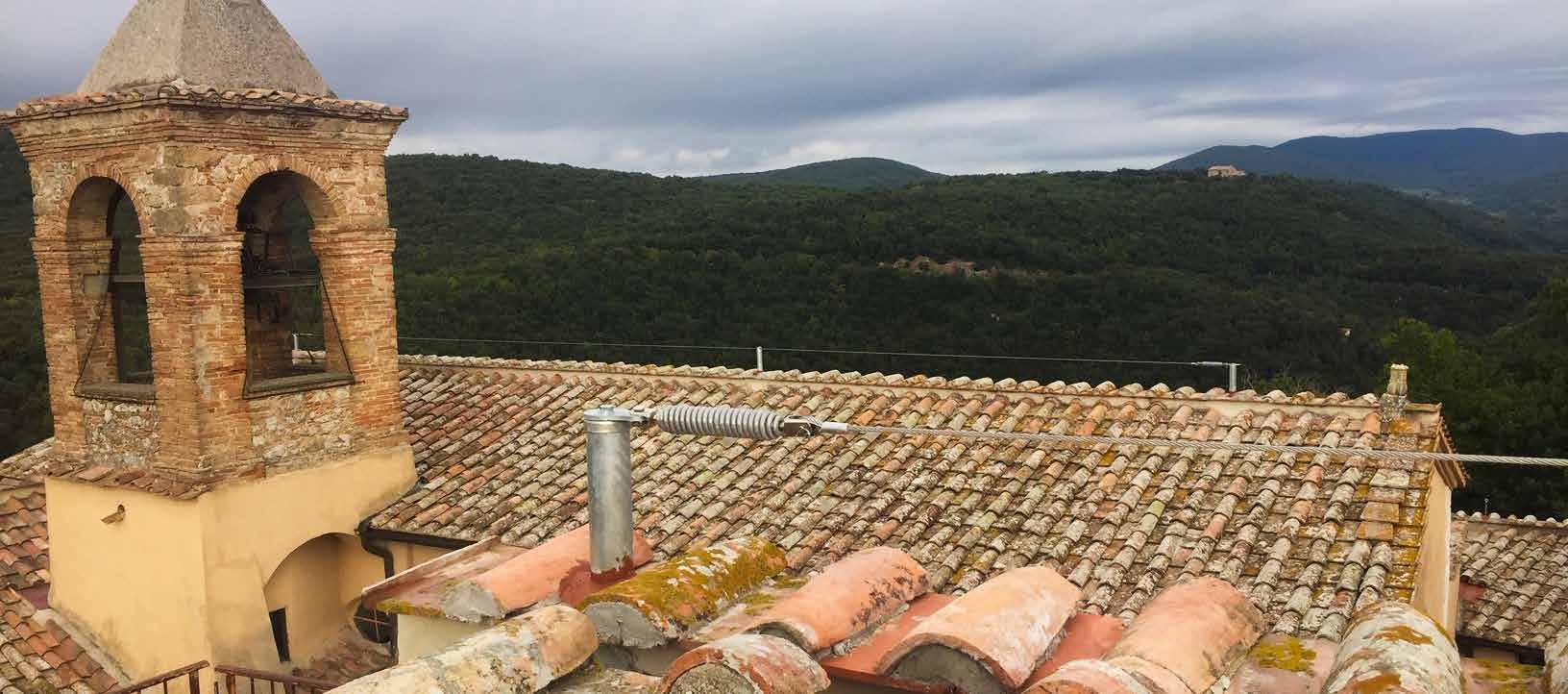

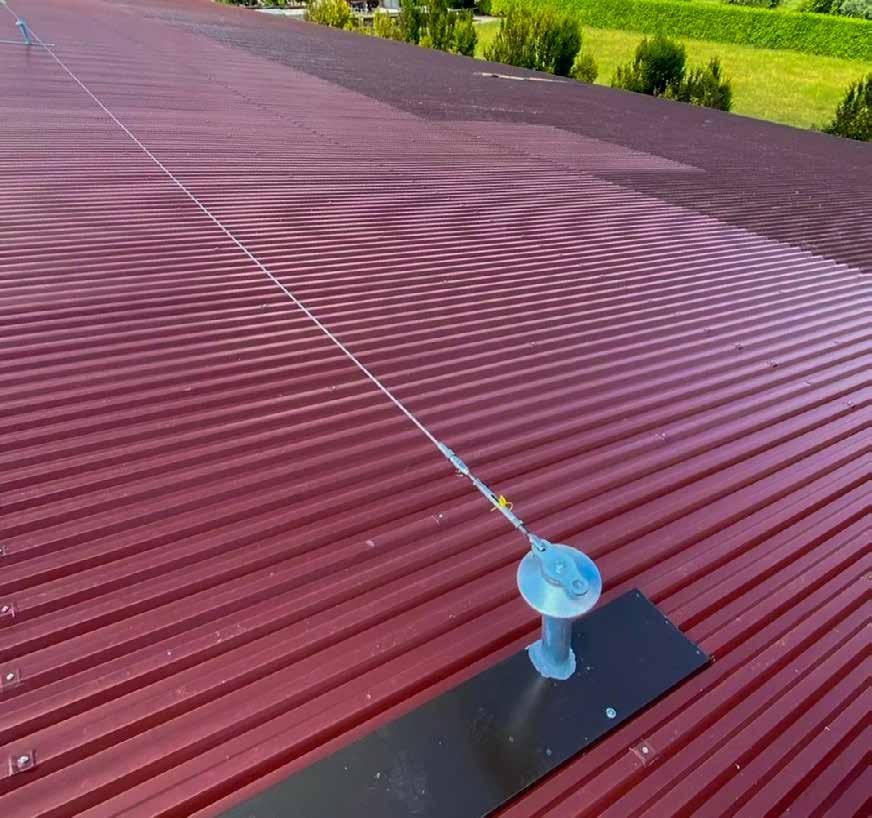

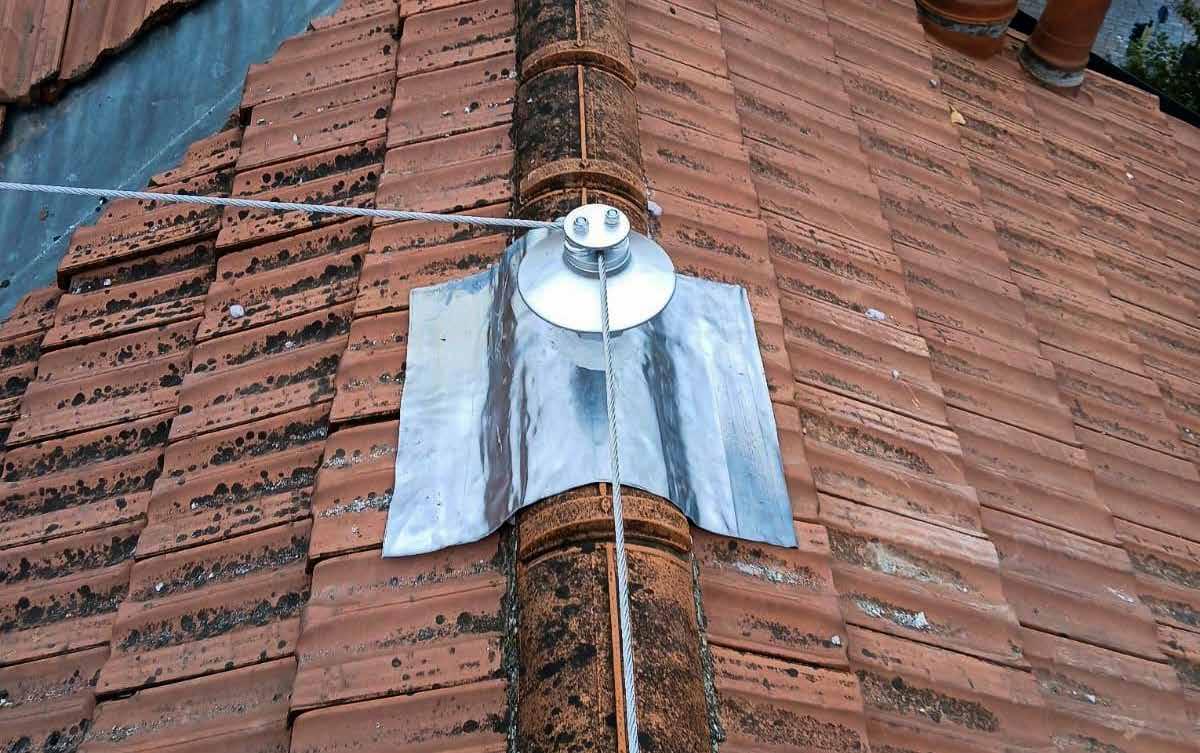

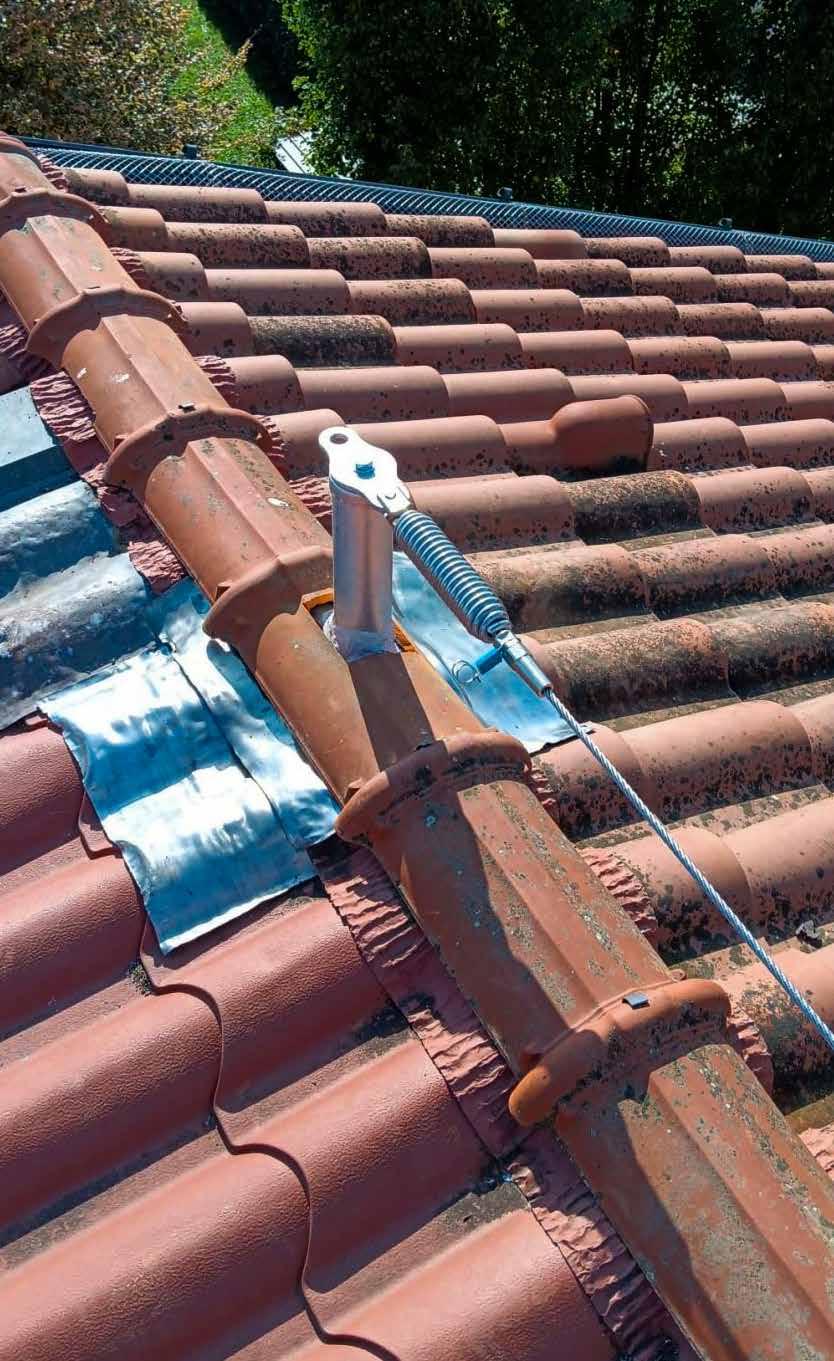

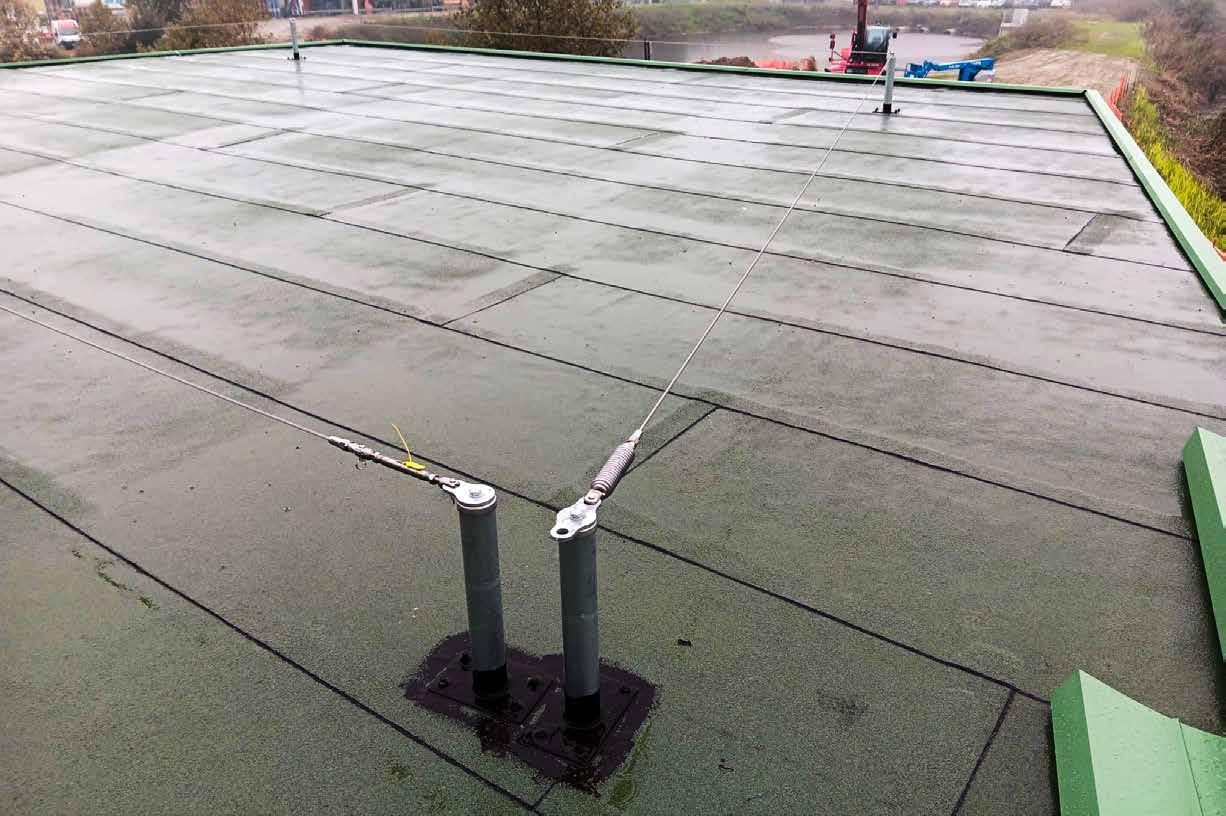

The system features versatile characteristics adaptable to various architectural configurations, allowing installation on flat, pitched or ridge roofs.
It is compatible with steel, timber and reinforced concrete structures thanks to the direct fixing option, and can be integrated with the Wall Line and Flat Line for greater flexibility.
Curves are permitted through the use of curved heads, while the line length can range from a minimum span of 3 metres to a maximum of 15 metres, which requires the inclusion of an intermediate support.

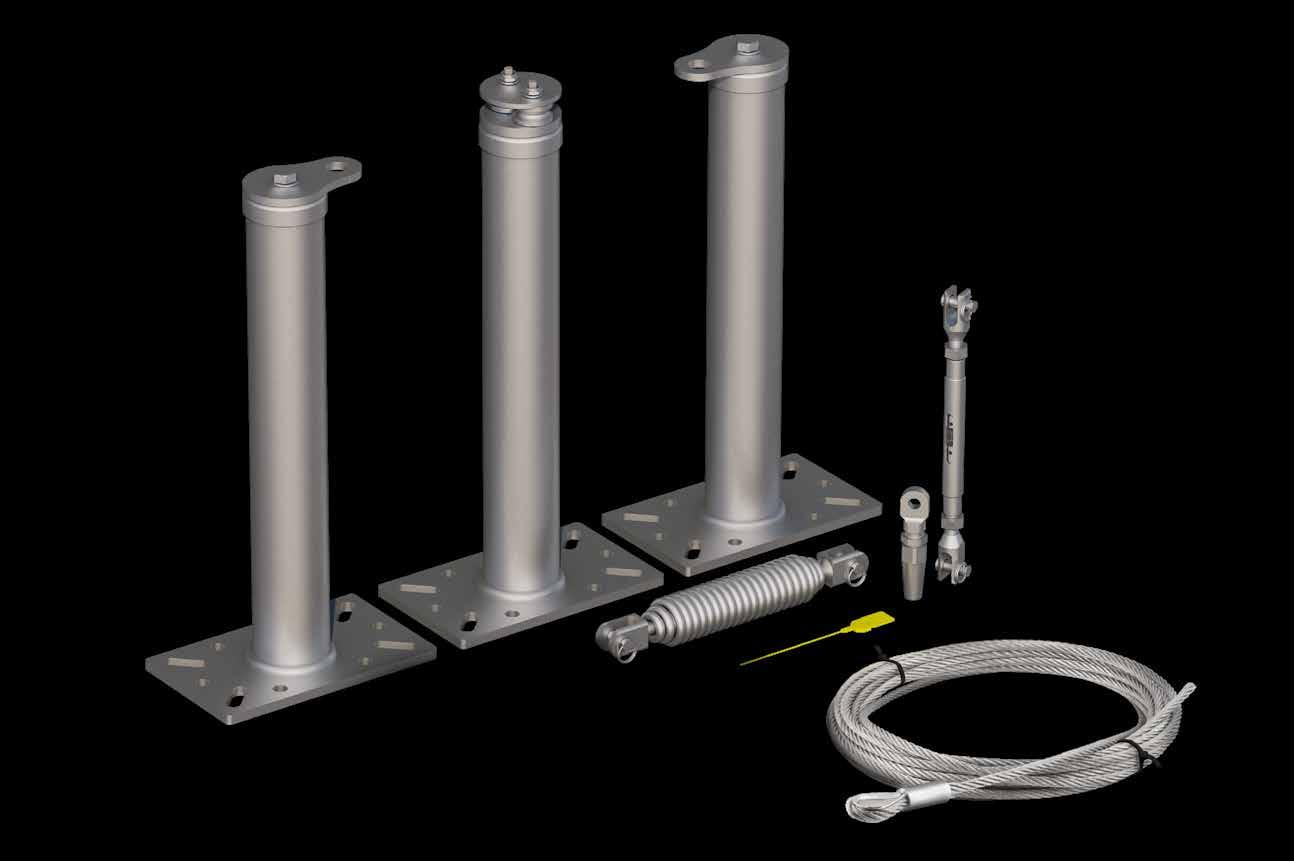

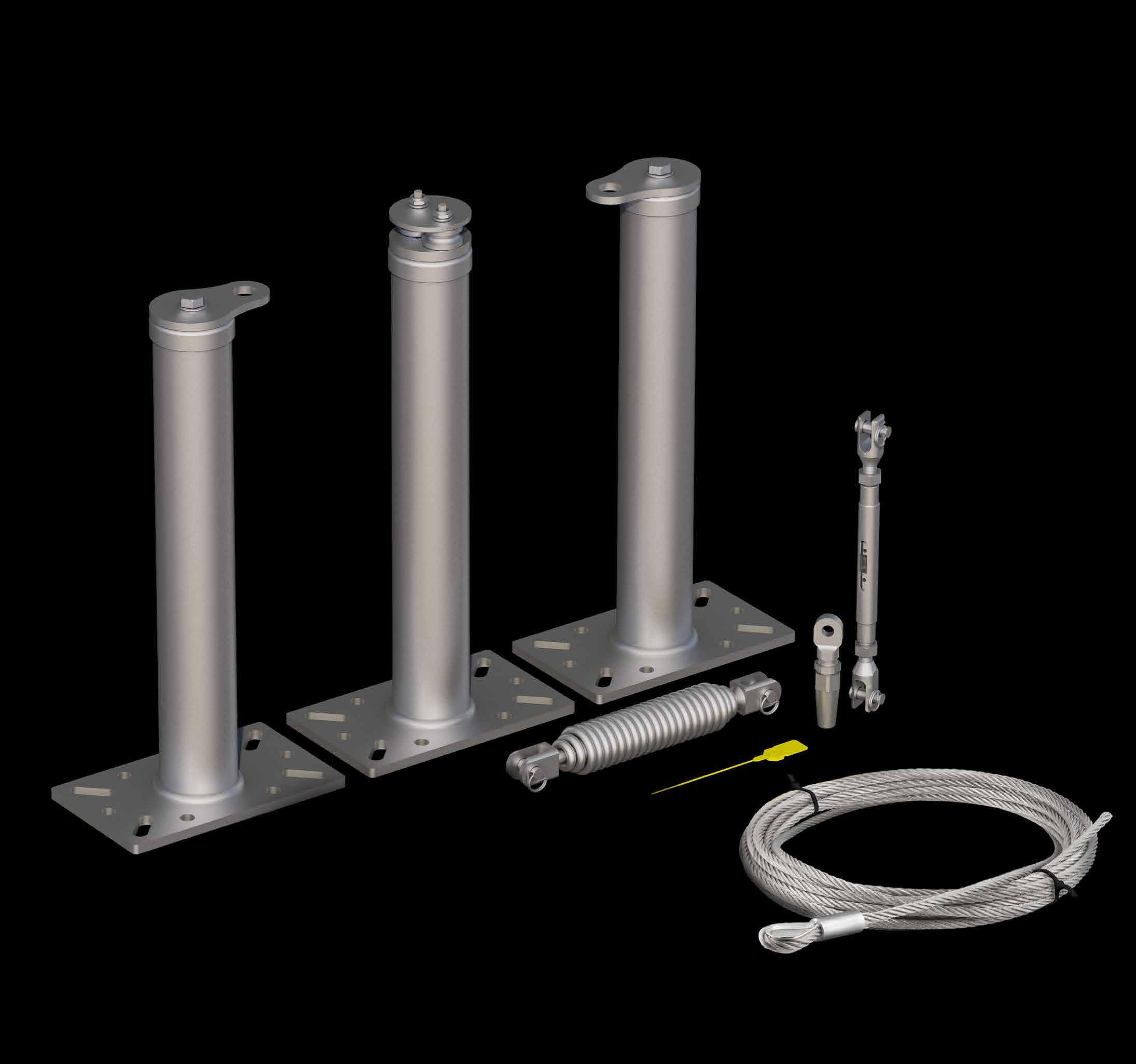

End head supports can be single or double, while intermediate sections can use standard, curved or cable guide heads.
Available bases adapt to flat, pitched or ridge surfaces, with selectable heights of 15, 35, 50 or 60 cm. The system is manufactured in durable materials including AISI 304 stainless steel and S235 hot-dip galvanised steel, ensuring durability and safety, and is designed to support up to a maximum of four operators at the same time.
The system is certified according to the following standards:
UNI EN 795 : 2012
CEN/TS 16415 : 2013
LIFELINES
SD76 RANGE TYPE C
ROOF LINEA
SD76 RANGE
