STRUCTURAL ANCHORS SD76 RANGE INDUSTRY
LIFELINES INDUSTRY

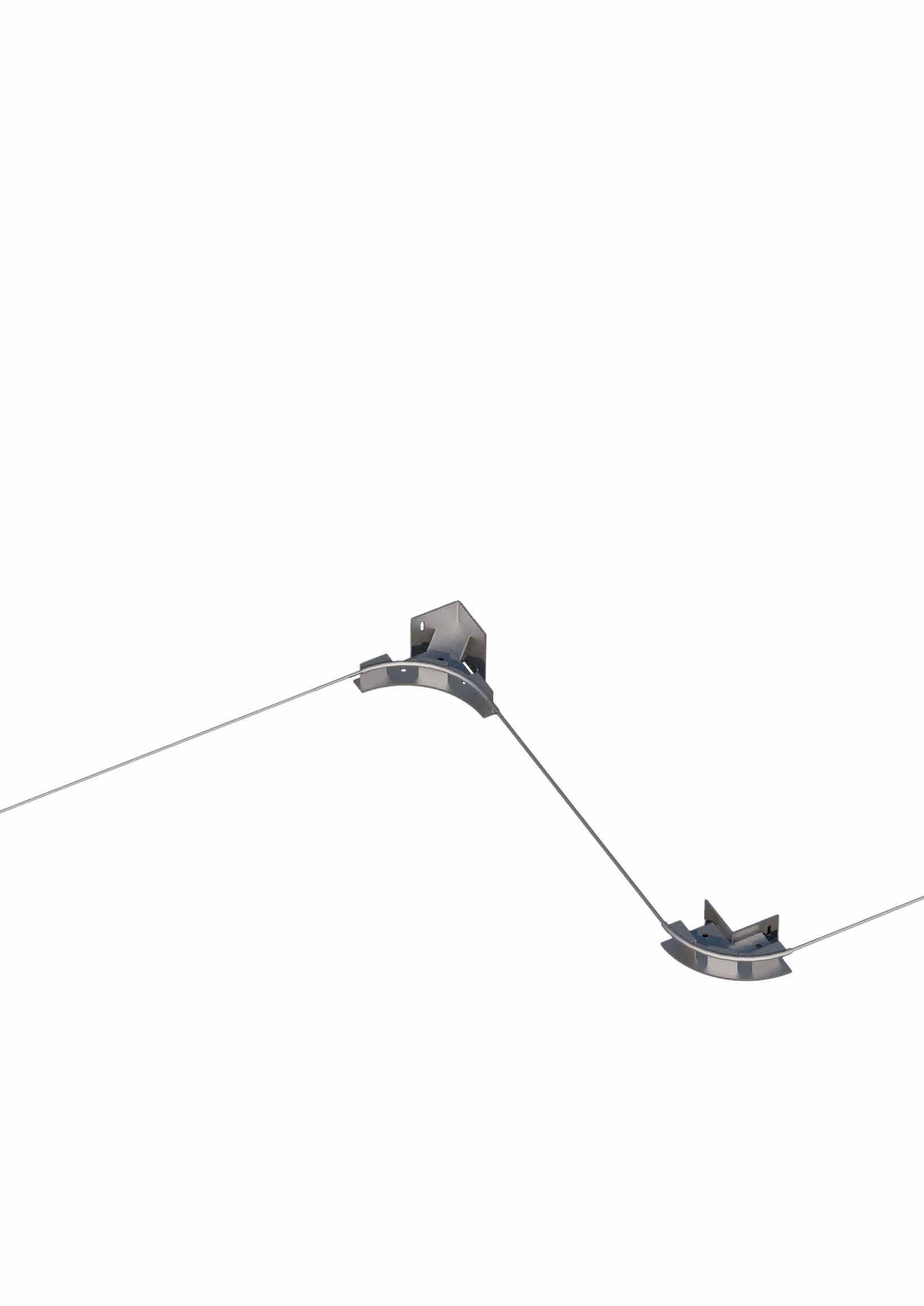

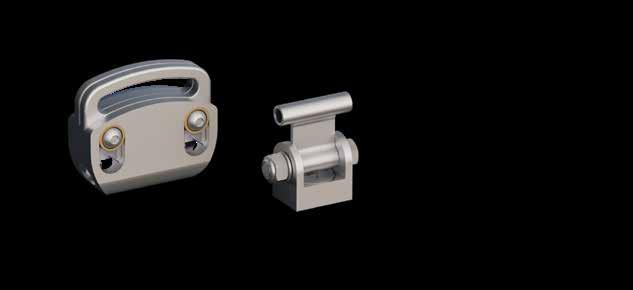

END SUPPORT CURVE SUPPORTS

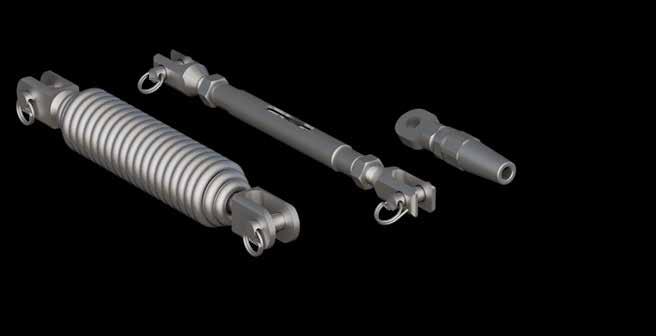

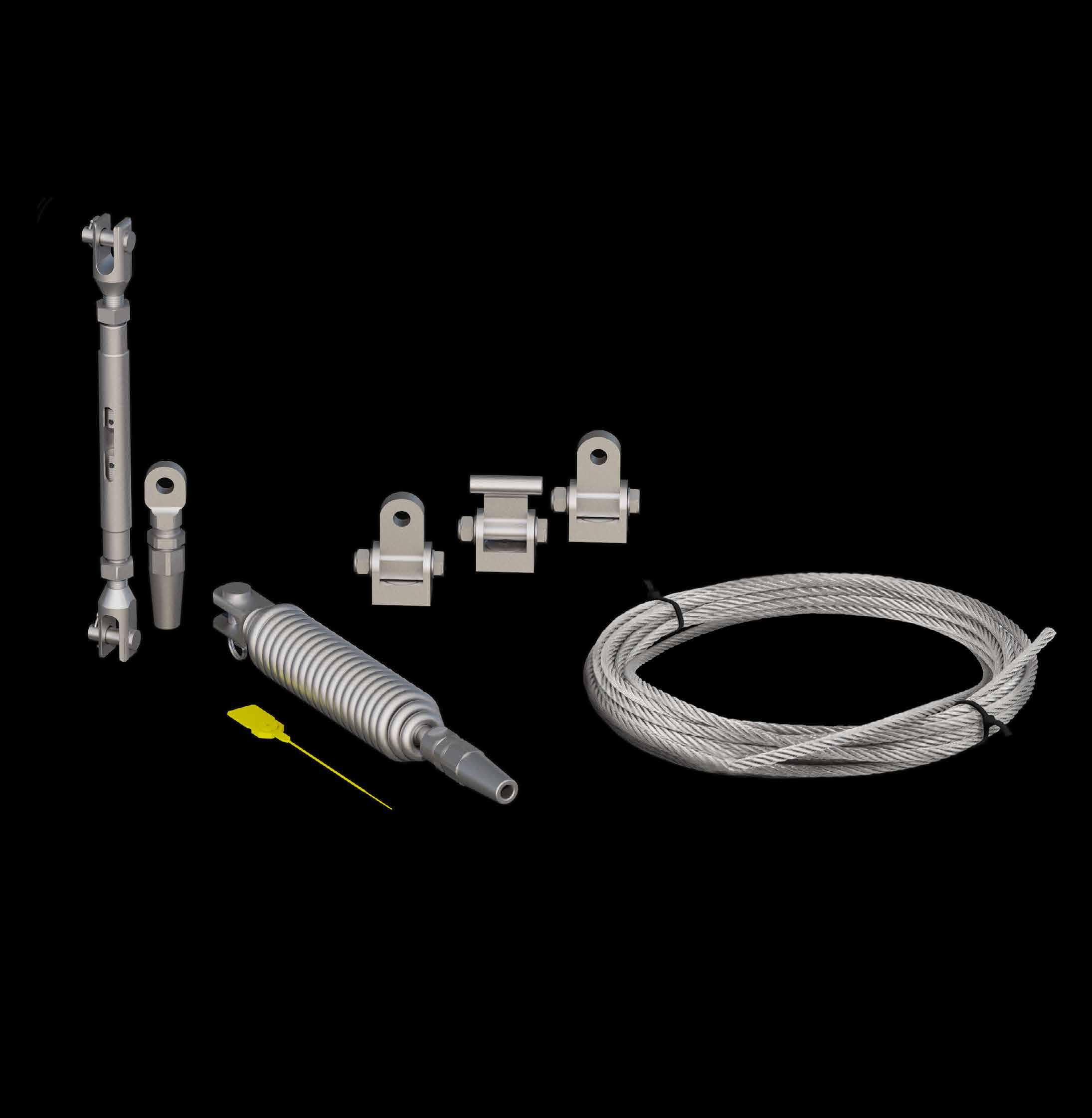

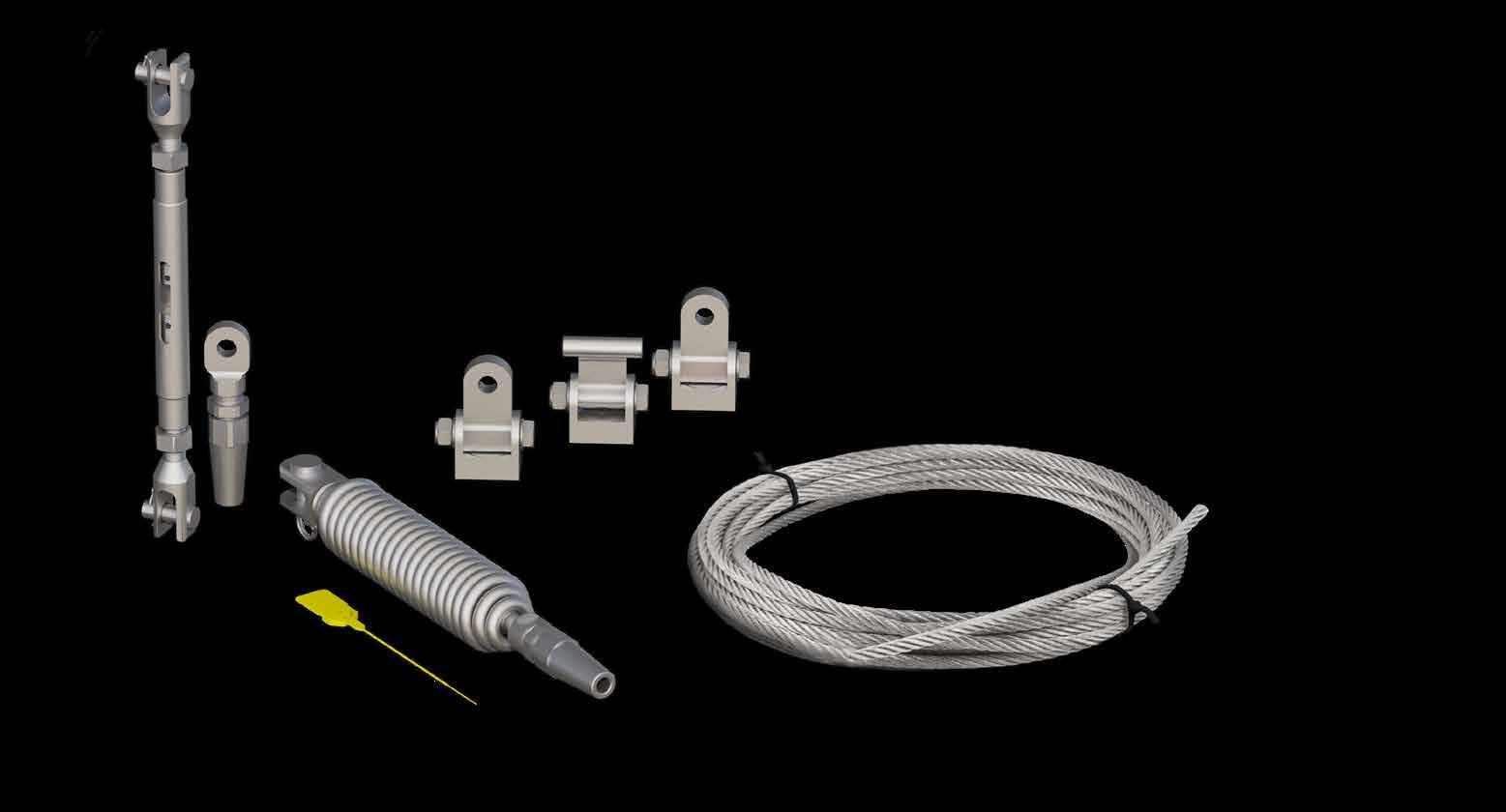

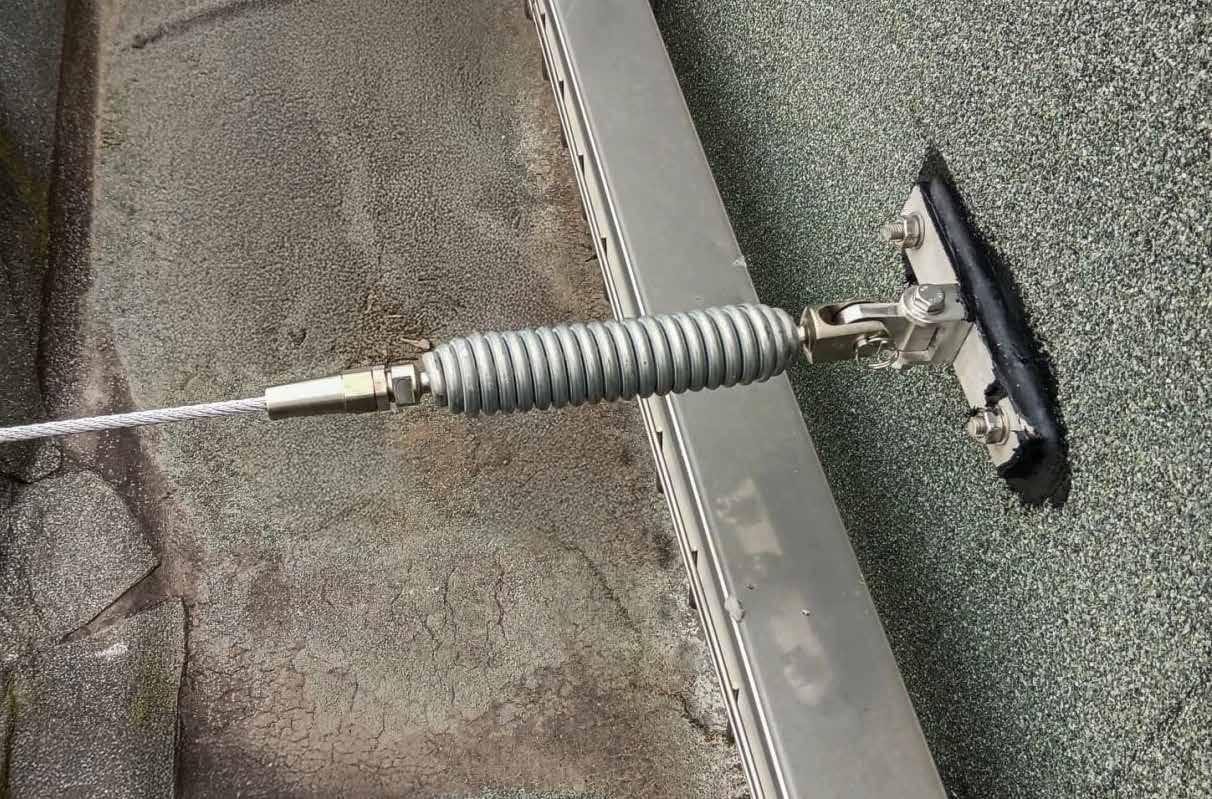

END COMPONENTS

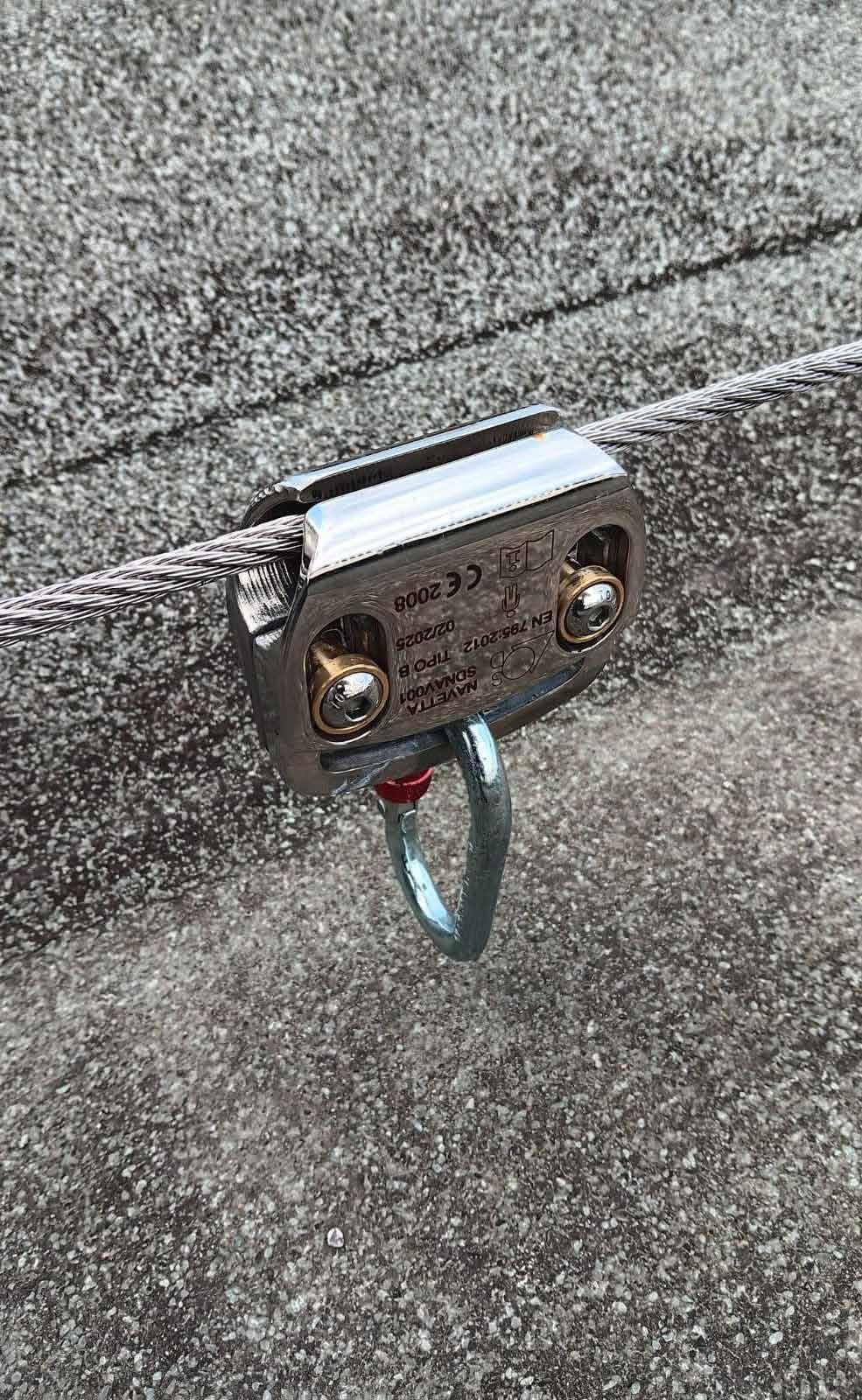

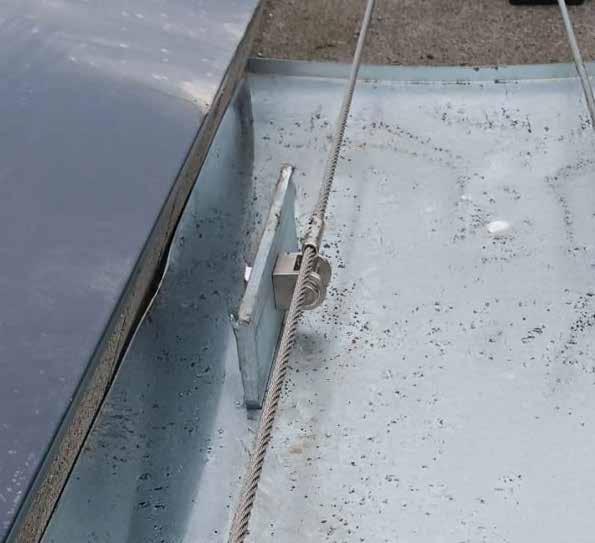

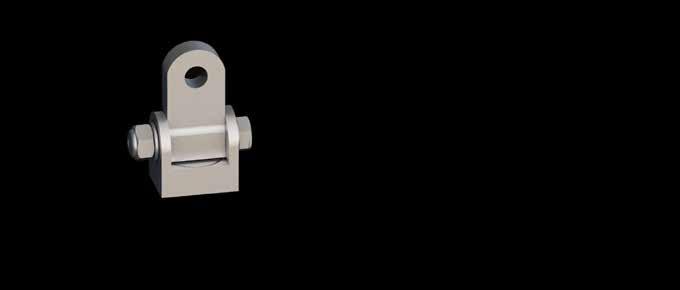

INTERMEDIATE HEAD

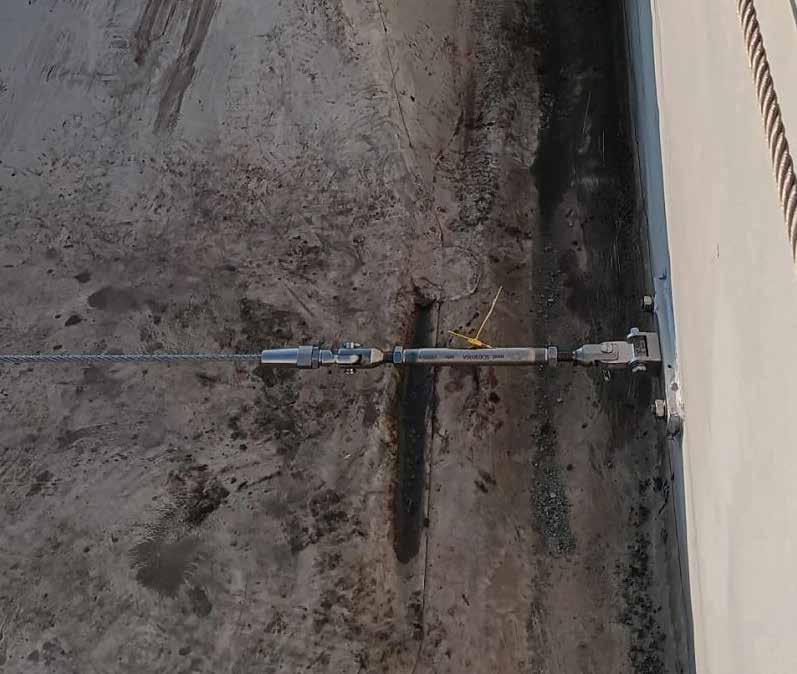

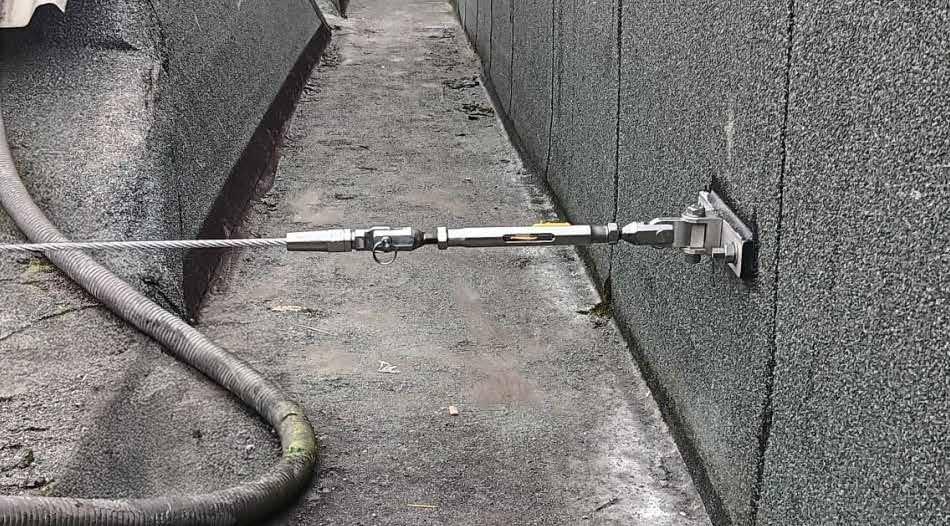

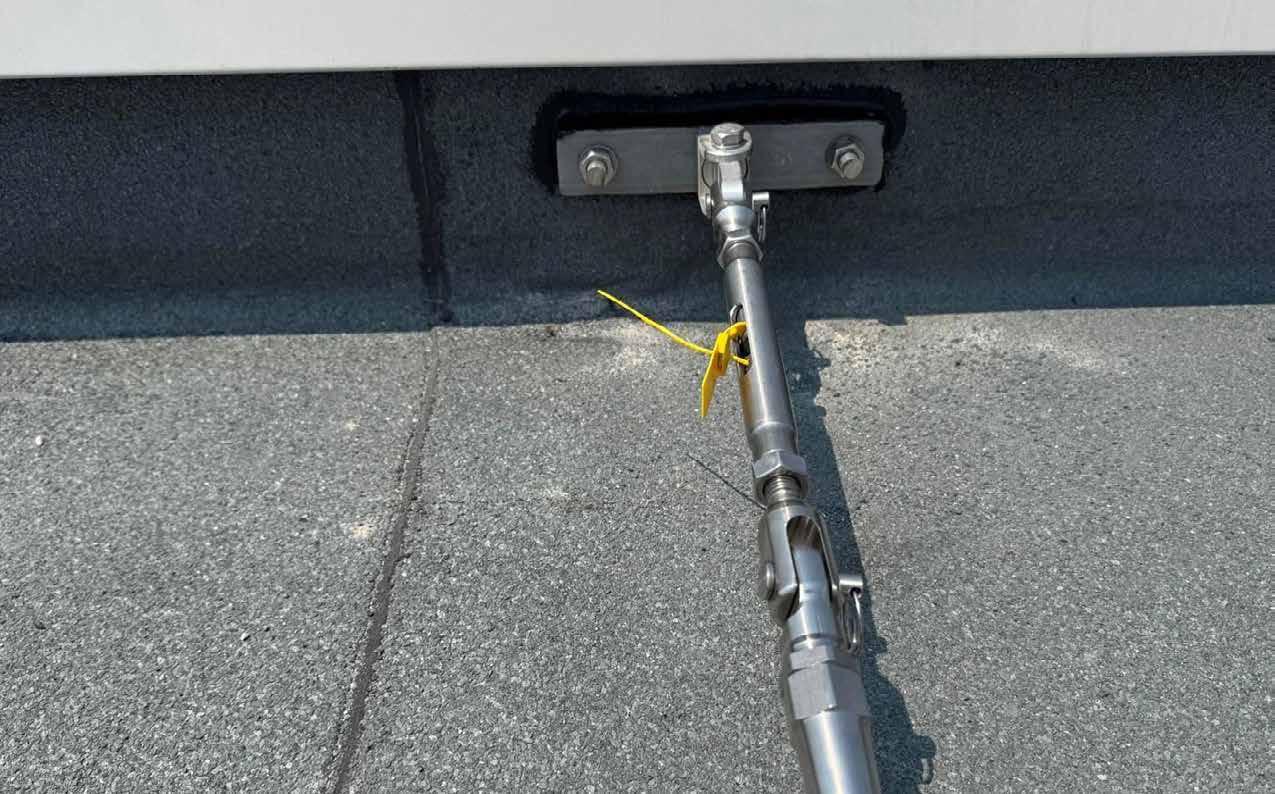

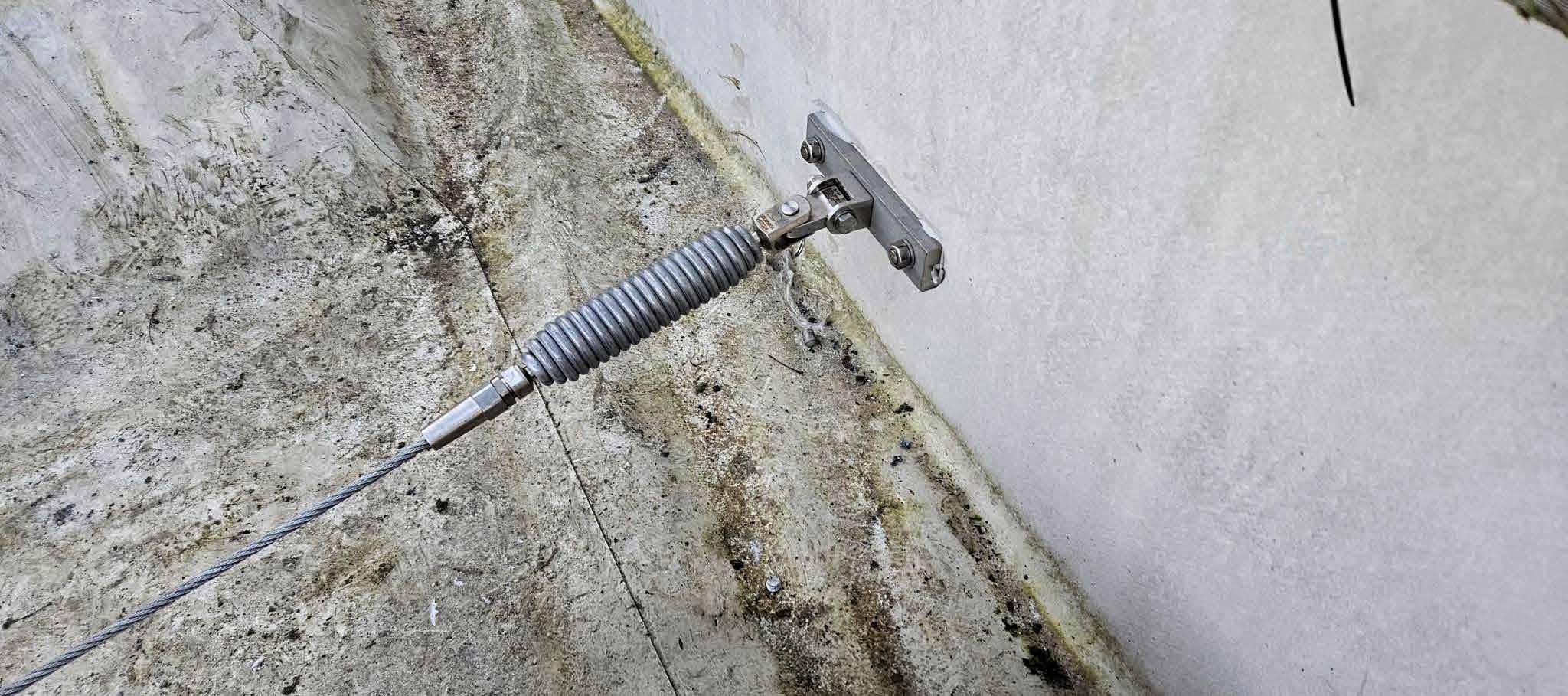

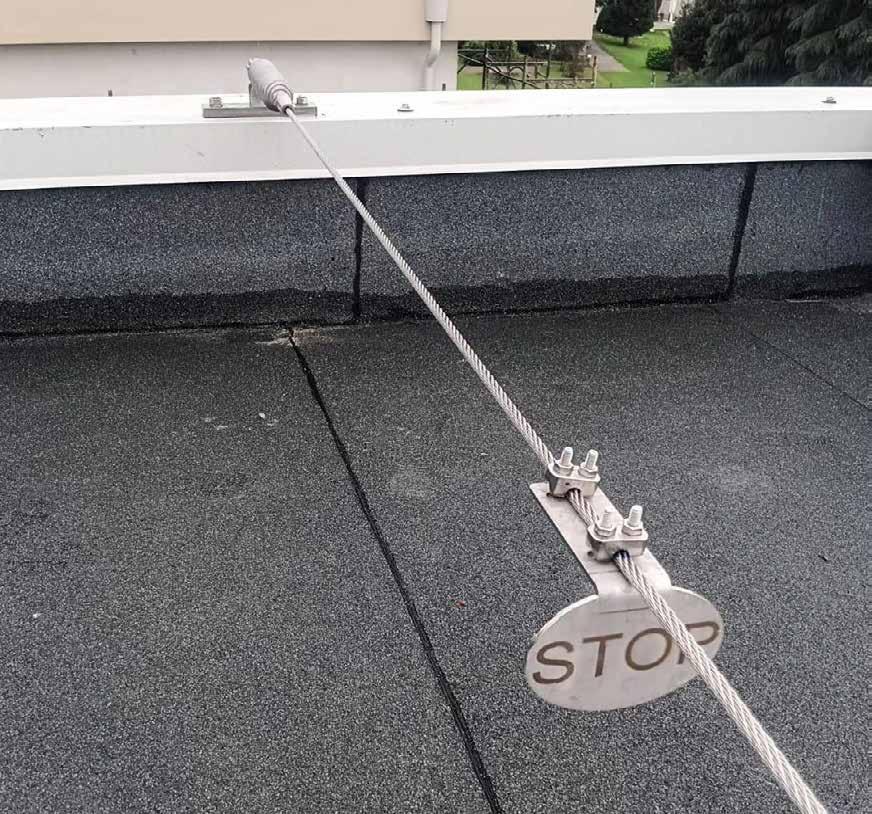

The system is designed for direct structural installation and adapts to vertical, inclined and horizontal surfaces, both floor-mounted and ceiling-mounted. It can be fixed directly to steel, timber or reinforced concrete structures, or installed using a load distribution plate, ensuring great application flexibility. Curves are permitted, provided they are realised using suitable cable guide supports, so as to maintain correct system performance and safety.

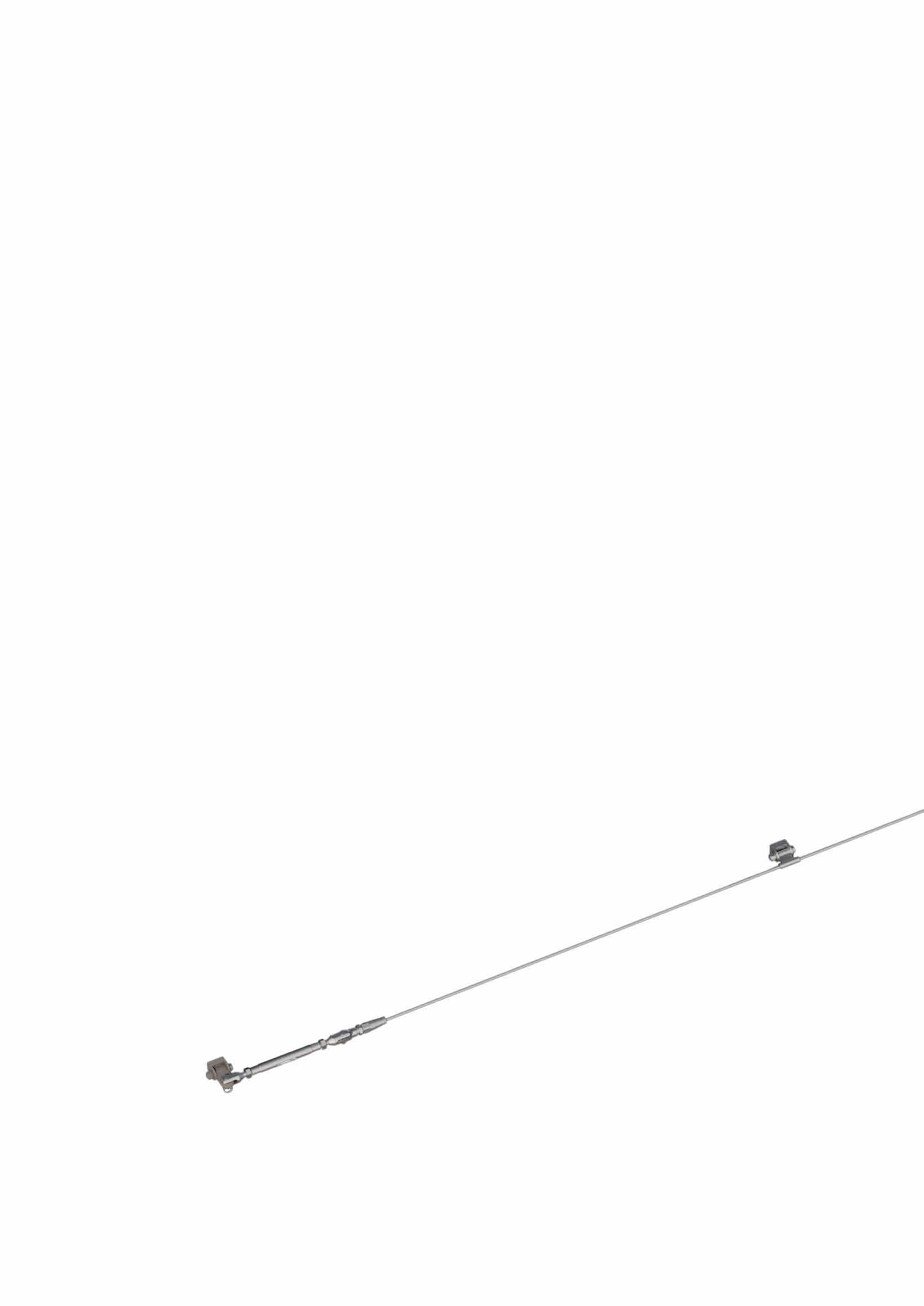

The line has a minimum span of 3 metres and can reach a maximum length of 15 metres; beyond this, an intermediate support is required. The system is manufactured in AISI 316L stainless steel, a material that ensures high strength and durability even in harsh environmental conditions.
The system is certified according to the following standards:
UNI EN 795 : 2012
CEN/TS 16415 : 2013
SD76 RANGE TYPE C
INDUSTRY LINE LIFELINES
SD76 RANGE
