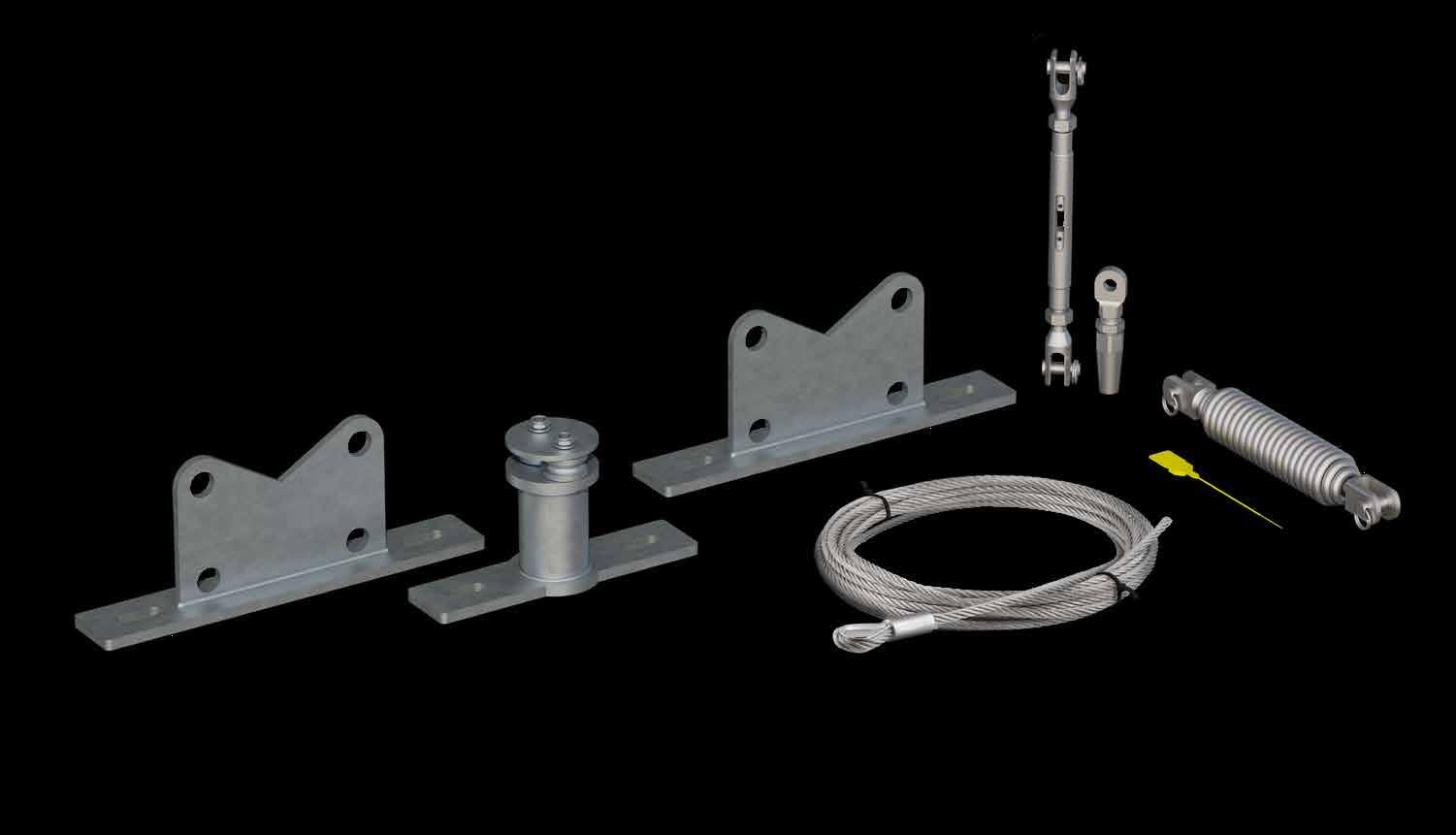

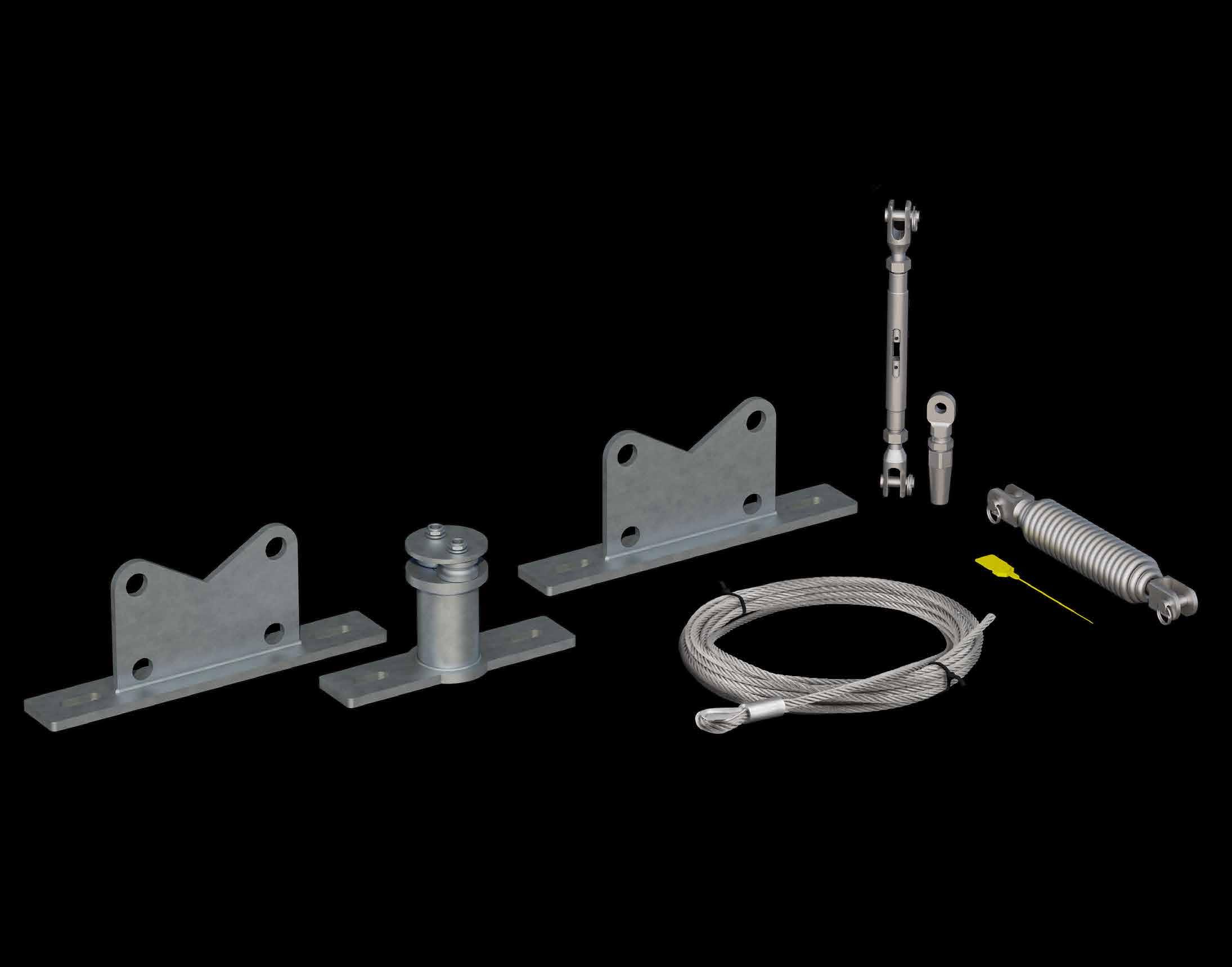

STRUCTURAL ANCHORS SD76 RANGE FLAT LINE

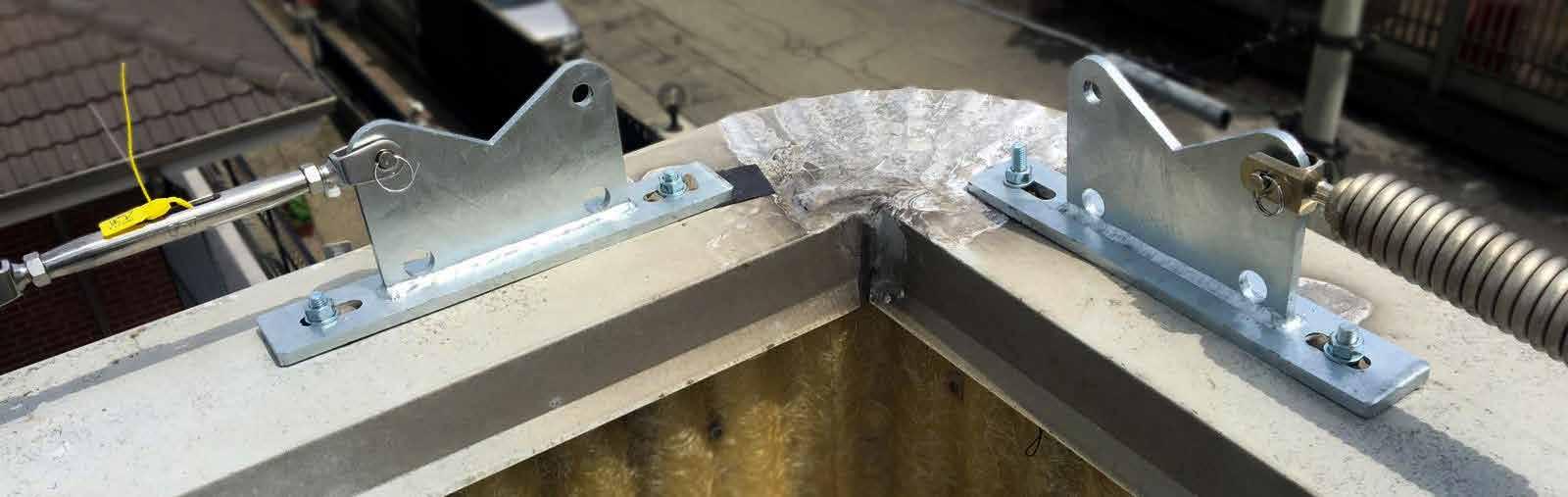

The system is designed to offer great installation flexibility, as it can be mounted on both horizontal surfaces such as floors and ceilings and vertical surfaces such as walls. It can be fixed directly to steel or reinforced concrete structures and can be easily combined with the Roof Line and Wall Line solutions. Furthermore, up to two separate lines can run from a single end support, delivering high design versatility with minimal visual impact.

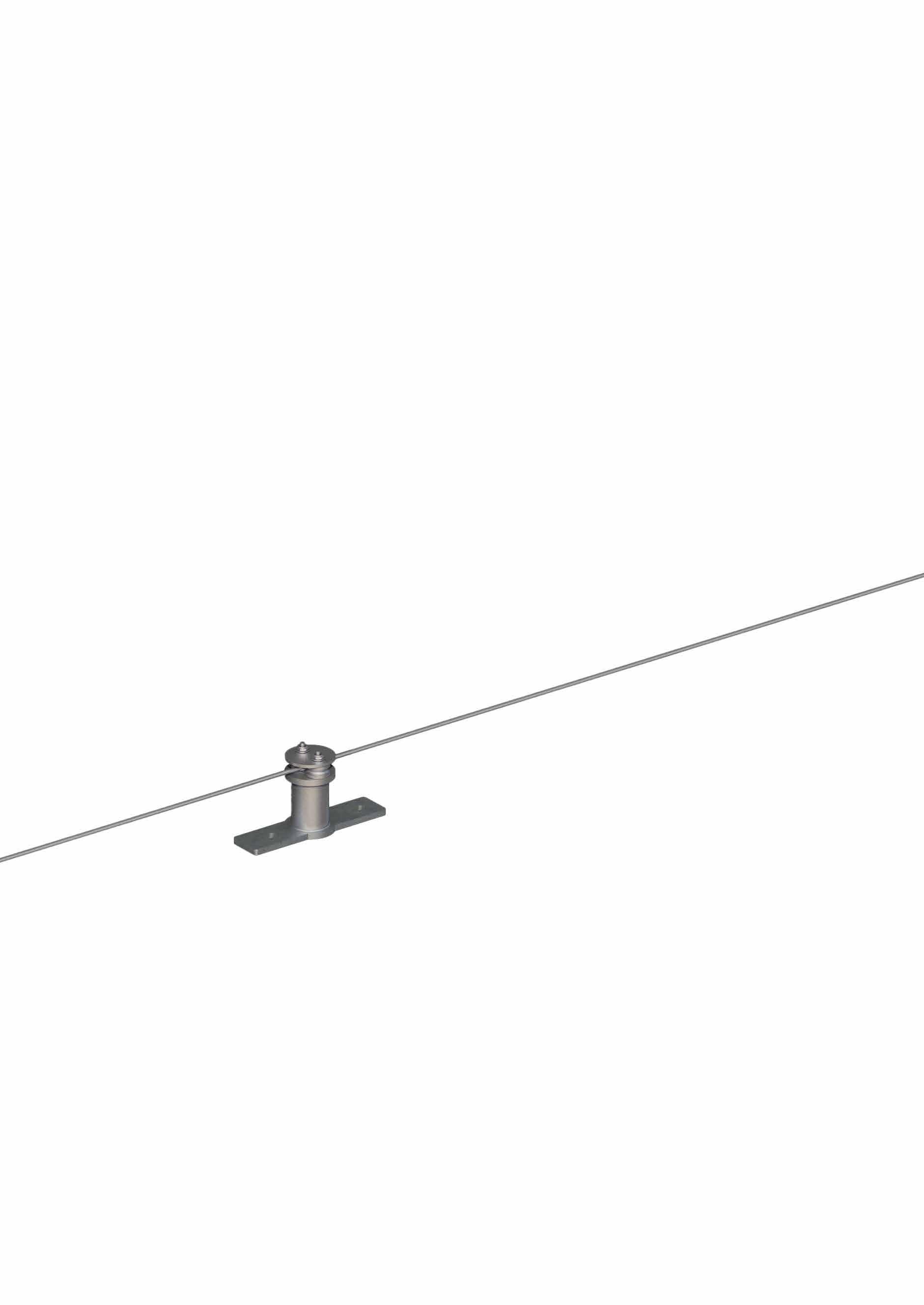

The line can cover spans ranging from a minimum of 3 metres to a maximum of 15 metres; in the latter case, an intermediate support is required to ensure correct system performance and safety.
UNI EN 795 : 2012

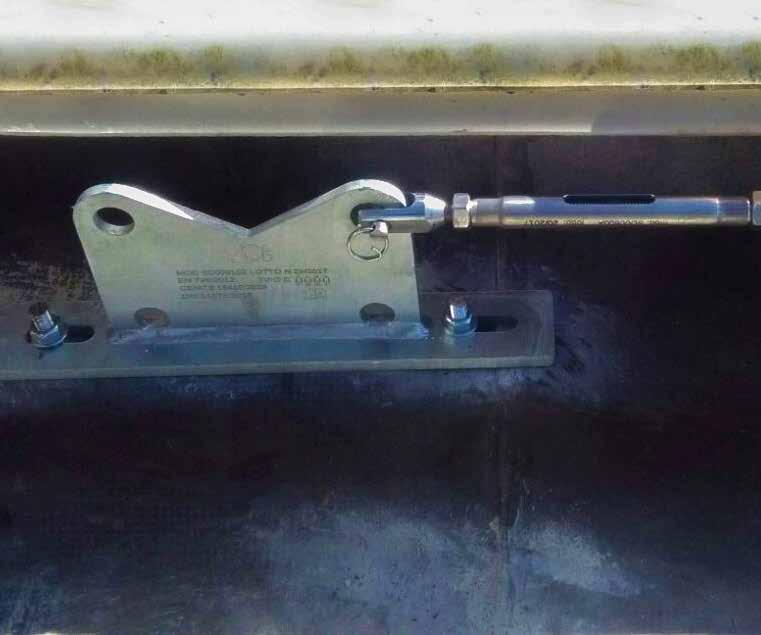

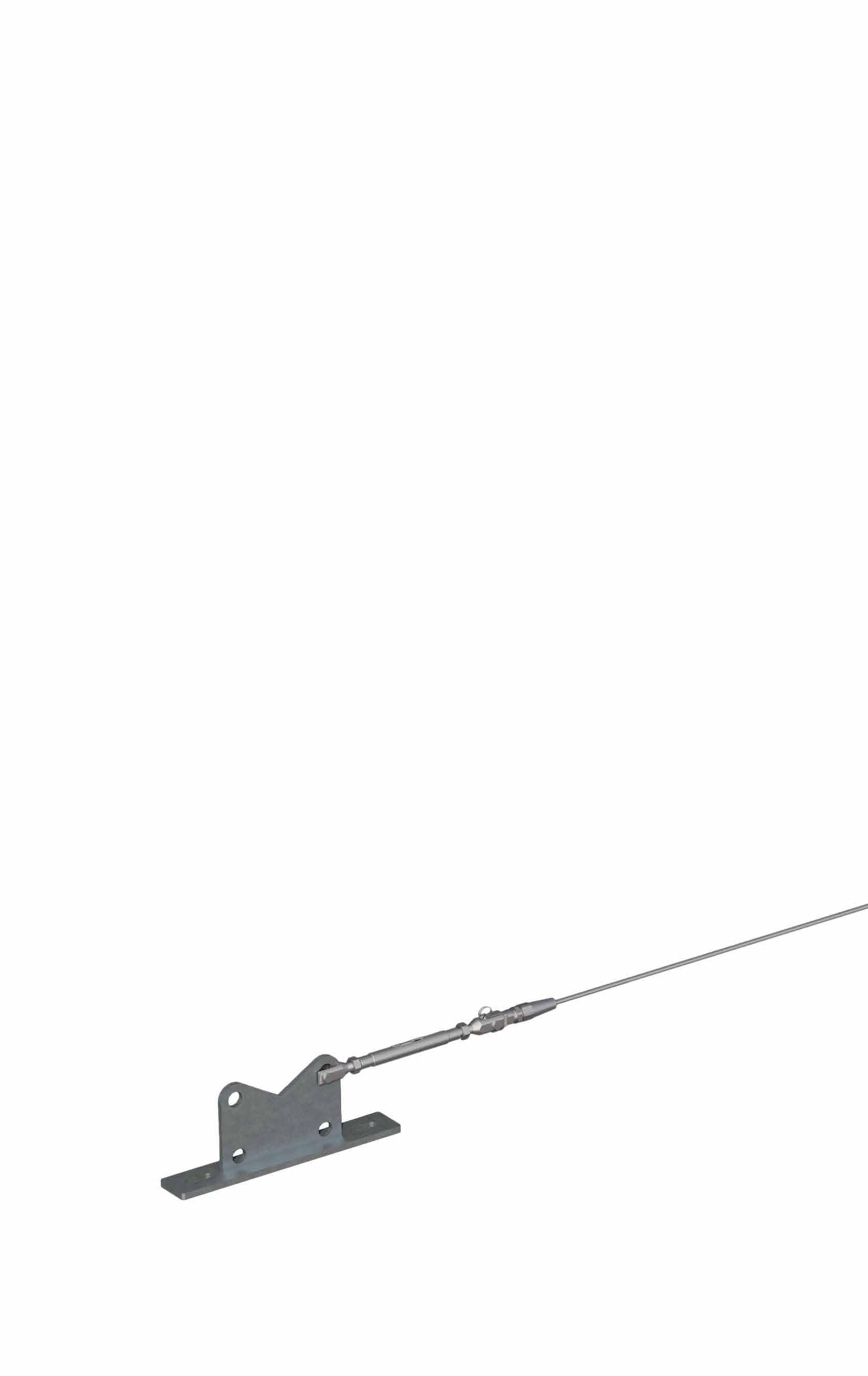

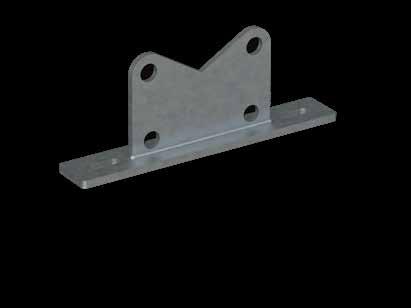

CEN/TS 16415 : 2013 END SUPPORT
The material used is S235 hot-dip galvanised steel, ensuring strength, durability and weather resistance. The system is certified according to the following standards:
